GMK NucBox M6 review: A balanced mini PC for under $300

Name: GMK NucBox M6
Brand: GMK

Midrange Zen 3+ for cheap.

You don't need the latest and greatest for most HTPC builds. The two-year old AMD Ryzen CPU is sufficient for common tasks while costing half as much as Zen 4 options.

Allen Ngo 👁, Published 07/06/2024 🇫🇷 🇪🇸 ...

AMD Mini PC Zen Zen 3 (Vermeer)

The NucBox M6 is the faster version of the NucBox M5. GMK has swapped out the U-series Ryzen 7 5700U in the M5 for the newer H-series Ryzen 5 6600H in the M6. Chassis design and physical features are otherwise unchanged and so we recommend checking out our review on the M5 to learn more about the series.

Our review configuration retails for $300 complete with 16 GB of RAM, 512 GB SSD, and Windows 11 Pro. The starting price can be even lower at just $230 for a barebones kit. All SKUs come with the same black color option and Ryzen 5 6600H processor.

Competitors to the NucBox M6 include other affordable mini PCs like the Beelink SER5, Maxtang MTN-FP750, or Geekom Mini IT12.

More GMK reviews:

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

GMK NucBox M6

Processor

AMD Ryzen 5 6600H 6 x 3.3 - 4.5 GHz, 54 W PL2 / Short Burst, 50 W PL1 / Sustained, Rembrandt-H (Zen 3+)

Graphics adapter

AMD Radeon 660M, Core: 1900 MHz, DDR5, 32.0.11021.1011

Memory

32 GB

, DDR5, 4800 MHz, Dual-Channel, 2x SODIMM

Mainboard

AMD Promontory/Bixby FCH

Storage

AirDisk APF 10-512G, 512 GB

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm combo

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 48 x 128 x 127 ( = 1.89 x 5.04 x 5 in)

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

Weight

526 g ( = 18.55 oz / 1.16 pounds), Power Supply: 507 g ( = 17.88 oz / 1.12 pounds)

Price

300 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Potential Competitors in Comparison

Rating	Version	Date	Model	Weight	Height	Resolution
63.6 %	v8	07 / 2024	GMK NucBox M6 R5 6600H, Radeon 660M	526 g	48 mm	x
78.9 % v7 ^(old)	v7 ^(old)	04 / 2024	GMK NucBox M5 R7 5700U, Vega 8	505 g	48 mm	x
83.6 % v7 ^(old)	v7 ^(old)	04 / 2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
84.5 % v7 ^(old)	v7 ^(old)	05 / 2024	BOSGAME M1 R7 7840HS, Radeon 780M	766 g	51 mm	x
82.1 % v7 ^(old)	v7 ^(old)	11 / 2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
80.8 % v7 ^(old)	v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm	x

Hinweis: Wir haben unser Rating-System kürzlich aktualisiert und die Ergebnisse von Version 8 sind nicht mit den Ergebnissen von Version 7 vergleichbar. Weitere Informationen dazu sind hier verfügbar.

Note: We have recently updated our rating system and the results of version 8 are not comparable with the results of version 7. More information is available here .

Case — Familiar Plastic Design

Size Comparison

Connectivity

While port options are identical to the NucBox M5, it's important to note that the M6 does not support USB4 despite the manufacturer marketing. Device Manager lists only USB 3.2 support and no USB4. Power Delivery and DisplayPort via USB-C are fortunately still supported.

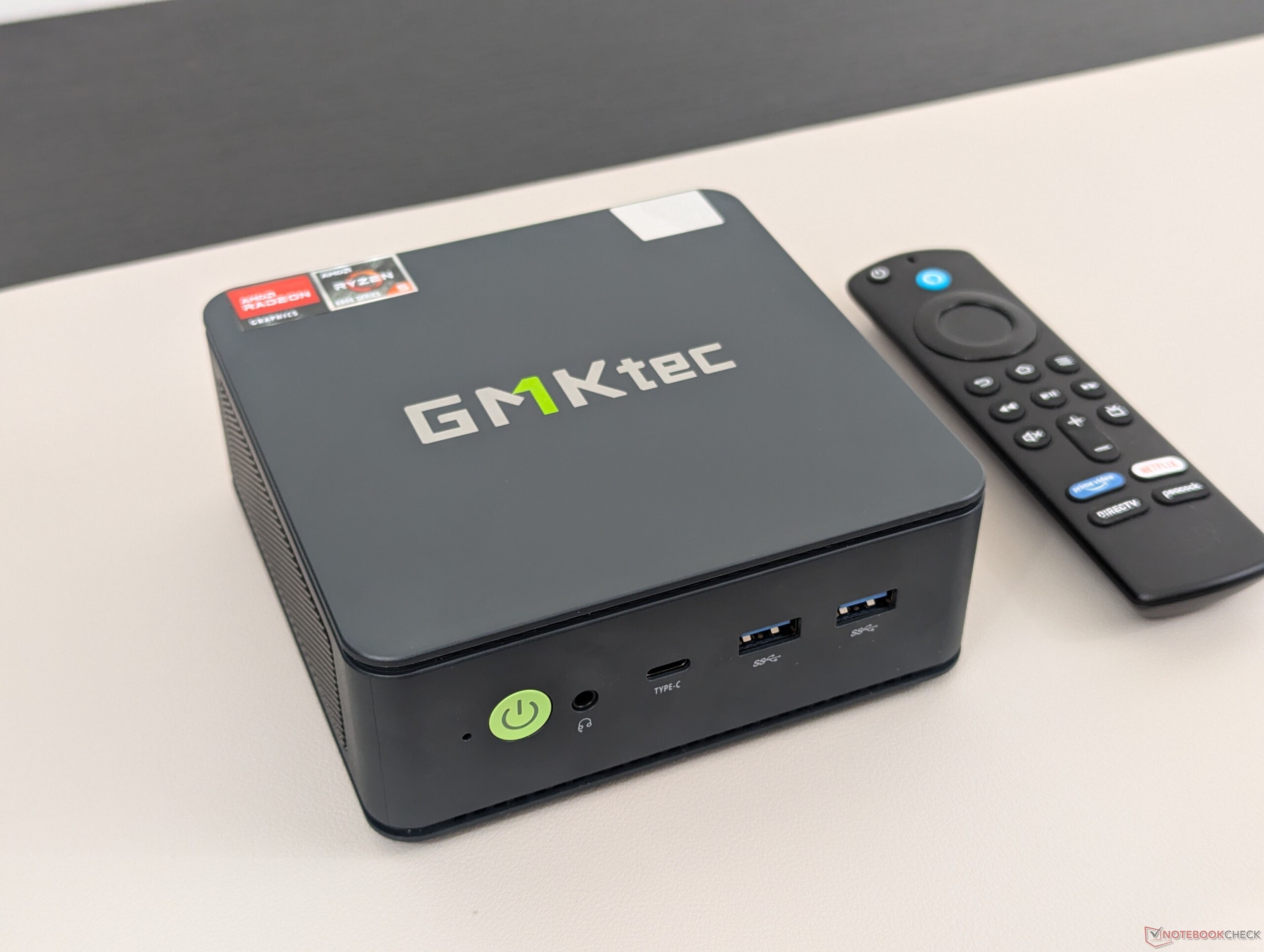

Front: Power button, 3.5 mm headset, USB-C 3.2 w/ Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

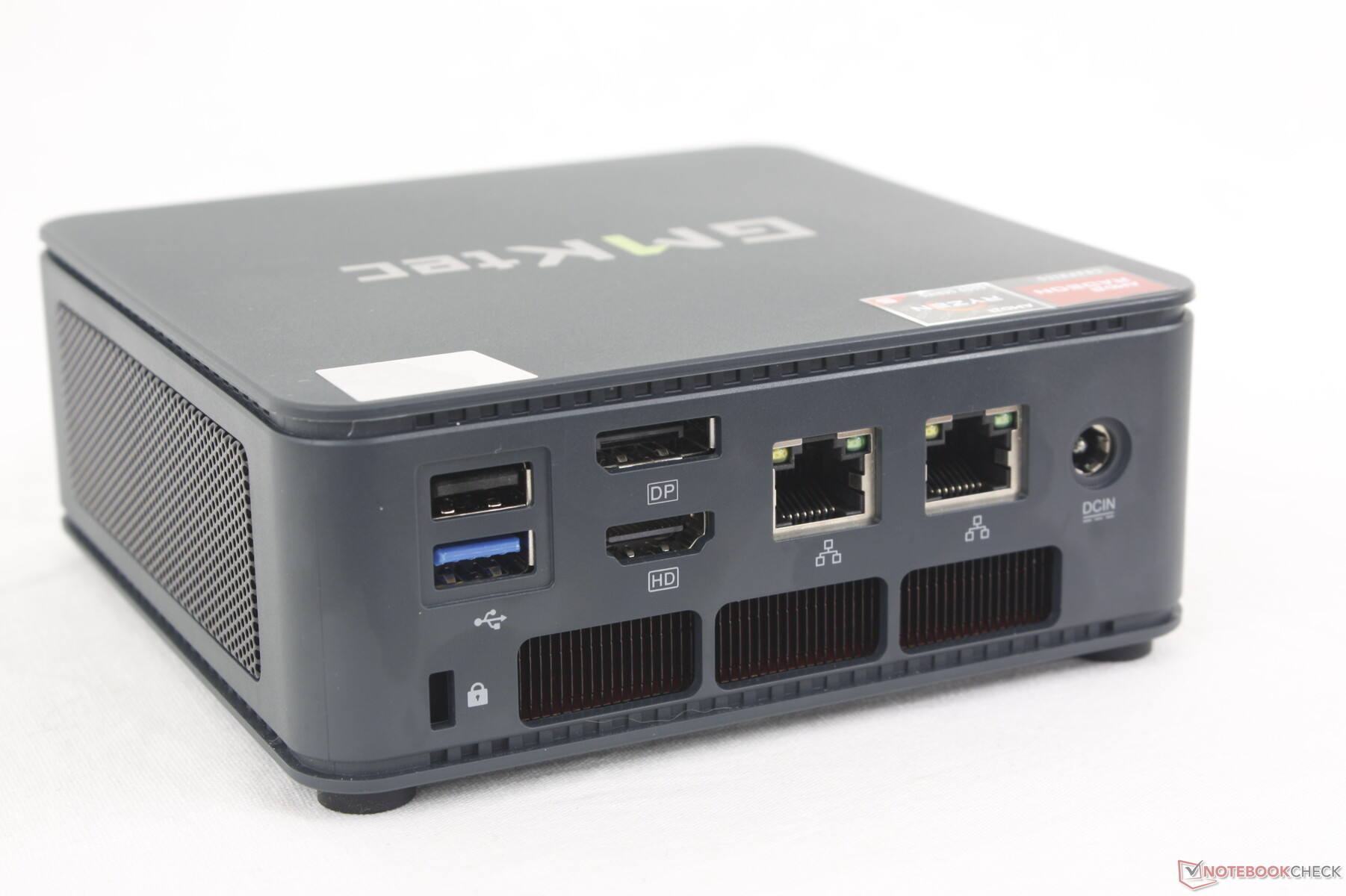

Rear: 2x USB-A 2.0, DisplayPort (4K144), HDMI 2.0 (4K60), 2x RJ-45 (2.5 Gbps), AC adapter, Kensington lock

Communication

Our WiFi tests show performance to be faster on Wi-Fi 6 than on Wi-Fi 6E even after multiple retries. Wi-Fi 6E speeds are abnormally slow to suggest possible antenna issues with the MediaTek MT7922 module in our test unit.

Networking
iperf3 transmit AXE11000
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1531 (1372^min - 1639^max) MBit/s
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1470 (1310^min - 1625^max) MBit/s -4%
GMK NucBox M5 MediaTek RZ616	1335 (782^min - 1633^max) MBit/s -13%
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -46%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -59%
iperf3 receive AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1479 (1255^min - 1539^max) MBit/s +2%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1449 (1247^min - 1560^max) MBit/s
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s -3%
GMK NucBox M5 MediaTek RZ616	1264 (1077^min - 1480^max) MBit/s -13%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -35%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s +267%
GMK NucBox M5 MediaTek RZ616	1437 (695^min - 1546^max) MBit/s +265%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1324 (1090^min - 1580^max) MBit/s +236%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s +10%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	394 (359^min - 432^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +144%
GMK NucBox M5 MediaTek RZ616	1347 (1315^min - 1439^max) MBit/s +97%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1321 (1233^min - 1393^max) MBit/s +93%
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s +44%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	684 (650^min - 718^max) MBit/s

GMK NucBox M6; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø394 (359-432)

GMK NucBox M6; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø684 (650-718)

GMK NucBox M6; iperf3 transmit AXE11000; iperf 3.1.3: Ø1531 (1372-1639)

GMK NucBox M6; iperf3 receive AXE11000; iperf 3.1.3: Ø1449 (1247-1560)

Maintenance

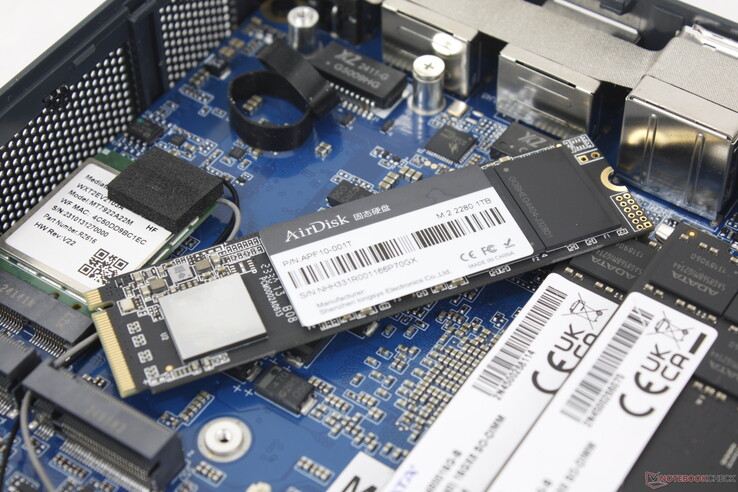

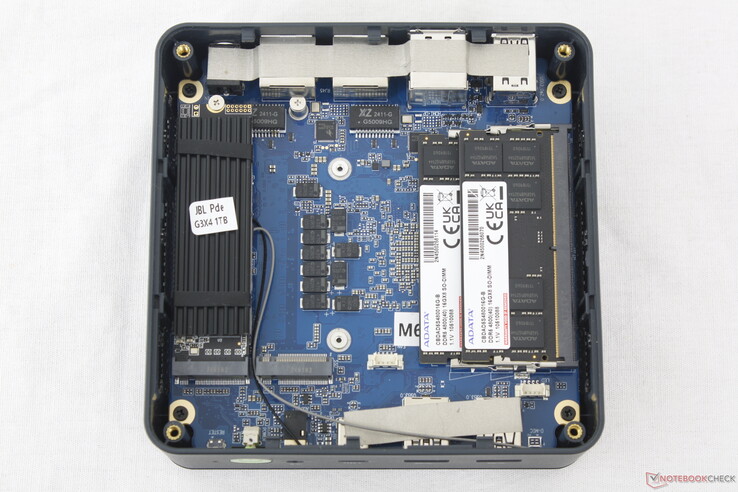

The top panel requires only a Phillips screwdriver to remove for easy servicing.

Accessories And Warranty

The retail box includes a removable VESA mount and HDMI cable in addition to the usual manuals and AC adapter. Note that third-party USB-C AC adapters can also be used if they meet the power requirements of the mini PC.

The usual one-year limited manufacturer warranty applies if purchased in the US.

Performance — Good CPU For The Price

Testing Conditions

We set Windows to Performance mode prior to running the benchmarks below.

Processor

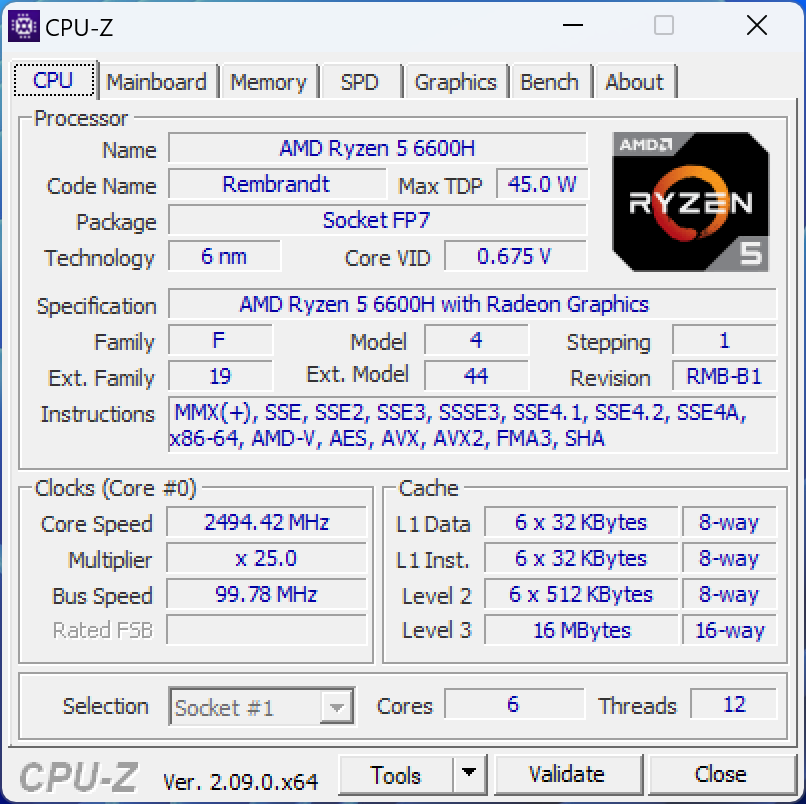

For a midrange processor from 2022, the Ryzen 5 6600H still packs a good punch with multi-thread results in between that of the competing Core i5-12450H and Core i5-12500H. Users who can't decide between the NucBox M5 or M6 will find that the Ryzen 5 6600H is faster than the Ryzen 7 5700U by about 60 percent.

Cinebench R15 Multi Loop

GMK NucBox M6 AMD Ryzen 5 6600H: Ø1720 (1708.16-1737.02)

GMK NucBox M5 AMD Ryzen 7 5700U: Ø1108 (1041.59-1129.53)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

BOSGAME M1 AMD Ryzen 7 7840HS: Ø2554 (2501.09-2597.23)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	85.7 pt
Aoostar GEM12 AMD Ryzen 7 8845HS	84.8 pt
BOSGAME M1 AMD Ryzen 7 7840HS	84.3 pt
Acemagic F2A Intel Core Ultra 7 155H	83.3 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	75.5 pt
Geekom GT13 Pro Intel Core i9-13900H	75.2 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P	72.9 pt
Geekom XT12 Pro Intel Core i9-12900H	70.9 pt
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	70.5 pt
Aoostar GEM10 AMD Ryzen 7 6800H	67.5 pt
GMK NucBox M6 AMD Ryzen 5 6600H	63 pt
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	62.5 pt
Average AMD Ryzen 5 6600H	60.8 pt
Geekom Mini IT12 Intel Core i5-12450H	58.7 pt
Acemagic AD15 Intel Core i5-11500B	56.7 pt
GMK NucBox M5 AMD Ryzen 7 5700U	44.9 pt
Intel NUC11TNKi5 ^-2! Intel Core i5-1135G7	39.2 pt

Cinebench R23 / Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +78%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points +73%
Aoostar GEM12 AMD Ryzen 7 8845HS	16130 Points +55%
BOSGAME M1 AMD Ryzen 7 7840HS	16123 (15200.9^min - 16122.9^max) Points +55%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points +40%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	13451 Points +29%
Aoostar GEM10 AMD Ryzen 7 6800H	13117 Points +26%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +21%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	11072 Points +6%
Geekom XT12 Pro Intel Core i9-12900H	11036 Points +6%
Average AMD Ryzen 5 6600H (10226 - 10717, n=3)	10454 Points 0%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points
Geekom Mini IT12 Intel Core i5-12450H	8511 Points -18%
Acemagic AD15 Intel Core i5-11500B	8318 Points -20%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points -36%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points -51%

Cinebench R23 / Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +28%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points +25%
Geekom XT12 Pro Intel Core i9-12900H	1824 Points +23%
Aoostar GEM12 AMD Ryzen 7 8845HS	1783 Points +20%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points +20%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +19%
BOSGAME M1 AMD Ryzen 7 7840HS	1718 Points +16%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points +15%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	1696 Points +14%
Geekom Mini IT12 Intel Core i5-12450H	1663 Points +12%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1543 Points +4%
Aoostar GEM10 AMD Ryzen 7 6800H	1542 Points +4%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points
Acemagic AD15 Intel Core i5-11500B	1484 Points 0%
Average AMD Ryzen 5 6600H (1458 - 1486, n=3)	1467 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points -8%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points -15%

Cinebench R20 / CPU (Multi Core)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points +75%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +75%
BOSGAME M1 AMD Ryzen 7 7840HS	6349 Points +55%
Aoostar GEM12 AMD Ryzen 7 8845HS	6346 Points +55%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points +37%
Aoostar GEM10 AMD Ryzen 7 6800H	5216 Points +27%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	5054 Points +23%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +19%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	4339 Points +6%
Geekom XT12 Pro Intel Core i9-12900H	4294 Points +5%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points
Average AMD Ryzen 5 6600H (3965 - 4141, n=3)	4071 Points -1%
Geekom Mini IT12 Intel Core i5-12450H	3270 Points -20%
Acemagic AD15 Intel Core i5-11500B	3236 Points -21%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points -37%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points -52%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +26%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points +22%
Geekom XT12 Pro Intel Core i9-12900H	701 Points +20%
Aoostar GEM12 AMD Ryzen 7 8845HS	691 Points +18%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points +17%
BOSGAME M1 AMD Ryzen 7 7840HS	682 Points +17%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +16%
Geekom GT13 Pro Intel Core i9-13900H	659 Points +13%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	653 Points +12%
Geekom Mini IT12 Intel Core i5-12450H	642 Points +10%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	604 Points +3%
Aoostar GEM10 AMD Ryzen 7 6800H	598 Points +2%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points
Average AMD Ryzen 5 6600H (564 - 584, n=3)	574 Points -2%
Acemagic AD15 Intel Core i5-11500B	566 Points -3%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points -14%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points -15%

Cinebench R15 / CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points +58%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +58%
BOSGAME M1 AMD Ryzen 7 7840HS	2597 (2501.09^min - 2597.23^max) Points +50%
Aoostar GEM12 AMD Ryzen 7 8845HS	2537 Points +46%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points +38%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	2283 (1991.44^min - 2282.84^max) Points +31%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points +30%
Geekom XT12 Pro Intel Core i9-12900H	2121 Points +22%
Aoostar GEM10 AMD Ryzen 7 6800H	2117 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +17%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1795 Points +3%
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points
Average AMD Ryzen 5 6600H (1626 - 1740, n=3)	1701 Points -2%
Acemagic AD15 Intel Core i5-11500B	1322 Points -24%
Geekom Mini IT12 Intel Core i5-12450H	1321 Points -24%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points -35%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points -54%

Cinebench R15 / CPU Single 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	279 Points +15%
BOSGAME M1 AMD Ryzen 7 7840HS	275 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +12%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points +5%
Geekom XT12 Pro Intel Core i9-12900H	251 Points +3%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	249 Points +2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	245 Points +1%
Geekom GT13 Pro Intel Core i9-13900H	245 Points +1%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points
Aoostar GEM10 AMD Ryzen 7 6800H	240 Points -1%
Geekom Mini IT12 Intel Core i5-12450H	239 Points -2%
Average AMD Ryzen 5 6600H (231 - 243, n=3)	237 Points -2%
Acemagic AD15 Intel Core i5-11500B	223 Points -8%
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points -17%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points -23%

Blender / v2.79 BMW27 CPU
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * -105%
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds * -46%
Geekom Mini IT12 Intel Core i5-12450H	385 Seconds * -31%
Acemagic AD15 Intel Core i5-11500B	379 Seconds * -29%
Average AMD Ryzen 5 6600H (291 - 306, n=3)	297 Seconds * -1%
Geekom XT12 Pro Intel Core i9-12900H	296 Seconds * -1%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds *
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	279 Seconds * +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +6%
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * +11%
Aoostar GEM10 AMD Ryzen 7 6800H	259 Seconds * +12%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	246 Seconds * +16%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * +24%
Aoostar GEM12 AMD Ryzen 7 8845HS	197 Seconds * +33%
BOSGAME M1 AMD Ryzen 7 7840HS	196 Seconds * +33%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +39%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * +42%

7-Zip 18.03 / 7z b 4
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS +46%
Aoostar GEM12 AMD Ryzen 7 8845HS	70733 MIPS +43%
BOSGAME M1 AMD Ryzen 7 7840HS	70417 MIPS +43%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +35%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS +13%
Aoostar GEM10 AMD Ryzen 7 6800H	55067 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +7%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	52924 MIPS +7%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS +6%
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	48327 MIPS -2%
Geekom XT12 Pro Intel Core i9-12900H	47146 MIPS -4%
Average AMD Ryzen 5 6600H (39886 - 49353, n=3)	45692 MIPS -7%
Acemagic AD15 Intel Core i5-11500B	36194 MIPS -27%
Geekom Mini IT12 Intel Core i5-12450H	35191 MIPS -29%
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS -31%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS -53%

7-Zip 18.03 / 7z b 4 -mmt1
Aoostar GEM12 AMD Ryzen 7 8845HS	6644 MIPS +16%
BOSGAME M1 AMD Ryzen 7 7840HS	6602 MIPS +15%
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS +3%
Geekom XT12 Pro Intel Core i9-12900H	5881 MIPS +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	5796 MIPS +1%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS
Average AMD Ryzen 5 6600H (5466 - 5720, n=3)	5580 MIPS -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -3%
Aoostar GEM10 AMD Ryzen 7 6800H	5521 MIPS -3%
Acemagic AD15 Intel Core i5-11500B	5498 MIPS -4%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -4%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	5418 MIPS -5%
Geekom Mini IT12 Intel Core i5-12450H	5386 MIPS -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS -17%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS -20%

Geekbench 6.4 / Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13356 Points +45%
BOSGAME M1 AMD Ryzen 7 7840HS	13326 Points +44%
Aoostar GEM12 AMD Ryzen 7 8845HS	13318 Points +44%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +34%
Geekom GT13 Pro Intel Core i9-13900H	11358 Points +23%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	11069 Points +20%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10348 Points +12%
Geekom XT12 Pro Intel Core i9-12900H	10233 Points +11%
Aoostar GEM10 AMD Ryzen 7 6800H	9527 Points +3%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points
Average AMD Ryzen 5 6600H (n=1)	9240 Points 0%
Geekom Mini IT12 Intel Core i5-12450H	8828 Points -4%
Acemagic AD15 Intel Core i5-11500B	8148 Points -12%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	7854 Points -15%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points -32%

Geekbench 6.4 / Single-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	2667 Points +31%
BOSGAME M1 AMD Ryzen 7 7840HS	2640 Points +29%
Geekom GT13 Pro Intel Core i9-13900H	2580 Points +26%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2492 Points +22%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2483 Points +22%
Geekom XT12 Pro Intel Core i9-12900H	2464 Points +21%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +18%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	2320 Points +14%
Geekom Mini IT12 Intel Core i5-12450H	2286 Points +12%
Acemagic AD15 Intel Core i5-11500B	2173 Points +6%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	2072 Points +1%
Aoostar GEM10 AMD Ryzen 7 6800H	2049 Points 0%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points
Average AMD Ryzen 5 6600H (n=1)	2042 Points 0%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points -20%

Geekbench 5.5 / Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +63%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +55%
Aoostar GEM12 AMD Ryzen 7 8845HS	12143 Points +48%
BOSGAME M1 AMD Ryzen 7 7840HS	12116 Points +48%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +29%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	10560 Points +29%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points +26%
Geekom XT12 Pro Intel Core i9-12900H	10028 Points +22%
Aoostar GEM10 AMD Ryzen 7 6800H	8898 Points +9%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points
Geekom Mini IT12 Intel Core i5-12450H	8066 Points -2%
Average AMD Ryzen 5 6600H (6403 - 8195, n=3)	7442 Points -9%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	7368 Points -10%
Acemagic AD15 Intel Core i5-11500B	7132 Points -13%
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points -32%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points -44%

Geekbench 5.5 / Single-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	1958 Points +29%
BOSGAME M1 AMD Ryzen 7 7840HS	1928 Points +27%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +22%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points +22%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points +19%
Geekom XT12 Pro Intel Core i9-12900H	1790 Points +18%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +15%
Geekom Mini IT12 Intel Core i5-12450H	1636 Points +8%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	1626 Points +7%
Acemagic AD15 Intel Core i5-11500B	1566 Points +4%
Aoostar GEM10 AMD Ryzen 7 6800H	1552 Points +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1534 Points +1%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points
Average AMD Ryzen 5 6600H (1446 - 1513, n=3)	1478 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points -8%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points -20%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps +50%
Aoostar GEM12 AMD Ryzen 7 8845HS	20.5 fps +47%
BOSGAME M1 AMD Ryzen 7 7840HS	20.3 fps +46%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +41%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps +17%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	15.1 fps +9%
Aoostar GEM10 AMD Ryzen 7 6800H	14.9 fps +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +2%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps +1%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps
Average AMD Ryzen 5 6600H (11.5 - 14.2, n=3)	13.2 fps -5%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	12.7 fps -9%
Geekom XT12 Pro Intel Core i9-12900H	12.3 fps -12%
Geekom Mini IT12 Intel Core i5-12450H	10.4 fps -25%
Acemagic AD15 Intel Core i5-11500B	10.3 fps -26%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps -39%
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps -52%

LibreOffice / 20 Documents To PDF
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	58.5 s * -12%
GMK NucBox M5 AMD Ryzen 7 5700U	58 s * -11%
Average AMD Ryzen 5 6600H (52.4 - 60, n=3)	56.9 s * -9%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	54.8 s * -5%
Geekom Mini IT12 Intel Core i5-12450H	53.2 s * -2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * -0%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s *
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * +2%
Aoostar GEM10 AMD Ryzen 7 6800H	51.2 s * +2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * +6%
Aoostar GEM12 AMD Ryzen 7 8845HS	47.5 s * +9%
BOSGAME M1 AMD Ryzen 7 7840HS	47.4 s * +10%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * +17%
Acemagic AD15 Intel Core i5-11500B	41.2 s * +21%
Geekom XT12 Pro Intel Core i9-12900H	39.6 s * +24%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +25%

R Benchmark 2.5 / Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * -25%
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec * -17%
Acemagic AD15 Intel Core i5-11500B	0.561 sec * -12%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	0.519 sec * -4%
Aoostar GEM10 AMD Ryzen 7 6800H	0.515 sec * -3%
Average AMD Ryzen 5 6600H (0.4995 - 0.532, n=3)	0.511 sec * -2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	0.507 sec * -2%
Geekom Mini IT12 Intel Core i5-12450H	0.505 sec * -1%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec *
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +7%
Geekom XT12 Pro Intel Core i9-12900H	0.4632 sec * +7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * +7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +11%
BOSGAME M1 AMD Ryzen 7 7840HS	0.4418 sec * +12%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * +12%
Aoostar GEM12 AMD Ryzen 7 8845HS	0.4392 sec * +12%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1737 Points

Cinebench R15 OpenGL 64Bit

154.4 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

243 Points

Cinebench R20 CPU (Multi Core)

4106 Points

Cinebench R20 CPU (Single Core)

584 Points

Cinebench R23 Single Core

1486 Points

Cinebench R23 Multi Core

10418 Points

Help

... in comparison

Performance Rating
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	100 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	97.7 pt
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	62.2 pt
Average AMD Ryzen 5 6600H	60.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	56.7 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	46.4 pt
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	43.2 pt

AIDA64 / FP32 Ray-Trace
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	26022 KRay/s +112%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +107%
Average AMD Ryzen 5 6600H (12156 - 12871, n=3)	12434 KRay/s +1%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	12274 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -10%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s -28%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	7345 KRay/s -40%

AIDA64 / FPU Julia
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	110752 Points +44%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +40%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	76931 Points
Average AMD Ryzen 5 6600H (75025 - 78277, n=3)	76744 Points 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -28%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	45926 Points -40%

AIDA64 / CPU SHA3
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	4854 MB/s +83%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +80%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +3%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	2650 MB/s
Average AMD Ryzen 5 6600H (2606 - 2689, n=3)	2648 MB/s 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s -27%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	1503 MB/s -43%

AIDA64 / CPU Queen
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	117809 Points +43%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +36%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +6%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	82119 Points
Average AMD Ryzen 5 6600H (78765 - 82119, n=3)	80152 Points -2%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	68805 Points -16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points -18%

AIDA64 / FPU SinJulia
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	14915 Points +53%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +51%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	9992 Points +3%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	9739 Points
Average AMD Ryzen 5 6600H (9184 - 9739, n=3)	9426 Points -3%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -25%

AIDA64 / FPU Mandel
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	59072 Points +39%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +36%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	42406 Points
Average AMD Ryzen 5 6600H (41153 - 43222, n=3)	42260 Points 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -35%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	24053 Points -43%

AIDA64 / CPU AES
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	166944 MB/s +60%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +58%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	104138 MB/s
Average AMD Ryzen 5 6600H (100609 - 104138, n=3)	102594 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -5%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s -24%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46218 MB/s -56%

AIDA64 / CPU ZLib
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	1051 MB/s +59%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +56%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +22%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	660 MB/s
Average AMD Ryzen 5 6600H (634 - 660, n=3)	649 MB/s -2%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	513 MB/s -22%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s -23%

AIDA64 / FP64 Ray-Trace
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	13897 KRay/s +111%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +107%
Average AMD Ryzen 5 6600H (6545 - 6911, n=3)	6681 KRay/s +1%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	6588 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -10%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s -31%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	3892 KRay/s -41%

AIDA64 / CPU PhotoWorxx
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	41516 MPixel/s +40%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s +38%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	29621 MPixel/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -2%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	25066 MPixel/s -15%
Average AMD Ryzen 5 6600H (16218 - 29621, n=3)	24848 MPixel/s -16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -40%

Stress Test

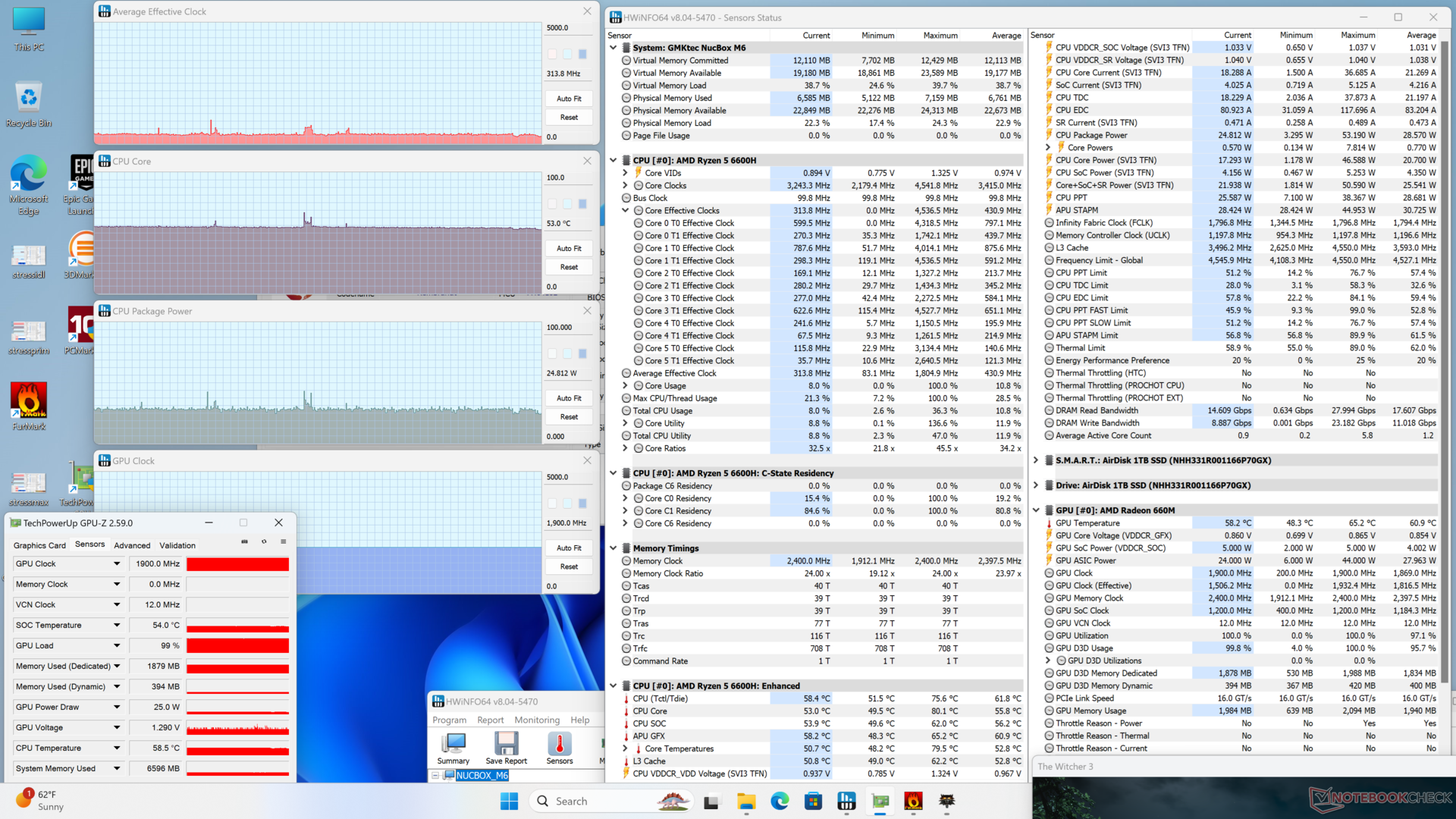

The CPU would boost to 4.1 GHz, 54 W, and 78 C when running Prime95 stress before quickly falling and stabilizing to 3.9 GHz and 50 W just a few seconds later. While maximum Turbo Core performance is not indefinite, the drop is surprisingly marginal.

Core temperature would stabilize at just 64 C when running Witcher 3 to represent typical gaming loads which is comparable to the slower NucBox M5.

	Average CPU Clock (GHz)	GPU Clock (MHz)	Average CPU Temperature (°C)

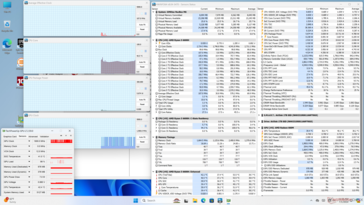

System Idle	--	--	40
Prime95 Stress	~3.9	--	80
Prime95 + FurMark Stress	~3.7	1421	75
Witcher 3 Stress	~0.3	1900	54

System Performance

PCMark 10 Standard. Average scores are in between mini PCs running on faster Zen 4 CPUs and slower Zen 2 CPUs as to be expected

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +21%
BOSGAME M1 Radeon 780M, R7 7840HS	7198 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points +1%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6220 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	6220 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points -12%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	5293 Points -15%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +12%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +8%
BOSGAME M1 Radeon 780M, R7 7840HS	11211 Points +8%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	10360 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	10360 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	9554 Points -8%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -9%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +17%
BOSGAME M1 Radeon 780M, R7 7840HS	9075 Points 0%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	9059 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	9059 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points -2%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	8457 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points -13%

PCMark 10 / Digital Content Creation
BOSGAME M1 Radeon 780M, R7 7840HS	9948 Points +43%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points +6%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6959 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	6959 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points -25%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	4982 Points -28%

CrossMark / Overall
BOSGAME M1 Radeon 780M, R7 7840HS	1891 Points +24%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +19%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1521 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	1521 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -21%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1087 Points -29%

CrossMark / Productivity
BOSGAME M1 Radeon 780M, R7 7840HS	1823 Points +20%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +20%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +15%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1517 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	1517 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -17%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1133 Points -25%

CrossMark / Creativity
BOSGAME M1 Radeon 780M, R7 7840HS	2013 Points +28%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +27%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +26%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1567 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	1567 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -26%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1042 Points -34%

CrossMark / Responsiveness
BOSGAME M1 Radeon 780M, R7 7840HS	1749 Points +24%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points +12%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1407 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	1407 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -19%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1091 Points -22%

WebXPRT 3 / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +34%
BOSGAME M1 Radeon 780M, R7 7840HS	319 Points +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	305 Points +25%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	250 Points +2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	244 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	244 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	214 Points -12%

WebXPRT 4 / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	266 Points +38%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +38%
BOSGAME M1 Radeon 780M, R7 7840HS	258 Points +33%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	193.4 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	193.4 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	192.4 Points -1%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	158.5 Points -18%

Mozilla Kraken 1.1 / Total
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	802 ms * -33%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	702 ms * -16%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	604 ms *
Average AMD Ryzen 5 6600H, AMD Radeon 660M (n=1)	604 ms * -0%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +12%
BOSGAME M1 Radeon 780M, R7 7840HS	526 ms * +13%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	494 ms * +18%

* ... smaller is better

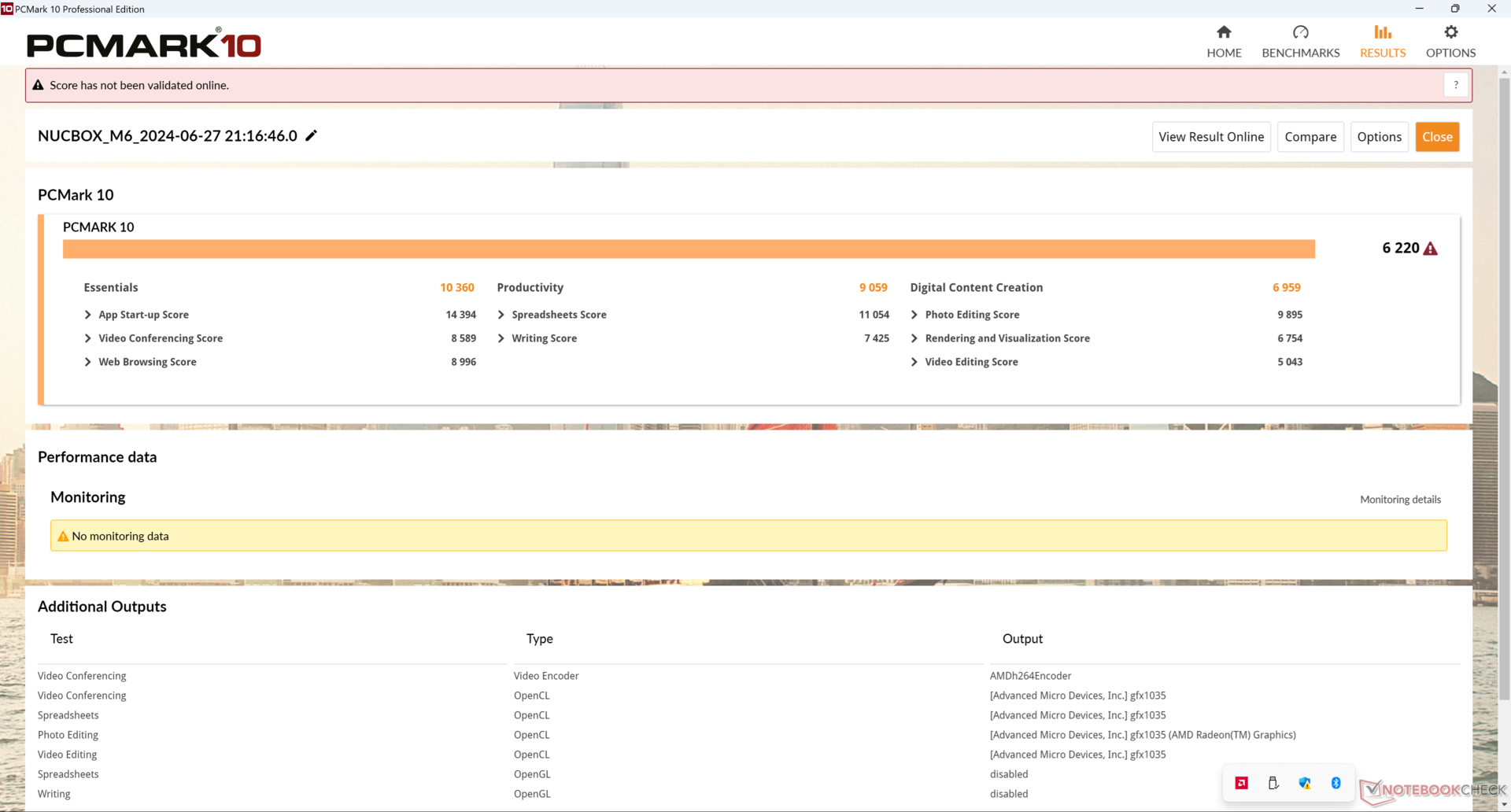

PCMark 10 Score		6220 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	69508 MB/s +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +36%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	50886 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -12%
Average AMD Ryzen 5 6600H (28335 - 50886, n=3)	42594 MB/s -16%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	39126 MB/s -23%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -24%

AIDA64 / Memory Read
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	61765 MB/s +20%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s +19%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	51684 MB/s
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46813 MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -13%
Average AMD Ryzen 5 6600H (34300 - 51684, n=3)	45152 MB/s -13%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -23%

AIDA64 / Memory Write
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	86719 MB/s +57%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +57%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	55160 MB/s
Average AMD Ryzen 5 6600H (31788 - 55160, n=3)	47364 MB/s -14%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	47048 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -25%

AIDA64 / Memory Latency
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	100.1 ns * -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -12%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -9%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	89.8 ns * -5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * -3%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	85.8 ns *
Average AMD Ryzen 5 6600H (81.7 - 89.8, n=3)	85.8 ns * -0%

* ... smaller is better

DPC Latency

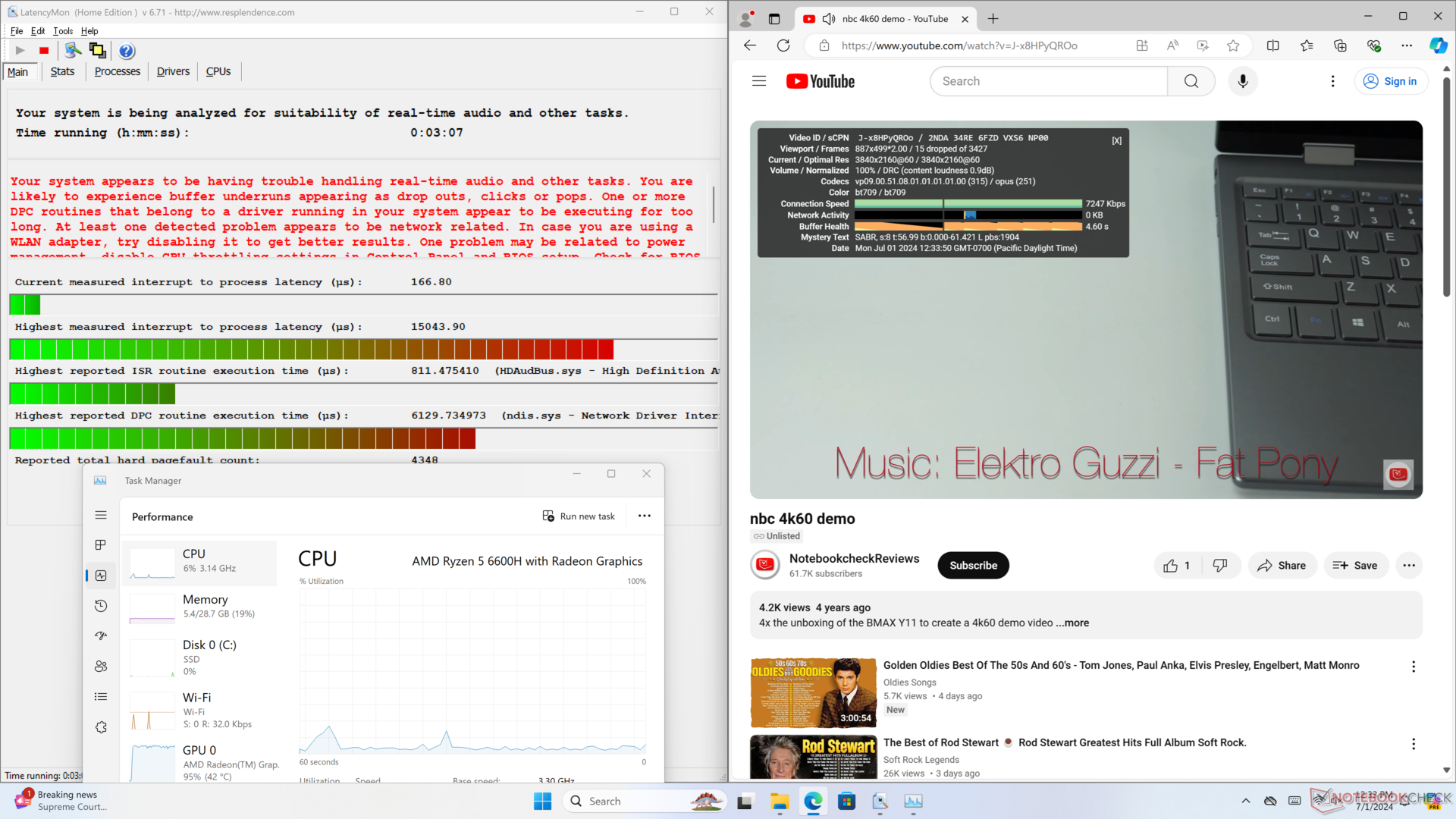

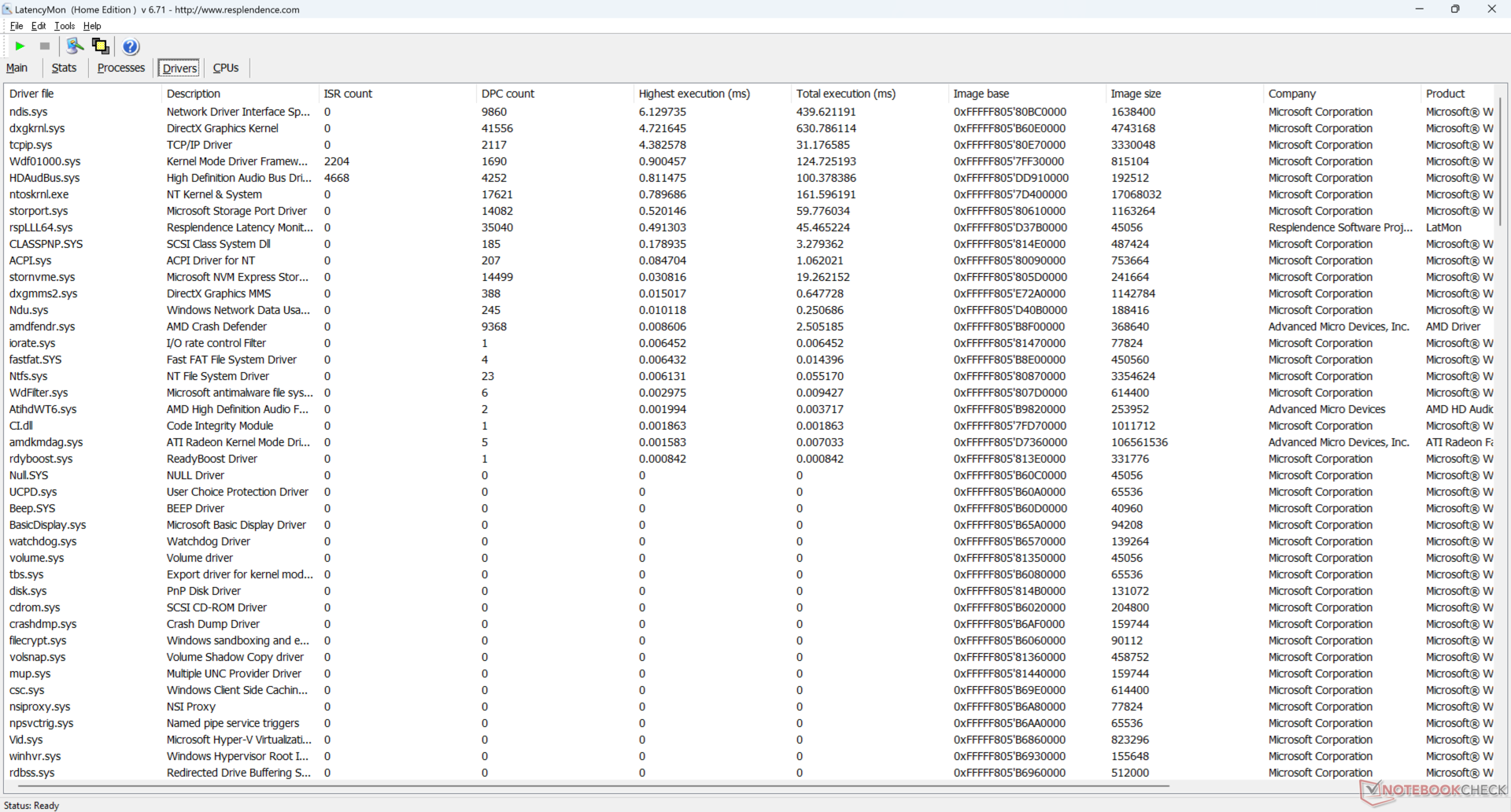

LatencyMon reveals major DPC issues when opening multiple browser tabs of our homepage even after multiple retests. 4K video playback at 60 FPS is also problematic with 15 dropped frames recorded over a 60-second period. These problems would persist despite updating both Windows and AMD drivers to their latest respective versions at the time of review.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	15043.9 μs *
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * +30%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	2146.9 μs * +86%
BOSGAME M1 Radeon 780M, R7 7840HS	1179.5 μs * +92%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +93%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +98%

* ... smaller is better

Storage Devices

The system ships with a PCIe3 x4 NVMe SSD from AirDisk instead of the more common PCIe4 drive likely to save on costs. The midrange SSD offers a stable read rate of 2600 MB/s which is sufficient considering the CPU it is paired with.

M.2 SSD with heat spreader removed. The system comes with just one heat spreader even though it can support up to two M.2 SSDs

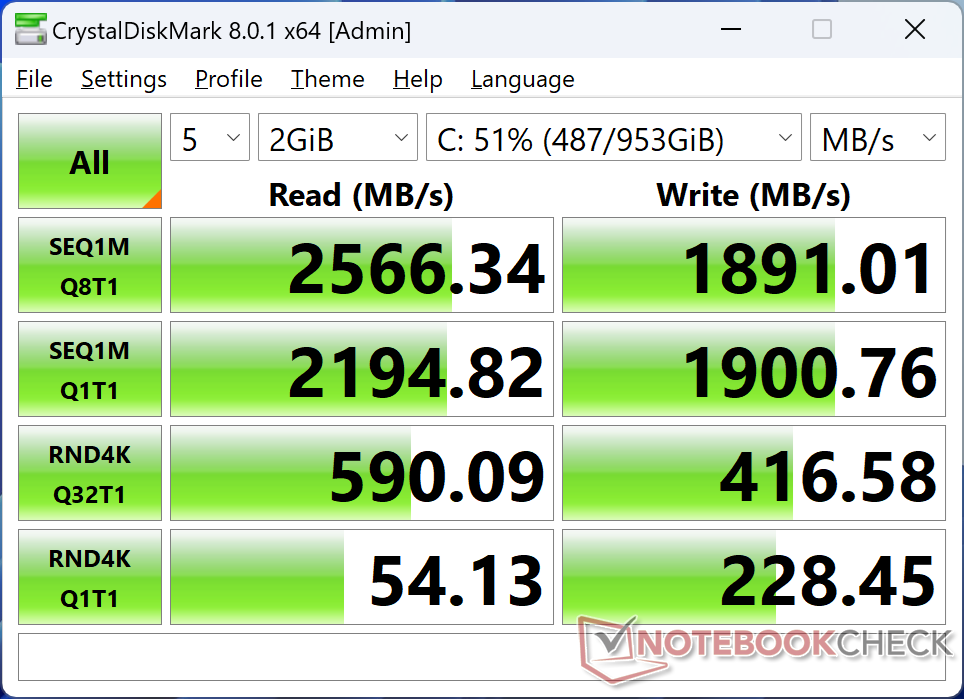

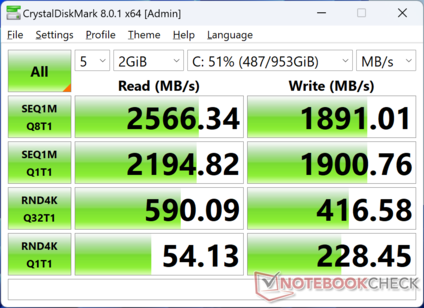

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

AirDisk APF 10-512G

CDM 5/6 Read Seq Q32T1: 2547 MB/s

CDM 5/6 Write Seq Q32T1: 1852 MB/s

CDM 5/6 Read 4K Q32T1: 595 MB/s

CDM 5/6 Write 4K Q32T1: 425.3 MB/s

CDM 5 Read Seq: 2192 MB/s

CDM 5 Write Seq: 1856 MB/s

CDM 5/6 Read 4K: 54.06 MB/s

CDM 5/6 Write 4K: 223 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	88.3 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	70 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	58.5 pt
BOSGAME M1	58.1 pt
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	49.9 pt
GMK NucBox M6 AirDisk APF 10-512G	42 pt

DiskSpd
seq read
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s +75%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +60%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s +24%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2560 (2546.51^min - 2560.12^max) MB/s +21%
BOSGAME M1	2533 (2518.88^min - 2532.52^max) MB/s +20%
GMK NucBox M6 AirDisk APF 10-512G	2113 (2099.24^min - 2112.85^max) MB/s
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +202%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +81%
BOSGAME M1	3176 (2921.36^min - 3176.08^max) MB/s +71%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s +55%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2752 (2706.58^min - 2751.67^max) MB/s +49%
GMK NucBox M6 AirDisk APF 10-512G	1852 (1762.49^min - 1851.99^max) MB/s
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s +179%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +165%
BOSGAME M1	4109 (3651.18^min - 4108.53^max) MB/s +62%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s +45%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3536 (3096.86^min - 3536.22^max) MB/s +39%
GMK NucBox M6 AirDisk APF 10-512G	2536 (2272.68^min - 2536.26^max) MB/s
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s +262%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s +75%
BOSGAME M1	3187 (3142.8^min - 3187.38^max) MB/s +73%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3126 (3077.57^min - 3126.22^max) MB/s +70%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +54%
GMK NucBox M6 AirDisk APF 10-512G	1842 (1840.35^min - 1842.35^max) MB/s
4k q1 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s +30%
BOSGAME M1	64.4 (64.2^min - 64.35^max) MB/s +18%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	62.7 (54.67^min - 62.69^max) MB/s +14%
GMK NucBox M6 AirDisk APF 10-512G	54.8 (52.56^min - 54.76^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -5%
4k q1 t1 write
BOSGAME M1	261 (258.95^min - 260.75^max) MB/s +14%
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +5%
GMK NucBox M6 AirDisk APF 10-512G	228 (215.43^min - 228.32^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -22%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	175.4 (153.43^min - 175.39^max) MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -24%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +187%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +154%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2315 (2310.04^min - 2315.42^max) MB/s +139%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +27%
GMK NucBox M6 AirDisk APF 10-512G	968 (965.06^min - 967.94^max) MB/s
BOSGAME M1	791 (751.42^min - 791.35^max) MB/s -18%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +401%
BOSGAME M1	3112 (3068.44^min - 3111.56^max) MB/s +291%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s +179%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1400 (948.76^min - 1400.43^max) MB/s +76%
GMK NucBox M6 AirDisk APF 10-512G	795 (753.98^min - 794.81^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -21%

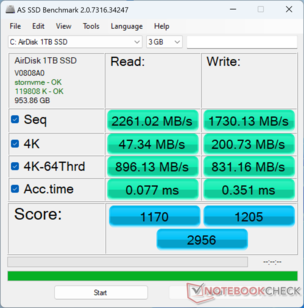

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +168%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +103%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points +59%
BOSGAME M1	4263 Points +44%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3786 Points +28%
GMK NucBox M6 AirDisk APF 10-512G	2956 Points
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points +178%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points +45%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +43%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1433 Points +22%
GMK NucBox M6 AirDisk APF 10-512G	1170 Points
BOSGAME M1	1146 Points -2%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +197%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +149%
BOSGAME M1	2547 Points +111%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points +77%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1626 Points +35%
GMK NucBox M6 AirDisk APF 10-512G	1205 Points
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +158%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +111%
BOSGAME M1	3438.69 MB/s +52%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s +40%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3028.67 MB/s +34%
GMK NucBox M6 AirDisk APF 10-512G	2261.02 MB/s
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +234%
BOSGAME M1	2877.44 MB/s +66%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s +64%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2729.51 MB/s +58%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +41%
GMK NucBox M6 AirDisk APF 10-512G	1730.13 MB/s
4K Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +65%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s +38%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	50 MB/s +6%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s +5%
BOSGAME M1	48.27 MB/s +2%
GMK NucBox M6 AirDisk APF 10-512G	47.34 MB/s
4K Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +4%
GMK NucBox M6 AirDisk APF 10-512G	200.73 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s -5%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -28%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	126.66 MB/s -37%
BOSGAME M1	114.69 MB/s -43%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s +191%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s +49%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +25%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1080.06 MB/s +21%
GMK NucBox M6 AirDisk APF 10-512G	896.13 MB/s
BOSGAME M1	754.28 MB/s -16%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +275%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +168%
BOSGAME M1	2144.62 MB/s +158%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s +106%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1226.59 MB/s +48%
GMK NucBox M6 AirDisk APF 10-512G	831.16 MB/s
Access Time Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -22%
BOSGAME M1	0.088 ms * -14%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -3%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.077 ms * -0%
GMK NucBox M6 AirDisk APF 10-512G	0.077 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +42%
Access Time Write
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.408 ms * -16%
GMK NucBox M6 AirDisk APF 10-512G	0.351 ms *
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * +44%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +78%
BOSGAME M1	0.058 ms * +83%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +94%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M6; diskspd 2.0.17 f: Ø2502 (2251.92-2522.24)

GPU Performance — The Radeon 660M Struggles In Most Games

The Radeon 660M is roughly 35 percent slower than the Radeon 680M to be roughly on par with the more common Iris Xe 96 EUs. Though not particularly suited for most games, it is at least a respectable leap over the Radeon RX Vega 8 on older generation Zen processors.

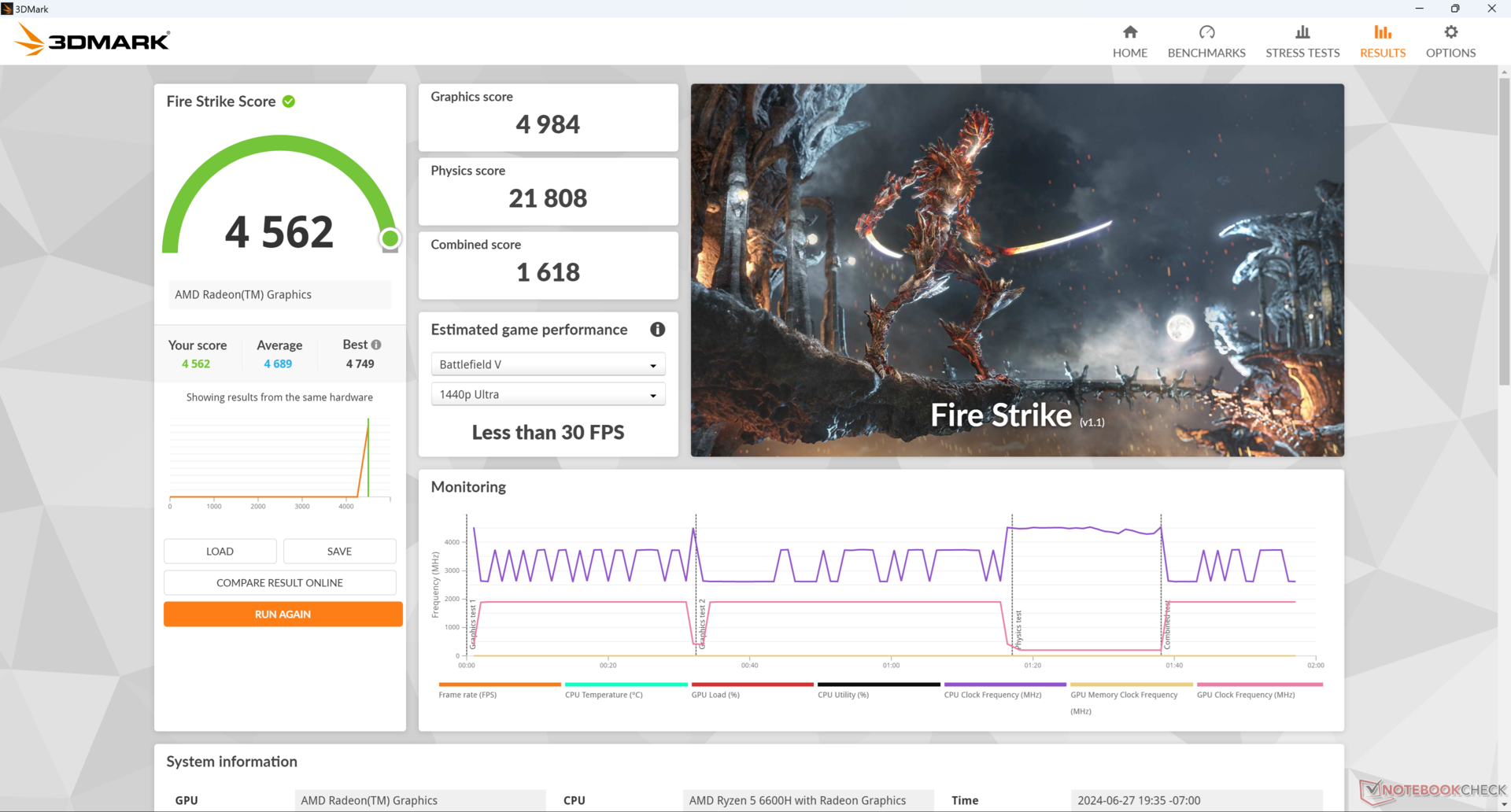

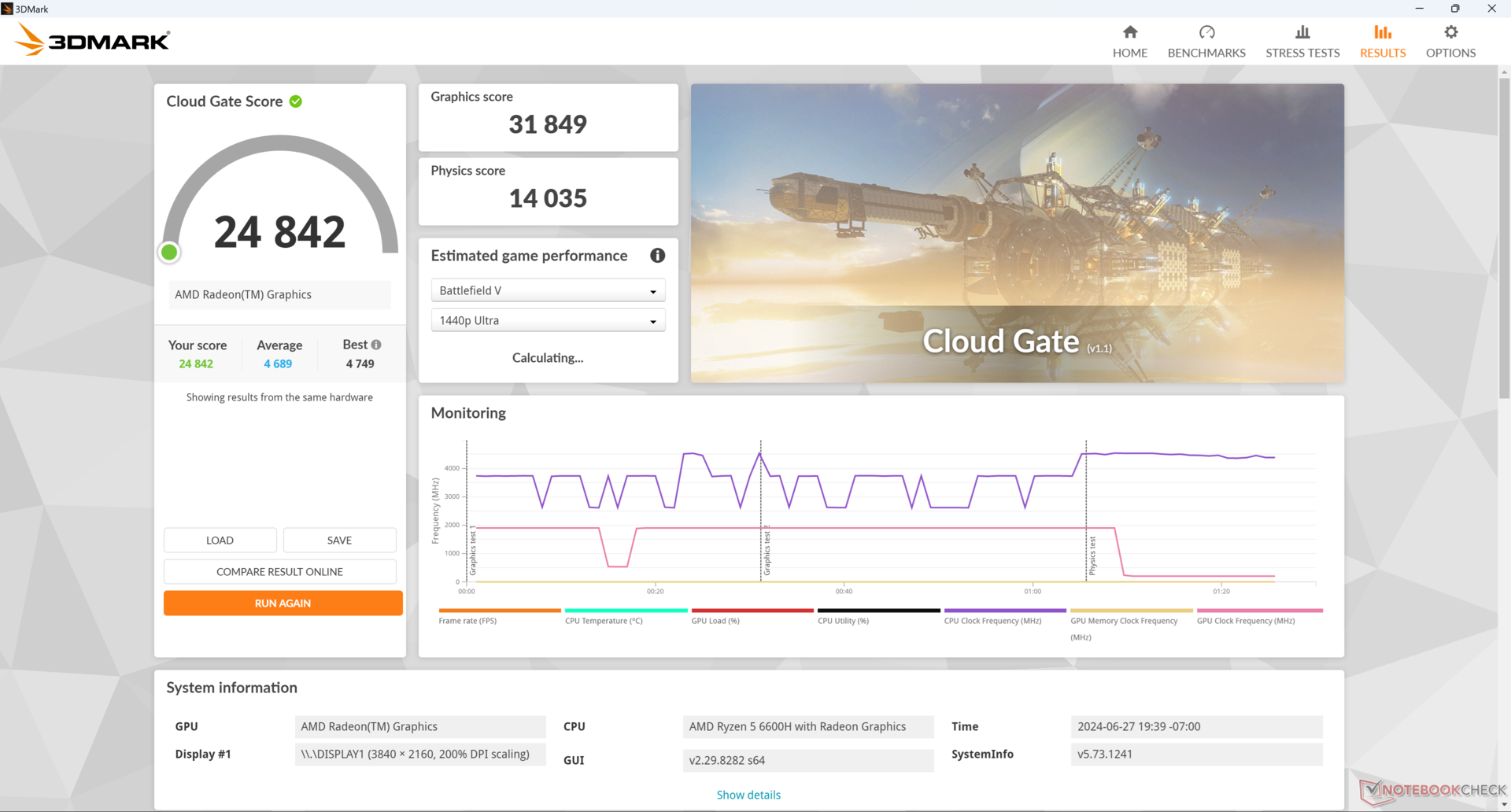

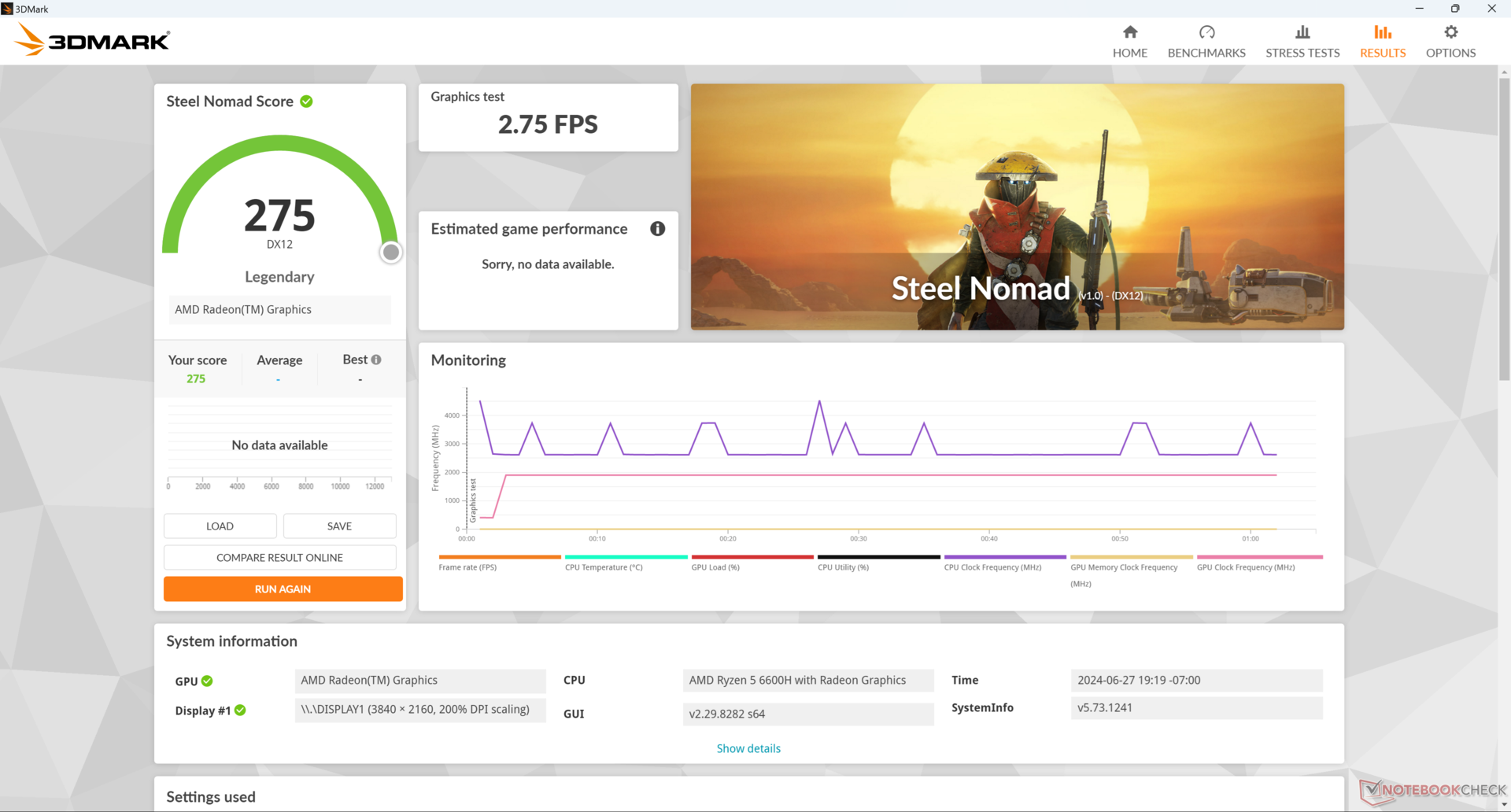

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	99.8 pt
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	90.2 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	88.5 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	85 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	82.7 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	58.2 pt
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	54.1 pt
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	53.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	53.2 pt
Average AMD Radeon 660M	48.8 pt
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	46.9 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	40.5 pt
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	35.1 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	26.8 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	24.5 pt

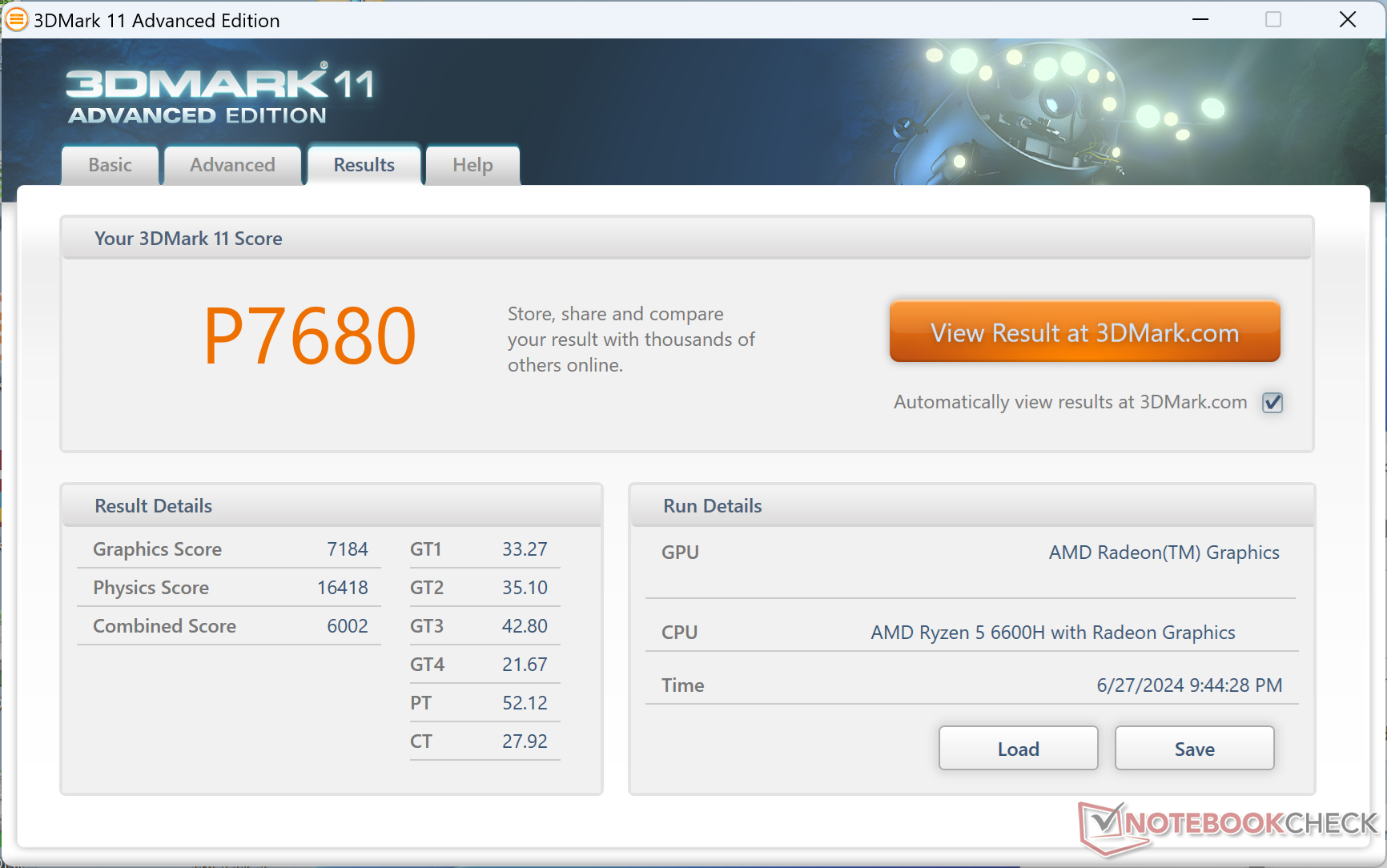

3DMark 11 - 1280x720 Performance GPU
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	14249 Points +98%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	13410 Points +87%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +68%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points +63%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11668 Points +62%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points +3%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	7184 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -1%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	6975 Points -3%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	6858 Points -5%
Average AMD Radeon 660M (4636 - 7184, n=10)	6315 Points -12%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points -25%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -27%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points -52%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	3065 Points -57%

3DMark
1280x720 Cloud Gate Standard Graphics
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	53972 Points +69%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	46987 Points +48%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	45116 Points +42%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	44014 Points +38%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	38976 Points +22%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	33541 Points +5%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	31849 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30564 Points -4%
Average AMD Radeon 660M (21857 - 33949, n=9)	30069 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -14%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25003 Points -21%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	24634 Points -23%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	19330 Points -39%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	16288 Points -49%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	15716 Points -51%
1920x1080 Fire Strike Graphics
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	8816 Points +77%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	8007 Points +61%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +55%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	7653 Points +54%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points +52%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points +17%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5421 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +5%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	4984 Points
Average AMD Radeon 660M (3447 - 4993, n=10)	4472 Points -10%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	4424 Points -11%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -37%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points -47%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	2363 Points -53%
2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +103%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points +102%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	3178 Points +101%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2846 Points +80%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2518 Points +59%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +6%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1582 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1581 Points 0%
Average AMD Radeon 660M (1016 - 1588, n=10)	1425 Points -10%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	1399 Points -12%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -35%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points -53%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	658 Points -58%

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark 11 Performance		7680 points
3DMark Cloud Gate Standard Score		24842 points
3DMark Fire Strike Score		4562 points
3DMark Time Spy Score		1793 points
3DMark Steel Nomad Score		275 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Average AMD Radeon 660M (438 - 755, n=8)	554 Seconds *
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	458 Seconds *
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	306 Seconds *
v3.3 Classroom CPU
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	758 Seconds * -53%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	673 Seconds * -35%
Average AMD Radeon 660M (323 - 968, n=10)	670 Seconds * -35%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	536 Seconds * -8%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	497 Seconds *
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	467 Seconds * +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +7%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	460 Seconds * +7%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	438 Seconds * +12%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	399 Seconds * +20%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	320 Seconds * +36%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	319 Seconds * +36%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	301 Seconds * +39%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	294 Seconds * +41%
v3.3 Classroom oneAPI/Intel
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	254 Seconds *

* ... smaller is better

Performance Rating - Percent
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.6 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.2 pt
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	62 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	52.2 pt
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.4 pt
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	42.3 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.3 (29^min) fps +87%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +73%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.8 (15^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps -8%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -34%

Final Fantasy XV Benchmark - 1920x1080 High Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 fps +72%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +64%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -36%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.1 (5.2^min, 33.8^P1) fps +76%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +65%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -31%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88.5 (78.9^min) fps +46%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +44%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +1%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -25%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +20%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +17%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -27%

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.3 fps +94%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +89%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.6 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.7 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.3 fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -43%

The Witcher 3
1024x768 Low Graphics & Postprocessing
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	160.7 (126^min) fps +64%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps +58%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.7 fps +4%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	98.2 (84^min) fps
Average AMD Radeon 660M (32.2 - 98.2, n=8)	77.7 fps -21%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.6 (60^min) fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps -40%
1366x768 Medium Graphics & Postprocessing
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	103.8 (96^min) fps +97%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps +88%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	52.6 (38^min) fps
Average AMD Radeon 660M (40.2 - 58.5, n=7)	48.7 fps -7%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.3 (38^min) fps -18%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps -26%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 (48^min) fps +103%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps +98%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.1 fps +21%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	25.7 (24^min) fps
Average AMD Radeon 660M (18.5 - 28.6, n=8)	24.2 fps -6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps -14%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps -27%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.3 (29^min) fps +87%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +73%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.8 (15^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps -8%
Average AMD Radeon 660M (12.3 - 17.9, n=8)	15.4 fps -13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -34%

Far Cry 5
1280x720 Low Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88 (77^min) fps +24%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps +21%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	71 (62^min) fps
Average AMD Radeon 660M (38 - 71, n=6)	58.3 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	46 (37^min) fps -35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps -35%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (36^min) fps -41%
1920x1080 Medium Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	54 (48^min) fps +64%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps +48%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33 (29^min) fps
Average AMD Radeon 660M (18 - 33, n=6)	27.8 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (24^min) fps -21%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps -36%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (17^min) fps -39%
1920x1080 High Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (43^min) fps +63%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps +50%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	30 (26^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps -17%
Average AMD Radeon 660M (16 - 30, n=6)	25 fps -17%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps -37%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (16^min) fps -37%
1920x1080 Ultra Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47 (41^min) fps +74%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps +59%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	27 (20^min) fps
Average AMD Radeon 660M (16 - 27, n=5)	23.2 fps -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23 (21^min) fps -15%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps -33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17 (15^min) fps -37%

Final Fantasy XV Benchmark
1280x720 Lite Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	84.5 fps +75%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps +67%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	48.3 fps
Average AMD Radeon 660M (33.1 - 53.4, n=10)	43.5 fps -10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps -33%
1920x1080 Standard Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.9 fps +66%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps +59%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.7 fps
Average AMD Radeon 660M (16 - 24.7, n=10)	21.1 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps -35%
1920x1080 High Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 fps +72%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +64%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps
Average AMD Radeon 660M (11.1 - 17.9, n=10)	15.2 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -36%

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.6 (51.6^min) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps
Average AMD Radeon 660M (27.5 - 34.1, n=2)	30.8 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (12.7^min) fps
1920x1080 Low Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.9 (37.5^min) fps +97%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps +91%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.3 (20.5^min) fps
Average AMD Radeon 660M (14.9 - 24.3, n=4)	20.1 fps -17%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 (6.57^min) fps -43%
1920x1080 Medium Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.5 (30.6^min) fps +107%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps +94%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	18.1 (15.7^min) fps
Average AMD Radeon 660M (11.5 - 18.1, n=4)	15 fps -17%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.9 (8.08^min) fps -40%
1920x1080 High Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.6 (23.3^min) fps +155%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps +139%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	11.6 (10^min) fps
Average AMD Radeon 660M (8.85 - 13.2, n=5)	11.1 fps -4%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.17 (6.25^min) fps -21%
1920x1080 Ultra Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	25.8 (19.9^min) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Average AMD Radeon 660M (7.77 - 11.2, n=3)	9.38 fps

Strange Brigade
1280x720 lowest AF:1
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	175.9 (26.4^min, 151.8^P1) fps +46%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps +40%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	120.2 (78.3^min, 104.5^P1) fps
Average AMD Radeon 660M (70.2 - 120.7, n=9)	106.4 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps -21%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.8 (20.7^min, 69.9^P1) fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps -34%
1920x1080 medium AA:medium AF:4
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	70.9 (5^min, 61.9^P1) fps +65%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps +58%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	43 (36.6^min, 37.4^P1) fps
Average AMD Radeon 660M (26.8 - 44.5, n=9)	39.2 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps -13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (15.3^min, 28.3^P1) fps -25%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps -30%
1920x1080 high AA:high AF:8
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	60.6 (32.5^min, 47.4^P1) fps +69%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps +61%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	35.9 (28.5^min, 29.1^P1) fps
Average AMD Radeon 660M (21.4 - 35.9, n=9)	31.4 fps -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (14.8^min, 19.1^P1) fps -25%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps -31%
1920x1080 ultra AA:ultra AF:16
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.1 (5.2^min, 33.8^P1) fps +76%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +65%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps
Average AMD Radeon 660M (18.4 - 29.7, n=9)	26.1 fps -12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -31%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	142.1 fps +76%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps +72%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	80.8 fps
Average AMD Radeon 660M (56.3 - 80.8, n=2)	68.6 fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	59.8 fps -26%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.5 fps -33%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps -33%
1920x1080 Low Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.7 fps +94%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps +87%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	40 fps
Average AMD Radeon 660M (26.9 - 40, n=3)	33.7 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.5 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps -32%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps -36%
1920x1080 Medium Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.9 fps +79%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps +67%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	31.3 fps
Average AMD Radeon 660M (19.7 - 31.3, n=3)	26 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.5 fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps -38%
1920x1080 High Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.9 fps +85%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps +79%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	20.5 fps
Average AMD Radeon 660M (12.6 - 20.5, n=3)	16.9 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.1 fps -21%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps -33%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps -41%
1920x1080 Badass Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.3 fps +94%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +89%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.6 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.7 fps -19%
Average AMD Radeon 660M (9.57 - 15.6, n=2)	12.6 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.3 fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -43%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps +11%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	159.5 (137.7^min) fps +10%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	144.9 (123.5^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps -15%
Average AMD Radeon 660M (93.7 - 144.9, n=10)	115.4 fps -20%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -24%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.7 (85.3^min) fps -31%
1366x768 med (1/3)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	126.5 (104.4^min) fps +17%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps +16%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.9 (92.8^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps -13%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps -16%
Average AMD Radeon 660M (72.2 - 107.9, n=10)	90.8 fps -16%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.6 (61.8^min) fps -25%
1920x1080 high (2/3)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	98.8 (88.1^min) fps +41%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps +38%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	70 (63.6^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps -3%
Average AMD Radeon 660M (37.4 - 70, n=10)	56.8 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.5 (43.1^min) fps -28%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps -30%
1920x1080 ultra (3/3) best looking
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88.5 (78.9^min) fps +46%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +44%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +1%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps
Average AMD Radeon 660M (32.8 - 60.8, n=10)	48.8 fps -20%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -25%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	186.7 (148^min, 125^P1) fps +74%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps +58%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.3 (86^min, 79^P1) fps
Average AMD Radeon 660M (72.1 - 107.3, n=3)	88.8 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80 (64^min, 64^P1) fps -25%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 (55^min, 54^P1) fps -40%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps -43%
1920x1080 Low Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	109.9 (95^min, 85^P1) fps +89%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps +71%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	58.3 (43^min, 42^P1) fps
Average AMD Radeon 660M (42.4 - 58.3, n=4)	48.4 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	48 (40^min, 40^P1) fps -18%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.7 (31^min, 27^P1) fps -39%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps -44%
1920x1080 Medium Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	95 (81^min, 76^P1) fps +82%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps +64%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	52.3 (41^min, 39^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.3 (36^min, 36^P1) fps -15%
Average AMD Radeon 660M (37 - 52.3, n=4)	42.9 fps -18%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.3 (28^min, 25^P1) fps -38%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps -45%
1920x1080 High Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	70.6 (60^min, 59^P1) fps +90%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps +79%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.2 (31^min, 29^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.2 (27^min, 26^P1) fps -16%
Average AMD Radeon 660M (26.2 - 37.2, n=4)	29.7 fps -20%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.8 (20^min, 18^P1) fps -36%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps -42%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 fps +185%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	19.2 (14^min, 14^P1) fps +128%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps +118%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.8 (13^min, 13^P1) fps +99%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps +81%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	8.43 (6^min, 6^P1) fps
Average AMD Radeon 660M (5.13 - 8.43, n=3)	6.49 fps -23%

Baldur's Gate 3
1280x720 Low Preset AA:SM
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	64.7 fps +73%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.3 fps
Average AMD Radeon 660M (26.6 - 37.3, n=2)	32 fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.5 fps -40%
1920x1080 Low Preset AA:SM
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 fps +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps +77%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	22.9 fps
Average AMD Radeon 660M (16.5 - 22.9, n=4)	20.1 fps -12%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps -38%
1920x1080 Medium Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.8 fps +144%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps +123%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.1 fps
Average AMD Radeon 660M (12.8 - 15.1, n=4)	14 fps -7%
1920x1080 High Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.9 fps +125%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps +111%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	13.3 fps
Average AMD Radeon 660M (10.2 - 13.3, n=4)	11.7 fps -12%
1920x1080 Ultra Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.2 fps +132%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps +114%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	12.6 fps
Average AMD Radeon 660M (9.97 - 12.6, n=3)	11.5 fps -9%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps +27%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	64.2 fps +24%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	51.8 fps
Average AMD Radeon 660M (34.8 - 51.8, n=10)	44.3 fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.4 fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -27%
1920x1080 med (fps_test=2)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps +23%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 fps +20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	38.5 fps
Average AMD Radeon 660M (24.2 - 38.5, n=10)	31.9 fps -17%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps -29%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps -29%
1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +20%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +17%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps
Average AMD Radeon 660M (22.1 - 33.8, n=10)	28.2 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -27%

Idling on Witcher 3 reveals issues maintaining steady frame rates to suggest poor handling of background activities or poor drivers. As shown by our graph below, frame rates would occasionally dip sharply from ~30 FPS to ~24 FPS for seemingly no reason when it should be steady throughout.

Witcher 3 FPS Chart

GMK NucBox M6: Ø29.3 (23-32)

	low	med.	high	ultra
The Witcher 3 (2015)	98.2	52.6	25.7	17.8
Dota 2 Reborn (2015)	144.9	107.9	70	60.8
Final Fantasy XV Benchmark (2018)	48.3	24.7	17.9
X-Plane 11.11 (2018)	51.8	38.5	33.2
Far Cry 5 (2018)	71	33	30	27
Strange Brigade (2018)	120.2	43	35.9	29.6
Tiny Tina's Wonderlands (2022)	40	31.3	20.5	15.6
F1 22 (2022)	58.3	52.3	37.2	8.43
Baldur's Gate 3 (2023)	22.9	15.1	13.3	12.6
Cyberpunk 2077 2.2 Phantom Liberty (2023)	24.3	18.1	11.6

Emissions

System Noise

Fan noise is louder than what we recorded on the NucBox M5. When considering that the M6 uses a more demanding CPU with no changes to the cooling solution, the louder noise is no surprise. Even medium loads like 3DMark 06 can cause the fan to reach its maximum RPM just 30 seconds into the test compared to only 37 dB(A) on the slower M5. Fan pulsing occurs more frequently than we would like.

Fan noise profile (White: Background, Red: System idle, Blue: 3DMark 06, Orange: Cyberpunk 2077 stress, Green: Prime95+FurMark stress)

Noise Level

Idle		31.9 / 32 / 33.8 dB(A)
Load		48.5 / 48.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.2 dB(A)

	GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	BOSGAME M1 Radeon 780M, R7 7840HS	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		9%	3%	8%	28%	4%
off / environment *	24.2	23.4 3%	23.2 4%	23.2 4%	23.7 2%	29.8 -23%
Idle Minimum *	31.9	33.8 -6%	31.3 2%	32 -0%	23.9 25%	30.2 5%
Idle Average *	32	33.8 -6%	31.3 2%	32 -0%	23.9 25%	31.1 3%
Idle Maximum *	33.8	33.8 -0%	33.4 1%	32 5%	23.9 29%	31.9 6%
Load Average *	48.5	36.5 25%	47.5 2%	38.7 20%	28 42%	40 18%
Witcher 3 ultra *	48.5	36.8 24%	43.6 10%	41.7 14%	27.6 43%
Load Maximum *	48.5	36.9 24%	47.7 2%	42 13%	32.8 32%	40.5 16%

* ... smaller is better

Temperature

AC adapter reaches over 37 C when running demanding loads

Surface temperatures are never uncomfortably warm. Unlike on some Beelink models, the NucBox M6 has no grilles on the top surface as it instead draws fresh air through narrow slits along the perimeter. Positioning the unit vertically is safe even though some ventilation grilles will be blocked.

Energy Management — Higher Performance, Higher Consumption

Power Consumption

The system is much more demanding than the NucBox M5 due to the switch to an H-series CPU. Running Witcher 3, for example, would demand 75 percent more power while Prime95 would demand over 2.5x the power. The Ryzen 5 6600H is certainly faster than the Ryzen 7 5700U in the NucBox M5, but performance-per-watt still favors the M5 by wide margins.

We're able to record a maximum draw of 85 W from the medium-sized (~14.5 x 6.4 x 3.2 cm) 120 W AC adapter when the CPU is fully stressed. Note that this adapter is larger than the 65 W AC adapter that ships with the NucBox M5 due to the more demanding processor of the NucBox M6.

Consumption when initiating Prime95 stress would spike to 83 W for about 10 seconds before falling slightly to 79 W

Prime95+FurMark stress initiated at 10s mark

Power Consumption

Off / Standby	1.2 / 1.5 Watt
Idle	7.9 / 8 / 8.3 Watt
Load	61.5 / 84.6 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M6 R5 6600H, Radeon 660M, AirDisk APF 10-512G, , x,	GMK NucBox M5 R7 5700U, Vega 8, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	BOSGAME M1 R7 7840HS, Radeon 780M, , , x,	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		39%	-8%	-15%	43%	0%
Idle Minimum *	7.9	5.9 25%	6.7 15%	7.3 8%	4.4 44%	5.1 35%
Idle Average *	8	6.2 22%	7 12%	7.3 9%	5 37%	5.8 27%
Idle Maximum *	8.3	6.4 23%	7.6 8%	8.4 -1%	5.3 36%	10.2 -23%
Load Average *	61.5	28.2 54%	74.3 -21%	72.7 -18%	29.8 52%	68.1 -11%
Witcher 3 ultra *	47.3	27.5 42%	75 -59%	80.5 -70%	28.8 39%
Load Maximum *	84.6	29.5 65%	85.7 -1%	99.1 -17%	40.4 52%	108.3 -28%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox M6 R5 6600H, Radeon 660M; Witcher 3 ultra: Ø47.3 (45.7-49.8)

GMK NucBox M5 R7 5700U, Vega 8; Witcher 3 ultra: Ø27.5 (26.7-28.1)

GMK NucBox M6 R5 6600H, Radeon 660M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø80 (77.6-84.6)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø27.7 (27.4-29.5)

Power Consumption external Monitor

GMK NucBox M6 R5 6600H, Radeon 660M; Prime95 V2810 Stress (external Monitor): Ø78.3 (76.1-82.8)

GMK NucBox M5 R7 5700U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø27.6 (27.3-28)

GMK NucBox M6 R5 6600H, Radeon 660M; Cinebench R15 Multi (external Monitor): Ø75.1 (57.8-78.5)

GMK NucBox M5 R7 5700U, Vega 8; Cinebench R15 Multi (external Monitor): Ø25.6 (25-25.9)

GMK NucBox M6 R5 6600H, Radeon 660M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.7 (52.9-56.1)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø30.1 (29.6-30.5)

GMK NucBox M6 R5 6600H, Radeon 660M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø47.3 (45.7-49.8)

GMK NucBox M5 R7 5700U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø27.5 (26.7-28.1)

GMK NucBox M6 R5 6600H, Radeon 660M; Idle 1min (external Monitor): Ø8.08 (7.75-13.6)

GMK NucBox M5 R7 5700U, Vega 8; Idle 1min (external Monitor): Ø6.26 (6.02-7.71)

Pros

+ supports 2x M.2 SSDs + 2x DDR5 RAM modules

+ small and compact

+ easy serviceability

+ inexpensive

Cons

- DPC issues with imperfect 4K60 video playback

- only one USB-C port with no USB4 support

- very loud under load

- aging iGPU

Verdict — Great Value For The Price And Size

Much like the rest of the lineup, the NucBox M6 knocks it out of the park when it comes to performance-per-dollar. The Ryzen 5 6600H runs laps around any Core i3 or Celeron option commonly found in the sub $300 price range. HTPC users who want to maximize performance without breaking the bank will want to consider the NucBox M5.

The GMKtec NucBox M6 is all about value without settling for slower U-series CPUs from the Core i3 or Celeron families. Fan noise, however, can be on the louder side for a mini PC.

There are a few drawbacks including the lack of USB4 support and the louder fan noise associated with the faster H-series CPU. Wi-Fi 6E compatibility, while nice to have, may exhibit performance issues and the same can be said when playing 4K video content at 60 FPS. The latter issues in particular may show a lack of care to the smaller details of the model. For the target audience of home users and basic HTPC streaming tasks, however, most will be more likely to notice the fan noise than anything else.

Price and Availability

The NucBox M6 is now shipping directly from the manufacturer for $230 as a barebones kit or for $300 with 16 GB RAM, 512 GB SSD, and Windows 11 Pro. The model is also available on Amazon for higher starting prices.

Note: We have recently updated our rating system and the results of version 8 are not comparable with the results of version 7. More information is available here .

GMK NucBox M6 - 07/04/2024 v8
Allen Ngo

Chassis

82 / 98 → 84%

Connectivity

56 / 81 → 69%

Weight

83%

Games Performance

32 / 80 → 40%

Application Performance

78 / 92 → 85%

Noise

69%

Average

43%

64%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
0%

Power Use
69.8%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 22%

Price comparison

Read all 1 comments / answer

Loading Comments

Comment on this article

Allen Ngo - Lead Editor U.S. - 5339 articles published on Notebookcheck since 2011

After graduating with a B.S. in environmental hydrodynamics from the University of California, I studied reactor physics to become licensed by the U.S. NRC to operate nuclear reactors. There's a striking level of appreciation you gain for everyday consumer electronics after working with modern nuclear reactivity systems astonishingly powered by computers from the 80s. When I'm not managing day-to-day activities and US review articles on Notebookcheck, you can catch me following the eSports scene and the latest gaming news.

contact me via: @AllenNgoNBC

Please share our article, every link counts!
