Intel NUC 13 Pro Kit aka Arena Canyon review: Modern mini-PC with Intel Core i7-1360P for demanding applications
The Intel NUC 13 Pro Kit is a very compact mini-PC that provides excellent connectivity. The company offers two models under the "Arena Canyon" code name: a slim and a tall variant. The physically taller model (with "Tall" in its name) can house an additional 2.5-inch drive in its chassis. Our review unit is the slim variant, which can only hold up to two storage devices and is roughly €100 (US$109) cheaper.
With the new Arena Canyon lineup, Intel is largely just doing a product refresh by updating its NUC range with the latest Raptor Lake-P CPUs. The NUC mini-PC in this review features an Intel Core i7-1360P, an extremely powerful CPU with 12 cores and 16 threads. Our review unit already comes with a whopping 32 GB of DDR4 RAM, but you can upgrade it to 64 GB. This model also ships with a 512 GB SSD as well as Windows 11 Professional, the latest version of the OS at the time of this review.
Comparison with possible competitors
Rating | Date | Model | Weight | Height | Best Price |
---|---|---|---|---|---|
80.8 % | 04/2023 | Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | 538 g | 37 mm | |
78.9 % | 11/2022 | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | 511 g | 37 mm | |
85.5 % | 03/2023 | Morefine M600, 6900HX R9 6900HX, Radeon 680M | 779 g | 40.6 mm | |
85.1 % | 01/2023 | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | 1.2 kg | 66 mm | |
79.5 % | 02/2023 | Minisforum Mars Series MC560 R5 5600U, Vega 7 | 562 g | 66 mm | |
09/2022 | Minipc Union Ace Magician AMR5 R5 5600U, Vega 7 | 628 g | 72 mm | ||
09/2022 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | 586 g | 53 mm |
Detailed look at Intel NUC 13 Pro Kit
Case

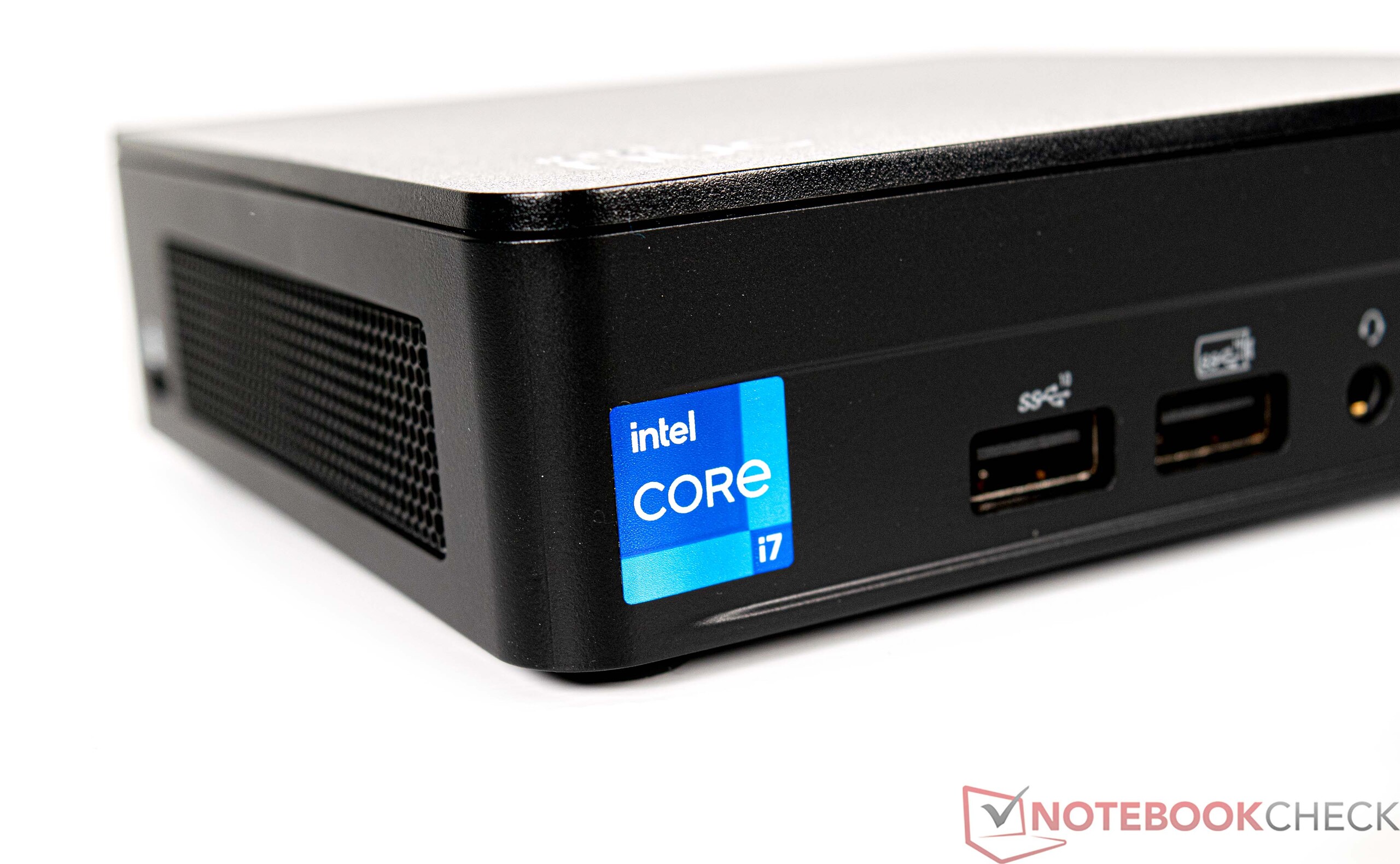

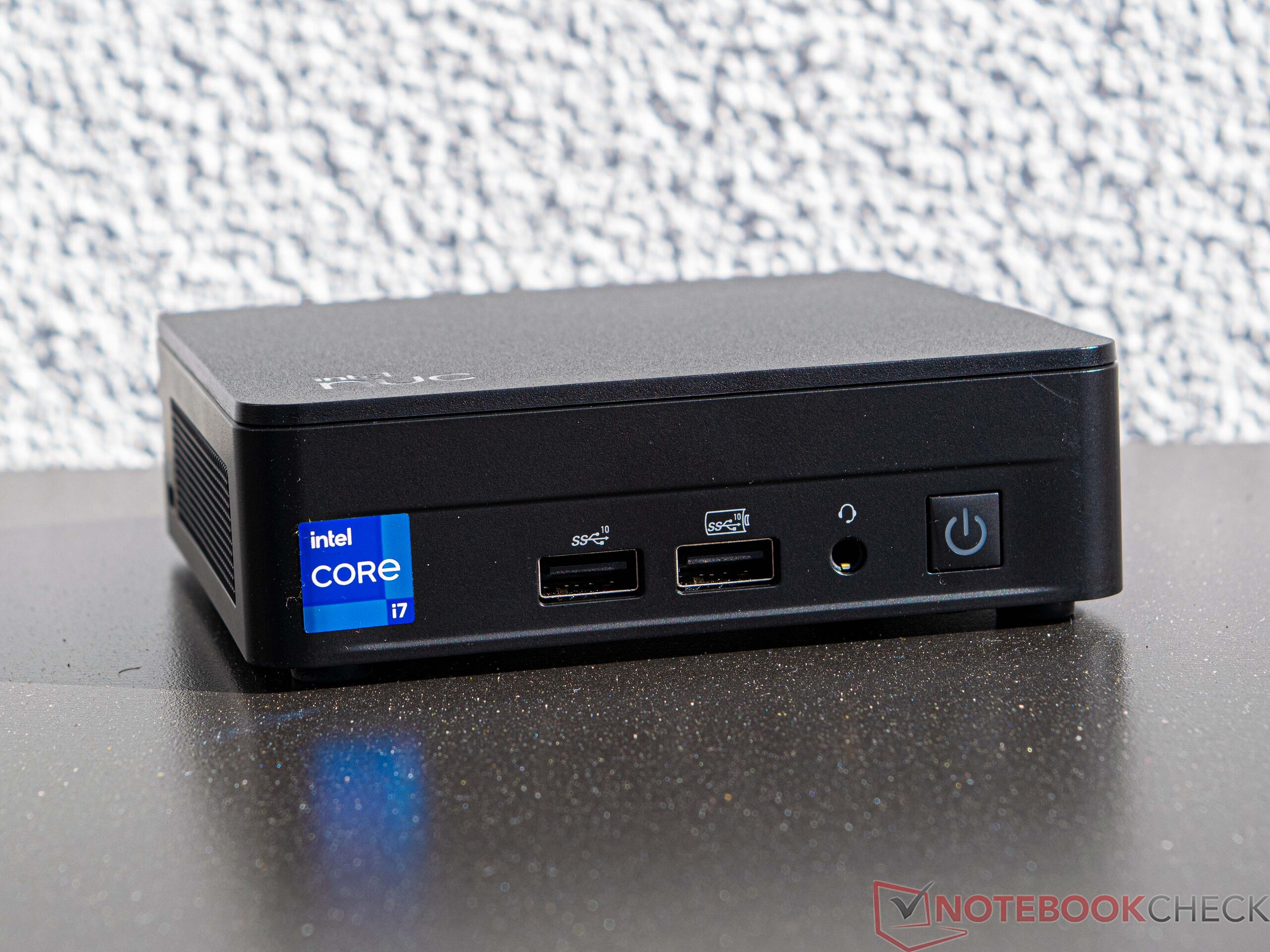

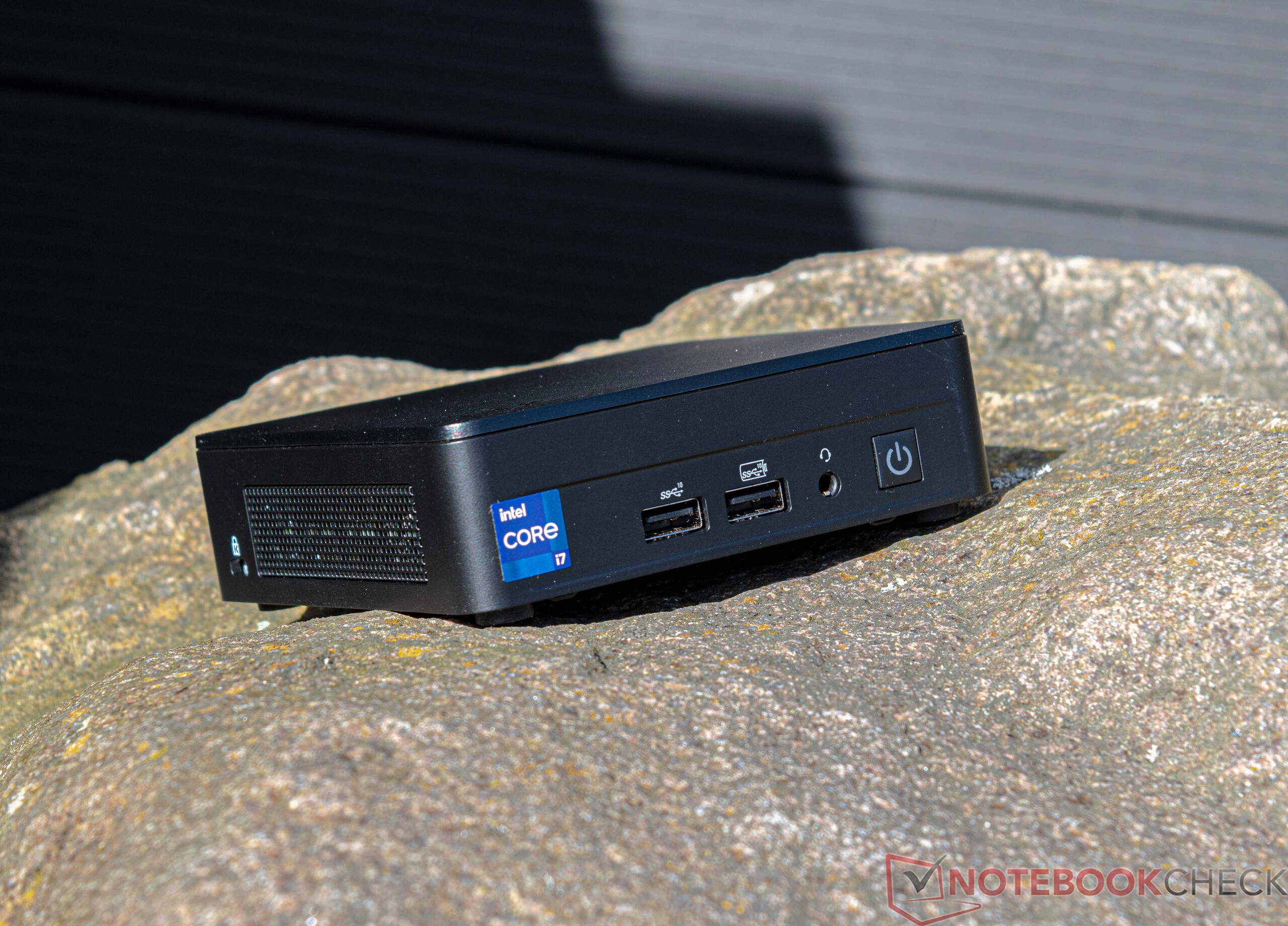

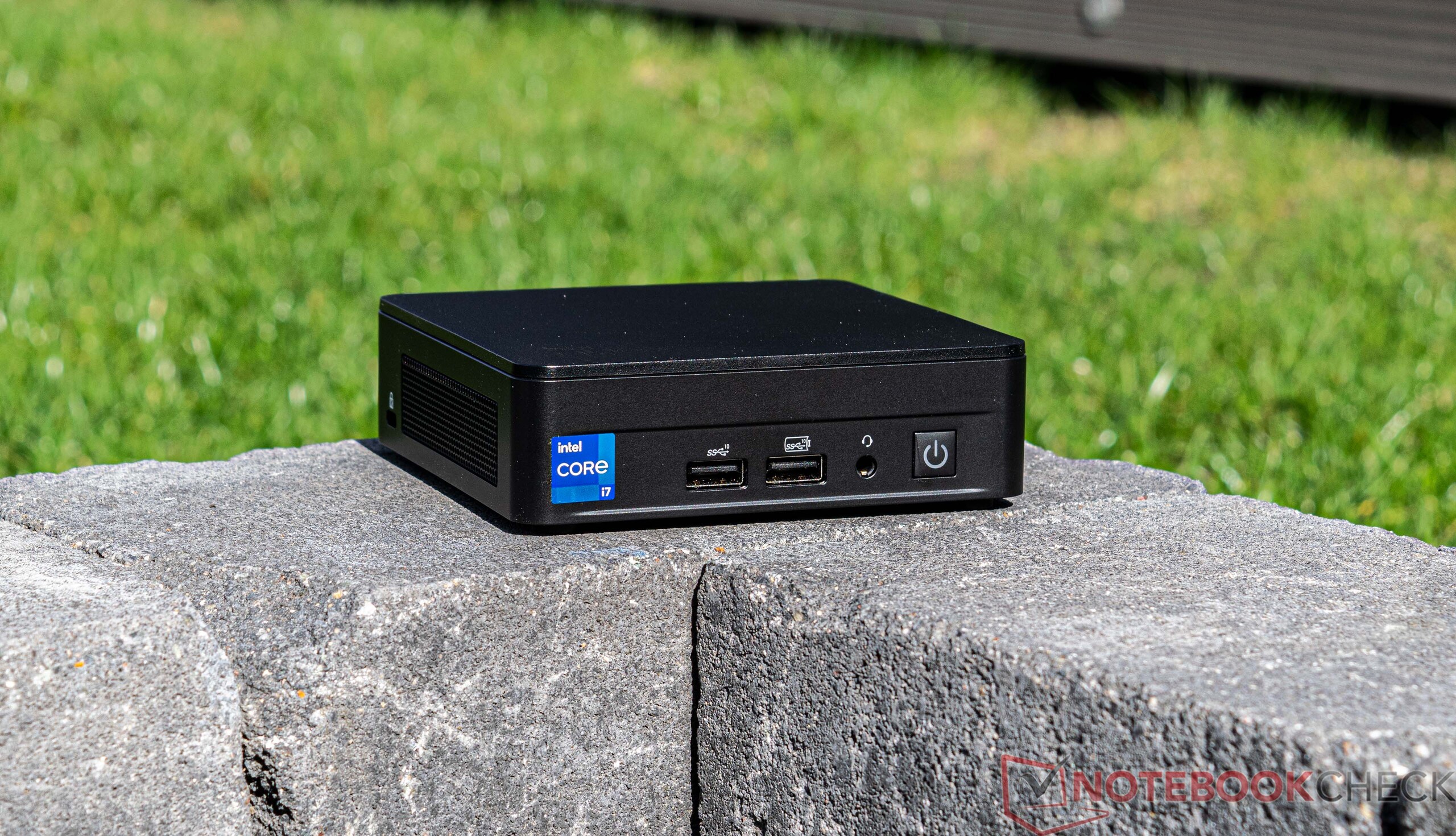

The Arena Canyon NUC looks very similar to its Wall Street Canyon counterpart. The slim variant we are reviewing is fairly thin at 37 mm (1.46") and occupies 11.7 x 11.2 cm (4.6 x 4.4") of desk space. If this sounds familiar, it is because the Intel NUC 12 Pro Kit has the exact same physical dimensions. The Intel NUC mini-PCs are considerably more compact than some of the other devices in our comparison.

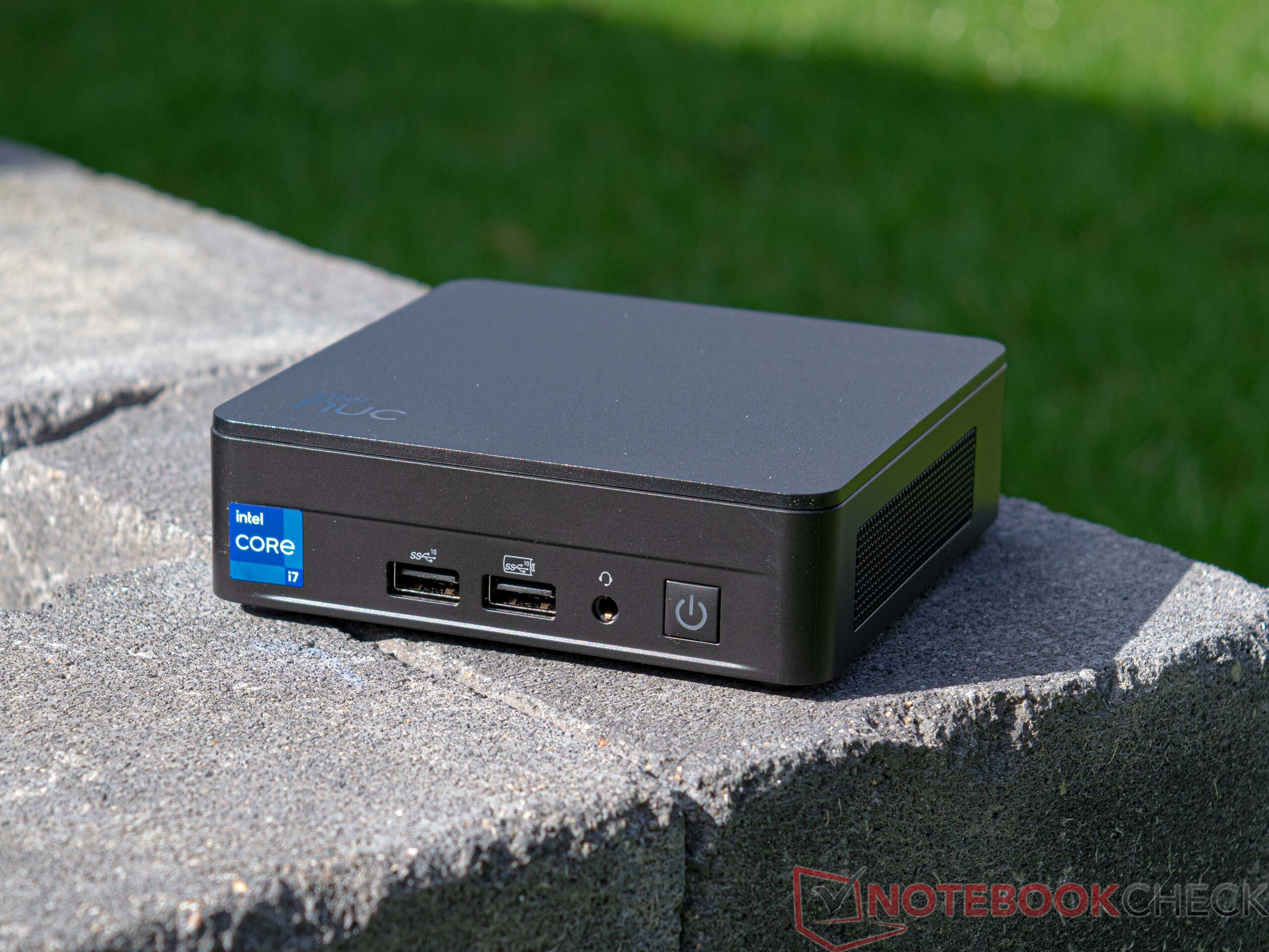

The device has quite an unassuming appearance, and you'll also have to put up with its plastic construction. Nevertheless, there is a robust metal frame inside the Intel NUC 13 Pro Kit that significantly enhances the unit's overall sturdiness. That said, we do hope that Intel would switch to using an all-metal chassis in future. One more thing to mention is that you can attach the Intel NUC 13 Pro Kit to the back of a monitor using the included VESA mount.

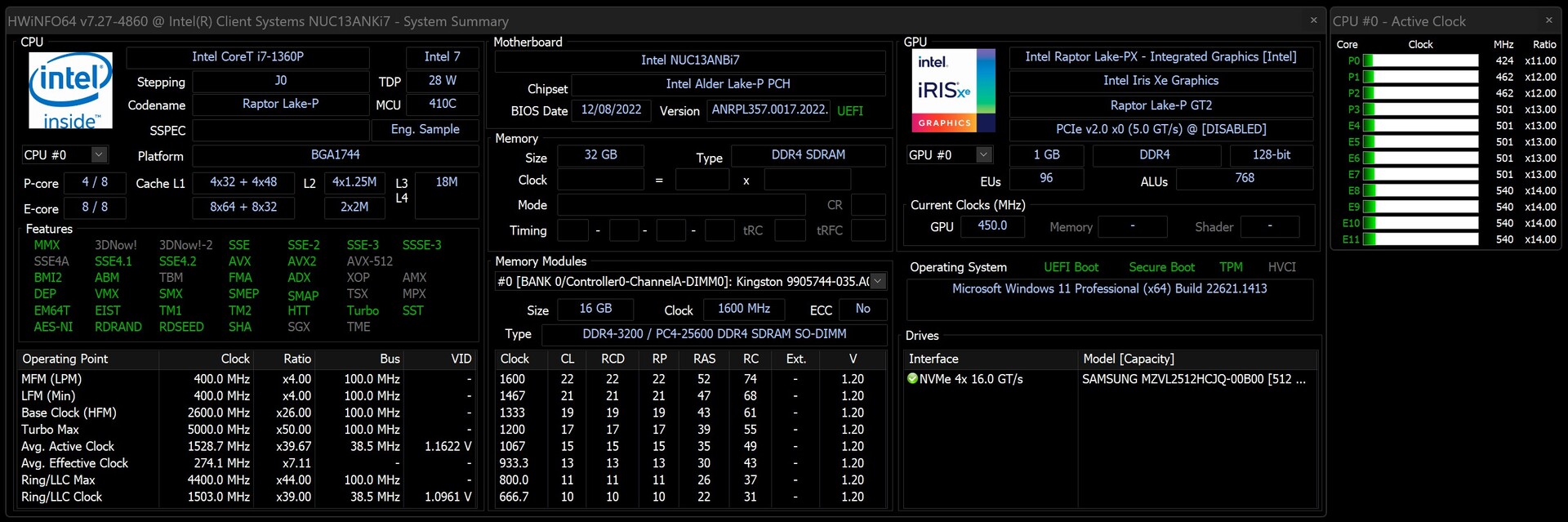

Specifications

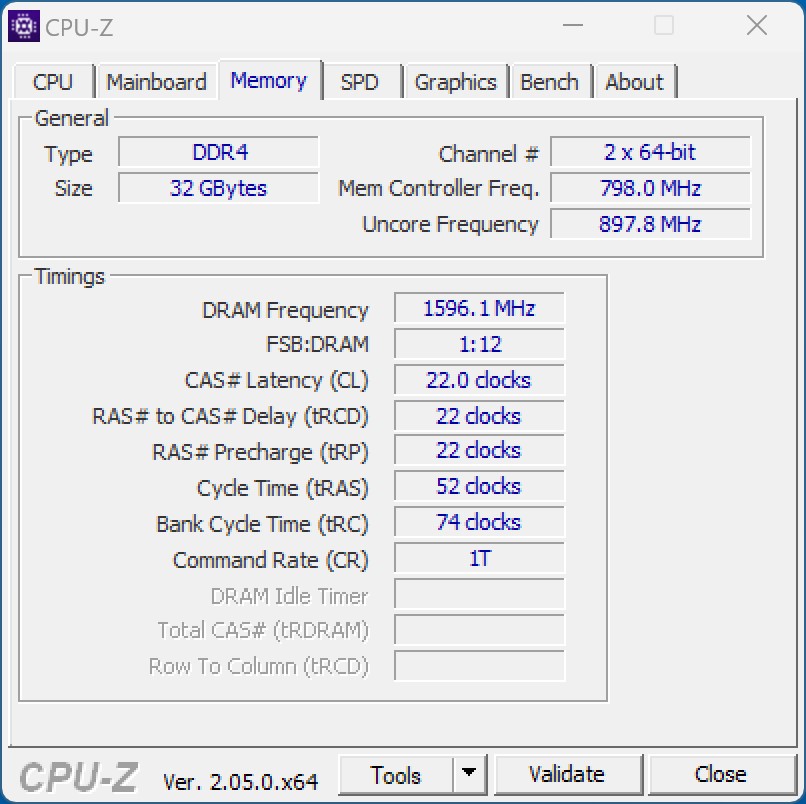

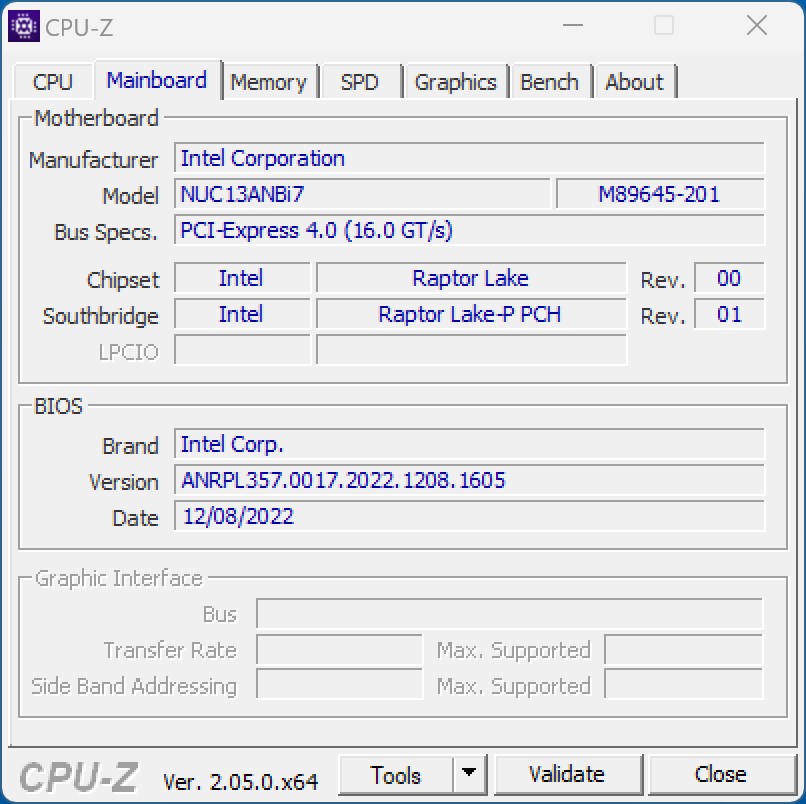

As previously mentioned, the Intel NUC 13 Pro Kit shares the same design and dimensions as its predecessor. The same also applies to the port selection. There are once again a plethora of USB ports, including two Thunderbolt ports. The device can connect to monitors via HDMI or Thunderbolt and also comes with a 2.5G network port.

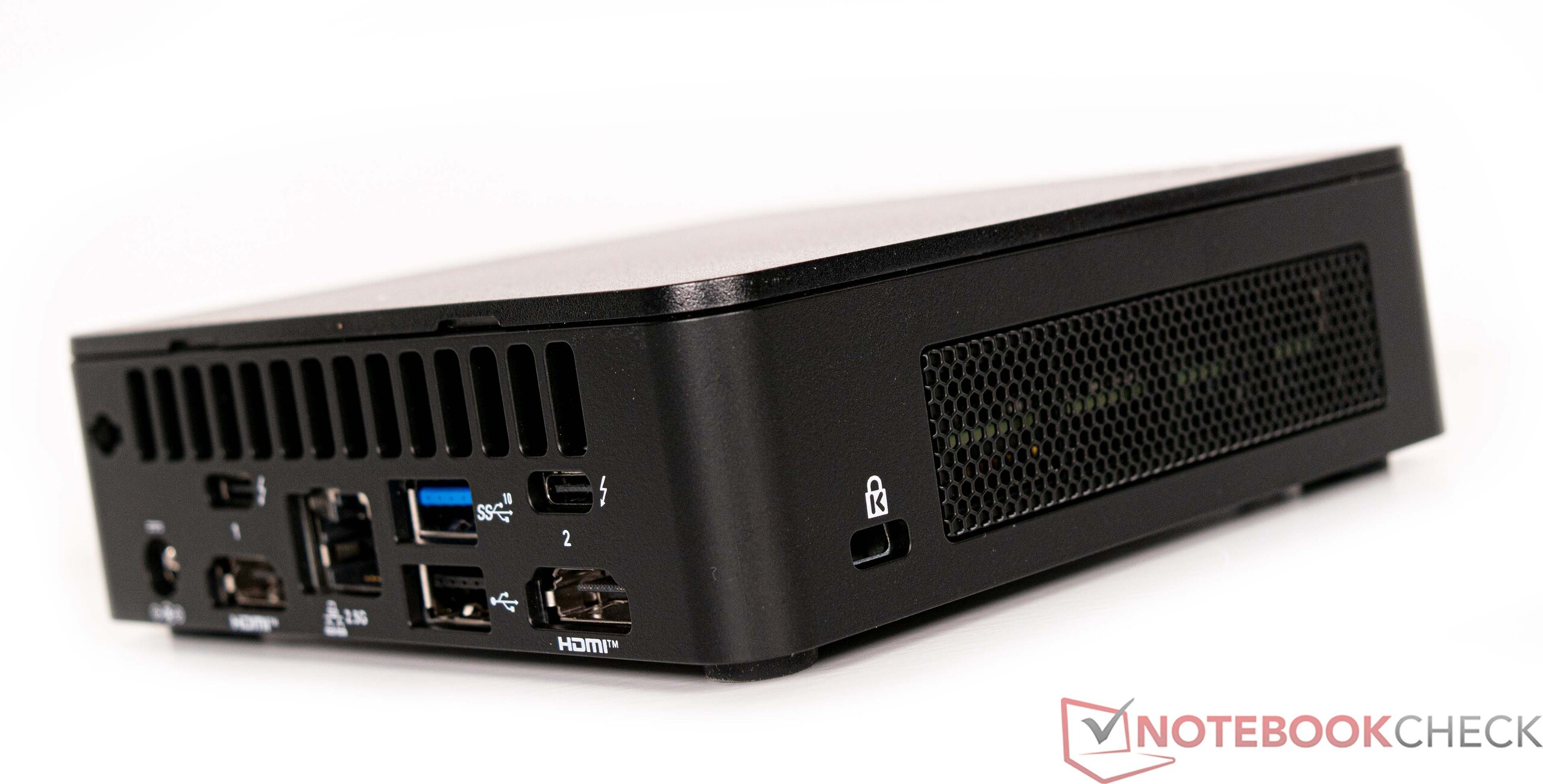

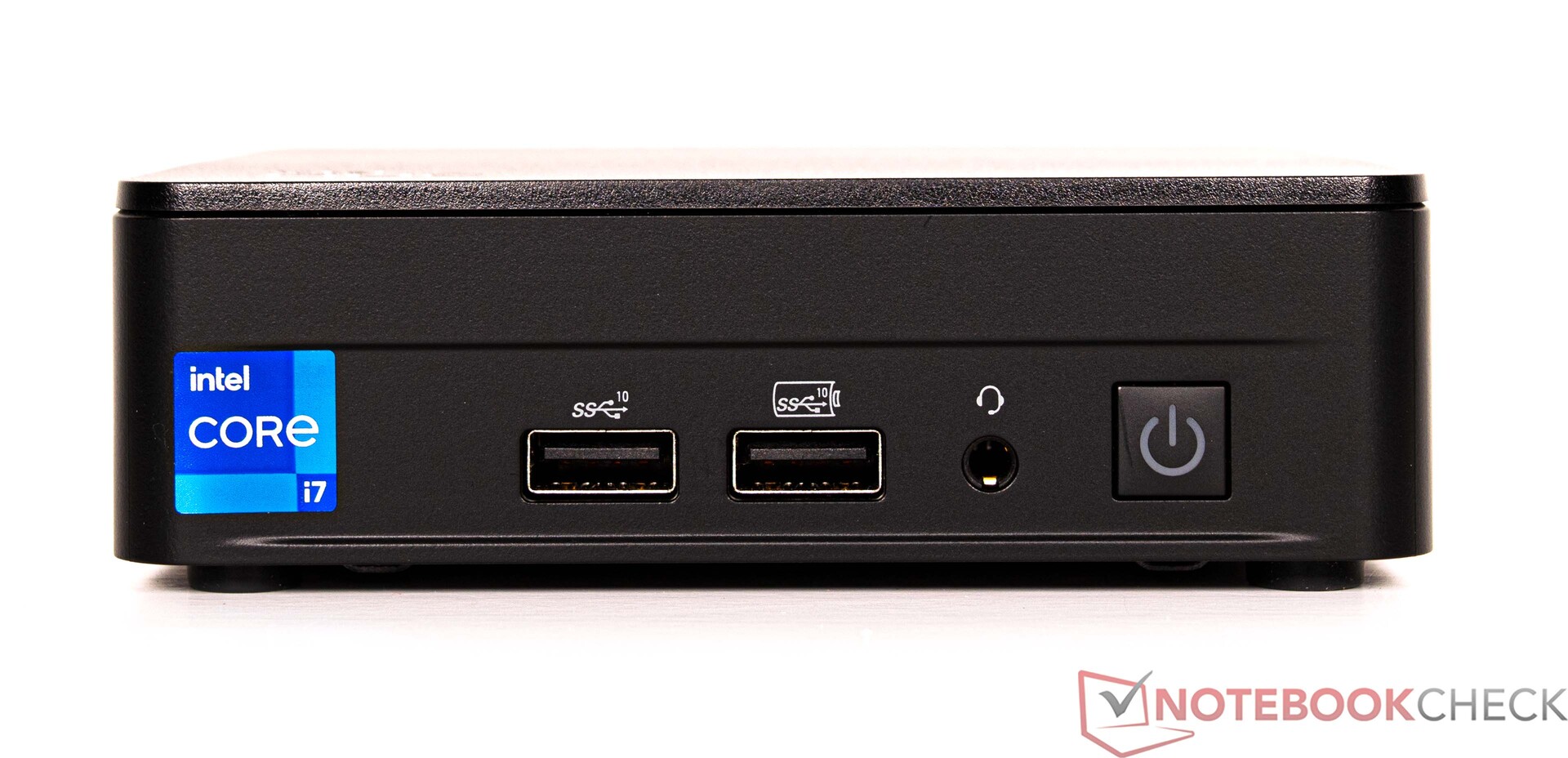

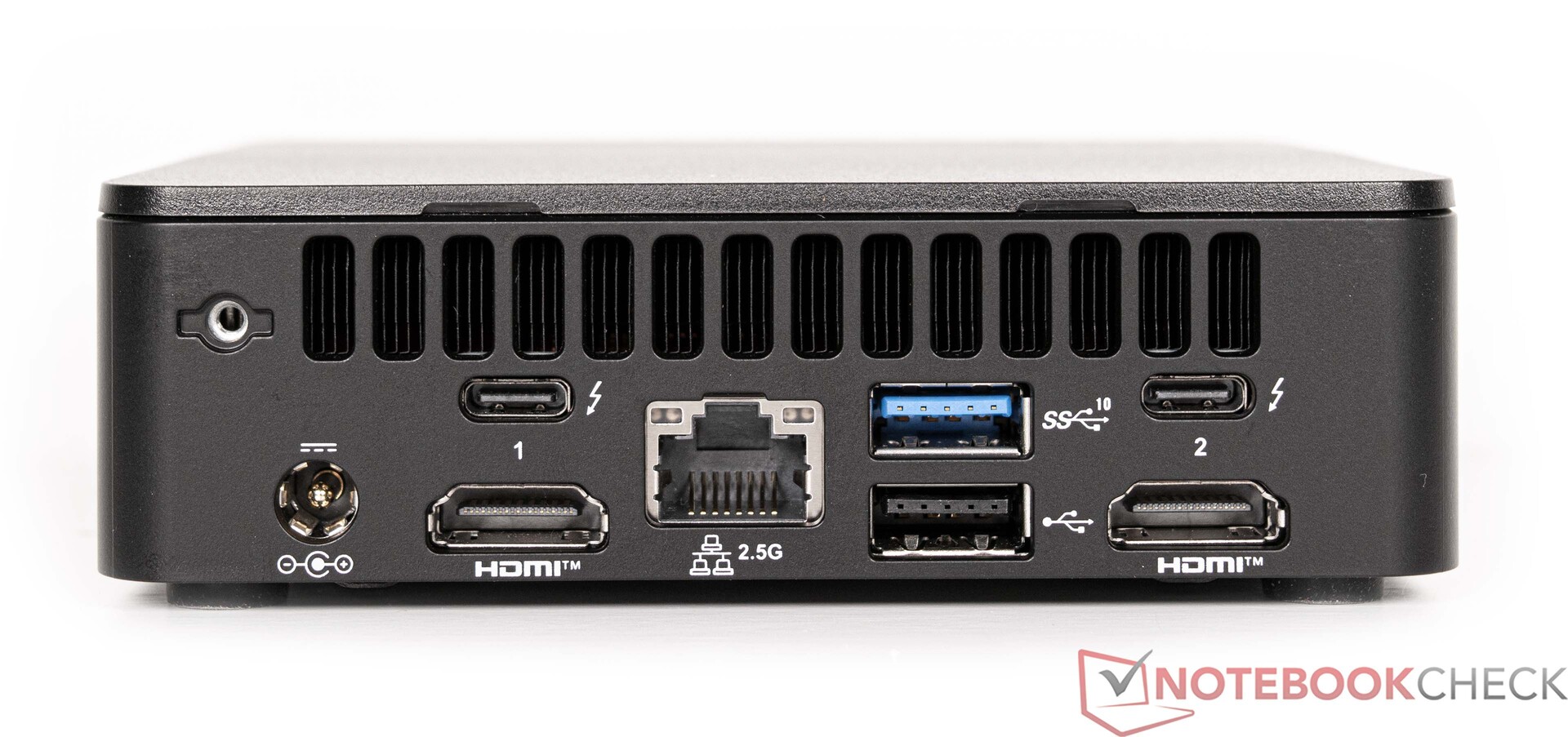

Connectivity
Intel has equipped the NUC 13 Pro Kit with the same Wi-Fi 6E AX211 module found on the NUC 12 Pro Kit. In our testing, we saw excellent and stable data transfer rates when the device was connected to a 6GHz network. Our measurements show that the device delivers low transfer speeds if you only have access to a 5GHz connection for technical reasons. That said, the speeds we measured are still very stable and good enough for everyday use. This Wi-Fi test was carried with our reference router, the ASUS ROG Rapture GT-AXE11000.

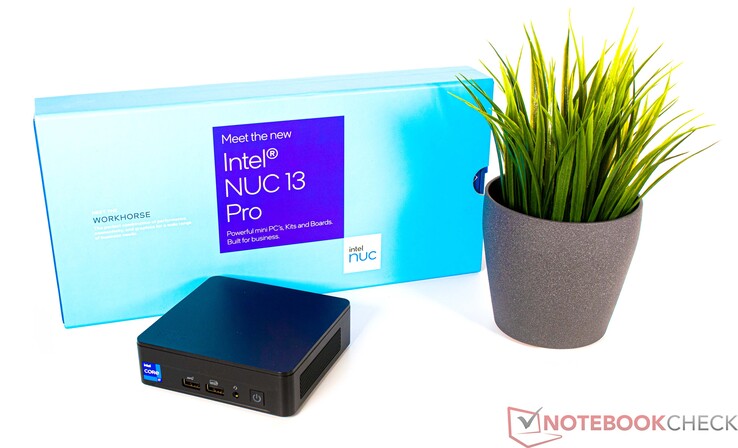

Accessories
Inside the box, you'll find a 120-watt power supply and a VESA mount plate alongside the mini-PC itself.
Maintenance

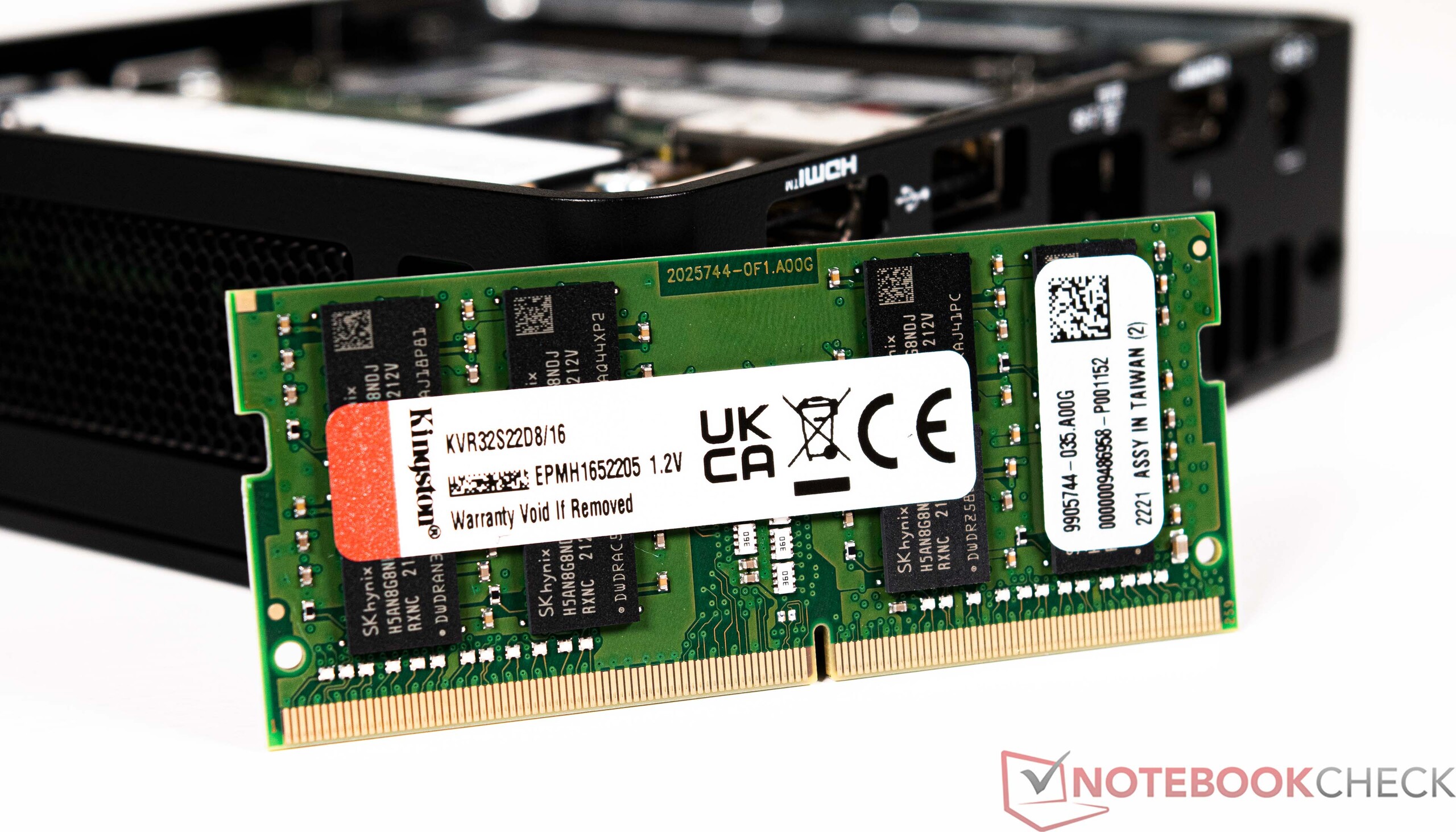

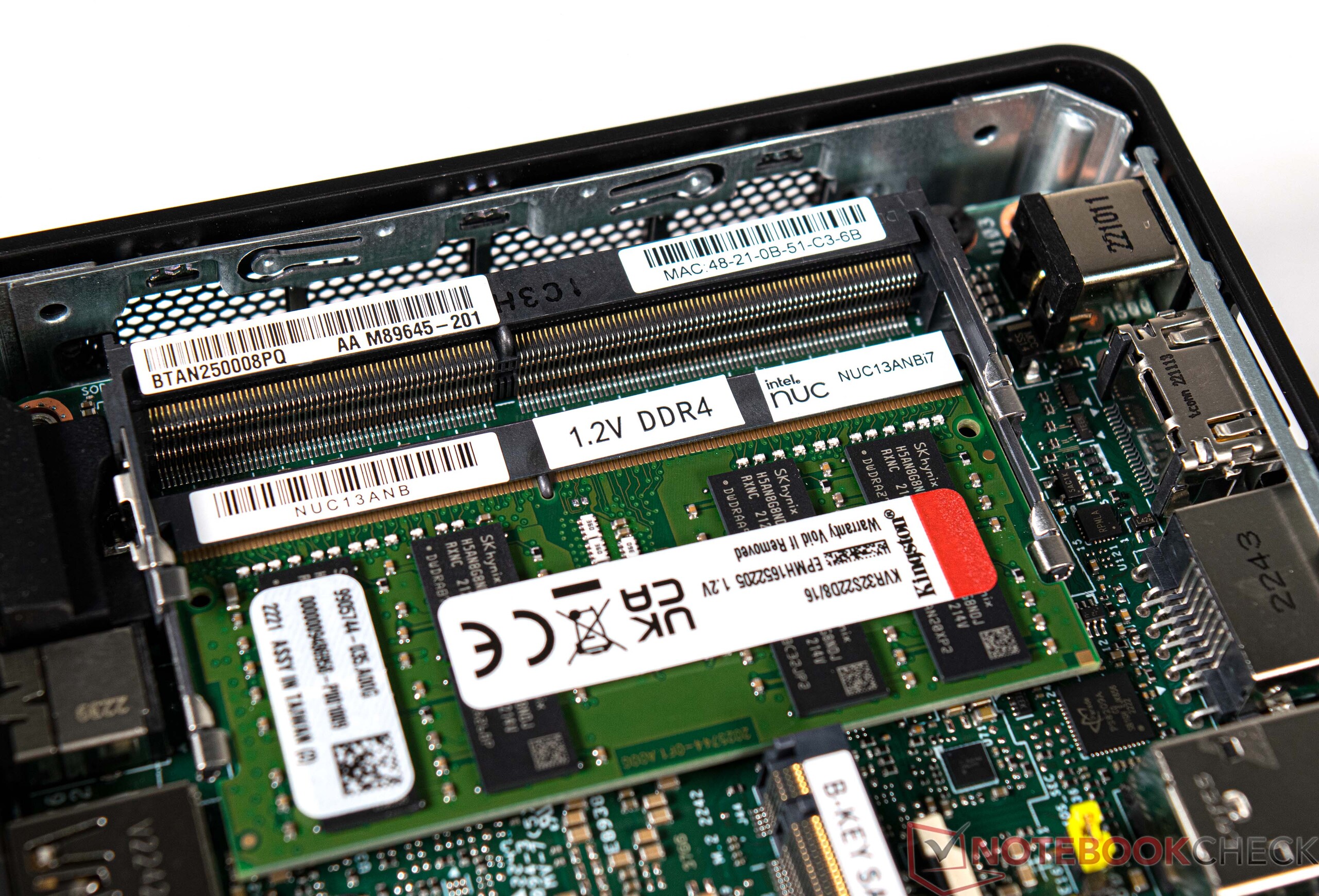

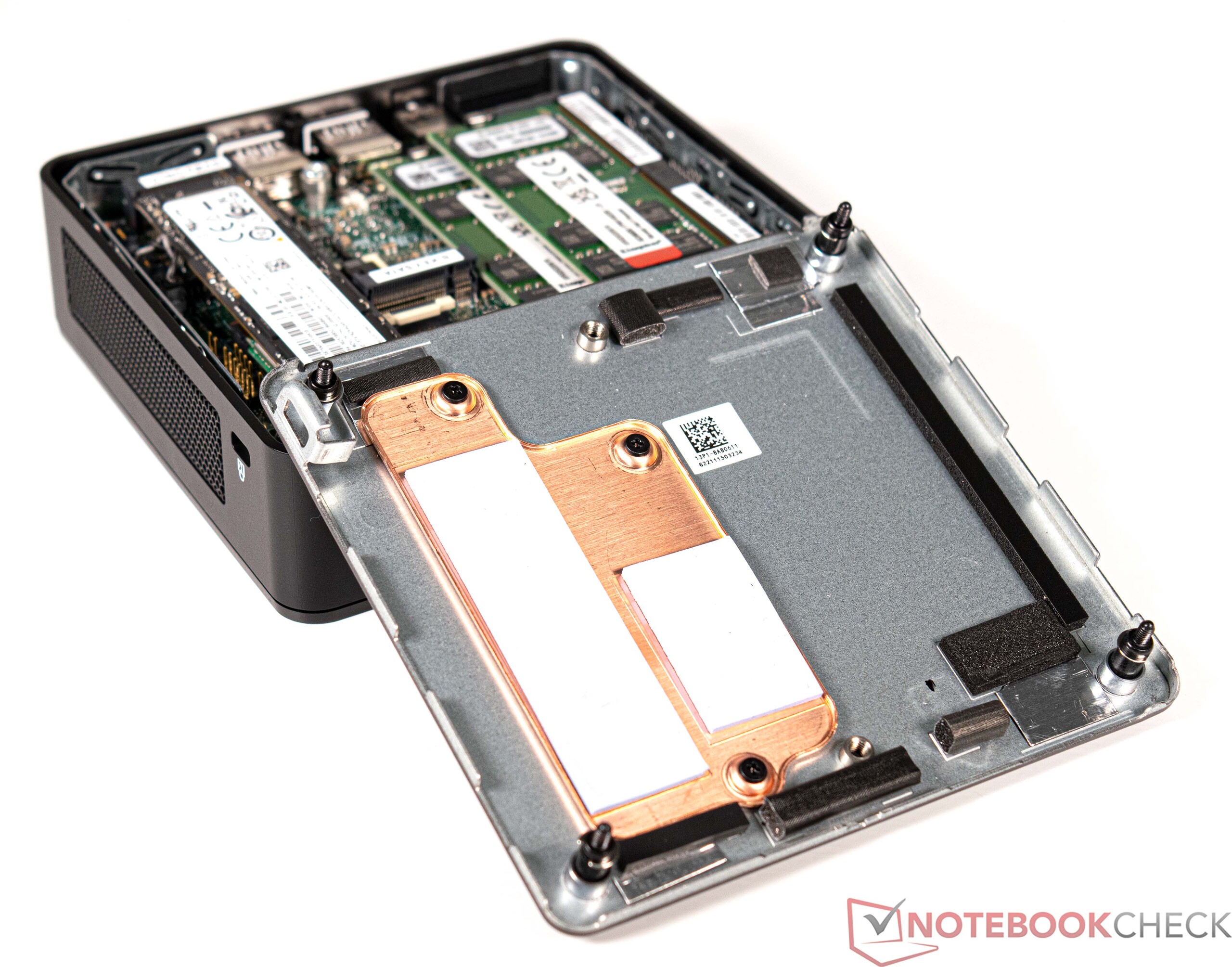

The Intel NUC 13 Pro Kit relatively easy to open. The bottom cover, which also helps dissipate heat from the SSD, is held in place by four screws. Removing the bottom cover will grant you very convenient access to the RAM and SSD slots underneath.
Performance - Core i7 with 12 cores and 16 threads
Judging by the Core i7-1360P, we expect the NUC 13 Pro Kit to have similar great performance to a NUC 12 Pro Kit with a Core i7-1260P. With 12 cores and 16 threads at its disposal, the NUC 13 Pro offers enough performance to handle all kinds of demanding tasks.
Test conditions
All performance-related tests were carried out in "Balanced" power mode. We didn't make any modifications to the SoC's performance and left it in the default Auto mode in the BIOS settings.

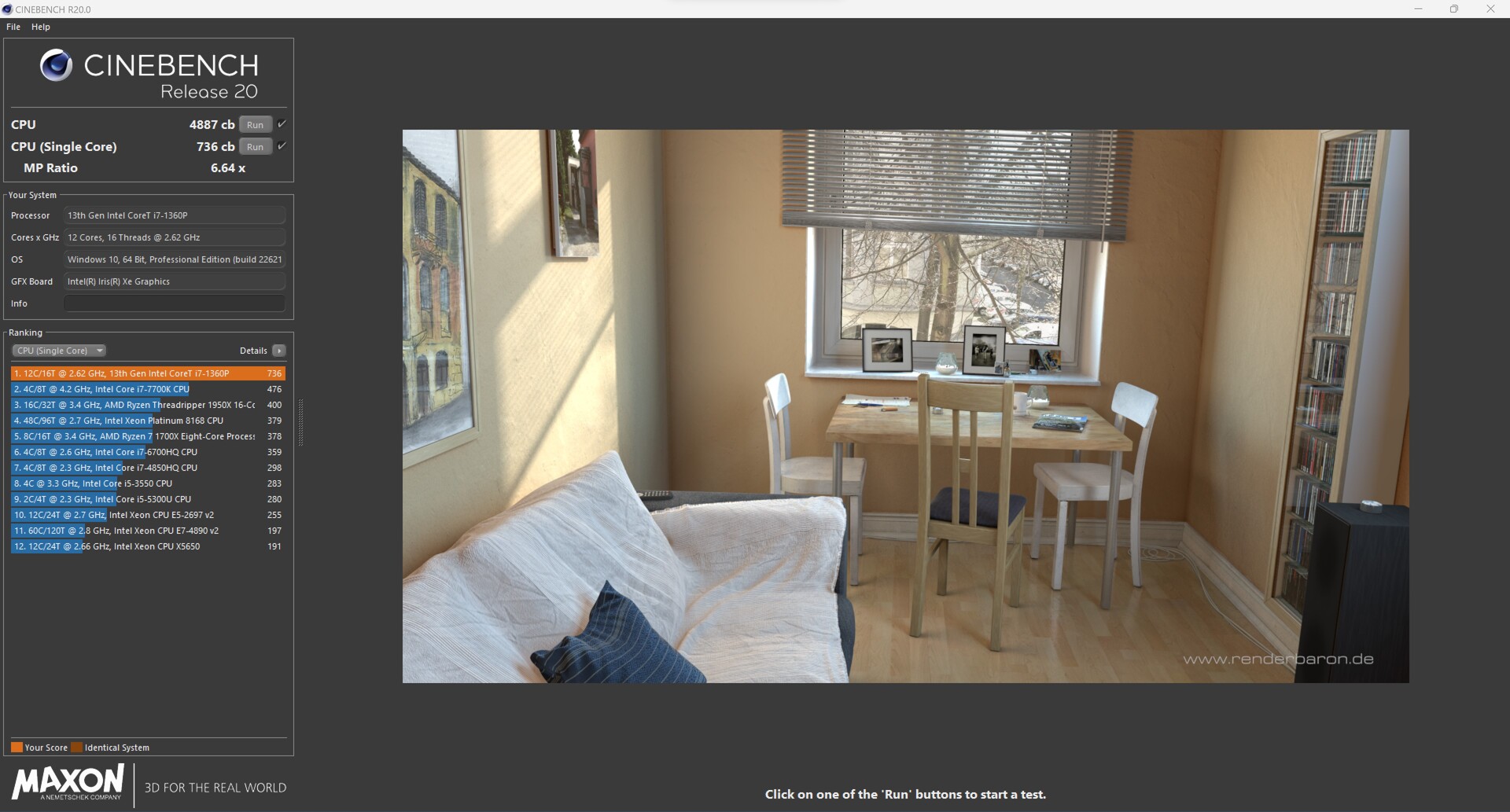

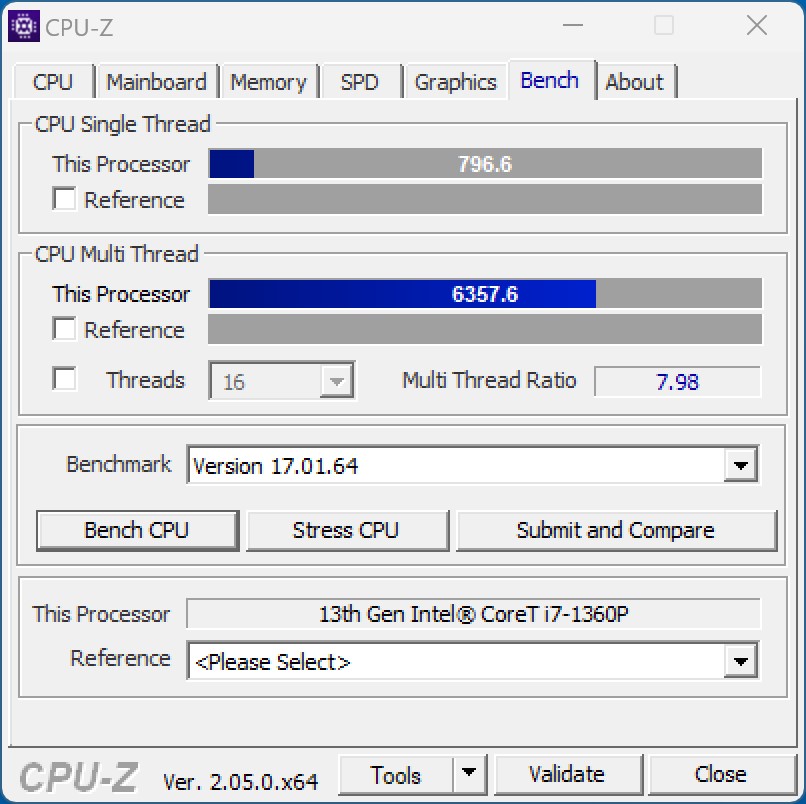

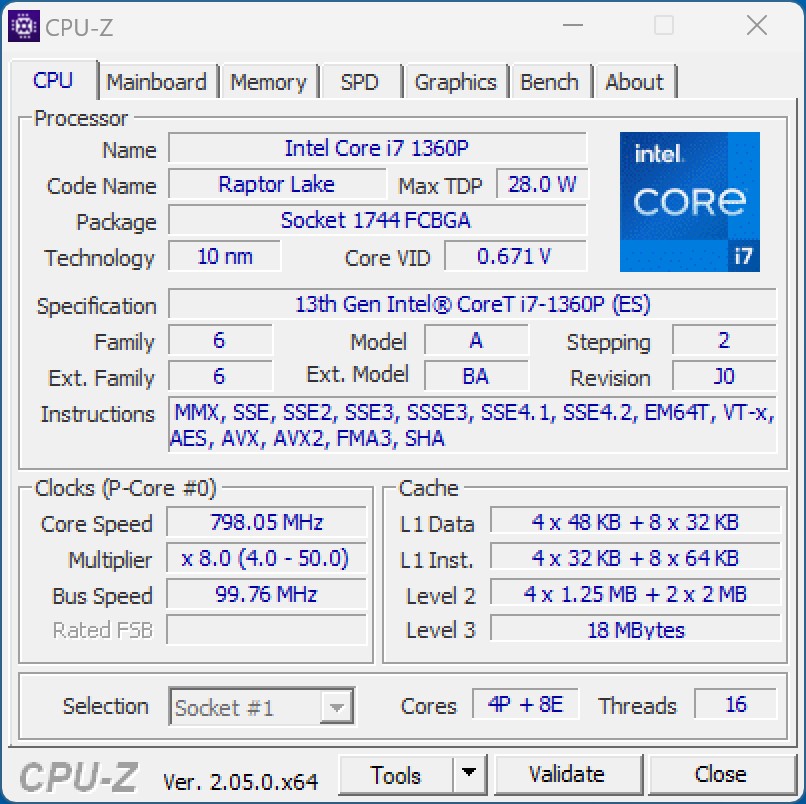

Processor

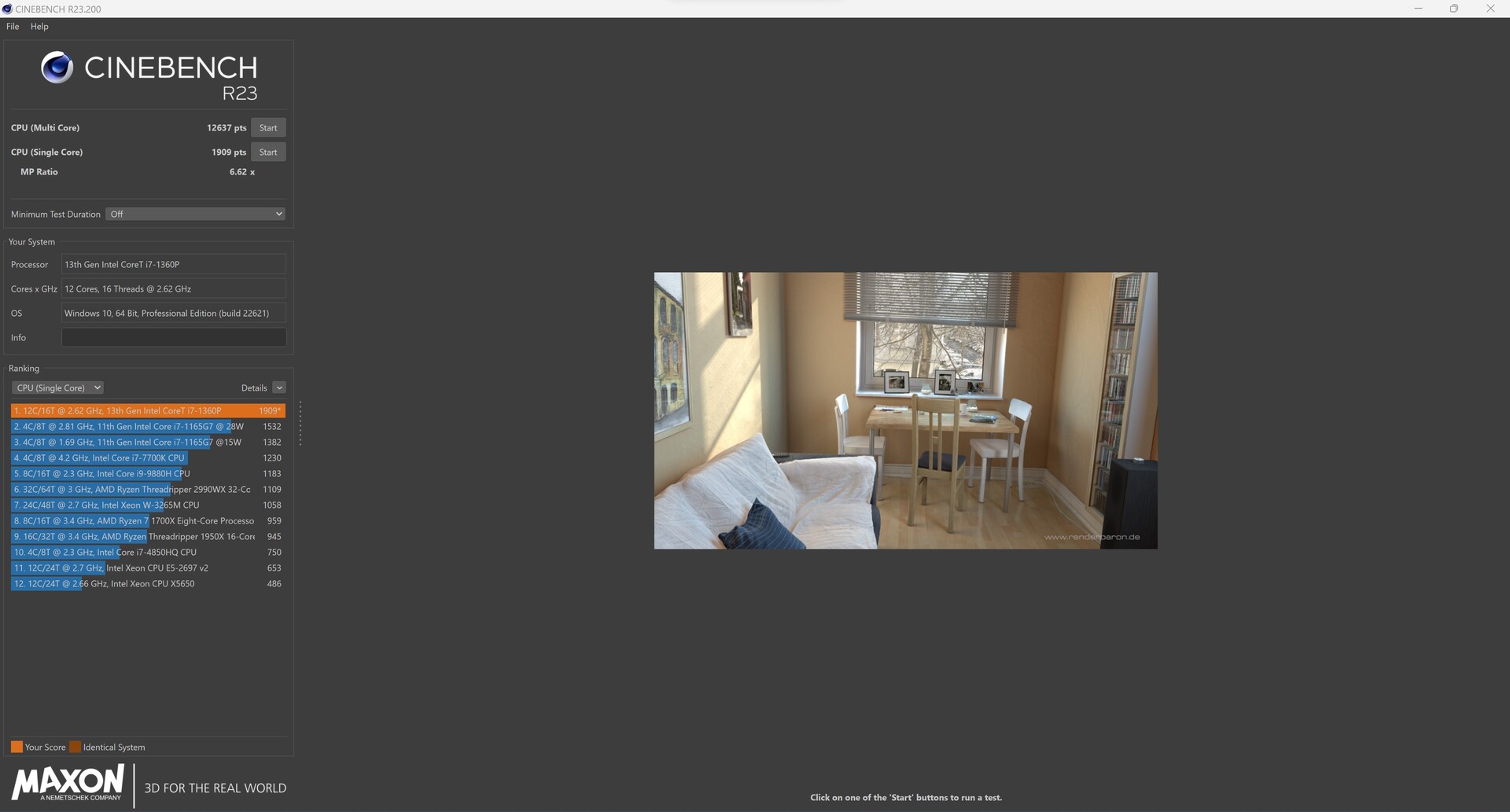

Although the Core i7-1360P in the NUC 13 Pro Kit is a cutting-edge SoC, its improvements over the Core i7-1260P are pretty modest. Essentially, the new CPU's base clock has been increased by 100MHz to 1.6GHz. The processor is nonetheless capable of boosting up to 5.0GHz, which corresponds to a gain of 300MHz. There are no major changes to the architecture in terms of its cache. Consequently, whilst we did see great benchmark results similar to those from the Core i7-1260P, the gap in overall performance rating is minuscule at just 3%. Power management likewise hasn't changed at all; the Core i7-1360P has a max short-term power draw of 64 watts (PL2) and a long-term power draw of 40 watts (PL1) – just like its predecessor.
The Intel NUC 13 Pro Kit performed somewhat better than its predecessor as well as the other devices in our comparison. But it also goes to show how close these competing devices are to each other. An example to illustrate this point would be the comparison with the Minisforum Neptune Series NAD9, which features a Core i9-12900H (14 native cores and 20 thread) and came in second in our performance ranking.
Please refer to our CPU comparison table for more information and benchmarks.
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Intel NUC 13 Pro Kit - Arena Canyon vs. Cinebench R15 Multi loop

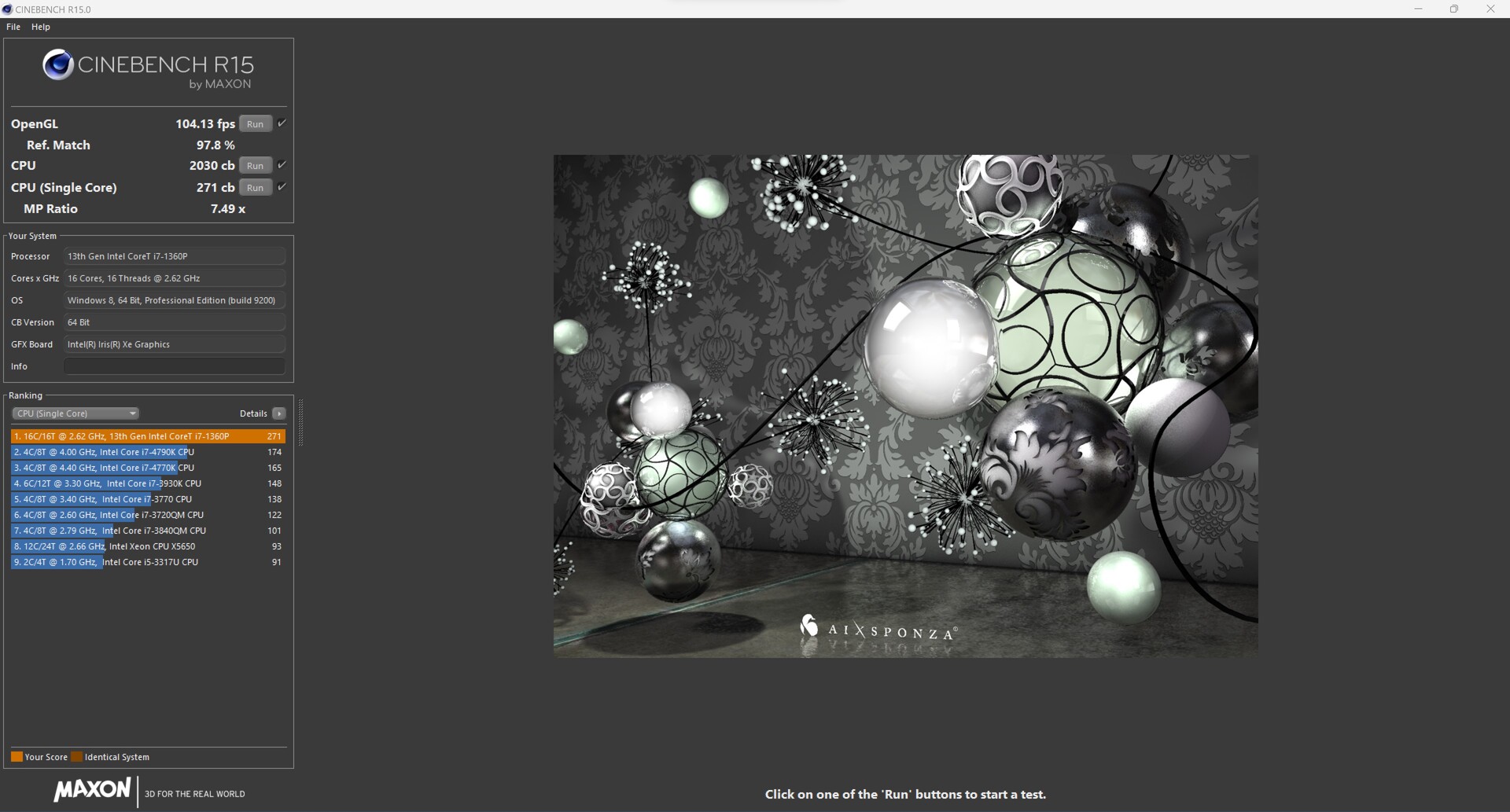

Running Cinebench R15 in a loop gave us an initial clue as to the effectiveness of the built-in cooling solution. After the third run, our review unit settled down at a relatively consistent performance level, receiving an average score of 1,825 over the course of 50 runs. By comparison, the Intel NUC 12 Pro Kit completed the same test with a final score of 1,702. The performance of both devices dropped substantially after the first run because of their cooling unit and their power management in connection with PL2.
System performance
In system performance-related synthetic benchmarks, the Intel NUC 13 Pro Kit was able to keep up the good performance seen during CPU benchmarks. That said, it didn't manage to come in first in some of the tests. The Minisforum Neptune NAD9 and Morefine M600 achieved better results in some cases. The latter has a significant edge in AIDA64 benchmarks thanks to its faster DDR5 memory. Nevertheless, the Intel NUC 13 Pro Kit is still a very respectable piece of hardware that showed great performance in our testing and is capable of handling day-to-day tasks.
* ... smaller is better
DPC latency

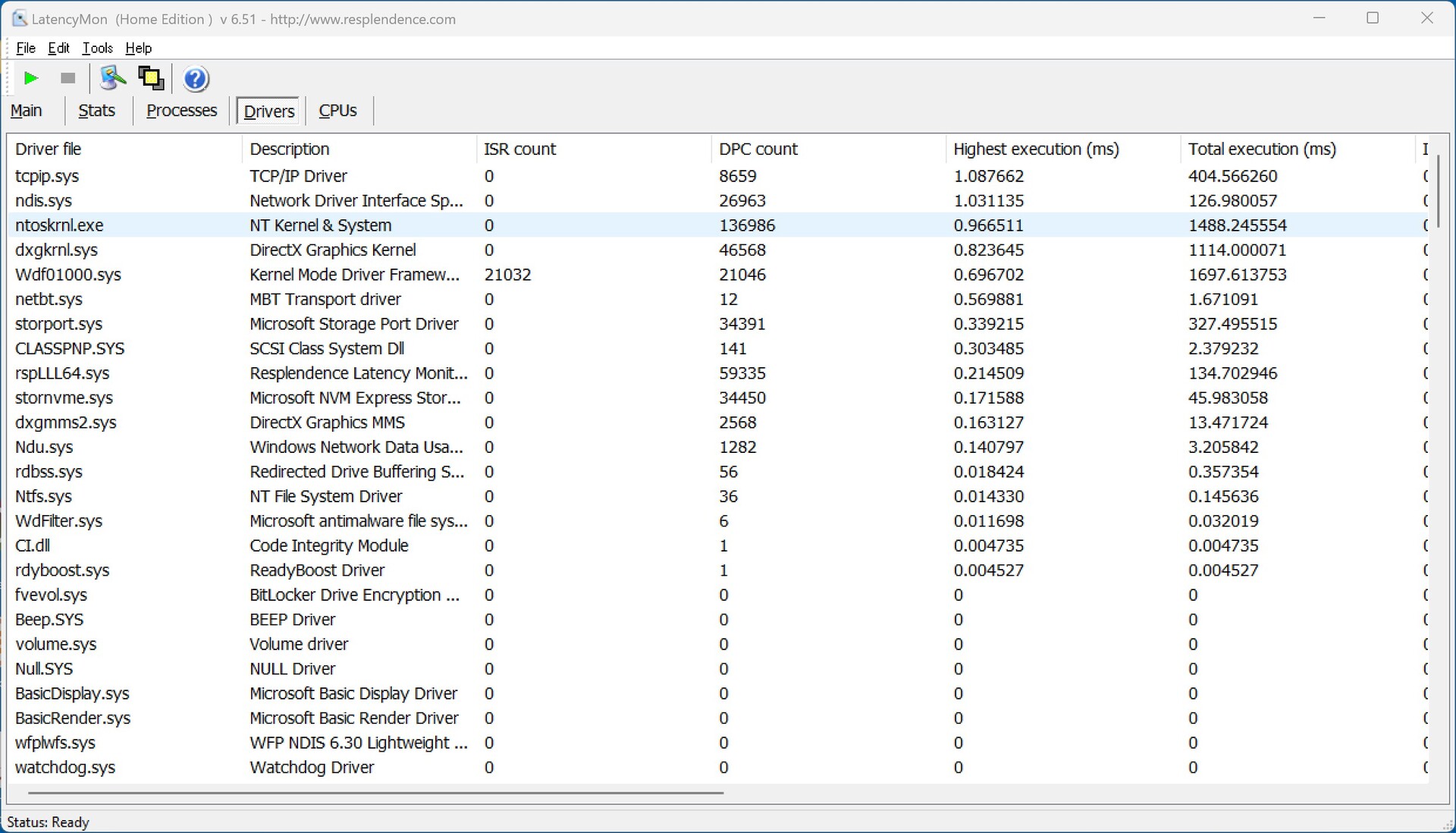

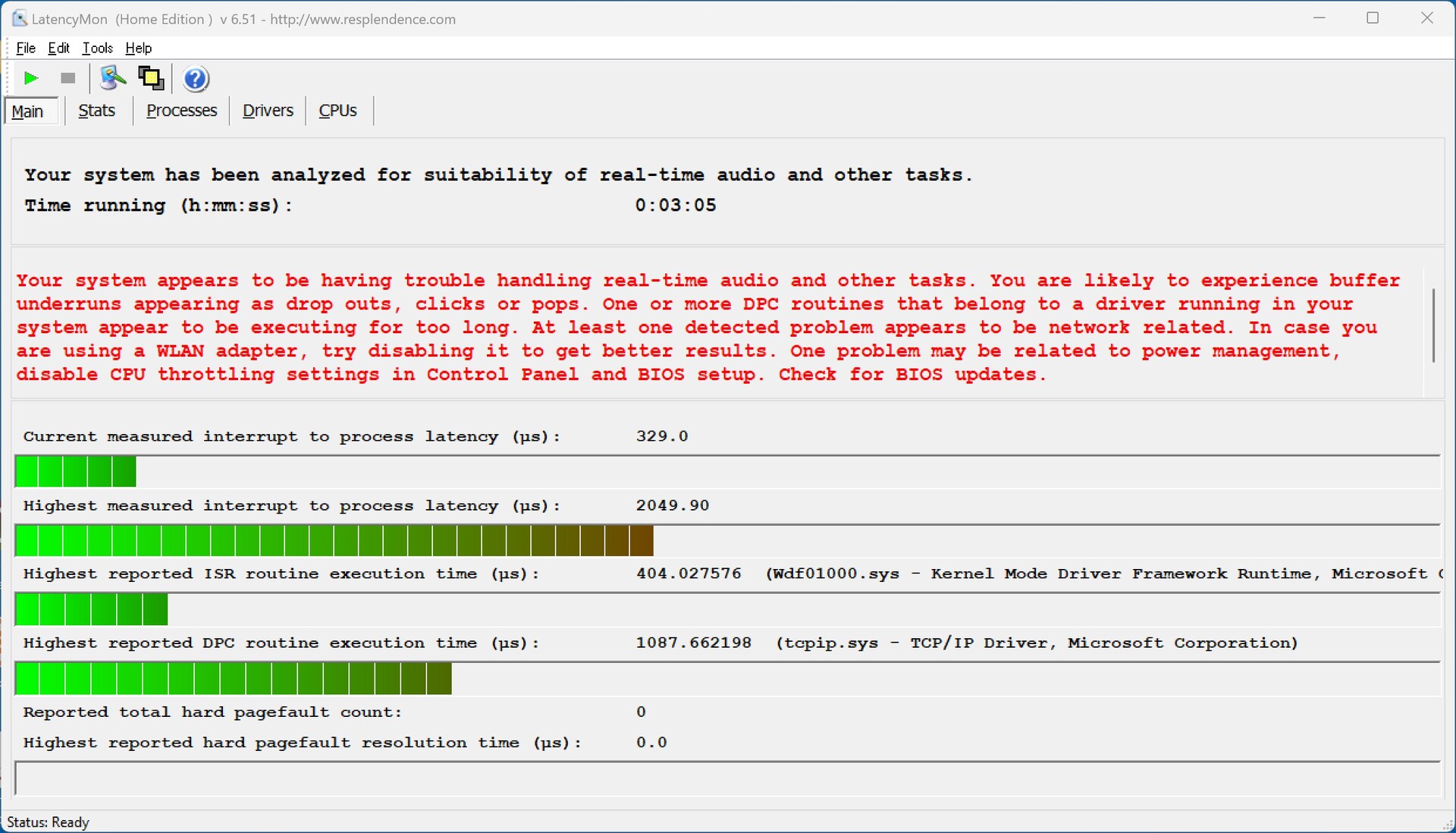

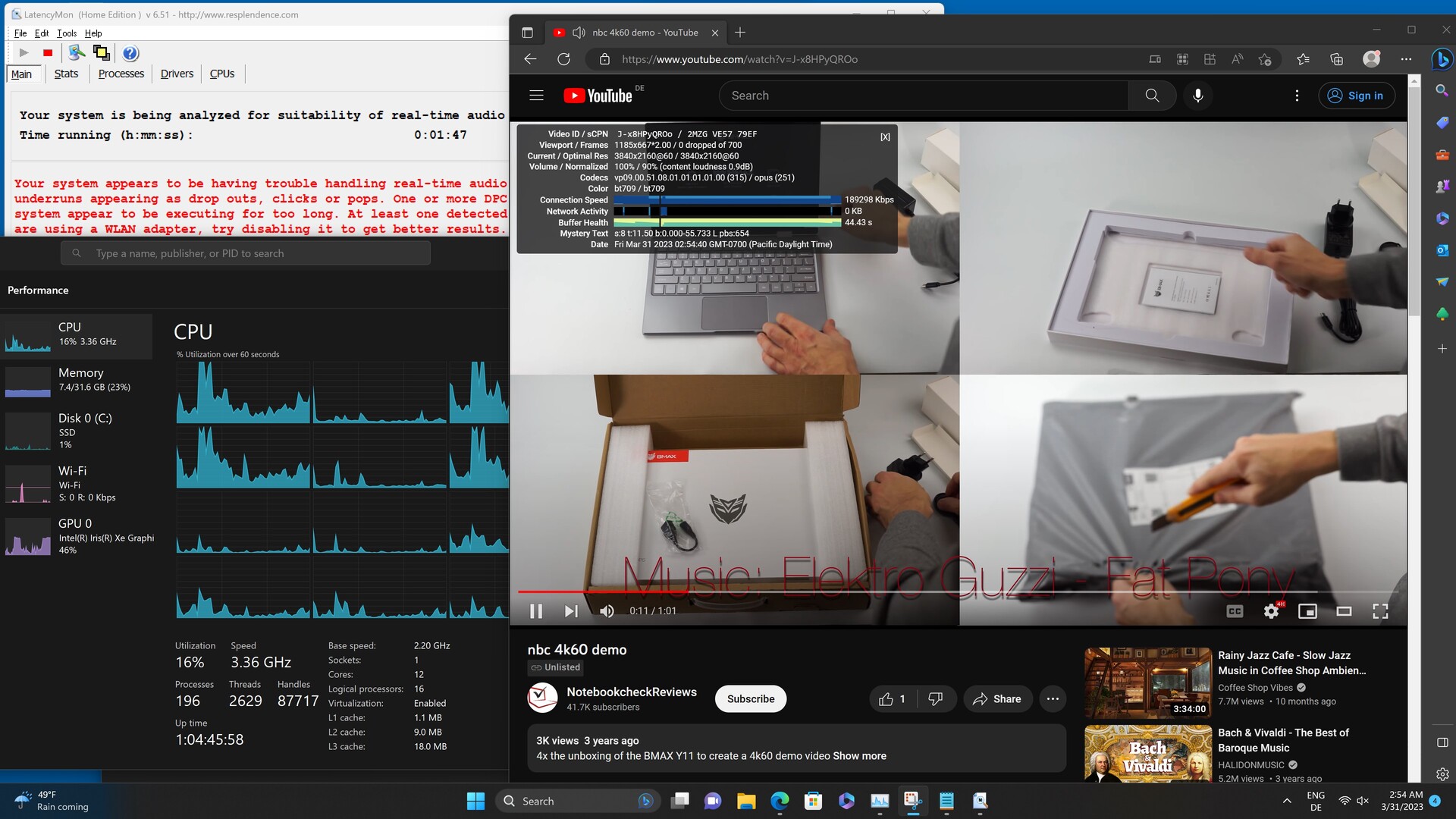

LatencyMon reported increased latencies when several tabs were kept open in Microsoft Edge. When the device was playing back our 4K demo video, the latencies didn't get any worse and iGPU utilisation was slightly over 40%.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Minisforum Mars Series MC560 | |
Morefine M600, 6900HX | |
Minisforum Neptune Series NAD9 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 |
* ... smaller is better
Mass storage

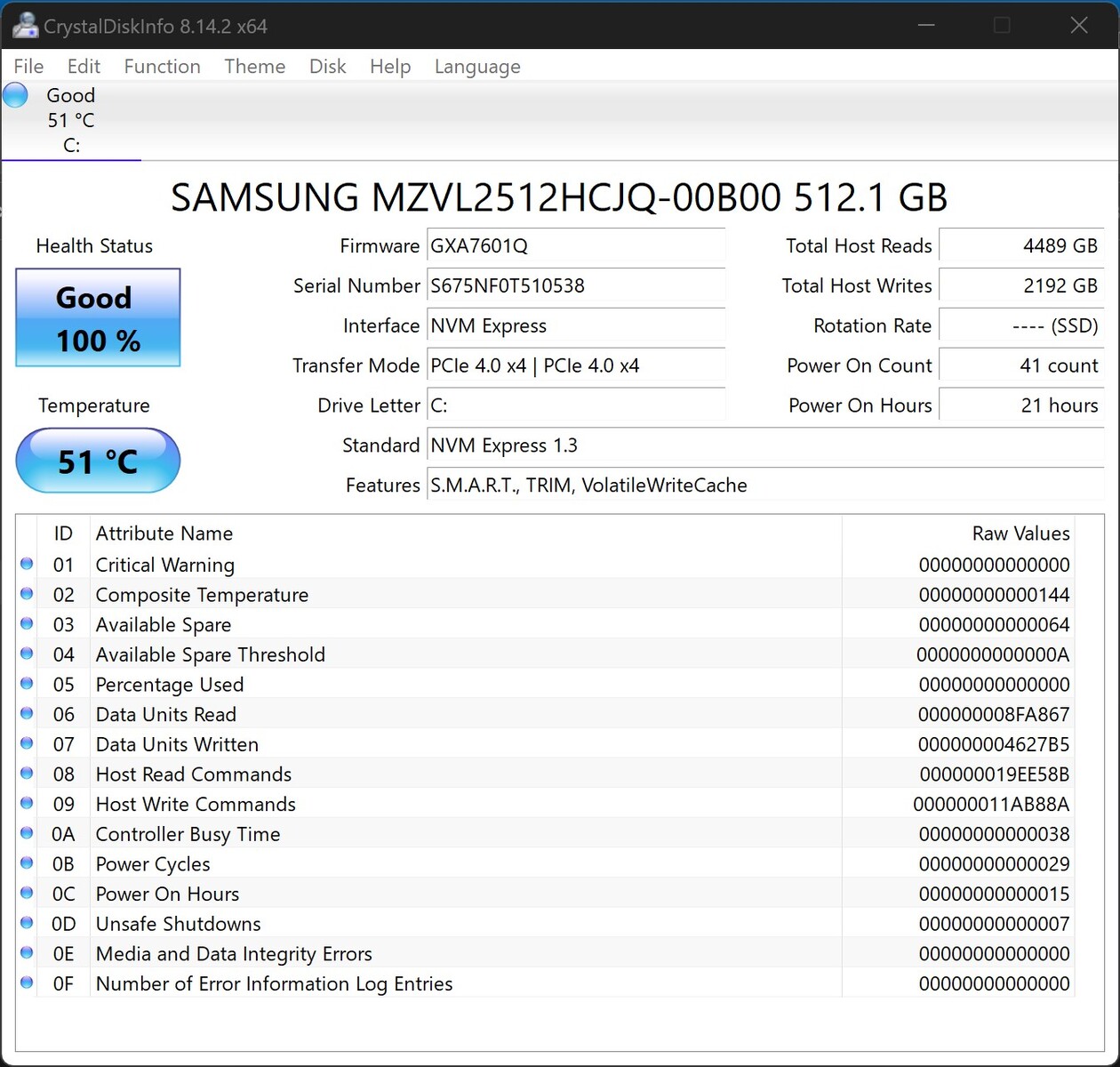

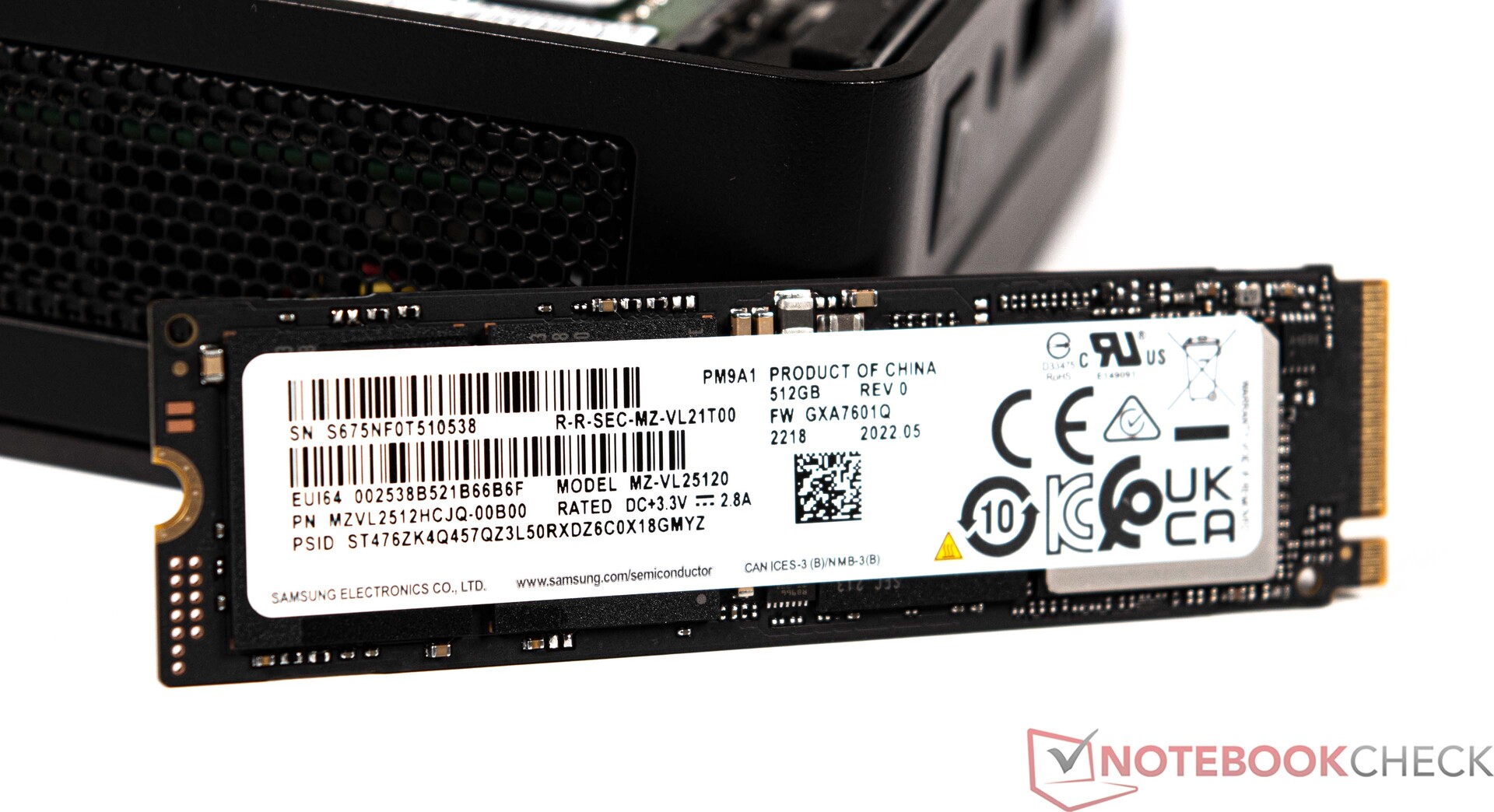

Our review unit came with a 512 GB NVMe SSD made by Samsung. In addition to this drive, the slim version of the NUC 13 Pro Kit can accommodate another storage device. However, the second slot can only fit an M.2 SSD with a length of 42 mm and is only limited to SATA speeds.

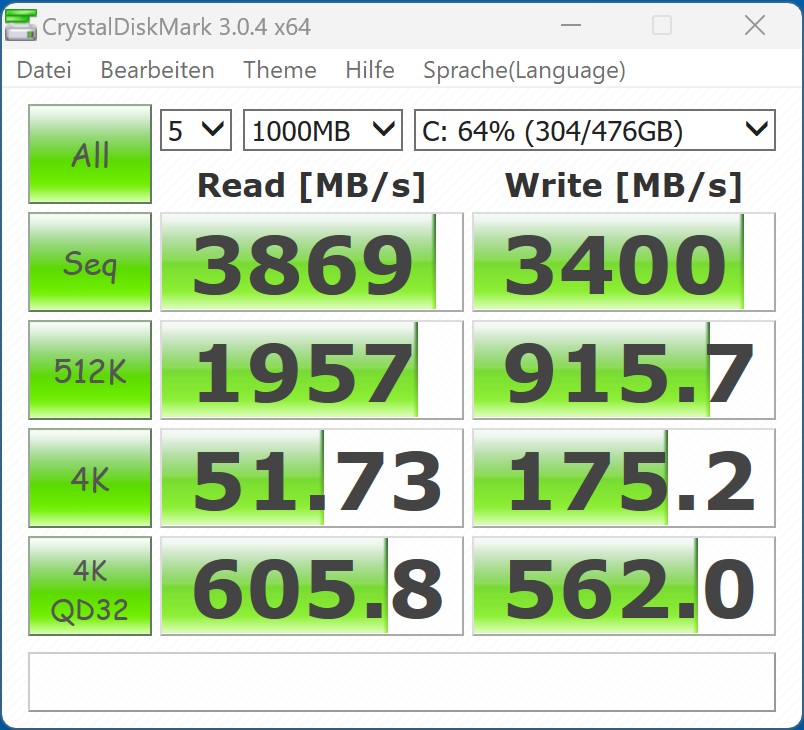

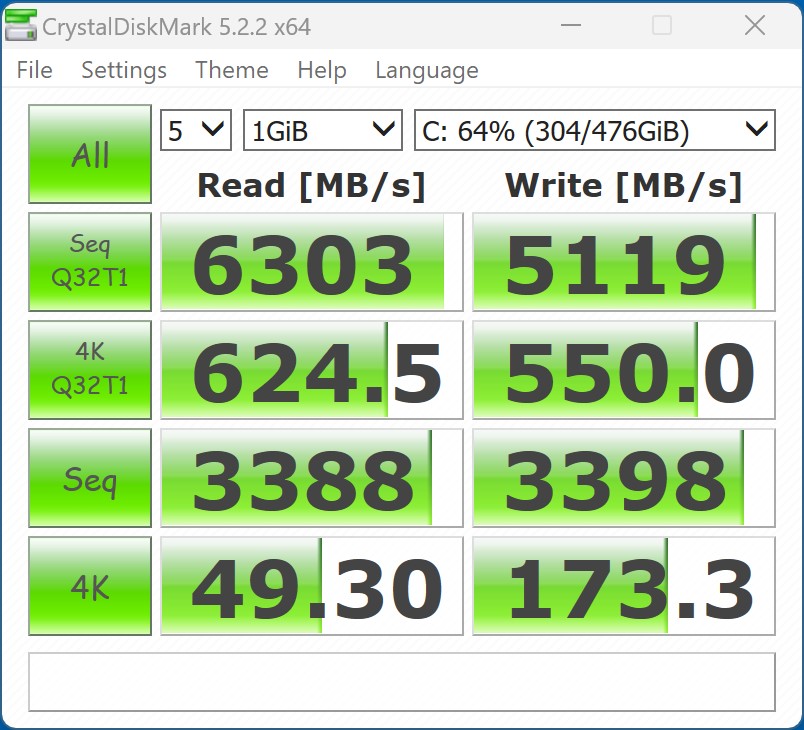

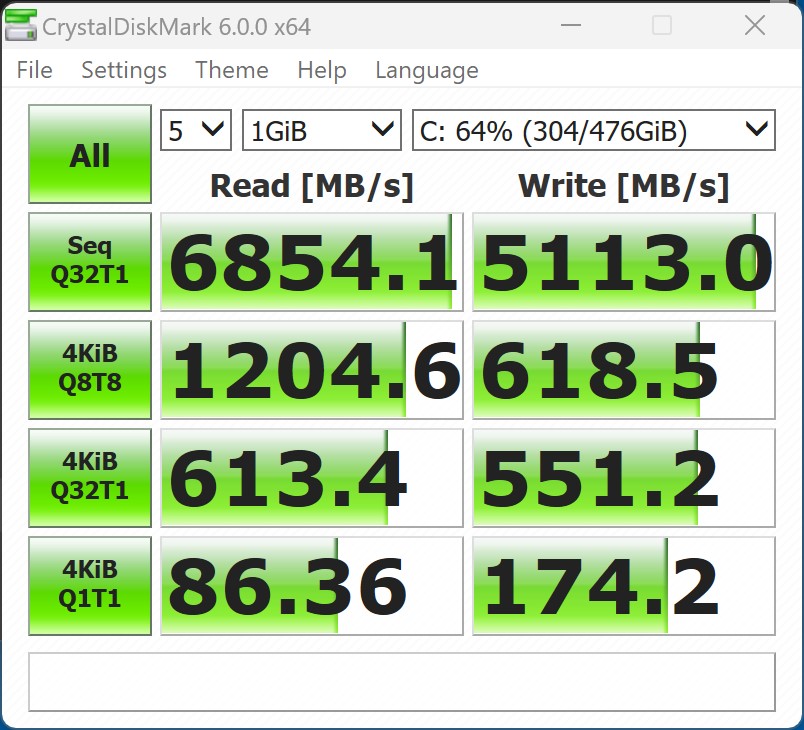

The Samsung SSD included in our review model delivered adequate performance in both read and write operations. As you can see in the graph below, the Intel NUC 13 Pro Kit also has no problem dealing with sustained load on its SSD. Particularly relevant here is that the bottom of the device serves as a heat sink.
You can refer to our storage comparison table for more information and benchmarks.
* ... smaller is better
Sustained Load Read: DiskSpd Read Loop, Queue Depth 8
Graphics card

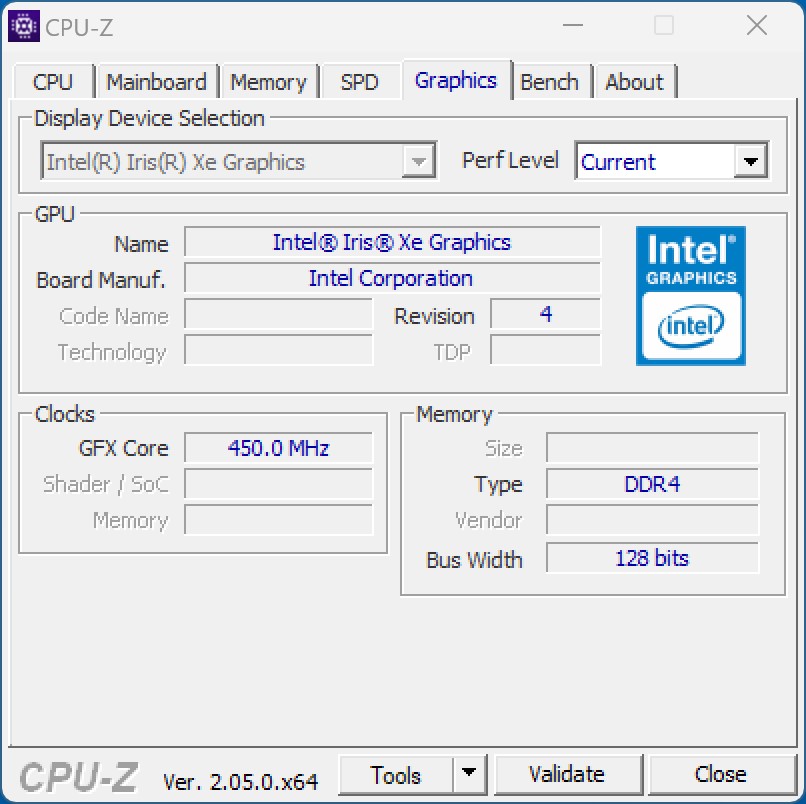

For graphics processing, the NUC 13 Pro Kit uses the familiar Intel Iris Xe Graphics G7 with 96EUs. On the Core i7-1360P, the integrated GPU is allowed to run at speeds of up to 1.5GHz – slightly faster than its counterpart on the Core i7-1260P. This results in marginally better 3D performance in the synthetic benchmarks we performed. However, in terms of integrated graphics performance, the review unit couldn't exactly match the Minisforum Neptune Series NAD9, which features a Core i9-12900H. Our comparison also clearly demonstrates that AMD's Radeon 680M is an exceptionally powerful iGPU. Based on our testing, it provides about 40% more performance than the Iris Xe Graphics G7.
You can connect an external graphics card to the NUC 13 Pro Kit via Thunderbolt. This is something we tested out with a Razer Core X and an Nvidia GeForce RTX 3060 Ti. Combined with a dedicated graphics card, the unit delivered good performance that is marginally better than what the NUC 12 Pro Kit is capable of.
Please visit our GPU comparison table for more information and benchmarks.
3DMark 05 Standard | 40633 points | |
3DMark 06 Standard Score | 34555 points | |
3DMark Vantage P Result | 27877 points | |
3DMark 11 Performance | 7752 points | |
3DMark Ice Storm Standard Score | 64338 points | |
3DMark Cloud Gate Standard Score | 23389 points | |
3DMark Fire Strike Score | 4873 points | |
3DMark Fire Strike Extreme Score | 2339 points | |
3DMark Time Spy Score | 1907 points | |
Help |
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
3DMark 11 - 1280x720 Performance GPU | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
1920x1080 Fire Strike Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
2560x1440 Time Spy Graphics | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Fire Strike Extreme Graphics | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK | |
Extreme Preset DX11 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK |
Unigine Superposition | |
1920x1080 1080p High | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK | |
1920x1080 1080p Extreme | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK | |
1024x600 Normal, Fluid 3DTex | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK | |
1024x600 Normal, Fluid 2DTexArr | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK | |
1024x600 Normal, Mandel Vector | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK | |
1024x600 Normal, QJuliaRayTrace | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK |
Gaming performance
The onboard iGPU is not good enough for gaming despite offering better performance than the integrated graphics on the NUC 12 Pro Kit. We only managed to get playable frame rates at low resolutions and settings. If you are looking for a mini-PC to game on, you should look for a model with a dedicated graphics card, such as the Minisforum HX99G.
As with the synthetic benchmarks, we also examined the gaming performance when the device is connected via Thunderbolt to a Razer Core X with an Nvidia GeForce RTX 3060 Ti inside. Fundamentally, this configuration will give you much better 3D performance and allow games to run properly at high resolutions and max settings. However, the performance of the dedicated GPU is limited by the eGPU dock's four PCIe 3.0 lanes.
Intel Iris Xe Graphics G7
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Morefine M600, 6900HX | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minisforum Neptune Series NAD9 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician TK11-A0 | |
Minisforum Mars Series MC560 | |
Minipc Union Ace Magician AMR5 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Morefine M600, 6900HX | |
Minisforum Neptune Series NAD9 | |
Intel NUC 13 Pro Kit NUC13ANK | |
Minipc Union Ace Magician TK11-A0 | |
Minisforum Mars Series MC560 | |
Minipc Union Ace Magician AMR5 | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
low | med. | high | ultra | |
GTA V (2015) | 126.2 | 107.3 | 20.7 | |
The Witcher 3 (2015) | 101.7 | 31.1 | 16.3 | |
Dota 2 Reborn (2015) | 123.8 | 93.9 | 67.6 | 61.6 |
Far Cry 5 (2018) | 46 | 26 | 25 | 23 |
Strange Brigade (2018) | 95.4 | 37.3 | 31 | 25.2 |
Shadow of the Tomb Raider (2018) | 36.1 | 24 | 22.7 | 19.4 |
Far Cry New Dawn (2019) | 52 | 29 | 28 | 26 |
Metro Exodus (2019) | 41.3 | 20.6 | 14.9 | 11.8 |
Borderlands 3 (2019) | 55.5 | 25.4 | 16.2 | 12.3 |
F1 2020 (2020) | 94.4 | 49.2 | 37.9 | 24.2 |
F1 2021 (2021) | 109.7 | 53.3 | 42 | 29.2 |
Far Cry 6 (2021) | 27.1 | 22.7 | 19 | |
God of War (2022) | 21.5 | 18.8 | 14.5 | 10.8 |
Tiny Tina's Wonderlands (2022) | 32.5 | 25.2 | 16.1 | 12.7 |
F1 22 (2022) | 48 | 44.3 | 31.2 | 24 |
Nvidia GeForce RTX 3060 Ti via Thunderbolt 3
Performance Rating - Percent | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
low | med. | high | ultra | QHD | 4K | |
GTA V (2015) | 180.5 | 175.5 | 164.4 | 100.6 | 90.9 | 103.6 |
The Witcher 3 (2015) | 310.6 | 209.2 | 151.4 | 74.8 | 61 | |
Dota 2 Reborn (2015) | 165.7 | 147.3 | 139.3 | 127.5 | 106.8 | |
Final Fantasy XV Benchmark (2018) | 176.9 | 141.1 | 98.5 | 77 | 48 | |
X-Plane 11.11 (2018) | 139.6 | 122.5 | 93.2 | 84.4 | ||
Far Cry 5 (2018) | 155 | 131 | 125 | 117 | 100 | 58 |
Strange Brigade (2018) | 204 | 157 | 153.3 | 150 | 128.3 | 84.4 |
Shadow of the Tomb Raider (2018) | 148 | 102.3 | 98.6 | 92.1 | 75.2 | 49.4 |
Far Cry New Dawn (2019) | 118 | 113 | 109 | 99 | 91 | 55 |
Metro Exodus (2019) | 144.3 | 92.3 | 70.4 | 53.3 | 46.3 | 34 |
Borderlands 3 (2019) | 138 | 122.2 | 98.7 | 82.8 | 63.9 | 38.1 |
F1 2020 (2020) | 203 | 119.2 | 124.8 | 106.1 | 89.5 | 60.2 |
F1 2021 (2021) | 141 | 109.1 | 68.9 | 54.2 | 49.4 | 36.3 |
Far Cry 6 (2021) | 75.3 | 63.4 | 52.3 | 45.6 | 44.8 | |
God of War (2022) | 109.2 | 95.4 | 80 | 60.5 | 53.5 | 39.6 |
Tiny Tina's Wonderlands (2022) | 168.1 | 136.7 | 98.5 | 80.4 | 61.2 | 35.9 |
F1 22 (2022) | 60.3 | 53.7 | 43 | 28.5 | 26.8 | 19.7 |
Emissions - Moderate power draw, but audible under load
Noise emissions
The Intel NUC 13 Pro Kit is fairly unobtrusive and barely audible at idle, producing no more than 31.1 dB(A) of noise according to our measurement. The fan spins up to pretty high speeds under load: noise level was 40 dB(A) on average during our testing. The device only became marginally louder under full load, peaking at 40.5 dB(A) in our analysis. Overall, the Intel NUC 13 Pro Kit is slightly less noisy than its predecessor, but Minisforum devices are the quietest within our comparison group.
Noise Level
Idle |
| 30.2 / 31.1 / 31.9 dB(A) |
Load |
| 40 / 40.5 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 29.8 dB(A) |
Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Morefine M600, 6900HX R9 6900HX, Radeon 680M | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | Minisforum Mars Series MC560 R5 5600U, Vega 7 | Minipc Union Ace Magician AMR5 R5 5600U, Vega 7 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | |
---|---|---|---|---|---|---|---|
Noise | -4% | 3% | 9% | 7% | -11% | 1% | |
off / environment * | 29.8 | 30.4 -2% | 30.4 -2% | 30.2 -1% | 30.2 -1% | 30.5 -2% | 30.28 -2% |
Idle Minimum * | 30.2 | 33.1 -10% | 30.9 -2% | 30.5 -1% | 30.4 -1% | 31.5 -4% | 31.82 -5% |
Idle Average * | 31.1 | 33.1 -6% | 31.5 -1% | 30.5 2% | 30.4 2% | 32.6 -5% | 32.27 -4% |
Idle Maximum * | 31.9 | 33.1 -4% | 31.5 1% | 30.5 4% | 30.4 5% | 33.8 -6% | 33.17 -4% |
Load Average * | 40 | 38.1 5% | 37.5 6% | 30.5 24% | 31.8 20% | 49.3 -23% | 35.82 10% |
Load Maximum * | 40.5 | 43.6 -8% | 34.1 16% | 30.5 25% | 33.4 18% | 50.9 -26% | 37.1 8% |
* ... smaller is better
Temperature

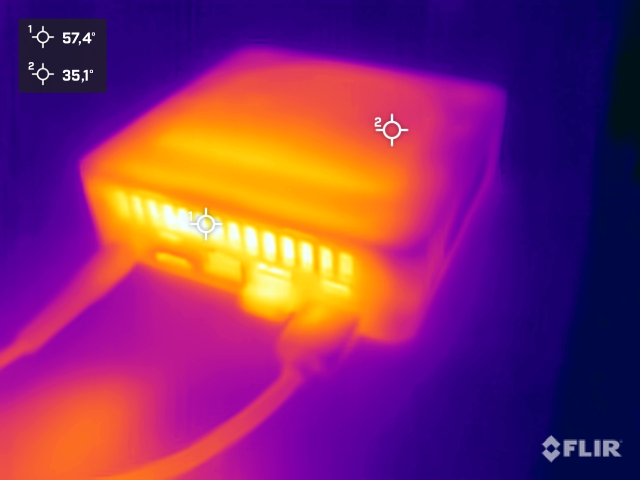

The chassis of the NUC 13 Pro Kit barely gets warm at idle. Warm air is expelled directly from the chassis at the back.
During the load test with Prime95, the Core i7-1360P hit a very high max temperature of 100°C (212°F), but this occurred only at the beginning of the test when the processor was running at its boost clock. During the stress test with Prime95, the CPU was able to maintain power usage consistently at its PL1 of 40 watts. Its P-cores ran at an average speed of 2.8GHz, whilst its E-cores managed to hit roughly 2.2GHz. Fundamentally, heat isn't something you have to worry about because these high temperatures were the consequence of an extreme scenario that is unlikely to happen in everyday use.
Power consumption
We wouldn't really say that the Intel NUC 12 Pro Kit was extremely efficient back then. Intel seems to have made some decent improvements in this area. The NUC 13 Pro Kit's idle power consumption is now substantially lower. But the device drew as much as 108 watts from the 120-watt power supply under load – roughly 10 watts more than its predecessor. Under moderate load, however, power consumption only increased by 4 watts between the two generations to 68 watts, which is fantastic given the performance of the Core i7-1360P.
Off / Standby | 0.5 / 1.2 Watt |
Idle | 5.1 / 5.8 / 10.2 Watt |
Load |
68.1 / 108.3 Watt |
Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Morefine M600, 6900HX R9 6900HX, Radeon 680M | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | Minisforum Mars Series MC560 R5 5600U, Vega 7 | Minipc Union Ace Magician AMR5 R5 5600U, Vega 7 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | Average Intel Iris Xe Graphics G7 96EUs | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|
Power Consumption | -51% | -40% | -69% | 18% | -4% | 30% | 4% | -39% | |
Idle Minimum * | 5.1 | 12.1 -137% | 9.9 -94% | 12.1 -137% | 6.2 -22% | 8.4 -65% | 3.4 33% | 5.26 ? -3% | 9.8 ? -92% |
Idle Average * | 5.8 | 12.2 -110% | 11 -90% | 13 -124% | 6.3 -9% | 8.7 -50% | 5.7 2% | 8.46 ? -46% | 11.7 ? -102% |
Idle Maximum * | 10.2 | 12.3 -21% | 11.2 -10% | 18.2 -78% | 7.5 26% | 9.3 9% | 7 31% | 10.6 ? -4% | 14.7 ? -44% |
Load Average * | 68.1 | 64 6% | 74.2 -9% | 70.6 -4% | 41.3 39% | 46.4 32% | 36.5 46% | 44.8 ? 34% | 51.9 ? 24% |
Load Maximum * | 108.3 | 98.8 9% | 103.2 5% | 113 -4% | 49 55% | 52 52% | 68 37% | 66.6 ? 39% | 86 ? 21% |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
Verdict - Updated hardware in a familiar design
Intel has been active in the mini-PC space for years with its NUC line and understands what really matters for this form factor. The Intel NUC 13 Pro Kit, code-named Arena Canyon, is certainly a great choice for anyone looking for a tiny yet power PC. As mentioned earlier in this review, Intel is refreshing the NUC lineup by giving it a Core i7-1360P and is now counting on the Raptor Lake-P series (which replaces Alder Lake-P). There is a increase in performance, but it is fairly modest. So you shouldn't expect to see a dramatic jump in performance over an Intel NUC 12 Pro Kit with a Core i7-1260P. There also isn't much new to say about the port selection. But one positive aspect is the variety of modern ports, which is something you don't often see on tiny PCs. The NUC 13 Pro Kit offers two fully fledged Thunderbolt connections. Due to its form factor, the device has no more than four USB-A ports, but these should be enough to satisfy most users.
The Intel NUC 13 Pro Kit is an exceptionally compact, high-performance office PC. The tiny workhorse can also be expanded in meaningful ways thanks to its excellent external connectivity.

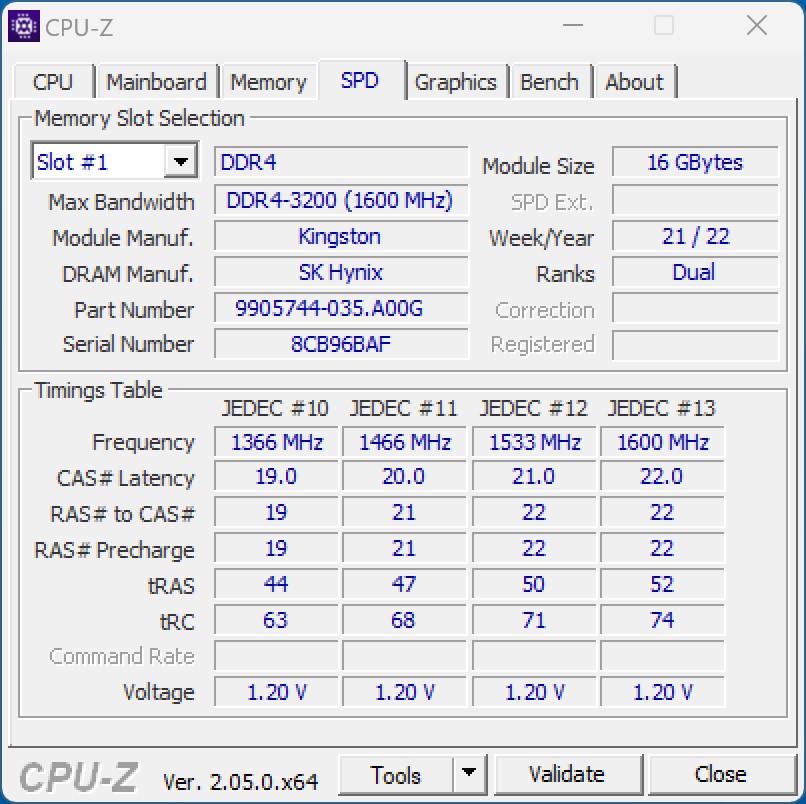

In our testing, the Intel NUC 13 Pro Kit delivered outstanding performance. Both the SoC and the SSD had an impressive showing. Coupled with a generous 32 GB of DDR4 RAM (upgradable to 64 GB), the mini PC let us work swiftly at all times. Our review unit didn't have any major flaws. But we did notice some minor shortcomings with its 5GHz connectivity during our Wi-Fi test. Moreover, we hope to see higher-quality materials being used on future NUCs. Doing away with the plastic body would definitely be a start and a great fit for the device. This would also bring the feel of the device more in line with the overall package. The Chinese manufacturers Minisforum and Morefine have demonstrated with their products (Minisforum Neptune Series NAD9 and Morefine M600) that this is something achievable.
Based on looks alone, the NUC 13 Pro Kit is unmistakably part of the Intel NUC series. It has excellent fit and finish. That said, the device is up against quite a number of competitors in the mini-PC space. Leading the pack is the Intel NUC 12 Pro Kit, which is hot on the heels of its successor. The MinisForum NAD9 and Morefine M600 are likewise formidable competitors offering similar performance.
Price and availability
The Intel NUC 13 Pro Kit (Arena Canyon) isn't yet available right now. According to Intel, it should cost around the same as an Intel NUC 12 Pro Kit. The NUC 13 Pro Kit will be available as both a barebone system and a complete PC equipped with RAM and SSD. Back when we reviewed the NUC 12 Pro Kit, it had a price tag of approx. €660 (US$720). In Germany, you can currently purchase a barebone model with a Core i7-1260P from Notebooksbillger.de for €540 (US$590).
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
Intel NUC 13 Pro Kit NUC13ANK
-
08/12/2023 v7
Sebastian Bade
