Intel NUC 12 Pro Kit - Wall Street Canyon in review: Advanced mini PC with Intel Core i7-1260P for high versatility
Intel has updated its compact NUC mini PC series with the new Alder Lake-P SoCs. The name "Wall Street Canyon" signifies the latest model series based on the modern SoCs. There are two base configurations, which differ in terms of their dimensions. The slightly higher-end model carries the "Tall" moniker, which indicates the option for an additional 2.5-inch drive. By contrast, our "Slim" test device does not offer this option. In terms of the price, about 100 USD separates the two variants. Both devices are only able as a barebone. Thus, users will have to install the RAM and storage themselves.

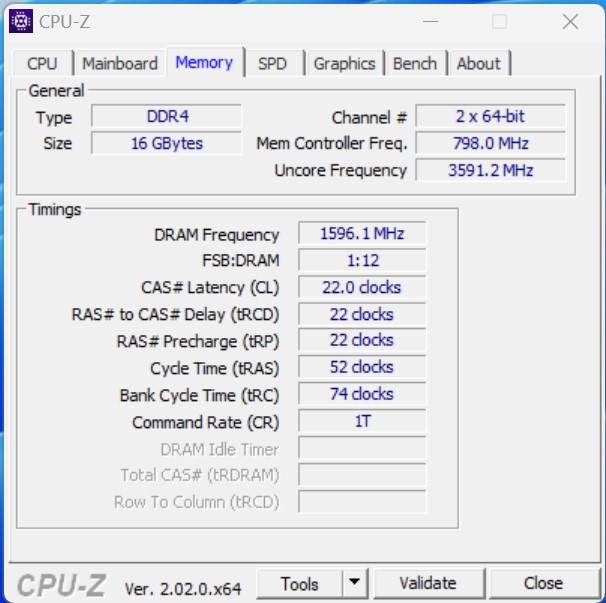

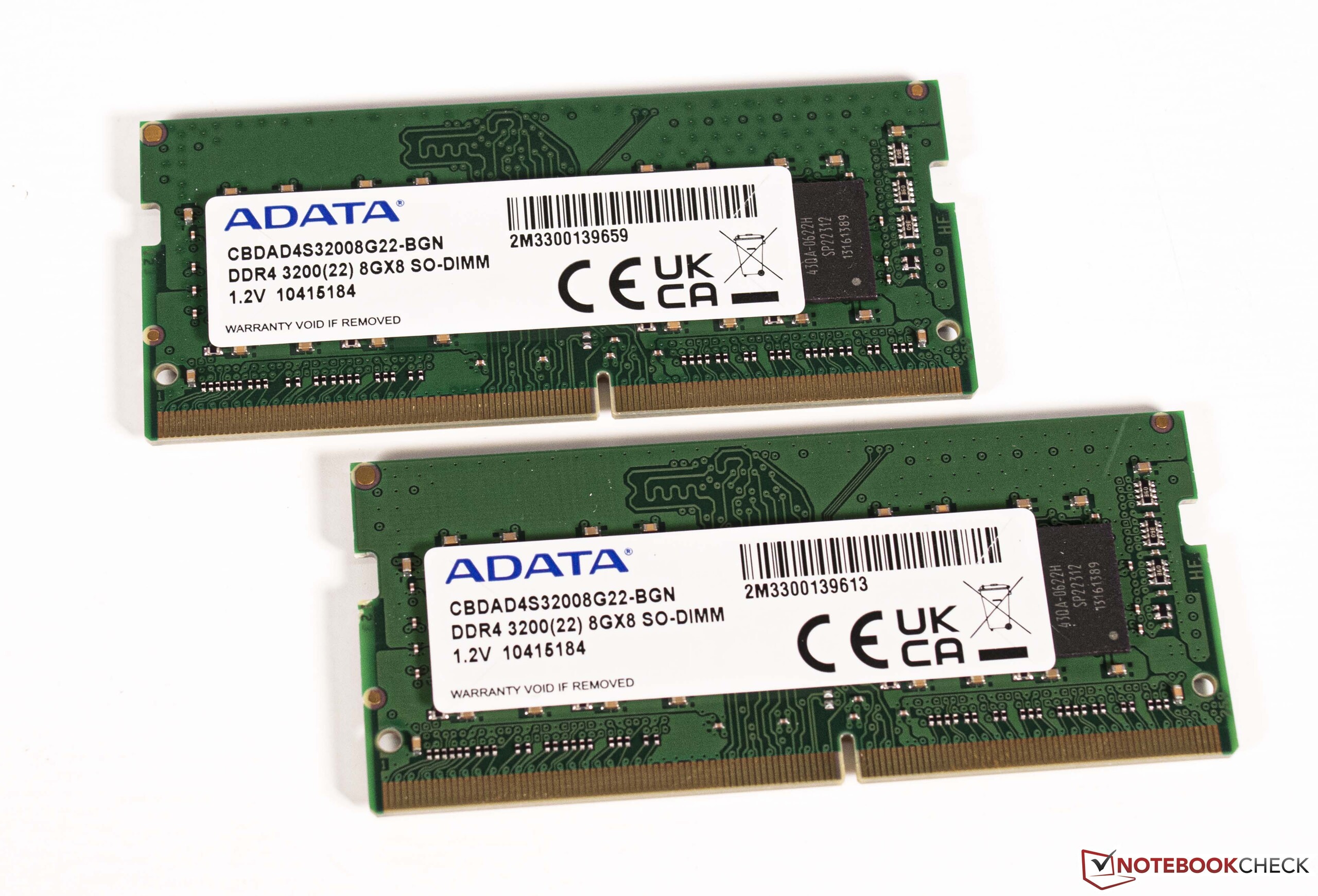

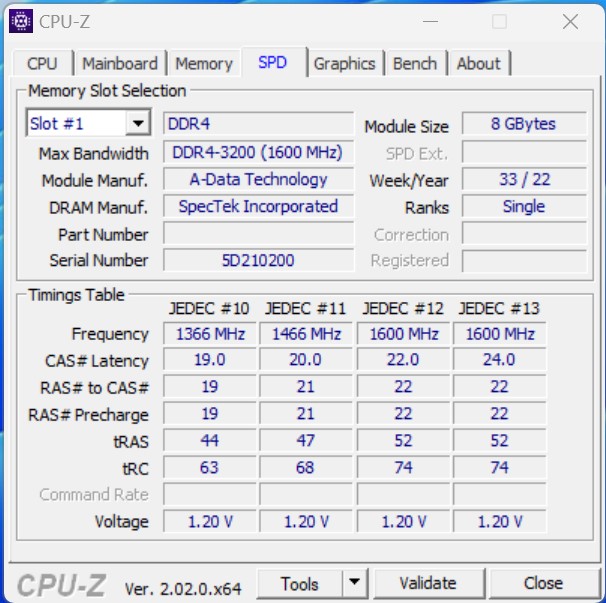

For our testing, we installed two 8-GB DDR4-3200 modules and a 512-GB SSD in our test sample. The latest available version of Windows 11 Professional at the time of this review serves as the operating system.
Potential Competitors in Comparison
Rating | Date | Model | Weight | Height | Best Price |
---|---|---|---|---|---|
78.9 % | 11/2022 | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | 511 g | 37 mm | |
01/2022 | Minisforum EliteMini HX90 R9 5900HX, Vega 8 | 60 mm | |||
04/2021 | Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs | 504 g | 37 mm | ||
09/2022 | Minipc Union Ace Magician AMR5 R5 5600U, Vega 7 | 628 g | 72 mm | ||
09/2022 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | 586 g | 53 mm | ||
10/2022 | Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs | 795 g | 63.5 mm |
Intel NUC 12 Pro Kit im Detail
Case

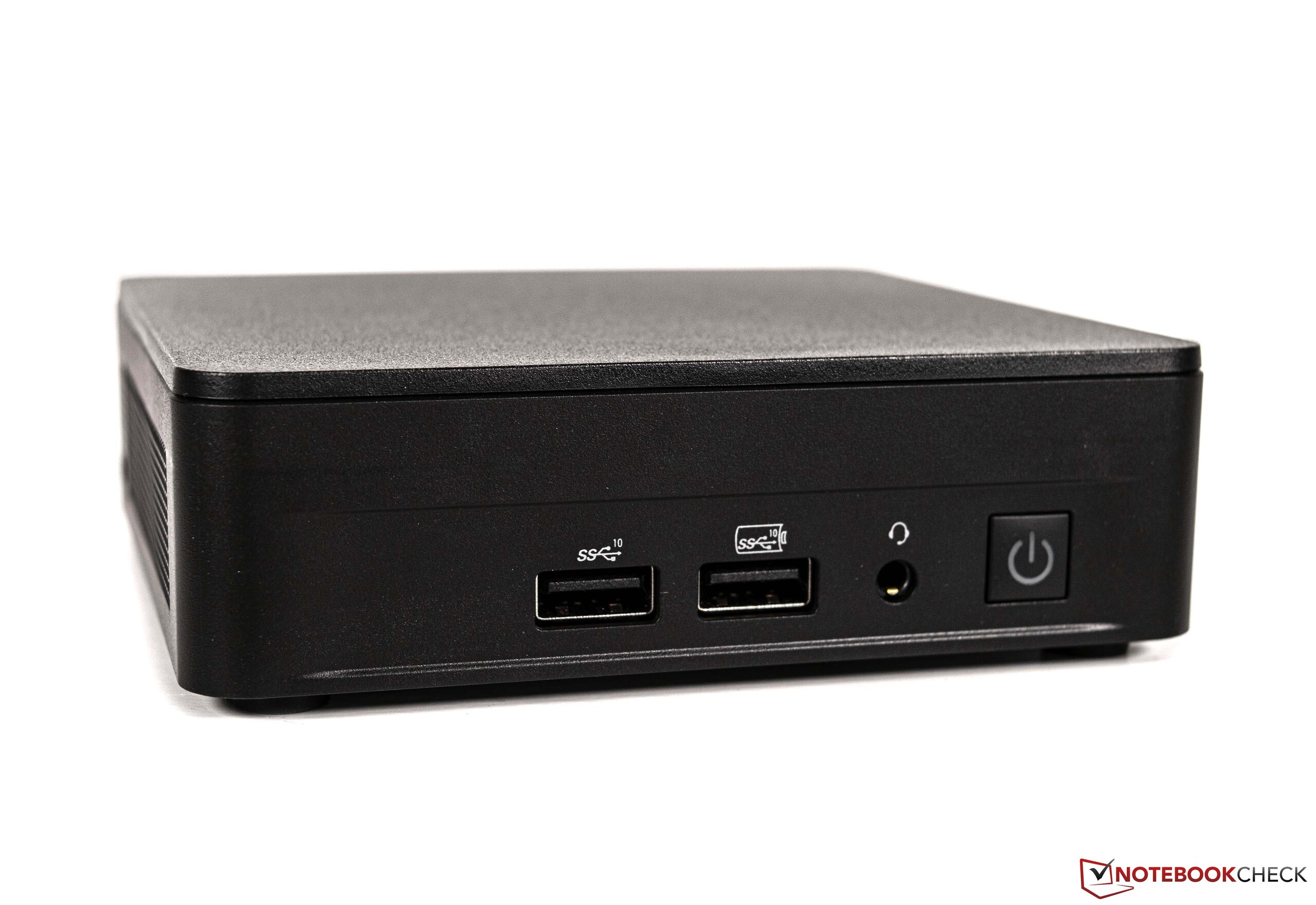

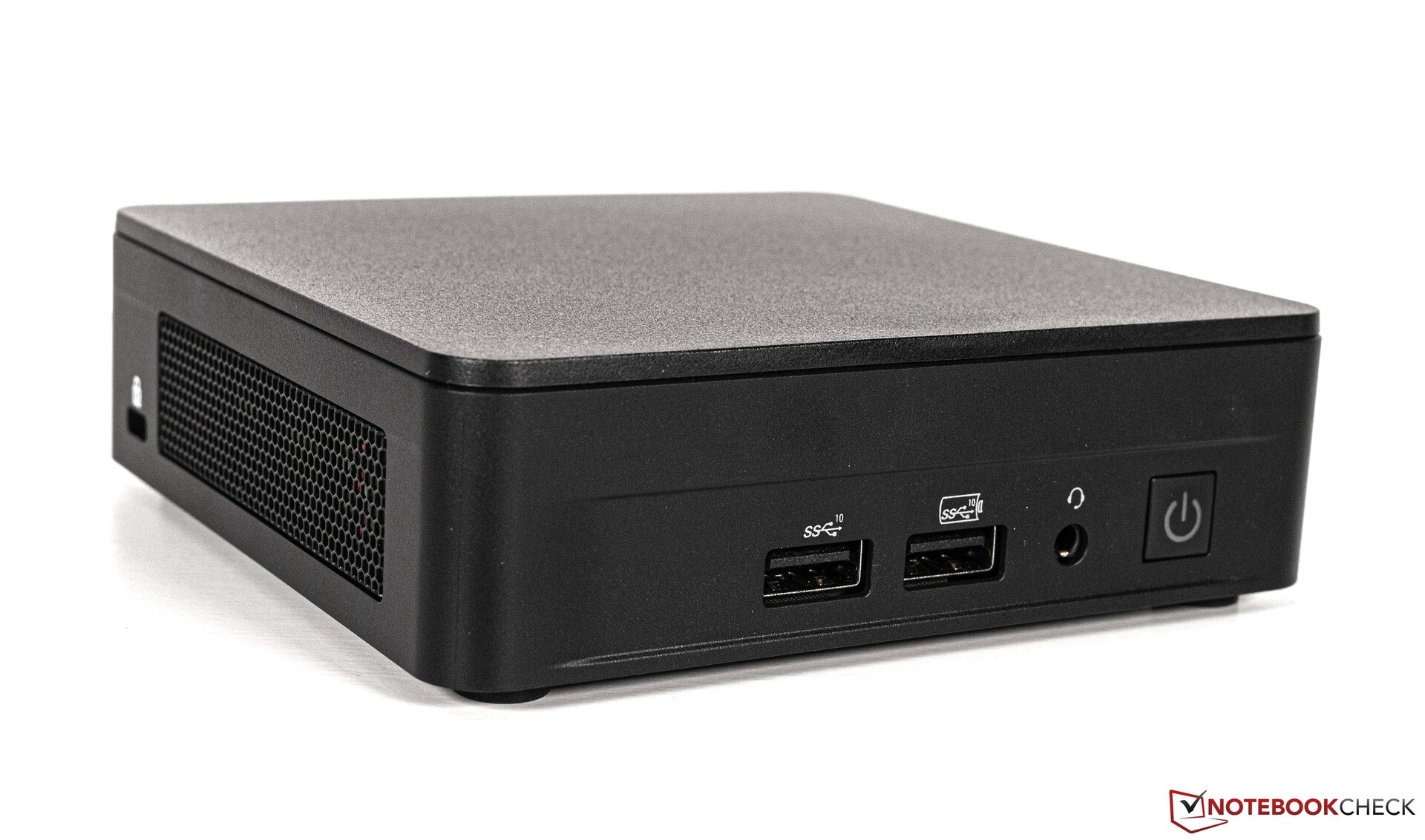

Visually, the Wall Street Canyon is very obviously an Intel NUC. The exterior design of the device is very subtle and there are no glossy surfaces anywhere on the system. Although the bottom of the case consists of metal, doubling as a cooling solution for the storage, a noticeable portion of the NUC consists of plastic. The device has a robust metal frame, which has almost become standard on the compact Intel NUCs and provides the PC with the necessary rigidity. With a height of just 37 mm (~1.46 in), our Slim version is quite small. Furthermore, the device does not take up a lot of space on a desk due to its small footprint of 11.7 x 11.2 cm (~4.61 x 4.41 in). Alternatively, it can be attached to a monitor with the included VESA mount.

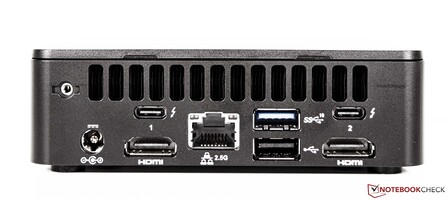

Connectivity

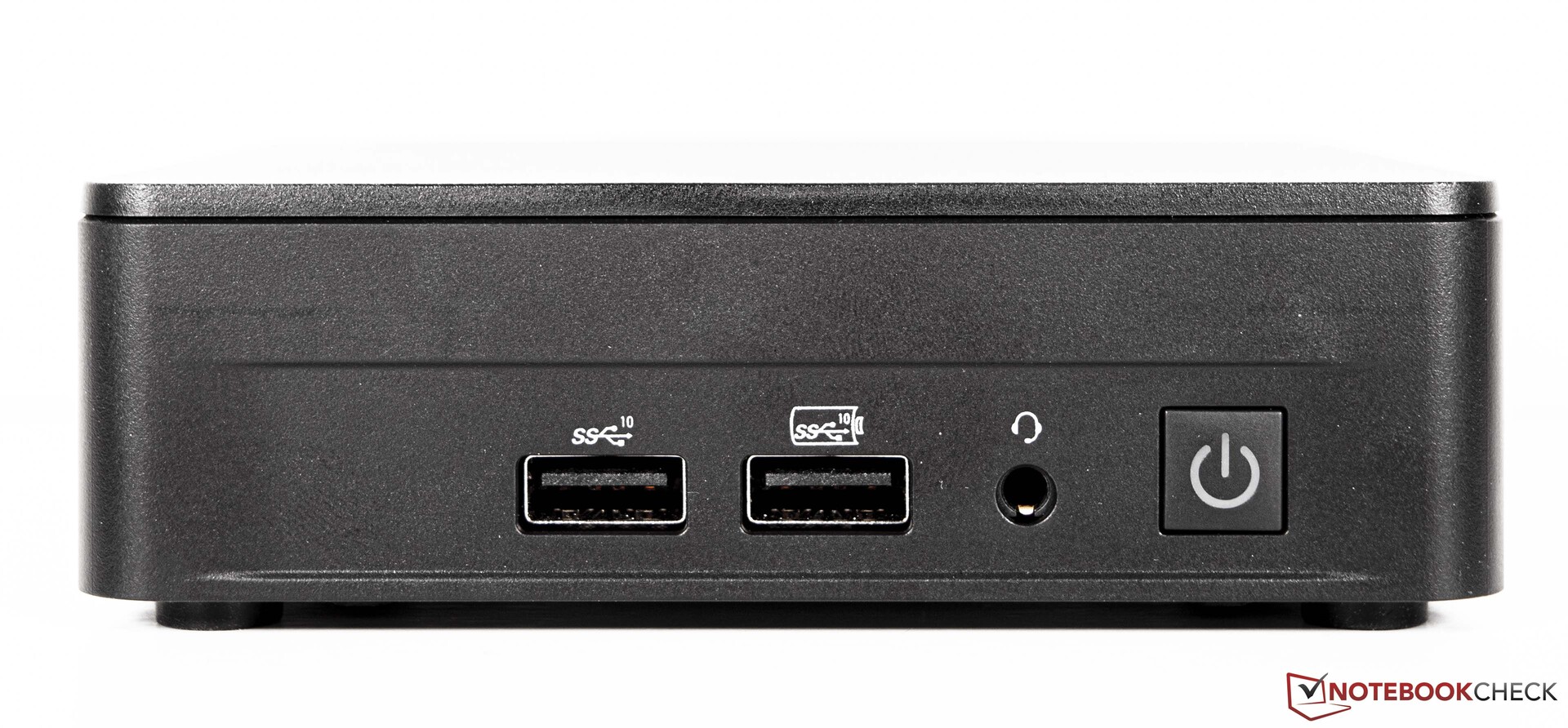

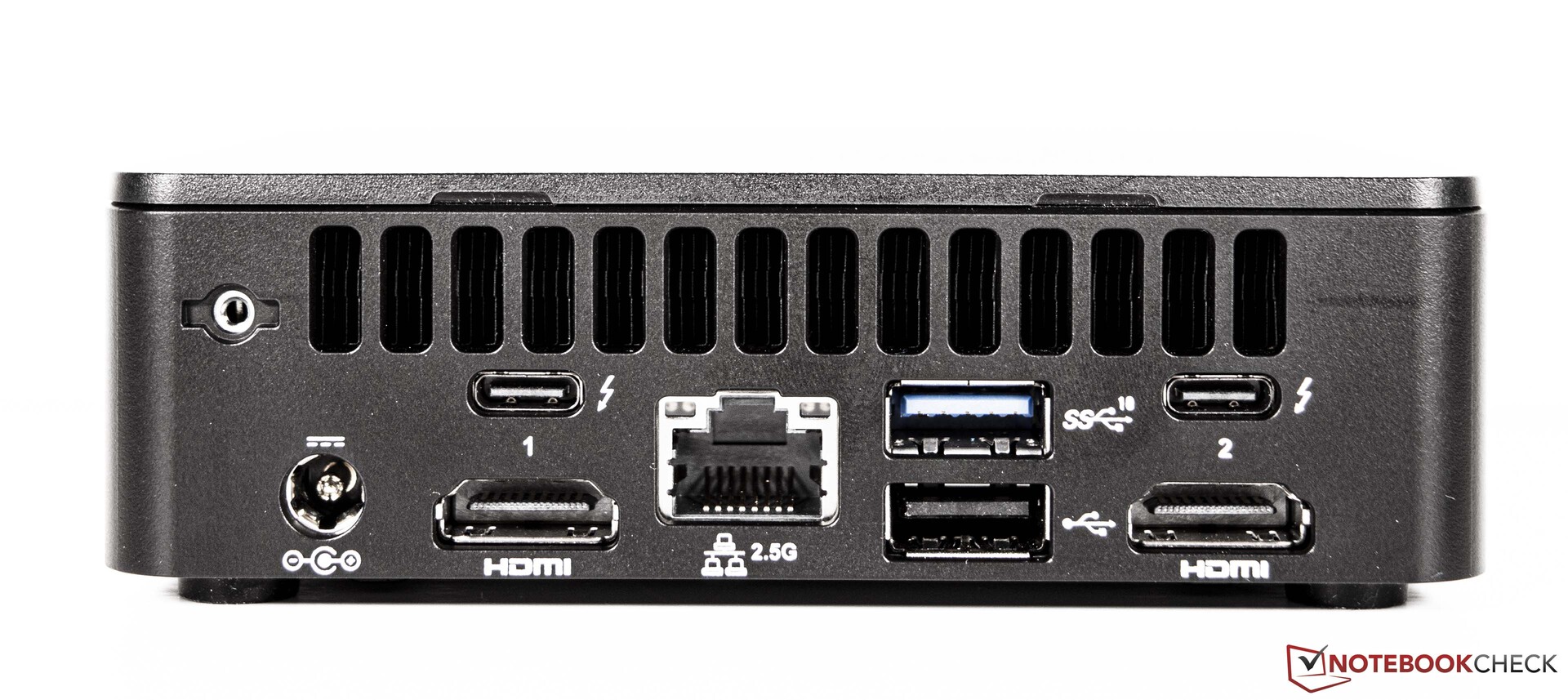

The Intel NUC 12 Pro Kit offers all the most common options in terms of the port selection. There are four USB type-A and two USB type-C ports. The type-C ports support USB4 speeds. The two Thunderbolt interfaces also vastly increase the flexibility of the system. The wide range of available accessories is almost endless. Finally, there are two HDMI ports and a 2.5G Ethernet port.
Communication
On the NUC 12 Pro Kit, Intel's own Wi-Fi 6E AX211 module is used for wireless networking. It performs well in our testing. Regardless, it does not quite the transfer rates we were hoping for when sending data. The Morefine S600-Apex achieves significantly better results with the same module. We used our reference router Asus ROG Rapture GT-AXE11000 for this test.

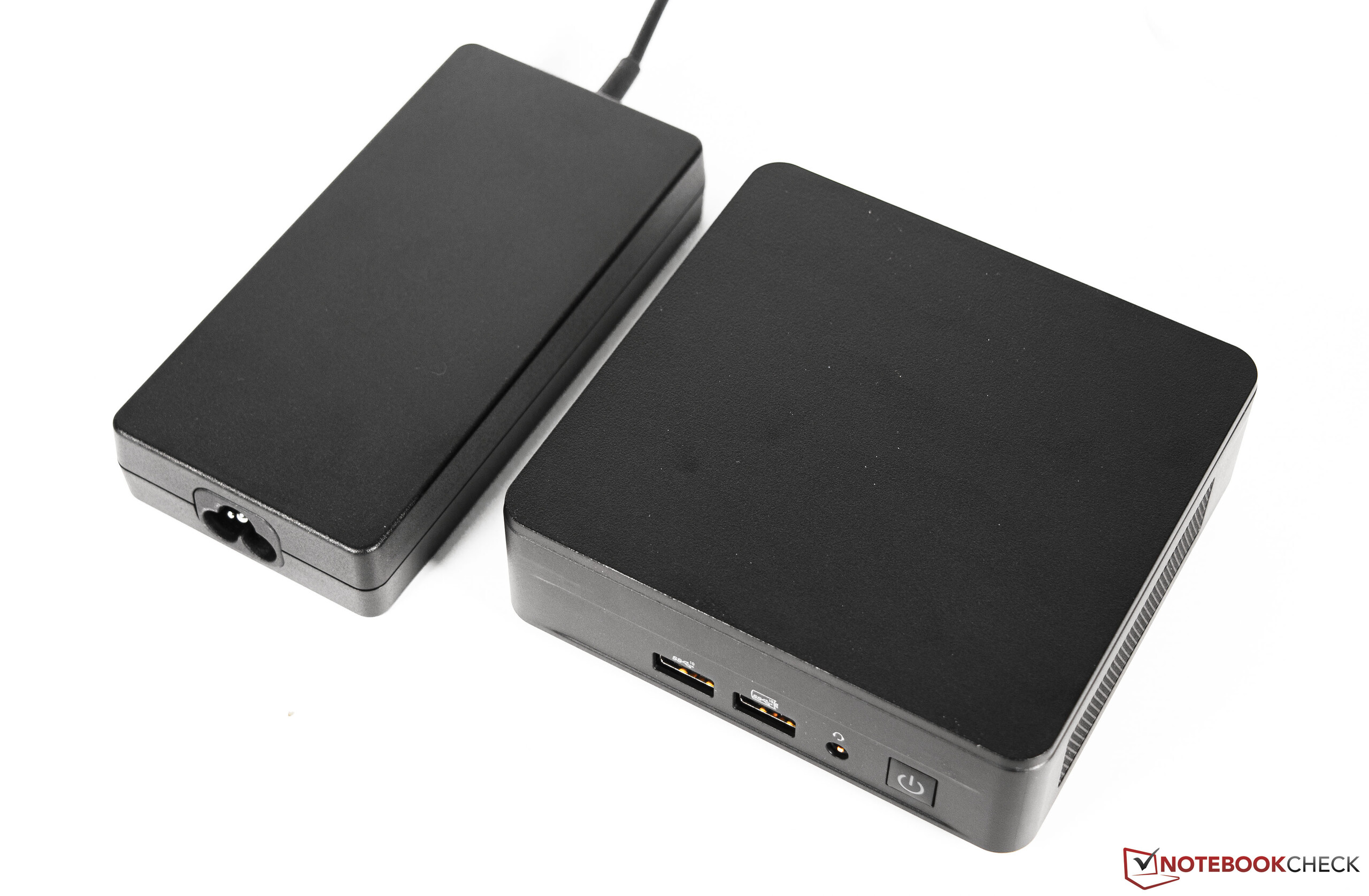

Accessories

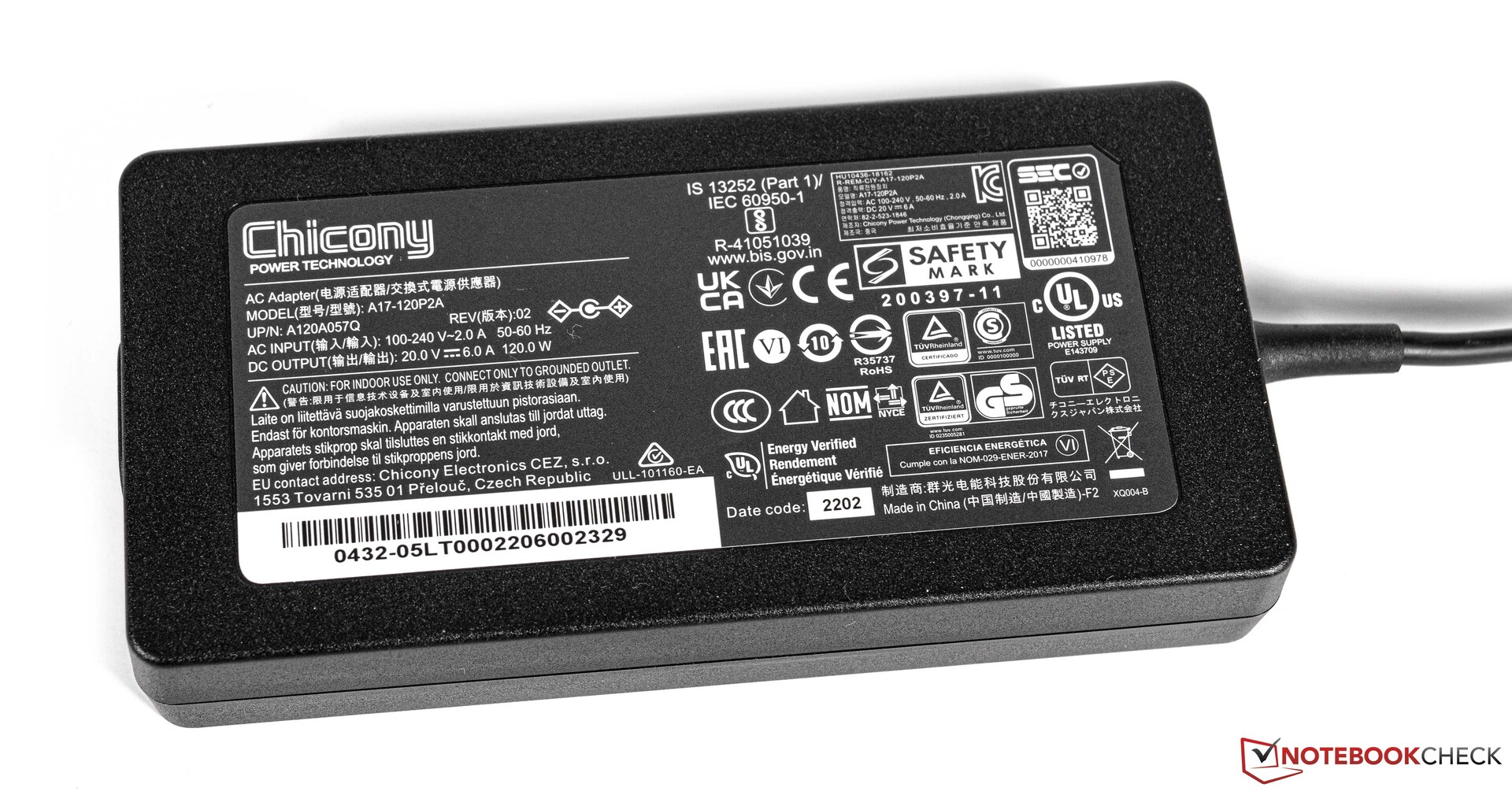

Aside from the device itself, the package includes the 120-watt AC adapter and a plate for VESA mounting.

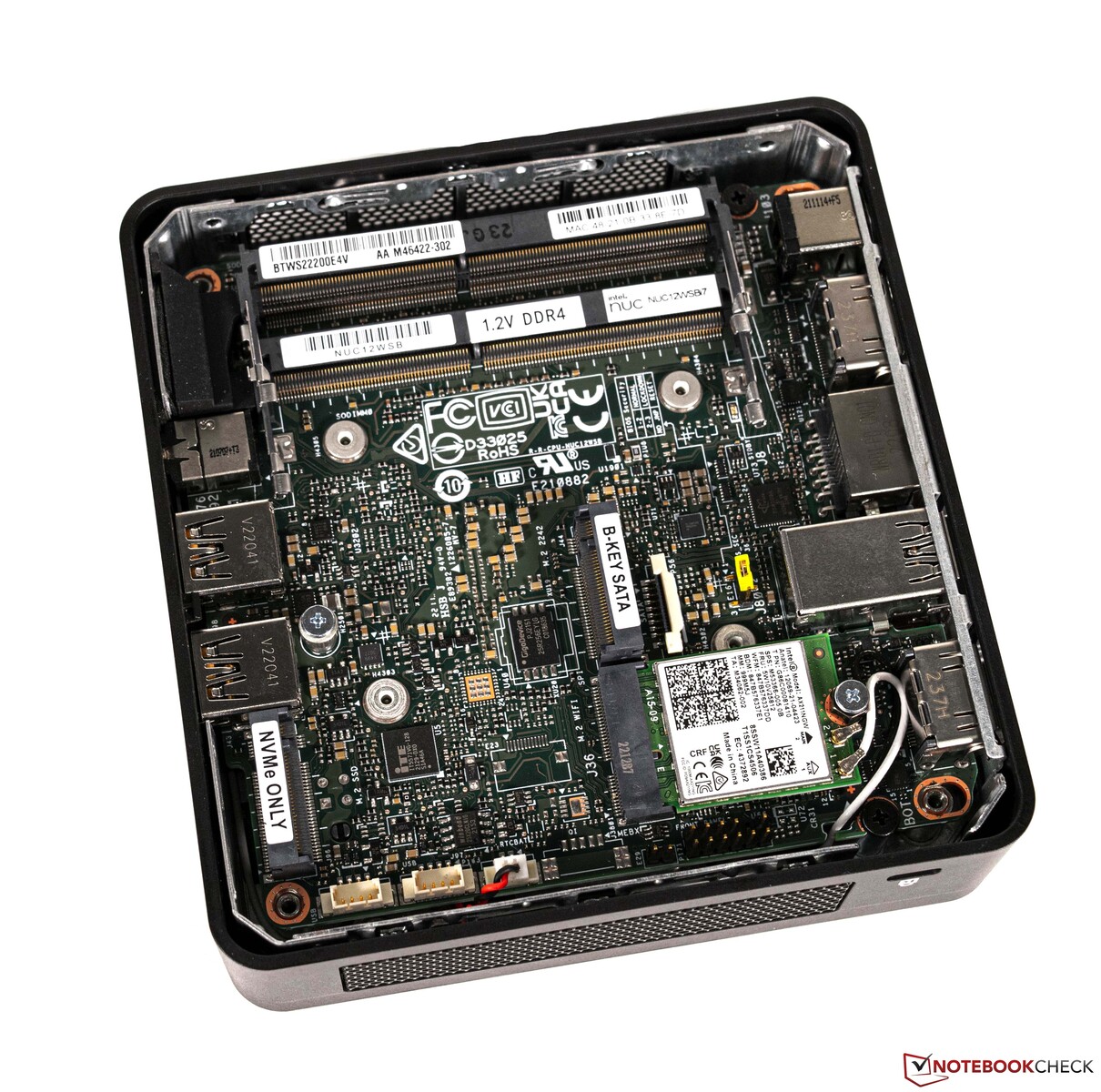

Maintenance

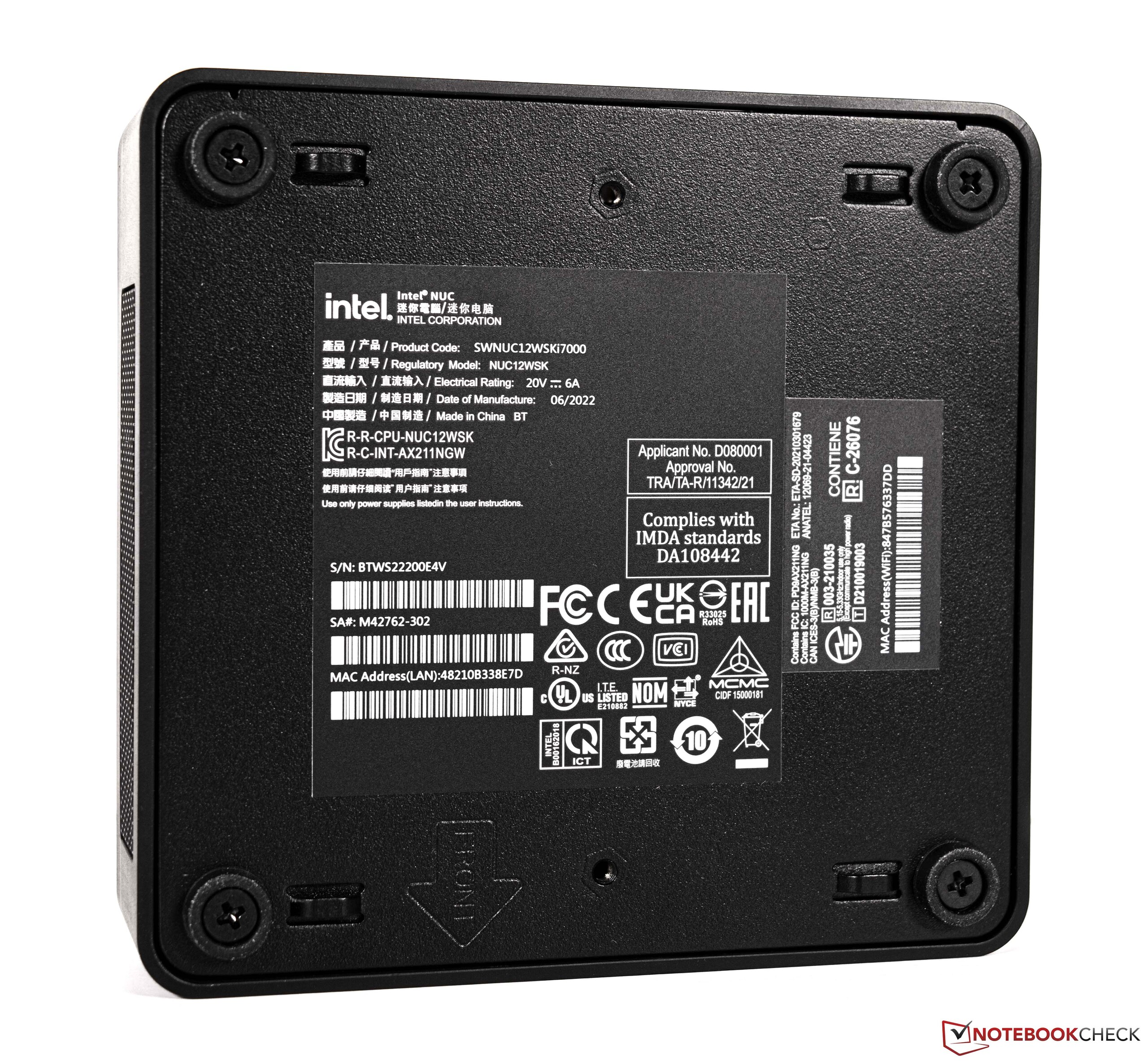

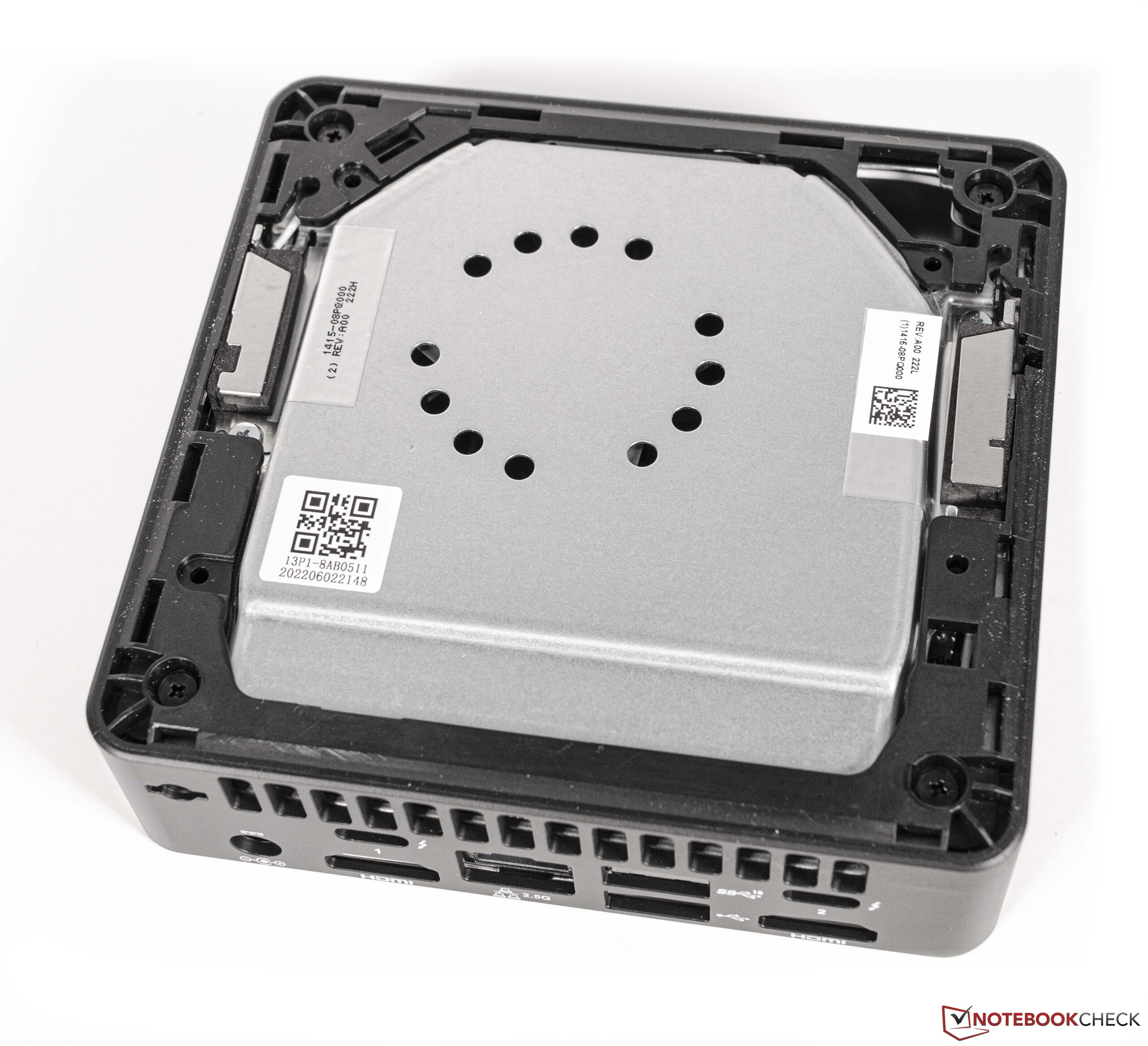

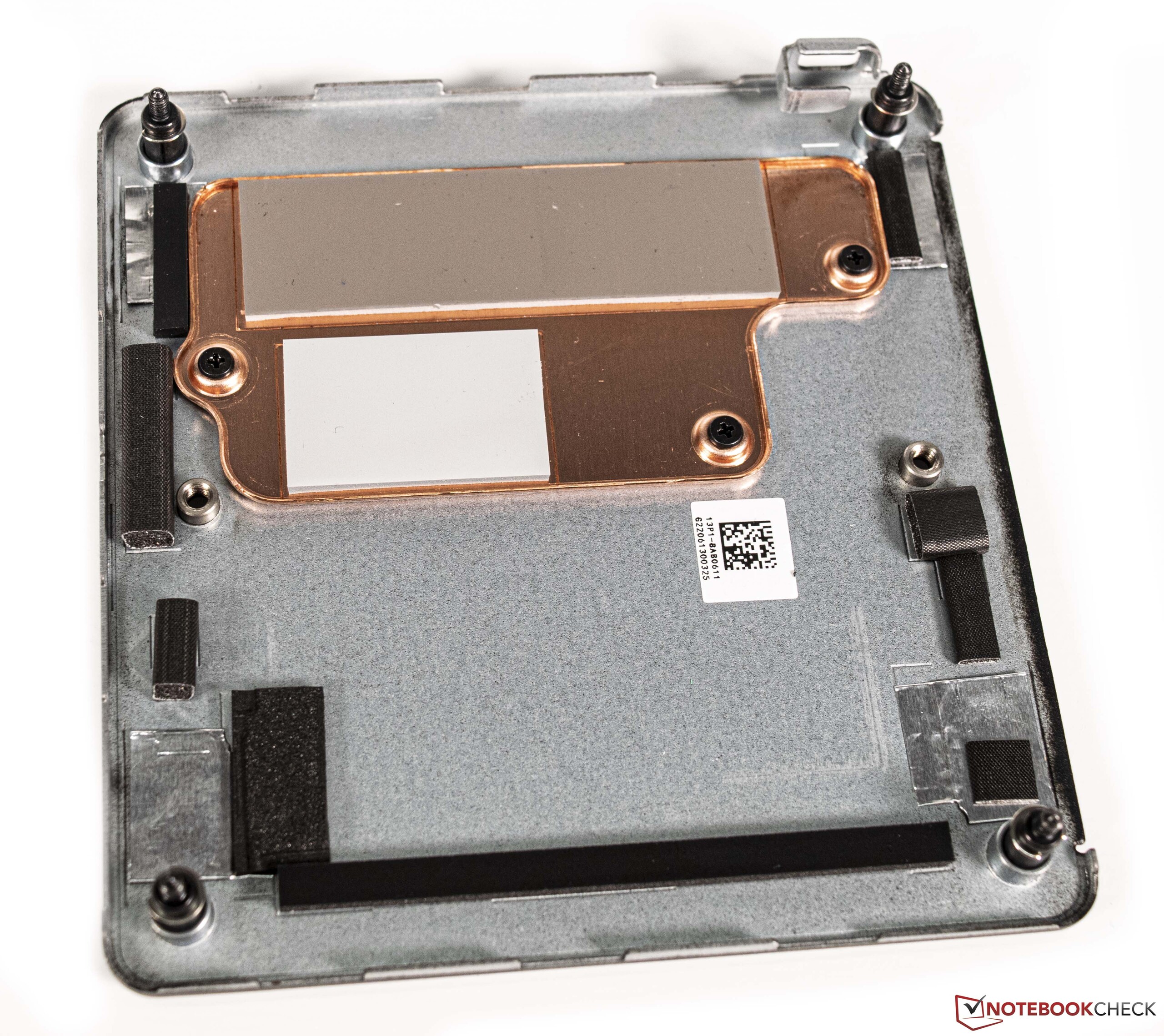

Like all compact Intel NUCs, the NUC 12 Pro Kit allows for quick and easy maintenance via the bottom of the device. The bottom cover is fixed by four small screws and doubles as a cooler for the SSDs. Once inside, accessing the RAM and SSD slots is very straightforward.
Performance - Core i7 with 12 Cores
Compact PCs are becoming more and more powerful, as users working with the Intel NUC 12 Pro Kit will quickly realize. At the heart of the system, there is a 12-core CPU with 16 threads, making the compact system an excellent choice for demanding tasks.
Testing Conditions
We performed all benchmarks using the balanced power profile. We did not modify the CPU performance settings and left everything on auto in the BIOS settings.
Processor

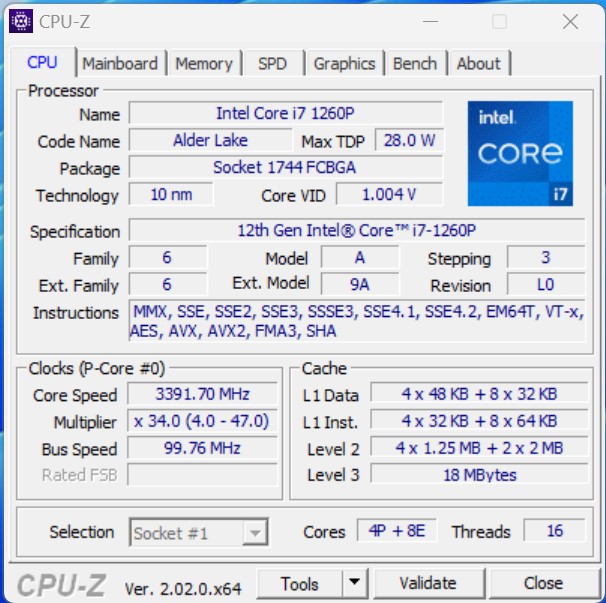

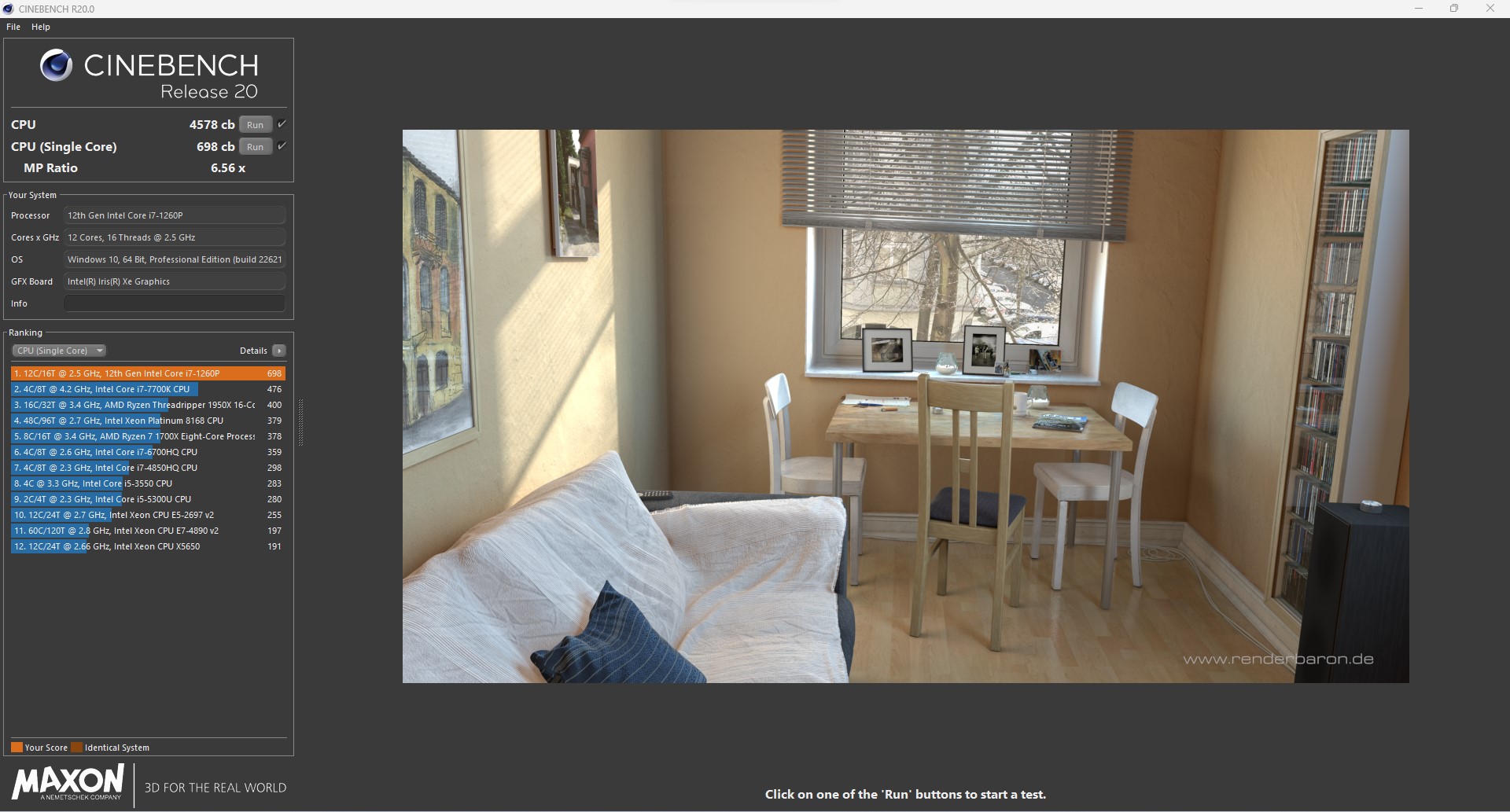

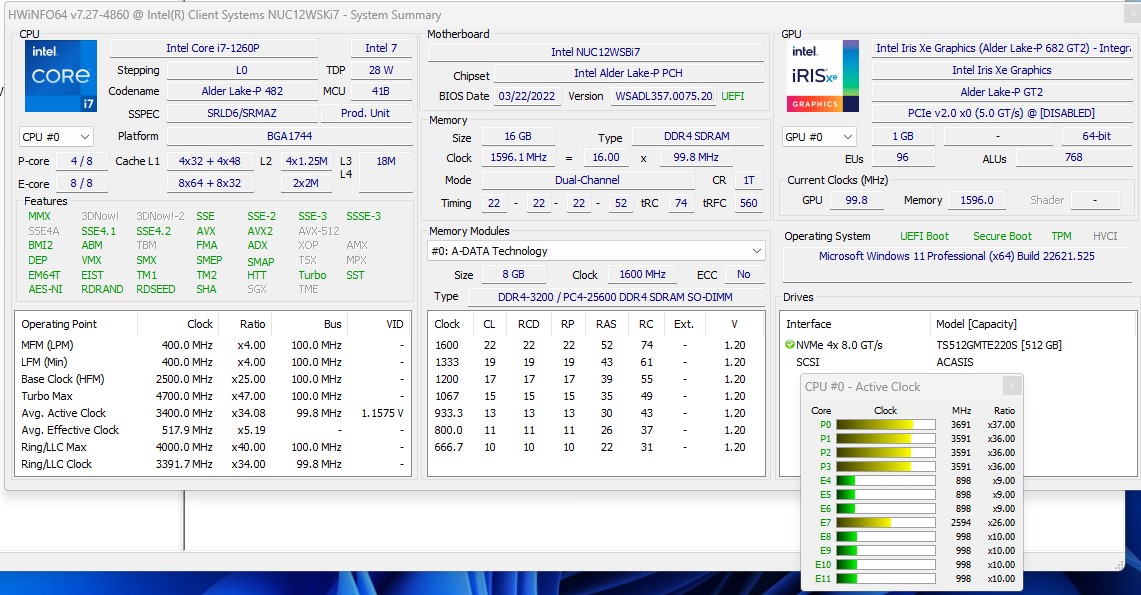

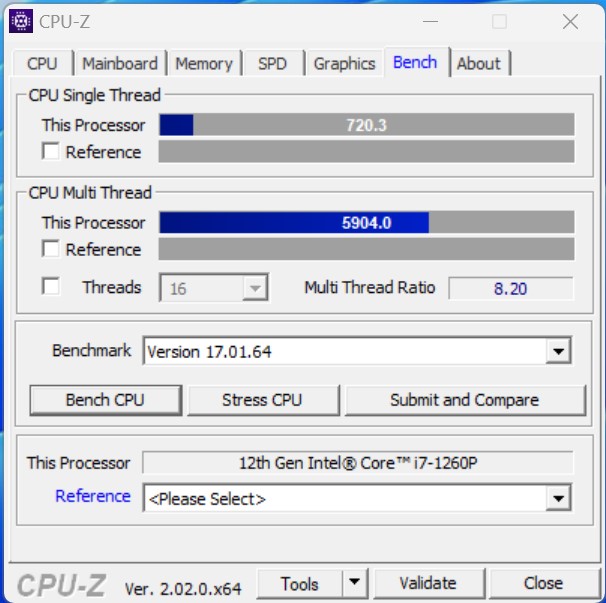

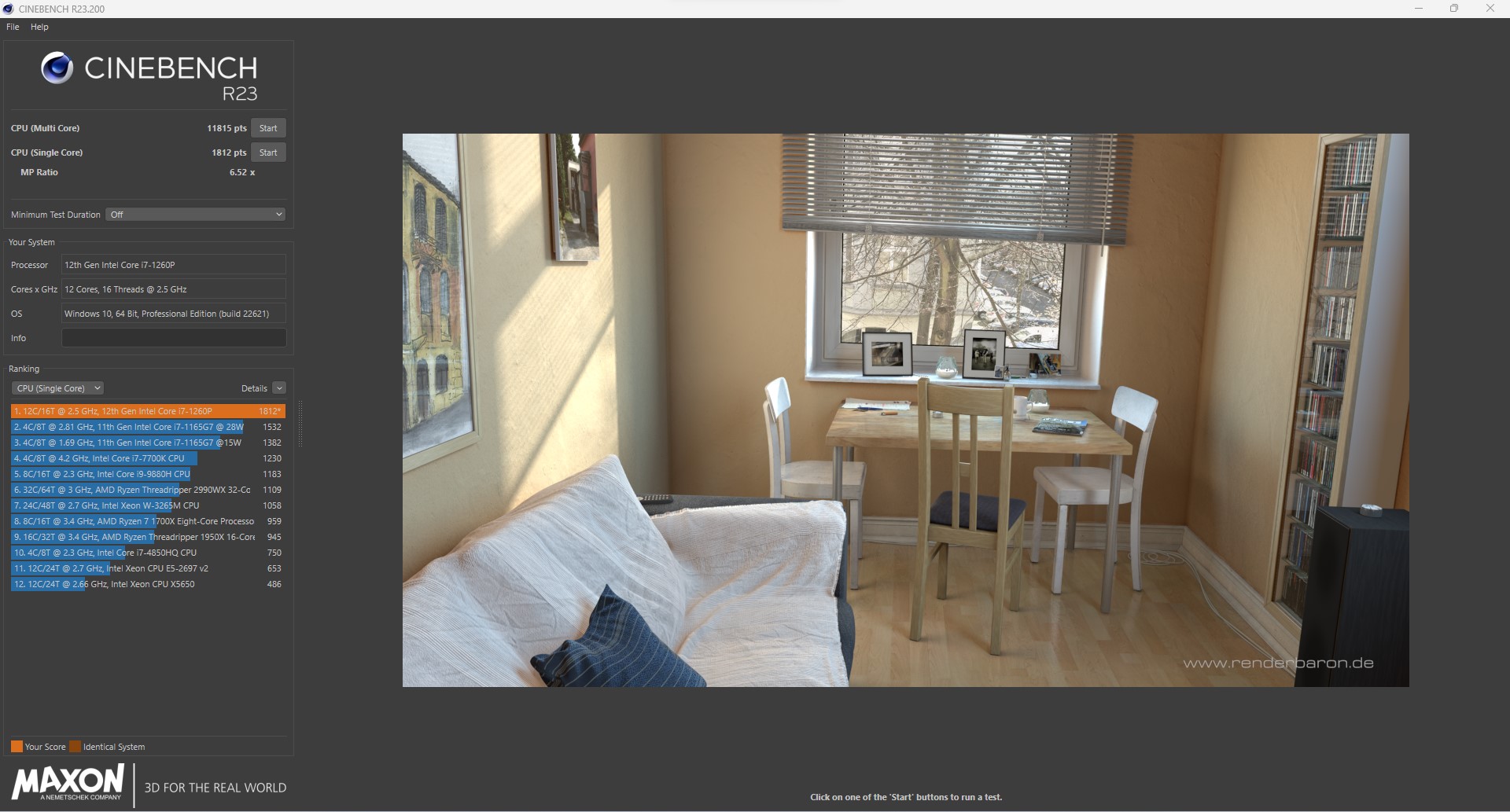

With the Intel Core i7-1260P, the Intel NUC 12 Pro kit includes a very recent SoC. Thanks to its 12 physical cores and a total of 16 threads, the Intel Core i7-1260p is a solid choice even for demanding users. It is rated for a burst TDP (PL2) of 64 watts and a continuous TDP (PL1) of 40 watts. Compared to its competitors, the Intel NUC 12 Pro Kit performs very well. Among its compact PC competitors, only the Morefine S600-Apex is able to achieve a slightly better overall score. A 14 percent deficit compared to an Intel Core i5-12600K is still not particularly large. This further illustrates just how well this mobile SoC is able to perform.
More comparisons and benchmarks can be found on our CPU benchmark page.
Performance Rating - Percent | |
Intel Core i5-12600K | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Average Intel Core i7-1260P | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 |
* ... smaller is better
Cinebench R11.5 | |
CPU Single 64Bit | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (2.93 - 3.15, n=3) | |
Morefine S600-Apex Engineer | |
CPU Multi 64Bit | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S600-Apex Engineer | |
Average Intel Core i7-1260P (20.1 - 23.6, n=3) |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (13568 - 14504, n=2) | |
Morefine S600-Apex Engineer | |
Rendering Multiple CPUs 64Bit | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (53950 - 73492, n=2) |
Blender - v2.79 BMW27 CPU | |
Intel NUC11TNKi5 | |
Average Intel Core i7-1260P (264 - 906, n=26) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S600-Apex Engineer |
WinRAR - Result | |
Average Intel Core i7-1260P (6559 - 16777, n=3) | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
Geekbench 5.0 | |
5.0 Multi-Core | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (6440 - 10411, n=10) | |
Intel NUC11TNKi5 | |
5.0 Single-Core | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (1557 - 1694, n=10) | |
Intel NUC11TNKi5 |
Geekbench 4.4 | |
64 Bit Single-Core Score | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (6698 - 7554, n=3) | |
Intel NUC11TNKi5 | |
64 Bit Multi-Core Score | |
Average Intel Core i7-1260P (36974 - 39852, n=3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC11TNKi5 |
3DMark 11 - 1280x720 Performance Physics | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S600-Apex Engineer | |
Average Intel Core i7-1260P (4745 - 18968, n=27) | |
Intel NUC11TNKi5 |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (3.45 - 13.6, n=26) | |
Intel NUC11TNKi5 |
R Benchmark 2.5 - Overall mean | |
Intel NUC11TNKi5 | |
Average Intel Core i7-1260P (0.4559 - 0.727, n=25) | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
LibreOffice - 20 Documents To PDF | |
Intel NUC11TNKi5 | |
Average Intel Core i7-1260P (40.2 - 65.7, n=25) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S600-Apex Engineer |
WebXPRT 3 - Overall | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (250 - 298, n=24) | |
Intel NUC11TNKi5 |
Mozilla Kraken 1.1 - Total | |
Intel NUC11TNKi5 | |
Morefine S600-Apex Engineer | |
Average Intel Core i7-1260P (531 - 604, n=24) | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
3DMark | |
3840x2160 Fire Strike Ultra Physics | |
Morefine S600-Apex Engineer | |
Average Intel Core i7-1260P (15903 - 22818, n=12) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC11TNKi5 | |
1920x1080 Fire Strike Physics | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (6797 - 22877, n=28) | |
Intel NUC11TNKi5 | |
2560x1440 Time Spy CPU | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average Intel Core i7-1260P (2352 - 10150, n=28) | |
Intel NUC11TNKi5 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx

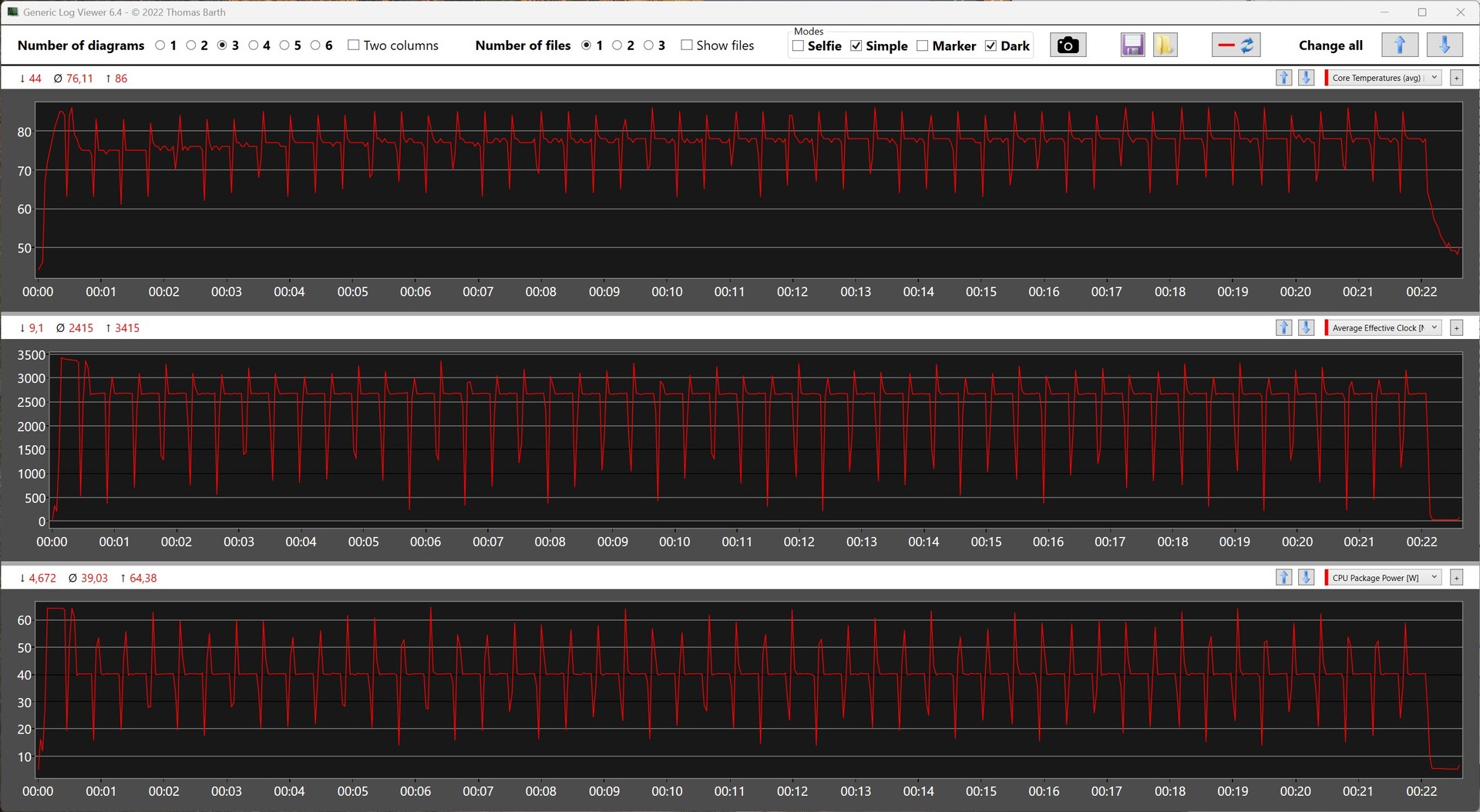

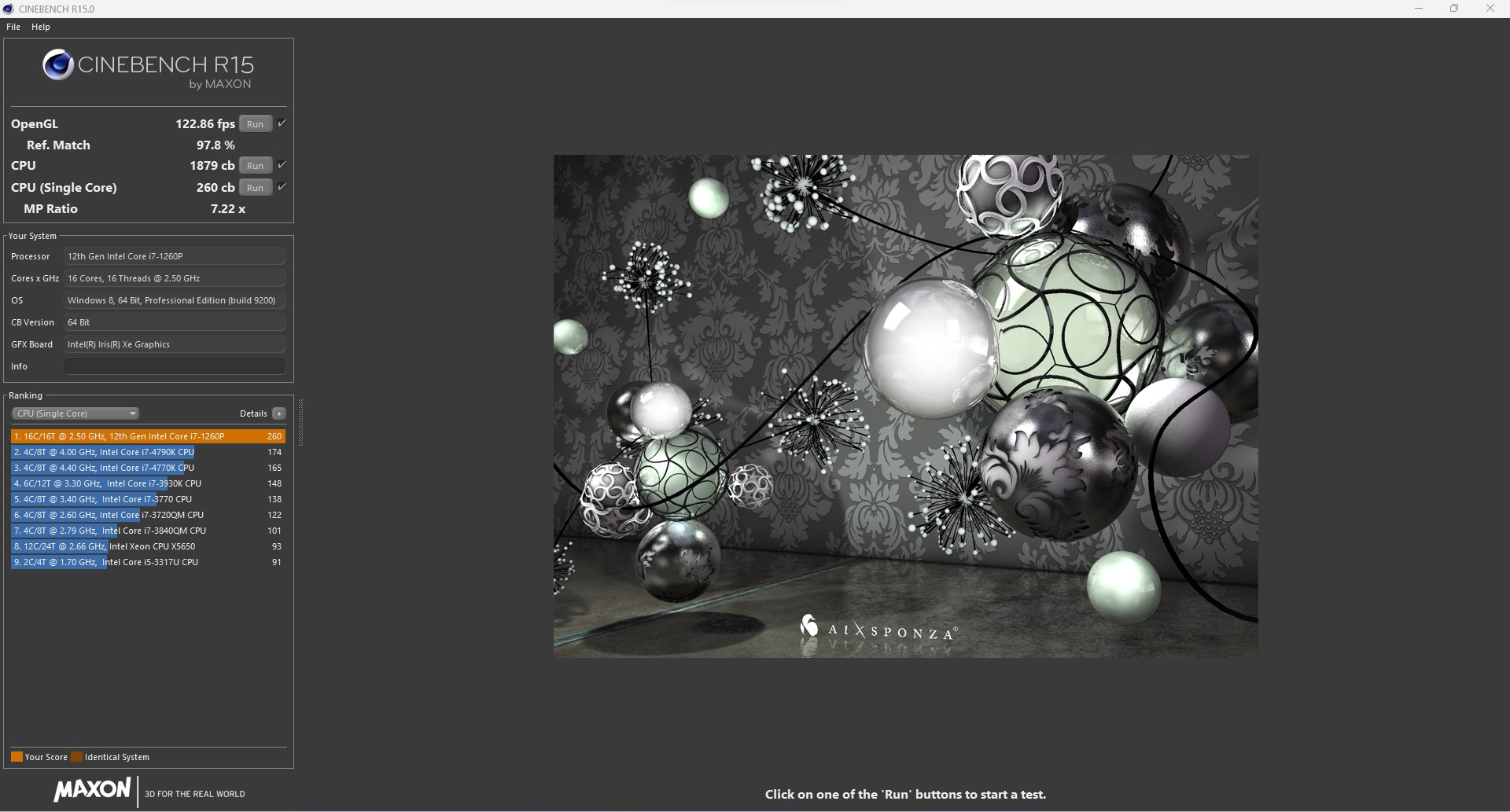

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop
We get our first glimpse into the efficiency of the integrated cooling solution in our Cinebench R15 loop. The maximum Turbo is only active during the first loop with performance dropping off significantly during the second run. The scores dip by about 10 percent. There are no major fluctuations during the remainder of the test and the average total score is 1702 points.
System Performance
Unfortunately, the Intel NUC 12 Pro Kit is not able to seamlessly transition its good CPU benchmark scores into good synthetic benchmark scores. Disregarding the Intel Core i5-12600K, it only places third in PCMark 10. By contrast, Crossmark once again appears to favor our test device and restores the old performance hierarchy. Similarly, we observe above-average transfer rates compared to other mini PCs in the RAM tests.
AIDA64 / Memory Copy | |
Intel Core i5-12600K | |
Average Intel Core i7-1260P (25125 - 71544, n=25) | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Average of class Mini PC (6481 - 70620, n=97, last 2 years) | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Intel NUC11TNKi5 |
AIDA64 / Memory Read | |
Intel Core i5-12600K | |
Average Intel Core i7-1260P (24983 - 72065, n=25) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S600-Apex Engineer | |
Minisforum EliteMini HX90 | |
Average of class Mini PC (6914 - 71285, n=97, last 2 years) | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Intel NUC11TNKi5 |
AIDA64 / Memory Write | |
Intel Core i5-12600K | |
Average Intel Core i7-1260P (23512 - 66799, n=25) | |
Average of class Mini PC (6862 - 89318, n=97, last 2 years) | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Minisforum EliteMini HX90 | |
Intel NUC11TNKi5 |
AIDA64 / Memory Latency | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician AMR5 | |
Average of class Mini PC (44.9 - 154.6, n=97, last 2 years) | |
Intel NUC11TNKi5 | |
Minisforum EliteMini HX90 | |
Average Intel Core i7-1260P (77.9 - 118.4, n=21) | |
Minipc Union Ace Magician TK11-A0 |
* ... smaller is better

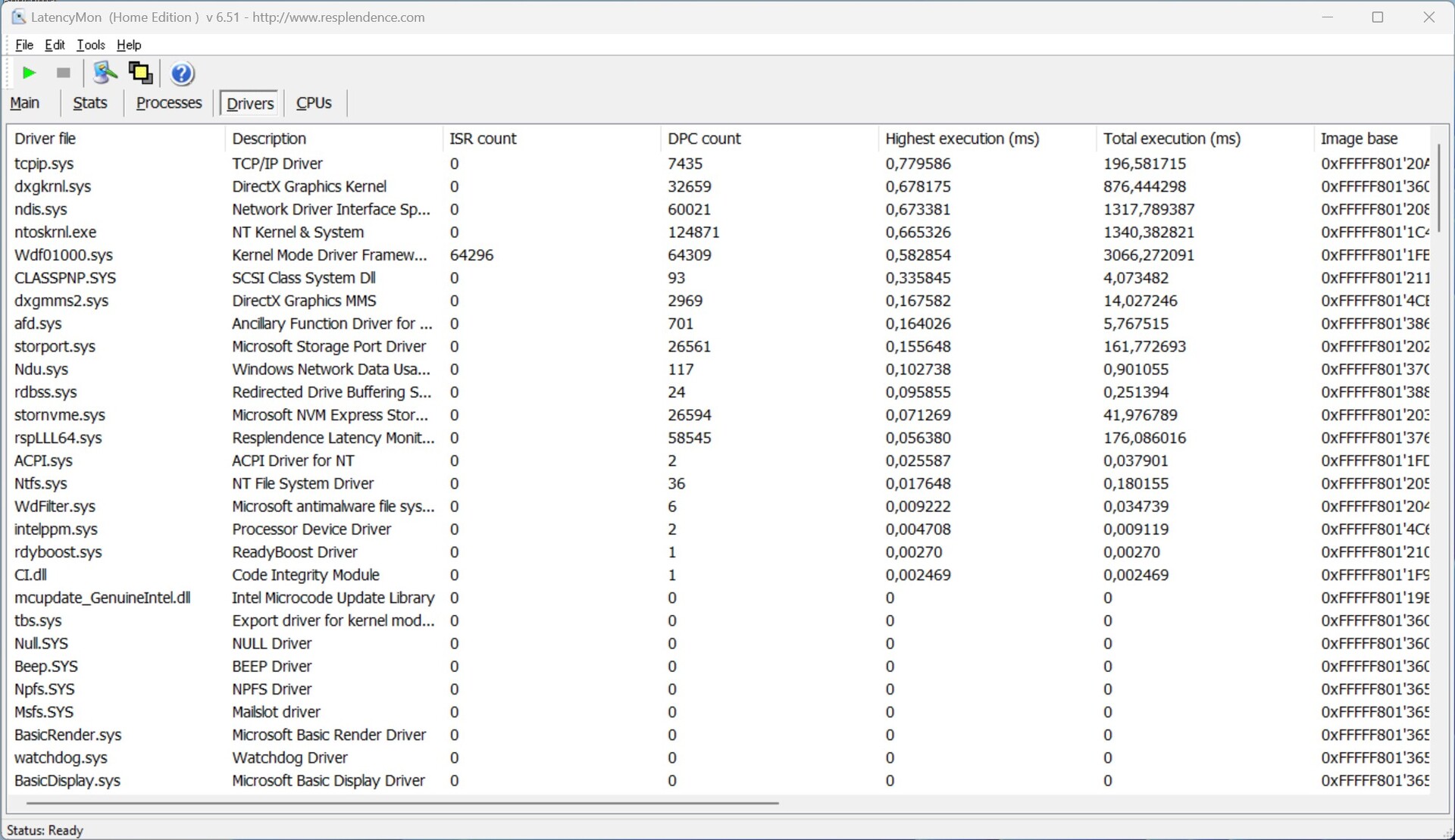

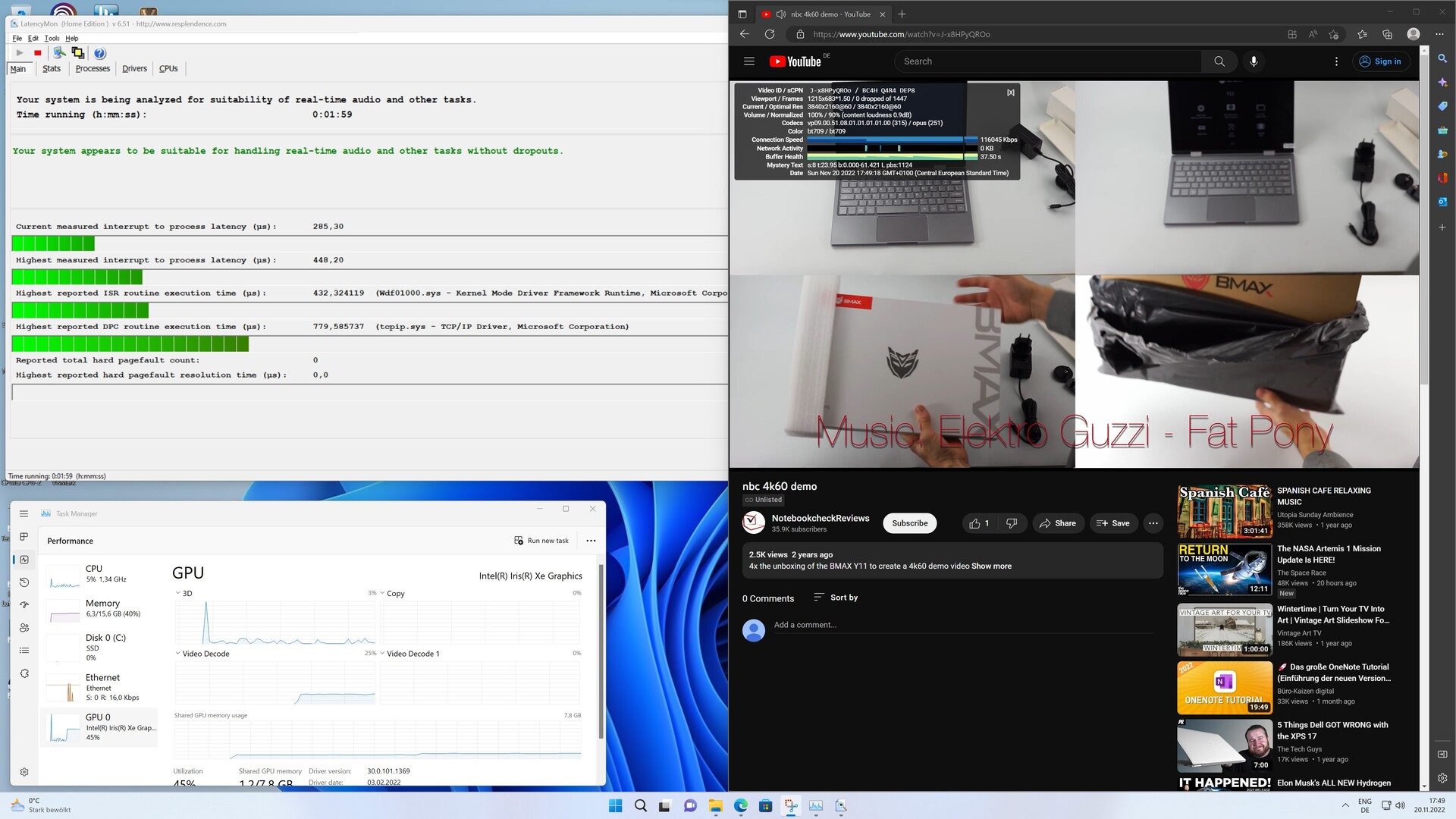

DPC Latency
The Intel NUC 12 Pro Kit performs well in combination with the Intel Core i7-1260P. We did not observe problematic latencies during video playback of a video sample. Here the iGPU was at about 45 percent utilization.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Minisforum EliteMini HX90 | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 | |
Intel NUC11TNKi5 |
* ... smaller is better

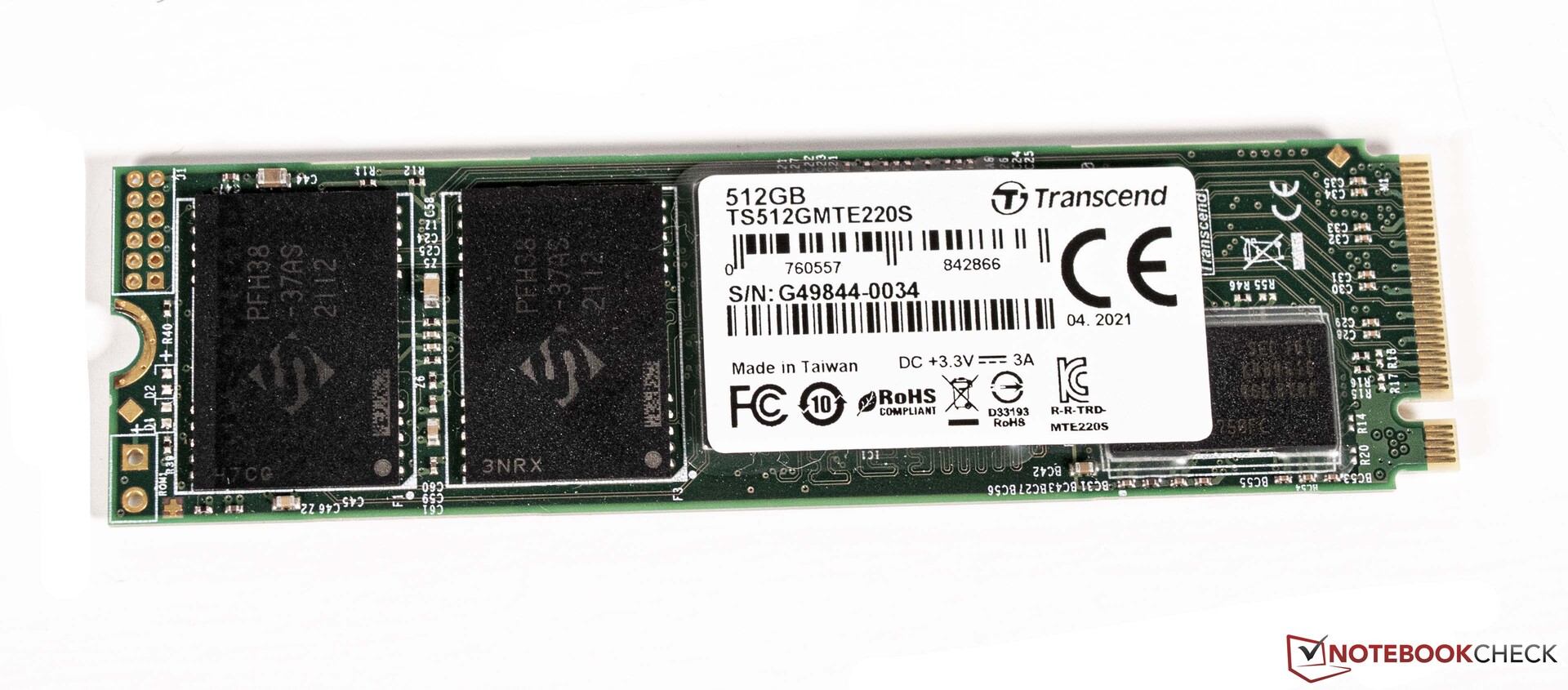

Storage Solution

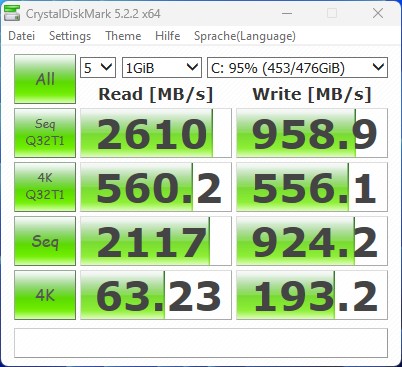

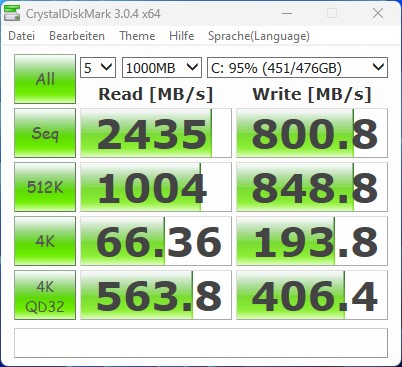

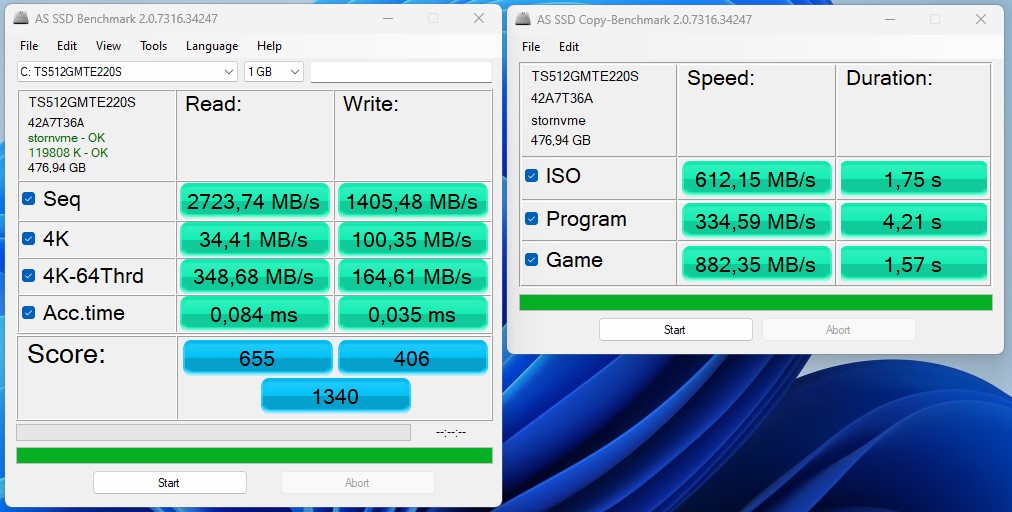

Our test sample of the Intel NUC 12 Pro Kit supports up to two M.2 SSDs. However, users will have to pay attention to the form factor. While the primary NVMe-M.2 slot only supports 80mm SSDs, the secondary M.2 slot only accepts shorter 42mm SSDs.

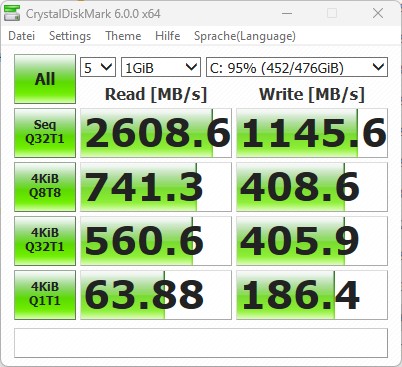

We use a Transcend SSD and RAM from our hardware stock. The SSD performance is solid. However, other devices in our comparison are equipped with faster SSDs. The importance of these results should not be overestimated, since users will be able to install an SSD of their choice in the Intel NUC 12 Pro Kit barebone.
More comparisons and benchmarks can be found on our SSD and HDD page.
Drive Performance Rating - Percent | |
Average of class Mini PC | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Minisforum EliteMini HX90 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC11TNKi5 |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU Performance

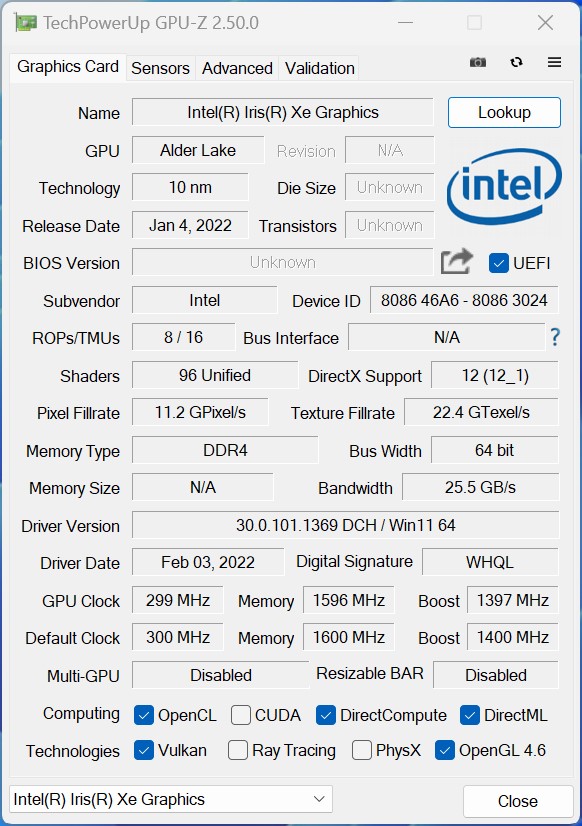

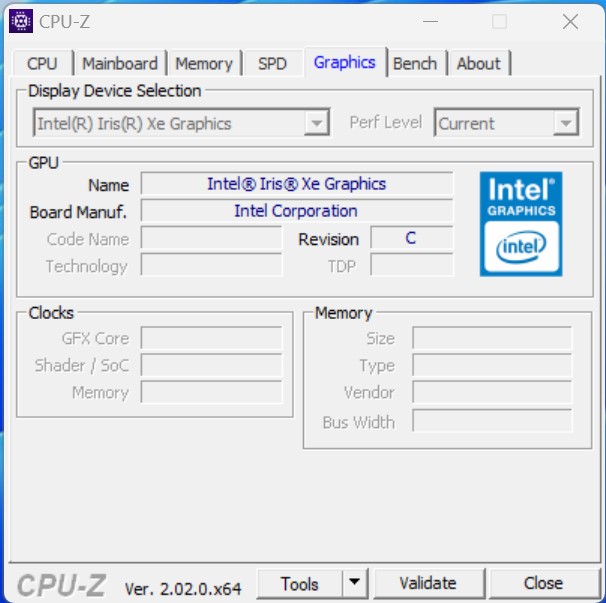

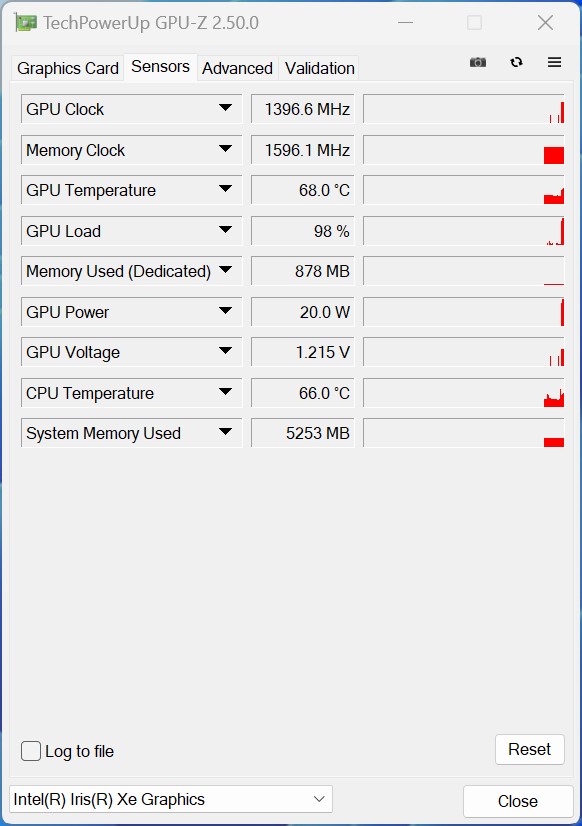

An Intel Iris Xe Graphics G7 with 96 EUs is used as the integrated graphics solution. Performance-wise, it is only suitable for 2D rendering. The 3D performance is significantly lacking compared to a dedicated GPU. However, an external GPU can be connected via Thunderbolt instead. We tried this using our Razer Core X and an Nvidia GeForce RTX 3060 Ti and documented the results, which can be found in the following graphs. In a nutshell, the performance of the Inte NUC 12 Pro Kit increases substantially in this scenario, where it exceeds even that of the Ace Magician TK11-A0.
More comparisons and benchmarks can be found on our GPU page.
3DMark Performance Rating - Percent | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 | |
Intel NUC11TNKi5 -1! |
3DMark 11 - 1280x720 Performance GPU | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S600-Apex Engineer | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 | |
Intel NUC11TNKi5 |
Performance Rating - Percent | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti -8! | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician TK11-A0 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 | |
Minisforum EliteMini HX90 | |
Extreme Preset DX11 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Minisforum EliteMini HX90 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 | |
Sala GPUs-only | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Minisforum EliteMini HX90 |
3DMark 05 Standard | 43430 points | |
3DMark 06 Standard Score | 32994 points | |
3DMark Vantage P Result | 24787 points | |
3DMark 11 Performance | 7421 points | |
3DMark Ice Storm Standard Score | 53585 points | |
3DMark Cloud Gate Standard Score | 19367 points | |
3DMark Fire Strike Score | 4564 points | |
3DMark Fire Strike Extreme Score | 2165 points | |
3DMark Time Spy Score | 1854 points | |
Help |
Gaming Performance
The iGPU is not suitable for gaming use. At best, some titles are playable at low resolutions and low graphics settings. Regardless, the gaming experience still is not great. If you are looking for a gaming device, a model with a dedicated GPU will be a better fit. The latest models HX90G and NUCXi7 from Minisforum can be suitable alternatives. Alternatively, a Thunderbolt eGPU dock can be used. We used the Razer Core X in combination with the Nvidia GeForce RTX 3060 Ti to test this configuration. Although this setup is able to run many games at high resolutions, the performance is still significantly worse compared to a traditional desktop PC. This is a result of the Thunderbolt 4 ports being limited to just 4 PCIe lanes.
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician TK11-A0 | |
Minipc Union Ace Magician AMR5 | |
Intel NUC11TNKi5 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Morefine S600-Apex Engineer | |
Minipc Union Ace Magician TK11-A0 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
Borderlands 3 | |
1920x1080 Medium Overall Quality (DX11) | |
Morefine S600-Apex Engineer | |
Minisforum EliteMini HX90 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician AMR5 | |
Minipc Union Ace Magician TK11-A0 | |
1280x720 Very Low Overall Quality (DX11) | |
Minisforum EliteMini HX90 | |
Morefine S600-Apex Engineer | |
Minipc Union Ace Magician AMR5 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minipc Union Ace Magician TK11-A0 |
Metro Exodus | |
1280x720 Low Quality AF:4x | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 | |
1920x1080 Medium Quality AF:4x | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 |
F1 2021 | |
1280x720 Ultra Low Preset | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 | |
1920x1080 Medium Preset AA:T AF:16x | |
Morefine S600-Apex Engineer | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum EliteMini HX90 | |
Minipc Union Ace Magician AMR5 |
The Witcher 3 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
GTA V | |
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Dota 2 Reborn | |
1920x1080 ultra (3/3) best looking | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
3840x2160 ultra (3/3) best looking | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 High Quality | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
X-Plane 11.11 | |
1920x1080 high (fps_test=3) | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
3840x2160 high (fps_test=3) | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
Far Cry 5 | |
1920x1080 Ultra Preset AA:T | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 Ultra Preset AA:T | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Far Cry New Dawn | |
1920x1080 Ultra Preset | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 Ultra Preset | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Strange Brigade | |
1920x1080 ultra AA:ultra AF:16 | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 ultra AA:ultra AF:16 | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Metro Exodus | |
1920x1080 Ultra Quality AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 Ultra Quality AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G |
Borderlands 3 | |
2560x1440 Badass Overall Quality (DX11) | |
Nvidia GeForce RTX 3060 Ti FE | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G | |
1920x1080 Badass Overall Quality (DX11) | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
Tiny Tina's Wonderlands | |
1920x1080 Badass Preset (DX12) | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
2560x1440 Badass Preset (DX12) | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G |
F1 2020 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Nvidia GeForce RTX 3060 Ti FE | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
Performance Rating - Percent | |
Average NVIDIA GeForce RTX 3060 Ti | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
The Witcher 3 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Minisforum NUCX i7 | |
Average NVIDIA GeForce RTX 3060 Ti (64.6 - 124.3, n=6) | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Average NVIDIA GeForce RTX 3060 Ti (54.6 - 85.6, n=6) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
GTA V - 2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Minisforum NUCX i7 | |
Average NVIDIA GeForce RTX 3060 Ti (38.9 - 117, n=6) | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Dota 2 Reborn - 3840x2160 ultra (3/3) best looking | |
Minisforum NUCX i7 | |
Average NVIDIA GeForce RTX 3060 Ti (33.7 - 169, n=6) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
Final Fantasy XV Benchmark - 2560x1440 High Quality | |
Average NVIDIA GeForce RTX 3060 Ti (40.8 - 93.2, n=6) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
X-Plane 11.11 - 3840x2160 high (fps_test=3) | |
Average NVIDIA GeForce RTX 3060 Ti (30.3 - 128.8, n=6) | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
Far Cry 5 - 2560x1440 Ultra Preset AA:T | |
Average NVIDIA GeForce RTX 3060 Ti (90 - 125, n=6) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Far Cry New Dawn - 2560x1440 Ultra Preset | |
Average NVIDIA GeForce RTX 3060 Ti (73 - 121, n=6) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Strange Brigade - 2560x1440 ultra AA:ultra AF:16 | |
Average NVIDIA GeForce RTX 3060 Ti (119.3 - 161.3, n=6) | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
Borderlands 3 | |
2560x1440 Badass Overall Quality (DX11) | |
Average NVIDIA GeForce RTX 3060 Ti (63.2 - 76.3, n=6) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum NUCX i7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G | |
1920x1080 Badass Overall Quality (DX11) | |
Average NVIDIA GeForce RTX 3060 Ti (78.2 - 108.5, n=6) | |
Minisforum NUCX i7 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Neptune Series HX90G |
F1 2020 - 2560x1440 Ultra High Preset AA:T AF:16x | |
Minisforum NUCX i7 | |
Average NVIDIA GeForce RTX 3060 Ti (87.6 - 150, n=6) | |
Minisforum Neptune Series HX90G | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
F1 2021 - 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Minisforum NUCX i7 | |
Average NVIDIA GeForce RTX 3060 Ti (45.2 - 107.8, n=6) | |
Minisforum Neptune Series HX90G | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only
low | med. | high | ultra | |
GTA V (2015) | 108.6 | 93.9 | 19.4 | 8.27 |
The Witcher 3 (2015) | 88.1 | 15.2 | ||
Dota 2 Reborn (2015) | 116.4 | 87.9 | 63.1 | 57.9 |
Final Fantasy XV Benchmark (2018) | 42.8 | 23 | 16.4 | |
X-Plane 11.11 (2018) | 62.3 | 46.2 | 40.4 | |
Far Cry 5 (2018) | 52 | 27 | 25 | 24 |
Strange Brigade (2018) | 90.1 | 39.5 | 32.5 | 26.2 |
Far Cry New Dawn (2019) | 47 | 27 | 26 | 23 |
Metro Exodus (2019) | 41.5 | 20.3 | 14.4 | |
Borderlands 3 (2019) | 52.4 | 23 | 15 | |
F1 2020 (2020) | 95 | 48.7 | 37.4 | 23.9 |
F1 2021 (2021) | 101.1 | 47.3 | 36.8 | 26.9 |
Tiny Tina's Wonderlands (2022) | 31.8 | 24.2 | 15.2 | |
F1 22 (2022) | 44.3 | 42.6 | 30.9 | 23.7 |
Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti
low | med. | high | ultra | QHD | 4K | |
GTA V (2015) | 178.5 | 172.4 | 128.2 | 85.1 | 57.8 | 39.4 |
The Witcher 3 (2015) | 308 | 211 | 151.2 | 75.3 | 72.3 | |
Dota 2 Reborn (2015) | 167.7 | 150.9 | 144.9 | 134.5 | 109 | |
Final Fantasy XV Benchmark (2018) | 175.7 | 141.1 | 97.6 | 77.1 | 48.5 | |
X-Plane 11.11 (2018) | 126.9 | 110.6 | 90.3 | 80.1 | ||
Far Cry 5 (2018) | 153 | 133 | 127 | 120 | 100 | |
Strange Brigade (2018) | 204 | 156.4 | 153.7 | 148.8 | 129.9 | 83.4 |
Far Cry New Dawn (2019) | 133 | 115 | 111 | 101 | 92 | 59 |
Metro Exodus (2019) | 144.5 | 91.9 | 70.5 | 52.9 | 46.1 | 33.8 |
Borderlands 3 (2019) | 145.2 | 126.5 | 101.3 | 83.6 | 63.9 | 37.8 |
F1 2020 (2020) | 209 | 124.7 | 126.1 | 102.7 | 92.7 | 60.3 |
F1 2021 (2021) | 142.1 | 113.1 | 68.7 | 51.7 | 49.2 | 41.5 |
Tiny Tina's Wonderlands (2022) | 173.9 | 139.5 | 100.3 | 81.5 | 61.9 | 36 |
F1 22 (2022) | 71.3 | 70.4 | 57.7 | 31.5 | 30.2 | 21.1 |
Emissions
System Noise
The Intel NUC 12 Pro Kit is only quiet during idle. The fan softly runs at 33 dB(A), making it barely noticeable. Under load, this value increases to an average of 38 dB(A) and an even higher 43 dB(A) during the stress test. That being said, the Intel NUC 12 Pro Kit still is not the loudest device in our comparison. However, competitors such as the Minisforum EliteMini HX90 are able to remain much quieter.
Noise Level
Idle |
| 33.1 / 33.1 / 33.1 dB(A) |
Load |
| 38.1 / 43.6 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.4 dB(A) |
Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Minisforum EliteMini HX90 R9 5900HX, Vega 8 | Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs | Minipc Union Ace Magician AMR5 R5 5600U, Vega 7 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs | |
---|---|---|---|---|---|---|
Noise | 9% | -2% | -7% | 5% | -8% | |
off / environment * | 30.4 | 30.8 -1% | 24.8 18% | 30.5 -0% | 30.28 -0% | 29.6 3% |
Idle Minimum * | 33.1 | 35.6 -8% | 31.5 5% | 31.82 4% | 36.1 -9% | |
Idle Average * | 33.1 | 31.6 5% | 35.6 -8% | 32.6 2% | 32.27 3% | 37.6 -14% |
Idle Maximum * | 33.1 | 35.6 -8% | 33.8 -2% | 33.17 -0% | 39.2 -18% | |
Load Average * | 38.1 | 36.2 5% | 49.3 -29% | 35.82 6% | 42.6 -12% | |
Load Maximum * | 43.6 | 33.4 23% | 47.6 -9% | 50.9 -17% | 37.1 15% | 42.4 3% |
Witcher 3 ultra * | 38 |
* ... smaller is better
Temperatures

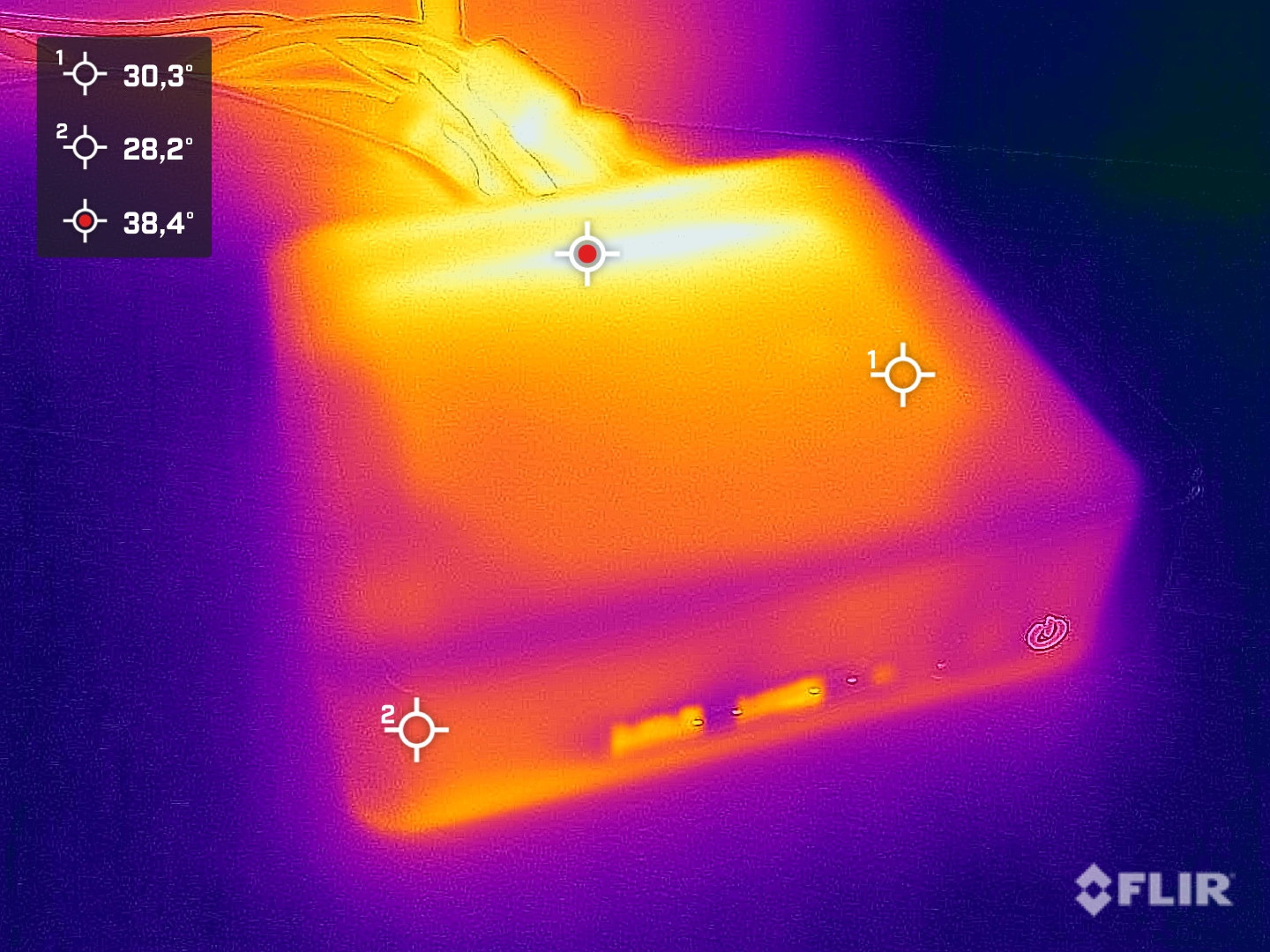

During idle and during undemanding tasks, the surface temperatures of the Intel NUC 12 Pro Kit remain relatively cool. Heat is able to quickly escape from the case through the back.

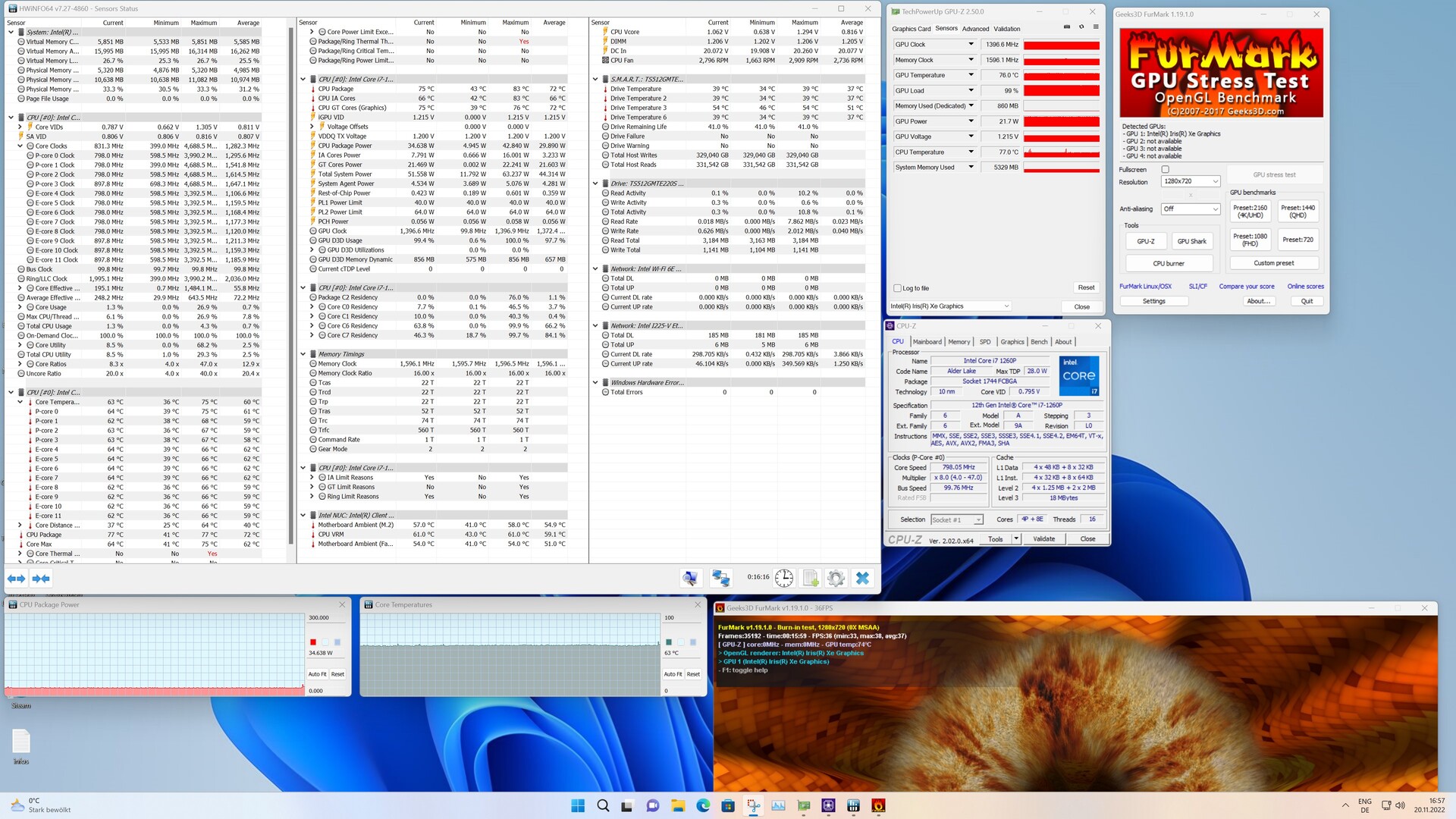

When stressing the system with Prime95, the Intel Core i7-1260P reaches a peak temperature of 93 °C (199.4 °F) and a clock rate of 2.6 GHz on the P cores. Meanwhile, the E cores still maintain a respectable 2.3 GHz. The temperatures are nothing to worry about overall and there is no thermal throttling during pure CPU stress. The CPU initially reaches the PL2 TDP limit and subsequently falls to the PL1 limit of 40 watts. This value can be maintained throughout the entirety of the stress test.
Energy Consumption

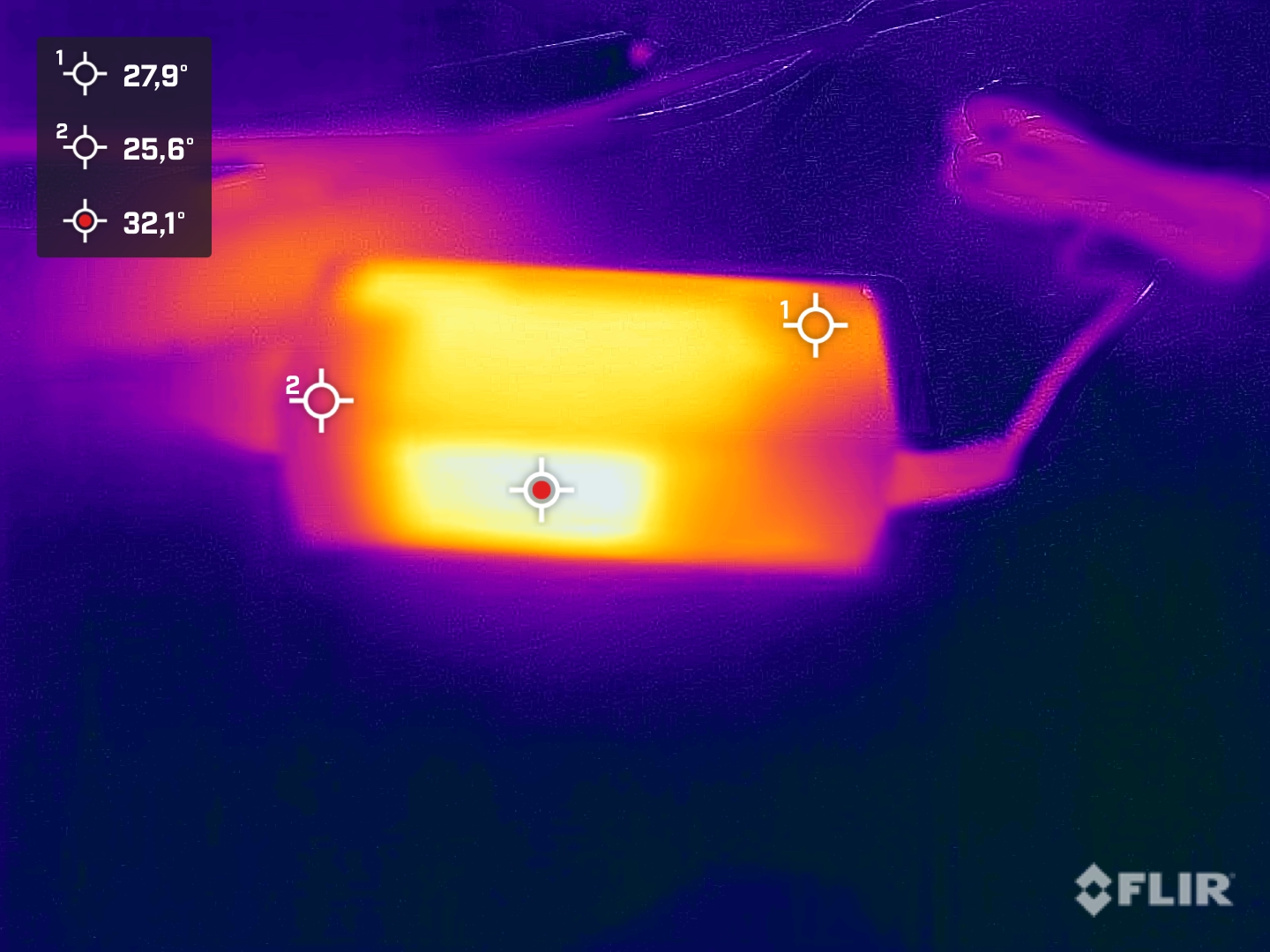

The Intel NUC 12 Pro Kit cannot be described as being extremely energy efficient. This is due to the somewhat high power consumption during idle. In this scenario, the 120-watt AC adapter has to provide at least 12 watts. Under load, this value increases to an average of 64 watts with temporary spikes to almost 99 watts when the Turbo is active. Thus, the AC adapter is sufficiently dimensioned. Surprisingly, the energy consumption during sleep mode (4.7 watts) and while switched off (1.6 watts) is relatively high.
Off / Standby | 1.66 / 4.73 Watt |
Idle | 12.1 / 12.2 / 12.3 Watt |
Load |
64 / 98.8 Watt |
Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs | Minipc Union Ace Magician AMR5 R5 5600U, Vega 7 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs | Average Intel Iris Xe Graphics G7 96EUs | Average of class Mini PC | |
---|---|---|---|---|---|---|---|
Power Consumption | 12% | 32% | 48% | -231% | 33% | 7% | |
Idle Minimum * | 12.1 | 11.5 5% | 8.4 31% | 3.4 72% | 46.5 -284% | 5.26 ? 57% | 9.8 ? 19% |
Idle Average * | 12.2 | 12.4 -2% | 8.7 29% | 5.7 53% | 63 -416% | 8.46 ? 31% | 11.7 ? 4% |
Idle Maximum * | 12.3 | 12.9 -5% | 9.3 24% | 7 43% | 68.9 -460% | 10.6 ? 14% | 14.7 ? -20% |
Load Average * | 64 | 40.7 36% | 46.4 27% | 36.5 43% | 73.9 -15% | 44.8 ? 30% | 51.9 ? 19% |
Load Maximum * | 98.8 | 73.5 26% | 52 47% | 68 31% | 80.8 18% | 66.6 ? 33% | 86 ? 13% |
Witcher 3 ultra * | 43.9 |
* ... smaller is better
Consumption external Monitor
Pros
Cons
Verdict - Advanced, Powerful and Future-Proof
The Intel NUC 12 Pro Kit is more than capable of being an excellent office PC. It is based on the Intel Core i7-1260P, a fast SoC with 12 cores and 16 threads that is capable of running many applications simultaneously. The main advantage of the system is its compact form factor combined with the latest and greatest interfaces, which barely leave anything to be desired. Thunderbolt 4, which is available twofold, is by far the most interesting addition.
The price of around 700 USD is a half-truth when it comes to making a purchasing decision, since the barebone system includes neither RAM, an SSD nor a Windows license. That being said, offerings from other mini PC manufacturers are similar in their nature. Our modestly equipped test configuration includes 16 GB of RAM and a 512-GB SSD and performs very well. Subjectively, the system never felt slow during our testing period. Thanks to the good DPC latencies, the device is well suited to be a streaming client for the living room. An external GPU dock can also be connected in the event that more 3D performance is needed. While reviewing the system, we explored this option with the help of an Nvidia GeForce RTX 3060 Ti.
First and foremost, the Intel NUC 12 Pro Kit is a great office PC. However, with the appropriate accessories, the small system becomes capable of much more.
Visually, the Intel NUC 12 Pro Kit falls in line with other models from Intel's NUC series. The build quality is good, although the plastic-clad exterior may look somewhat cheap at first glance. Overall, the Intel NUC 12 Pro Kit makes no major missteps that would disqualify us from recommending the system. There are many competitors in the mini PC space. That being said, not many of them feature Thunderbolt support. The Ace Magician TK11-A0 is one of the exceptions. However, it is unable to match the CPU performance of the Intel NUC 12 Pro Kit.
Price and Availability
The Intel NUC 12 Pro Kit - Wall Street Canyon is currently available on various retailes such as Amazon for around 710 USD.
Intel NUC 12 Pro Kit NUC12WSKi7
-
11/24/2022 v7
Sebastian Bade
