Morefine M600 desktop PC review: Modern mini PC with AMD Ryzen 9 6900HX, 32 GB DDR5 and USB4

Following the Morefine S600 Apex Engineer, the Chinese manufacturer has now also released a version of the system using up-to-date AMD SoCs. The cheaper model with an AMD Ryzen 5-6600U starts at $388 for a barebone version. The top-of-the-range model with an AMD Ryzen 9 6900HX could be bought for around $569 at the time of testing. The device can also be fitted with RAM and SSD - this brings our test system to a total of $809, which includes 32 GB DDR5 RAM, a 1 TB SSD, and Windows 11 Professional.

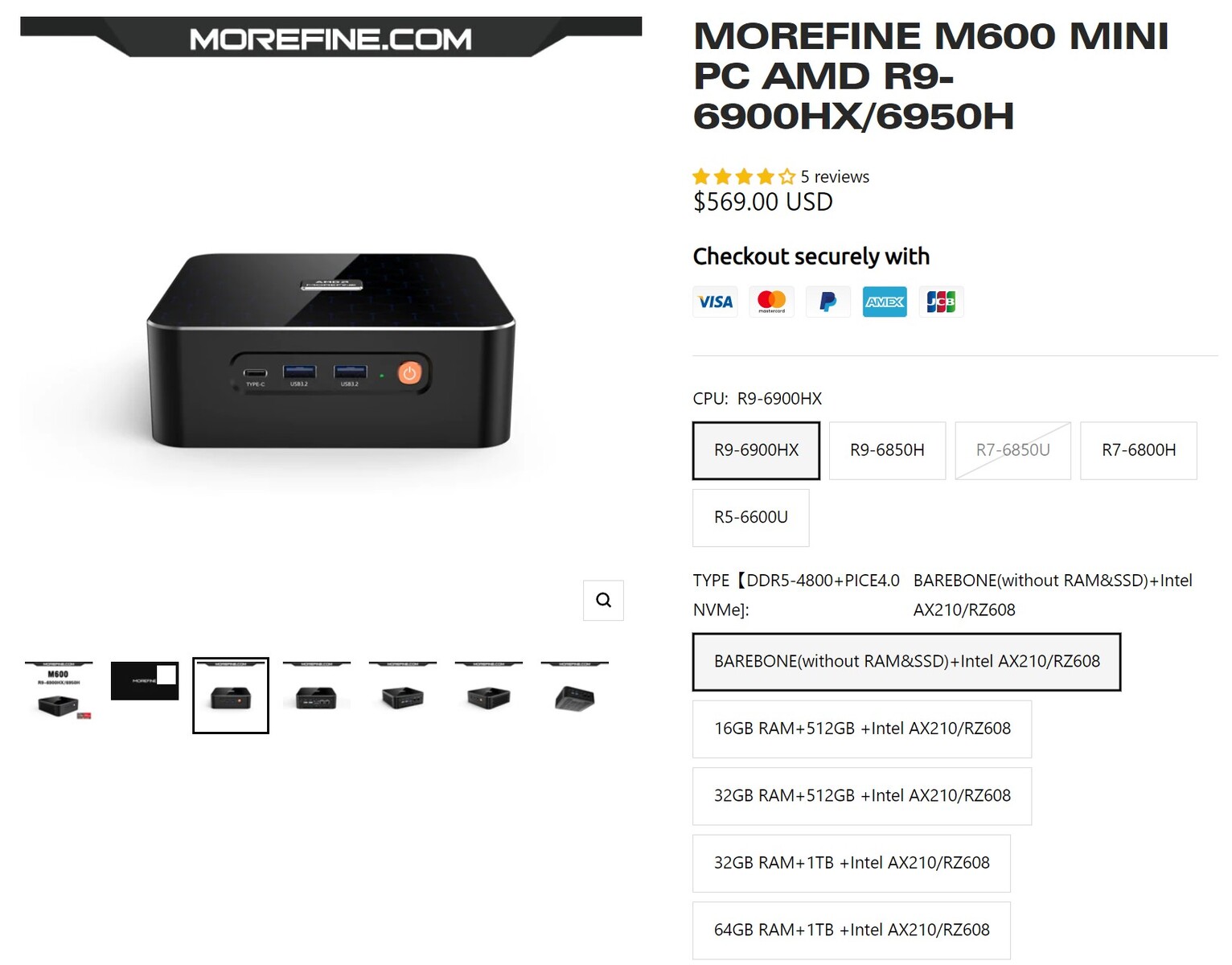

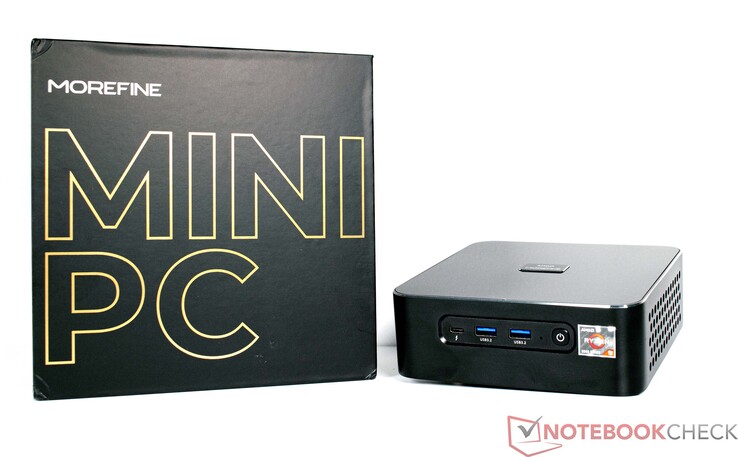

The Morefine M600 comes in an aesthetically pleasing and stable box complete with all required accessories, so your PC is ready to go immediately. Additionally, the box includes a VESA mount which you can use to mount the PC to an external monitor - internally the PC can be fitted with up to three SSDs. In this review, we put the Morefine M600 up against devices such as the Minisforum Venus Series UM690, the Minisforum Neptune Series NAD9, as well as the Morefine M600's predecessor. You can find a complete list of all these devices in the following table.
Possible competitors compared
Rating | Date | Model | Weight | Height | Price |
---|---|---|---|---|---|
85.5 % v7 (old) | 03 / 2023 | Morefine M600, 6900HX R9 6900HX, Radeon 680M | 779 g | 40.6 mm | |
v (old) | 01 / 2022 | Morefine S500+ R9 5900HX, Vega 8 | 697 g | 40 mm | |
v (old) | 05 / 2022 | Minisforum EliteMini B550 R7 5700G, Vega 8 | 1.1 kg | 67 mm | |
v7 (old) | 09 / 2022 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | 586 g | 53 mm | |
v7 (old) | 10 / 2022 | Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs | 795 g | 63.5 mm | |
85.1 % v7 (old) | 01 / 2023 | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | 1.2 kg | 66 mm | |
78.9 % v7 (old) | 11 / 2022 | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | 511 g | 37 mm | |
86.1 % v7 (old) | 02 / 2023 | Minisforum Venus Series UM690 R9 6900HX, Radeon 680M | 621 g | 48 mm |
Case

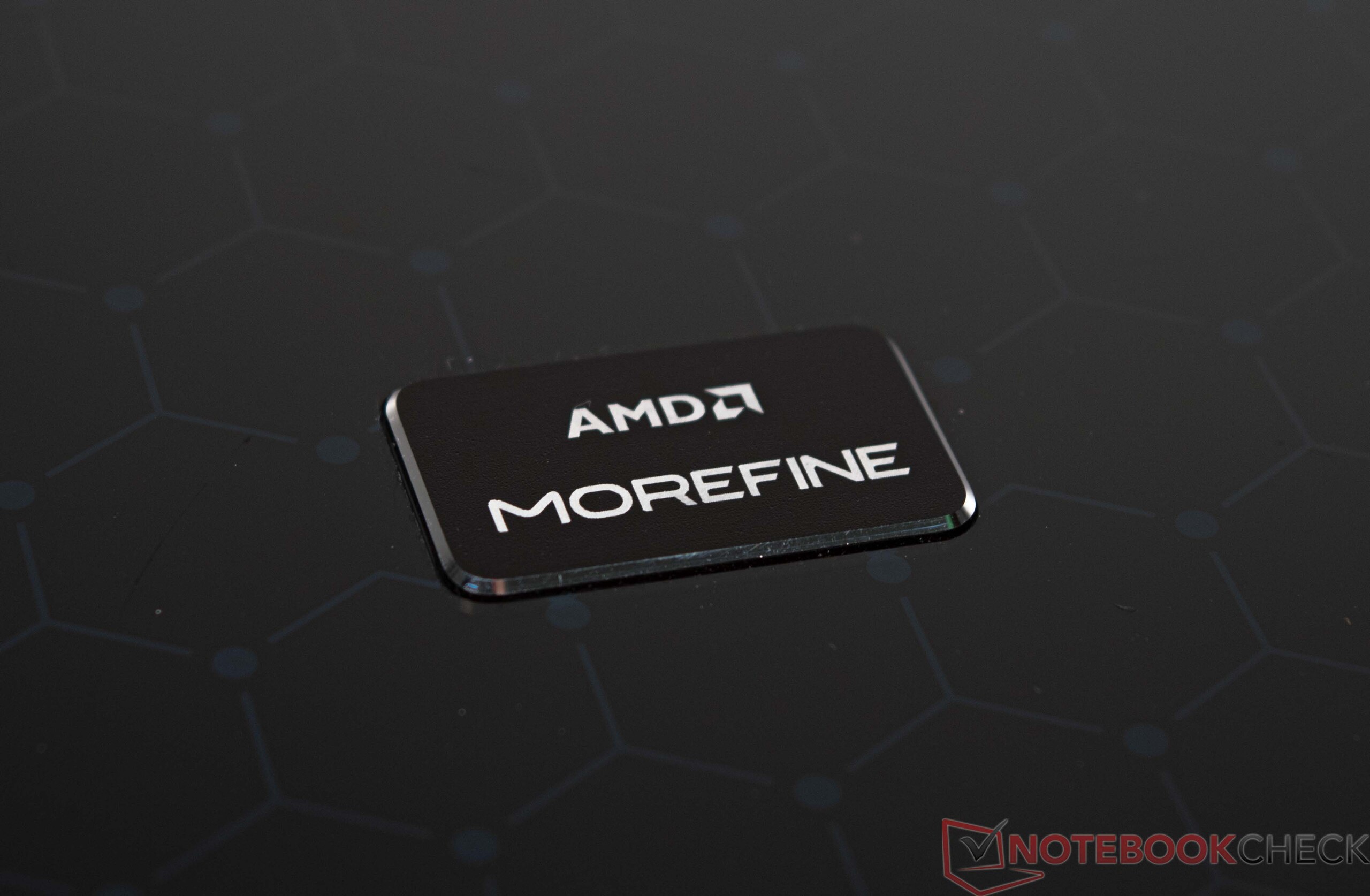

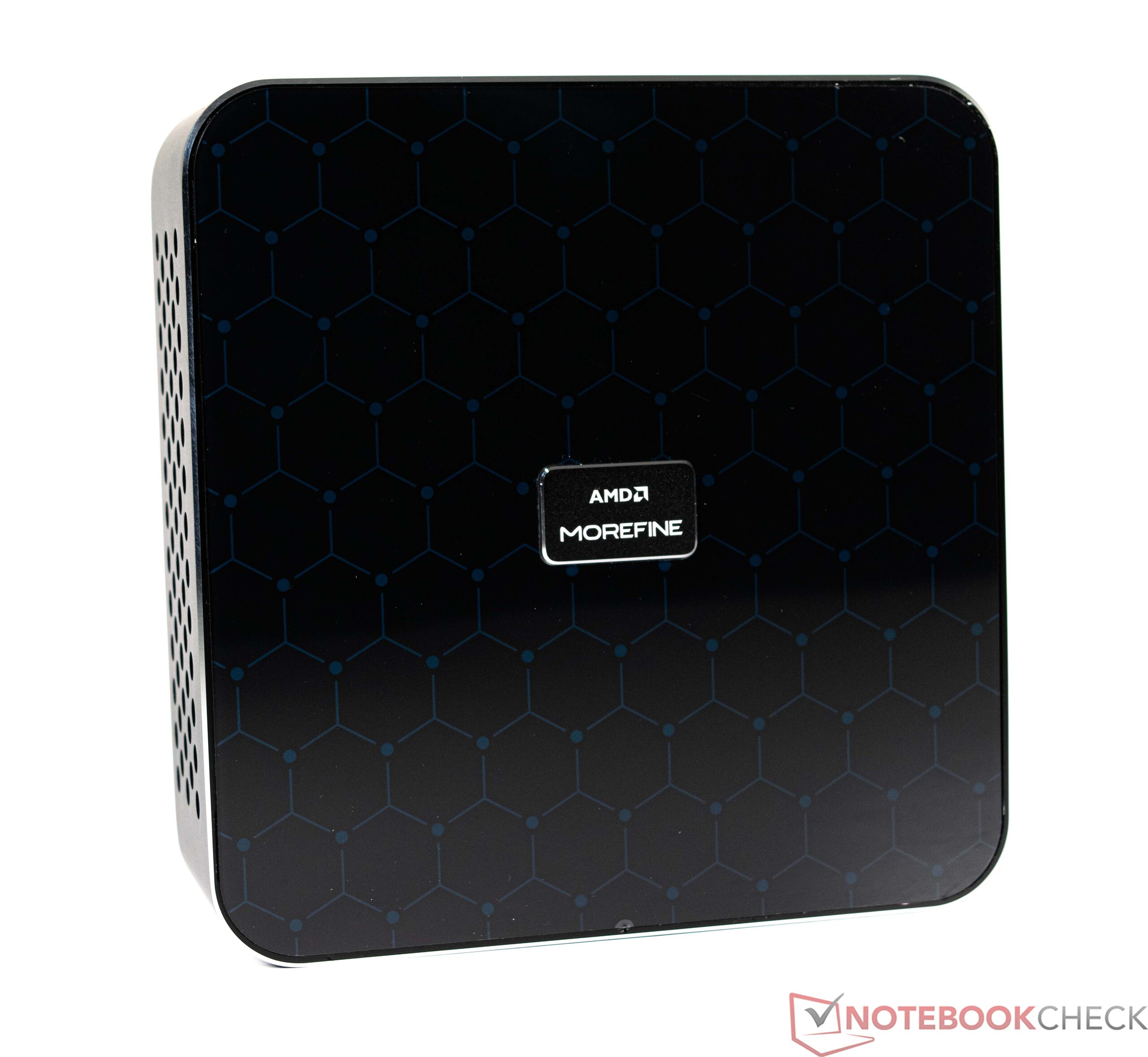

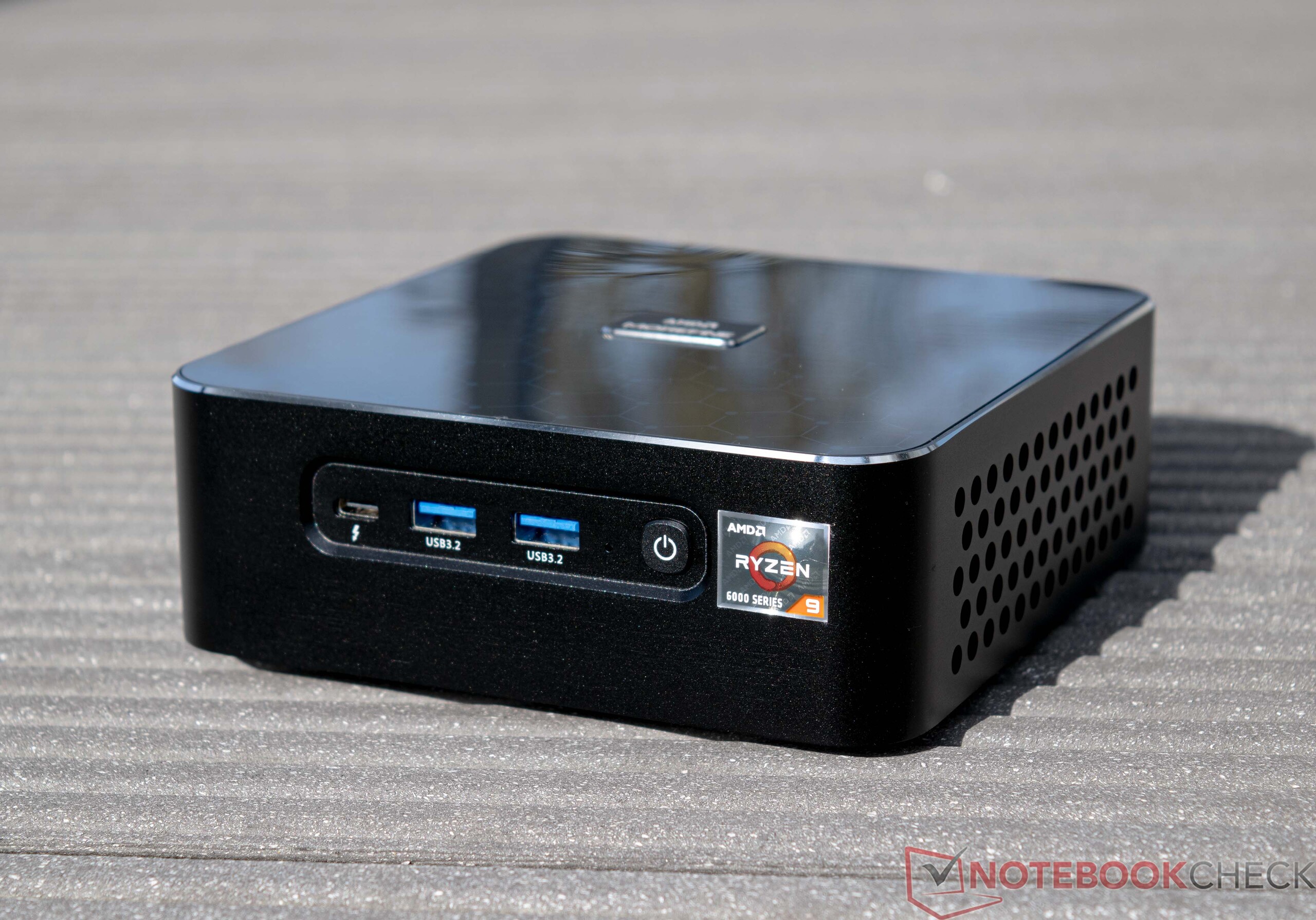

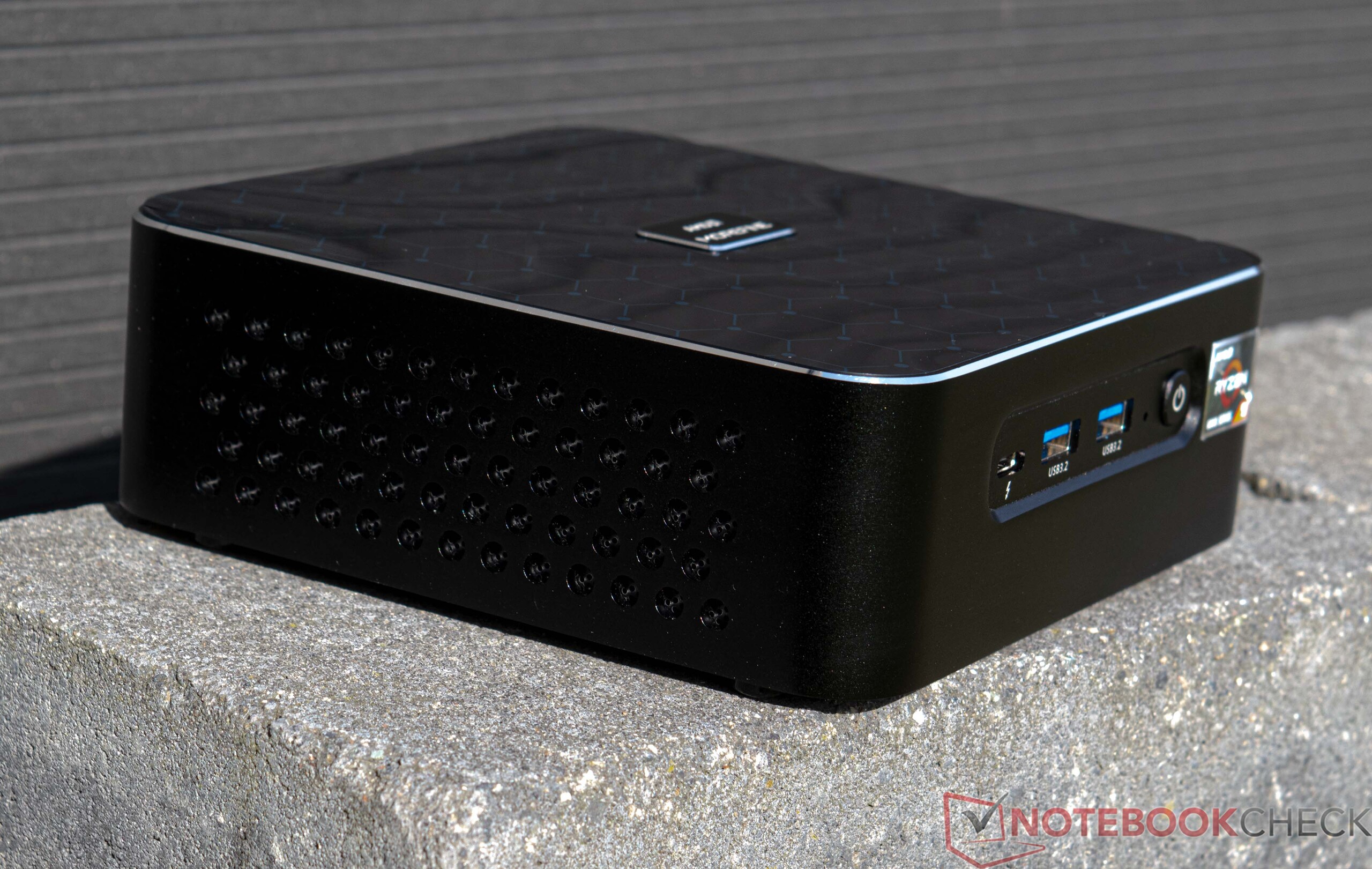

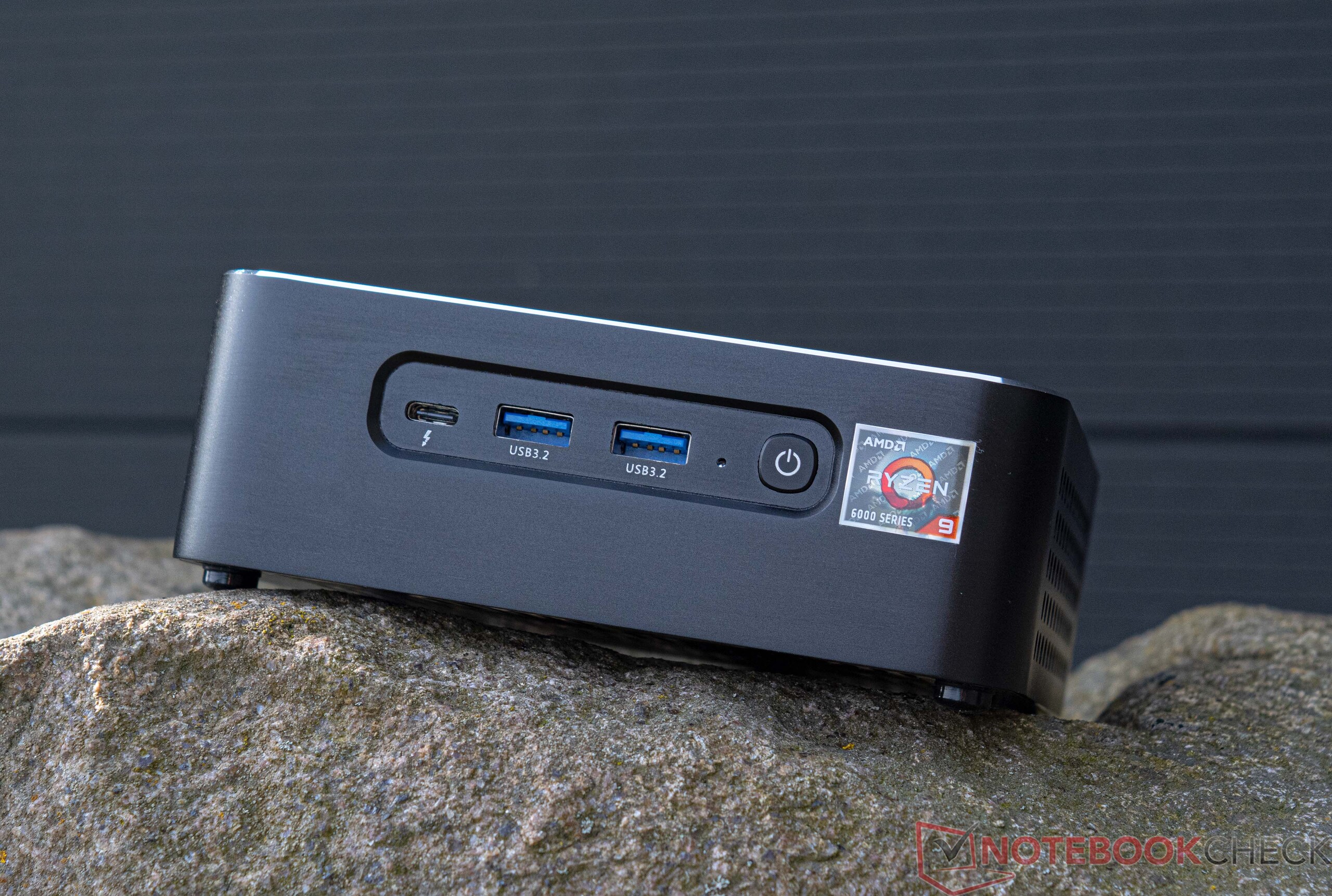

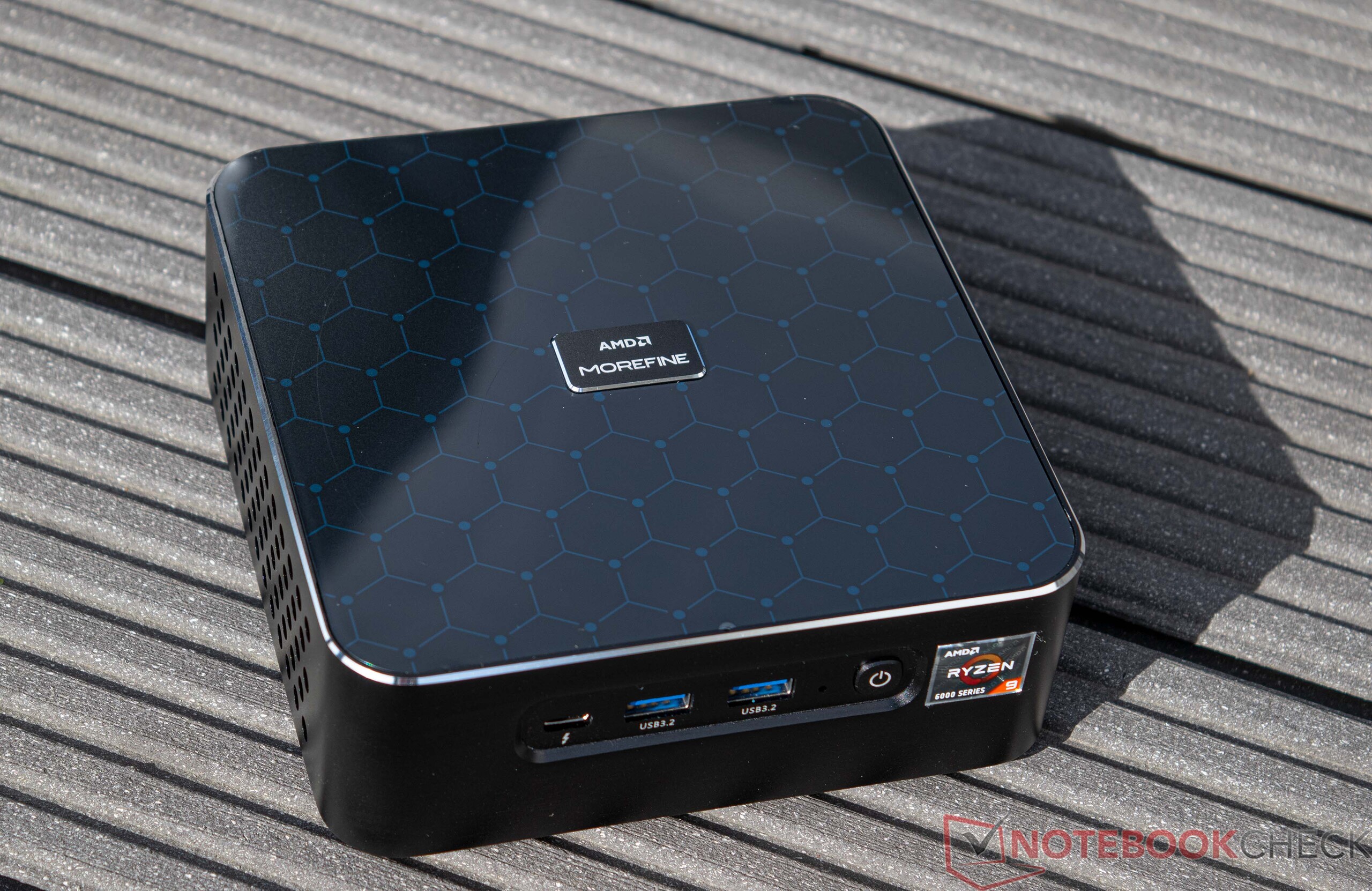

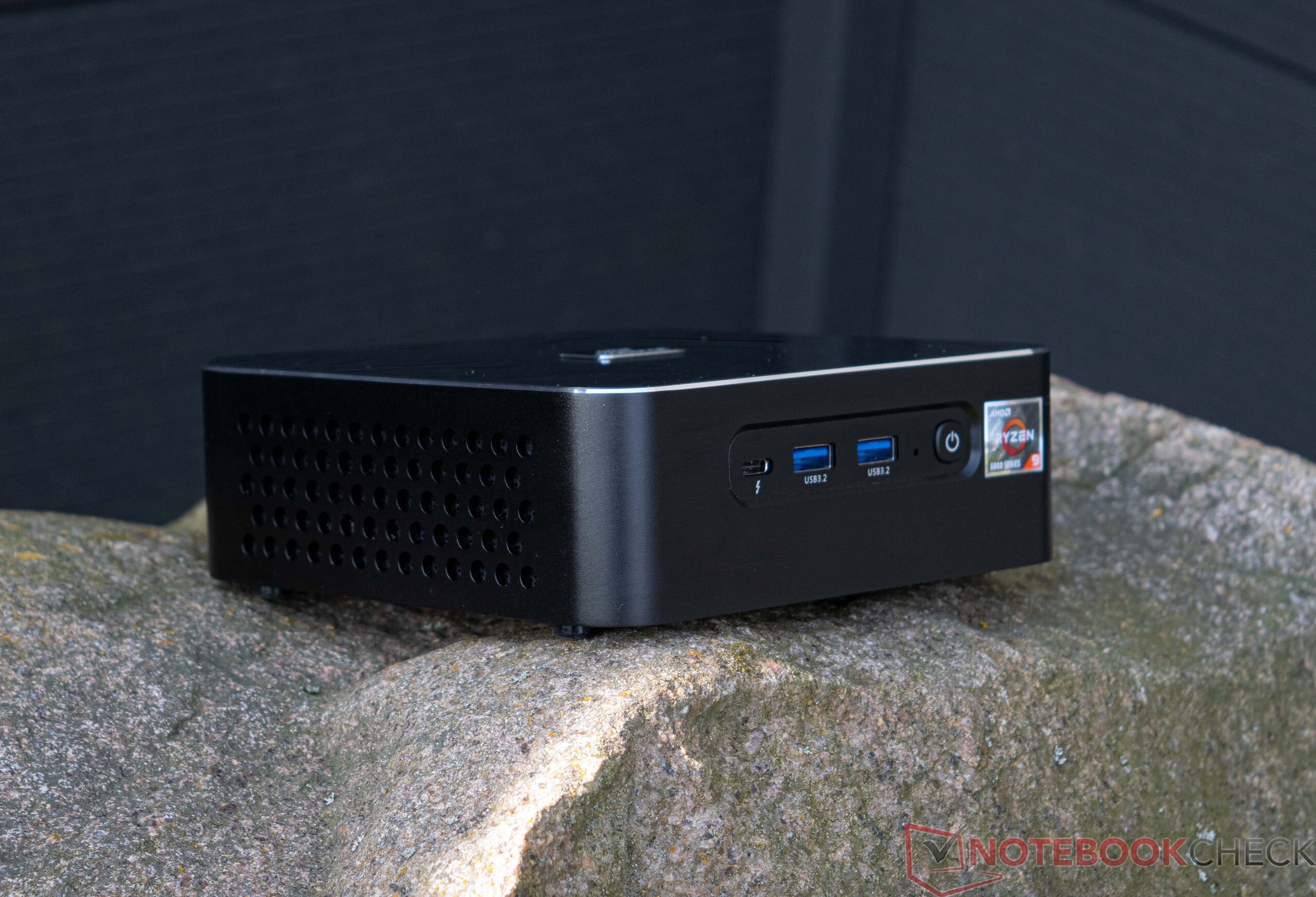

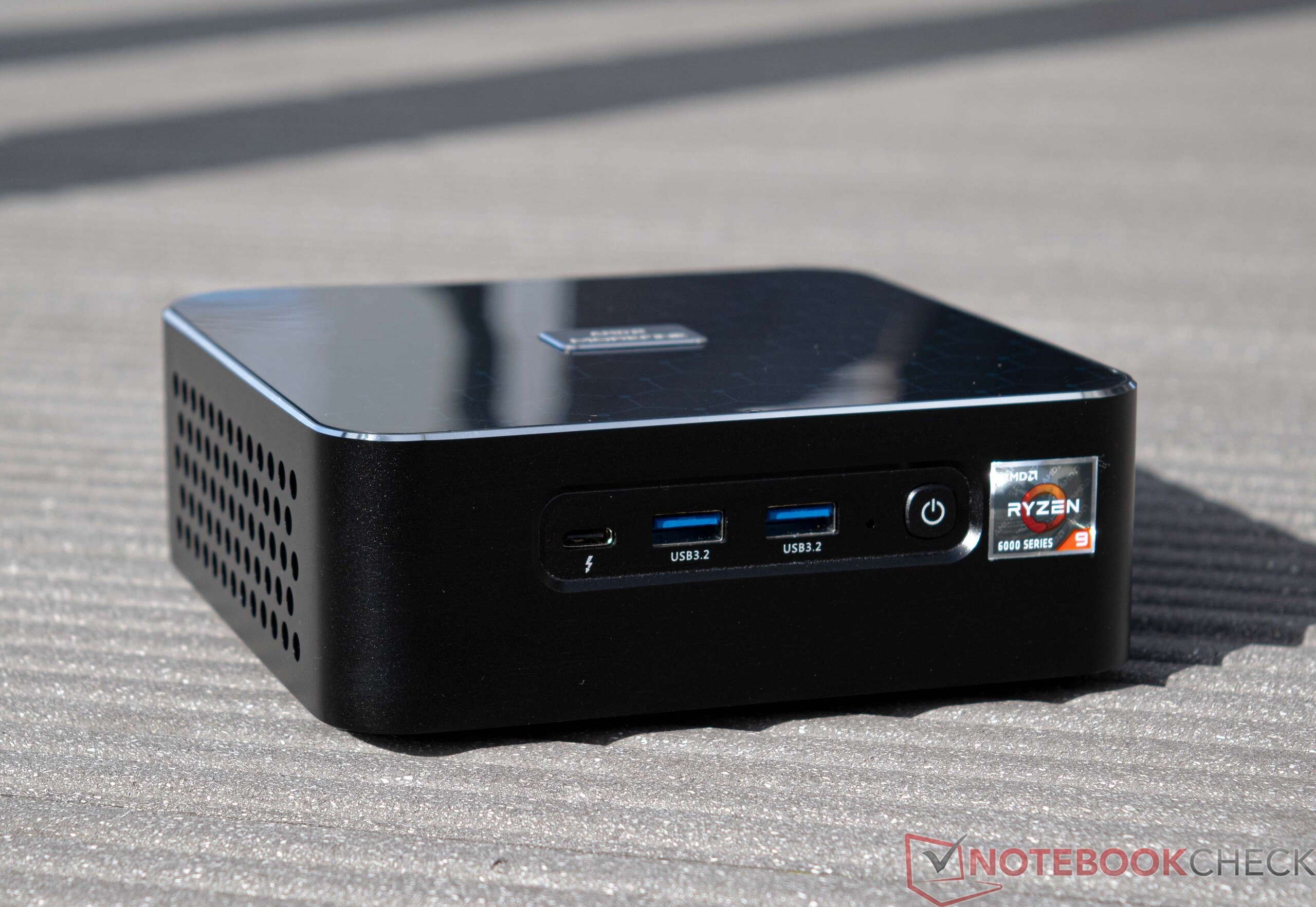

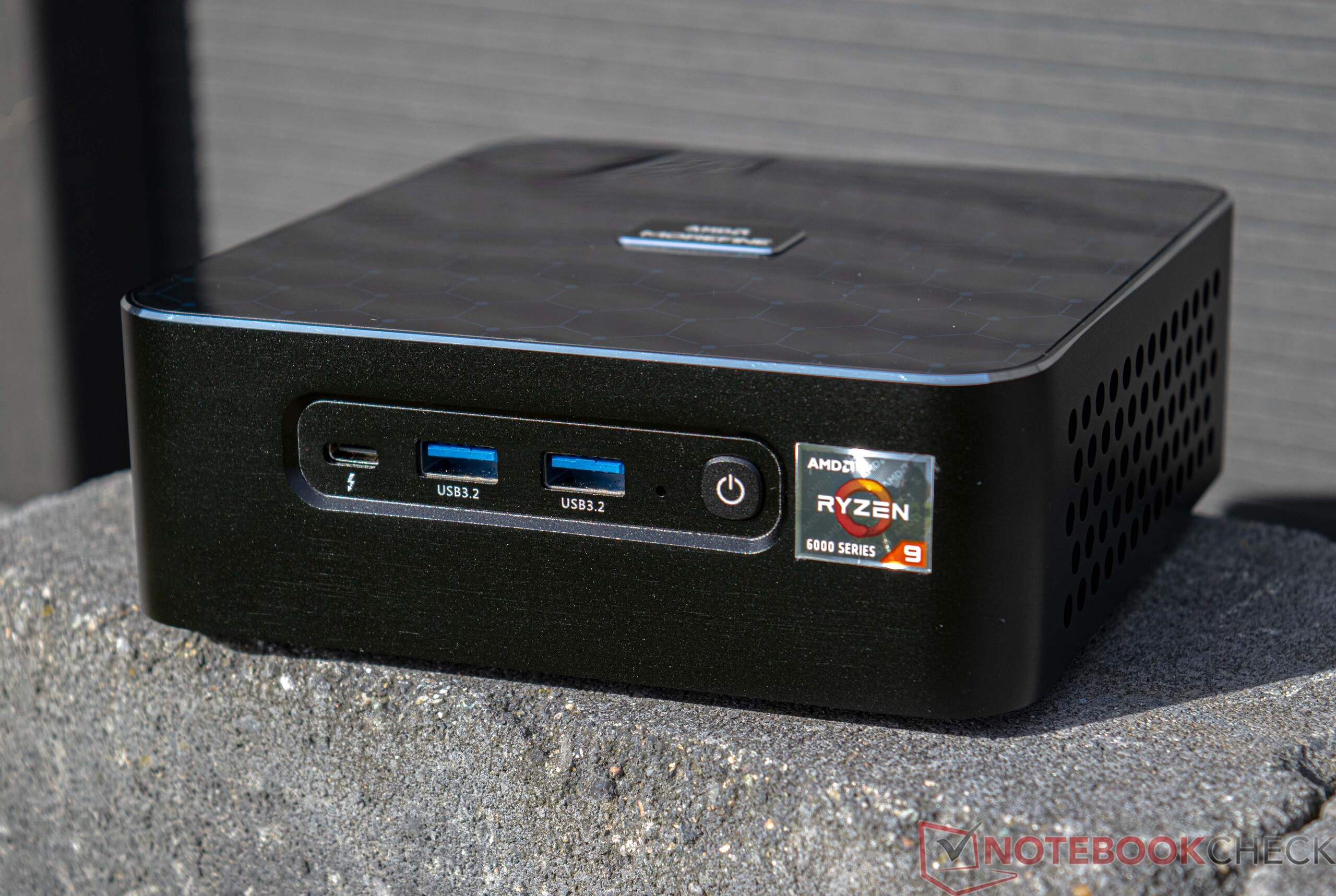

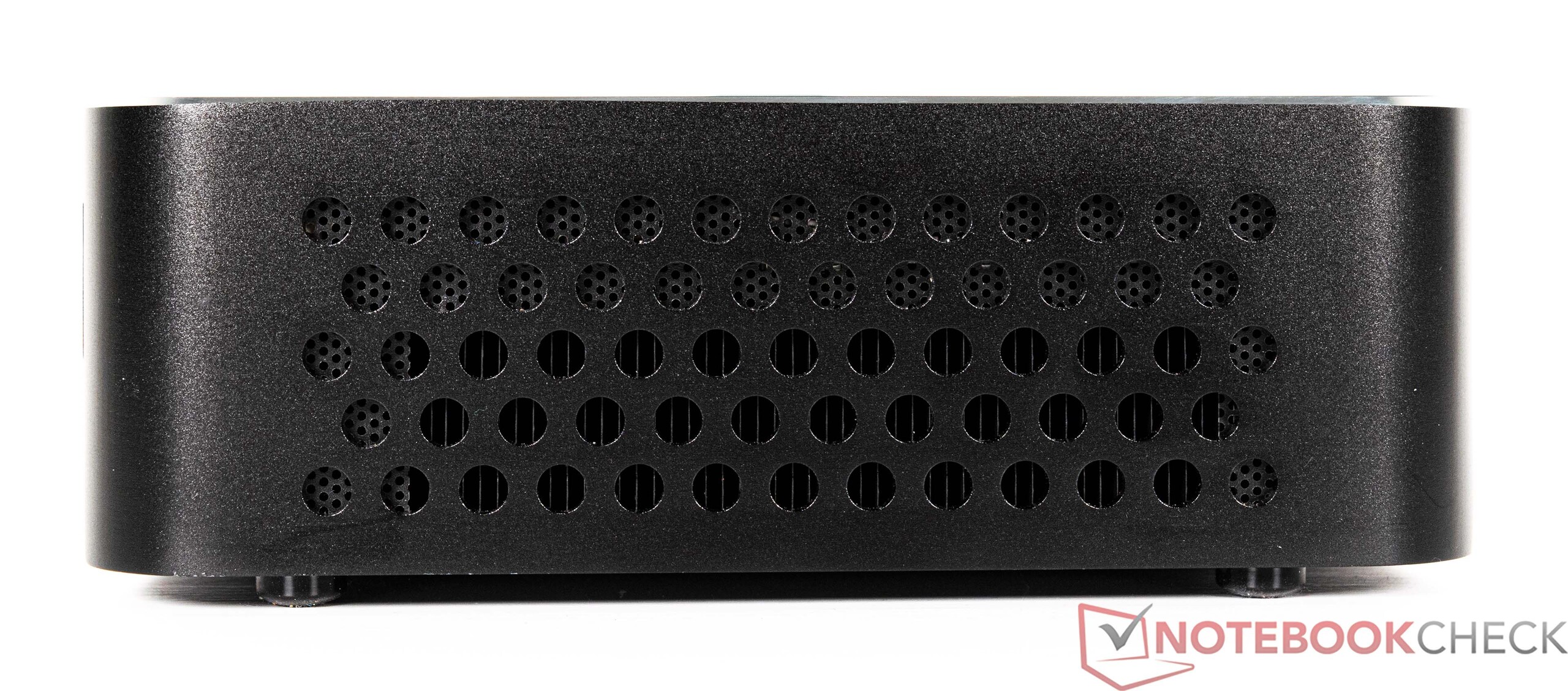

Purely looks-wise, the Morefine M600 can be compared with its Intel counterpart, the Morefine S600 Apex Engineer. The case is mostly made out of an aluminium-magnesium alloy, giving the device excellent stability and a high-quality feel. The top of the case consists of a metal-reinforced plastic lid with an engraved pattern. Unfortunately, this is prone to getting scratched due to its high-shine surface.
Size-wise, our test sample lands somewhere in the middle and doesn't take up too much space on a desk. The Morefine M600 is also quite light, weighing in at only 779 grams. Compared to the Morefine S600 Apex Engineer, this PC's power adapter is considerably smaller. In our test sample, the 120-watt power adapter only weighed in at 372 grams.
Connectivity

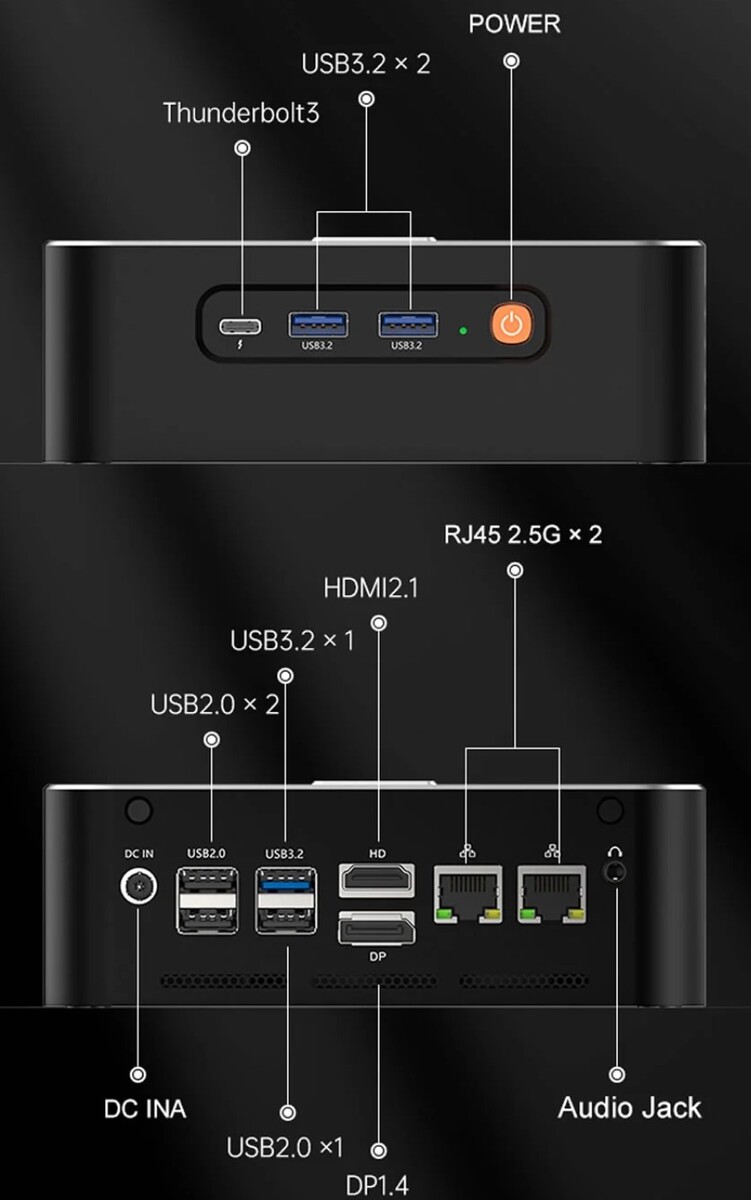

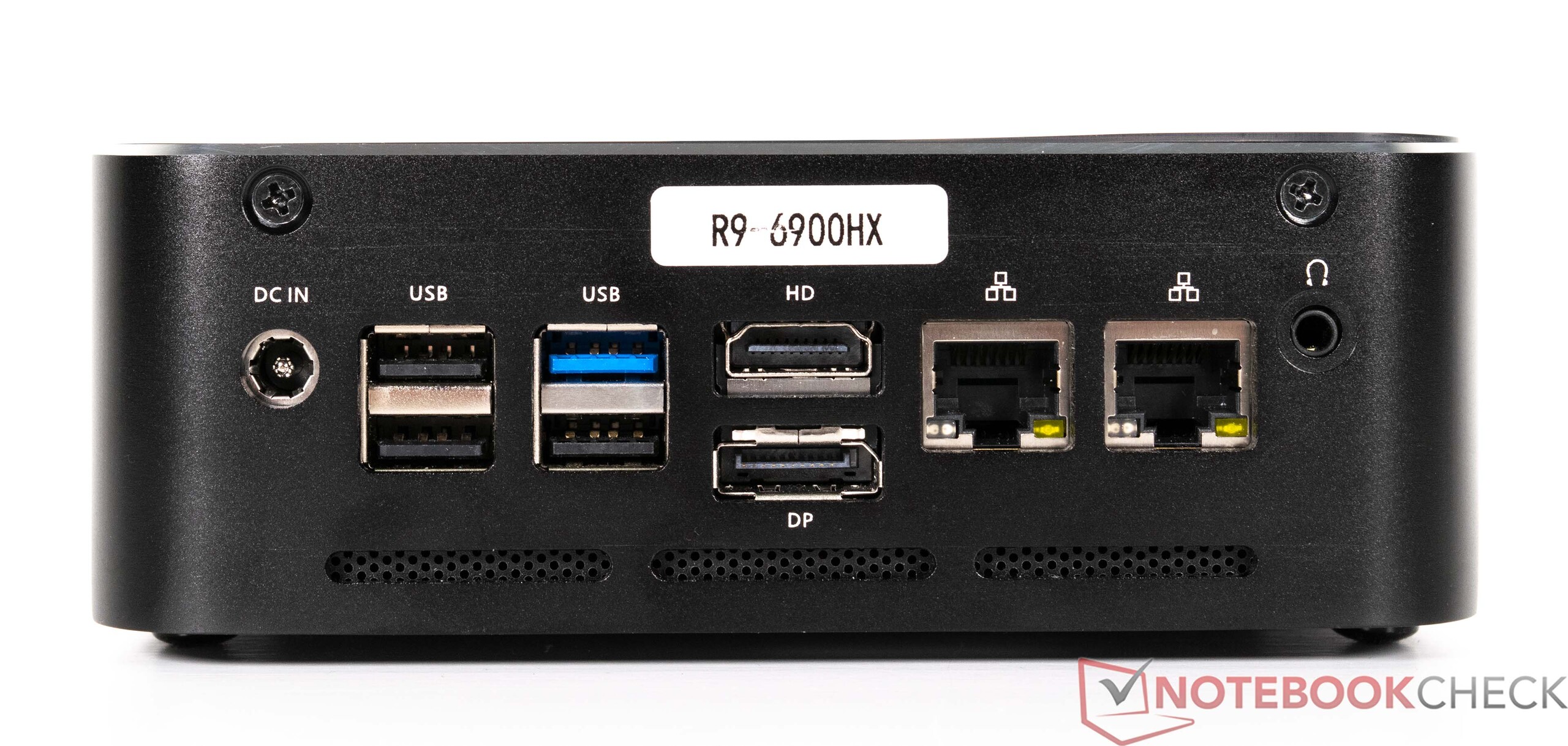

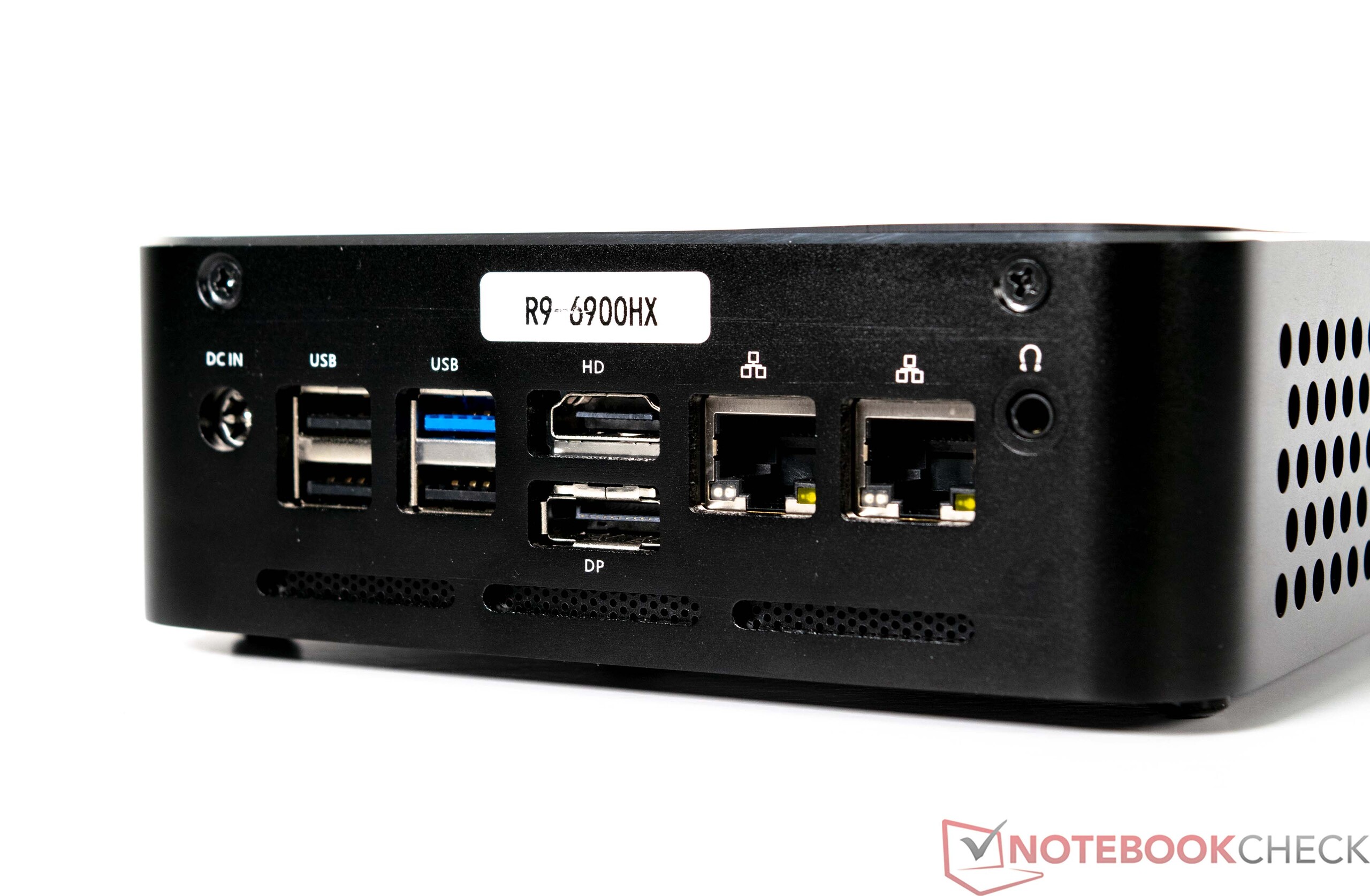

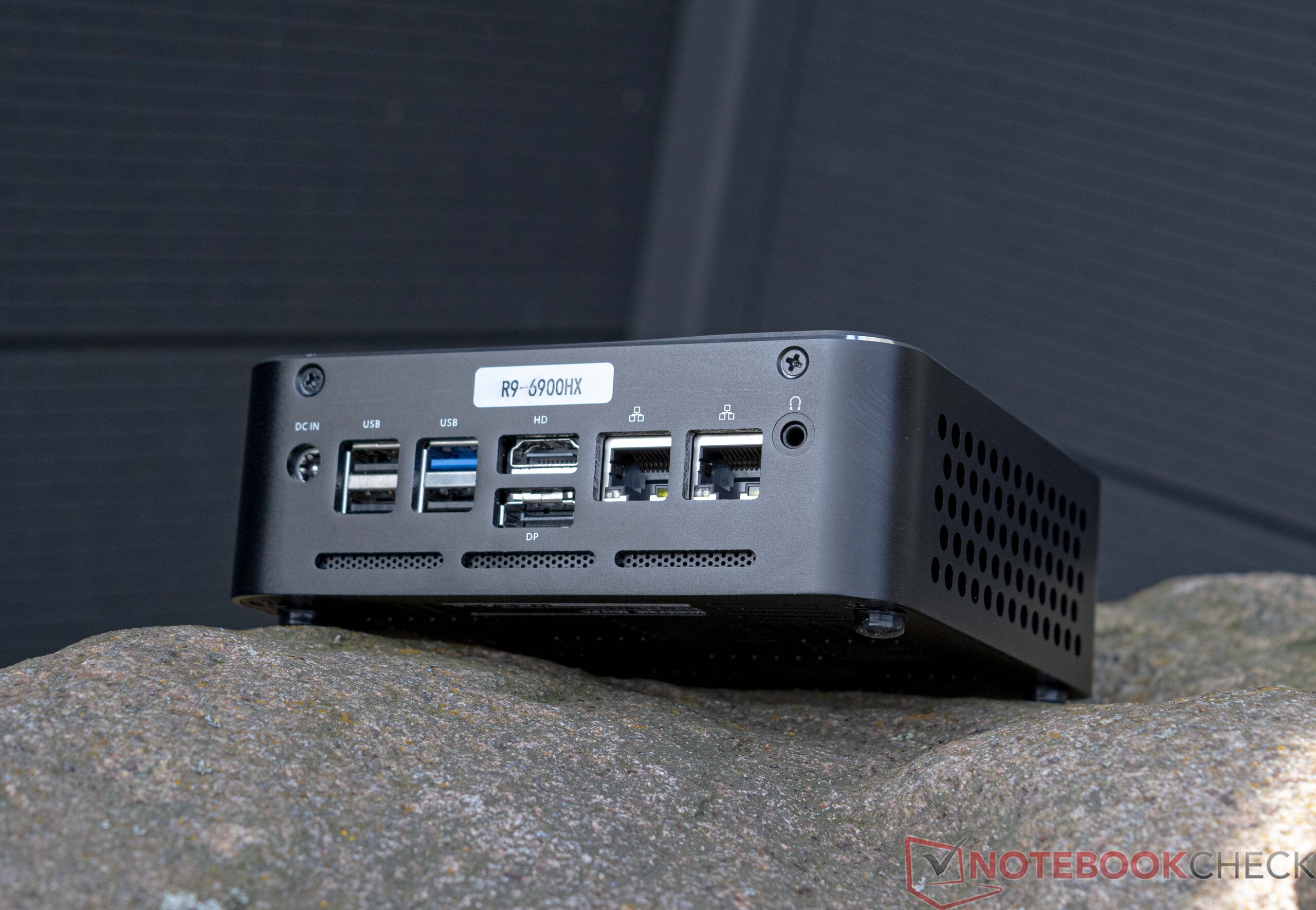

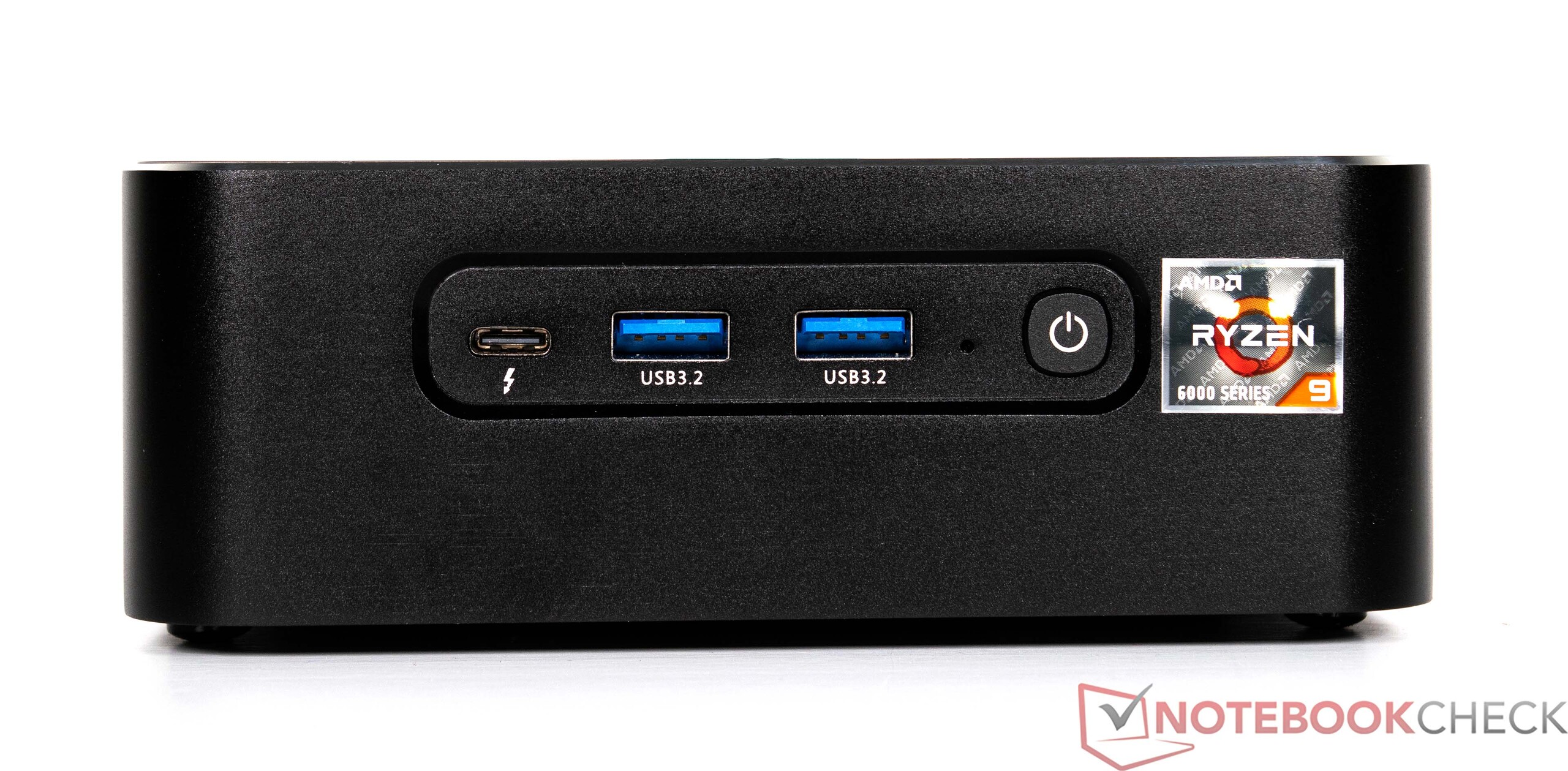

Despite its compact design, the Morefine M600 has a surprisingly good number of ports. With 6 USB ports in total, most users will be more than satisfied. The same number of ports can be seen in the Minisforum Venus Series UM690. On the front of the compact PC, there is also a USB-C socket with Thunderbolt support, which widens its range of possible uses massively. In total, three monitors can be connected to the Morefine M600 simultaneously - either via HDMI, DisplayPort or USB-C.
Communication
The Morefine M600 features a Wi-Fi 6E module from Mediatek. In our practical test, in which we used our ROG Rapture GT-AXE11000 router from Asus as our test router, the Morefine M600 delivered above-average stable and consistent transfer rates. However, compared to the Minisforum Neptune Series NAD9, which has an Intel Wi-Fi 6E AX210, the Morefine M600 was considerably slower. In everyday use, we subjectively wouldn't notice too much of a difference between the two. If you are looking for faster data transfer, the PC is also fitted with two LAN sockets, which deliver speeds of up to 2.5 Gbit/s each.
Accessories

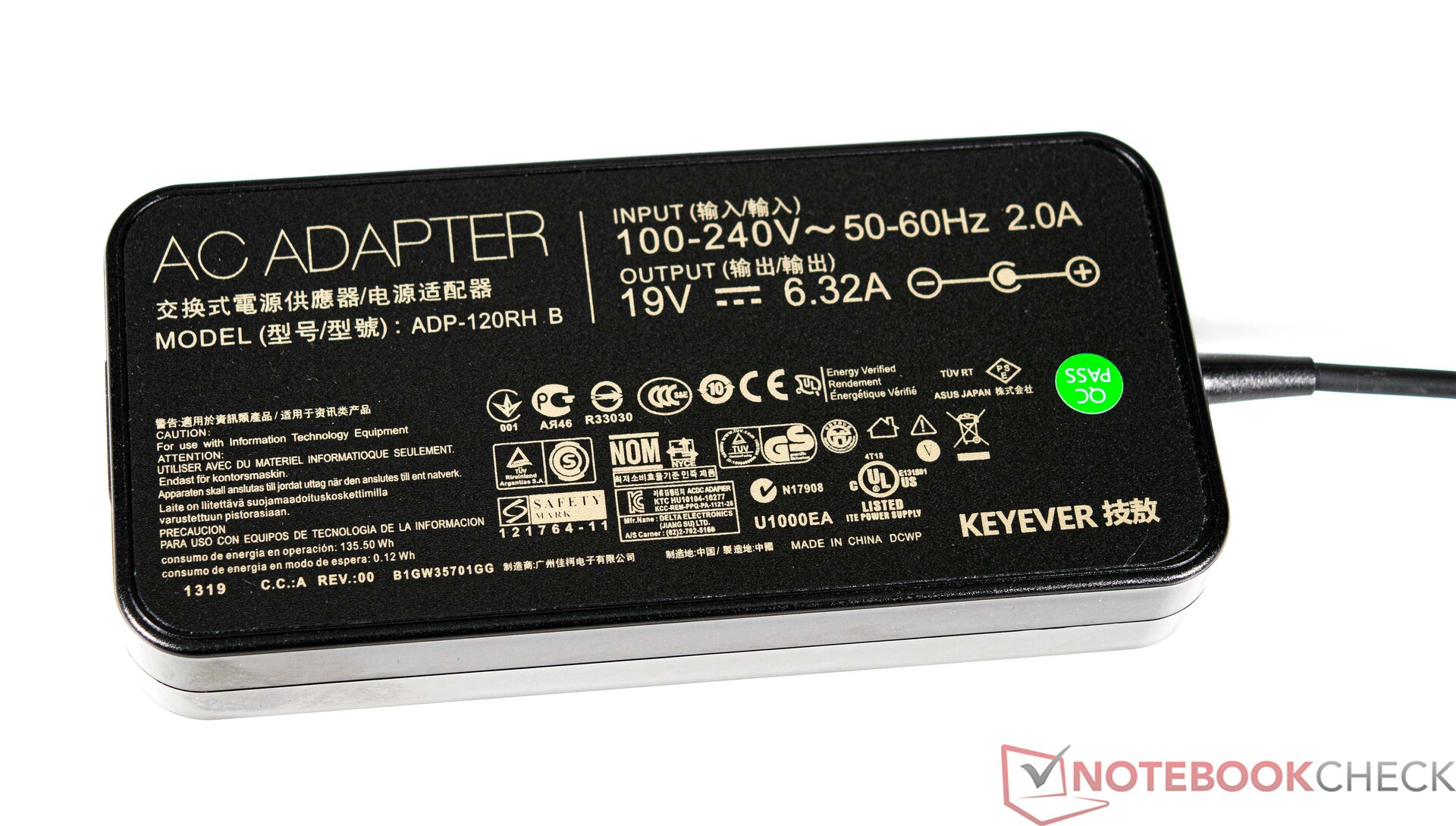

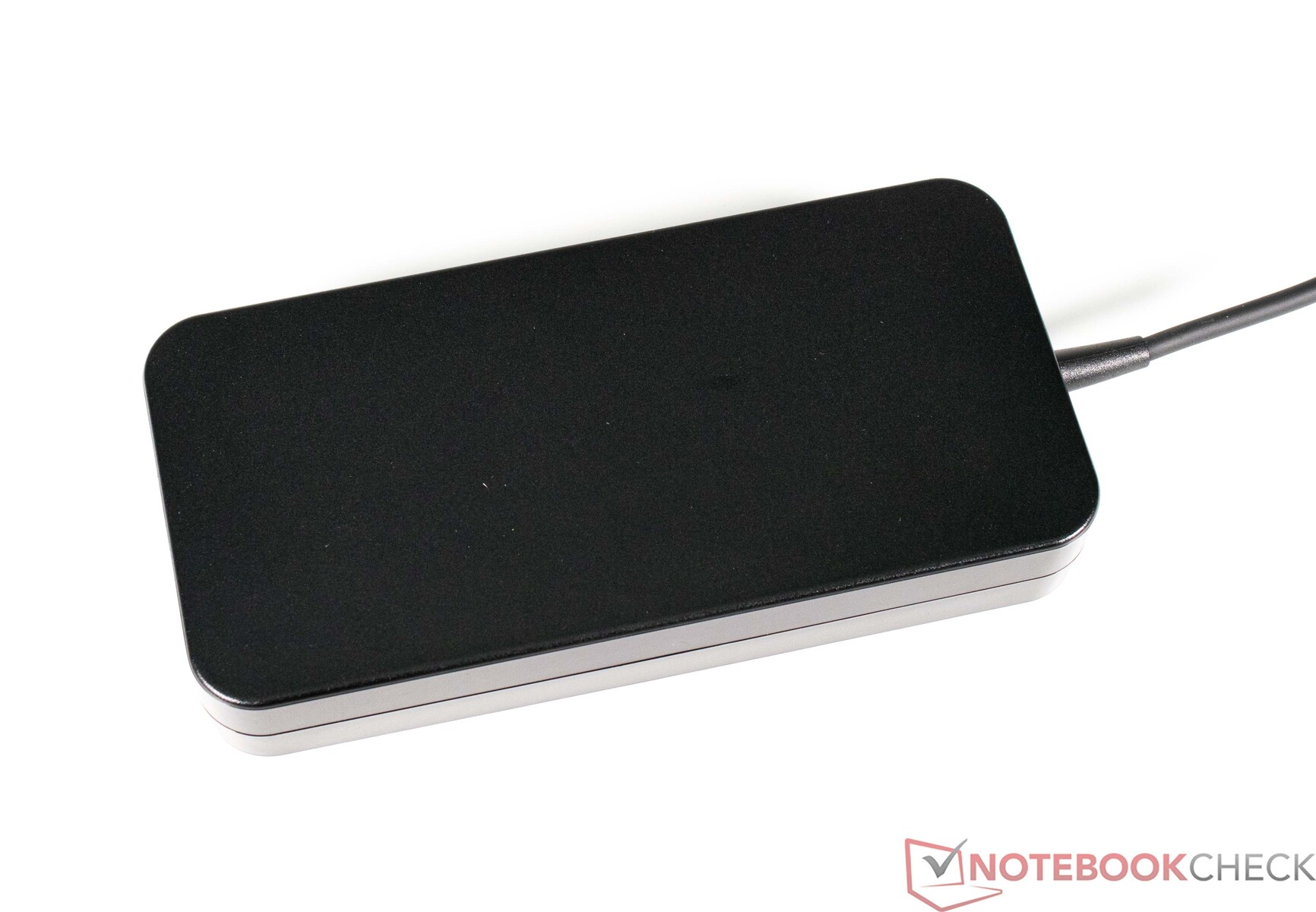

The PC also comes with a 120-watt power adapter and a VESA mount which can be used to fix the device directly to a monitor. Additionally, the manufacturer includes an HMDI cable and a connection cable for a 2.5-inch drive.
Maintenance

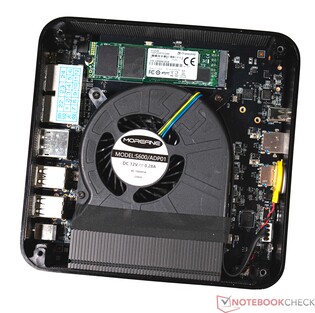

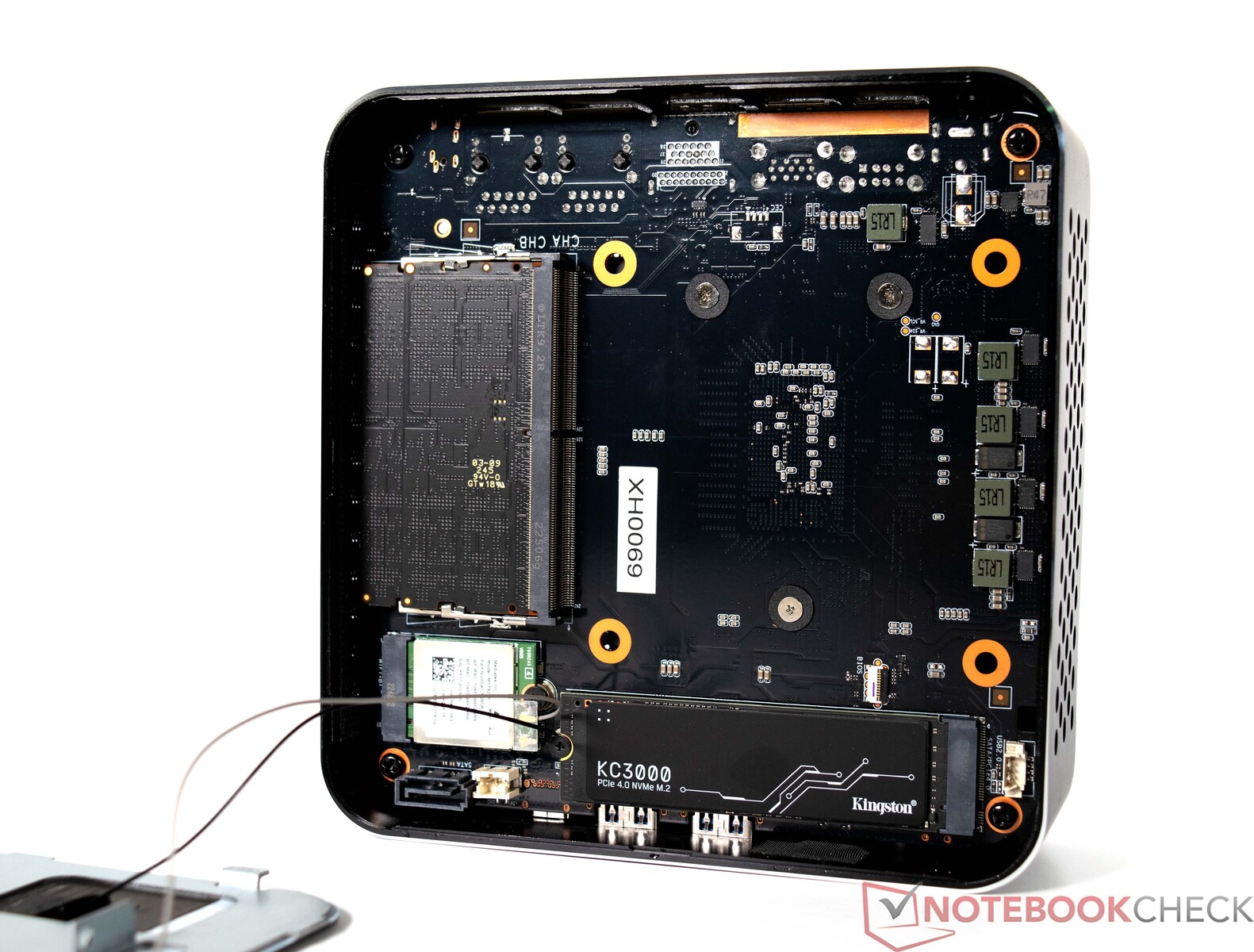

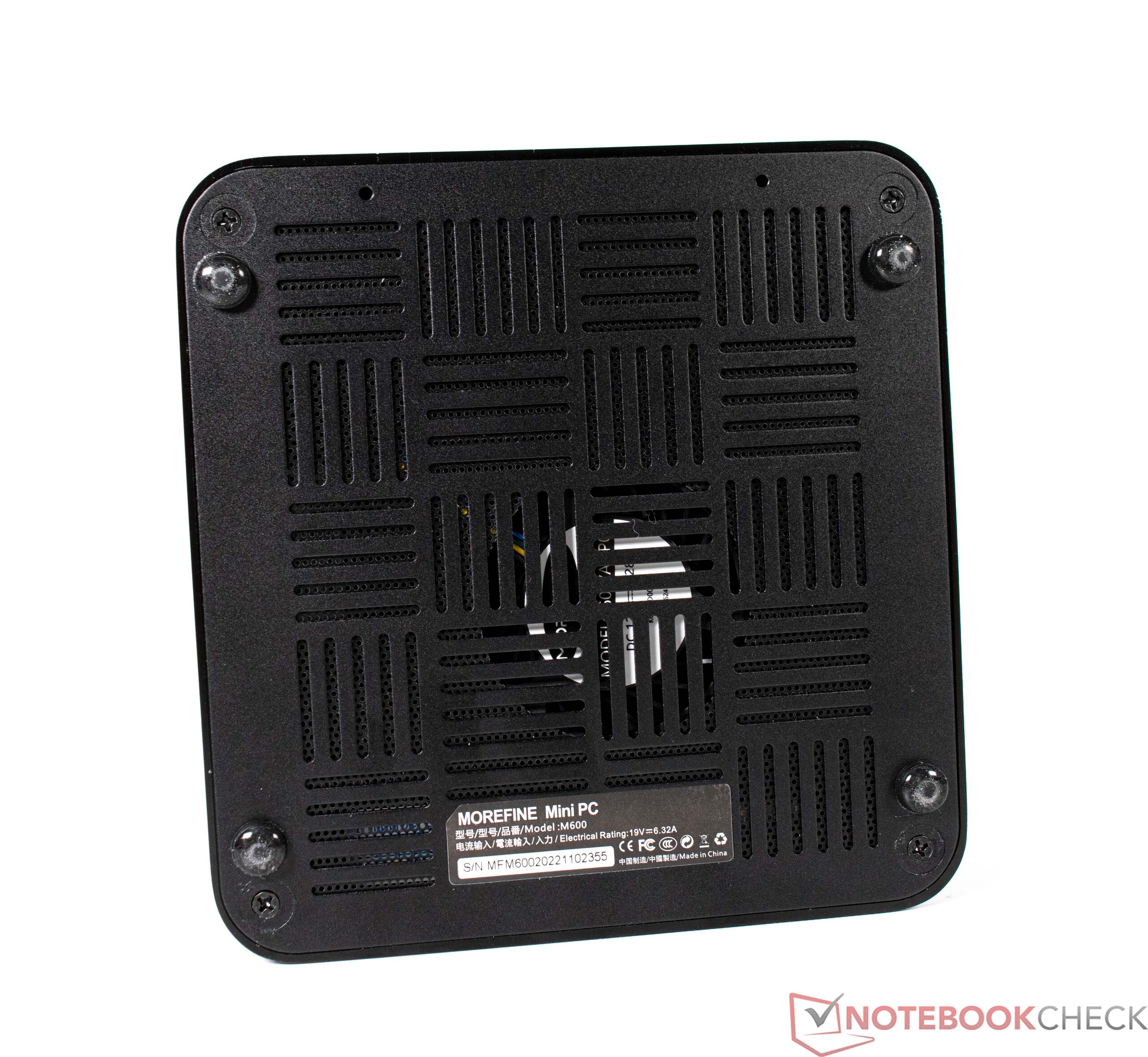

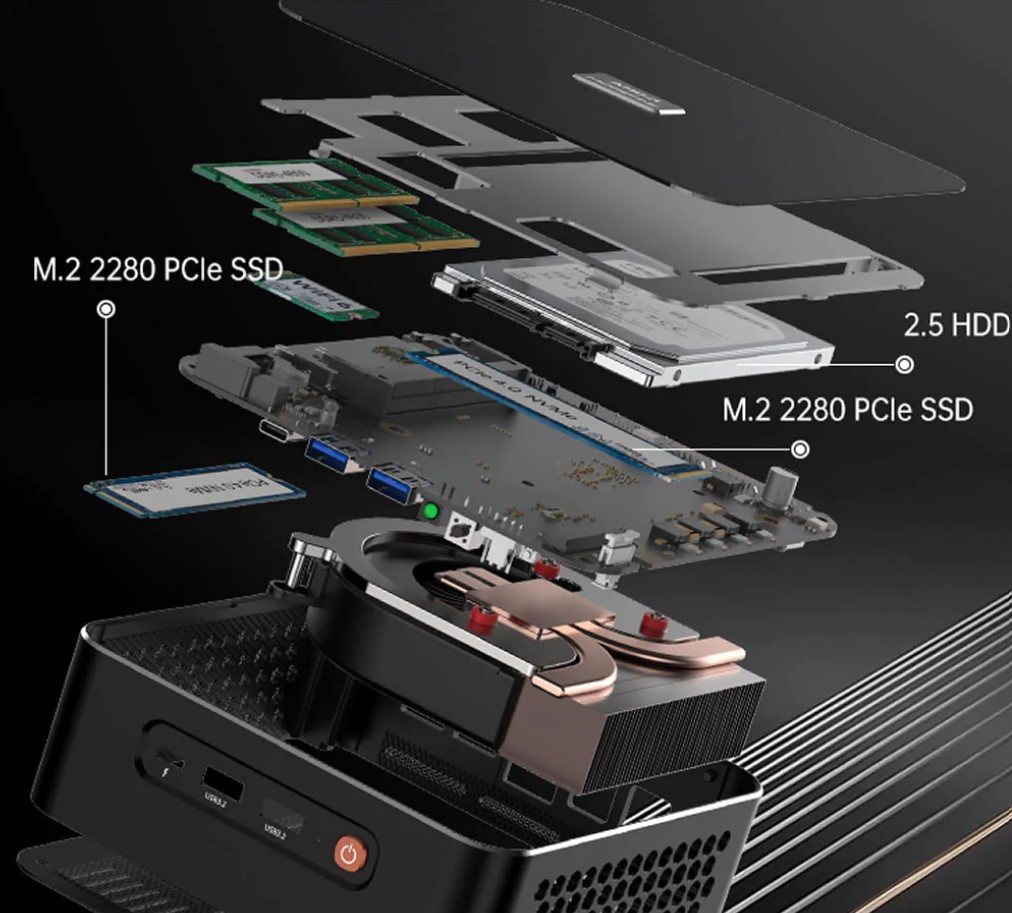

Similar to the Morefine S600 Apex Engineer, the Morefine M600 can be opened up easily. The top is connected with two screws which can be easily accessed from the back. On the bottom, the screws are hidden under the device's stuck-on feet. This is a little inconvenient if you ever need to take apart the bottom of the PC. There, you can find the fan and an M.2 slot, which was already fitted with an SSD in our test system.
Testing conditions
In all performance tests run with this device, we used the highest-performance energy profile. Deviations were made only in the power consumption and noise emission measurements in accordance with our test criteria. The CPU's performance as well as the cooling system's performance remained unchanged in the BIOS. There, the SoCs performance can be raised to 54 watts.

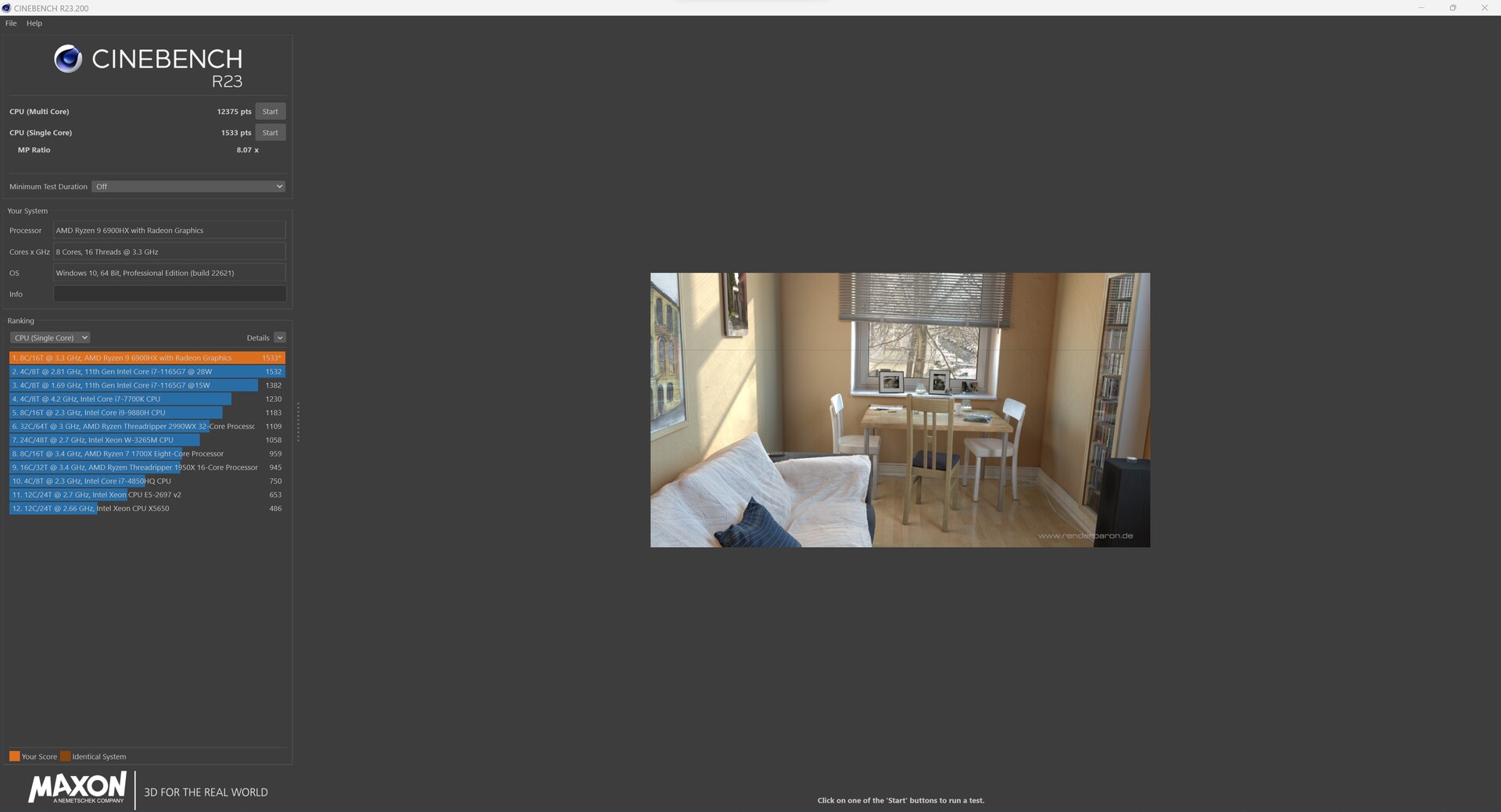

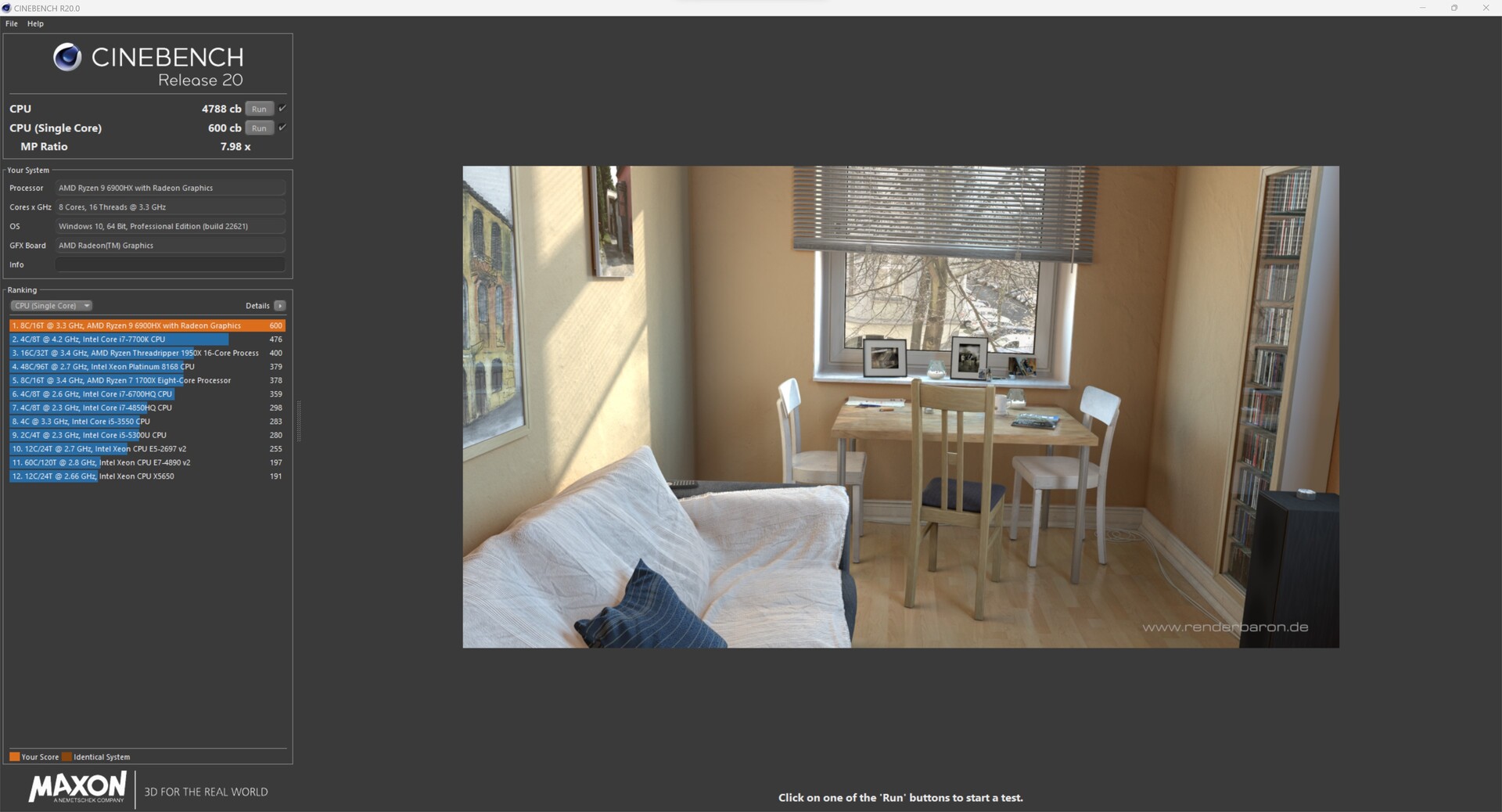

Processor

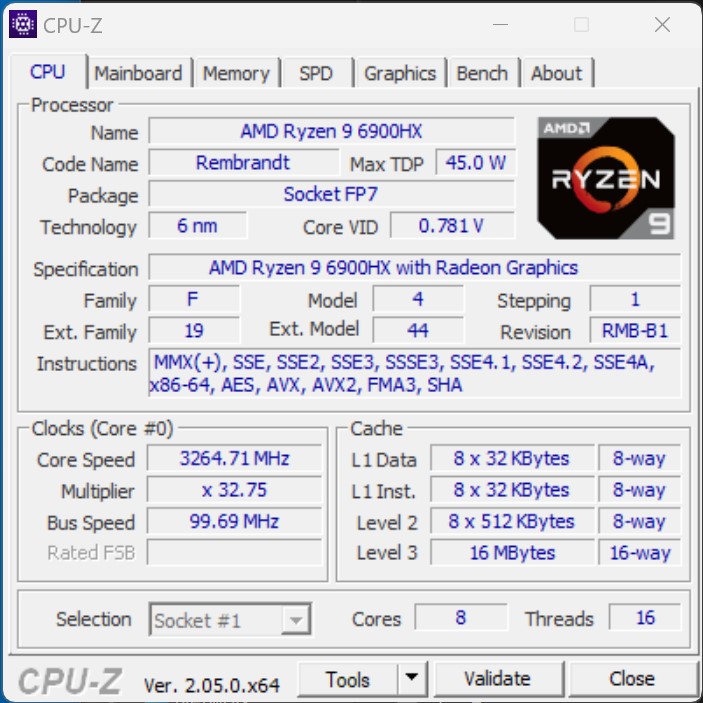

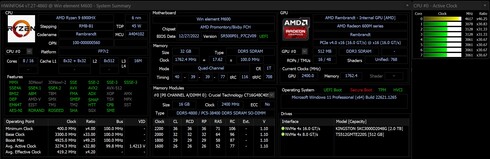

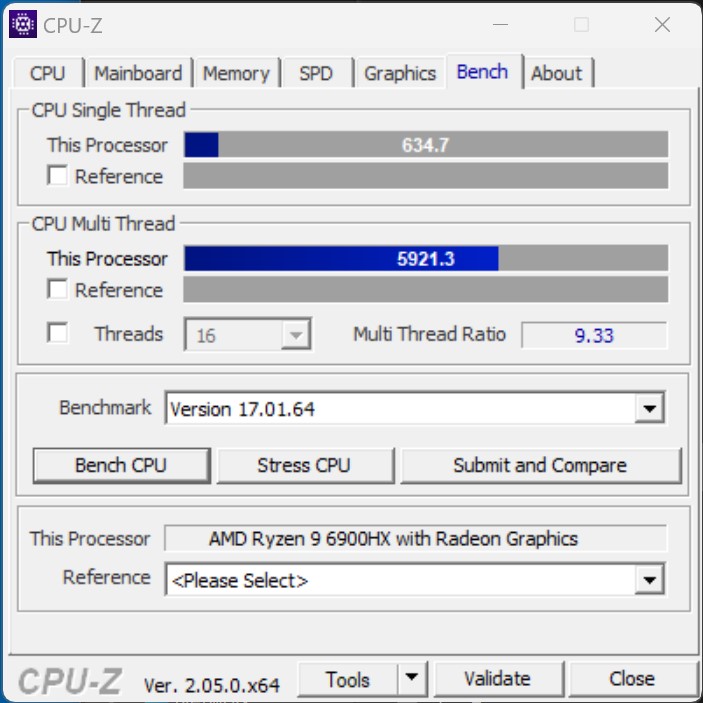

The AMD Ryzen 9 6900HX is a Rembrandt series 8-core processor with 16 threads, based on a Zen3 architecture chip. At load, the Morefine M600 showed short peaks of 65 watts before the PC stabilized at its 45-watt limit. This could already be seen with the Minisforum Venus Series UM690. Compared to its similarly kitted-out competitors, the Morefine M600 lost out in all CPU benchmarks - but only by 4 percentage points. The Morefine S600 Apex Engineer was a little faster, which could be put down to its Intel Core i9-12900HK. It features 14 cores and 20 threads, which means it achieved better multi-core performance rates than the AMD Ryzen 9 6900HX. Still, the difference between them was quite small. With the exception of the Ace Magician TK11-A0, all our test samples' results lay quite close together.
You can find more processor benchmarks here.
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx

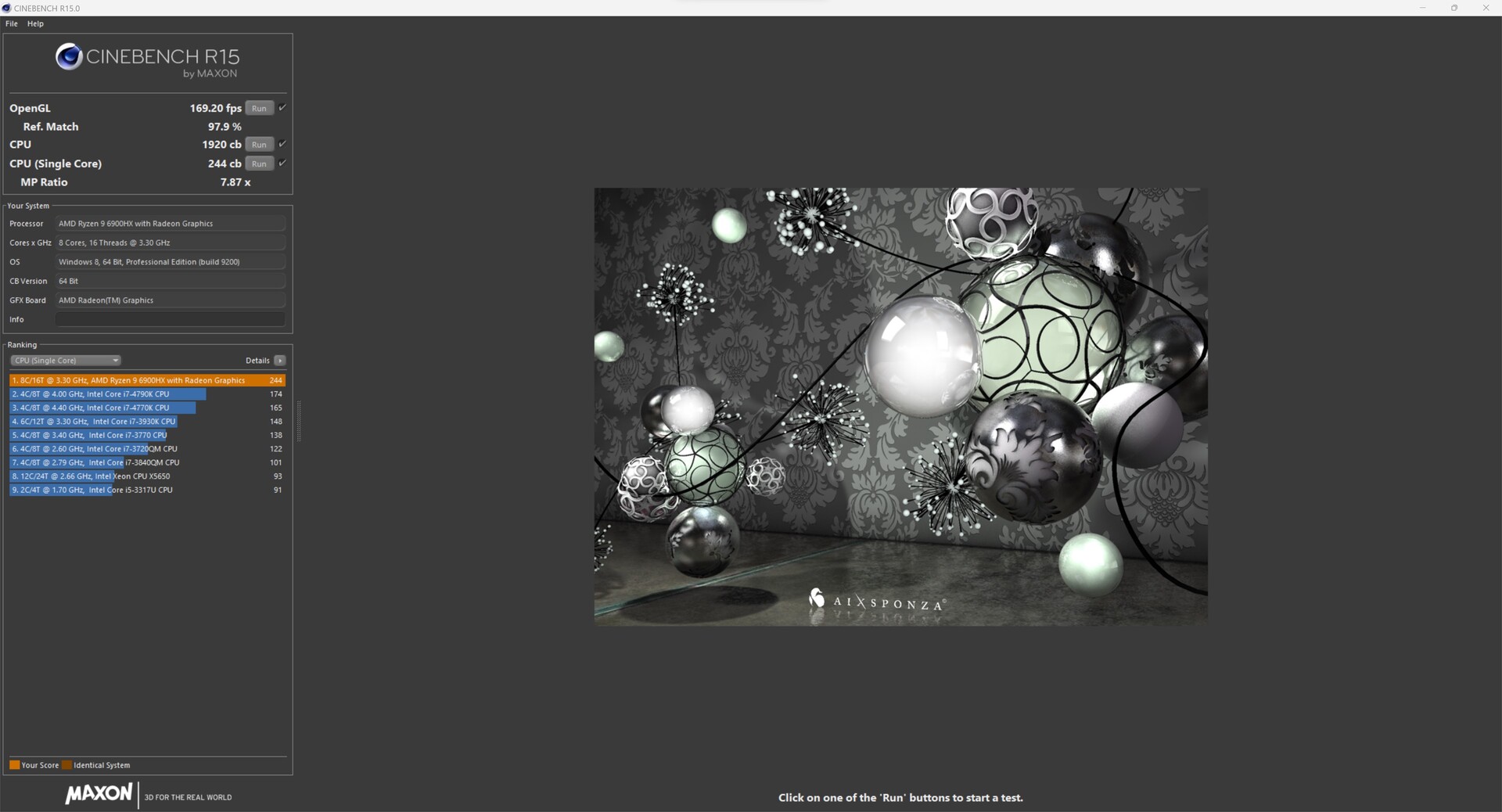

Morefine M600 in the Cinebench R15 Multi Loop

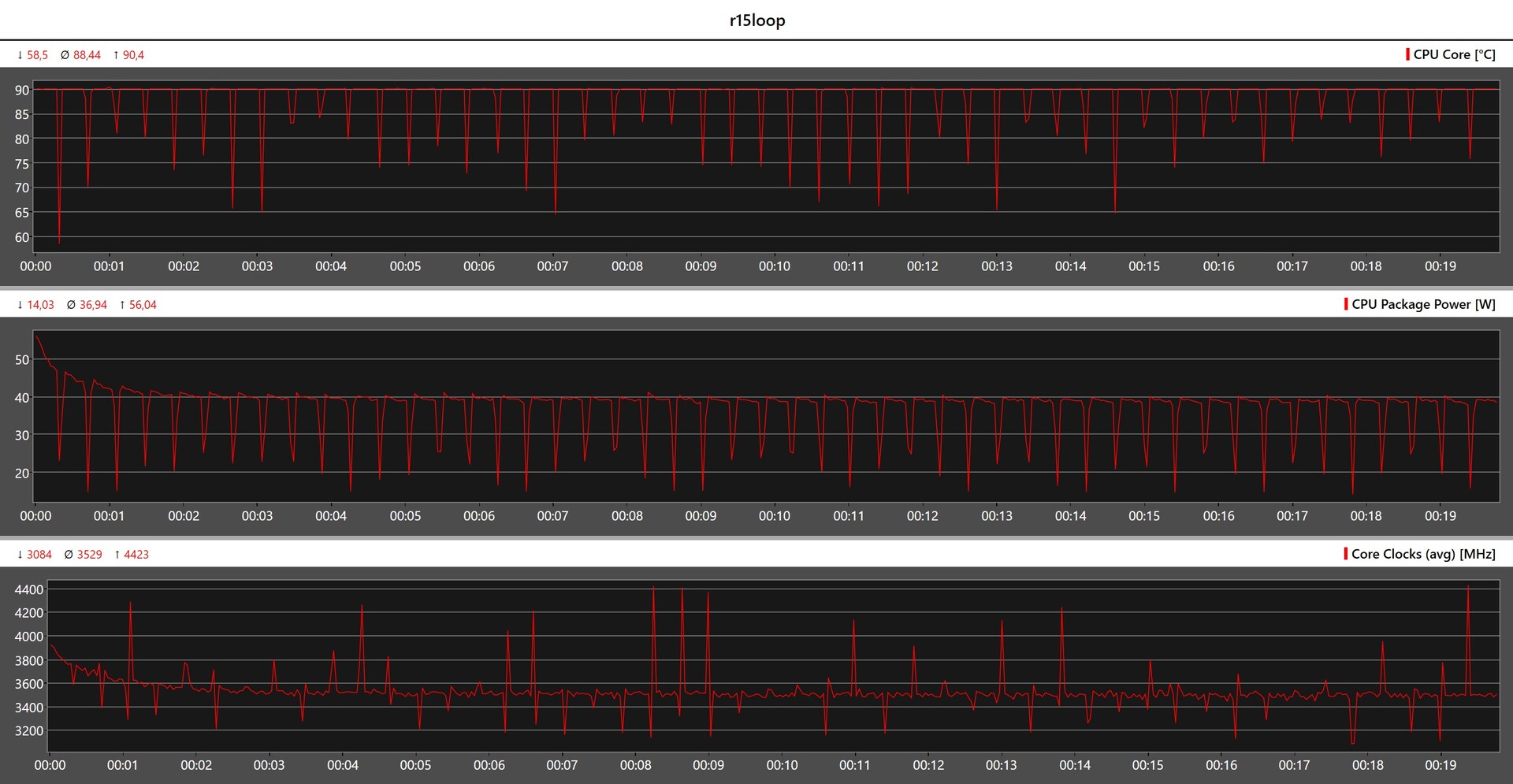

The Cinebench R15 continuous loop gave us our first look at how well the device's integrated cooling system performed. On the whole, the AMD Ryzen 9 6900HX delivered a relatively stable performance of 1,900 points after 50 cycles.
System performance
The Morefine M600 performed well in the PCMark 10 system benchmark. It only achieved average results in the Crossmark test, although we measured good results in the RAM tests. Here, our test sample even landed in first place. In day-to-day use, the Morefine M600 performs well and can be compared with all of the other devices in our test.
* ... smaller is better

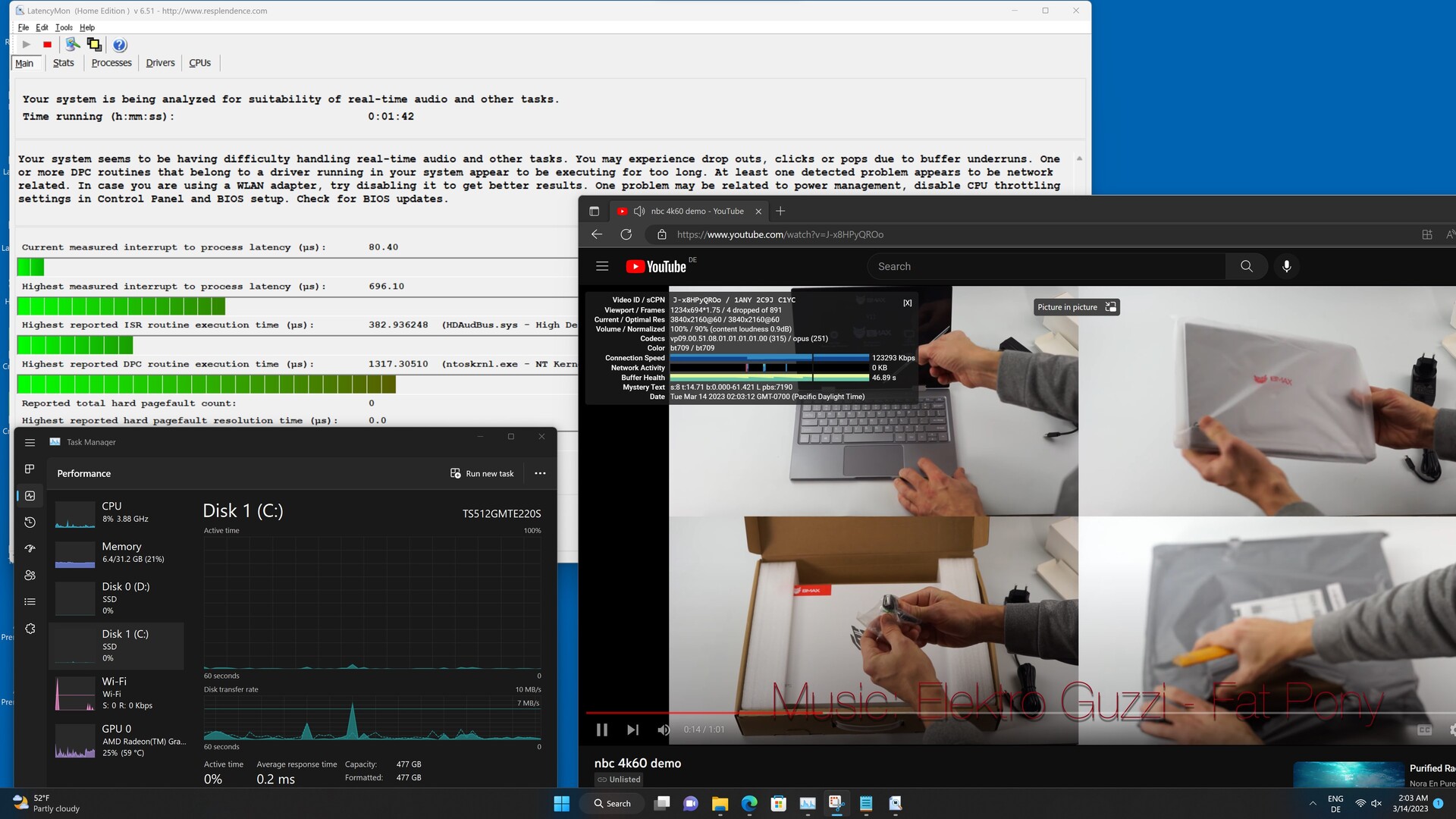

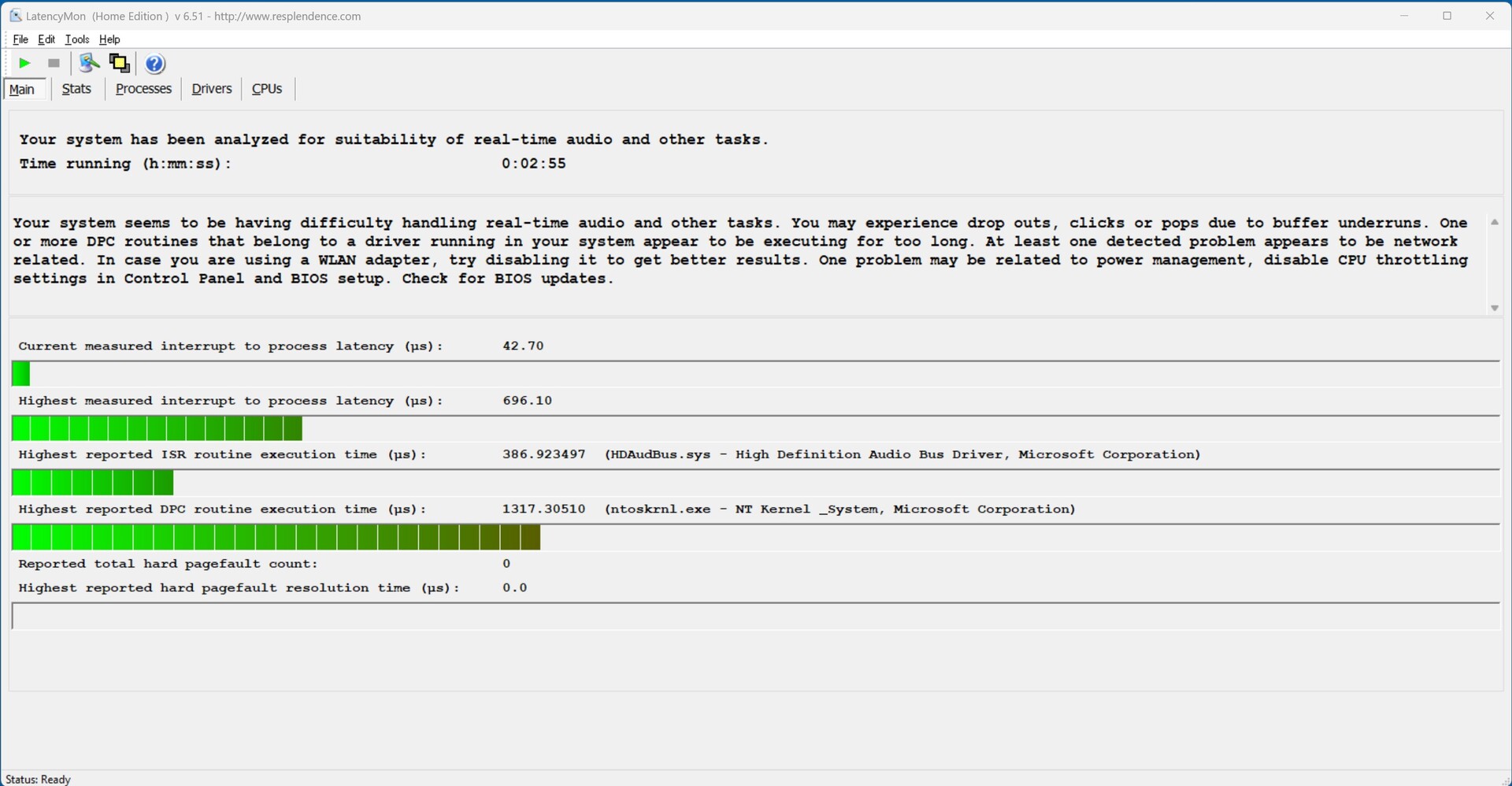

DPC latency

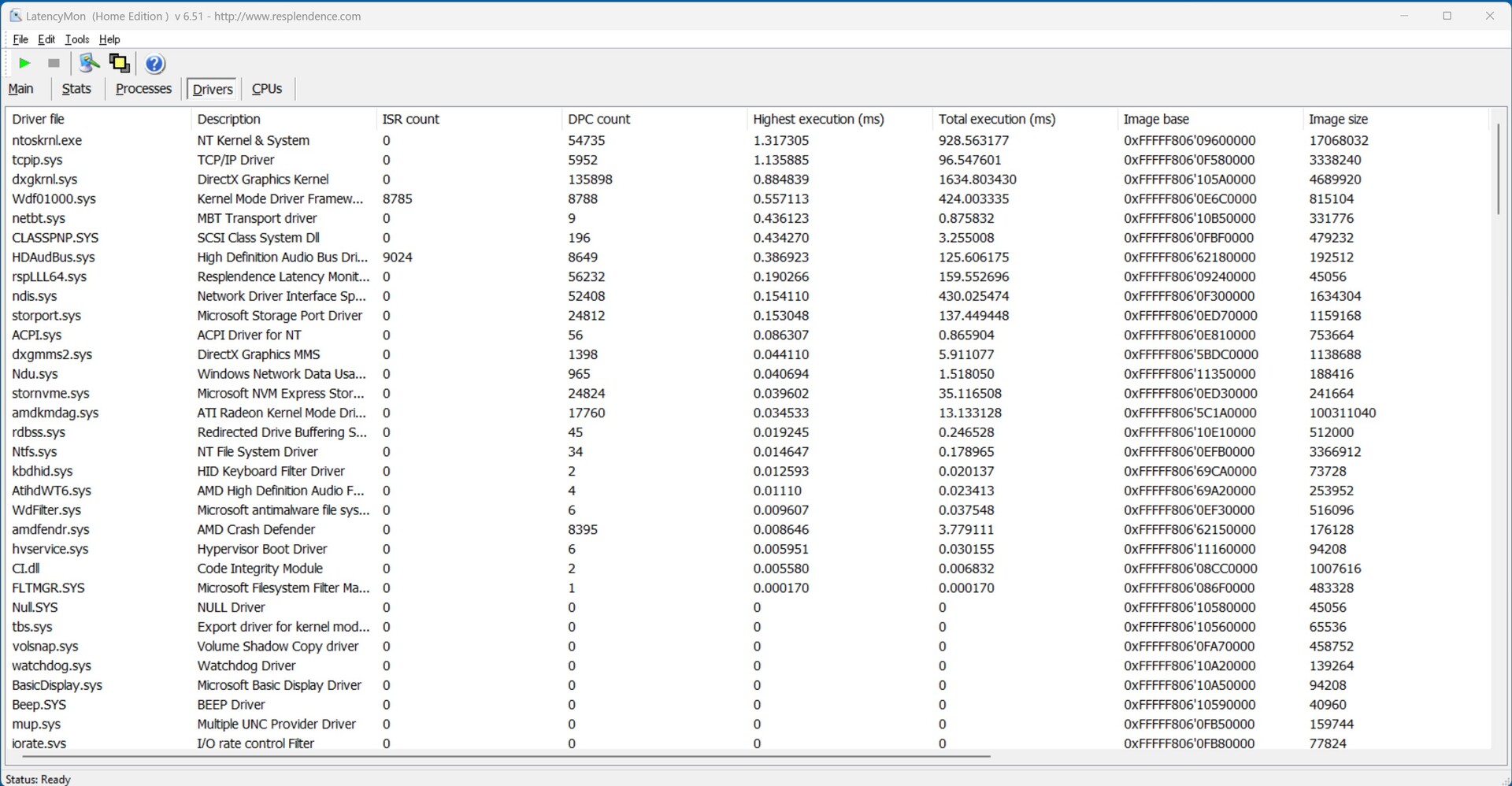

Using the tool LatencyMon, we already measured slightly increased latencies when opening multiple browser tabs. Playing 4K video and using Prime95 didn't result in any further increases.
* ... smaller is better
Storage devices

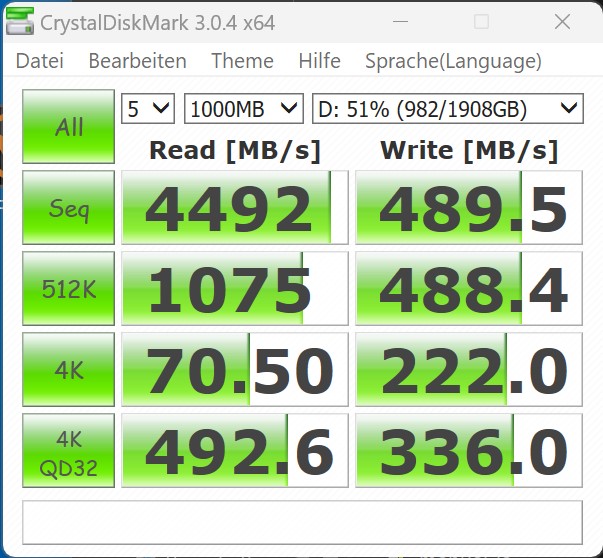

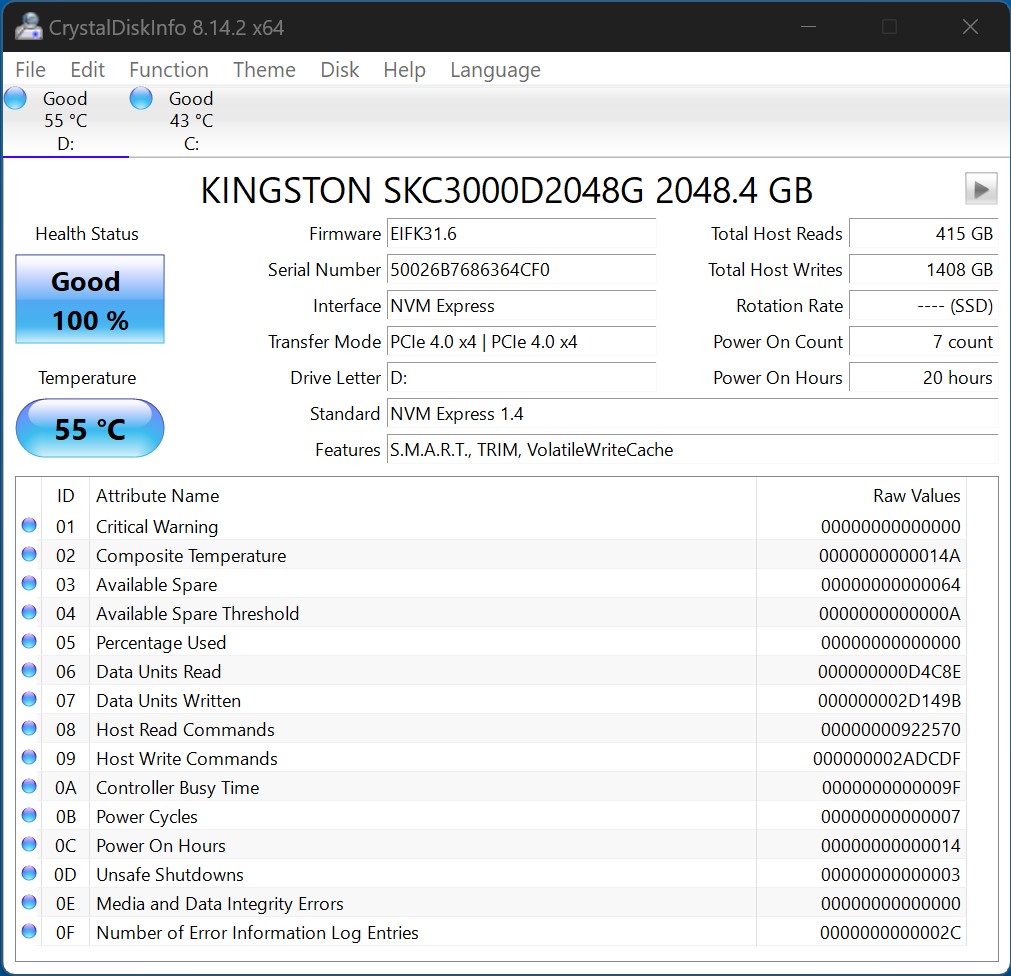

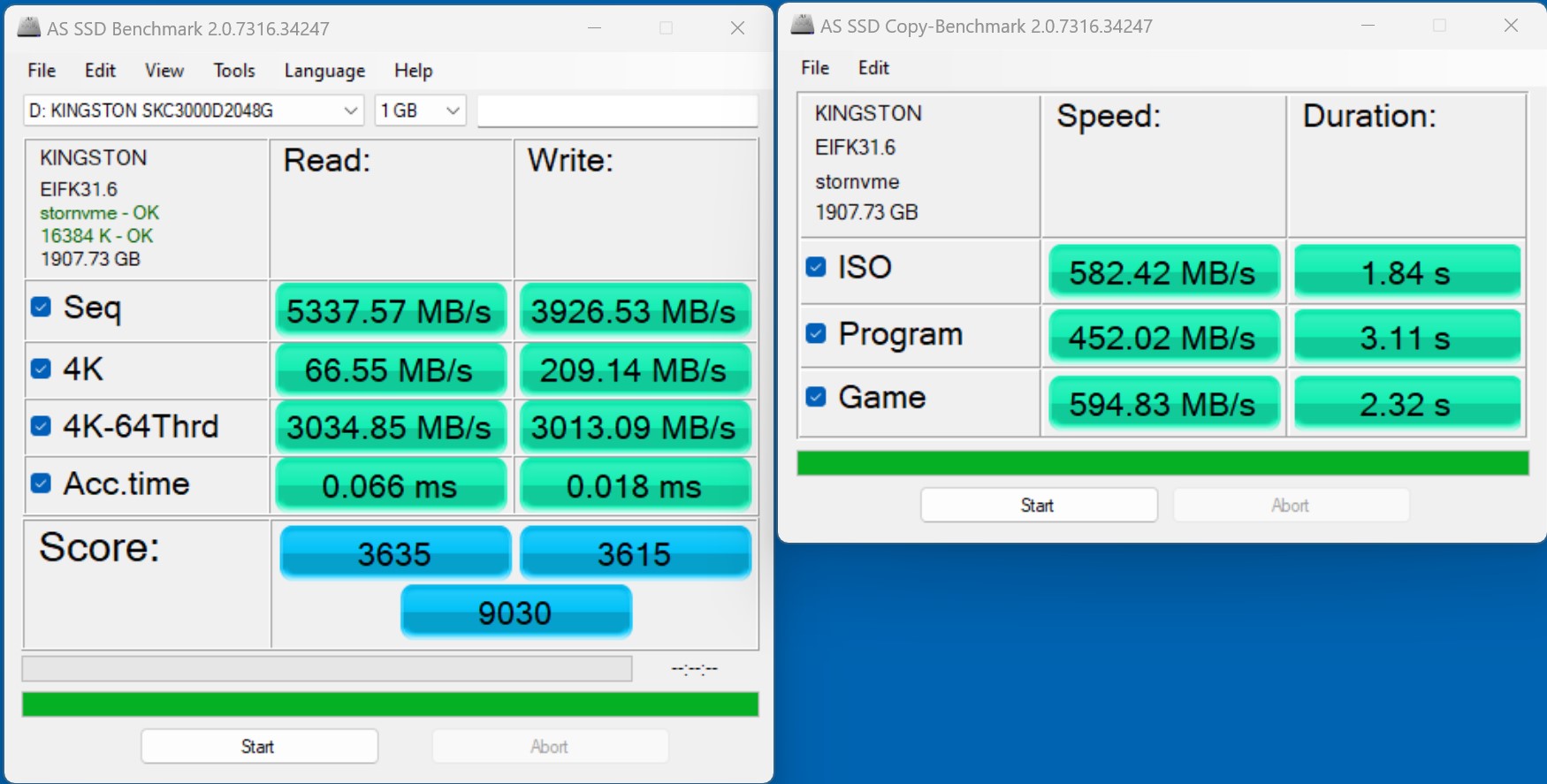

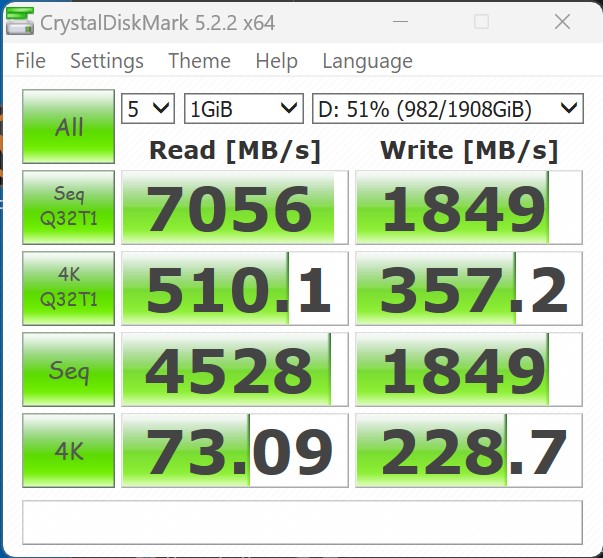

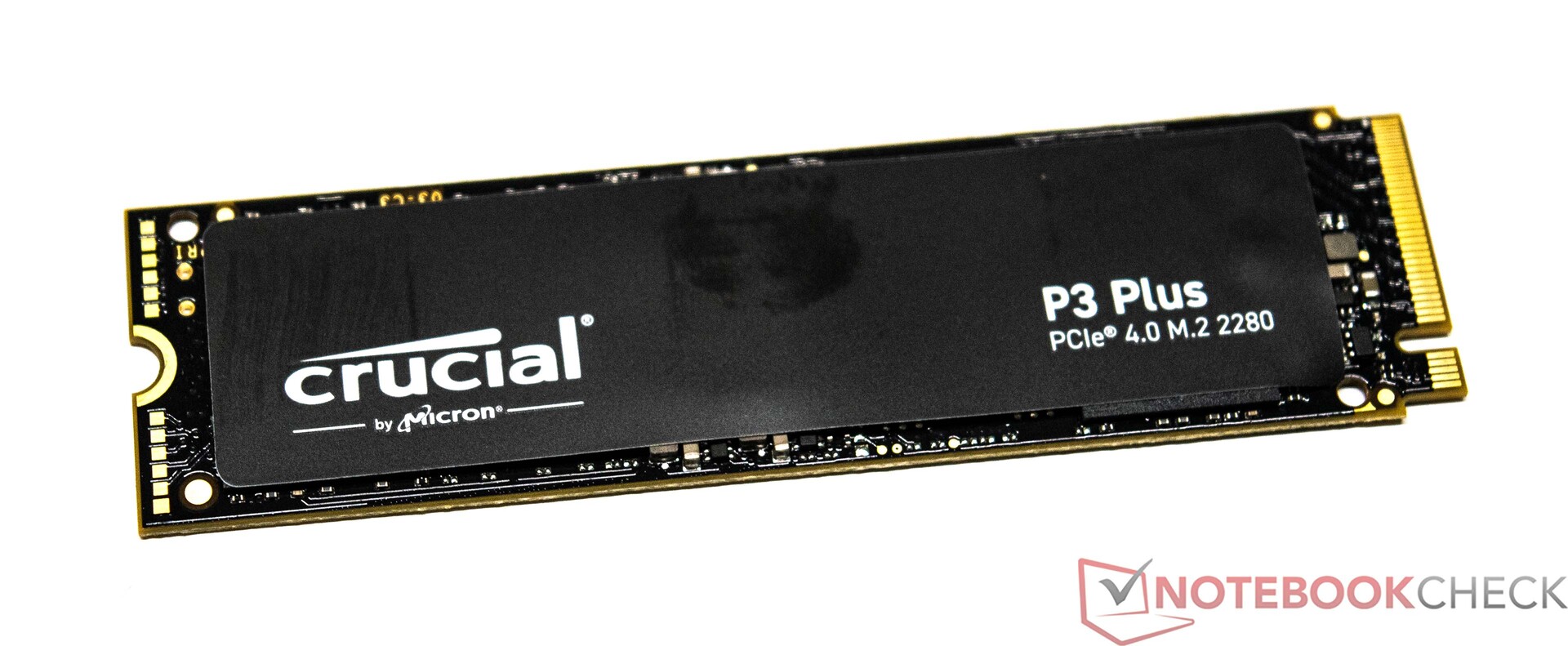

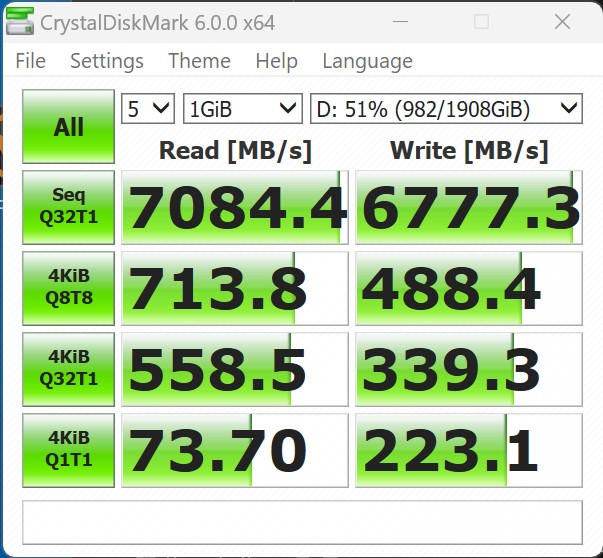

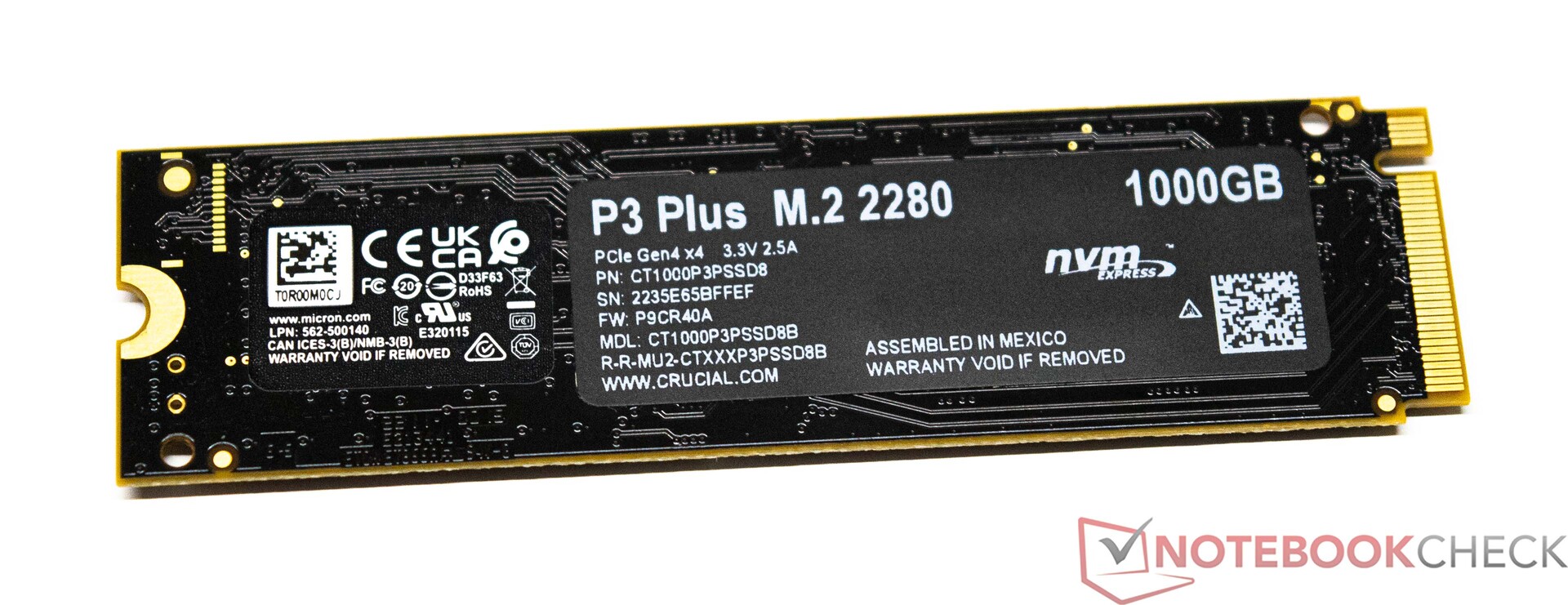

Our Morefine M600 sample was fitted with a 1-TB SSD from Crucial, specifically the Crucial P3 Plus. Attentive readers will notice that we actually performed our benchmarks using a different SSD. During our test, the built-in SSD malfunctioned, which meant we had to use a different model going forward. The Kingston KC3000 is also a PCle 4.0 NMVe SSD. We measured good transfer rates in our test with a few weaknesses when it came to continuous output.
The Morefine M600 can be fitted with up to 3 SSDs and you can even connect a 2.5-inch drive under the PC's lid - however, the drive can't exceed 9 millimetres in height. As previously mentioned, the cable required for this is included within the scope of delivery.
For more comparisons and benchmarks, take a look at our comparison table.
* ... smaller is better
Reading continuous output: DiskSpd Read Loop, Queue Depth 8
Graphics card

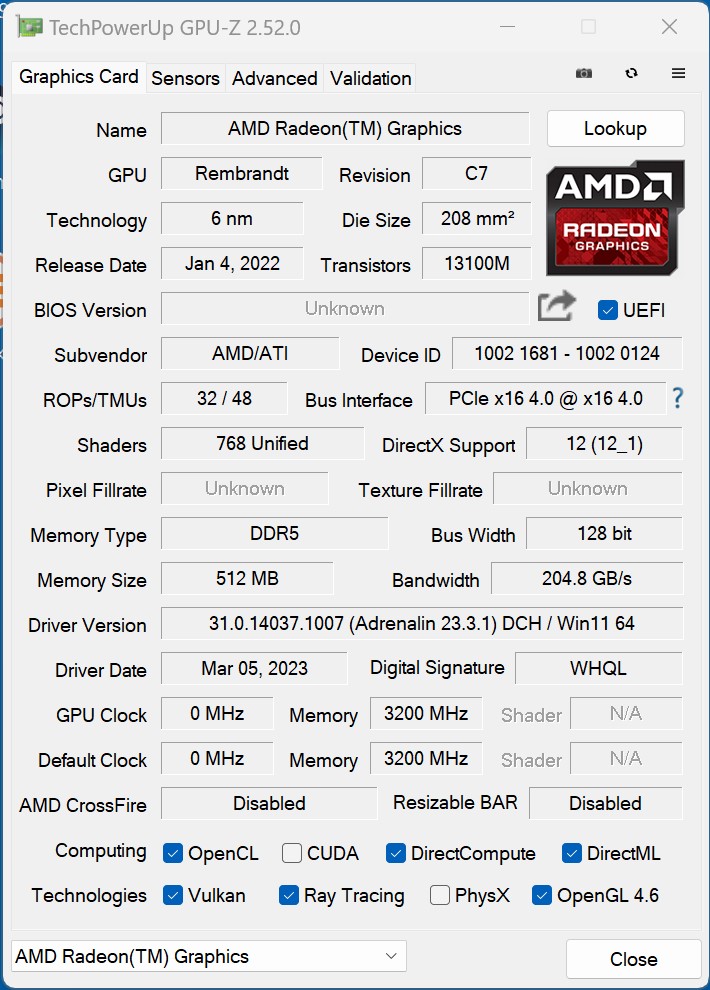

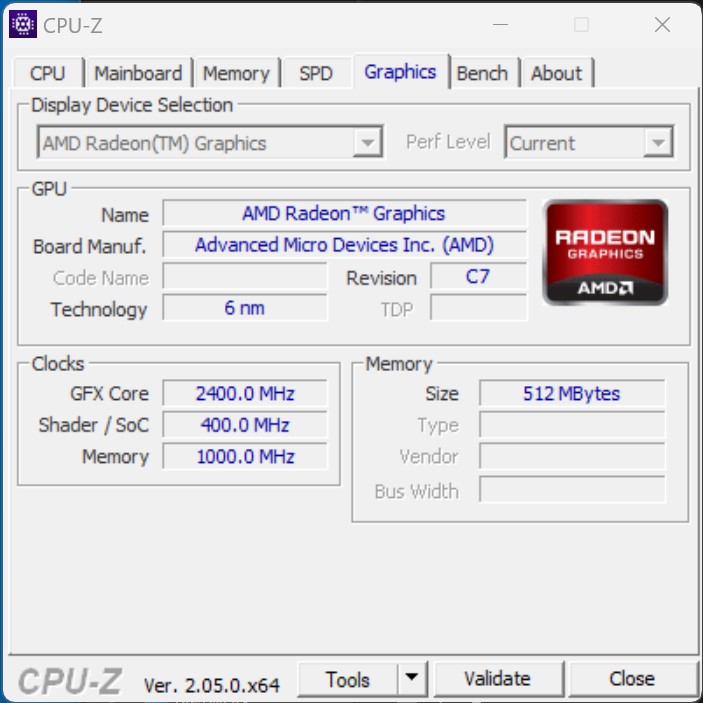

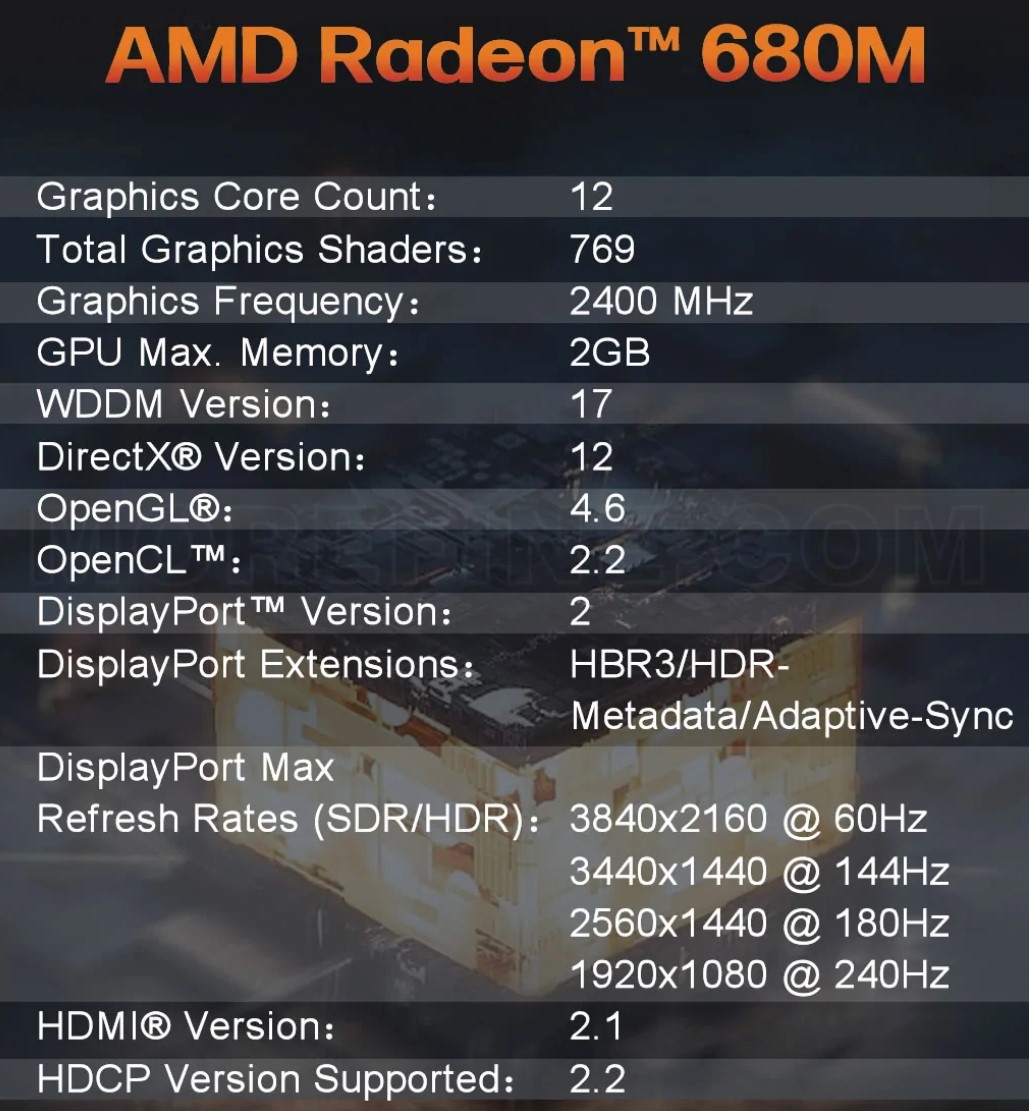

The other tests already helped paint a picture of the AMD Radeon 680M's good base performance as a Rembrandt-SoC iGPU. With the Morefine M600, we also observed a great performance win over the Morefine S500+ with an older AMD Radeon RX Vega 8. Comparing it to the Minisforum Neptune Series NAD9 makes it clear that this was very necessary.
Due to its Thunderbolt port, we took a look at its performance in conjunction with the Razer Core X and an Nvidia GeForce RTX 3060 Ti. However, due to the desktop graphics card's lesser PCI Express connectivity, its performance was somewhat limited. Nevertheless, the iGPU's 3D performance increased considerably. Our synthetic tests showed results similar to the Morefine M600's competitors. Only the Ace Magician TK11-A0 fell somewhat behind because of its slower CPU.
You can find more AMD Radeon 680M benchmarks here.
AMD Radeon 680M
Nvidia GeForce RTX 3060 Ti via Thunderbolt 3
Performance Rating - Percent | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti |
3DMark 11 - 1280x720 Performance GPU | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
1920x1080 Fire Strike Graphics | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
2560x1440 Time Spy Graphics | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Fire Strike Extreme Graphics | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Extreme Preset DX11 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Unigine Superposition | |
1920x1080 1080p High | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
1920x1080 1080p Extreme | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 3DTex | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 2DTexArr | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Vector | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, QJuliaRayTrace | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Gaming performance
Compared to the AMD Radeon RX Vega 8, the new AMD Radeon 680M showed a big increase in performance. With a few restrictions in detail, some current games ran smoothly - but not always. When playing Borderlands 3 with medium levels of detail, we only managed to reach 35 FPS. Its gaming performance was good compared to its competitors', although the Minisforum Venus Series UM690 fared a little better in our tests. Compared to competitors using current Intel iGPUs, the AMD Radeon 680M was able to stand its ground and even managed to lead the way at times.
The same as in our synthetic tests, we took a look at the PC's gaming performance in conjunction with the Razer Core X and an Nvidia GeForce RTX 3060 Ti. Its 3D performance increased significantly with the use of Thunderbolt and its relevant accessories. Compared to its competitors, which we tested in the same way, our test sample did a great job. The Intel NUC 12 Pro was able to achieve better performance due to its fast CPU. As a result, The 3D performance of the tested games could be improved by 153 per cent compared to the Morefine M600 based on the iGPU.
For further comparisons and benchmarks, take a look at our GPU games list.
AMD Radeon 680M
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Minisforum Venus Series UM690 | |
Morefine M600, 6900HX | |
Morefine S600-Apex Engineer | |
Minisforum Neptune Series NAD9 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine S500+ | |
Minisforum EliteMini B550 | |
Minipc Union Ace Magician TK11-A0 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Minisforum Venus Series UM690 | |
Morefine M600, 6900HX | |
Morefine S600-Apex Engineer | |
Minisforum Neptune Series NAD9 | |
Morefine S500+ | |
Minipc Union Ace Magician TK11-A0 | |
Minisforum EliteMini B550 | |
Intel NUC 12 Pro Kit NUC12WSKi7 |
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 152.1 | 140.4 | 53.5 | 24.1 |
The Witcher 3 (2015) | 113.9 | 72.7 | 39.4 | 25 |
Dota 2 Reborn (2015) | 133.4 | 110.4 | 82.2 | 71.8 |
Final Fantasy XV Benchmark (2018) | 59.5 | 31 | 23.4 | |
X-Plane 11.11 (2018) | 63.5 | 50.7 | 41.3 | |
Far Cry 5 (2018) | 75 | 41 | 34 | 36 |
Strange Brigade (2018) | 140.4 | 57.8 | 47.9 | 41.3 |
Shadow of the Tomb Raider (2018) | 92 | 39.8 | 35.4 | 29.9 |
Far Cry New Dawn (2019) | 66 | 39 | 37 | 34 |
Metro Exodus (2019) | 65.8 | 27.2 | 20.2 | 16.4 |
Borderlands 3 (2019) | 90.7 | 34.8 | 24.1 | 19.6 |
F1 2020 (2020) | 166.9 | 80.9 | 63.7 | 43.9 |
F1 2021 (2021) | 175.3 | 82.1 | 63.5 | 26.6 |
Far Cry 6 (2021) | 78.4 | 38.7 | 33.1 | 28.6 |
GRID Legends (2022) | 84.5 | 62.9 | 48 | 38 |
Cyberpunk 2077 1.6 (2022) | 50.6 | 41.8 | 33.6 | 18.9 |
Tiny Tina's Wonderlands (2022) | 44.7 | 35.3 | 23.5 | 18.7 |
F1 22 (2022) | 74.3 | 65.4 | 48.4 | 12.2 |
Nvidia GeForce RTX 3060 Ti via Thunderbolt 3
Performance Rating - Percent | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600, 6900HX |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600, 6900HX |
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600, 6900HX |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
Intel NUC 12 Pro Kit NUC12WSKi7 | |
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti | |
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Morefine M600, 6900HX |
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
GTA V (2015) | 174.2 | 169.1 | 151.9 | 89.5 | 58.5 | 96.9 |
The Witcher 3 (2015) | 210.1 | 143.7 | 108.7 | 56.3 | 60.9 | |
Dota 2 Reborn (2015) | 140.6 | 126.4 | 120 | 111.7 | 96.5 | |
Final Fantasy XV Benchmark (2018) | 174.9 | 132.2 | 92.2 | 73.6 | 46.5 | |
X-Plane 11.11 (2018) | 106.7 | 94 | 76 | 66.3 | ||
Far Cry 5 (2018) | 132 | 115 | 111 | 104 | 90 | 56 |
Strange Brigade (2018) | 173 | 134.5 | 132.9 | 131.1 | 119.6 | 79.5 |
Shadow of the Tomb Raider (2018) | 117.6 | 91.6 | 89.4 | 86.8 | 77.3 | 51.4 |
Far Cry New Dawn (2019) | 114 | 101 | 98 | 87 | 81 | 57 |
Metro Exodus (2019) | 113.9 | 76.7 | 58.6 | 44 | 39.2 | 30 |
Borderlands 3 (2019) | 87.2 | 96.2 | 84.3 | 69.8 | 55.1 | 32.8 |
F1 2020 (2020) | 174.6 | 95.9 | 106.1 | 86.7 | 74.9 | 53.1 |
F1 2021 (2021) | 117.5 | 91.1 | 57.6 | 44 | 38.9 | 34.5 |
Far Cry 6 (2021) | 62.6 | 53.3 | 44.1 | 37.8 | 37.2 | 0.8 |
GRID Legends (2022) | 98.7 | 83.7 | 69.1 | 59.3 | 53.1 | 43.9 |
Cyberpunk 2077 1.6 (2022) | 82.8 | 80.7 | 72.9 | 60.7 | 43 | 23.1 |
Tiny Tina's Wonderlands (2022) | 154.1 | 125.5 | 92.2 | 74.8 | 58.2 | 35 |
F1 22 (2022) | 49.4 | 44.9 | 35.2 | 20.5 | 22 | 16.9 |
Emissions - economic, but still audible
Noise emissions
As seen in the Morefine S600 Apex Engineer, the Morefine M600 features a similar cooling system, which can operate relatively quietly thanks to its economical SoC. At no load, the device is very quiet and we measured 37.5 dB(A) at medium load. This makes the Morefine M600's noise emissions audible, but they are completely acceptable compared to its competitors.
Noise Level
Idle |
| 30.9 / 31.5 / 31.5 dB(A) |
Load |
| 37.5 / 34.1 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: ![]() ![]() ![]() |
Morefine M600, 6900HX R9 6900HX, Radeon 680M | Minisforum Venus Series UM690 R9 6900HX, Radeon 680M | Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs | Morefine S500+ R9 5900HX, Vega 8 | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Minisforum EliteMini B550 R7 5700G, Vega 8 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | |
---|---|---|---|---|---|---|---|---|
Noise | 1% | -16% | -9% | 6% | -8% | 4% | -3% | |
off / environment * | 30.4 | 30.5 -0% | 29.6 3% | 30.1 1% | 30.2 1% | 30.4 -0% | 30.2 1% | 30.28 -0% |
Idle Minimum * | 30.9 | 31.6 -2% | 36.1 -17% | 30.5 1% | 33.1 -7% | 30.5 1% | 31.82 -3% | |
Idle Average * | 31.5 | 31.6 -0% | 37.6 -19% | 33.15 -5% | 30.5 3% | 33.1 -5% | 30.5 3% | 32.27 -2% |
Idle Maximum * | 31.5 | 31.6 -0% | 39.2 -24% | 30.5 3% | 33.1 -5% | 30.5 3% | 33.17 -5% | |
Load Average * | 37.5 | 33.9 10% | 42.6 -14% | 30.5 19% | 38.1 -2% | 31.2 17% | 35.82 4% | |
Load Maximum * | 34.1 | 34.4 -1% | 42.4 -24% | 41.63 -22% | 30.5 11% | 43.6 -28% | 35.1 -3% | 37.1 -9% |
* ... smaller is better
Temperature

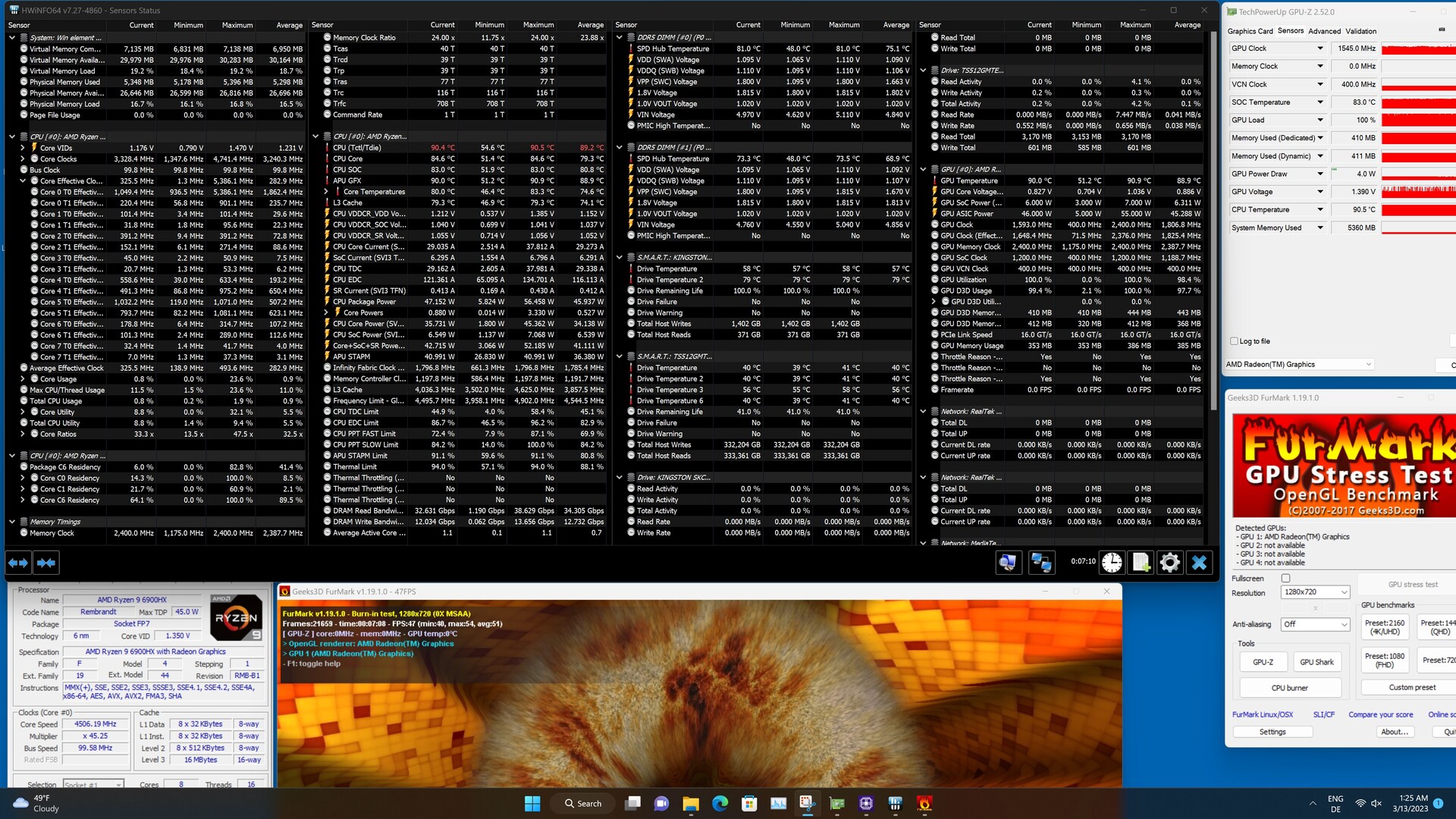

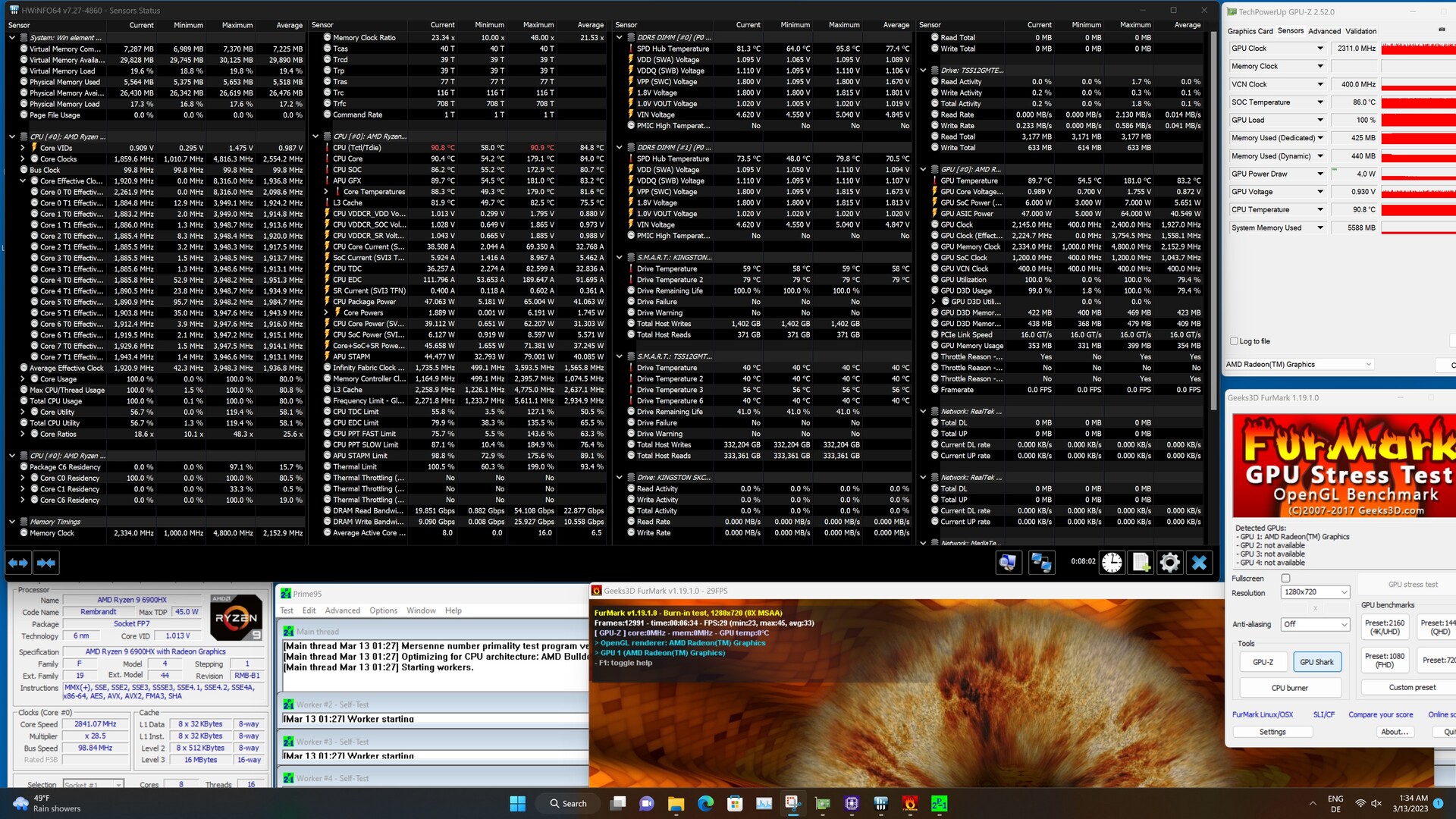

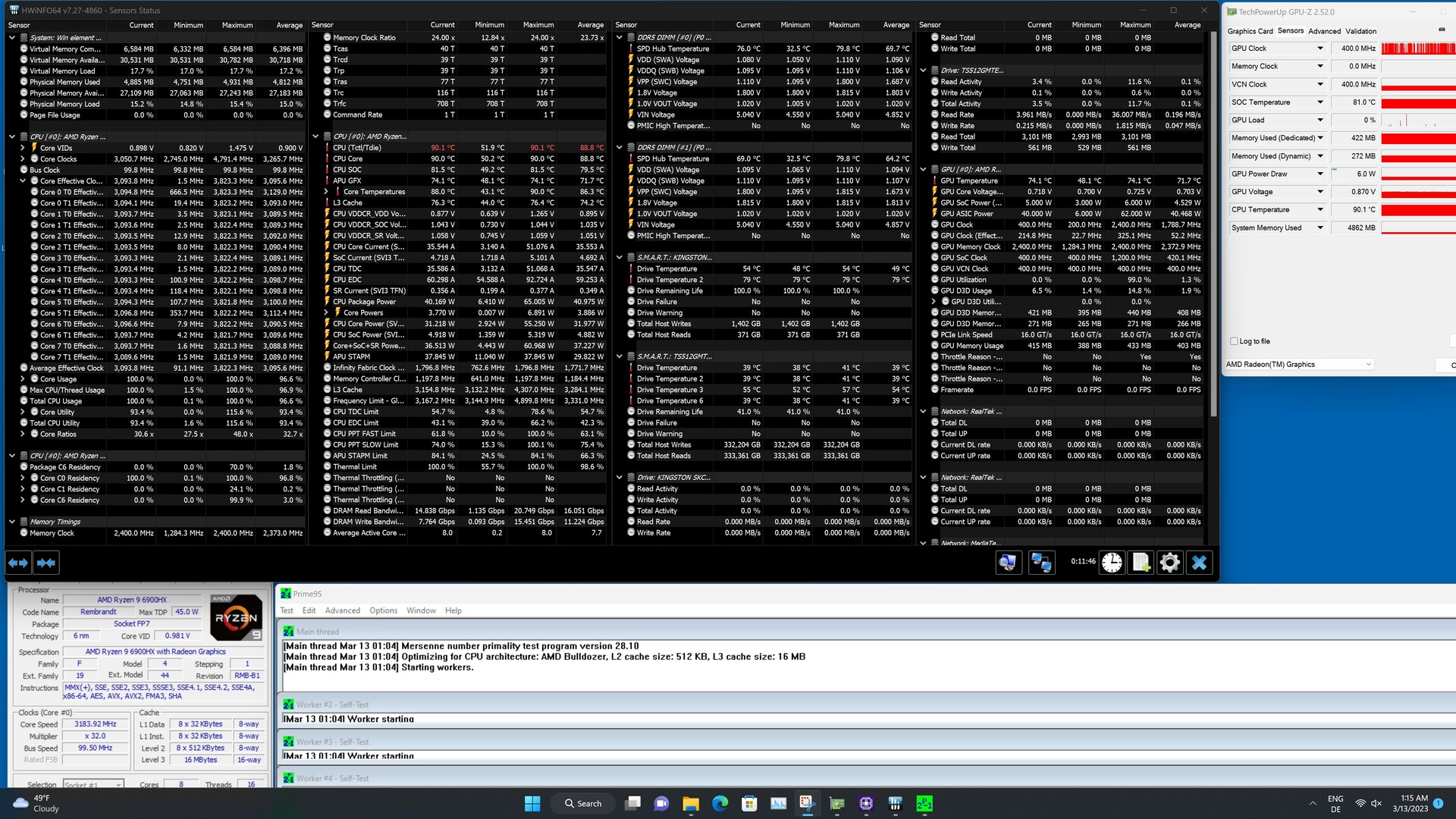

The Morefine M600's case only heats up slightly, which means that heat is effectively led out of it. In the AMD Ryzen 9 6900HX's stress test (which simulates an extreme scenario), we noted a maximum temperature of 90.9 °C.
Power consumption
Compared to the Morefine M600's performance, its power consumption was very small. This advantage applied to all mini PCs in our comparison. Compared to the Morefine S600 Apex Engineer, the manufacturer was able to drastically improve power consumption at no load. With a consumption of only 9.9 to 11.2 watts, our sample was roughly on the same level as the Minisforum Venus Series UM690. At load, the Morefine M600 had a slighter higher power consumption than its competitors. Alongside the Minisforum Neptune Series NAD9 and the Minisforum EliteMini B550, it momentarily surpassed the 100-watt mark.
Its 120-watt power adapter never struggled to supply the PC with sufficient power.
Off / Standby | ![]() ![]() |
Idle | ![]() ![]() ![]() |
Load |
![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() | |
Key:
min: ![]() ![]() ![]() |
Morefine M600, 6900HX R9 6900HX, Radeon 680M | Minisforum Venus Series UM690 R9 6900HX, Radeon 680M | Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs | Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs | Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs | Morefine S500+ R9 5900HX, Vega 8 | Minisforum EliteMini B550 R7 5700G, Vega 8 | Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs | Average AMD Radeon 680M | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|---|
Power Consumption | 10% | -267% | -21% | -5% | 20% | -3% | 47% | 23% | -3% | |
Idle Minimum * | 9.9 | 8.7 12% | 46.5 -370% | 12.1 -22% | 12.1 -22% | 8.1 18% | 8.9 10% | 3.4 66% | 6.76 ? 32% | 9.52 ? 4% |
Idle Average * | 11 | 9.6 13% | 63 -473% | 13 -18% | 12.2 -11% | 8.4 24% | 9.6 13% | 5.7 48% | 8.87 ? 19% | 11.7 ? -6% |
Idle Maximum * | 11.2 | 10.5 6% | 68.9 -515% | 18.2 -63% | 12.3 -10% | 11.9 -6% | 11.8 -5% | 7 37% | 10.5 ? 6% | 15 ? -34% |
Load Average * | 74.2 | 65.8 11% | 73.9 -0% | 70.6 5% | 64 14% | 47.1 37% | 98.9 -33% | 36.5 51% | 53.2 ? 28% | 59 ? 20% |
Load Maximum * | 103.2 | 94.5 8% | 80.8 22% | 113 -9% | 98.8 4% | 72.9 29% | 101.8 1% | 68 34% | 70.1 ? 32% | 100.2 ? 3% |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
Verdict - by all means suitable for everyday life
The Morefine M600 is a classic example of a mini PC which wins you over thanks to its high-quality finish and great performance. Optically, the all-black device may not offer many highlights, but that doesn't matter. With its AMD Ryzen 9 6900HX, you get a very fast 8-core SoC with good iGPU performance - noticeably better than that of the Morefine S500+. There are definitely some current games which you can play smoothly on the PC without having to skimp on graphic details. However, you shouldn't look at the Morefine M600 as being a full gaming PC. Its modern connectivity options including Thunderbolt 4 make the device future-proof - even if its CPU performance stagnates compared to the Morefine S500+.
The Morefine M600 is a fast mini PC with great connectivity options. Thanks to its Thunderbolt 4 port, it has lots of opportunities to be pushed to its full potential.
A slight downside of the PC is its built-in cooling system - but it still outshines that of the Morefine S600 Apex Engineer. This can be put down to its slightly more economical SoC. The Minisforum Venus Series UM690, which we have tested previously, proved to be a similarly kitted-out mini PC which ended up running much quieter at load.
Prices and availability
The Morefine M600 can currently be purchased directly from the manufacturer. Prices begin at $569 for the barebone version with the AMD Ryzen 9 6900HX. The cheaper model with the Ryzen 5 starts at $388.
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Morefine M600, 6900HX
- 03/25/2023 v7 (old)
Sebastian Bade
