Verdict — Decent Last Resort Graphics Boost
The Radeon RX 7600M XT is uncommon and for good reason. Unfortunately, it hasn't aged very well when compared to modern budget Nvidia GPUs like the GeForce RTX 4050 which can oftentimes outperform our AMD solution while pulling in just half the power. It targets 1080p gaming, but the latest titles are already proving to be overwhelming. These drawbacks would have been more acceptable for the AD-GP1 if it weren't for its steep $400 to $500 retail price.
With that said, the AD-GP1 is still an improvement when paired to laptops or mini PCs powered by integrated Intel or AMD graphics even if the underlying Radeon RX 7600M XT GPU isn't the newest or most efficient. It can be seen as a portable last resort solution if there are no other ways of boosting graphics performance from your existing PC.
Pros
Cons
Price and Availability
GMKtec is now shipping the AD-GP1 eGPU docking station as reviewed for $465 USD.

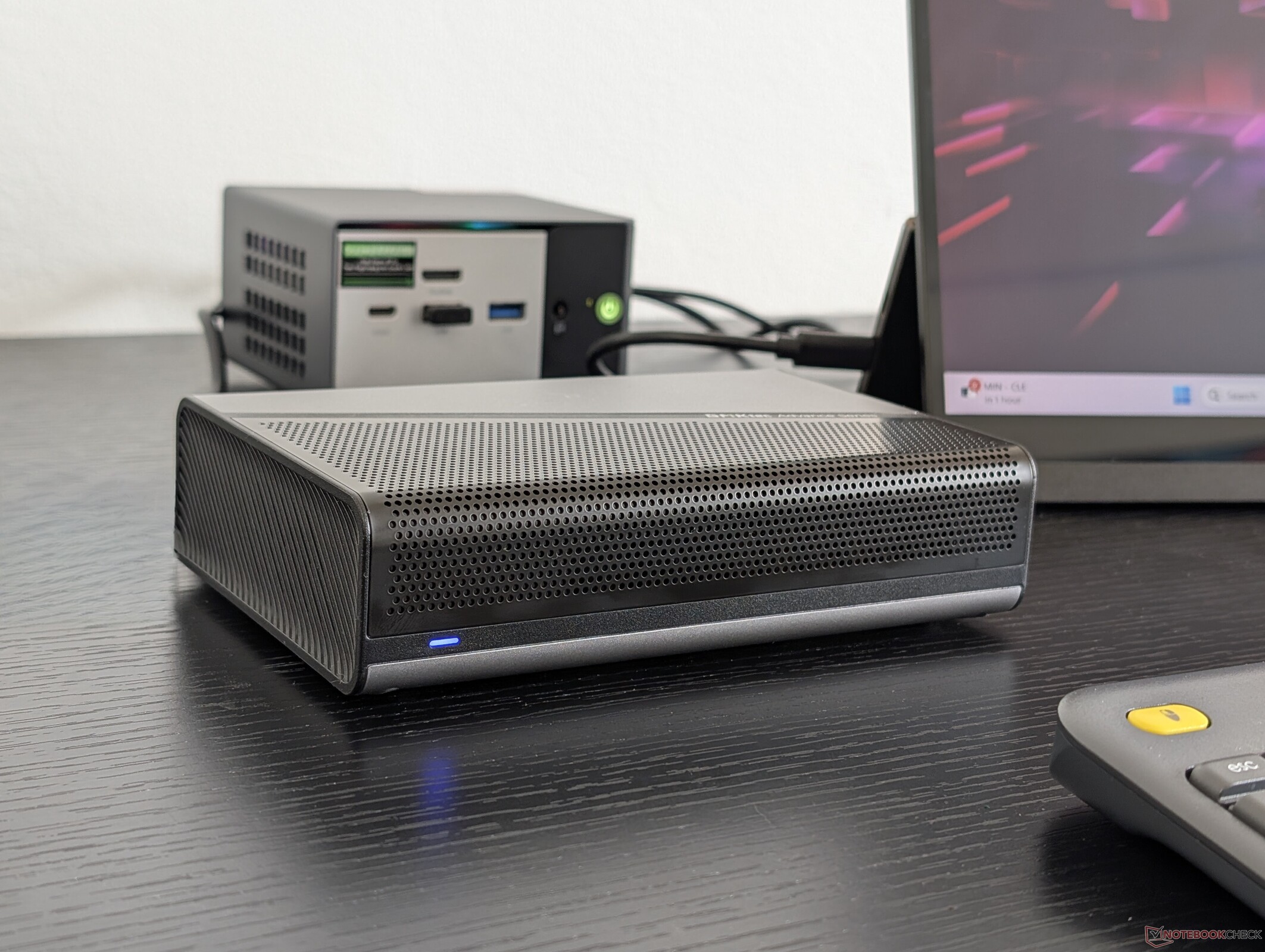

The GMK AD-GP1 is a small external GPU (eGPU) solution with an integrated Radeon 7600M XT. It competes directly with other mini eGPUs including the GPD G1 which also utilizes the same AMD graphics.
Specifications
Case
The unit should be positioned horizontally due to how the ventilation grilles are designed. While the unit itself is reasonably small and about the size of an Intel NUC Canyon, its bulky 240 W power brick is just as large and arguably an eyesore.
Connectivity

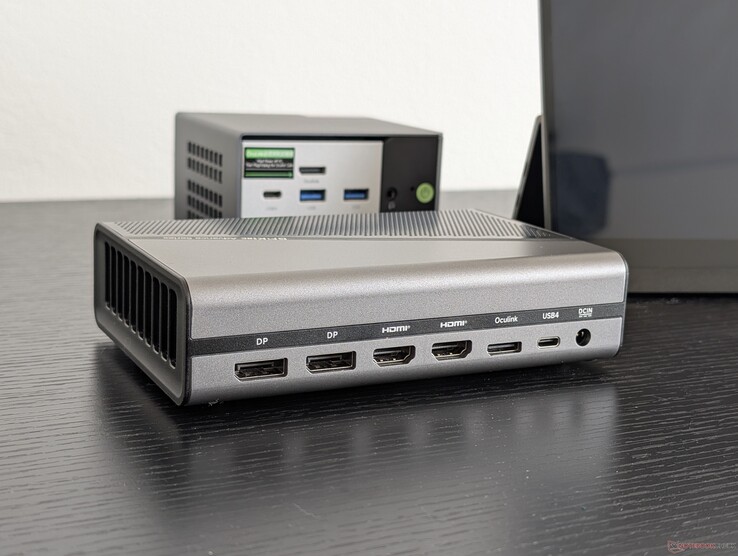

The dock can output up to four external displays via DisplayPort 2.0 or HDMI 2.1. Note that the single USB-C 4.0 port cannot be used as a DisplayPort as it is mainly for connecting to the host PC (if OcuLink is not compatible) or for 100 W Power Delivery charging.
Performance
Testing Conditions
Our host PC is the GMK EVO-X1 mini PC with the Ryzen AI 9 CPU as reviewed here. The model is notable for its integrated OcuLink port to be fully compatible with the AD-GP1. Otherwise, users can connect most PCs to the dock via USB-C 4.0 for slightly slower performance.
System Performance
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| CrossMark / Overall | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| HP ZBook Ultra G1a 14 | |
| GMK EVO-X1 | |
| CrossMark / Productivity | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| HP ZBook Ultra G1a 14 | |
| CrossMark / Creativity | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| HP ZBook Ultra G1a 14 | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| CrossMark / Responsiveness | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| HP ZBook Ultra G1a 14 | |
| WebXPRT 3 / Overall | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| GMK EVO-X1 | |
| Beelink GTI12 Ultra EX Docking Station | |
| HP ZBook Ultra G1a 14 | |
| WebXPRT 4 / Overall | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| Beelink GTI12 Ultra EX Docking Station | |
| GMK EVO-X1 | |
| HP ZBook Ultra G1a 14 | |
| Mozilla Kraken 1.1 / Total | |
| Beelink GTI12 Ultra EX Docking Station | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) | |
| HP ZBook Ultra G1a 14 | |
| GMK EVO-X1 | |
* ... smaller is better

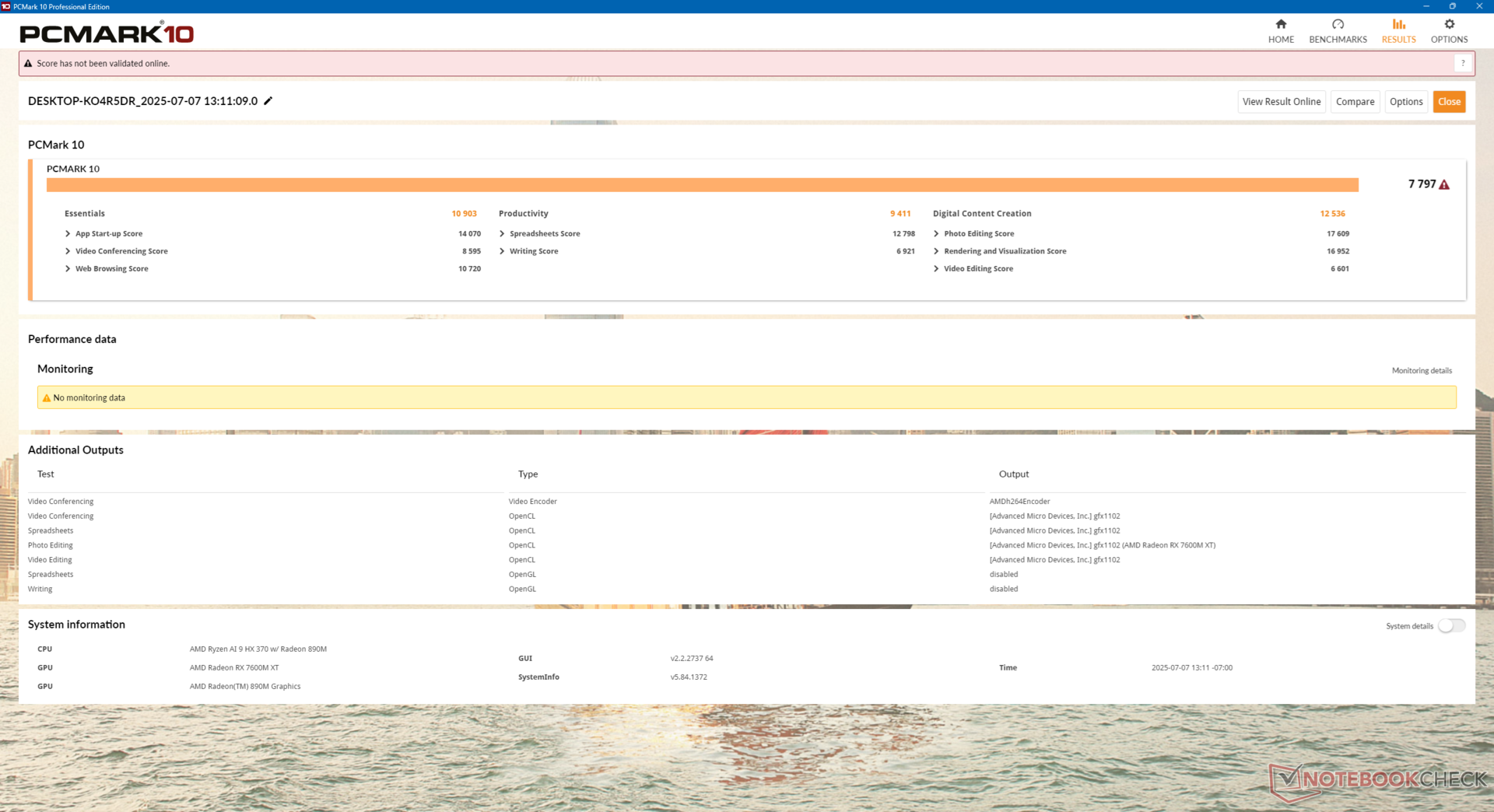

| PCMark 10 Score | 7797 points | |
Help | ||
GPU Performance

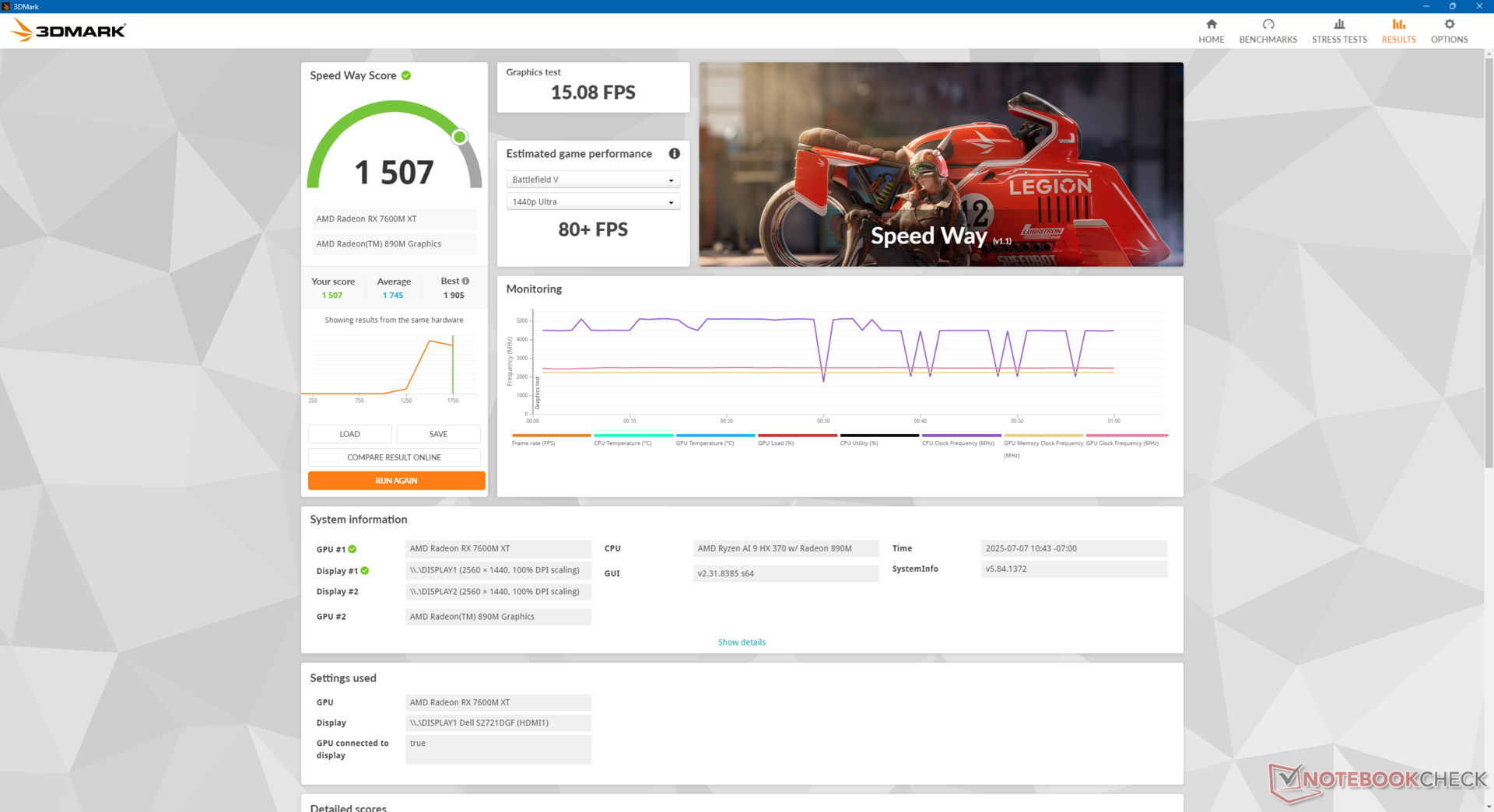

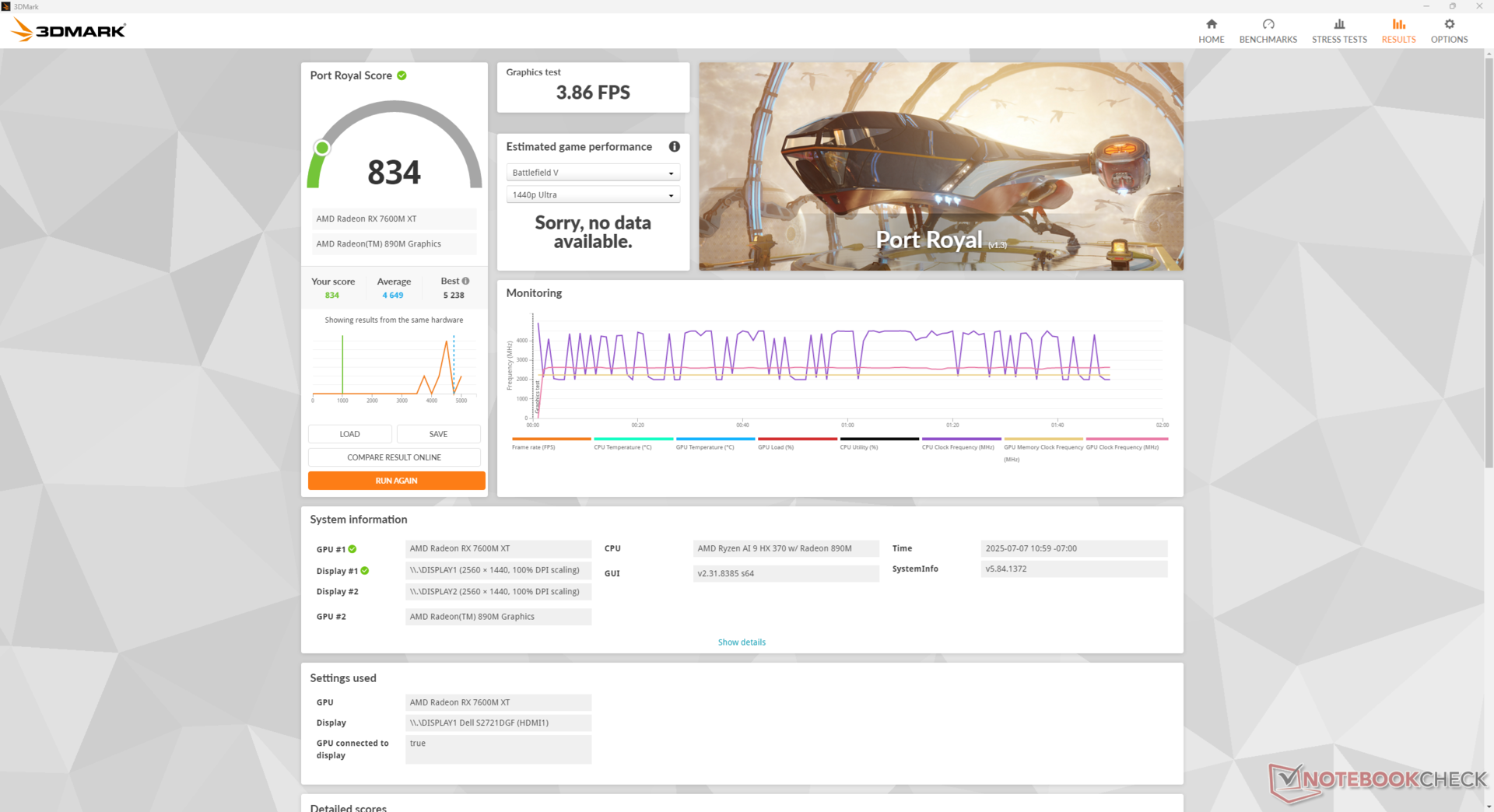

Raw performance sits in between the GeForce RTX 4050 and RTX 4060. If running more demanding DX12 titles with ray-tracing, however, the Radeon RX 7600M XT falls behind significantly due to its weak RT cores when compared to Nvidia. This is exemplified by our very low score in the RT-specific Port Royal benchmark.
Overall performance is still roughly 2x to 2.5x faster than the integrated Radeon 890M in most modern AMD Zen 5 laptops or mini PCs.

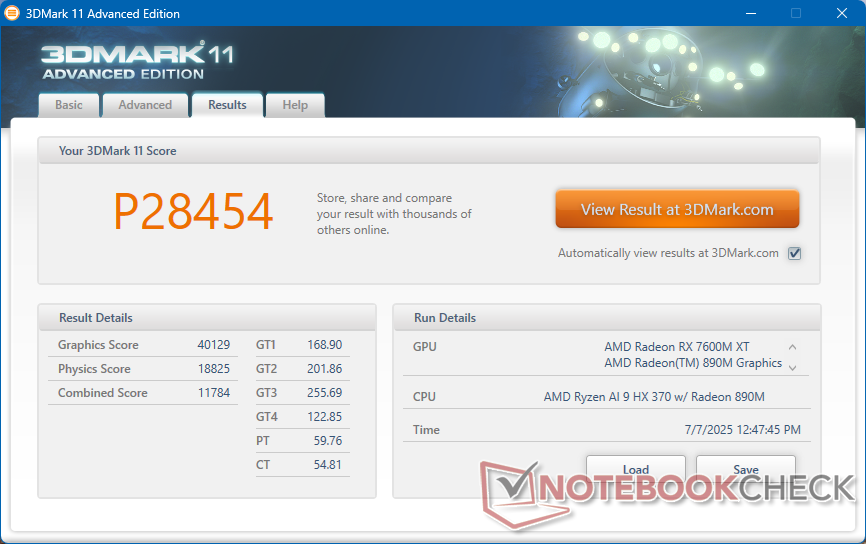

| 3DMark 11 Performance | 28454 points | |

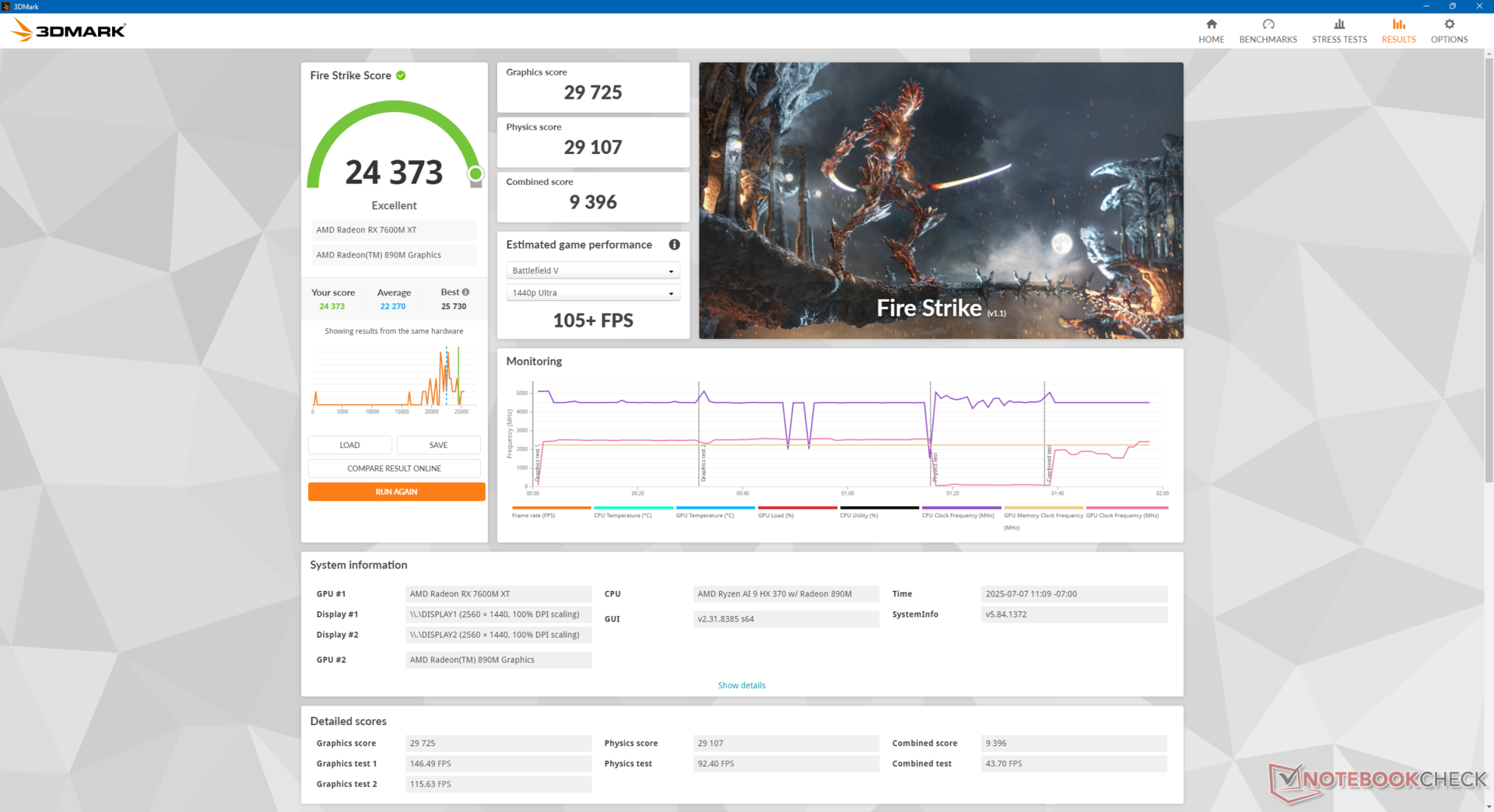

| 3DMark Fire Strike Score | 24373 points | |

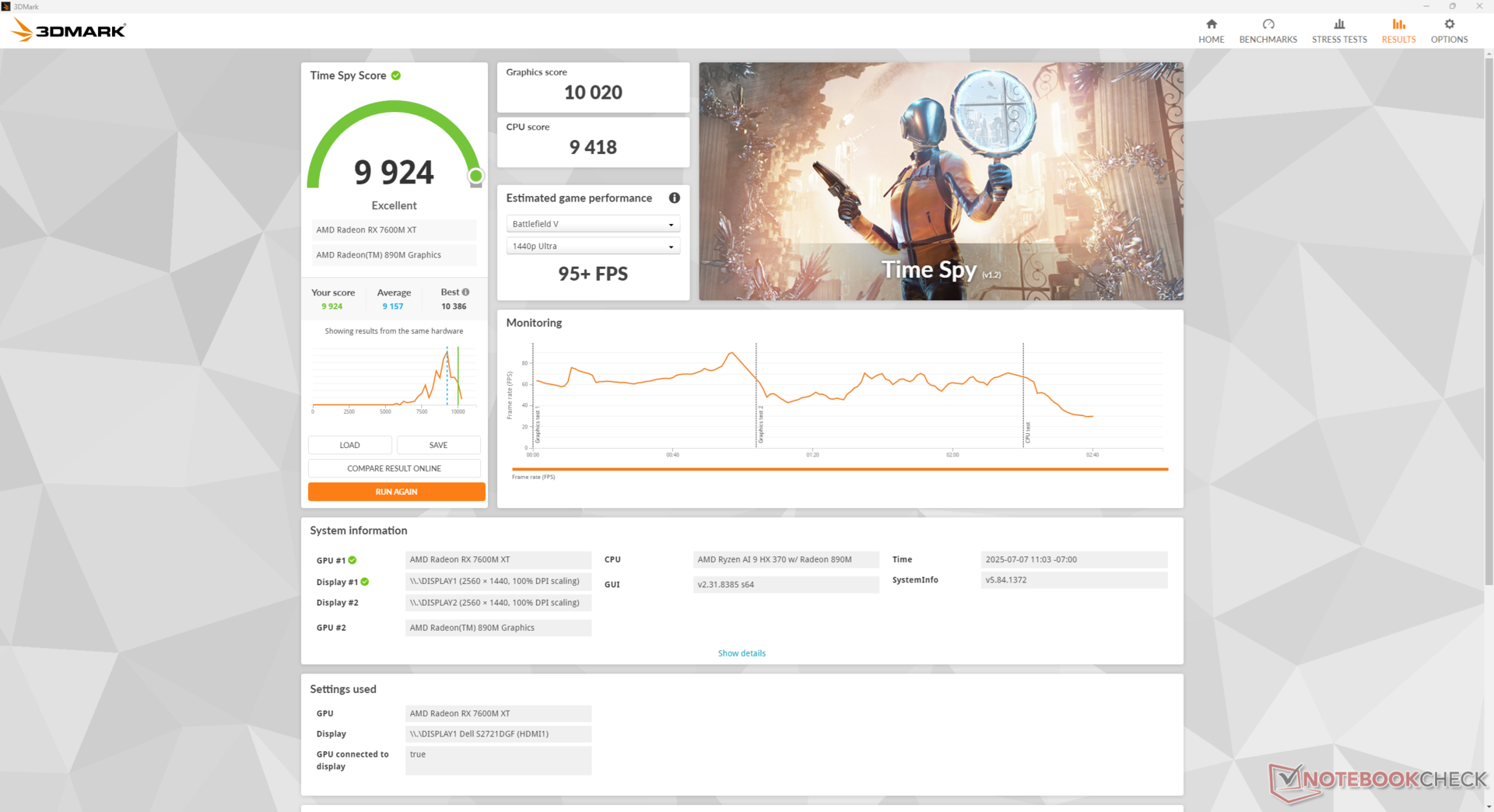

| 3DMark Time Spy Score | 9924 points | |

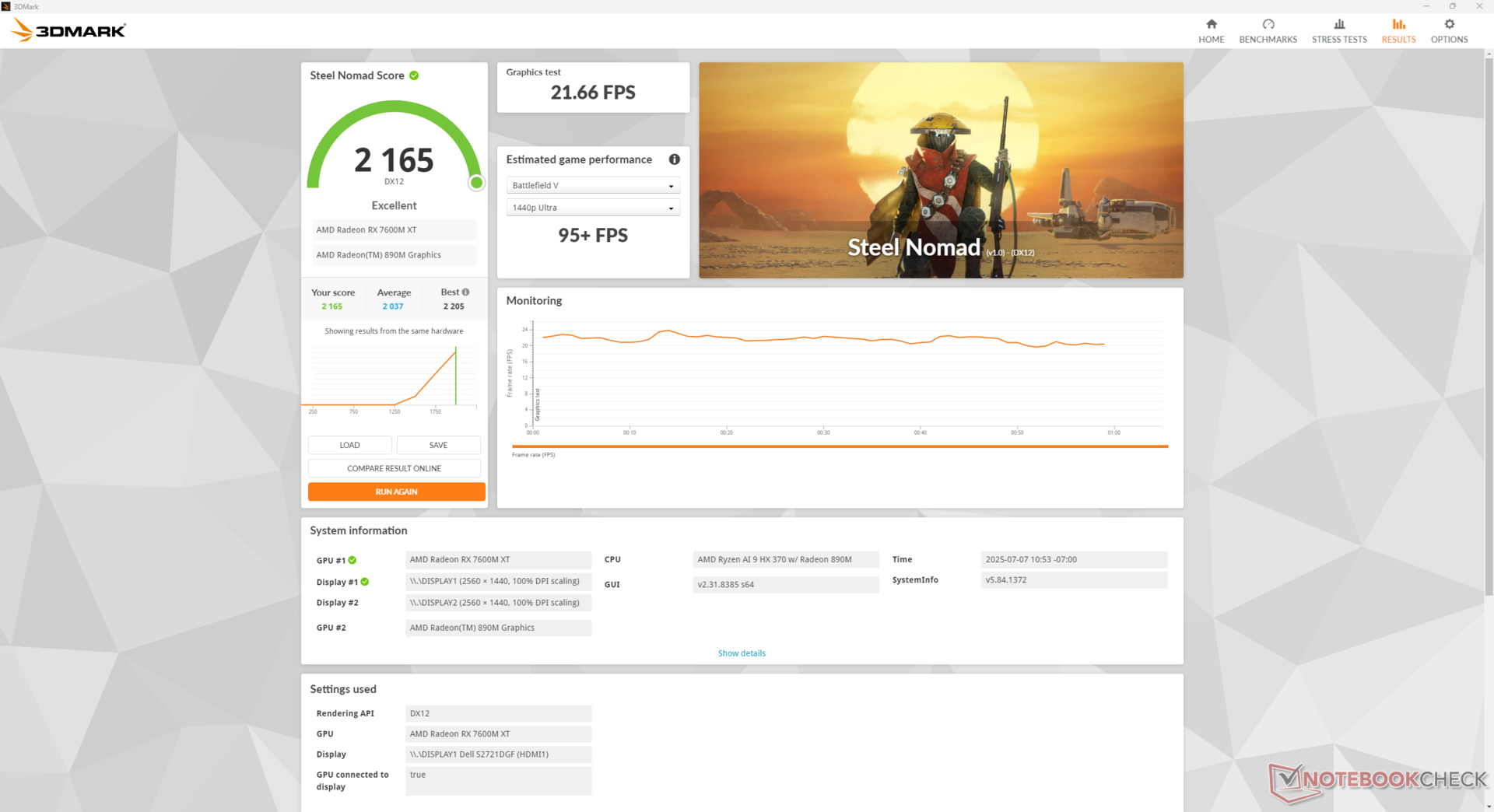

| 3DMark Steel Nomad Score | 2165 points | |
Help | ||
Gaming Performance
Older DX11 titles run well on the Radeon RX 7600M XT. Newer titles, however, show the AD-GP1 struggling to keep up even when on low 1080p settings. For example, Monster Hunter Wilds can't crack the average 60 FPS mark on the lowest 1080p settings without the help of FSR or frame generation. Titles that rely or force ray tracing, such as Indiana Jones and the Great Circle, are essentially unplayable. Other demanding titles like Marvel Rivals show difficulty maintaining 60 FPS at 1080p when characters and effects fill the screen for a very unsteady experience even with FSR enabled.
| Monster Hunter Wilds | |
| 1920x1080 lowest, FSR Quality, Frame Generation | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP ZBook Ultra G1a 14 | |
| 1920x1080 lowest, no upscaling | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP ZBook Ultra G1a 14 | |
| HP OmniStudio X 32-c0077ng | |
| 1920x1080 medium, no upscaling | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP ZBook Ultra G1a 14 | |
| HP OmniStudio X 32-c0077ng | |
| 1920x1080 ultra, RT: high, no upscaling | |
| HP ZBook Ultra G1a 14 | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| HP OmniStudio X 32-c0077ng | |
| 2560x1440 ultra, RT: high, no upscaling | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| F1 24 | |
| 1920x1080 High Preset AA:T AF:16x | |
| Minisforum G7 PT | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) | |
| GMK AD-GP1 Radeon 7600M XT | |
| GMK AD-GP1 Radeon 7600M XT | |
| HP OmniStudio X 32-c0077ng | |
| Average AMD Radeon RX 7600M XT (27.7 - 195.3, n=5) | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| HP OmniStudio X 32-c0077ng | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (23.5 - 33.9, n=3) | |
| Minisforum G7 PT | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| HP OmniStudio X 32-c0077ng | |
| Minisforum G7 PT | |
| Average AMD Radeon RX 7600M XT (7.32 - 17.7, n=4) | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) | |
| GMK AD-GP1 Radeon 7600M XT | |
| 2560x1440 Ultra High Preset + Quality FSR AF:16x | |
| Minisforum G7 PT | |
| Average AMD Radeon RX 7600M XT (10.9 - 21.8, n=2) | |
| GMK AD-GP1 Radeon 7600M XT | |
| Indiana Jones and the Great Circle - 1920x1080 Low Preset | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| Assassin's Creed Shadows | |
| 1920x1080 High | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| 1920x1080 Ultra High | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| 2560x1440 Ultra High | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
| 2560x1440 Ultra High + FSR Quality | |
| GMK AD-GP1 Radeon 7600M XT | |
| Average AMD Radeon RX 7600M XT (n=1) | |
Cyberpunk 2077 ultra FPS Chart
| low | med. | high | ultra | QHD FSR | QHD | |
|---|---|---|---|---|---|---|
| Dota 2 Reborn (2015) | 149.8 | 122.6 | 131.8 | 109.1 | ||
| Final Fantasy XV Benchmark (2018) | 130 | 125.3 | 89.6 | 66.5 | ||
| X-Plane 11.11 (2018) | 83.1 | 63.3 | 45.7 | |||
| Strange Brigade (2018) | 327 | 238 | 196.6 | 167.7 | 112.4 | |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 91.8 | 80.3 | 71.3 | 45.6 | ||
| F1 24 (2024) | 215 | 203 | 159.4 | 29.9 | 10.9 | 7.32 |
| Indiana Jones and the Great Circle (2024) | 19 | 9.6 | 8.4 | |||
| Monster Hunter Wilds (2025) | 56.4 | 51.7 | 20.8 | 19.5 | ||
| Assassin's Creed Shadows (2025) | 55 | 51 | 44 | 17 | 14 | 14 |
Emissions
System Noise

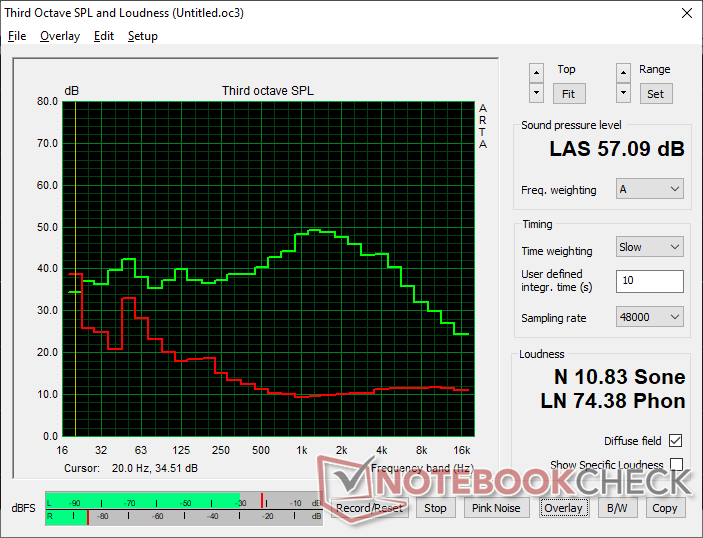

The AD-GP1 does a great job at remaining quiet when running undemanding loads to be generally unnoticeable. However, fan noise steadily picks up when gaming before stabilizing at 57 dB(A) to be as loud as many gaming laptops.
Noise level
| Idle |
| 30.2 / / dB(A) |
| Load |
| / dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 28 dB(A) | ||
| GMK AD-GP1 Radeon 7600M XT Radeon RX 7600M XT, Ryzen AI 9 HX 370 | Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Radeon RX 7600M XT, R7 8700G, Kingston OM8PGP41024Q-A0 | HP ZBook Ultra G1a 14 Radeon 8060S, Ryzen AI Max+ PRO 395, WDC PC SN810 2TB | Beelink GTI12 Ultra EX Docking Station GeForce RTX 3070, i9-12900H, Crucial P3 Plus CT1000P3PSSD8 | XFX Speedster QICK 308 Radeon RX 7600 Black Edition Radeon RX 7600, R9 7950X, Corsair MP600 | GMK EVO-X1 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8 | |
|---|---|---|---|---|---|---|
| Noise | 8% | 17% | 8% | 11% | 16% | |
| off / environment * (dB) | 28 | 24.7 12% | 23.9 15% | 22.8 19% | 25.4 9% | 23.3 17% |
| Idle Minimum * (dB) | 30.2 | 30.7 -2% | 23.9 21% | 32.7 -8% | 26.3 13% | 27.8 8% |
| Cyberpunk 2077 ultra * (dB) | 57.1 | 49.6 13% | 49.1 14% | 50.3 12% | 44.2 23% | |
| Idle Average * (dB) | 30.8 | 23.9 | 32.7 | 26.3 | 30.3 | |
| Idle Maximum * (dB) | 30.8 | 26.8 | 35.3 | 26.3 | 30.4 | |
| Load Average * (dB) | 39.8 | 42.2 | 36.8 | 29.6 | 44.6 | |
| Load Maximum * (dB) | 48.8 | 49.2 | 52.9 | 39.4 | 46.1 | |
| Witcher 3 ultra * (dB) | 39.6 |
* ... smaller is better

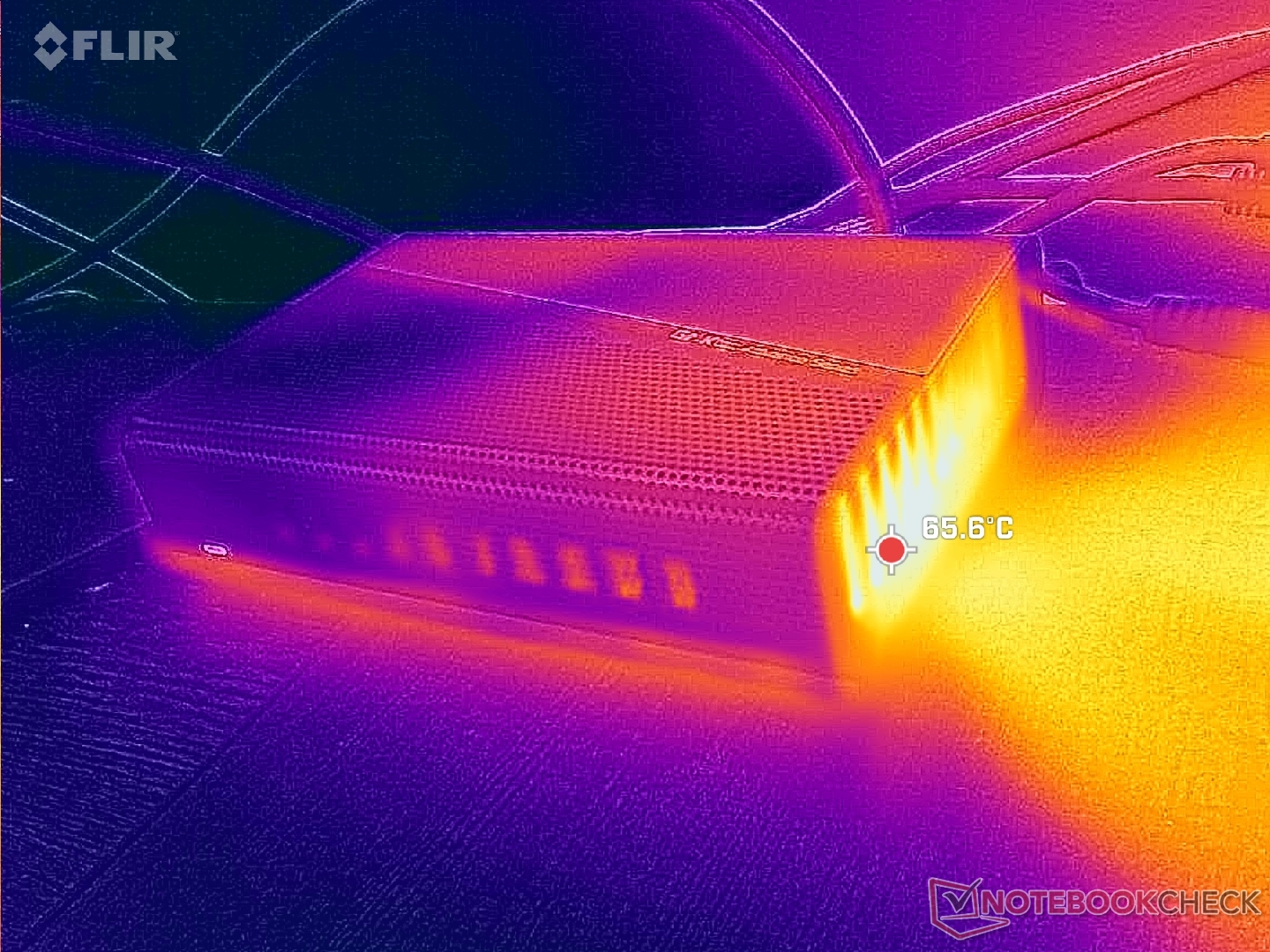

Temperature
Stress Test

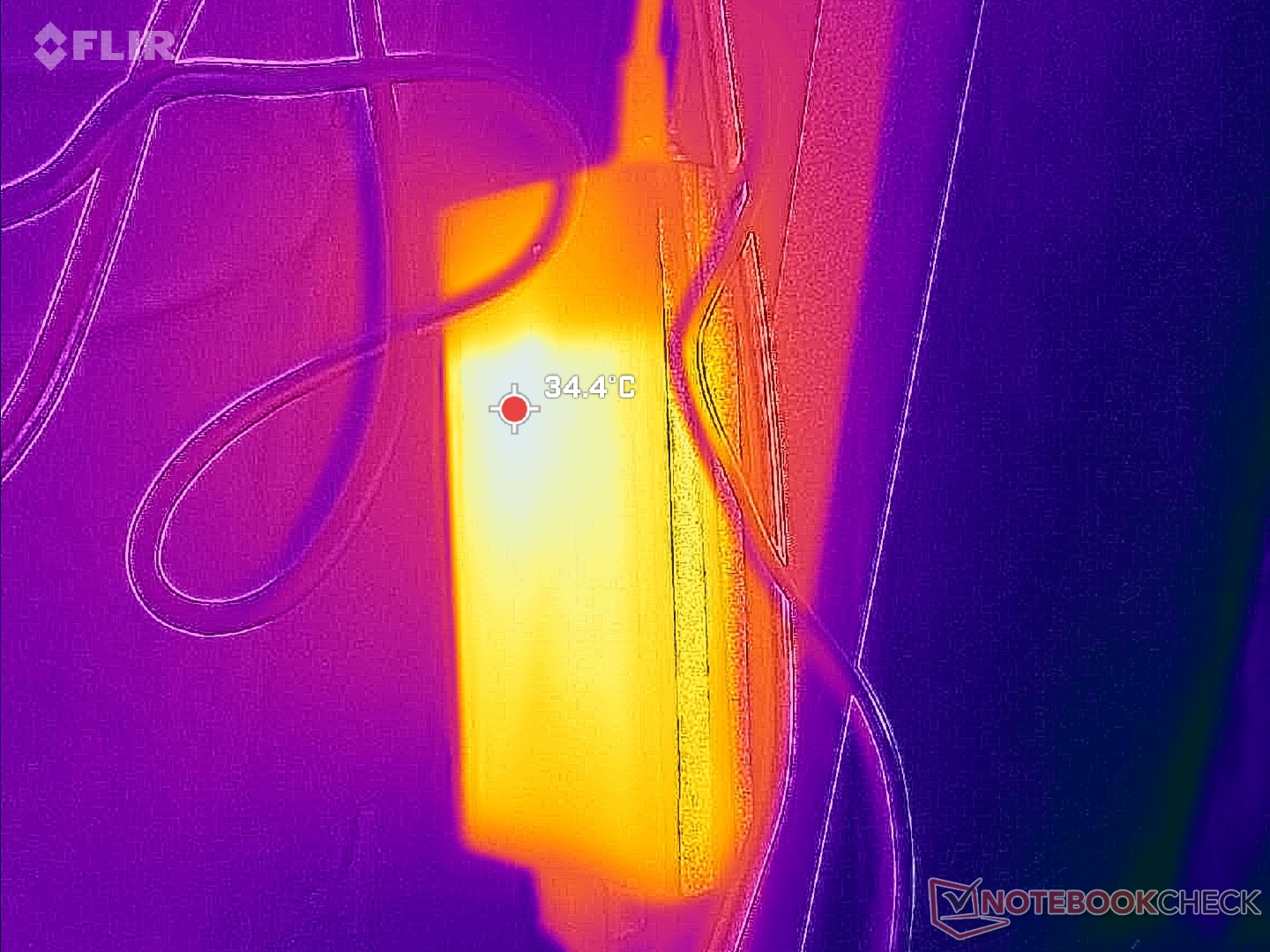

The GPU would stabilize at 2341 MHz, 72 C, and 156 W when running Cyberpunk 2077 to represent typical gaming conditions. A temporary maximum of 200 W can be recorded when running FurMark meaning that the 240 W AC adapter is sufficient for powering the dock in addition to most devices connected via USB-C PD.
Keep in mind that the GeForce RTX 4050 GPU in most laptops demand just 80 W or less while providing similar performance to the AD-GP1.
| GPU Clock (MHz) | Average CPU Temperature (°C) | Average GPU Temperature (°C) | |
| System Idle | 353 | 40 | 51 |
| FurMark Stress | 2148 | 56 | 75 |
| Cyberpunk 2077 Stress | 2431 | 75 | 72 |
Potential Competitors in Comparison
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1.  | GMK AD-GP1 Radeon 7600M XT AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon RX 7600M XT ⎘ | 710 g | 39.9 mm | x | |
| Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) AMD Ryzen 7 8700G ⎘ AMD Radeon RX 7600M XT ⎘ 32 GB Memory, 1024 GB SSD | List Price: 619€ | 1.4 kg | 45 mm | 0.00" 0x0 | |
3. 87.4%  | HP ZBook Ultra G1a 14 AMD Ryzen AI Max+ PRO 395 ⎘ AMD Radeon 8060S ⎘ 128 GB Memory, 2048 GB SSD | Amazon: 1. $3,499.00 HP ZBook Ultra G1a 14" Touch... 2. $3,262.50 HP ZBook Ultra G1a 14" Touch... 3. $1,942.44 HP ZBook Ultra G1a 14" Mobil... List Price: 4000 USD | 1.6 kg | 18.5 mm | 14.00" 2880x1800 243 PPI OLED |
4. 76.5%  | Beelink GTI12 Ultra EX Docking Station Intel Core i9-12900H ⎘ NVIDIA GeForce RTX 3070 ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $129.00 Beelink EX Docking Station, ... 2. $129.00 Beelink External GPU Docking... List Price: 740 USD | 1.3 kg | 55.8 mm | x |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition AMD Ryzen 9 7950X ⎘ AMD Radeon RX 7600 ⎘ 32 GB Memory, 2048 GB SSD | Amazon: 1. $356.28 XFX Speedster QICK308 Radeon... 2. $249.99 XFX Speedster SWFT210 Radeon... 3. $339.00 XFX Speedster QICK308 Radeon... List Price: 279€ | 852 g | 50 mm | 32.00" 3840x2160 138 PPI | |
| AMD Ryzen 5 7600X (Noctua NH-L9a-AM5) AMD Ryzen 5 7600X ⎘ AMD Radeon Graphics (Ryzen 7000) ⎘ 32 GB Memory, 2048 GB SSD | Amazon: 1. $59.95 Noctua NH-L9a-AM5 chromax.Bl... 2. $49.95 Noctua NH-L9a-AM5, Premium L... 3. $79.95 Noctua NH-L9x65 chromax.Blac... | 32.00" 3840x2160 138 PPI | |||
7. 72%  | GMK EVO-X1 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: $1,049.99 List Price: 900 USD | 595 g | 63.2 mm | x |
