GMKtec NucBox M3 mini PC review: Core i5-12450H is just too power-hungry

Name: GMK NucBox M3
Brand: GMK

Only minor advantages over Ryzen U series.

The NucBox M3 isn't slow, but the poor performance-per-watt of the Core i5-12450H compares unfavorably to U-series alternatives which can offer similar performance levels with much smaller power budgets.

Allen Ngo 👁, Published 11/09/2023 🇸🇪 🇹🇷 ...

Desktop Mini PC Alder Lake

The NucBox M3 succeeds last year's NucBox M2 by swapping out the 11th gen Tiger Lake Intel Core H CPU for 12th gen Alder Lake options alongside a slightly revised chassis design. Our specific review unit comes configured with the Core i5-12450H, 32 GB RAM, and 1 TB SSD for approximately $480 USD, but barebone options start at just $370.

Alternatives to the NucBox M3 include other budget-oriented mini PCs like the Beelink SER5, Geekom A5, or BMAX B7.

More GMK reviews:

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

GMK NucBox M3

Processor

Intel Core i5-12450H 8 x 1.5 - 4.4 GHz, 45 W PL2 / Short Burst, 35 W PL1 / Sustained, Alder Lake-H

Graphics adapter

Intel UHD Graphics Xe G4 48EUs, Core: 1200 MHz, RAM: 2660 MHz, DDR4, 31.0.101.4575

Memory

32 GB

, DDR4-3200, Dual-Channel, 19-19-19-43

Mainboard

Intel Alder Lake-P PCH

Storage

Lexar NM610 Pro NM610P001T-HNNNG, 1024 GB

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

5 USB 3.1 Gen2, 2 HDMI, Audio Connections: 3.5 mm headset

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 42.4 x 114 x 106 ( = 1.67 x 4.49 x 4.17 in)

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

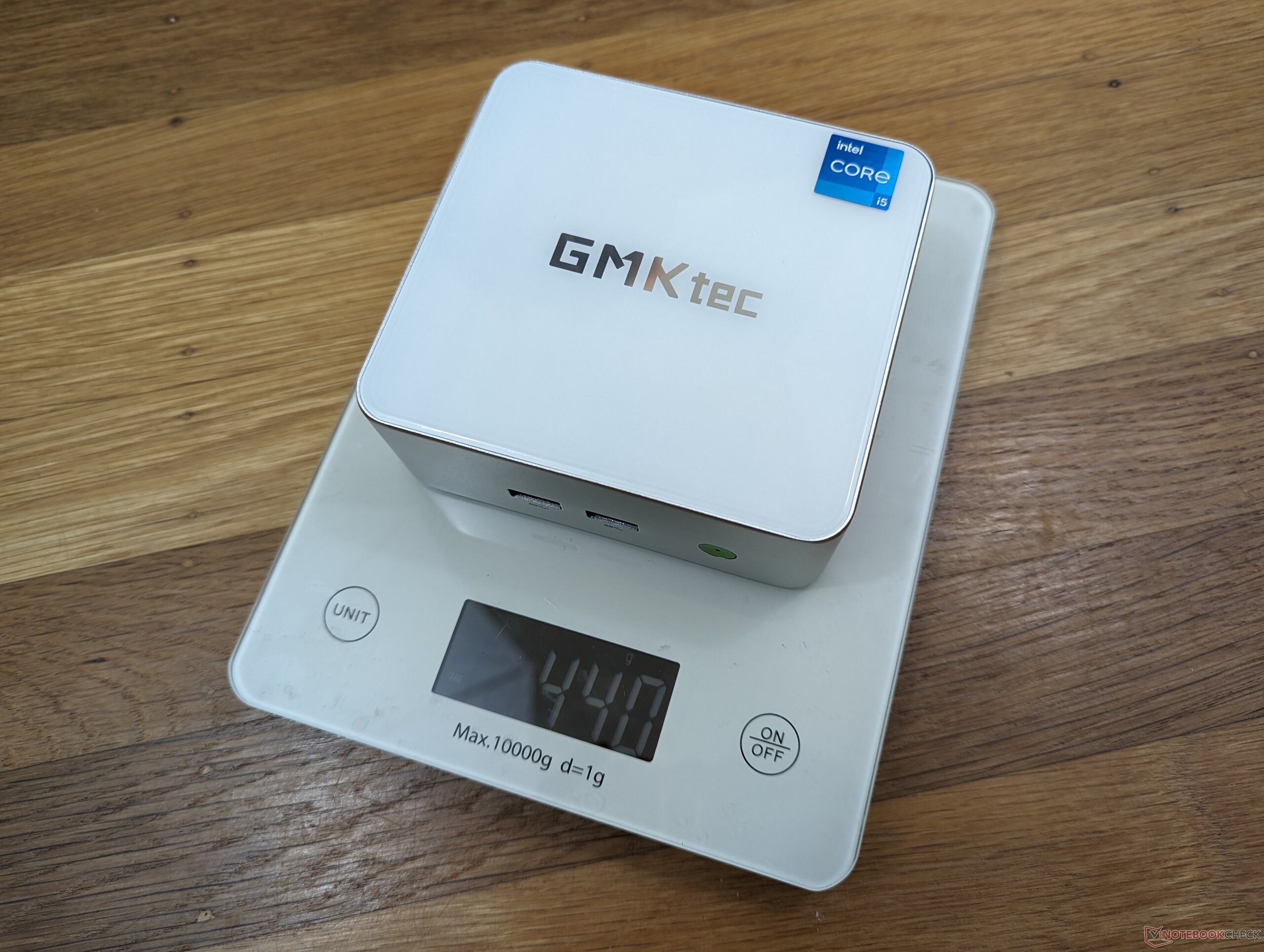

Weight

440 g ( = 15.52 oz / 0.97 pounds), Power Supply: 396 g ( = 13.97 oz / 0.87 pounds)

Price

380 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Potential Competitors in Comparison

Rating	Date	Model	Weight	Height	Resolution
78.7 % v7 ^(old)	11 / 2023	GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs	440 g	42.4 mm	x
82.8 % v7 ^(old)	10 / 2023	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
82.1 % v7 ^(old)	11 / 2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
73.1 % v7 ^(old)	10 / 2023	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	335 g	39.1 mm	x
81.2 % v7 ^(old)	10 / 2023	Geekom A5 R7 5800H, Vega 8	555 g	49.2 mm	x
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm	x

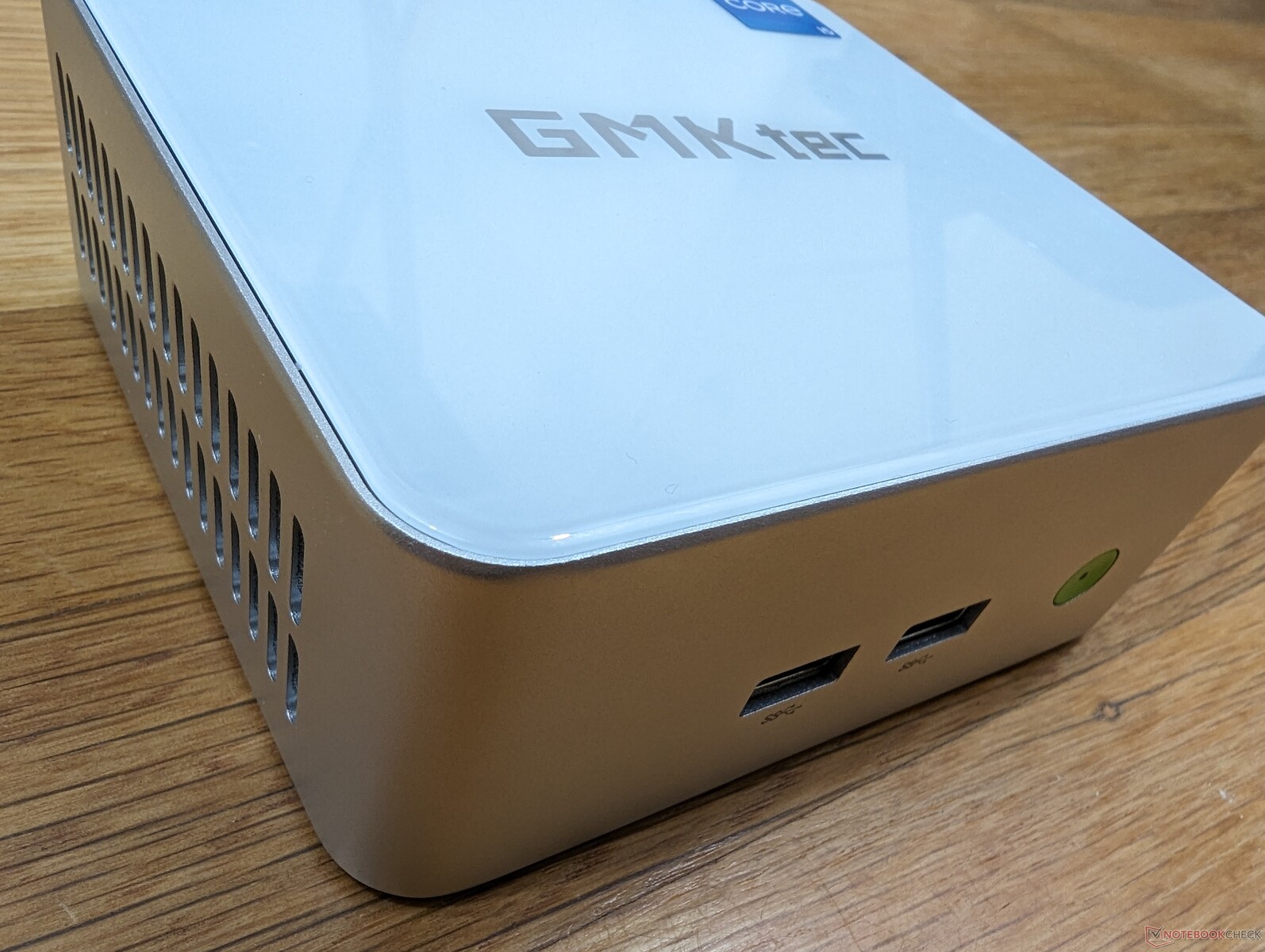

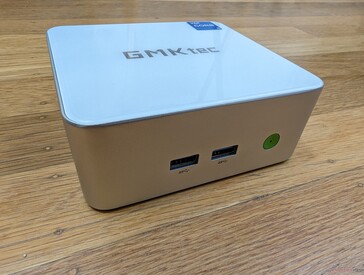

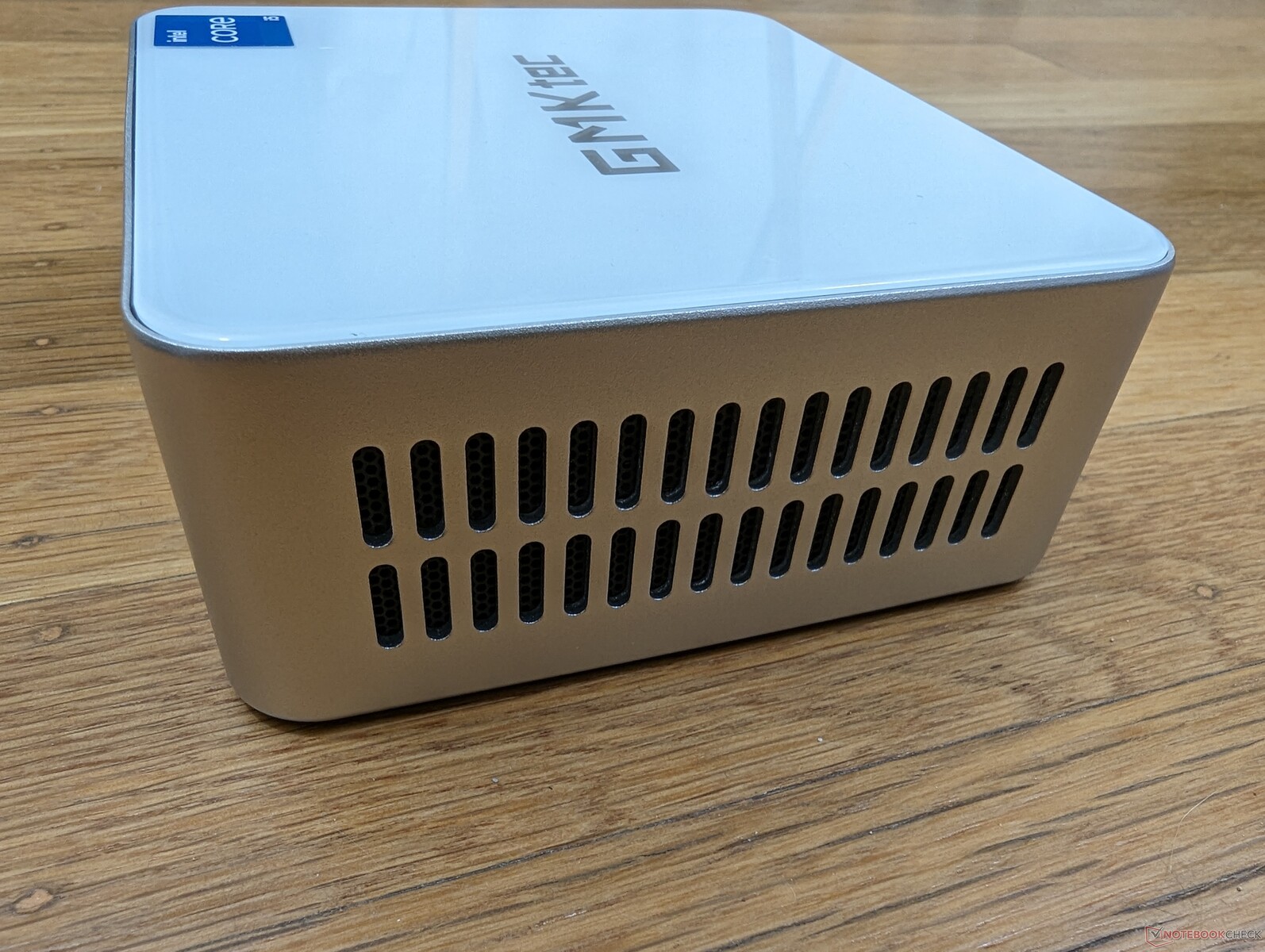

Case

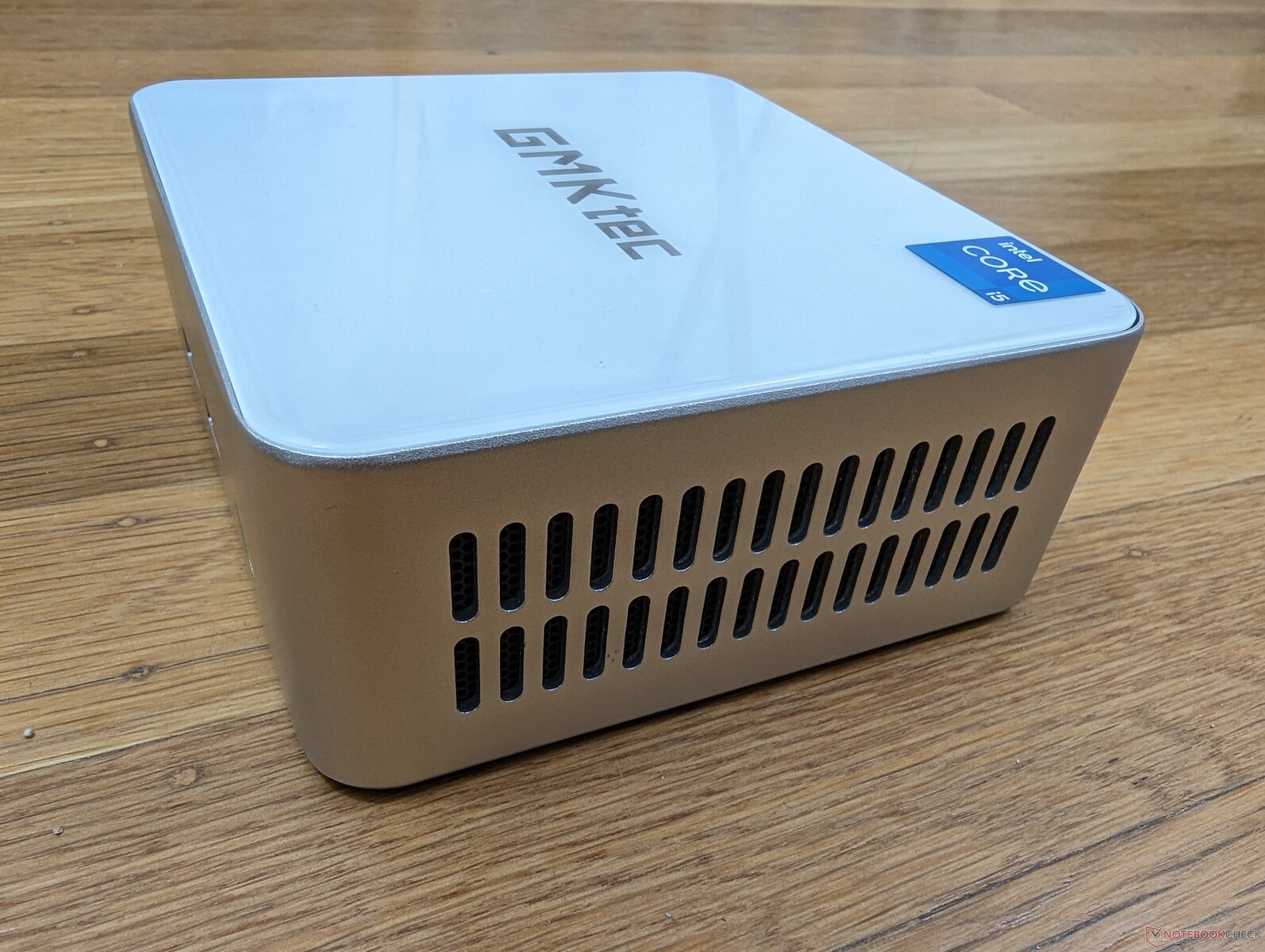

The NucBox M3 is smaller than the NucBox K3 Pro while being heavier for a denser feel. The chassis consists of metal for the sides and plastic for the top and bottom. Though build quality is solid and without any noticeable defects on our unit, the plastic top and bottom make the system feel cheap when compared to the Intel NUC series.

Top cover is unfortunately not removable

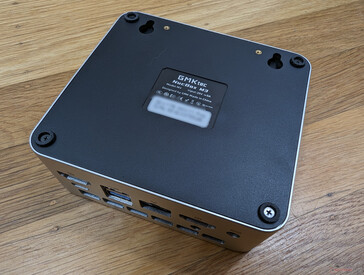

Underside shows rubber feet and holes for optional VESA mounting

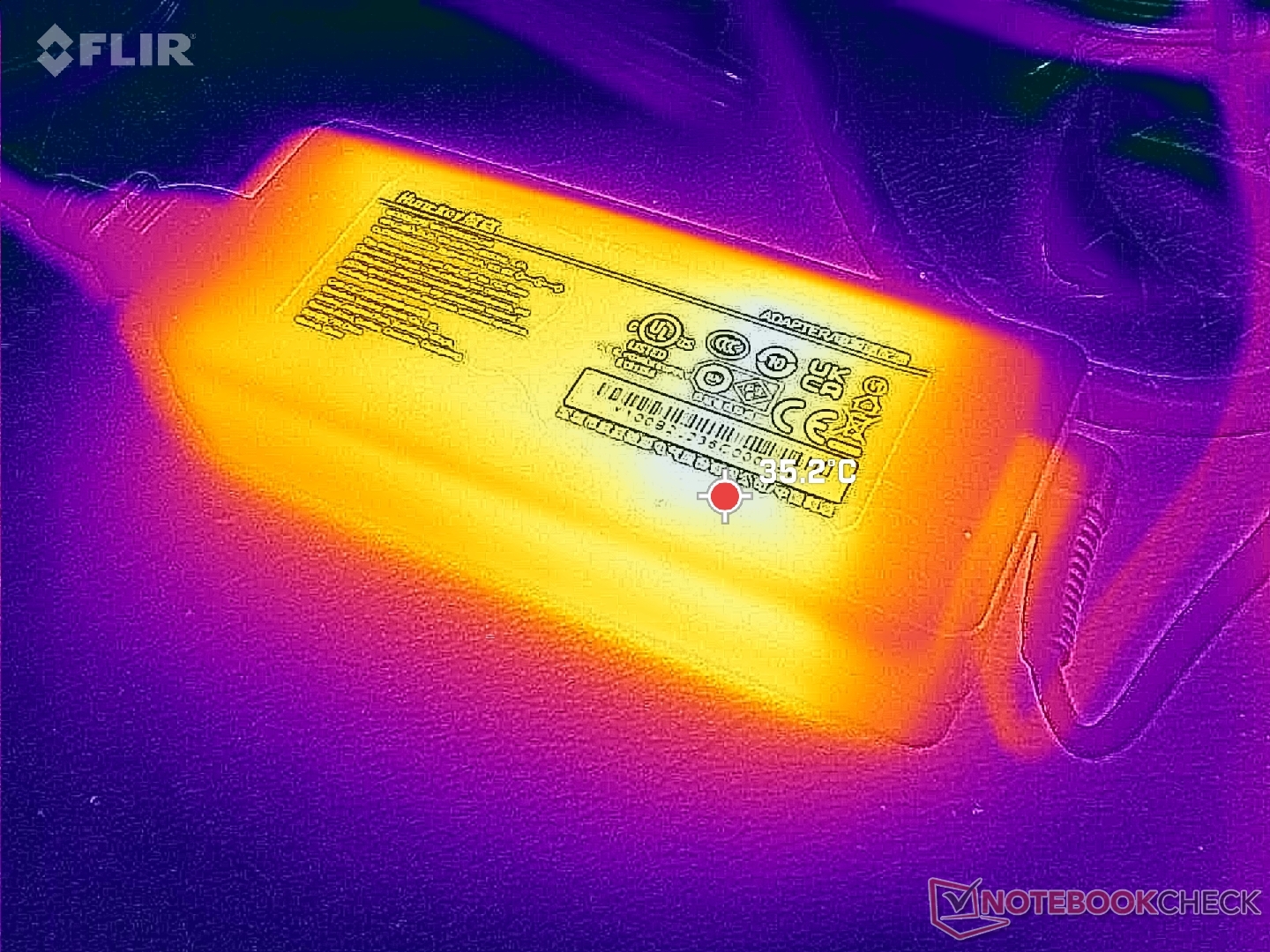

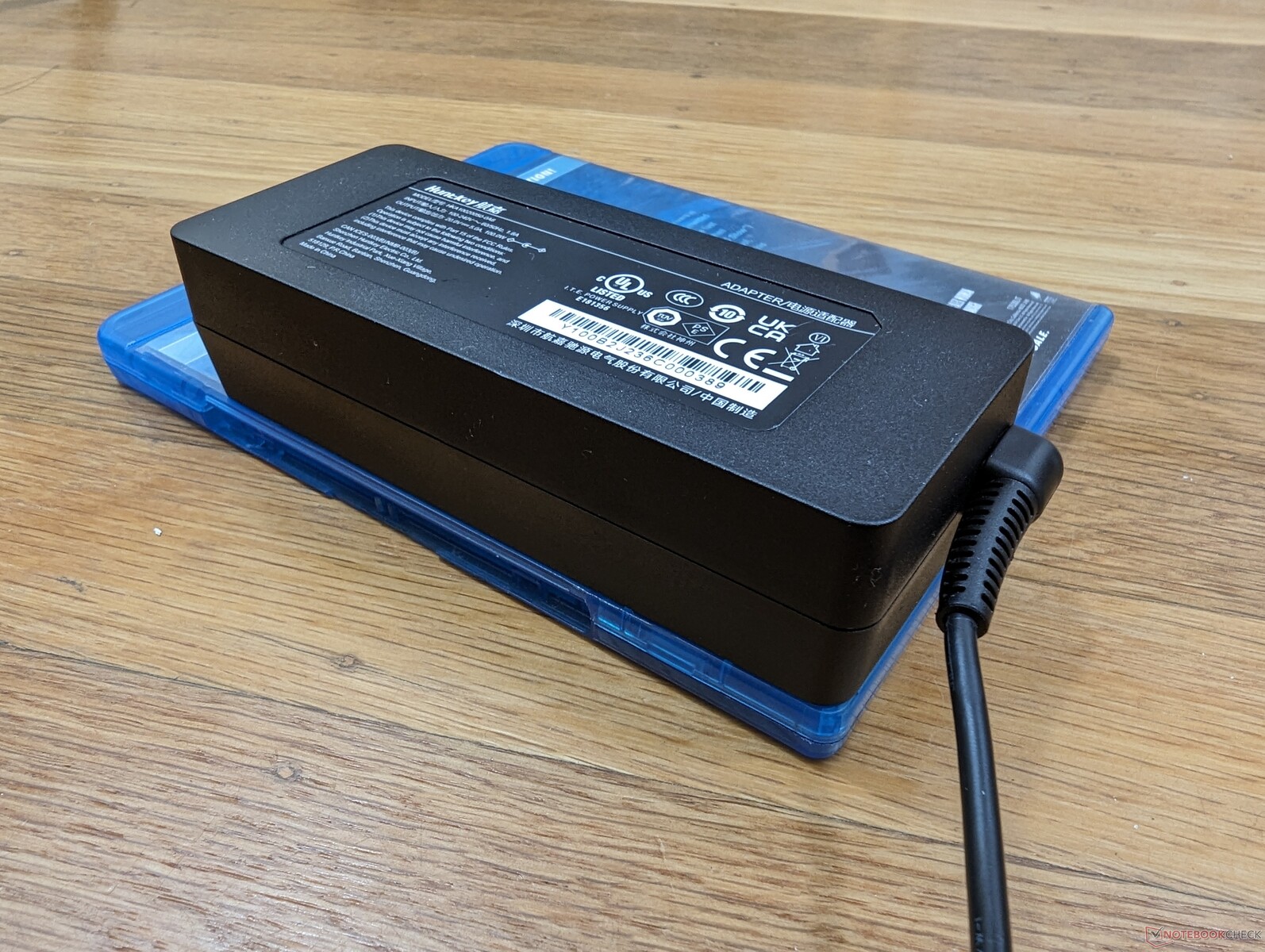

Small-medium (13 x 5.2 x 3.3 cm) 100 W AC adapter

Size Comparison

Connectivity

While port options are decent, the single USB-C port appears to have issues outputting video. The manufacturer advertises USB-C DisplayPort compatibility, but none of our USB-C external monitors would work. Thunderbolt is not supported either likely to save on costs.

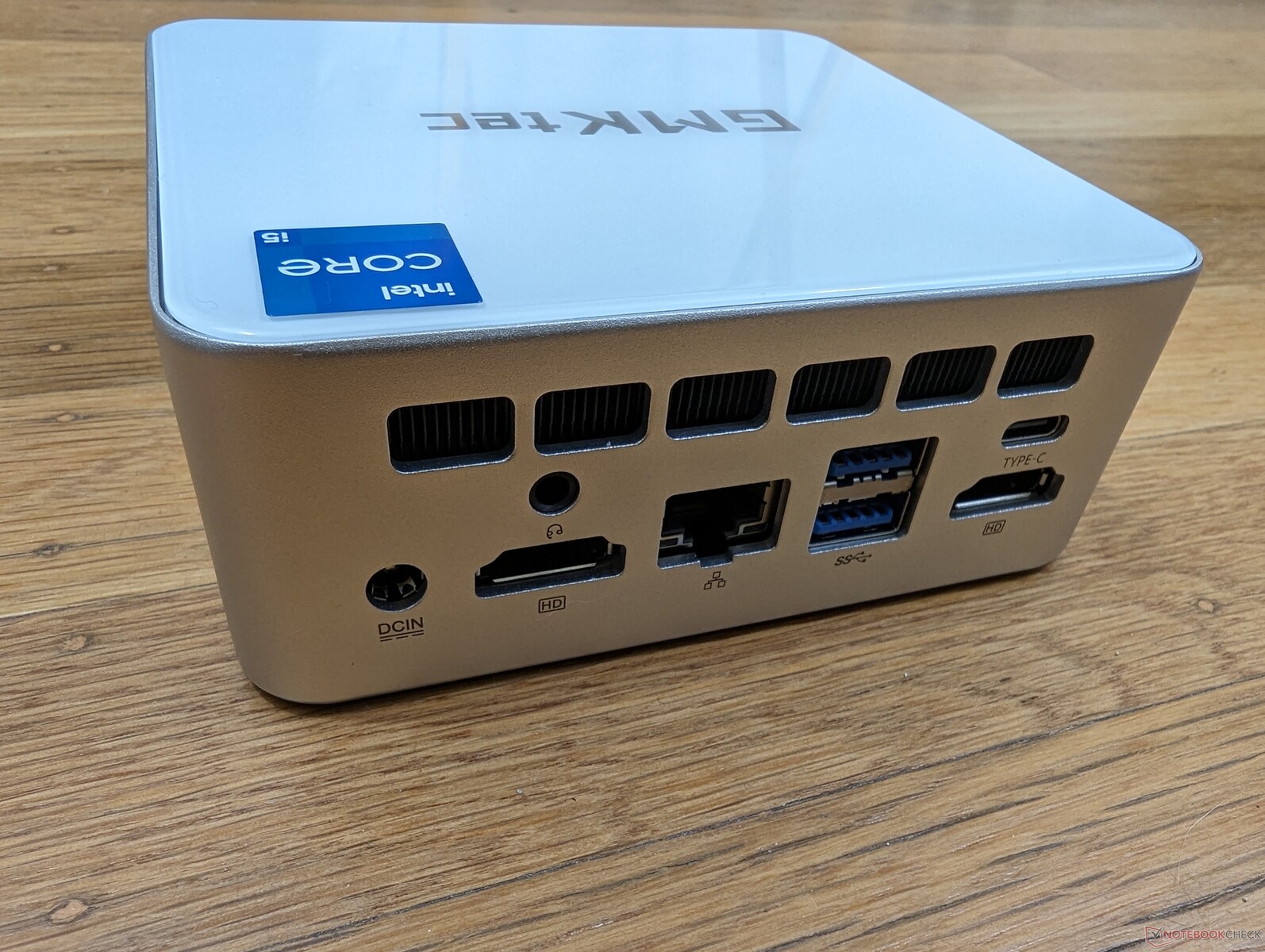

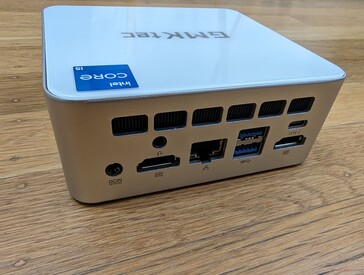

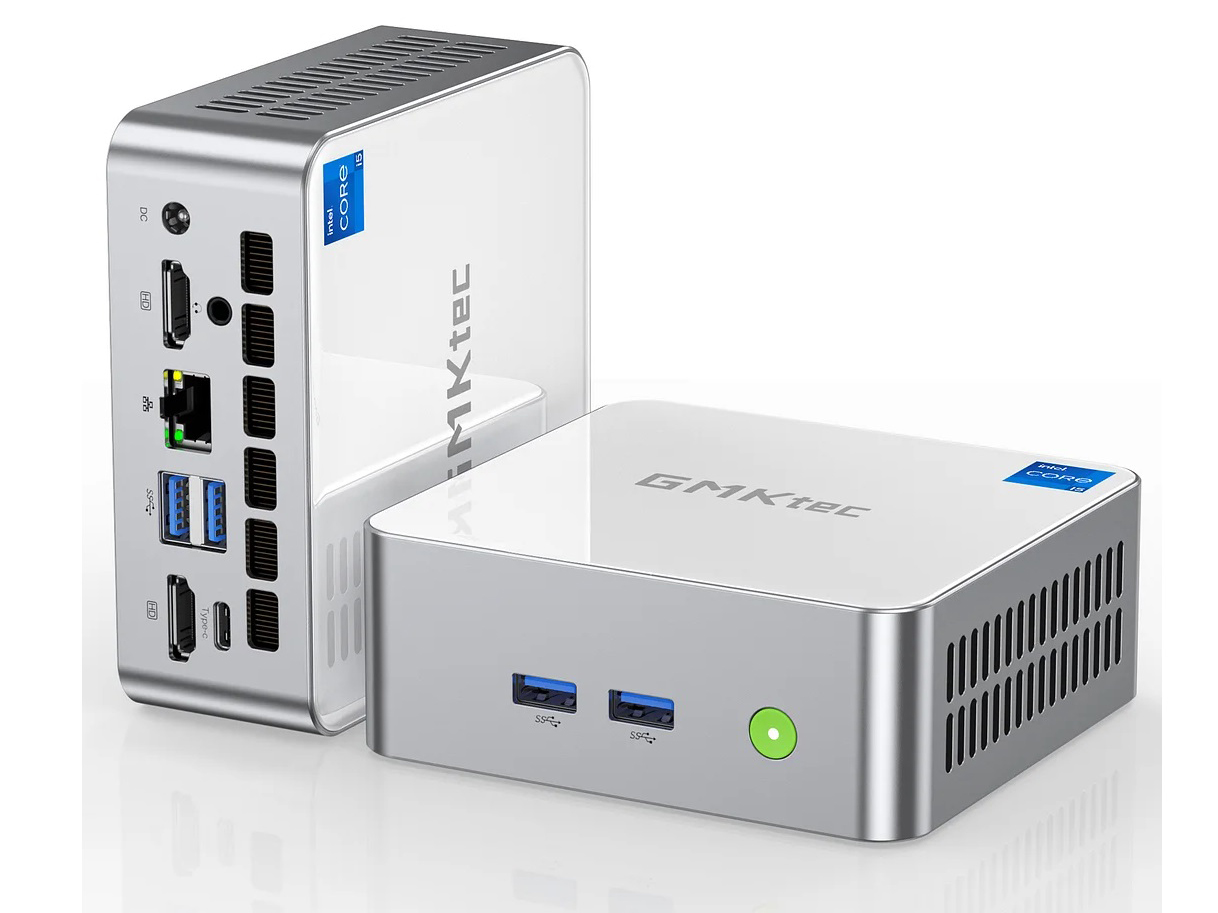

Rear: AC adapter, 3.5 mm headset, 2x HDMI 2.0 (4K60), Gigabit RJ-45, USB-A 2.0, USB-A 3.2, USB-C (no PD)

Communication

The model ships with no Wi-Fi 6E support likely to save on costs. Wi-Fi 6 connectivity is otherwise steady and reliable.

Networking
iperf3 transmit AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s +49%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +36%
GMK NucBox M3 Realtek RTL8852BE	859 (773^min - 924^max) MBit/s
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -3%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	438 (376^min - 489^max) MBit/s -49%
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s +64%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +51%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +9%
GMK NucBox M3 Realtek RTL8852BE	860 (789^min - 895^max) MBit/s
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	470 (445^min - 491^max) MBit/s -45%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s

GMK NucBox M3; iperf3 transmit AXE11000; iperf 3.1.3: Ø859 (773-924)

GMK NucBox M3; iperf3 receive AXE11000; iperf 3.1.3: Ø860 (789-895)

Maintenance

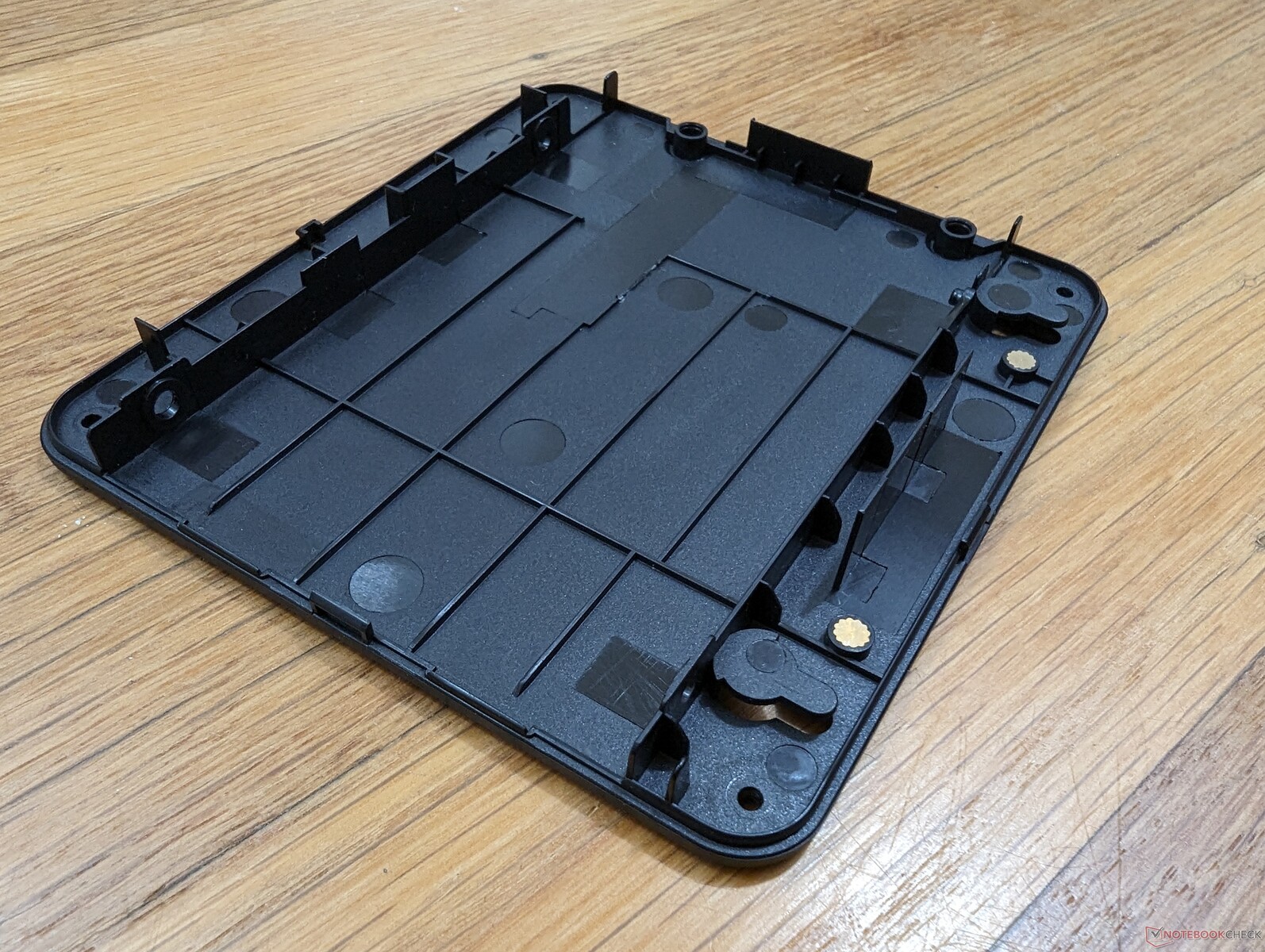

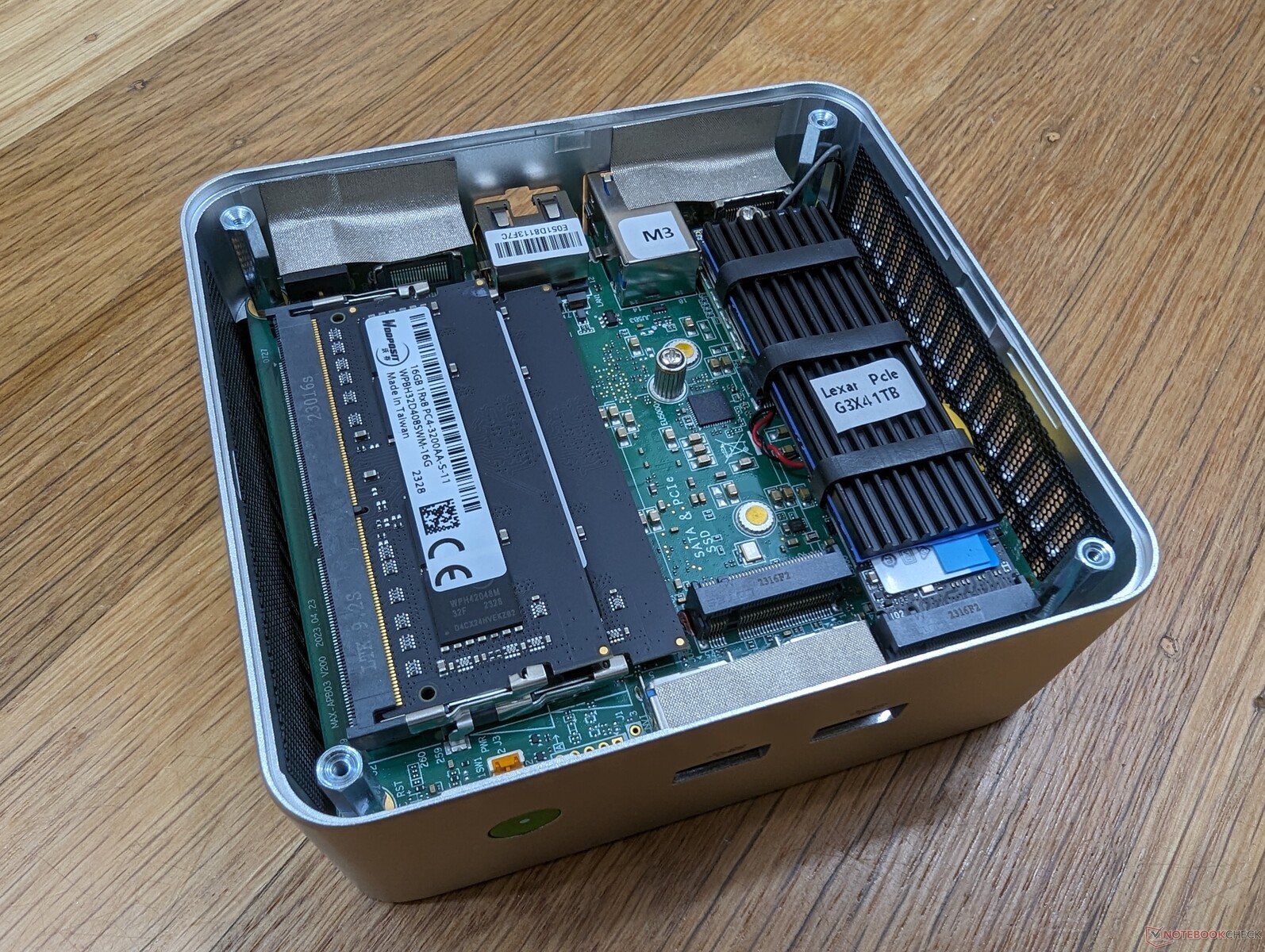

The bottom panel is secured by four Phillips screws for easy serviceability.

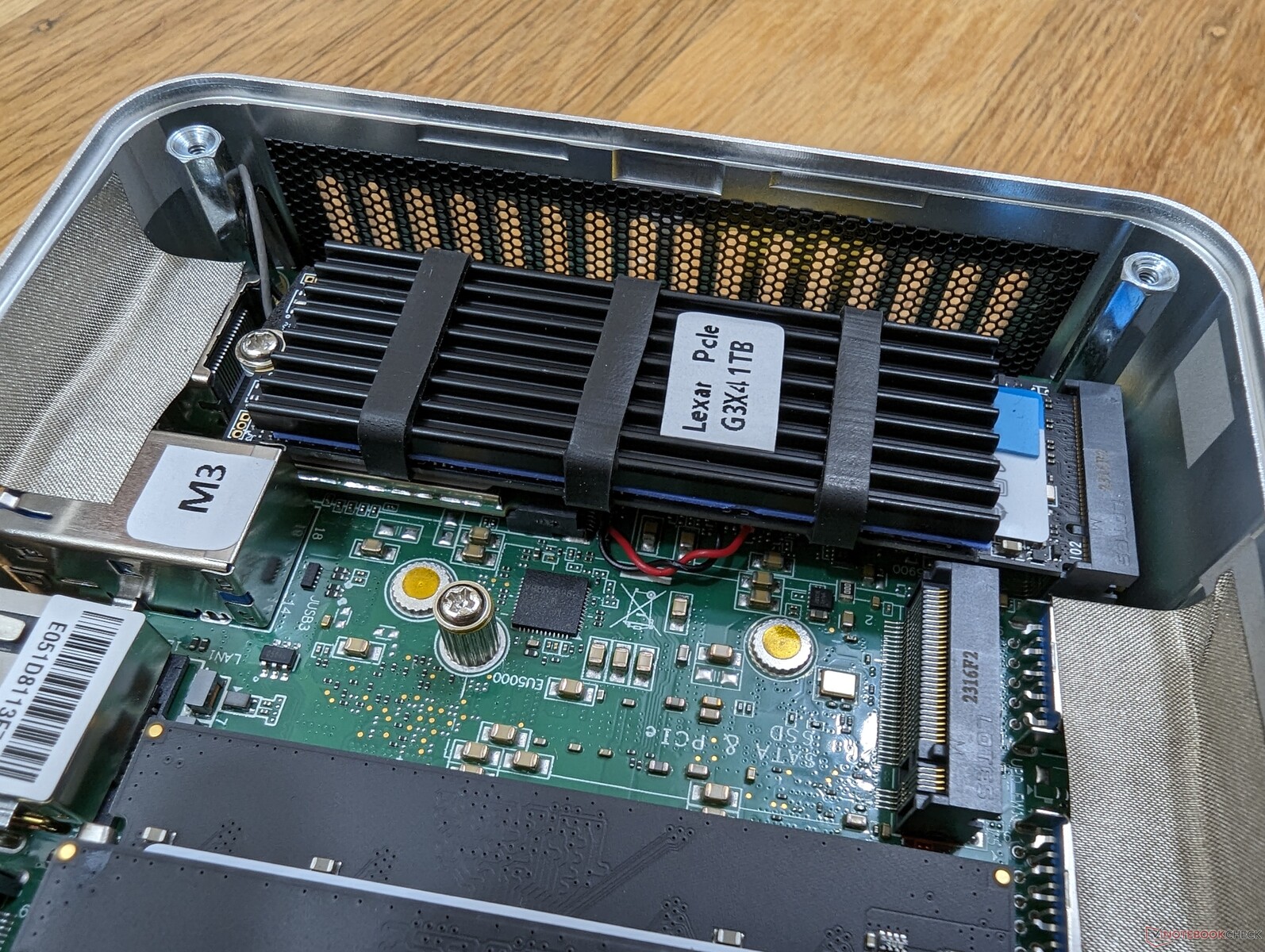

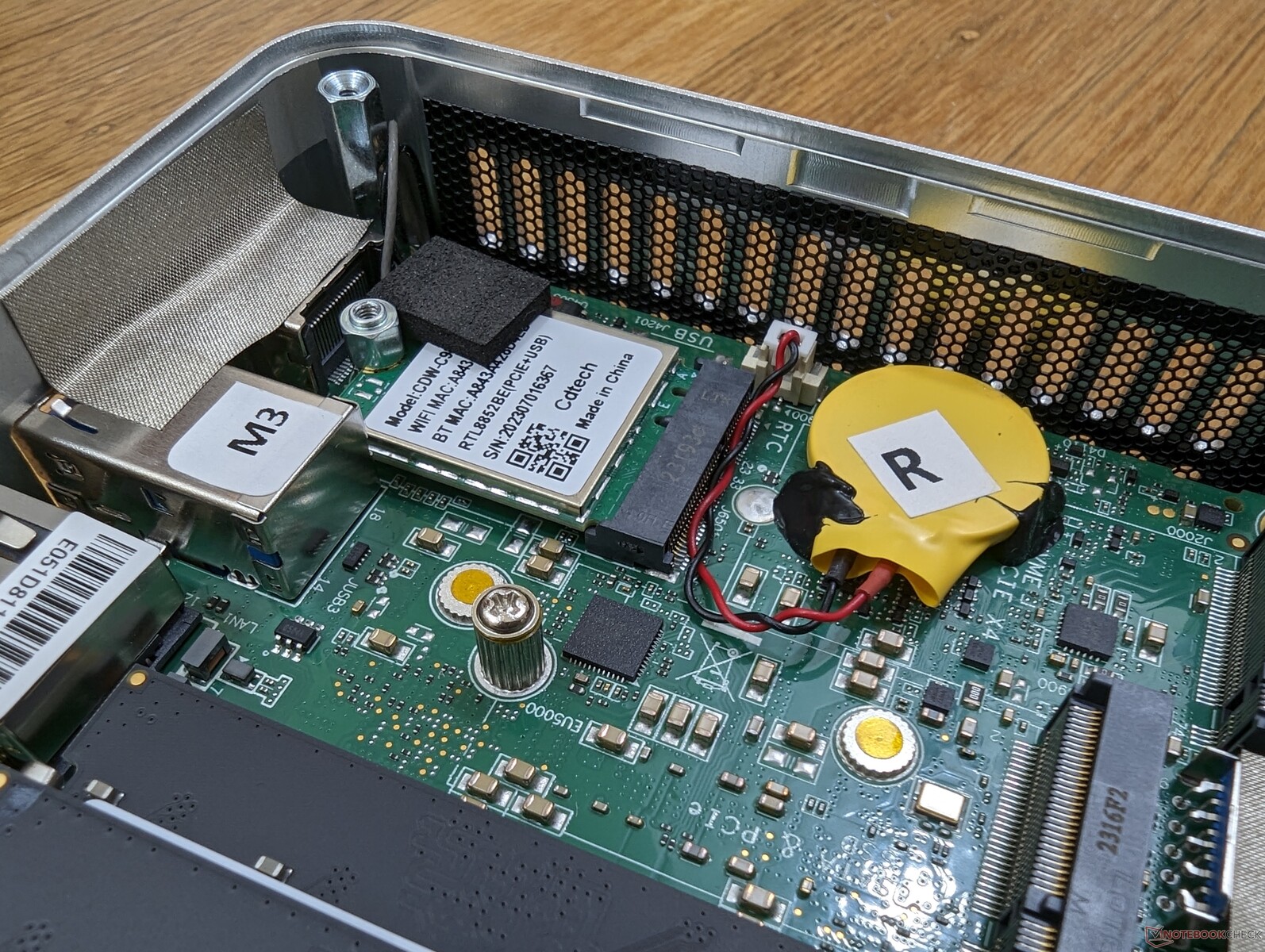

Easy access to 2x SODIMM slots, 1x M.2 2280 SSD slot, and 1x M.2 2242 SSD slot

Accessories And Warranty

The retail box includes an HDMI cable, AC adapter, paperwork, and VESA mount with screws. The usual one-year limited manufacturer warranty applies if purchased in the US.

Performance

Testing Conditions

We set Windows to Performance mode prior to running the benchmarks below. The manufacturer installs no specialized software for toggling any model-specific features.

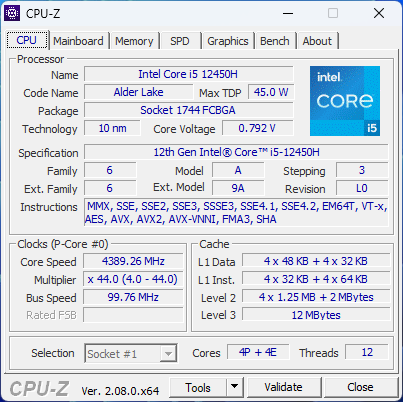

Processor

Multi-thread performance from our Core i5-12450H is about 25 to 30 percent slower than the Core i7-12650H as found on the NucBox K3 Pro. The deficit is enough to put our CPU neck-to-neck with the Ryzen 5 5560U which is a less expensive and more power-efficient alternative. The Core i5-12450H instead excels at single-thread performance where it's within striking distance with the Core i7-13700H.

Cinebench R15 Multi Loop

GMK NucBox M3 Intel Core i5-12450H: Ø1118 (1101.32-1149.92)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

Beelink Mini S12 Pro Intel Processor N100: Ø461 (458.73-467.21)

Geekom A5 AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Dell OptiPlex Micro Intel Core i7-13700	90.6 pt
Beelink SER7 AMD Ryzen 7 7840HS	83.5 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	77.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	73.8 pt
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	73 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	69.1 pt
GMK NucBox K3 Pro Intel Core i7-12650H	67.7 pt
Geekom AS 5 AMD Ryzen 9 5900HX	66 pt
Geekom A5 AMD Ryzen 7 5800H	62.5 pt
Average Intel Core i5-12450H	58.8 pt
GMK NucBox M3 Intel Core i5-12450H	57.4 pt
LG Gram 15Z90Q Intel Core i5-1240P	53.8 pt
Beelink SER5 AMD Ryzen 5 5560U	50.5 pt
BMAX B7 Power G7A2 Intel Core i7-11390H	44.6 pt
Beelink Mini S12 Pro Intel Processor N100	25.5 pt

Cinebench R23 / Multi Core
Dell OptiPlex Micro Intel Core i7-13700	21013 (16514.7^min - 21012.7^max) Points +174%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +110%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +89%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	14023 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +65%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points +63%
Geekom AS 5 AMD Ryzen 9 5900HX	11662 Points +52%
Geekom A5 AMD Ryzen 7 5800H	10819 Points +41%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points +40%
Average Intel Core i5-12450H (7662 - 10633, n=6)	9113 Points +19%
LG Gram 15Z90Q Intel Core i5-1240P	8337 Points +9%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points 0%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points
BMAX B7 Power G7A2 Intel Core i7-11390H	4570 Points -40%
Beelink Mini S12 Pro Intel Processor N100	2916 (2877.53^min - 2916.35^max) Points -62%

Cinebench R23 / Single Core
Dell OptiPlex Micro Intel Core i7-13700	1997 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +12%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +6%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +5%
GMK NucBox M3 Intel Core i5-12450H	1688 Points
Average Intel Core i5-12450H (1601 - 1688, n=6)	1655 Points -2%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1570 Points -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points -8%
LG Gram 15Z90Q Intel Core i5-1240P	1501 Points -11%
Geekom AS 5 AMD Ryzen 9 5900HX	1490 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	1407 Points -17%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -17%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -25%
Beelink Mini S12 Pro Intel Processor N100	931 Points -45%

Cinebench R20 / CPU (Multi Core)
Dell OptiPlex Micro Intel Core i7-13700	7027 Points +138%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +115%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +96%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5341 Points +81%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +66%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points +62%
Geekom AS 5 AMD Ryzen 9 5900HX	4574 Points +55%
Geekom A5 AMD Ryzen 7 5800H	4229 Points +43%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points +37%
Average Intel Core i5-12450H (2952 - 4105, n=6)	3517 Points +19%
LG Gram 15Z90Q Intel Core i5-1240P	3175 Points +8%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points +2%
GMK NucBox M3 Intel Core i5-12450H	2952 Points
BMAX B7 Power G7A2 Intel Core i7-11390H	1767 Points -40%
Beelink Mini S12 Pro Intel Processor N100	1115 Points -62%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +12%
Dell OptiPlex Micro Intel Core i7-13700	703 Points +9%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +8%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +7%
GMK NucBox M3 Intel Core i5-12450H	646 Points
Average Intel Core i5-12450H (622 - 646, n=6)	638 Points -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	613 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points -6%
Geekom AS 5 AMD Ryzen 9 5900HX	581 Points -10%
LG Gram 15Z90Q Intel Core i5-1240P	572 Points -11%
Geekom A5 AMD Ryzen 7 5800H	551 Points -15%
BMAX B7 Power G7A2 Intel Core i7-11390H	550 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -23%
Beelink Mini S12 Pro Intel Processor N100	357 Points -45%

Cinebench R15 / CPU Multi 64Bit
Dell OptiPlex Micro Intel Core i7-13700	2986 (2348.38^min - 2986.19^max) Points +160%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +123%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	2343 Points +104%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +95%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +77%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points +76%
Geekom AS 5 AMD Ryzen 9 5900HX	1928 Points +68%
Geekom A5 AMD Ryzen 7 5800H	1773 Points +54%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points +47%
LG Gram 15Z90Q Intel Core i5-1240P	1479 (718.44^min - 1478.52^max) Points +29%
Average Intel Core i5-12450H (1150 - 1591, n=6)	1372 Points +19%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points +11%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points
BMAX B7 Power G7A2 Intel Core i7-11390H	775 (685.89^min - 775.39^max) Points -33%
Beelink Mini S12 Pro Intel Processor N100	467 (458.73^min - 467.21^max) Points -59%

Cinebench R15 / CPU Single 64Bit
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +19%
Dell OptiPlex Micro Intel Core i7-13700	279 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +9%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +8%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	255 Points +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX	241 Points +1%
GMK NucBox M3 Intel Core i5-12450H	238 Points
Average Intel Core i5-12450H (225 - 239, n=6)	234 Points -2%
Geekom A5 AMD Ryzen 7 5800H	227 Points -5%
LG Gram 15Z90Q Intel Core i5-1240P	209 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	209 Points -12%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -15%
Beelink Mini S12 Pro Intel Processor N100	153.9 Points -35%

Blender / v2.79 BMW27 CPU
Beelink Mini S12 Pro Intel Processor N100	1048 Seconds * -144%
BMAX B7 Power G7A2 Intel Core i7-11390H	665 Seconds * -55%
LG Gram 15Z90Q Intel Core i5-1240P	477 Seconds * -11%
GMK NucBox M3 Intel Core i5-12450H	429 Seconds *
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * +9%
Average Intel Core i5-12450H (330 - 429, n=7)	379 Seconds * +12%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * +23%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +36%
Geekom AS 5 AMD Ryzen 9 5900HX	260 Seconds * +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * +39%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	229 Seconds * +47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +50%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +54%
Dell OptiPlex Micro Intel Core i7-13700	178 Seconds * +59%

7-Zip 18.03 / 7z b 4
Dell OptiPlex Micro Intel Core i7-13700	74475 MIPS +139%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +125%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	63214 MIPS +103%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS +83%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS +76%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +73%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +70%
Geekom AS 5 AMD Ryzen 9 5900HX	50673 MIPS +63%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS +38%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS +23%
Average Intel Core i5-12450H (31119 - 38415, n=7)	33971 MIPS +9%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS
LG Gram 15Z90Q Intel Core i5-1240P	28108 MIPS -10%
BMAX B7 Power G7A2 Intel Core i7-11390H	20822 MIPS -33%
Beelink Mini S12 Pro Intel Processor N100	13291 MIPS -57%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +26%
Dell OptiPlex Micro Intel Core i7-13700	6466 MIPS +21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +11%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5807 MIPS +8%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS +7%
Geekom AS 5 AMD Ryzen 9 5900HX	5653 MIPS +6%
BMAX B7 Power G7A2 Intel Core i7-11390H	5539 MIPS +3%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS +2%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS
Average Intel Core i5-12450H (4824 - 5386, n=7)	5109 MIPS -5%
LG Gram 15Z90Q Intel Core i5-1240P	4847 MIPS -10%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -12%
Beelink Mini S12 Pro Intel Processor N100	3958 MIPS -26%

Geekbench 5.5 / Multi-Core
Dell OptiPlex Micro Intel Core i7-13700	15525 Points +122%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +63%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +48%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	10126 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +40%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points +33%
Geekom AS 5 AMD Ryzen 9 5900HX	8826 Points +26%
Geekom A5 AMD Ryzen 7 5800H	8823 Points +26%
LG Gram 15Z90Q Intel Core i5-1240P	8747 Points +25%
Average Intel Core i5-12450H (6777 - 8330, n=7)	7342 Points +5%
GMK NucBox M3 Intel Core i5-12450H	6990 Points
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -15%
BMAX B7 Power G7A2 Intel Core i7-11390H	4457 Points -36%
Beelink Mini S12 Pro Intel Processor N100	2867 Points -59%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +21%
Dell OptiPlex Micro Intel Core i7-13700	1958 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +12%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +9%
GMK NucBox M3 Intel Core i5-12450H	1639 Points
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1615 Points -1%
Average Intel Core i5-12450H (1527 - 1665, n=7)	1614 Points -2%
LG Gram 15Z90Q Intel Core i5-1240P	1598 Points -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX	1574 Points -4%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -9%
BMAX B7 Power G7A2 Intel Core i7-11390H	1486 Points -9%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -20%
Beelink Mini S12 Pro Intel Processor N100	1018 Points -38%

HWBOT x265 Benchmark v2.2 / 4k Preset
Dell OptiPlex Micro Intel Core i7-13700	21.4 fps +144%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +132%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	17.7 fps +102%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +100%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps +80%
Geekom AS 5 AMD Ryzen 9 5900HX	15 fps +71%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +62%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +51%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps +40%
Average Intel Core i5-12450H (8.78 - 12.3, n=6)	10.5 fps +20%
Beelink SER5 AMD Ryzen 5 5560U	10 fps +14%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps
LG Gram 15Z90Q Intel Core i5-1240P	7.77 fps -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	5.84 fps -33%
Beelink Mini S12 Pro Intel Processor N100	3.41 fps -61%

LibreOffice / 20 Documents To PDF
Beelink Mini S12 Pro Intel Processor N100	69.6 s * -69%
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -39%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -32%
LG Gram 15Z90Q Intel Core i5-1240P	53.6 s * -30%
BMAX B7 Power G7A2 Intel Core i7-11390H	52.6 s * -28%
Geekom AS 5 AMD Ryzen 9 5900HX	50.1 s * -22%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	49.6 s * -21%
Average Intel Core i5-12450H (41.1 - 60.3, n=7)	48.2 s * -17%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * -6%
GMK NucBox M3 Intel Core i5-12450H	41.1 s *
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +3%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +9%
Dell OptiPlex Micro Intel Core i7-13700	36.4 s * +11%

R Benchmark 2.5 / Overall mean
Beelink Mini S12 Pro Intel Processor N100	0.822 sec * -66%
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -18%
BMAX B7 Power G7A2 Intel Core i7-11390H	0.571 sec * -15%
LG Gram 15Z90Q Intel Core i5-1240P	0.559 sec * -13%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -6%
Average Intel Core i5-12450H (0.4949 - 0.54, n=7)	0.517 sec * -4%
Geekom AS 5 AMD Ryzen 9 5900HX	0.506 sec * -2%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * +2%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	0.4822 sec * +3%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +10%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +10%
Dell OptiPlex Micro Intel Core i7-13700	0.423 sec * +15%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1150 Points

Cinebench R15 OpenGL 64Bit

76.1 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

238 Points

Cinebench R20 CPU (Multi Core)

2952 Points

Cinebench R20 CPU (Single Core)

646 Points

Cinebench R23 Single Core

1688 Points

Cinebench R23 Multi Core

7662 Points

Help

... in comparison

Performance Rating
Geekom A5 AMD Ryzen 7 5800H, Vega 8	94.3 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	83.6 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	74.8 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	68.8 pt
Average Intel Core i5-12450H	63.9 pt
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	57 pt
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8.2 pt

AIDA64 / FP32 Ray-Trace
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s +48%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s +26%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s +19%
Average Intel Core i5-12450H (7229 - 10474, n=6)	8823 KRay/s +18%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	7448 KRay/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -89%

AIDA64 / FPU Julia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +107%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points +51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points +48%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points +30%
Average Intel Core i5-12450H (37583 - 51636, n=6)	44726 Points +19%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	37583 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4395 Points -88%

AIDA64 / CPU SHA3
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +58%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s +57%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s +21%
Average Intel Core i5-12450H (1724 - 2359, n=6)	2042 MB/s +18%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s +13%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	1724 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	307 MB/s -82%

AIDA64 / CPU Queen
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +53%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points +30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points +12%
Average Intel Core i5-12450H (59539 - 68897, n=6)	64206 Points +7%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	59969 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8691 Points -86%

AIDA64 / FPU SinJulia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +119%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points +70%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points +31%
Average Intel Core i5-12450H (5007 - 6147, n=6)	5667 Points +13%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	5007 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	430 Points -91%

AIDA64 / FPU Mandel
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +128%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points +49%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points +27%
Average Intel Core i5-12450H (18516 - 25115, n=6)	21639 Points +16%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	18624 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2217 Points -88%

AIDA64 / CPU AES
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +66%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +52%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s +27%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s +21%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	65152 MB/s
Average Intel Core i5-12450H (46835 - 78537, n=6)	63661 MB/s -2%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8426 MB/s -87%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +65%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +43%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s +23%
Average Intel Core i5-12450H (490 - 708, n=6)	596 MB/s +22%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s +4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	490 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.7 MB/s -83%

AIDA64 / FP64 Ray-Trace
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s +59%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s +47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s +30%
Average Intel Core i5-12450H (4025 - 5614, n=6)	4797 KRay/s +19%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s +13%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	4025 KRay/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -88%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +10%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	26489 MPixel/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s -5%
Average Intel Core i5-12450H (12271 - 28682, n=6)	24704 MPixel/s -7%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -32%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6535 MPixel/s -75%

System Performance

PCMark 10 / Score
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points +18%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6149 Points +16%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points +10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points +3%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5310 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	5310 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	3164 Points -40%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +9%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	10614 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	10614 Points 0%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	10356 Points -2%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -11%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7295 Points -31%

PCMark 10 / Productivity
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	9311 Points +26%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points +21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points +7%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points +6%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	7369 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	7369 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	4764 Points -35%

PCMark 10 / Digital Content Creation
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points +41%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6544 Points +26%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points +25%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points +1%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5194 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	5194 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	2476 Points -52%

CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +18%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1540 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	1540 Points 0%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1429 Points -7%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -22%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	839 Points -46%

CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +11%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1561 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	1561 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -4%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1408 Points -10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -19%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	905 Points -42%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +30%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +16%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1523 Points +1%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1510 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	1510 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -24%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	773 Points -49%

CrossMark / Responsiveness
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points 0%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1572 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs (n=1)	1572 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -17%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1233 Points -22%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -27%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	856 Points -46%

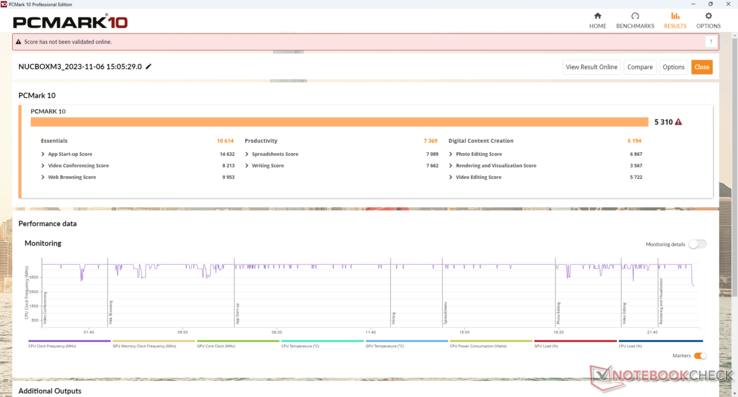

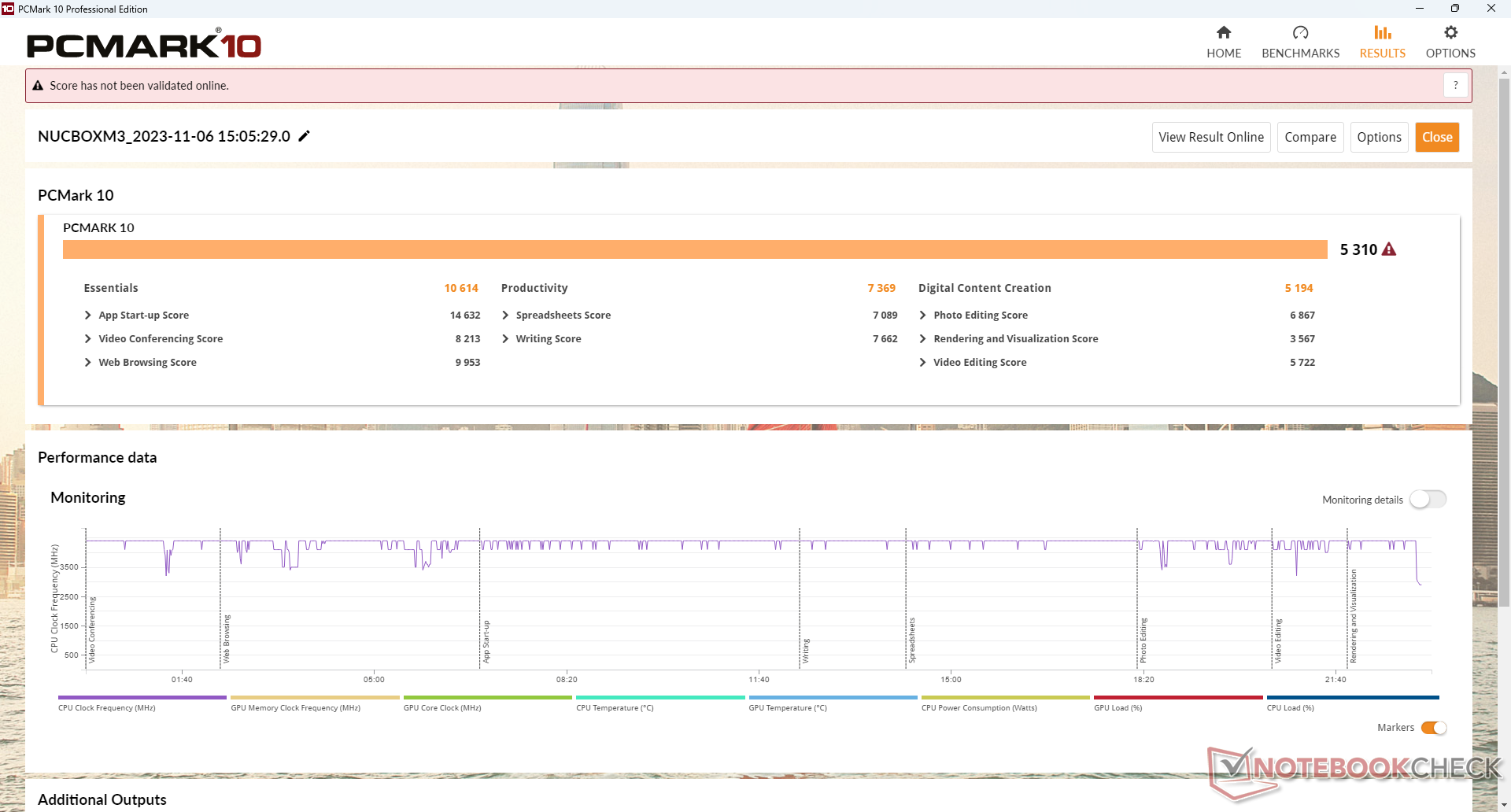

PCMark 10 Score		5310 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +64%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +6%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +3%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	42484 MB/s
Average Intel Core i5-12450H (21750 - 43918, n=6)	39769 MB/s -6%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -9%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11580 MB/s -73%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +56%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s +5%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	43117 MB/s
Average Intel Core i5-12450H (22956 - 47555, n=6)	42429 MB/s -2%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -8%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12488 MB/s -71%

AIDA64 / Memory Write
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s +27%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	46577 MB/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -1%
Average Intel Core i5-12450H (22297 - 46963, n=6)	42160 MB/s -9%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -12%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12305 MB/s -74%

AIDA64 / Memory Latency
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	114.8 ns * -47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -23%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -20%
Average Intel Core i5-12450H (76.5 - 100.9, n=6)	84.7 ns * -9%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * -4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	77.9 ns *

* ... smaller is better

DPC Latency

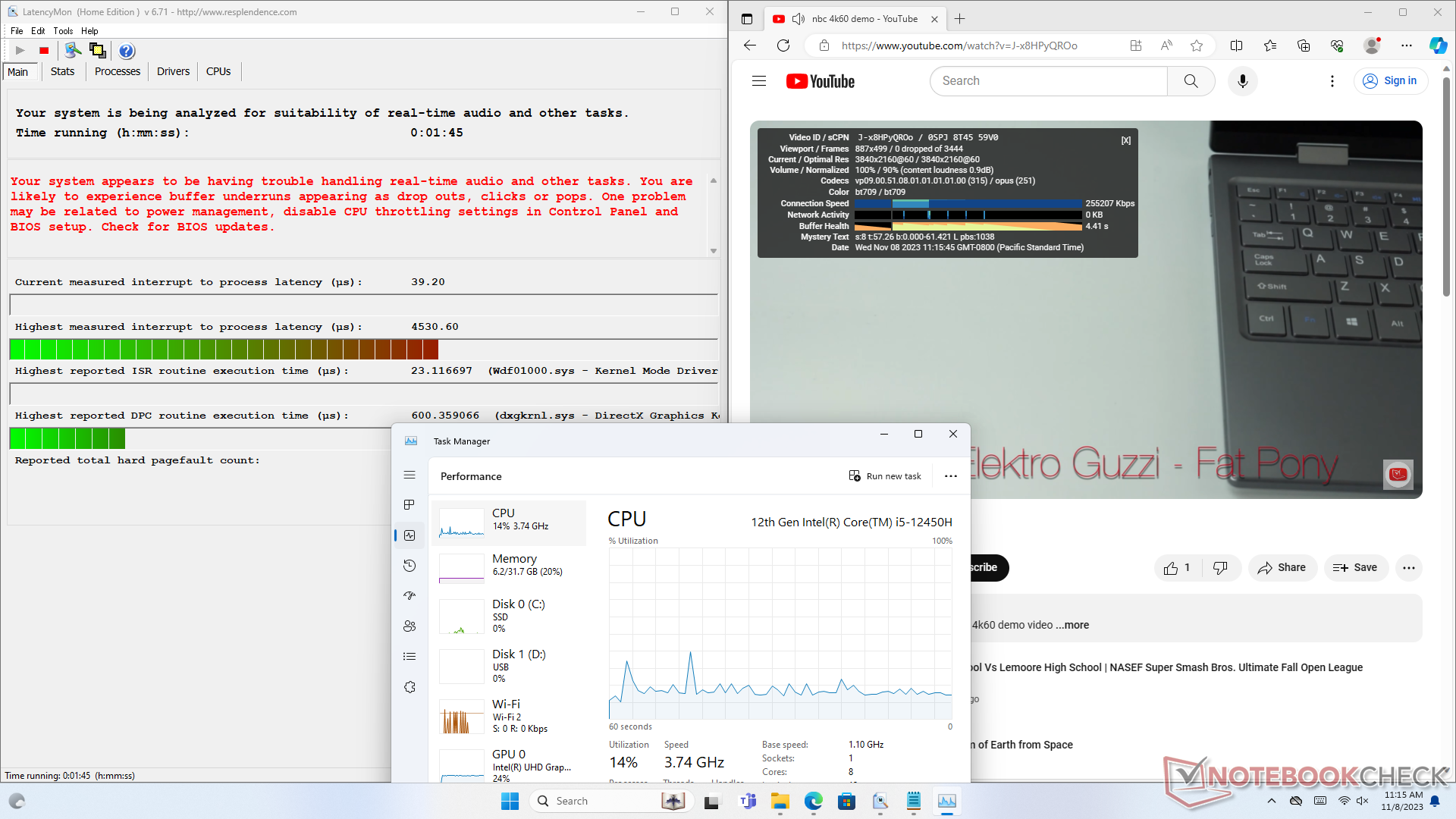

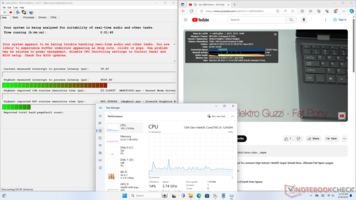

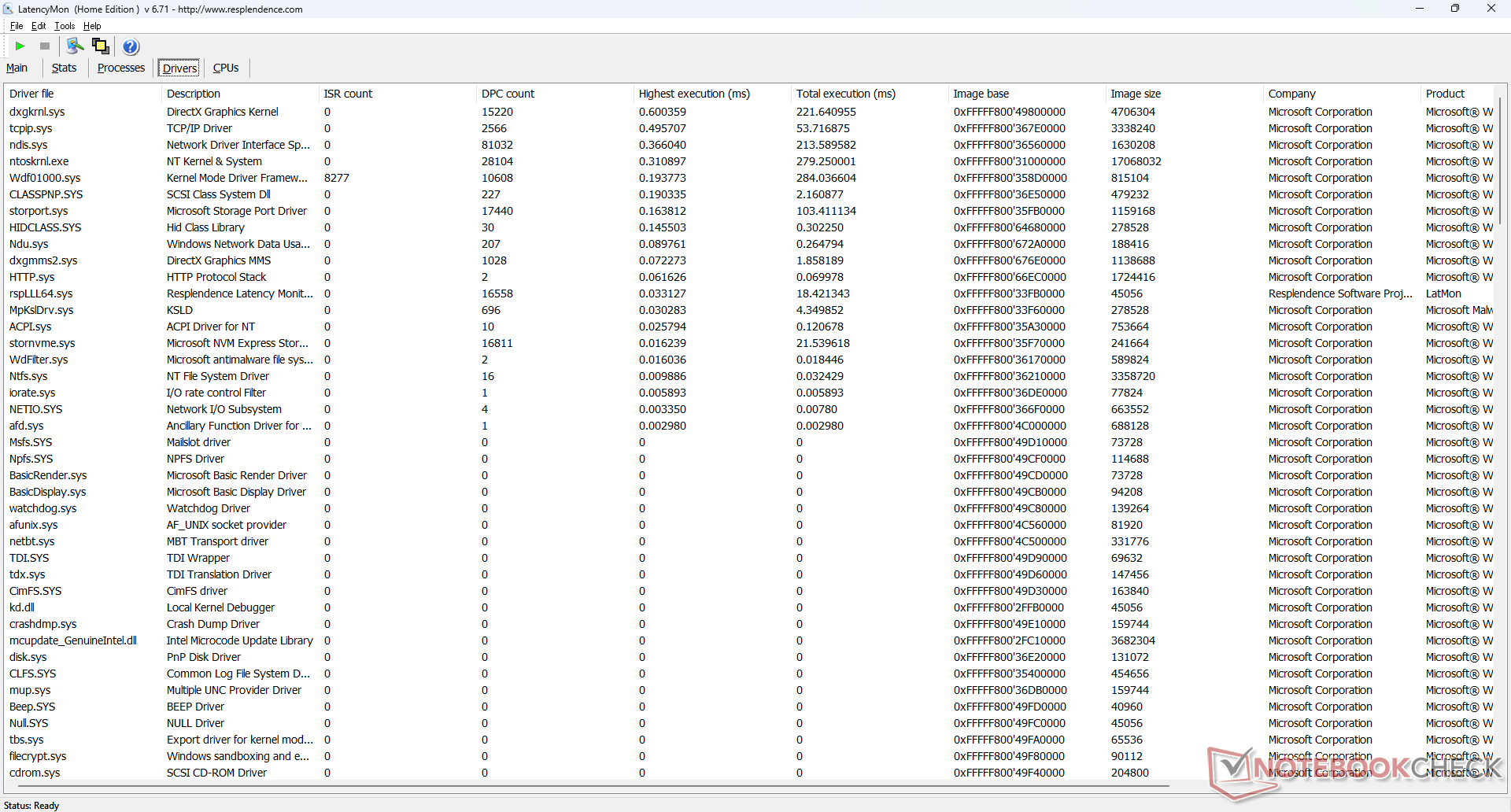

LatencyMon reveals DPC issues when opening multiple browser tabs of our homepage. 4K video playback at 60 FPS is otherwise perfect and with no dropped frames recorded.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7391.7 μs * -63%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	4530.6 μs *
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +69%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * +71%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +76%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +92%

* ... smaller is better

Storage Devices

GMK deploys the same Lexar NM610 Pro PCIe3 x4 NVMe SSD for both its NucBox M3 and NucBox K3 Pro models. The system does not ship with a PCIe4 SSD likely to save on costs.

A second SSD can be installed but it must be 42 mm in length or shorter.

Supports up to two internal SSDs. Surprisingly, the primary SSD comes with its own dedicated heat sink despite the budget-oriented price range

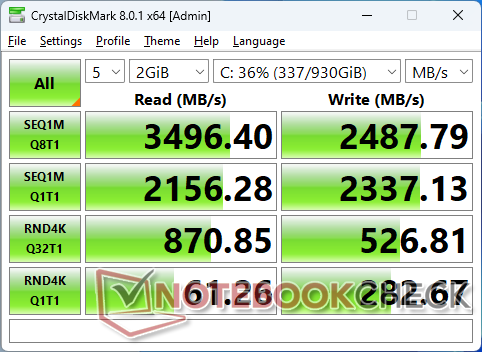

CrystalDiskMark 5.2 / 6

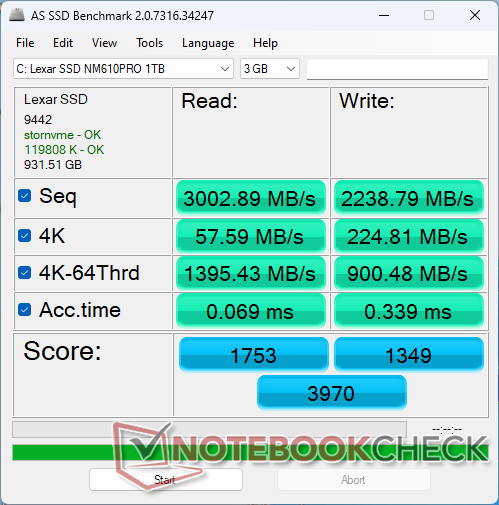

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3494 MB/s

CDM 5/6 Write Seq Q32T1: 2430 MB/s

CDM 5/6 Read 4K Q32T1: 864.9 MB/s

CDM 5/6 Write 4K Q32T1: 527.5 MB/s

CDM 5 Read Seq: 2115 MB/s

CDM 5 Write Seq: 2360 MB/s

CDM 5/6 Read 4K: 60.58 MB/s

CDM 5/6 Write 4K: 268 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	84.8 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	75 pt
Geekom A5 Lexar NM620 512GB	66.7 pt
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	66.2 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	53.5 pt
Beelink Mini S12 Pro	37.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +68%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s +30%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +18%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2011 (1922.53^min - 2010.96^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s 0%
Beelink Mini S12 Pro	724 (713.03^min - 723.5^max) MB/s -64%
seq write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +45%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s +24%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s +15%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2317 (2260.73^min - 2317.16^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -17%
Beelink Mini S12 Pro	715 (699.61^min - 714.88^max) MB/s -69%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +93%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s +6%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s 0%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3479 (3183.34^min - 3478.79^max) MB/s
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s -1%
Beelink Mini S12 Pro	874 (761^min - 873.67^max) MB/s -75%
seq q8 t1 write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s +32%
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s +27%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +16%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2446 (2381.26^min - 2445.98^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -2%
Beelink Mini S12 Pro	867 (858.82^min - 866.96^max) MB/s -65%
4k q1 t1 read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	59.8 (58.68^min - 59.84^max) MB/s
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s -9%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -12%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -13%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -16%
Beelink Mini S12 Pro	50.2 (48.32^min - 50.22^max) MB/s -16%
4k q1 t1 write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	282 (273.36^min - 281.83^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -37%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -39%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -42%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s -47%
Beelink Mini S12 Pro	131.7 (124.21^min - 131.65^max) MB/s -53%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +51%
Geekom A5 Lexar NM620 512GB	1960 MB/s +7%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1837 (1834.99^min - 1837.44^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -33%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -38%
Beelink Mini S12 Pro	861 (842.97^min - 860.59^max) MB/s -53%
4k q32 t16 write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s +88%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s +16%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1180 (1097.88^min - 1179.87^max) MB/s
Beelink Mini S12 Pro	721 (676.73^min - 721.31^max) MB/s -39%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -47%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -55%

AS SSD
Score Total
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +51%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points +18%
Geekom A5 Lexar NM620 512GB	4006 Points +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3970 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -17%
Beelink Mini S12 Pro	2210 Points -44%
Score Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1753 Points
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -5%
Geekom A5 Lexar NM620 512GB	1502 Points -14%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -22%
Beelink Mini S12 Pro	920 Points -48%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +165%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points +58%
Geekom A5 Lexar NM620 512GB	1739 Points +29%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1349 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -5%
Beelink Mini S12 Pro	801 Points -41%
Seq Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +59%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s +5%
Geekom A5 Lexar NM620 512GB	3020 MB/s +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3002.89 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -1%
Beelink Mini S12 Pro	704.36 MB/s -77%
Seq Write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s +26%
Geekom A5 Lexar NM620 512GB	2714 MB/s +21%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +9%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2238.79 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -24%
Beelink Mini S12 Pro	736.89 MB/s -67%
4K Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +36%
Geekom A5 Lexar NM620 512GB	57.7 MB/s 0%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	57.59 MB/s
Beelink Mini S12 Pro	55.88 MB/s -3%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -11%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s -14%
4K Write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	224.81 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -7%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s -8%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -36%
Geekom A5 Lexar NM620 512GB	125.5 MB/s -44%
Beelink Mini S12 Pro	113.72 MB/s -49%
4K-64 Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1395.43 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s -4%
Geekom A5 Lexar NM620 512GB	1143 MB/s -18%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -20%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -27%
Beelink Mini S12 Pro	793.52 MB/s -43%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +246%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s +90%
Geekom A5 Lexar NM620 512GB	1342 MB/s +49%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	900.48 MB/s
Beelink Mini S12 Pro	613.44 MB/s -32%
Access Time Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -36%
Beelink Mini S12 Pro	0.086 ms * -25%
Geekom A5 Lexar NM620 512GB	0.08 ms * -16%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -14%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.069 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +35%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -8%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.339 ms *
Geekom A5 Lexar NM620 512GB	0.13 ms * +62%
Beelink Mini S12 Pro	0.114 ms * +66%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +77%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +94%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M3: Ø3435 (3058.49-3467.66)

GPU Performance

Graphics performance is faster than the average PC with the same Iris Xe 48 EUs since this integrated GPU is typically paired with slower Core U-series CPUs. In this case, the faster Core H-class CPU in our NucBox M3 helps to boost overall GPU performance. Nonetheless, the system is still nowhere near fast enough to run most games natively.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 ^-1! AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	84.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	61.9 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	60.9 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	59.9 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	55.3 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	52.5 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48.2 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	41.1 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	38.6 pt
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	37.2 pt
Dell OptiPlex Micro ^-1! Intel UHD Graphics 770, Intel Core i7-13700	30.5 pt
Average Intel UHD Graphics Xe G4 48EUs	30.5 pt
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	15.3 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +229%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +166%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +83%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +82%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points +77%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points +44%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +42%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4770 Points +22%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points +14%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	3591 Points -8%
Average Intel UHD Graphics Xe G4 48EUs (2156 - 4524, n=14)	3418 Points -12%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points -61%

3DMark

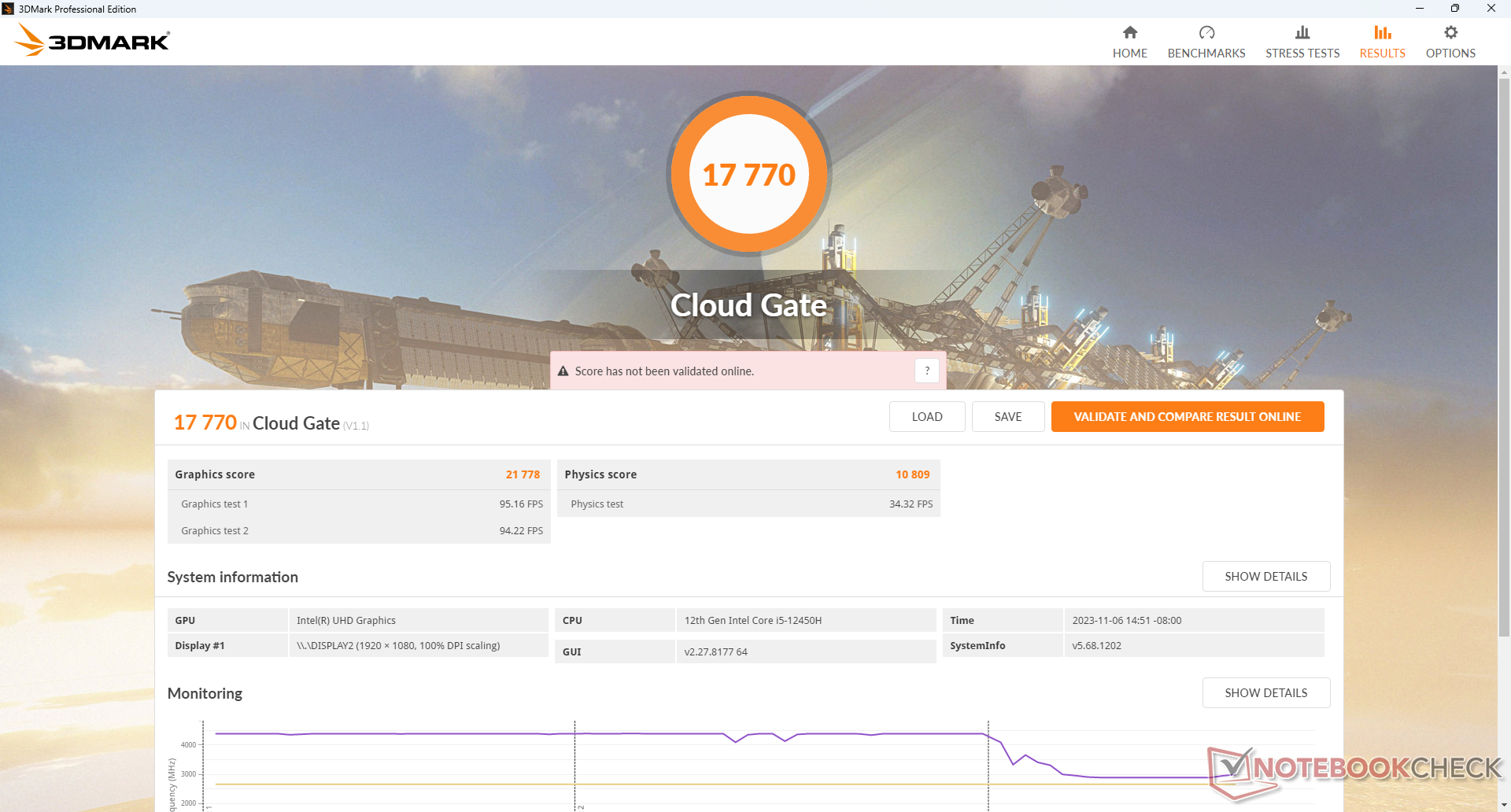

1280x720 Cloud Gate Standard Graphics
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points +83%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +51%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points +45%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +26%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	24221 Points +11%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	22822 Points +5%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	21778 Points
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	16589 Points -24%
Average Intel UHD Graphics Xe G4 48EUs (11270 - 21778, n=13)	15520 Points -29%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points -59%
1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +156%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +108%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points +54%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +46%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +46%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points +41%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points +35%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -2%
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	2900 Points -7%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	2886 Points -8%
Average Intel UHD Graphics Xe G4 48EUs (1602 - 3571, n=14)	2366 Points -24%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points -60%
2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +233%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +153%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +92%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points +73%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points +64%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +62%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points +48%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points +14%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	986 Points +13%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	793 Points -9%
Average Intel UHD Graphics Xe G4 48EUs (634 - 1022, n=12)	778 Points -11%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	328 Points -62%

3DMark Performance Rating | 3DMark 11 | 3DMark

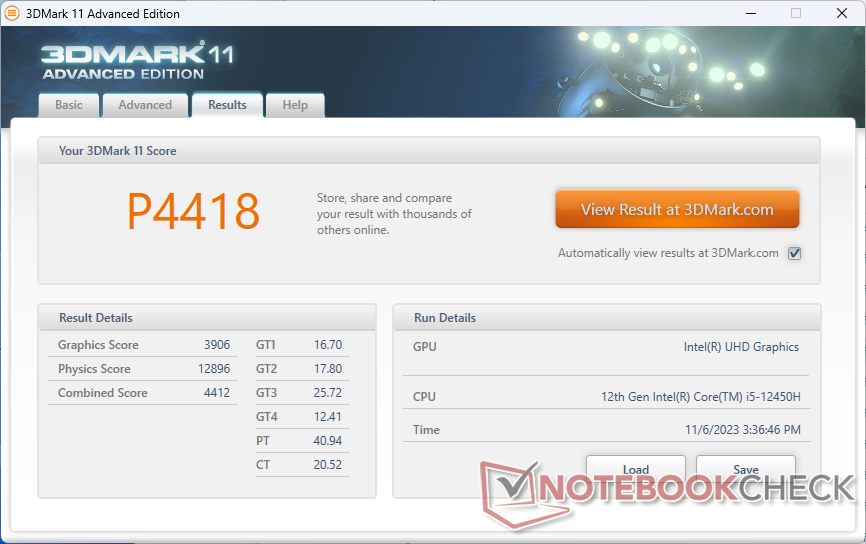

3DMark 11 Performance		4418 points

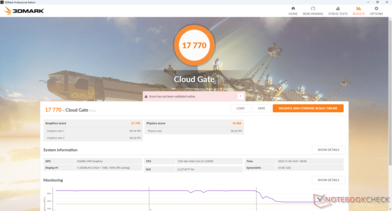

3DMark Cloud Gate Standard Score		17770 points

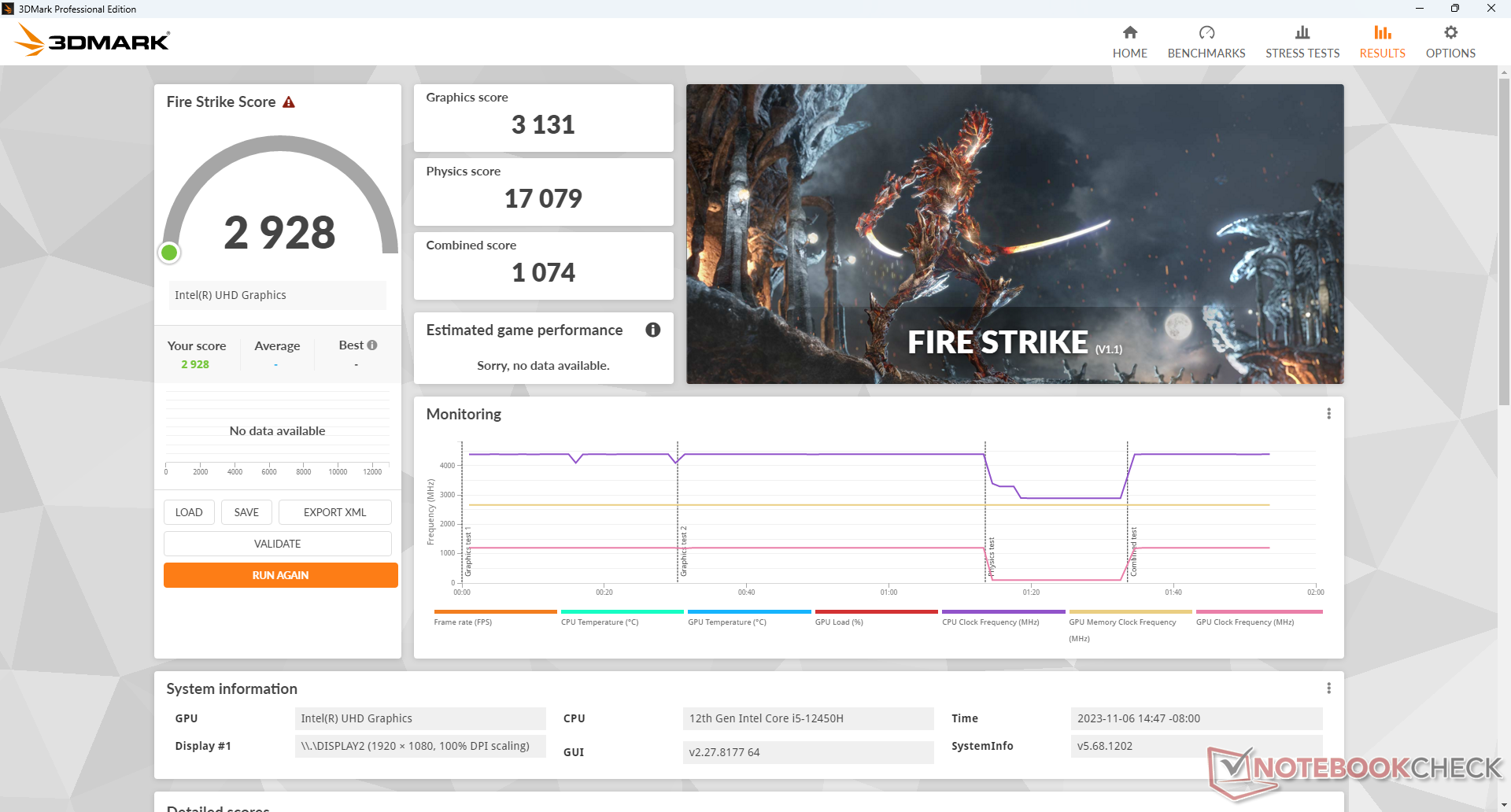

3DMark Fire Strike Score		2928 points

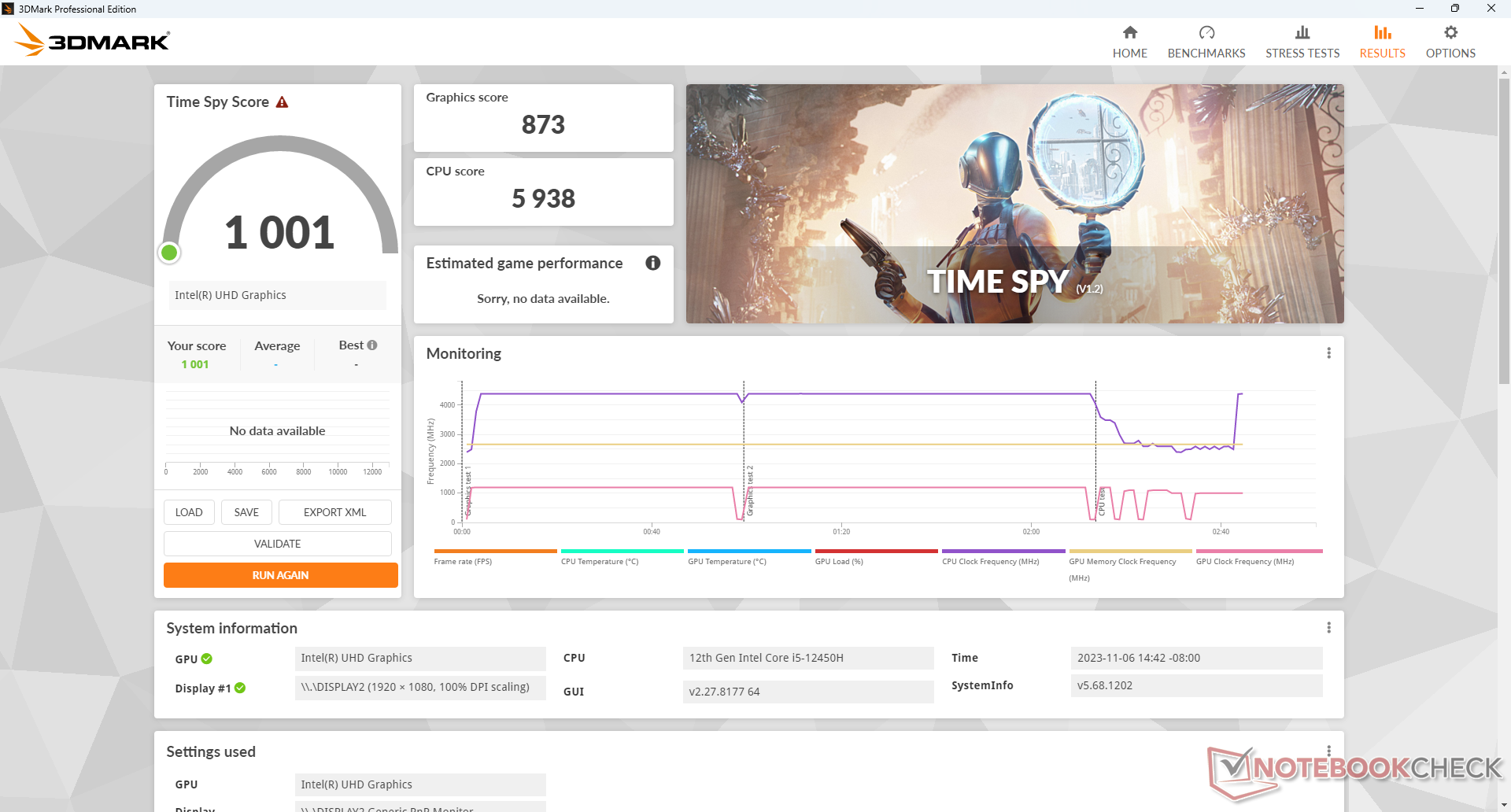

3DMark Time Spy Score		1001 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	524 Seconds *
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	477 Seconds *
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	347 Seconds *
v3.3 Classroom CPU
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2052 Seconds * -177%
Average Intel UHD Graphics Xe G4 48EUs (719 - 2408, n=6)	1582 Seconds * -113%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1259 Seconds * -70%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds *
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * +9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * +20%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * +23%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	513 Seconds * +31%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +37%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	463 Seconds * +38%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	451 Seconds * +39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * +40%
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	320 Seconds * +57%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +57%

* ... smaller is better

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps +147%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	68 (58^min) fps +100%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (56^min) fps +82%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61 (56^min) fps +79%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	46 (37^min) fps +35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps +35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps +32%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34 (20^min) fps
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 fps -15%
Average Intel UHD Graphics Xe G4 48EUs (23 - 34, n=2)	28.5 fps -16%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps +194%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	41 (35^min) fps +141%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +71%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (24^min) fps +65%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (24^min) fps +53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps +29%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps +24%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17 (15^min) fps
Average Intel UHD Graphics Xe G4 48EUs (14 - 17, n=2)	15.5 fps -9%
1920x1080 High Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	46 (41^min) fps +188%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	38 (32^min) fps +138%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 (24^min) fps +69%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26 (23^min) fps +63%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps +56%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps +31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps +19%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	16 (14^min) fps
Average Intel UHD Graphics Xe G4 48EUs (13 - 16, n=2)	14.5 fps -9%
1920x1080 Ultra Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	44 (39^min) fps +193%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	36 (29^min) fps +140%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 (22^min) fps +67%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 (23^min) fps +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23 (21^min) fps +53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps +33%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps +20%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (13^min) fps
Average Intel UHD Graphics Xe G4 48EUs (12 - 15, n=2)	13.5 fps -10%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	148.1 (121^min) fps +142%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	107.7 fps +76%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.7 fps +66%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps +40%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	85.6 (16^min, 36.2^P0.1, 60.2^P1) fps +40%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps +40%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.7 fps +39%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.1 (39^min) fps
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps -4%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	58 (38^min) fps -5%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	48.4 fps -21%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	42 fps -31%
Average Intel UHD Graphics Xe G4 48EUs (20.6 - 62.3, n=11)	41.1 fps -33%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	16 fps -74%
1366x768 Medium Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	97.1 (91^min) fps +152%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	65.8 fps +70%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps +45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps +41%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.1 (16.8^min, 34.9^P0.1, 43.7^P1) fps +40%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps +1%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	38.6 (36^min) fps
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	37.9 (35^min) fps -2%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	31.3 fps -19%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31 fps -20%
Average Intel UHD Graphics Xe G4 48EUs (15.6 - 39.3, n=10)	28.1 fps -27%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (45^min) fps +144%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	39.3 fps +96%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.1 fps +55%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps +50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps +33%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26 (20.8^min, 21.4^P0.1, 22.6^P1) fps +29%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.9 fps +29%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20.1 (17^min) fps
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	15 fps -25%
Average Intel UHD Graphics Xe G4 48EUs (8.37 - 20.7, n=10)	14.5 fps -28%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (28^min) fps +221%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.5 fps +147%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.6 (14.7^min, 14.7^P0.1, 15.4^P1) fps +85%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.3 fps +82%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps +72%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps +45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps +31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps +24%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	9.5 (8^min) fps
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.8 fps -7%
Average Intel UHD Graphics Xe G4 48EUs (5.61 - 10.3, n=8)	7.94 fps -16%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	76.5 fps +168%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	63.1 fps +121%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.3 fps +59%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.4 fps +56%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps +39%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	38.3 fps +34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps +31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps +13%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	28.5 fps
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	28.2 fps -1%
Average Intel UHD Graphics Xe G4 48EUs (14.6 - 32.5, n=15)	22.4 fps -21%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.1 fps -22%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	13.4 fps -53%
1920x1080 Standard Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.2 fps +158%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	33.1 fps +124%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.4 fps +51%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.2 fps +50%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps +48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps +35%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	19.6 fps +32%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps +9%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	14.8 fps
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	14.6 fps -1%
Average Intel UHD Graphics Xe G4 48EUs (8.88 - 19, n=10)	13.2 fps -11%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.5 fps -29%
1920x1080 High Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.5 fps +169%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	23.6 fps +123%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16 fps +51%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.9 fps +50%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps +43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps +38%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps +8%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	10.6 fps
Average Intel UHD Graphics Xe G4 48EUs (3.86 - 19, n=8)	10.3 fps -3%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	10.2 fps -4%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.15 fps -23%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.8 fps +59%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.3 fps +52%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.2 fps +47%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.6 fps +45%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	51.4 fps +42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps +20%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps +14%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	38 fps +5%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps +5%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.3 fps
Average Intel UHD Graphics Xe G4 48EUs (21.8 - 42.5, n=11)	32.5 fps -10%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	12.9 fps -64%
1920x1080 med (fps_test=2)
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	43.7 fps +84%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.5 fps +83%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.3 fps +69%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.3 fps +65%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps +39%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps +38%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	32.7 fps +37%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30 fps +26%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps +15%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	23.8 fps
Average Intel UHD Graphics Xe G4 48EUs (15.8 - 29.6, n=11)	22.8 fps -4%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.9 fps -54%
1920x1080 high (fps_test=3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.5 fps +66%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	35.5 fps +61%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.5 fps +57%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.2 fps +55%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	29.7 fps +35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps +30%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	27.9 fps +27%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps +18%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps +10%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	22 fps
Average Intel UHD Graphics Xe G4 48EUs (14.1 - 26.7, n=11)	21 fps -5%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.4 fps -53%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	156.9 (136.5^min) fps +324%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	153.1 (115.1^min) fps +314%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	135 (114.8^min) fps +265%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	129.5 (112.6^min) fps +250%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps +235%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps +223%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps +199%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	110.5 (93.1^min) fps +199%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps +199%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	92.3 (83.6^min) fps +149%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	80.8 (58.2^min) fps +118%
Average Intel UHD Graphics Xe G4 48EUs (37 - 108.6, n=15)	76.1 fps +106%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	37 (34.9^min) fps
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.9 (33.6^min) fps -3%
1366x768 med (1/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	121.1 (100.6^min) fps +235%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	108.6 (88.6^min) fps +200%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.6 (88.3^min) fps +194%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	96.1 (82.8^min) fps +165%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps +159%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps +158%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	91.4 (78.4^min) fps +152%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps +151%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps +129%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	64.9 (55.9^min) fps +79%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (44.6^min) fps +43%
Average Intel UHD Graphics Xe G4 48EUs (27.3 - 51.2, n=15)	38.2 fps +6%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.2 (33.9^min) fps
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.7 (33.9^min) fps -1%
1920x1080 high (2/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	95.5 (85.2^min) fps +170%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	69.6 (59.3^min) fps +97%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.7 (59.9^min) fps +91%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps +91%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62.8 (54.9^min) fps +77%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps +77%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps +61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps +38%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	44.2 (41.5^min) fps +25%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	35.4 (33.8^min) fps
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34.6 (33^min) fps -2%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	32.9 (30.6^min) fps -7%
Average Intel UHD Graphics Xe G4 48EUs (19.3 - 53.1, n=15)	29.8 fps -16%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	20.7 (19.3^min) fps -42%
1920x1080 ultra (3/3) best looking
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.6 (74.9^min) fps +147%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.7 (56^min) fps +84%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	62.2 (53.4^min) fps +79%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +78%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.1 (52.2^min) fps +70%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps +66%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps +50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps +31%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	40.8 (38.2^min) fps +18%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34.7 (32.5^min) fps
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34 (32.3^min) fps -2%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29.6 (27.2^min) fps -15%
Average Intel UHD Graphics Xe G4 48EUs (18.9 - 49.3, n=15)	27.9 fps -20%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	19.1 (17.7^min) fps -45%

Cyberpunk 2077 1.6
1280x720 Low Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.5 (19.7^min) fps +272%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.9 (21^min) fps +191%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.9 (19.9^min) fps +45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.9 (14.3^min) fps +30%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	19.2 (13.1^min) fps
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	18.6 (12^min) fps -3%
Average Intel UHD Graphics Xe G4 48EUs (14.4 - 19.2, n=2)	16.8 fps -12%
1920x1080 Low Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 (20.7^min) fps +306%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	31.4 (16.4^min) fps +191%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	16.4 (7.3^min) fps +52%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	13.8 (9.9^min) fps +28%
Average Intel UHD Graphics Xe G4 48EUs (10.8 - 10.9, n=2)	10.9 fps +1%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	10.8 (7.7^min) fps
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	10.2 (7.3^min) fps -6%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	166 (4.54^min, 125^P1) fps +56%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	141.6 (8.77^min, 90.9^P1) fps +33%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	140.1 (17.4^min, 90.9^P1) fps +31%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	126.2 (50.6^min, 76.9^P1) fps +18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	125.5 (11.9^min, 83.3^P1) fps +18%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	111.2 (8.07^min, 76.9^P1) fps +4%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	106.7 (12.9^min, 71.4^P1) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps -3%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	56.4 (18^min, 34.5^P1) fps -47%
Average Intel UHD Graphics Xe G4 48EUs (36.7 - 106.7, n=10)	55.8 fps -48%
1920x1080 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	129.1 (9.37^min, 90.9^P1) fps +111%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	97.4 (8.56^min, 66.7^P1) fps +59%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.7 (18.2^min, 58.8^P1) fps +42%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (9.46^min, 58.8^P1) fps +41%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	81.5 (25.1^min, 58.8^P1) fps +33%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps +6%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64 (8.04^min, 45.5^P1) fps +5%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.2 (24.1^min, 45.5^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (30.6 - 61.2, n=8)	41.4 fps -32%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	34.7 (7.53^min, 22.7^P1) fps -43%
1366x768 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	158.4 (14.6^min, 111.1^P1) fps +75%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	129.5 (30.7^min, 83.3^P1) fps +43%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122.2 (9.95^min, 76.9^P1) fps +35%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	115.4 (23.7^min, 71.4^P1) fps +27%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	107.3 (19^min, 62.5^P1) fps +18%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	97.5 (36.1^min, 62.5^P1) fps +7%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	90.7 (31.1^min, 55.6^P1) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -7%
Average Intel UHD Graphics Xe G4 48EUs (28.1 - 91, n=11)	52.1 fps -43%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	44.8 (21^min, 27.8^P1) fps -51%
1920x1080 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	132.3 (14.1^min, 83.3^P1) fps +114%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	96.3 (8.48^min, 62.5^P1) fps +56%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	88.2 (28.6^min, 55.6^P1) fps +43%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.6 (14^min, 58.8^P1) fps +37%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	75.9 (6.19^min, 50^P1) fps +23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64.1 (29.4^min, 45.5^P1) fps +4%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.7 (28^min, 45.5^P1) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -7%
Average Intel UHD Graphics Xe G4 48EUs (25.4 - 61.7, n=8)	38.5 fps -38%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29.6 (16.5^min, 20.4^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	68.3 (4.5^min, 45.5^P1) fps +355%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	49.2 (13.3^min, 33.3^P1) fps +228%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.1 (10.8^min, 25.6^P1) fps +134%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.1 (15.2^min, 23.8^P1) fps +121%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (11.1^min, 17.9^P1) fps +64%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.7 (9.05^min, 15.9^P1) fps +38%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps +6%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (10^min, 11.4^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (6.19 - 18.1, n=10)	12.7 fps -15%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.5 (3.06^min, 18.9^P1) fps +335%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	21.7 (12.7^min, 15.4^P1) fps +243%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.5 (4.68^min, 11.4^P1) fps +145%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.5 (4.93^min, 10.8^P1) fps +129%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps +77%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps +8%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	6.32 (3.91^min, 4.98^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (5.11 - 7.89, n=4)	6.13 fps -3%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	4.13 (2.37^min, 2.79^P1) fps -35%

Strange Brigade
1280x720 lowest AF:1
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.2 (109.1^min, 139.7^P1) fps +153%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	132.2 (72.4^min, 110.3^P1) fps +105%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.9 (66.3^min, 84.2^P1) fps +57%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	97.8 (28^min, 76.9^P1) fps +52%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps +48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps +39%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps +23%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	64.4 (13.2^min, 19^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (31.3 - 74.1, n=9)	51 fps -21%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	49 (12.2^min, 15^P1) fps -24%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	48.5 (12.4^min, 14.7^P1) fps -25%
1920x1080 medium AA:medium AF:4
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.6 (52.2^min, 57^P1) fps +156%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	55.2 (43.9^min, 48.5^P1) fps +116%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.8 (24.2^min, 34.3^P1) fps +52%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.9 (18.6^min, 32.1^P1) fps +48%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps +46%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps +36%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps +18%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	25.6 (7.1^min, 12.5^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (11.7 - 30.3, n=9)	20.5 fps -20%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	18.2 (7.4^min, 8.9^P1) fps -29%
1920x1080 high AA:high AF:8
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.6 (39.2^min, 42.9^P1) fps +178%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (33.6^min, 36.3^P1) fps +130%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (23.8^min, 25.8^P1) fps +62%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.1 (16^min, 24.6^P1) fps +61%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps +55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps +46%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps +23%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20 (5^min, 6.58^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (10.8 - 23.9, n=9)	16.8 fps -16%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	15.4 (5^min, 5.4^P1) fps -23%
1920x1080 ultra AA:ultra AF:16
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (23.8^min, 32^P1) fps +172%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	39.9 (27.9^min, 32^P1) fps +125%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.4 (19.7^min, 22.4^P1) fps +55%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 (15.6^min, 18.4^P1) fps +54%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps +42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps +29%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps +16%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.7 (5^min, 5^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (15 - 19.4, n=3)	17.4 fps -2%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	13.2 (5^min, 5^P1) fps -25%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	164.2 (129^min, 114^P1) fps +218%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	134.3 (108^min, 87^P1) fps +160%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.3 (78^min, 72^P1) fps +73%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.9 (72^min, 71^P1) fps +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80 (64^min, 64^P1) fps +55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps +38%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps +19%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	51.7 (41^min, 40^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (49.1 - 51.7, n=2)	50.4 fps -3%
1920x1080 Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	94.6 (81^min, 71^P1) fps +239%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	80.2 (70^min, 61^P1) fps +187%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.8 (40^min, 38^P1) fps +75%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	48 (40^min, 40^P1) fps +72%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.7 (40^min, 39^P1) fps +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps +41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps +16%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	27.9 (23^min, 19^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (25.3 - 27.9, n=2)	26.6 fps -5%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.7 (72^min, 66^P1) fps +246%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	70.4 (62^min, 51^P1) fps +184%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.3 (36^min, 36^P1) fps +79%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.4 (33^min, 35^P1) fps +71%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.7 (28^min, 27^P1) fps +28%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.2 (35^min, 32^P1) fps +66%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps +48%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps +15%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	24.8 (21^min, 17^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (23 - 24.8, n=2)	23.9 fps -4%
1920x1080 High Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	63 (48^min, 51^P1) fps +260%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	51.7 (43^min, 39^P1) fps +195%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.2 (27^min, 26^P1) fps +78%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.2 (26^min, 25^P1) fps +78%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps +54%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps +23%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.5 (14^min, 12^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (16.4 - 17.5, n=2)	17 fps -3%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 fps +78%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.5 (19^min, 19^P1) fps +67%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.1 (19^min, 18^P1) fps +64%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +53%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	17.7 (13^min, 13^P1) fps +31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps +13%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.5 (11^min, 11^P1) fps
Average Intel UHD Graphics Xe G4 48EUs (12.7 - 13.5, n=2)	13.1 fps -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	11.9 fps -12%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	140.6 fps +359%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	106.6 fps +248%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.2 fps +169%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.2 fps +159%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	59.8 fps +95%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps +77%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps +76%
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	31.3 fps +2%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	30.6 fps
Average Intel UHD Graphics Xe G4 48EUs (29.2 - 30.6, n=2)	29.9 fps -2%
1920x1080 Low Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.6 fps +319%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	60.3 fps +253%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.4 fps +125%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38 fps +122%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.5 fps +90%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps +61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps +50%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.1 fps
Dell OptiPlex Micro Intel Core i7-13700, Intel UHD Graphics 770	16.4 fps -4%
Average Intel UHD Graphics Xe G4 48EUs (14.6 - 17.1, n=2)	15.9 fps -7%
1920x1080 Medium Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	52 fps +291%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	44.9 fps +238%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.9 fps +117%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.8 fps +117%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 fps +89%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps +57%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps +47%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.3 fps
Average Intel UHD Graphics Xe G4 48EUs (12.2 - 13.3, n=2)	12.8 fps -4%

Witcher 3 FPS Chart

GMK NucBox M3: Ø60.6 (55-64)

	low	med.	high	ultra
GTA V (2015)	106.7	90.7	15	6.32
The Witcher 3 (2015)	61.1	38.6	20.1	9.5
Dota 2 Reborn (2015)	37	36.2	35.4	34.7
Final Fantasy XV Benchmark (2018)	28.5	14.8	10.6
X-Plane 11.11 (2018)	36.3	23.8	22
Far Cry 5 (2018)	34	17	16	15
Strange Brigade (2018)	64.4	25.6	20	17.7
Cyberpunk 2077 1.6 (2022)	10.8
Tiny Tina's Wonderlands (2022)	17.1	13.3
F1 22 (2022)	27.9	24.8	17.5	13.5

Emissions

System Noise

Fan noise behavior is probably the worst aspect of the NucBox M3. The fan pulses frequently and much more often than on most other mini PCs. For example, the fan would briefly spike to 39 dB(A) when launching applications or even for seemingly no reason when web browsing before returning to normal. Moving to a U-series CPU instead of the H-series would have likely addressed this annoying issue.

Fan noise profile (White: Background, Red: System idle, Blue: 3DMark 06, Orange: Witcher 3, Green: Prime95 stress)

Noise Level

Idle		25.7 / 25.7 / 39.1 dB(A)
Load		37 / 43.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.9 dB(A)

	GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		7%	20%	12%	-6%	-8%
off / environment *	23.9	23.1 3%	23.7 1%	23.3 3%	25 -5%	29.8 -25%
Idle Minimum *	25.7	25 3%	23.9 7%	26.3 -2%	28.2 -10%	30.2 -18%
Idle Average *	25.7	25.5 1%	23.9 7%	26.3 -2%	28.2 -10%	31.1 -21%
Idle Maximum *	39.1	25.5 35%	23.9 39%	26.3 33%	28.2 28%	31.9 18%
Load Average *	37	39.9 -8%	28 24%	31.9 14%	47.8 -29%	40 -8%
Witcher 3 ultra *	43.5	39.9 8%	27.6 37%	33 24%
Load Maximum *	43.5	39.9 8%	32.8 25%	36.7 16%	47.4 -9%	40.5 7%

* ... smaller is better

Temperature

AC adapter can reach over 35 C when running demanding loads

Fresh air enters from the sides of the unit instead of the top unlike on the recent Beelink SER5. Thus, it's safe to place items on top of the unit so long as the sides and rear have ample space for airflow.

Stress Test

When running Prime95, the CPU would boost to 2.6 GHz and 45 W for only about 10 seconds before falling and stabilizing at 1.8 GHz and 35 W in order to maintain a reasonable core temperature of 75 C. Maximum Turbo Boost potential is therefore short-lived on the NucBox M3. Repeating this same test on the NucBox K3 Pro with the faster Core i7-12650H would result in both higher clock rates and warmer core temperatures approaching 84 C.

	CPU Clock (GHz)	GPU Clock (MHz)	Average CPU Temperature (°C)
System Idle	--	--	54
Prime95 Stress	1.8	--	78
Prime95 + FurMark Stress	0.9	998	73
Witcher 3 Stress	1.4	1197	74

Energy Management

Power Consumption

It's no secret that Intel 12th gen CPUs can be very power demanding especially those from the Core-H family. The Core i5-12450H is no different as it's nearly as demanding as the Ryzen 7 5800H in the Geekom A5 even though the AMD CPU offers faster multi-thread performance. Worse yet, our system completes CineBench R15 xT at about the same time as the Ryzen 5 5560U in the Beelink SER5 but it consumes almost 80 percent more power to do so.

Power consumption when running GPU-heavy applications like games also doesn't put the our GMK system in a favorable light. Running Witcher 3 would demand almost 60 percent more power than on the Beelink SER5 even though graphics performance is similar between the two models.

Consumption would spike to 74 W when initiating Prime95 stress before falling and stabilizing at 61 W a few seconds later

Prime95+FurMark stress initiated at 10s mark

Power Consumption

Off / Standby	0.8 / 1.7 Watt
Idle	10.6 / 11.9 / 12.5 Watt
Load	54.9 / 75.6 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N), , , x,	Geekom A5 R7 5800H, Vega 8, Lexar NM620 512GB, , x,	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		5%	51%	42%	14%	11%
Idle Minimum *	10.6	7.1 33%	4.4 58%	8.3 22%	6.9 35%	5.1 52%
Idle Average *	11.9	10.1 15%	5 58%	8.8 26%	7.9 34%	5.8 51%
Idle Maximum *	12.5	18.6 -49%	5.3 58%	8.9 29%	8.9 29%	10.2 18%
Load Average *	54.9	45.3 17%	29.8 46%	20.1 63%	60.8 -11%	68.1 -24%
Witcher 3 ultra *	46.4	55.2 -19%	28.8 38%	21.5 54%
Load Maximum *	75.6	52.9 30%	40.4 47%	32.2 57%	89.7 -19%	108.3 -43%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Witcher 3 ultra: Ø46.4 (43.3-63)

Beelink SER5 R5 5560U, Vega 6; Witcher 3 ultra: Ø28.8 (28.3-30.6)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø58 (55.8-75.6)

Beelink SER5 R5 5560U, Vega 6; 1280x720 Prime95 28.10 and Furmark 1.25: Ø39 (38.6-40.4)

Power Consumption external Monitor

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Prime95 V2810 Stress (external Monitor): Ø61.5 (59.9-74.1)

Beelink SER5 R5 5560U, Vega 6; Prime95 V2810 Stress (external Monitor): Ø39.5 (39-39.9)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Cinebench R15 Multi (external Monitor): Ø57.3 (52.7-67.8)

Beelink SER5 R5 5560U, Vega 6; Cinebench R15 Multi (external Monitor): Ø35.2 (34.9-35.4)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34.5 (33.4-43.8)

Beelink SER5 R5 5560U, Vega 6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.2 (30.5-32)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø46.4 (43.3-63)

Beelink SER5 R5 5560U, Vega 6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.8 (28.3-30.6)

GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs; Idle 1min (external Monitor): Ø10.8 (10.5-12.9)

Beelink SER5 R5 5560U, Vega 6; Idle 1min (external Monitor): Ø4.46 (4.19-5.88)

Pros

+ 2x SODIMM and 2x M.2 SSDs

+ relatively inexpensive

+ compact form factor

+ good port options

Cons

- loud fan noise with frequent pulsing

- high power consumption

- USB-C DP issues

- no Thunderbolt

Verdict

In review: GMKtec NucBox M3. Test unit provided by GMK

A major reason for using a Core H-based mini PC instead of Core U or Ryzen U is for the faster performance. Unfortunately, the Core i5-12450H doesn't offer enough over U-series CPUs to justify the increase in power consumption and fan noise. The NucBox M3 runs noticeably louder than U-series alternatives like the Beelink SER5 without providing any significant advantages in terms of multi-thread performance or graphics performance. Add to the fact that most U-series mini PCs are cheaper than the NucBox M3 and it becomes more difficult to recommend the model.

The NucBox M3 runs louder and hotter than most other mini PCs with U-series CPUs without offering all that much better performance to compensate.

Highlights of the NucBox M3 include easily accessible internals and plenty of port options. However, these highlights are shared across most mini PCs and so they can't be considered major advantages. The model would need to do more to better distinguish itself from the ocean of alternatives like tool-less servicing, Thunderbolt support, multiple USB-C ports, integrated AC adapter, or quieter fan noise.

Price and Availability

Amazon is not yet offering the NucBox M3. Users can instead purchase directly from the manufacturer for $380 USD if configured with 32 GB RAM and 1 TB SSD.

GMK NucBox M3 - 11/09/2023 v7 ^(old)
Allen Ngo

Chassis

79 / 98 → 80%

Connectivity

54 / 81 → 67%

Weight

84%

Display

83%

Games Performance

61%

Application Performance

94%

Noise

82%

Average

77%

79%

Mini PC - Weighted Average

Price comparison

Loading Comments

Comment on this article

Allen Ngo - Lead Editor U.S. - 5313 articles published on Notebookcheck since 2011

After graduating with a B.S. in environmental hydrodynamics from the University of California, I studied reactor physics to become licensed by the U.S. NRC to operate nuclear reactors. There's a striking level of appreciation you gain for everyday consumer electronics after working with modern nuclear reactivity systems astonishingly powered by computers from the 80s. When I'm not managing day-to-day activities and US review articles on Notebookcheck, you can catch me following the eSports scene and the latest gaming news.

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > GMKtec NucBox M3 mini PC review: Core i5-12450H is just too power-hungry

Allen Ngo, 2023-11- 9 (Update: 2023-11-11)

GMKtec NucBox M3 mini PC review: Core i5-12450H is just too power-hungry

Only minor advantages over Ryzen U series.

Potential Competitors in Comparison

Case

Size Comparison

Connectivity

Communication

Maintenance

Accessories And Warranty

Performance

Testing Conditions

Processor

Cinebench R15 Multi Loop

System Performance

DPC Latency

Storage Devices

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performance

Witcher 3 FPS Chart

Emissions

System Noise

Temperature

Stress Test

Energy Management

Power Consumption

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

Verdict

Price and Availability

More articles related to this device

Related Articles

Transparency

Price comparison
