Lenovo IdeaCentre Mini 01IRH8 review: An Intel NUC challenger approaches

Look ma, no power brick! With so many mini PCs to choose from nowadays, the IdeaCentre Mini will need something up its sleeve to really stand out from the crowd. Luckily, its integrated PSU and inexpensive price of under US$700 for the Core i7 option might just be enough.

Allen Ngo 👁, Published 09/01/2023 🇸🇪 🇫🇷 ...

Lenovo offers several Think-branded mini PCs ranging from the ThinkCentre to the ThinkStation all aimed at offices and professional environments. To contrast these business-centric models, Lenovo has made available this year the consumer-centric 1 liter IdeaCentre Mini Gen 8 complete with the latest Intel 13th gen Raptor Lake-H CPUs to complement the larger IdeaCentre 5i.

Our review unit is the higher-end configuration with the Core i7-13700H for approximately $688 USD while the lower-end Core i5-13500H option starts at just $522. All SKUs ship with 16 GB of RAM, 512 GB to 1 TB of storage, and Windows 11 meaning there are no barebone options.

The IdeaCentre Mini competes with other small mini PCs with integrated graphics such as most Intel NUC models, Beelink GTR7, Geekom Mini IT11, or Trigkey Speed S.

More Lenovo reviews:

Test device courtesy of Lenovo

Download your licensed rating image as PNG / SVG

Lenovo IdeaCentre Mini 01IRH8

Processor

Intel Core i7-13700H 14 x 1.8 - 5 GHz, 79 W PL2 / Short Burst, 44 W PL1 / Sustained, Raptor Lake-H

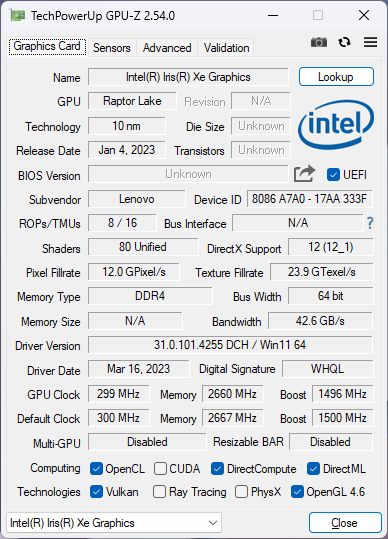

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Core: 1500 MHz, Memory: 2667 MHz, DDR4, 31.0.101.4255

Memory

16 GB

, DDR4-3200, Dual-Channel, 15-15-15-35

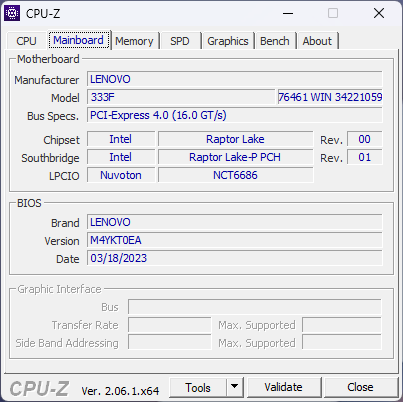

Mainboard

Intel Raptor Lake-P PCH

Storage

Samsung PM9B1 512GB MZVL4512HBLU, 512 GB

Soundcard

Intel Raptor Lake-P/U/H PCH - cAVS

Connections

1 USB 2.0, 5 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm headset

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1

Size

height x width x depth (in mm): 39 x 195 x 191.4 ( = 1.54 x 7.68 x 7.54 in)

Operating System

Microsoft Windows 11 Pro

Additional features

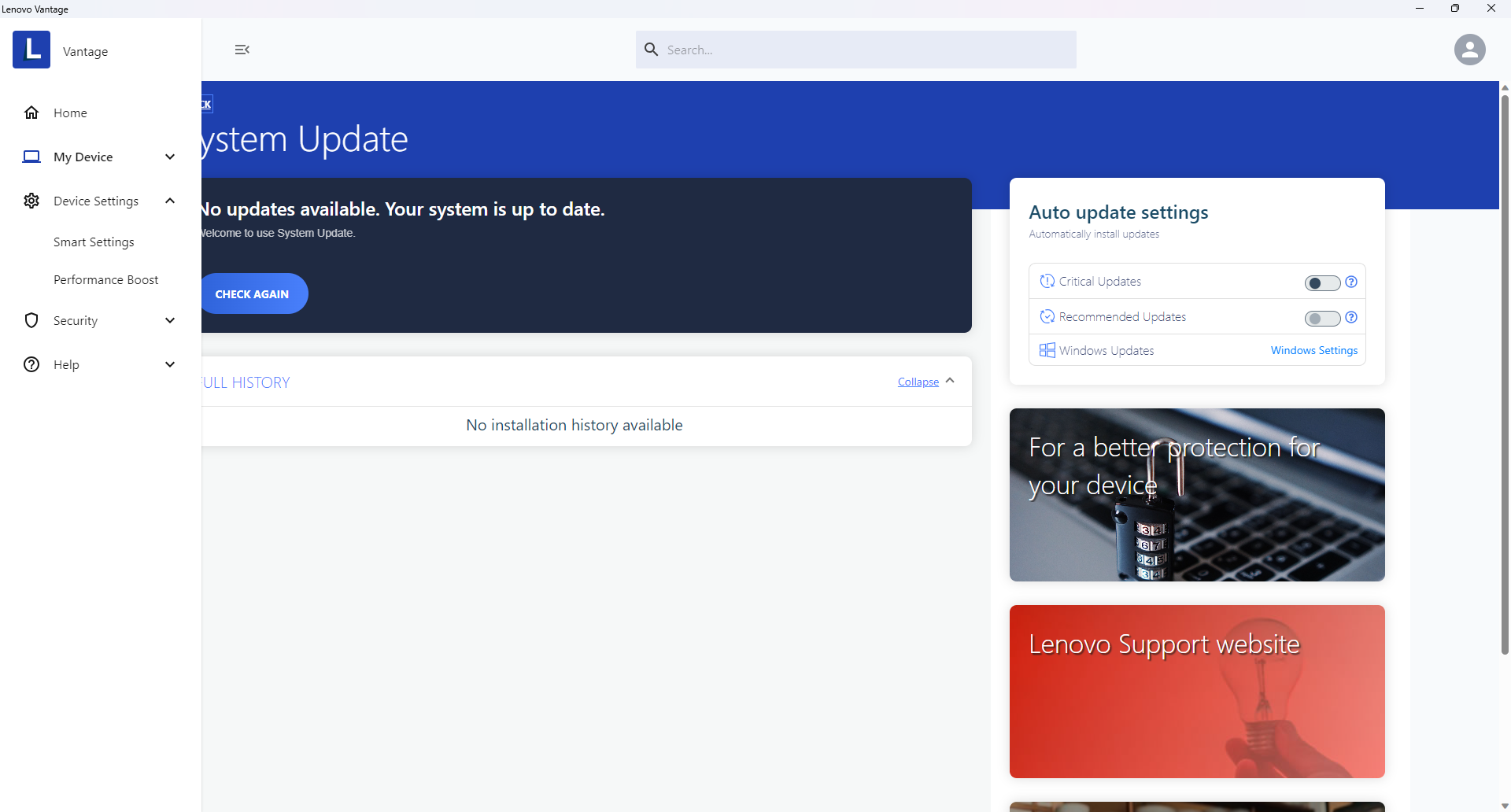

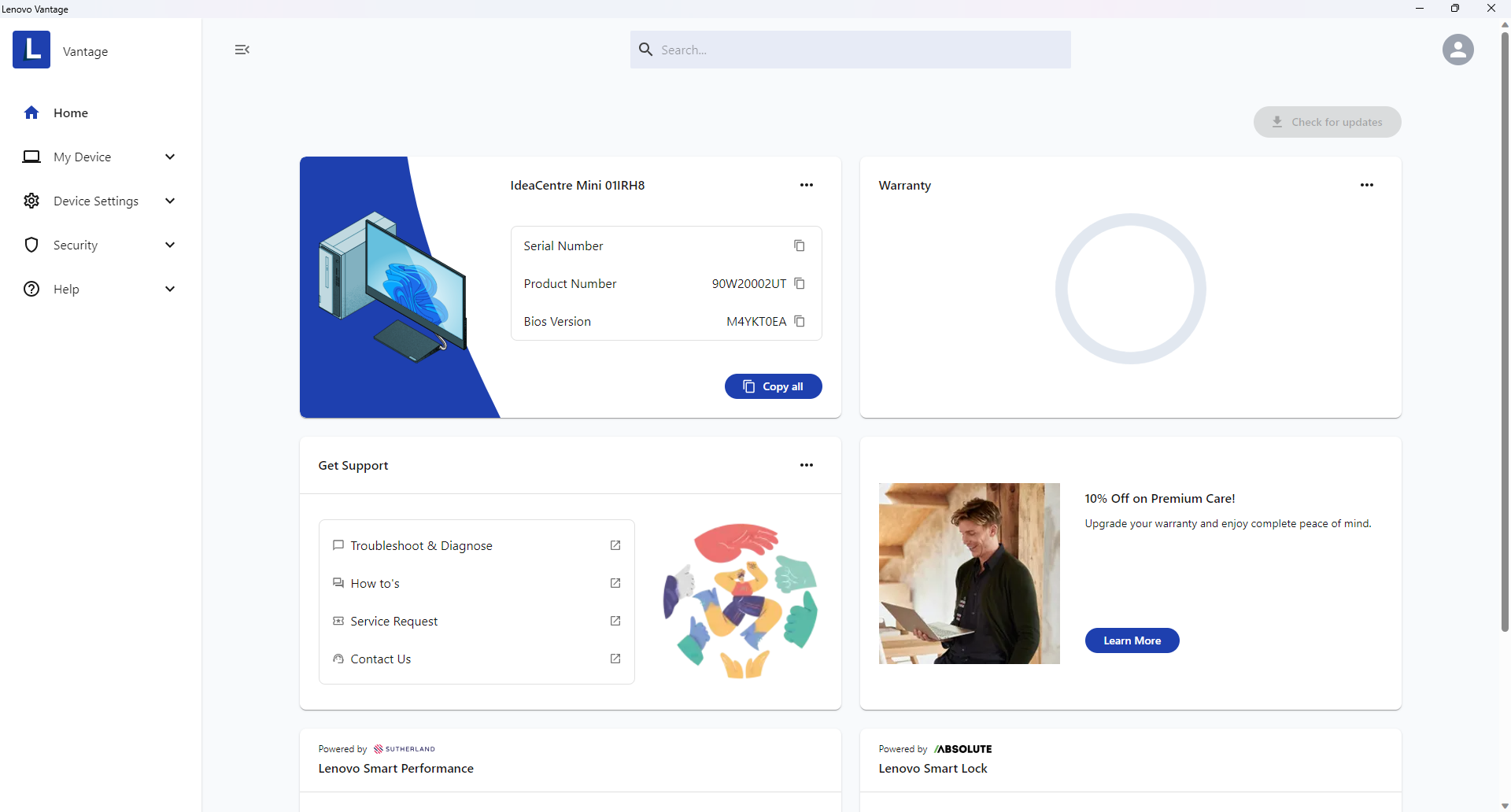

Vertical stand, Lenovo Vantage, Now, Smart Storage, 12 Months Warranty

Weight

1.755 kg ( = 61.91 oz / 3.87 pounds), Power Supply: 61 g ( = 2.15 oz / 0.13 pounds)

Price

688 USD

Links

Lenovo homepage
Lenovo notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Potential Competitors in Comparison

Rating	Date	Model	Weight	Height	Resolution
81 %	09/2023	Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs	1.8 kg	39 mm	x
83.1 %	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
	03/2023	Intel NUC 12 Pro Kit NUC12WSBi5 i5-1240P, Iris Xe G7 80EUs	549 g	45.6 mm	x
86.3 %	07/2023	Beelink GTR7 7840HS R7 7840HS, Radeon 780M	890 g	48.8 mm	x
80.6 %	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm	x
	03/2023	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs	415 g	40.7 mm	x

Case — Dense And Well-Built

The IdeaCentre may not be a ThinkCentre, but it's almost built like one. The metal sides, internal rollcage, and integrated PSU contribute to a dense mini PC especially for a consumer product. Pushing down on the center of the outer lid results in almost no warping, though a bit of creaking is audible.

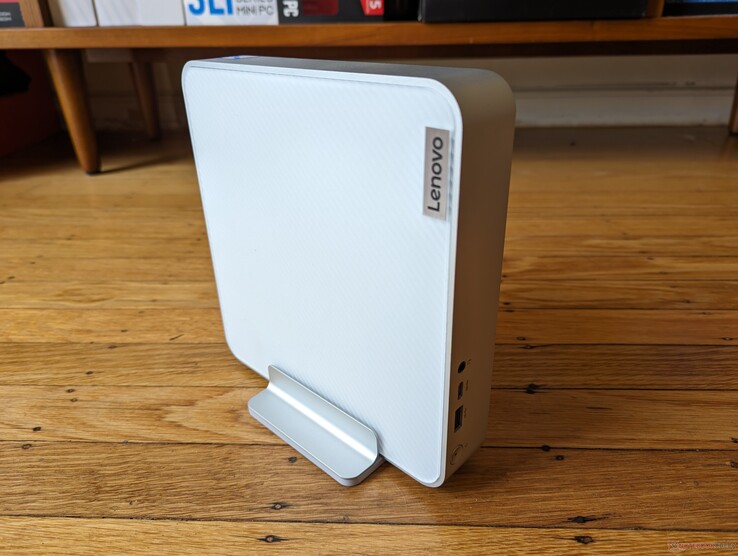

The unit can be positioned vertically such as on a bookshelf without blocking any vents. A notable omission, however, is support for VESA mounting likely due to how heavy the unit is. Many consumer mini PCs like those from Beelink and even some office-centric ones can be mounted behind monitors to save on desk space.

The IdeaCentre Mini is much larger and heavier than many other mini PCs with no discrete GPUs. The Intel NUC 13 Pro, for example, is almost 3x lighter and has a much smaller footprint. Instead, the key advantage of the IdeaCentre Mini is its fully integrated PSU which trades away the annoyances of an unsightly power brick commonly found with most mini PCs and laptops in favor of a larger but more convenient chassis. We personally prefer the advantages of an integrated PSU as it means there is no proprietary power brick to accidentally lose.

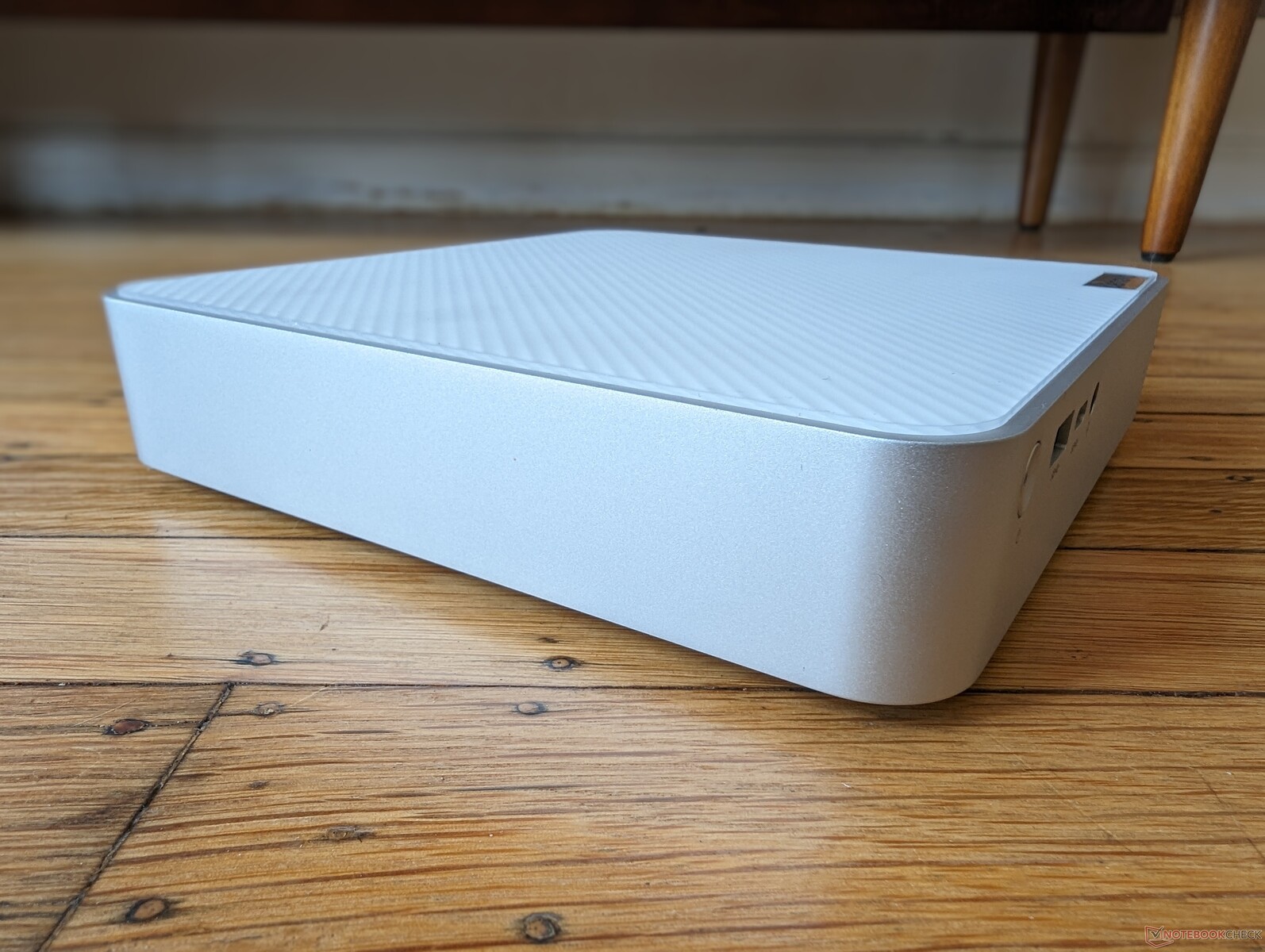

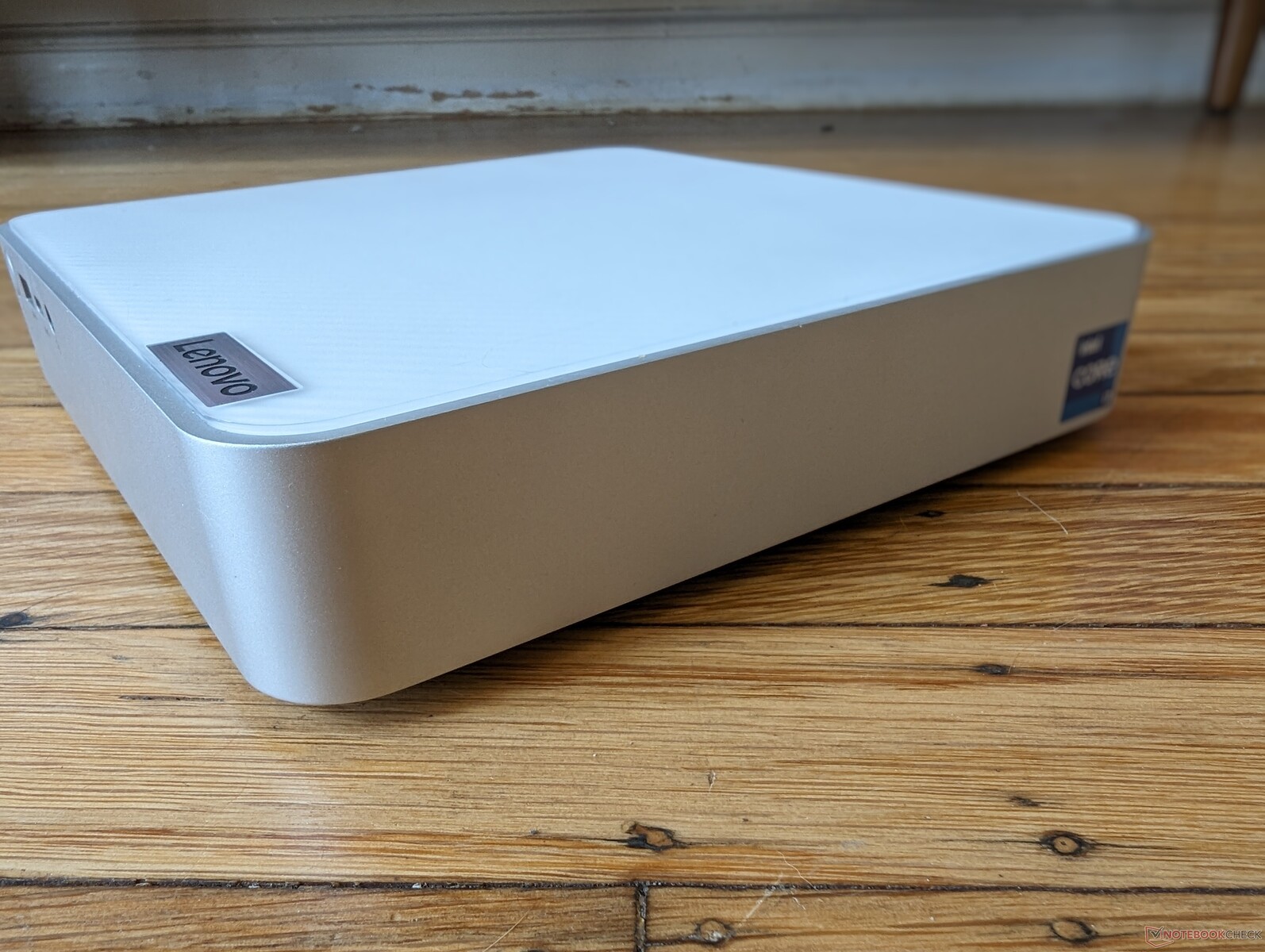

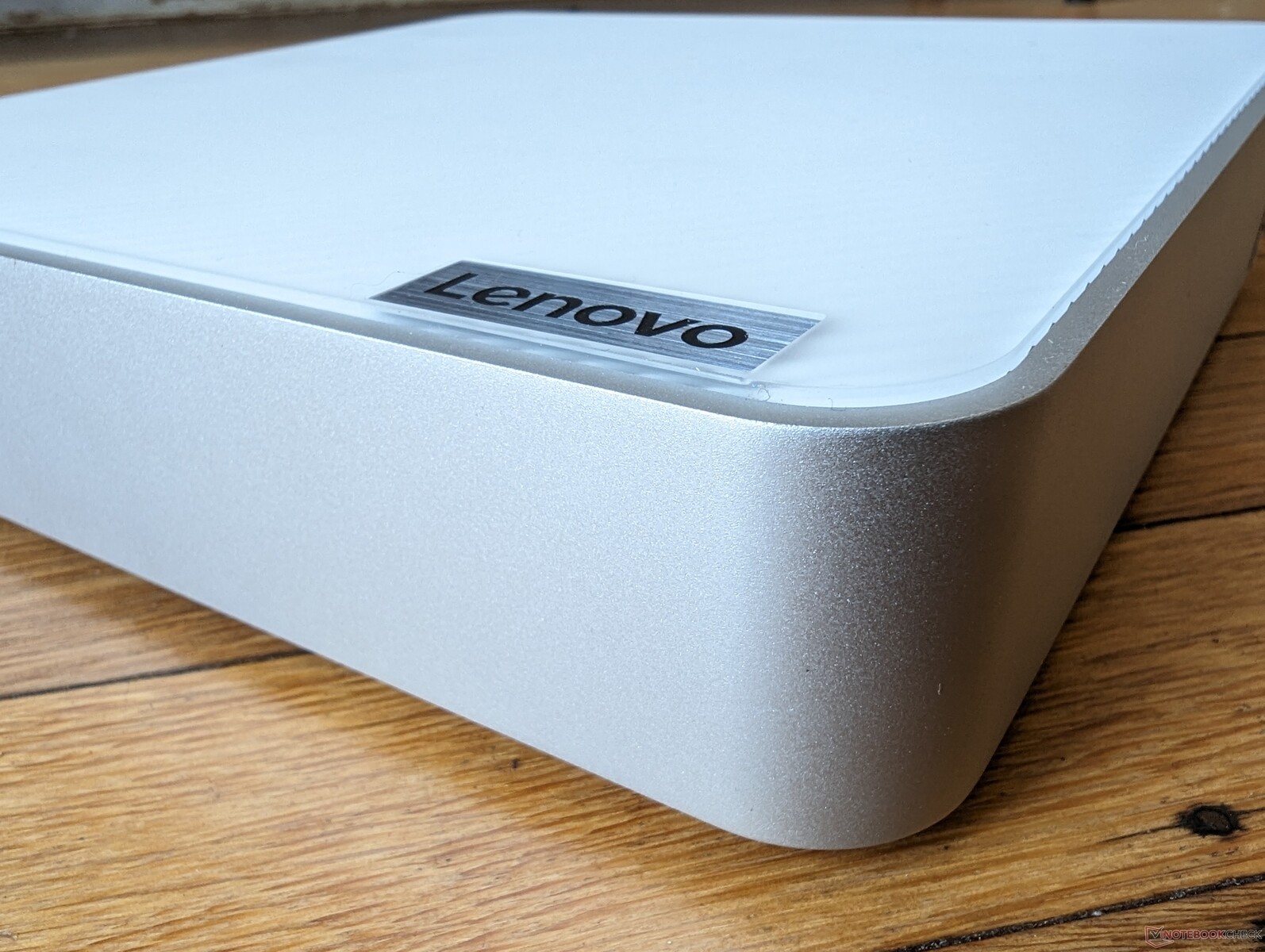

Gray metal sides with white plastic top and bottom

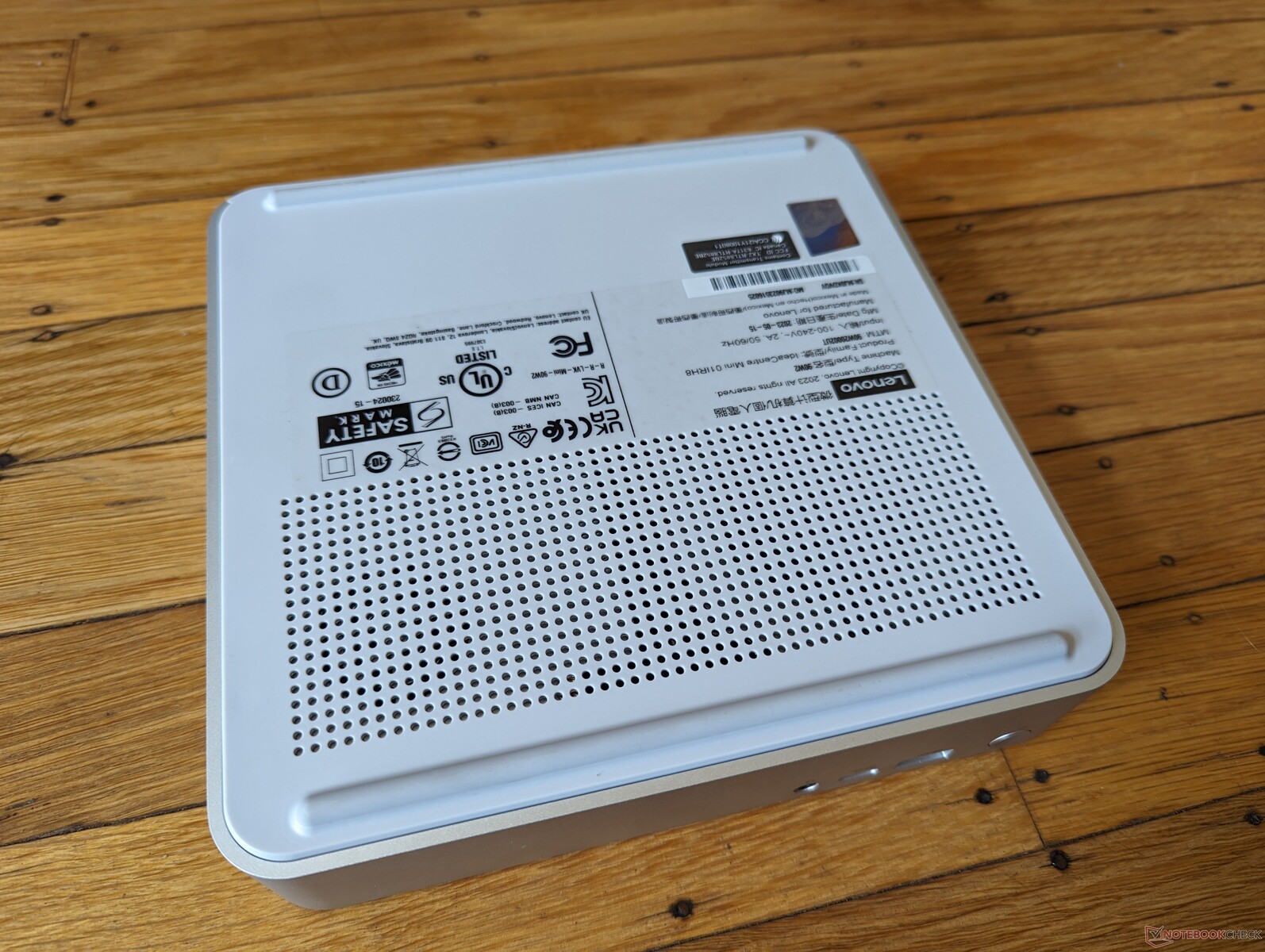

Fresh air enters from the bottom as there are no other intake vents

Note the button next to the HDMI port. Pushing it removes the top of the unit for servicing

Size Comparison

Lenovo IdeaCentre Mini 01IRH8 Beelink GTR7 7840HS Trigkey Speed S Geekom Mini IT11, i7-11390H Intel NUC 12 Pro Kit NUC12WSBi5 Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

Connectivity

Port options are excellent especially since the model integrates full-size DisplayPort, 2.5 Gbps RJ-45, and multiple USB-C ports for a total of three different video-out options. Note that only the rear USB-C port supports video as the front USB-C port is for data and charging only.

There is no Kensington Lock port as the IdeaCentre Mini is designed for homes and not public office spaces.

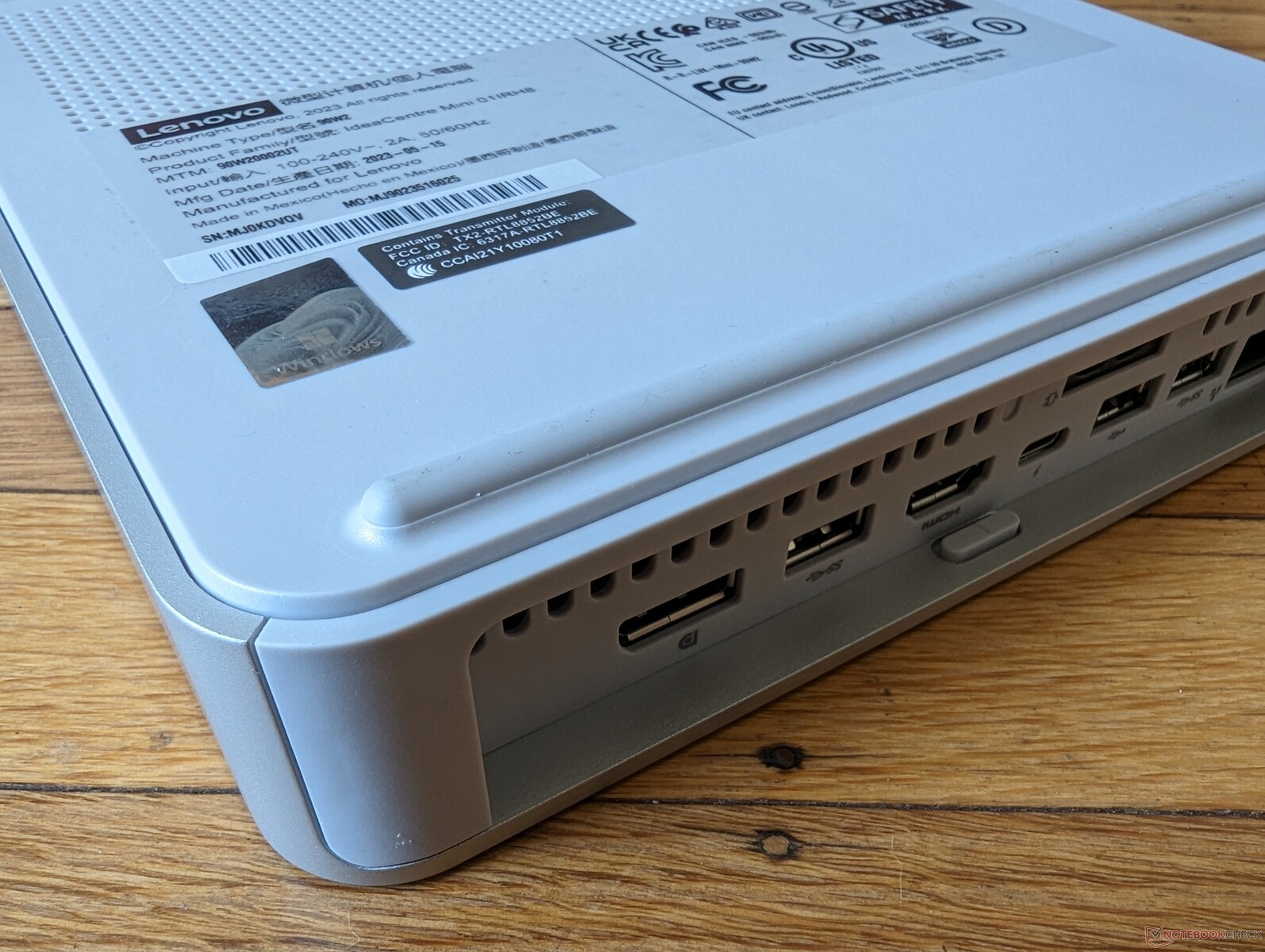

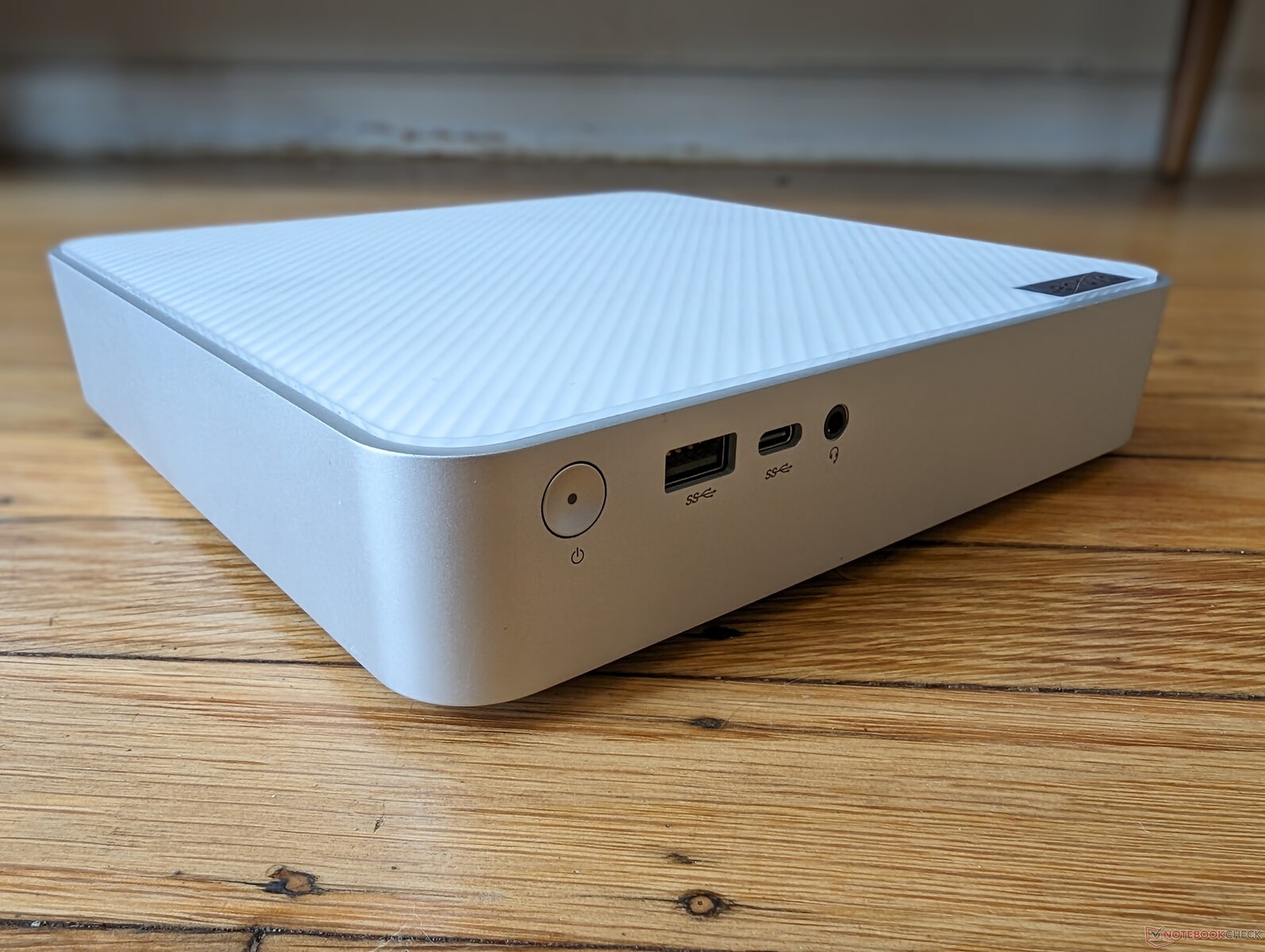

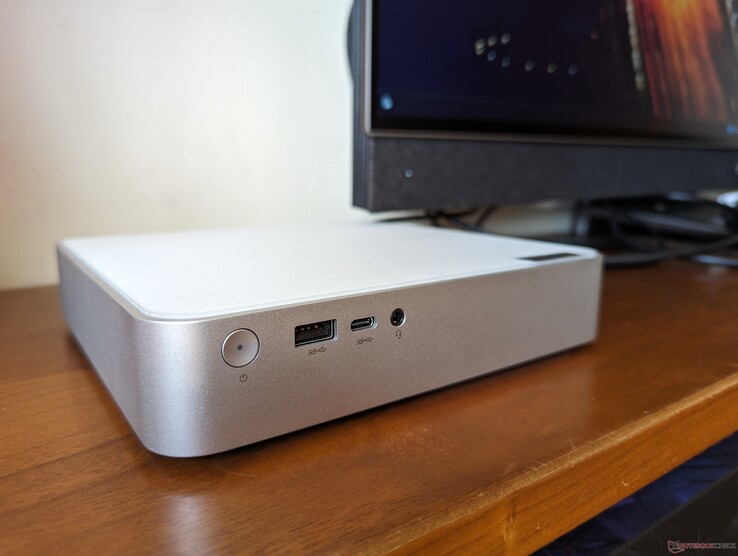

Front: USB-A 3.2 Gen. 2, USB-C 3.2 Gen. 2, 3.5 mm headset

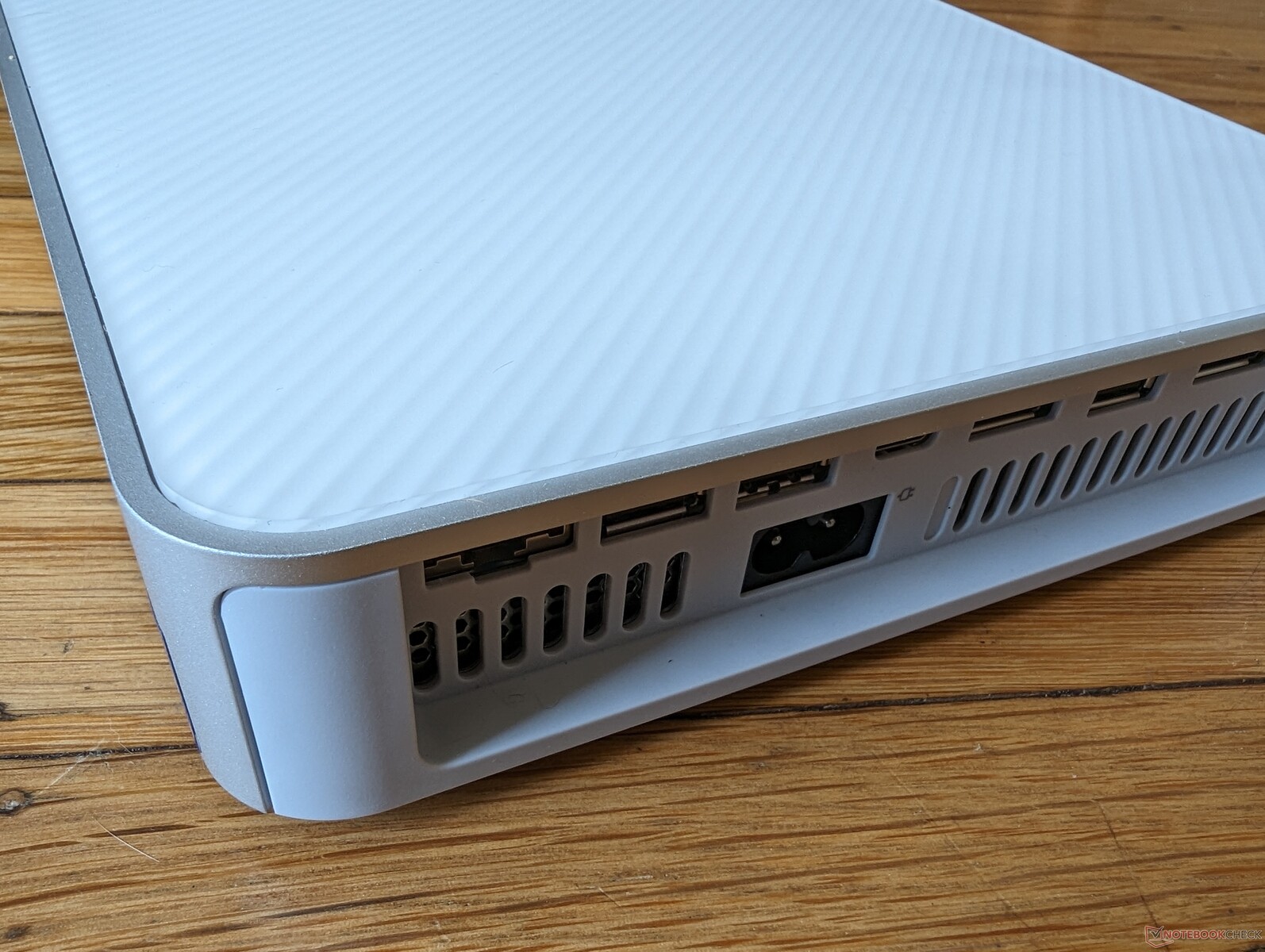

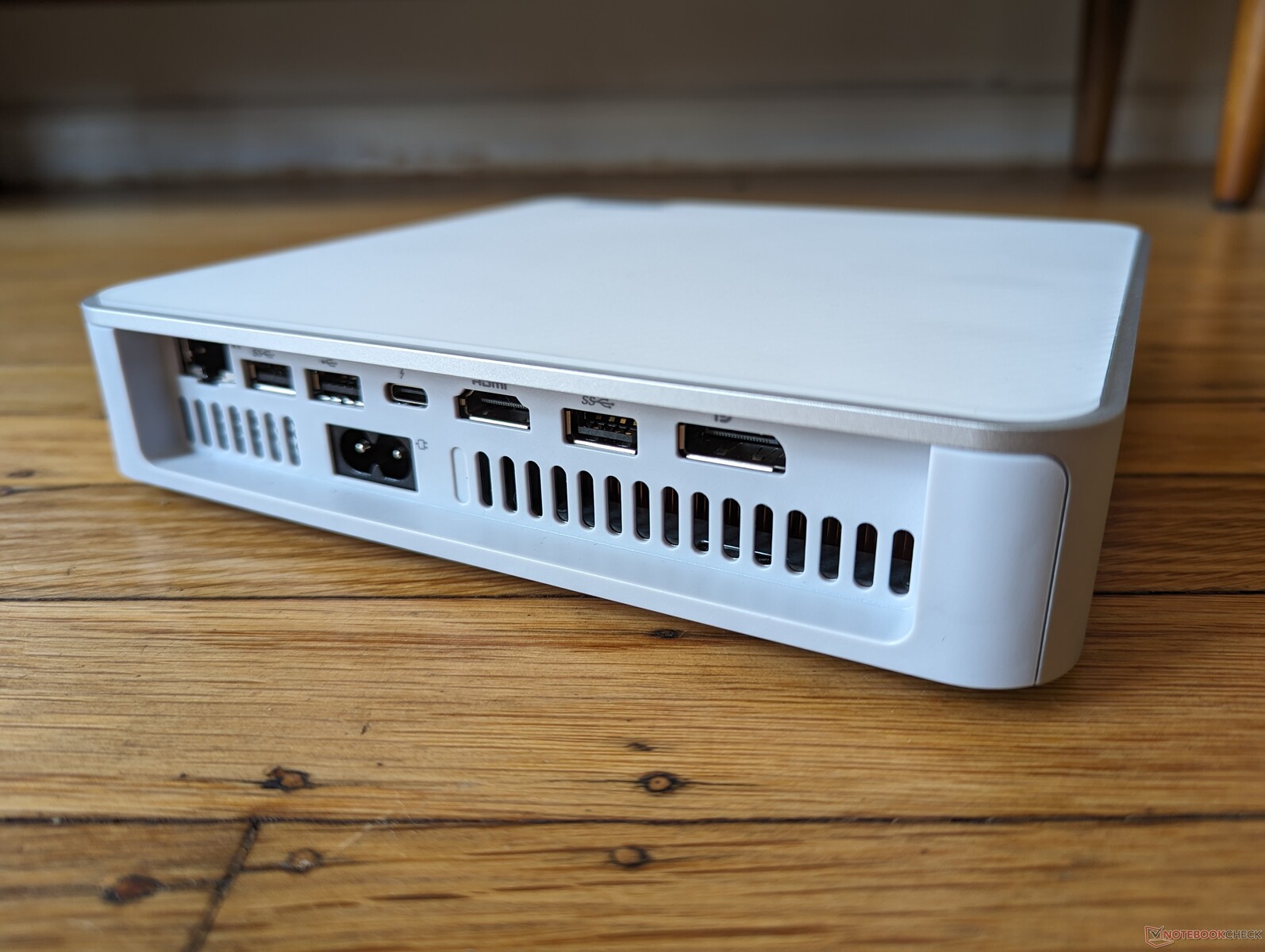

Rear: 2.5 Gbps RJ-45, USB-A 3.2 Gen. 2, USB-A 2.0, Power cord, HDMI 2.1 TMDS, USB-A 3.2 Gen. 2, DisplayPort 1.4

Communication

The model ships with a Realtek RTL8852BE for Wi-Fi 6 and Bluetooth 5.1 connectivity. It does not include Wi-Fi 6E to save on costs which is a bit of a shame as Wi-Fi 6E is most beneficial for HTPC game streaming purposes. Performance is nevertheless steady and reliable when paired to our Asus AXE11000 test router.

Networking
iperf3 transmit AXE11000
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +62%
Trigkey Speed S Intel Wi-Fi 6 AX201	1068 (610^min - 1322^max) MBit/s +33%
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1031 (961^min - 1109^max) MBit/s +28%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +5%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	803 (713^min - 847^max) MBit/s
iperf3 receive AXE11000
Beelink GTR7 7840HS Intel Wi-Fi 6 AX200	1211 (1112^min - 1284^max) MBit/s +51%
Trigkey Speed S Intel Wi-Fi 6 AX201	1163 (815^min - 1422^max) MBit/s +45%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +39%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +20%
Lenovo IdeaCentre Mini 01IRH8 Realtek RTL8852BE	801 (656^min - 887^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s

Lenovo IdeaCentre Mini 01IRH8; iperf3 transmit AXE11000; iperf 3.1.3: Ø803 (713-847)

Lenovo IdeaCentre Mini 01IRH8; iperf3 receive AXE11000; iperf 3.1.3: Ø801 (656-887)

Maintenance

Servicing requires a bit more work than an Intel NUC or Beelink GTR/GTI series due to the integrated PSU. To begin, users must first remove the top cover of the unit by pushing a button near the rear HDMI port. Once the top panel is off, users must then remove four Phillips screws that hold the bottom panel in place. Next, two more buttons must be pushed in order to remove the bottom cover of the chassis to expose the fan and integrated PSU.

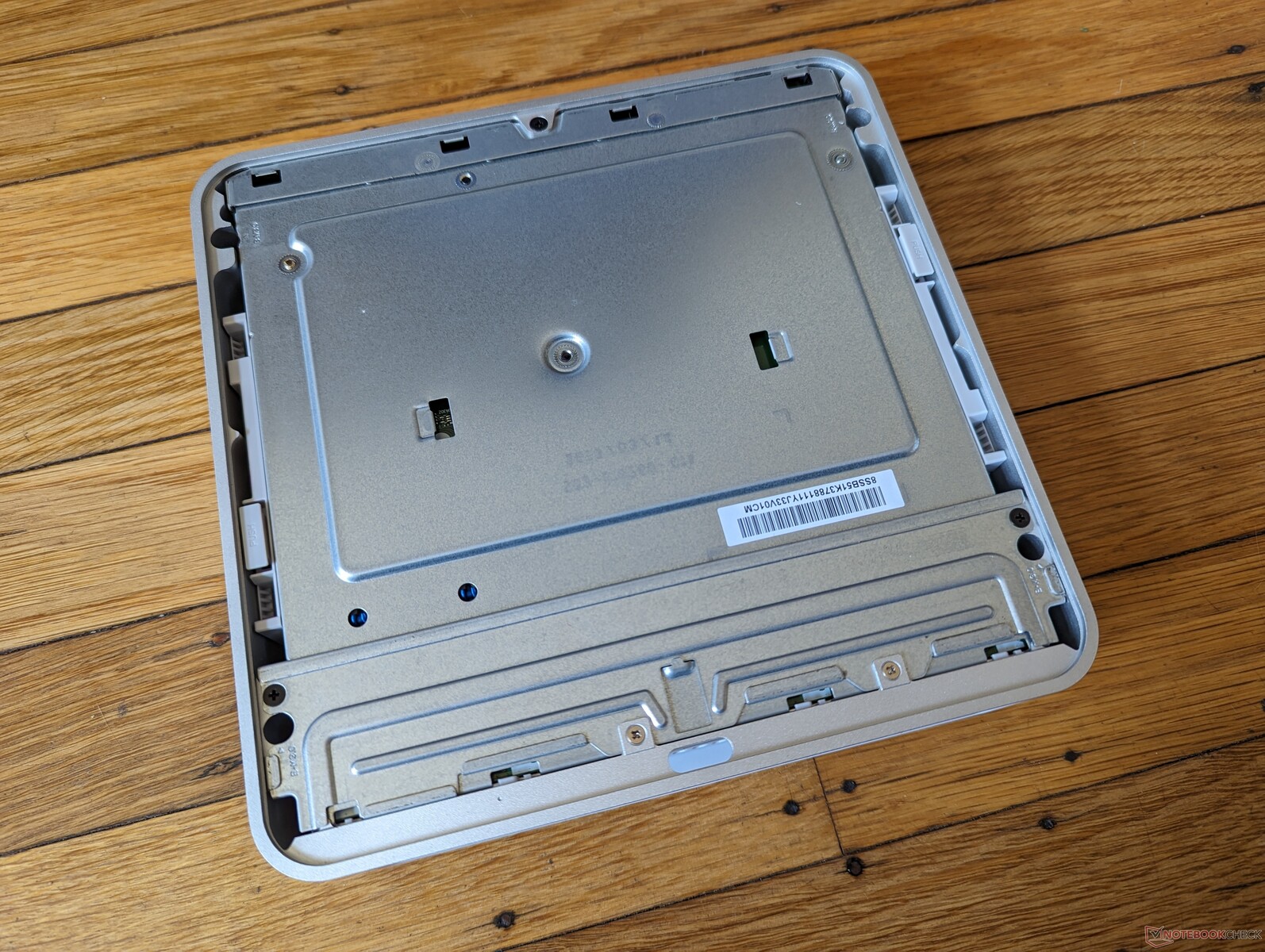

Removing the top panel reveals the metal rollcage which improves build quality at the cost of a heavier weight

To access the 2x SODIMM slots, 2x M.2 SSD slots and WLAN module, however, the fan and PSU must be removed as shown by the images below. This part is thankfully quite simple as the fan and PSU are secured by latches and not screws.

Thankfully, the online Lenovo manual here details the disassembly.

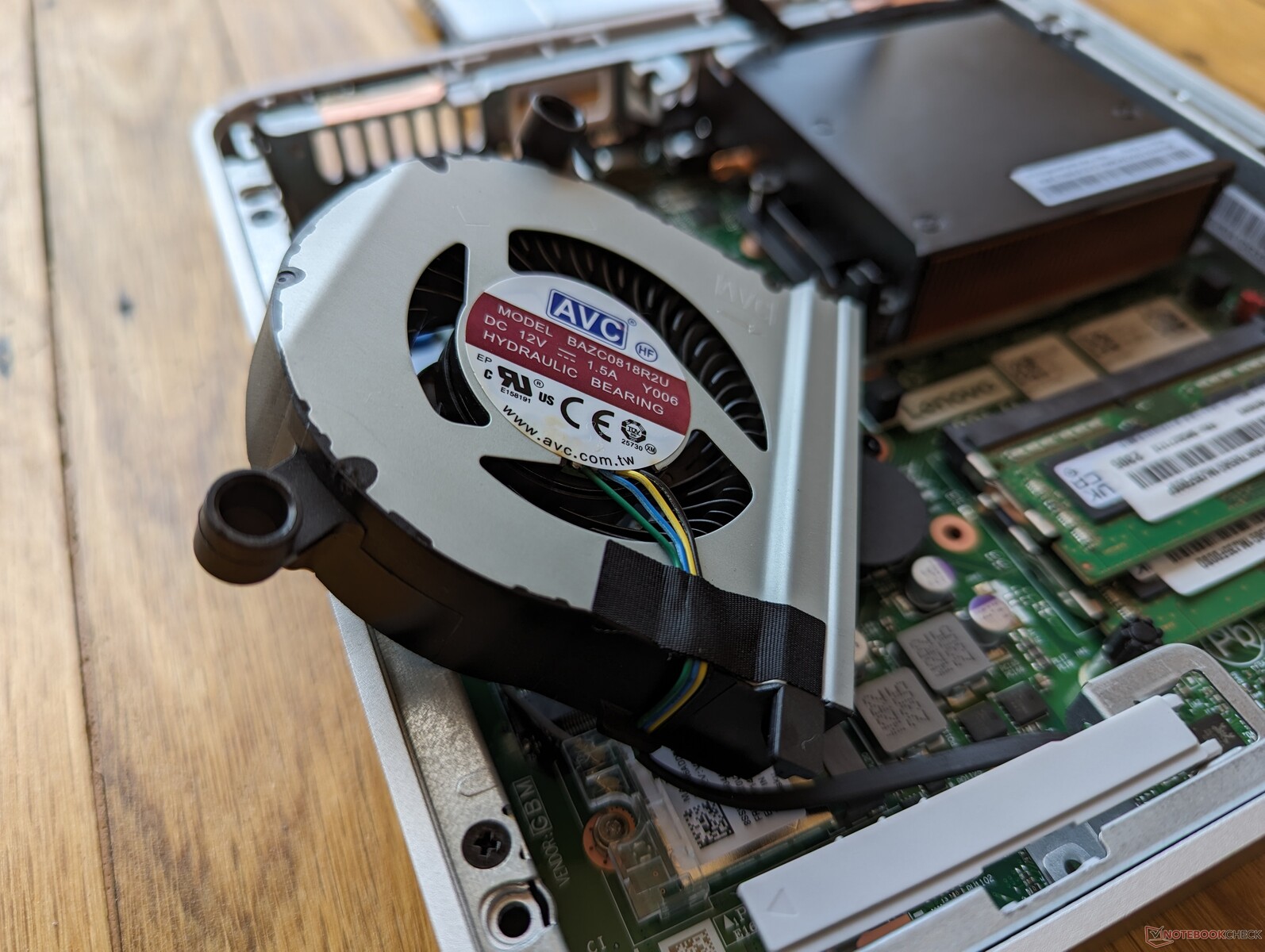

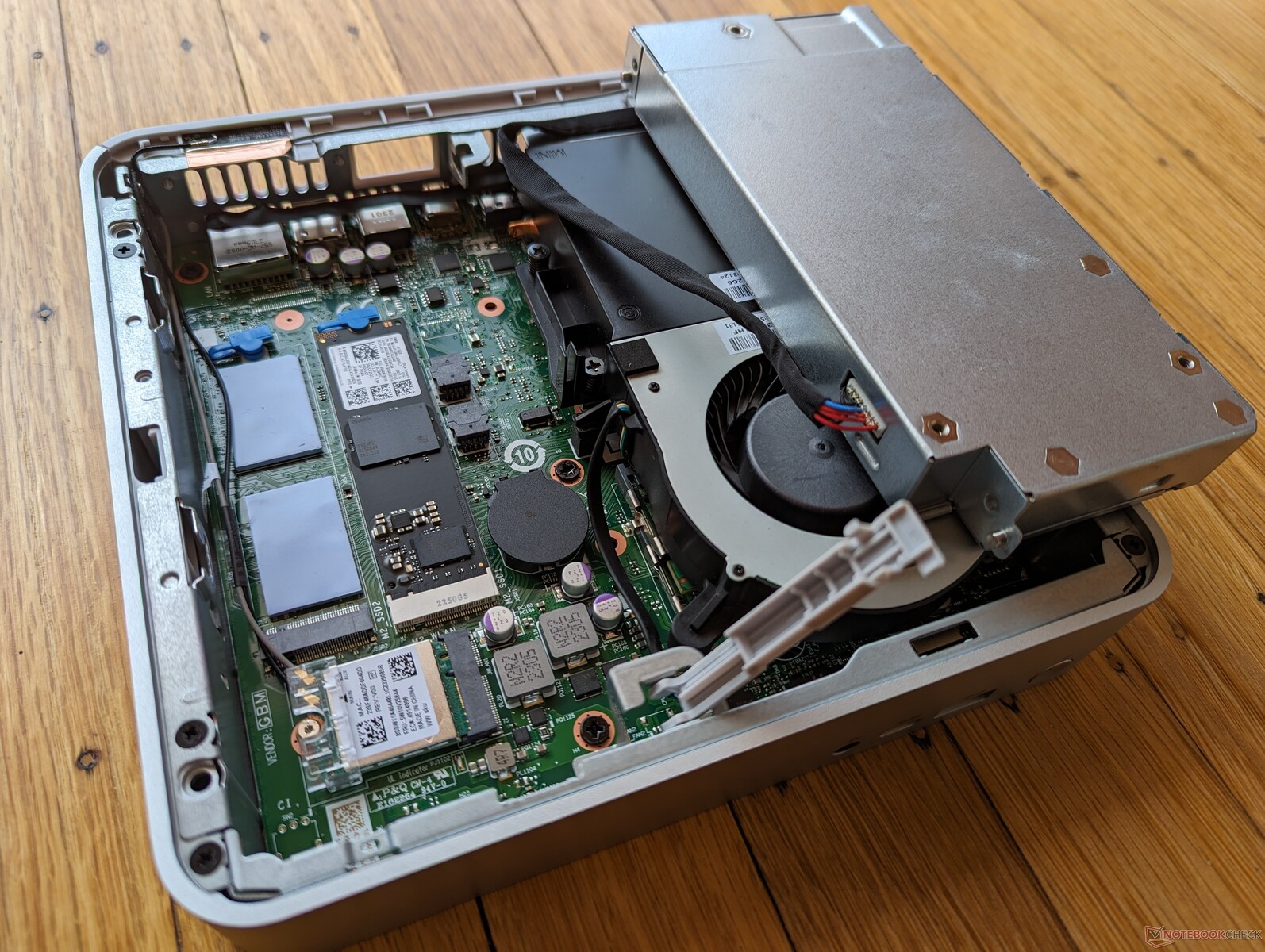

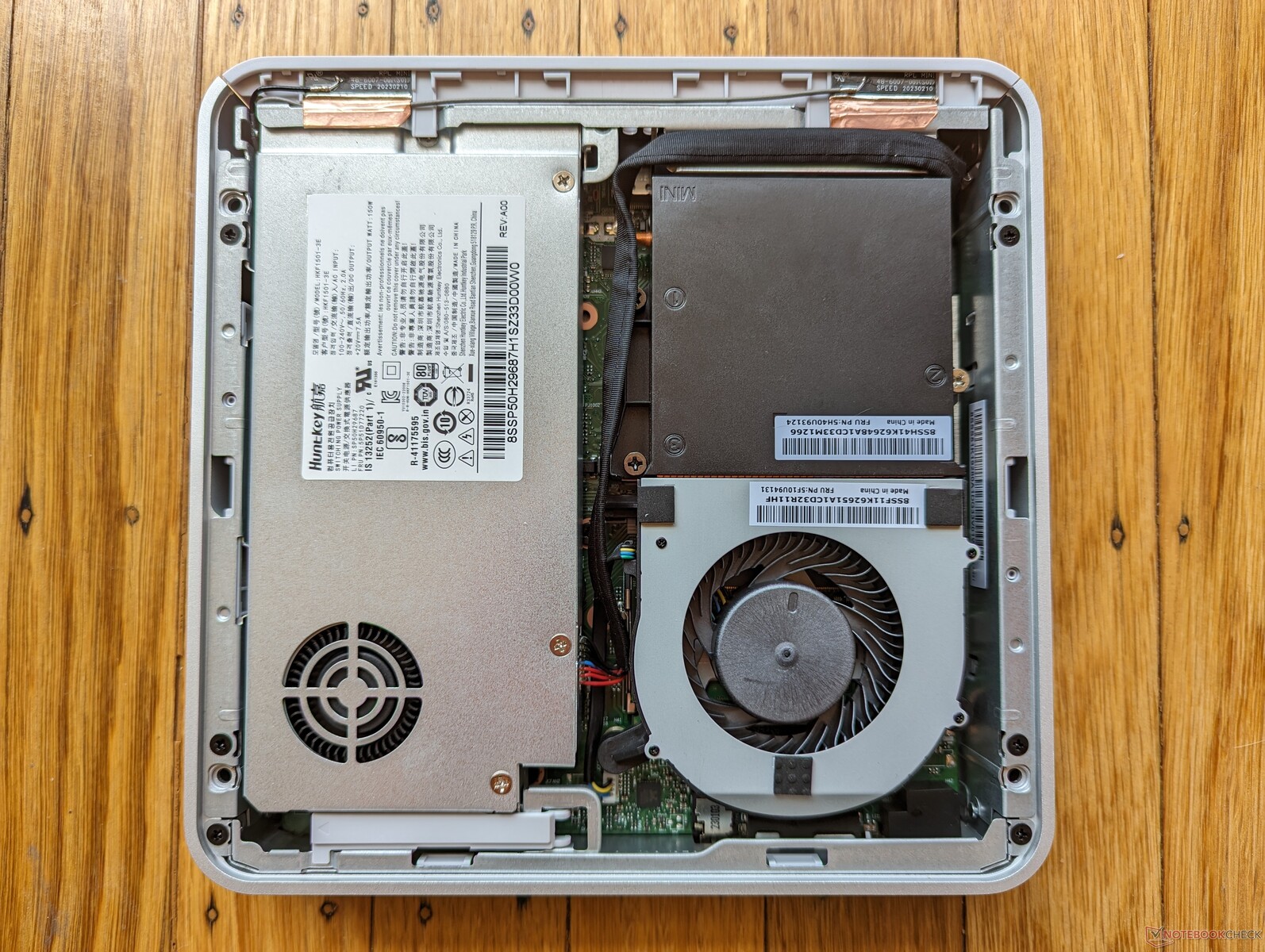

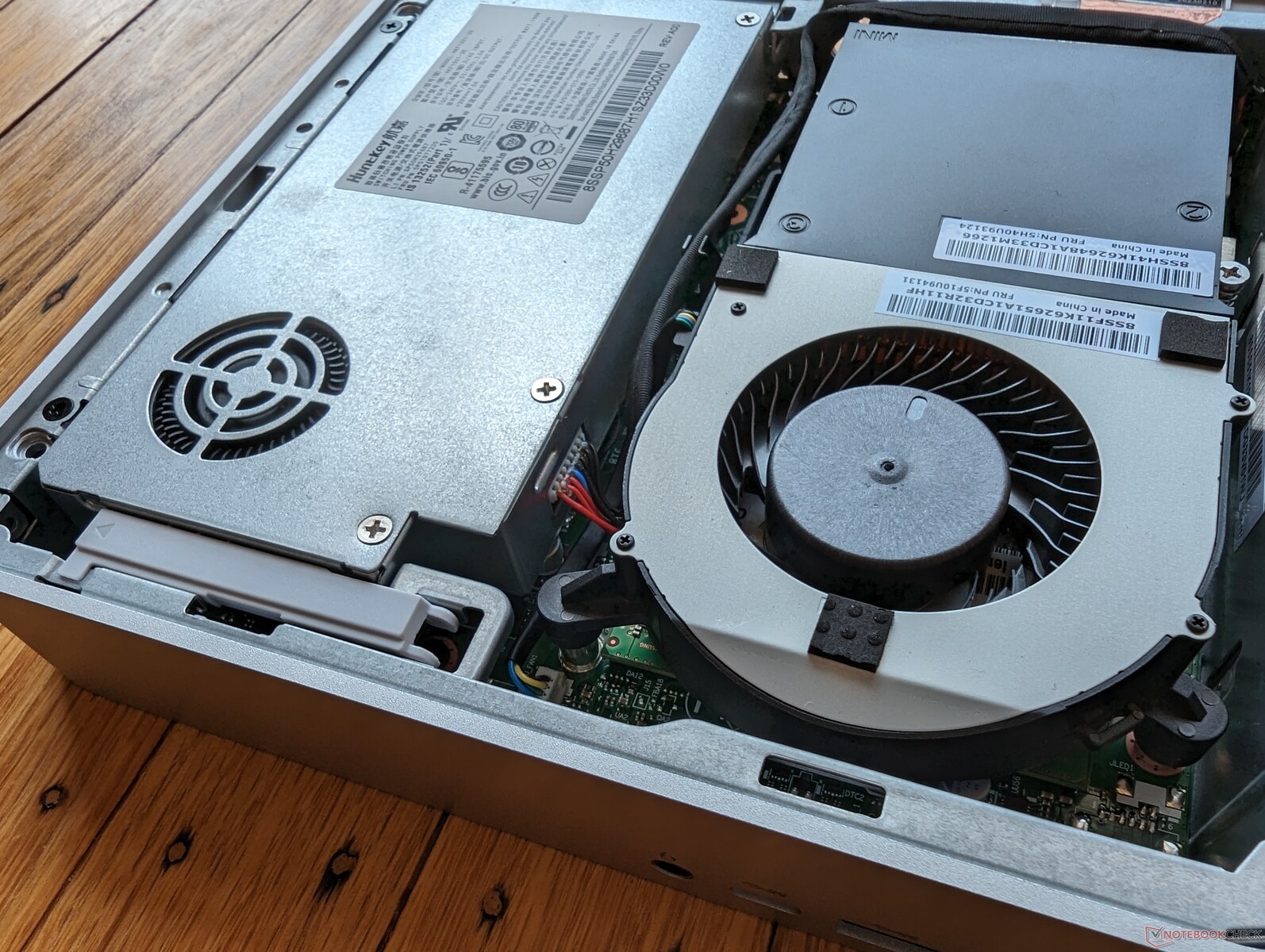

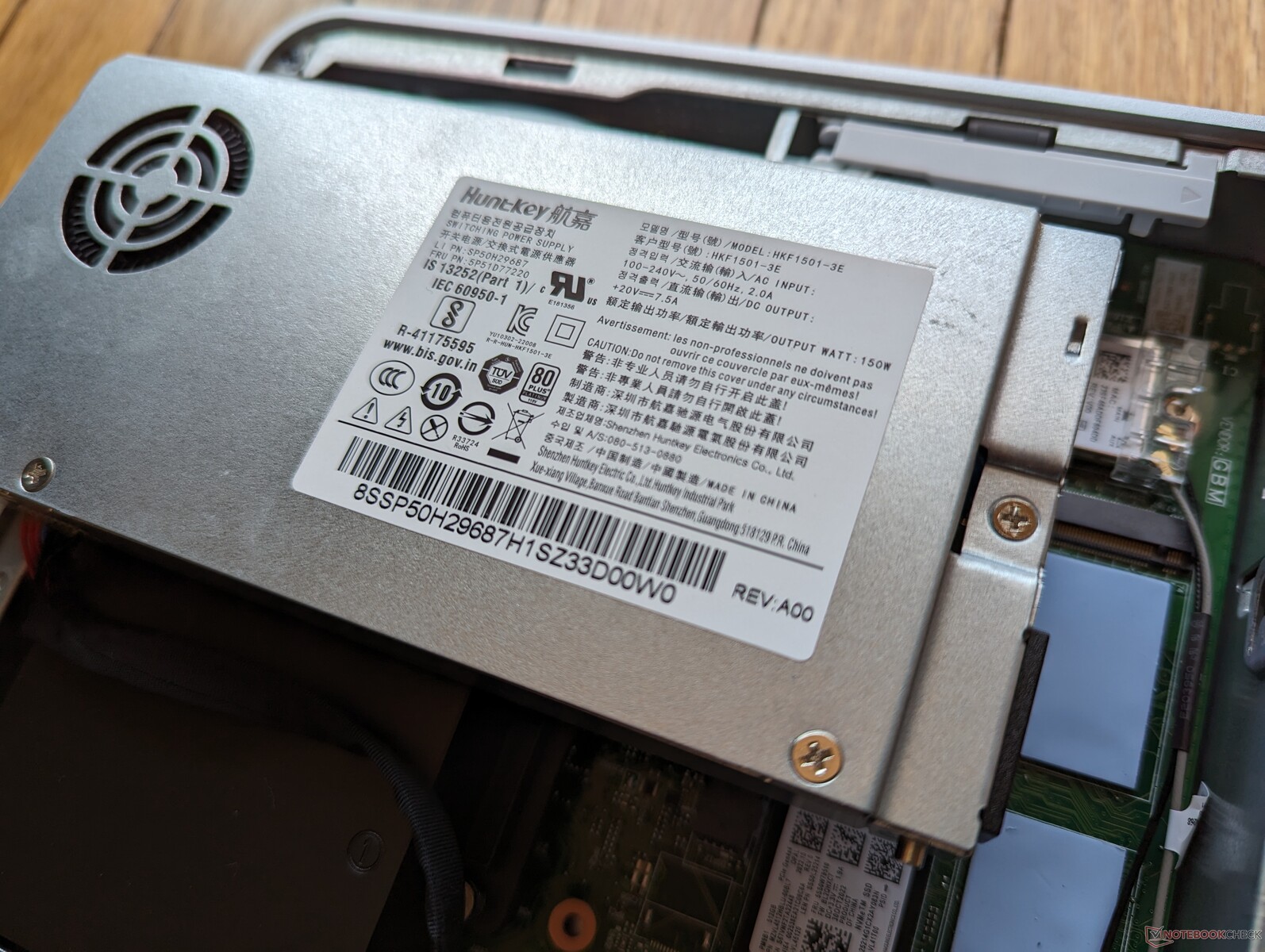

Removing the bottom panel reveals the integrated PSU and system fan

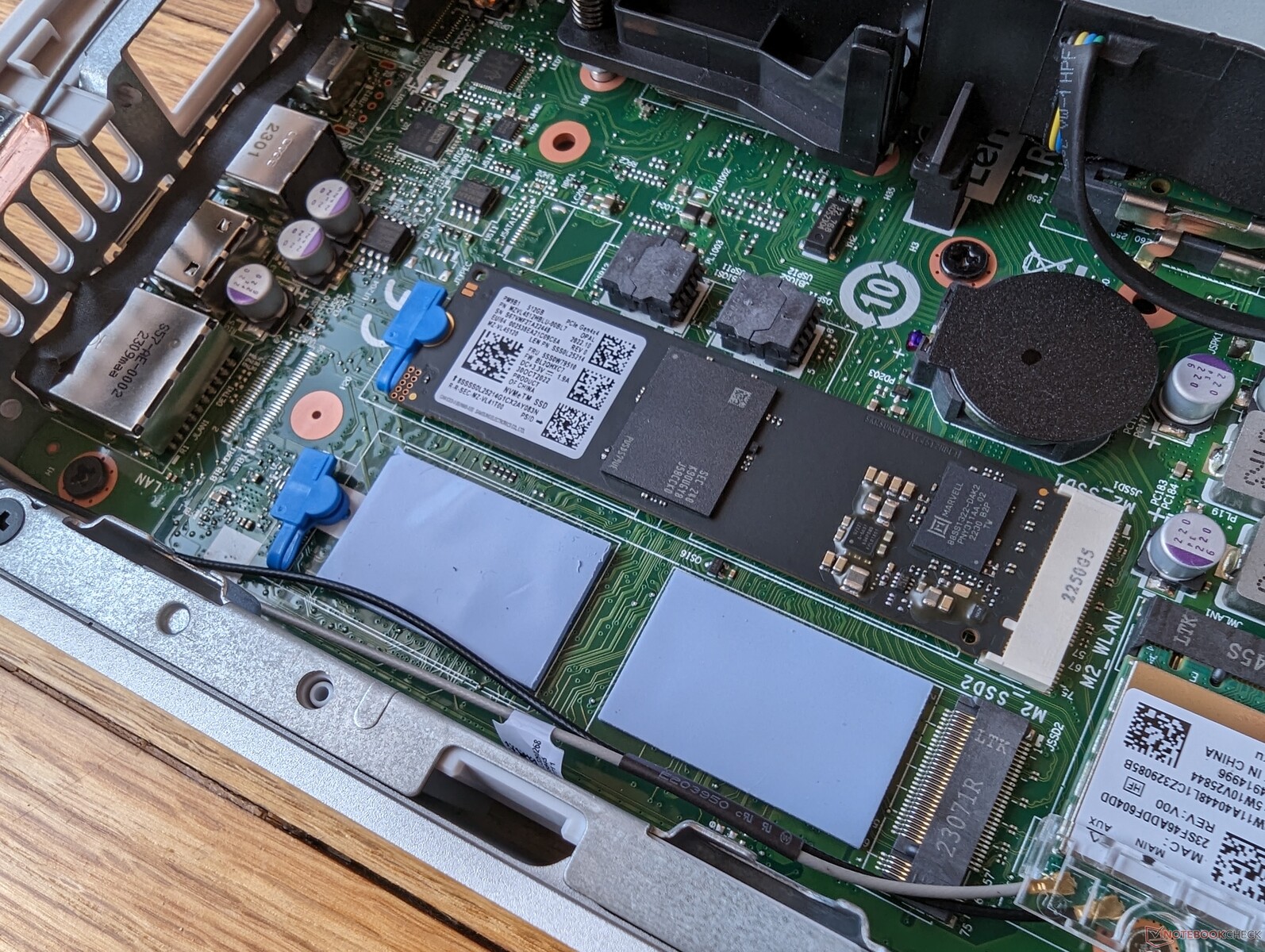

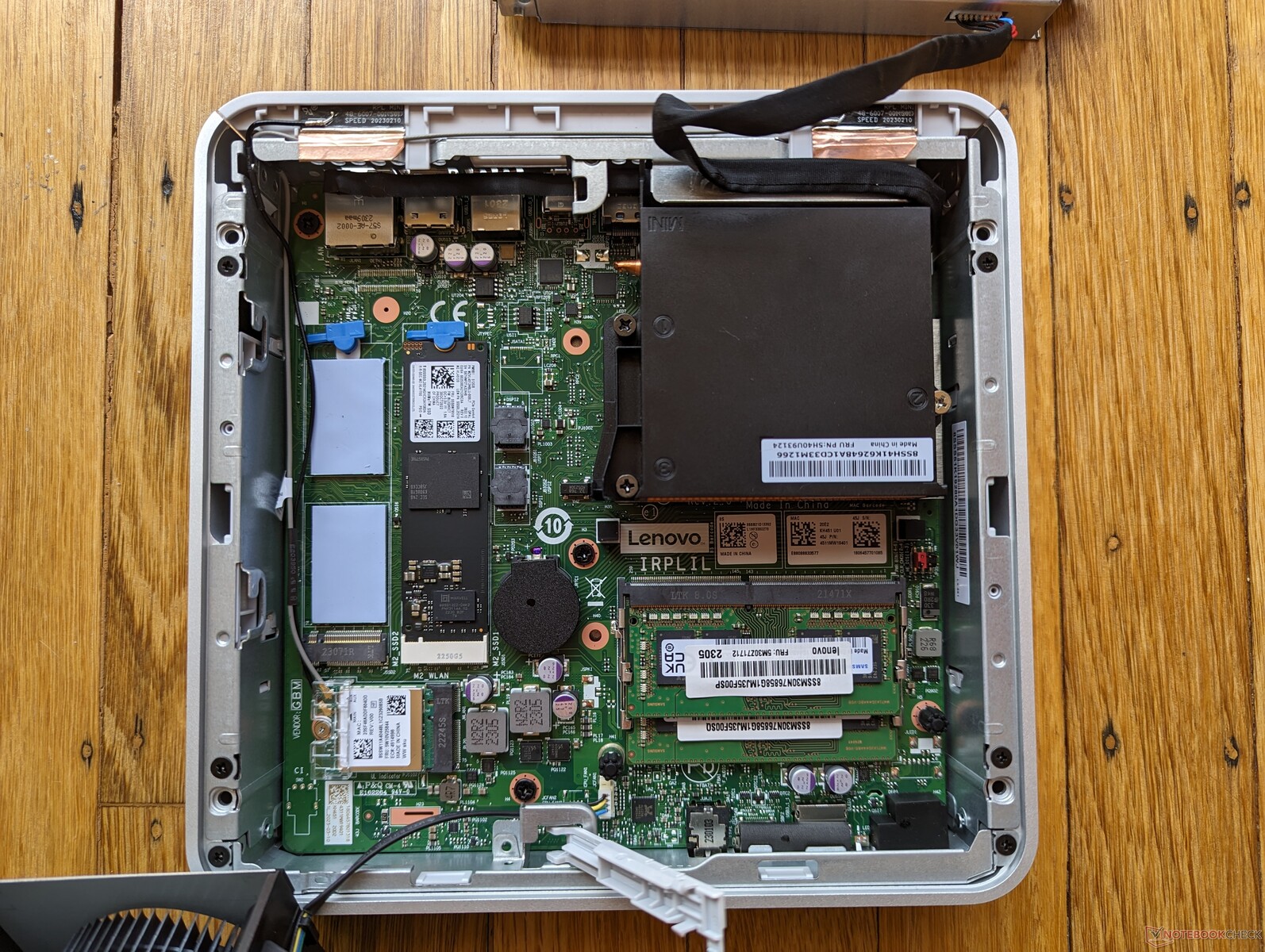

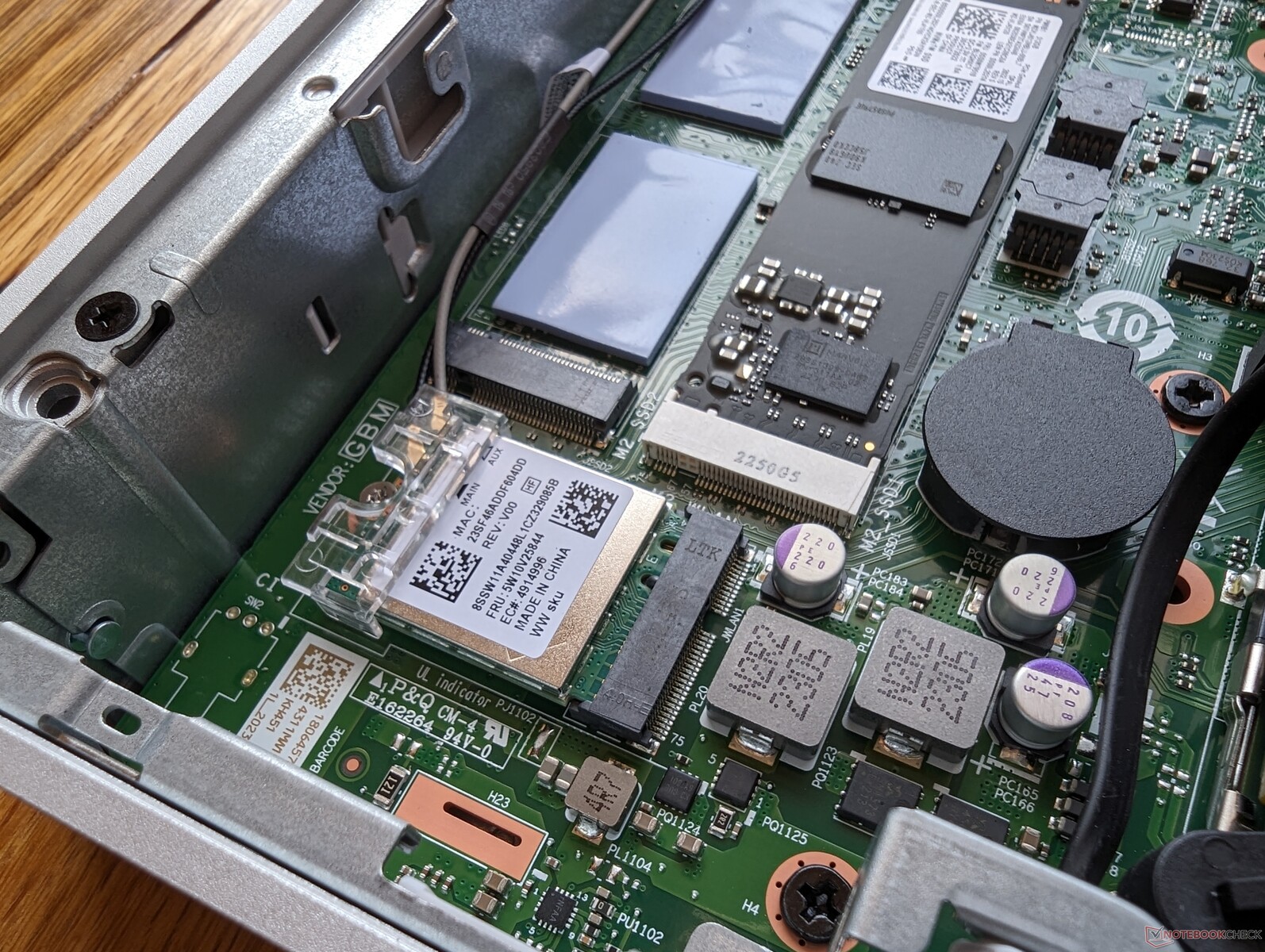

Removing the PSU and fan finally reveals the upgradeable components

Accessories And Warranty

The standard retail box includes the paperwork, standardized 2-prong AC power cord, and a removable vertical stand. The usual one-year limited manufacturer warranty applies.

Performance

Testing Conditions

We set the system to its default "Lenovo Balanced" mode prior to running the benchmarks below. There is no specific Performance mode via Windows or the Lenovo Vantage software. Users should still become familiar with Vantage nonetheless as it is the hub for Lenovo-specific updates and security settings.

Processor

CPU performance is in line with the average PC in our database equipped with the same Core i7-13700H if not slightly lower by a few percentage points due to the limited Turbo Boost of the Lenovo mini PC. When running CineBench R15 xT in a loop, for example, the initial score of 2240 points would drop by 16 percent over time whereas the 14-inch Acer Predator Triton can maintain faster clock rates over time with the same processor. Even so, the IdeaCentre Mini is still faster than most other mini PCs running on older 12th gen Core-H or AMD Zen 3+ CPUs. Users would have to consider mini PCs with Zen 4 options like the Beelink GTR7 or other Core-HX options for something appreciably faster than our Lenovo.

Downgrading to the Core i5-13500H configuration is expected to entail a performance deficit of up to 10 percent based on our time with the Minisforum Venus Series NPB5.

Cinebench R15 Multi Loop

Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H: Ø1926 (1862.02-2240.14)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P: Ø1681 (1638.81-2006.82)

Beelink GTR7 7840HS AMD Ryzen 7 7840HS: Ø2669 (2587.99-2689.08)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H: Ø946 (931.81-953.22)

Trigkey Speed S Intel Core i5-11320H: Ø854 (839.91-860.88)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	86.1 pt
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	82.9 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	78.7 pt
Average Intel Core i7-13700H	78.3 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	74.1 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	72.4 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	69.2 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	68.1 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	62.2 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	58.8 pt
Blackview MP200 Intel Core i5-11400H	52.4 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	49 pt
Intel NUC11PAQi7 ^-1! Intel Core i7-1165G7	47.3 pt
Trigkey Speed S Intel Core i5-11320H	44.9 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	43.5 pt

Cinebench R23 / Multi Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	17214 (17017.5^min - 17213.9^max) Points +19%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +17%
Average Intel Core i7-13700H (5890 - 20034, n=28)	15266 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points -6%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points -14%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	11626 (11015.5^min - 11625.6^max) Points -20%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	11171 Points -23%
Blackview MP200 Intel Core i5-11400H	8451 Points -42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points -42%
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -59%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -60%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points -64%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points -4%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	1812 Points -5%
Average Intel Core i7-13700H (1323 - 1914, n=28)	1797 Points -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points -16%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points -18%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1537 Points -19%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1506 Points -21%
Trigkey Speed S Intel Core i5-11320H	1465 Points -23%
Blackview MP200 Intel Core i5-11400H	1462 Points -23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points -24%

Cinebench R20 / CPU (Multi Core)
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6744 Points +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +14%
Average Intel Core i7-13700H (2322 - 7674, n=28)	5945 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points -12%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -19%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	4524 Points -22%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	4386 Points -24%
Blackview MP200 Intel Core i5-11400H	3283 Points -43%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points -44%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points -54%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -61%
Trigkey Speed S Intel Core i5-11320H	2216 Points -62%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points -65%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points -1%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	705 Points -2%
Average Intel Core i7-13700H (508 - 741, n=28)	693 Points -4%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points -14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	598 Points -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	592 Points -18%
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points -19%
Trigkey Speed S Intel Core i5-11320H	567 Points -21%
Blackview MP200 Intel Core i5-11400H	560 Points -22%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points -23%

Cinebench R15 / CPU Multi 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2689 (2587.99^min - 2689.08^max) Points +20%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +19%
Average Intel Core i7-13700H (905 - 2982, n=28)	2455 Points +10%
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points -9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -11%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1953 (1862.98^min - 1952.55^max) Points -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1837 Points -18%
Blackview MP200 Intel Core i5-11400H	1378 Points -38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points -41%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points -56%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -57%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -62%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points -65%

Cinebench R15 / CPU Single 64Bit
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	286 Points +10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points
Average Intel Core i7-13700H (213 - 278, n=28)	260 Points 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points -2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points -4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	247 Points -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points -6%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	243 Points -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points -11%
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points -12%
Blackview MP200 Intel Core i5-11400H	218 Points -16%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points -17%
Trigkey Speed S Intel Core i5-11320H	215 Points -17%

Blender / v2.79 BMW27 CPU
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * -173%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -151%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -138%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * -117%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * -76%
Blackview MP200 Intel Core i5-11400H	373 Seconds * -73%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	282 Seconds * -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -24%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	263 Seconds * -22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * -20%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * -20%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	229 Seconds * -6%
Average Intel Core i7-13700H (169 - 555, n=28)	229 Seconds * -6%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds *
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +13%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +28%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	65706 MIPS +20%
Average Intel Core i7-13700H (27322 - 76344, n=28)	61025 MIPS +11%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	57693 MIPS +5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS -4%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	52046 MIPS -5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS -34%
Blackview MP200 Intel Core i5-11400H	34660 MIPS -37%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -53%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -55%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS -57%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	6749 MIPS +12%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS -2%
Average Intel Core i7-13700H (4825 - 6238, n=28)	5858 MIPS -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	5809 MIPS -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS -5%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	5433 MIPS -10%
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS -10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS -11%
Blackview MP200 Intel Core i5-11400H	5343 MIPS -11%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS -13%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -15%

Geekbench 5.5 / Multi-Core
Average Intel Core i7-13700H (6165 - 14215, n=28)	11777 Points +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +12%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +11%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	10752 Points +4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	9357 Points -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points -10%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points -15%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	7986 Points -23%
Blackview MP200 Intel Core i5-11400H	6006 Points -42%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points -44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -51%
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -52%
Trigkey Speed S Intel Core i5-11320H	4927 Points -52%

Geekbench 5.5 / Single-Core
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	2010 Points +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -1%
Average Intel Core i7-13700H (1362 - 1919, n=28)	1792 Points -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points -4%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points -7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points -9%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points -14%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1580 Points -14%
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points -15%
Trigkey Speed S Intel Core i5-11320H	1523 Points -17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points -18%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1499 Points -19%
Blackview MP200 Intel Core i5-11400H	1465 Points -20%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +18%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps
Average Intel Core i7-13700H (6.72 - 21.2, n=28)	16.7 fps -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps -10%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	15.1 fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -21%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	13.3 fps -24%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	11.7 fps -34%
Blackview MP200 Intel Core i5-11400H	10.2 fps -42%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps -45%
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -57%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps -63%

LibreOffice / 20 Documents To PDF
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	60.2 s * -60%
Blackview MP200 Intel Core i5-11400H	53 s * -41%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * -30%
Average Intel Core i7-13700H (31.3 - 62.4, n=28)	48.2 s * -28%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -23%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * -23%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	44.3 s * -18%
Trigkey Speed S Intel Core i5-11320H	44 s * -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * -17%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * -12%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	39 s * -4%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s *

R Benchmark 2.5 / Overall mean
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * -33%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -31%
Blackview MP200 Intel Core i5-11400H	0.581 sec * -29%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * -23%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * -20%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	0.525 sec * -16%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	0.512 sec * -13%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * -8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * -7%
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * -5%
Average Intel Core i7-13700H (0.4308 - 0.607, n=28)	0.4651 sec * -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec *
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -0%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +7%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS	0.4184 sec * +7%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

2240 Points

Cinebench R15 OpenGL 64Bit

102 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

260 Points

Help

... in comparison

Performance Rating
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	100 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	58.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	52 pt
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	42.1 pt
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	35.2 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	33.5 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	27538 KRay/s +107%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	13281 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	6976 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -50%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6011 KRay/s -55%

AIDA64 / FPU Julia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	116903 Points +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	69808 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -18%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	30000 Points -57%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27835 Points -60%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -60%

AIDA64 / CPU SHA3
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	5096 MB/s +60%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	3190 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	2019 MB/s -37%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	1979 MB/s -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -42%

AIDA64 / CPU Queen
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	117764 Points +16%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	101624 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -15%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	75592 Points -26%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -51%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	48734 Points -52%

AIDA64 / FPU SinJulia
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	15525 Points +75%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	8851 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -18%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6540 Points -26%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	4826 Points -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -49%

AIDA64 / FPU Mandel
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	62378 Points +90%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	32781 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -15%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	17951 Points -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -49%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	16325 Points -50%

AIDA64 / CPU AES
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	177158 MB/s +169%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	68595 MB/s +4%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	67922 MB/s +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	65953 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -19%

AIDA64 / CPU ZLib
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	1103 MB/s +15%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	956 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	812 MB/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -61%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	362 MB/s -62%

AIDA64 / FP64 Ray-Trace
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	14722 KRay/s +108%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	7090 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	3761 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -48%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	3442 KRay/s -51%

AIDA64 / CPU PhotoWorxx
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	40726 MPixel/s +108%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +50%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27809 MPixel/s +42%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	25970 MPixel/s +33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	19552 MPixel/s

System Performance

PCMark scores are higher than many other mini PCs powered by 12th gen Intel CPUs or Core-P series CPUs like the Intel NUC 13 Pro or Beelink GTi11. Mini PCs with newer AMD CPUs like the Beelink GTR7 can handily outperform our Lenovo in the Productivity and Digital Content Creation subtests due to the slower multi-thread CPU performance and graphics performance of our IdeaCentre Mini.

PCMark 10 / Score
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	9118 Points +46%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7453 Points +19%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	6247 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (5531 - 6247, n=4)	5914 Points -5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5331 Points -15%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5302 Points -15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -21%

PCMark 10 / Essentials
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	11598 Points +2%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	11401 Points
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	11155 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points -3%
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (9961 - 11401, n=4)	10669 Points -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	10652 Points -7%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	10558 Points -7%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -15%

PCMark 10 / Productivity
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	10988 Points +43%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10702 Points +39%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7691 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (7072 - 7691, n=4)	7394 Points -4%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	7058 Points -8%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	6963 Points -9%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -14%

PCMark 10 / Digital Content Creation
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	16145 Points +114%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9409 Points +25%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +1%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	7547 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (6413 - 7727, n=4)	7123 Points -6%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5502 Points -27%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5469 Points -28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4916 Points -35%

CrossMark / Overall
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	2263 Points +31%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1723 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1548 - 1868, n=4)	1705 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -7%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1566 Points -9%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -17%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1371 Points -20%

CrossMark / Productivity
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	2059 Points +23%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1677 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1500 - 1787, n=4)	1658 Points -1%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1559 Points -7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -8%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -9%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1456 Points -13%

CrossMark / Creativity
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	2625 Points +40%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1872 Points
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1620 - 2009, n=4)	1801 Points -4%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -6%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1556 Points -17%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -27%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1255 Points -33%

CrossMark / Responsiveness
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	1929 Points +32%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1620 Points +11%
Average Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs (1456 - 1715, n=4)	1580 Points +9%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1494 Points +3%
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	1456 Points
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -10%

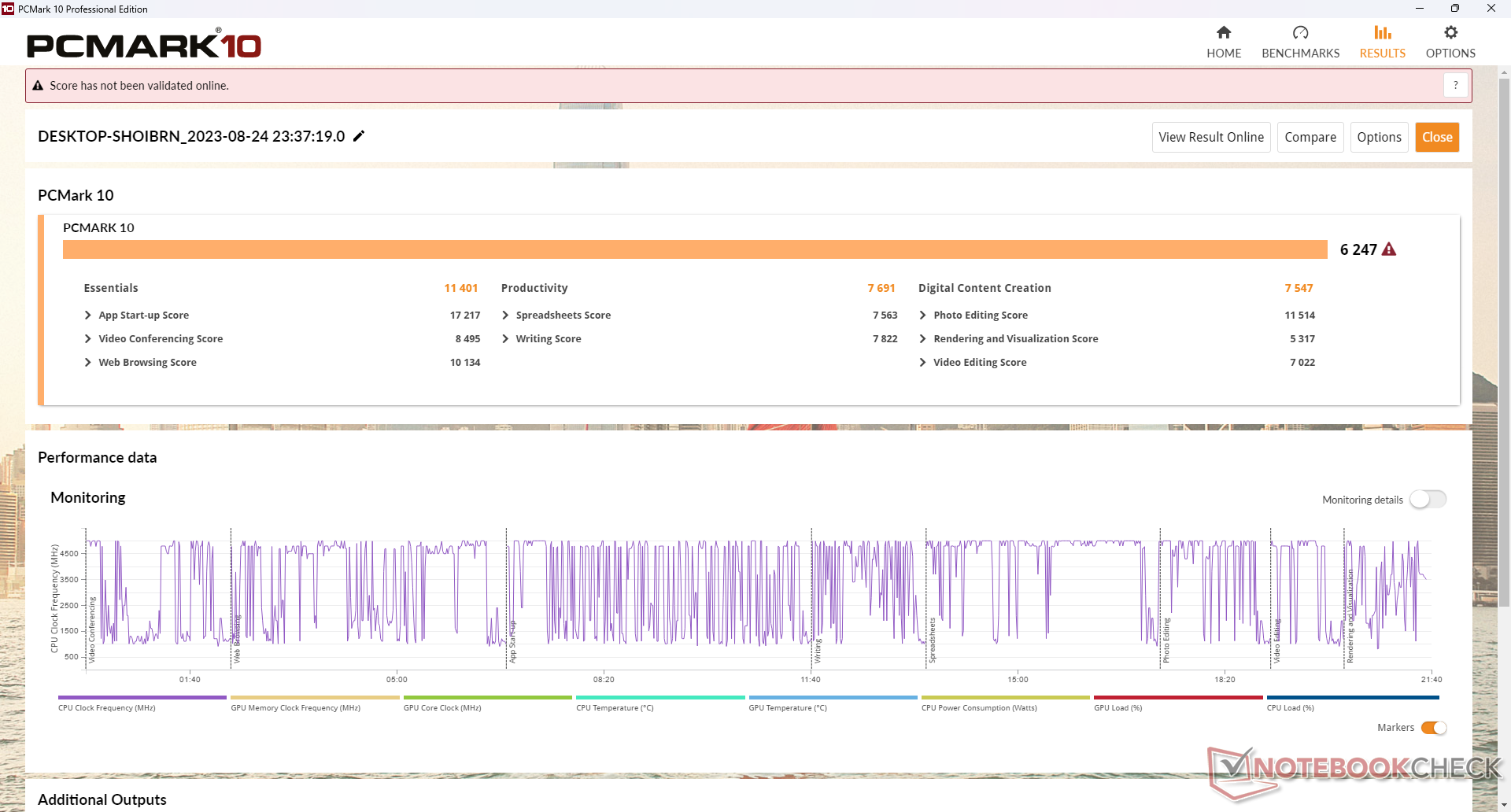

PCMark 10 Score		6247 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	69199 MB/s +73%
Average Intel Core i7-13700H (24334 - 78081, n=28)	62480 MB/s +56%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s +11%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	43747 MB/s +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s +5%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	41310 MB/s +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	40018 MB/s

AIDA64 / Memory Read
Average Intel Core i7-13700H (23681 - 79656, n=28)	65892 MB/s +48%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	61838 MB/s +39%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	47347 MB/s +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s +6%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46709 MB/s +5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	44583 MB/s

AIDA64 / Memory Write
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	87226 MB/s +104%
Average Intel Core i7-13700H (22986 - 99898, n=28)	68690 MB/s +61%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s +10%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46778 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	46768 MB/s +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	42710 MB/s

AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -17%
Average Intel Core i7-13700H (82.4 - 136.8, n=28)	94.1 ns * -14%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	90.3 ns * -10%
Beelink GTR7 7840HS AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Iris Xe G7 96EUs	82.4 ns *
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	77.6 ns * +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +20%

* ... smaller is better

DPC Latency

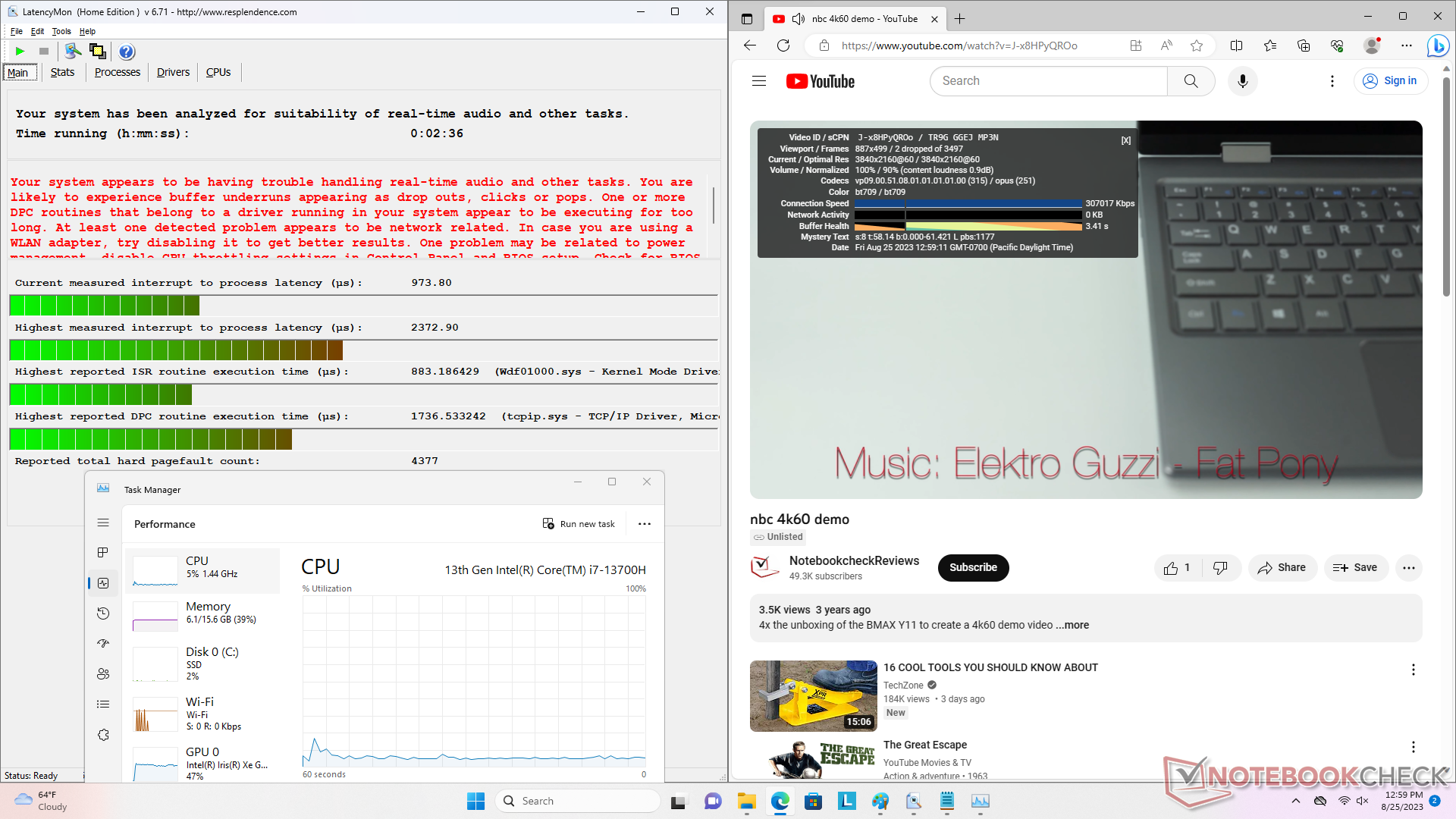

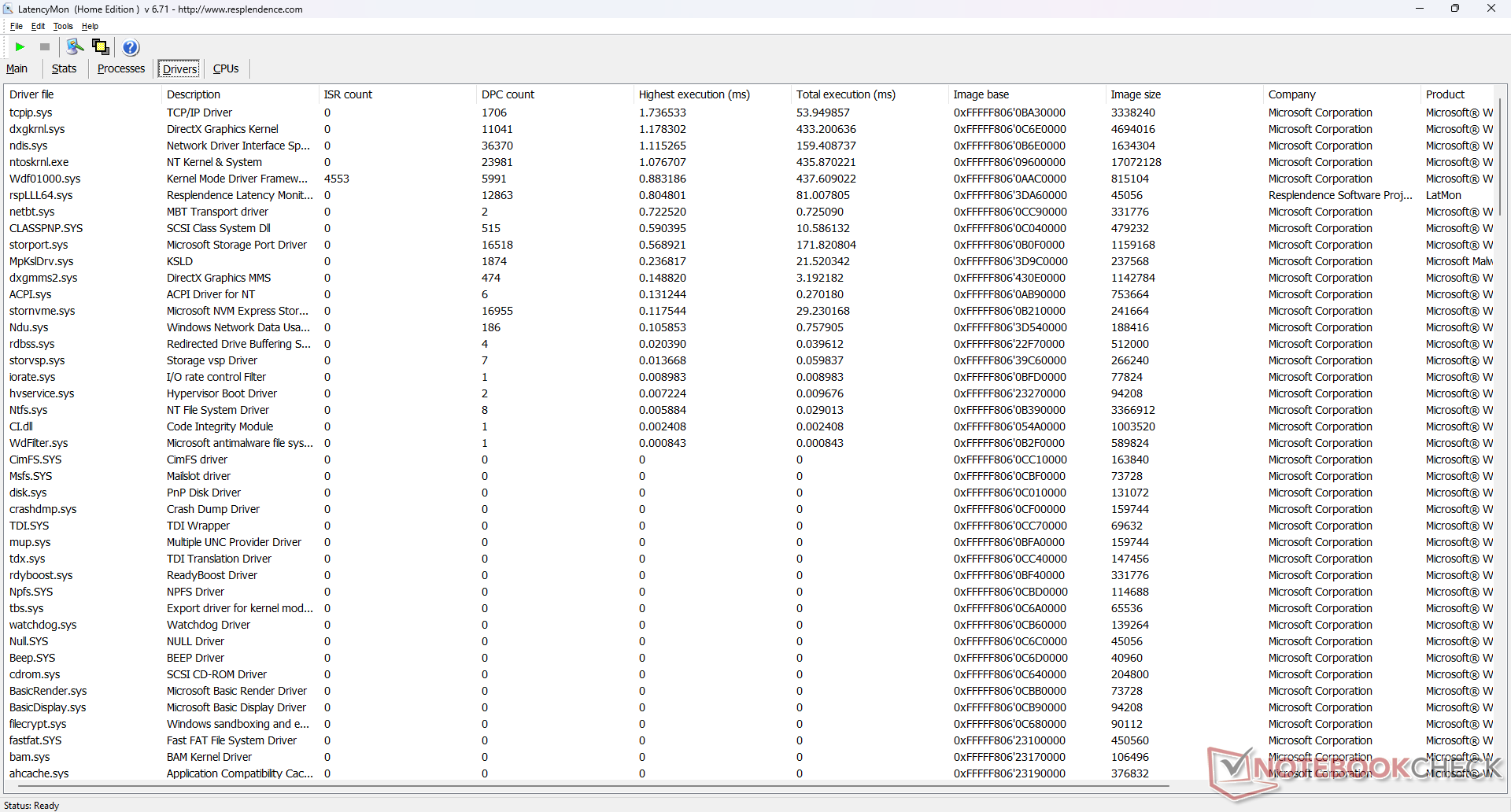

LatencyMon reveals DPC issues when opening multiple browser tabs of our homepage. Additionally, we're able to record 2 dropped frames during a 60-second playback of a 4K video at 60 FPS. Though 2 frames is hardly noticeable, 0 dropped frames is ideal and more common on other PCs.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU	2372.9 μs *
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1455.4 μs * +39%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +55%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.4 μs * +63%
Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	718.7 μs * +70%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +80%

* ... smaller is better

Storage Devices

The system ships with a Samsung PM9B1 PCIe4 x4 NVMe SSD which is the budget version of the faster Samsung PM9A1 commonly found on higher-end mini PCs or gaming laptops. Maximum transfer rates are steady and sustainable at 3600 MB/s compared to 5500 MB/s on the Intel NUC 13 Pro sporting the Samsung PM9A1. The PM9B1 is nonetheless more than sufficient for consumer multimedia purposes and it balances well with the Core i7-13700H.

Up to two PCIe4 x4 2280 SSDs can be installed.

Two PCIe4 x4 NVMe slots. The thermal pads touch the bottom of the PSU for heat dissipation when the unit is put back together

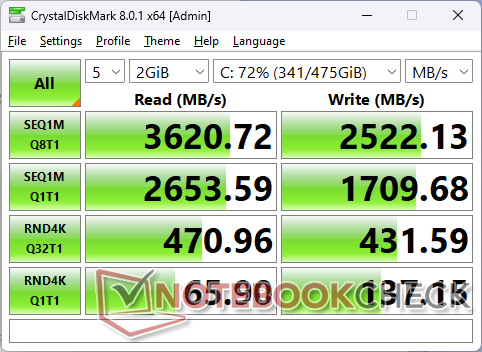

CrystalDiskMark 5.2 / 6

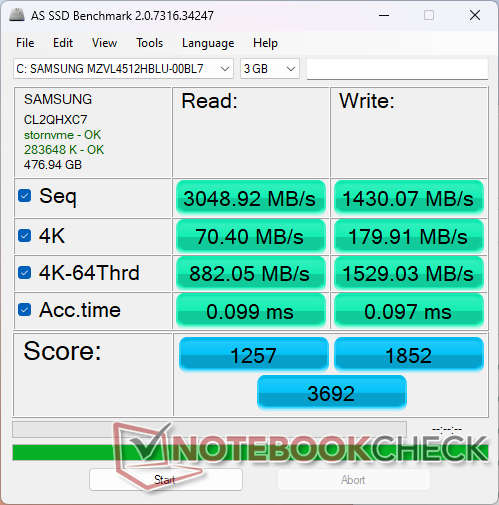

AS SSD

DiskSpd

Samsung PM9B1 512GB MZVL4512HBLU

CDM 5/6 Read Seq Q32T1: 3627 MB/s

CDM 5/6 Write Seq Q32T1: 2525 MB/s

CDM 5/6 Read 4K Q32T1: 467.9 MB/s

CDM 5/6 Write 4K Q32T1: 436.7 MB/s

CDM 5 Read Seq: 2649 MB/s

CDM 5 Write Seq: 1688 MB/s

CDM 5/6 Read 4K: 65.25 MB/s

CDM 5/6 Write 4K: 135.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	86.8 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	79.5 pt
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	56.3 pt
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	52.9 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	51.6 pt
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	51.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +27%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3033 (3026.64^min - 3032.69^max) MB/s +16%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2625 (2562.3^min - 2625.21^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2433 (2411.3^min - 2433.16^max) MB/s -7%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -36%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	938 (893.07^min - 938.27^max) MB/s -64%
seq write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3591 (3535.23^min - 3591.16^max) MB/s +103%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +89%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +30%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1773 (1718.7^min - 1773.12^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1625 (1475.57^min - 1625.19^max) MB/s -8%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1128 (693.82^min - 1128.11^max) MB/s -36%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +52%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5174 (4541.87^min - 5174.3^max) MB/s +44%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3582 (3101.69^min - 3581.9^max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3508 (3328.18^min - 3507.7^max) MB/s -2%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2909 (2628.77^min - 2908.96^max) MB/s -19%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -38%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +116%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3570 (3522.17^min - 3569.77^max) MB/s +56%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2615 (711.82^min - 2614.74^max) MB/s +14%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +9%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	2291 (2242.9^min - 2291.17^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1621 (1610.27^min - 1621.2^max) MB/s -29%
4k q1 t1 read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	86.1 (85.71^min - 86.12^max) MB/s +7%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	80.5 (74.84^min - 80.54^max) MB/s
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	62.6 (62.13^min - 62.62^max) MB/s -22%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	38.7 (22.67^min - 38.7^max) MB/s -52%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -53%
4k q1 t1 write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	269 (266.85^min - 269.05^max) MB/s +92%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	260 (257.62^min - 260.21^max) MB/s +85%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	160.7 (123.92^min - 160.73^max) MB/s +14%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s +3%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	140.4 (133.49^min - 140.42^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -15%
4k q32 t16 read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2765 (2513.4^min - 2765.45^max) MB/s +193%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	945 (935.84^min - 944.53^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -14%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -32%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	569 (455.25^min - 568.93^max) MB/s -40%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	474 (472.39^min - 473.68^max) MB/s -50%
4k q32 t16 write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3254 (3139.57^min - 3253.57^max) MB/s +544%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1258 (1245.8^min - 1257.91^max) MB/s +149%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	505 (469.38^min - 505.2^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -10%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	446 (240.36^min - 445.56^max) MB/s -12%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -65%

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +42%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	5182 Points +40%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3692 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3592 Points -3%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2595 Points -30%
Score Read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1796 Points +43%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points +20%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1257 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1233 Points -2%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	792 Points -37%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +80%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2508 Points +35%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1852 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1784 Points -4%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points -12%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1442 Points -22%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +49%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	3786.44 MB/s +24%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	3048.92 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2902.75 MB/s -5%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2714.84 MB/s -11%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -26%
Seq Write
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2799.85 MB/s +96%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +89%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1486.78 MB/s +4%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1430.07 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -8%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1287.68 MB/s -10%
4K Read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	73.17 MB/s +4%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +2%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	70.4 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s -10%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	59.79 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	59.71 MB/s -15%
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +25%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	219.46 MB/s +22%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	216.44 MB/s +20%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	210.95 MB/s +17%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	179.91 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -7%
4K-64 Read
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	1357.17 MB/s +54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s +39%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.18 MB/s 0%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	882.05 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -10%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	447.15 MB/s -49%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +89%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	2017.38 MB/s +32%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	1529.03 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1418.48 MB/s -7%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s -17%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1094.27 MB/s -28%
Access Time Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -1%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.099 ms *
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.083 ms * +16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +39%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.047 ms * +53%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.045 ms * +55%
Access Time Write
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.129 ms * -33%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.102 ms * -5%
Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU	0.097 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +10%
Beelink GTR7 7840HS Crucial P3 Plus CT1000P3PSSD8	0.049 ms * +49%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +75%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Lenovo IdeaCentre Mini 01IRH8 Samsung PM9B1 512GB MZVL4512HBLU: Ø3596 (3147.41-3611.18)

Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)

GPU Performance

The integrated Iris Xe 96 EUs is starting to show its age when compared to the latest options from AMD. The Radeon 680M, for example, can be up to 50 to 60 percent faster and the newer Radeon 780M is even faster still. Nonetheless, performance is reliable for non-gaming applications such as 4K playback and streaming.

For gaming purposes, it's recommended to attach an eGPU or opt for another mini PC equipped with more powerful AMD Radeon 780M graphics instead like the Beelink GTR7 or Minisforum Venus Series UM790 Pro. If not, the Iris Xe 96 EUs is only powerful enough for cloud streaming or running local games on very low settings and resolutions save for undemanding ones like DOTA 2 Reborn.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	91.9 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	84.3 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	78.4 pt
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	64.1 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.6 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.3 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	55.2 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	54.5 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	54.1 pt
Average Intel Iris Xe Graphics G7 96EUs	53.3 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	52.5 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.4 pt
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	43.4 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13 pt

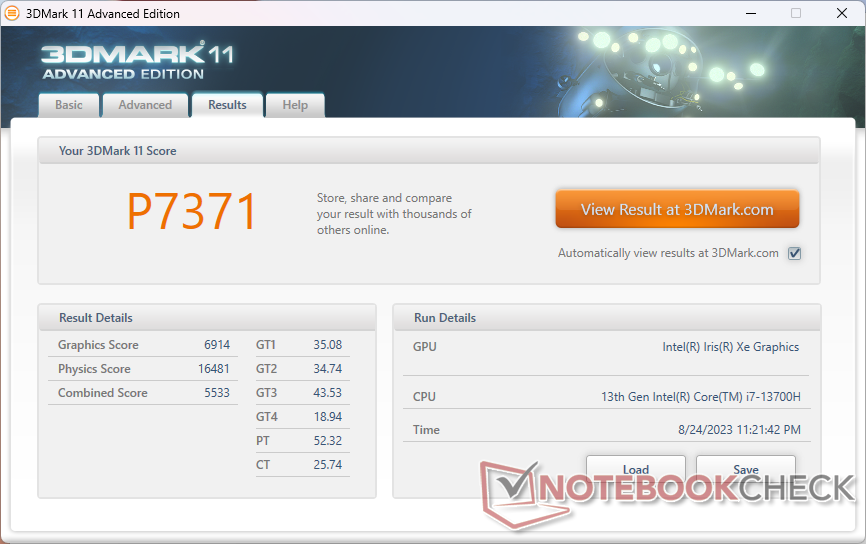

3DMark 11 - 1280x720 Performance GPU
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	12978 Points +88%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +79%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	10734 Points +55%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +50%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points +12%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +6%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points -3%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points -6%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points -7%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=201)	6353 Points -8%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points -10%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points -13%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -22%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -76%

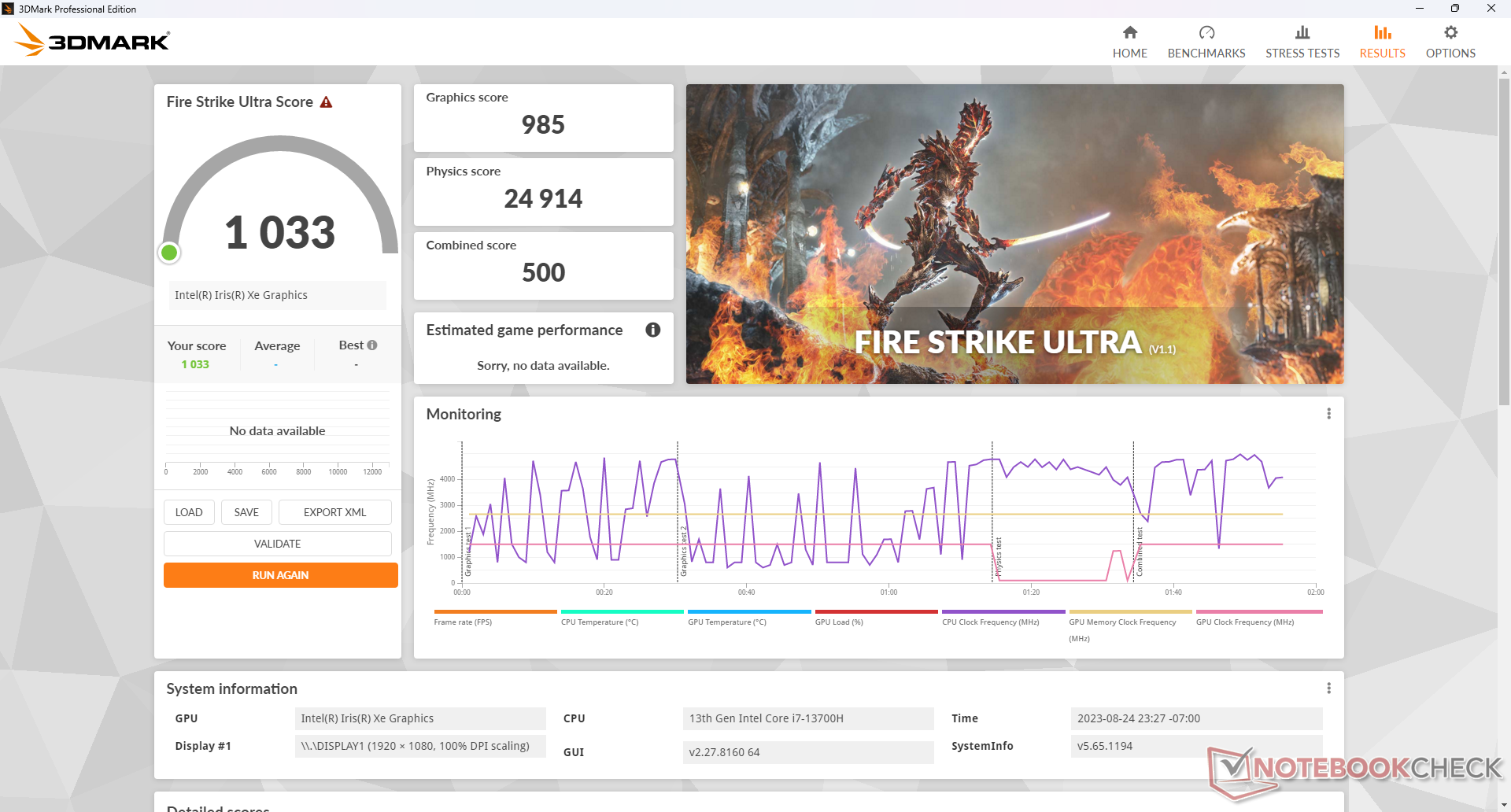

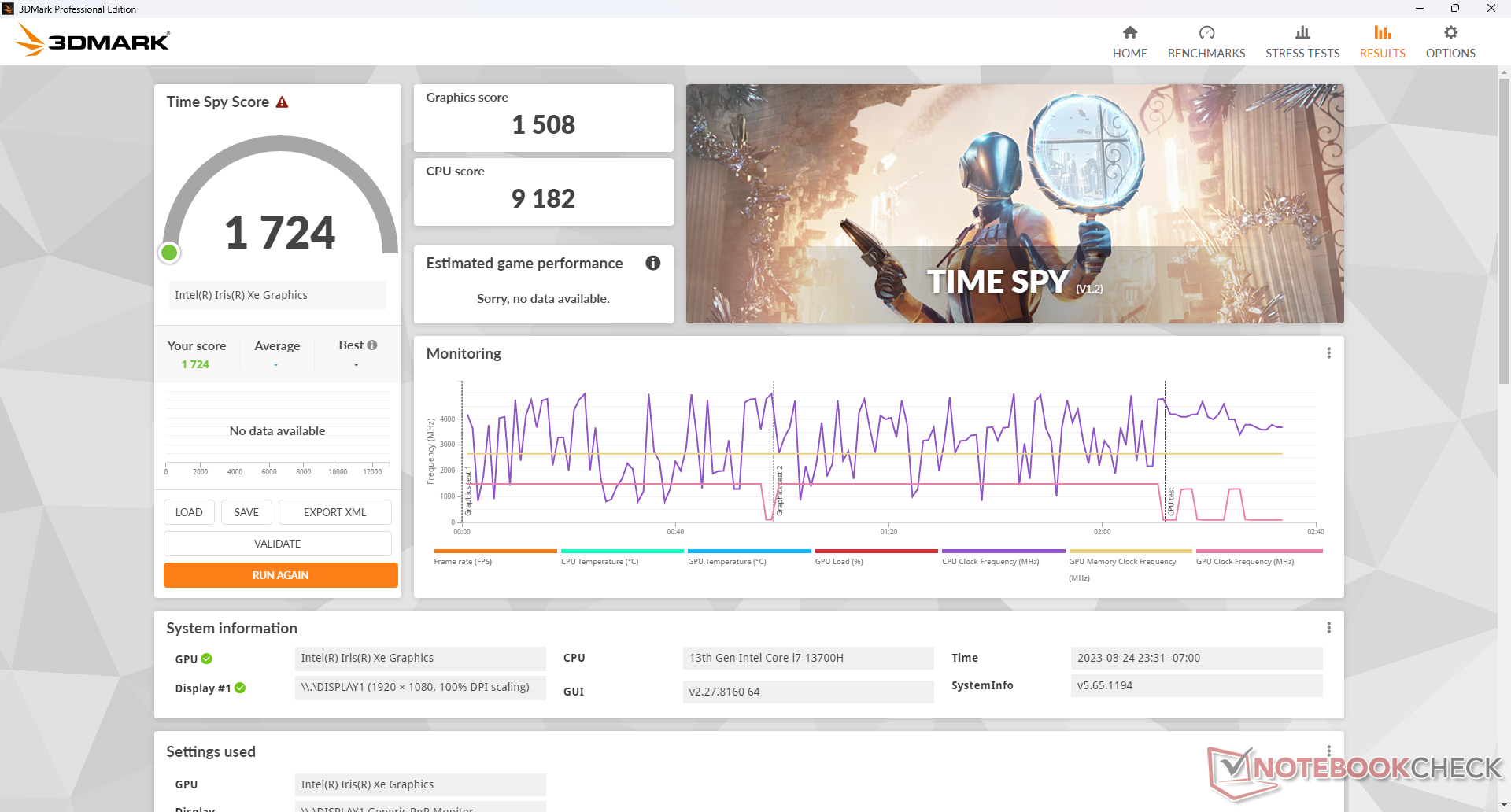

3DMark

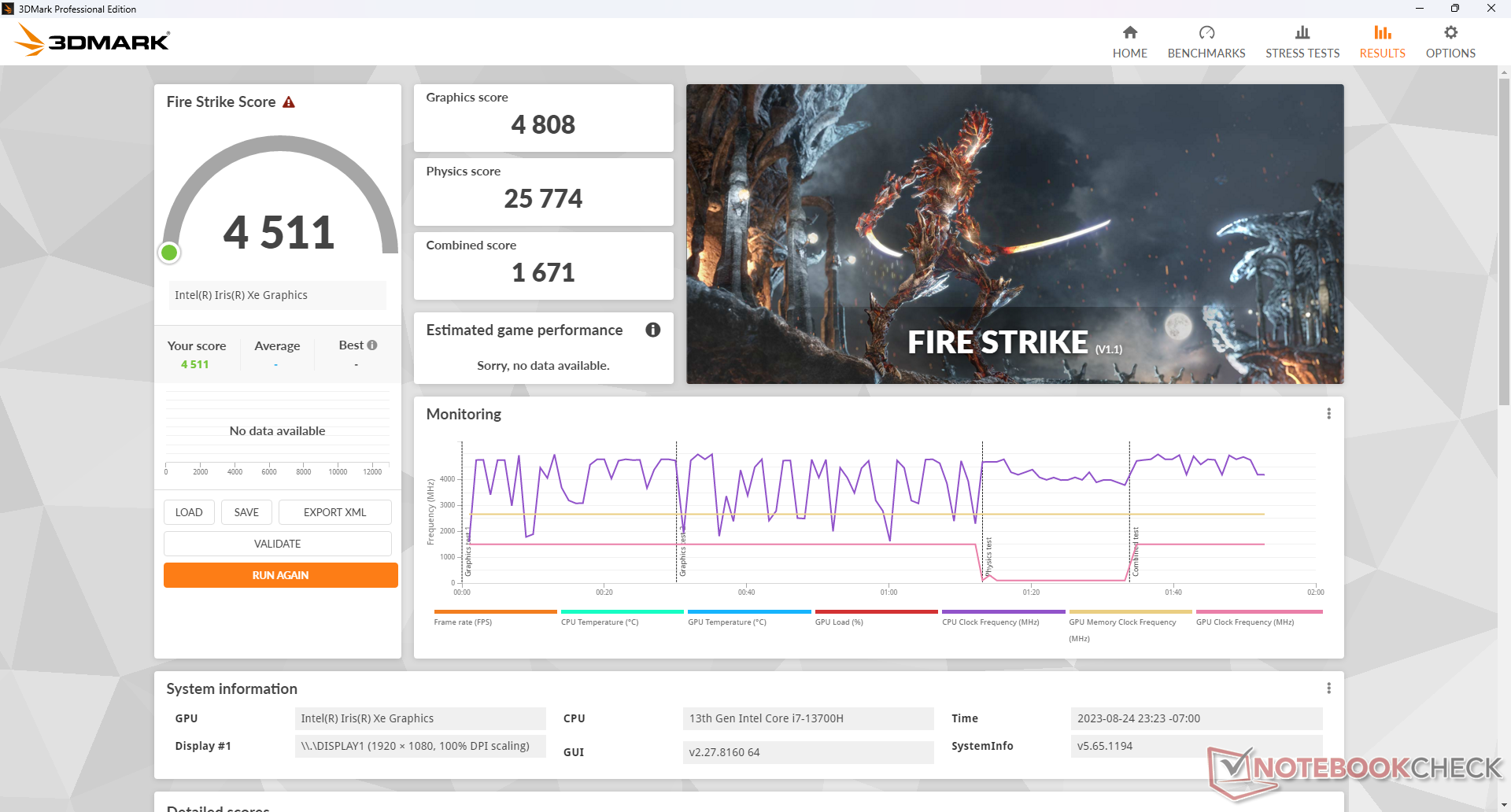

1920x1080 Fire Strike Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	7980 Points +66%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points +51%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	7180 Points +49%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +35%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points +18%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +17%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points +10%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points +3%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=214)	4920 Points +2%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points +2%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -5%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -16%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -75%
2560x1440 Time Spy Graphics
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	2910 Points +93%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +75%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2395 Points +59%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +47%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points +22%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +11%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points +4%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points +3%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points 0%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=211)	1495 Points -1%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -14%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -77%
2560x1440 Time Spy Score
Beelink GTR7 7840HS AMD Radeon 780M, AMD Ryzen 7 7840HS	3274 Points +90%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2966 Points +72%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2693 Points +56%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2492 Points +45%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2057 Points +19%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points +10%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1754 Points +2%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1738 Points +1%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points 0%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points -3%
Average Intel Iris Xe Graphics G7 96EUs (789 - 2133, n=208)
