Geekom Mini IT11 review: The Intel NUC competitor with a Core i7-11390H and USB4 is at its limit

Name: Geekom Mini IT11, i7-11390H
Brand: Geekom

Intel Tiger Lake in the year 2023? The Geekom Mini IT11 currently isn't one of the most powerful devices when it comes to pure performance. However, Geekom have updated their Mini IT11 with a now slightly outdated Intel Core i7-11390H - previously, the PC featured an Intel Core i7-1195G7. Together with modern connectivity options, the Mini IT11 currently still makes for a decent device. As the PC thankfully has a Thunderbolt port, we can also take a look at its gaming performance using an external GPU.

Sebastian Bade (translated by Daisy Dickson), Published 07/11/2023 🇩🇪 🇸🇪 ...

Mini PC Desktop Intel Tiger Lake Thunderbolt

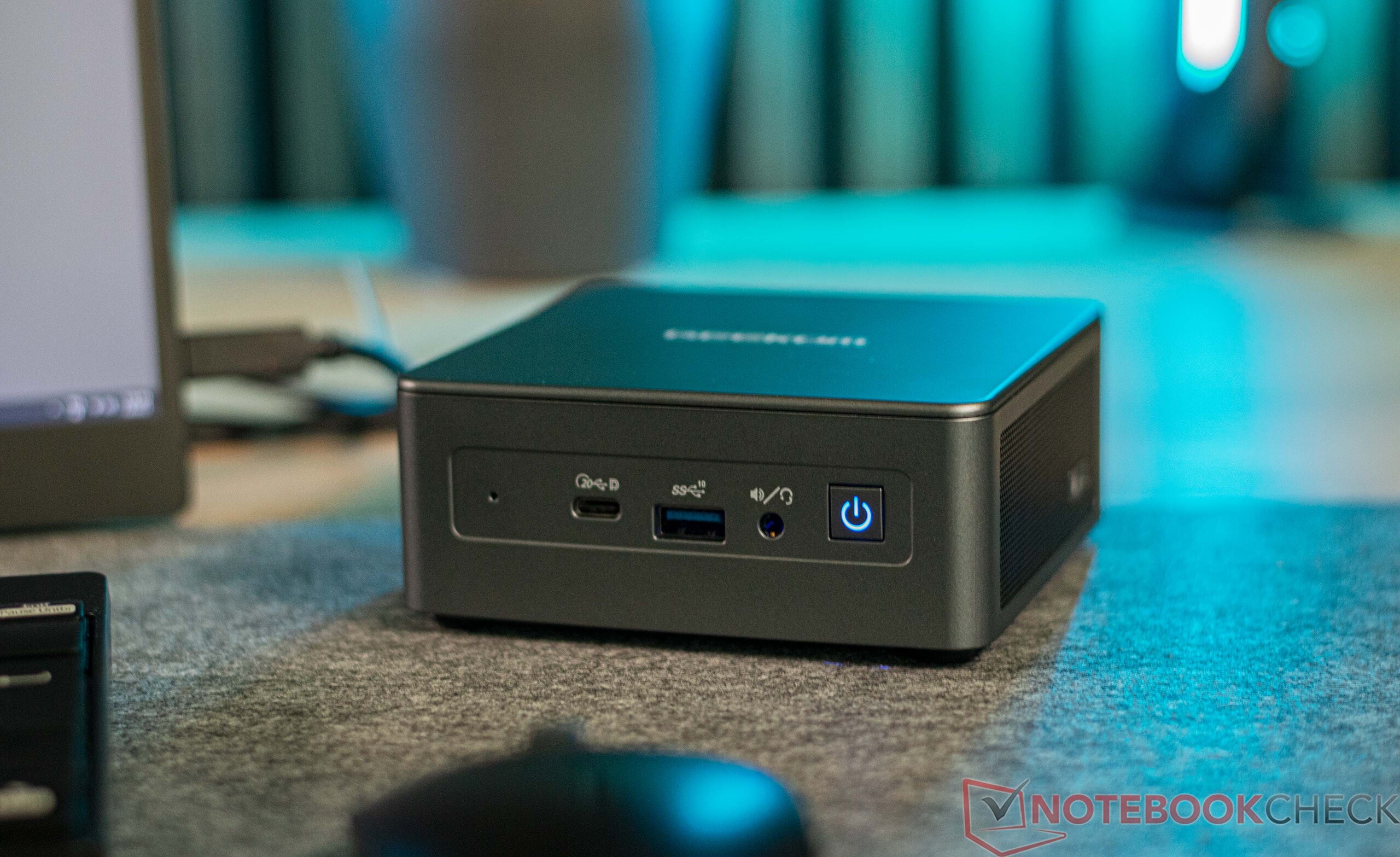

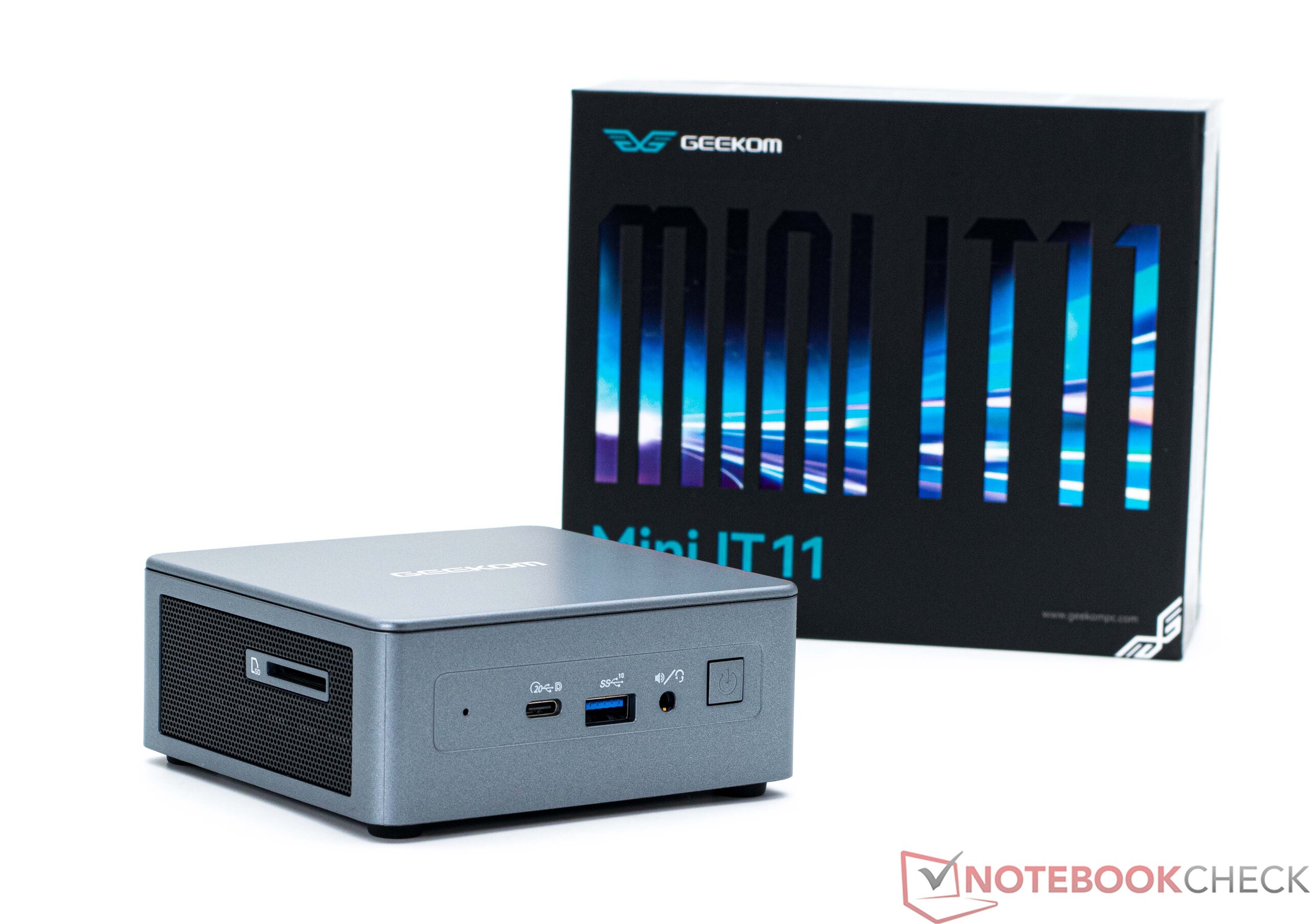

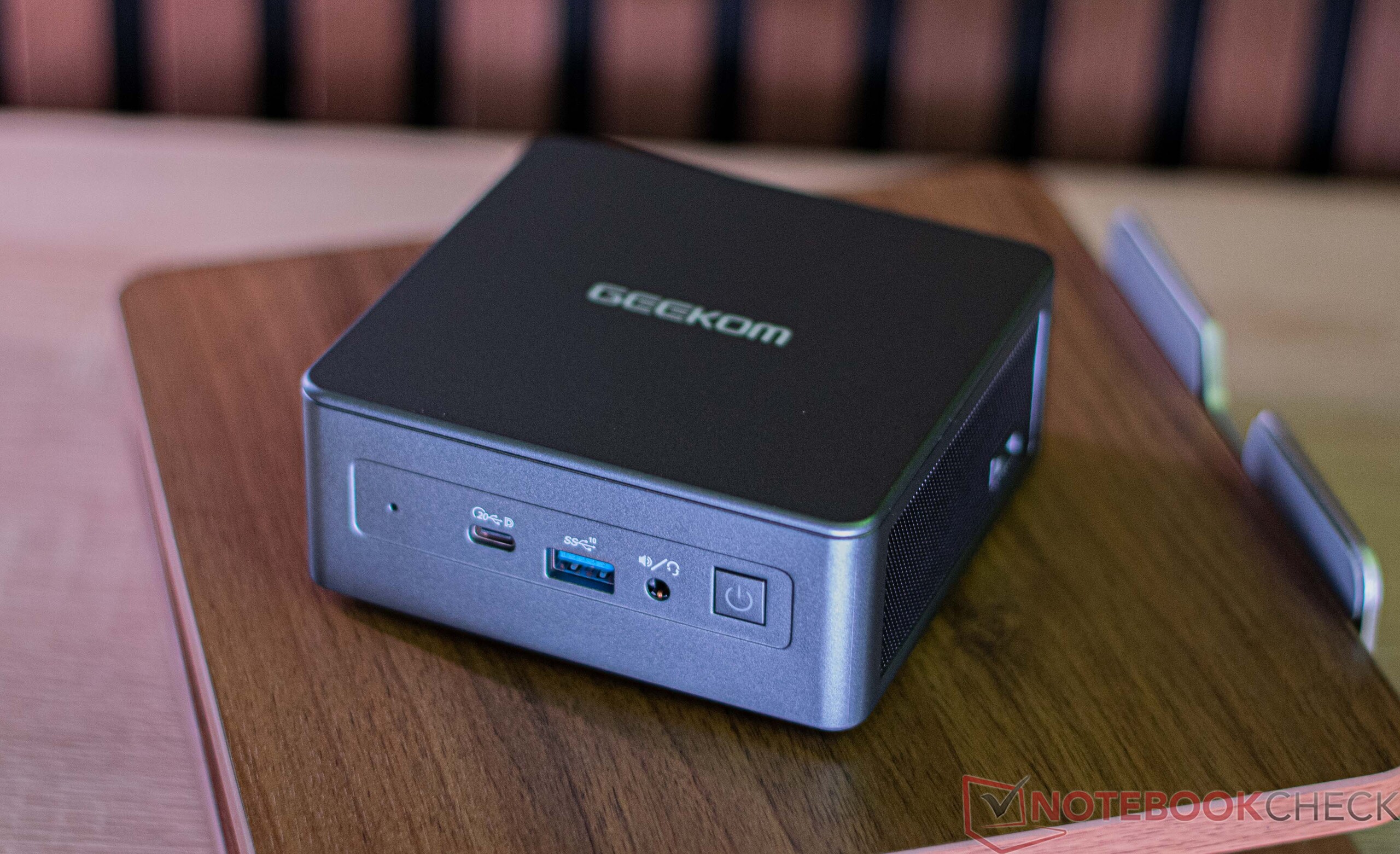

The Geekom Mini IT11 is a high-quality mini PC based on the well-known Intel NUC models. Internally, the device features an Intel Core i7-11390H with 4 cores and 8 threads, meaning this device is considerably worse-off than current models. This is no wonder - the SoC was released in 2021 and is still classed as a Tiger Lake series model from Intel. With this SoC, the device's old one, the Intel Core i7-1195G7, can now retire. Alternatively, you can find the Mini IT11 from Geekom with an Intel Core i5-1155G7.

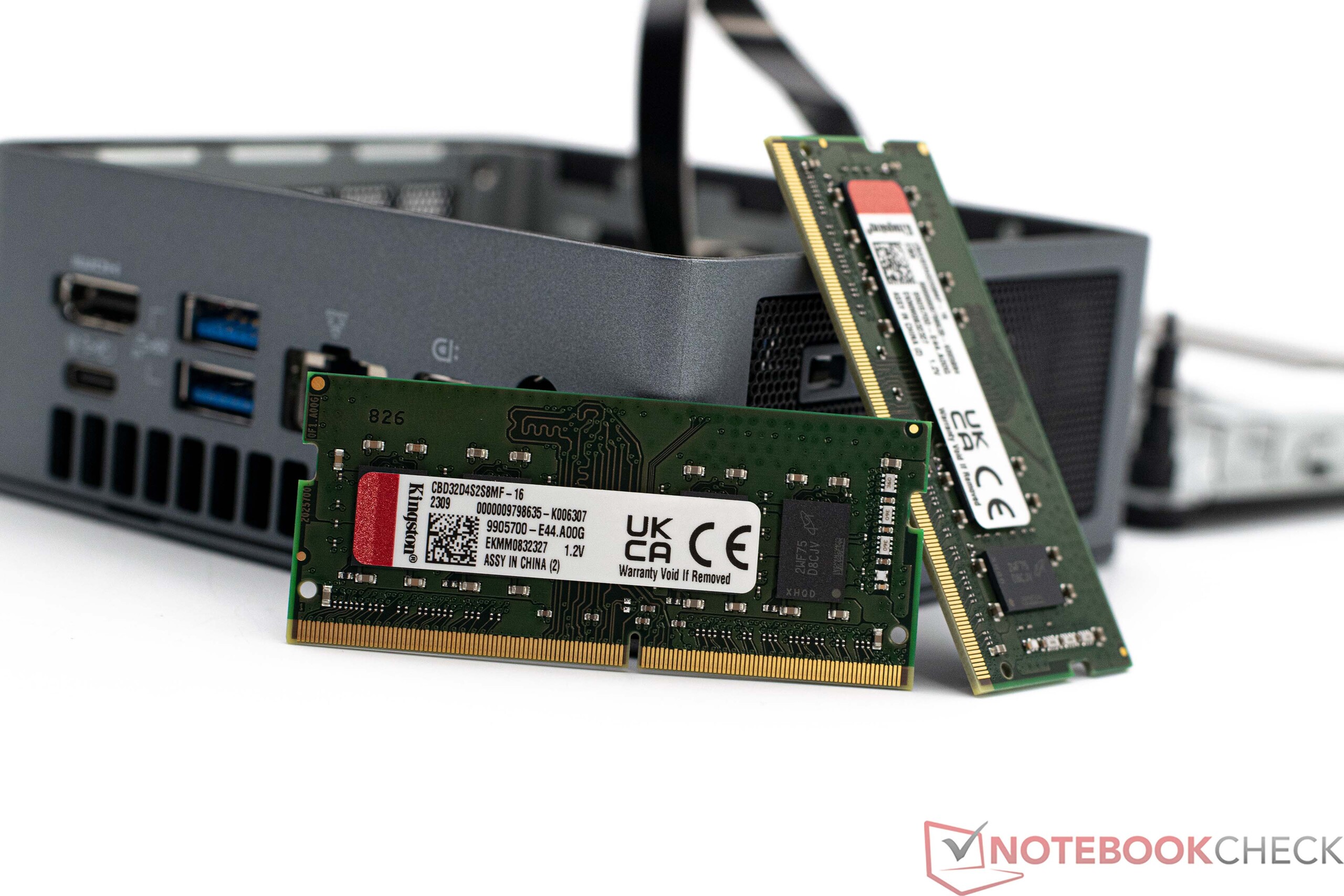

Our test sample of the Mini IT is equipped with 32 GB RAM and a 1-TB SSD. This helps the compact computing beast close the gap to its competitors. But how well does its now slightly outdated SoC compare to its more modern rivals? Price-wise, the Geekom Mini IT11 comes in at $599. This is pretty standard and fits in with the rest of the mini PC market.

You can find a list of all the comparison devices for this review in the following overview.

Test device courtesy of Geekom

Download your licensed rating image as PNG / SVG

Geekom Mini IT11, i7-11390H

Processor

Intel Core i7-11390H 4 x 3.4 - 5 GHz, 64 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Core: 1400 MHz, Memory: 2000 MHz, 31.0.101.3959

Memory

32 GB

, DDR4-3200, max 64 GB

Mainboard

Intel Tiger Lake-UP3 PCH-LP

Storage

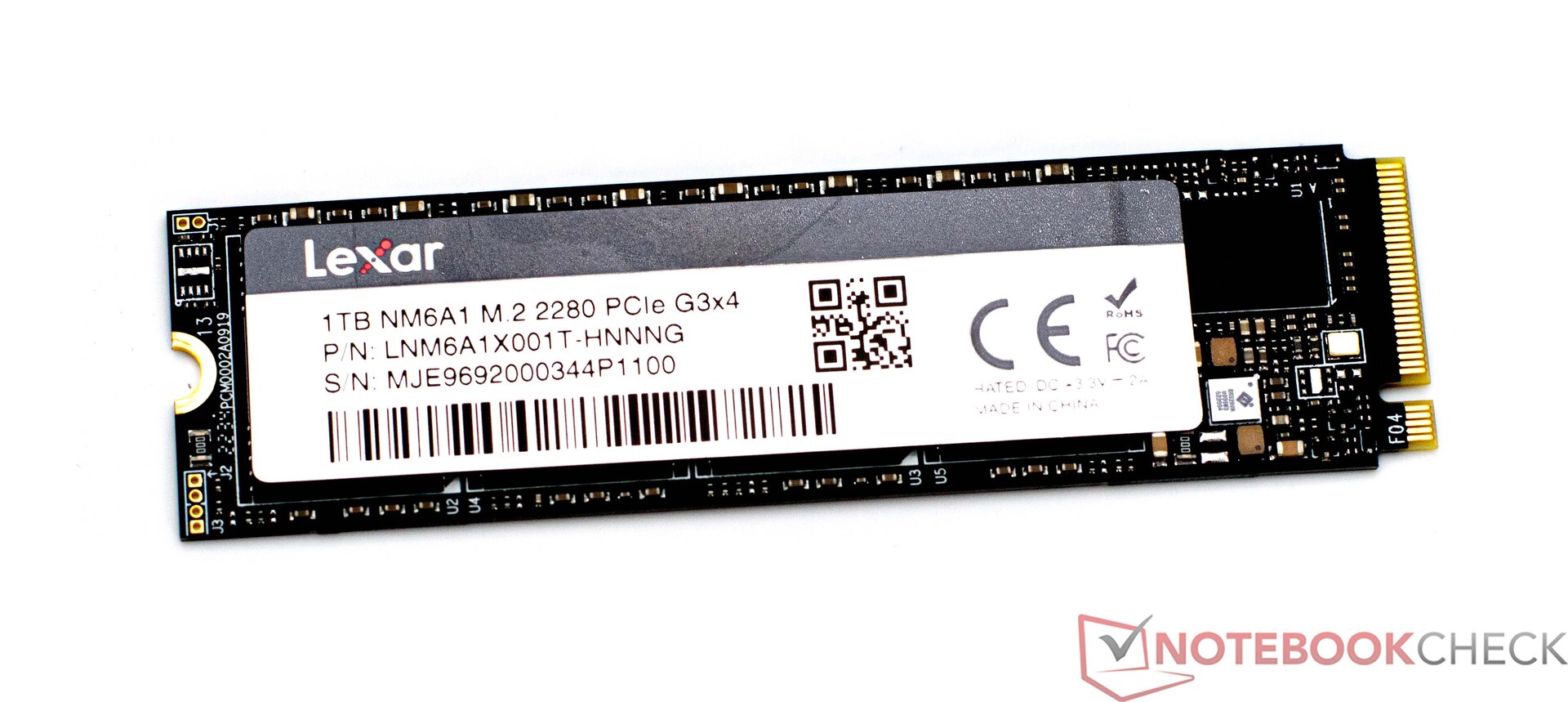

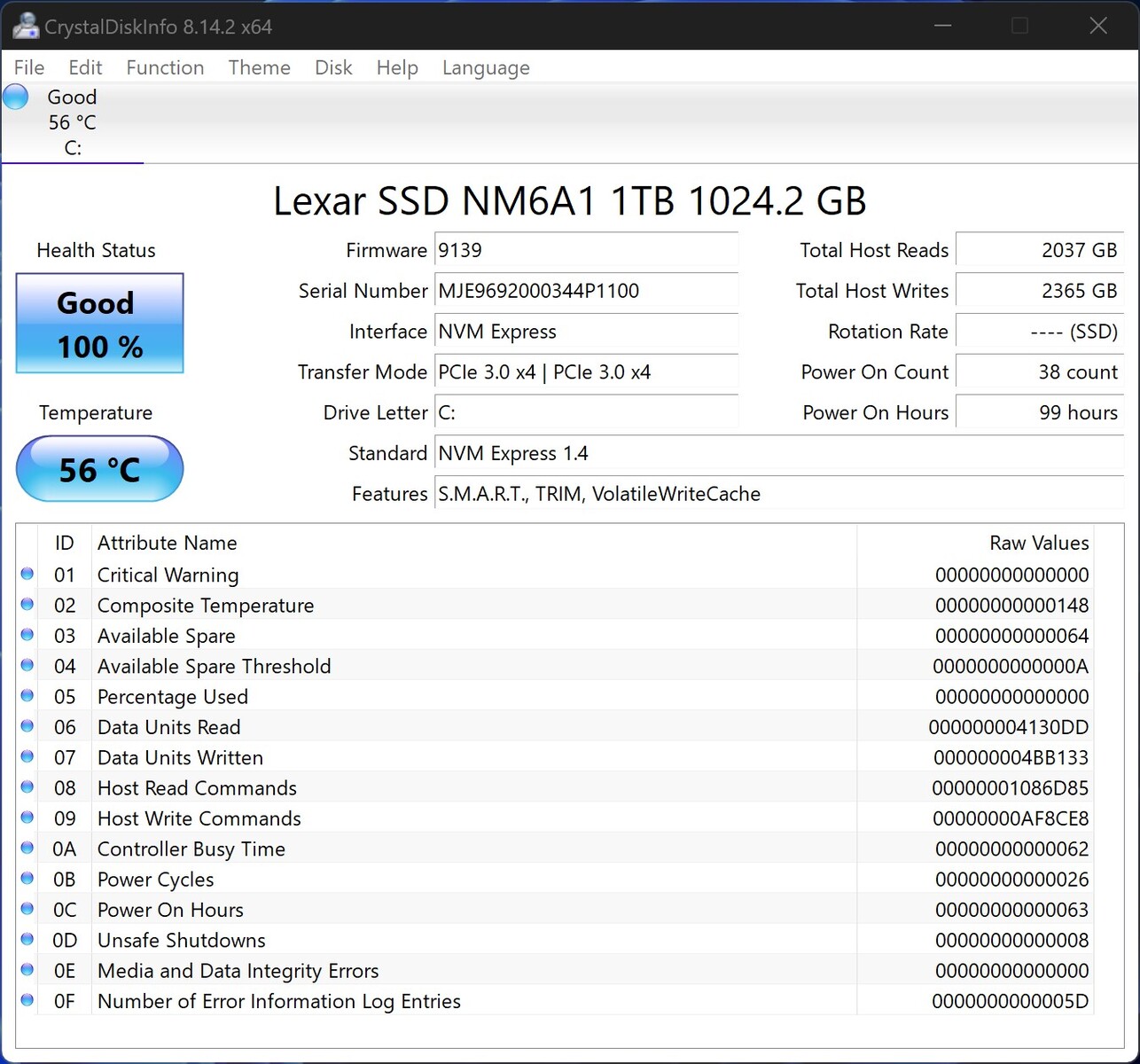

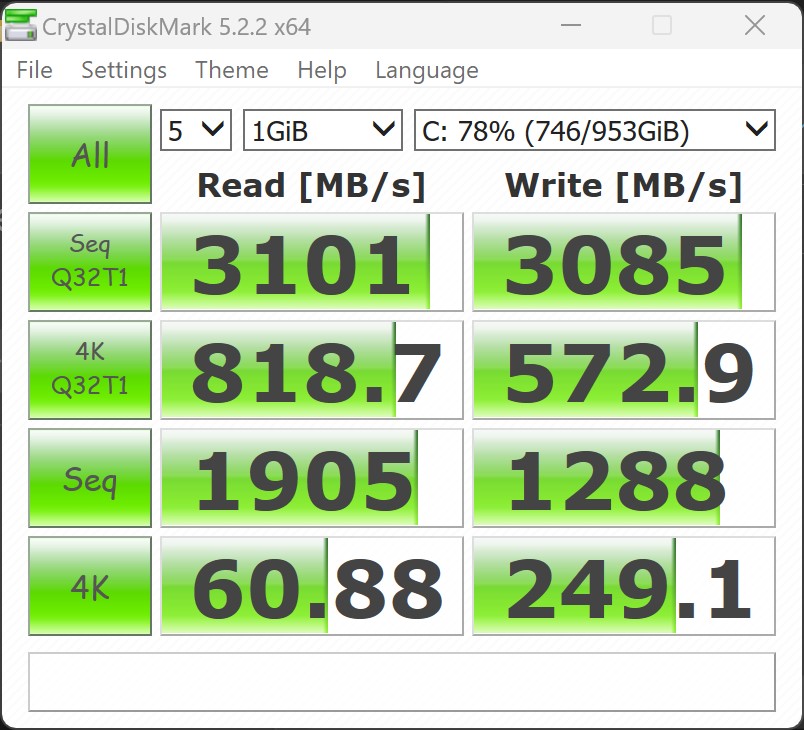

Lexar 1024GB LNM6A1X001T-HNNNG, 1024 GB

, M.2-2280, NVMe, 930 GB free

Soundcard

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Connections

3 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Card Reader: Full-Size Card-Reader

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 48 x 117 x 112 ( = 1.89 x 4.61 x 4.41 in)

Operating System

Microsoft Windows 11 Pro

Additional features

24 Months Warranty

Weight

536 g ( = 18.91 oz / 1.18 pounds), Power Supply: 236 g ( = 8.32 oz / 0.52 pounds)

Price

599 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Possible competitors compared

Rating	Date	Model	Weight	Height
80.6 %	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
82.3 %	05/2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.9 %	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
81.7 %	05/2023	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
70.9 %	12/2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
	11/2022	Geekom Mini IT11-GM11i7T i7-1195G7, Iris Xe G7 96EUs	565 g	45.6 mm
	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

The Geekom Mini IT11, i7-11390H in detail

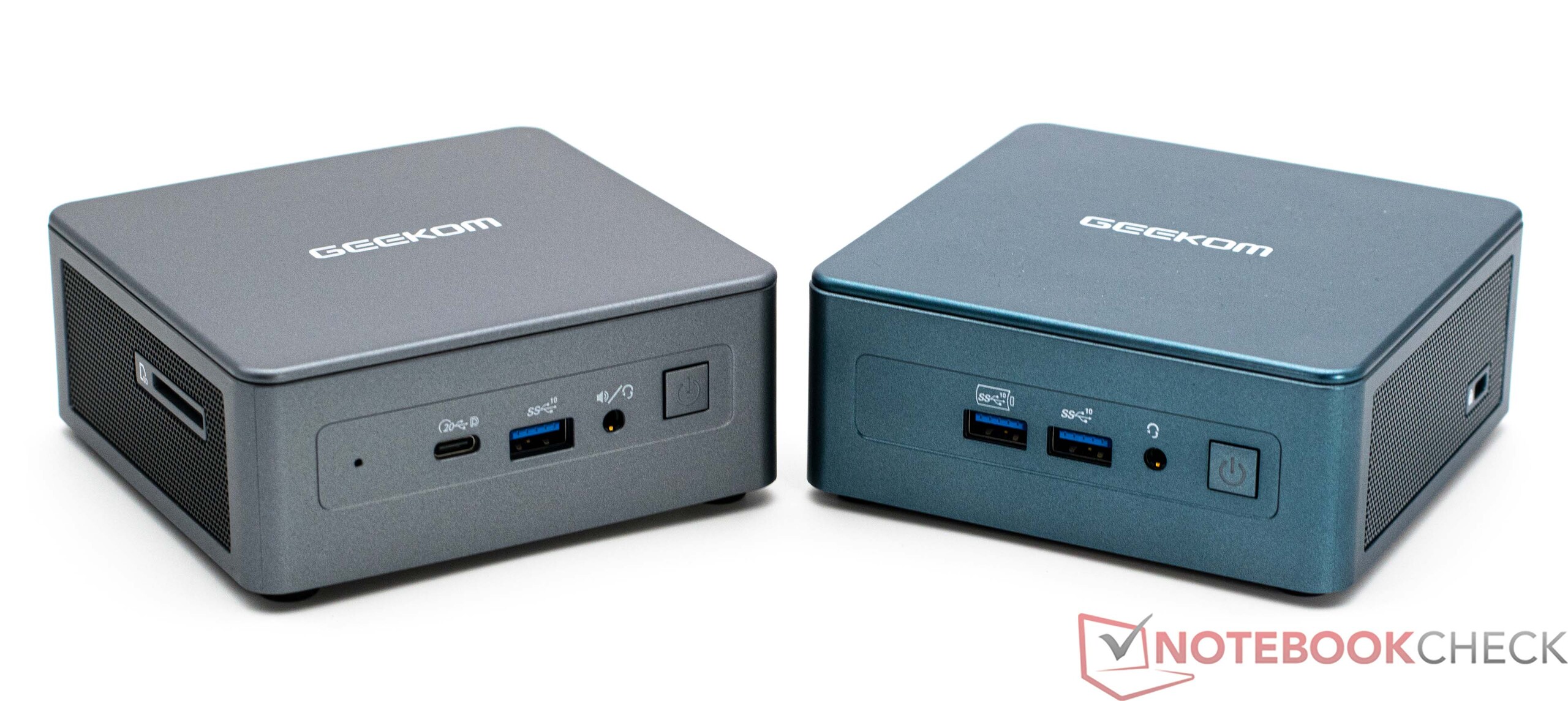

Geekom Mini IT11, i7-11390H (left), Geekom Mini IT12, i7-1260P (right)

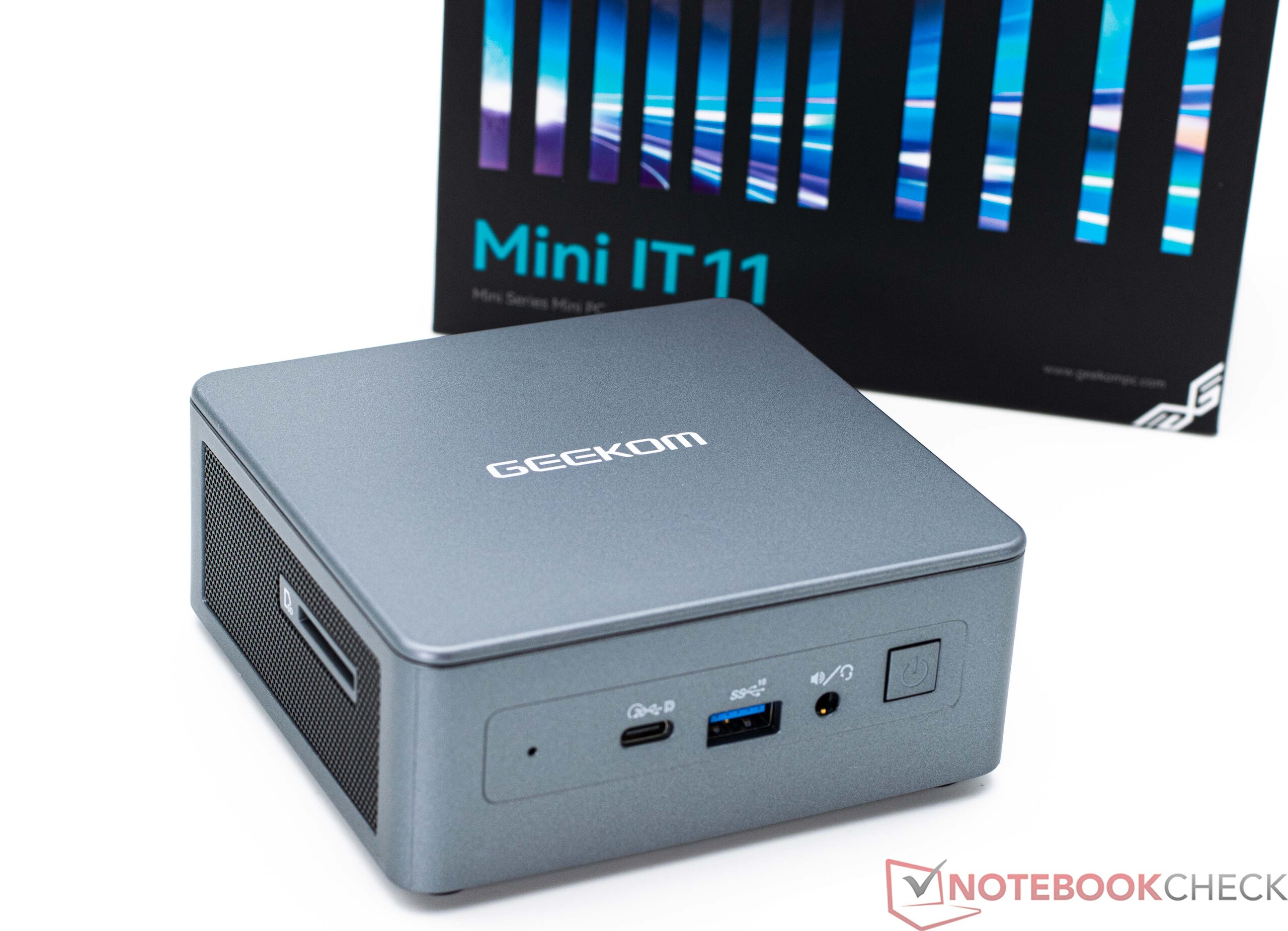

Case - The Intel NUC sends its regards

As is already known, the Geekom Mini IT11 is really similar to its Intel NUC counterpart. All of its dimensions - height, width and depth - are identical. It has nice and small footprint of 11.7 x 11.2 centimetres, which can't be beaten by any of its competitors which we tested. Different to Intel, Geekom only offer their Mini IT11 in the tall version, meaning you can always install a 2.5-inch storage device.

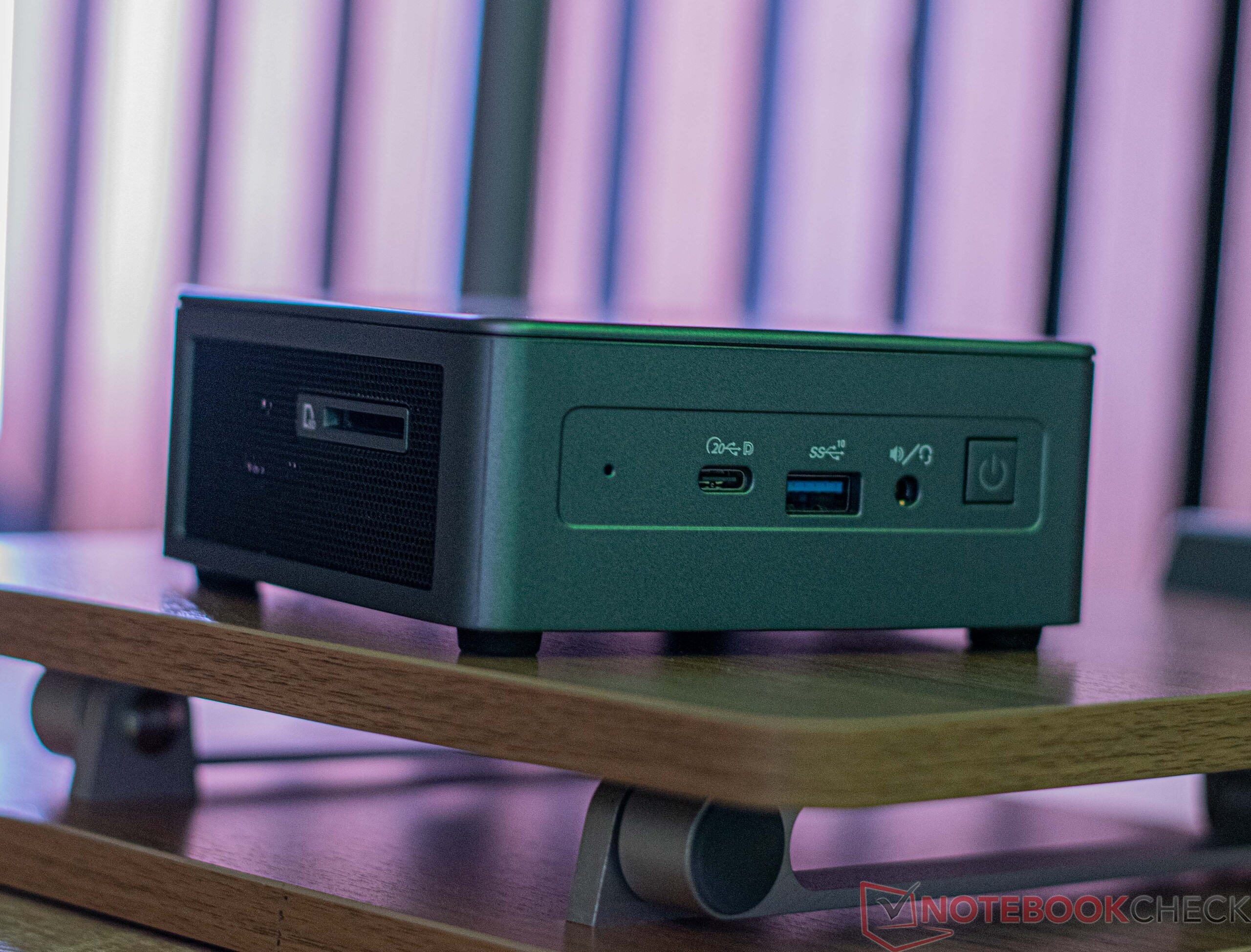

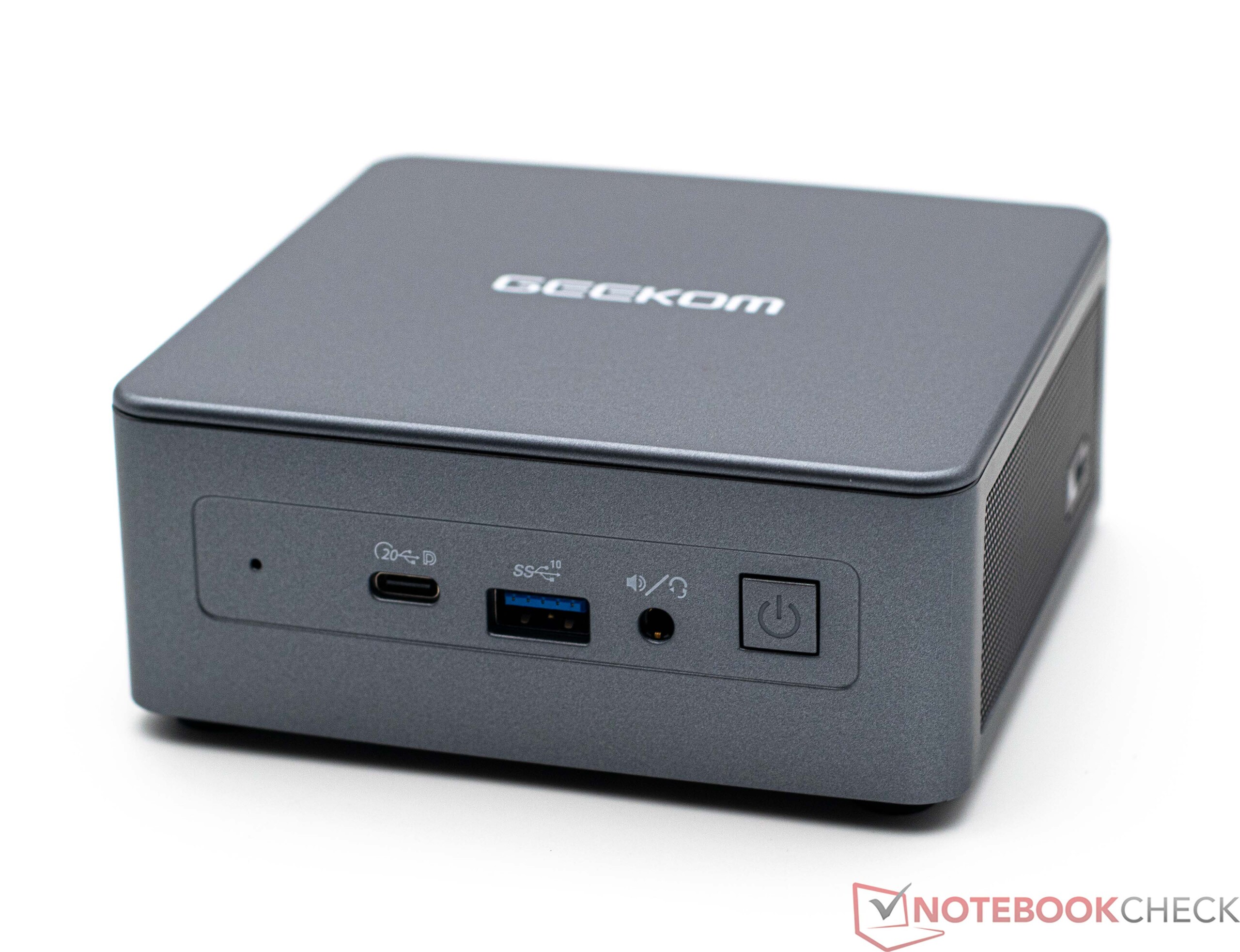

The Geekom Mini IT11 comes in gray and it doesn't have any shiny surfaces. Its build quality is flawless - although its case is just made from plastic. Underneath hides a metal frame which gives the device a great amount of robustness. At the same time, the Geekom Mini IT11 is still quite light, weighing in at 536 grams. Purely from a visual standpoint you really can see quite a lot of similarities to the Geekom Mini IT12, but as the successor to the Mini IT11, this is no big surprise. By the way, the Geekom Mini IT11 can be attached to a monitor using the provided VESA mount - a feature that a lot of mini PCs offer.

Size comparison

Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U Minipc Union NiPoGi CK10 - 10810U Minisforum Venus Series NAB6 Minisforum Venus Series UM560 XT Geekom Mini IT11, i7-11390H Geekom Mini IT12 Geekom Mini IT11-GM11i7T DIN A5 ❌

Connectivity - Up-to-date even in 2023

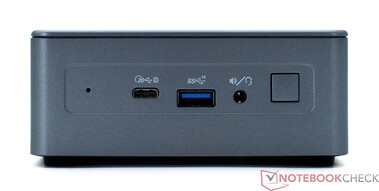

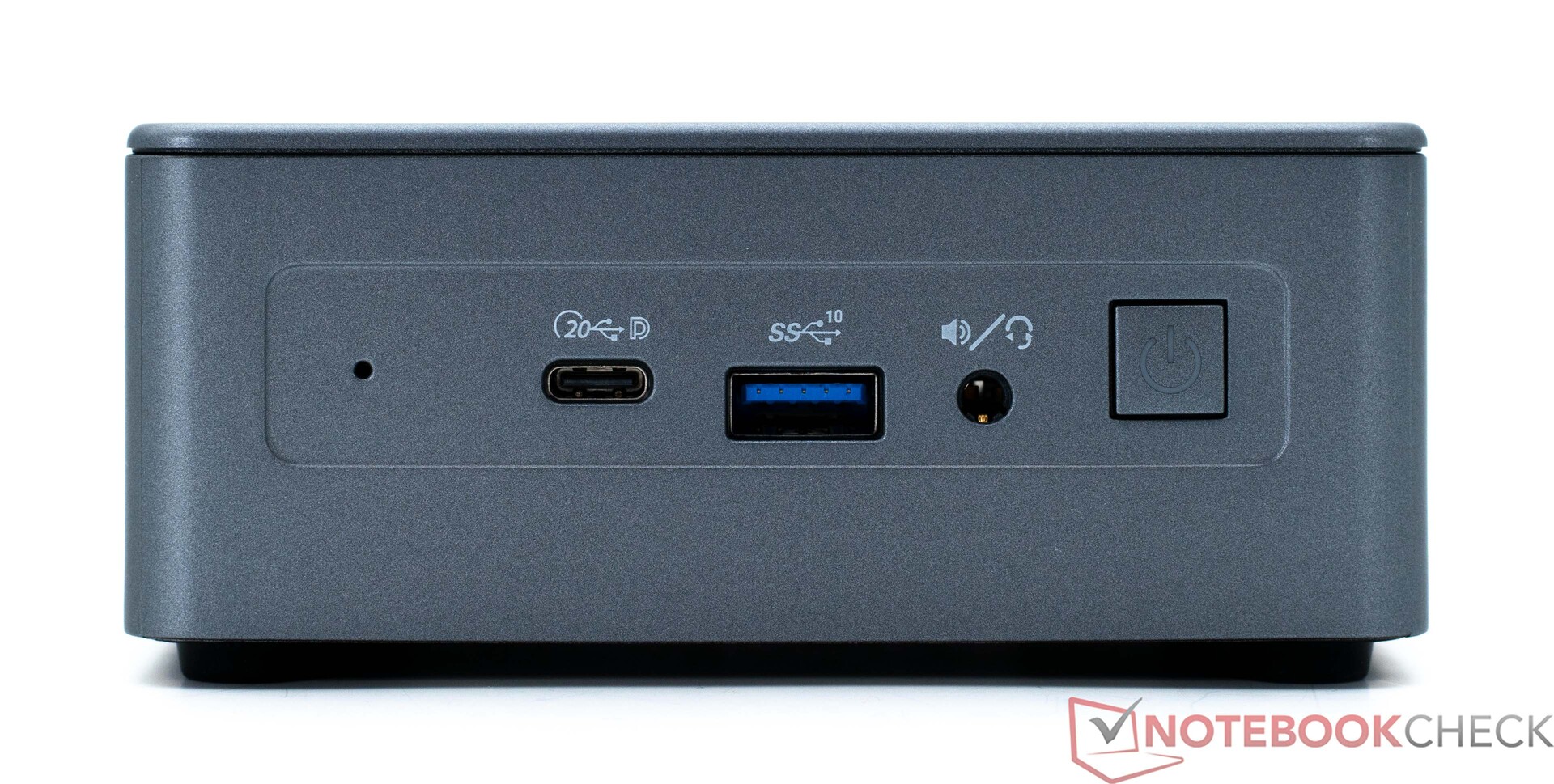

In terms of connectivity options, the Geekom Mini IT11 really does have a lot to offer despite its compact size: It features three USB Type-A ports, of which all three provide USB 3.0 speeds, meaning their range of uses is wide. Thankfully, the Mini IT11 also features USB 4. This makes it possible to connect a multitude of external devices in order to almost infinitely expand the compact computing beast's range of uses. You can even connect up to four screens to the Geekom Mini IT11 simultaneously. We also don't want to forget to mention its 2.5G network connection as well as its SD card reader which offers outstanding performance thanks to its UHS II speeds.

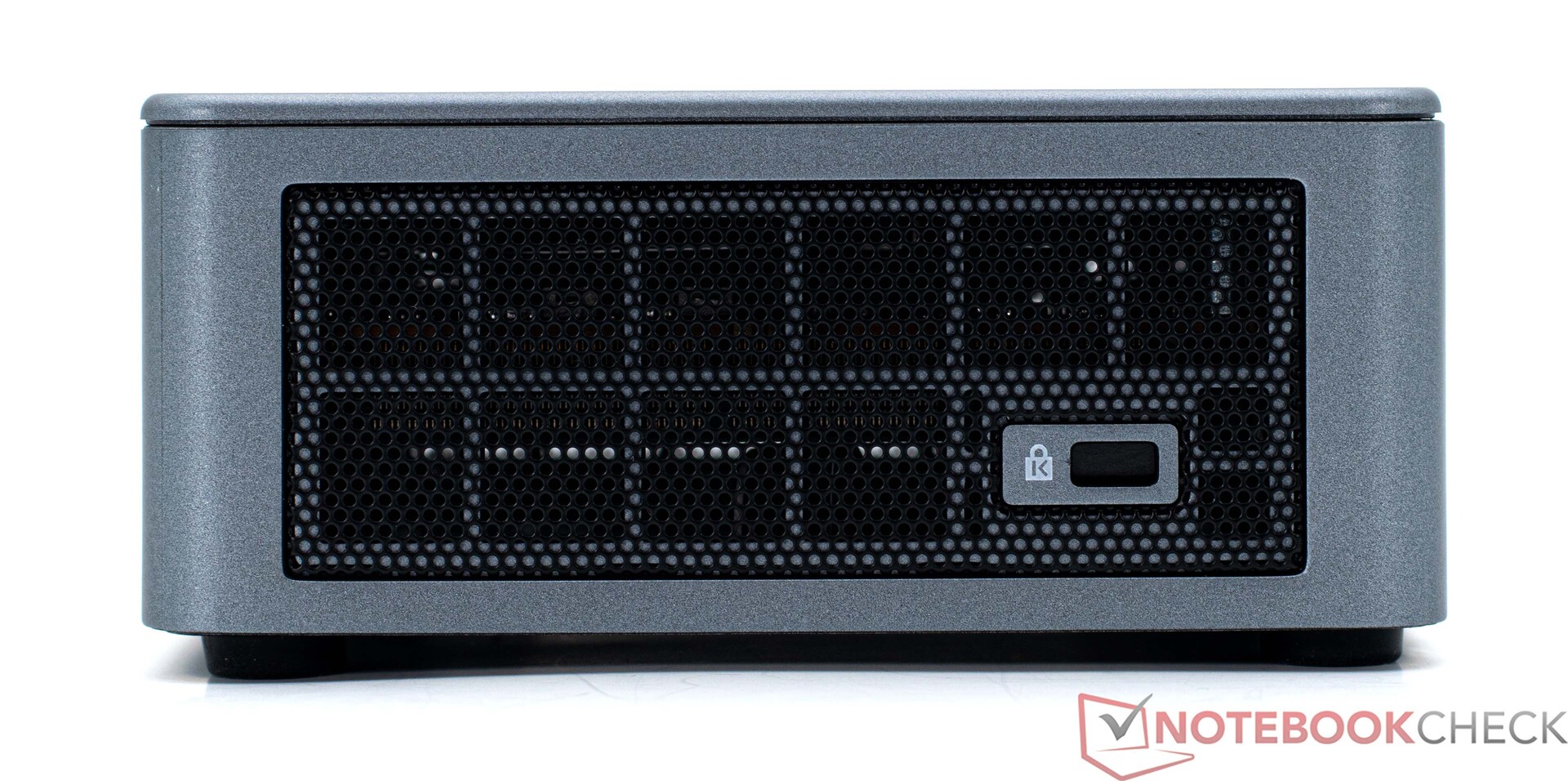

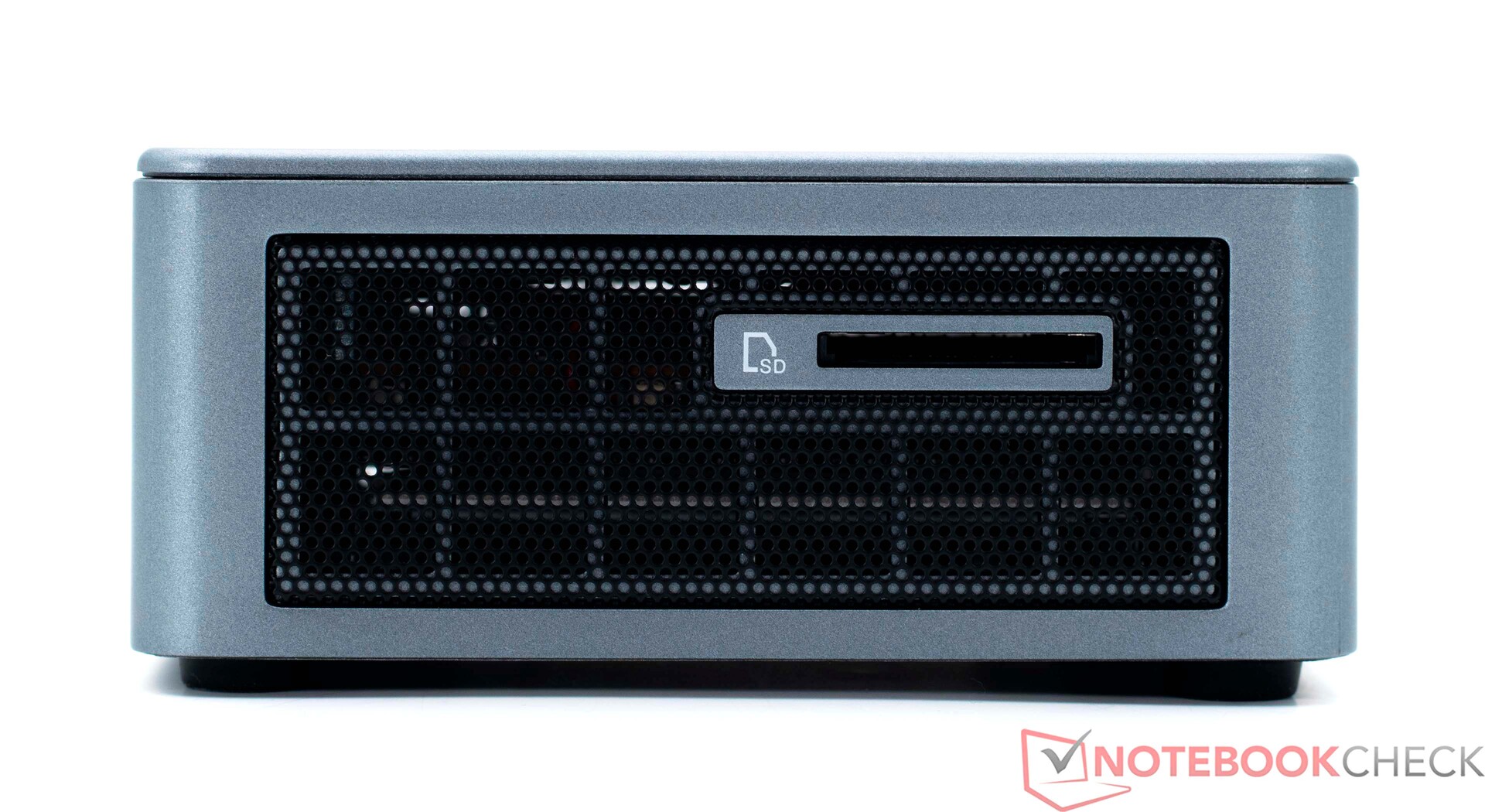

Left side: SD card reader (UHS II support)

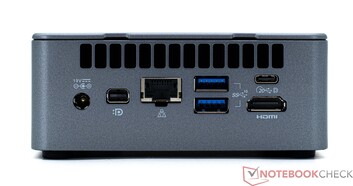

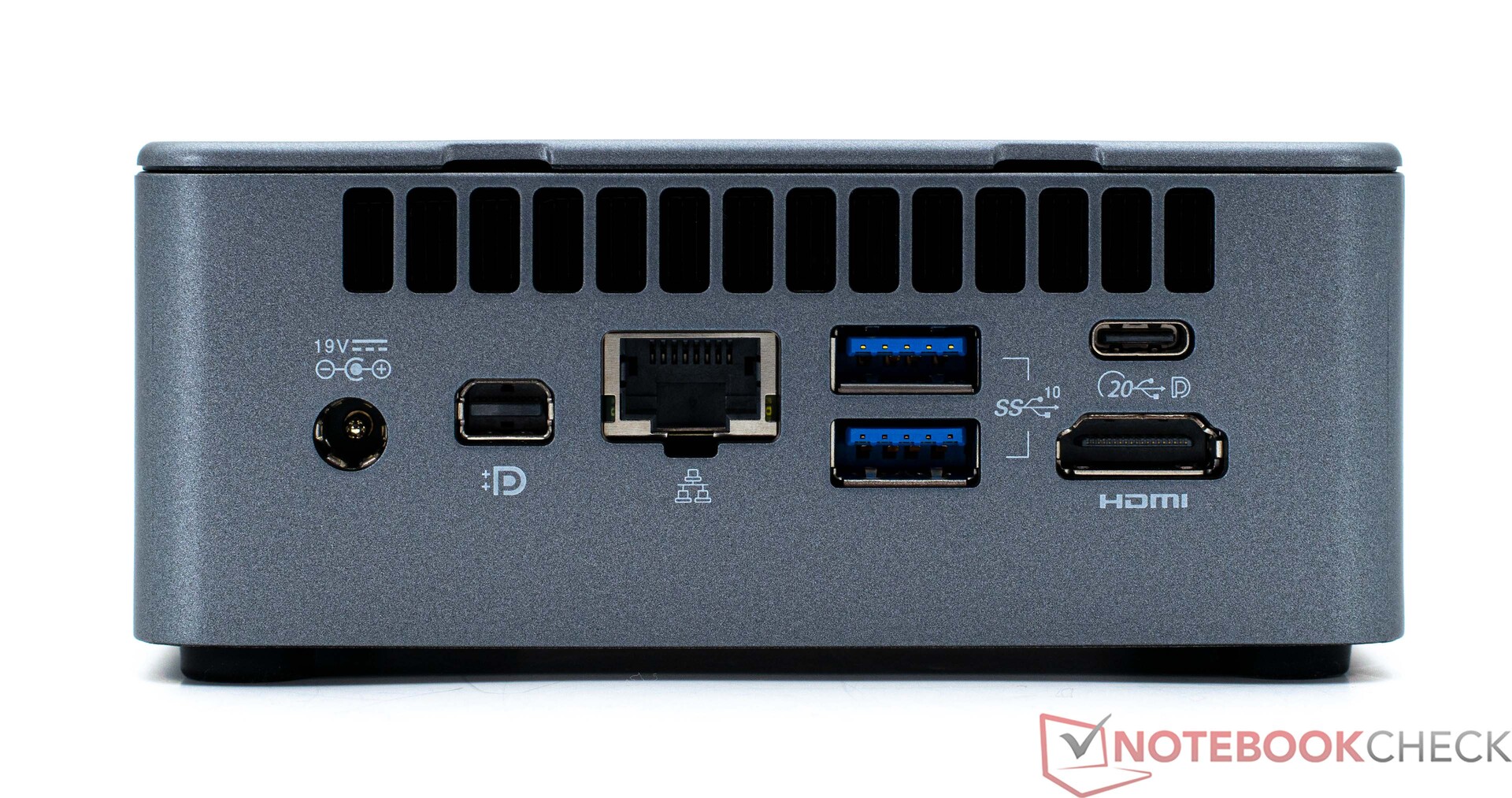

Back: power connection, mini-display port, RJ45, 2x USB 3.2 Gen 2, USB4, HDMI

SD card reader

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H (AV Pro SD microSD 128 GB V60)	163.3 MB/s
Intel Beast Canyon NUC Intel Core i9-11900KB (AV Pro SD microSD 128 GB V60)	140.3 MB/s -14%
Intel Dragon Canyon NUC	140.3 MB/s -14%
Average of class Mini PC (16.9 - 181.8, n=17, last 2 years)	84.5 MB/s -48%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	65 MB/s -60%
Geekom MiniAir 11 Special Edition Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)	16.9 MB/s -90%
maximum AS SSD Seq Read Test (1GB)
Intel Beast Canyon NUC Intel Core i9-11900KB (AV Pro SD microSD 128 GB V60)	198.7 MB/s +12%
Intel Dragon Canyon NUC	198.7 MB/s +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H (AV Pro SD microSD 128 GB V60)	178.1 MB/s
Average of class Mini PC (18.2 - 200, n=17, last 2 years)	97.2 MB/s -45%
Zotac ZBOX Magnus EN173070C Intel Core i7-11800H (AV Pro SD microSD 128 GB V60)	69.9 MB/s -61%
Geekom MiniAir 11 Special Edition Intel Celeron N5095 (AV Pro SD microSD 128 GB V60)	28.8 MB/s -84%

Communication

The Geekom Mini IT11 features a Wi-Fi 6 AX201 module from Intel. This makes it clear that it is unable to form network connections within the new 6-GHz frequency band. Its measured sending and receiving rates were still on quite a high level and remained stable all throughout our test. The module also supports Bluetooth connections (5.2), meaning you can easily connect a headset or a mouse wirelessly.

We used the Asus ROG Rapture GT-AXE11000 as a test router for this test.

Networking
iperf3 receive AXE11000
Average Intel Wi-Fi 6 AX201 (390 - 1734, n=72)	1440 MBit/s +50%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s -1%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s -2%
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s -6%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s -7%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -18%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -59%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -80%
iperf3 transmit AXE11000
Average Intel Wi-Fi 6 AX201 (438 - 1715, n=67)	1300 MBit/s +54%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +9%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s -2%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s -2%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -7%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -12%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -26%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s -59%

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø957 (941-967)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø845 (818-879)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

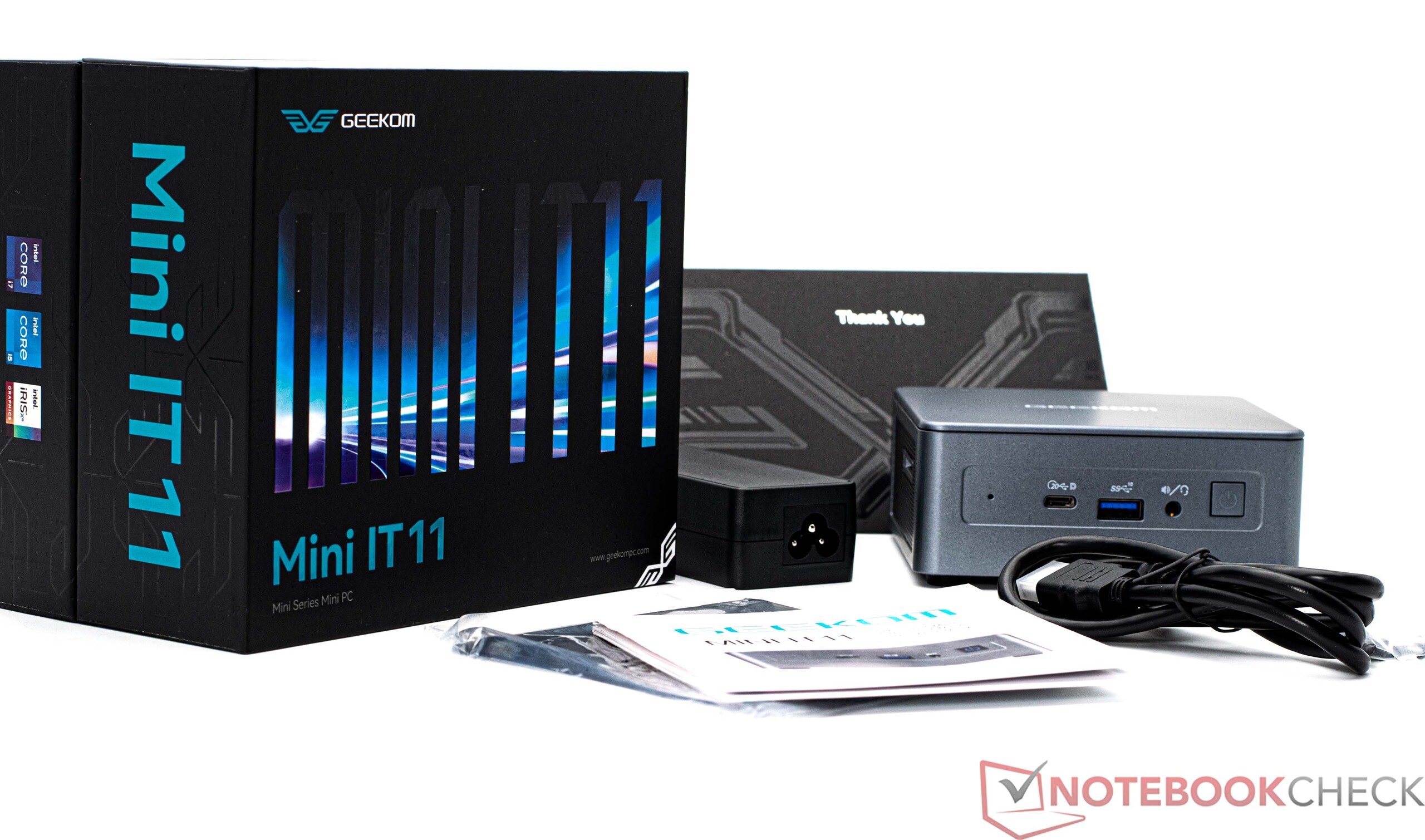

Accessories

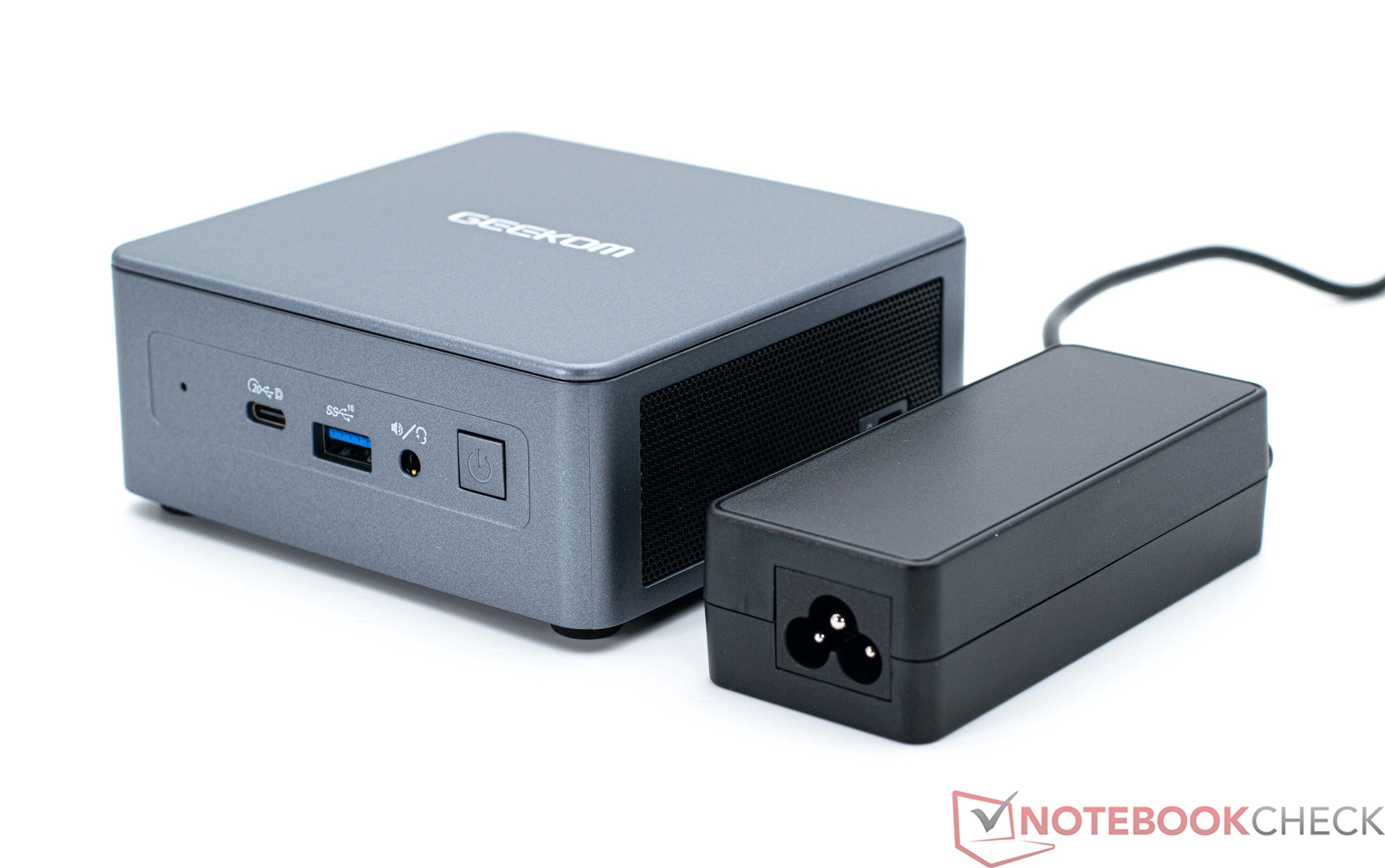

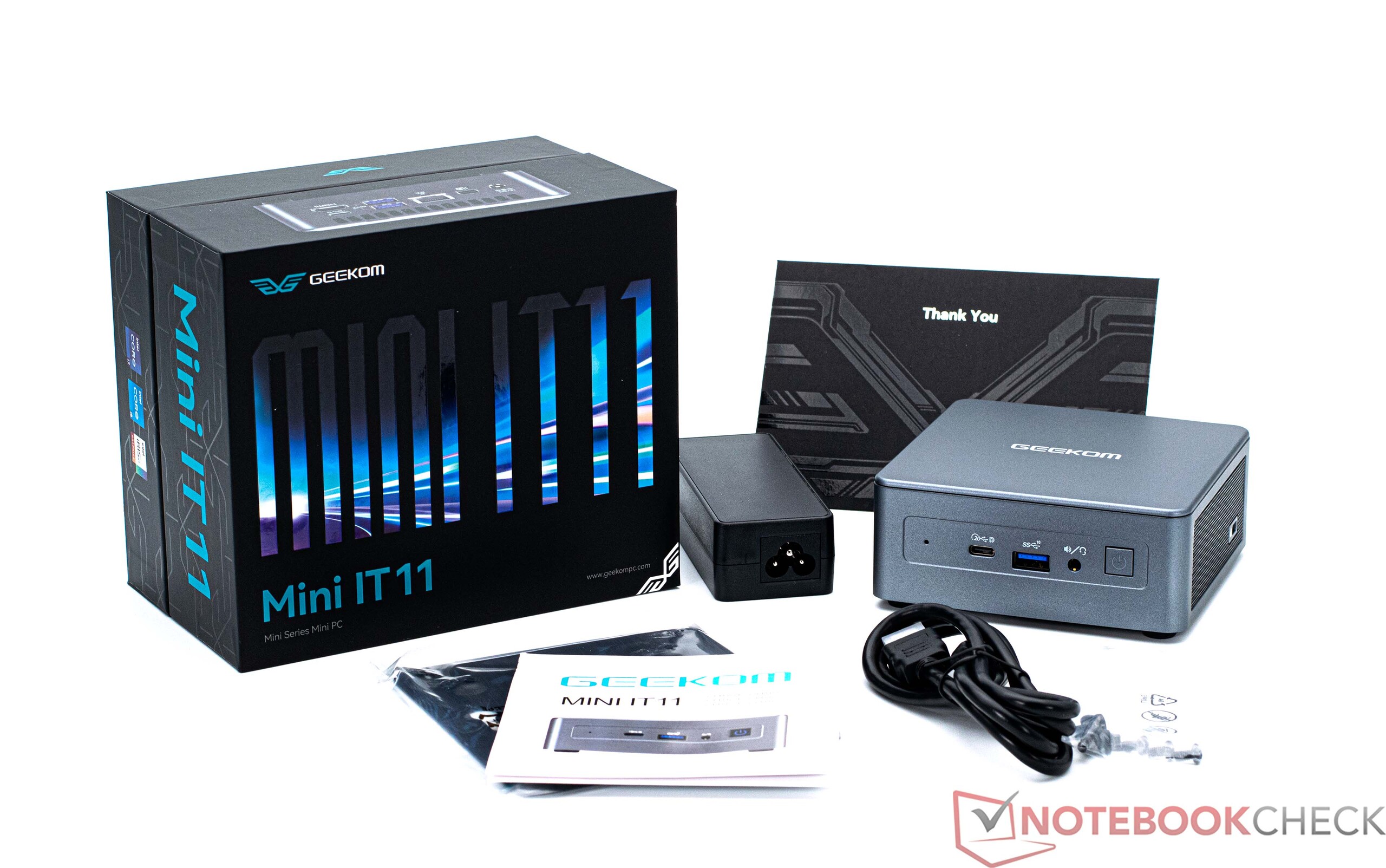

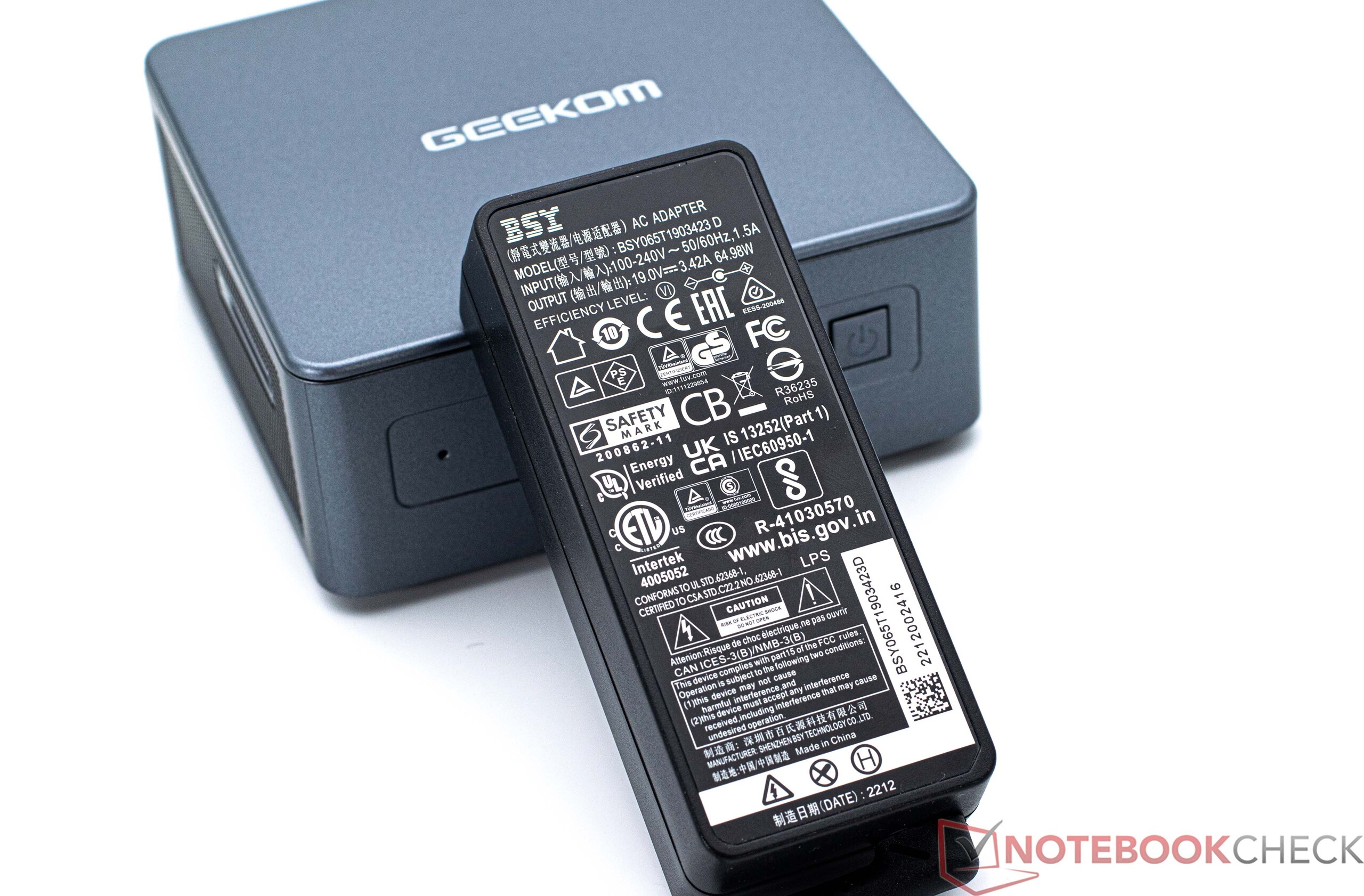

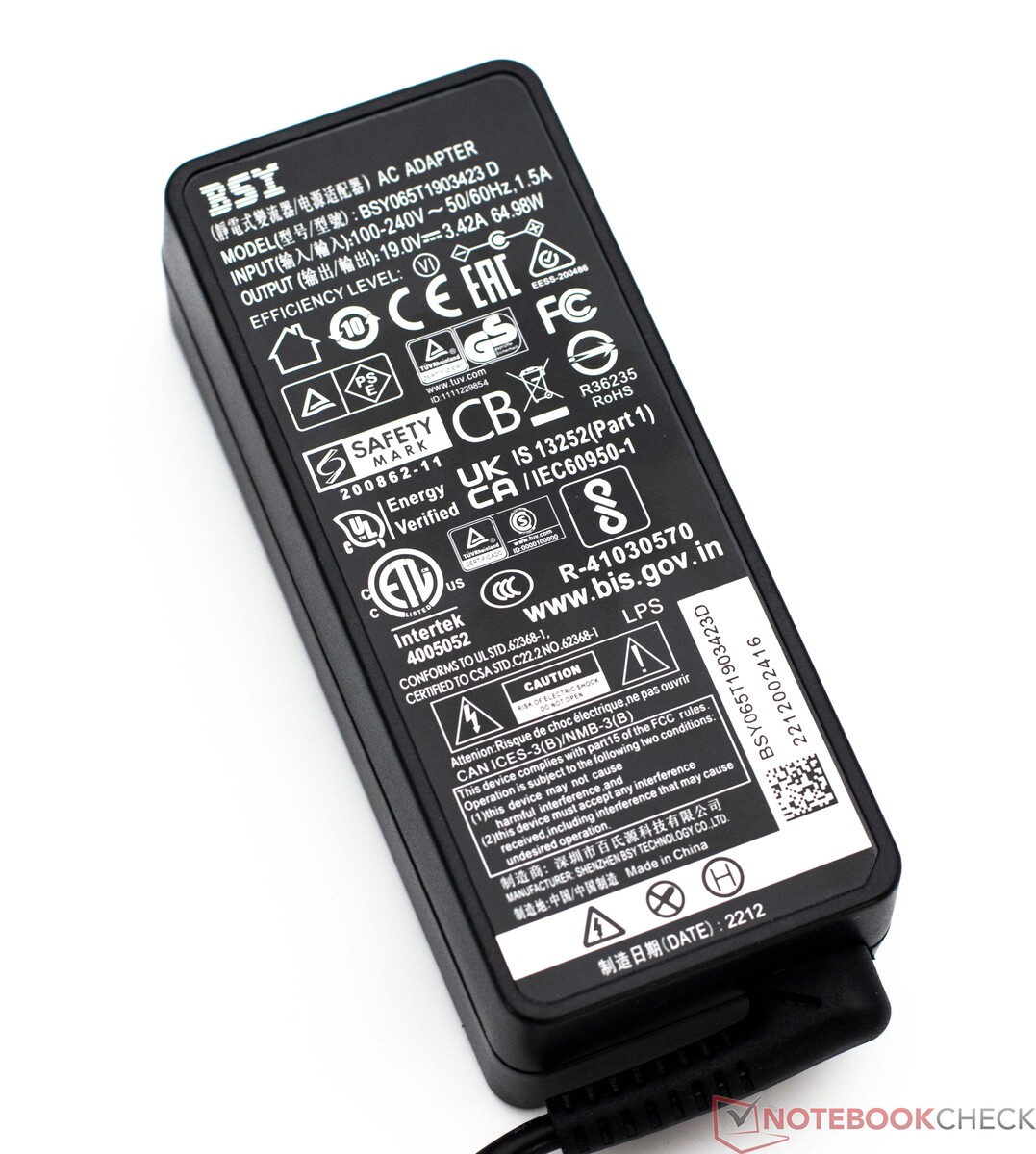

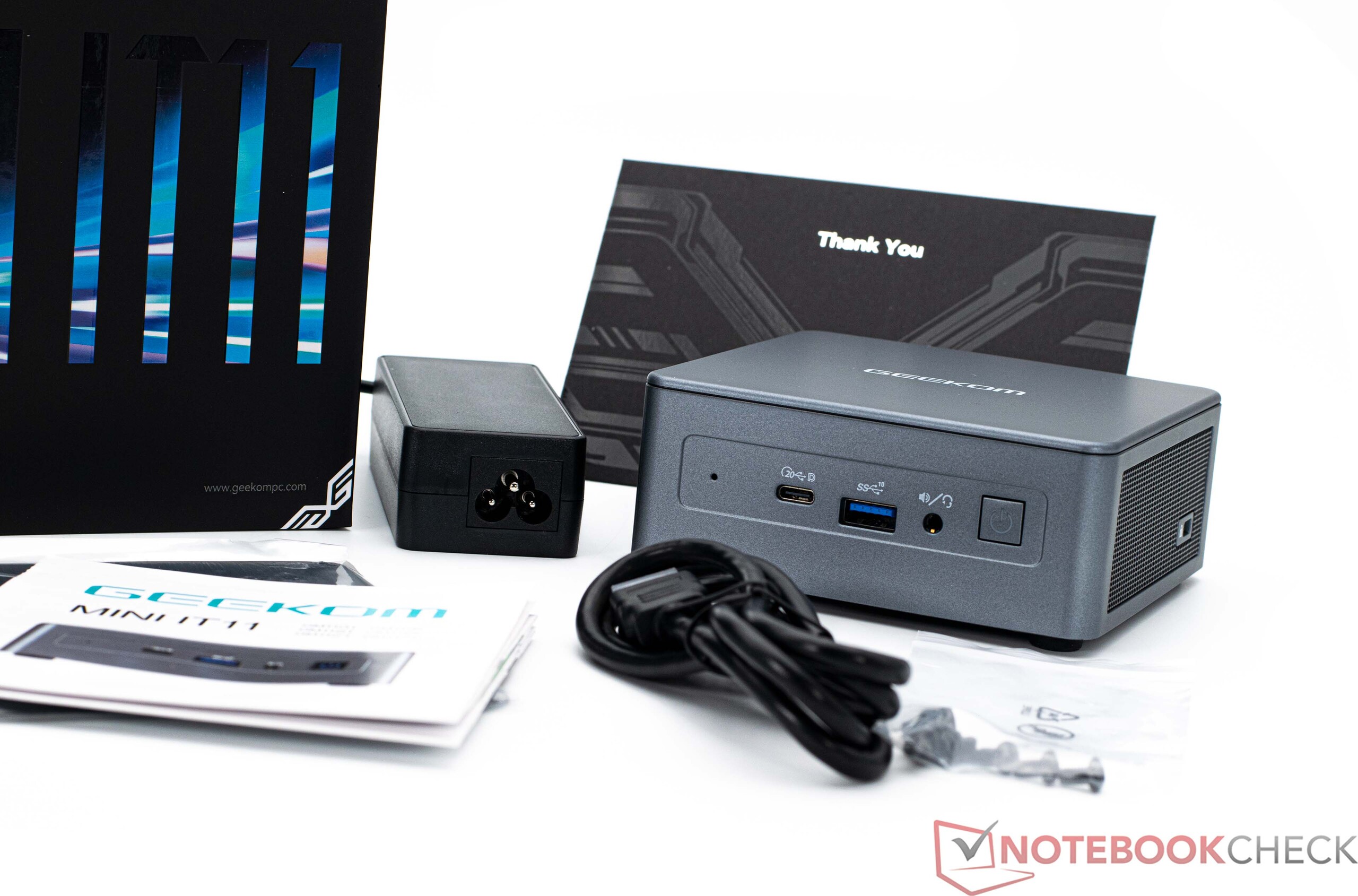

Its scope of delivery is extensive and features everything you will need to set up and run the PC. Aside from the device itself, the package also includes a 65-watt power supply and a VESA mounting plate. Geekom have also included an HDMI cable and a short instruction manual.

Maintenance

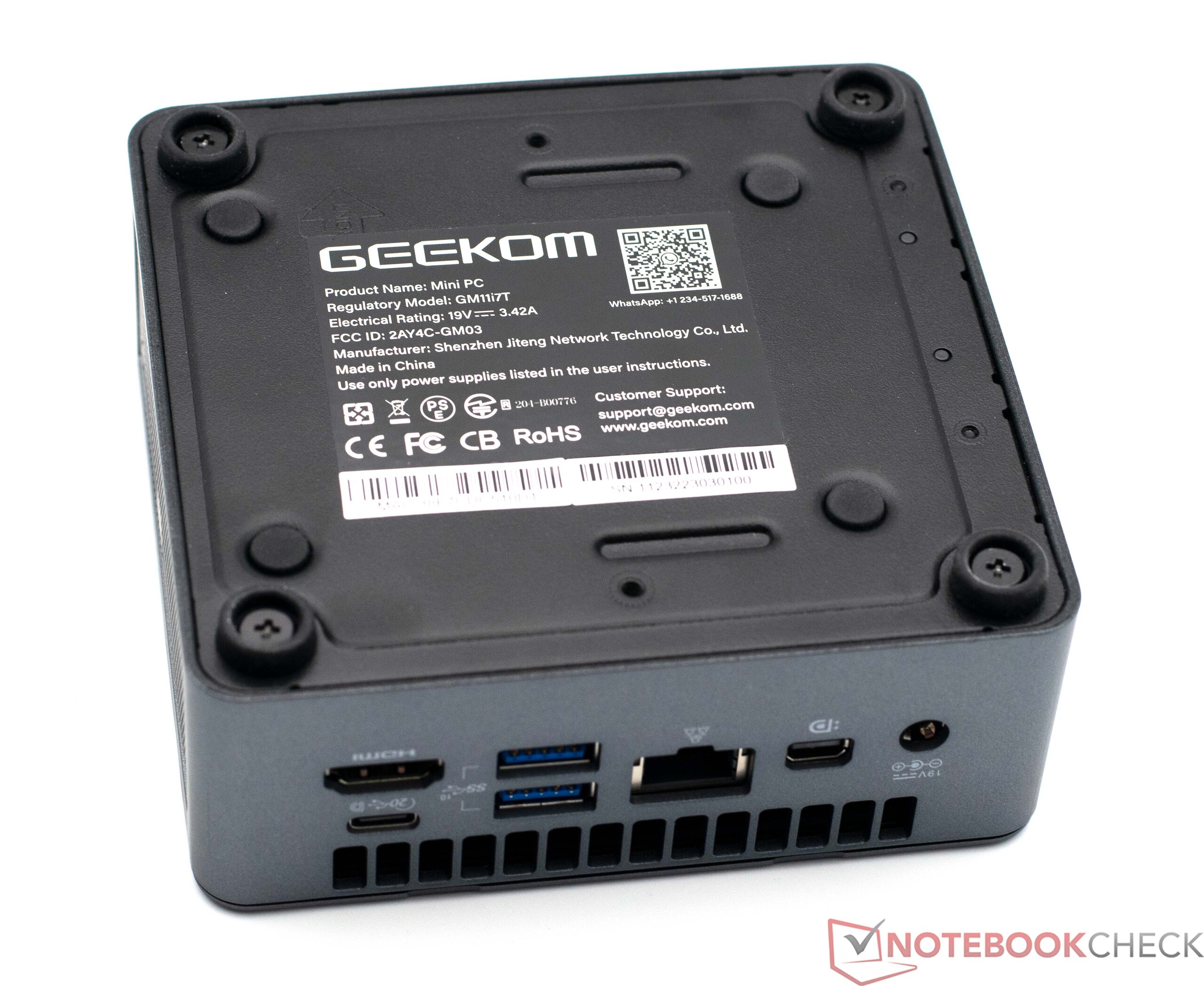

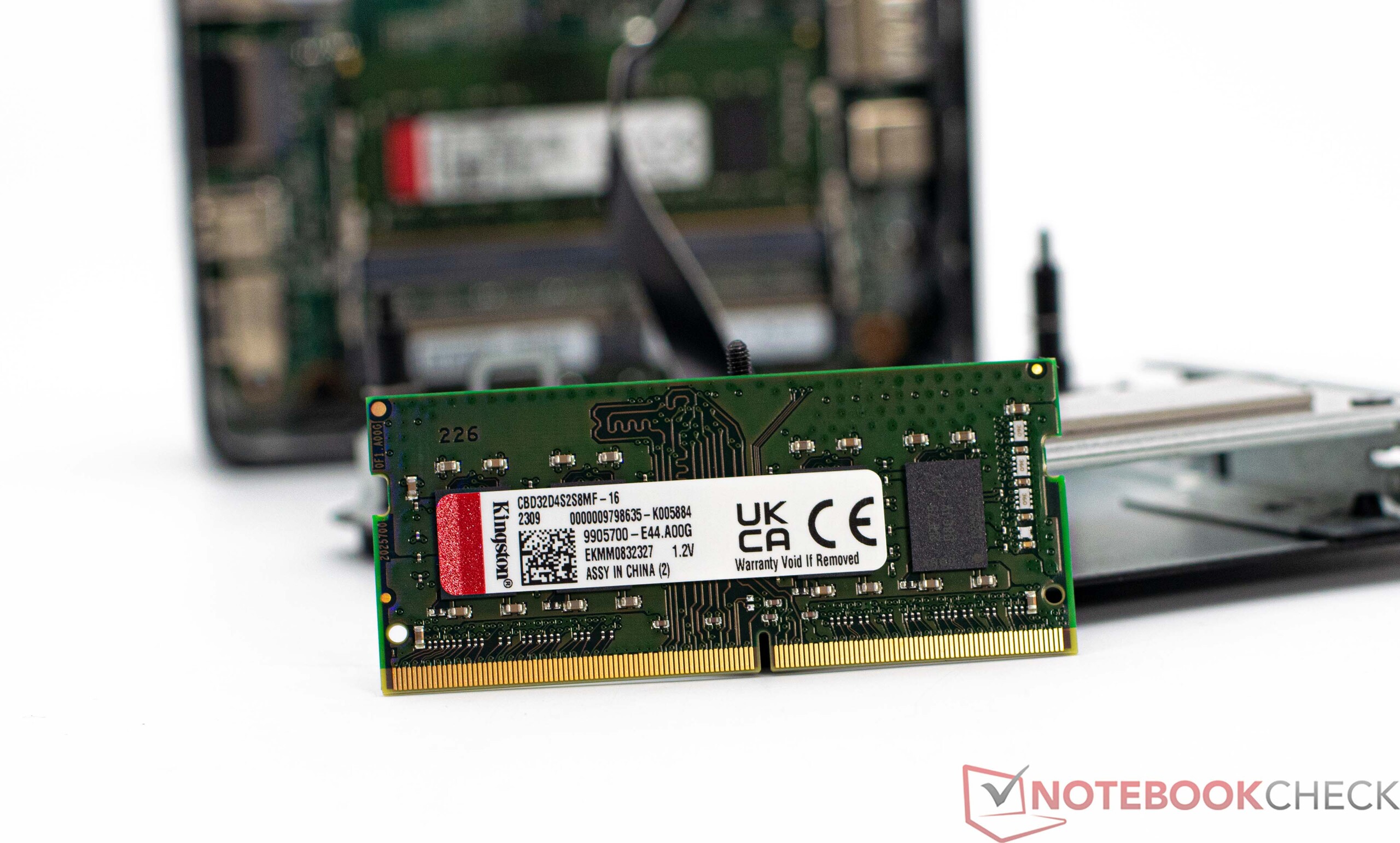

The Geekom Mini IT11 can be opened up super easily. The bottom is secured by four screws and is also used to dissipate heat from the SSD. You can swap out the SSD, RAM and the WLAN module. In total, the Geekom Mini IT11 has space for up to three SSDs. To access the cooling system, you have to take apart the device even further.

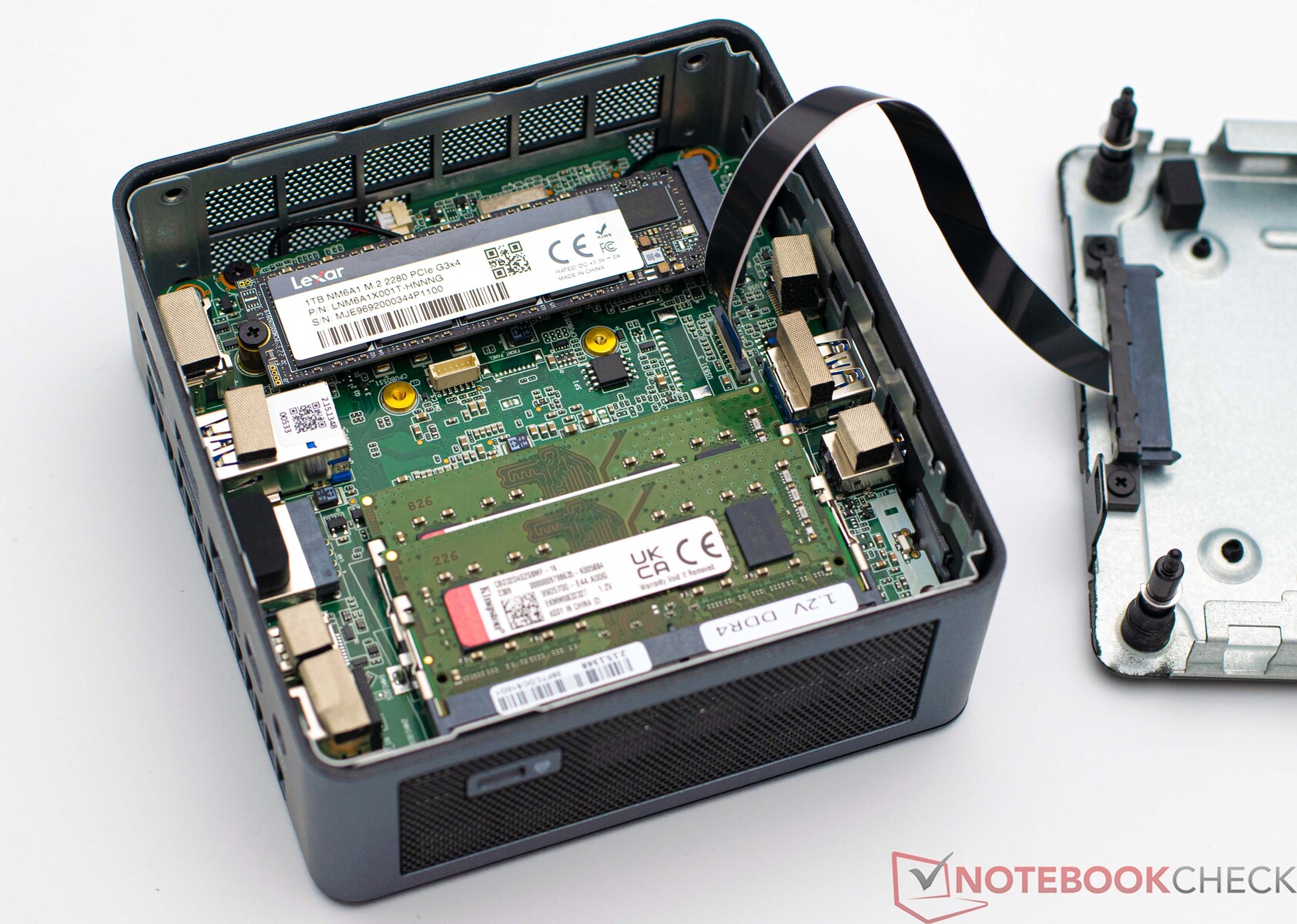

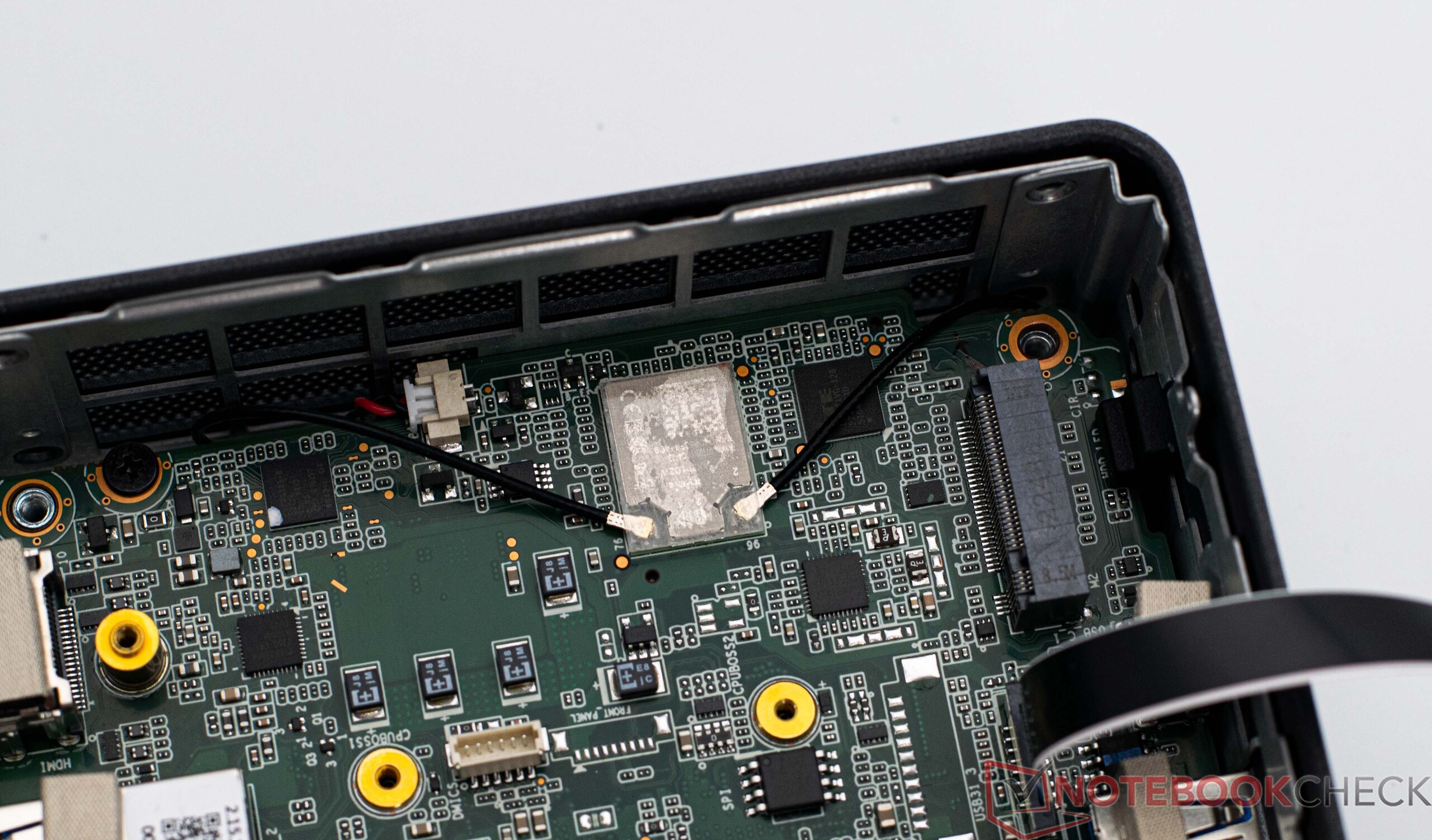

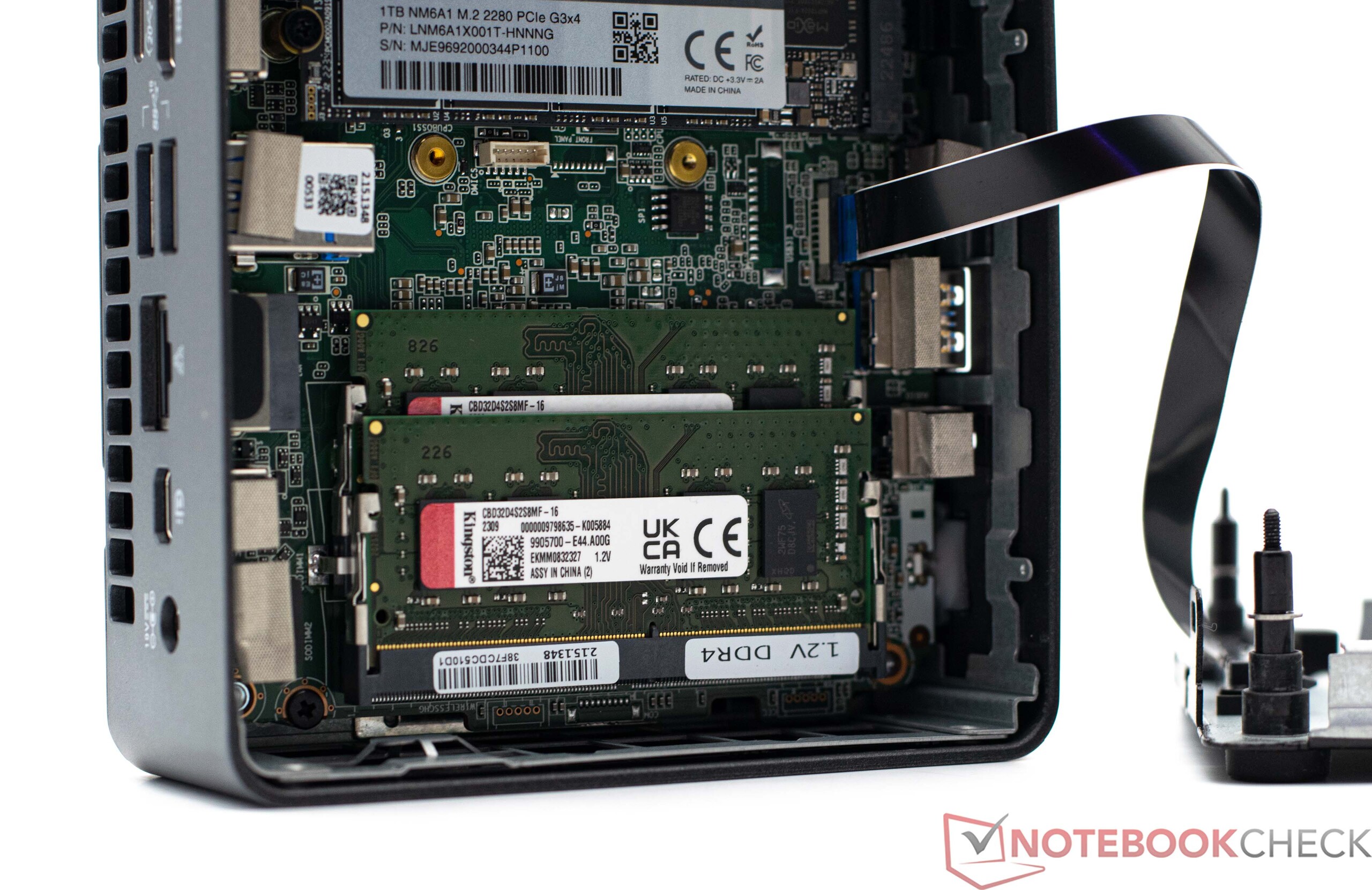

The Geekom Mini IT11 with removed bottom plate

Performance - The Core i7-11390H with only 4 cores and 8 threads

Due to the PC being fitted with an Intel Core i7-11390H, we don't expect the Geekom Mini to set any new records. Even so, we still expect the device to perform smoothly in everyday use.

Testing conditions

We ran all of the performance tests using the energy profile "balanced". We didn't change the SoC's performance and left it in its delivered state according to the BIOS settings.

Processor - only 4 cores and 8 threads

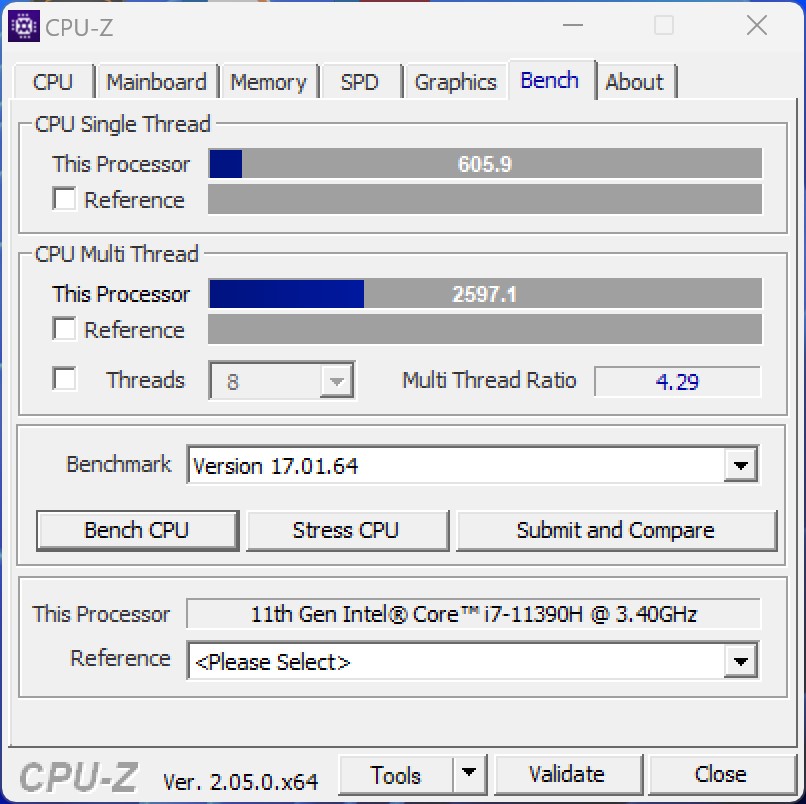

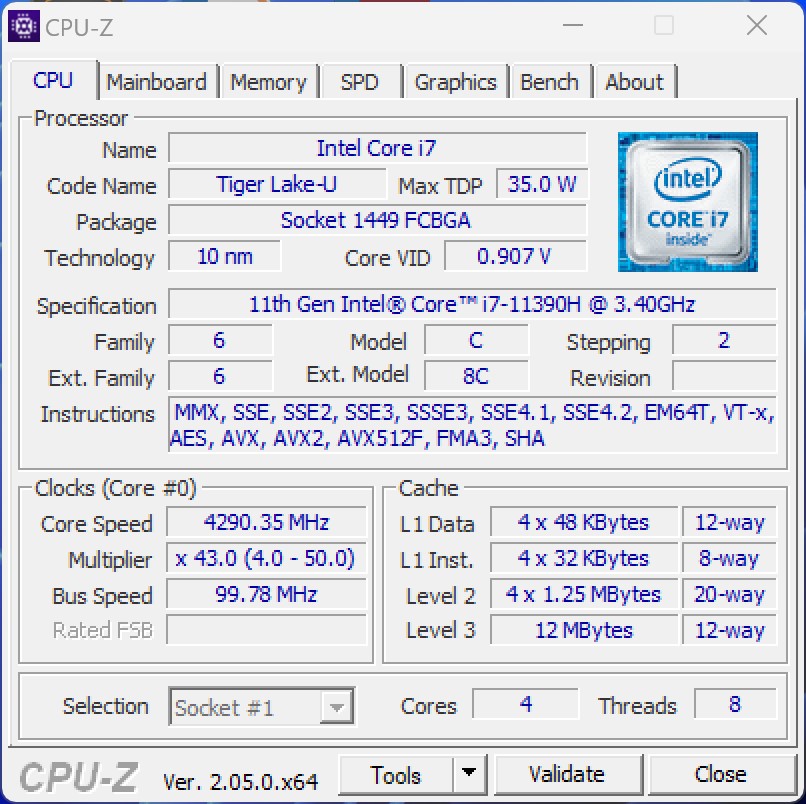

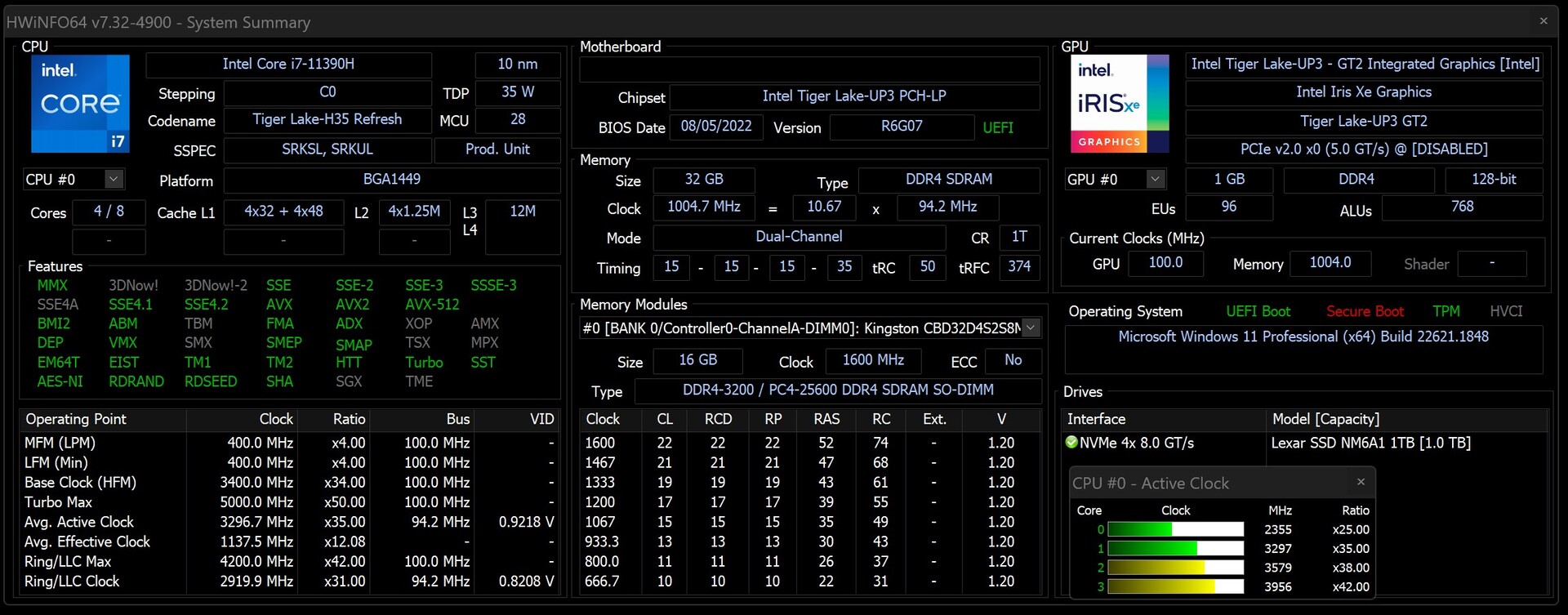

The Geekom Mini IT11 is fitted with an Intel Core i7-11390H. The SoC only has four native processing units and can process a total of eight threads at once. Due to its small number of native processing units, its mult-core performance suffers compared to its competitors. Intel's pet project, namely its single-core performance, is able to help the outdated SoC to still achieve relatively good rates. Compared to the Morefine M600, the Geekom Mini IT11 only did a little bit worse. In the performance ratings, there were only 7 percentage points between the two, which shouldn't be too noticeable in everyday use. The slightly newer Geekom Mini IT12 did 12 per cent better than our test sample.

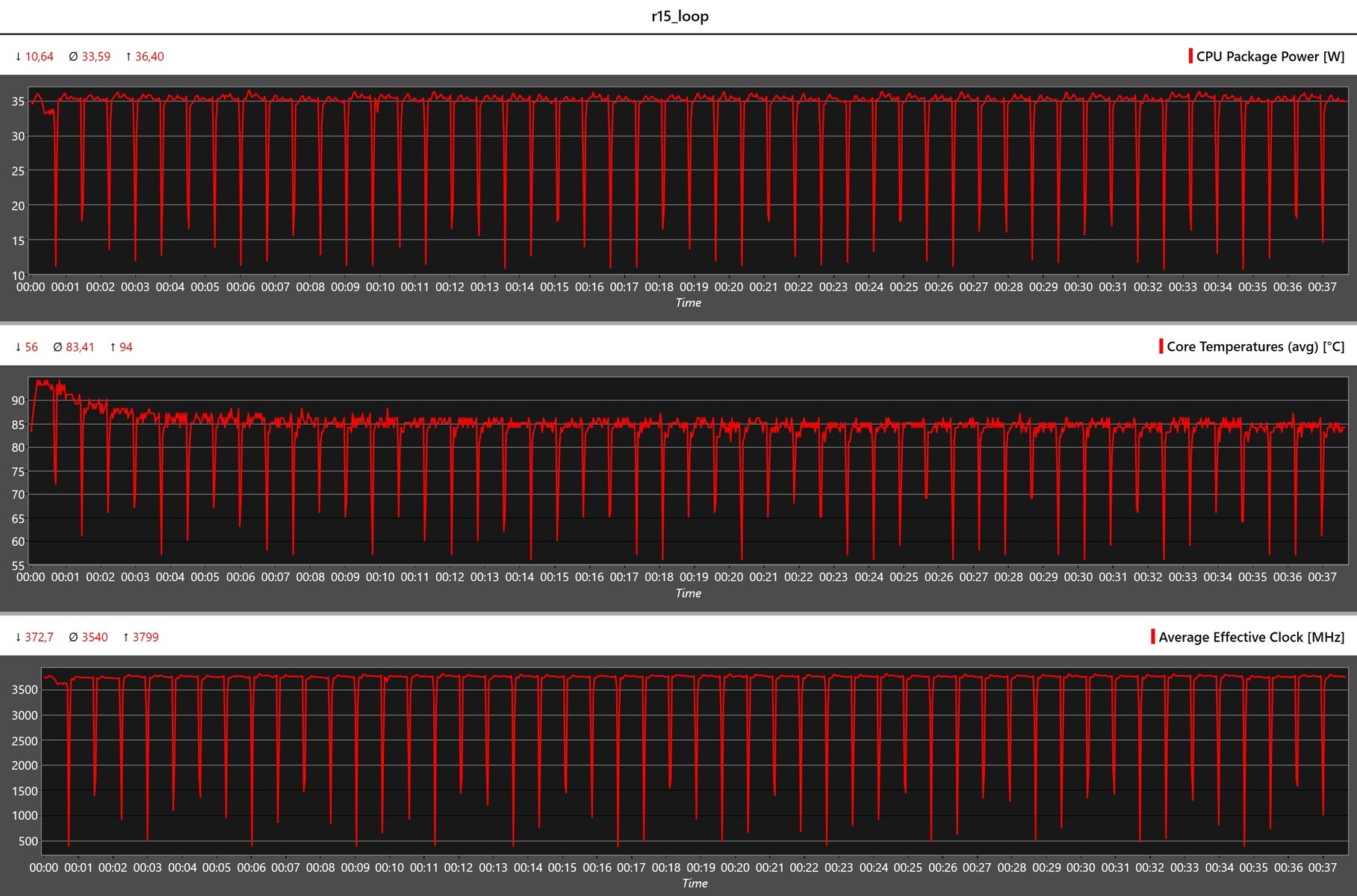

Its short-term power consumption (PL2) is 64 watts, and under continuous load (PL1), the PC can consume 35 watts. However, we noted that the PC wasn't even able to come near its 64-watt limit. Its high temperatures led its power consumption to be reduced prematurely, meaning the installed SoC wasn't able to be used to its full potential.

For further comparisons and benchmarks, take a look at our CPU comparison table.

Performance Rating - Percent
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	52.1 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	47.6 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	45.8 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	45.6 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	43 pt
Geekom Mini IT11-GM11i7T ^-2! Intel Core i7-1195G7, 2900 MHz	43 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	37.7 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	34.8 pt

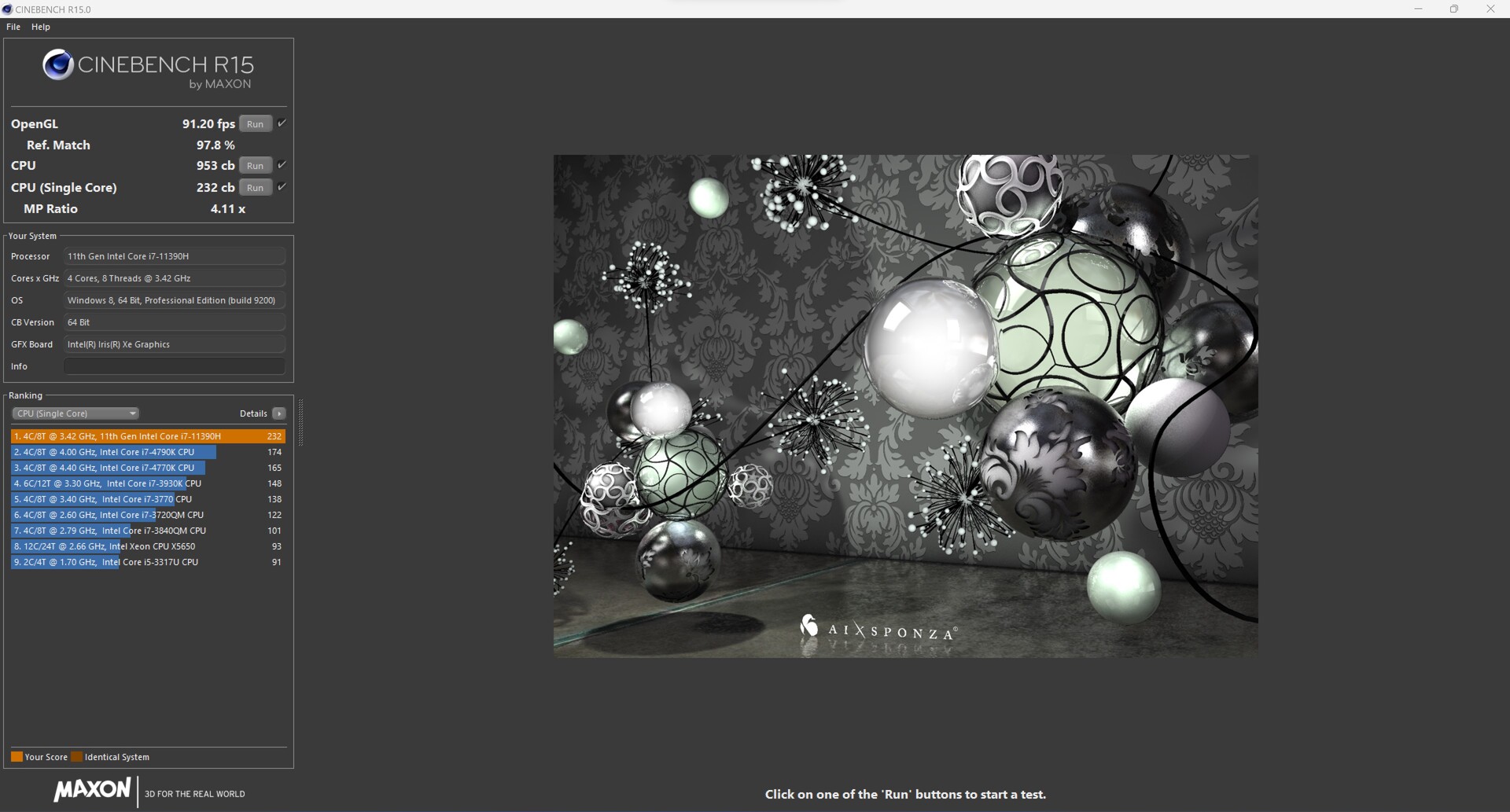

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	236 Points +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	225 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points -27%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +99%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1596 Points +67%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points +64%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points +43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	831 (819.47^min - 831.07^max) Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -41%

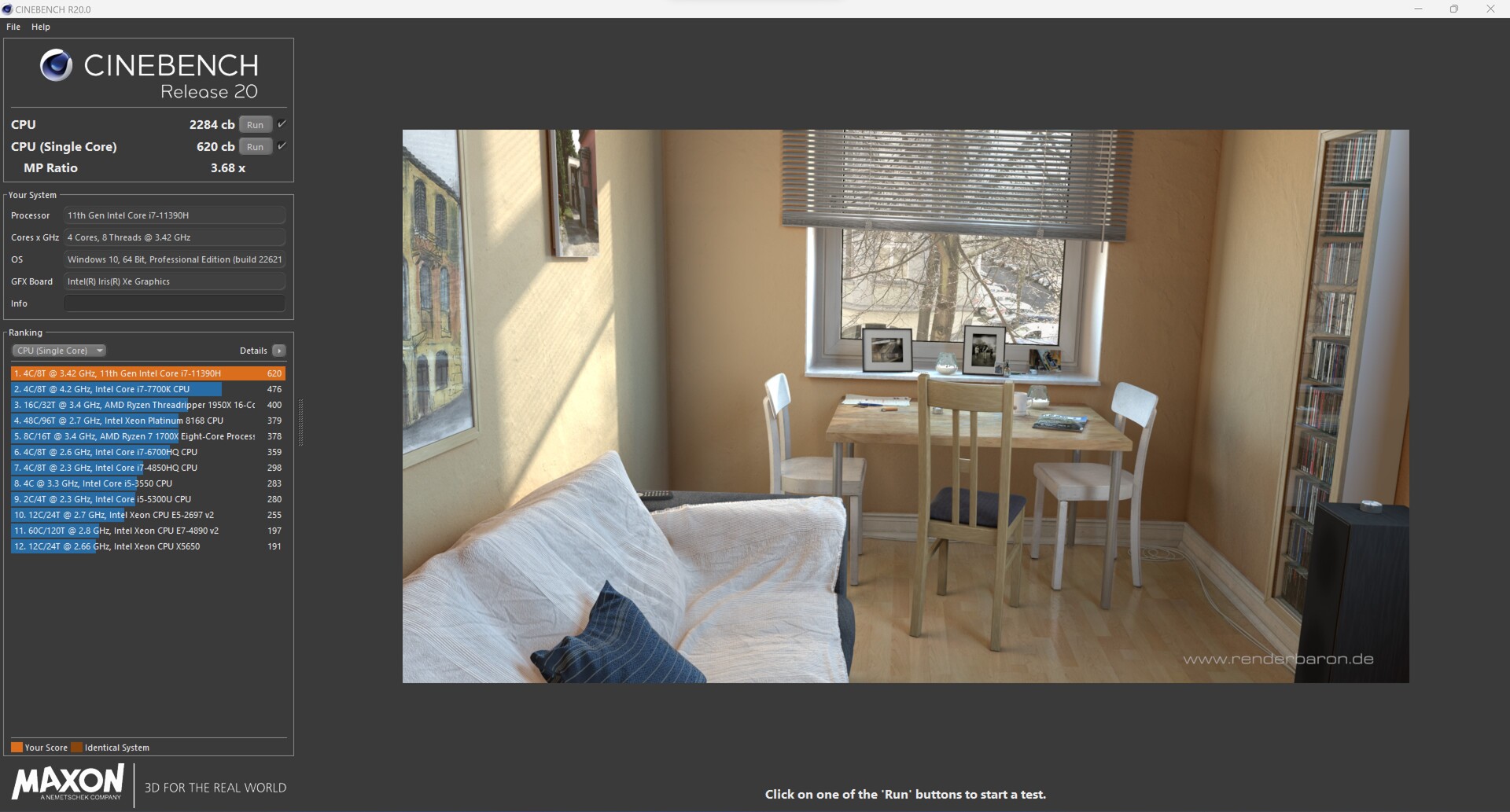

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	617 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	533 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points -33%
CPU (Multi Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +109%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	3768 Points +65%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points +50%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points +50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	2024 Points -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -37%

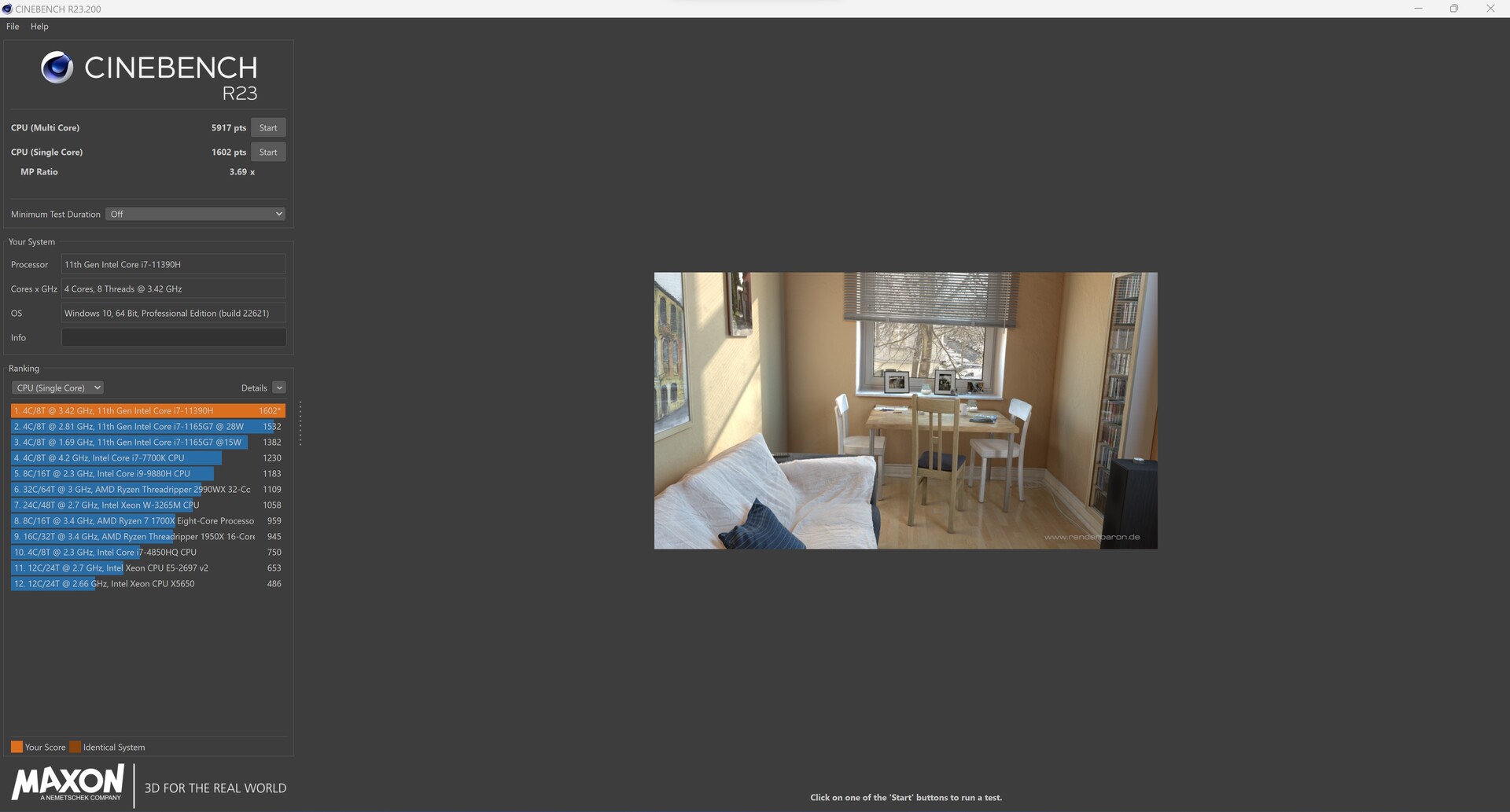

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1602 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	1595 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1375 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1346 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1082 Points -32%
Multi Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +104%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	9564 Points +62%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points +50%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points +44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5917 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	5337 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3867 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	3721 Points -37%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * -35%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	564 Seconds * -10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * +19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	319 Seconds * +38%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +44%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * +46%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +45%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	251.21 fps +17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps -34%
Pass 2
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +101%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	95.18 fps +72%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps +41%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps +29%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -34%

Geekbench 5.5
Multi-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +84%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +75%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +50%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7253 Points +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	4734 Points -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points -23%
Single-Core
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +7%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	1649 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1443 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points -27%

Geekbench 5.0
5.0 Multi-Core
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +104%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +104%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +81%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	7128 Points +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	4683 Points -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points -22%
5.0 Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	1636 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	1393 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points -26%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	6970 Points -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -6%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6117 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points -33%
64 Bit Multi-Core Score
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +95%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +95%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +71%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	28997 Points +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -5%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	18904 Points -7%

7-Zip 18.03
7z b 4
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +85%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	46562 MIPS +80%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +71%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS +45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	24351 MIPS -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -32%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	5890 MIPS 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS -7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	5369 MIPS -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -19%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS -21%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +79%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	12.4 fps +63%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +54%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps +33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	6.92 fps -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps -32%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec *
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	0.53 sec * +2%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	0.526 sec * +3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +15%

LibreOffice - 20 Documents To PDF
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	83.9 s * -78%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * -44%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	56.7 s * -20%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +16%

WebXPRT 3 - Overall
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +18%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points +5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	270 Points +3%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	261 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points -21%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	651 ms * -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	612 ms * +5%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +19%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21110 Points +83%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points +82%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points +61%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points +38%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	11800 Points +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points -27%
1920x1080 Fire Strike Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +88%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	21025 Points +77%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points +34%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	12048 Points +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points -24%
2560x1440 Time Spy CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +99%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, 3300 MHz	6767 Points +47%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points +41%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points +11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, 2900 MHz	4472 Points -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points -41%

* ... smaller is better

Performance Rating
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95.6 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92.1 pt
Average of class Mini PC	84.2 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	83.1 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	75 pt
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	60.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	59.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	54.2 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	41.7 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s +71%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s +63%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +51%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s +43%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s +20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	6609 KRay/s 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -30%

AIDA64 / FPU Julia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points +155%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +115%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points +96%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +89%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points +45%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	28579 Points +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -13%

AIDA64 / CPU SHA3
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s +28%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +25%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s +8%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	1909 MB/s +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -43%

AIDA64 / CPU Queen
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +67%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points +53%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +52%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points +49%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points +14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -6%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	46554 Points -6%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points +98%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +93%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +64%
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +62%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points +23%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	4656 Points +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -12%

AIDA64 / FPU Mandel
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points +134%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +95%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +67%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points +61%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points +19%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	17352 Points +4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -25%

AIDA64 / CPU AES
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s +65%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +61%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +31%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s +30%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	66023 MB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s -69%

AIDA64 / CPU ZLib
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +81%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s +65%
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +56%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s +55%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s +42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	347 MB/s -7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -29%

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s +57%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s +57%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +45%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +38%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	3619 KRay/s -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -31%

AIDA64 / CPU PhotoWorxx
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +10%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +6%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	25669 MPixel/s +1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s -20%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -60%

Geekom Mini IT12 vs. Cinebench R15 Multi Loop

The Cinebench R15 continuous loop gives us a first look at the installed cooler's efficiency in combination with the SoC's power target. We saw that the PC didn't perform any better at the beginning of this test than it did throughout the rest of the test's duration. The telemetry data during the test showed us that its maximum temperature was reached very quickly. We do want to mention one positive aspect: The Intel Core i7-11390H performed consistently and the perviously mentioned high CPU temperatures didn't cause any dips in performance whatsoever.

CPU metrics during the Cinebench R15 loop

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minisforum Mars Series MC560 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1099 (1072.7-1239.66)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

System performance

During the synthetic benchmarks, the Geekom Mini IT11 didn't have an easy job to compete with its competitors with regards to its system performance. It not reaching its maximum power consumption levels contributed to these results, and our test sample had to settle for coming in somewhere in the middle. During the Crossmarks and the RAM benchmarks, the Geekom Mini IT11 did slightly better compared to its PCMark 10 results. However, we can subjectively say that the Mini IT11 is still fine for everyday use. Its quad-core SoC still proves to be fast enough thanks to its generous RAM and its SSD.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points +26%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +23%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +19%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points +15%
Geekom Mini IT11-GM11i7T, Intel Core i7-1195G7 Intel Iris Xe Graphics G7 96EUs, Intel SSD 660p SSDPEKNW512G8	5067 Points +3%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -8%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -21%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +18%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points +9%
Geekom Mini IT11-GM11i7T, Intel Core i7-1195G7 Intel Iris Xe Graphics G7 96EUs, Intel SSD 660p SSDPEKNW512G8	10303 Points +7%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points +5%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points +2%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -8%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -23%

PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points +42%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +33%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points +20%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points +9%
Geekom Mini IT11-GM11i7T, Intel Core i7-1195G7 Intel Iris Xe Graphics G7 96EUs, Intel SSD 660p SSDPEKNW512G8	7070 Points +4%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points -2%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -6%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +30%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +21%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +5%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points -6%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -13%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points -29%

CrossMark / Responsiveness
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +45%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +21%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -15%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points -17%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -46%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +33%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +29%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +22%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points +1%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -12%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points -24%

CrossMark / Productivity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +23%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +14%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -2%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points -28%

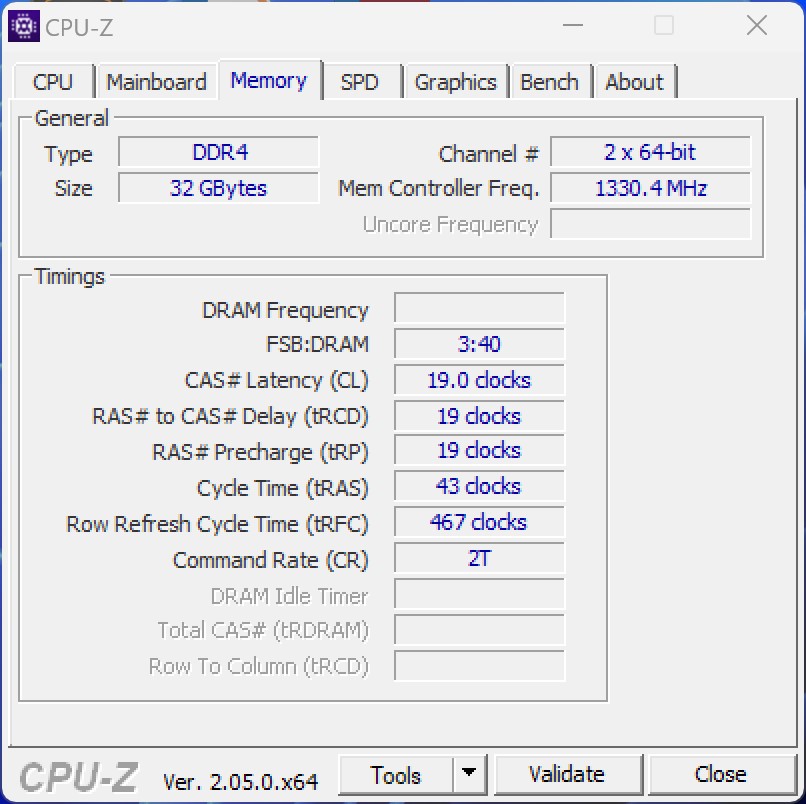

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +12%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +7%
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s +2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	41937 MB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -55%

AIDA64 / Memory Read
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +6%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s 0%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	47463 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -3%
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -59%

AIDA64 / Memory Write
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +1%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	46975 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s 0%
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s 0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -61%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -42%
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * -32%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -21%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns * -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * -8%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Iris Xe G7 96EUs	69.8 ns * -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * +9%

* ... smaller is better

DPC latency

The Geekom IT11 achieved the best latency results compared to all of the comparison devices. The system seems to work excellently in this regard. We noted no issues playing our 4K test video. The dropped frames came from the loading time at the beginning. The iGPU was used to about 40 per cent capacity while playing the video. Prime95 also didn't lead to any increased latencies.

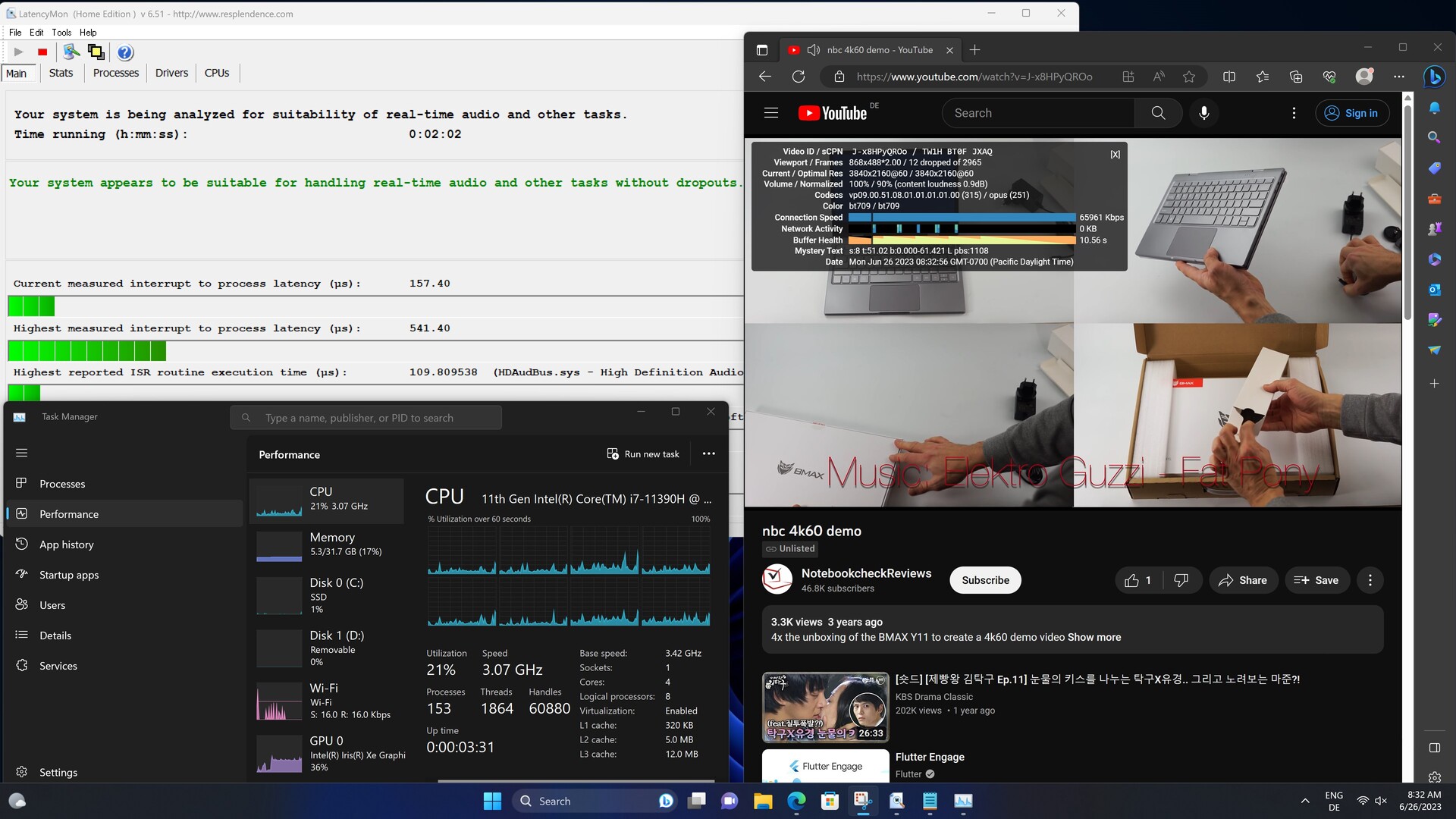

Maximum latencies when opening multiple browser tabs and playing 4K video

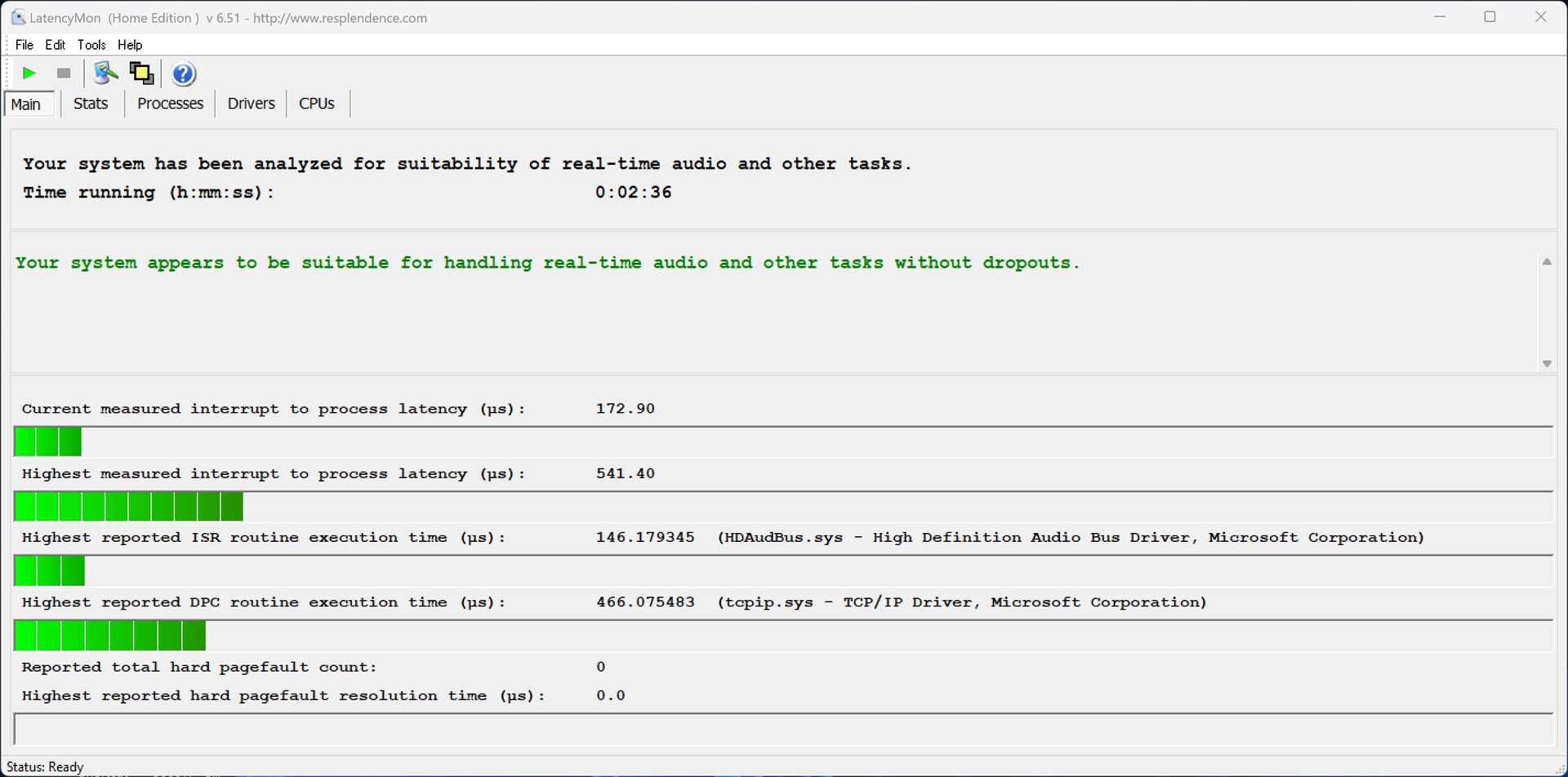

Maximum latencies after ten seconds of Prime95

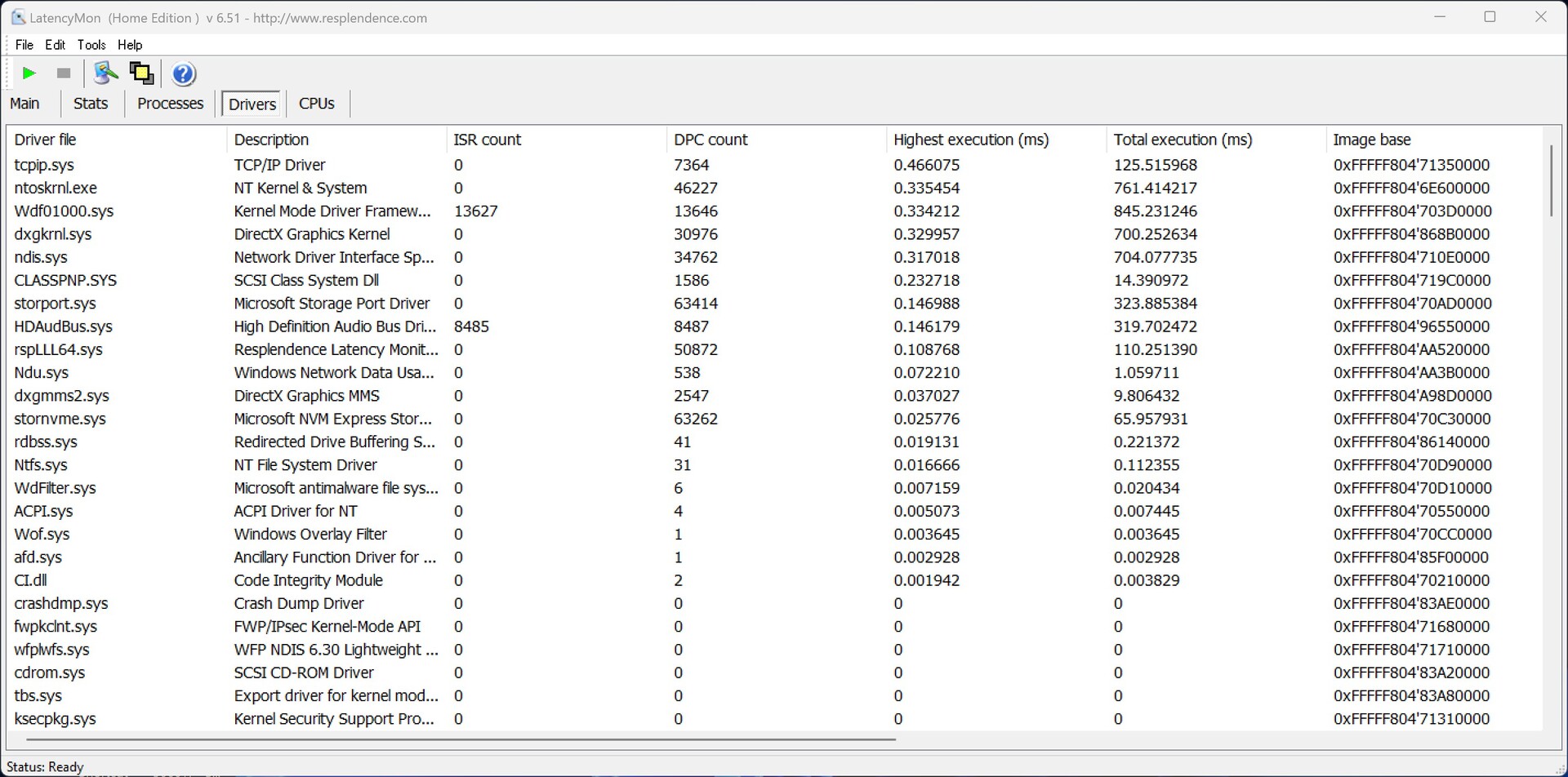

Drivers ranked by longest execution duration

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	7414 μs * -1491%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -118%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * -112%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	940.27 μs * -102%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * -71%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * -41%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	541.1 μs * -16%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs *

* ... smaller is better

Storage devices

Geekom have equipped the Mini IT11 with a 512-GB NVMe SSD from Lexar. The installed model makes use of the NVMe connection and offers decent transfer rates. It cannot come close to the Miniforum NAB6's outstanding SSD performance, even still, our test device came in on second place. Its transfer rates are definitely fit for everyday use. Under continuous load, the Geekom Mini IT11's SSD cooling wasn't quite enough to avoid the read rates being throttled. At times, we noted a loss in read rates of up to 50 per cent.

The Geekom Mini IT11 can be fitted with two M.2 SSDs. In addition, the device features a 2.5-inch slot, meaning a total of three storage devices can be installed. You just have to keep in mind a maximum build height of 7 millimetres.

For further comparisons and benchmarks, take a look at our comparison table.

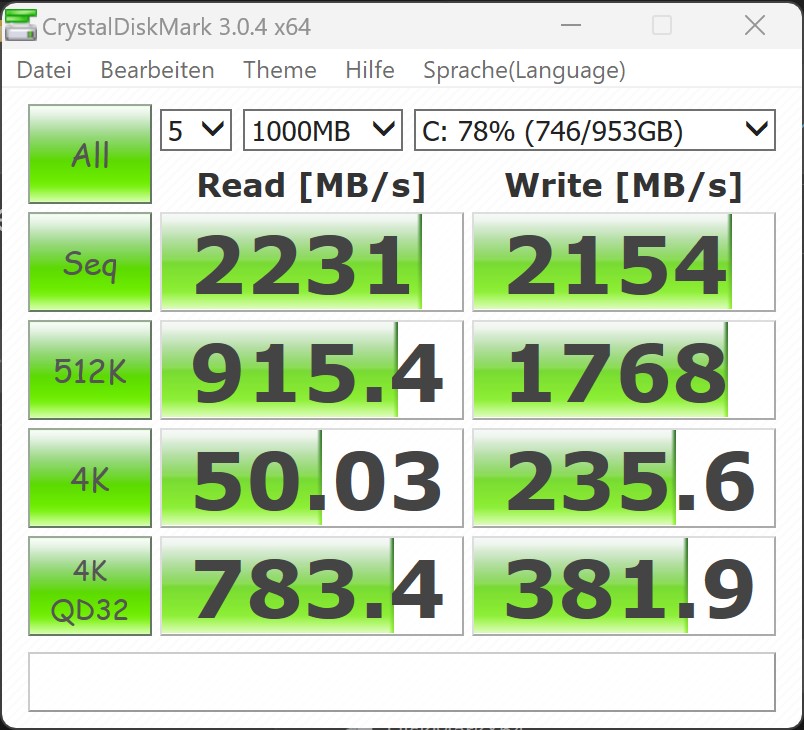

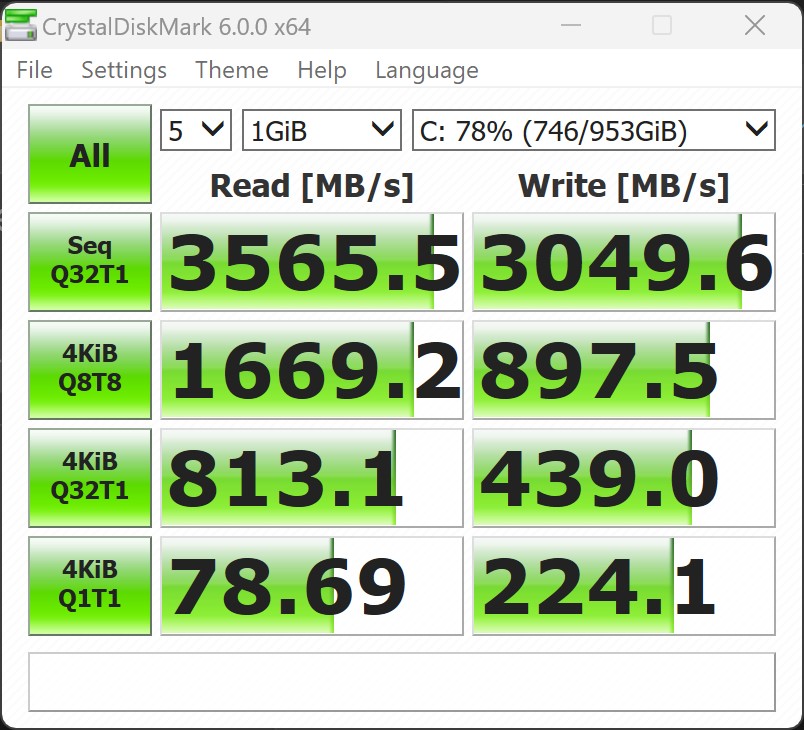

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar 1024GB LNM6A1X001T-HNNNG

Sequential Read: 2231 MB/s

Sequential Write: 2154 MB/s

512K Read: 915.4 MB/s

512K Write: 1768 MB/s

4K Read: 50.03 MB/s

4K Write: 235.6 MB/s

4K QD32 Read: 783.4 MB/s

4K QD32 Write: 381.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	84.2 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	59.6 pt
Average of class Mini PC	58.4 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	55.5 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	52.4 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	46.9 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	42.7 pt
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	40.1 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	15.4 pt

DiskSpd
seq read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +60%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +30%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +21%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +2%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s -2%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1549 (1537.7^min - 1549.42^max) MB/s -8%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -14%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -82%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s -11%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s -18%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s -48%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -53%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	945 (937.02^min - 945.39^max) MB/s -59%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -81%
seq q8 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +116%
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +14%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +13%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s +6%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1745 (1554.41^min - 1745.32^max) MB/s -22%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -24%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s -80%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +42%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s -10%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s -22%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -28%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s -36%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s -51%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	952 (939.95^min - 952.11^max) MB/s -62%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -82%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +117%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	65.7 (65.2^min - 65.71^max) MB/s +72%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s +46%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s +35%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +18%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s +18%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +6%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s +2%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s
4k q1 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +250%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +130%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +91%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	223 (217.36^min - 222.63^max) MB/s +86%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +64%
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s +55%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s +40%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -32%
4k q32 t16 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +203%
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +71%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +57%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s +30%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -12%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -34%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	345 (344.96^min - 345.39^max) MB/s -46%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s -54%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +1824%
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s +815%
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +518%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +435%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	847 (829.95^min - 846.98^max) MB/s +381%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +340%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +209%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s +87%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s

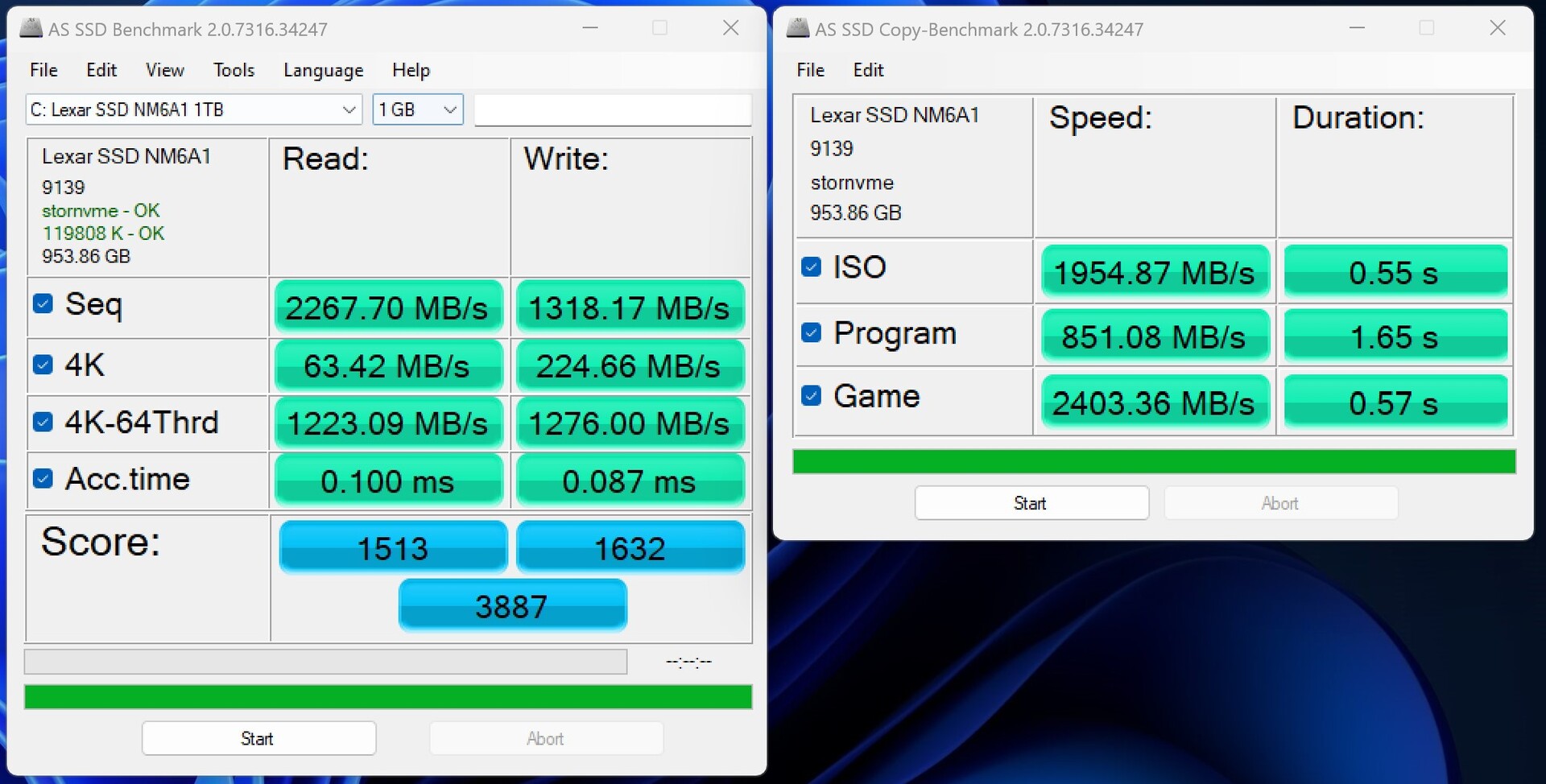

AS SSD
Score Total
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +22%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points -8%
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -26%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -36%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1598 Points -59%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -81%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -95%
Score Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +56%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points -11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -24%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points -37%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -52%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points -56%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	522 Points -65%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points -75%
Score Write
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points +4%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points -4%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points -11%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points -20%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -28%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	810 Points -50%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points -57%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -89%
Seq Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +71%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +25%
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s +24%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s +23%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -3%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s -3%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	1356.17 MB/s -40%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s -78%
Seq Write
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s +49%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s +34%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +22%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -7%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -33%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	854.29 MB/s -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s -60%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s -70%
4K Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +62%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	61.08 MB/s -4%
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s -12%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s -13%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -23%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s -34%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -37%
4K Write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +58%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +21%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	191.79 MB/s -15%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s -18%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -18%
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s -25%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s -33%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -82%
4K-64 Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +53%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -27%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s -44%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -68%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	325.14 MB/s -73%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s -74%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s -76%
4K-64 Write
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s +8%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s -6%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s -17%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s -32%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -35%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	532.6 MB/s -58%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s -64%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -93%
Access Time Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * -17%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * -12%
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms * -3%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms *
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +2%
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	0.091 ms * +9%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +40%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +40%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms * +56%
Access Time Write
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms * -49%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * -36%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * -30%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * -26%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -18%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms *
Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	0.045 ms * +48%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms * +72%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +74%

* ... smaller is better

SSD Throttling: DiskSpd Read Loop, Queue Depth 8

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8: Ø1555 (1360.64-1603.84)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Graphics card

Due to its Intel Core i7-11390H, an Intel Iris Xe Graphics G7 with 96 EUs acts as the Geekom Mini IT11's integrated graphics card. Purely from a performance standpoint, this model should only really be used for 2D rendering. The AMD Radeon 660M in the Morefine M600 offers a bit more performance. The Geekom Mini IT12's Intel Iris Xe Graphics G7 is almost the exact same speed, but due to its newer SoC, it came in ahead of our test sample.

Further comparisons and benchmarks can be found in our G PU comparison table.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	95.1 pt
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	93.6 pt
Geekom Mini IT11-GM11i7T ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	88 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	86.5 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	81 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	80 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	76.5 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	24.3 pt

3DMark 11 - 1280x720 Performance GPU
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points +22%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +12%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +4%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +3%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points +1%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -69%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points +56%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +46%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	27609 Points +43%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points +17%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points +11%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +6%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -58%
1920x1080 Fire Strike Graphics
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +20%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +14%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	4551 Points +13%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +1%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -8%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -73%
2560x1440 Time Spy Graphics
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +18%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +10%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -4%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -15%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	1091 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -72%
Fire Strike Extreme Graphics
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +17%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +17%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	2039 Points +11%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +2%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -5%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	491 Points -73%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	92.9 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	92.2 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	90.6 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	79.2 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	77.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	76.1 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	25.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps +19%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps +18%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -2%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -69%
Extreme Preset DX11
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +14%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -1%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -68%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps +17%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps +17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +13%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +2%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps -4%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -65%
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +38%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +17%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps +15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps -1%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +24%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points +20%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points +17%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -3%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -9%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points -67%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +43%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points +22%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points -3%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -17%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points -61%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +48%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +3%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -11%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points -63%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points +59%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +56%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points +38%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -19%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points -70%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +14%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points +13%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points +7%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -4%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points -74%
1024x600 Normal, QJuliaRayTrace
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points +25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +6%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +3%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -12%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points -62%

3DMark 05 Standard		29075 points
3DMark 06 Standard Score		22323 points
3DMark Vantage P Result		17785 points
3DMark 11 Performance		5702 points
3DMark Ice Storm Standard Score		45086 points
3DMark Cloud Gate Standard Score		14916 points
3DMark Fire Strike Score		3723 points
3DMark Fire Strike Extreme Score		1824 points
3DMark Time Spy Score		1456 points
Help

... in comparison

Gaming performance

We can't recommend using the iGPU for gaming due to its limited performance levels. The Geekom Mini IT11 only achieved playable frame rates in the lowest resolutions and with low detail settings. If you are looking for a gaming device, then you'd be better off looking for a model with a dedicated graphics card. Here, we see a clear advantage for Minisforum's HX99G and NUCXi7 models. Alternatively, you can purchase the device based on an AMD Ryzen 9 6900HX - other models which feature this are the Geekom AS 6, Morefine M600 and the Ace Magican AM08 Pro.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	113.9 fps +80%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	101.7 fps +61%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps +39%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	63.6 fps 0%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	63.3 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	39.4 fps +77%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +44%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	31.1 fps +40%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	22.2 fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20.7 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps -12%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -32%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	90.7 fps +148%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +61%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	55.5 fps +52%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	54.3 fps +48%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	53.4 fps +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52.4 fps +43%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36.6 fps
1920x1080 High Overall Quality (DX11)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	24.1 fps +130%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +54%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	16.2 fps +54%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	15 fps +43%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	13.3 fps +27%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	13.2 fps +26%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	10.5 fps

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	152.1 (2.73^min, 100^P1) fps +56%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +38%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	126.2 (50.6^min, 76.9^P1) fps +29%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	121.3 (9.08^min, 83.3^P1) fps +24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	114.3 (8.54^min, 76.9^P1) fps +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	108.6 (21.4^min, 71.4^P1) fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	97.7 (25.6^min, 55.6^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	53.5 (3.46^min, 38.5^P1) fps +161%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	28.5 (10.1^min, 21.3^P1) fps +39%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	27.2 (6.42^min, 20^P1) fps +33%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps +2%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	20.7 (9.05^min, 15.9^P1) fps +1%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	20.5 (8.17^min, 14.5^P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	19.4 (8.25^min, 15.2^P1) fps -5%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	75 (60^min) fps +88%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	52 (45^min) fps +30%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49 (42^min) fps +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	46 (37^min) fps +15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	44 (38^min) fps +10%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	40 (35^min) fps
1920x1080 High Preset AA:T
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	34 (30^min) fps +79%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +42%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	25 (23^min) fps +32%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	25 (22^min) fps +32%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	20 (17^min) fps +5%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (17^min) fps +5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	19 (17^min) fps

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	66 (50^min) fps +83%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps +44%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	52 (34^min) fps +44%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	47 (30^min) fps +31%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	43 (33^min) fps +19%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	40 (31^min) fps +11%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36 (24^min) fps
1920x1080 High Preset
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	37 (29^min) fps +106%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +56%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	28 (22^min) fps +56%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26 (19^min) fps +44%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (12^min) fps +11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	19 (16^min) fps +6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	18 (14^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +43%
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	133.4 (119^min) fps +39%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	123.8 (98^min) fps +29%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	117.4 (100.8^min) fps +23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	116.4 (93.7^min) fps +22%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	111 (97.1^min) fps +16%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	95.8 (84.4^min) fps
1920x1080 high (2/3)
Morefine M600, 6900HX Radeon 680M, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G	82.2 (71.4^min) fps +82%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +50%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	67.6 (59.9^min) fps +50%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	63.1 (57.2^min) fps +40%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	57.2 (52.1^min) fps +27%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	50.5 (43.6^min) fps +12%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	45.2 (38.5^min) fps

	low	med.	high	ultra
GTA V (2015)	97.7	84.7	20.5	7.7
The Witcher 3 (2015)	63.3		22.2	11.4
Dota 2 Reborn (2015)	95.8	66.6	45.2	42
Far Cry 5 (2018)	40	20	19	17
Strange Brigade (2018)	68.6	29	23.3	19.1
Shadow of the Tomb Raider (2018)	39.1	15.9
Far Cry New Dawn (2019)	36	20	18	17
Borderlands 3 (2019)	36.6	16.9	10.5	7.98
F1 2020 (2020)	66.7	34.2	26.4	17
F1 2021 (2021)	78.3	37.1	29.2	20.3
GRID Legends (2022)	33.6	29.8	25.7	15.5
Tiny Tina's Wonderlands (2022)	22.3	17	10.7	8.4
F1 22 (2022)	33.3	30.6	21.7	16.5

3D performance via an eGPU dock with the Nvidia GeForce RTX 3060 Ti

As the Geekom Mini IT11 features two USB 4 ports with Thunderbolt, we were also able to take a look at its performance in combination with our Razer Core X and an Nvidia GeForce RTX 3060 Ti. In our test, this combination did quite well, although the Mini IT11 was only able to come in ahead of the Ace Magician TK11-A0. The quad-core CPU's limitations really made themselves known during the gaming tests. Even so, we noted a considerable boost in performance over its slow iGPU. You do have to note that the more modern Geekom Mini IT12 achieved 20 per cent better performance levels in the same combination.

The Geekom Mini IT11 with a Razer Core X and an Nvidia GeForce RTX 3060 Ti

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	97.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	95.8 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	94.6 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	84 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	83.3 pt
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	78.5 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	72.7 pt

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	100.6 (9.76^min, 66.7^P1 - 197.6^max) fps +1205%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	96.6 (15^min, 66.7^P1 - 168.7^max) fps +1153%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	90.5 (15.8^min, 62.5^P1 - 187.2^max) fps +1074%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	89.5 (16.6^min, 58.8^P1 - 175.8^max) fps +1061%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +1004%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	56.7 (16.3^min, 20.4^P1 - 152.8^max) fps +635%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +628%
	7.71 (3.66^min, 5.78^P1 - 23.7^max) fps
	7.7 (3.58^min, 5.88^P1 - 16.9^max) fps 0%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps +561%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	74.8 fps +556%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	73.8 fps +547%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	64.6 fps +467%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps +433%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	57.9 fps +408%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	56.3 fps +394%
	11.4 fps

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	134.5 (115.1^min) fps +220%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	127.5 (110.1^min) fps +204%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	126.2 (108.1^min) fps +200%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	113.3 (94.8^min) fps +170%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	111.7 (92.8^min) fps +166%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	92.8 (79.9^min) fps +121%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	89.2 (74.2^min) fps +112%
	42 (37.8^min) fps

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	98.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	97.6 fps
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	97.4 fps
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	92.2 fps
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	91.5 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	79 fps
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	58.8 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	150 (76.6^min, 93.3^P1 - 295^max) fps +685%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +679%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	147 (76.9^min, 90.8^P1 - 300^max) fps +670%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	139.7 (74^min, 89.1^P1 - 257^max) fps +631%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	131.1 (68.1^min, 78.3^P1 - 270^max) fps +586%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	127.4 (45.3^min, 77.9^P1 - 260^max) fps +567%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	114.7 (58.8^min, 72.4^P1 - 210^max) fps +501%
	19.1 (5^min, 5.1^P1 - 275^max) fps

Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	120 (92^min - 158^max) fps +606%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	117 (88^min - 156^max) fps +588%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	114 (85^min - 152^max) fps +571%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	107 (72^min - 143^max) fps +529%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	104 (77^min - 138^max) fps +512%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	95 (70^min - 128^max) fps +459%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	60 (46^min - 78^max) fps +253%
	17 (15^min - 20^max) fps

Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	101 (74^min - 147^max) fps +494%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	99 fps +482%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	95 (69^min - 143^max) fps +459%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	88 (63^min - 132^max) fps +418%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	87 (62^min - 135^max) fps +412%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	76 (54^min - 121^max) fps +347%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	54 (39^min - 85^max) fps +218%
	17 (11^min - 22^max) fps

F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	106.5 (85^min - 130^max) fps +526%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	106.1 (59^min - 146^max) fps +524%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	102.7 (53^min - 145^max) fps +504%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	100.5 (58^min - 143^max) fps +491%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	86.7 (48^min - 122^max) fps +410%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	82.4 (39^min - 117^max) fps +385%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.5 (43^min - 107^max) fps +379%
	17 (12^min - 21^max) fps

F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	65.4 (47^min, 47^P1 - 73^max) fps +222%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	54.2 (36^min, 31^P1 - 61^max) fps +167%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +155%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	51.5 (31^min, 27^P1 - 60^max) fps +154%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	49.8 (33^min, 24^P1 - 57^max) fps +145%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	44 (9^min, 20^P1 - 52^max) fps +117%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	43.5 (10^min, 19^P1 - 51^max) fps +114%
	20.3 (16^min, 16^P1 - 23^max) fps

Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	83.6 fps +948%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1260P	83.2 fps +943%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) Intel Core i7-1360P	82.8 fps +938%
Geekom Mini IT11 (Nvidia GeForce RTX 3060 Ti FE TB3) NVIDIA GeForce RTX 3060 Ti, Intel Core i7-11390H	78.2 fps +880%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	76.4 fps +857%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	71.3 fps +793%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3) AMD Ryzen 9 6900HX	69.8 fps +775%
	7.98 fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	161.7	151.4	92.1	56.7	38.9	30.5
The Witcher 3 (2015)	227.9		115	64.6		54.6
Dota 2 Reborn (2015)	115.4	107.2	95.5	89.2		33.7
Final Fantasy XV Benchmark (2018)	124.1	76.7	58.8		40.8	23.2
X-Plane 11.11 (2018)	94.3	82.2	68.4			30.3
Far Cry 5 (2018)	121	106	101	95	90	58
Strange Brigade (2018)	182.2	144.6	143.2	139.7	119.3	79.6
Shadow of the Tomb Raider (2018)	108.7	98	97.6	95	84.7	53.8
Far Cry New Dawn (2019)	101	88	84	76	73	56
Borderlands 3 (2019)	114.9	101.6	90.2	78.2	63.2	38.1
F1 2020 (2020)	183.7	152.2	139.7	106.5	92	61.9
F1 2021 (2021)	128.9	101.8	66	49.8	45.2	38.4
Far Cry 6 (2021)	67	56.9	47.6	42.7	41.8
God of War (2022)	102	93.1	78.7	51.9	58.3	39.3
GRID Legends (2022)	103	91.2	78.7	68.9	62.3	49.2
Tiny Tina's Wonderlands (2022)	162.4	136.7	97.4	79.4	60.5	35.7
F1 22 (2022)	59.2	54	41.1	26.5	25.3	19

Emissions - frugal and quiet

Noise emissions

During our noise emission measurements in idle mode, we noted very low emissions. Even under average load, our measured value of 30.6 dB(A) means the PC was still very quiet. Under full load, the Geekom Mini IT11 could be heard at just over 36 dB(A). Compared to its competitors, our test sample achieved very good results.

Noise Level

Idle		30.2 / 30.2 / 30.2 dB(A)
Load		30.6 / 36.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Arta (15 cm distance) environment noise: 29.7 dB(A)

	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		5%	1%	-1%	0%	1%	-7%
off / environment *	29.7	29.4 1%	29.8 -0%	29.4 1%	30 -1%	30.4 -2%	30.28 -2%
Idle Minimum *	30.2	29.4 3%	29.9 1%	29.4 3%	30.3 -0%	30.8 -2%	31.82 -5%
Idle Average *	30.2	29.4 3%	30.1 -0%	29.5 2%	30.5 -1%	30.9 -2%	32.27 -7%
Idle Maximum *	30.2	29.5 2%	30.2 -0%	29.7 2%	30.6 -1%	30.9 -2%	33.17 -10%
Load Average *	30.6	29.6 3%	32.1 -5%	34.6 -13%	32.5 -6%	31 -1%	35.82 -17%
Witcher 3 ultra *	30.5
Load Maximum *	36.4	29.6 19%	32.5 11%	36.1 1%	33.2 9%	31 15%	37.1 -2%

* ... smaller is better

Temperature

The Geekom Mini IT11's case heated up noticeably under load, although these temperatures didn't ever reach any critical levels. Its cooling concept is constructed in a way that warm air is led out of the device using the shortest possible route.

We did note quite high processor temperatures. Its thermal limit was hit and the SoC couldn't be used to its full potential. We noted a maximum of 37 watts, and a short burst of up to 64 watts. Its small cooler avoids its full potential from being made use of.

Stresstest FurMark, solo — Stress test FurMark, solo

Geekom Mini IT11 vs. stress test (front)

Power consumption

Generally, we can say that the Geekom Mini IT11 is a very frugal device. In idle mode, it only consumed an average of 7.3 to 8.4 watts. Under average load, we noted 28.7 watts and during bursts of load, we noted up to 61.1 watts. The power consumption values we measured accurately reflect the Geekom Mini IT11's general performance levels. The NiPoGi CK10 and the Ace Magician TK11-A0 are more frugal, but they do offer lower total peformance levels.

With a maximum of 65 watts, the supplied power connection is sufficient in size and it shouldn't have any issues providing the device with enough consistent power.

Power Consumption

Off / Standby	0.37 / 0.71 Watt
Idle	7.3 / 7.8 / 8.4 Watt
Load	28.7 / 61.1 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-31%	-19%	-74%	-8%	28%	12%	-14%	-56%
Idle Minimum *	7.3	8 -10%	5 32%	10.4 -42%	6.6 10%	4.8 34%	3.4 53%	5.26 ?(2.2 - 46.5, n=185) 28%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -34%
Idle Average *	7.8	8.7 -12%	7 10%	12.3 -58%	6.8 13%	4.9 37%	5.7 27%	8.46 ?(3.8 - 63, n=185) -8%	11.7 ?(1.9 - 63, n=91, last 2 years) -50%
Idle Maximum *	8.4	8.8 -5%	10.7 -27%	12.4 -48%	7.2 14%	5.5 35%	7 17%	10.7 ?(5.8 - 68.9, n=185) -27%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -75%
Load Average *	28.7	54.6 -90%	50.3 -75%	72.9 -154%	45.1 -57%	23 20%	36.5 -27%	44.8 ?(12.5 - 77.5, n=185) -56%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -81%
Load Maximum *	61.1	83.2 -36%	82 -34%	101.2 -66%	73.4 -20%	54 12%	68 -11%	66.8 ?(30.1 - 118, n=185) -9%	86 ?(18.1 - 271, n=92, last 2 years) -41%

* ... smaller is better

Power consumption with external monitor

Geekom Mini IT11, i7-11390H; Prime95 V2810 Stress (external Monitor): Ø57.6 (47.9-61.1)

Geekom Mini IT11, i7-11390H; Cinebench R15 Multi (external Monitor): Ø50.7 (48-54.1)

Geekom Mini IT11, i7-11390H; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø34.2 (30.8-37.3)

Geekom Mini IT11, i7-11390H; 1920x1080 The Witcher 3 ultra (external Monitor): Ø30.4 (29-31.6)

Geekom Mini IT11, i7-11390H; Idle 1min (external Monitor): Ø8.39 (7.73-10.5)

Pros

+ stable, compact case

+ stable CPU performance

+ 32 GB RAM

+ easy to open up

+ 2x Thunderbolt

+ very low DPC latencies

+ very quiet in use

+ quick SD card reader

+ can accommodate up to three SSDs

+ low power consumption

Cons

- aged SoC with only 4 cores

- high CPU temperatures under load

- SSD performance not always stable

Verdict - A solid device for working with great connectivity

Geekom Mini IT11 review - test device provided by Geekom

We can now say that the Geekom Mini IT11 is generally quite a well-equipped mini PC when it comes to performance. The reason why this is only a relative statement is because of its installed hardware. The Intel Core i7-11390H only has 4 native cores - and that in 2023! The good single-core performance continuously shown by Intel over the years does still continue to be present in this slightly outdated SoC, as our test sample actually managed to beat some current AMD SoCs. Although, you do have to come to grips with its limitations in multi-core performance compared to its competitors. Even so, the Geekom Mini IT11 managed to show its strengths during our daily use and that an Intel Core i7-11390H definitely is still fast enough at this present moment. The SoC has 32 GB RAM, which is also quite good and you likely won't have to upgrade this immediately.

The Geekom Mini IT11 delivers solid performance within a small case and also features an excellent array of connectivity options.

We have to give its modern connectivity options the praise it deserves. The Geekom Mini IT11 has a plethora of connections and at the same time, it hasn't forgone modern ports such as Thunderbolt. This gives you a great amount of possibilities to widen the PC's range of uses with the help of third party accessories.

If anything, we just have to complain about its design and material choice - the case remains to be made from plastic and this just can't keep up with its competitors' aluminum cladding. Its Minisforum and Morefine rivals have shown what is possible. Price-wise, the Geekom Mini IT11 comes in at around $599. This is neither cheap nor expensive. Its competitors all land within a similar price range.

Price and availability

The Geekom Mini IT11 can be bought directly form the manufacturer. Our test sample can be bought for $599. The version with an Intel Core i5-1155G7, 16 GB RAM and a 512 GB SSD can be had for $399. Finally, the version with an Intel Core i7-11390H, 32 GB RAM and a 2,048-GB SSD can be purchased for $649.

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Geekom Mini IT11, i7-11390H - 2023-07-08 07/08/2023 v7
Sebastian Bade

Chassis

83 / 98 → 85%

Connectivity

62 / 81 → 77%

Weight

83%

Games Performance

63%

Application Performance

92%

Noise

87%

Average

75%

81%

Mini PC - Weighted Average

Geekom Mini IT11 review: The Intel NUC competitor with a Core i7-11390H and USB4 is at its limit

Possible competitors compared

The Geekom Mini IT11, i7-11390H in detail

Case - The Intel NUC sends its regards

Size comparison

Connectivity - Up-to-date even in 2023

SD card reader

Communication

Accessories

Maintenance

Performance - The Core i7-11390H with only 4 cores and 8 threads

Testing conditions

Processor - only 4 cores and 8 threads

Geekom Mini IT12 vs. Cinebench R15 Multi Loop

System performance

DPC latency

Storage devices

SSD Throttling: DiskSpd Read Loop, Queue Depth 8

Graphics card

Gaming performance

3D performance via an eGPU dock with the Nvidia GeForce RTX 3060 Ti

Emissions - frugal and quiet

Noise emissions

Temperature

Power consumption

Power consumption with external monitor

Pros

Cons

Verdict - A solid device for working with great connectivity

Price and availability

Transparency

More articles related to this device

Related Articles
