Beelink SER6 Pro Ryzen 7 7735HS mini PC review: Now with integrated DisplayPort

Name: Beelink SER6 Pro Ryzen 7 7735HS
Brand: Beelink

Just buy the older 2022 model.

Don't be fooled by the fresh 7000 series name as this is very much a 6000 series processor. The Zen 3+ Ryzen 7 7735HS is still powerful especially when it comes to integrated graphics, but it offers essentially nothing over the less expensive Ryzen 7 6800H or older Ryzen 9 6900HS.

Allen Ngo 👁, Published 04/20/2023 🇸🇪 🇫🇷 ...

Desktop Mini PC Zen

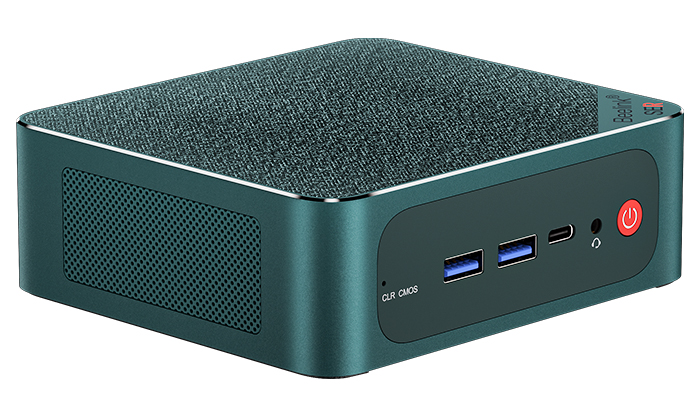

The 2023 Beelink SER6 Pro is an update to the 2022 SER6 Pro. It replaces the older Ryzen 7 6800 or Ryzen 9 6900HS options on last year's model with the newer Ryzen 7 7735HS. Other than the processor update, however, the chassis remains identical with just one notable change.

Our review unit with the Ryzen 7 7735HS, 32 GB RAM, 500 GB NVMe SSD, and pre-installed Windows 10 Pro can be found online for about $650 USD or $550 if on sale. The model competes directly with other mini PCs most notable the Intel NUC series.

More Beelink reviews:

Test device courtesy of Beelink

Download your licensed rating image as PNG / SVG

Beelink SER6 Pro Ryzen 7 7735HS

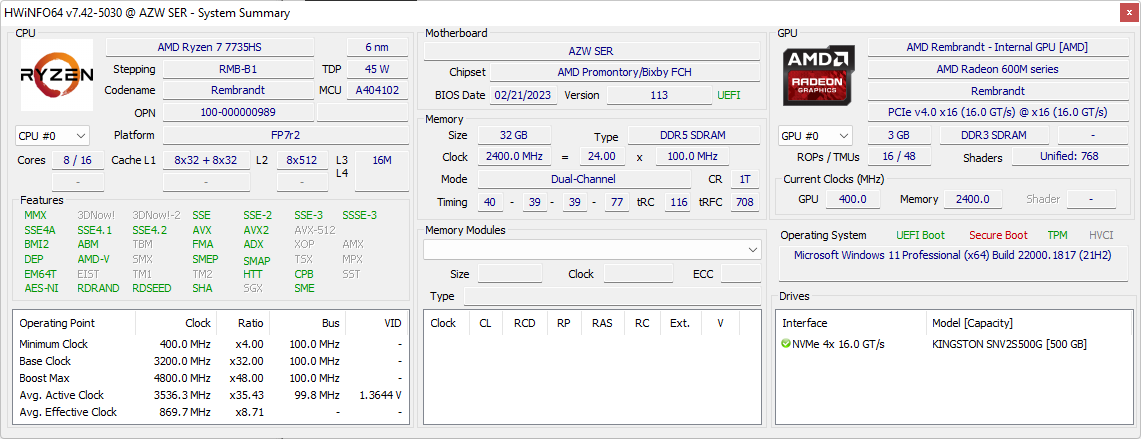

Processor

AMD Ryzen 7 7735HS 8 x 3.2 - 4.8 GHz, 45 W PL2 / Short Burst, 38 W PL1 / Sustained, Rembrandt-HS Refresh

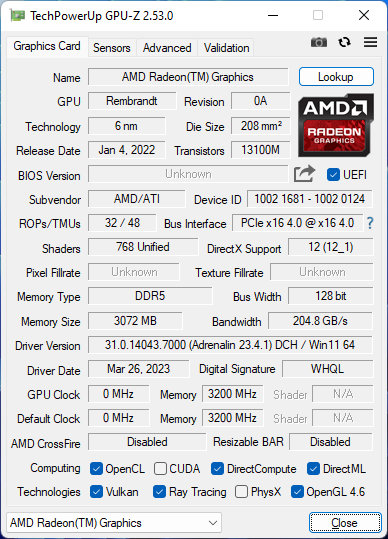

Graphics adapter

AMD Radeon 680M - 3 GB VRAM, RAM: 2400 MHz, DDR5, 23.4.1

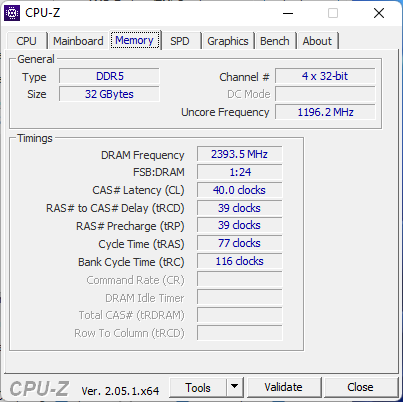

Memory

32 GB

, DDR5, 2400 MHz, 40-39-39-77, Dual-Channel

Mainboard

AMD Promontory/Bixby FCH

Storage

Kingston NV2 500GB SNV2S/500G, 500 GB

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

4 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, Audio Connections: 3.5 mm headset

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 42 x 126 x 113 ( = 1.65 x 4.96 x 4.45 in)

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

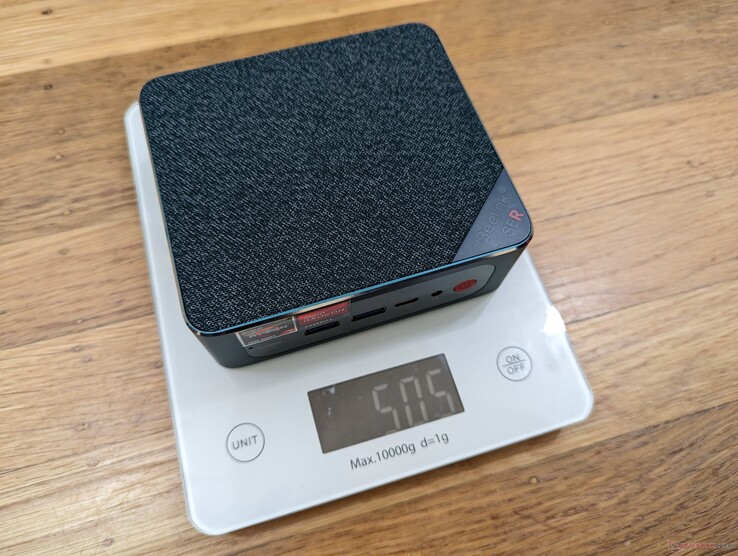

Weight

506 g ( = 17.85 oz / 1.12 pounds), Power Supply: 496 g ( = 17.5 oz / 1.09 pounds)

Price

550 USD

Links

Beelink homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Potential Competitors in Comparison

Rating	Date	Model	Weight	Height	Resolution
84.8 % v7 ^(old)	04 / 2023	Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M	506 g	42 mm	x
v ^(old)	01 / 2023	Beelink SER6 Pro R7 6800H, Radeon 680M	511 g	42 mm	x
v ^(old)	11 / 2022	Beelink GTR6 R9 6900HX, Radeon 680M	815 g	43 mm	x
80.8 % v7 ^(old)	04 / 2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm	x
v ^(old)	03 / 2023	Intel NUC 12 Pro Kit NUC12WSBi5 i5-1240P, Iris Xe G7 80EUs	549 g	45.6 mm	x
86.1 % v7 ^(old)	02 / 2023	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M	621 g	48 mm	x

Case

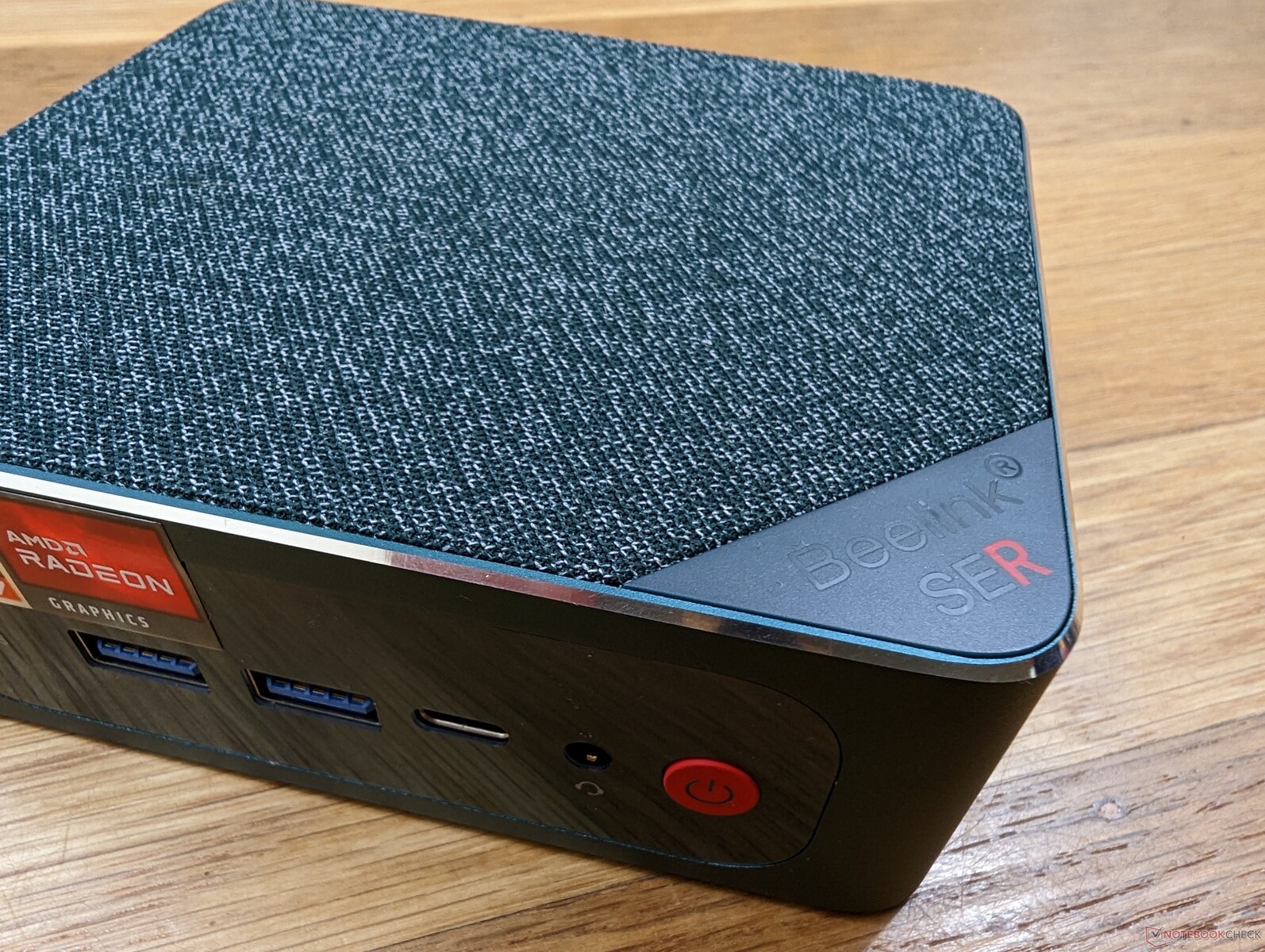

There are no major design changes to the chassis save for one exception: the second HDMI port on last year's model has been swapped for a full-size DisplayPort instead. This is actually preferable as DisplayPort has better compatibility with higher refresh rates and adaptive sync monitors than HDMI.

The breathable fabric returns to allow for two individual fans on both the top and bottom sides of unit

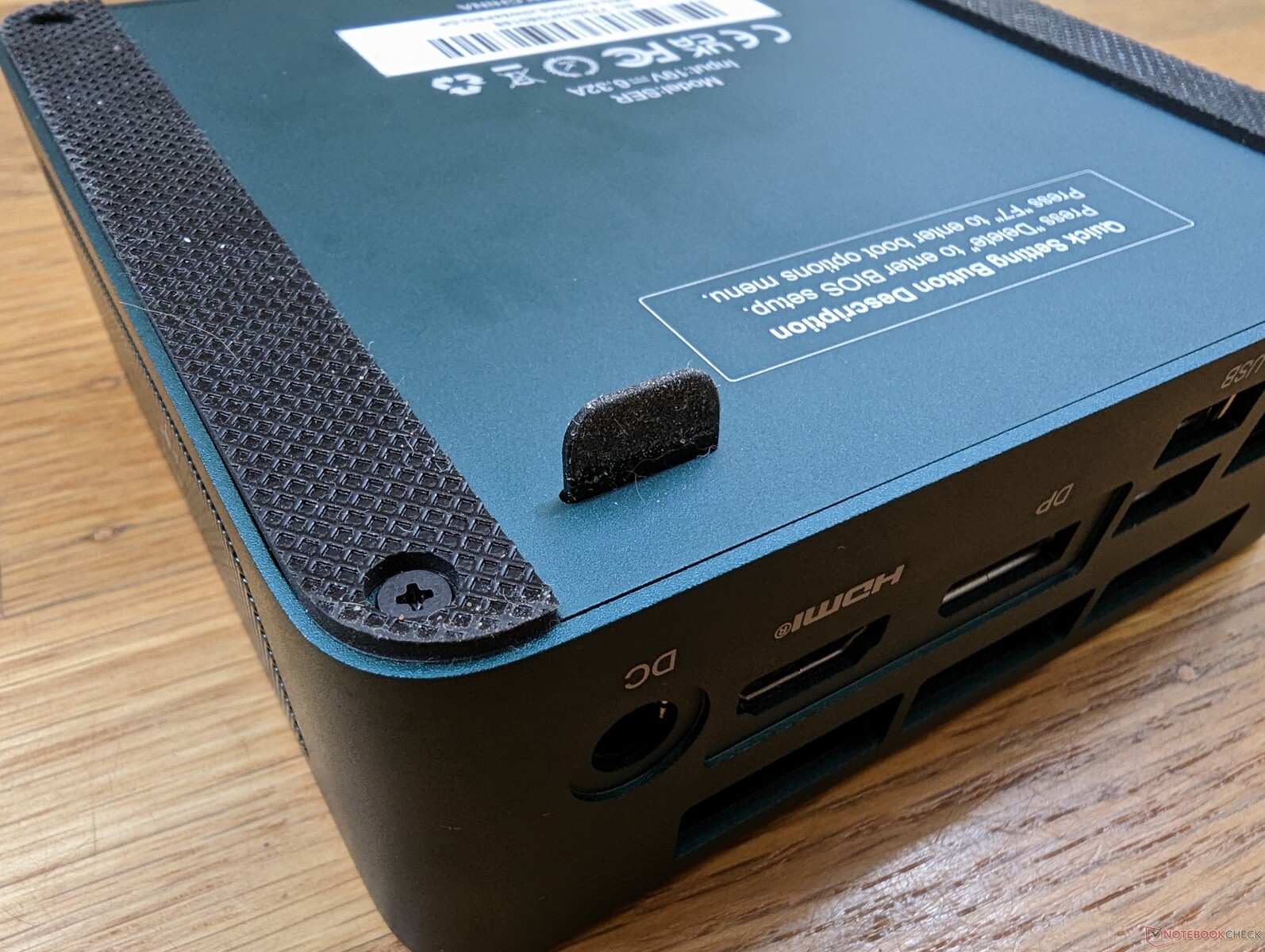

Rubber flap makes it easier to grip and remove the bottom panel

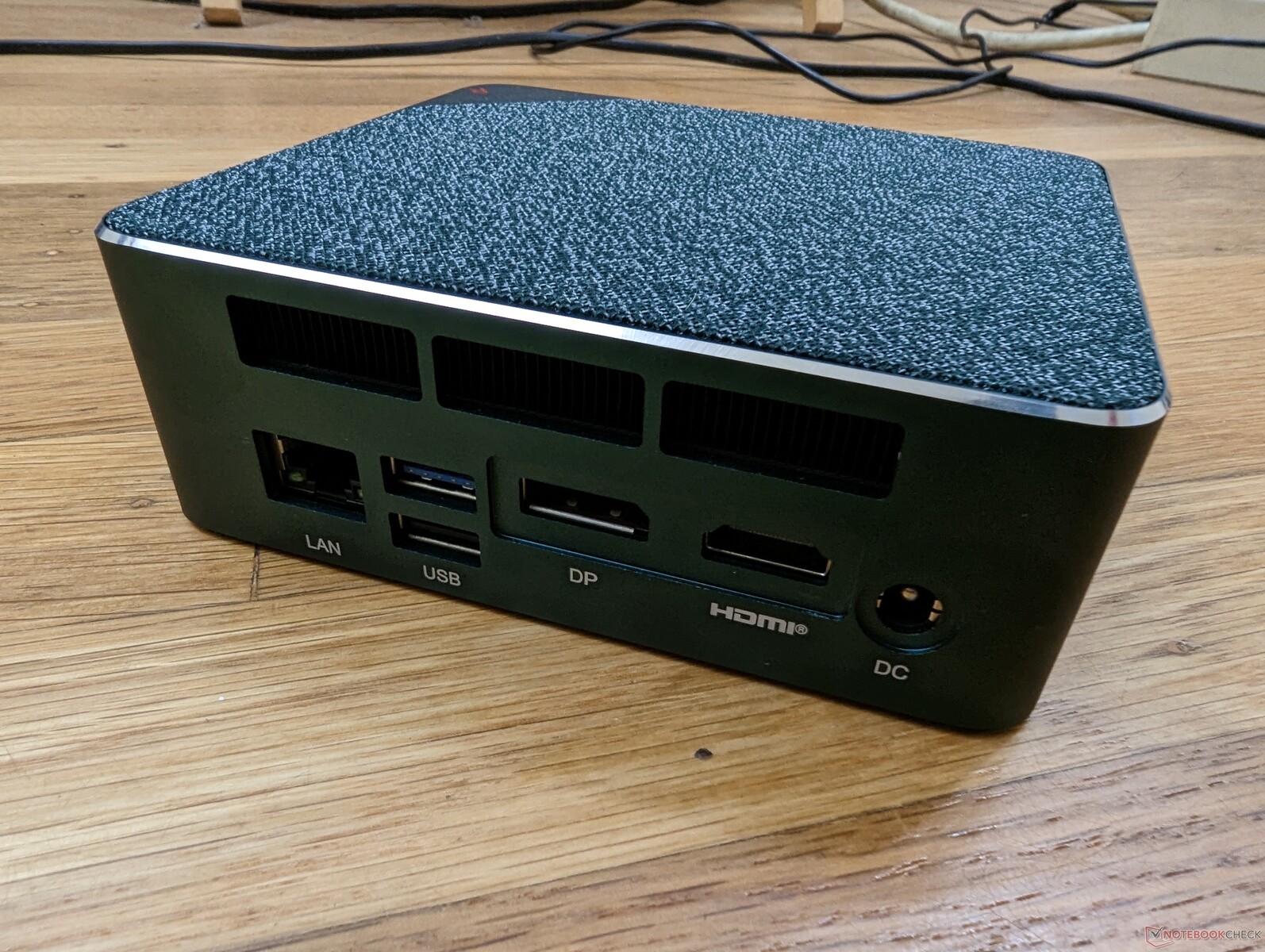

Rear ports. Note the new DP port that has replaced one of the HDMI ports on last year's model

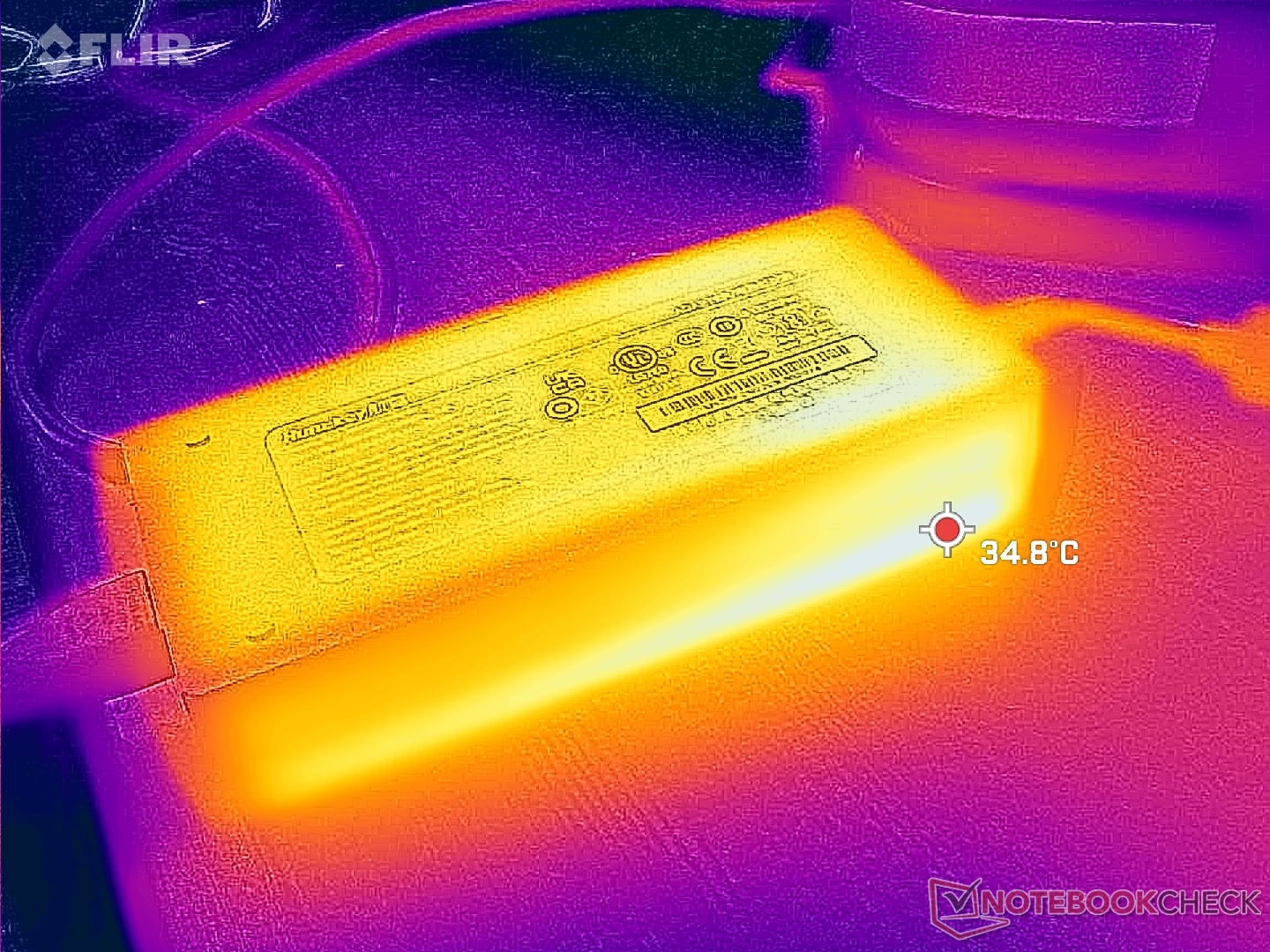

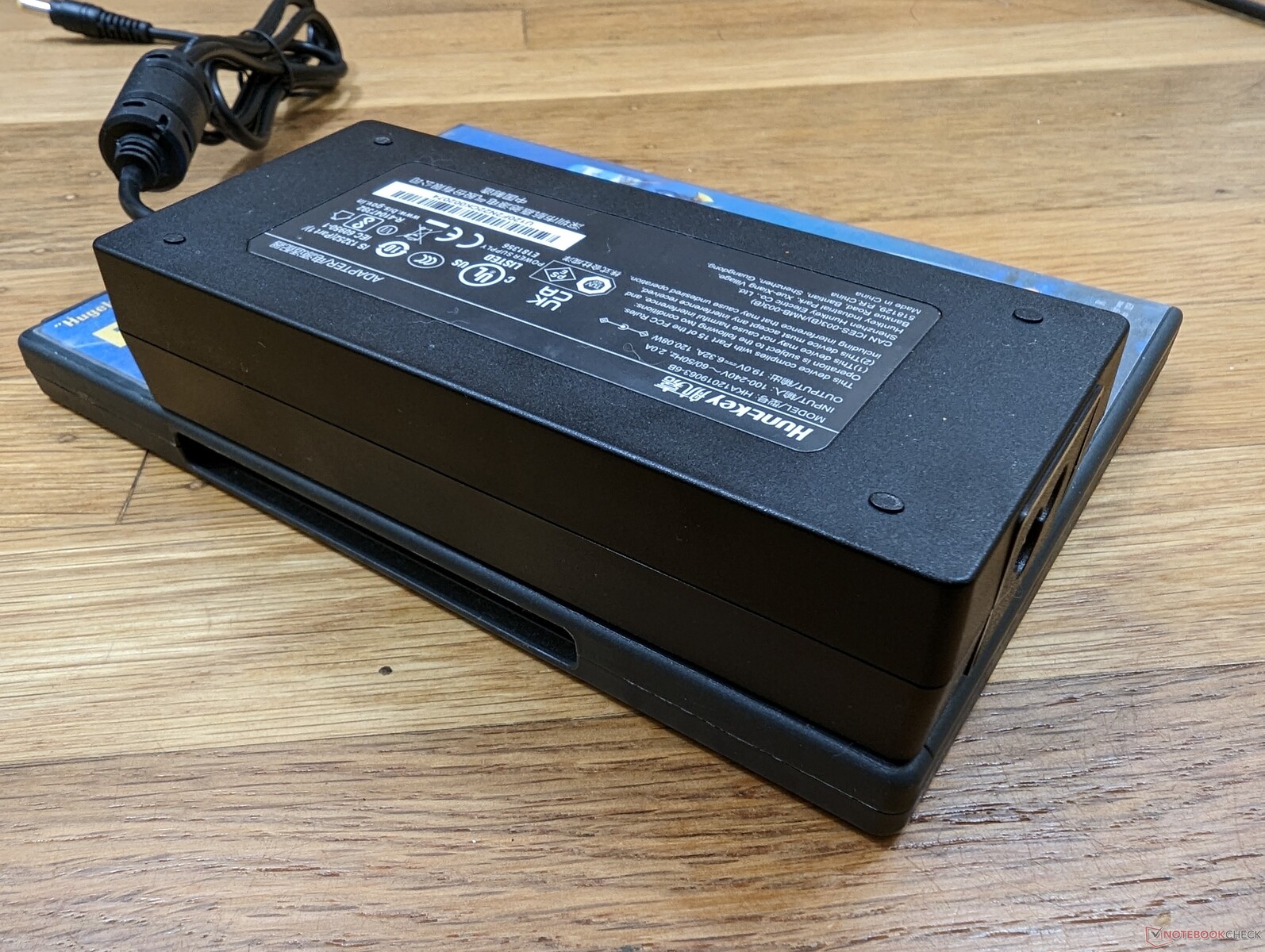

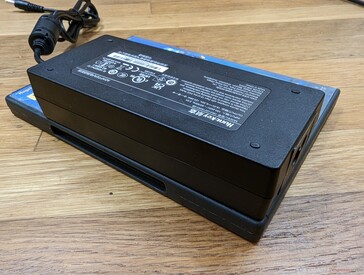

Small-medium (14.5 x 6.3 x 3 cm) 120 W AC adapter

Size Comparison

Beelink GTR6 Minisforum Venus Series UM690 Beelink SER6 Pro Ryzen 7 7735HS Beelink SER6 Pro Intel NUC 12 Pro Kit NUC12WSBi5 Intel NUC 13 Pro Kit NUC13ANK DIN A5 ❌

Communication

Networking
iperf3 transmit AXE11000
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1273 (1063^min - 1401^max) MBit/s +19%
Beelink SER6 Pro Ryzen 7 7735HS Intel Wi-Fi 6 AX200	1069 (800^min - 1158^max) MBit/s
Minisforum Venus Series UM690 MediaTek RZ608	943 (477^min - 981^max) MBit/s -12%
Beelink GTR6 MediaTek RZ608	909 (429^min - 966^max) MBit/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -22%
iperf3 receive AXE11000
Beelink SER6 Pro Ryzen 7 7735HS Intel Wi-Fi 6 AX200	1356 (1119^min - 1463^max) MBit/s
Beelink SER6 Pro Intel Wi-Fi 6 AX200	1282 (247^min - 1409^max) MBit/s -5%
Minisforum Venus Series UM690 MediaTek RZ608	956 (944^min - 963^max) MBit/s -29%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -31%
Beelink GTR6 MediaTek RZ608	860 (440^min - 882^max) MBit/s -37%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
Beelink GTR6 MediaTek RZ608	948 (476^min - 1030^max) MBit/s
Minisforum Venus Series UM690 MediaTek RZ608	787 (638^min - 865^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s
Minisforum Venus Series UM690 MediaTek RZ608	961 (954^min - 967^max) MBit/s
Beelink GTR6 MediaTek RZ608	886 (867^min - 900^max) MBit/s

Beelink SER6 Pro Ryzen 7 7735HS; iperf3 transmit AXE11000; iperf 3.1.3: Ø1069 (800-1158)

Beelink SER6 Pro Ryzen 7 7735HS; iperf3 receive AXE11000; iperf 3.1.3: Ø1356 (1119-1463)

Maintenance

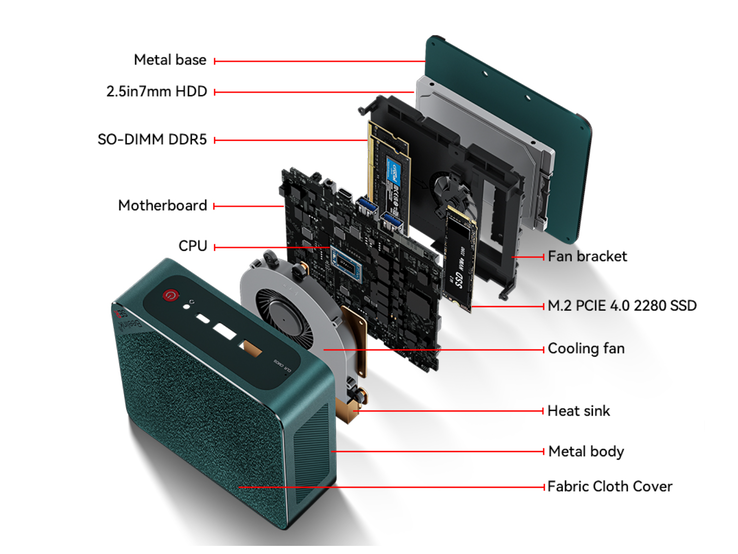

Serviceability remains the same as on last year's model. Users have 2x storage bays (1x PCIe4 x4 M.2 2280, 1x 2.5-inch SATA III) and 2x DDR5 SODIMM slots for expansion.

Accessories and Warranty

The standard one-year limited warranty applies if purchased in the US. The retail box includes a manual, removable wall-mounted VESA bracket, two HDMI cables, and the AC adapter.

Performance

Testing Conditions

We set our unit to Performance mode via Windows prior to running any benchmarks below. There is no pre-installed "Command Center" application unlike on many other laptops or PCs from major brands.

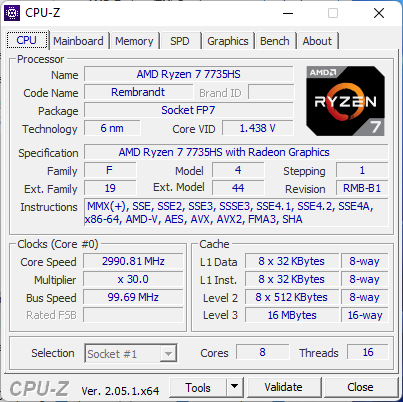

Processor

Much like what we discovered on the recently reviewed Lenovo Slim 7 Pro, the 2023 Ryzen 7 7735HS performs almost identically to the older Ryzen 7 6800H or Ryzen 9 6900HS. This is because the Ryzen 7 7735HS is largely a rebrand of the older Zen 3+ series despite its recent launch early last month. Consequently, even the older 12th gen Core i7-12700H can outperform the Ryzen 7 7735HS in pretty much everything but integrated graphics performance.

For a "true" current gen AMD processor, you'd have to get the Zen 4 Ryzen 9 7945HX instead. Unfortunately, such an option is not available on the SER6 Pro.

Cinebench R15 Multi Loop

Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS: Ø1891 (1862.98-1952.55)

Beelink SER6 Pro AMD Ryzen 7 6800H: Ø1854 (1821.83-1930.5)

Beelink GTR6 AMD Ryzen 9 6900HX: Ø1922 (1894.3-1968.5)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P: Ø1681 (1638.81-2006.82)

Minisforum Venus Series UM690 AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Intel NUC13 Raptor Canyon Intel Core i9-13900K	86.4 pt
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	85.4 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	56.2 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	53.7 pt
Beelink GTR6 AMD Ryzen 9 6900HX	50.3 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	48.5 pt
Average AMD Ryzen 7 7735HS	47.8 pt
Beelink SER6 Pro AMD Ryzen 7 6800H	47.3 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-2! Intel Core i5-1240P	44.3 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	43.2 pt
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	42.1 pt
Trigkey Speed S Intel Core i5-11320H	33.4 pt

Cinebench R23 / Multi Core
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	34087 (33104.5^min - 34086.9^max) Points +193%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	32592 Points +180%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	16674 Points +43%
Average AMD Ryzen 7 7735HS (10283 - 14131, n=14)	12760 Points +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +9%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	11626 (11015.5^min - 11625.6^max) Points
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	11556 (23.57^min - 11556.2^max) Points -1%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	11494 Points -1%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	277 Points -98%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points -28%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	8199 Points -29%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -51%

Cinebench R23 / Single Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	2203 Points +43%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +24%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	1873 Points +22%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1801 Points +17%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points +11%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	1690 Points +10%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	1689 Points +10%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1537 Points
Average AMD Ryzen 7 7735HS (1288 - 1570, n=14)	1527 Points -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -2%
Trigkey Speed S Intel Core i5-11320H	1465 Points -5%

Cinebench R20 / CPU (Multi Core)
Intel NUC13 Raptor Canyon Intel Core i9-13900K	13415 Points +197%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	13208 Points +192%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	6459 Points +43%
Average AMD Ryzen 7 7735HS (3968 - 5502, n=14)	4946 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +8%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	4524 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -1%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	4456 Points -2%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points -29%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	3153 Points -30%
Trigkey Speed S Intel Core i5-11320H	2216 Points -51%

Cinebench R20 / CPU (Single Core)
Intel NUC13 Raptor Canyon Intel Core i9-13900K	853 Points +43%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +23%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	720 Points +20%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	692 Points +16%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points +9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	653 Points +9%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	649 Points +9%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +6%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	598 Points
Average AMD Ryzen 7 7735HS (502 - 613, n=14)	596 Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -2%
Trigkey Speed S Intel Core i5-11320H	567 Points -5%

Cinebench R15 / CPU Multi 64Bit
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	5521 (5355.47^min - 5521.05^max) Points +183%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	5321 Points +172%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	2632 Points +35%
Average AMD Ryzen 7 7735HS (1758 - 2355, n=16)	2121 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +4%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	2007 (1638.81^min - 2006.82^max) Points +3%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	2005 Points +3%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1953 (1862.98^min - 1952.55^max) Points
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -1%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points -32%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	1311 Points -33%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -56%

Cinebench R15 / CPU Single 64Bit
Intel NUC13 Raptor Canyon Intel Core i9-13900K	319 Points +29%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	308 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +10%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	259 Points +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	247 Points
Average AMD Ryzen 7 7735HS (206 - 255, n=15)	246 Points 0%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points -1%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	242 Points -2%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -2%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	242 Points -2%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	242 Points -2%
Trigkey Speed S Intel Core i5-11320H	215 Points -13%

Blender / v2.79 BMW27 CPU
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -106%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	388 Seconds * -48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * -44%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	285 Seconds * -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * -5%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	263 Seconds *
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +2%
Average AMD Ryzen 7 7735HS (214 - 351, n=14)	250 Seconds * +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	198 Seconds * +25%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	101 Seconds * +62%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	91 Seconds * +65%

7-Zip 18.03 / 7z b 4
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	140932 MIPS +144%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	127201 MIPS +120%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	64403 MIPS +12%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	57693 MIPS
Average AMD Ryzen 7 7735HS (43455 - 63698, n=14)	57351 MIPS -1%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS -8%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	45947 MIPS -20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS -37%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	35918 MIPS -38%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -57%

7-Zip 18.03 / 7z b 4 -mmt1
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	7581 MIPS +31%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	7255 MIPS +25%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +3%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	5972 MIPS +3%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	5809 MIPS
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -1%
Average AMD Ryzen 7 7735HS (4779 - 5849, n=14)	5663 MIPS -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS -8%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	5262 MIPS -9%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -12%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	5097 MIPS -12%

Geekbench 5.5 / Multi-Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	22448 Points +140%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	19325 Points +107%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +13%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	10126 Points +8%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	9357 Points
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points 0%
Average AMD Ryzen 7 7735HS (7368 - 10258, n=14)	9243 Points -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -1%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	9065 Points -3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points -6%
Trigkey Speed S Intel Core i5-11320H	4927 Points -47%

Geekbench 5.5 / Single-Core
Intel NUC13 Raptor Canyon Intel Core i9-13900K	2106 Points +33%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	2047 Points +30%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +17%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points +8%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	1675 Points +6%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1590 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	1580 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -2%
Average AMD Ryzen 7 7735HS (1327 - 1615, n=14)	1545 Points -2%
Trigkey Speed S Intel Core i5-11320H	1523 Points -4%

HWBOT x265 Benchmark v2.2 / 4k Preset
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	37.6 fps +149%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	34.5 fps +128%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	18.7 fps +24%
Average AMD Ryzen 7 7735HS (10.8 - 17.9, n=14)	15.7 fps +4%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	15.1 fps
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	12.9 fps -15%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps -36%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	9.47 fps -37%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -52%

LibreOffice / 20 Documents To PDF
Average AMD Ryzen 7 7735HS (44.3 - 63.9, n=14)	54.8 s * -24%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	49.4 s * -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	49.1 s * -11%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * -10%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -10%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	44.9 s * -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	44.3 s *
Trigkey Speed S Intel Core i5-11320H	44 s * +1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * +1%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	41.6 s * +6%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	36.8 s * +17%

R Benchmark 2.5 / Overall mean
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -15%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS	0.512 sec *
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U	0.511 sec * -0%
Average AMD Ryzen 7 7735HS (0.4822 - 0.585, n=14)	0.504 sec * +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * +3%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P	0.4987 sec * +3%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * +5%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	0.4643 sec * +9%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +13%
Asus ROG Strix Scar 17 G733PY-XS96 AMD Ryzen 9 7945HX	0.4059 sec * +21%
Intel NUC13 Raptor Canyon Intel Core i9-13900K	0.3911 sec * +24%

* ... smaller is better

Blender
v3.3 Classroom HIP/AMD
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * -13%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	340 Seconds * -8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds * -1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	314 Seconds *
v3.3 Classroom CPU
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * -33%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * -4%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	445 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * +2%
Minisforum Venus Series UM690 AMD Radeon 680M, AMD Ryzen 9 6900HX	394 Seconds * +11%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

1953 Points

Cinebench R15 OpenGL 64Bit

172.8 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Cinebench R15 CPU Single 64Bit

247 Points

Cinebench R20 CPU (Multi Core)

4524 Points

Cinebench R20 CPU (Single Core)

598 Points

Cinebench R23 Single Core

1537 Points

Cinebench R23 Multi Core

11626 Points

Help

... in comparison

Performance Rating
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	99.1 pt
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	90.8 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	88.3 pt
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	87.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	73.6 pt
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	55.8 pt

AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	15102 KRay/s +15%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	13630 KRay/s +4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	13148 KRay/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	12876 KRay/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6011 KRay/s -54%

AIDA64 / FPU Julia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	98980 Points +18%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	86563 Points +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	83889 Points
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	82673 Points -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -34%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27835 Points -67%

AIDA64 / CPU SHA3
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	3452 MB/s +20%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	3033 MB/s +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	2886 MB/s 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	2885 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	2019 MB/s -30%

AIDA64 / CPU Queen
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	103686 Points +8%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	95566 Points
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	94363 Points -1%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	93785 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points -9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	75592 Points -21%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	13101 Points +8%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	12291 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	12094 Points
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	11981 Points -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -40%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	6540 Points -46%

AIDA64 / FPU Mandel
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	52710 Points +15%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	47561 Points +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	45982 Points
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	45287 Points -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -40%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	16325 Points -64%

AIDA64 / CPU AES
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	136723 MB/s +16%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	122402 MB/s +4%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	118383 MB/s +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	117400 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -15%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	67922 MB/s -42%

AIDA64 / CPU ZLib
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	863 MB/s +21%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	812 MB/s +14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +13%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	757 MB/s +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	732 MB/s +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	712 MB/s

AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	7973 KRay/s +13%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	7214 KRay/s +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	7032 KRay/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	6917 KRay/s -2%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	3442 KRay/s -51%

AIDA64 / CPU PhotoWorxx
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	30600 MPixel/s 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	30542 MPixel/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	30360 MPixel/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	27809 MPixel/s -9%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	27720 MPixel/s -9%

System Performance

PCMark benchmarks are again essentially identical to what we recorded on the 2022 SER6 Pro since their processors are so similar.

PCMark 10 / Score
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	7109 Points +2%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	7045 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	6950 Points
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	6936 Points 0%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (5722 - 7000, n=7)	6562 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points -10%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5331 Points -23%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +4%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	11323 Points +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	11158 Points 0%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	11124 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	10838 Points -3%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	10652 Points -4%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (9795 - 11124, n=7)	10495 Points -6%

PCMark 10 / Productivity
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	10210 Points +4%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	10060 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	9862 Points
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	9759 Points -1%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (8428 - 9862, n=7)	9204 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points -20%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	7058 Points -28%

PCMark 10 / Digital Content Creation
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	8703 Points +5%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	8432 Points +2%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	8319 Points 0%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	8306 Points
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (5798 - 8726, n=7)	7969 Points -4%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	5469 Points -34%

CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +4%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1736 Points
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1731 Points 0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1704 Points -2%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1691 Points -3%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1387 - 1736, n=7)	1578 Points -9%

CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +1%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1738 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1721 Points
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1701 Points -1%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1674 Points -3%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1443 - 1725, n=7)	1577 Points -8%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +10%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1785 Points
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1763 Points -1%
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1745 Points -2%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1698 Points -5%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1376 - 1785, n=7)	1643 Points -8%

CrossMark / Responsiveness
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1671 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1640 Points
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	1639 Points 0%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1625 Points -1%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points -4%
Average AMD Ryzen 7 7735HS, AMD Radeon 680M (1218 - 1653, n=7)	1407 Points -14%

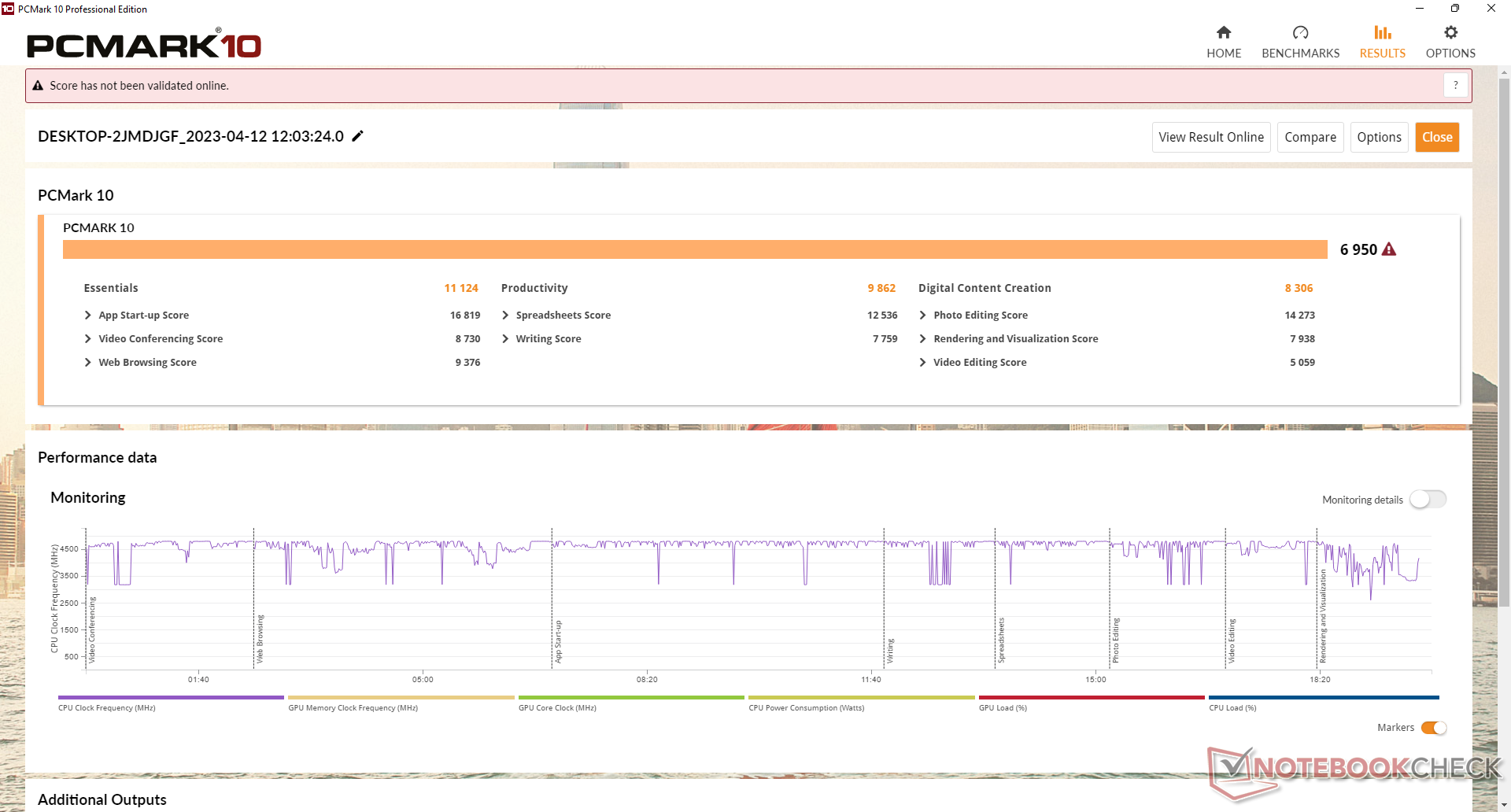

PCMark 10 Score		6950 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	51235 MB/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51186 MB/s 0%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	50935 MB/s -1%
Average AMD Ryzen 7 7735HS (30324 - 52012, n=15)	48388 MB/s -6%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	47938 MB/s -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -12%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	43747 MB/s -15%

AIDA64 / Memory Read
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	51869 MB/s 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	51856 MB/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	51679 MB/s 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	49936 MB/s -4%
Average AMD Ryzen 7 7735HS (33938 - 51856, n=15)	47441 MB/s -9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	47347 MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -13%

AIDA64 / Memory Write
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	55316 MB/s 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	55284 MB/s
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	55238 MB/s 0%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	54750 MB/s -1%
Average AMD Ryzen 7 7735HS (33175 - 55284, n=15)	52434 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	46768 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -16%

AIDA64 / Memory Latency
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -16%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Iris Xe G7 80EUs	90.3 ns * -9%
Average AMD Ryzen 7 7735HS (78.2 - 109.8, n=15)	90.2 ns * -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, Radeon 680M	83.5 ns * -1%
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, Radeon 680M	83 ns * -1%
Beelink GTR6 AMD Ryzen 9 6900HX, Radeon 680M	82.9 ns * -0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, Radeon 680M	82.5 ns *

* ... smaller is better

DPC Latency

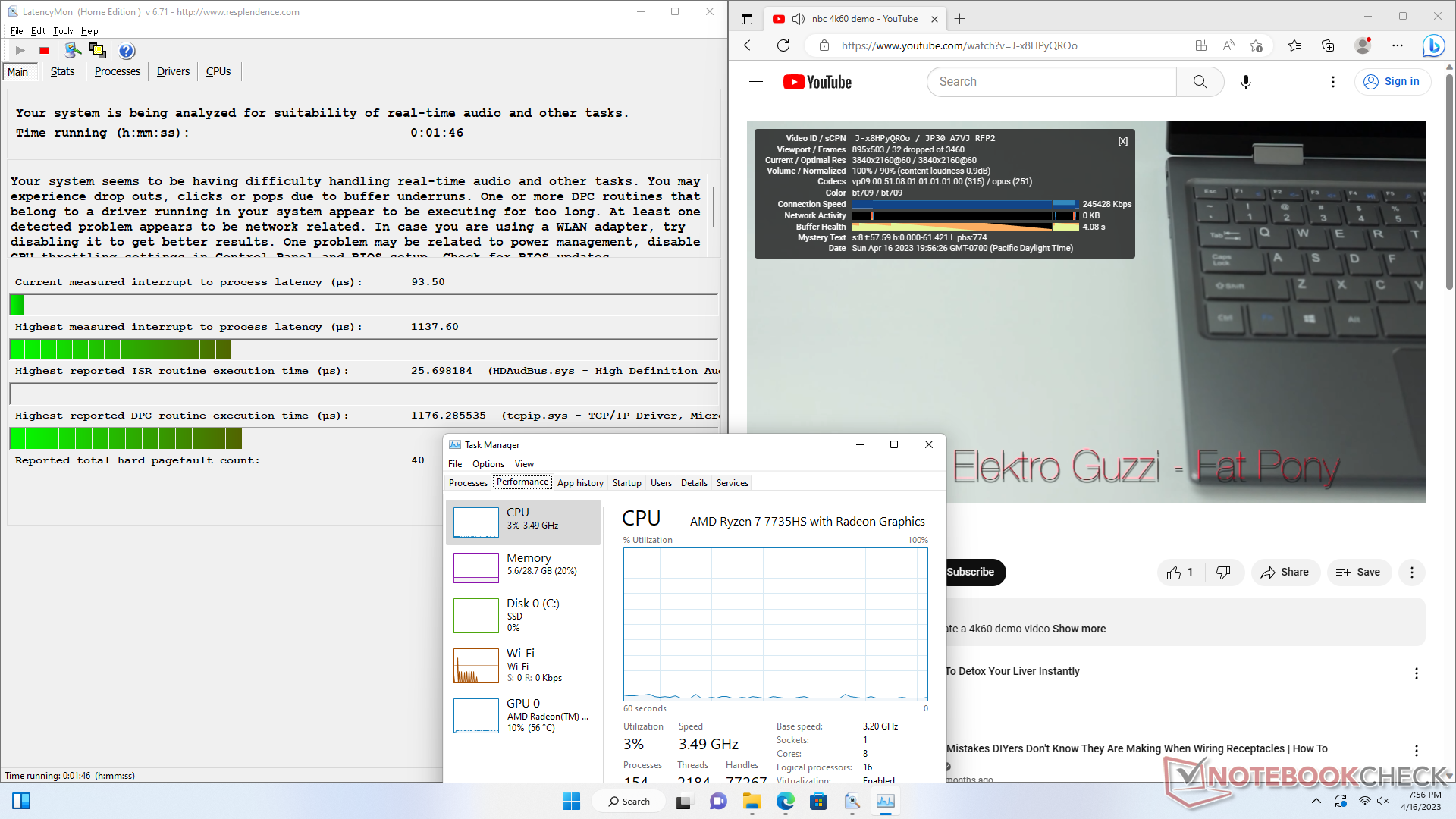

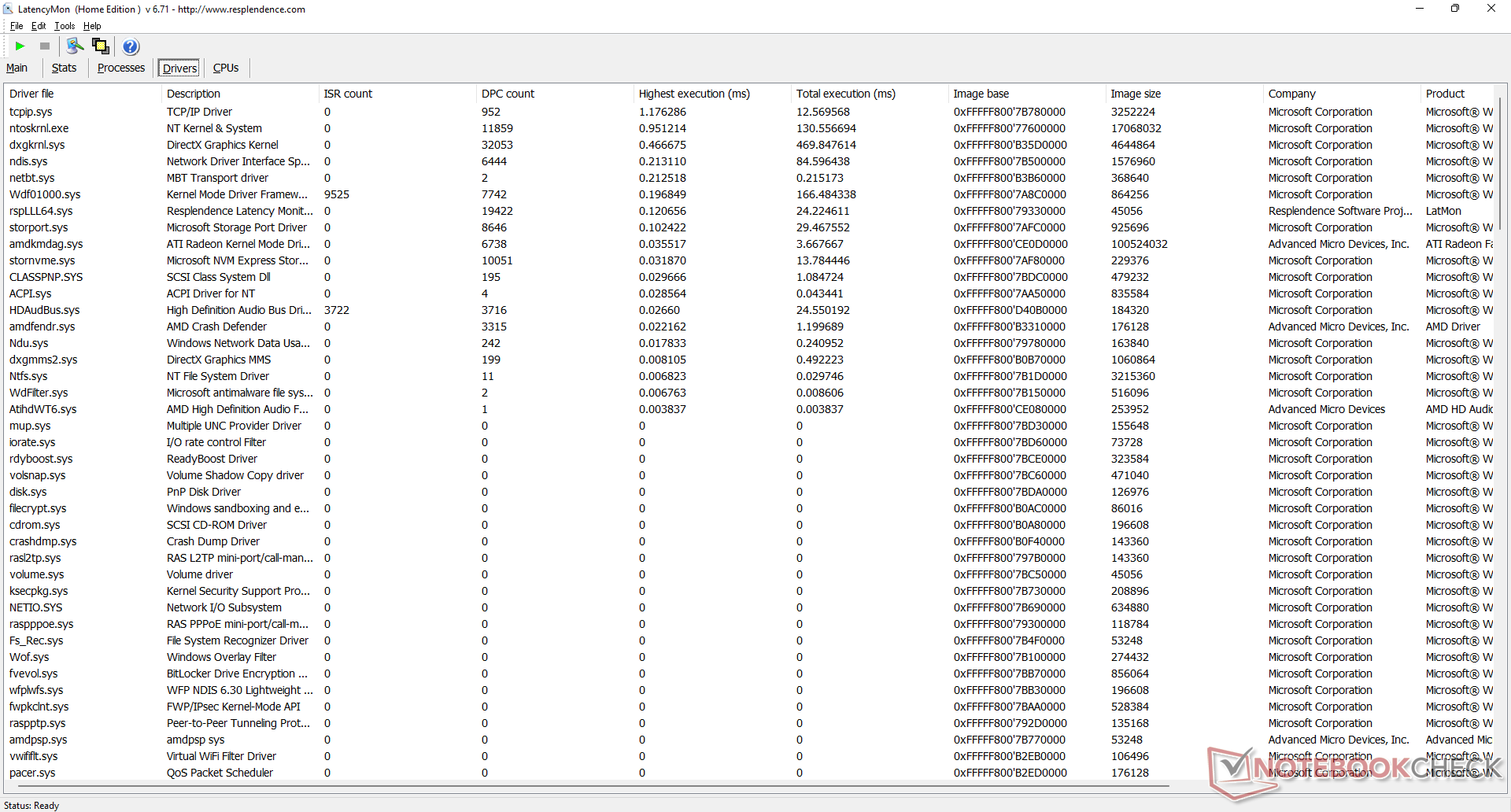

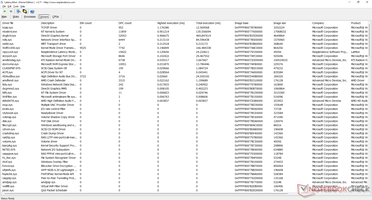

LatencyMon reveals DPC issues when opening multiple browser tabs of our homepage. Additionally, our unit would exhibit 4K60 video playback issues with 32 dropped frames during our minute-long test video.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0	1488 μs * -31%
Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	1329 μs * -17%
Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	1137.6 μs *
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +4%
Intel NUC 12 Pro Kit NUC12WSBi5 Iris Xe G7 80EUs, i5-1240P, Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.4 μs * +22%
Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	509.9 μs * +55%

* ... smaller is better

Storage Devices

Our 2023 SER6 Pro unit ships with the same Kingston NV2 500GB SNV2S/500G as found on last year's model.

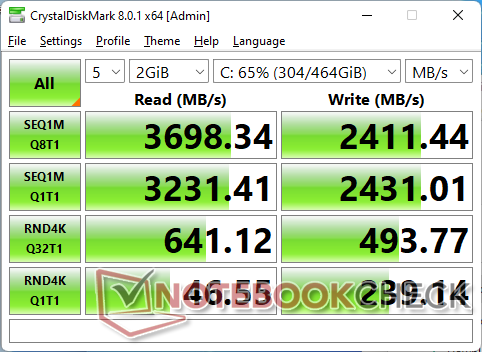

CrystalDiskMark 5.2 / 6

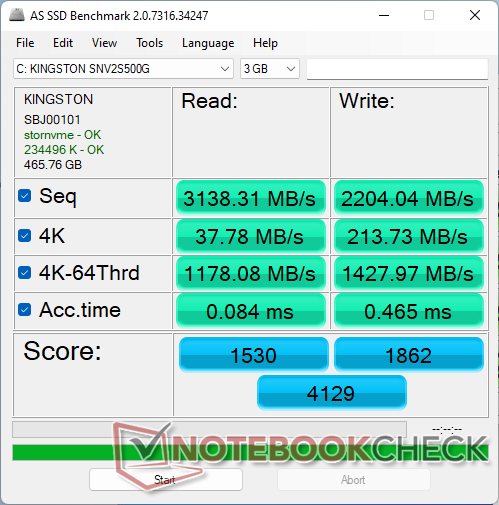

AS SSD

DiskSpd

Kingston NV2 500GB SNV2S/500G

CDM 5/6 Read Seq Q32T1: 3621 MB/s

CDM 5/6 Write Seq Q32T1: 2456 MB/s

CDM 5/6 Read 4K Q32T1: 634.9 MB/s

CDM 5/6 Write 4K Q32T1: 494.3 MB/s

CDM 5 Read Seq: 2906 MB/s

CDM 5 Write Seq: 2465 MB/s

CDM 5/6 Read 4K: 44.56 MB/s

CDM 5/6 Write 4K: 237.5 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	93.3 pt
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.2 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	75.1 pt
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	57.4 pt
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	51.5 pt
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	48.9 pt

DiskSpd
seq read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	4168 (3579.63^min - 4168.09^max) MB/s +80%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +46%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3195 (3147.62^min - 3194.91^max) MB/s +38%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3074 (3056.63^min - 3074.49^max) MB/s +33%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2312 (2299.53^min - 2312.11^max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	938 (893.07^min - 938.27^max) MB/s -59%
seq write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3783.49^min - 3937.52^max) MB/s +76%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3539 (3516.6^min - 3538.94^max) MB/s +58%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +50%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2277 (2253.07^min - 2277.24^max) MB/s +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2243 (2200.96^min - 2243.2^max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1128 (693.82^min - 1128.11^max) MB/s -50%
seq q8 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	7061 (6122.84^min - 7060.97^max) MB/s +148%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +136%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4820 (3819.87^min - 4820.3^max) MB/s +69%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3553 (3164.22^min - 3552.99^max) MB/s +25%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3508 (3328.18^min - 3507.7^max) MB/s +23%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2849 (2731.13^min - 2849.44^max) MB/s
seq q8 t1 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3938 (3914.12^min - 3937.52^max) MB/s +79%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3536 (3475.82^min - 3536.01^max) MB/s +61%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +29%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2615 (711.82^min - 2614.74^max) MB/s +19%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	2271 (2252.65^min - 2271.35^max) MB/s +3%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2195 (2178.89^min - 2194.65^max) MB/s
4k q1 t1 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	80.4 (79.66^min - 80.38^max) MB/s +101%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	70.8 (63.28^min - 70.81^max) MB/s +77%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s +30%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	42.6 (42.44^min - 42.57^max) MB/s +7%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	40 (39.84^min - 39.95^max) MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	38.7 (22.67^min - 38.7^max) MB/s -3%
4k q1 t1 write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	288 (287.39^min - 288.47^max) MB/s +15%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	284 (282.24^min - 284.12^max) MB/s +14%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	250 (246.86^min - 249.77^max) MB/s
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	239 (236.27^min - 238.58^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -29%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	160.7 (123.92^min - 160.73^max) MB/s -36%
4k q32 t16 read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1942 (1940.94^min - 1941.94^max) MB/s +58%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1933 (1926.8^min - 1932.75^max) MB/s +58%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1568 (1565.33^min - 1568.49^max) MB/s +28%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1227 (1221.9^min - 1227.11^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s 0%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	569 (455.25^min - 568.93^max) MB/s -54%
4k q32 t16 write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3741 (3667.09^min - 3740.76^max) MB/s +175%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3331 (2068.43^min - 3331.41^max) MB/s +145%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1391 (1351.44^min - 1391.2^max) MB/s +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1362 (1327.37^min - 1362.29^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -54%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	446 (240.36^min - 445.56^max) MB/s -67%

AS SSD
Score Total
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	6722 Points +63%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	6665 Points +61%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +45%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	4218 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	4129 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	3592 Points -13%
Score Read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2352 Points +54%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2207 Points +44%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +9%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1643 Points +7%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1530 Points
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1233 Points -19%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +92%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3477 Points +87%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3145 Points +69%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1862 Points
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1792 Points -4%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1784 Points -4%
Seq Read
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	5799.1 MB/s +85%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +52%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	4050 MB/s +29%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	3138.31 MB/s
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	3079.48 MB/s -2%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	2902.75 MB/s -8%
Seq Write
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	3737.17 MB/s +70%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	3025 MB/s +37%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +11%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	2204.04 MB/s
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1926.48 MB/s -13%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1486.78 MB/s -33%
4K Read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	86.05 MB/s +128%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +107%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	75.39 MB/s +100%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	59.71 MB/s +58%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	38.62 MB/s +2%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	37.78 MB/s
4K Write
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	240.66 MB/s +13%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	237.79 MB/s +11%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	216.44 MB/s +1%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	213.73 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -2%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	206.56 MB/s -3%
4K-64 Read
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	1860.96 MB/s +58%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	1551.47 MB/s +32%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1296.75 MB/s +10%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1178.08 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -5%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	883.18 MB/s -25%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +118%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	2865.66 MB/s +101%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	2602.12 MB/s +82%
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	1427.97 MB/s
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	1418.48 MB/s -1%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	1392.49 MB/s -2%
Access Time Read
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	0.084 ms *
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.065 ms * +23%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.057 ms * +32%
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.048 ms * +43%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.045 ms * +46%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +46%
Access Time Write
Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G	0.465 ms *
Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G	0.362 ms * +22%
Intel NUC 12 Pro Kit NUC12WSBi5 Lexar 512GB NM6A1 LNM6A1X512G-HNNG	0.129 ms * +72%
Beelink GTR6 Kingston KC3000 512G SKC3000S512G	0.047 ms * +90%
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0	0.031 ms * +93%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +96%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER6 Pro Ryzen 7 7735HS Kingston NV2 500GB SNV2S/500G: Ø2669 (2438.83-2700.03)

Beelink SER6 Pro Kingston NV2 500GB SNV2S/500G: Ø3043 (2655.48-3280.21)

GPU Performance

Graphics performance is the same as on last year's Ryzen 7 6800H or Ryzen 9 6900HX since all of these CPUs sport the same integrated Radeon 680M GPU. This isn't necessarily a bad thing because the Radeon 680M is already well ahead of the competing Intel Iris Xe 96 EUs by 40 to 60 percent, but users who were expecting some sort of boost this year will be disappointed.

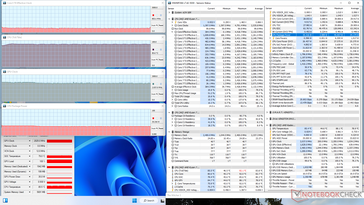

Idling on Witcher 3 reveals performance stability issues as frame rates would frequently dip for seemingly no reason as shown by our graph below. This behavior suggests poor prioritization of background activities or driver issues with the integrated GPU. We had updated our Radeon drivers to the latest versions as of the date of publishing and results would not change.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	99.5 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	98.7 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	98.4 pt
Average AMD Radeon 680M	92.1 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	69.1 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	63.2 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	61.4 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-2! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	55.5 pt
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	52.6 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	10734 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points -2%
Average AMD Radeon 680M (6858 - 11755, n=37)	10088 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -33%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points -40%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points -42%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points -48%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points -50%

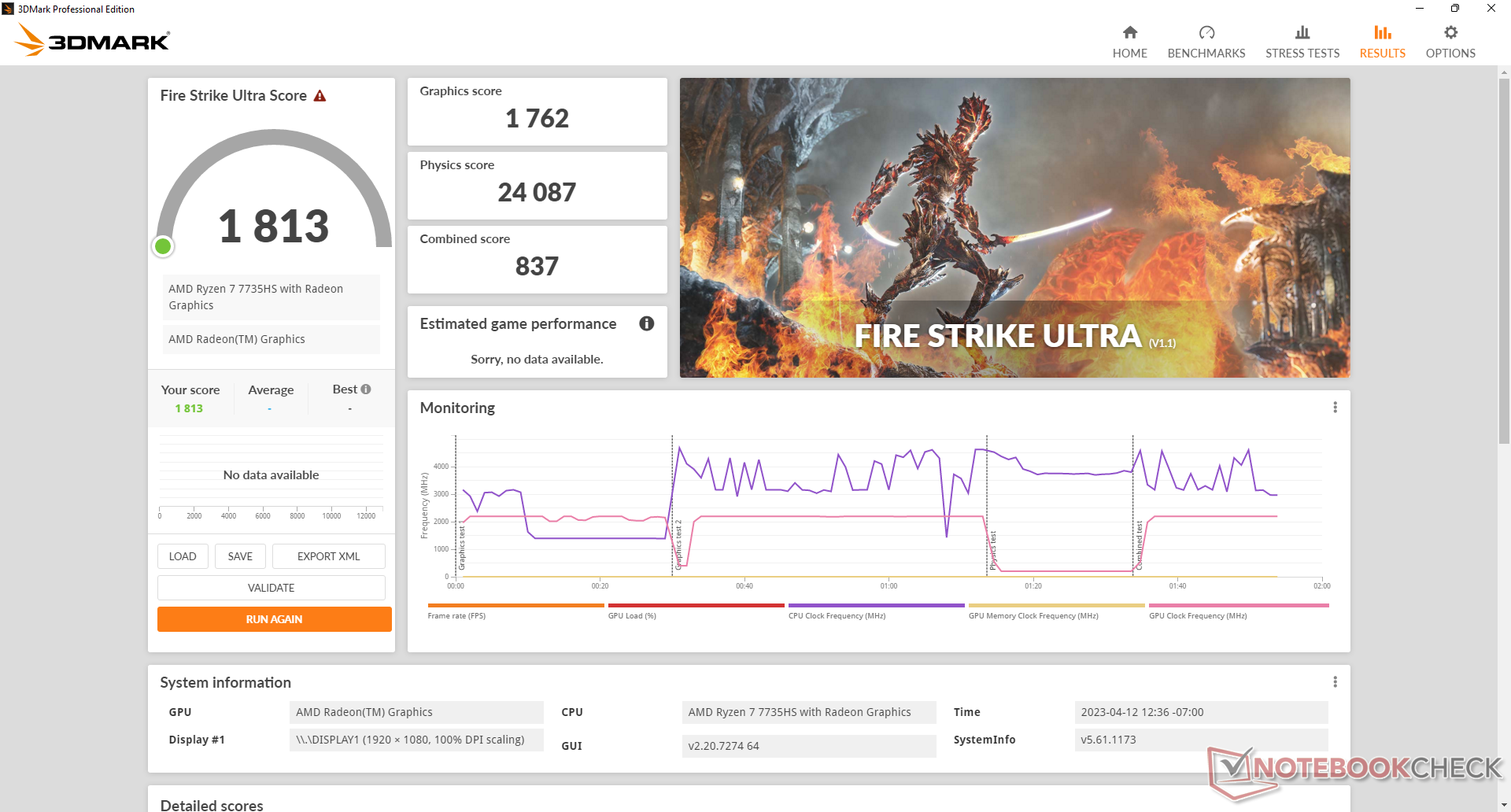

3DMark
1920x1080 Fire Strike Graphics
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	7180 Points
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -2%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -3%
Average AMD Radeon 680M (3791 - 7706, n=39)	6718 Points -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points -27%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points -32%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -36%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points -41%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points -41%
2560x1440 Time Spy Graphics
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points +2%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2395 Points
Average AMD Radeon 680M (1359 - 2607, n=39)	2227 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points -30%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points -35%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points -37%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points -48%
2560x1440 Time Spy Score
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points +2%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Radeon 680M, AMD Ryzen 7 7735HS	2693 Points
Average AMD Radeon 680M (1546 - 2914, n=39)	2492 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1907 Points -29%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1754 Points -35%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points -38%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1402 Points -48%

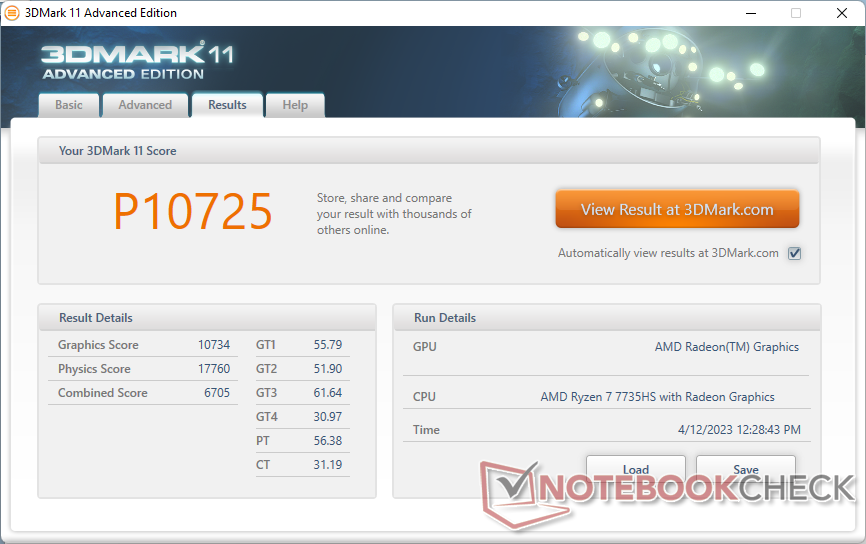

3DMark 11 Performance		10725 points

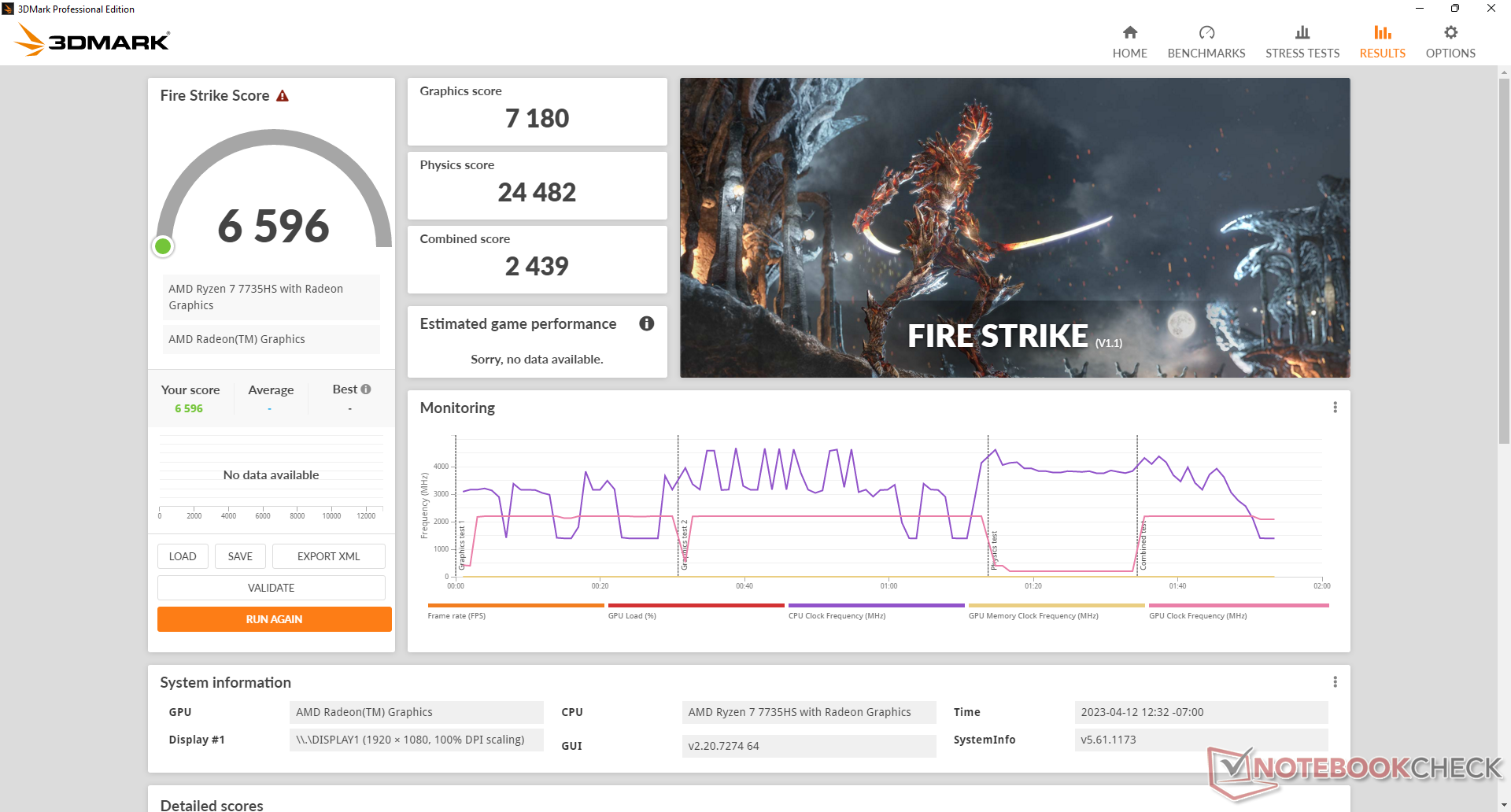

3DMark Fire Strike Score		6596 points

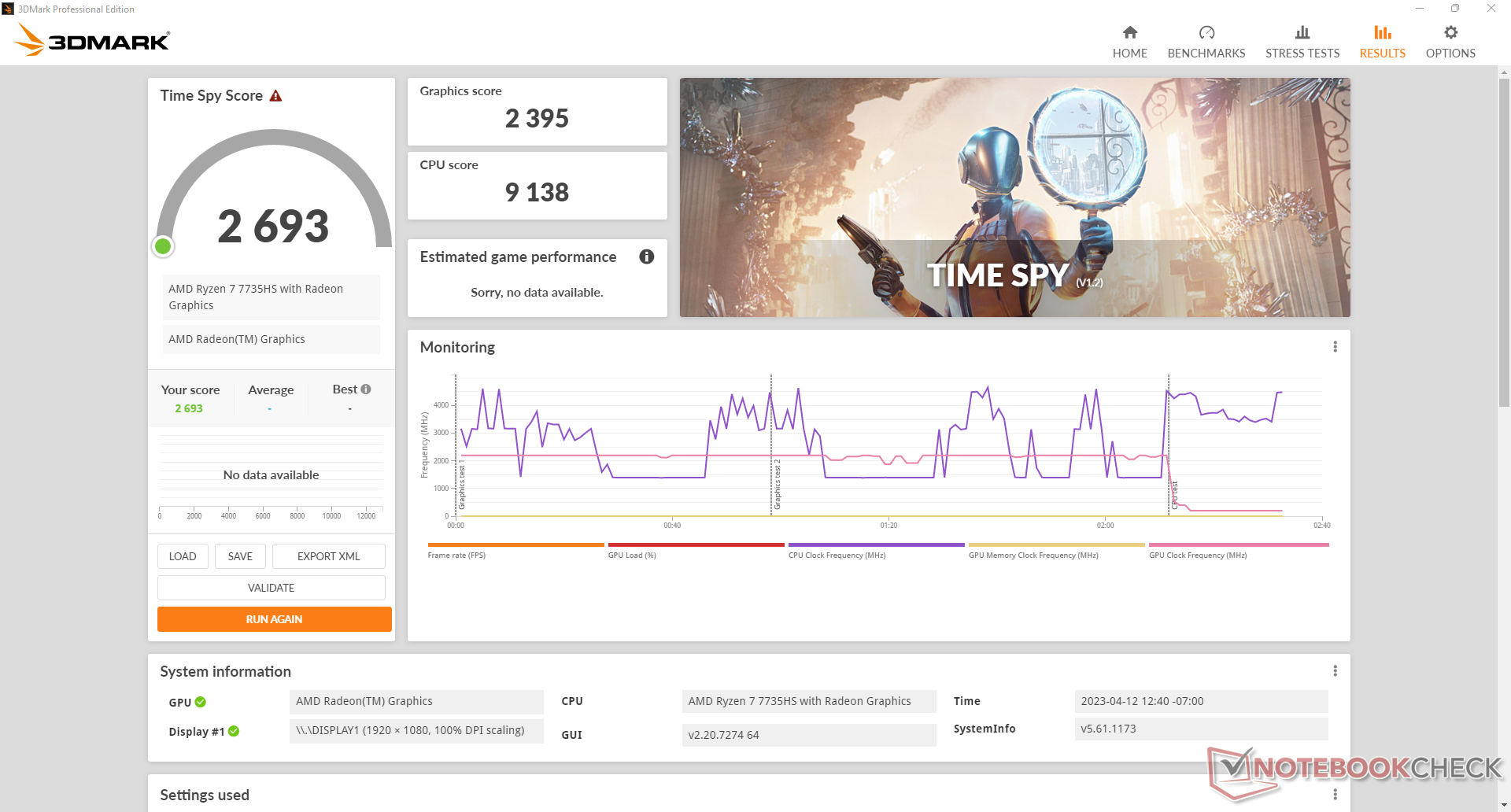

3DMark Time Spy Score		2693 points
Help

... in comparison

Performance Rating - Percent
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	99.6 pt
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	98.4 pt
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	97.3 pt
Intel NUC Pro Chassis_i7_1265U ^-1! Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	68.2 pt
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.2 pt
Intel NUC Pro Chassis_i5_1245U ^-1! Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	59.4 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-4! Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	46.5 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps +7%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	25.2 (23^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps -48%

Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	24.7 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps -38%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.2 fps -38%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	72.8 (65.3^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -2%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps -15%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps -28%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	45.7 (42.8^min) fps -37%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34 (32.3^min) fps -53%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.2 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps -8%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps -28%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.9 fps -29%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps +3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.7 (31.5^min, 32.4^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps -42%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.9 (6.4^min, 8.1^P1) fps -44%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18.8 (5^min, 5^P1) fps -54%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps +9%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	62.2 fps
Average AMD Radeon 680M (34.4 - 74.7, n=37)	59.3 fps -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps -30%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	40.6 fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps -36%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	38.3 fps -38%
1920x1080 Standard Quality
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps
Average AMD Radeon 680M (18.3 - 36.9, n=38)	30.9 fps -6%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps -24%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	21.7 fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	21.3 fps -35%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	19.6 fps -41%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	24.7 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -1%
Average AMD Radeon 680M (12.9 - 26.2, n=38)	22 fps -11%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps -38%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.2 fps -38%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +20%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps +19%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	115.6 (84^min) fps
Average AMD Radeon 680M (67.4 - 150, n=30)	114.8 fps -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.7 fps -12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps -22%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.8 (79^min) fps -24%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps -30%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	42 fps -64%
1366x768 Medium Graphics & Postprocessing
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps +7%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	79.8 (72^min) fps
Average AMD Radeon 680M (44.5 - 85.3, n=23)	70 fps -12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps -25%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.5 (49^min) fps -33%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	52.3 (22.4^min, 24.9^P0.1, 29.9^P1) fps -34%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31 fps -61%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 (38^min) fps
Average AMD Radeon 680M (22.3 - 48, n=32)	37.4 fps -12%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps -21%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.1 fps -27%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27.7 (12.8^min, 13.7^P0.1, 15.4^P1) fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.5 (22^min) fps -45%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	15 fps -65%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps +7%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	25.2 (23^min) fps
Average AMD Radeon 680M (14.3 - 27.1, n=32)	23 fps -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps -48%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	142.2 (123.6^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps -13%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps -15%
Average AMD Radeon 680M (34.4 - 146.2, n=39)	114.5 fps -19%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	110.4 (89.3^min) fps -22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps -23%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.9 (33.6^min) fps -75%
1366x768 med (1/3)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -1%
Average AMD Radeon 680M (33.3 - 121.4, n=39)	95.2 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps -17%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89 (72.1^min) fps -22%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps -30%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.7 (33.9^min) fps -69%
1920x1080 high (2/3)
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (74.5^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps -6%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -9%
Average AMD Radeon 680M (33.2 - 89.1, n=39)	71.5 fps -20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps -23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps -43%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	49.8 (46.3^min) fps -44%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34.6 (33^min) fps -61%
1920x1080 ultra (3/3) best looking
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	72.8 (65.3^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -2%
Average AMD Radeon 680M (33.2 - 84.9, n=39)	63 fps -13%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps -15%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps -28%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	45.7 (42.8^min) fps -37%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34 (32.3^min) fps -53%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	65.2 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -1%
Average AMD Radeon 680M (26.8 - 66.7, n=39)	55 fps -16%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps -22%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	48.4 fps -26%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps -32%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps +1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps +1%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.3 fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps -16%
Average AMD Radeon 680M (21.1 - 53.1, n=39)	43.5 fps -17%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps -32%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	33.3 fps -36%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	42.2 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps -8%
Average AMD Radeon 680M (16.6 - 44.5, n=39)	35.7 fps -15%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps -28%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.9 fps -29%

Strange Brigade
1280x720 lowest AF:1
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	137.8 (107.9^min, 119.9^P1) fps
Average AMD Radeon 680M (72.9 - 167.5, n=36)	131.9 fps -4%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps -31%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.1 (18.9^min, 25.5^P1) fps -42%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (9.6^min, 21.1^P1) fps -52%
1920x1080 medium AA:medium AF:4
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps +2%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	56.4 (47.8^min, 49^P1) fps
Average AMD Radeon 680M (30 - 63, n=36)	53.8 fps -5%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps -32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	34.5 (12.4^min, 19.8^P1) fps -39%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.6 (9.5^min, 16^P1) fps -48%
1920x1080 high AA:high AF:8
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps +3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps +3%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	47.1 (35.1^min, 37.2^P1) fps
Average AMD Radeon 680M (25.3 - 53.1, n=36)	44.5 fps -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps -34%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps -37%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	28.5 (7.8^min, 15.4^P1) fps -39%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	23.5 (5.8^min, 8.9^P1) fps -50%
1920x1080 ultra AA:ultra AF:16
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps +3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.7 (31.5^min, 32.4^P1) fps
Average AMD Radeon 680M (22 - 44.2, n=36)	38.2 fps -6%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -38%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps -42%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.9 (6.4^min, 8.1^P1) fps -44%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18.8 (5^min, 5^P1) fps -54%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (18.6^min) fps +6%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps +5%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	40.8 (19.7^min) fps
Average AMD Radeon 680M (26 - 50.6, n=15)	38 fps -7%
1920x1080 Medium Preset
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	33.1 (19.1^min) fps +4%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps +4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	31.8 (20.6^min) fps
Average AMD Radeon 680M (20.1 - 41.8, n=15)	29 fps -9%
1280x720 Low Preset
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	72.8 (23.7^min) fps +5%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	72.2 (23.3^min) fps +4%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	69.2 (26.3^min) fps
Average AMD Radeon 680M (46.1 - 77.6, n=14)	63.7 fps -8%
1920x1080 High Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +2%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	21.8 (6.2^min) fps
Average AMD Radeon 680M (16.3 - 33.6, n=15)	21.4 fps -2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	21.3 (3^min) fps -2%
1920x1080 Ultra Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps 0%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	17.5 (3.4^min) fps
Average AMD Radeon 680M (14 - 23.8, n=15)	17.5 fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	17.2 (3.2^min) fps -2%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	141.3 (116^min, 93^P1) fps
Average AMD Radeon 680M (75.5 - 147.3, n=19)	126.1 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80 (64^min, 64^P1) fps -43%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	79.9 (65^min, 61^P1) fps -43%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	57.6 (47^min, 47^P1) fps -59%
1920x1080 Low Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	80.1 (69^min, 55^P1) fps
Average AMD Radeon 680M (44.1 - 85.4, n=25)	73.3 fps -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	48 (40^min, 40^P1) fps -40%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	45.4 (37^min, 36^P1) fps -43%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	32.4 (20^min, 27^P1) fps -60%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	69.5 (57^min, 49^P1) fps
Average AMD Radeon 680M (38 - 75.1, n=25)	64.5 fps -7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.3 (36^min, 36^P1) fps -36%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	40.9 (34^min, 33^P1) fps -41%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.6 (25^min, 24^P1) fps -57%
1920x1080 High Preset AA:T AF:16x
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	52.9 (43^min, 38^P1) fps
Average AMD Radeon 680M (30 - 56.2, n=25)	47.7 fps -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.2 (27^min, 26^P1) fps -41%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.8 (25^min, 24^P1) fps -44%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	22 (19^min, 18^P1) fps -58%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 fps +73%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	22.1 (18^min, 18^P1) fps +59%
Beelink SER6 Pro Ryzen 7 7735HS AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (10^min, 9^P1) fps
Average AMD Radeon 680M (7.85 - 14.7, n=22)	11.5 fps -17%

Witcher 3 FPS Chart

Beelink SER6 Pro Ryzen 7 7735HS: Ø109.5 (15-126)

	low	med.	high	ultra
The Witcher 3 (2015)	115.6	79.8	42.4	25.2
Dota 2 Reborn (2015)	142.2	113.5	89.1	72.8
Final Fantasy XV Benchmark (2018)	62.2	33	24.7
X-Plane 11.11 (2018)	65.2	52.3	42.2
Strange Brigade (2018)	137.8	56.4	47.1	40.7
Cyberpunk 2077 1.6 (2022)	40.8	31.8	21.8	17.5
Tiny Tina's Wonderlands (2022)	58.6	44.4	29.9	23.1
F1 22 (2022)	80.1	69.5	52.9	13.9

Emissions

System Noise

There are some slight differences in fan noise when compared to last year's model, but they both reach a similar maximum of ~40 dB(A) when running very demanding loads like games. When running lower loads like browsers, the newer model does appear to run quieter for longer periods before resorting to higher fan RPMs.

Noise Level

Idle		23.3 / 23.3 / 26.2 dB(A)
Load		40.2 / 40.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.3 dB(A)

	Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G	Beelink SER6 Pro Radeon 680M, R7 6800H, Kingston NV2 500GB SNV2S/500G	Beelink GTR6 Radeon 680M, R9 6900HX, Kingston KC3000 512G SKC3000S512G	Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Minisforum Venus Series UM690 Radeon 680M, R9 6900HX, Kingston OM8PGP4512Q-A0
Noise		-5%	-8%	-19%	-16%
off / environment *	23.3	22.8 2%	23.2 -0%	29.8 -28%	30.5 -31%
Idle Minimum *	23.3	24.1 -3%	23.6 -1%	30.2 -30%	31.6 -36%
Idle Average *	23.3	24.1 -3%	23.8 -2%	31.1 -33%	31.6 -36%
Idle Maximum *	26.2	33.8 -29%	36.2 -38%	31.9 -22%	31.6 -21%
Load Average *	40.2	40.1 -0%	39.7 1%	40 -0%	33.9 16%
Witcher 3 ultra *	37	38.7 -5%	41 -11%
Load Maximum *	40.2	40.1 -0%	43 -7%	40.5 -1%	34.4 14%

* ... smaller is better

Temperature

AC adapter can reach over 35 C when running demanding loads for long periods

Surface temperatures are not an issue on the SER6 Pro. However, keep in mind that fresh air enters from the top surface and so any papers, books, or items should not be placed on top. Allow some space along the rear for the waste heat to exit as well.

Stress Test

CPU clock rate and board power draw when running Prime95 would boost to 3.4 GHz and 45 W, respectively, lasting for just a few seconds. The CPU would then quickly stabilize at 3.1 GHz, 38 W, and 86 C thereafter which is slightly warmer and faster than what we recorded on last year's SER6 Pro.

When running Witcher 3, GPU clock rates and temperature would stabilize at 2037 MHz and 86 C, respectively, compared to 1150 MHz and just 68 C on the slower Intel-powered SEi12.

	CPU Clock (GHz)	GPU Clock (MHz)	Average CPU Temperature (°C)
System Idle	--	--	51
Prime95 Stress	3.1	--	86
Prime95 + FurMark Stress	2.6	931	85
Witcher 3 Stress	0.8	2037	86

Energy Management

Power Consumption

Power consumption is nearly identical to last year's Ryzen 7 6800H model as shown by our comparison graphs below. Thus, performance-per-watt is unfortunately not any better when jumping from the older Ryzen 7 6800H to the newer Ryzen 7 7735HS.

Initiating Prime95 causes consumption to spike to 72 W for just a few seconds before falling to 63 W

Prime95+FurMark stress initiated at 10s mark

Power Consumption

Off / Standby	0.34 / 0.71 Watt
Idle	8.9 / 9 / 9.3 Watt
Load	62.5 / 80.1 Watt


Key: min: , med: , max: Metrahit Energy

	Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,	Beelink SER6 Pro R7 6800H, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x,	Beelink GTR6 R9 6900HX, Radeon 680M, Kingston KC3000 512G SKC3000S512G, , x,	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Minisforum Venus Series UM690 R9 6900HX, Radeon 680M, Kingston OM8PGP4512Q-A0, , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption		6%	-4%	5%	-8%	-79%
Idle Minimum *	8.9	8.3 7%	7.6 15%	5.1 43%	8.7 2%	15.5 -74%
Idle Average *	9	8.4 7%	9.9 -10%	5.8 36%	9.6 -7%	16.2 -80%
Idle Maximum *	9.3	8.7 6%	10.6 -14%	10.2 -10%	10.5 -13%	16.5 -77%
Load Average *	62.5	60.8 3%	64 -2%	68.1 -9%	65.8 -5%	83.4 -33%
Witcher 3 ultra *	62.6	61.4 2%	69 -10%			121.7 -94%
Load Maximum *	80.1	72 10%	80.4 -0%	108.3 -35%	94.5 -18%	173.5 -117%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.6 (60.9-64.9)

Beelink SER6 Pro R7 6800H, Radeon 680M; Witcher 3 ultra: Ø61.4 (59.7-62.8)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø65 (63.6-80.1)

Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø63.3 (62-72)

Power Consumption external Monitor

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63.6 (62.6-72)

Beelink SER6 Pro R7 6800H, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø62.1 (60.9-70.6)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø62.7 (55.1-67.9)

Beelink SER6 Pro R7 6800H, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø61 (57.5-66.4)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.9 (62.7-67.8)

Beelink SER6 Pro R7 6800H, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø62.6 (61.3-68.3)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.6 (60.9-64.9)

Beelink SER6 Pro R7 6800H, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø61.4 (59.7-62.8)

Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M; Idle 1min (external Monitor): Ø9.2 (8.79-12.5)

Beelink SER6 Pro R7 6800H, Radeon 680M; Idle 1min (external Monitor): Ø8.51 (8.12-9.32)

Pros

+ fast CPU and GPU performance for the size

+ USB4 and Power Delivery support

+ slightly quieter under lower loads

+ 2x SODIMM + 2x storage bays

+ integrated DisplayPort

Cons

- no tangible performance boost over the older Ryzen 7 6800H

- Wi-Fi 6E does not come standard

- only one USB-C port

- DPC issues

Verdict — Nothing More Than A Zen 3+ Rebrand

In review: Beelink SER6 Pro Ryzen 7 7735HS. Test unit provided by Beelink

The best part about the SER6 Pro Ryzen 7 7735HS is that the older SER6 Pro Ryzen 7 6800H is now cheaper. The two processors are too similar in performance and power consumption meaning you can simply purchase the older model without fear of missing out on any major features.

The Ryzen 7 7735HS performs identically to the older Ryzen 7 6800H. The 2023 SER6 Pro is therefore difficult to recommend over the 2022 model as it offers almost no other changes.

The integrated DisplayPort is a nice addition, but we believe Beelink could have done more to entice buyers. A second USB-C port, integrated fingerprint reader, or a Kensington lock, for example, could have helped to better differentiate the 2023 model from the 2022 one. Additionally, the DPC latency issues and frame drops when playing 4K video should be addressed since many buyers may use the SER6 Pro for HTPC purposes.

Price and Availability

Amazon is now shipping the Beelink SER6 Pro as configured for $550 USD.

Beelink SER6 Pro Ryzen 7 7735HS - 04/20/2023 v7 ^(old)
Allen Ngo

Chassis

79 / 98 → 80%

Connectivity

60 / 81 → 74%

Weight

83%

Display

83%

Games Performance

78%

Application Performance

96%

Noise

92%

Average

81%

85%

Mini PC - Weighted Average

Price comparison

Read all 5 comments / answer

Loading Comments

Comment on this article

Allen Ngo - Lead Editor U.S. - 5269 articles published on Notebookcheck since 2011

After graduating with a B.S. in environmental hydrodynamics from the University of California, I studied reactor physics to become licensed by the U.S. NRC to operate nuclear reactors. There's a striking level of appreciation you gain for everyday consumer electronics after working with modern nuclear reactivity systems astonishingly powered by computers from the 80s. When I'm not managing day-to-day activities and US review articles on Notebookcheck, you can catch me following the eSports scene and the latest gaming news.

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Beelink SER6 Pro Ryzen 7 7735HS mini PC review: Now with integrated DisplayPort

Allen Ngo, 2023-04-20 (Update: 2023-04-20)

Beelink SER6 Pro Ryzen 7 7735HS mini PC review: Now with integrated DisplayPort

Just buy the older 2022 model.

Potential Competitors in Comparison

Case

Size Comparison

Communication

Maintenance

Accessories and Warranty

Performance

Testing Conditions

Processor

Cinebench R15 Multi Loop

System Performance

DPC Latency

Storage Devices

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performance

Witcher 3 FPS Chart

Emissions

System Noise

Temperature

Stress Test

Energy Management

Power Consumption

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pros

Cons

Verdict — Nothing More Than A Zen 3+ Rebrand

Price and Availability

More articles related to this device

Related Articles

Transparency

Price comparison
