Intel Core i7-620LM

Intel 620LM

The Intel Core i7-620LM is a fast middle class low voltage dual core CPU for laptops and clocks (due to the Turbo Mode) from 2.0 to 2.8 GHz. Each core is based on the Nehalem (Westmere) micro-architecture. Hyperthreading enables the Dual Core CPU to handle 4 threads at once (for a better usage of the pipeline). Compared to the Core i7-620M, the 620LM is slower but more power efficient.

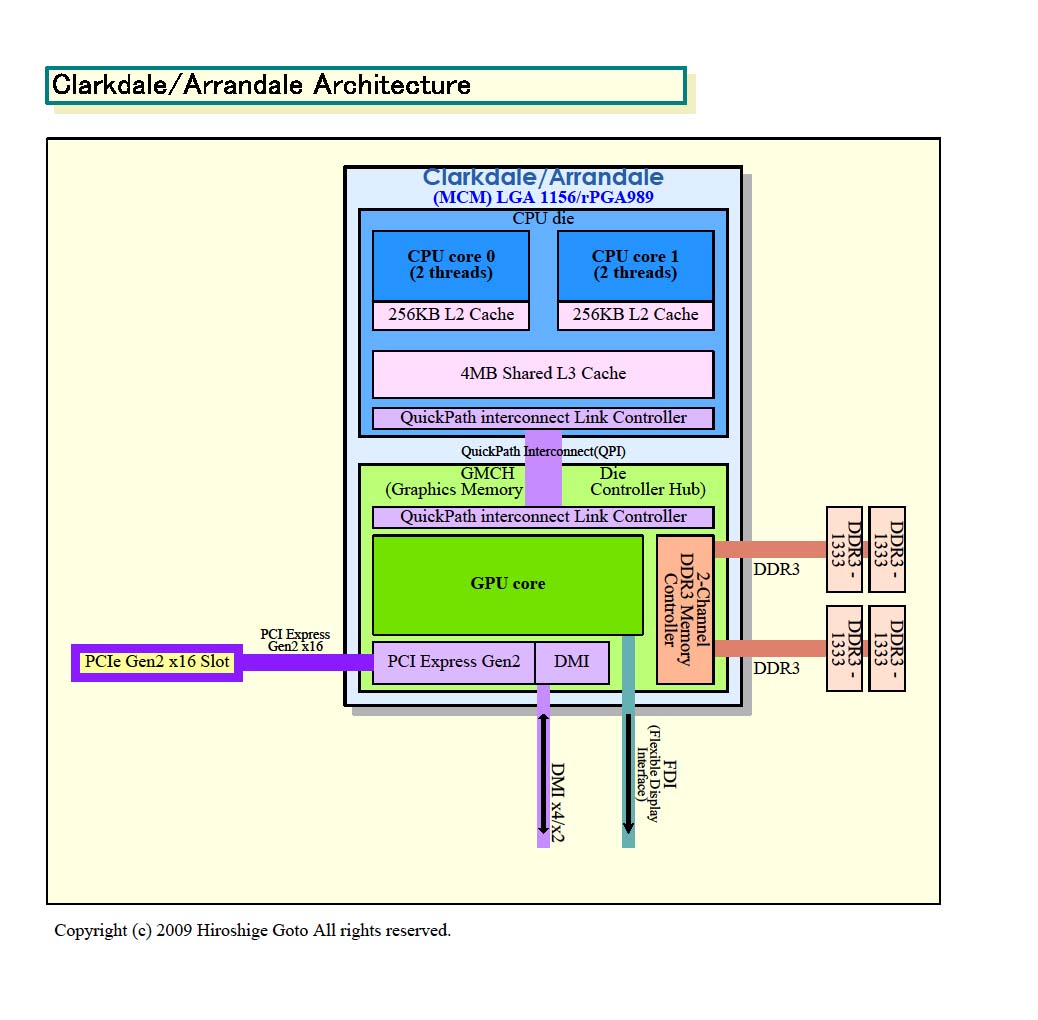

A feature of the new Core i7-620LM is the integrated graphics card (called Intel HD Graphics) and memory controller. Both are on a separate die that is still manufactured in 45nm whereas the CPU die is already manufactured in the new 32nm process.

Due to the integrated memory controller, the HyperThreading and Turbo Boost, the  Core i7-620LM is faster than a similar clocked Core 2 Duo in all (us known) applications and benchmarks. The performance should be somewhere on the level of the Core i5-350M. Beware, that some laptop designs may not feature the Turbo Boost. Therefore, the CPU may be slower than the 350M.

The 32nm cpu cores of the Westmere generation can also process some new instructions to accelerate AES encryptions. Modern applications that support AES encoding can show a significant performance boost using the new instructions (e.g. the Communications Suite test in the PCMark Vantage boosts up to 70% using AES in the faster Core i5-520M).

The integrated Intel Graphics Media Accelerator HD (GMA HD) graphics card is between 266-566 MHz (Turbo Boost) and therefore the base speed is clearly below the non low voltage versions. The performance should

still be a lot faster than the old GMA 4500MHD. The power consumption of 25 Watt TDP (max.) counts for the whole package and therefore it is clearly better than the 25 Watt TDP of the Core 2 Duo P-series (CPU alone).

SeriesIntel Core i7
CodenameArrandale
Clock Rate2000 - 2800 MHz
Front Side Bus2500 MHz
Level 2 Cache512 KB
Level 3 Cache4096 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)25 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+144 mm2
Max. Temperature105 °C
SocketBGA1288
FeaturesTurbo Boost (2.8 GHz max), Hyper Threading, Enhanced Speedstep, integrated GMA HD 266-566 MHz
64 Bit64 Bit support
Hardware VirtualizationVT-x, VT-d
Starting Price $300 U.S.
Announcement Date01/04/2010
Product Link (external)Intel Core i7 620LM

Benchmarks

wPrime 2.0x - 1024m
0% 100%
min: 848.142      avg: 848.1 (10%)     median: 848.1 (10%)     max: 848.142 seconds
wPrime 2.0x - 32m
0% 100%
min: 26.516      avg: 26.5 (5%)     median: 26.5 (5%)     max: 26.516 seconds
3DMark 06 - CPU -
0% 100%
min: 2358      avg: 2358 (27%)     median: 2358 (27%)     max: 2358 Points
Cinebench R10 - Rendering Single 32Bit
0% 100%
min: 2937      avg: 2937 (44%)     median: 2937 (44%)     max: 2937 Points
Cinebench R10 - Rendering Multiple CPUs 32Bit
0% 100%
min: 5640      avg: 5640 (16%)     median: 5640 (16%)     max: 5640 Points
Super Pi mod 1.5 XS 1M -
0% 100%
min: 16.162      avg: 16.2 (3%)     median: 16.2 (3%)     max: 16.162 Seconds
Super Pi mod 1.5 XS 2M -
0% 100%
min: 38.048      avg: 38 (2%)     median: 38 (2%)     max: 38.048 Seconds
Super Pi Mod 1.5 XS 32M -
0% 100%
min: 919.981      avg: 920 (4%)     median: 920 (4%)     max: 919.981 Seconds
SiSoft Sandra Dhrystone (MIPS) -
0% 100%
min: 28100      avg: 28100 (13%)     median: 28100 (13%)     max: 28100 MIPS
SiSoft Sandra Whetstone (MFLOPS) -
0% 100%
min: 24620      avg: 24620 (19%)     median: 24620 (19%)     max: 24620 MFLOPS
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

#0 Did not recreate cache, as it is less than 5 days old +0.001s ... 0.001s

#1 min, max, avg, median took 6.5088272094727E-5s +0.342s ... 0.343s

#2 return log +0s ... 0.343s

Reviews for the Intel Core i7 620LM processor

Getac V200 (Intel Graphics Media Accelerator (GMA) HD Graphics, 12.1")
» Getac V200 - External Review

Lenovo Thinkpad X201-NU7F8GE (Intel Graphics Media Accelerator (GMA) HD Graphics, 12.1")
» Lenovo Thinkpad X201-NU7F8GE - External Review
