Intel Pentium P6200

Intel P6200

The Intel Pentium P6200 is an entry level CPU for laptops. It clocks with 2.13 GHz and supports no TurboBoost for automatic overclocking. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Pentium series had).

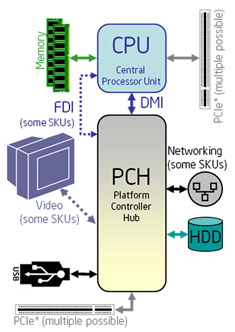

The P6200 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 667MHz due to Turbo Boost (GPU only).

The performance of the CPU is a bit limited due to the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller and small improvements in the core.

SeriesIntel Pentium
CodenameArrandale

Series: Pentium Arrandale

Intel Pentium P6300 compare2.27 GHz2 / 2 cores3 MB L3
Intel Pentium P6200 « 2.13 GHz2 / 2 cores3 MB L3
Intel Pentium P6100 compare2 GHz2 / 2 cores3 MB L3
Intel Pentium P6000 compare1.86 GHz2 / 2 cores3 MB L3
Intel Pentium U5600 compare1.33 GHz2 / 2 cores3 MB L3
Intel Pentium U5400 compare1.2 GHz2 / 2 cores3 MB L3
Clock Rate2133 MHz
Front Side Bus2500
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3 MB
Number of Cores / Threads2 / 2
Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Architecturex86
Announcement Date09/26/2010
Product Link (external)Intel Pentium P6200

Benchmarks

Cinebench R11.5 - Cinebench R11.5 CPU Multi 64 Bit
min: 1.28     avg: 1.4     median: 1.4 (2%)     max: 1.4 Points
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R11.5 - Cinebench R11.5 CPU Single 64 Bit
0.7 Points (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Single (32bit)
min: 2389     avg: 2404     median: 2394 (14%)     max: 2428 points
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Multi (32bit)
min: 4594     avg: 4619     median: 4620 (3%)     max: 4643 points
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Multi (64bit)
min: 5763     avg: 5773     median: 5773 (4%)     max: 5783 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R10 - Cinebench R10 Rend. Single (64bit)
min: 2987     avg: 2997     median: 2996.5 (16%)     max: 3006 Points
+ 2 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 1024m *
min: 987     avg: 1031     median: 1031 (12%)     max: 1075 s
+ 2 benchmarks and specifications   + Show comparison chart
wPrime 2.10 - wPrime 2.0 32m *
min: 31.1     avg: 32.5     median: 32.5 (7%)     max: 33.84 s
+ 2 benchmarks and specifications   + Show comparison chart
3DMark 06 - CPU - 3DMark 06 - CPU
min: 1396     avg: 1812     median: 1949 (4%)     max: 1954 Points
+ 4 benchmarks and specifications   + Show comparison chart
Super Pi mod 1.5 XS 1M - Super Pi mod 1.5 XS 1M *
min: 20.4     avg: 20.6     median: 20.6 (4%)     max: 20.75 s
+ 2 benchmarks and specifications   + Show comparison chart
Super Pi mod 1.5 XS 2M - Super Pi mod 1.5 XS 2M *
min: 46.88     avg: 47.5     median: 47.5 (2%)     max: 48.17 s
+ 2 benchmarks and specifications   + Show comparison chart
Super Pi Mod 1.5 XS 32M - Super Pi mod 1.5 XS 32M *
1114 s (5%)
+ 1 benchmarks and specifications   + Show comparison chart
SiSoft Sandra Dhrystone (MIPS) - SiSoft Sandra Dhrystone (MIPS)
19570 MIPS (9%)
+ 1 benchmarks and specifications   + Show comparison chart
SiSoft Sandra Whetstone (MFLOPS) - SiSoft Sandra Whetstone (MFLOPS)
13850 MFLOPS (11%)
+ 1 benchmarks and specifications   + Show comparison chart
Windows 7 Experience Index - Win7 CPU
5.8 Points (74%)
+ 3 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
