Intel Pentium P6300

Intel P6300

The Intel Pentium P6300 is an entry level CPU for laptops. It clocks with 2.26 GHz and supports no TurboBoost for automatic overclocking. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Pentium series had).

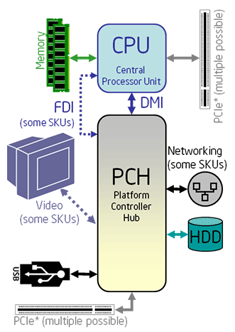

The P6300 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 667MHz due to Turbo Boost (GPU only).

The performance of the CPU is a bit limited due to the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller and small improvements in the core.

SeriesIntel Pentium
CodenameArrandale
Series: Pentium Arrandale
» Intel Pentium P63002266 MHz2 / 23 MB
Intel Pentium P6200 compare2133 MHz2 / 23 MB
Intel Pentium P6100 compare2000 MHz2 / 23 MB
Intel Pentium P6000 compare1860 MHz2 / 23 MB
Intel Pentium U5600 compare1333 MHz2 / 23 MB
Intel Pentium U5400 compare1200 MHz2 / 23 MB
Clock Rate2266 MHz
Front Side Bus2500
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3 MB
Number of Cores / Threads2 / 2
Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Announcement Date01/06/2011
Product Link (external)Intel Pentium P6300
