Intel Pentium P6200

Intel P6200

The Intel Pentium P6200 is an entry level CPU for laptops. It clocks with 2.13 GHz and supports no TurboBoost for automatic overclocking. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Pentium series had).

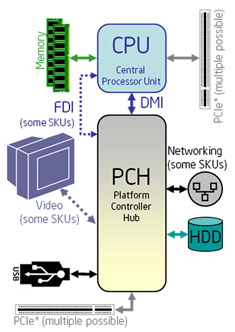

The P6200 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 667MHz due to Turbo Boost (GPU only).

The performance of the CPU is a bit limited due to the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller and small improvements in the core.

SeriesIntel Pentium
CodenameArrandale
Clock Rate2133 MHz
Front Side Bus2500 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3072 KB
Number of Cores / Threads2 / 2
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Announcement Date09/26/2010
Product Link (external)Intel Pentium P6200

Benchmarks

wPrime 2.0x - 1024m
0% 100%
min: 987.47      avg: 1031.2 (12%)     median: 1031.2 (12%)     max: 1075 seconds
wPrime 2.0x - 32m
0% 100%
min: 31.1      avg: 32.5 (7%)     median: 32.5 (7%)     max: 33.838 seconds
3DMark 06 - CPU -
0% 100%
min: 1396      avg: 1812 (20%)     median: 1949 (22%)     max: 1954 Points
Cinebench R11.5 - CPU Single 64Bit
0% 100%
min: 0.71      avg: 0.7 (36%)     median: 0.7 (36%)     max: 0.71 Points
Cinebench R11.5 - CPU Multi 64Bit
0% 100%
min: 1.28      avg: 1.4 (8%)     median: 1.4 (8%)     max: 1.4 Points
Cinebench R10 - Rendering Single CPUs 64Bit
0% 100%
min: 2987      avg: 2996.5 (35%)     median: 2996.5 (35%)     max: 3006 Points
Cinebench R10 - Rendering Multiple CPUs 64Bit
0% 100%
min: 5763      avg: 5773 (16%)     median: 5773 (16%)     max: 5783 Points
Cinebench R10 - Rendering Single 32Bit
0% 100%
min: 2389      avg: 2403.7 (36%)     median: 2394 (36%)     max: 2428 Points
Cinebench R10 - Rendering Multiple CPUs 32Bit
0% 100%
min: 4594      avg: 4619 (13%)     median: 4620 (13%)     max: 4643 Points
Super Pi mod 1.5 XS 1M -
0% 100%
min: 20.4      avg: 20.6 (4%)     median: 20.6 (4%)     max: 20.748 Seconds
Super Pi mod 1.5 XS 2M -
0% 100%
min: 46.88      avg: 47.5 (2%)     median: 47.5 (2%)     max: 48.173 Seconds
Super Pi Mod 1.5 XS 32M -
0% 100%
min: 1114      avg: 1114 (0%)     median: 1114 (0%)     max: 1114 Seconds
SiSoft Sandra Dhrystone (MIPS) -
0% 100%
min: 19570      avg: 19570 (9%)     median: 19570 (9%)     max: 19570 MIPS
SiSoft Sandra Whetstone (MFLOPS) -
0% 100%
min: 13850      avg: 13850 (11%)     median: 13850 (11%)     max: 13850 MFLOPS
Windows 7 Experience Index - Processor
0% 100%
min: 5.8      avg: 5.8 (74%)     median: 5.8 (74%)     max: 5.8 points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
