AMD A4 Micro-6400T

AMD A4 Micro-6400T

The AMD A4 Micro-6400T is a mobile quad-core SoC (codenamed "Mullins") for tablets, which has been presented in April 2014. In addition to 4 CPU cores clocked at 1.0 - 1.6 GHz (boost clock), the 28 nanometer chip also integrates a Radeon R3 GPU, a single-channel DDR3L-1333 memory controller and the Southbridge with various I/O-ports.

Architecture

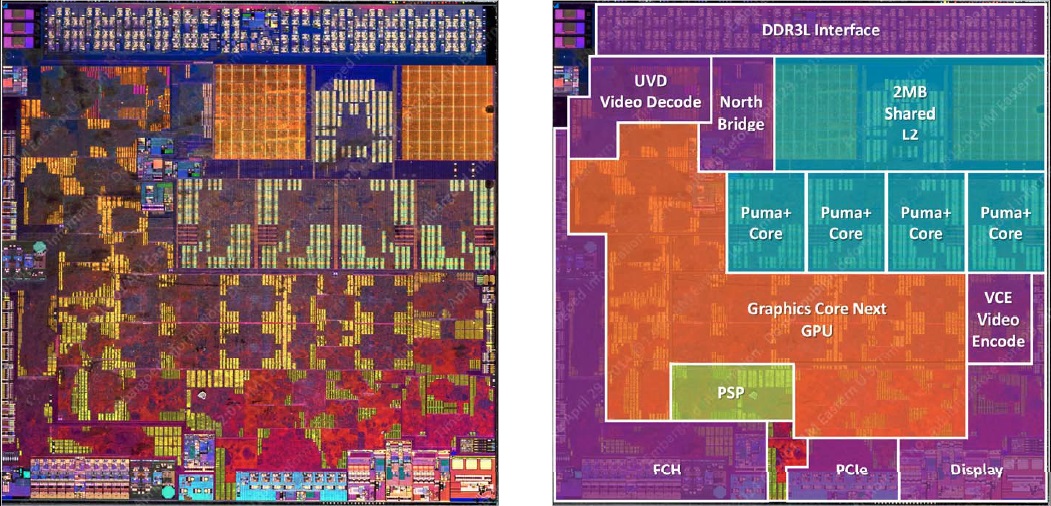

Both Beema (for notebooks) and Mullins (for tablets and compact subnotebooks, same die) are based on AMD's Puma+ architecture, which is the successor to the previous Jaguar design (Kabini and Temash APUs). Neither the performance per clock nor the feature set (including SSE up to 4.2, AVX and AES) have been modified. However, AMD managed to reduce the leakage current, enabling significantly higher (boost) clock speeds. This leads to a more responsive system and better overall performance. As its predecessor, the chip is manufactured in 28 nm.

Performance

In single thread tasks, the APU performs slightly better than the former A4-5000 (15 W, 1.5 GHz), but clocks and performance will decrease substantially in long-lasting multi-thread benchmarks. Overall, performance is similar to a Celeron N2920. Nonetheless, the Micro-6400T will be sufficient for simple workloads like Office, Internet browsing and multimedia.

Graphics

The SoC integrates a Radeon R3 GPU with 128 shaders, which is based on the GCN architecture and clocked at up to 350 MHz. On average, the graphics performance is similar to Intel's HD Graphics (Ivy Bridge) or a Radeon HD 8250. Current games (as of 2014) are thus hardly playable even in low settings, only a few older and less demanding titels will run fluently.

Power Consumption

The power consumption of the entire SoC is rated at 4.5 watts TDP (SDP: 2.8 W). Thus, the APU is suitable for passively cooled tablets.

SeriesAMD A-Series
CodenameMullins
Clock Rate1000 - 1600 MHz
Level 1 Cache256 KB
Level 2 Cache2048 KB
Number of Cores / Threads4 / 4
Max. Power Consumption (TDP = Thermal Design Power)4.5 Watt
Manufacturing Technology28 nm
FeaturesSSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, Single-Channel DDR3L-1333a
GPUAMD Radeon R3 (Mullins/Beema) ( - 350 MHz)
64 Bit64 Bit support
Hardware VirtualizationVT
Announcement Date04/29/2014

Benchmarks

Octane V2 - Total Score
0%
100%
minmin: 3947     avg: 5387 (14%)     median: 5387 (14%)     max: 6827 Points
Cinebench R15 - CPU Single 64Bit
0%
100%
minmin: 34     avg: 34 (19%)     median: 34 (19%)     max: 34 Points
Cinebench R15 - CPU Multi 64Bit
0%
100%
minmin: 95     avg: 95 (6%)     median: 95 (6%)     max: 95 Points
Mozilla Kraken 1.1 - Total Score
0%
100%
minmin: 5975.9     avg: 7665.4 (2%)     median: 7665.4 (2%)     max: 9354.9 ms
Geekbench 3 - 32 Bit Multi-Core Score
0%
100%
minmin: 2239     avg: 2239 (14%)     median: 2239 (14%)     max: 2239 Points
Geekbench 3 - 32 Bit Single-Core Score
0%
100%
minmin: 882     avg: 882 (19%)     median: 882 (19%)     max: 882 Points
3DMark (2013) - Fire Strike Standard Physics 1920x1080
0%
100%
minmin: 1336     avg: 1336 (8%)     median: 1336 (8%)     max: 1336 Points
3DMark (2013) - Cloud Gate Standard Physics 1280x720
0%
100%
minmin: 927     avg: 927 (2%)     median: 927 (2%)     max: 927 Points
3DMark (2013) - Ice Storm Standard Physics 1280x720
0%
100%
minmin: 8597     avg: 8597 (6%)     median: 8597 (6%)     max: 8597 Points
Geekbench 2 - 32 Bit - Stream
0%
100%
minmin: 2419     avg: 2419 (26%)     median: 2419 (26%)     max: 2419 Points
Geekbench 2 - 32 Bit - Memory
0%
100%
minmin: 1986     avg: 1986 (22%)     median: 1986 (22%)     max: 1986 Points
Geekbench 2 - 32 Bit - Floating Point
0%
100%
minmin: 3307     avg: 3307 (19%)     median: 3307 (19%)     max: 3307 Points
Geekbench 2 - 32 Bit - Integer
0%
100%
minmin: 2513     avg: 2513 (16%)     median: 2513 (16%)     max: 2513 Points
Geekbench 2 - 32 Bit - Total Score
0%
100%
minmin: 2676     avg: 2676 (19%)     median: 2676 (19%)     max: 2676 Points
Sunspider - 1.0 Total Score
0%
100%
minmin: 393     avg: 544.6 (14%)     median: 544.6 (14%)     max: 696.1 ms
TrueCrypt - Serpent Mean 100MB
0%
100%
minmin: 0.0834     avg: 0.1 (0%)     median: 0.1 (0%)     max: 0.0834 GB/s
TrueCrypt - Twofish Mean 100MB
0%
100%
minmin: 0.133     avg: 0.1 (0%)     median: 0.1 (0%)     max: 0.133 GB/s
TrueCrypt - AES Mean 100MB
0%
100%
minmin: 0.721     avg: 0.7 (8%)     median: 0.7 (8%)     max: 0.721 GB/s
X264 HD Benchmark 4.0 - Pass 2
0%
100%
minmin: 6.9     avg: 6.9 (8%)     median: 6.9 (8%)     max: 6.9 fps
X264 HD Benchmark 4.0 - Pass 1
0%
100%
minmin: 33.5     avg: 33.5 (17%)     median: 33.5 (17%)     max: 33.5 fps
WinRAR - Result
0%
100%
minmin: 820     avg: 820 (11%)     median: 820 (11%)     max: 820 KB/s
wPrime 2.0x - 1024m
0%
100%
minmin: 1456.663     avg: 1456.7 (17%)     median: 1456.7 (17%)     max: 1456.663 seconds
wPrime 2.0x - 32m
0%
100%
minmin: 46.268     avg: 46.3 (9%)     median: 46.3 (9%)     max: 46.268 seconds
3DMark 11 - Performance Physics 1280x720
0%
100%
minmin: 1280     avg: 1280 (10%)     median: 1280 (10%)     max: 1280 points
3DMark Vantage - P CPU no PhysX 1280x1024
0%
100%
minmin: 3589     avg: 3589 (8%)     median: 3589 (8%)     max: 3589 Points
3DMark 06 - CPU -
0%
100%
minmin: 1664     avg: 1664 (16%)     median: 1664 (16%)     max: 1664 Points
Cinebench R11.5 - CPU Single 64Bit
0%
100%
minmin: 0.41     avg: 0.4 (19%)     median: 0.4 (19%)     max: 0.41 Points
Cinebench R11.5 - CPU Multi 64Bit
0%
100%
minmin: 1.16     avg: 1.2 (7%)     median: 1.2 (7%)     max: 1.16 Points
Cinebench R10 - Rendering Single CPUs 64Bit
0%
100%
minmin: 1545     avg: 1545 (17%)     median: 1545 (17%)     max: 1545 Points
Cinebench R10 - Rendering Multiple CPUs 64Bit
0%
100%
minmin: 4159     avg: 4159 (11%)     median: 4159 (11%)     max: 4159 Points
Cinebench R10 - Rendering Single 32Bit
0%
100%
minmin: 1251     avg: 1251 (19%)     median: 1251 (19%)     max: 1251 Points
Cinebench R10 - Rendering Multiple CPUs 32Bit
0%
100%
minmin: 3380     avg: 3380 (10%)     median: 3380 (10%)     max: 3380 Points
Super Pi mod 1.5 XS 1M -
0%
100%
minmin: 40.531     avg: 40.5 (9%)     median: 40.5 (9%)     max: 40.531 Seconds
Super Pi mod 1.5 XS 2M -
0%
100%
minmin: 92.346     avg: 92.3 (4%)     median: 92.3 (4%)     max: 92.346 Seconds
Super Pi Mod 1.5 XS 32M -
0%
100%
minmin: 2065.238     avg: 2065.2 (0%)     median: 2065.2 (0%)     max: 2065.238 Seconds
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

#0 Did not recreate cache, as it is less than 5 days old +0.001s ... 0.001s

#1 min, max, avg, median took 0.00025391578674316s +0.284s ... 0.285s

#2 return log +0s ... 0.286s
