AMD A4-5100

AMD A4-5100

The AMD A4-5100 is a mobile quad-core SoC for low-end laptops, which was presented in November 2013. In addition to 4 CPU cores with a clock speed of 1.55 GHz (no Turbo), the 28-nanometer chip also integrates a Radeon HD 8330 GPU, a single channel DDR3(L)-1600 memory controller as well as the Southbridge with various I/O- ports. The only difference to the older A4-5000 is the slightly increased CPU clock (+50 MHz)

Architecture

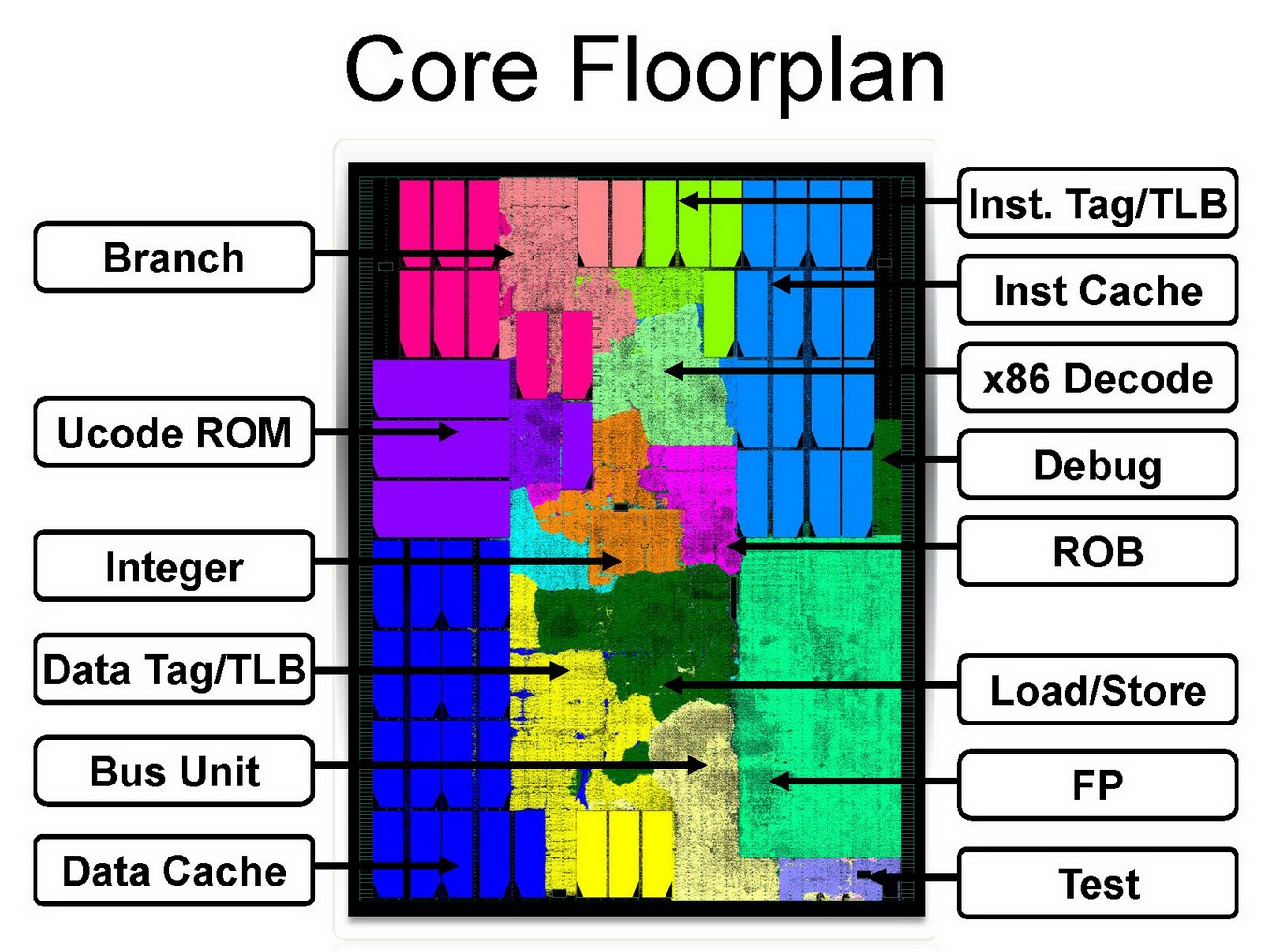

Both Kabini (for notebooks) and Temash (tablets and compact subnotebooks) are based on AMD's new Jaguar architecture, which replaces the previous Bobcat models (e.g. the E-350). The performance per clock has been increased by about 20 percent. Furthermore, various modern instruction set extensions such as SSE up to version 4.2, AVX and AES are now supported. The finer 28-nanometer process from TSMC allows lower voltages and/or higher clock rates compared to Bobcat, as well as up to 4 CPU cores (Bobcat: 2 cores).

Performance

Due to the low clock speed of 1.55 GHz, the performance in poorly parallelized applications is quite modest and just slightly above the old E2-1800. However, if all 4 cores are busy, the performance equals the Sandy-Bridge-based Core i3-2377M. For office and multimedia tasks, the A4-5100 has sufficient power; however, it will reach its limits in more demanding applications and games.

Graphics

The SoC integrates a Radeon HD 8330 GPU with 128 shaders, which is based on the GCN architecture and clocked at 500 MHz (no Turbo). On average, the HD 8330 matches a Radeon HD 7470M or Intel HD Graphics 4000. Many recent games (as of 2013) are therefore hardly playable. However, some older or less demanding games will run fluently.

Power Consumption

The power consumption of the entire SoC is rated at 15 watts. Thus, the A4-5100 is a bit more economical than its predecessors (E2-1800: 17 watts) and suitable for smaller subnotebooks.

SeriesAMD A-Series
CodenameKabini
Series: A-Series Kabini
AMD A6-5200 compare2000 MHz4 / 4
» AMD A4-51001550 MHz4 / 4
AMD A4-5050 compare1550 MHz4 / 4
AMD A4-5000 compare1500 MHz4 / 4
AMD E2-3800 compare1300 MHz4 / 4
Clock Rate1550 MHz
Level 1 Cache256 KB
Level 2 Cache2 MB
Number of Cores / Threads4 / 4
Power Consumption (TDP = Thermal Design Power)15 Watt
Manufacturing Technology28 nm
FeaturesSSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, DDR3L-1600
GPUAMD Radeon HD 8330 (? - 500 MHz)
64 Bit64 Bit support
Announcement Date11/02/2013
Product Link (external)AMD A-Series A4-5100
