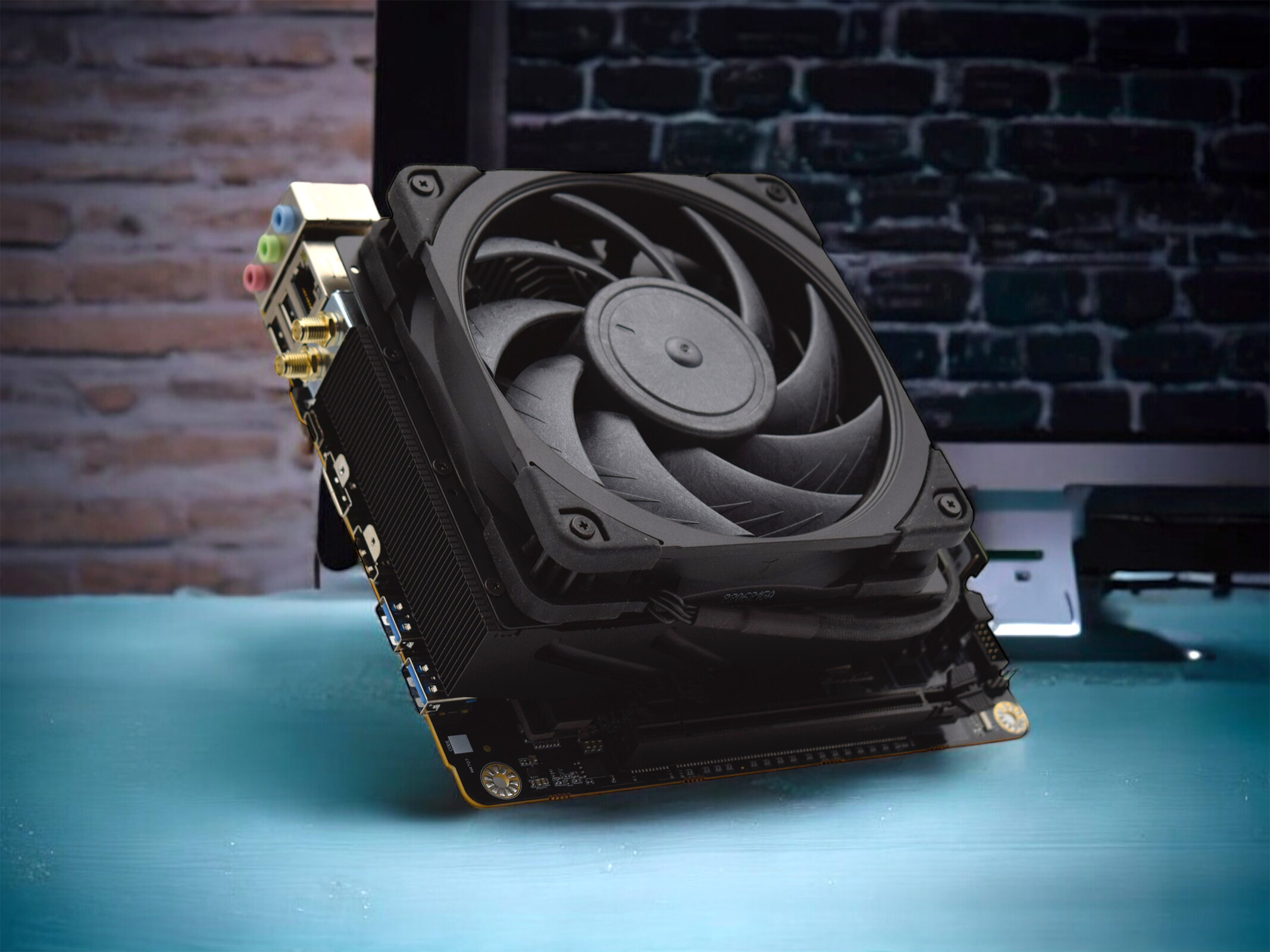

Minisforum BD790i review: Mini-ITX mainboard with an AMD Ryzen 9 7945HX and PCIe 5.0 as a basis for small gaming PCs

Minisforum is primarily known for offering mini PCs across all performance classes. Most mini PC manufacturers tend to stay away from the conventional desktop market but as it turns out, Minisforum is daring to gain a foothold in this area too. Some time ago, we were able to discover the good performance of the Minisforum BD770i based on the AMD Ryzen 7 7745HX. As the top-of-the-range model with an AMD Ryzen APU, Minisforum's BD790i mainboard is an even more powerful model in the manufacturer's portfolio, which we will be examining in detail in this review.

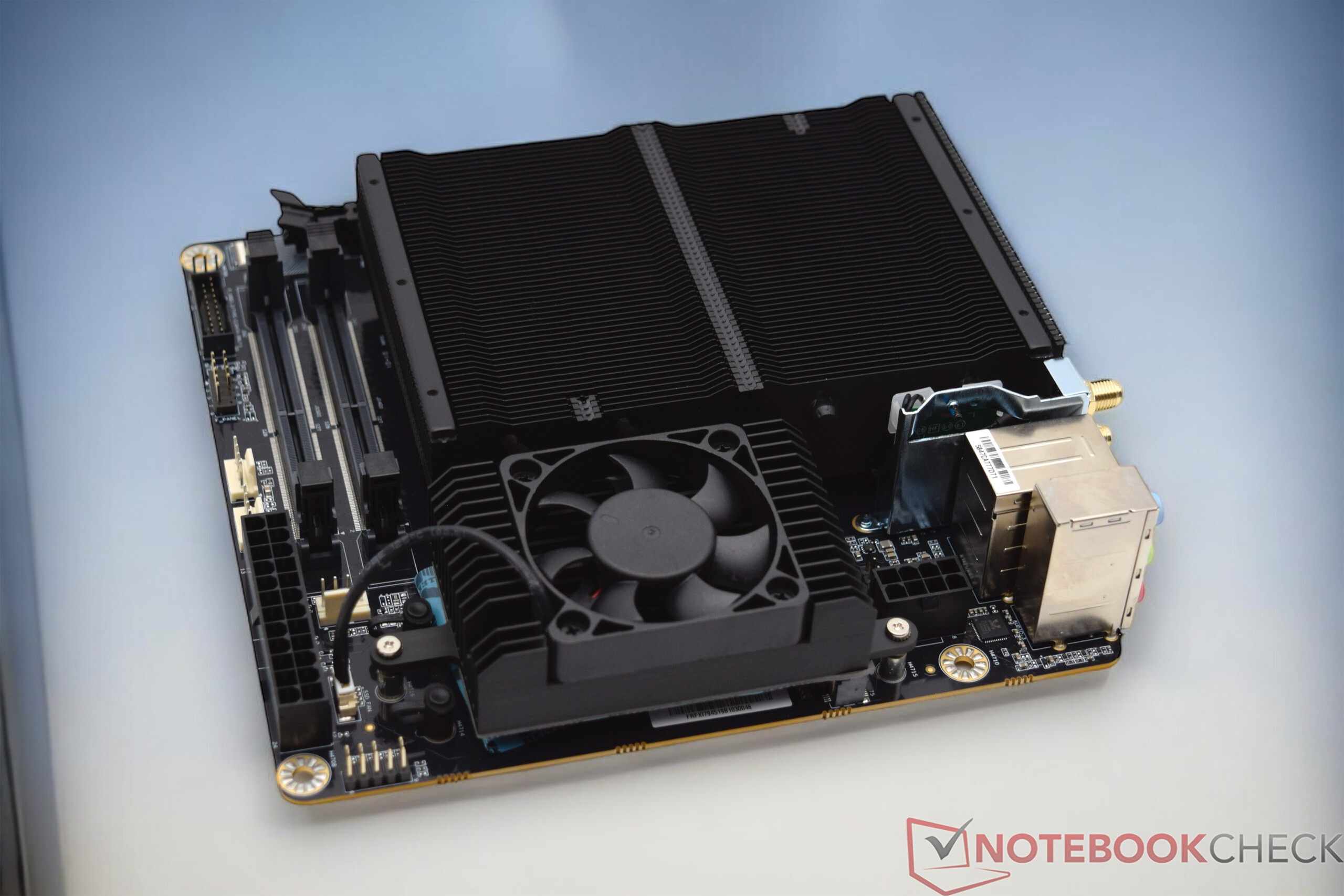

Minisforum has installed an AMD Ryzen 9 7945HX processor into the BD790i, which is equipped with 16 Zen4 cores. This means that the SoC, which comes from the mobile sector, is currently one of the fastest AMD currently has to offer. In order to evaluate its gaming performance, we took a look at it in combination with an Nvidia GeForce RTX 4090. Thanks to its full PCIe x16 slot, the graphics card could be connected with its full performance.

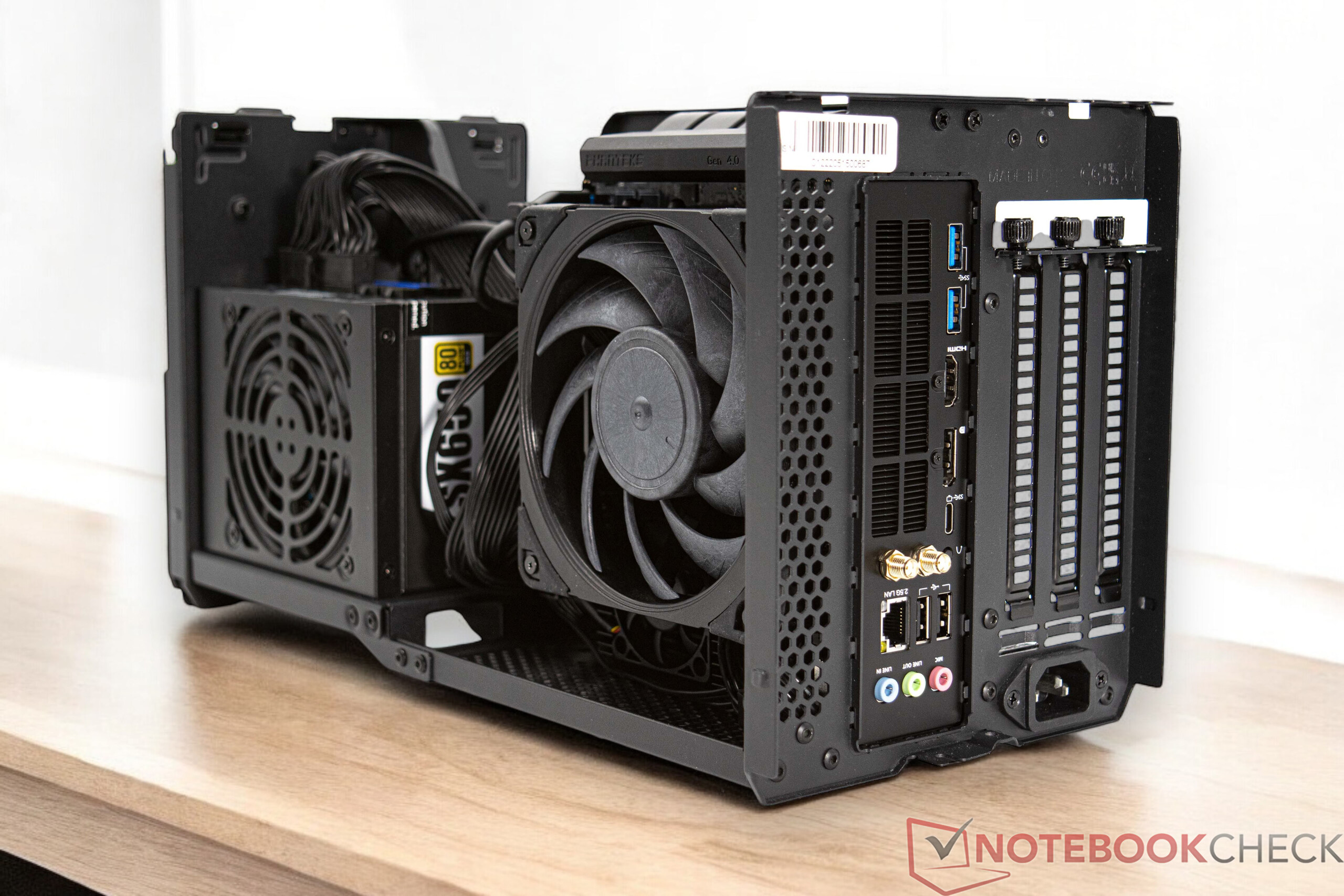

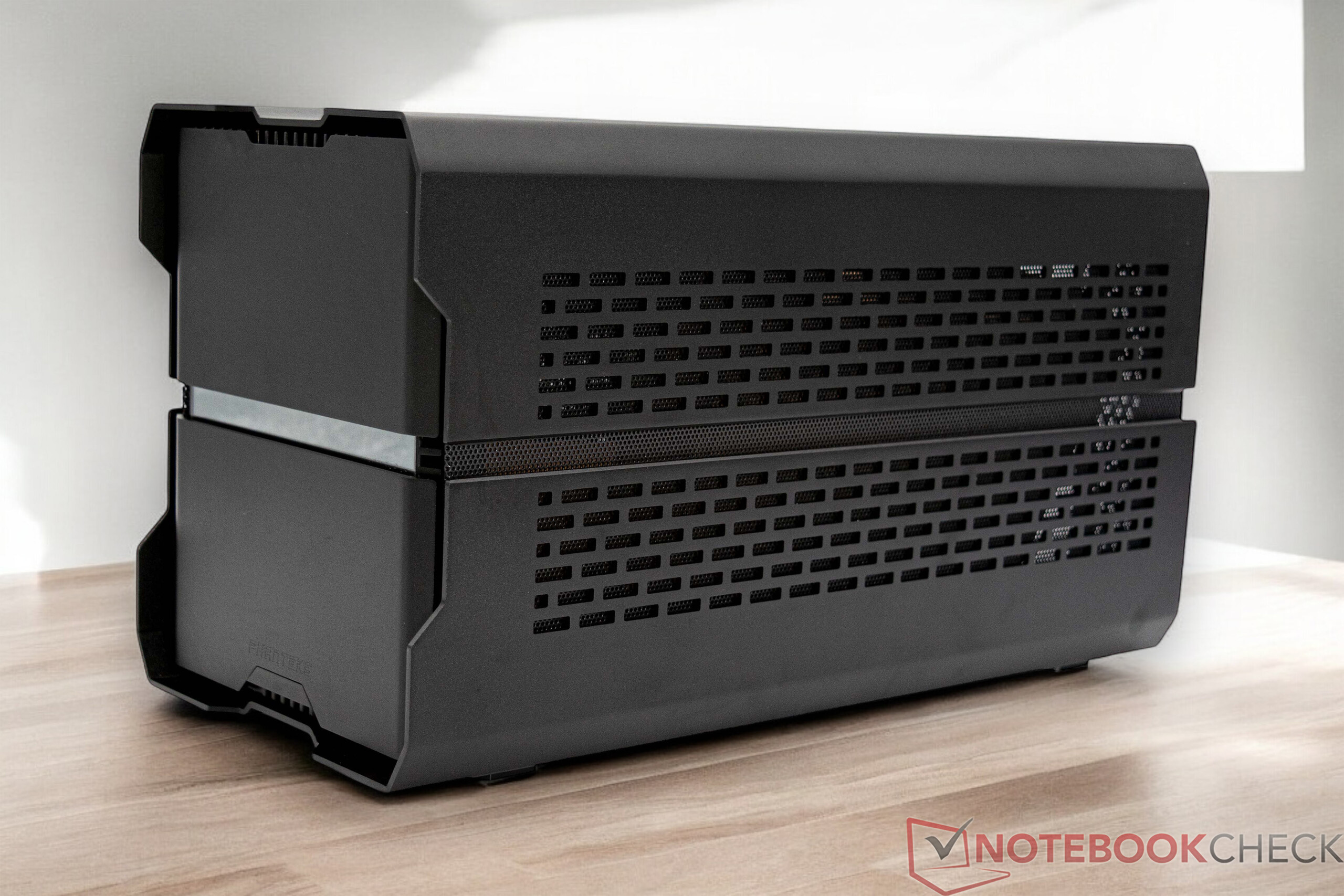

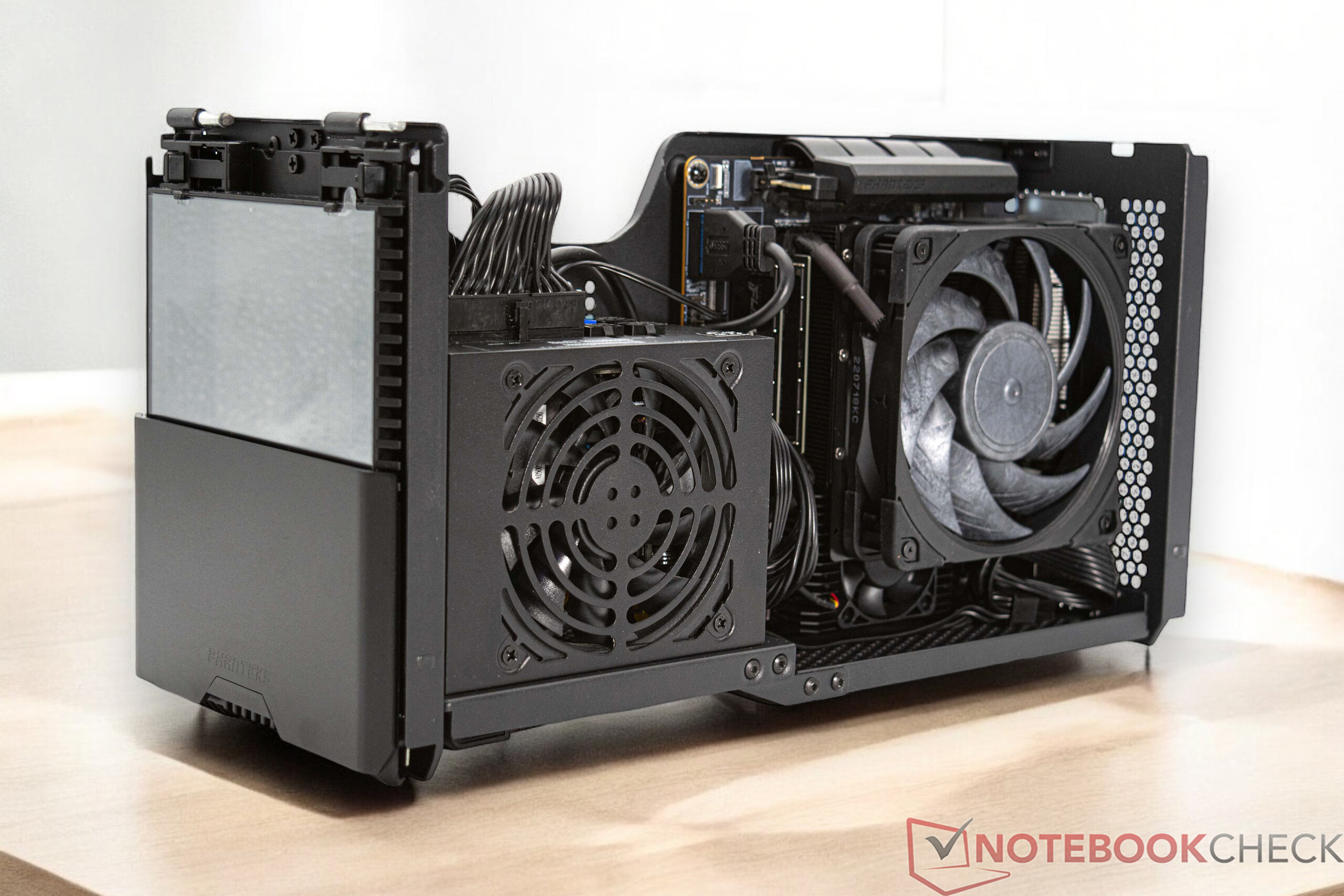

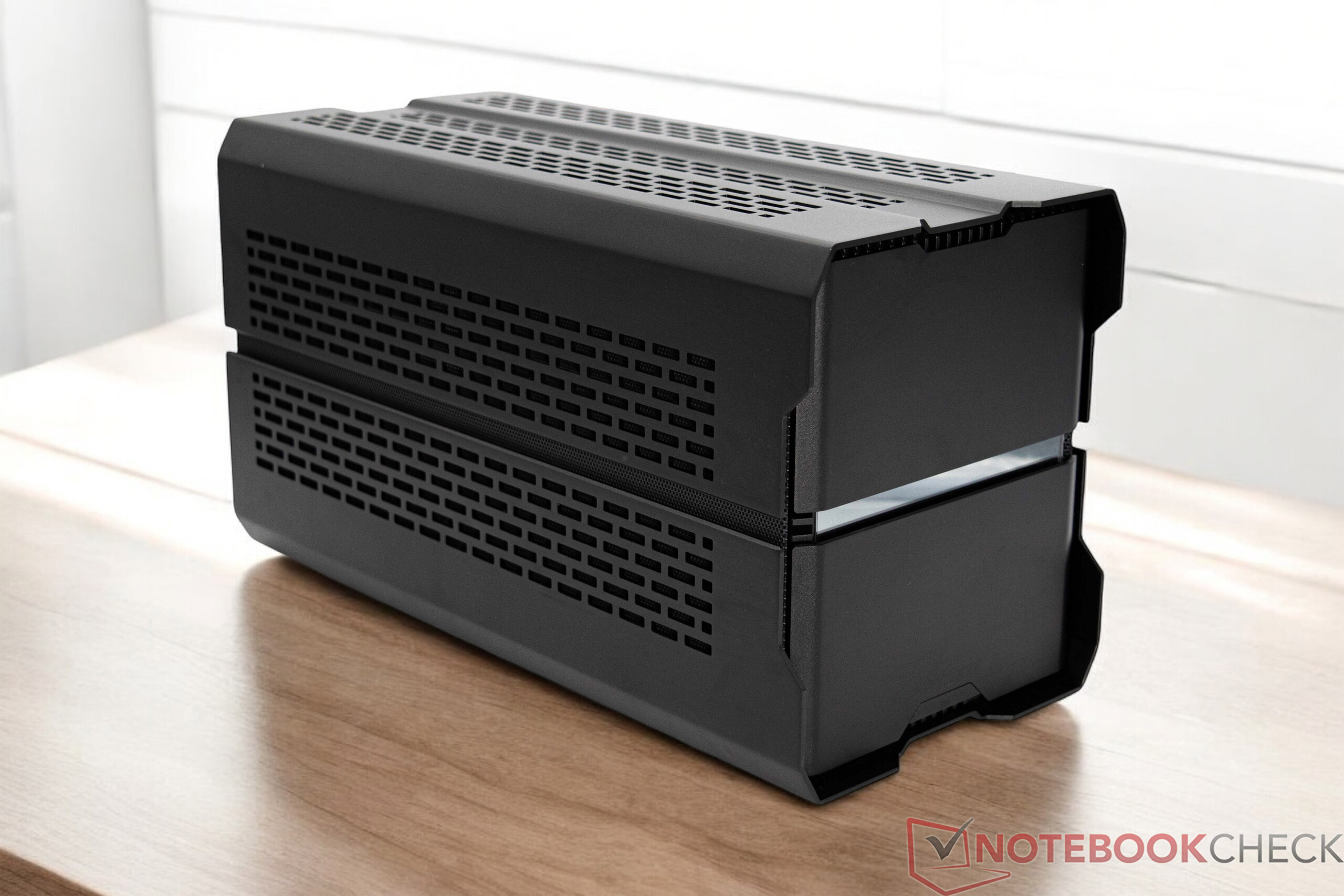

Case and test setup

To ensure the best possible comparability with the Minisforum BD770i which we already tested, we stuck to the exact same conditions. More precisely, this means that we carried out all our CPU tests in its installed state. We used the Phanteks Enthoo Evolv Shift XT case, which offers a good basis thanks to its compactness.

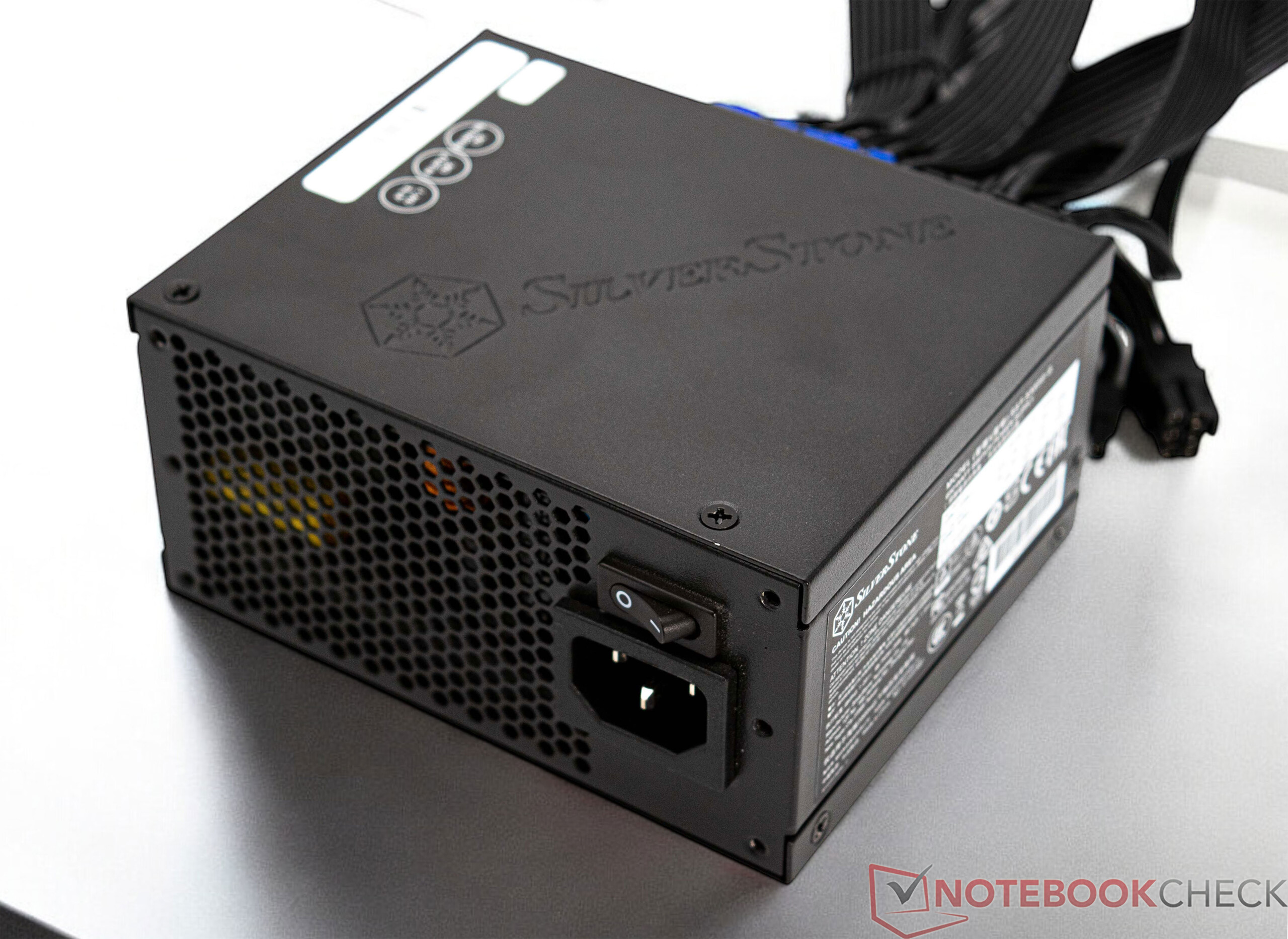

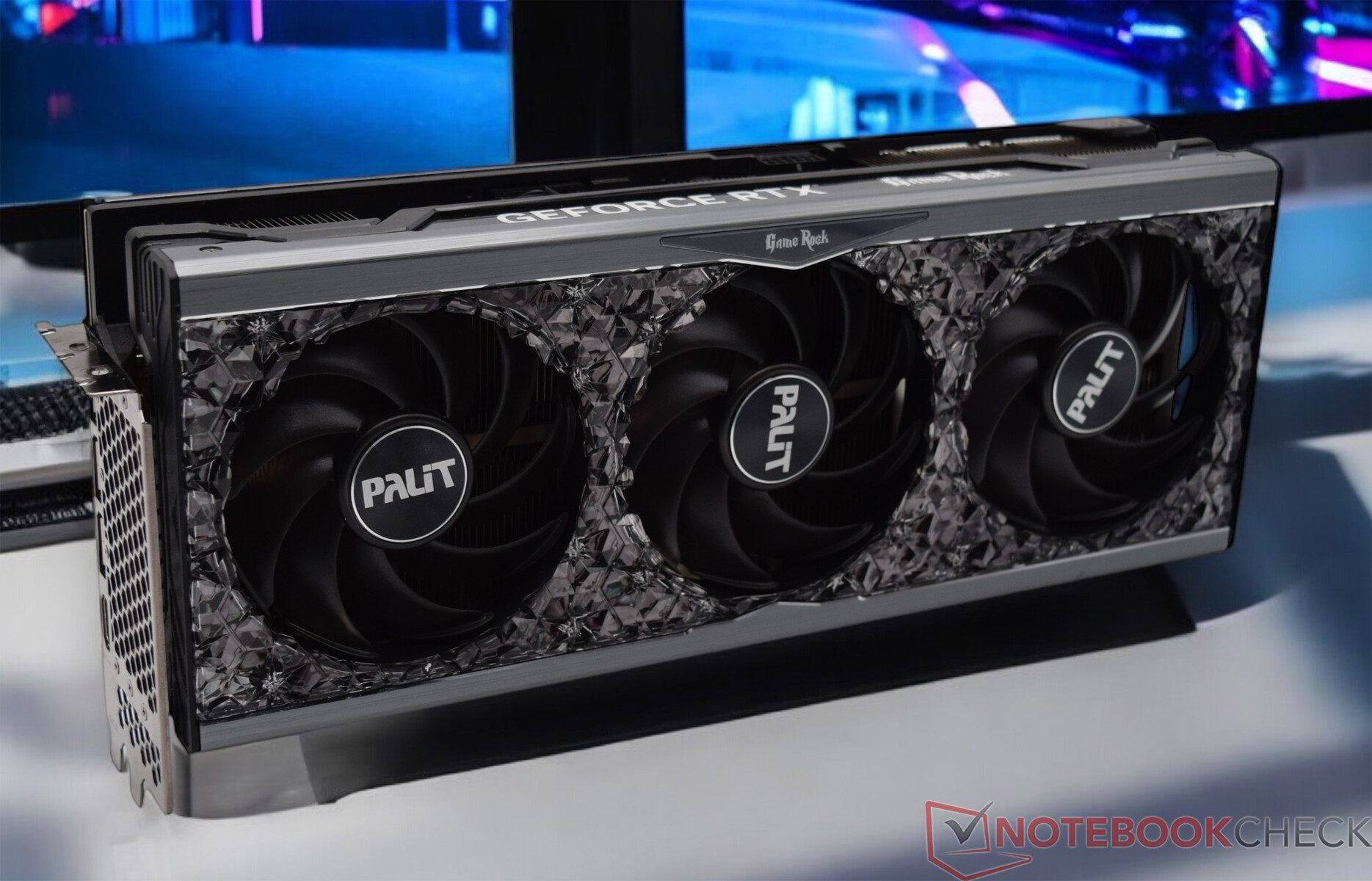

For our performance comparison with a dedicated graphics card, we tested the Minisforum BD790i together with the Palit GeForce RTX 4090 GameRock OC in an open setup. Due to the size of the graphics card, it was not possible to install it in the Phanteks Enthoo Evolv Shift XT. Graphics cards that don't exceed a length of 32.4 centimeters fit into the Phanteks Enthoo Evolv Shift XT.

Scope of delivery and connectivity

The Minisforum BD790i mainboard's scope of delivery is similar to that of the Minisforum BD770i. The manufacturer ships the mainboard with a pre-installed cooler that covers both the processor and the voltage converters. There is an IO shield to match the mainboard, which is unfortunately not pre-installed. A relatively large WLAN antenna is also included in the scope of delivery. There are no completely pre-configured options, but this is not a problem. A 120-millimeter fan must be purchased as a CPU fan, which is quickly installed using the mounting material. An SSD and RAM as well as a PC power supply unit are then required for operation. The Minisforum BD790i is a good basis for a powerful and compact DIY PC in miniature format.

The Minisforum BD790i's connectivity is pretty sparse. There are only a few connections on the back compared to conventional mainboards, although the most important ports are on board. There is also a USB 3.2 connector on the board itself, which means that a total of 6 USB-A ports can be used. Unfortunately, there are no other connections, such as an ARGB header or an additional USB-C port. When it comes to fan choice, you are limited to the pre-installed cooler. There is no alternative option for installing a more powerful cooler. It would be better to cool the voltage converters separately in order to give the user the option of installing their own cooling solution.

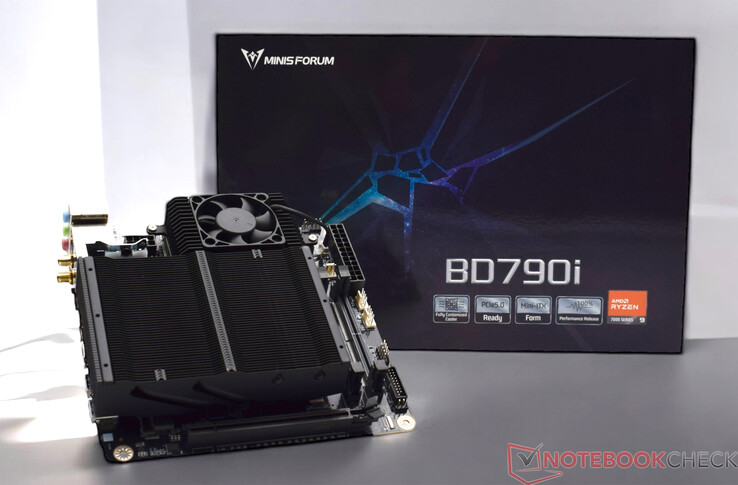

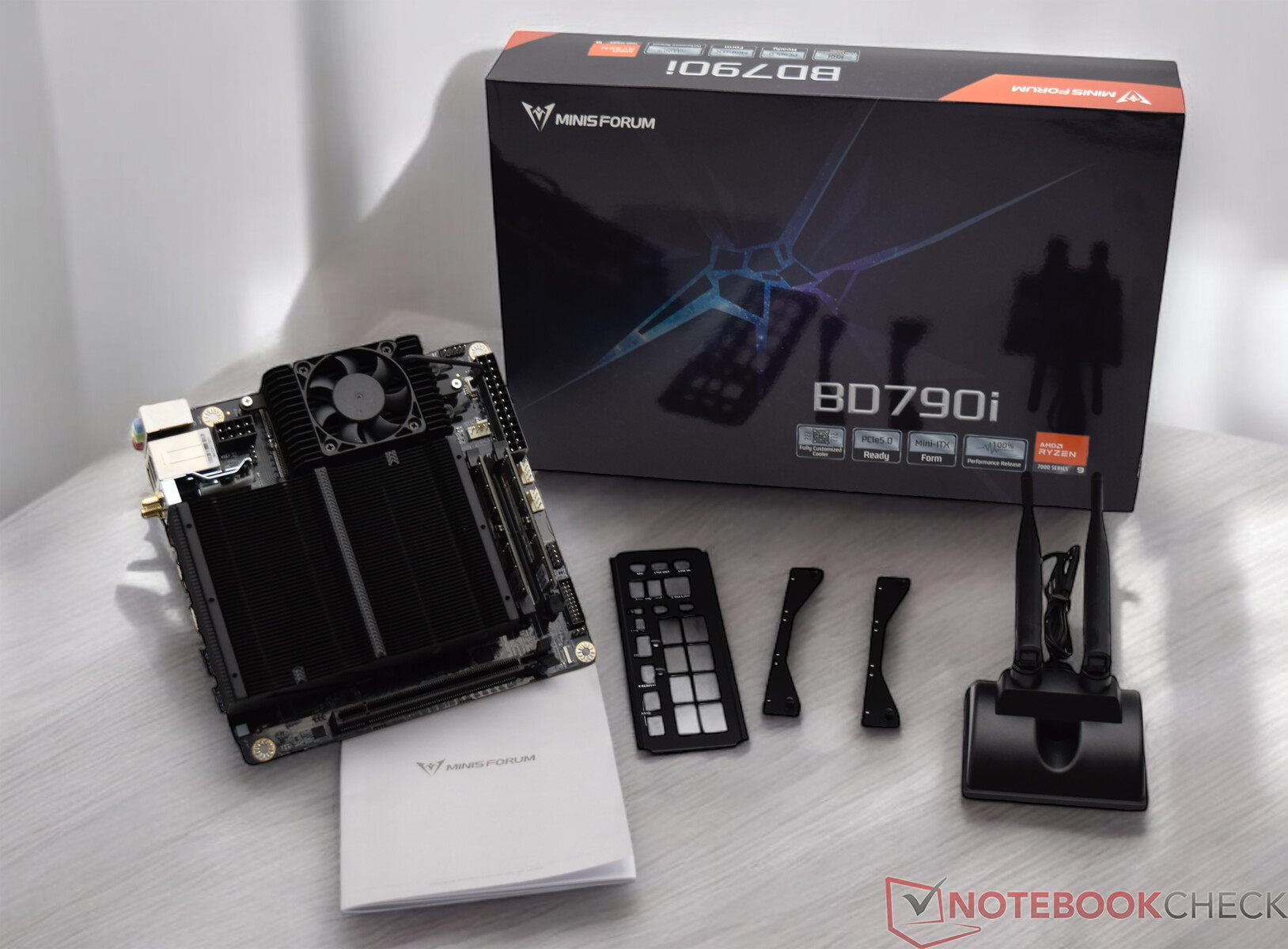

The Minisforum BD790i's scope of delivery

Processor benchmarks

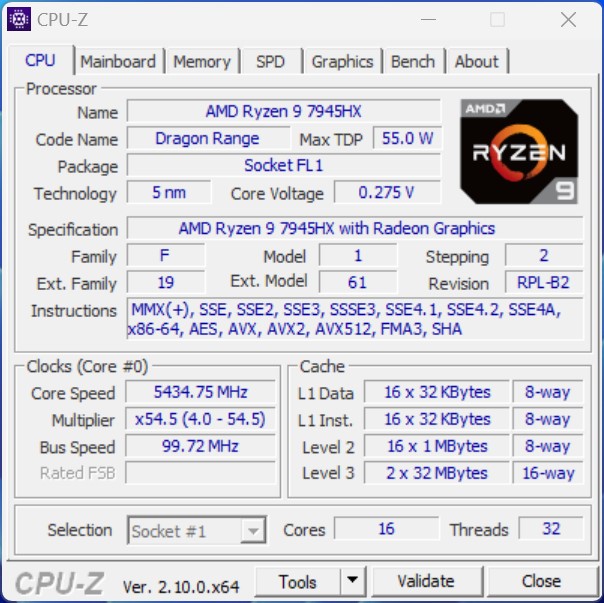

The Minisforum BD790i mainboard is equipped with one of the most powerful processors currently available in the laptop sector. The AMD Ryzen 9 7945HX features 16 Zen4 cores, which can process a total of 32 threads. In terms of performance, this sounds very promising—and this was also proven in our tests. In the performance comparison, the AMD Ryzen 9 7945HX ranked between an AMD Ryzen 9 7900X and an AMD Ryzen 9 7950X. If we look at the comparison with Intel processors, then the AMD Ryzen 9 7945HX's performance can be compared with an Intel Core i7-14700K. Compared to conventional desktop processors, power consumption is the biggest advantage of the AMD Ryzen 9 7945HX. At just 100 watts, the processor is significantly more frugal and also easier to cool.

For further comparisons and benchmarks, take a look at our CPU comparison table.

Performance Rating - Percent
Intel Core i9-14900K i9-14900K, 3200 MHz	79.3 pt
Intel Core i9-13900K i9-13900K, 3000 MHz	76.8 pt
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	75.3 pt
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	73.9 pt
Intel Core i7-14700K i7-14700K, 2500 MHz	73.6 pt
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	70.1 pt
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	68.4 pt
Intel Core i5-14600K i5-14600K, 3500 MHz	65.3 pt
Intel Core i9-12900K i9-12900K, 3200 MHz	64.6 pt
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	63.2 pt
Intel Core i5-13600K i5-13600K, 3500 MHz	63.1 pt
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	60.7 pt
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	60.1 pt
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	58.4 pt
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	57.9 pt
Intel Core i5-12600K i5-12600K, 2800 MHz	55.7 pt
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	55.1 pt
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	55 pt
Intel Core i5-13400 i5-13400, 2500 MHz	53 pt
Intel Core i5-12400F i5-12400F, 2500 MHz	48.1 pt

Cinebench R23
Single Core
Intel Core i9-14900K i9-14900K, 3200 MHz	2351 Points +21%
Intel Core i9-13900K i9-13900K, 3000 MHz	2267 Points +17%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	2180 Points +12%
Intel Core i7-14700K i7-14700K, 2500 MHz	2153 Points +11%
Intel Core i5-14600K i5-14600K, 3500 MHz	2064 Points +6%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	2053 Points +6%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2045 Points +5%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2039 Points +5%
Intel Core i5-13600K i5-13600K, 3500 MHz	2010 Points +4%
Intel Core i9-12900K i9-12900K, 3200 MHz	1998 Points +3%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	1967 Points +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	1942 Points
Intel Core i5-12600K i5-12600K, 2800 MHz	1907 Points -2%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	1854 Points -5%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	1820 Points -6%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	1813 Points -7%
Intel Core i5-13400 i5-13400, 2500 MHz	1786 Points -8%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	1779 Points -8%
Intel Core i5-12400F i5-12400F, 2500 MHz	1680 Points -13%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	1649 Points -15%
Multi Core
Intel Core i9-14900K i9-14900K, 3200 MHz	41193 Points +23%
Intel Core i9-13900K i9-13900K, 3000 MHz	40103 Points +20%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	37792 Points +13%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	36291 Points +8%
Intel Core i7-14700K i7-14700K, 2500 MHz	35892 Points +7%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	33459 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	29480 Points -12%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	27062 Points -19%
Intel Core i9-12900K i9-12900K, 3200 MHz	27005 Points -19%
Intel Core i5-14600K i5-14600K, 3500 MHz	24491 Points -27%
Intel Core i5-13600K i5-13600K, 3500 MHz	24268 Points -27%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	18845 Points -44%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	18086 Points -46%
Intel Core i5-12600K i5-12600K, 2800 MHz	17491 Points -48%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	17176 Points -49%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	16985 Points -49%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	16706 Points -50%
Intel Core i5-13400 i5-13400, 2500 MHz	15953 Points -52%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	15322 Points -54%
Intel Core i5-12400F i5-12400F, 2500 MHz	12380 Points -63%

Cinebench R20
CPU (Single Core)
Intel Core i9-14900K i9-14900K, 3200 MHz	900 Points +18%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	858 Points +13%
Intel Core i7-14700K i7-14700K, 2500 MHz	832 Points +9%
Intel Core i9-13900K i9-13900K, 3000 MHz	828 Points +9%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	795 Points +5%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	795 Points +5%
Intel Core i5-14600K i5-14600K, 3500 MHz	790 Points +4%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	786 Points +3%
Intel Core i5-13600K i5-13600K, 3500 MHz	775 Points +2%
Intel Core i9-12900K i9-12900K, 3200 MHz	766 Points +1%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	761 Points 0%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	760 Points
Intel Core i5-12600K i5-12600K, 2800 MHz	734 Points -3%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	719 Points -5%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	711 Points -6%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	709 Points -7%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	690 Points -9%
Intel Core i5-13400 i5-13400, 2500 MHz	688 Points -9%
Intel Core i5-12400F i5-12400F, 2500 MHz	653 Points -14%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	641 Points -16%
CPU (Multi Core)
Intel Core i9-14900K i9-14900K, 3200 MHz	15466 Points +18%
Intel Core i9-13900K i9-13900K, 3000 MHz	15181 Points +16%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	14786 Points +13%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	14188 Points +9%
Intel Core i7-14700K i7-14700K, 2500 MHz	13672 Points +5%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	13057 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	11563 Points -11%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	10482 Points -20%
Intel Core i9-12900K i9-12900K, 3200 MHz	10240 Points -22%
Intel Core i5-14600K i5-14600K, 3500 MHz	9371 Points -28%
Intel Core i5-13600K i5-13600K, 3500 MHz	9265 Points -29%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	7399 Points -43%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	7121 Points -45%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	6719 Points -49%
Intel Core i5-12600K i5-12600K, 2800 MHz	6692 Points -49%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	6640 Points -49%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	6509 Points -50%
Intel Core i5-13400 i5-13400, 2500 MHz	6135 Points -53%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	5985 Points -54%
Intel Core i5-12400F i5-12400F, 2500 MHz	4740 Points -64%

Cinebench R15
CPU Single 64Bit
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	341 Points +10%
Intel Core i9-14900K i9-14900K, 3200 MHz	332 Points +7%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	328 Points +5%
Intel Core i9-13900K i9-13900K, 3000 MHz	327 Points +5%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	326 Points +5%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	324 Points +4%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	315 Points +1%
Intel Core i7-14700K i7-14700K, 2500 MHz	314 Points +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	311 Points
Intel Core i5-14600K i5-14600K, 3500 MHz	297 Points -5%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	295 Points -5%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	291 Points -6%
Intel Core i5-13600K i5-13600K, 3500 MHz	289 Points -7%
Intel Core i9-12900K i9-12900K, 3200 MHz	286 Points -8%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	284 Points -9%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	279 Points -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	275 Points -12%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	272 Points -13%
Intel Core i5-13400 i5-13400, 2500 MHz	257 Points -17%
Intel Core i5-12400F i5-12400F, 2500 MHz	244 Points -22%
CPU Multi 64Bit
Intel Core i9-14900K i9-14900K, 3200 MHz	6282 Points +19%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	6209 Points +17%
Intel Core i9-13900K i9-13900K, 3000 MHz	6191 Points +17%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	5974 Points +13%
Intel Core i7-14700K i7-14700K, 2500 MHz	5459 (5323.4^min - 5459.26^max) Points +3%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	5289 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	4856 Points -8%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	4492 Points -15%
Intel Core i9-12900K i9-12900K, 3200 MHz	4057 Points -23%
Intel Core i5-13600K i5-13600K, 3500 MHz	3643 Points -31%
Intel Core i5-14600K i5-14600K, 3500 MHz	3640 Points -31%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	2994 Points -43%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	2974 Points -44%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	2663 Points -50%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	2630 Points -50%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	2608 Points -51%
Intel Core i5-12600K i5-12600K, 2800 MHz	2555 Points -52%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2507 Points -53%
Intel Core i5-13400 i5-13400, 2500 MHz	2358 Points -55%
Intel Core i5-12400F i5-12400F, 2500 MHz	1759 Points -67%

Cinebench R11.5
CPU Single 64Bit
Intel Core i9-14900K i9-14900K, 3200 MHz	4.02 Points +10%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	4 Points +9%
Intel Core i9-13900K i9-13900K, 3000 MHz	3.92 Points +7%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	3.86 Points +5%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	3.86 Points +5%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	3.83 Points +4%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	3.72 Points +1%
Intel Core i7-14700K i7-14700K, 2500 MHz	3.7 Points +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	3.67 Points
Intel Core i5-14600K i5-14600K, 3500 MHz	3.58 Points -2%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	3.5 Points -5%
Intel Core i9-12900K i9-12900K, 3200 MHz	3.49 Points -5%
Intel Core i5-13600K i5-13600K, 3500 MHz	3.48 Points -5%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	3.46 Points -6%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	3.43 Points -7%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	3.33 Points -9%
Intel Core i5-12600K i5-12600K, 2800 MHz	3.31 Points -10%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	3.14 Points -14%
Intel Core i5-13400 i5-13400, 2500 MHz	3.1 Points -16%
Intel Core i5-12400F i5-12400F, 2500 MHz	2.95 Points -20%
CPU Multi 64Bit
Intel Core i9-14900K i9-14900K, 3200 MHz	72.24 Points +17%
Intel Core i9-13900K i9-13900K, 3000 MHz	70.78 Points +15%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	68.61 Points +11%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	64.59 Points +5%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	61.54 Points
Intel Core i7-14700K i7-14700K, 2500 MHz	61.44 Points 0%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	54.51 Points -11%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	49.6 Points -19%
Intel Core i9-12900K i9-12900K, 3200 MHz	47.06 Points -24%
Intel Core i5-13600K i5-13600K, 3500 MHz	42.38 Points -31%
Intel Core i5-14600K i5-14600K, 3500 MHz	40.96 Points -33%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	35.06 Points -43%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	33.48 Points -46%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	30.88 Points -50%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	30.86 Points -50%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	30.25 Points -51%
Intel Core i5-12600K i5-12600K, 2800 MHz	30.01 Points -51%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	28.41 Points -54%
Intel Core i5-13400 i5-13400, 2500 MHz	27.36 Points -56%
Intel Core i5-12400F i5-12400F, 2500 MHz	20.39 Points -67%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i9-14900K i9-14900K, 3200 MHz	18511 Points +17%
Intel Core i9-13900K i9-13900K, 3000 MHz	18236 Points +15%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	17541 Points +10%
Intel Core i7-14700K i7-14700K, 2500 MHz	17458 Points +10%
Intel Core i5-14600K i5-14600K, 3500 MHz	16643 Points +5%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	16338 Points +3%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	16260 Points +2%
Intel Core i5-13600K i5-13600K, 3500 MHz	16235 Points +2%
Intel Core i9-12900K i9-12900K, 3200 MHz	16144 Points +2%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	16010 Points +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	15889 Points
Intel Core i5-12600K i5-12600K, 2800 MHz	15180 Points -4%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	15010 Points -6%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	14731 Points -7%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	14485 Points -9%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	14177 Points -11%
Intel Core i5-13400 i5-13400, 2500 MHz	14142 Points -11%
Intel Core i5-12400F i5-12400F, 2500 MHz	13664 Points -14%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	13279 Points -16%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	8853 Points -44%
Rendering Multiple CPUs 64Bit
Intel Core i9-14900K i9-14900K, 3200 MHz	144156 Points +10%
Intel Core i7-14700K i7-14700K, 2500 MHz	136062 Points +4%
Intel Core i9-13900K i9-13900K, 3000 MHz	132000 Points +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	131256 Points
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	130289 Points -1%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	121250 Points -8%
Intel Core i5-14600K i5-14600K, 3500 MHz	115171 Points -12%
Intel Core i9-12900K i9-12900K, 3200 MHz	112749 Points -14%
Intel Core i5-13600K i5-13600K, 3500 MHz	110412 Points -16%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	104638 Points -20%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	100227 Points -24%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	99215 Points -24%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	94035 Points -28%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	89641 Points -32%
Intel Core i5-12600K i5-12600K, 2800 MHz	89478 Points -32%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	88529 Points -33%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	87064 Points -34%
Intel Core i5-13400 i5-13400, 2500 MHz	83214 Points -37%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	72361 Points -45%
Intel Core i5-12400F i5-12400F, 2500 MHz	69819 Points -47%

Blender - v2.79 BMW27 CPU
Intel Core i5-12400F i5-12400F, 2500 MHz	269 Seconds * -186%
Intel Core i5-13400 i5-13400, 2500 MHz	206 Seconds * -119%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	203 Seconds * -116%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	192 Seconds * -104%
Intel Core i5-12600K i5-12600K, 2800 MHz	189.5 Seconds * -102%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	188 Seconds * -100%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	184 Seconds * -96%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	169 Seconds * -80%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	169 Seconds * -80%
Intel Core i5-13600K i5-13600K, 3500 MHz	135 Seconds * -44%
Intel Core i5-14600K i5-14600K, 3500 MHz	134 Seconds * -43%
Intel Core i9-12900K i9-12900K, 3200 MHz	121.1 Seconds * -29%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	112.8 Seconds * -20%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	106 Seconds * -13%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	94 Seconds *
Intel Core i7-14700K i7-14700K, 2500 MHz	91 Seconds * +3%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	86 Seconds * +9%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	85 Seconds * +10%
Intel Core i9-13900K i9-13900K, 3000 MHz	80 Seconds * +15%
Intel Core i9-14900K i9-14900K, 3200 MHz	80 Seconds * +15%

wPrime 2.10
32m
Intel Core i9-12900K i9-12900K, 3200 MHz	4.924 s * -157%
Intel Core i5-12600K i5-12600K, 2800 MHz	4.725 s * -146%
Intel Core i5-12400F i5-12400F, 2500 MHz	4.078 s * -113%
Intel Core i5-13400 i5-13400, 2500 MHz	3.474 s * -81%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2.78 s * -45%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	2.698 s * -41%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	2.626 s * -37%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	2.617 s * -37%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	2.538 s * -32%
Intel Core i5-13600K i5-13600K, 3500 MHz	2.527 s * -32%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	2.435 s * -27%
Intel Core i5-14600K i5-14600K, 3500 MHz	2.39 s * -25%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	2.275 s * -19%
Intel Core i7-14700K i7-14700K, 2500 MHz	2.147 s * -12%
Intel Core i9-14900K i9-14900K, 3200 MHz	2.07 s * -8%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	2.007 s * -5%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	1.917 s *
Intel Core i9-13900K i9-13900K, 3000 MHz	1.818 s * +5%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	1.781 s * +7%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	1.669 s * +13%
1024m
Intel Core i5-13400 i5-13400, 2500 MHz	452.309 s * -1209%
Intel Core i5-12600K i5-12600K, 2800 MHz	202.7 s * -486%
Intel Core i9-12900K i9-12900K, 3200 MHz	190.6 s * -451%
Intel Core i5-13600K i5-13600K, 3500 MHz	177.592 s * -414%
Intel Core i5-14600K i5-14600K, 3500 MHz	158.77 s * -359%
Intel Core i5-12400F i5-12400F, 2500 MHz	112.849 s * -227%
Intel Core i7-14700K i7-14700K, 2500 MHz	109.801 s * -218%
Intel Core i9-13900K i9-13900K, 3000 MHz	79.738 s * -131%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	74.491 s * -116%
Intel Core i9-14900K i9-14900K, 3200 MHz	74.47 s * -115%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	72.819 s * -111%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	72.546 s * -110%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	66.801 s * -93%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	64.9 s * -88%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	62.733 s * -82%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	60.675 s * -76%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	39.954 s * -16%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	34.561 s *
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	33.879 s * +2%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	30.811 s * +11%

X264 HD Benchmark 4.0
Pass 1
Intel Core i9-14900K i9-14900K, 3200 MHz	433.5 (424^min - 434^max) fps +15%
Intel Core i7-14700K i7-14700K, 2500 MHz	419 (415^min - 420^max) fps +11%
Intel Core i9-13900K i9-13900K, 3000 MHz	412 (410^min - 417^max) fps +9%
Intel Core i5-14600K i5-14600K, 3500 MHz	411 (410^min - 412^max) fps +9%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	392.5 (391^min - 397^max) fps +4%
Intel Core i5-13600K i5-13600K, 3500 MHz	388 (386^min - 388^max) fps +3%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	379.5 (378^min - 385^max) fps +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	377 (375^min - 380^max) fps
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	376 (369^min - 378^max) fps 0%
Intel Core i9-12900K i9-12900K, 3200 MHz	368.5 (366^min - 369^max) fps -2%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	367 (363^min - 371^max) fps -3%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	364 (361^min - 367^max) fps -3%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	358.5 (356^min - 366^max) fps -5%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	344 (339^min - 346^max) fps -9%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	338.5 (337^min - 340^max) fps -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps -12%
Intel Core i5-13400 i5-13400, 2500 MHz	311 (310^min - 312^max) fps -18%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	304.5 (304^min - 306^max) fps -19%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	298 (288^min - 300^max) fps -21%
Intel Core i5-12400F i5-12400F, 2500 MHz	252.5 (249^min - 256^max) fps -33%
Pass 2
Intel Core i9-14900K i9-14900K, 3200 MHz	286.5 (285^min - 287^max) fps +18%
Intel Core i9-13900K i9-13900K, 3000 MHz	267 (266^min - 271^max) fps +10%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	266.5 (263^min - 267^max) fps +10%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	265.5 (263^min - 266^max) fps +9%
Intel Core i7-14700K i7-14700K, 2500 MHz	261 (259^min - 262^max) fps +7%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	243 (242^min - 244^max) fps
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	241 (240^min - 242^max) fps -1%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	221 (220^min - 221^max) fps -9%
Intel Core i5-14600K i5-14600K, 3500 MHz	209 (208^min - 209^max) fps -14%
Intel Core i9-12900K i9-12900K, 3200 MHz	206 (206^min - 206^max) fps -15%
Intel Core i5-13600K i5-13600K, 3500 MHz	199 (198.5^min - 199.4^max) fps -18%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	173.25 (172.2^min - 174.1^max) fps -29%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	169.25 (169.1^min - 170^max) fps -30%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	154 (153.4^min - 154.3^max) fps -37%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	150.8 (150.7^min - 152.5^max) fps -38%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	149.3 (148.8^min - 149.8^max) fps -39%
Intel Core i5-12600K i5-12600K, 2800 MHz	148 (147^min - 148^max) fps -39%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	147.8 (147.7^min - 147.9^max) fps -39%
Intel Core i5-13400 i5-13400, 2500 MHz	135.8 (135.7^min - 135.9^max) fps -44%
Intel Core i5-12400F i5-12400F, 2500 MHz	101.35 (101.1^min - 101.5^max) fps -58%

WinRAR - Result
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	17225 KB/s +13%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	16585 KB/s +9%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	16351 KB/s +7%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	16178 KB/s +6%
Intel Core i9-14900K i9-14900K, 3200 MHz	16108 KB/s +6%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	15779 KB/s +4%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	15242 KB/s
Intel Core i9-13900K i9-13900K, 3000 MHz	14836 KB/s -3%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	14819 KB/s -3%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	14476 KB/s -5%
Intel Core i7-14700K i7-14700K, 2500 MHz	12800 KB/s -16%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	12503 KB/s -18%
Intel Core i5-14600K i5-14600K, 3500 MHz	11491 KB/s -25%
Intel Core i5-13600K i5-13600K, 3500 MHz	10937 KB/s -28%
Intel Core i9-12900K i9-12900K, 3200 MHz	10792 KB/s -29%
Intel Core i5-13400 i5-13400, 2500 MHz	7979 KB/s -48%
Intel Core i5-12400F i5-12400F, 2500 MHz	7816 KB/s -49%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	7699 KB/s -49%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	7439 KB/s -51%
Intel Core i5-12600K i5-12600K, 2800 MHz	6239 KB/s -59%

TrueCrypt
AES Mean 100MB
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	30.7 GB/s +11%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	27.7 GB/s
Intel Core i9-13900K i9-13900K, 3000 MHz	27 GB/s -3%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	26.9 GB/s -3%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	26.9 GB/s -3%
Intel Core i9-14900K i9-14900K, 3200 MHz	26.7 GB/s -4%
Intel Core i7-14700K i7-14700K, 2500 MHz	25.6 GB/s -8%
Intel Core i5-14600K i5-14600K, 3500 MHz	19.5 GB/s -30%
Intel Core i5-13600K i5-13600K, 3500 MHz	18.8 GB/s -32%
Intel Core i9-12900K i9-12900K, 3200 MHz	18.5 GB/s -33%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	16.4 GB/s -41%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	15.3 GB/s -45%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	14.9 GB/s -46%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	14.8 GB/s -47%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	14.8 GB/s -47%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	13.4 GB/s -52%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	13.2 GB/s -52%
Intel Core i5-12600K i5-12600K, 2800 MHz	12.8 GB/s -54%
Intel Core i5-13400 i5-13400, 2500 MHz	11.8 GB/s -57%
Intel Core i5-12400F i5-12400F, 2500 MHz	9.3 GB/s -66%
Twofish Mean 100MB
Intel Core i9-14900K i9-14900K, 3200 MHz	5.8 GB/s +41%
Intel Core i9-13900K i9-13900K, 3000 MHz	5.4 GB/s +32%
Intel Core i7-14700K i7-14700K, 2500 MHz	4.6 GB/s +12%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	4.5 GB/s +10%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	4.2 GB/s +2%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	4.1 GB/s
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	3.7 GB/s -10%
Intel Core i9-12900K i9-12900K, 3200 MHz	3.7 GB/s -10%
Intel Core i5-14600K i5-14600K, 3500 MHz	3.4 GB/s -17%
Intel Core i5-13600K i5-13600K, 3500 MHz	3.1 GB/s -24%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2.8 GB/s -32%
Intel Core i5-12600K i5-12600K, 2800 MHz	2.2 GB/s -46%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	2.2 GB/s -46%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	2.2 GB/s -46%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	2.1 GB/s -49%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	2.1 GB/s -49%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	2.1 GB/s -49%
Intel Core i5-13400 i5-13400, 2500 MHz	2 GB/s -51%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	1.8 GB/s -56%
Intel Core i5-12400F i5-12400F, 2500 MHz	1.4 GB/s -66%
Serpent Mean 100MB
Intel Core i9-13900K i9-13900K, 3000 MHz	3 GB/s +15%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2.8 GB/s +8%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	2.8 GB/s +8%
Intel Core i9-14900K i9-14900K, 3200 MHz	2.8 GB/s +8%
Intel Core i7-14700K i7-14700K, 2500 MHz	2.6 GB/s 0%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	2.6 GB/s
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	2.4 GB/s -8%
Intel Core i9-12900K i9-12900K, 3200 MHz	1.9 GB/s -27%
Intel Core i5-14600K i5-14600K, 3500 MHz	1.8 GB/s -31%
Intel Core i5-13600K i5-13600K, 3500 MHz	1.7 GB/s -35%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	1.5 GB/s -42%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	1.4 GB/s -46%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	1.4 GB/s -46%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	1.4 GB/s -46%
Intel Core i5-12600K i5-12600K, 2800 MHz	1.3 GB/s -50%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	1.3 GB/s -50%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	1.3 GB/s -50%
Intel Core i5-13400 i5-13400, 2500 MHz	1.2 GB/s -54%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	1.1 GB/s -58%
Intel Core i5-12400F i5-12400F, 2500 MHz	0.884 GB/s -66%

Geekbench 5.5
Multi-Core
Intel Core i9-14900K i9-14900K, 3200 MHz	25867 Points +27%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	24625 Points +21%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	24343 Points +19%
Intel Core i9-13900K i9-13900K, 3000 MHz	24157 Points +18%
Intel Core i7-14700K i7-14700K, 2500 MHz	23159 Points +14%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	20394 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	19987 Points -2%
Intel Core i9-12900K i9-12900K, 3200 MHz	17854 Points -12%
Intel Core i5-14600K i5-14600K, 3500 MHz	17516 Points -14%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	16891 Points -17%
Intel Core i5-13600K i5-13600K, 3500 MHz	16651 Points -18%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	14252 Points -30%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	13462 Points -34%
Intel Core i5-12600K i5-12600K, 2800 MHz	12797 Points -37%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	12751 Points -37%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	12177 Points -40%
Intel Core i5-13400 i5-13400, 2500 MHz	12107 Points -41%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	11917 Points -42%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	11564 Points -43%
Intel Core i5-12400F i5-12400F, 2500 MHz	9517 Points -53%
Single-Core
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	2523 Points +17%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2311 Points +7%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	2311 Points +7%
Intel Core i9-13900K i9-13900K, 3000 MHz	2290 Points +6%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2274 Points +5%
Intel Core i9-14900K i9-14900K, 3200 MHz	2243 Points +4%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2205 Points +2%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	2158 Points
Intel Core i7-14700K i7-14700K, 2500 MHz	2121 Points -2%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	2067 Points -4%
Intel Core i9-12900K i9-12900K, 3200 MHz	2042 Points -5%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	2027 Points -6%
Intel Core i5-14600K i5-14600K, 3500 MHz	2017 Points -7%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	1975 Points -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	1967 Points -9%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	1943 Points -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	1904 Points -12%
Intel Core i5-13400 i5-13400, 2500 MHz	1795 Points -17%
Intel Core i5-12400F i5-12400F, 2500 MHz	1742 Points -19%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	1682 Points -22%

Geekbench 5.0
5.0 Multi-Core
Intel Core i9-14900K i9-14900K, 3200 MHz	25459 Points +24%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	24479 Points +19%
Intel Core i9-13900K i9-13900K, 3000 MHz	24021 Points +17%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	23720 Points +15%
Intel Core i7-14700K i7-14700K, 2500 MHz	22756 Points +11%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	20593 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	19975 Points -3%
Intel Core i9-12900K i9-12900K, 3200 MHz	17959 Points -13%
Intel Core i5-14600K i5-14600K, 3500 MHz	17374 Points -16%
Intel Core i5-13600K i5-13600K, 3500 MHz	16635 Points -19%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	16570 Points -20%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	13888 Points -33%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	13342 Points -35%
Intel Core i5-12600K i5-12600K, 2800 MHz	12746 Points -38%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	12556 Points -39%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	11933 Points -42%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	11880 Points -42%
Intel Core i5-13400 i5-13400, 2500 MHz	11801 Points -43%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	11232 Points -45%
Intel Core i5-12400F i5-12400F, 2500 MHz	9368 Points -55%
5.0 Single-Core
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	2397 Points +14%
Intel Core i9-14900K i9-14900K, 3200 MHz	2272 Points +8%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2222 Points +6%
Intel Core i9-13900K i9-13900K, 3000 MHz	2214 Points +6%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2194 Points +5%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	2183 Points +4%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2126 Points +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	2095 Points
Intel Core i7-14700K i7-14700K, 2500 MHz	2045 Points -2%
Intel Core i5-14600K i5-14600K, 3500 MHz	2004 Points -4%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	1989 Points -5%
Intel Core i9-12900K i9-12900K, 3200 MHz	1968 Points -6%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	1938 Points -7%
Intel Core i5-13600K i5-13600K, 3500 MHz	1931 Points -8%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	1900 Points -9%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	1898 Points -9%
Intel Core i5-12600K i5-12600K, 2800 MHz	1821 Points -13%
Intel Core i5-13400 i5-13400, 2500 MHz	1706 Points -19%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	1683 Points -20%
Intel Core i5-12400F i5-12400F, 2500 MHz	1673 Points -20%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i9-14900K i9-14900K, 3200 MHz	9890 Points +15%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	9757 Points +13%
Intel Core i9-13900K i9-13900K, 3000 MHz	9598 Points +11%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	9322 Points +8%
Intel Core i7-14700K i7-14700K, 2500 MHz	9304 Points +8%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	9240 Points +7%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	9193 Points +7%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	9097 Points +6%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	8926 Points +4%
Intel Core i5-14600K i5-14600K, 3500 MHz	8904 Points +3%
Intel Core i9-12900K i9-12900K, 3200 MHz	8665 Points +1%
Intel Core i5-13600K i5-13600K, 3500 MHz	8618 Points 0%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	8613 Points
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	8243 Points -4%
Intel Core i5-12600K i5-12600K, 2800 MHz	8223 Points -5%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	8048 Points -7%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	7904 Points -8%
Intel Core i5-13400 i5-13400, 2500 MHz	7683 Points -11%
Intel Core i5-12400F i5-12400F, 2500 MHz	7548 Points -12%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	7216 Points -16%
64 Bit Multi-Core Score
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	89678 Points +18%
Intel Core i9-14900K i9-14900K, 3200 MHz	89177 Points +17%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	87922 Points +15%
Intel Core i9-13900K i9-13900K, 3000 MHz	86695 Points +14%
Intel Core i7-14700K i7-14700K, 2500 MHz	79501 Points +4%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	76265 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	74731 Points -2%
Intel Core i5-14600K i5-14600K, 3500 MHz	64035 Points -16%
Intel Core i9-12900K i9-12900K, 3200 MHz	63583 Points -17%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	63233 Points -17%
Intel Core i5-13600K i5-13600K, 3500 MHz	60407 Points -21%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	54840 Points -28%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	54665 Points -28%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	51644 Points -32%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	48743 Points -36%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	47407 Points -38%
Intel Core i5-12600K i5-12600K, 2800 MHz	46557 Points -39%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	46270 Points -39%
Intel Core i5-13400 i5-13400, 2500 MHz	42509 Points -44%
Intel Core i5-12400F i5-12400F, 2500 MHz	35098 Points -54%

3DMark 11 - 1280x720 Performance Physics
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	36991 Points +36%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	35127 Points +30%
Intel Core i7-14700K i7-14700K, 2500 MHz	32336 Points +19%
Intel Core i9-13900K i9-13900K, 3000 MHz	32273 Points +19%
Intel Core i9-14900K i9-14900K, 3200 MHz	32188 Points +19%
Intel Core i5-14600K i5-14600K, 3500 MHz	31641 Points +17%
Intel Core i5-13600K i5-13600K, 3500 MHz	30480 Points +12%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	28618 Points +6%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	28618 Points +6%
Intel Core i9-12900K i9-12900K, 3200 MHz	28211 Points +4%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	27102 Points
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	26321 Points -3%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	25717 Points -5%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	25396 Points -6%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	25367 Points -6%
Intel Core i5-12600K i5-12600K, 2800 MHz	25017 Points -8%
Intel Core i5-13400 i5-13400, 2500 MHz	23120 Points -15%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	22960 Points -15%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	21848 Points -19%
Intel Core i5-12400F i5-12400F, 2500 MHz	19436 Points -28%

7-Zip 18.03
7z b 4
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	161724 MIPS +15%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	159341 MIPS +13%
Intel Core i9-14900K i9-14900K, 3200 MHz	149570 MIPS +6%
Intel Core i9-13900K i9-13900K, 3000 MHz	147068 MIPS +5%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	140613 MIPS
Intel Core i7-14700K i7-14700K, 2500 MHz	135648 MIPS -4%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	127792 MIPS -9%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	124975 MIPS -11%
Intel Core i9-12900K i9-12900K, 3200 MHz	97671 MIPS -31%
Intel Core i5-14600K i5-14600K, 3500 MHz	93235 MIPS -34%
Intel Core i5-13600K i5-13600K, 3500 MHz	89647 MIPS -36%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	85067 MIPS -40%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	83268 MIPS -41%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	72684 MIPS -48%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	70019 MIPS -50%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	69291 MIPS -51%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	68220 MIPS -51%
Intel Core i5-12600K i5-12600K, 2800 MHz	64260 MIPS -54%
Intel Core i5-13400 i5-13400, 2500 MHz	59510 MIPS -58%
Intel Core i5-12400F i5-12400F, 2500 MHz	45043 MIPS -68%
7z b 4 -mmt1
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	8365 MIPS +8%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	8321 MIPS +8%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	8282 MIPS +7%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	8235 MIPS +7%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	8063 MIPS +5%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	7796 MIPS +1%
Intel Core i9-14900K i9-14900K, 3200 MHz	7772 MIPS +1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	7711 MIPS
Intel Core i7-14700K i7-14700K, 2500 MHz	7351 MIPS -5%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	7275 MIPS -6%
Intel Core i9-13900K i9-13900K, 3000 MHz	7272 MIPS -6%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	6974 MIPS -10%
Intel Core i5-14600K i5-14600K, 3500 MHz	6910 MIPS -10%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	6683 MIPS -13%
Intel Core i9-12900K i9-12900K, 3200 MHz	6571 MIPS -15%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	6563 MIPS -15%
Intel Core i5-13600K i5-13600K, 3500 MHz	6502 MIPS -16%
Intel Core i5-12600K i5-12600K, 2800 MHz	5944 MIPS -23%
Intel Core i5-13400 i5-13400, 2500 MHz	5829 MIPS -24%
Intel Core i5-12400F i5-12400F, 2500 MHz	5476 MIPS -29%

HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	44.4 fps +18%
Intel Core i9-14900K i9-14900K, 3200 MHz	42.8 fps +14%
Intel Core i9-13900K i9-13900K, 3000 MHz	42.6 fps +13%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	42.4 fps +13%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	37.6 fps
Intel Core i7-14700K i7-14700K, 2500 MHz	36.8 fps -2%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	36.2 fps -4%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	31.8 fps -15%
Intel Core i5-12600K i5-12600K, 2800 MHz	30.1 fps -20%
Intel Core i9-12900K i9-12900K, 3200 MHz	30 fps -20%
Intel Core i5-14600K i5-14600K, 3500 MHz	28.6 fps -24%
Intel Core i5-13600K i5-13600K, 3500 MHz	27.6 fps -27%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	24.4 fps -35%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	24.1 fps -36%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	23.2 fps -38%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	21.1 fps -44%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	20.9 fps -44%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	20.7 fps -45%
Intel Core i5-13400 i5-13400, 2500 MHz	19.1 fps -49%
Intel Core i5-12400F i5-12400F, 2500 MHz	15.2 fps -60%

R Benchmark 2.5 - Overall mean
Intel Core i5-12400F i5-12400F, 2500 MHz	0.4837 sec * -25%
Intel Core i5-13400 i5-13400, 2500 MHz	0.4654 sec * -20%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	0.4556 sec * -17%
Intel Core i5-12600K i5-12600K, 2800 MHz	0.4456 sec * -15%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	0.4354 sec * -12%
Intel Core i9-12900K i9-12900K, 3200 MHz	0.4216 sec * -9%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	0.4192 sec * -8%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	0.4152 sec * -7%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	0.4141 sec * -7%
Intel Core i5-13600K i5-13600K, 3500 MHz	0.405 sec * -4%
Intel Core i5-14600K i5-14600K, 3500 MHz	0.3937 sec * -1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	0.3884 sec *
Intel Core i7-14700K i7-14700K, 2500 MHz	0.3826 sec * +1%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	0.3749 sec * +3%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	0.3736 sec * +4%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	0.372 sec * +4%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	0.3682 sec * +5%
Intel Core i9-13900K i9-13900K, 3000 MHz	0.3539 sec * +9%
Intel Core i9-14900K i9-14900K, 3200 MHz	0.345 sec * +11%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	0.3389 sec * +13%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K i5-12600K, 2800 MHz	71.8 s * -102%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	53.9 s * -52%
Intel Core i5-12400F i5-12400F, 2500 MHz	46.5 s * -31%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	46.4 s * -31%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	46.3 s * -30%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	45.97 s * -29%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	41.4 s * -17%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	40.7 s * -15%
Intel Core i9-12900K i9-12900K, 3200 MHz	40.6 s * -14%
Intel Core i7-14700K i7-14700K, 2500 MHz	39.8 s * -12%
Intel Core i5-13400 i5-13400, 2500 MHz	38.7 s * -9%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	38.6 s * -9%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	36.8 s * -4%
Intel Core i9-13900K i9-13900K, 3000 MHz	36.6 s * -3%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	35.5 s * -0%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	35.5 s *
Intel Core i5-13600K i5-13600K, 3500 MHz	35 s * +1%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	34.9 s * +2%
Intel Core i9-14900K i9-14900K, 3200 MHz	32.5 s * +8%
Intel Core i5-14600K i5-14600K, 3500 MHz	31.9 s * +10%

WebXPRT 3 - Overall
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	383 Points +6%
Intel Core i9-14900K i9-14900K, 3200 MHz	382 Points +6%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	371 Points +3%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	366 Points +1%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	364 Points +1%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	362 Points 0%
Intel Core i9-13900K i9-13900K, 3000 MHz	361 Points 0%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	361 Points
Intel Core i5-14600K i5-14600K, 3500 MHz	354 Points -2%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	353 Points -2%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	349 Points -3%
Intel Core i7-14700K i7-14700K, 2500 MHz	339 Points -6%
Intel Core i5-13600K i5-13600K, 3500 MHz	333 Points -8%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	324 Points -10%
Intel Core i9-12900K i9-12900K, 3200 MHz	320 Points -11%
Intel Core i5-13400 i5-13400, 2500 MHz	306 Points -15%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	302 Points -16%
Intel Core i5-12600K i5-12600K, 2800 MHz	293 Points -19%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	291 Points -19%
Intel Core i5-12400F i5-12400F, 2500 MHz	272 Points -25%

Mozilla Kraken 1.1 - Total
Intel Core i5-12400F i5-12400F, 2500 MHz	573 ms * -28%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	558 ms * -25%
Intel Core i5-13400 i5-13400, 2500 MHz	535 ms * -20%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	517 ms * -16%
Intel Core i5-12600K i5-12600K, 2800 MHz	511 ms * -15%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	487 ms * -9%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	487 ms * -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	481 ms * -8%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	481 ms * -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	469 ms * -5%
Intel Core i5-14600K i5-14600K, 3500 MHz	450 ms * -1%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	446 ms *
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	441 ms * +1%
Intel Core i7-14700K i7-14700K, 2500 MHz	439 ms * +2%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	437 ms * +2%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	433 ms * +3%
Intel Core i9-13900K i9-13900K, 3000 MHz	432 ms * +3%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	431 ms * +3%
Intel Core i9-14900K i9-14900K, 3200 MHz	418 ms * +6%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	389 ms * +13%

3DMark
1920x1080 Fire Strike Physics
Intel Core i9-14900K i9-14900K, 3200 MHz	56087 Points +43%
Intel Core i9-13900K i9-13900K, 3000 MHz	53853 Points +38%
Intel Core i7-14700K i7-14700K, 2500 MHz	49142 Points +26%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	44787 Points +15%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	42682 Points +9%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	42682 Points +9%
Intel Core i5-14600K i5-14600K, 3500 MHz	40164 Points +3%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	39600 Points +1%
Intel Core i9-12900K i9-12900K, 3200 MHz	39112 Points 0%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	39095 Points
Intel Core i5-13600K i5-13600K, 3500 MHz	35386 Points -9%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	33462 Points -14%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	33345 Points -15%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	30691 Points -21%
Intel Core i5-12600K i5-12600K, 2800 MHz	29671 Points -24%
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	28906 Points -26%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	28247 Points -28%
Intel Core i5-13400 i5-13400, 2500 MHz	27135 Points -31%
Intel Core i5-12400F i5-12400F, 2500 MHz	24023 Points -39%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	19932 Points -49%
2560x1440 Time Spy CPU
Intel Core i9-14900K i9-14900K, 3200 MHz	23721 Points +107%
Intel Core i7-14700K i7-14700K, 2500 MHz	21541 Points +88%
Intel Core i9-13900K i9-13900K, 3000 MHz	19392 Points +69%
Intel Core i5-14600K i5-14600K, 3500 MHz	18768 Points +64%
Intel Core i9-12900K i9-12900K, 3200 MHz	18431 Points +61%
AMD Ryzen 9 7950X3D R9 7950X3D, 4200 MHz	17206 Points +50%
Intel Core i5-13600K i5-13600K, 3500 MHz	17124 Points +49%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	16616 Points +45%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	16616 Points +45%
AMD Ryzen 7 7800X3D R7 7800X3D, 4200 MHz	14098 Points +23%
Intel Core i5-12600K i5-12600K, 2800 MHz	13869 Points +21%
AMD Ryzen 9 5950X R9 5950X, 3400 MHz	13650 Points +19%
Intel Core i5-13400 i5-13400, 2500 MHz	12948 Points +13%
AMD Ryzen 9 7945HX R9 7945HX, 2500 MHz	11466 Points
AMD Ryzen 7 7840HS R7 7840HS, 3800 MHz	11159 Points -3%
AMD Ryzen 7 7745HX R7 7745HX, 3600 MHz	11051 Points -4%
AMD Ryzen 5 9600X Ryzen 5 9600X, 3900 MHz	10821 Points -6%
AMD Ryzen 9 7940HS R9 7940HS, 4000 MHz	10563 Points -8%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	10458 Points -9%
Intel Core i5-12400F i5-12400F, 2500 MHz	9745 Points -15%

* ... smaller is better

Cinebench results AMD Ryzen 9 7945HX

In combination with the AMD Ryzen 9 7945HX, the Minisforum BD790i mainboard mastered the Cinebench R15 continuous loop excellently. The performance of its 16 cores remained stable over all 50 runs, meaning no loss of performance is to be expected under continuous load. The factory-installed cooler performed well in this test.

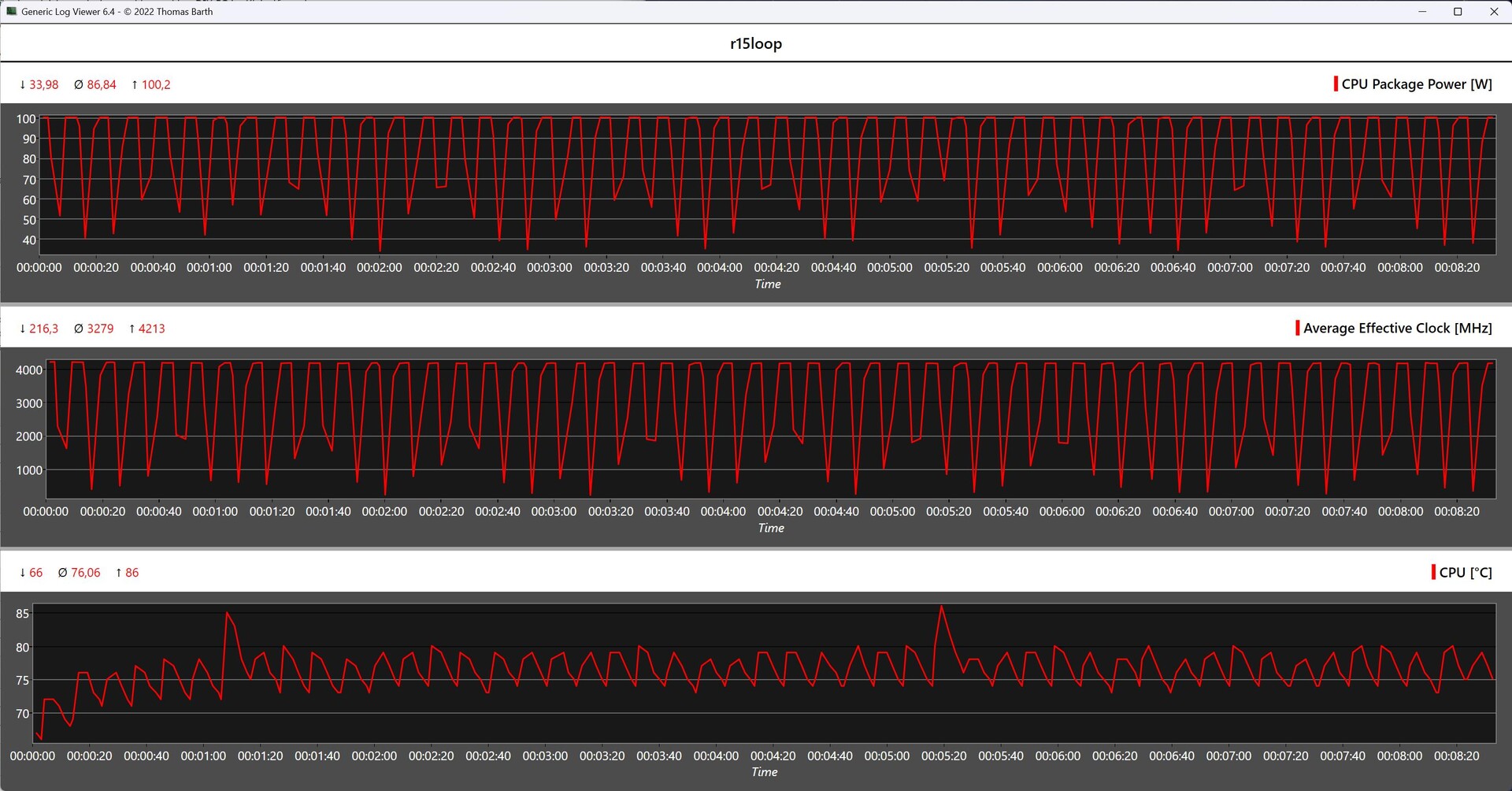

CPU metrics during the Cinebench R15 loop

AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G: Ø5075 (4988.15-5158.63)

Intel Core i9-12900K NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5: Ø3987 (3920.42-4037.55)

Intel Core i5-12600K NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5: Ø2545 (2497.35-2570.36)

AMD Ryzen 5 7600X NVIDIA GeForce RTX 3090, R5 7600X: Ø2468 (2440.21-2487.56)

AMD Ryzen 9 7900X NVIDIA GeForce RTX 3090, R9 7900X: Ø4785 (4739.9-4829.17)

AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600: Ø6154 (6136.85-6189.08)

Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600: Ø6182 (6045.95-6213.11)

Intel Core i5-13600K NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600: Ø3620 (3607.83-3632.07)

AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0: Ø2605 (2564.1-2649.53)

AMD Ryzen 5 9600X NVIDIA GeForce RTX 4090, Ryzen 5 9600X: Ø2623 (2586.99-2654.28)

AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955: Ø2867 (2818.49-2955.3)

System performance

The test system based on the Minisforum BD790i couldn't always keep up with its competitors during the system performance benchmarks. Nevertheless, the system's performance was generally pretty high. The powerful and at the same time relatively frugal AMD Ryzen 9 7945HX shows no weaknesses during everyday use. The combination of its fast NVMe SSD and DDR5 RAM allows enough leeway for it to master even power-hungry tasks.

Performance Rating | PCMark 10

Performance Rating - Percent
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 ^-1! NVIDIA GeForce RTX 4090, R9 7950X3D	97 pt
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	96.8 pt
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	96.8 pt
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	96.5 pt
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	96.3 pt
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	95.7 pt
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	93.5 pt
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	93.4 pt
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	92.7 pt
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	87.6 pt
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	85.4 pt
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	84.8 pt
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	84.6 pt
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	83.9 pt
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	82.7 pt
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	82 pt
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	76.7 pt
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	75.5 pt

PCMark 10
Score
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	10101 Points +44%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	9911 Points +41%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	9911 Points +41%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	9788 Points +39%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	9587 Points +37%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	9500 Points +35%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	9470 Points +35%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	9362 Points +33%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	8778 Points +25%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	8614 Points +23%
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	8604 Points +23%
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	8259 Points +18%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	7756 Points +10%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	7526 Points +7%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7048 Points 0%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	7020 Points
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	6751 Points -4%
Essentials
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	12868 Points +4%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	12651 Points +2%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	12651 Points +2%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	12354 Points
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	12352 Points 0%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	12306 Points 0%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	12259 Points -1%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	12130 Points -2%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	12059 Points -2%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	11532 Points -7%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	11337 Points -8%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	11255 Points -9%
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	11086 Points -10%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	11011 Points -11%
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	10650 Points -14%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	10635 Points -14%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	10511 Points -15%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10448 Points -15%
Productivity
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	12608 Points +13%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	12576 Points +13%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	12108 Points +9%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	12075 Points +9%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	11853 Points +7%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	11853 Points +7%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	11784 Points +6%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	11630 Points +5%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	11370 Points +2%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	11163 Points 0%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	11117 Points
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	11048 Points -1%
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	11001 Points -1%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	10893 Points -2%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	10832 Points -3%
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	10699 Points -4%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	9971 Points -10%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	8577 Points -23%

Performance Rating | PCMark 10

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	2611 Points +17%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	2589 Points +16%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	2512 Points +12%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	2405 Points +7%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	2310 Points +3%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	2271 Points +1%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	2240 Points
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	2236 Points 0%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	2216 Points -1%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	2193 Points -2%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	2179 Points -3%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	1877 Points -16%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	1762 Points -21%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1761 Points -21%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1726 Points -23%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	1495 Points -33%

CrossMark / Productivity
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	2421 Points +16%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	2388 Points +15%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	2336 Points +12%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	2211 Points +6%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	2142 Points +3%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	2115 Points +1%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	2101 Points +1%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	2085 Points
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	2074 Points -1%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	2061 Points -1%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	2014 Points -3%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	1741 Points -16%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1675 Points -20%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	1667 Points -20%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1656 Points -21%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	1359 Points -35%

CrossMark / Creativity
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	2891 Points +16%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	2786 Points +12%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	2784 Points +12%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	2673 Points +7%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	2575 Points +3%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	2552 Points +3%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	2488 Points
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	2434 Points -2%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	2414 Points -3%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	2412 Points -3%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	2384 Points -4%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2040 Points -18%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	2039 Points -18%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1914 Points -23%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	1849 Points -26%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	1710 Points -31%

CrossMark / Responsiveness
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	2653 Points +31%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	2413 Points +19%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	2350 Points +16%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	2288 Points +13%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	2251 Points +11%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	2145 Points +6%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	2090 Points +3%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	2039 Points +1%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	2026 Points
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	1965 Points -3%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	1831 Points -10%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	1799 Points -11%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	1795 Points -11%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1382 Points -32%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1361 Points -33%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	1332 Points -34%

CrossMark: Overall | Productivity | Creativity | Responsiveness

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	85662 MB/s +48%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	82790 MB/s +43%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	74937 MB/s +29%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	73868 MB/s +27%
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	73146 MB/s +26%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	73104 MB/s +26%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	71766 MB/s +24%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	71725 MB/s +24%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	71074 MB/s +23%
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	70749 MB/s +22%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	69140 MB/s +19%
Average of class Desktop (53867 - 88386, n=16, last 2 years)	67460 MB/s +16%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	67039 MB/s +16%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	63242 MB/s +9%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	62093 MB/s +7%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	59949 MB/s +3%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	59171 MB/s +2%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	57953 MB/s
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	53867 MB/s -7%
Average AMD Ryzen 9 7945HX (48948 - 57953, n=7)	52377 MB/s -10%

AIDA64 / Memory Read
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	95232 MB/s +41%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	88793 MB/s +31%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	83883 MB/s +24%
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	81059 MB/s +20%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	80946 MB/s +19%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	78282 MB/s +16%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	77867 MB/s +15%
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	76864 MB/s +13%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	75757 MB/s +12%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	75338 MB/s +11%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	74338 MB/s +10%
Average of class Desktop (54278 - 94830, n=16, last 2 years)	72001 MB/s +6%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	67753 MB/s
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	62991 MB/s -7%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	62528 MB/s -8%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	61867 MB/s -9%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	61458 MB/s -9%
Average AMD Ryzen 9 7945HX (56910 - 67753, n=7)	60896 MB/s -10%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	59007 MB/s -13%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	54278 MB/s -20%

AIDA64 / Memory Write
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	87412 MB/s +25%
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	86693 MB/s +24%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	85951 MB/s +23%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	84101 MB/s +20%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	83670 MB/s +19%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	81320 MB/s +16%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	79843 MB/s +14%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	79298 MB/s +13%
Average of class Desktop (60635 - 84869, n=16, last 2 years)	77315 MB/s +10%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	76967 MB/s +10%
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	74140 MB/s +6%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	74029 MB/s +6%
Intel Core i5-12600K, NVIDIA Titan RTX NVIDIA Titan RTX, i5-12600K, Intel Optane 905P 480GB 2.5	73824 MB/s +5%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	73805 MB/s +5%
Intel Core i9-12900K, NVIDIA Titan RTX NVIDIA Titan RTX, i9-12900K, Intel Optane 905P 480GB 2.5	73707 MB/s +5%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	73484 MB/s +5%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	70803 MB/s +1%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	70063 MB/s
Average AMD Ryzen 9 7945HX (58602 - 70063, n=7)	62608 MB/s -11%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	48748 MB/s -30%

AIDA64 / Memory Latency
AMD Ryzen 7 7840HS, AMD Radeon 780M Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	92 ns * -19%
AMD Ryzen 9 7940HS, AMD Radeon 780M Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	87.6 ns * -14%
Average of class Desktop (68.5 - 168, n=16, last 2 years)	87 ns * -13%
Average AMD Ryzen 9 7945HX (77.1 - 91.3, n=7)	84.4 ns * -9%
Intel Core i5-13600K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i5-13600K, Corsair MP600	81.1 ns * -5%
AMD Ryzen 7 7745HX, AMD Radeon 610M Radeon 610M, R7 7745HX, Fikwot FN955	80.7 ns * -5%
Intel Core i5-12400F, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-12400F, Intel Optane 905P 480GB 2.5	79.2 ns * -3%
Intel Core i5-13400, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-13400, Intel Optane 905P 480GB 2.5	77.2 ns * -0%
AMD Ryzen 9 7945HX, AMD Radeon 610M Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	77.1 ns *
Intel Core i9-13900K, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	76.5 ns * +1%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i9-14900K, WDC PC SN720 SDAQNTW-512G	70.3 ns * +9%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, i5-14600K, WDC PC SN720 SDAQNTW-512G	69.7 ns * +10%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R7 7800X3D, Corsair MP600	68 ns * +12%
AMD Ryzen 9 5950X, NVIDIA Titan RTX NVIDIA Titan RTX, R9 5950X, Intel Optane 905P 480GB 2.5	67.7 ns * +12%
AMD Ryzen 9 7950X3D, NVIDIA GeForce RTX 4090 NVIDIA GeForce RTX 4090, R9 7950X3D	65.6 ns * +15%
AMD Ryzen 5 7600X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R5 7600X	63.8 ns * +17%
AMD Ryzen 9 7900X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7900X	63.3 ns * +18%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 3090 NVIDIA GeForce RTX 3090, R9 7950X, Corsair MP600	61.7 ns * +20%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

* ... smaller is better

DPC latencies

We recorded comparatively high latencies in our test system based on the Minisforum BD790i. We documented increased values even when simply surfing the web. These increased further when playing the 4K test video, which means that the system doesn't seem to be suitable for processing real-time video and audio material in this configuration.

Maximum latency when opening multiple browser tabs

Maximum latency when playing 4K video material

Maximum latency after ten seconds of Prime95

Drivers ranked by longest execution duration

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	3954 μs *
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1178.9 μs * +70%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1063 μs * +73%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	422.4 μs * +89%

* ... smaller is better

Storage devices

As mentioned at the beginning of this review, Minisforum only supplies the BD790i mainboard itself. In order to be able to put a complete system into operation, you have to take care of the missing components such as RAM, SSD, power supply and a CPU fan yourself. For the SSD, we opted for a Kingston KC3000 with 2 TB of storage space. The model is connected via PCIe 4.0 x4 and doesn't fully take advantage of the interface, as the Minisforum BD790i technically supports two PCIe 5.0 SSDs. Both M.2 interfaces are located on the top of the mainboard. Covered by a small heat sink, which is also equipped with a small fan, our SSD had no problems delivering stable performance. We can reassure anyone who thinks that this small fan will cause an earache, as the fan is nice and quiet and can't be heard next to the CPU fan.

For further comparisons and benchmarks, please refer to our comparison table.

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston KC3000 2048G SKC3000D2048G

Sequential Read: 4718 MB/s

Sequential Write: 6075 MB/s

512K Read: 3179 MB/s

512K Write: 5375 MB/s

4K Read: 81.57 MB/s

4K Write: 275.6 MB/s

4K QD32 Read: 800.2 MB/s

4K QD32 Write: 648.4 MB/s

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Minisforum BD790i Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø7357 (6532.21-7378.41)

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Minisforum BD770i Fikwot FN955; diskspd 2.0.17 f: Ø7151 (6786.02-7165.06)

Graphics card - The AMD Radeon 610M as an iGPU

The AMD Ryzen 9 7945HX only features a simple graphics solution as an iGPU, which goes by the name of AMD Radeon 610M. This is still based on the RDNA2 architecture and only offers 2 CUs, which means that there are only 128 shader units in total available for 3D calculations. Compared to the AMD Ryzen 7 7745HX, which is installed on the Minisforum BD770i, there isn't any more 3D performance. In view of this, their results are almost identical. Compared to an AMD Radeon 780M, the AMD Radeon 610M has no chance. In our opinion, this weak graphics solution should not be expected to do more than simple image output.

Further comparisons and benchmarks can be found in our GPU comparison table.

Performance Rating | 3DMark 11 | 3DMark

Performance Rating - Percent
AMD Radeon 780M, AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	100 pt
AMD Radeon 780M, AMD Ryzen 9 7940HS Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.5 pt
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U Vega 7, R5 5600U, ESO512GYLCT	44.5 pt
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	42.3 pt
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	26.9 pt
AMD Radeon 610M, AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	25.8 pt
AMD Radeon 610M, AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955	23.1 pt
Average AMD Radeon 610M	21.7 pt

3DMark 11 - 1280x720 Performance GPU
AMD Radeon 780M, AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	13347 Points +293%
AMD Radeon 780M, AMD Ryzen 9 7940HS Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	12384 Points +264%
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U Vega 7, R5 5600U, ESO512GYLCT	5923 Points +74%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	5047 Points +48%
AMD Radeon 610M, AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	3399 Points
AMD Radeon 610M, AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955	3347 Points -2%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	3168 Points -7%
Average AMD Radeon 610M (1029 - 3399, n=5)	2666 Points -22%

3DMark
2560x1440 Time Spy Graphics
AMD Radeon 780M, AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2832 Points +323%
AMD Radeon 780M, AMD Ryzen 9 7940HS Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2632 Points +293%
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U Vega 7, R5 5600U, ESO512GYLCT	1153 Points +72%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	1114 Points +67%
AMD Radeon 610M, AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	669 Points
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	658 Points -2%
AMD Radeon 610M, AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955	636 Points -5%
Average AMD Radeon 610M (224 - 669, n=4)	511 Points -24%
1920x1080 Fire Strike Graphics
AMD Radeon 780M, AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	8348 Points +267%
AMD Radeon 780M, AMD Ryzen 9 7940HS Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	7284 Points +220%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	3905 Points +71%
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U Vega 7, R5 5600U, ESO512GYLCT	3819 Points +68%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	2495 Points +10%
AMD Radeon 610M, AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955	2305 Points +1%
AMD Radeon 610M, AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	2277 Points
Average AMD Radeon 610M (781 - 2305, n=5)	1842 Points -19%
Fire Strike Extreme Score
AMD Radeon 780M, AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	4120 Points +296%
AMD Radeon 780M, AMD Ryzen 9 7940HS Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3506 Points +237%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	1733 Points +66%
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U Vega 7, R5 5600U, ESO512GYLCT	1560 Points +50%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1104 Points +6%
AMD Radeon 610M, AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	1041 Points
Average AMD Radeon 610M (530 - 1041, n=3)	858 Points -18%
AMD Radeon 610M, AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955	530 Points -49%
1280x720 Cloud Gate Standard Graphics
AMD Radeon 780M, AMD Ryzen 7 7840HS Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	50924 Points +269%
AMD Radeon 780M, AMD Ryzen 9 7940HS Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	47968 Points +247%
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U Vega 7, R5 5600U, ESO512GYLCT	27497 Points +99%
Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	23061 Points +67%
Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	15662 Points +13%
Average AMD Radeon 610M (11389 - 15902, n=5)	14040 Points +2%
AMD Radeon 610M, AMD Ryzen 7 7745HX Radeon 610M, R7 7745HX, Fikwot FN955	13981 Points +1%
AMD Radeon 610M, AMD Ryzen 9 7945HX Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	13814 Points

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Affinity Photo 2

Performance Rating - Percent
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	91.3 pt
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	86 pt
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	42.7 pt
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	40.6 pt
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	36.5 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	29.2 pt
Average AMD Radeon 610M	29.2 pt
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	29.1 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	34.5 fps +165%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29.7 fps +128%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	25 fps +92%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.6 fps +43%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	13.6 fps +5%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps +2%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	13 fps
Average AMD Radeon 610M (11.7 - 13.6, n=4)	12.7 fps -2%
Extreme Preset DX11
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	35.5 fps +191%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	31.1 fps +155%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	19.1 fps +57%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	18.2 fps +49%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps +15%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	12.3 fps +1%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	12.2 fps
Average AMD Radeon 610M (10.9 - 12.3, n=4)	11.6 fps -5%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	24 fps +140%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	20.4 fps +104%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.3 fps +23%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	11.8 fps +18%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	10 fps 0%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	10 fps
Average AMD Radeon 610M (9.8 - 10, n=3)	9.93 fps -1%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps -12%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	20.8 fps +119%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	17.7 fps +86%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	13 fps +37%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	12.2 fps +28%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps +6%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	9.6 fps +1%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	9.5 fps
Average AMD Radeon 610M (9.1 - 9.6, n=3)	9.4 fps -1%

ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	10495 Points +544%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	10102 Points +520%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	2999 Points +84%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	2370 Points +45%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	1632 Points 0%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	1629 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points -13%
Average AMD Radeon 610M (517 - 1654, n=4)	1358 Points -17%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	468 Points +107%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points +89%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	243 Points +8%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	227 Points 0%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	226 Points
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	207 Points -8%
Average AMD Radeon 610M (109 - 227, n=4)	196 Points -13%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points -19%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	488 Points +153%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	427 Points +121%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	231 Points +20%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	212 Points +10%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	194 Points +1%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	193 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points -12%
Average AMD Radeon 610M (84 - 194, n=4)	164.8 Points -15%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2984 Points +838%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2637 Points +729%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	790 Points +148%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	450 Points +42%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	321 Points +1%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	318 Points
Average AMD Radeon 610M (109 - 322, n=4)	268 Points -16%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points -20%
1024x600 Normal, Mandel Scalar
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	2808 Points +473%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	2757 Points +463%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	877 Points +79%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	743 Points +52%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	490 Points
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	487 Points -1%
Average AMD Radeon 610M (87 - 495, n=4)	390 Points -20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points -23%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	3849 Points +855%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	3752 Points +831%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	857 Points +113%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	759 Points +88%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points +13%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	403 Points 0%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	403 Points
Average AMD Radeon 610M (128 - 427, n=4)	340 Points -16%

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	5750 Points
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	3442 Points -40%
Average AMD Radeon 610M (889 - 5750, n=3)	2559 Points -55%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	2123 Points -63%
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	1399 Points -76%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	1360 Points -76%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	1331 Points -77%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	889 Points -85%

Gaming performance - AMD Radeon 610M

In order to better assess the AMD Radeon 610M's 3D performance, we put it through some gaming tests. Unfortunately, the low-performance iGPU couldn't boast good frame rates. Even when playing older games, the AMD Radeon 610M struggled to display adequate frame rates on the screen. Models equipped with an AMD Radeon 780M offered noticeably better performance. Even so, the limits of an AMD Radeon 780M were also quickly reached, leaving only the option to use a dedicated graphics card if you're wanting to enjoy the latest games.

For an overview of the iGPU's performance compared to other graphics cards, please take a look at our GPU games list.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	153.5 (20.1^min, 43.1^P0.1, 107.8^P1 - 370^max) fps +245%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	135.1 fps +204%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	74 (26^min, 29.9^P0.1, 42.4^P1 - 267^max) fps +66%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	63.6 fps +43%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	47.3 (4.78^min, 19.9^P0.1, 25.3^P1 - 232^max) fps +6%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	44.5 (8.12^min, 22.4^P0.1, 30.4^P1 - 506^max) fps
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	44 (17.6^min, 23.6^P0.1, 29.2^P1 - 484^max) fps -1%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	49.1 (23.1^min, 38.4^P0.1, 40.8^P1 - 125.3^max) fps +253%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	43.3 fps +212%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	30.2 (5.17^min, 14.7^P0.1, 16.3^P1 - 162.3^max) fps +117%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20.7 fps +49%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	16.1 (8.34^min, 8.6^P0.1, 8.83^P1 - 61^max) fps +16%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	13.9 (7.02^min, 10.1^P0.1, 12.1^P1 - 16.8^max) fps
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	13.5 (6.61^min, 9.9^P0.1, 11.5^P1 - 16.8^max) fps -3%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	97.3 fps +155%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	90.4 fps +137%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	54.3 fps +43%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	42.2 fps +11%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	40.3 fps +6%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	38.1 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	24.5 fps -36%
1920x1080 High Overall Quality (DX11)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	33.3 fps +295%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	29 fps +244%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	13.2 fps +57%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	11.2 fps +33%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	9.04 fps +7%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	8.43 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	6.23 fps -26%

GTA V
1024x768 Lowest Settings possible
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	164.4 (4.9^min, 111.1^P1 - 324^max) fps +25%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	157.8 (4.54^min, 111.1^P1 - 295^max) fps +20%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	134.5 (7.24^min, 90.9^P1 - 367^max) fps +3%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	131.2 (7.24^min, 90.9^P1 - 448^max) fps
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	121.3 (9.08^min, 83.3^P1 - 273^max) fps -8%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	118.3 (10.2^min, 76.9^P1 - 249^max) fps -10%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	100.8 (23.7^min, 71.4^P1 - 196.9^max) fps -23%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	66.9 (3.09^min, 45.5^P1 - 259^max) fps +210%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	59.7 (4.52^min, 40^P1 - 219^max) fps +176%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	28.5 (10.1^min, 21.3^P1 - 207^max) fps +32%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	23.1 (9.37^min, 16.4^P1 - 192^max) fps +7%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	21.6 (6.51^min, 16.1^P1 - 189.5^max) fps
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	16.9 (5.82^min, 13^P1 - 41.6^max) fps -22%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.7 (7.54^min, 9.71^P1 - 58.8^max) fps -37%

Far Cry 5
1280x720 Low Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	87 (75^min - 104^max) fps +248%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	80 (69^min - 98^max) fps +220%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	49 (42^min - 63^max) fps +96%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	46 (38^min - 52^max) fps +84%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	34 (29^min - 43^max) fps +36%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	30 (26^min - 36^max) fps +20%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	25 (21^min - 33^max) fps
1920x1080 High Preset AA:T
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	47 (42^min - 56^max) fps +292%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	41 (36^min - 49^max) fps +242%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	21 (18^min - 25^max) fps +75%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (17^min - 25^max) fps +67%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	14 (12^min - 19^max) fps +17%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	12 (10^min - 16^max) fps 0%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	12 (10^min - 16^max) fps

Far Cry New Dawn
1280x720 Low Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	75 (58^min - 97^max) fps +134%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	70 (50^min - 89^max) fps +119%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	45 (29^min - 56^max) fps +41%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	43 (33^min - 55^max) fps +34%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	35 (27^min - 43^max) fps +9%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	32 (26^min - 40^max) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	27 (17^min - 35^max) fps -16%
1920x1080 High Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	45 (37^min - 53^max) fps +221%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	40 (32^min - 47^max) fps +186%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	22 (16^min - 27^max) fps +57%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	20 (12^min - 24^max) fps +43%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	16 (12^min - 19^max) fps +14%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	14 (11^min - 17^max) fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13 (9^min - 16^max) fps -7%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	151.2 fps +311%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	131.4 fps +257%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	56.9 fps +55%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	40.9 fps +11%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	36.8 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	25.7 fps -30%
1920x1080 High Preset (DX12)
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	38.8 fps +361%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	33.3 fps +296%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	13.5 fps +61%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	9.24 fps +10%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	8.41 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	6.35 fps -24%

Metro Exodus
1280x720 Low Quality AF:4x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	92.5 (56.63^min - 130.99^max) fps +269%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	81.1 (49.18^min - 114.94^max) fps +223%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	33.1 (19.24^min - 49.3^max) fps +32%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	28.4 (18.34^min - 40.02^max) fps +13%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	25.1 (15.39^min - 37.85^max) fps
1920x1080 High Quality AF:16x
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	28.7 (14.33^min - 42.03^max) fps +271%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	25 (12.18^min - 37.05^max) fps +223%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	11.7 (6.1^min - 17.86^max) fps +51%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	8.4 (4.14^min - 13.6^max) fps +9%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	7.73 (3.74^min - 13.13^max) fps

Shadow of the Tomb Raider
1280x720 Lowest Preset
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	109.2 fps +206%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	94.1 fps +164%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	40.5 fps +13%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	40 fps +12%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	35.7 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	33.2 fps -7%
1920x1080 High Preset AA:SM
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	41.2 fps +258%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	36.3 fps +216%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	17.6 fps +53%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	12.6 fps +10%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	12.1 fps +5%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	11.5 fps

Strange Brigade
1280x720 lowest AF:1
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	168.8 (121.6^min, 142.3^P1 - 233^max) fps +708%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	148.8 (53.7^min, 130^P1 - 285^max) fps +612%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	86.3 (51.6^min, 72^P1 - 163.3^max) fps +313%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	78.1 (17.5^min, 24^P1 - 419^max) fps +274%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	67.7 (53.7^min, 60.2^P1 - 86.8^max) fps +224%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	55.6 (12.4^min, 18^P1 - 448^max) fps +166%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	20.9 (18.4^min, 19.1^P1 - 24.8^max) fps
1920x1080 high AA:high AF:8
Minisforum EliteMini UM780 XTX Radeon 780M, R7 7840HS, Kingston OM8PGP41024Q-A0	56.5 (37.2^min, 44.1^P1 - 77.4^max) fps +295%
Minisforum Venus Series UM790 Pro Radeon 780M, R9 7940HS, 2x Kingston OM8PGP4256Q-A0 (RAID 0)	50.7 (14.7^min, 38.5^P1 - 320^max) fps +255%
Minisforum Mars Series MC560 Vega 7, R5 5600U, ESO512GYLCT	26 (19.1^min, 20.7^P1 - 45.9^max) fps +82%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	25.6 (5^min, 9.18^P1 - 212^max) fps +79%
Minisforum BD770i Radeon 610M, R7 7745HX, Fikwot FN955	17 (13.4^min, 13.9^P1 - 22.4^max) fps +19%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	16.6 (5^min, 5.93^P1 - 306^max) fps +16%
Minisforum BD790i Radeon 610M, R9 7945HX, Kingston KC3000 2048G SKC3000D2048G	14.3 (10.6^min, 11^P1 - 20^max) fps

	low	med.	high	ultra
GTA V (2015)	131.2	99.5	21.6	9.61
The Witcher 3 (2015)	44.5	27	13.9	7.8
Final Fantasy XV Benchmark (2018)	25.9	11.4	7.97
X-Plane 11.11 (2018)	39.8	23.5	20.8
Far Cry 5 (2018)	25	13	12	11
Strange Brigade (2018)	20.9	18.8	14.3	12
Shadow of the Tomb Raider (2018)	35.7	12.5	11.5	9.4
Far Cry New Dawn (2019)	32	15	14	12
Metro Exodus (2019)	25.1	10.6	7.73	6.41
Borderlands 3 (2019)	38.1	14.3	8.43	6.4
Tiny Tina's Wonderlands (2022)	16.3	12.8	8.41

The Minisforum BD790i with an Nvidia GeForce RTX 4090

The Minisforum BD790i mainboard is ideal as the basis for a compact gaming system. The AMD Ryzen 9 7945HX offers plenty of performance, and even CPU-demanding games don't overtax the 16-core component in any way. A look at the synthetic benchmarks reveals only minor differences between the various systems. The Minisforum BD790i mainboard has a full PCIe x16 interface that already supports the 5.0 standard. This means that future graphics cards, which will probably be released in the coming months, can also be operated with their full bandwidth, which further underpins this component's future-proof qualities. We used our Palit GeForce RTX 4090 Gamerock OC for the gaming tests. Due to the size of the graphics card, we had to use the Minisforum BD790i in an open setup for these tests. The graphics card is simply too big for the Phanteks Enthoo Evolv Shift XT case.

To analyze the gaming benchmarks, let's first take a look at the performance at the CPU limit. This is where there were the biggest differences between the various processors. Our test system delivered roughly the performance level that can be expected from an AMD Ryzen 5 9600X. An Intel Core i9-14900K was within reach and only delivered slightly more performance. When we increased the resolution and the detail level, the processor's performance moved more and more into the background. At the GPU limit, all comparison devices were much closer together, meaning a real difference was hardly noticeable. The combination of an AMD Ryzen 9 7945HX and the Palit GeForce RTX 4090 Gamerock OC consistently ensured impressive gaming performance, which is in no way inferior to conventional desktop PCs.

All systems listed in this comparison were tested with the same graphics card, a Palit GeForce RTX 4090 Gamerock OC.

Minisforum BD790i in combination with the Nvidia GeForce RTX 4090

Performance Rating - Percent
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	97.8 pt
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	96.3 pt
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	96 pt
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	95.5 pt
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	94.9 pt
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	94.9 pt
Intel Core i7-13700, NVIDIA GeForce RTX 4090	94.6 pt
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	91.7 pt
Intel Core i7-12700, NVIDIA GeForce RTX 4090	90.8 pt
Intel Core i5-13400, NVIDIA GeForce RTX 4090	88.5 pt

3DMark 11 - 1280x720 Performance GPU
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	115253 Points +3291%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	114641 Points +3273%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	110994 Points +3165%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	107723 Points +3069%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	105473 Points +3003%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	104876 Points +2985%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	104598 Points +2977%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	104516 Points +2975%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	103741 Points +2952%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	99614 Points +2831%
	3399 Points

3DMark
2560x1440 Time Spy Graphics
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	37809 Points +5552%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	37769 Points +5546%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	37714 Points +5537%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	37664 Points +5530%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	37161 Points +5455%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	37106 Points +5446%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	36836 Points +5406%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	34580 Points +5069%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	33624 Points +4926%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	32488 Points +4756%
	669 Points
1920x1080 Fire Strike Graphics
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	87786 Points +3755%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	86031 Points +3678%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	79398 Points +3387%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	78878 Points +3364%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	78579 Points +3351%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	77224 Points +3291%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	73447 Points +3126%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	72678 Points +3092%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	72177 Points +3070%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	66973 Points +2841%
	2277 Points
3840x2160 Fire Strike Ultra Graphics
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	25571 Points +5306%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	25435 Points +5277%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	25342 Points +5258%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	25254 Points +5239%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	25052 Points +5196%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	25018 Points +5189%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	24968 Points +5179%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	24915 Points +5167%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	24906 Points +5166%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	24669 Points +5115%
	473 Points

Unigine Superposition
1280x720 720p Low
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	63603 Points +1278%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	57833 Points +1153%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	56805 Points +1131%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	51741 Points +1021%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	50617 Points +997%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	50107 Points +986%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	49203 Points +966%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	45591 Points +888%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	40758 Points +783%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	35207 Points +663%
	4614 Points
1920x1080 1080p High
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	50390 Points +5353%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	50230 Points +5336%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	49328 Points +5239%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	46814 Points +4966%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	45532 Points +4828%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	45368 Points +4810%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	45162 Points +4788%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	41353 Points +4375%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	37819 Points +3993%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	32711 Points +3440%
	924 Points
1920x1080 1080p Extreme
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	22618 Points +7978%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	22416 Points +7906%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	21954 Points +7741%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	21917 Points +7728%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	21824 Points +7694%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	21808 Points +7689%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	21646 Points +7631%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	21615 Points +7620%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	21604 Points +7616%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	21586 Points +7609%
	280 Points
3840x2160 4k Optimized
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	33943 Points
Intel Core i7-13700, NVIDIA GeForce RTX 4090	33765 Points
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	33737 Points
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	33700 Points
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	33601 Points
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	33540 Points
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	33095 Points
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	32629 Points
Intel Core i7-12700, NVIDIA GeForce RTX 4090	32608 Points
Intel Core i5-13400, NVIDIA GeForce RTX 4090	30877 Points
7680x4320 8k Optimized
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	13082 Points
Intel Core i7-13700, NVIDIA GeForce RTX 4090	13081 Points
Intel Core i7-12700, NVIDIA GeForce RTX 4090	13070 Points
Intel Core i5-13400, NVIDIA GeForce RTX 4090	13011 Points
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	12801 Points
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	12791 Points
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	12770 Points
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	12752 Points
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	12526 Points
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	12498 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	324 fps +3140%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	304.6 fps +2946%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	283.4 fps +2734%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	270.7 fps +2607%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	266.6 fps +2566%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	257.5 fps +2475%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	249.8 fps +2398%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	246.7 fps +2367%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	238.4 fps +2284%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	226.2 fps +2162%
	10 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	331.8 fps +3393%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	320.9 fps +3278%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	303.2 fps +3092%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	293.1 fps +2985%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	288 fps +2932%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	270 fps +2742%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	260.9 fps +2646%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	260.9 fps +2646%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	258.5 fps +2621%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	242.8 fps +2456%
	9.5 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	472.4 fps +3534%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	463.3 fps +3464%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	461 fps +3446%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	458 fps +3423%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	456.3 fps +3410%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	450.4 fps +3365%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	450.4 fps +3365%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	442.4 fps +3303%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	433.8 fps +3237%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	420 fps +3131%
	13 fps
Extreme Preset DX11
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	491.5 fps +3929%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	484.4 fps +3870%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	476.3 fps +3804%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	473.9 fps +3784%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	473.1 fps +3778%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	473 fps +3777%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	463.8 fps +3702%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	462.5 fps +3691%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	435.2 fps +3467%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	416.6 fps +3315%
	12.2 fps

ComputeMark v2.1
1024x600 Normal, Score
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	92521 Points +5580%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	92397 Points +5572%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	92292 Points +5566%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	92222 Points +5561%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	92171 Points +5558%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	91722 Points +5531%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	91703 Points +5529%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	91665 Points +5527%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	91659 Points +5527%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	91616 Points +5524%
	1629 Points
1024x600 Normal, Fluid 3DTex
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	10875 Points +4712%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	10797 Points +4677%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	10759 Points +4661%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	10758 Points +4660%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	10756 Points +4659%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	10756 Points +4659%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	10749 Points +4656%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	10724 Points +4645%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	10707 Points +4638%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	10498 Points +4545%
	226 Points
1024x600 Normal, Fluid 2DTexArr
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	6960 Points +3506%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	6948 Points +3500%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	6924 Points +3488%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	6920 Points +3485%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	6901 Points +3476%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	6891 Points +3470%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	6891 Points +3470%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	6891 Points +3470%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	6887 Points +3468%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	6879 Points +3464%
	193 Points
1024x600 Normal, Mandel Vector
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	17390 Points +5369%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	17369 Points +5362%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	17355 Points +5358%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	17336 Points +5352%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	17307 Points +5342%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	17246 Points +5323%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	17207 Points +5311%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	17196 Points +5308%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	17156 Points +5295%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	17154 Points +5294%
	318 Points
1024x600 Normal, Mandel Scalar
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	23006 Points +4595%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	22992 Points +4592%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	22970 Points +4588%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	22936 Points +4581%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	22926 Points +4579%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	22889 Points +4571%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	22843 Points +4562%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	22834 Points +4560%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	22825 Points +4558%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	22813 Points +4556%
	490 Points
1024x600 Normal, QJuliaRayTrace
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	34494 Points +8459%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	34367 Points +8428%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	34333 Points +8419%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	34332 Points +8419%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	34269 Points +8403%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	34107 Points +8363%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	34057 Points +8351%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	34033 Points +8345%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	33935 Points +8321%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	33822 Points +8293%
	403 Points

Performance comparison at CPU limit at 720p

Performance Rating - Percent
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	98.8 pt
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	90.2 pt
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	86.7 pt
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	85.2 pt
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	79.4 pt
Intel Core i7-13700, NVIDIA GeForce RTX 4090	76.5 pt
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	76.4 pt
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	74.1 pt
Intel Core i7-12700, NVIDIA GeForce RTX 4090	65.9 pt
Intel Core i5-13400, NVIDIA GeForce RTX 4090	57.3 pt

F1 22 - 1280x720 Ultra Low Preset AA:T AF:16x
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	629 (477^min, 404^P1 - 691^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	575 (428^min, 366^P1 - 631^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	533 (379^min, 335^P1 - 591^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	507 (370^min, 322^P1 - 562^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	463 (344^min, 290^P1 - 519^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	461 (332^min, 291^P1 - 514^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	447 (342^min, 277^P1 - 503^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	436 (316^min, 273^P1 - 499^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	370 (291^min, 235^P1 - 403^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	276 (223^min, 175^P1 - 302^max) fps

Far Cry 5 - 1280x720 Low Preset AA:T
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	344 (220^min - 464^max) fps +1276%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	263 (201^min - 342^max) fps +952%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	256 (194^min - 336^max) fps +924%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	255 (199^min - 343^max) fps +920%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	238 (182^min - 313^max) fps +852%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	232 (161^min - 306^max) fps +828%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	205 (155^min - 280^max) fps +720%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	204 (156^min - 270^max) fps +716%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	191 (154^min - 245^max) fps +664%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	185 (144^min - 241^max) fps +640%
	25 (21^min - 33^max) fps

X-Plane 11.11 - 1280x720 low (fps_test=1)
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	263 fps +561%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	245 fps +516%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	228 fps +473%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	223 fps +460%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	219 fps +450%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	218 fps +448%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	196.4 fps +393%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	195.9 fps +392%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	181.4 fps +356%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	155.7 fps +291%
	39.8 fps

Final Fantasy XV Benchmark - 1280x720 Lite Quality
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	237 fps +815%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	237 fps +815%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	236 fps +811%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	236 fps +811%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	236 fps +811%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	236 fps +811%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	236 fps +811%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	234 fps +803%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	232 fps +796%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	217 fps +738%
	25.9 fps

Dota 2 Reborn - 1280x720 min (0/3) fastest
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	322.9 (268^min) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	310.6 (261.3^min) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	292.5 (254^min) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	291 (244.2^min) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	268.7 (228.5^min) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	261.5 (226.3^min) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	252 (207.9^min) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	245 (213.8^min) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	202.4 (178^min) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	182.1 (160.5^min) fps

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	858.4 fps +1829%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	826 (23.6^min, 360^P0.1, 574^P1 - 1357^max) fps +1756%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	826 (25.6^min, 359^P0.1, 581^P1 - 1348^max) fps +1756%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	762 (66^min, 266^P0.1, 520^P1 - 1355^max) fps +1612%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	709 (68^min, 283^P0.1, 492^P1 - 1116^max) fps +1493%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	692 (27.9^min, 218^P0.1, 476^P1 - 1085^max) fps +1455%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	670.4 fps +1407%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	632 (29.4^min, 209^P0.1, 471^P1 - 1028^max) fps +1320%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	522 fps +1073%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	451.7 fps +915%
	44.5 (8.12^min, 22.4^P0.1, 30.4^P1 - 506^max) fps

GTA V - 1024x768 Lowest Settings possible
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	188.5 fps +44%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	188.2 (5.44^min, 200^P1 - 724^max) fps +43%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	188.1 (3^min, 200^P1 - 713^max) fps +43%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	188 (2.39^min, 200^P1 - 739^max) fps +43%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	187.7 (5.01^min, 200^P1 - 613^max) fps +43%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	187.7 (4.67^min, 200^P1 - 640^max) fps +43%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	187.6 (6.27^min, 200^P1 - 666^max) fps +43%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	187.6 (6.33^min, 200^P1 - 591^max) fps +43%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	187.1 (2.4^min, 200^P1 - 499^max) fps +43%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	186.8 (1.87^min, 166.7^P1 - 445^max) fps +42%
	131.2 (7.24^min, 90.9^P1 - 448^max) fps

Borderlands 3 - 1280x720 Very Low Overall Quality (DX11)
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	310 fps +714%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	258 fps +577%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	242 fps +535%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	237 fps +522%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	228 fps +498%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	222 fps +483%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	213 fps +459%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	203 fps +433%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	185.6 fps +387%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	169 fps +344%
	38.1 fps

Far Cry New Dawn - 1280x720 Low Preset
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	291 (218^min - 442^max) fps +809%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	231 (150^min - 345^max) fps +622%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	226 (163^min - 362^max) fps +606%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	216 (168^min - 312^max) fps +575%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	203 (144^min - 297^max) fps +534%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	200 (140^min - 302^max) fps +525%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	174 (103^min - 253^max) fps +444%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	170 (123^min - 265^max) fps +431%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	165 (119^min - 255^max) fps +416%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	159 (110^min - 233^max) fps +397%
	32 (26^min - 40^max) fps

Shadow of the Tomb Raider - 1280x720 Lowest Preset
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	407 fps +1040%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	337 fps +844%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	332 fps +830%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	319 fps +794%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	281 fps +687%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	275 fps +670%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	273 fps +665%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	272 fps +662%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	231 fps +547%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	204 fps +471%
	35.7 fps

Tiny Tina's Wonderlands - 1280x720 Lowest Preset (DX12)
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	548 fps +1389%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	536 fps +1357%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	459 fps +1147%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	457 fps +1142%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	438 fps +1090%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	414 fps +1025%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	410 fps +1014%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	382 fps +938%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	342 fps +829%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	299 fps +713%
	36.8 fps

Strange Brigade - 1280x720 lowest AF:1
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	766 (267^min, 595^P1 - 1030^max) fps +3565%
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	760 (257^min, 602^P1 - 1084^max) fps +3536%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	735 (154.9^min, 595^P1 - 998^max) fps +3417%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	717 (186^min, 554^P1 - 1036^max) fps +3331%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	698 (182.7^min, 569^P1 - 937^max) fps +3240%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	676 (174.6^min, 524^P1 - 975^max) fps +3134%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	626 (284^min, 497^P1 - 830^max) fps +2895%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	592 (145.4^min, 461^P1 - 800^max) fps +2733%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	523 (243^min, 410^P1 - 698^max) fps +2402%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	408 (153.5^min, 319^P1 - 565^max) fps +1852%
	20.9 (18.4^min, 19.1^P1 - 24.8^max) fps

Metro Exodus - 1280x720 Low Quality AF:4x
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	374 (214.41^min - 571.76^max) fps +1390%
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	349 (182.25^min - 551.57^max) fps +1290%
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	318 (165.98^min - 520.02^max) fps +1167%
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	300 (162.95^min - 476.42^max) fps +1095%
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	296 (170.68^min - 455.17^max) fps +1079%
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	287 (154.34^min - 426.99^max) fps +1043%
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	270 (148.35^min - 431.03^max) fps +976%
Intel Core i7-13700, NVIDIA GeForce RTX 4090	268 (127.73^min - 445.04^max) fps +968%
Intel Core i7-12700, NVIDIA GeForce RTX 4090	233 (124.52^min - 364.56^max) fps +828%
Intel Core i5-13400, NVIDIA GeForce RTX 4090	196.9 (110.05^min - 286.04^max) fps +684%
	25.1 (15.39^min - 37.85^max) fps

F1 2020 - 1280x720 Ultra Low Preset
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	681 (531^min - 769^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	630 (468^min - 710^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	584 (467^min - 677^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	563 (437^min - 628^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	529 (400^min - 599^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	470 (364^min - 522^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	461 (323^min - 528^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	403 (333^min - 436^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	388 (314^min - 434^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	292 (253^min - 317^max) fps

F1 2021 - 1280x720 Ultra Low Preset
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	830 (632^min, 515^P1 - 919^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	720 (552^min, 445^P1 - 791^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	677 (504^min, 418^P1 - 754^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	669 (451^min, 412^P1 - 741^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	589 (432^min, 369^P1 - 647^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	572 (447^min, 359^P1 - 620^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	562 (468^min, 364^P1 - 618^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	562 (420^min, 351^P1 - 627^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	448 (363^min, 297^P1 - 477^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	337 (277^min, 237^P1 - 358^max) fps

Performance comparison at GPU limit at 2,160p

Performance Rating - Percent
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	99.2 pt
Intel Core i9-14900K, NVIDIA GeForce RTX 4090 ^-1!	97.5 pt
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	96.5 pt
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	95.6 pt
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	95.2 pt
Intel Core i7-13700, NVIDIA GeForce RTX 4090	93.6 pt
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	92.4 pt
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	92.1 pt
Intel Core i7-12700, NVIDIA GeForce RTX 4090	89.7 pt
Intel Core i5-13400, NVIDIA GeForce RTX 4090	85.3 pt

F1 22 - 3840x2160 Ultra High Preset AA:T AF:16x
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	85 (73^min, 72^P1 - 99^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	85 (60^min, 65^P1 - 98^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	84.9 (73^min, 72^P1 - 98^max) fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	84.5 (72^min, 71^P1 - 97^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	83.8 (73^min, 72^P1 - 96^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	83.5 (72^min, 71^P1 - 96^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	82.5 (72^min, 71^P1 - 96^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	81.6 (71^min, 70^P1 - 93^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	81.3 (71^min, 68^P1 - 93^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	81.2 (72^min, 67^P1 - 93^max) fps

Far Cry 5 - 3840x2160 Ultra Preset AA:T
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	187 (166^min - 215^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	181 (151^min - 215^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	181 (150^min - 215^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	175 (140^min - 212^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	171 (140^min - 207^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	170 (136^min - 198^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	153 (117^min - 203^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	152 (115^min - 207^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	146 (112^min - 198^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	142 (108^min - 190^max) fps

Final Fantasy XV Benchmark - 3840x2160 High Quality
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	161.9 fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	161.5 fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	161.1 fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	160.2 fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	158.2 fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	157.9 fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	153.4 fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	152 fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	150.9 fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	149.8 fps

Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	258.2 (201.3^min) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	234.4 (192.2^min) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	228.7 (190.7^min) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	225 (189.1^min) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	211.5 (179.5^min) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	196.8 (166.7^min) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	196.7 (164.3^min) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	192.8 (156.7^min) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	163.7 (141.2^min) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	149.8 (129.3^min) fps

The Witcher 3 - 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	292 (41.8^min, 168.4^P0.1, 232^P1 - 689^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	288 (85.6^min, 166.1^P0.1, 233^P1 - 721^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	284 (88.3^min, 166.6^P0.1, 240^P1 - 831^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	282.2 fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	282.1 fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	282 fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	281 fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	277 (60.5^min, 160.4^P0.1, 218^P1 - 675^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	277 (20.2^min, 154.7^P0.1, 219^P1 - 925^max) fps

GTA V - 3840x2160 Highest Settings possible AA:4xMSAA + FX AF:16x
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	146.2 (8.5^min, 90.9^P1 - 331^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	145 (6.06^min, 100^P1 - 295^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	141.9 (11.7^min, 100^P1 - 301^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	140.8 (8.91^min, 90.9^P1 - 270^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	138 (8.49^min, 90.9^P1 - 306^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	133.3 (8.35^min, 90.9^P1 - 273^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	133 (6.57^min, 90.9^P1 - 255^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	130.6 (8.29^min, 90.9^P1 - 245^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	126.9 (5^min, 90.9^P1 - 249^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	122.2 (8.01^min, 90.9^P1 - 227^max) fps

Borderlands 3 - 3840x2160 Badass Overall Quality (DX11)
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	137.9 fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	137.4 fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	136.1 fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	135 fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	134.1 fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	132.4 fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	131.8 fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	127.9 fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	125.5 fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	120.5 fps

Far Cry New Dawn - 3840x2160 Ultra Preset
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	180 (147^min - 219^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	159 (120^min - 220^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	153 (115^min - 219^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	148 (110^min - 200^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	145 (104^min - 215^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	145 (106^min - 212^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	127 (92^min - 198^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	124 (84^min - 203^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	123 (85^min - 195^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	119 (88^min - 182^max) fps

Shadow of the Tomb Raider - 3840x2160 Highest Preset AA:T
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	188.8 fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	188.2 fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	188.1 fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	187.7 fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	187.6 fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	186.8 fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	186.4 fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	186 fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	184.5 fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	173.1 fps

Tiny Tina's Wonderlands - 3840x2160 Badass Preset (DX12)
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	131.6 fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	130.8 fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	130.4 fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	130.3 fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	130.2 fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	130 fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	129.8 fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	129.8 fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	129.7 fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	129.7 fps

Strange Brigade - 3840x2160 ultra AA:ultra AF:16
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	291 (43.8^min, 249^P1 - 489^max) fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	289 (119.3^min, 246^P1 - 463^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	289 (243^min, 249^P1 - 426^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	289 (68.9^min, 245^P1 - 450^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	287 (131.6^min, 246^P1 - 435^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	286 (37.1^min, 244^P1 - 520^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	284 (44.1^min, 236^P1 - 407^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	282 (28.1^min, 238^P1 - 533^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	281 (31.7^min, 239^P1 - 482^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	278 (59.8^min, 227^P1 - 408^max) fps

Metro Exodus - 3840x2160 Ultra Quality AF:16x
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	142.9 (82.83^min - 229.52^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	142.1 (81.45^min - 230.73^max) fps
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	141.6 (85.41^min - 213.31^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	139.7 (76.95^min - 229.15^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	138 (71.03^min - 235.4^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	136.9 (71.43^min - 234.36^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	135.8 (71.78^min - 226.91^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	133.7 (72.8^min - 223.61^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	132.4 (68.05^min - 211.86^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	126.7 (68.66^min - 196.97^max) fps

F1 2020 - 3840x2160 Ultra High Preset AA:T AF:16x
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	288 (242^min - 333^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	288 (242^min - 338^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	287 (245^min - 337^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	287 (243^min - 337^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	286 (245^min - 335^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	286 (243^min - 338^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	283 (240^min - 332^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	283 (239^min - 331^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	275 (197^min - 319^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	229 (184^min - 265^max) fps

F1 2021 - 3840x2160 Ultra High Preset + Raytracing AA:T AF:16x
AMD Ryzen 7 7800X3D, NVIDIA GeForce RTX 4090	207 (179^min, 176^P1 - 230^max) fps
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4090	207 (175^min, 170^P1 - 231^max) fps
AMD Ryzen 5 9600X, NVIDIA GeForce RTX 4090	205 (176^min, 168^P1 - 232^max) fps
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090	203 (170^min, 156^P1 - 223^max) fps
Intel Core i5-14600K, NVIDIA GeForce RTX 4090	201 (173^min, 153^P1 - 227^max) fps
Intel Core i9-14900K, NVIDIA GeForce RTX 4090	201 (173^min, 158^P1 - 226^max) fps
AMD Ryzen 9 7950X, NVIDIA GeForce RTX 4090	199.1 (168^min, 166^P1 - 223^max) fps
Intel Core i7-13700, NVIDIA GeForce RTX 4090	196.8 (166^min, 156^P1 - 217^max) fps
Intel Core i7-12700, NVIDIA GeForce RTX 4090	193.1 (162^min, 137^P1 - 211^max) fps
Intel Core i5-13400, NVIDIA GeForce RTX 4090	176.2 (144^min, 127^P1 - 189^max) fps

	low	med.	high	ultra	QHD	4K
GTA V (2015)	187.6	187.3	183	141	140.5	183.6
The Witcher 3 (2015)	709	618	563	310	272	292
Dota 2 Reborn (2015)	268.7	234.8	221.4	202.6		196.7
Final Fantasy XV Benchmark (2018)	234	234	213		208	152
X-Plane 11.11 (2018)	196.4	169.4	127.6			105.9
Far Cry 5 (2018)	191	168	163	151	151	146
Strange Brigade (2018)	592	470	465	463	461	289
Shadow of the Tomb Raider (2018)	273	266	264	263	252	186.8
Far Cry New Dawn (2019)	165	142	139	124	129	123
Metro Exodus (2019)	270	243	210	183.2	167.7	133.7
Borderlands 3 (2019)	213	189.6	175.5	165.6	163.2	134.1
F1 2020 (2020)	470	390	379	359	354	283
F1 2021 (2021)	562	533	455	220	222	203
Tiny Tina's Wonderlands (2022)	365	308	269	258	222	129.8
F1 22 (2022)	382	366	339	170	159.4	85
F1 23 (2023)	368	390	373	164.3	147.9	80.9
Cyberpunk 2077 2.2 Phantom Liberty (2023)	186	183.2	177.4	163.9	151.4	75.3
Assassin's Creed Mirage (2023)	250	244	236	167	163	128
Avatar Frontiers of Pandora (2023)	232	212	202	170	126	70
F1 24 (2024)	350	371	345	176.7	146.3	80

Power consumption and temperatures

Minisforum delivers the BD790i mainboard with a pre-installed heatpipe cooling unit, which cools the processor and the voltage converters on the mainboard. The choice of fan is up to the user and must be installed by themselves. The corresponding mounting material to install a 120-millimeter fan is included. We chose a Noctua NF-A12x25 fan, which was already used in our test of the Minisforum BD770i. The biggest advantage of the Minisforum BD790i compared to conventional desktop PCs is its low power consumption. We only measured around 140 watts during the Cinebench R15 multi-test, which is great efficiency in relation to the performance it offers.

Regarding its overall operation and the noise level during operation, we can only say that the built-in power supply unit is audible in our test setup. Both in idle mode and under load, we were unable to take any measurements that would be influenced by the installed power supply unit. The CPU fan and the pre-installed fan for cooling the SSD cannot be heard from the closed case. The cooling works very effectively and we didn't document any critical values under load. Nevertheless, we are of the opinion that separating the CPU and VRM cooler would make sense in order to be able to install a cooling solution for the processor itself. The SoC could certainly be cooled even more effectively with an AiO solution.

Compared to the well-known mainboard manufacturers, the setting options in the Minisforum BD790i mainboard's BIOS are very limited. The processor's power consumption can be changed, although the fan curve can't be adjusted separately. If Minisforum continues to cover this market, we would very much welcome a more user-friendly option.

Efficiency overview

Performance Rating | Power Consumption

Performance Rating - Percent
Minisforum BD790i AMD Ryzen 9 7945HX, Radeon 610M	93.8 pt
Minisforum BD770i AMD Ryzen 7 7745HX, Radeon 610M	85.5 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Minisforum BD790i AMD Ryzen 9 7945HX, Radeon 610M	237 Points per Watt
Minisforum BD770i AMD Ryzen 7 7745HX, Radeon 610M	224 Points per Watt -5%
Cinebench R23 Single Power Efficiency - external Monitor
Minisforum BD770i AMD Ryzen 7 7745HX, Radeon 610M	41.8 Points per Watt +23%
Minisforum BD790i AMD Ryzen 9 7945HX, Radeon 610M	34 Points per Watt
Cinebench R15 Multi Efficiency (external Monitor)
Minisforum BD790i AMD Ryzen 9 7945HX, Radeon 610M	38 Points per Watt
Minisforum BD770i AMD Ryzen 7 7745HX, Radeon 610M	23.5 Points per Watt -38%

Power Consumption: Cinebench R15 Multi (external Monitor) | Prime95 V2810 Stress (external Monitor) | Cinebench R23 Multi (external Monitor) | Cinebench R23 Single (external Monitor) | Cinebench R15 Multi Efficiency (external Monitor)

Power Consumption / Cinebench R15 Multi (external Monitor)
Intel Core i9-14900K	548 (545^min, 545^P1 - 551^max) Watt * -294%
Intel Core i9-13900K	480 (263^min, 277^P1 - 553^max) Watt * -245%
AMD Ryzen 9 7950X (Idle: 95.2 W)	364 (357^min, 357^P1 - 373^max) Watt * -162%
Intel Core i7-13700K	357 (356^min, 356^P1 - 362^max) Watt * -157%
Intel Core i5-14600K	329 (323^min, 324^P1 - 331^max) Watt * -137%
Intel Core i5-13600K	286 (232^min, 235^P1 - 343^max) Watt * -106%
Intel Core i7-12700	284 (282^min, 282^P1 - 287^max) Watt * -104%
AMD Ryzen 9 7950X3D	273 (264^min, 264^P1 - 304^max) Watt * -96%
AMD Ryzen 7 7800X3D	207 (203^min, 203^P1 - 216^max) Watt * -49%
Intel Core i5-13400	196.6 (194.6^min, 194.6^P1 - 207^max) Watt * -41%
Intel Core i5-12400F	194.4 (192.3^min, 192.3^P1 - 200^max) Watt * -40%
AMD Ryzen 9 7945HX	139.1 (131.4^min, 132^P1 - 140.9^max) Watt *
AMD Ryzen 7 7745HX	127.5 (126.9^min, 126.9^P1 - 127.9^max) Watt * +8%

Power Consumption / Prime95 V2810 Stress (external Monitor)
Intel Core i9-14900K	537 (508^min, 510^P1 - 606^max) Watt * -270%
Intel Core i9-13900K	471 (414^min, 427^P1 - 561^max) Watt * -224%
Intel Core i5-14600K	370 (349^min, 349^P1 - 422^max) Watt * -155%
Intel Core i7-13700K	357 (341^min, 342^P1 - 458^max) Watt * -146%
Intel Core i5-13600K	348 (283^min, 288^P1 - 496^max) Watt * -140%
AMD Ryzen 9 7950X (Idle: 95.2 W)	335 (311^min, 312^P1 - 364^max) Watt * -131%
Intel Core i7-12700	327 (304^min, 305^P1 - 394^max) Watt * -125%
AMD Ryzen 9 7950X3D	276 (267^min, 267^P1 - 329^max) Watt * -90%
Intel Core i5-12400F	239 (225^min, 226^P1 - 252^max) Watt * -65%
Intel Core i5-13400	229 (224^min, 224^P1 - 247^max) Watt * -58%
AMD Ryzen 7 7800X3D	218 (214^min, 215^P1 - 223^max) Watt * -50%
AMD Ryzen 9 7945HX	145.2 (140.8^min, 141.7^P1 - 151.2^max) Watt *
AMD Ryzen 7 7745HX	130.1 (125.2^min, 125.3^P1 - 132.3^max) Watt * +10%

Power Consumption / Cinebench R23 Multi (external Monitor)
Intel Core i9-14900K	531 (470^min, 479^P1 - 573^max) Watt * -277%
AMD Ryzen 9 7950X (95.2)	353 (346^min, 347^P1 - 362^max) Watt * -150%
Intel Core i5-14600K	332 (329^min, 329^P1 - 336^max) Watt * -135%
AMD Ryzen 9 7950X3D	289 (287^min, 287^P1 - 290^max) Watt * -105%
AMD Ryzen 7 7800X3D	203 (202^min, 202^P1 - 204^max) Watt * -44%
AMD Ryzen 9 7945HX	141 (140.6^min, 140.6^P1 - 141.7^max) Watt *
AMD Ryzen 7 7745HX	84.1 (81.1^min, 81.5^P1 - 88.8^max) Watt * +40%

Power Consumption / Cinebench R23 Single (external Monitor)
AMD Ryzen 7 7800X3D	190.8 (180^min, 184.6^P1 - 261^max) Watt * -234%
AMD Ryzen 9 7950X (95.2)	153.9 (148.8^min, 149.8^P1 - 179.2^max) Watt * -169%
Intel Core i9-14900K	151.5 (145.4^min, 146.4^P1 - 205^max) Watt * -165%
Intel Core i5-14600K	149.7 (143.8^min, 144.7^P1 - 227^max) Watt * -162%
AMD Ryzen 9 7945HX	57.2 (50.9^min, 52.3^P1 - 68^max) Watt *
AMD Ryzen 7 7745HX	44.4 (42.7^min, 43^P1 - 64^max) Watt * +22%

Power Consumption / Cinebench R15 Multi Efficiency (external Monitor)
AMD Ryzen 9 7945HX	38 Points per Watt
AMD Ryzen 7 7745HX	23.5 Points per Watt -38%
AMD Ryzen 9 7950X3D	21.9 Points per Watt -42%
AMD Ryzen 9 7950X	17.1 Points per Watt -55%
AMD Ryzen 7 7800X3D	14.4 Points per Watt -62%
Intel Core i9-13900K	12.9 Points per Watt -66%
Intel Core i5-13600K	12.7 Points per Watt -67%
Intel Core i9-14900K	11.5 Points per Watt -70%
Intel Core i5-14600K	11.1 Points per Watt -71%

Power Consumption: Cinebench R15 Multi (external Monitor) | Prime95 V2810 Stress (external Monitor) | Cinebench R23 Multi (external Monitor) | Cinebench R23 Single (external Monitor) | Cinebench R15 Multi Efficiency (external Monitor)

* ... smaller is better

Verdict - Powerful AMD Ryzen 9 7945HX

The Minisforum BD790i reviewed: test sample provided by Minisforum

The Minisforum BD790i is a very powerful mainboard including an SoC, which, as a Mini-ITX mainboard, offers the perfect basis for building small systems. As this is only a mainboard, the manufacturer targets customers willing to build a system themselves. Unlike with ready-made mini PCs, you still have to take care of additional components. It goes without saying that this incurs additional costs.

In combination with the AMD Ryzen 9 7945HX, the Minisforum BD790i delivers impressive performance, great efficiency and—thanks to its PCIe-5.0 support—good futureproof qualities for graphics cards and SSDs.

Based on our tests of the Minisforum BD790i itself, we can say that the AMD Ryzen 9 7945HX is an extremely powerful processor that can currently handle all tasks with ease. Compared to an Intel Core i9-14900K or an AMD Ryzen 9 7950X, the AMD Ryzen 9 7945HX has to admit defeat—although the difference in performance is only very slight. In relation to power consumption, the conventional desktop processors can no longer keep up. The decision to accommodate laptop technology in a conventional mainboard is a sensible one when it comes to efficiency. However, the biggest disadvantage is that the SoC cannot simply be replaced. In addition, you are limited to a fixed cooling unit, which means you can't use alternative cooling units.

At first glance, its current price of just under US$500 seems very high. When comparing performance values, however, the AMD Ryzen 9 7945HX certainly doesn't need to hide behind the fastest desktop processors. We therefore consider its current price to be justified, and if you don't want to upgrade the CPU at a later date, you can buy it without hesitation.

Price and availability

At the time of writing, you can purchase the Minisforum BD790i from Amazon for US$479.99.

Name	BD790i	BD790i SE	BD770i	AR900i
CPU	AMD Ryzen 9 7945HX	AMD Ryzen 9 7940HX	AMD Ryzen 7 7745HX	Intel Core i9-13900HX Processor
Cores / threads	16 / 32	16/32	8/16	24/32
GPU	AMD Radeon 610M	AMD Radeon 610M	AMD Radeon 610M	Intel UHD Graphics
Memory types	DDR5-5200 SODIMM	DDR5-5200 SODIMM	DDR5-5200 SODIMM	DDR5-5600 SODIMM
Max memory size	96 GB	64 GB	64 GB	64 GB

3DMark 06 Standard Score		20555 points
3DMark Vantage P Result		12092 points
3DMark 11 Performance		3873 points
3DMark Ice Storm Standard Score		41556 points
3DMark Cloud Gate Standard Score		14629 points
3DMark Fire Strike Score		2156 points
3DMark Fire Strike Extreme Score		530 points
3DMark Time Spy Score		740 points
Help

Minisforum BD790i review: Mini-ITX mainboard with an AMD Ryzen 9 7945HX and PCIe 5.0 as a basis for small gaming PCs

Mobile SoC meets desktop motherboard.

Minisforum mainboards in comparison

The Minisforum BD790i and the test system in detail

Case and test setup

Scope of delivery and connectivity

Processor benchmarks

Cinebench results AMD Ryzen 9 7945HX

System performance

DPC latencies

Storage devices

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

Graphics card - The AMD Radeon 610M as an iGPU

Gaming performance - AMD Radeon 610M

The Minisforum BD790i with an Nvidia GeForce RTX 4090

Performance comparison at CPU limit at 720p

Performance comparison at GPU limit at 2,160p

Power consumption and temperatures

Efficiency overview

Power consumption with and without dedicated graphics card

Power consumption with Nvidia GeForce RTX 4090

Pros

Cons

Verdict - Powerful AMD Ryzen 9 7945HX

Price and availability

Transparency

More articles related to this device

Related Articles
