MSI Cubi NUC 1M mini PC review: Solid but pricier than the competition ↺
Performance-per-dollar could be better.
The Cubi NUC 1M doesn't necessarily do anything poorly, but it doesn't excel in any key category, either. Its high price of over $900 USD for the Core 7 configuration sticks out like a sore thumb against cheaper and faster alternatives.Allen Ngo 👁 Published 🇫🇷 🇪🇸 ...
Verdict — Reliable But Pricey

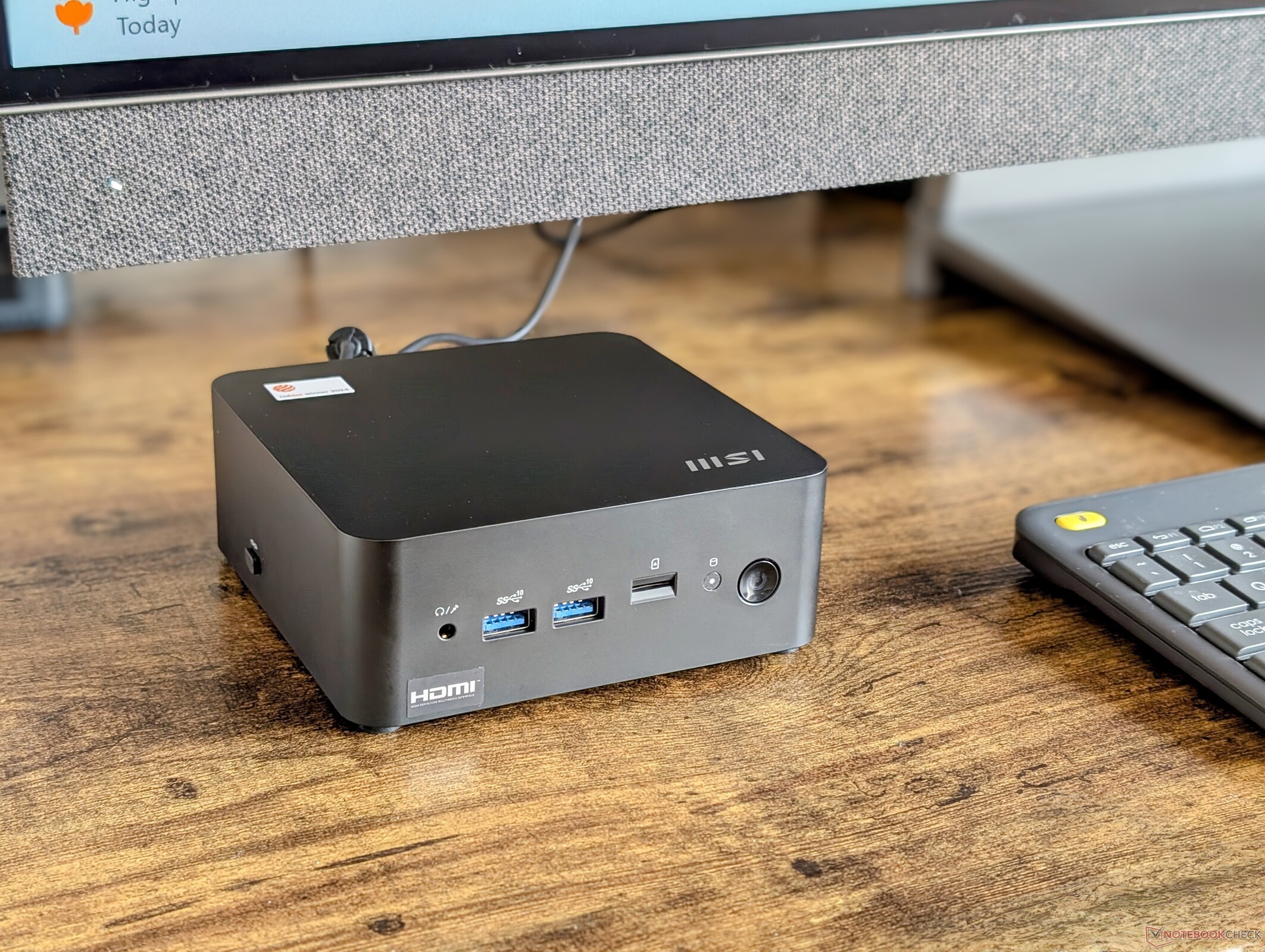

The Cubi NUC 1M is a well-built mini PC for office or conference room applications. It integrates dual Thunderbolt 4 ports and a MicroSD reader whereas most other mini PCs have just one Thunderbolt port and no SD reader at all. If your workloads can exploit these specific features on a daily basis, then the MSI mini PC can be a worthwhile option.
The Cubi NUC 1M is a basic office mini PC commanding a not-so-basic MSRP. Cheaper and faster alternatives are available if you don't mind losing the integrated MicroSD reader.
Pros
Cons
The main problem with the Cubi NUC 1M is instead its steep price of $800 USD for the just the Core i5 120U configuration or almost $1000 for our Core i7 configuration as reviewed. Alternatives from Beelink or GMK are several hundred dollars less while offering faster CPU options and similar chassis sizes. Value is therefore poorer than expected relative to the competition.
Price and Availability
The Cubi NUC 1M is now shipping on Amazon for $800 for the Core i5 configuration or $950 for the Core i7 option.
Potential Competitors in Comparison
Image | Model / Review | Geizhals | Weight | Height | Display |
---|---|---|---|---|---|
MSI Cubi NUC 1M Intel Core 7 150U ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 1024 GB SSD | 660 g | 50.1 mm | x | ||
GMK NucBox K9 Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD | Listenpreis 560 USD Geizhals Suche | 528 g | 47 mm | x | |
Asus NUC 14 Pro Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ , 2048 GB SSD | 525 g | 37 mm | x | ||
Beelink SEi11 Pro Intel Core i5-11320H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 500 GB SSD | Listenpreis 430 USD | 440 g | 40 mm | x | |
Beelink SER8 AMD Ryzen 7 8845HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD | Listenpreis 650 USD | 776 g | 44.7 mm | x | |
BOSGAME M1 AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory | Listenpreis 690 USD | 766 g | 51 mm | x |
The MSI Cubi series fills in the gap left behind by Intel when they decided to end production for the own NUC series. It targets core business users and offices where low-profile PCs are preferred over high-performance alternatives.
Our test unit is the highest-end configuration with the Raptor Lake-U Refresh Core 7 150U CPU while lesser options are available with the Core 5 120U or Core 3 100U.
Alternatives to the Cubi NUC 1M include other low-profile U-series-powered mini PCs like the GMK NucBox M5 or Beelink Mini S12 Pro.
More MSI reviews:
Specifications

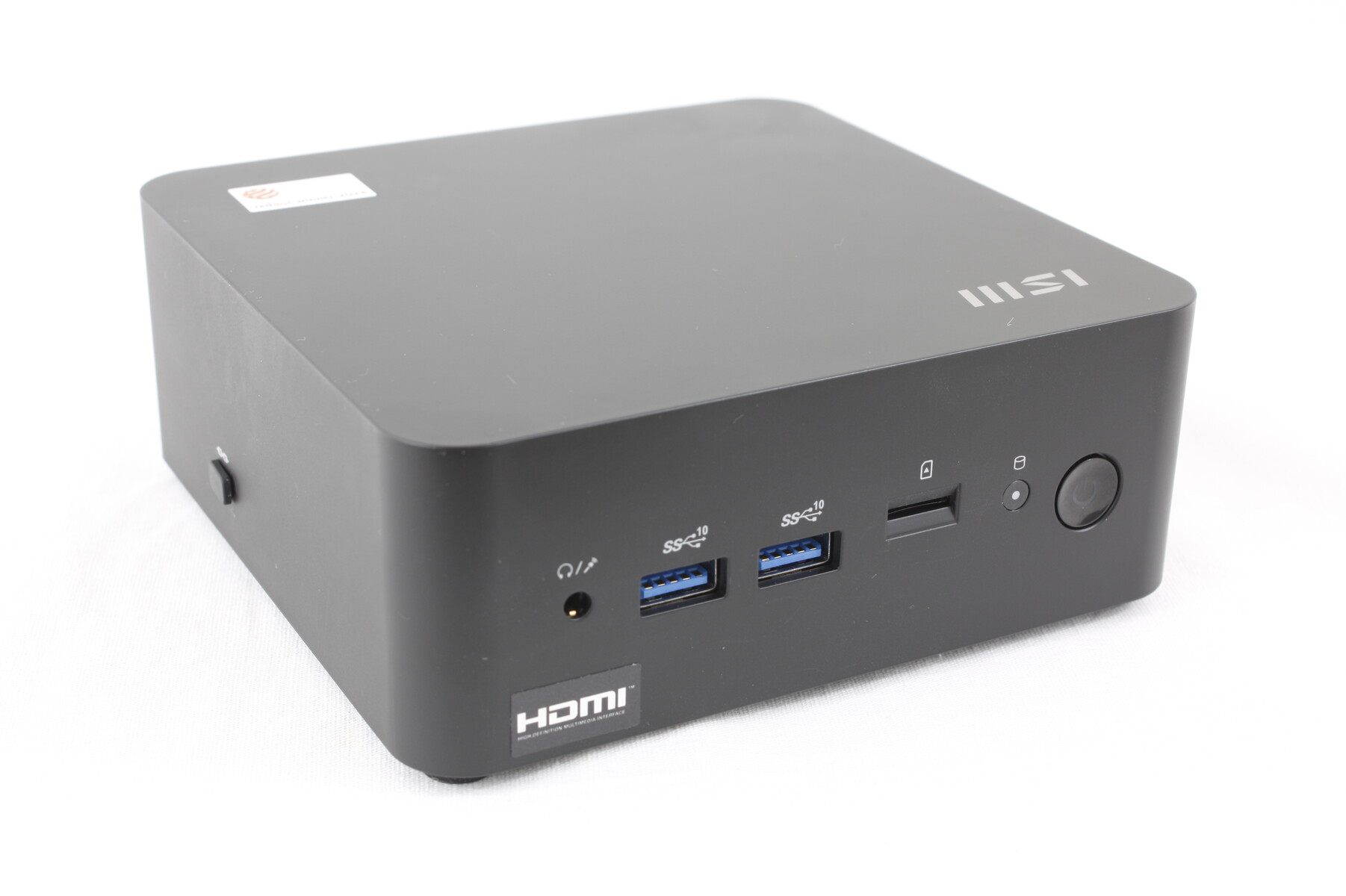

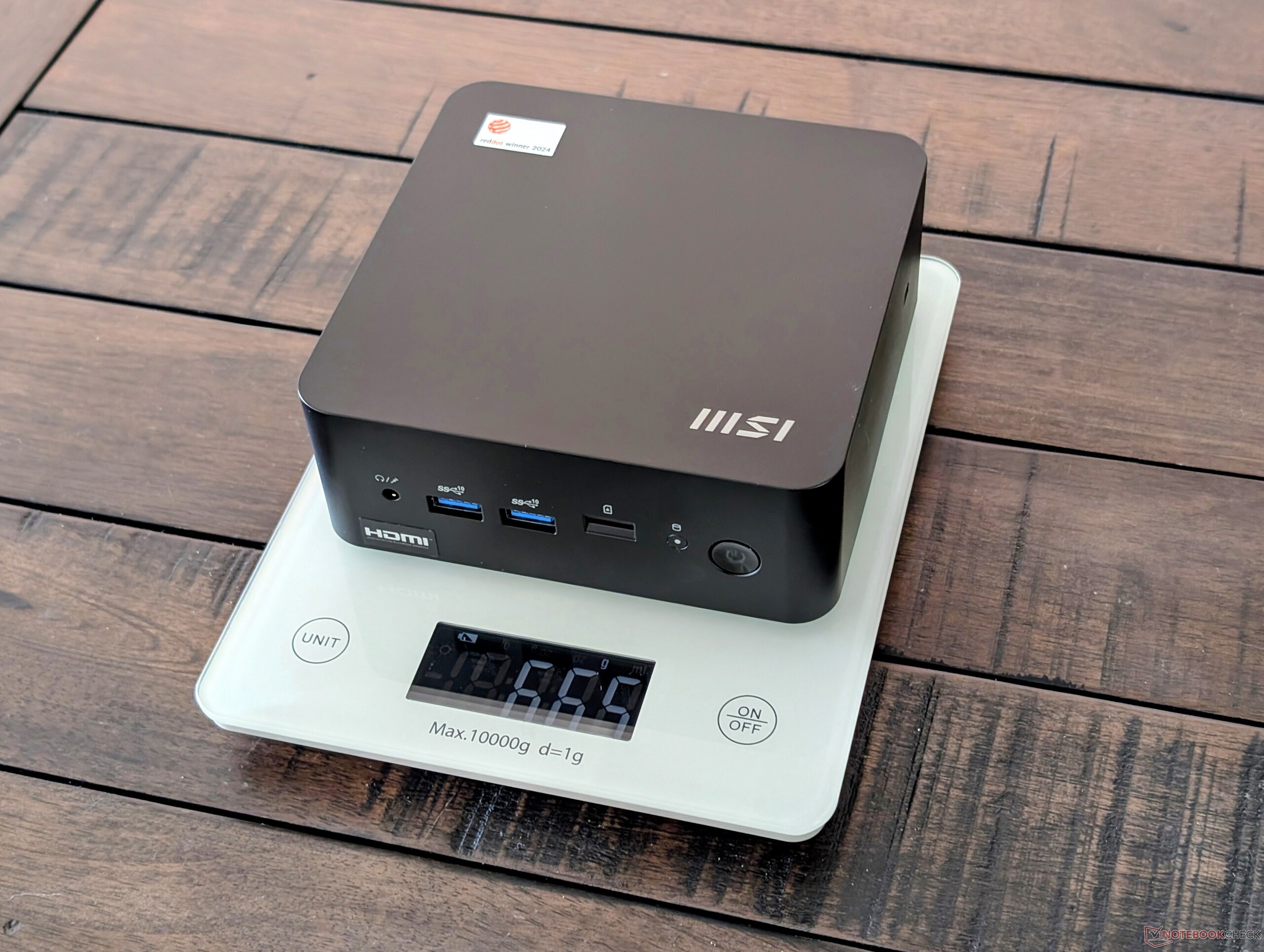

Case
The chassis is mostly plastic with metal reinforcement around the inner lining of the sides. Although this adds some weight to the unit, it gives a higher sense of quality especially when many alternatives from Beelink or GMK use far fewer metal materials to save on costs.
The smooth matte black surface is unfortunately a huge fingerprint magnet. A white or silver color option similar to the business-centric MSI Prestige series would have mitigated this problem.

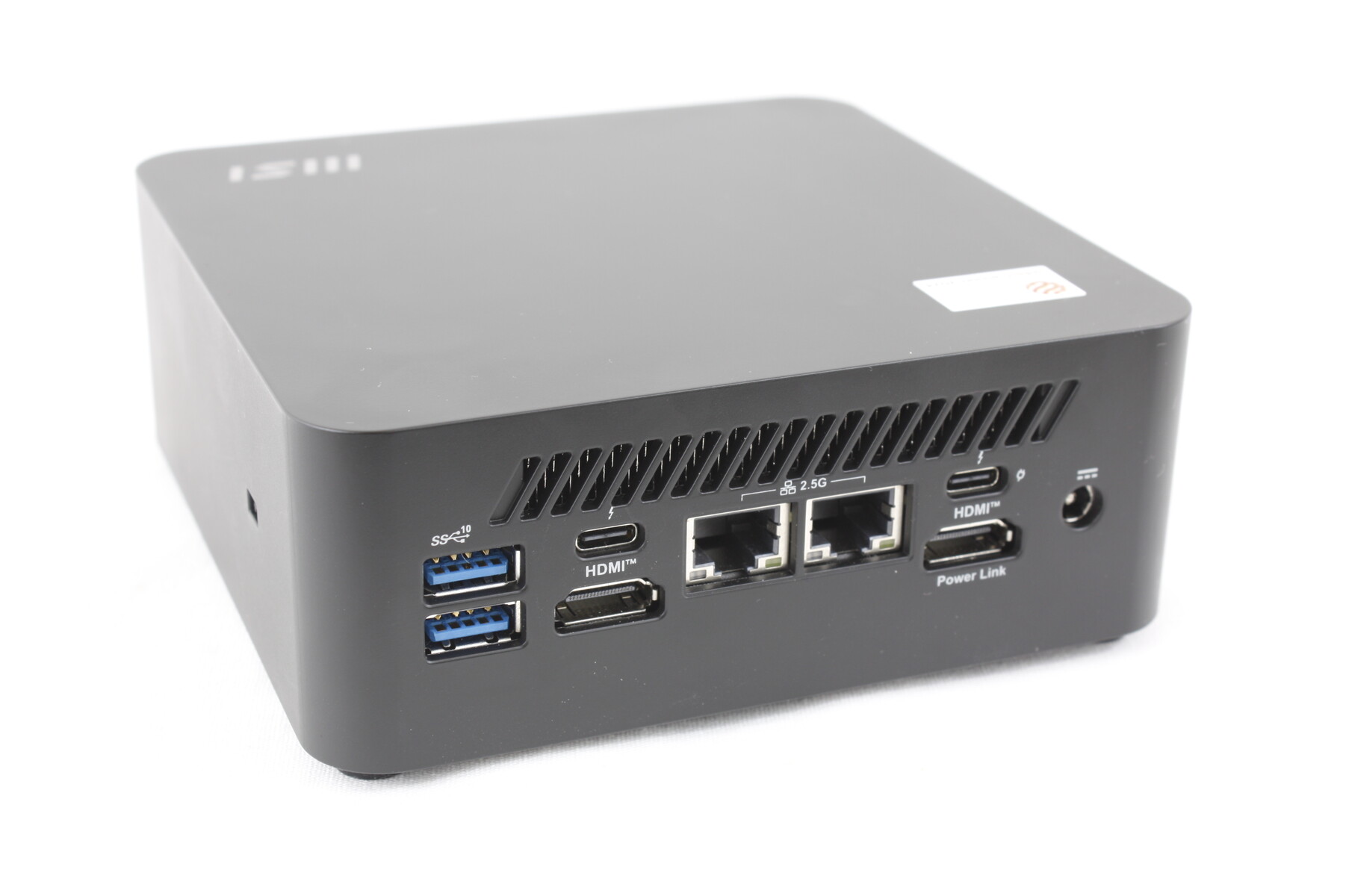

Connectivity
The system includes a decently fast integrated MicroSD card reader unlike on most other mini PCs which should appeal to some camera users and content creators. We also appreciate that there are two USB-C ports unlike on most Beelink mini PCs.
It's worth noting that the system can be powered on with third-party USB-C AC adapters should you ever lose the barrel-type AC adapter included in the box.
SD Card Reader
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
MSI Cubi NUC 1M (Angelbird AV Pro V60) | |
maximum AS SSD Seq Read Test (1GB) | |
MSI Cubi NUC 1M (Angelbird AV Pro V60) |
Communication
Wi-Fi 6E and Bluetooth 5.3 support come standard. Wi-Fi 7 would have been great to see especially at this price point.
Networking | |
iperf3 transmit AXE11000 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Beelink SER8 | |
MSI Cubi NUC 1M | |
iperf3 receive AXE11000 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
Beelink SER8 | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
iperf3 transmit AXE11000 6GHz | |
MSI Cubi NUC 1M | |
Asus NUC 14 Pro | |
BOSGAME M1 | |
Beelink SEi11 Pro | |
iperf3 receive AXE11000 6GHz | |
Asus NUC 14 Pro | |
MSI Cubi NUC 1M | |
BOSGAME M1 | |
Beelink SEi11 Pro |

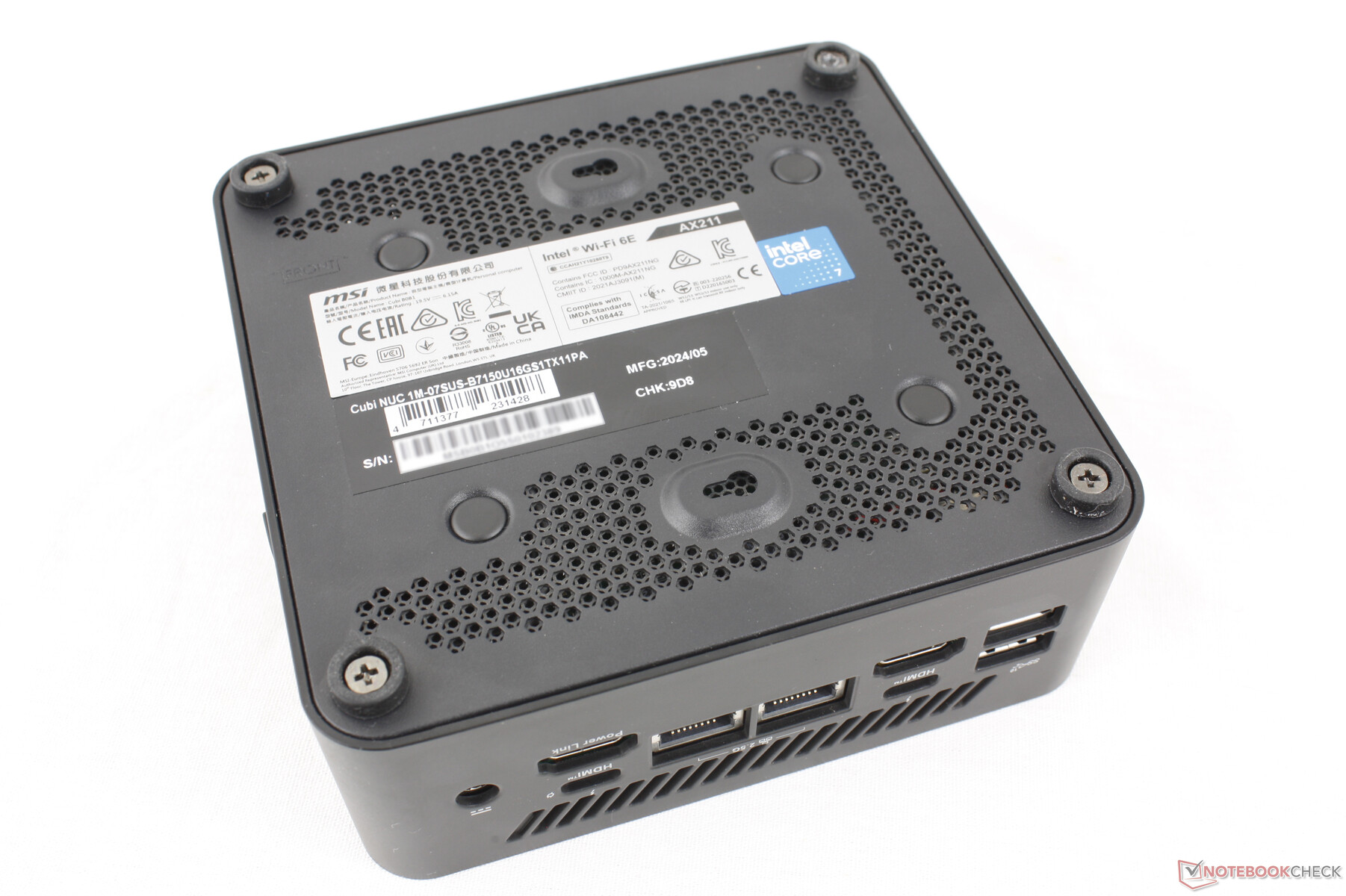

Maintenance

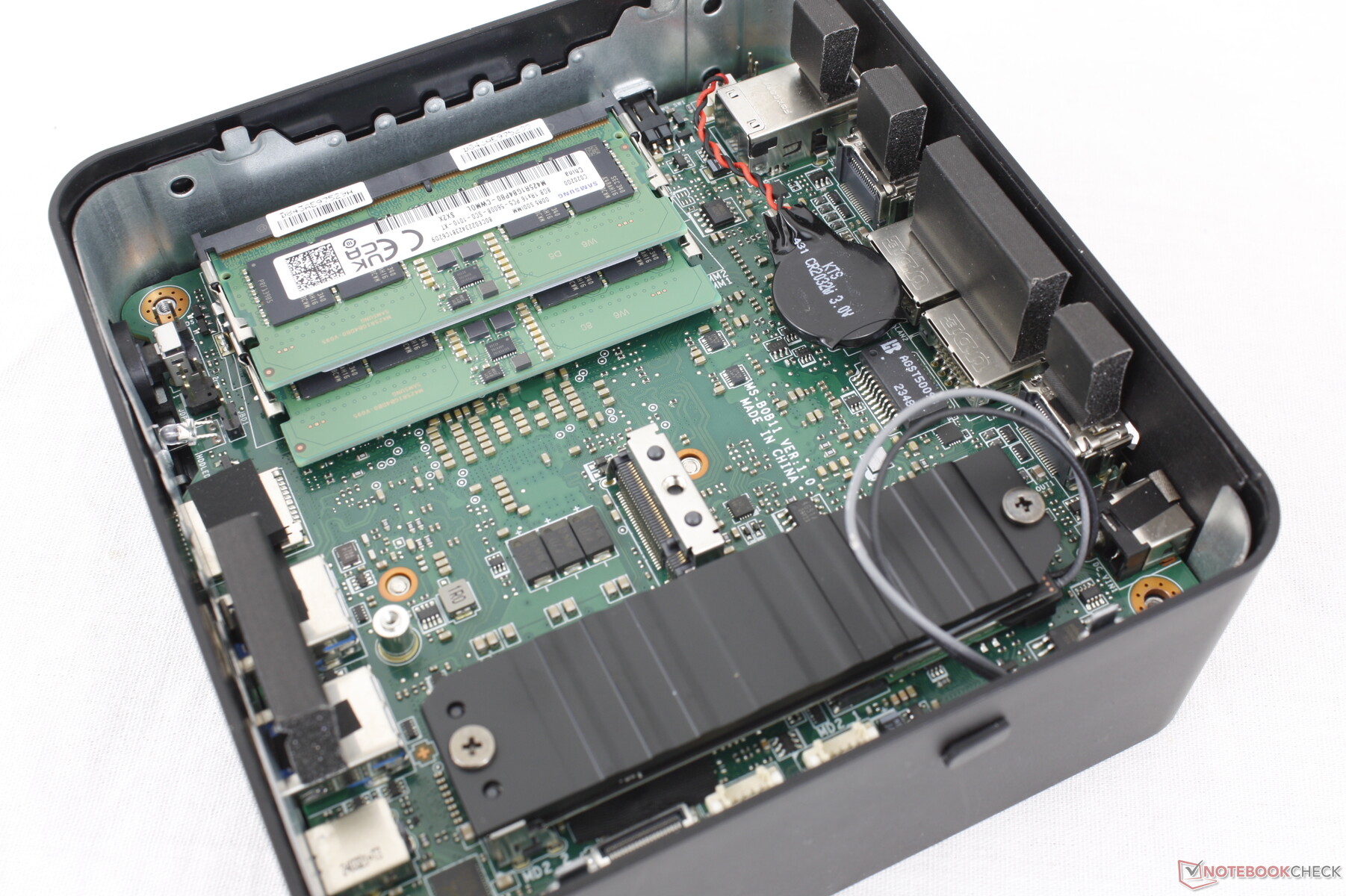

The bottom metal plate can be easily removed with just a Phillips screwdriver to reveal upgradeable components. Note that the screws are not thumbscrews unlike on many Intel NUC models.
Sustainability
MSI utilizes 42.9 percent post-consumer recycled plastics during manufacturing alongside sustainably sourced wood pulp for the packaging. Nonetheless, plastic wrapping is still used for the AC adapter and accessories.

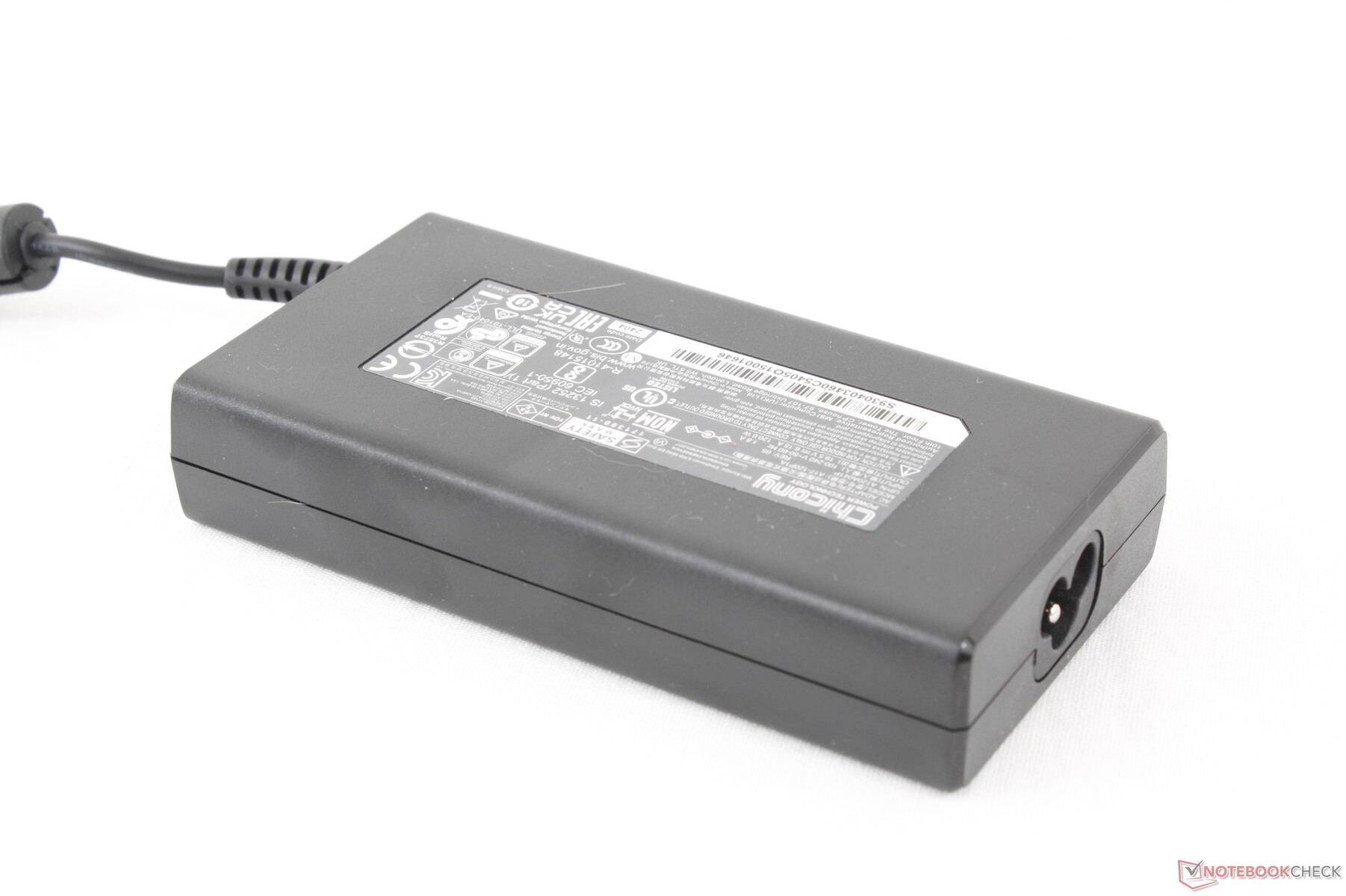

Accessories And Warranty
A removable SATA III cable is included for users who want to connect an external 2.5-inch SATA III drive to a special port on the right side of the unit. It's not a very elegant solution, but at least the option is there whereas most other mini PCs are now omitting 2.5-inch SATA support altogether.
The standard one-year limited manufacturer warranty applies with the option to extend up to three years.
Performance
Testing Conditions
We set Windows and MSI Center to Performance mode prior to running the benchmarks below.

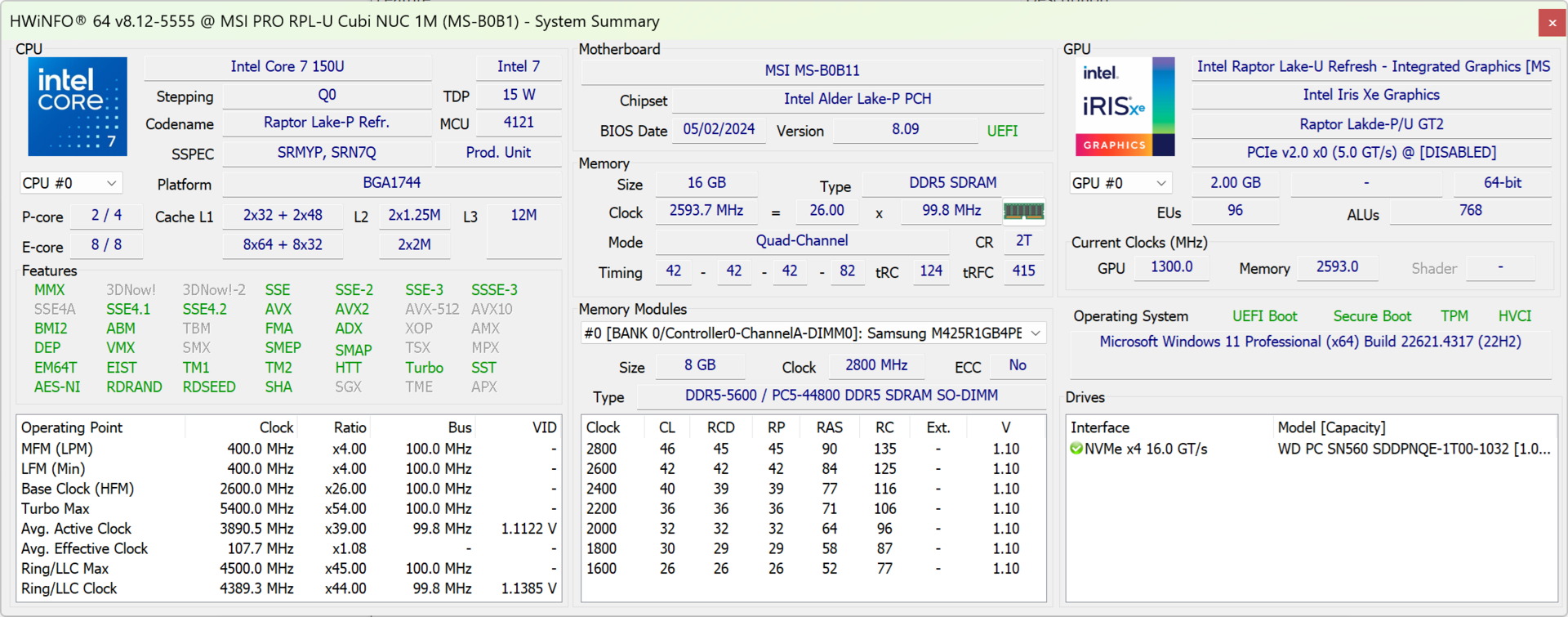

Processor

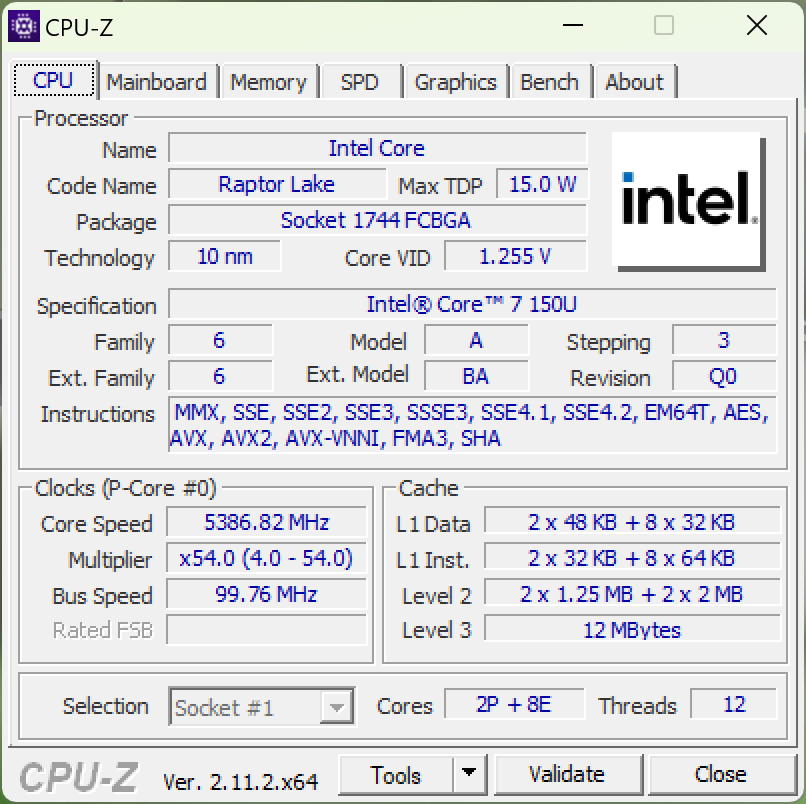

While the Core 7 150U is relatively new, it's based on the older Raptor Lake-U platform and so it performs very similarly to the outgoing Core i7-1365U. It lacks the integrated AI features and improved integrated Arc graphics of the Meteor Lake platform.
Dropping down to the Core 5 120U configuration is not expected to significantly impact processor performance since the two CPUs share the same number of cores and threads. if you're trying to save money, then the Core 5 SKU may be worth considering for this reason.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
AIDA64 / FP32 Ray-Trace | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (6306 - 7909, n=4) | |
Beelink SEi11 Pro | |
MSI Cubi NUC 1M |
AIDA64 / FPU Julia | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (32582 - 41382, n=4) | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
AIDA64 / CPU SHA3 | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Beelink SEi11 Pro | |
Average Intel Core 7 150U (1656 - 2165, n=4) | |
MSI Cubi NUC 1M |
AIDA64 / CPU Queen | |
BOSGAME M1 | |
Beelink SER8 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (58025 - 70820, n=4) | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
AIDA64 / FPU SinJulia | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (4387 - 5293, n=4) | |
Beelink SEi11 Pro | |
MSI Cubi NUC 1M |
AIDA64 / FPU Mandel | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (16042 - 20259, n=4) | |
Beelink SEi11 Pro | |
MSI Cubi NUC 1M |
AIDA64 / CPU AES | |
Beelink SER8 | |
BOSGAME M1 | |
GMK NucBox K9 | |
Beelink SEi11 Pro | |
Asus NUC 14 Pro | |
Average Intel Core 7 150U (33007 - 41731, n=4) | |
MSI Cubi NUC 1M |
AIDA64 / CPU ZLib | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (491 - 695, n=4) | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
AIDA64 / FP64 Ray-Trace | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (3417 - 4243, n=4) | |
Beelink SEi11 Pro | |
MSI Cubi NUC 1M |
AIDA64 / CPU PhotoWorxx | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
BOSGAME M1 | |
Beelink SER8 | |
MSI Cubi NUC 1M | |
Average Intel Core 7 150U (21802 - 38866, n=4) | |
Beelink SEi11 Pro |

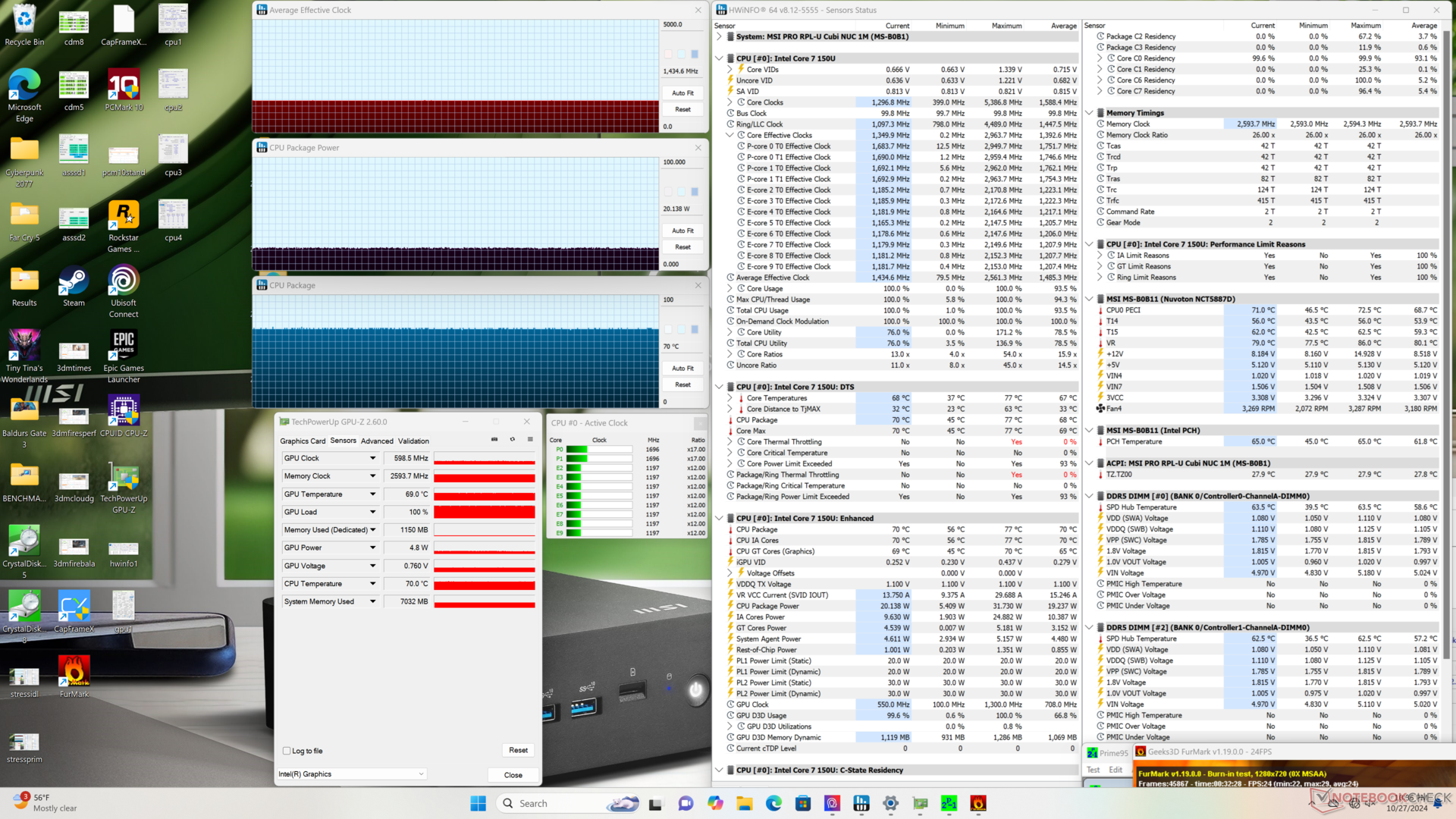

Stress Test

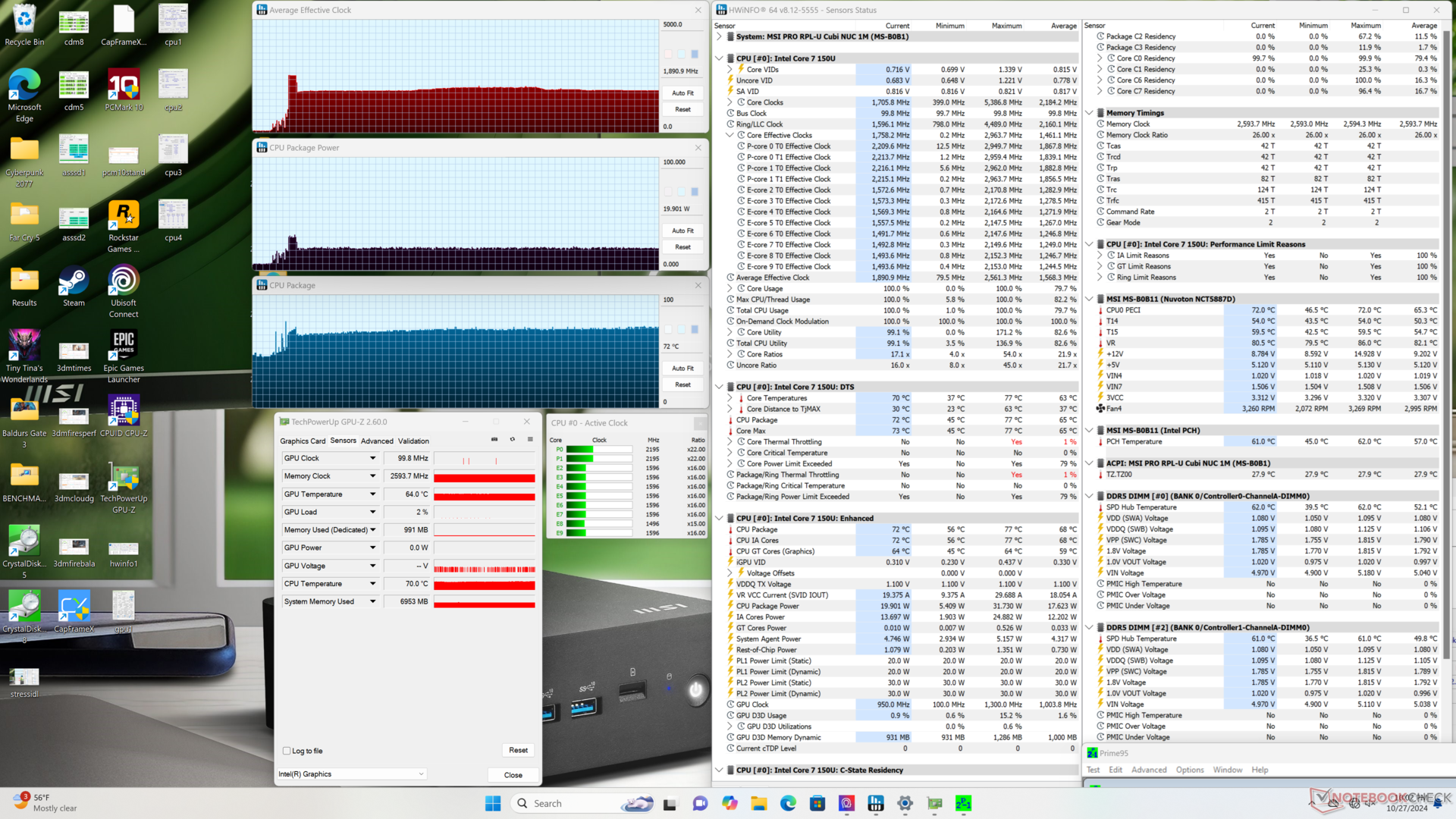

When initiating Prime95 stress, the CPU would boost to 2.6 GHz and 31 W lasting for just a few seconds before falling and stabilizing at 1.9 GHz and 20 W as shown by the screenshots below. Maximum Turbo Boost is not sustainable as to be expected from a U-series-powered PC.

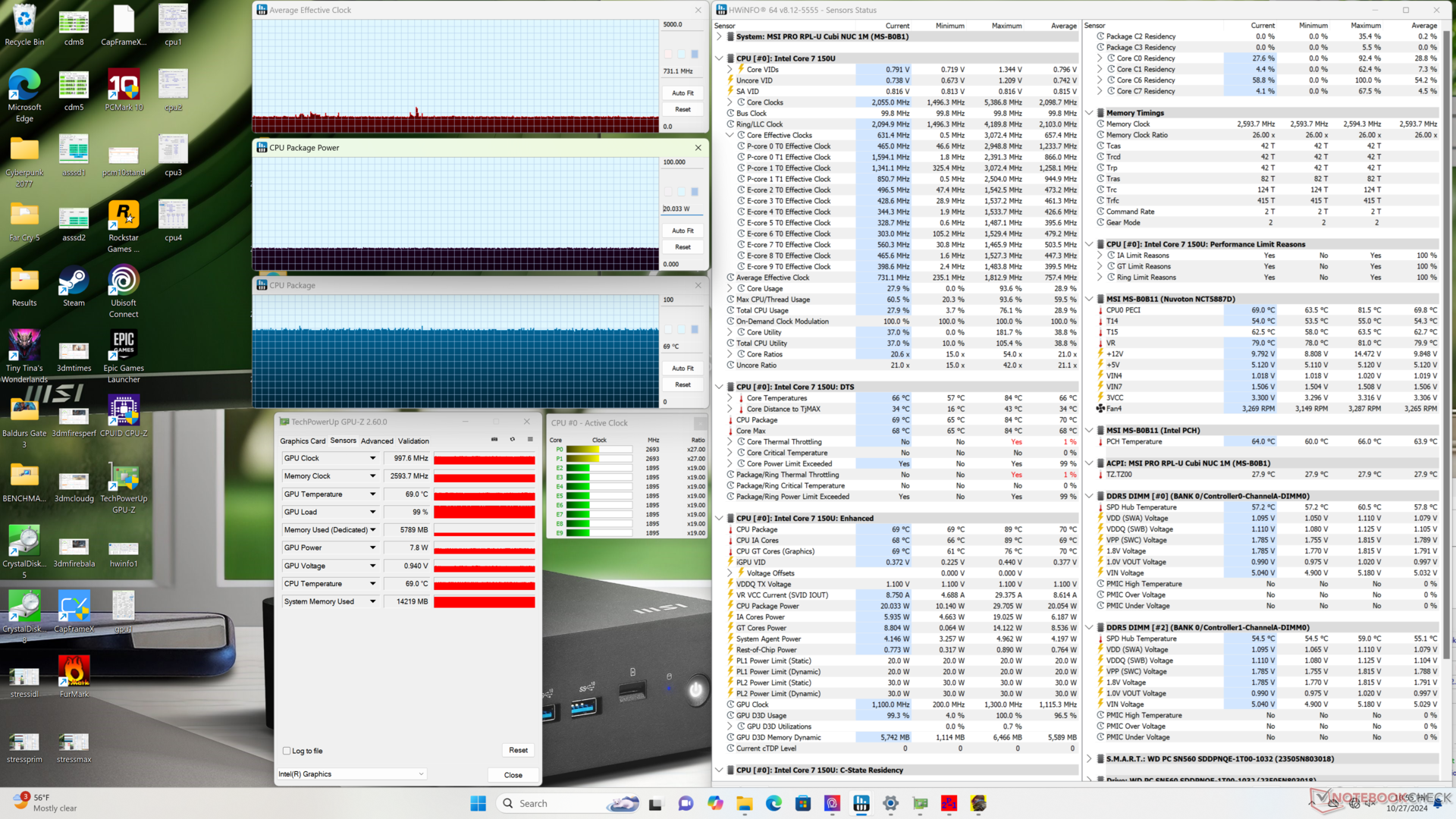

Core temperature would stabilize at 69 C when running Cyberpunk 2077 compared to 72 C on the faster NucBox K9.
CPU Clock (GHz) | GPU Clock (MHz) | Average CPU Temperature (°C) | |

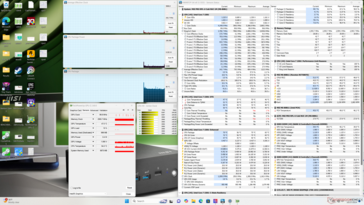

System Idle | -- | -- | 50 |
Prime95 Stress | 1.9 | -- | 72 |
Prime95 + FurMark Stress | 1.4 | 599 | 70 |
Cyberpunk 2077 Stress | 0.7 | 998 | 69 |
System Performance
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score | |
Beelink SER8 | |
BOSGAME M1 | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (6080 - 6173, n=2) | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
PCMark 10 / Essentials | |
Beelink SER8 | |
BOSGAME M1 | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (10856 - 11219, n=2) | |
MSI Cubi NUC 1M | |
GMK NucBox K9 | |
Beelink SEi11 Pro | |
Asus NUC 14 Pro |
PCMark 10 / Productivity | |
Beelink SER8 | |
BOSGAME M1 | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (8387 - 8399, n=2) | |
MSI Cubi NUC 1M | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
Beelink SEi11 Pro |
PCMark 10 / Digital Content Creation | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (6701 - 6775, n=2) | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
CrossMark / Overall | |
BOSGAME M1 | |
Beelink SER8 | |
MSI Cubi NUC 1M | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (1660 - 1734, n=2) | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
Beelink SEi11 Pro |
CrossMark / Productivity | |
BOSGAME M1 | |
Beelink SER8 | |
MSI Cubi NUC 1M | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (1649 - 1778, n=2) | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
Beelink SEi11 Pro |
CrossMark / Creativity | |
BOSGAME M1 | |
Beelink SER8 | |
Asus NUC 14 Pro | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (1708 - 1730, n=2) | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
CrossMark / Responsiveness | |
BOSGAME M1 | |
Beelink SER8 | |
MSI Cubi NUC 1M | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (1493 - 1685, n=2) | |
GMK NucBox K9 | |
Beelink SEi11 Pro | |
Asus NUC 14 Pro |
WebXPRT 3 / Overall | |
Beelink SER8 | |
BOSGAME M1 | |
MSI Cubi NUC 1M | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (307 - 311, n=2) | |
Beelink SEi11 Pro | |
GMK NucBox K9 | |
Asus NUC 14 Pro |
WebXPRT 4 / Overall | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (271 - 276, n=2) | |
MSI Cubi NUC 1M | |
Beelink SER8 | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Beelink SEi11 Pro |
Mozilla Kraken 1.1 / Total | |
Beelink SEi11 Pro | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
BOSGAME M1 | |
Beelink SER8 | |
Average Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs (489 - 502, n=2) | |
MSI Cubi NUC 1M |
* ... smaller is better

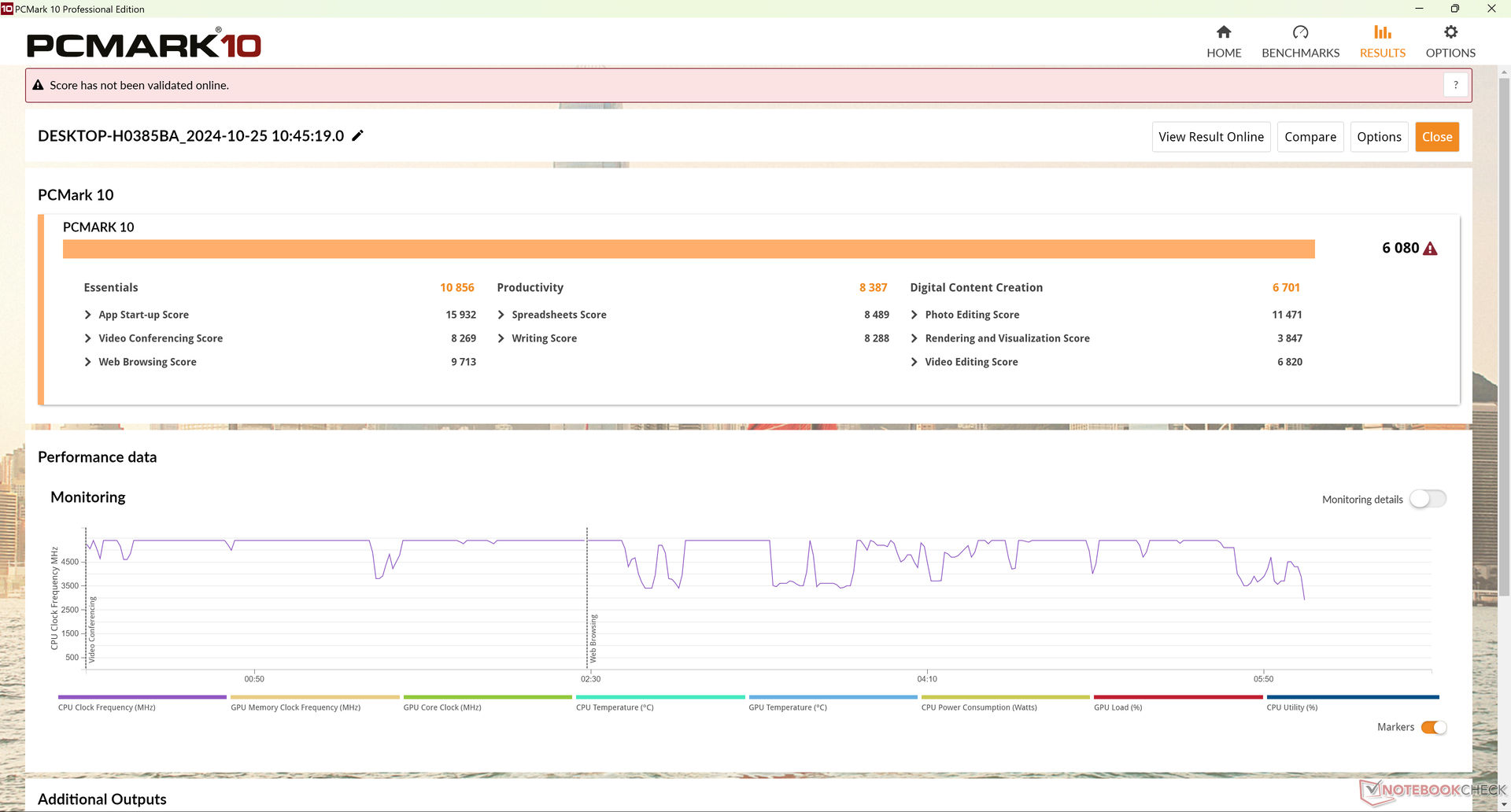

PCMark 10 Score | 6080 points | |
Help |
AIDA64 / Memory Copy | |
BOSGAME M1 | |
Asus NUC 14 Pro | |
Beelink SER8 | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
Average Intel Core 7 150U (36579 - 61190, n=4) | |
Beelink SEi11 Pro |
AIDA64 / Memory Read | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
Beelink SER8 | |
BOSGAME M1 | |
Average Intel Core 7 150U (39827 - 68780, n=4) | |
Beelink SEi11 Pro |
AIDA64 / Memory Write | |
BOSGAME M1 | |
Beelink SER8 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
Average Intel Core 7 150U (44925 - 78327, n=4) | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
AIDA64 / Memory Latency | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
BOSGAME M1 | |
Beelink SER8 | |
Average Intel Core 7 150U (74.5 - 100, n=4) | |
Beelink SEi11 Pro | |
MSI Cubi NUC 1M |
* ... smaller is better

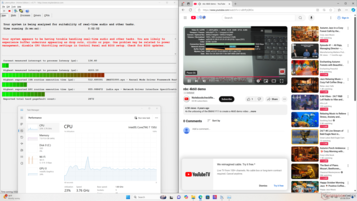

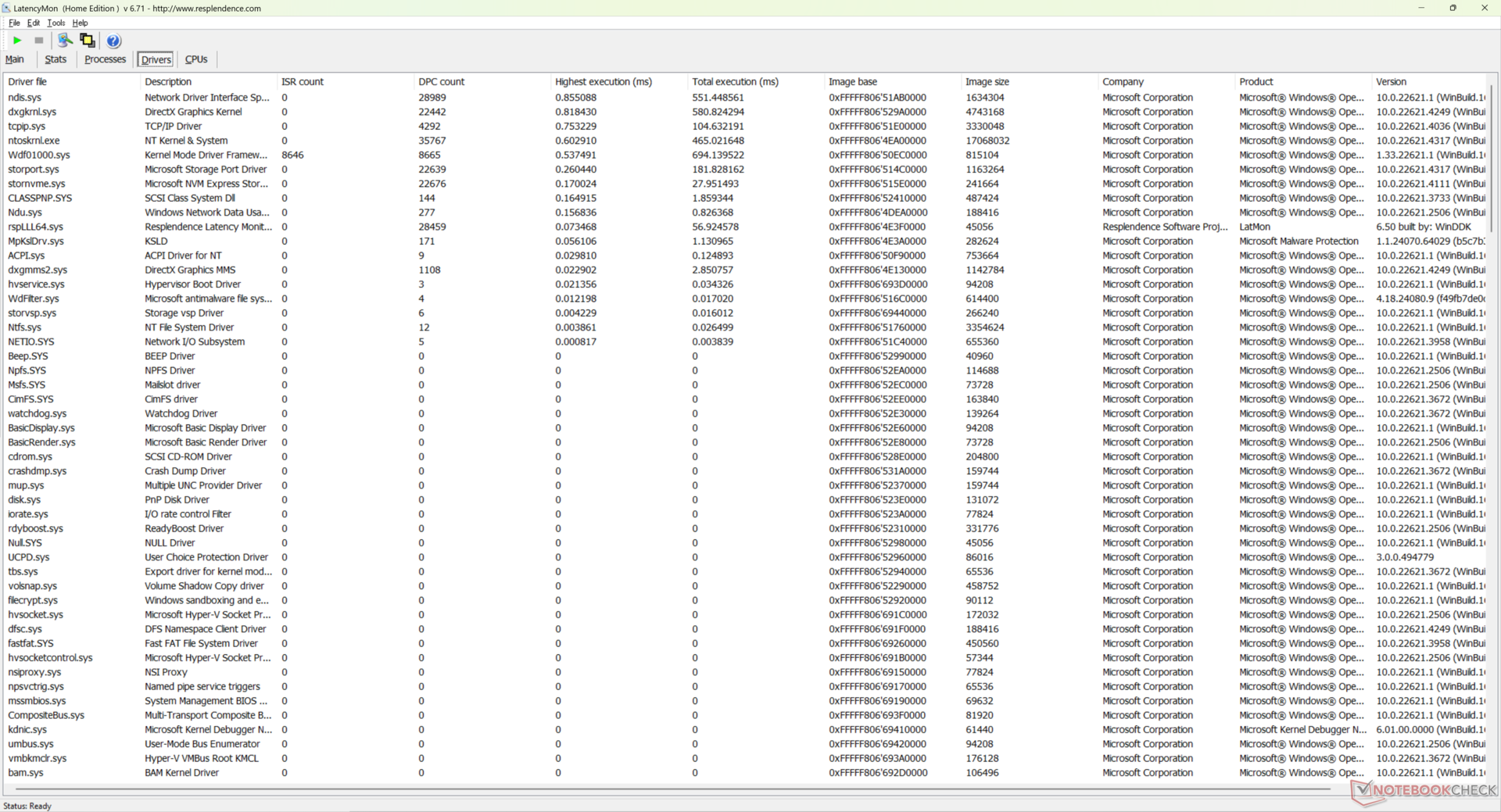

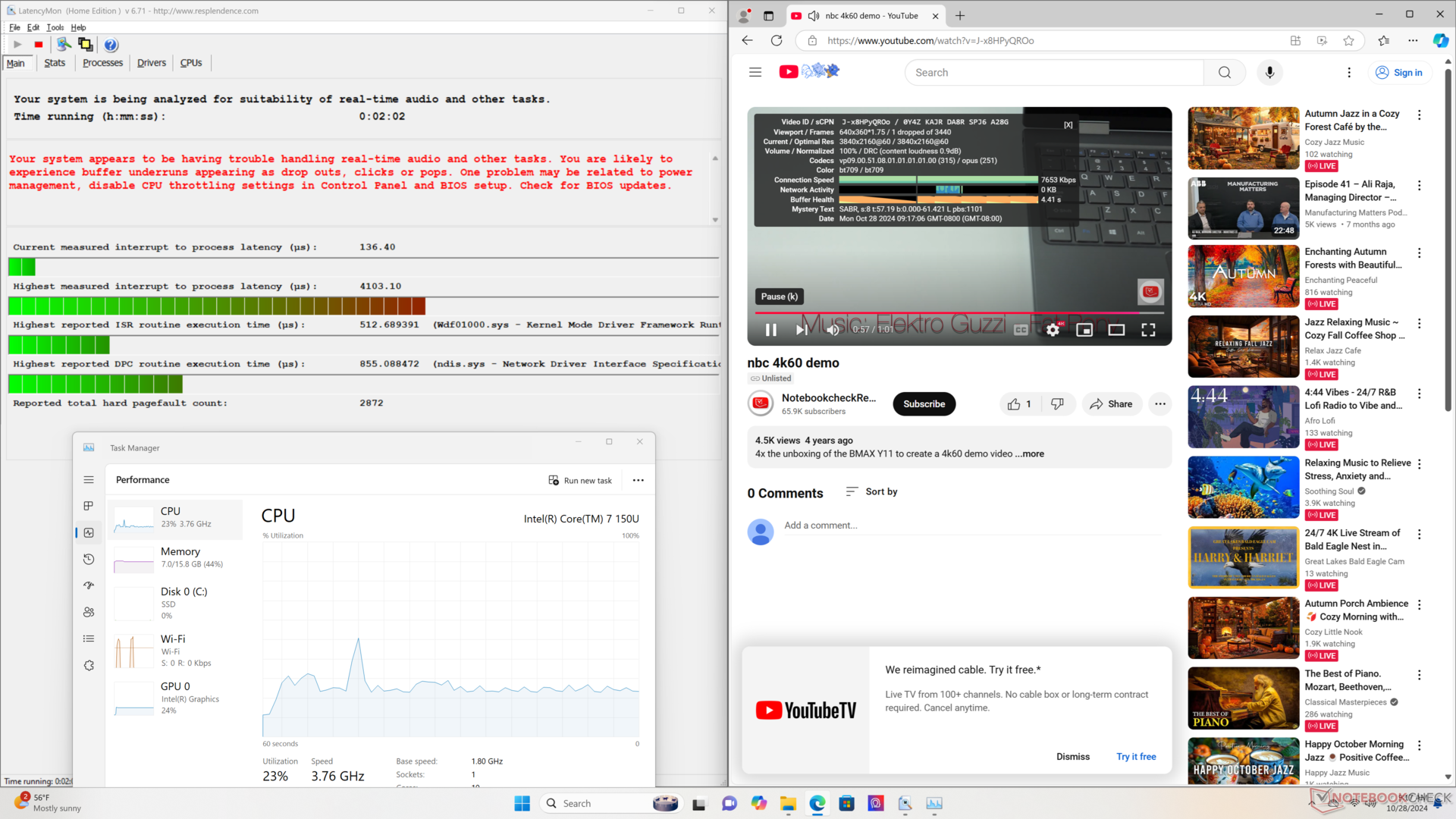

DPC Latency
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
Asus NUC 14 Pro | |
BOSGAME M1 | |
Beelink SER8 | |
Beelink SEi11 Pro |
* ... smaller is better

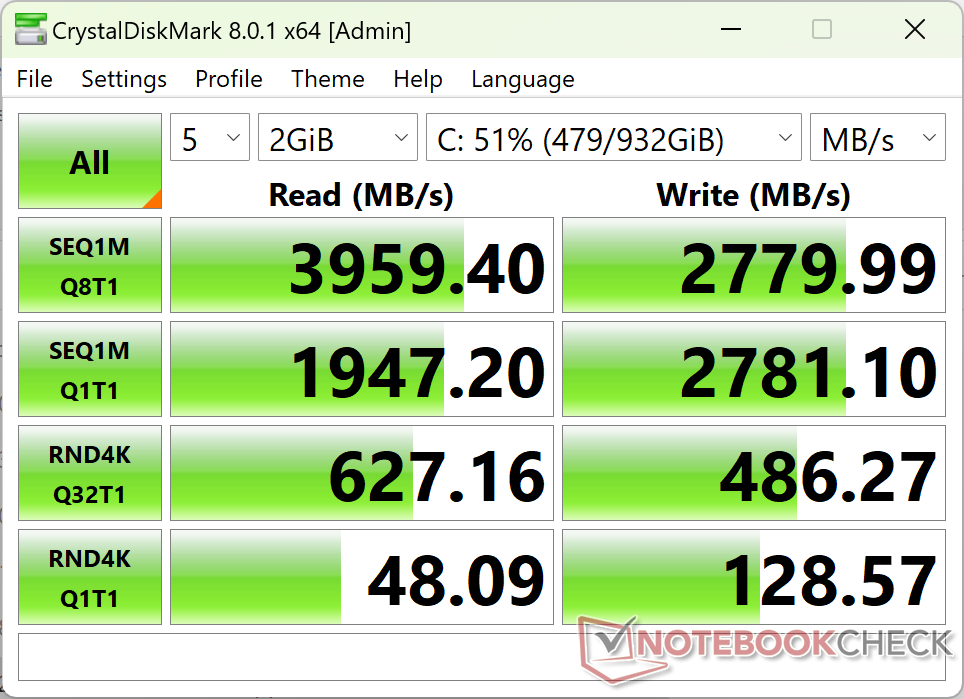

Storage Devices

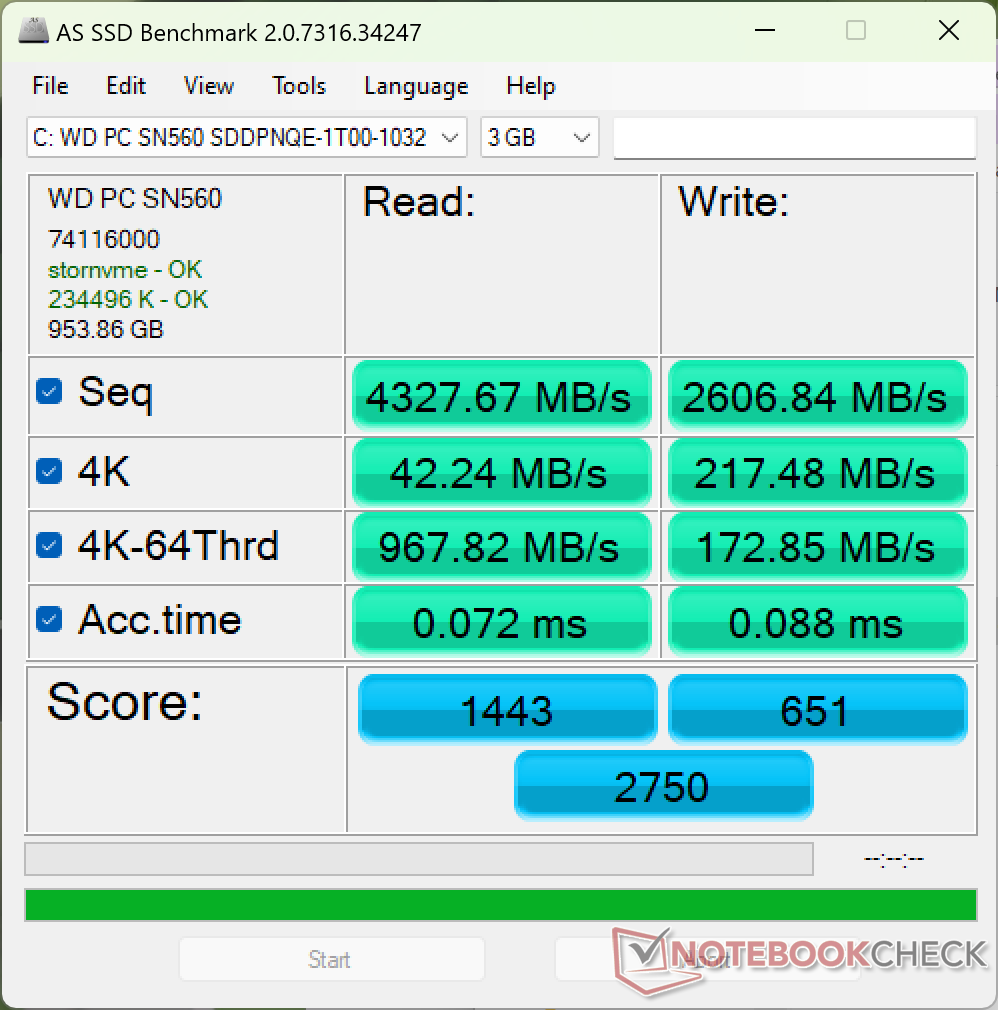

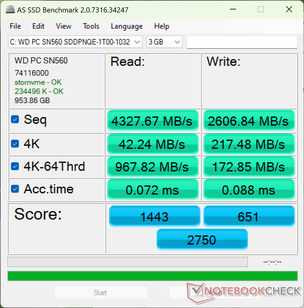

Our unit ships with the midrange WD PC SN560 SDDPNQE-1T00 M.2 PCIe4 x4 NVMe SSD offering stable transfer rates of up to 5000 MB/s. We appreciate that the SSD heat spreader comes standard and pre-installed.
Drive Performance Rating - Percent | |
GMK NucBox K9 | |
Beelink SER8 | |
Asus NUC 14 Pro | |
BOSGAME M1 | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU Performance
The Iris Xe G7 96 EUs is now several years old and so it falls well behind most newer mini PCs running on Meteor Lake or Zen 4 or higher platforms. The Cubi NUC 1M is therefore more fit for streaming and light 2D games.
Running on Balanced mode instead of Performance mode does not appear to impact performance as their 3DMark scores would be nearly identical in our tests.
Dropping down to the Core 5 120U configuration is expected to impact graphics performance by about 10 to 20 percent as the Core 5 CPU is paired with the slower integrated Iris Xe 80 EUs instead.
X-Plane would fail to launch on our Cubi 1M unit and so its results are not available below.

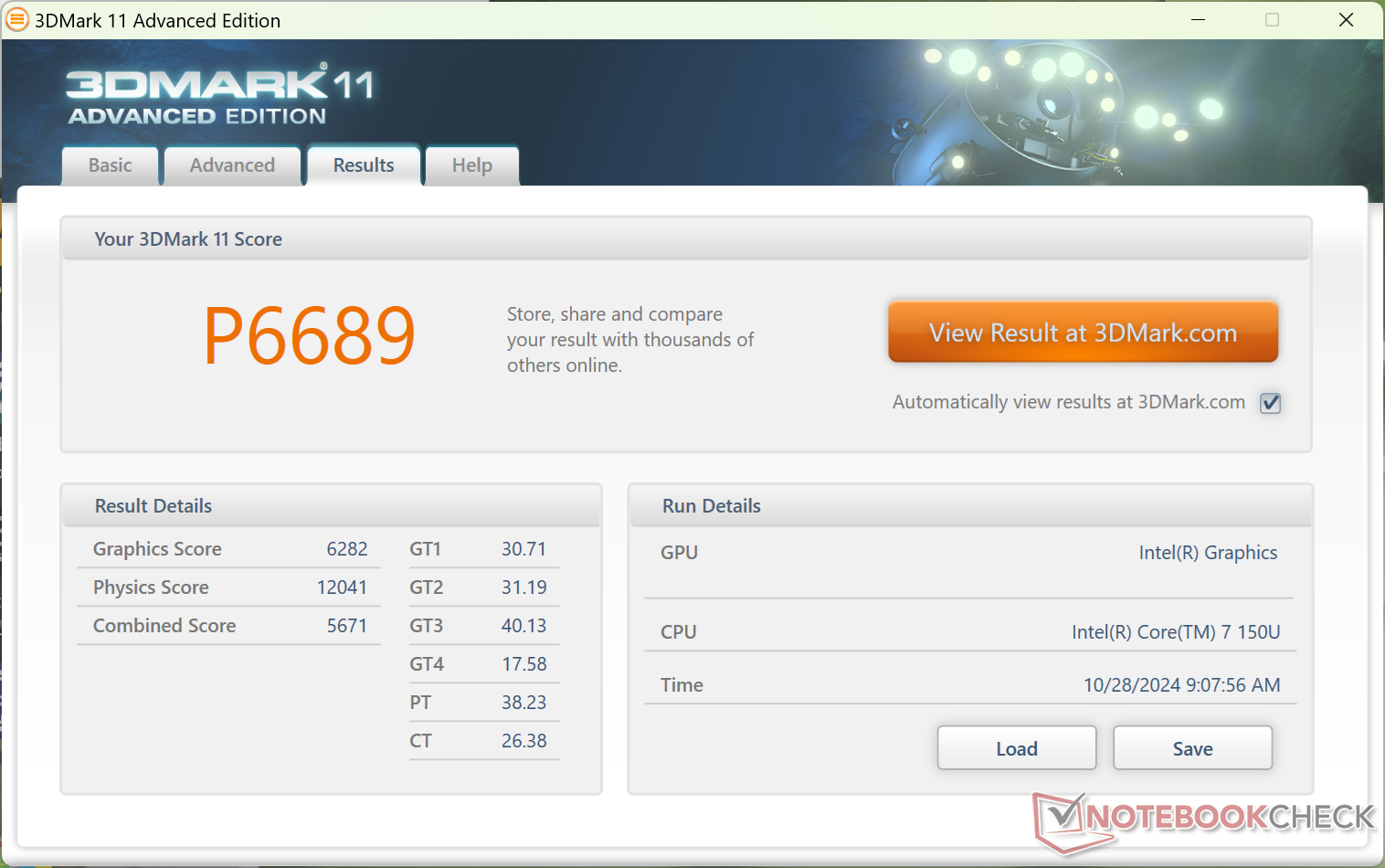

3DMark 11 Performance | 6689 points | |

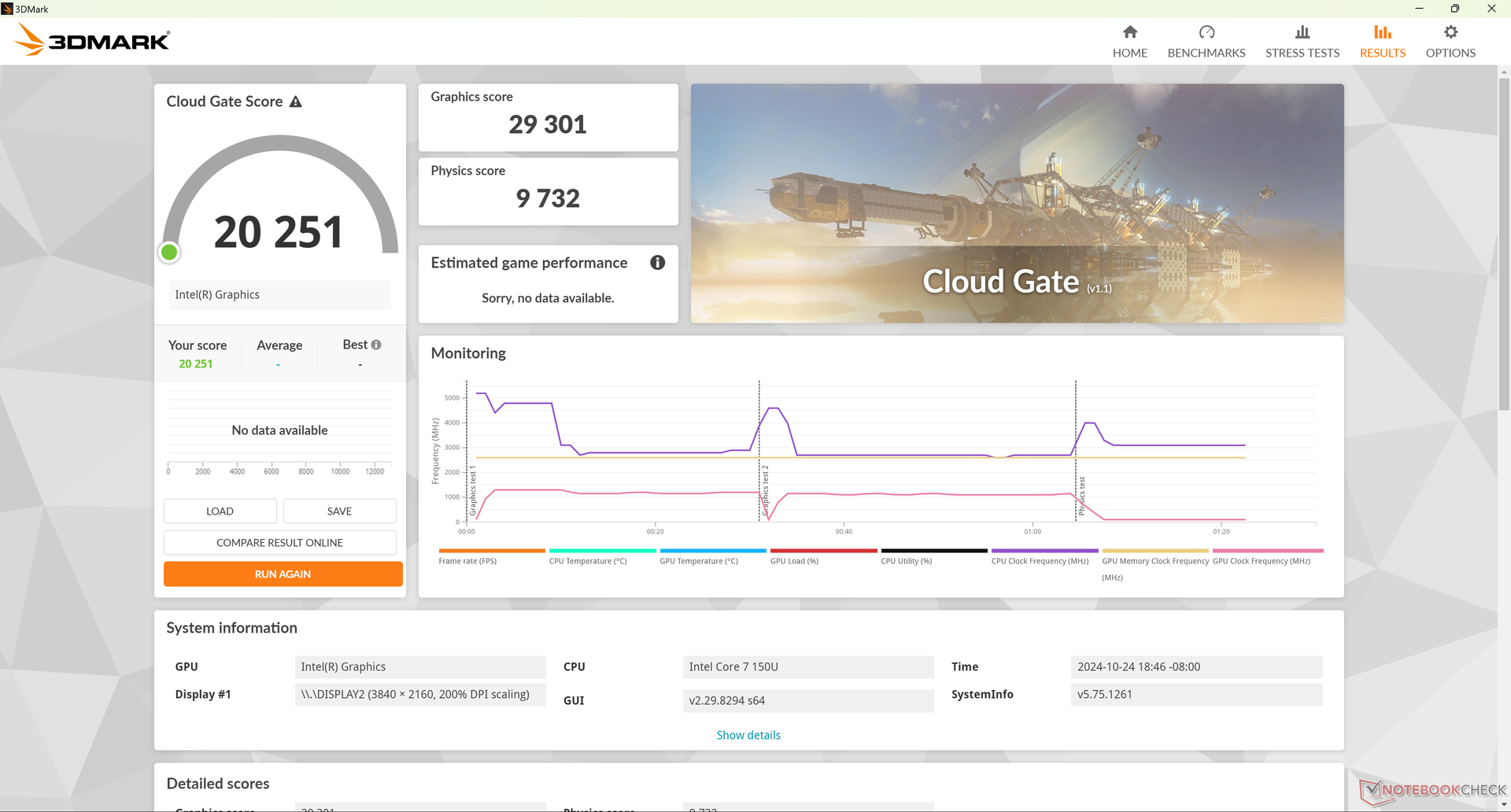

3DMark Cloud Gate Standard Score | 20251 points | |

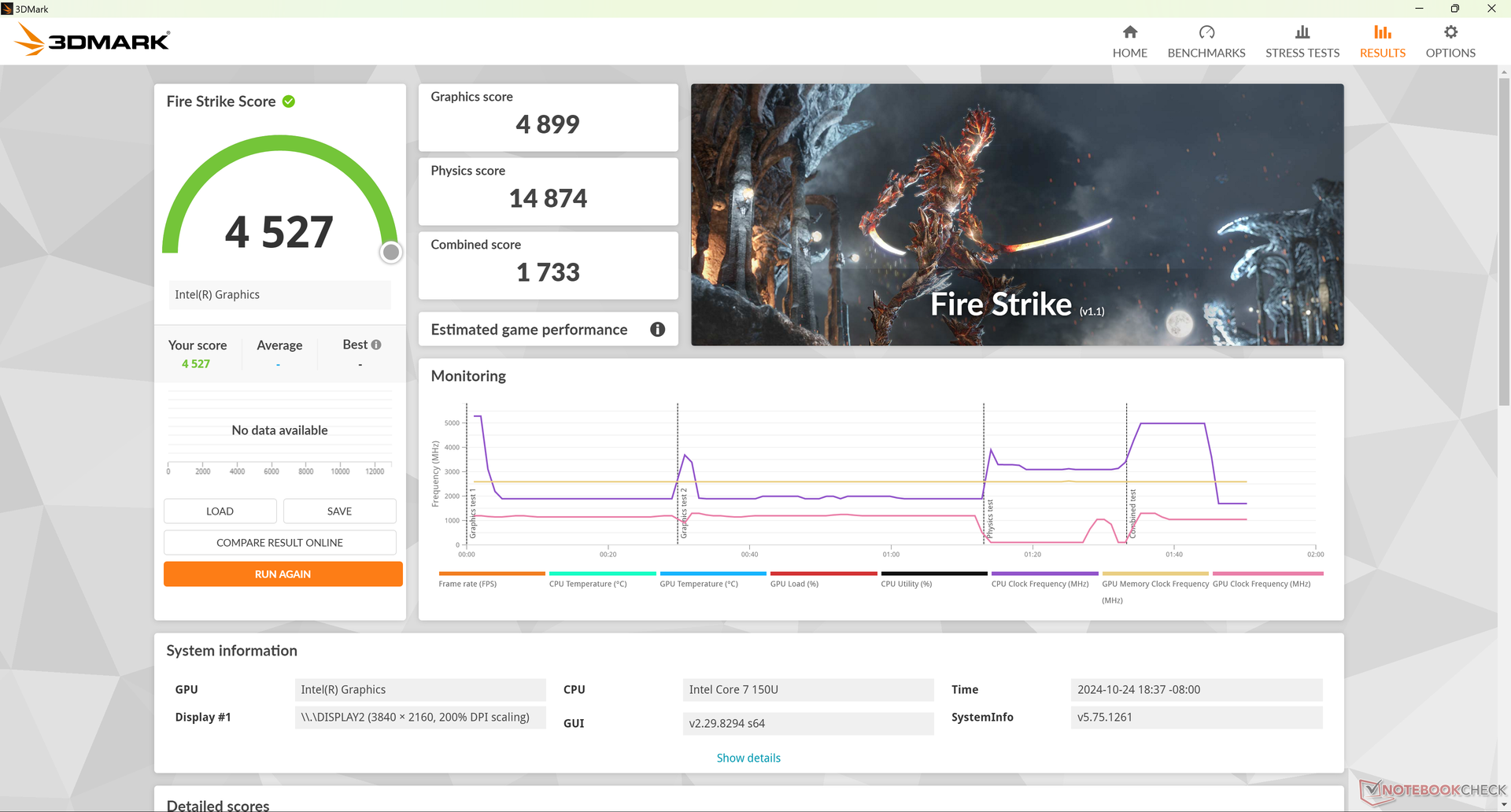

3DMark Fire Strike Score | 4527 points | |

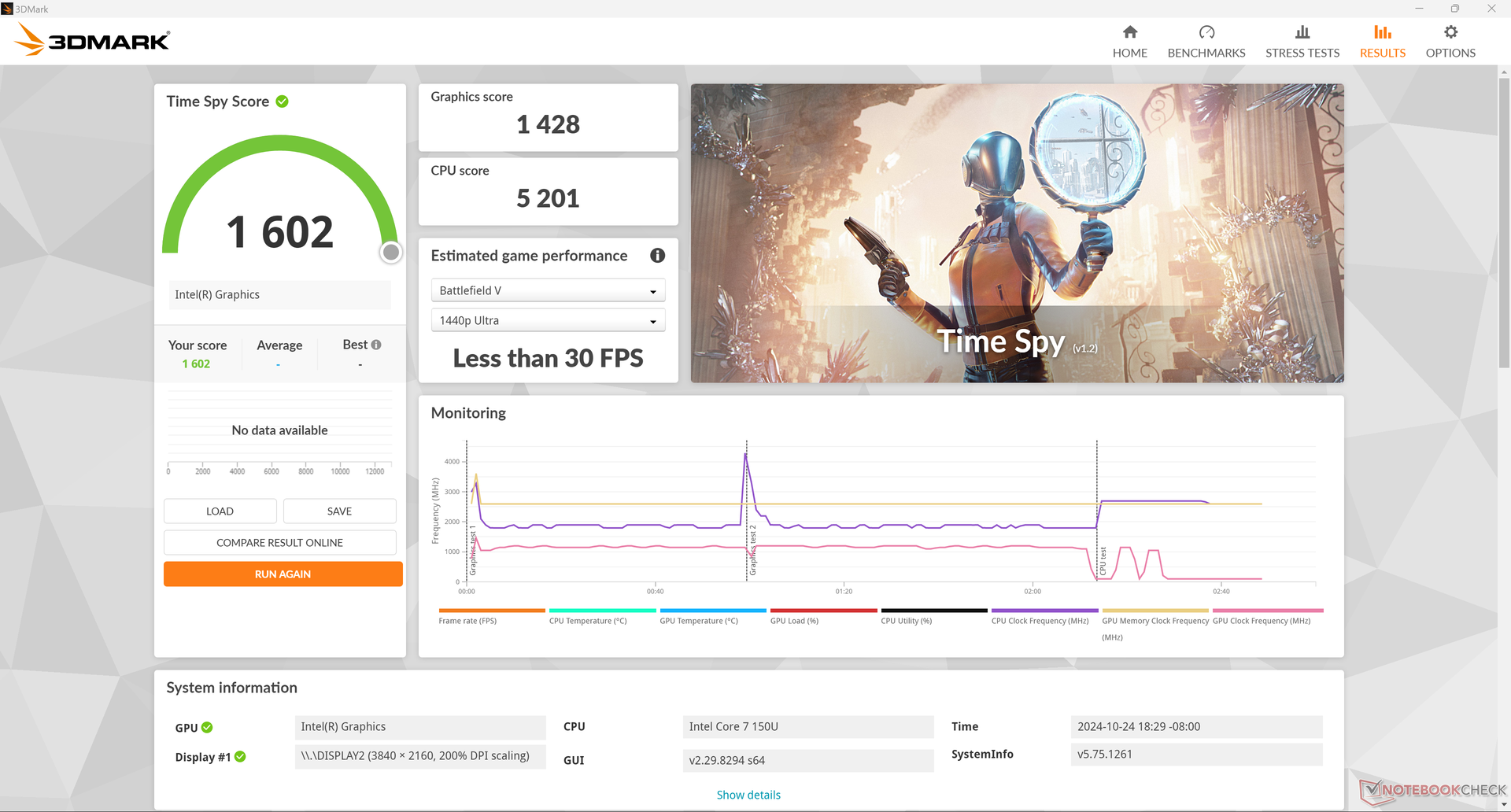

3DMark Time Spy Score | 1602 points | |
Help |
Blender | |
v3.3 Classroom HIP/AMD | |
Beelink SER6 Pro | |
Beelink SER6 Pro Ryzen 7 7735HS | |
v3.3 Classroom OPTIX/RTX | |
Lenovo ThinkStation P3 Tiny-30H0006AGE | |
v3.3 Classroom CUDA | |
Lenovo ThinkStation P3 Tiny-30H0006AGE | |
v3.3 Classroom CPU | |
Beelink SEi11 Pro | |
MSI Cubi NUC 1M | |
GMK NucBox M5 | |
Average Intel Iris Xe Graphics G7 96EUs (336 - 1259, n=105) | |
GMK NucBox M6 | |
Beelink SER6 Pro | |
Khadas Mind 2 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
HP Elite Mini 800 G9-5M9X6EA | |
GMK NucBox K6 | |
Geekom AX8 Pro | |
Beelink SER8 | |
Lenovo ThinkStation P3 Tiny-30H0006AGE | |
v3.3 Classroom oneAPI/Intel | |
GMK NucBox K9 | |
Khadas Mind 2 |
* ... smaller is better
Performance Rating - Percent | |
BOSGAME M1 -1! | |
Beelink SER8 -1! | |
Asus NUC 14 Pro -2! | |
GMK NucBox K9 | |
Beelink SEi11 Pro -3! | |
MSI Cubi NUC 1M -2! |
Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
BOSGAME M1 | |
Beelink SER8 | |
GMK NucBox K9 | |
Asus NUC 14 Pro |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
MSI Cubi NUC 1M |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
BOSGAME M1 | |
Beelink SER8 | |
Asus NUC 14 Pro | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
BOSGAME M1 | |
Beelink SER8 | |
GMK NucBox K9 | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Beelink SER8 | |
BOSGAME M1 | |
GMK NucBox K9 | |
Asus NUC 14 Pro | |
MSI Cubi NUC 1M | |
Beelink SEi11 Pro |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
Beelink SER8 | |
BOSGAME M1 | |
Beelink SEi11 Pro | |
GMK NucBox K9 | |
Asus NUC 14 Pro |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
BOSGAME M1 | |
Beelink SER8 | |
GMK NucBox K9 | |
MSI Cubi NUC 1M |
Cyberpunk 2077 ultra FPS Chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 100.3 | 86.1 | 23.6 | 9.98 |
Dota 2 Reborn (2015) | 97.7 | 61.9 | 62.5 | 57.8 |
Final Fantasy XV Benchmark (2018) | 40.9 | 23 | 16.6 | |
Far Cry 5 (2018) | 49 | 28 | 26 | 24 |
Strange Brigade (2018) | 88.2 | 38.9 | 31.1 | 25.2 |
Tiny Tina's Wonderlands (2022) | 27.5 | 20.3 | 14 | 10.9 |
F1 22 (2022) | 42.3 | 38.2 | 28.3 | 21.4 |
Baldur's Gate 3 (2023) | 15.3 | |||
Cyberpunk 2077 2.2 Phantom Liberty (2023) | 15.4 | 12.4 | 10.8 | 9.46 |
Emissions

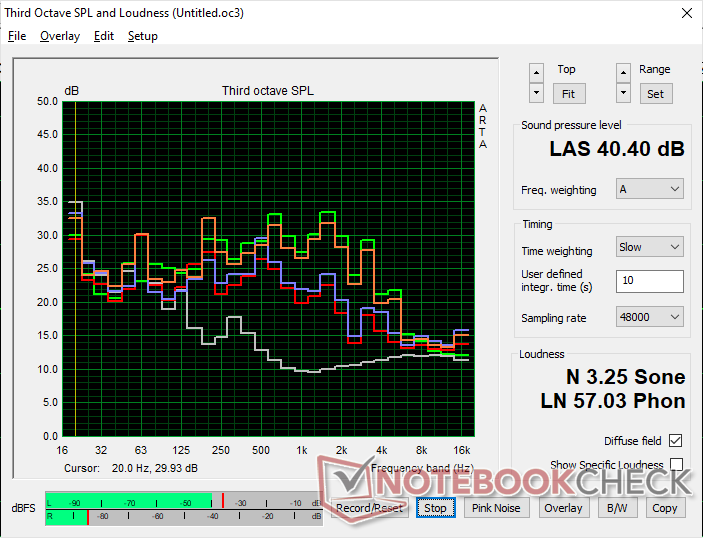

System Noise
The internal fan is always active at around 30 dB(A) at its baseline. The good news is that this is almost inaudible in a typical office or conference room environment. Additionally, the fan is relatively inert and so there are no sudden or high increases in RPMs when running even medium to medium-high loads.
Noise Level
Idle |
| 29.9 / 29.9 / 32 dB(A) |
Load |
| 33.5 / 40.5 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: ![]() ![]() ![]() |
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00 | GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000 | Asus NUC 14 Pro Arc 7-Core, Ultra 5 125H, Kingston KC3000 2048G SKC3000D2048G | Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN | Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8 | BOSGAME M1 Radeon 780M, R7 7840HS | |
---|---|---|---|---|---|---|
Noise | -11% | -4% | 11% | 5% | -6% | |
off / environment * | 23.5 | 23 2% | 24 -2% | 22.8 3% | 23.6 -0% | 23.2 1% |
Idle Minimum * | 29.9 | 29.8 -0% | 26 13% | 24.7 17% | 28.8 4% | 32 -7% |
Idle Average * | 29.9 | 35.7 -19% | 26.2 12% | 24.7 17% | 28.8 4% | 32 -7% |
Idle Maximum * | 32 | 35.7 -12% | 26.2 18% | 25.3 21% | 30.5 5% | 32 -0% |
Load Average * | 33.5 | 41.9 -25% | 42.4 -27% | 33.2 1% | 34.6 -3% | 38.7 -16% |
Cyberpunk 2077 ultra * | 39.1 | 43.8 -12% | 47.7 -22% | 34.1 13% | ||
Load Maximum * | 40.5 | 44 -9% | 47.8 -18% | 37.8 7% | 34.5 15% | 42 -4% |
Witcher 3 ultra * | 34.5 | 41.7 |
* ... smaller is better
Temperature
Unlike most other mini PCs, the Cubi NUC 1M lacks ventilation grilles on almost all sides except for the bottom and rear. However, the power-efficient U-series CPU means surface temperatures shouldn't be a problem regardless. The hot spot on top would remain below 30 C even when running demanding loads for long periods.
Energy Management
Power Consumption

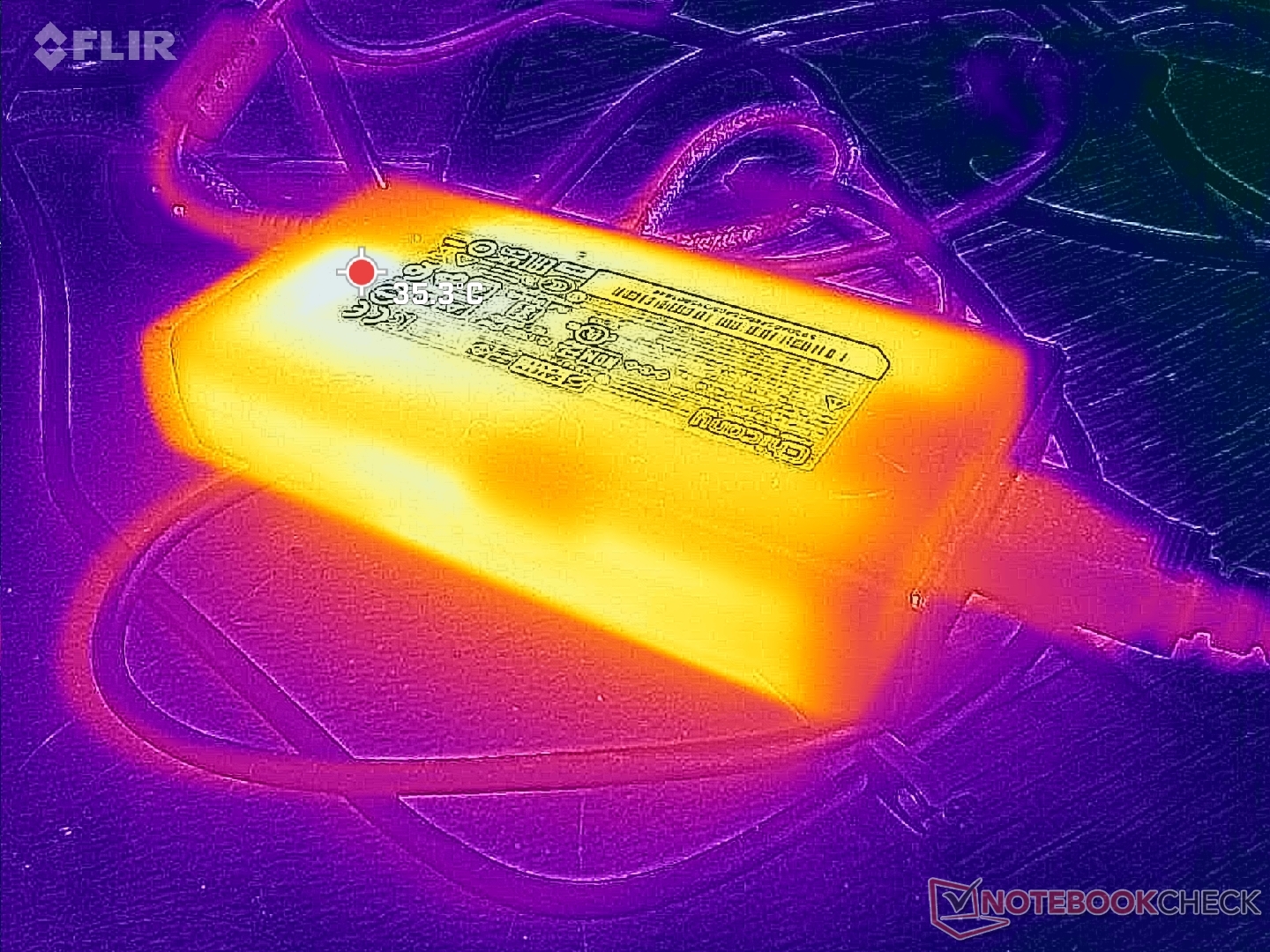

Consumption is generally lower than most H-powered mini PCs especially when running demanding loads. Most notably, the system ships with a sizable 120 W AC adapter even though the mini PC barely draws half at 100 percent CPU utilization. The high overhead can be used to power Thunderbolt accessories or other external devices.
We would like to see a switch to universal USB-C AC adapters in the future much like on modern U-series powered laptops.
Off / Standby | ![]() ![]() |
Idle | ![]() ![]() ![]() |
Load |
![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() | |
Key:
min: ![]() ![]() ![]() |
MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs, WD PC SN560 SDDPNQE-1T00, , x, | GMK NucBox K9 Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x, | Asus NUC 14 Pro Ultra 5 125H, Arc 7-Core, Kingston KC3000 2048G SKC3000D2048G, , x, | Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x, | Beelink SER8 R7 8845HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x, | BOSGAME M1 R7 7840HS, Radeon 780M, , , x, | |
---|---|---|---|---|---|---|
Power Consumption | -41% | -34% | -26% | -24% | -32% | |
Idle Minimum * | 6.4 | 10.9 -70% | 5.1 20% | 9.8 -53% | 7.3 -14% | 7.3 -14% |
Idle Average * | 8.3 | 11 -33% | 6.4 23% | 10.3 -24% | 7.3 12% | 7.3 12% |
Idle Maximum * | 10.4 | 11.4 -10% | 14.7 -41% | 10.5 -1% | 8.4 19% | 8.4 19% |
Load Average * | 38.5 | 52.8 -37% | 55.5 -44% | 54.2 -41% | 68.2 -77% | 72.7 -89% |
Cyberpunk 2077 ultra external monitor * | 36.1 | 57.1 -58% | 59.1 -64% | |||
Load Maximum * | 52.5 | 72.2 -38% | 103.3 -97% | 59 -12% | 84.3 -61% | 99.1 -89% |
Witcher 3 ultra * | 53.1 | 75.1 | 80.5 |
* ... smaller is better

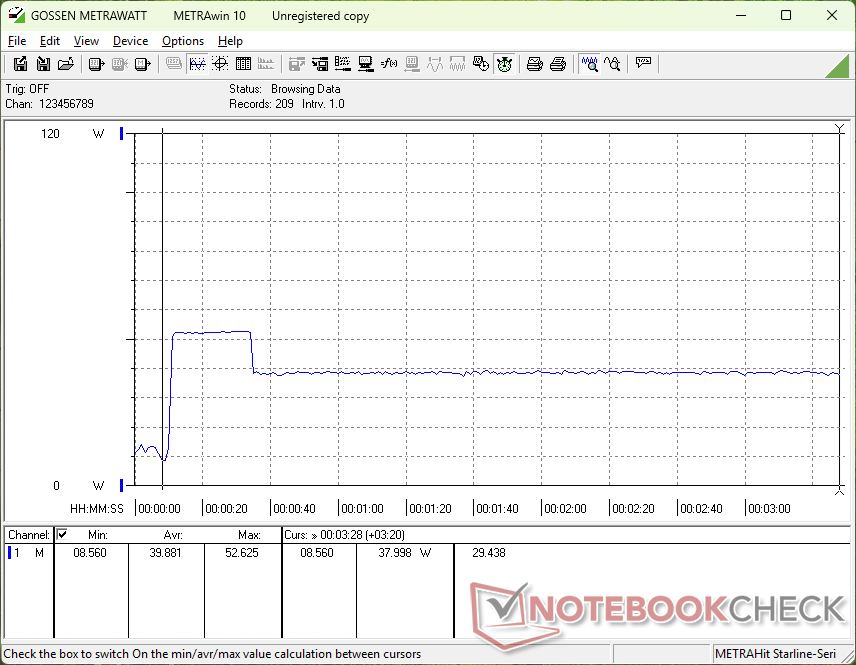

Power Consumption Cyberpunk / Stress Test

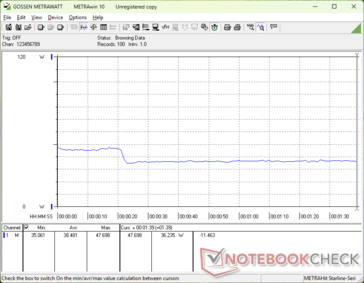

Power Consumption external Monitor
Notebookcheck Rating
MSI Cubi NUC 1M
- 10/30/2024 v8
Allen Ngo
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
