Intel Pentium P6100

Intel P6100

The Intel Pentium P6100 is an entry level CPU for laptops. It clocks with 2 GHz and supports no TurboBoost for automatic overclocking. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Pentium series had).

Compared to the Celeron P4600, the P6100 offers a bit better performance due to the faster System Bus and an increased Level 3 cache. However, VT-x is not available for the P6100.

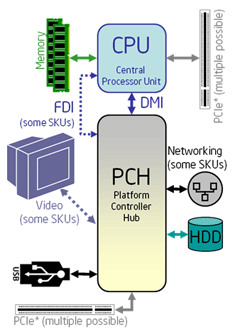

The P6100 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 766MHz due to Turbo Boost (GPU only).

The performance of the CPU is relatively low, because of the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller.

SeriesIntel Pentium
CodenameArrandale
Clock Rate2000 MHz
Front Side Bus2500 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3072 KB
Number of Cores / Threads2 / 2
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Announcement Date09/26/2010
Product Link (external)Intel Pentium P6100

CPU Benchmarks

wPrime 2.0x: 1024m
0% 100%
min: 1045.5     avg: 1082.7 (88.56%)     max: 1141.266 seconds*
wPrime 2.0x: 32m
0% 100%
min: 32.9     avg: 34.4 (93.93%)     max: 37.702 seconds*
3DMark Vantage: P CPU no PhysX 1280x1024
0% 100%
min: 4073     avg: 4230 (10.58%)     max: 4320 Points
3DMark 06 - CPU:
0% 100%
min: 1805     avg: 1840 (18.94%)     max: 1865 Points
Cinebench R11.5: CPU Multi 64Bit
0% 100%
min: 1.25     avg: 1.3 (6.24%)     max: 1.32 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 1649     avg: 2661.1 (10.6%)     max: 2869 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 5061     avg: 5368 (12.68%)     max: 5536 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 2147     avg: 2239.2 (32.23%)     max: 2280 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 4036     avg: 4318.8 (12.42%)     max: 4387 Points
Super Pi mod 1.5 XS 1M:
0% 100%
min: 20.9     avg: 21.6 (97.21%)     max: 25 Seconds*
Super Pi mod 1.5 XS 2M:
0% 100%
min: 49     avg: 50 (98.74%)     max: 52.01 Seconds*
Super Pi Mod 1.5 XS 32M:
0% 100%
min: 1151     avg: 1297 (94.29%)     max: 1902 Seconds*
SiSoft Sandra Dhrystone (MIPS):
0% 100%
min: 18345     avg: 18352.5 (8.7%)     max: 18360 MIPS
SiSoft Sandra Whetstone (MFLOPS):
0% 100%
min: 13000     avg: 13000 (9.97%)     max: 13000 MFLOPS
Windows 7 Experience Index: Processor
0% 100%
min: 5.7     avg: 5.7 (66.67%)     max: 5.7 points
- Range of benchmarks for this CPU
- Average benchmark score
