Intel Celeron M P4600

Intel P4600

The Intel Celeron P4600 is an entry level CPU for laptops. It clocks with 2 GHz and supports no TurboBoost for automatic overclocking of the CPU. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Celeron series had). The similar clocked Pentium P6100 is a bit faster due to the larger level 3 cache and the faster QPI link. However, it has no support for VT-x Virtualization functions.

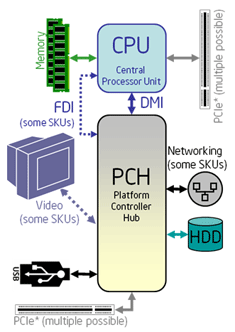

The P4600 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 766MHz due to TurboBoost (GPU only).

The performance of the CPU is relatively low, because of the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller.

SeriesIntel Celeron M
CodenameArrandale
Clock Rate2000 MHz
Front Side Bus2500 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache2048 KB
Number of Cores / Threads2 / 2
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesVirtualization Technology (VT-x), Intel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Hardware VirtualizationVT-x
Starting Price $86 U.S.
Announcement Date10/01/2010
Product Link (external)Intel Celeron M P4600

CPU Benchmarks

wPrime 2.0x: 1024m
0% 100%
min: 1081     avg: 1081 (88.58%)     max: 1081 seconds*
wPrime 2.0x: 32m
0% 100%
min: 34.29     avg: 34.3 (93.96%)     max: 34.29 seconds*
3DMark 06 - CPU:
0% 100%
min: 1804     avg: 1804 (18.52%)     max: 1804 Points
Cinebench R11.5: CPU Multi 64Bit
0% 100%
min: 1.27     avg: 1.3 (6.04%)     max: 1.27 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 2122     avg: 2122 (8.41%)     max: 2122 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 5146     avg: 5146 (12.03%)     max: 5146 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 1886     avg: 1886 (26.83%)     max: 1886 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 4213     avg: 4213 (12.11%)     max: 4213 Points
Super Pi mod 1.5 XS 1M:
0% 100%
min: 32     avg: 32 (94.93%)     max: 32 Seconds*
Super Pi mod 1.5 XS 2M:
0% 100%
min: 74     avg: 74 (97.71%)     max: 74 Seconds*
Super Pi Mod 1.5 XS 32M:
0% 100%
min: 1787     avg: 1787 (92.11%)     max: 1787 Seconds*
Windows 7 Experience Index: Processor
0% 100%
min: 5.7     avg: 5.7 (66.67%)     max: 5.7 points
- Range of benchmarks for this CPU
- Average benchmark score
