Intel Core i7-640UM

Intel 640UM

The Intel Core i7-640UM is a Ultra Low Voltage dual-core processor for small and light laptops. It is clocked with 1.1 - 2.26 GHz (if Turbo Boost is enabled). Each core is based on the Nehalem (Westmere) micro-architecture. Hyperthreading enables the Dual Core CPU to handle 4 threads at once (for a better usage of the pipeline). Compared to the Core i7-620M and the 640LM, the 640UM is much slower (due to the lower clock rate) but more power efficient.

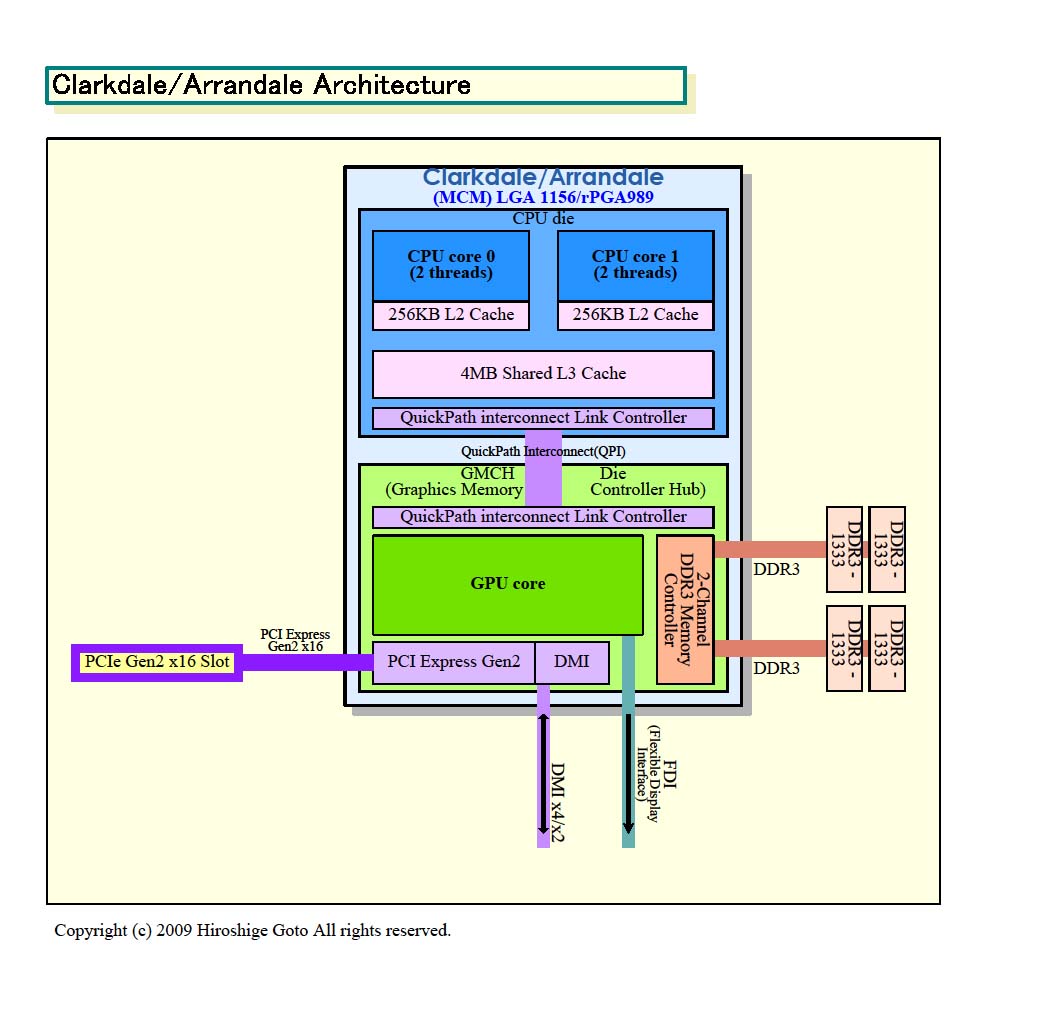

A feature of the new Core i7-640UM is the integrated graphics card (called Intel HD Graphics) and memory controller. Both are on a separate die that is still manufactured in 45nm whereas the CPU die is already manufactured in the new 32nm process.

Due to the integrated memory controller, the HyperThreading and Turbo Boost, the  Core i7-640UM is faster than a similar clocked Core 2 Duo (1.2 GHz) in all (us known) applications and benchmarks. Still the Turbo Boost may not trigger very often (sometimes it is even not activated in the BIOS) and therefore the maximum of 2.26 GHz is not very important. All in all the I7-640UM should be faster than a Core 2 Duo SL9300 (1.6GHz).

The 32nm cpu cores of the Westmere generation can also process some new instructions to accelerate AES encryptions. Modern applications that support AES encoding can profit significantly using the new instructions (e.g. the Communications Suite test in the PCMark Vantage boosts up to 70% using AES in the faster Core i5-520M).

The integrated Intel Graphics Media Accelerator HD (GMA HD) graphics card is between 166-500 MHz (Turbo Boost) and therefore the base speed is clearly below the non low voltage versions. The performance should still be faster than the old GMA 4500MHD.

The power consumption of 18 Watt TDP (max.) counts for the whole package and therefore it is clearly better than the 17 Watt TDP of the Core 2 Duo SL-series (CPU alone).





SeriesIntel Core i7
CodenameArrandale
Clock Rate1200 - 2266 MHz
Front Side Bus2500 MHz
Level 2 Cache512 KB
Level 3 Cache4096 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)18 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature105 °C
SocketBGA1288
FeaturesTurbo Boost (2.26 GHz max), Hyper Threading, Enhanced Speedstep, integrated GMA HD 166-500MHz
64 Bit64 Bit support
Hardware VirtualizationVT-x
Starting Price $305 U.S.
Announcement Date01/04/2010
Product Link (external)Intel Core i7 640UM

CPU Benchmarks

PCMark 05: Standard 1024x768
0% 100%
min: 4597     avg: 4597 (25.61%)     max: 4597 Points
PCMark Vantage: Result 1024x768
0% 100%
min: 5329     avg: 5329 (19.86%)     max: 5329 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 5713     avg: 5713 (13.67%)     max: 5713 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 2940     avg: 2940 (11.73%)     max: 2940 Points
- Range of benchmarks for this CPU
- Average benchmark score

Cinebench R10 in comparison
AMD C-Series C-50 (min)
712.5
...
AMD A-Series A10-4600M
2856.3
AMD A-Series A8-5557M
2871
AMD Phenom II X4 (Desktop) 905e
2930
Intel Core i7 640UM
2940
Intel Pentium P6200
2996.5
AMD A-Series A8-5550M
3028.5
AMD A-Series A6-4400M
3063
...
Intel Core i7 (Desktop) 4770K (max)
7716

Reviews for the Intel Core i7 640UM processor
