Verdict: The KFA2 GeForce RTX 5070 1-Click OC is a powerful WQHD GPU with an AI boost
The KFA2 GeForce RTX 5070 1-Click OC is a solid 1,440p GPU that delivers strong performance during modern games. It offers excellent gaming performance and impresses with its support for DLSS 4 and Multi Frame Generation (MFG), which ensures smoother frame rates, especially when running demanding titles. In direct comparison to the AMD Radeon RX 9070, the RTX 5070 is slightly slower in some scenarios, but it remains the better choice for users who don't want to do without Nvidia's technologies.
The Nvidia GeForce RTX 5070 offers excellent value for money, particularly within the price range of up to $700, and is an excellent option for anyone who doesn't want to compromise on graphics quality. The surcharge compared to an Nvidia GeForce RTX 5060 Ti with 16 GB is justified, as this is reflected in its performance. The GeForce RTX 5070's 12 GB VRAM is sufficient, but represents the minimum that should be expected in this performance class. In terms of its future viability, the Nvidia GeForce RTX 5070 Ti clearly offers more potential for the time being.
Pros
Cons
Price and availability
The KFA2 GeForce RTX 5070 1-Click OC retails for approximately $670.
Table of Contents
- Verdict: The KFA2 GeForce RTX 5070 1-Click OC is a powerful WQHD GPU with an AI boost
- Specifications
- First impression and build
- Performance – 12 GB VRAM is just enough
- Xtreme Tuner Plus - KFA2 Tuning Utility, mobile app and 1-Click OC
- Synthetic benchmarks - On par with the AMD RX 9000
- Gaming performance - 12 GB VRAM is the minimum

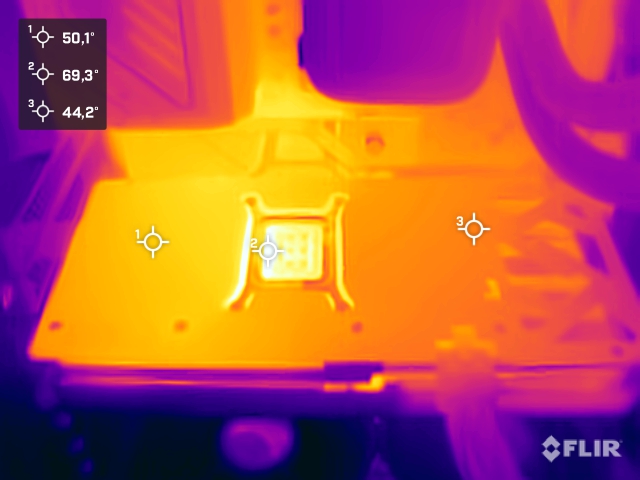

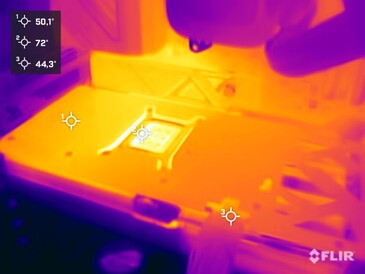

- Emissions - Good cooling, but audible under load

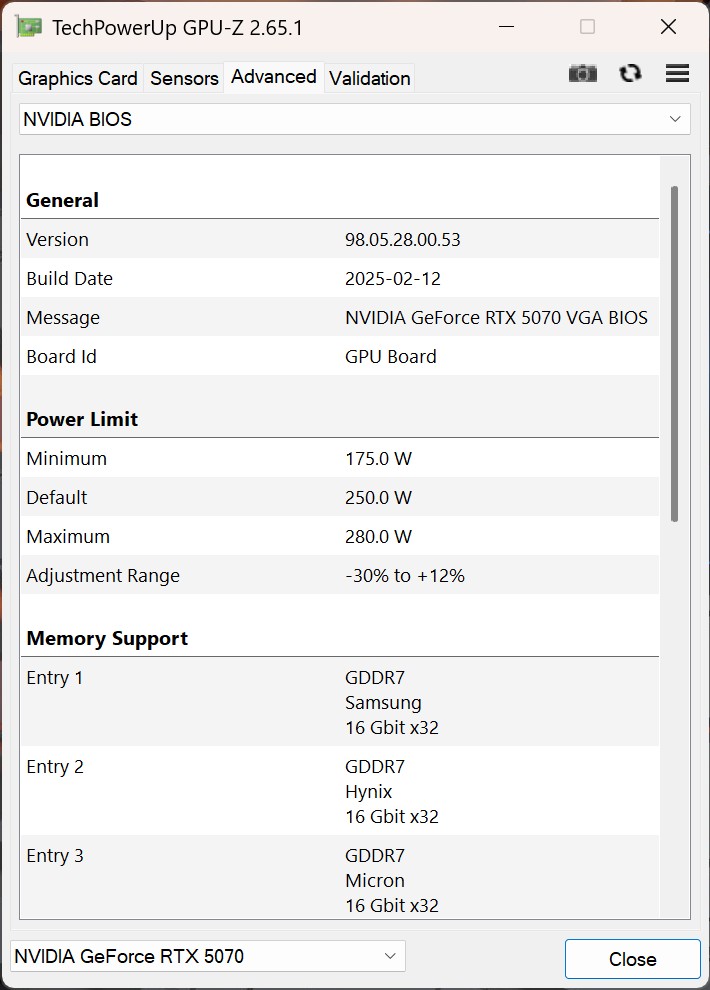

- Energy management - 250 watts aren't always reached
- Notebookcheck total rating
The KFA2 GeForce RTX 5070 1-Click OC is based on the new GB205 chip and joins Nvidia's Blackwell generation as a powerful mid-range GPU. It has adopted lots of the features of the larger models, such as the latest generation of DLSS and the innovative Multi Frame Generation (MFG), but offers them with adapted performance and efficiency. Compared to the RTX 5070 Ti, it differs primarily in its fewer shader units, less video memory and lower memory bandwidth.
Nevertheless, with its 12 GB VRAM, it's ideally equipped for the latest games and creative applications. Thanks to its Blackwell architecture, a wide range of games will benefit from AI-supported performance improvements. The MFG technology can be activated via the Nvidia app—even in games without native support, and according to Nvidia without any loss of performance.
More reviews of Nvidia's Blackwell graphics cards:
- Nvidia GeForce RTX 5090 (Founders Edition)
- Nvidia GeForce RTX 5080 (Asus TUF Gaming GeForce RTX 5080 OC)
- Nvidia GeForce RTX 5070 Ti (KFA2 GeForce RTX 5070 Ti 1-Click OC)
- Nvidia GeForce RTX 5060 Ti (Asus TUF Gaming GeForce RTX 5060 Ti OC)

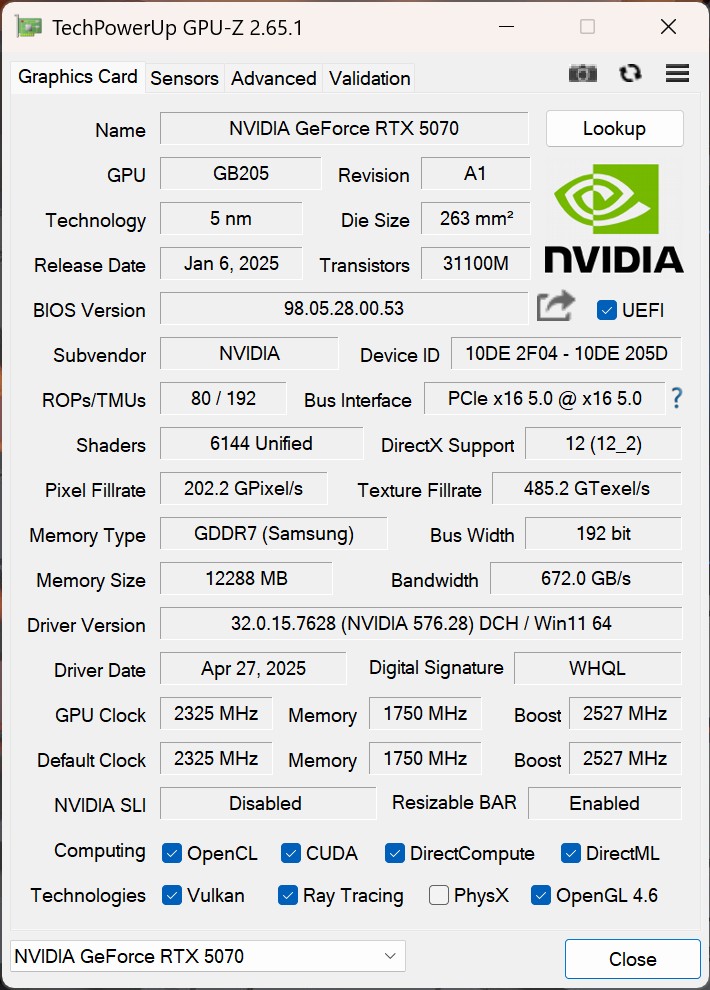

Specifications
First impression and build

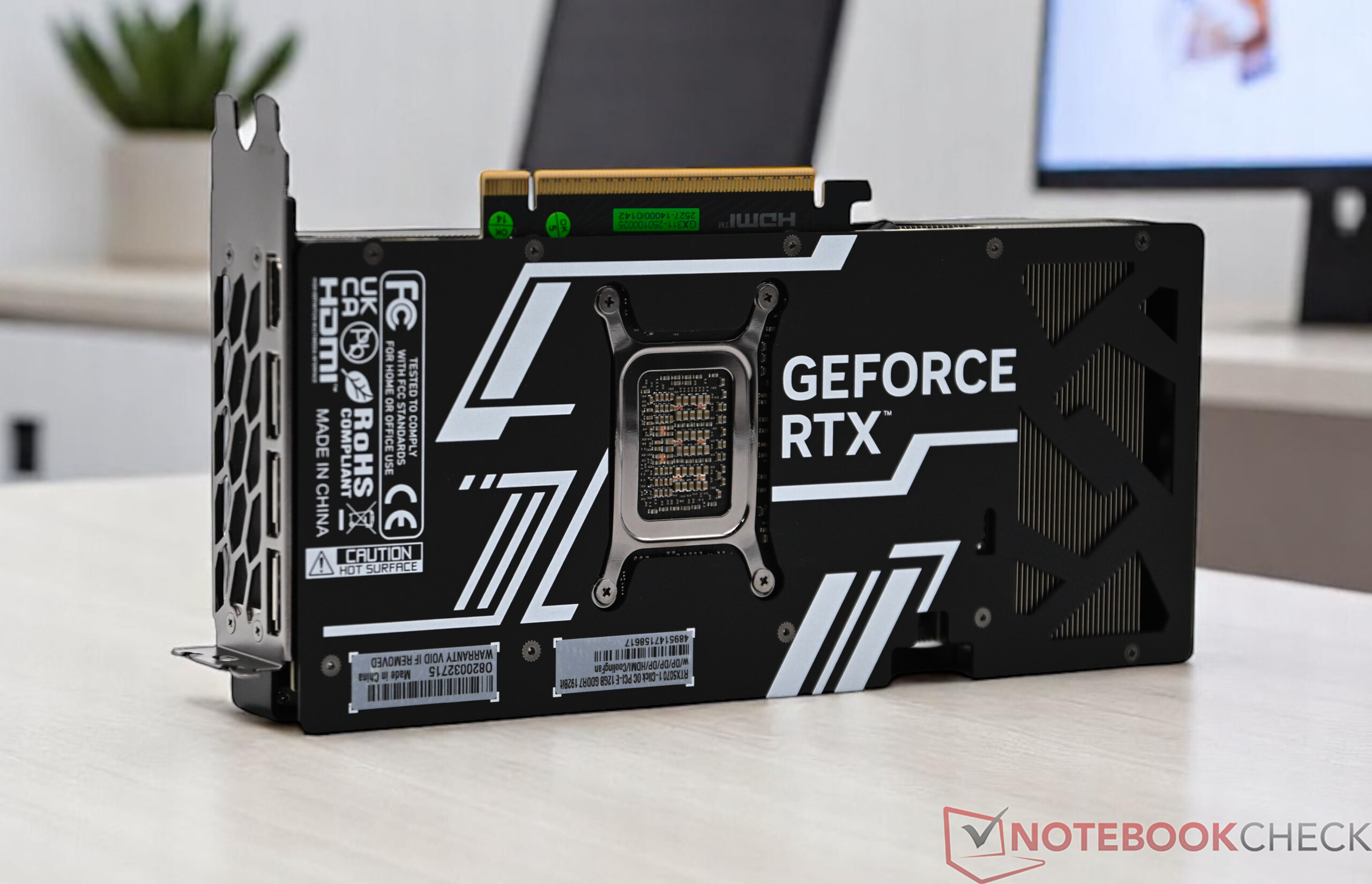

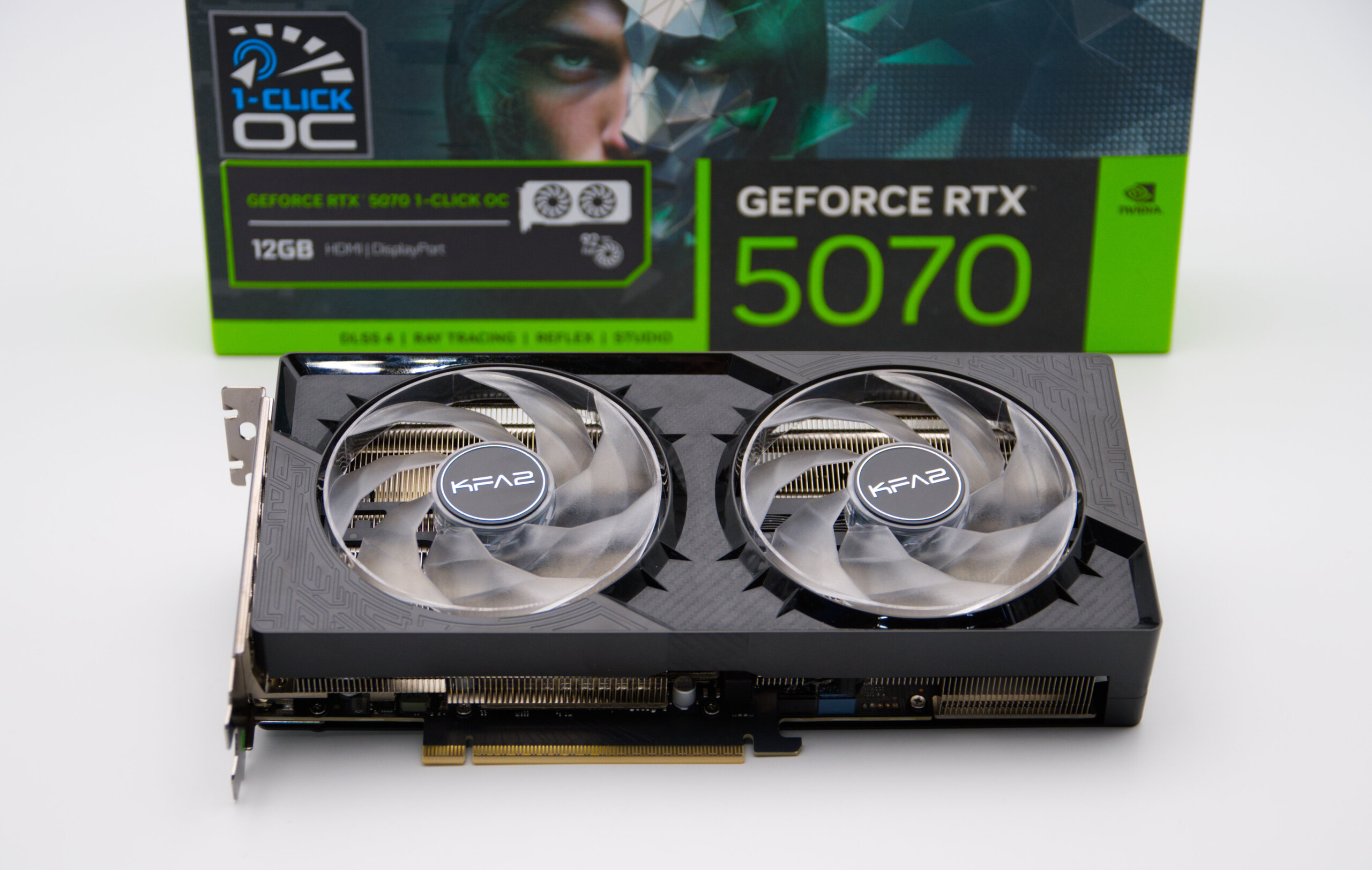

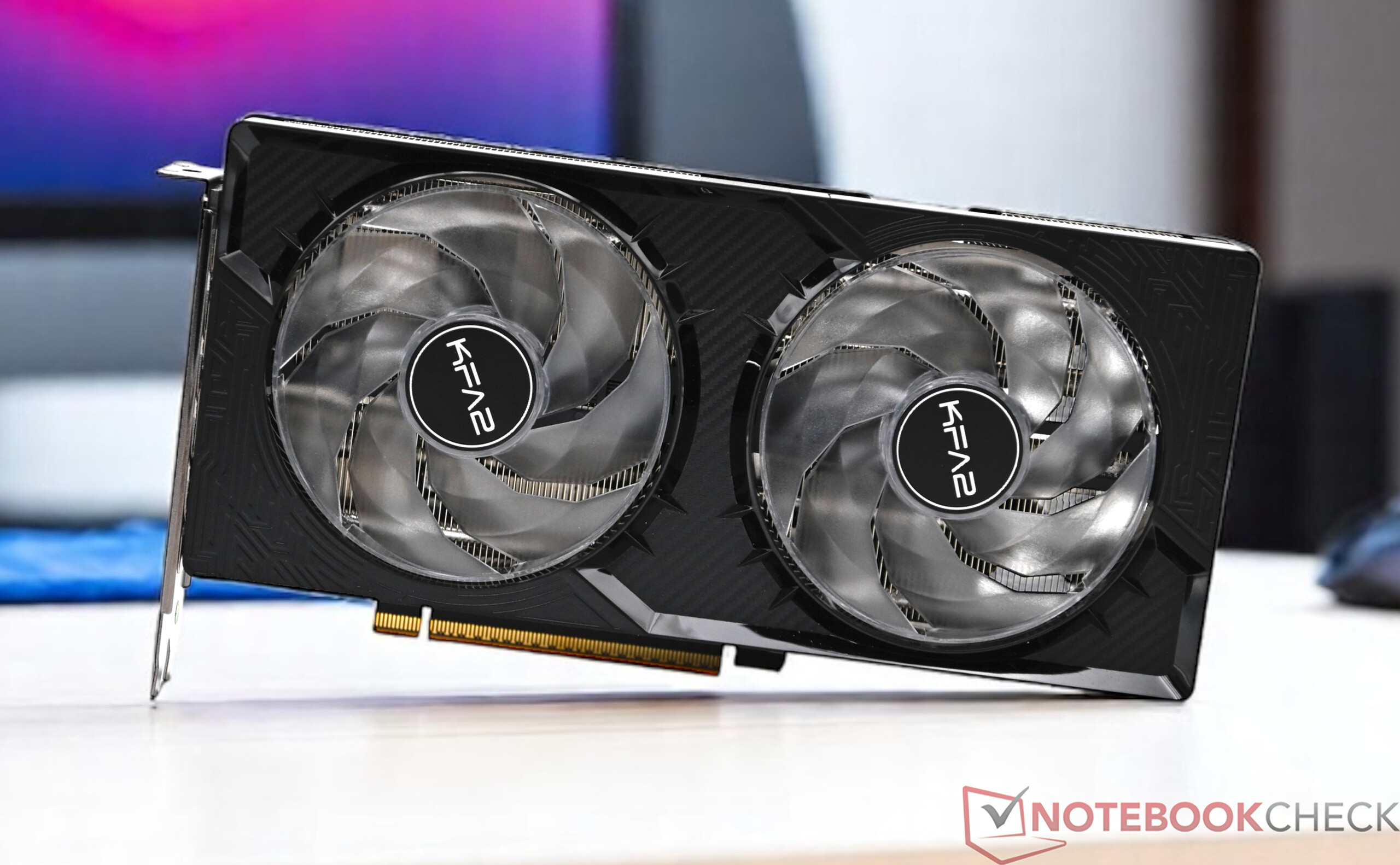

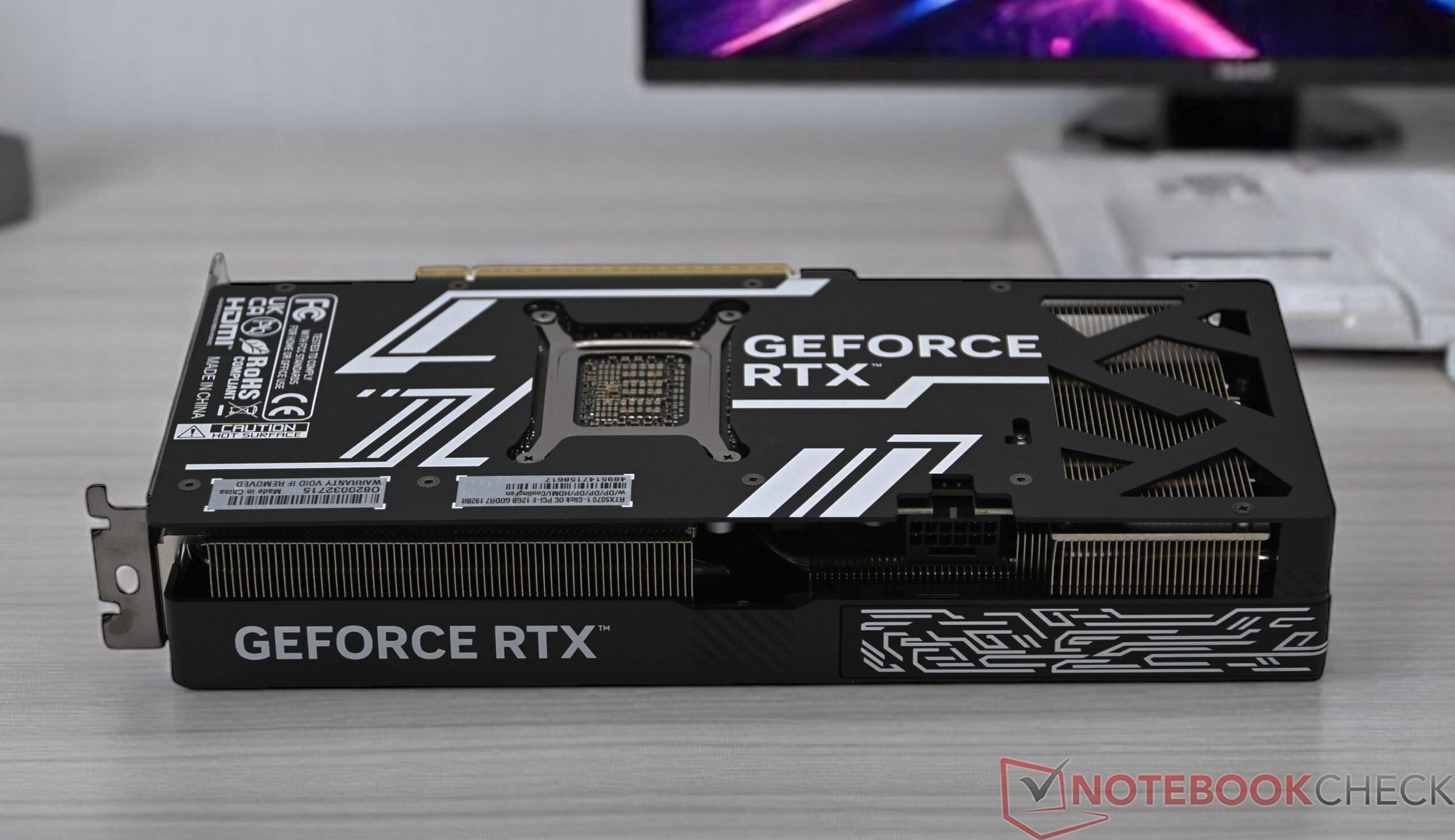

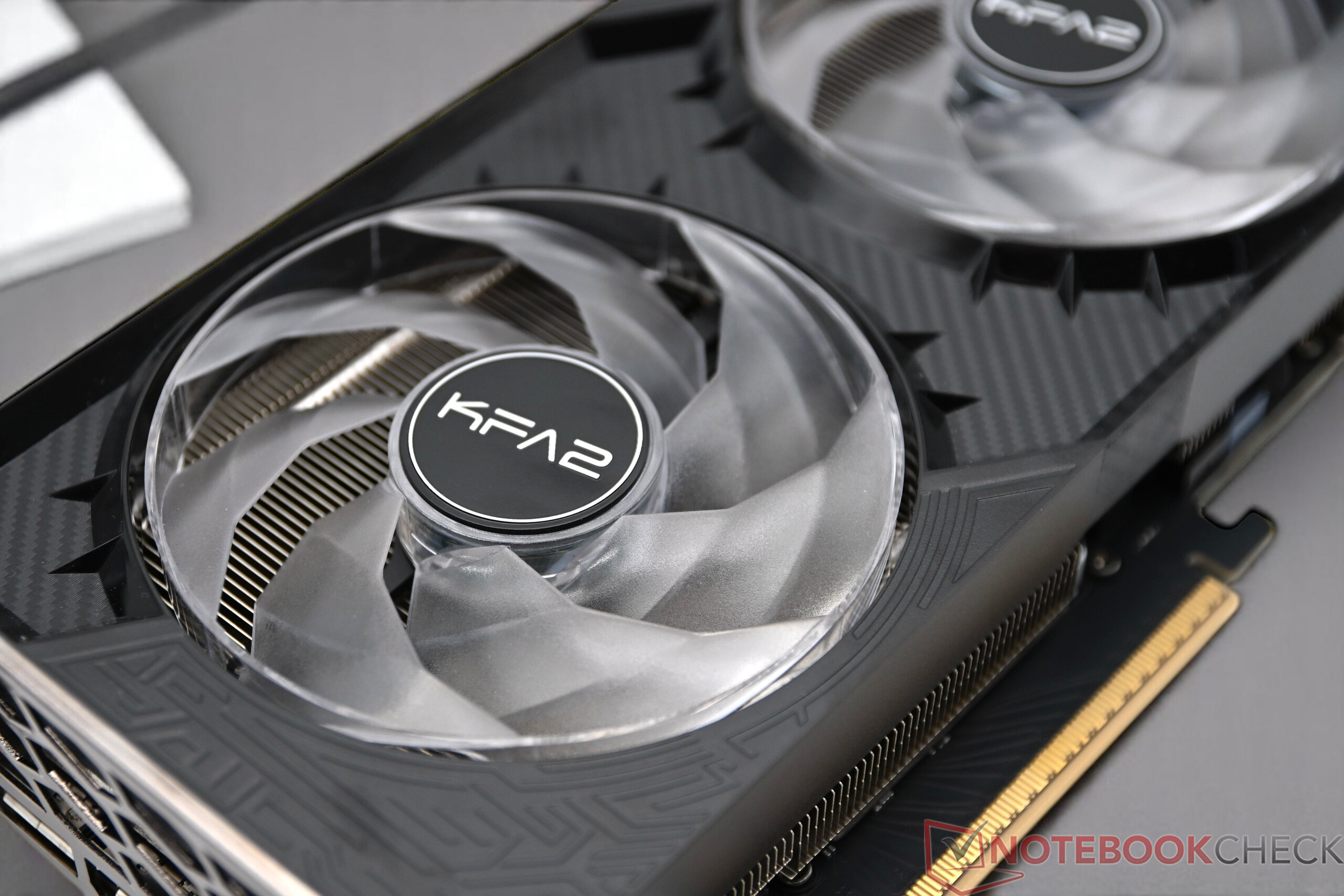

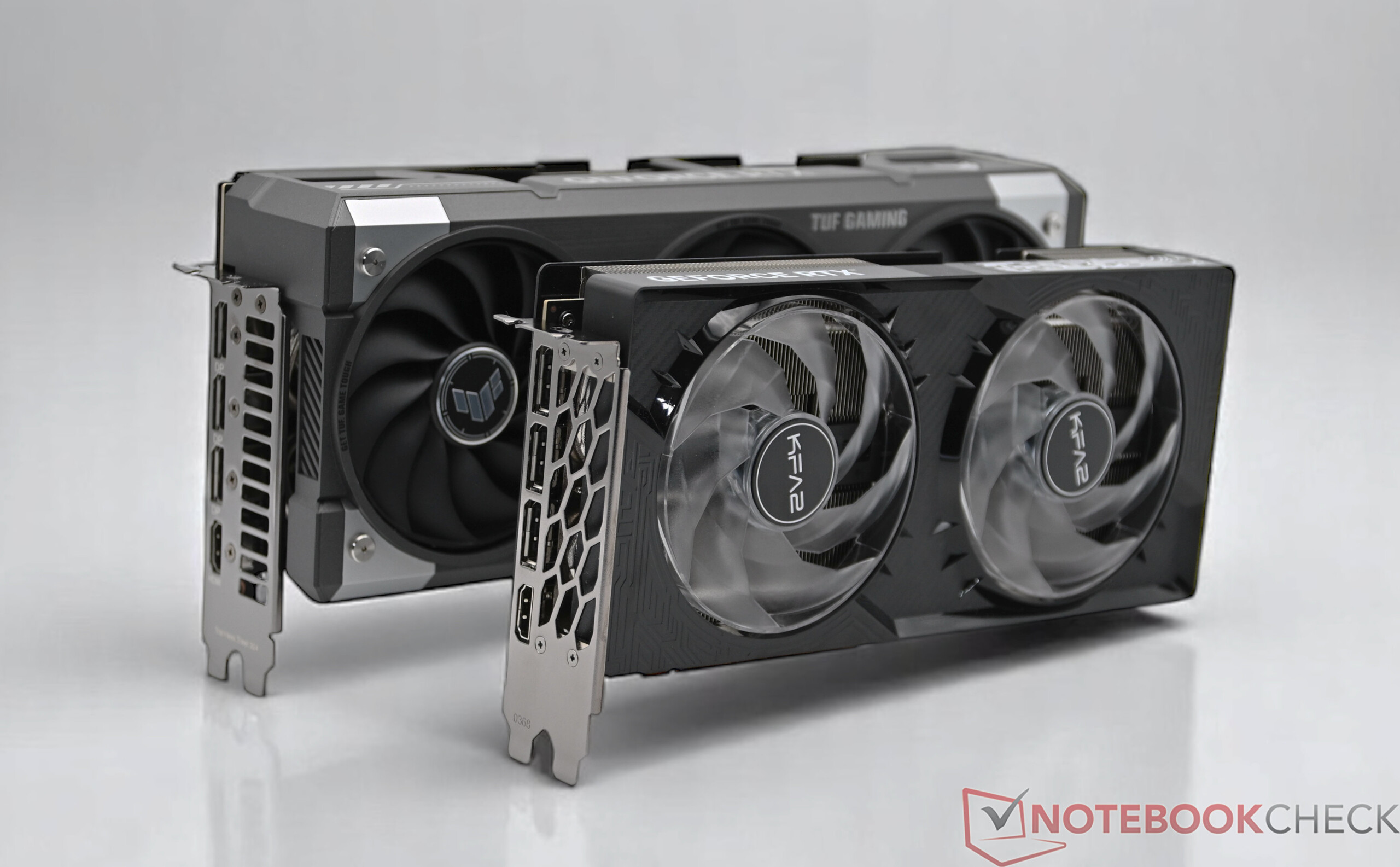

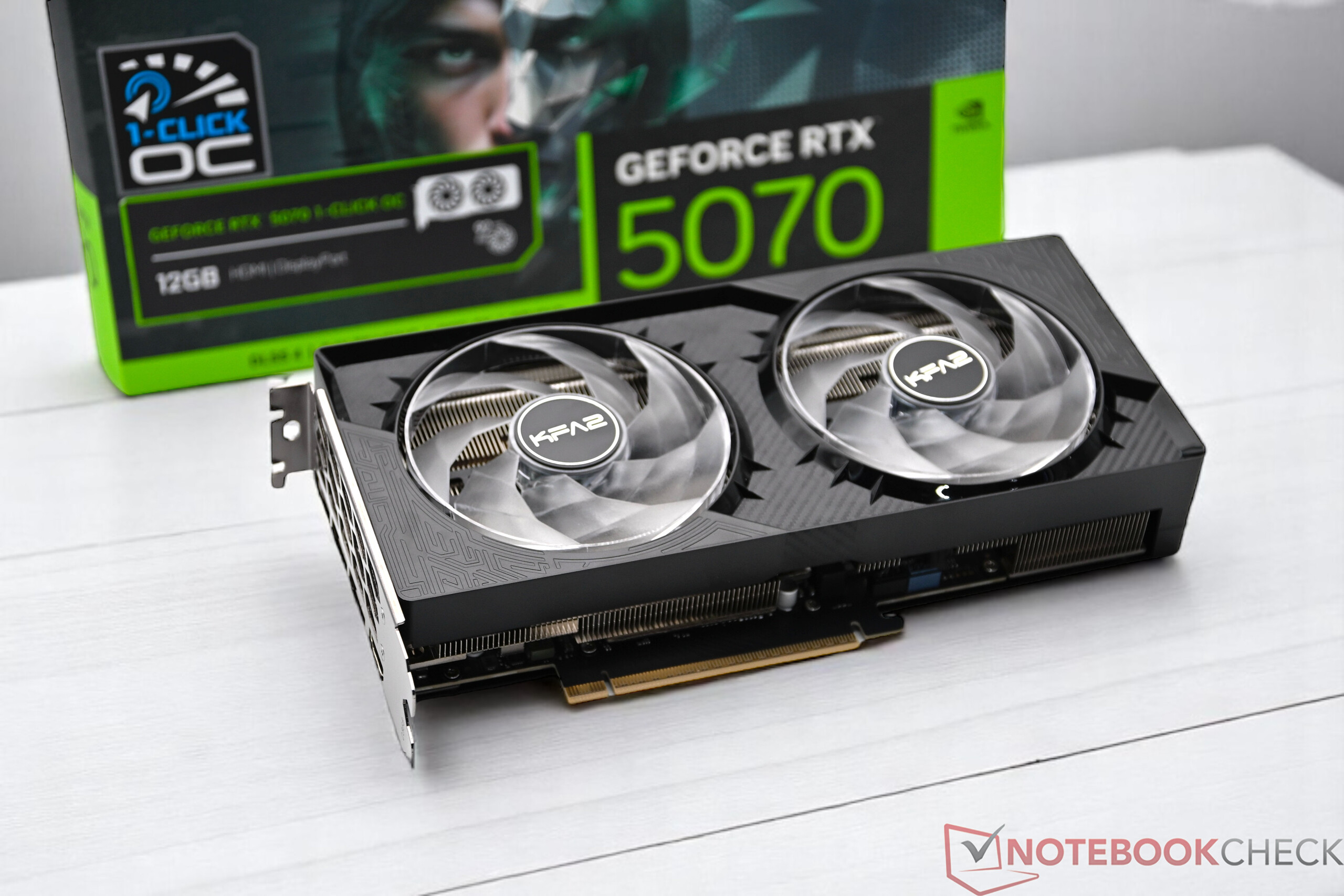

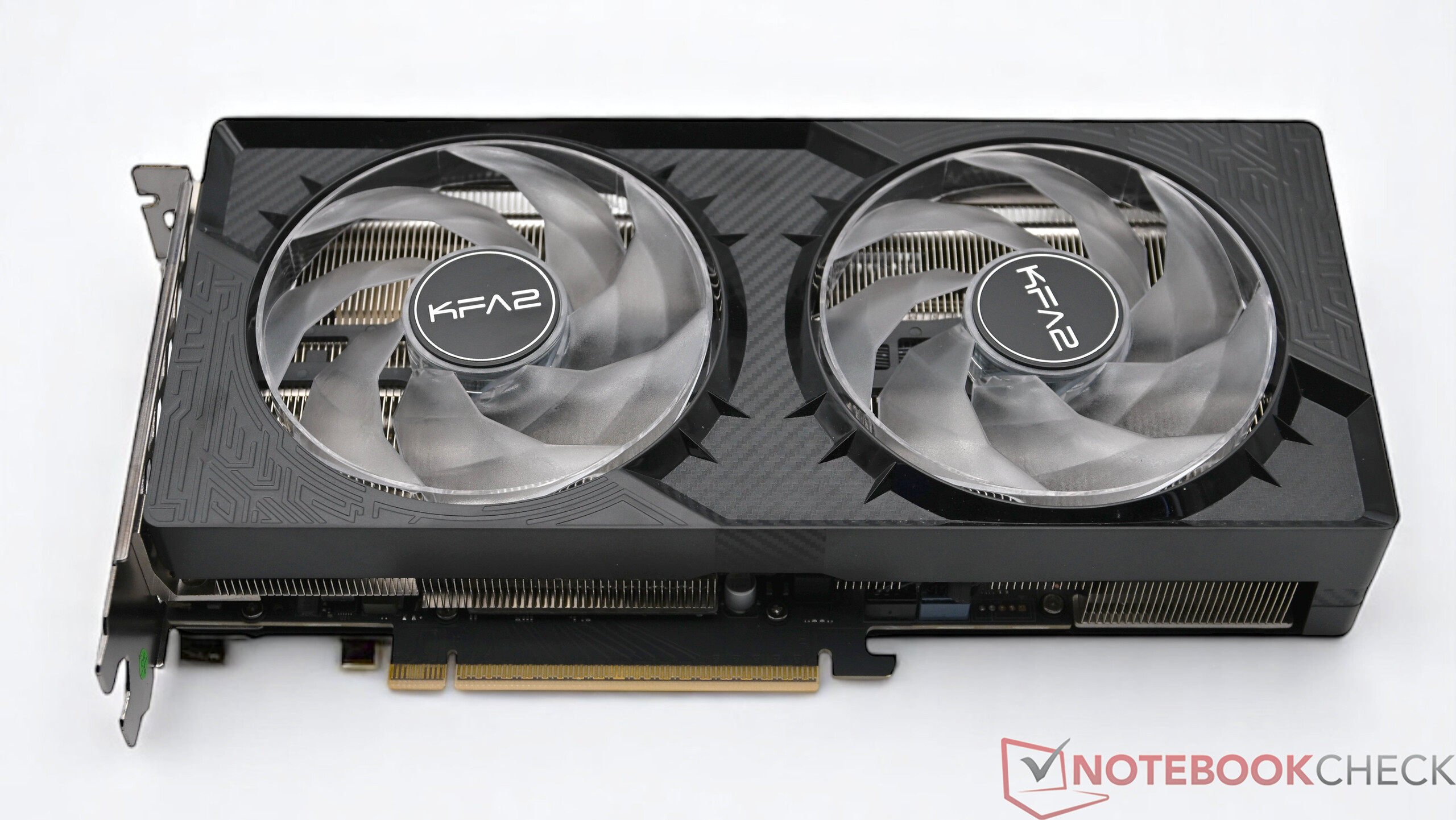

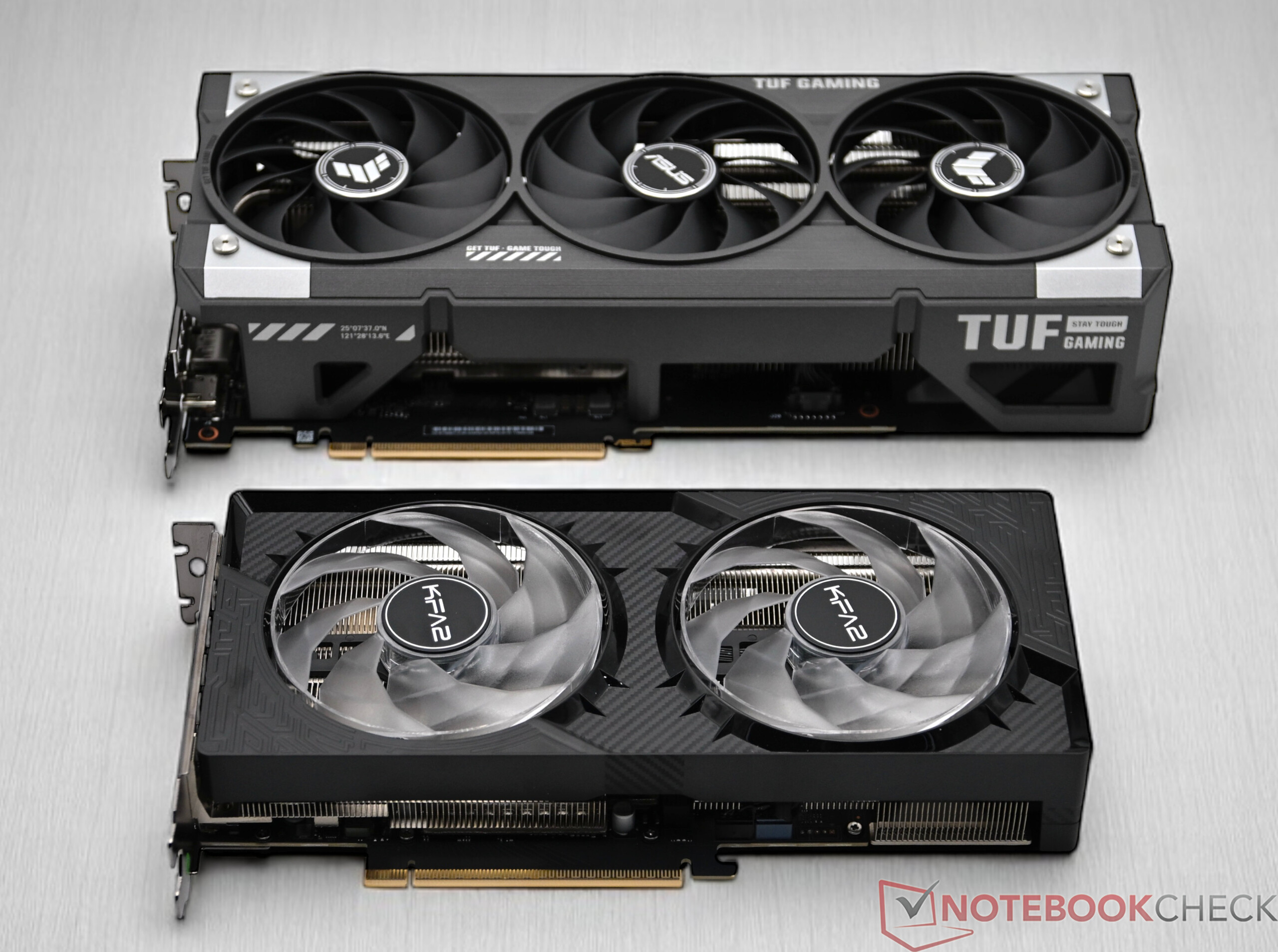

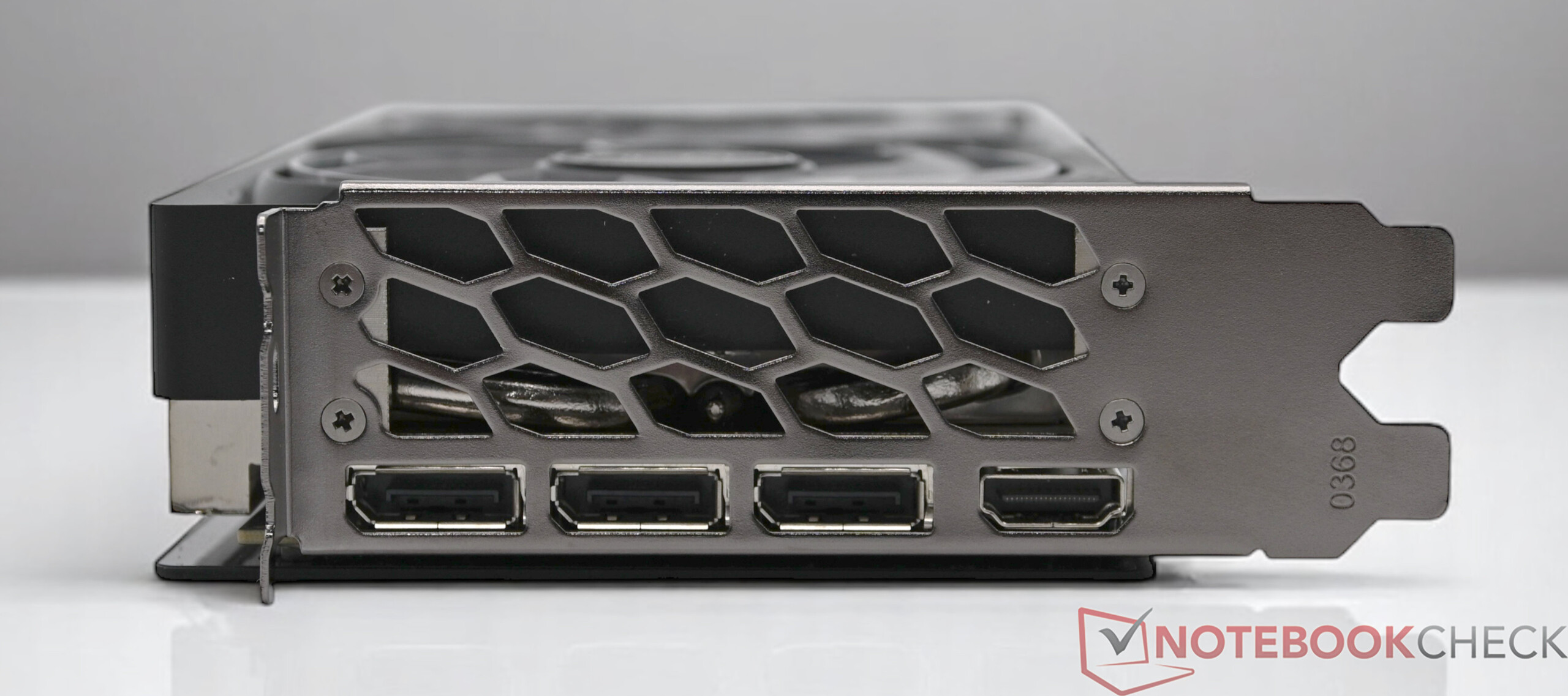

The KFA2 GeForce RTX 5070 1-Click OC boasts a modern look and solid build. The manufacturer has gone for plastic on the front, while an aluminum backplate provides additional stability and improved heat dissipation. Its striking design is complemented by subtle RGB lighting, which can be individually adjusted. Plus, there's a small switch on the graphics card to deactivate the lighting entirely. Two fans are used to cool the graphics card, which appear comparatively small in relation to its power consumption. With a length of around 25 centimeters, the KFA2 GeForce RTX 5070 1-Click OC is one of the more compact representatives of its performance class. Thanks to its slim 2-slot design, neighboring PCIe slots remain free. This makes it a good choice for PC systems with limited space.

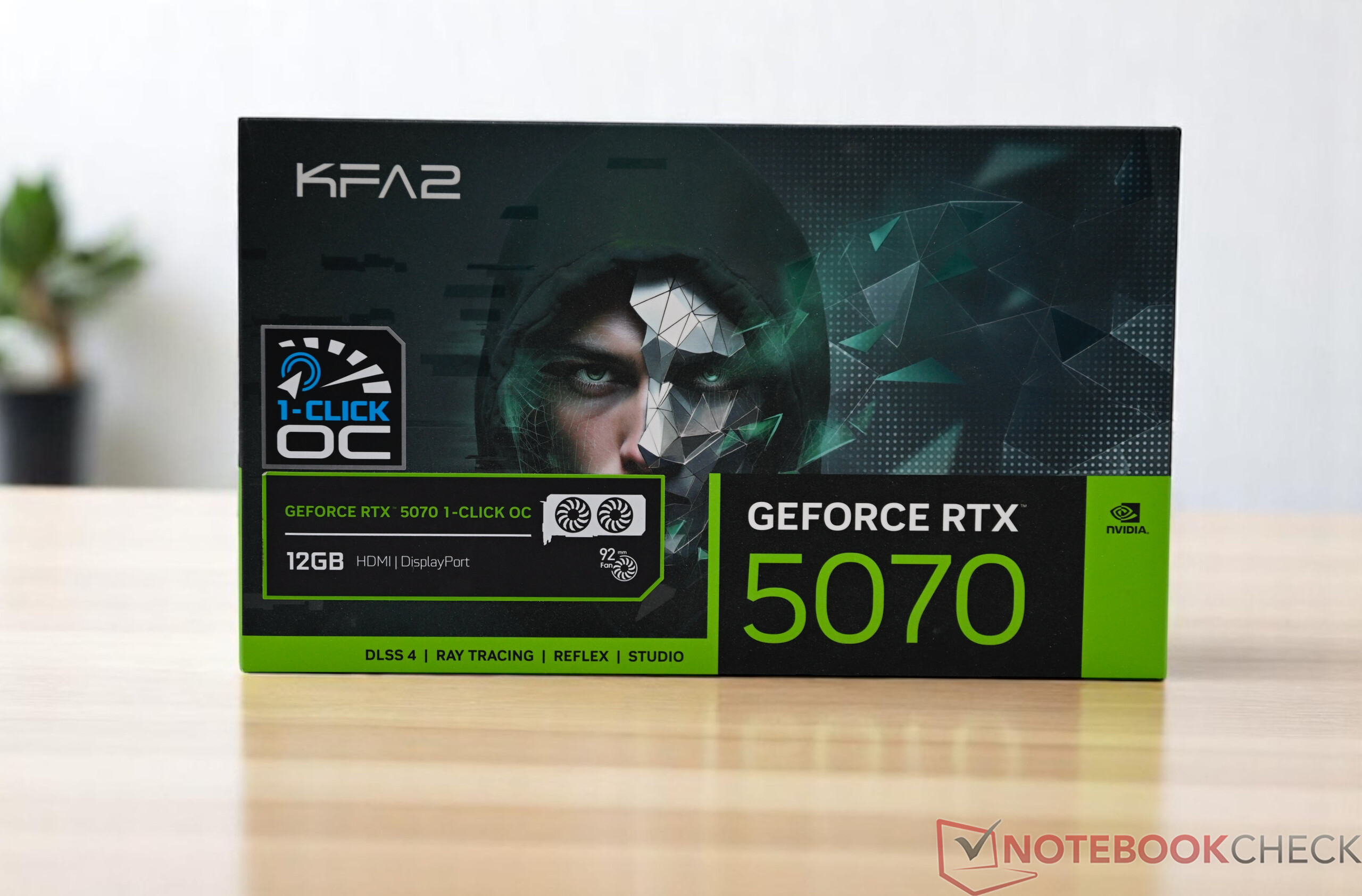

Its scope of delivery is rather limited: In addition to the graphics card itself, buyers only get a power adapter (2x8-pin PCIe to 12V 2x6). Additional accessories, such as a GPU stand or RGB cables, are not included.
Technical data compared
Model | RTX 5090 (FE) | RTX 5080 (FE) | RTX 5070 Ti | RTX 5070 | RTX 5060 Ti | RTX 4070 | RTX 3070 |
Chip | GB202 | GB203 | GB203 | GB205 | GB206 | AD104 | GA104 |
FinFET process | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 8 nm |
CUDA cores | 21,760 | 10,752 | 8,960 | 6,144 | 4,608 | 5,888 | 5,888 |
Texture units | 680 | 336 | 280 | 192 | 144 | 184 | 184 |
Tensor cores | 680 5th Gen | 336 5th Gen | 280 5th Gen | 192 5th Gen | 144 5th Gen | 184 4th Gen | 184 3rd Gen |
RT cores | 170 | 84 | 70 | 48 | 36 | 46 | 46 |
GPU base clock | 2,010 MHz | 2,295 MHz | 2,295 MHz | 2,325 MHz | 2,407 MHz | 1,920 MHz | 1,500 MHz |
GPU boost clock | 2,407 MHz | 2,617 MHz | 2,452 MHz | 2,512 MHz | 2,572 MHz | 2,475 MHz | 1,725 MHz |
Memory bus | 512 bit | 256 bit | 256 bit | 192 bit | 128 bit | 192 bit | 256 bit |
Memory bandwidth | 1,792 GB/s | 960 GB/s | 896 GB/s | 672 GB/s | 448 GB/s | 504.2 GB/s | 448 GB/s |
Video memory | 32 GB GDDR7 | 16 GB GDDR7 | 16 GB GDDR7 | 12 GB GDDR7 | 8 / 16 GB GDDR7 | 12 GB GDDR6X | 8 GB GDDR6 |
TGP (Total Graphics Power) | 575 watts | 360 watts | 300 watts | 250 watts | 180 watts | 200 watts | 220 watts |
Performance – 12 GB VRAM is just enough
The KFA2 GeForce RTX 5070 1-Click OC uses the Blackwell generation and features technical innovations such as DLSS 4 and Multi Frame Generation (MFG) for smoother frame rates and more realistic visuals. It's equipped with 6,144 CUDA cores and 12 GB GDDR7 RAM with a bandwidth of 672 GB/s. There are only minor technical differences compared to the Nvidia GeForce RTX 4070. Its VRAM continues to be 12 GB, which is still sufficient for its intended purpose.

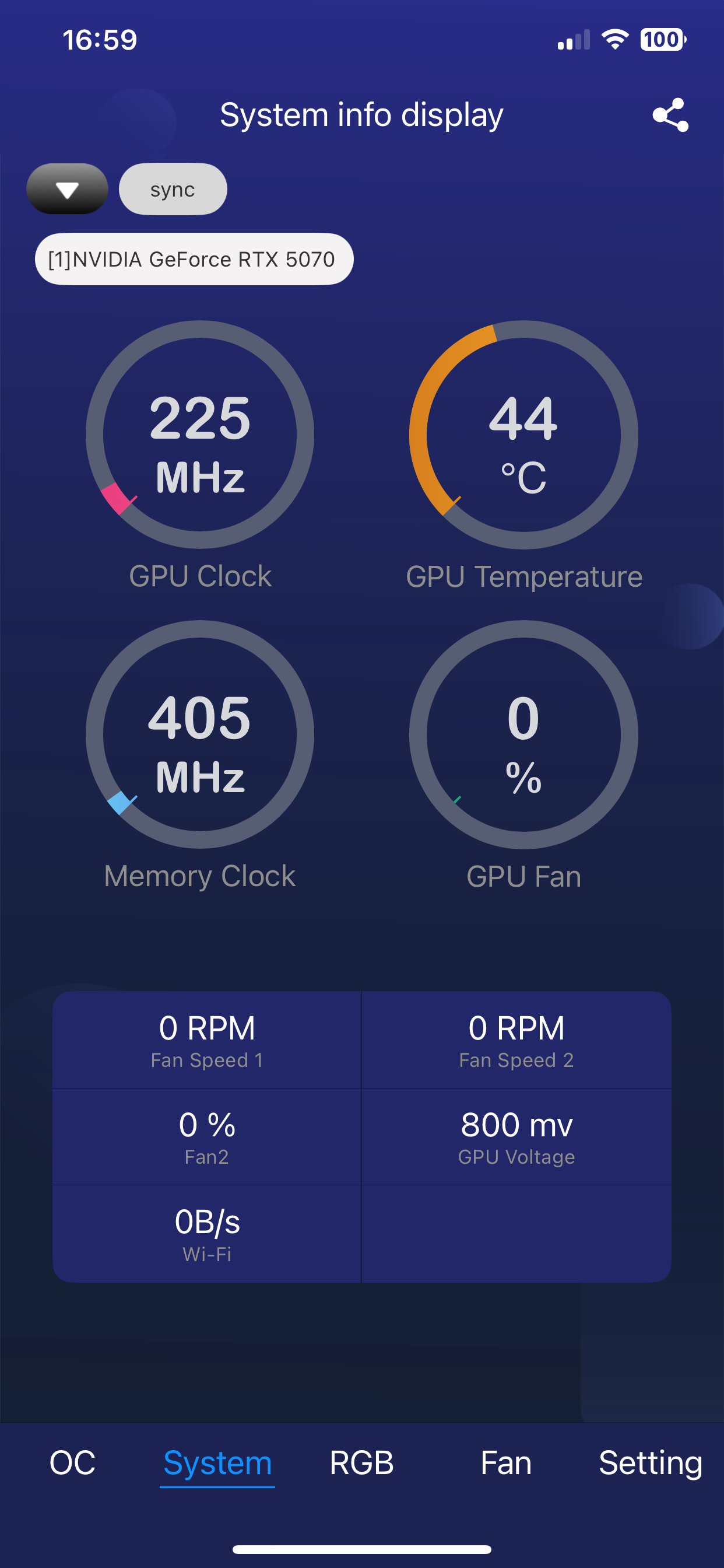

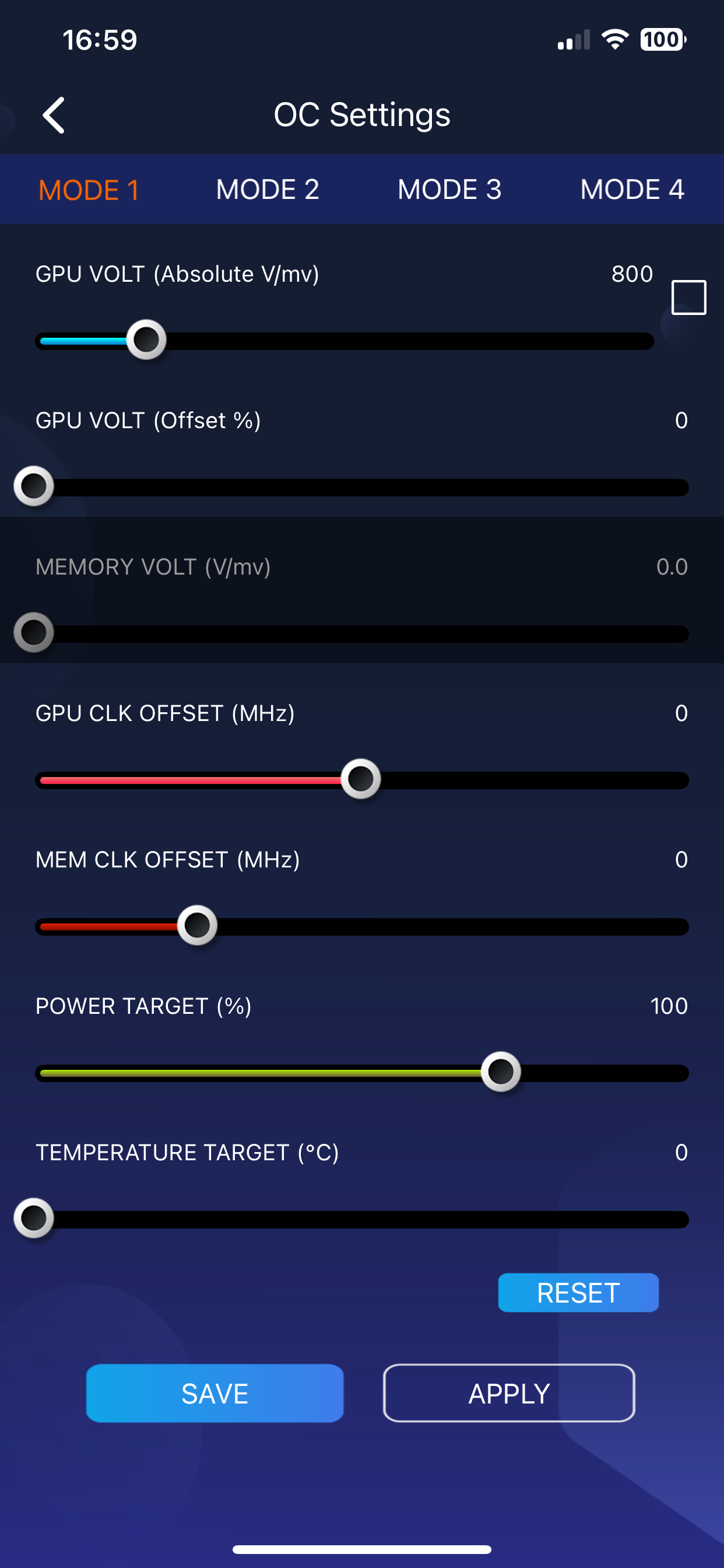

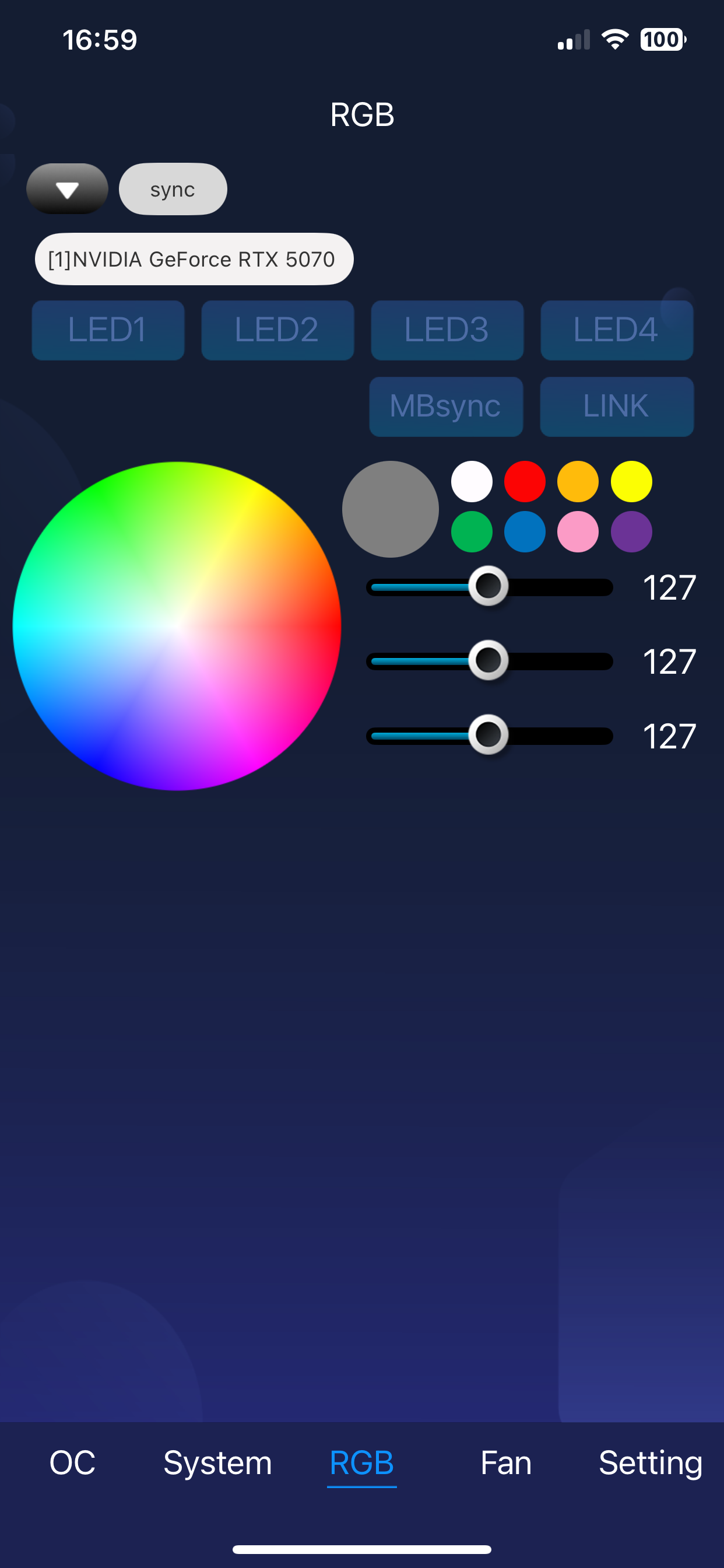

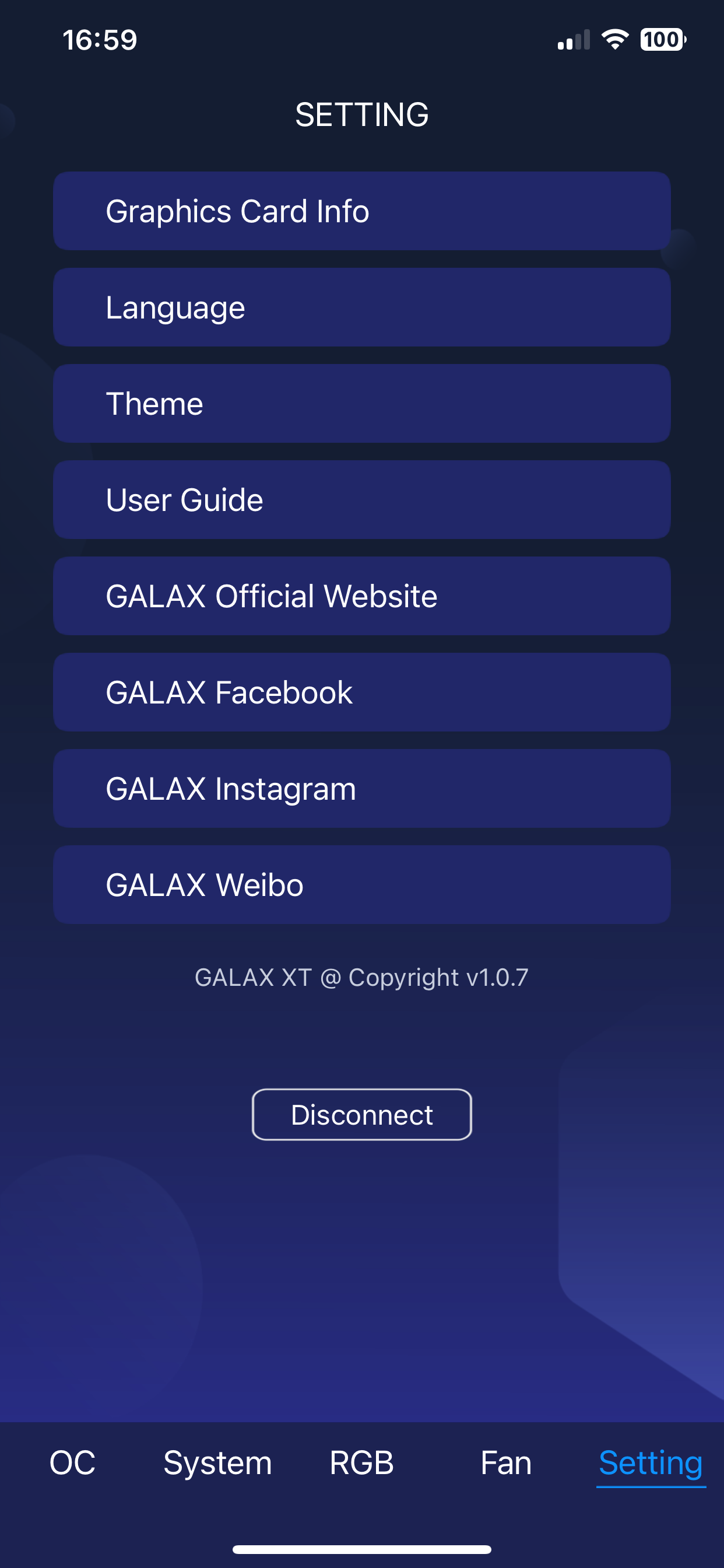

Xtreme Tuner Plus - KFA2 Tuning Utility, mobile app and 1-Click OC

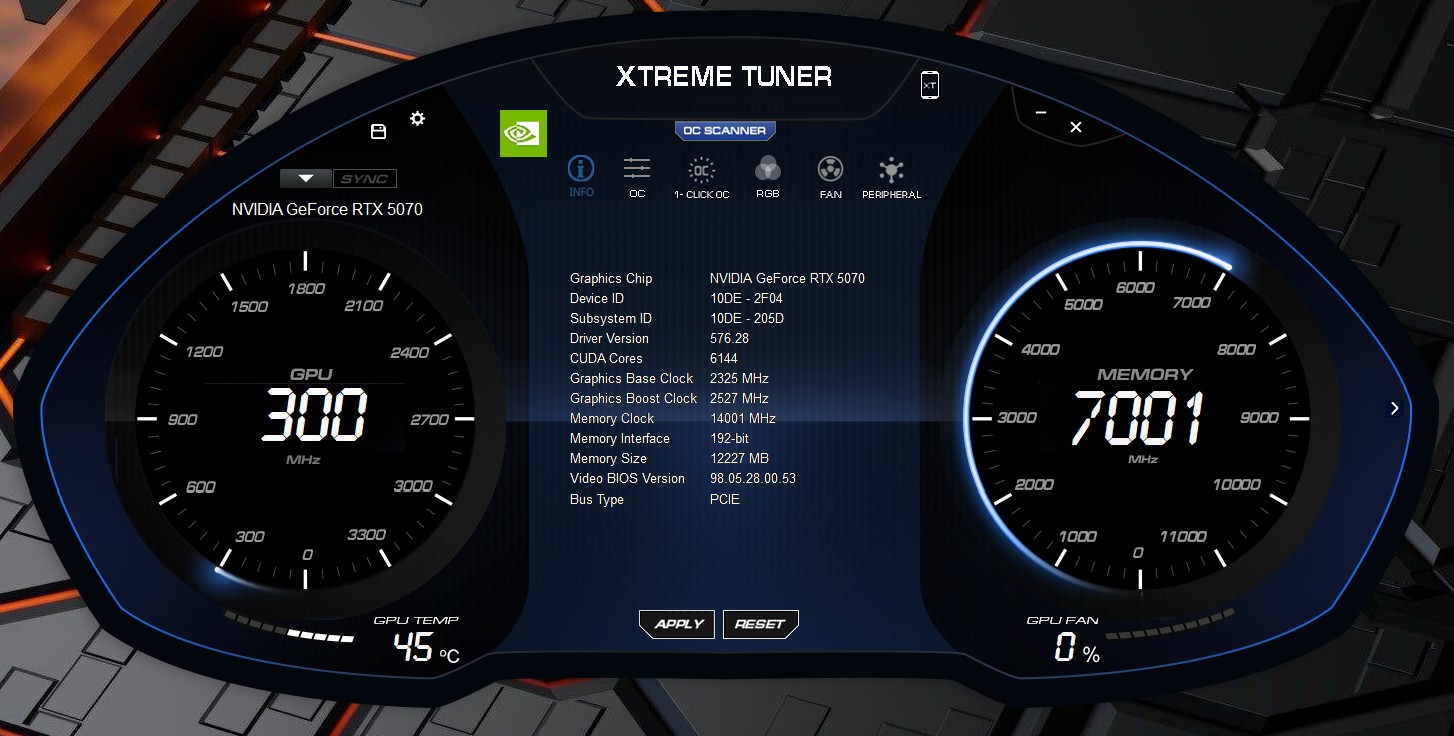

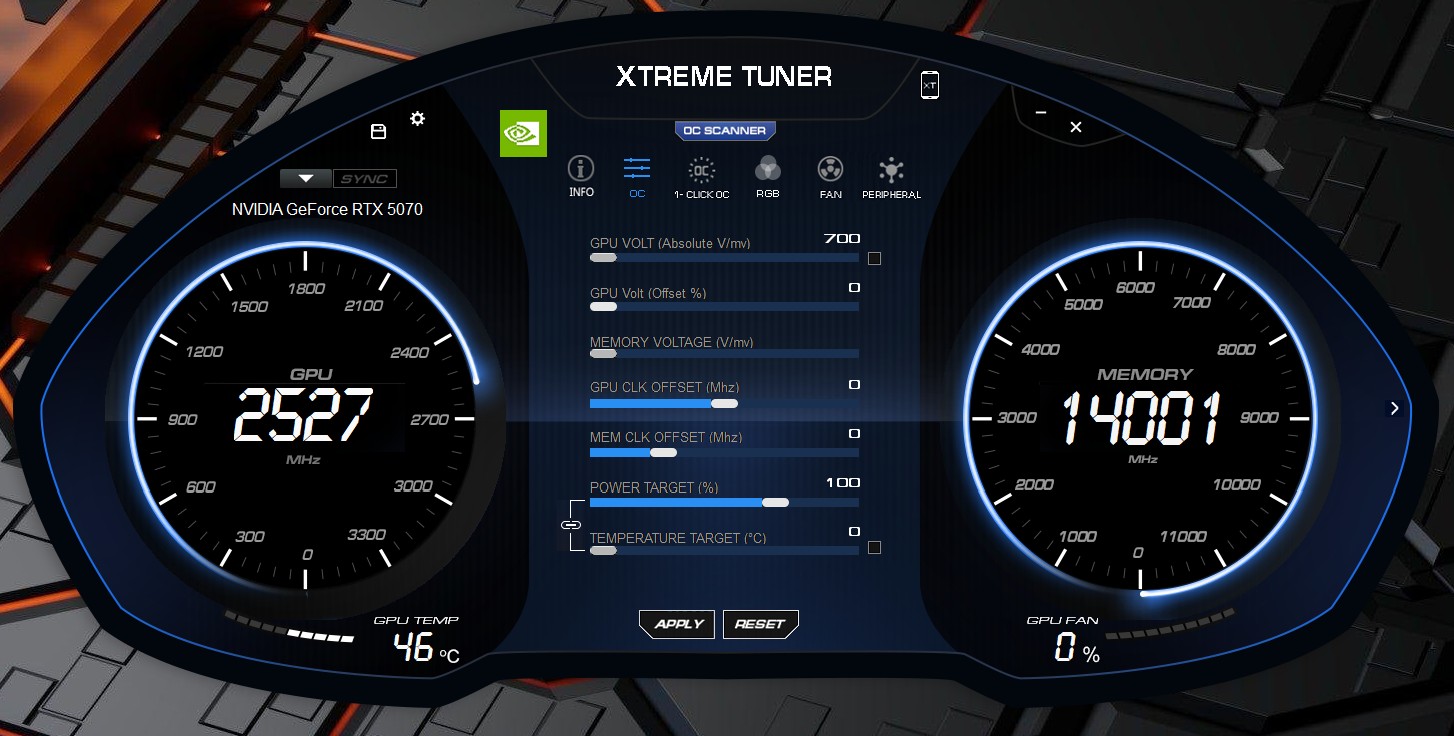

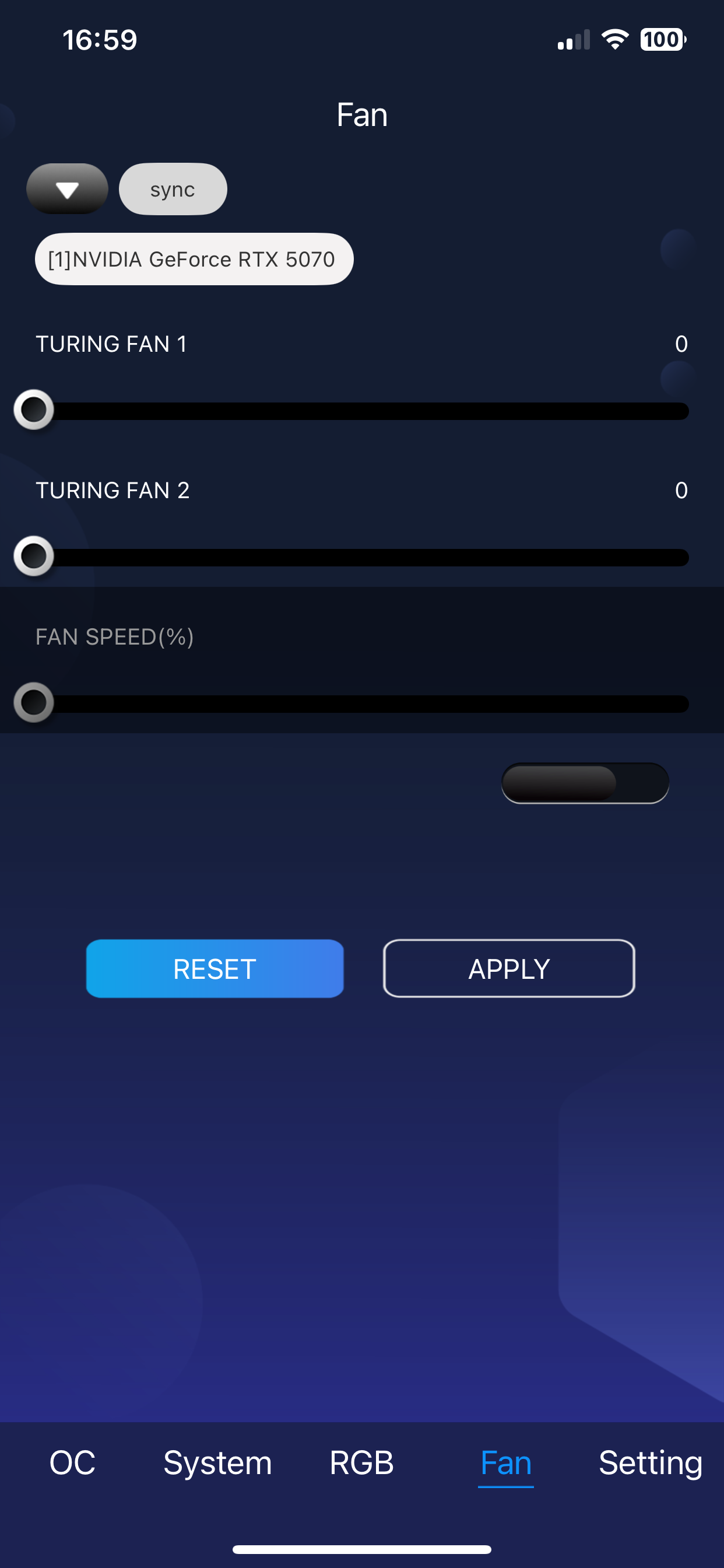

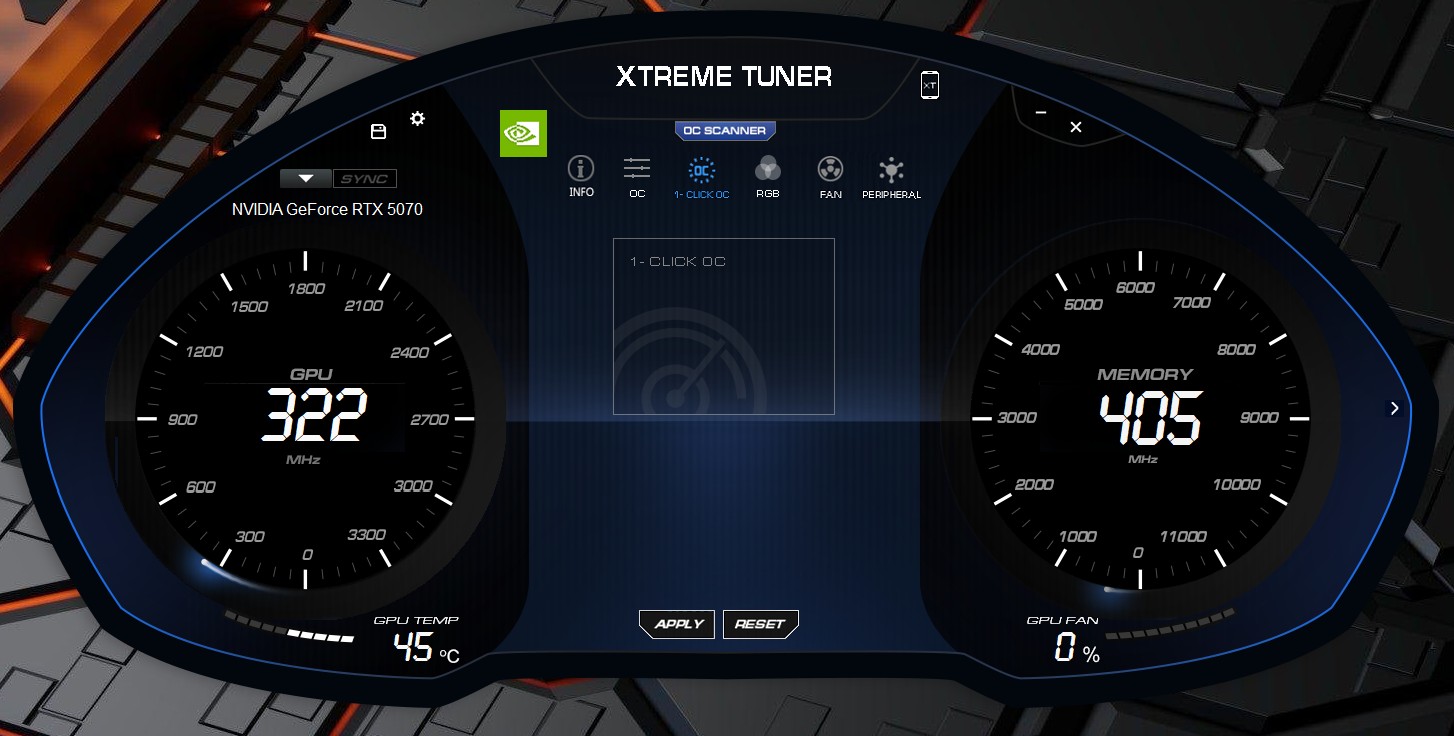

The KFA2 "Xtreme Tuner" tool gives users extensive options for customizing their graphics card: Clock rates can be adjusted manually, the power target can be increased to up to 280 watts and the RGB lighting can be controlled individually. Smartphone control is particularly practical, allowing settings to be made conveniently on the move—ideal for fine adjustments during operation. The connection is set up easily using a QR code; the only requirement is that the PC and smartphone are on the same network. The 1-Click-OC function increases its clock rate by 15 MHz, but only offers a minimal increase in performance and remains more of a marketing gimmick.
Testing conditions

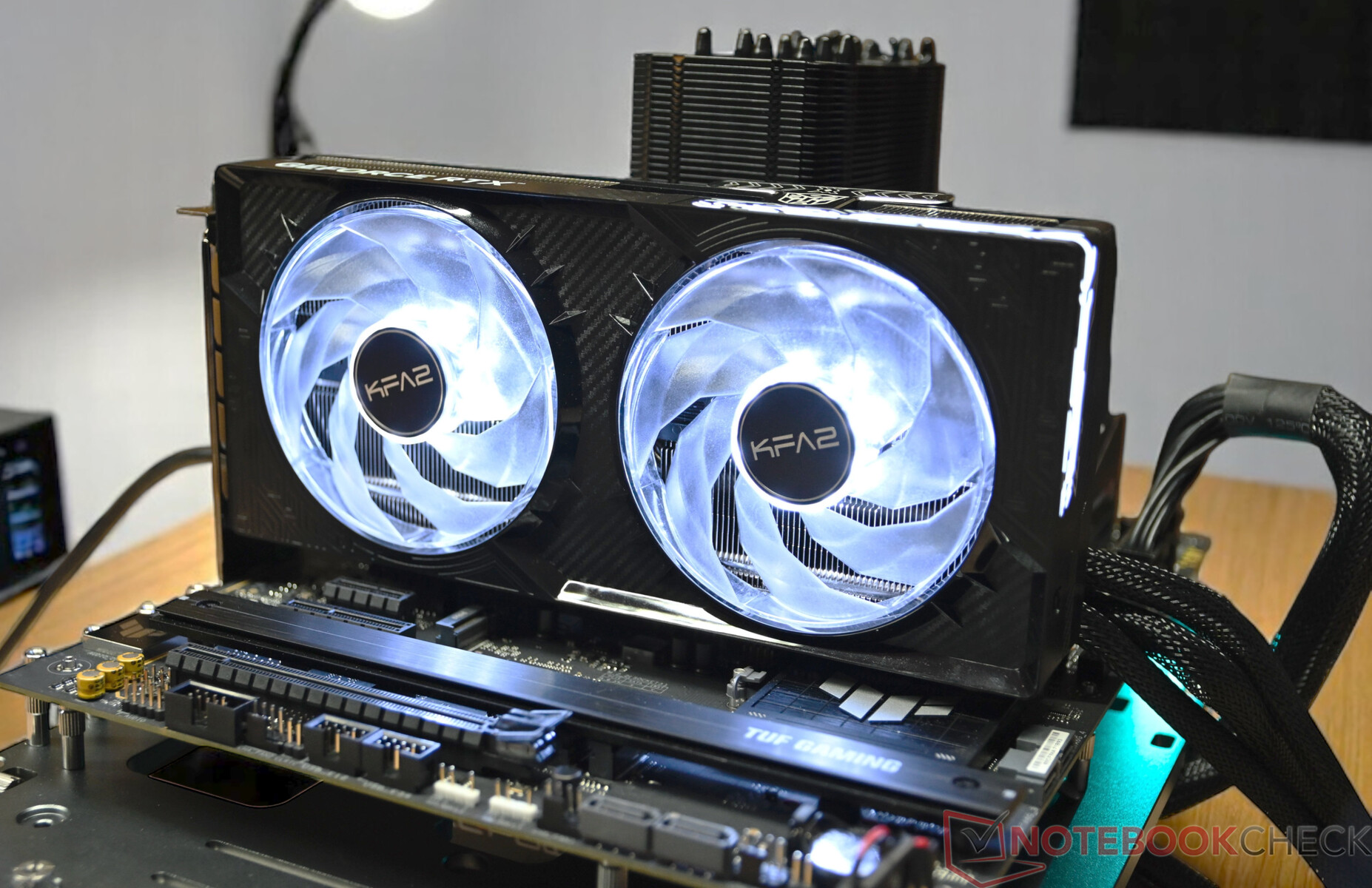

We used ann AMD Ryzen 7 9800X3D on an Asrock X870E Taichi motherboard for this test. The KFA2 GeForce RTX 5070 1-Click OC was operated in its factory settings—neither its maximum power consumption nor its clock rates were adjusted.
Synthetic benchmarks - On par with the AMD RX 9000
The KFA2 GeForce RTX 5070 1-Click OC's synthetic benchmarks attest to the card's respectable performance. Our test sample won the direct comparison with the predecessor model with a plus of around 25 percent. Compared to the competition—especially in the duel with current AMD Radeon RX 9000 models—the KFA2 GeForce RTX 5070 1-Click OC came on average exactly between the two models from the red camp. Compared to the KFA2 GeForce RTX 5070 Ti, you'll have to reckon with a gap of around 20 percent.
Performance Rating - Percent | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 1-Click OC | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
Extreme Preset OpenGL | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Palit GeForce RTX 4090 GameRock OC | |
Nvidia GeForce RTX 5090 Founders Edition | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 | |
AMD Radeon RX 9070 XT | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
Nvidia GeForce RTX 5090 Founders Edition | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 1-Click OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
V-Ray Benchmark Next 4.10 - GPU | |
Nvidia GeForce RTX 5090 Founders Edition (v4.10.07 ) | |
Palit GeForce RTX 4090 GameRock OC (v4.10.07 ) | |
Asus TUF Gaming GeForce RTX 5080 OC (v4.10.07 ) | |
KFA2 GeForce RTX 5070 Ti 1-Click OC (v4.10.07 ) | |
KFA2 GeForce RTX 5070 1-Click OC (v4.10.07 ) | |
KFA2 GeForce RTX 4070 EX Gamer (v4.10.07 ) | |
Nvidia GeForce RTX 3090 FE (v4.10.07 ) | |
Asus TUF Gaming GeForce RTX 5060 Ti OC (v4.10.07 ) | |
ASUS Dual GeForce RTX 4060 EVO OC (v4.10.07 ) | |
XFX Speedster MERC 310 Radeon RX 7900 XTX (v4.10.07 ) | |
AMD Radeon RX 9070 (v4.10.07 ) | |
AMD Radeon RX 9070 XT (v4.10.07 ) |
Blender | |
v3.3 Classroom CUDA | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
Palit GeForce RTX 4090 GameRock OC | |
Nvidia GeForce RTX 5090 Founders Edition | |
v3.3 Classroom OPTIX/RTX | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
Palit GeForce RTX 4090 GameRock OC | |
Nvidia GeForce RTX 5090 Founders Edition | |
v4.3 Barbershop OPTIX | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
Palit GeForce RTX 4090 GameRock OC | |
Nvidia GeForce RTX 5090 Founders Edition |
MLPerf Client 0.5 - overall generation rate | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
Nvidia GeForce RTX 3090 FE | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
* ... smaller is better
Professional applications
WIth regards to performance, the KFA2 GeForce RTX 5070 1-Click OC came clearly behind the RTX 5080 but remained within striking distance of the 5070 Ti, with a gap of just over ten percent separating the two. During SPECviewperf 2020, it achieved good results and proved to be a powerful all-round card for semi-professional workloads in a wide range of scenarios. In the SPECworkstation 4.0 test, the results were closer together overall, with AMD's GPUs taking the lead in specific supported tests.
KFA2 GeForce RTX 5070 1-Click OC R7 9800X3D | Asus TUF Gaming GeForce RTX 5060 Ti OC R7 9800X3D | KFA2 GeForce RTX 5070 Ti 1-Click OC R7 9800X3D | Asus TUF Gaming GeForce RTX 5080 OC R7 9800X3D | Nvidia GeForce RTX 5090 Founders Edition R7 9800X3D | KFA2 GeForce RTX 4070 EX Gamer R7 9800X3D | Palit GeForce RTX 4090 GameRock OC R7 9800X3D | Nvidia GeForce RTX 3090 FE R7 9800X3D | AMD Radeon RX 9070 R7 9800X3D | AMD Radeon RX 9070 XT R7 9800X3D | XFX Speedster MERC 310 Radeon RX 7900 XTX R7 9800X3D | |
---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 2020 | -25% | 13% | 40% | 93% | -16% | 58% | -9% | 112% | 140% | 138% | |
3840x2160 Medical (medical-03) | 23.2 | 17.9 -23% | 29.7 28% | 34.8 50% | 51.2 121% | 20.7 -11% | 43.4 87% | 21.1 -9% | 131 465% | 156 572% | 107 361% |
3840x2160 Maya (maya-06) | 414 | 280 -32% | 479 16% | 565 36% | 697 68% | 313 -24% | 610 47% | 363 -12% | 377 -9% | 405 -2% | 565 36% |
3840x2160 Energy (energy-03) | 70.8 | 54.1 -24% | 61.9 -13% | 115 62% | 196 177% | 57.3 -19% | 138 95% | 56.4 -20% | 109 54% | 136 92% | 194 174% |
3840x2160 Creo (creo-03) | 117 | 101 -14% | 124 6% | 130 11% | 136 16% | 111 -5% | 133 14% | 114 -3% | 195 67% | 205 75% | 223 91% |
3840x2160 CATIA (catia-06) | 62.5 | 45.1 -28% | 72.2 16% | 82.5 32% | 109 74% | 49.2 -21% | 89.9 44% | 59.3 -5% | 129 106% | 133 113% | 149 138% |
3840x2160 3ds Max (3dsmax-07) | 148 | 110 -26% | 182 23% | 217 47% | 297 101% | 123 -17% | 235 59% | 139 -6% | 128 -14% | 134 -9% | 187 26% |
SPECworkstation 4.0 | -11% | 7% | 11% | 25% | -7% | 16% | -9% | 26% | 34% | 40% | |
Graphics Score | 7.07 | 5.6 -21% | 8.03 14% | 9.16 30% | 11.2 58% | 6.08 -14% | 9.9 40% | 6.19 -12% | 11.8 67% | 12.8 81% | 14.1 99% |
AI & Machine Learning Score | 1.22 | 1.21 -1% | 1.22 0% | 1.21 -1% | 1.18 -3% | 1.22 0% | 1.2 -2% | 1.2 -2% | 1.16 -5% | 1.19 -2% | 1.22 0% |
Viewport Graphics | 7.07 | 5.6 -21% | 8.03 14% | 9.16 30% | 11.2 58% | 6.08 -14% | 9.9 40% | 6.19 -12% | 11.8 67% | 12.8 81% | 14.1 99% |
HandBrake | 1.82 | 1.82 0% | 1.8 -1% | 1.84 1% | 1.85 2% | 1.81 -1% | 1.82 0% | 1.72 -5% | 2.05 13% | 2.06 13% | 1.92 5% |
ONNX Inference | 4.24 | 3.77 -11% | 4.55 7% | 4.13 -3% | 4.65 10% | 4.04 -5% | 4.23 0% | 3.69 -13% | 3.74 -12% | 4.2 -1% | 4.21 -1% |
Total Average (Program / Settings) | -18% /
-18% | 10% /
10% | 26% /
27% | 59% /
62% | -12% /
-12% | 37% /
39% | -9% /
-9% | 69% /
73% | 87% /
92% | 89% /
93% |
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
Performance Rating | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
Zotac Gaming GeForce RTX 5090 SOLID | |
AMD Radeon RX 9070 | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3090 FE | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
MSI GeForce RTX 3070 Ti Suprim X | |
ASUS Dual GeForce RTX 4060 EVO OC |
SPECworkstation 4.0 / Graphics Score | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
Zotac Gaming GeForce RTX 5090 SOLID | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
MSI GeForce RTX 3070 Ti Suprim X | |
ASUS Dual GeForce RTX 4060 EVO OC |
SPECworkstation 4.0 / Accelerator Score | |
Zotac Gaming GeForce RTX 5090 SOLID | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3090 FE | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
MSI GeForce RTX 3070 Ti Suprim X | |
ASUS Dual GeForce RTX 4060 EVO OC |
SPECworkstation 4.0 / Viewport Graphics | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
Zotac Gaming GeForce RTX 5090 SOLID | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
MSI GeForce RTX 3070 Ti Suprim X | |
ASUS Dual GeForce RTX 4060 EVO OC |
SPECworkstation 4.0 / HandBrake | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
Asus TUF Gaming GeForce RTX 5080 OC | |
Zotac Gaming GeForce RTX 5090 SOLID | |
Palit GeForce RTX 4090 GameRock OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
MSI GeForce RTX 3070 Ti Suprim X |
SPECworkstation 4.0 / ONNX Inference | |
Zotac Gaming GeForce RTX 5090 SOLID | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Palit GeForce RTX 4090 GameRock OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
MSI GeForce RTX 3070 Ti Suprim X | |
ASUS Dual GeForce RTX 4060 EVO OC |
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
Gaming performance - 12 GB VRAM is the minimum
The KFA2 GeForce RTX 5070 1-Click OC delivers sufficient performance to run current games smoothly without the use of AI options. To clarify this statement: The KFA2 GeForce RTX 5070 1-Click OC is primarily designed for gaming in 1,440p (WQHD). Its performance meets this objective, and its 12 GB VRAM is still a sensible choice in this context. In comparison, our test sample delivered the performance of an Nvidia GeForce RTX 3090, although the KFA2 GeForce RTX 5070 1-Click OC couldn't come close to the performance of an AMD Radeon RX 9070.
Performance Rating - Percent | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC -1! |
The Witcher 3 | |
3840x2160 Ultra Graphics & Postprocessing (HBAO+) | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Ultra Graphics & Postprocessing (HBAO+) | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Hogwarts Legacy | |
3840x2160 Ultra Preset AA:High T | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 XT | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Ultra Preset AA:High T | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Baldur's Gate 3 | |
3840x2160 Ultra Preset AA:T | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Ultra Preset AA:T | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Cyberpunk 2077 2.2 Phantom Liberty | |
3840x2160 Ultra Preset (FSR off) | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Ultra Preset (FSR off) | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 EVO OC |
Alan Wake 2 | |
3840x2160 High Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
2560x1440 High Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
F1 24 | |
3840x2160 Ultra High Preset AA:T AF:16x | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Black Myth: Wukong | |
3840x2160 cinematic TSR 100 | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 cinematic TSR 100 | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Star Wars Outlaws | |
3840x2160 cinem. ultra | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 cinem. ultra | |
Palit GeForce RTX 4090 GameRock OC | |
Nvidia GeForce RTX 5090 Founders Edition | |
Asus TUF Gaming GeForce RTX 5080 OC | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Call of Duty Black Ops 6 | |
3840x2160 Extreme Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Extreme Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3090 FE | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Stalker 2 | |
3840x2160 Epic Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Epic Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
Indiana Jones and the Great Circle | |
3840x2160 Very Ultra Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
AMD Radeon RX 9070 XT | |
Nvidia GeForce RTX 3090 FE | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC | |
2560x1440 Very Ultra Preset | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
XFX Speedster MERC 310 Radeon RX 7900 XTX | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
AMD Radeon RX 9070 XT | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
AMD Radeon RX 9070 | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
ASUS Dual GeForce RTX 4060 EVO OC |
DLSS 4 and Multi Frame Generation (MFG)
In terms of pure raster performance, the Blackwell architecture in combination with the KFA2 GeForce RTX 5070 1-Click OC only showed slight progress compared to Ada Lovelace. However, DLSS 4 and Multi Frame Generation (MFG) provide a significant fps boost, especially in supported games. This means that even demanding titles can be displayed smoothly in 4K—provided that modern upscaling technologies are used. In direct comparison to the KFA2 GeForce RTX 5070 Ti, however, the non-Ti model is clearly lagging behind. A performance deficit of 30 to 40 percent has to be factored in. Compared to the Nvidia GeForce RTX 5060 Ti, the KFA2 GeForce RTX 5070 1-Click OC delivers around 20 percent more performance, depending on the game in question.
Cyberpunk 2077 2.2 Phantom Liberty | |
3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality (no FG) | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3090 FE | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality + Frame Generation (M)FG 2x | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
3840x2160 Ray Tracing Overdrive Preset + DLSS 4 Transformer Quality + Frame Generation MFG 4x | |
Nvidia GeForce RTX 5090 Founders Edition | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
Alan Wake 2 | |
3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
Nvidia GeForce RTX 3090 FE | |
3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS + FG 2x | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
3840x2160 High Preset + Ultra Ray Tracing + Quality DLSS + FG 4x | |
Nvidia GeForce RTX 5090 Founders Edition | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
Star Wars Outlaws | |
3840x2160 cinem. ultra, RT ultra, DLSS, FG RR | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
3840x2160 cinem. ultra, RT ultra, DLSS, FG 4x, RR | |
Nvidia GeForce RTX 5090 Founders Edition | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
Hogwarts Legacy | |
3840x2160 Ultra Preset + Full Ray Tracing + DLSS4 Quality + FG 2x AA:High T | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC | |
3840x2160 Ultra Preset + Full Ray Tracing + DLSS4 Quality + FG 4x AA:High T | |
Nvidia GeForce RTX 5090 Founders Edition | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
Kingdom Come Deliverance 2 - 3840x2160 Ultra Preset + Quality DLSS | |
Nvidia GeForce RTX 5090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
Asus TUF Gaming GeForce RTX 5080 OC | |
KFA2 GeForce RTX 5070 Ti 1-Click OC | |
KFA2 GeForce RTX 5070 1-Click OC | |
Nvidia GeForce RTX 3090 FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
Asus TUF Gaming GeForce RTX 5060 Ti OC |
Overview of the tested games with the KFA2 GeForce RTX 5070 1-Click OC
low | med. | high | ultra | QHD DLSS | QHD | 4K DLSS | 4K | |
---|---|---|---|---|---|---|---|---|
The Witcher 3 (2015) | 771 | 658 | 436 | 209 | 169.3 | 153.7 | ||
Dota 2 Reborn (2015) | 360 | 326 | 312 | 289 | 222 | |||
Final Fantasy XV Benchmark (2018) | 235 | 236 | 206 | 162.4 | 93.4 | |||
X-Plane 11.11 (2018) | 231 | 212 | 183.9 | 144.6 | ||||
Far Cry 5 (2018) | 386 | 322 | 306 | 290 | 222 | 116 | ||
Strange Brigade (2018) | 672 | 562 | 491 | 437 | 318 | 162.7 | ||
Far Cry New Dawn (2019) | 333 | 286 | 275 | 247 | 210 | 118 | ||
Anno 1800 (2019) | 288 | 275 | 232 | 146.8 | 117.8 | |||
Borderlands 3 (2019) | 319 | 286 | 243 | 197.7 | 144.2 | 76.7 | ||
Far Cry 6 (2021) | 305 | 273 | 247 | 220 | 168.9 | 93.4 | ||
Forza Horizon 5 (2021) | 465 | 329 | 299 | 188 | 161 | 114 | ||
Farming Simulator 22 (2021) | 423 | 369 | 330 | 314 | 297 | 185.4 | ||
God of War (2022) | 291 | 244 | 196.7 | 141.4 | 121.9 | 81 | ||
Tiny Tina's Wonderlands (2022) | 483 | 385 | 253 | 199.5 | 140.3 | 73.5 | ||
The Witcher 3 v4.00 (2023) | 418 | 363 | 315 | 261 | 191.5 | 96.9 | ||
Hogwarts Legacy (2023) | 227 | 197.7 | 157.5 | 120.8 | 89.3 | 63 | 51.5 | |
Lies of P (2023) | 382 | 340 | 293 | 267 | 180 | 148.3 | 93.7 | |
Baldur's Gate 3 (2023) | 281 | 222 | 194 | 190.6 | 138.3 | 118.5 | 74.5 | |
Cyberpunk 2077 2.2 Phantom Liberty (2023) | 262 | 219 | 187.6 | 170.3 | 128.7 | 111.8 | 72.5 | 49.2 |
Lords of the Fallen (2023) | 170.3 | 158.2 | 132.6 | 109.3 | 79.2 | 77.6 | 44.8 | |
Alan Wake 2 (2023) | 127.1 | 120.9 | 112.7 | 77.7 | 57 | 40 | ||
Avatar Frontiers of Pandora (2023) | 160 | 147 | 127 | 96 | 63 | 56 | 32 | |
Alone in the Dark (2024) | 367 | 305 | 288 | 226 | 142.4 | 122.6 | 55.8 | |
F1 24 (2024) | 489 | 478 | 380 | 138.2 | 88.3 | 75.4 | 43.3 | |
The First Descendant (2024) | 300 | 183.9 | 157.8 | 132.8 | 93.9 | 51.7 | 53.1 | |
Black Myth: Wukong (2024) | 166 | 123 | 96 | 56 | 61 | 42 | 42 | 25 |
Star Wars Outlaws (2024) | 109.3 | 102.4 | 88 | 72.4 | 72.9 | 54.2 | 46.9 | 32.7 |
Space Marine 2 (2024) | 151.6 | 142 | 139.7 | 139 | 140.9 | 109.6 | 91.6 | 58.4 |
Final Fantasy XVI (2024) | 138.1 | 134.7 | 116.5 | 107.1 | 106.8 | 74.4 | 63.5 | 42.2 |
God of War Ragnarök (2024) | 261 | 221 | 199.4 | 186.7 | 190.9 | 141.1 | 122.2 | 81.5 |
Until Dawn (2024) | 189 | 170.1 | 122.9 | 92.7 | 86.6 | 66.9 | 54.6 | 37.6 |
Call of Duty Black Ops 6 (2024) | 220 | 209 | 147 | 139 | 112 | 103 | 67 | 64 |
Stalker 2 (2024) | 132.9 | 115.3 | 97.4 | 79.7 | 126.5 | 61.3 | 78.6 | 35.7 |
Indiana Jones and the Great Circle (2024) | 196.9 | 147.2 | 130.8 | 122.2 | 103.6 | 53.8 | ||
Kingdom Come Deliverance 2 (2025) | 269 | 208 | 167.6 | 116.7 | 106.9 | 85.2 | 65.3 | 48 |
Monster Hunter Wilds (2025) | 120.4 | 102.1 | 81.9 | 64.1 | ||||
Civilization 7 (2025) | 555 | 404 | 298 | 188 | 87.7 | |||
Assassin's Creed Shadows (2025) | 111 | 100 | 87 | 66 | 61 | 53 | 50 | 37 |
The Elder Scrolls IV Oblivion Remastered (2025) | 205 | 158.1 | 103.7 | 52.2 | 56.1 | 37.7 | 35 | 22.2 |
Doom: The Dark Ages (2025) | 125.5 | 109.5 | 102.5 | 99.3 | 96.4 | 70.3 | 58.9 | 38.6 |
Emissions - Good cooling, but audible under load
Noise emissions
KFA2 has equipped its GeForce RTX 5070 1-Click OC with a comparatively compact cooling system comprising of two axial fans. In 2D mode, the fan-stop mode ensures silent operation. Under average load, we measured a sound pressure level of 35.7 dB(A), and just over 47 dB(A) during the stress test. We noted some slight coil whining, but the fan noise was louder than this under load. Compared to other models, the KFA2 GeForce RTX 5070 1-Click OC is clearly audible.
Noise Level
Idle |
| 26.2 / 26.2 / 26.2 dB(A) |
Load |
| 35.7 / 47.3 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: ![]() ![]() ![]() |
Temperature

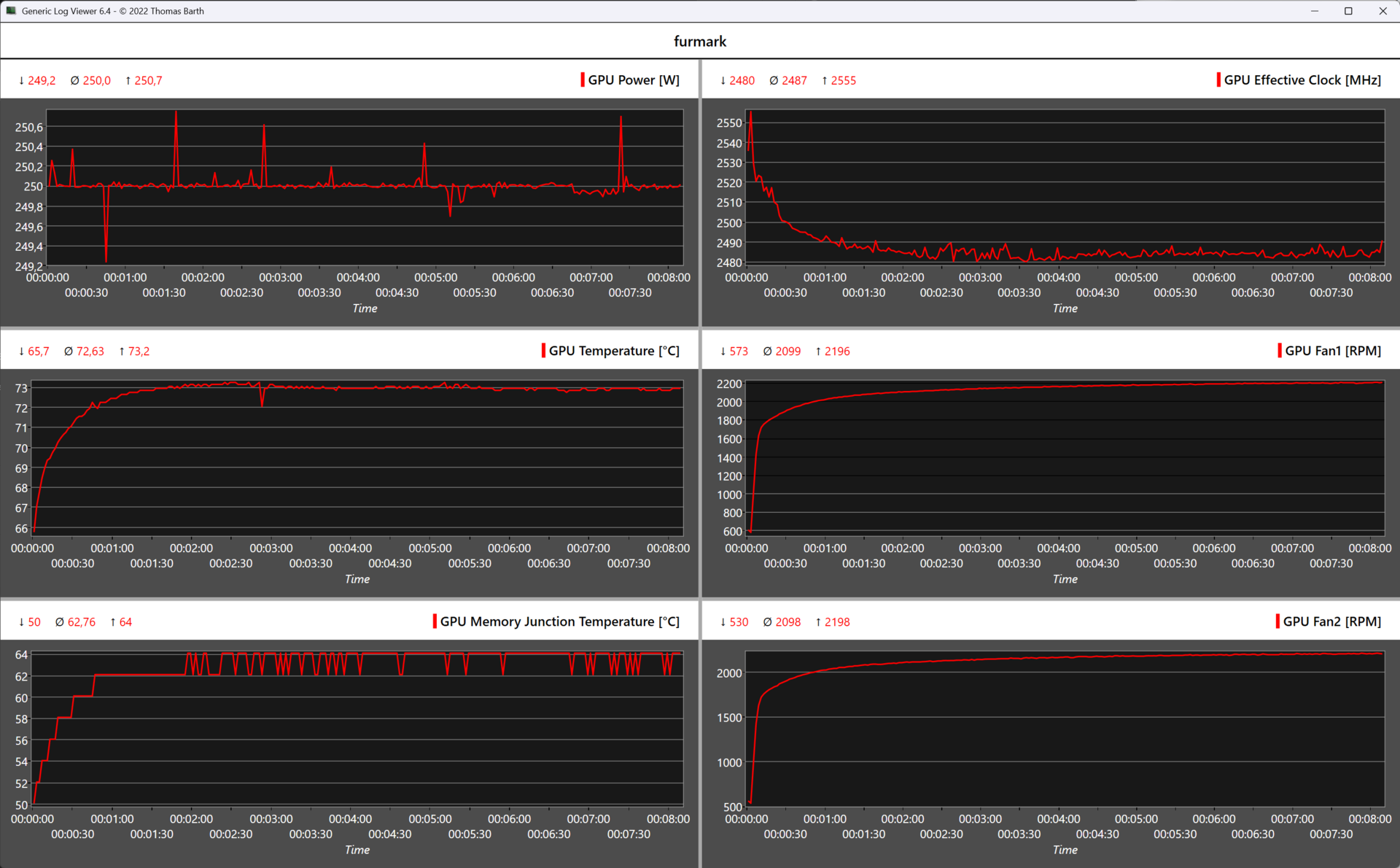

The KFA2 GeForce RTX 5070 1-Click OC's cooling concept is powerful enough to dissipate the approximately 250 watts of waste heat under full load, although KFA2 has only gone for a compact cooling solution. Unfortunately, this has an impact on its operating noise under load. However, the temperatures show that the graphics card isn't operating at its thermal limit. You can manually adjust the fan speed, which would mean quieter operation as long as you are willing to accept slightly higher temperatures.
fps diagram - 30 mins Cyberpunk 2077 1,920 x 1,080 Ultra Preset (FSR off)
Energy management - 250 watts aren't always reached
The KFA2 GeForce RTX 5070 1-Click OC works efficiently. Still, with the exception of the Nvidia GeForce RTX 5090, all other models in the Blackwell series are more frugal. The KFA2 GeForce RTX 5070 1-Click OC has a performance advantage over the Nvidia GeForce RTX 4070, with its higher power consumption of 250 watts (RTX 4070: 200 watts). In our measurements, on the other hand, we only saw a small increase in power consumption.
For stable operation, KFA2 recommends a power supply unit that can supply at least 650 watts, ideally with a native 12 V 2x6 connection. Alternatively, you can use the supplied adapter (2x8-pin PCIe to 12 V 2x6).
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D |
Power Consumption / The Witcher 3 ultra (external Monitor) | |
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D |
Power Consumption / Cyberpunk 2077 FHD ultra no FSR (external Monitor) | |
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
AMD Radeon RX 9070, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5080 OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 Ti 1-Click OC, AMD Ryzen 7 9800X3D | |
Asus TUF Gaming GeForce RTX 5060 Ti OC, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 5070 1-Click OC, AMD Ryzen 7 9800X3D | |
Palit GeForce RTX 4090 GameRock OC, AMD Ryzen 7 9800X3D | |
Nvidia GeForce RTX 5090 Founders Edition, AMD Ryzen 7 9800X3D | |
XFX Speedster MERC 310 Radeon RX 7900 XTX, AMD Ryzen 7 9800X3D | |
KFA2 GeForce RTX 4070 EX Gamer, AMD Ryzen 7 9800X3D | |
AMD Radeon RX 9070 XT, AMD Ryzen 7 9800X3D | |
Nvidia GeForce RTX 3090 FE, AMD Ryzen 7 9800X3D |
* ... smaller is better
Power consumption with external monitor
Notebookcheck total rating
The KFA2 GeForce RTX 5070 1-Click OC delivers solid performance for WQHD gaming. DLSS 4 and Frame Generation provide additional fps boosts. With 12 GB VRAM, it is future-proof—but we can only recommended it to a limited extent in 4K. Overall, a strong all-rounder for demanding gamers.
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
