Asus VivoBook S15 D533UA Review: Ryzen 7 all-rounder with good battery runtimes

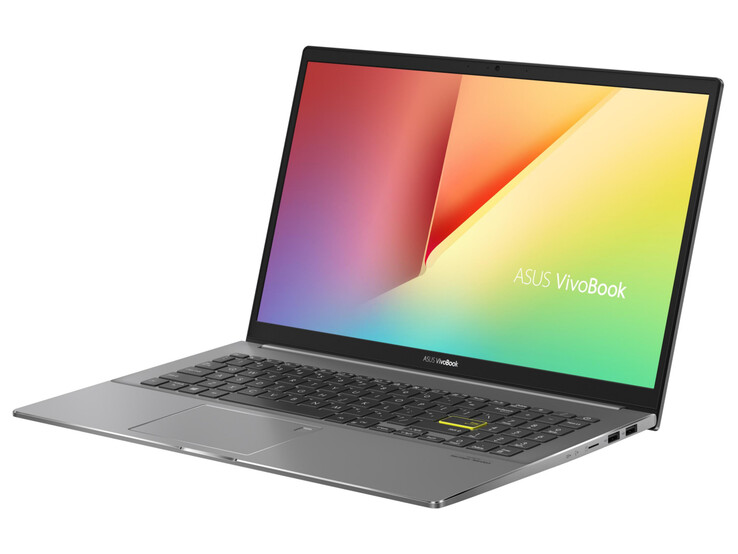

Asus offers the VivoBook S15 D533UA, a stylish, slim 15.6-inch all-rounder that is powered by a Ryzen APU. The device is familiar to us. A few months ago, we reviewed the VivoBook S15 S533EQ which is based on a Core i7-1165G7 CPU and a GeForce-MX350 GPU. The competitors include notebooks like the Samsung Galaxy Book NP750XDA the Honor MagicBook 15 the HP Pavilion 15, and the MSI Modern 15 A11M.
Possible competitors in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
82.1 % | 07/2021 | Asus VivoBook S15 D533UA R7 5700U, Vega 8 | 1.8 kg | 16.1 mm | 15.60" | 1920x1080 | |
82 % | 07/2021 | Samsung Galaxy Book NP750XDA i5-1135G7, Iris Xe G7 80EUs | 1.6 kg | 16 mm | 15.60" | 1920x1080 | |
83.6 % | 07/2021 | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 17 mm | 15.60" | 1920x1080 | |
81.2 % | 06/2021 | HP Pavilion 15-eg i7-1165G7, GeForce MX450 | 1.7 kg | 17.9 mm | 15.60" | 1920x1080 | |
81.3 % | 06/2021 | MSI Modern 15 A11M-062 i7-1165G7, Iris Xe G7 96EUs | 1.6 kg | 17 mm | 15.60" | 1920x1080 |
Case & equipment - VivoBook without Thunderbolt
Asus relies on a sleek, slim metal case for the S15, which is finished in a dark silver-gray. The back of the lid is available in four colors: Black, Red, Green, White - we have the black model. The S533 does not have any manufacturing flaws. Stability and stiffness are within reason. The lid's maximum opening angle is about 130 degrees. The battery is firmly installed. The innards can be accessed after removing the bottom shell.
The laptop has three USB-A ports (2x USB 2.0, 1x USB 3.2 Gen 1) and one USB-C port (USB 3.2 Gen 1). The latter does not support Power Delivery or Displayport via USB-C. Thus, only one video output is available with the HDMI port. The microSD memory card reader (reference card: AV PRO microSD 128 GB V60) is one of the slowest of its kind.
The WLAN chip (Intel AX200) supports the 802.11 a/b/g/n/ac/ax standards and offers Bluetooth 5 functionality. The data rates determined under optimal conditions (no other WLAN devices in the near vicinity, short distance between notebook and server PC; router: Netgear Nighthawk AX12) turn out very good.
Connection equipment
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
MSI Modern 15 A11M-062 (AV PRO microSD 128 GB V60) | |
HP Pavilion 15-eg (AV PRO microSD 128 GB V60) | |
Average of class Office (8 - 196.8, n=50, last 2 years) | |
Samsung Galaxy Book NP750XDA (AV PRO microSD 128 GB V60) | |
Asus VivoBook S15 D533UA (AV PRO microSD 128 GB V60) | |
Asus VivoBook S15 S533EQ-BQ002T (Toshiba Exceria Pro M501 microSDXC 64GB) | |
maximum AS SSD Seq Read Test (1GB) | |
MSI Modern 15 A11M-062 (AV PRO microSD 128 GB V60) | |
HP Pavilion 15-eg (AV PRO microSD 128 GB V60) | |
Average of class Office (26.4 - 173.2, n=44, last 2 years) | |
Asus VivoBook S15 D533UA (AV PRO microSD 128 GB V60) | |
Samsung Galaxy Book NP750XDA (AV PRO microSD 128 GB V60) | |
Asus VivoBook S15 S533EQ-BQ002T (Toshiba Exceria Pro M501 microSDXC 64GB) |
Networking | |
iperf3 transmit AX12 | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 | |
HP Pavilion 15-eg | |
MSI Modern 15 A11M-062 | |
Asus VivoBook S15 D533UA | |
Average Intel Wi-Fi 6 AX200 (447 - 1645, n=127) | |
Asus VivoBook S15 S533EQ-BQ002T | |
iperf3 receive AX12 | |
Samsung Galaxy Book NP750XDA | |
HP Pavilion 15-eg | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA | |
MSI Modern 15 A11M-062 | |
Average Intel Wi-Fi 6 AX200 (523 - 1684, n=128) | |
Asus VivoBook S15 S533EQ-BQ002T |

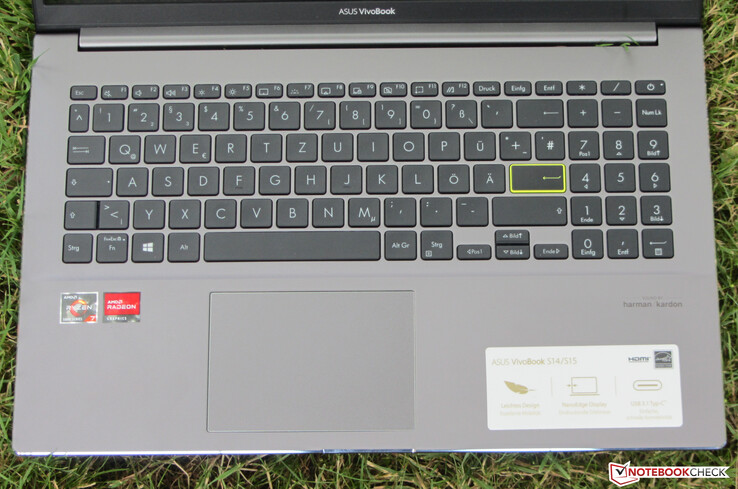

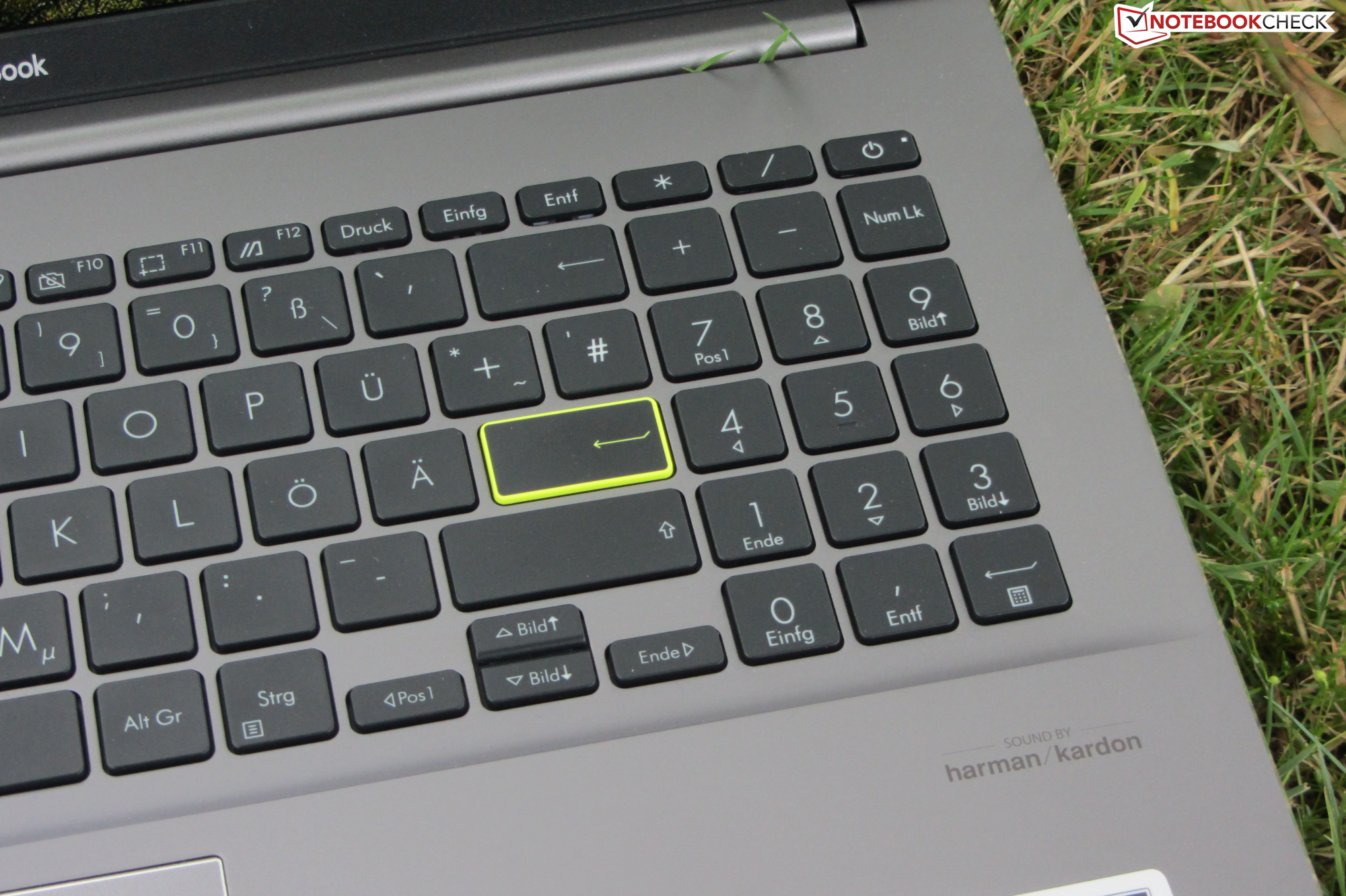

Input devices - Asus computer offers key illumination

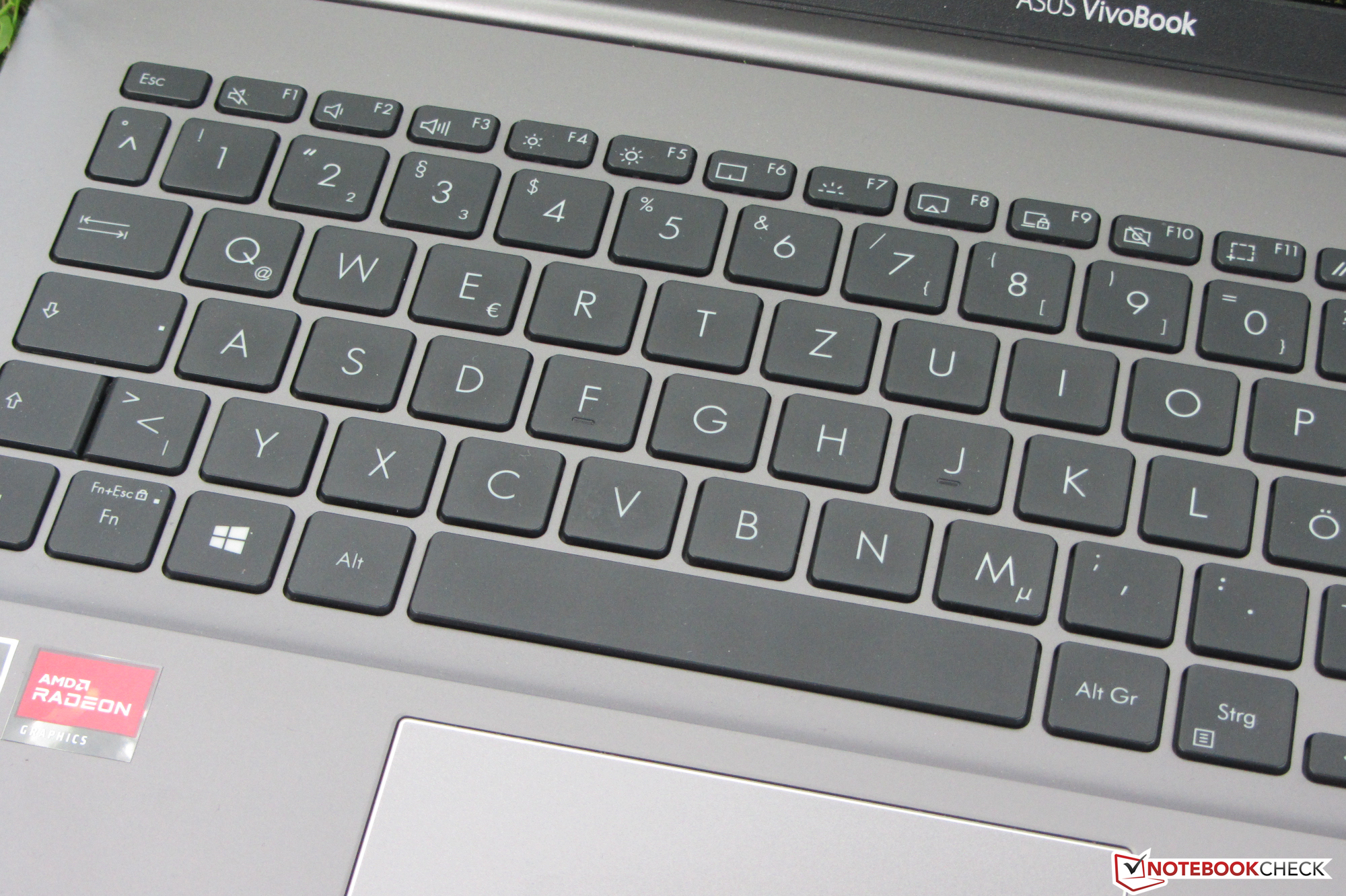

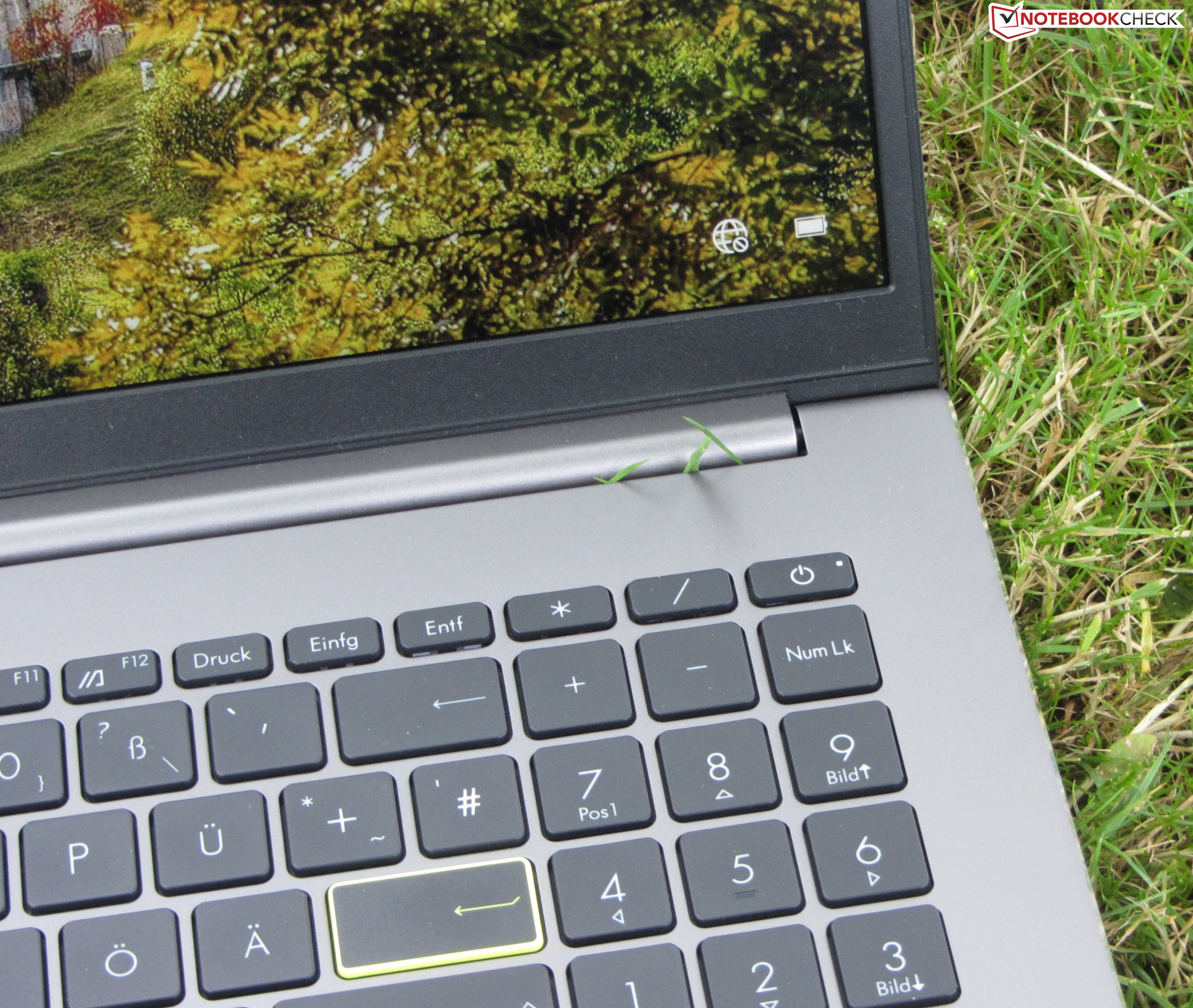

The keys of the illuminated chiclet keyboard offer a short travel and a clear pressure point. The key resistance could be crisper for our taste. The keyboard yields a bit during typing. It did not prove to be overly annoying. All in all, Asus delivers a keyboard that is suitable for everyday use.

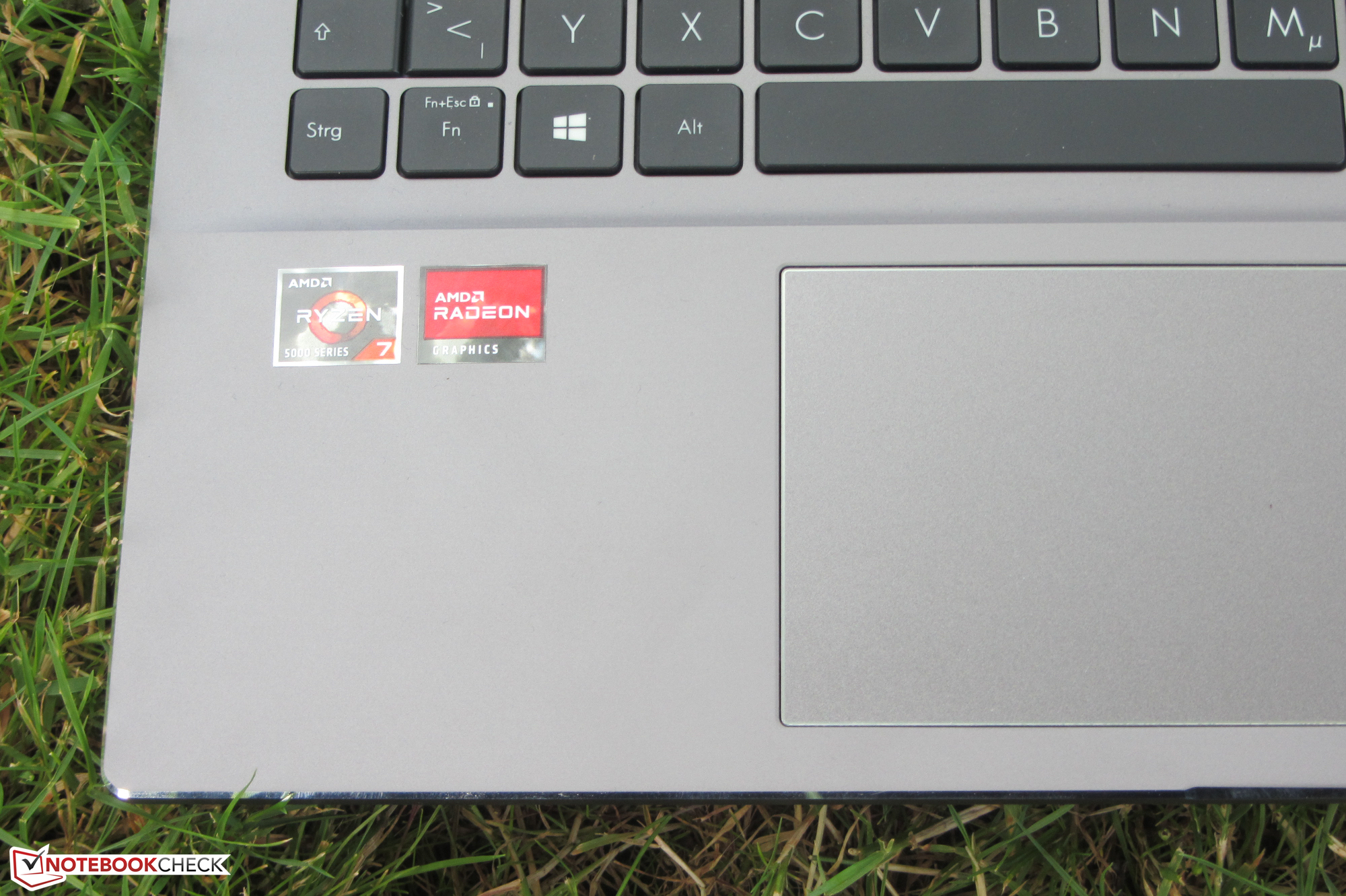

The smooth surface of the multi-touch ClickPad (10.5 x 7.3 cm/~4.1 x 2.9 in) makes it easy for the fingers to glide. It also responds to inputs in the corners. The pad has a short stroke and a clear pressure point.

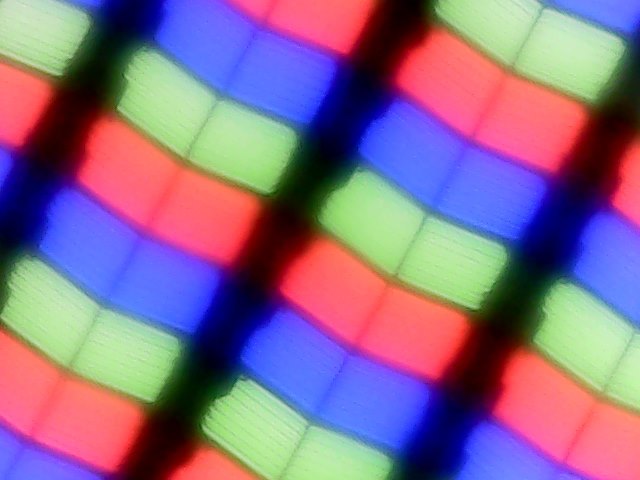

Display - IPS on board
Brightness (266.8 cd/m²) and contrast (516:1) of the matte 15.6-inch screen (1,920 x 1,080 pixels) do not trigger enthusiasm. We consider values beyond 300 cd/m² or 1,000:1 as good. PWM flickering could not be detected.
|
Brightness Distribution: 85 %
Center on Battery: 291 cd/m²
Contrast: 516:1 (Black: 0.56 cd/m²)
ΔE Color 3.96 | 0.5-29.43 Ø5

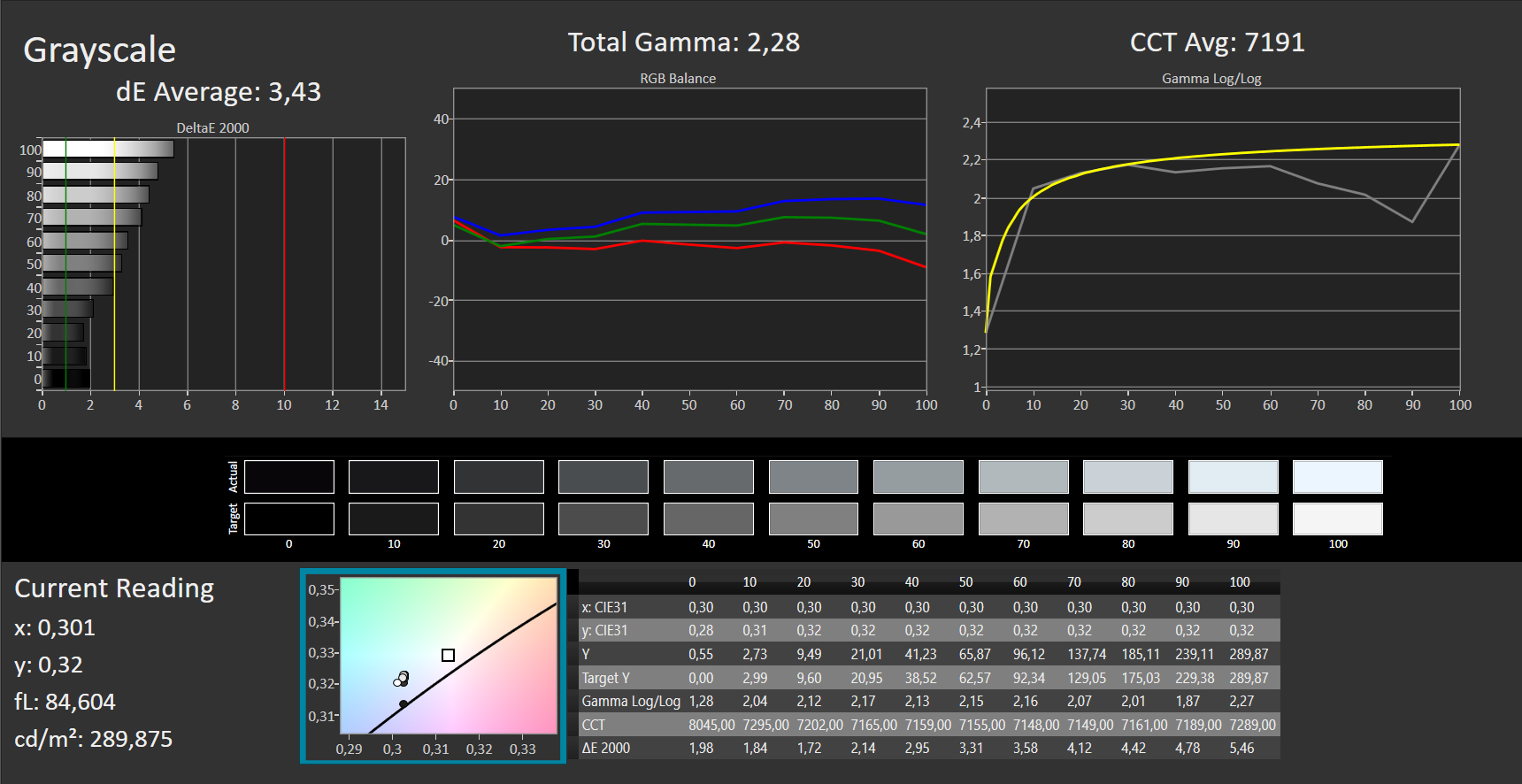

ΔE Greyscale 3.43 | 0.57-98 Ø5.3
65% sRGB (Argyll 1.6.3 3D)
42% AdobeRGB 1998 (Argyll 1.6.3 3D)
45% AdobeRGB 1998 (Argyll 2.2.0 3D)
65.2% sRGB (Argyll 2.2.0 3D)
43.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28
Asus VivoBook S15 D533UA Chi Mei N156HCA-EAB, IPS, 1920x1080, 15.60 | Samsung Galaxy Book NP750XDA CEC PANDA LM156LF5L03, IPS, 1920x1080, 15.60 | Honor MagicBook 15 i5 1135G7 BOE TV156FHM-NH2, IPS, 1920x1080, 15.60 | HP Pavilion 15-eg Chi Mei CMN1523, IPS, 1920x1080, 15.60 | MSI Modern 15 A11M-062 AU Optronics B156HW02, IPS, 1920x1080, 15.60 | Asus VivoBook S15 S533EQ-BQ002T Panda LM156LF-5L04, IPS, 1920x1080, 15.60 | |
---|---|---|---|---|---|---|
Display | 49% | -2% | -17% | -10% | ||
Display P3 Coverage | 43.6 | 65.4 50% | 42.9 -2% | 39.01 -11% | ||
sRGB Coverage | 65.2 | 96.3 48% | 64 -2% | 56 -14% | 58.5 -10% | |
AdobeRGB 1998 Coverage | 45 | 67.5 50% | 44.4 -1% | 36 -20% | 40.33 -10% | |
Response Times | -39% | -66% | -26% | -80% | -77% | |
Response Time Grey 50% / Grey 80% * | 18 ? | 29 ? -61% | 36 ? -100% | 22.8 ? -27% | 40 ? -122% | 38 ? -111% |
Response Time Black / White * | 19 ? | 22 ? -16% | 24.8 ? -31% | 23.6 ? -24% | 26 ? -37% | 27 ? -42% |
PWM Frequency | 26320 ? | |||||
Screen | 4% | 22% | -3% | 40% | -16% | |
Brightness middle | 289 | 325 12% | 332 15% | 294.3 2% | 269 -7% | 287 -1% |
Brightness | 267 | 297 11% | 318 19% | 251 -6% | 251 -6% | 261 -2% |
Brightness Distribution | 85 | 86 1% | 87 2% | 76 -11% | 86 1% | 84 -1% |
Black Level * | 0.56 | 0.445 21% | 0.27 52% | 0.26 54% | 0.18 68% | 0.51 9% |
Contrast | 516 | 730 41% | 1230 138% | 1132 119% | 1494 190% | 563 9% |
Colorchecker dE 2000 * | 3.96 | 3.48 12% | 3.3 17% | 4.08 -3% | 3.5 12% | 4.72 -19% |
Colorchecker dE 2000 max. * | 6.76 | 8.07 -19% | 7.8 -15% | 19.49 -188% | 5.49 19% | 17.94 -165% |
Greyscale dE 2000 * | 3.43 | 5.27 -54% | 5.2 -52% | 3 13% | 2.01 41% | 2.2 36% |
Gamma | 2.28 96% | 2.41 91% | 2.07 106% | 2.21 100% | 2.38 92% | 2.51 88% |
CCT | 7191 90% | 7769 84% | 7370 88% | 6616 98% | 6806 96% | 6758 96% |
Color Space (Percent of AdobeRGB 1998) | 42 | 44 5% | 37 -12% | |||
Color Space (Percent of sRGB) | 65 | 70 8% | 58 -11% | |||
Colorchecker dE 2000 calibrated * | 1 | 3.7 | 3.74 | |||
Total Average (Program / Settings) | -18% /
-3% | 2% /
15% | -10% /
-6% | -19% /
10% | -34% /
-23% |
* ... smaller is better

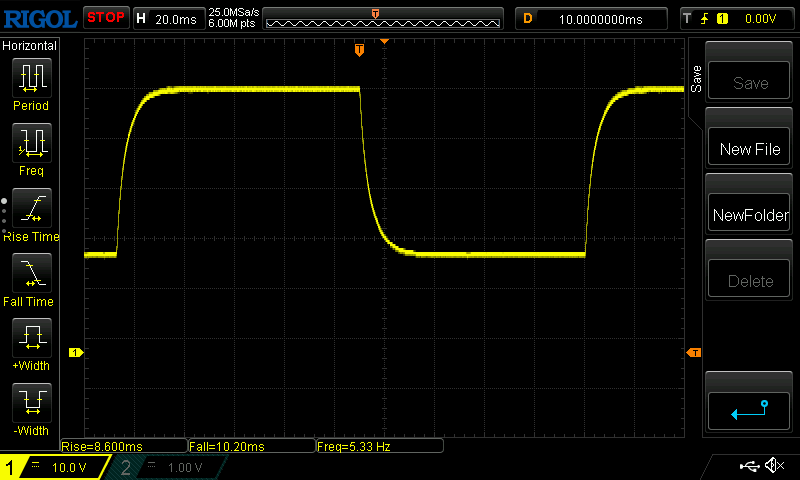

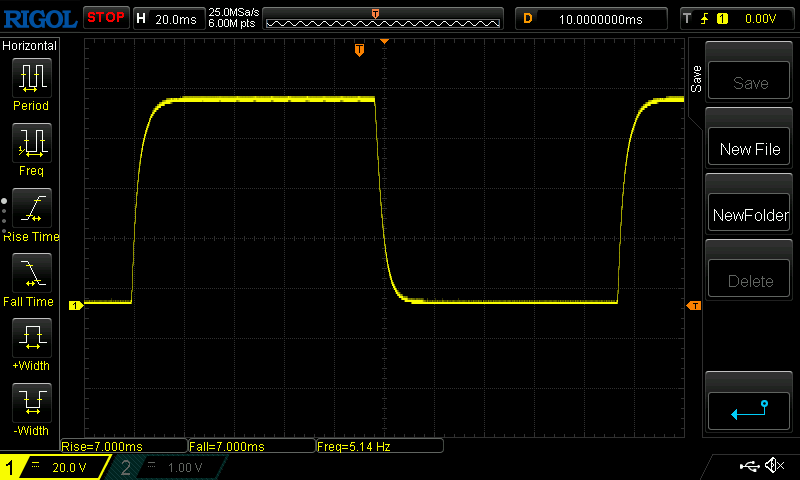

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
19 ms ... rise ↗ and fall ↘ combined | ↗ 10 ms rise | |
↘ 9 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.6 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
18 ms ... rise ↗ and fall ↘ combined | ↗ 8 ms rise | |
↘ 10 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 26 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.9 ms). |

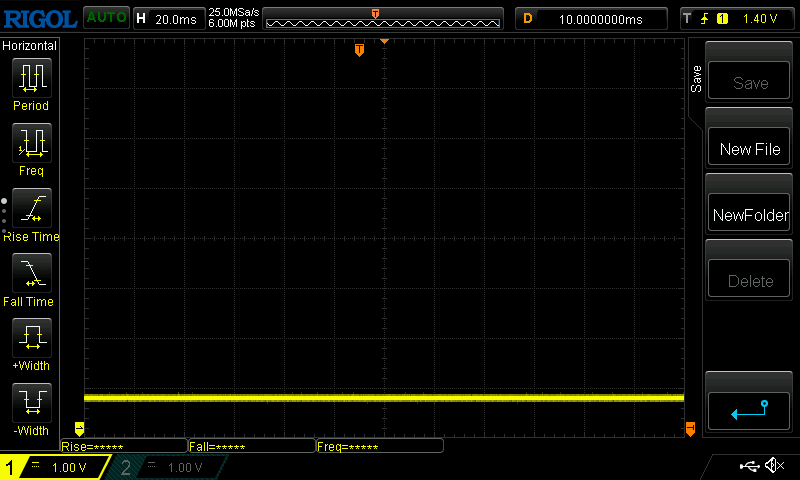

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18110 (minimum: 5 - maximum: 3846000) Hz was measured. |

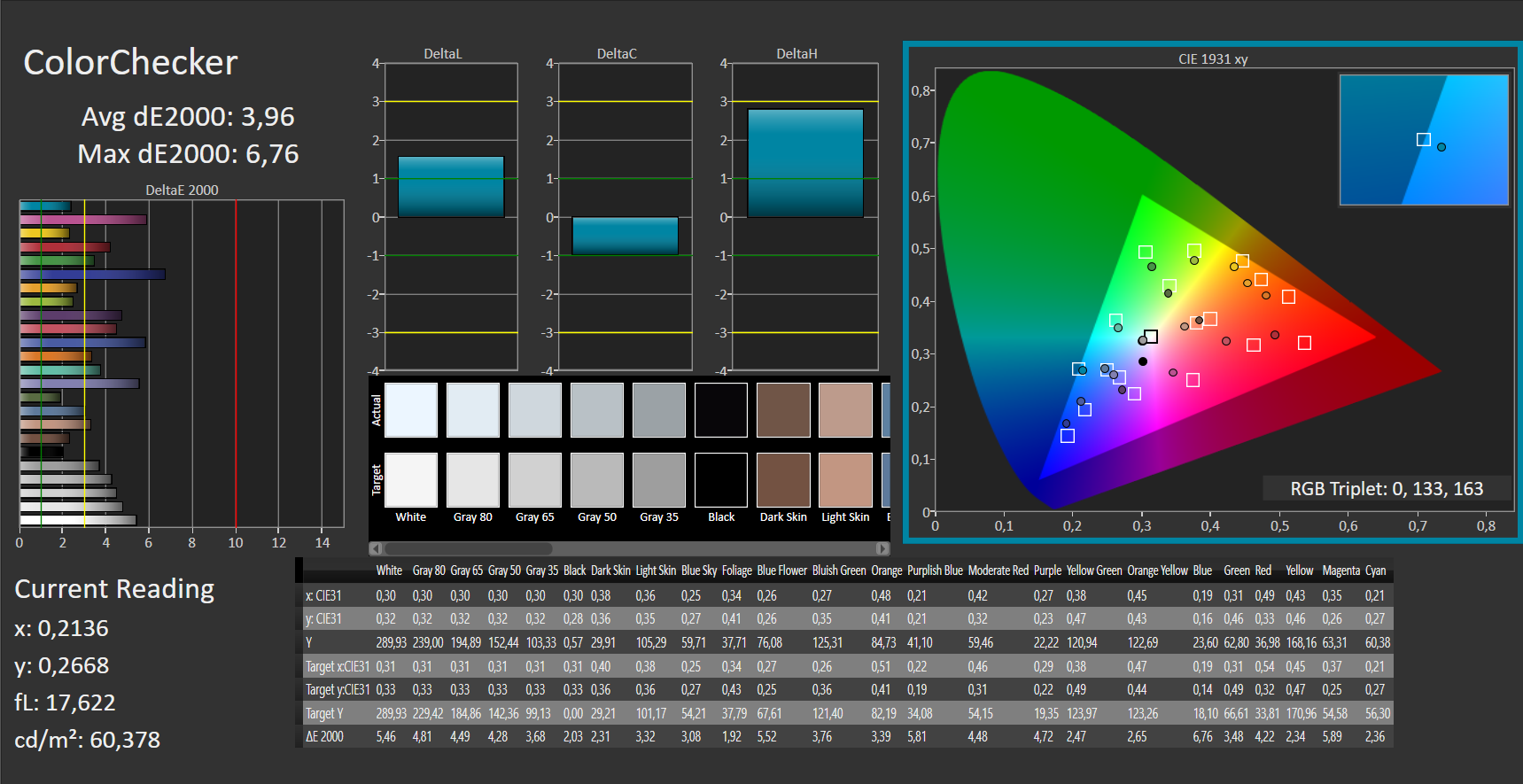

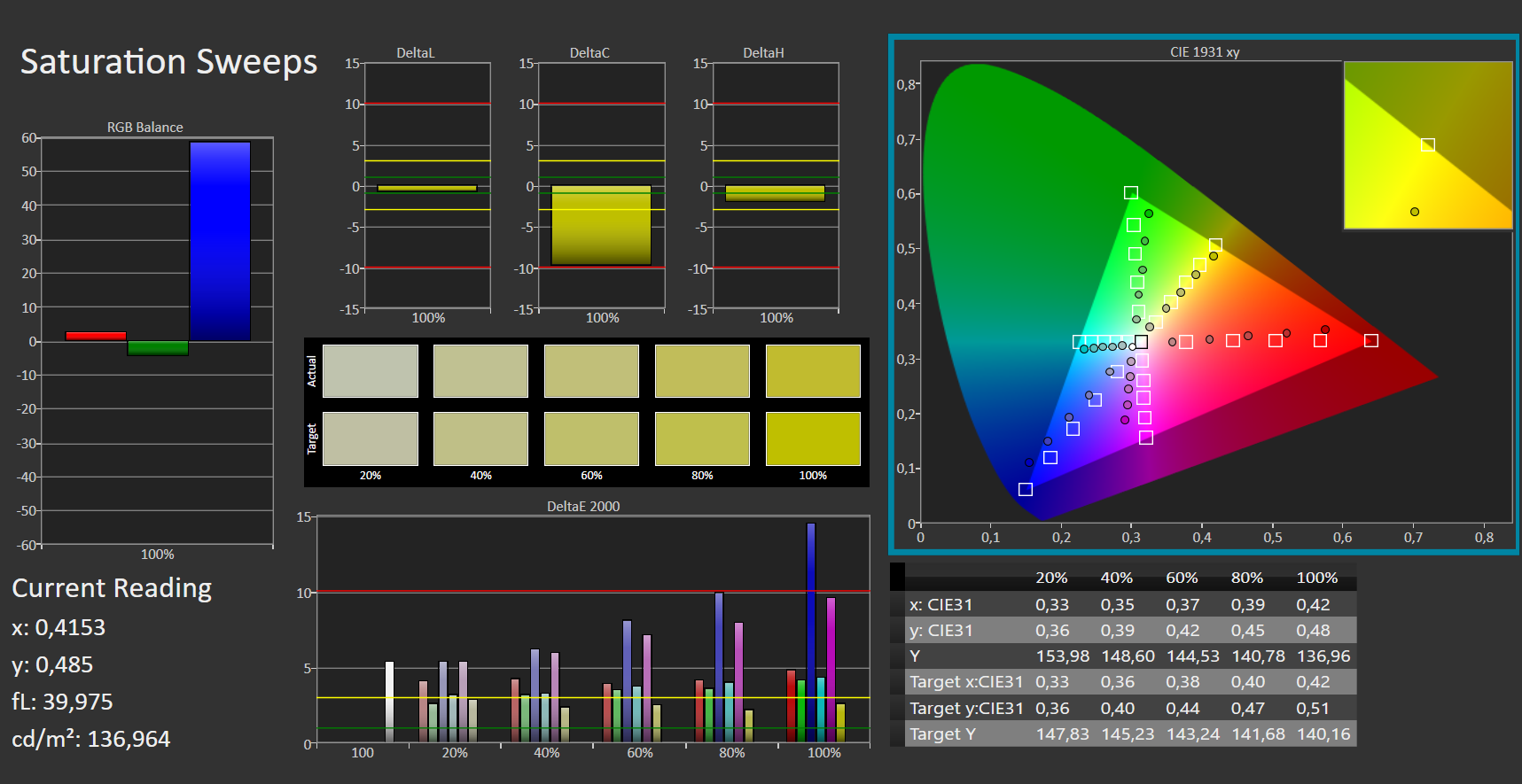

The screen shows a very decent color reproduction in its state of delivery, but misses the target with a color deviation of almost 4 (DeltaE less than 3). It does not suffer from a blue cast. The display cannot reproduce the AdobeRGB (45%), sRGB (65%) and DCI-P3 (44%) color spaces.

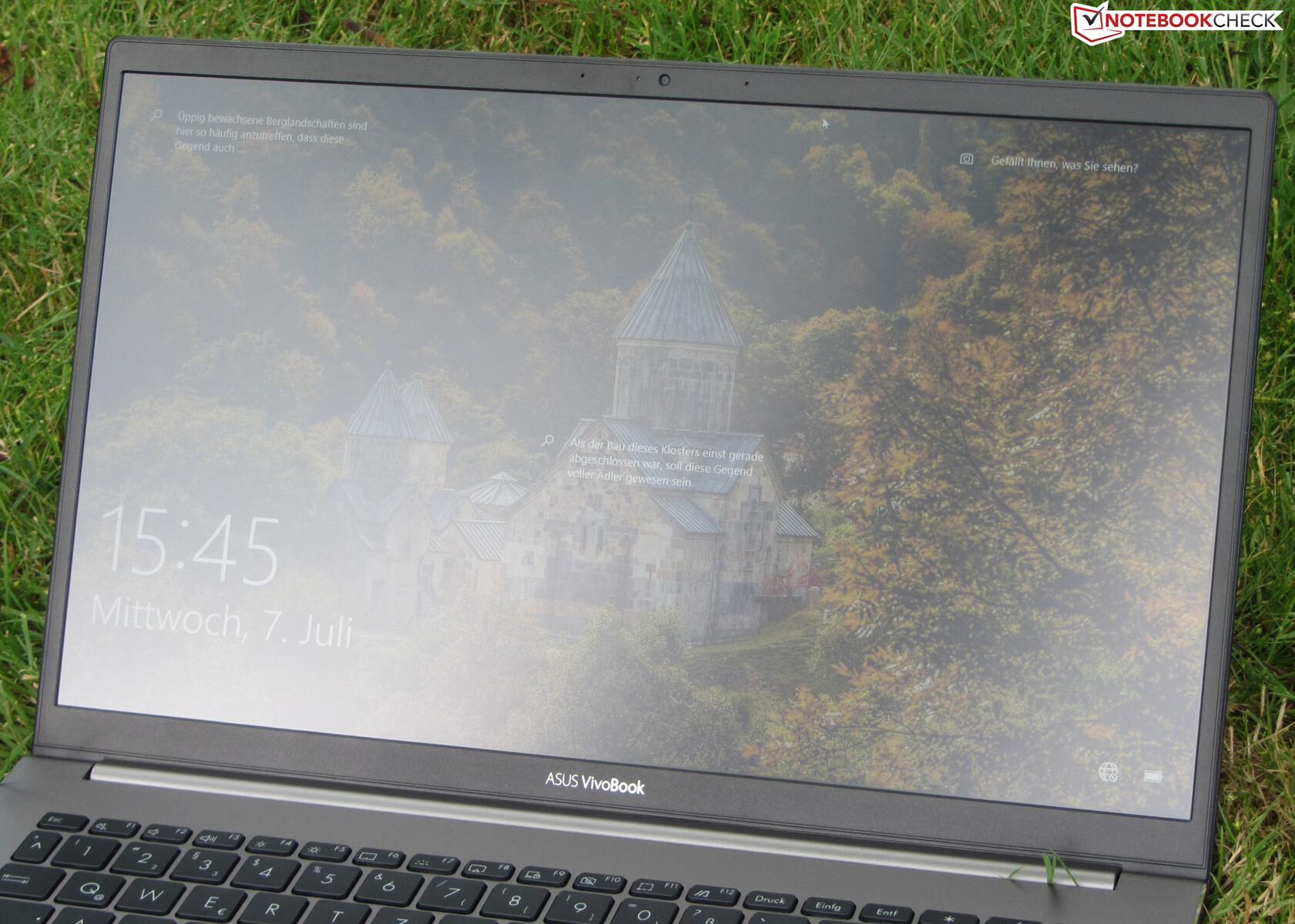

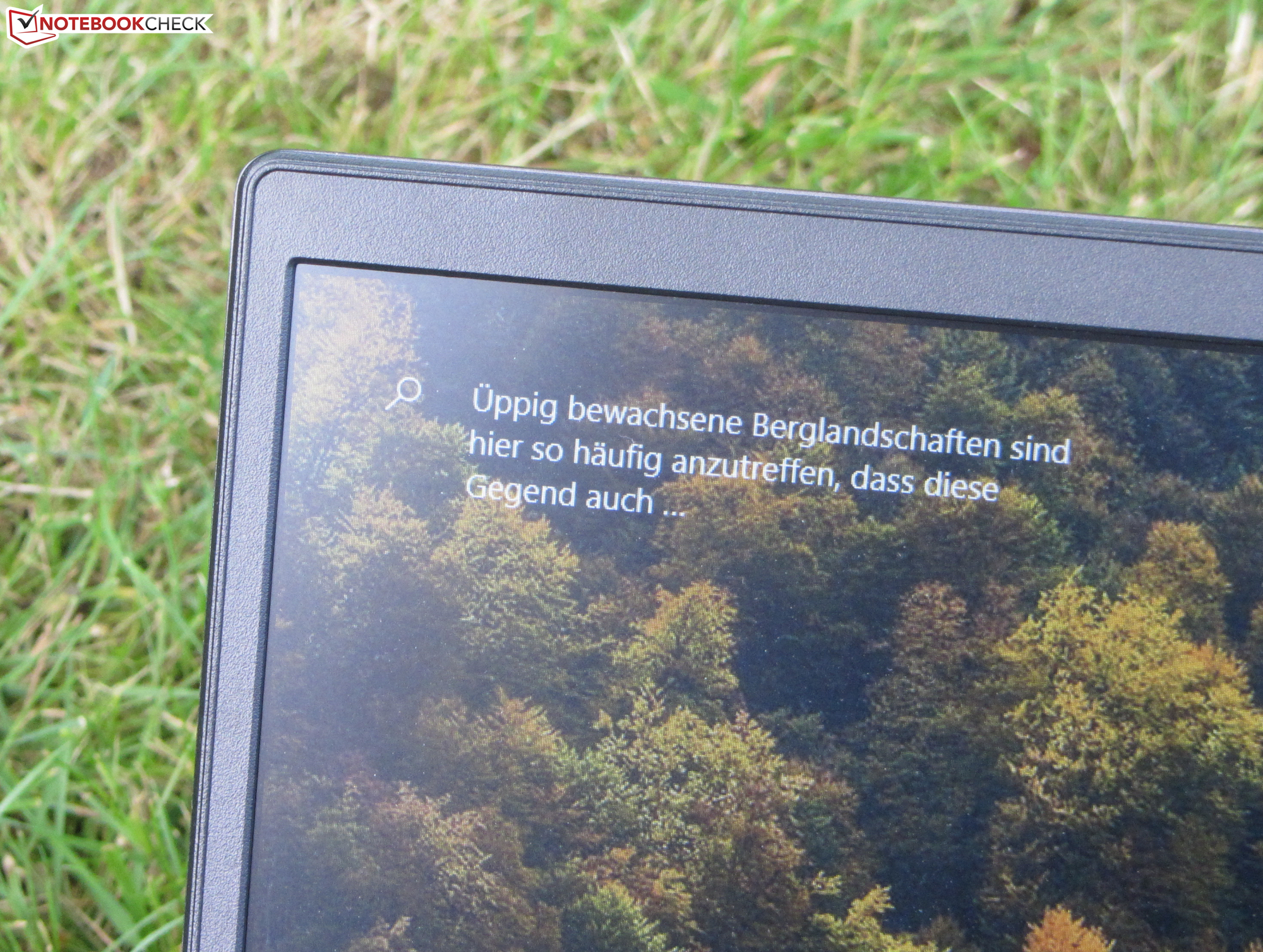

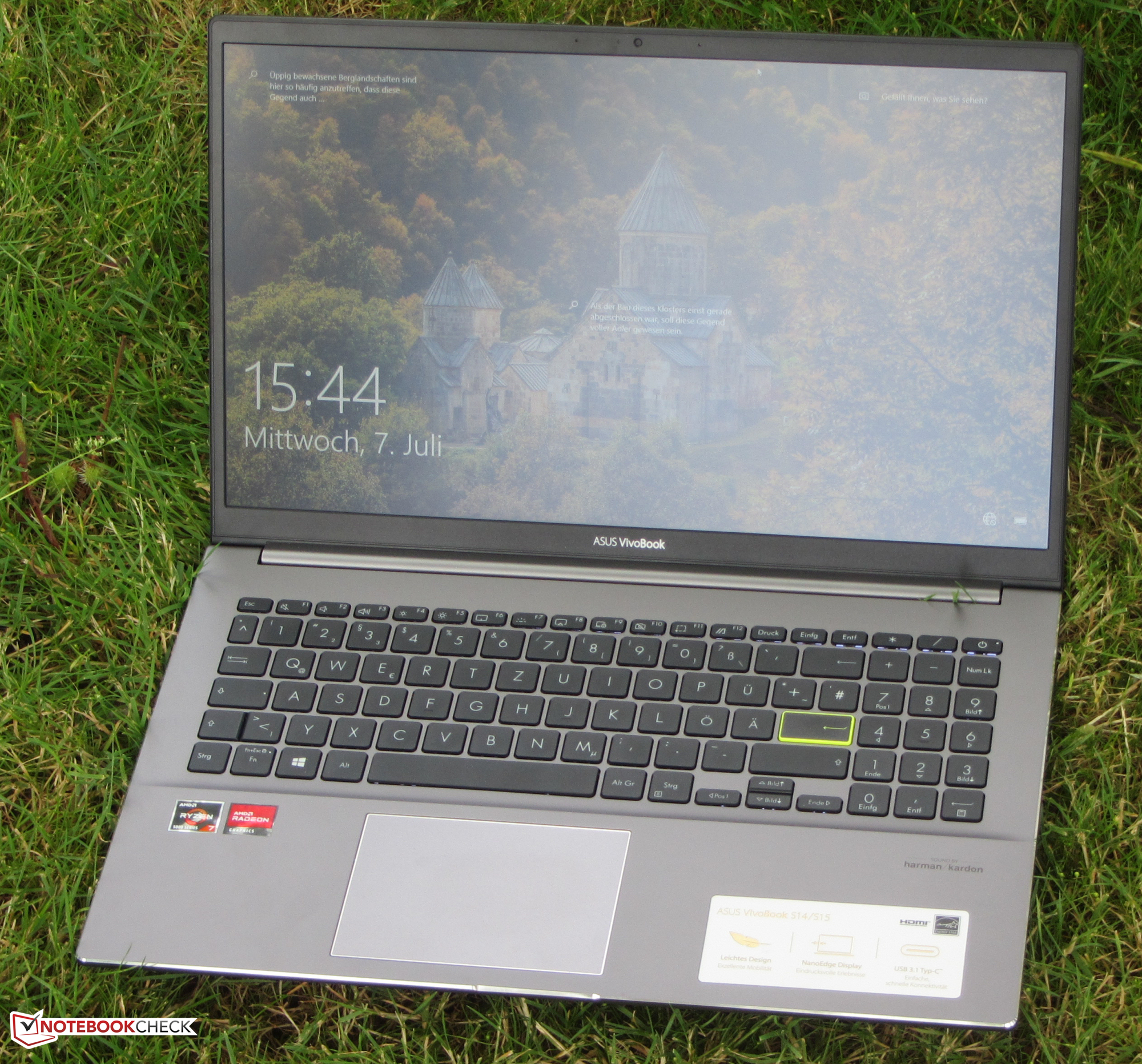

The viewing-angle stable IPS panel can be read from any position. Outdoors, reading the screen is only possible in the shade or under cloudy skies due to its low brightness level.
Performance - Ryzen 7 Power
Asus' VivoBook S15 D533UA is a 15.6-inch all-rounder that provides enough performance for office and Internet applications as well as simple computer games.
Test conditions
The notebook has three energy profiles ("Power Mode", "Balanced Mode", "Whisper Mode"), which can be switched between via the key combination "Fn" + "F". We used the profile "Balanced Mode". We also ran some benchmarks with the "Performance Mode" profile active. The results can be found in the comparison diagrams.
Power Mode | Balanced Mode | Fan Mode | |
---|---|---|---|
Power Limit 1 | 35 Watt | 28 Watt | 20 Watt |
Power Limit 2 | 35 watts | 35 watts | 35 watts |
Processor

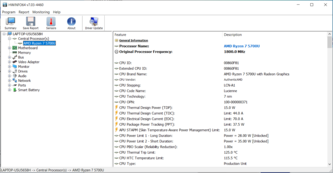

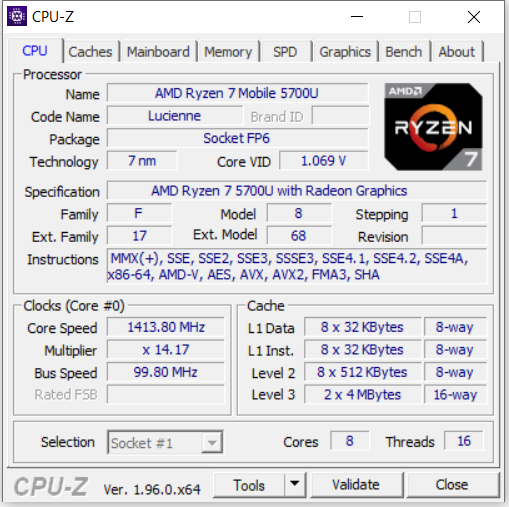

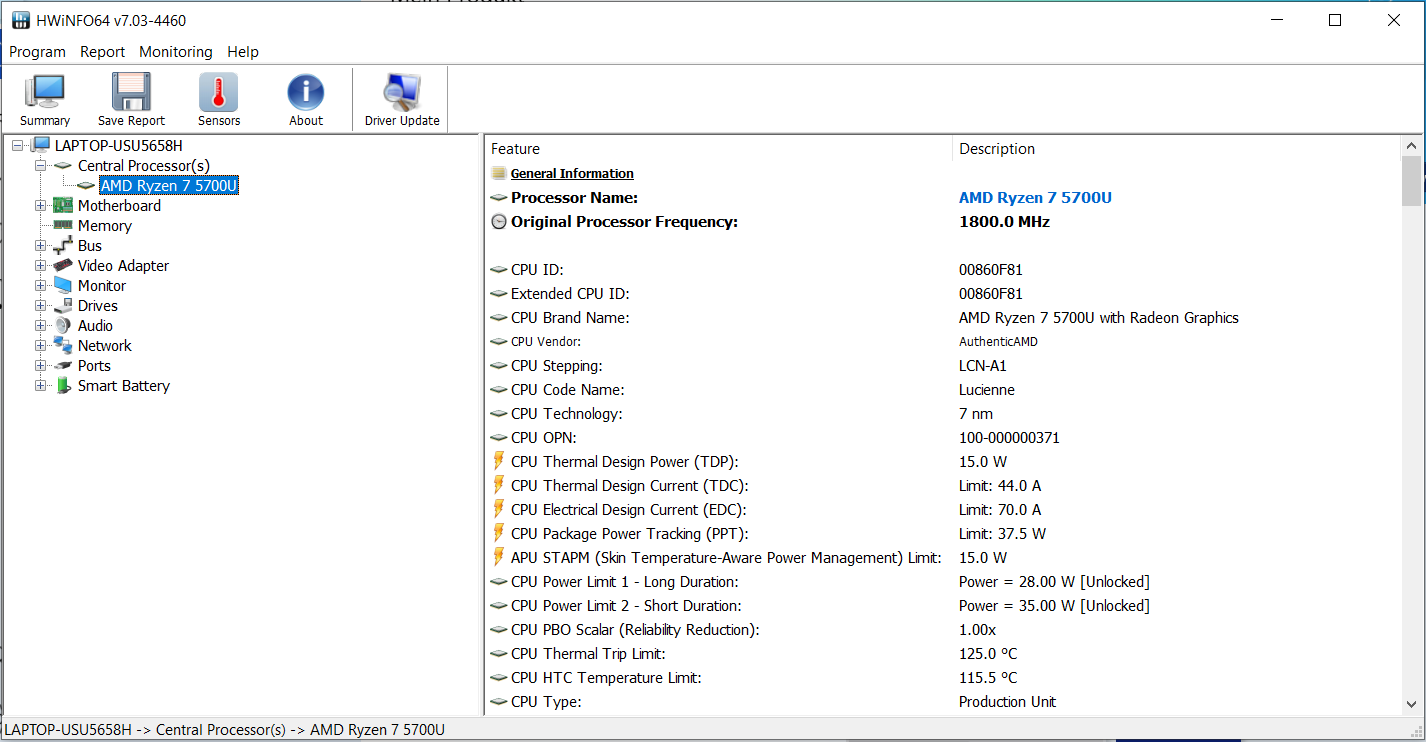

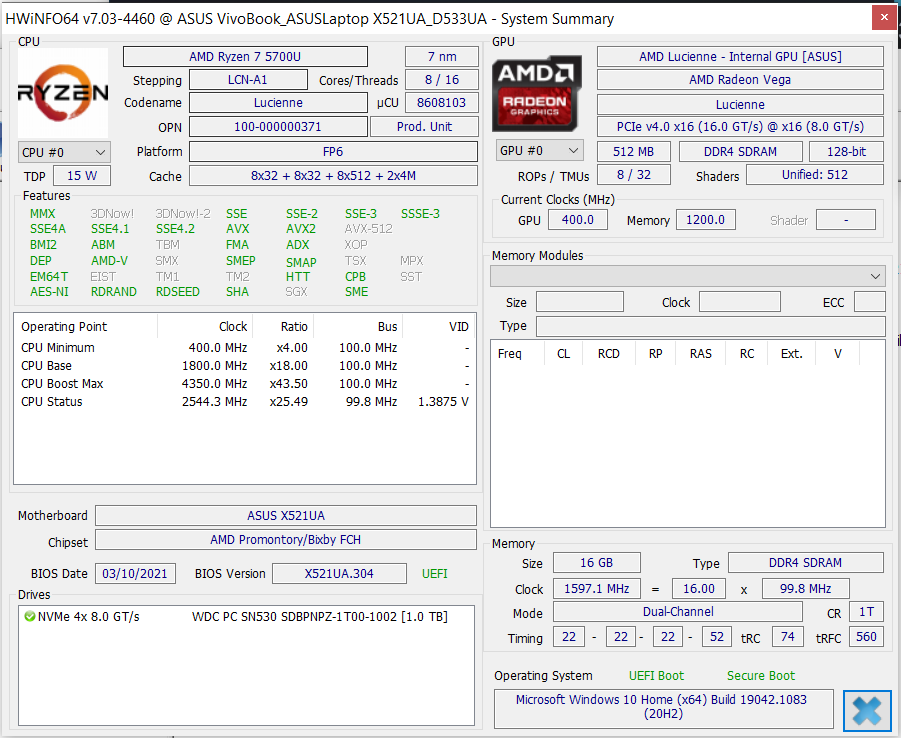

The CPU part of the Ryzen-7-5700U-APU (Lucienne) consists of an eight-core processor that operates with a base speed of 1.8 GHz. An increase up to 4.35 GHz is possible via Turbo. Simultaneous multithreading (two threads can be processed per core) is supported.
The multi-thread test of the Cinebench R15 benchmark is processed with 3.5 GHz for a short time, then the clock drops to 3.1 GHz. The single-thread test is run with 1.4 to 4.35 GHz. In battery mode, the CPU runs at 3.1 GHz (multi-thread) or 1.1 to 4.35 GHz (single-thread).

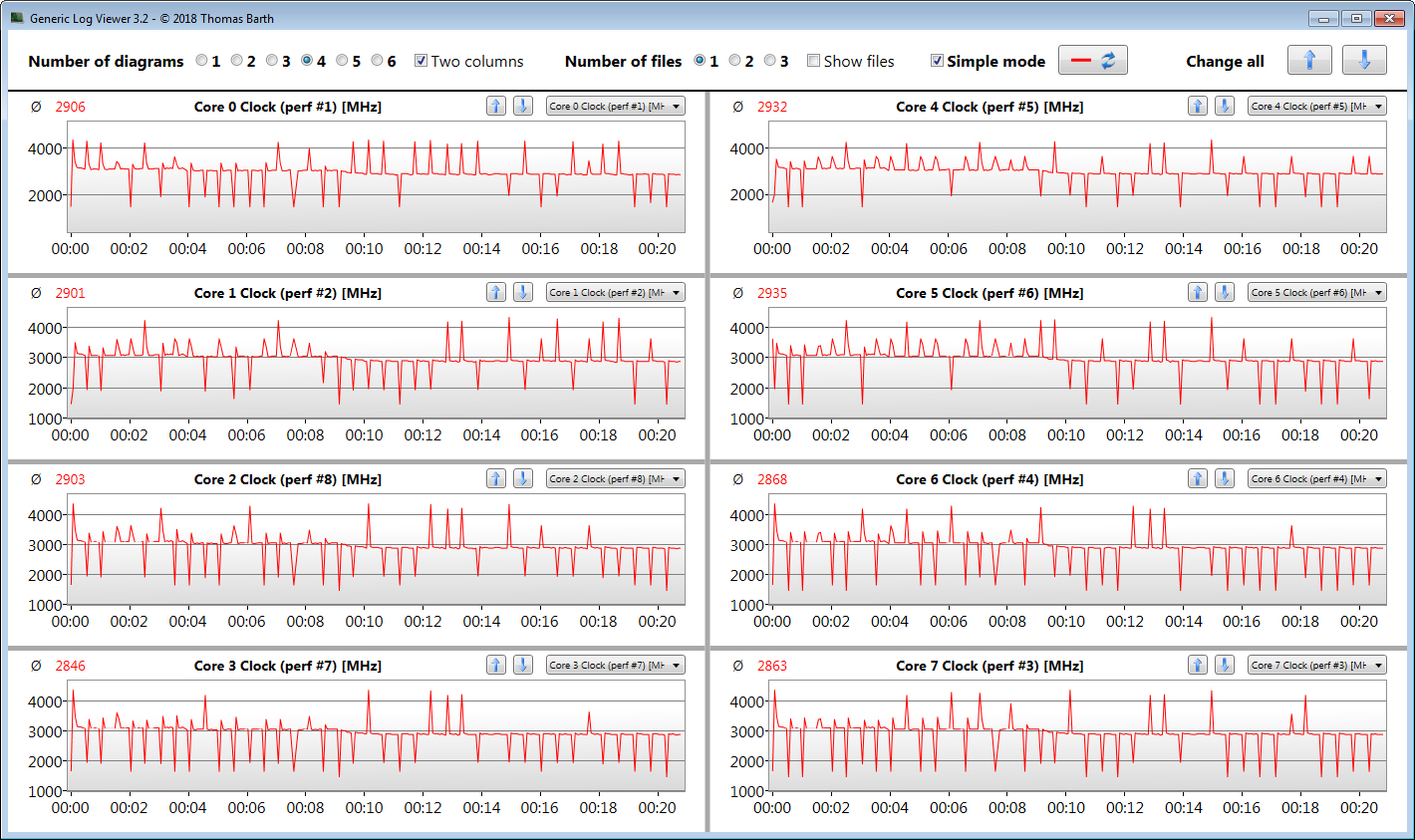

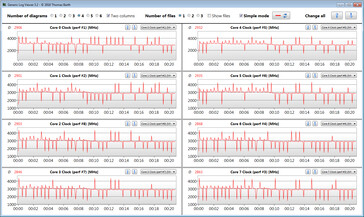

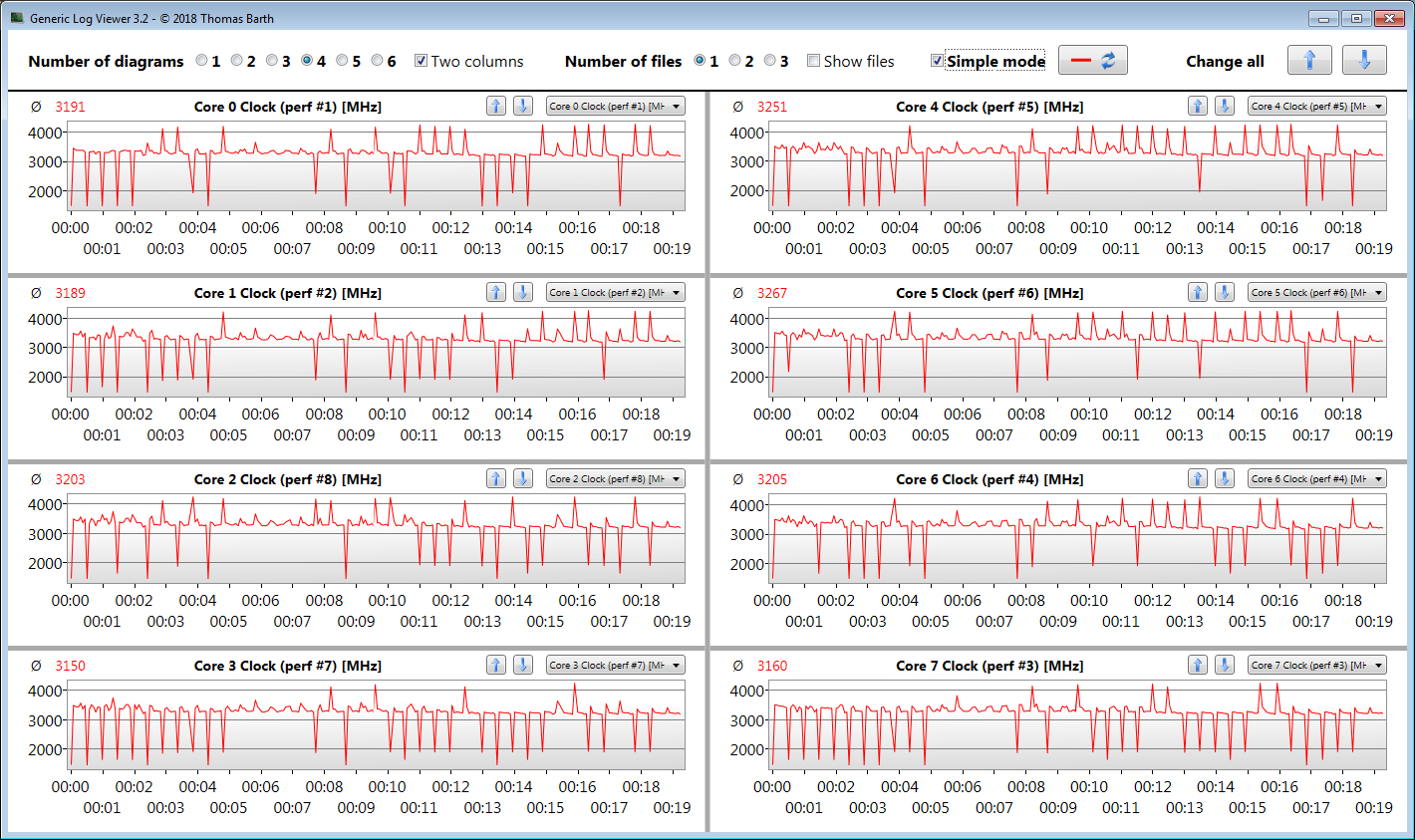

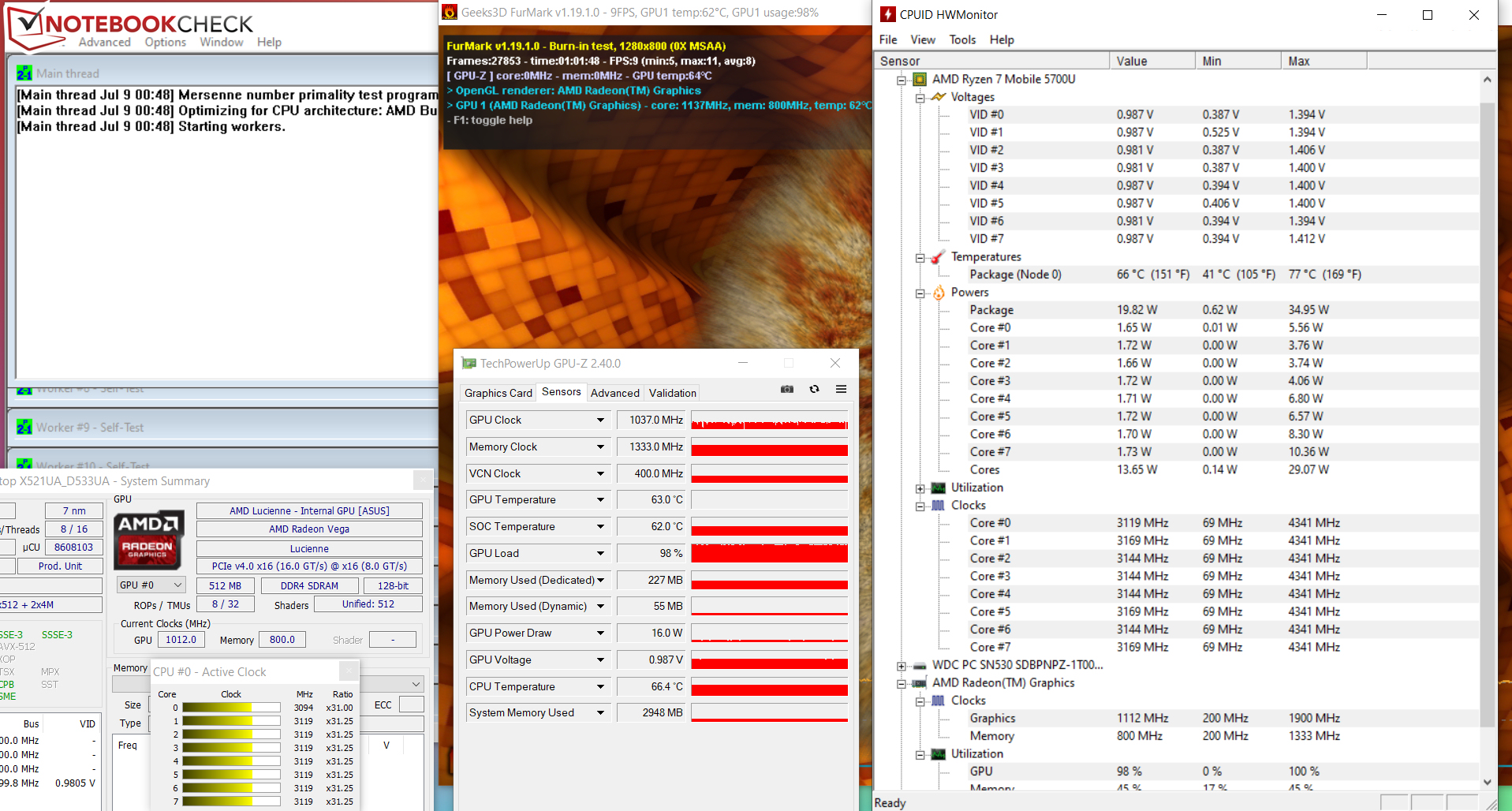

We check whether the CPU Turbo is used permanently in mains operation by running the multi-thread test of the Cinebench R15 benchmark in a loop for at least 30 minutes. The Turbo is used on medium level. The "Performance Mode" profile causes the clock to increase slightly.
The CPU delivers a high level of multi-thread performance, but falls short of its capabilities due to a Turbo clock on a medium level.
Cinebench R23 | |
Single Core | |
Asus VivoBook S15 S533EQ-BQ002T | |
HP Pavilion 15-eg | |
Average of class Office (529 - 1995, n=121, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (1177 - 1268, n=17) | |
Multi Core | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (7438 - 10139, n=17) | |
Average of class Office (1056 - 15743, n=122, last 2 years) | |
Asus VivoBook S15 S533EQ-BQ002T | |
HP Pavilion 15-eg | |
Honor MagicBook 15 i5 1135G7 |
Cinebench R20 | |
CPU (Single Core) | |
Asus VivoBook S15 S533EQ-BQ002T | |
HP Pavilion 15-eg | |
MSI Modern 15 A11M-062 | |
Average of class Office (181.3 - 764, n=120, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (478 - 494, n=18) | |
Samsung Galaxy Book NP750XDA | |
CPU (Multi Core) | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (2309 - 3877, n=18) | |
Average of class Office (356 - 5904, n=120, last 2 years) | |
MSI Modern 15 A11M-062 | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
HP Pavilion 15-eg | |
Honor MagicBook 15 i5 1135G7 |
Cinebench R15 | |
CPU Single 64Bit | |
MSI Modern 15 A11M-062 | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average of class Office (82.6 - 284, n=118, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
Samsung Galaxy Book NP750XDA | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (184 - 190, n=16) | |
CPU Multi 64Bit | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (1196 - 1691, n=17) | |
Average of class Office (160.8 - 2642, n=120, last 2 years) | |
MSI Modern 15 A11M-062 | |
Asus VivoBook S15 S533EQ-BQ002T | |
Honor MagicBook 15 i5 1135G7 | |
Samsung Galaxy Book NP750XDA | |
HP Pavilion 15-eg |
Blender - v2.79 BMW27 CPU | |
Honor MagicBook 15 i5 1135G7 | |
HP Pavilion 15-eg | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average of class Office (214 - 2844, n=121, last 2 years) | |
MSI Modern 15 A11M-062 | |
Average AMD Ryzen 7 5700U (292 - 402, n=17) | |
Asus VivoBook S15 D533UA | |
Asus VivoBook S15 D533UA (Leistungsmodus) |
7-Zip 18.03 | |
7z b 4 -mmt1 | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
MSI Modern 15 A11M-062 | |
Average of class Office (2233 - 6687, n=122, last 2 years) | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (4476 - 4620, n=17) | |
Honor MagicBook 15 i5 1135G7 | |
7z b 4 | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (32529 - 47501, n=17) | |
Average of class Office (4226 - 62349, n=121, last 2 years) | |
MSI Modern 15 A11M-062 | |
Asus VivoBook S15 S533EQ-BQ002T | |
Samsung Galaxy Book NP750XDA | |
HP Pavilion 15-eg | |
Honor MagicBook 15 i5 1135G7 |
Geekbench 5.5 | |
Single-Core | |
Asus VivoBook S15 S533EQ-BQ002T | |
MSI Modern 15 A11M-062 | |
Average of class Office (510 - 1974, n=123, last 2 years) | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Average AMD Ryzen 7 5700U (1105 - 1205, n=16) | |
Multi-Core | |
Average of class Office (1018 - 11980, n=123, last 2 years) | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (4254 - 7635, n=16) | |
Asus VivoBook S15 S533EQ-BQ002T | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U (6.97 - 12.1, n=17) | |
Average of class Office (1.55 - 17.4, n=121, last 2 years) | |
MSI Modern 15 A11M-062 | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 |
LibreOffice - 20 Documents To PDF | |
Average AMD Ryzen 7 5700U (52.4 - 68.5, n=17) | |
Average of class Office (31.3 - 117.5, n=121, last 2 years) | |
Asus VivoBook S15 D533UA | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T |
R Benchmark 2.5 - Overall mean | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 | |
Average AMD Ryzen 7 5700U (0.567 - 0.641, n=17) | |
Average of class Office (0.4244 - 1.397, n=120, last 2 years) | |
Asus VivoBook S15 D533UA | |
MSI Modern 15 A11M-062 | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 S533EQ-BQ002T | |
HP Pavilion 15-eg |
* ... smaller is better
System performance
The system works nimbly and smoothly. The Ryzen APU provides more than enough computing power for office and Internet applications. Beyond that, it allows using computer games to a limited extent. The working memory (16 GB, DDR4-3200, onboard) runs in dual-channel mode. An expansion of the memory is not possible.
PCMark 8 Home Score Accelerated v2 | 4376 points | |
PCMark 8 Creative Score Accelerated v2 | 4703 points | |
PCMark 8 Work Score Accelerated v2 | 5424 points | |
PCMark 10 Score | 5402 points | |
Help |
PCMark 10 / Score | |
HP Pavilion 15-eg | |
Asus VivoBook S15 D533UA | |
Average of class Office (2325 - 7157, n=105, last 2 years) | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4775 - 5518, n=12) | |
MSI Modern 15 A11M-062 | |
Honor MagicBook 15 i5 1135G7 | |
Samsung Galaxy Book NP750XDA |
PCMark 10 / Essentials | |
HP Pavilion 15-eg | |
Average of class Office (5095 - 20841, n=105, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA | |
Samsung Galaxy Book NP750XDA | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8347 - 10091, n=12) | |
MSI Modern 15 A11M-062 | |
Asus VivoBook S15 S533EQ-BQ002T |
PCMark 10 / Productivity | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8112, n=12) | |
Average of class Office (3041 - 10198, n=105, last 2 years) | |
MSI Modern 15 A11M-062 | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 |
PCMark 10 / Digital Content Creation | |
HP Pavilion 15-eg | |
Average of class Office (1912 - 9056, n=105, last 2 years) | |
Asus VivoBook S15 D533UA | |
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4583 - 5964, n=12) | |
Asus VivoBook S15 S533EQ-BQ002T | |
Samsung Galaxy Book NP750XDA | |
MSI Modern 15 A11M-062 | |
Honor MagicBook 15 i5 1135G7 |

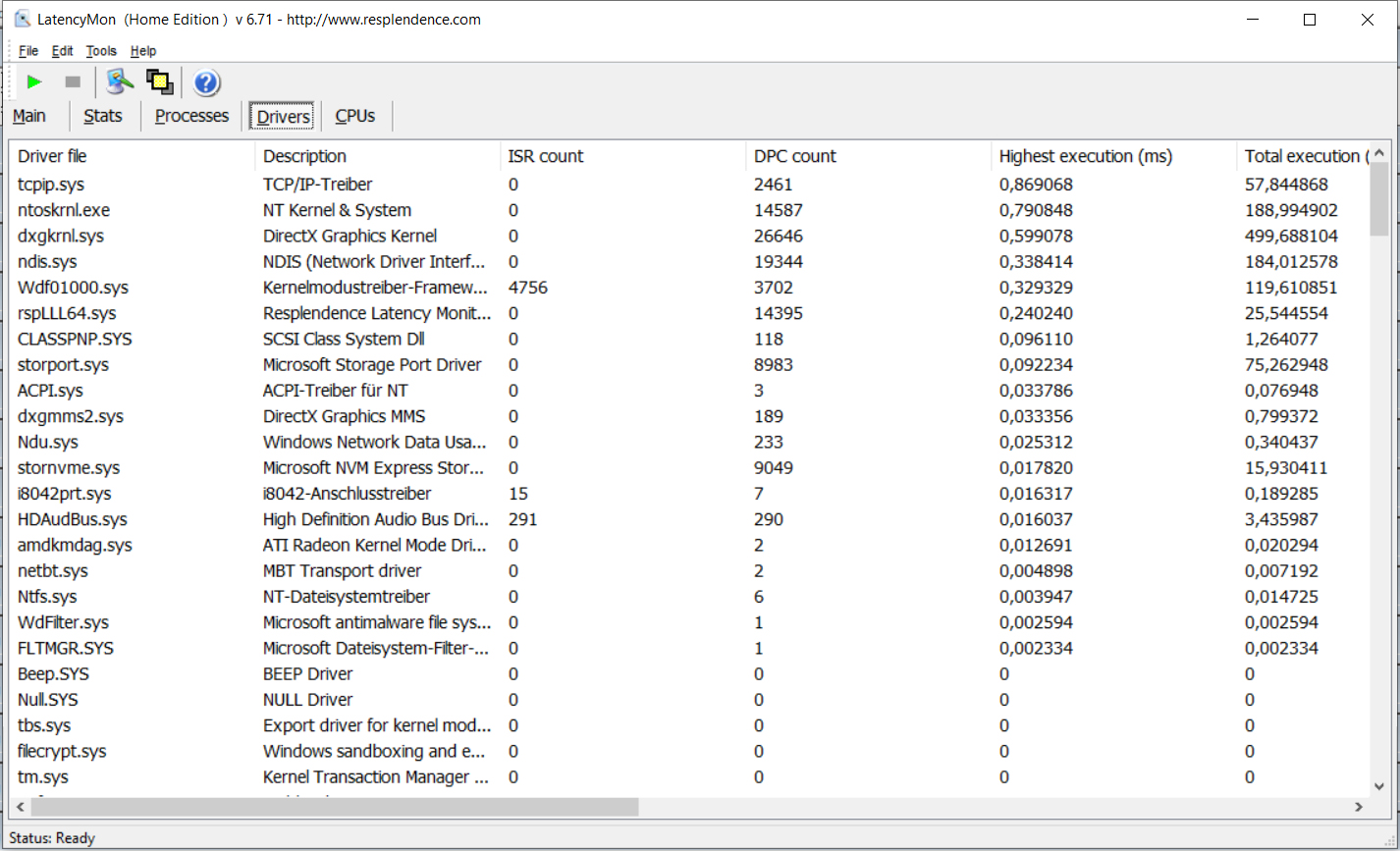

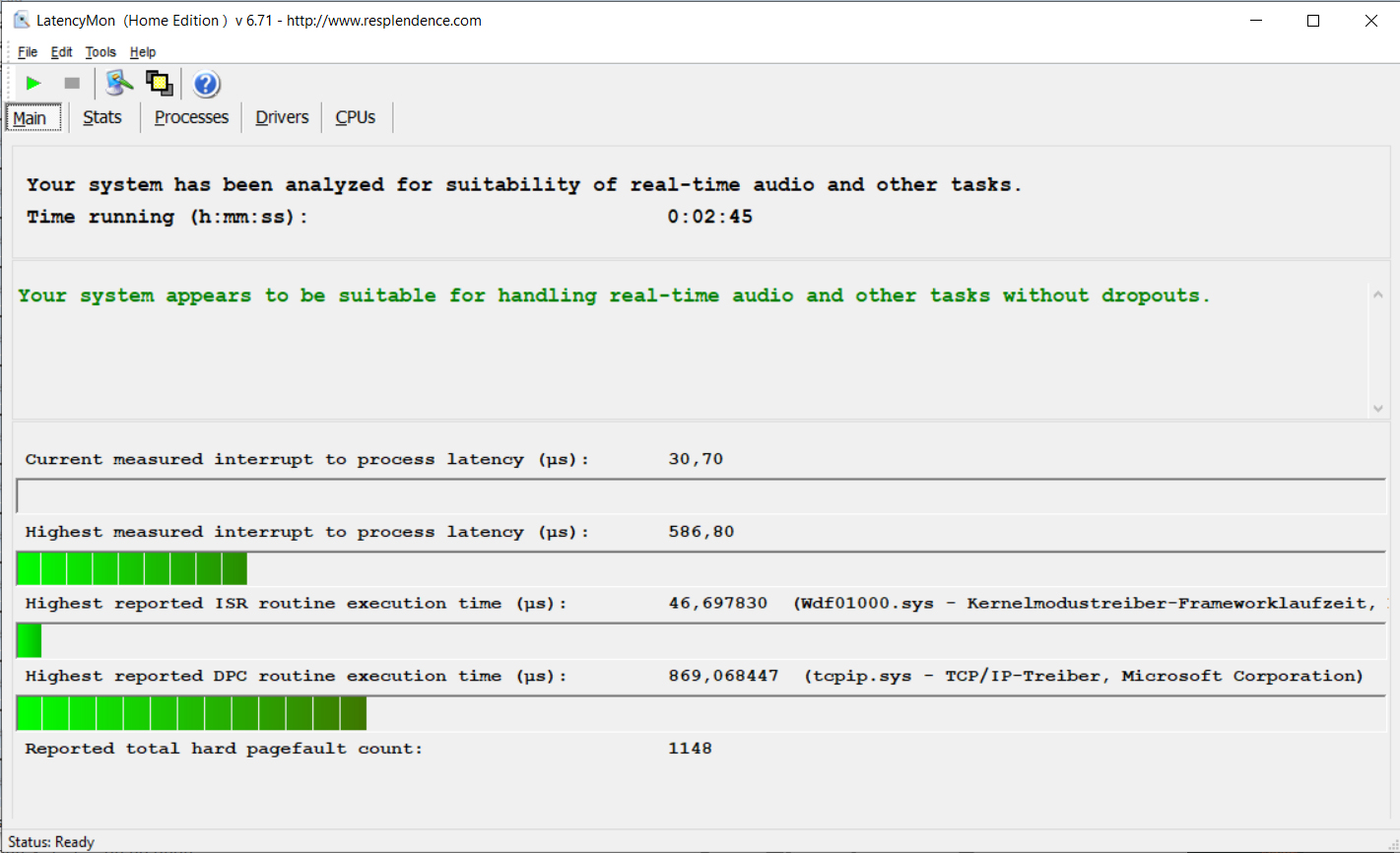

DPC latencies
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
HP Pavilion 15-eg | |
MSI Modern 15 A11M-062 | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA |
* ... smaller is better
Mass storage

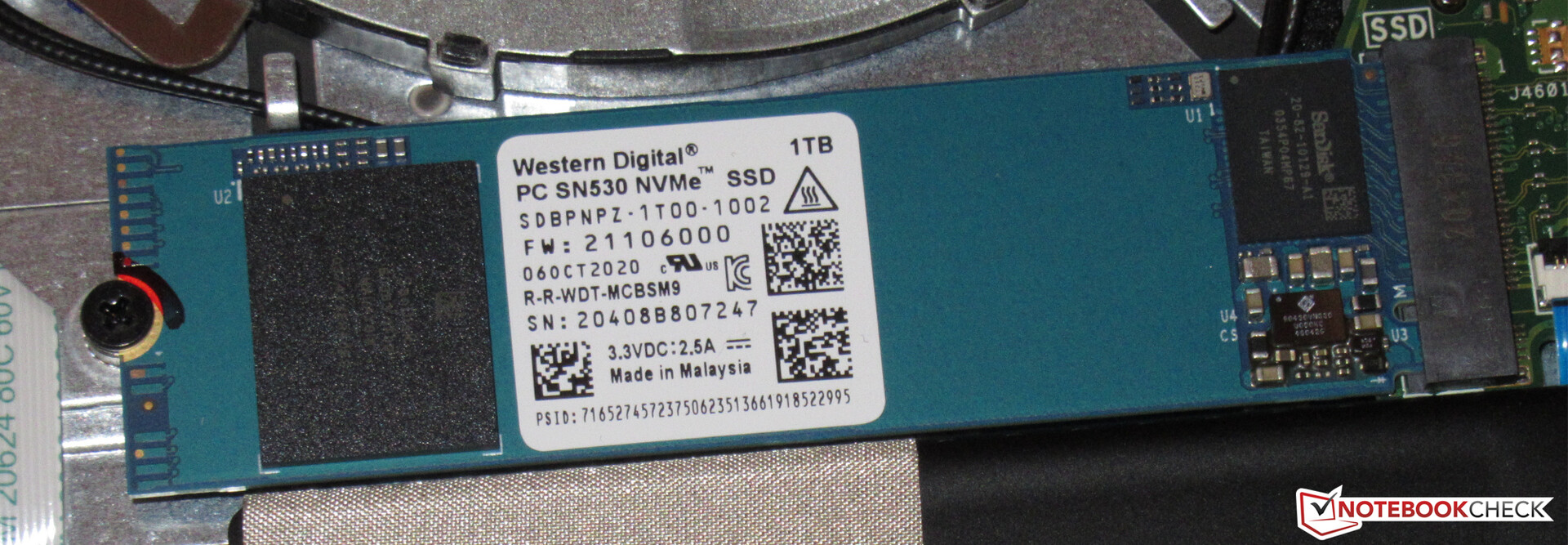

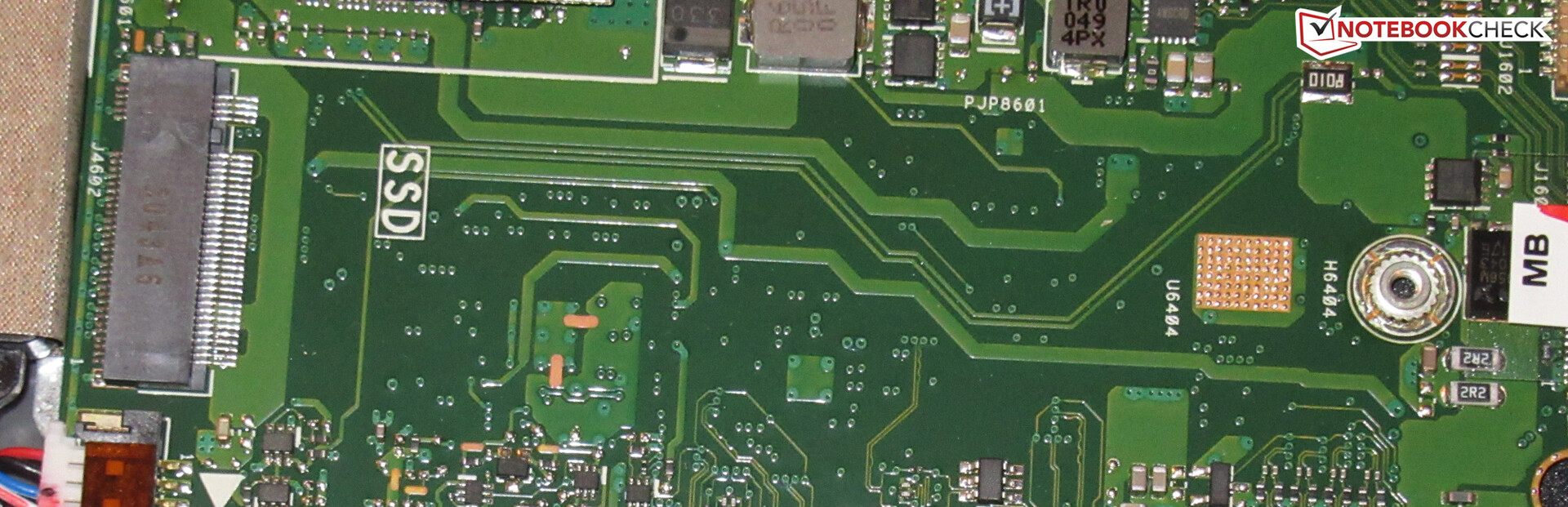

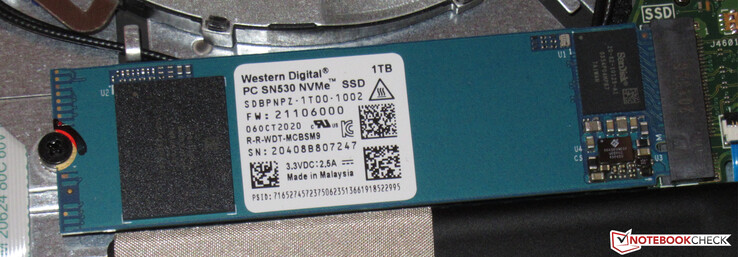

A 1 TB NVMe SSD (M.2-2280) from Western Digital serves as the system drive and delivers good transfer rates. It is not one of the top SSD models.
Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00 | Samsung Galaxy Book NP750XDA Lite-On CL1-8D512 | Honor MagicBook 15 i5 1135G7 WDC PC SN730 SDBPNTY-512G | HP Pavilion 15-eg Samsung PM991 MZVLQ1T0HALB | MSI Modern 15 A11M-062 Kingston OM8PCP3512F-AB | Asus VivoBook S15 S533EQ-BQ002T Intel SSD 660p 1TB SSDPEKNW010T8 | Average WDC PC SN530 SDBPNPZ-1T00 | Average of class Office | |
---|---|---|---|---|---|---|---|---|
CrystalDiskMark 5.2 / 6 | -19% | 40% | -8% | -15% | 17% | 12% | 32% | |
Write 4K | 116.8 | 102.4 -12% | 208.5 79% | 141.6 21% | 215.1 84% | 214.4 84% | 182.7 ? 56% | 156.6 ? 34% |
Read 4K | 43.92 | 36.27 -17% | 51.6 17% | 42.61 -3% | 47.9 9% | 58.5 33% | 48.6 ? 11% | 61 ? 39% |
Write Seq | 1990 | 1134 -43% | 2579 30% | 1337 -33% | 965 -52% | 1678 -16% | 1979 ? -1% | 2378 ? 19% |
Read Seq | 1959 | 1841 -6% | 2476 26% | 1575 -20% | 1149 -41% | 1648 -16% | 1828 ? -7% | 2593 ? 32% |
Write 4K Q32T1 | 373.3 | 495.5 33% | 602 61% | 397.8 7% | 335.3 -10% | 644 73% | 498 ? 33% | 400 ? 7% |
Read 4K Q32T1 | 524 | 322.6 -38% | 680 30% | 454.2 -13% | 303.4 -42% | 600 15% | 573 ? 9% | 511 ? -2% |
Write Seq Q32T1 | 1985 | 930 -53% | 2706 36% | 1648 -17% | 968 -51% | 1760 -11% | 1980 ? 0% | 3018 ? 52% |
Read Seq Q32T1 | 2456 | 1988 -19% | 3392 38% | 2388 -3% | 1986 -19% | 1853 -25% | 2336 ? -5% | 4226 ? 72% |
AS SSD | -52% | 29% | -4% | -60% | -21% | -3% | 3% | |
Seq Read | 2082 | 1780 -15% | 2960 42% | 2030 -2% | 1747 -16% | 1754 -16% | 2059 ? -1% | 3122 ? 50% |
Seq Write | 1844 | 843 -54% | 2371 29% | 1003 -46% | 909 -51% | 1567 -15% | 1812 ? -2% | 2036 ? 10% |
4K Read | 44.33 | 24.25 -45% | 46.48 5% | 46.74 5% | 40.89 -8% | 53 20% | 37.4 ? -16% | 56.1 ? 27% |
4K Write | 157.5 | 102.2 -35% | 143.6 -9% | 164.2 4% | 75.6 -52% | 167.9 7% | 164.6 ? 5% | 156.7 ? -1% |
4K-64 Read | 1039 | 369 -64% | 1470 41% | 1098 6% | 163.6 -84% | 586 -44% | 765 ? -26% | 1044 ? 0% |
4K-64 Write | 1556 | 717 -54% | 1806 16% | 891 -43% | 262.6 -83% | 858 -45% | 1431 ? -8% | 1458 ? -6% |
Access Time Read * | 0.05 | 0.076 -52% | 0.088 -76% | 0.053 -6% | 0.134 -168% | 0.097 -94% | 0.0364 ? 27% | 0.08214 ? -64% |
Access Time Write * | 0.065 | 0.124 -91% | 0.026 60% | 0.062 5% | 0.048 26% | 0.038 42% | 0.07029 ? -8% | 0.06413 ? 1% |
Score Read | 1292 | 571 -56% | 1812 40% | 1348 4% | 379 -71% | 815 -37% | 1008 ? -22% | 1413 ? 9% |
Score Write | 1898 | 904 -52% | 2186 15% | 1155 -39% | 429 -77% | 1182 -38% | 1677 ? -12% | 1818 ? -4% |
Score Total | 3845 | 1726 -55% | 4899 27% | 3149 -18% | 976 -75% | 2421 -37% | 3337 ? -13% | 3911 ? 2% |
Copy ISO MB/s | 1441 | 2520 75% | 1583 10% | 1477 2% | 1653 ? 15% | 1642 ? 14% | ||
Copy Program MB/s | 484.9 | 790 63% | 682 41% | 495.3 2% | 528 ? 9% | 504 ? 4% | ||
Copy Game MB/s | 1098 | 1879 71% | 1428 30% | 719 -35% | 1173 ? 7% | 1156 ? 5% | ||
Total Average (Program / Settings) | -36% /
-38% | 35% /
33% | -6% /
-5% | -38% /
-41% | -2% /
-7% | 5% /
2% | 18% /
14% |
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
Graphics card

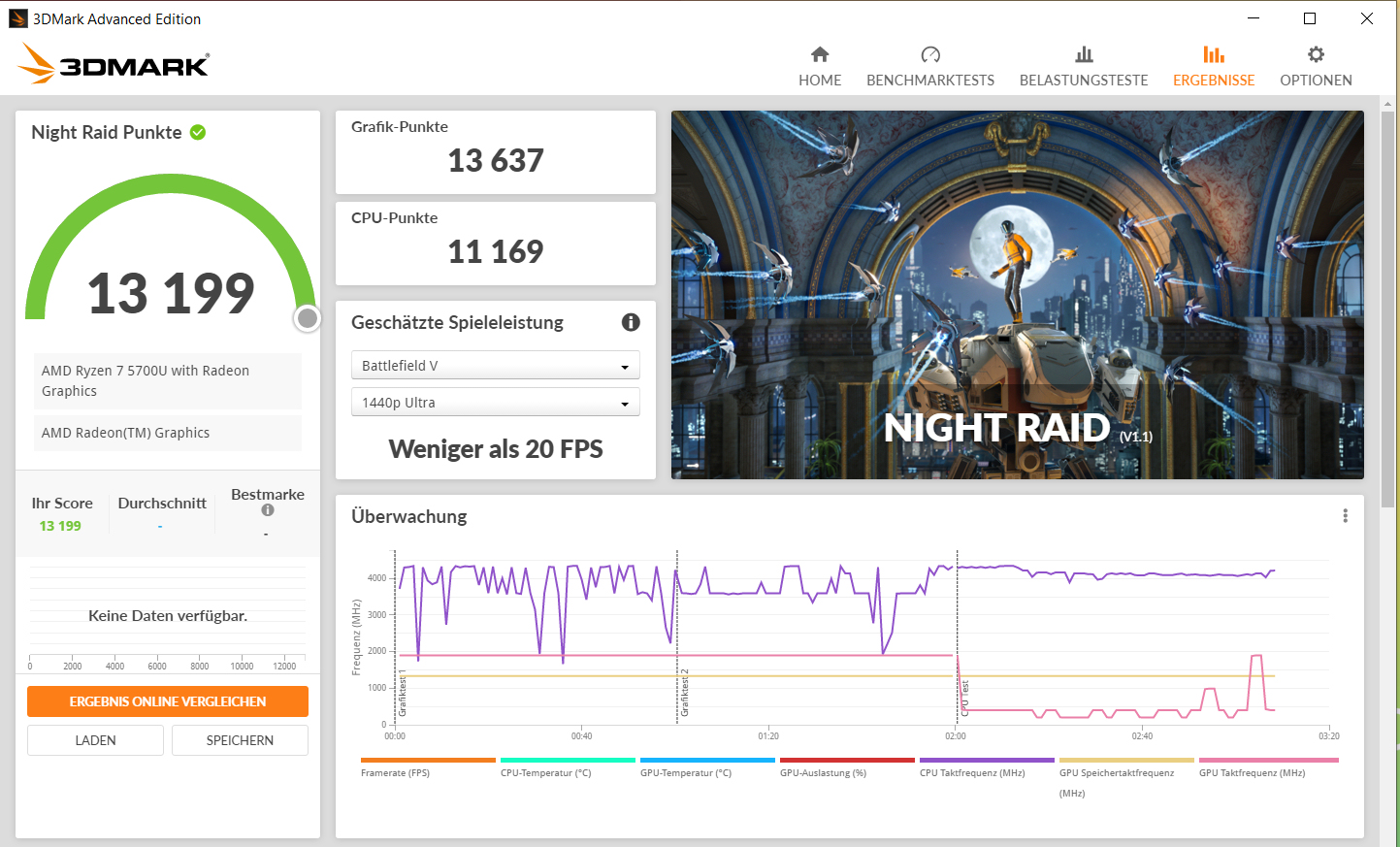

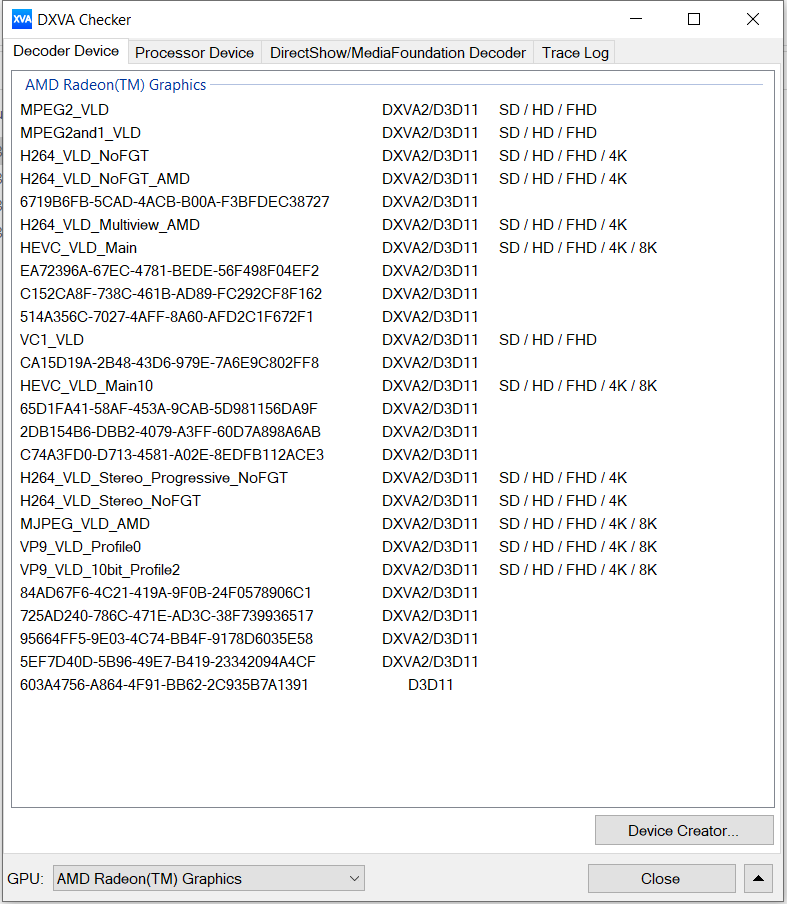

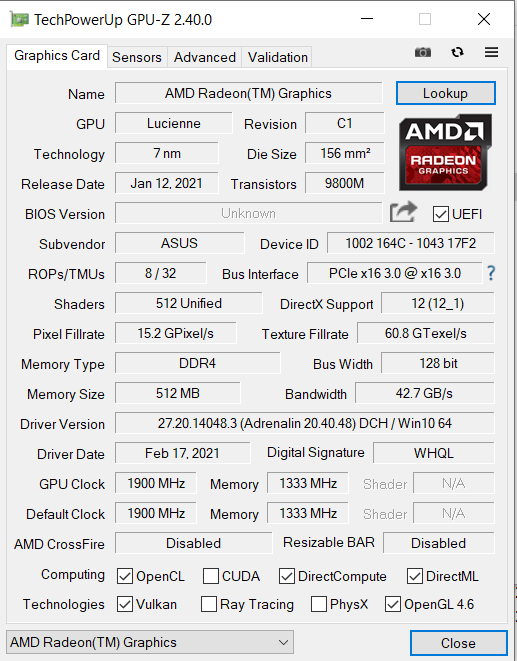

The Vega-8 graphics core supports DirectX 12 and reaches speeds of up to 1,900 MHz. The maximum can be maintained permanently, as the Witcher 3 test shows. The 3DMark results are below average compared to the Vega-8 notebooks we have tested so far. We attribute this to the installed working memory. Since the latter is soldered, there is no potential for improvement.
3DMark 11 Performance | 5743 points | |
3DMark Ice Storm Standard Score | 99970 points | |

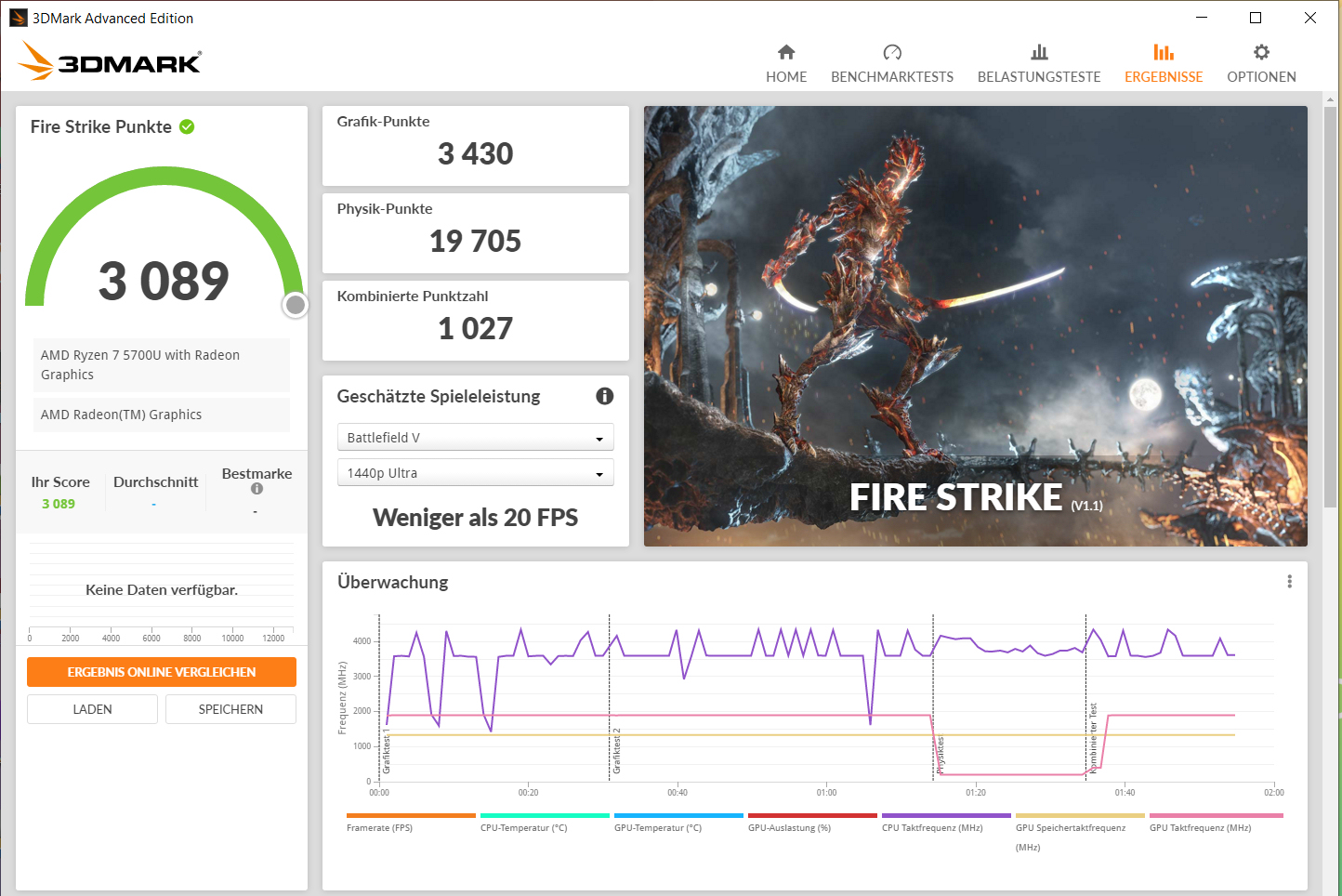

3DMark Fire Strike Score | 3089 points | |
3DMark Time Spy Score | 1187 points | |
Help |
3DMark 11 - 1280x720 Performance GPU | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
Samsung Galaxy Book NP750XDA | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=53) | |
Average of class Office (1474 - 12230, n=115, last 2 years) | |
Asus VivoBook S15 D533UA | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 |
3DMark | |
1920x1080 Fire Strike Graphics | |
HP Pavilion 15-eg | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average of class Office (712 - 8815, n=117, last 2 years) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=53) | |
Honor MagicBook 15 i5 1135G7 | |
Asus VivoBook S15 D533UA | |
MSI Modern 15 A11M-062 | |
1280x720 Cloud Gate Standard Graphics | |
HP Pavilion 15-eg | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13941 - 36134, n=45) | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average of class Office (5681 - 58068, n=98, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 | |
2560x1440 Time Spy Graphics | |
HP Pavilion 15-eg | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average of class Office (242 - 3186, n=113, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=53) | |
Asus VivoBook S15 D533UA | |
MSI Modern 15 A11M-062 |
Gaming performance
The Ryzen APU smoothly brings many of the games in our database to the screen. Most titles are playable at HD resolution (1,280 x 720 pixels) and low to medium quality levels. Games with moderate hardware requirements allow more. Some current games can also be played.
The same behavior as in the 3DMark benchmarks is seen: The working memory slows down the GPU a bit. As a result, it delivers some of the lowest frame rates we have measured so far with the Vega-8 graphics core.
The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
HP Pavilion 15-eg | |
Samsung Galaxy Book NP750XDA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average of class Office (7.82 - 89, n=97, last 2 years) | |
Honor MagicBook 15 i5 1135G7 | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=34) | |
Asus VivoBook S15 D533UA | |
MSI Modern 15 A11M-062 |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 72, n=56) | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Average of class Office (7.8 - 104.2, n=124, last 2 years) | |
Samsung Galaxy Book NP750XDA | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 |
X-Plane 11.11 - 1280x720 low (fps_test=1) | |
HP Pavilion 15-eg | |
Asus VivoBook S15 S533EQ-BQ002T | |
Honor MagicBook 15 i5 1135G7 | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.9 - 64.9, n=56) | |
MSI Modern 15 A11M-062 | |
Asus VivoBook S15 D533UA | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Average of class Office (9.12 - 109.9, n=124, last 2 years) | |
Samsung Galaxy Book NP750XDA |
GTA V - 1366x768 Normal/Off AF:4x | |
HP Pavilion 15-eg | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42) | |
Samsung Galaxy Book NP750XDA | |
Average of class Office (7.47 - 153.1, n=104, last 2 years) | |
Asus VivoBook S15 D533UA (Leistungsmodus) | |
Asus VivoBook S15 D533UA | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 |
Strange Brigade - 1280x720 lowest AF:1 | |
Samsung Galaxy Book NP750XDA (1.47.22.14 D3D12) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=49) | |
Average of class Office (16.3 - 173.8, n=111, last 2 years) | |
Asus VivoBook S15 D533UA (1.47.22.14 D3D12, Leistungsmodus) | |
Asus VivoBook S15 D533UA (1.47.22.14 D3D12) | |
Honor MagicBook 15 i5 1135G7 (1.47.22.14 D3D12) | |
MSI Modern 15 A11M-062 (1.47.22.14 D3D12) |
Dirt 5 - 1280x720 Ultra Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.2 - 60.6, n=4) | |
Asus VivoBook S15 D533UA | |
Average of class Office (last 2 years) |
Watch Dogs Legion - 1280x720 Low Preset (DX12) | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.5 - 44.9, n=2) | |
Asus VivoBook S15 S533EQ-BQ002T | |
Asus VivoBook S15 D533UA | |
Average of class Office (20.6 - 32.2, n=3, last 2 years) |
Star Wars Squadrons - 1280x720 Low Preset | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (96.3 - 134, n=2) | |
Asus VivoBook S15 S533EQ-BQ002T | |
Asus VivoBook S15 D533UA |
Mass Effect Legendary Edition - 1280x720 Off | |
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (45.6 - 54.5, n=3) | |
Asus VivoBook S15 D533UA |

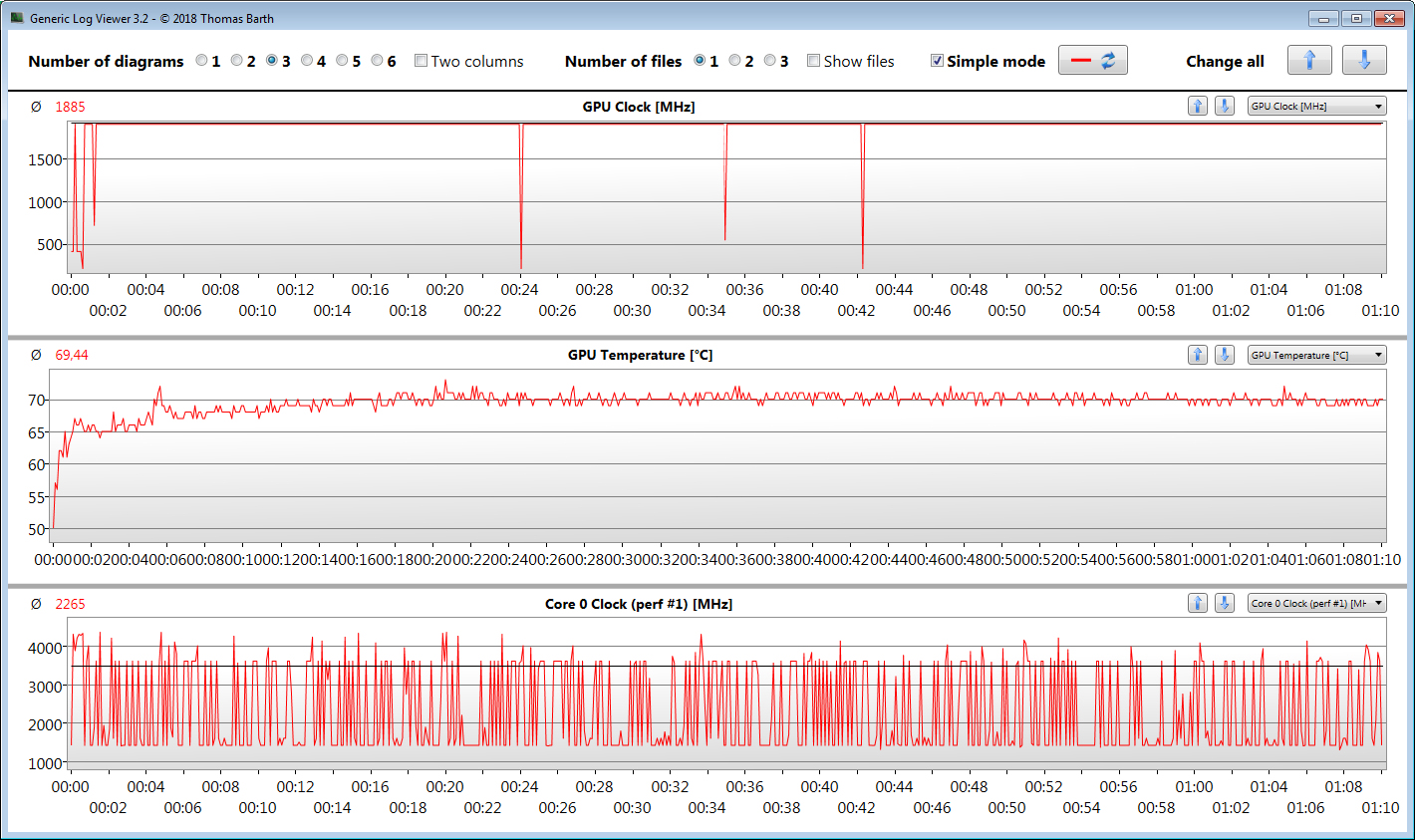

To check whether the frame rates remain largely constant over a longer period, we run the game "The Witcher 3" for about 60 minutes with Full HD resolution and maximum quality settings. The game character is not moved. The GPU permanently runs at maximum speed.
Witcher 3 FPS-Diagram
low | med. | high | ultra | |
GTA V (2015) | 89.6 | 78.3 | 25.4 | 10 |
The Witcher 3 (2015) | 54 | 38.5 | 19.6 | 13.4 |
Dota 2 Reborn (2015) | 97 | 75.8 | 48.8 | 45.6 |
Final Fantasy XV Benchmark (2018) | 33.5 | 17.3 | 11.6 | |
X-Plane 11.11 (2018) | 42.2 | 32.4 | 28.9 | |
Far Cry 5 (2018) | 43 | 19 | 17 | 17 |
Strange Brigade (2018) | 72.3 | 29 | 24.6 | 21.1 |
Anno 1800 (2019) | 49.4 | 21 | 12.1 | 6.95 |
Gears Tactics (2020) | 77.7 | 29.7 | 19.1 | 13.4 |
F1 2020 (2020) | 79.1 | 37.2 | 29.1 | 20.2 |
Death Stranding (2020) | 36.6 | 19.7 | 18 | 17.9 |
Horizon Zero Dawn (2020) | 35 | 16 | 14 | 12 |
Serious Sam 4 (2020) | 54.2 | 21.6 | 13.6 | 9.05 |
Star Wars Squadrons (2020) | 96.3 | 39 | 35.8 | 32.3 |
Watch Dogs Legion (2020) | 31.5 | 17.2 | 14.1 | |
Dirt 5 (2020) | 42.9 | 20 | 15.3 | 11.8 |
Assassin´s Creed Valhalla (2020) | 33 | 16 | 13 | 11 |
Yakuza Like a Dragon (2020) | 43 | 12.2 | 11.9 | 11.4 |
Immortals Fenyx Rising (2020) | 37 | 18 | 15 | 14 |
Hitman 3 (2021) | 55.3 | 19.6 | 17.6 | 16.1 |
Outriders (2021) | 39.9 | 29 | 21.9 | 16.7 |
Mass Effect Legendary Edition (2021) | 49.4 | 33.5 | ||
Days Gone (2021) | 33.8 | 18.2 | 16.9 | 12.8 |
Emissions & Energy Management - Asus Laptop with good battery life
Noise emissions
The device usually does not make a sound when idling and under low load - the fan is inactive. This is over under medium to high load. In both cases, we register a maximum sound pressure level of 45 dB(A). For a lower noise level, we would have to use the energy profile "Whisper mode" - at the expense of computing power.
Noise Level
Idle |
| 26 / 26 / 28.8 dB(A) |
Load |
| 45 / 45 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) |
Asus VivoBook S15 D533UA R7 5700U, Vega 8 | Samsung Galaxy Book NP750XDA i5-1135G7, Iris Xe G7 80EUs | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs | HP Pavilion 15-eg i7-1165G7, GeForce MX450 | MSI Modern 15 A11M-062 i7-1165G7, Iris Xe G7 96EUs | Asus VivoBook S15 S533EQ-BQ002T i7-1165G7, GeForce MX350 | |
---|---|---|---|---|---|---|
Noise | 2% | 12% | 6% | -1% | 8% | |
off / environment * | 26 | 26 -0% | 24.6 5% | 25.4 2% | 26 -0% | 25 4% |
Idle Minimum * | 26 | 26 -0% | 24.6 5% | 25.6 2% | 28.8 -11% | 25 4% |
Idle Average * | 26 | 26 -0% | 24.6 5% | 25.6 2% | 28.8 -11% | 25 4% |
Idle Maximum * | 28.8 | 26 10% | 24.6 15% | 25.6 11% | 28.8 -0% | 25 13% |
Load Average * | 45 | 43.3 4% | 33.9 25% | 39.2 13% | 34 24% | 39.5 12% |
Load Maximum * | 45 | 45.7 -2% | 36.5 19% | 41.5 8% | 48.2 -7% | 41.6 8% |
Witcher 3 ultra * | 33.9 | 39.1 | 39.3 |
* ... smaller is better

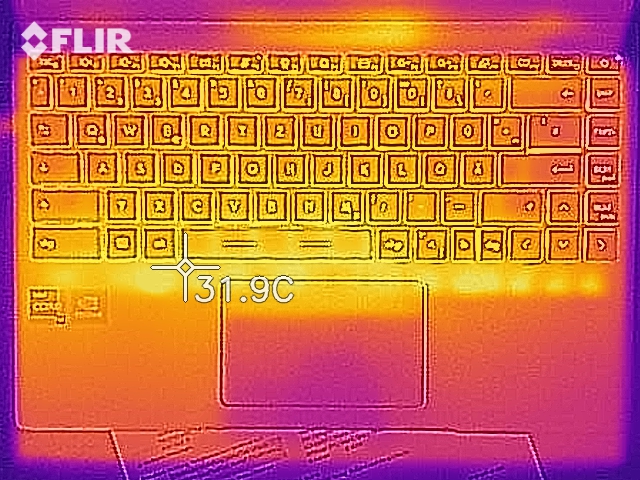

Temperature
Our stress test (Prime95 and FurMark run for at least one hour) runs the CPU and GPU at 3.1 GHz and approximately 1,050 MHz, respectively. The stress test represents an extreme scenario. We use this test to check whether the system runs stably even under full load.
The Asus computer heats up noticeably, but not excessively. Temperatures in the lower to mid 40 degrees Celsius (104 degrees Fahrenheit) range are registered at some measuring points during the stress test. In everyday use, the rates are in the green zone.

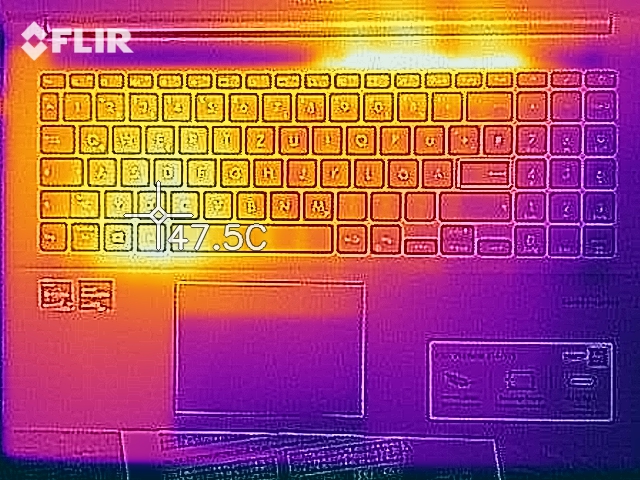

(-) The maximum temperature on the upper side is 46.1 °C / 115 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

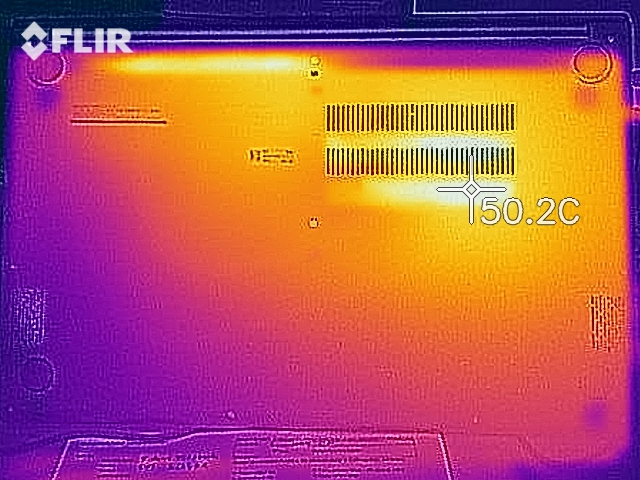

(-) The bottom heats up to a maximum of 46.6 °C / 116 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.5 °C / 78 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.5 °C / 90.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.8 °C / -8.6 F).
Asus VivoBook S15 D533UA R7 5700U, Vega 8 | Samsung Galaxy Book NP750XDA i5-1135G7, Iris Xe G7 80EUs | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs | HP Pavilion 15-eg i7-1165G7, GeForce MX450 | MSI Modern 15 A11M-062 i7-1165G7, Iris Xe G7 96EUs | Asus VivoBook S15 S533EQ-BQ002T i7-1165G7, GeForce MX350 | |
---|---|---|---|---|---|---|
Heat | 1% | 13% | -3% | 3% | 11% | |
Maximum Upper Side * | 46.1 | 46.5 -1% | 35.4 23% | 44 5% | 41.4 10% | 38.1 17% |
Maximum Bottom * | 46.6 | 44.8 4% | 40.8 12% | 53.4 -15% | 49.1 -5% | 41.3 11% |
Idle Upper Side * | 27.4 | 27.8 -1% | 25.4 7% | 27.4 -0% | 27.8 -1% | 24.5 11% |
Idle Bottom * | 28.2 | 28.3 -0% | 26 8% | 28.8 -2% | 26.6 6% | 26.8 5% |
* ... smaller is better
Speaker
The stereo speakers produce a decent sound that lacks bass
Asus VivoBook S15 D533UA audio analysis
(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (14.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.3% higher than median
(±) | linearity of highs is average (8.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 17% of all tested devices in this class were better, 7% similar, 76% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 70% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Energy consumption
The laptop is unexceptional in terms of energy consumption. The maximum idle power consumption is about 12.2 watts. Under load, the demand increases to up to 65 watts (stress test) and 43 watts on average (Witcher 3 test). The following diagram illustrates the fairly constant power consumption during the Witcher 3 test. The power supply's nominal power is 65 watts.
Off / Standby | 0.5 / 3.6 Watt |
Idle | 5 / 7.7 / 12.2 Watt |
Load |
41 / 65 Watt |
Power consumption Witcher 3
Asus VivoBook S15 D533UA R7 5700U, Vega 8 | Samsung Galaxy Book NP750XDA i5-1135G7, Iris Xe G7 80EUs | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs | HP Pavilion 15-eg i7-1165G7, GeForce MX450 | MSI Modern 15 A11M-062 i7-1165G7, Iris Xe G7 96EUs | Asus VivoBook S15 S533EQ-BQ002T i7-1165G7, GeForce MX350 | |
---|---|---|---|---|---|---|
Power Consumption | 17% | 18% | -17% | -9% | 5% | |
Idle Minimum * | 5 | 3.5 30% | 3.4 32% | 4.9 2% | 8.8 -76% | 3 40% |
Idle Average * | 7.7 | 8 -4% | 7.7 -0% | 7.9 -3% | 11 -43% | 6.4 17% |
Idle Maximum * | 12.2 | 9.4 23% | 8.3 32% | 14.2 -16% | 15.5 -27% | 7.9 35% |
Load Average * | 41 | 37.8 8% | 32 22% | 64.3 -57% | 26.4 36% | 59 -44% |
Witcher 3 ultra * | 43 | 36.7 15% | 33.9 21% | 55.6 -29% | 26.4 39% | 48 -12% |
Load Maximum * | 65 | 45 31% | 65.2 -0% | 65.4 -1% | 54 17% | 68 -5% |
* ... smaller is better
Battery life
The VivoBook achieves a runtime of 8:58 h in our practical WLAN test. The load during web page loads is mapped via a script.
Battery Runtime - WiFi Websurfing | |
Samsung Galaxy Book NP750XDA | |
Average of class Office (272 - 1137, n=107, last 2 years) | |
Asus VivoBook S15 D533UA | |
Asus VivoBook S15 S533EQ-BQ002T | |
Honor MagicBook 15 i5 1135G7 | |
MSI Modern 15 A11M-062 | |
HP Pavilion 15-eg |
Pros
Cons
Verdict - There's still more
Asus sends a chic, slim 15.6-inch all-rounder into the race for buyers' favor with the VivoBook S15, which has a very low power consumption thanks to its Ryzen-7-5700U APU with a high degree of multi-thread performance. It clearly leaves the Intel-based competition behind. The single-thread performance is the other way around.
The screen is not appropriate for the chic VivoBook S15.

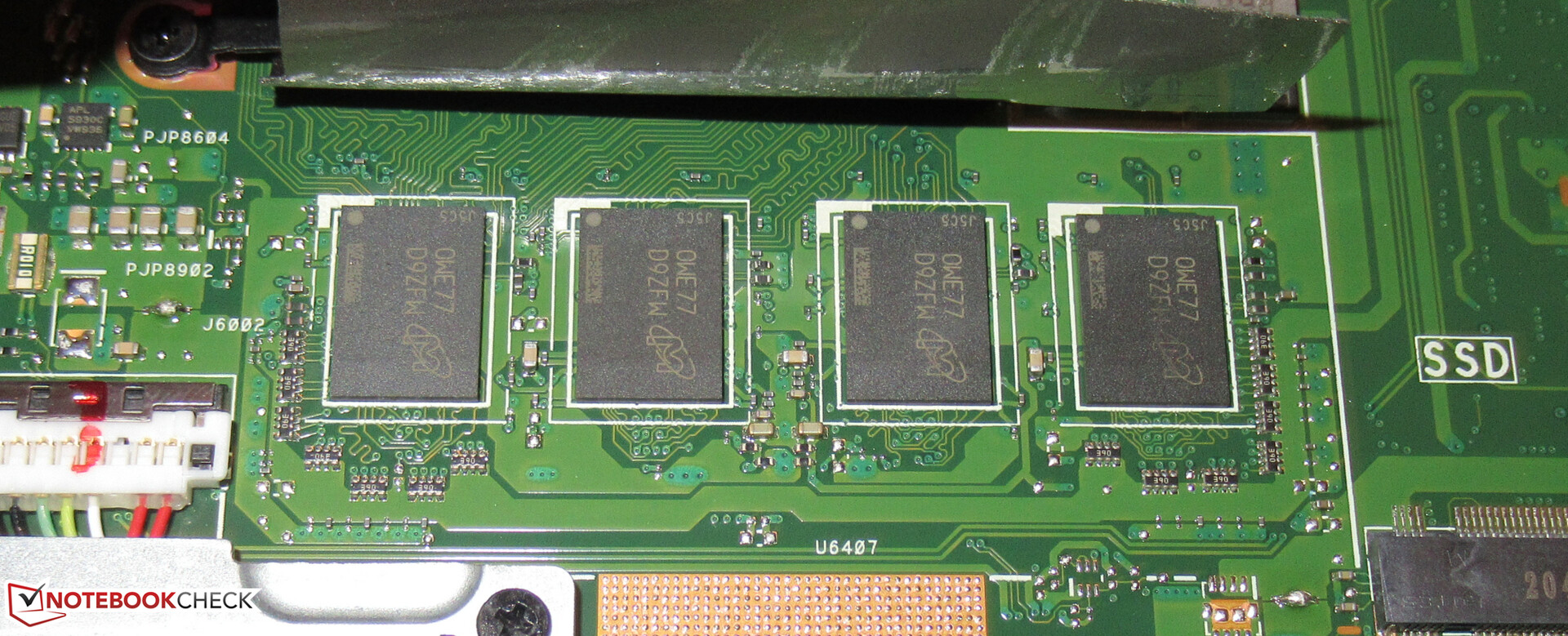

Office and Internet applications as well as simple computer games do not pose a big challenge for the APU. However: The working memory (16 GB, dual-channel mode, onboard) slows down the Vega-8 iGPU a bit. It cannot be changed since the memory cannot be swapped - at least not easily.
Heat and noise development under load should be lower. The screen (FHD, IPS) is disappointing overall. Although it offers stable viewing angles, a matte surface and decent color reproduction, brightness, contrast and color space coverage are too low. An 800 Euro (~$945) notebook has to offer much more here.
The laptop's good battery runtimes support the flagship well. With a WLAN runtime of just under 9 hours, you should be able to get through the day without a power adapter. Unfortunately, the notebook cannot be powered via USB-C since the available slot (USB 3.2 Gen 1) does not support Power Delivery. The last tested Intel sister model offers this option thanks to a Thunderbolt 4 slot.
To prevent misunderstandings: The laptop is called Asus VivoBook S15 D533UA.However, the corresponding model number is S533UA-BQ048T.
Price and availability
The Asus VivoBook S15 D533UA is currently available in our tested configuration S533UA-BQ048T (Ryzen 7 5700U, 16 GB RAM, 1 TB SSD, Windows 10 Home) at a price of 829 Euros (~$979) at Cyberport.de.
Asus VivoBook S15 D533UA
-
07/12/2021 v7
Sascha Mölck
