Intel Pentium P6000

Intel P6000

The Intel Pentium P6000 is an entry level CPU for laptops. It clocks with 1.68 GHz and supports no TurboBoost for automatic overclocking. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Pentium series had).

Compared to the Celeron P4500, the P6000 offers a bit better performance due to the faster System Bus and an increased Level 3 cache. However, VT-x is not available for the P6000.

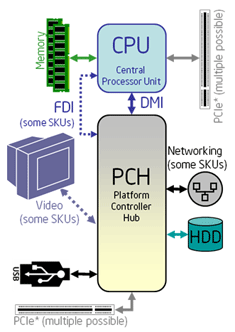

The P6000 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 766MHz due to Turbo Boost (GPU only).

The performance of the CPU is relatively low, because of the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller.

SeriesIntel Pentium
CodenameArrandale
Clock Rate1860 MHz
Front Side Bus4800 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache3072 KB
Number of Cores / Threads2 / 2
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesIntel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Hardware VirtualizationVT-x
Announcement Date04/01/2010
Product Link (external)Intel Pentium P6000

CPU Benchmarks

wPrime 2.0x: 1024m
0% 100%
min: 1130.2     avg: 1138.1 (87.9%)     max: 1146 seconds*
wPrime 2.0x: 32m
0% 100%
min: 35.7     avg: 36.1 (93.6%)     max: 36.5 seconds*
3DMark 06 - CPU:
0% 100%
min: 1625     avg: 1635 (16.56%)     max: 1642 Points
PCMark 05: Standard 1024x768
0% 100%
min: 3929     avg: 4639.5 (25.89%)     max: 5350 Points
Cinebench R11.5: CPU Multi 64Bit
0% 100%
min: 1.18     avg: 1.2 (5.52%)     max: 1.18 Points
Cinebench R10: Rendering Single CPUs 64Bit
0% 100%
min: 2541     avg: 2541 (29.79%)     max: 2541 Points
Cinebench R10: Rendering Multiple CPUs 64Bit
0% 100%
min: 4885     avg: 4885 (13.75%)     max: 4885 Points
Cinebench R10: Rendering Single 32Bit
0% 100%
min: 2046     avg: 2050.5 (29.34%)     max: 2055 Points
Cinebench R10: Rendering Multiple CPUs 32Bit
0% 100%
min: 3900     avg: 3939.5 (11.33%)     max: 3979 Points
Super Pi mod 1.5 XS 1M:
0% 100%
min: 23     avg: 23.4 (96.71%)     max: 23.7 Seconds*
Super Pi mod 1.5 XS 2M:
0% 100%
min: 54     avg: 54.2 (98.48%)     max: 54.4 Seconds*
Super Pi Mod 1.5 XS 32M:
0% 100%
min: 1245     avg: 1245 (96.44%)     max: 1245 Seconds*
SiSoft Sandra Dhrystone (MIPS):
0% 100%
min: 15150     avg: 16135 (7.65%)     max: 17120 MIPS
SiSoft Sandra Whetstone (MFLOPS):
0% 100%
min: 10740     avg: 11370 (8.72%)     max: 12000 MFLOPS
Windows 7 Experience Index: Processor
0% 100%
min: 5.4     avg: 5.4 (61.9%)     max: 5.4 points
- Range of benchmarks for this CPU
- Average benchmark score
