Notebookcheck

Intel Celeron M P4500

Intel P4500

The Intel Celeron P4500 is an entry level CPU for laptops. It clocks with 1.68 GHz and supports no TurboBoost for automatic overclocking. Furthermore AES instructions and hyperthreading are disabled. The CPU supports Enhanced Speedstep, but there may be some other power saving features disabled (as the Penryn - Celeron series had).

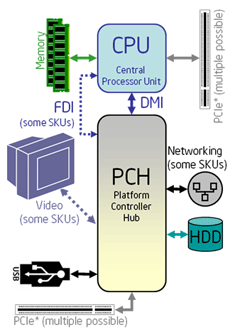

The P4500 is based on the Arrandale CPUs and therefore contains an integrated memory controller and Intel HD Graphics graphics card (both manufactured in 45nm, the CPU in 32nm). The also called GMA HD graphics in the CPU is clocked at 500MHz and is able to overclock to 766MHz due to Turbo Boost (GPU only).

The performance of the CPU is relatively low, because of the low clock rate and the missing Turbo Boost and Hyperthreading. Still the performance per GHz should be a bit better than similar clocked Core 2 Duo, because of the integrated memory controller.

SeriesIntel Celeron M
CodenameArrandale
Clock Rate1860 MHz
Front Side Bus2500 MHz
Level 1 Cache128 KB
Level 2 Cache512 KB
Level 3 Cache2048 KB
Number of Cores / Threads2 / 2
Max. Power Consumption (TDP = Thermal Design Power)35 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Features0.8-1.4 (High Frequency Mode) 0.775 - 1 (Low Frequency Mode)
Die Size81+114 mm2
Max. Temperature90 °C
SocketPGA988
FeaturesVirtualization Technology (VT-x), Intel 64, Enhanced Speedstep, Thermal Monitoring, Execute Disable Bit
64 Bit64 Bit support
Hardware VirtualizationVT-x
Starting Price $86 U.S.
Announcement Date04/01/2010
Product Link (external)Intel Celeron M P4500

Benchmarks

wPrime 2.0x - 1024m
0% 100%
min: 1140.7      avg: 1140.7 (13%)     median: 1140.7 (13%)     max: 1140.7 seconds
wPrime 2.0x - 32m
0% 100%
min: 37.1      avg: 37.1 (7%)     median: 37.1 (7%)     max: 37.1 seconds
Cinebench R11.5 - CPU Multi 64Bit
0% 100%
min: 1.16      avg: 1.2 (7%)     median: 1.2 (7%)     max: 1.16 Points
Cinebench R10 - Rendering Single 32Bit
0% 100%
min: 2533      avg: 2533 (38%)     median: 2533 (38%)     max: 2533 Points
Cinebench R10 - Rendering Multiple CPUs 32Bit
0% 100%
min: 4826      avg: 4826 (14%)     median: 4826 (14%)     max: 4826 Points
Super Pi mod 1.5 XS 1M -
0% 100%
min: 24      avg: 24 (5%)     median: 24 (5%)     max: 24 Seconds
Super Pi mod 1.5 XS 2M -
0% 100%
min: 56      avg: 56 (2%)     median: 56 (2%)     max: 56 Seconds
Super Pi Mod 1.5 XS 32M -
0% 100%
min: 1284      avg: 1284 (0%)     median: 1284 (0%)     max: 1284 Seconds
SiSoft Sandra Dhrystone (MIPS) -
0% 100%
min: 15781      avg: 15781 (7%)     median: 15781 (7%)     max: 15781 MIPS
SiSoft Sandra Whetstone (MFLOPS) -
0% 100%
min: 10767      avg: 10767 (8%)     median: 10767 (8%)     max: 10767 MFLOPS
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
