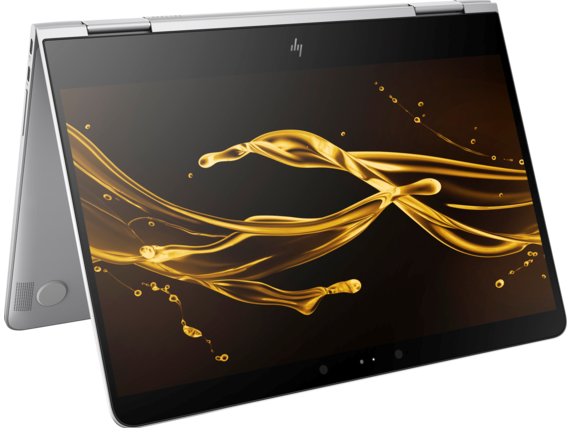

HP Spectre x360 13 w023dx Convertible Review

Best Spectre convertible yet. The 13-inch Spectre x360 series has received a full-blown refresh in time for Kaby Lake and the results are nothing short of impressive.

The HP brand has always appealed well to large-scale businesses and traditional office users. To millennials and the younger workforce, however, the manufacturer is not typically seen as an alternative or even competitor to the sleek notebooks that Apple have to offer. The Spectre series was created in an attempt to bridge that gap and attract a new age of business users with a thinner and more visually distinct design philosophy.

The latest Spectre x360 13 is a complete refresh of the outgoing Skylake-based Spectre x360 13 with new Kaby Lake options and narrower bezels for a lighter and more portable chassis. Up until this point, we have been recommending the Lenovo Yoga series as the go-to notebook for those who find the convertible aspect valuable since the older Spectre x360 models are comparatively larger, thicker, and overall heavier. Is this latest redesign compelling enough to change our minds about the Spectre series?

HP Spectre x360 13-w023dx (Spectre x360 13 Series)
Processor
Intel Core i7-7500U 2 x 2.7 - 3.5 GHz, Kaby Lake
Graphics adapter
Intel HD Graphics 620, Core: 847.7 MHz, Memory: 930 MHz, DDR3, 21.20.16.4492
Memory
16 GB
, 1066.7 MHz, 14-17-17-40, Dual-Channel
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, Chi Mei CMN1367, IPS, glossy: yes
Mainboard
Intel Kaby Lake-U Premium PCH
Storage
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, Audio Connections: 3.5 mm combo , Brightness Sensor, Sensors: Gyroscope
Networking
Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 13.7 x 305.6 x 217.9 ( = 0.54 x 12.03 x 8.58 in)
Battery
57.8 Wh Lithium-Polymer, 3-cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: FHD IR
Primary Camera: 2 MPix
Additional features

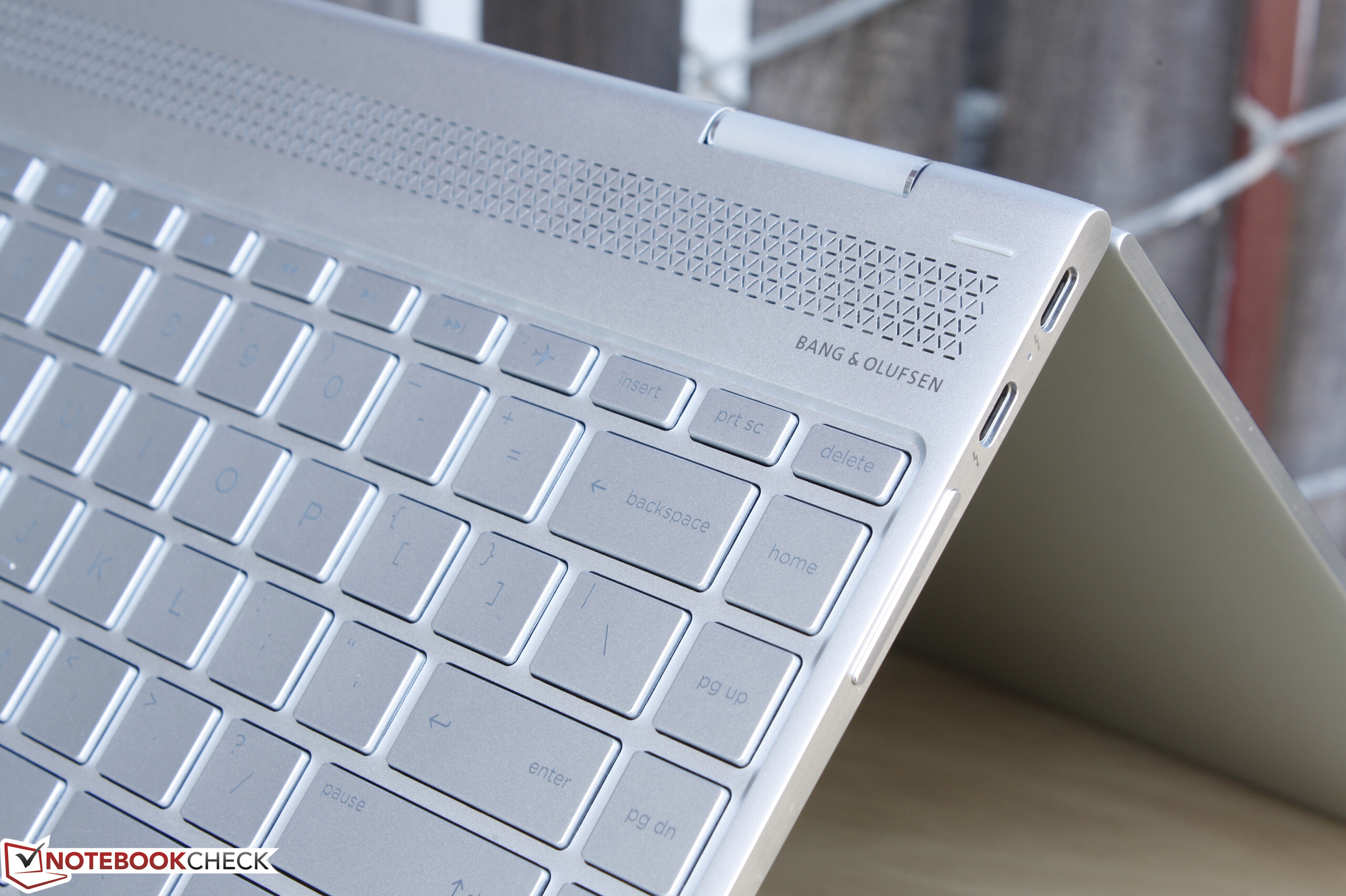

Speakers: Bang & Olufsen Quad Speakers, Keyboard: Chiclet, Keyboard Light: yes, Norton Anti-Virus, 12 Months Warranty
Weight
1.273 kg ( = 44.9 oz / 2.81 pounds), Power Supply: 195 g ( = 6.88 oz / 0.43 pounds)
Price
1100 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Case

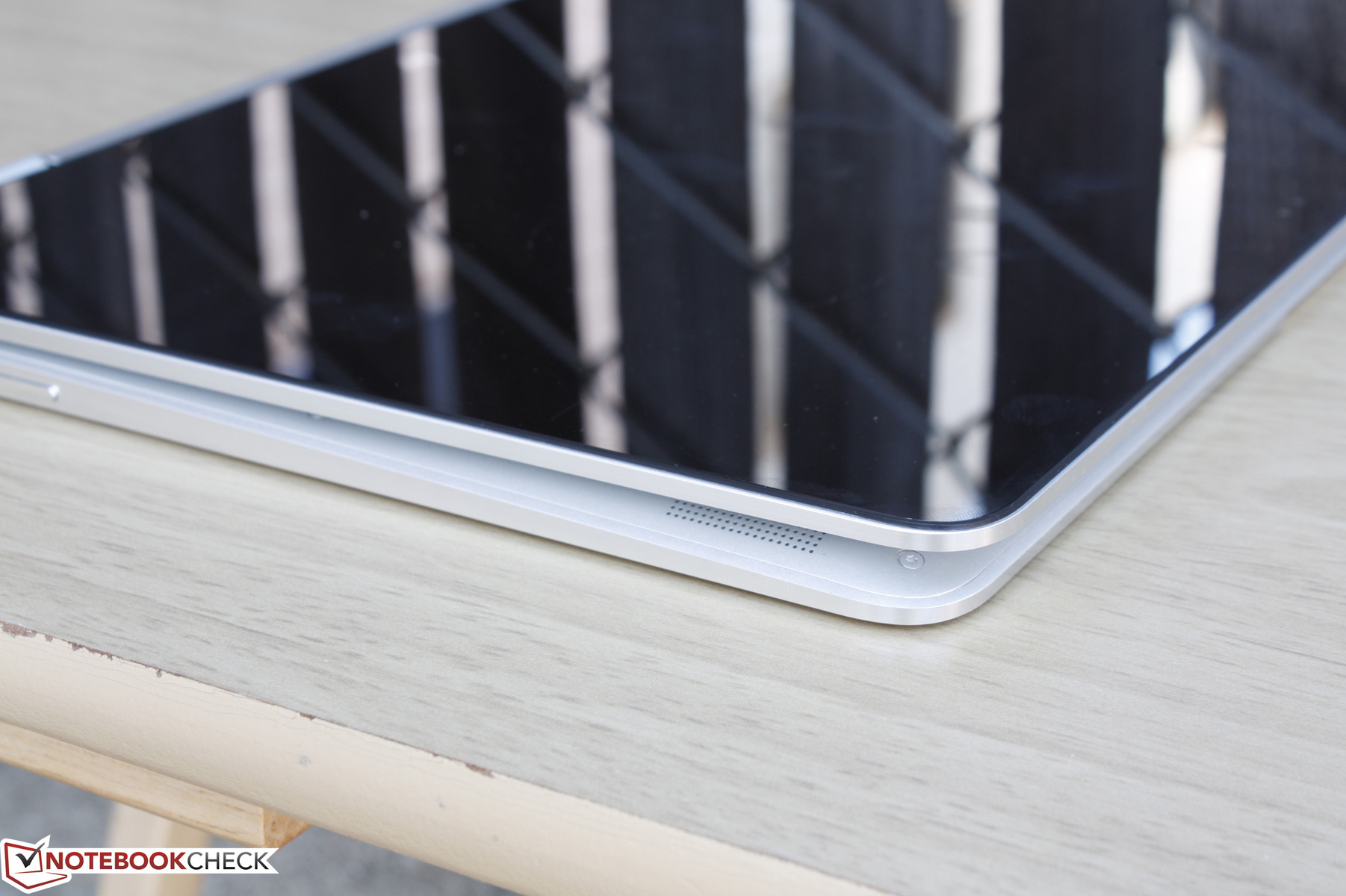

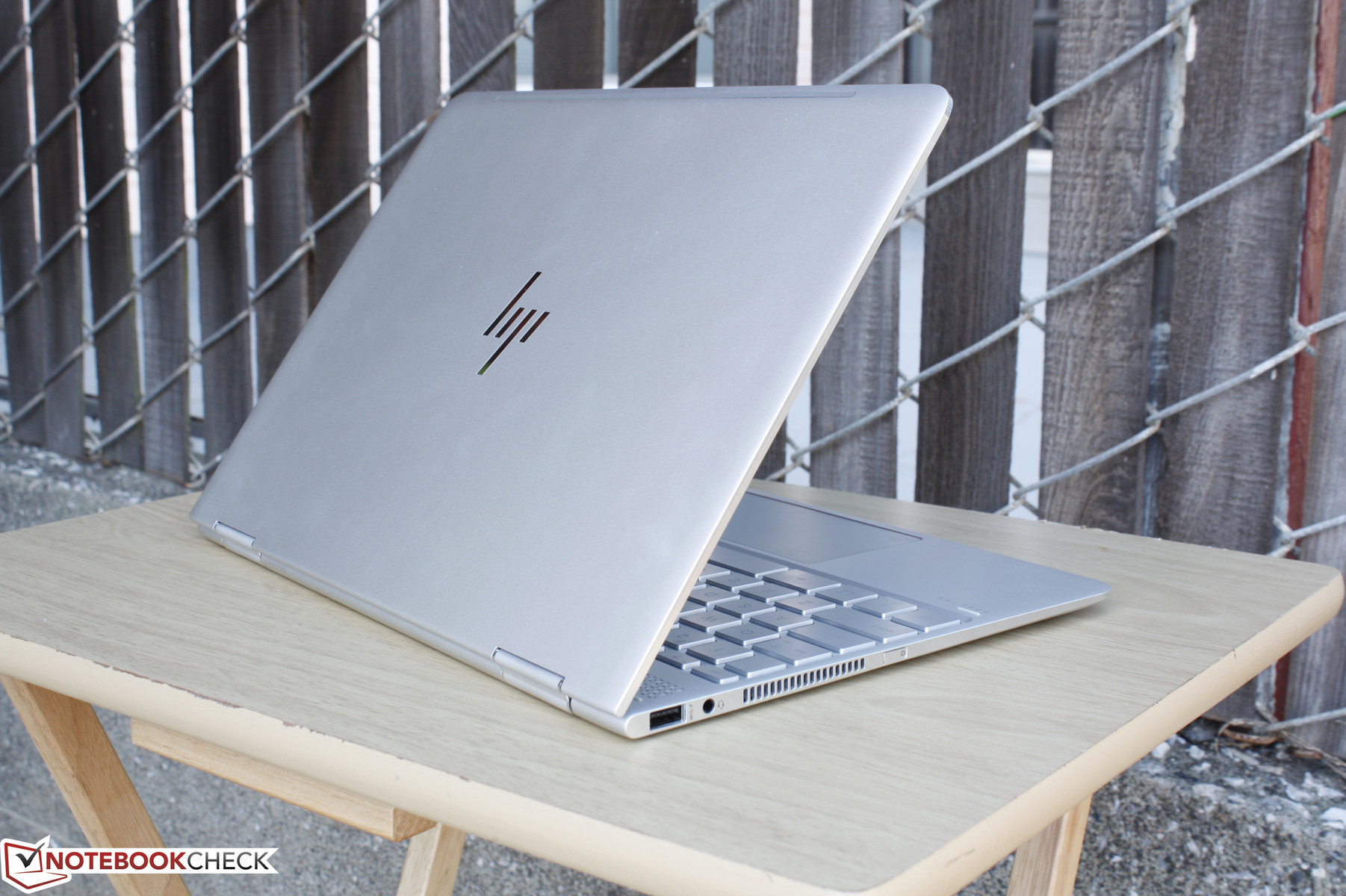

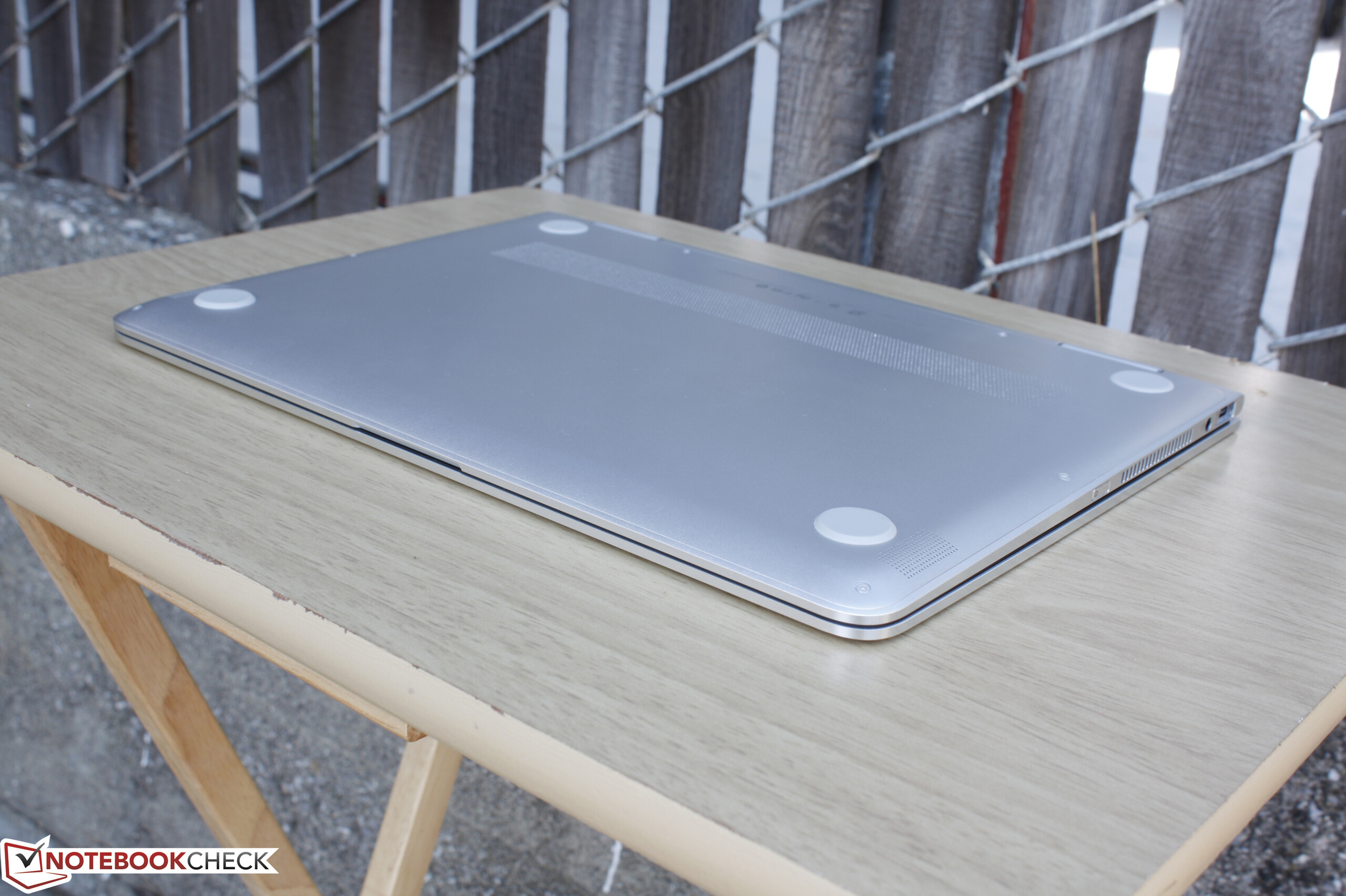

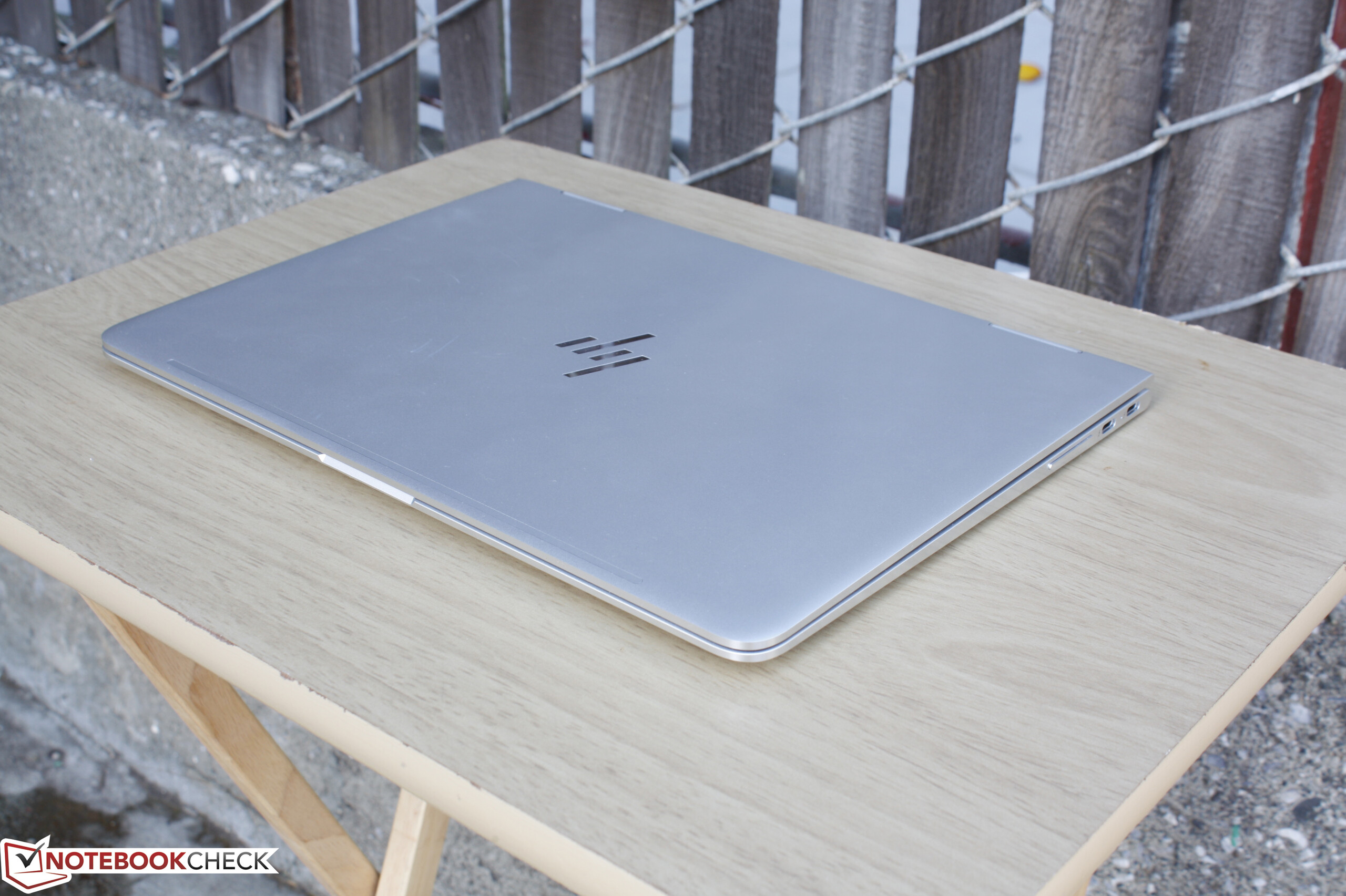

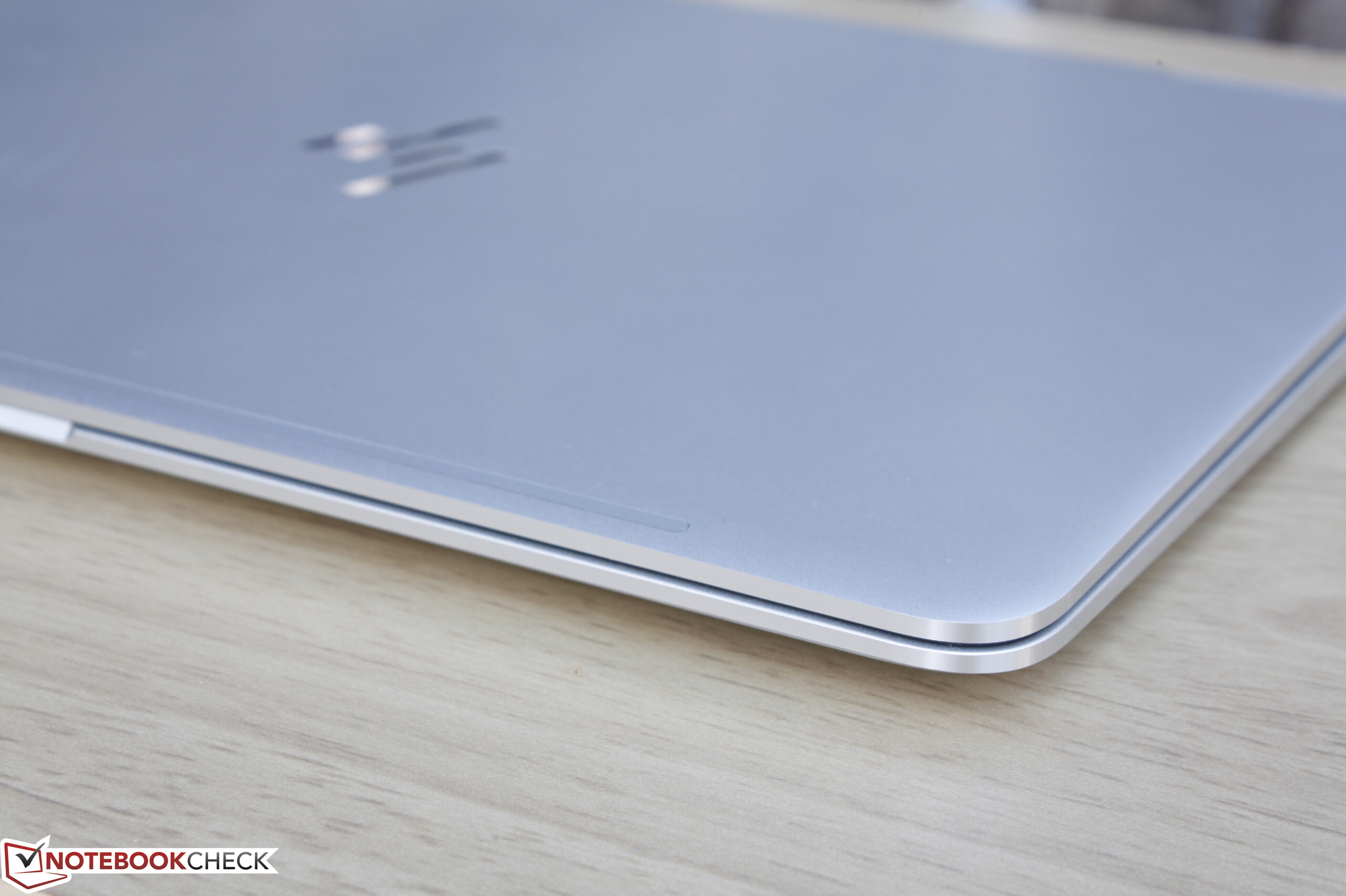

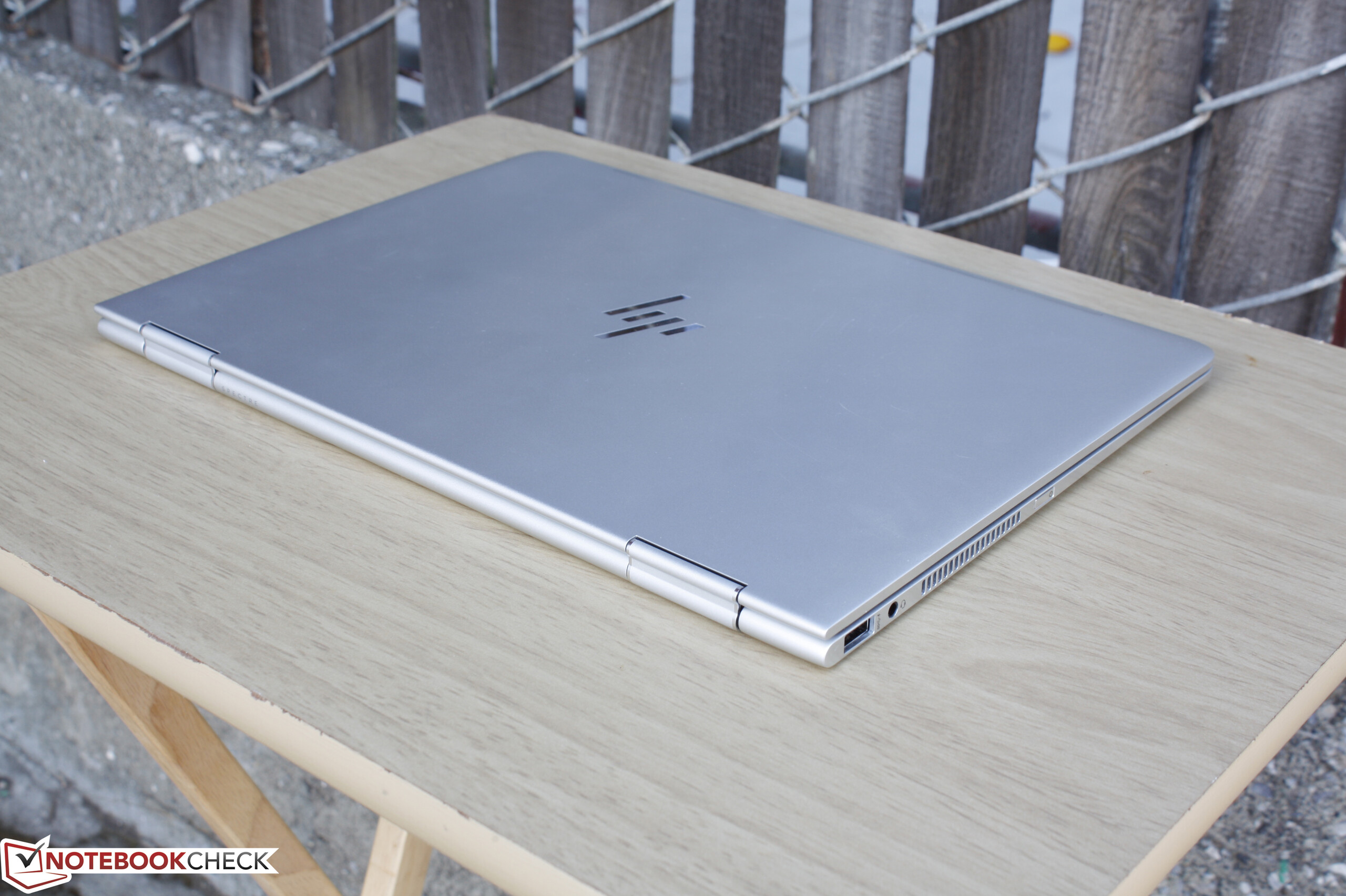

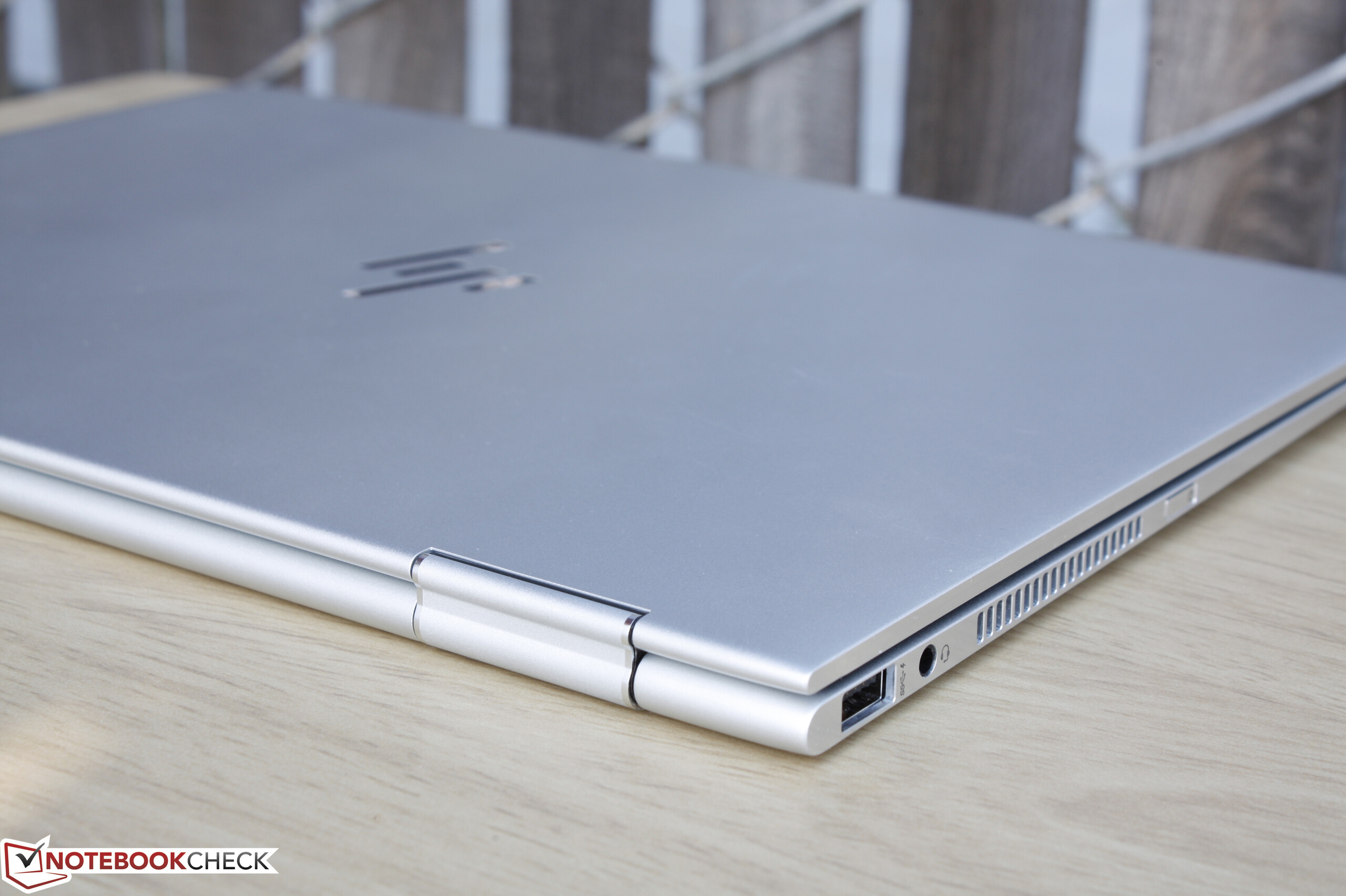

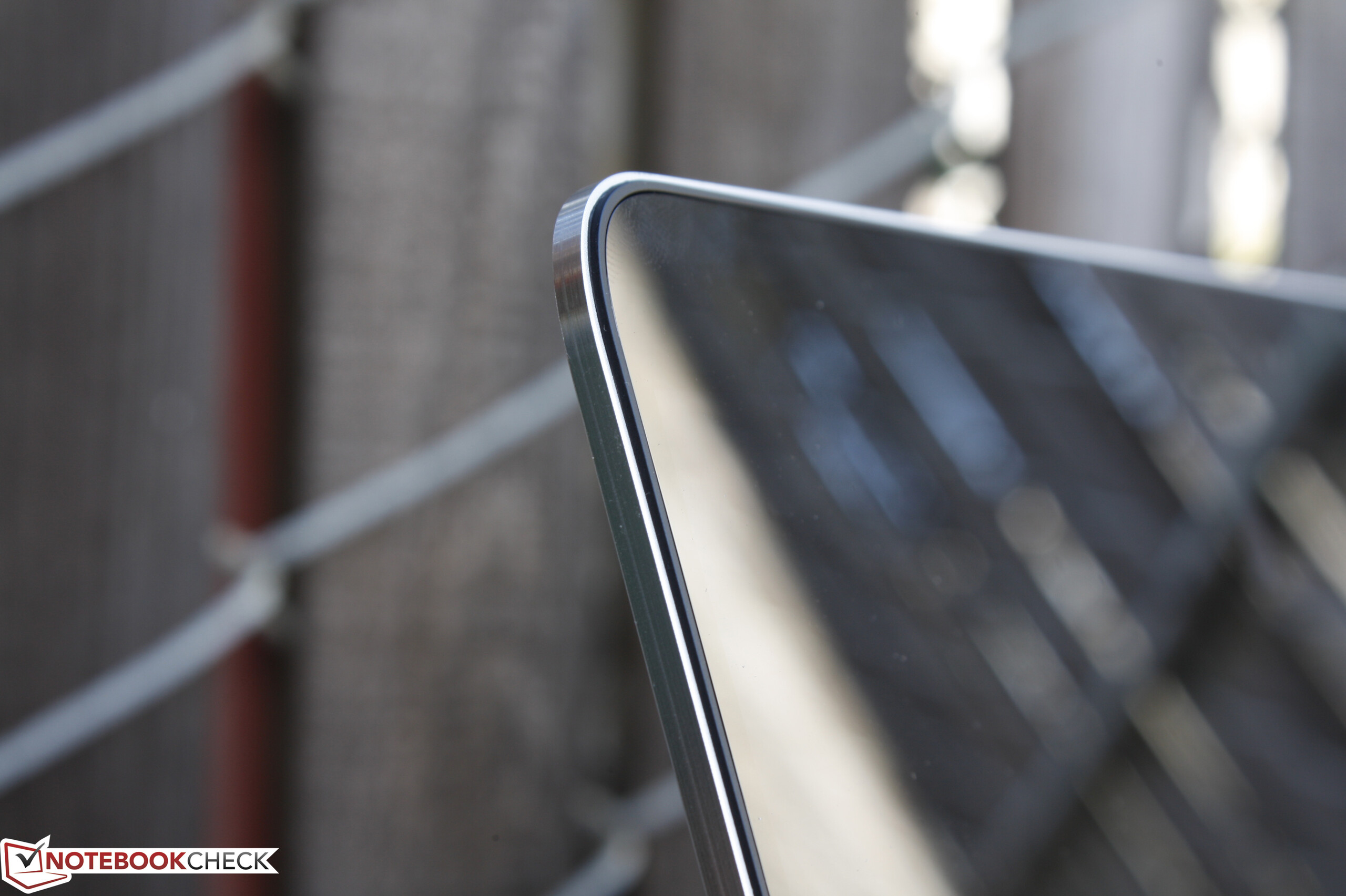

Super-thin notebooks almost always have us concerned about case quality. Make the bezels even narrower like on the XPS 13 and we start questioning the rigidity and longevity of the design. Fortunately, the Spectre series is notable for its clean-cut CNC aluminum, Gorilla Glass-reinforced touchscreen, and flat brushed edges that all lend to a sturdy first impression especially when compared to the more flexible carbon fiber Yoga 900 series. The lid is very resistant to twists and depressions even though it is significantly smaller in length and width compared to the outgoing Spectre x360 13. Pushing down on the outer center of lid and between the two hinges will depress the surface slightly, so the chassis is not perfectly rigid.

The base is firm and nigh inflexible around its corners and down the center of the keyboard. Between it and the lid, there are no unintended gaps and almost no creaking for an overall excellent workmanship. The 13-inch Dell Inspiron 13 7368 is stronger still, but it is much thicker and heavier as well. The hinges are satisfactory at best with only slight teetering when typing. Using the touchscreen or transporting the notebook will almost always push the lid back for a wider angle each time.

There are no rubberized edges around the Spectre and the unit can feel slippery when handling in its closed position as a result.

The Spectre x360 convertibles have always been a little heavier than the flagship Lenovo Yoga counterparts due in part to their superior aluminum construction and rigidity. Now that its bezel edges have been shaved off to just over 5 mm (from over 15 mm on the older generation), the overall size and weight of the Spectre x360 13 has been drastically reduced. This makes handling much easier in tablet mode when up against the Yoga 900 or Zenbook UX360 while being a hair thinner than both. Nonetheless, the HP convertible isn't any lighter than these same competitors at about 1.3 kg even though it may be smaller in width.

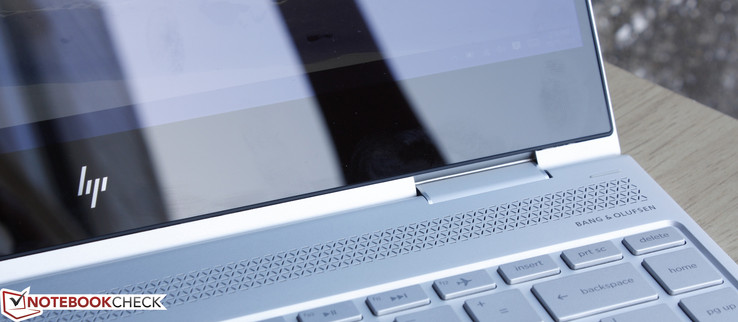

The thickness of the top horizontal bezel is about 17 mm in contrast to its much thinner left and right sides. HP tells us that this was done to preserve IR sensor and webcam placement compared to the suboptimal placement of the webcam on the XPS 13 9350/9360 series. In theory, the Spectre x360 13 could have been even smaller and lighter had HP decided to slice off the top bezel.

327 mm / 12.9 inch 228 mm / 8.98 inch 14.6 mm / 0.575 inch 1.3 kg2.8 lbs324 mm / 12.8 inch 225 mm / 8.86 inch 14.9 mm / 0.587 inch 1.3 kg2.8 lbs325 mm / 12.8 inch 229 mm / 9.02 inch 10.4 mm / 0.4094 inch 1.2 kg2.56 lbs321 mm / 12.6 inch 219 mm / 8.62 inch 13.9 mm / 0.547 inch 1.2 kg2.65 lbs305.6 mm / 12 inch 217.9 mm / 8.58 inch 13.7 mm / 0.539 inch 1.3 kg2.81 lbs304 mm / 12 inch 201 mm / 7.91 inch 15 mm / 0.591 inch 1.3 kg2.89 lbs297 mm / 11.7 inch 210 mm / 8.27 inch 1 mm / 0.03937 inch 5.7 g0.01257 lbs

Connectivity

We're relieved to see one USB Type-A port on the Spectre x360 13 after having none on the recent Spectre 13. The dual Thunderbolt 3 ports make a return here to be one of the very few (if not only) convertible notebooks to feature two simultaneously. Users can charge the notebook through either port and even through HP's new Thunderbolt-enabled Envy monitor.

Missing ports include HDMI, mDP, RJ-45, and even a SD reader. Thus, owners will need to rely on USB or Thunderbolt 3 adapters for better connectivity features.

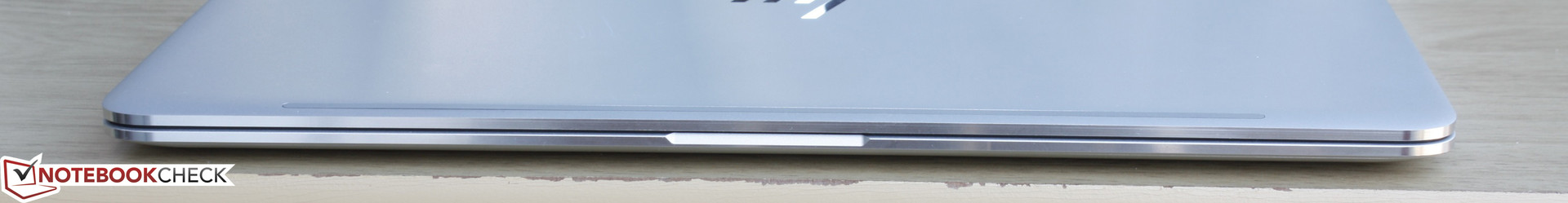

Front: No connectivity
Front: No connectivity

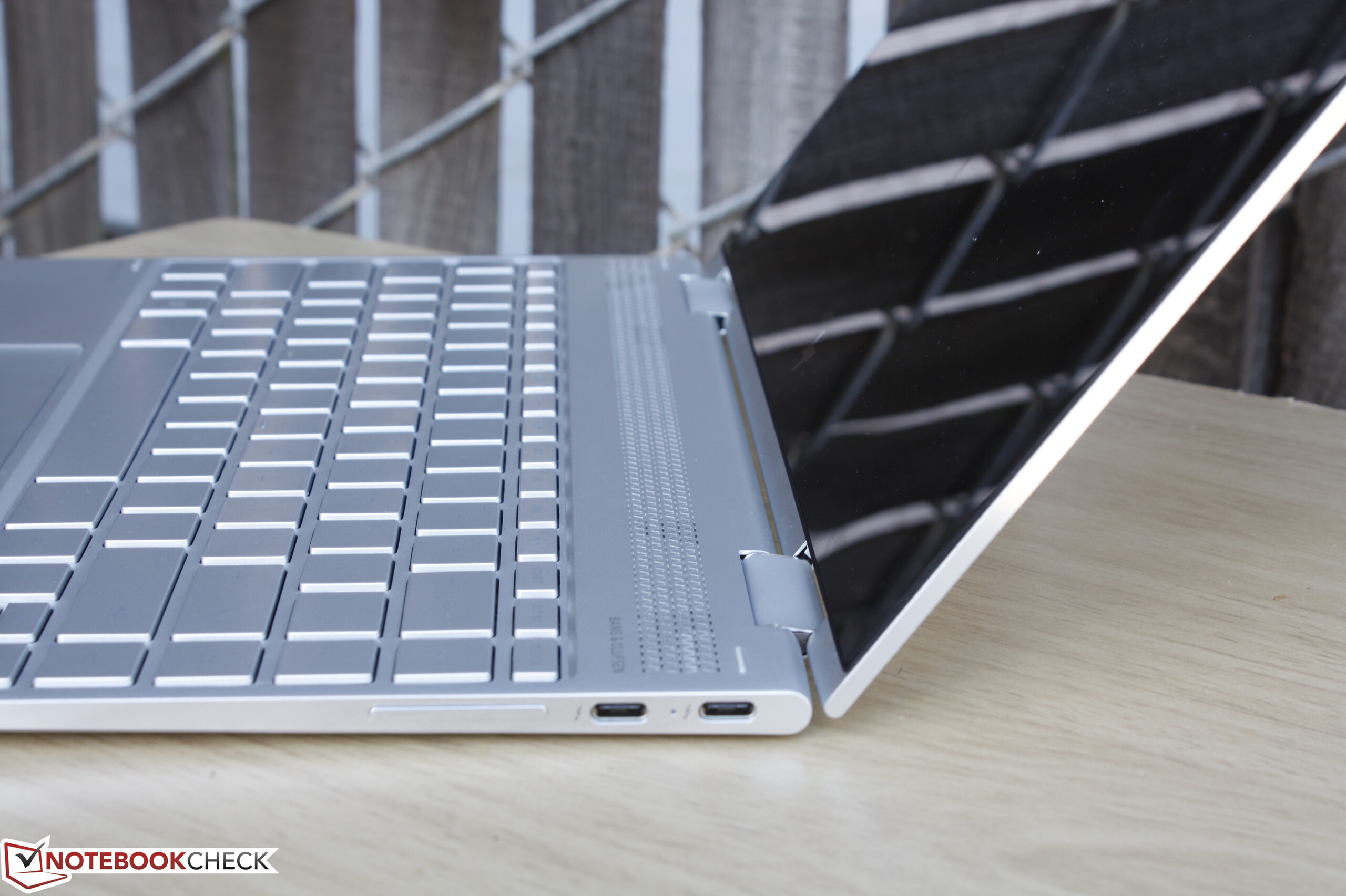

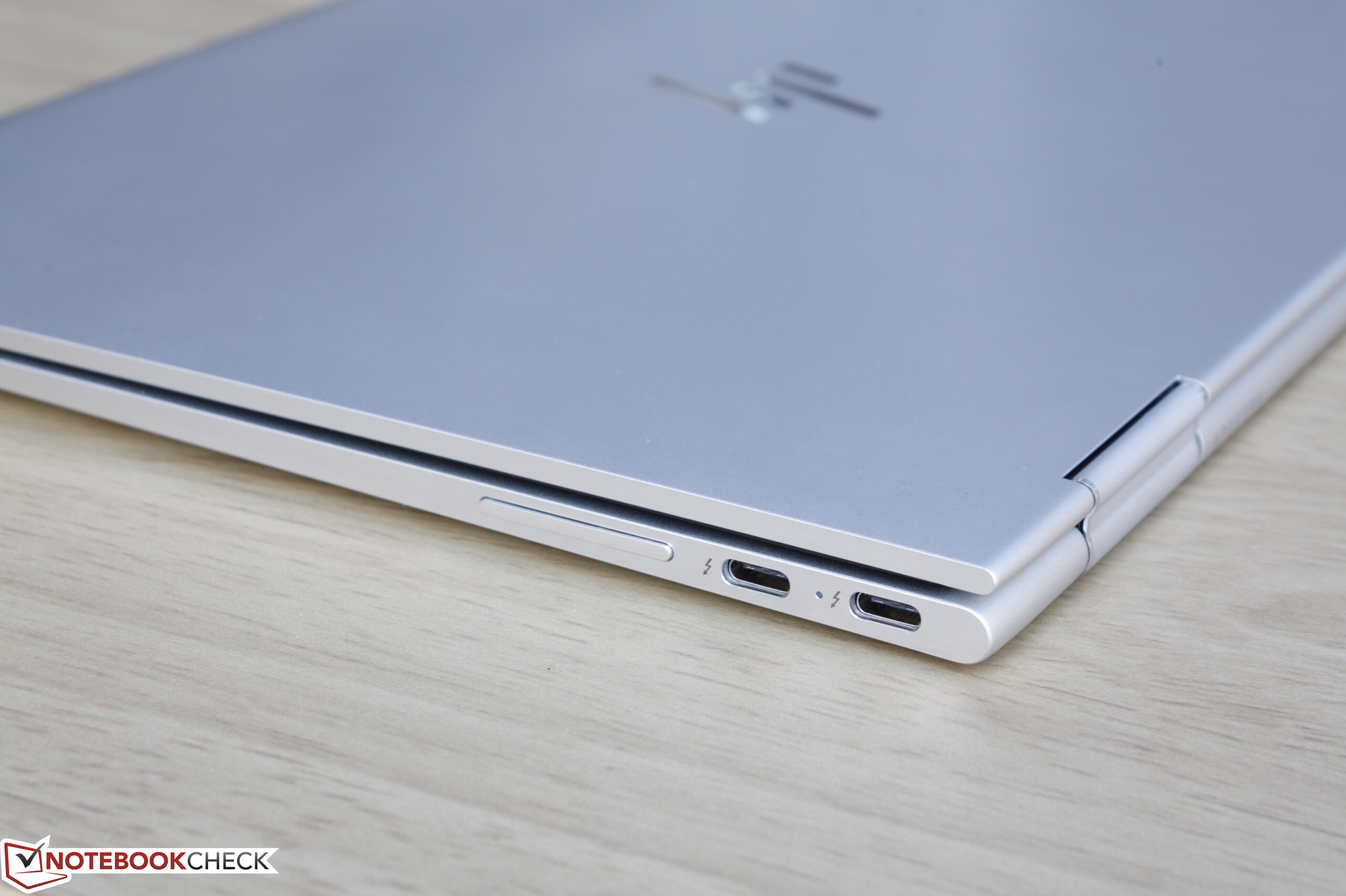

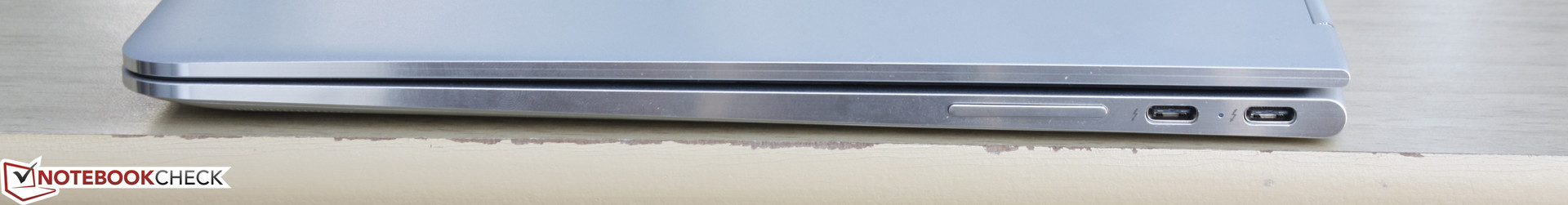

Right: 2x USB Type-C + Thunderbolt 3, Volume rocker
Right: 2x USB Type-C + Thunderbolt 3, Volume rocker

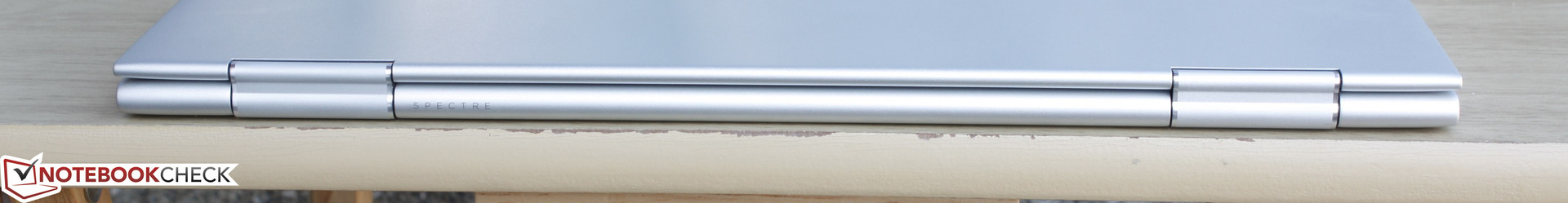

Rear: No connectivity
Rear: No connectivity

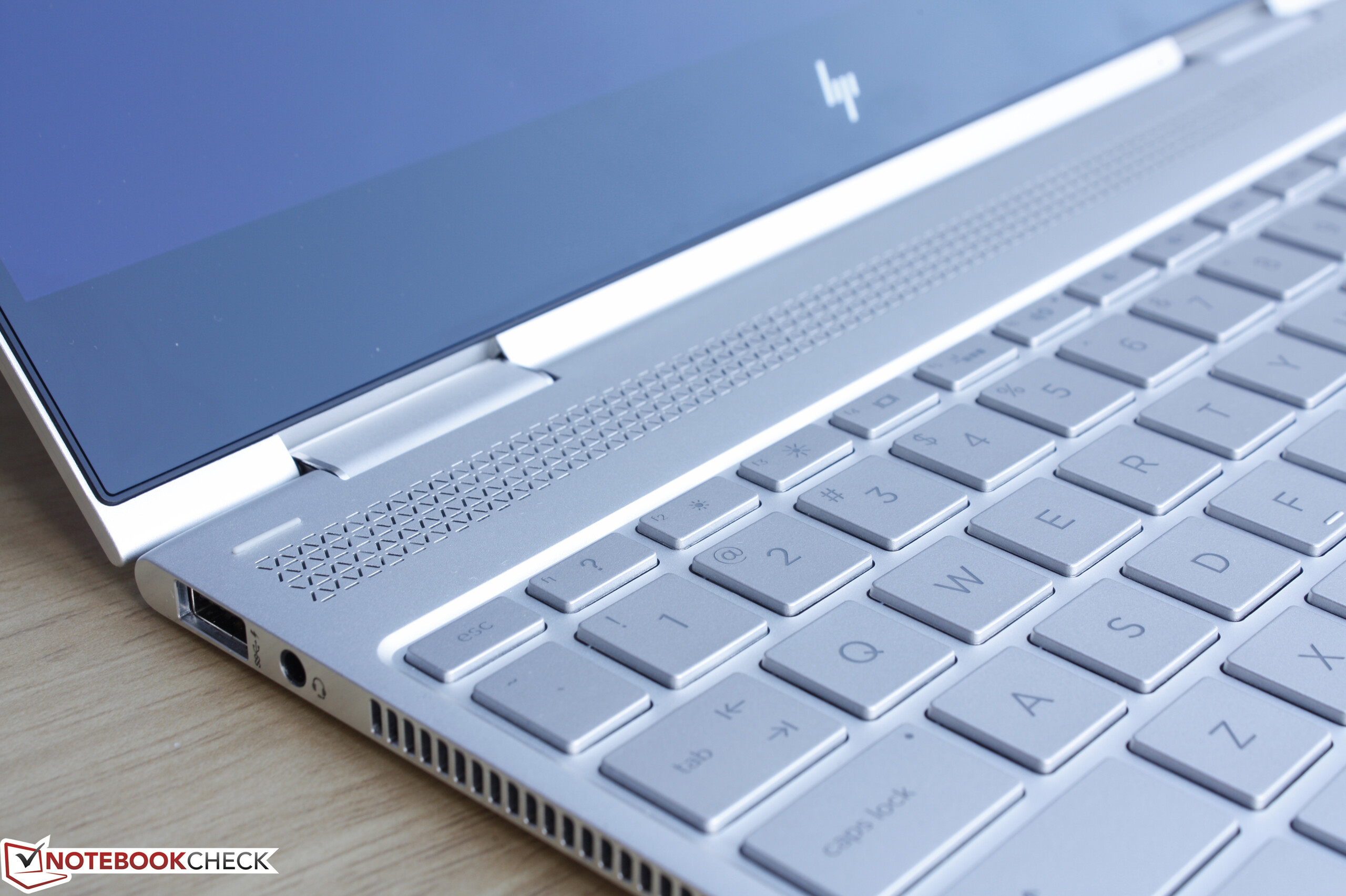

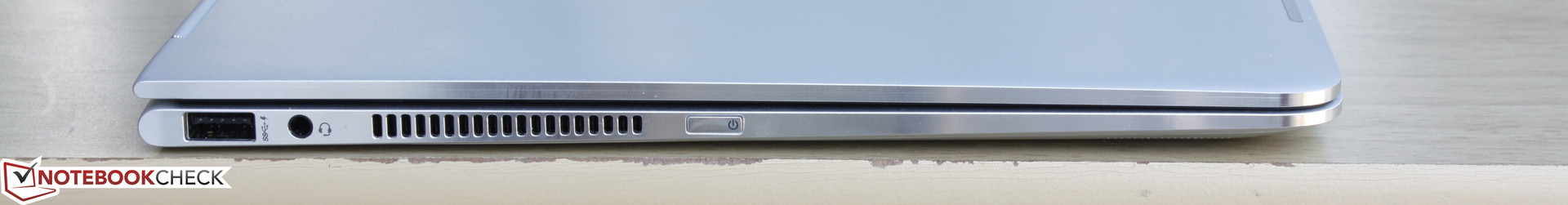

Left: USB 3.0, 3.5 mm combo audio, Power button
Left: USB 3.0, 3.5 mm combo audio, Power button

Communication

WLAN is provided by a dual-band Intel 8265 capable of theoretical transfer rates of up to 867 Mbps. A Jperf test with settings as shown below reveal stable real-world transfer rates of about 500 Mbps. We experienced no connectivity issues during our time with the Spectre x360 15. No WWAN options are available on the series thus far.

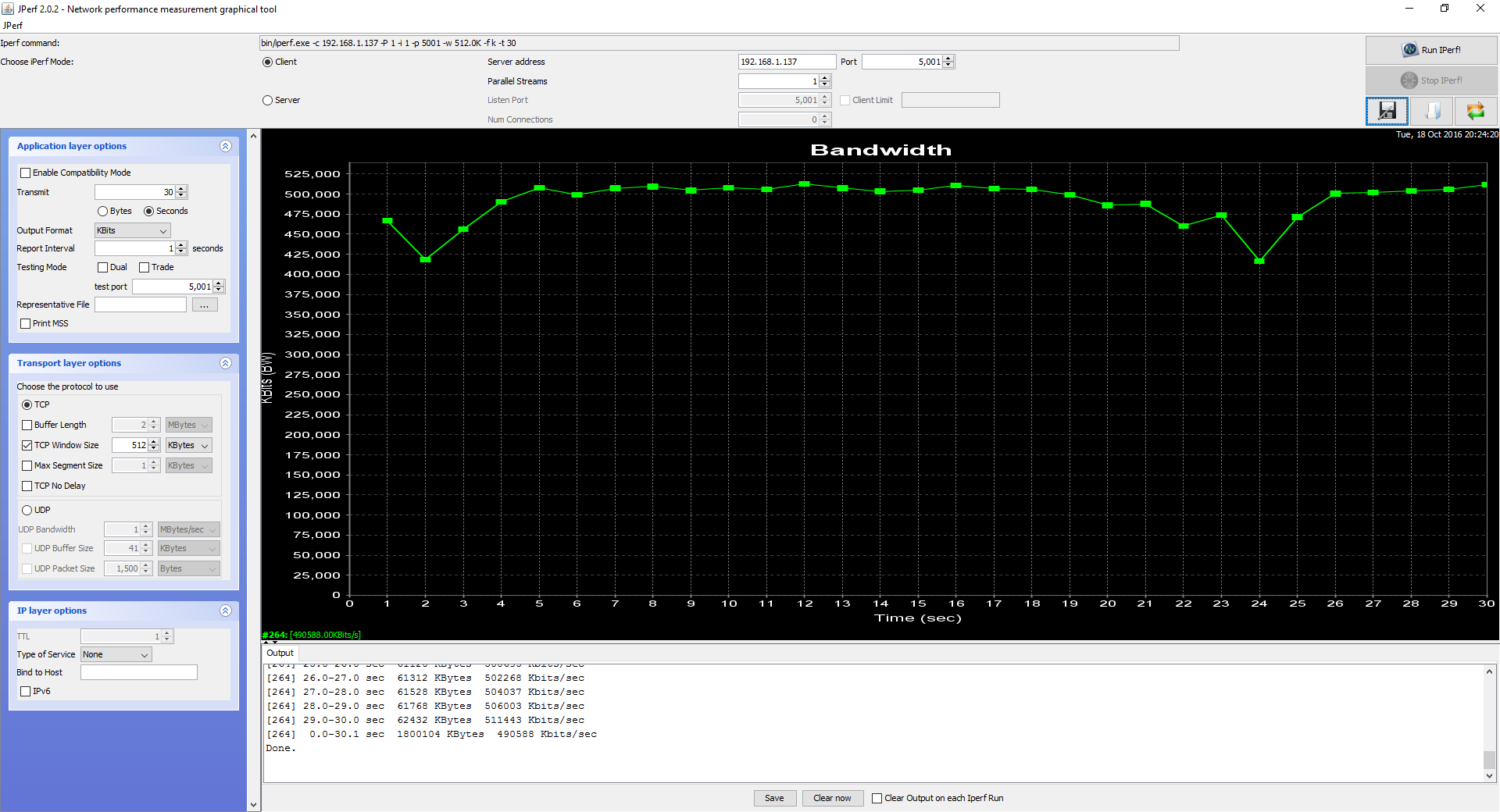

Jperf (client)
Jperf (client)

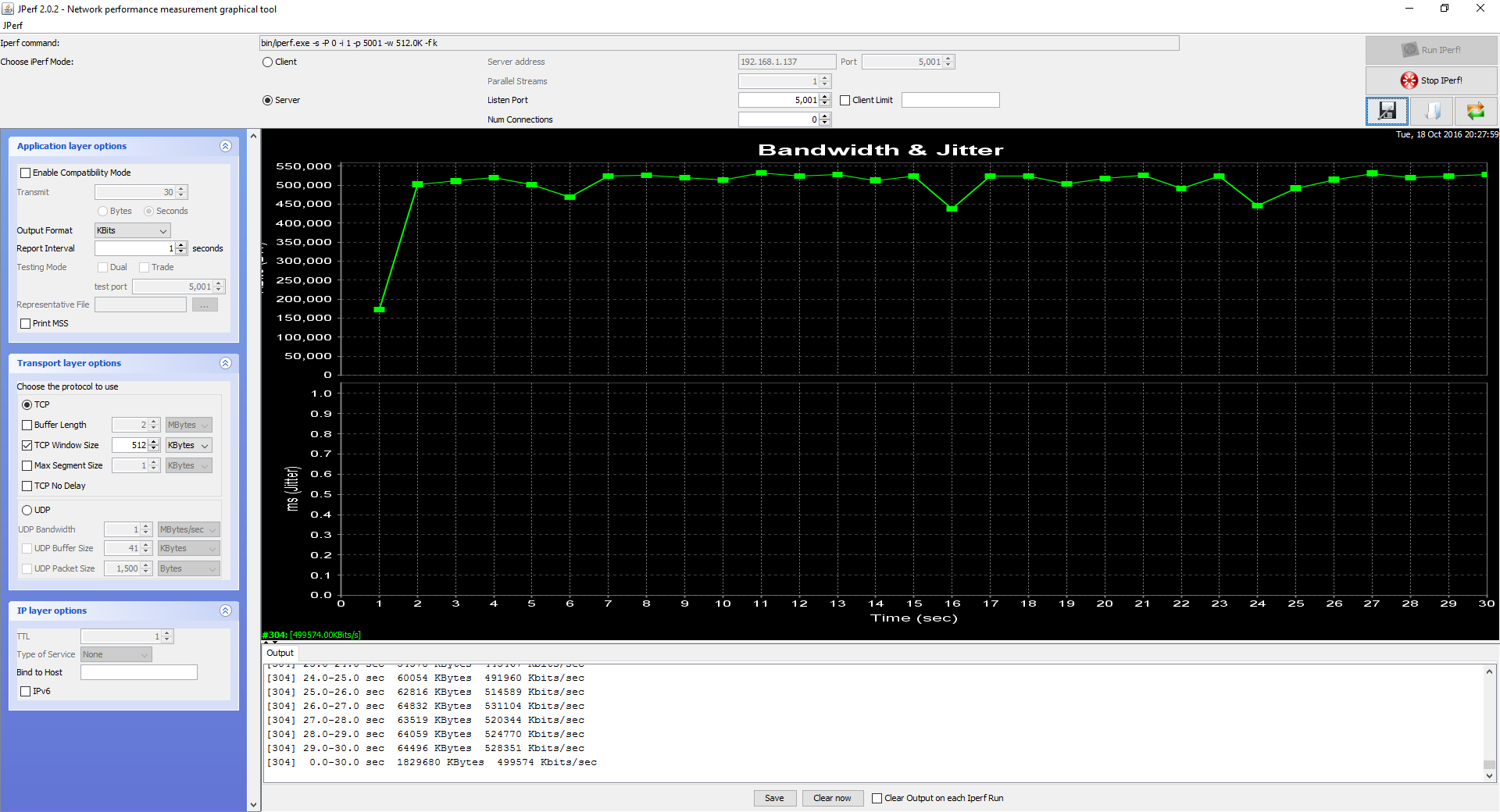

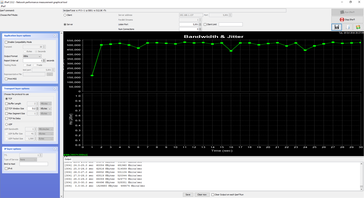

Jperf (server)
Jperf (server)
Networking
iperf Server (receive) TCP 1 m 512KB
MSI GT72VR 6RD-063US
Atheros/Qualcomm QCA6174
531 MBit/s +6%
HP Spectre x360 13-w023dx
Intel Dual Band Wireless-AC 8265
499.6 MBit/s
HP 250 G5 Y1V08UT
Intel Dual Band Wireless-AC 3165
166.7 MBit/s -67%
iperf Client (transmit) TCP 1 m 512KB
MSI GT72VR 6RD-063US
Atheros/Qualcomm QCA6174
550 MBit/s +12%
HP Spectre x360 13-w023dx
Intel Dual Band Wireless-AC 8265
490.6 MBit/s
HP 250 G5 Y1V08UT
Intel Dual Band Wireless-AC 3165
248.4 MBit/s -49%

Accessories

Included extras are a faux leather case, AC adapter extension cable, Setup guide, and Warranty card. We would have liked to see Thunderbolt-to-USB adapters included in the box like on the Spectre 13 alongside a cleaning cloth as well. Nonetheless, users can take advantage of the two Thunderbolt 3 ports with dual 4K monitors, Thunderbolt-based docking stations, and other all-in-one adapters.

Maintenance

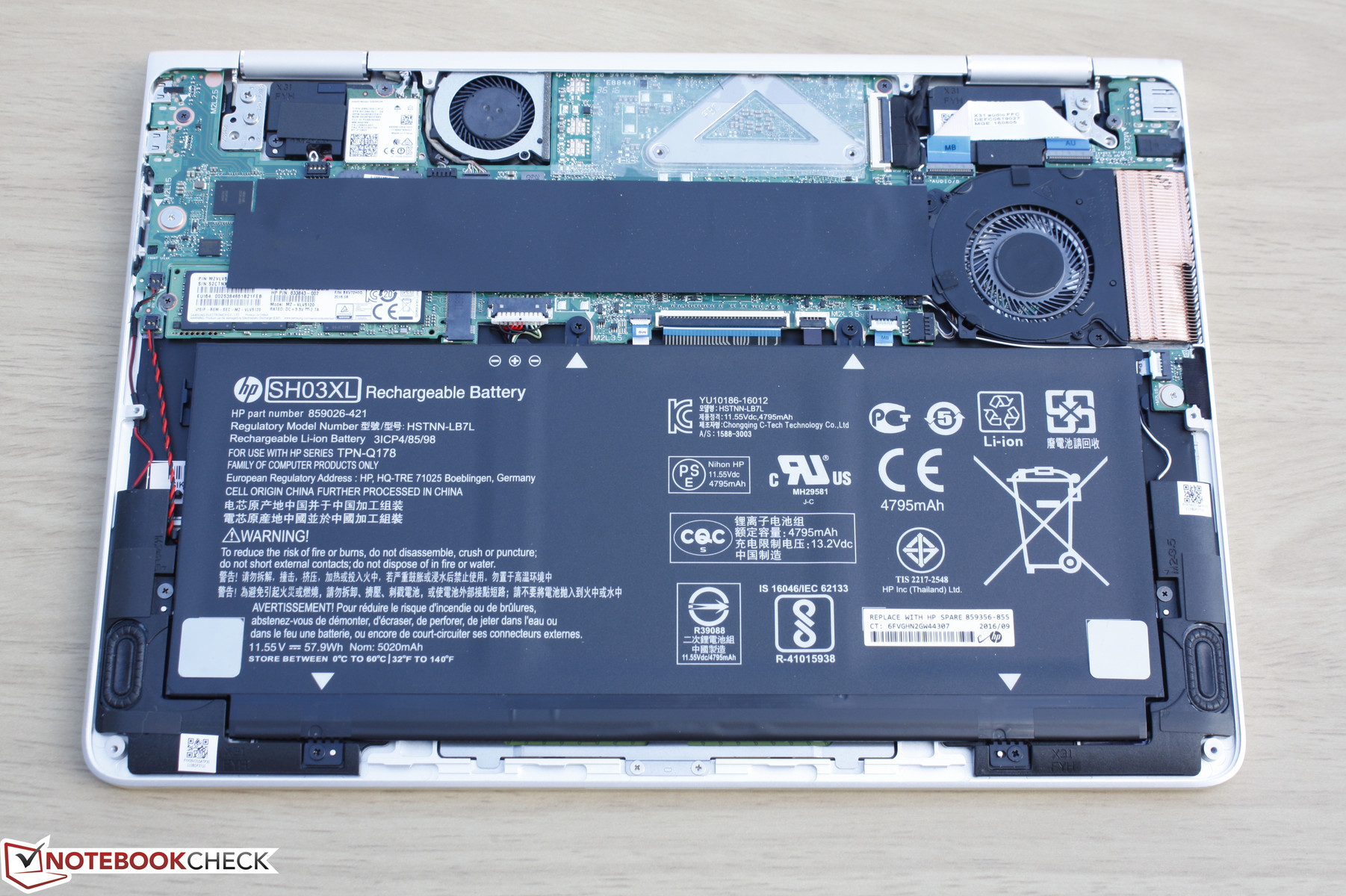

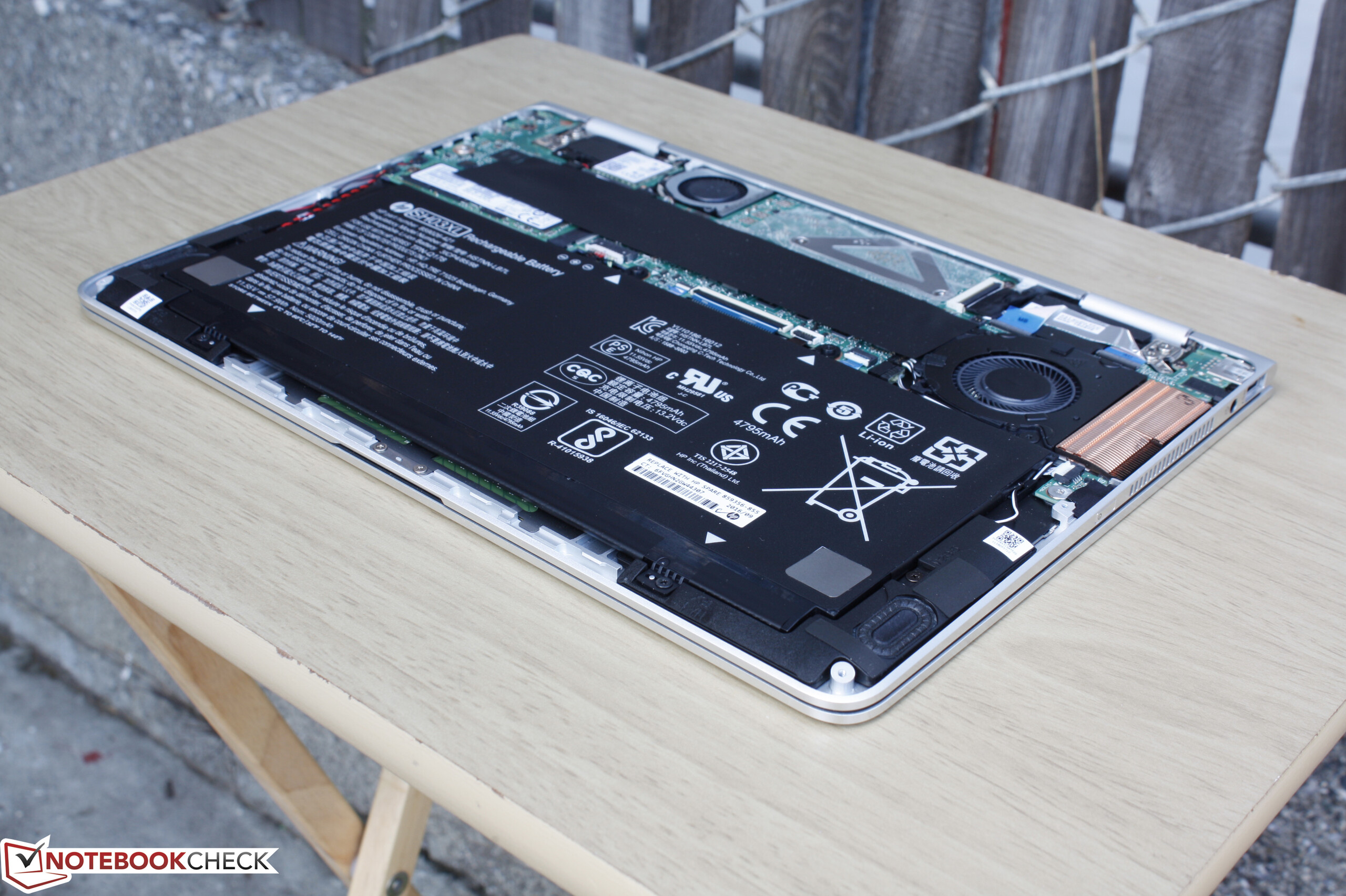

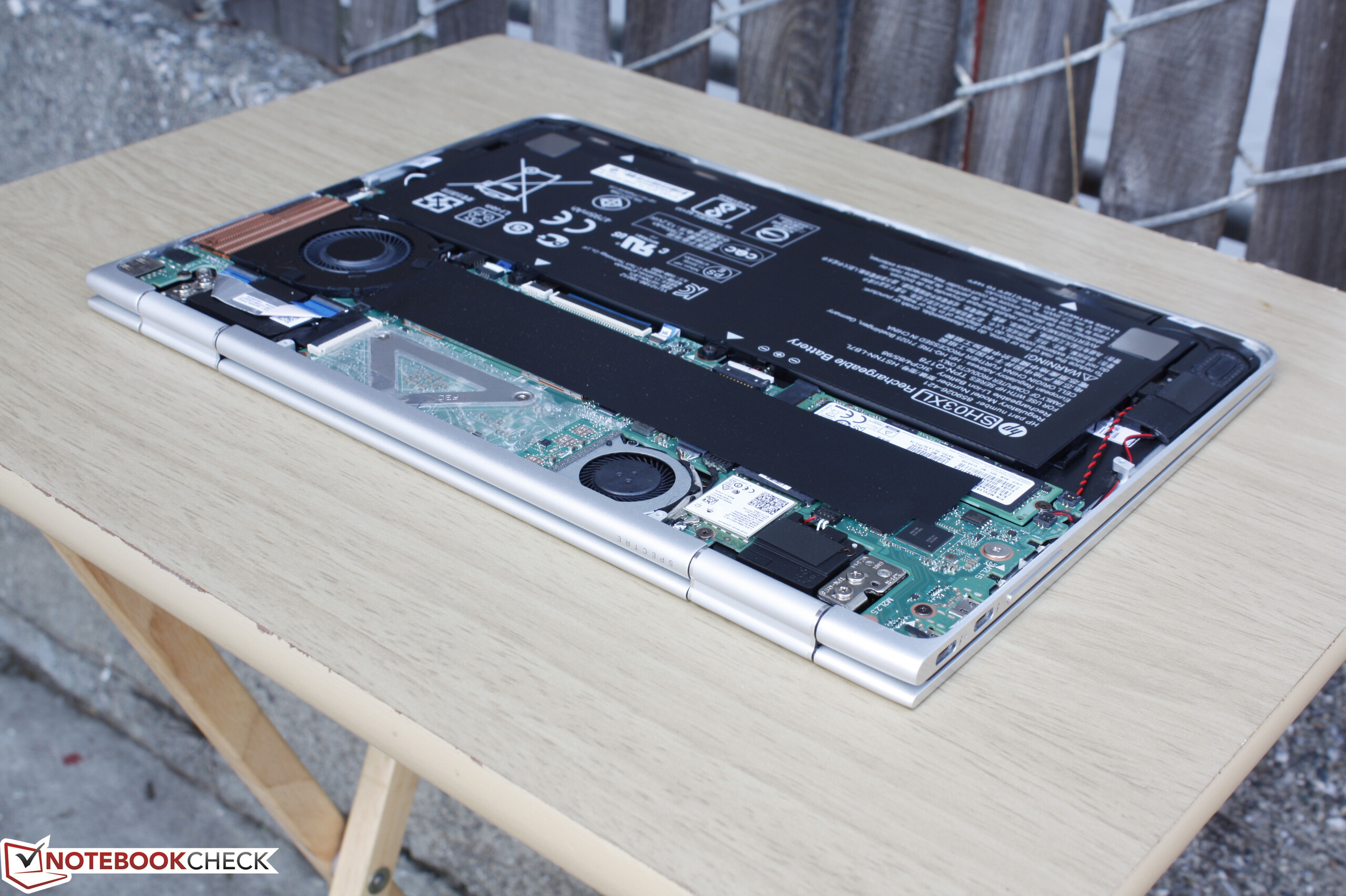

The bottom panel can be removed with a T5 hex wrench, Philips screwdriver, sharp edge, and some patience. There are eight screws total of which 2 are hidden underneath the rear rubber feet. Once the tightly latched panel is removed, users have direct access to the internal battery, M.2 2280 SSD slot, M.2 2232 WLAN slot, and the two system fans. It's possible to purchase a lower-end SKU and upgrade the internal SSD at a later date.

Warranty

The standard one-year limited warranty applies for buyers in the U.S. with phone and chat support included. Extended warranty options are available up to three years with accidental damage protection for an additional $240 USD.

Please see our Guarantees, Return Policies & Warranties FAQ for country-specific information.

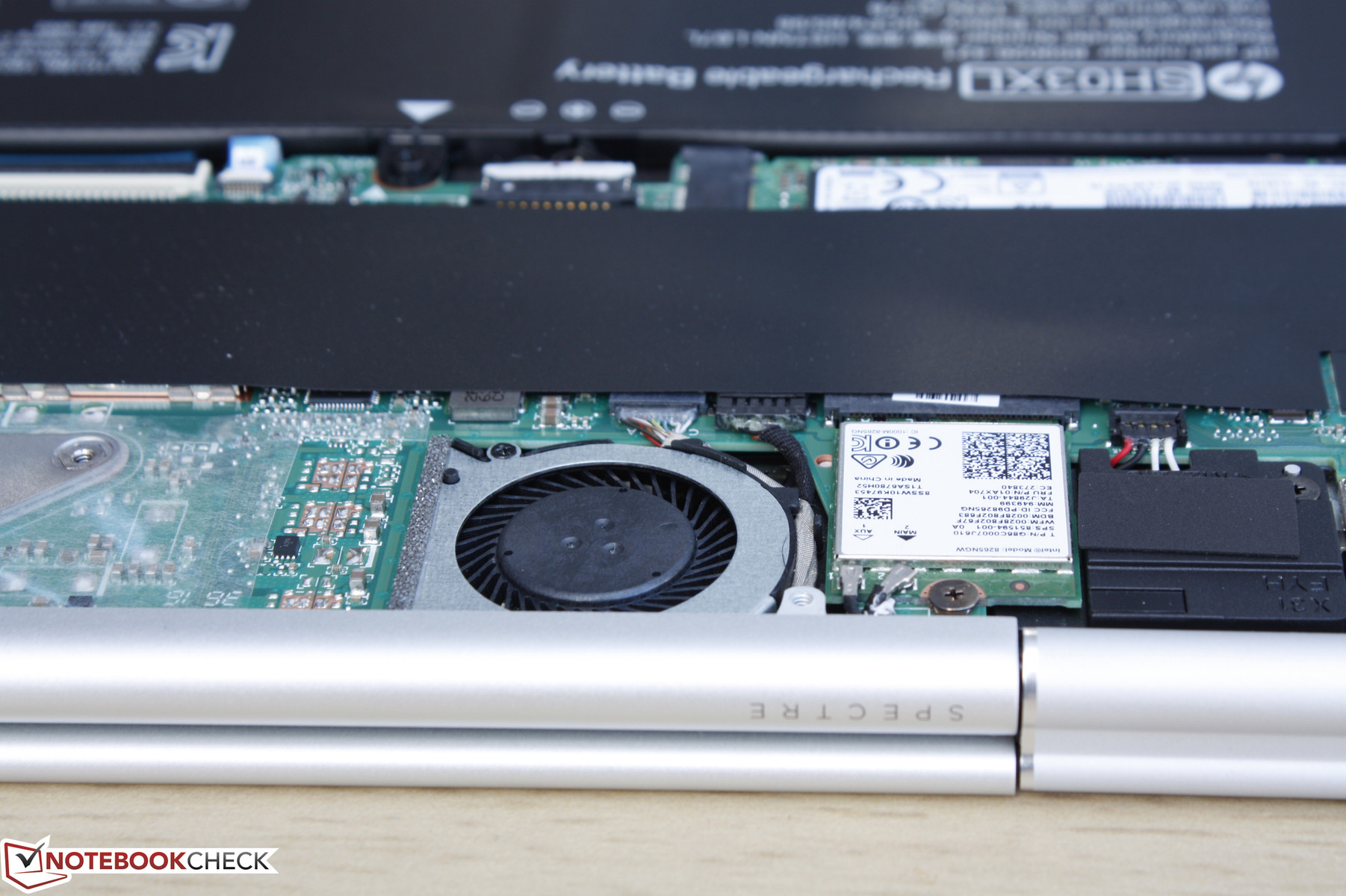

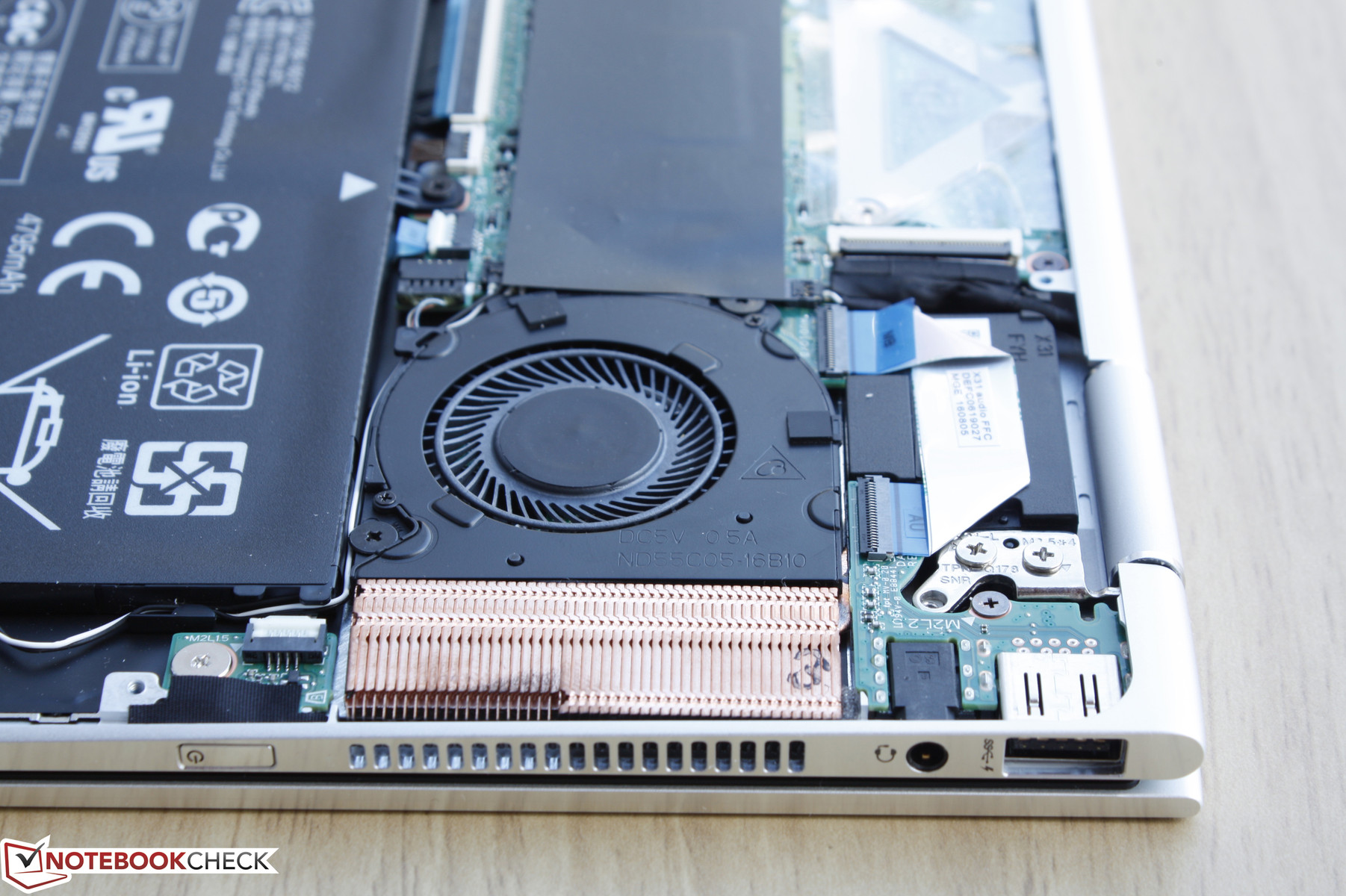

End-user upgrades limited to the M.2 SSD and WLAN card
End-user upgrades limited to the M.2 SSD and WLAN card

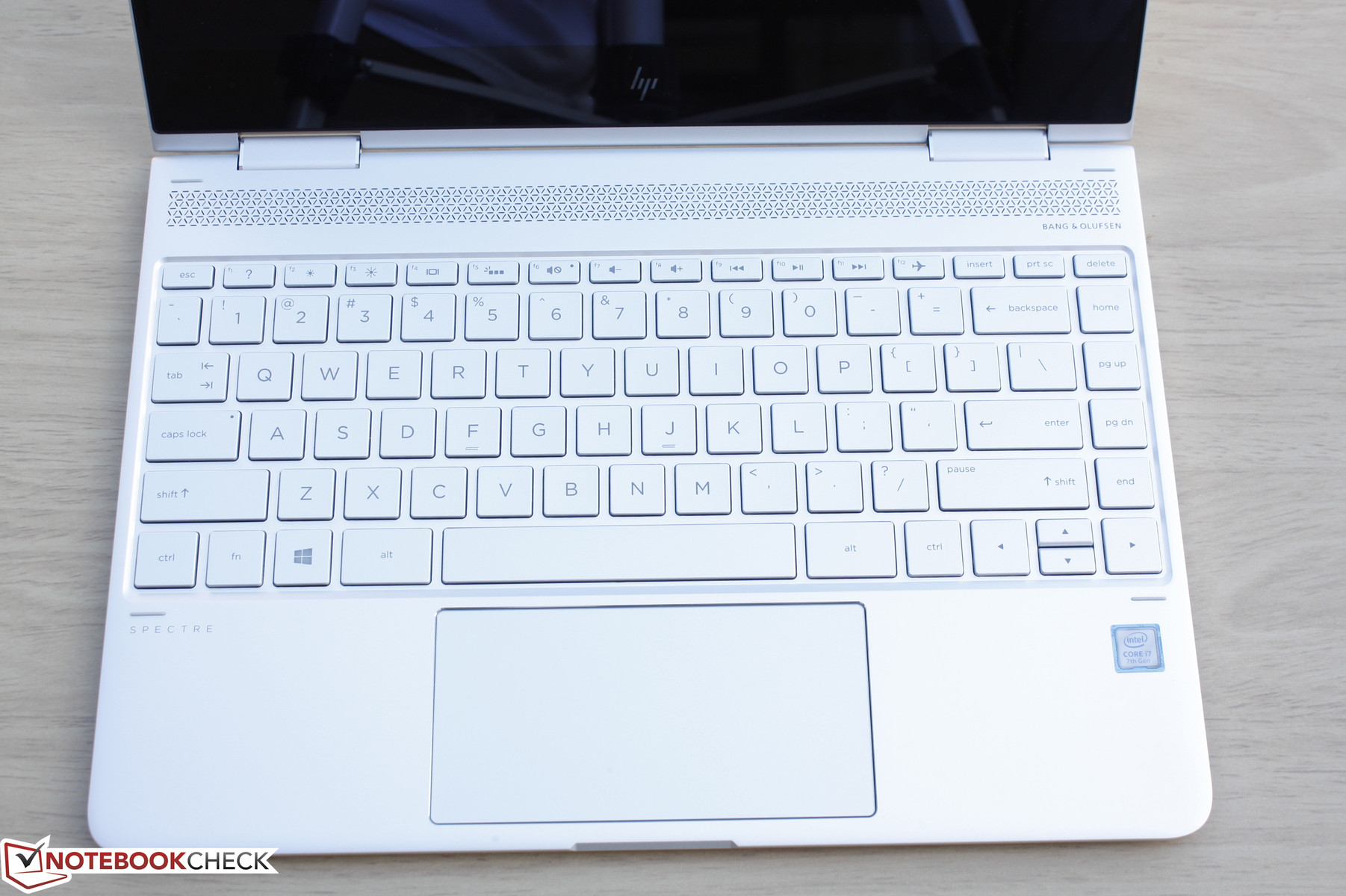

Input Devices

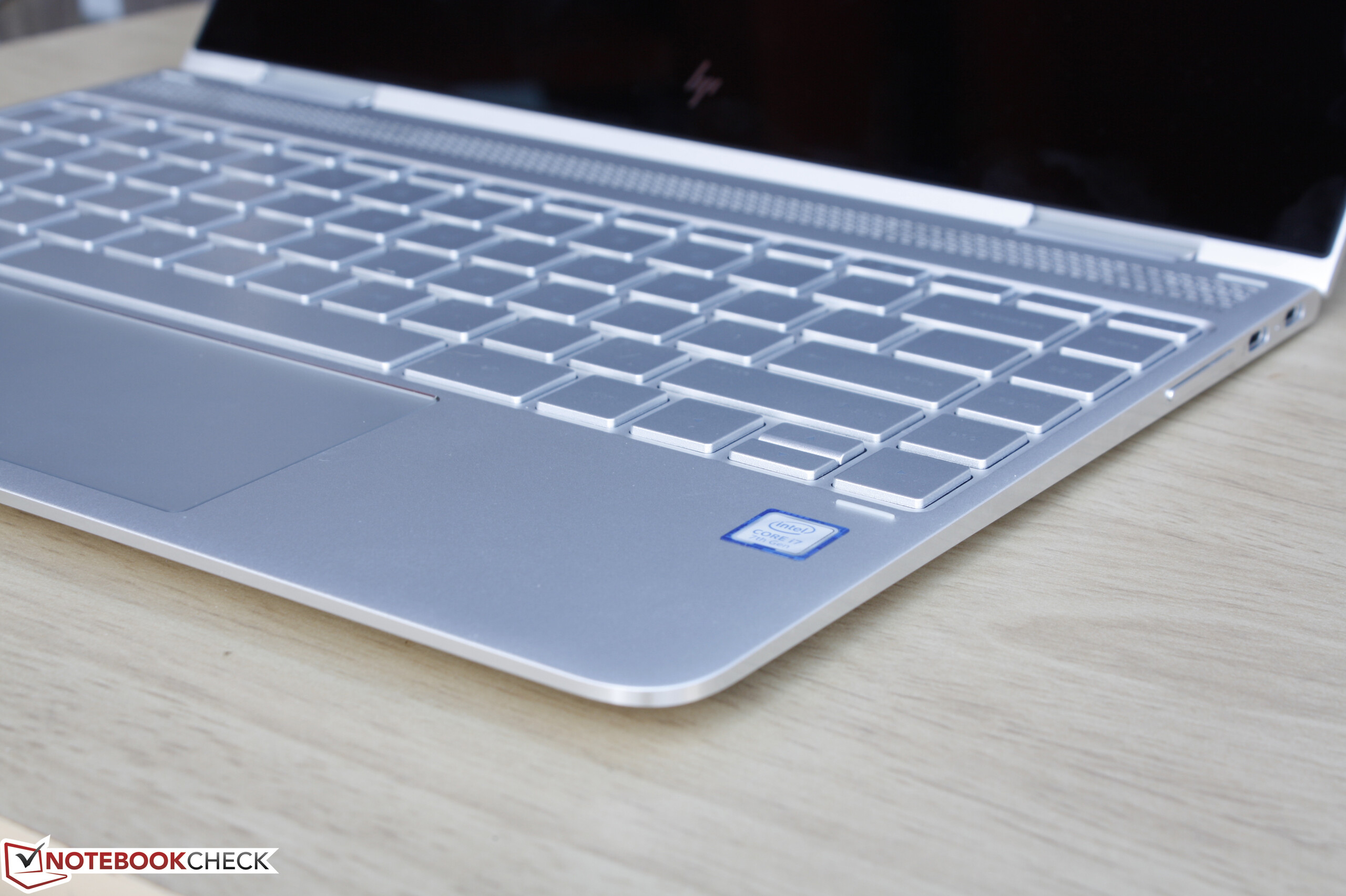

The imprinted letters don't contrast very well with the silver color scheme
The imprinted letters don't contrast very well with the silver color scheme

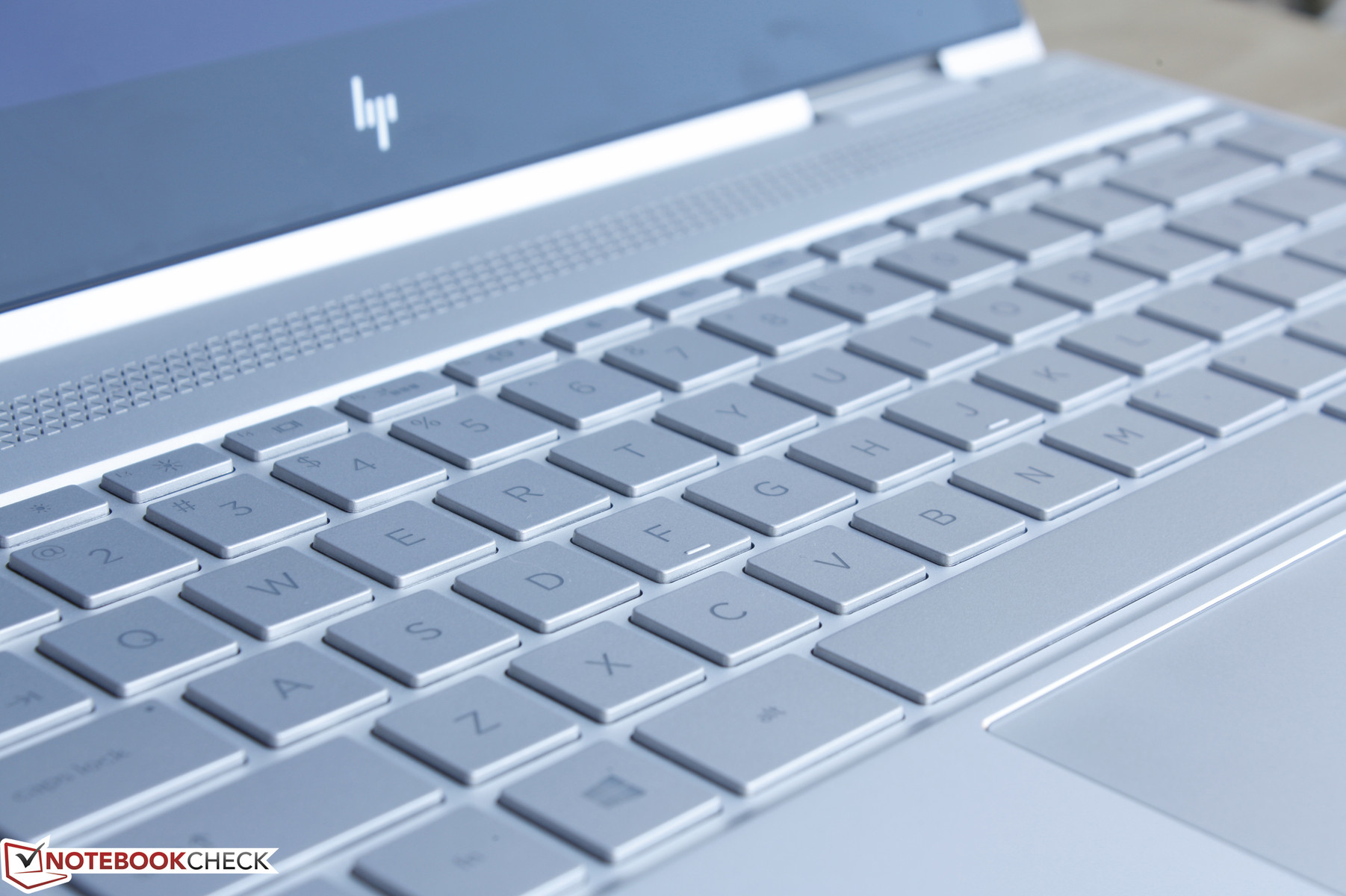

Keyboard

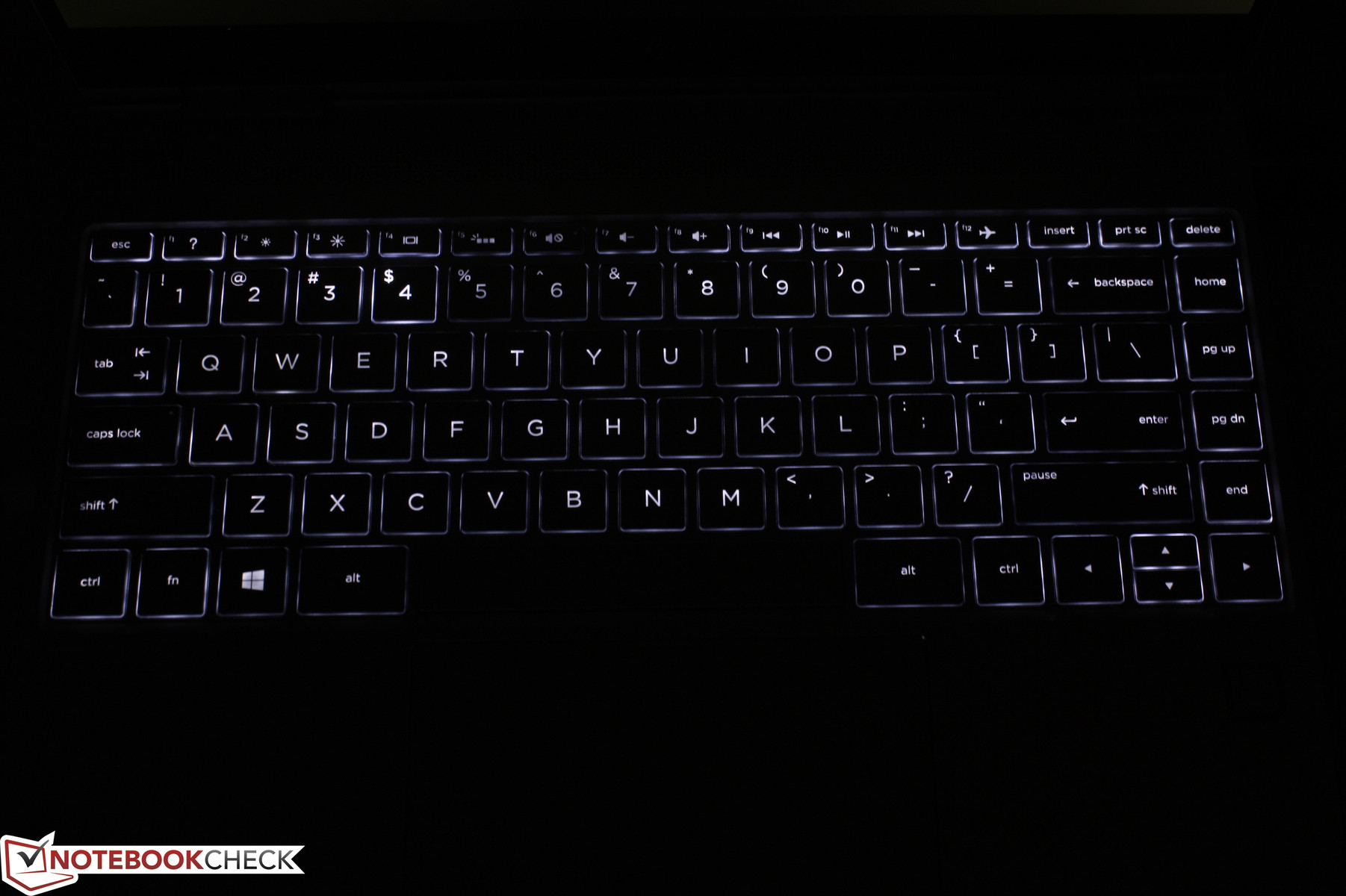

The keyboard keys are relatively quiet with a shallow 1.3 mm of travel. Feedback is slightly on the soft side and could have been more firm compared to what the Lenovo AccuType and Dell XPS 13 series have to offer. The Space bar and Up/Down arrow keys are especially soft on the Spectre. The keyboard is otherwise quite roomy (~29 x 10 cm) for a 13-inch notebook as the narrower bezel design has not affected the overall size of the keys.

There are no dedicated auxiliary keys aside from the volume rocker on the edge next to the Thunderbolt 3 ports. Additionally, the silver keys don't contrast as well with the dark lettering compared to most other notebooks with black keys and white lettering are much more common. Only one level of white backlight is available and the lighting is unfortunately uneven across the keys as shown in our image below. Some older HP notebooks suffer from this as well and it is definitely something HP should improve upon for future iterations. Unlike on certain ThinkPad Yoga convertibles, the keys will not automatically depress when switching between tablet and notebooks modes.

Touchpad

The smooth glass touchpad is wider than on most other notebooks (12 x 6 cm) for easier operation and multi-touch gestures of up to four fingers. We experienced no issues with cursor controls and the Synaptics software is fortunately reliable when it comes to automatic palm detection or else the larger surface area would have been a major annoyance.

The integrated mouse keys are shallow in travel with firm feedback and an audible click. The force required to input a click is not too strong or light for a comfortable experience even without any dedicated keys. Note that the left and right clicks are not distributed equally; you must click on the very bottom right of the touchpad to input a right click as most of the surface will register a left click. This is still one of the better integrated touchpads on an Ultrabook or convertible this size.

Display

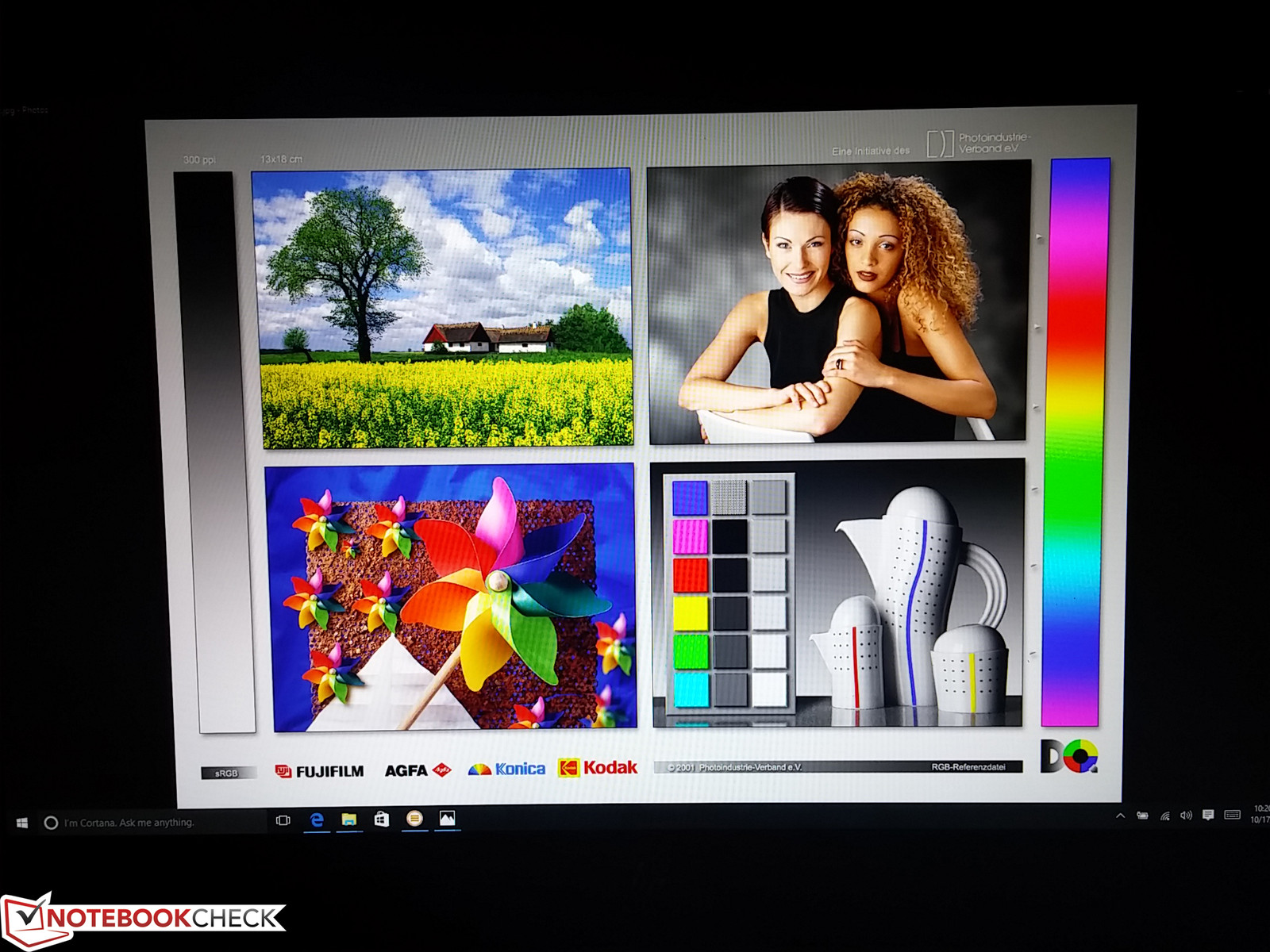

The edge-to-edge 1080p touchscreen provides a crisp picture without any noticeable grains or screen-door effects. A quick search for its CMN1367 panel ID shows no other notebooks in our database sporting the exact same IPS panel. Display brightness and contrast are both very good at just over 300 nits and almost 1000:1, respectively, but they fall short of the recently released XPS 13 9360 as shown in the table below. The touchscreen itself does not support active styluses, but HP is considering the feature for future revisions of the Spectre x360 series.

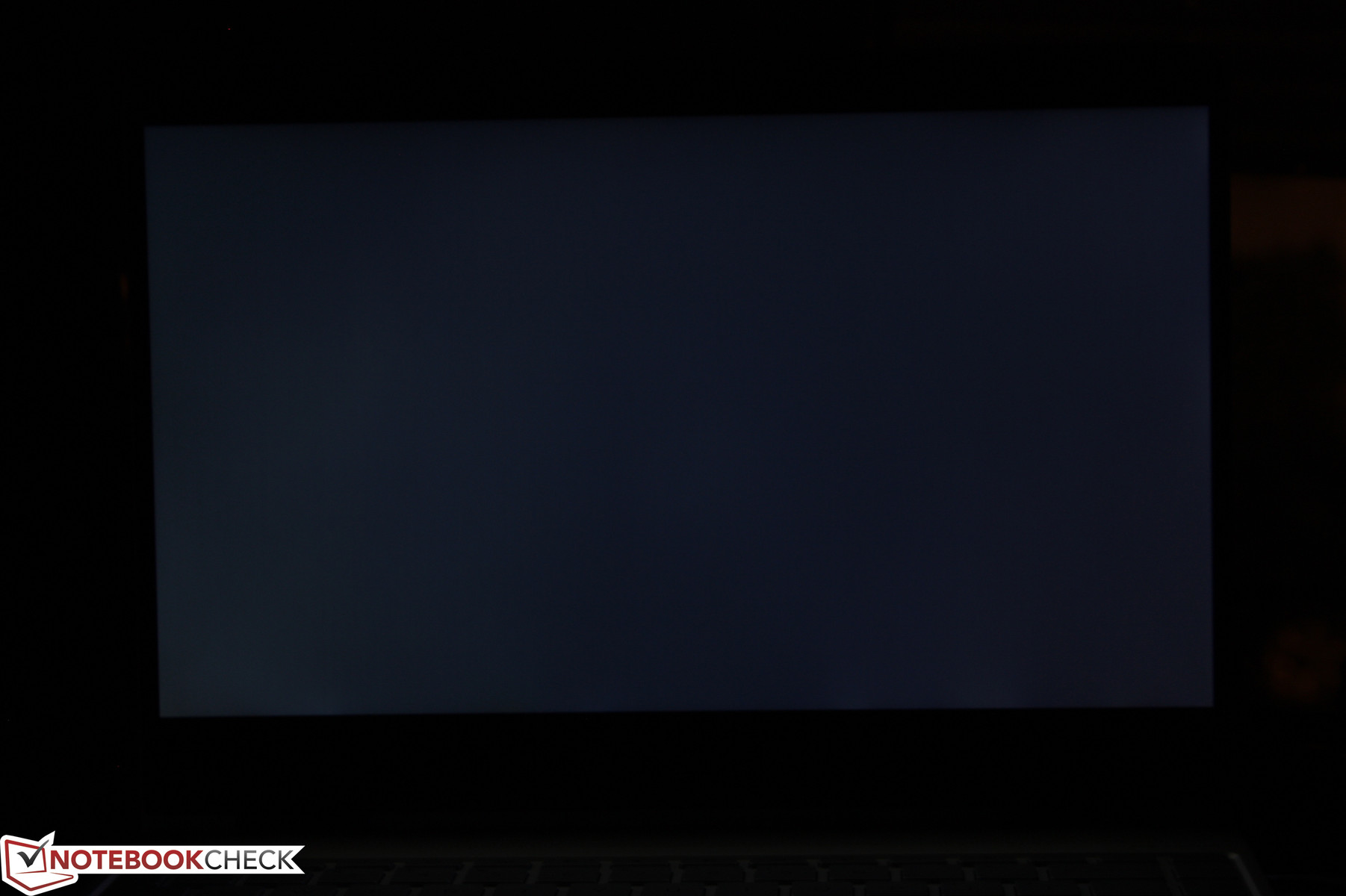

Backlight bleeding is very minimal at the bottom left corner of the screen. This is almost unnoticeable even during video playback with black bars compared to what we've witnessed on some MSI and Eurocom systems.

Almost no uneven backlight bleeding
Almost no uneven backlight bleeding

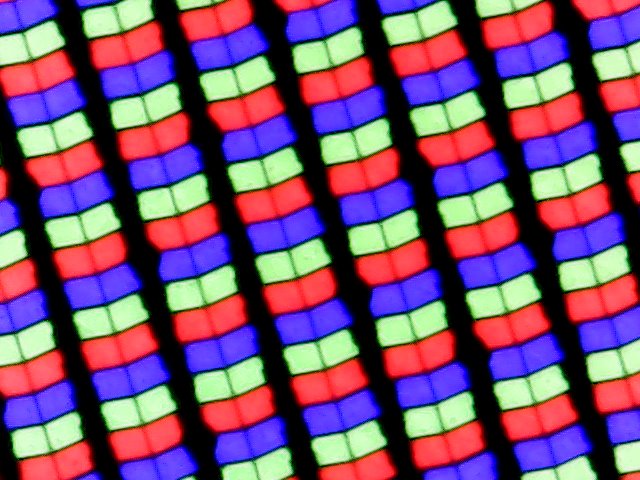

Glossy subpixel array (166 PPI)
Glossy subpixel array (166 PPI)
317.2
cd/m²
325.8
cd/m²
320.7
cd/m²
322.3
cd/m²
334.6
cd/m²
307.8
cd/m²
321.8
cd/m²
316.3
cd/m²
300.6
cd/m²
Distribution of brightness
Chi Mei CMN1367 tested with X-Rite i1Pro Basic 2
Maximum: 334.6 cd/m² (Nits) Average: 318.6 cd/m² Minimum: 14.5 cd/m²
Brightness Distribution: 90 %
Center on Battery: 334.6 cd/m²
Contrast: 996:1 (Black: 0.336 cd/m²)
ΔE Color 6.21 | 0.5-29.43 Ø5
ΔE Greyscale 7.71 | 0.57-98 Ø5.3
90% sRGB (Argyll 1.6.3 3D)
58.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
90.4% sRGB (Argyll 2.2.0 3D)
65.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.36
HP Spectre x360 13-w023dx
Chi Mei CMN1367, IPS, 13.30, 1920x1080
Dell XPS 13 9360 QHD+ i5
Sharp SHP144A, , 13.30, 3200x1800
HP Spectre 13
IPS UWVA, 13.30, 1920x1080
Lenovo Yoga 900-13ISK 80MK
IPS, 13.30, 3200x1800
Asus Zenbook UX360UA-C4159T
AU Optronics AOU272D / B133HAN02.7, IPS, 13.30, 1920x1080
Acer Aspire S 13 S5-371-71QZ
AUO B133HAN04.1, IPS, 13.30, 1920x1080
Display
0%
3%
-2%
1%
Display P3 Coverage
65.4
64.6
-1%
65.6
0%
63.2
-3%
64.8
-1%
sRGB Coverage
90.4
91.6
1%
94.7
5%
88.7
-2%
93.1
3%
AdobeRGB 1998 Coverage
65.8
66.5
1%
67.5
3%
64.9
-1%
66
0%
Response Times
-2%
-36%
2%
23%
-29%
Response Time Grey 50% / Grey 80% *
33.2 ?(16, 17.2)
31 ?(13, 18)
7%
50.8 ?(20, 30.8)
-53%
38.8 ?(18.4, 20.4)
-17%
29 ?(11, 18)
13%
50 ?(22, 28)
-51%
Response Time Black / White *
28 ?(5.6, 22.4)
31.2 ?(10.8, 20.4)
-11%
33.2 ?(7.2, 26)
-19%
22.4 ?(9.2, 13.2)
20%
19 ?(7, 12)
32%
29.6 ?(7.6, 22)
-6%
PWM Frequency
1316
50 ?(40)
Screen
22%
27%
-11%
10%
10%
Brightness middle
334.6
444
33%
300.5
-10%
319.8
-4%
344
3%
375
12%
Brightness
319
393
23%
305
-4%
302
-5%
326
2%
358
12%
Brightness Distribution
90
82
-9%
76
-16%
88
-2%
86
-4%
87
-3%
Black Level *
0.336
0.33
2%
0.184
45%
0.835
-149%
0.27
20%
0.39
-16%
Contrast
996
1345
35%
1633
64%
383
-62%
1274
28%
962
-3%
Colorchecker dE 2000 *
6.21
4
36%
2.64
57%
2.68
57%
5.53
11%
4.6
26%
Colorchecker dE 2000 max. *
12
7.7
36%
5.06
58%
10.01
17%
8.8
27%
Greyscale dE 2000 *
7.71
2.83
63%
2.8
64%
2.35
70%
6.67
13%
4
48%
Gamma
2.36 93%
2.05 107%
2.16 102%
2.09 105%
2.43 91%
2.34 94%
CCT
6458 101%
6963 93%
6999 93%
6975 93%
7012 93%
7304 89%
Color Space (Percent of AdobeRGB 1998)
58.6
59.3
1%
60.9
4%
57
-3%
60
2%
57.9
-1%
Color Space (Percent of sRGB)
90
91.4
2%
94.3
5%
88
-2%
93
3%
88.7
-1%
Total Average (Program / Settings)
7% / 15%
-2% / 14%
-4% / -7%
11% / 9%
-10% / 4%

* ... smaller is better

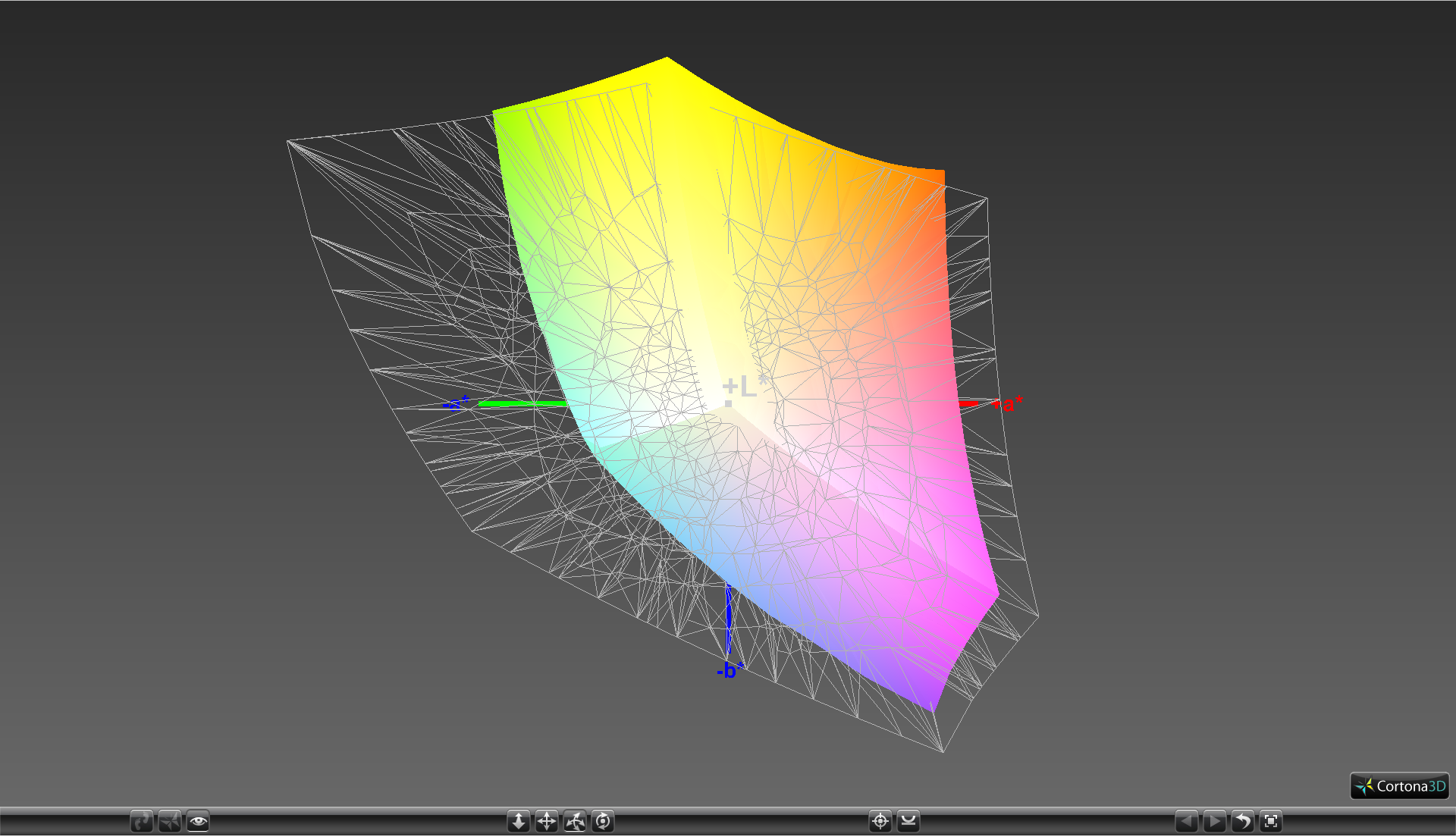

Color space is approximately 59 percent and 90 percent of the AdobeRGB and sRGB standards, respectively, for deeper and more accurate colors when properly calibrated. This is in line with many other high-end 13-inch notebooks like the Acer Aspire S 13 and the Yoga 900. In comparison, cheaper TN panels may cover just 60 percent of the sRGB standard.

vs. AdobeRGB
vs. AdobeRGB

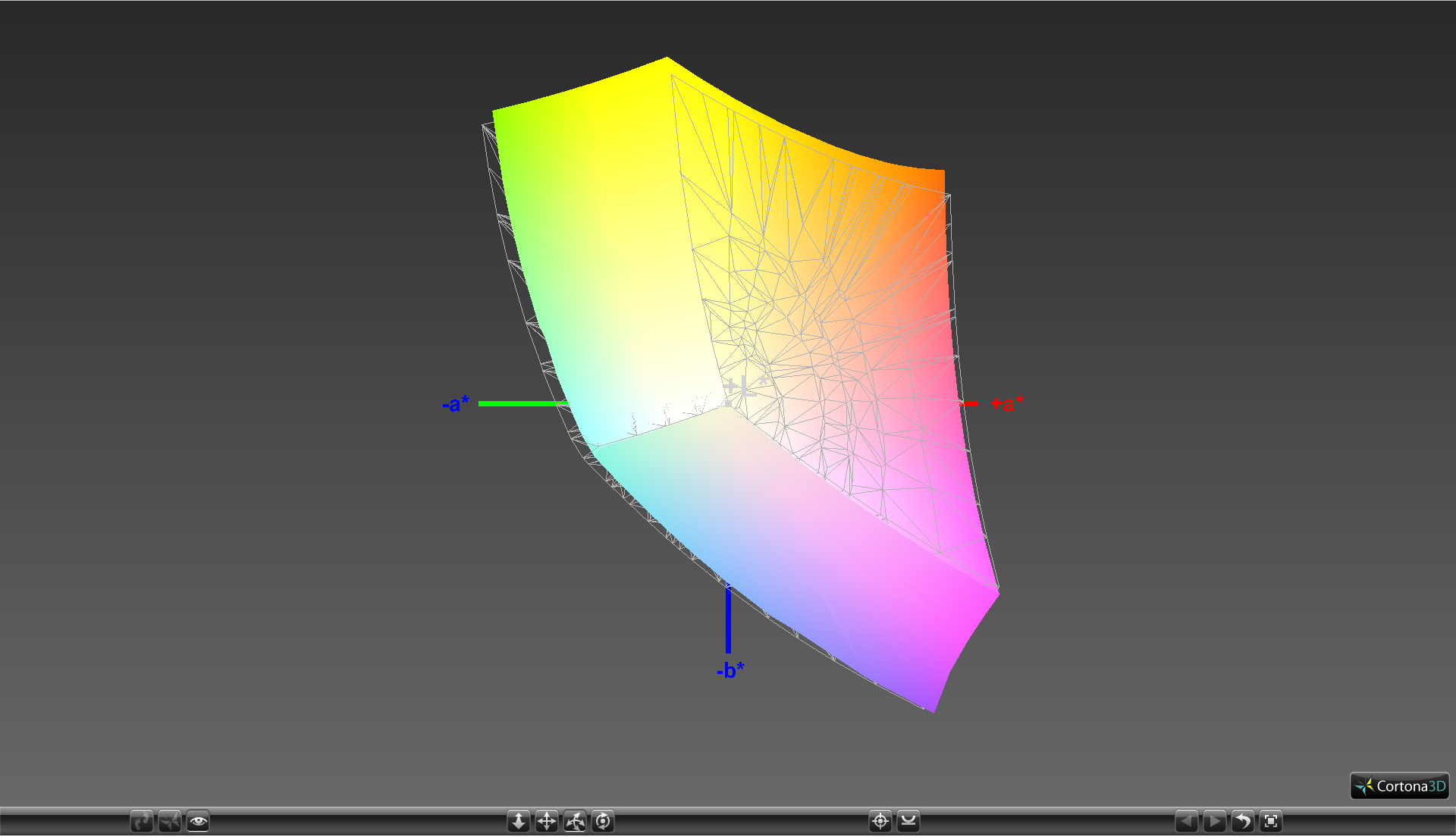

vs. HP Spectre 13
vs. HP Spectre 13
vs. sRGB
vs. sRGB
vs. Dell XPS 13 9360 QHD+
vs. Dell XPS 13 9360 QHD+

Grayscale and RGB balance are poor out of the box, which is uncommon for a high-end notebook such as this. A quick calibration dramatically improves color accuracy and is highly recommended for owners. Colors still become increasingly inaccurate at higher saturation levels due to the imperfect sRGB coverage of the panel.

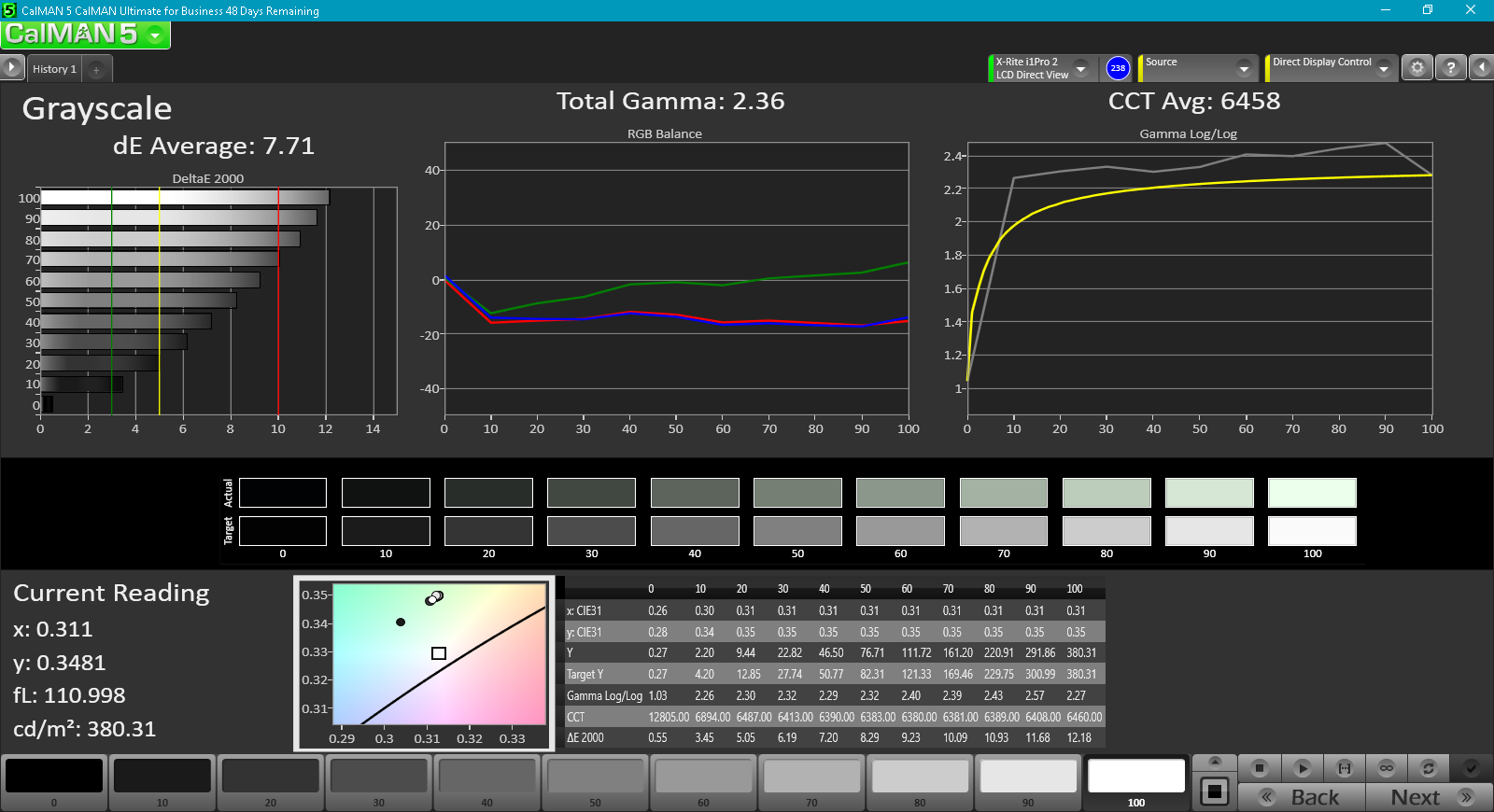

Grayscale before calibration
Grayscale before calibration

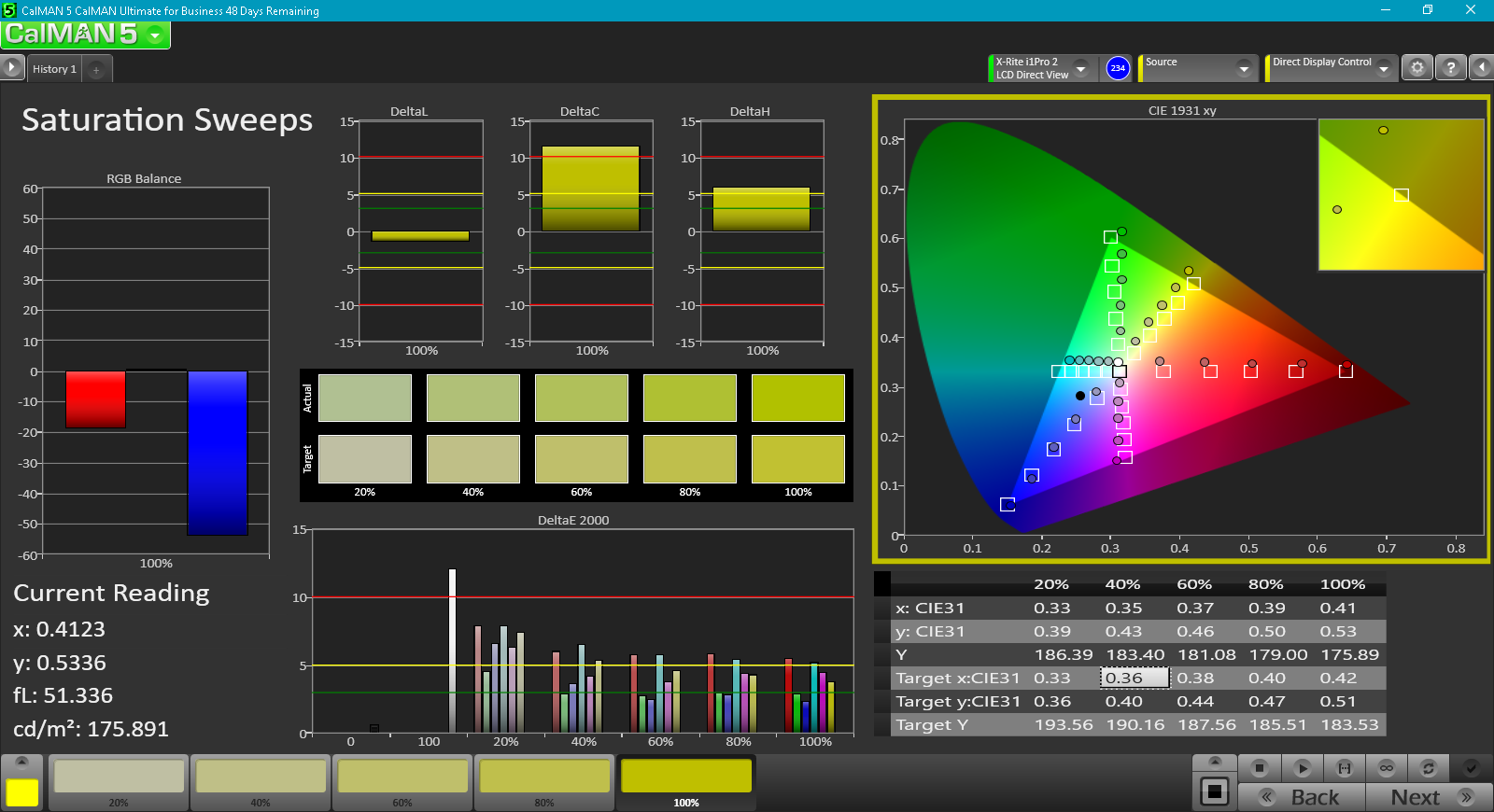

Saturation Sweeps before calibration
Saturation Sweeps before calibration

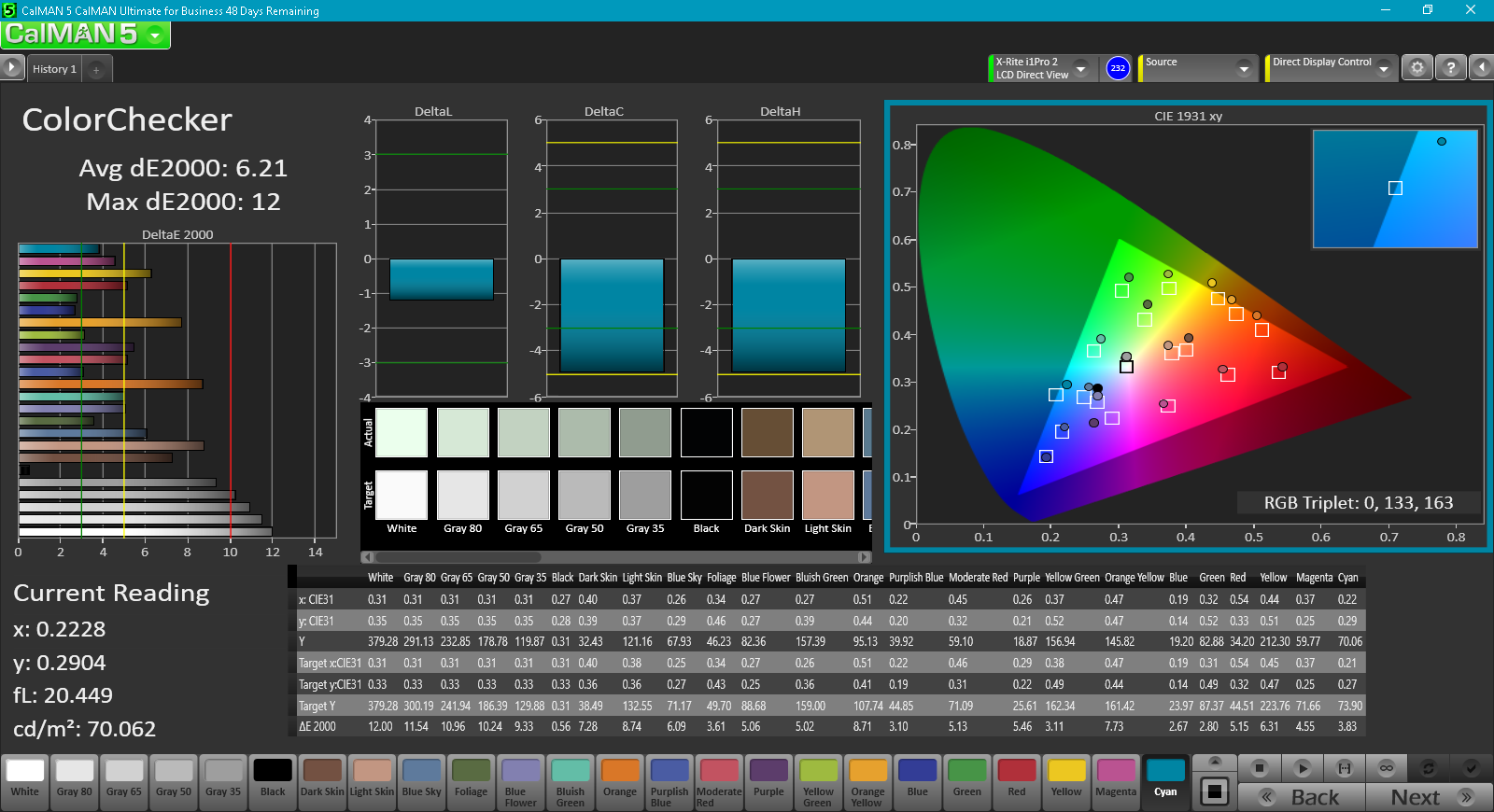

ColorChecker before calibration
ColorChecker before calibration

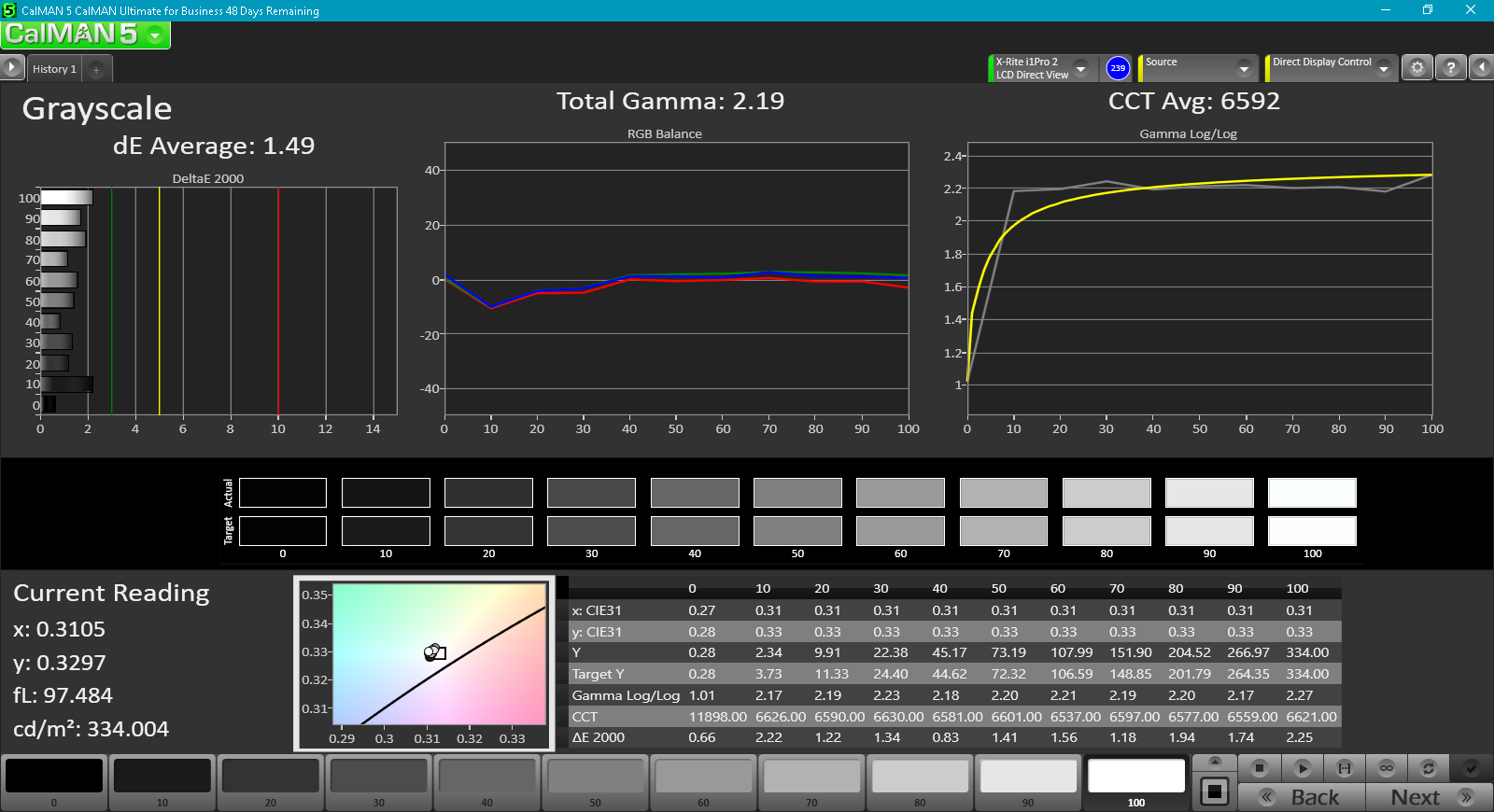

Grayscale after calibration
Grayscale after calibration

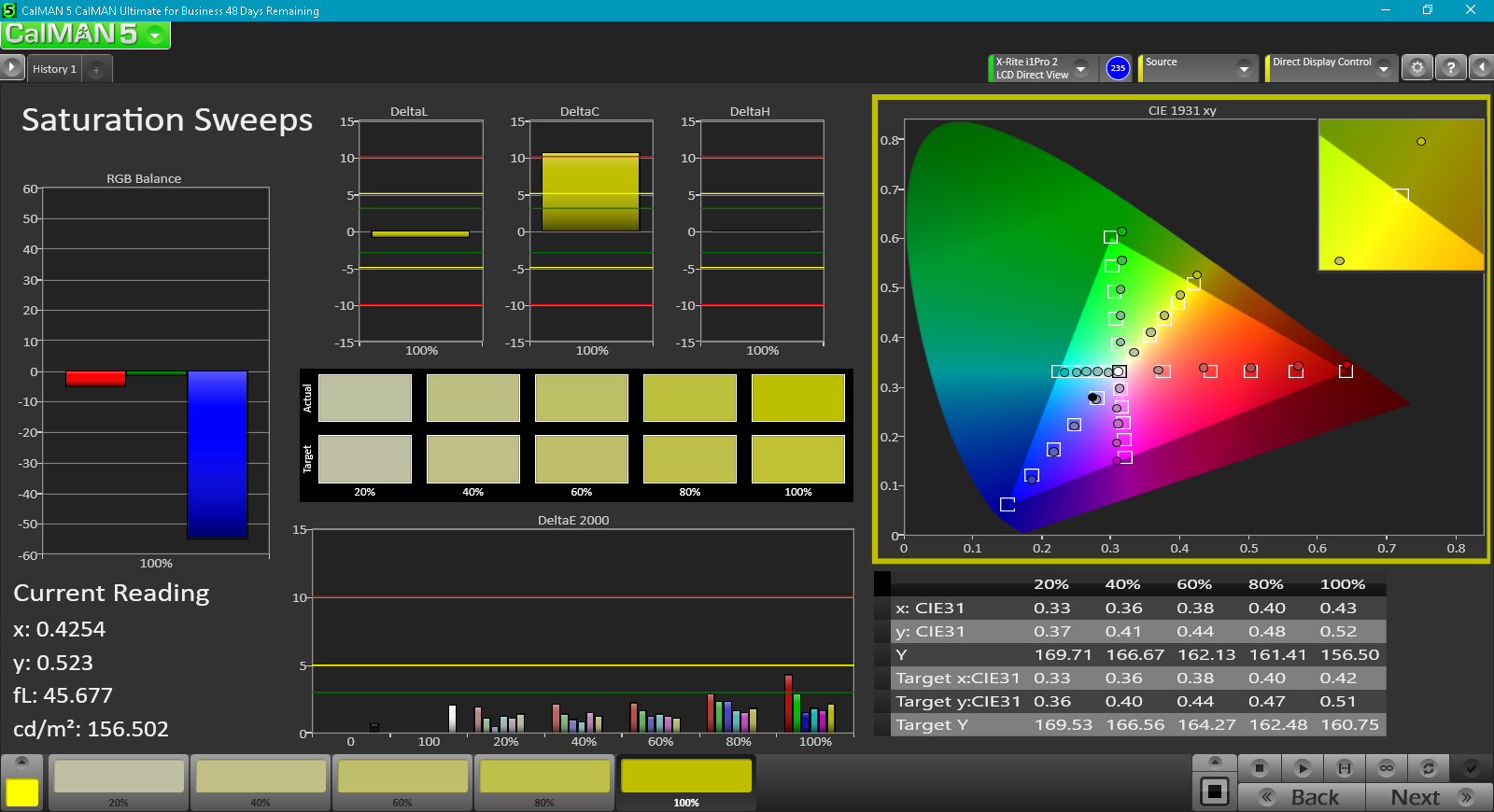

Saturation Sweeps after calibration
Saturation Sweeps after calibration

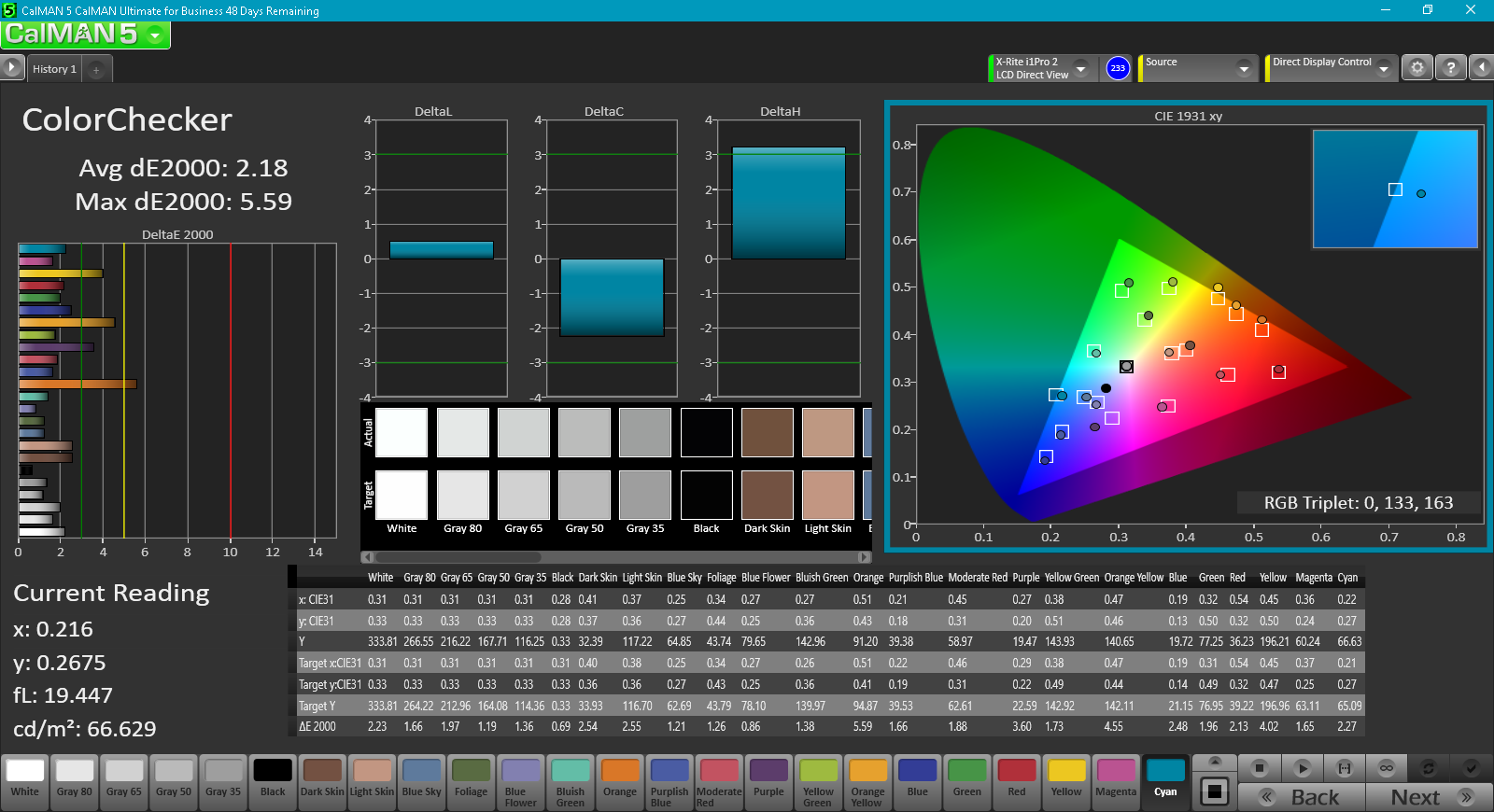

ColorChecker after calibration
ColorChecker after calibration

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

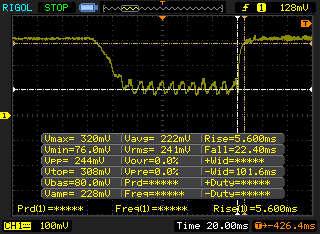

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 5.6 ms rise
↘ 22.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 67 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

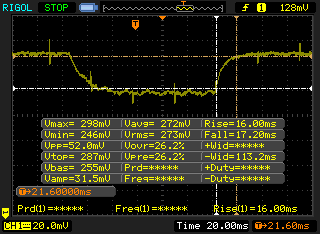

       Response Time 50% Grey to 80% Grey
33.2 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 17.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 39 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).

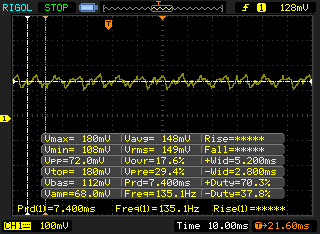

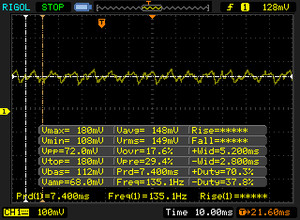

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18110 (minimum: 5 - maximum: 3846000) Hz was measured.

Outdoor visibility is good under shade and average when under direct sunlight. The display backlight is not significantly brighter than many of its competitors and glare from the glossy screen can still be an issue. We recommend toggling off the Display Power Saver Technology option in the HD Graphics control panel or else maximum display brightness will be slightly lower when running on batteries.

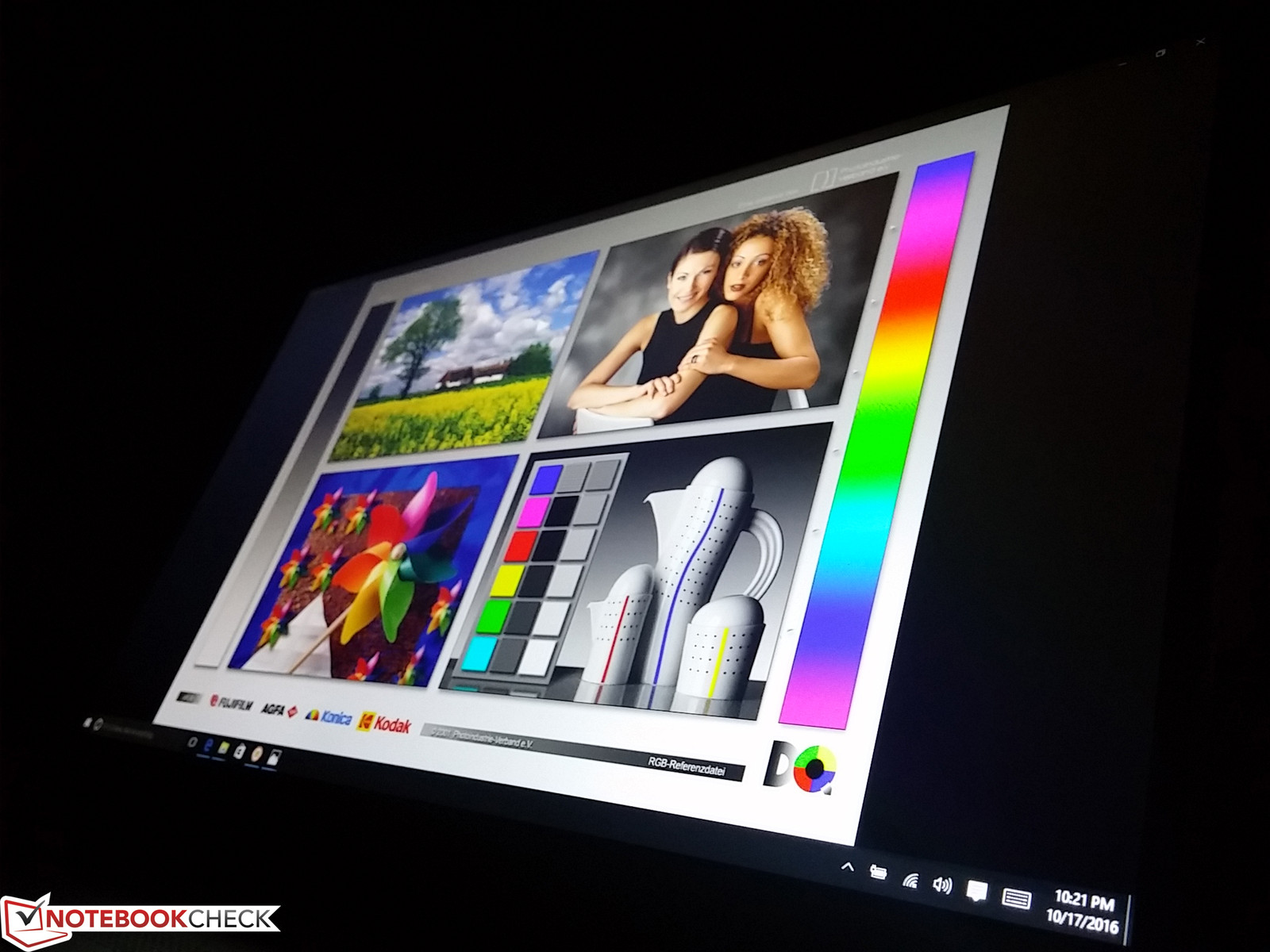

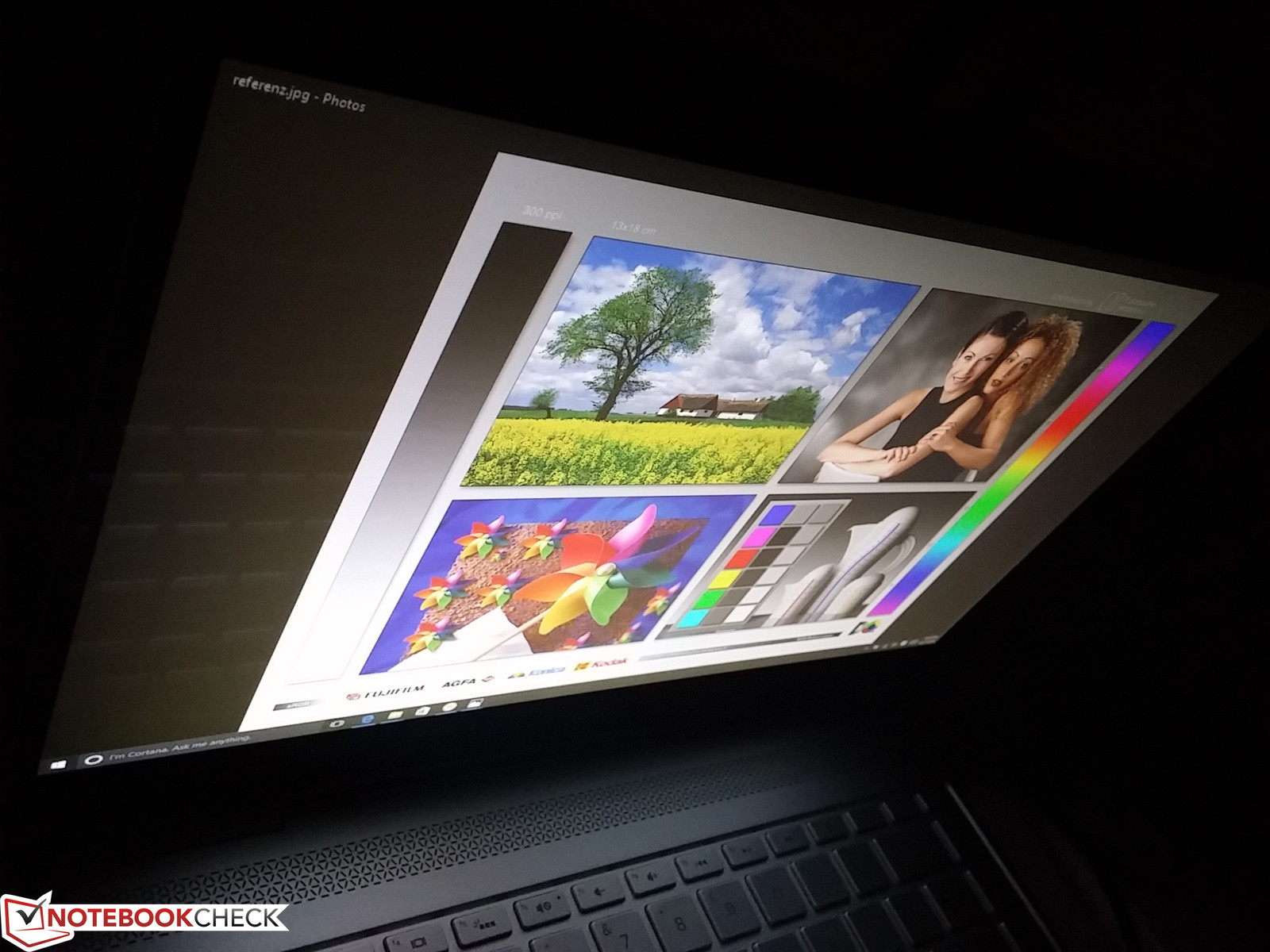

Viewing angles are excellent as expected from an IPS panel to help reduce glare as much as possible and allow for both portrait and landscape orientations when in tablet mode. Colors remain stable while relative brightness decreases slightly if not looking directly in front of the screen.

Outdoors under shade
Outdoors under shade

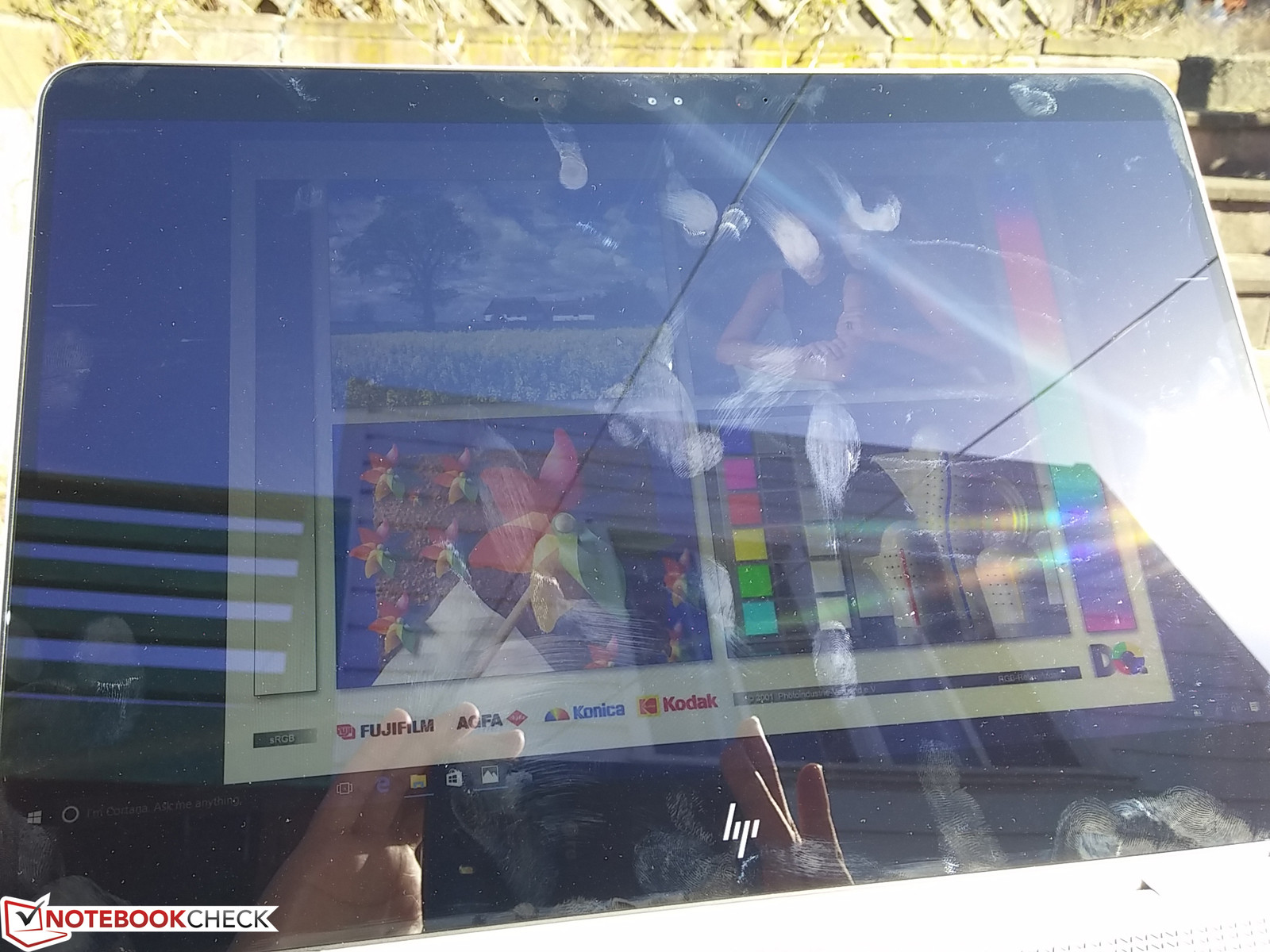

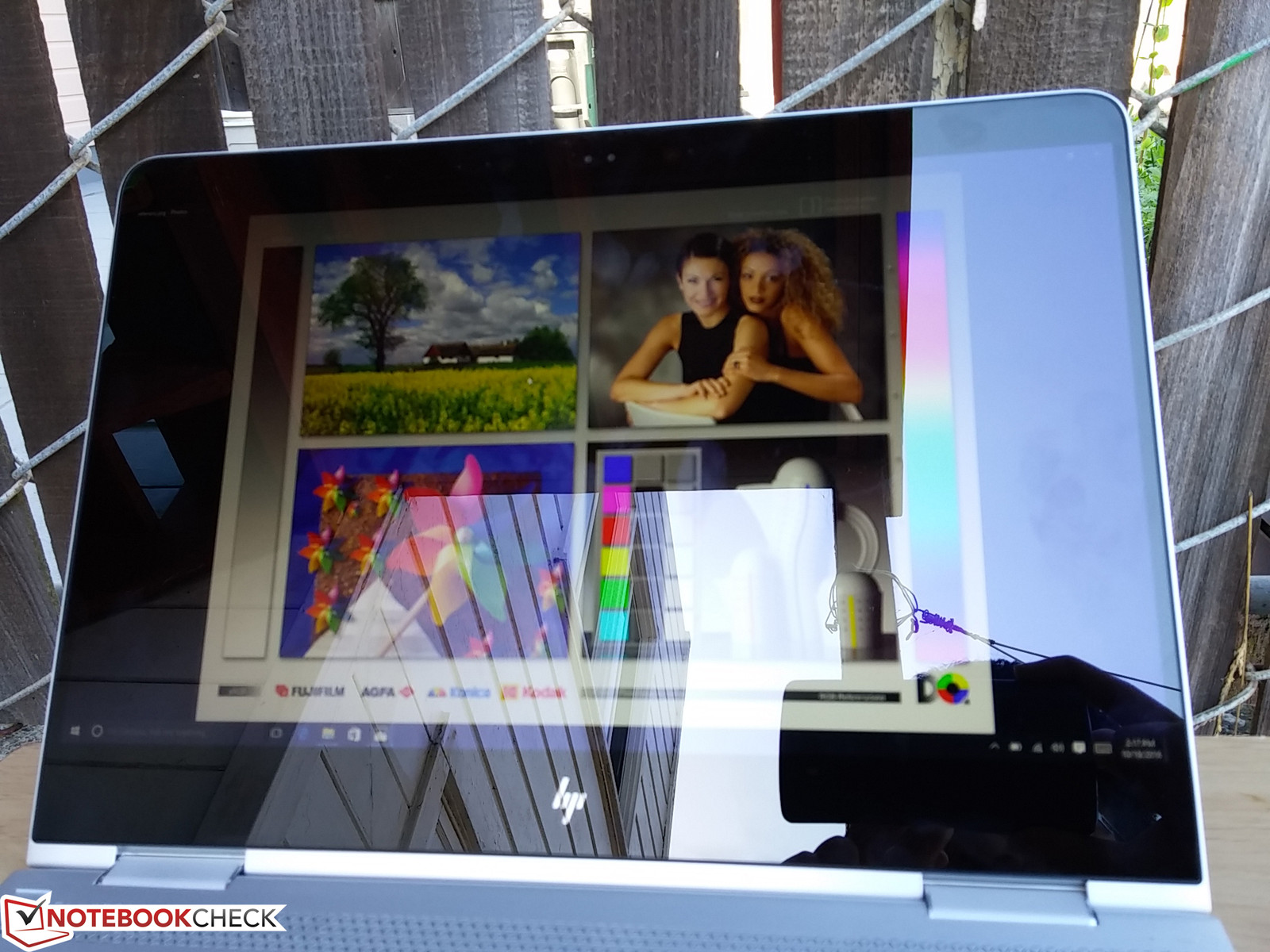

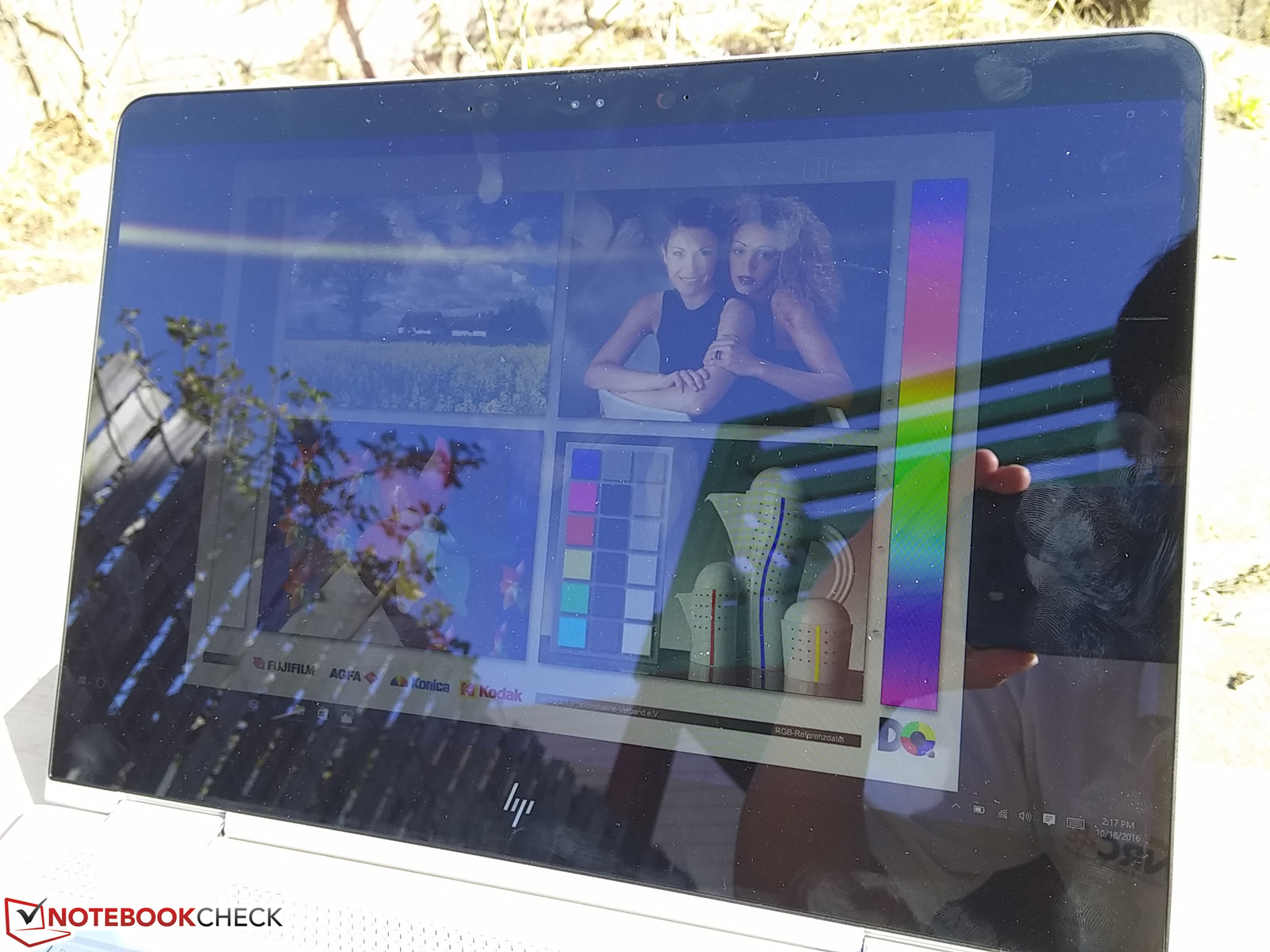

Outdoors under direct sunlight
Outdoors under direct sunlight
Outdoors under direct sunlight
Outdoors under direct sunlight

Performance

The Spectre x360 13 is one of the first convertible notebooks available to ship with a selection of Kaby Lake processors. Users can configure with either a Core i5-7200U or Core i5-7500U. Display options are limited to a single WLED 1080p panel unlike on the outgoing Spectre x360 13 which carries a QHD 2560 x 1440 option, but HP has hinted to us that SKUs or revisions with higher resolutions may be available in the future. The i7-7500U CPU in our test unit directly replaces the Skylake i7-6500U with both higher base clock rates (2.7 GHz vs. 2.5 GHz) and higher maximum Turbo Boost potential (3.5 GHz vs. 3.1 GHz).

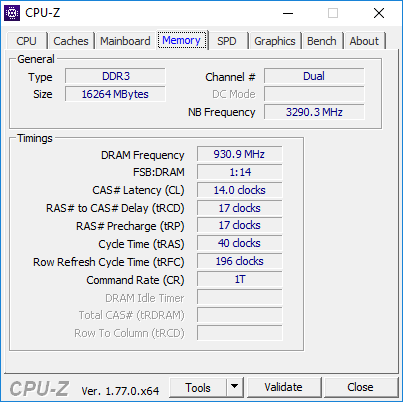

RAM is soldered at either 8 GB or 16 GB with the latter option reserved for i7-7500U SKUs only. HP has opted to go with DDR3 instead of the more power-efficient DDR4 possibly to save on costs.

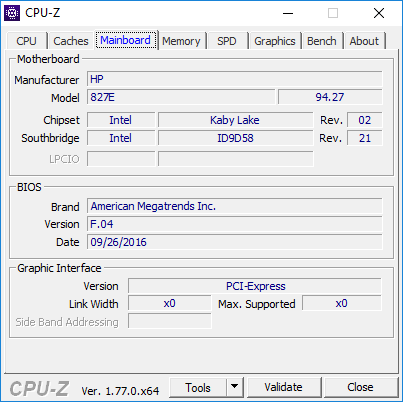

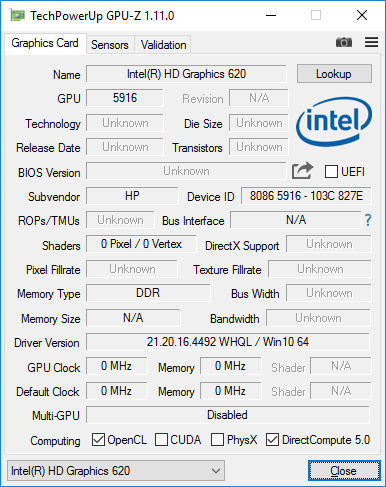

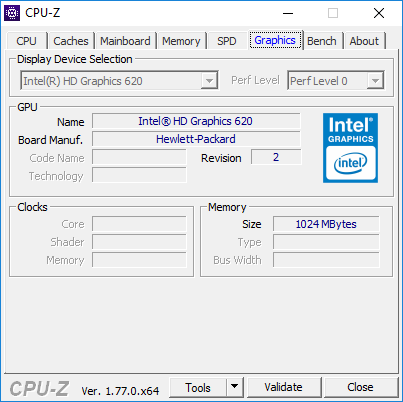

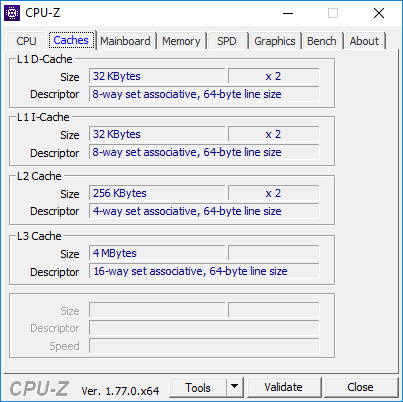

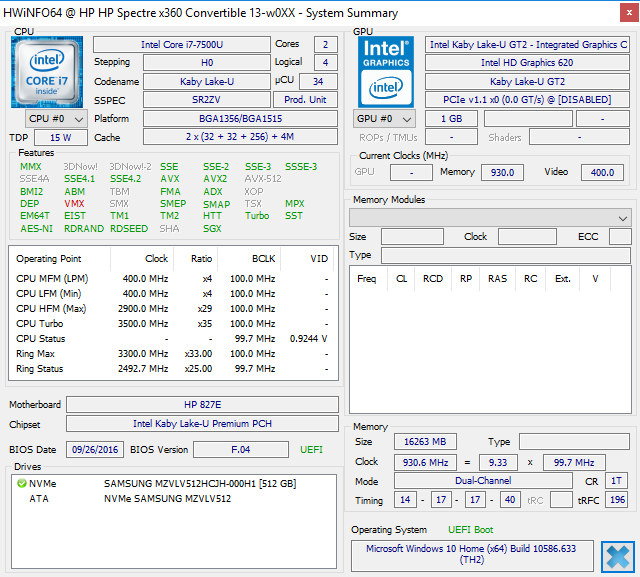

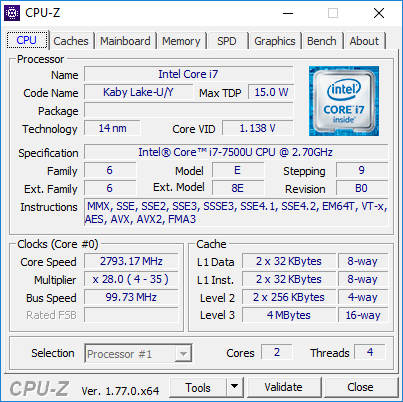

The latest version of GPU-Z as of this writing was unable to fully recognize the integrated HD Graphics 620.



Processor

The CPU performance deltas between successive Intel Core ix generations have been minimal when compared to the performance deltas of their integrated GPUs. As shown by our comparison below, the Core i7-6500U in our Spectre is at most just a few percentage points within the U-class Core i7 Skylake and Broadwell processors according to CineBench benchmarks. If raw CPU performance is the only factor, then opting for an older system will bring almost no drawbacks. Proper quad-core processors with higher TDP requirements like the i7-4700HQ will handily outperform the i7-7500U in multi-threaded workloads.

Overall performance of the i7-7500U in the new Spectre is consistently slower than other systems sporting the same CPU. The MSI CX72, for example, scores 15 percent higher in CineBench R15 for both single- and multi-threaded workloads. Poorer Turbo Boost performance on the Spectre is a contributing factor to

See our dedicated CPU page on the Core i7-7500U for more technical information and benchmark comparisons. Our full review on the Kaby Lake U-series also dives deeper into the 7th generation Core ix series as a whole.

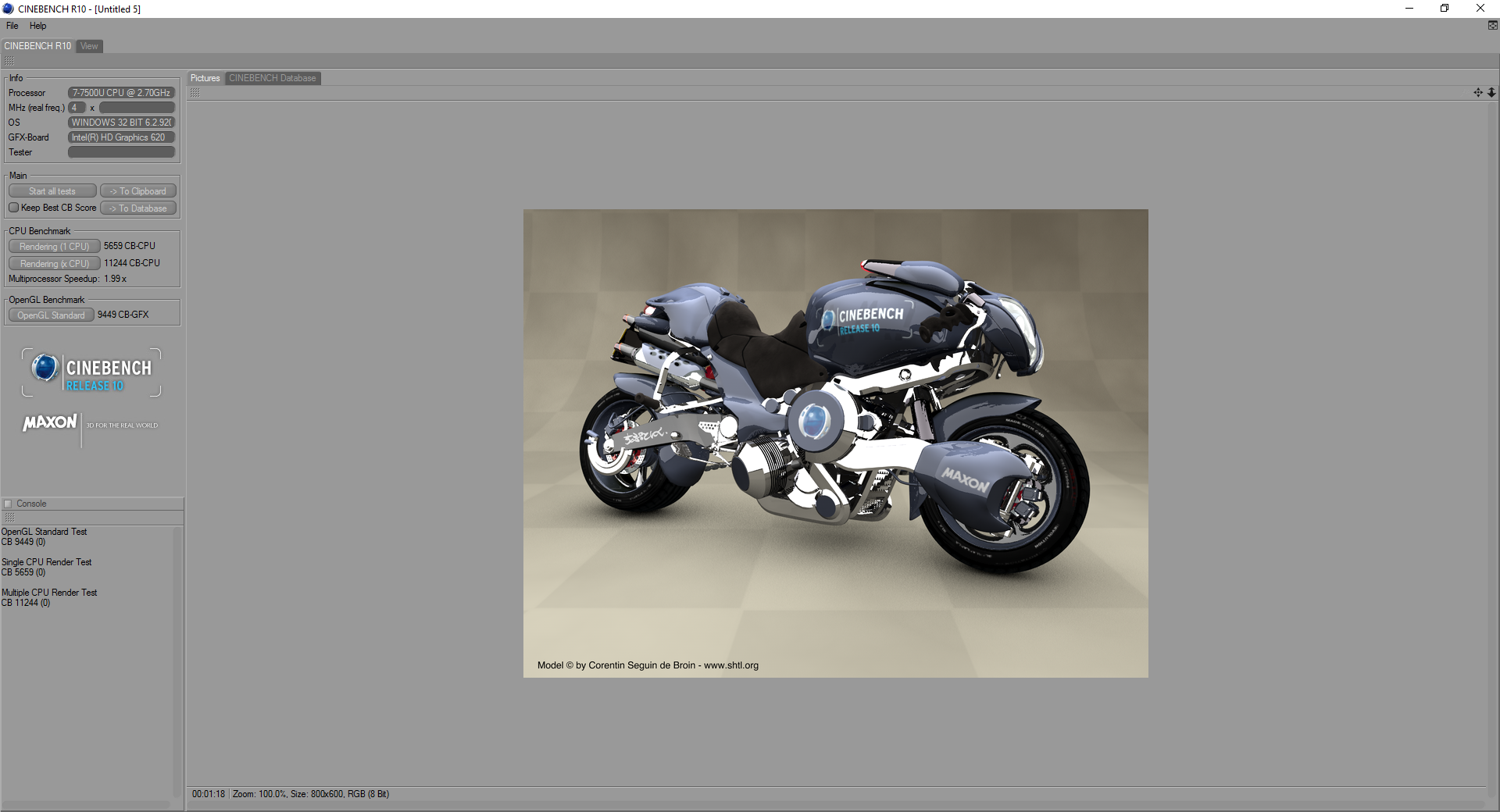

CineBench R10 32-bit
CineBench R10 32-bit

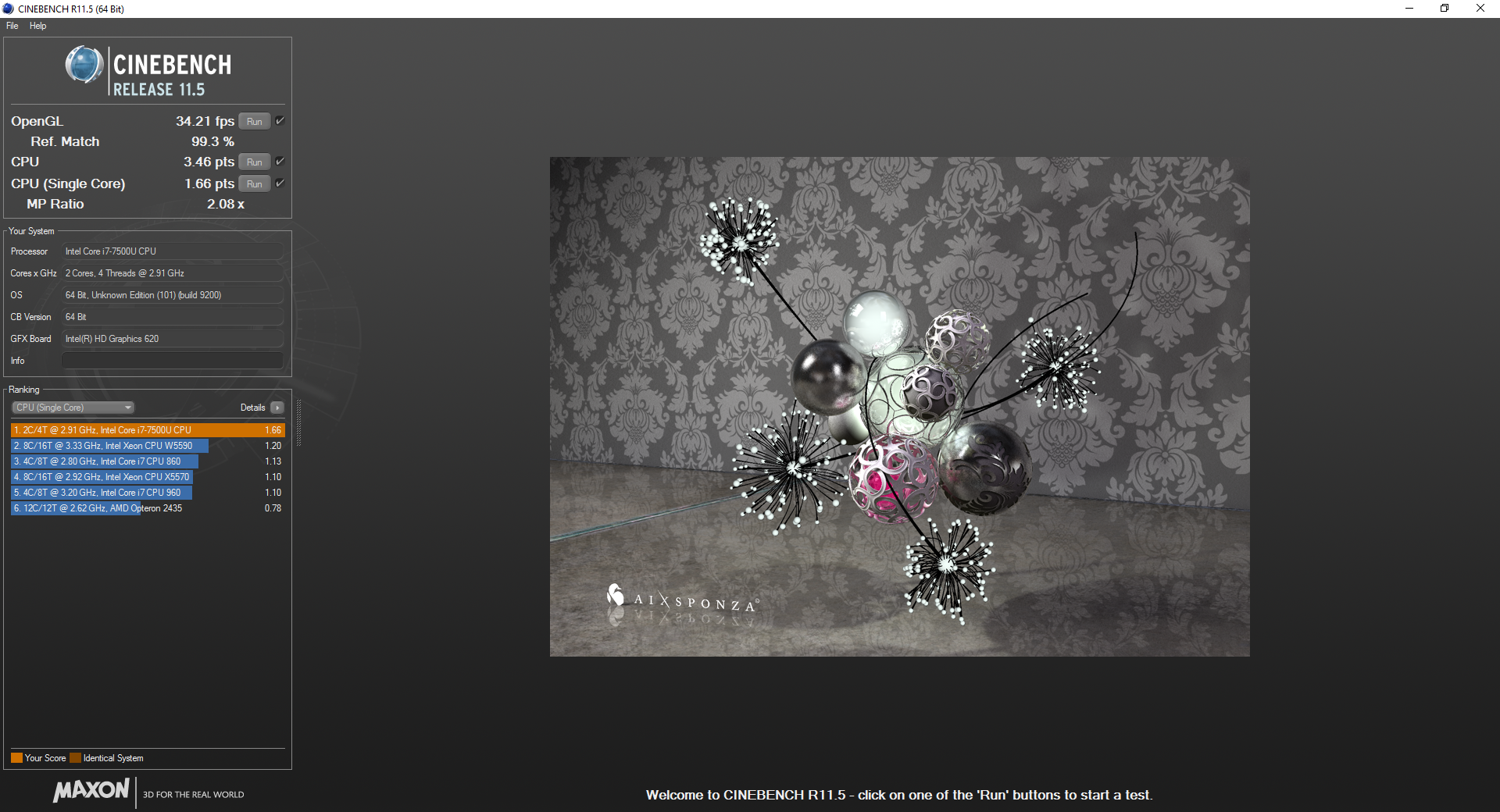

CineBench R11.5 64-bit
CineBench R11.5 64-bit

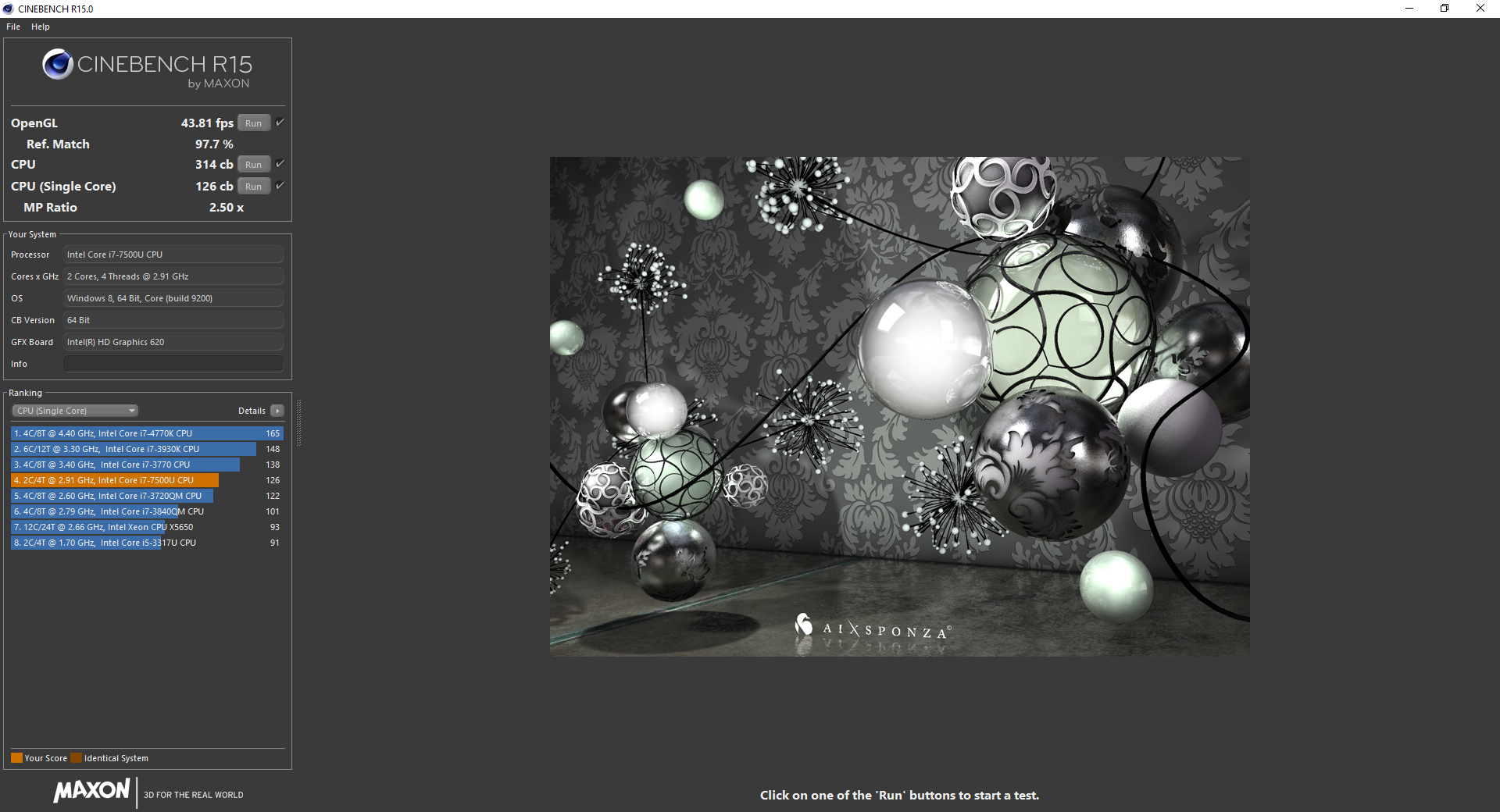

CineBench R15
CineBench R15
Cinebench R15
CPU Single 64Bit
MSI CX72-7QL
Intel Core i7-7500U
145 Points +15%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
131 Points +4%
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
131 Points +4%
Asus Zenbook UX510UW-CN044T
Intel Core i7-6500U
130 Points +3%
Lenovo ThinkPad T440s 20AQ006BGE
Intel Core i7-4600U
129 Points +2%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
126 Points
Lenovo Ideapad 510-15ISK
Intel Core i5-6200U
109 Points -13%
HP 250 G4 T6P08ES
Intel Core i5-5200U
108 Points -14%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
99 Points -21%
CPU Multi 64Bit
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
566 Points +80%
MSI CX72-7QL
Intel Core i7-7500U
363 Points +16%
Asus Zenbook UX510UW-CN044T
Intel Core i7-6500U
326 Points +4%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
314 Points
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
296 Points -6%
Lenovo Ideapad 510-15ISK
Intel Core i5-6200U
293 Points -7%
Lenovo ThinkPad T440s 20AQ006BGE
Intel Core i7-4600U
272 Points -13%
HP 250 G4 T6P08ES
Intel Core i5-5200U
257 Points -18%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
223 Points -29%
Cinebench R11.5
CPU Single 64Bit
MSI CX72-7QL
Intel Core i7-7500U
1.68 Points +1%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
1.66 Points
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
1.5 Points -10%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
1.49 Points -10%
Asus Zenbook UX510UW-CN044T
Intel Core i7-6500U
1.47 Points -11%
Lenovo ThinkPad T440s 20AQ006BGE
Intel Core i7-4600U
1.46 Points -12%
HP 250 G4 T6P08ES
Intel Core i5-5200U
1.28 Points -23%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
1.14 Points -31%
CPU Multi 64Bit
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
6.02 Points +74%
MSI CX72-7QL
Intel Core i7-7500U
4.03 Points +16%
Asus Zenbook UX510UW-CN044T
Intel Core i7-6500U
3.61 Points +4%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
3.46 Points
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
3.26 Points -6%
Lenovo ThinkPad T440s 20AQ006BGE
Intel Core i7-4600U
2.95 Points -15%
HP 250 G4 T6P08ES
Intel Core i5-5200U
2.81 Points -19%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
2.49 Points -28%
Cinebench R10
Rendering Multiple CPUs 32Bit
MSI CX72-7QL
Intel Core i7-7500U
12824 Points +14%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
11244 Points
Asus Zenbook UX510UW-CN044T
Intel Core i7-6500U
11024 Points -2%
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
10271 Points -9%
Lenovo ThinkPad T440s 20AQ006BGE
Intel Core i7-4600U
9156 Points -19%
HP 250 G4 T6P08ES
Intel Core i5-5200U
8672 Points -23%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
7580 Points -33%
Rendering Single 32Bit
MSI CX72-7QL
Intel Core i7-7500U
5666 Points 0%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
5659 Points
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
4940 Points -13%
Asus Zenbook UX510UW-CN044T
Intel Core i7-6500U
4917 Points -13%
Lenovo ThinkPad T440s 20AQ006BGE
Intel Core i7-4600U
4672 Points -17%
HP 250 G4 T6P08ES
Intel Core i5-5200U
4134 Points -27%
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
3725 Points -34%
wPrime 2.10 - 1024m
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
790 s * -63%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
485.2 s *
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
482.1 s * +1%
MSI CX72-7QL
Intel Core i7-7500U
473.7 s * +2%
Super Pi Mod 1.5 XS 32M - 32M
Lenovo IdeaPad Z40-59422614
Intel Core i5-4200U
849 s * -48%
Toshiba Portege Z30t-B1320W10
Intel Core i7-5600U
636 s * -11%
HP Spectre x360 13-w023dx
Intel Core i7-7500U
572 s *
MSI CX72-7QL
Intel Core i7-7500U
547 s * +4%

* ... smaller is better

Cinebench R10 Shading 32Bit
9449
Cinebench R10 Rendering Multiple CPUs 32Bit
11244
Cinebench R10 Rendering Single 32Bit
5659
Cinebench R11.5 CPU Multi 64Bit
3.46 Points
Cinebench R11.5 OpenGL 64Bit
34.21 fps
Cinebench R11.5 CPU Single 64Bit
1.66 Points
Cinebench R15 CPU Single 64Bit
126 Points
Cinebench R15 Ref. Match 64Bit
97.7 %
Cinebench R15 OpenGL 64Bit
43.81 fps
Cinebench R15 CPU Multi 64Bit
314 Points
Help

System Performance

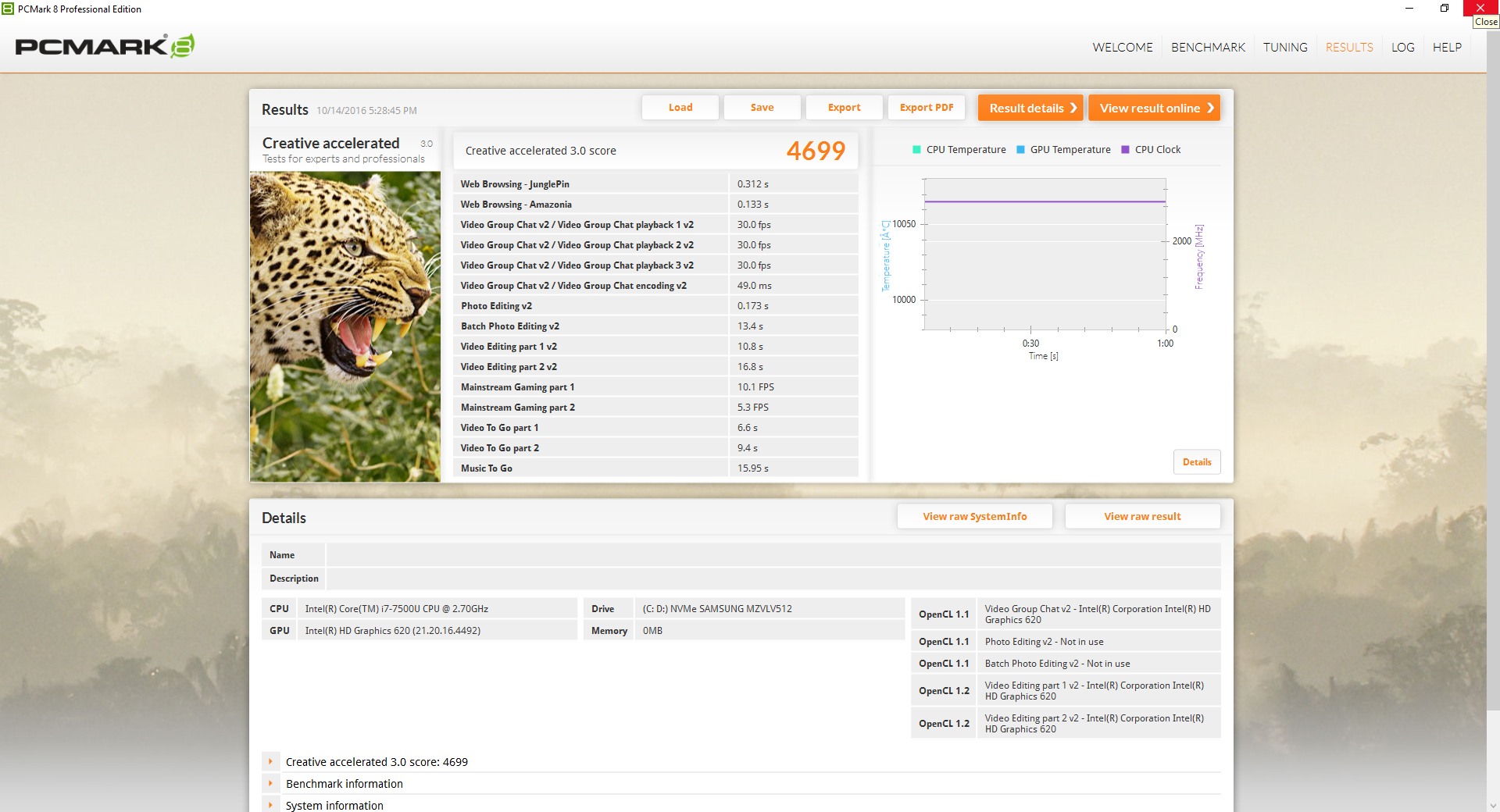

PCMark 8 benchmarks rank our Spectre x360 13 ahead of some of its closest competitors including the Asus UX360UA and the Yoga 900. There's no doubt that the small bumps in processor and graphics performance from the Kaby Lake generation played a part in the slightly higher scores for the system.

Subjectively, the convertible runs flawlessly and we experienced no notable software or hardware abnormalities during our time with the test unit.

PCMark 8 Home Accelerated
PCMark 8 Home Accelerated
PCMark 8 Creative Accelerated
PCMark 8 Creative Accelerated
PCMark 8 Work Accelerated
PCMark 8 Work Accelerated
PCMark 8
Home Score Accelerated v2
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
3795 Points
HP Spectre 13
HD Graphics 520, 6500U, Samsung PM951 NVMe MZVLV256
3549 Points -6%
Asus Zenbook UX360UA-C4159T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
3435 Points -9%
Lenovo Yoga 900-13ISK 80MK
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
2837 Points -25%
Dell XPS 13 9360 QHD+ i5
HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK
2761 Points -27%
Work Score Accelerated v2
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
4910 Points
HP Spectre 13
HD Graphics 520, 6500U, Samsung PM951 NVMe MZVLV256
4498 Points -8%
Asus Zenbook UX360UA-C4159T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
4315 Points -12%
Lenovo Yoga 900-13ISK 80MK
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
3863 Points -21%
Creative Score Accelerated v2
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
4699 Points
HP Spectre 13
HD Graphics 520, 6500U, Samsung PM951 NVMe MZVLV256
4222 Points -10%
Lenovo Yoga 900-13ISK 80MK
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
3709 Points -21%

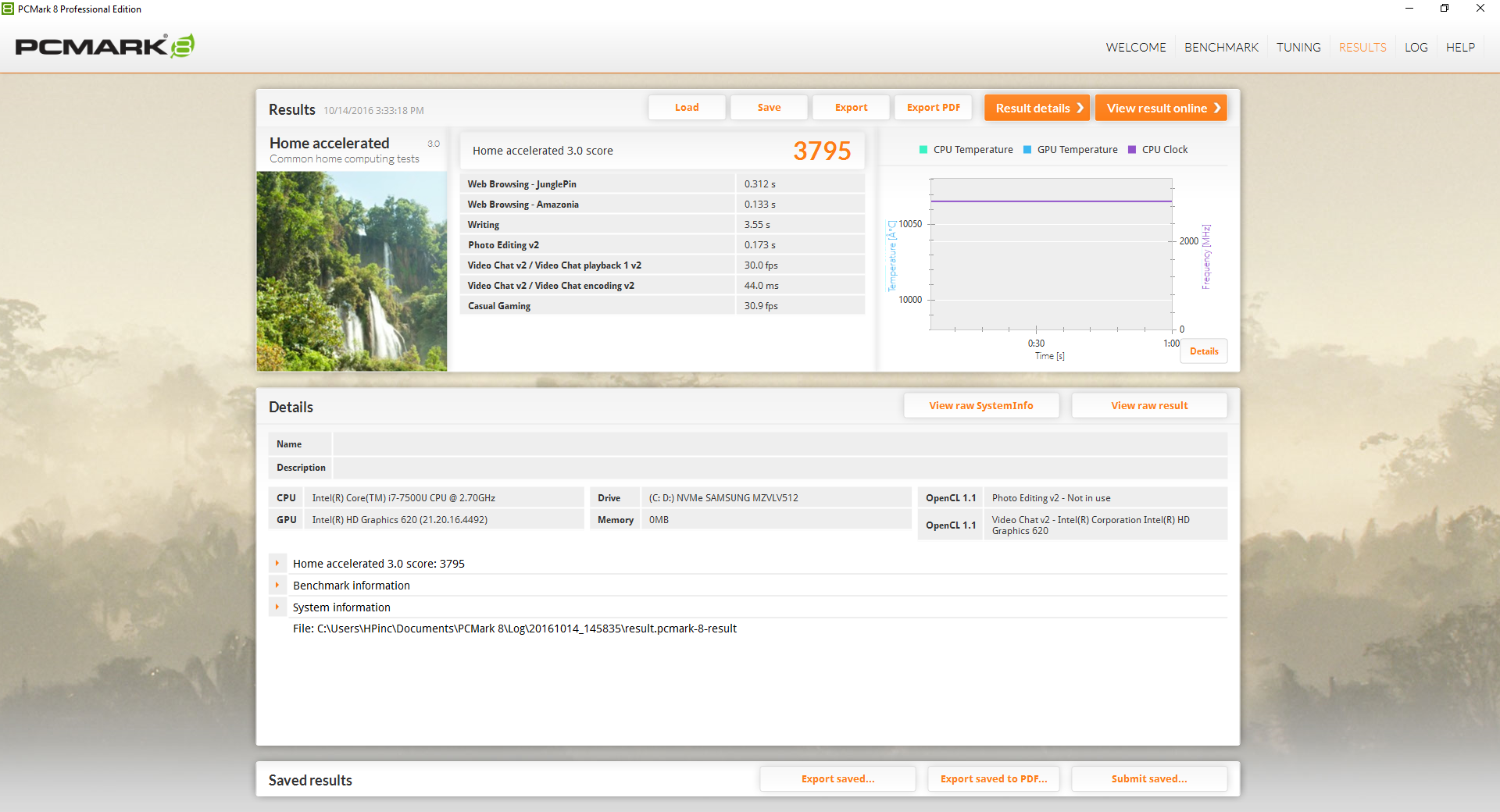

PCMark 8 Home Score Accelerated v2
3795 points
PCMark 8 Creative Score Accelerated v2
4699 points

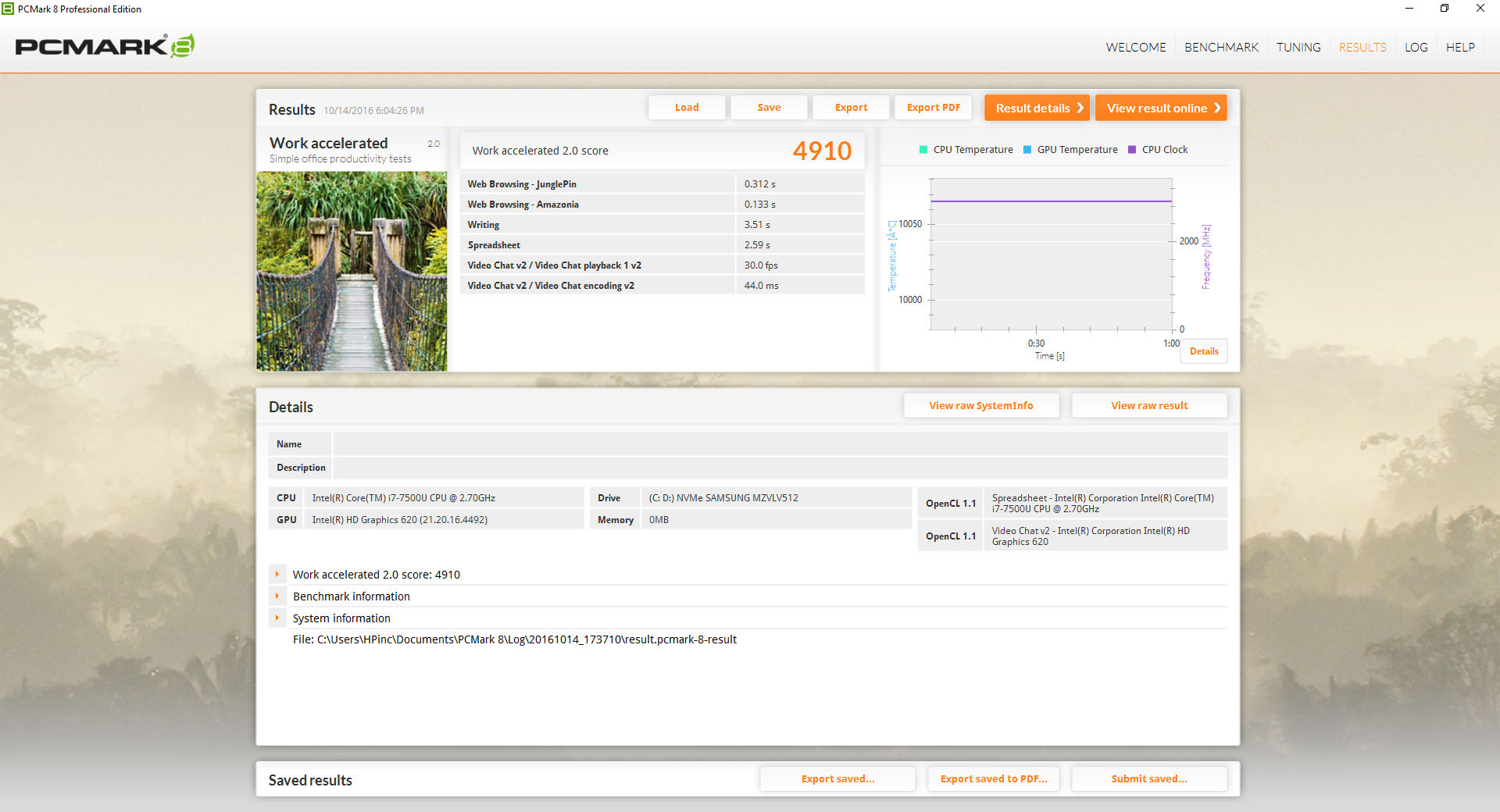

PCMark 8 Work Score Accelerated v2
4910 points
Help

Storage Devices

Internal storage is limited to a single M.2 NVMe slot with configurable options of 256 GB and 512 GB. A 1 TB option will be coming soon according to HP for even more storage space.

The Samsung PM951 NVMe SSD in our test unit is significantly faster than standard SSDs limited by the SATA III interface and even edges out the NVMe Toshiba SSD in our XPS 13 9360 test unit. While sequential read rates are fast at over 1300 MB/s, sequential write rates are only average for a NVMe SSD at about 570 MB/s.

See our growing table of SSDs and HDDs for more benchmark comparisons.

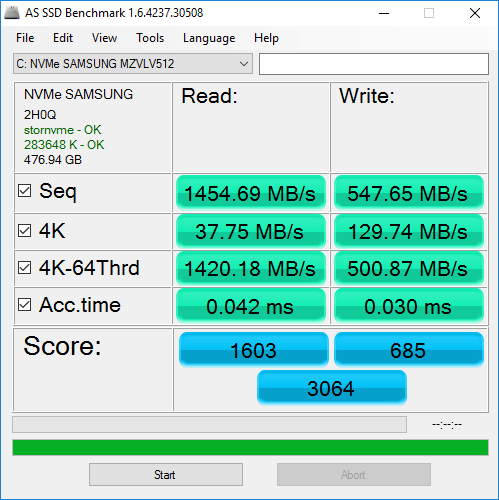

AS SSD
AS SSD
CDM
CDM

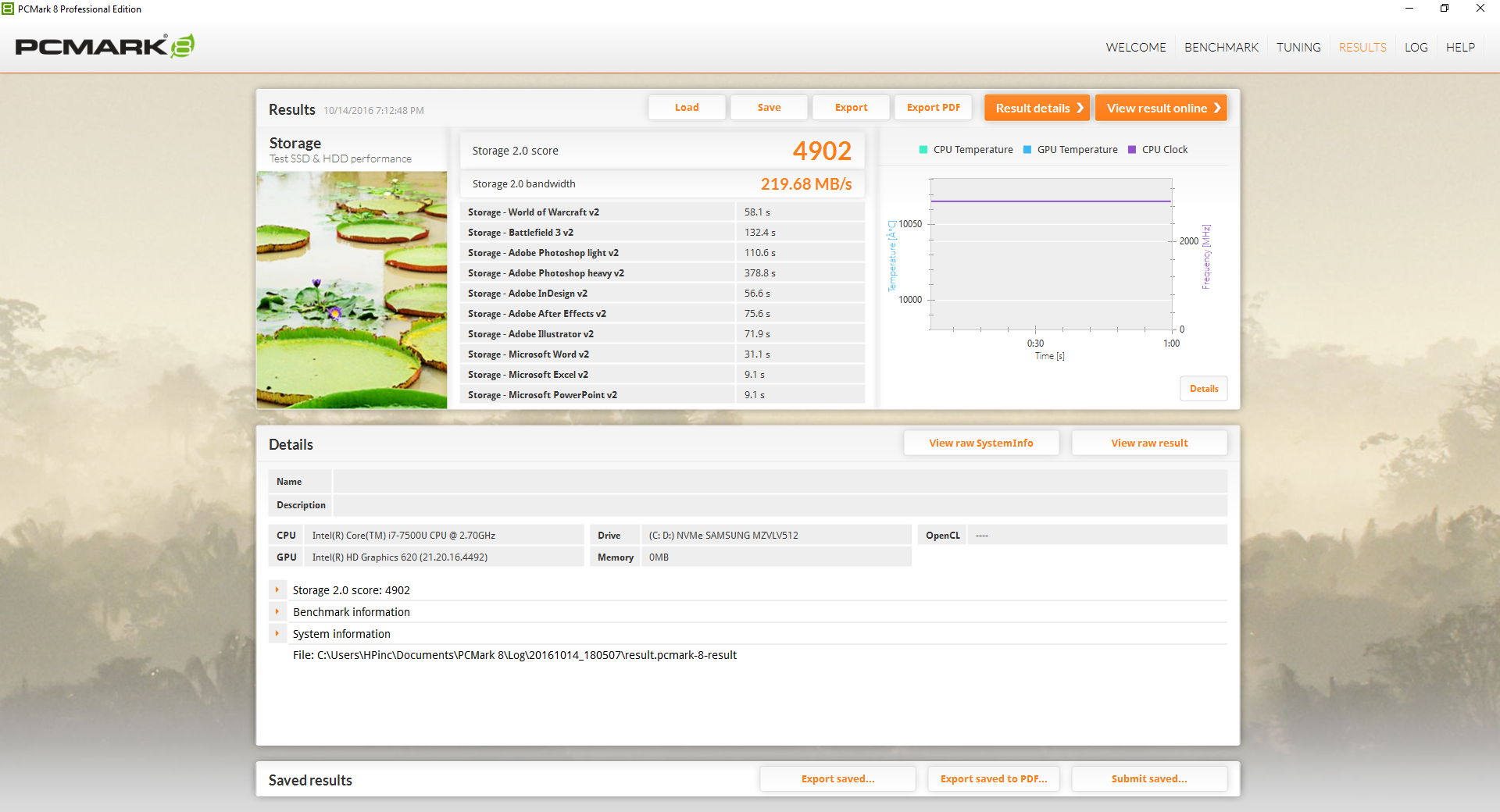

PCMark 8 Storage
PCMark 8 Storage
HP Spectre x360 13-w023dx
Samsung PM951 NVMe MZVLV512
Dell XPS 13 9360 QHD+ i5
Toshiba NVMe THNSN5256GPUK
Lenovo Yoga 900-13ISK 80MK
Samsung SSD PM871 MZNLN512HCJH
Asus Zenbook UX360UA-C4159T
SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
Acer Aspire S 13 S5-371-71QZ
LiteOn CV1-8B512
CrystalDiskMark 3.0
-12%
-38%
-41%
-41%
Read Seq
1376
1168
-15%
514
-63%
452.1
-67%
502
-64%
Write Seq
571
329
-42%
459.5
-20%
421.3
-26%
418.9
-27%
Read 512
679
1015
49%
413.4
-39%
288.6
-57%
341.3
-50%
Write 512
571
307
-46%
424.5
-26%
310.7
-46%
389.7
-32%
Read 4k
42.66
33
-23%
36.34
-15%
28.52
-33%
29.69
-30%
Write 4k
137.9
132
-4%
100.1
-27%
72.1
-48%
86.8
-37%
Read 4k QD32
535
525
-2%
313.8
-41%
389.6
-27%
301.3
-44%
Write 4k QD32
361.2
325
-10%
96.8
-73%
285.3
-21%
211.2
-42%

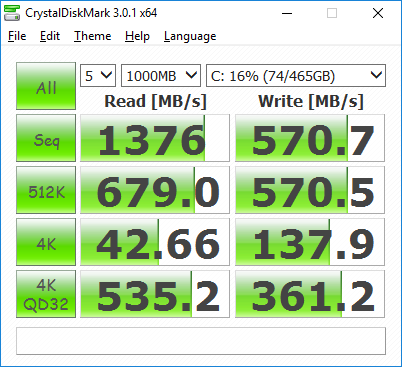

Samsung PM951 NVMe MZVLV512
Sequential Read: 1376 MB/s
Sequential Write: 571 MB/s
512K Read: 679 MB/s
512K Write: 571 MB/s
4K Read: 42.66 MB/s
4K Write: 137.9 MB/s
4K QD32 Read: 535 MB/s
4K QD32 Write: 361.2 MB/s

GPU Performance

The integrated HD Graphics 620 is about 20 to 30 percent faster than the outgoing HD Graphics 520 according to 3DMark benchmarks and about 80 percent faster than the HD Graphics 4400 found on older Haswell notebooks. We wouldn't consider the jump in performance to be revolutionary, but it's measurable nonetheless. The previous generation of integrated Iris GPUs still hold a commanding lead over the HD Graphics 620 and, by extension, so do the entry-level Nvidia Maxwell GPUs.

Our MSI CX72 reference with the same i7-7500U is again ahead of our Spectre in raw GPU power by about 15 percent in 3DMark benchmarks.

See our dedicated GPU page on the HD Graphics 620 for more technical information and benchmark comparisons.

3DMark 11
3DMark 11

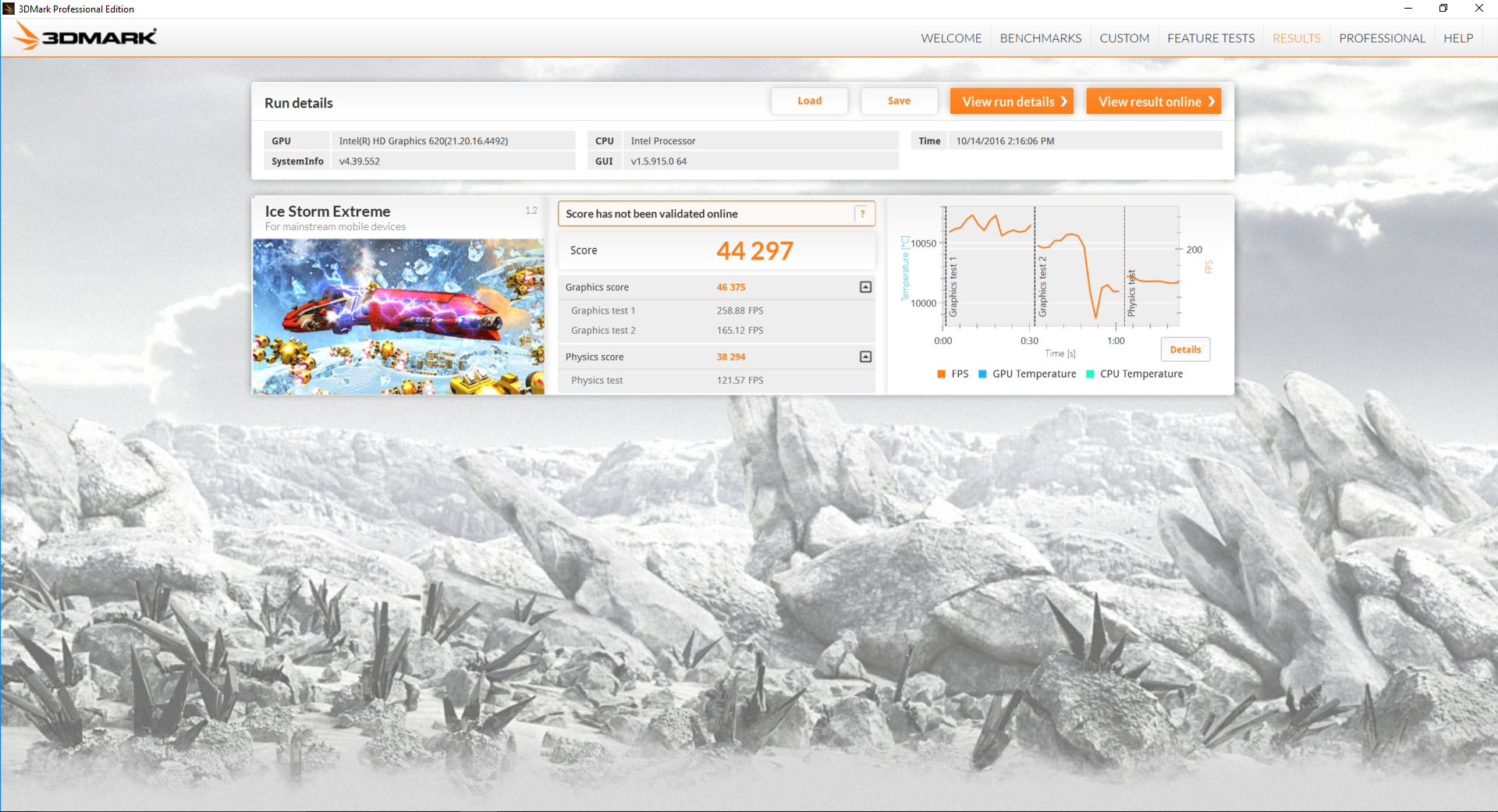

Ice Storm Extreme
Ice Storm Extreme

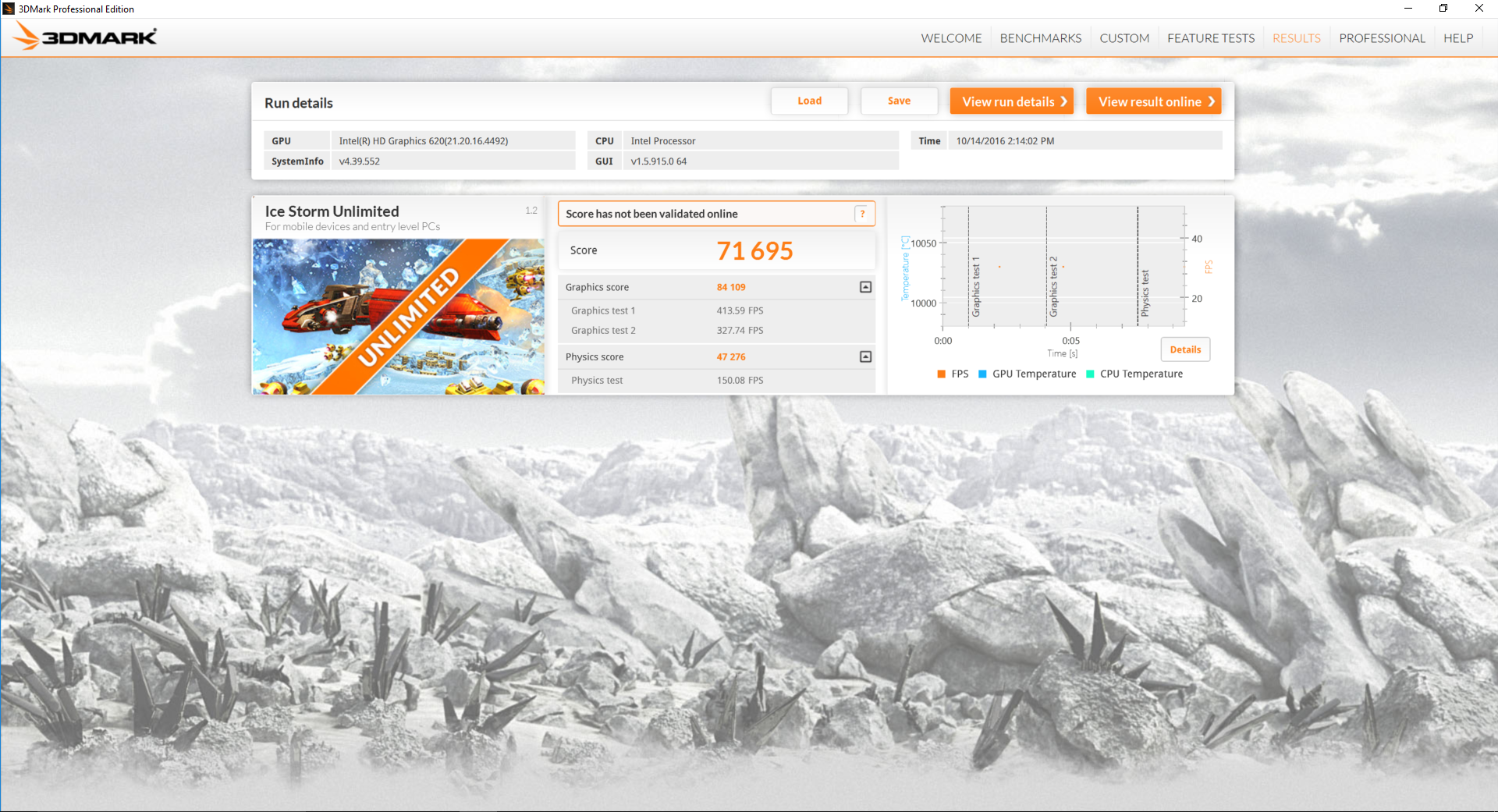

Ice Storm Unlimited
Ice Storm Unlimited

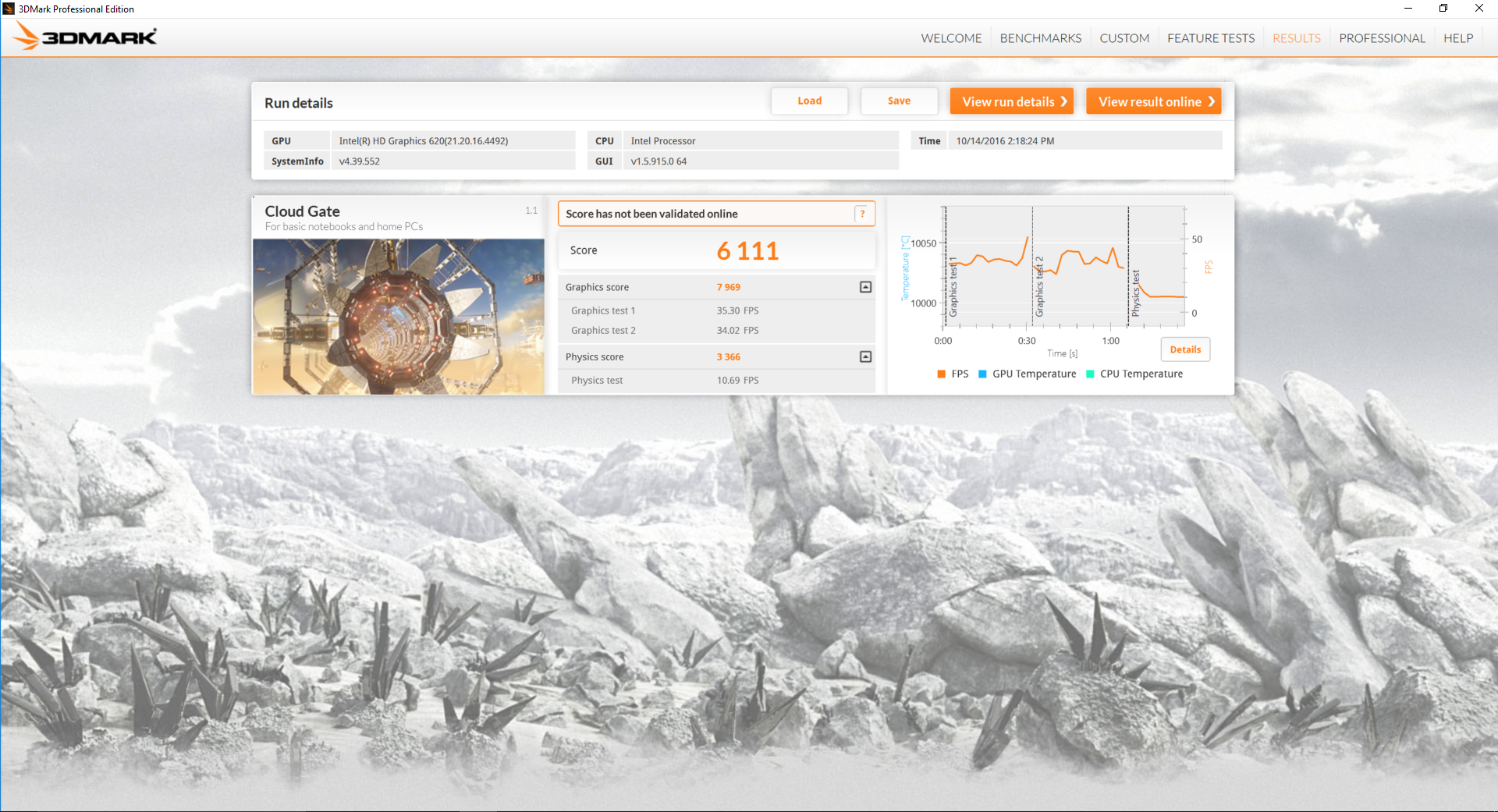

Cloud Gate
Cloud Gate

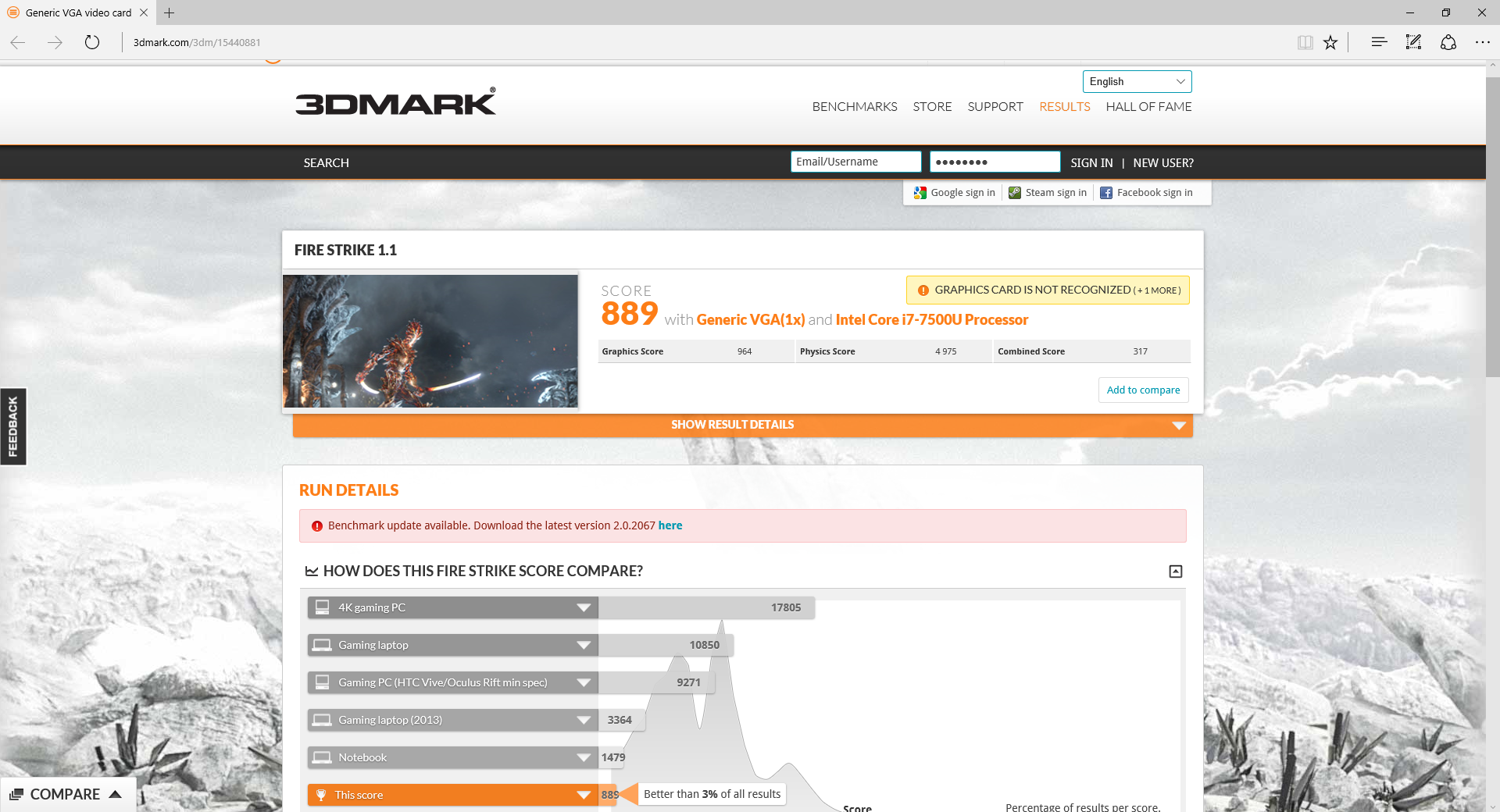

Fire Strike
Fire Strike
Fire Strike Extreme
Fire Strike Extreme
3DMark
1280x720 Cloud Gate Standard Graphics
Acer Aspire E5-574-53YZ
Intel Iris Graphics 550, 6267U
11093 Points +39%
MSI CX72-7QL
Intel HD Graphics 620, i7-7500U
9332 Points +17%
HP Spectre x360 13-w023dx
Intel HD Graphics 620, i7-7500U
7969 Points
Acer TravelMate P257-M-56AX
Intel HD Graphics 5500, 5200U
6590 Points -17%
HP ProBook 640 G2-T9X60ET
Intel HD Graphics 520, 6200U
6426 Points -19%
HP EliteBook 840 G3 T8X41EA
Intel HD Graphics 520, 6600U
6122 Points -23%
Toshiba Portege Z30t-B1320W10
Intel HD Graphics 5500, 5600U
5721 Points -28%
Sony Vaio SVF14N13CXB
Intel HD Graphics 4400, 4200U
4500 Points -44%
1920x1080 Fire Strike Graphics
MSI CX72-7QL
Intel HD Graphics 620, i7-7500U
1128 Points +17%
Acer Aspire E5-574-53YZ
Intel Iris Graphics 550, 6267U
1114 Points +16%
HP Spectre x360 13-w023dx
Intel HD Graphics 620, i7-7500U
964 Points
HP ProBook 640 G2-T9X60ET
Intel HD Graphics 520, 6200U
770 Points -20%
HP EliteBook 840 G3 T8X41EA
Intel HD Graphics 520, 6600U
749 Points -22%
Toshiba Portege Z30t-B1320W10
Intel HD Graphics 5500, 5600U
677 Points -30%
Sony Vaio SVF14N13CXB
Intel HD Graphics 4400, 4200U
535 Points -45%
3DMark 11
1280x720 Performance GPU
Acer Aspire E5-574-53YZ
Intel Iris Graphics 550, 6267U
2421 Points +55%
MSI CX72-7QL
Intel HD Graphics 620, i7-7500U
1668 Points +7%
HP Spectre x360 13-w023dx
Intel HD Graphics 620, i7-7500U
1560 Points
HP ProBook 640 G2-T9X60ET
Intel HD Graphics 520, 6200U
1376 Points -12%
HP EliteBook 840 G3 T8X41EA
Intel HD Graphics 520, 6600U
1268 Points -19%
Acer TravelMate P257-M-56AX
Intel HD Graphics 5500, 5200U
1147 Points -26%
Toshiba Portege Z30t-B1320W10
Intel HD Graphics 5500, 5600U
1110 Points -29%
Sony Vaio SVF14N13CXB
Intel HD Graphics 4400, 4200U
661 Points -58%
1280x720 Performance Combined
Acer Aspire E5-574-53YZ
Intel Iris Graphics 550, 6267U
2157 Points +44%
MSI CX72-7QL
Intel HD Graphics 620, i7-7500U
1765 Points +18%
HP Spectre x360 13-w023dx
Intel HD Graphics 620, i7-7500U
1498 Points
Acer TravelMate P257-M-56AX
Intel HD Graphics 5500, 5200U
1248 Points -17%
HP EliteBook 840 G3 T8X41EA
Intel HD Graphics 520, 6600U
1231 Points -18%
HP ProBook 640 G2-T9X60ET
Intel HD Graphics 520, 6200U
1220 Points -19%
Toshiba Portege Z30t-B1320W10
Intel HD Graphics 5500, 5600U
970 Points -35%
Sony Vaio SVF14N13CXB
Intel HD Graphics 4400, 4200U
206 Points -86%

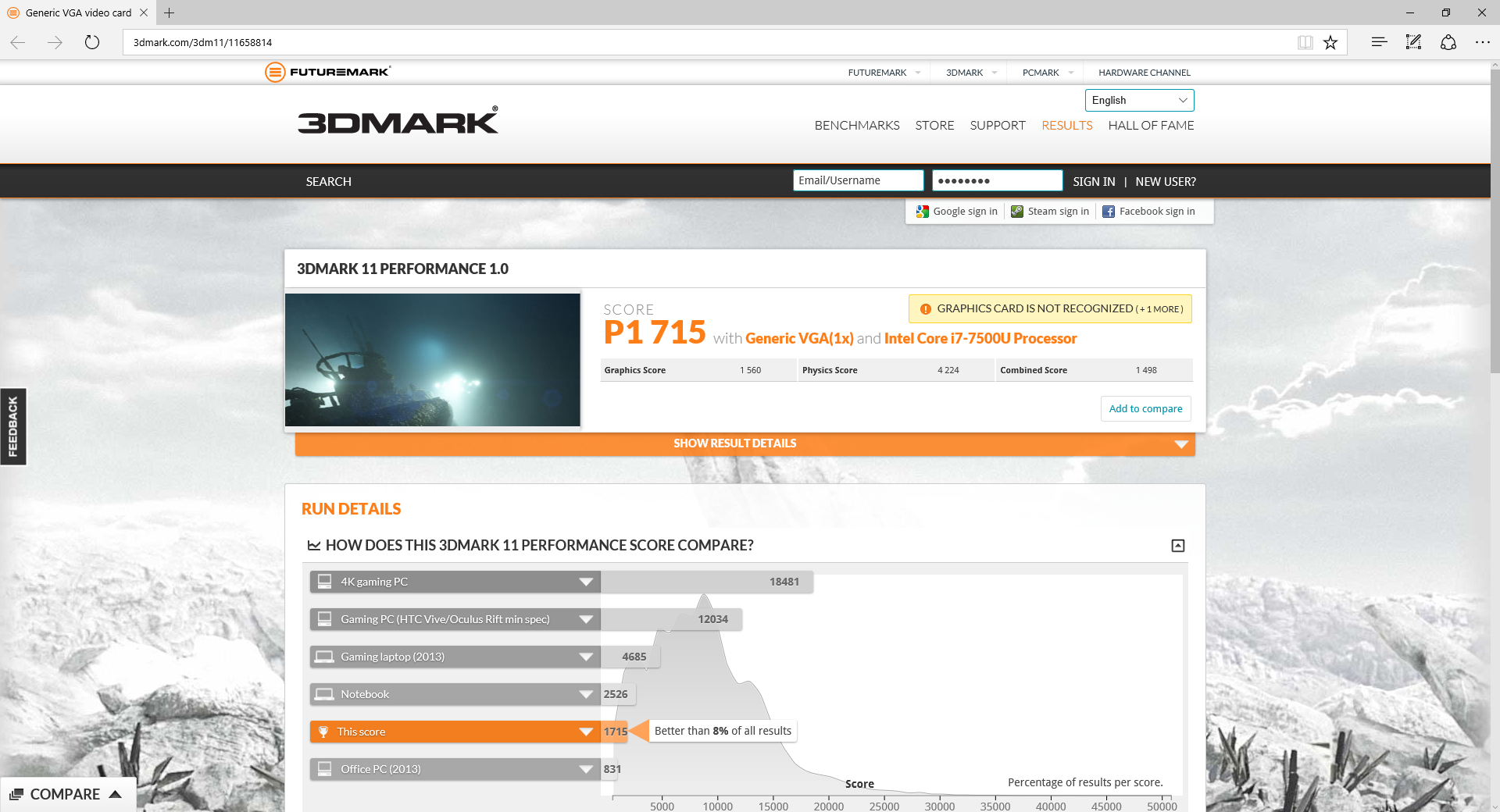

3DMark 11 Performance
1715 points
3DMark Ice Storm Standard Score
61863 points
3DMark Cloud Gate Standard Score
6111 points
3DMark Fire Strike Score
889 points
3DMark Fire Strike Extreme Score
395 points
Help

Gaming Performance

The performance boost over the previous generation HD Graphics 520 or even the HD Graphics 5500 is still not significant enough to be able to play the latest titles on anything more than Low to Medium settings at 720p. Titles like Bioshock Infinite reveal that both the Iris series and entry-level Nvidia GPUs can significantly outperform the HD Graphics 620. Undemanding titles like DOTA 2 or LoL will see more tangible benefits from the Kaby Lake iGPU.

BioShock Infinite
1280x720 Very Low Preset
Acer TravelMate P278-MG-76L2
GeForce 940M, 6500U, Lite-On CV1-8B256
89.9 (18.04min - 142.19max) fps +68%
Acer Aspire E5-574-53YZ
Iris Graphics 550, 6267U, Toshiba MQ02ABD100H
74.2 fps +39%
MSI CX72-7QL
HD Graphics 620, i7-7500U
67.8 fps +27%
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
53.5 fps
Lenovo ThinkPad Yoga 12 20DK002EPB
HD Graphics 5500, 5600U, Samsung SSD PM871 MZ7LN256HCHP
45.1 fps -16%
HP ProBook 650 G2 V1A44ET
HD Graphics 520, 6200U, Sandisk X300 SD7SN6S-256G-1006
38.3 fps -28%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE)
HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO
31.49 fps -41%
Fujitsu Lifebook T904
HD Graphics 4400, 4600U, Toshiba HG5d THNSNH256GCST
27.68 fps -48%
1366x768 Medium Preset
Acer TravelMate P278-MG-76L2
GeForce 940M, 6500U, Lite-On CV1-8B256
50.9 (8.09min - 109.73max) fps +66%
Acer Aspire E5-574-53YZ
Iris Graphics 550, 6267U, Toshiba MQ02ABD100H
44.8 fps +46%
MSI CX72-7QL
HD Graphics 620, i7-7500U
36.6 fps +20%
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
30.6 fps
Lenovo ThinkPad Yoga 12 20DK002EPB
HD Graphics 5500, 5600U, Samsung SSD PM871 MZ7LN256HCHP
24.1 fps -21%
HP ProBook 650 G2 V1A44ET
HD Graphics 520, 6200U, Sandisk X300 SD7SN6S-256G-1006
21.7 fps -29%
Samsung ATIV Book 9 2014 (NP930X5J-K02DE)
HD Graphics 4400, 4200U, Samsung MZNTE128HMGR-000SO
17.06 fps -44%
Fujitsu Lifebook T904
HD Graphics 4400, 4600U, Toshiba HG5d THNSNH256GCST
14.3 fps -53%
1366x768 High Preset
Acer TravelMate P278-MG-76L2
GeForce 940M, 6500U, Lite-On CV1-8B256
41.4 (5.93min - 76.29max) fps +59%
Acer Aspire E5-574-53YZ
Iris Graphics 550, 6267U, Toshiba MQ02ABD100H
38.2 fps +46%
MSI CX72-7QL
HD Graphics 620, i7-7500U
30.9 fps +18%
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
26.1 fps
Lenovo ThinkPad Yoga 12 20DK002EPB
HD Graphics 5500, 5600U, Samsung SSD PM871 MZ7LN256HCHP
19.9 fps -24%
HP ProBook 650 G2 V1A44ET
HD Graphics 520, 6200U, Sandisk X300 SD7SN6S-256G-1006
17.9 fps -31%
low med. high ultra
BioShock Infinite (2013) 53.5 30.6 26.1 8.3
Metro: Last Light (2013) 27.9 23.6 15 7.2
Rise of the Tomb Raider (2016) 20.8 12.6
Overwatch (2016) 48 34.1 19.9

Stress Test

We stress the notebook with unrealistic maximum loads to identify for any throttling or stability issues. Users can expect the processor to be able to maintain its base clock rate of 2.7 GHz when under Prime95, so any Turbo Boost benefits will be short-lived. This also falls in line with our lower-than-expected CineBench results for the i7-7500U in the Spectre compared to other systems equipped with the same CPU. Both the CPU and GPU will throttle down to just 997 MHz and 598 MHz, respectively, when under simultaneous Prime95 and FurMark stress. Core temperature appears to peak at around 88 C before Turbo Boost and clock rate ceilings are automatically lowered.

Running Unigine Valley to represent medium or gaming loads will result in a stable core temperature of about 72 C, which is relatively low for a thin notebook under load. Running on battery power will not significantly throttle CPU or GPU performance. A 3DMark 11 run on batteries returns Physics and Graphics scores of 4166 and 1485 points, respectively, compared to 4224 and 1560 points when connected to mains.

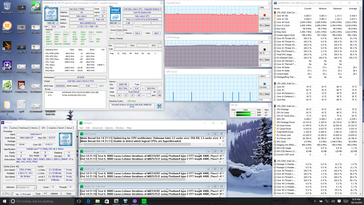

Prime95 stress
Prime95 stress

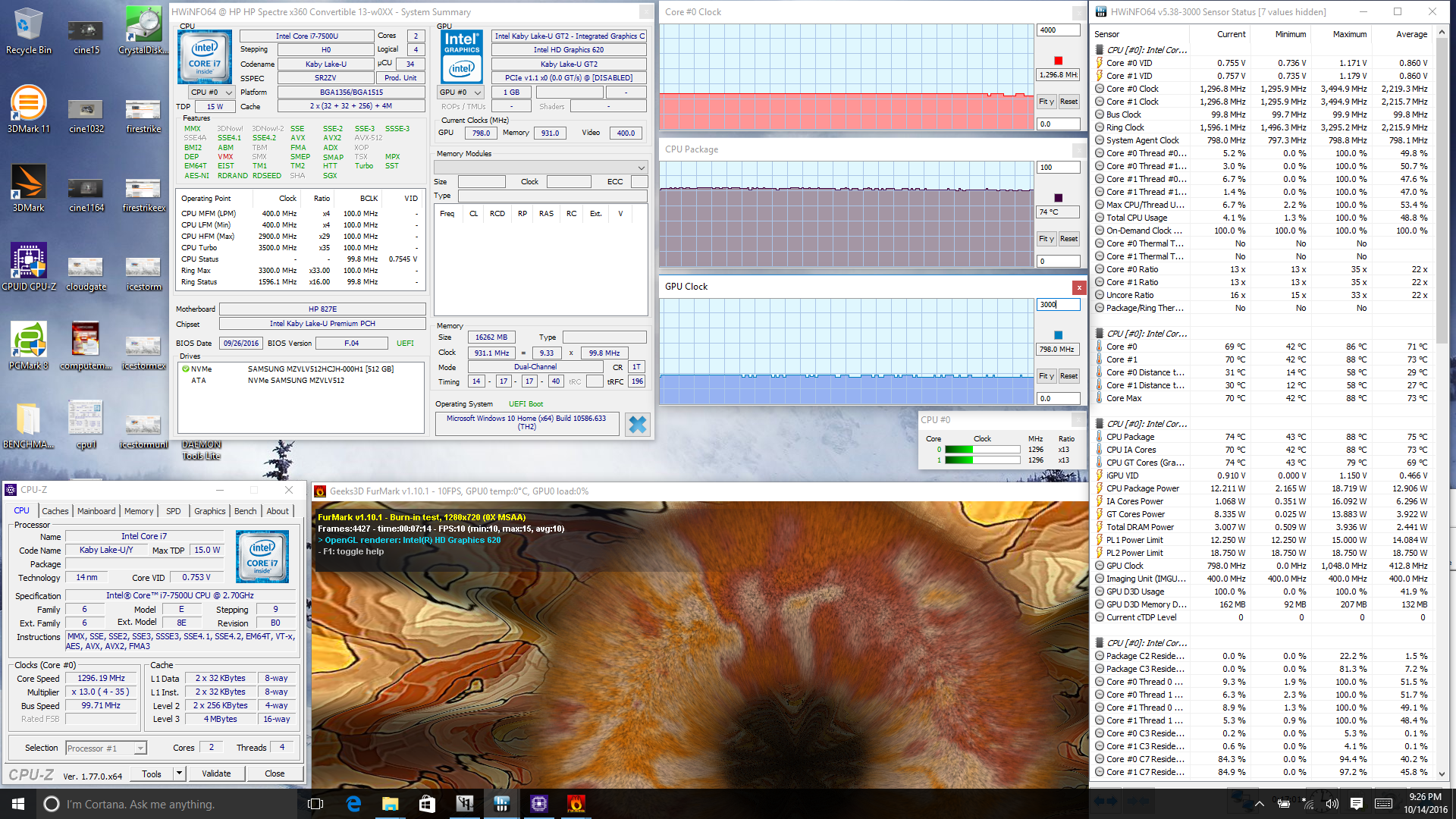

FurMark stress
FurMark stress

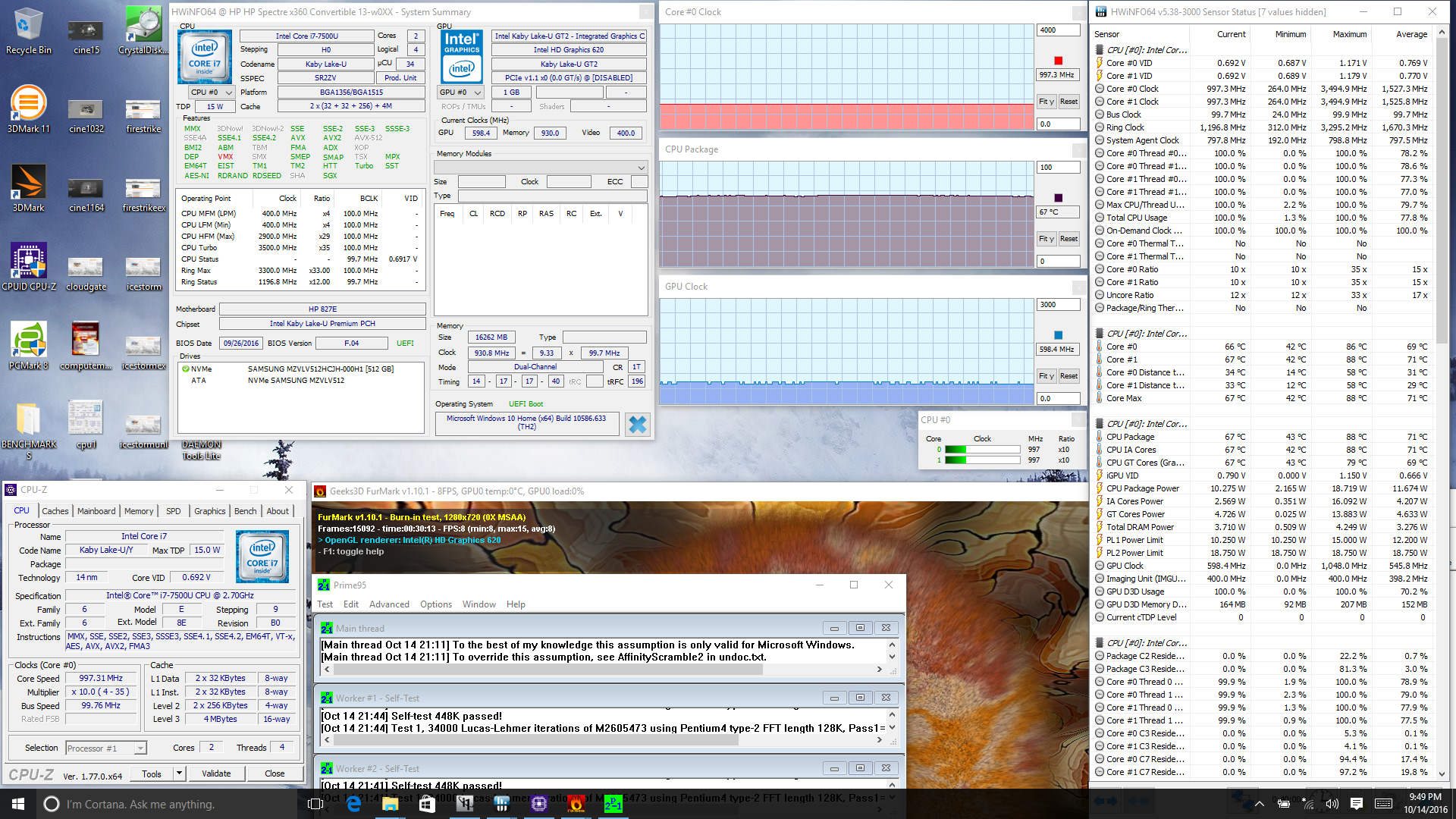

Prime95+FurMark stress
Prime95+FurMark stress

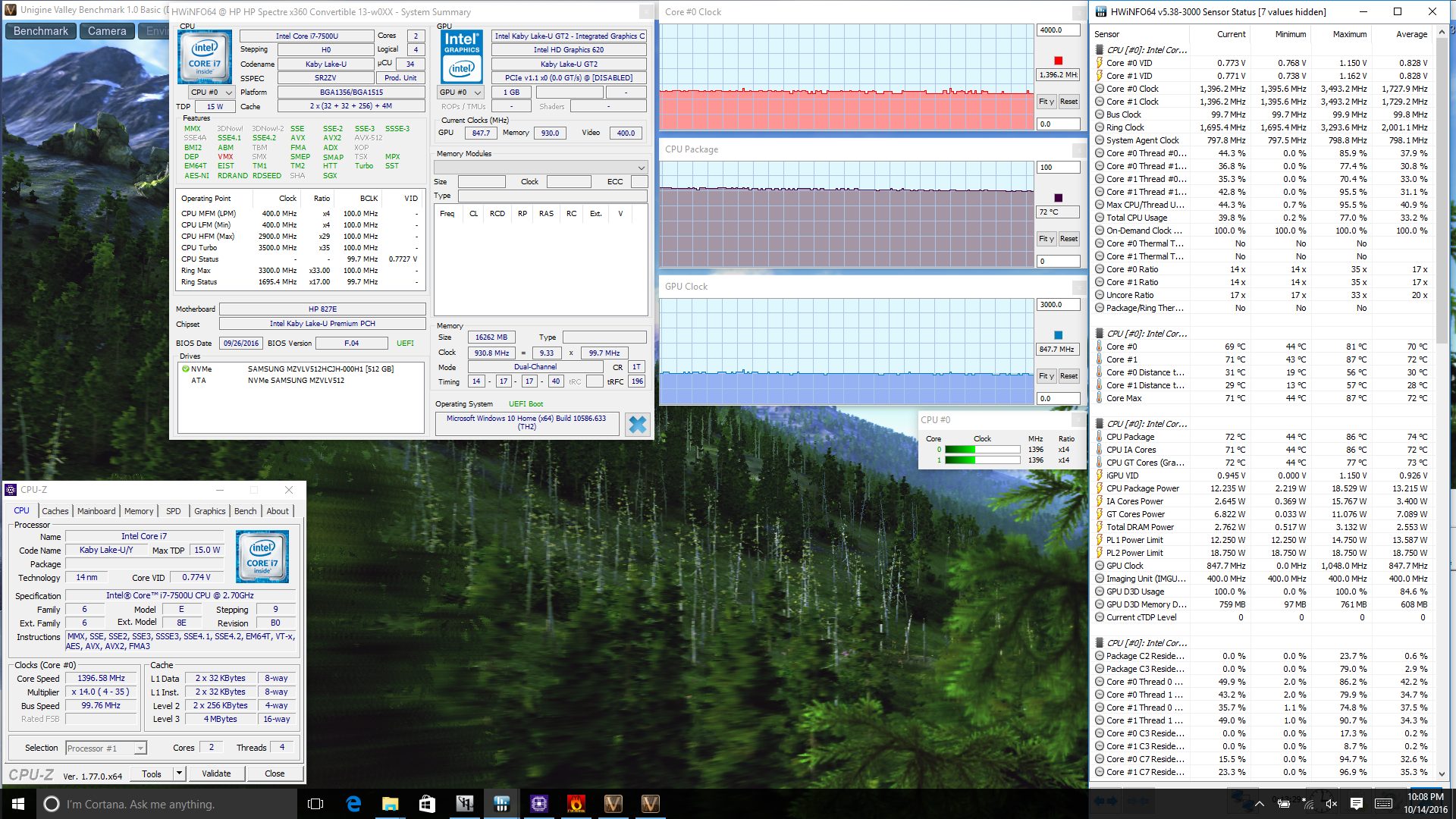

Unigine Valley stress
Unigine Valley stress
CPU Clock (GHz) GPU Clock (MHz) Average CPU Temperature (°C)
Prime95 Stress 2.7 -- 82
FurMark Stress -- 798 74
Prime95 + FurMark Stress 1.0 598 67
Unigine Valley Stress 1.4 848 72

Emissions

System Noise

The Spectre x360 13 utilizes two fans whereas most notebooks with ULV processors have just one. Fan noise is silent when word processing or browsing and will occasionally pulsate to an audible 31.2 to 32.5 dB(A) range under heavier loads. This luckily occurs infrequently, so fan noise was never bothersome during day-to-day use. When it does occur, however, the fans tend to maintain their higher RPMs for longer before powering down to quieter levels.

Gaming loads will bump fans to a steady 37.3 dB(A) to be louder than many of its competitors including the XPS 13 9360. Running both Prime95 and FurMark simultaneously will have the fans at their maximum 39.6 dB(A).

Primary ~40 mm system fan and copper heat sink
Primary ~40 mm system fan and copper heat sink
Secondary ~25 mm fan adjacent to WLAN and M.2 SSD
Secondary ~25 mm fan adjacent to WLAN and M.2 SSD
HP Spectre x360 13 (White: Background, Red: System idle, Blue: Unigine Valley, Green: Prime95+FurMark)
HP Spectre x360 13 (White: Background, Red: System idle, Blue: Unigine Valley, Green: Prime95+FurMark)
HP Spectre 13
HP Spectre 13
HP Spectre x360 15
HP Spectre x360 15

Noise Level

Idle
29.1 / 29.1 / 31.2 dB(A)
Load
37.3 / 39.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)   environment noise: 29.1 dB(A)
HP Spectre x360 13-w023dx
HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV512
Dell XPS 13 9360 QHD+ i5
HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK
HP Spectre 13
HD Graphics 520, 6500U, Samsung PM951 NVMe MZVLV256
Lenovo Yoga 900-13ISK 80MK
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH
Asus Zenbook UX360UA-C4159T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
Noise
0%
-2%
3%
-2%
-1%
off / environment *
29.1
30.3
-4%
28.5
2%
30.5
-5%
31.2
-7%
Idle Minimum *
29.1
30.6
-5%
28.5
2%
29.7
-2%
30.5
-5%
31.2
-7%
Idle Average *
29.1
30.6
-5%
30.9
-6%
29.8
-2%
32.1
-10%
31.2
-7%
Idle Maximum *
31.2
32.2
-3%
31.6
-1%
30
4%
32.3
-4%
31.5
-1%
Load Average *
37.3
32.2
14%
38.8
-4%
32
14%
36.1
3%
35.7
4%
Load Maximum *
39.6
38.5
3%
41.4
-5%
38.5
3%
36.1
9%
35.8
10%

* ... smaller is better

Temperature

Surface temperatures are relatively flat when idling. Common loads like web browsing or video playback will raise temperatures by a noticeable amount, but the hot spots are thankfully towards the rear of the notebook and away from the user's palms as shown by our thermographs below. At worst, we were able to measure a surface temperature of just over 48 C to be quite similar to the XPS 13 9360 and the Spectre 13. The system never becomes uncomfortable to use, though the hot spot will become more noticeable when holding onto the tablet in portrait mode.

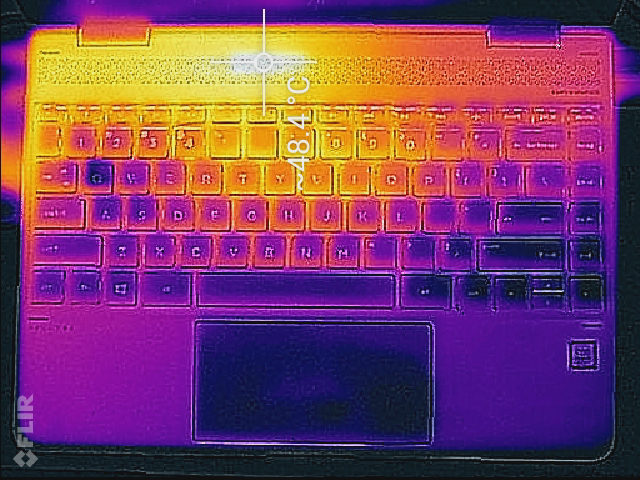

Maximum load (top)
Maximum load (top)

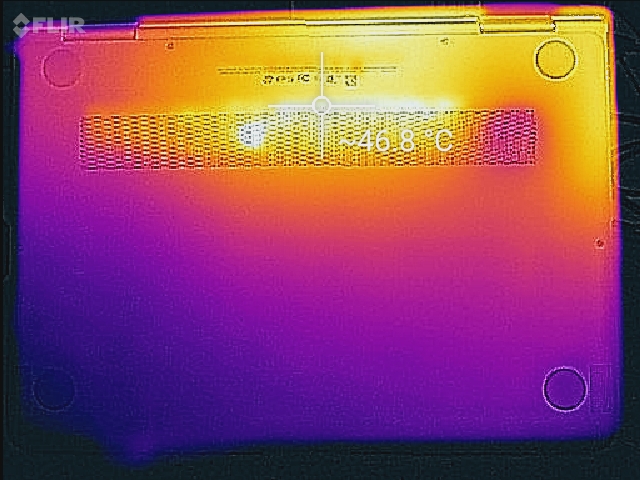

Maximum load (bottom)
Maximum load (bottom)
Max. Load
 44 °C
111 F
48.2 °C
119 F
35 °C
95 F

 34.8 °C
95 F
40.2 °C
104 F
30.4 °C
87 F

 33 °C
91 F
30.4 °C
87 F
31.2 °C
88 F

Maximum: 48.2 °C = 119 F
Average: 36.4 °C = 98 F
39.4 °C
103 F
46 °C
115 F
44 °C
111 F
35.4 °C
96 F
39.2 °C
103 F
39.2 °C
103 F
34 °C
93 F
35.6 °C
96 F
36.2 °C
97 F
Maximum: 46 °C = 115 F
Average: 38.8 °C = 102 F
Power Supply (max.)  42 °C = 108 F | Room Temperature 21 °C = 70 F | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 48.2 °C / 119 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.4 °C / 72 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33 °C / 91.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-4.9 °C / -8.8 F).

Speakers

Two of the four speakers on the front corners of the notebook
Two of the four speakers on the front corners of the notebook

The new quad speakers from Bang & Olufsen provide better sound than expected from a thin convertible. Volume is loud and relatively balanced as shown by our microphone measurements below with tangible reverberation on the palm rests when at 50 percent volume or above. Bass and overall quality are not as good as thicker notebooks like the Eurocom X7E2, but still more balanced than even the older 15-inch Spectre x360 15.

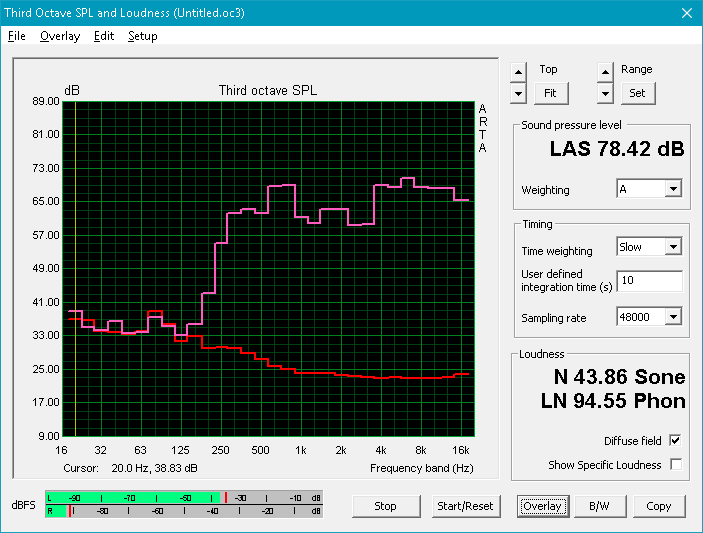

HP Spectre x360 13 (Red: System idle, Pink: Pink noise)
HP Spectre x360 13 (Red: System idle, Pink: Pink noise)
HP 250 G5
HP 250 G5
Eurocom X7E2
Eurocom X7E2
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.339.52536.838.13136.336.24034.733.95033.935.26333.335.38032.831.910032.2311253131.416029.435.820029.648.52502955.231528.657.44002859.850026.260.163025.660.28002561.6100024.367125024.570160024.466.9200023.864.5250023.757.7315023.757.3400023.560.2500023.562.4630023.663.5800023.964.9100002461.7125002462.11600025.166.3SPL36.676.2N2.837.2median 24.5median 60.2Delta1.35.535.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseHP Spectre x360 13-w023dxApple MacBook 12 (Early 2016) 1.1 GHz
HP Spectre x360 13-w023dx audio analysis

(±) | speaker loudness is average but good (76.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.9% difference to median)
Compared to same class
» 58% of all tested devices in this class were better, 7% similar, 34% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 58% of all tested devices were better, 7% similar, 36% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Frequency Comparison (Checkbox selectable!)
Graph 1: Pink Noise 100% Vol.; Graph 2: Audio off

Energy Management

Power Consumption

The HP convertible is about as energy efficient as competing 13-inch notebooks including those equipped with Skylake processors. We were able to measure a draw of about 5 W to 7 W when idling on desktop with no active windows. Gaming will draw about 33 W to 35 W, which is again similar to most 13-inch Skylake U-class notebooks.

The included small power adapter (~6.5 x 6.5 x 2.7 cm) is rated for up to 45 W with a 65 W option available at Best Buy retailers. The 45 W adapter is more than sufficient for our particular configuration. As for third-party Thunderbolt 3-based chargers, HP claims that the Spectre x360 13 will support them so long as they are certified chargers. The included 45 W adapter outputs 5 V/9 V at 3 A.

Power Consumption
Off / Standbydarklight 0.56 / 0.75 Watt
Idledarkmidlight 5.5 / 6.7 / 7.1 Watt
Load midlight 33.1 / 35.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
HP Spectre x360 13-w023dx
i7-7500U, HD Graphics 620, Samsung PM951 NVMe MZVLV512, IPS, 1920x1080, 13.30
Dell XPS 13 9360 QHD+ i5
i5-7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, , 3200x1800, 13.30
HP Spectre 13
6500U, HD Graphics 520, Samsung PM951 NVMe MZVLV256, IPS UWVA, 1920x1080, 13.30
Asus Zenbook UX360UA-C4159T
6500U, HD Graphics 520, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND), IPS, 1920x1080, 13.30
Acer Aspire S 13 S5-371-71QZ
6500U, HD Graphics 520, LiteOn CV1-8B512, IPS, 1920x1080, 13.30
Power Consumption
13%
-37%
-7%
6%
Idle Minimum *
5.5
3.7
33%
8.6
-56%
6.9
-25%
4.1
25%
Idle Average *
6.7
6.1
9%
11
-64%
7.9
-18%
6.7
-0%
Idle Maximum *
7.1
6.5
8%
11.3
-59%
8.3
-17%
7.4
-4%
Load Average *
33.1
29.5
11%
33.8
-2%
30.1
9%
32.4
2%
Load Maximum *
35.2
33
6%
36.2
-3%
29.6
16%
32.4
8%

* ... smaller is better

Battery Life

Runtimes on the Spectre x360 13 are incredibly long. Idling on desktop at the minimum brightness setting and on Power Saver mode will last well over 20 hours while more real-world WLAN conditions at a brightness setting of 150 nits will last for over 9 hours. This is significantly longer than most Skylake U-class notebooks including the Spectre 13. The long battery life can be attributed to both the Kaby Lake platform and the large non-removable 58 Wh battery.

Charging from near empty to full capacity will take a little less than 2.5 hours.

Battery Runtime
Idle (without WLAN, min brightness)
20h 33min
WiFi Websurfing
9h 18min
Load (maximum brightness)
2h 01min
HP Spectre x360 13-w023dx
i7-7500U, HD Graphics 620, 57.8 Wh
Dell XPS 13 9360 QHD+ i5
i5-7200U, HD Graphics 620, 60 Wh
HP Spectre 13
6500U, HD Graphics 520, 38 Wh
Lenovo Yoga 900-13ISK 80MK
6500U, HD Graphics 520, 66 Wh
Asus Zenbook UX360UA-C4159T
6500U, HD Graphics 520, 57 Wh
Acer Aspire S 13 S5-371-71QZ
6500U, HD Graphics 520, 45 Wh
Battery Runtime
4%
-39%
-18%
13%
-17%
Reader / Idle
1233
715
-42%
844
-32%
1165
-6%
1028
-17%
WiFi v1.3
558
526
-6%
338
-39%
403
-28%
581
4%
472
-15%
Load
121
137
13%
78
-36%
128
6%
169
40%
99
-18%

Pros

+ small dimensions; attractive design
+ 2x USB Type-C w/ Thunderbolt 3
+ relatively accessible internals
+ lightweight and portable
+ long battery life
+ fast NVMe SSD
+ wide clickpad
+ rigid chassis

Cons

- weak Turbo Boost potential; lower-than-average CPU and GPU performance from the i7-7500U
- no fingerprint reader, Kensington Lock, or SmartCard reader
- inaccurate grayscale and colors before calibration
- no display resolutions higher than 1080p
- system fans almost always active
- no SD reader, mDP, or HDMI ports
- uneven keyboard backlight

Verdict

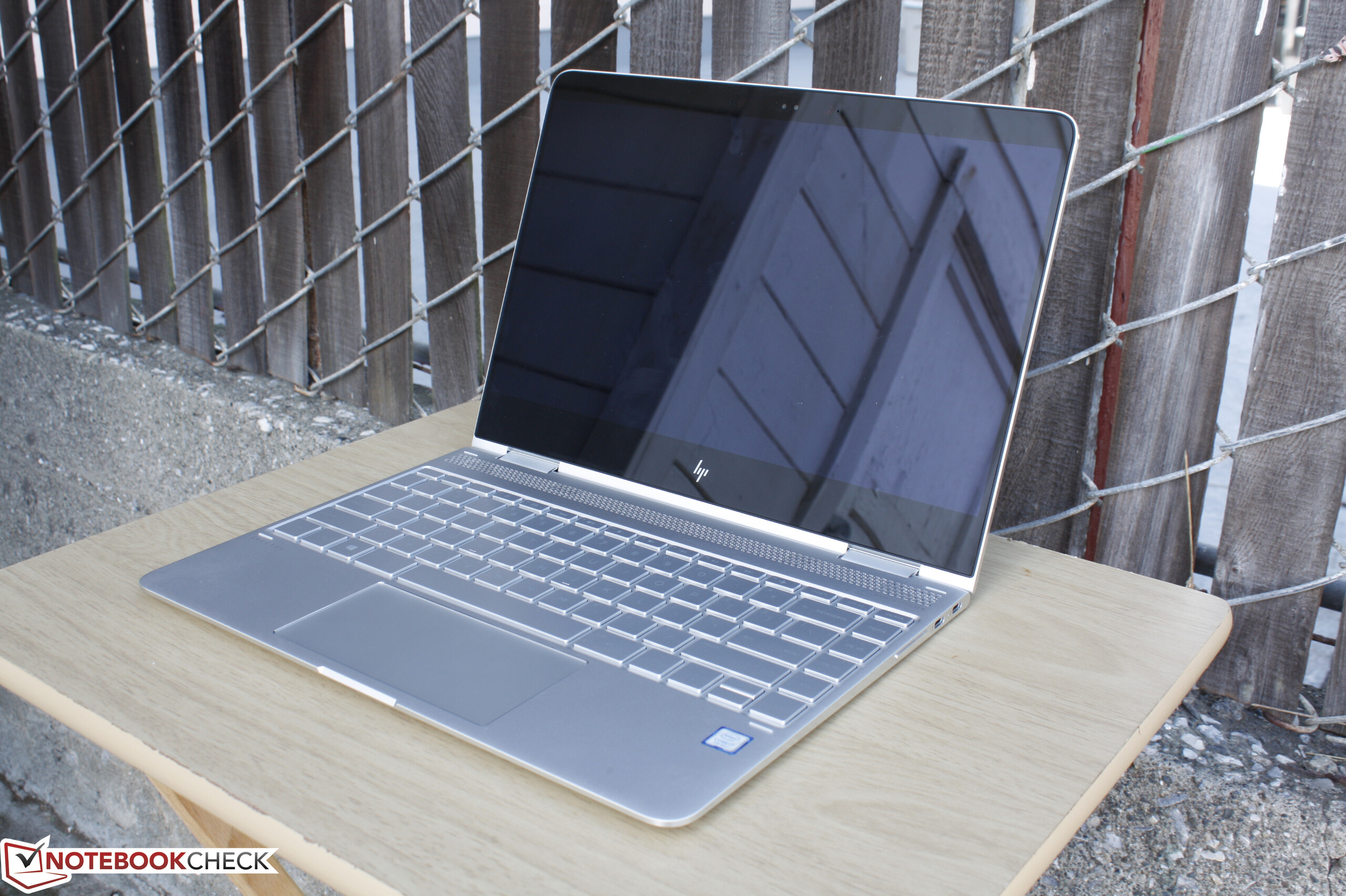

In review: HP Spectre x360 13-w023dx. Test model provided by HP US.
In review: HP Spectre x360 13-w023dx. Test model provided by HP US.

The Spectre x360 13 is the best Spectre 2-in-1 yet. Our biggest gripe with previous Spectre convertibles was that they were very bulky compared to the competition, but the narrower bezels have helped slimmed down both size and weight tremendously without any drastic consequences to quality or rigidity. In fact, the new design is the best aspect of the Spectre x360 13 more so than the Kaby Lake hardware update. Other advantages of the refresh are the longer runtimes, NVMe SSD, stronger integrated GPU performance, and 2x Thunderbolt 3 ports.

The extreme portability and versatility of the HP convertible come at the cost of features as even a MicroSD reader or some sort of included dongle for HDMI/VGA support would have been praised. The keyboard, while adequate, doesn't quite match up against the XPS 13 or Lenovo ThinkPad Yoga series in terms of feedback and travel. Its very weak Turbo Boost potential means processor performance is slower than expected out of the i7-7500U, so its full power is unfortunately not utilized on this system.

HP has taken a barebones approach with the new Spectre and we find this to be for the better considering that the convertible targets Ultrabook and MacBook Air users alike. We can't wait to see the manufacturer apply the same slim bezel concept to its existing Spectre x360 15 series.

The Spectre x360 13 is powerful enough to be a multimedia notebook while being lightweight and portable enough to act as an occasional Windows tablet. Its new smaller design allows the convertible to be the best of both worlds more fittingly than the current competition.

HP Spectre x360 13-w023dx - 10/20/2016 v5.1(old)
Allen Ngo

Chassis
86 / 98 → 87%
Keyboard
88%
Pointing Device
89%
Connectivity
48 / 80 → 60%
Weight
72 / 35-78 → 86%
Battery
92%
Display
80%
Games Performance
58 / 68 → 85%
Application Performance
88 / 87 → 100%
Temperature
90%
Noise
90%
Audio
60 / 91 → 66%
Camera
66 / 85 → 77%
Average
77%
85%
Convertible - Weighted Average

Pricecompare

Read all 16 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > HP Spectre x360 13 w023dx Convertible Review
Allen Ngo, 2016-12-22 (Update: 2020-06- 8)
