Acer mini-PC review: Surprisingly powerful – until you look at the SSD

Name: Acer Revo Box RB102-LNL, Core Ultra 7 256V
Brand: Acer

Small, fast, and economical.

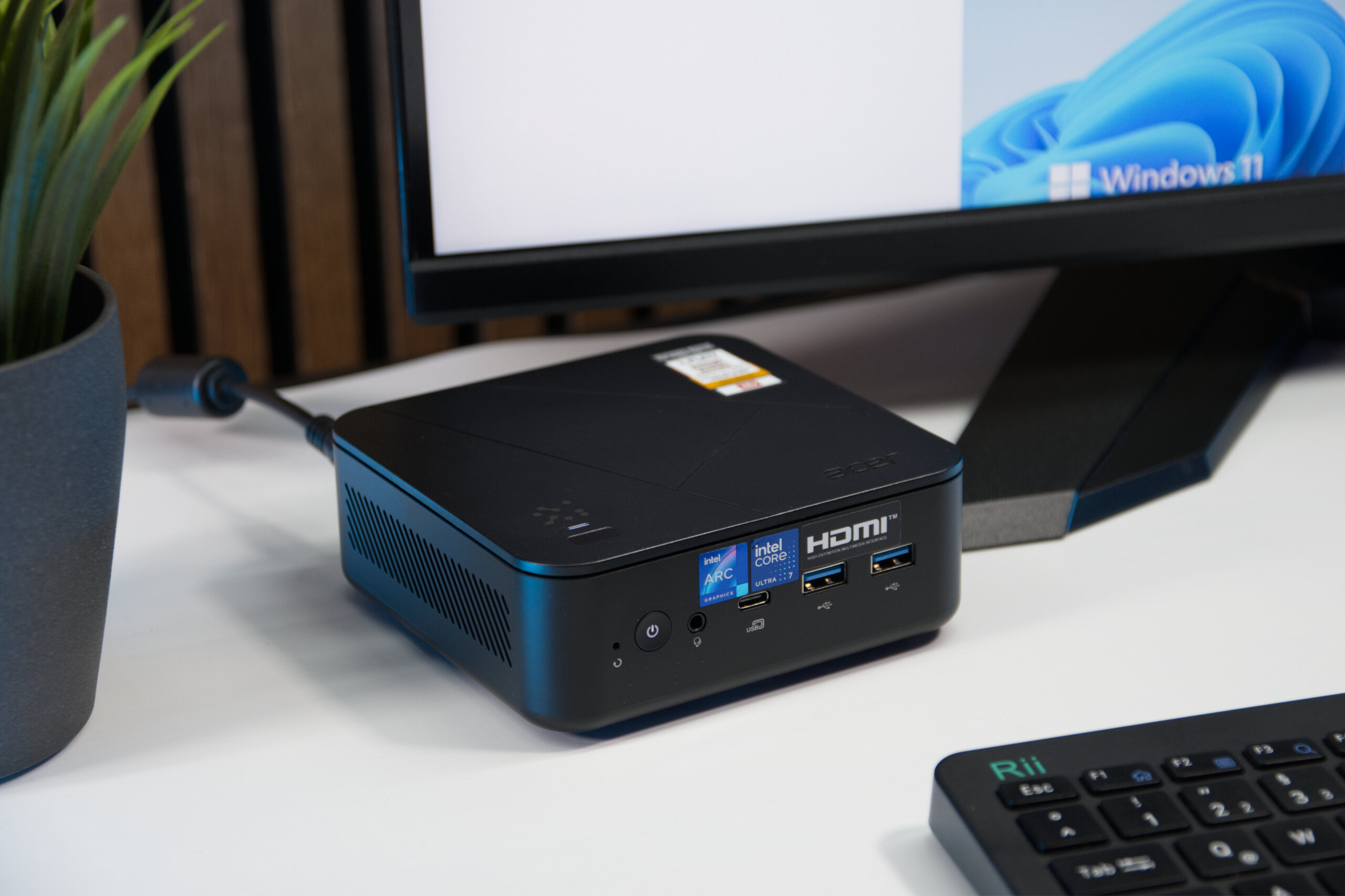

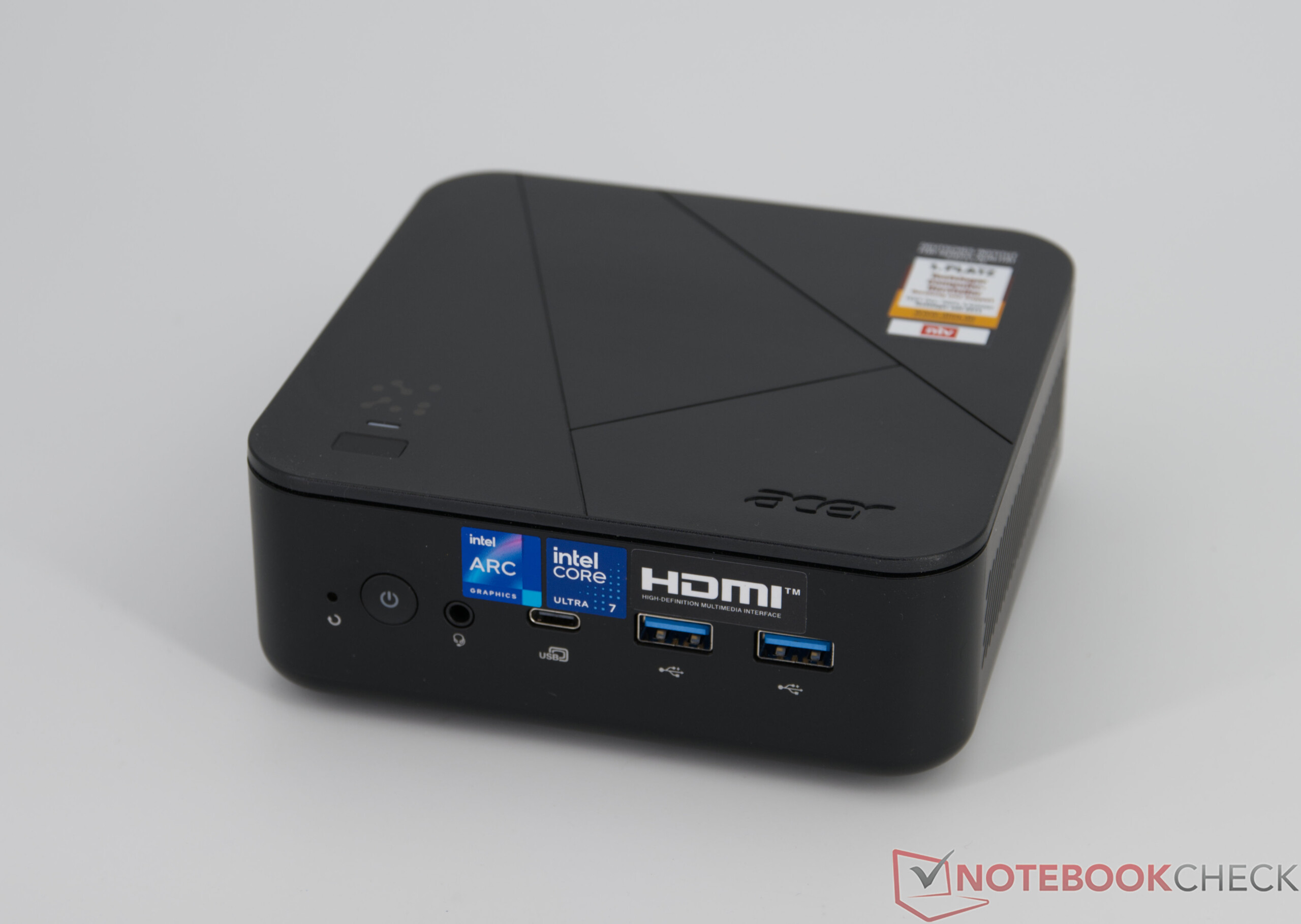

The Acer Revo Box RB102-LNL promises plenty of performance in a minimal space while operating quietly and efficiently. But how well does this compact mini-PC really perform? Our review highlights its strengths and weaknesses and reveals whether the Acer can hold its own against the competition.
Sebastian Bade 👁 (translated by Sebastian Bade) Published 09/08/2026 🇩🇪 🇳🇱 ...
Mini PC Lunar Lake Intel

Verfict – Compact, quiet, and efficient—with a few minor flaws

The Acer Revo Box RB102-LNL made a generally positive impression in our test and proved to be a versatile mini-PC for everyday use. The Intel Core Ultra 7 256V processor offers sufficient performance for office applications, multimedia, and more demanding multitasking. Thanks to the fast DDR5 RAM running at 8,533 MT/s, the system is also very responsive. Other positive features include low-power consumption and good thermal management. Even under prolonged load, performance remains stable, while noise levels remain pleasantly low.

In terms of design, the Acer mini PC offers several practical advantages. The compact plastic case allows for space-saving setup. Alternatively, the device can be mounted behind a monitor using a VESA mount. The selection of ports is versatile, while the ability to install a second SSD and swap out the Wi-Fi module has become standard on modern mini PCs.

Test device courtesy of Heinzsoft

Download your licensed rating image as PNG / SVG

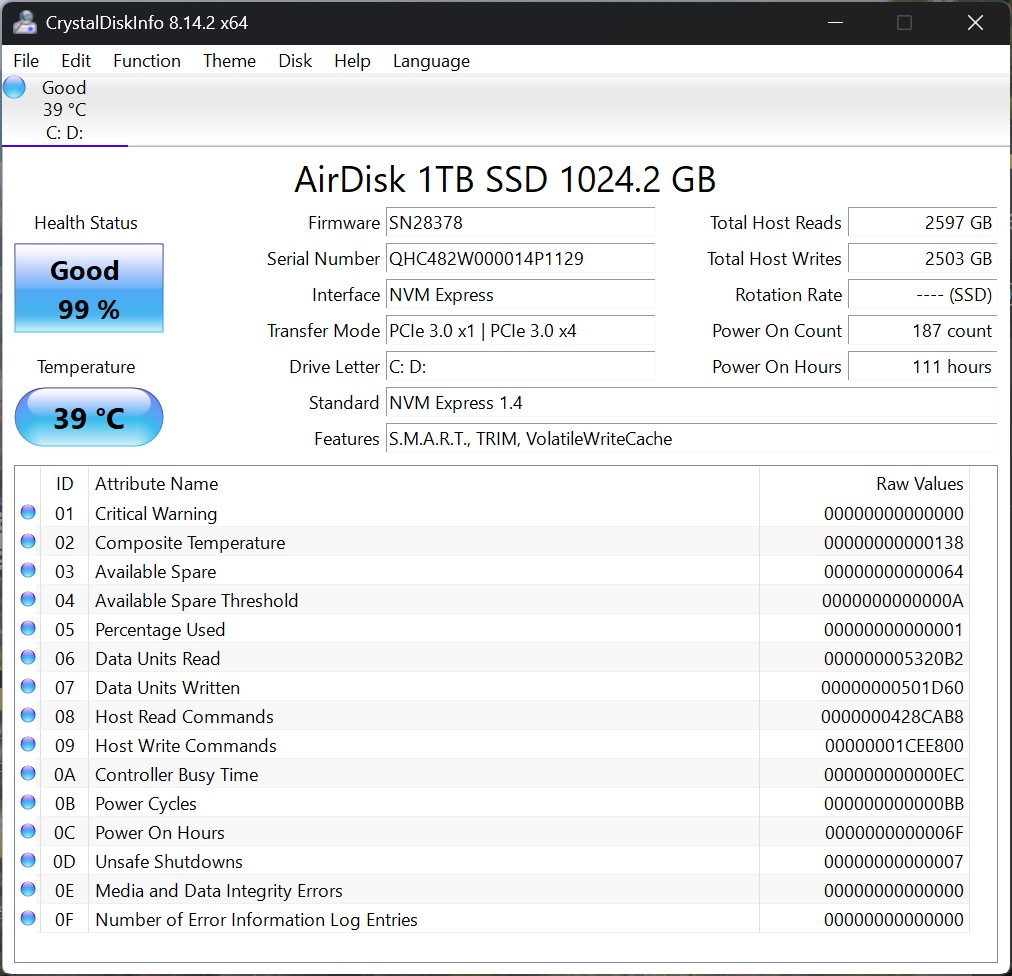

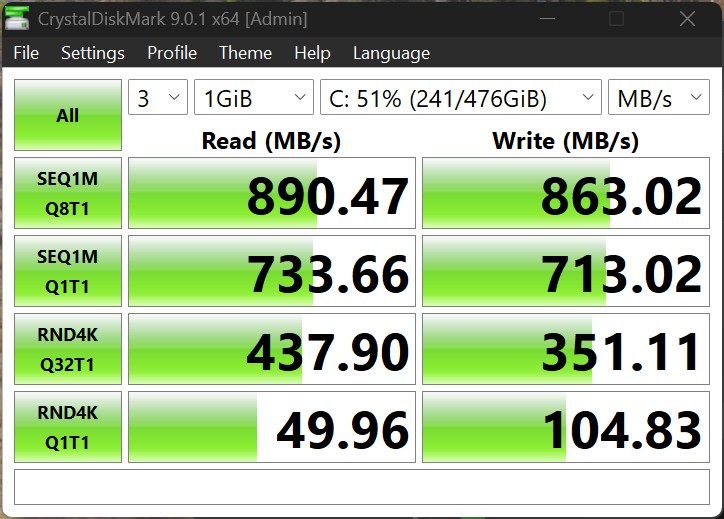

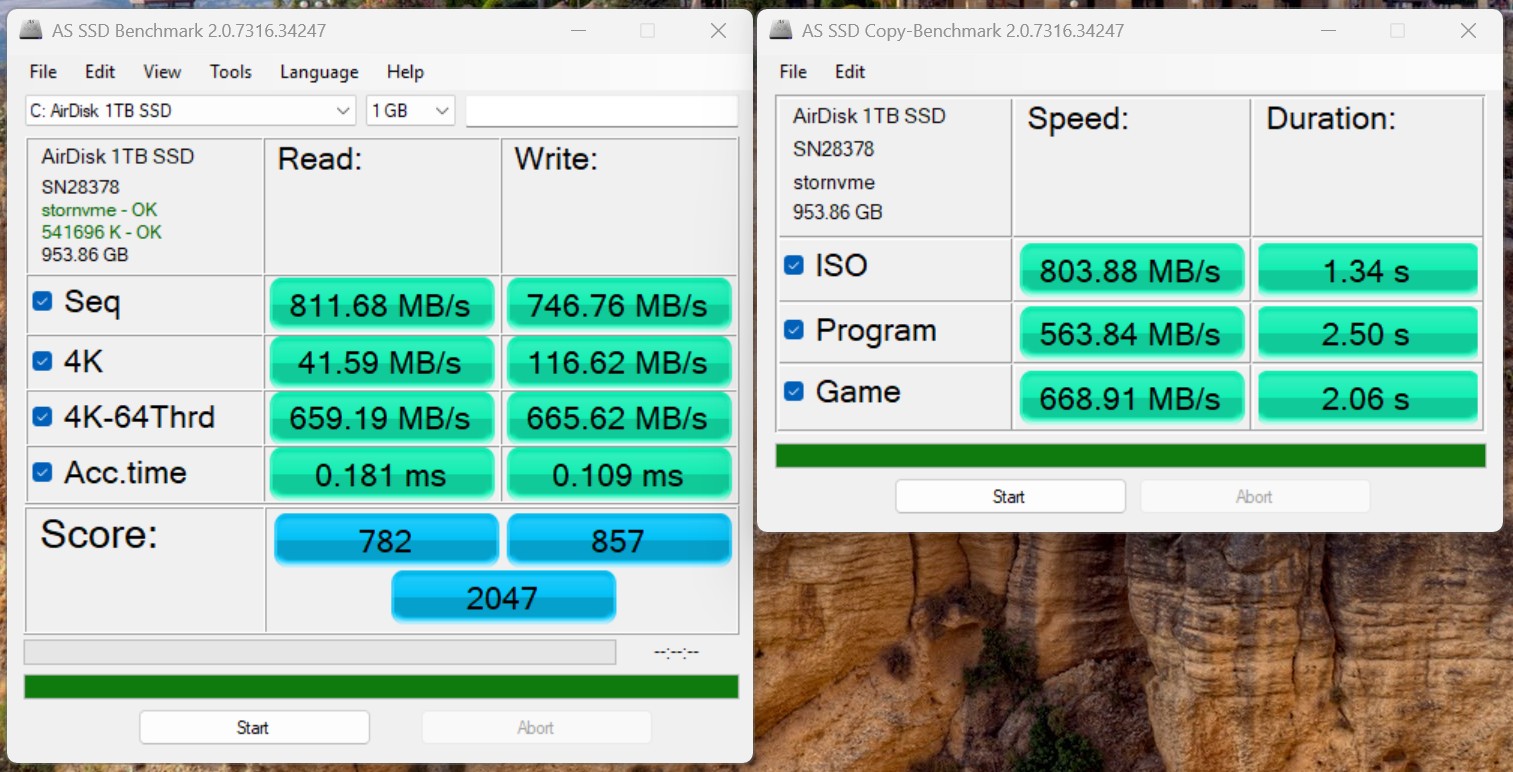

However, the Acer also has some weaknesses. In particular, the built-in SSD fails to impress in terms of transfer rates due to its PCIe 3.0 x1 connection and slows down the system compared to more modern competitors. Added to this is the soldered-in RAM, which makes future upgrades impossible. Anyone who needs more flexibility for future upgrades should take this into account.

Alternatives are available, particularly from AMD. Models with Ryzen processors offer higher graphics performance depending on the configuration and, in some cases, better options for memory expansion. The Acer, on the other hand, stands out with its combination of a compact design, low-power consumption, quiet operation, and balanced everyday performance. Those looking for exactly these features and who can live with the limitations regarding the SSD and RAM will find this to be a great mini-PC for office work, multimedia, and everyday use.

Pros

+ compact design and lightweight

+ everyday CPU performance

+ fast DDR5 RAM at 8,533 MT/s

+ quiet in idle mode and under load

+ Low power consumption, good efficiency

+ VESA mount

+ two SSDs can be installed

Cons

- RAM is soldered in place and not expandable

- SSD connected only via PCIe 3.0 x1

- plastic case does not look particularly high-quality

- DPC latencies

Price and Availability

The Acer Revo Box RB102-LNL is available in various configurations. The model we tested, featuring an Intel Core Ultra 7 256V, 16 GB LPDDR5X, and a 1-TB SSD, is currently listed starting at $899.

Amazon: No results found for your request.

Verfict – Compact, quiet, and efficient—with a few minor flaws
Specifications
Case & Connectivity
Performance
Emissions
Energy Management
Notebookcheck Rating
Comparison of Possible Alternatives

The Acer Revo Box RB102 is a compact mini-PC available in various configurations with AMD or Intel processors. In our review, we’ll be focusing on the mini-PC based on the Intel Core Ultra 7 256V with 16 GB of LPDDR5X RAM.

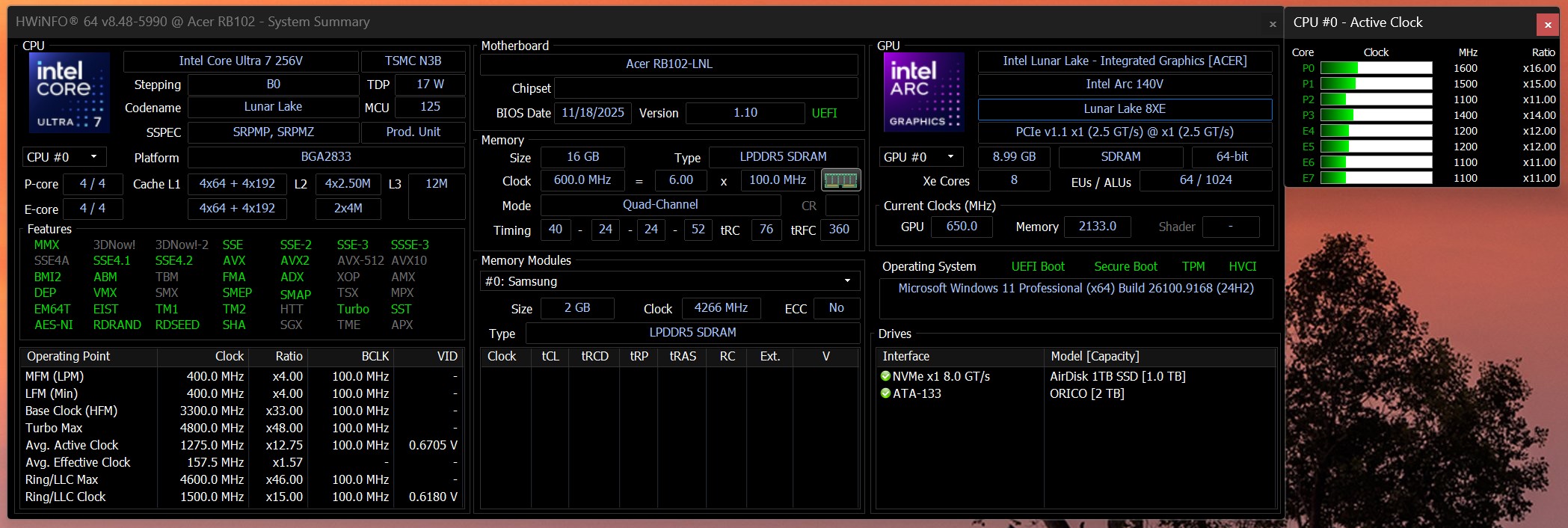

Specifications

Acer Revo Box RB102-LNL, Core Ultra 7 256V

Processor

Intel Core Ultra 7 256V 8c/8t, 4 x 4.8 GHz Intel Lion Cove P-Core, 4 x 3.7 GHz Intel Skymont E-Core, 37 W PL2 / Short Burst, 30 W PL1 / Sustained, Lunar Lake

Graphics adapter

Intel Arc Graphics 140V

Memory

16 MB

, LPDDR5X, 8.533 MT/s

Mainboard

Intel Lunar Lake PCH

Storage

AirDisk APF 10-001T, 1024 GB

, 870 GB free

Soundcard

Intel Lunar Lake SOC - cAVS (Audio, Voice, Speech)

Connections

2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 USB4 40 Gbps, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5mm Combo, 1 Fingerprint Reader, 2. Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 43 x 131 x 131 ( = 1.69 x 5.16 x 5.16 in)

Operating System

Microsoft Windows 11 Pro

Additional features

24 Months Warranty

Weight

438 g ( = 15.45 oz / 0.97 pounds), Power Supply: 295 g ( = 10.41 oz / 0.65 pounds)

Links

Acer homepage
Acer notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

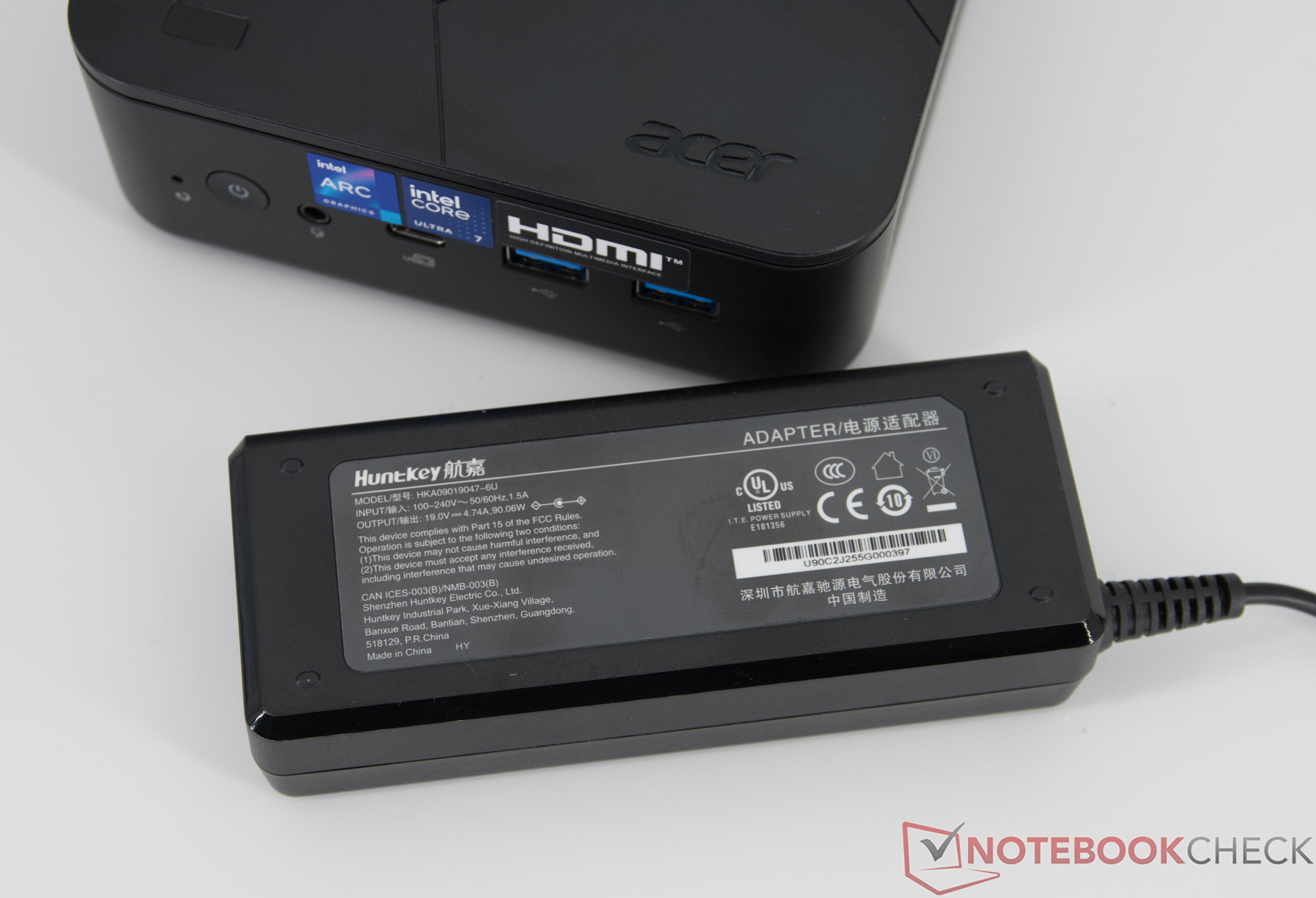

Acer Revo Box RB102-LNL with power adapter (19 V; 4.74 A)

Acer Revo Box RB102-LNL with power supply (19 V; 4.74 A)

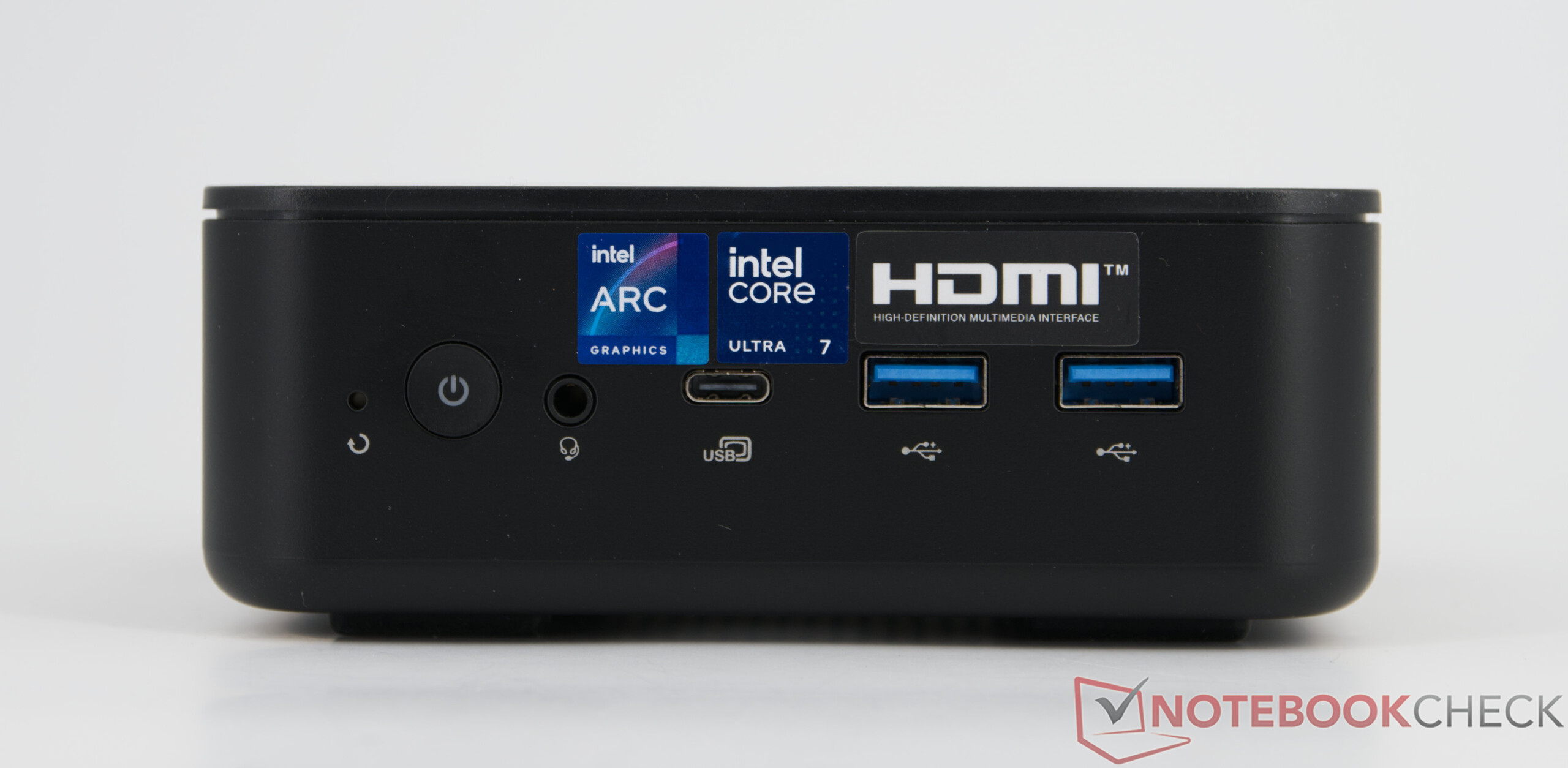

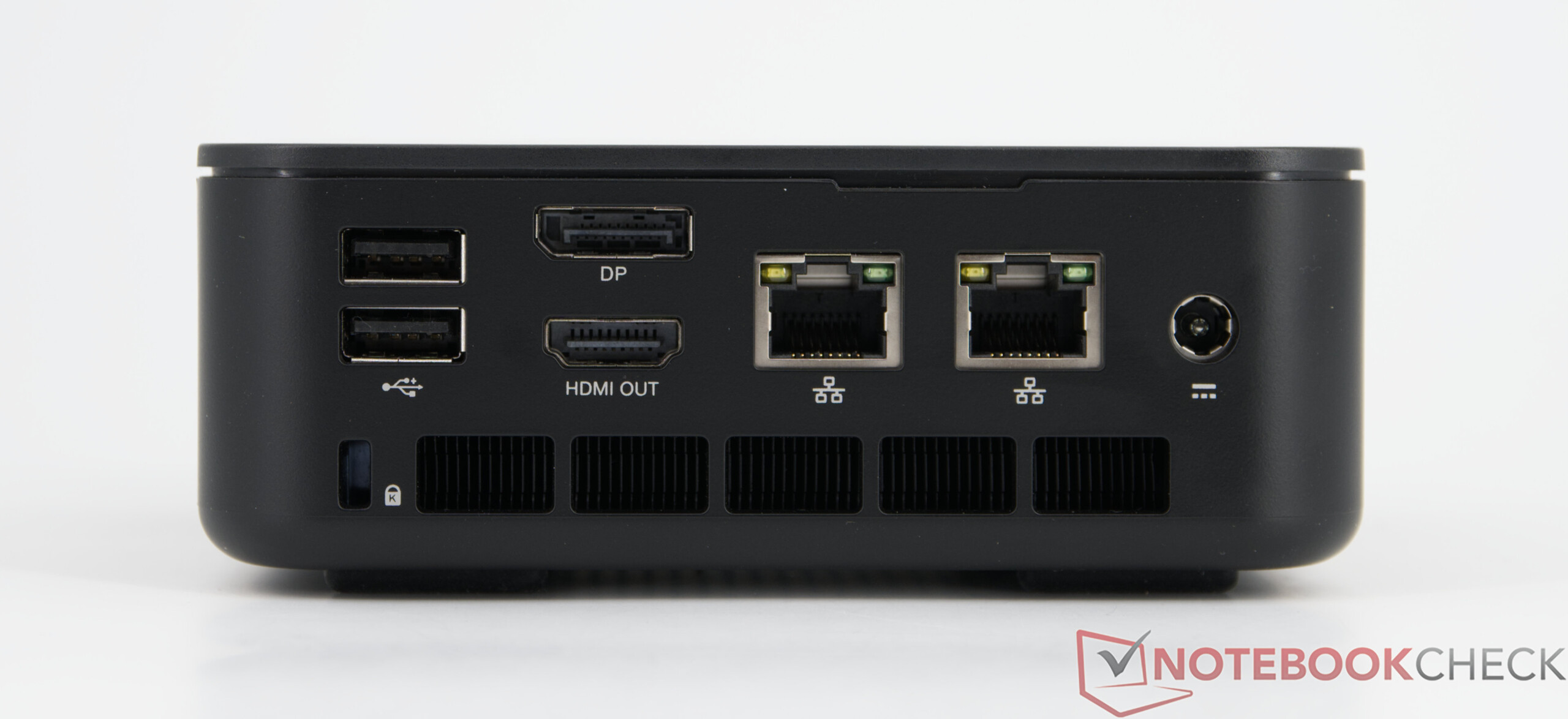

Case & Connectivity

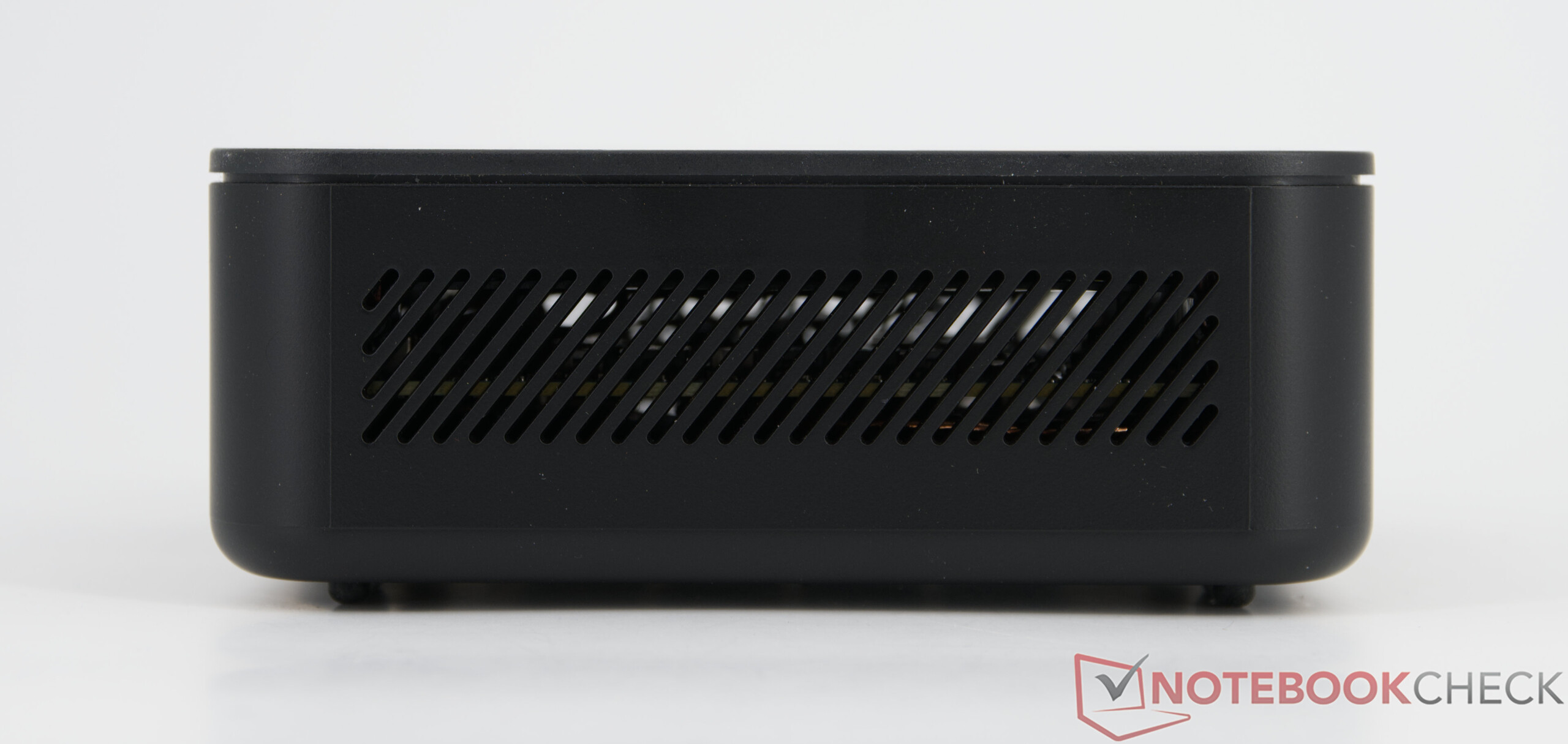

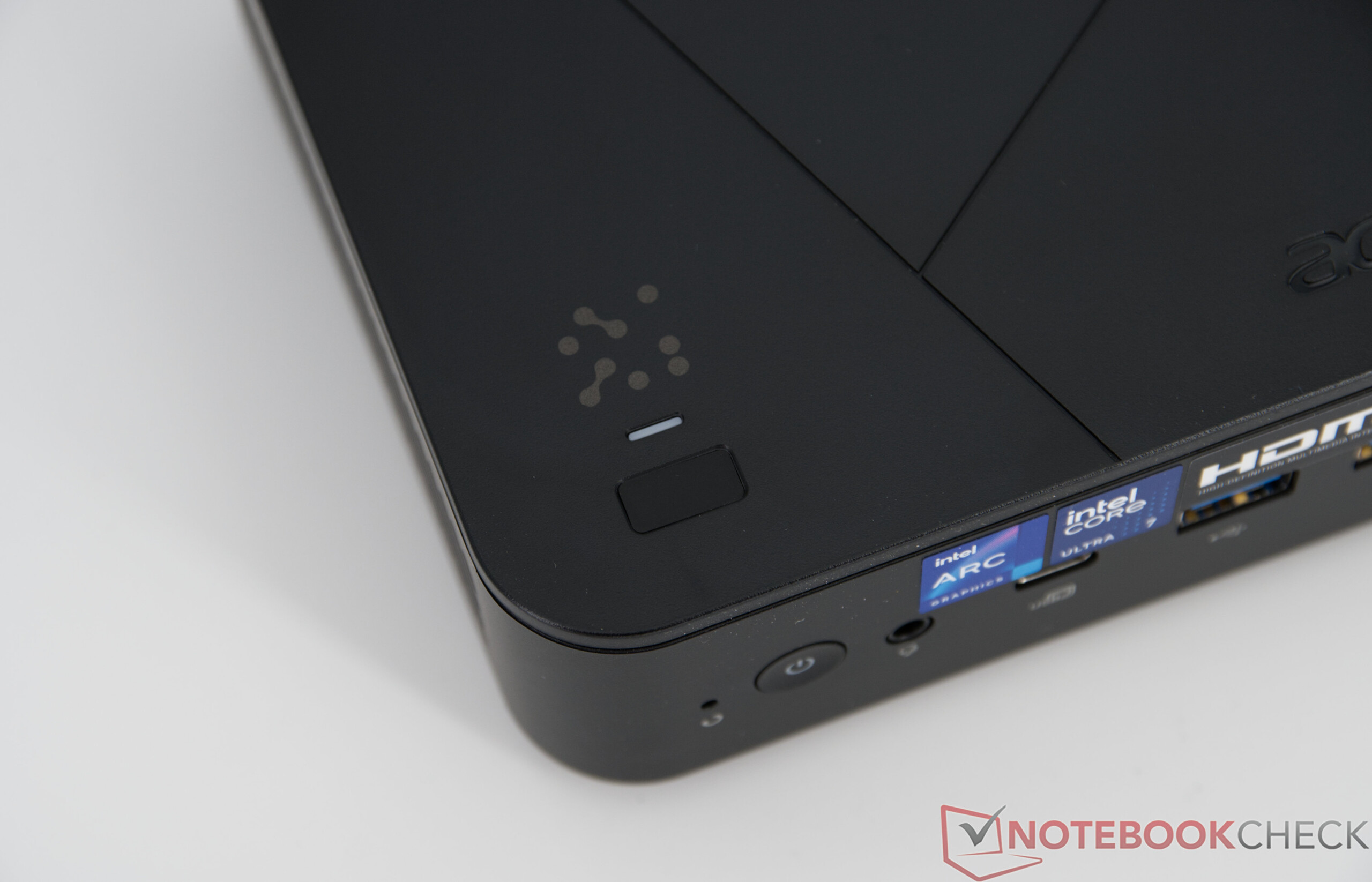

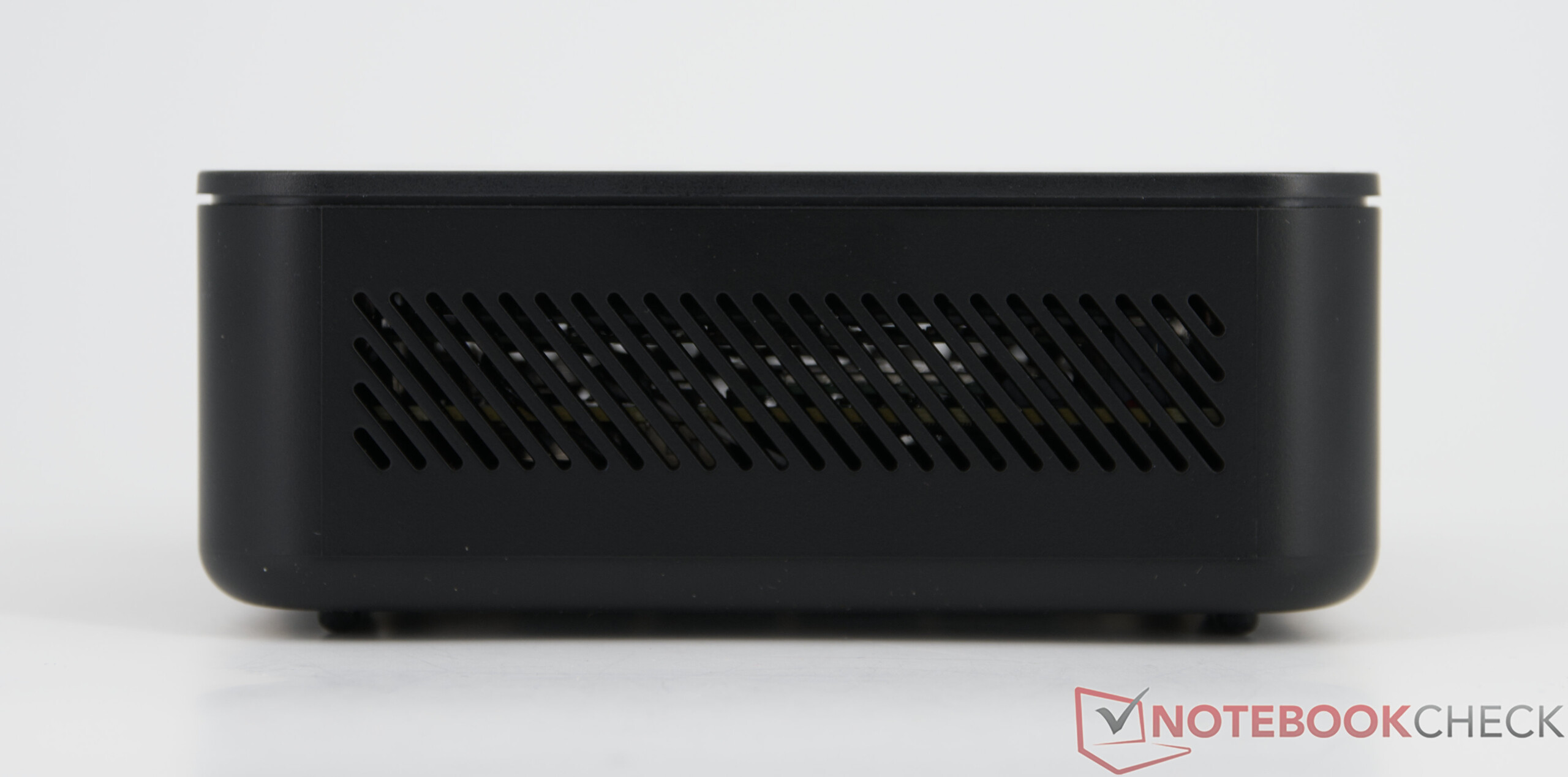

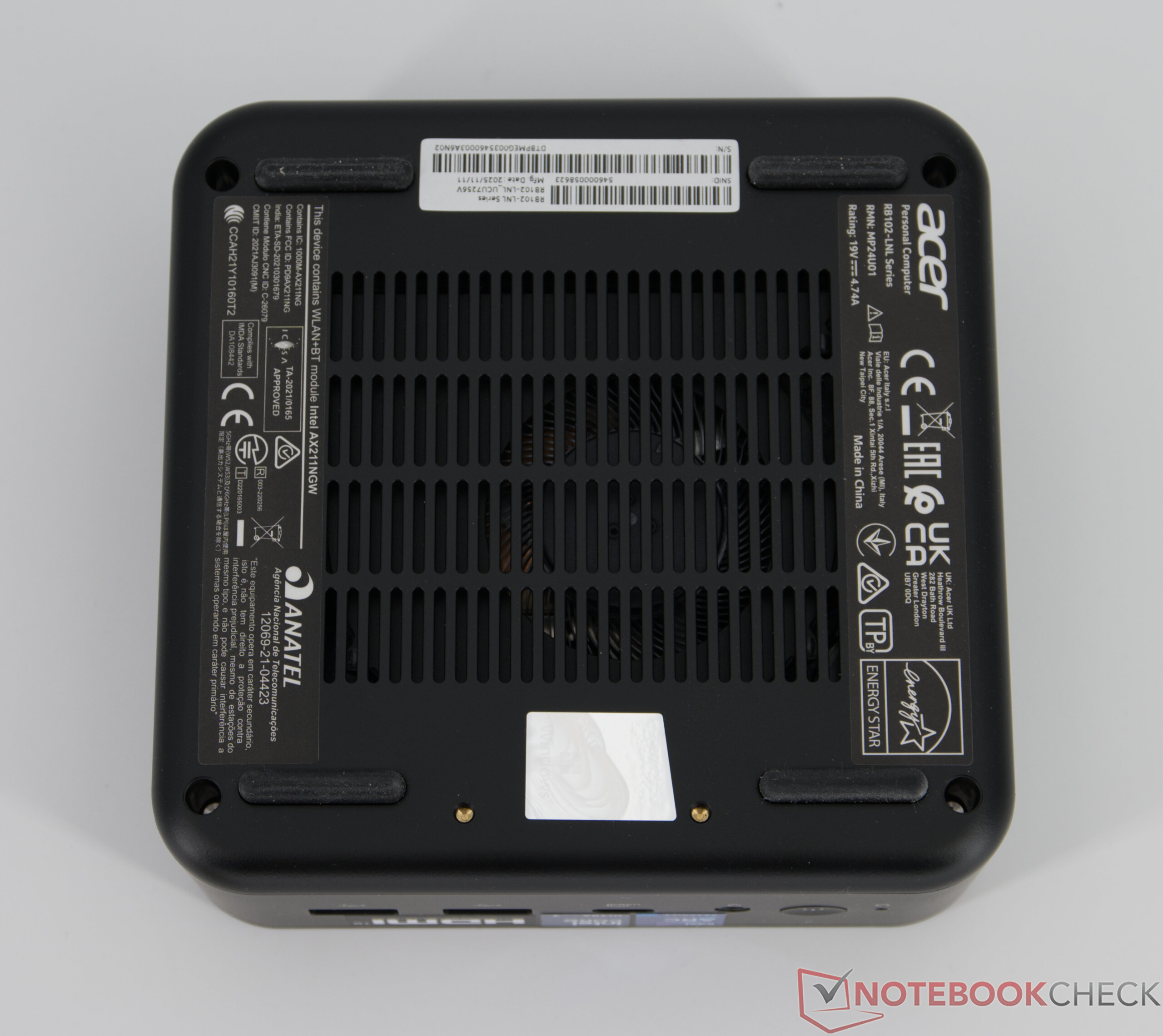

The Acer Revo Box RB102 features an extremely compact chassis that can be discreetly placed on a desk. Thanks to the VESA mount, the mini PC can also be mounted behind a monitor to save space. Acer primarily uses plastic for the chassis, which contributes to its light weight. Nevertheless, the chassis feels solid and is sufficiently rigid against twisting in everyday use. The matte finish is also resistant to fingerprints and blends discreetly into various work environments. In terms of connectivity, the device offers a good selection of USB ports, USB4, HDMI, and DisplayPort. The two 2.5 Gbit/s Ethernet ports are also practical, enabling even faster wired network connections in addition to Wi-Fi 6E.

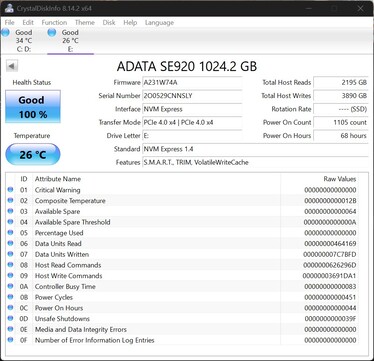

USB4 Speed (ADATA SE920)

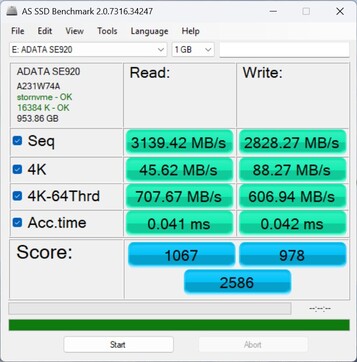

Performance Test with the ADATA SE920 via USB4

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	3187.93 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	3139.42 MB/s
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	3118.71 MB/s
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	3086.76 MB/s
Average of class Mini PC (423 - 3906, n=47, last 2 years)	2750 MB/s
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	1639.9 MB/s
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	789.54 MB/s

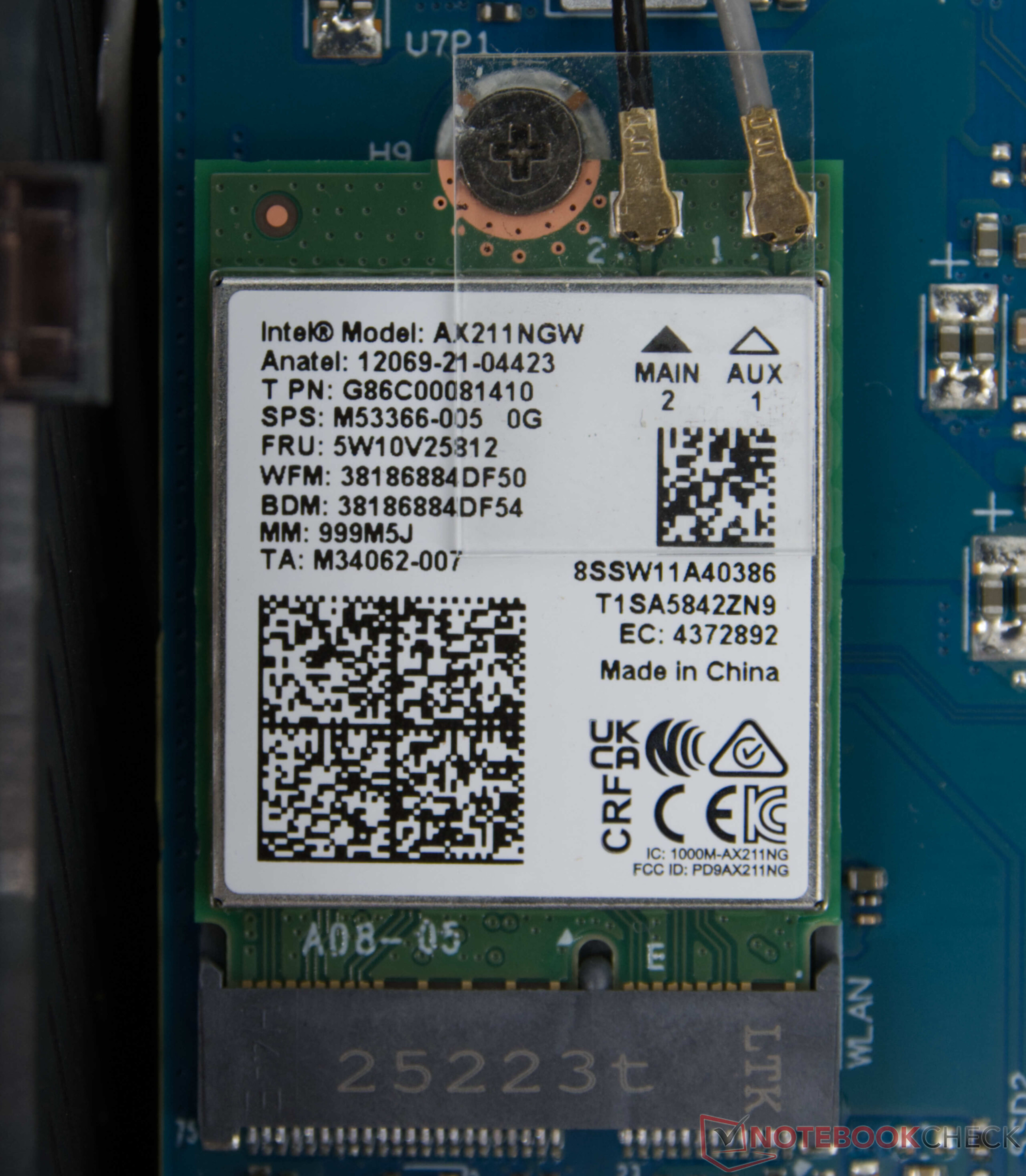

Wi-Fi Performance

Networking
iperf3 receive Wi-Fi6/7 RT-BE96U
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	2843 (2427^min - 2923^max) MBit/s +75%
Average of class Mini PC (1498 - 2843, n=5, last 2 years)	1952 MBit/s +20%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1827 (1808^min - 1845^max) MBit/s +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Wi-Fi 6E AX211	1625 (1523^min - 1689^max) MBit/s
Average Intel Wi-Fi 6E AX211 (n=1)	1625 MBit/s 0%
Acemagic Retro X3 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1498 (1333^min - 1556^max) MBit/s -8%
iperf3 transmit Wi-Fi6/7 RT-BE96U
Geekom IT13 Max Intel Wi-Fi 7 BE200 320MHz	4122 (2112^min - 4336^max) MBit/s +135%
Average of class Mini PC (973 - 4122, n=5, last 2 years)	2061 MBit/s +17%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Wi-Fi 6E AX211	1755 (1379^min - 1871^max) MBit/s
Average Intel Wi-Fi 6E AX211 (n=1)	1755 MBit/s 0%
Acemagic Retro X3 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1477 (725^min - 1611^max) MBit/s -16%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	973 (922^min - 1011^max) MBit/s -45%
iperf3 receive AXE11000 6GHz
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1754 (1718^min - 1770^max) MBit/s
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1628 (1584^min - 1674^max) MBit/s
Average of class Mini PC (729 - 1814, n=52, last 2 years)	1537 MBit/s
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=226)	1498 MBit/s
iperf3 transmit AXE11000 6GHz
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1857 (1753^min - 1931^max) MBit/s
Average of class Mini PC (504 - 1887, n=52, last 2 years)	1479 MBit/s
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1464 (1344^min - 1577^max) MBit/s
Average Intel Wi-Fi 6E AX211 (385 - 1851, n=226)	1363 MBit/s
iperf3 receive AXE11000
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1776 (1764^min - 1791^max) MBit/s
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (881^min - 1786^max) MBit/s
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=276)	1393 MBit/s
Average of class Mini PC (267 - 1776, n=71, last 2 years)	1149 MBit/s
iperf3 transmit AXE11000
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1811 (1708^min - 1888^max) MBit/s
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1720 (1653^min - 1796^max) MBit/s
Average Intel Wi-Fi 6E AX211 (64 - 1921, n=276)	1230 MBit/s
Average of class Mini PC (251 - 1811, n=71, last 2 years)	1095 MBit/s

Acer Revo Box RB102-LNL, Core Ultra 7 256V; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø1624 (1523-1689) MBit/s

Acer Revo Box RB102-LNL, Core Ultra 7 256V; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø1755 (1379-1871) MBit/s

Accessories

In addition to the Acer Revo Box RB102, the package includes the corresponding 90-watt power supply, a VESA mount, and the necessary mounting hardware. A user manual is also included.

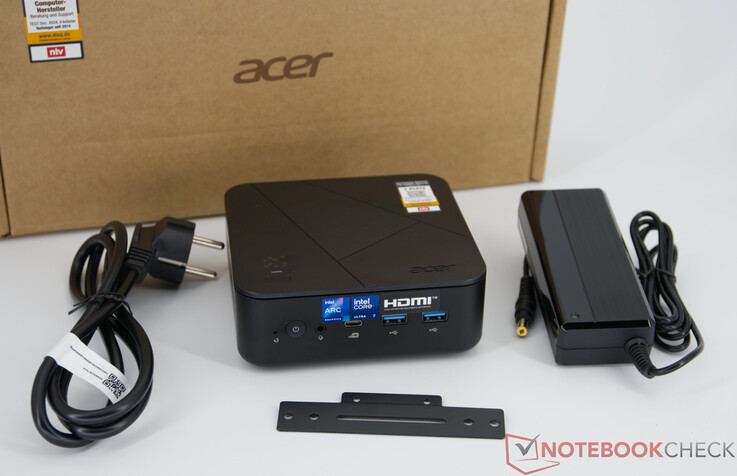

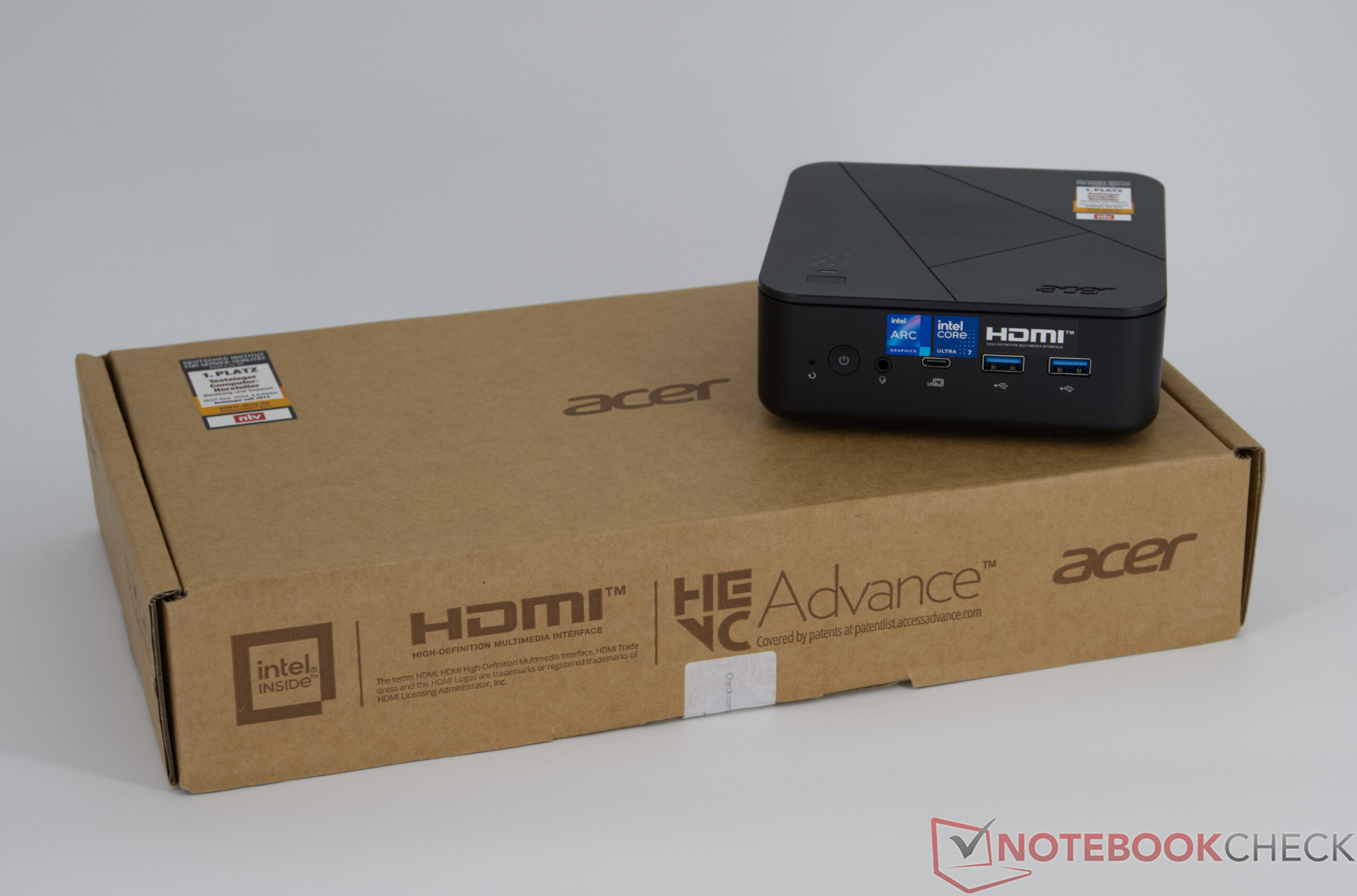

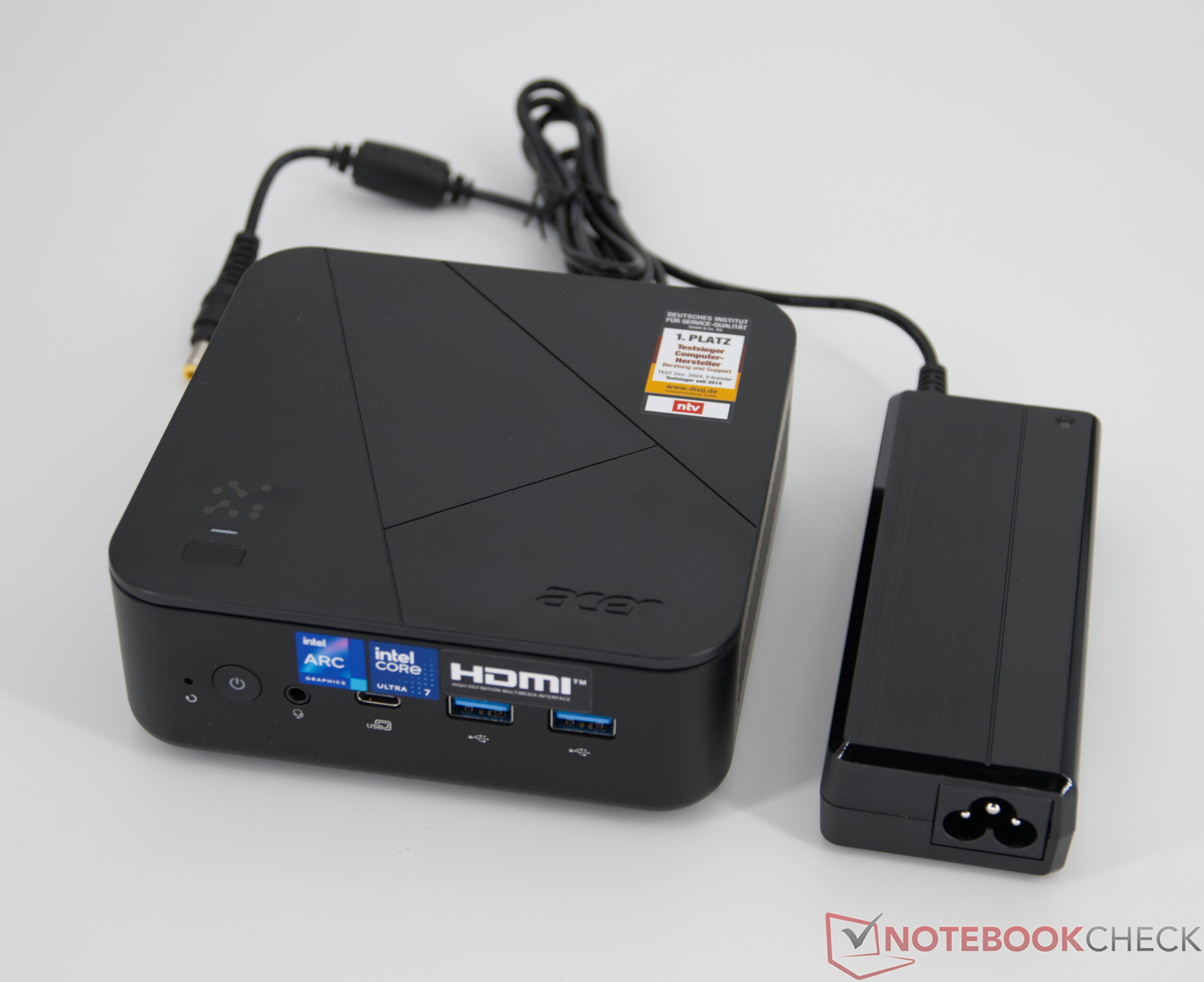

Package Contents of the Acer Revo Box RB102

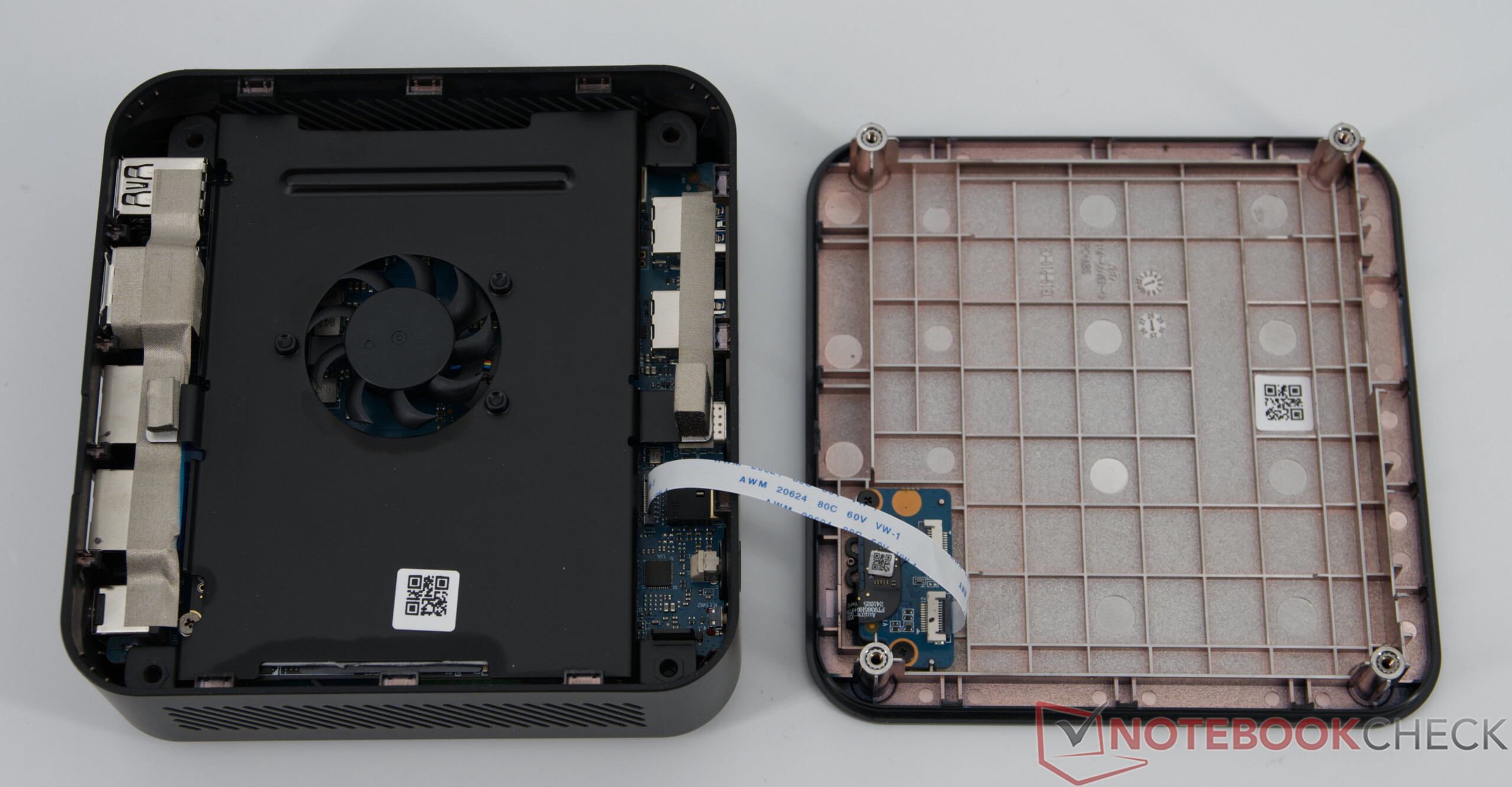

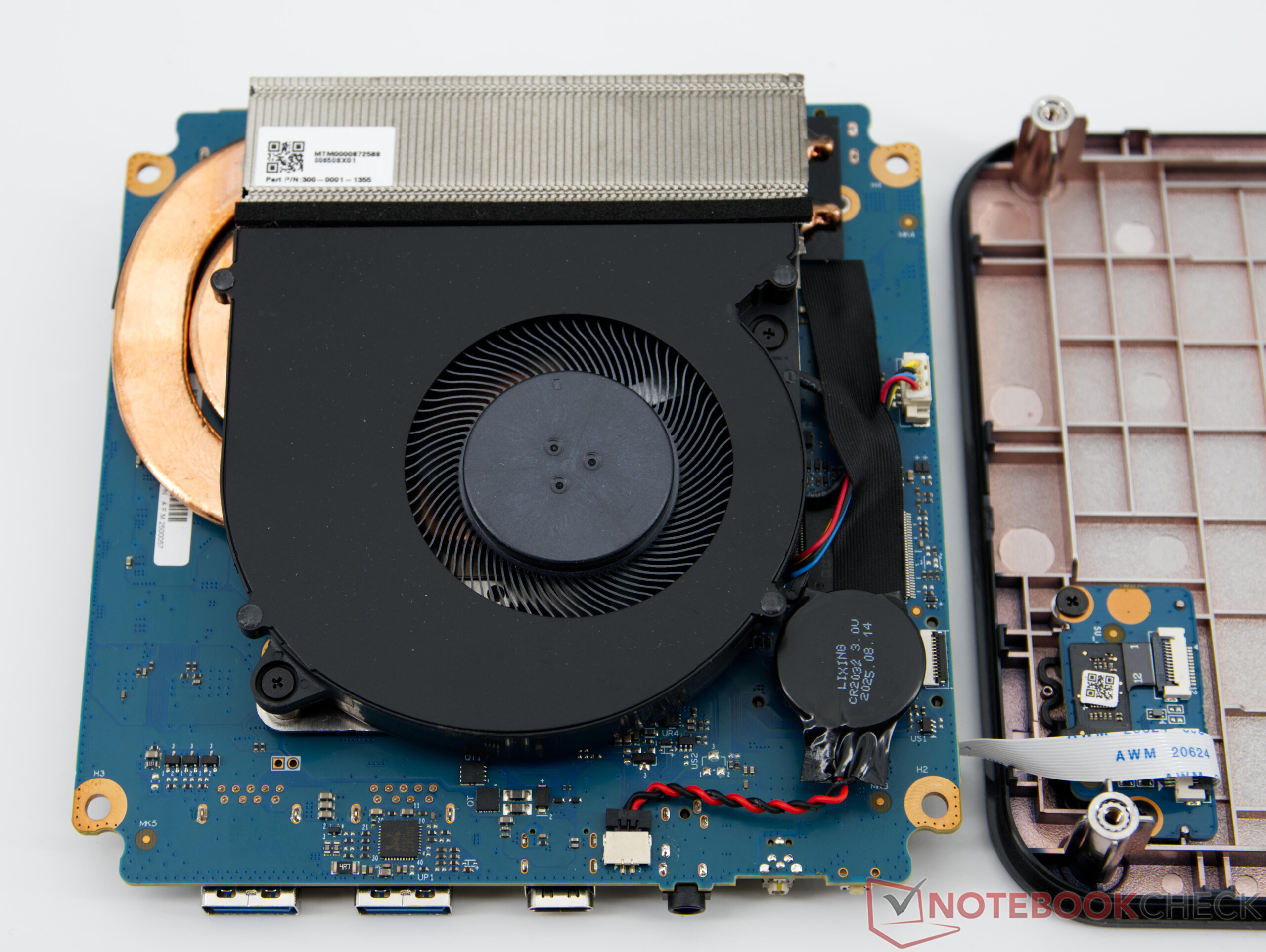

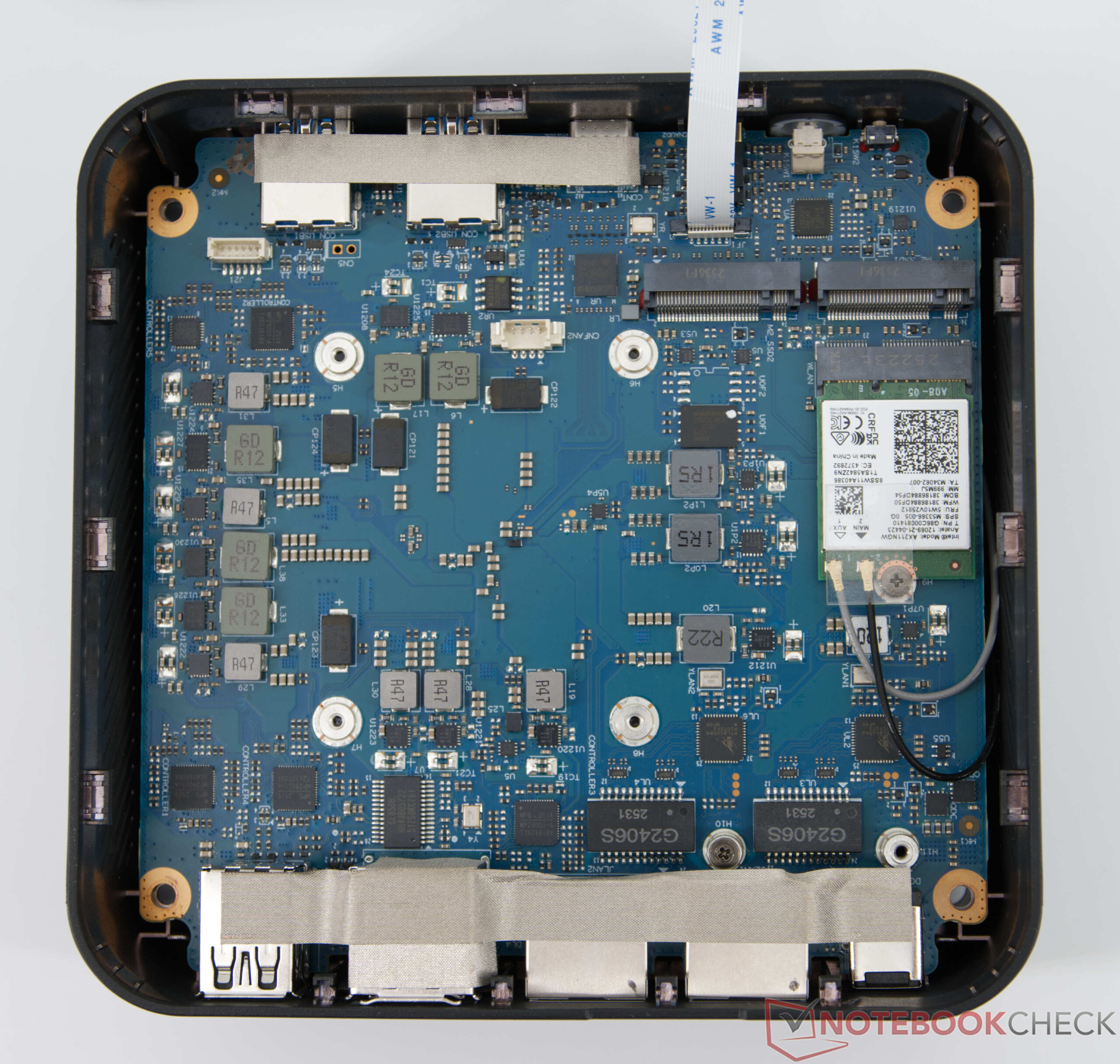

Maintenance

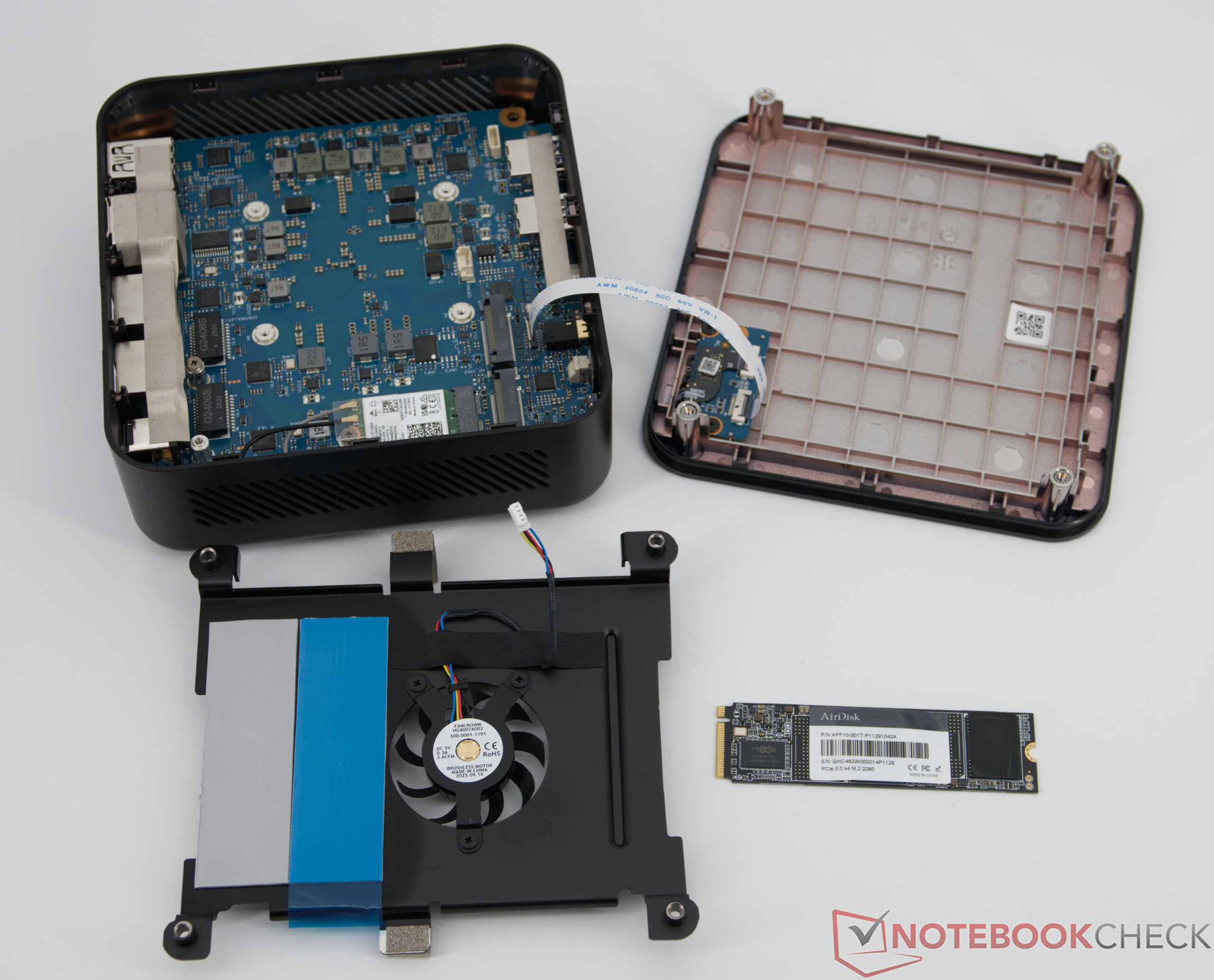

Overall, maintenance on the Acer Revo Box RB102 is quite straightforward. The case can be opened from the bottom, providing access to the most important components. However, the RAM is soldered in place and cannot be expanded. There is only one additional slot available for an extra SSD. If necessary, the Wi-Fi module can also be replaced. Cleaning the cooling system is also straightforward.

Performance

Test Conditions

All benchmarks were performed using factory settings. Furthermore, the BIOS does not offer any additional modes for adjusting the processor’s performance.

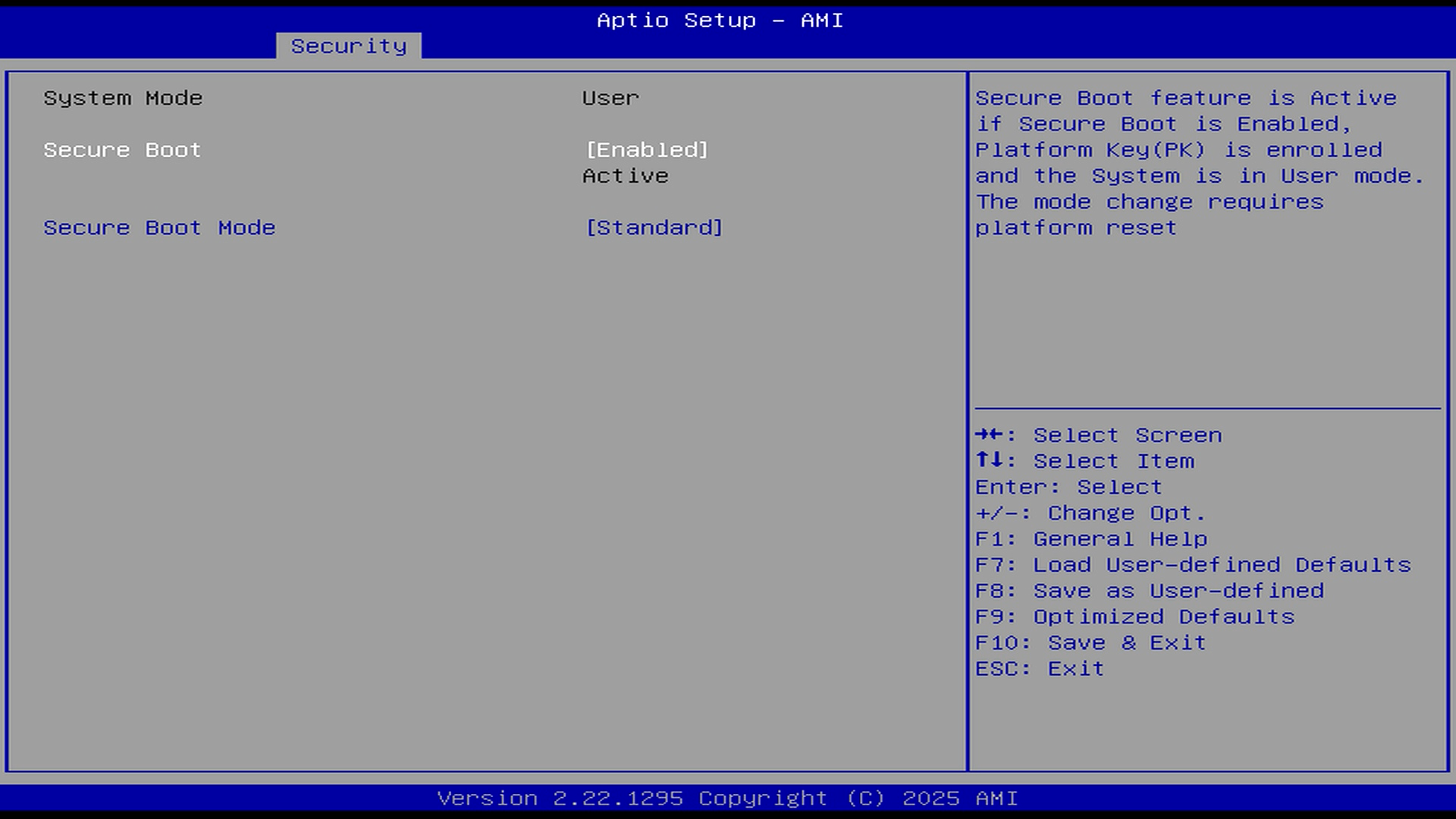

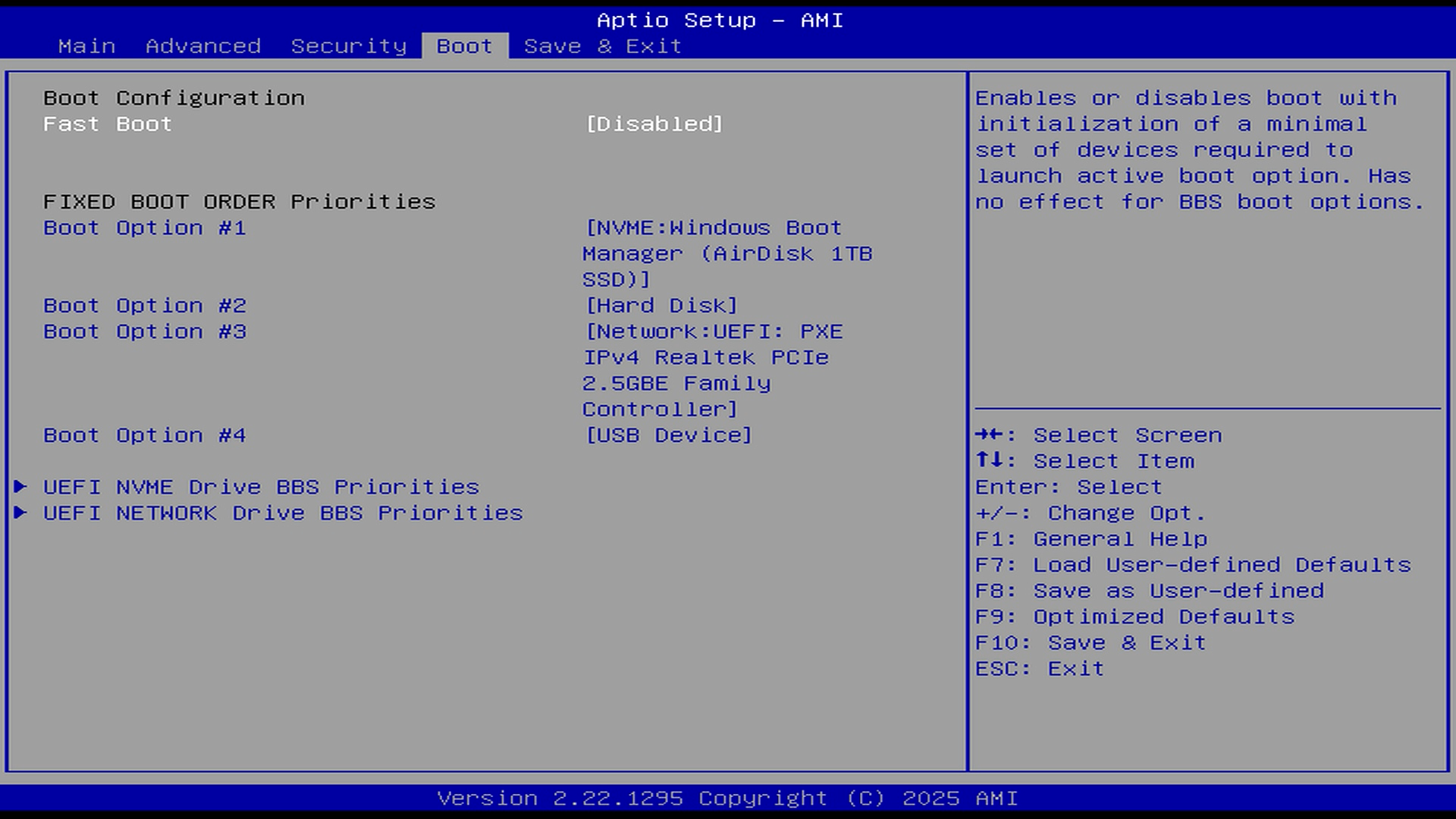

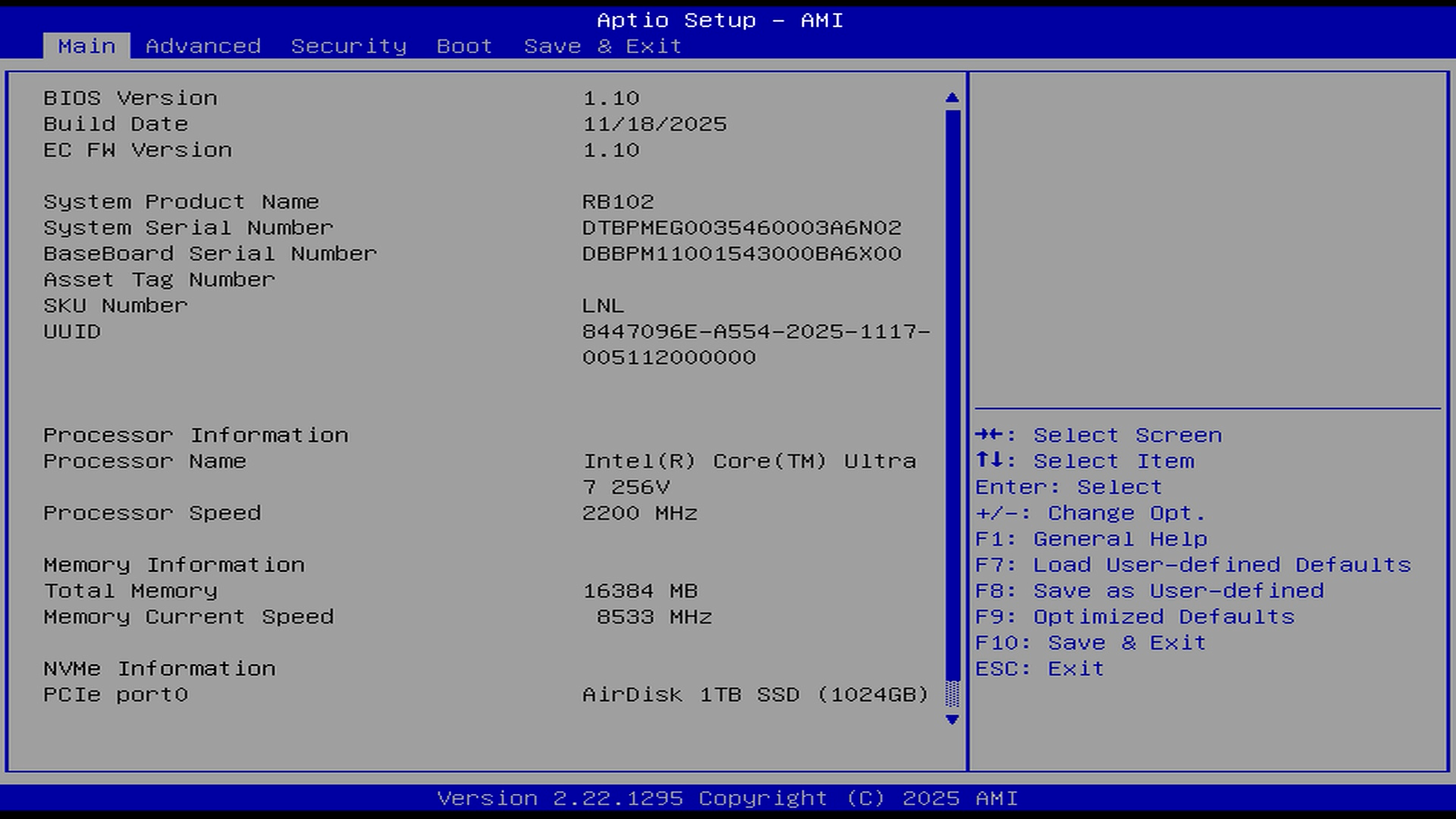

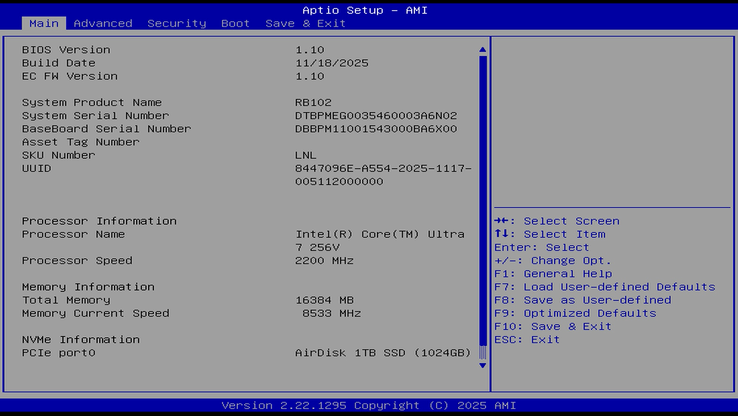

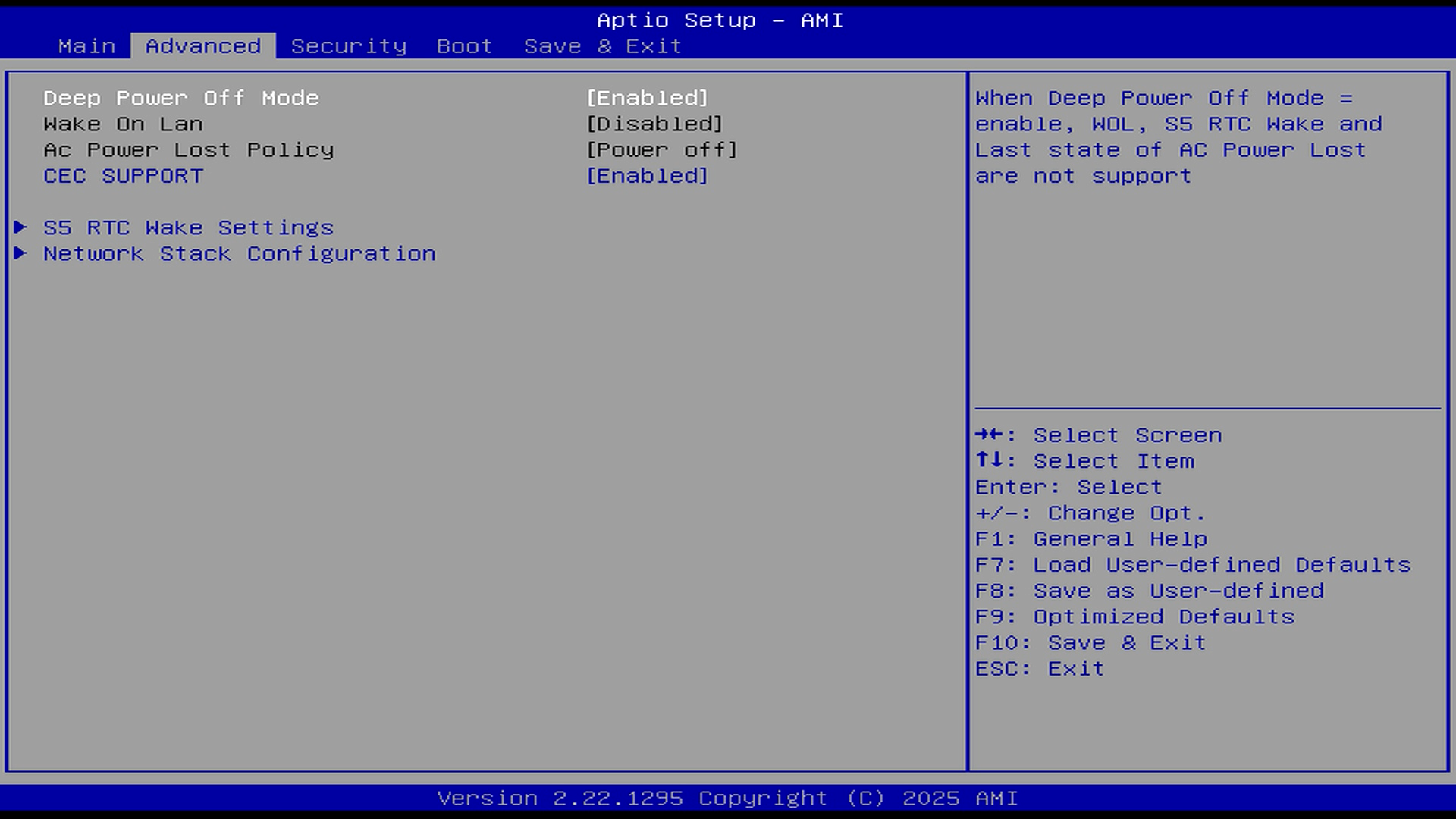

BIOS Settings

Processor

The CPU performance of the Acer Revo Box RB102 is solid for a compact mini-PC. In the performance rating, the system scores 44.9 points, placing it in the middle of the pack. The Intel Core Ultra 7 256V thus offers sufficient power for typical office applications, multimedia, and more demanding multitasking. Compared to the Intel Core Ultra 5 226V in the NucBox K17, performance is approximately 11 percent higher.

Performance rating - Percent
Khadas Mind Pro Intel Core Ultra X7 358H	52.7 pt
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	49.1 pt
Geekom IT13 Max Intel Core Ultra 9 185H	47.6 pt
Acemagic Retro X3 AMD Ryzen 7 255	47.5 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	44.9 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	44.7 pt
GMK NucBox K17 Intel Core Ultra 5 226V	40.3 pt

Cinebench 2024
CPU Multi Core
Khadas Mind Pro Intel Core Ultra X7 358H	1090 Points +82%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	962 Points +60%
Geekom IT13 Max Intel Core Ultra 9 185H	882 Points +47%
Acemagic Retro X3 AMD Ryzen 7 255	876 Points +46%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	698 Points +16%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	600 Points
GMK NucBox K17 Intel Core Ultra 5 226V	523 Points -13%
CPU Single Core
Khadas Mind Pro Intel Core Ultra X7 358H	124 Points +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	121 Points
GMK NucBox K17 Intel Core Ultra 5 226V	115 Points -5%
Geekom IT13 Max Intel Core Ultra 9 185H	106 Points -12%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	104 Points -14%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	103 Points -15%
Acemagic Retro X3 AMD Ryzen 7 255	99 Points -18%

Cinebench R23
Multi Core
Khadas Mind Pro Intel Core Ultra X7 358H	19830 Points +82%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	16876 Points +55%
Geekom IT13 Max Intel Core Ultra 9 185H	16775 Points +54%
Acemagic Retro X3 AMD Ryzen 7 255	16390 Points +51%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	12079 Points +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	10878 Points
GMK NucBox K17 Intel Core Ultra 5 226V	8665 Points -20%
Single Core
Khadas Mind Pro Intel Core Ultra X7 358H	2086 Points +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1964 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1859 Points -5%
Geekom IT13 Max Intel Core Ultra 9 185H	1857 Points -5%
Acemagic Retro X3 AMD Ryzen 7 255	1741 Points -11%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1740 Points -11%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1716 Points -13%

Cinebench R20
CPU (Multi Core)
Khadas Mind Pro Intel Core Ultra X7 358H	7749 Points +84%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6600 Points +57%
Geekom IT13 Max Intel Core Ultra 9 185H	6554 Points +56%
Acemagic Retro X3 AMD Ryzen 7 255	6409 Points +52%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	4734 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	4209 Points
GMK NucBox K17 Intel Core Ultra 5 226V	3380 Points -20%
CPU (Single Core)
Khadas Mind Pro Intel Core Ultra X7 358H	782 Points +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	754 Points
GMK NucBox K17 Intel Core Ultra 5 226V	714 Points -5%
Geekom IT13 Max Intel Core Ultra 9 185H	714 Points -5%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	678 Points -10%
Acemagic Retro X3 AMD Ryzen 7 255	676 Points -10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	666 Points -12%

Cinebench R15
CPU Multi 64Bit
Khadas Mind Pro Intel Core Ultra X7 358H	3053 Points +86%
Geekom IT13 Max Intel Core Ultra 9 185H	2714 Points +66%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2655 Points +62%
Acemagic Retro X3 AMD Ryzen 7 255	2578 Points +57%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1877 Points +15%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1639 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -24%
CPU Single 64Bit
Khadas Mind Pro Intel Core Ultra X7 358H	312 Points +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	299 Points
GMK NucBox K17 Intel Core Ultra 5 226V	282 Points -6%
Acemagic Retro X3 AMD Ryzen 7 255	275 Points -8%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	273 Points -9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	268 Points -10%
Geekom IT13 Max Intel Core Ultra 9 185H	266 Points -11%

Cinebench R11.5
CPU Multi 64Bit
Khadas Mind Pro Intel Core Ultra X7 358H	37.47 Points +82%
Geekom IT13 Max Intel Core Ultra 9 185H	32.53 Points +58%
Acemagic Retro X3 AMD Ryzen 7 255	30.18 Points +47%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	30.14 Points +47%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22.33 Points +9%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	20.56 Points
GMK NucBox K17 Intel Core Ultra 5 226V	15.79 Points -23%
CPU Single 64Bit
Khadas Mind Pro Intel Core Ultra X7 358H	3.73 Points +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	3.56 Points
GMK NucBox K17 Intel Core Ultra 5 226V	3.36 Points -6%
Acemagic Retro X3 AMD Ryzen 7 255	3.25 Points -9%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	3.23 Points -9%
Geekom IT13 Max Intel Core Ultra 9 185H	3.21 Points -10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.2 Points -10%

Cinebench R10
Rendering Single CPUs 64Bit
Khadas Mind Pro Intel Core Ultra X7 358H	17731 Points +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	16650 Points
GMK NucBox K17 Intel Core Ultra 5 226V	15701 Points -6%
Geekom IT13 Max Intel Core Ultra 9 185H	14783 Points -11%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	14463 Points -13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	13966 Points -16%
Acemagic Retro X3 AMD Ryzen 7 255	13907 Points -16%
Rendering Multiple CPUs 64Bit
Khadas Mind Pro Intel Core Ultra X7 358H	113910 Points +52%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	88096 Points +18%
Geekom IT13 Max Intel Core Ultra 9 185H	87150 Points +17%
Acemagic Retro X3 AMD Ryzen 7 255	85088 Points +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	74728 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	71955 Points -4%
GMK NucBox K17 Intel Core Ultra 5 226V	56263 Points -25%

Blender
v2.79 BMW27 CPU
GMK NucBox K17 Intel Core Ultra 5 226V	387 Seconds * -21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	320 Seconds *
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	265 Seconds * +17%
Geekom IT13 Max Intel Core Ultra 9 185H	199 Seconds * +38%
Acemagic Retro X3 AMD Ryzen 7 255	196 Seconds * +39%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	190 Seconds * +41%
Khadas Mind Pro Intel Core Ultra X7 358H	184 Seconds * +43%
v3.3 Classroom CPU
GMK NucBox K17 Intel Core Ultra 5 226V	642 Seconds * -23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	522 Seconds *
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	434 Seconds * +17%
Geekom IT13 Max Intel Core Ultra 9 185H	344 Seconds * +34%
Acemagic Retro X3 AMD Ryzen 7 255	316 Seconds * +39%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	310 Seconds * +41%
Khadas Mind Pro Intel Core Ultra X7 358H	304 Seconds * +42%
v4.3 Barbershop CPU
GMK NucBox K17 Intel Core Ultra 5 226V	3291 Seconds * -20%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2739 Seconds *
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2112 Seconds * +23%
Geekom IT13 Max Intel Core Ultra 9 185H	1766 Seconds * +36%
Acemagic Retro X3 AMD Ryzen 7 255	1581 Seconds * +42%
Khadas Mind Pro Intel Core Ultra X7 358H	1507 Seconds * +45%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1505 Seconds * +45%

wPrime 2.10
32m
Khadas Mind Pro Intel Core Ultra X7 358H	10.232 s * -48%
GMK NucBox K17 Intel Core Ultra 5 226V	7.806 s * -13%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	6.926 s *
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4.3 s * +38%
Geekom IT13 Max Intel Core Ultra 9 185H	4.07 s * +41%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.406 s * +51%
Acemagic Retro X3 AMD Ryzen 7 255	2.991 s * +57%
1024m
GMK NucBox K17 Intel Core Ultra 5 226V	336.5 s * -7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	313.598 s *
Khadas Mind Pro Intel Core Ultra X7 358H	290.719 s * +7%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	103.21 s * +67%
Geekom IT13 Max Intel Core Ultra 9 185H	96.87 s * +69%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	94.412 s * +70%
Acemagic Retro X3 AMD Ryzen 7 255	70.884 s * +77%

X264 HD Benchmark 4.0
Pass 1
Khadas Mind Pro Intel Core Ultra X7 358H	346 (346^min - 346^max) fps +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	327 (326^min - 328^max) fps
Geekom IT13 Max Intel Core Ultra 9 185H	295.5 (292^min - 307^max) fps -10%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	285 (282^min - 289^max) fps -13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	282.5 (279^min - 287^max) fps -14%
GMK NucBox K17 Intel Core Ultra 5 226V	275.5 (274^min - 276^max) fps -16%
Acemagic Retro X3 AMD Ryzen 7 255	261 (258^min - 264^max) fps -20%
Pass 2
Khadas Mind Pro Intel Core Ultra X7 358H	171.65 (170^min - 174.9^max) fps +71%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	151.55 (151.1^min - 152.1^max) fps +51%
Geekom IT13 Max Intel Core Ultra 9 185H	146.9 (145.9^min - 151.4^max) fps +46%
Acemagic Retro X3 AMD Ryzen 7 255	142.05 (141^min - 144.5^max) fps +42%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	111.6 (111^min - 113.5^max) fps +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	100.3 (94.7^min - 101.4^max) fps
GMK NucBox K17 Intel Core Ultra 5 226V	79.1 (79^min - 79.3^max) fps -21%

WinRAR - Result
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7397 KB/s +43%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6974 KB/s +34%
Khadas Mind Pro Intel Core Ultra X7 358H	6917 KB/s +33%
Geekom IT13 Max Intel Core Ultra 9 185H	6499 KB/s +25%
Acemagic Retro X3 AMD Ryzen 7 255	6140 KB/s +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	5189 KB/s
GMK NucBox K17 Intel Core Ultra 5 226V	4880 KB/s -6%

TrueCrypt
AES Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	15 GB/s +88%
Acemagic Retro X3 AMD Ryzen 7 255	14.7 GB/s +84%
Khadas Mind Pro Intel Core Ultra X7 358H	13.8 GB/s +73%
Geekom IT13 Max Intel Core Ultra 9 185H	11 GB/s +38%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10.5 GB/s +31%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8 GB/s
GMK NucBox K17 Intel Core Ultra 5 226V	5.8 GB/s -27%
Twofish Mean 100MB
Khadas Mind Pro Intel Core Ultra X7 358H	2.4 GB/s +71%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2.1 GB/s +50%
Geekom IT13 Max Intel Core Ultra 9 185H	2.1 GB/s +50%
Acemagic Retro X3 AMD Ryzen 7 255	2 GB/s +43%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1.5 GB/s +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1.4 GB/s
GMK NucBox K17 Intel Core Ultra 5 226V	1.3 GB/s -7%
Serpent Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1.3 GB/s +82%
Acemagic Retro X3 AMD Ryzen 7 255	1.3 GB/s +82%
Khadas Mind Pro Intel Core Ultra X7 358H	1.2 GB/s +68%
Geekom IT13 Max Intel Core Ultra 9 185H	1.2 GB/s +68%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.984 GB/s +38%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	0.713 GB/s
GMK NucBox K17 Intel Core Ultra 5 226V	0.657 GB/s -8%

Geekbench AI
Quantized CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7281 Points +47%
Khadas Mind Pro Intel Core Ultra X7 358H	7159 Points +44%
Acemagic Retro X3 AMD Ryzen 7 255	6745 Points +36%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6189 Points +25%
Geekom IT13 Max Intel Core Ultra 9 185H	6055 Points +22%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	4960 Points
GMK NucBox K17 Intel Core Ultra 5 226V	4298 Points -13%
Half Precision CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1868 Points +38%
Khadas Mind Pro Intel Core Ultra X7 358H	1820 Points +34%
Acemagic Retro X3 AMD Ryzen 7 255	1682 Points +24%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1549 Points +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1355 Points
Geekom IT13 Max Intel Core Ultra 9 185H	1354 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V	1184 Points -13%
Single Precision CPU 1.2
Khadas Mind Pro Intel Core Ultra X7 358H	4125 Points +57%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4003 Points +52%
Acemagic Retro X3 AMD Ryzen 7 255	3929 Points +49%
Geekom IT13 Max Intel Core Ultra 9 185H	3377 Points +28%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3260 Points +24%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2629 Points
GMK NucBox K17 Intel Core Ultra 5 226V	2243 Points -15%
Quantized CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	8522 Points +26%
Khadas Mind Pro Intel Core Ultra X7 358H	8175 Points +21%
Acemagic Retro X3 AMD Ryzen 7 255	8056 Points +19%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7221 Points +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	6752 Points
Geekom IT13 Max Intel Core Ultra 9 185H	6688 Points -1%
GMK NucBox K17 Intel Core Ultra 5 226V	5529 Points -18%
Half Precision CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1942 Points +33%
Acemagic Retro X3 AMD Ryzen 7 255	1895 Points +29%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1664 Points +14%
Khadas Mind Pro Intel Core Ultra X7 358H	1642 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1465 Points
Geekom IT13 Max Intel Core Ultra 9 185H	1414 Points -3%
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points -14%
Single Precision CPU 1.7
Khadas Mind Pro Intel Core Ultra X7 358H	4558 Points +37%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4324 Points +30%
Acemagic Retro X3 AMD Ryzen 7 255	4111 Points +24%
Geekom IT13 Max Intel Core Ultra 9 185H	3519 Points +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	3319 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3250 Points -2%
GMK NucBox K17 Intel Core Ultra 5 226V	2621 Points -21%

Geekbench 6.7
Single-Core
Khadas Mind Pro Intel Core Ultra X7 358H	2856 Points +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2782 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2779 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V	2619 Points -6%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2601 Points -7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2545 Points -9%
Acemagic Retro X3 AMD Ryzen 7 255	2505 Points -10%
Geekom IT13 Max Intel Core Ultra 9 185H	2465 Points -11%
Multi-Core
Khadas Mind Pro Intel Core Ultra X7 358H	15698 Points +41%
Geekom IT13 Max Intel Core Ultra 9 185H	13160 Points +18%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12843 Points +16%
Acemagic Retro X3 AMD Ryzen 7 255	11267 Points +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	11106 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	11010 Points -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10642 Points -4%
GMK NucBox K17 Intel Core Ultra 5 226V	9100 Points -18%

Geekbench 6.0
Single-Core
Khadas Mind Pro Intel Core Ultra X7 358H	2768 Points +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2653 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2507 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2447 Points -8%
Geekom IT13 Max Intel Core Ultra 9 185H	2319 Points -13%
Acemagic Retro X3 AMD Ryzen 7 255	2175 Points -18%
GMK NucBox K17 Intel Core Ultra 5 226V	1177 Points -56%
Multi-Core
Khadas Mind Pro Intel Core Ultra X7 358H	15527 Points +47%
Geekom IT13 Max Intel Core Ultra 9 185H	12728 Points +20%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12573 Points +19%
Acemagic Retro X3 AMD Ryzen 7 255	12046 Points +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	10584 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10295 Points -3%
GMK NucBox K17 Intel Core Ultra 5 226V	5782 Points -45%

Geekbench 5.5
Multi-Core
Khadas Mind Pro Intel Core Ultra X7 358H	16310 Points +69%
Geekom IT13 Max Intel Core Ultra 9 185H	13184 Points +37%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12267 Points +27%
Acemagic Retro X3 AMD Ryzen 7 255	10844 Points +13%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	9632 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9453 Points -2%
GMK NucBox K17 Intel Core Ultra 5 226V	8063 Points -16%
Single-Core
Khadas Mind Pro Intel Core Ultra X7 358H	2097 Points +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	2036 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1921 Points -6%
GMK NucBox K17 Intel Core Ultra 5 226V	1914 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1879 Points -8%
Acemagic Retro X3 AMD Ryzen 7 255	1864 Points -8%
Geekom IT13 Max Intel Core Ultra 9 185H	1822 Points -11%

Geekbench 5.0
5.0 Multi-Core
Khadas Mind Pro Intel Core Ultra X7 358H	15868 Points +65%
Geekom IT13 Max Intel Core Ultra 9 185H	13171 Points +37%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12233 Points +27%
Acemagic Retro X3 AMD Ryzen 7 255	10808 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	9623 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9462 Points -2%
GMK NucBox K17 Intel Core Ultra 5 226V	8152 Points -15%
5.0 Single-Core
Khadas Mind Pro Intel Core Ultra X7 358H	2062 Points +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	1972 Points
GMK NucBox K17 Intel Core Ultra 5 226V	1865 Points -5%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1839 Points -7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1765 Points -10%
Geekom IT13 Max Intel Core Ultra 9 185H	1764 Points -11%
Acemagic Retro X3 AMD Ryzen 7 255	1729 Points -12%

Geekbench 4.4
64 Bit Multi-Core Score
Khadas Mind Pro Intel Core Ultra X7 358H	56812 Points +71%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	49528 Points +49%
Geekom IT13 Max Intel Core Ultra 9 185H	48415 Points +46%
Acemagic Retro X3 AMD Ryzen 7 255	45332 Points +37%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	37145 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	33140 Points
GMK NucBox K17 Intel Core Ultra 5 226V	28864 Points -13%
64 Bit Single-Core Score
Khadas Mind Pro Intel Core Ultra X7 358H	8831 Points +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8474 Points
GMK NucBox K17 Intel Core Ultra 5 226V	8018 Points -5%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7946 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7790 Points -8%
Acemagic Retro X3 AMD Ryzen 7 255	7667 Points -10%
Geekom IT13 Max Intel Core Ultra 9 185H	7424 Points -12%

3DMark 11 - 1280x720 Performance Physics
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	22746 Points +49%
Khadas Mind Pro Intel Core Ultra X7 358H	21246 Points +39%
Geekom IT13 Max Intel Core Ultra 9 185H	20911 Points +37%
Acemagic Retro X3 AMD Ryzen 7 255	19506 Points +28%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	18116 Points +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	15268 Points
GMK NucBox K17 Intel Core Ultra 5 226V	13612 Points -11%

7-Zip 18.03
7z b 4
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	71883 MIPS +99%
Acemagic Retro X3 AMD Ryzen 7 255	66847 MIPS +85%
Geekom IT13 Max Intel Core Ultra 9 185H	66510 MIPS +85%
Khadas Mind Pro Intel Core Ultra X7 358H	66409 MIPS +84%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	53012 MIPS +47%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	36044 MIPS
GMK NucBox K17 Intel Core Ultra 5 226V	31083 MIPS -14%
7z b 4 -mmt1
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6467 MIPS +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6463 MIPS +10%
Khadas Mind Pro Intel Core Ultra X7 358H	6220 MIPS +6%
Acemagic Retro X3 AMD Ryzen 7 255	6178 MIPS +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	5875 MIPS
Geekom IT13 Max Intel Core Ultra 9 185H	5522 MIPS -6%
GMK NucBox K17 Intel Core Ultra 5 226V	5452 MIPS -7%

HWBOT x265 Benchmark v2.2 - 4k Preset
Khadas Mind Pro Intel Core Ultra X7 358H	21.7 fps +57%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	21 fps +52%
Acemagic Retro X3 AMD Ryzen 7 255	19.8 fps +43%
Geekom IT13 Max Intel Core Ultra 9 185H	19.7 fps +43%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	15.7 fps +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	13.8 fps
GMK NucBox K17 Intel Core Ultra 5 226V	10.9 fps -21%

R Benchmark 2.5 - Overall mean
GMK NucBox K17 Intel Core Ultra 5 226V	0.4746 sec * -5%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.4683 sec * -4%
Acemagic Retro X3 AMD Ryzen 7 255	0.4675 sec * -4%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	0.4597 sec * -2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	0.4504 sec *
Geekom IT13 Max Intel Core Ultra 9 185H	0.4501 sec * -0%
Khadas Mind Pro Intel Core Ultra X7 358H	0.4239 sec * +6%
Khadas Mind Pro Intel Core Ultra X7 358H	0.4139 sec * +8%

LibreOffice - 20 Documents To PDF
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	83.3 s * -72%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	63.5 s * -31%
GMK NucBox K17 Intel Core Ultra 5 226V	62.1 s * -29%
Acemagic Retro X3 AMD Ryzen 7 255	61.1 s * -27%
Geekom IT13 Max Intel Core Ultra 9 185H	51.4 s * -6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	48.3 s *
Khadas Mind Pro Intel Core Ultra X7 358H	46.4 s * +4%

3DMark
1920x1080 Fire Strike Physics
Khadas Mind Pro Intel Core Ultra X7 358H	28536 Points +30%
Geekom IT13 Max Intel Core Ultra 9 185H	28505 Points +29%
Acemagic Retro X3 AMD Ryzen 7 255	27148 Points +23%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	26674 Points +21%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22281 Points +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	22021 Points
GMK NucBox K17 Intel Core Ultra 5 226V	18892 Points -14%
2560x1440 Time Spy CPU
Khadas Mind Pro Intel Core Ultra X7 358H	14090 Points +71%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	11025 Points +34%
Geekom IT13 Max Intel Core Ultra 9 185H	10487 Points +28%
Acemagic Retro X3 AMD Ryzen 7 255	9227 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8219 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7608 Points -7%
GMK NucBox K17 Intel Core Ultra 5 226V	6588 Points -20%

Super Pi mod 1.5 XS 1M - 1M
GMK NucBox K17 Intel Core Ultra 5 226V	8.517 s * -6%
Acemagic Retro X3 AMD Ryzen 7 255	8.481 s * -6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	8.003 s *
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7.401 s * +8%
Khadas Mind Pro Intel Core Ultra X7 358H	7.254 s * +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7.159 s * +11%
Geekom IT13 Max Intel Core Ultra 9 185H	6.841 s * +15%

Super Pi mod 1.5 XS 2M - 2M
Acemagic Retro X3 AMD Ryzen 7 255	20.859 s * -19%
GMK NucBox K17 Intel Core Ultra 5 226V	18.695 s * -6%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	18.294 s * -4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	17.869 s * -2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	17.554 s *
Khadas Mind Pro Intel Core Ultra X7 358H	15.971 s * +9%
Geekom IT13 Max Intel Core Ultra 9 185H	15.115 s * +14%

Affinity Photo 2 - Combined (Multi CPU)
Khadas Mind Pro Intel Core Ultra X7 358H	1075 Points +65%
Geekom IT13 Max Intel Core Ultra 9 185H	868 Points +33%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	820 Points +26%
Acemagic Retro X3 AMD Ryzen 7 255	774 Points +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V	651 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	555 Points -15%
GMK NucBox K17 Intel Core Ultra 5 226V	348 Points -47%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

10790

Cinebench R10 Shading 64Bit

18770 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

74728 Points

Cinebench R10 Rendering Single CPUs 64Bit

16650 Points

Cinebench R10 Shading 32Bit

15661

Cinebench R10 Rendering Multiple CPUs 32Bit

47118

Cinebench R11.5 CPU Single 32Bit

3.1 Points

Cinebench R11.5 CPU Multi 32Bit

18.06 Points

Cinebench R11.5 OpenGL 32Bit

111.19 fps

Cinebench R11.5 CPU Single 64Bit

3.56 Points

Cinebench R11.5 CPU Multi 64Bit

20.56 Points

Cinebench R11.5 OpenGL 64Bit

111.98 fps

Cinebench R15 CPU Single 64Bit

299 Points

Cinebench R15 CPU Multi 64Bit

1639 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

197.89 fps

Cinebench R20 CPU (Single Core)

754 Points

Cinebench R20 CPU (Multi Core)

4209 Points

Cinebench R23 Multi Core

10878 Points

Cinebench R23 Single Core

1964 Points

Cinebench 2024 CPU Single Core

121 Points

Cinebench 2024 CPU Multi Core

600 Points

Cinebench 2026 CPU Multi

2484 Points

Cinebench 2026 CPU Single Thread

474 Points

Help

... in comparison

Performance rating
Minisforum AI X1, Ryzen 7 255 ^-1! AMD Ryzen 7 255, Radeon 780M	96.2 pt
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	93.5 pt
Average of class Mini PC	88.1 pt
GMK NucBox M6 Ultra ^-1! AMD Ryzen 5 7640HS, Radeon 760M	70.9 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	69.8 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	52.5 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	43 pt

AIDA64 / FP32 Ray-Trace
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	27202 KRay/s +112%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	26069 KRay/s +104%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	26023 KRay/s +103%
Average of class Mini PC (974 - 82725, n=102, last 2 years)	24491 KRay/s +91%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	19264 KRay/s +50%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	14620 KRay/s +14%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	13192 KRay/s +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	12807 KRay/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	12685 KRay/s -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	9508 KRay/s -26%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	9335 KRay/s -27%

AIDA64 / FPU Julia
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	110760 Points +73%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	107165 Points +68%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	107056 Points +68%
Average of class Mini PC (6115 - 363782, n=102, last 2 years)	101024 Points +58%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	79194 Points +24%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75689 Points +18%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75046 Points +17%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	63909 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	63626 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	48424 Points -24%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	48320 Points -24%

AIDA64 / CPU SHA3
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	4831 MB/s +71%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	4716 MB/s +67%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	4716 MB/s +67%
Average of class Mini PC (385 - 9475, n=102, last 2 years)	4298 MB/s +52%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	3909 MB/s +38%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3756 MB/s +33%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	3489 MB/s +24%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2823 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	2814 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2202 MB/s -22%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2197 MB/s -22%

AIDA64 / CPU Queen
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	118448 Points +139%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	117439 Points +136%
Average of class Mini PC (20501 - 154404, n=81, last 2 years)	91321 Points +84%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	88231 Points +78%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	66907 Points +35%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	49663 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	47070 Points -5%

AIDA64 / FPU SinJulia
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	15213 Points +243%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	15011 Points +239%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	15008 Points +239%
Average of class Mini PC (1116 - 31931, n=102, last 2 years)	12926 Points +192%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	10946 Points +147%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	10118 Points +128%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	10118 Points +128%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	4433 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	4426 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3921 Points -12%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3915 Points -12%

AIDA64 / FPU Mandel
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	59408 Points +84%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	57596 Points +78%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	57586 Points +78%
Average of class Mini PC (3322 - 192994, n=102, last 2 years)	53067 Points +64%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	42413 Points +31%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	39227 Points +21%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	36858 Points +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	32338 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	32316 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	25349 Points -22%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	25323 Points -22%

AIDA64 / CPU AES
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	88405 MB/s +120%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	87750 MB/s +118%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	87498 MB/s +118%
Average of class Mini PC (9915 - 204742, n=101, last 2 years)	81408 MB/s +102%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	77622 MB/s +93%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	77212 MB/s +92%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	60442 MB/s +50%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	40221 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	40029 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	34228 MB/s -15%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34222 MB/s -15%

AIDA64 / CPU ZLib
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	1142 MB/s +83%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	1119 MB/s +80%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	1088 MB/s +75%
Average of class Mini PC (127.2 - 2431, n=102, last 2 years)	1075 MB/s +73%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	1046 MB/s +68%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	1038 MB/s +67%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	752 MB/s +21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	623 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	621 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	521 MB/s -16%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	516 MB/s -17%

AIDA64 / FP64 Ray-Trace
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	14090 KRay/s +103%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	13991 KRay/s +102%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	13661 KRay/s +97%
Average of class Mini PC (537 - 43587, n=102, last 2 years)	13029 KRay/s +88%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	10317 KRay/s +49%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	7875 KRay/s +14%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	7070 KRay/s +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	6932 KRay/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	6875 KRay/s -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	5165 KRay/s -25%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	5133 KRay/s -26%

AIDA64 / CPU PhotoWorxx
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	56898 MPixel/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	52313 MPixel/s -8%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	51770 MPixel/s -9%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46620 MPixel/s -18%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	50262 MPixel/s -12%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	48941 MPixel/s -14%
Average of class Mini PC (8069 - 96843, n=102, last 2 years)	42120 MPixel/s -26%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	39932 MPixel/s -30%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	39444 MPixel/s -31%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	30508 MPixel/s -46%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	30485 MPixel/s -46%

AIDA64 / CPU CheckMate
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	5903 MP/s +123%
Average of class Mini PC (1743 - 19453, n=21, last 2 years)	5623 MP/s +112%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	3258 MP/s +23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	2650 MP/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2013 MP/s -24%

Cinebench R15 Multi Endurance Test

Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Intel Core Ultra 7 256V: Ø1516 (1478.8-1599.87) Points

GMK NucBox K17 Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1226 (1212.75-1232.63) Points

Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, AMD Ryzen 7 255: Ø2629 (2564.6-2672.19) Points

Geekom IT13 Max Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2415 (2345.08-2716.65) Points

GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, AMD Ryzen 5 7640HS: Ø1844 (1829.49-1885.73) Points

Acemagic Retro X3 AMD Ryzen 7 255, AMD Ryzen 7 255: Ø2535 (2525.57-2578.48) Points

Khadas Mind Pro Intel Core Ultra X7 358H, Intel Core Ultra X7 358H: Ø2737 (2694.51-3038.13) Points

System Performance

In everyday use, the Acer Revo Box RB102 proves to be a responsive and powerful mini-PC. The fast DDR5 RAM, running at 8,533 MT/s, ensures smooth operation and short load times. Even with typical office applications, multimedia, and multitasking, this mini-PC from Acer is well-equipped and delivers solid performance for everyday use.

PCMark 10 / Score
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	8834 Points +13%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	8330 Points +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	7822 Points
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	7736 Points -1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	7481 Points -4%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	6793 Points -13%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	6448 Points -18%

PCMark 10 / Essentials
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	10282 Points +9%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9933 Points +5%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	9919 Points +5%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	9779 Points +3%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	9740 Points +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	9462 Points
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	9312 Points -2%

PCMark 10 / Productivity
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	15629 Points +12%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	13969 Points
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	13908 Points 0%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	13840 Points -1%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	13677 Points -2%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9353 Points -33%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	9124 Points -35%

WebXPRT 4 / Overall
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	278 Points +19%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	273 Points +17%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	252 Points +8%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	249 Points +6%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	239 Points +2%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	236 Points +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	234 Points

WebXPRT 3 / Overall
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	297 Points +23%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	295 Points +22%
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	293 Points +22%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	292 Points +21%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	292 Points +21%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	285 Points +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	241 Points

Mozilla Kraken 1.1 / Total
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	591 ms * -24%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	555 ms * -17%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	521 ms * -10%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	511 ms * -8%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	494 ms * -4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	475 ms *
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	460 ms * +3%

CrossMark / Overall
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	2053 Points +25%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1846 Points +13%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1727 Points +6%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1661 Points +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1636 Points
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1605 Points -2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1558 Points -5%

CrossMark / Productivity
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	1874 Points +17%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1724 Points +8%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1641 Points +3%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1633 Points +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1595 Points
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1564 Points -2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1529 Points -4%

CrossMark / Creativity
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	2393 Points +29%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	2074 Points +12%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1986 Points +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1856 Points
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1764 Points -5%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1743 Points -6%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1710 Points -8%

CrossMark / Responsiveness
Khadas Mind Pro, Intel Core Ultra X7 358H Intel Arc B390 12 Xe3 Panther Lake iGPU, Western Digital SN740 SDDPTQE-2T00	1704 Points +41%
Geekom IT13 Max, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston NV3 500GB SNV3S/500GCN	1601 Points +32%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1435 Points +18%
Acemagic Retro X3, AMD Ryzen 7 255 AMD Radeon 780M, Faspeed P9-1TB	1357 Points +12%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1347 Points +11%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1244 Points +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Core Ultra 7 256V Intel Arc Graphics 140V, AirDisk APF 10-001T	1211 Points

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	117565 MB/s +14%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	102915 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	102585 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	102045 MB/s -1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	100830 MB/s -2%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75089 MB/s -27%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	74884 MB/s -27%
Average of class Mini PC (15933 - 163031, n=102, last 2 years)	69498 MB/s -32%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	68402 MB/s -34%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	67953 MB/s -34%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	67909 MB/s -34%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	63022 MB/s -39%

AIDA64 / Memory Read
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	108413 MB/s +21%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	89687 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	87910 MB/s -2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	85847 MB/s -4%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	84874 MB/s -5%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	72277 MB/s -19%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	70624 MB/s -21%
Average of class Mini PC (14143 - 123769, n=102, last 2 years)	66439 MB/s -26%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	61434 MB/s -32%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	61294 MB/s -32%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	50151 MB/s -44%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	50038 MB/s -44%

AIDA64 / Memory Write
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	120314 MB/s +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	117875 MB/s
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	117859 MB/s 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	111489 MB/s -5%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	111430 MB/s -5%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	89387 MB/s -24%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	88683 MB/s -25%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	82539 MB/s -30%
Average of class Mini PC (10630 - 216693, n=102, last 2 years)	79179 MB/s -33%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	75225 MB/s -36%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	75208 MB/s -36%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	74661 MB/s -37%

AIDA64 / Memory Latency
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v6.92.6600)	174.6 ns * -81%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (v8.20.8100)	172.1 ns * -79%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	113.3 ns * -18%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M (v8.20.8100)	109.1 ns * -13%
Average of class Mini PC (88.1 - 174.6, n=103, last 2 years)	101.7 ns * -5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v8.20.8100)	96.4 ns *
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (v6.92.6600)	96.3 ns * -0%
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v8.20.8100)	93.2 ns * +3%
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (v6.92.6600)	0 ns * +100%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	91.2 ns * +5%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	89.5 ns * +7%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	88.2 ns * +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M (v6.92.6600)	88.8 ns * +8%

* ... smaller is better

UL Procyon for Windows / Overall Score Integer NPU
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (OpenVINO)	2186 Points +23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (OpenVINO)	1781 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (OpenVINO)	1748 Points -2%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (OpenVINO)	634 Points -64%

UL Procyon for Windows / Overall Score Integer GPU
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (Windows ML)	102 Points +79%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core (Windows ML)	89 Points +56%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	79 Points +39%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V (Windown ML)	57 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (Windows ML)	54 Points -5%

DPC Latences

Maximum latency when opening multiple browser tabs

Maximum latency when playing 4K video footage (old)

Maximum latency after ten seconds of Prime95

Drivers sorted by longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	2211.4 μs *
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	1849 μs * +16%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	1200 μs * +46%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	1030 μs * +53%
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	849 μs * +62%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	781 μs * +65%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	559.7 μs * +75%

* ... smaller is better

Storage devices

A PCIe 3.0 x1 SSD is used, which achieves only low transfer rates due to the severely limited interface and is thus largely responsible for the comparatively poor performance in the SSD comparison. Under sustained load, however, there are no significant performance drops. Two M.2 slots are available for mass storage, allowing a total of two SSDs to be installed.

AS SSD

DiskSpd

AirDisk APF 10-001T

Sequential Read: 812MB/s

Sequential Write: 747MB/s

4K Read: 41.6MB/s

4K Write: 116.6MB/s

4K-64 Read: 659MB/s

4K-64 Write: 666MB/s

Access Time Read: 0.181ms

Access Time Write: 0.109ms

Copy ISO: 803.88MB/s

Copy Program: 563.84MB/s

Copy Game: 668.91MB/s

Score Read: 782Points

Score Write: 857Points

Score Total: 2047Points

Drive Performance rating | DiskSpd | AS SSD | SPECworkstation 4.0

Drive Performance rating - Percent
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	86.7 pt
Average of class Mini PC	77.8 pt
Acemagic Retro X3 Faspeed P9-1TB	72.1 pt
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	66.7 pt
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	65.9 pt
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	63 pt
GMK NucBox M6 Ultra	61.8 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	35 pt

DiskSpd
seq read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3437 (2671.77^min - 3436.65^max) MB/s +403%
Acemagic Retro X3 Faspeed P9-1TB	3296 (2404.8^min - 3296^max) MB/s +383%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	2684 (2597.37^min - 2683.81^max) MB/s +293%
Average of class Mini PC (435 - 4960, n=85, last 2 years)	2547 MB/s +273%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2476 (2339.58^min - 2475.9^max) MB/s +263%
GMK NucBox M6 Ultra	2218 (2191.96^min - 2217.5^max) MB/s +225%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1458 (1439.33^min - 1457.73^max) MB/s +113%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	683 (671.51^min - 682.62^max) MB/s
seq write
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	4489 (4456.76^min - 4488.53^max) MB/s +509%
Acemagic Retro X3 Faspeed P9-1TB	3476 (3435.39^min - 3475.61^max) MB/s +372%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	3203 (3115.53^min - 3202.98^max) MB/s +335%
Average of class Mini PC (408 - 5556, n=85, last 2 years)	3055 MB/s +315%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2744 (1428.03^min - 2743.91^max) MB/s +272%
GMK NucBox M6 Ultra	2205 (2009.88^min - 2204.95^max) MB/s +199%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1945 (1600.49^min - 1945.32^max) MB/s +164%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	737 (690.89^min - 737.36^max) MB/s
seq q8 t1 read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	6829 (5502.51^min - 6829.17^max) MB/s +667%
Acemagic Retro X3 Faspeed P9-1TB	6218 (5011.82^min - 6217.57^max) MB/s +599%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	5237 (4426.67^min - 5236.79^max) MB/s +488%
Average of class Mini PC (543 - 7117, n=85, last 2 years)	4511 MB/s +407%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3945 (2995.45^min - 3945.37^max) MB/s +343%
GMK NucBox M6 Ultra	3301 (2507.56^min - 3301.34^max) MB/s +271%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2691 (2471.58^min - 2691.48^max) MB/s +202%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	890 (669.12^min - 890.45^max) MB/s
seq q8 t1 write
Acemagic Retro X3 Faspeed P9-1TB	4779 (4697.87^min - 4778.87^max) MB/s +450%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	4665 (4573.89^min - 4665.22^max) MB/s +437%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	4009 (3770.05^min - 4009.08^max) MB/s +361%
Average of class Mini PC (410 - 6647, n=85, last 2 years)	3599 MB/s +314%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3082 (2929.93^min - 3081.85^max) MB/s +255%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2941 (2574.88^min - 2941.05^max) MB/s +238%
GMK NucBox M6 Ultra	2384 (2320.5^min - 2383.89^max) MB/s +174%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	869 (858.57^min - 868.58^max) MB/s
4k q1 t1 read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	62.9 (60.28^min - 62.92^max) MB/s +30%
Acemagic Retro X3 Faspeed P9-1TB	62.2 (60.24^min - 62.23^max) MB/s +29%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	61.8 (59.37^min - 61.83^max) MB/s +28%
GMK NucBox M6 Ultra	58.8 (57.48^min - 58.79^max) MB/s +22%
Average of class Mini PC (6.85 - 88.3, n=85, last 2 years)	56.5 MB/s +17%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	48.2 (45^min - 48.2^max) MB/s
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	43.7 (42.75^min - 43.72^max) MB/s -9%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	41.9 (40.29^min - 41.94^max) MB/s -13%
4k q1 t1 write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	201 (158.52^min - 201.45^max) MB/s +69%
Average of class Mini PC (29.6 - 366, n=85, last 2 years)	184.8 MB/s +56%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	181.5 (174.66^min - 181.45^max) MB/s +53%
GMK NucBox M6 Ultra	173.4 (162.83^min - 173.44^max) MB/s +46%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	142.4 (137.59^min - 142.4^max) MB/s +20%
Acemagic Retro X3 Faspeed P9-1TB	141.7 (140.5^min - 141.66^max) MB/s +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	118.6 (107.95^min - 118.59^max) MB/s
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	103.5 (100.16^min - 103.46^max) MB/s -13%
4k q32 t16 read
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	2679 (2673.79^min - 2679.21^max) MB/s +320%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1960 (1905.33^min - 1960.41^max) MB/s +207%
Average of class Mini PC (177.7 - 4349, n=85, last 2 years)	1561 MB/s +145%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1055 (1028.03^min - 1055.25^max) MB/s +65%
Acemagic Retro X3 Faspeed P9-1TB	977 (944.6^min - 976.53^max) MB/s +53%
GMK NucBox M6 Ultra	948 (936.95^min - 947.59^max) MB/s +49%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	638 (615.83^min - 637.6^max) MB/s
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	581 (564.79^min - 581.34^max) MB/s -9%
4k q32 t16 write
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	2684 (2649^min - 2684.47^max) MB/s +553%
Average of class Mini PC (151.8 - 4088, n=85, last 2 years)	1414 MB/s +244%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	962 (435.84^min - 961.9^max) MB/s +134%
GMK NucBox M6 Ultra	788 (750.91^min - 787.75^max) MB/s +92%
Acemagic Retro X3 Faspeed P9-1TB	427 (414.04^min - 427.39^max) MB/s +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	411 (357.67^min - 410.77^max) MB/s
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	404 (399.8^min - 404.26^max) MB/s -2%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	245 (194.02^min - 244.8^max) MB/s -40%

AS SSD
Score Total
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	5294 Points +159%
Average of class Mini PC (507 - 10559, n=83, last 2 years)	4985 Points +144%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	4353 Points +113%
Acemagic Retro X3 Faspeed P9-1TB	4266 Points +108%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	3550 Points +73%
GMK NucBox M6 Ultra	3522 Points +72%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3171 Points +55%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	2047 Points
Score Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1833 Points +134%
Average of class Mini PC (192 - 3834, n=83, last 2 years)	1715 Points +119%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	1618 Points +107%
Acemagic Retro X3 Faspeed P9-1TB	1261 Points +61%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1219 Points +56%
GMK NucBox M6 Ultra	1211 Points +55%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1169 Points +49%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	782 Points
Score Write
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	2838 Points +231%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2550 Points +198%
Acemagic Retro X3 Faspeed P9-1TB	2426 Points +183%
Average of class Mini PC (210 - 5505, n=83, last 2 years)	2422 Points +183%
GMK NucBox M6 Ultra	1709 Points +99%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1494 Points +74%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	857 Points
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	826 Points -4%
Seq Read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	5056 MB/s +523%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	4110 MB/s +406%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	3967 MB/s +389%
Acemagic Retro X3 Faspeed P9-1TB	3955 MB/s +387%
Average of class Mini PC (501 - 5766, n=83, last 2 years)	3807 MB/s +369%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	3570.8 MB/s +340%
GMK NucBox M6 Ultra	2966 MB/s +265%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	812 MB/s
Seq Write
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	3801.45 MB/s +409%
Average of class Mini PC (437 - 5654, n=83, last 2 years)	3005 MB/s +302%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	2998 MB/s +301%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2929 MB/s +292%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	2883 MB/s +286%
Acemagic Retro X3 Faspeed P9-1TB	2369 MB/s +217%
GMK NucBox M6 Ultra	2291 MB/s +207%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	747 MB/s
4K Read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	63.9 MB/s +54%
GMK NucBox M6 Ultra	63.5 MB/s +53%
Average of class Mini PC (18.2 - 101.7, n=83, last 2 years)	59.5 MB/s +43%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	58.9 MB/s +42%
Acemagic Retro X3 Faspeed P9-1TB	55.1 MB/s +32%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	51 MB/s +23%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	41.6 MB/s
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	35.07 MB/s -16%
4K Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	184.2 MB/s +58%
Average of class Mini PC (67.3 - 318, n=83, last 2 years)	177.4 MB/s +52%
GMK NucBox M6 Ultra	170.1 MB/s +46%
Acemagic Retro X3 Faspeed P9-1TB	169.5 MB/s +45%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	164.8 MB/s +41%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	164.28 MB/s +41%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	118.3 MB/s +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	116.6 MB/s
4K-64 Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	1363 MB/s +107%
Average of class Mini PC (118.5 - 3321, n=83, last 2 years)	1275 MB/s +93%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	1225.77 MB/s +86%
GMK NucBox M6 Ultra	850 MB/s +29%
Acemagic Retro X3 Faspeed P9-1TB	810 MB/s +23%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	772 MB/s +17%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	659 MB/s
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	599 MB/s -9%
4K-64 Write
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	2293.27 MB/s +244%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2093 MB/s +214%
Acemagic Retro X3 Faspeed P9-1TB	2019 MB/s +203%
Average of class Mini PC (96.3 - 4890, n=83, last 2 years)	1945 MB/s +192%
GMK NucBox M6 Ultra	1310 MB/s +97%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1088 MB/s +63%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	666 MB/s
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	342 MB/s -49%
Access Time Read
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.242 ms * -34%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	0.181 ms *
Acemagic Retro X3 Faspeed P9-1TB	0.147 ms * +19%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.137 ms * +24%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	0.129 ms * +29%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.128 ms * +29%
GMK NucBox M6 Ultra	0.117 ms * +35%
Average of class Mini PC (0.027 - 0.242, n=83, last 2 years)	0.09298 ms * +49%
Access Time Write
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.185 ms * -70%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	0.109 ms *
Average of class Mini PC (0.013 - 0.706, n=83, last 2 years)	0.1016 ms * +7%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.097 ms * +11%
GMK NucBox M6 Ultra	0.088 ms * +19%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.084 ms * +23%
Acemagic Retro X3 Faspeed P9-1TB	0.062 ms * +43%
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	0.029 ms * +73%

SPECworkstation 4.0 - Storage Score
Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00	0.89 Points +162%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.86 Points +153%
Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN	0.82 Points +141%
Average of class Mini PC (0.2 - 1.1, n=65, last 2 years)	0.693 Points +104%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.59 Points +74%
GMK NucBox M6 Ultra	0.47 Points +38%
Acemagic Retro X3 Faspeed P9-1TB	0.44 Points +29%
Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T	0.34 Points

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Acer Revo Box RB102-LNL, Core Ultra 7 256V AirDisk APF 10-001T; diskspd 2.0.17 f: Ø887 (644.42-891.18) MB/s

GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB; diskspd 2.0.17 f: Ø3765 (1445.94-6800.23) MB/s

Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00; diskspd 2.0.17 f: Ø2676 (2375.73-2711.44) MB/s

Geekom IT13 Max Kingston NV3 500GB SNV3S/500GCN; diskspd 2.0.17 f: Ø2948 (2469.4-2989.49) MB/s

GMK NucBox M6 Ultra ; diskspd 2.0.17 f: Ø3300 (2878.04-3339.75) MB/s

Acemagic Retro X3 Faspeed P9-1TB; diskspd 2.0.17 f: Ø6510 (5621.42-6619.63) MB/s

Khadas Mind Pro Western Digital SN740 SDDPTQE-2T00; diskspd 2.0.17 f: Ø5230 (4692.85-5249.38) MB/s

Graphics Card and Gaming Performance

The Intel Core Ultra 7 256V uses the integrated Intel Arc Graphics 140V with eight Xe2 cores. It offers sufficient graphics performance for everyday multimedia tasks, high-resolution video playback, and hardware-accelerated media processing. Gaming is also possible, with older and less demanding titles in particular running smoothly at medium to high detail settings. Compared to integrated graphics solutions such as the AMD Radeon 890M, however, the Arc 140V holds its own in benchmarks. Graphics performance remains largely consistent under sustained load.

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	99.8 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	57.3 pt
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	51.6 pt
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	49.7 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	49.3 pt
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	49.1 pt
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	46.3 pt
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	38.1 pt

3DMark 11 - 1280x720 Performance GPU
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	18261 Points +60%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	14293 Points +25%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	13594 Points +19%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	13388 Points +17%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	11434 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10312 Points -10%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	10018 Points -12%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	9877 Points -14%

3DMark
2560x1440 Time Spy Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	6945 Points +95%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	3569 Points
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3520 Points -1%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3148 Points -12%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3144 Points -12%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2874 Points -19%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2790 Points -22%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2281 Points -36%
1920x1080 Fire Strike Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	16560 Points +71%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	9692 Points
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8647 Points -11%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8463 Points -13%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	8404 Points -13%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	8350 Points -14%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	8094 Points -16%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6558 Points -32%
Steel Nomad Score
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H (Vulkan)	1646 Points +123%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H (DX12)	1608 Points +118%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H (DX12)	782 Points +6%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H (Vulkan)	669 Points -9%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V (Vulkan)	738 Points
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V (DX12)	715 Points -3%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V (Vulkan)	659 Points -11%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V (DX12)	644 Points -13%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370 (Vulkan)	618 Points -16%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370 (DX12)	519 Points -30%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255 (Vulkan)	511 Points -31%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255 (DX12)	500 Points -32%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255 (Vulkan)	477 Points -35%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255 (DX12)	474 Points -36%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS (Vulkan)	403 Points -45%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS (DX12)	395 Points -46%
2560x1440 Port Royal Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	4154 Points +99%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2091 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1798 Points -14%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1682 Points -20%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1649 Points -21%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1647 Points -21%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1322 Points -37%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1300 Points -38%
Night Raid Score
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	47672 Points +32%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	36214 Points
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	29636 Points -18%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	29220 Points -19%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29215 Points -19%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	29054 Points -20%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	28685 Points -21%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	23611 Points -35%
Solar Bay Score
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	27822 Points +71%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	16242 Points
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13911 Points -14%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	13402 Points -17%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	13236 Points -19%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	12194 Points -25%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	11287 Points -31%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9578 Points -41%

Performance rating - Percent
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	97.8 pt
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	63.6 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	60.9 pt
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	60.4 pt
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	57.8 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	55.9 pt
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	54.2 pt
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	47 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	73.1 fps +50%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	48.6 fps
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	40.1 fps -17%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	37.3 fps -23%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	36.4 fps -25%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	36 fps -26%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	31.5 fps -35%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	28.8 fps -41%
Extreme Preset DX11
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	71.7 fps +156%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.1 fps +47%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	37.2 fps +33%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	34.5 fps +23%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +16%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	29.3 fps +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	28 fps
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.3 fps -6%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	47.9 fps +153%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	27.7 fps +47%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	25.4 fps +34%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	24.8 fps +31%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	23.7 fps +25%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	23.1 fps +22%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	19.5 fps +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	18.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	49 fps +45%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	33.8 fps
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.7 fps -21%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	23.6 fps -30%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	21.9 fps -35%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	19.6 fps -42%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	17.7 fps -48%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	17.2 fps -49%

Unigine Superposition
1280x720 720p Low
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	22835 Points +76%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	12989 Points
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12737 Points -2%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	12536 Points -3%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	11334 Points -13%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10953 Points -16%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points -18%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9195 Points -29%
1920x1080 1080p High
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	7652 Points +79%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	4265 Points
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3976 Points -7%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3823 Points -10%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3751 Points -12%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	3638 Points -15%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	3182 Points -25%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2830 Points -34%
1920x1080 1080p Extreme
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3718 Points +86%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2052 Points +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1997 Points
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1960 Points -2%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1748 Points -12%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1694 Points -15%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1563 Points -22%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1336 Points -33%

ComputeMark v2.1
1024x600 Normal, Score
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	10533 Points +63%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	10495 Points +63%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	9629 Points +49%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9395 Points +46%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7704 Points +19%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6520 Points +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	6452 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	5886 Points -9%
1024x600 Normal, Fluid 3DTex
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1121 Points +34%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	929 Points +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	836 Points
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	530 Points -37%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	494 Points -41%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	475 Points -43%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	427 Points -49%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	422 Points -50%
1024x600 Normal, Fluid 2DTexArr
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1017 Points +53%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	666 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	641 Points -4%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	507 Points -24%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	487 Points -27%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	479 Points -28%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	443 Points -33%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	427 Points -36%
1024x600 Normal, Mandel Vector
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2984 Points +109%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2526 Points +77%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2512 Points +76%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	2180 Points +53%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1905 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1720 Points +20%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1428 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1242 Points -13%
1024x600 Normal, Mandel Scalar
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2808 Points +123%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2596 Points +106%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2531 Points +101%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	2379 Points +89%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2005 Points +59%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1616 Points +28%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1258 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1092 Points -13%
1024x600 Normal, QJuliaRayTrace
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	3849 Points +70%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3837 Points +70%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	3546 Points +57%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3351 Points +48%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2785 Points +23%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2319 Points +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	2263 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1983 Points -12%

LuxMark v2.0 64Bit
Room GPUs-only
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1449 Samples/s +32%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1098 Samples/s
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	997 Samples/s -9%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	975 Samples/s -11%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	911 Samples/s -17%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	882 Samples/s -20%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	838 Samples/s -24%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	747 Samples/s -32%
Sala GPUs-only
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3930 Samples/s +26%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	3110 Samples/s
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2879 Samples/s -7%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2698 Samples/s -13%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1645 Samples/s -47%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1576 Samples/s -49%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1570 Samples/s -50%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1513 Samples/s -51%

Affinity Photo 2 - Combined (Single / Multi GPU)
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	10429 Points +36%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	7692 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6245 Points -19%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5264 Points -32%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2944 Points -62%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1649 Points -79%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1580 Points -79%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1495 Points -81%

Geekbench AI
Quantized GPU 1.7
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	6908 Points +60%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	5896 Points +37%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	5586 Points +29%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	4966 Points +15%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4807 Points +11%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	4314 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4133 Points -4%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3491 Points -19%
Half Precision GPU 1.7
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	16188 Points +42%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13247 Points +16%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	11517 Points +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	11379 Points
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	11320 Points -1%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9269 Points -19%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	9167 Points -19%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7806 Points -31%
Single Precision GPU 1.7
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	9783 Points +59%
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8093 Points +31%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	7428 Points +20%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	6354 Points +3%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6296 Points +2%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6253 Points +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	6166 Points
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	4797 Points -22%

Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance rating
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	100 pt
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	85.2 pt
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	83 pt
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	79.9 pt
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	66.3 pt
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	62.7 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	48.5 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	44 pt

SPECworkstation 4.0 / Graphics Score
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.21 Points +121%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2.06 Points +106%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1.97 Points +97%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.61 Points +61%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1.57 Points +57%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1.07 Points +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.87 Points -13%

SPECworkstation 4.0 / Accelerator Score
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.46 Points +97%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	2.19 Points +75%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2.15 Points +72%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	2.04 Points +63%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1.83 Points +46%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1.75 Points +40%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1.27 Points +2%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	1.25 Points

SPECworkstation 4.0 / Viewport Graphics
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.21 Points +122%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2.06 Points +107%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1.97 Points +98%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.61 Points +62%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1.57 Points +58%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1.07 Points +8%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	0.995 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.869 Points -13%

SPECworkstation 4.0 / HandBrake
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1.77 Points +81%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.44 Points +47%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1.39 Points +42%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1.37 Points +40%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1.3 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1.12 Points +15%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	0.977 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.872 Points -11%

SPECworkstation 4.0 / ONNX Inference
Minisforum AI X1 Pro, HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1.71 Points +116%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.43 Points +81%
Acemagic Retro X3 AMD Radeon 780M, AMD Ryzen 7 255	1.37 Points +73%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1.28 Points +62%
Geekom IT13 Max Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1.09 Points +38%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	0.944 Points +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Arc Graphics 140V, Intel Core Ultra 7 256V	0.79 Points
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.689 Points -13%

	Acer Revo Box RB102-LNL, Core Ultra 7 256V, Intel Arc Graphics 140V Core Ultra 7 256V	GMK NucBox K17, Intel Arc Graphics 130V Core Ultra 5 226V	Minisforum AI X1, Ryzen 7 255, AMD Radeon 780M Ryzen 7 255	Geekom IT13 Max, Intel Arc 8-Core iGPU Ultra 9 185H	GMK NucBox M6 Ultra, AMD Radeon 760M R5 7640HS	Acemagic Retro X3, AMD Radeon 780M Ryzen 7 255	Khadas Mind Pro, Intel Arc B390 12 Xe3 Panther Lake iGPU Ultra X7 358H	Minisforum AI X1 Pro, HX 370, AMD Radeon 890M Ryzen AI 9 HX 370	Average of class Mini PC
SPECviewperf 2020		-11%	241%	8%	151%	193%	54%	249%	386%
3840x2160 Medical (medical-03) (fps)	5.34	4.32 -19%	12.6 136%	7.12 33%	11 106%	15.9 198%	9.48 78%	15.2 185%	24.1 ?(1.74 - 90.1, n=66, last 2 years) 351%
3840x2160 Energy (energy-03) (fps)	4.18	3.32 -21%	19.1 357%	5.57 33%	10.1 142%	11.9 185%	7.67 83%	15.5 271%	35.8 ?(1.16 - 139, n=66, last 2 years) 756%
3840x2160 Creo (creo-03) (fps)	21.9	18.7 -15%	33.7 54%	19.2 -12%	26.2 20%	29.8 36%	28.9 32%	34.1 56%	51.1 ?(8.09 - 126, n=66, last 2 years) 133%
3840x2160 CATIA (catia-06) (fps)	11.5	11.5 0%	24.6 114%	12.3 7%	21.1 83%	21.2 84%	19.5 70%	23.1 101%	36.3 ?(4.65 - 89.8, n=62, last 2 years) 216%
3840x2160 Siemens NX (snx-04) (fps)	7.24	6.7 -7%	63.1 772%	6.23 -14%	48.6 571%	54.5 653%	7.09 -2%	68.7 849%	52.2 ?(3.78 - 233, n=64, last 2 years) 621%
3840x2160 Maya (maya-06) (fps)	43.3	42.1 -3%	47.5 10%	44.3 2%	36.5 -16%	44.9 4%	69.4 60%	55.9 29%	147.6 ?(11.6 - 542, n=65, last 2 years) 241%

3DMark 05 Standard		53943 points
3DMark 06 Standard Score		45301 points
3DMark Vantage P Result		46623 points
3DMark 11 Performance		11803 points
3DMark Ice Storm Standard Score		203823 points
3DMark Cloud Gate Standard Score		34407 points
3DMark Fire Strike Score		8838 points
3DMark Fire Strike Extreme Score		3895 points
3DMark Time Spy Score		3899 points
3DMark Steel Nomad Score		715 points
Help

... in comparison

Performance rating - Percent
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	97.7 pt
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	70.3 pt
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	66.8 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	61.1 pt
Acemagic Retro X3 ^-1! Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	60.5 pt
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	58.6 pt
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	53.2 pt
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	51.1 pt

GTA V
1024x768 Lowest Settings possible
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	175.9 (3.7^min, 125^P1) fps +9%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	166.2 (4.23^min, 71.4^P1) fps +3%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	162.3 (5.48^min, 100^P1) fps +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	161.2 (2.13^min, 90.9^P1) fps
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	157 (5.72^min, 100^P1) fps -3%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	148.5 (4.34^min, 100^P1) fps -8%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	147.7 (4.09^min, 100^P1) fps -8%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	115.9 (16.7^min, 71.4^P1) fps -28%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	108.8 (13.5^min, 76.9^P1) fps +60%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	71.9 (6.03^min, 47.6^P1) fps +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	67.8 (10.4^min, 47.6^P1) fps
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	64.8 (5.04^min, 43.5^P1) fps -4%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	57.9 (5.01^min, 41.7^P1) fps -15%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	55.5 (5.25^min, 40^P1) fps -18%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	54.8 (8.67^min, 38.5^P1) fps -19%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	37.2 (6.45^min, 30.3^P1) fps -45%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	167.6 (135.7^min) fps +58%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	160.8 (137.9^min) fps +51%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	151.2 (131.3^min) fps +42%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	131.4 (114.4^min) fps +24%
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	129.5 (70.9^min) fps +22%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	107 (68^min) fps +1%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	106.2 (68.3^min) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	94.5 (66.9^min) fps -11%
1920x1080 high (2/3)
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	104 (71.4^min) fps +52%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	92.5 (81.6^min) fps +35%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	91.6 (79.1^min) fps +34%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	90.3 (75.3^min) fps +32%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	81.2 (52.7^min) fps +19%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	81.2 (68.7^min) fps +19%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	68.3 (40.3^min) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	52.3 (25.3^min) fps -23%

Cyberpunk 2077
1920x1080 Low Preset (FSR off)
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	85.6 (70.9^min) fps +78%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	48.1 (41.3^min) fps 0%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	48 (39.9^min, 37.2^P1) fps
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	42.6 (36.3^min, 34.3^P1) fps -11%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	38.7 (32.8^min, 31.7^P1) fps -19%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	36.2 (30.3^min, 28.8^P1) fps -25%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	34 (29.7^min, 28.4^P1) fps -29%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	32.9 (28.4^min) fps -31%
1920x1080 High Preset (FSR off)
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	57.8 (48.8^min) fps +113%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.9 (24.5^min) fps +7%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	27.1 (23.4^min, 22.1^P1) fps
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	26.9 (23.1^min, 21.5^P1) fps -1%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	25 (21.1^min, 20.3^P1) fps -8%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	24.9 (21.1^min, 20.2^P1) fps -8%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	23.6 (20^min, 19.3^P1) fps -13%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	20.9 (17.7^min) fps -23%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	84.3 (65.3^min, 69.5^P0.1, 72.1^P1) fps +61%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	67.9 (43.2^min, 47.8^P0.1, 55.8^P1) fps +29%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	65.9 (48.5^min, 50.7^P0.1, 57.6^P1) fps +26%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	55.6 (42.4^min, 44.2^P0.1, 46.8^P1) fps +6%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	52.5 (42.6^min, 43.1^P0.1, 44.2^P1) fps
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	52.1 (39.1^min, 40.9^P0.1, 44.6^P1) fps -1%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	49.3 (29.8^min, 29.9^P0.1, 30^P1) fps -6%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.7 (29.8^min, 29.9^P0.1, 30^P1) fps -9%
1920x1080 High Preset AA:T
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	42.7 (36.1^min, 36.7^P0.1, 39.1^P1) fps +56%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.8 (15.7^min, 23.2^P0.1, 26.3^P1) fps +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	27.4 (23.4^min, 23.5^P0.1, 24.3^P1) fps
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	26.3 (22.5^min, 22.6^P0.1, 23.5^P1) fps -4%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	23.4 (19.4^min, 20.1^P0.1, 21.1^P1) fps -15%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	22.9 (19.8^min, 19.8^P0.1, 20^P1) fps -16%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	22.5 (15^min, 17.8^P0.1, 20^P1) fps -18%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	20 (17.9^min, 17.9^P0.1, 18.3^P1) fps -27%

F1 24
1920x1080 Low Preset AA:T AF:16x
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	160.3 (137^min, 110^P1) fps +103%
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	82.4 (57^min, 52^P1) fps +4%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	82.3 (70^min, 62^P1) fps +4%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	79.1 (54^min, 62^P1) fps
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	74.3 (65^min, 55^P1) fps -6%
Acemagic Retro X3 Radeon 780M, Ryzen 7 255, Faspeed P9-1TB	70.1 (28^min, 53^P1) fps -11%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	66.1 (48^min, 37^P1) fps -16%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	62.2 (53^min, 51^P1) fps -21%
1920x1080 High Preset AA:T AF:16x
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	109.6 (95^min, 77^P1) fps +102%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	54.2 (34^min, 35^P1) fps 0%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Arc 140V, Core Ultra 7 256V, AirDisk APF 10-001T	54.2 (25^min, 44^P1) fps
Minisforum AI X1 Pro, HX 370 Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	53.4 (40^min, 32^P1) fps -1%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.1 (39^min, 37^P1) fps -13%
Geekom IT13 Max Arc 8-Core, Ultra 9 185H, Kingston NV3 500GB SNV3S/500GCN	45.1 (38^min, 36^P1) fps -17%
GMK NucBox M6 Ultra Radeon 760M, R5 7640HS	43.4 (32^min, 27^P1) fps -20%

FPS Chart - 30 Min. Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)

Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V: Ø27.2 (22.3-28.2) fps

GMK NucBox K17 Core Ultra 5 226V, Arc 130V: Ø16.4 (15.6-17.2) fps

Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M: Ø22.2 (21.4-22.5) fps

Geekom IT13 Max Ultra 9 185H, Arc 8-Core: Ø18 (17.2-18.5) fps

GMK NucBox M6 Ultra R5 7640HS, Radeon 760M: Ø17.5 (14-17.8) fps

Acemagic Retro X3 Ryzen 7 255, Radeon 780M: Ø20.2 (19.1-20.6) fps

Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU: Ø46.3 (43.6-47.2) fps

	low	med.	high	ultra
GTA V (2015)	161.2	155.6	67.8	25.7
The Witcher 3 (2015)	162.2	105.8	58.1	23.8
Dota 2 Reborn (2015)	106.2	97.3	68.3	83.2
Final Fantasy XV Benchmark (2018)	87.8	48.2	33.6
Strange Brigade (2018)	230	79.4	67.2	56.3
Baldur's Gate 3 (2023)	38.9	31.2	27.4	26.7
Cyberpunk 2077 (2023)	48	37.7	27.1	23
F1 24 (2024)	79.1	77.2	54.2	19.6

Emissions

System noise

The Acer Revo Box RB102 mini PC operates pleasantly quietly during everyday use and is sometimes completely silent. The compact cooling system is well-tuned and keeps noise levels low even during typical tasks. Even under prolonged load, the operating noise remains comparatively low, so the mini-PC is hardly noticeable acoustically.

Noise level

Idle		24.7 / 24.8 / 24.9 dB(A)
Load		34.9 / 35.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.6 dB(A)

	Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Acemagic Retro X3 Ryzen 7 255, Radeon 780M	Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU
Noise		9%	-12%	-23%	-11%	-18%	-4%
off / environment * (dB)	24.6	25.1 -2%	24.9 -1%	24.6 -0%	24.7 -0%	24.6 -0%	24.6 -0%
Idle Minimum * (dB)	24.7	25.3 -2%	31.1 -26%	25.3 -2%	27.5 -11%	25 -1%	24.9 -1%
Idle Average * (dB)	24.8	25.4 -2%	31.2 -26%	25.6 -3%	29.3 -18%	25 -1%	24.9 -0%
Idle Maximum * (dB)	24.9	26.1 -5%	31.2 -25%	25.6 -3%	30.1 -21%	25 -0%	25 -0%
Load Average * (dB)	34.9	27.4 21%	36.7 -5%	53.3 -53%	39 -12%	43.6 -25%	40.1 -15%
Witcher 3 ultra * (dB)	35.1	28 20%	37.9 -8%	47.1 -34%	39 -11%	49.8 -42%	36.2 -3%
Cyberpunk 2077 ultra * (dB)	38.9	29.1 25%	37.8 3%	53.4 -37%	39.3 -1%	49.9 -28%	39.7 -2%
Load Maximum * (dB)	35.2	28.6 19%	38.4 -9%	53.5 -52%	39 -11%	50.2 -43%	40.2 -14%

* ... smaller is better

Temperature

Even under sustained load, the Acer Revo Box RB102 shows no signs of overheating. Surface temperatures remain at a non-critical level, while the cooling system reliably dissipates the generated heat. Performance remains stable even during prolonged use, without any temperature-induced throttling.

Acer Revo Box RB102 during the stress test stress test (top view)

Acer Revo Box RB102 during the stress test stress test (bottom view)

Max. Load

Idle

Cyberpunk


29.2 °C 85 F	30.8 °C 87 F	32.9 °C 91 F
31.2 °C 88 F	31.8 °C 89 F	32.8 °C 91 F
30.7 °C 87 F	33.1 °C 92 F	32 °C 90 F

Maximum: 33.1 °C = 92 F
Average: 31.6 °C = 89 F


31.8 °C 89 F	33.9 °C 93 F	28.7 °C 84 F
29.3 °C 85 F	23 °C 73 F	27.6 °C 82 F
29.7 °C 85 F	27 °C 81 F	25.6 °C 78 F

Maximum: 33.9 °C = 93 F
Average: 28.5 °C = 83 F

Power Supply (max.) 49.5 °C = 121 F | Room Temperature 22.2 °C = 72 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


29.2 °C 85 F	30.8 °C 87 F	30.2 °C 86 F
29.6 °C 85 F	30.4 °C 87 F	29.9 °C 86 F
30.1 °C 86 F	29.9 °C 86 F	29.8 °C 86 F

Maximum: 30.8 °C = 87 F
Average: 30 °C = 86 F


30.3 °C 87 F	31.7 °C 89 F	30.2 °C 86 F
29.9 °C 86 F	30.3 °C 87 F	29.8 °C 86 F
30 °C 86 F	29.9 °C 86 F	29.7 °C 85 F

Maximum: 31.7 °C = 89 F
Average: 30.2 °C = 86 F

Power Supply (max.) 31.8 °C = 89 F | Room Temperature 22.1 °C = 72 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


29.2 °C 85 F	30.8 °C 87 F	32.9 °C 91 F
31.2 °C 88 F	31.8 °C 89 F	32.8 °C 91 F
30.7 °C 87 F	33.1 °C 92 F	32 °C 90 F

Maximum: 33.1 °C = 92 F
Average: 31.6 °C = 89 F


31.8 °C 89 F	33 °C 91 F	28.7 °C 84 F
29.3 °C 85 F	23 °C 73 F	27.6 °C 82 F
29.7 °C 85 F	27 °C 81 F	25.6 °C 78 F

Maximum: 33 °C = 91 F
Average: 28.4 °C = 83 F

Power Supply (max.) 49.5 °C = 121 F | Room Temperature 22.2 °C = 72 F | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 33.1 °C / 92 F, compared to the average of 35.3 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 33.9 °C / 93 F, compared to the average of 36 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30 °C / 86 F, compared to the device average of 32.1 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.6 °C / 89 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.

Energy Management

The Acer Revo Box RB102’s overall power consumption is pleasingly low. The compact mini-PC is particularly energy-efficient when idle, but even under load, power consumption remains within reasonable limits. This makes the system an efficient solution for everyday use without consuming an unnecessary amount of energy.

Power Consumption

Off / Standby	0.24 / 1.4 Watt
Idle	4.9 / 5.9 / 7.6 Watt
Load	37.7 / 56.1 Watt


Key: min: , med: , max: Metrahit Energy

	Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M	Geekom IT13 Max Ultra 9 185H, Arc 8-Core	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Acemagic Retro X3 Ryzen 7 255, Radeon 780M	Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU	Average Intel Arc Graphics 140V	Average of class Mini PC
Power Consumption		5%	-38%	-82%	-61%	-43%	-9%	0%	-78%
Idle Minimum * (Watt)	4.9	4.7 4%	4.4 10%	11.8 -141%	8.8 -80%	5.7 -16%	3.9 20%	3.75 ?(1.3 - 7, n=38) 23%	8.54 ?(2.3 - 35.9, n=83, last 2 years) -74%
Idle Average * (Watt)	5.9	6.1 -3%	5.9 -0%	12.2 -107%	9.5 -61%	6.9 -17%	4.7 20%	6.19 ?(2.5 - 13.2, n=38) -5%	10.6 ?(2.59 - 37.1, n=82, last 2 years) -80%
Idle Maximum * (Watt)	7.6	9.6 -26%	6.9 9%	16.1 -112%	11.8 -55%	8.2 -8%	5.2 32%	8.13 ?(4.1 - 15.1, n=38) -7%	13.2 ?(2.7 - 44.4, n=83, last 2 years) -74%
Load Average * (Watt)	37.7	32.7 13%	70.4 -87%	52.9 -40%	69.6 -85%	62.5 -66%	42.6 -13%	39.2 ?(27.3 - 47, n=34) -4%	62.9 ?(21.2 - 159.2, n=83, last 2 years) -67%
Cyberpunk 2077 ultra external monitor * (Watt)	46.8	39.5 16%	85.8 -83%	54.4 -16%	70.5 -51%	81.9 -75%	67.5 -44%
Load Maximum * (Watt)	56.1	41.3 26%	97.4 -74%	100.1 -78%	74.8 -33%	99 -76%	93.5 -67%	60.2 ?(39.6 - 70, n=38) -7%	108.6 ?(27.9 - 423, n=83, last 2 years) -94%

* ... smaller is better

Power efficiency

Performance rating | Power Consumption

Performance rating - Percent
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU	100 pt
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	85 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	78.4 pt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	64.9 pt
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	64.8 pt
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	64.2 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	59.2 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU	250 Points per Watt +15%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	223 Points per Watt +3%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	217 Points per Watt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	213 Points per Watt -2%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	207 Points per Watt -5%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	202 Points per Watt -7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	195.1 Points per Watt -10%
Cinebench R23 Single Power Efficiency - external Monitor
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU	115.2 Points per Watt +20%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	96.3 Points per Watt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85.7 Points per Watt -11%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	66.4 Points per Watt -31%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	62.9 Points per Watt -35%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	50.6 Points per Watt -47%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	48.9 Points per Watt -49%
Cinebench R15 Multi Efficiency (external Monitor)
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU	35.8 Points per Watt +18%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	32 Points per Watt +5%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	30.4 Points per Watt
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	29.9 Points per Watt -2%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	29.9 Points per Watt -2%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	29.8 Points per Watt -2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	28.1 Points per Watt -8%
Cyberpunk 2077 ultra Efficiency
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU	0.686 fps per Watt +18%
Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V, Arc 140V	0.581 fps per Watt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	0.4152 fps per Watt -29%
Geekom IT13 Max Intel Core Ultra 9 185H, Arc 8-Core	0.3309 fps per Watt -43%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	0.2587 fps per Watt -55%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	0.2482 fps per Watt -57%
Acemagic Retro X3 AMD Ryzen 7 255, Radeon 780M	0.2466 fps per Watt -58%

Energy consumption with an external monitor

Acer Revo Box RB102-LNL, Core Ultra 7 256V; Idle 1min (external Monitor): Ø5.92 (3.44-7.56) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; 1280x720 Prime95 28.10 and Furmark 1.25: Ø47.7 (41.6-56.1) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø46.8 (41.7-56.1) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; 3DMark06 Return To Proxycon: Ø37.8 (35.4-42.9) Watt

Energy consumption with an external monitor

Acer Revo Box RB102-LNL, Core Ultra 7 256V; Prime95 V2810 Stress (external Monitor): Ø47.2 (44.6-55.7) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; Cinebench R15 Multi (external Monitor): Ø53.9 (53-54.7) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; Cinebench R23 Single (external Monitor): Ø20.4 (16.3-41.4) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; Cinebench R23 Multi (external Monitor): Ø50.2 (44.6-54.6) Watt

Acer Revo Box RB102-LNL, Core Ultra 7 256V; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø37.1 (35.2-44.1) Watt

Notebookcheck Rating

Back to the verdict

Acer Revo Box RB102-LNL, Core Ultra 7 256V - 09/06/2026 v8
Sebastian Bade

Chassis

78 / 98 → 80%

Connectivity

71 / 81 → 88%

Weight

84%

Games Performance

56 / 80 → 70%

Application Performance

83 / 92 → 90%

Workstation

34%

AI Performance

90%

Temperature

93%

Noise

91%

Average

60%

82%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
75%

Power Use
79.8%

Repairability
60%

Software Updates
22.3%

Total Sustainability Score: 39.5%

Comparison of Possible Alternatives

Image	Model / Review	Price	Weight	Dimensions
1. 81.8%	Acer Revo Box RB102-LNL, Core Ultra 7 256V Intel Core Ultra 7 256V ⎘ Intel Arc Graphics 140V ⎘ 0 GB Memory, 1024 GB SSD	Amazon:	438 g	131 x 131 x 43 mm
2. 81.9%	GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 1024 GB SSD	List Price: 569€	461 g	185 x 187 x 44.5 mm
3. 81.1%	Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	List Price: 579€	658 g	126 x 128 x 52 mm
4. 78.6%	Geekom IT13 Max Intel Core Ultra 9 185H ⎘ Intel Arc 8-Core iGPU ⎘ 24 GB Memory, 500 GB SSD	List Price: 799€	833 g	132 x 136 x 50.1 mm
5. 77.4%	GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memory	Amazon: List Price: 336€	506 g	127 x 128.8 x 47.8 mm
6. 77.2%	Acemagic Retro X3 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 16 GB Memory, SSD	List Price: 899€	528 g	128.2 x 128.2 x 44 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Loading comments

Comment on this article

Add as a preferred source on Google

Editor of the original article: Sebastian Bade - Managing Editor Mini-PC - 832 articles published on Notebookcheck since 2012

I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.

contact me via: Bluesky, Threads, Facebook, nbc.basti, LinkedIn, Xing

> Expert reviews and news on laptops, smartphones and tech innovations > Reviews > Acer mini-PC review: Surprisingly powerful – until you look at the SSD

Sebastian Bade, 2026-09- 8 (Update: 2026-09- 8)

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Apple MacBook Air 15 M3 M3, M3 10-Core GPU	598
Asus Zenbook S 14 UX5406 Core Ultra 9 Core Ultra 9 288V, Arc 140V	598
Microsoft Surface Laptop 7 15 Lunar Lake Core Ultra 7 268V, Arc 140V	600
Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V	600
Medion SPRCHRGD 14 S2 Core Ultra 7 258V, Arc 140V	608
MSI Summit E13 AI Evo A1MTG Ultra 7 155H, Arc 8-Core	609
Lenovo ThinkPad T14s G4-21F8002TGE R7 7840U, Radeon 780M	609
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

Acer mini-PC review: Surprisingly powerful – until you look at the SSD

Small, fast, and economical.

Verfict – Compact, quiet, and efficient—with a few minor flaws

Pros

Cons

Price and Availability

Table of Contents

Specifications

Case & Connectivity

Size Comparison

USB4 Speed (ADATA SE920)

Wi-Fi Performance

Accessories

Maintenance

Performance

Test Conditions

BIOS Settings

Processor

Cinebench R15 Multi Endurance Test

System Performance

DPC Latences

Storage devices

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Graphics Card and Gaming Performance

FPS Chart - 30 Min. Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)

Emissions

System noise

Temperature

Energy Management

Power efficiency

Energy consumption with an external monitor

Energy consumption with an external monitor

Notebookcheck Rating

Comparison of Possible Alternatives

Transparency

3DMark 11 in comparison
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Nexoc GH5 515IG i5-10300H, GeForce GTX 1650 Mobile	11799
Lenovo Yoga Slim 7 14AKP G10 Ryzen AI 7 350, Radeon 860M	11800
Lenovo IdeaPad 5 Pro 16ACH R7 5800H, GeForce GTX 1650 Mobile	11801
Acer Revo Box RB102-LNL, Core Ultra 7 256V Core Ultra 7 256V, Arc 140V	11803
EVGA SC17 6820HK, GeForce GTX 980M	11812
Asus Zenbook A14 UX3704NA X2E-88-100, X2-90	11814
Asus Zenbook A14 UX3704NA X2E-88-100, X2-90	11814
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
