AMD A10 Micro-6700T

AMD A10 Micro-6700T

The AMD A10 Micro-6700T is a mobile quad-core SoC (codenamed "Mullins") for tablets, which has been presented in April 2014. In addition to 4 CPU cores clocked at 1.2 - 2.2 GHz (boost clock), the 28 nanometer chip also integrates a Radeon R6 GPU, a single-channel DDR3L-1333 memory controller and the Southbridge with various I/O-ports.

Architecture

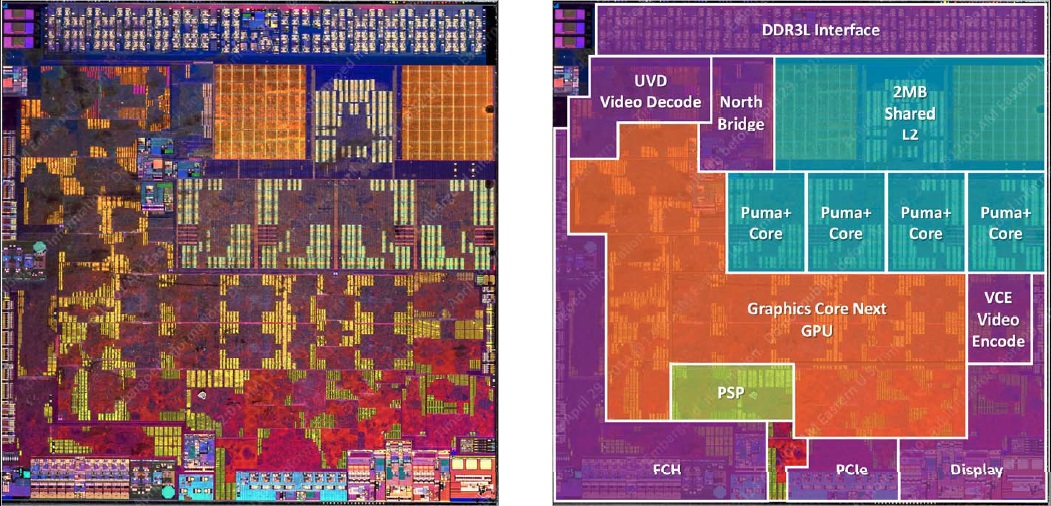

Both Beema (for notebooks) and Mullins (for tablets and compact subnotebooks, same die) are based on AMD's Puma+ architecture, which is the successor to the previous Jaguar design (Kabini and Temash APUs). Neither the performance per clock nor the feature set (including SSE up to 4.2, AVX and AES) have been modified. However, AMD managed to reduce the leakage current, enabling significantly higher (boost) clock speeds. This leads to a more responsive system and better overall performance. As its predecessor, the chip is manufactured in 28 nm.

Performance

In single thread tasks, the APU should be even faster than the former A6-5200 (25 W, 2.0 GHz), but clocks and performance may decrease substantially in long-lasting multi-thread benchmarks. Nonetheless, the Micro-6700T should be sufficient for daily workloads like Office, Internet browsing and multimedia.

Graphics

The SoC integrates a Radeon R6 GPU with 128 shaders, which is based on the GCN architecture and clocked at up to 500 MHz. On average, we expect the graphics performance to be similar to Intel's HD Graphics 4000 (ULV versions) or a Radeon HD 8330. Current games (as of 2014) are thus hardly playable even in low settings, only a few older and less demanding titels should run flawless.

Power Consumption

The power consumption of the entire SoC is rated at 4.5 watts TDP (SDP: 2.8 W). Thus, the APU is suitable for passively cooled tablets.

SeriesAMD A-Series
CodenameMullins
Clock Rate1200 - 2200 MHz
Level 1 Cache256 KB
Level 2 Cache2048 KB
Number of Cores / Threads4 / 4
Max. Power Consumption (TDP = Thermal Design Power)4.5 Watt
Manufacturing Technology28 nm
FeaturesSSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, Single-Channel DDR3L-1333
GPUAMD Radeon R6 (Mullins) (? - 500 MHz)
64 Bit64 Bit support
Hardware VirtualizationVT
Announcement Date04/29/2014

Benchmarks

3DMark (2013) - Cloud Gate Standard Physics 1280x720
0% 100%
min: 1218      avg: 1218 (3%)     median: 1218 (3%)     max: 1218 Points
3DMark (2013) - Ice Storm Unlimited Physics 1280x720 offscreen
0% 100%
min: 15582      avg: 15582 (27%)     median: 15582 (27%)     max: 15582 Points
TrueCrypt - Twofish Mean 100MB
0% 100%
min: 0.168      avg: 0.2 (10%)     median: 0.2 (10%)     max: 0.168 GB/s
TrueCrypt - AES Mean 100MB
0% 100%
min: 0.931      avg: 0.9 (11%)     median: 0.9 (11%)     max: 0.931 GB/s
Cinebench R11.5 - CPU Single 64Bit
0% 100%
min: 0.55      avg: 0.6 (28%)     median: 0.6 (28%)     max: 0.55 Points
Cinebench R11.5 - CPU Multi 64Bit
0% 100%
min: 1.49      avg: 1.5 (8%)     median: 1.5 (8%)     max: 1.49 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

#0 Did not recreate cache, as it is less than 5 days old +0.002s ... 0.002s

#1 min, max, avg, median took 5.8174133300781E-5s +0.239s ... 0.241s

#2 return log +0s ... 0.241s

:: No reviews found for this CPU (yet).
