Minisforum Mercury Series EM780 review: Extremely compact mini-PC with AMD Ryzen 7 7840U, 32 GB of RAM and 1 TB SSD
Minisforum has given the Mercury Series EM780 a newer SoC as an upgrade over the EM680. The AMD Ryzen 7 7840U similarly boasts eight native cores but is equipped with a much newer iGPU. The manufacturer hasn’t skimped on memory either, packing 32 GB of LPDDR5 RAM into the device, though it is non-upgradable. Other than storage capacity, the base specs are always the same. The configuration with a 512 GB SSD is currently available for €699 (US$619) on Minisforum’s online shop. For €30 more (€729, or US$639), you can also get the Mercury Series EM780 with 1 TB of storage, which is the model we are focusing on here.
In this review, we’ll be taking a look at the performance gain over the Minisforum EM680. The new Mercury Series model will also go head-to-head with other powerful mini-PCs that we’ve previously reviewed in depth. An overview of the comparison devices can be found in the table below.
Comparison with possible competitors
Rating | Date | Model | Memory | Weight | Height |
---|---|---|---|---|---|
85.1 % | 03/2024 | Minisforum Mercury Series EM780 R7 7840U, Radeon 780M | 32768 MB | 238 g | 43 mm |
82.6 % | 03/2024 | Geekom A7 R9 7940HS, Radeon 780M | 32768 MB | 417 g | 38 mm |
81.8 % | 06/2023 | Minisforum Mercury Series EM680 R7 6800U, Radeon 680M | 16384 MB | 239 g | 43 mm |
81.2 % | 10/2023 | Geekom A5 R7 5800H, Vega 8 | 32768 MB | 555 g | 49.2 mm |
79.5 % | 11/2023 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | 16384 MB | 572 g | 45.6 mm |
79.5 % | 02/2024 | Maxtang MTN-FP750 R7 7735HS, Radeon 680M | 16384 MB | 601 g | 52 mm |
78.4 % | 01/2024 | NiPoGi AD08 i7-12650H, UHD Graphics 64EUs | 32768 MB | 878 g | 188.5 mm |

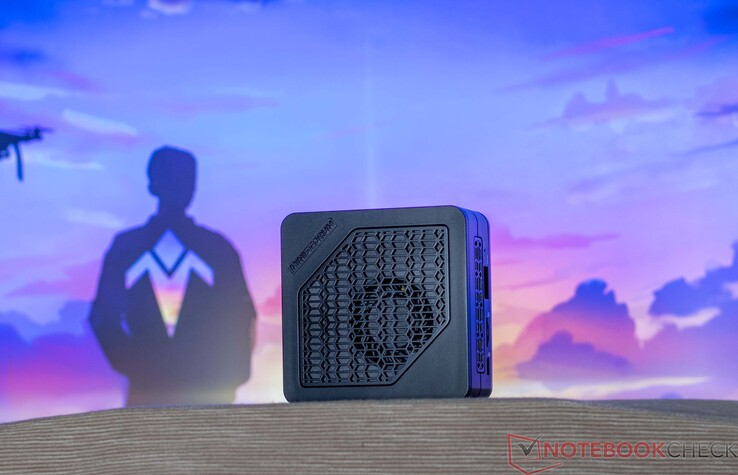

Detailed look at the Minisforum Mercury Series EM780

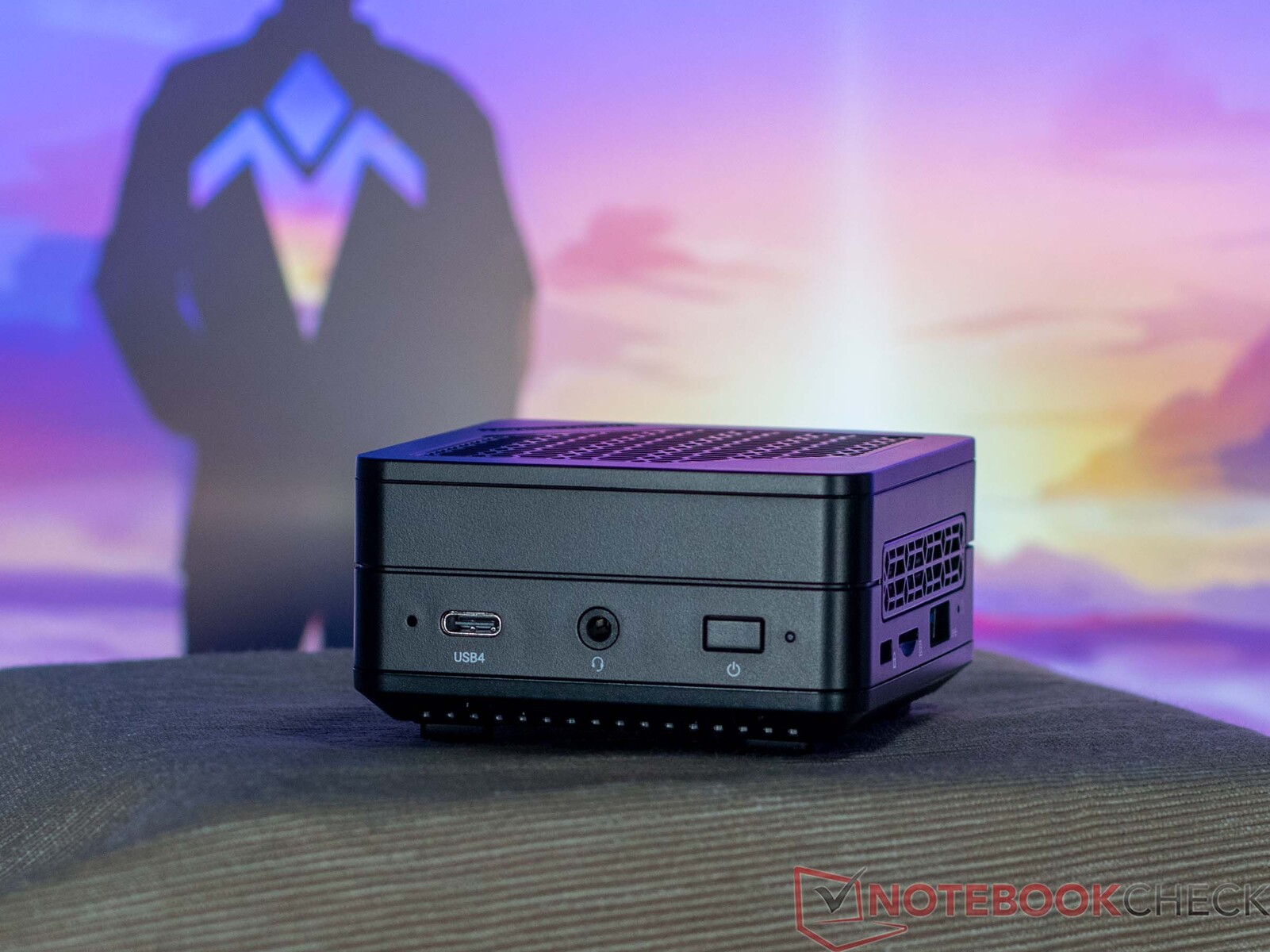

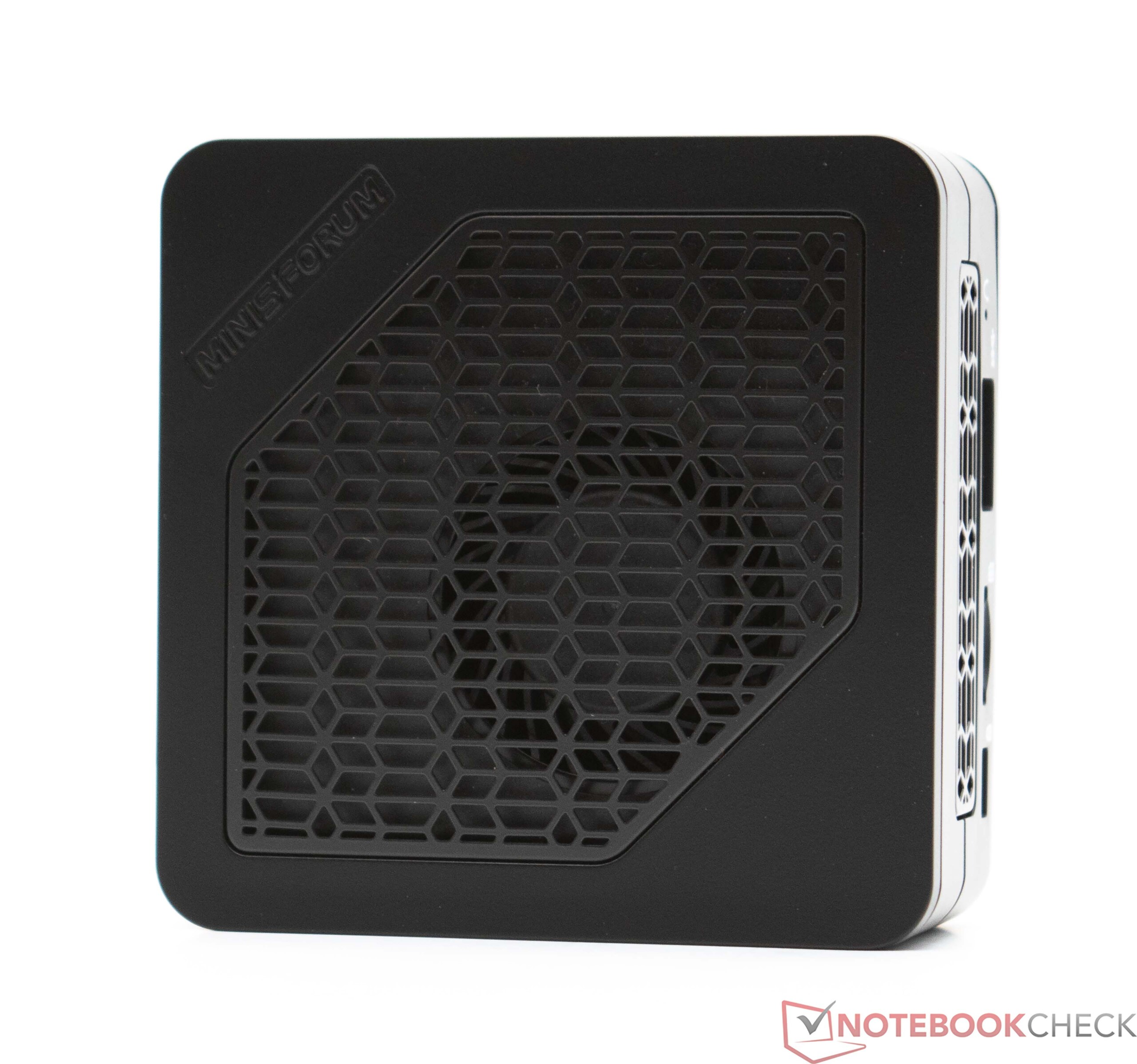

Case - Lots of plastic, but extremely compact
The Minisforum Mercury Series EM780 uses the same chassis as the EM680, meaning the new model too is extremely compact. With a footprint measuring just 80 x 80 mm (3.15 x 3.15 in), the Minisforum EM780 also only takes up very little space. Moreover, the device is fairly slim at just 43 mm (1.69 in) thick. In terms of material, Minisforum has chosen to give the device a mostly plastic construction. The plastic is remarkably sturdy thanks to the compact design. Only the air vents are fitted with metal mesh, which is meant to let the components inside get sufficient fresh air.
Specifications
Despite being one of the smallest mini-PCs right now, the Minisforum Mercury Series EM780 has an impressive selection of I/Os. Whilst you certainly have to put up with some limitations, everything important is essentially present. There are a total of five USB ports, two of which offer USB4 speed. Other than the two Type-C ports, which are capable of video output, you can also connect another display via HDMI. This means up to three monitors are usable with the device simultaneously. But there is something else to take note: peripherals must support Power Delivery because the EM780 is powered over the USB-C port.
SD card reader
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Geekom A5 (AV Pro SD microSD 128 GB V60) | |
Geekom A7 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (16.9 - 181.8, n=17, last 2 years) | |
Minisforum Mercury Series EM680 (AV Pro SD microSD 128 GB V60) | |
Minisforum Mercury Series EM780 (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Geekom A7 (AV Pro SD microSD 128 GB V60) | |
Geekom A5 (AV Pro SD microSD 128 GB V60) | |
Geekom Mini IT12 (AV Pro SD microSD 128 GB V60) | |
Average of class Mini PC (18.2 - 200, n=17, last 2 years) | |
Minisforum Mercury Series EM680 (AV Pro SD microSD 128 GB V60) | |
Minisforum Mercury Series EM780 (AV Pro SD microSD 128 GB V60) |

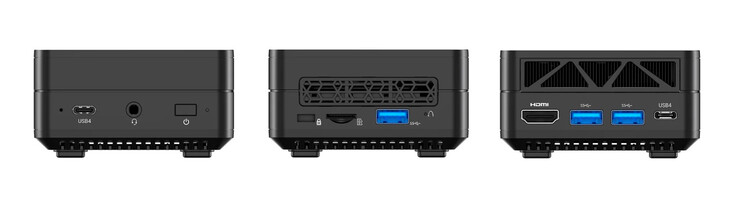

Connectivity
Inside the Mercury Series EM780, an Intel Killer Wi-Fi 6E AX1675w ensures stable and speedy wireless connection. In our realistic test, the Wi-Fi module delivered consistently good performance. That said, it wasn't quite able to reach the level of performance shown by the MediaTek RZ616 in the EM680 when connected to a 6 GHz network. The results were obtained with the help of our Asus ROG Rapture GT-AXE11000 reference router.

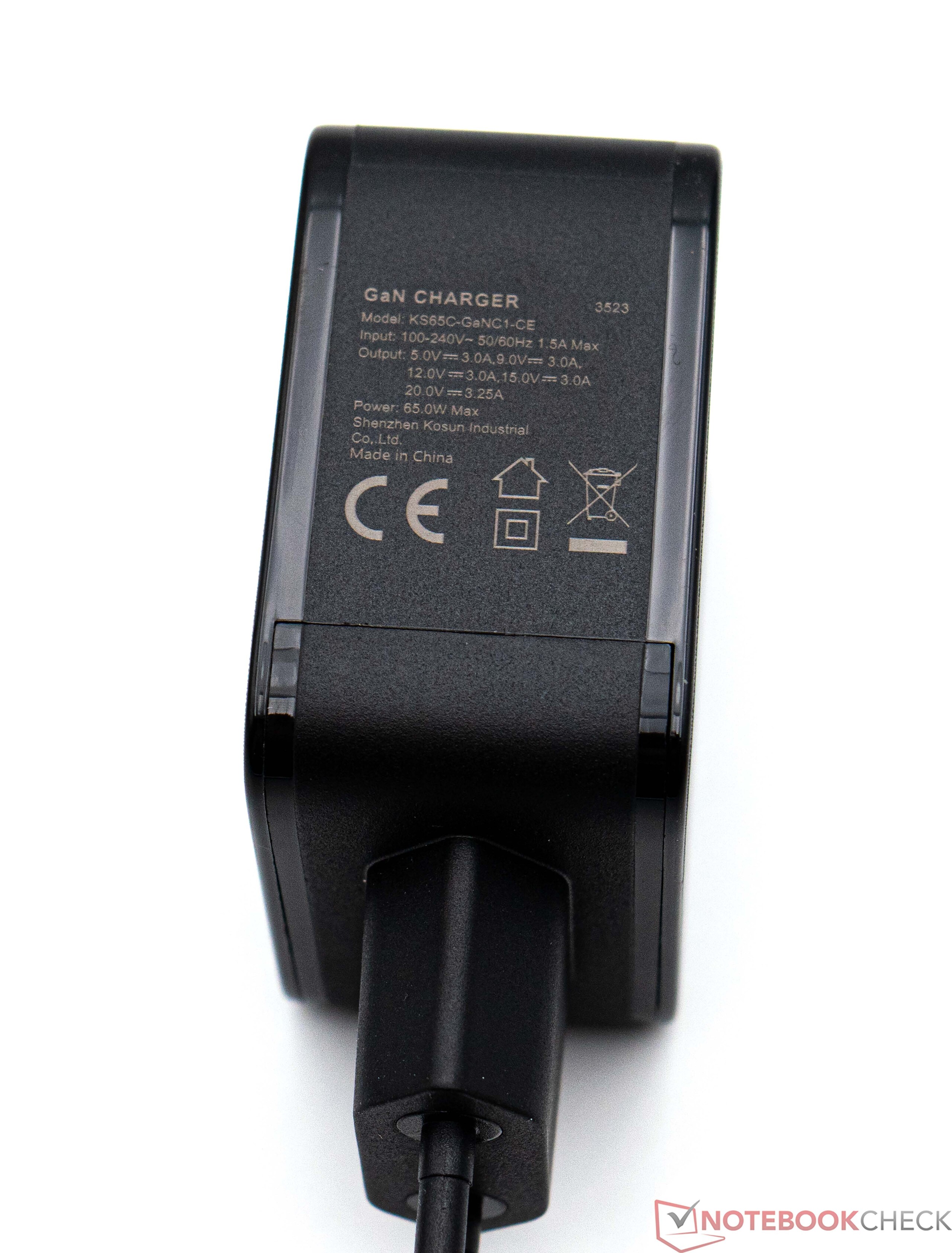

Accessories
The mini-PC is shipped in a relatively small box. Other than the device itself, you’ll find a small 65-watt power adapter and a USB-C cable in the box. The company has also included an RJ45 LAN adapter as well as an obligatory HDMI cable and some documentation.

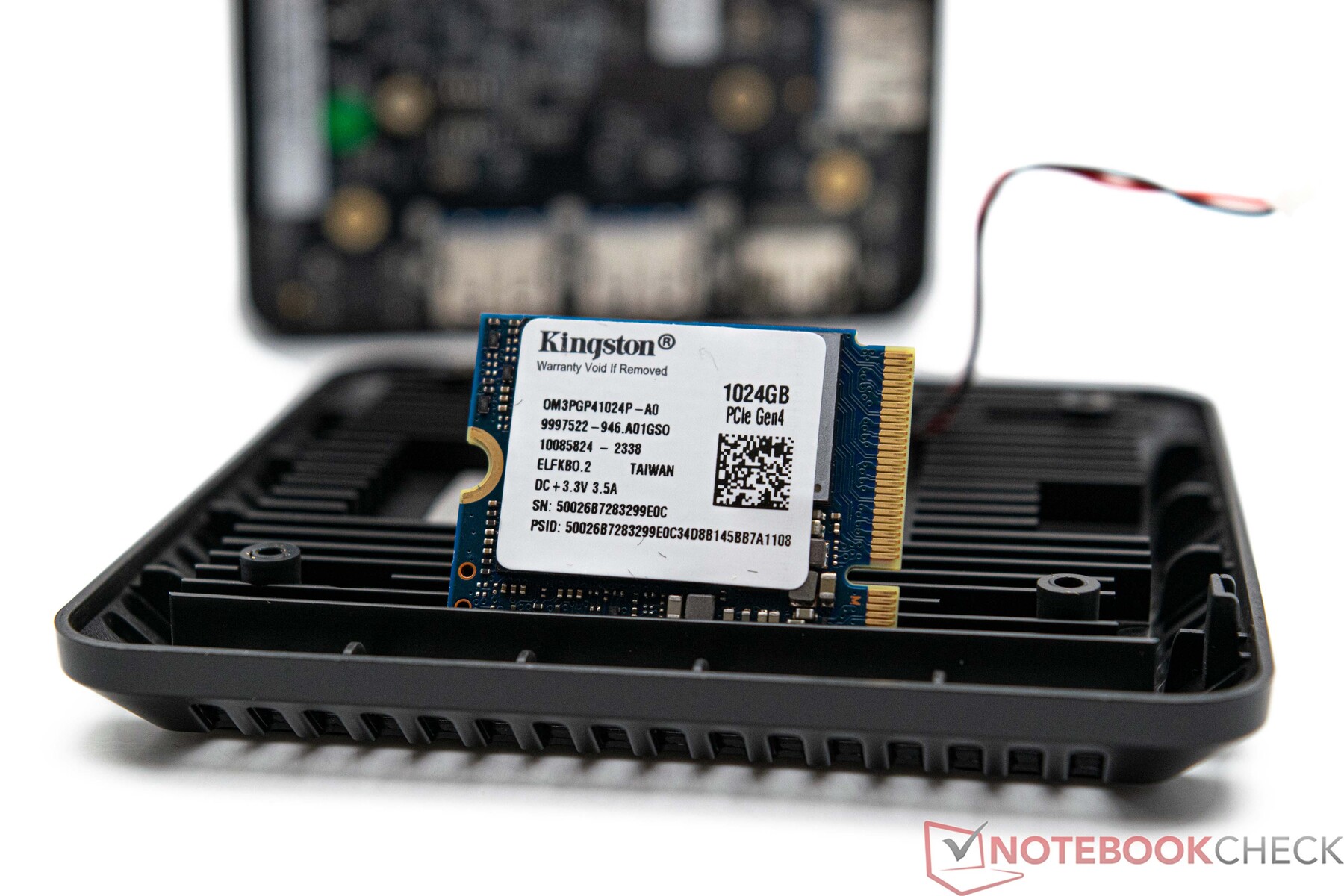

Maintenance
The amount of user maintenance that can be done on the Minisforum Mercury Series EM780 is limited to a minimum. Only the bottom cover can be removed with relative ease if you ever need to replace the SSD underneath. There is no room for a second storage drive in the mini-PC anyway. It is not recommended to take the device further apart, let alone dismantle the CPU cooler. Inside the box is also a note that says liquid metal is used for heat transfer.

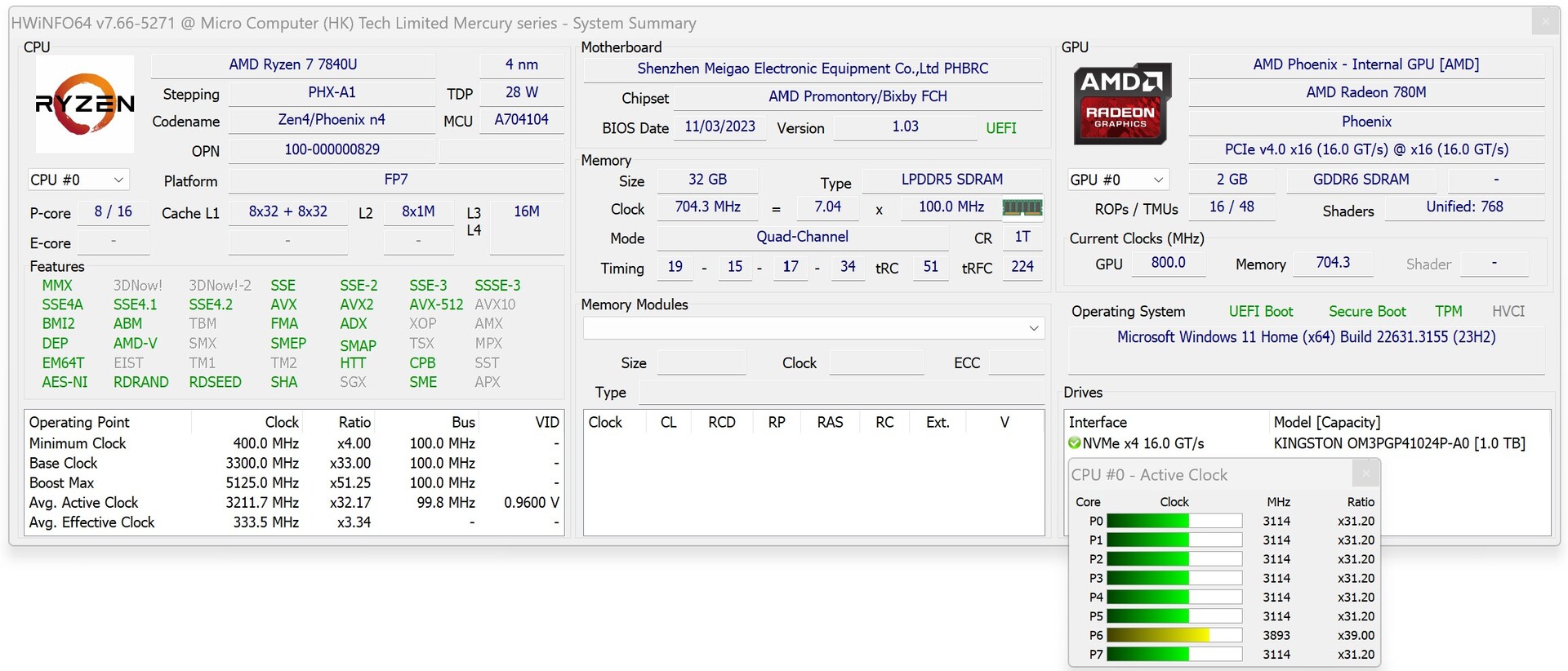

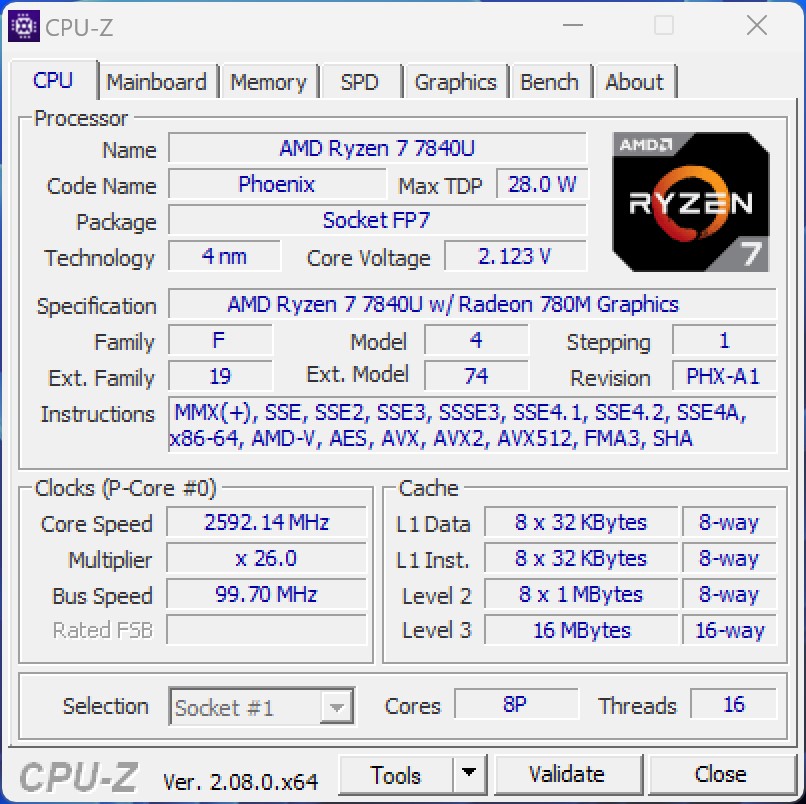

Performance - AMD Ryzen 7 7840U with 8 cores and 16 threads
All variants of the Mercury Series EM780 come with the AMD Ryzen 7 7840U. As the successor to the Ryzen 7 6800U, the newer SoC can run at slightly higher clock speeds and features the latest Radeon 780M iGPU. The mini-PC should be able to handle more demanding tasks well judging by these specs. The SoC is flanked by 32 GB of LPDDR5 RAM (6,400 MT/s) and a 1 TB SSD.
Test conditions
We selected the “High Performance” power mode during all performance-related tests involving this device. The only exceptions here are the power usage and noise level measurements, which were carried out in accordance with our test criteria.

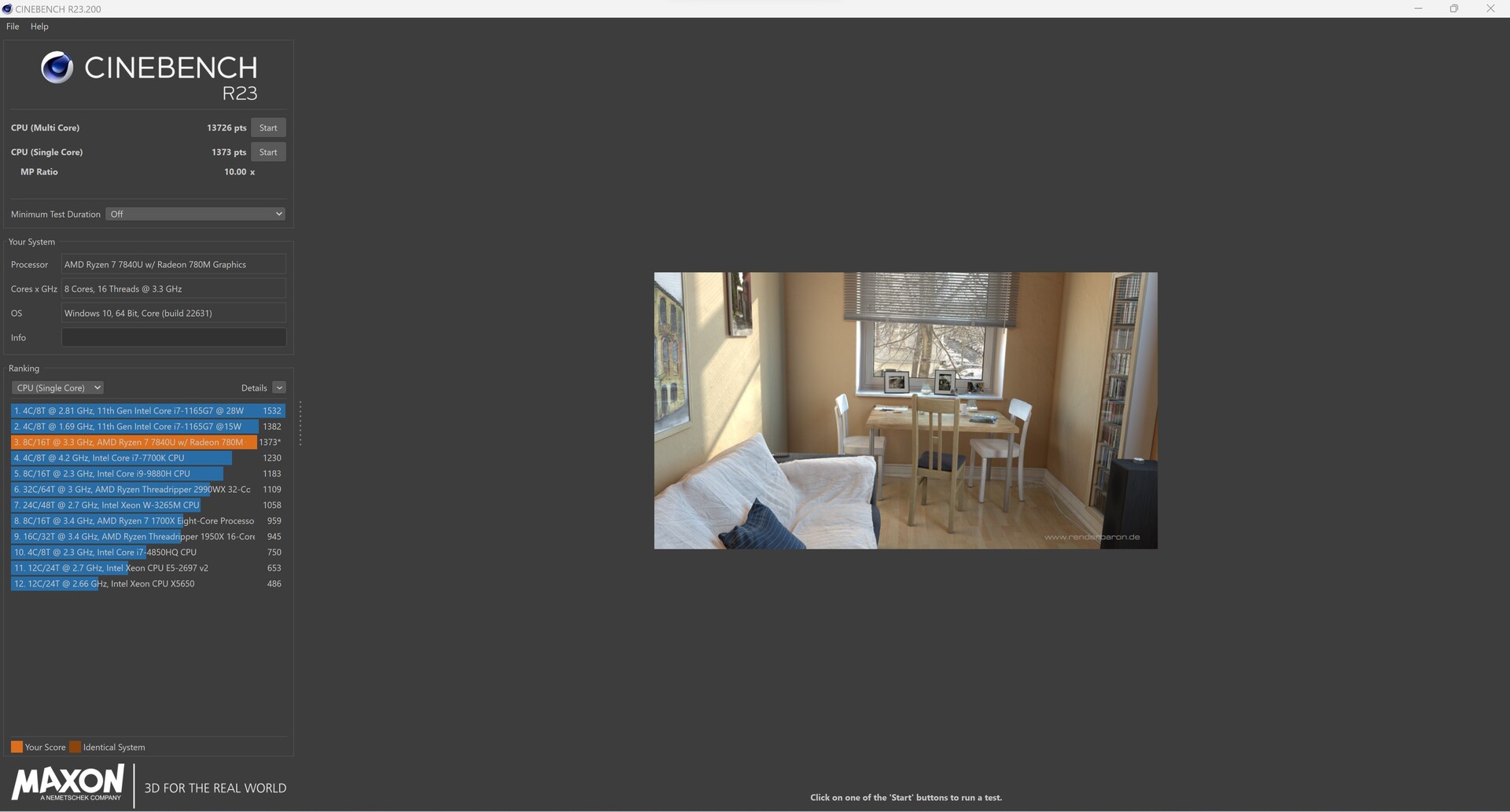

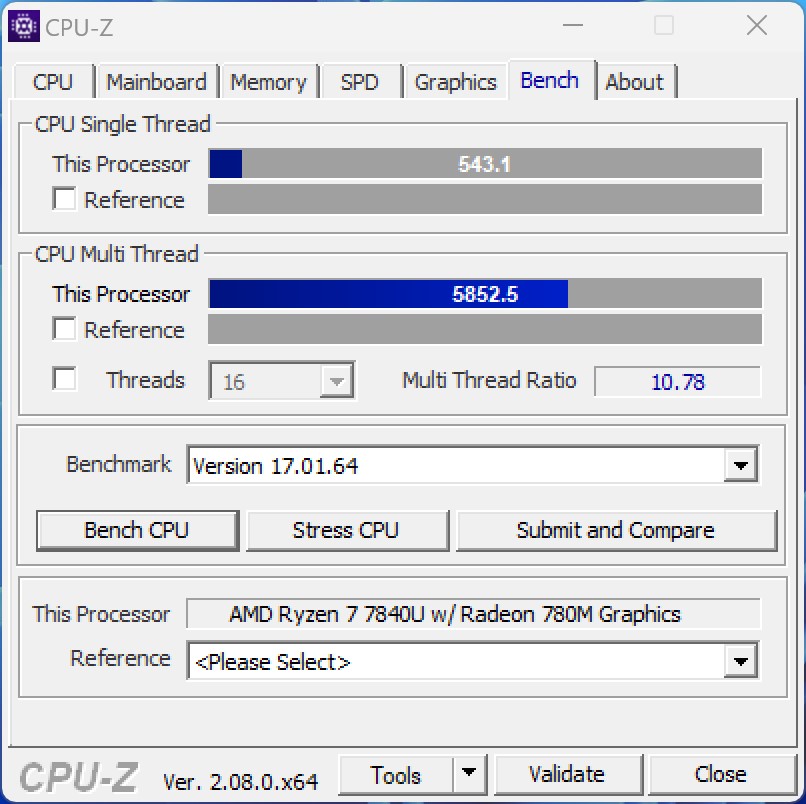

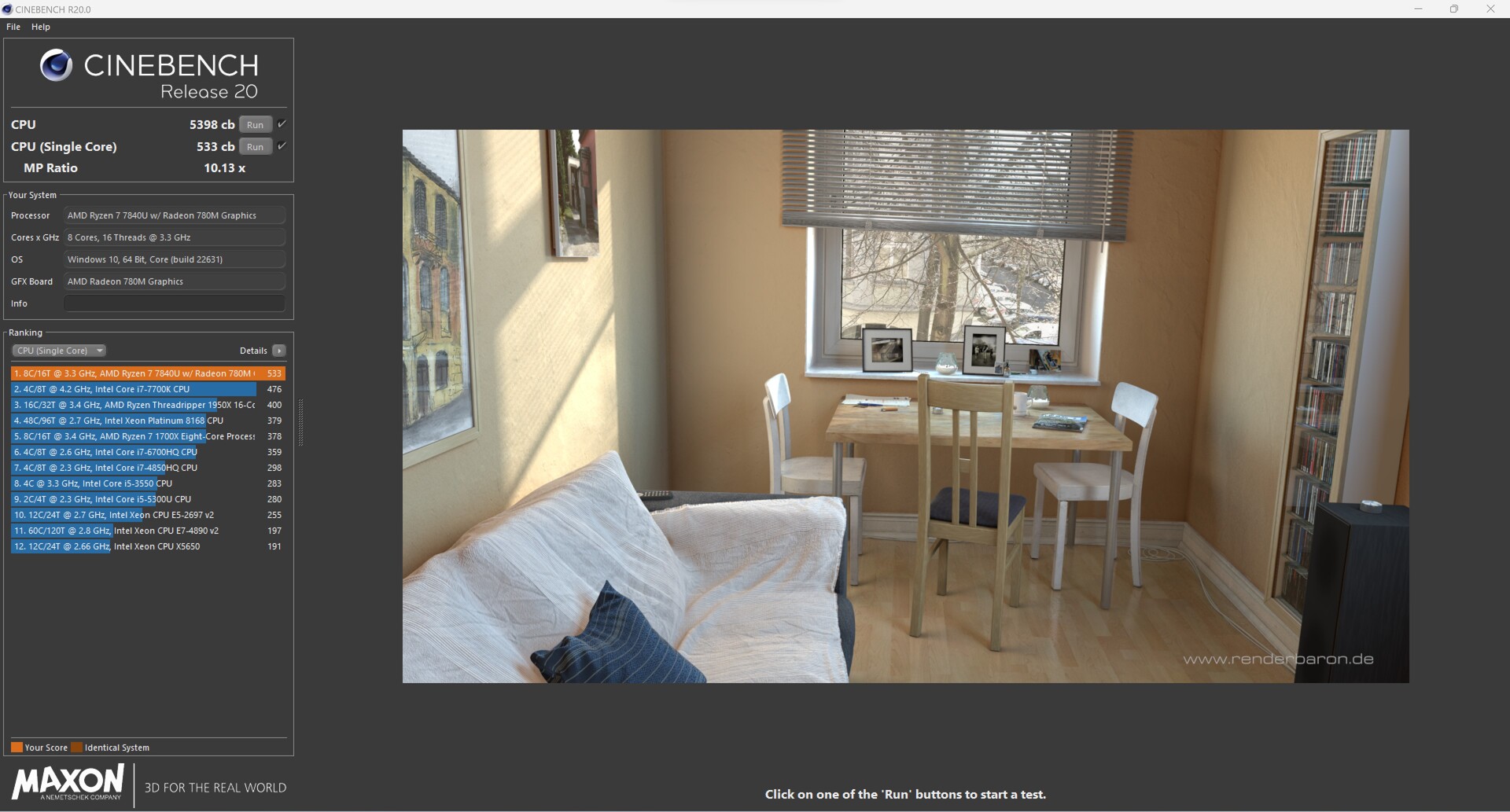

Processor
With the AMD Ryzen 7 7840U, the Minisforum Mercury Series EM780 has received an efficient SoC with adequate performance. However, one thing that stood out is the comparatively low single-core performance. But the Zen 4 SoC can deliver solid results in multi-thread performance tests. Almost all the devices in our comparison are neck and neck when it comes to their averaged performance score. Only the Geekom A7 with an AMD Ryzen 9 7940HS managed to take a slightly larger lead over the rest of the pack.
Even though the Mercury Series EM780 is exceptionally tiny and thus has a much smaller cooling unit than most other mini-PCs, the level of CPU performance is still outstanding. This is clearly reflected in the AIDA64 benchmarks, where our review unit firmly took second place.
Click here to find more processor benchmark results.
Performance Rating - Percent | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 |
Cinebench R10 | |
Rendering Single CPUs 64Bit | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Rendering Multiple CPUs 64Bit | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 |
Blender - v2.79 BMW27 CPU | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM780 | |
Geekom A7 |
WinRAR - Result | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 |
Geekbench 4.4 | |
64 Bit Single-Core Score | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Minisforum Mercury Series EM780 | |
64 Bit Multi-Core Score | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 |
3DMark 11 - 1280x720 Performance Physics | |
Geekom A7 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM780 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
R Benchmark 2.5 - Overall mean | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A7 |
LibreOffice - 20 Documents To PDF | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Geekom A7 | |
Geekom A5 | |
Geekom Mini IT12 | |
NiPoGi AD08 |
WebXPRT 3 - Overall | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 |
Mozilla Kraken 1.1 - Total | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A7 |
Super Pi mod 1.5 XS 1M - 1M | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom A7 |
Super Pi mod 1.5 XS 2M - 2M | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Geekom A7 | |
NiPoGi AD08 |
Super Pi Mod 1.5 XS 32M - 32M | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A7 | |
Geekom A5 | |
Geekom Mini IT12 | |
NiPoGi AD08 |
* ... smaller is better
Performance Rating - Percent | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 |
Geekbench 4.4 | |
64 Bit Single-Core Score | |
Geekom A7 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Minisforum Mercury Series EM780 | |
64 Bit Multi-Core Score | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 |
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Average of class Mini PC | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FP32 Ray-Trace | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Average of class Mini PC (561 - 27538, n=98, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FPU Julia | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (3604 - 116903, n=98, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU SHA3 | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (225 - 5096, n=98, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU Queen | |
Geekom A7 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM780 | |
NiPoGi AD08 | |
Average of class Mini PC (8172 - 119569, n=98, last 2 years) | |
Geekom Mini IT12 |
AIDA64 / FPU SinJulia | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (408 - 15525, n=98, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / FPU Mandel | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (1958 - 62378, n=98, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU AES | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (3691 - 177158, n=98, last 2 years) | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 |
AIDA64 / CPU ZLib | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Average of class Mini PC (74.8 - 1183, n=98, last 2 years) | |
Geekom Mini IT12 |
AIDA64 / FP64 Ray-Trace | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Average of class Mini PC (308 - 14722, n=98, last 2 years) | |
NiPoGi AD08 | |
Geekom Mini IT12 |
AIDA64 / CPU PhotoWorxx | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Geekom A5 | |
Average of class Mini PC (4408 - 44347, n=98, last 2 years) | |
NiPoGi AD08 | |
Maxtang MTN-FP750 |

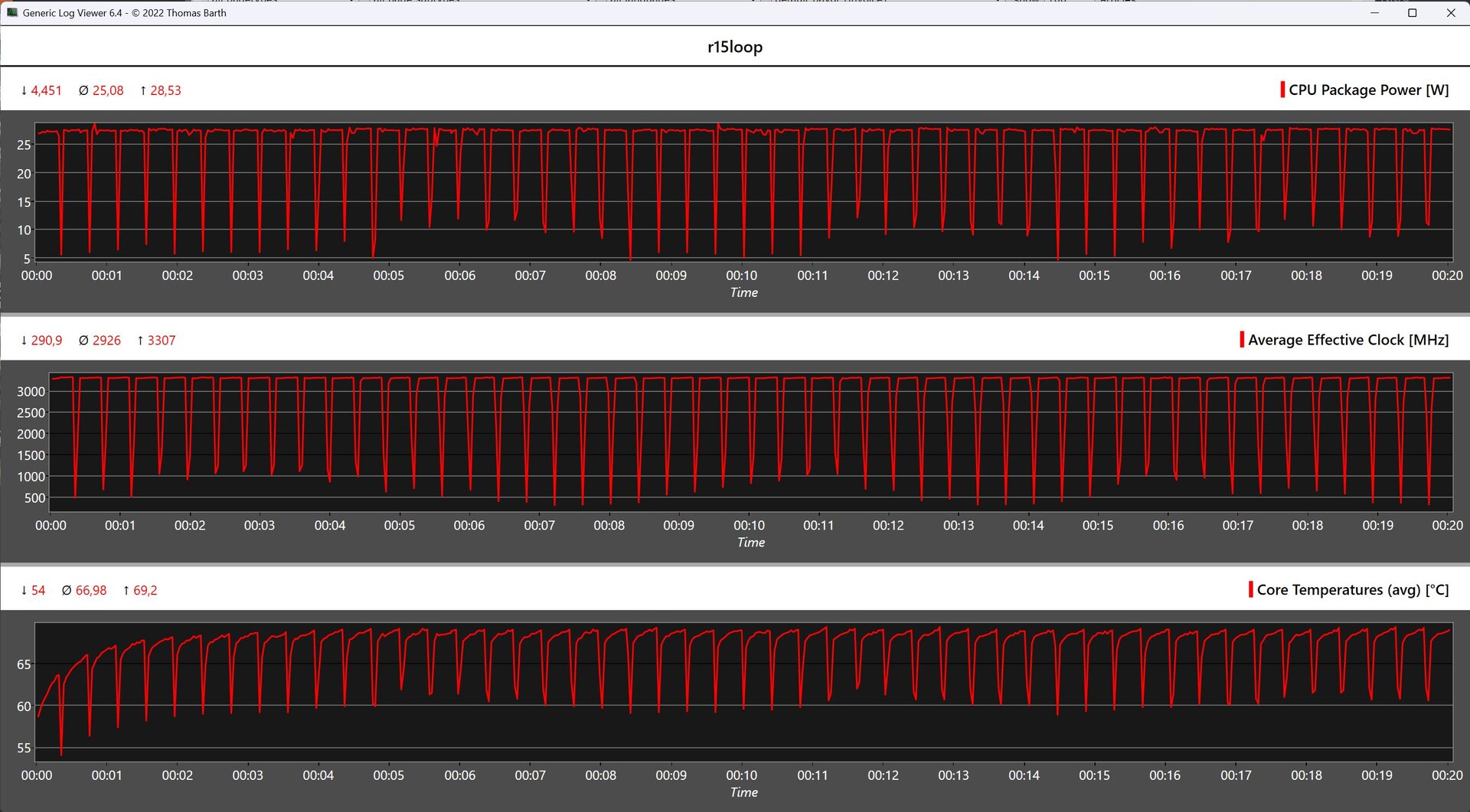

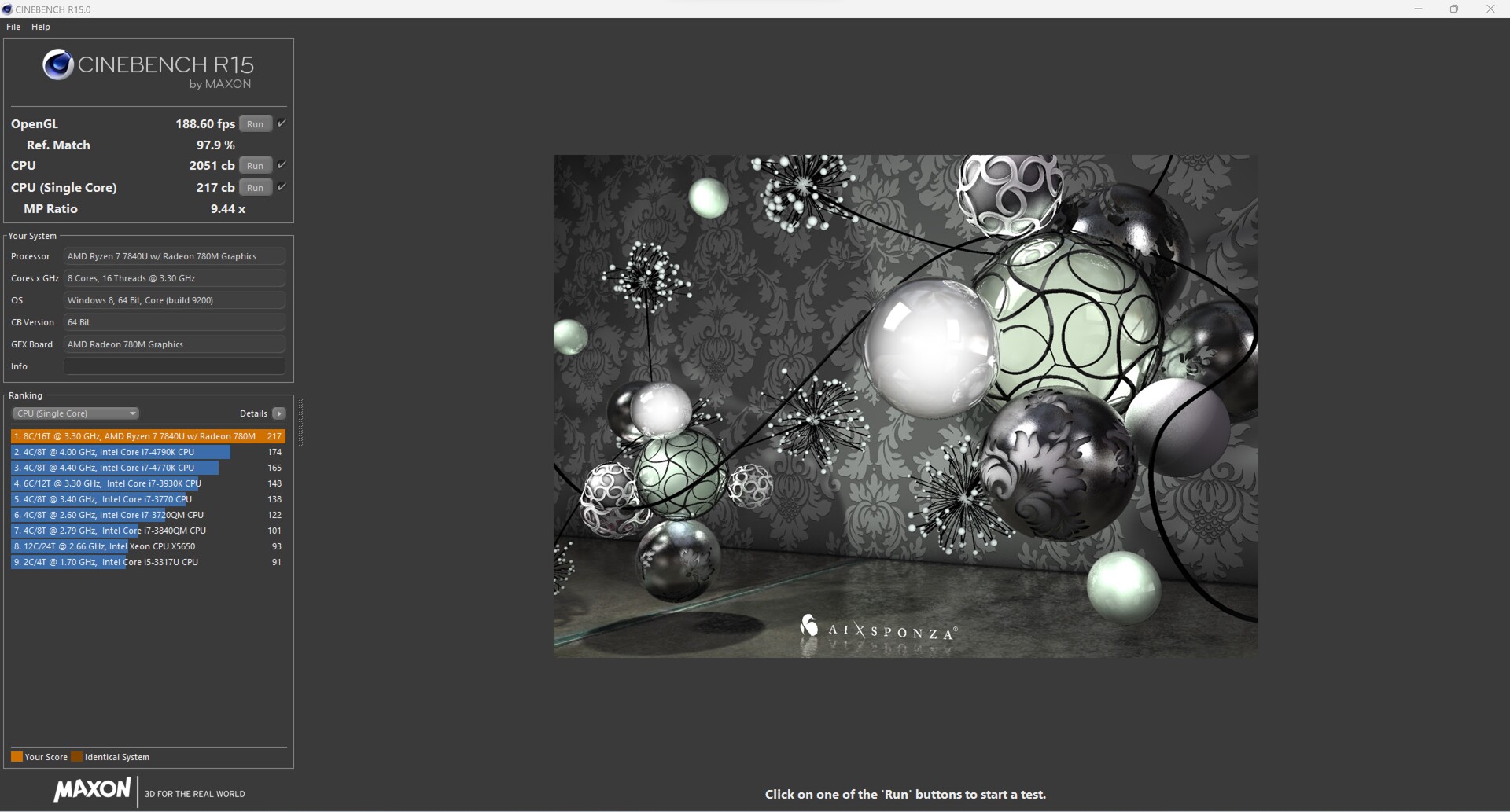

Minisforum Mercury Series EM780 in Cinebench R15 Multi loop
Running Cinebench R15 in a loop is quite demanding on the Ryzen 7 7840U. As a result, it allows us to take a peek at how well the cooling unit works. The results obtained after 50 runs show that performance remained very stable over time. With an average score of 1,896, the Minisforum Mercury Series EM780 was similarly able to secure the runner-up position in this test. Analysis of the CPU data revealed that the SoC managed to maintain a power usage of 28 watts consistently. We recorded a peak CPU temperature of nearly 70°C (158°F), which suggests Minisforum has given the EM780 an highly effective cooler.

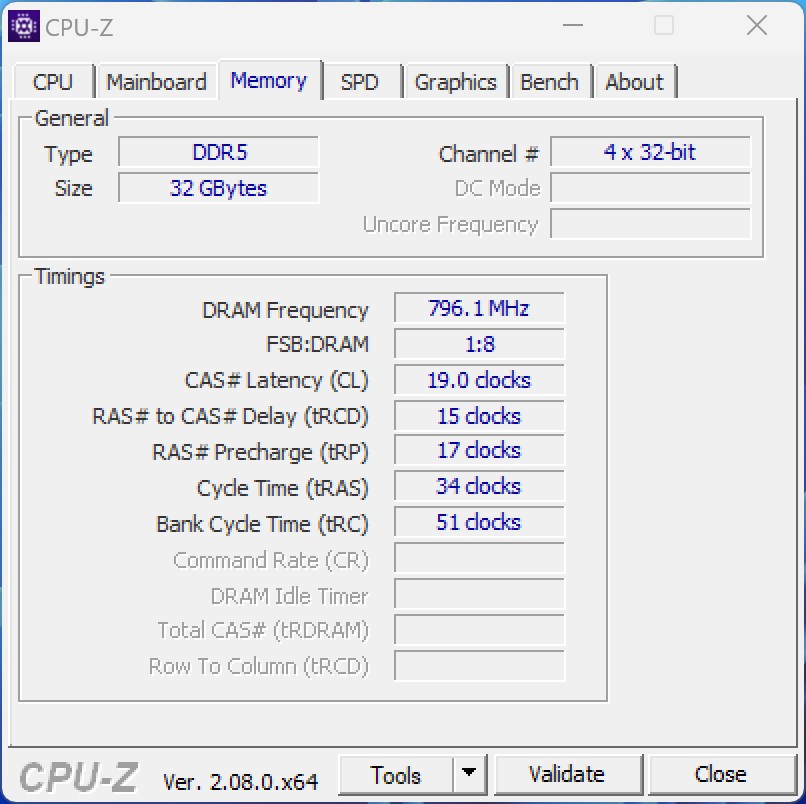

System performance
The Minisforum Mercury Series EM780 left a positive impression in everyday use. Results from PCMark 10 also echo this sentiment. However, our review sample couldn’t keep up with the competitors in Crossmark. We repeated the test several times to ensure there wasn't any issue with the test, but this didn’t drastically change the results. Even so, the AMD Ryzen 7 7840U still delivered fantastic results in conjunction with the onboard memory.
AIDA64 / Memory Copy | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Average AMD Ryzen 7 7840U (43255 - 70532, n=10) | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A5 | |
Average of class Mini PC (6481 - 70620, n=98, last 2 years) | |
Maxtang MTN-FP750 |
AIDA64 / Memory Read | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Average AMD Ryzen 7 7840U (37399 - 61602, n=9) | |
Geekom Mini IT12 | |
NiPoGi AD08 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Average of class Mini PC (6914 - 71285, n=98, last 2 years) | |
Maxtang MTN-FP750 |
AIDA64 / Memory Write | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Average AMD Ryzen 7 7840U (49426 - 92289, n=11) | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
Average of class Mini PC (6862 - 89318, n=98, last 2 years) | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 |
AIDA64 / Memory Latency | |
Minisforum Mercury Series EM780 | |
Average AMD Ryzen 7 7840U (90 - 137.2, n=10) | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom A7 | |
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years) | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 |
* ... smaller is better

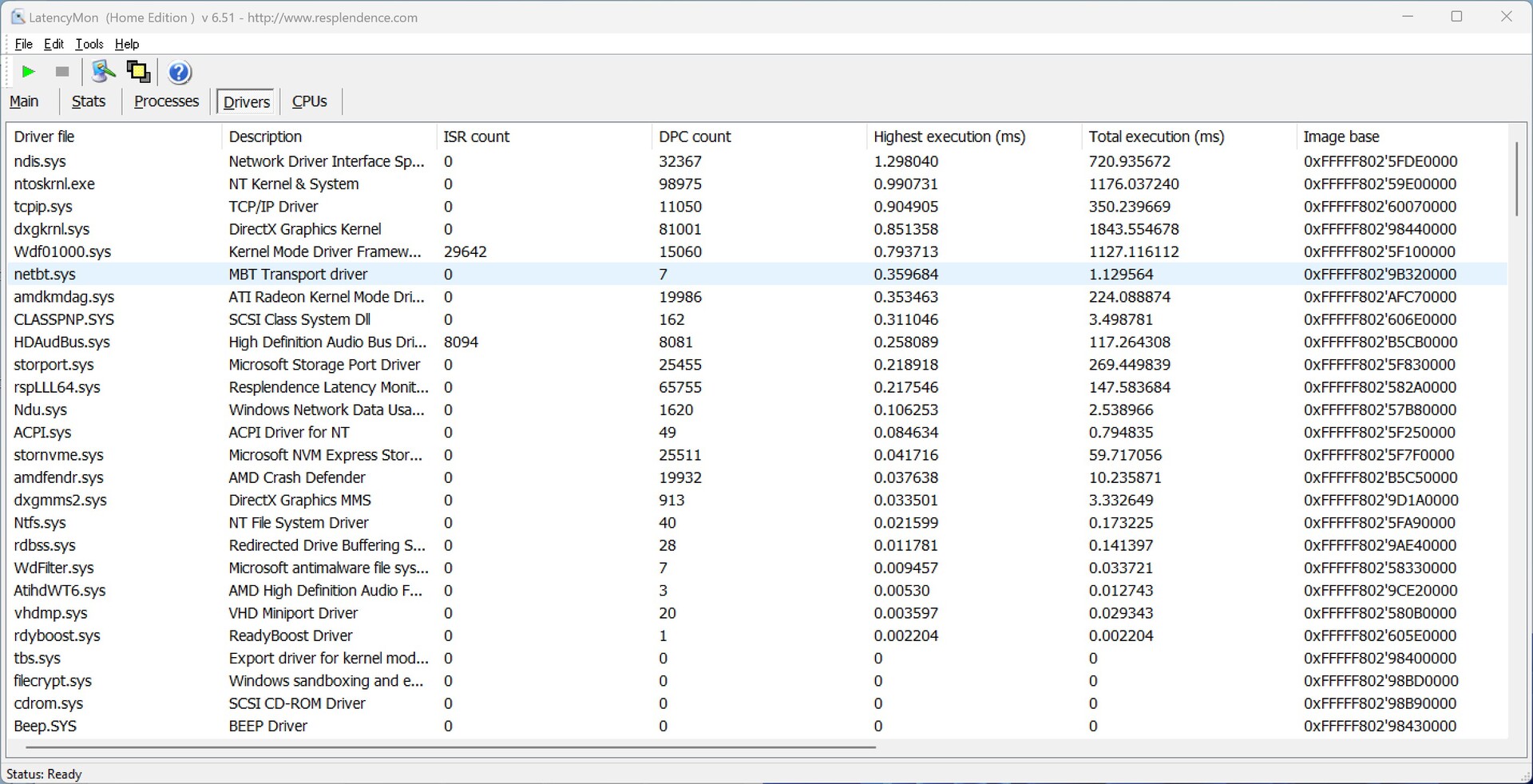

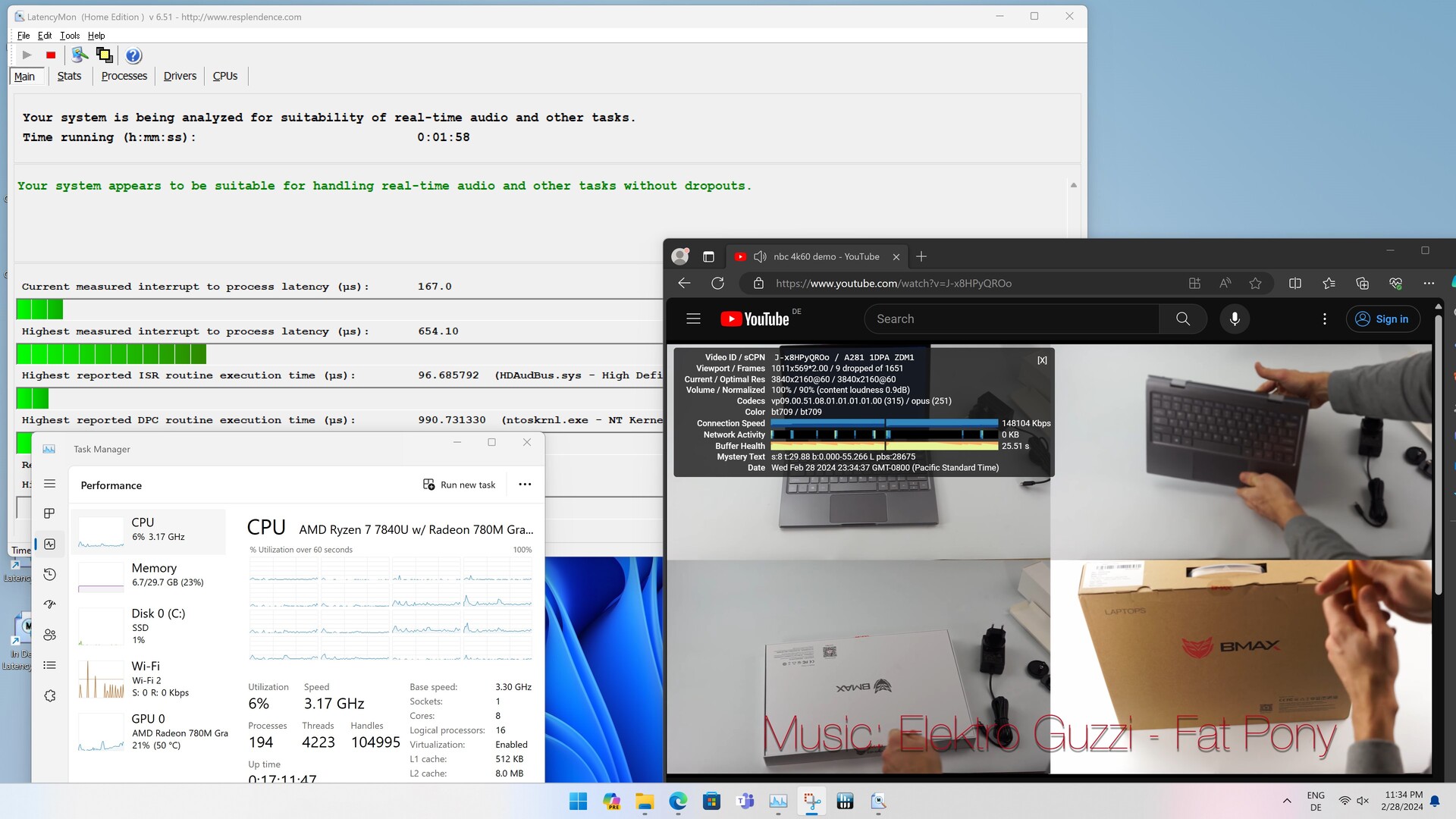

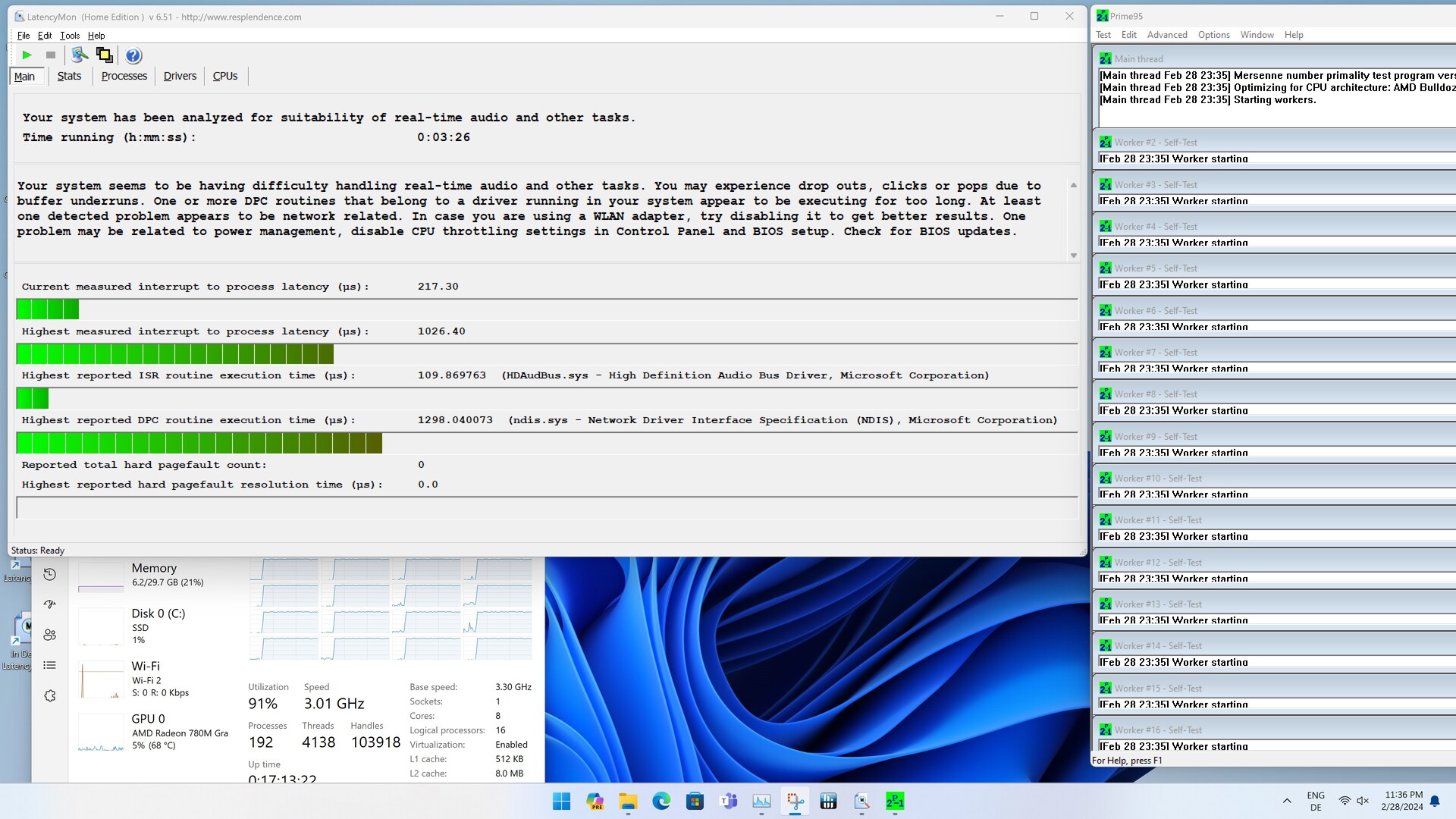

DPC latency
When used for basic web browsing, the Minisforum Mercury Series EM780 had no issue at all with increased latency. The review unit also effortlessly handled playback of our 4K test video, though we did notice a few dropped frames. Latency only shot up when Prime95 started running. We think the EM780 would nevertheless still make for an excellent streaming client.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Minisforum Mercury Series EM680, AMD Ryzen 7 6800U | |
Geekom A7, AMD Ryzen 9 7940HS | |
Geekom Mini IT12, Intel Core i5-12450H | |
Geekom A5, AMD Ryzen 7 5800H | |
Minisforum Mercury Series EM780, AMD Ryzen 7 7840U | |
Maxtang MTN-FP750, AMD Ryzen 7 7735HS | |
NiPoGi AD08, Intel Core i7-12650H |
* ... smaller is better

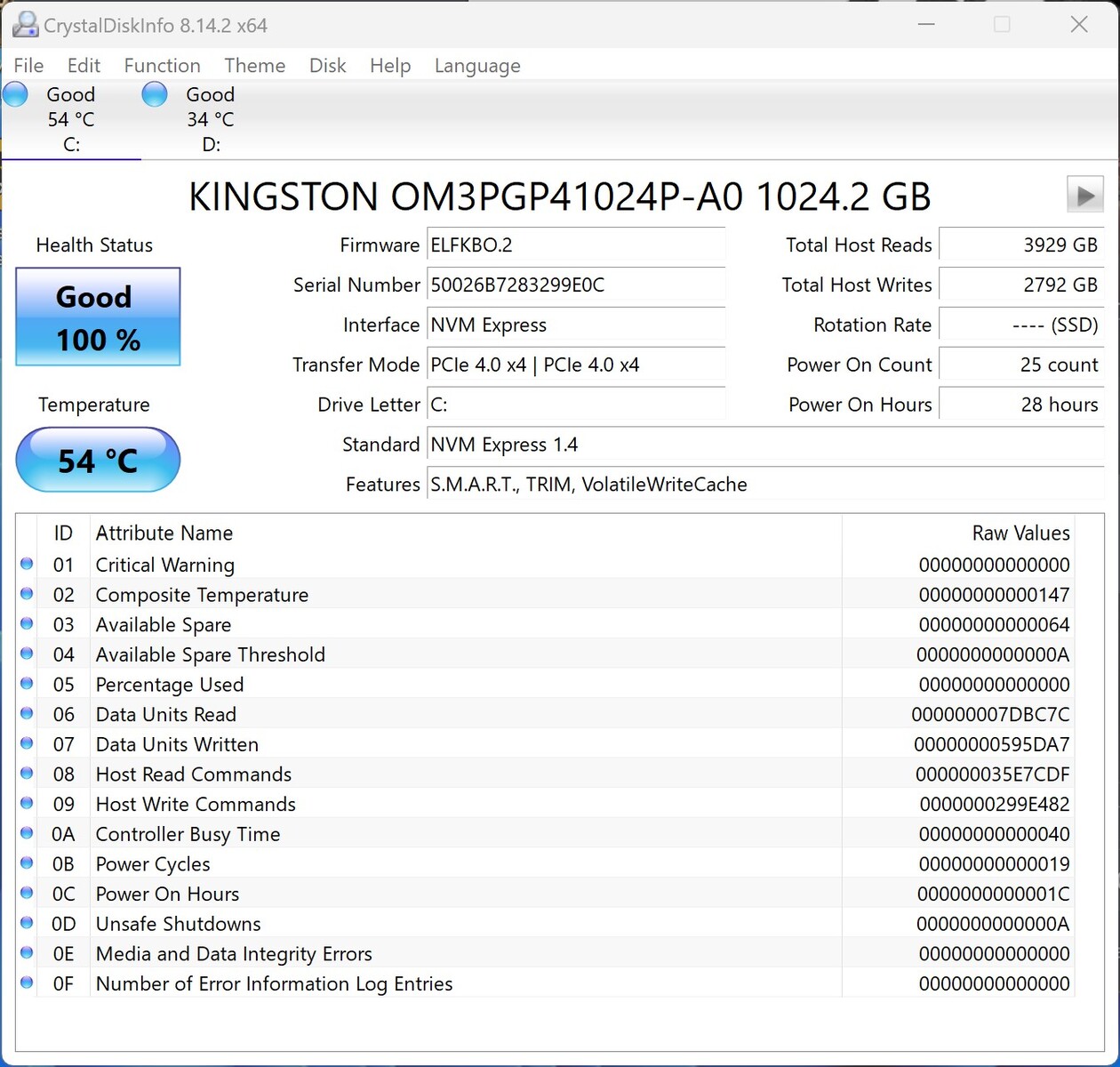

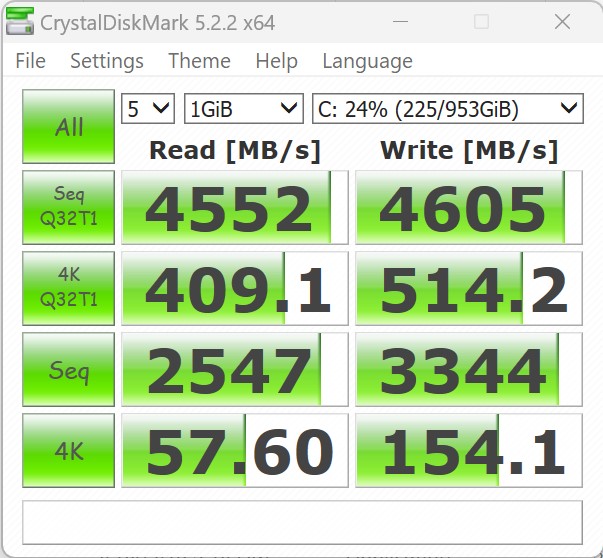

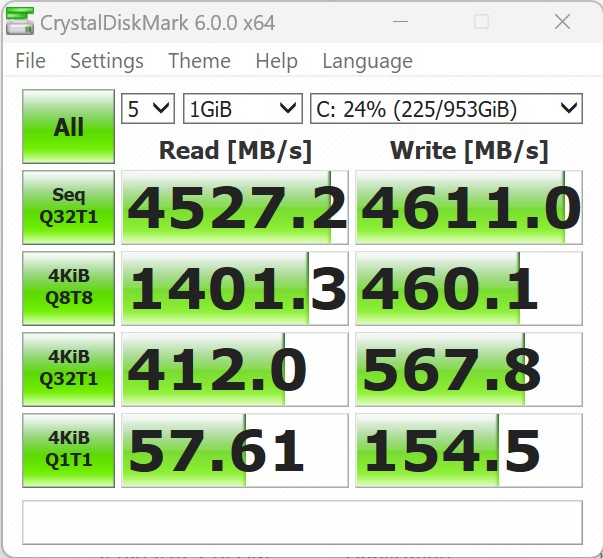

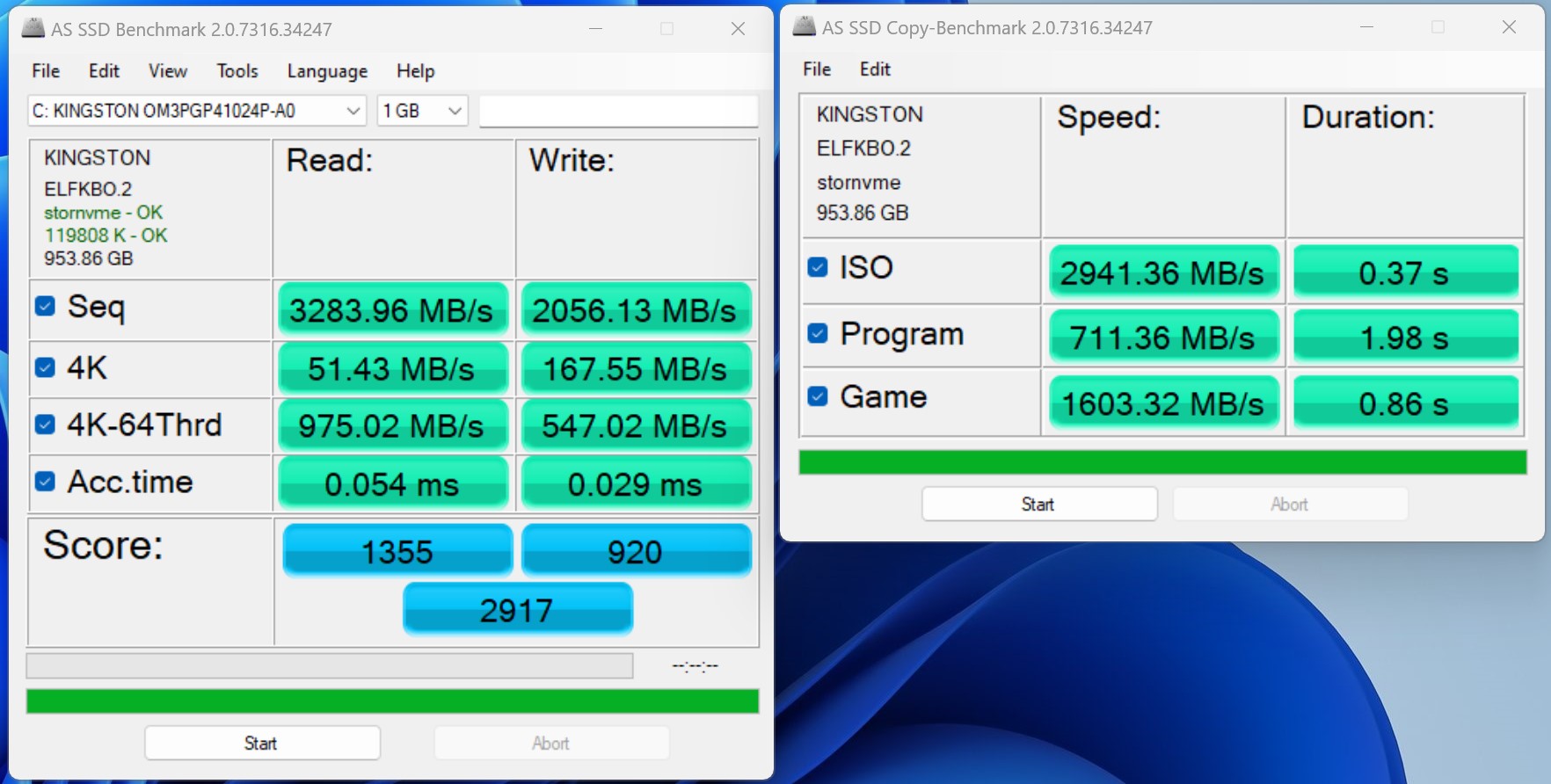

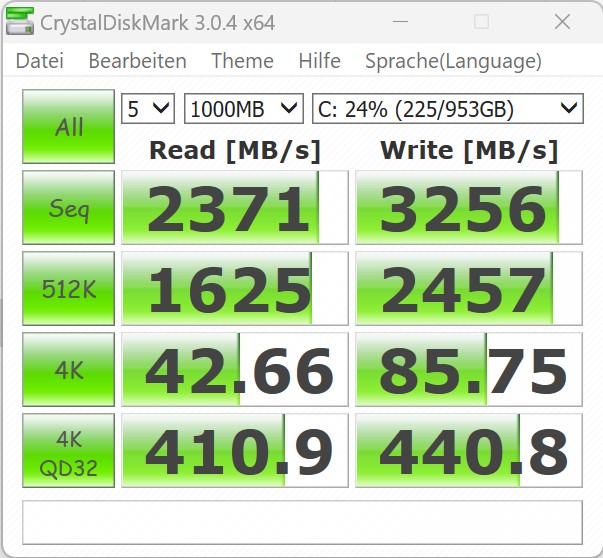

Mass storage
Due to its design, the Mercury Series EM780 comes with an extremely small SSD. The storage drive, measuring just 30 mm (1.18 in) in length, is made by Kingston and delivers serviceable transfer rates. At least the storage isn’t permanently installed and can be replaced. On the bottom of the device, Minisforum has placed an additional fan and heatsink to prevent the SSD overheating. This system seems to pay off because the read speed remained stable throughout the stress test. Just like its predecessor, the EM780 can only accommodate one storage drive.
You can refer to our comparison table for more info and benchmark scores.
Drive Performance Rating - Percent | |
Minisforum Mercury Series EM680 | |
Geekom A7 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
Average of class Mini PC | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 |
* ... smaller is better
Sustained load Read: DiskSpd Read Loop, Queue Depth 8

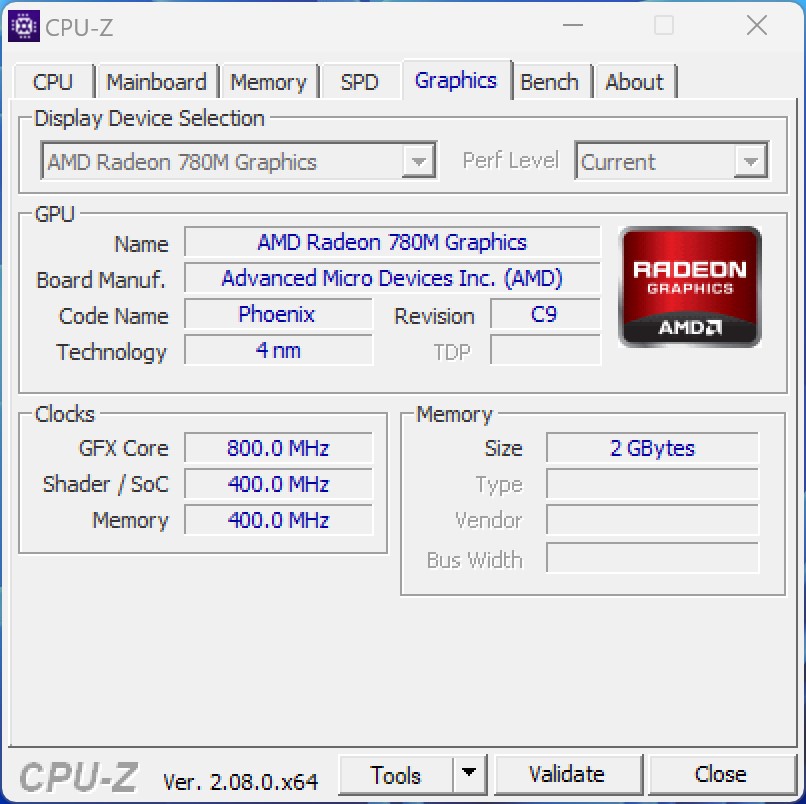

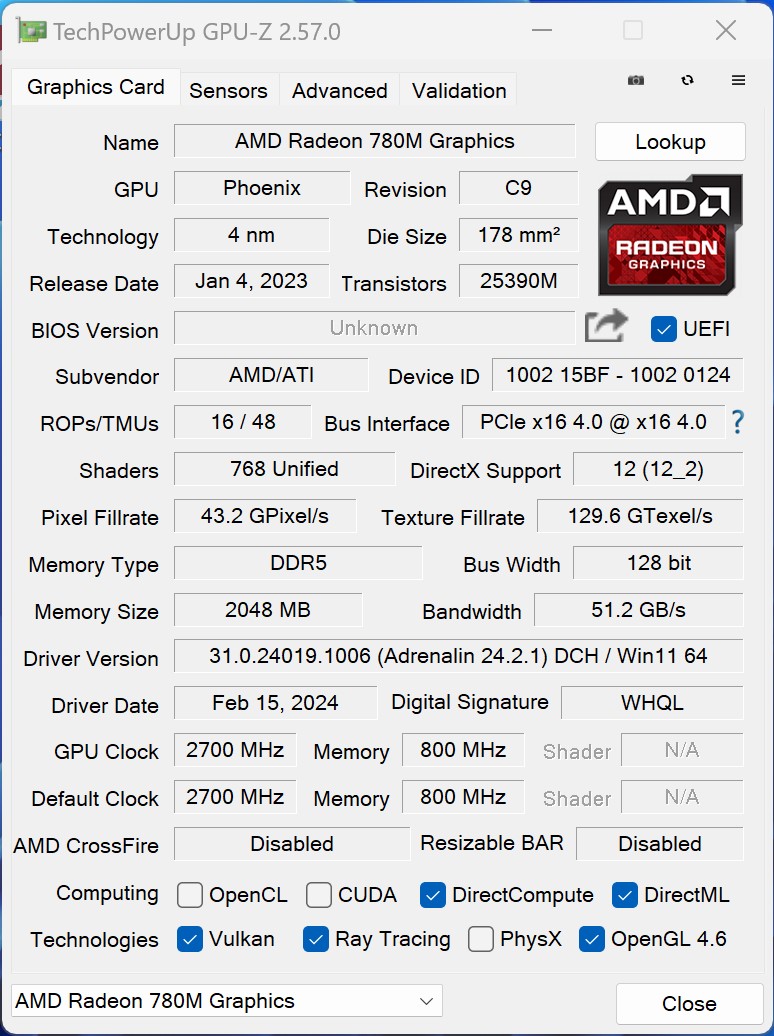

Graphics card
By using a newer Zen 4 APU, the Minisforum Mercury Series EM780 now boasts much more powerful iGPU than the EM680: the AMD Radeon 780M. The newer model is ranked above its predecessor and produced better performance across the board. The Geekom A7 sports the same iGPU, but was able to get a little more performance from the graphics card due to its higher power usage. That said, the gap is relatively small with only a 16% difference in 3DMark Performance Rating.
You can find more benchmark results for the AMD Radeon 780M and other GPUs on this page.
3DMark Performance Rating - Percent | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
3DMark 11 - 1280x720 Performance GPU | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1920x1080 Fire Strike Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
2560x1440 Time Spy Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Fire Strike Extreme Graphics | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Performance Rating - Percent | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom A7 | |
Geekom Mini IT12 |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, Fluid 3DTex | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, Fluid 2DTexArr | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, Mandel Vector | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
1024x600 Normal, QJuliaRayTrace | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Maxtang MTN-FP750 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Minisforum Mercury Series EM780, AMD Radeon 780M R7 7840U | Geekom A7, AMD Radeon 780M R9 7940HS | Minisforum Mercury Series EM680, AMD Radeon 680M R7 6800U | Geekom A5, AMD Radeon RX Vega 8 (Ryzen 4000/5000) R7 5800H | Geekom Mini IT12, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) i5-12450H | Maxtang MTN-FP750, AMD Radeon 680M R7 7735HS | Average of class Mini PC | |
---|---|---|---|---|---|---|---|
SPECviewperf 12 | 19% | -32% | -34% | -65% | -35% | -13% | |
1900x1060 3ds Max (3dsmax-05) | 75.6 | 84.7 12% | 49.2 -35% | 51.7 -32% | 29.8 -61% | 46.9 -38% | 71 ? -6% |
1900x1060 Catia (catia-04) | 69.2 | 89 29% | 49.7 -28% | 44.2 -36% | 22.9 -67% | 51.5 -26% | 62.6 ? -10% |
1900x1060 Creo (creo-01) | 44.3 | 55.4 25% | 31.1 -30% | 36.3 -18% | 17.7 -60% | 33.2 -25% | 34.7 ? -22% |
1900x1060 Maya (maya-04) | 63.8 | 69.7 9% | 37.9 -41% | 40.3 -37% | 22.8 -64% | 45.2 -29% | 61 ? -4% |
1900x1060 Medical (medical-01) | 46 | 60.5 32% | 22 -52% | 18.2 -60% | 5.07 -89% | 17.9 -61% | 26.2 ? -43% |
1900x1060 Showcase (showcase-01) | 29.1 | 30.3 4% | 29 0% | 21.7 -25% | 13.2 -55% | 17.5 -40% | 34.9 ? 20% |
1900x1060 Solidworks (sw-03) | 96.5 | 116 20% | 58.6 -39% | 68.3 -29% | 38.9 -60% | 72.1 -25% | 69.7 ? -28% |
SPECviewperf 13 | 18% | -31% | -35% | -69% | -36% | -9% | |
3ds Max (3dsmax-06) | 75.9 | 83.9 11% | 49.9 -34% | 51.6 -32% | 29.6 -61% | 48.3 -36% | 70.9 ? -7% |
Catia (catia-05) | 101 | 130 29% | 75.3 -25% | 62.1 -39% | 32.7 -68% | 73.9 -27% | 91.5 ? -9% |
Creo (creo-02) | 82.2 | 93.4 14% | 61.4 -25% | 50.6 -38% | 26.5 -68% | 44.9 -45% | 70.1 ? -15% |
Energy (energy-02) | 18.4 | 23.8 29% | 10.1 -45% | 10.6 -42% | 0.94 -95% | 11.4 -38% | 17.7 ? -4% |
Maya (maya-05) | 94.6 | 107 13% | 71.8 -24% | 56.5 -40% | 32.2 -66% | 58.3 -38% | 94.7 ? 0% |
Medical (medical-02) | 56.3 | 77.6 38% | 20.5 -64% | 31 -45% | 4.49 -92% | 32.8 -42% | 33 ? -41% |
Showcase (showcase-02) | 29 | 25.4 -12% | 28.9 0% | 21.5 -26% | 13.1 -55% | 17.4 -40% | 34.5 ? 19% |
Solidworks (sw-04) | 89.7 | 109 22% | 63.1 -30% | 72.4 -19% | 47.2 -47% | 72.9 -19% | 74.4 ? -17% |
SPECviewperf 2020 | 14% | -33% | -40% | -78% | -42% | -1% | |
3840x2160 Medical (medical-03) | 8.2 | 11.1 35% | 3.73 -55% | 4.82 -41% | 0.78 -90% | 4.72 -42% | 7.2 ? -12% |
3840x2160 Energy (energy-03) | 15.4 | 14.1 -8% | 4.93 -68% | 5.33 -65% | 0.52 -97% | 6.6 -57% | 11 ? -29% |
3840x2160 Creo (creo-03) | 27.1 | 31.4 16% | 20.2 -25% | 19.1 -30% | 9.17 -66% | 17.5 -35% | 29.8 ? 10% |
3840x2160 CATIA (catia-06) | 20.7 | 24.8 20% | 15.8 -24% | 13.1 -37% | 5.24 -75% | 13.1 -37% | 19 ? -8% |
3840x2160 3ds Max (3dsmax-07) | 18.6 | 20.9 12% | 10.8 -42% | 11.3 -39% | 6.95 -63% | 9.26 -50% | 21.4 ? 15% |
3840x2160 Siemens NX (snx-04) | 55.4 | 61.4 11% | 50.4 -9% | 38 -31% | 5.89 -89% | 33 -40% | 42.7 ? -23% |
3840x2160 Maya (maya-06) | 42.2 | 47 11% | 39.1 -7% | 25.8 -39% | 15.3 -64% | 29.5 -30% | 57.9 ? 37% |
Total Average (Program / Settings) | 17% /
17% | -32% /
-32% | -36% /
-36% | -71% /
-71% | -38% /
-37% | -8% /
-8% |
3DMark 05 Standard | 42324 points | |
3DMark 06 Standard Score | 37928 points | |
3DMark Vantage P Result | 37433 points | |
3DMark 11 Performance | 11319 points | |
3DMark Ice Storm Standard Score | 147099 points | |
3DMark Cloud Gate Standard Score | 31112 points | |
3DMark Fire Strike Score | 6718 points | |
3DMark Fire Strike Extreme Score | 3556 points | |
3DMark Time Spy Score | 2916 points | |
Help |
Gaming performance
The excellent performance of the AMD Radeon 780M continues into the games tested. The iGPU has markedly higher performance than the Radeon 680M. The number of games playable on a humble iGPU has massively increased. However, you’ll have to make do with a lower level of detail. Right now, only a dedicated graphics card can give you better 3D performance than the 780M. The Minisforum Neptune Series HX99G is worth checking out if you want a mini-PC with a dGPU. Optionally, the Mercury Series EM780 can also be connected to an external graphics card. We’ll delve into that separately in the next section.
You can visit our GPU gaming performance list to get an overview of how the iGPU stacks up against other graphics cards.
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
NiPoGi AD08 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Minisforum Mercury Series EM680 | |
NiPoGi AD08 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
Geekom Mini IT12 |
Borderlands 3 | |
1280x720 Very Low Overall Quality (DX11) | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Minisforum Mercury Series EM680 | |
Geekom Mini IT12 | |
1920x1080 High Overall Quality (DX11) | |
Minisforum Mercury Series EM780 | |
Geekom A7 | |
Minisforum Mercury Series EM680 | |
Geekom A5 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
GTA V | |
1024x768 Lowest Settings possible | |
Geekom A7 | |
Geekom A5 | |
Minisforum Mercury Series EM780 | |
NiPoGi AD08 | |
Geekom Mini IT12 | |
Maxtang MTN-FP750 | |
Minisforum Mercury Series EM680 | |
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
Geekom A7 | |
Minisforum Mercury Series EM780 | |
Geekom A5 | |
Minisforum Mercury Series EM680 | |
Maxtang MTN-FP750 | |
NiPoGi AD08 | |
Geekom Mini IT12 |
Witcher 3 FPS chart
low | med. | high | ultra | |
GTA V (2015) | 126.3 | 117 | 59.2 | 24.6 |
The Witcher 3 (2015) | 140.3 | 96.6 | 45.5 | 28.5 |
Dota 2 Reborn (2015) | 112.4 | 96.1 | 80.5 | 71 |
Final Fantasy XV Benchmark (2018) | 68.6 | 34.4 | 25.7 | |
X-Plane 11.11 (2018) | 54 | 40.2 | 33.8 | |
Far Cry 5 (2018) | 73 | 46 | 42 | 40 |
Strange Brigade (2018) | 147.5 | 61 | 51.9 | 44 |
Shadow of the Tomb Raider (2018) | 88 | 40.3 | 36.2 | 31.5 |
Far Cry New Dawn (2019) | 64 | 44 | 41 | 38 |
Metro Exodus (2019) | 76.6 | 34.3 | 25.3 | 20.8 |
Borderlands 3 (2019) | 75.7 | 43.7 | 28.4 | 22.2 |
F1 2020 (2020) | 178.1 | 87.8 | 68.7 | 46 |
F1 2021 (2021) | 196.8 | 100.1 | 77 | 30 |
Far Cry 6 (2021) | 77.1 | 47.2 | 39.1 | 34.3 |
God of War (2022) | 39.2 | 31.7 | 25.6 | 18.1 |
GRID Legends (2022) | 73.5 | 92.5 | 55.3 | 42.4 |
Tiny Tina's Wonderlands (2022) | 62.7 | 45.6 | 29.8 | 23.8 |
F1 22 (2022) | 88.3 | 77.3 | 56.7 | 14.3 |
F1 23 (2023) | 82 | 72.7 | 51.8 | 11.3 |
Cyberpunk 2077 2.0 Phantom Liberty (2023) | 38.5 | 29.9 | 23.6 | 20.5 |
Total War Pharaoh (2023) | 81.9 | 61.8 | 36.2 | 29 |
Avatar Frontiers of Pandora (2023) | 19 | 17 | 14 | 11 |
Testing out two eGPUs with Minisforum Mercury Series EM780 performs
As Minisforum has equipped the Mercury Series EM780 with USB4 ports, the palm-size computer can also be used together with an external graphics card. We took a look at the performance gain from pairing the mini-PC with a GPD G1 and then with a Razer Core X and an Nvidia GeForce RTX 3060 Ti. Whilst the AMD Radeon 780M already offers adequate performance, plugging in an eGPU is still going to boost 3D performance noticeably. It is sometimes even possible to play modern games at 1440p as well. That said, technical limitations related to the USB4 interface are something you’ll have to deal with. This is because an external graphics card can only communicate with the mini-PC at up to PCIe 3.0 x4. The OCuLink interface is an alternative to USB4, but it is currently available only on a handful of devices. Connecting the GPD G1 via OCuLink provides an approximately 10% boost in performance. One of the few mini-PCs with a native OCuLink port is the Minisforum EliteMini UM780 XTX.
Minisforum Mercury Series EM780 with Razer Core X and Nvidia GeForce RTX 3060 Ti
Performance Rating - Percent | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) |
3DMark 11 - 1280x720 Performance GPU | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
3DMark | |
2560x1440 Time Spy Graphics | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Fire Strike Graphics | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
3840x2160 Fire Strike Ultra Graphics | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Unigine Superposition | |
1280x720 720p Low | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p High | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 1080p Extreme | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
3840x2160 4k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
7680x4320 8k Optimized | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Extreme Preset DX11 | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 3DTex | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Fluid 2DTexArr | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Vector | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, Mandel Scalar | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
1024x600 Normal, QJuliaRayTrace | |
Geekom A7 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Minisforum EM780 (Nvidia GeForce RTX 3060 Ti FE @TB3) | |
Minisforum Mercury Series EM680 (Nvidia GeForce RTX 3060 Ti FE TB3) | |
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3) | |
low | med. | high | ultra | QHD | 4K | |
Dota 2 Reborn (2015) | 136.4 | 123 | 118.4 | 109.8 | 95.9 | |
Final Fantasy XV Benchmark (2018) | 165.3 | 128.8 | 92.7 | 72.6 | 45.4 | |
X-Plane 11.11 (2018) | 105.3 | 88.4 | 70.4 | 60.6 | ||
Far Cry 5 (2018) | 126 | 109 | 105 | 99 | 89 | 56 |
Strange Brigade (2018) | 169.4 | 132.5 | 129.6 | 121.8 | 117.6 | 79.7 |
Far Cry New Dawn (2019) | 105 | 94 | 91 | 81 | 78 | 57 |
Metro Exodus (2019) | 115.7 | 77.3 | 59.6 | 44.9 | 40.1 | 30.7 |
Borderlands 3 (2019) | 106.8 | 97.8 | 87.1 | 75.8 | 61.3 | 37.4 |
F1 2020 (2020) | 174.1 | 98.1 | 101.3 | 83.4 | 73.3 | 53 |
F1 2021 (2021) | 114.3 | 87.2 | 57 | 44.1 | 41.2 | 34.3 |
Far Cry 6 (2021) | 63.1 | 54 | 44.8 | 37.9 | 37.3 | |
God of War (2022) | 99.7 | 88.6 | 74.6 | 58.2 | 50.5 | 38.5 |
GRID Legends (2022) | 101.2 | 81.5 | 67.5 | 57.4 | 53.3 | 44.4 |
Tiny Tina's Wonderlands (2022) | 155.6 | 125.8 | 90.7 | 75 | 58.2 | 33.8 |
F1 22 (2022) | 48.9 | 43.3 | 34.4 | 22.6 | 22 | 17.7 |
F1 23 (2023) | 54.3 | 54.3 | 43.2 | 28.1 | 26.1 | 12.4 |
Cyberpunk 2077 2.0 Phantom Liberty (2023) | 75.7 | 71.2 | 63.1 | 57 | 40.9 | 21.4 |
Total War Pharaoh (2023) | 240.1 | 144.6 | 89.1 | 67.4 | 55.7 | 36.6 |
Avatar Frontiers of Pandora (2023) | 60 | 58 | 52 | 42 | 31 | 10 |
Minisforum Mercury Series EM780 mit GPD G1 (AMD Radeon RX 7600M XT)
Performance Rating - Percent | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) |
3DMark 11 - 1280x720 Performance GPU | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
3DMark | |
2560x1440 Time Spy Graphics | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1920x1080 Fire Strike Graphics | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
3840x2160 Fire Strike Ultra Graphics | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Unigine Superposition | |
1920x1080 1080p High | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1920x1080 1080p Extreme | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
3840x2160 4k Optimized | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
7680x4320 8k Optimized | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Unigine Heaven 4.0 | |
Extreme Preset OpenGL | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Extreme Preset DX11 | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
ComputeMark v2.1 | |
1024x600 Normal, Score | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1024x600 Normal, Fluid 3DTex | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
1024x600 Normal, Fluid 2DTexArr | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
1024x600 Normal, Mandel Vector | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1024x600 Normal, Mandel Scalar | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
1024x600 Normal, QJuliaRayTrace | |
GPD G1 Radeon RX 7600M XT (120 Watt, OCuLink @PCIe x4 4.0) | |
Aoostar GOD77 (GPD G1 Radeon RX 7600M XT @USB4) | |
Minisforum EM780 (GPD G1 Radeon RX 7600M XT @USB4) | |
Geekom A7 (GPD G1 Radeon RX 7600M XT @USB4) | |
low | med. | high | ultra | QHD | 4K | |
GTA V (2015) | 140.4 | 133.6 | 105.5 | 68.3 | 56.2 | 65 |
The Witcher 3 (2015) | 124.5 | 75.8 | 67.5 | 66 | 64.8 | 48.7 |
Far Cry 5 (2018) | 85 | 73 | 69 | 61 | 61 | 48 |
Strange Brigade (2018) | 157.8 | 131.9 | 123.5 | 116.9 | 95.9 | 56.9 |
Shadow of the Tomb Raider (2018) | 119.7 | 100.8 | 98.7 | 83.9 | 59.6 | 23.3 |
Far Cry New Dawn (2019) | 81 | 61 | 52 | 46 | 47 | 44 |
Metro Exodus (2019) | 56.1 | 36.4 | 37.5 | 32.2 | 30.5 | 16.8 |
Borderlands 3 (2019) | 77 | 66.3 | 61.4 | 57.3 | 53.4 | 30.5 |
F1 2020 (2020) | 226 | 164.1 | 100.3 | 140.1 | 82.9 | 53.2 |
F1 2021 (2021) | 208 | 165.7 | 105.7 | 72.2 | 52.5 | 23.5 |
Far Cry 6 (2021) | 71.6 | 63.7 | 55.1 | 45.4 | 43.2 | 0.978 |
GRID Legends (2022) | 82.1 | 68.5 | 55.8 | 51.2 | 48 | 39.3 |
Tiny Tina's Wonderlands (2022) | 127 | 117.2 | 78.6 | 65.6 | 47.3 | 26.3 |
F1 22 (2022) | 90.8 | 87.1 | 70.2 | 34.8 | 24.8 | |
F1 23 (2023) | 122.5 | 116.8 | 99.5 | 23.8 | 11.3 | |
Cyberpunk 2077 2.0 Phantom Liberty (2023) | 76.9 | 67.1 | 58.3 | 53.4 | 37.4 | 13.6 |
Total War Pharaoh (2023) | 192 | 98.4 | 71.1 | 61 | 53.7 | 30.6 |
Avatar Frontiers of Pandora (2023) | 44 | 41 | 36 | 17 | 11 | 6.6 |
Emissions - AMD Ryzen 7 7840U always under control
Noise emissions
Although the Minisforum Mercury Series EM780 packs a lot of power into an extremely compact chassis, the noise levels we measured were consistently great. Our review unit reached slightly more than 30 dB(A) at idle. The noise level increased to roughly 32 dB(A) under ordinary load and hit 38 dB(A) during the stress test. Though it is worth noting that the fan at the bottom didn’t affect our measurements. The primary source of noise is the CPU fan, which draws in fresh air from the top.
Noise Level
Idle |
| 30.1 / 30.3 / 30.4 dB(A) |
Load |
| 32.2 / 37.9 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.1 dB(A) |
Minisforum Mercury Series EM780 R7 7840U, Radeon 780M | Geekom A7 R9 7940HS, Radeon 780M | Minisforum Mercury Series EM680 R7 6800U, Radeon 680M | Geekom A5 R7 5800H, Vega 8 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | Maxtang MTN-FP750 R7 7735HS, Radeon 680M | NiPoGi AD08 Nipogi AD08 (Performance), i7-12650H, UHD Graphics 64EUs | |
---|---|---|---|---|---|---|---|
Noise | -14% | 0% | -9% | -14% | -2% | -15% | |
off / environment * | 25.1 | 25.4 -1% | 29.7 -18% | 25 -0% | 24.8 1% | 25 -0% | 25 -0% |
Idle Minimum * | 30.1 | 33.3 -11% | 30.8 -2% | 28.2 6% | 36.5 -21% | 25.3 16% | 31.1 -3% |
Idle Average * | 30.3 | 33.6 -11% | 30.8 -2% | 28.2 7% | 36.5 -20% | 25.3 17% | 31.2 -3% |
Idle Maximum * | 30.4 | 33.7 -11% | 31 -2% | 28.2 7% | 36.5 -20% | 25.4 16% | 31.3 -3% |
Load Average * | 32.2 | 43.3 -34% | 31.2 3% | 47.8 -48% | 36.6 -14% | 45.1 -40% | 51.7 -61% |
Witcher 3 ultra * | 36.8 | 43.2 -17% | 32.2 12% | 36.6 1% | |||
Load Maximum * | 37.9 | 43.3 -14% | 33.6 11% | 47.4 -25% | 47.5 -25% | 45.3 -20% | 45.8 -21% |
* ... smaller is better

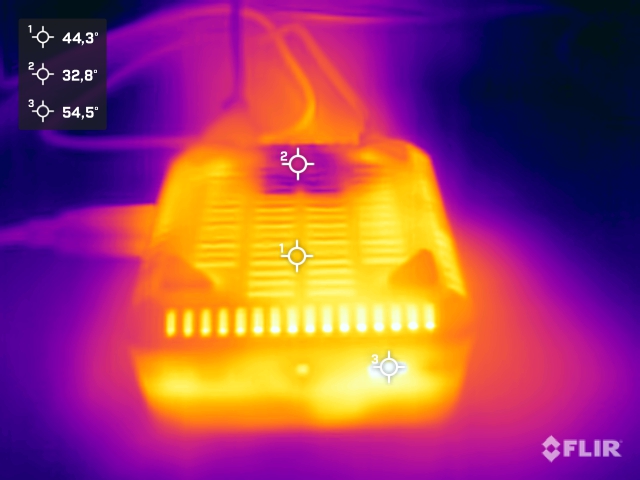

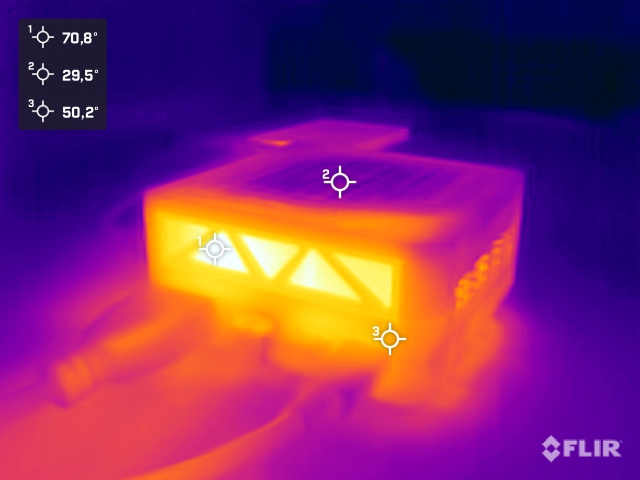

Temperature

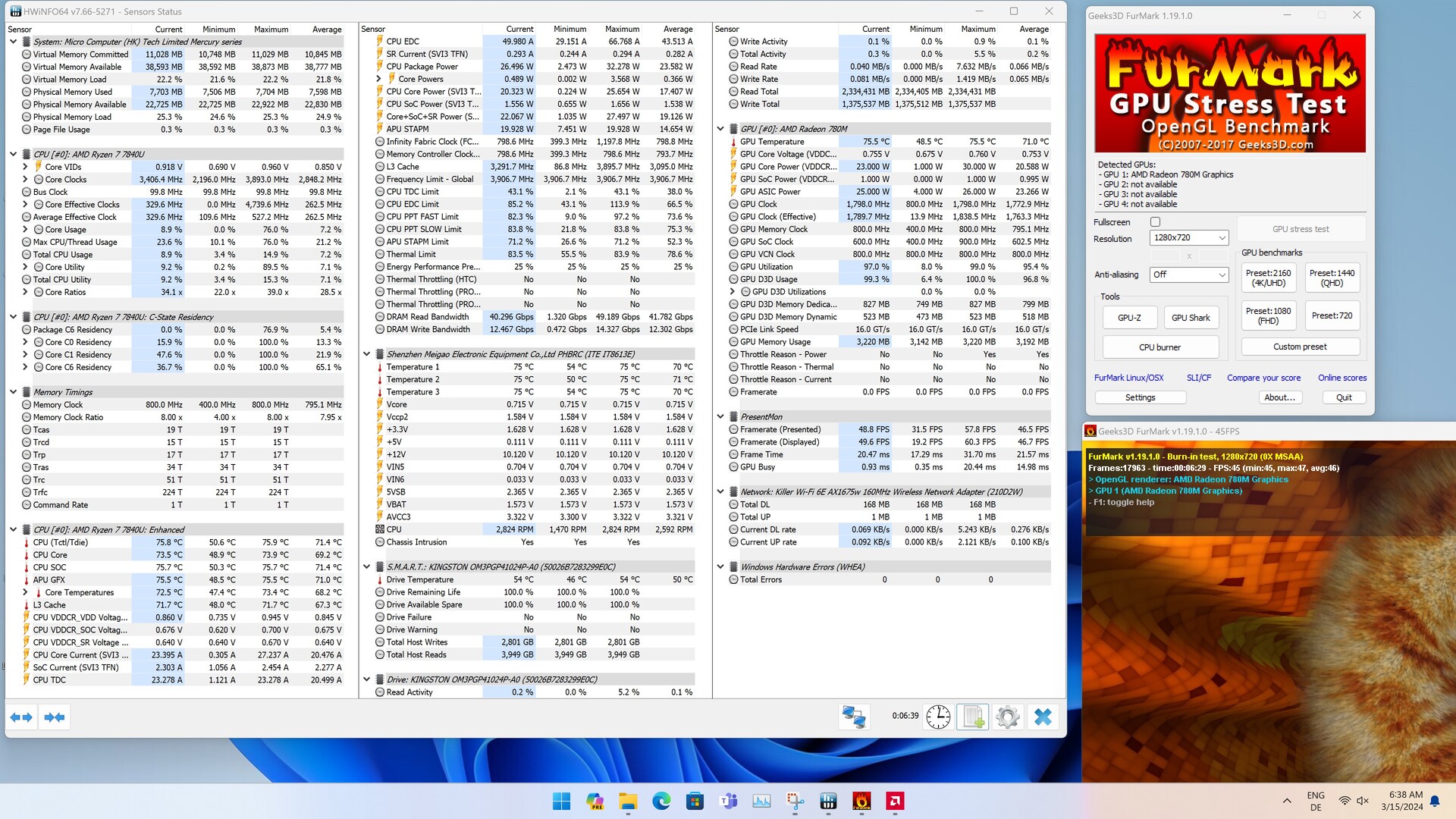

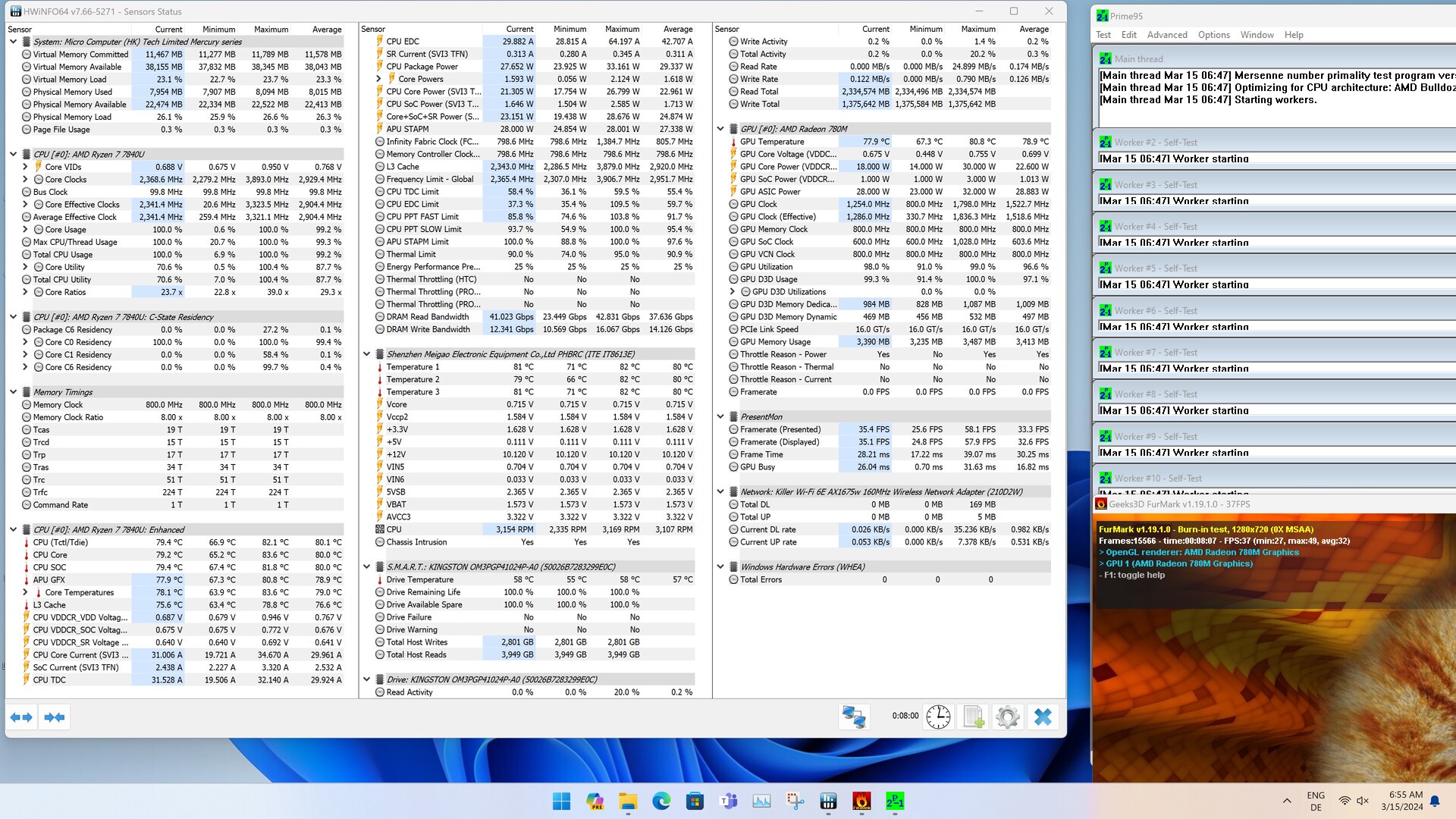

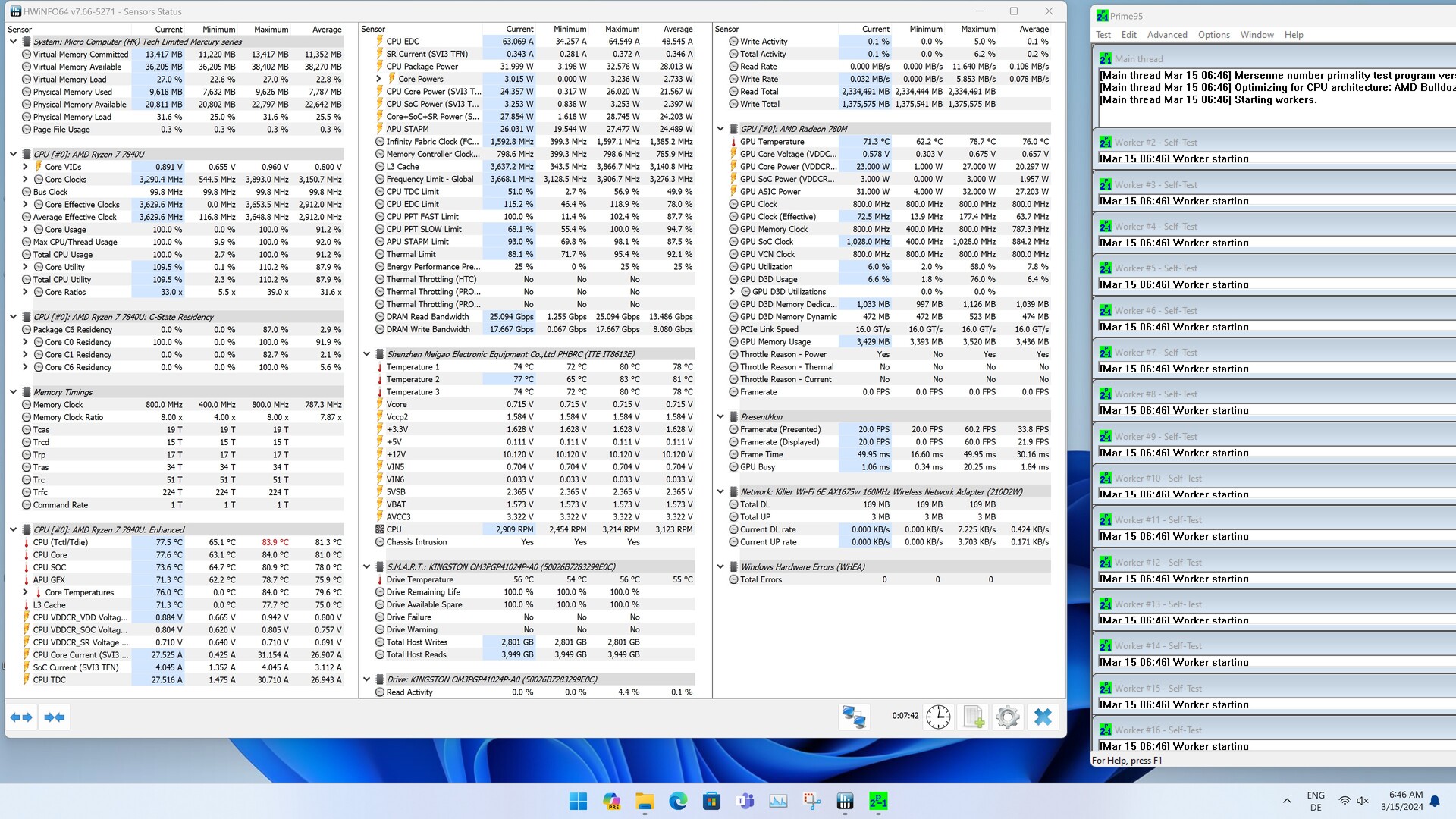

We didn’t see any extreme values when it comes to chassis temperatures. The bottom became slightly warmer than the top because of the SSD and heatsink. The processor itself got as hot as 83.9°C (183.0°F) during the stress test. Minisforum has set a thermal limit for the processor, but this is not an issue considering the SoC is able to operate continuously at 28 watts (TDP).
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.5 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.3 °C / 87 F, compared to the device average of 32.2 °C / 90 F.
Power consumption

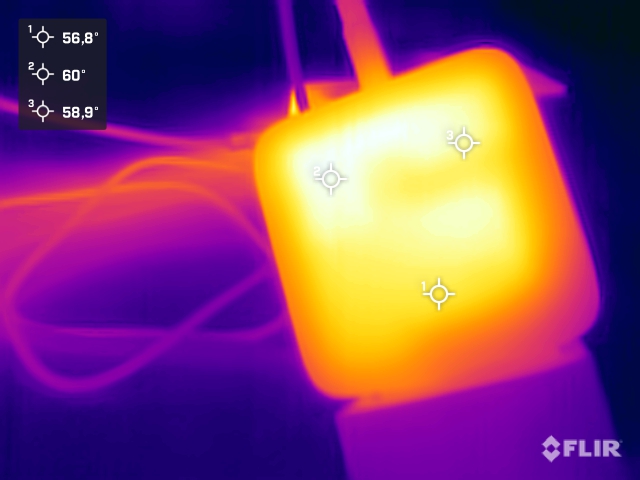

The Minisforum Mercury Series EM780 is a very frugal mini-PC. But its power consumption has, in some cases, increased significantly compared with the EM680. That said, with an average power usage of 31.7 watts, our review unit is still one of the least power-hungry devices in our comparison. The included adapter can deliver up to 65 watts to the device over USB4. Alternatively, you can power the Minisforum EM780 via a monitor that supports Power Delivery.
Minisforum Mercury Series EM780 R7 7840U, Radeon 780M | Geekom A7 R9 7940HS, Radeon 780M | Minisforum Mercury Series EM680 R7 6800U, Radeon 680M | Geekom A5 R7 5800H, Vega 8 | Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs | Maxtang MTN-FP750 R7 7735HS, Radeon 680M | NiPoGi AD08 i7-12650H, UHD Graphics 64EUs | Average AMD Radeon 780M | Average of class Mini PC | |
---|---|---|---|---|---|---|---|---|---|
Power Consumption | -7% | 30% | -14% | -3% | 1% | -88% | -7% | -29% | |
Idle Minimum * | 10.2 | 3.8 63% | 7 31% | 6.9 32% | 5.5 46% | 7 31% | 14.2 -39% | 6.37 ? 38% | 9.75 ? 4% |
Idle Average * | 10.9 | 4.8 56% | 7.2 34% | 7.9 28% | 8.5 22% | 8.1 26% | 15.1 -39% | 8.59 ? 21% | 11.7 ? -7% |
Idle Maximum * | 12.2 | 6.5 47% | 7.2 41% | 8.9 27% | 11.3 7% | 8.4 31% | 28.7 -135% | 11.3 ? 7% | 14.7 ? -20% |
Load Average * | 31.7 | 71.9 -127% | 20 37% | 60.8 -92% | 42.3 -33% | 54.2 -71% | 76.9 -143% | 52.8 ? -67% | 51.9 ? -64% |
Load Maximum * | 55 | 94.7 -72% | 52.1 5% | 89.7 -63% | 86.5 -57% | 61.4 -12% | 100.2 -82% | 73.6 ? -34% | 86 ? -56% |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
Verdict - AMD Ryzen 7 7840U with great performance

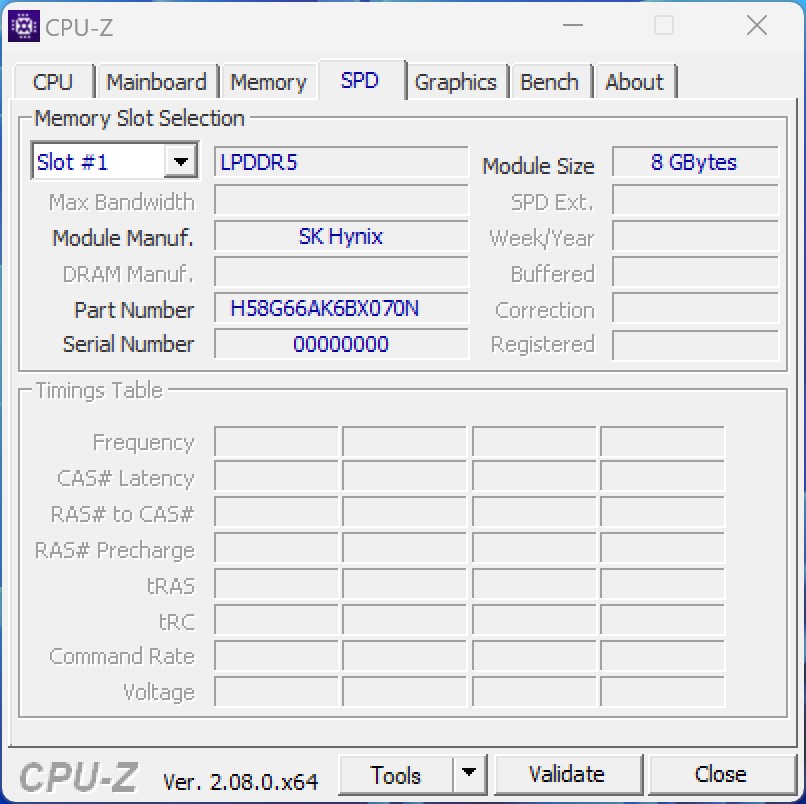

The Minisforum Mercury Series EM780 is an extremely small PC that performs well in nearly every aspect. The mini-PC is equipped with a modern eight-core processor in the form of an AMD Ryzen 7 7840U. At the same time, the SoC boasts a rather powerful iGPU that is capable of achieving excellent performance in spite of the low power usage. The Minisforum EM780 packs a tremendous amount of power on a footprint of just 80 x 80 mm (3.15 x 3.15 in). You’ll also be well-served by the 32 GB of DDR5 RAM. Unfortunately, the memory is neither expandable nor replaceable, which is one of the drawbacks of such compact PCs. On the other hand, it is possible to upgrade the mass storage in the EM780. The storage drive has a relatively generous capacity of 1 TB. The device has impeccable fit and finish, even though the chassis is largely made of plastic. The mini-PC still feels nice to the touch, and the choice of material also doesn’t affect how sturdy the device is.
The impressive Minisforum Mercury Series EM780 offers excellent performance in a very small package, without sacrificing cutting-edge I/O ports like USB4.
We really like the cooling system. It’s able to effectively remove heat from the AMD Ryzen 7 7840U. There isn’t any performance loss even under full load. The same applies to the SSD as well, which has been given a separate cooling unit. Noise level is fairly all right overall, meaning you won’t hear any annoying noise in the background when the computer is running. Minisforum got around the lack of an Ethernet port by including an adapter you can plug in via USB4. The EM780 mini-PC will set you back €729 (US$639). This is by no means a steal, but you'll get one of the most compact mini-PCs in this performance category.

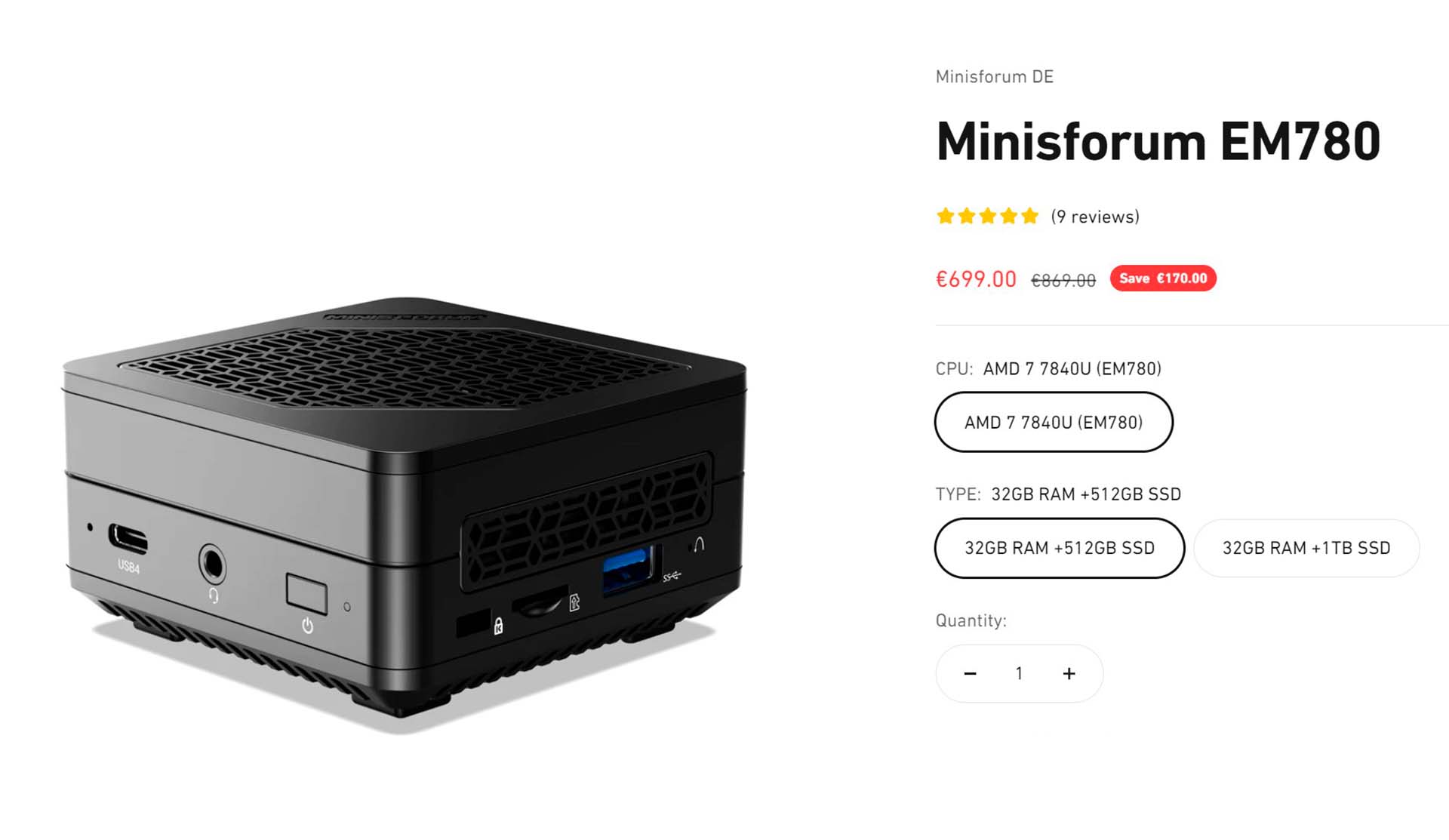

Price and availability
The Minisforum Mercury Series EM780 is available directly on the company's online shop. Minisforum is currently still offering attractive preorder discounts: our review model with 1 TB of storage costs €729 (US$639), whereas the cheaper variant with a 512 GB SSD will set you back €699 (US$619). Both models can also be found on Amazon for the same price.
Prices are accurate at the time of publishing this review and subject to change.
Minisforum Mercury Series EM780
-
03/16/2024 v7
Sebastian Bade
Transparency
The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
