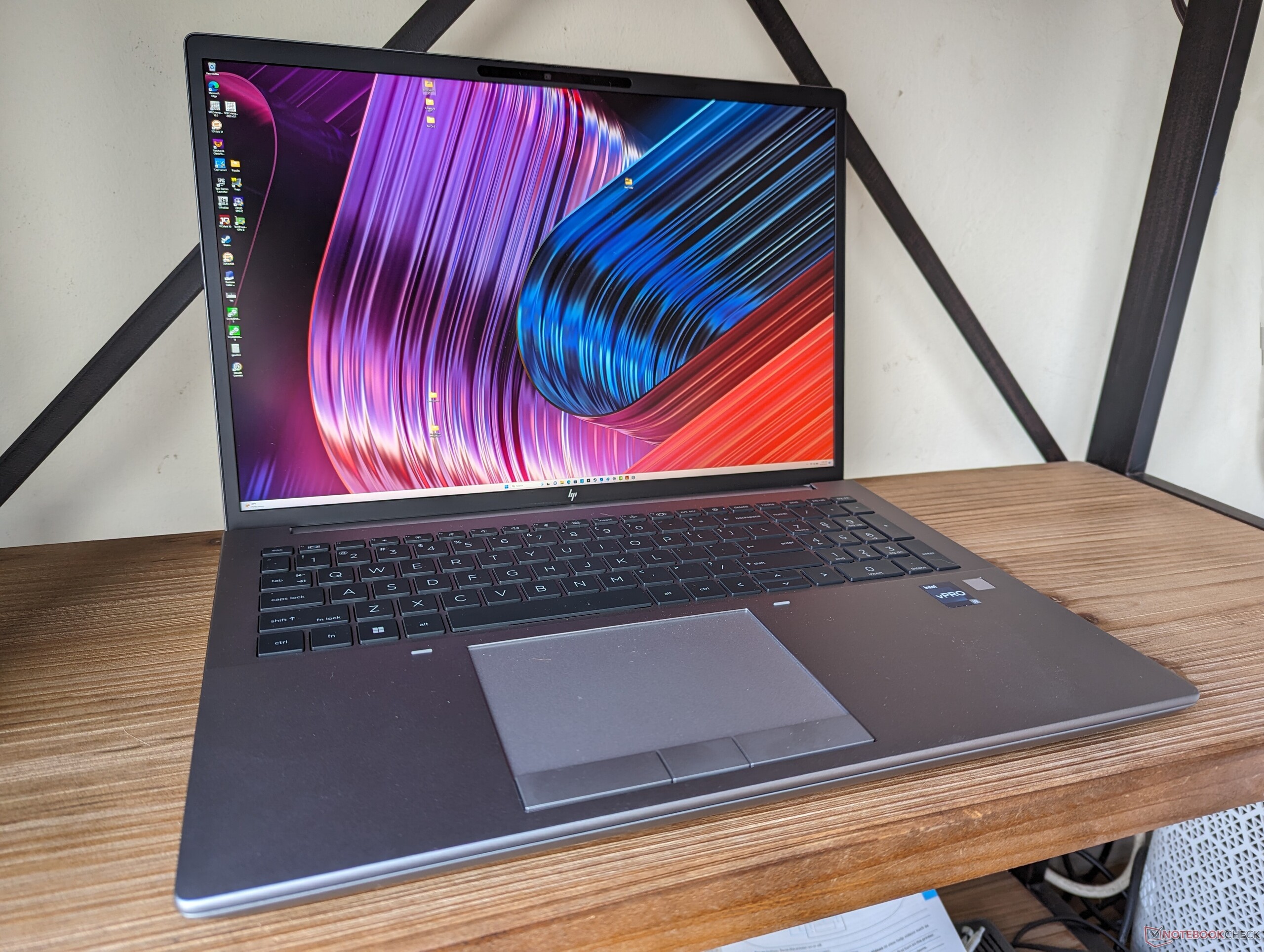

HP ZBook Fury 16 G10 mobile workstation review: 100 W Nvidia RTX 5000 Ada
The ZBook Fury 16 G10 directly succeeds last year's ZBook Fury 16 G9 with new 13th gen Raptor Lake-HX CPU and Nvidia RTX Ada GPU options to replace the older 12th gen Alder Lake and RTX Ampere processors, respectively. The new model is otherwise visually identical to the Fury 16 G9 and so we recommend catching up on our review for last year's model to learn more about the physical features of the Fury 16 G10.
Our specific review unit is a higher-end configuration with the Core i9-13950HX, Nvidia RTX 5000 Ada, and 2400p IPS display for approximately $5300 USD retail. Lesser configurations are available for lower starting prices as detailed by the official HP specifications list.
Alternatives to the Fury 16 G10 include other 16-inch mobile workstations like the Dell Precision 5680, Lenovo ThinkPad P16 G1, MSI CreatorPro Z16P, or the Asus ProArt StudioBook 16.
More HP reviews:
Potential Competitors in Comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
92.3 % v7 (old) | 09 / 2023 | HP ZBook Fury 16 G10 i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU | 2.6 kg | 28.5 mm | 16.00" | 3840x2400 | |
91 % v7 (old) | 06 / 2023 | HP ZBook Fury 16 G9 i9-12950HX, RTX A5500 Laptop GPU | 2.6 kg | 28.5 mm | 16.00" | 3840x2400 | |
89 % v7 (old) | 08 / 2023 | Dell Precision 5000 5680 i9-13900H, NVIDIA RTX 5000 Ada Generation Laptop GPU | 2.3 kg | 22.17 mm | 16.00" | 3840x2400 | |
91 % v7 (old) | 02 / 2023 | Lenovo ThinkPad P16 G1 RTX A5500 i9-12950HX, RTX A5500 Laptop GPU | 3 kg | 30.23 mm | 16.00" | 3840x2400 | |
84.3 % v7 (old) | 11 / 2022 | MSI CreatorPro Z16P B12UKST i7-12700H, RTX A3000 Laptop GPU | 2.4 kg | 19 mm | 16.00" | 2560x1600 | |
v (old) | 12 / 2021 | Asus ProArt StudioBook 16 W7600H5A-2BL2 W-11955M, RTX A5000 Laptop GPU | 2.4 kg | 21.4 mm | 16.00" | 3840x2400 |
Case — Familiar ZBook Fury 16 G9 Design
SD Card Reader
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Dell Precision 5000 5680 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
MSI CreatorPro Z16P B12UKST (AV Pro V60) | |
HP ZBook Fury 16 G10 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
HP ZBook Fury 16 G9 (PNY EliteX-PRO60) | |
Lenovo ThinkPad P16 G1 RTX A5500 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Dell Precision 5000 5680 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
HP ZBook Fury 16 G10 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 (AV Pro SD microSD 128 GB V60) | |
HP ZBook Fury 16 G9 (PNY EliteX-PRO60) | |
MSI CreatorPro Z16P B12UKST (AV Pro V60) | |
Lenovo ThinkPad P16 G1 RTX A5500 (Toshiba Exceria Pro SDXC 64 GB UHS-II) |
Communication
Networking | |
iperf3 transmit AX12 | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 | |
iperf3 receive AX12 | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 | |
iperf3 transmit AXE11000 | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G9 | |
iperf3 receive AXE11000 | |
HP ZBook Fury 16 G9 | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 | |
iperf3 transmit AXE11000 6GHz | |
MSI CreatorPro Z16P B12UKST | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G10 | |
Dell Precision 5000 5680 | |
iperf3 receive AXE11000 6GHz | |
MSI CreatorPro Z16P B12UKST | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 |

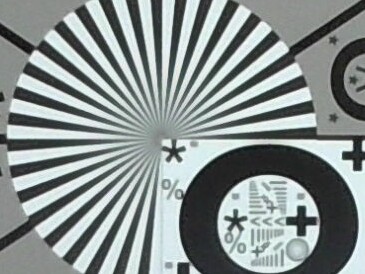

Webcam
HP laptops continue to have some of the highest resolution webcams in the market. The 5 MP sensor on the Fury 16 G10 offers a much cleaner picture than the 2 MP webcam on the Precision 5680.

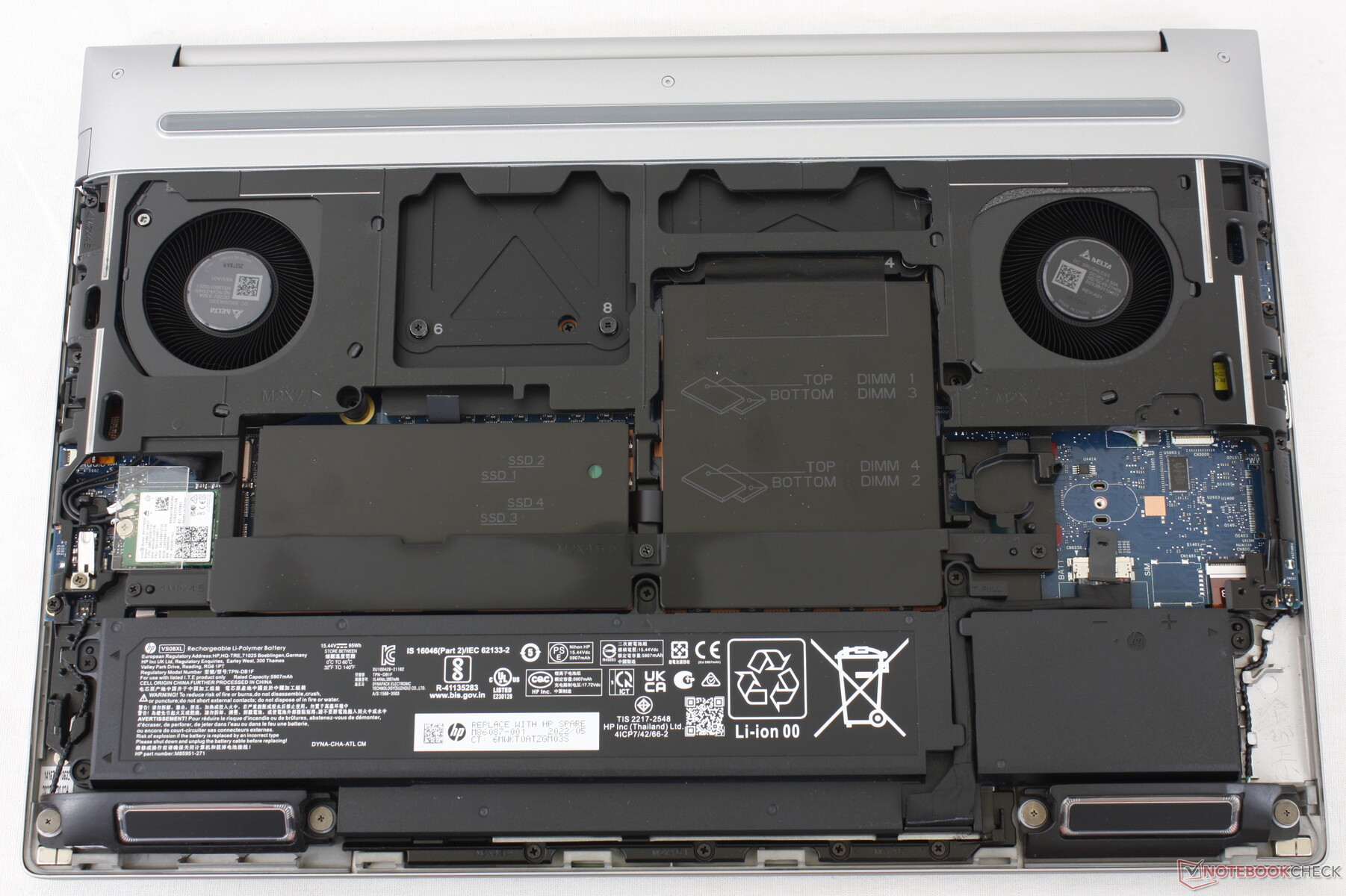

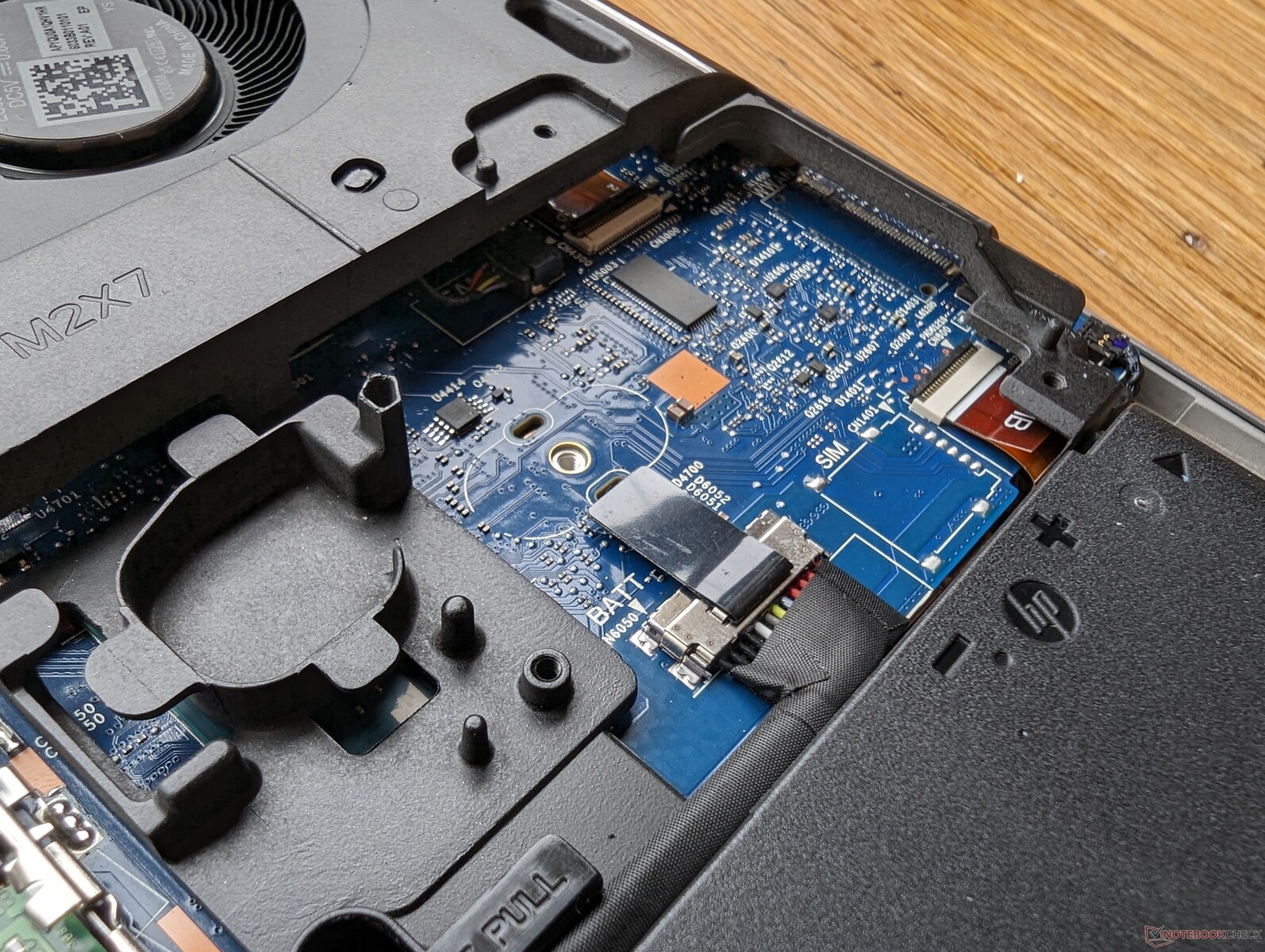

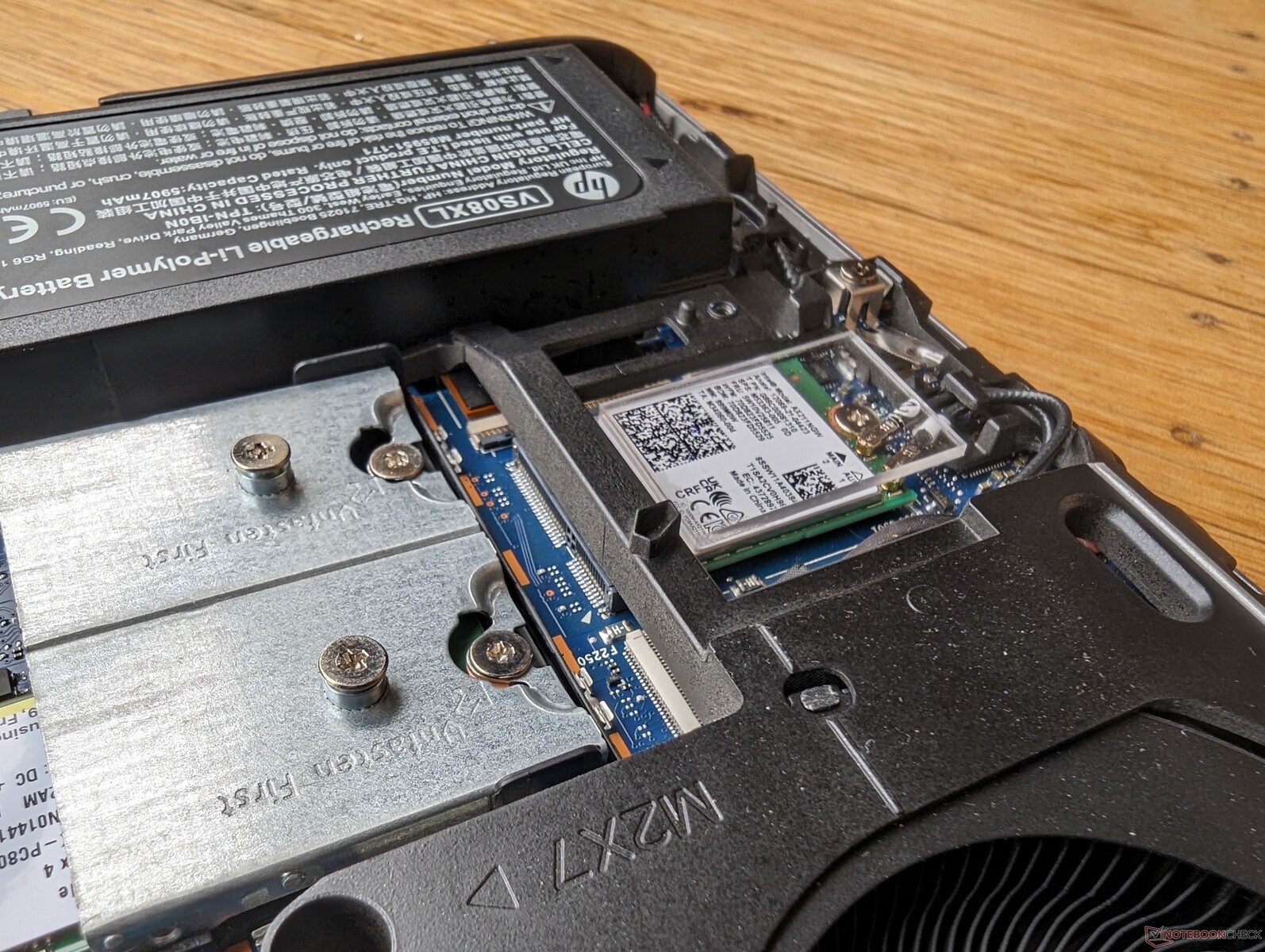

Maintenance

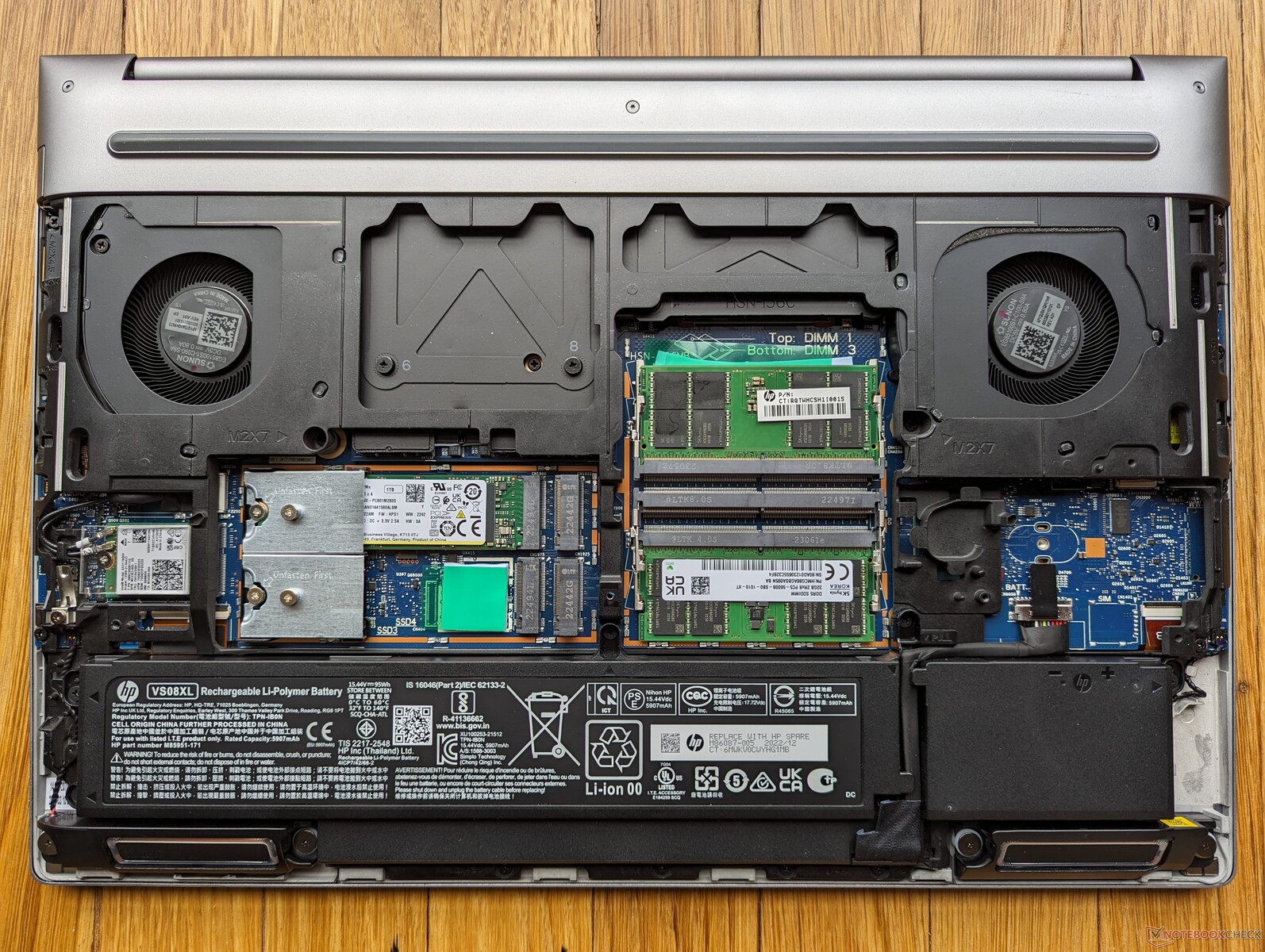

Servicing is "tool-less" in the sense that the bottom panel can be removed without any tools. Once inside, however, a screwdriver will be required to remove the metal plate protecting the four SSDs and four RAM modules. You'll therefore still need a screwdriver for any meaningful upgrades.

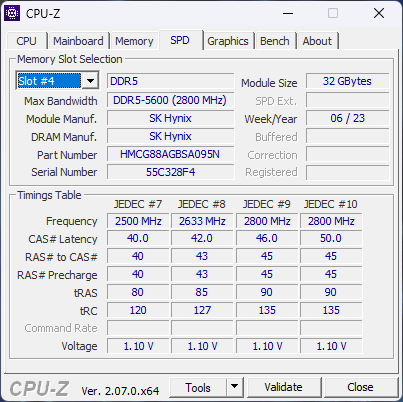

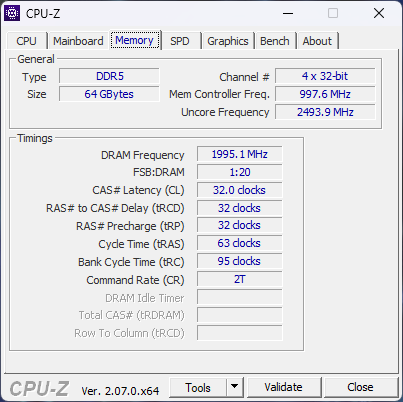

Up to 128 GB of RAM is supported albeit only up to 4000 MT/s.
Accessories And Warranty
There are no extras in the box other than the AC adapter and paperwork. HP offers three years limited warranty as standard.

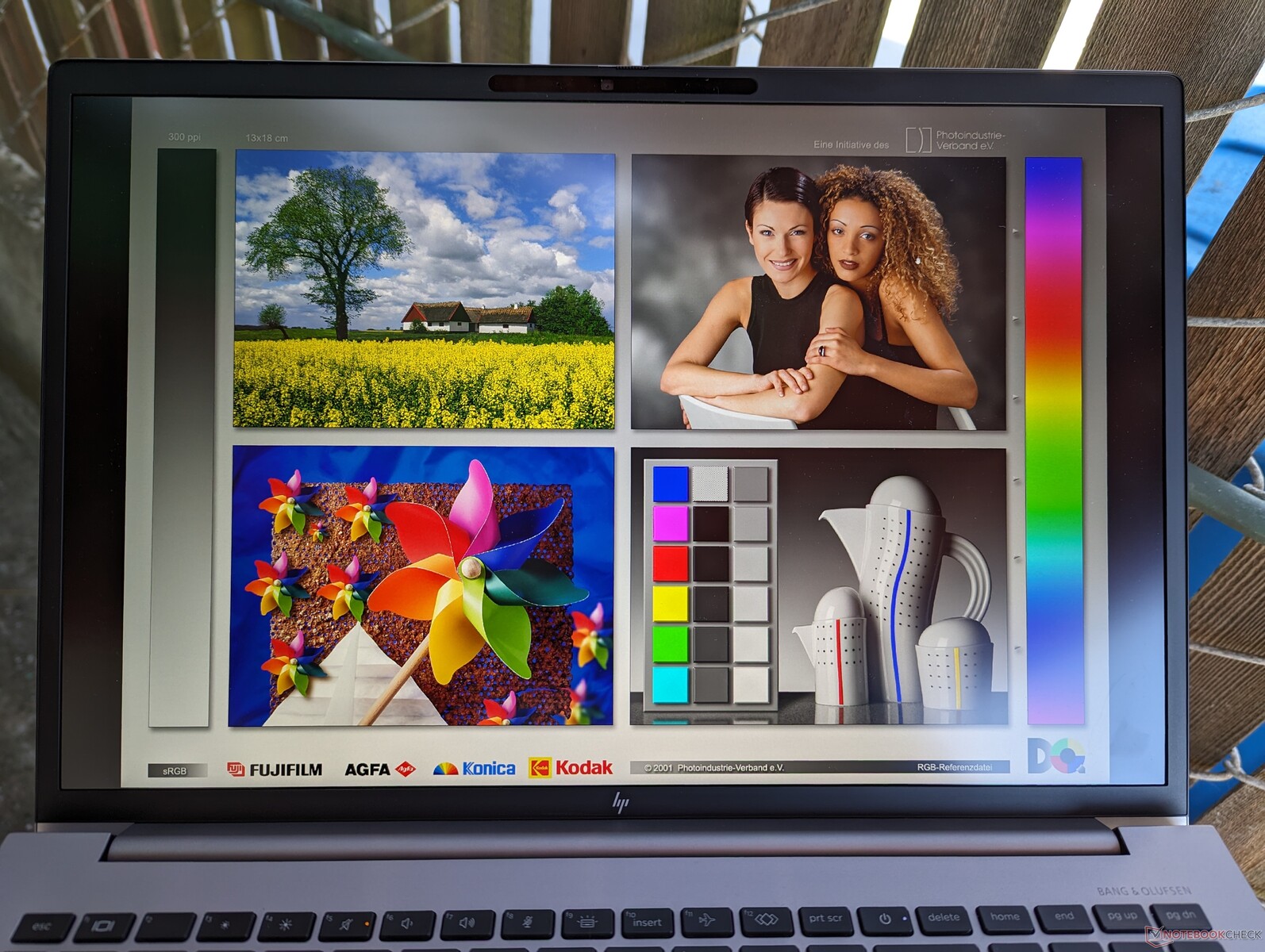

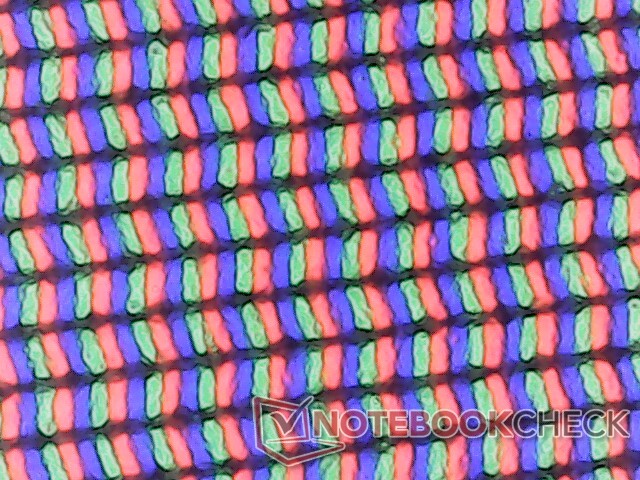

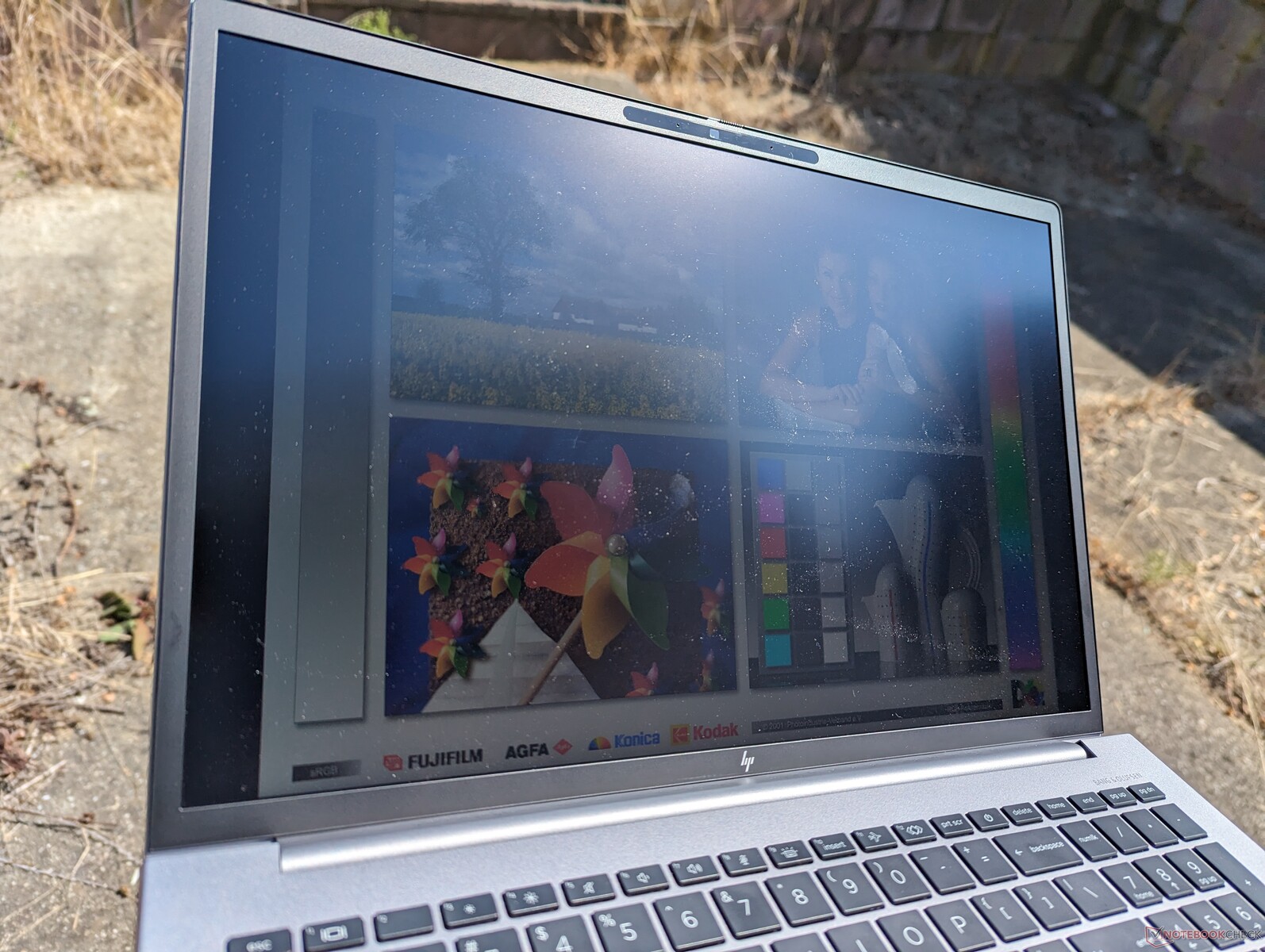

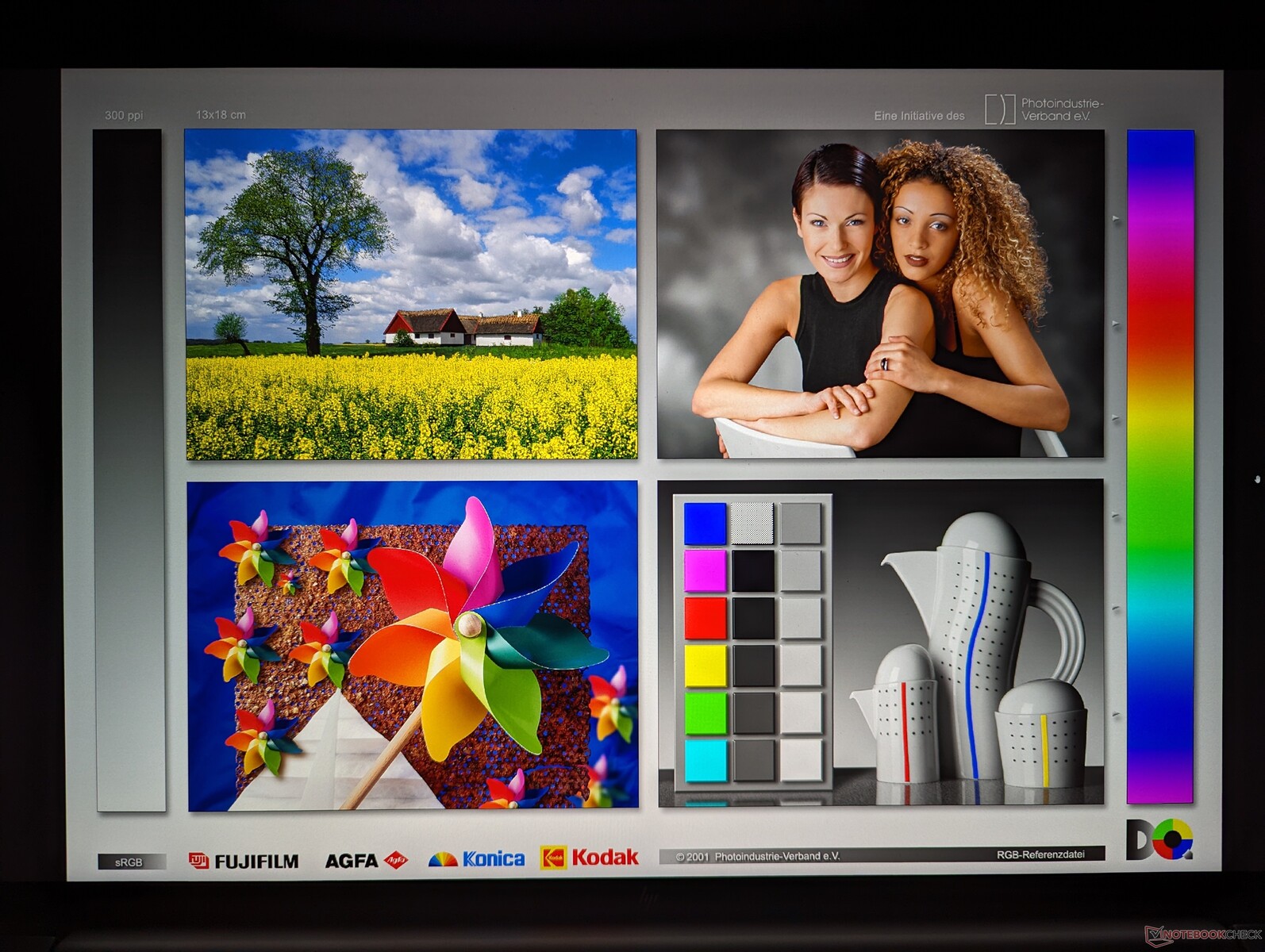

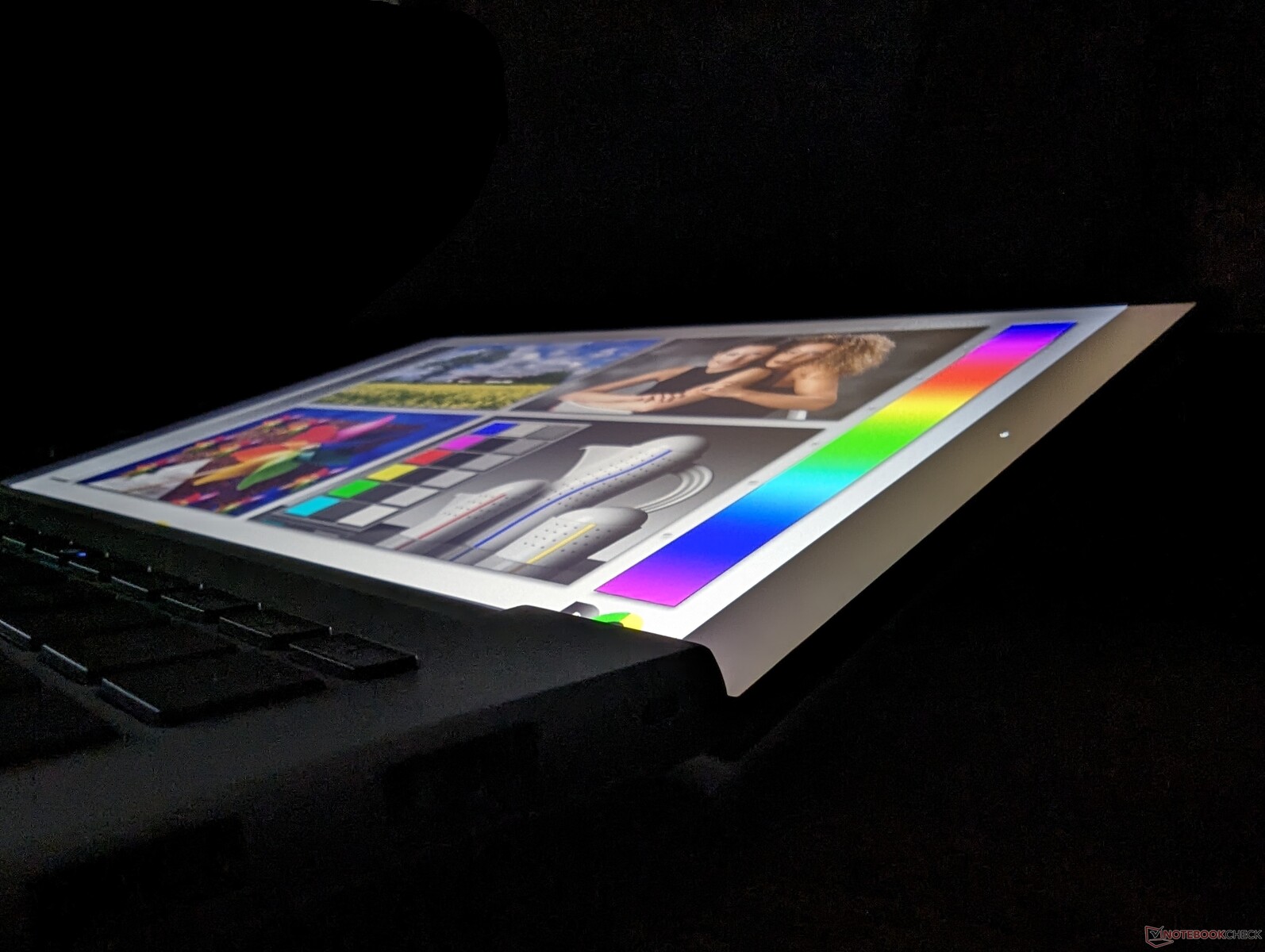

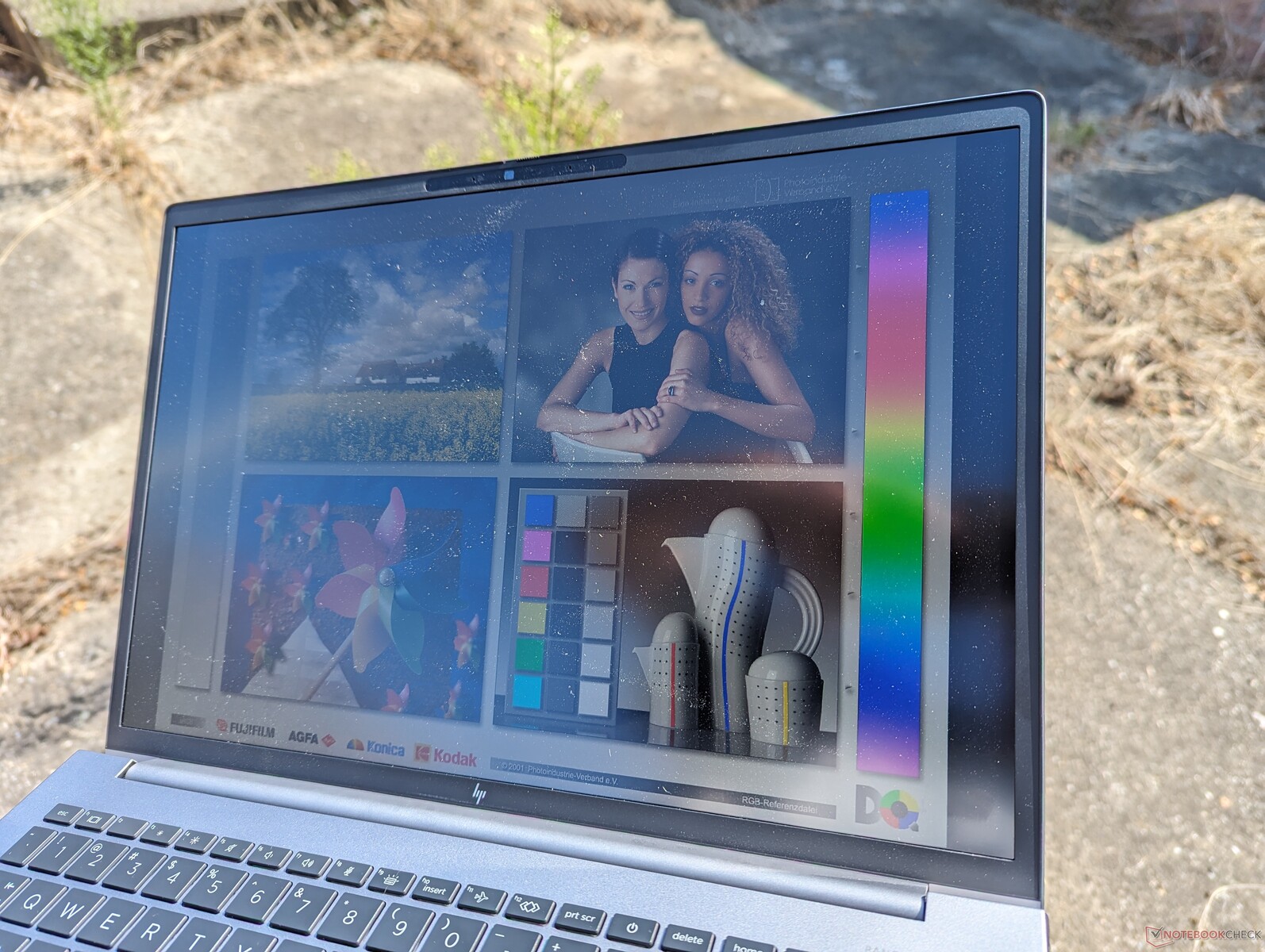

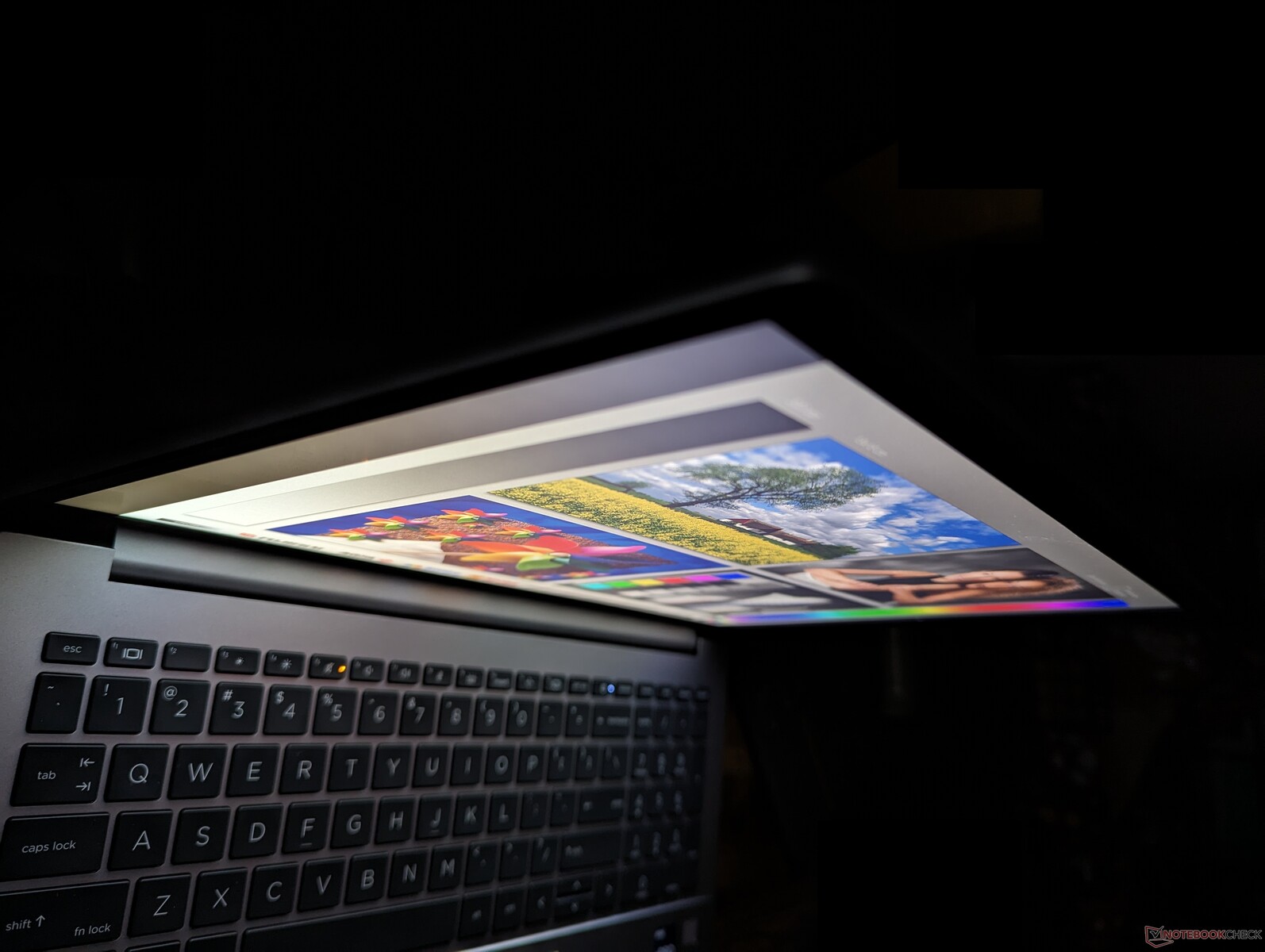

Display
The following three eDP+PSR (Panel Self Refresh) display options are available for the 16-inch Fury 16 G10. Our specific review unit has been configured with the bolded option:
- 3840 x 2400, 60Hz, OLED, touchscreen, 400 nits, 100% DCI-P3, glossy
- 3840 x 2400, 120 Hz, IPS, non-touch, 500 nits, 100% DCI-P3, matte
- 1920 x 1200, 60 Hz, IPS, non-touch, 1000 nits, 100% sRGB, matte
Our independent measurements with an X-Rite colorimeter confirm both the full P3 coverage and 500-nit maximum brightness as advertised. The 120 Hz refresh rate is also a noticeable boost over the 60 Hz panel on last year's Fury 16 G9. This is one of the very few workstations in the market at the moment to offer a 4K IPS panel with both P3 colors and a fast 120 Hz refresh rate.
|

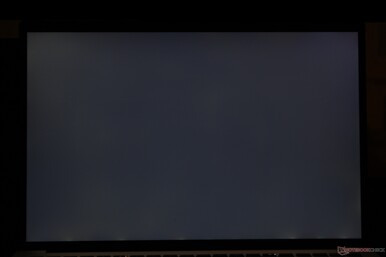

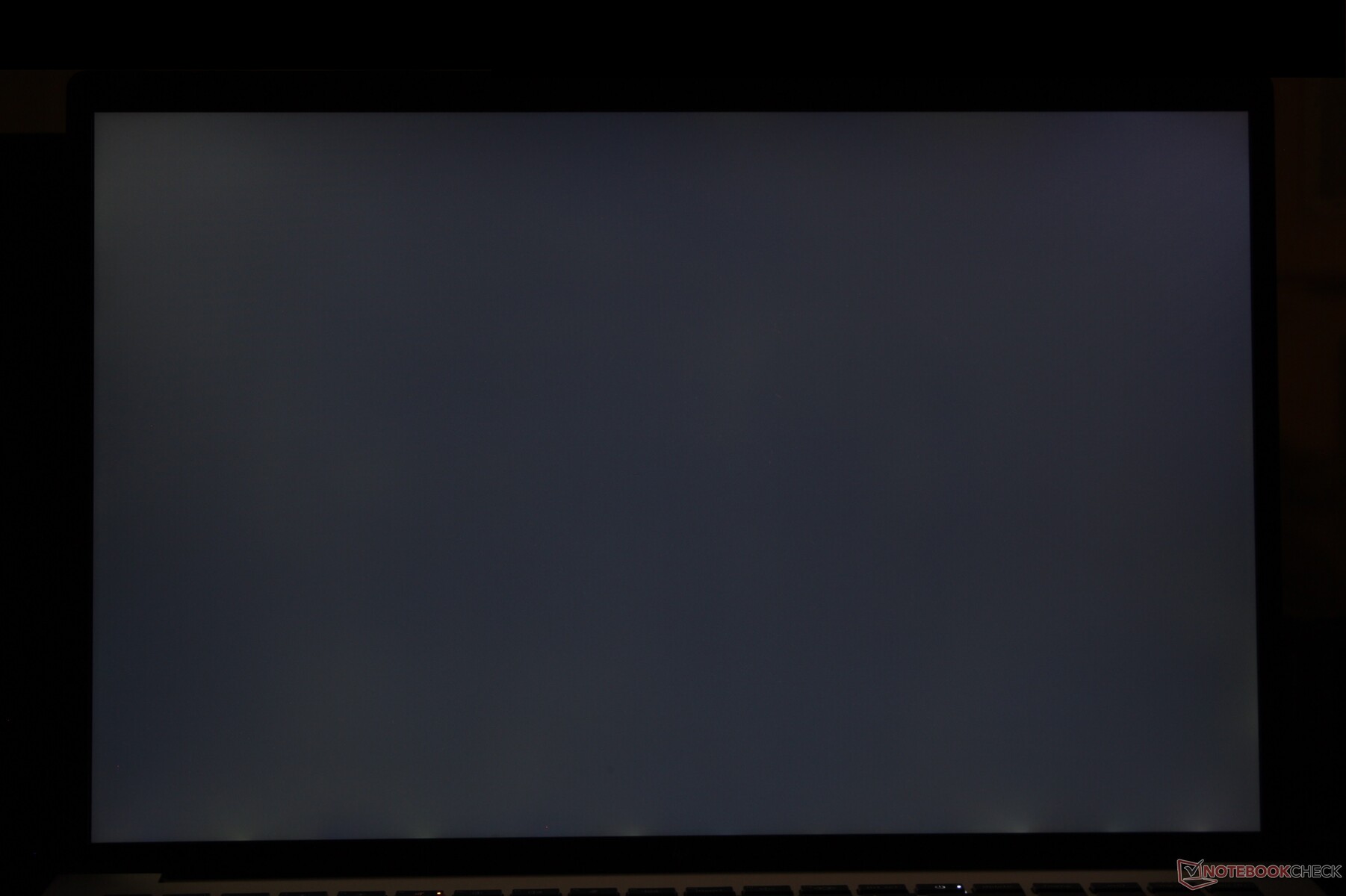

Brightness Distribution: 90 %
Center on Battery: 514.6 cd/m²
Contrast: 1119:1 (Black: 0.46 cd/m²)
ΔE Color 2.4 | 0.5-29.43 Ø4.92, calibrated: 0.4
ΔE Greyscale 1 | 0.5-98 Ø5.2
86.2% AdobeRGB 1998 (Argyll 2.2.0 3D)

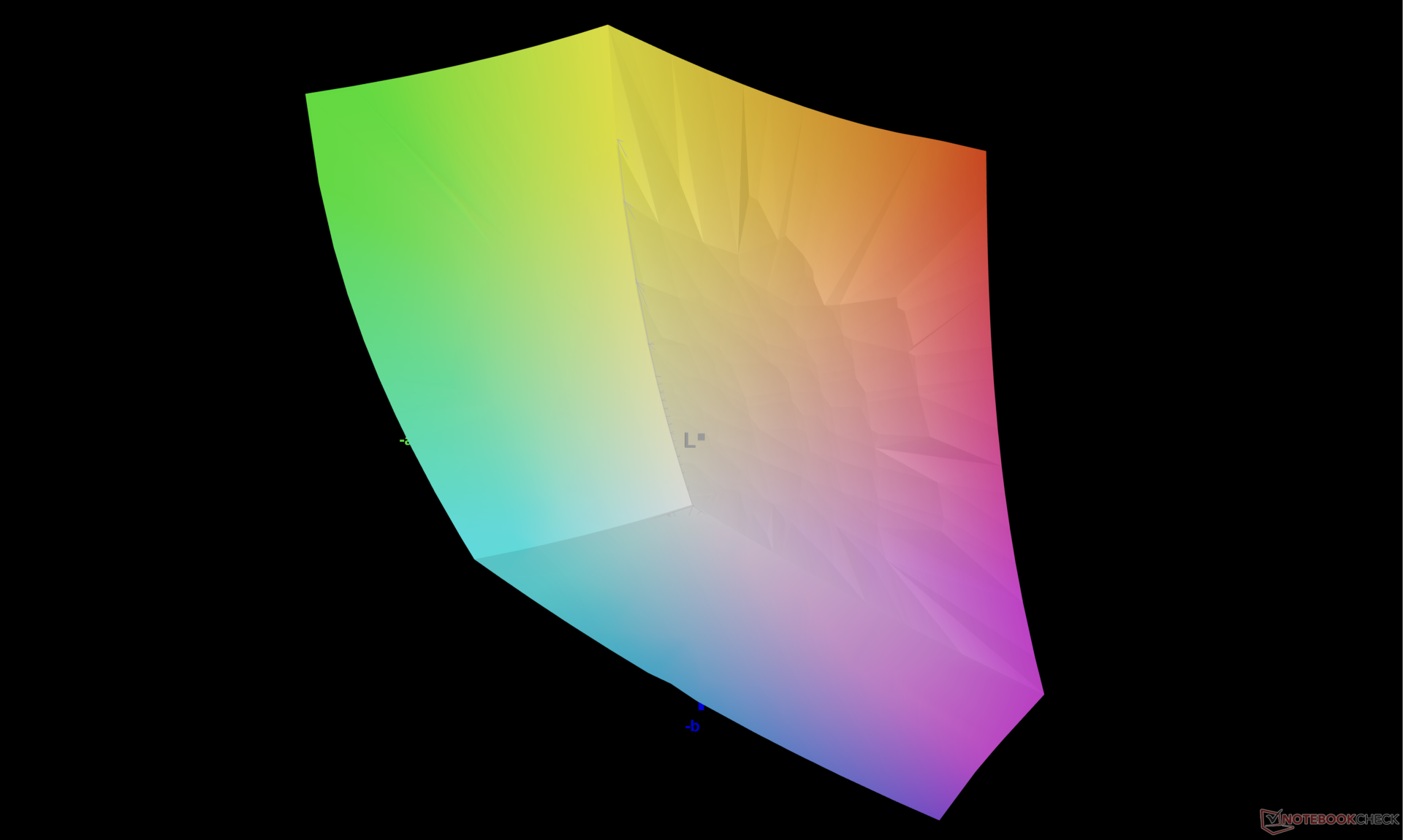

99.9% sRGB (Argyll 2.2.0 3D)
98% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.3
HP ZBook Fury 16 G10 AUO87A8, IPS, 3840x2400, 16" | HP ZBook Fury 16 G9 BOE0A52, IPS, 3840x2400, 16" | Dell Precision 5000 5680 Samsung 160YV03, OLED, 3840x2400, 16" | Lenovo ThinkPad P16 G1 RTX A5500 LP160UQ1-SPB1, IPS, 3840x2400, 16" | MSI CreatorPro Z16P B12UKST B160QAN02.N, IPS, 2560x1600, 16" | Asus ProArt StudioBook 16 W7600H5A-2BL2 ATNA60YV02-0, OLED, 3840x2400, 16" | |
---|---|---|---|---|---|---|
Display | -0% | 5% | -2% | 0% | 5% | |
Display P3 Coverage | 98 | 97.4 -1% | 99.9 2% | 82.9 -15% | 97.6 0% | 99.9 2% |
sRGB Coverage | 99.9 | 99.9 0% | 100 0% | 98.9 -1% | 99.9 0% | 100 0% |
AdobeRGB 1998 Coverage | 86.2 | 86.3 0% | 97.5 13% | 95.9 11% | 87.4 1% | 98.6 14% |
Response Times | -3% | 84% | -283% | 8% | 81% | |
Response Time Grey 50% / Grey 80% * | 11.9 ? | 13.7 ? -15% | 1.68 ? 86% | 45.6 ? -283% | 12.8 ? -8% | 2 ? 83% |
Response Time Black / White * | 9.6 ? | 8.6 ? 10% | 1.77 ? 82% | 36.8 ? -283% | 7.4 ? 23% | 2 ? 79% |
PWM Frequency | 60 ? | 240 ? | ||||
Screen | -141% | -72% | -16% | -12% | -102% | |
Brightness middle | 514.6 | 530.5 3% | 345.7 -33% | 601.9 17% | 407 -21% | 353 -31% |
Brightness | 495 | 476 -4% | 349 -29% | 569 15% | 388 -22% | 360 -27% |
Brightness Distribution | 90 | 83 -8% | 98 9% | 77 -14% | 88 -2% | 96 7% |
Black Level * | 0.46 | 0.57 -24% | 0.47 -2% | 0.36 22% | ||
Contrast | 1119 | 931 -17% | 1281 14% | 1131 1% | ||
Colorchecker dE 2000 * | 2.4 | 2.26 6% | 3.59 -50% | 2.45 -2% | 1.3 46% | 2.45 -2% |
Colorchecker dE 2000 max. * | 4.86 | 7.02 -44% | 4.46 8% | 2.5 49% | 3.75 23% | |
Colorchecker dE 2000 calibrated * | 0.4 | 4.73 -1083% | 0.99 -148% | 0.7 -75% | 2.77 -593% | |
Greyscale dE 2000 * | 1 | 1 -0% | 3.1 -210% | 2.6 -160% | 2.1 -110% | 1.88 -88% |
Gamma | 2.3 96% | 2.28 96% | 2.13 103% | 2.3 96% | 2.26 97% | 2.31 95% |
CCT | 6553 99% | 6543 99% | 6448 101% | 6805 96% | 6437 101% | 6441 101% |
Total Average (Program / Settings) | -48% /
-87% | 6% /
-27% | -100% /
-53% | -1% /
-7% | -5% /
-44% |
* ... smaller is better

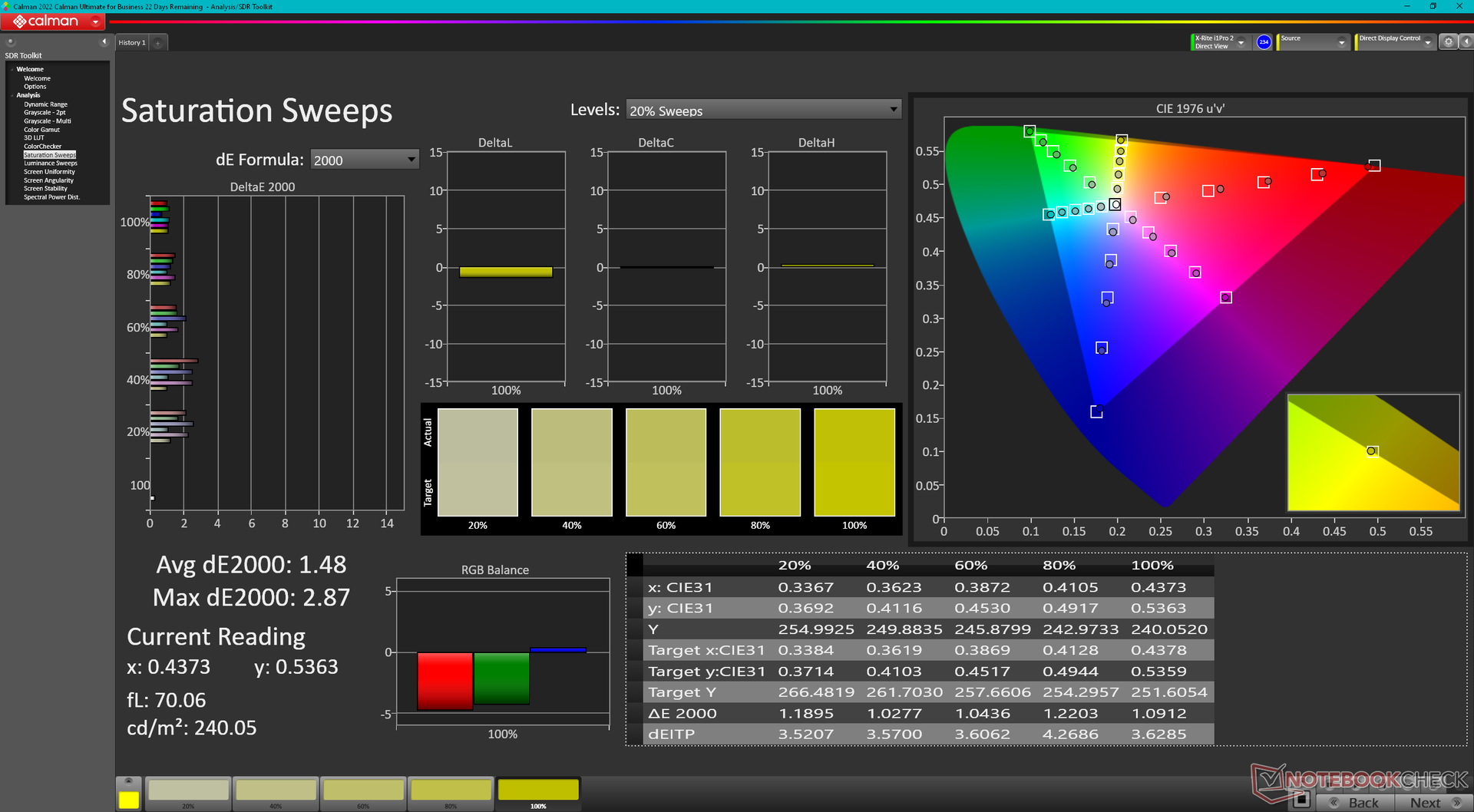

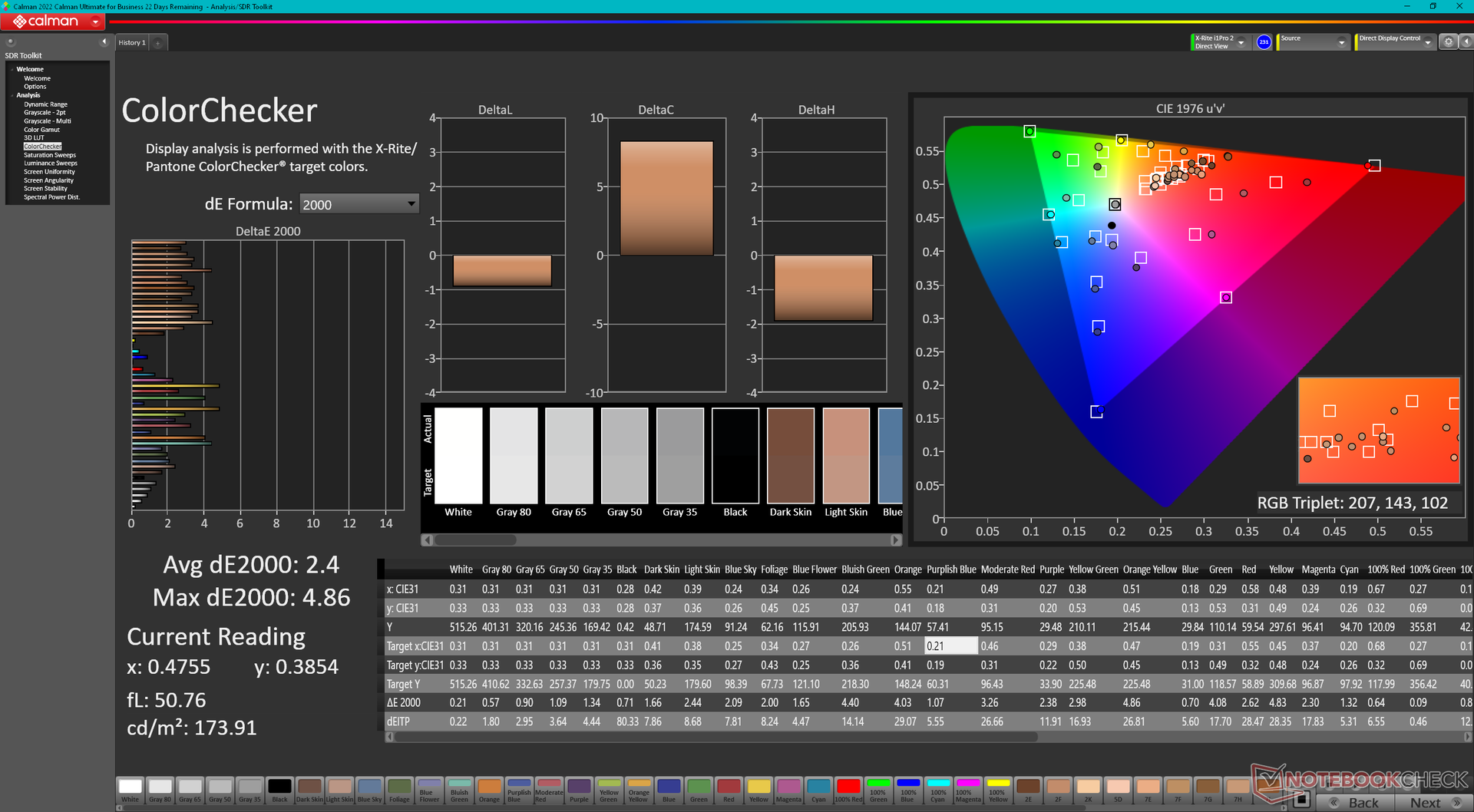

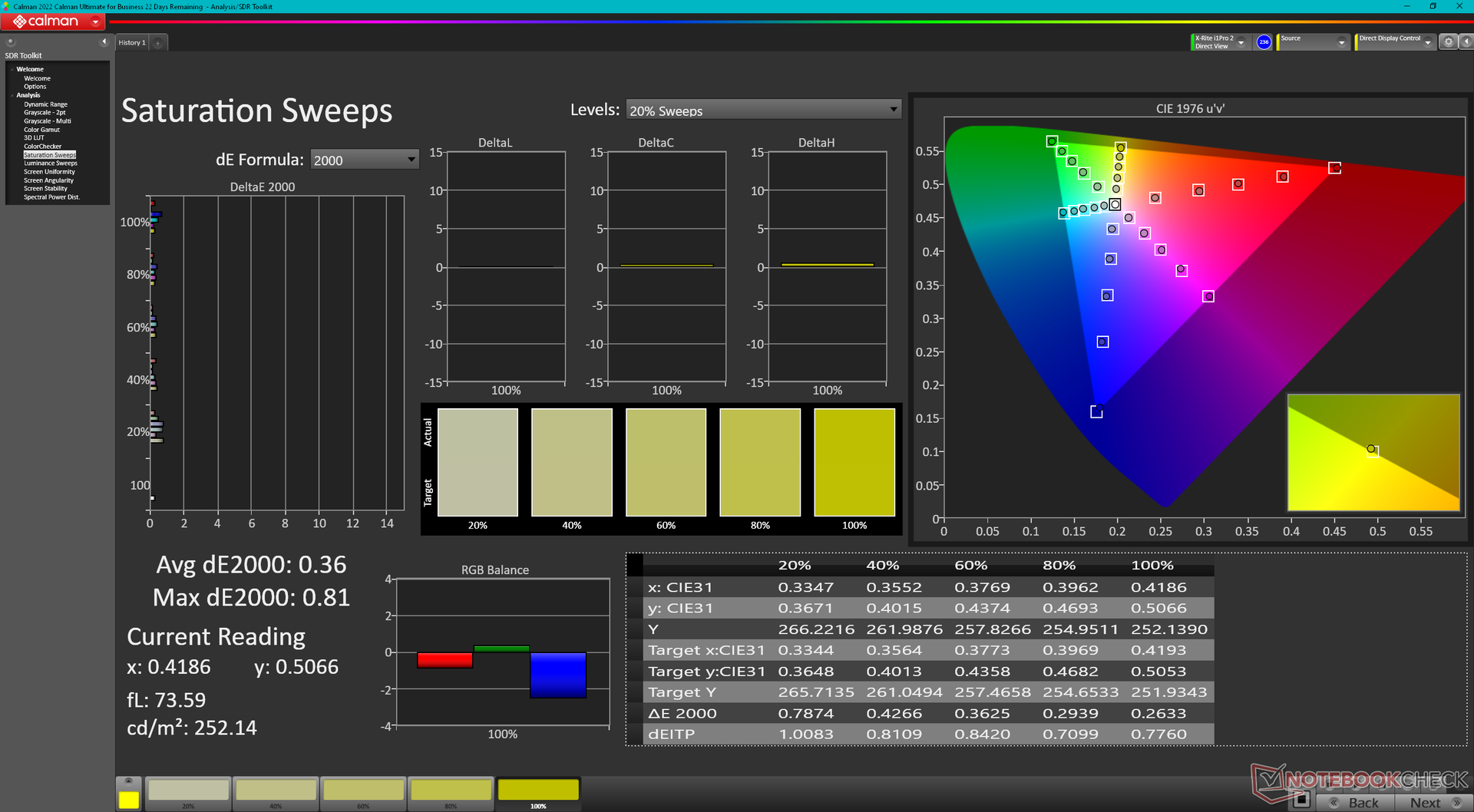

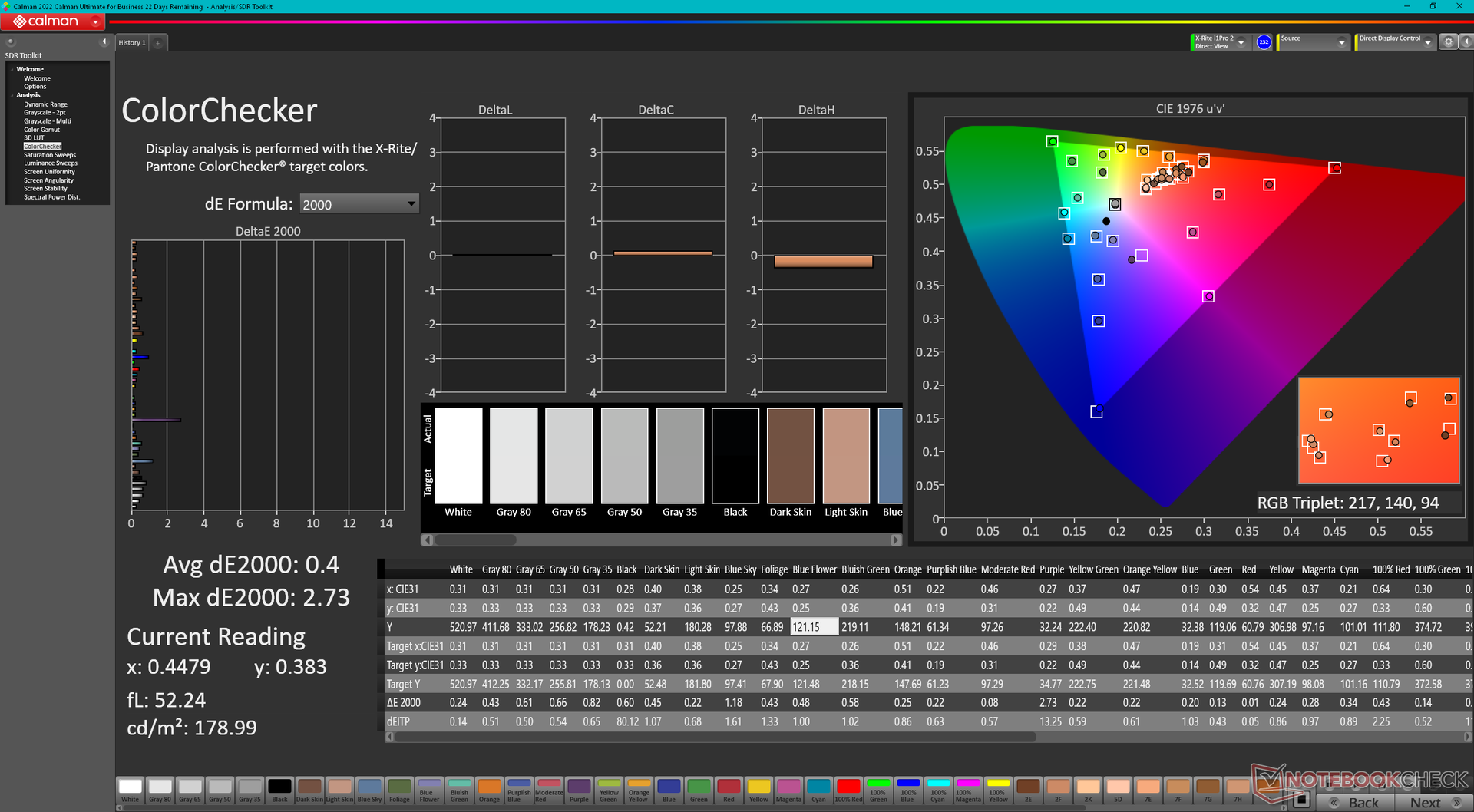

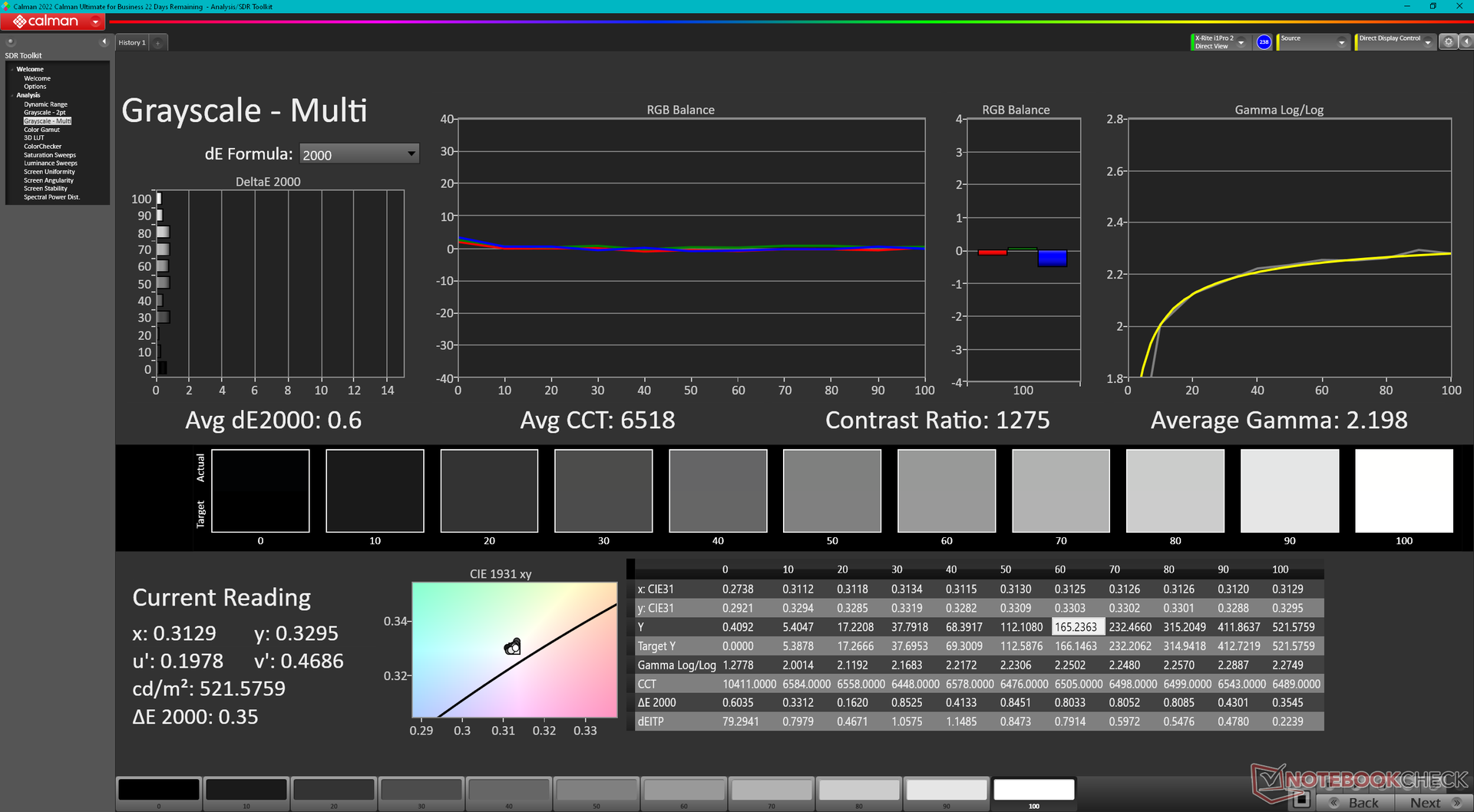

The display comes well-calibrated out of the box against the P3 standard and so an end-user calibration is therefore not as necessary.
Display Response Times

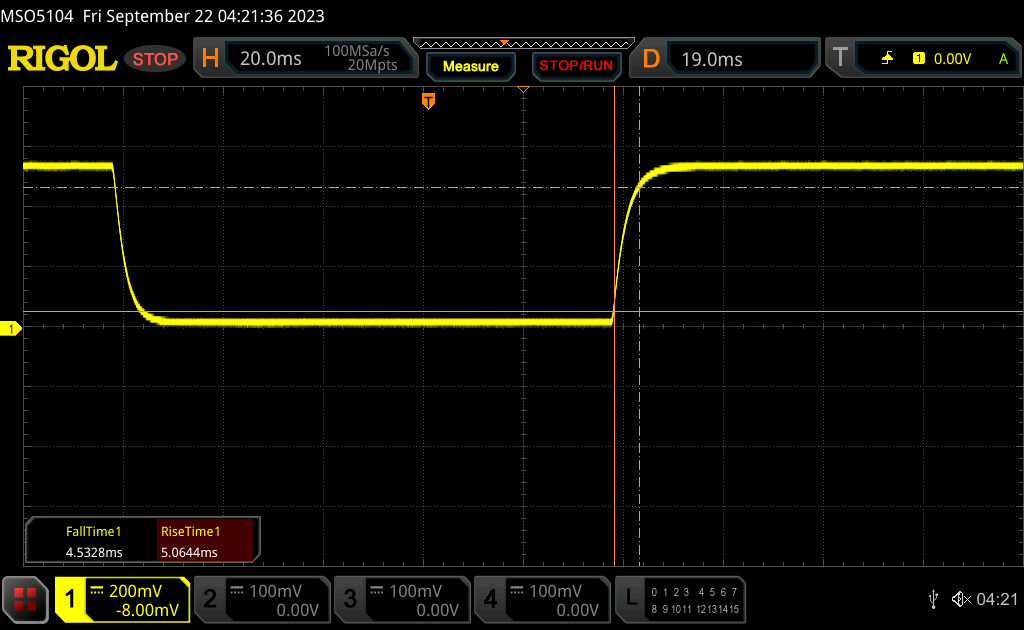

↔ Response Time Black to White | ||
---|---|---|
9.6 ms ... rise ↗ and fall ↘ combined | ↗ 5.1 ms rise | |
↘ 4.5 ms fall | ||
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 22 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

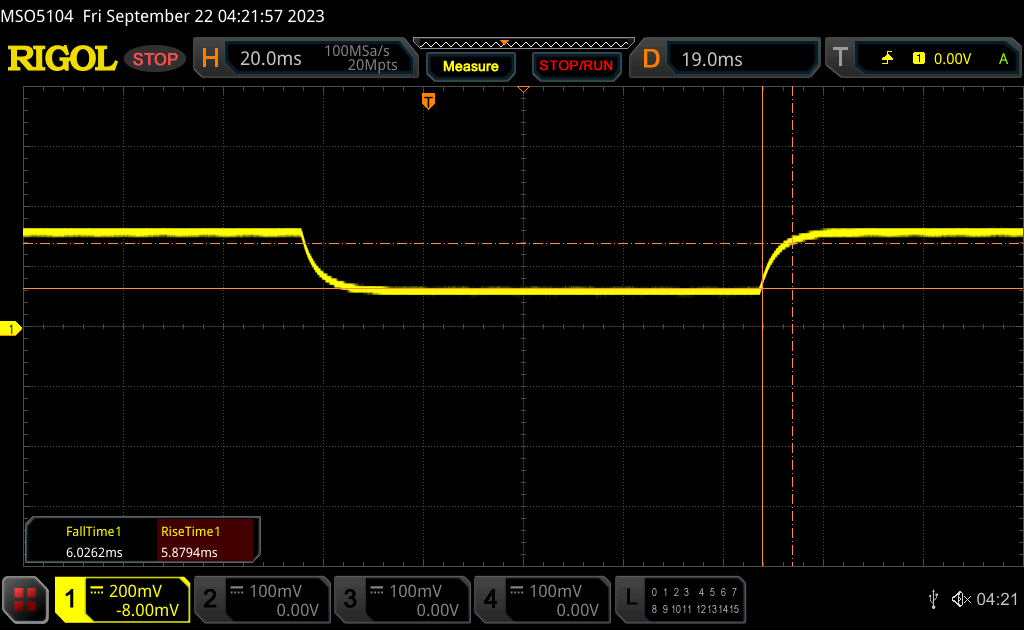

↔ Response Time 50% Grey to 80% Grey | ||
11.9 ms ... rise ↗ and fall ↘ combined | ↗ 5.9 ms rise | |
↘ 6 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 21 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). |

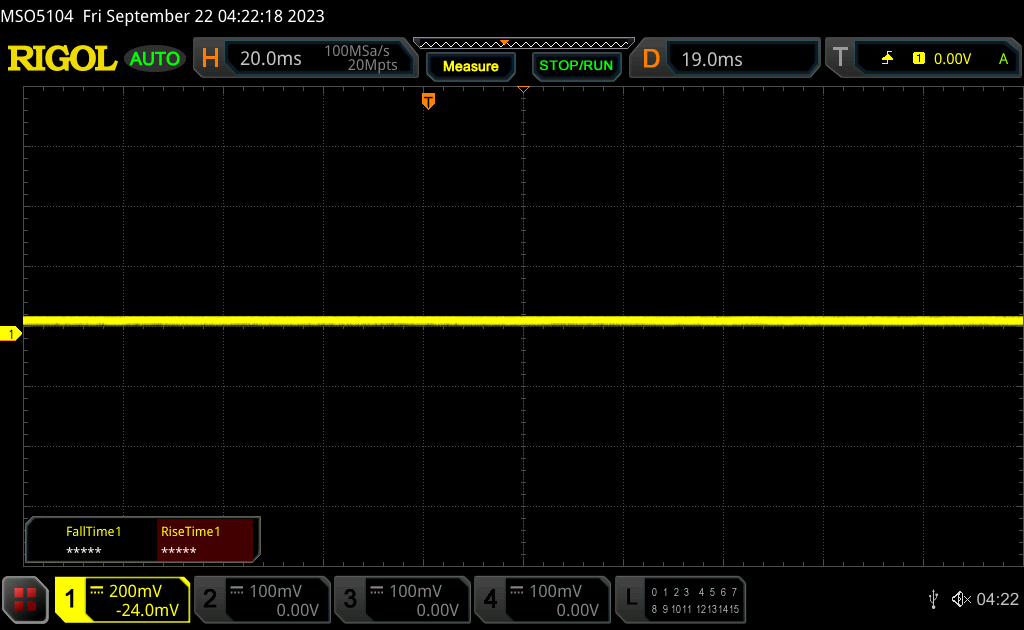

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. |
Performance
Testing Conditions
We set Windows to Performance mode prior to running any benchmarks below.
Advanced Optimus, MUX, and Intel Xeon CPUs are not supported. However, it's worth noting that the model officially supports DDR5 ECC RAM despite the lack of any Xeon options which is a feature not found on most other mobile workstations.
ECC VRAM mode can be toggled on our off much like on other Ada Lovelace GPUs designed for workstations. Enabling it reduces the maximum usable VRAM from 16 GB to 15 GB.

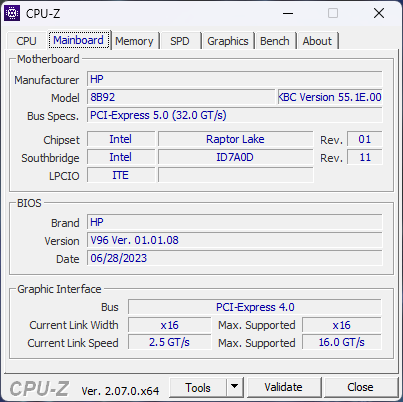

Processor

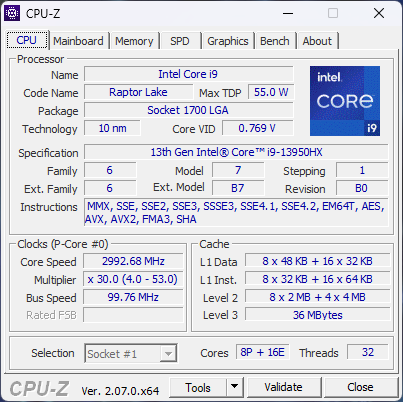

CPU performance is a mixed bag. On one hand, multi-thread performance is roughly 25 to 30 percent faster than the Core i9-12950HX in last year's Fury 16 G9. On the other hand, performance averages about 15 percent slower than on other laptops with the same Core i9-13950HX processor as our HP. The exact same CPU in the larger Razer Blade 18 and MSI GE78HX, for example, run consistently faster than our HP. This isn't to say that the Fury 16 G10 is slow, but it shows that the CPU is slightly slower than expected.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Average Intel Core i9-13950HX (26 - 34.5, n=7) | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G9 | |
HP ZBook Studio 16 G9 62U04EA | |
MSI CreatorPro Z16P B12UKST | |
Lenovo ThinkPad P16 G1 21D6001DMB | |
Lenovo ThinkPad P1 G4-20Y4Z9DVUS | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average Intel Core i9-13950HX | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / FP32 Ray-Trace | |
Average Intel Core i9-13950HX (18131 - 28957, n=7) | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / FPU Julia | |
Average Intel Core i9-13950HX (102591 - 144303, n=7) | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / CPU SHA3 | |
Average Intel Core i9-13950HX (4981 - 7093, n=7) | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
MSI CreatorPro Z16P B12UKST | |
Dell Precision 5000 5680 |
AIDA64 / CPU Queen | |
Average Intel Core i9-13950HX (131931 - 140103, n=7) | |
HP ZBook Fury 16 G10 | |
Dell Precision 5000 5680 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / FPU SinJulia | |
Average Intel Core i9-13950HX (12381 - 17057, n=7) | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / FPU Mandel | |
Average Intel Core i9-13950HX (46539 - 71038, n=7) | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / CPU AES | |
Average Intel Core i9-13950HX (99981 - 204491, n=7) | |
MSI CreatorPro Z16P B12UKST | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 |
AIDA64 / CPU ZLib | |
Average Intel Core i9-13950HX (1472 - 2069, n=7) | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
MSI CreatorPro Z16P B12UKST | |
Dell Precision 5000 5680 |
AIDA64 / FP64 Ray-Trace | |
Average Intel Core i9-13950HX (9787 - 15573, n=7) | |
HP ZBook Fury 16 G10 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G9 | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST |
AIDA64 / CPU PhotoWorxx | |
Dell Precision 5000 5680 | |
Average Intel Core i9-13950HX (40233 - 50864, n=7) | |
MSI CreatorPro Z16P B12UKST | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 |
System Performance

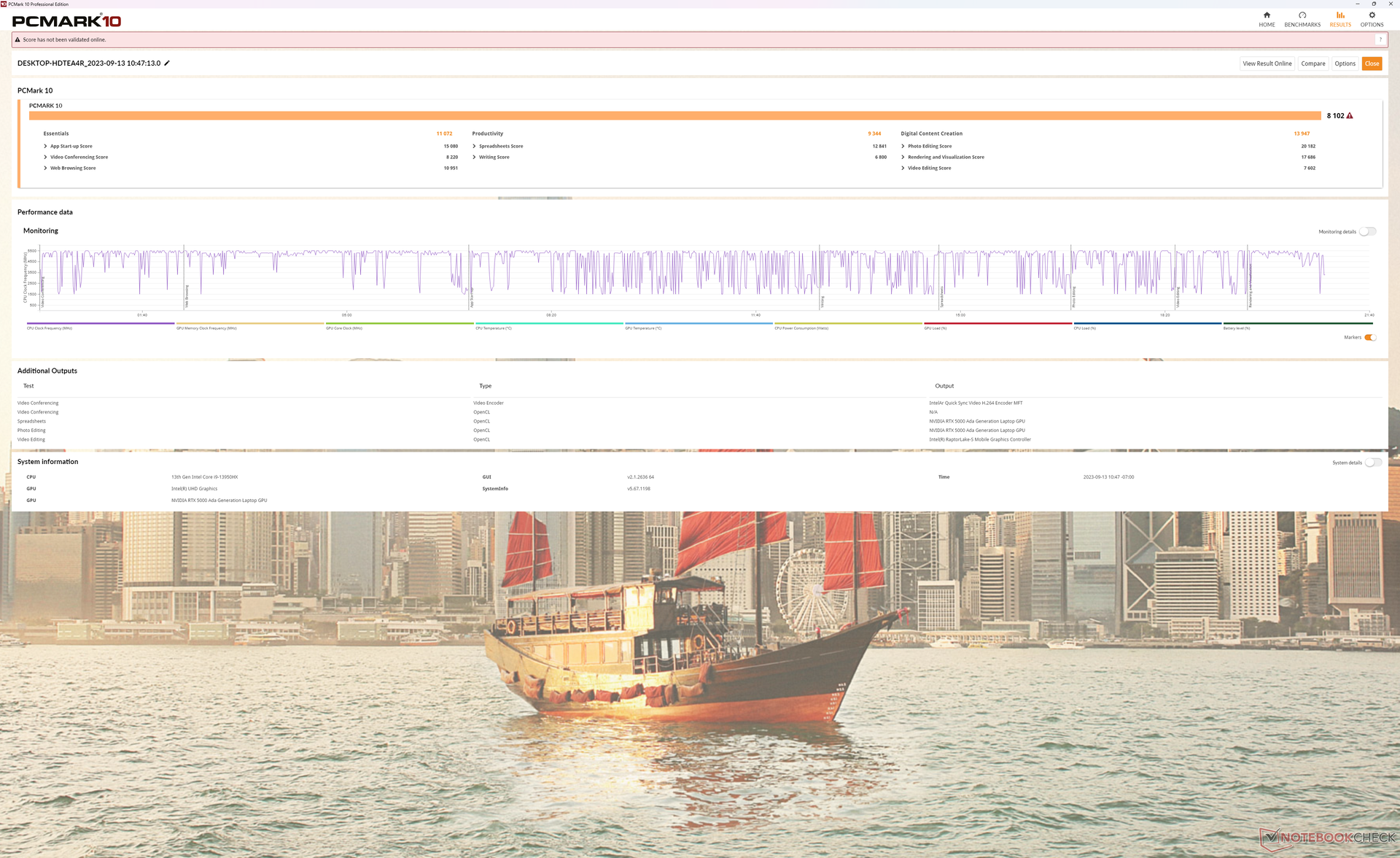

PCMark scores are ahead of last year's Fury 16 G9 especially in the Digital Content Creation subtest due to the significant jump in GPU performance. Meanwhile, the Precision 5680 scores higher in Productivity because of its RAID 0 SSDs. Of course, our HP can also be configured with RAID if desired.
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
MSI CreatorPro Z16P B12UKST | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 | |
HP ZBook Fury 16 G9 |
PCMark 10 / Essentials | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
HP ZBook Fury 16 G9 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
MSI CreatorPro Z16P B12UKST | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 |
PCMark 10 / Productivity | |
Dell Precision 5000 5680 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
MSI CreatorPro Z16P B12UKST | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 | |
HP ZBook Fury 16 G9 |
PCMark 10 / Digital Content Creation | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
Dell Precision 5000 5680 | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
MSI CreatorPro Z16P B12UKST | |
HP ZBook Fury 16 G9 |
CrossMark / Overall | |
MSI CreatorPro Z16P B12UKST | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
HP ZBook Fury 16 G9 | |
Lenovo ThinkPad P16 G1 RTX A5500 |
CrossMark / Productivity | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
MSI CreatorPro Z16P B12UKST | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G9 | |
Lenovo ThinkPad P16 G1 RTX A5500 |
CrossMark / Creativity | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Dell Precision 5000 5680 | |
HP ZBook Fury 16 G9 | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
MSI CreatorPro Z16P B12UKST |
CrossMark / Responsiveness | |
MSI CreatorPro Z16P B12UKST | |
HP ZBook Fury 16 G10 | |
Average Intel Core i9-13950HX, NVIDIA RTX 5000 Ada Generation Laptop GPU () | |
HP ZBook Fury 16 G9 | |
Dell Precision 5000 5680 | |
Lenovo ThinkPad P16 G1 RTX A5500 |
PCMark 10 Score | 8102 points | |
Help |
AIDA64 / Memory Copy | |
Dell Precision 5000 5680 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
MSI CreatorPro Z16P B12UKST | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 |
AIDA64 / Memory Read | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 |
AIDA64 / Memory Write | |
Dell Precision 5000 5680 | |
MSI CreatorPro Z16P B12UKST | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 |
* ... smaller is better
DPC Latency

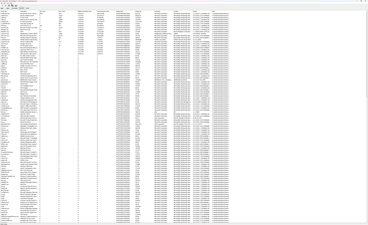

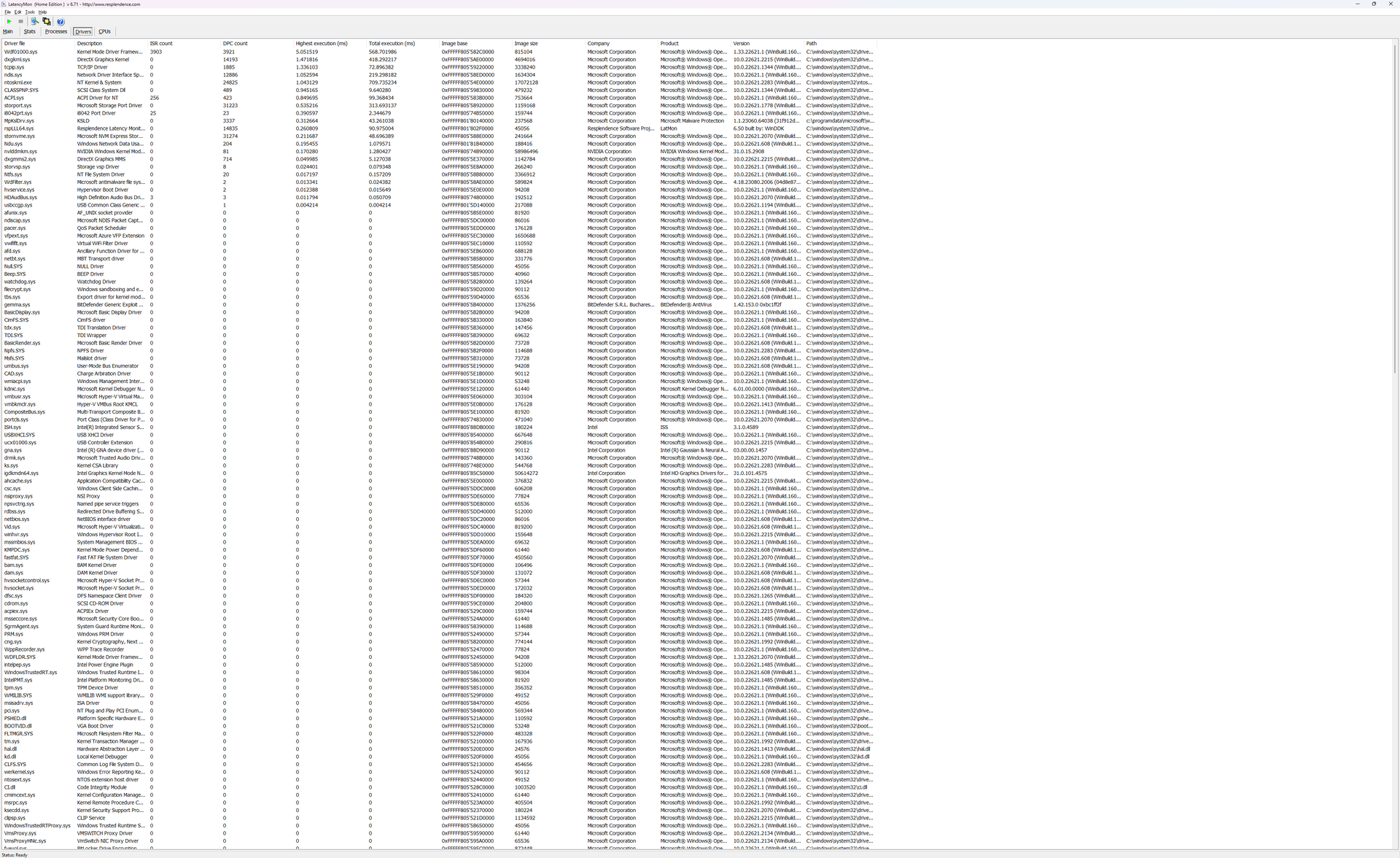

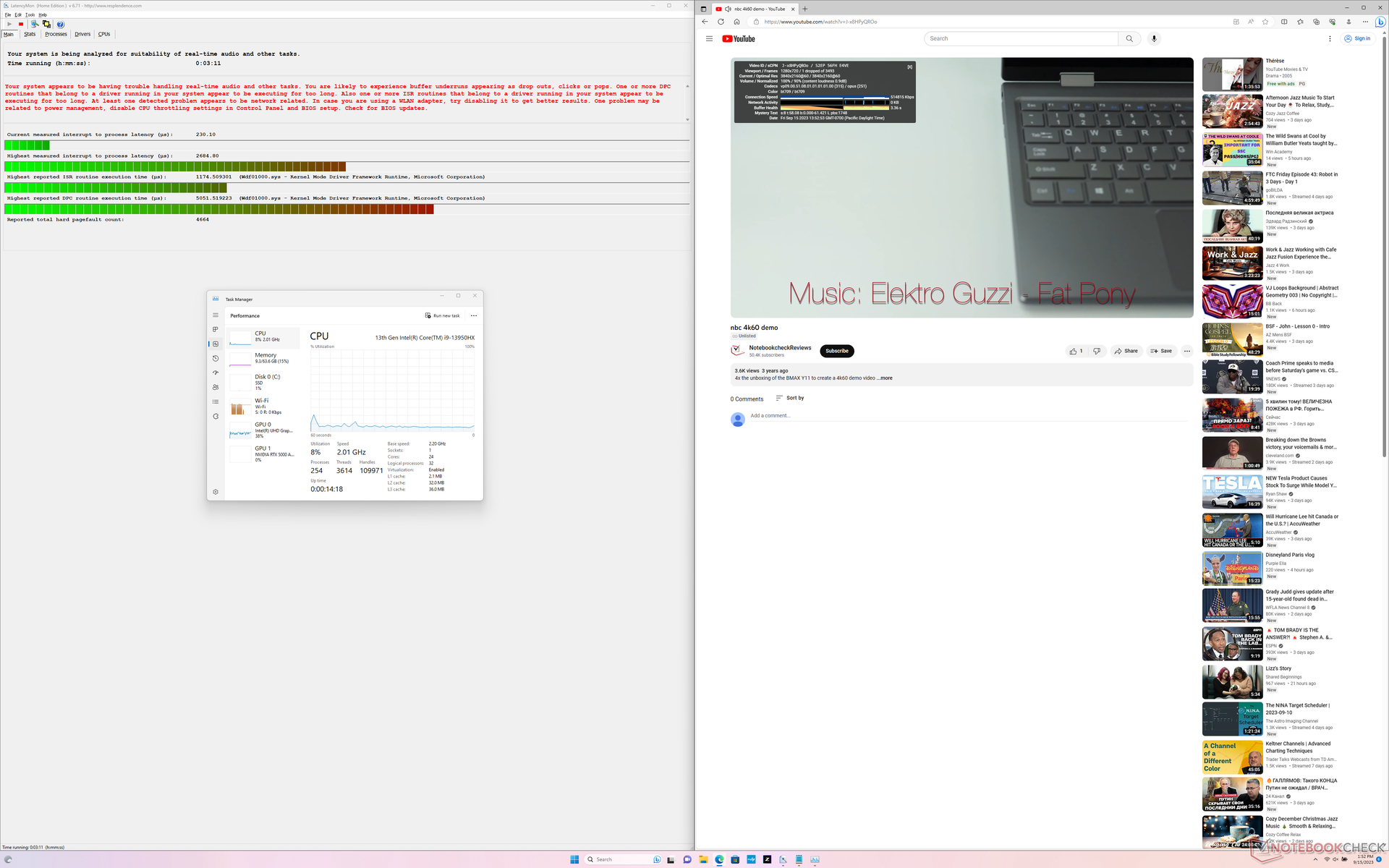

LatencyMon reveals DPC issues when opening multiple tabs of our homepage. 4K video playback at 60 FPS is almost perfect with just one dropped frame recorded during a 60-second interval.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
HP ZBook Fury 16 G10 | |
HP ZBook Fury 16 G9 | |
Dell Precision 5000 5680 | |
Lenovo ThinkPad P16 G1 RTX A5500 | |
Asus ProArt StudioBook 16 W7600H5A-2BL2 | |
MSI CreatorPro Z16P B12UKST |
* ... smaller is better
Storage Devices

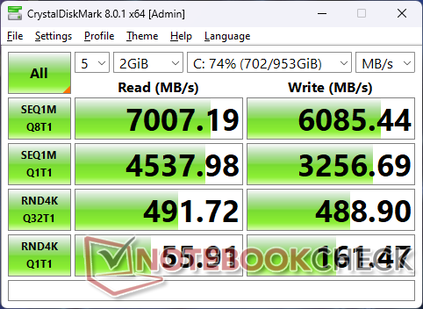

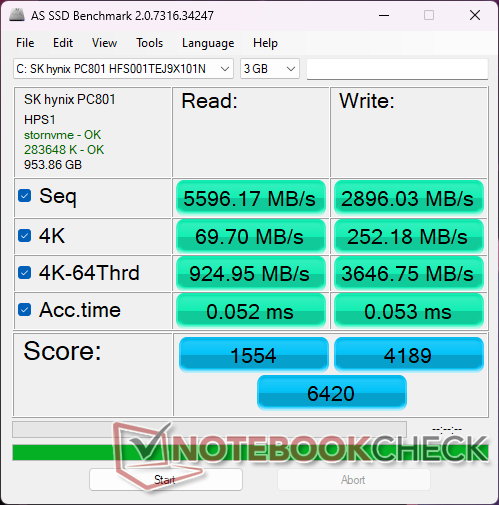

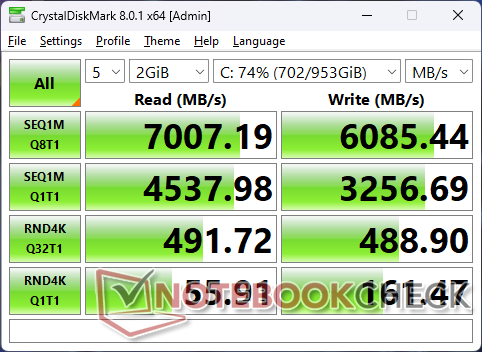

Our test unit ships with an SK hynix PC801 PCIe4 x4 NVMe SSD whereas our older Fury G16 G9 unit would ship with a Micron 3400. Unfortunately, performance would still throttle to as low as 3400 MB/s after about a minute into our stress test as shown by the graph below. It's clear that the four M.2 SSD slots could really use some more cooling to improve performance consistency.
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU Performance — Mobile Monster

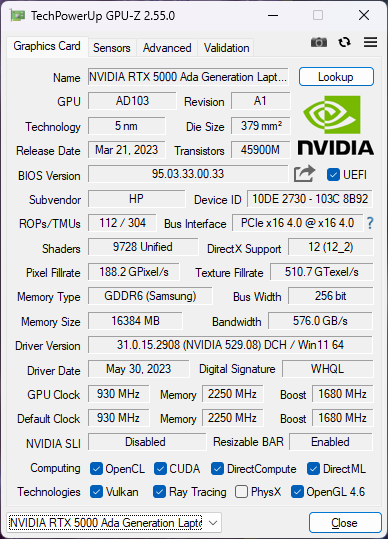

The RTX 5000 Ada in our HP system is 10 to 20 percent faster than the same GPU on the Dell Precision 5680. Its slight but consistent performance advantages can be attributed to the higher TGP ceiling whereas the GPU in the aforementioned Dell would run at a lower power envelope. Our Stress Test section below details our observations.
Overall performance is well ahead of the RTX A5500 in last year's Fury 16 G9 by up to 40 percent or even 80 percent depending on the application.
