Intel Atom Z2580

Intel Z2580

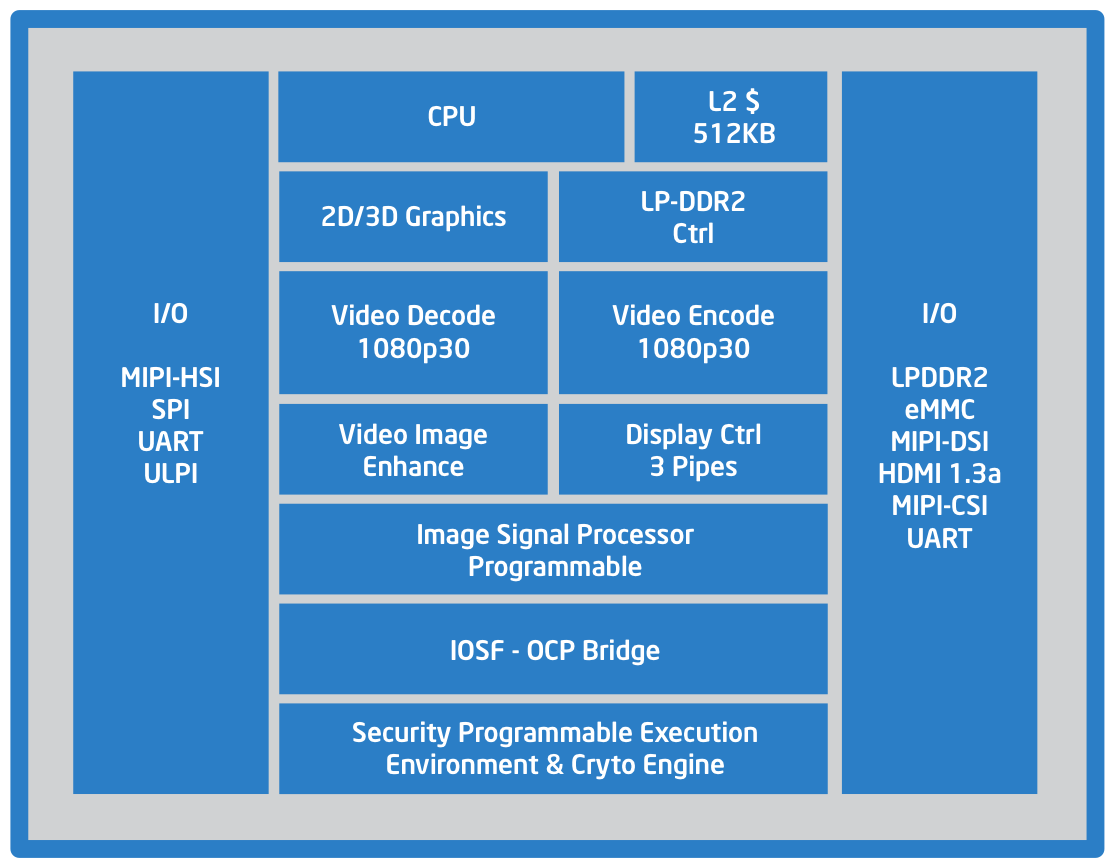

The Intel Atom Z2580 is a SoC (System on a Chip) with the Codename Cloverview and part of the Clover Trail+ platform. The Z2580 is a one chip SoC and integrates a dual core Atom processor (Saltwell) clocked at 1.3 - 2 GHz. Due to Hyper-Threading, 4 threads can be executed on the two cores (for improved efficiency).

The Saltwell CPU core is still very similar to the first Intel Atom. Therefore, the performance per clock should be very similar (only very small enhancements). However, the CPU now features additional 256 KB low-power-cache (on a separate voltage plane) to allow the CPU and L2 cache to enter a lower power state. Furthermore, the Atom now supports some sort of Turbo Boost and can reach up to 2 GHz shortly (1.3 GHz base frequency). Furthermore, the CPU core can be downclocked to 100 MHz (in 100 MHz steps) to save power.

The processor performance should be on a level with a previous generation Atom processor clocked at 1.3 - 2.0 GHz (e.g., the Atom N550 clocked at 1.5 GHz). Therefore, the Z2580 should be one of the fastest smartphone/tablet SoCs available.

The integrated graphics card is based on a PowerVR SGX 544MP2 design and clocked at 400 MHz. The video decoder (MPEG4.2, H.264, VC1, WMV) and encoder (MPEG4.2, H.264) also stem from Imagination Technologies (VDX385 and VDE285) and should allow 1080p30 de- and encoding of videos.

Furthermore, a dual channel LPDDR2 memory controller (2x 32 Bit) for a maximum of 1GB RAM is integrated.

The whole SoC was optimized for power efficiency and low power consumption. It is produced with a 32nm LP (low power) process and has a TDP of 3 Watt (according to TechPowerUp). Therefore, the Z2580 is even suited for smartphones.

Sources: Intel PressemeldungIntel ARKAnandtechTechpowerup (Socket, TDP)

SeriesIntel Atom
CodenameCloverview
Clock Rate1300 - 2000 MHz
Level 1 Cache112 KB
Level 2 Cache1024 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)3 Watt
Transistor Count140 Million
Manufacturing Technology32 nm
Features0.3-1.2
Die Size65 mm2
Max. Temperature90 °C
SocketBGA 617
FeaturesHyper-Threading, VT-x, Enhanced SpeedStep, Thermal-Monitoring, Intel HD-Audio, Smart Idle
GPUPowerVR SGX544MP2 (400 - MHz)
64 Bitno 64 Bit support
Hardware VirtualizationVT-x
Announcement Date01/13/2012
Product Link (external)Intel Atom Z2580

CPU Benchmarks

Vellamo 3.x: Metal
0% 100%
min: 900     avg: 911 (31.82%)     max: 922 Points
Vellamo 3.x: Multicore Beta
0% 100%
min: 1149     avg: 1189.5 (14.16%)     max: 1230 Points
Vellamo 3.x: Browser
0% 100%
min: 1834     avg: 1992.5 (36.14%)     max: 2151 Points
Octane V2: Total Score
0% 100%
min: 2822     avg: 2822 (11.62%)     max: 2822 Points
Mozilla Kraken 1.1: Total Score
0% 100%
min: 10624.5     avg: 11196 (82.98%)     max: 11767.4 ms*
Geekbench 3: 32 Bit Multi-Core Score
0% 100%
min: 1291     avg: 1302.5 (10.15%)     max: 1314 Points
Geekbench 3: 32 Bit Single-Core Score
0% 100%
min: 544     avg: 552 (15.74%)     max: 560 Points
AndEBench: Java
0% 100%
min: 265     avg: 265 (20.81%)     max: 265 Iter./s
AndEBench: Native
0% 100%
min: 11714     avg: 11714 (53.03%)     max: 11714 Iter./s
3DMark (2013): Ice Storm Unlimited Physics 1280x720 offscreen
0% 100%
min: 10809     avg: 10843 (16.23%)     max: 10877 Points
3DMark (2013): Ice Storm Extreme Physics 1920x1080
0% 100%
min: 9915     avg: 10311 (21.64%)     max: 10707 Points
3DMark (2013): Ice Storm Standard Physics 1280x720
0% 100%
min: 9540     avg: 9606 (17.74%)     max: 9672 Points
PassMark PerformanceTest Mobile V1: CPU Tests
0% 100%
min: 11276     avg: 11276 (24.53%)     max: 11276 Points
AnTuTu Benchmark v4: Total Score
0% 100%
min: 21093     avg: 21704.5 (50.48%)     max: 22316 points
Geekbench 2 - 32 Bit: Stream
0% 100%
min: 1021     avg: 1021 (10.61%)     max: 1021 Points
Geekbench 2 - 32 Bit: Memory
0% 100%
min: 1373     avg: 1373 (13.33%)     max: 1373 Points
Geekbench 2 - 32 Bit: Floating Point
0% 100%
min: 1851     avg: 1851 (10.95%)     max: 1851 Points
Geekbench 2 - 32 Bit: Integer
0% 100%
min: 1300     avg: 1300 (9.13%)     max: 1300 Points
Geekbench 2 - 32 Bit: Total Score
0% 100%
min: 1479     avg: 1479 (11.04%)     max: 1479 Points
Sunspider:
0% 100%
min: 836.8     avg: 847 (78.96%)     max: 857.1 ms*
Sunspider:
0% 100%
min: 921.5     avg: 921.5 (92.12%)     max: 921.5 ms*
Quadrant Standard Edition 2.0:
0% 100%
min: 6730     avg: 6730 (27.99%)     max: 6730 points
Linpack for Android: Multi Thread
0% 100%
min: 281.111     avg: 291.2 (19.86%)     max: 301.19 MFLOPS
Linpack for Android: Single Thread
0% 100%
min: 136.536     avg: 139.3 (17.34%)     max: 142.09 MFLOPS
- Range of benchmarks for this CPU
- Average benchmark score

Reviews for the Intel Atom Z2580 processor

Asus Fonepad Note FHD 6 ME560CG (PowerVR SGX544MP2, 6.0")
» Review Asus Fonepad Note FHD 6 Smartphone - Review
» Asus Fonepad Note FHD 6 - External Review

Asus Transformer Book Trio ( , 11.6")
» Asus Transformer Book Trio - External Review

Asus Zenfone 6 (PowerVR SGX544MP2, 6.0")
» Asus Zenfone 6 - External Review

Dell Venue 8 (PowerVR SGX544, 8.0")
» Dell Venue 8 - External Review

Lenovo K900 (PowerVR SGX544, 5.5")
» Lenovo K900 - External Review
