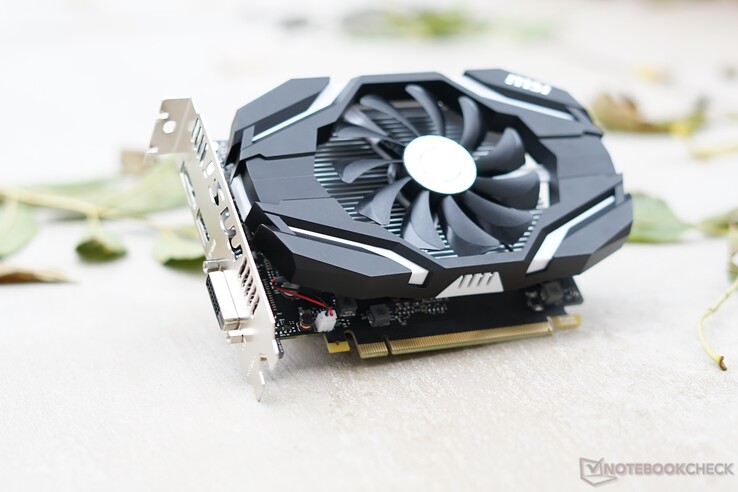

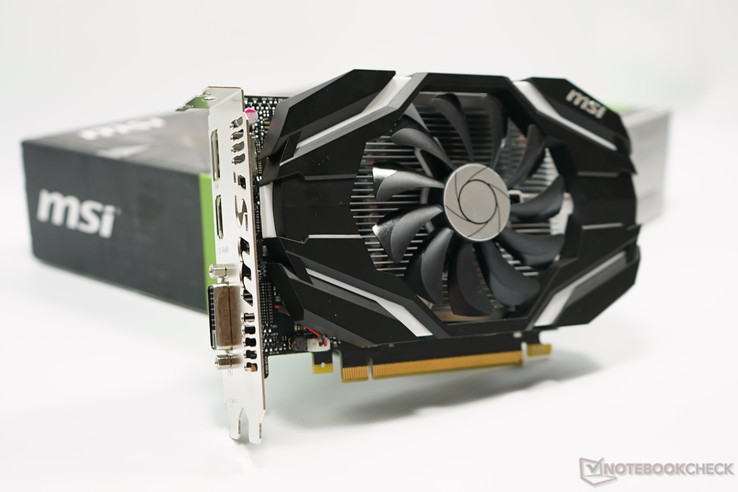

MSI GeForce GTX 1050 Ti 4G Review

GP107 by Samsung The GTX 1050 Ti is Nvidia's latest addition to its Pascal line-up below the GTX 1060. Our review will show how the 14-nm chip, which is produced by Samsung, performs and whether it can compete with AMD in this price segment.

Klaus Hinum (translated by Andreas Osthoff), Published 10/25/2016 🇩🇪 🇳🇱 ...

The new GeForce GTX 1050 and 1050 Ti graphics cards are based on the new 14 nm process from Samsung for the first time and not the 16 nm processor from TSMC anymore, which is the case for the bigger chips like GTX 1060, 1070, and 1080. The MSI card comes with 4 GB GDDR5 video memory and slightly higher clocks. It offers three video outputs: DisplayPort, HDMI, and DVI-D. This means analog monitors cannot be attached without a converter. The cooler is a simple top blower and the graphics card occupies two slots, but is also suited for ITX cases thanks to the short PCB. The official clocks of the MSI GeForce GTX 1050 Ti 4G are 1290 MHz base / 1392 Boost and 7008 MHz memory. The clocks are therefore on the reference level from Nvidia. MSI also advertises "Military Class 4 Components" with aluminum-core-CAPs, which are supposed to ensure a long durability.

Specifications	GTX 1050	GTX 1050 Ti	GTX 1060 3GB	GTX 1060 6GB	GTX 960
Chip	GP107	GP107	GP106	GP106	GM206
Manufactured	14 nm	14 nm	16 nm	16 nm	28 nm
Shader	640	768	1152	1280	1024
Texture Units	40	48	72	80	64
GPU Base Clock	1354 MHz	1290 MHz	1569 MHz	1506 MHz	1126 MHz
GPU Boost Clock	1455 MHz	1392 MHz	1936 MHz	1848 MHz	1178 MHz
L2 Cache	1 MB	1 MB	1.5 MB	1.5 MB	1 MB
Memory Bus	128-bit	128-bit	192-bit	192-bit	128-bit
Memory Bandwidth	112 GB/s	112 GB/s	192 GB/s	192 GB/s	112 GB/s
Memory Size	2 GB	4 GB	3 GB	6 GB	2 GB
Power (Watts)	75 W	75 W	120 W	120 W	120 W

Pascal

Similar to the faster GeForce GTX 1060, 1070 and 1080 chips, the GTX 1050 Ti is based on the modern Pascal generation from Nvidia. It is an evolution of Maxwell and focuses on efficiency. The most important new features are improved video outputs, which are now up to date and ready for high resolution screens with HDR thanks to DisplayPort 1.4 and HDMI 2.0b. More details about architectural improvements like SMP and GeForce Boost 3.0 are available in our dedicated article about Nvidia's Pascal architecture.

Our test system for the following benchmarks consists of these components:

Intel Core i7-4790K (not overclocked), 16 GB DDR3, Asus ZU97-Deluxe, Asus PB287Q 4K Monitor, Samsung SSD 840 Pro (256 GB, System), OCZ Trion 150 SSD (960 GB, Benchmarks), Windows 10 64-bit with all updates as of mid October. The driver was a beta driver for the 1050, which was distributed for the press ahead of the launch.

Synthetic Benchmarks

The GTX 1050 Ti is pretty much on par with the old GTX 960 (desktop) and the GTX 970M (laptop) in the synthetic Futuremark and Unigine benchmarks. The Radeon RX 460 is clearly beaten, but the RX 470 is much faster. The closest GPU from AMD in terms of performance is the old Radeon R9 380.

Performance Rating | 3DMark | 3DMark 11 | Unigine Heaven 4.0 | Unigine Valley 1.0

Performance Rating - Percent
NVIDIA GeForce GTX 1060 (Desktop) ^-1! Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	99.3 pt ∼99%
AMD Radeon R9 290X ^-2! Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	94.6 pt ∼95%
NVIDIA GeForce GTX 970 ^-1! MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	90.5 pt ∼91%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	88.9 pt ∼89%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	84 pt ∼84%
AMD Radeon R9 380 ^-1! Desktop-PC, Intel Xeon E3-1230 v3	62.4 pt ∼62%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	59.6 pt ∼60%
NVIDIA GeForce GTX 960 ^-1! MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	58.4 pt ∼58%
NVIDIA GeForce GTX 970M ^-1! Acer Predator 17 G9-791-75PV, Intel Core i7-6700HQ	58.2 pt ∼58%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	46 pt ∼46%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	45.1 pt ∼45%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	42 pt ∼42%

3DMark
1920x1080 Fire Strike Graphics
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	12984 Points ∼100% +69%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	12186 Points ∼94% +58%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	11998 Points ∼92% +56%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	11954 Points ∼92% +55%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	11869 Points ∼91% +54%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	8218 Points ∼63% +7%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	7912 Points ∼61% +3%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	7696 Points ∼59%
NVIDIA GeForce GTX 970M Acer Predator 17 G9-791-75PV, Intel Core i7-6700HQ	7594 Points ∼58% -1%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	6160 Points ∼47% -20%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	5979 Points ∼46% -22%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	5701 Points ∼44% -26%
1280x720 Cloud Gate Standard Graphics
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	80879 Points ∼100% +59%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	72213 Points ∼89% +42%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	71472 Points ∼88% +40%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	66398 Points ∼82% +30%
NVIDIA GeForce GTX 970M Acer Predator 17 G9-791-75PV, Intel Core i7-6700HQ	51939 Points ∼64% +2%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	50939 Points ∼63%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	50723 Points ∼63% 0%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	49088 Points ∼61% -4%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	38935 Points ∼48% -24%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	38182 Points ∼47% -25%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	34892 Points ∼43% -32%

3DMark 11 - 1280x720 Performance GPU
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	17919 Points ∼100% +85%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	17738 Points ∼99% +83%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	17401 Points ∼97% +80%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	16355 Points ∼91% +69%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	16033 Points ∼89% +65%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	12191 Points ∼68% +26%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	10683 Points ∼60% +10%
NVIDIA GeForce GTX 970M Acer Predator 17 G9-791-75PV, Intel Core i7-6700HQ	9902 Points ∼55% +2%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	9694 Points ∼54%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	8607 Points ∼48% -11%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	8597 Points ∼48% -11%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	8391 Points ∼47% -13%

Unigine Heaven 4.0 - Extreme Preset DX11
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	82.7 fps ∼100% +72%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	66 fps ∼80% +38%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	61.1 fps ∼74% +27%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	48 fps ∼58%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	45.9 fps ∼56% -4%
NVIDIA GeForce GTX 970M Acer Predator 17 G9-791-75PV, Intel Core i7-6700HQ	45.2 fps ∼55% -6%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	43.2 fps ∼52% -10%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	33.9 fps ∼41% -29%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	33.5 fps ∼41% -30%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	31.2 fps ∼38% -35%

Unigine Valley 1.0 - 1920x1080 Extreme HD DirectX AA:x8
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	64.2 fps ∼100% +58%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	59.1 fps ∼92% +45%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	52.3 fps ∼81% +29%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	47.2 fps ∼74% +16%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	40.7 fps ∼63%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	31 fps ∼48% -24%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	27.1 fps ∼42% -33%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	23.9 (13.1^min - 44.3^max) fps ∼37% -41%

Performance Rating | 3DMark | 3DMark 11 | Unigine Heaven 4.0 | Unigine Valley 1.0

Gaming Benchmarks

The gaming benchmarks show a slight advantage for the GTX 1050 over the old GTX 960 / GTX 970M, but the performance is still very similar. Compared to the modern Polaris GPUs from AMD, the MSI 1050 Ti sits right between the RX 460 and RX 470 and roughly on par with the old R9 280X / 380.

Performance Rating - Percent
NVIDIA GeForce GTX 980 (Laptop) ^-10! Schenker XMG U716, Intel Core i7-6700	95.4 pt ∼95%
NVIDIA GeForce GTX 1060 (Desktop) ^-8! Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	95.3 pt ∼95%
AMD Radeon R9 Fury ^-2! XFX Radeon R9 Fury Pro, Intel Core i7-4790K	93.5 pt ∼94%
NVIDIA GeForce GTX 980 ^-13! Desktop PC, Intel Core i7-6700K	92.8 pt ∼93%
NVIDIA GeForce GTX 970 ^-1! MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	89.3 pt ∼89%
AMD Radeon RX 480 (Desktop) ^-1! AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	87.6 pt ∼88%
AMD Radeon R9 390X ^-9! XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	85 pt ∼85%
AMD Radeon RX 470 (Desktop) ^-10! MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	82.1 pt ∼82%
AMD Radeon R9 290X ^-11! Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	75.8 pt ∼76%
NVIDIA GeForce GTX 1050 Ti (Desktop) ^-2! MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	60.4 pt ∼60%
AMD Radeon R9 380 ^-11! Desktop-PC, Intel Xeon E3-1230 v3	59.2 pt ∼59%
AMD Radeon R9 280X ^-14! Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	57.9 pt ∼58%
NVIDIA GeForce GTX 960 ^-5! MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	57.5 pt ∼58%
NVIDIA GeForce GTX 970M ^-8! Schenker W504, Intel Core i7-4700MQ	52.1 pt ∼52%
AMD Radeon RX 460 (Desktop) ^-2! XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	42.4 pt ∼42%
NVIDIA GeForce GTX 965M ^-3! MSI GE72 965M Ti, Intel Core i7-6700HQ	40.4 pt ∼40%
AMD Radeon R7 370 ^-13! MSI Gaming R7 370 2GB, Intel Core i7-4790K	37.5 pt ∼38%

Overwatch - 1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	139 fps ∼100% +104%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	121 (94^min - 147^max) fps ∼87% +78%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	117 (97^min) fps ∼84% +72%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	116 fps ∼83% +71%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	107 fps ∼77% +57%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	97 (78^min - 117^max) fps ∼70% +43%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	94 (77^min - 113^max) fps ∼68% +38%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	73 (59^min - 88^max) fps ∼53% +7%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	68 (58^min - 82^max) fps ∼49%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	66.9 fps ∼48% -2%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	62.6 (53^min) fps ∼45% -8%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	51.2 (44^min - 62^max) fps ∼37% -25%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	47.6 (40^min - 56^max) fps ∼34% -30%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	46.3 (39^min - 53^max) fps ∼33% -32%

Doom - 1920x1080 Ultra Preset AA:SM
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	99.7 fps ∼100% +44%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	97.5 (82^min) fps ∼98% +41%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	96 (81^min - 122^max) fps ∼96% +39%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	83 (67^min - 125^max) fps ∼83% +20%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	80 (68^min - 109^max) fps ∼80% +16%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	80 (68^min - 109^max) fps ∼80% +16%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	69 (58^min - 94^max) fps ∼69%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	68 fps ∼68% -1%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	43.4 (37^min - 58^max) fps ∼44% -37%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	41.4 (30^min) fps ∼42% -40%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	40.4 (33^min - 54^max) fps ∼41% -41%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	27.5 (20^min - 43^max) fps ∼28% -60%

Hitman 2016 - 1920x1080 Ultra / On AA:SM AF:16x
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	61.5 (35^min - 77^max) fps ∼100% +88%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	58.7 (44^min - 72^max) fps ∼95% +80%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	61 (45^min - 86^max) fps ∼99% +87%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	59.2 (48^min - 62^max) fps ∼96% +81%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	58 (43^min - 71^max) fps ∼94% +77%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	57.8 (41^min) fps ∼94% +77%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	55.6 (41^min - 68^max) fps ∼90% +70%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	55.3 fps ∼90% +69%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	54.4 fps ∼88% +66%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	52 fps ∼85% +59%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	41 (27^min - 54^max) fps ∼67% +25%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	36 fps ∼59% +10%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	32.7 (23^min - 42^max) fps ∼53%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	31.9 (23^min) fps ∼52% -2%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	29.6 (22^min - 36^max) fps ∼48% -9%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	26 (18^min - 34^max) fps ∼42% -20%

Far Cry Primal - 1920x1080 Ultra Preset AA:SM
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	68 (52^min - 83^max) fps ∼100% +66%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	67 fps ∼99% +63%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	63 (49^min) fps ∼93% +54%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	59 (47^min - 76^max) fps ∼87% +44%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	57 (46^min - 73^max) fps ∼84% +39%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	54 (43^min - 67^max) fps ∼79% +32%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	41 (32^min - 49^max) fps ∼60%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	37 fps ∼54% -10%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	36 (28^min) fps ∼53% -12%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	33 (23^min - 40^max) fps ∼49% -20%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	29 (22^min - 34^max) fps ∼43% -29%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	29 (24^min - 38^max) fps ∼43% -29%

Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	71.3 (64^min) fps ∼100% +75%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	66.9 fps ∼94% +64%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	66.5 fps ∼93% +63%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	60.2 (54^min - 67^max) fps ∼84% +48%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	57 (46^min - 66^max) fps ∼80% +40%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	57 (49^min - 65^max) fps ∼80% +40%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	54.3 (49^min - 59^max) fps ∼76% +33%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	50.5 (47^min - 55^max) fps ∼71% +24%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	40.7 (37^min - 45^max) fps ∼57%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	39.4 (36^min - 43^max) fps ∼55% -3%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	38 (35^min) fps ∼53% -7%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	36.1 fps ∼51% -11%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	30.4 (26^min - 33^max) fps ∼43% -25%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	27.9 (24^min - 31^max) fps ∼39% -31%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	27.3 (24^min - 30^max) fps ∼38% -33%

Just Cause 3 - 1920x1080 Very High / On AA:SM AF:16x
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	85.6 fps ∼100%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	84.2 (75^min) fps ∼98%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	82 (72^min - 96^max) fps ∼96%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	80 (72^min - 90^max) fps ∼93%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	79 (66^min - 89^max) fps ∼92%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	59 (47^min - 73^max) fps ∼69%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	52.6 fps ∼61%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	50.7 (46^min) fps ∼59%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	48.6 fps ∼57%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	41.3 (36^min - 48^max) fps ∼48%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	39 (30^min - 45^max) fps ∼46%

Rainbow Six Siege - 1920x1080 Ultra Preset AA:T AF:16x
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	130 fps ∼100% +65%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	127 (86^min - 188^max) fps ∼98% +61%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	120 fps ∼92% +52%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	120 (77^min - 204^max) fps ∼92% +52%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	117 (77^min - 186^max) fps ∼90% +48%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	107.6 (67^min) fps ∼83% +36%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	107.6 fps ∼83% +36%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	79 (56^min - 104^max) fps ∼61%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	64.6 (51^min - 81^max) fps ∼50% -18%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	64.5 fps ∼50% -18%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	63.5 (22^min) fps ∼49% -20%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	49 (34^min - 65^max) fps ∼38% -38%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	40.8 (10^min - 109^max) fps ∼31% -48%

Assassin's Creed Syndicate - 1920x1080 Ultra High Preset AA:4x MSAA + FX
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	35.3 fps ∼100% +54%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	33.5 (27^min) fps ∼95% +46%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	32.3 fps ∼92% +41%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	32 (26^min - 39^max) fps ∼91% +40%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	29.1 (23^min - 34^max) fps ∼82% +27%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	28.3 (23^min - 34^max) fps ∼80% +24%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	25.6 fps ∼73% +12%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	22.9 (18^min - 27^max) fps ∼65%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	18.9 (15^min) fps ∼54% -17%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	18.9 fps ∼54% -17%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	17.4 fps ∼49% -24%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	14 (11^min - 17^max) fps ∼40% -39%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	5 (3^min - 8^max) fps ∼14% -78%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	4.3 (2^min - 8^max) fps ∼12% -81%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	4.1 (2^min - 7^max) fps ∼12% -82%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	3.4 (2^min - 5^max) fps ∼10% -85%

Fallout 4 - 1920x1080 Ultra Preset AA:T AF:16x
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	80 (66^min - 98^max) fps ∼100% +72%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	78 fps ∼98% +68%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	77.1 fps ∼96% +66%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	73 (59^min - 94^max) fps ∼91% +57%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	72.8 fps ∼91% +57%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	67.6 (52^min - 86^max) fps ∼85% +46%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	65 (52^min - 80^max) fps ∼81% +40%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	64 (51^min - 80^max) fps ∼80% +38%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	46.7 fps ∼58% +1%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	46.4 (38^min - 58^max) fps ∼58%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	44.8 fps ∼56% -3%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	44.7 (35^min - 55^max) fps ∼56% -4%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	43.4 (33^min) fps ∼54% -6%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	35.2 (28^min - 45^max) fps ∼44% -24%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	34 (24^min - 43^max) fps ∼43% -27%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	32.3 (26^min - 41^max) fps ∼40% -30%

Anno 2205 - 1920x1080 Ultra High Preset AA:8x
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	33 (31^min - 35^max) fps ∼100% +59%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	31.9 fps ∼97% +54%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	30.7 fps ∼93% +48%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	28.7 (25^min - 31^max) fps ∼87% +39%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	27.7 fps ∼84% +34%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	27.7 (35^min - 30^max) fps ∼84% +34%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	26 (23^min - 29^max) fps ∼79% +26%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	22.7 (21^min - 25^max) fps ∼69% +10%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	20.7 (17^min - 23^max) fps ∼63%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	20.6 fps ∼62% 0%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	17.6 fps ∼53% -15%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	16.8 (14^min) fps ∼51% -19%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	13.4 (12^min - 15^max) fps ∼41% -35%

World of Warships - 1920x1080 Very High Preset AA:High FX AF:16x
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	153 (95^min - 217^max) fps ∼100% +35%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	134 (85^min - 168^max) fps ∼88% +19%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	133 (91^min - 162^max) fps ∼87% +18%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	130 (79^min - 179^max) fps ∼85% +15%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	124.1 fps ∼81% +10%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	124 (85^min - 156^max) fps ∼81% +10%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	113 (86^min - 152^max) fps ∼74%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	110.8 fps ∼72% -2%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	101.1 fps ∼66% -11%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	77 (45^min - 106^max) fps ∼50% -32%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	75 (60^min - 105^max) fps ∼49% -34%

Mad Max - 1920x1080 Very High Preset AF:12x
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	144 (127^min - 158^max) fps ∼100% +82%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	136.6 fps ∼95% +73%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	132 fps ∼92% +67%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	125 fps ∼87% +58%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	119 (103^min - 131^max) fps ∼83% +51%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	119 (106^min - 130^max) fps ∼83% +51%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	116.4 fps ∼81% +47%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	91.4 (80^min - 99^max) fps ∼63% +16%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	84 fps ∼58% +6%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	80.5 fps ∼56% +2%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	79 (72^min - 87^max) fps ∼55%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	77.9 (64^min) fps ∼54% -1%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	61.5 (55^min - 67^max) fps ∼43% -22%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	57.8 (51^min - 66^max) fps ∼40% -27%

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	45.5 (39^min - 51^max) fps ∼100% +65%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	44.4 fps ∼98% +61%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	44.3 fps ∼97% +61%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	43.9 (40^min - 49^max) fps ∼96% +60%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	42.2 (36^min - 49^max) fps ∼93% +53%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	40.8 fps ∼90% +48%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	40.7 (35^min - 45^max) fps ∼89% +48%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	29.9 fps ∼66% +9%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	29 (25^min - 32^max) fps ∼64% +5%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	27.7 (21^min) fps ∼61% +1%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	27.5 (22^min - 32^max) fps ∼60%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	25.8 (19^min) fps ∼57% -6%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	23 fps ∼51% -16%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	20.2 (16^min - 25^max) fps ∼44% -27%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	51 fps ∼100% +40%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	47.7 fps ∼94% +31%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	45.6 fps ∼89% +25%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	41 (20^min - 80^max) fps ∼80% +13%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	36.4 (22.1^min - 102^max) fps ∼71%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	28.3 fps ∼55% -22%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	28 (12^min) fps ∼55% -23%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	20.7 fps ∼41% -43%

Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	137 fps ∼100% +63%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	134.4 fps ∼98% +60%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	133 fps ∼97% +58%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	122 fps ∼89% +45%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	84 fps ∼61%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	80.9 fps ∼59% -4%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	61.3 fps ∼45% -27%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	60.9 fps ∼44% -27%

Middle-earth: Shadow of Mordor - 1920x1080 Ultra Preset (HD Package)
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	103 (65^min - 146^max) fps ∼100% +77%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	94.5 fps ∼92% +62%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	91.4 fps ∼89% +57%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	84 (57^min - 123^max) fps ∼82% +44%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	80 (52^min - 125^max) fps ∼78% +37%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	61.6 fps ∼60% +6%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	58.2 (25^min - 165^max) fps ∼57%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	41.2 (28^min - 58^max) fps ∼40% -29%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	35.4 fps ∼34% -39%

Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	92.3 fps ∼100%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	90 fps ∼98%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	89 fps ∼96%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	82.7 fps ∼90%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	80 (43^min - 143^max) fps ∼87%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	54.9 fps ∼59%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	42 (7^min - 95^max) fps ∼46%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	37.2 (24^min - 67^max) fps ∼40%

BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	121.4 fps ∼100% +54%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	118 fps ∼97% +49%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	112.4 fps ∼93% +42%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	110 (20^min - 177^max) fps ∼91% +39%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	80.8 fps ∼67% +2%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	79 (45^min - 130^max) fps ∼65%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	55.3 fps ∼46% -30%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	55 (9^min - 95^max) fps ∼45% -30%

Battlefield 1 - 1920x1080 Ultra Preset AA:T
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	102 (79^min - 109^max) fps ∼100% +63%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	96.9 (86^min) fps ∼95% +55%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	96 (85^min - 104^max) fps ∼94% +54%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	89.4 (76^min - 96^max) fps ∼88% +43%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	88.5 (72^min - 96^max) fps ∼87% +42%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	87 (78^min - 93^max) fps ∼85% +39%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	83 (73^min - 88^max) fps ∼81% +33%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	62.4 (53^min - 68^max) fps ∼61%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	60.2 (52^min - 64^max) fps ∼59% -4%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	55.4 (47^min) fps ∼54% -11%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	46.6 (38^min - 51^max) fps ∼46% -25%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	42.5 (36^min - 46^max) fps ∼42% -32%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	40.1 (34^min - 43^max) fps ∼39% -36%

Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	64.5 (51^min - 95^max) fps ∼100% +80%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	60.7 fps ∼94% +70%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	56.1 fps ∼87% +57%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	55 fps ∼85% +54%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	52.6 (45^min - 73^max) fps ∼82% +47%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	48.9 (40^min - 71^max) fps ∼76% +37%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	39.4 fps ∼61% +10%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	36.1 fps ∼56% +1%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	35.8 (29^min - 54^max) fps ∼56%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	26.2 (21^min - 40^max) fps ∼41% -27%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	25.3 (21^min - 36^max) fps ∼39% -29%

Dragon Age: Inquisition - 1920x1080 Ultra Graphics Quality AA:2x MS
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	67.9 fps ∼100% +70%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	67.4 (51^min) fps ∼99% +69%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	66.9 fps ∼99% +68%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	65.4 fps ∼96% +64%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	64.1 (48.5^min) fps ∼94% +61%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	53.9 (44.4^min) fps ∼79% +35%
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	60 (52^min) fps ∼88% +50%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	41.6 fps ∼61% +4%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	39.9 (29^min) fps ∼59%

Mirror's Edge Catalyst - 1920x1080 Ultra Preset AF:16x
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	81.3 (74^min - 86^max) fps ∼100% +75%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	78.3 fps ∼96% +68%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	76.4 (69^min) fps ∼94% +64%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	72 fps ∼89% +55%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	70.3 (66^min - 75^max) fps ∼86% +51%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	65.9 (53^min - 73^max) fps ∼81% +42%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	65.2 (55^min - 72^max) fps ∼80% +40%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	50 fps ∼62% +8%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	46.5 (43^min - 50^max) fps ∼57%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	42.1 (33^min) fps ∼52% -9%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	34.2 (29^min - 38^max) fps ∼42% -26%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	33.5 (30^min - 38^max) fps ∼41% -28%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	33.4 (31^min - 37^max) fps ∼41% -28%

Star Wars Battlefront - 1920x1080 Ultra Preset AA:FX
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	119 (100^min - 137^max) fps ∼100% +95%
NVIDIA GeForce GTX 980 Desktop PC, Intel Core i7-6700K	104.1 (89^min) fps ∼87% +71%
AMD Radeon R9 290X Sapphire Radeon R9 290X Tri-X OC, Intel Core i7-4790K	104 (92^min - 123^max) fps ∼87% +70%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	104 fps ∼87% +70%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	102.1 fps ∼86% +67%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, Intel Core i7-6700K	102 fps ∼86% +67%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	100 (90^min - 119^max) fps ∼84% +64%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	94 (78^min - 113^max) fps ∼79% +54%
AMD Radeon R9 280X Asus Z97 Deluxe Desktop i7-4790K, R9 280X, Intel Core i7-4790K	76 (66^min - 89^max) fps ∼64% +25%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	61.3 fps ∼52% 0%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	61 (52^min - 74^max) fps ∼51%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	60.8 fps ∼51% 0%
NVIDIA GeForce GTX 970M Schenker W504, Intel Core i7-4700MQ	59 (50^min) fps ∼50% -3%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, Intel Core i7-4790K	52 (43^min - 62^max) fps ∼44% -15%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	48.6 (41^min - 57^max) fps ∼41% -20%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	45.8 (39^min - 55^max) fps ∼38% -25%

Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS
AMD Radeon R9 Fury XFX Radeon R9 Fury Pro, Intel Core i7-4790K	101 (92^min - 122^max) fps ∼100% +53%
NVIDIA GeForce GTX 980 (Laptop) Schenker XMG U716, Intel Core i7-6700	99.6 fps ∼99% +51%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, Intel Core i7-4790K	94 (86^min - 114^max) fps ∼93% +42%
AMD Radeon R9 390X XFX Radeon R9 390X DD Black Edition, Intel Xeon E3-1230 v3	89.7 fps ∼89% +36%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, Intel Core i7-4790K	82 (67^min - 101^max) fps ∼81% +24%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, Intel Core i7-4790K	77 (62^min - 100^max) fps ∼76% +17%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, Intel Core i7-4790K	66 (58^min - 81^max) fps ∼65%
AMD Radeon R9 380 Desktop-PC, Intel Xeon E3-1230 v3	59.5 fps ∼59% -10%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, Intel Xeon E3-1230 v3	58 fps ∼57% -12%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, Intel Core i7-6700HQ	43.1 (39^min - 54^max) fps ∼43% -35%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, Intel Core i7-4790K	38.6 (31^min - 48^max) fps ∼38% -42%

Modern and demanding games like No Man's Sky, Deus Ex Mankind Divided, Assassin's Creed Syndicate or Anno 2205 can therefore only be played smoothly at Full-HD and High details. The poorly optimized Mafia 3 is limited to Medium details and 1366 x 768 pixels to ensure smooth gameplay. Simpler titles like Battlefield 1, Mirror's Edge Catalyst, Doom or Overwatch can also be played smoothly in the highest settings at 1920 x 1080 pixels.

	low	med.	high	ultra	4K
Metro 2033 (2010)				55.1
Crysis 3 (2013)				35.8
BioShock Infinite (2013)			208	79
Battlefield 4 (2013)				66	30.2
Middle-earth: Shadow of Mordor (2014)				58.2
Alien: Isolation (2014)				84
Dragon Age: Inquisition (2014)				39.9
GTA V (2015)				36.4
Dirt Rally (2015)				62.1	52.7
The Witcher 3 (2015)			49.4	27.5
Mad Max (2015)				79	26.9
Dota 2 Reborn (2015)					63
World of Warships (2015)				113	35.7
Anno 2205 (2015)			61.8	20.7
Fallout 4 (2015)				46.4
Star Wars Battlefront (2015)				61	21.6
Assassin's Creed Syndicate (2015)			52.6	22.9
Rainbow Six Siege (2015)	272	181	95	79
Rise of the Tomb Raider (2016)			48.9	40.7
Far Cry Primal (2016)	135	61	54	41
Hitman 2016 (2016)		88	34.5	32.7
Ashes of the Singularity (2016)		40.4	37.9		12.8
Doom (2016)				69	23.3
Overwatch (2016)			114	68	35.6
Mirror's Edge Catalyst (2016)				46.5
No Man's Sky (2016)	79		44.6	20.7
Deus Ex Mankind Divided (2016)		61.4	32.7	22.8
FIFA 17 (2016)				187	72
Mafia 3 (2016)	68.2	41.8	22.1
Battlefield 1 (2016)	199	144	69	62.4	25.2
Civilization VI (2016)			57.5	47.3	36.3
Farming Simulator 17 (2016)				113	51.1
Titanfall 2 (2016)			62	56.6	18.5
Call of Duty Infinite Warfare (2016)				60.5	26.1
Dishonored 2 (2016)	82	73	41.1	38.7	21.9
Watch Dogs 2 (2016)			45.4	28.5	15.2
Resident Evil 7 (2017)			70	58.4	18.6
For Honor (2017)	198	71.4	68	48.9	19.7
Mass Effect Andromeda (2017)		52.7	34.8	31.4	13.2
Warhammer 40.000: Dawn of War III (2017)			30	25.9
Prey (2017)	143		82	66.6	23
Playerunknown's Battlegrounds (PUBG) (2017)	127	55.1	49.5	35.5	11.4
Fortnite (2018)			65	44.8	12.5
Final Fantasy XV Benchmark (2018)	62	33.3	22.7
Kingdom Come: Deliverance (2018)			35.2	26.6

Performance under load / Throttling

Throttling was no problem for the MSI card. The results were stable (99.6 %) after 20 3DMark Time Spy (Stress Test) runs. The clocks are steady at 1280 MHz in FurMark, and the GPU reached 56 °C and 43 % of the possible fan speed. The clocks were also steady at around 1660 MHz during Witcher 3 with 57 °C for the GPU and 43 % fan speed. The power (Pwr) was the reason for the performance cap (PerfCap) in both tests according to GPU-Z (more than 90 % of the TDP).

Compute Performance

The GeForce GTX 1050 Ti has 6 Compute Units, which are clocked at 1455 MHz (in the case of the MSI card) according to LuxMark. The support OpenCL, DirectCompute or CUDA. The MSI 1050 Ti is once again on par with the GeForce GTX 960 (Desktop) and between the RX 460 and RX 470. RX 470 and GTX 1060 are much faster (+ 56/57 % on average).

Performance Rating | LuxMark v2.0 64Bit | ComputeMark v2.1

Performance Rating - Percent
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	100 pt ∼100%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	74.5 pt ∼75%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	68 pt ∼68%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	68 pt ∼68%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	66.3 pt ∼66%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	43.2 pt ∼43%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	43.1 pt ∼43%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	42.6 pt ∼43%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	37.6 pt ∼38%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	35.7 pt ∼36%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	34.9 pt ∼35%

LuxMark v2.0 64Bit
Room GPUs-only
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	2485 Samples/s ∼100% +111%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	1874 Samples/s ∼75% +59%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	1773 Samples/s ∼71% +51%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	1661 Samples/s ∼67% +41%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	1440 Samples/s ∼58% +23%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	1319 Samples/s ∼53% +12%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	1179 Samples/s ∼47% 0%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	1175 Samples/s ∼47%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	957 Samples/s ∼39% -19%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	790 Samples/s ∼32% -33%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	782 Samples/s ∼31% -33%
Sala GPUs-only
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	3877 Samples/s ∼100% +80%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	3468 Samples/s ∼89% +61%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	3020 Samples/s ∼78% +40%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	3020 Samples/s ∼78% +40%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	2584 Samples/s ∼67% +20%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	2388 Samples/s ∼62% +11%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	2156 Samples/s ∼56%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	1908 Samples/s ∼49% -12%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	1836 Samples/s ∼47% -15%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	1554 Samples/s ∼40% -28%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	1486 Samples/s ∼38% -31%

ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	5084 Points ∼100% +163%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	3322 Points ∼65% +72%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	3027 Points ∼60% +57%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	2746 Points ∼54% +42%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	2475 Points ∼49% +28%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	2070 Points ∼41% +7%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	1931 Points ∼38%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	1686 Points ∼33% -13%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	1587 Points ∼31% -18%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	1253 Points ∼25% -35%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	1180 Points ∼23% -39%
1024x600 Normal, Mandel Scalar
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	3131 Points ∼100% +187%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	2539 Points ∼81% +133%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	2447 Points ∼78% +124%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	2002 Points ∼64% +83%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	1829 Points ∼58% +67%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	1236 Points ∼39% +13%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	1121 Points ∼36% +3%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	1115 Points ∼36% +2%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	1095 Points ∼35% 0%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	1092 Points ∼35%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	1024 Points ∼33% -6%
1024x600 Normal, Mandel Vector
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	2863 Points ∼100% +124%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	2172 Points ∼76% +70%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	2162 Points ∼76% +69%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	1994 Points ∼70% +56%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	1840 Points ∼64% +44%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	1372 Points ∼48% +7%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	1277 Points ∼45%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	1266 Points ∼44% -1%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	1224 Points ∼43% -4%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	1206 Points ∼42% -6%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	1172 Points ∼41% -8%
1024x600 Normal, Fluid 2DTexArr
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	1376 Points ∼100% +131%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	991 Points ∼72% +66%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	963 Points ∼70% +62%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	917 Points ∼67% +54%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	911 Points ∼66% +53%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	613 Points ∼45% +3%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	596 Points ∼43%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	560 Points ∼41% -6%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	529 Points ∼38% -11%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	479 Points ∼35% -20%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	388 Points ∼28% -35%
1024x600 Normal, Fluid 3DTex
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	1402 Points ∼100% +135%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	1220 Points ∼87% +104%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	1039 Points ∼74% +74%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	985 Points ∼70% +65%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	936 Points ∼67% +57%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	694 Points ∼50% +16%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	597 Points ∼43%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	578 Points ∼41% -3%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	536 Points ∼38% -10%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	536 Points ∼38% -10%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	409 Points ∼29% -31%
1024x600 Normal, Score
NVIDIA GeForce GTX 1070 (Desktop) MSI Gaming Z GeForce GTX 1070 OC Bios Desktop PC, 4790K	13856 Points ∼100% +152%
AMD Radeon RX 480 (Desktop) AMD Radeon RX 480 8 GB Reference, 4790K	9659 Points ∼70% +76%
NVIDIA GeForce GTX 1060 (Desktop) Nvidia GeForce GTX 1060 Founders Edition 6 GB, 6700K	9266 Points ∼67% +69%
AMD Radeon RX 470 (Desktop) MSI RX 470 Gaming X 4GB, 4790K	9044 Points ∼65% +65%
NVIDIA GeForce GTX 970 MSI Gaming Z GeForce GTX 970 Desktop PC, 4790K	8549 Points ∼62% +56%
NVIDIA GeForce GTX 960 MSI GeForce GTX 960 Gaming 4G Desktop-PC, E3-1230 v3	5743 Points ∼41% +5%
NVIDIA GeForce GTX 1050 Ti (Desktop) MSI GeForce GTX 1050 Ti, 4790K	5493 Points ∼40%
NVIDIA GeForce GTX 970M Aorus X3 Plus v5, 6700HQ	5107 Points ∼37% -7%
AMD Radeon R7 370 MSI Gaming R7 370 2GB, 4790K	4861 Points ∼35% -12%
NVIDIA GeForce GTX 965M MSI GE72 965M Ti, 6700HQ	4680 Points ∼34% -15%
AMD Radeon RX 460 (Desktop) XFX RX-460P4DFG5 Double Dissipation 4 GB, 4790K	4540 Points ∼33% -17%

Performance Rating | LuxMark v2.0 64Bit | ComputeMark v2.1

Problems

We tested the graphics card for a couple of days but we did not encounter any stability issues or problems during the benchmarks. Only the slightly clattery fan (see section System Noise) affected the good impression a bit.

Video Engine

The video engine should be identical to the bigger Pascal models and therefore be able to de-/encode 4K without significant CPU load. The DVXA Checker did show the same result of supported codecs for the MSI compared to the GTX 1080 Founders Edition and a HEVC 4K Main10 Playback Benchmark ran at 198 FPS and 3 % CPU load.

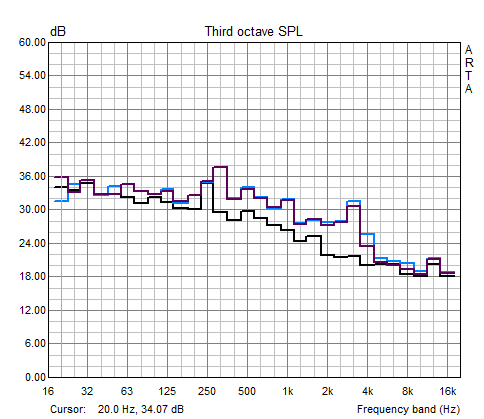

System Noise

Difference maximum load and idle. The subjective noise level is not inconvenient.

The fan is also running while idling and audible in quiet environments, but not annoying. The card is pretty restrained under load (up to 41 dB(A) for the whole system 15 cm from the card), but not as quiet as the more expensive Gaming X and Z model from MSI (e. g. GTX 1070 in review). Our model also produced some clattering from time to time, which could be fixed by touching the card. Maybe our test model has a manufacturing defect.

Heat Development

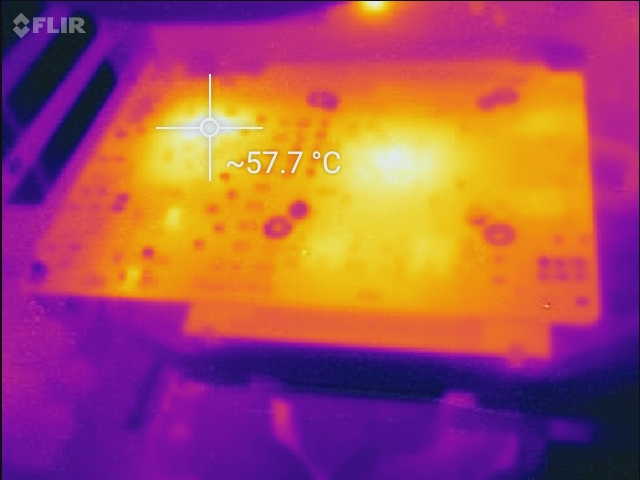

Heat distribution at the back under load

Both the internal as well as external temperatures did not reveal any problems. We can measure up to 57 °C at the PCB after one hour of stress and the GPU core only reaches up to 57 °C as well during our tests. Both values are completely uncritical. Thanks to 202 MHz GPU and memory clock, the card drops to very cool 23 °C while idling.

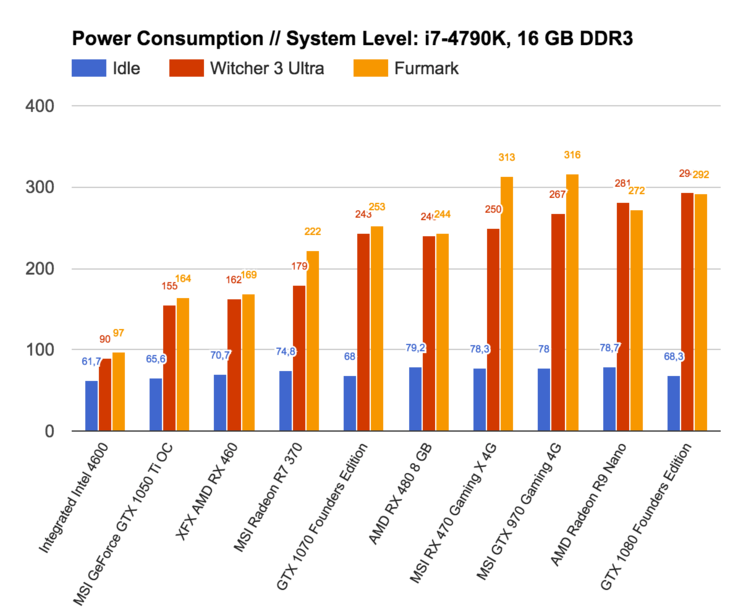

Power Consumption

One obvious advantage of the MSI GeForce GTX 1050 Ti 4G is the power consumption. It sets a new record in our system for the idle test and only consumes 4 Watts more the the integrated Intel graphics card of the processor. The results are also very good under load, the efficiency of 0.43 FPS / Watt in the FurMark Test (because of the heavy clock reduction) is only on par with the GTX 970 (0.43) and RX 470 (0.42), respectively, but not comparable with the bigger GTX 1070 (0.77 FPS / Watt) or 1080 (0.7) models.

Verdict

Nvidia's new GeForce GTX 1050 Ti sits right between the Radeon RX 460 and RX 470 in our benchmarks. The difference to the GTX 1060 with 6 GB VRAM is pretty big, while the smaller 3 GB model should be closer to the 1050 Ti due to the memory restrictions. This means the 1050 Ti can handle modern titles 1080p and High up to Ultra details.

The retail price of the GeForce GTX 1050 Ti is also between the RX 460 and RX 470 at $139 without taxes.

Our inexpensive test model MSI GeForce GT 1050 Ti is also suited for small ITX cases thanks to the short PCB. Except for the occasional fan clattering, the card convinces with a pretty quiet fan noise and low consumption figures. Build quality and design are okay for the price range, so we can recommend the card in this segment.

Read all 9 comments / answer

Loading comments

Comment on this article

Translator: Andreas Osthoff - Managing Editor Business Laptops - 1492 articles published on Notebookcheck since 2013

I grew up with modern consumer electronics and my first computer was a Commodore C64, which encouraged my interest in building my own systems. I started working as a review editor for Notebookcheck during my dual studies at Siemens. Currently, I am mainly responsible for dealing with business laptops and mobile workstations. It’s a great experience to be able to review the latest devices and technologies and then compare them with each other.

contact me via: LinkedIn

Please share our article, every link counts!

.170

> Notebook / Laptop Reviews and News > Reviews > MSI GeForce GTX 1050 Ti 4G Review

Klaus Hinum, 2016-10-25 (Update: 2022-01-27)
