AMD Ryzen 9 7945HX3D Zen4 analysis - The fastest mobile gaming processor thanks to 3D V-Cache

Better performance in 1080p & QHD.

In the field of desktop PCs, AMD processors with 3D cache have existed for quite some time, but the announcement of the Ryzen 9 7945HX3D marks the first mobile processor with 3D V-Cache coming onto the market. According to AMD, this is now the fastest gaming processor - which we have analyzed.

At the beginning of April, we were able to test the new Ryzen 9 7945HX mobile processor, which is a direct competitor to Intel's high-end chip, the Core i9-13980HX. The results were conclusive, as its multi-core performance was higher - but its efficiency was the real star of the show. While the Intel CPUs consume upwards of 170 watts, the Ryzen 9 7945HX offers comparable performance while only using 80 - 100 watts.

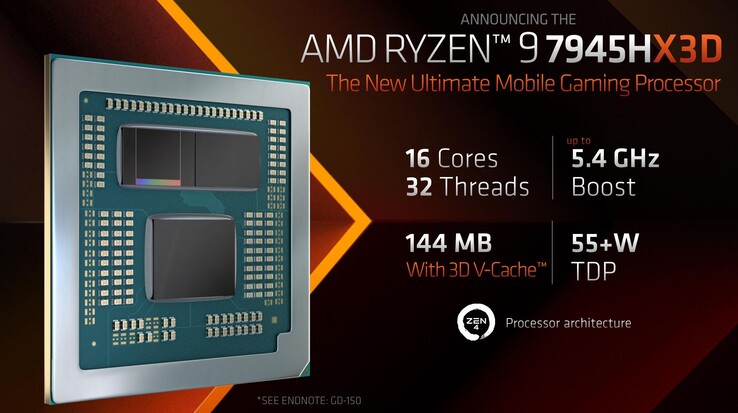

AMD has already offered desktop CPUs with 3D V-Cache since last year and now, the Ryzen 9 7945HX3D is the first mobile processor which features this technology. Aside from the new 3D V-Cache (an additional 64 MB), its specifications are identical to the regular Ryzen 9 7945HX, meaning it features 16 cores/32 threads with a maximum clock of 5.4 GHz. In the case of the 7945HX3D, its normal cache (80 MB L2/L3 cache) has been expanded by a further 64 MB L3 cache. In doing so, the additional cache module is situated directly on the Zen4 CCD, which is slightly slimmer than the regular Zen4 CCD, leading to an identical build height. Apart from its additional cache, it also features structural silicone which allows the cooling unit to take up the entire surface. Especially at high frame rates, this is supposed to improve performance, since access time can be shortened and new data can be provided faster.

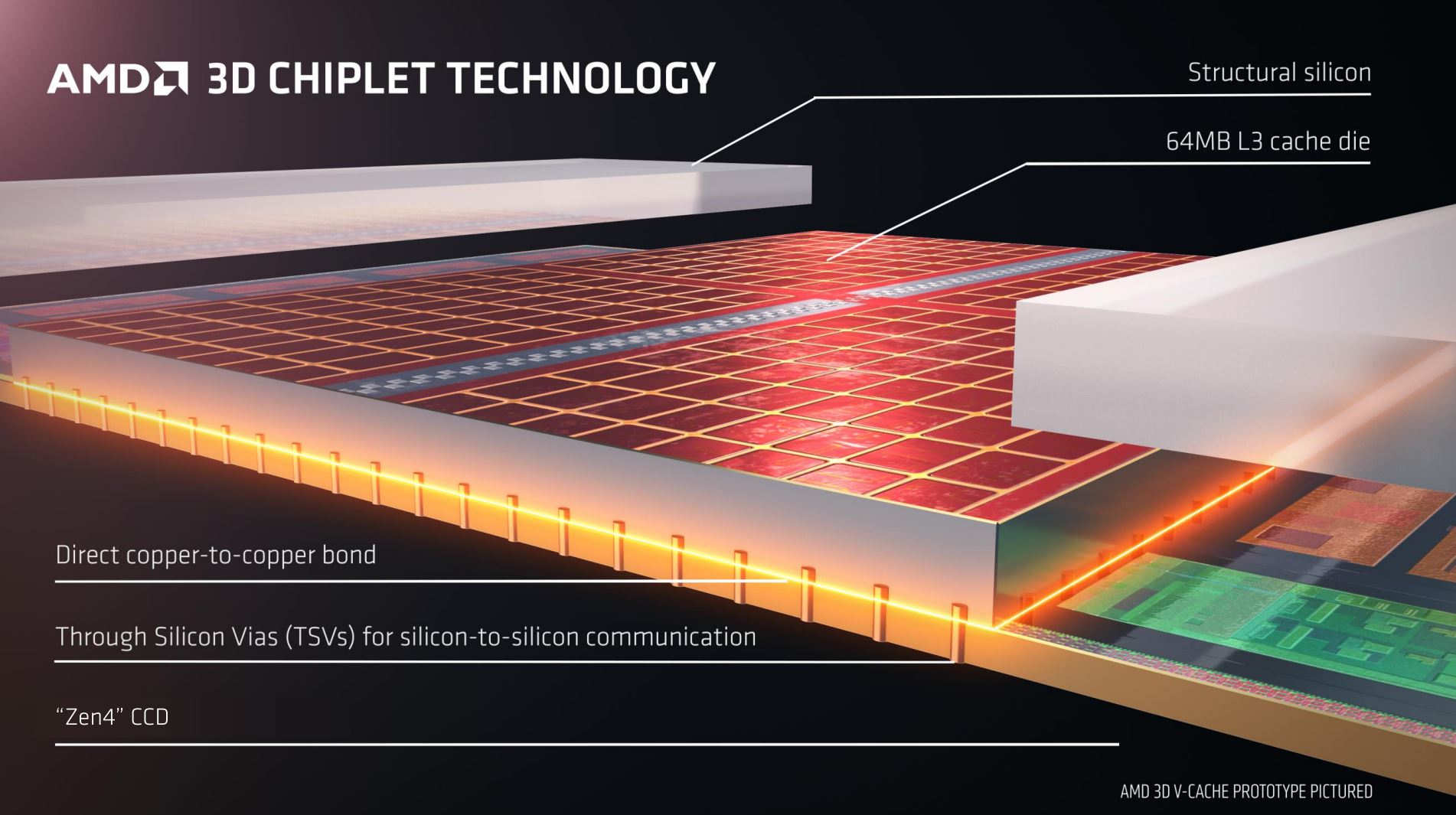

3D V-Cache (source: AMD)
3D V-Cache (source: AMD)

AMD also claims that the 3D V-Cache has a positive effect on low TDP values according to internal tests and has compared 70 and 40 watts with and without 3D V-Cache. However, we cannot verify this with our test systems. The Ryzen 9 7945HX3D is currently only available in the new Asus ROG Strix SCAR 17 X3D.

Test system - Asus ROG Strix SCAR 17 X3D

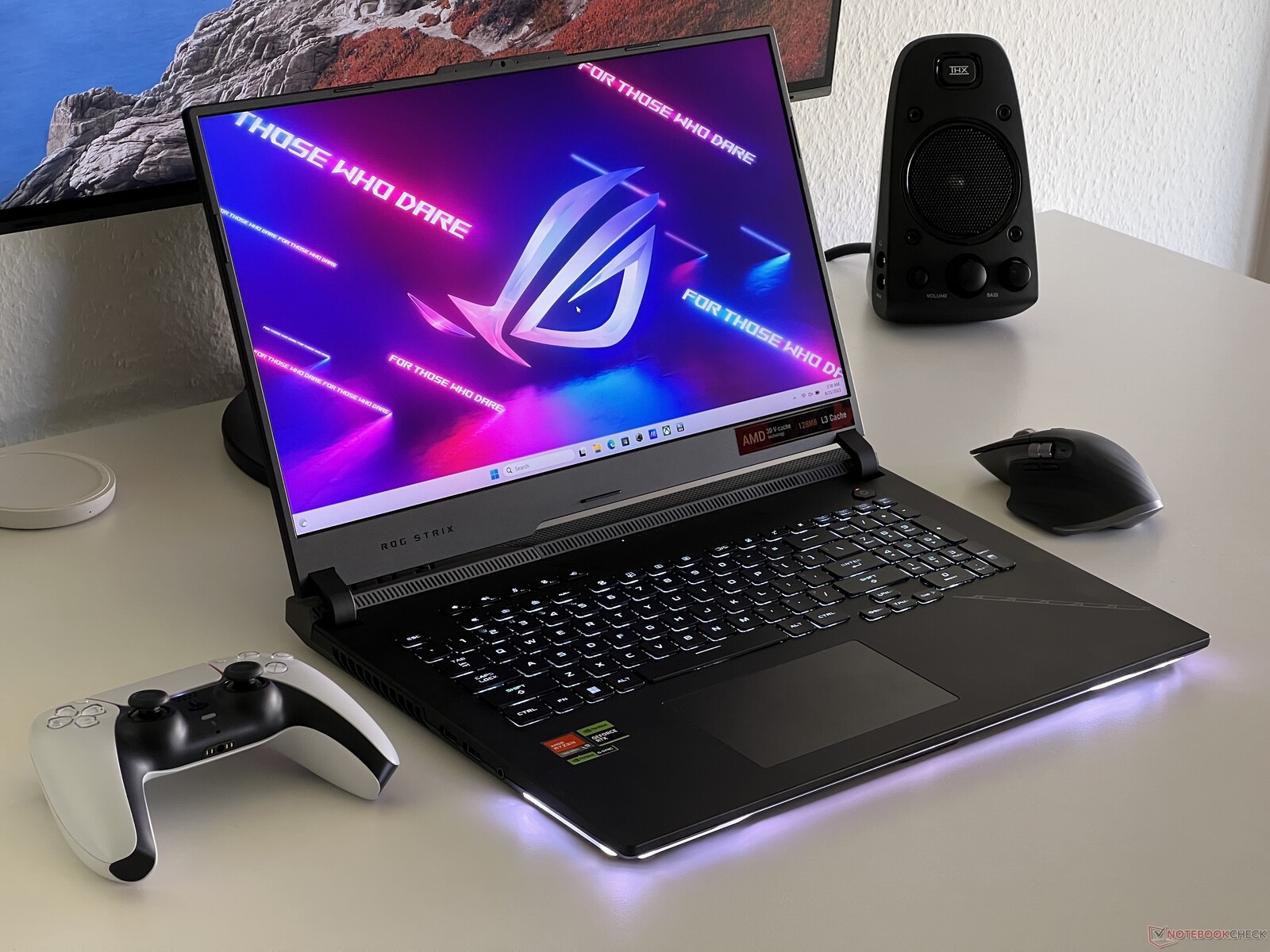

Asus ROG Strix SCAR 17 X3D
Asus ROG Strix SCAR 17 X3D

The Asus ROG Strix SCAR 17 X3D is currently the only gaming laptop featuring the new Ryzen 9 7945HX3D to enter the market. We have already tested the SCAR 17 with the regular Ryzen 9 7945HX and aside from its processor, its configuration with the GeForce RTX 4090 Laptop and the 240-Hz QHD panel is identical. Due to the new processor's surface texture, Asus now can't use liquid metal to dissipate heat from it - this makes itself known if you take a look at its maximum power consumption values. On the Ryzen 9 7945HX3D, it takes in 115 watts for a very short amount of time, then it balances out at 100 watts.

Please note: For our efficiency measurements, we used the consumption rates on an external monitor in order to rule out the internal display as an influencing factor. As already seen on the last ROG Strix SCAR 17, all display outputs run via the dedicated GPU which, as a result, is always active as soon as you use an external monitor. Of course, this has an effect on the measurements to a certain extent, especially when it comes to its single-core efficiency.

Single-core performance

Its single-core performance is practically identical to the regular Ryzen 9 7945HX and in turn, is considerably faster than the old Zen3 models such as the Ryzen 9 6900HX. Intel's Core i9-13900HX is also comparable - only the Core i9-13980HX benefits in total through its single-core turbo.

CPU Performance Rating: Percent
Cinebench R23: Single Core
Cinebench R20: CPU (Single Core)
Cinebench R15: CPU Single 64Bit
7-Zip 18.03: 7z b 4 -mmt1
Geekbench 5.5: Single-Core
CPU Performance Rating
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
98.5 pt
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
96 pt
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
95.4 pt
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
95.2 pt
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
94.7 pt
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
94.6 pt
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
93 pt
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
91.8 pt
Intel Core i9-13950HX
Razer Blade 16 Early 2023
88.2 pt
Intel Core i9-12900HX
MSI Titan GT77 12UHS
87.9 pt
AMD Ryzen 9 6900HX
SCHENKER XMG Neo 17 M22
75.3 pt
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
74.9 pt
Apple M2 Max -1!
Apple MacBook Pro 16 2023 M2 Max
74.9 pt
Cinebench R23 / Single Core
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
2169 Points +12%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
2100 Points +9%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
2055 Points +6%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
2043 Points +6%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
2029 Points +5%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
1940 Points 0%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
1936 Points 0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
1935 Points
Intel Core i9-12900HX
MSI Titan GT77 12UHS
1913 Points -1%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
1863 Points -4%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
1625 Points -16%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
1566 Points -19%
AMD Ryzen 9 6900HX
SCHENKER XMG Neo 17 M22
1557 Points -20%
Cinebench R20 / CPU (Single Core)
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
825 Points +9%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
803 Points +6%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
788 Points +4%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
756 Points 0%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
756 Points 0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
755 Points
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
753 Points 0%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
742 Points -2%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
738 Points -2%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
712 Points -6%
AMD Ryzen 9 6900HX
SCHENKER XMG Neo 17 M22
605 Points -20%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
595 Points -21%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
460 Points -39%
Cinebench R15 / CPU Single 64Bit
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
312 Points 0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
311 Points
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
307 Points -1%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
301 Points -3%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
301 Points -3%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
300 Points -4%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
295 Points -5%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
294 Points -5%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
294 Points -5%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
278 Points -11%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
274 Points -12%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
249 Points -20%
AMD Ryzen 9 6900HX
SCHENKER XMG Neo 17 M22
248 Points -20%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
239 Points -23%
7-Zip 18.03 / 7z b 4 -mmt1
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
7573 MIPS
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
7379 MIPS -3%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
7332 MIPS -3%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
7319 MIPS -3%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
7035 MIPS -7%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
7018 MIPS -7%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
6897 MIPS -9%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
6800 MIPS -10%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
6445 MIPS -15%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
6256 MIPS -17%
AMD Ryzen 9 6900HX
SCHENKER XMG Neo 17 M22
5872 MIPS -22%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
5727 MIPS -24%
Geekbench 5.5 / Single-Core
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
2139 Points 0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
2133 Points
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
2132 Points 0%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
2103 Points -1%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
2053 Points -4%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
2043 Points -4%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
2025 Points -5%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
2023 Points -5%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
1978 Points -7%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
1923 Points -10%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
1805 Points -15%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
1594 Points -25%
AMD Ryzen 9 6900HX
SCHENKER XMG Neo 17 M22
1590 Points -25%
CPU Performance Rating: Percent
Cinebench R23: Single Core
Cinebench R20: CPU (Single Core)
Cinebench R15: CPU Single 64Bit
7-Zip 18.03: 7z b 4 -mmt1
Geekbench 5.5: Single-Core

When taking a look at the results, you can't forget that the AMD Zen4 core consumes around 27 watts under single-core load, while the new Raptor Lake HX CPUs' performance core consumes 34 - 36 watts. This means AMD's pure CPU efficiency is better than Intel's. The fact that the dedicated Nvidia GPU was active for our power consumption measurements using an external monitor, of course, distorted our results - it is important to keep this in mind. For the sake of completeness, however, we have still included these values. You might actually see this as a positive, as even with its activated dGPU, our test device with the new Ryzen 9 7945HX3D was on the same level as the Intel Raptor Lake HX chips, which had an inactive iGPU during its measurements.

Power Consumption / Cinebench R23 Single Power Efficiency - external Monitor
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
71.9 Points per Watt +167%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
28.5 Points per Watt +6%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
28.2 Points per Watt +5%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
27.8 Points per Watt +3%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
26.9 Points per Watt
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
26.8 Points per Watt 0%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
26.4 Points per Watt -2%
Power Consumption / Cinebench R23 Single (external Monitor)
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
73.8 (69.8min, 70.2P1 - 100.2max) Watt * -3%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
73.4 (69.8min, 69.9P1 - 99.9max) Watt * -2%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
72.2 (62.6min, 63.8P1 - 92.5max) Watt * -0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
71.9 (70.8min, 71P1 - 86max) Watt *
Intel Core i9-12900HX
MSI Titan GT77 12UHS
68.7 (63.7min, 64.8P1 - 87.6max) Watt * +4%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
66.1 (57.7min, 58.2P1 - 93.6max) Watt * +8%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
22.6 (17.4min, 18.2P1 - 29.7max) Watt * +69%

* ... smaller is better

Multi-core performance

During the multi-core test, we became aware of its slightly weak cooling - here, the new Ryzen 9 7945HX3D narrowly avoided being able to compete with the models featuring the regular Ryzen 9 7945HX. In total, the new Zen4 processor with 3D V-Cache still came ahead of its Intel competitors which, in addition, consume more power. However, if you require the maximum CPU performance, then you should go for a device with the regular Ryzen 9 7945HX which uses liquid metal.

CPU Performance Rating: Percent
Cinebench R23: Multi Core
Cinebench R20: CPU (Multi Core)
Cinebench R15: CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4
Geekbench 5.5: Multi-Core
CPU Performance Rating
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
91.8 pt
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
90.5 pt
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
89.4 pt
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
87.3 pt
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
86.3 pt
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
82.5 pt
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
81.4 pt
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
80.3 pt
Intel Core i9-13950HX
Razer Blade 16 Early 2023
72.1 pt
Intel Core i9-12900HX
MSI Titan GT77 12UHS
60.7 pt
Apple M2 Max -2!
Apple MacBook Pro 16 2023 M2 Max
45.4 pt
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
35.9 pt
Cinebench R23 / Multi Core
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
34521 (32987.6min - 34521.3max) Points +5%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
34202 Points +4%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
33277 Points +2%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
33052 Points +1%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
32782 Points
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
32379 Points -1%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
30162 Points -8%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
28707 (26191.7min - 28706.8max) Points -12%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
28010 (26406.1min - 28009.8max) Points -15%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
26703 Points -19%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
26736 (22394.1min - 26736.1max) Points -18%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
22982 Points -30%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
14767 Points -55%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
14085 Points -57%
Cinebench R20 / CPU (Multi Core)
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
13769 Points +6%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
13457 Points +3%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
13033 Points
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
12648 Points -3%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
12437 Points -5%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
11500 Points -12%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
11289 Points -13%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
10025 Points -23%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
8697 Points -33%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
8667 Points -33%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
5489 Points -58%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
4044 Points -69%
Cinebench R15 / CPU Multi 64Bit
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
5663 Points +1%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
5600 (5177.32min - 5599.89max) Points
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
5554 (5255.55min - 5554.01max) Points -1%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
5227 (4889.98min - 5226.71max) Points -7%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
5205 (4749.47min - 5204.94max) Points -7%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
5172 (4917.63min - 5171.97max) Points -8%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
4913 Points -12%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
4875 (4298.3min - 4875.08max) Points -13%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
4819 (4429.68min - 4819.28max) Points -14%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
4529 (4463.29min - 4528.99max) Points -19%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
3570 (3259.45min - 3569.52max) Points -36%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
2292 Points -59%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
2074 (2068.47min, 2068.57P1 - 2081.27max) Points -63%
Blender / v2.79 BMW27 CPU
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
220 Seconds * -132%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
147 Seconds * -55%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
114 Seconds * -20%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
111 Seconds * -17%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
105 Seconds * -11%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
101 Seconds * -6%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
100 Seconds * -5%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
100 Seconds * -5%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
95 Seconds * -0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
95 Seconds *
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
93 Seconds * +2%
7-Zip 18.03 / 7z b 4
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
140471 MIPS +3%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
136201 MIPS
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
135927 MIPS 0%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
127295 MIPS -7%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
125720 MIPS -8%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
123364 MIPS -9%
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
122254 MIPS -10%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
118715 MIPS -13%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
109330 MIPS -20%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
86234 MIPS -37%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
64457 MIPS -53%
Geekbench 5.5 / Multi-Core
Intel Core i9-13900HX
Lenovo Legion Pro 7 16IRX8H
21058 Points +6%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 Raptor Lake
20784 Points +5%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
20634 Points +4%
Intel Core i9-13980HX
MSI Titan GT77 HX 13VI
20329 Points +2%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
19954 Points 0%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
19875 Points
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
19583 Points -1%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
18372 Points -8%
Intel Core i9-13950HX
Razer Blade 16 Early 2023
18152 Points -9%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
16250 Points -18%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
15348 Points -23%
AMD Ryzen 9 6900HX
Asus ROG Zephyrus Duo 16 GX650RX
10167 Points -49%
CPU Performance Rating: Percent
Cinebench R23: Multi Core
Cinebench R20: CPU (Multi Core)
Cinebench R15: CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4
Geekbench 5.5: Multi-Core

* ... smaller is better

When taking a look at its efficiency, you again have to remember that the dedicated GPU was active. Due to its higher total consumption, the influence is smaller here compared to during the single-core tests. The new Ryzen 9 7945HX3D came ahead of both of the regular 7945HX CPUs in turbo mode, which is the sole result of the lower power limits. If they both had identical power limits (e.g. 100 watts), then both models' efficiencies would be comparable. Here, you can also see AMD's advantage over Intel, whose CPUs simply require more energy in order to offer similar performance levels. Apple, with its M2 Max processor, came ever so slightly ahead - but in total, it offers notably lower maximum performance.

Power Consumption / Cinebench R23 Multi Power Efficiency - external Monitor
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
233 Points per Watt +13%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
207 Points per Watt
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
194.4 Points per Watt -6%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI
191.1 Points per Watt -8%
Intel Core i9-13950HX
Razer Blade 16 Early 2023 RTX 4090
144.1 Points per Watt -30%
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
135.3 Points per Watt -35%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
122.6 Points per Watt -41%
Power Consumption / Cinebench R23 Multi (external Monitor)
Intel Core i9-13950HX
MSI Titan GT77 HX 13VI
246 (227min, 227P1 - 264max) Watt * -55%
Intel Core i9-13950HX
Razer Blade 16 Early 2023 RTX 4090
197.3 (191.9min, 192.7P1 - 200max) Watt * -24%
Intel Core i9-12900HX
MSI Titan GT77 12UHS
187.5 (166.8min, 167.1P1 - 230max) Watt * -18%
Intel Core i9-13900HX
SCHENKER XMG Neo 16 E23
182.4 (172.3min, 172.3P1 - 207max) Watt * -15%
AMD Ryzen 9 7945HX
Asus ROG Strix G17 G713PI (Turbo Mode)
179 (171.5min, 171.8P1 - 181.3max) Watt * -13%
AMD Ryzen 9 7945HX
Asus Zephyrus Duo 16 GX650PY-NM006W
177.6 (166.7min, 166.8P1 - 187.3max) Watt * -12%
AMD Ryzen 9 7945HX3D
Asus ROG Strix Scar 17 G733PYV-LL053X
158.5 (149.9min, 150.4P1 - 171.1max) Watt *
Intel Core i7-13700HX
Aorus 15X ASF
148.3 (116.3min, 116.3P1 - 185.2max) Watt * +6%
Apple M2 Max
Apple MacBook Pro 16 2023 M2 Max
63.5 (61.8min, 62.1P1 - 67.8max) Watt * +60%

* ... smaller is better

Performance with lower power limits

We were able to set new fixed power limits for the processor via the manual mode found in the test device's Armoury Crate software - unfortunately, we were more limited on the 7945HX3D. Due to its weaker cooling, the processor couldn't even complete the short Cinebench R23 run with a fixed limit of 115 watts - plus, this time, the app only allowed a minimum value of 65 watts. Both results at 100 watts and 80 watts were about on the same level as the regular Ryzen 9 7945HX. Here, you can also say that the Ryzen 9 7945HX3D offers better performance at 80 watts than the Intel Core i9-13980HX can at 150 watts.

Cinebench R23 Multi
Power Limit Core i9-13900HX Core i9-13950HX Core i9-13980HX Ryzen 9 7945HX Ryzen 9 7945HX3D
170 watts 31,958 31,903
150 watts 30,655 30,623
130 watts 28,239 29,141 29,281 34,202
115 watts 27,369 28,199 28,073 33,361
100 watts 25,942 26,653 26,507 32,947 32,977
80 watts 23,216 23,950 23,766 30,907 30,804
55 watts 18,843 19,772 19,478 26,045

Gaming performance 1080p

Now coming to the gaming benchmarks, where we have first taken a look at Full HD resolution. Here, the new Ryzen 9 7945HX3D was really able to show its advantages in quite a few games - we even noted it leading by two-figure percentage points at times. In Far Cry 5, we noted a whopping 36 % improvement compared to the regular Ryzen 9 7945HX as well as Intel's HX CPUs. In some games, we didn't measure any improvement, such as in The Witcher 3 and Call of Duty Modern Warfare 2.

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
213.9 (205min) fps +3%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
207 fps
SCHENKER Key 17 Pro (Early 23)
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
206 (176min) fps 0%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
203.8 (186min) fps -2%
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
200 (174min) fps -3%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
198.9 (190min, 191P1) fps -4%
Average of class Gaming
  (18.4 - 216, n=163, last 2 years)
128.3 fps -38%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
119.8 (114min) fps -42%
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
167.7 (1.87min, 111.1P1) fps
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
149 (3.13min, 111.1P1) fps -11%
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
143.6 (4.39min, 100P1) fps -14%
SCHENKER Key 17 Pro (Early 23)
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
142.3 (4.44min, 100P1) fps -15%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
141.3 (4.69min, 100P1) fps -16%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
140.9 (3.54min, 83.3P1) fps -16%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
119.9 (3.81min, 76.9P1) fps -29%
Average of class Gaming
  (12.1 - 167.7, n=168, last 2 years)
113.7 fps -32%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
112.6 (4.54min, 71.4P1) fps -33%
Final Fantasy XV Benchmark - 1920x1080 High Quality
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
194.8 fps +8%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
187.4 fps +4%
SCHENKER Key 17 Pro (Early 23)
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
183.1 fps +2%
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
181.2 fps +1%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
180 fps
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
177.6 fps -1%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
163.9 fps -9%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
119.9 fps -33%
Average of class Gaming
  (19.2 - 201, n=180, last 2 years)
119.9 fps -33%
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
420 (64.7min, 302P1) fps
SCHENKER Key 17 Pro (Early 23)
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
378 (20.6min, 257P1) fps -10%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
373 (29.9min, 272P1) fps -11%
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
373 (73.3min, 273P1) fps -11%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
366 (29.1min, 263P1) fps -13%
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
347 (87.7min, 252P1) fps -17%
Average of class Gaming
  (38.9 - 421, n=178, last 2 years)
229 fps -45%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
223 (89min, 167.8P1) fps -47%
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
220 (175min) fps
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
194.2 (157.6min) fps -12%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
190.2 (160.9min) fps -14%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
185.9 (157.5min) fps -15%
SCHENKER Key 17 Pro (Early 23)
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
182.5 (149.3min) fps -17%
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
182.1 (154.2min) fps -17%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
182 (152.8min) fps -17%
Average of class Gaming
  (33.2 - 220, n=186, last 2 years)
150.5 fps -32%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
139 (118.5min) fps -37%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
166.2 fps
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
143.5 fps -14%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
142.8 fps -14%
SCHENKER Key 17 Pro (Early 23)
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
136.6 fps -18%
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
136.4 fps -18%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
134.2 fps -19%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
134.1 fps -19%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
117.8 fps -29%
Average of class Gaming
  (31.5 - 166.2, n=192, last 2 years)
108.1 fps -35%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
94.3 fps -43%
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
271 fps
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
228 fps -16%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
214 fps -21%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
168 fps -38%
Average of class Gaming
  (27 - 271, n=29, last 2 years)
165.6 fps -39%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
143.7 fps -47%
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
144.7 (124min, 94P1) fps +6%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
138.2 (118min, 84P1) fps +2%
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
135.9 (118min, 98P1) fps
Lenovo Legion Pro 7 RTX4090
Intel Core i9-13900HX, NVIDIA GeForce RTX 4090 Laptop GPU
129.2 (105min, 83P1) fps -5%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
124.5 (107min, 87P1) fps -8%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
116.3 (86min, 73P1) fps -14%
Average of class Gaming
  (13 - 144.7, n=96, last 2 years)
84.9 fps -38%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
84.1 (71min, 59P1) fps -38%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
218 fps
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
160 fps -27%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
158 (117min) fps -28%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
145 (106min) fps -33%
Average of class Gaming
  (34 - 218, n=101, last 2 years)
131 fps -40%
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures AA:T
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
167 fps
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
144 fps -14%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
112 (91min) fps -33%
Average of class Gaming
  (35 - 167, n=27, last 2 years)
111.4 fps -33%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
110 (74min) fps -34%
Call of Duty Modern Warfare 2 2022 - 1920x1080 Extreme Quality Preset AA:T2X Filmic SM
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
182 fps
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
180 (103min) fps -1%
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
176 fps -3%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
170 (98P1) fps -7%
Average of class Gaming
  (15 - 182, n=35, last 2 years)
116.9 fps -36%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
108 (61min) fps -41%
Cyberpunk 2077 1.6 - 1920x1080 Ultra Preset
Asus ROG Strix Scar 17 G733PYV-LL053X
AMD Ryzen 9 7945HX3D, NVIDIA GeForce RTX 4090 Laptop GPU
157 fps
MSI Titan GT77 HX 13VI
Intel Core i9-13950HX, NVIDIA GeForce RTX 4090 Laptop GPU
135 fps -14%
Asus ROG Strix Scar 17 G733PY-XS96
AMD Ryzen 9 7945HX, NVIDIA GeForce RTX 4090 Laptop GPU
133.8 (57.7min) fps -15%
Alienware m18 R1
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
127.92 (32.4min) fps -19%
Asus ROG Strix Scar 18 2023 G834JY-N6005W
Intel Core i9-13980HX, NVIDIA GeForce RTX 4090 Laptop GPU
119.7 (69min) fps -24%
Lenovo Legion Pro 5 16ARX8
AMD Ryzen 7 7745HX, NVIDIA GeForce RTX 4070 Laptop GPU
98.9 (35.5min) fps -37%
Average of class Gaming
  (16.7 - 159.7, n=69, last 2 years)
93 fps -41%

Gaming performance QHD

In QHD resolution, the new processor also showed some advantages, although these were not as big as in 1080p. In general, the Ryzen 9 7945HX3D still offers better performance than its competitors - again by up to two-figure percentages at times.

Shadow of the Tomb Raider - 2560x1440 Highest Preset AA:T
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
199 fps
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
190 fps -5%
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
187 fps -6%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
185 fps -7%
Far Cry 5 - 2560x1440 Ultra Preset AA:T
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
194 fps
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
159 fps -18%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
142 (104min - 189max) fps -27%
Far Cry 6 - 2560x1440 Ultra Graphics Quality + HD Textures AA:T
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
146 fps
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
135 fps -8%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
109 (88min - 120max) fps -25%
Final Fantasy XV Benchmark - 2560x1440 High Quality
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
162.9 fps +8%
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
159.5 fps +5%
SCHENKER Key 17 Pro (Early 23)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung 990 Pro 2 TB MZVL72T0HDLB
156.4 fps +3%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
154 fps +2%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
151.2 fps
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
151 fps 0%
GTA V - 2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
160.6 (2.82min, 111.1P1 - 363max) fps
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
145.5 (2.46min, 111.1P1 - 281max) fps -9%
SCHENKER Key 17 Pro (Early 23)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung 990 Pro 2 TB MZVL72T0HDLB
141.5 (28.6min, 100P1 - 268max) fps -12%
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
138.5 (3.45min, 76.9P1 - 256max) fps -14%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
137.7 (3.84min, 90.9P1 - 304max) fps -14%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
114.8 (5.12min, 71.4P1 - 204max) fps -29%
F1 22 - 2560x1440 Ultra High Preset AA:T AF:16x
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
92.2 (79min, 74P1 - 106max) fps 0%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
92.1 (75min, 60P1 - 107max) fps 0%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
91.8 (78min, 76P1 - 105max) fps
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
90.1 (78min, 71P1 - 104max) fps -2%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
85.2 (72min, 40P1 - 96max) fps -7%
Call of Duty Modern Warfare 2 2022 - 2560x1440 Extreme Quality Preset AA:T2X Filmic SM
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
136 fps
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
135 fps -1%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
135 (69min) fps -1%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
132 (67min) fps -3%
Cyberpunk 2077 1.6 - 2560x1440 Ultra Preset
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
116 fps
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
104.3 (34.5min - 159.2max) fps -10%
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
102.16 (48.9min - 193.9max) fps -12%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
100.93 (30.73min - 162.33max) fps -13%
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
98 fps -16%

Gaming performance 4K

In 4K resolution, the new Ryzen 9 7945HX3D doesn't offer any advantage compared to the regular Ryzen 9 7945HX or Intel's mobile HX processors, although all of the models performed on a very similar level.

Shadow of the Tomb Raider - 3840x2160 Highest Preset AA:T
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
120 fps +15%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
104 fps 0%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
104 fps
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
103 fps -1%
Far Cry 5 - 3840x2160 Ultra Preset AA:T
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
113 fps +3%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
110 fps
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
108 (97min - 124max) fps -2%
Far Cry 6 - 3840x2160 Ultra Graphics Quality + HD Textures AA:T
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
89 fps +1%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
88 fps
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
82 (73min - 89max) fps -7%
Final Fantasy XV Benchmark - 3840x2160 High Quality
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
94.7 fps +11%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
93.3 fps +10%
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
92.6 fps +9%
SCHENKER Key 17 Pro (Early 23)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung 990 Pro 2 TB MZVL72T0HDLB
91.9 fps +8%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
91.7 fps +8%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
85 fps
GTA V - 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
182.7 (1.878min, 125P1 - 564max) fps
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
176.4 (1.959min, 111.1P1 - 452max) fps -3%
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
175.7 (2.91min, 111.1P1 - 424max) fps -4%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
173.6 (2.41min, 111.1P1 - 427max) fps -5%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
170.5 (3.62min, 111.1P1 - 289max) fps -7%
SCHENKER Key 17 Pro (Early 23)
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung 990 Pro 2 TB MZVL72T0HDLB
167.9 (3.06min, 111.1P1 - 495max) fps -8%
F1 22 - 3840x2160 Ultra High Preset AA:T AF:16x
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
45.9 (39min, 37P1 - 53max) fps +2%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
45.8 (39min, 38P1 - 52max) fps +2%
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
45.5 (38min, 37P1 - 52max) fps +1%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
45 (38min, 38P1 - 51max) fps
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
44.9 (38min, 37P1 - 52max) fps 0%
Call of Duty Modern Warfare 2 2022 - 3840x2160 Extreme Quality Preset AA:T2X Filmic SM
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
85 fps +2%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
83 fps
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
82 (39min) fps -1%
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
82 (38min) fps -1%
Cyberpunk 2077 1.6 - 3840x2160 Ultra Preset
MSI Titan GT77 HX 13VI
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13950HX, Samsung PM9A1 MZVL22T0HBLB
56 fps +10%
Asus ROG Strix Scar 17 G733PYV-LL053X
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX3D, SK hynix PC801 HFS001TEJ9X101N
51 fps
Lenovo Legion Pro 7 RTX4090
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX, Samsung PM9A1 MZVL21T0HCLR
50.05 (28.38min - 104.95max) fps -2%
Alienware m18 R1
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13980HX, SK hynix PC801 HFS001TEJ9X101N
49.99 (36.8min - 91.2max) fps -2%
Asus ROG Strix Scar 17 G733PY-XS96
NVIDIA GeForce RTX 4090 Laptop GPU, R9 7945HX, SK hynix PC801 HFS001TEJ9X101N
48.6 (32.3min - 68.3max) fps -5%

Verdict - The Ryzen 9 7945HX3D is the fastest gaming processor

The AMD Ryzen 9 7945HX3D in the new Asus ROG Strix SCAR 17 X3D
The AMD Ryzen 9 7945HX3D in the new Asus ROG Strix SCAR 17 X3D

After running our tests, it is clear that AMD's new Ryzen 9 7945HX3D is the fastest gaming processor. Its additional 3D V-Cache makes itself especially known in Full HD resolution and offers a considerable advantage (at times two-figure percentages) in many games compared to the regular Ryzen 9 7945HX and Intel's mobile HX processors. This is quite the performance, but you do have to question whether users of a high-end gaming laptop will really play games in 1080p resolution. For example, the test device Asus ROG Strix SCAR 17 features a QHD panel and although we did still note a benefit in quite a few games, the difference compared to other processors becomes smaller. Gaming in 4K at the latest is unable to offer any improvement.

The new AMD Ryzen 9 7945HX3D is the fastest mobile gaming CPU on the market which additionally offers 3D V-Cache and an has especially large advantage over its competitors when it comes to gaming in 1080p resolution. Its advantage already becomes more limited in QHD resolution.

All-in-all, its pure CPU performance is identical to the regular Ryzen 9 7945HX and especially its multi-core efficiency in comparison to Intel's HX processors is phenomenal. Even with a fixed 80-watt power limit, the Ryzen is still faster than Intel's Core i9-13980HX at 150 watts. The same can be said for the regular Ryzen 9 7945HX without 3D V-Cache. The new processor does come with a disadvantage: Due to the HX3D processor's surface texture, no liquid metal can be used. Its weaker cooling makes this noticeable, as the SCAR 17 with the normal Ryzen 9 7945HX has a bit of an advantage when it comes to maximum CPU performance.

Read all 3 comments / answer
static version load dynamic
Loading comments
Comment on this article
Please share our article, every link counts!
Mail Logo
> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > AMD Ryzen 9 7945HX3D Zen4 analysis - The fastest mobile gaming processor thanks to 3D V-Cache
Redaktion, 2023-08-22 (Update: 2023-08-22)
