Beelink EQ14 mini PC review: Ready-to-go HTPC for under $200

Name: Beelink EQ14
Brand: Beelink

Intel N150 processor debut.

One of the least expensive mini PCs comes with the newest Intel Twin Lake processor. HTPC users on tight budgets will appreciate the quietness and low price, but multitaskers may be disappointed by the slow performance.
Allen Ngo 👁 Published 01/27/2025 🇫🇷 🇪🇸 ...
Mini PC Intel

Verdict — Low Profile At The Cost Of Performance

The Beelink EQ14 represents a lot of value for the price. For $200, the system includes 16 GB of RAM, a 512 GB SSD, and Windows 11 Home preinstalled which together make up more than half the price of the system. The low barrier to entry, integrated PSU and quiet operation are desirable for most HTPC or streaming purposes.

Test device courtesy of Beelink

Download your licensed rating image as PNG / SVG

Unfortunately, the new N150 processor is somewhat disappointing in that it offers very little over the existing N100. The single-channel RAM limitation is a bummer and so is the lack of DisplayPort-over-USB support. Users who want something faster may want to consider the louder and slightly more expensive GMK NucBox M6.

Pros

+ supports up to two M.2 SATA III SSDs

+ good port options for the price

+ very quiet even under load

+ no external AC adapter

+ inexpensive

Cons

- no DisplayPort over USB-C or Power Delivery

- imperfect 4K60 video playback

- underwhelming performance

- single-channel RAM only

- no VESA mounting

Price and Availability

The manufacturer is now shipping the EQ14 directly from its website for $199. Alternatively, the model is currently on sale on Amazon for $189.

$199.00

Beelink Mini PC, EQ14 Intel Twin Lake N150(up to 3.6GHz) 4C/4T, Mini Computer 16GB DDR4 RAM 500GB SSD, Desktop PC Dual Display HDMI*2 4K 60Hz/Dual 1000Mbps/WiFi6/BT5.2/WOL/PXE/Openwrt/Office/W-11 Pro

Potential Competitors in Comparison

Image	Model / Review	Price	Weight	Height	Display
1. 61.3%	Beelink EQ14 Intel Processor N150 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 16 GB Memory	Amazon: $199.00 List Price: 200 USD	432 g	39 mm	x
2. 77.1%	Beelink SER9 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $999.00 List Price: 1000 USD	814 g	44.7 mm	x
3. 67.3%	GMK NucBox K9 Intel Core Ultra 5 125H ⎘ Intel Arc 7-Core iGPU ⎘ 32 GB Memory, 1024 GB SSD	Amazon: $599.96 List Price: 560 USD	528 g	47 mm	x
4. 61.3%	Newsmay AC8F-POE Intel Processor N100 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 8 GB Memory, 128 GB SSD	Amazon: 1. $21.99 PowerHOOD AC/DC Adapter Comp... List Price: 295 EUR	1.2 kg	62 mm	x
5. 73% ^{v7 (old)}	Maxtang MTN-ALN50 Intel Core i3-N305 ⎘ Intel UHD Graphics 32EUs (Alder Lake) ⎘ 16 GB Memory, 512 GB SSD	List Price: 348 USD	685 g	52.5 mm	x
6. 73.2% ^{v7 (old)}	Asus ExpertCenter PN42-BBN200MV Intel Processor N200 ⎘ Intel UHD Graphics Xe 750 32EUs (Rocket Lake) ⎘ 16 GB Memory, 2048 GB SSD	List Price: 299 EUR	828 g	57.6 mm	x
7. 73.1% ^{v7 (old)}	Beelink Mini S12 Pro Intel Processor N100 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 16 GB Memory	Amazon: 1. $159.00 Beelink Mini S12 Pro Mini PC... 2. $169.00 Beelink Mini PC, Mini S12 Pr... 3. $157.99 Beelink Mini S12 Pro Mini PC... List Price: 200 USD	335 g	39.1 mm	x

Verdict — Low Profile At The Cost Of Performance
Specifications
Case
Connectivity
Performance

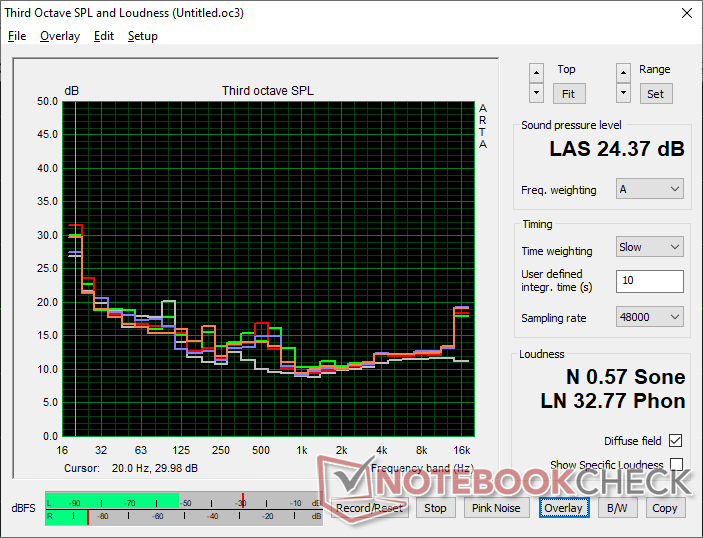

Emissions
Energy Management
Notebookcheck Rating

The Beelink EQ14 is one of the least expensive mini PCs in the company's lineup coming in at just under $200. It also happens to be one of the very few devices to carry the new Intel N150 Twin Lake CPU.

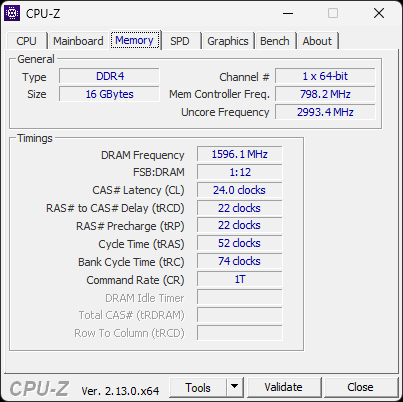

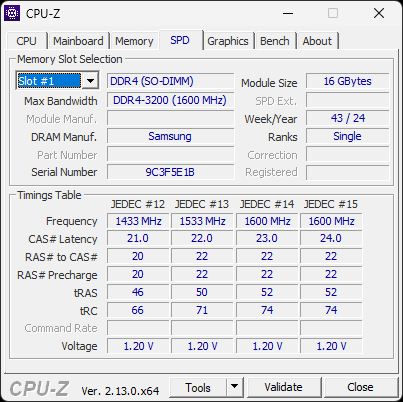

Our test unit has been configured with 16 GB of single-channel RAM and a 512 GB M.2 SATA III SSD. There are unfortunately no barebones options at the time of writing.

More Beelink reviews:

Specifications

Beelink EQ14

Processor

Intel Processor N150 4 x - 3.6 GHz, 25 W PL2 / Short Burst, 20 W PL1 / Sustained, Twin Lake

Graphics adapter

Intel UHD Graphics 24EUs (Alder Lake-N), Core: 750 MHz, DDR4, 32.0.101.5972

Memory

16 GB

, DDR4-3200, 24-22-22-52, Single-Channel

Mainboard

Intel Alder Lake-N PCH

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

1 USB 3.0 / 3.1 Gen1, 3 USB 3.1 Gen2, Audio Connections: 3.5 mm combo

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wi-Fi 6 AX101 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 39 x 126 x 126 ( = 1.54 x 4.96 x 4.96 in)

Operating System

Microsoft Windows 11 Home

Additional features

HDMI cable, 12 Months Warranty

Weight

432 g ( = 15.24 oz / 0.95 pounds) ( = 0 oz / 0 pounds)

Price

200 USD

Amazon

$199.00

Links

Beelink homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Case

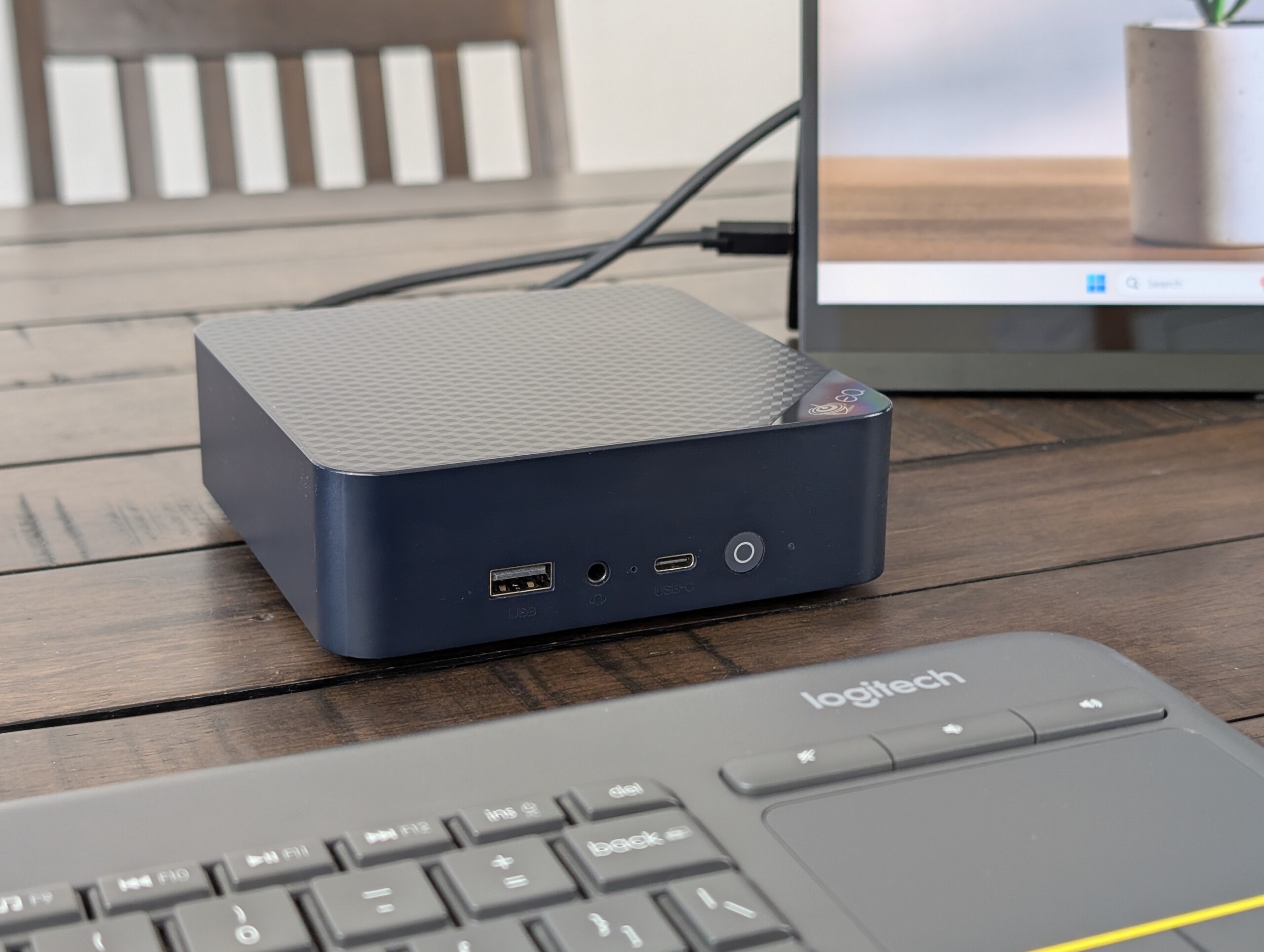

The chassis is mostly plastic as to be expected for the price point. However, the lightweight and understated look becomes more impressive when you consider that the system requires no external power brick unlike the vast majority of mini PCs in the market. A universal AC power cable is all that is required.

Size Comparison

Newsmay AC8F-POE Asus ExpertCenter PN42-BBN200MV Beelink SER9 Maxtang MTN-ALN50 GMK NucBox K9 Beelink EQ14 Beelink Mini S12 Pro DIN A5 ❌

Connectivity

A wide array of ports are available despite the very low starting price. The single USB-C port does not support DisplayPort nor Power Delivery.

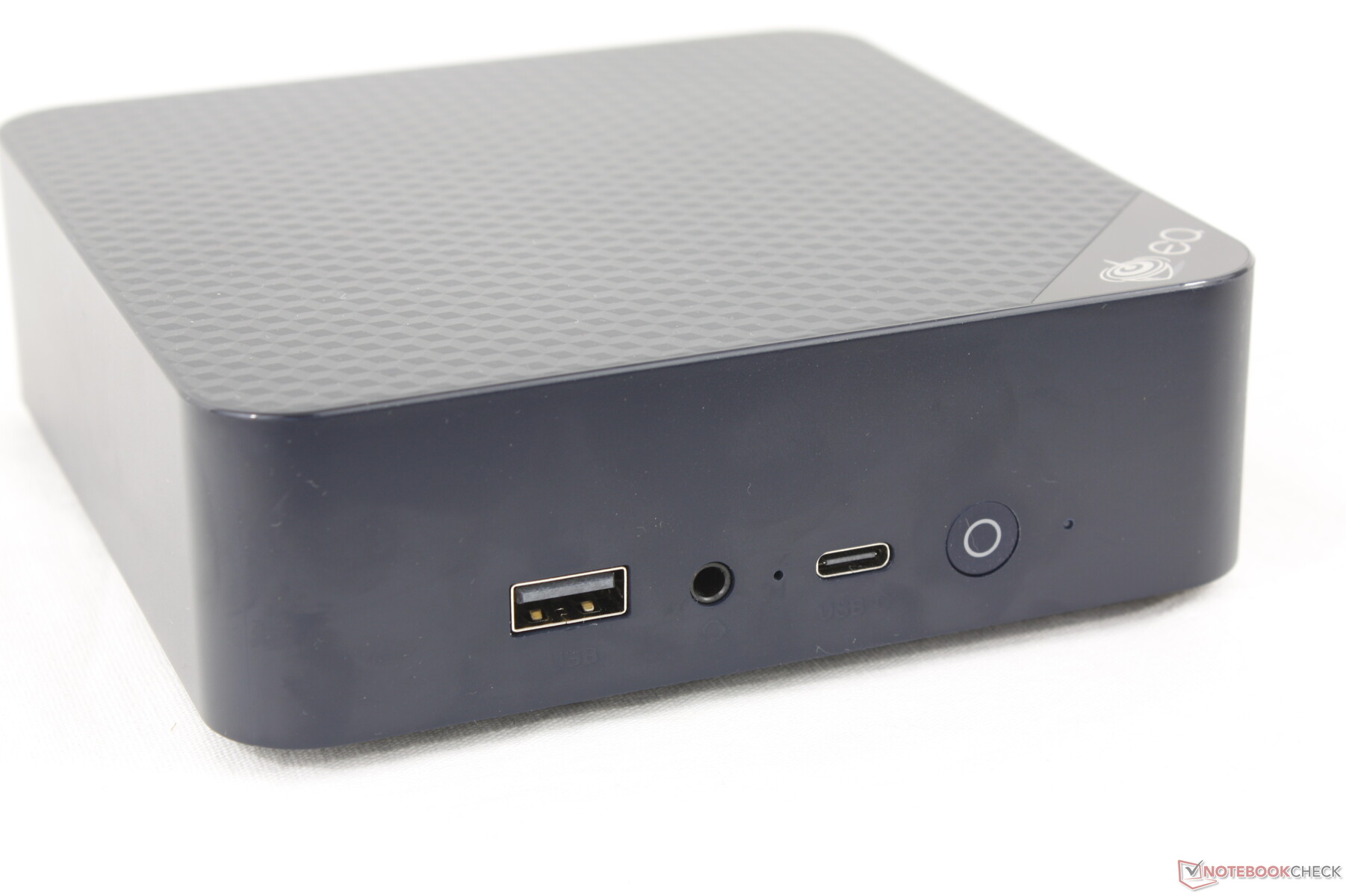

Front: USB-A 3.2 Gen. 2 (10 Gbps), 3.5 mm headset, Reset button, USB-C (10 Gbps), Power button

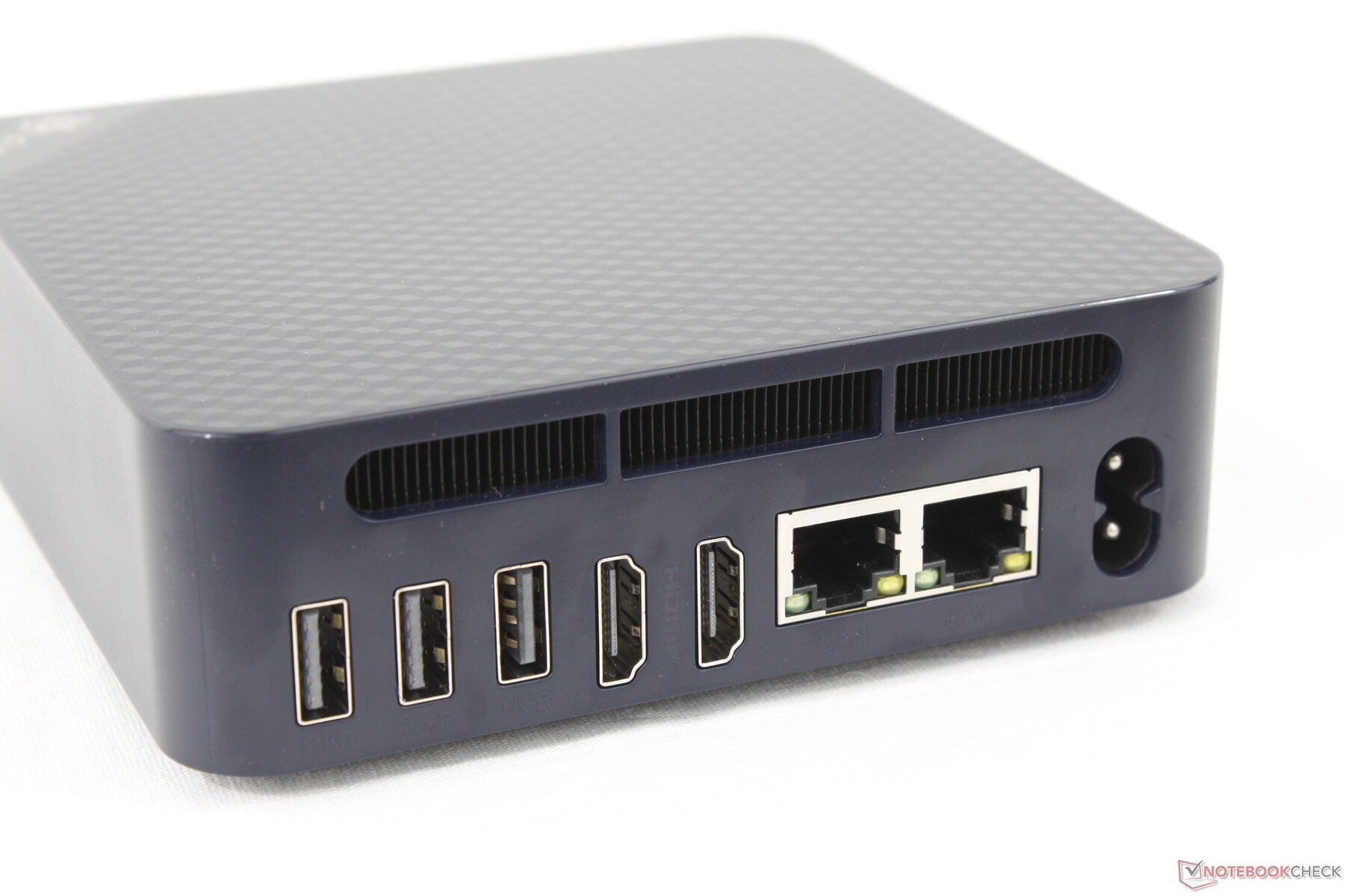

Rear: 2x USB-A 3.2 Gen. 2 (10 Gbps), USB-A 2.0 (480 Mbps), 2x HDMI (4K60), 2x RJ-45 (1 Gbps), Standard AC power

Communication

Wireless transfer rates are slow as the system ships with a 1x1 WLAN module instead of the usual 2x2.

Networking
iperf3 transmit AXE11000
Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201	1527 (1473^min - 1571^max) MBit/s +253%
GMK NucBox K9 Intel Wi-Fi 6 AX201	823 (607^min - 901^max) MBit/s +91%
Beelink SER9 Intel Wi-Fi 6 AX200	609 (334^min - 677^max) MBit/s +41%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	438 (376^min - 489^max) MBit/s +1%
Beelink EQ14 Intel Wi-Fi 6 AX101	432 (380^min - 463^max) MBit/s
iperf3 receive AXE11000
Asus ExpertCenter PN42-BBN200MV Intel Wi-Fi 6 AX201	1684 (1645^min - 1707^max) MBit/s +266%
Beelink SER9 Intel Wi-Fi 6 AX200	814 (717^min - 861^max) MBit/s +77%
GMK NucBox K9 Intel Wi-Fi 6 AX201	764 (635^min - 829^max) MBit/s +66%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	470 (445^min - 491^max) MBit/s +2%
Beelink EQ14 Intel Wi-Fi 6 AX101	460 (398^min - 486^max) MBit/s

Beelink EQ14; iperf3 transmit AXE11000; iperf 3.1.3: Ø432 (380-463)

Beelink EQ14; iperf3 receive AXE11000; iperf 3.1.3: Ø460 (398-486)

Maintenance

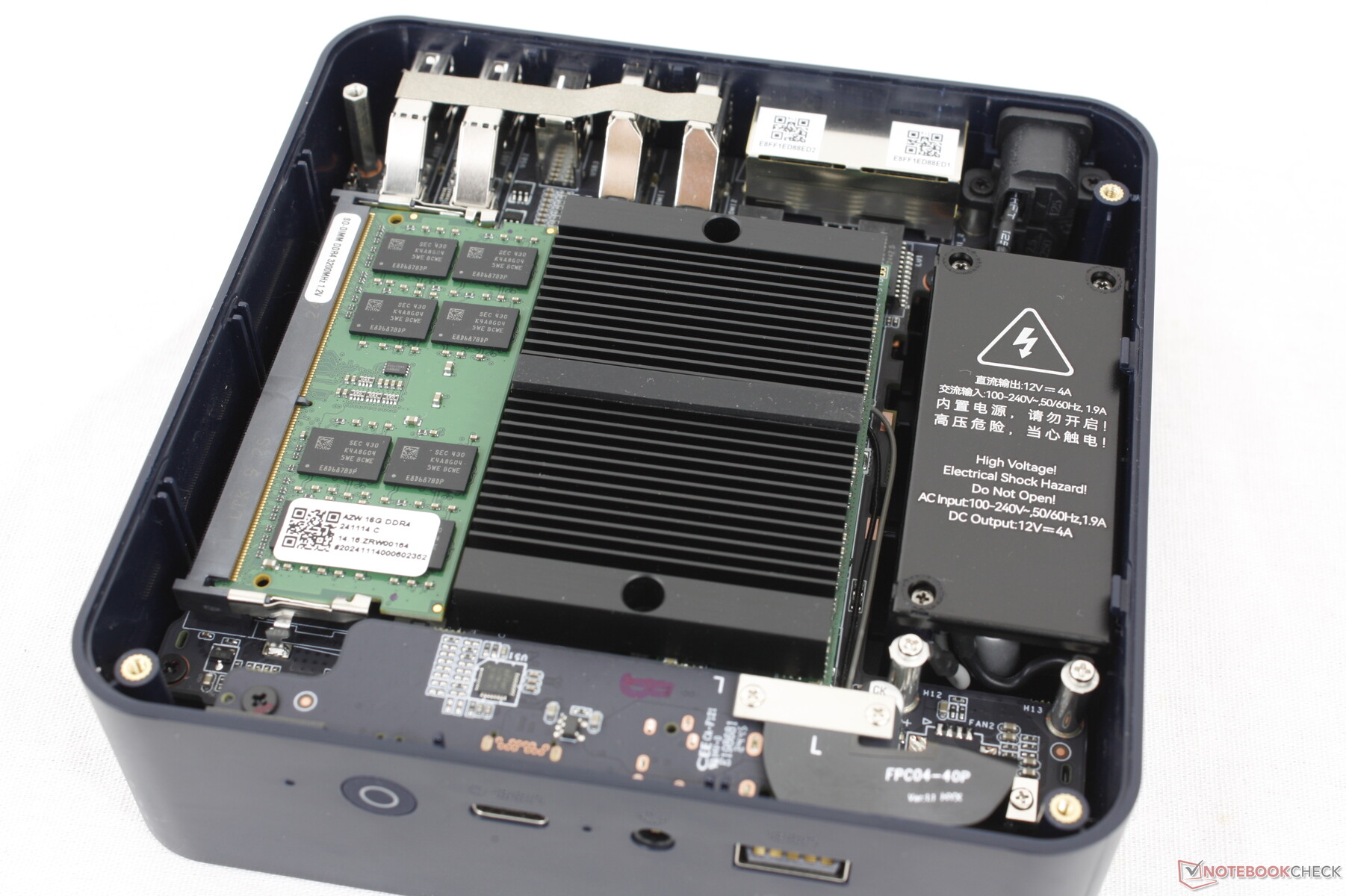

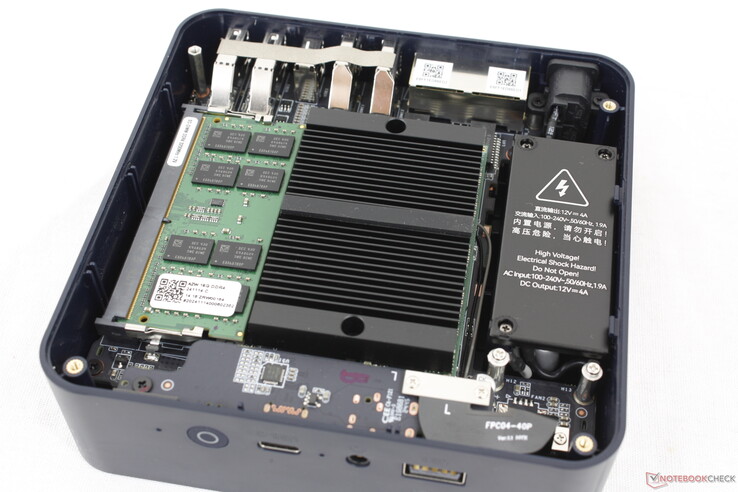

The bottom panel requires a Phillips screwdriver to remove. Users have direct access to both M.2 2280 SSD slots and the single DDR5 SODIMM slot. Only one RAM module can be installed meaning there is no dual-channel memory support.

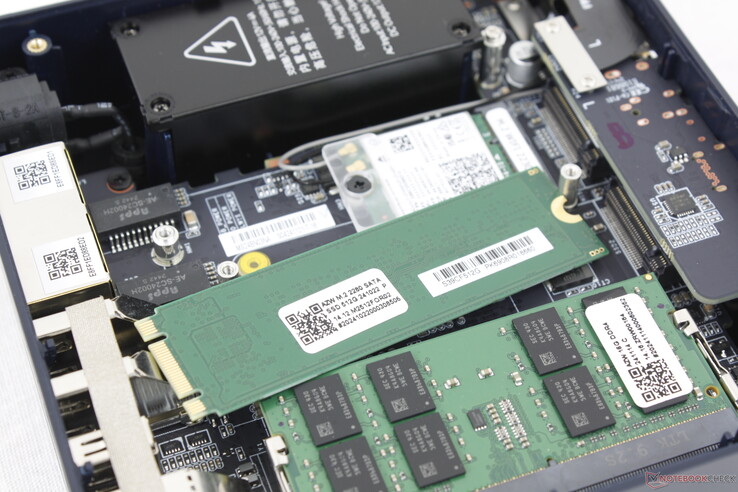

SSD slots come with their own heat sink which is surprising for the price

Sustainability

The manufacturer advertises no sustainability measures taken during manufacturing. Meanwhile, the packaging is mostly paper and cardboard with some protective plastic wrapping.

Accessories And Warranty

The retail box includes an HDMI cable in addition to a power cable and user's manual. There is no special power brick as mentioned above.

The usual one-year limited manufacturer warranty applies if purchased in the US.

Performance

Testing Conditions

We set Windows to Performance mode prior to running the benchmarks below.

Processor

Multi-thread performance with our N150 is within single-digit percentage points of the N100 in the Beelink Mini S12 Pro to show no major year-over-year gains. However, underperforming mini PCs with the N100 or N200 like the Newsmay AC8F-POE or Asus ExpertCenter PN42 may see multi-thread performance increases of up to 40 percent or 100 percent. Even so, overall performance is still very slow meaning that the large percentage gains will be barely noticeable in day-to-day workloads.

Cinebench R15 Multi Loop

Beelink EQ14 Intel Processor N150: Ø437 (433.6-454.68)

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

Newsmay AC8F-POE Intel Processor N100: Ø295 (290.65-304.47)

Maxtang MTN-ALN50 Intel Core i3-N305: Ø796 (767.84-856.33)

Asus ExpertCenter PN42-BBN200MV Intel Processor N200: Ø210 (198.23-215.98)

Beelink Mini S12 Pro Intel Processor N100: Ø461 (458.73-467.21)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	92.9 pt
GMK NucBox K3 Pro Intel Core i7-12650H	84.9 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	84.7 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H	84.2 pt
MSI Cubi NUC 1M Intel Core 7 150U	76.8 pt
GMK NucBox M5 AMD Ryzen 7 5700U	61.1 pt
Acemagic S1 Intel Processor N97	41.4 pt
Beelink Mini S12 Pro Intel Processor N100	40.7 pt
Beelink EQ14 Intel Processor N150	39.7 pt
Average Intel Processor N150	38.9 pt
Acemagic S1 Intel Processor N95	38.8 pt
Newsmay AC8F-POE Intel Processor N100	33.5 pt
Beelink U59 N5105 ^-2! Intel Celeron N5105	28.5 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	25.8 pt
GMK NucBox 3 ^-2! Intel Celeron J4125	13.3 pt

Cinebench R23 / Multi Core
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points +429%
Asus NUC 14 Pro Intel Core Ultra 5 125H	14516 Points +427%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points +321%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points +288%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points +162%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points +142%
Beelink Mini S12 Pro Intel Processor N100	2916 (2877.53^min - 2916.35^max) Points +6%
Acemagic S1 Intel Processor N97	2913 Points +6%
Acemagic S1 Intel Processor N95	2769 Points +1%
Beelink EQ14 Intel Processor N150	2753 (2705.91^min - 2753.1^max) Points
Average Intel Processor N150 (2428 - 2753, n=2)	2591 Points -6%
Beelink U59 N5105 Intel Celeron N5105	2175 (2157.23^min - 2174.57^max) Points -21%
Newsmay AC8F-POE Intel Processor N100	1946 Points -29%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1406 Points -49%
GMK NucBox 3 Intel Celeron J4125	1186 (1172.17^min - 1186.25^max) Points -57%

Cinebench R23 / Single Core
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points +99%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +90%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points +89%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1721 Points +83%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points +59%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points +34%
Acemagic S1 Intel Processor N97	973 Points +3%
Average Intel Processor N150 (943 - 949, n=2)	946 Points 0%
Beelink EQ14 Intel Processor N150	943 Points
Acemagic S1 Intel Processor N95	933 Points -1%
Beelink Mini S12 Pro Intel Processor N100	931 Points -1%
Newsmay AC8F-POE Intel Processor N100	843 Points -11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	690 Points -27%
Beelink U59 N5105 Intel Celeron N5105	618 Points -34%
GMK NucBox 3 Intel Celeron J4125	438 Points -54%

Cinebench R20 / CPU (Multi Core)
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points +436%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5617 Points +434%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points +331%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points +286%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points +168%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points +145%
Beelink Mini S12 Pro Intel Processor N100	1115 Points +6%
Acemagic S1 Intel Processor N97	1115 Points +6%
Beelink EQ14 Intel Processor N150	1051 Points
Acemagic S1 Intel Processor N95	1050 Points 0%
Average Intel Processor N150 (933 - 1051, n=2)	992 Points -6%
Beelink U59 N5105 Intel Celeron N5105	826 Points -21%
Newsmay AC8F-POE Intel Processor N100	748 Points -29%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	542 Points -48%
GMK NucBox 3 Intel Celeron J4125	430 Points -59%

Cinebench R20 / CPU (Single Core)
MSI Cubi NUC 1M Intel Core 7 150U	718 Points +100%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +92%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points +91%
Asus NUC 14 Pro Intel Core Ultra 5 125H	622 Points +73%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points +65%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points +38%
Acemagic S1 Intel Processor N97	371 Points +3%
Average Intel Processor N150 (359 - 362, n=2)	361 Points +1%
Beelink EQ14 Intel Processor N150	359 Points
Beelink Mini S12 Pro Intel Processor N100	357 Points -1%
Acemagic S1 Intel Processor N95	357 Points -1%
Newsmay AC8F-POE Intel Processor N100	326 Points -9%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	265 Points -26%
Beelink U59 N5105 Intel Celeron N5105	235 Points -35%
GMK NucBox 3 Intel Celeron J4125	170 Points -53%

Cinebench R15 / CPU Multi 64Bit
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points +429%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2141 Points +371%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points +333%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points +272%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points +148%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points +129%
Acemagic S1 Intel Processor N97	479 Points +5%
Beelink Mini S12 Pro Intel Processor N100	467 (458.73^min - 467.21^max) Points +3%
Beelink EQ14 Intel Processor N150	455 (433.6^min - 454.68^max) Points
Acemagic S1 Intel Processor N95	446 Points -2%
Average Intel Processor N150 (402 - 455, n=2)	429 Points -6%
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points -19%
Newsmay AC8F-POE Intel Processor N100	298 Points -35%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	219 Points -52%
GMK NucBox 3 Intel Celeron J4125	207 (171.15^min - 207.16^max) Points -55%

Cinebench R15 / CPU Single 64Bit
MSI Cubi NUC 1M Intel Core 7 150U	258 Points +65%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +64%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points +64%
Asus NUC 14 Pro Intel Core Ultra 5 125H	248 Points +59%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points +56%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points +20%
Acemagic S1 Intel Processor N97	161 Points +3%
Beelink EQ14 Intel Processor N150	156.4 Points
Average Intel Processor N150 (154.3 - 156.4, n=2)	155.4 Points -1%
Acemagic S1 Intel Processor N95	154 Points -2%
Beelink Mini S12 Pro Intel Processor N100	153.9 Points -2%
Newsmay AC8F-POE Intel Processor N100	138 Points -12%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	113 Points -28%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points -31%
GMK NucBox 3 Intel Celeron J4125	63.1 Points -60%

Blender / v2.79 BMW27 CPU
GMK NucBox 3 Intel Celeron J4125	3032 Seconds * -177%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	2150 Seconds * -97%
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds * -44%
Newsmay AC8F-POE Intel Processor N100	1522 Seconds * -39%
Average Intel Processor N150 (1094 - 1233, n=2)	1164 Seconds * -6%
Acemagic S1 Intel Processor N95	1113 Seconds * -2%
Beelink EQ14 Intel Processor N150	1094 Seconds *
Beelink Mini S12 Pro Intel Processor N100	1048 Seconds * +4%
Acemagic S1 Intel Processor N97	1020 Seconds * +7%
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * +59%
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds * +61%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * +70%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds * +76%
Asus NUC 14 Pro Intel Core Ultra 5 125H	228 Seconds * +79%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * +80%

7-Zip 18.03 / 7z b 4
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS +369%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS +351%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS +249%
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS +177%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS +155%
Beelink Mini S12 Pro Intel Processor N100	13291 MIPS +8%
Acemagic S1 Intel Processor N97	13174 MIPS +7%
Beelink EQ14 Intel Processor N150	12321 MIPS
Acemagic S1 Intel Processor N95	12190 MIPS -1%
Average Intel Processor N150 (11171 - 12321, n=2)	11746 MIPS -5%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS -9%
Newsmay AC8F-POE Intel Processor N100	8725 MIPS -29%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	7146 MIPS -42%
GMK NucBox 3 Intel Celeron J4125	5694 MIPS -54%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0 MIPS -100%

7-Zip 18.03 / 7z b 4 -mmt1
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS +51%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS +51%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS +48%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +48%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5136 MIPS +31%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS +18%
Acemagic S1 Intel Processor N97	4019 MIPS +3%
Beelink Mini S12 Pro Intel Processor N100	3958 MIPS +1%
Beelink EQ14 Intel Processor N150	3906 MIPS
Average Intel Processor N150 (3859 - 3906, n=2)	3883 MIPS -1%
Acemagic S1 Intel Processor N95	3866 MIPS -1%
Newsmay AC8F-POE Intel Processor N100	3583 MIPS -8%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	3230 MIPS -17%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS -20%
GMK NucBox 3 Intel Celeron J4125	2237 MIPS -43%

Geekbench 6.4 / Multi-Core
Asus NUC 14 Pro Intel Core Ultra 5 125H	11749 Points +280%
GMK NucBox K3 Pro Intel Core i7-12650H	11014 Points +256%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10348 Points +235%
GMK NucBox K2 AMD Ryzen 7 7735HS	10241 Points +231%
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points +183%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points +102%
Beelink Mini S12 Pro Intel Processor N100	3236 Points +5%
Acemagic S1 Intel Processor N97	3181 Points +3%
Beelink EQ14 Intel Processor N150	3093 Points
Average Intel Processor N150 (2980 - 3093, n=2)	3037 Points -2%
Acemagic S1 Intel Processor N95	2961 Points -4%
Newsmay AC8F-POE Intel Processor N100	2780 Points -10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1660 Points -46%

Geekbench 6.4 / Single-Core
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points +111%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2483 Points +98%
GMK NucBox K3 Pro Intel Core i7-12650H	2466 Points +96%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2316 Points +85%
GMK NucBox K2 AMD Ryzen 7 7735HS	2098 Points +67%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points +29%
Acemagic S1 Intel Processor N97	1300 Points +4%
Beelink EQ14 Intel Processor N150	1255 Points
Average Intel Processor N150 (1249 - 1255, n=2)	1252 Points 0%
Beelink Mini S12 Pro Intel Processor N100	1245 Points -1%
Acemagic S1 Intel Processor N95	1227 Points -2%
Newsmay AC8F-POE Intel Processor N100	1209 Points -4%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	956 Points -24%

Geekbench 5.5 / Multi-Core
Asus NUC 14 Pro Intel Core Ultra 5 125H	10856 Points +307%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points +287%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +268%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points +254%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points +192%
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points +110%
Beelink Mini S12 Pro Intel Processor N100	2867 Points +7%
Acemagic S1 Intel Processor N97	2757 Points +3%
Beelink EQ14 Intel Processor N150	2667 Points
Average Intel Processor N150 (2579 - 2667, n=2)	2623 Points -2%
Acemagic S1 Intel Processor N95	2566 Points -4%
Newsmay AC8F-POE Intel Processor N100	2332 Points -13%
Beelink U59 N5105 Intel Celeron N5105	2080 Points -22%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1540 Points -42%
GMK NucBox 3 Intel Celeron J4125	1198 Points -55%

Geekbench 5.5 / Single-Core
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points +87%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points +77%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +75%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1685 Points +65%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points +53%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points +18%
Acemagic S1 Intel Processor N97	1060 Points +4%
Beelink EQ14 Intel Processor N150	1020 Points
Beelink Mini S12 Pro Intel Processor N100	1018 Points 0%
Average Intel Processor N150 (991 - 1020, n=2)	1006 Points -1%
Acemagic S1 Intel Processor N95	999 Points -2%
Newsmay AC8F-POE Intel Processor N100	975 Points -4%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	928 Points -9%
Beelink U59 N5105 Intel Celeron N5105	653 Points -36%
GMK NucBox 3 Intel Celeron J4125	462 Points -55%

HWBOT x265 Benchmark v2.2 / 4k Preset
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps +408%
Asus NUC 14 Pro Intel Core Ultra 5 125H	15.7 fps +389%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps +370%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps +283%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps +167%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps +163%
Acemagic S1 Intel Processor N97	3.49 fps +9%
Beelink Mini S12 Pro Intel Processor N100	3.41 fps +6%
Beelink EQ14 Intel Processor N150	3.21 fps
Acemagic S1 Intel Processor N95	3.17 fps -1%
Average Intel Processor N150 (2.81 - 3.21, n=2)	3.01 fps -6%
Newsmay AC8F-POE Intel Processor N100	2.12 fps -34%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps -37%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1.52 fps -53%
GMK NucBox 3 Intel Celeron J4125	1.26 fps -61%

LibreOffice / 20 Documents To PDF
GMK NucBox 3 Intel Celeron J4125	159 s * -101%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	120 s * -51%
Beelink U59 N5105 Intel Celeron N5105	101 s * -27%
Newsmay AC8F-POE Intel Processor N100	100.2 s * -26%
Acemagic S1 Intel Processor N95	89.3 s * -13%
Average Intel Processor N150 (79.3 - 82.1, n=2)	80.7 s * -2%
Beelink EQ14 Intel Processor N150	79.3 s *
Acemagic S1 Intel Processor N97	75.7 s * +5%
Beelink Mini S12 Pro Intel Processor N100	69.6 s * +12%
GMK NucBox M5 AMD Ryzen 7 5700U	58 s * +27%
Asus NUC 14 Pro Intel Core Ultra 5 125H	55.7 s * +30%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * +34%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s * +42%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +50%
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +52%

R Benchmark 2.5 / Overall mean
GMK NucBox 3 Intel Celeron J4125	1.525 sec * -80%
Beelink U59 N5105 Intel Celeron N5105	1.162 sec * -37%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1.149 sec * -36%
Newsmay AC8F-POE Intel Processor N100	0.975 sec * -15%
Average Intel Processor N150 (0.846 - 0.88, n=2)	0.863 sec * -2%
Beelink EQ14 Intel Processor N150	0.846 sec *
Acemagic S1 Intel Processor N95	0.837 sec * +1%
Beelink Mini S12 Pro Intel Processor N100	0.822 sec * +3%
Acemagic S1 Intel Processor N97	0.789 sec * +7%
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec * +31%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0.4982 sec * +41%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec * +42%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +44%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * +47%
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * +48%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

455 Points

Cinebench R15 OpenGL 64Bit

39.2 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

156.4 Points

Cinebench R20 CPU (Single Core)

359 Points

Cinebench R20 CPU (Multi Core)

1051 Points

Cinebench R23 Single Core

943 Points

Cinebench R23 Multi Core

2753 Points

Cinebench 2024 CPU Single Core

61.3 Points

Cinebench 2024 CPU Multi Core

178.9 Points

Help

... in comparison

Performance Rating
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	97.5 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	57.1 pt
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	21.7 pt
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	12.4 pt
Average Intel Processor N150	11.9 pt
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9.4 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9.2 pt
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	5.5 pt

AIDA64 / FP32 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	34743 KRay/s +1500%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s +395%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	4334 KRay/s +100%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	2172 KRay/s
Average Intel Processor N150 (1995 - 2172, n=2)	2084 KRay/s -4%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1449 KRay/s -33%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	1384 KRay/s -36%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -61%

AIDA64 / FPU Julia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	132394 Points +1074%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points +418%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	20768 Points +84%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	11281 Points
Average Intel Processor N150 (9804 - 11281, n=2)	10543 Points -7%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	7395 Points -34%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	7292 Points -35%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4395 Points -61%

AIDA64 / CPU SHA3
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	5656 MB/s +653%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s +289%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	1381 MB/s +84%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	751 MB/s
Average Intel Processor N150 (629 - 751, n=2)	690 MB/s -8%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	476 MB/s -37%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	466 MB/s -38%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	307 MB/s -59%

AIDA64 / CPU Queen
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	99023 Points +343%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points +253%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	40581 Points +82%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	23345 Points +5%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22407 Points 0%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22334 Points
Average Intel Processor N150 (22243 - 22334, n=2)	22289 Points 0%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8691 Points -61%

AIDA64 / FPU SinJulia
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18959 Points +1596%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points +596%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	2333 Points +109%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1118 Points
Average Intel Processor N150 (1116 - 1118, n=2)	1117 Points 0%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1019 Points -9%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	985 Points -12%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	430 Points -62%

AIDA64 / FPU Mandel
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	70450 Points +1193%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points +413%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	10378 Points +90%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	5448 Points
Average Intel Processor N150 (4882 - 5448, n=2)	5165 Points -5%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	3732 Points -31%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	3648 Points -33%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2217 Points -59%

AIDA64 / CPU AES
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s +883%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	81324 MB/s +638%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	24535 MB/s +123%
Average Intel Processor N150 (11025 - 11103, n=2)	11064 MB/s 0%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	11025 MB/s
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9214 MB/s -16%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	8752 MB/s -21%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8426 MB/s -24%

AIDA64 / CPU ZLib
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	1444 MB/s +569%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s +291%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	448 MB/s +107%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	216 MB/s
Average Intel Processor N150 (184 - 216, n=2)	200 MB/s -7%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	140.8 MB/s -35%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	133.4 MB/s -38%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.7 MB/s -62%

AIDA64 / FP64 Ray-Trace
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	18694 KRay/s +1503%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s +385%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	2096 KRay/s +80%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1166 KRay/s
Average Intel Processor N150 (1013 - 1166, n=2)	1090 KRay/s -7%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	754 KRay/s -35%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	705 KRay/s -40%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -60%

AIDA64 / CPU PhotoWorxx
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	48813 MPixel/s +252%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s +234%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	15326 MPixel/s +10%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	13876 MPixel/s
Average Intel Processor N150 (12501 - 13876, n=2)	13189 MPixel/s -5%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9750 MPixel/s -30%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9467 MPixel/s -32%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6535 MPixel/s -53%

System Performance

PCMark results are comparable to the older N100 to show that overall performance with our newer N150 isn't noticeably faster during common day-to-day workloads like browsing or spreadsheets.

PCMark 10 / Score
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	7613 Points +173%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points +132%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	3614 Points +30%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	3164 Points +13%
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (2789 - 3050, n=2)	2920 Points +5%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	2789 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	2786 Points 0%

PCMark 10 / Essentials
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points +81%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	10684 Points +81%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7295 Points +24%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	6947 Points +18%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	6068 Points +3%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	5895 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (5842 - 5895, n=2)	5869 Points 0%

PCMark 10 / Productivity
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	9812 Points +131%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points +80%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	4784 Points +13%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	4764 Points +12%
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (4245 - 4867, n=2)	4556 Points +7%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	4479 Points +6%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	4245 Points

PCMark 10 / Digital Content Creation
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	11422 Points +385%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points +280%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	3855 Points +64%
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (2355 - 2708, n=2)	2532 Points +8%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	2476 Points +5%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	2355 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	2161 Points -8%

CrossMark / Overall
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1692 Points +124%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points +116%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	881 Points +17%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	839 Points +11%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	756 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (715 - 756, n=2)	736 Points -3%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	706 Points -7%
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	614 Points -19%

CrossMark / Productivity
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points +93%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1588 Points +92%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	919 Points +11%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	905 Points +9%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	827 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (794 - 827, n=2)	811 Points -2%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	779 Points -6%
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	688 Points -17%

CrossMark / Creativity
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1868 Points +160%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points +138%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	887 Points +23%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	773 Points +8%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	719 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (681 - 719, n=2)	700 Points -3%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	672 Points -7%
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	560 Points -22%

CrossMark / Responsiveness
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points +127%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	1520 Points +127%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	856 Points +28%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	764 Points +14%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	671 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (603 - 671, n=2)	637 Points -5%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	608 Points -9%
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	577 Points -14%

WebXPRT 3 / Overall
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	286 Points +64%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points +50%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	190.4 Points +9%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	176.3 Points +1%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	174.3 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (172.3 - 174.3, n=2)	173.3 Points -1%
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	171.3 Points -2%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	163.3 Points -6%

WebXPRT 4 / Overall
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	231 Points
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	140.3 Points
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	136.2 Points
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (n=1)	135.3 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	130.3 Points

Mozilla Kraken 1.1 / Total
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	1460 ms * -40%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	1083 ms * -4%
Average Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N) (1044 - 1047, n=2)	1046 ms * -0%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	1044 ms *
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	1023 ms * +2%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	981 ms * +6%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms * +46%
Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	445 ms * +57%

* ... smaller is better

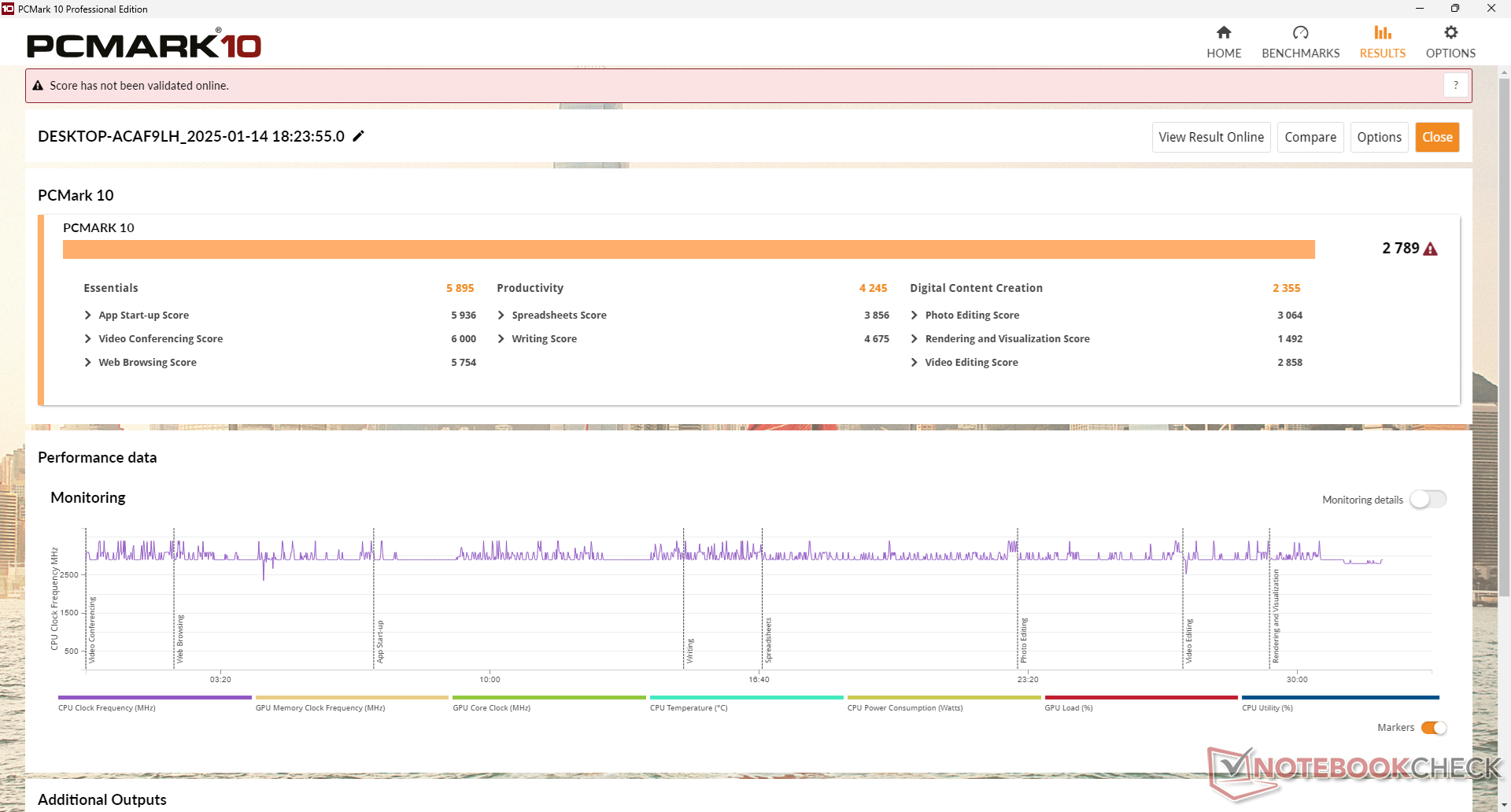

PCMark 10 Score		2789 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	89287 MB/s +301%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s +203%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	22938 MB/s +3%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22240 MB/s
Average Intel Processor N150 (18528 - 22240, n=2)	20384 MB/s -8%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18937 MB/s -15%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	18620 MB/s -16%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11580 MB/s -48%

AIDA64 / Memory Read
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98398 MB/s +325%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s +204%
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	23286 MB/s +1%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	23165 MB/s
Average Intel Processor N150 (19320 - 23165, n=2)	21243 MB/s -8%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19509 MB/s -16%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18451 MB/s -20%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12488 MB/s -46%

AIDA64 / Memory Write
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	98583 MB/s +325%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s +207%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	23191 MB/s
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	22849 MB/s -1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	21626 MB/s -7%
Average Intel Processor N150 (19560 - 23191, n=2)	21376 MB/s -8%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19528 MB/s -16%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12305 MB/s -47%

AIDA64 / Memory Latency
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns * -198%
Beelink SER9 AMD Ryzen AI 9 HX 370, Radeon 890M	115.2 ns * -145%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	114.8 ns * -144%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	52.9 ns * -12%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	49.5 ns * -5%
Average Intel Processor N150 (47.1 - 51.8, n=2)	49.5 ns * -5%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	47.1 ns *
Maxtang MTN-ALN50 Intel Core i3-N305, UHD Graphics 32EUs	44.9 ns * +5%

* ... smaller is better

DPC Latency

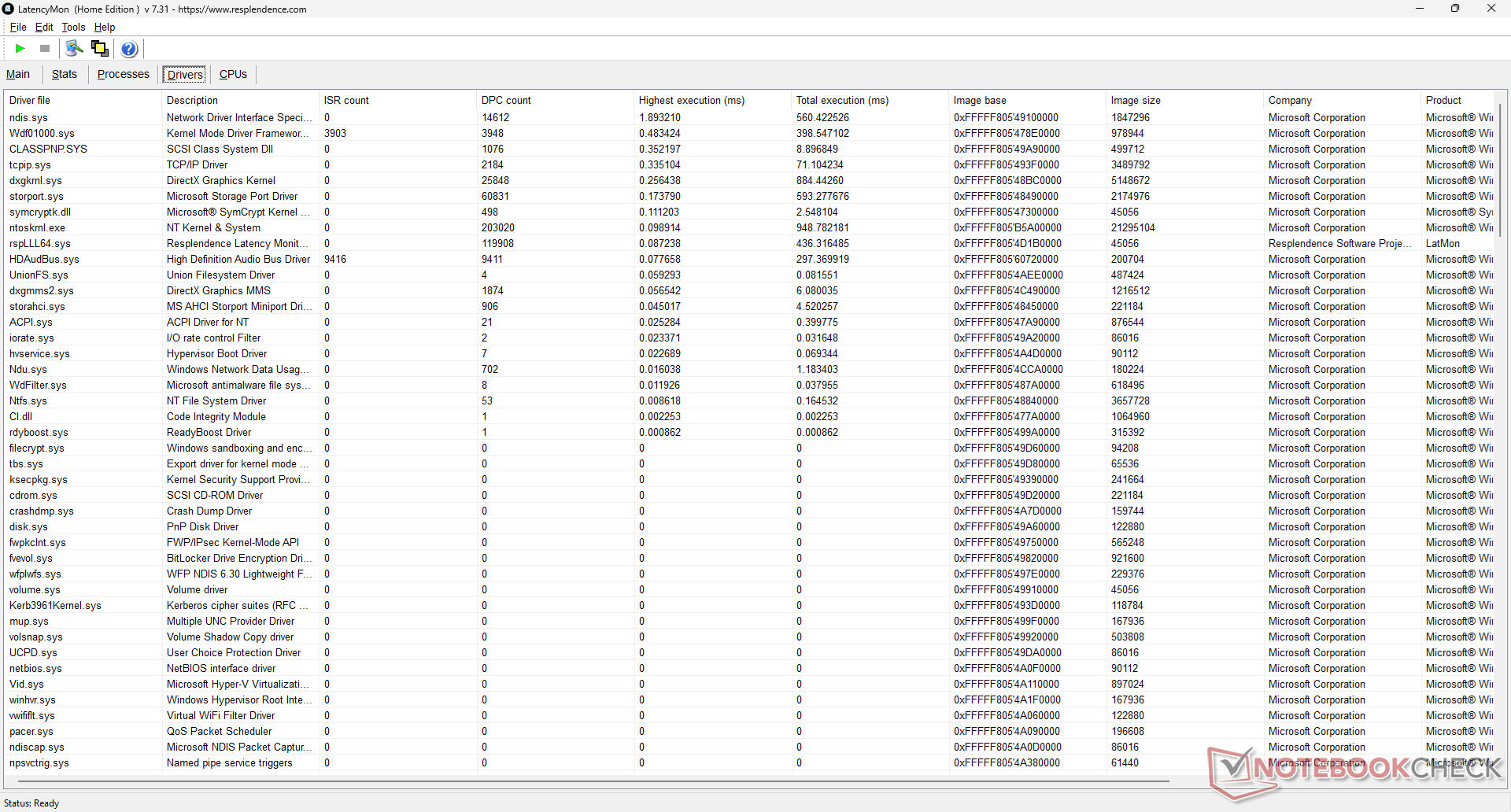

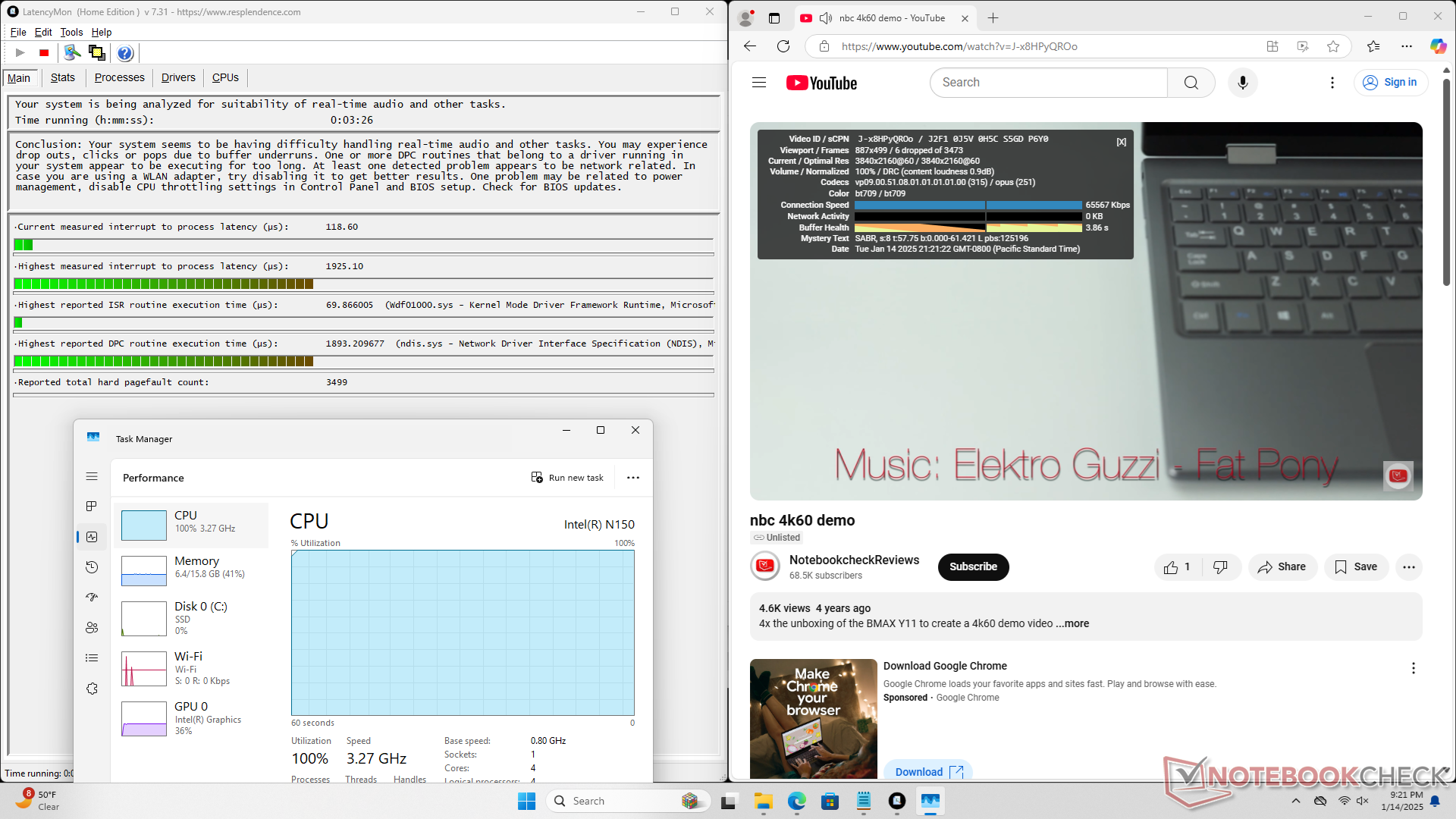

LatencyMon shows DPC issues when opening multiple browser tabs of our homepage. 4K60 video playback is also imperfect with 6 dropped frames within a 60-second timeframe even after multiple retests. CPU utilization is unusually high as well at 100 percent despite checking for background activity meaning that multi-tasking during video playback will very likely cause frame skips or stutters.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	29083.3 μs * -1411%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7391.7 μs * -284%
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	5491 μs * -185%
Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	2186.9 μs * -14%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	1925.1 μs *
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	639 μs * +67%

* ... smaller is better

Storage Devices

The system comes with an M.2 SATA III SSD instead of NVMe as a cost-saving measure. Transfer rates are steady at ~500 MB/s which is essentially the limit of the SATA III interface.

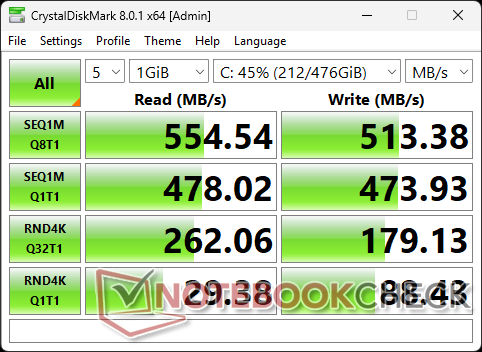

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 550.6 MB/s

CDM 5/6 Write Seq Q32T1: 513.6 MB/s

CDM 5/6 Read 4K Q32T1: 257.7 MB/s

CDM 5/6 Write 4K Q32T1: 174.9 MB/s

CDM 5 Read Seq: 487.7 MB/s

CDM 5 Write Seq: 482.5 MB/s

CDM 5/6 Read 4K: 29.08 MB/s

CDM 5/6 Write 4K: 86.53 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K9 MasonSemi 1TB MC7000	91.8 pt
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	67.9 pt
Beelink Mini S12 Pro	35.7 pt
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	31.9 pt
Maxtang MTN-ALN50 Foresee 512GB	16.5 pt
Beelink EQ14	14.9 pt
Newsmay AC8F-POE AirDisk AFF 10-128G	13.5 pt

DiskSpd
seq read
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s +663%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2257 (2254.02^min - 2257.37^max) MB/s +355%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1948 (1560.49^min - 1947.92^max) MB/s +293%
Beelink Mini S12 Pro	724 (713.03^min - 723.5^max) MB/s +46%
Beelink EQ14	496 (484.73^min - 495.71^max) MB/s
Maxtang MTN-ALN50 Foresee 512GB	452 (363.13^min - 452.08^max) MB/s -9%
Newsmay AC8F-POE AirDisk AFF 10-128G	413 (410.18^min - 412.9^max) MB/s -17%
seq write
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s +998%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1873 (688.38^min - 1873.41^max) MB/s +270%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1535 (1194.25^min - 1534.56^max) MB/s +203%
Beelink Mini S12 Pro	715 (699.61^min - 714.88^max) MB/s +41%
Beelink EQ14	506 (491.99^min - 506.01^max) MB/s
Maxtang MTN-ALN50 Foresee 512GB	457 (452.57^min - 457.39^max) MB/s -10%
Newsmay AC8F-POE AirDisk AFF 10-128G	417 (409.15^min - 416.7^max) MB/s -18%
seq q8 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s +1171%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4658 (3456.11^min - 4657.77^max) MB/s +738%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2058 (1971.74^min - 2057.94^max) MB/s +270%
Beelink Mini S12 Pro	874 (761^min - 873.67^max) MB/s +57%
Beelink EQ14	556 (429.92^min - 556.16^max) MB/s
Maxtang MTN-ALN50 Foresee 512GB	484 (360.5^min - 483.68^max) MB/s -13%
Newsmay AC8F-POE AirDisk AFF 10-128G	397 (395.52^min - 396.69^max) MB/s -29%
seq q8 t1 write
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s +1164%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2086 (1404.04^min - 2086.06^max) MB/s +297%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2047 (794.1^min - 2047.34^max) MB/s +289%
Beelink Mini S12 Pro	867 (858.82^min - 866.96^max) MB/s +65%
Beelink EQ14	526 (462.09^min - 525.96^max) MB/s
Maxtang MTN-ALN50 Foresee 512GB	478 (470.6^min - 478.45^max) MB/s -9%
Newsmay AC8F-POE AirDisk AFF 10-128G	453 (445.02^min - 453.26^max) MB/s -14%
4k q1 t1 read
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s +234%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	53.7 (52.17^min - 53.71^max) MB/s +126%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.9 (39.99^min - 52.89^max) MB/s +122%
Beelink Mini S12 Pro	50.2 (48.32^min - 50.22^max) MB/s +111%
Newsmay AC8F-POE AirDisk AFF 10-128G	28.4 (28.01^min - 28.38^max) MB/s +19%
Maxtang MTN-ALN50 Foresee 512GB	26.3 (25.91^min - 26.27^max) MB/s +11%
Beelink EQ14	23.8 (23.34^min - 23.81^max) MB/s
4k q1 t1 write
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	236 (212.83^min - 235.59^max) MB/s +190%
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s +152%
Beelink Mini S12 Pro	131.7 (124.21^min - 131.65^max) MB/s +62%
Beelink EQ14	81.4 (76.92^min - 81.38^max) MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	74 (57.85^min - 73.96^max) MB/s -9%
Maxtang MTN-ALN50 Foresee 512GB	73.4 (71.63^min - 73.43^max) MB/s -10%
Newsmay AC8F-POE AirDisk AFF 10-128G	40.4 (39.84^min - 40.4^max) MB/s -50%
4k q32 t16 read
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3162 (3155.7^min - 3161.51^max) MB/s +827%
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s +558%
Beelink Mini S12 Pro	861 (842.97^min - 860.59^max) MB/s +152%
Beelink EQ14	341 (335.23^min - 341.31^max) MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	324 (210.77^min - 323.72^max) MB/s -5%
Newsmay AC8F-POE AirDisk AFF 10-128G	161.3 (160.59^min - 161.32^max) MB/s -53%
Maxtang MTN-ALN50 Foresee 512GB	102.3 (101.76^min - 102.32^max) MB/s -70%
4k q32 t16 write
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s +1075%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1782 (864.63^min - 1781.78^max) MB/s +548%
Beelink Mini S12 Pro	721 (676.73^min - 721.31^max) MB/s +162%
Beelink EQ14	275 (207.31^min - 275.22^max) MB/s
Maxtang MTN-ALN50 Foresee 512GB	209 (205.92^min - 208.55^max) MB/s -24%
Newsmay AC8F-POE AirDisk AFF 10-128G	165 (159.56^min - 165.01^max) MB/s -40%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	142.2 (93.56^min - 142.15^max) MB/s -48%

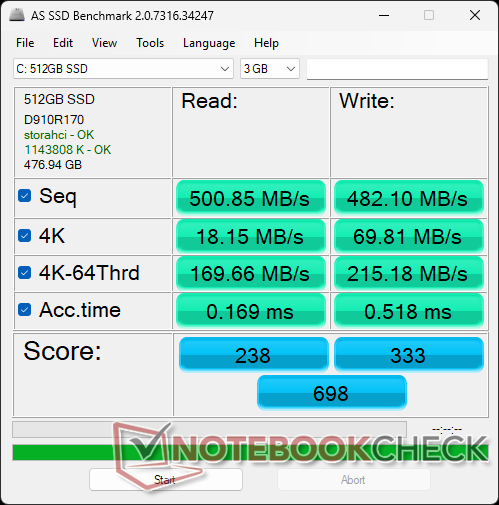

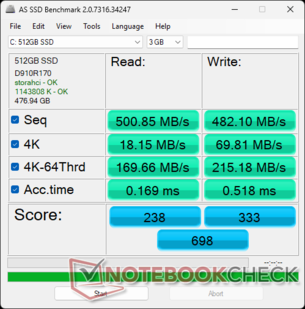

AS SSD
Score Total
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points +976%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	4872 Points +598%
Beelink Mini S12 Pro	2210 Points +217%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1396 Points +100%
Maxtang MTN-ALN50 Foresee 512GB	724 Points +4%
Beelink EQ14	698 Points
Newsmay AC8F-POE AirDisk AFF 10-128G	550 Points -21%
Score Read
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points +1269%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1511 Points +535%
Beelink Mini S12 Pro	920 Points +287%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	504 Points +112%
Maxtang MTN-ALN50 Foresee 512GB	263 Points +11%
Beelink EQ14	238 Points
Newsmay AC8F-POE AirDisk AFF 10-128G	172 Points -28%
Score Write
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2688 Points +707%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points +679%
Beelink Mini S12 Pro	801 Points +141%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	631 Points +89%
Beelink EQ14	333 Points
Maxtang MTN-ALN50 Foresee 512GB	316 Points -5%
Newsmay AC8F-POE AirDisk AFF 10-128G	284 Points -15%
Seq Read
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s +1051%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	3789.22 MB/s +657%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1233 MB/s +146%
Beelink Mini S12 Pro	704.36 MB/s +41%
Maxtang MTN-ALN50 Foresee 512GB	505 MB/s +1%
Beelink EQ14	500.85 MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	483 MB/s -4%
Seq Write
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s +1073%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1679.72 MB/s +248%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1125 MB/s +133%
Beelink Mini S12 Pro	736.89 MB/s +53%
Beelink EQ14	482.1 MB/s
Maxtang MTN-ALN50 Foresee 512GB	462 MB/s -4%
Newsmay AC8F-POE AirDisk AFF 10-128G	346 MB/s -28%
4K Read
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s +273%
Beelink Mini S12 Pro	55.88 MB/s +208%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	46.12 MB/s +154%
Maxtang MTN-ALN50 Foresee 512GB	31.3 MB/s +72%
Newsmay AC8F-POE AirDisk AFF 10-128G	29.6 MB/s +63%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	28.1 MB/s +55%
Beelink EQ14	18.15 MB/s
4K Write
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	219.64 MB/s +215%
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s +113%
Beelink Mini S12 Pro	113.72 MB/s +63%
Beelink EQ14	69.81 MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	65.5 MB/s -6%
Maxtang MTN-ALN50 Foresee 512GB	64.6 MB/s -7%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	40.8 MB/s -42%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s +1441%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	1086.32 MB/s +540%
Beelink Mini S12 Pro	793.52 MB/s +368%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	353 MB/s +108%
Maxtang MTN-ALN50 Foresee 512GB	181.2 MB/s +7%
Beelink EQ14	169.66 MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	94.3 MB/s -44%
4K-64 Write
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	2300.17 MB/s +969%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s +773%
Beelink Mini S12 Pro	613.44 MB/s +185%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	478 MB/s +122%
Beelink EQ14	215.18 MB/s
Maxtang MTN-ALN50 Foresee 512GB	205 MB/s -5%
Newsmay AC8F-POE AirDisk AFF 10-128G	183.9 MB/s -15%
Access Time Read
Newsmay AC8F-POE AirDisk AFF 10-128G	0.288 ms * -70%
Maxtang MTN-ALN50 Foresee 512GB	0.228 ms * -35%
Beelink EQ14	0.169 ms *
Beelink Mini S12 Pro	0.086 ms * +49%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.073 ms * +57%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.061 ms * +64%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms * +64%
Access Time Write
Beelink EQ14	0.518 ms *
Newsmay AC8F-POE AirDisk AFF 10-128G	0.316 ms * +39%
Maxtang MTN-ALN50 Foresee 512GB	0.281 ms * +46%
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms * +62%
Beelink Mini S12 Pro	0.114 ms * +78%
Beelink SER9 Crucial P3 Plus CT1000P3PSSD8	0.092 ms * +82%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.074 ms * +86%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink EQ14; diskspd 2.0.17 f: Ø540 (413.56-558.89)

GPU Performance

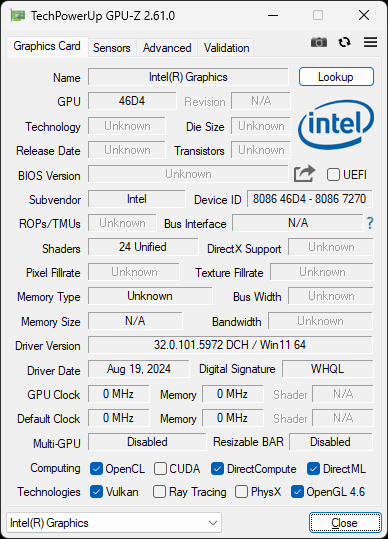

The integrated UHD Graphics 24 EUs remains the same as before for no noticeable performance gains. It was not designed to run most games locally no matter the graphical setting.

Certain games would fail to launch including X-Plane 11.11.

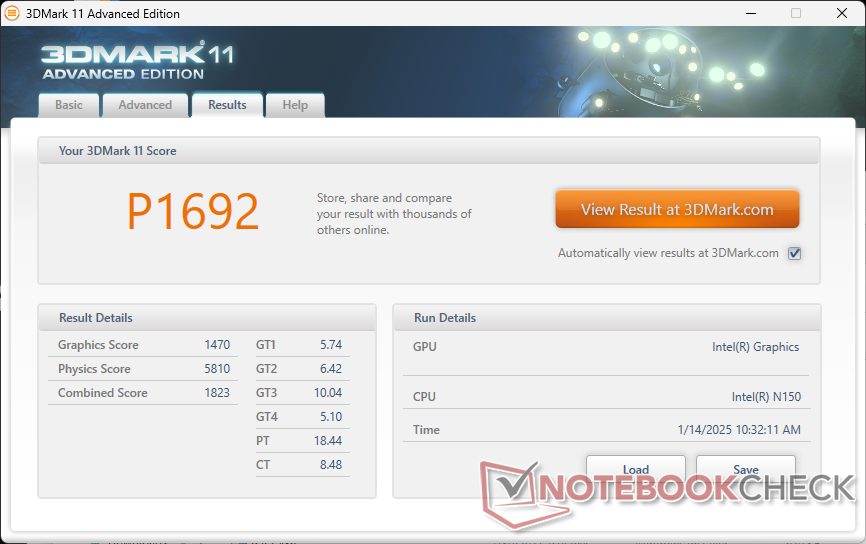

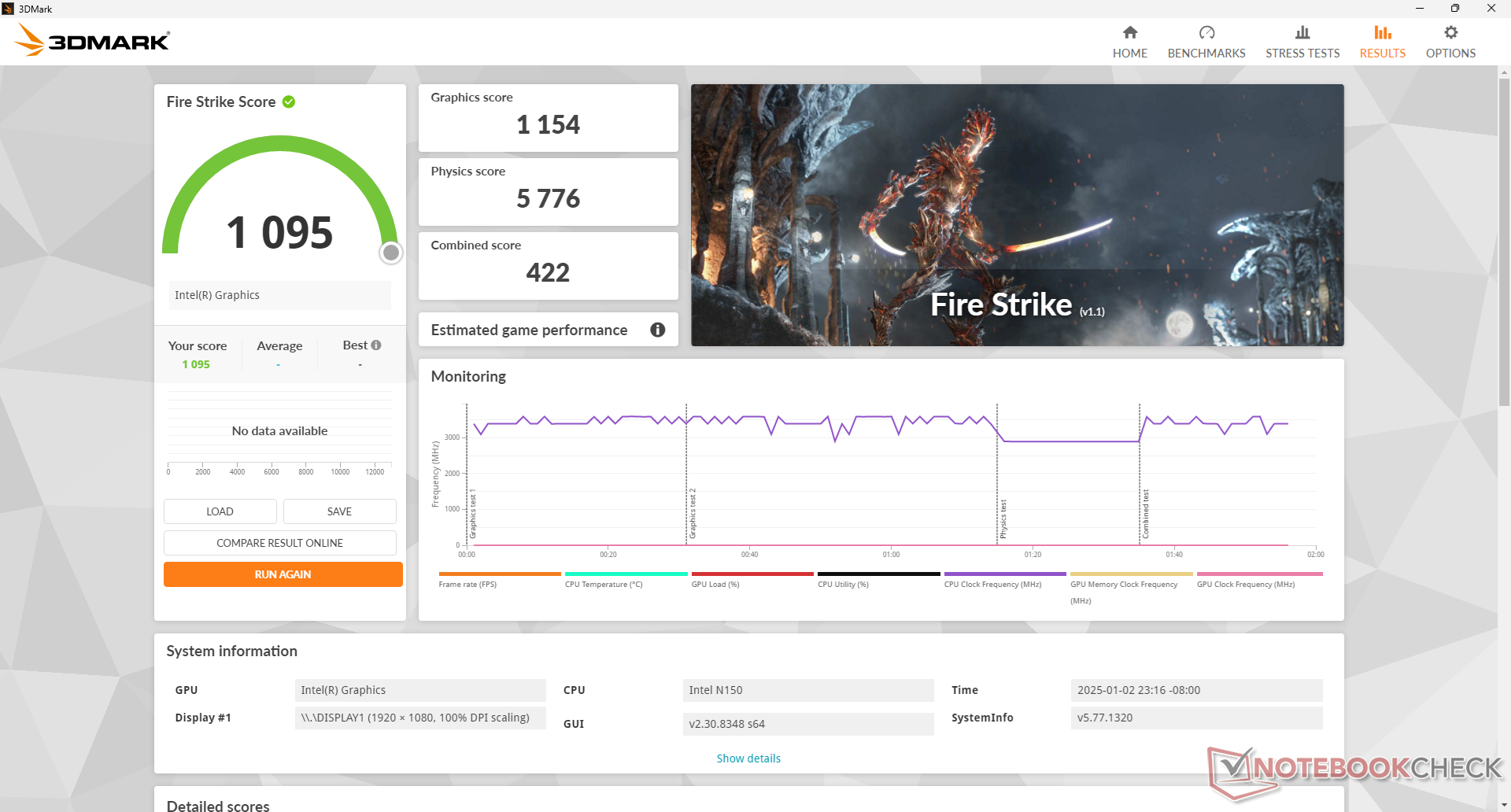

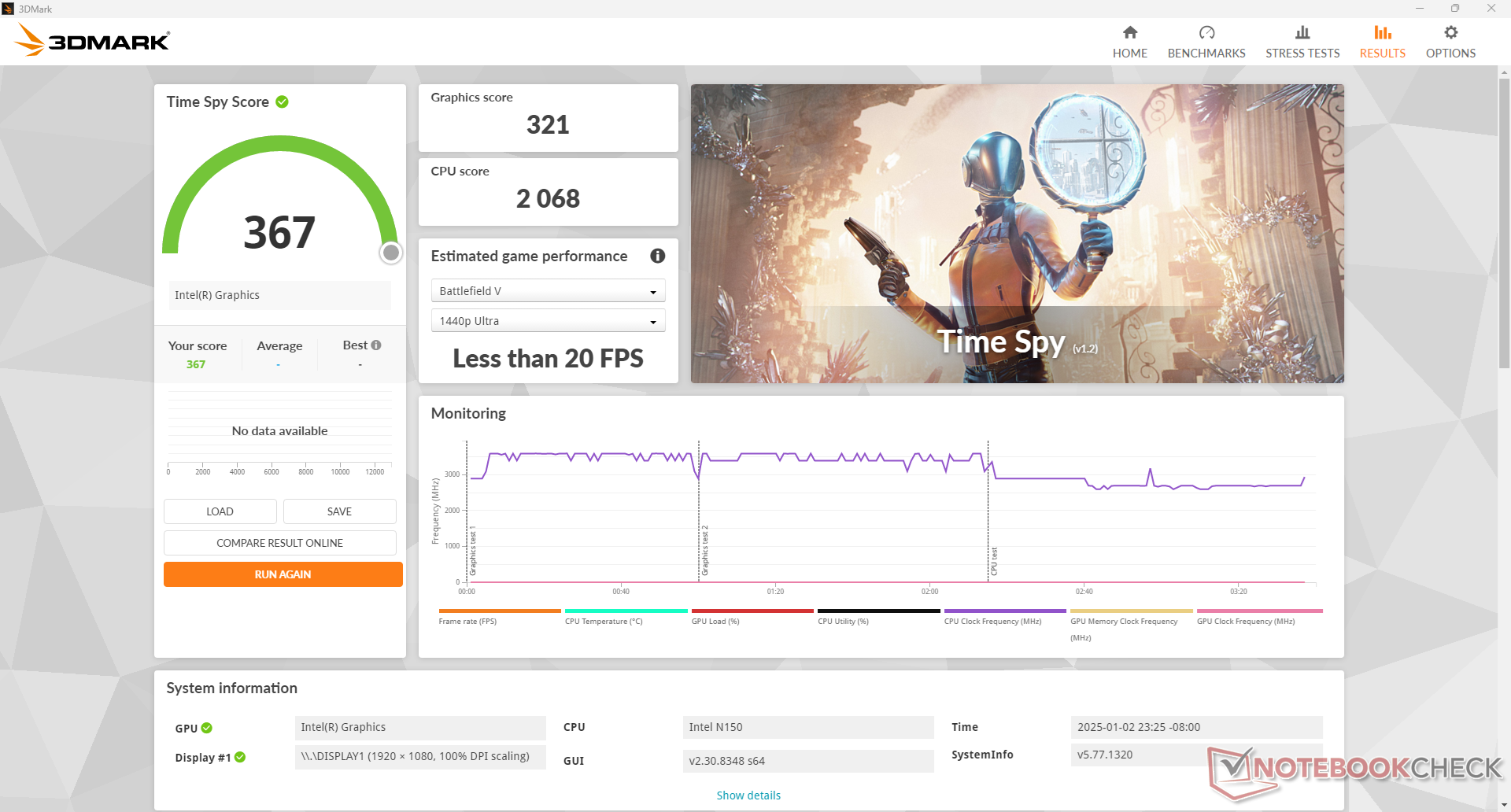

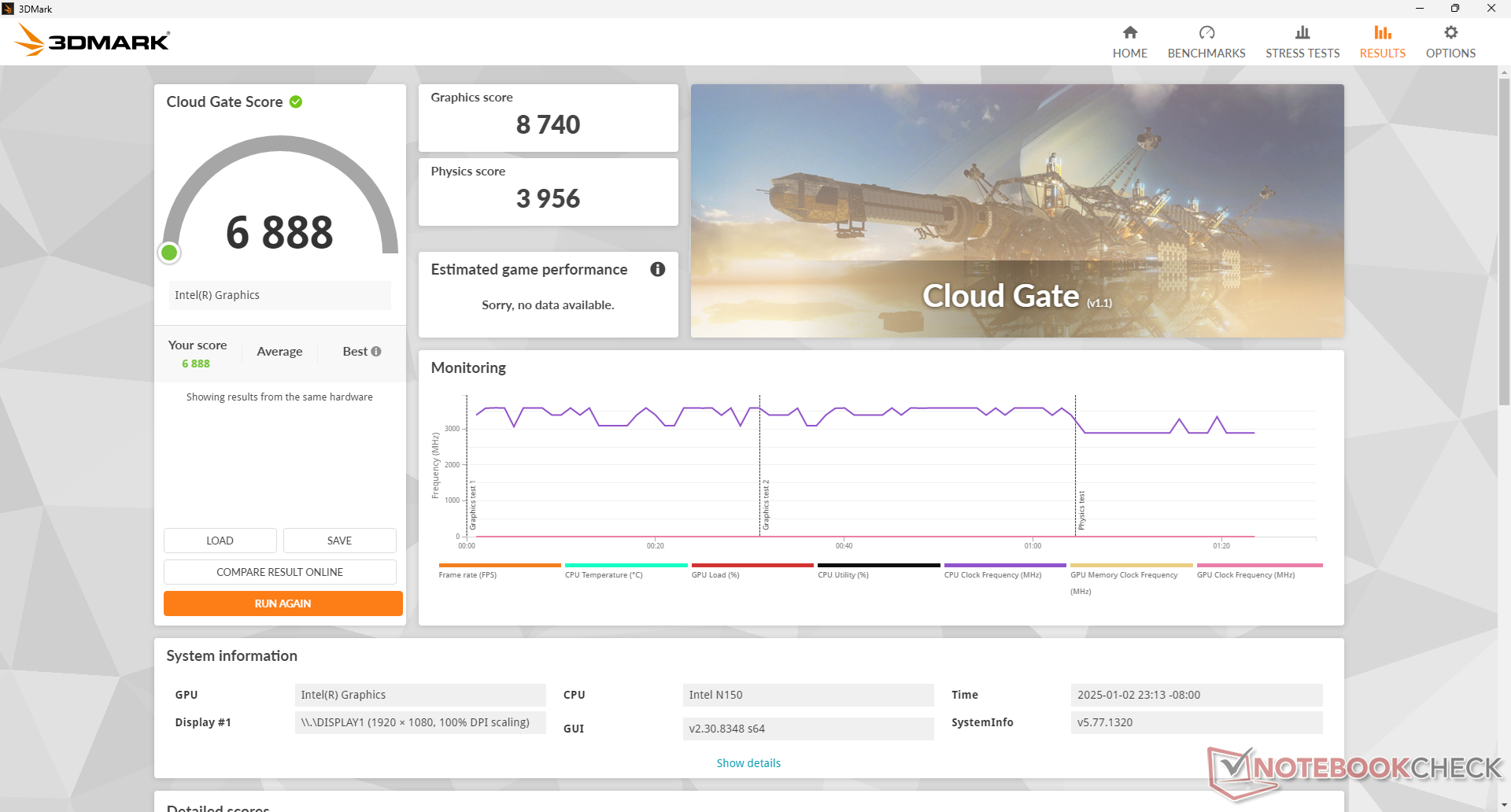

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	100 pt
GMK NucBox K2 ^-1! AMD Radeon 680M, AMD Ryzen 7 7735HS	86.8 pt
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	57.4 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48.4 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	46.9 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	31.1 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	20.5 pt
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	15.1 pt
Average Intel UHD Graphics 24EUs (Alder Lake-N)	14.9 pt
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	14.5 pt
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	14 pt
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	13.8 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	13.7 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	13.4 pt
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	4.5 pt

3DMark
1280x720 Cloud Gate Standard Graphics
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	41975 Points +380%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points +235%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25003 Points +186%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	16288 Points +86%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	11498 Points +32%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points +3%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	8740 Points
Average Intel UHD Graphics 24EUs (Alder Lake-N) (7218 - 11498, n=15)	8624 Points -1%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	8388 Points -4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7970 Points -9%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	7604 Points -13%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7218 Points -17%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	2453 Points -72%
1920x1080 Fire Strike Graphics
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	7900 Points +585%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points +556%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points +325%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +296%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points +217%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points +129%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	1646 Points +43%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points +9%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1080 - 1646, n=14)	1215 Points +5%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1154 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points -1%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1122 Points -3%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1106 Points -4%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1106 Points -4%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	378 Points -67%
2560x1440 Time Spy Graphics
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	3205 Points +898%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points +659%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points +345%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points +301%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points +262%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points +130%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	473 Points +47%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	342 Points +7%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (304 - 473, n=15)	335 Points +4%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	328 Points +2%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	321 Points
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	314 Points -2%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	312 Points -3%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	304 Points -5%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	102 Points -68%

3DMark 11 - 1280x720 Performance GPU
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	11785 Points +702%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points +610%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points +327%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +279%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points +267%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points +133%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2233 Points +52%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1458 - 2233, n=15)	1559 Points +6%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points +3%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1485 Points +1%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1470 Points
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1458 Points -1%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1458 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points -8%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	508 Points -65%

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark 11 Performance		1692 points
3DMark Cloud Gate Standard Score		6888 points
3DMark Fire Strike Score		1095 points
3DMark Time Spy Score		367 points
Help

... in comparison

Blender
v3.3 Classroom HIP/AMD
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	4297 Seconds * -102%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	3015 Seconds * -42%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	2940 Seconds * -38%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1992 - 3964, n=13)	2386 Seconds * -12%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2125 Seconds *
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2052 Seconds * +3%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2014 Seconds * +5%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds * +61%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	758 Seconds * +64%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * +73%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds * +79%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	399 Seconds * +81%
Asus NUC 14 Pro Intel Arc 7-Core iGPU, Intel Core Ultra 5 125H	399 Seconds * +81%

* ... smaller is better

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps +143%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps +105%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.7 (85.3^min) fps +71%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps +68%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	97.1 (61.8^min) fps +67%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	80.8 (58.2^min) fps +39%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	73.8 (65.8^min) fps +27%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	72.7 (53.4^min) fps +25%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	68.7 (48^min) fps +18%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (44.7 - 80.8, n=14)	67.1 fps +15%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	58.2 (36.9^min) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	35.1 (22.9^min) fps -40%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	34.3 (29.9^min) fps -41%
1366x768 med (1/3)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +294%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps +224%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.6 (61.8^min) fps +180%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	79.2 (57.5^min) fps +175%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps +115%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	52 (39.9^min) fps +81%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (44.6^min) fps +79%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	47.1 (39.2^min) fps +64%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (27.6 - 52, n=14)	43 fps +49%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	28.8 (15.9^min) fps
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	24.1 (17.1^min) fps -16%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	20.6 (14.9^min) fps -28%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	14.2 (9.9^min) fps -51%
1920x1080 high (2/3)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps +286%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	75.9 (45.7^min) fps +248%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps +188%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps +187%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.5 (43.1^min) fps +132%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	26.8 (25.1^min) fps +23%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	21.8 (1.7^min) fps
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	20.7 (19.3^min) fps -5%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (13.2 - 26.8, n=14)	19.4 fps -11%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	18.7 (17.5^min) fps -14%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	16.8 (12.2^min) fps -23%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	10.9 (9.8^min) fps -50%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	6.8 (5.2^min) fps -69%
1920x1080 ultra (3/3) best looking
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps +267%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	72.9 (47.2^min) fps +263%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps +188%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps +186%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps +137%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	24.9 (23.1^min) fps +24%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	20.1 (11.2^min) fps
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	19.1 (17.7^min) fps -5%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (13.4 - 24.9, n=14)	18.8 fps -6%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	17.4 (16.2^min) fps -13%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	15.5 (10.8^min) fps -23%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	9.9 (8.5^min) fps -51%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	6.3 (4.4^min) fps -69%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	47.5 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.4 fps
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	20.8 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (12.9 - 24.7, n=10)	19.5 fps
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	12.9 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	11.3 fps
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	7.67 fps
1920x1080 med (fps_test=2)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	38.5 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.3 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (8.75 - 15, n=10)	12.8 fps
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.9 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	8.45 fps
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.75 fps
1920x1080 high (fps_test=3)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	32.9 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	12.3 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (7.81 - 13.9, n=9)	11.8 fps
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.4 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	7.62 fps
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.5 fps

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	46.3 (39.2^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.5 (19.8^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (12.7^min) fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	16.7 (12.5^min) fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	11.1 (8.45^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (n=1)	11.1 fps
1920x1080 Low Preset (FSR off)
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	30.1 (25.8^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.4 (12.1^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 (6.57^min) fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	9.3 (7.27^min) fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	6.07 (4.62^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (n=1)	6.07 fps

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps +839%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.5 fps +347%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	37.9 fps +211%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	18.1 fps +48%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (12.2 - 18.1, n=5)	13.7 fps +12%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	12.5 fps +2%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	12.2 fps
1920x1080 Low Preset (DX12)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	27.5 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	10.2 fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	8.45 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (5.24 - 10.2, n=5)	7.49 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	6.56 fps
1920x1080 Medium Preset (DX12)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.5 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	20.3 fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	7.87 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (3.92 - 7.87, n=4)	5.63 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	5.25 fps

Baldur's Gate 3
1280x720 Low Preset
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	50.2 (27.7^min, 29.7^P0.1, 32.6^P1) fps +561%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	22.9 fps +201%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.5 fps +196%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	16.6 (2.68^min, 3.81^P0.1, 6.04^P1) fps +118%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	7.6 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (n=1)	7.6 fps 0%
1920x1080 Low Preset
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	33.5 (20.9^min, 21^P0.1, 23.4^P1) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	15.3 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	9.7 (2.89^min, 2.93^P0.1, 3.12^P1) fps

GTA V
1024x768 Lowest Settings possible
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	156.3 (4.92^min, 90.9^P1) fps +187%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps +180%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	100.3 (39.9^min, 62.5^P1) fps +84%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	58.2 (7.46^min, 37^P1) fps +7%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	54.4 (1.684^min, 34.5^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (44.7 - 59, n=10)	54.2 fps 0%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	54 (15.4^min, 37^P1) fps -1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	36.8 (1.484^min, 19.2^P1) fps -32%
1920x1080 Lowest Settings possible
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	129.8 (58.5^min, 90.9^P1) fps +411%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps +343%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	78.6 (26^min, 50^P1) fps +209%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	33.9 (14.3^min, 25^P1) fps +33%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	28.7 (15.2^min, 21.7^P1) fps +13%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (25.4 - 33.9, n=8)	28.6 fps +13%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	25.4 (10.8^min, 18.5^P1) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	22.6 (2.97^min, 14.7^P1) fps -11%
1366x768 Normal/Off AF:4x
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	148.8 (4.43^min, 83.3^P1) fps +245%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps +223%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	86.1 (7.7^min, 50^P1) fps +100%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	48 (3.5^min, 31.3^P1) fps +11%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (36.6 - 51.3, n=9)	44.1 fps +2%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	43.1 (4.32^min, 27.8^P1) fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	41.9 (17.9^min, 29.4^P1) fps -3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	34.1 (0.795^min, 19.2^P1) fps -21%
1920x1080 Normal/Off AF:4x
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	117.6 (36.7^min, 83.3^P1) fps +372%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps +355%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71 (6.44^min, 40^P1) fps +185%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	30.9 (15.4^min, 22.7^P1) fps +24%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (21 - 30.9, n=8)	26.3 fps +6%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	25.7 (13.4^min, 19.2^P1) fps +3%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	24.9 (8.29^min, 15.6^P1) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	21.7 (1.389^min, 12.5^P1) fps -13%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps +758%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	39.9 (3.1^min, 29.4^P1) fps +560%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23.6 (8.96^min, 17.2^P1) fps +290%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (5.87 - 36.5, n=8)	10.4 fps +72%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	7.7 (3.86^min, 5.62^P1) fps +27%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	6.37 (3.66^min, 5.13^P1) fps +5%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	6.05 (3.5^min, 4.57^P1) fps
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps +786%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	16.6 (2.85^min, 11.4^P1) fps +513%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	9.98 (4.2^min, 6.21^P1) fps +268%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	3.4 (1.558^min, 2.15^P1) fps +25%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (2.71 - 3.4, n=7)	2.99 fps +10%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	2.85 (1.295^min, 1.563^P1) fps +5%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	2.71 (1.138^min, 1.799^P1) fps

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps +626%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71.8 (51^min, 58^P1) fps +254%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 (55^min, 54^P1) fps +218%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (20.3 - 25.4, n=2)	22.9 fps +13%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	20.3 (17^min, 16^P1) fps
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps +672%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	42.3 (35^min, 32^P1) fps +295%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.7 (31^min, 27^P1) fps +234%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	10.7 (9^min, 9^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (n=1)	10.7 fps 0%

Strange Brigade
1280x720 lowest AF:1
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps +454%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps +232%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.8 (20.7^min, 69.9^P1) fps +200%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	61.4 (14.5^min, 18.6^P1) fps +131%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	37.7 (8.6^min, 10.3^P1) fps +42%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (23.2 - 37.7, n=11)	28.4 fps +7%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	28 (6.3^min, 7.37^P1) fps +5%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	26.6 (6^min, 6.91^P1) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	25.2 (6.6^min, 8.91^P1) fps -5%
1920x1080 medium AA:medium AF:4
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps +454%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	38.9 (14.7^min, 28.5^P1) fps +285%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (15.3^min, 28.3^P1) fps +221%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	23.1 (6.7^min, 11.2^P1) fps +129%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	14.1 (5^min, 6.1^P1) fps +40%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (9.7 - 14.9, n=10)	11.5 fps +14%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	10.4 (5^min, 5^P1) fps +3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	10.1 (5^min, 5^P1) fps 0%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	10.1 (5^min, 5^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps +590%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	49 (43^min) fps +390%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (36^min) fps +320%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	20 (17^min) fps +100%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (10 - 20, n=8)	14.8 fps +48%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	14 (12^min) fps +40%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	10 (1^min) fps
1920x1080 Medium Preset AA:T
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	28 (24^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (17^min) fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	9 (8^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (6 - 9, n=6)	7.17 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	6 (5^min) fps
1920x1080 High Preset AA:T
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	26 (22^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (16^min) fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	9 (8^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (6 - 9, n=5)	6.6 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	6 (5^min) fps
1920x1080 Ultra Preset AA:T
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	24 (21^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17 (15^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (5 - 6, n=3)	5.67 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	5 (5^min) fps

Final Fantasy XV Benchmark
1280x720 Lite Quality
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps +269%
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	60.6 fps +252%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps +138%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps +130%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps +105%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	26.3 fps +53%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	17.8 fps +3%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	17.2 fps
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.7 fps -20%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (12 - 17.8, n=12)	13.7 fps -20%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	13.4 fps -22%
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	12.3 fps -28%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	5.91 fps -66%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.13 fps -76%
1920x1080 Standard Quality
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	35.4 fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	13.3 fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	8.69 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (5.63 - 8.69, n=10)	6.52 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	5.87 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	3.48 fps
1920x1080 High Quality
Asus NUC 14 Pro Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU	25.3 fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel UHD Graphics 770	9.3 fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	6.26 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (4.22 - 6.26, n=9)	4.72 fps
Acemagic S1 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	4.22 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	2.5 fps

Cyberpunk 2077 ultra FPS Chart

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø2.38 (2.27-2.45)

	low	med.	high	ultra
GTA V (2015)	54.4	43.1	6.05	2.71
Dota 2 Reborn (2015)	58.2	28.8	21.8	20.1
Final Fantasy XV Benchmark (2018)	17.2
Far Cry 5 (2018)	10
Strange Brigade (2018)	26.6	10.1
Tiny Tina's Wonderlands (2022)
F1 22 (2022)	10.7
Baldur's Gate 3 (2023)
Cyberpunk 2077 2.2 Phantom Liberty (2023)

Emissions

System Noise

While there is an internal fan, fan noise is barely audible at just around 24 dB(A) against a silent background of 22.5 dB(A). It would remain quiet even when running demanding loads to be essentially unnoticeable in typical HTPC or office environments.

Fan noise profile (White: Background, Red: System idle, Blue: 3DMark 06, Orange: Cyberpunk 2077, Green: Prime95+FurMark stress)

Noise Level

Idle		23.5 / 23.5 / 23.8 dB(A)
Load		24 / 24.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 22.5 dB(A)

	Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	Beelink SER9 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	Maxtang MTN-ALN50 UHD Graphics 32EUs, i3-N305, Foresee 512GB	Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100
Noise		-24%	-53%	-5%	-25%	-6%	-20%
off / environment *	22.5	23.2 -3%	23 -2%	24.8 -10%	25 -11%	25 -11%	23.3 -4%
Idle Minimum *	23.5	26.6 -13%	29.8 -27%	24.8 -6%	25.1 -7%	25 -6%	26.3 -12%
Idle Average *	23.5	26.8 -14%	35.7 -52%	24.8 -6%	25.1 -7%	25 -6%	26.3 -12%
Idle Maximum *	23.8	26.8 -13%	35.7 -50%	24.8 -4%	25.1 -5%	25 -5%	26.3 -11%
Load Average *	24	33.4 -39%	41.9 -75%	24.9 -4%	34.5 -44%	25 -4%	31.9 -33%
Cyberpunk 2077 ultra *	23.8	34.6 -45%	43.8 -84%
Load Maximum *	24.4	33.8 -39%	44 -80%	25 -2%	43 -76%	25 -2%	36.7 -50%
Witcher 3 ultra *							33

* ... smaller is better

Temperature

Surface temperatures are low and never an issue no matter the load which is impressive for such a small mini PC with an integrated PSU. Hot spots top out at 37 C toward the rear both when idling or when running demanding applications for long periods.

Stress Test

The CPU would boost to 2.9 GHz and 24 W when initiating Prime95 stress. After hitting a core temperature of 70 C a few seconds later, however, the processor would drop and stabilize at 2.4 GHz and 20 W instead to maintain a slightly cooler core temperature of 66 C. The relatively low temperatures correlate with the low surface temperatures mentioned above.

	Average CPU Clock (GHz)	GPU Clock (MHz)	Average CPU Temperature (°C)
System Idle	--	--	48
Prime95 Stress	2.4	--	66
Prime95 + FurMark Stress	2.1	750	68
Cyberpunk 2077 Stress	1.5	750	64

Energy Management

Power Consumption

Idling demands between 7 W and 10 W which is more than expected from an N-series CPU. When running stressful loads, however, the system becomes just a few watts more efficient than the Beelink Mini S12 Pro with the older N100 processor. Maximum consumption can reach 32 W temporarily when the CPU is at 100 percent utilization before falling to 24 W about 30 seconds later.

Prime95+FurMark stress initiated at 10s mark

Power Consumption

Off / Standby	0.85 / 1.3 Watt
Idle	7.9 / 8.9 / 9.1 Watt
Load	21.2 / 31.6 Watt


Key: min: , med: , max: Metrahit Energy

	Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,	Beelink SER9 Ryzen AI 9 HX 370, Radeon 890M, Crucial P3 Plus CT1000P3PSSD8, , x,	GMK NucBox K9 Ultra 5 125H, Arc 7-Core, MasonSemi 1TB MC7000, , x,	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G, , x,	Maxtang MTN-ALN50 i3-N305, UHD Graphics 32EUs, Foresee 512GB, , x,	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs, Kingston KC3000 2048G SKC3000D2048G, , x,	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N), , , x,
Power Consumption		-90%	-87%	-2%	-1%	21%	0%
Idle Minimum *	7.9	5.7 28%	10.9 -38%	7.9 -0%	3.9 51%	4.4 44%	8.3 -5%
Idle Average *	8.9	5.9 34%	11 -24%	10.1 -13%	7 21%	6 33%	8.8 1%
Idle Maximum *	9.1	6 34%	11.4 -25%	10.3 -13%	7.2 21%	9.7 -7%	8.9 2%
Load Average *	21.2	68.7 -224%	52.8 -149%	17.3 18%	30.1 -42%	14.6 31%	20.1 5%
Cyberpunk 2077 ultra external monitor *	22.3	78.2 -251%	57.1 -156%
Load Maximum *	31.6	82 -159%	72.2 -128%	31.6 -0%	48.7 -54%	30.2 4%	32.2 -2%
Witcher 3 ultra *							21.5

* ... smaller is better

Power Consumption Cyberpunk / Stress Test

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø26.8 (25.3-32)

Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU): Ø21 (19.2-26.5)

Power Consumption external Monitor

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø25.2 (23.7-31.4)

Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU); Prime95 V2810 Stress (external Monitor): Ø19.7 (17.1-20.5)

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø23.4 (21.1-25.6)

Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU); Cinebench R15 Multi (external Monitor): Ø17.6 (16.8-18)

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16.4 (15.7-18.8)

Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø16 (15.3-19)

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø8.91 (8.81-10.4)

Intel NUC11ATKC2, N4505 Celeron N4505, UHD Graphics (Jasper Lake 16 EU); Idle 1min (external Monitor): Ø8.03 (7.87-8.35)

Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø22.3 (21-24.2)

Notebookcheck Rating

Back to the verdict

Beelink EQ14 - 01/27/2025 v8
Allen Ngo

Chassis

74 / 98 → 76%

Connectivity

37 / 81 → 45%

Weight

84%

Games Performance

6 / 80 → 7%

Application Performance

60 / 92 → 65%

Temperature

90%

Noise

100%

Average

44%

61%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
50%

Power Use
71.9%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 30.7%

The SER8 Pro is a new mini PC with a built-in microphone (Image source: Beelink)

New Beelink SER8 Pro mini PC with AMD Ryzen 7 8845HS and 32GB RAM announced 03/12/2025

Beelink GTI13 Ultra mini PC review: A Mac Mini alternative with Intel Core i9 02/26/2025

Beelink SER9 review: AMD Zen 5 makes this mini PC faster than ever 11/15/2024

Beelink GTI12 Ultra EX Docking Station mini PC review: More affordable than expected 10/21/2024

Beelink SER8 PC review: Mac Mini-inspired design with an AMD Ryzen 7 8845HS 07/08/2024

Ryzen 5 5560U performance debut: Beelink SER5 mini PC review 11/07/2023

Intel N100 performance debut: Beelink Mini S12 Pro mini PC review 10/18/2023

Beelink SER7 mini PC review: Ryzen 7 7840HS with vapor chamber cooling 09/09/2023

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Read all 5 comments / answer

Loading Comments

Comment on this article

Allen Ngo - Lead Editor U.S. - 5289 articles published on Notebookcheck since 2011

After graduating with a B.S. in environmental hydrodynamics from the University of California, I studied reactor physics to become licensed by the U.S. NRC to operate nuclear reactors. There's a striking level of appreciation you gain for everyday consumer electronics after working with modern nuclear reactivity systems astonishingly powered by computers from the 80s. When I'm not managing day-to-day activities and US review articles on Notebookcheck, you can catch me following the eSports scene and the latest gaming news.

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Beelink EQ14 mini PC review: Ready-to-go HTPC for under $200

Allen Ngo, 2025-01-27 (Update: 2025-01-27)

Beelink EQ14 mini PC review: Ready-to-go HTPC for under $200

Intel N150 processor debut.

Verdict — Low Profile At The Cost Of Performance

Pros

Cons

Price and Availability

Potential Competitors in Comparison

Table of Contents

Specifications

Case

Size Comparison

Connectivity

Communication

Maintenance

Sustainability

Accessories And Warranty

Performance

Testing Conditions

Processor

Cinebench R15 Multi Loop

System Performance

DPC Latency

Storage Devices

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performance

Cyberpunk 2077 ultra FPS Chart

Emissions

System Noise

Temperature

Stress Test

Energy Management

Power Consumption

Power Consumption Cyberpunk / Stress Test

Power Consumption external Monitor

Notebookcheck Rating

Related Articles

Transparency

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	165
Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N)	178.9
BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	181
Acemagic S1 N95, UHD Graphics 24EUs (Alder Lake-N)	182
Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	184
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Lenovo IdeaPad V110-17IKB 80V20006GE i5-7200U, HD Graphics 620	1691
Acer Aspire V3-571G-53214G50Maii 3210M, GeForce GT 640M	1691
Acer TravelMate P2510-M-51ZQ i5-7200U, HD Graphics 620	1692
Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1692
Lenovo V330-15IKB i3-7130U, UHD Graphics 620	1692
Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	1693
Samsung Notebook 9 NP900X3N-K01US i5-7200U, HD Graphics 620	1695
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
