Newsmay AC8F-POE review: A mini PC with PoE support and Intel N100 for professional environments

Name: Newsmay AC8F-POE
Brand: Newsmay

Not for everyday use!

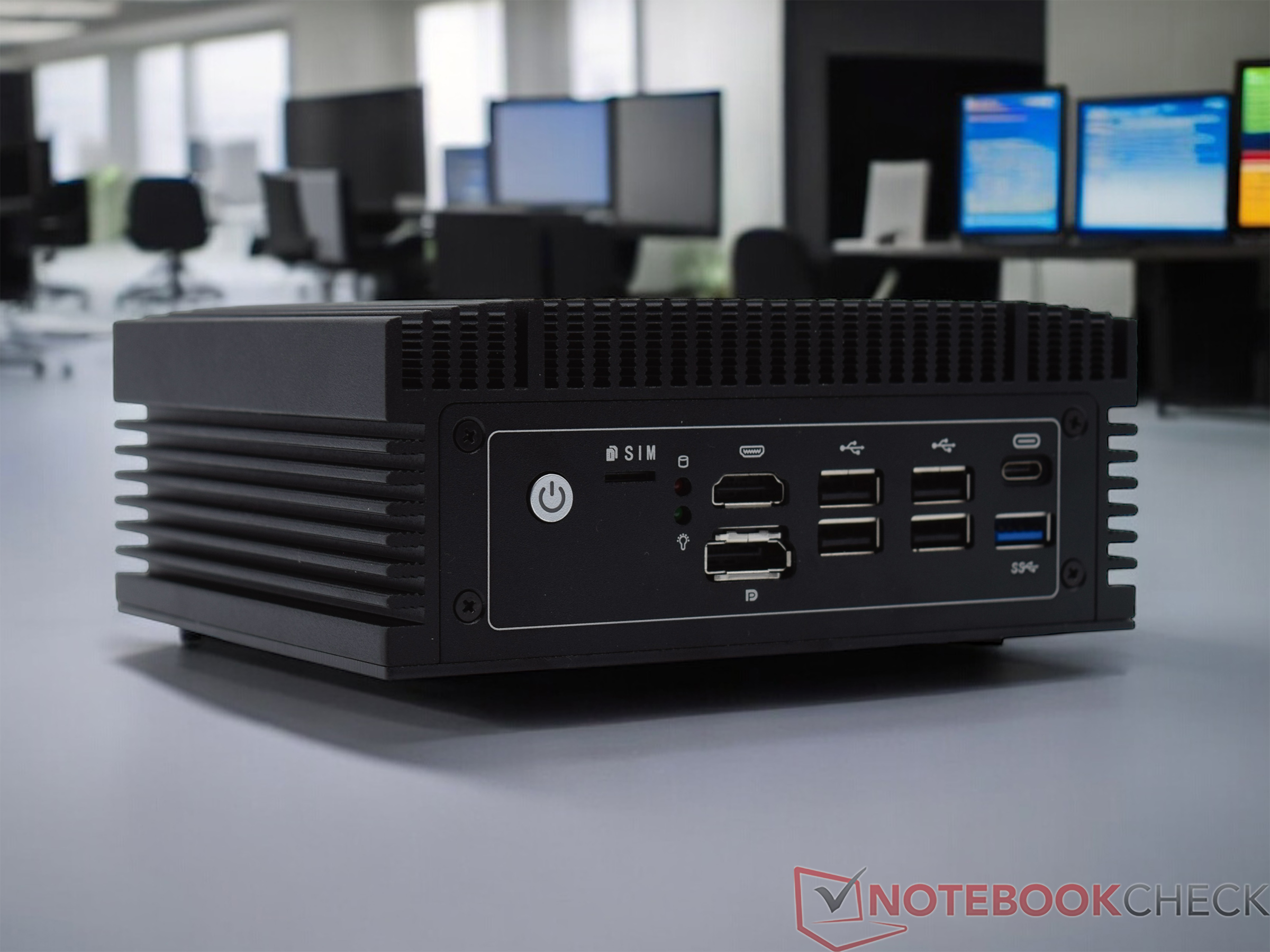

The Newsmay AC8F-POE is a mini PC for professional environments. With PoE support, the computer can be powered directly via the network cable. In this review, discover more about the Newsmay AC8F-POE and what kind of performance can be expected of the Intel N100.

Sebastian Bade, 👁 Sebastian Bade (translated by Andrew Dickson), Published 07/04/2024 🇩🇪 🇸🇪 ...

Mini PC Desktop Intel Internet of Things (IoT) Linux / Unix Windows Business

Newsmay is a Chinese system manufacturer that specializes in the production of special PCs. With the Newsmay AC8F-POE, we are dealing with a mini PC for industrial use that can be either used as a firewall or mobile router. The fanless concept is reflected in its visual appearance and is the reason why, from a visual point of view, the Newsmay AC8F-POE differentiates itself from most other mini PCs. With the Intel N100, the Newsmay AC8F-POE has been fitted with an already widely adopted SoC which, for a long time, has scored well as an economical and performant chip in many tests. The RAM comes in at 16 GB and mass storage is provided by a small 128 GB SSD.

At the time of reviewing, the device currently changes hands for $295 and, in the meantime, it can be ordered on Amazon. In addition to our review specs, Newsmay also offers the AC8F-POE with two other processors. Here you can choose from either an Intel N95 or an Intel N97. To illustrate the performance of other mini PCs, in this review, the Newsmay AC8F-POE will have to prove itself against similarly performant devices. A list of the competitors can be found in the following table.

Test device courtesy of Newsmay

Download your licensed rating image as PNG / SVG

Newsmay AC8F-POE

Processor

Intel Processor N100 4 x 1 - 3.4 GHz, 25 W PL2 / Short Burst, 10 W PL1 / Sustained, Alder Lake-N

Graphics adapter

Intel UHD Graphics 24EUs (Alder Lake-N)

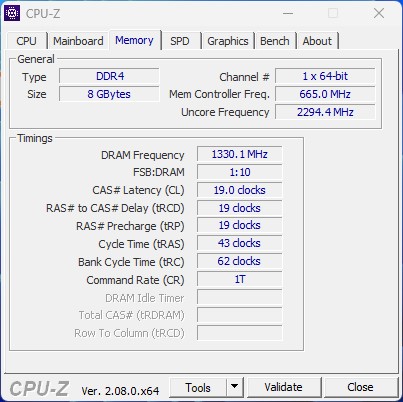

Memory

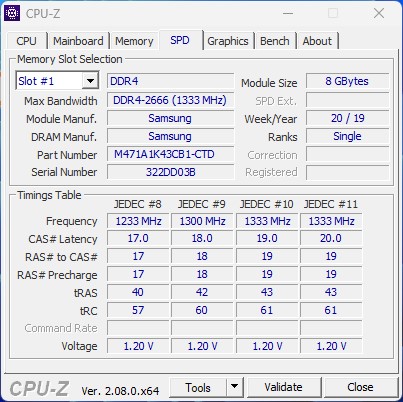

8 GB

, DDR4-2666, Single-Channel

Mainboard

Intel Alder Lake-N PCH

Storage

AirDisk AFF 10-128G, 128 GB

, 96 GB free

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

4 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 3x RJ45 i225-V LAN-Port, 1 PoE in ready, 1x RJ45 COM RS232, can update to RS485/RS422, internal Mainboard header: 1x USB2.0, 1x RS232

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s)

Size

height x width x depth (in mm): 62 x 155 x 126.5 ( = 2.44 x 6.1 x 4.98 in)

Additional features

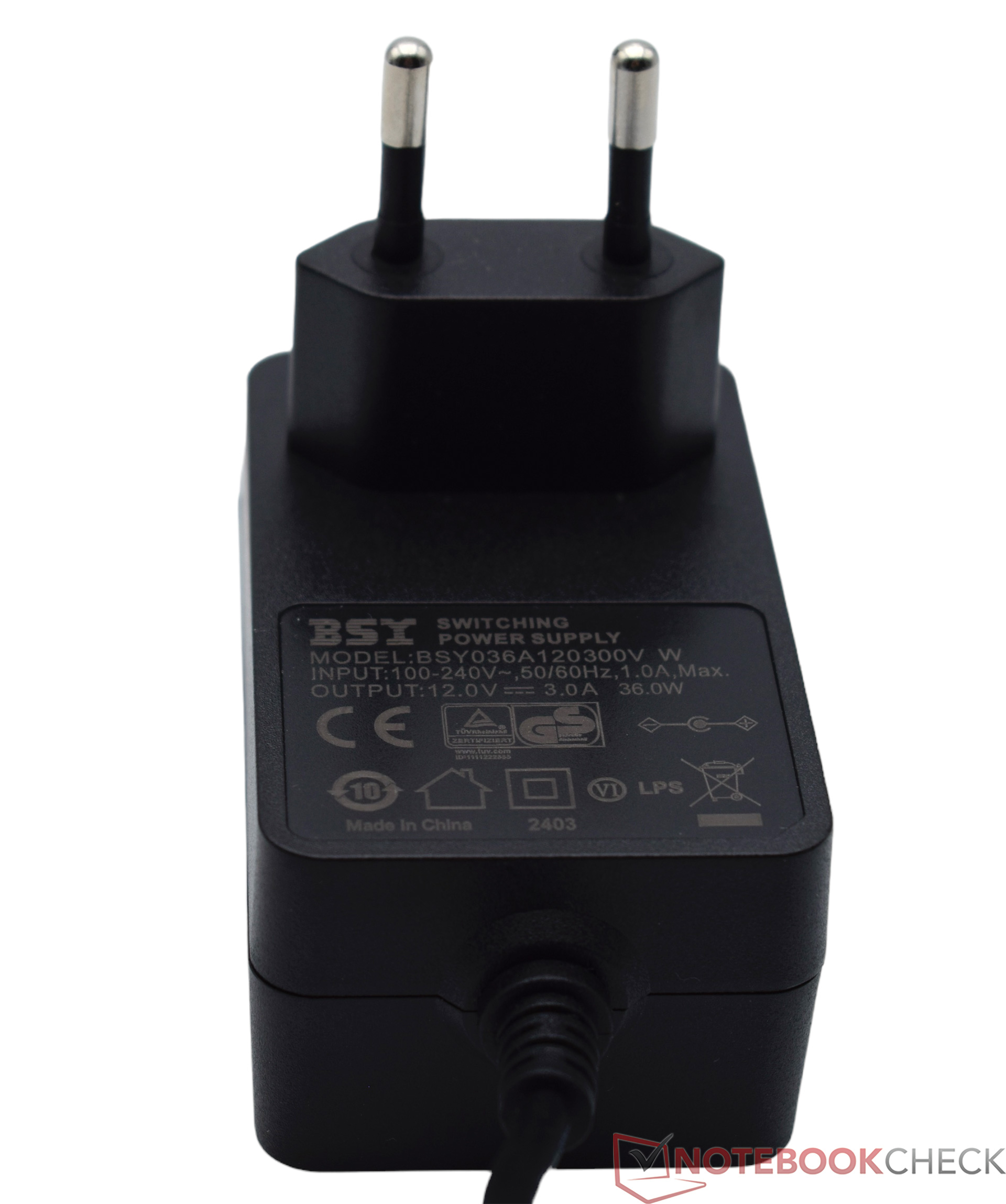

36W Power Adapter, 12 Months Warranty

Weight

1.244 kg ( = 43.88 oz / 2.74 pounds), Power Supply: 143 g ( = 5.04 oz / 0.32 pounds)

Price

295 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Possible competitors compared

Bew.	Version	Datum	Model	PL2	PL1	Gewicht	Preis
61.3 %	v8	07 / 2024	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	25	10	1.2 kg	295 EUR
65.8 %	v8	06 / 2024	Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	18	9	367 g	219 EUR
77.4 % v7 ^(old)	v7 ^(old)	11 / 2023	Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N)	25	15	453 g	279 EUR
75.8 % v7 ^(old)	v7 ^(old)	03 / 2024	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N)	25	25	450 g	249 EUR
73.5 % v7 ^(old)	v7 ^(old)	09 / 2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	15	15	214 g	250 EUR
73.2 % v7 ^(old)	v7 ^(old)	01 / 2024	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	25	6	828 g	299 EUR
71.1 % v7 ^(old)	v7 ^(old)	07 / 2023	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	35	15	392 g	179 EUR

Note: We have updated our rating system meaning the results from version 8 are not comparable with those in version 7. Additional information can be found here.

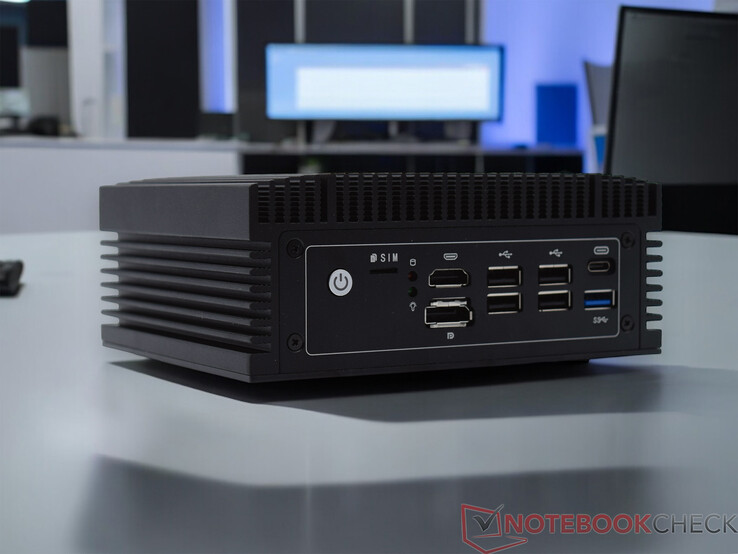

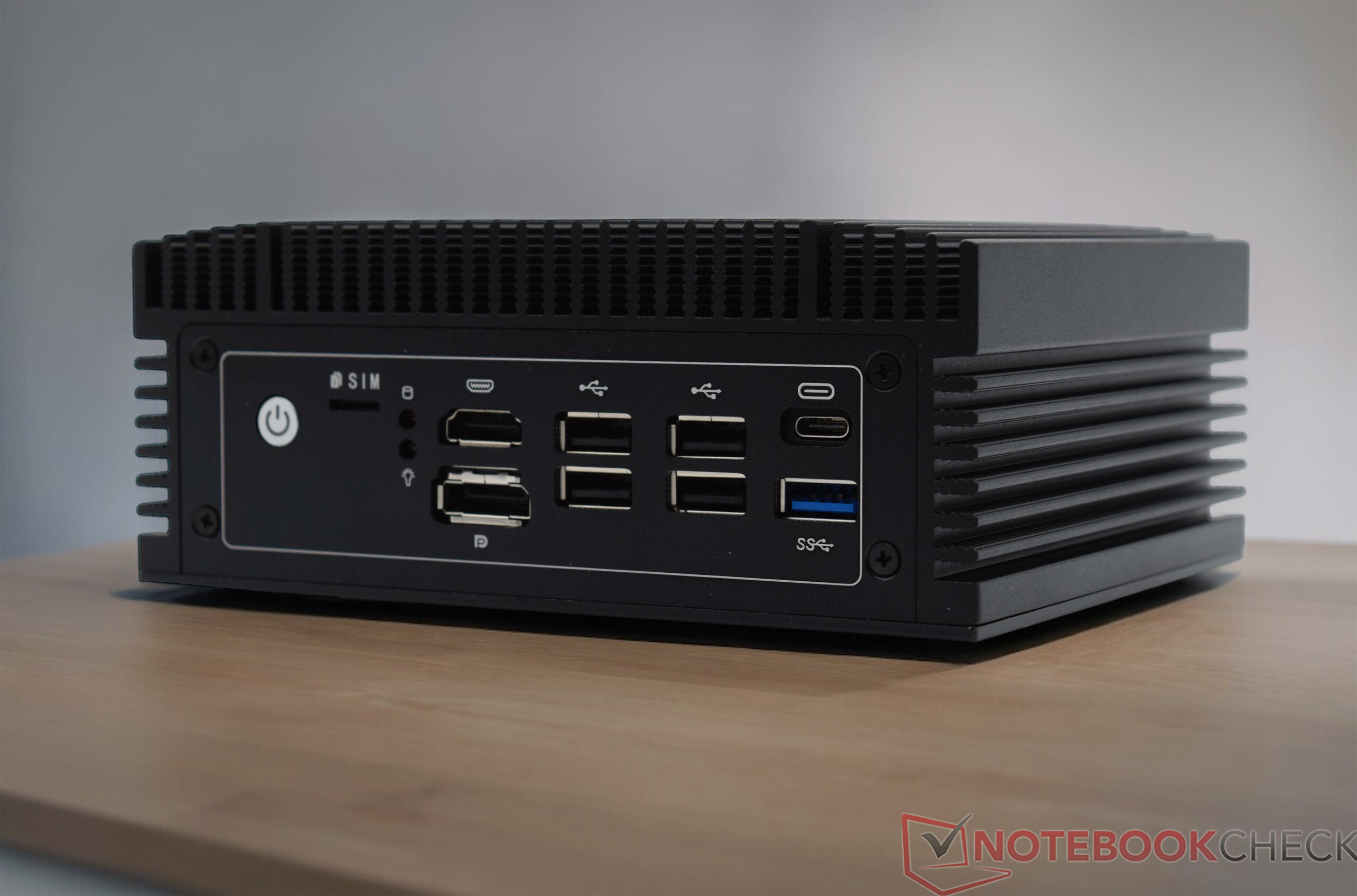

Case - A sturdy metal case serves as a cooling element

The Newsmay AC8F-POE's cooling concept is initially responsible for the mini PC's looks. Since the manufacturer has opted for passive cooling, the case is also used to dissipate heat. We can already reveal that, in practice, this works wonderfully well. The case consists completely of metal and can be taken apart comparably easily. On the top of the unit and at the sides, large cooling vents have been fitted to emit the heat over a large area. One disadvantage of this concept is the weight, with the review sample tipping the scales at a more than decent 1.2 kilograms. The Newsmay also takes up more space than the competition. The fit and finish are good and everything fits together harmoniously. The only small point of criticism is the somewhat sharp-edged cooling fins.

Size comparison

Newsmay AC8F-POE Asus ExpertCenter PN42-BBN200MV Acemagic S1 BOSGAME N95 Minisforum Venus Series UN100D Geekom MiniAir 12 Blackview MP80 DIN A5 ❌

Features

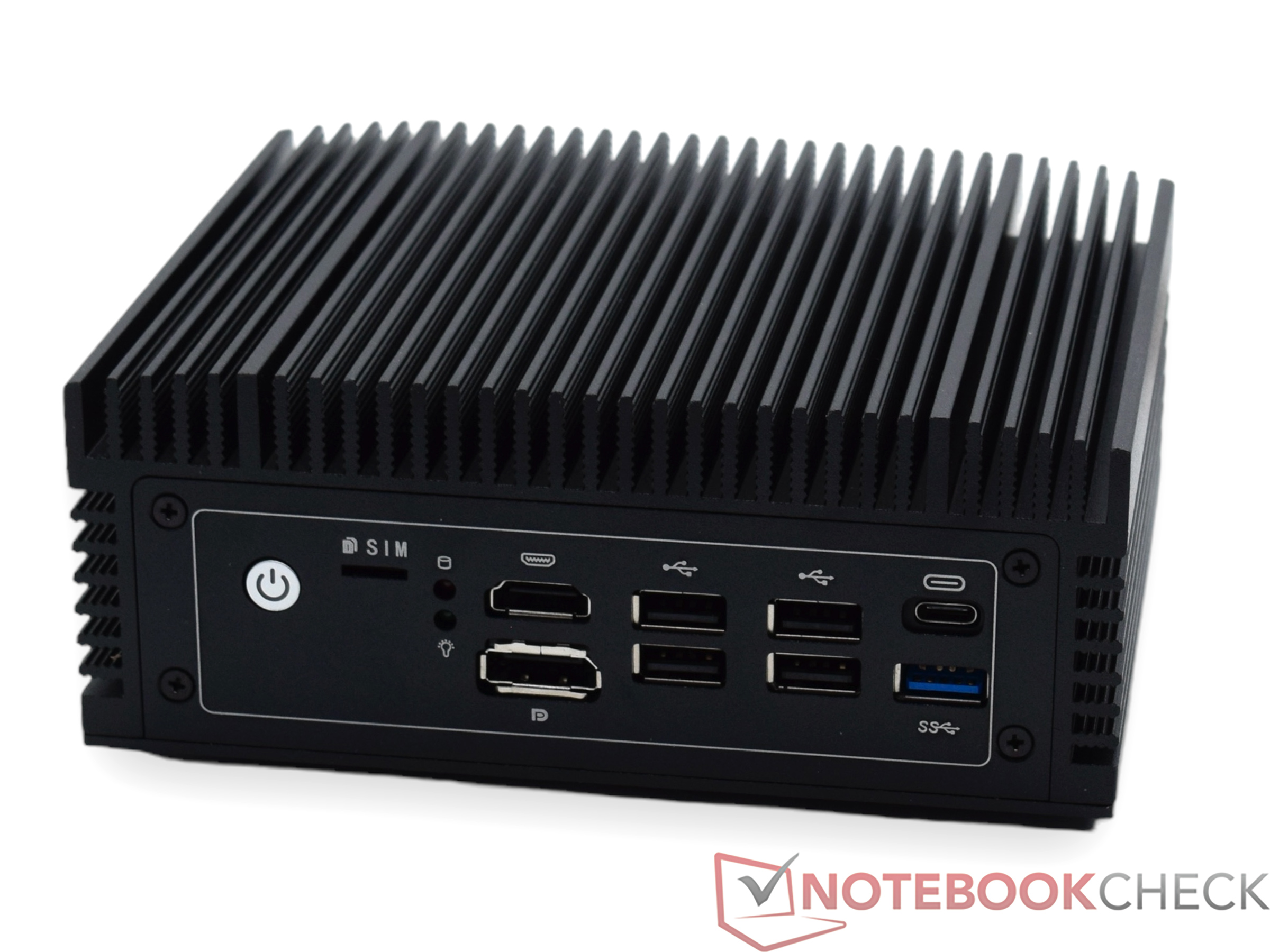

The Newsmay AC8F-POE offers a good selection of ports which meet their intended use. The first thing you notice is the many LAN ports which can serve as an interface to various networks. For example, LAN port 4 offers the option to provide the device with power and thereby makes the PSU unnecessary. Not many mini PCs have the PoE option and this gives the Newsmay AC8F-POE a unique selling point. However, we were unable to test this since we currently don’t have access to a PoE-capable switch. In addition to numerous USB ports - two of which only possess the 2.0 speed - the front is home to an HDMI port and a DisplayPort connector for transferring images. Likewise, there is a SIM card slot, although this device specification doesn’t come fitted with an internal 4G or 5G module. Both Wi-Fi antenna ports promise more than they deliver since a Wi-Fi module is also not installed in the Newsmay AC8F-POE. With this being the case, the next section covering communication is absent from this review. You can, however, fit the device with a Wi-Fi module.

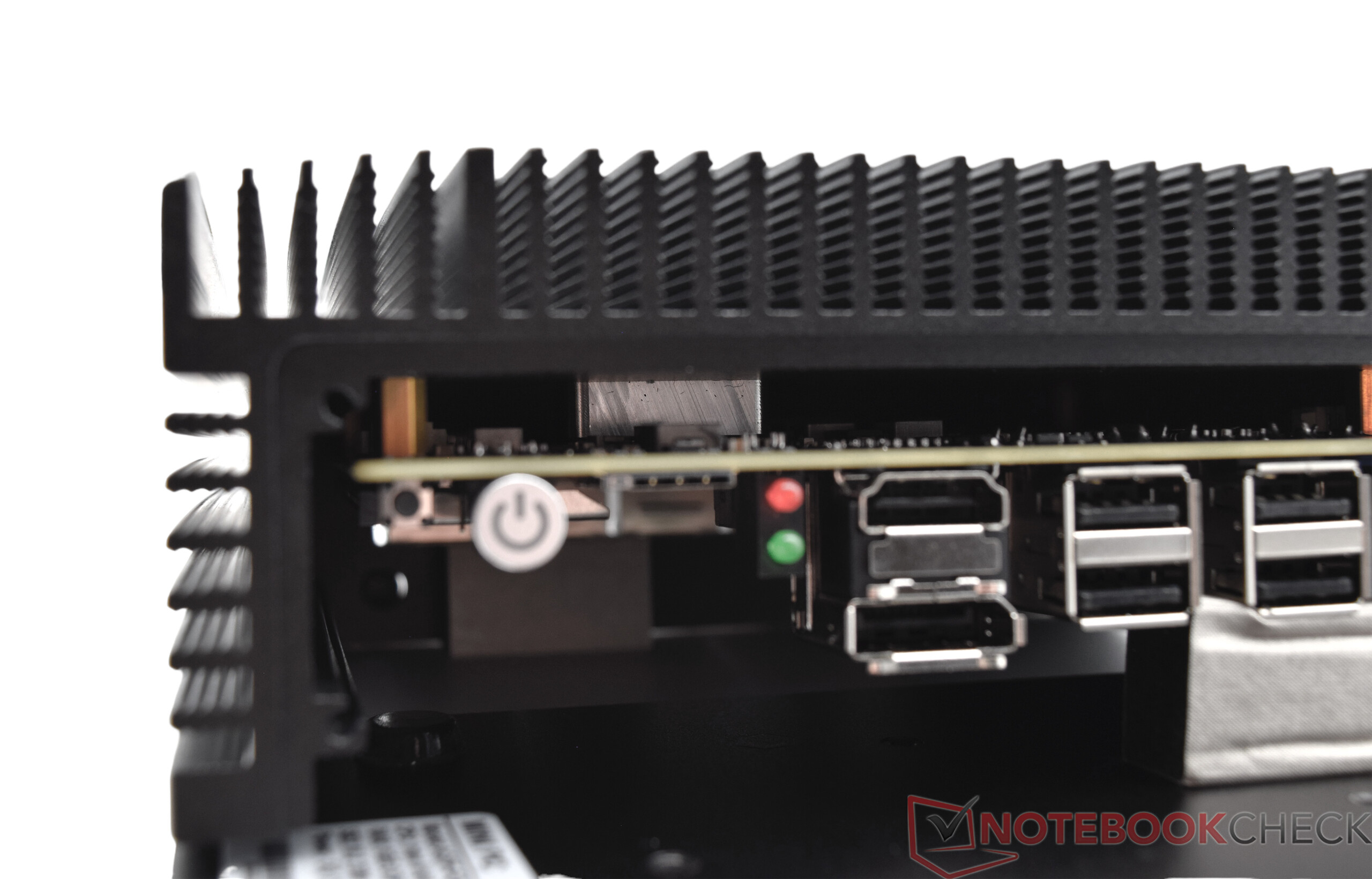

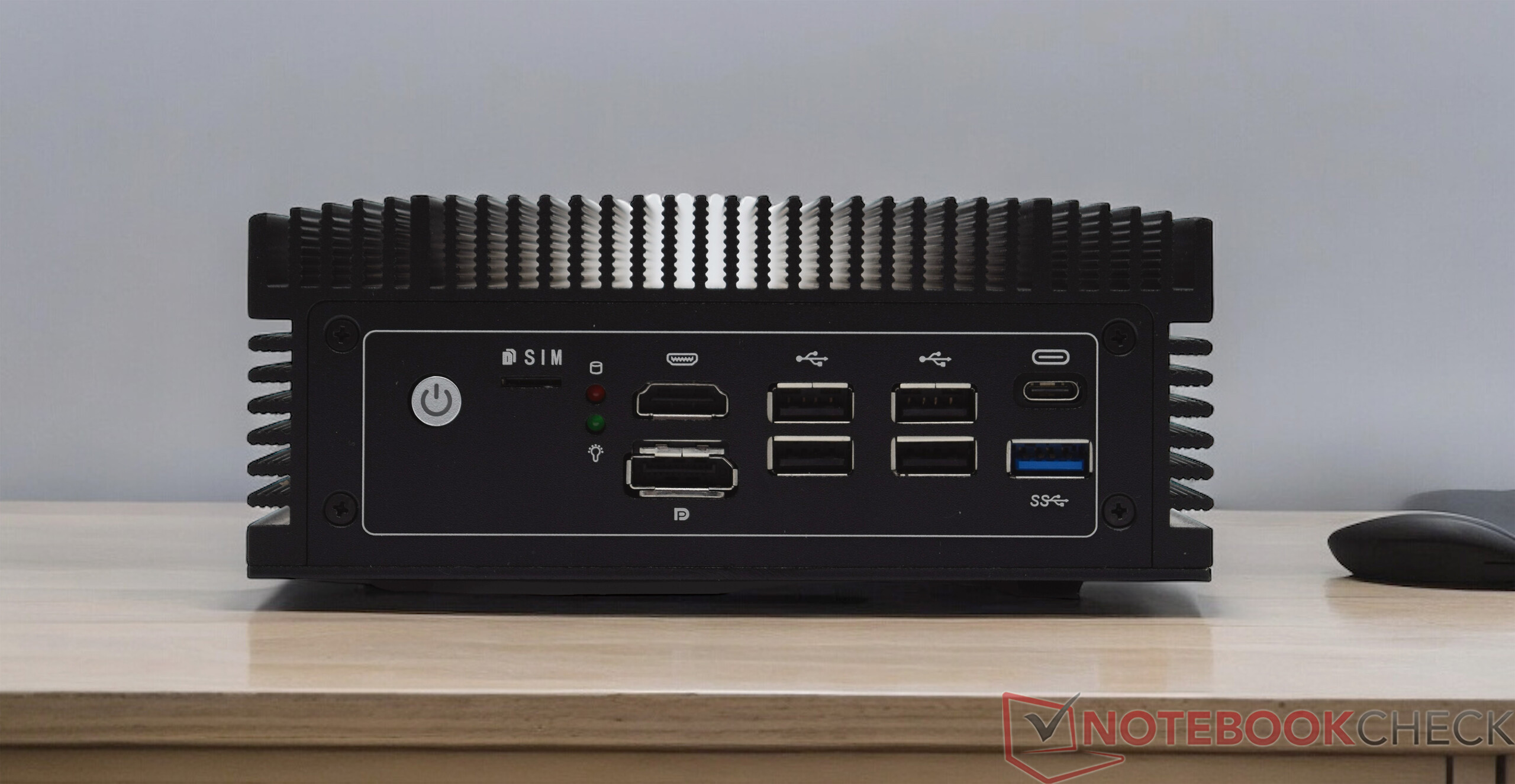

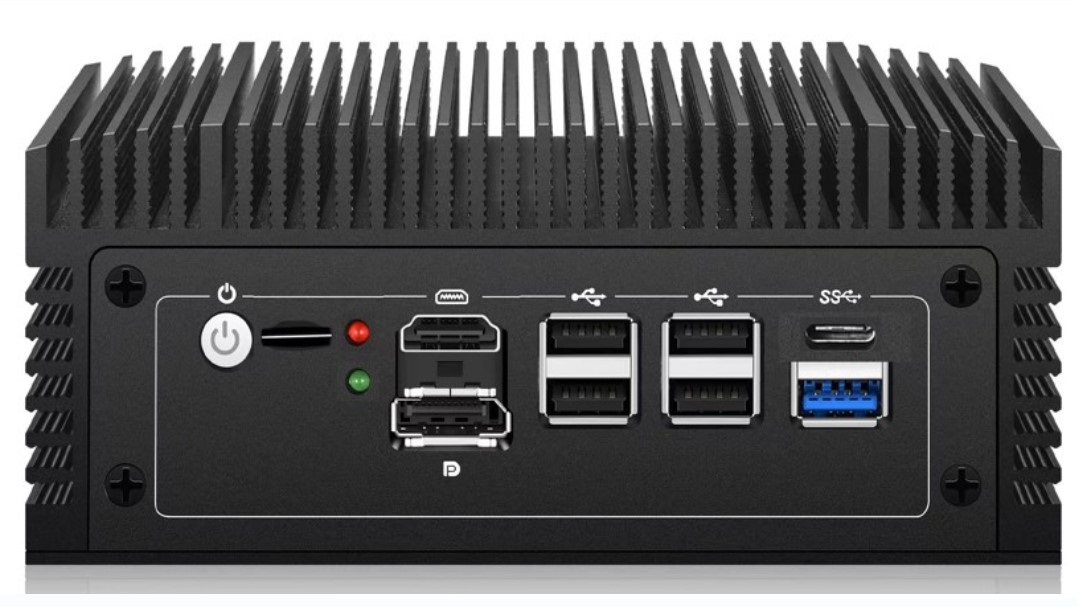

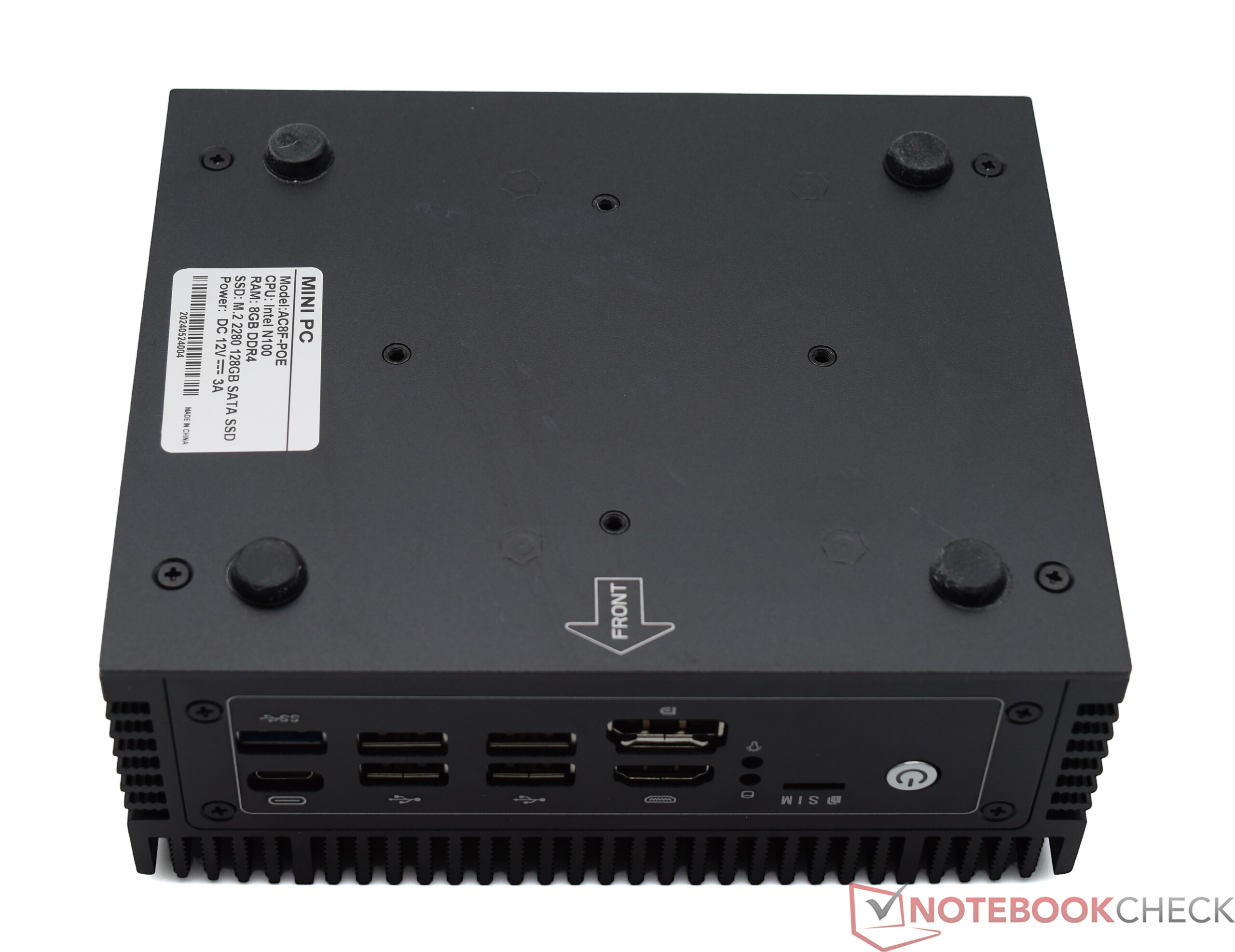

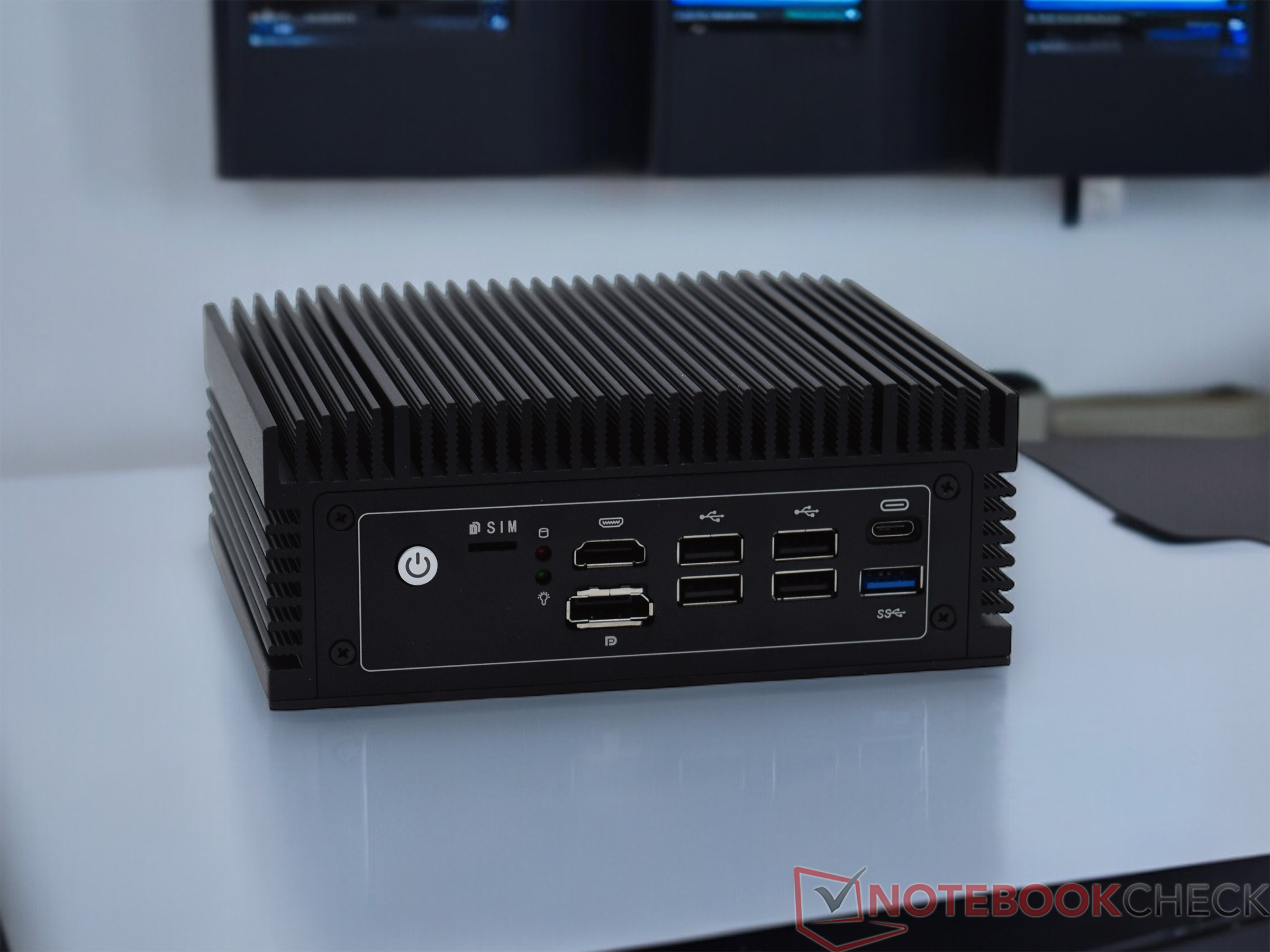

Front: Power on, SIM card slot, DisplayPort, HDMI, 4x USB-A 2.0, USB 3.0 type A, USB 3.0 type C (source: Newsmay)

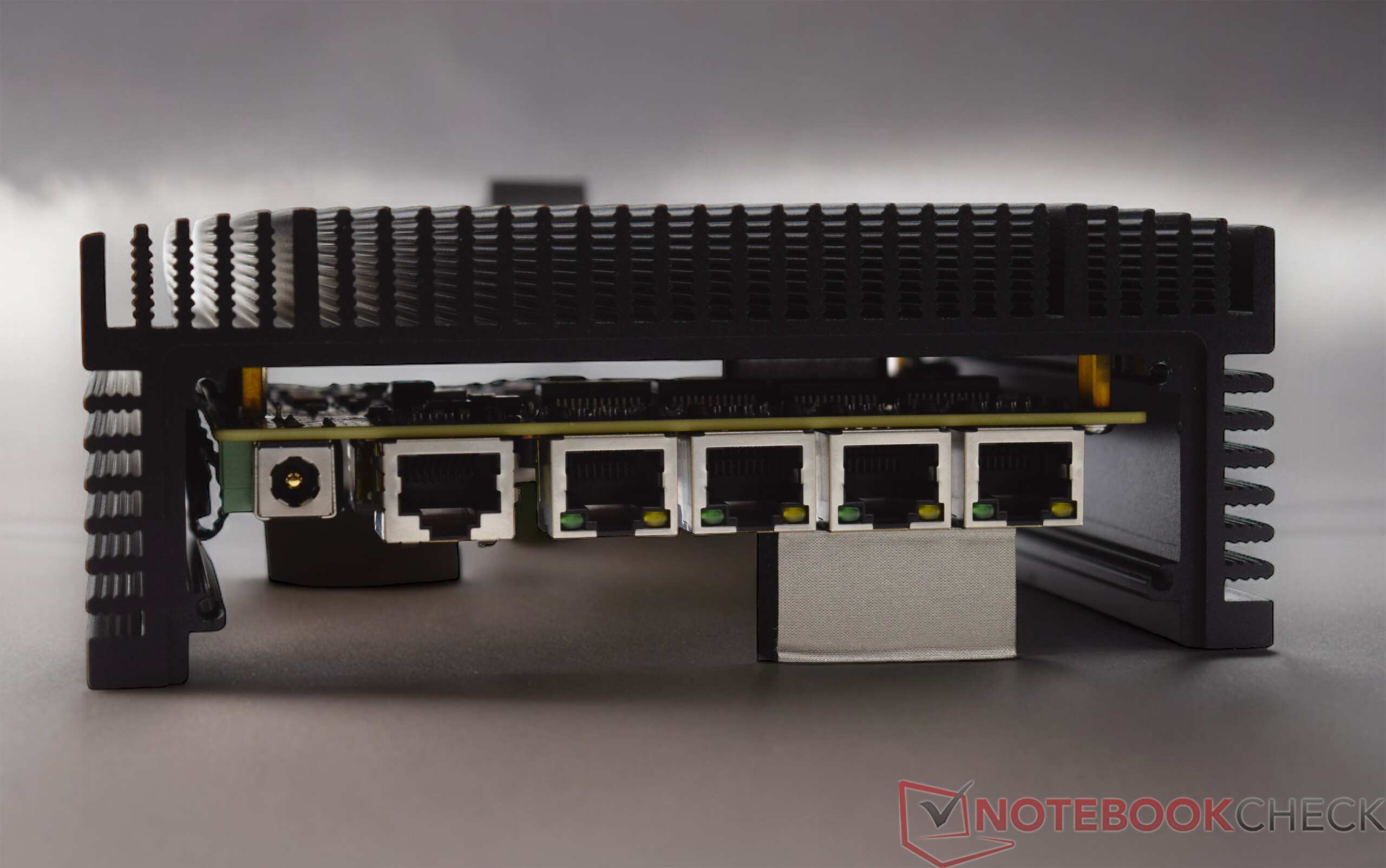

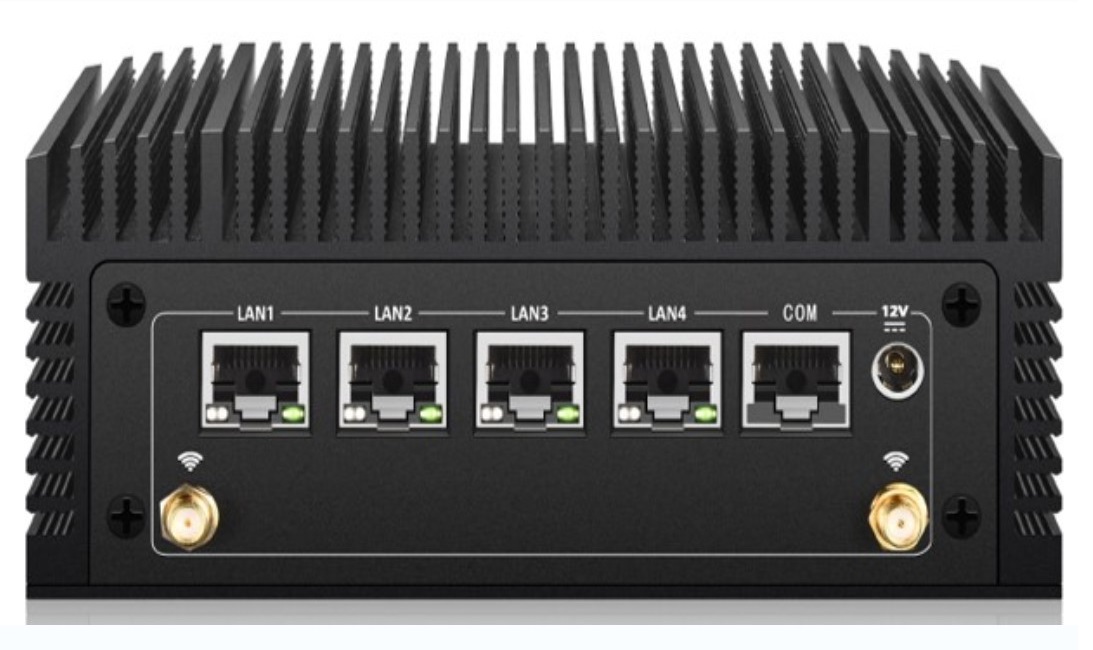

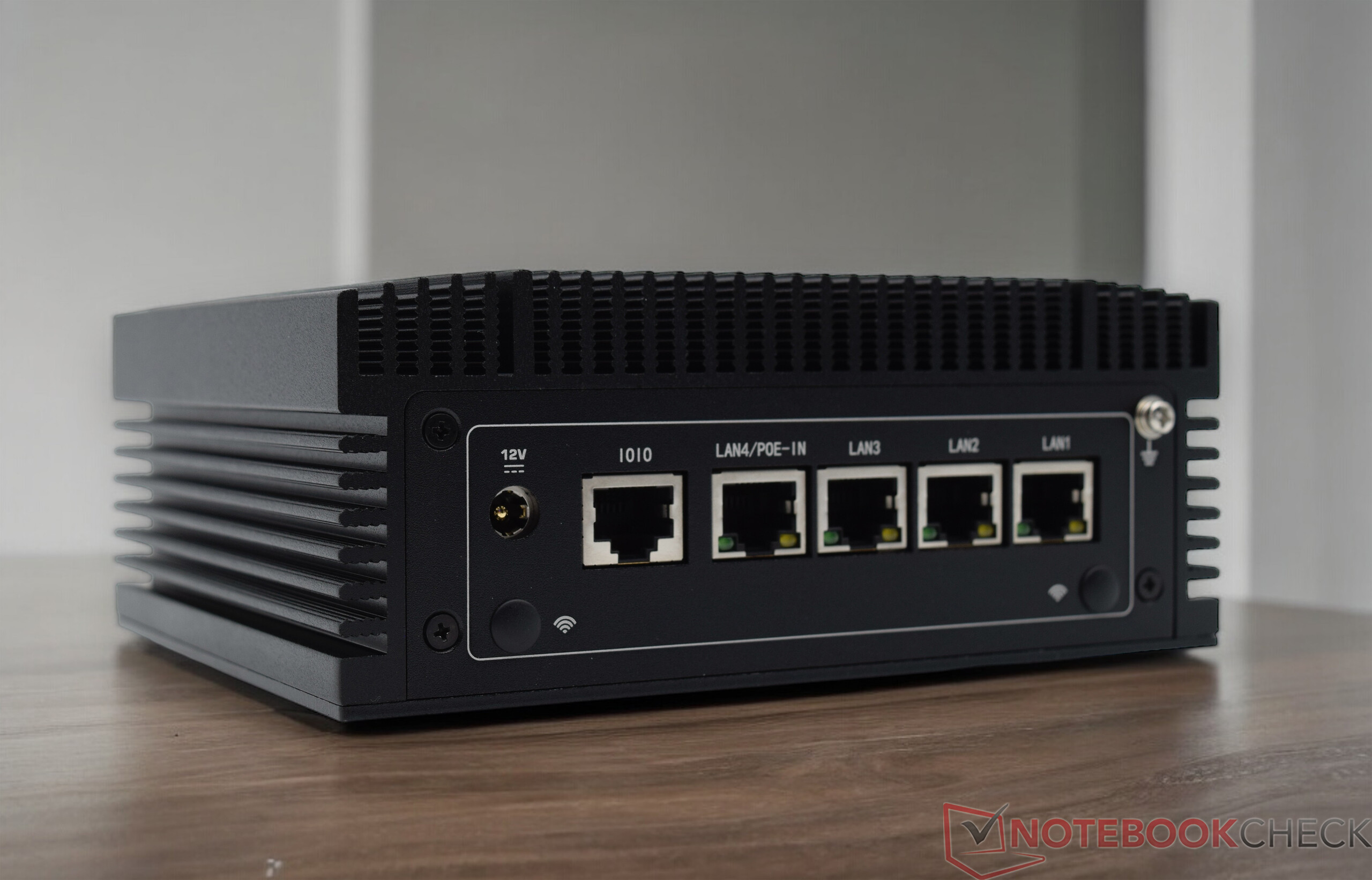

Rear: 4x LAN port, 1 support PoE in, 1x RJ45 COM RS232, can be updated to RS485/RS422 (source: Newsmay)

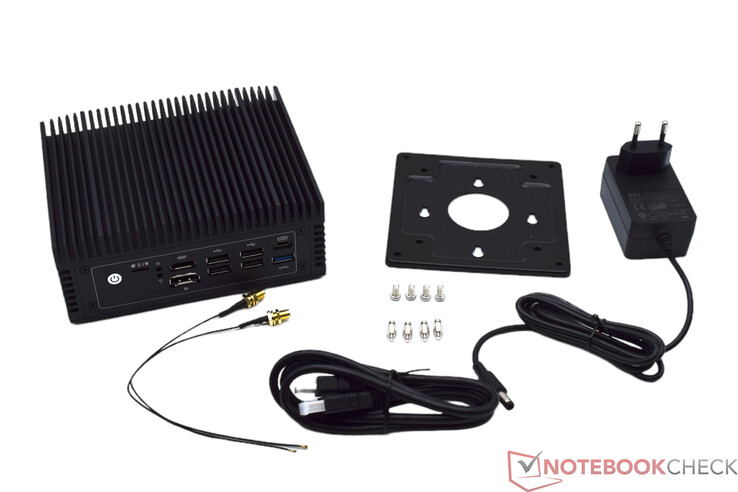

Accessories

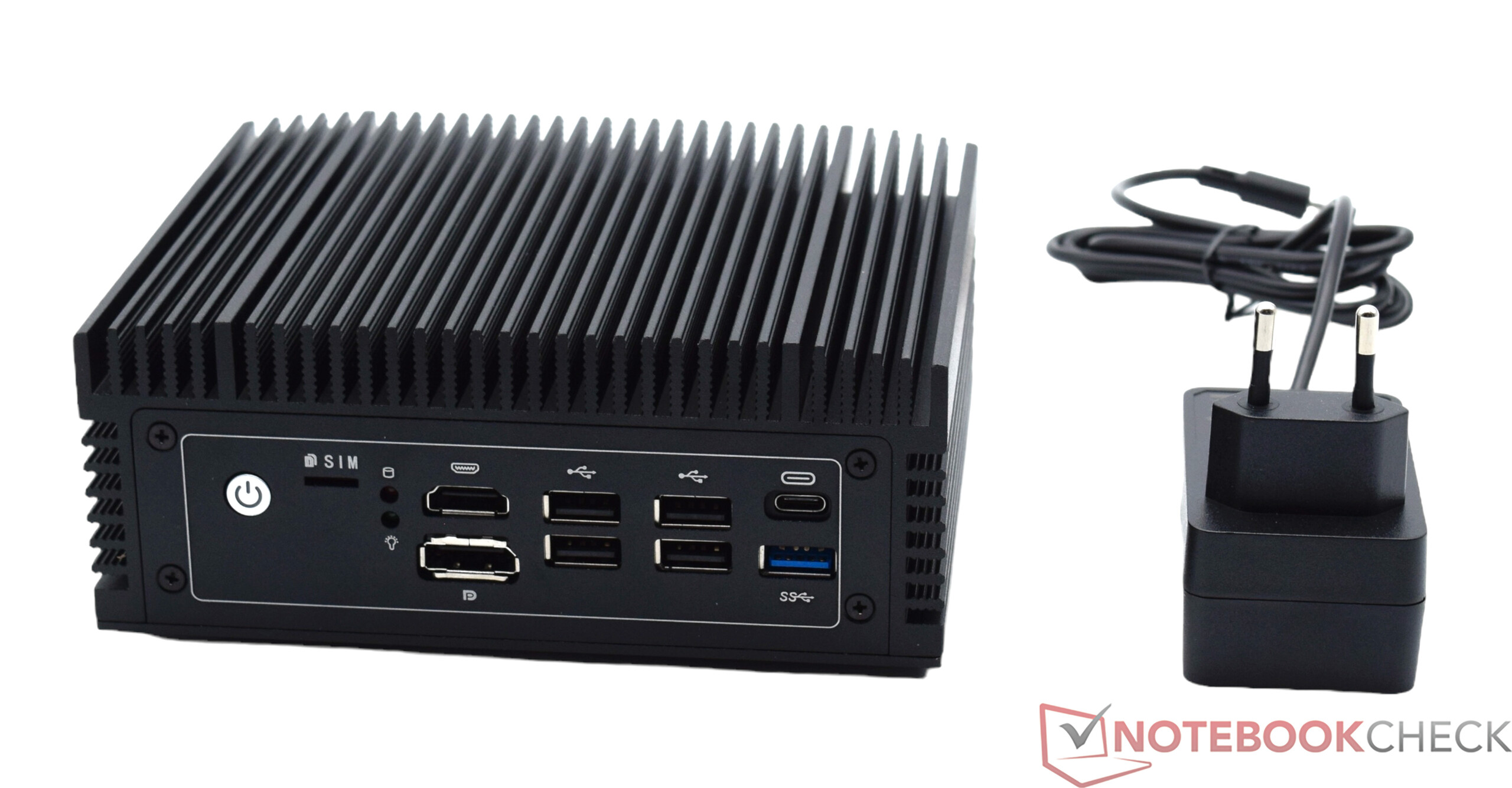

The mini PC comes in straightforward, unassuming packaging. Inside the box, you will find an HDMI cable together with the 35-watt PSU. The Newsmay AC8F-POE can also be attached to a VESA mount. A mounting plate with mounting material comes as part of the package. Likewise, two Wi-Fi antenna cables for attaching to the case are also included. However, there are no external Wi-Fi antennas. A connector cable for the optional 2.5-inch mass storage is already installed in the device.

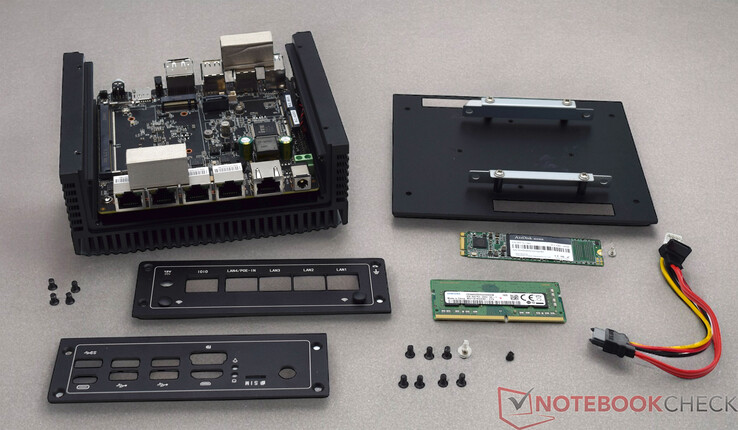

Maintenance

The Newsmay AC8F-POE is sold with RAM and mass storage which means no upgrading work is required before using the device for the first time. However, the sturdy metal case can be easily opened on the base of the unit. Only four screws require unscrewing to dismantle the base plate. Fortunately, these are not covered by rubber feet which is the case with other manufacturers. In our case, it is possible to fit an additional 2.5-inch data storage device. Likewise, there is also a free slot for a Wi-Fi module. The passive design means there is no need to clean a fan. In the long term, this means there shouldn’t be a significant build-up of dust in the system itself.

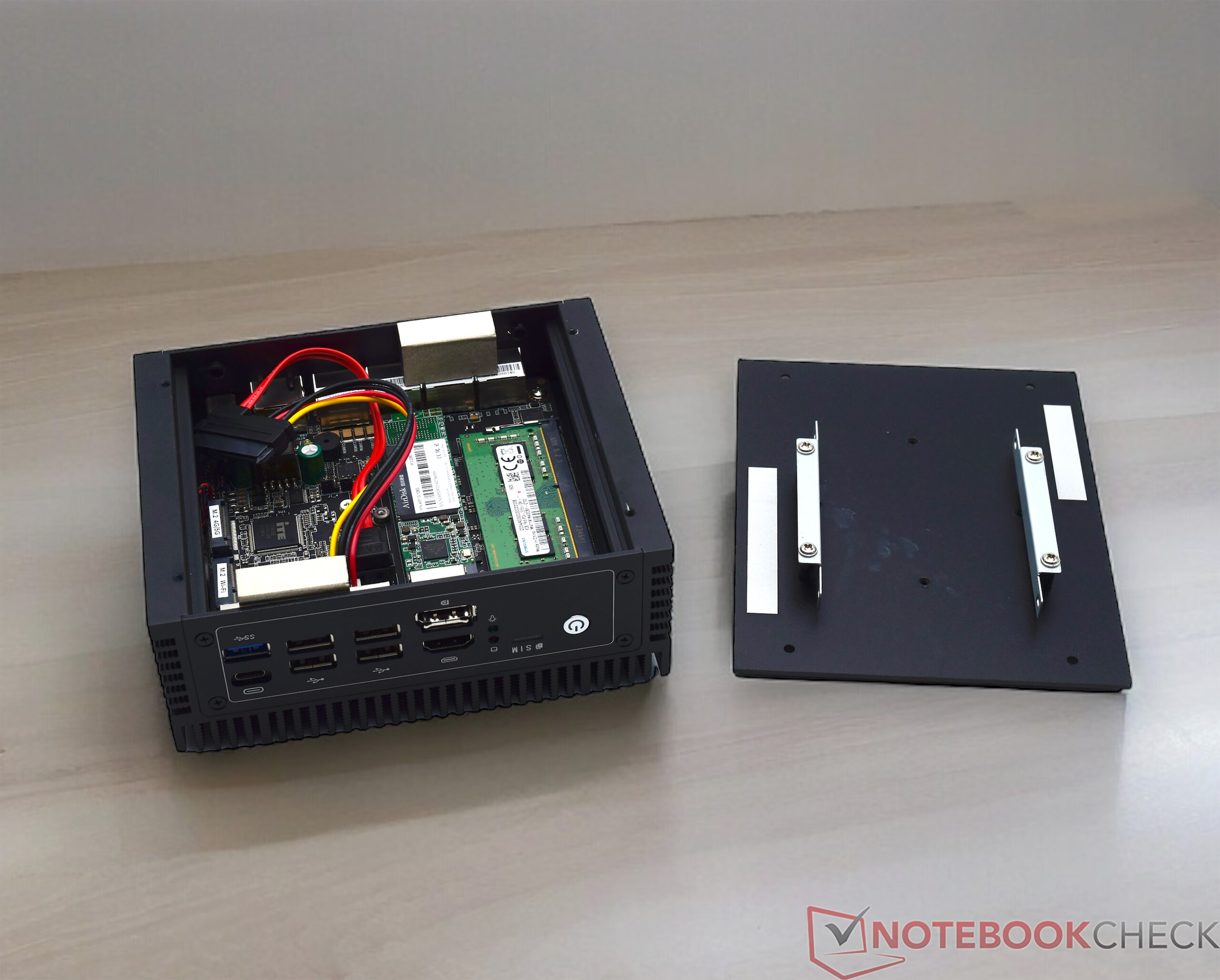

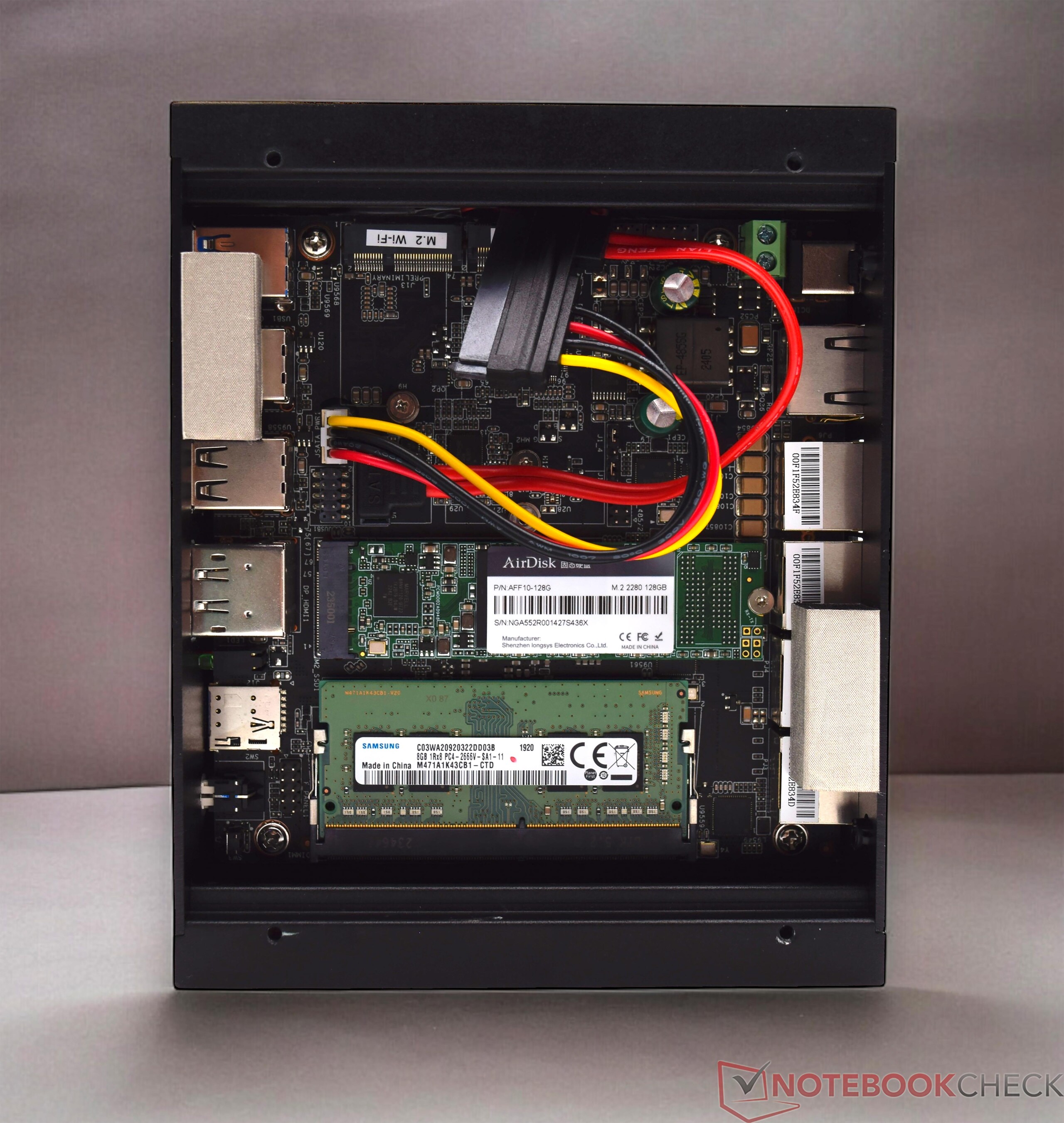

Newsmay AC8F-POE with the base plate removed

Sustainability

Externally, the Newsmay AC8F-POE’s packaging appears neutral. However, the inside reveals that a lot of plastic has been used. Individually packaged cables are unnecessary and pollute the environment so there’s room for improvement in this area. The device itself does largely without plastic - and that’s good. However, we do not have any additional figures regarding the environmental footprint.

Performance - A passively cooled Intel N100 with four cores

In the meantime, the Intel N100 is a widely used SoC which has four native processing units and belongs to the Alder Lake series. The SoC was launched at the beginning of 2023 and is mostly found in budget devices. Due to its low power consumption, the processor is also suitable for passively cooled devices. The Newsmay AC8F-POE only has 8 GB of RAM which is a bit meagre when used in combination with the Windows operating system. However, this can be expanded at a later date.

Test conditions

We carried out all of the performance tests using the "Highest Performance" energy settings. Different energy-saving plans only came into play with the power consumption and noise measurements. Additional details concerning the test criteria are summarized here.

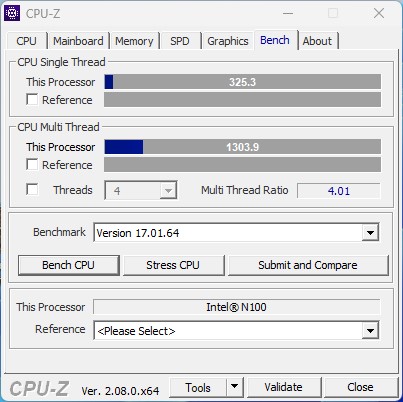

Processor

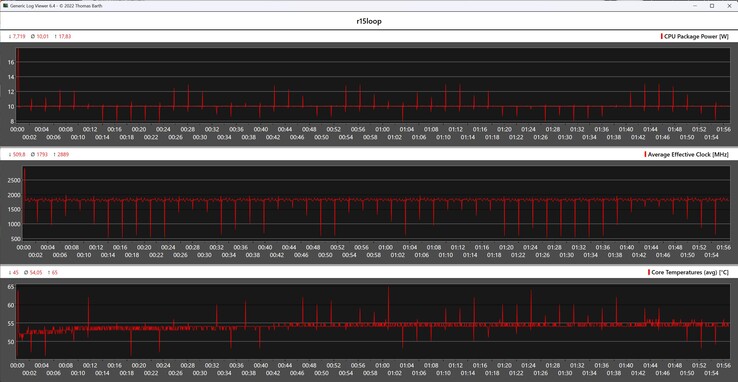

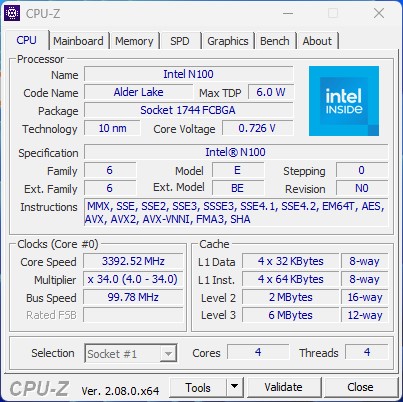

The Intel N100 is a quad-core processor with Alder Lake architecture. Identical to the N95 and N97 models, there are only marginal performances between the three models. These are precisely the three models Newsmay offers in the AC8F-POE. Nevertheless, you can see from the specifications that the processor’s performance differs when it comes to power consumption. The Intel N100 found in our review system possesses a PL1 of 10 watts. With the Intel N97, it is 12 watts, even though 15 watts are stated for the Intel N95. As a result, the two alternative SoCs achieve better multi-core performance. In the performance comparison, our review device finds itself in second last place. Only the similarly passively cooled Asus PN42 is worse. However, the gap to the other competitors which have active cooling is small and only in the single-digit percentage range.

Additional processor benchmarks can be found here.

Performance Rating - Percent
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	36.4 pt
Geekom MiniAir 12 Intel Processor N100, 25, 15	35.8 pt
Blackview MP80 Intel Processor N95, 15, 15	35.6 pt
BOSGAME N95 Intel Processor N95, 35, 15	35.6 pt
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	34.5 pt
Newsmay AC8F-POE Intel Processor N100, 25, 10	33.4 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	31.6 pt

Cinebench R23
Multi Core
Geekom MiniAir 12 Intel Processor N100, 25, 15	2983 Points +53%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2913 Points +50%
BOSGAME N95 Intel Processor N95, 35, 15	2785 Points +43%
Blackview MP80 Intel Processor N95, 15, 15	2686 Points +38%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2203 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1946 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1406 Points -28%
Single Core
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	973 Points +15%
BOSGAME N95 Intel Processor N95, 35, 15	935 Points +11%
Geekom MiniAir 12 Intel Processor N100, 25, 15	929 Points +10%
Blackview MP80 Intel Processor N95, 15, 15	914 Points +8%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	907 Points +8%
Newsmay AC8F-POE Intel Processor N100, 25, 10	843 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	690 Points -18%

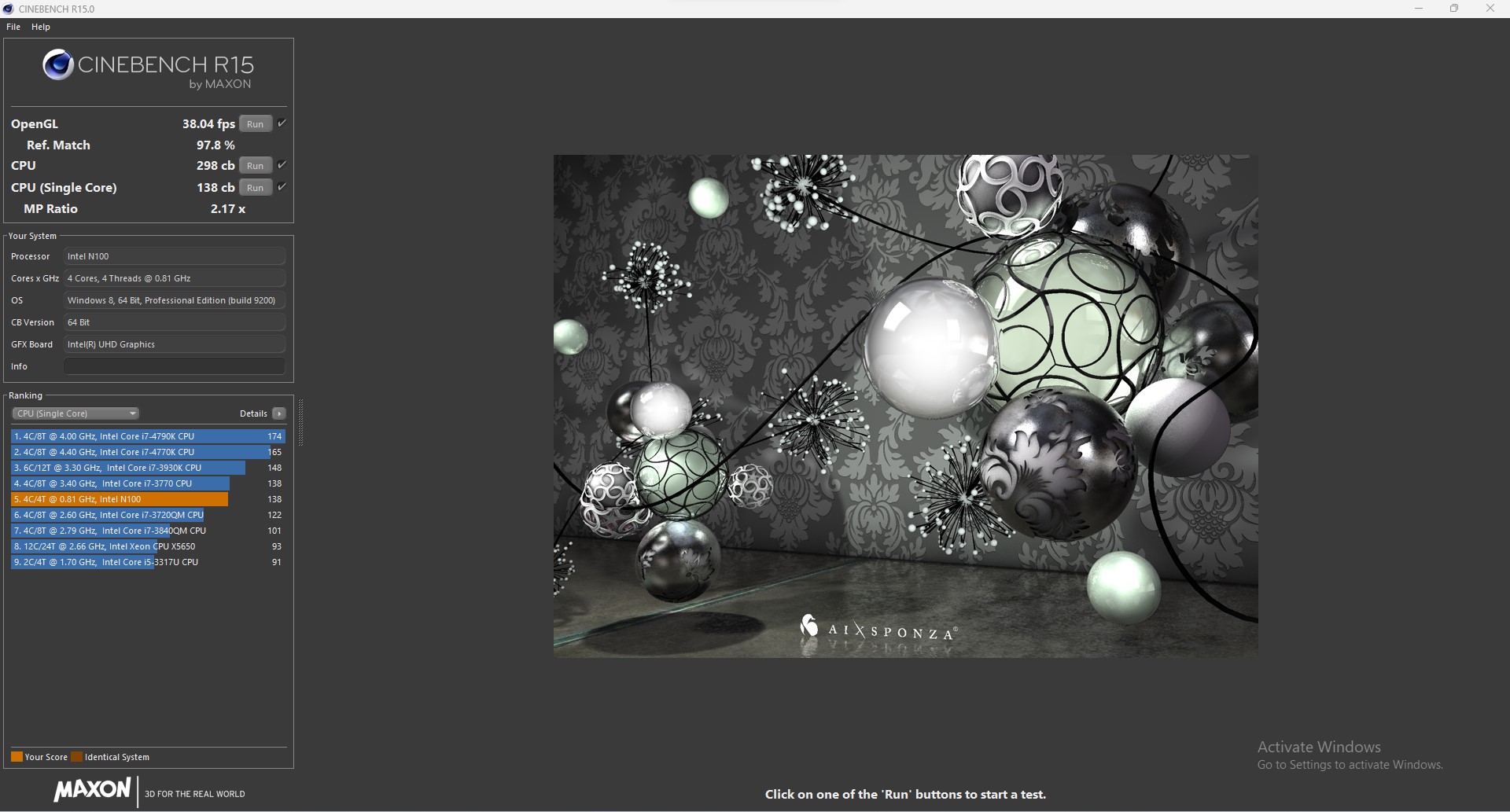

Cinebench R15
CPU Single 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	161 Points +17%
BOSGAME N95 Intel Processor N95, 35, 15	155 Points +12%
Geekom MiniAir 12 Intel Processor N100, 25, 15	152 Points +10%
Blackview MP80 Intel Processor N95, 15, 15	151 Points +9%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	146 Points +6%
Newsmay AC8F-POE Intel Processor N100, 25, 10	138 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	113 Points -18%
CPU Multi 64Bit
Geekom MiniAir 12 Intel Processor N100, 25, 15	479 Points +61%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	479 Points +61%
BOSGAME N95 Intel Processor N95, 35, 15	452 Points +52%
Blackview MP80 Intel Processor N95, 15, 15	434 Points +46%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	336 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	298 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	219 Points -27%

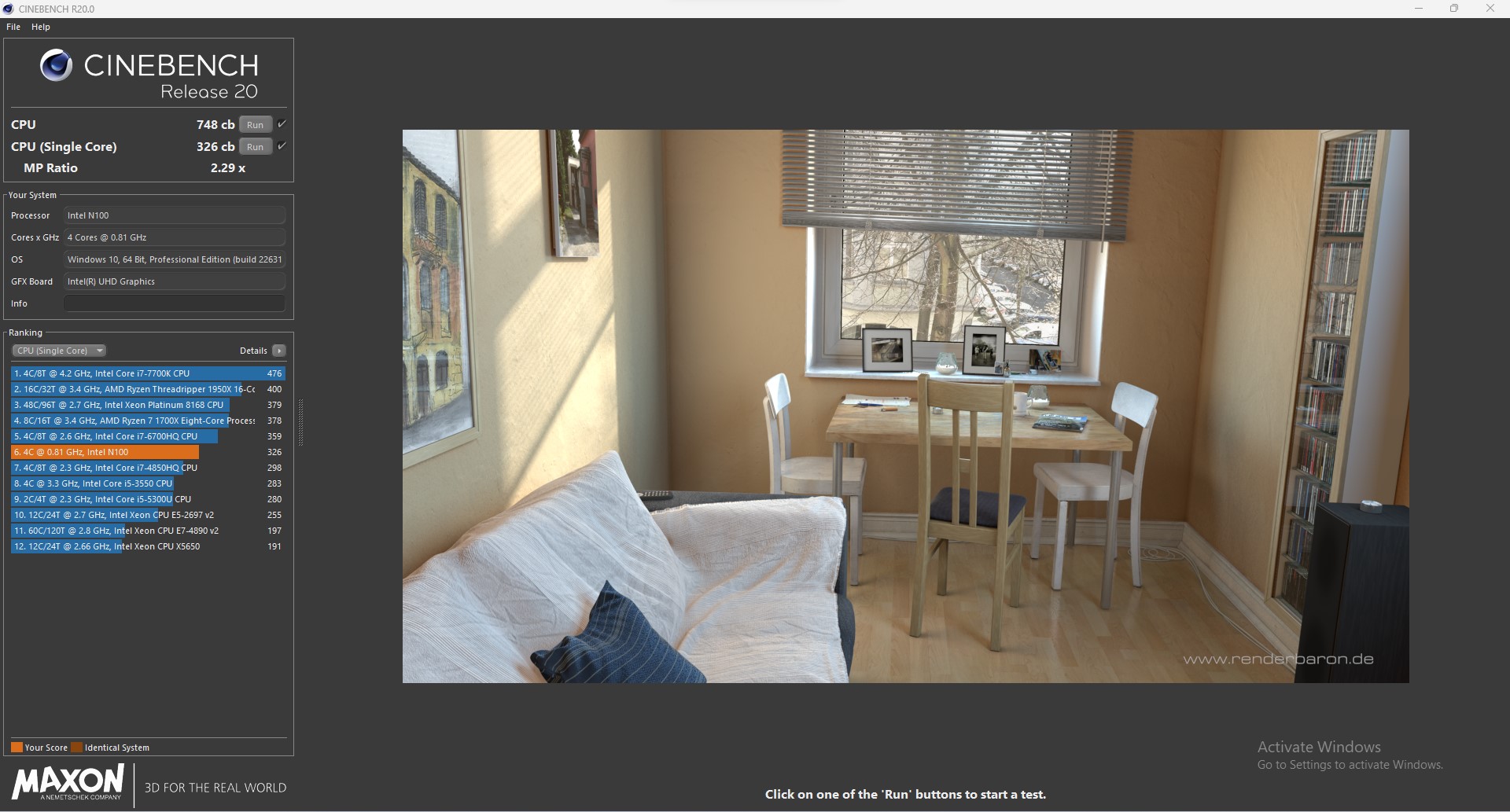

Cinebench R20
CPU (Single Core)
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	371 Points +14%
BOSGAME N95 Intel Processor N95, 35, 15	357 Points +10%
Geekom MiniAir 12 Intel Processor N100, 25, 15	353 Points +8%
Blackview MP80 Intel Processor N95, 15, 15	350 Points +7%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	346 Points +6%
Newsmay AC8F-POE Intel Processor N100, 25, 10	326 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	265 Points -19%
CPU (Multi Core)
Geekom MiniAir 12 Intel Processor N100, 25, 15	1139 Points +52%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1115 Points +49%
BOSGAME N95 Intel Processor N95, 35, 15	1067 Points +43%
Blackview MP80 Intel Processor N95, 15, 15	1029 Points +38%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	842 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	748 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	542 Points -28%

Cinebench R11.5
CPU Single 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1.94 Points +16%
BOSGAME N95 Intel Processor N95, 35, 15	1.86 Points +11%
Blackview MP80 Intel Processor N95, 15, 15	1.83 Points +10%
Geekom MiniAir 12 Intel Processor N100, 25, 15	1.83 Points +10%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1.76 Points +5%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1.67 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1.36 Points -19%
CPU Multi 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	5.97 Points +55%
BOSGAME N95 Intel Processor N95, 35, 15	5.62 Points +46%
Blackview MP80 Intel Processor N95, 15, 15	5.41 Points +41%
Geekom MiniAir 12 Intel Processor N100, 25, 15	5.18 Points +35%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	4.23 Points +10%
Newsmay AC8F-POE Intel Processor N100, 25, 10	3.84 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2.73 Points -29%

Cinebench R10
Rendering Single CPUs 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	8567 Points +18%
Geekom MiniAir 12 Intel Processor N100, 25, 15	8098 Points +12%
Blackview MP80 Intel Processor N95, 15, 15	8080 Points +11%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	7750 Points +7%
BOSGAME N95 Intel Processor N95, 35, 15	7574 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	7250 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	5971 Points -18%
Rendering Multiple CPUs 64Bit
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	24158 Points +66%
Geekom MiniAir 12 Intel Processor N100, 25, 15	23912 Points +64%
BOSGAME N95 Intel Processor N95, 35, 15	22275 Points +53%
Blackview MP80 Intel Processor N95, 15, 15	20565 Points +41%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	16948 Points +17%
Newsmay AC8F-POE Intel Processor N100, 25, 10	14545 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	11030 Points -24%

Blender - v2.79 BMW27 CPU
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2150 Seconds * -41%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1522 Seconds *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1346 Seconds * +12%
Blackview MP80 Intel Processor N95, 15, 15	1124 Seconds * +26%
BOSGAME N95 Intel Processor N95, 35, 15	1103 Seconds * +28%
Geekom MiniAir 12 Intel Processor N100, 25, 15	1038 Seconds * +32%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1020 Seconds * +33%

wPrime 2.10
32m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	25.99 s * -52%
BOSGAME N95 Intel Processor N95, 35, 15	18.213 s * -7%
Blackview MP80 Intel Processor N95, 15, 15	17.521 s * -3%
Newsmay AC8F-POE Intel Processor N100, 25, 10	17.085 s *
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	16.819 s * +2%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	16.224 s * +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	15.908 s * +7%
1024m
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	874.559 s * -35%
Newsmay AC8F-POE Intel Processor N100, 25, 10	645.884 s *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	588.291 s * +9%
BOSGAME N95 Intel Processor N95, 35, 15	568.939 s * +12%
Blackview MP80 Intel Processor N95, 15, 15	538.757 s * +17%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	522.766 s * +19%
Geekom MiniAir 12 Intel Processor N100, 25, 15	496.78 s * +23%

X264 HD Benchmark 4.0
Pass 1
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	174.8 (165.8^min - 175.5^max) fps +72%
Geekom MiniAir 12 Intel Processor N100, 25, 15	173 (172.8^min - 173.5^max) fps +70%
Blackview MP80 Intel Processor N95, 15, 15	163.3 (162.1^min - 163.7^max) fps +60%
BOSGAME N95 Intel Processor N95, 35, 15	162.4 (161.9^min - 162.4^max) fps +60%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	121.2 (121^min - 174.5^max) fps +19%
Newsmay AC8F-POE Intel Processor N100, 25, 10	101.8 (100.5^min - 169.3^max) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	79.95 (79^min - 109.2^max) fps -21%
Pass 2
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	34.85 (34.6^min - 35^max) fps +67%
Geekom MiniAir 12 Intel Processor N100, 25, 15	34.7 (34.7^min - 34.8^max) fps +66%
BOSGAME N95 Intel Processor N95, 35, 15	32.45 (32.4^min - 32.5^max) fps +56%
Blackview MP80 Intel Processor N95, 15, 15	32.4 (32.4^min - 32.4^max) fps +55%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	24.1 (24^min - 25.1^max) fps +16%
Newsmay AC8F-POE Intel Processor N100, 25, 10	20.85 (20.8^min - 21.1^max) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	16.3 (16.2^min - 16.4^max) fps -22%

WinRAR - Result
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2501 KB/s +12%
Geekom MiniAir 12 Intel Processor N100, 25, 15	2372 KB/s +7%
BOSGAME N95 Intel Processor N95, 35, 15	2362 KB/s +6%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2321 KB/s +4%
Blackview MP80 Intel Processor N95, 15, 15	2277 KB/s +2%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2226 KB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2115 KB/s -5%

TrueCrypt
AES Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	3.2 GB/s +10%
Geekom MiniAir 12 Intel Processor N100, 25, 15	2.9 GB/s 0%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2.9 GB/s 0%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2.9 GB/s 0%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2.9 GB/s
Blackview MP80 Intel Processor N95, 15, 15	2.8 GB/s -3%
BOSGAME N95 Intel Processor N95, 35, 15	2.7 GB/s -7%
Twofish Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	0.583 GB/s +10%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	0.537 GB/s +2%
Geekom MiniAir 12 Intel Processor N100, 25, 15	0.532 GB/s +1%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	0.532 GB/s +1%
Newsmay AC8F-POE Intel Processor N100, 25, 10	0.529 GB/s
Blackview MP80 Intel Processor N95, 15, 15	0.501 GB/s -5%
BOSGAME N95 Intel Processor N95, 35, 15	0.492 GB/s -7%
Serpent Mean 100MB
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	0.287 GB/s +12%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	0.263 GB/s +2%
Geekom MiniAir 12 Intel Processor N100, 25, 15	0.261 GB/s +2%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	0.257 GB/s 0%
Newsmay AC8F-POE Intel Processor N100, 25, 10	0.257 GB/s
Blackview MP80 Intel Processor N95, 15, 15	0.244 GB/s -5%
BOSGAME N95 Intel Processor N95, 35, 15	0.239 GB/s -7%

Geekbench 5.5
Multi-Core
Geekom MiniAir 12 Intel Processor N100, 25, 15	2896 Points +24%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2829 Points +21%
Blackview MP80 Intel Processor N95, 15, 15	2793 Points +20%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2757 Points +18%
BOSGAME N95 Intel Processor N95, 35, 15	2616 Points +12%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2332 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1540 Points -34%
Single-Core
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1060 Points +9%
Blackview MP80 Intel Processor N95, 15, 15	1013 Points +4%
BOSGAME N95 Intel Processor N95, 35, 15	1007 Points +3%
Geekom MiniAir 12 Intel Processor N100, 25, 15	998 Points +2%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	996 Points +2%
Newsmay AC8F-POE Intel Processor N100, 25, 10	975 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	928 Points -5%

Geekbench 5.0
5.0 Multi-Core
Geekom MiniAir 12 Intel Processor N100, 25, 15	2862 Points +26%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2804 Points +23%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2738 Points +20%
Blackview MP80 Intel Processor N95, 15, 15	2737 Points +20%
BOSGAME N95 Intel Processor N95, 35, 15	2585 Points +13%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2278 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1518 Points -33%
5.0 Single-Core
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	1052 Points +9%
Blackview MP80 Intel Processor N95, 15, 15	1005 Points +4%
BOSGAME N95 Intel Processor N95, 35, 15	1000 Points +3%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	999 Points +3%
Geekom MiniAir 12 Intel Processor N100, 25, 15	993 Points +3%
Newsmay AC8F-POE Intel Processor N100, 25, 10	968 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	891 Points -8%

Geekbench 4.4
64 Bit Single-Core Score
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	4703 Points +10%
Blackview MP80 Intel Processor N95, 15, 15	4553 Points +6%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	4552 Points +6%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	4549 Points +6%
BOSGAME N95 Intel Processor N95, 35, 15	4495 Points +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	4467 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	4278 Points
64 Bit Multi-Core Score
Geekom MiniAir 12 Intel Processor N100, 25, 15	11264 Points +9%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	11250 Points +9%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	10893 Points +5%
Blackview MP80 Intel Processor N95, 15, 15	10798 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	10361 Points
BOSGAME N95 Intel Processor N95, 35, 15	10299 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	9989 Points -4%

3DMark 11 - 1280x720 Performance Physics
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	6118 Points +64%
Geekom MiniAir 12 Intel Processor N100, 25, 15	6062 Points +63%
Blackview MP80 Intel Processor N95, 15, 15	5806 Points +56%
BOSGAME N95 Intel Processor N95, 35, 15	5767 Points +55%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	4382 Points +18%
Newsmay AC8F-POE Intel Processor N100, 25, 10	3723 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	2765 Points -26%

7-Zip 18.03
7z b 4
Geekom MiniAir 12 Intel Processor N100, 25, 15	13177 MIPS +51%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	13174 MIPS +51%
BOSGAME N95 Intel Processor N95, 35, 15	12224 MIPS +40%
Blackview MP80 Intel Processor N95, 15, 15	12177 MIPS +40%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	10350 MIPS +19%
Newsmay AC8F-POE Intel Processor N100, 25, 10	8725 MIPS
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	7146 MIPS -18%
7z b 4 -mmt1
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	4019 MIPS +12%
Blackview MP80 Intel Processor N95, 15, 15	3843 MIPS +7%
BOSGAME N95 Intel Processor N95, 35, 15	3803 MIPS +6%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	3780 MIPS +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	3635 MIPS +1%
Newsmay AC8F-POE Intel Processor N100, 25, 10	3583 MIPS
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	3230 MIPS -10%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	3.49 fps +65%
Geekom MiniAir 12 Intel Processor N100, 25, 15	3.47 fps +64%
Blackview MP80 Intel Processor N95, 15, 15	3.29 fps +55%
BOSGAME N95 Intel Processor N95, 35, 15	3.25 fps +53%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	2.51 fps +18%
Newsmay AC8F-POE Intel Processor N100, 25, 10	2.12 fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1.52 fps -28%

R Benchmark 2.5 - Overall mean
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1.149 sec * -18%
Newsmay AC8F-POE Intel Processor N100, 25, 10	0.975 sec *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	0.889 sec * +9%
BOSGAME N95 Intel Processor N95, 35, 15	0.834 sec * +14%
Geekom MiniAir 12 Intel Processor N100, 25, 15	0.831 sec * +15%
Blackview MP80 Intel Processor N95, 15, 15	0.83 sec * +15%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	0.789 sec * +19%

LibreOffice - 20 Documents To PDF
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	120 s * -20%
Newsmay AC8F-POE Intel Processor N100, 25, 10	100.2 s *
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	80.8 s * +19%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	75.7 s * +24%
BOSGAME N95 Intel Processor N95, 35, 15	74.6 s * +26%
Geekom MiniAir 12 Intel Processor N100, 25, 15	72.9 s * +27%
Blackview MP80 Intel Processor N95, 15, 15	68.3 s * +32%

WebXPRT 3 - Overall
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	191.4 Points +17%
Blackview MP80 Intel Processor N95, 15, 15	183.4 Points +12%
Geekom MiniAir 12 Intel Processor N100, 25, 15	181.4 Points +11%
BOSGAME N95 Intel Processor N95, 35, 15	179.4 Points +10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	171.3 Points +5%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	170.4 Points +4%
Newsmay AC8F-POE Intel Processor N100, 25, 10	163.3 Points

Mozilla Kraken 1.1 - Total
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1460 ms * -35%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1083 ms *
BOSGAME N95 Intel Processor N95, 35, 15	1056 ms * +2%
Blackview MP80 Intel Processor N95, 15, 15	1026 ms * +5%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1024 ms * +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	1020 ms * +6%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	975 ms * +10%

3DMark
1920x1080 Fire Strike Physics
Geekom MiniAir 12 Intel Processor N100, 25, 15	6525 Points +37%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	6473 Points +36%
Blackview MP80 Intel Processor N95, 15, 15	6062 Points +27%
BOSGAME N95 Intel Processor N95, 35, 15	5952 Points +25%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	5256 Points +10%
Newsmay AC8F-POE Intel Processor N100, 25, 10	4775 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	4135 Points -13%
2560x1440 Time Spy CPU
Geekom MiniAir 12 Intel Processor N100, 25, 15	2500 Points +68%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	2493 Points +67%
BOSGAME N95 Intel Processor N95, 35, 15	2386 Points +60%
Blackview MP80 Intel Processor N95, 15, 15	2378 Points +60%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	1610 Points +8%
Newsmay AC8F-POE Intel Processor N100, 25, 10	1489 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1251 Points -16%

Super Pi mod 1.5 XS 1M - 1M
Newsmay AC8F-POE Intel Processor N100, 25, 10	19.473 s *
Blackview MP80 Intel Processor N95, 15, 15	19.421 s * -0%
Geekom MiniAir 12 Intel Processor N100, 25, 15	19.359 s * +1%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	19.358 s * +1%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	18.806 s * +3%
BOSGAME N95 Intel Processor N95, 35, 15	18.749 s * +4%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	18.404 s * +5%

Super Pi mod 1.5 XS 2M - 2M
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	42.733 s * -5%
Newsmay AC8F-POE Intel Processor N100, 25, 10	40.679 s *
Blackview MP80 Intel Processor N95, 15, 15	40.504 s * -0%
Geekom MiniAir 12 Intel Processor N100, 25, 15	40.352 s * +1%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	40.302 s * +1%
BOSGAME N95 Intel Processor N95, 35, 15	39.73 s * +2%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	38.325 s * +6%

Super Pi Mod 1.5 XS 32M - 32M
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, 25, 6	1010.589 s * -17%
Newsmay AC8F-POE Intel Processor N100, 25, 10	863.891 s *
BOSGAME N95 Intel Processor N95, 35, 15	824.724 s * +5%
Blackview MP80 Intel Processor N95, 15, 15	823.666 s * +5%
Geekom MiniAir 12 Intel Processor N100, 25, 15	818.372 s * +5%
Minisforum Venus Series UN100D Intel Processor N100, 18, 9	816.966 s * +5%
Acemagic S1 Acemagic S1, N97, Intel Processor N97, 25, 25	785.564 s * +9%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

4770

Cinebench R10 Shading 64Bit

8706 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14545 Points

Cinebench R10 Rendering Single CPUs 64Bit

7250 Points

Cinebench R10 Shading 32Bit

8529

Cinebench R10 Rendering Multiple CPUs 32Bit

10048

Cinebench R11.5 CPU Single 32Bit

1.55 Points

Cinebench R11.5 CPU Multi 32Bit

3.53 Points

Cinebench R11.5 OpenGL 32Bit

33.05 fps

Cinebench R11.5 CPU Single 64Bit

1.67 Points

Cinebench R11.5 CPU Multi 64Bit

3.84 Points

Cinebench R11.5 OpenGL 64Bit

33.23 fps

Cinebench R15 CPU Single 64Bit

138 Points

Cinebench R15 CPU Multi 64Bit

298 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

38.04 fps

Cinebench R20 CPU (Multi Core)

748 Points

Cinebench R20 CPU (Single Core)

326 Points

Cinebench R23 Multi Core

1946 Points

Cinebench R23 Single Core

843 Points

Help

... in comparison

Performance Rating
Average of class Mini PC	100 pt
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22.9 pt
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19.3 pt
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	15.5 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	15.1 pt
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8.7 pt
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8.2 pt

AIDA64 / FP32 Ray-Trace
Average of class Mini PC (764 - 51004, n=113, last 2 years)	14407 KRay/s +894%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	2204 KRay/s +52%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1646 KRay/s +14%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1449 KRay/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	1384 KRay/s -4%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -42%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -47%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	764 KRay/s -47%

AIDA64 / FPU Julia
Average of class Mini PC (4140 - 214250, n=113, last 2 years)	69674 Points +842%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	11550 Points +56%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8519 Points +15%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	7395 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	7292 Points -1%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4398 Points -41%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4144 Points -44%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -44%

AIDA64 / CPU SHA3
Average of class Mini PC (290 - 9399, n=113, last 2 years)	3093 MB/s +550%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	808 MB/s +70%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	570 MB/s +20%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	476 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	466 MB/s -2%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	308 MB/s -35%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -39%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -39%

AIDA64 / CPU Queen
Average of class Mini PC (8172 - 184747, n=113, last 2 years)	82085 Points +266%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	23345 Points +4%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22866 Points +2%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22512 Points 0%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22407 Points
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8704 Points -61%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -63%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8172 Points -64%

AIDA64 / FPU SinJulia
Average of class Mini PC (408 - 29064, n=113, last 2 years)	9419 Points +824%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	1136 Points +11%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1114 Points +9%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1019 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	985 Points -3%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	432 Points -58%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -60%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -60%

AIDA64 / FPU Mandel
Average of class Mini PC (2088 - 113499, n=113, last 2 years)	36309 Points +873%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	5834 Points +56%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4222 Points +13%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	3732 Points
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	3648 Points -2%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2220 Points -41%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2092 Points -44%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -44%

AIDA64 / CPU AES
Average of class Mini PC (3691 - 325960, n=113, last 2 years)	89915 MB/s +876%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22028 MB/s +139%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	18389 MB/s +100%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9214 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	8752 MB/s -5%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8439 MB/s -8%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -14%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7951 MB/s -14%

AIDA64 / CPU ZLib
Average of class Mini PC (76.7 - 2039, n=113, last 2 years)	797 MB/s +466%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	220 MB/s +56%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	161 MB/s +14%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	140.8 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	133.4 MB/s -5%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	82.5 MB/s -41%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -45%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	76.7 MB/s -46%

AIDA64 / FP64 Ray-Trace
Average of class Mini PC (432 - 26952, n=113, last 2 years)	7716 KRay/s +923%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	1190 KRay/s +58%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	893 KRay/s +18%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	754 KRay/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	705 KRay/s -6%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -38%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	433 KRay/s -43%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -43%

AIDA64 / CPU PhotoWorxx
Average of class Mini PC (5296 - 51727, n=113, last 2 years)	29956 MPixel/s +207%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	14376 MPixel/s +47%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	14155 MPixel/s +45%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9750 MPixel/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	9467 MPixel/s -3%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -32%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6278 MPixel/s -36%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5296 MPixel/s -46%

Cinebench R15 Multi Continuous Test

Despite its fanless design, the Newsmay AC8F-POE handled the Cinebench R15 continuous loop wonderfully well. However, you have to do without constant turbo use which means that the Intel N100’s performance will remain mostly stable. With a maximum temperature of just 65 °C, at no point does the SoC reach critical values and this results in performance that is almost similar to some actively cooled models.

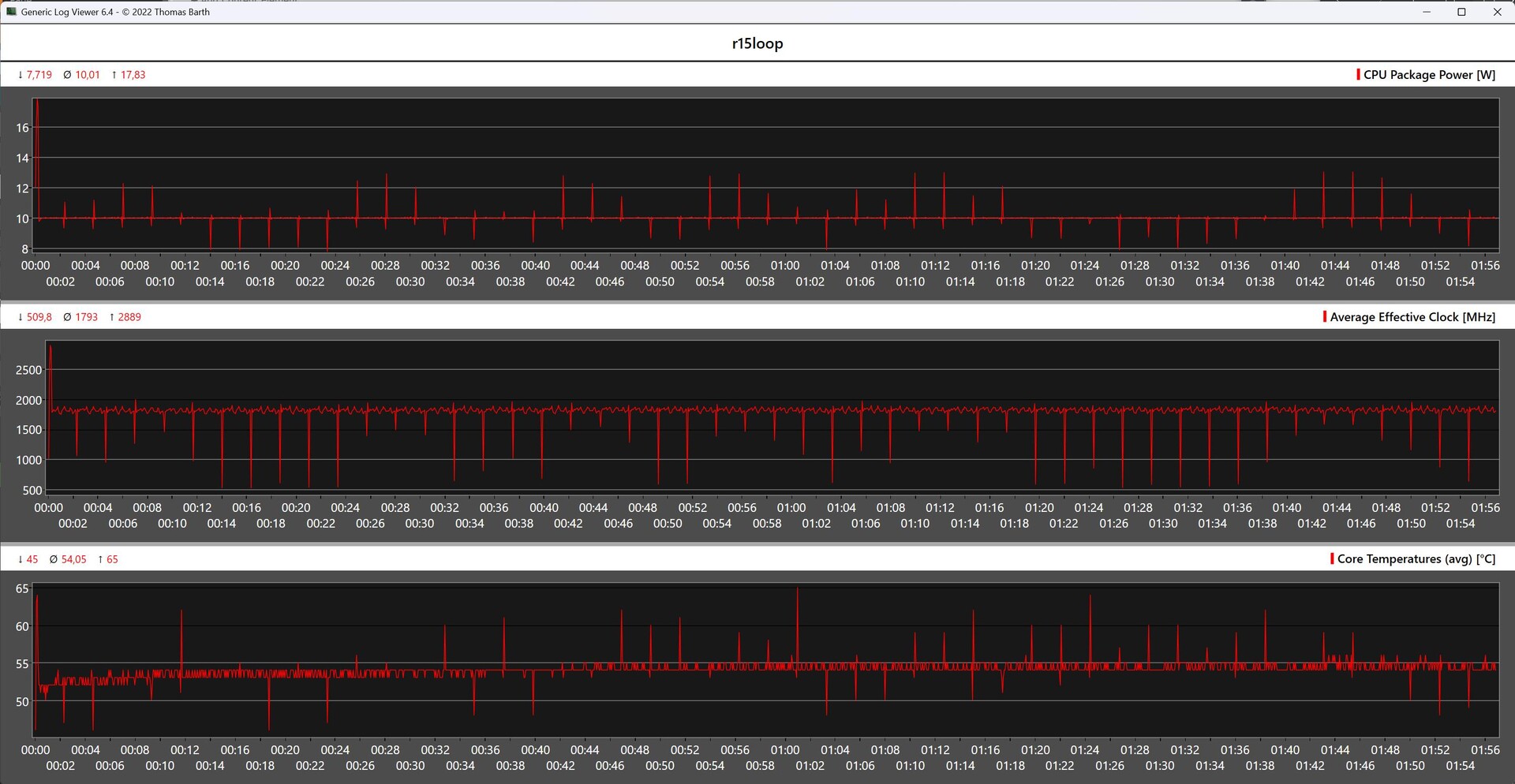

CPU metrics during the Cinebench R15 loop

Newsmay AC8F-POE Intel Processor N100, Intel Processor N100: Ø295 (290.65-304.47)

Minisforum Venus Series UN100D Intel Processor N100, Intel Processor N100: Ø330 (323.31-347.87)

Geekom MiniAir 12 Intel Processor N100, Intel Processor N100: Ø472 (462.09-474.18)

Acemagic S1 Intel Processor N97, Intel Processor N97: Ø462 (454.89-465.38)

Blackview MP80 Intel Processor N95, Intel Processor N95: Ø425 (410.8-428.48)

Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel Processor N200: Ø210 (198.23-215.98)

BOSGAME N95 Intel Processor N95, Intel Processor N95: Ø421 (417.99-423.28)

System performance

The system performance is influenced significantly by the CPU performance and the RAM. The latter comes up a little short at 8 GB and this is sometimes highlighted in everyday situations. You shouldn’t, therefore, expect the Newsmay AC8F-POE to be able to handle too many simultaneous demands. Taking that into account, the system works well. Nevertheless, our recommendation is to opt directly for a 16 GB RAM module to have sufficient resources up your sleeve.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	3435 Points +23%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	3220 Points +16%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	3192 Points +15%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	3183 Points +14%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	3147 Points +13%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	2786 Points

PCMark 10 / Essentials
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	7482 Points +23%
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	7416 Points +22%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	7198 Points +19%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	7079 Points +17%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	7021 Points +16%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	6068 Points

PCMark 10 / Productivity
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	4993 Points +11%
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	4952 Points +11%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	4923 Points +10%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	4886 Points +9%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	4861 Points +9%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	4479 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	844 Points +20%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	791 Points +12%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	786 Points +11%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	773 Points +9%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	764 Points +8%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	706 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	614 Points -13%

CrossMark / Responsiveness
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	896 Points +47%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	835 Points +37%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	755 Points +24%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	730 Points +20%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	709 Points +17%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	608 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	577 Points -5%

CrossMark / Creativity
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	768 Points +14%
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	751 Points +12%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	739 Points +10%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	723 Points +8%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	714 Points +6%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	672 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	560 Points -17%

CrossMark / Productivity
Acemagic S1, Intel Processor N97 Intel UHD Graphics 24EUs (Alder Lake-N), Netac G938E	930 Points +19%
BOSGAME N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kingston OM8SEP4256Q-A0	843 Points +8%
Geekom MiniAir 12, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Lexar NM620 512GB	837 Points +7%
Minisforum Venus Series UN100D, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), Gofatoo 256GB	836 Points +7%
Blackview MP80, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Netac NS512GSSD330	810 Points +4%
Newsmay AC8F-POE, Intel Processor N100 Intel UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G	779 Points
Asus ExpertCenter PN42-BBN200MV, Intel Processor N200 Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Kingston KC3000 2048G SKC3000D2048G	688 Points -12%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average of class Mini PC (8377 - 89287, n=113, last 2 years)	50484 MB/s +171%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	31917 MB/s +71%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22018 MB/s +18%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18937 MB/s +2%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	18620 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	12715 MB/s -32%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	10663 MB/s -43%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8458 MB/s -55%

AIDA64 / Memory Read
Average of class Mini PC (8974 - 100086, n=113, last 2 years)	51474 MB/s +164%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	32913 MB/s +69%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	23505 MB/s +20%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19509 MB/s
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	18451 MB/s -5%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11626 MB/s -40%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	11247 MB/s -42%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	9027 MB/s -54%

AIDA64 / Memory Write
Average of class Mini PC (8762 - 100538, n=113, last 2 years)	55622 MB/s +185%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	36423 MB/s +87%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	23127 MB/s +18%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	21626 MB/s +11%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19528 MB/s
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	14266 MB/s -27%
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11728 MB/s -40%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8959 MB/s -54%

AIDA64 / Memory Latency
Geekom MiniAir 12 Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	139.9 ns * -183%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	124.9 ns * -152%
BOSGAME N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	119.8 ns * -142%
Average of class Mini PC (44.9 - 184.8, n=113, last 2 years)	92.3 ns * -86%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, UHD Graphics Xe 750 32EUs	52.9 ns * -7%
Minisforum Venus Series UN100D Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	50.7 ns * -2%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	49.5 ns *
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	45 ns * +9%

* ... smaller is better

DPC latencies

At first glance, the recorded DPC latencies look acceptable. In a comparison, our review device performs very well, once more securing a mid-table placing. When surfing the internet and playing 4K video material, we didn’t measure very high DC latencies and they only increased during Prime95. Additionally, we recorded some skipped frames during the 4K test video playback.

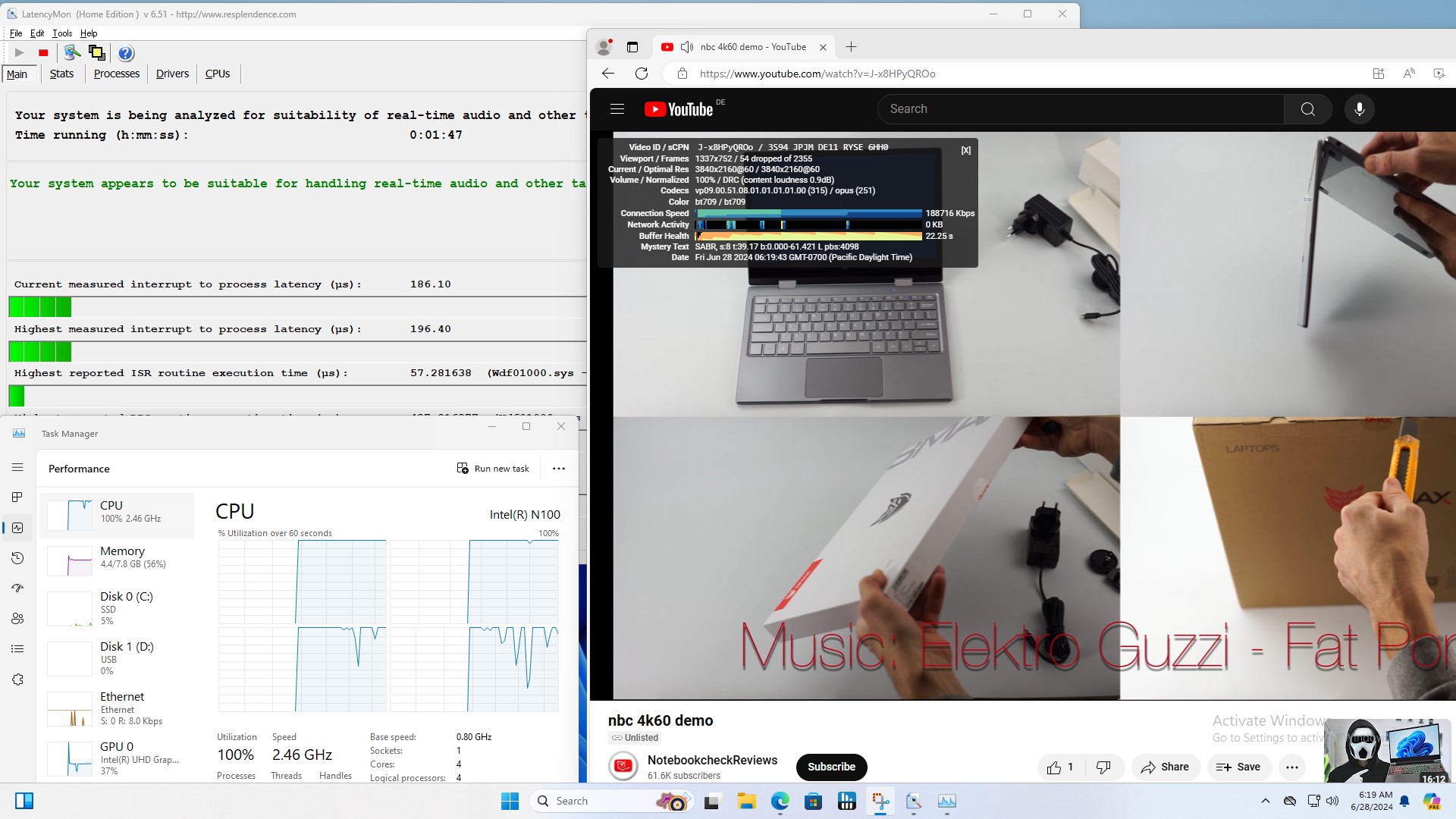

Maximum latency when opening multiple browser tabs and playing 4K video material

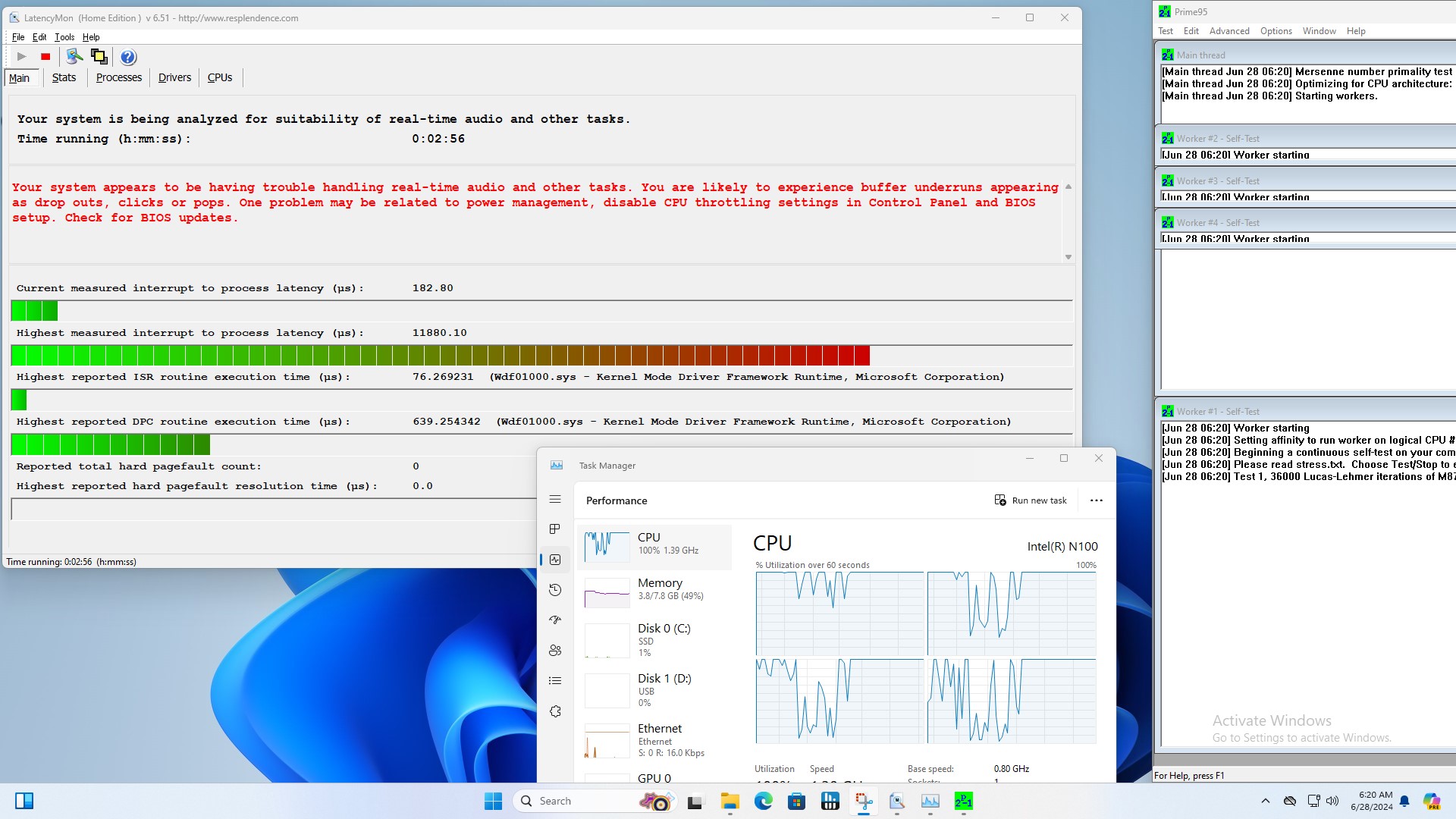

Maximum latency after ten seconds of Prime95

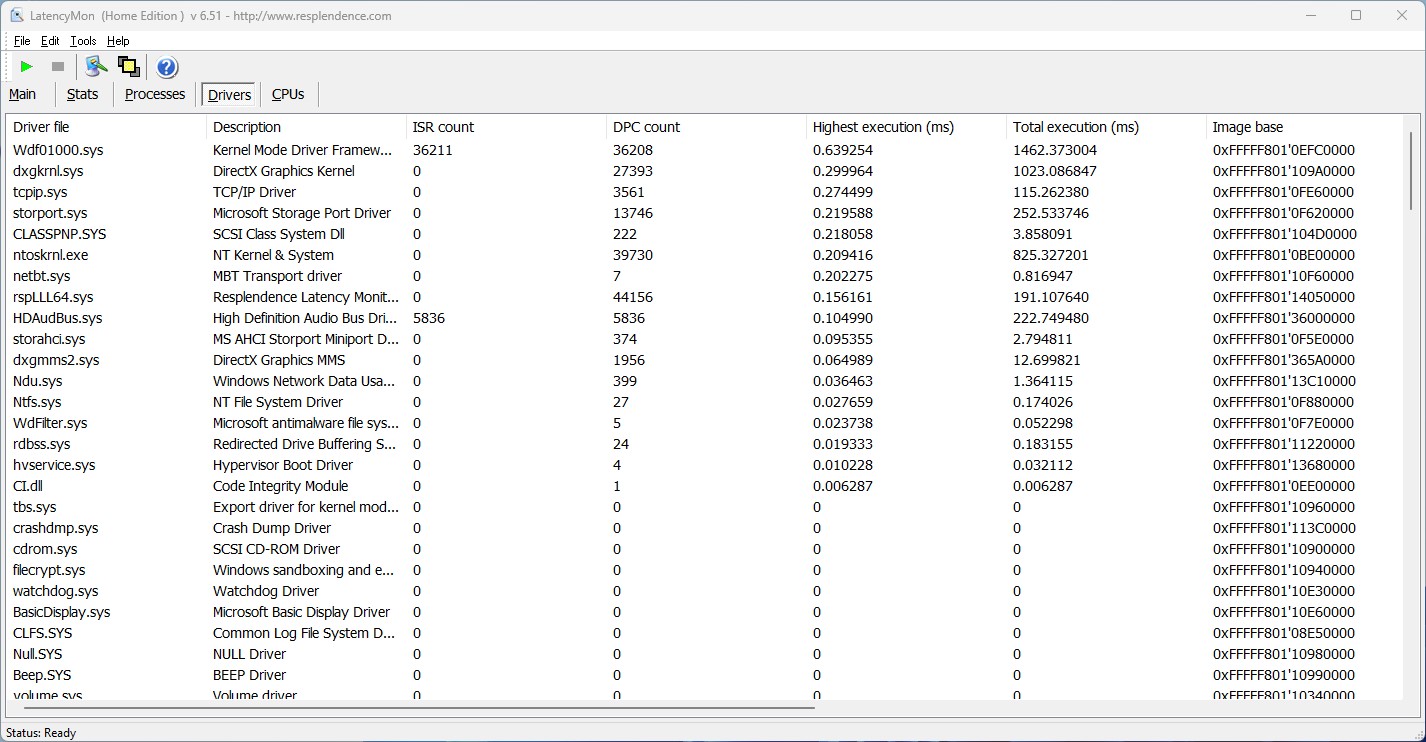

Drivers listed according to their longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertCenter PN42-BBN200MV UHD Graphics Xe 750 32EUs, N200, Kingston KC3000 2048G SKC3000D2048G	5491 μs * -759%
Minisforum Venus Series UN100D UHD Graphics 24EUs (Alder Lake-N), N100, Gofatoo 256GB	2194.9 μs * -243%
BOSGAME N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kingston OM8SEP4256Q-A0	1165.5 μs * -82%
Blackview MP80 UHD Graphics 24EUs (Alder Lake-N), N95, Netac NS512GSSD330	817.1 μs * -28%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	639 μs *
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	449.2 μs * +30%
Geekom MiniAir 12 UHD Graphics 24EUs (Alder Lake-N), N100, Lexar NM620 512GB	409.9 μs * +36%

* ... smaller is better

Mass storage

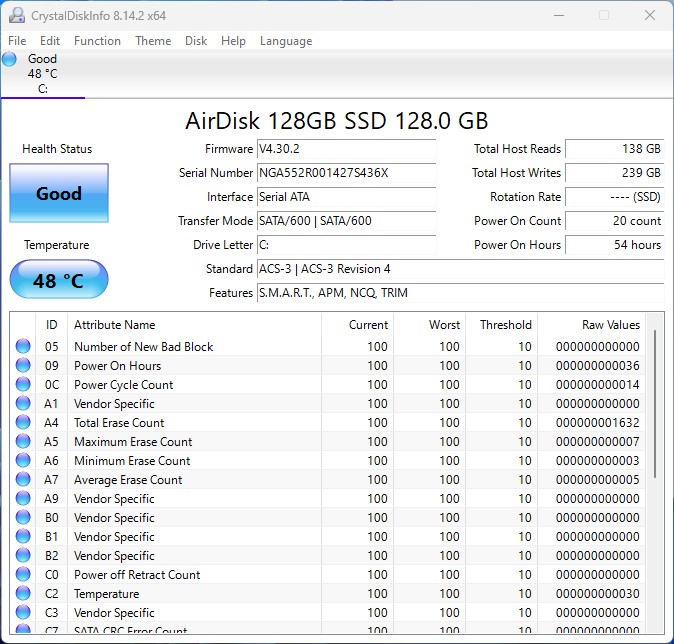

The installed SSD is a straightforward M.2 SSD running at SATA speed. Accordingly, the AirDisk model only delivers low transfer speeds and is inferior to all of the other competing models listed here. Despite this, the SSD copes well with everyday use. With only 128 GB, the preinstalled model doesn’t offer much storage space. Subracting the Windows installation might only leave you with 96 GB at your disposal but you can still install a second storage device. The optional 2.5-inch storage’s cable connector is already installed in the device.

Additional comparisons and benchmarks can be found in our comparison table.

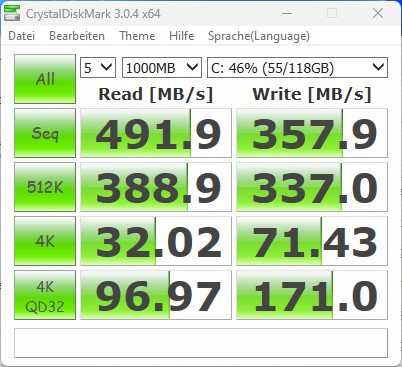

CrystalDiskMark 3.0

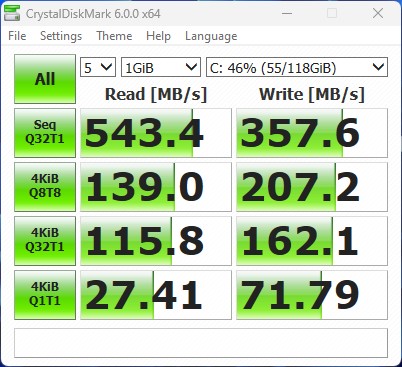

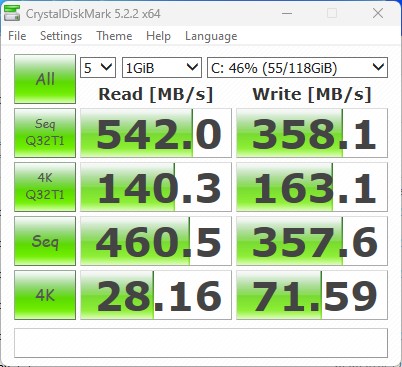

CrystalDiskMark 5.2 / 6

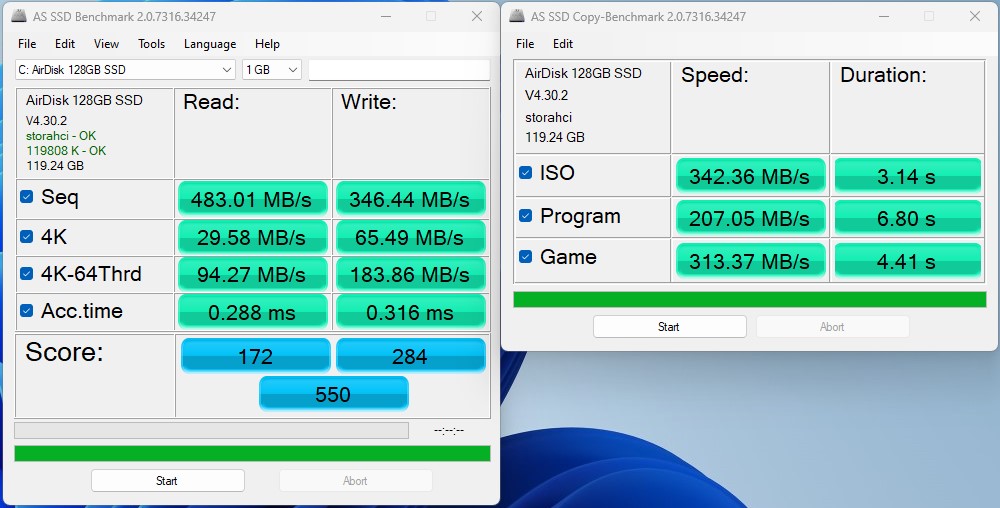

AS SSD

DiskSpd

AirDisk AFF 10-128G

Sequential Read: 491.9 MB/s

Sequential Write: 357.9 MB/s

512K Read: 388.9 MB/s

512K Write: 337 MB/s

4K Read: 32.02 MB/s

4K Write: 71.43 MB/s

4K QD32 Read: 96.97 MB/s

4K QD32 Write: 171 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	95.8 pt
Geekom MiniAir 12 Lexar NM620 512GB	74 pt
Acemagic S1 Netac G938E	63.2 pt
Minisforum Venus Series UN100D Gofatoo 256GB	60.6 pt
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	46.8 pt
BOSGAME N95 Kingston OM8SEP4256Q-A0	39.6 pt
Blackview MP80 Netac NS512GSSD330	29.3 pt
Newsmay AC8F-POE AirDisk AFF 10-128G	17.1 pt

DiskSpd
seq read
Average of class Mini PC (413 - 4357, n=113, last 2 years)	2372 MB/s +474%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1948 (1560.49^min - 1947.92^max) MB/s +372%
Geekom MiniAir 12 Lexar NM620 512GB	1781 (456.55^min - 1780.69^max) MB/s +331%
Acemagic S1 Netac G938E	1529 (1518.34^min - 1529.45^max) MB/s +270%
Minisforum Venus Series UN100D Gofatoo 256GB	1471 (1453.54^min - 1471.36^max) MB/s +256%
BOSGAME N95 Kingston OM8SEP4256Q-A0	762 (757.28^min - 762.31^max) MB/s +85%
Blackview MP80 Netac NS512GSSD330	542 (541.31^min - 542.36^max) MB/s +31%
Newsmay AC8F-POE AirDisk AFF 10-128G	413 (410.18^min - 412.9^max) MB/s
seq write
Average of class Mini PC (259 - 5595, n=113, last 2 years)	2622 MB/s +529%
Geekom MiniAir 12 Lexar NM620 512GB	2130 (210.13^min - 2130.43^max) MB/s +411%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1535 (1194.25^min - 1534.56^max) MB/s +268%
Minisforum Venus Series UN100D Gofatoo 256GB	1478 (20.55^min - 1478.09^max) MB/s +254%
Acemagic S1 Netac G938E	1392 (1353.52^min - 1392.3^max) MB/s +234%
BOSGAME N95 Kingston OM8SEP4256Q-A0	649 (644.49^min - 649.49^max) MB/s +56%
Blackview MP80 Netac NS512GSSD330	476 (138.2^min - 475.75^max) MB/s +14%
Newsmay AC8F-POE AirDisk AFF 10-128G	417 (409.15^min - 416.7^max) MB/s
seq q8 t1 read
Average of class Mini PC (397 - 8430, n=113, last 2 years)	3915 MB/s +886%
Geekom MiniAir 12 Lexar NM620 512GB	3339 (2794.11^min - 3338.91^max) MB/s +741%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2058 (1971.74^min - 2057.94^max) MB/s +418%
Acemagic S1 Netac G938E	1788 (1591.28^min - 1787.61^max) MB/s +350%
Minisforum Venus Series UN100D Gofatoo 256GB	1771 (1628.33^min - 1771.46^max) MB/s +346%
BOSGAME N95 Kingston OM8SEP4256Q-A0	820 (687.12^min - 820.02^max) MB/s +107%
Blackview MP80 Netac NS512GSSD330	556 (424.25^min - 556.44^max) MB/s +40%
Newsmay AC8F-POE AirDisk AFF 10-128G	397 (395.52^min - 396.69^max) MB/s
seq q8 t1 write
Geekom MiniAir 12 Lexar NM620 512GB	3029 (212.44^min - 3028.52^max) MB/s +569%
Average of class Mini PC (271 - 6669, n=113, last 2 years)	2951 MB/s +551%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	2086 (1404.04^min - 2086.06^max) MB/s +360%
Acemagic S1 Netac G938E	1710 (1487.72^min - 1710.37^max) MB/s +277%
Minisforum Venus Series UN100D Gofatoo 256GB	1690 (18.45^min - 1690.07^max) MB/s +273%
BOSGAME N95 Kingston OM8SEP4256Q-A0	684 (677.48^min - 683.67^max) MB/s +51%
Blackview MP80 Netac NS512GSSD330	489 (220.62^min - 488.78^max) MB/s +8%
Newsmay AC8F-POE AirDisk AFF 10-128G	453 (445.02^min - 453.26^max) MB/s
4k q1 t1 read
Average of class Mini PC (6.85 - 87.3, n=113, last 2 years)	55.8 MB/s +96%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	52.9 (39.99^min - 52.89^max) MB/s +86%
Acemagic S1 Netac G938E	48.9 (48.33^min - 48.93^max) MB/s +72%
Minisforum Venus Series UN100D Gofatoo 256GB	46.7 (46.12^min - 46.69^max) MB/s +64%
BOSGAME N95 Kingston OM8SEP4256Q-A0	45.9 (45.49^min - 45.92^max) MB/s +62%
Geekom MiniAir 12 Lexar NM620 512GB	43.1 (20.32^min - 43.07^max) MB/s +52%
Blackview MP80 Netac NS512GSSD330	32.5 (32.38^min - 32.5^max) MB/s +14%
Newsmay AC8F-POE AirDisk AFF 10-128G	28.4 (28.01^min - 28.38^max) MB/s
4k q1 t1 write
Average of class Mini PC (40.4 - 435, n=113, last 2 years)	194 MB/s +380%
Geekom MiniAir 12 Lexar NM620 512GB	136.8 (103.17^min - 136.84^max) MB/s +239%
Acemagic S1 Netac G938E	131.7 (130.58^min - 131.74^max) MB/s +226%
Minisforum Venus Series UN100D Gofatoo 256GB	129.9 (26.76^min - 129.87^max) MB/s +222%
BOSGAME N95 Kingston OM8SEP4256Q-A0	96.7 (95.09^min - 96.72^max) MB/s +139%
Blackview MP80 Netac NS512GSSD330	88.1 (66.88^min - 88.14^max) MB/s +118%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	74 (57.85^min - 73.96^max) MB/s +83%
Newsmay AC8F-POE AirDisk AFF 10-128G	40.4 (39.84^min - 40.4^max) MB/s
4k q32 t16 read
Average of class Mini PC (102.3 - 4158, n=113, last 2 years)	1454 MB/s +801%
Minisforum Venus Series UN100D Gofatoo 256GB	823 (230.6^min - 823.13^max) MB/s +410%
Acemagic S1 Netac G938E	737 (736.82^min - 737.34^max) MB/s +357%
Geekom MiniAir 12 Lexar NM620 512GB	578 (567.96^min - 578.39^max) MB/s +258%
BOSGAME N95 Kingston OM8SEP4256Q-A0	440 (438.98^min - 440.28^max) MB/s +173%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	324 (210.77^min - 323.72^max) MB/s +101%
Blackview MP80 Netac NS512GSSD330	179.4 (173.35^min - 179.35^max) MB/s +11%
Newsmay AC8F-POE AirDisk AFF 10-128G	161.3 (160.59^min - 161.32^max) MB/s
4k q32 t16 write
Average of class Mini PC (70.3 - 4288, n=113, last 2 years)	1353 MB/s +720%
Acemagic S1 Netac G938E	830 (808.45^min - 829.56^max) MB/s +403%
Minisforum Venus Series UN100D Gofatoo 256GB	806 (13.77^min - 805.51^max) MB/s +388%
Geekom MiniAir 12 Lexar NM620 512GB	732 (50.3^min - 732.45^max) MB/s +344%
BOSGAME N95 Kingston OM8SEP4256Q-A0	411 (406.46^min - 410.69^max) MB/s +149%
Blackview MP80 Netac NS512GSSD330	276 (99.25^min - 275.55^max) MB/s +67%
Newsmay AC8F-POE AirDisk AFF 10-128G	165 (159.56^min - 165.01^max) MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	142.2 (93.56^min - 142.15^max) MB/s -14%

AS SSD
Score Total
Average of class Mini PC (507 - 10021, n=110, last 2 years)	4300 Points +682%
Geekom MiniAir 12 Lexar NM620 512GB	2938 Points +434%
Acemagic S1 Netac G938E	2656 Points +383%
Minisforum Venus Series UN100D Gofatoo 256GB	2373 Points +331%
BOSGAME N95 Kingston OM8SEP4256Q-A0	1423 Points +159%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1396 Points +154%
Blackview MP80 Netac NS512GSSD330	796 Points +45%
Newsmay AC8F-POE AirDisk AFF 10-128G	550 Points
Score Read
Average of class Mini PC (172 - 3741, n=110, last 2 years)	1571 Points +813%
Geekom MiniAir 12 Lexar NM620 512GB	1282 Points +645%
Acemagic S1 Netac G938E	1111 Points +546%
Minisforum Venus Series UN100D Gofatoo 256GB	1018 Points +492%
BOSGAME N95 Kingston OM8SEP4256Q-A0	522 Points +203%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	504 Points +193%
Blackview MP80 Netac NS512GSSD330	265 Points +54%
Newsmay AC8F-POE AirDisk AFF 10-128G	172 Points
Score Write
Average of class Mini PC (210 - 4371, n=110, last 2 years)	1957 Points +589%
Geekom MiniAir 12 Lexar NM620 512GB	1008 Points +255%
Acemagic S1 Netac G938E	978 Points +244%
Minisforum Venus Series UN100D Gofatoo 256GB	839 Points +195%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	631 Points +122%
BOSGAME N95 Kingston OM8SEP4256Q-A0	626 Points +120%
Blackview MP80 Netac NS512GSSD330	387 Points +36%
Newsmay AC8F-POE AirDisk AFF 10-128G	284 Points
Seq Read
Average of class Mini PC (483 - 6620, n=110, last 2 years)	3253 MB/s +573%
Geekom MiniAir 12 Lexar NM620 512GB	2934 MB/s +507%
Minisforum Venus Series UN100D Gofatoo 256GB	1600 MB/s +231%
Acemagic S1 Netac G938E	1556 MB/s +222%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1233 MB/s +155%
BOSGAME N95 Kingston OM8SEP4256Q-A0	700 MB/s +45%
Blackview MP80 Netac NS512GSSD330	526 MB/s +9%
Newsmay AC8F-POE AirDisk AFF 10-128G	483 MB/s
Seq Write
Geekom MiniAir 12 Lexar NM620 512GB	2449 MB/s +608%
Average of class Mini PC (277 - 5783, n=110, last 2 years)	2393 MB/s +592%
Acemagic S1 Netac G938E	1326 MB/s +283%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	1125 MB/s +225%
Minisforum Venus Series UN100D Gofatoo 256GB	1124 MB/s +225%
BOSGAME N95 Kingston OM8SEP4256Q-A0	595 MB/s +72%
Blackview MP80 Netac NS512GSSD330	466 MB/s +35%
Newsmay AC8F-POE AirDisk AFF 10-128G	346 MB/s
4K Read
Geekom MiniAir 12 Lexar NM620 512GB	62.1 MB/s +110%
Minisforum Venus Series UN100D Gofatoo 256GB	59.9 MB/s +102%
Average of class Mini PC (18.2 - 104.3, n=110, last 2 years)	58.7 MB/s +98%
Acemagic S1 Netac G938E	44.6 MB/s +51%
BOSGAME N95 Kingston OM8SEP4256Q-A0	38.7 MB/s +31%
Blackview MP80 Netac NS512GSSD330	30.2 MB/s +2%
Newsmay AC8F-POE AirDisk AFF 10-128G	29.6 MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	28.1 MB/s -5%
4K Write
Average of class Mini PC (40.8 - 366, n=110, last 2 years)	175.4 MB/s +168%
Geekom MiniAir 12 Lexar NM620 512GB	122.1 MB/s +86%
Minisforum Venus Series UN100D Gofatoo 256GB	116.8 MB/s +78%
Acemagic S1 Netac G938E	110.7 MB/s +69%
BOSGAME N95 Kingston OM8SEP4256Q-A0	100.9 MB/s +54%
Blackview MP80 Netac NS512GSSD330	84.3 MB/s +29%
Newsmay AC8F-POE AirDisk AFF 10-128G	65.5 MB/s
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	40.8 MB/s -38%
4K-64 Read
Average of class Mini PC (94.3 - 3220, n=110, last 2 years)	1187 MB/s +1159%
Geekom MiniAir 12 Lexar NM620 512GB	927 MB/s +883%
Acemagic S1 Netac G938E	911 MB/s +866%
Minisforum Venus Series UN100D Gofatoo 256GB	798 MB/s +746%
BOSGAME N95 Kingston OM8SEP4256Q-A0	413 MB/s +338%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	353 MB/s +274%
Blackview MP80 Netac NS512GSSD330	181.8 MB/s +93%
Newsmay AC8F-POE AirDisk AFF 10-128G	94.3 MB/s
4K-64 Write
Average of class Mini PC (96.3 - 3731, n=110, last 2 years)	1543 MB/s +739%
Acemagic S1 Netac G938E	735 MB/s +300%
Geekom MiniAir 12 Lexar NM620 512GB	641 MB/s +249%
Minisforum Venus Series UN100D Gofatoo 256GB	610 MB/s +232%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	478 MB/s +160%
BOSGAME N95 Kingston OM8SEP4256Q-A0	466 MB/s +153%
Blackview MP80 Netac NS512GSSD330	256 MB/s +39%
Newsmay AC8F-POE AirDisk AFF 10-128G	183.9 MB/s
Access Time Read
Newsmay AC8F-POE AirDisk AFF 10-128G	0.288 ms *
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.101 ms * +65%
Average of class Mini PC (0.025 - 0.288, n=110, last 2 years)	0.09611 ms * +67%
Blackview MP80 Netac NS512GSSD330	0.077 ms * +73%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.073 ms * +75%
Minisforum Venus Series UN100D Gofatoo 256GB	0.071 ms * +75%
Acemagic S1 Netac G938E	0.055 ms * +81%
Geekom MiniAir 12 Lexar NM620 512GB	0.054 ms * +81%
Access Time Write
Newsmay AC8F-POE AirDisk AFF 10-128G	0.316 ms *
Blackview MP80 Netac NS512GSSD330	0.136 ms * +57%
Geekom MiniAir 12 Lexar NM620 512GB	0.125 ms * +60%
Minisforum Venus Series UN100D Gofatoo 256GB	0.12 ms * +62%
Average of class Mini PC (0.014 - 0.706, n=110, last 2 years)	0.1111 ms * +65%
BOSGAME N95 Kingston OM8SEP4256Q-A0	0.109 ms * +66%
Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G	0.074 ms * +77%
Acemagic S1 Netac G938E	0.034 ms * +89%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Newsmay AC8F-POE AirDisk AFF 10-128G; diskspd 2.0.17 f: Ø413 (409.97-413.15)

Minisforum Venus Series UN100D Gofatoo 256GB; diskspd 2.0.17 f: Ø1764 (1623.93-1770.42)

Geekom MiniAir 12 Lexar NM620 512GB; diskspd 2.0.17 f: Ø2163 (895.27-2580.55)

Acemagic S1 Netac G938E; diskspd 2.0.17 f: Ø1723 (916.09-1789.5)

Blackview MP80 Netac NS512GSSD330: Ø551 (425.51-553.5)

Asus ExpertCenter PN42-BBN200MV Kingston KC3000 2048G SKC3000D2048G; diskspd 2.0.17 f: Ø1990 (1877.37-2058.56)

BOSGAME N95 Kingston OM8SEP4256Q-A0: Ø817 (676.33-820.44)

Graphics card

The Intel N100 only has a simple iGPU that carries the name Intel UHD Graphics. The iGPU is only equipped with 24 EUs and only delivers low-level 3D performance. Compared to the competition, the Newsmay AC8F-POE displays similar performance without standing out as overly negative or positive. With its Intel N97, only the Acemagic S1 achieves a significant lead due to its higher power limits. However, we are miles off useable gaming performance.

Additional Intel UHD Graphics benchmarks can be found here.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	100 pt
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	69.5 pt
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	69.1 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	68.6 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	67.4 pt
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	67.4 pt
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	65.9 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2233 Points +53%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1494 Points +2%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points +2%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1489 Points +2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1488 Points +2%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1458 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points -7%

3DMark
2560x1440 Time Spy Graphics
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	473 Points +56%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	342 Points +13%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	321 Points +6%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	321 Points +6%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	321 Points +6%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	317 Points +4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	304 Points
1920x1080 Fire Strike Graphics
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	1646 Points +47%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1217 Points +8%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1198 Points +7%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points +4%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points +2%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1124 Points 0%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1122 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	9 fps +36%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.6 fps +15%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.5 fps +14%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.2 fps +9%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.7 fps +2%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.6 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.4 fps -18%
Extreme Preset DX11
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	9.3 fps +39%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.7 fps +15%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7.7 fps +15%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	7.5 fps +12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6.8 fps +1%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6.7 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	5.8 fps -13%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	5.7 fps +33%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.3 fps +23%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.2 fps +21%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	5.2 fps +21%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	4.6 fps +7%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.3 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -19%
1920x1080 Extreme HD Preset OpenGL AA:x8
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	6 fps +28%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6 fps +28%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	6 fps +28%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	5.8 fps +23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	5.4 fps +15%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	4.7 fps
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	3.5 fps -26%

Unigine Superposition
1280x720 720p Low
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2646 Points +35%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2505 Points +28%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2376 Points +21%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2351 Points +20%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1958 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1924 Points -2%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1607 Points -18%
1920x1080 1080p High
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	688 Points +45%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	530 Points +11%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	527 Points +11%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	512 Points +8%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	476 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	469 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	466 Points -2%
1920x1080 1080p Extreme
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	302 Points +44%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	226 Points +8%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	225 Points +7%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	218 Points +4%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	218 Points +4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	210 Points

ComputeMark v2.1
1024x600 Normal, Score
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	911 Points +45%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	700 Points +11%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	684 Points +9%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	683 Points +8%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	670 Points +6%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	650 Points +3%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	630 Points
1024x600 Normal, Fluid 3DTex
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	155 Points +32%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	154 Points +32%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	133 Points +14%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	126 Points +8%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	117 Points
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	116 Points -1%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	87 Points -26%
1024x600 Normal, Fluid 2DTexArr
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	122 Points +28%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points +26%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	114 Points +20%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	106 Points +12%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	97 Points +2%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	95 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	83 Points -13%
1024x600 Normal, Mandel Vector
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	169 Points +41%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	143 Points +19%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	126 Points +5%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	125 Points +4%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	120 Points
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	118 Points -2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	118 Points -2%
1024x600 Normal, Mandel Scalar
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	190 Points +88%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	144 Points +43%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points +9%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	110 Points +9%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	101 Points
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	99 Points -2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	99 Points -2%
1024x600 Normal, QJuliaRayTrace
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	311 Points +58%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	243 Points +23%
BOSGAME N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	203 Points +3%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	197 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	194 Points -2%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	192 Points -3%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	189 Points -4%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	275 Samples/s +24%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	261 Samples/s +18%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	255 Samples/s +15%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	250 Samples/s +13%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	222 Samples/s
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	129 Samples/s -42%
Sala GPUs-only
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	753 Samples/s +45%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	551 Samples/s +6%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	518 Samples/s
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	508 Samples/s -2%
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	473 Samples/s -9%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	369 Samples/s -29%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom MiniAir 12 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1124 Points +6%
Minisforum Venus Series UN100D Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1119 Points +6%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1059 Points

3DMark 05 Standard		12765 points
3DMark 06 Standard Score		9253 points
3DMark Vantage P Result		5578 points
3DMark 11 Performance		1626 points
3DMark Ice Storm Standard Score		43011 points
3DMark Cloud Gate Standard Score		6053 points
3DMark Fire Strike Score		1055 points
3DMark Time Spy Score		345 points
Help

... in comparison

Emissions - Silent and free of temperature problems

Noise emissions

Due to its lack of active cooling components, the Newsmay AC8F-POE always runs silently. With its Venus Series UN100D, Minisforum shows very impressively that active cooling doesn’t always have to be loud.

Noise Level

Idle		24.8 / 24.8 / 24.8 dB(A)
Load		24.9 / 25 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.8 dB(A)

	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N)	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		0%	-11%	-18%	-14%	-1%	-22%
off / environment *	24.8	24.4 2%	24.8 -0%	24.9 -0%	25.2 -2%	25 -1%	29.7 -20%
Idle Minimum *	24.8	24.4 2%	24.8 -0%	25.8 -4%	25.4 -2%	25 -1%	30.2 -22%
Idle Average *	24.8	24.5 1%	28.6 -15%	25.9 -4%	25.5 -3%	25 -1%	30.2 -22%
Idle Maximum *	24.8	24.5 1%	28.7 -16%	26 -5%	25.5 -3%	25 -1%	30.2 -22%
Load Average *	24.9	24.9 -0%	29 -16%	34.5 -39%	32.3 -30%	25 -0%	30.4 -22%
Load Maximum *	25	25.9 -4%	30.2 -21%	38.2 -53%	36.4 -46%	25 -0%	31.4 -26%

* ... smaller is better

Temperature

In our review device, the case temperatures are mostly a little higher than the competition due to its cooling concept. The heat distribution works exceptionally well and there is no discernible direct hotspot. It is visible in the images in the area of the contact surface with the processor. With a peak of only 59 °C, the Intel N100 remains comparably cool, especially when you consider Intel’s thermal limit for this SoC is stated as 105 °C. Over a longer period of time, the manufacturer has managed to ensure stable performance at 10 watts. For a short period, the SoC hit 21 watts which isn’t entirely in accordance with the defined PL2.

Regarding the case temperatures, it’s worth noting that they are very dependent on the choice of location for the device. A well-ventilated location will ensure comparatively low surface temperatures. We recorded the temperatures in an air conditioned room at an ambient temperature of 20 to 21 °C.

Newsmay AC8F-POE during the stress test (top)

Newsmay AC8F-POE during the stress test (bottom)

Max. Load

Idle


41.4 °C 107 F	41.7 °C 107 F	40.4 °C 105 F
41.8 °C 107 F	42 °C 108 F	40.2 °C 104 F
41.7 °C 107 F	42.2 °C 108 F	40.4 °C 105 F

Maximum: 42.2 °C = 108 F
Average: 41.3 °C = 106 F


38.7 °C 102 F	38.9 °C 102 F	39.7 °C 103 F
39 °C 102 F	39 °C 102 F	39.6 °C 103 F
38.8 °C 102 F	39 °C 102 F	39.9 °C 104 F

Maximum: 39.9 °C = 104 F
Average: 39.2 °C = 103 F

Power Supply (max.) 38.1 °C = 101 F | Room Temperature 20.8 °C = 69 F | Fluke t3000FC (calibrated)

(-) The average temperature for the upper side under maximal load is 41.3 °C / 106 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 42.2 °C / 108 F, compared to the average of 35.8 °C / 96 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 30.6 °C / 87 F, compared to the device average of 32.3 °C / 90 F.

Energy management

The Newsmay AC8F-POE’s energy management can follow two paths. One way is to use the supplied 36-watt PSU although, alternatively, if the network structure is available, PoE (802.3 bt/at) can also be used. In the comparison, our review device used somewhat more power than any device except the Acemagic S1 but this is still acceptable. The Newsmay doesn’t make any significant missteps in this area. The supplied PSU delivers sufficient power at all times and, in the testing period, we didn’t encounter any problems concerning the power supply.

Power Consumption

Off / Standby	2.2 / 2.3 Watt
Idle	7.9 / 10.1 / 10.3 Watt
Load	17.3 / 31.6 Watt


Key: min: , med: , max: Metrahit Energy

	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N)	Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N)	Geekom MiniAir 12 N100, UHD Graphics 24EUs (Alder Lake-N)	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N)	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs	BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel UHD Graphics 24EUs (Alder Lake-N)	Average of class Mini PC
Power Consumption		17%	12%	-36%	19%	22%	33%	5%	-108%
Idle Minimum *	7.9	5.8 27%	5.9 25%	9.8 -24%	4.9 38%	4.4 44%	3.5 56%	6.42 ?(2.48 - 9.8, n=16) 19%	9.55 ?(2.2 - 45.7, n=115, last 2 years) -21%
Idle Average *	10.1	6.4 37%	7 31%	12 -19%	7.1 30%	6 41%	3.6 64%	8.2 ?(3.6 - 14.3, n=16) 19%	11.7 ?(2.59 - 47.5, n=113, last 2 years) -16%
Idle Maximum *	10.3	10.1 2%	9.3 10%	13.5 -31%	7.3 29%	9.7 6%	6.2 40%	10.4 ?(4.89 - 18.7, n=16) -1%	15.1 ?(2.6 - 49, n=115, last 2 years) -47%
Load Average *	17.3	15.7 9%	18.9 -9%	27.6 -60%	20.6 -19%	14.6 16%	20.4 -18%	19.9 ?(12.9 - 27.6, n=16) -15%	59 ?(12.9 - 170.6, n=115, last 2 years) -241%
Load Maximum *	31.6	28.1 11%	30 5%	46.2 -46%	26.2 17%	30.2 4%	25 21%	30.8 ?(21.1 - 46.2, n=16) 3%	100.1 ?(25 - 423, n=115, last 2 years) -217%

* ... smaller is better

Power consumption with an external monitor

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø10.3 (10.2-10.4)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø6.9 (6.46-10.1)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø13.5 (13.1-15.6)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Idle 1min (external Monitor): Ø6.07 (5.03-9.79)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 1920x1080 The Witcher 3 ultra (external Monitor): Ø31.1 (30.4-36.1)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø17.3 (16.5-34)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø15.3 (14.5-27.6)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 1280x720 Prime95 28.10 and Furmark 1.25: Ø43.4 (41.2-46.2)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø14.3 (12.7-27.7)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø17.3 (15.9-21)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø15.7 (10.4-26.3)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 3DMark06 Return To Proxycon: Ø27.5 (20.2-31.7)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; 3DMark06 Return To Proxycon: Ø14.7 (12.8-22.4)

Power consumption with an external monitor

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø16.5 (15.9-31.6)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø15.6 (13.7-28.1)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø37.1 (32.3-37.9)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Prime95 V2810 Stress (external Monitor): Ø14.1 (12.1-30.2)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø16.9 (15.6-26)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø16.2 (13.8-23.4)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø28.4 (27.3-30.4)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Cinebench R15 Multi (external Monitor): Ø13.6 (11.7-28.8)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø16.3 (13.6-20.6)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø14.9 (12.7-21.8)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Single (external Monitor): Ø23.2 (22.3-29.4)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Cinebench R23 Single (external Monitor): Ø12.6 (10.9-28.5)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø16.3 (15.7-26)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø15.3 (13.8-23.8)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); Cinebench R23 Multi (external Monitor): Ø28.5 (28-30.4)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; Cinebench R23 Multi (external Monitor): Ø12.9 (11.7-29.3)

Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø17.1 (16.4-25.3)

Minisforum Venus Series UN100D N100, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø13.6 (12.9-16.5)

Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.3 (26.2-36.2)

Asus ExpertCenter PN42-BBN200MV N200, UHD Graphics Xe 750 32EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.2 (12.3-24.7)

Pros

+ very stable case

+ low energy requirements

+ power supply possible via PoE

+ silent operation

+ many USB ports

+ stable CPU performance

+ heat distributed evenly over the case

Cons

- low graphics performance

- no WLAN

- only 8 GB of DDR4 at 2666 MT/s

Verdict - A special mini PC for special tasks

Newsmay AC8F-POE review - provided by Newsmay

The Newsmay AC8F-POE is certainly not a classic mini PC for everyday office use, even though the device basically comes equipped with similar hardware components as its competitors. The Intel N100 here is definitely a good choice even if the SoC celebrated its debut over one year ago. In our review, the passively cooled SoC delivers solid performance. The cooling unit copes exceptionally well with the low power consumption and, thermally, the Newsmay AC8F-POE never has any problems. In terms of the ports, visually, it becomes clear that the Newsmay AC8F-POE is a mini PC designed for special use cases. Many 2.5G LAN ports offer the possibility of being able to manage various networks simultaneously meaning the device can be used as a firewall. In combination with a mobile data connection, the computer can also be used as a mobile router. However, this requires additional hardware since a 4G or 5G module is not on board.

The Newsmay AC8F-POE offers many possibilities not covered by other mini PCs. Being able to supply power via LAN is one of the biggest advantages over alternative mini PCs.

Since the Newsmay AC8F-POE primarily uses a small Linux distribution, the size of the RAM and mass storage is put into perspective. Compared to Windows, specially adapted Linux versions go a little easier on the hardware and require fewer resources. The 8 GB of RAM and 128 GB storage in the system provided to us as a basis, is simply insufficient. Luckily, these key components are not fixed installations and can be quickly swapped or expanded.

The solid, industrial-look case is well crafted and is also an impressive, passive cooling element. For this reason, Newsmay could have made more performance available to the Intel N100. With 15 watts of sustained power, you would get a touch more performance without getting too annoyed at a significantly louder cooling unit. The Newsmay AC8F-POE's sturdy cooling element certainly has enough in the way of performance reserves.

Price and availability

The Newsmay AC8F-POE is listed on Amazon. If you plan on importing the device to the EU, additional taxes will add considerably to the overall cost of the device.

Note: We have updated our rating system meaning the results from version 8 are not comparable with those in version 7. Additional information can be found here.

Newsmay AC8F-POE - 07/01/2024 v8
Sebastian Bade

Chassis

87 / 98 → 89%

Connectivity

31 / 81 → 39%

Weight

72%

Games Performance

7 / 80 → 9%

Application Performance

57 / 92 → 62%

AI Performance

36%

Temperature

87%

Noise

100%

Average

47%

61%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
25%

Power Use
63.6%

Repairability
50%

Software Updates
0%

Total Sustainability Score: 31.4%

Miniproca: Mini PC with display (Image source: Miniproca)

Miniproca: New mini PC launches with folding touchscreen, powerful SoC and large discount 07/12/2024

HP Pro Mini 400 G9 Mini-PC review: NUC PC with good efficiency thanks to Intel Core i5-13500T and modular design 06/27/2024

Geekom GT13 Pro mini-PC review - Stylish NUC alternative with Intel Core i9-13900H, 32 GB DDR4 RAM and 2 TB SSD 06/21/2024

HP Elite Mini 800 G9 Mini-PC review - Modular NUC PC with Intel Core i5-13500, 16 GB DDR5 RAM and quiet cooling 06/21/2024

Minisforum Venus Series UN100D review: Mini-PC for office tasks with Intel N100 and DDR5 RAM starts at 219 euros 06/15/2024

Acemagic S1 Mini-PC in review - Compact PC for home use with Intel N97, 512 GB storage and an integrated display 03/11/2024

Review: The Asus ExpertCenter PN42 barebone has been given a frugal Intel N200 and DDR4 RAM 01/08/2024

Geekom MiniAir 12 review: An affordable mini PC with an Intel N100 and DDR5 RAM in a well-known Intel NUC design 11/23/2023

Blackview MP80 mini PC review: A super-small office PC featuring Intel N95 within an 0.285-litre case 09/03/2023

Bosgame Mini PC review: An affordable Mini PC with an Intel N95 for everyday office use 07/31/2023

Loading comments

Comment on this article

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Editor of the original article: Sebastian Bade - Senior Tech Writer - 610 articles published on Notebookcheck since 2012

I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.

contact me via: Bluesky, Threads, Facebook, nbc.basti, LinkedIn, Xing

Translator: Andrew Dickson - Translator - 137 articles published on Notebookcheck since 2022

My lifelong passion for tech was born in a gadget-filled household in Scotland. From games consoles to cameras to computers. Early adopters, so early the phrase might have been coined with our family in mind. On finishing school, I trained and qualified as a golf professional before moving to Germany, where I have worked and lived for over 30 years. In 2002, I formed a successful English language centre, providing training, translations and digital learning systems to numerous businesses in the Rhein Neckar metropole area. Whether augmented or virtual reality, smart devices, mobile technology, sustainable environmental solutions, the tech world is as exciting now as it has ever been. Working with Notebookcheck allows me to combine my love of both tech and language.

Please share our article, every link counts!
