BMAX B4 Turbo review: Inexpensive mini PC with Intel N150

Name: BMAX B4 Turbo
Brand: BMAX

Turbo with a 6 W CPU?

The B4 Turbo retails for well under $200 to be one of the least expensive ready-to-use mini PCs available without resorting to very old hardware. On the other hand, don't expect to get a lot done on the Twin Lake processor.
Allen Ngo 👁 Published 03/27/2025 🇫🇷 🇪🇸 ...
Mini PC Intel

Verdict — Great For Basic HTPC Needs

It's unreasonable to expect a fast processor from a ready-to-go mini PC retailing for less than $200. While the Twin Lake N150 CPU is relatively new, it still doesn't come close to older Core i3 options like the Core i3-1115G4.

Test device courtesy of BMax

Download your licensed rating image as PNG / SVG

For basic HTPC purposes like 1080p streaming, print servers, music, and other undemanding or low multi-tasking loads, however, the B4 Max is sufficient for the most part. Fan noise and wireless speeds could have been quieter and faster, respectively, but these limitations shouldn't be an issue in a 1080p living room setup. We also appreciate the integrated support for 2.5-inch SAYA III SSDs as such an option is becoming more uncommon on newer designs.

Pros

+ supports secondary 2.5-inch SATA drive

+ supports VESA mount

+ relatively inexpensive

+ 3x video-out ports

+ easy to service

Cons

- relatively short AC adapter cord

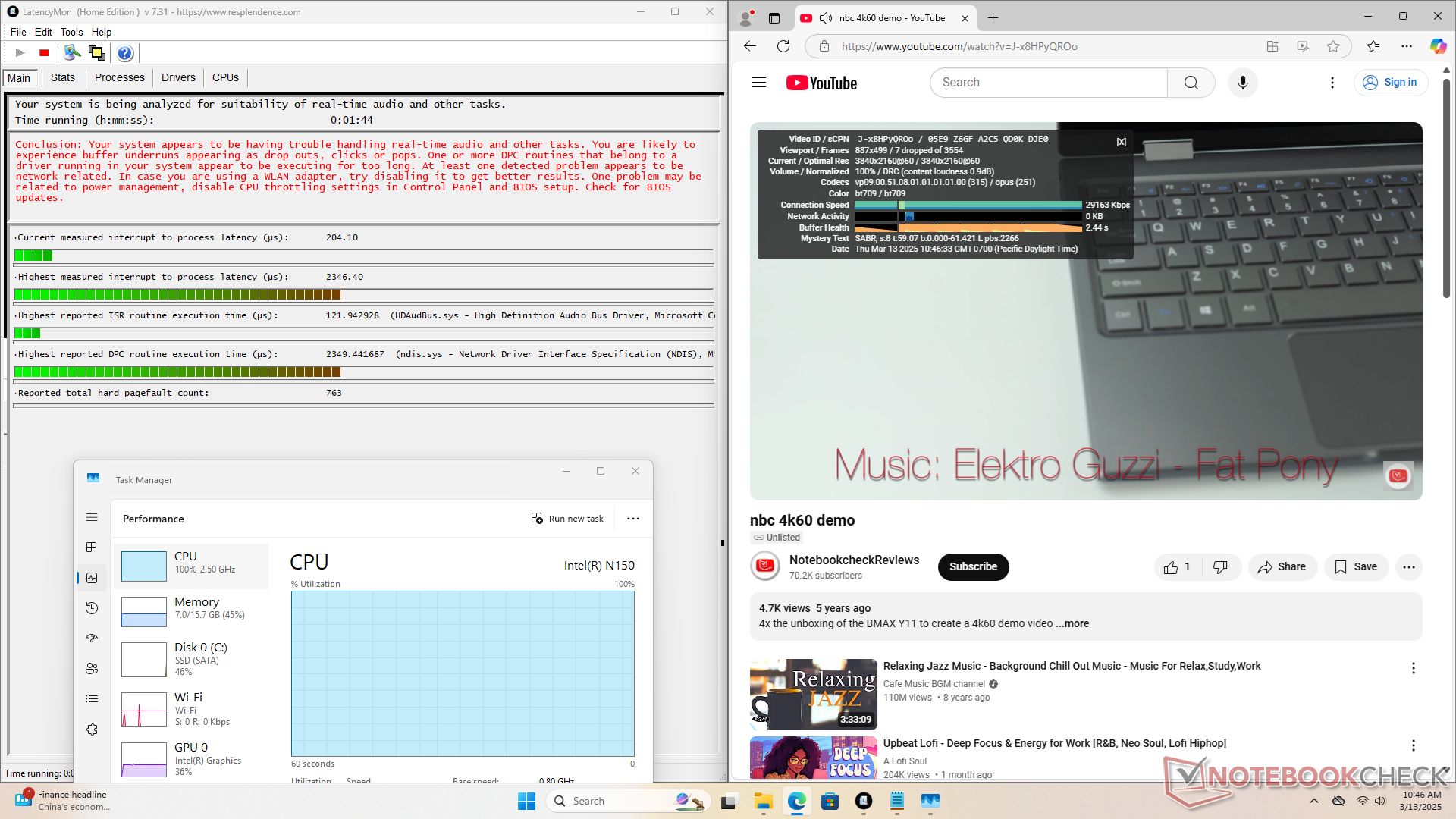

- imperfect 4K60 video playback

- single-channel RAM only

- slow Wi-Fi performance

- fan is always active

Price and Availability

The BMax B4 Turbo is out of stock on both Amazon and the official manufacturer store as of this writing. The temporary coupon code 'BMAXAnniversary5' is valid until April 1 to bring the price down to just under $150.

$164.90

Bmax Mini PC B4 16GB RAM 512GB SSD, Intel Alder Lake N95(up to 3.4 GHz) Win 11 Pro, Office Work Small Desktop Computer Support 4K UHD/Ubuntu/HDMI 2.0x2/Gigabit Ethernet/LAN/Dual-Band WiFi

$12.99
PWR+ 12V Power Supply for Bmax MaxMini B1 B2 B3 B4 B5 Pro Turbo Plus Mini PC Desktop Computer AC Adapter Extra Long Power Cord - (UL Listed Safety Certified)
$149.99
Bmax B4 Mini PC 512GB SSD Intel 12th Gen Alder Lake-N95 (up to 3.4GHz) 16GB SO-DIMM DDR4 RAM, Desktop Computer Support 4K Dual Display/HDMI 2.0/WiFi/BT/Gigabit Ethernet for Home/Office

Verdict — Great For Basic HTPC Needs
Specifications
Case
Connectivity
Performance
Emissions
Energy Management
Notebookcheck Rating

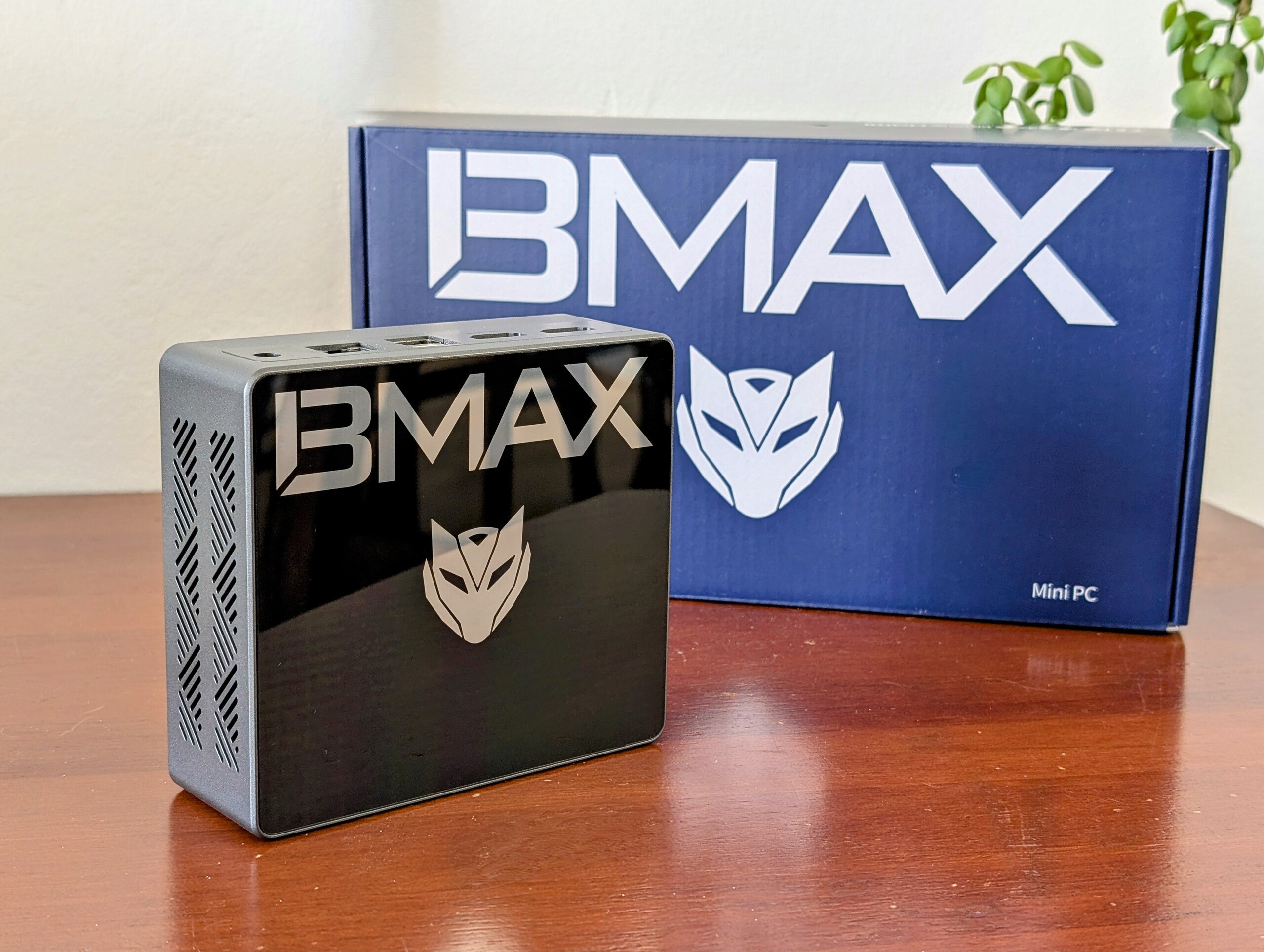

Despite what the name may suggest, the BMax B4 Turbo is a lower-end mini PC running on a low-power N150 Twin Lake processor. It's designed more for streaming or budget server applications rather than a full-fledged primary PC or multimedia system. Our test unit can be found online between $150 to $200 with 16 GB of RAM, 512 GB SSD, and Windows 11 pre-installed.

Alternatives include other budget mini PCs like the Acemagic S1, Beelink EQ14, or Asus NUC 14 Essential.

More BMax reviews:

Specifications

BMAX B4 Turbo

Processor

Intel Processor N150 4 x - 3.6 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Twin Lake

Graphics adapter

Intel UHD Graphics 24EUs (Alder Lake-N), Core: 1000 MHz, DDR5, 32.0.101.5972

Memory

16 GB

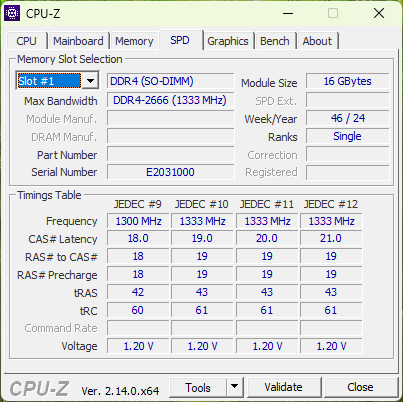

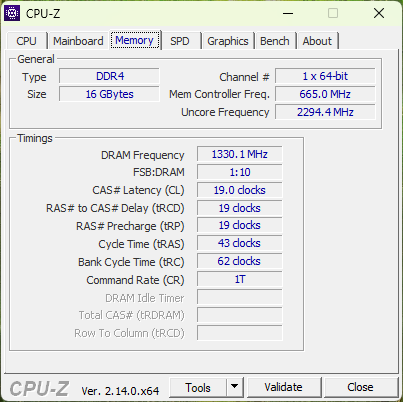

, DDR4-2666, Single-Channel, 19-19-19-43

Mainboard

Intel Alder Lake-N PCH

Soundcard

Intel Alder Lake-N PCH - cAVS

Connections

2 USB 2.0, 3 USB 3.0 / 3.1 Gen1, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: 3.5 mm combo

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0

Size

height x width x depth (in mm): 44 x 125 x 112 ( = 1.73 x 4.92 x 4.41 in)

Operating System

Microsoft Windows 11 Home

Additional features

12 Months Warranty

Weight

315 g ( = 11.11 oz / 0.69 pounds), Power Supply: 113 g ( = 3.99 oz / 0.25 pounds)

Price

175 EUR

Links

BMAX homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Case

Size and materials are essentially identical to the BMAX B7 Power except that the top surface is now smooth glossy plastic. Unsightly fingerprints readily accumulate on the top of the system as a result.

Size Comparison

Connectivity

Port options include all the basics sans a full-size DisplayPort. Note that the USB-C port can also be used for power should you ever lose the barrel AC adapter included in the box.

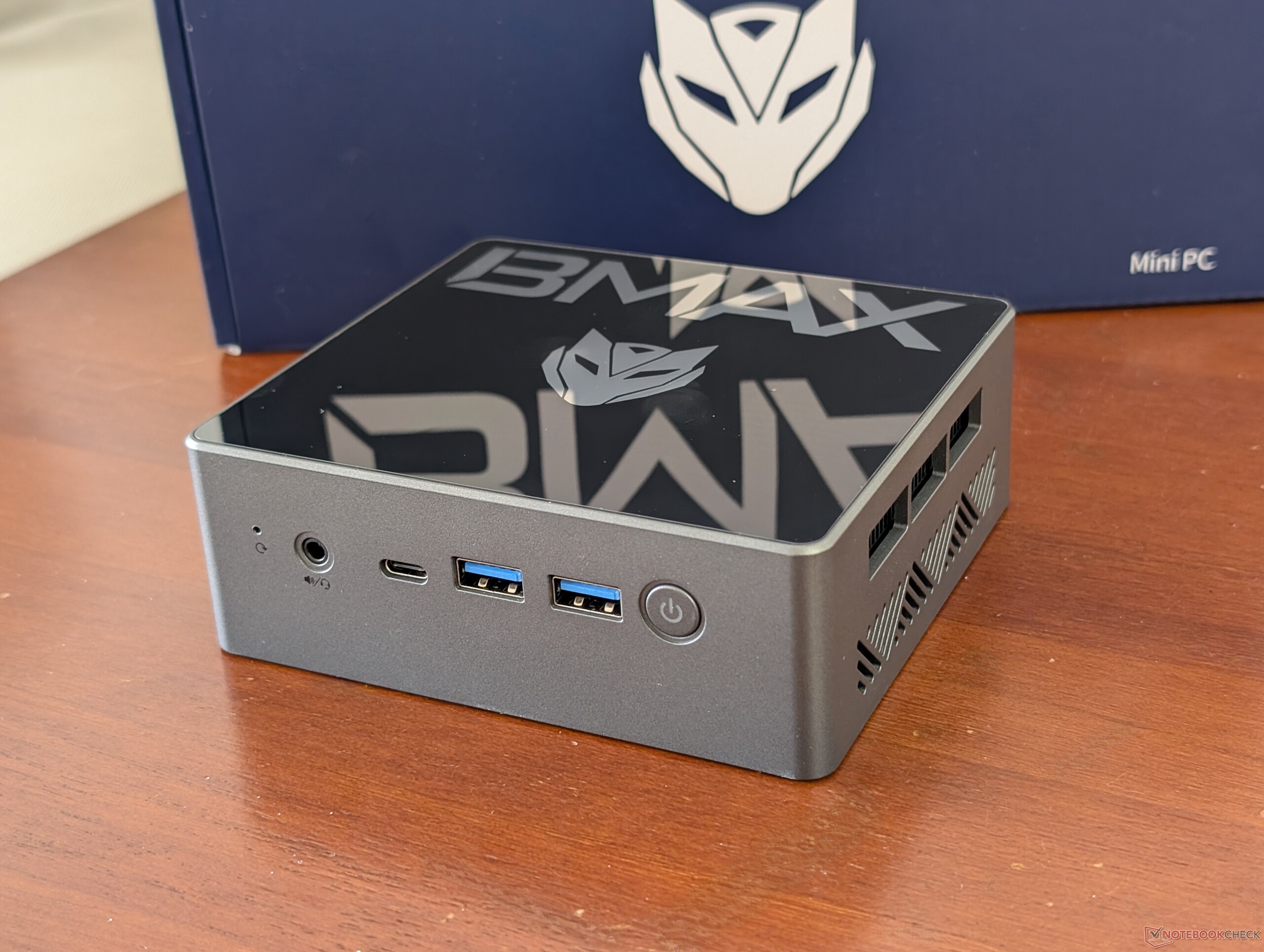

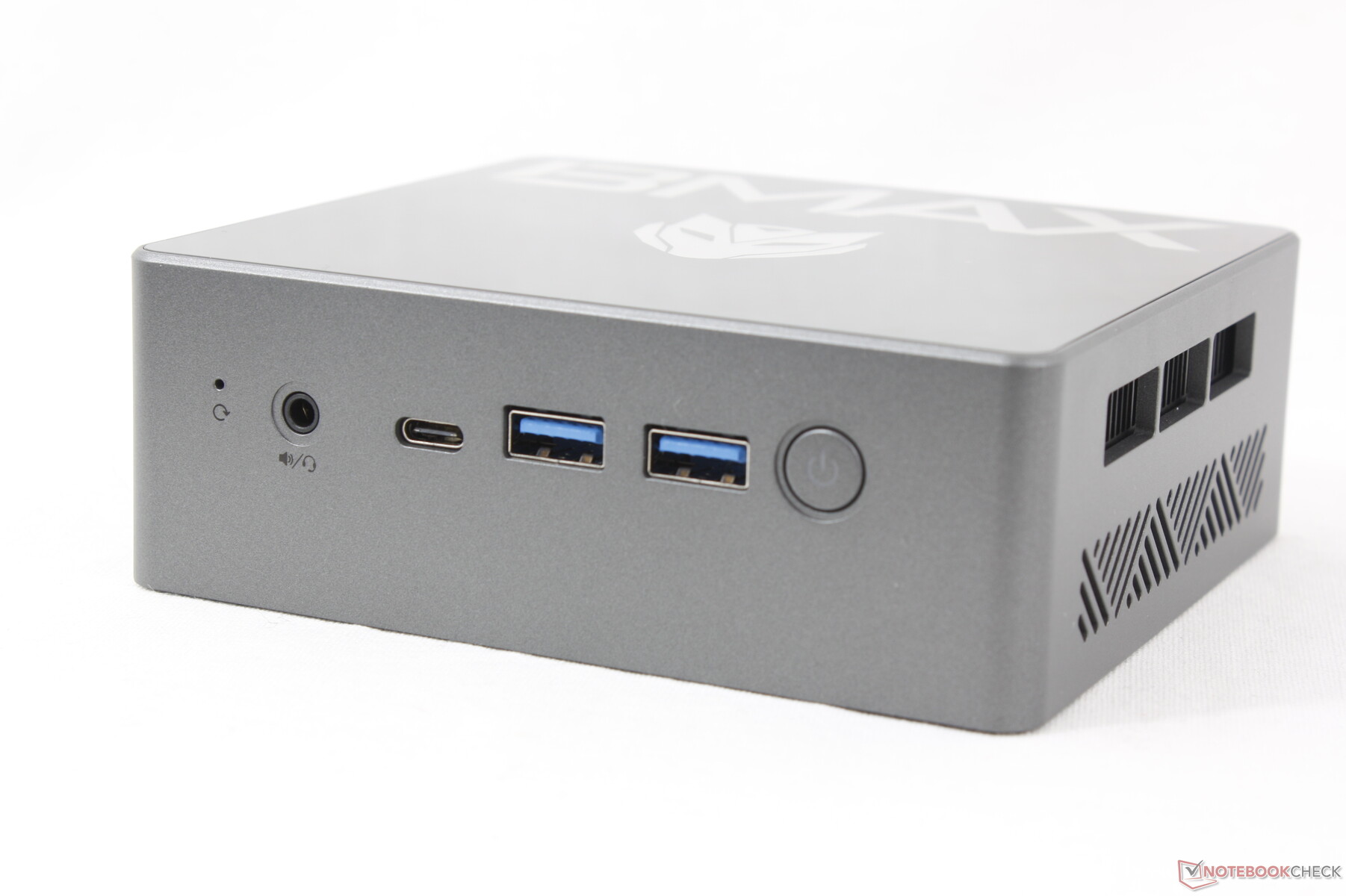

Front: Reset button, 3.5 mm headset, USB-C w/ Power Delivery + DisplayPort, 2x USB-A 3.0, Power button

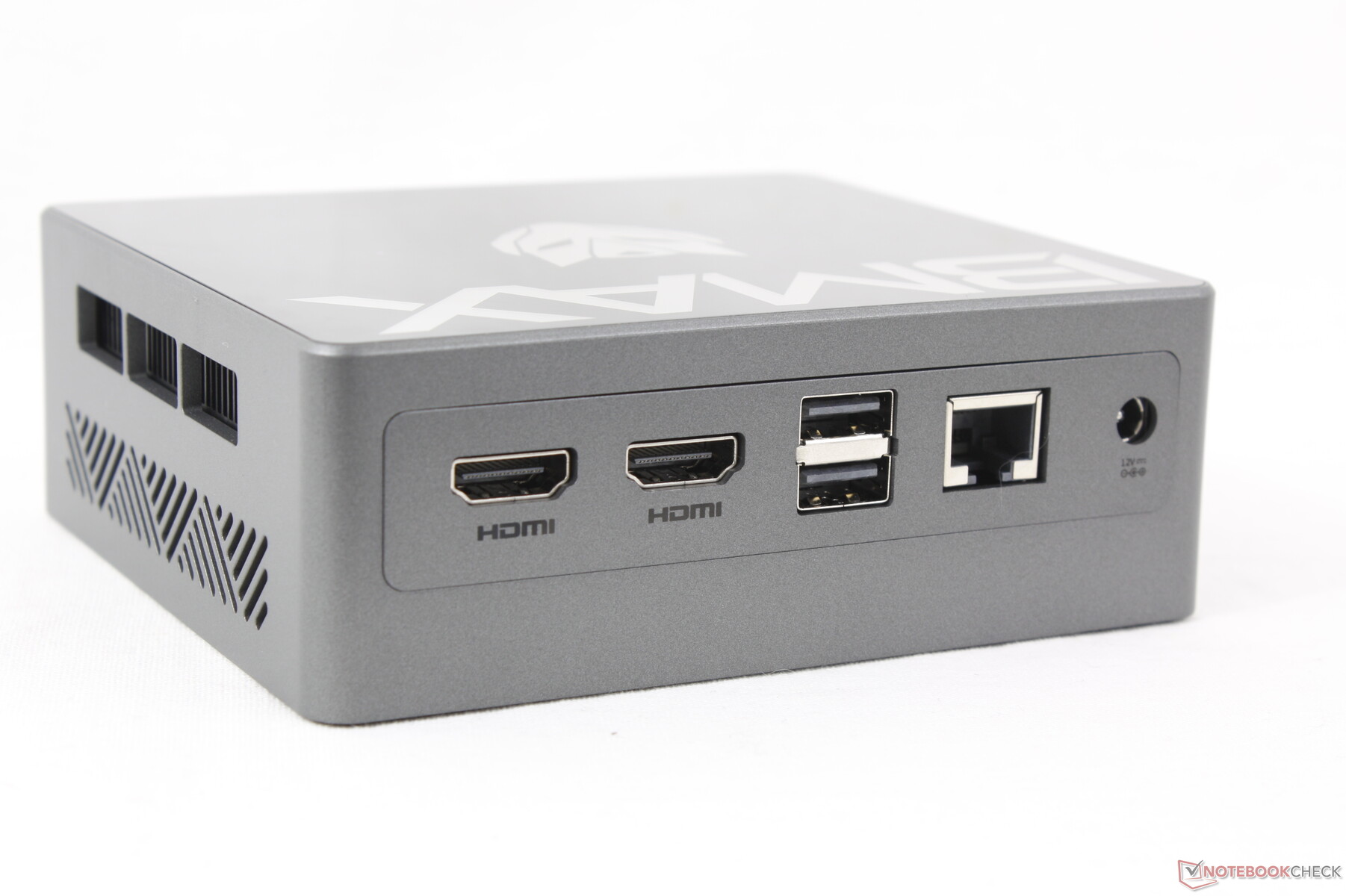

Rear: 2x HDMI 2.1, 2x USB-A 2.0, RJ-45, AC adapter

Communication

Networking
iperf3 transmit AXE11000
Asus NUC 14 Essential Intel Wi-Fi 6E AX211	965 (927^min - 1014^max) MBit/s +284%
BMAX B7 Power G7A2 Realtek RTL8852BE	898 (858^min - 935^max) MBit/s +258%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	636 (430^min - 784^max) MBit/s +153%
Acemagic S1 Realtek RTL8852BE	537 (512^min - 556^max) MBit/s +114%
Beelink EQ14 Intel Wi-Fi 6 AX101	432 (380^min - 463^max) MBit/s +72%
BMAX B4 Turbo Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	251 (226^min - 264^max) MBit/s
iperf3 receive AXE11000
Asus NUC 14 Essential Intel Wi-Fi 6E AX211	956 (938^min - 965^max) MBit/s +258%
BMAX B7 Power G7A2 Realtek RTL8852BE	747 (374^min - 763^max) MBit/s +180%
Acemagic S1 Realtek RTL8852BE	707 (636^min - 742^max) MBit/s +165%
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	692 (506^min - 872^max) MBit/s +159%
Beelink EQ14 Intel Wi-Fi 6 AX101	460 (398^min - 486^max) MBit/s +72%
BMAX B4 Turbo Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	267 (232^min - 293^max) MBit/s
iperf3 transmit AXE11000 6GHz
Asus NUC 14 Essential Intel Wi-Fi 6E AX211	1434 (1092^min - 1585^max) MBit/s
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	1400 (1199^min - 1463^max) MBit/s
iperf3 receive AXE11000 6GHz
Asus NUC 14 Essential Intel Wi-Fi 6E AX211	1682 (1671^min - 1693^max) MBit/s
MSI Cubi NUC 1M Intel Wi-Fi 6E AX211	1560 (1528^min - 1585^max) MBit/s

BMAX B4 Turbo; iperf3 transmit AXE11000; iperf 3.1.3: Ø251 (226-264)

BMAX B4 Turbo; iperf3 receive AXE11000; iperf 3.1.3: Ø266 (232-293)

Maintenance

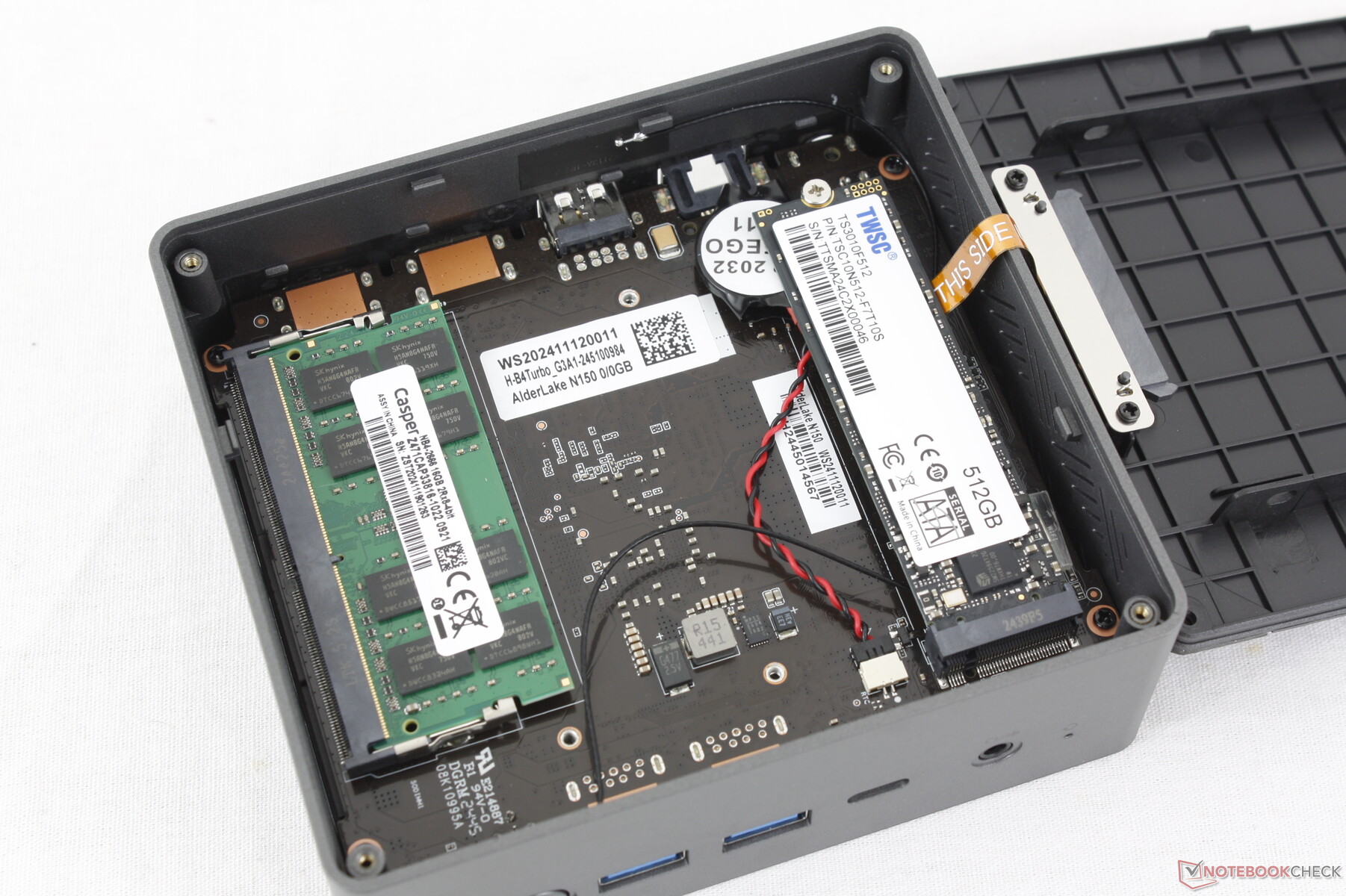

The bottom panel can be removed with just a Phillips screwdriver. A secondary 2.5-inch SATA III drive is supported while RAM is limited to just one slot.

Sustainability

BMax advertises no explicit sustainability measures taken during the manufacturing process.

Accessories And Warranty

The retail box includes an HDMI cable and removable VESA mount in addition to the AC adapter and paperwork.

Performance

Testing Conditions

We set Windows to Performance mode prior to running the benchmarks below.

Processor

The N150 runs 15 and 25 percent faster than the N100 in single- and multi-threaded workloads, respectively.

Cinebench R15 Multi Loop

BMAX B4 Turbo Intel Processor N150: Ø380 (363.55-401.51)

BMAX B7 Power G7A2 Intel Core i7-11390H: Ø695 (685.89-775.39)

Beelink EQ14 Intel Processor N150: Ø437 (433.6-454.68)

Asus NUC 14 Essential Intel Core 3 N355: Ø804 (728.77-884.19)

MSI Cubi NUC 1M Intel Core 7 150U: Ø971 (535.59-1039.66)

Newsmay AC8F-POE Intel Processor N100: Ø295 (290.65-304.47)

Acemagic S1 Intel Processor N97: Ø462 (454.89-465.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	94.4 pt
MSI Cubi NUC 1M Intel Core 7 150U	74.9 pt
BMAX B7 Power G7A2 Intel Core i7-11390H	56.5 pt
Asus NUC 14 Essential Intel Core 3 N355	46.8 pt
Acemagic S1 Intel Processor N97	38.1 pt
Beelink EQ14 Intel Processor N150	36.3 pt
BMAX B4 Turbo Intel Processor N150	34.6 pt
Average Intel Processor N150	33.2 pt
Newsmay AC8F-POE Intel Processor N100	29.3 pt
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	20.7 pt

Cinebench R23 / Multi Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points +518%
MSI Cubi NUC 1M Intel Core 7 150U	7226 (6983.97^min - 7226.42^max) Points +198%
Asus NUC 14 Essential Intel Core 3 N355	5262 Points +117%
BMAX B7 Power G7A2 Intel Core i7-11390H	4570 Points +88%
Acemagic S1 Intel Processor N97	2913 Points +20%
Beelink EQ14 Intel Processor N150	2753 (2705.91^min - 2753.1^max) Points +13%
BMAX B4 Turbo Intel Processor N150	2428 (2385.1^min - 2428.32^max) Points
Average Intel Processor N150 (2016 - 2753, n=3)	2399 Points -1%
Newsmay AC8F-POE Intel Processor N100	1946 Points -20%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1406 Points -42%

Cinebench R23 / Single Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +102%
MSI Cubi NUC 1M Intel Core 7 150U	1878 Points +98%
BMAX B7 Power G7A2 Intel Core i7-11390H	1407 Points +48%
Asus NUC 14 Essential Intel Core 3 N355	1039 Points +9%
Acemagic S1 Intel Processor N97	973 Points +3%
BMAX B4 Turbo Intel Processor N150	949 Points
Beelink EQ14 Intel Processor N150	943 Points -1%
Average Intel Processor N150 (828 - 949, n=3)	907 Points -4%
Newsmay AC8F-POE Intel Processor N100	843 Points -11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	690 Points -27%

Cinebench R20 / CPU (Multi Core)
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points +523%
MSI Cubi NUC 1M Intel Core 7 150U	2821 Points +202%
Asus NUC 14 Essential Intel Core 3 N355	2015 Points +116%
BMAX B7 Power G7A2 Intel Core i7-11390H	1767 Points +89%
Acemagic S1 Intel Processor N97	1115 Points +20%
Beelink EQ14 Intel Processor N150	1051 Points +13%
BMAX B4 Turbo Intel Processor N150	933 Points
Average Intel Processor N150 (768 - 1051, n=3)	917 Points -2%
Newsmay AC8F-POE Intel Processor N100	748 Points -20%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	542 Points -42%

Cinebench R20 / CPU (Single Core)
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +103%
MSI Cubi NUC 1M Intel Core 7 150U	718 Points +98%
BMAX B7 Power G7A2 Intel Core i7-11390H	550 Points +52%
Asus NUC 14 Essential Intel Core 3 N355	393 Points +9%
Acemagic S1 Intel Processor N97	371 Points +2%
BMAX B4 Turbo Intel Processor N150	362 Points
Beelink EQ14 Intel Processor N150	359 Points -1%
Average Intel Processor N150 (313 - 362, n=3)	345 Points -5%
Newsmay AC8F-POE Intel Processor N100	326 Points -10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	265 Points -27%

Cinebench R15 / CPU Multi 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points +506%
MSI Cubi NUC 1M Intel Core 7 150U	1040 (535.59^min - 1039.66^max) Points +159%
Asus NUC 14 Essential Intel Core 3 N355	822 Points +104%
BMAX B7 Power G7A2 Intel Core i7-11390H	775 (685.89^min - 775.39^max) Points +93%
Acemagic S1 Intel Processor N97	479 Points +19%
Beelink EQ14 Intel Processor N150	455 (433.6^min - 454.68^max) Points +13%
BMAX B4 Turbo Intel Processor N150	402 (363.55^min - 401.51^max) Points
Average Intel Processor N150 (313 - 455, n=3)	390 Points -3%
Newsmay AC8F-POE Intel Processor N100	298 Points -26%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	219 Points -46%

Cinebench R15 / CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points +77%
MSI Cubi NUC 1M Intel Core 7 150U	258 Points +67%
BMAX B7 Power G7A2 Intel Core i7-11390H	209 Points +35%
Asus NUC 14 Essential Intel Core 3 N355	168 Points +9%
Acemagic S1 Intel Processor N97	161 Points +4%
Beelink EQ14 Intel Processor N150	156.4 Points +1%
BMAX B4 Turbo Intel Processor N150	154.3 Points
Average Intel Processor N150 (134 - 156.4, n=3)	148.2 Points -4%
Newsmay AC8F-POE Intel Processor N100	138 Points -11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	113 Points -27%

Blender / v2.79 BMW27 CPU
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	2150 Seconds * -74%
Newsmay AC8F-POE Intel Processor N100	1522 Seconds * -23%
Average Intel Processor N150 (1094 - 1374, n=3)	1234 Seconds * -0%
BMAX B4 Turbo Intel Processor N150	1233 Seconds *
Beelink EQ14 Intel Processor N150	1094 Seconds * +11%
Acemagic S1 Intel Processor N97	1020 Seconds * +17%
BMAX B7 Power G7A2 Intel Core i7-11390H	665 Seconds * +46%
Asus NUC 14 Essential Intel Core 3 N355	574 Seconds * +53%
MSI Cubi NUC 1M Intel Core 7 150U	451 Seconds * +63%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * +82%

7-Zip 18.03 / 7z b 4
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS +391%
MSI Cubi NUC 1M Intel Core 7 150U	31447 MIPS +182%
Asus NUC 14 Essential Intel Core 3 N355	23225 MIPS +108%
BMAX B7 Power G7A2 Intel Core i7-11390H	20822 MIPS +86%
Acemagic S1 Intel Processor N97	13174 MIPS +18%
Beelink EQ14 Intel Processor N150	12321 MIPS +10%
BMAX B4 Turbo Intel Processor N150	11171 MIPS
Average Intel Processor N150 (9639 - 12321, n=3)	11044 MIPS -1%
Newsmay AC8F-POE Intel Processor N100	8725 MIPS -22%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	7146 MIPS -36%

7-Zip 18.03 / 7z b 4 -mmt1
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS +61%
MSI Cubi NUC 1M Intel Core 7 150U	5898 MIPS +53%
BMAX B7 Power G7A2 Intel Core i7-11390H	5539 MIPS +44%
Asus NUC 14 Essential Intel Core 3 N355	4044 MIPS +5%
Acemagic S1 Intel Processor N97	4019 MIPS +4%
Beelink EQ14 Intel Processor N150	3906 MIPS +1%
BMAX B4 Turbo Intel Processor N150	3859 MIPS
Average Intel Processor N150 (3590 - 3906, n=3)	3785 MIPS -2%
Newsmay AC8F-POE Intel Processor N100	3583 MIPS -7%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	3230 MIPS -16%

Geekbench 6.4 / Multi-Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10644 Points +257%
MSI Cubi NUC 1M Intel Core 7 150U	8756 Points +194%
Asus NUC 14 Essential Intel Core 3 N355	5088 Points +71%
BMAX B7 Power G7A2 Intel Core i7-11390H	5066 Points +70%
Acemagic S1 Intel Processor N97	3181 Points +7%
Beelink EQ14 Intel Processor N150	3093 Points +4%
BMAX B4 Turbo Intel Processor N150	2980 Points
Average Intel Processor N150 (2369 - 3093, n=3)	2814 Points -6%
Newsmay AC8F-POE Intel Processor N100	2780 Points -7%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1660 Points -44%

Geekbench 6.4 / Single-Core
MSI Cubi NUC 1M Intel Core 7 150U	2646 Points +112%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2583 Points +107%
BMAX B7 Power G7A2 Intel Core i7-11390H	2114 Points +69%
Asus NUC 14 Essential Intel Core 3 N355	1344 Points +8%
Acemagic S1 Intel Processor N97	1300 Points +4%
Beelink EQ14 Intel Processor N150	1255 Points 0%
BMAX B4 Turbo Intel Processor N150	1249 Points
Average Intel Processor N150 (1129 - 1255, n=3)	1211 Points -3%
Newsmay AC8F-POE Intel Processor N100	1209 Points -3%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	956 Points -23%

Geekbench 5.5 / Multi-Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points +309%
MSI Cubi NUC 1M Intel Core 7 150U	7788 Points +202%
Asus NUC 14 Essential Intel Core 3 N355	4903 Points +90%
BMAX B7 Power G7A2 Intel Core i7-11390H	4457 Points +73%
Acemagic S1 Intel Processor N97	2757 Points +7%
Beelink EQ14 Intel Processor N150	2667 Points +3%
BMAX B4 Turbo Intel Processor N150	2579 Points
Average Intel Processor N150 (2072 - 2667, n=3)	2439 Points -5%
Newsmay AC8F-POE Intel Processor N100	2332 Points -10%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1540 Points -40%

Geekbench 5.5 / Single-Core
MSI Cubi NUC 1M Intel Core 7 150U	1910 Points +93%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points +92%
BMAX B7 Power G7A2 Intel Core i7-11390H	1486 Points +50%
Asus NUC 14 Essential Intel Core 3 N355	1082 Points +9%
Acemagic S1 Intel Processor N97	1060 Points +7%
Beelink EQ14 Intel Processor N150	1020 Points +3%
BMAX B4 Turbo Intel Processor N150	991 Points
Average Intel Processor N150 (924 - 1020, n=3)	978 Points -1%
Newsmay AC8F-POE Intel Processor N100	975 Points -2%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	928 Points -6%

HWBOT x265 Benchmark v2.2 / 4k Preset
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps +484%
MSI Cubi NUC 1M Intel Core 7 150U	8.57 fps +205%
Asus NUC 14 Essential Intel Core 3 N355	5.85 fps +108%
BMAX B7 Power G7A2 Intel Core i7-11390H	5.84 fps +108%
Acemagic S1 Intel Processor N97	3.49 fps +24%
Beelink EQ14 Intel Processor N150	3.21 fps +14%
Average Intel Processor N150 (2.43 - 3.21, n=3)	2.82 fps 0%
BMAX B4 Turbo Intel Processor N150	2.81 fps
Newsmay AC8F-POE Intel Processor N100	2.12 fps -25%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1.52 fps -46%

LibreOffice / 20 Documents To PDF
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	120 s * -46%
Newsmay AC8F-POE Intel Processor N100	100.2 s * -22%
Average Intel Processor N150 (79.3 - 106.6, n=3)	89.3 s * -9%
Asus NUC 14 Essential Intel Core 3 N355	86.4 s * -5%
BMAX B4 Turbo Intel Processor N150	82.1 s *
Beelink EQ14 Intel Processor N150	79.3 s * +3%
Acemagic S1 Intel Processor N97	75.7 s * +8%
BMAX B7 Power G7A2 Intel Core i7-11390H	52.6 s * +36%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * +44%
MSI Cubi NUC 1M Intel Core 7 150U	37.9 s * +54%

R Benchmark 2.5 / Overall mean
Asus ExpertCenter PN42-BBN200MV Intel Processor N200	1.149 sec * -31%
Newsmay AC8F-POE Intel Processor N100	0.975 sec * -11%
Average Intel Processor N150 (0.846 - 0.957, n=3)	0.894 sec * -2%
BMAX B4 Turbo Intel Processor N150	0.88 sec *
Beelink EQ14 Intel Processor N150	0.846 sec * +4%
Asus NUC 14 Essential Intel Core 3 N355	0.801 sec * +9%
Acemagic S1 Intel Processor N97	0.789 sec * +10%
BMAX B7 Power G7A2 Intel Core i7-11390H	0.571 sec * +35%
MSI Cubi NUC 1M Intel Core 7 150U	0.4438 sec * +50%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * +50%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

402 Points

Cinebench R15 OpenGL 64Bit

46.5 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

154.3 Points

Cinebench R20 CPU (Multi Core)

933 Points

Cinebench R20 CPU (Single Core)

362 Points

Cinebench R23 Single Core

949 Points

Cinebench R23 Multi Core

2428 Points

Cinebench 2024 CPU Single Core

60.4 Points

Cinebench 2024 CPU Multi Core

155.5 Points

Help

... in comparison

Performance Rating
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	95.1 pt
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	83.4 pt
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	66.7 pt
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	37 pt
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	34.1 pt
Average Intel Processor N150	31.2 pt
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	30.8 pt
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	24.8 pt

AIDA64 / FP32 Ray-Trace
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	6306 KRay/s +216%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	5904 KRay/s +196%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	4535 KRay/s +127%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	2204 KRay/s +10%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	2172 KRay/s +9%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1995 KRay/s
Average Intel Processor N150 (1768 - 2172, n=3)	1978 KRay/s -1%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1449 KRay/s -27%

AIDA64 / FPU Julia
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	32582 Points +232%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	25054 Points +156%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	22322 Points +128%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	11550 Points +18%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	11281 Points +15%
Average Intel Processor N150 (9008 - 11281, n=3)	10031 Points +2%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	9804 Points
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	7395 Points -25%

AIDA64 / CPU SHA3
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	1747 MB/s +178%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	1656 MB/s +163%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	1489 MB/s +137%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	808 MB/s +28%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	751 MB/s +19%
Average Intel Processor N150 (584 - 751, n=3)	655 MB/s +4%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	629 MB/s
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	476 MB/s -24%

AIDA64 / CPU Queen
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	62280 Points +180%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	48368 Points +117%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	41583 Points +87%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22866 Points +3%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	22407 Points +1%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22334 Points 0%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22243 Points
Average Intel Processor N150 (20501 - 22334, n=3)	21693 Points -2%

AIDA64 / FPU SinJulia
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	4387 Points +293%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	4106 Points +268%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	2359 Points +111%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	1136 Points +2%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1118 Points 0%
Average Intel Processor N150 (1116 - 1118, n=3)	1117 Points 0%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1116 Points
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	1019 Points -9%

AIDA64 / FPU Mandel
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	16042 Points +229%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	15441 Points +216%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	10882 Points +123%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	5834 Points +20%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	5448 Points +12%
Average Intel Processor N150 (4528 - 5448, n=3)	4953 Points +1%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	4882 Points
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	3732 Points -24%

AIDA64 / CPU AES
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	58575 MB/s +428%
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	33007 MB/s +197%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	23724 MB/s +114%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22028 MB/s +98%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	11103 MB/s
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	11025 MB/s -1%
Average Intel Processor N150 (9998 - 11103, n=3)	10709 MB/s -4%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9214 MB/s -17%

AIDA64 / CPU ZLib
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	491 MB/s +167%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	447 MB/s +143%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	362 MB/s +97%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	220 MB/s +20%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	216 MB/s +17%
Average Intel Processor N150 (172.2 - 216, n=3)	190.7 MB/s +4%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	184 MB/s
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	140.8 MB/s -23%

AIDA64 / FP64 Ray-Trace
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	3417 KRay/s +237%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	3138 KRay/s +210%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	2263 KRay/s +123%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	1190 KRay/s +17%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1166 KRay/s +15%
Average Intel Processor N150 (951 - 1166, n=3)	1043 KRay/s +3%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	1013 KRay/s
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	754 KRay/s -26%

AIDA64 / CPU PhotoWorxx
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	37889 MPixel/s +203%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	20884 MPixel/s +67%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	14155 MPixel/s +13%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	13876 MPixel/s +11%
Average Intel Processor N150 (12201 - 13876, n=3)	12859 MPixel/s +3%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	12501 MPixel/s
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	11409 MPixel/s -9%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9750 MPixel/s -22%

System Performance

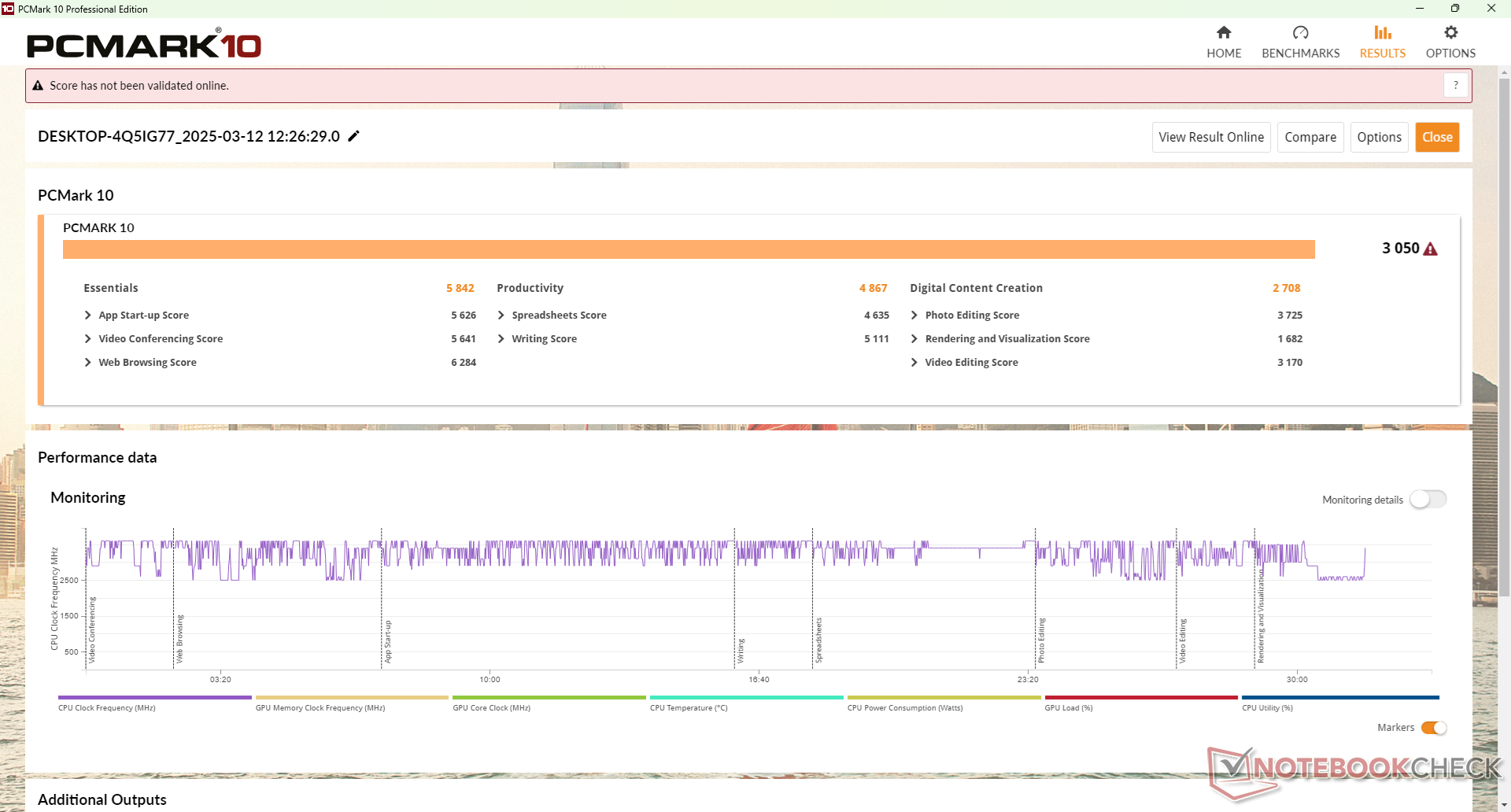

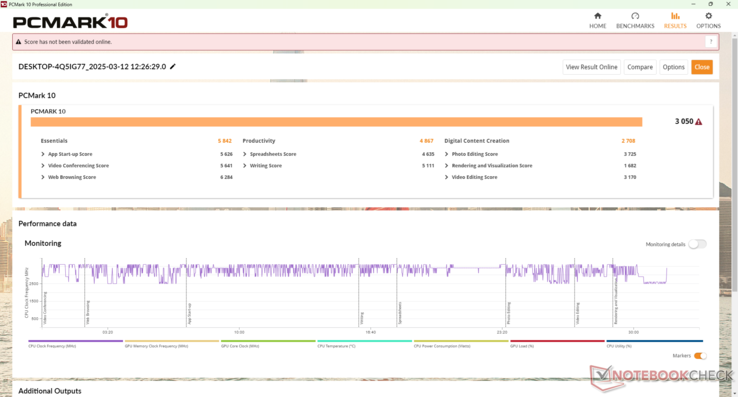

PCMark 10 / Score
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	6080 Points +99%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	4598 Points +51%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	3817 Points +25%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	3435 Points +13%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	3050 Points
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	2789 Points -9%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	2786 Points -9%

PCMark 10 / Essentials
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	10856 Points +86%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	9188 Points +57%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	7416 Points +27%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	7148 Points +22%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	6068 Points +4%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	5895 Points +1%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	5842 Points

PCMark 10 / Productivity
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	8387 Points +72%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	6442 Points +32%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	5122 Points +5%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	4952 Points +2%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	4867 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	4479 Points -8%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	4245 Points -13%

PCMark 10 / Digital Content Creation
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	6701 Points +147%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	4459 Points +65%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	4124 Points +52%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	2996 Points +11%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	2708 Points
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	2355 Points -13%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	2161 Points -20%

CrossMark / Overall
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1734 Points +143%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	1274 Points +78%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	907 Points +27%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	844 Points +18%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	756 Points +6%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	715 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	706 Points -1%

CrossMark / Productivity
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1778 Points +124%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	1399 Points +76%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	933 Points +18%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	930 Points +17%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	827 Points +4%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	794 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	779 Points -2%

CrossMark / Creativity
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1708 Points +151%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	1198 Points +76%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	918 Points +35%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	751 Points +10%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	719 Points +6%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	681 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	672 Points -1%

CrossMark / Responsiveness
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	1685 Points +179%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	1159 Points +92%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	896 Points +49%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	805 Points +33%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	671 Points +11%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	608 Points +1%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	603 Points

WebXPRT 3 / Overall
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	311 Points +80%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	191.4 Points +11%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	182.4 Points +6%
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	174.3 Points +1%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	172.3 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	163.3 Points -5%

WebXPRT 4 / Overall
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	271 Points +100%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	149.3 Points +10%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	145.3 Points +7%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	135.3 Points
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	130.3 Points -4%

Mozilla Kraken 1.1 / Total
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	1083 ms * -3%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	1047 ms *
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	1044 ms * -0%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	975 ms * +7%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	968 ms * +8%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	647 ms * +38%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	647 ms * +38%
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	489 ms * +53%

* ... smaller is better

PCMark 10 Score		3050 points
Help

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	59609 MB/s +222%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	29617 MB/s +60%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	22240 MB/s +20%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	22018 MB/s +19%
Average Intel Processor N150 (18528 - 22582, n=3)	21117 MB/s +14%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	19409 MB/s +5%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	18620 MB/s 0%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	18528 MB/s

AIDA64 / Memory Read
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	68780 MB/s +256%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	32903 MB/s +70%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	23505 MB/s +22%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	23165 MB/s +20%
Average Intel Processor N150 (19320 - 23165, n=3)	21518 MB/s +11%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	21253 MB/s +10%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19509 MB/s +1%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	19320 MB/s

AIDA64 / Memory Write
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	60626 MB/s +210%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	30579 MB/s +56%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	23191 MB/s +19%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	23127 MB/s +18%
Average Intel Processor N150 (19560 - 23191, n=3)	21830 MB/s +12%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	19684 MB/s +1%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	19560 MB/s
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	19528 MB/s 0%

AIDA64 / Memory Latency
MSI Cubi NUC 1M Intel Core 7 150U, Iris Xe G7 96EUs	74.5 ns * -44%
BMAX B7 Power G7A2 Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * -28%
Asus NUC 14 Essential Intel Core 3 N355, UHD Graphics 32EUs	52.2 ns * -1%
BMAX B4 Turbo Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	51.8 ns *
Average Intel Processor N150 (47.1 - 51.8, n=3)	49.7 ns * +4%
Newsmay AC8F-POE Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	49.5 ns * +4%
Beelink EQ14 Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)	47.1 ns * +9%
Acemagic S1 Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)	45 ns * +13%

* ... smaller is better

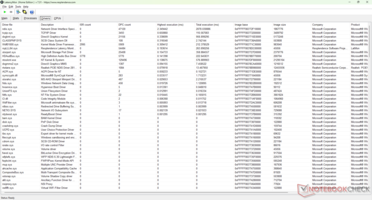

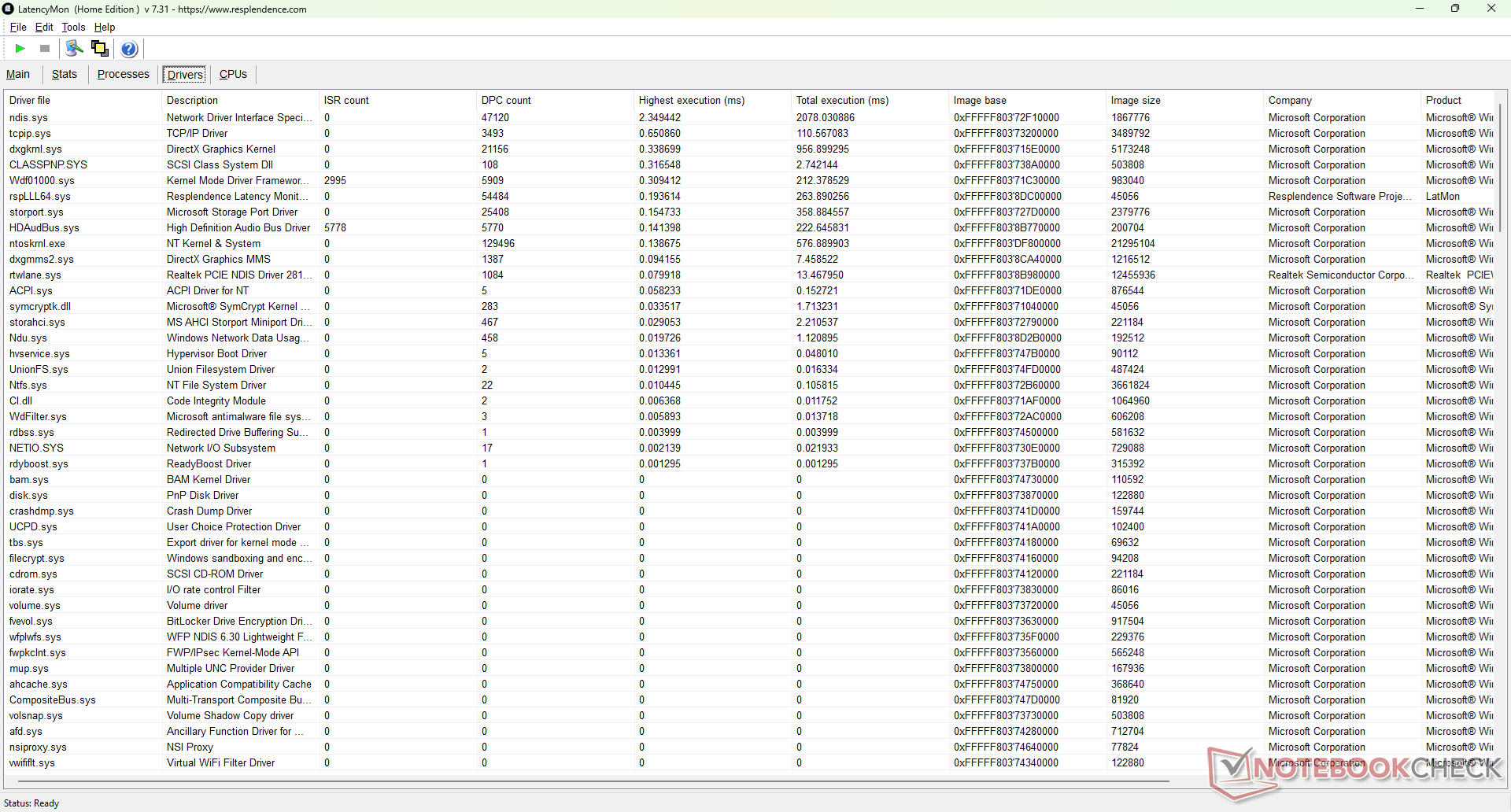

DPC Latency

We're able to record 7 dropped frames during a one-minute 4k60 video playback test when there should ideally be zero dropped frames.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	4103.1 μs * -75%
Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	2705 μs * -15%
BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	2346.4 μs *
Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	1925.1 μs * +18%
Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	639 μs * +73%
BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	584.8 μs * +75%
Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E	449.2 μs * +81%

* ... smaller is better

Storage Devices

The M.2 2280 SSD tops out at only ~500 MB/s compared to >2000 MB/s on most PCIe SSDs.

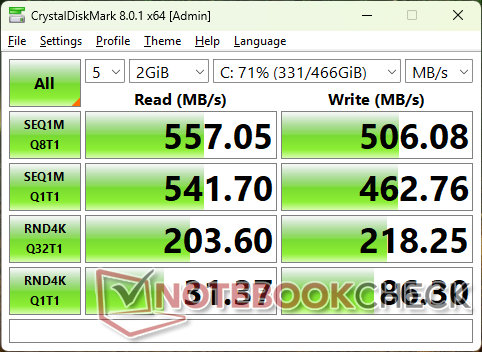

CrystalDiskMark 5.2 / 6

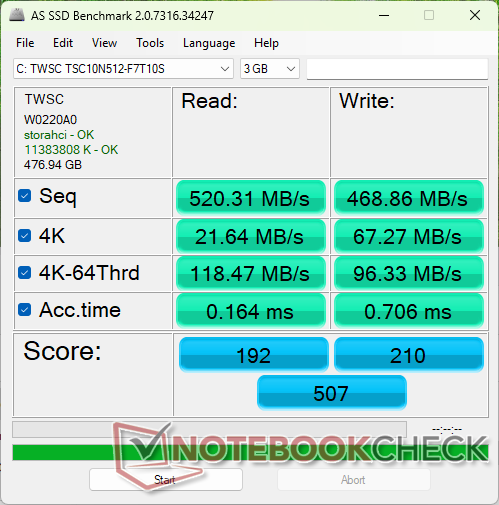

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 555.5 MB/s

CDM 5/6 Write Seq Q32T1: 505.4 MB/s

CDM 5/6 Read 4K Q32T1: 186.8 MB/s

CDM 5/6 Write 4K Q32T1: 217.7 MB/s

CDM 5 Read Seq: 541.4 MB/s

CDM 5 Write Seq: 486.2 MB/s

CDM 5/6 Read 4K: 29.11 MB/s

CDM 5/6 Write 4K: 82.35 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	90.5 pt
BMAX B7 Power G7A2 Kston K765-1TB	73.2 pt
Acemagic S1 Netac G938E	63.7 pt
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	49.9 pt
Beelink EQ14	22.7 pt
Newsmay AC8F-POE AirDisk AFF 10-128G	19.5 pt
BMAX B4 Turbo	18.7 pt

DiskSpd
seq read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4128 (4092.8^min - 4128.38^max) MB/s +673%
BMAX B7 Power G7A2 Kston K765-1TB	2237 (2110.76^min - 2237.45^max) MB/s +319%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	1794 (1777.13^min - 1793.93^max) MB/s +236%
Acemagic S1 Netac G938E	1529 (1518.34^min - 1529.45^max) MB/s +186%
BMAX B4 Turbo	534 (532.64^min - 533.92^max) MB/s
Beelink EQ14	496 (484.73^min - 495.71^max) MB/s -7%
Newsmay AC8F-POE AirDisk AFF 10-128G	413 (410.18^min - 412.9^max) MB/s -23%
seq write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	3215 (3133.8^min - 3214.8^max) MB/s +570%
BMAX B7 Power G7A2 Kston K765-1TB	1849 (1825.24^min - 1848.98^max) MB/s +285%
Acemagic S1 Netac G938E	1392 (1353.52^min - 1392.3^max) MB/s +190%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	1199 (1171.01^min - 1198.64^max) MB/s +150%
Beelink EQ14	506 (491.99^min - 506.01^max) MB/s +5%
BMAX B4 Turbo	480 (477.94^min - 479.5^max) MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	417 (409.15^min - 416.7^max) MB/s -13%
seq q8 t1 read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4987 (4558.37^min - 4987.33^max) MB/s +808%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	3148 (2674.18^min - 3147.62^max) MB/s +473%
BMAX B7 Power G7A2 Kston K765-1TB	3045 (2569.64^min - 3045.06^max) MB/s +455%
Acemagic S1 Netac G938E	1788 (1591.28^min - 1787.61^max) MB/s +226%
Beelink EQ14	556 (429.92^min - 556.16^max) MB/s +1%
BMAX B4 Turbo	549 (424.25^min - 549.08^max) MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	397 (395.52^min - 396.69^max) MB/s -28%
seq q8 t1 write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	3308 (3211.45^min - 3307.84^max) MB/s +564%
BMAX B7 Power G7A2 Kston K765-1TB	1981 MB/s +298%
Acemagic S1 Netac G938E	1710 (1487.72^min - 1710.37^max) MB/s +243%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	1628 (1551.73^min - 1628.02^max) MB/s +227%
Beelink EQ14	526 (462.09^min - 525.96^max) MB/s +6%
BMAX B4 Turbo	498 (494.99^min - 498.07^max) MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	453 (445.02^min - 453.26^max) MB/s -9%
4k q1 t1 read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	73.3 (72.01^min - 73.31^max) MB/s +241%
BMAX B7 Power G7A2 Kston K765-1TB	54.6 (54.21^min - 54.55^max) MB/s +154%
Acemagic S1 Netac G938E	48.9 (48.33^min - 48.93^max) MB/s +127%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	37.4 (36.24^min - 37.36^max) MB/s +74%
Newsmay AC8F-POE AirDisk AFF 10-128G	28.4 (28.01^min - 28.38^max) MB/s +32%
Beelink EQ14	23.8 (23.34^min - 23.81^max) MB/s +11%
BMAX B4 Turbo	21.5 (14.08^min - 21.46^max) MB/s
4k q1 t1 write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	282 (265.11^min - 281.58^max) MB/s +281%
BMAX B7 Power G7A2 Kston K765-1TB	184.7 (180.75^min - 184.67^max) MB/s +150%
Acemagic S1 Netac G938E	131.7 (130.58^min - 131.74^max) MB/s +78%
Beelink EQ14	81.4 (76.92^min - 81.38^max) MB/s +10%
BMAX B4 Turbo	74 (72.47^min - 74.04^max) MB/s
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	69.2 (65.75^min - 69.23^max) MB/s -6%
Newsmay AC8F-POE AirDisk AFF 10-128G	40.4 (39.84^min - 40.4^max) MB/s -45%
4k q32 t16 read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	1533 (1419.74^min - 1533.25^max) MB/s +763%
BMAX B7 Power G7A2 Kston K765-1TB	883 (872.66^min - 882.98^max) MB/s +397%
Acemagic S1 Netac G938E	737 (736.82^min - 737.34^max) MB/s +315%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	463 (452.09^min - 462.84^max) MB/s +161%
Beelink EQ14	341 (335.23^min - 341.31^max) MB/s +92%
BMAX B4 Turbo	177.7 (177.33^min - 177.69^max) MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	161.3 (160.59^min - 161.32^max) MB/s -9%
4k q32 t16 write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2010 (1622.95^min - 2010.14^max) MB/s +563%
BMAX B7 Power G7A2 Kston K765-1TB	1106 (1001.62^min - 1105.76^max) MB/s +265%
Acemagic S1 Netac G938E	830 (808.45^min - 829.56^max) MB/s +174%
BMAX B4 Turbo	303 (60.99^min - 302.92^max) MB/s
Beelink EQ14	275 (207.31^min - 275.22^max) MB/s -9%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	176.4 (166.69^min - 176.44^max) MB/s -42%
Newsmay AC8F-POE AirDisk AFF 10-128G	165 (159.56^min - 165.01^max) MB/s -46%

AS SSD
Score Total
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2750 Points +442%
BMAX B7 Power G7A2 Kston K765-1TB	2745 Points +441%
Acemagic S1 Netac G938E	2656 Points +424%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	2017 Points +298%
Beelink EQ14	698 Points +38%
Newsmay AC8F-POE AirDisk AFF 10-128G	550 Points +8%
BMAX B4 Turbo	507 Points
Score Read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	1443 Points +652%
Acemagic S1 Netac G938E	1111 Points +479%
BMAX B7 Power G7A2 Kston K765-1TB	1062 Points +453%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	779 Points +306%
Beelink EQ14	238 Points +24%
BMAX B4 Turbo	192 Points
Newsmay AC8F-POE AirDisk AFF 10-128G	172 Points -10%
Score Write
BMAX B7 Power G7A2 Kston K765-1TB	1151 Points +448%
Acemagic S1 Netac G938E	978 Points +366%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	917 Points +337%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	651 Points +210%
Beelink EQ14	333 Points +59%
Newsmay AC8F-POE AirDisk AFF 10-128G	284 Points +35%
BMAX B4 Turbo	210 Points
Seq Read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	4327.67 MB/s +732%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	2547 MB/s +390%
BMAX B7 Power G7A2 Kston K765-1TB	2329 MB/s +348%
Acemagic S1 Netac G938E	1556 MB/s +199%
BMAX B4 Turbo	520.31 MB/s
Beelink EQ14	500.85 MB/s -4%
Newsmay AC8F-POE AirDisk AFF 10-128G	483 MB/s -7%
Seq Write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	2606.84 MB/s +456%
BMAX B7 Power G7A2 Kston K765-1TB	1816 MB/s +287%
Acemagic S1 Netac G938E	1326 MB/s +183%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	838 MB/s +79%
Beelink EQ14	482.1 MB/s +3%
BMAX B4 Turbo	468.86 MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	346 MB/s -26%
4K Read
BMAX B7 Power G7A2 Kston K765-1TB	53.1 MB/s +145%
Acemagic S1 Netac G938E	44.6 MB/s +106%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	42.24 MB/s +95%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	35 MB/s +62%
Newsmay AC8F-POE AirDisk AFF 10-128G	29.6 MB/s +37%
BMAX B4 Turbo	21.64 MB/s
Beelink EQ14	18.15 MB/s -16%
4K Write
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	217.48 MB/s +223%
BMAX B7 Power G7A2 Kston K765-1TB	152.2 MB/s +126%
Acemagic S1 Netac G938E	110.7 MB/s +65%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	80.7 MB/s +20%
Beelink EQ14	69.81 MB/s +4%
BMAX B4 Turbo	67.27 MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	65.5 MB/s -3%
4K-64 Read
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	967.82 MB/s +717%
Acemagic S1 Netac G938E	911 MB/s +669%
BMAX B7 Power G7A2 Kston K765-1TB	776 MB/s +555%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	489 MB/s +313%
Beelink EQ14	169.66 MB/s +43%
BMAX B4 Turbo	118.47 MB/s
Newsmay AC8F-POE AirDisk AFF 10-128G	94.3 MB/s -20%
4K-64 Write
BMAX B7 Power G7A2 Kston K765-1TB	817 MB/s +748%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	752 MB/s +681%
Acemagic S1 Netac G938E	735 MB/s +663%
Beelink EQ14	215.18 MB/s +123%
Newsmay AC8F-POE AirDisk AFF 10-128G	183.9 MB/s +91%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	172.85 MB/s +79%
BMAX B4 Turbo	96.33 MB/s
Access Time Read
Newsmay AC8F-POE AirDisk AFF 10-128G	0.288 ms * -76%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	0.24 ms * -46%
Beelink EQ14	0.169 ms * -3%
BMAX B4 Turbo	0.164 ms *
BMAX B7 Power G7A2 Kston K765-1TB	0.097 ms * +41%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	0.072 ms * +56%
Acemagic S1 Netac G938E	0.055 ms * +66%
Access Time Write
BMAX B4 Turbo	0.706 ms *
Beelink EQ14	0.518 ms * +27%
Newsmay AC8F-POE AirDisk AFF 10-128G	0.316 ms * +55%
Asus NUC 14 Essential Micron 2400 MTFDKBA512QF	0.14 ms * +80%
MSI Cubi NUC 1M WD PC SN560 SDDPNQE-1T00	0.088 ms * +88%
BMAX B7 Power G7A2 Kston K765-1TB	0.049 ms * +93%
Acemagic S1 Netac G938E	0.034 ms * +95%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

BMAX B4 Turbo; diskspd 2.0.17 f: Ø546 (420.06-550.87)

GPU Performance

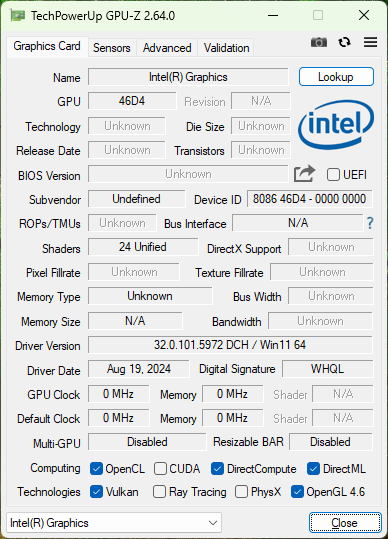

The N150 has the same integrated UHD Graphics 24EUs as on the N100. However, graphics performance is still faster than the average system with the same iGPU in our database by 15 to 20 percent.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	100 pt
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	65.1 pt
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	54.1 pt
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	45.5 pt
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	35.4 pt
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	30.3 pt
Average Intel UHD Graphics 24EUs (Alder Lake-N)	25.9 pt
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	24.8 pt
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	23.7 pt
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	23.7 pt

3DMark 11 - 1280x720 Performance GPU
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	6282 Points +236%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4770 Points +155%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	3428 Points +83%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	2901 Points +55%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2233 Points +19%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1872 Points
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1458 - 2233, n=16)	1581 Points -16%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1470 Points -21%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1458 Points -22%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1349 Points -28%

3DMark
1280x720 Cloud Gate Standard Graphics
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	29301 Points +183%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	16589 Points +60%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	16443 Points +59%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	14227 Points +37%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	11498 Points +11%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	10356 Points
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	8740 Points -16%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (7218 - 11498, n=16)	8719 Points -16%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	7970 Points -23%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	7604 Points -27%
1920x1080 Fire Strike Graphics
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	4899 Points +258%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	2886 Points +111%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	2655 Points +94%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	2139 Points +56%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	1646 Points +20%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1367 Points
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1080 - 1646, n=15)	1229 Points -10%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	1154 Points -16%
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	1144 Points -16%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1122 Points -18%
2560x1440 Time Spy Graphics
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	1428 Points +256%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	986 Points +146%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	737 Points +84%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	625 Points +56%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	473 Points +18%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	401 Points
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	342 Points -15%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (304 - 473, n=16)	339 Points -15%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	321 Points -20%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	304 Points -24%

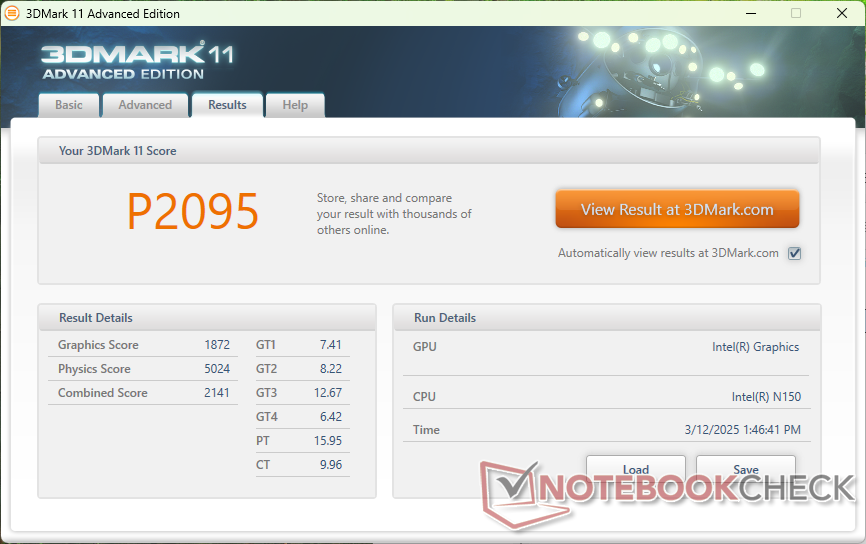

3DMark 11 Performance		2095 points

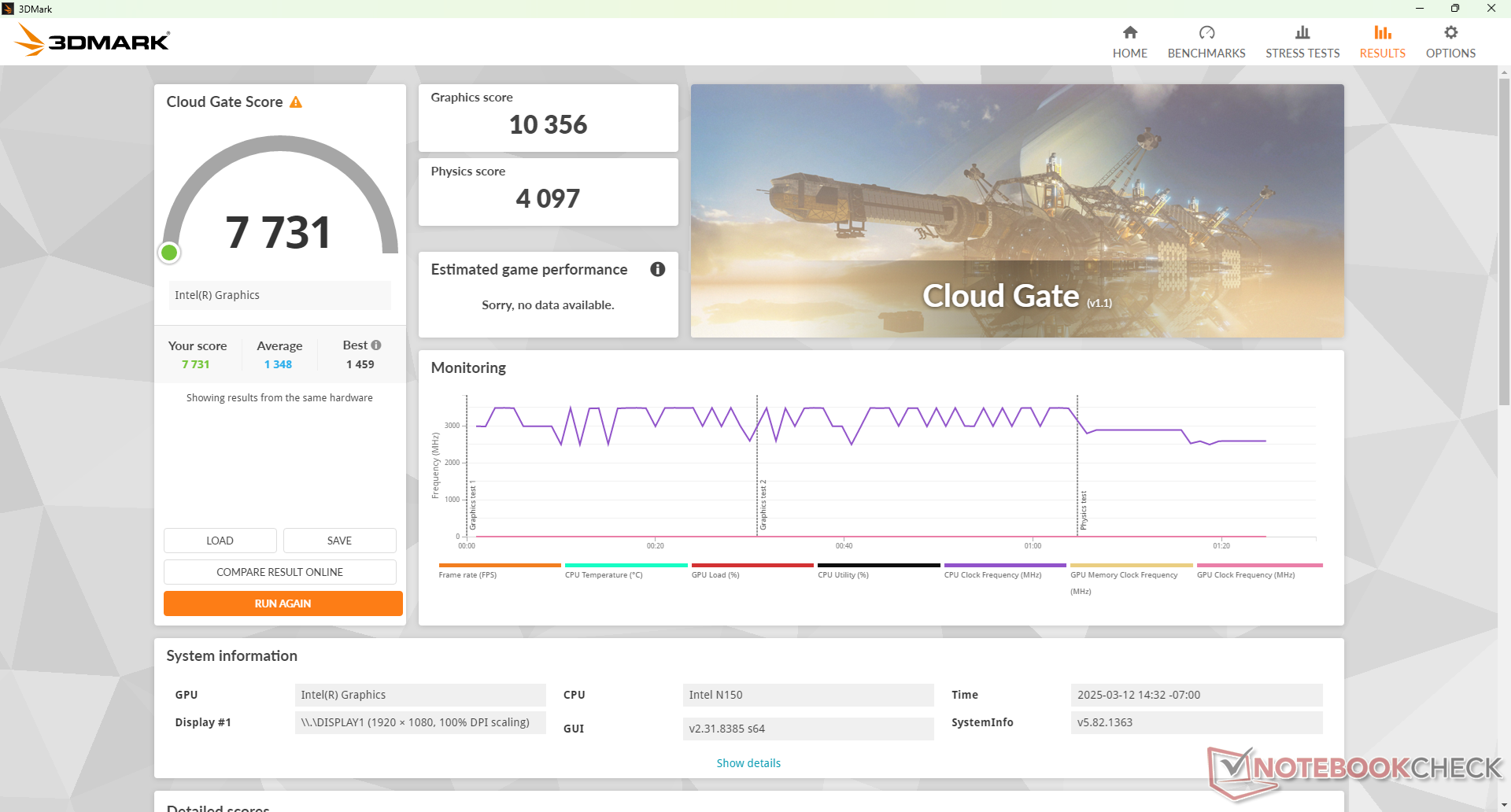

3DMark Cloud Gate Standard Score		7731 points

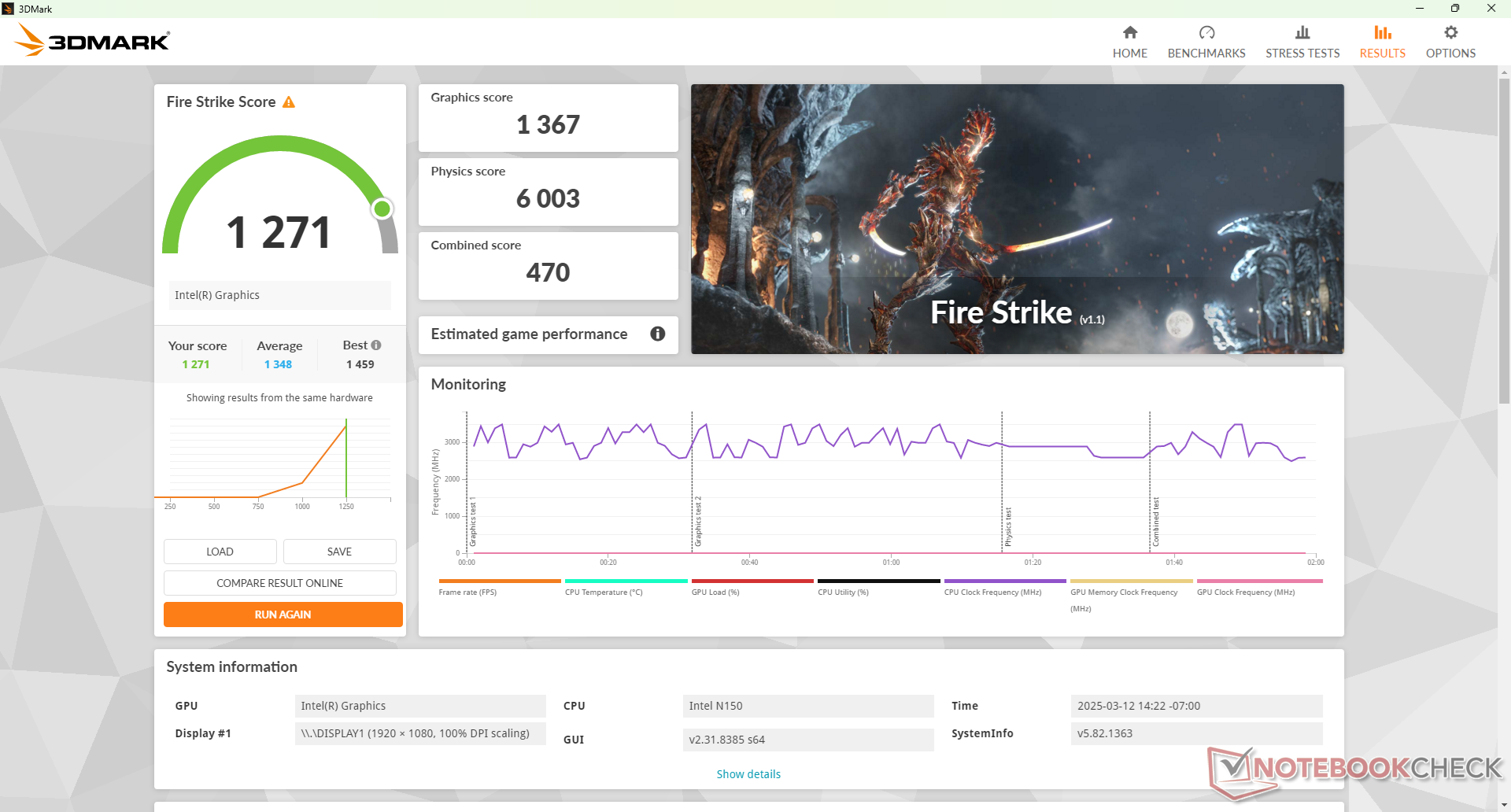

3DMark Fire Strike Score		1271 points

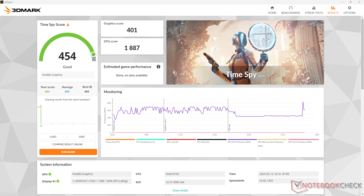

3DMark Time Spy Score		454 points
Help

... in comparison

Blender - v3.3 Classroom CPU
Asus ExpertCenter PN42-BBN200MV Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200	4297 Seconds * -77%
Newsmay AC8F-POE Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	3015 Seconds * -24%
BMAX B4 Turbo Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2429 Seconds *
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1992 - 3964, n=14)	2409 Seconds * +1%
Beelink EQ14 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150	2125 Seconds * +13%
Acemagic S1 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97	2014 Seconds * +17%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1259 Seconds * +48%
Asus NUC 14 Essential Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355	1121 Seconds * +54%
MSI Cubi NUC 1M Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U	829 Seconds * +66%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	396 Seconds * +84%

* ... smaller is better

GTA V - 1024x768 Lowest Settings possible
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	102.4 (25.3^min, 71.4^P1) fps +98%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	100.3 (39.9^min, 62.5^P1) fps +94%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	69.6 (9.06^min, 41.7^P1) fps +35%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	58.2 (7.46^min, 37^P1) fps +13%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	56.4 (18^min, 34.5^P1) fps +9%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	54.4 (1.684^min, 34.5^P1) fps +5%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (44.7 - 59, n=10)	54.2 fps +5%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (0.815^min, 26.3^P1) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	36.8 (1.484^min, 19.2^P1) fps -29%

Dota 2 Reborn
1280x720 min (0/3) fastest
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	105.8 (73.2^min) fps +81%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	97.7 (57.3^min) fps +68%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	92.3 (83.6^min) fps +58%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	72.7 (53.4^min) fps +25%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	70.4 (52.2^min) fps +21%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (44.7 - 80.8, n=14)	67.1 fps +15%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	58.3 (44.4^min) fps
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	58.2 (36.9^min) fps 0%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	35.1 (22.9^min) fps -40%
1366x768 med (1/3)
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	78.4 (32.1^min) fps +143%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	64.9 (55.9^min) fps +102%
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	61.9 (45.9^min) fps +92%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	52 (39.9^min) fps +61%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (27.6 - 52, n=14)	43 fps +34%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	39.7 (26.3^min) fps +23%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	32.2 (20.1^min) fps
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	28.8 (15.9^min) fps -11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	20.6 (14.9^min) fps -36%
1920x1080 high (2/3)
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	62.5 (42.1^min) fps +373%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	43.9 (24.2^min) fps +233%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	34.9 (23.4^min) fps +164%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	32.9 (30.6^min) fps +149%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	26.8 (25.1^min) fps +103%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	21.8 (1.7^min) fps +65%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (13.2 - 26.8, n=14)	19.4 fps +47%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	13.2 (4.8^min) fps
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	10.9 (9.8^min) fps -17%
1920x1080 ultra (3/3) best looking
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	57.8 (39.9^min) fps +152%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	40.7 (22.6^min) fps +78%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	32.1 (21.7^min) fps +40%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29.6 (27.2^min) fps +29%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	24.9 (23.1^min) fps +9%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	22.9 (14.8^min) fps
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	20.1 (11.2^min) fps -12%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (13.4 - 24.9, n=14)	18.8 fps -18%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	9.9 (8.5^min) fps -57%

Final Fantasy XV Benchmark
1280x720 Lite Quality
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	40.9 fps +173%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	26.2 fps +75%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.1 fps +47%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	21.6 fps +44%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	17.8 fps +19%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	17.2 fps +15%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	15 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (12 - 17.8, n=12)	13.7 fps -9%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	5.91 fps -61%
1920x1080 Standard Quality
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	23 fps +207%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	14.3 fps +91%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	11.6 fps +55%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.5 fps +40%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	8.69 fps +16%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	7.5 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (5.63 - 8.69, n=10)	6.52 fps -13%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	3.48 fps -54%
1920x1080 High Quality
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	16.6 fps +213%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	9.38 fps +77%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.15 fps +54%
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	7.81 fps +47%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	6.26 fps +18%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	5.3 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (4.22 - 6.26, n=9)	4.72 fps -11%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	2.5 fps -53%

Strange Brigade - 1280x720 lowest AF:1
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	88.2 (20^min, 29.9^P1) fps +185%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	49 (12.2^min, 15^P1) fps +58%
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	48.5 (12.4^min, 14.7^P1) fps +56%
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	37.7 (8.6^min, 10.3^P1) fps +22%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	31 (6.8^min, 8.12^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (23.2 - 37.7, n=11)	28.4 fps -8%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	26.6 (6^min, 6.91^P1) fps -14%
Asus ExpertCenter PN42-BBN200MV Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)	25.2 (6.6^min, 8.91^P1) fps -19%

F1 22 - 1280x720 Ultra Low Preset AA:T AF:16x
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	71.8 (51^min, 58^P1) fps +183%
BMAX B4 Turbo Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	25.4 (22^min, 21^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (20.3 - 25.4, n=2)	22.9 fps -10%
Beelink EQ14 Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)	20.3 (17^min, 16^P1) fps -20%

Cyberpunk 2077 2.2 Phantom Liberty - 1280x720 Low Preset (FSR off)
MSI Cubi NUC 1M Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs	25.5 (19.8^min) fps
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel UHD Graphics 770	15.1 (4.01^min) fps
Asus NUC 14 Essential Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)	13.8 (10.8^min) fps
Acemagic S1 Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)	11.1 (8.45^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (n=1)	11.1 fps

Cyberpunk 2077 ultra FPS Chart

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø2.97 (2.81-3.02)

	low	med.	high	ultra
GTA V (2015)	51.6
Dota 2 Reborn (2015)	58.3	32.2	13.2	22.9
Final Fantasy XV Benchmark (2018)	15	7.5	5.3
Strange Brigade (2018)	31
F1 22 (2022)
Cyberpunk 2077 2.2 Phantom Liberty (2023)

Emissions

System Noise

The fan is always active but quiet when idling. However, it ramps up fairly quicky when higher loads are introduced such as when launching browsers or multi-tasking. Pulsing behavior could be improved.

Fan noise profile (White: Background, Red: System idle, Blue: 3DMark 06, Orange: Cyberpunk 2077, Green: Prime95 stress)

Noise Level

Idle		23.8 / 23.8 / 39.9 dB(A)
Load		40 / 40.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.8 dB(A)

	BMAX B4 Turbo UHD Graphics 24EUs (Alder Lake-N), Processor N150	BMAX B7 Power G7A2 Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB	Beelink EQ14 UHD Graphics 24EUs (Alder Lake-N), Processor N150	Asus NUC 14 Essential UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF	MSI Cubi NUC 1M Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00	Newsmay AC8F-POE UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G	Acemagic S1 UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
Noise		17%	24%	11%	-1%	17%	6%
off / environment *	23.8	23 3%	22.5 5%	24.9 -5%	23.5 1%	24.8 -4%	24.9 -5%
Idle Minimum *	23.8	23 3%	23.5 1%	25 -5%	29.9 -26%	24.8 -4%	25.8 -8%
Idle Average *	23.8	25.12 -6%	23.5 1%	25 -5%	29.9 -26%	24.8 -4%	25.9 -9%
Idle Maximum *	39.9	25.12 37%	23.8 40%	25 37%	32 20%	24.8 38%	26 35%
Load Average *	40	27.15 32%	24 40%	30.2 24%	33.5 16%	24.9 38%	34.5 14%
Cyberpunk 2077 ultra *	40.6		23.8 41%		39.1 4%
Load Maximum *	40.8	27.15 33%	24.4 40%	32.3 21%	40.5 1%	25 39%	38.2 6%
Witcher 3 ultra *		27.15

* ... smaller is better

Temperature

Surface temperatures are relatively cool and a non-issue due to the low-power processor.

Stress Test

The CPU would spike to 2.6 GHz and 20 W when initiating Prime95 stress. After about 30 seconds, however, it would drop to 2 GHz and 15 W. Core temperature would remain relatively cool at the low 50 C range.

	Average CPU Clock (GHz)	GPU Clock (MHz)	Average CPU Temperature (°C)
System Idle	--	--	31
Prime95 Stress	2.2	--	55
Prime95 + FurMark Stress	1.3	850	54
Cyberpunk 2077 Stress	1.4	950	51

Energy Management

Power Consumption

Consumption maxes out at just under 30 W when running demanding loads even though the small AC adapter (~6.8 x 4.2 x 3.2 cm) is rated for just 26 W. Note that the AC adapter cord is relatively short at just 4 feet.

Consumption would spike to 27 W when initiating Prime95 stress before falling to 21 W after 30 seconds due to thermal limitations

Prime95+FurMark stress initiated at 10s mark

Power Consumption

Off / Standby	0.88 / 1.3 Watt
Idle	6.3 / 7.4 / 16.2 Watt
Load	22 / 29.8 Watt


Key: min: , med: , max: Metrahit Energy

	BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,	BMAX B7 Power G7A2 i7-11390H, Iris Xe G7 96EUs, Kston K765-1TB, , x,	Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,	Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs, Micron 2400 MTFDKBA512QF, , x,	MSI Cubi NUC 1M Core 7 150U, Iris Xe G7 96EUs, WD PC SN560 SDDPNQE-1T00, , x,	Newsmay AC8F-POE N100, UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G, , x,	Acemagic S1 N97, UHD Graphics 24EUs (Alder Lake-N), Netac G938E, , x,
Power Consumption		-13%	-2%	-4%	-34%	-2%	-36%
Idle Minimum *	6.3	9.1 -44%	7.9 -25%	4.1 35%	6.4 -2%	7.9 -25%	9.8 -56%
Idle Average *	7.4	9.5 -28%	8.9 -20%	5.4 27%	8.3 -12%	10.1 -36%	12 -62%
Idle Maximum *	16.2	10 38%	9.1 44%	6.5 60%	10.4 36%	10.3 36%	13.5 17%
Load Average *	22	27.1 -23%	21.2 4%	29.2 -33%	38.5 -75%	17.3 21%	27.6 -25%
Cyberpunk 2077 ultra external monitor *	20.7		22.3 -8%	30.1 -45%	36.1 -74%
Load Maximum *	29.8	32.3 -8%	31.6 -6%	50.5 -69%	52.5 -76%	31.6 -6%	46.2 -55%
Witcher 3 ultra *		29.1

* ... smaller is better

Power Consumption Cyberpunk / Stress Test

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø23.9 (22.2-29.7)

Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs: Ø33 (31.5-50.5)

Power Consumption external Monitor

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø21.6 (19.8-27.2)

Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Prime95 V2810 Stress (external Monitor): Ø31.9 (29.8-45.1)

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø20.1 (18.1-24.5)

Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Cinebench R15 Multi (external Monitor): Ø35.6 (29.2-38.1)

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø18.3 (17.8-23.6)

Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.2 (23.7-25.5)

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø7.51 (6.32-16.2)

Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Idle 1min (external Monitor): Ø5.41 (4.99-6.52)

BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø20.7 (18.9-21.8)

Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø30.1 (25.6-36.9)

Notebookcheck Rating

Back to the verdict

BMAX B4 Turbo - 03/27/2025 v8
Allen Ngo

Chassis

73 / 98 → 75%

Connectivity

49 / 81 → 60%

Weight

86%

Games Performance

8 / 80 → 10%

Application Performance

59 / 92 → 64%

Temperature

90%

Noise

75%

Average

51%

58%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
50%

Power Use
72.9%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 39.2%

Potential Competitors in Comparison

Image	Model / Review	Price	Weight	Height	Display
1. 58.3%	BMAX B4 Turbo Intel Processor N150 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 16 GB Memory	Amazon: 1. $164.90 Bmax Mini PC B4 16GB RAM 512... 2. $12.99 PWR+ 12V Power Supply for Bm... 3. $149.99 Bmax B4 Mini PC 512GB SSD In... List Price: 175 EUR	315 g	44 mm	x
2. 78.4% ^{v7 (old)}	BMAX B7 Power G7A2 Intel Core i7-11390H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 1024 GB SSD	List Price: 399 US-Dollar	363 g	44 mm	x
3. 61.3%	Beelink EQ14 Intel Processor N150 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 16 GB Memory	Amazon: List Price: 200 USD	432 g	39 mm	x
4. 68%	Asus NUC 14 Essential Intel Core 3 N355 ⎘ Intel UHD Graphics 32EUs (Alder Lake) ⎘ 16 GB Memory, 512 GB SSD	Amazon: 1. $387.00 Asus NUC14 Essential Intel®... 2. $616.99 ASUS NUC 14 Pro Slim Barebon... 3. $1,599.99 NUC 14 Performance Barebone ... List Price: 295 EUR	465 g	36 mm	x
5. 66.1%	MSI Cubi NUC 1M Intel Core 7 150U ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 16 GB Memory, 1024 GB SSD	Amazon: $749.00 List Price: 950 USD	660 g	50.1 mm	x
6. 61.3%	Newsmay AC8F-POE Intel Processor N100 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 8 GB Memory, 128 GB SSD	Amazon: 1. $21.99 PowerHOOD AC/DC Adapter Comp... List Price: 295 EUR	1.2 kg	62 mm	x
7. 75.8% ^{v7 (old)}	Acemagic S1 Intel Processor N97 ⎘ Intel UHD Graphics 24EUs (Alder Lake-N) ⎘ 16 GB Memory, 512 GB SSD	Amazon: 1. $22.99 PowerHOOD 12V AC Adapter Com... 2. $9.99 Portable Charger Adapter for... 3. $9.99 Portable Charger Adapter for... List Price: 249 EUR	450 g	42 mm	x

The Windows 365 Link is a mini PC with cloud features (Image source: Microsoft)

Windows 365 Link: Microsoft's first mini PC features Intel processors and intriguing concept 04/04/2025

Minisforum AI X1 Pro review: An all-round mini PC for the office, multimedia, gaming and creative tasks 03/07/2025

GMK NucBox K11 mini PC review: Strong performance-per-dollar with AMD Zen 4 03/03/2025

Beelink GTI13 Ultra mini PC review: A Mac Mini alternative with Intel Core i9 02/26/2025

GMKtec EVO-X1 mini PC review: New boxy design with Oculink and Ryzen AI 9 02/20/2025

Lenovo IdeaCentre Mini 5 review: The mini PC for everyday use turns out to be great value for money 02/05/2025

BOSGAME M2 mini PC review: Fixes a major complaint about the original M1 01/28/2025

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Loading Comments

Comment on this article

Allen Ngo - Lead Editor U.S. - 5317 articles published on Notebookcheck since 2011

After graduating with a B.S. in environmental hydrodynamics from the University of California, I studied reactor physics to become licensed by the U.S. NRC to operate nuclear reactors. There's a striking level of appreciation you gain for everyday consumer electronics after working with modern nuclear reactivity systems astonishingly powered by computers from the 80s. When I'm not managing day-to-day activities and US review articles on Notebookcheck, you can catch me following the eSports scene and the latest gaming news.

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > BMAX B4 Turbo review: Inexpensive mini PC with Intel N150

Allen Ngo, 2025-03-27 (Update: 2025-03-27)

BMAX B4 Turbo review: Inexpensive mini PC with Intel N150

Turbo with a 6 W CPU?

Verdict — Great For Basic HTPC Needs

Pros

Cons

Price and Availability

Table of Contents

Specifications

Case

Size Comparison

Connectivity

Communication

Maintenance

Sustainability

Accessories And Warranty

Performance

Testing Conditions

Processor

Cinebench R15 Multi Loop

System Performance

DPC Latency

Storage Devices

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performance

Cyberpunk 2077 ultra FPS Chart

Emissions

System Noise

Temperature

Stress Test

Energy Management

Power Consumption

Power Consumption Cyberpunk / Stress Test

Power Consumption external Monitor

Notebookcheck Rating

Potential Competitors in Comparison

Related Articles

Transparency

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N)	155.5
Zotac ZBOX PI430AJ i3-N300, UHD Graphics 32EUs	165
Beelink EQ14 Processor N150, UHD Graphics 24EUs (Alder Lake-N)	178.9
BOSGAME N95 N95, UHD Graphics 24EUs (Alder Lake-N)	181
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Lenovo ThinkPad X1 Yoga 2020-20UCS03S00 i7-10510U, UHD Graphics 620	2092
HP Pavilion 17-f217ng 5200U, GeForce 830M	2094
Dell Latitude 15 5511-VNJNW i5-10400H, UHD Graphics 630	2095
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N)	2095
Lenovo IdeaPad 320s-14IKB i5-7200U, GeForce 920MX	2096
Asus M509DA-EJ153T R3 3200U, Vega 3	2097
Dell Latitude 15 3550-0123 5500U, GeForce 830M	2097
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
