Intel Core i7-680UM

Intel 680UM

The Intel Core i7-680UM is a Ultra Low Voltage dual-core processor for small and light laptops. It is clocked with 1.47 - 2.5 GHz (if Turbo Boost is enabled). The 680UM is the fastest ULV CPU in Q4 2010. Each core is based on the Nehalem (Westmere) micro-architecture. Hyperthreading enables the Dual Core CPU to handle 4 threads at once (for a better usage of the pipeline). Compared to the Core i7-640M and the i7 640LM CPUs, the 680UM is much slower (due to the lower clock rate) but more power efficient.

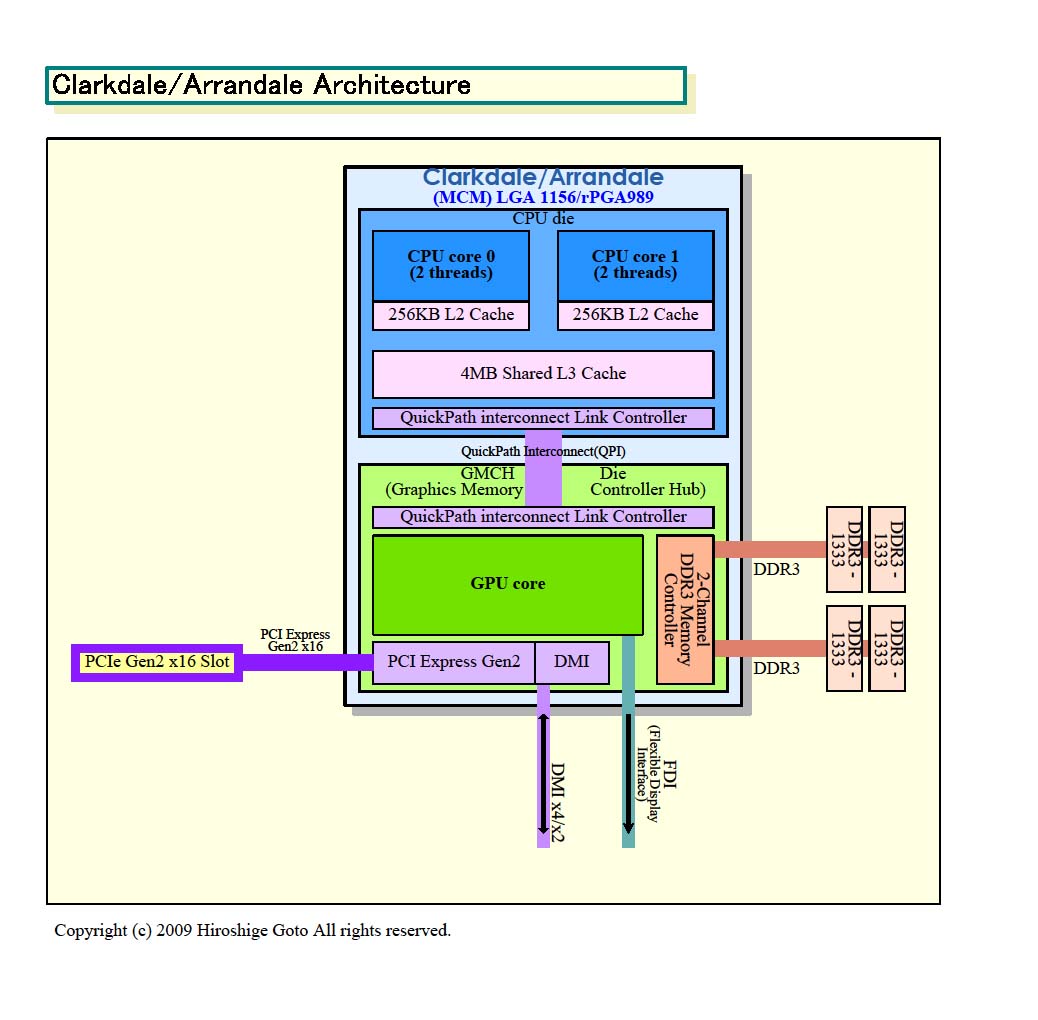

A feature of the new Core i7-680UM is the integrated graphics card (called Intel HD Graphics) and memory controller. Both are on a separate die that is still manufactured in 45nm whereas the CPU die is already manufactured in the new 32nm process.

Due to the integrated memory controller, the HyperThreading and Turbo Boost, the  Core i7-680UM is faster than a similar clocked Core 2 Duo (1.4 GHz) in all (us known) applications and benchmarks. Still the Turbo Boost may not trigger very often (sometimes it is even not activated in the BIOS) and therefore the maximum of 2.53 GHz could not be important. If the Turbo triggers, the CPU may be as fast, as a 2.6 GHz Core 2 Duo in single threaded applications.

The 32nm cpu cores of the Westmere generation can also process some new instructions to accelerate AES encryptions. Modern applications that support AES encoding can profit significantly using the new instructions (e.g. the Communications Suite test in the PCMark Vantage boosts up to 70% using AES in the faster Core i5-520M).

The integrated Intel Graphics Media Accelerator HD (GMA HD) graphics card is between 166-500 MHz (Turbo Boost) and therefore the base speed is clearly below the non low voltage versions. The performance should still be faster than the old GMA 4500MHD.

SeriesIntel Core i7
CodenameArrandale
Clock Rate1467 - 2533 MHz
Front Side Bus2500 MHz
Level 2 Cache512 KB
Level 3 Cache4096 KB
Number of Cores / Threads2 / 4
Max. Power Consumption (TDP = Thermal Design Power)18 Watt
Transistor Count382+177 Million
Manufacturing Technology32 nm
Die Size81+144 mm2
Max. Temperature105 °C
SocketBGA1288
FeaturesTurbo Boost (2.40 GHz max), Hyper Threading, Enhanced Speedstep, integrated GMA HD 166-500MHz
64 Bit64 Bit support
Hardware VirtualizationVT-x, VT-d
Starting Price $317 U.S.
Announcement Date09/26/2010
Product Link (external)Intel Core i7 680UM

Benchmarks

No benchmarks found for this graphics card.
