Intel Atom Z3460

Intel Z3460

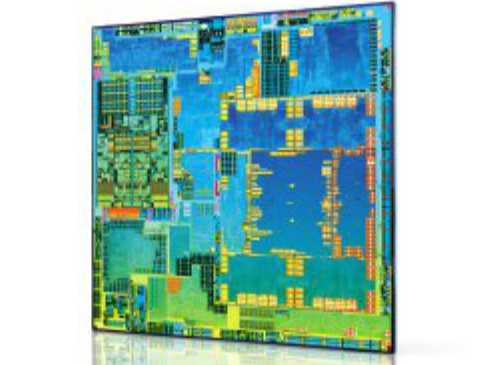

The Intel Atom Z3460 is a power efficient dual-core SoC for (mainly) Android tablets and smartphones. It is clocked at up to 1.6 GHz (Burst) and part of the Merrifield platform. Thanks to the specially optimized 22 nanometer low-power process (P1271) with tri-gate transistors, performance and energy efficiency have been significantly improved compared to its predecessor. Besides the CPU cores, the SoC integrates a PowerVR G6400 GPU as well as a Dual-Channel LPDDR3-1066 memory controller (max. 4 GB, 8.5 GB/s).

Architecture

The processor cores are based on the new Silvermont architecture, which is an out-of-order design for the first time. The increased utilization of the pipeline and many other improvements (optimized branch prediction, increased buffers, enhanced decoders) have increased the performance per clock by about 50 percent. At the same time, however, the Hyper-Threading feature of the previous Intel Atom generation has been removed. Other major changes are the support for new instruction set extensions such as SSE 4.1 and 4.2 as well as AES-NI (depending on the model).

Performance

Compared to other smartphone and tablet SoCs, the Z3460 offers a relatively high performance per clock. In some cases, the chip even competes with high-end SoCs like the Qualcomm Snapdragon 800. However, the Z3460 has only 2 CPU cores, so the (less important) multithreading performance is only at the level of cheaper Cortex-A7 quad cores.

Graphics

The integrated GPU has not been developed by Intel itself, but licensed from Imagination Technologies. The PowerVR G6400 is very similar to the G6430 in Apple's A7, but clocked slightly higher at 400 - 457 MHz. Compared to other mobile graphics solutions, the G6400 performs similar to the Snapdragon 800/Adreno 330 or the ARM Mali-T628 MP6. Therefore, even the most demanding Android games of 2014 will run fluently in high resolutions.

Power Consumption

According to its performance and specifications, the chip should have a medium-high power consumption. Intel claims, the SoC is suitable for tablets as well as smartphones.

SeriesIntel Atom
CodenameMerrifield
Clock Rate1600 MHz
Level 2 Cache1024 KB
Number of Cores / Threads2 / 2
Manufacturing Technology22 nm
Max. Temperature90 °C
FeaturesPowerVR G6400 GPU (400 - 457 MHz), 2x 32 Bit LPDDR3-1066 (max. 4 GB), Wireless Display
GPUPowerVR G6400 (400 - 457 MHz)
64 Bit64 Bit support
Announcement Date02/24/2014
Product Link (external)Intel Atom Z3460

CPU Benchmarks

Vellamo 3.0: Metal
0% 100%
min: 1078     avg: 1078 (48.48%)     max: 1078 Points
Vellamo 3.0: Multicore Beta
0% 100%
min: 1158     avg: 1158 (12.03%)     max: 1158 Points
Vellamo 3.0: Browser
0% 100%
min: 2709     avg: 2709 (55.74%)     max: 2709 Points
Octane V2: Total Score
0% 100%
min: 5114     avg: 5114 (21.36%)     max: 5114 Points
Mozilla Kraken 1.1: Total Score
0% 100%
min: 6959.5     avg: 6959.5 (90.27%)     max: 6959.5 ms*
Geekbench 3: 32 Bit Multi-Core Score
0% 100%
min: 1174     avg: 1174 (9.15%)     max: 1174 Points
Geekbench 3: 32 Bit Single-Core Score
0% 100%
min: 704     avg: 704 (20.08%)     max: 704 Points
AndEBench: Java
0% 100%
min: 474     avg: 474 (42.56%)     max: 474 Iter./s
AndEBench: Native
0% 100%
min: 7542     avg: 7542 (32.45%)     max: 7542 Iter./s
3DMark (2013): Ice Storm Unlimited Physics 1280x720 offscreen
0% 100%
min: 6797     avg: 6797 (7.86%)     max: 6797 Points
3DMark (2013): Ice Storm Extreme Physics 1920x1080
0% 100%
min: 6059     avg: 6059 (12.72%)     max: 6059 Points
PassMark PerformanceTest Mobile V1: CPU Tests
0% 100%
min: 9112     avg: 9112 (19.62%)     max: 9112 Points
AnTuTu Benchmark v4: Total Score
0% 100%
min: 24471     avg: 24471 (56.91%)     max: 24471 points
Geekbench 2 - 32 Bit: Stream
0% 100%
min: 1697     avg: 1697 (18.12%)     max: 1697 Points
Geekbench 2 - 32 Bit: Memory
0% 100%
min: 1739     avg: 1739 (17.9%)     max: 1739 Points
Geekbench 2 - 32 Bit: Floating Point
0% 100%
min: 1624     avg: 1624 (9.58%)     max: 1624 Points
Geekbench 2 - 32 Bit: Integer
0% 100%
min: 1076     avg: 1076 (7.42%)     max: 1076 Points
Geekbench 2 - 32 Bit: Total Score
0% 100%
min: 1462     avg: 1462 (10.9%)     max: 1462 Points
Sunspider:
0% 100%
min: 866     avg: 866 (78.49%)     max: 866 ms*
Sunspider:
0% 100%
min: 907.2     avg: 907.2 (92.26%)     max: 907.2 ms*
Quadrant Standard Edition 2.0:
0% 100%
min: 10339     avg: 10339 (43%)     max: 10339 points
Linpack for Android: Multi Thread
0% 100%
min: 297.472     avg: 297.5 (20.3%)     max: 297.472 MFLOPS
Linpack for Android: Single Thread
0% 100%
min: 180.287     avg: 180.3 (22.72%)     max: 180.287 MFLOPS
- Range of benchmarks for this CPU
- Average benchmark score
