Intel Core i7-11375H vs Intel Core i5-11500B vs Intel Core i9-11900H

Intel Core i7-11375H

The Intel Core i7-11375H is a high end quad core SoC for thin and light gaming laptops and mobile workstations. It is based on the Tiger Lake H35 generation and was announced early 2021. It integrates four Willow Cove processor cores (8 threads thanks to HyperThreading). The base clock speed depends on the TDP setting and can vary from 3 (28 W TDP) to 3.3 GHz (35 W). Compared to the i7-11370H, the only difference is the additional Turbo Boost 3.0 for a single core. With it, the 11375H can clock up to 5 GHz. Two cores can clock up to 4.8 GHz (as the 11370H) and all four cores can reach up to 4.3 GHz. The 11375H can use the whole 12 MB level 3 cache.

The processor performance of the i7 should be very similar to the i7-11370H. Only single threaded short workloads will be slightly faster. The multi-threaded performance should be clearly higher than the old Core i5-10400H (Comet Lake, fastest quad core of the 10th gen) due to the new processor architecture. The similar Core i7-1185G7 offers similar specs as the 11370H but a lower TDP and therefore also lower (sustained) performance.

The SoC also included the improved Xe graphics adapter with all 96 EUs clocked at up to 1350 MHz.

Furthermore, Tiger Lake SoCs add PCIe 4 support (four lanes), AI hardware acceleration, and the partial integration of Thunderbolt 4/USB 4 and Wi-Fi 6 in the chip.

The chip is produced on the improved 10nm process (called 10nm SuperFin) at Intel, which should be comparable to the 7nm process at TSMC (e.g. Ryzen 4000 series).

All articles on Tiger Lake can be found on our Tiger Lake architecture hub.

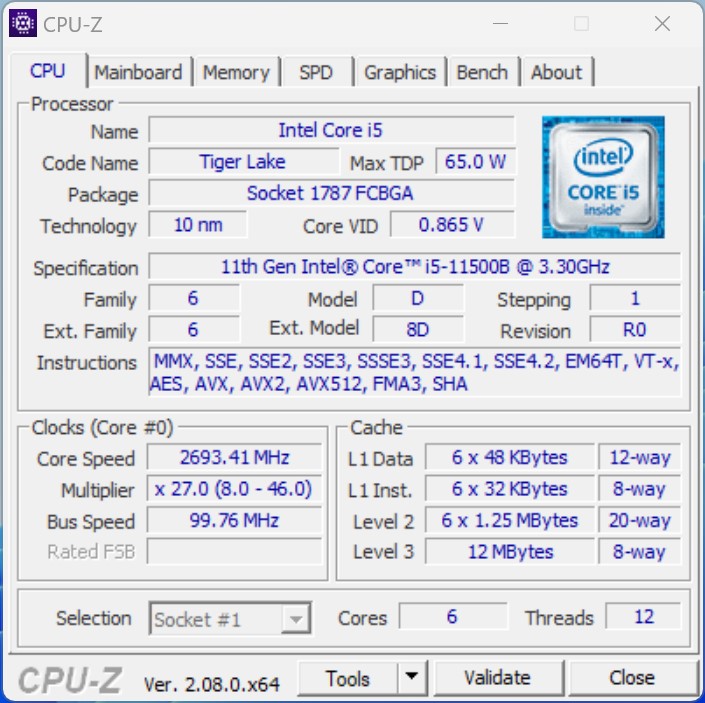

Intel Core i5-11500B

The Intel Core i5-11500B is a hexa-core processor for desktops and mini PCs. It is based on the Tiger Lake architecture (H45) and was presented in Q2 2021. The chip offers a TDP of 65 watts (configurable). The six processor cores can clock from 3.3 to 4.6 GHz (single-core turbo). The processor offers 12 MB level 3 cache and supports DDR4 RAM with up to 3,200 MT/s. The integrated graphics are based on the Xe architecture and are named UHD Graphics (32 EUs). In the 11500B it clocks from 350 to 1,450 MHz. The chip is manufactured using the 10 nm SuperFin process.

Performance

The performance of the Intel Core i5-11500B depends primarily on the performance of the installed cooling unit. The TDP of the SoC can also be lowered. In principle, however, the Intel Core i5-11500B should offer slightly more performance than an Intel Core i5-11400H (6 cores 2.7 - 4.5 GHz).

Features

As with the smaller Tiger Lake chips, Wi-Fi (Wi-Fi 6E) and Thunderbolt 4 / USB 4 are (partially) integrated into the chip for faster, cheaper and space-saving implementations in desktops and mini-PCs. The i5-11500B also offers 20 PCIe 4.0 lanes.

Intel Core i9-11900H

The Intel Core i9-11900H is a high end octa core SoC for gaming laptops and mobile workstations. It is based on the Tiger Lake H45 generation and was announced in mid 2021. It integrates eight Willow Cove processor cores (16 threads thanks to HyperThreading). The base clock speed depends on the TDP setting and at 45 Watt is at 2.5 GHz. The single core boost speed can reach up to 4.9 GHz, all cores can reach up to 4.5 GHz. The CPU offers 24 MB level 3 cache and supports DDR4-3200 memory.

Thanks to the new Tiger Lake architecture, the i9-11900H should be similar or faster than the old Intel Core i9-10885H (Comet Lake-H, 2.4 - 5.3 GHz, 16 MB L3) in single and multi threaded performance and similar to the Ryzen 9 5800H (Zen 3, 3.2 - 4.4 GHz, 16 MB L3). Therefore, the i9 should be one of the fastest laptop CPUs in 2021 and well suited for even very demanding tasks.

The SoC also included the improved Xe graphics card called UHD graphics with all 32 EUs.

Furthermore, Tiger Lake SoCs add PCIe 4 support (20 lanes in the H45 series), AI hardware acceleration, and the partial integration of Thunderbolt 4/USB 4 and Wi-Fi 6E in the chip.

The chip is produced on the improved 10nm process (called 10nm SuperFin) at Intel, which should be comparable to the 7nm process at TSMC (e.g. Ryzen 4000 series). The default TDP is rated at 45 W at 2.5 GHz base speed, at 35 Watt the base clock speed decreases to 2.1 GHz (cTDP down).

All articles on Tiger Lake can be found on our Tiger Lake architecture hub.
