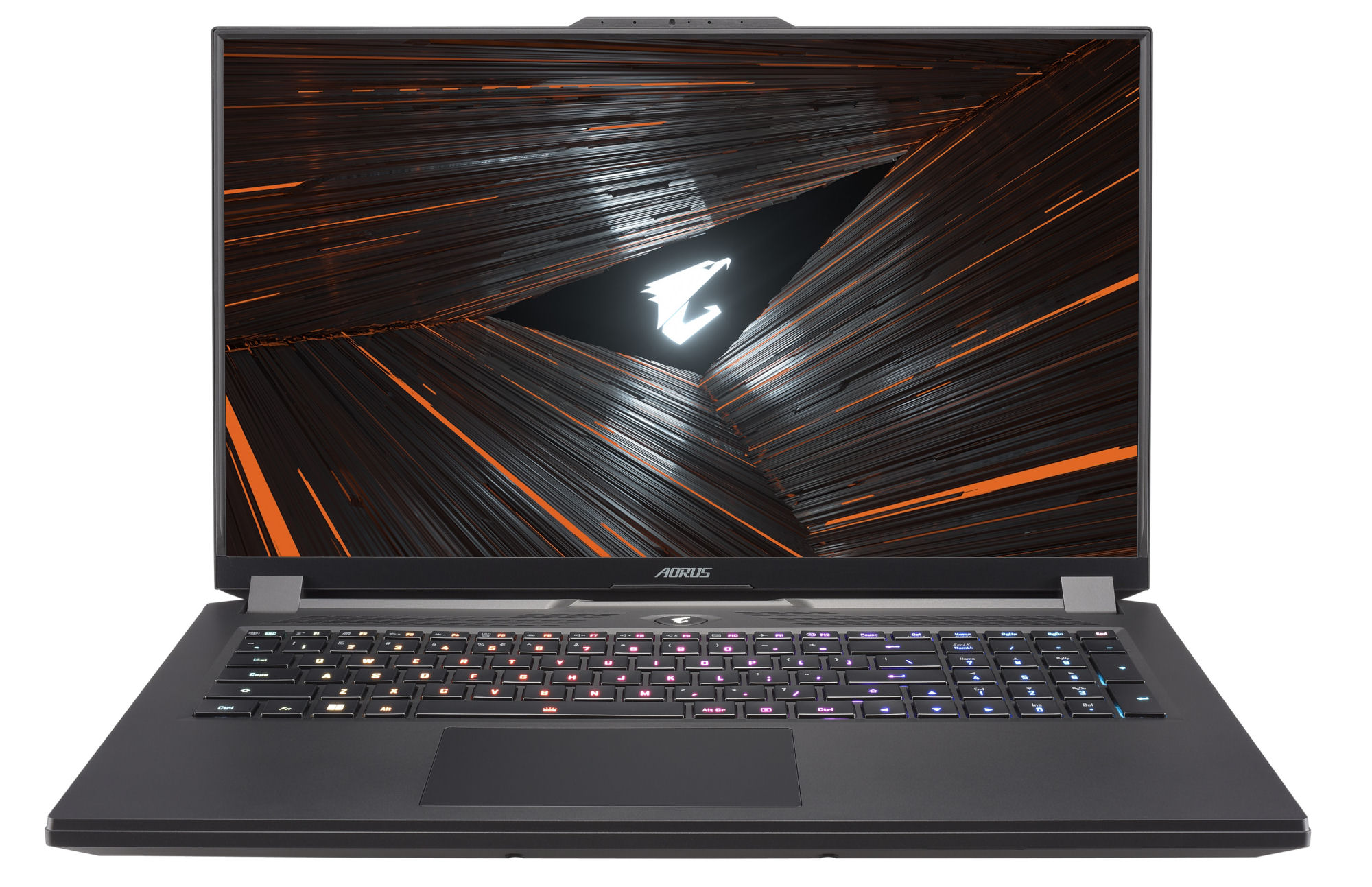

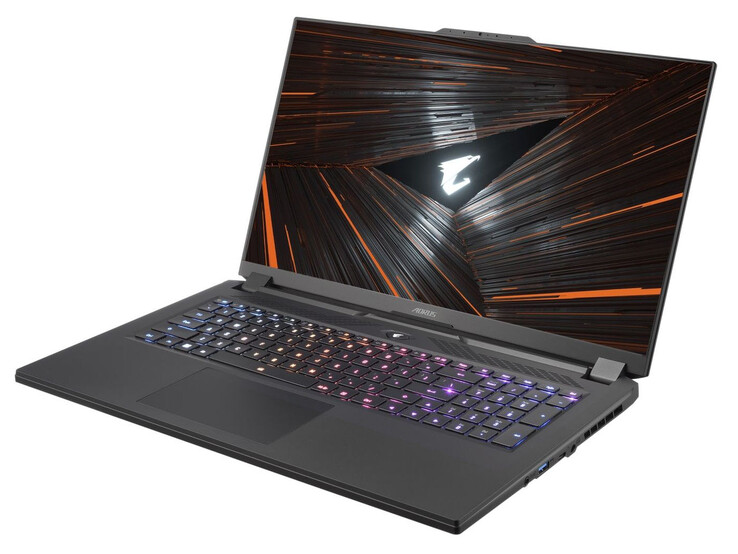

Aorus 17 XE4 Review: Potent Gaming Notebook with 360 Hz Screen
The Aorus 17 XE4 belongs to the category of compact gaming notebooks in the 17.3-inch format. The machine is powered by a Core i7-12700H processor and a GeForce RTX 3070 Ti laptop GPU. Competitors include the Razer Blade 17, the Lenovo Legion 5 Pro 16 G7, and the MSI Vector GP66 12UGS.
Possible Competitors in Comparision
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
85.2 % | 04/2022 | Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU | 2.6 kg | 27 mm | 17.30" | 1920x1080 | |
91.2 % | 03/2022 | Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU | 2.7 kg | 19.9 mm | 17.30" | 2560x1440 | |
88 % | 03/2022 | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU | 2.6 kg | 26.6 mm | 16.00" | 2560x1600 | |
86.9 % | 03/2022 | MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU | 2.3 kg | 23.4 mm | 15.60" | 1920x1080 |

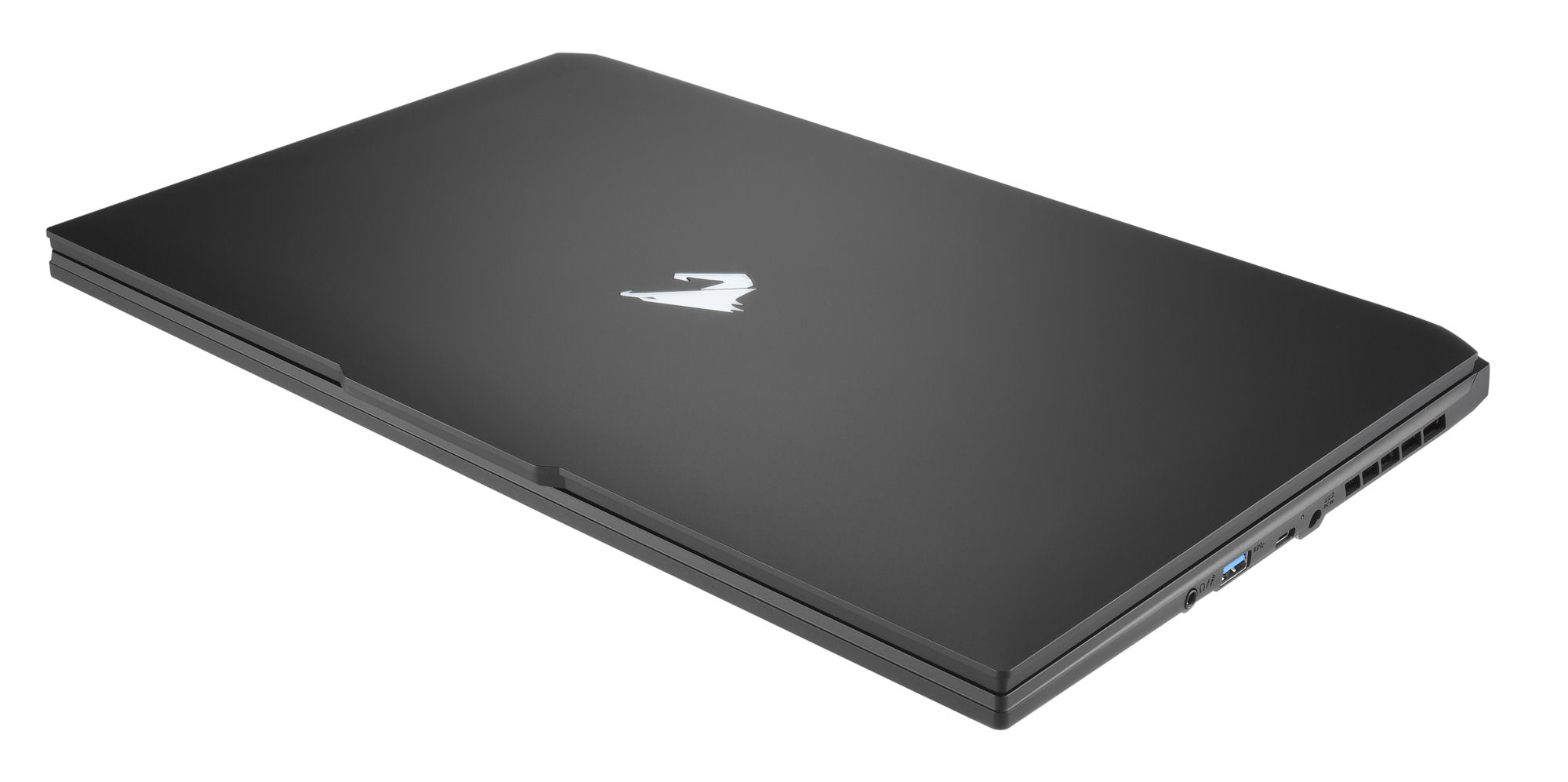

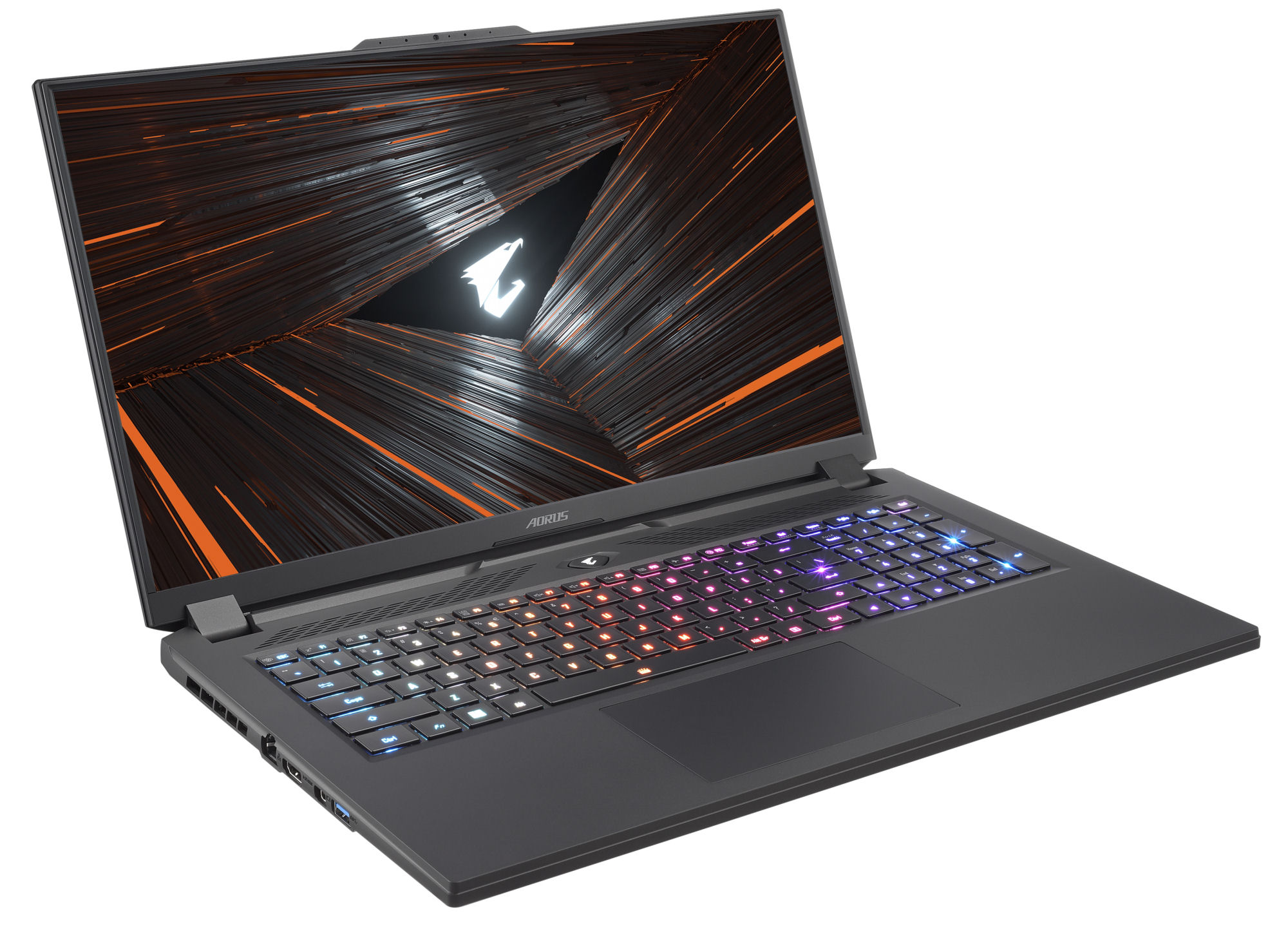

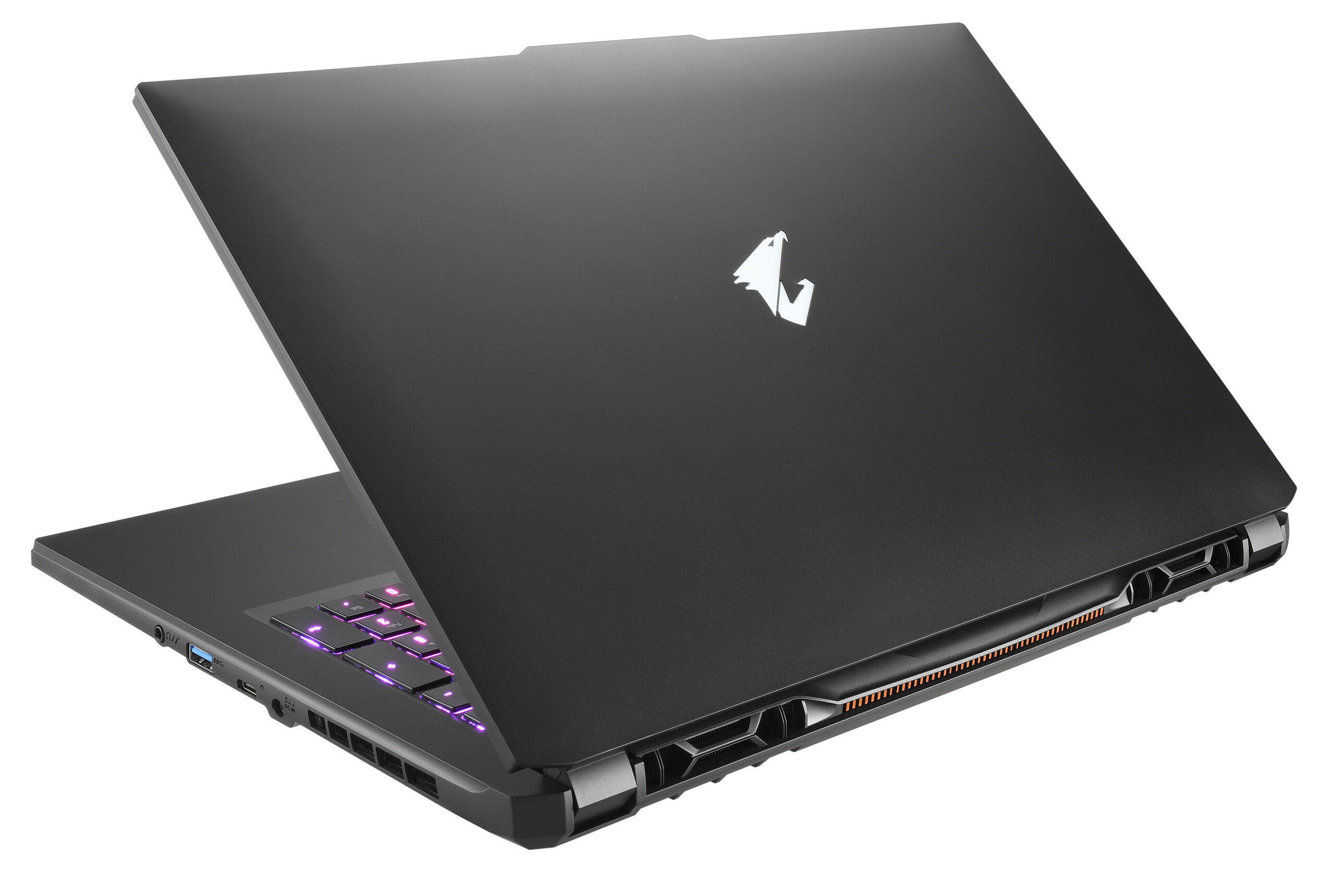

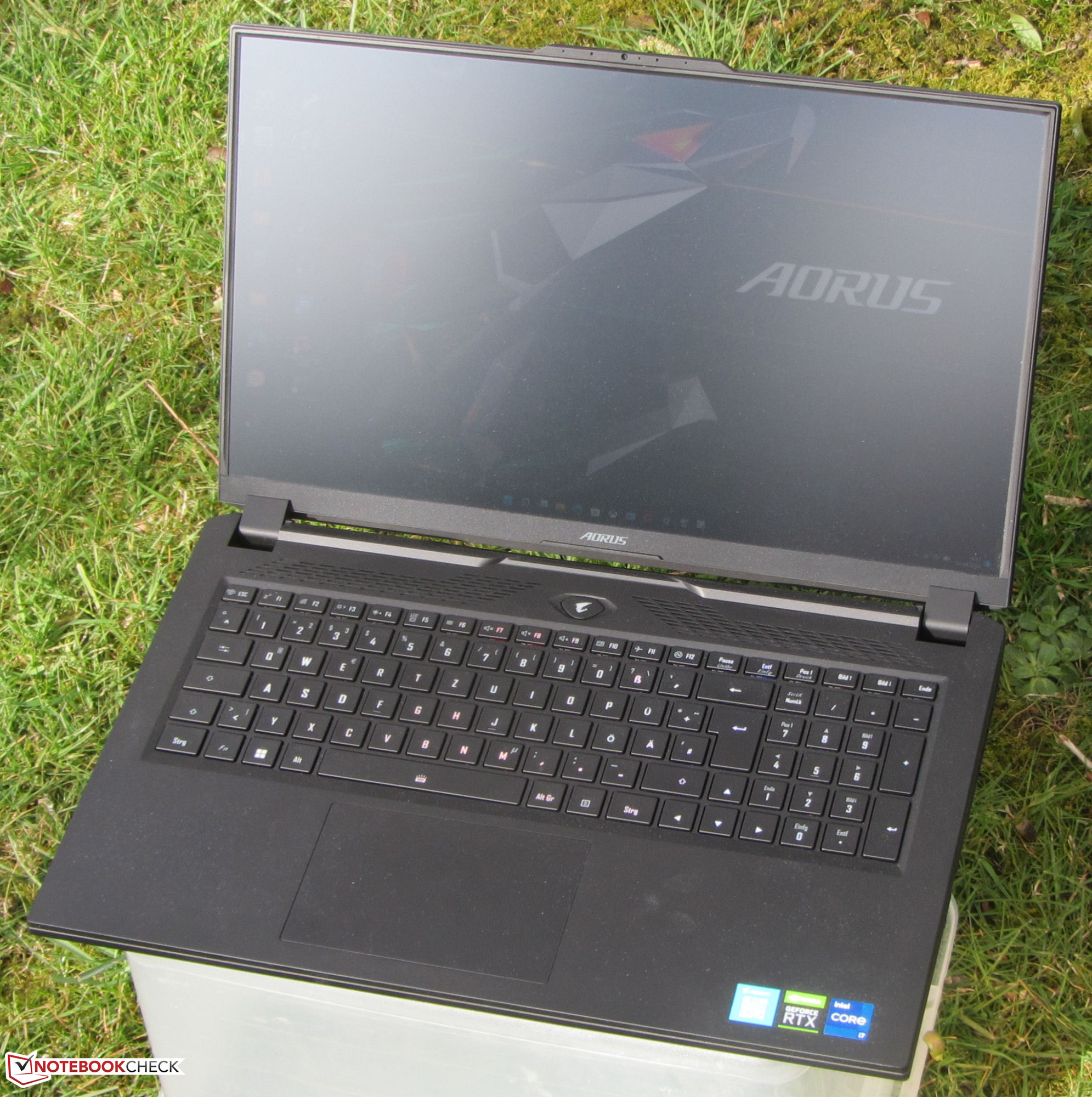

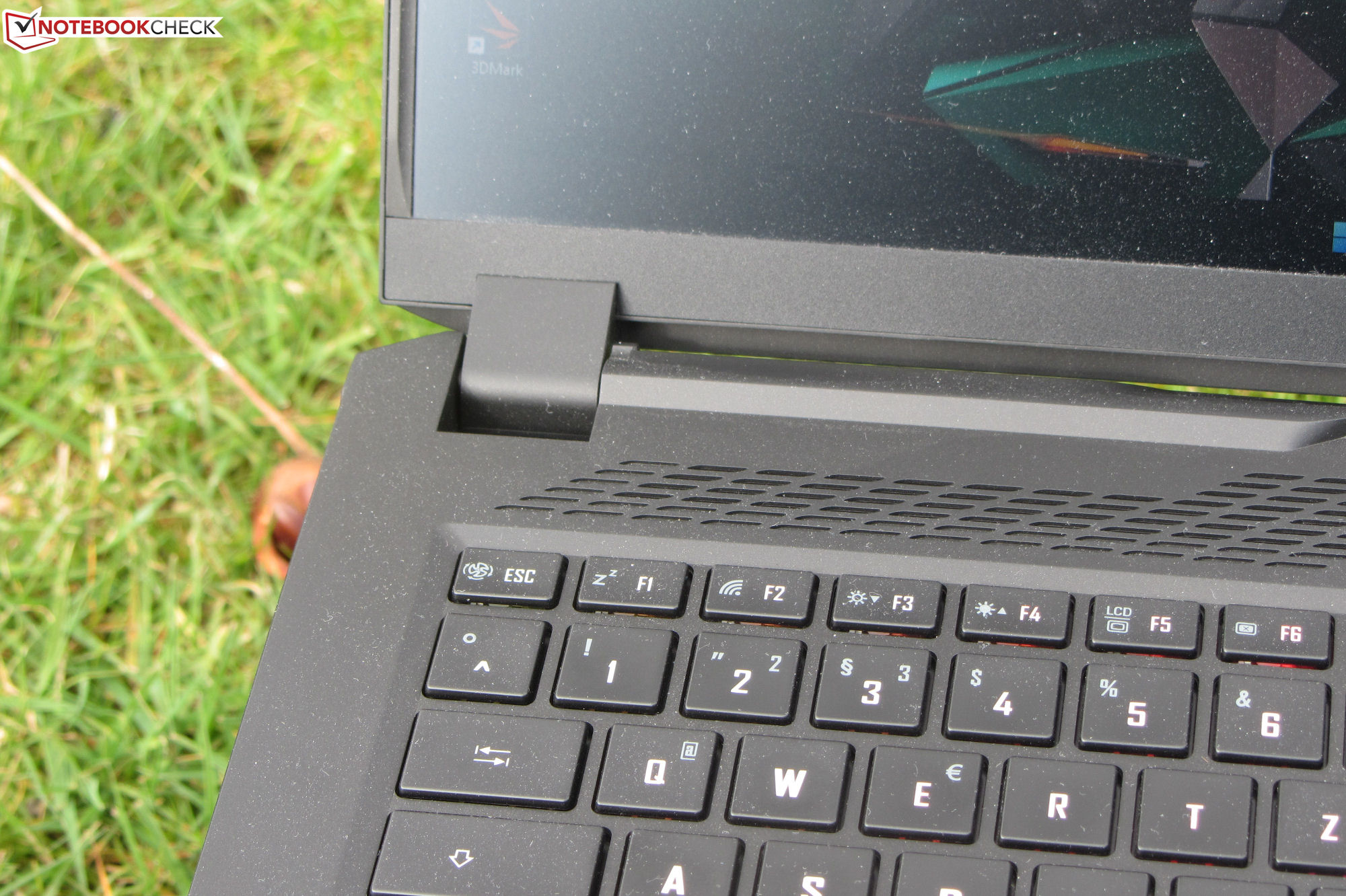

Case - A plastic chassis for the Aorus 17

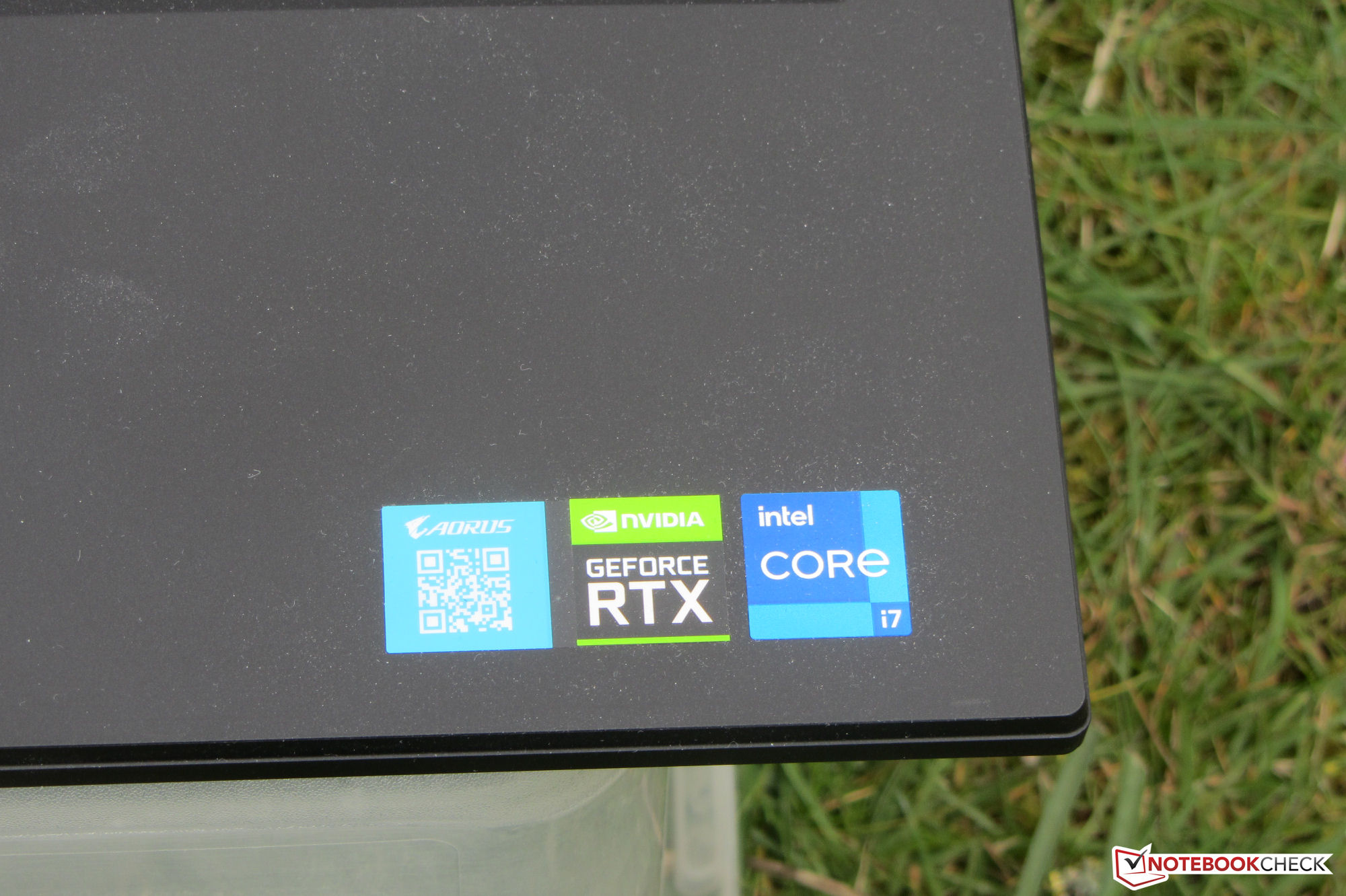

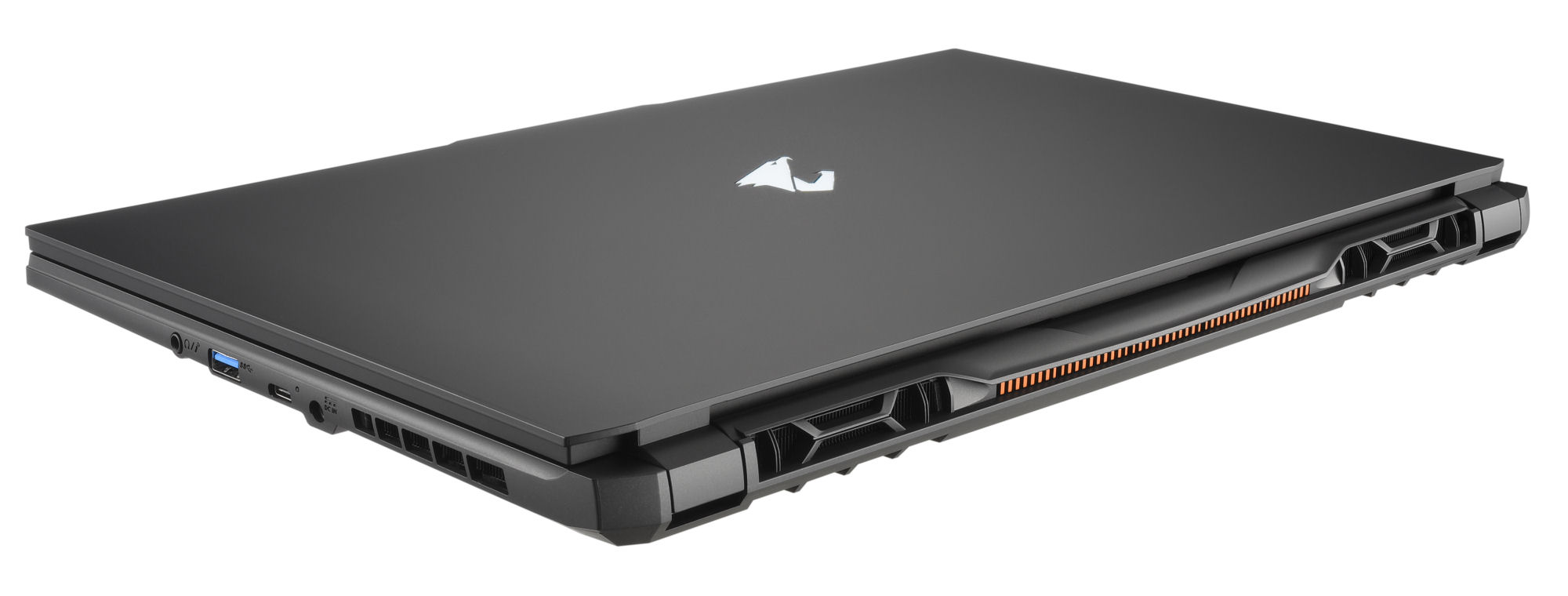

The case of the Aorus laptop is made of matte black plastic with smooth surfaces. An illuminated Aorus logo on the back of the lid sets the accent. The thin display frame complements the elegant appearance of the laptop. Connoisseurs of earlier Aorus 17 models will notice that the camera has moved to the area above the screen. The battery is inbuilt. The interior is accessible after removing the bottom cover.
The case is well manufactured. Gap dimensions are even, there are no material protrusions and/or sharp edges. The base unit and lid bend a little under torsion, but this is not a serious issue in everyday use. The hinges keep the lid firmly in place, but a one-handed opening is possible. The maximum opening angle is around 130 degrees.
The weight and measurements of the Aorus 17 are relatively small for a 17.3-inch notebook - this is also true for the Razer Blade 17. Of course, both do not match the dimensions of a 15.6-inch laptop.
Hardware - Gigabyte notebook offers Thunderbolt 4

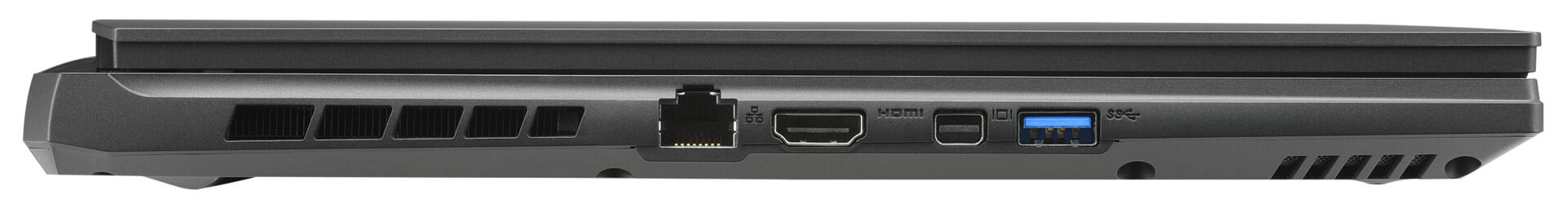

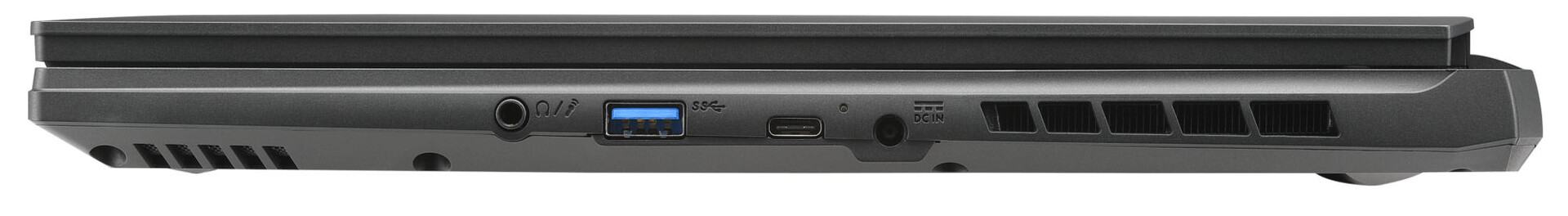

The gaming laptop comes with two USB-A slots (USB 3.2 Gen 1) and one USB-C slot (Thunderbolt 4). The latter supports DisplayPort via USB-C. Therefore, together with the HDMI connection and the dedicated mini DisplayPort, there are three video outputs. The Aorus 17 does not have an onboard memory card reader.
Communication
The WLAN module contains a chip (AX211) from Intel that supports 802.11a/b/g/n/ac/ax standards. The transmission speeds determined under optimal conditions (no other WLAN devices in the immediate vicinity, small distance between notebook and server PC) were excellent. Network connectivity is handled by Realtek's RTL8125 Gigabit Ethernet controller, which does its job flawlessly.
Networking | |
iperf3 receive AXE11000 | |
Aorus 17 XE4 | |
Average of class Gaming (685 - 1890, n=158, last 2 years) | |
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=170) | |
iperf3 transmit AXE11000 | |
Aorus 17 XE4 | |
Average of class Gaming (636 - 1780, n=152, last 2 years) | |
Average Intel Wi-Fi 6E AX211 (464 - 1861, n=170) |

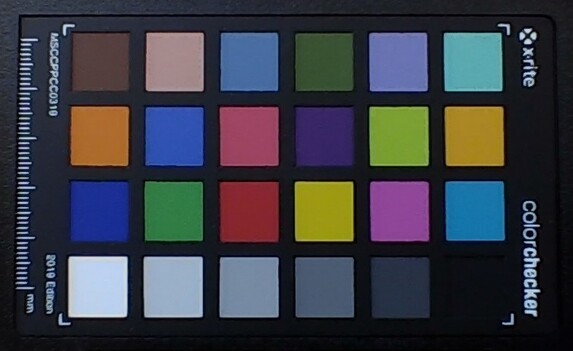

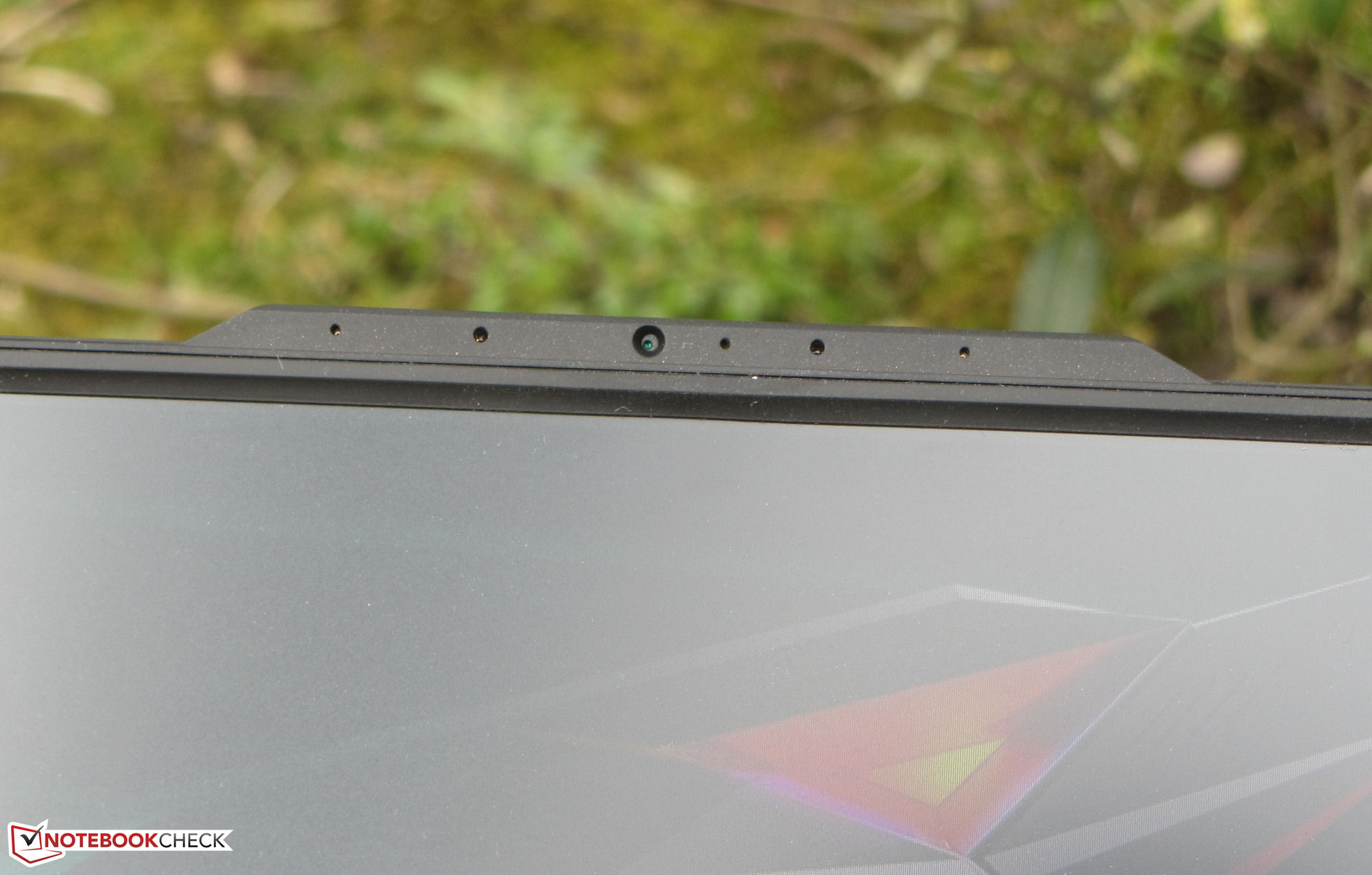

Webcam
The webcam (0.9 MP) creates images with a maximum resolution of 1,280x720 pixels. There is a problem with the color accuracy: the tones deviate significantly from the target. The camera does not have a mechanical cover, but it can be permanently deactivated in the computer's BIOS.
Accessories
Besides the usual documents (quick start guide and warranty information), no other accessories are included with the notebook.
Maintenance

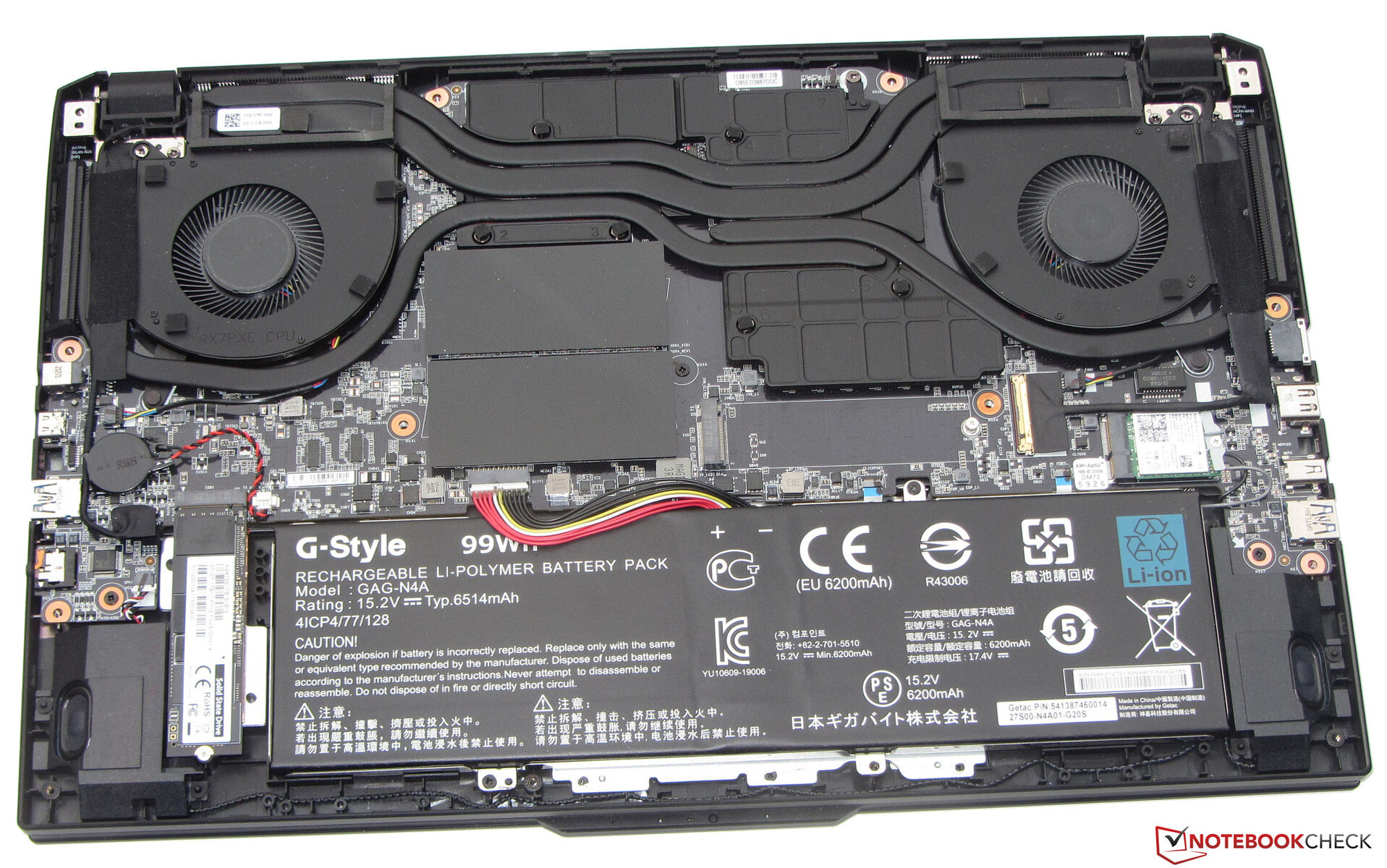

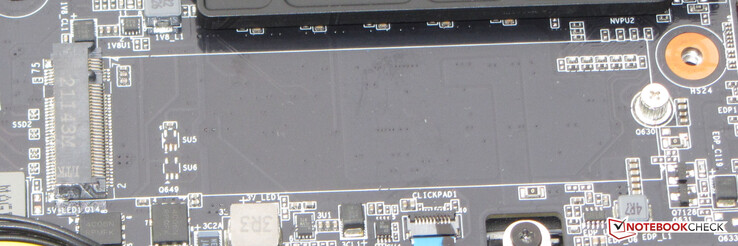

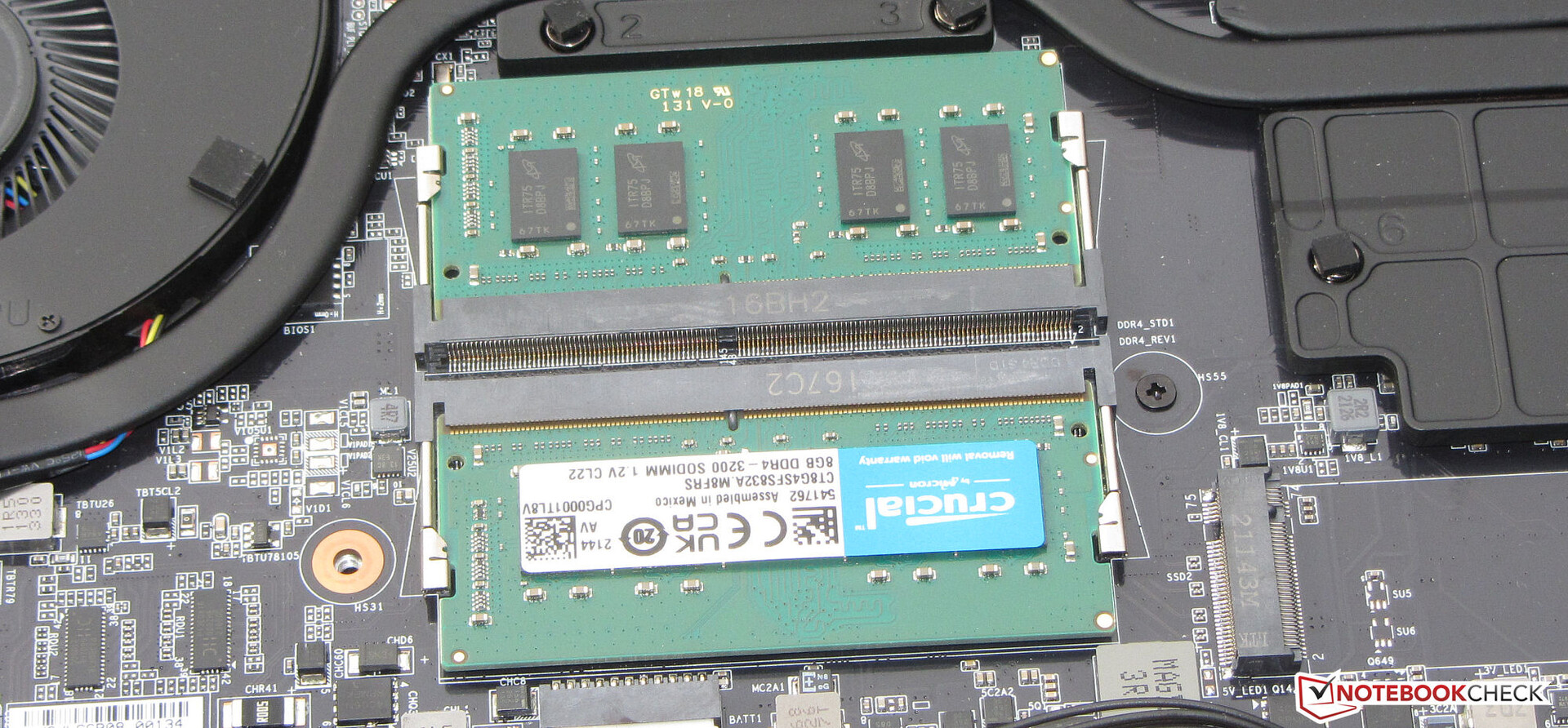

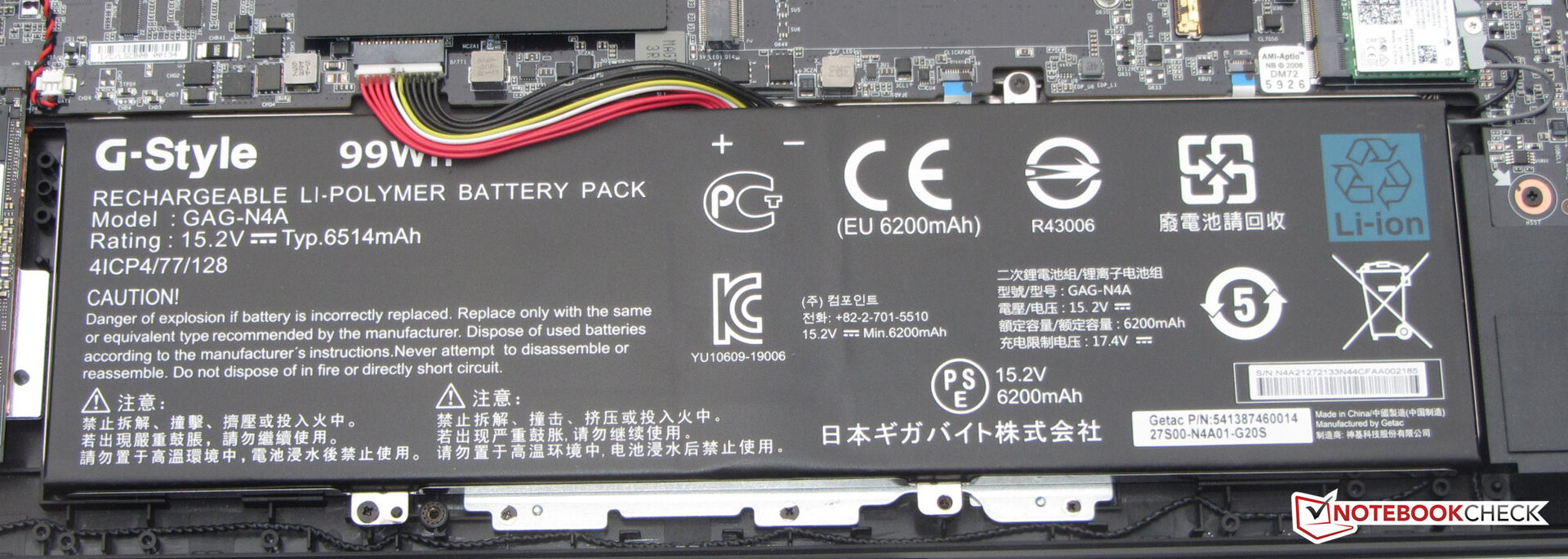

After removing all screws on the underside of the device, the bottom cover can be removed using a flat spatula or a putty knife. Afterward, you have access to the SSD, the second M.2 slot (PCIe 4, M.2-2280), the WLAN module, the RAM, the BIOS battery, and the fans.
Warranty
Gigabyte gives a two-year warranty for the 17.3-inch laptop. Warranty extensions are not available.
Input Devices - The keyboard offers RGB lighting

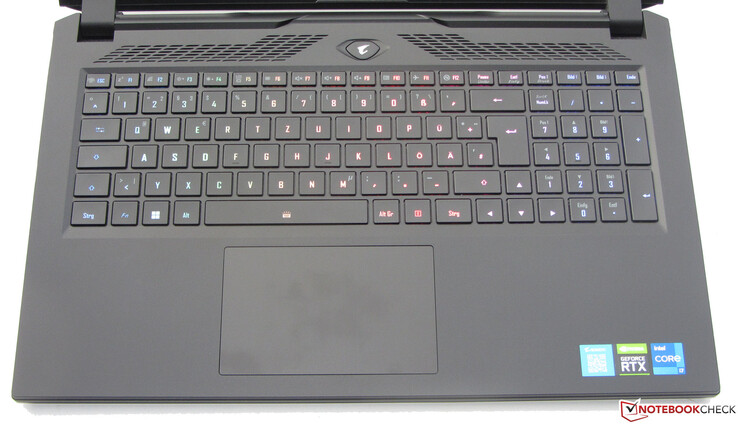

Keyboard

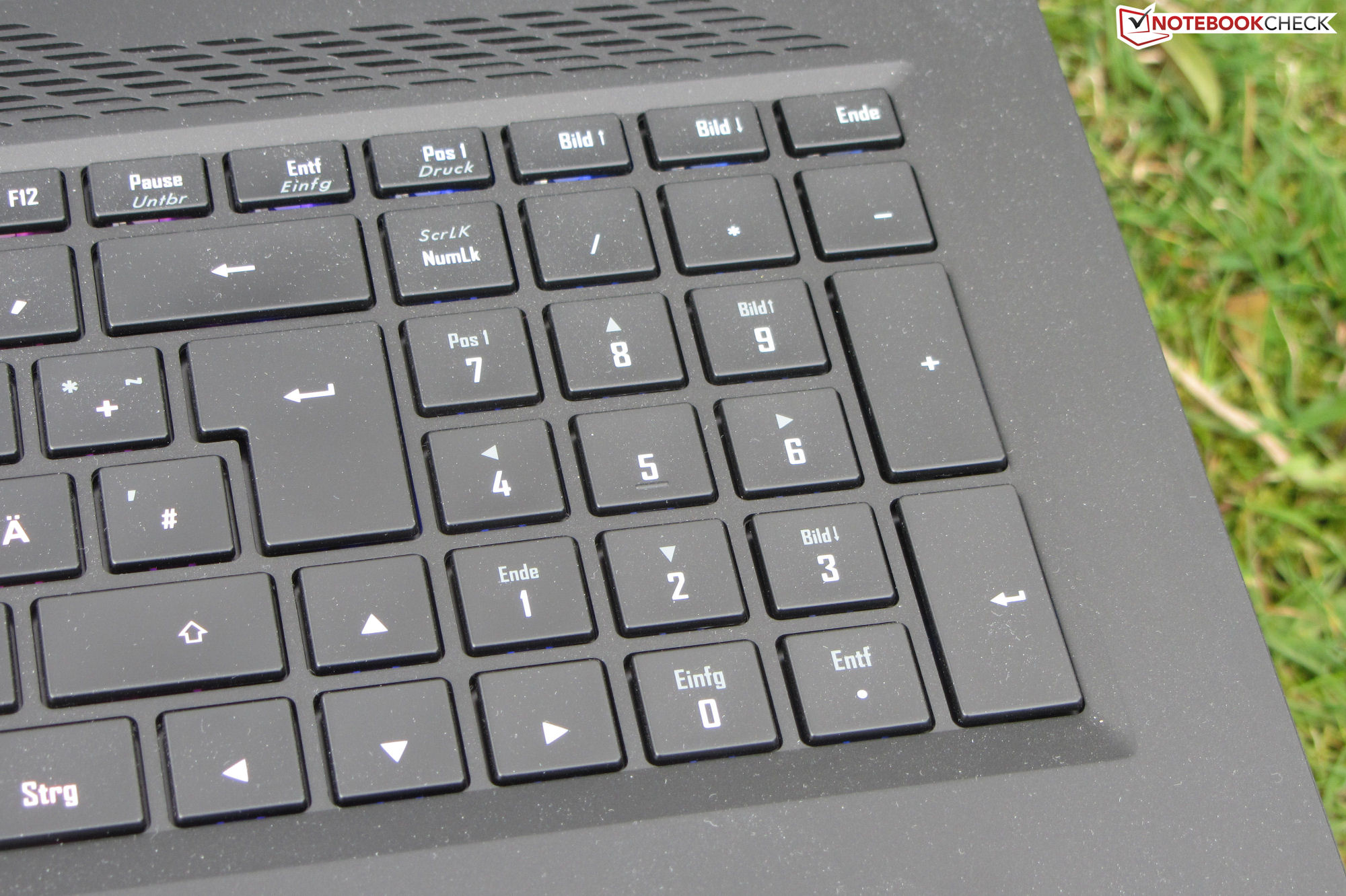

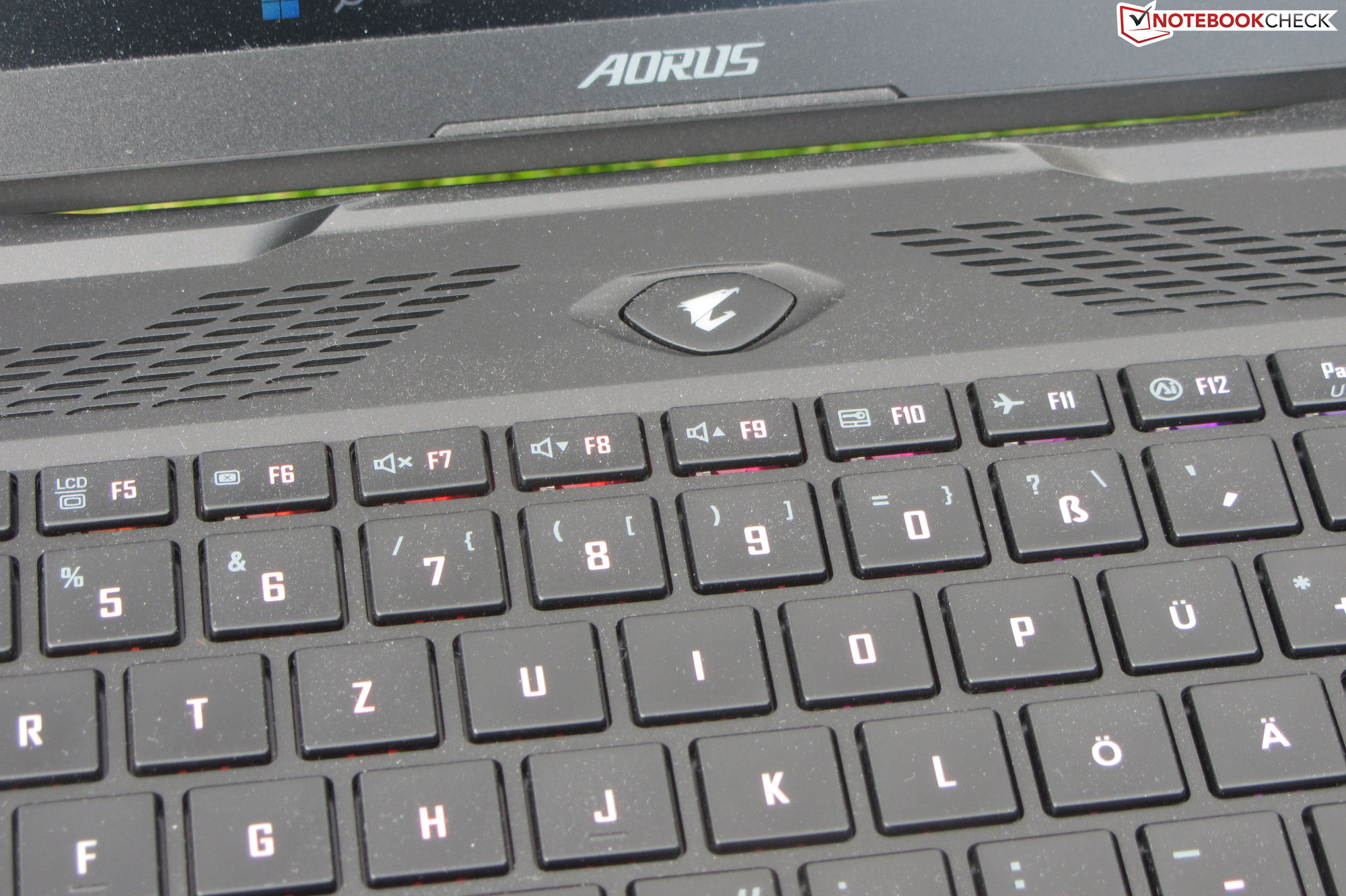

The notebook features an illuminated chiclet keyboard with a number pad. The smooth keys have a medium key travel and a clear pressure point. The keyboard yields minimally during typing, which did not prove to be bothersome. The two-stage key illumination is controlled via a key combination. Overall, Gigabyte delivers a keyboard suitable for everyday use.
Touchpad
A multi-touch capable clickpad (~12.2 x 7.6 cm) serves as a mouse replacement. Its smooth surface makes gliding easy for the fingers. It also responds to inputs in the corners. The pad offers a short stroke and a clear pressure point.
Display - The IPS panel could be brighter
While the contrast (1096:1) of the matte 17.3-inch screen (1,920x1,080 pixels) meets the target value (> 1000:1), the brightness (266.8 cd/m²) is too low. We consider values above 300 cd/m² to be good. The 360 Hz panel offers short response times. PWM flickering could not be detected.
|
Brightness Distribution: 82 %
Center on Battery: 274 cd/m²
Contrast: 1096:1 (Black: 0.25 cd/m²)
ΔE Color 2.07 | 0.5-29.43 Ø5, calibrated: 0.83
ΔE Greyscale 3 | 0.57-98 Ø5.3

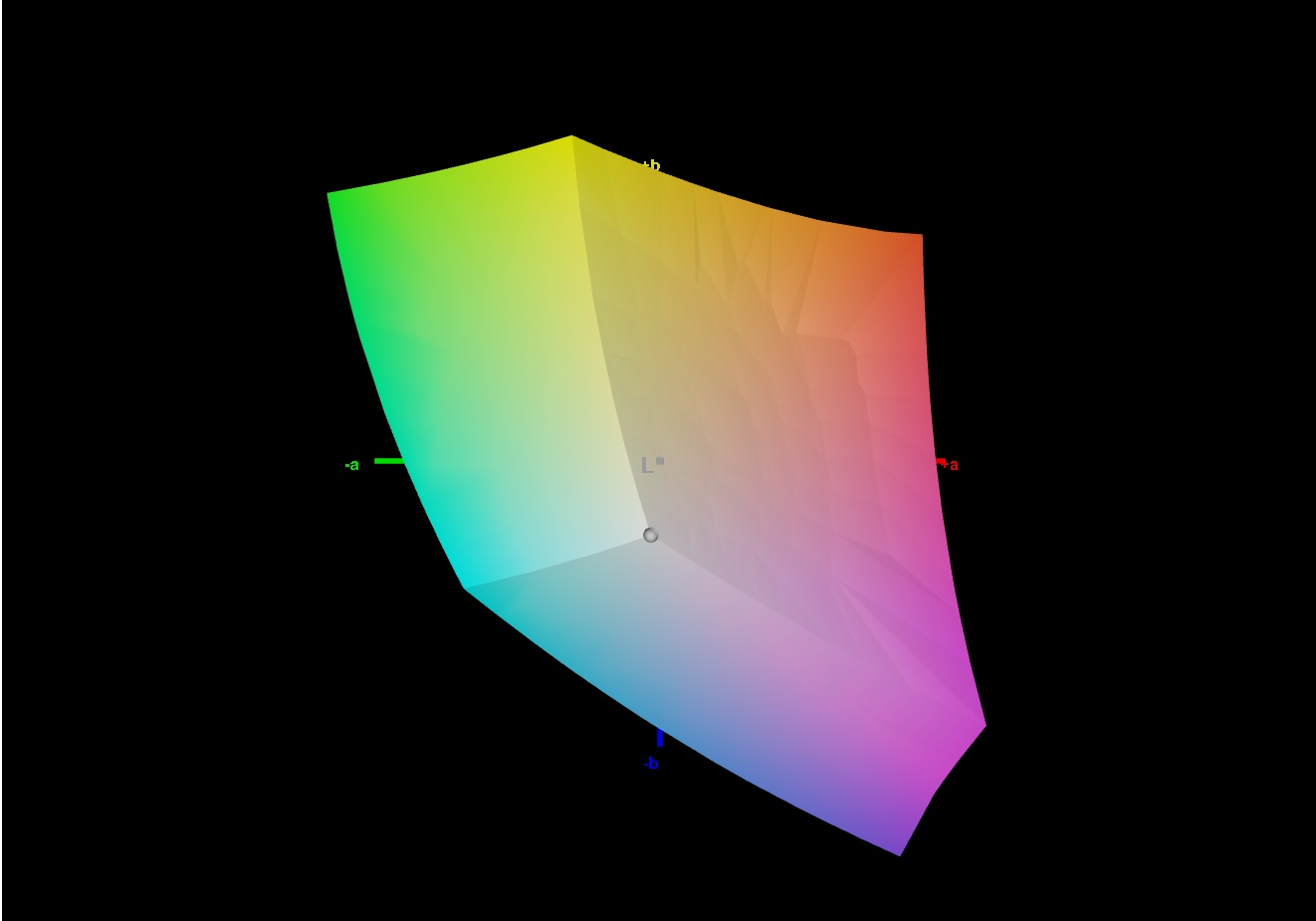

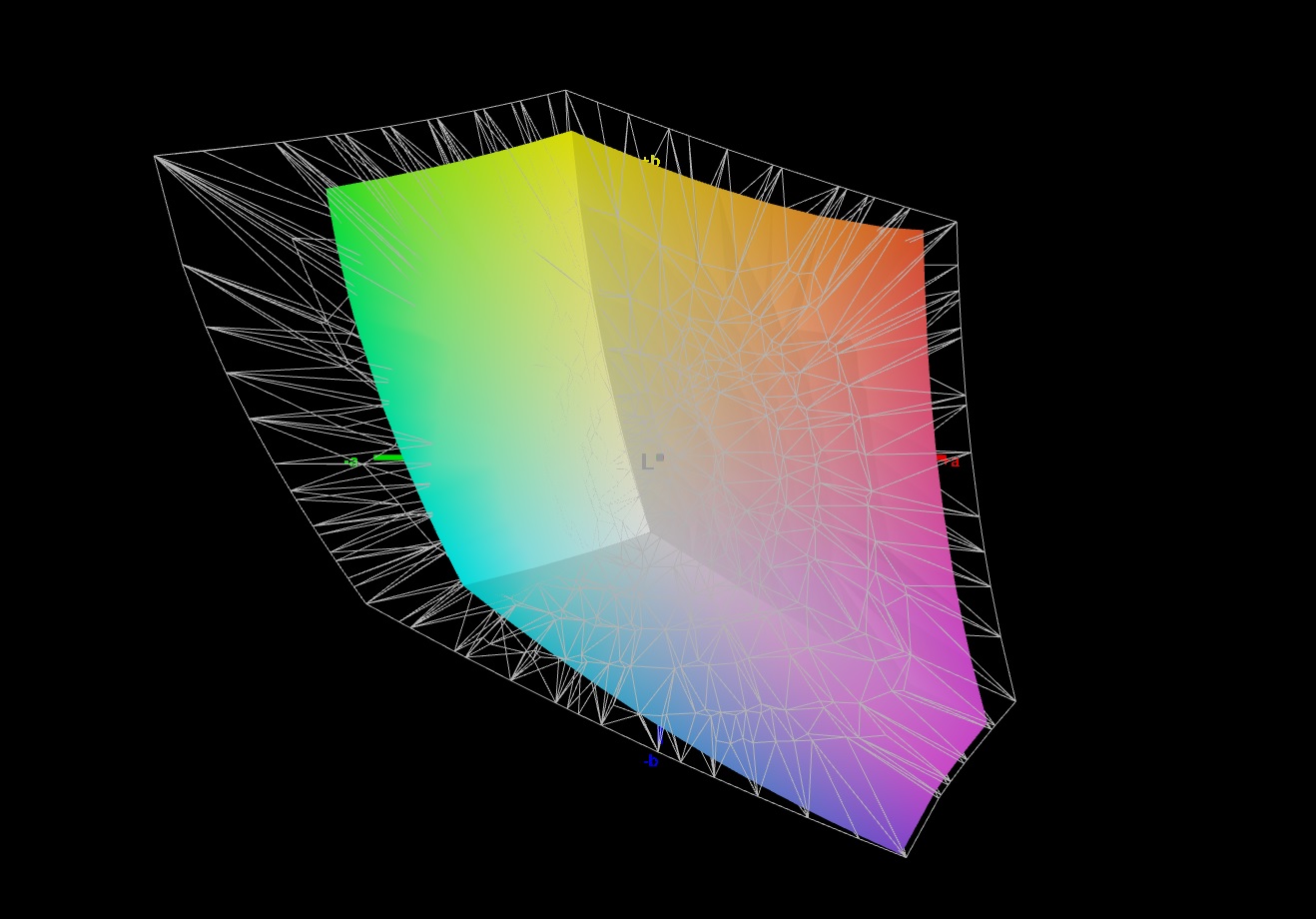

71.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.4% sRGB (Argyll 2.2.0 3D)

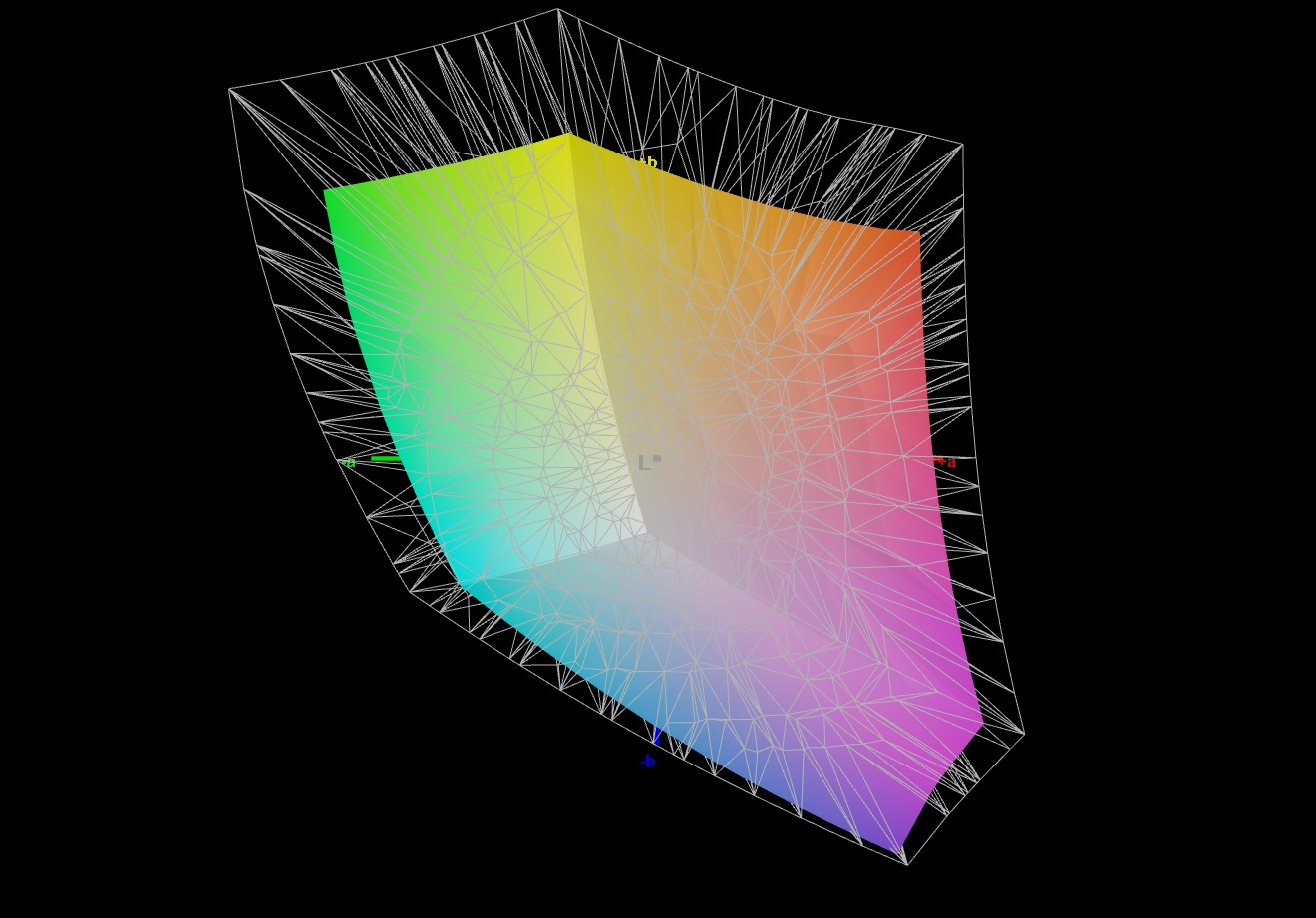

69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.207
Aorus 17 XE4 Sharp LQ173M1JW12, IPS, 1920x1080, 17.30 | Razer Blade 17 RTX 3080 Ti BOE NE173QHM-NZ1, IPS, 2560x1440, 17.30 | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti NE160QDM-NY1, IPS, 2560x1600, 16.00 | MSI Vector GP66 12UGS BOE NE156FHM-NZ3, IPS, 1920x1080, 15.60 | |
---|---|---|---|---|
Display | 22% | -1% | 1% | |
Display P3 Coverage | 69 | 98.7 43% | 68.7 0% | 70.1 2% |
sRGB Coverage | 99.4 | 99.9 1% | 97.6 -2% | 99.5 0% |
AdobeRGB 1998 Coverage | 71.2 | 86.2 21% | 70.9 0% | 72.1 1% |
Response Times | -9% | 8% | 38% | |
Response Time Grey 50% / Grey 80% * | 15.2 ? | 17.6 ? -16% | 17.6 ? -16% | 5.8 ? 62% |
Response Time Black / White * | 11.2 ? | 11.4 ? -2% | 7.6 ? 32% | 9.6 ? 14% |
PWM Frequency | ||||
Screen | -5% | 8% | -9% | |
Brightness middle | 274 | 335.9 23% | 502 83% | 353.1 29% |
Brightness | 267 | 294 10% | 491 84% | 325 22% |
Brightness Distribution | 82 | 75 -9% | 91 11% | 85 4% |
Black Level * | 0.25 | 0.38 -52% | 0.37 -48% | 0.38 -52% |
Contrast | 1096 | 884 -19% | 1357 24% | 929 -15% |
Colorchecker dE 2000 * | 2.07 | 2.82 -36% | 2.7 -30% | 2.24 -8% |
Colorchecker dE 2000 max. * | 4.89 | 5.04 -3% | 4.5 8% | 5 -2% |
Colorchecker dE 2000 calibrated * | 0.83 | 1.4 -69% | 1.02 -23% | |
Greyscale dE 2000 * | 3 | 1.7 43% | 2.7 10% | 4 -33% |
Gamma | 2.207 100% | 2.14 103% | 2.44 90% | 2.24 98% |
CCT | 6999 93% | 6382 102% | 6326 103% | 6864 95% |
Total Average (Program / Settings) | 3% /
0% | 5% /
6% | 10% /
0% |
* ... smaller is better

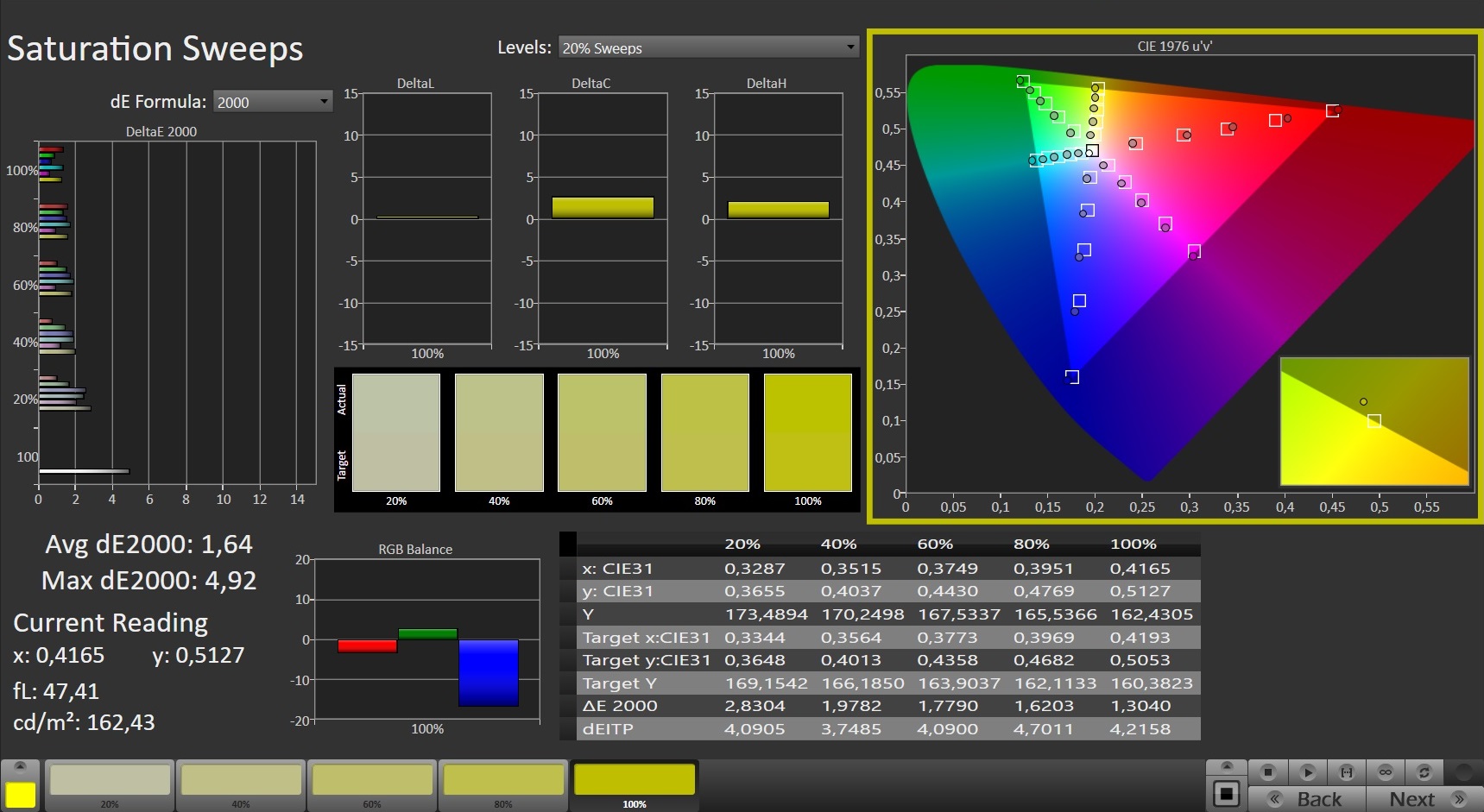

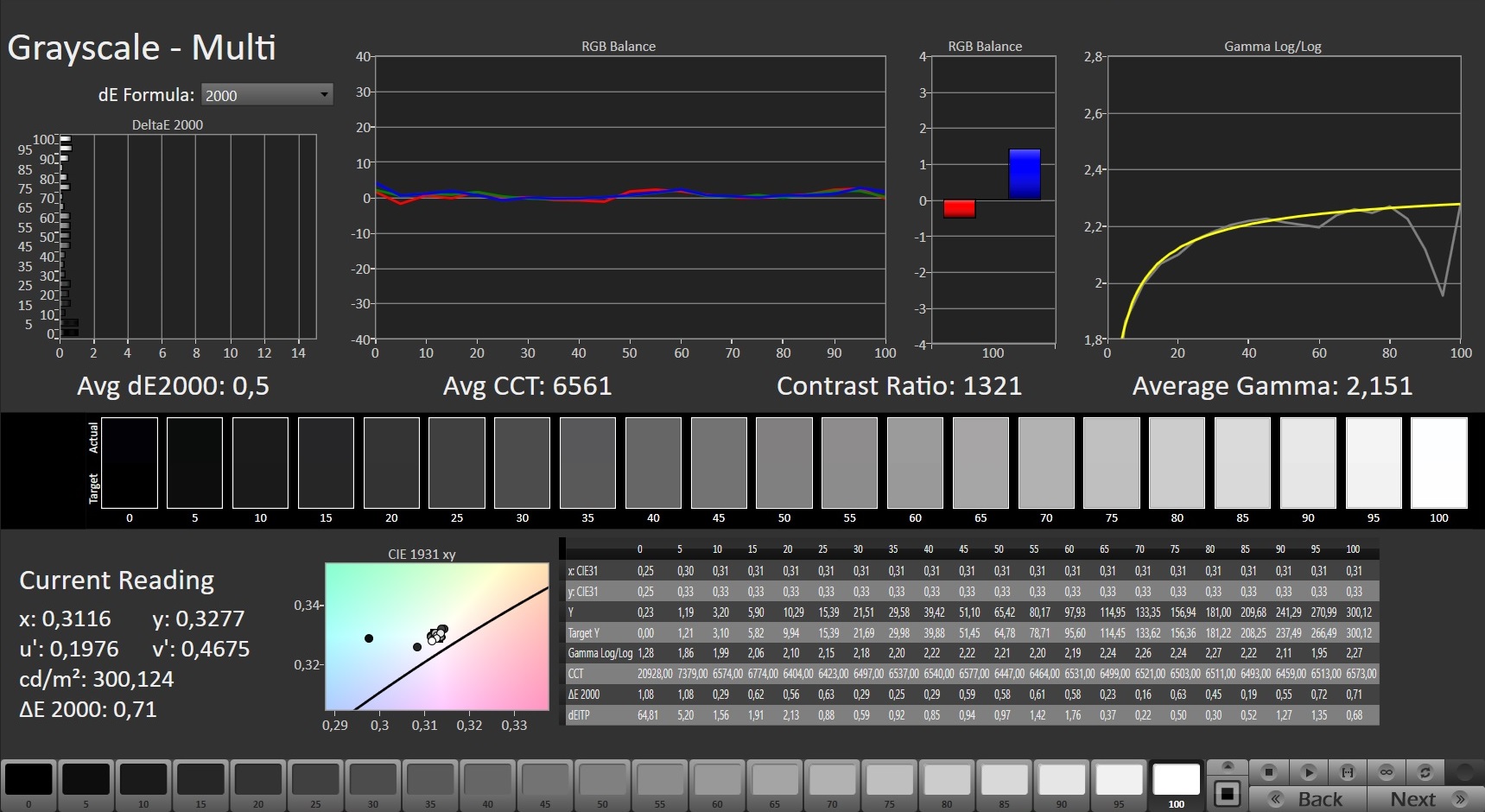

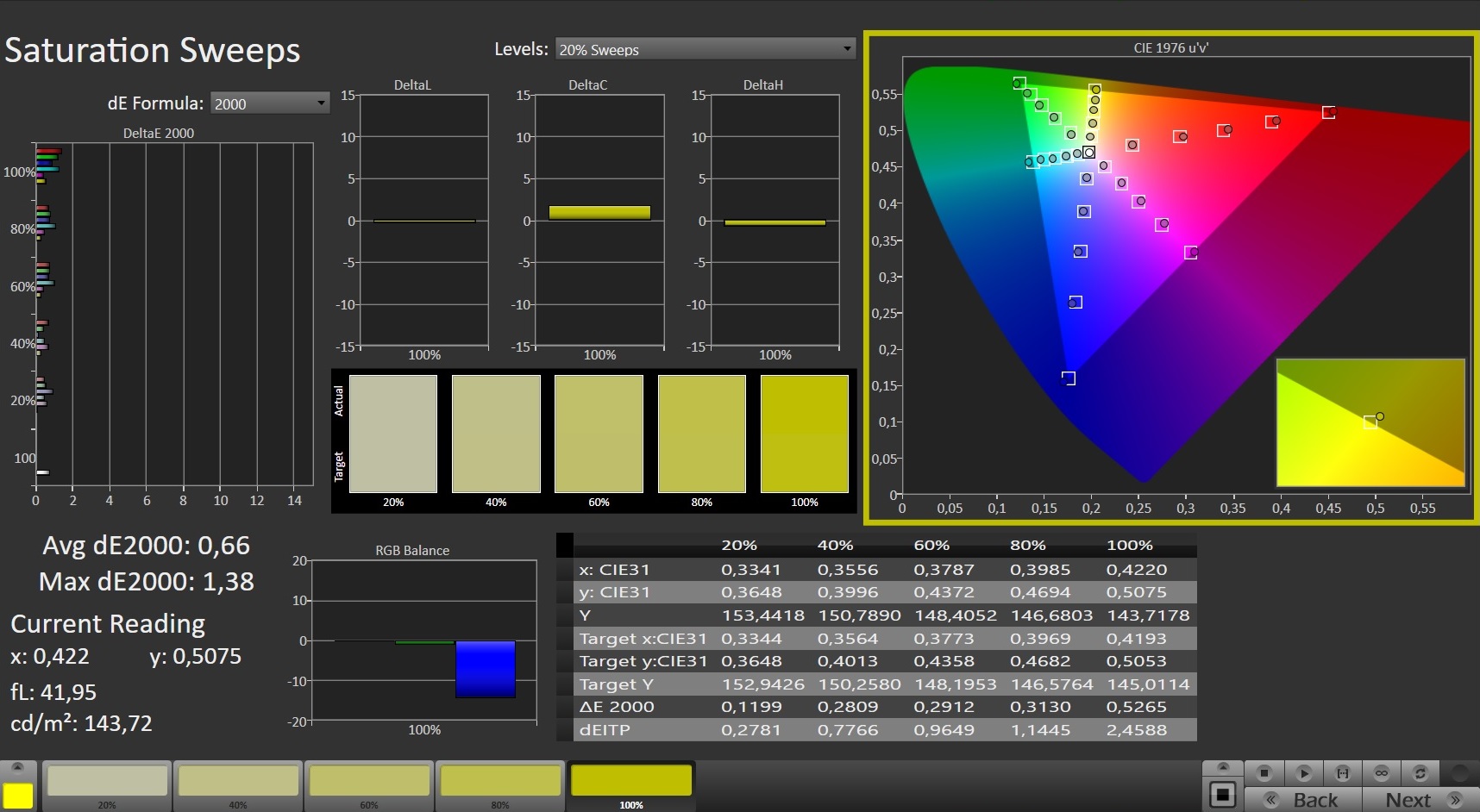

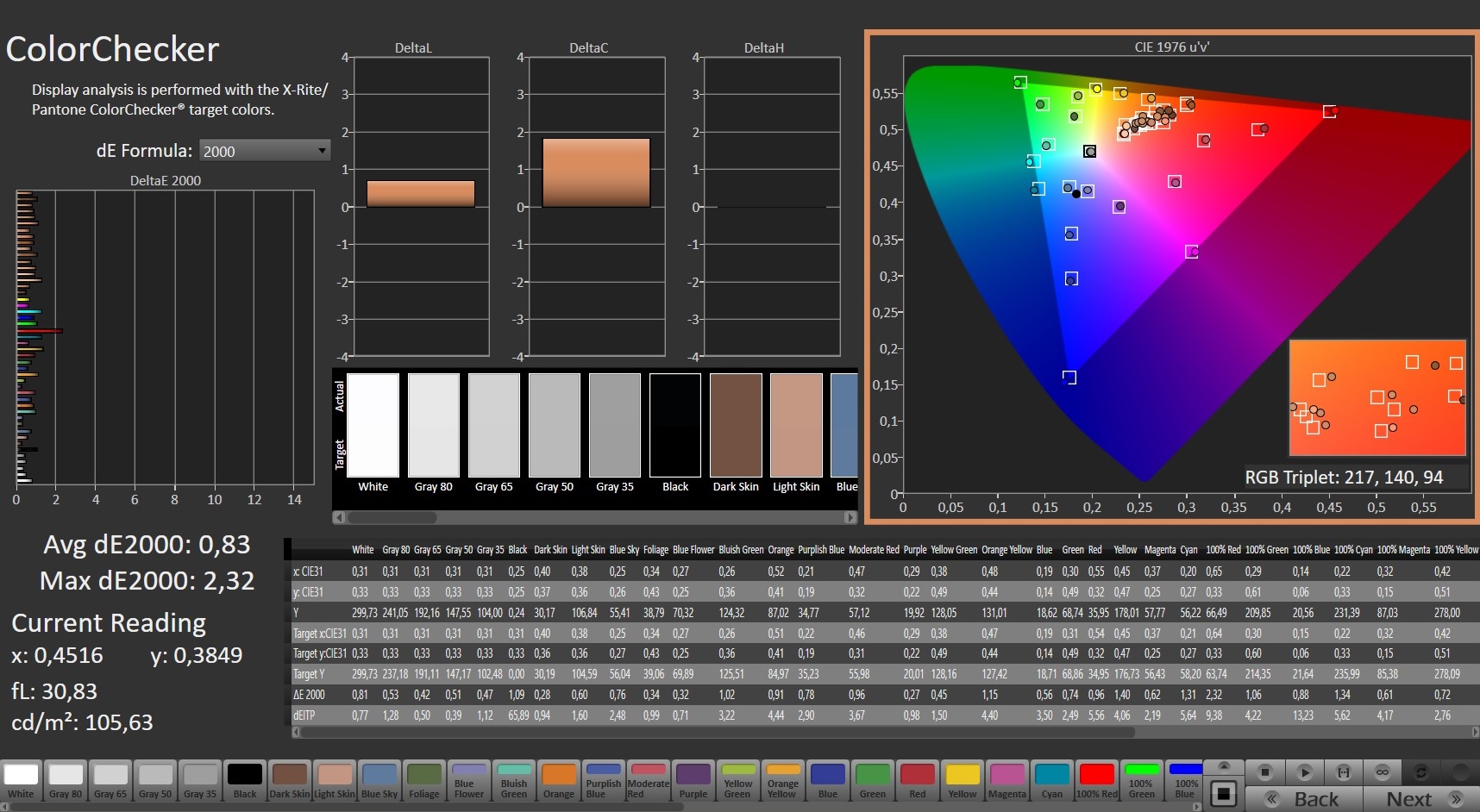

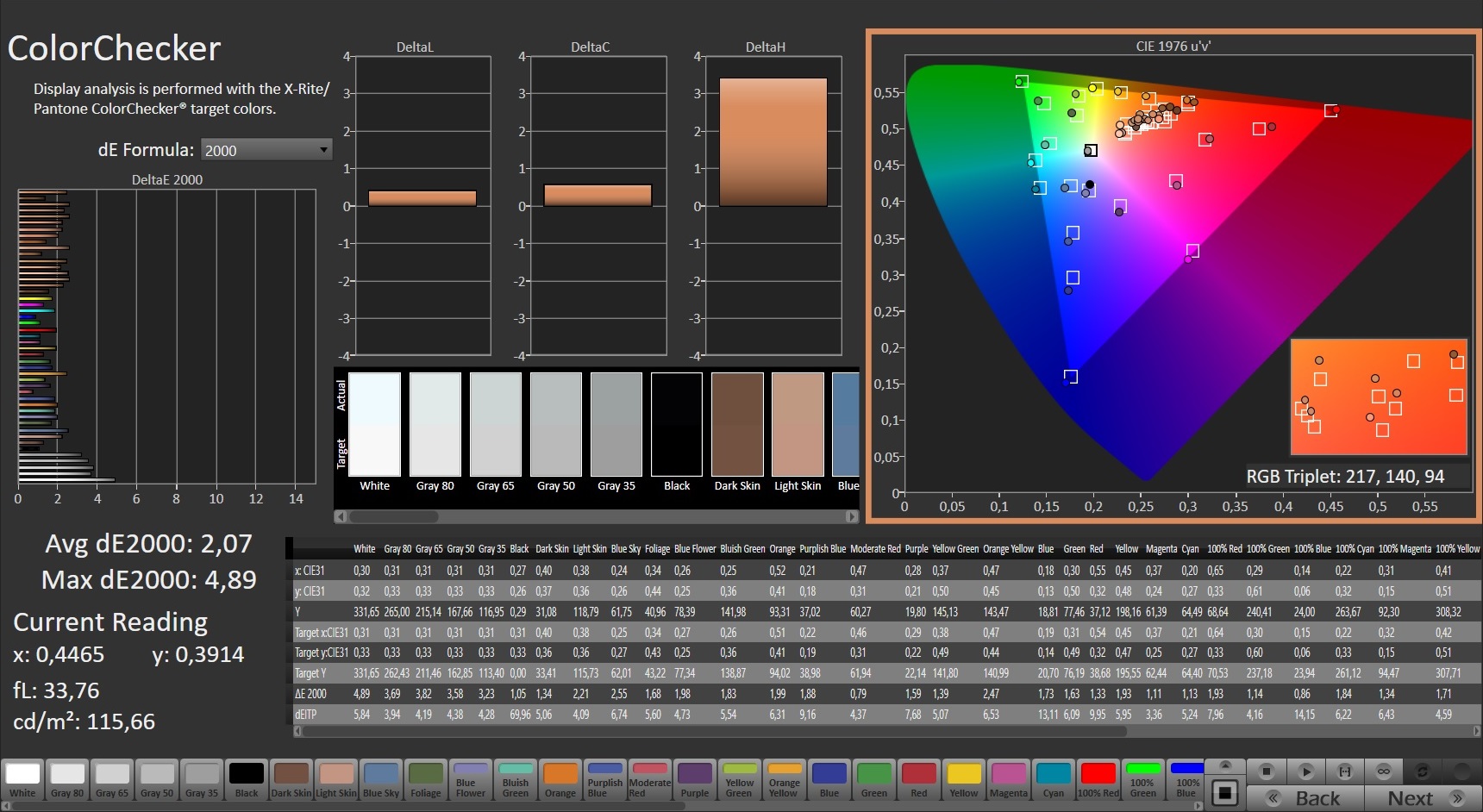

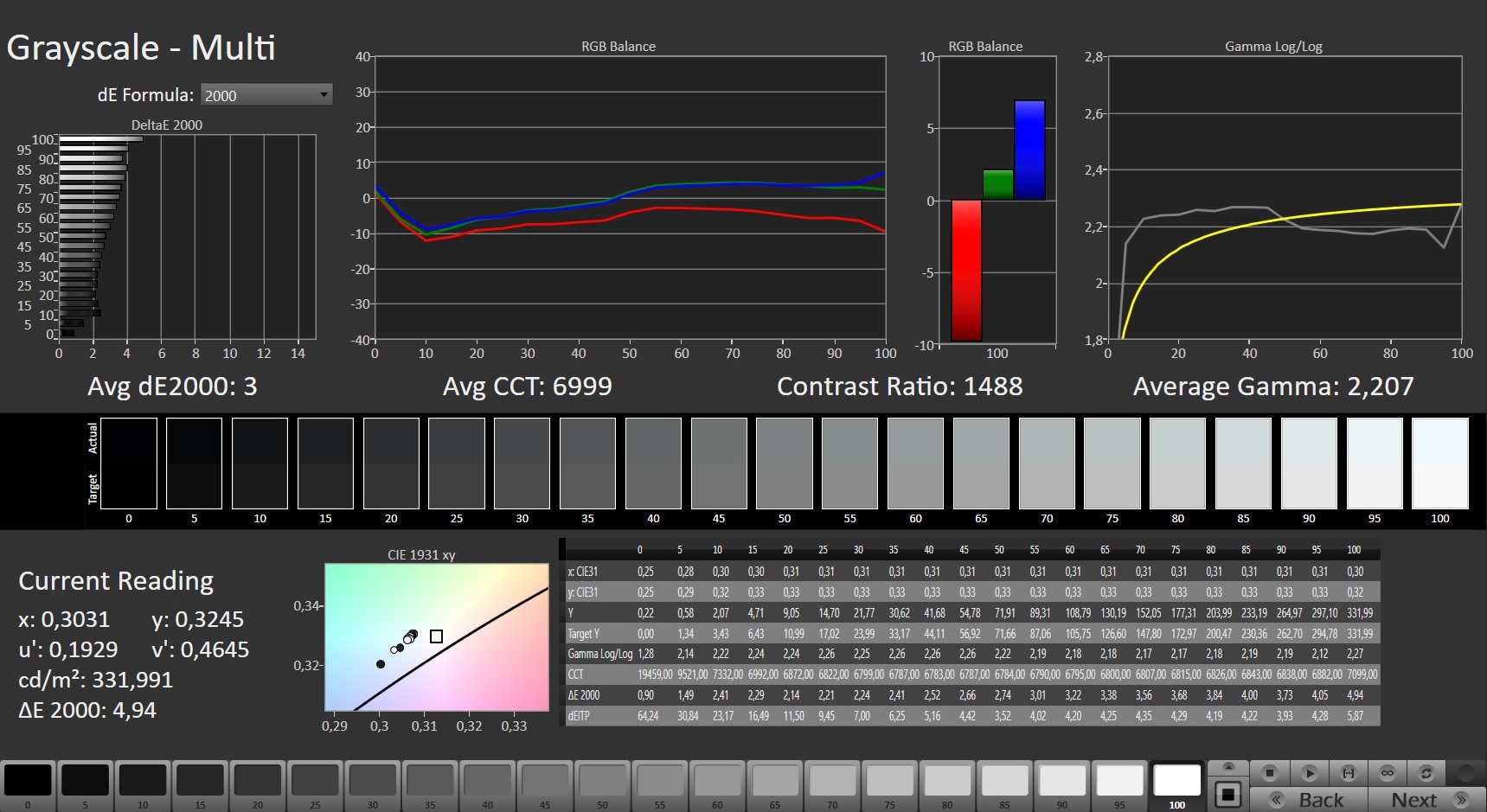

Directly out of the box, the display achieves good color representation: color deviations are within the target range. Calibration provides further improvement. The display cannot reproduce the AdobeRGB (71%) and DCI-P3 (69%) color spaces, but the sRGB color space is reproduced at 99%.
Display Response Times

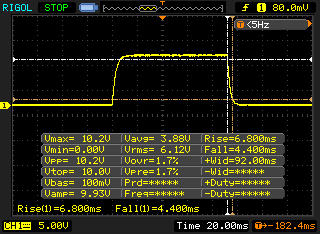

↔ Response Time Black to White | ||
---|---|---|
11.2 ms ... rise ↗ and fall ↘ combined | ↗ 6.8 ms rise | |
↘ 4.4 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 25 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21.6 ms). | ||

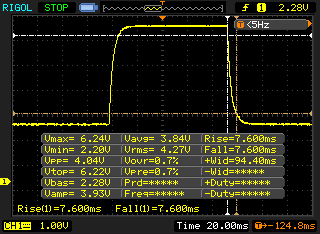

↔ Response Time 50% Grey to 80% Grey | ||
15.2 ms ... rise ↗ and fall ↘ combined | ↗ 7.6 ms rise | |
↘ 7.6 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 23 % of all devices are better. This means that the measured response time is better than the average of all tested devices (33.9 ms). |

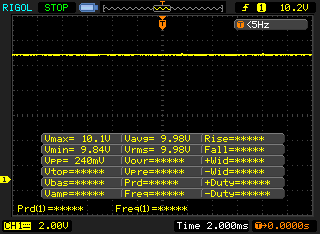

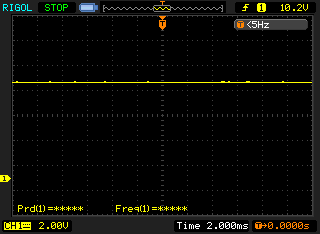

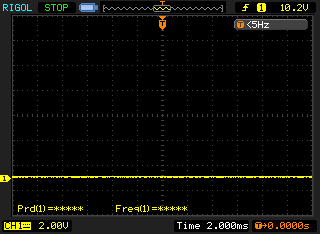

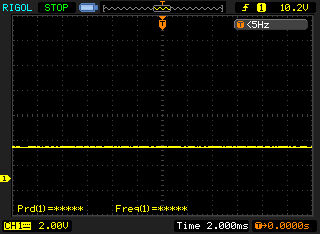

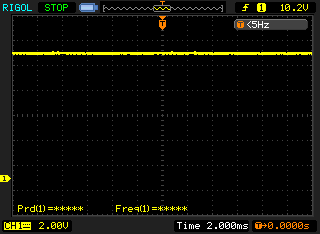

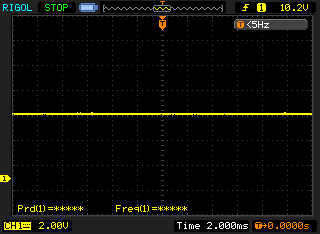

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18110 (minimum: 5 - maximum: 3846000) Hz was measured. |

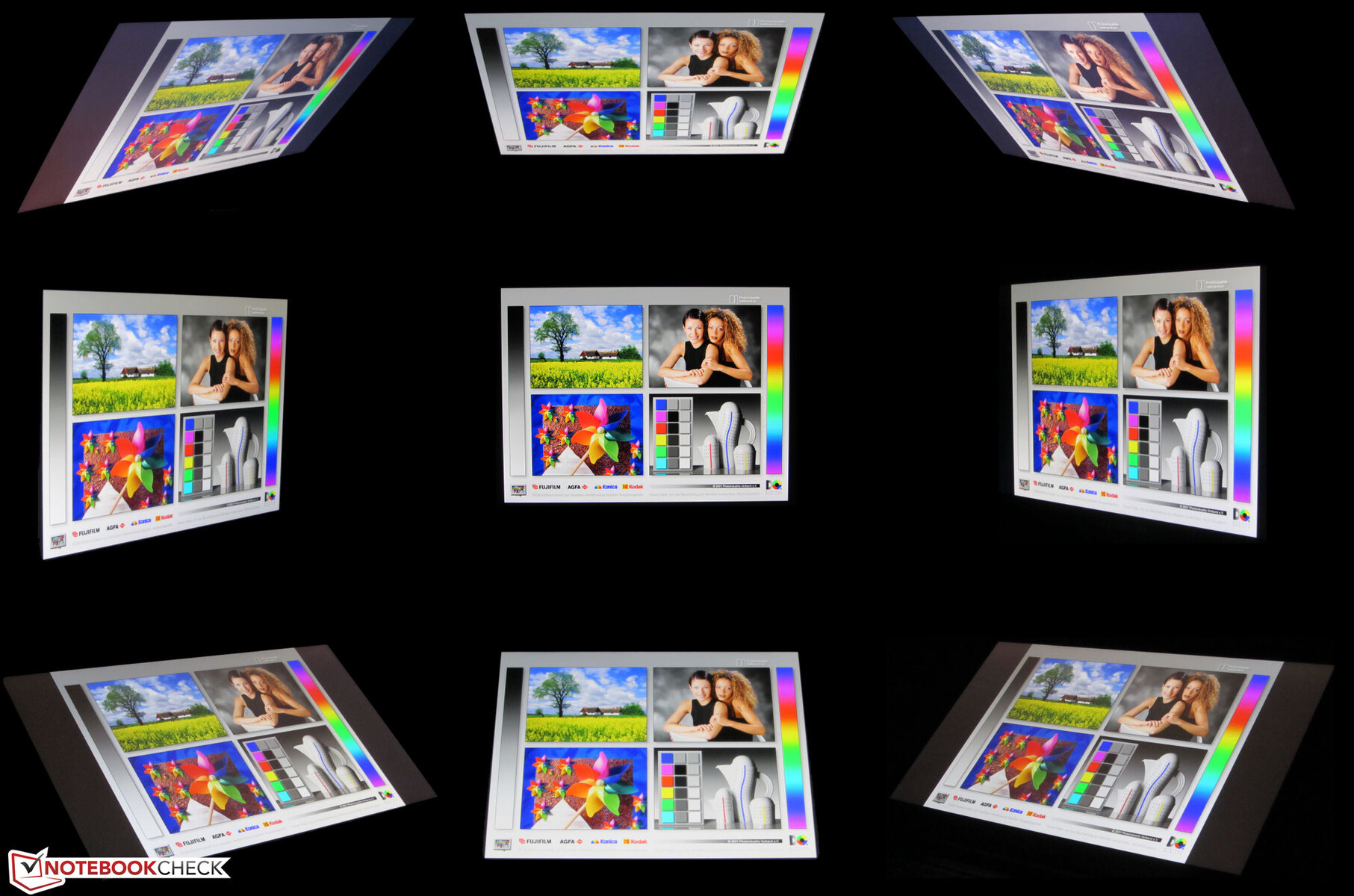

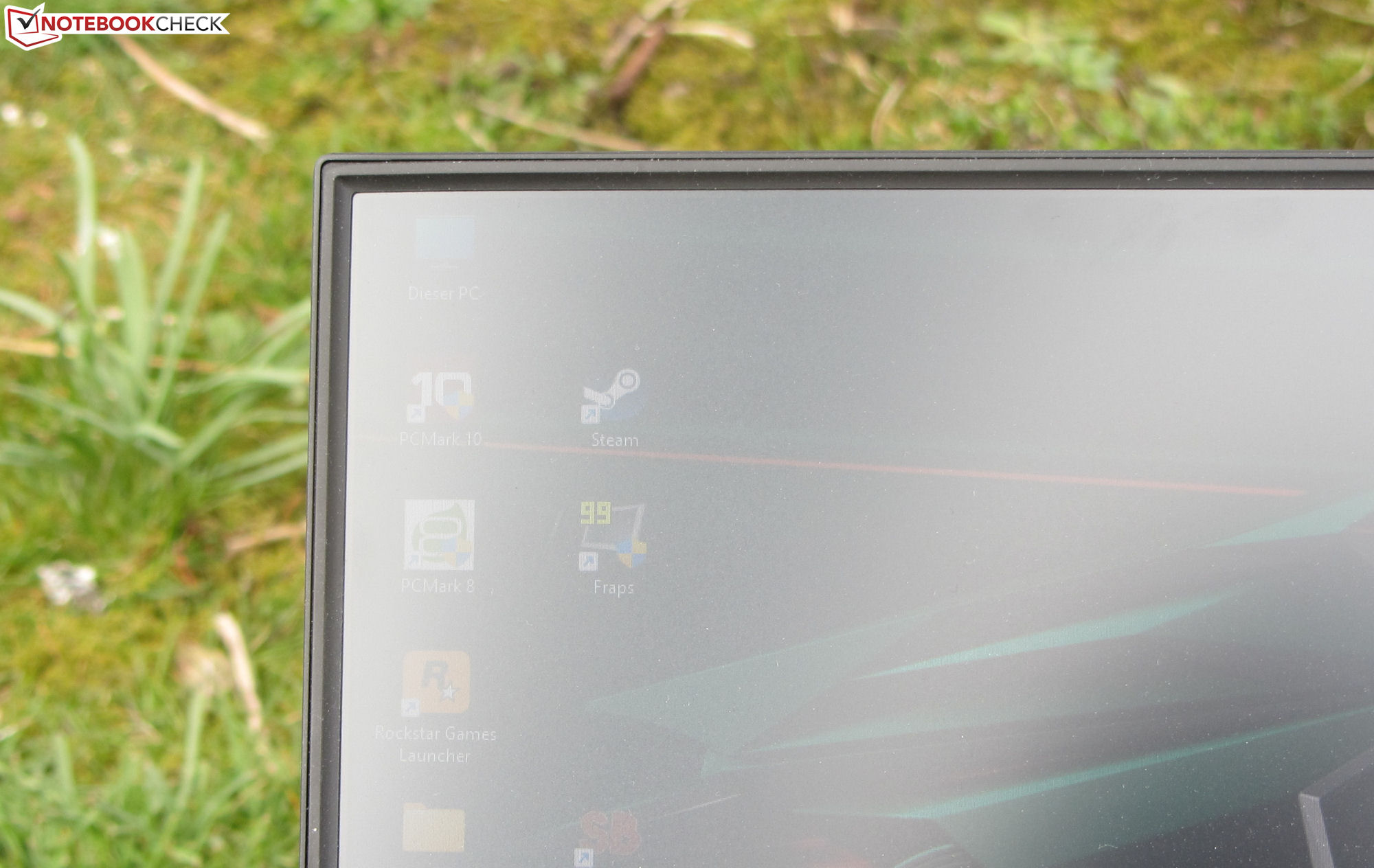

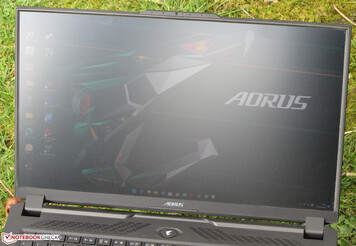

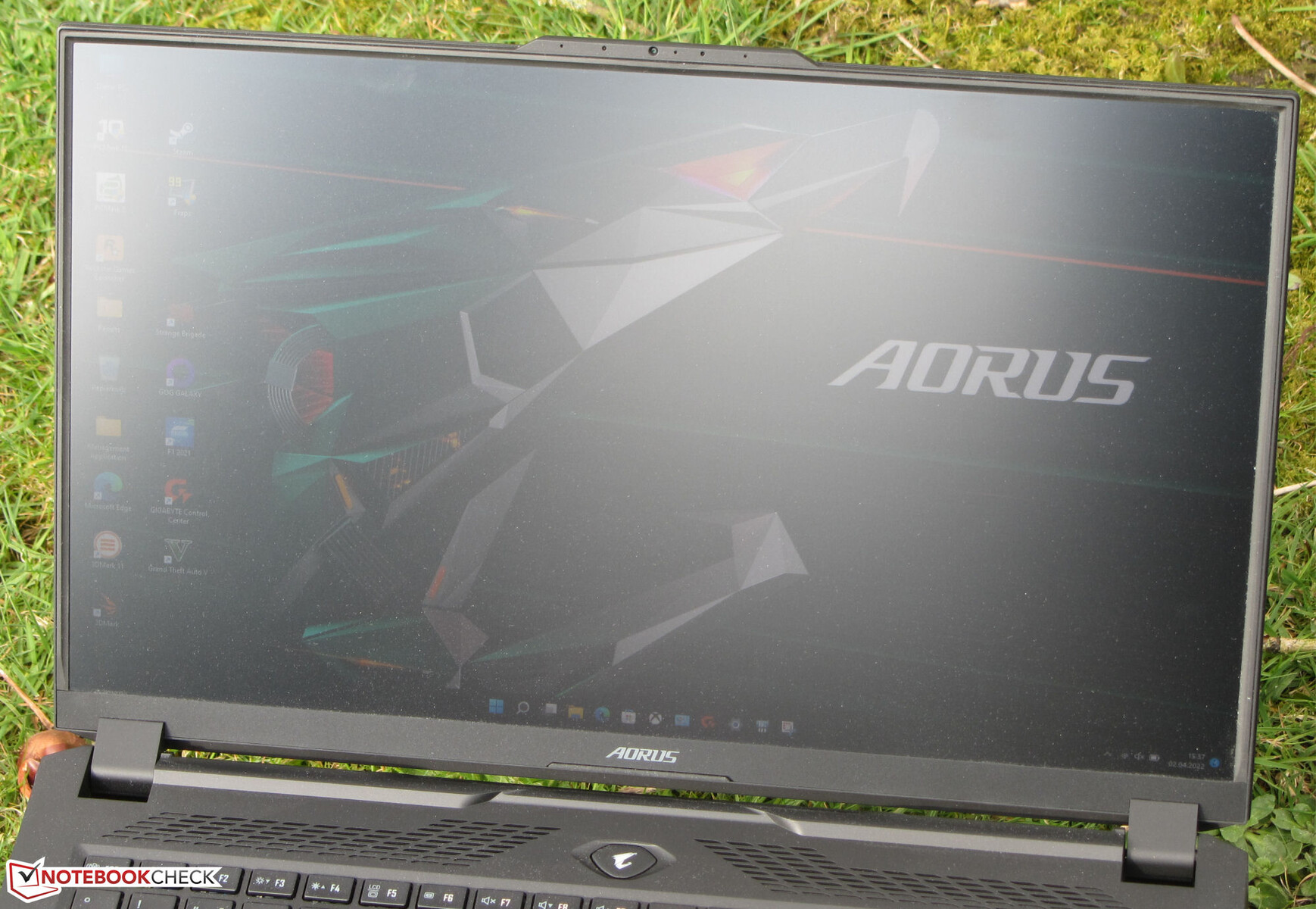

The viewing angles of the IPS panel are good, the content can be read from all positions. The outdoor readability of the display is normal when the sun is not shining too brightly.
Performance - Alder Lake and Ampere provide enough power for years to come
Gigabyte's Aorus 17 is a 17.3-inch gaming notebook that brings every current game smoothly to the screen.
Test Conditions

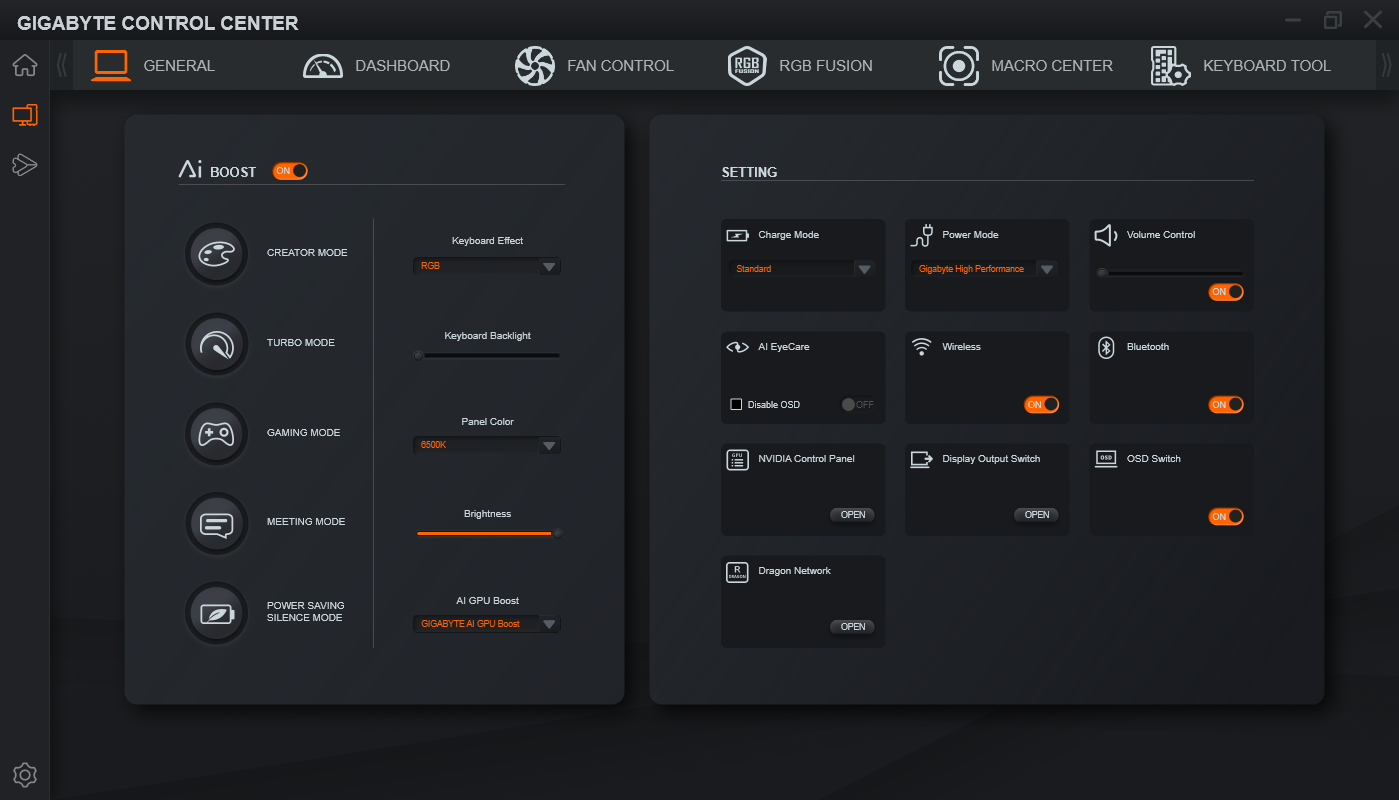

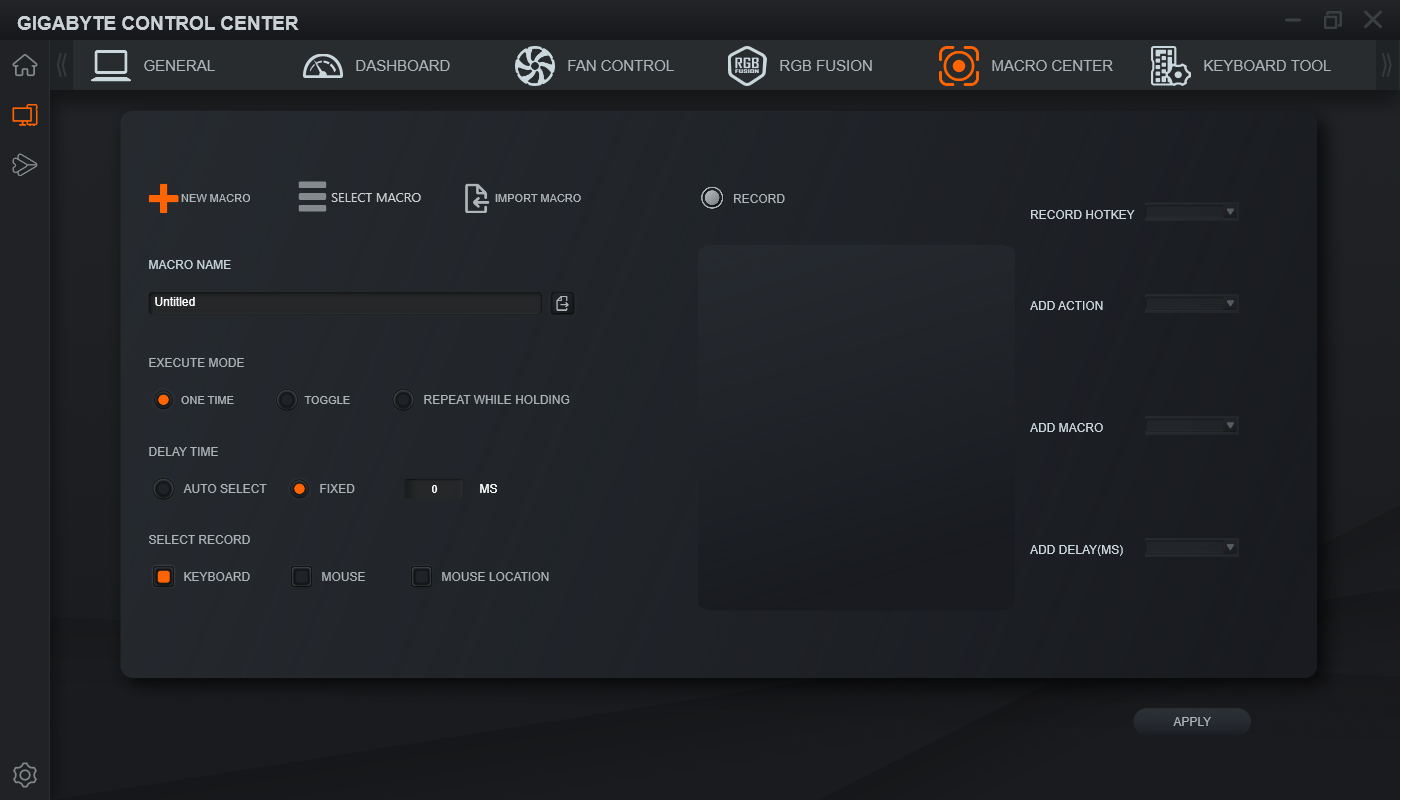

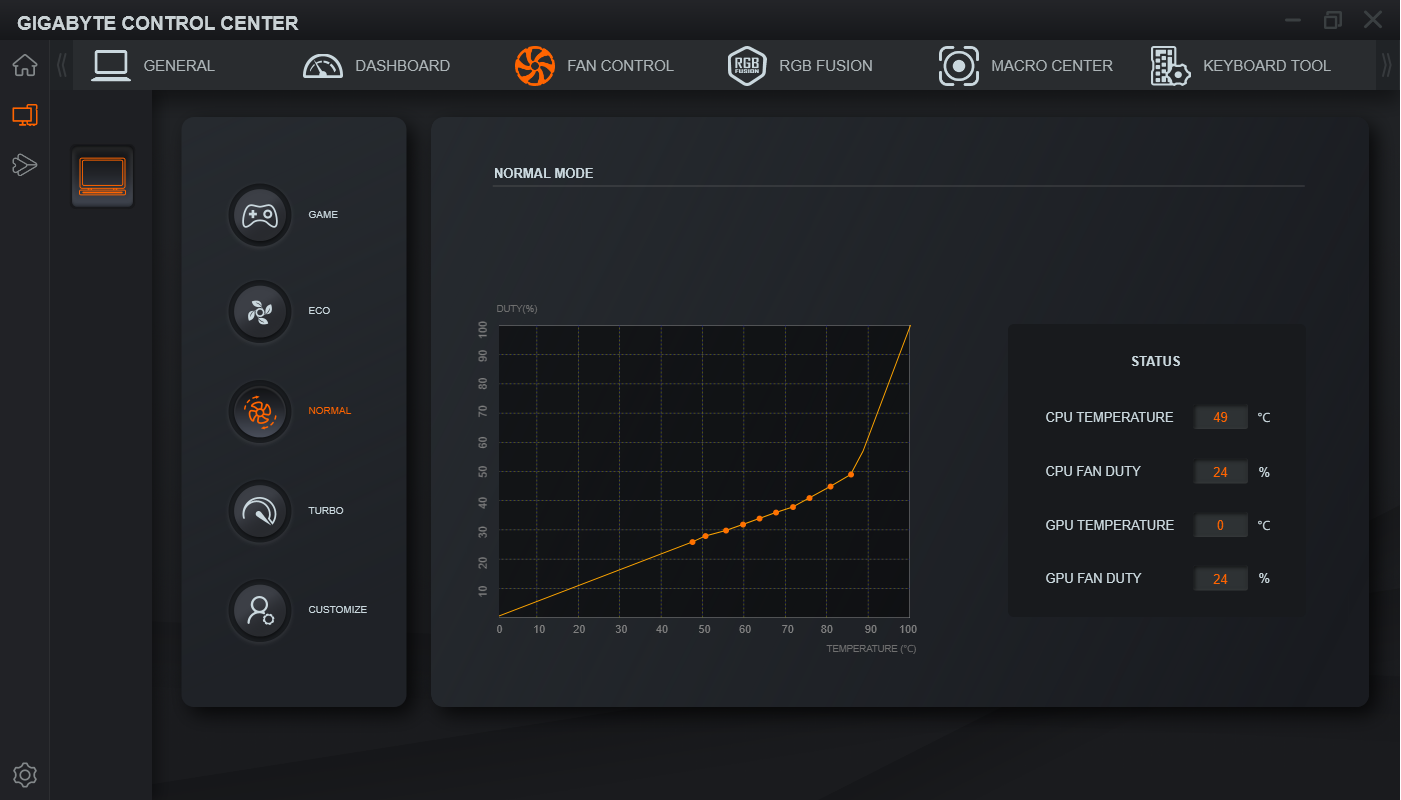

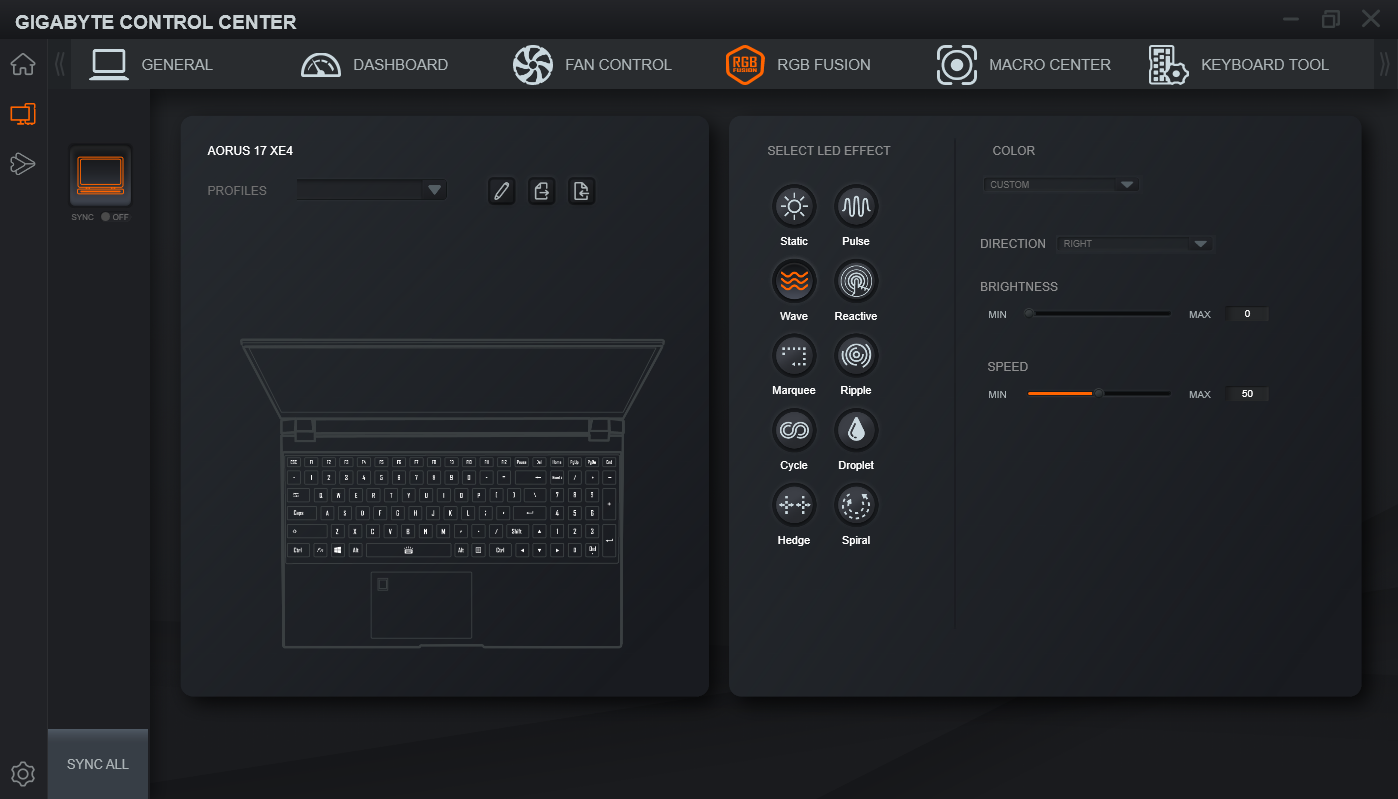

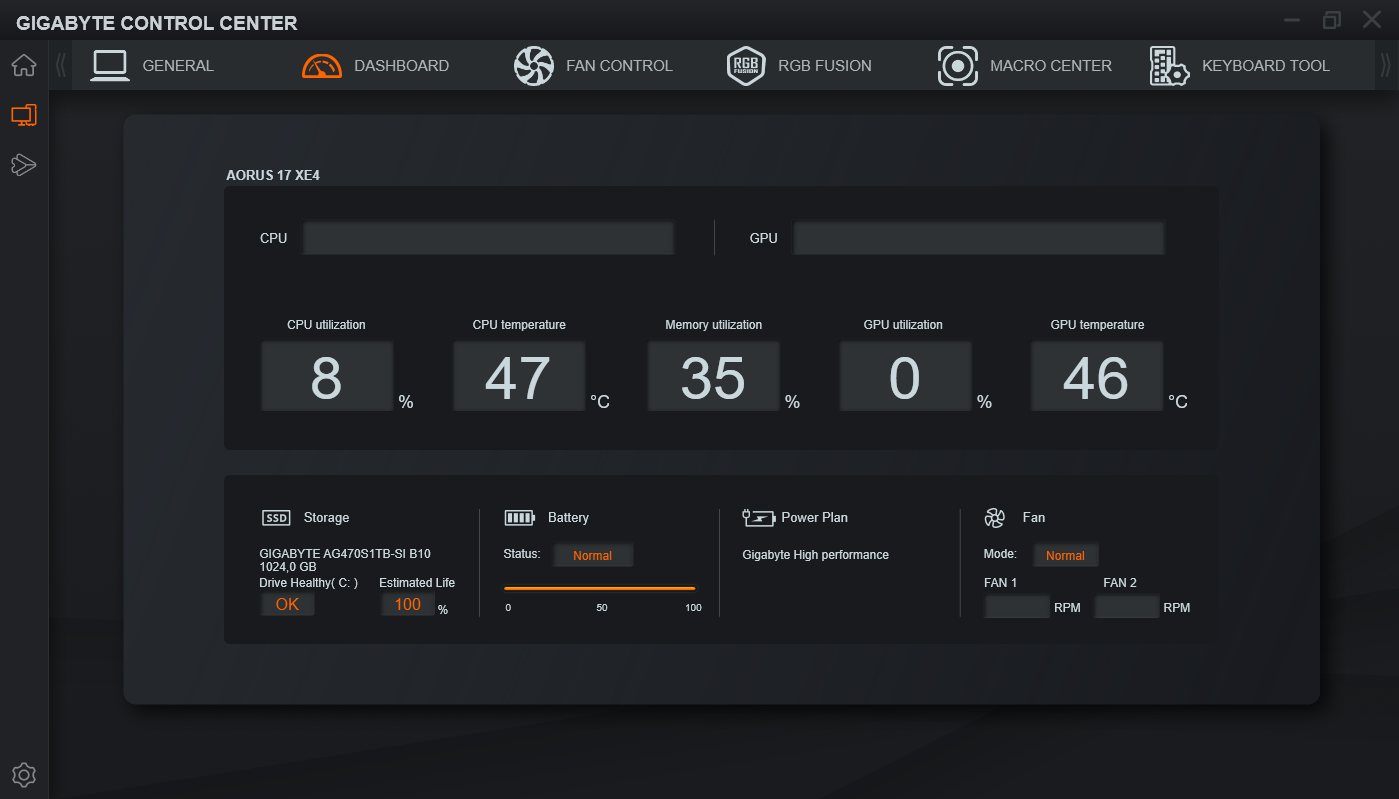

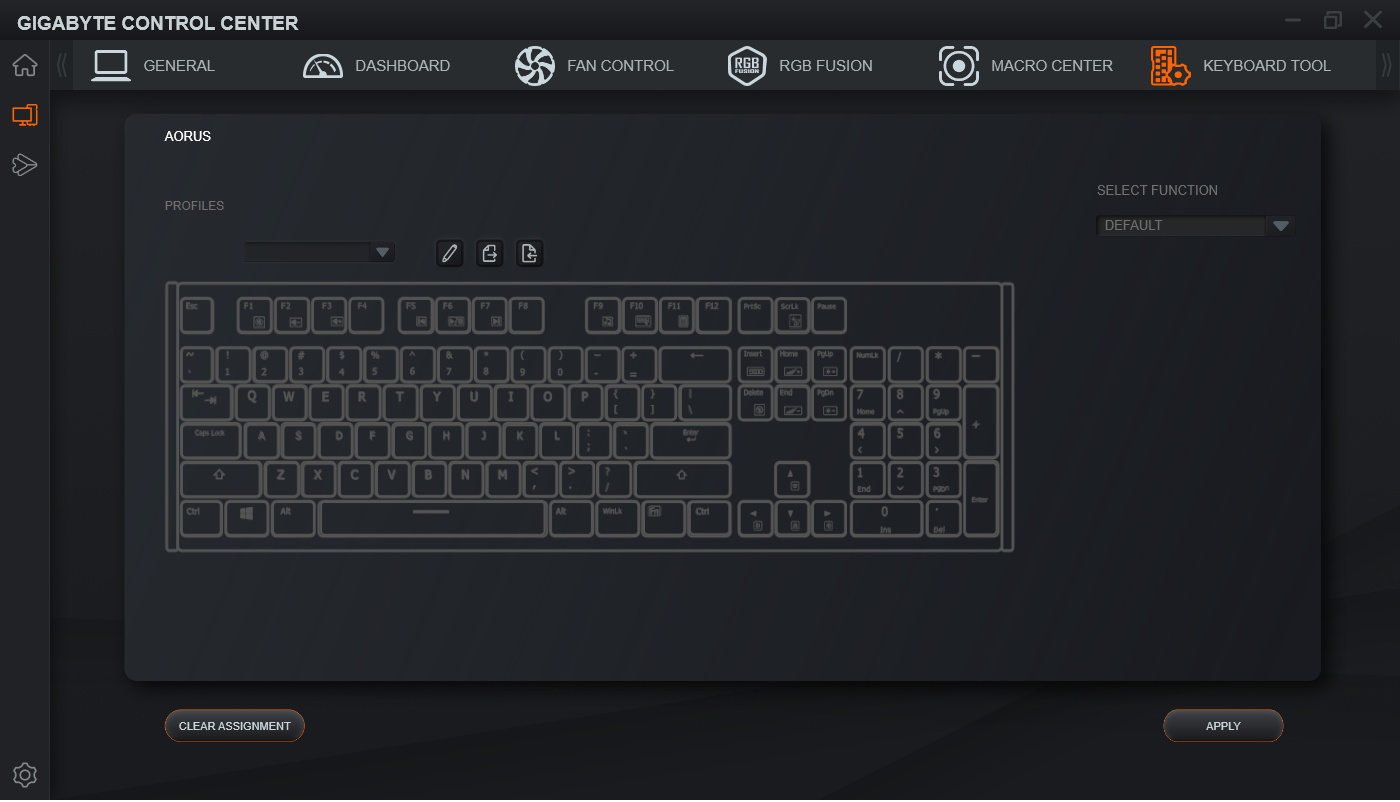

The pre-installed Gigabyte Control Center provides various performance profiles that allow for control over CPU and GPU performance, fan activity, screen brightness, and color temperature, among other things. We use the higher-level AI mode here. The Control Center then selects the appropriate profile automatically.
Some benchmarks were carried out with the profiles "Power Saving Silence Mode" and "Turbo Mode" continuously active. The latter is not recommended for long-term use since the fans continuously operate at full speed.
Creator Mode | Turbo Mode | Gaming Mode | Meeting Mode | Power Saving Silence Mode | |
---|---|---|---|---|---|
Power Limit 1 | 70 Watt | 70 Watt | 55 Watt | 15 Watt | 15 Watt |
Power Limit 2 | 115 Watt | 115 Watt | 115 Watt | 30 Watt | 30 Watt |
Processor

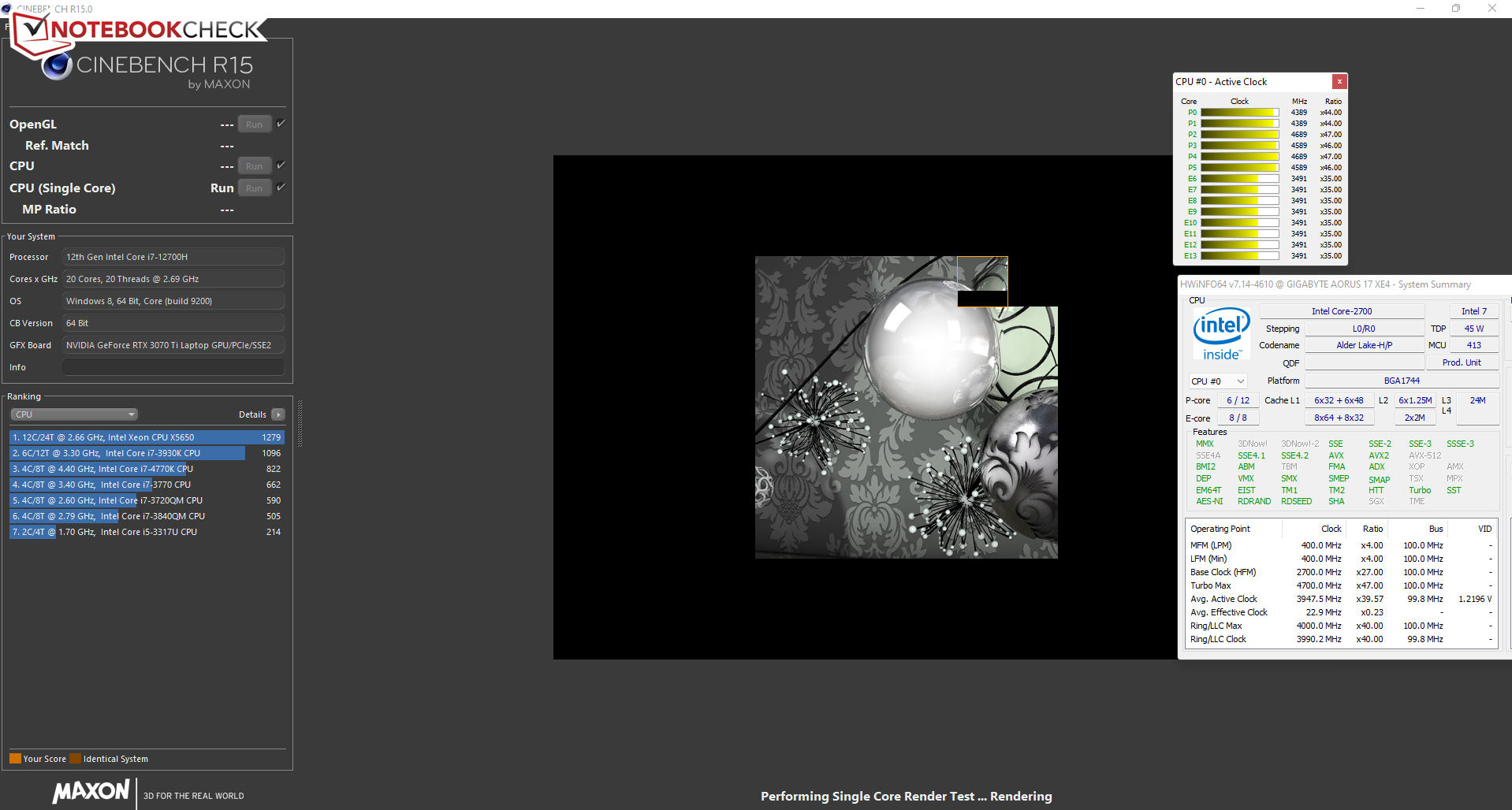

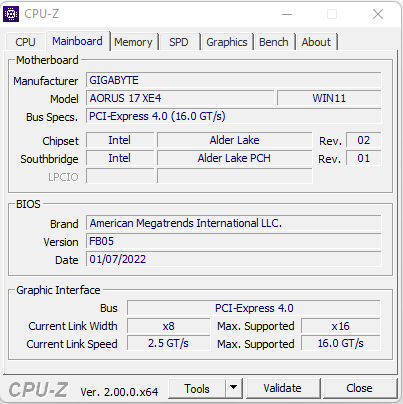

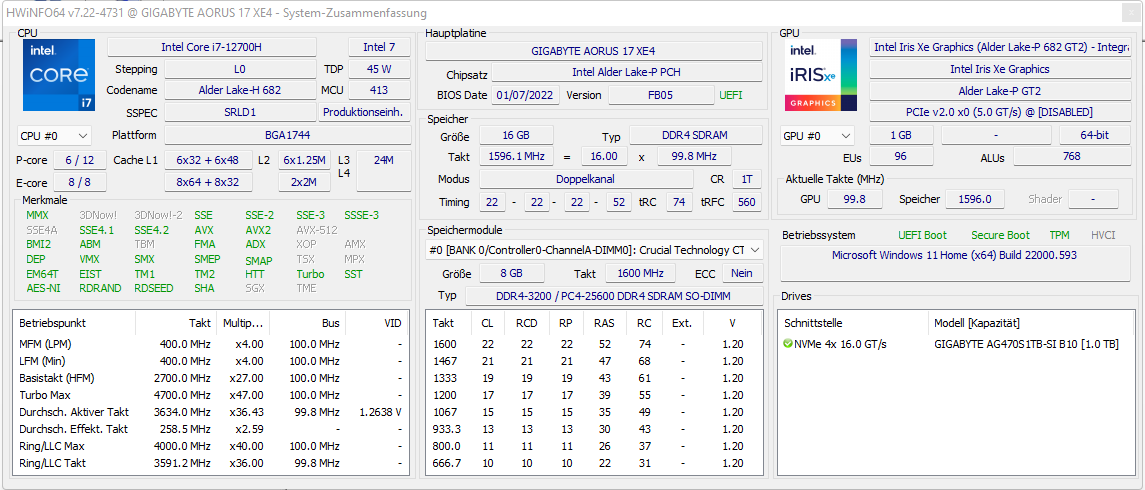

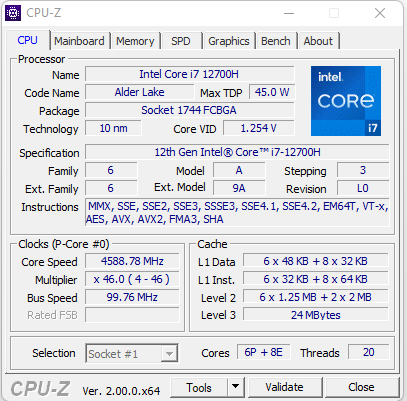

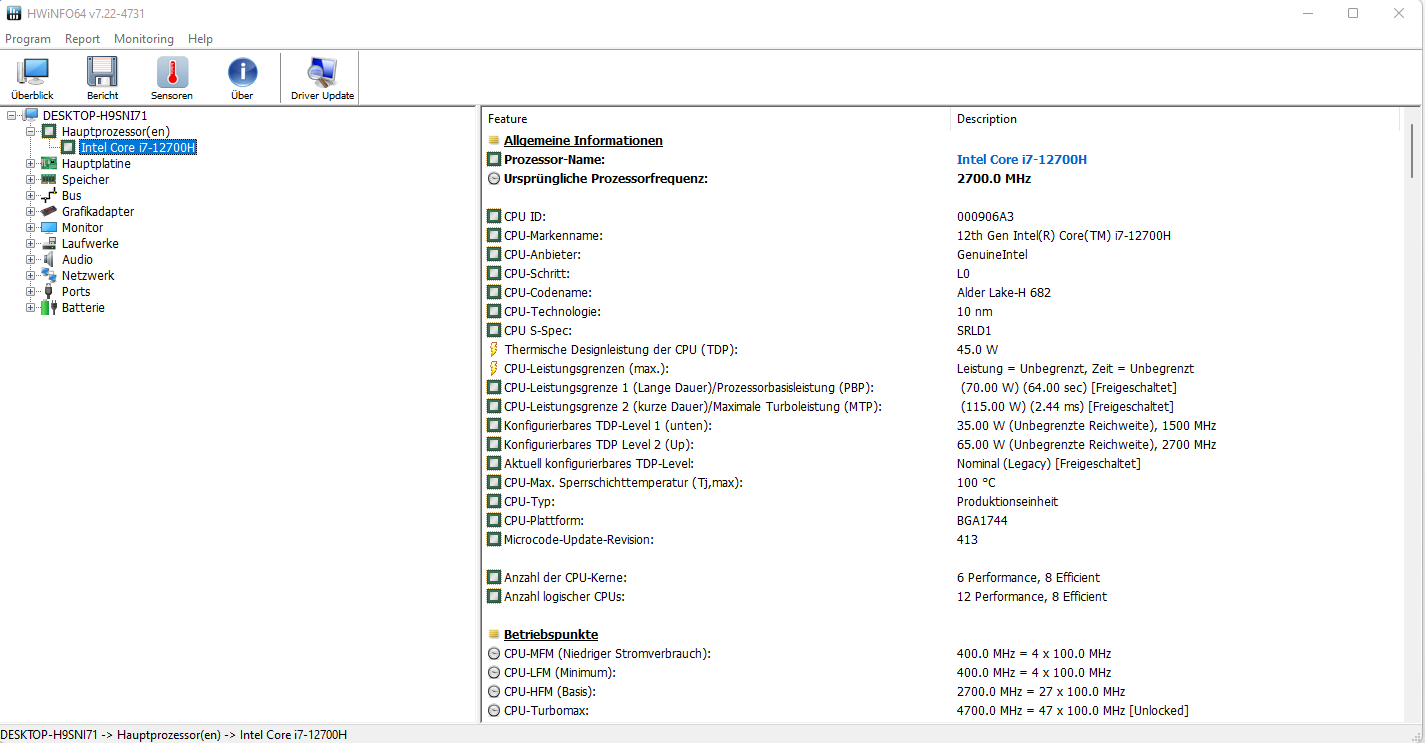

The Core i7-12700H processor (Alder Lake) consists of six performance cores (Hyperthreading, 2.4 to 4.7 GHz) and eight efficiency cores (no Hyperthreading, 1.8 to 3.5 GHz). In total, this amounts to 20 logical CPU cores.

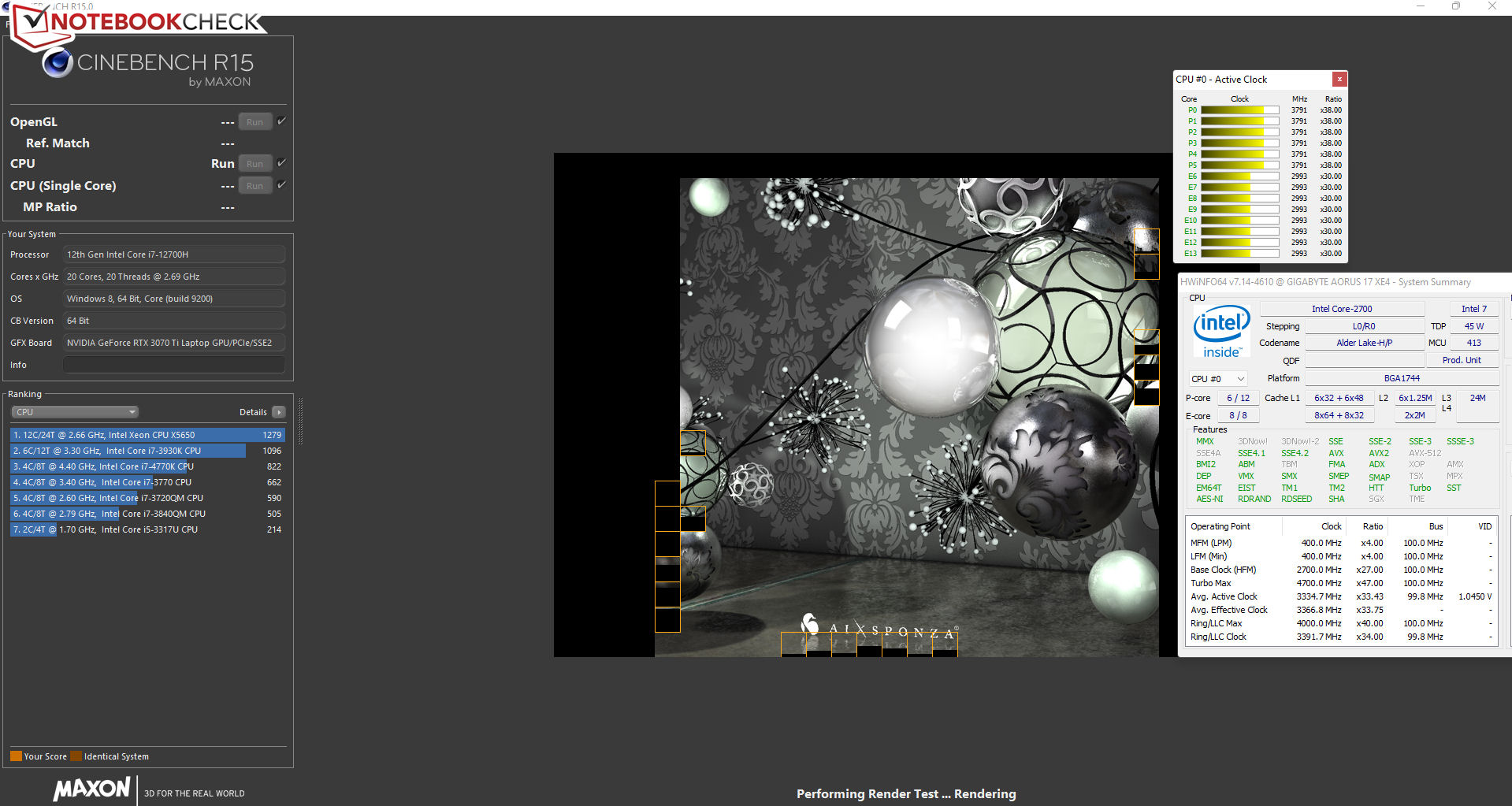

The multi-thread test of the Cinebench R15 benchmark is operated briefly at high clock rates (P-cores: 3.7 to 4.1 GHz, E-cores: 3 to 3.1 GHz), before dropping (P-Cores: 3.1 GHz, E-Cores: 2.6 GHz). The single thread test runs continuously at high speeds (P-cores: 4.1 to 4.7 GHz, E-cores: 3.5 GHz).

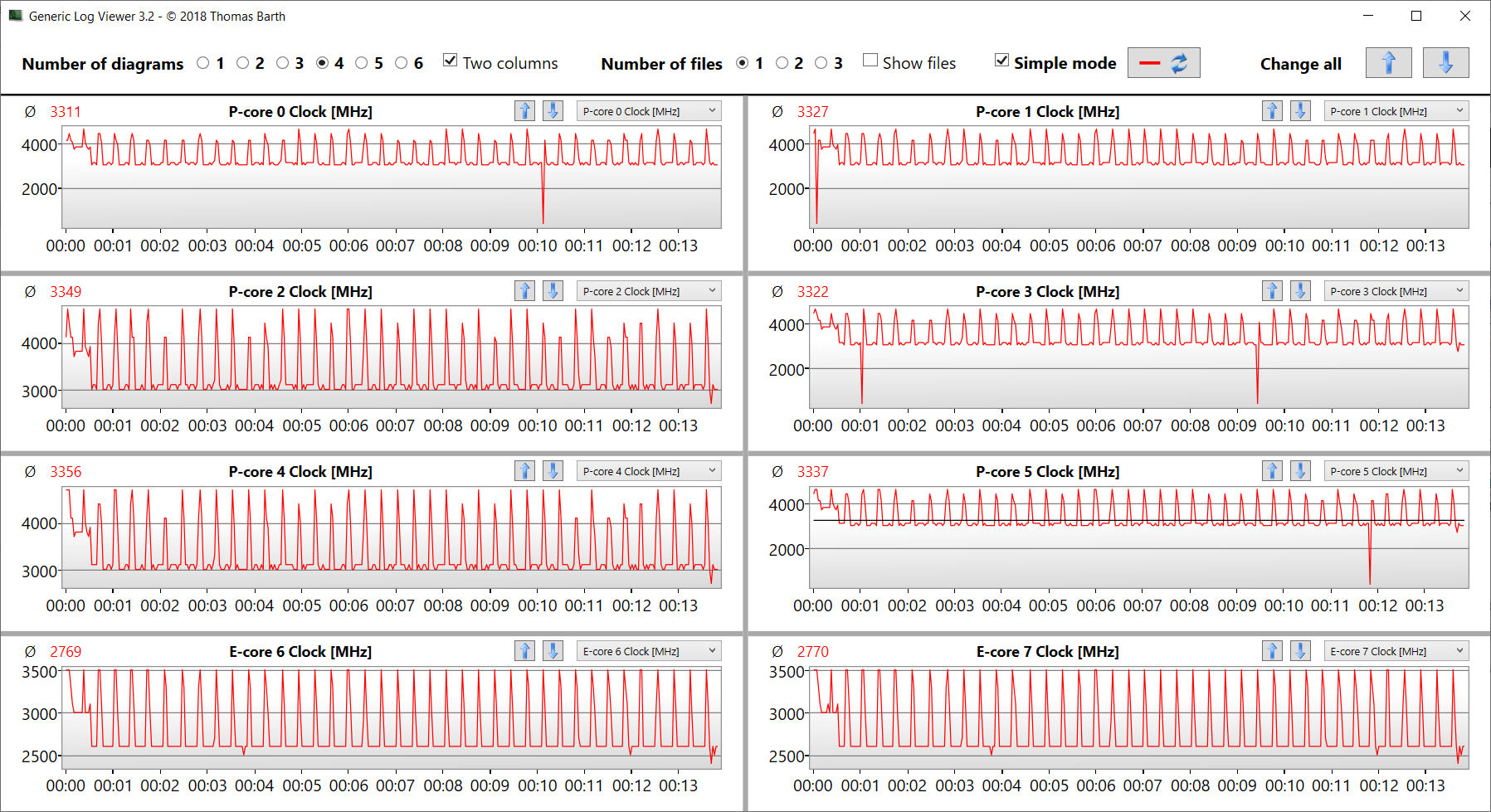

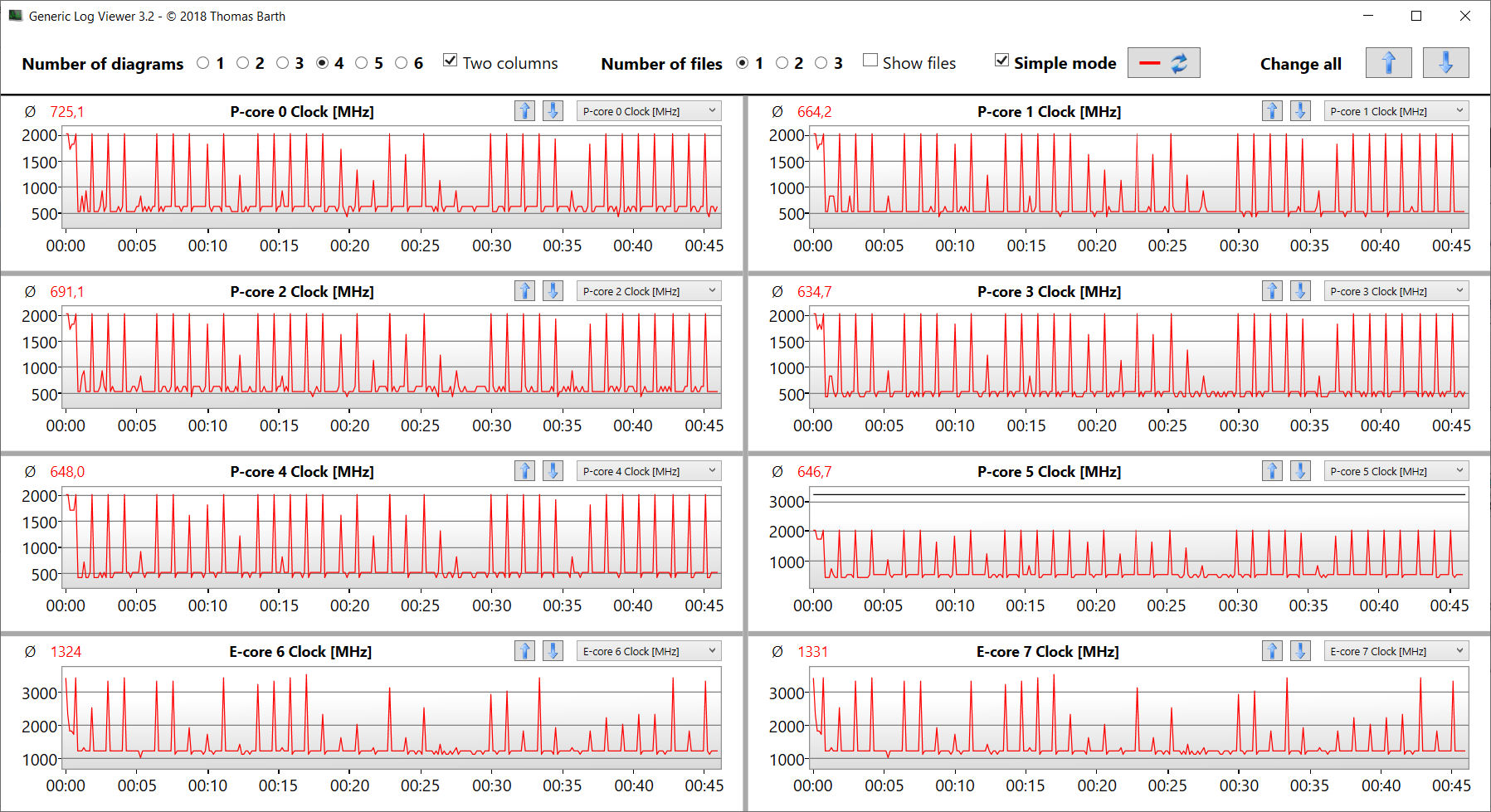

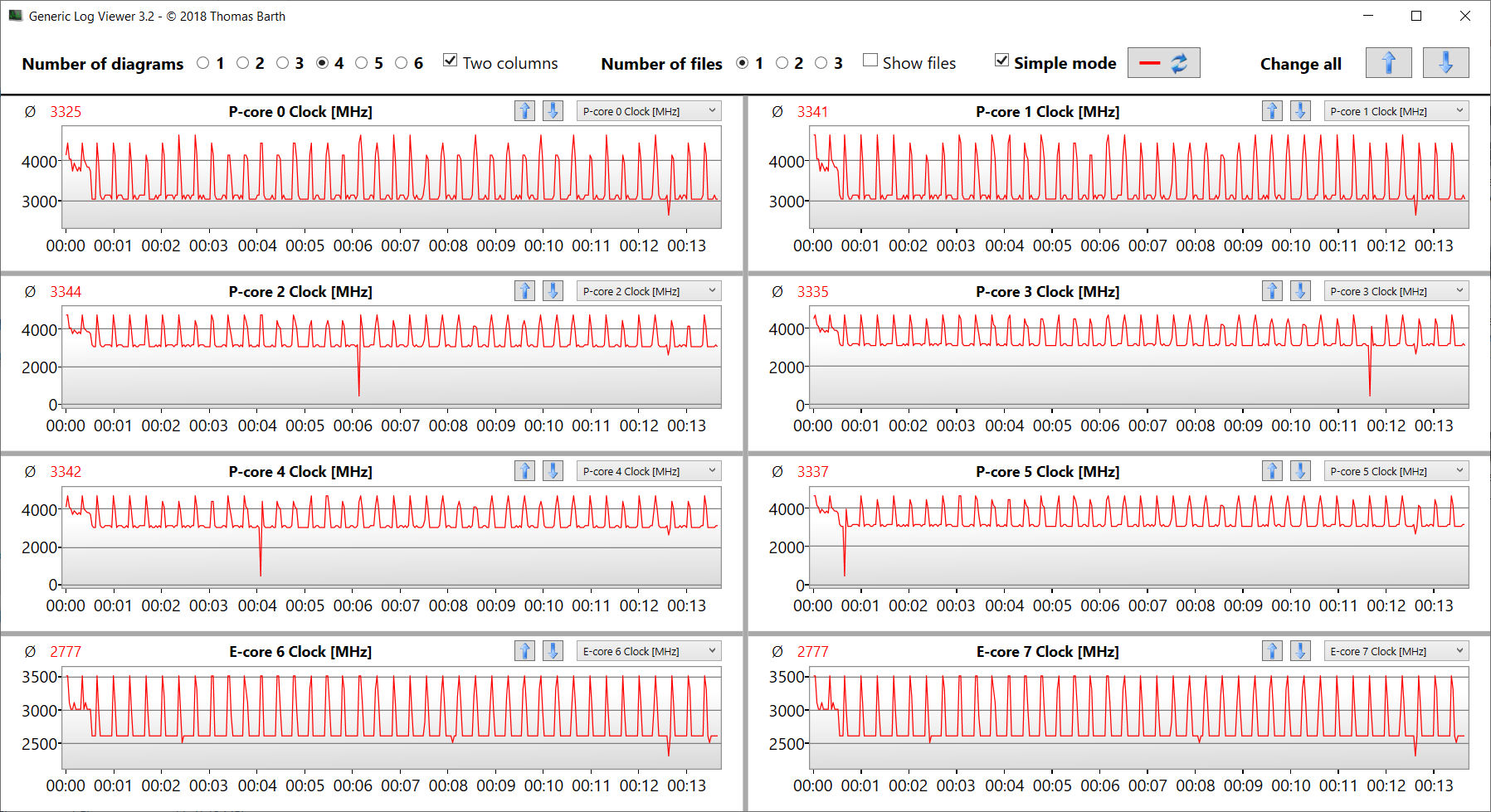

We checked whether the CPU Turbo is used continuously under power supply operation by running the multi-thread test of the Cinebench R15 benchmark in a loop. High clock rates can only be maintained for short periods. Afterward, both the P- and E-cores operate at speeds in the mid turbo range. Selectively activating the performance profile "Turbo Mode" does not yield any advantages.
Cinebench R15 Multi Sustained Load
CPU Performance Rating - Percent | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 | |
Aorus 17 XE4 | |
Razer Blade 17 RTX 3080 Ti | |
Average Intel Core i7-12700H | |
Aorus 17 XE4 |
Cinebench R23 | |
Multi Core | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (2435 - 34613, n=244, last 2 years) | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H (4032 - 19330, n=63) | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Silence Mode) | |
Single Core | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Turbo Mode) | |
Average of class Gaming (527 - 2235, n=242, last 2 years) | |
Average Intel Core i7-12700H (778 - 1826, n=62) | |
Aorus 17 XE4 (Silence Mode) |
Cinebench R20 | |
CPU (Multi Core) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (930 - 13769, n=242, last 2 years) | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H (1576 - 7407, n=63) | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Silence Mode) | |
CPU (Single Core) | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Turbo Mode) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Average of class Gaming (169 - 855, n=242, last 2 years) | |
Average Intel Core i7-12700H (300 - 704, n=63) | |
Aorus 17 XE4 (Silence Mode) |
Cinebench R15 | |
CPU Multi 64Bit | |
Average of class Gaming (400 - 5663, n=247, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H (1379 - 2916, n=69) | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Silence Mode) | |
CPU Single 64Bit | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Average of class Gaming (79.2 - 318, n=246, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Turbo Mode) | |
Average Intel Core i7-12700H (113 - 263, n=64) | |
Aorus 17 XE4 (Silence Mode) |
Blender - v2.79 BMW27 CPU | |
Aorus 17 XE4 (Silence Mode) | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H (168 - 732, n=62) | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Turbo Mode) | |
Average of class Gaming (87 - 1259, n=240, last 2 years) | |
MSI Vector GP66 12UGS | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti |
7-Zip 18.03 | |
7z b 4 | |
Average of class Gaming (11386 - 140932, n=240, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 (Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti | |
Average Intel Core i7-12700H (22844 - 73067, n=62) | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Silence Mode) | |
7z b 4 -mmt1 | |
MSI Vector GP66 12UGS | |
Average of class Gaming (2685 - 7581, n=241, last 2 years) | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Turbo Mode) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Razer Blade 17 RTX 3080 Ti | |
Average Intel Core i7-12700H (2743 - 5972, n=62) | |
Aorus 17 XE4 (Silence Mode) |
Geekbench 5.5 | |
Multi-Core | |
Average of class Gaming (1946 - 22200, n=246, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Razer Blade 17 RTX 3080 Ti | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Turbo Mode) | |
Average Intel Core i7-12700H (5144 - 13745, n=63) | |
Aorus 17 XE4 (Silence Mode) | |
Single-Core | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 (Turbo Mode) | |
Average of class Gaming (158 - 2193, n=246, last 2 years) | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Razer Blade 17 RTX 3080 Ti | |
Average Intel Core i7-12700H (803 - 1851, n=63) | |
Aorus 17 XE4 (Silence Mode) |
HWBOT x265 Benchmark v2.2 - 4k Preset | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (3 - 37.6, n=244, last 2 years) | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 (Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti | |
Average Intel Core i7-12700H (4.67 - 21.8, n=63) | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Silence Mode) |
LibreOffice - 20 Documents To PDF | |
Aorus 17 XE4 (Silence Mode) | |
Average of class Gaming (32.8 - 332, n=238, last 2 years) | |
Razer Blade 17 RTX 3080 Ti | |
Average Intel Core i7-12700H (34.2 - 95.3, n=62) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 (Turbo Mode) | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 |
R Benchmark 2.5 - Overall mean | |
Aorus 17 XE4 (Silence Mode) | |
Average of class Gaming (0.3609 - 4.47, n=241, last 2 years) | |
Average Intel Core i7-12700H (0.4441 - 1.052, n=62) | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
MSI Vector GP66 12UGS |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average of class Gaming | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average Intel Core i7-12700H | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 | |
Aorus 17 XE4 |
AIDA64 / FP32 Ray-Trace | |
Average of class Gaming (2585 - 60169, n=237, last 2 years) | |
Average Intel Core i7-12700H (2585 - 17957, n=62) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / FPU Julia | |
Average of class Gaming (12439 - 252486, n=237, last 2 years) | |
Average Intel Core i7-12700H (12439 - 90760, n=62) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / CPU SHA3 | |
Average of class Gaming (629 - 10389, n=237, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
Average Intel Core i7-12700H (833 - 4242, n=62) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / CPU Queen | |
Average of class Gaming (15371 - 200651, n=237, last 2 years) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Average Intel Core i7-12700H (57923 - 103202, n=62) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / FPU SinJulia | |
Average of class Gaming (2137 - 32988, n=237, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Average Intel Core i7-12700H (3249 - 9939, n=62) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / FPU Mandel | |
Average of class Gaming (7135 - 134044, n=237, last 2 years) | |
Average Intel Core i7-12700H (7135 - 44760, n=62) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / CPU AES | |
Average of class Gaming (18146 - 328679, n=237, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Average Intel Core i7-12700H (31839 - 144360, n=62) | |
Aorus 17 XE4 (v6.50.5800) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / CPU ZLib | |
Average of class Gaming (150.9 - 2409, n=237, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Average Intel Core i7-12700H (305 - 1171, n=62) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / FP64 Ray-Trace | |
Average of class Gaming (1437 - 31796, n=237, last 2 years) | |
Average Intel Core i7-12700H (1437 - 9692, n=62) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
AIDA64 / CPU PhotoWorxx | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Average of class Gaming (8341 - 60161, n=238, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
Average Intel Core i7-12700H (12863 - 52207, n=62) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
Aorus 17 XE4 (v6.50.5800, Silence Mode) |
System Performance
The system runs smoothly. The installed hardware provides more than enough computing power for performance-demanding applications such as gaming and image editing. In addition, the PCMark results are good. The RAM transfer rates are at a normal level for DDR4-3200 memory. Competitors like the Razer Blade 17 and the Legion 5 Pro 16 G7 deliver better rates because they are equipped with faster DDR5-4800 memory.
PCMark 8 Home Score Accelerated v2 | 5881 points | |
PCMark 8 Creative Score Accelerated v2 | 7483 points | |
PCMark 8 Work Score Accelerated v2 | 6906 points | |
PCMark 10 Score | 7700 points | |
Help |
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (6941 - 7947, n=11) | |
Average of class Gaming (4477 - 9852, n=208, last 2 years) |
PCMark 10 / Essentials | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 | |
Average of class Gaming (7334 - 12334, n=207, last 2 years) | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (9892 - 10935, n=11) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti |
PCMark 10 / Productivity | |
MSI Vector GP66 12UGS | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (9024 - 10638, n=11) | |
Average of class Gaming (6161 - 11833, n=207, last 2 years) | |
Razer Blade 17 RTX 3080 Ti |
PCMark 10 / Digital Content Creation | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (10165 - 12546, n=11) | |
Average of class Gaming (5288 - 18475, n=207, last 2 years) |
CrossMark / Overall | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (974 - 2295, n=173, last 2 years) | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (974 - 2000, n=12) |
CrossMark / Productivity | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (907 - 2166, n=173, last 2 years) | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (907 - 1962, n=12) |
CrossMark / Creativity | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (1027 - 2514, n=173, last 2 years) | |
Aorus 17 XE4 | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (1027 - 2057, n=12) |
CrossMark / Responsiveness | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (1029 - 2142, n=12) | |
Average of class Gaming (1029 - 2327, n=173, last 2 years) |
AIDA64 / Memory Copy | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Average of class Gaming (18074 - 92565, n=237, last 2 years) | |
Average Intel Core i7-12700H (25615 - 80511, n=62) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) |
AIDA64 / Memory Read | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Average of class Gaming (20318 - 90647, n=237, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
Average Intel Core i7-12700H (25586 - 79442, n=62) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) |
AIDA64 / Memory Write | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
Average of class Gaming (18928 - 103259, n=237, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
Average Intel Core i7-12700H (23679 - 88660, n=62) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) |
AIDA64 / Memory Latency | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
Aorus 17 XE4 (v6.50.5800) | |
MSI Vector GP66 12UGS (v6.50.5800) | |
Average of class Gaming (59.5 - 152.5, n=234, last 2 years) | |
Average Intel Core i7-12700H (76.2 - 133.9, n=60) | |
Razer Blade 17 RTX 3080 Ti (v6.50.5800) |
* ... smaller is better

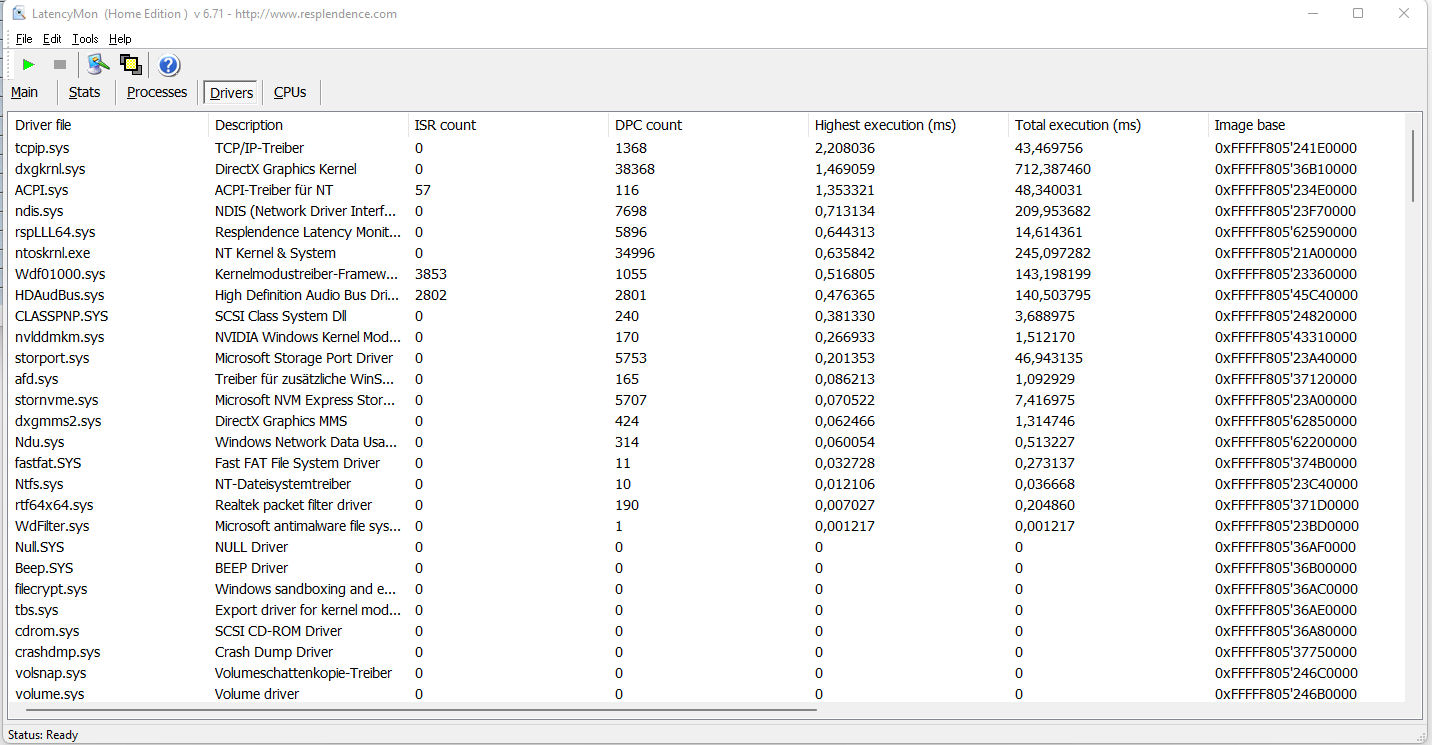

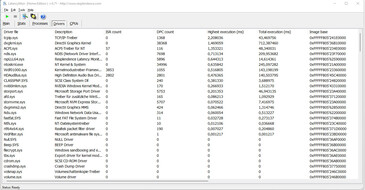

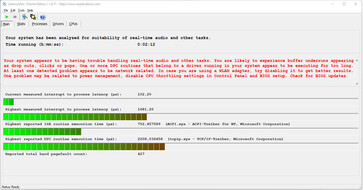

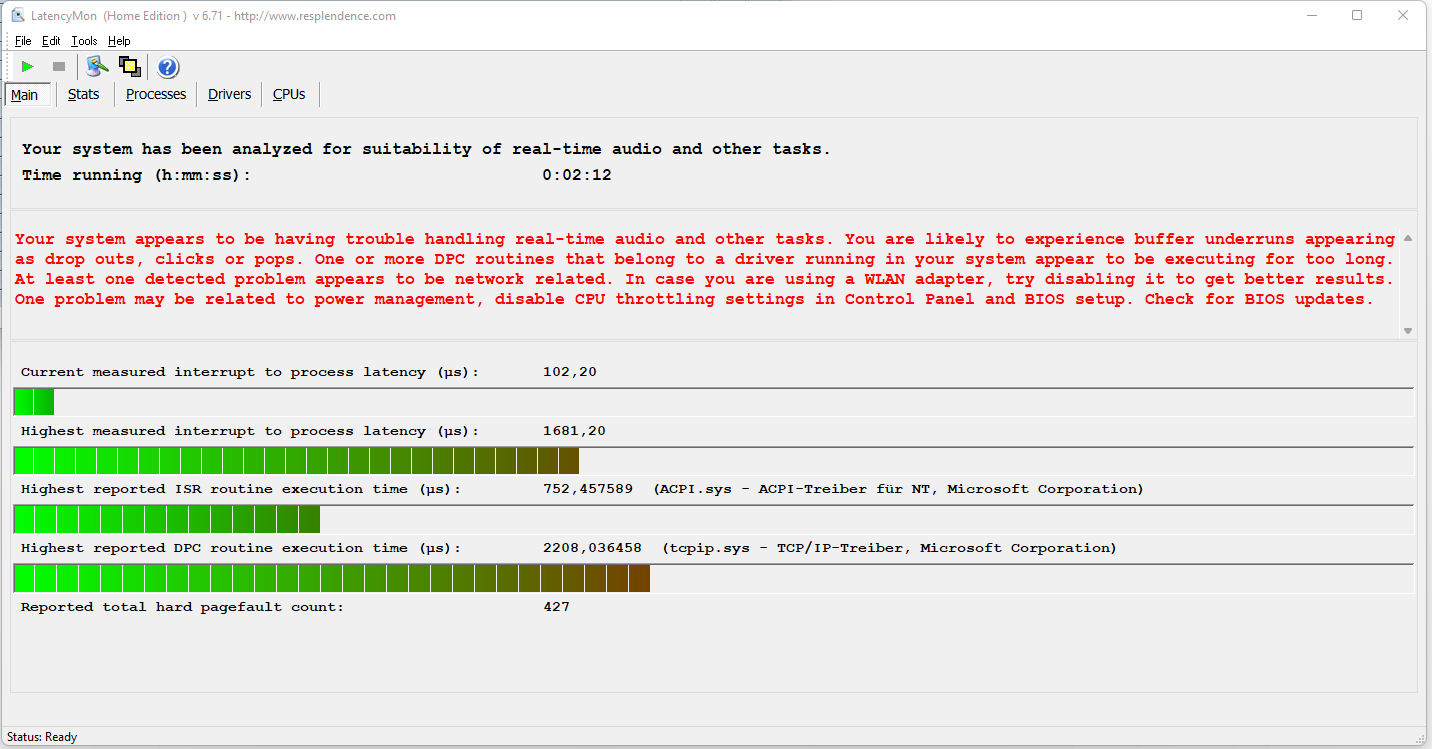

DPC Latencies
The standardized latency monitor test (web surfing, 4k video playback, Prime95 high-load) revealed several abnormal DPC latencies. The system does not seem to be suitable for real-time video and audio editing. Future software updates may lead to improvements or at worst, impairments.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 | |
Razer Blade 17 RTX 3080 Ti | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti |
* ... smaller is better
Storage Devices

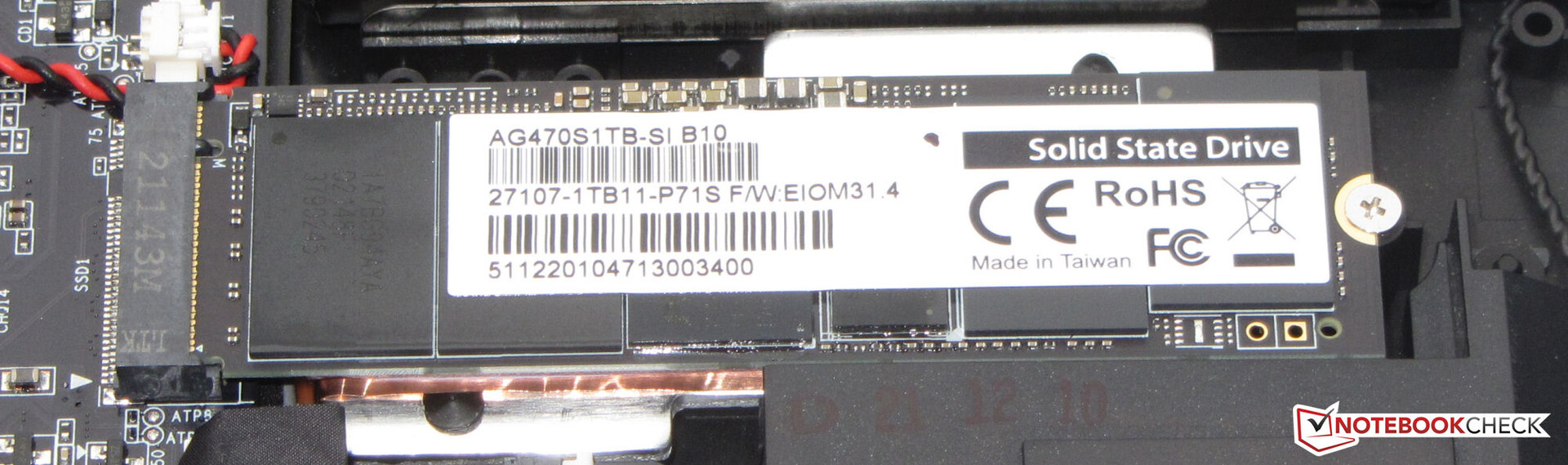

An NVMe SSD (M.2-2280, PCIe 4) from Gigabyte serves as the system drive. It offers 1 TB of storage and delivers excellent transfer rates. The notebook has room for a second PCIe 4 SSD (M.2-2280).
Drive Performance Rating - Percent | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Razer Blade 17 RTX 3080 Ti | |
Average Gigabyte AG470S1TB-SI B10 | |
Average of class Gaming | |
MSI Vector GP66 12UGS |
* ... smaller is better
Sustained Read: DiskSpd Read Loop, Queue Depth 8

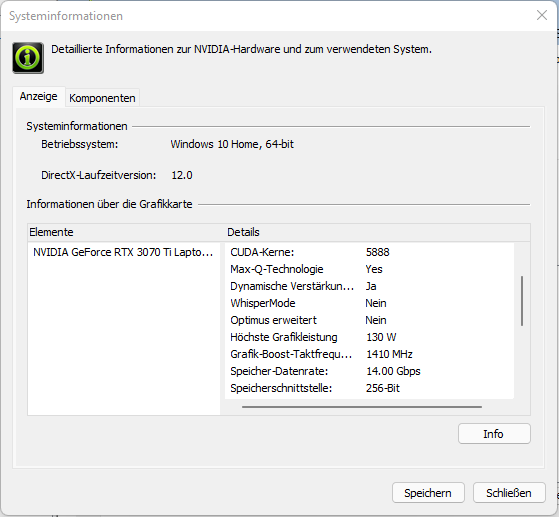

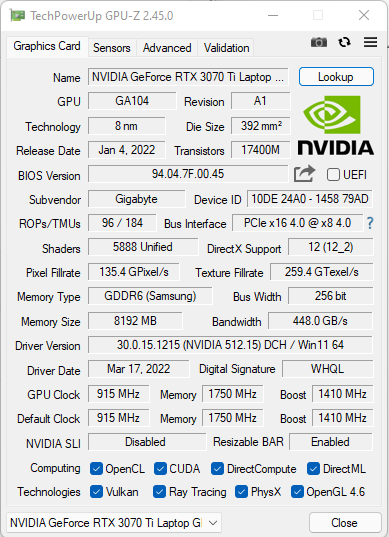

GPU Performance
The actual performance of an RTX 3000 GPU depends on a few factors: cooling, memory configuration, and the maximum TGP that a notebook manufacturer chooses within the limits defined by Nvidia. Gigabyte gives the installed GeForce RTX 3070 Ti laptop GPU a maximum TGP of 130 watts (115 watts + 15 watts Dynamic Boost). However, the Witcher 3 test reveals that the Dynamic Boost is not (or cannot be) fully utilized.
The benchmark results are slightly above the previously determined RTX 3070 Ti average. Activation of the "Turbo Mode" profile causes a small performance increase. The GPU can draw on fast GDDR6 graphics memory (8,192 MB). The processor's integrated Iris Xe Graphics G7 graphics core is active and the notebook works with Nvidia's Optimus switching graphics solution.
3DMark 11 Performance | 31122 points | |
3DMark Ice Storm Standard Score | 133013 points | |
3DMark Cloud Gate Standard Score | 54234 points | |
3DMark Fire Strike Score | 24133 points | |
3DMark Time Spy Score | 10754 points | |
Help |
3DMark Performance Rating - Percent | |
Razer Blade 17 RTX 3080 Ti | |
MSI Vector GP66 12UGS | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti -2! | |
Aorus 17 XE4 | |
Average of class Gaming | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU | |
Aorus 17 XE4 |
3DMark 11 - 1280x720 Performance GPU | |
Razer Blade 17 RTX 3080 Ti | |
MSI Vector GP66 12UGS | |
Average of class Gaming (1029 - 72070, n=246, last 2 years) | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (13799 - 42569, n=36) | |
Aorus 17 XE4 (Silence Mode) |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Aorus 17 XE4 (Turbo Mode) | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 | |
Average of class Gaming (15902 - 193851, n=157, last 2 years) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (33126 - 181005, n=25) | |
Aorus 17 XE4 (Silence Mode) | |
1920x1080 Fire Strike Graphics | |
Razer Blade 17 RTX 3080 Ti | |
MSI Vector GP66 12UGS | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (781 - 53059, n=250, last 2 years) | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (22612 - 32550, n=37) | |
Aorus 17 XE4 (Silence Mode) | |
2560x1440 Time Spy Graphics | |
Razer Blade 17 RTX 3080 Ti | |
Average of class Gaming (224 - 22547, n=248, last 2 years) | |
MSI Vector GP66 12UGS | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 (Turbo Mode) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (8142 - 12324, n=37) | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Silence Mode) |
Gaming Performance
The built-in hardware runs all current games smoothly in FHD resolution at maximum settings. Higher resolutions would also be possible when a corresponding monitor is connected - with partially reduced quality settings. Refresh rates are slightly above the RTX 3070 Ti average.
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Razer Blade 17 RTX 3080 Ti | |
MSI Vector GP66 12UGS | |
Average of class Gaming (8.61 - 216, n=244, last 2 years) | |
Aorus 17 XE4 (Turbo Mode) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (76.8 - 124.1, n=39) | |
Aorus 17 XE4 | |
Aorus 17 XE4 (Silence Mode) |
Dota 2 Reborn - 1920x1080 high (2/3) | |
Razer Blade 17 RTX 3080 Ti | |
MSI Vector GP66 12UGS | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (29.9 - 244, n=252, last 2 years) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (75.4 - 170.2, n=38) | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 (Silence Mode) |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
MSI Vector GP66 12UGS | |
Razer Blade 17 RTX 3080 Ti | |
Aorus 17 XE4 (Turbo Mode) | |
Aorus 17 XE4 | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (12.4 - 166.2, n=258, last 2 years) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (51.6 - 116.9, n=37) | |
Aorus 17 XE4 (Silence Mode) |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Razer Blade 17 RTX 3080 Ti (1.3) | |
MSI Vector GP66 12UGS (1.3) | |
Average of class Gaming (9.13 - 194.9, n=241, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (1.3) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (49.5 - 122.4, n=35) | |
Aorus 17 XE4 (1.3, Turbo Mode) | |
Aorus 17 XE4 (1.3) | |
Aorus 17 XE4 (1.3, Silence Mode) |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
MSI Vector GP66 12UGS | |
Aorus 17 XE4 (Turbo Mode) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 | |
Razer Blade 17 RTX 3080 Ti | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (44 - 123.9, n=36) | |
Average of class Gaming (6.38 - 167.7, n=231, last 2 years) | |
Aorus 17 XE4 (Silence Mode) |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Razer Blade 17 RTX 3080 Ti (1.47.22.14 D3D12) | |
MSI Vector GP66 12UGS (1.47.22.14 D3D12) | |
Average of class Gaming (14.6 - 421, n=239, last 2 years) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Aorus 17 XE4 (1.47.22.14 D3D12, Turbo Mode) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (109 - 221, n=37) | |
Aorus 17 XE4 (1.47.22.14 D3D12) | |
Aorus 17 XE4 (1.47.22.14 D3D12, Silence Mode) |
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (852849) | |
Aorus 17 XE4 (868399, Turbo Mode) | |
Average of class Gaming (13.5 - 271, n=73, last 2 years) | |
Aorus 17 XE4 (865624) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (67.3 - 134.2, n=13) |
Far Cry 6 | |
1920x1080 Ultra Graphics Quality + HD Textures AA:T | |
Average of class Gaming (14.7 - 167, n=40, last 2 years) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (82 - 95.3, n=4) | |
1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
Average of class Gaming (51.6 - 119, n=14, last 2 years) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (59 - 77.7, n=2) |
Guardians of the Galaxy | |
1920x1080 Ultra Preset | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (108 - 120, n=2) | |
Average of class Gaming (42 - 163, n=16, last 2 years) | |
Aorus 17 XE4 | |
1920x1080 Ultra Preset + Ultra Ray-Tracing | |
Average of class Gaming (37 - 128, n=12, last 2 years) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (63 - 69, n=2) |
Riders Republic - 1920x1080 Ultra Preset | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (96 - 105, n=2) | |
Average of class Gaming (13 - 179, n=12, last 2 years) |
Forza Horizon 5 - 1920x1080 Extreme Preset | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (76 - 80, n=3) | |
Average of class Gaming (19 - 124, n=14, last 2 years) |
God of War - 1920x1080 Ultra Preset | |
Average of class Gaming (30.6 - 133, n=27, last 2 years) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (55.1 - 64.3, n=5) | |
Aorus 17 XE4 |
Rainbow Six Extraction - 1920x1080 Ultra Preset (with Fixed Resolution Quality) | |
Aorus 17 XE4 | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (138 - 141, n=2) | |
Average of class Gaming (33 - 314, n=19, last 2 years) |
Cyberpunk 2077 1.6 | |
1920x1080 Ultra Preset | |
Razer Blade 17 RTX 3080 Ti | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (16.7 - 159.7, n=113, last 2 years) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (48.5 - 104, n=13) | |
Aorus 17 XE4 (1.52) | |
1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
Average of class Gaming (12.6 - 74, n=45, last 2 years) | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (27.9 - 63, n=7) | |
Aorus 17 XE4 (1.52) |
Elex 2 - 1920x1080 Ultra / On AA:SM AF:16x | |
Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (75 - 89, n=3) | |
Aorus 17 XE4 | |
Average of class Gaming (30.1 - 118.5, n=20, last 2 years) |

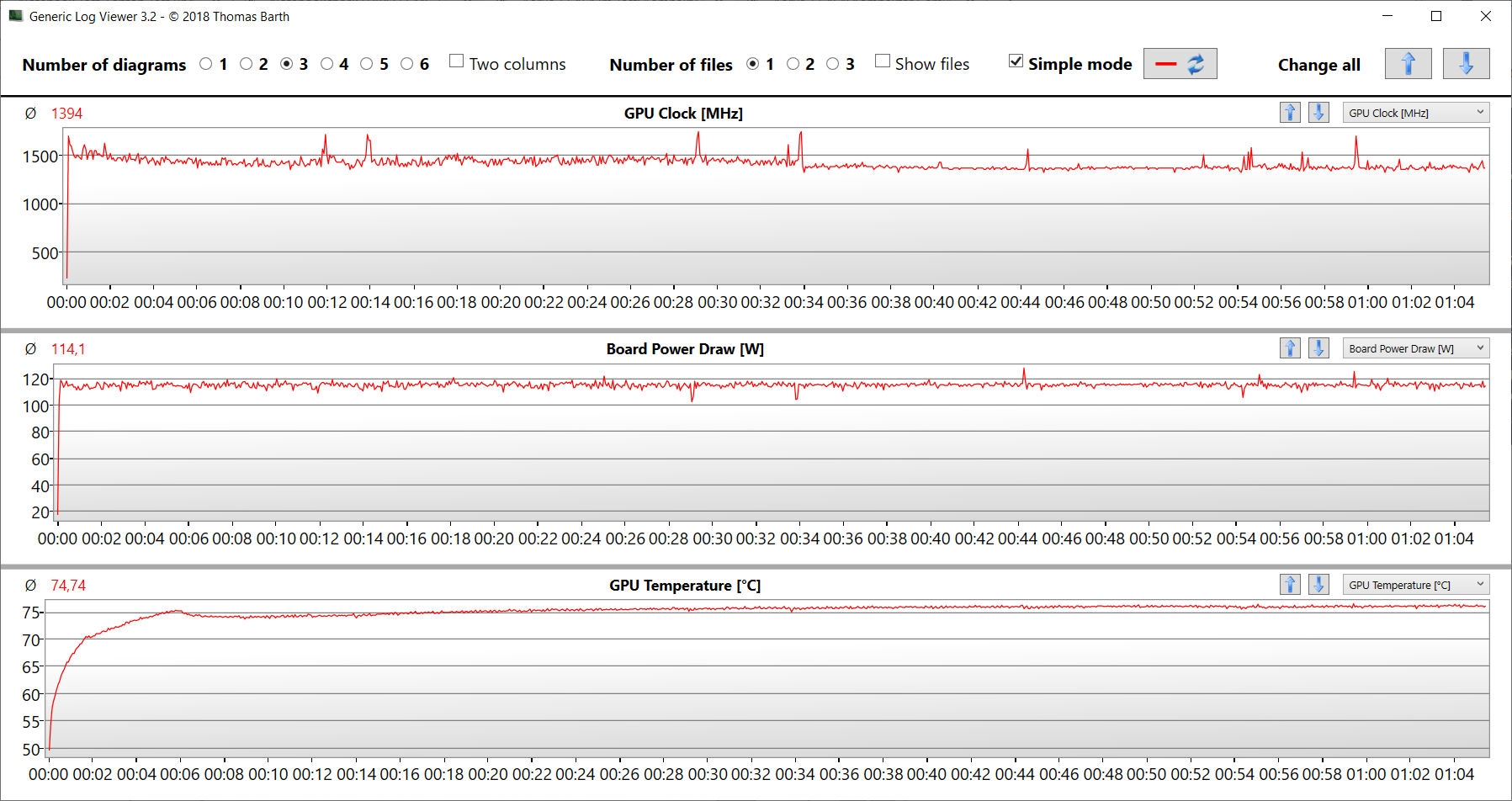

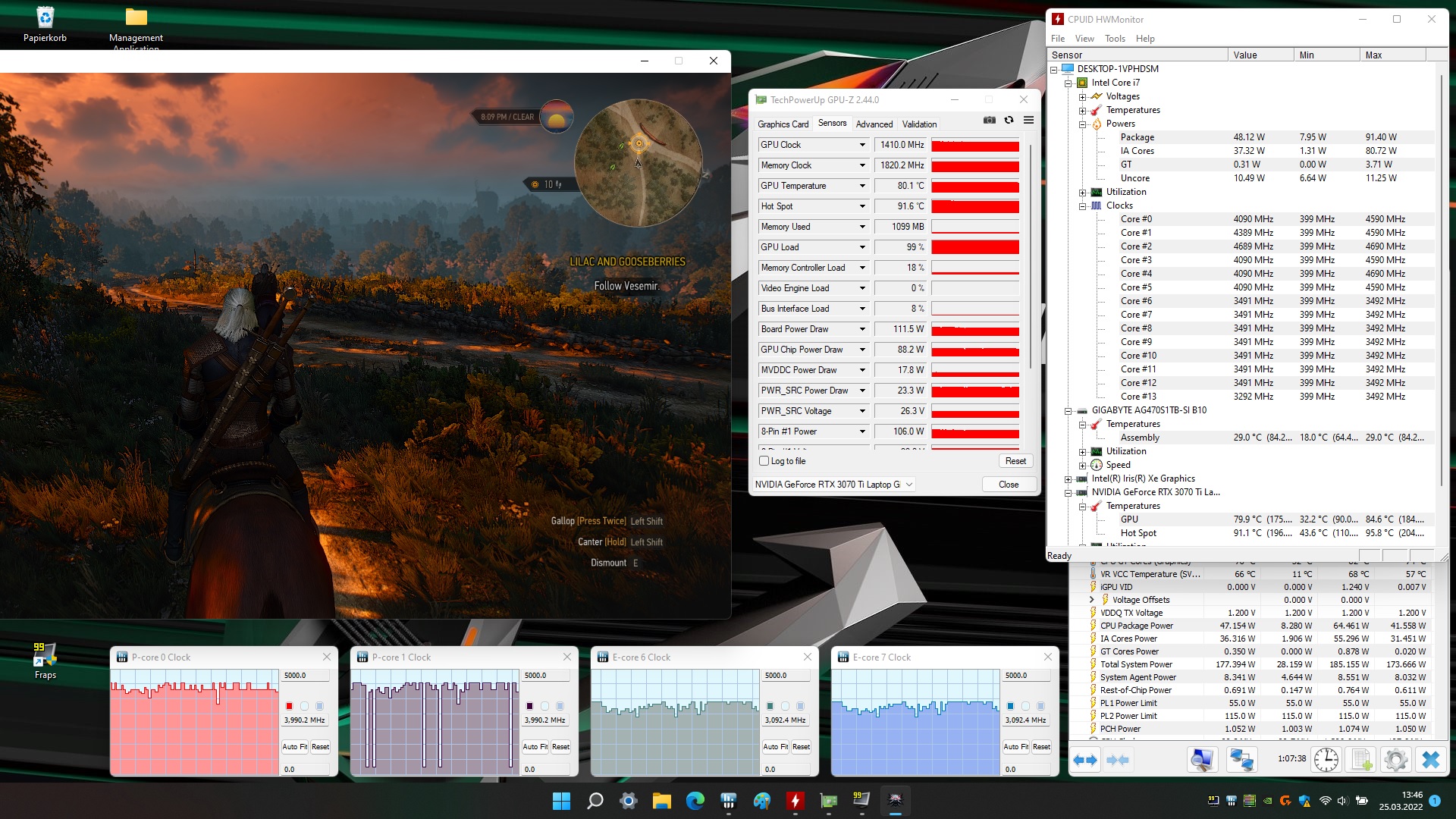

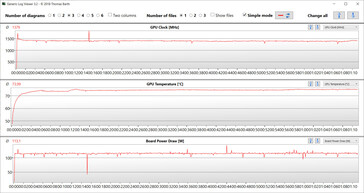

To check whether the frame rates remain largely constant over long periods of time, we ran the game "The Witcher 3" for about 60 minutes in Full HD resolution and at maximum quality settings. The game character was not moved. There was no noticeable drop in frame rates.
Witcher 3 FPS Chart
low | med. | high | ultra | |
GTA V (2015) | 185 | 179 | 175 | 117 |
The Witcher 3 (2015) | 422 | 291 | 180 | 99.9 |
Dota 2 Reborn (2015) | 174 | 155 | 147 | 139 |
Final Fantasy XV Benchmark (2018) | 180 | 126 | 96.5 | |
X-Plane 11.11 (2018) | 147 | 131 | 103 | |
Far Cry 5 (2018) | 177 | 146 | 138 | 130 |
Strange Brigade (2018) | 426 | 244 | 200 | 178 |
Doom Eternal (2020) | 365 | 240 | 207 | 198.4 |
Death Stranding (2020) | 156.9 | 143.1 | 137.9 | 137.1 |
Mafia Definitive Edition (2020) | 161.8 | 119.8 | 111.5 | |
Watch Dogs Legion (2020) | 121 | 106 | 96.3 | 70.6 |
Dirt 5 (2020) | 219 | 136.5 | 111.9 | 88.7 |
Assassin´s Creed Valhalla (2020) | 157 | 107 | 90 | 77 |
Hitman 3 (2021) | 250.8 | 183.5 | 165.5 | 156.9 |
F1 2021 (2021) | 327 | 229 | 196 | 116 |
Alan Wake Remastered (2021) | 169.3 | 136.3 | 130.5 | |
Far Cry 6 (2021) | 149 | 116 | 103 | 95.3 |
Guardians of the Galaxy (2021) | 120 | 109 | 111 | 108 |
Riders Republic (2021) | 189 | 139 | 115 | 105 |
Forza Horizon 5 (2021) | 195 | 130 | 124 | 79 |
Battlefield 2042 (2021) | 136.4 | 111.7 | 101.4 | 90 |
Halo Infinite (2021) | 129.9 | 113.3 | 106.7 | |
God of War (2022) | 124 | 104 | 84.7 | 59.6 |
Rainbow Six Extraction (2022) | 210 | 183 | 177 | 141 |
GRID Legends (2022) | 187.3 | 169.1 | 149.1 | 111.2 |
Cyberpunk 2077 1.6 (2022) | 123 | 108 | 84.2 | 69.7 |
Elex 2 (2022) | 110 | 104 | 88.8 | 80.1 |
Emissions - The Gigabyte Aorus makes a lot of noise
Noise
The Aorus laptop produced normal levels of noise during the entire load range - measured by the hardware. In everyday use (office, internet), noise levels are within limits, but it becomes loud under load (49 to 51 dB(A)). The fans are noticeable in two respects: on the one hand, they wobble slightly, and on the other hand, they emit a whistling noise at higher rotational speeds.
The noise under load can be reduced by using the performance profile "Power Saving Silence Mode" - at the expense of performance. Gaming is still possible at reduced settings.
Noise Level
Idle |
| 30 / 31 / 34 dB(A) |
Load |
| 44 / 49 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24 dB(A) |
Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10 | Razer Blade 17 RTX 3080 Ti GeForce RTX 3080 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR | MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H | |
---|---|---|---|---|
Noise | 12% | 1% | 8% | |
off / environment * | 24 | 23.3 3% | 24.6 -3% | 22.9 5% |
Idle Minimum * | 30 | 23.3 22% | 28.4 5% | 23.4 22% |
Idle Average * | 31 | 23.3 25% | 28.4 8% | 23.4 25% |
Idle Maximum * | 34 | 26.3 23% | 28.4 16% | 27.4 19% |
Load Average * | 44 | 38.2 13% | 49.4 -12% | 36 18% |
Witcher 3 ultra * | 51 | 50.9 -0% | 49.4 3% | 58.2 -14% |
Load Maximum * | 49 | 49.1 -0% | 54.7 -12% | 58 -18% |
* ... smaller is better
Temperature
Case temperatures remain within the green range in everyday use (office, internet). The notebook heats up considerably under load (stress test, Witcher 3). Temperatures just above 60 degrees Celsius occur at some measuring points. The CPU temperatures are not causing concern.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 58 °C / 136 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 27.6 °C / 82 F, compared to the device average of 33.8 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 41.7 °C / 107 F, compared to the device average of 33.8 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36 °C / 96.8 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-7.1 °C / -12.8 F).
Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU | Razer Blade 17 RTX 3080 Ti Intel Core i7-12800H, NVIDIA GeForce RTX 3080 Ti Laptop GPU | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU | MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU | |
---|---|---|---|---|
Heat | -4% | 3% | 3% | |
Maximum Upper Side * | 50 | 46 8% | 45.3 9% | 40.2 20% |
Maximum Bottom * | 58 | 46.8 19% | 61.2 -6% | 43.8 24% |
Idle Upper Side * | 30 | 36.2 -21% | 28.6 5% | 34.8 -16% |
Idle Bottom * | 32 | 38.6 -21% | 31.4 2% | 37 -16% |
* ... smaller is better
Stress Test

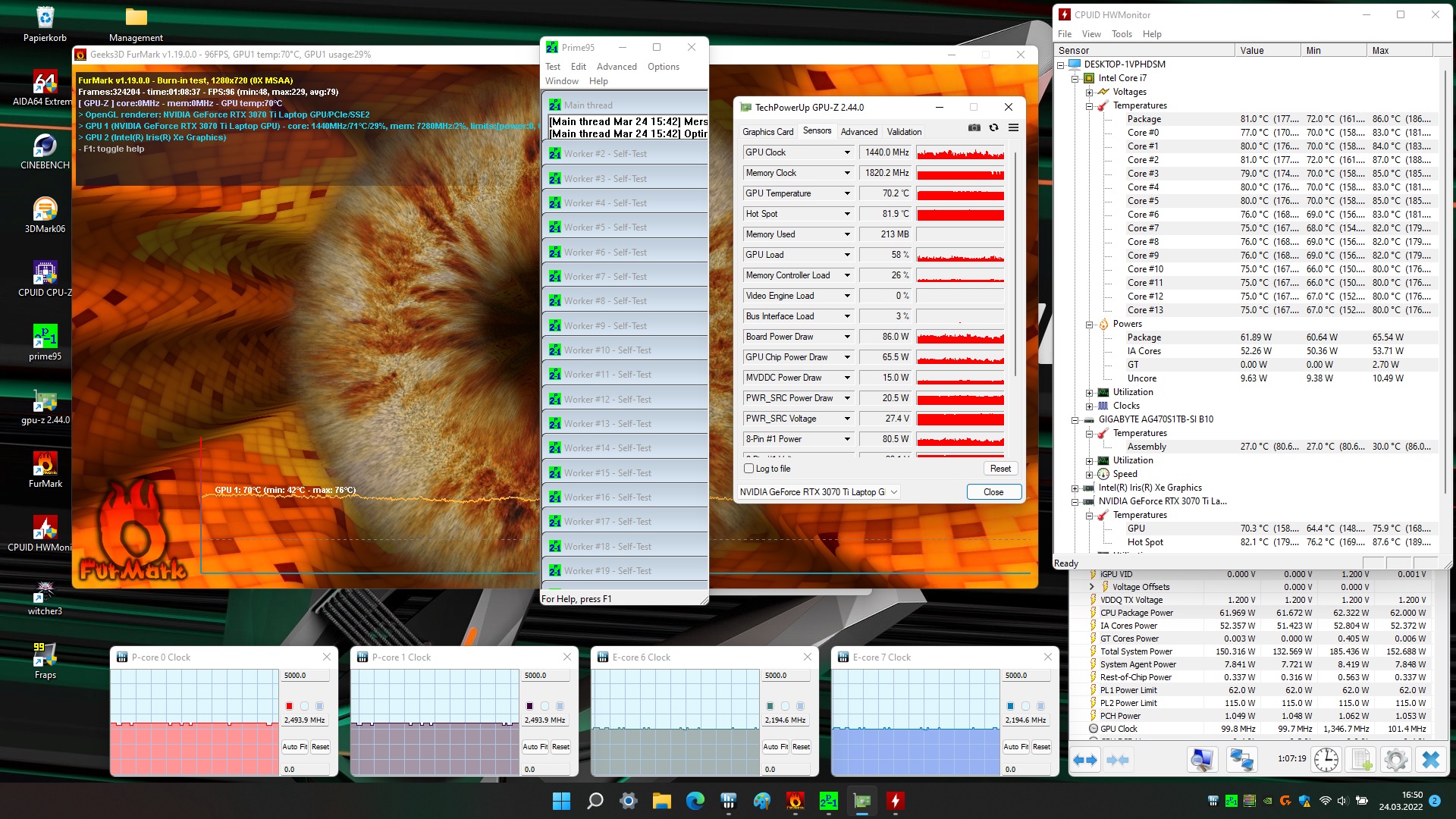

The CPU completed the stress test at 2.5 GHz (P-cores) and 2.2 GHz (E-cores). The GPU runs at speeds of more than 1000 MHz. The stress test represents an extreme scenario. We use this test to check whether the system runs stably under full load.
Speakers
The stereo speakers produce a decent sound that lacks bass. The maximum volume is relatively high. Headphones or external speakers are recommended for a better sound experience.
Aorus 17 XE4 audio analysis
(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.3% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.5% difference to median)
Compared to same class
» 45% of all tested devices in this class were better, 12% similar, 43% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 28% of all tested devices were better, 8% similar, 64% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti audio analysis
(±) | speaker loudness is average but good (79.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.8% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 7% similar, 67% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 81% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Energy Management - The 17.3-incher delivers average battery life
Power Consumption
Power requirements are at a normal level for the hardware installed here. At the beginning of the stress test, power consumption rose to 257 watts for a short time but quickly dropped to around 200 watts. The Witcher 3 test was carried out with an average of 196 watts. The included power adapter (rated output: 240 watts) is sufficiently sized.
Off / Standby | 0.1 / 0.1 Watt |
Idle | 20 / 23 / 28 Watt |
Load |
120 / 257 Watt |
Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Gigabyte AG470S1TB-SI B10, IPS, 1920x1080, 17.30 | Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1440, 17.30 | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16.00 | MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU, , IPS, 1920x1080, 15.60 | Average NVIDIA GeForce RTX 3070 Ti Laptop GPU | Average of class Gaming | |
---|---|---|---|---|---|---|
Power Consumption | -45% | 15% | -9% | 9% | 13% | |
Idle Minimum * | 20 | 29.8 -49% | 8.6 57% | 17.5 12% | 14.2 ? 29% | 13.7 ? 31% |
Idle Average * | 23 | 37.1 -61% | 17.6 23% | 20.1 13% | 19.9 ? 13% | 18.9 ? 18% |
Idle Maximum * | 28 | 60.8 -117% | 18.5 34% | 47.3 -69% | 26.2 ? 6% | 26.5 ? 5% |
Load Average * | 120 | 135.3 -13% | 110 8% | 107.3 11% | 125.8 ? -5% | 111.7 ? 7% |
Witcher 3 ultra * | 196 | 243 -24% | 227 -16% | 225 -15% | ||
Load Maximum * | 257 | 273.1 -6% | 294.6 -15% | 277.7 -8% | 248 ? 4% | 249 ? 3% |
* ... smaller is better
Power Consumption Witcher 3 / Stresstest
Power Consumption with an external monitor
Battery Life
The 17.3-incher achieves runtimes of 5:08 h and 6:06 h in the WLAN test (visiting websites via a script) and video test (short movie Big Buck Bunny (H.264 encoding, FHD) in a loop), respectively. During both tests, the notebook's energy-saving features were deactivated and the display brightness set to around 150 cd/m². The wireless modules were also switched off for the video test.
In short, the Aorus 17 only delivers average battery runtimes. When compared to the battery capacity (99 Wh), this is not particularly impressive. Rival laptops get similar runtimes out of relatively much lower capacities.
Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 99 Wh | Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU, 82 Wh | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 80 Wh | MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU, 65 Wh | Average of class Gaming | |
---|---|---|---|---|---|
Battery Runtime | -9% | -17% | -11% | 6% | |
Reader / Idle | 513 | 482 -6% | 473 -8% | 548 ? 7% | |
H.264 | 366 | 377 3% | 392 ? 7% | ||
WiFi v1.3 | 308 | 330 7% | 326 6% | 342 11% | 365 ? 19% |
Load | 94 | 68 -28% | 37 -61% | 61 -35% | 86 ? -9% |
Pros
Cons
Verdict - A powerful high-end gaming machine
The Aorus 17 is a potent gaming notebook in a 17.3-inch format designed for FHD gaming at maximum settings. A Core i7-12700H processor and GeForce RTX 3070 Ti Laptop GPU make this possible. A lightning-fast PCIe 4 SSD (1 TB) provides the necessary storage space and ensures short loading times.
With the Aorus 17 XE4, Gigabyte delivers a well-rounded, high-performance gaming notebook.
The processor and GPU are capable of operating at high speeds. However: the CPU clock is reduced to a medium turbo-level after short periods. Heating and noise levels are in the usual range - it becomes loud and hot under load. The energy profile "Power Saving Silence Mode" reduces noise, but the decreased computing power is still sufficient for gaming under some restrictions.
The matte display with stable viewing angles (FHD, IPS, 360 Hz) scores in terms of response times, contrast, color representation, and color space coverage. But the brightness is too low, and battery life falls in the average range. Another shortcoming: the battery cannot be charged via the USB-C port (Thunderbolt 4). But the port does offer other options such as connecting an external GPU or a comprehensive docking solution.
As an alternative to the Aorus 17, the Lenovo Legion 5 Pro 16 G7 is a possibility. This gets more performance out of the same CPU-GPU combination and has a much brighter screen in 16:10 format.
Price and Availiability
The Aorus 17 XE4 was not available in any known online store or price search engine at the time of review.
Aorus 17 XE4
-
04/13/2022 v7
Sascha Mölck
