Beelink SER7 mini PC review: Ryzen 7 7840HS with vapor chamber cooling
The SER7 is the latest mini PC from Beelink designed to succeed the older SER6 series. The model sports an updated chassis design when compared to its older siblings as well as newer AMD Zen 4 CPUs
Our review unit comes with the Ryzen 7 7840HS, 32 GB RAM, and 1 TB SSD for approximately $730 USD. There are currently no other configurations at the moment or even a barebones option.
Alternatives to the SER7 include other small mini PCs like the Lenovo IdeaCentre Mini, Intel NUC 13 Pro, or the Minisforum Venus NPB5. The Beelink SER series is distinct from the GTR series which consists of larger mini PCs with higher-end Ryzen 9 options.
More Beelink reviews:
Potential Competitors in Comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Best Price |
---|---|---|---|---|---|---|---|
86.6 % | 09/2023 | Beelink SER7 R7 7840HS, Radeon 780M | 640 g | 49 mm | x | ||
81 % | 09/2023 | Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs | 1.8 kg | 39 mm | x | ||
83.1 % | 08/2023 | Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs | 558 g | 37 mm | x | ||
81.7 % | 08/2023 | Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs | 604 g | 55 mm | x | ||
84.8 % | 04/2023 | Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M | 506 g | 42 mm | x | ||
86.3 % | 07/2023 | Beelink GTR7 7840HS R7 7840HS, Radeon 780M | 890 g | 48.8 mm | x |

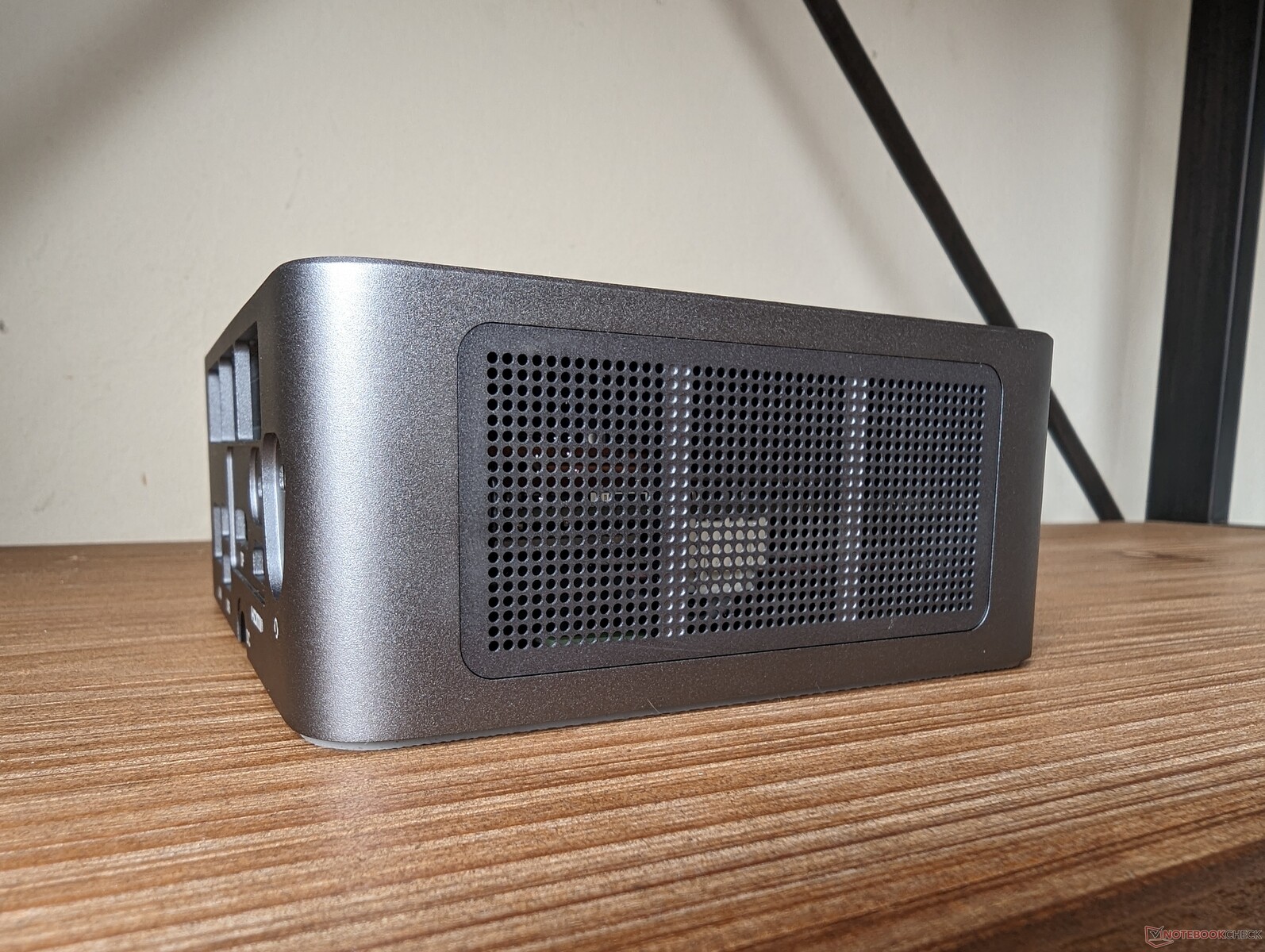

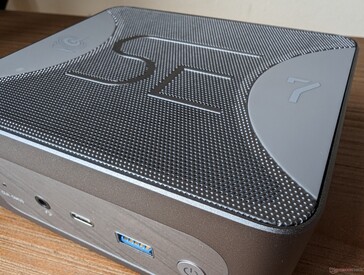

Case — Gunmetal Look
Beelink has dropped the removable top covers on older models in favor of a more fixed look and construction. The matte metal and ABS plastic surfaces are firm on each side including on the many ventilation grilles surrounding the unit. The SER7 is not a cheaply made or overlay plastic mini PC in any sense of the word.

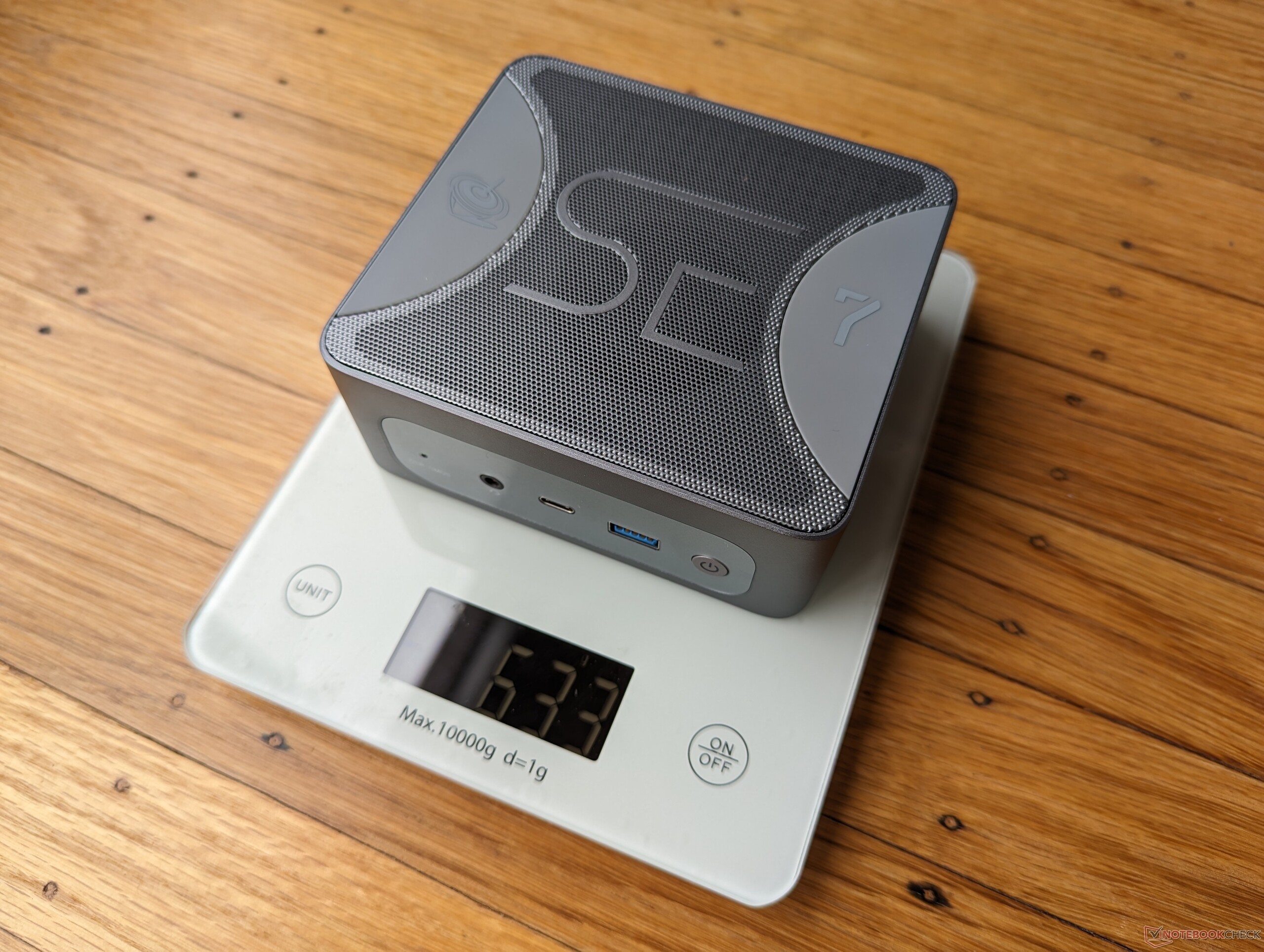

The unit is both heavier and thicker than older Beelink SER or SEI models due to the new integrated vapor chamber. It's not as large as the GTR or GTI series, but the size increase is nonetheless noticeable when compared to traditional Intel NUCs.

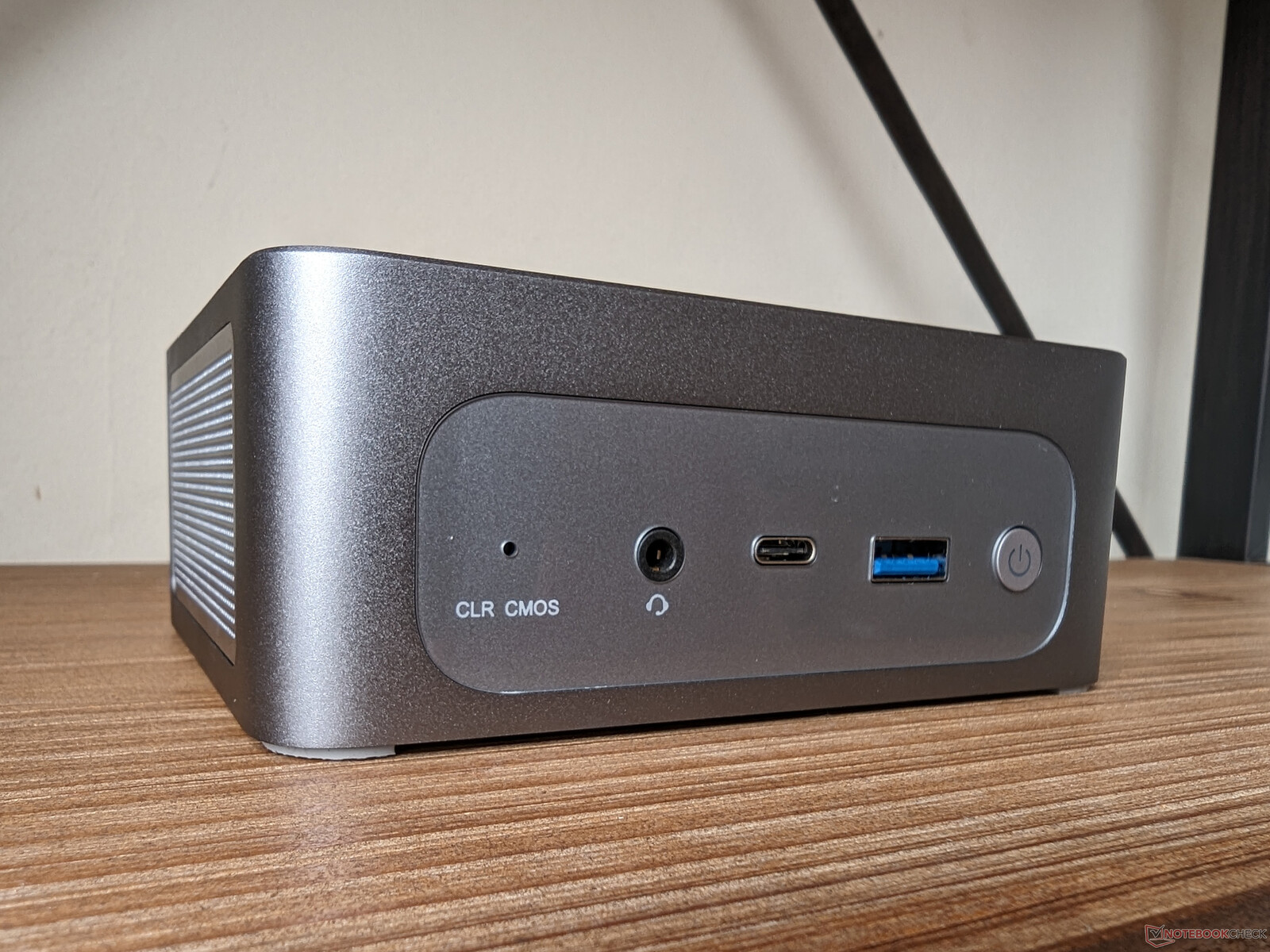

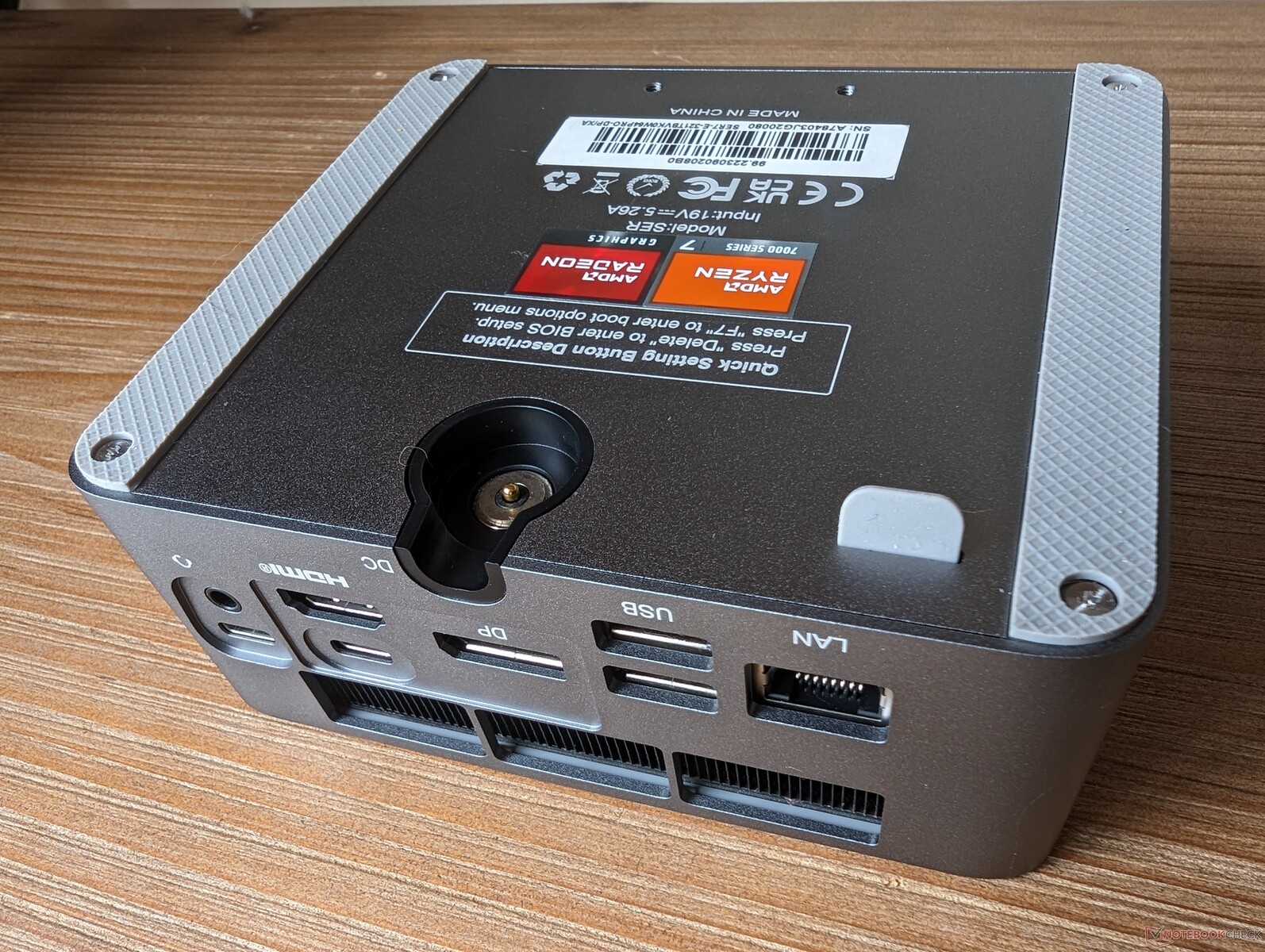

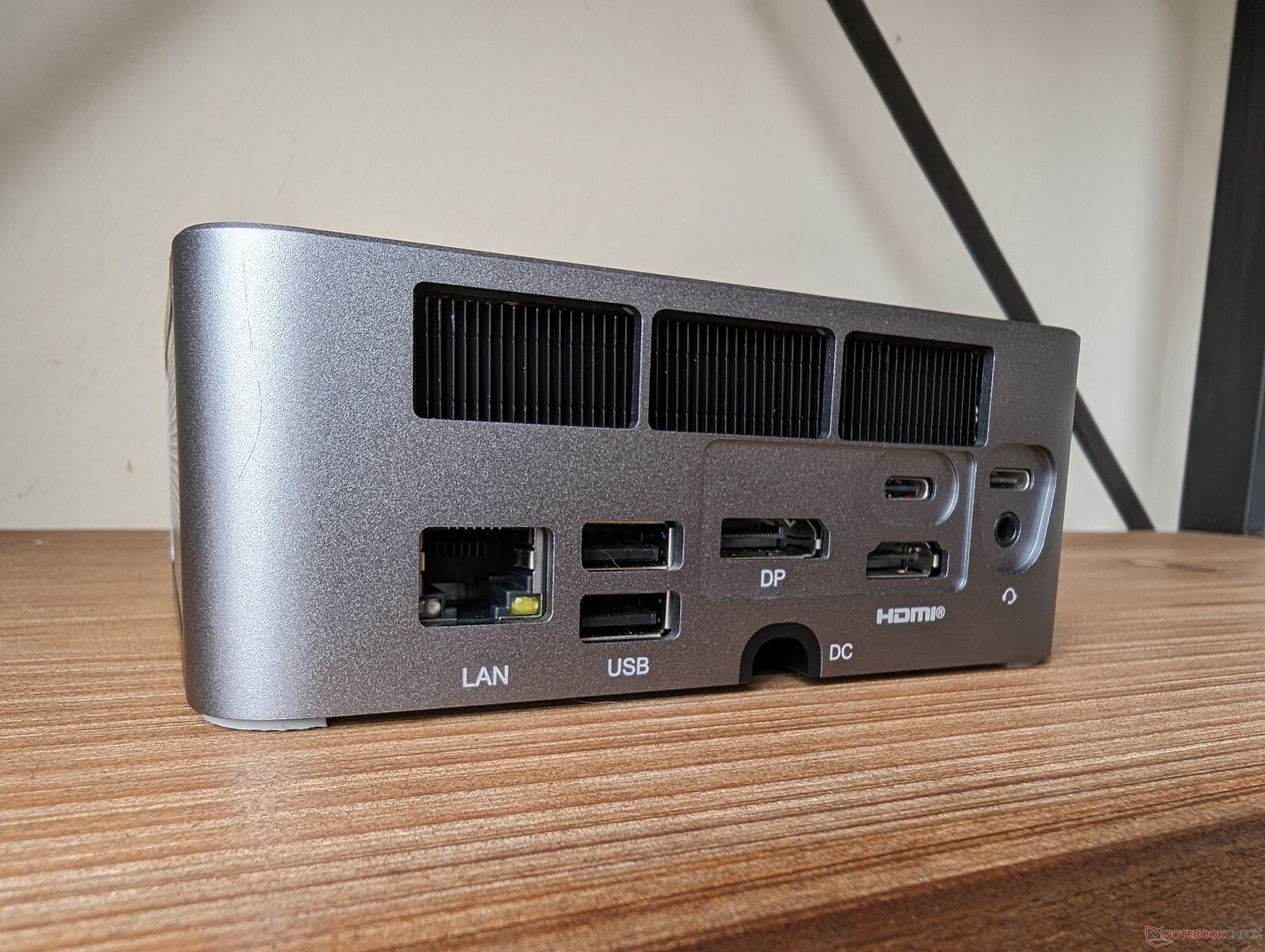

Connectivity — Lots Of USB-C
The SER7 addresses one of our main complaints about older Beelink models by integrating multiple USB-C ports instead of only one. In fact, the system includes three USB-C ports which is more than what most other mini PCs offer. Two of the USB-C ports are also USB4 meaning eGPUs are fully supported.
The dual 3.5 mm headphone jacks are also notable for more expansive audio support.

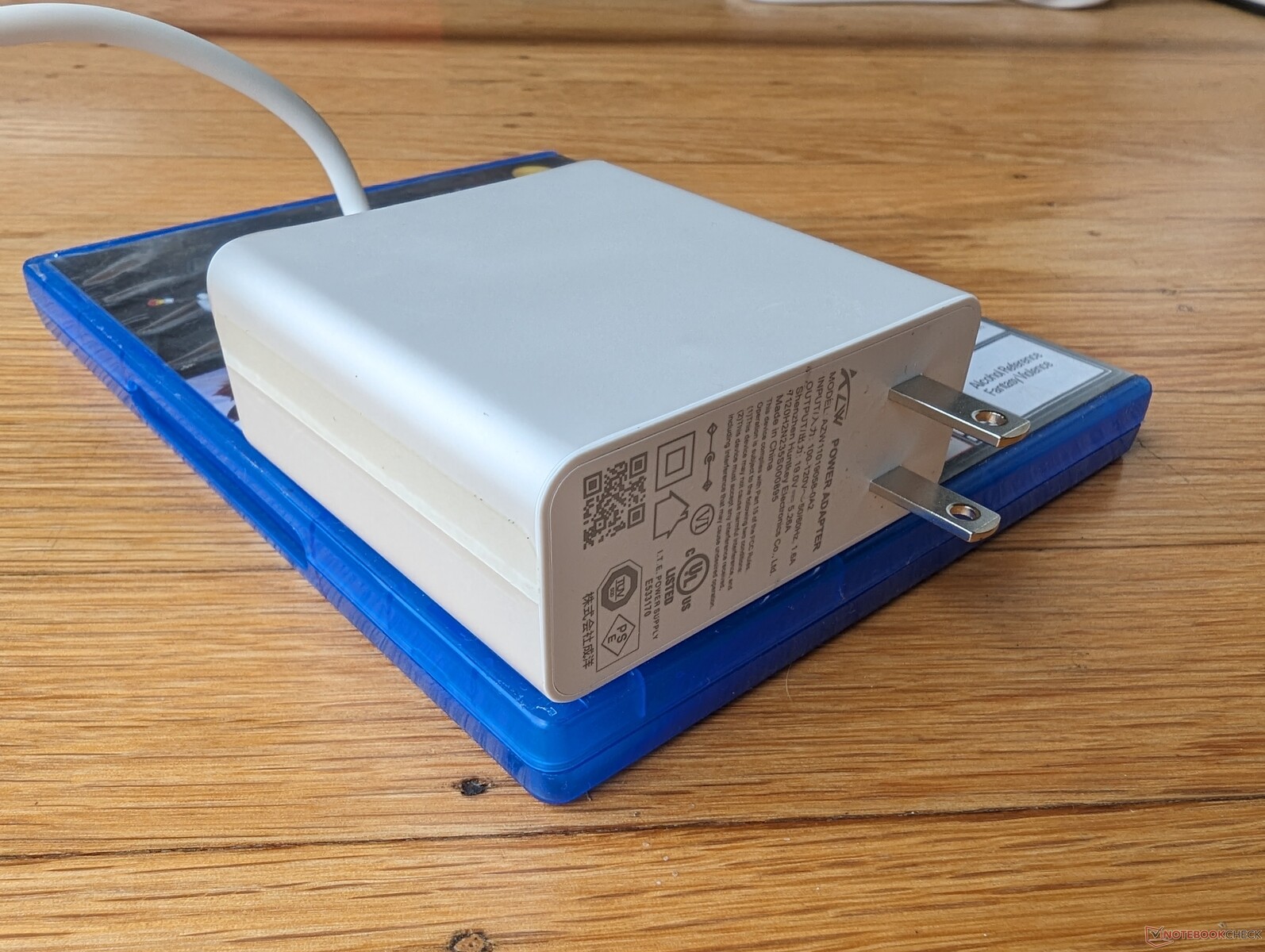

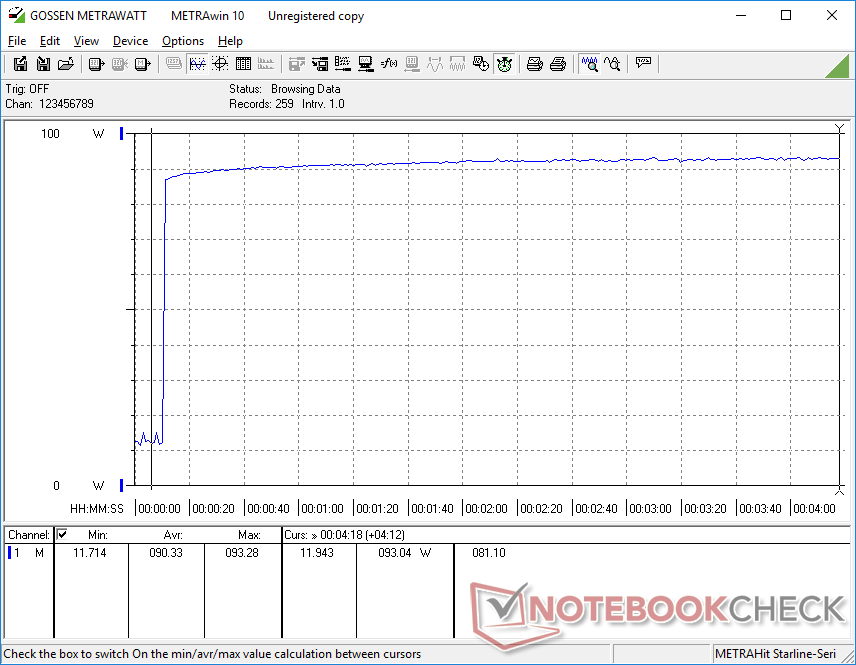

Note that USB-C Power Delivery is supported up to 100 W meaning you can use third-party USB-C AC adapters to power unit should you ever lose the proprietary AC adapter that ships with the box. However, the model appears to be picky with which USB-C AC adapters are supported. For example, our 130 W USB-C AC adapter from Dell would not power on the SER7 at all while our 140 W USB-C AC adapter from Lenovo would work without any issues.
There is no Kensington lock unlike on the Intel NUC series.
Communication
For one reason or another, Beelink is still shipping its fastest mini PCs with last generation Wi-Fi modules. The Intel AX200 in our unit does not support Wi-Fi 6E unlike on the Intel NUC 13 Pro which ships with the newer Intel AX211. While Wi-Fi 6E isn't always faster than Wi-Fi 6, it still provides lower latency to improve common HTPC applications like game streaming via cloud.
Networking | |
iperf3 transmit AXE11000 | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Beelink GTR7 7840HS | |
Minisforum Venus Series NPB5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
iperf3 receive AXE11000 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Beelink GTR7 7840HS | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
iperf3 transmit AXE11000 6GHz | |
Intel NUC 13 Pro Desk Edition Kit | |
iperf3 receive AXE11000 6GHz | |
Intel NUC 13 Pro Desk Edition Kit |

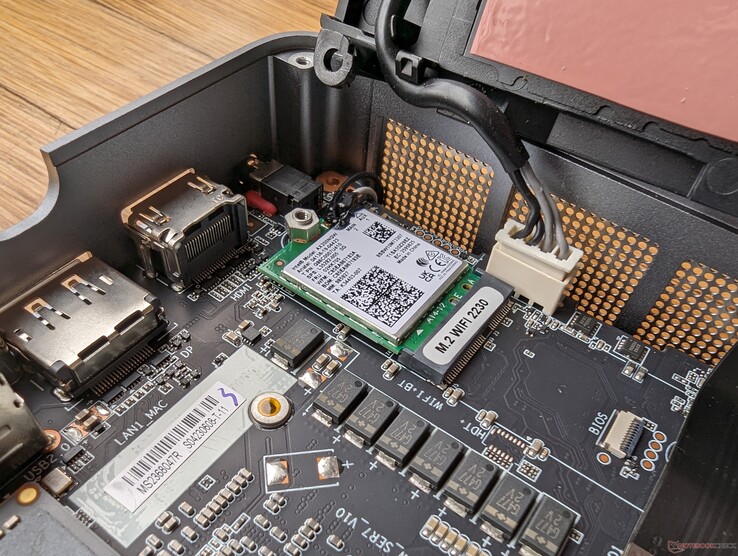

Maintenance

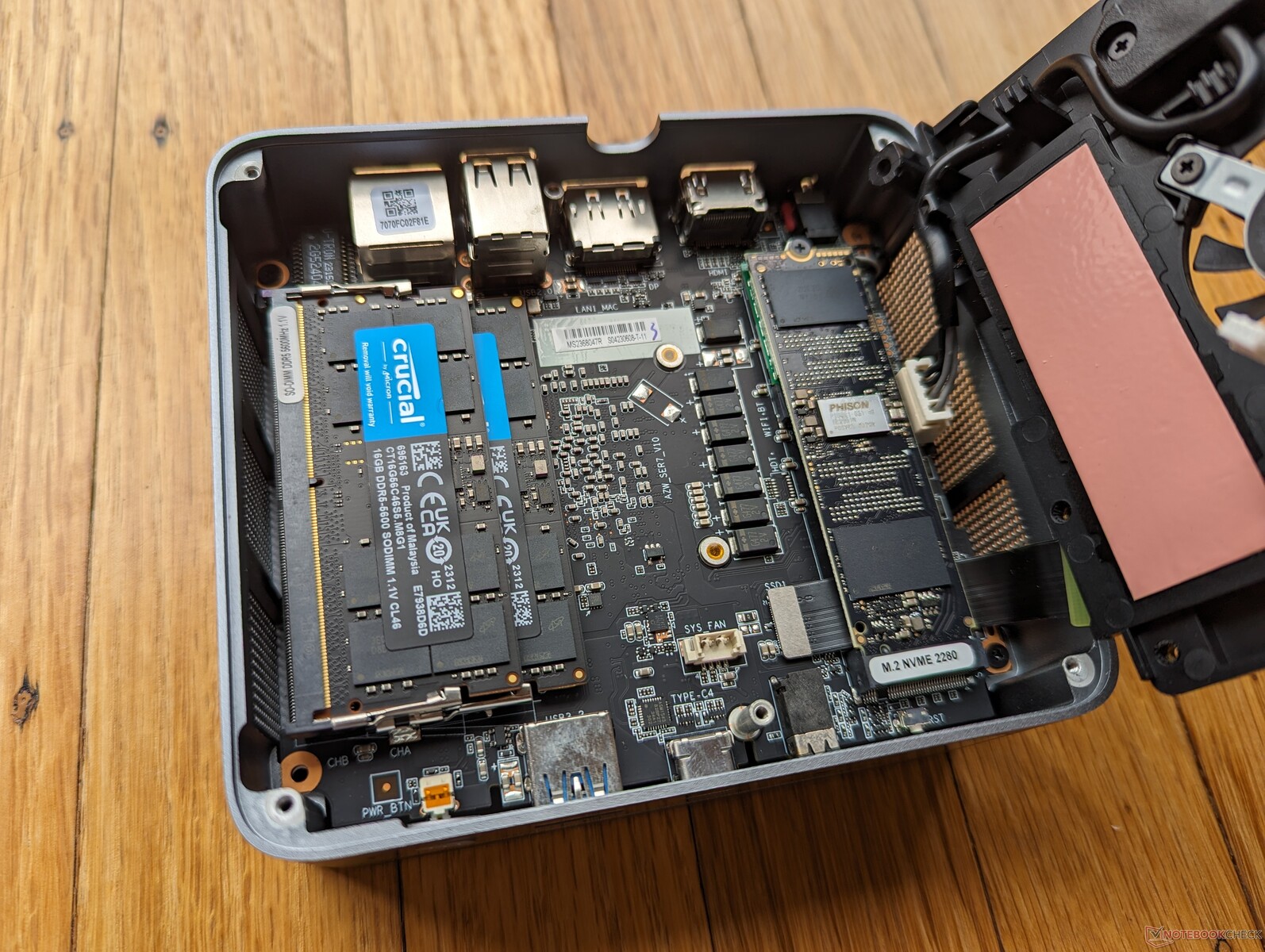

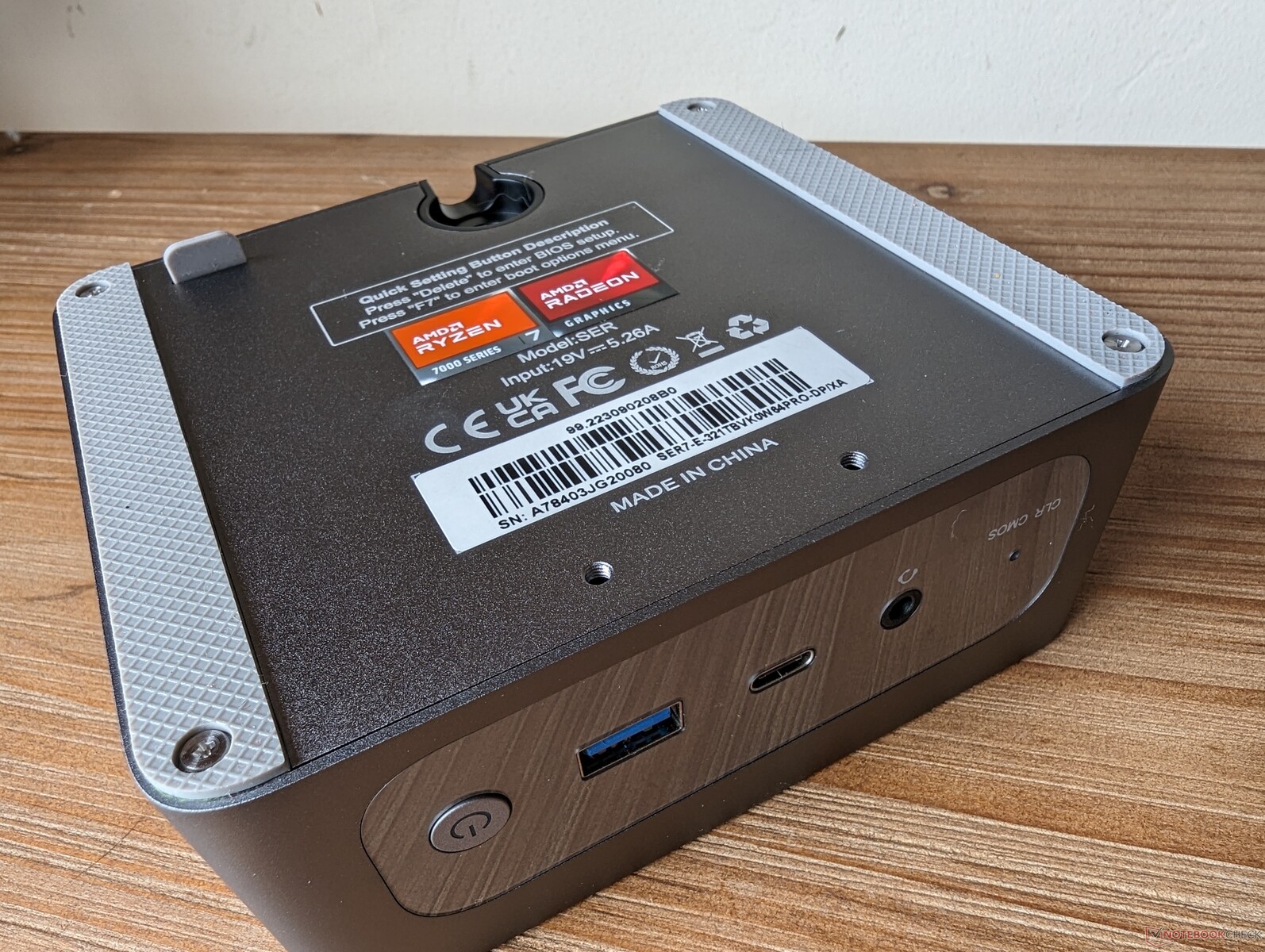

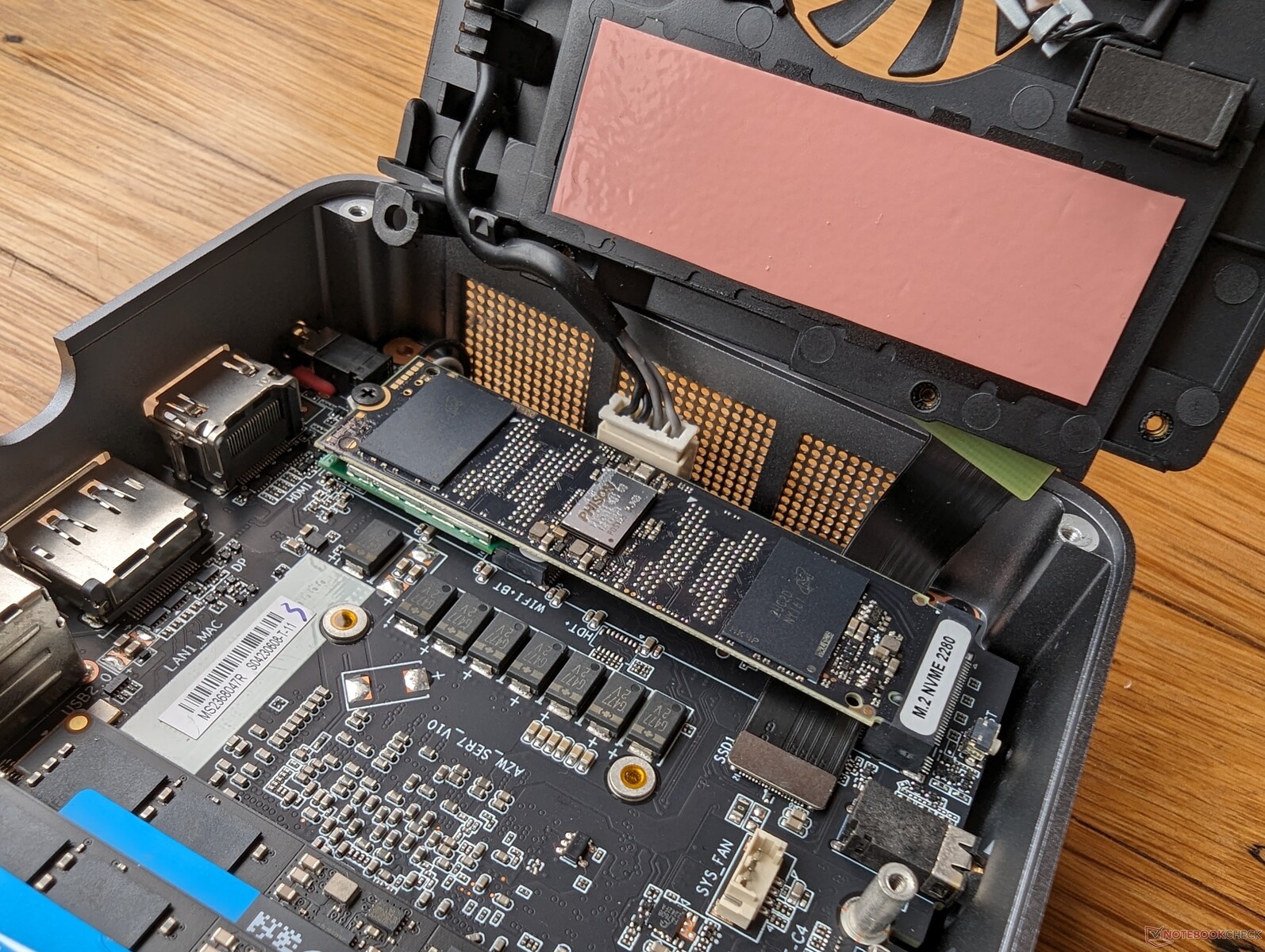

Servicing requires more steps than on an Intel NUC. Firstly, the bottom is secured by four Phillips screws and removing it reveals the fan bracket and secondary SSD slot as shown by the image below. Then, an additional set of screws must be removed from the fan bracket to reveal the motherboard underneath. The screws are of different lengths and it is important to not mix them up during reassembly.
The vapor chamber is on the other side of the motherboard facing upwards. Beelink discourages access to this side of the board.
Accessories And Warranty
The retail box includes a wall-mounted VESA bracket with screws, AC power adapter, and two HDMI cables. The AC adapter is unique when compared to other manufacturers as it attaches magnetically to the bottom of the SER7 to prevent accidental disconnects.
Performance — AMD Zen 4 Looking Good
Testing Conditions
We set out unit to Performance mode via Windows prior to running the benchmarks below. Beelink includes no control center-like software for toggling any special features.
Processor
Ryzen 7 7840HS performance is excellent with multi-thread results that are roughly 10 percent faster than the competing Core i7-13700H to easily outperform any Intel Core U or Core P processors currently available by relatively wide margins. Users demanding more performance will have to look at Core i9-13900K or Ryzen 9 7945HX solutions, but such processors are well beyond the power envelope of our HS-series CPU.

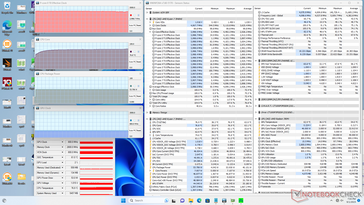

Performance stability is also excellent and better than most mini PCs powered by Core U or Core P CPUs. Processor performance in the Intel NUC 12 Pro, for example, would dip by about 20 percent over time when running CineBench R15 xT in a loop whereas our Beelink would remain flat throughout. This can be partly attributed to the vapor chamber cooler of the SER7 design.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Beelink GTR7 7840HS | |
Beelink SER7 | |
Average AMD Ryzen 7 7840HS | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / FP32 Ray-Trace | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (24712 - 28921, n=17) | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 |
AIDA64 / FPU Julia | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (103755 - 123167, n=17) | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / CPU SHA3 | |
Beelink GTR7 7840HS | |
Beelink SER7 | |
Average AMD Ryzen 7 7840HS (4293 - 5096, n=17) | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / CPU Queen | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (105028 - 122681, n=17) | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 |
AIDA64 / FPU SinJulia | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (14385 - 15525, n=17) | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / FPU Mandel | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (55540 - 65812, n=17) | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / CPU AES | |
Beelink GTR7 7840HS | |
Beelink SER7 | |
Average AMD Ryzen 7 7840HS (67389 - 177158, n=17) | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Minisforum Venus Series NPB5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / CPU ZLib | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (949 - 1123, n=17) | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER7 | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER6 Pro Ryzen 7 7735HS |
AIDA64 / FP64 Ray-Trace | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (13100 - 15599, n=17) | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit |
AIDA64 / CPU PhotoWorxx | |
Beelink SER7 | |
Beelink GTR7 7840HS | |
Minisforum Venus Series NPB5 | |
Average AMD Ryzen 7 7840HS (17615 - 41157, n=17) | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 |
System Performance
PCMark scores are some of the highest of any mini PC with no discrete GPU. Even the larger and heavier Lenovo IdeaCentre Mini Gen 8 trails behind our AMD Zen 4 solution.
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (7039 - 7651, n=7) | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Minisforum Venus Series NPB5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit |
PCMark 10 / Essentials | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink GTR7 7840HS | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Minisforum Venus Series NPB5 | |
Intel NUC 13 Pro Desk Edition Kit | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (10519 - 11214, n=7) | |
Beelink SER7 |
PCMark 10 / Productivity | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (9717 - 10970, n=7) | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Minisforum Venus Series NPB5 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit |
PCMark 10 / Digital Content Creation | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (9052 - 9987, n=7) | |
Beelink GTR7 7840HS | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 | |
Minisforum Venus Series NPB5 |
CrossMark / Overall | |
Minisforum Venus Series NPB5 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1566 - 1873, n=7) | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER7 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink GTR7 7840HS |
CrossMark / Productivity | |
Minisforum Venus Series NPB5 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Lenovo IdeaCentre Mini 01IRH8 | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1535 - 1816, n=7) | |
Beelink SER7 | |
Beelink GTR7 7840HS | |
Intel NUC 13 Pro Desk Edition Kit |
CrossMark / Creativity | |
Minisforum Venus Series NPB5 | |
Beelink SER7 | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1556 - 2040, n=7) | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink GTR7 7840HS |
CrossMark / Responsiveness | |
Minisforum Venus Series NPB5 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS, AMD Radeon 780M (1293 - 1706, n=7) | |
Lenovo IdeaCentre Mini 01IRH8 | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER7 |

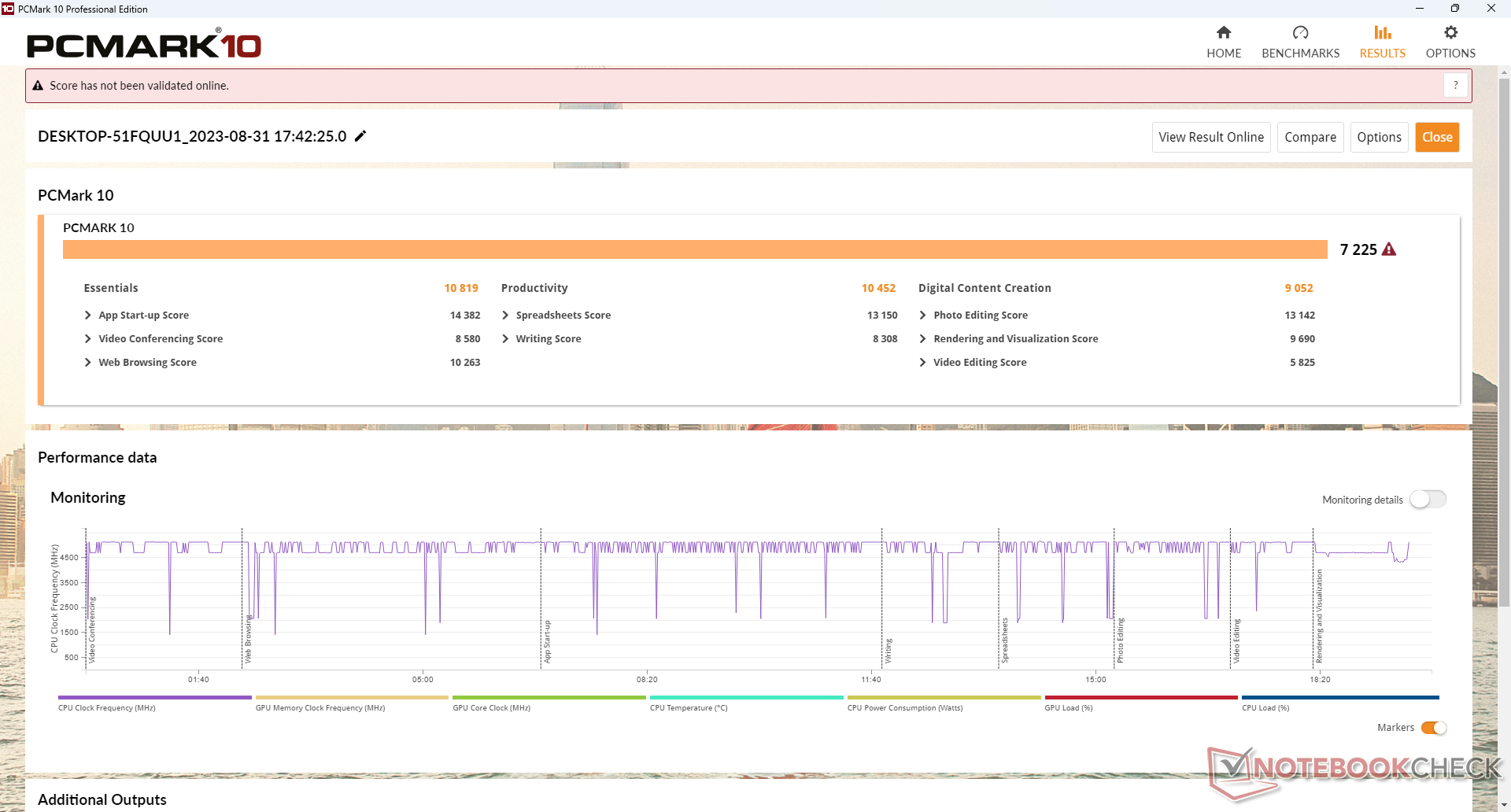

PCMark 10 Score | 7225 points | |
Help |
AIDA64 / Memory Copy | |
Beelink SER7 | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (30937 - 72158, n=17) | |
Minisforum Venus Series NPB5 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 |
AIDA64 / Memory Read | |
Minisforum Venus Series NPB5 | |
Beelink SER7 | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (30497 - 61911, n=17) | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 |
AIDA64 / Memory Write | |
Beelink SER7 | |
Beelink GTR7 7840HS | |
Average AMD Ryzen 7 7840HS (34590 - 93323, n=17) | |
Minisforum Venus Series NPB5 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Lenovo IdeaCentre Mini 01IRH8 |
AIDA64 / Memory Latency | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 | |
Average AMD Ryzen 7 7840HS (85.1 - 112, n=17) | |
Beelink GTR7 7840HS | |
Beelink SER7 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Lenovo IdeaCentre Mini 01IRH8 |
* ... smaller is better

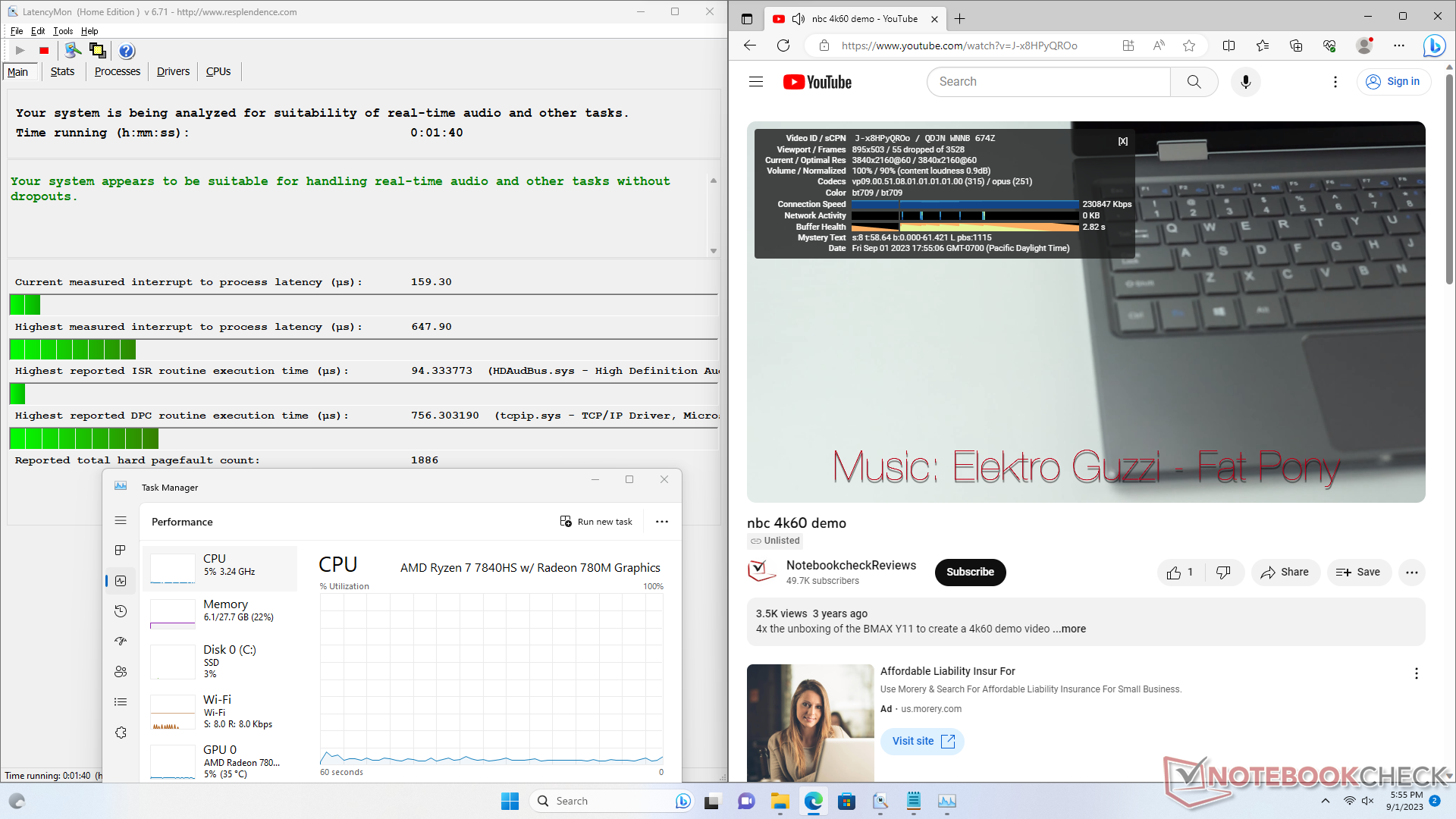

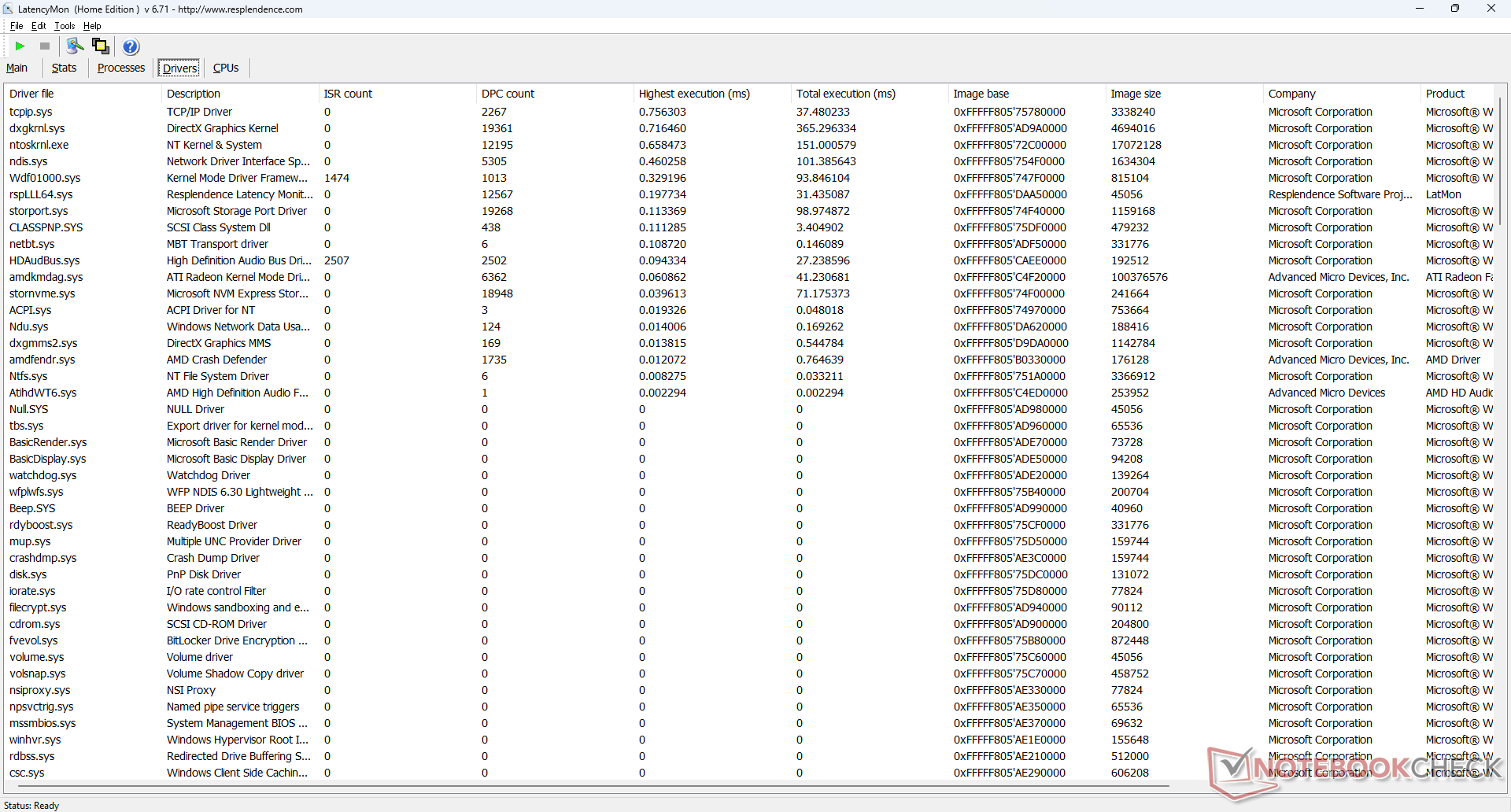

DPC Latency
LatencyMon reveals no major DPC issues when opening multiple browser tabs of our homepage. Unfortunately, 4K video playback at 60 FPS is problematic with 55 dropped frames recorded within a 60 second timespan. The CPU and GPU are more than capable of 4K60 video playback and so this suggests underlying driver issues with the SER7. The dropped frames manifest as occasional stutters during 4K60 video streaming.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Minisforum Venus Series NPB5 | |
Beelink GTR7 7840HS | |
Beelink SER7 |
* ... smaller is better
Storage Devices

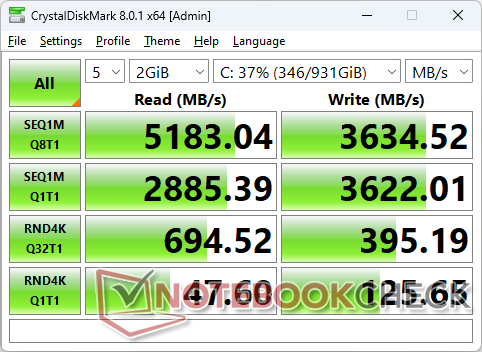

Perhaps unsurprisingly, the SER7 ships with the same Crucial P3 Plus CT1000P3PSSD8 NVMe SSD as found on other models from the same manufacturer including the GTR7. Transfer rates, however, are slower than expected in regards to write performance even after multiple retests. DiskSpeed shows poor performance when it comes to q8 t1 and 4k q1 t1 blocks.
Drive Performance Rating - Percent | |
Minisforum Venus Series NPB5 | |
Beelink GTR7 7840HS | |
Intel NUC 13 Pro Desk Edition Kit | |
Beelink SER7 | |
Lenovo IdeaCentre Mini 01IRH8 | |
Beelink SER6 Pro Ryzen 7 7735HS |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8

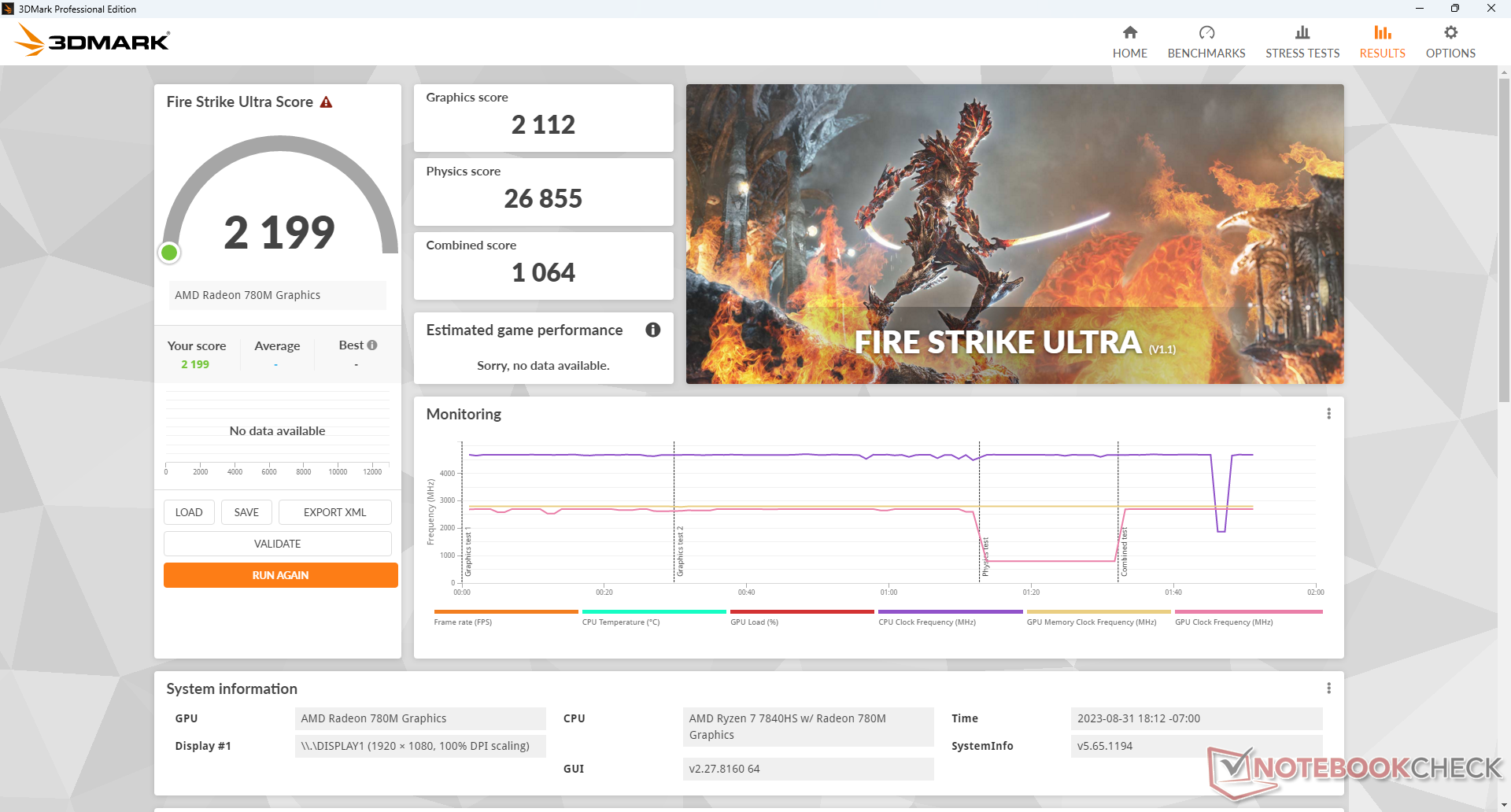

GPU Performance

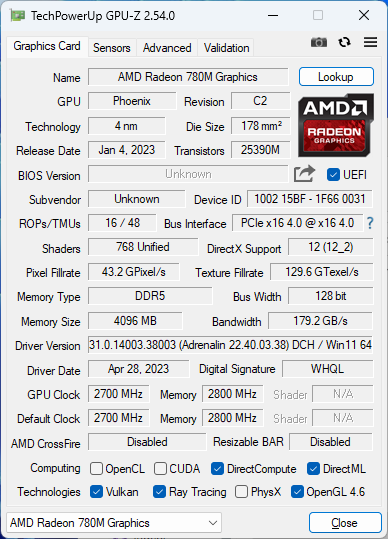

Graphics performance is about 10 to 20 percent faster than the Radeon 680M in the older SER6 Pro. The advantages are greater when running DX12 titles than on DX11 and so it is recommended to enable DX12 when possible. The Radeon 780M GPU makes the competing Iris Xe 96 EUs look like old technology with performance levels that are 40 to 75 percent faster than the Intel solution.

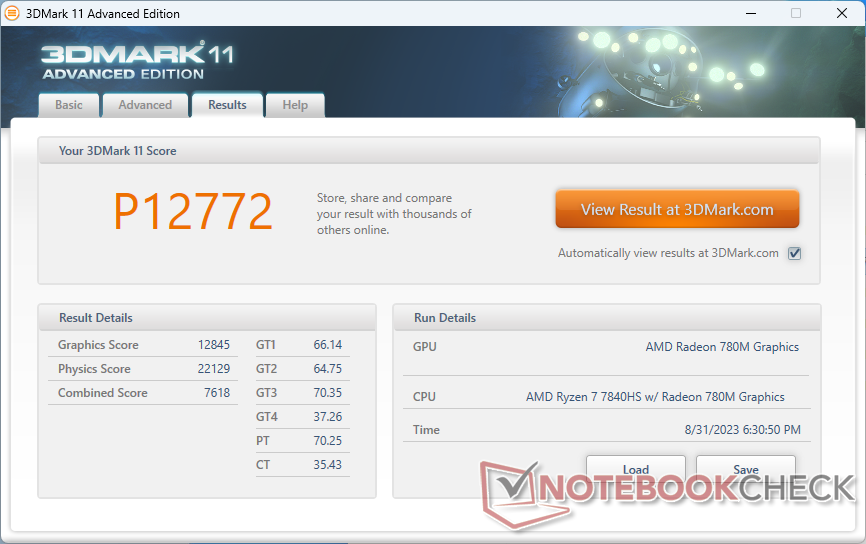

3DMark 11 Performance | 12772 points | |

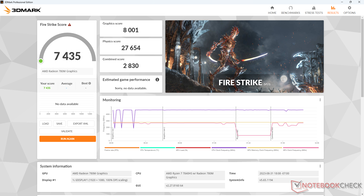

3DMark Fire Strike Score | 7435 points | |

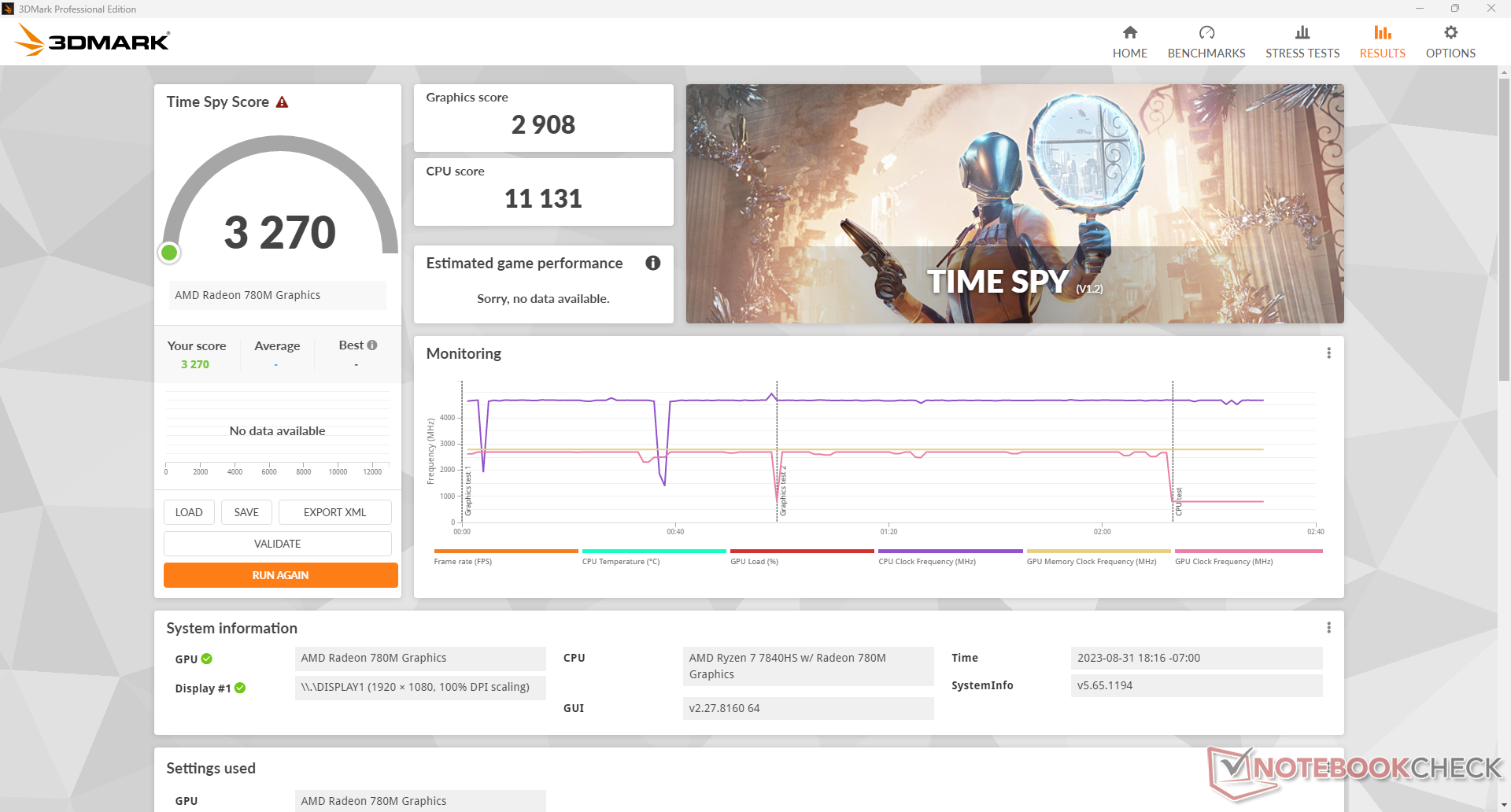

3DMark Time Spy Score | 3270 points | |
Help |
* ... smaller is better
Gaming Performance
The Radeon 680M was the fastest integrated GPU solution for gaming when it launched last year and the new Radeon 780M is even faster. The SER7 is able to run modern titles like F1 22 at 1080p and low to low-medium settings while maintaining performance levels close to 60 FPS. More demanding titles like Cyberpunk 2077 require lower settings in order to maintain frame rates above 30 FPS, but native 1080p is nonetheless possible.
Keep in mind that FreeSync is supported and it's highly recommended since the Radeon 780M will often run games in the 45 to 60 FPS range.
Witcher 3 FPS Chart
low | med. | high | ultra | |
GTA V (2015) | 166 | 158.4 | 68.3 | 27.5 |
The Witcher 3 (2015) | 148.1 | 97.1 | 49 | 30.5 |
Dota 2 Reborn (2015) | 156.9 | 121.1 | 95.5 | 85.6 |
Final Fantasy XV Benchmark (2018) | 76.5 | 38.2 | 28.5 | |
X-Plane 11.11 (2018) | 57.8 | 43.5 | 36.5 | |
Far Cry 5 (2018) | 84 | 50 | 46 | 44 |
Strange Brigade (2018) | 163.2 | 65.6 | 55.6 | 48.2 |
Cyberpunk 2077 1.6 (2022) | 43.9 | 34.6 | 26.9 | 24.8 |
Tiny Tina's Wonderlands (2022) | 71.6 | 52 | 37.1 | 30 |
F1 22 (2022) | 94.6 | 85.7 | 63 | 17.7 |
Emissions
System Noise — Slow And Gradual
The cooling solution consists of two fans: one larger one atop the vapor chamber and another smaller one for the SSD and motherboard. Fan noise generally hovers around the 29 dB(A) range against a silent background of 25 dB(A) when running undemanding loads which is barely noticeable. The most important part is that the internal fans do not pulse as readily as on older Beelink models and so any changes to RPM are gradual instead of sudden. This behavior is preferable as fans that speed up and slow down too very quickly tend to be more audible.
Running demanding loads like Witcher 3 would induce a fan noise of 35.6 dB(A) which is louder than on the larger IdeaCentre Mini. This can rise to the mid 40 dB(A) range if gaming for extended periods to be similar to many gaming laptops. The system thankfully never reaches such high highs if used primarily for streaming purposes.
We're able to notice slight coil whining on our unit, but it is not loud enough to be bothersome.

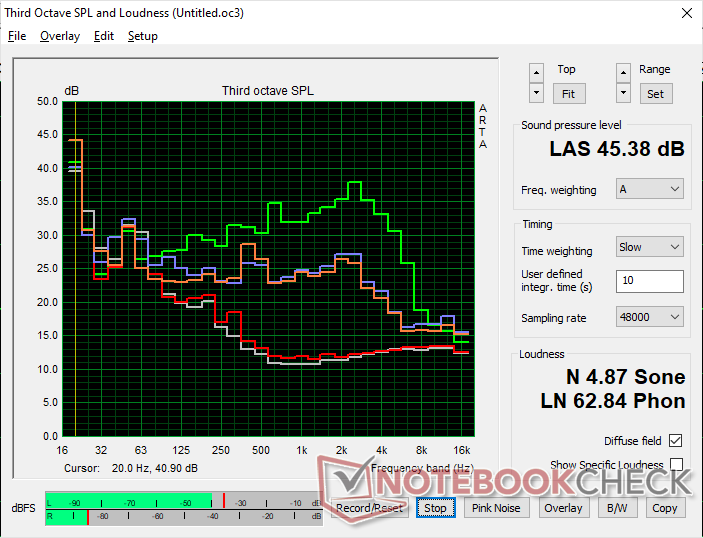

Noise Level
Idle |
| 25.1 / 25.1 / 25.1 dB(A) |
Load |
| 35.9 / 45.4 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.5 dB(A) |
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8 | Lenovo IdeaCentre Mini 01IRH8 Iris Xe G7 96EUs, i7-13700H, Samsung PM9B1 512GB MZVL4512HBLU | Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ | Minisforum Venus Series NPB5 Iris Xe G7 80EUs, i5-13500H, Kingston OM8PGP4512Q-A0 | Beelink SER6 Pro Ryzen 7 7735HS Radeon 680M, R7 7735HS, Kingston NV2 500GB SNV2S/500G | Beelink GTR7 7840HS Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8 | |
---|---|---|---|---|---|---|
Noise | -4% | -8% | -7% | 1% | -5% | |
off / environment * | 24.5 | 23.4 4% | 25.2 -3% | 25.1 -2% | 23.3 5% | 25.6 -4% |
Idle Minimum * | 25.1 | 30.4 -21% | 28.1 -12% | 27.8 -11% | 23.3 7% | 28.1 -12% |
Idle Average * | 25.1 | 30.4 -21% | 28.2 -12% | 27.8 -11% | 23.3 7% | 28.1 -12% |
Idle Maximum * | 25.1 | 30.4 -21% | 28.3 -13% | 27.9 -11% | 26.2 -4% | 28.1 -12% |
Load Average * | 35.9 | 30.7 14% | 42 -17% | 38.9 -8% | 40.2 -12% | 34.9 3% |
Witcher 3 ultra * | 35.6 | 33.9 5% | 37 -4% | 36.4 -2% | ||
Load Maximum * | 45.4 | 41 10% | 42.1 7% | 45.8 -1% | 40.2 11% | 42.4 7% |
* ... smaller is better
Temperature
Surface temperatures can be as warm as 60 C when running high loads like games, but the hot spots are only toward the rear near the ventilation grilles as shown by the heat maps below. The rest of the mini PC remains relatively cool with fresh air entering from the top. It's not recommended to place any items on top of the unit due to how the cooling solution works. Other mini PCs like the NUC 11 or IdeaCentre Mini draw fresh air from the sides instead in contrast to our Beelink.
Stress Test

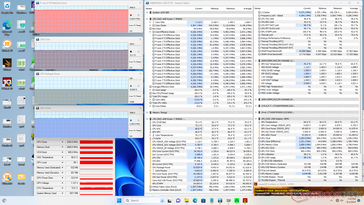

The CPU would boost to 4.1 GHz and 54 W when initiating Prime95 stress. It is able to maintain this rate and at a stable core temperature of 77 C with no major throttling issues. This is notable as other mini PCs, such as the Lenovo IdeaCentre Mini, may throttle to lower clock rates over time when subjected to the same stress test.
The integrated GPU would stabilize at around 2526 MHz and 64 C compared to 2025 MHz and 86 C on the older but smaller SER6 Pro. Thus, the SER7 runs both faster and cooler than its immediate predecessor.
CPU Clock (GHz) | GPU Clock (MHz) | Average CPU Temperature (°C) | |
System Idle | -- | -- | 36 |
Prime95 Stress | 4.0 | -- | 77 |
Prime95 + FurMark Stress | 4.3 | 2263 | 72 |
Witcher 3 Stress | ~0.3 | 2526 | 64 |
Energy Management — Just A Bit More Demanding
Power Consumption

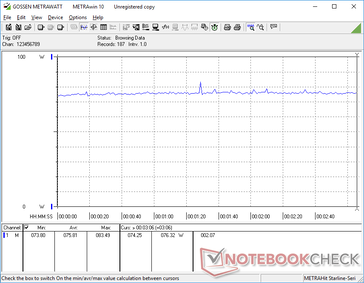

The overall high power consumption of the SER7 reflects its fast performance. When running Witcher 3 to represent typical gaming loads, for example, the Beelink would demand over 2x the power as a Dell Latitude 9330 running on the slower 12th gen Core i7-1265U CPU. Graphics performance-per-watt is still very good nonetheless since the Radeon 780M is significantly faster than the less demanding Iris Xe 96 EUs.

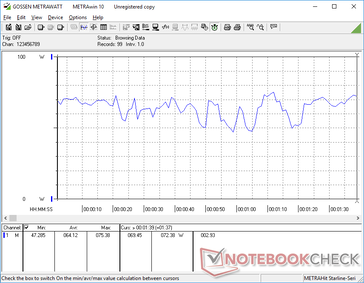

Processor performance-per-watt is excellent and it's one of the key highlights of Zen 4. When running CineBench R15 xT, for example, our Ryzen 7 7840HS would complete the benchmark at about the same time as the Core i7-13700H in the Lenovo IdeaCentre Mini while consuming around 35 W less.
We're able to measure a maximum draw of 95 W from the small (~7 x 7 x 3 cm) 100 W wall wart AC adapter when the CPU is at 100 percent utilization. This can prove to be problematic if attempting to power multiple external USB-C devices simultaneously and so a larger 120 W or 130 W AC adapter would have likely been more appropriate to better support both the mini PC and any connected accessories.
Off / Standby | 0.95 / 1.1 Watt |
Idle | 6.7 / 7.3 / 11.6 Watt |
Load |
64.1 / 94.8 Watt |
Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x, | Lenovo IdeaCentre Mini 01IRH8 i7-13700H, Iris Xe G7 96EUs, Samsung PM9B1 512GB MZVL4512HBLU, , x, | Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x, | Minisforum Venus Series NPB5 i5-13500H, Iris Xe G7 80EUs, Kingston OM8PGP4512Q-A0, , x, | Beelink SER6 Pro Ryzen 7 7735HS R7 7735HS, Radeon 680M, Kingston NV2 500GB SNV2S/500G, , x, | Beelink GTR7 7840HS R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x, | |
---|---|---|---|---|---|---|
Power Consumption | 9% | -1% | -34% | -0% | 7% | |
Idle Minimum * | 6.7 | 6.7 -0% | 7 -4% | 8.4 -25% | 8.9 -33% | 5.5 18% |
Idle Average * | 7.3 | 6.7 8% | 9.2 -26% | 11.3 -55% | 9 -23% | 5.8 21% |
Idle Maximum * | 11.6 | 7.1 39% | 11.8 -2% | 14.5 -25% | 9.3 20% | 7.7 34% |
Load Average * | 64.1 | 68.5 -7% | 45 30% | 70 -9% | 62.5 2% | 70.6 -10% |
Witcher 3 ultra * | 75.8 | 58.3 23% | 62.6 17% | 79.8 -5% | ||
Load Maximum * | 94.8 | 104.3 -10% | 97.2 -3% | 149 -57% | 80.1 16% | 111.8 -18% |
* ... smaller is better
Power Consumption Witcher 3 / Stresstest
Power Consumption external Monitor
Pros
Cons
Verdict — Performance Is Astounding, But Prices Are Creeping Up
The SER7 is the upgrade we wanted to see after the disappointing SER6 Pro. It brings about significant performance boosts to the already fast Zen 3+ series and it puts a lot of pressure on other mini PCs in terms of size and performance-per-watt particularly those powered by Intel Core U, P, or H CPUs. The fact that it supports USB4 and external GPUs also addresses one of the key drawbacks of AMD CPUs versus Intel.
The increase in performance over older models comes with an increase in thickness and weight. It's fortunately not that much larger especially since length and width remain the same as before. If you're placing the unit on a desk, for example, the taller height of the SER7 shouldn't be an issue.
The SER7 is one of Beelink's best mini PCs to date, but it's also one of the company's most expensive.
For future models, we'd love to see Wi-Fi 6E and tool-less servicing or easier access to the SODIMM slots and primary M.2 drive. Again, this is only a minor complaint as RAM and SSD upgrades are generally infrequent. The buggy SSD write performance and imperfect 4K60 video playback, however, should absolutely be addressed.
As one of Beelink's fastest mini PCs, the SER7 also commands one of the highest price points at $700 to $800 USD. Other mini PCs like the Ace Magician or SER6 can be found for half the price or less. They may come with slower H or U series CPUs and less RAM and storage, but they are still more than sufficient for HTPC tasks and faster than any Atom or Celeron solution. Thus, users will have to value the Zen 4 CPU, Radeon 780M GPU, and USB4 benefits of the SER7 to really make its higher price worthwhile.
Price and Availability
Amazon is now shipping the Beelink SER7 as reviewed for $800 USD. Alternatively, users can purchase directly from Beelink at a lower price.
Beelink SER7
-
09/09/2023 v7
Allen Ngo
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
