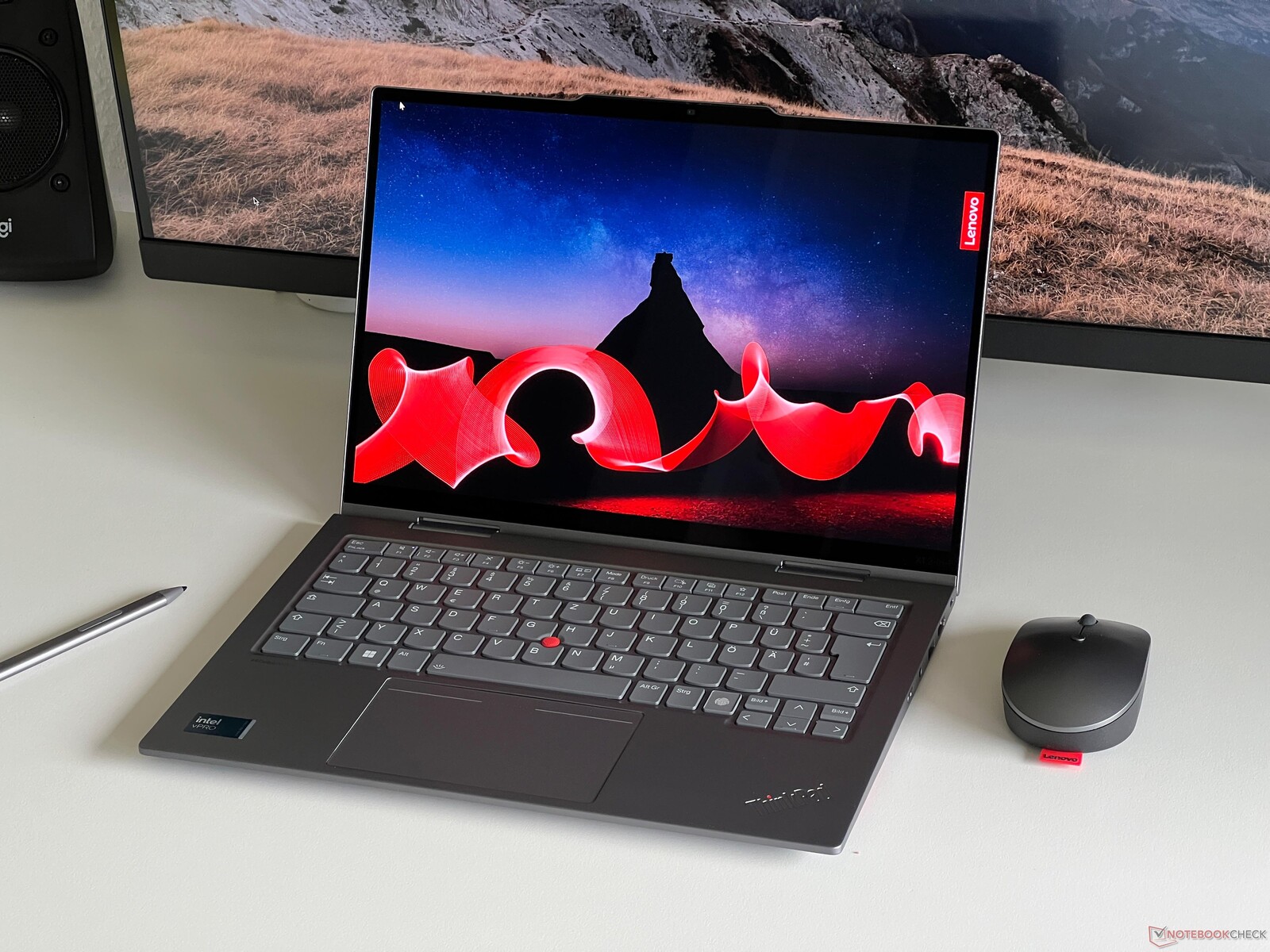

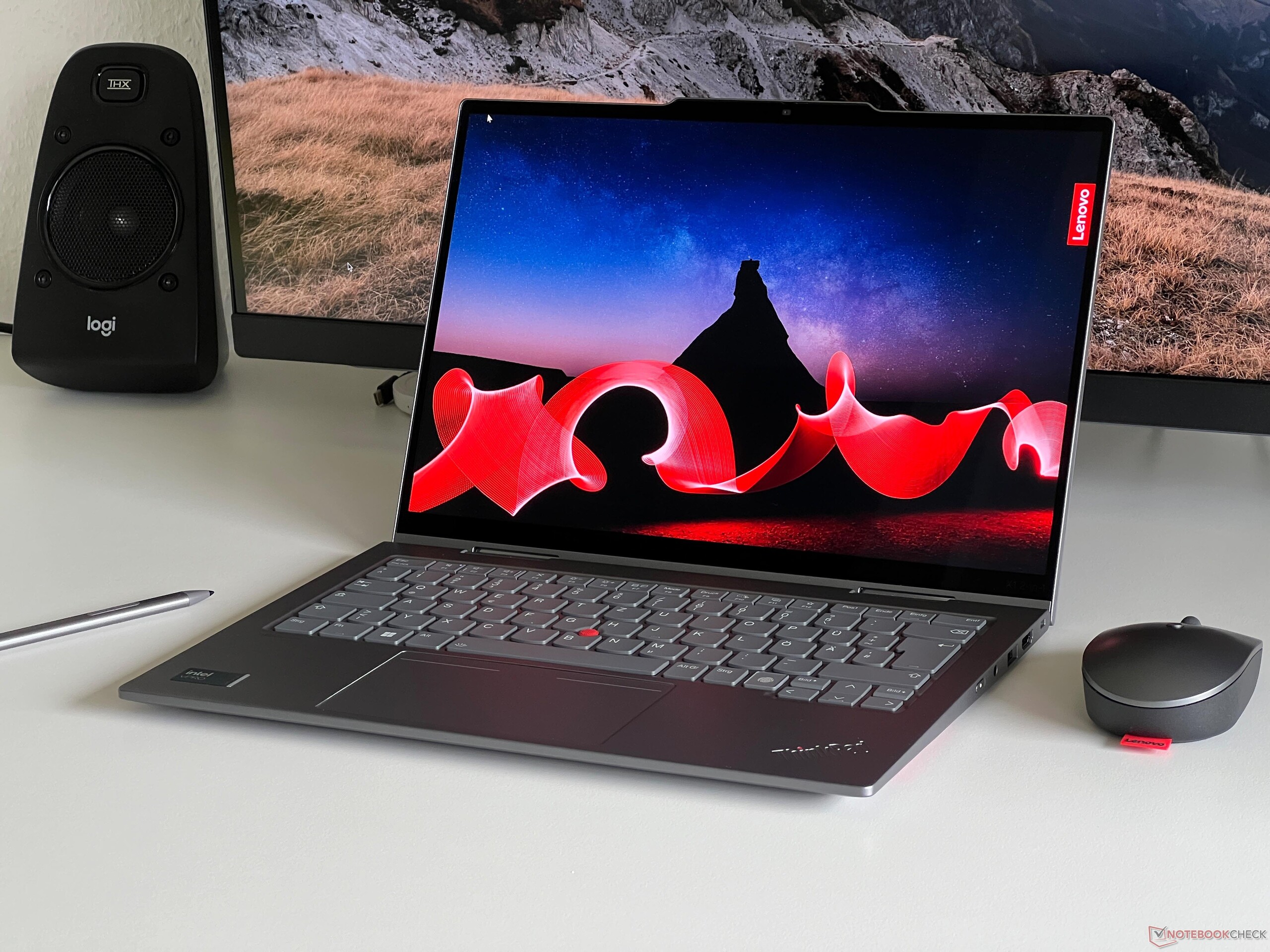

Lenovo ThinkPad X1 2in1 G9 review - The high-end business convertible with 120-Hz OLED and without TrackPoint buttons

For years, the ThinkPad X1 Yoga has been Lenovo's flagship convertible within the ThinkPad series, but apparently the name Yoga is now being moved completely into the area of private customers, with the 9th-generation of the convertible now simply being called the ThinkPad X1 2in1 G9. Its case has been completely revamped for this new model and it now makes use of Intel's latest Meteor Lake mobile processors—however, only the weaker U-series models.
Our test sample bears the name ThinkPad X1 2in1 G9 21KE004AGE with the Core Ultra 7 165H including its iGPU, 32 GB RAM, a 1-TB SSD as well as the new OLED touchscreen with a resolution of 2,880 x 1,800 pixels and a 120-Hz refresh rate. This model currently costs US$3,948. The top model featuring 64 GB RAM and a 2-TB SSD costs US$4,708 and the laptop's introductory price starts from US$3,456 (Core Ultra 5, 16 GB RAM, 512-GB SSD, Full HD IPS display).
Possible competitors compared
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
88.4 % v7 (old) | 06 / 2024 | Lenovo ThinkPad X1 2in1 G9 21KE004AGE Ultra 7 165U, Graphics 4-Core | 1.3 kg | 15.5 mm | 14.00" | 2880x1800 | |
90 % v7 (old) | 06 / 2023 | Lenovo ThinkPad X1 Yoga G8 i7-1355U i7-1355U, Iris Xe G7 96EUs | 1.4 kg | 15.53 mm | 14.00" | 1920x1200 | |
88.3 % v7 (old) | 04 / 2024 | Dell Latitude 9450 2-in-1 Ultra 7 165U, Graphics 4-Core | 1.6 kg | 16.28 mm | 14.00" | 2560x1600 | |
91.4 % v7 (old) | 02 / 2024 | HP Spectre x360 14-eu0078ng Ultra 7 155H, Arc 8-Core | 1.5 kg | 16.9 mm | 14.00" | 2880x1800 | |
90.5 % v7 (old) | 04 / 2024 | Lenovo Yoga 9 2-in-1 14IMH9 Ultra 7 155H, Arc 8-Core | 1.3 kg | 15.9 mm | 14.00" | 2880x1800 |

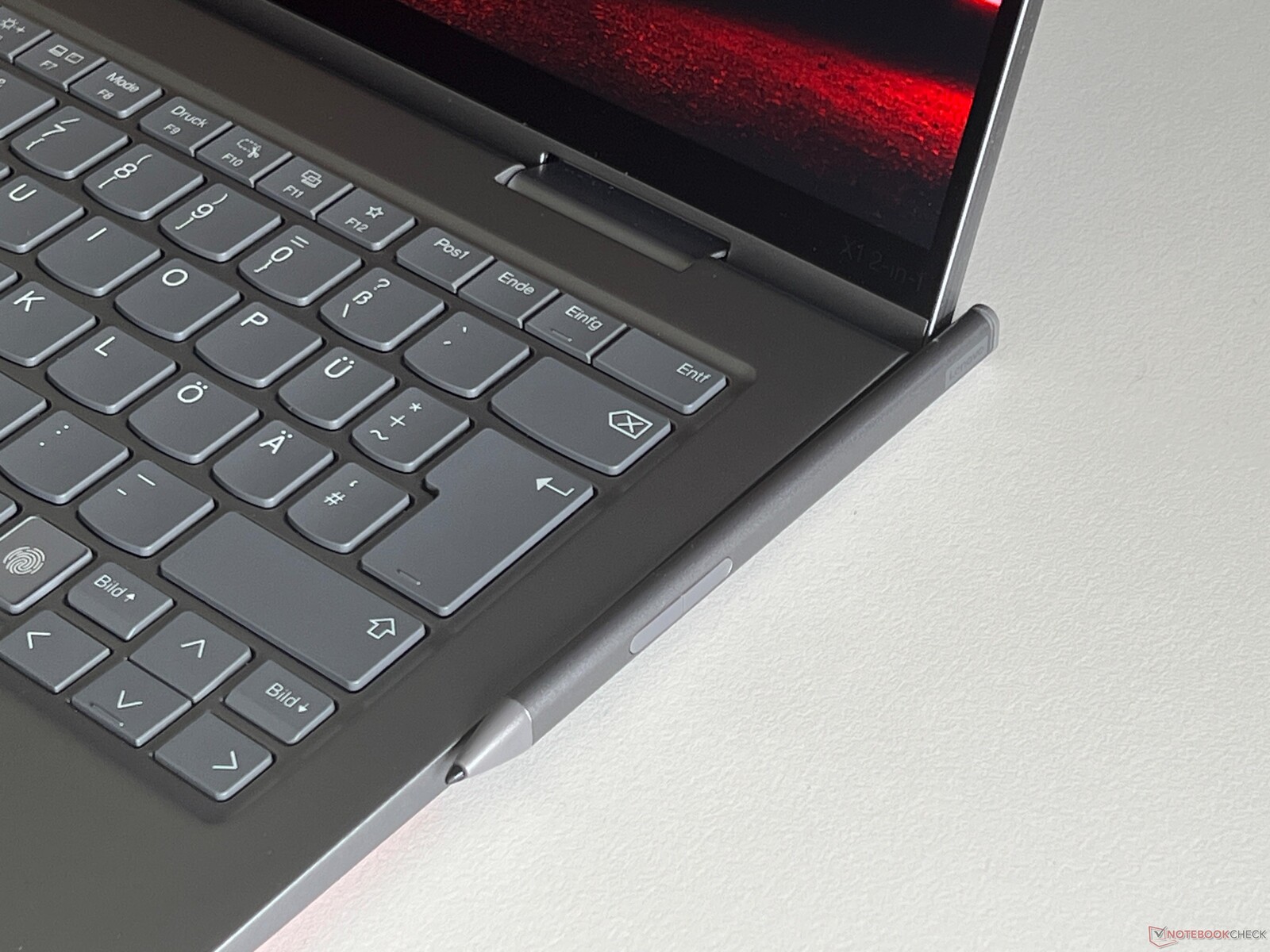

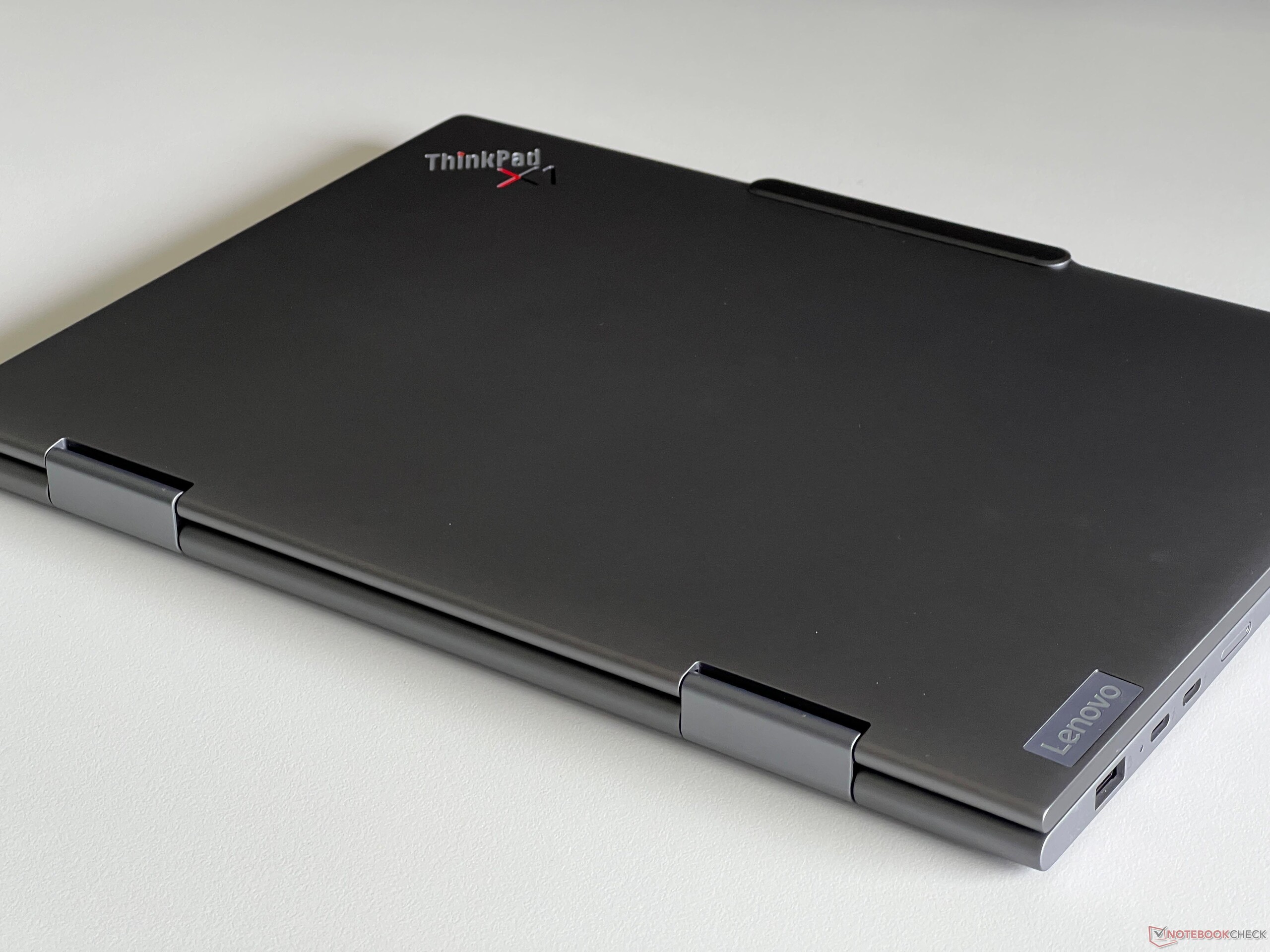

Case - Now without space for the stylus
Despite Lenovo having given its new X1 2in1 G9 a completely new case, its general design language has remained the same. This means the gray convertible continues to set itself apart from the black ThinkPad models, while its surfaces are also a lot less susceptible to collecting fingerprint marks. However, the likely biggest change has to do with its input pen, which is now much bigger than before. In turn, it now isn't possible to store the pen inside the laptop's case. Instead, you can only attach it magnetically to both sides of the device. This isn't a full replacement, as the pen will easily detach from the case, especially when you are transporting the laptop inside your bag.
We have nothing negative to say about the X1 convertible's quality, as its aluminum case (and magnesium aluminum alloy on the bottom of the base unit) is very stable and we couldn't dent it or elicit any creaking noises from it. The same can be said for the lid and we like the hinges in particular, as they hold the screen in place securely and almost entirely prevent it from rocking when you adjust its angle.

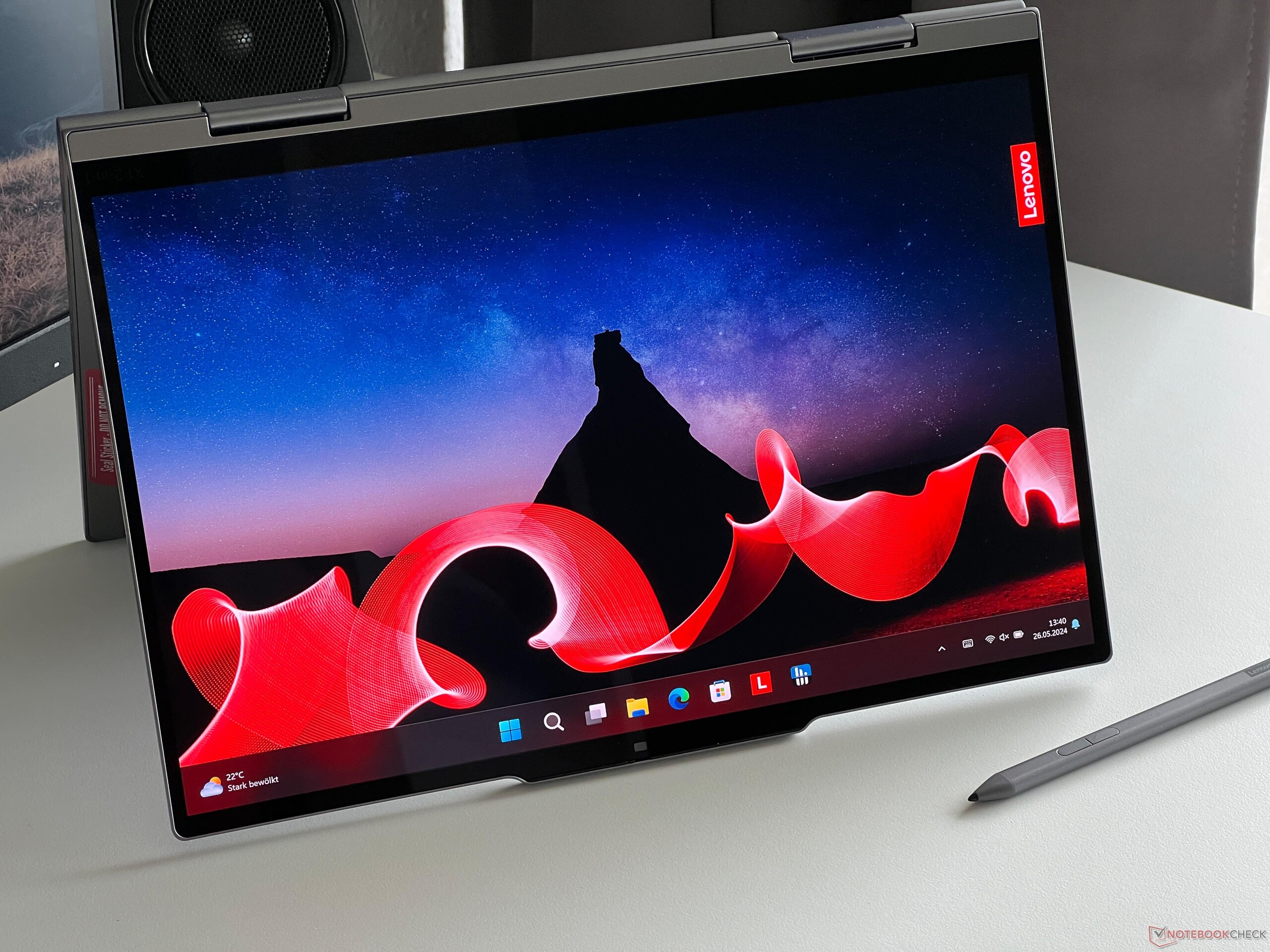

Of course, you can also completely flip over the display, which makes the X1 2in1's various operating modes possible. When using it in tent or presentation mode, however, the camera hump (which is now used on almost all Lenovo laptops) is particularly noticeable. This is because in this case, the device actually sits on the camera hump, which looks peculiar. Thankfully, there are no functional limitations when doing so.
The ThinkPad X1 2in1 G9 occupies the largest footprint amongst the comparison devices, however, the differences are minimal. In turn, it is the thinnest model, with a thickness of only 15.5 mm. It weighs 1.35 kg and the supplied 65-watt power supply adds another 329 grams onto the scales.

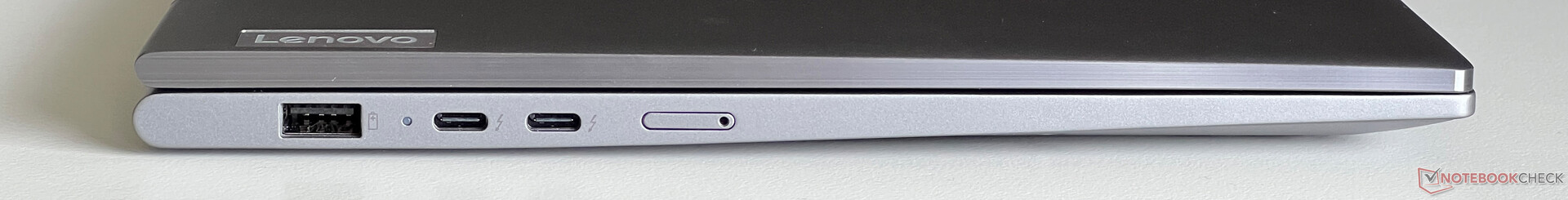

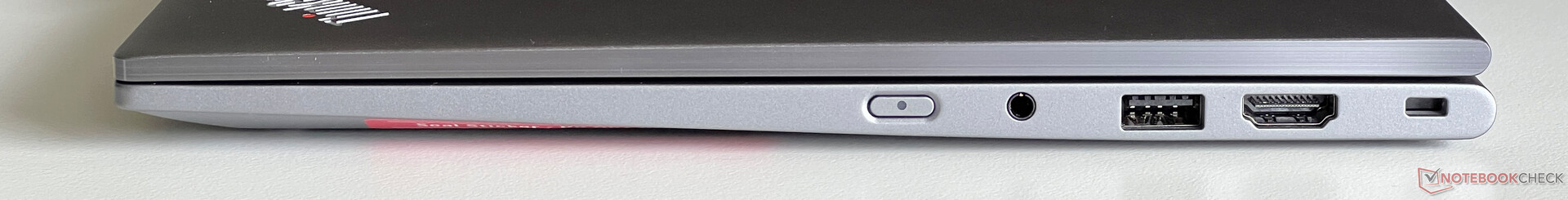

Connectivity - The X1 2in1 with Thunderbolt and HDMI
The ThinkPad X1 2in1 has no flaws when it comes to its connectivity options—aside from modern Thunderbolt 4 ports, it also features regular USB-A ports as well as a full-featured HDMI output. On the flip side, Lenovo hasn't installed an SD card reader. Both of the USB-C connections on the left side have moved forward a little, which may make it harder to access the USB-A port at the back. Apart from this, there are no layout issues.
Communication

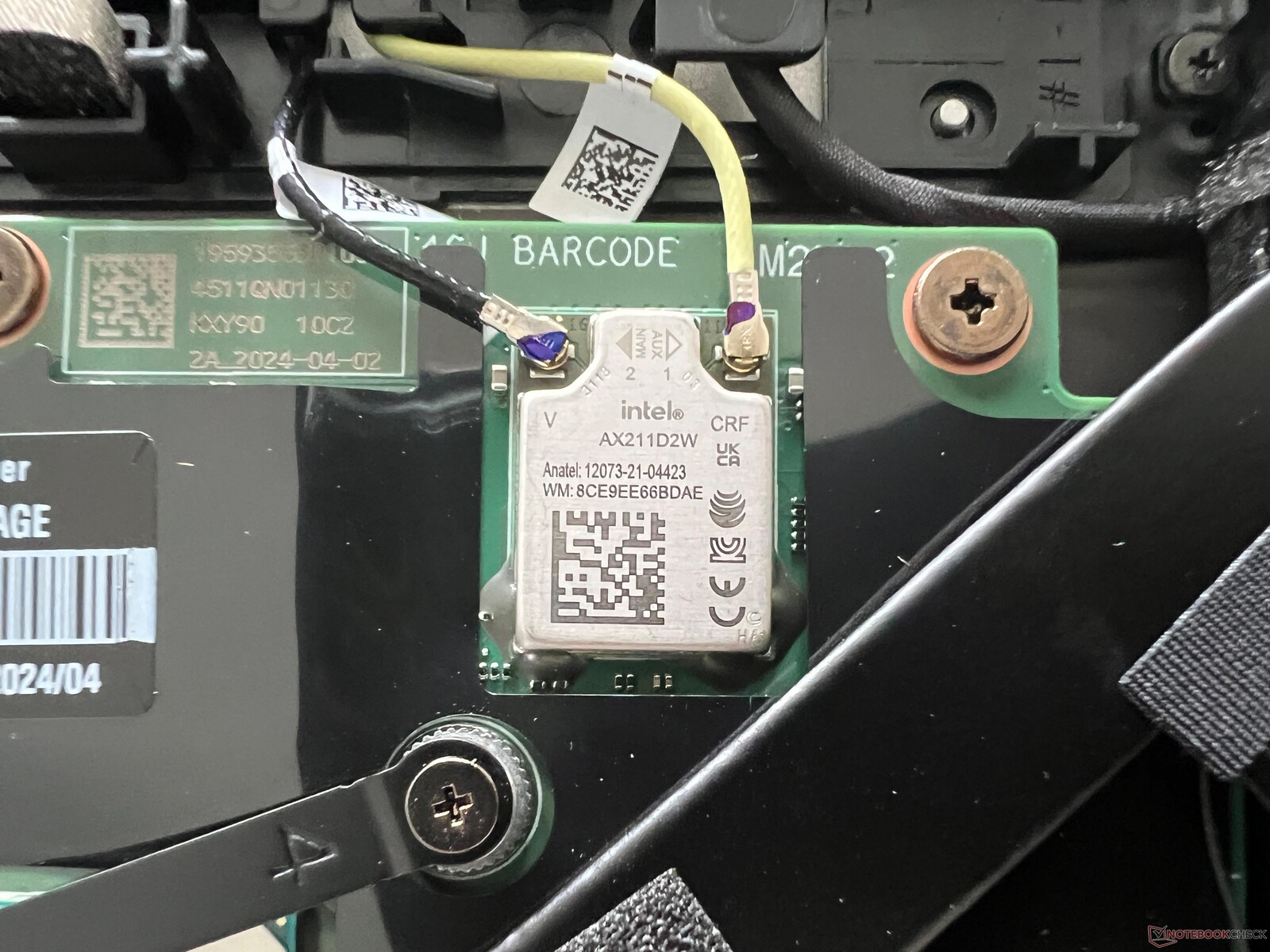

The new X1 2in1 can already be configured with a modern Wi-Fi 7 module, however, our test configuration only features the well-known AX211 card from Intel, which supports Wi-Fi 6E (6 GHz) and Bluetooth 5.3. In our test using a reference router from Asus, its transfer rates were high and stable—in addition, we noted no connection problems during the duration of our test.
Our test device is WWAN-ready and the required antenna for a cellular module, as well as a nano SIM card slot, are already installed. Moreover, the new X1 2in1 is the one of the first devices in years which can be ordered WWAN-ready via the manufacturer's configurator—usually, this was only reserved for selected Campus models.
Networking | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
iperf3 transmit AXE11000 6GHz | |
iperf3 receive AXE11000 6GHz | |
Dell Latitude 9450 2-in-1 | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
iperf3 transmit AXE11000 6GHz | |
iperf3 receive AXE11000 6GHz | |
HP Spectre x360 14-eu0078ng | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
iperf3 transmit AXE11000 | |
iperf3 receive AXE11000 | |
iperf3 transmit AXE11000 6GHz | |
iperf3 receive AXE11000 6GHz | |

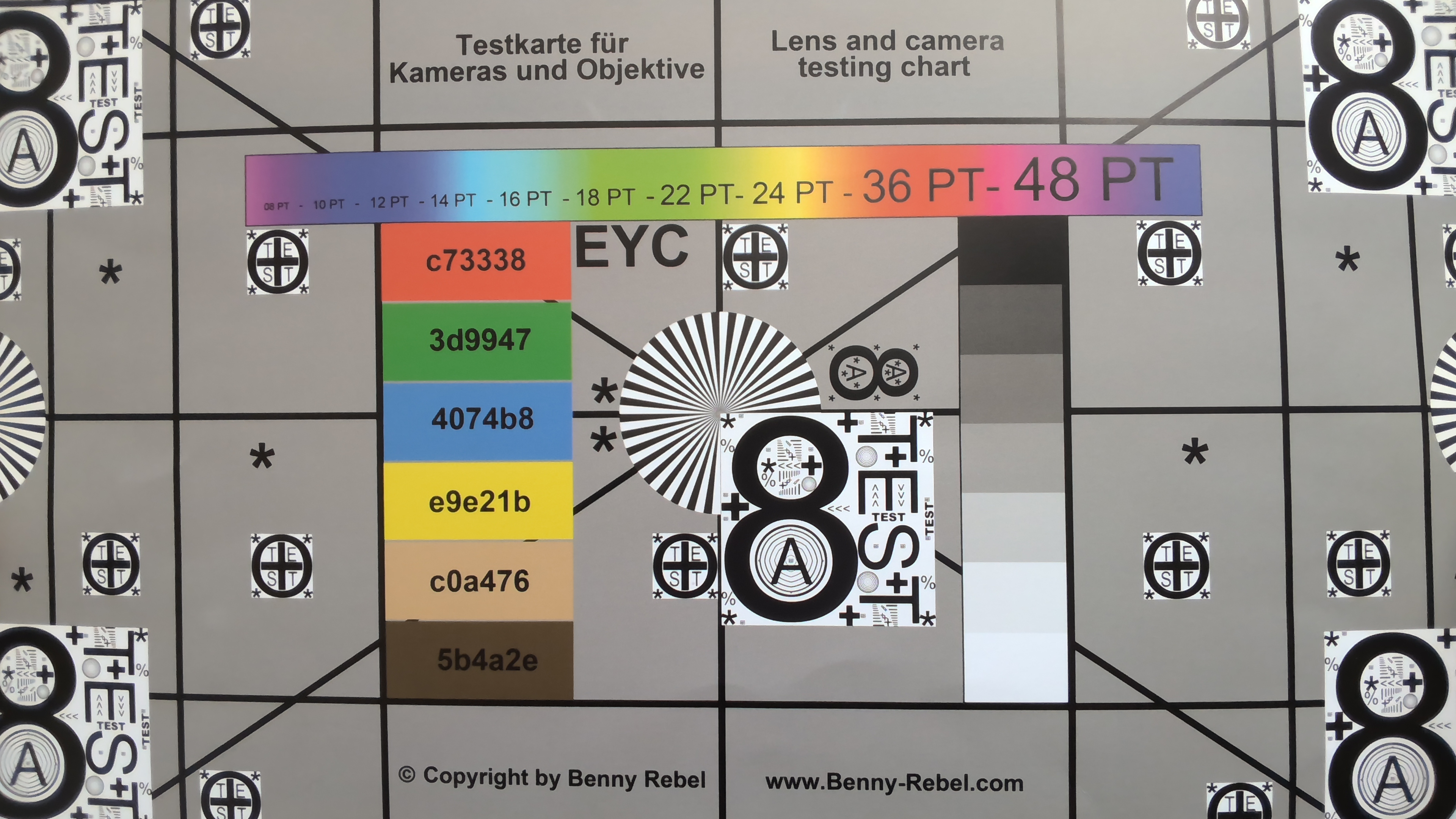

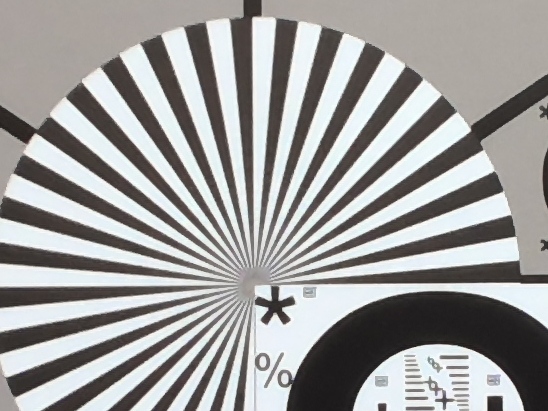

Webcam
You can optionally get the Lenovo laptop with an 8 MP camera with a mechanical cover—this is also included in our model. Compared to the regular 1080p models, image sharpness in particular benefits from the higher resolution. Together with the Meteor Lake processor, studio effects (soft focus, head tracking, etc.) are supported as part of the device's operating system. An IR camera for facial recognition via Windows Hello is also available.

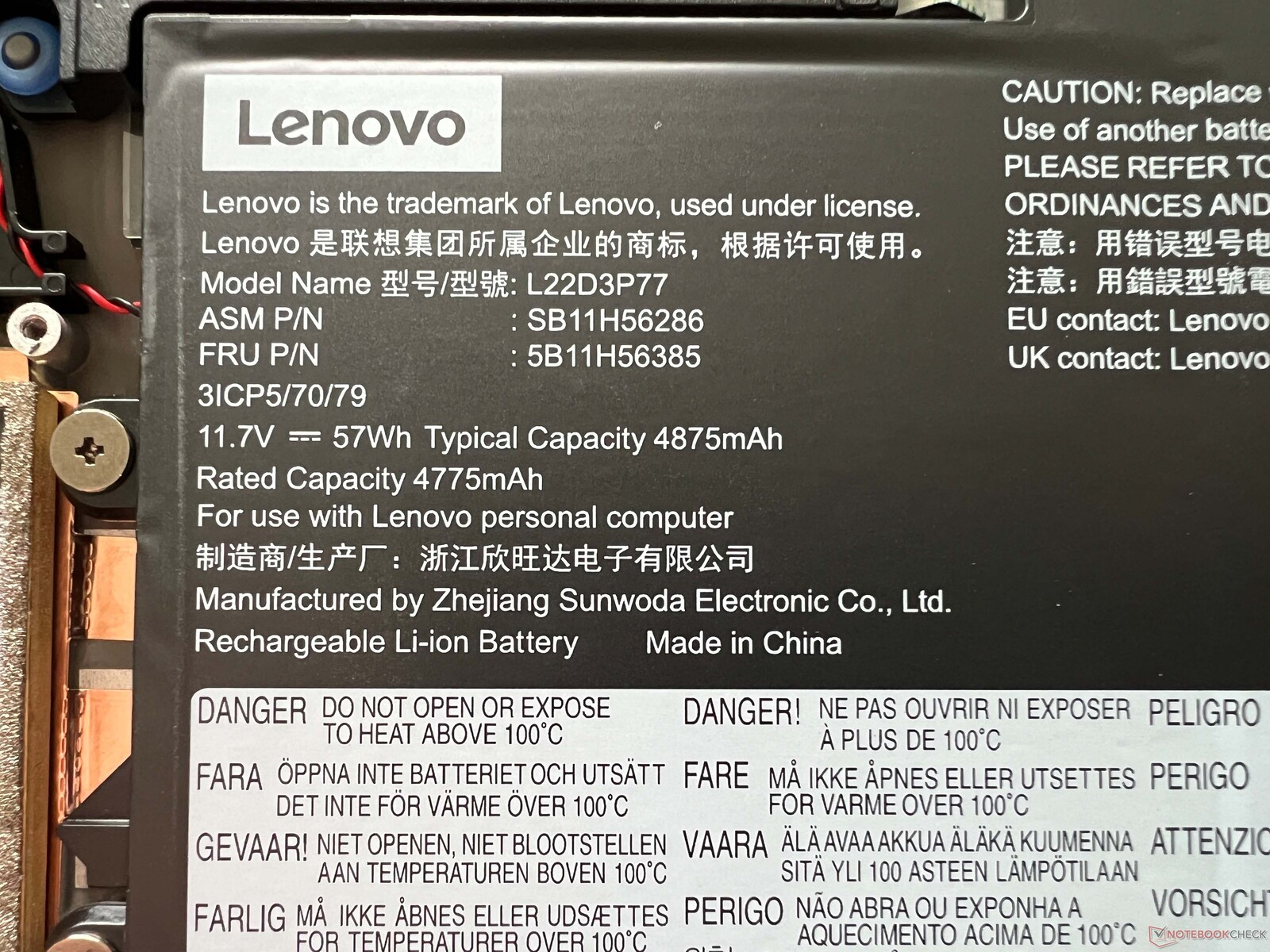

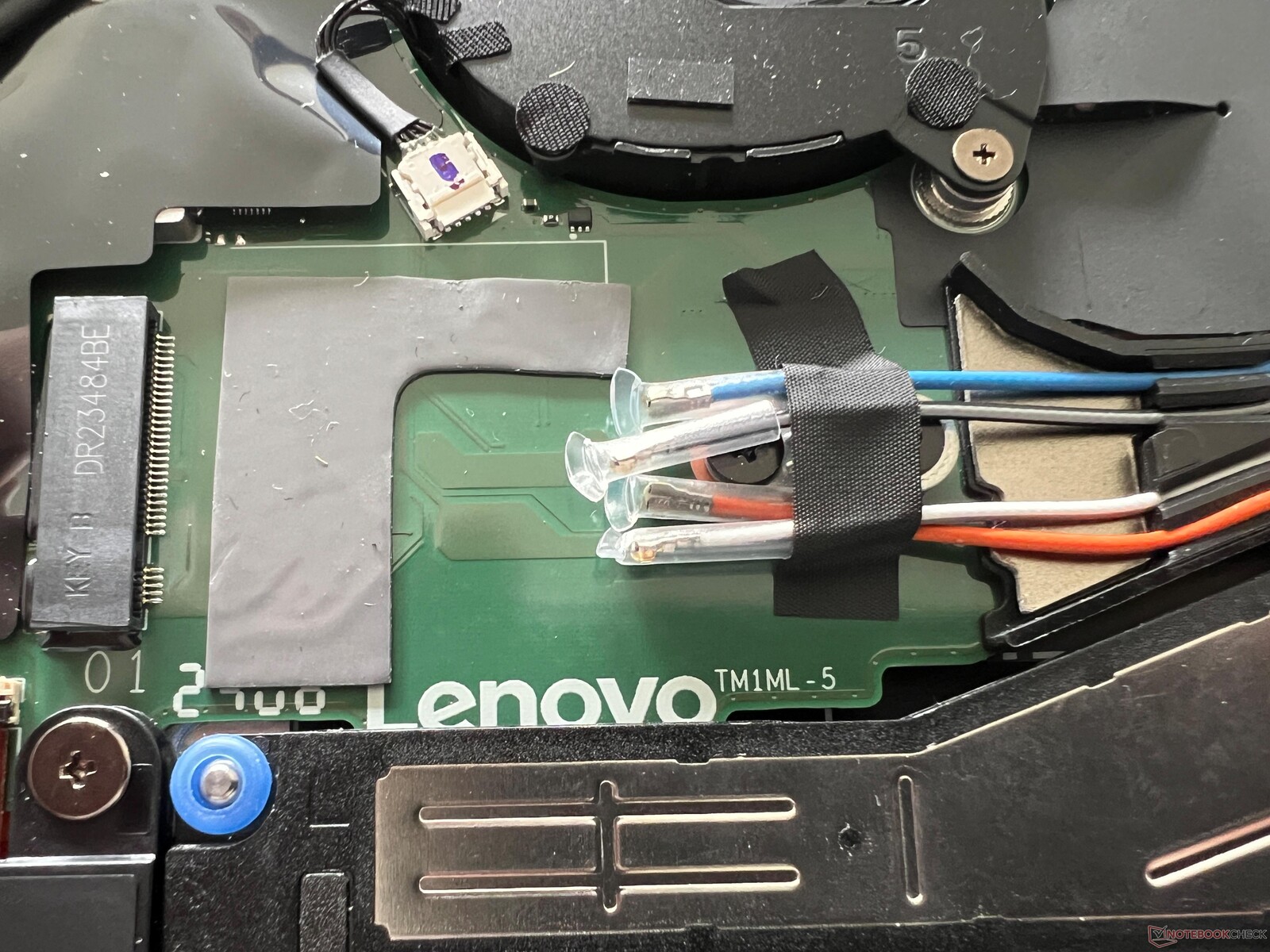

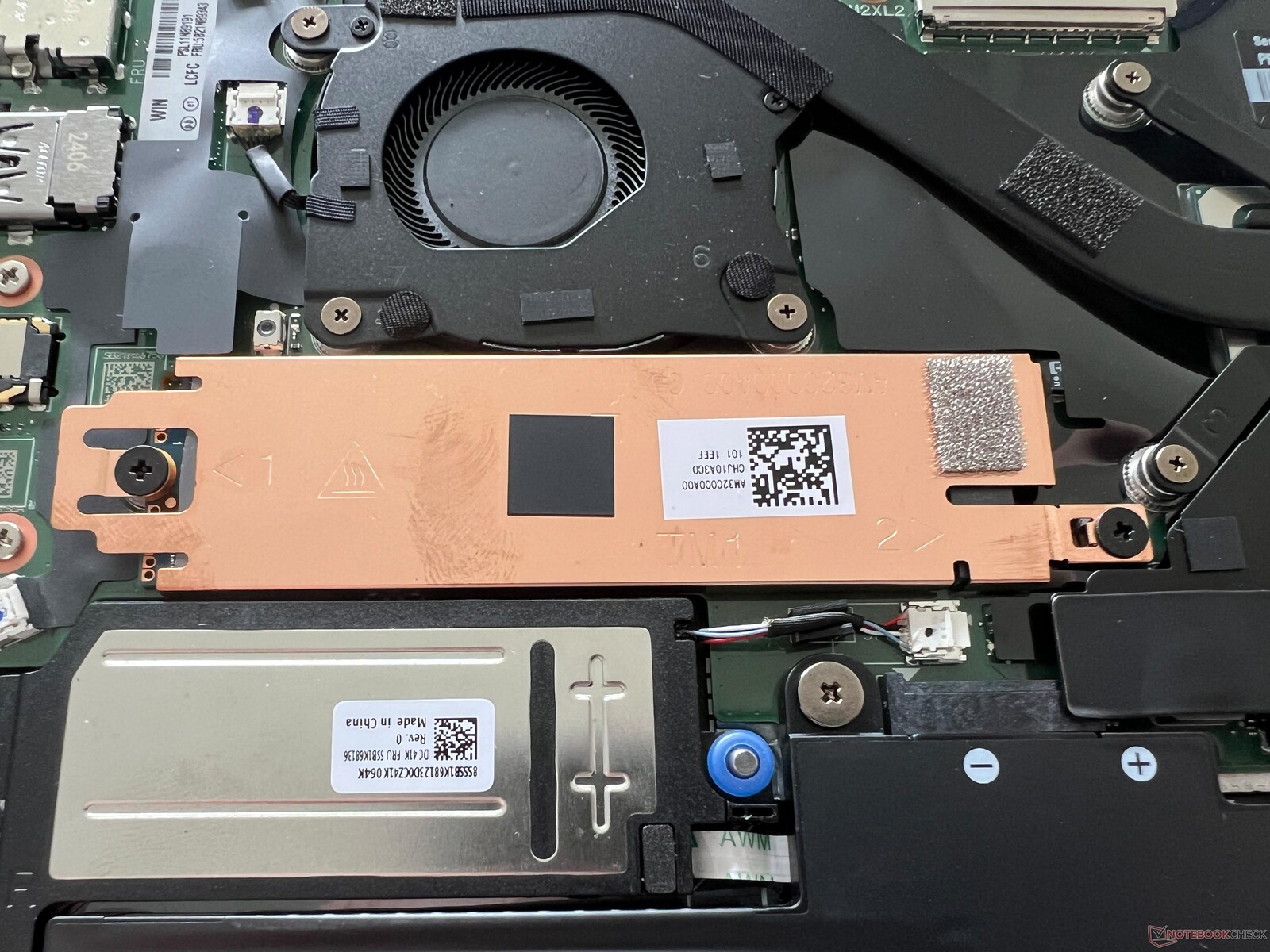

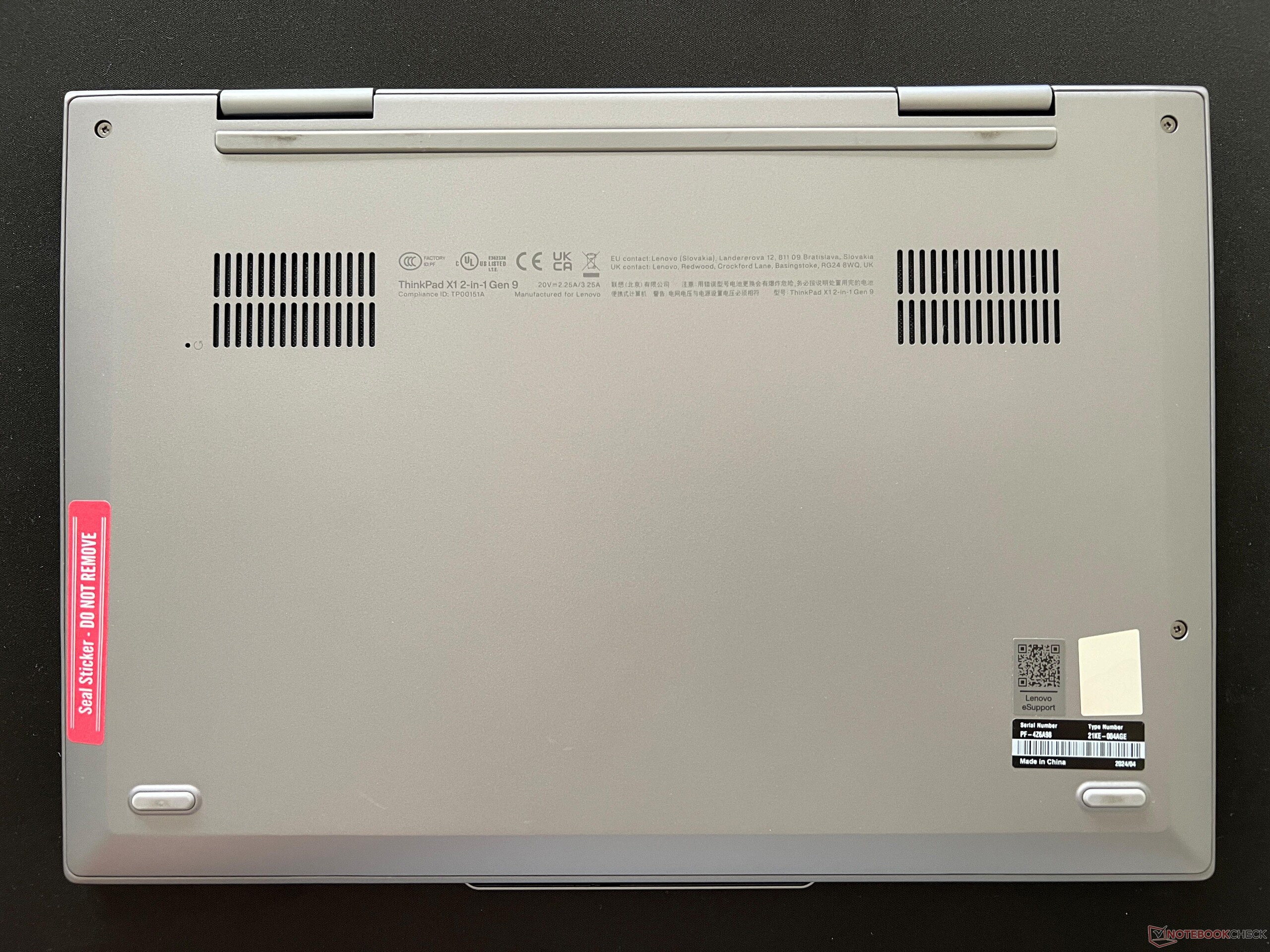

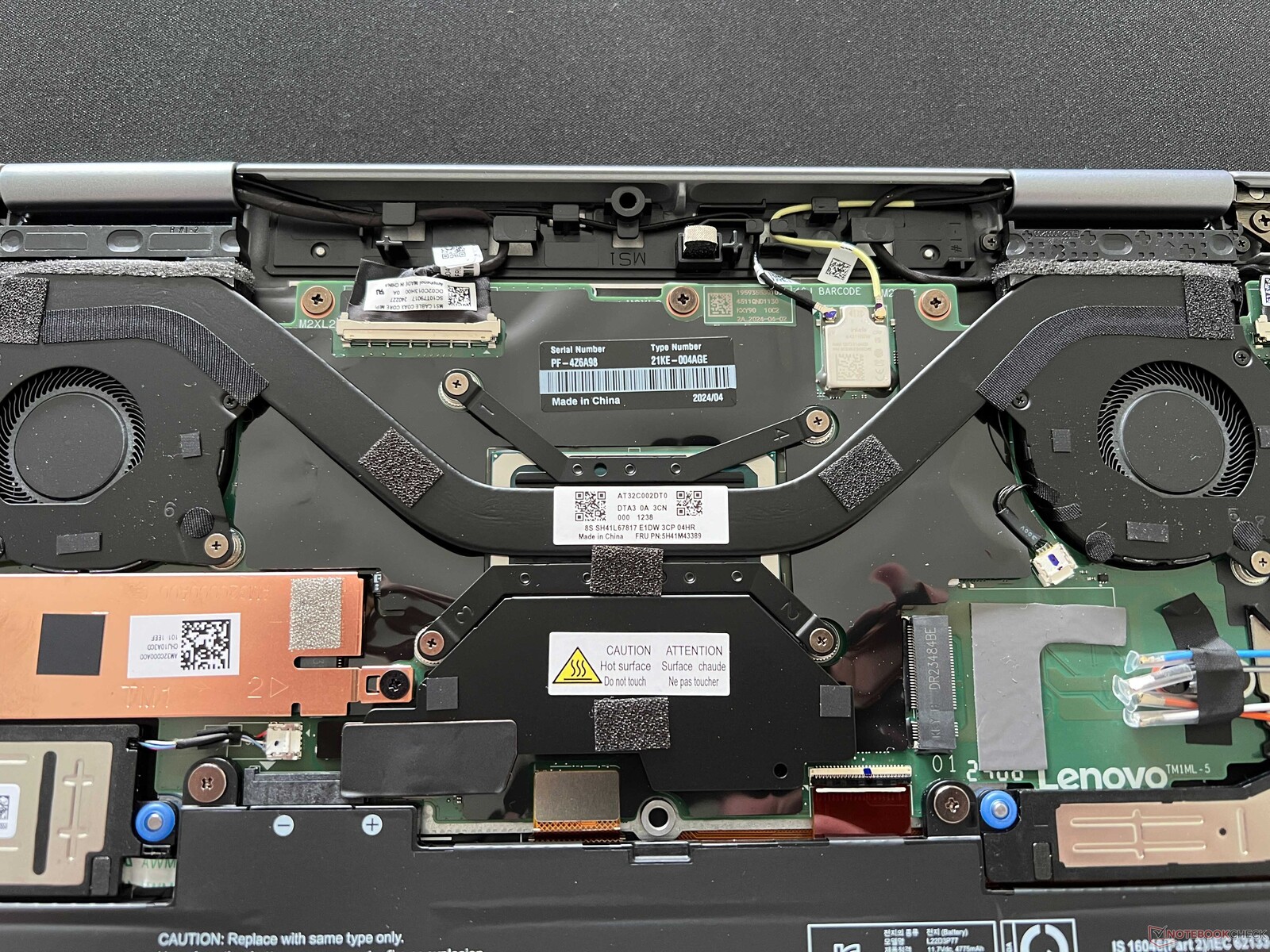

Maintenance
The bottom case cover is secured via regular Philips screws and can be removed quite easily. Inside, you can clean the fans and if required, swap out the battery or the M.2 2280 SSD. A WWAN module can also be installed, whereas the RAM and the WLAN module are soldered on.

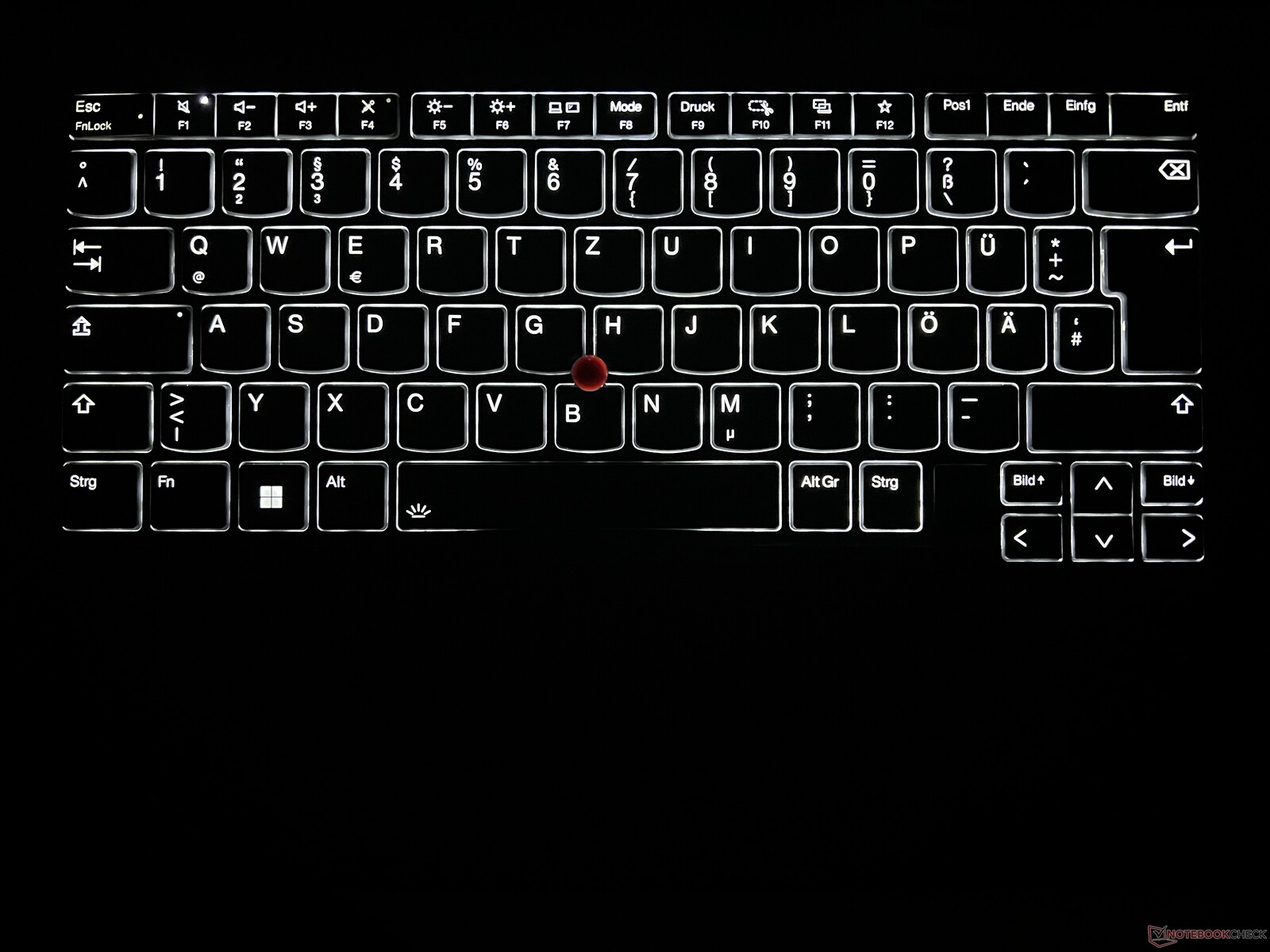

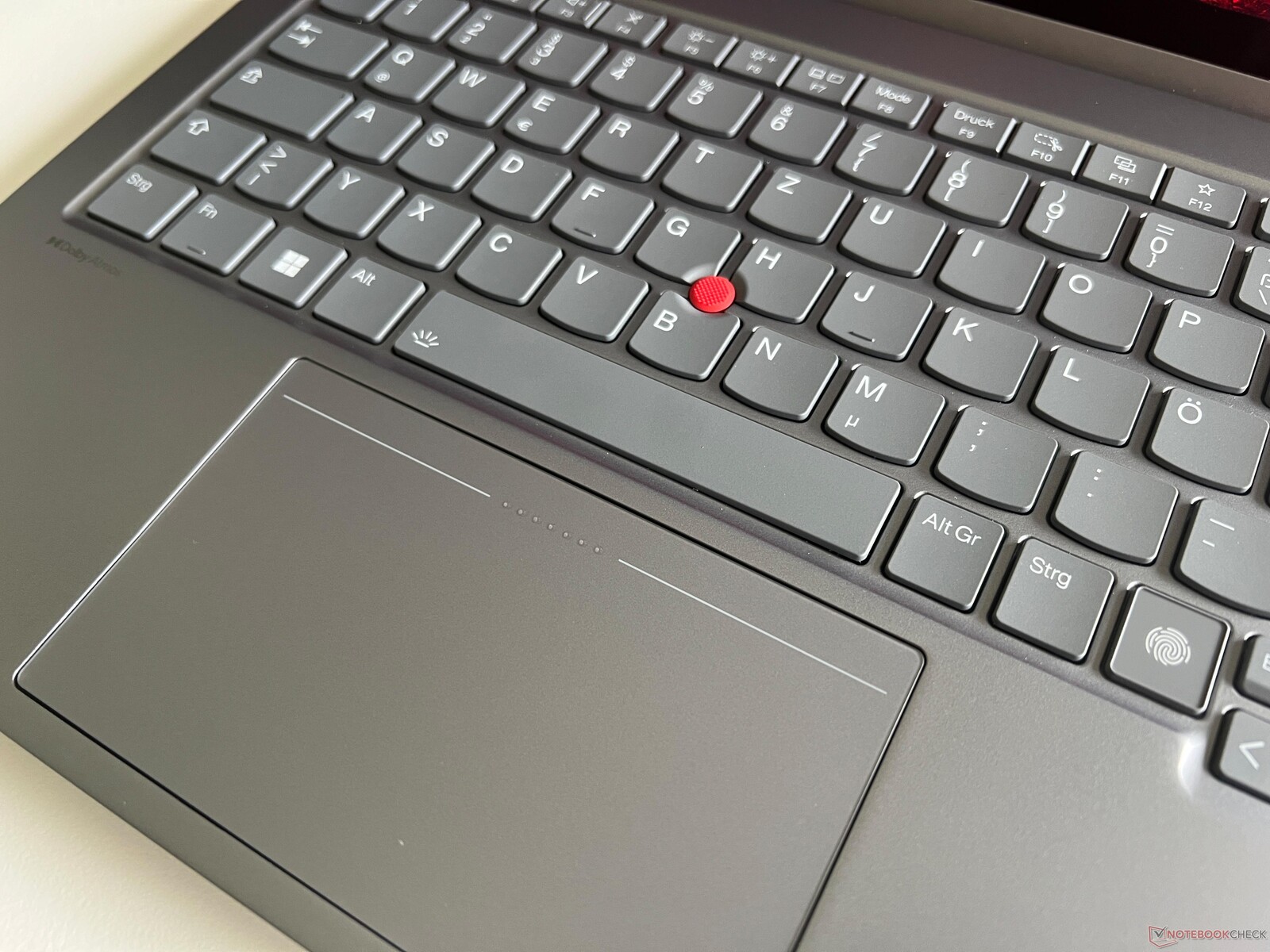

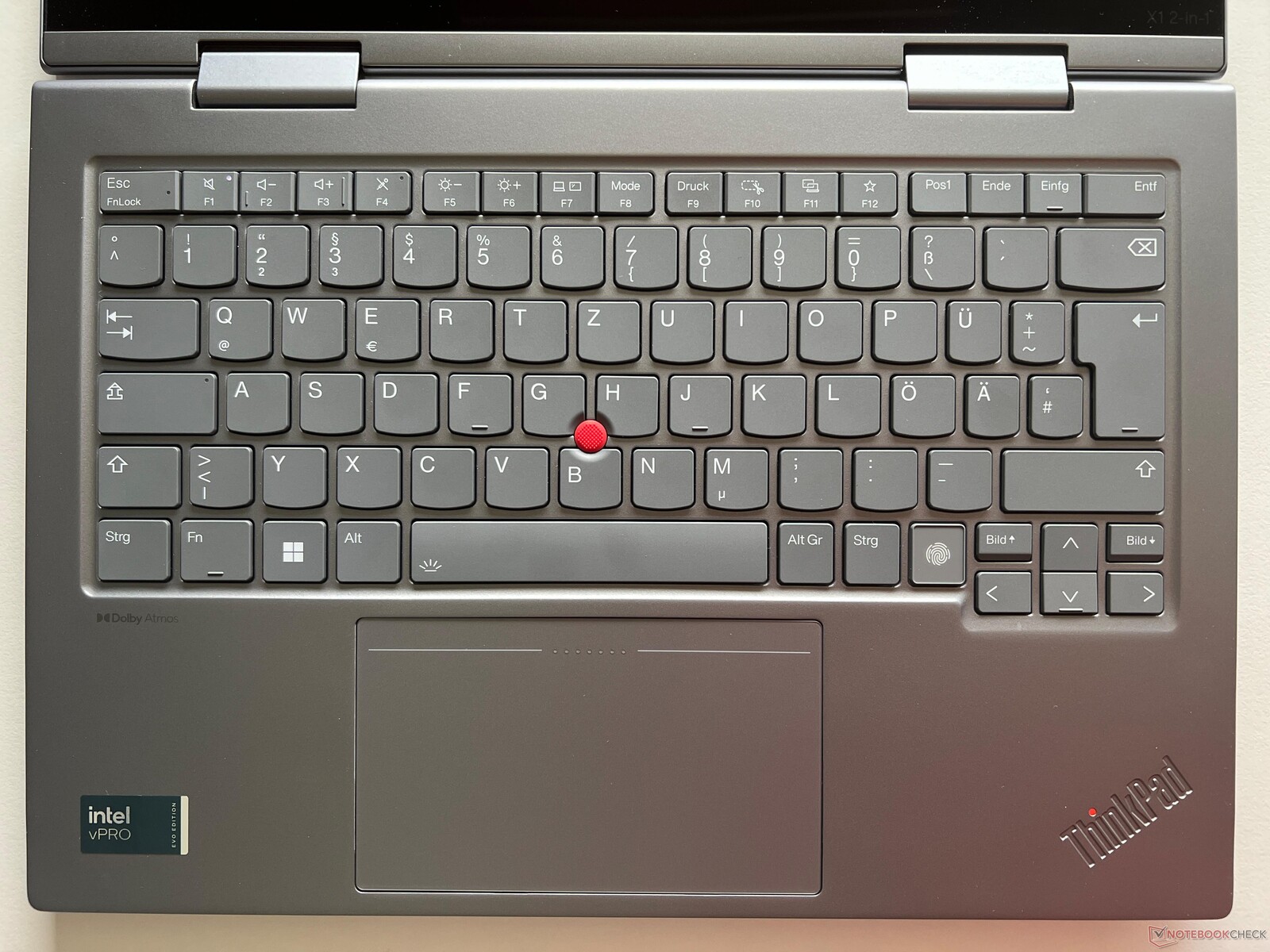

Input devices - A haptic touchpad without TrackPoint buttons
The ThinkPad X1 2in1 G9's keyboard continues to have a key lift of 1.5 mm and feels generally comfortable to type on, although its quality can no longer compete with the old models' key lift—which we always notice compared to our ThinkPad X1 Carbon from 2018. In addition, the ThinkPad no longer has an advantage over its competitors here. A button for the fingerprint scanner is new on its keyboard—but you'll have to go without the new Copilot key. It's also annoying that the two-level keyboard backlighting can't be activated automatically.
On the current ThinkPad X1 2in1, Lenovo lets customers choose whether they want a classic clickpad with three dedicated buttons for the TrackPoint, or a haptic touchpad without any dedicated buttons. The latter is installed in our test device and only the middle TrackPoint button can be felt with light dots. Basically, the pad has no moving parts and feedback is simulated by vibration motors. This has the advantage that its feedback is the same at all points, and its operation worked very well in our test. However, those who mainly use the TrackPoint should probably not go for the haptic pad, as the pad is no substitute for the dedicated keys and it isn't the best to operate. Inputs are also possible using the supplied active Lenovo Slim Pen and we noted no problems in practice.

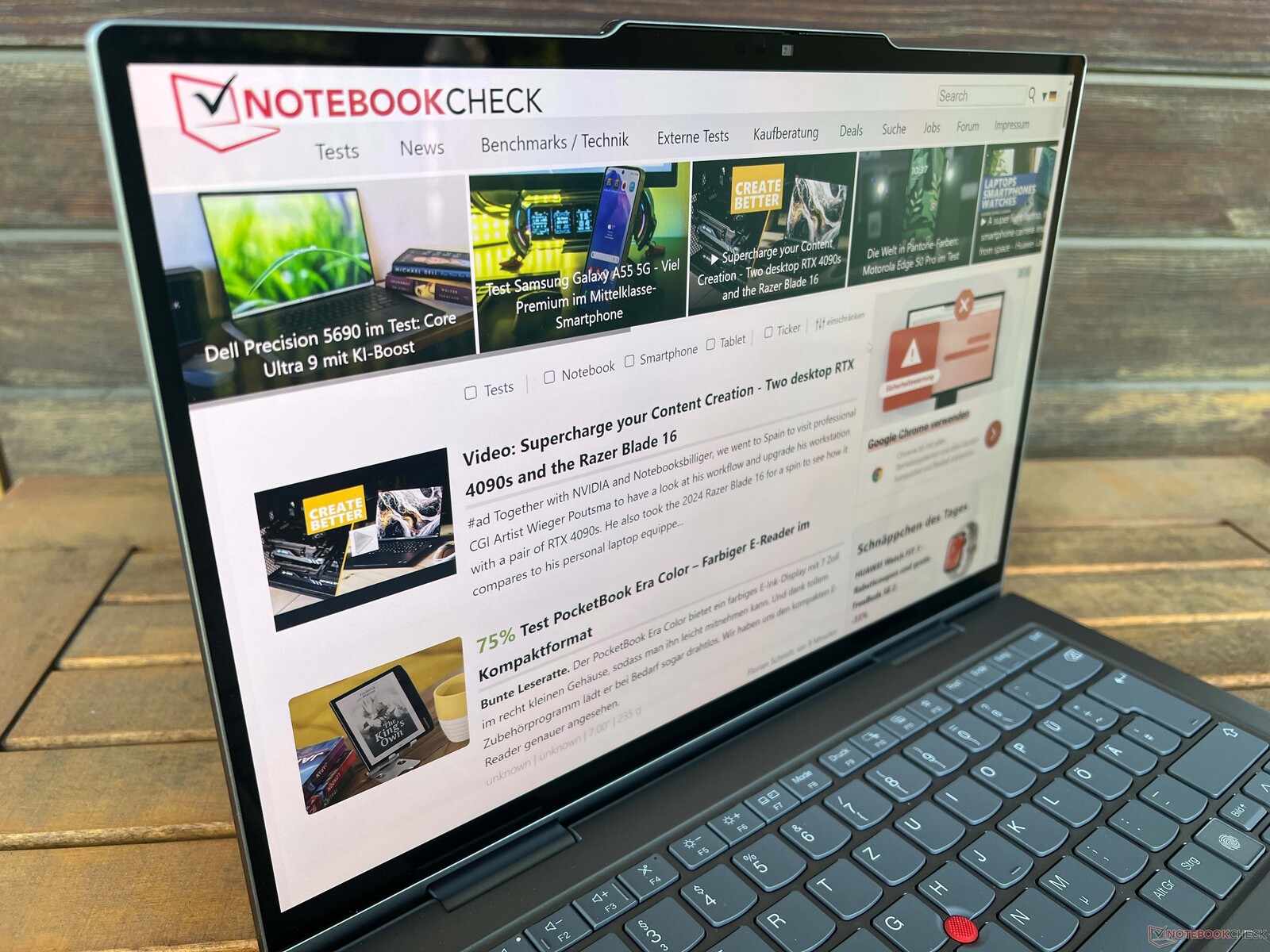

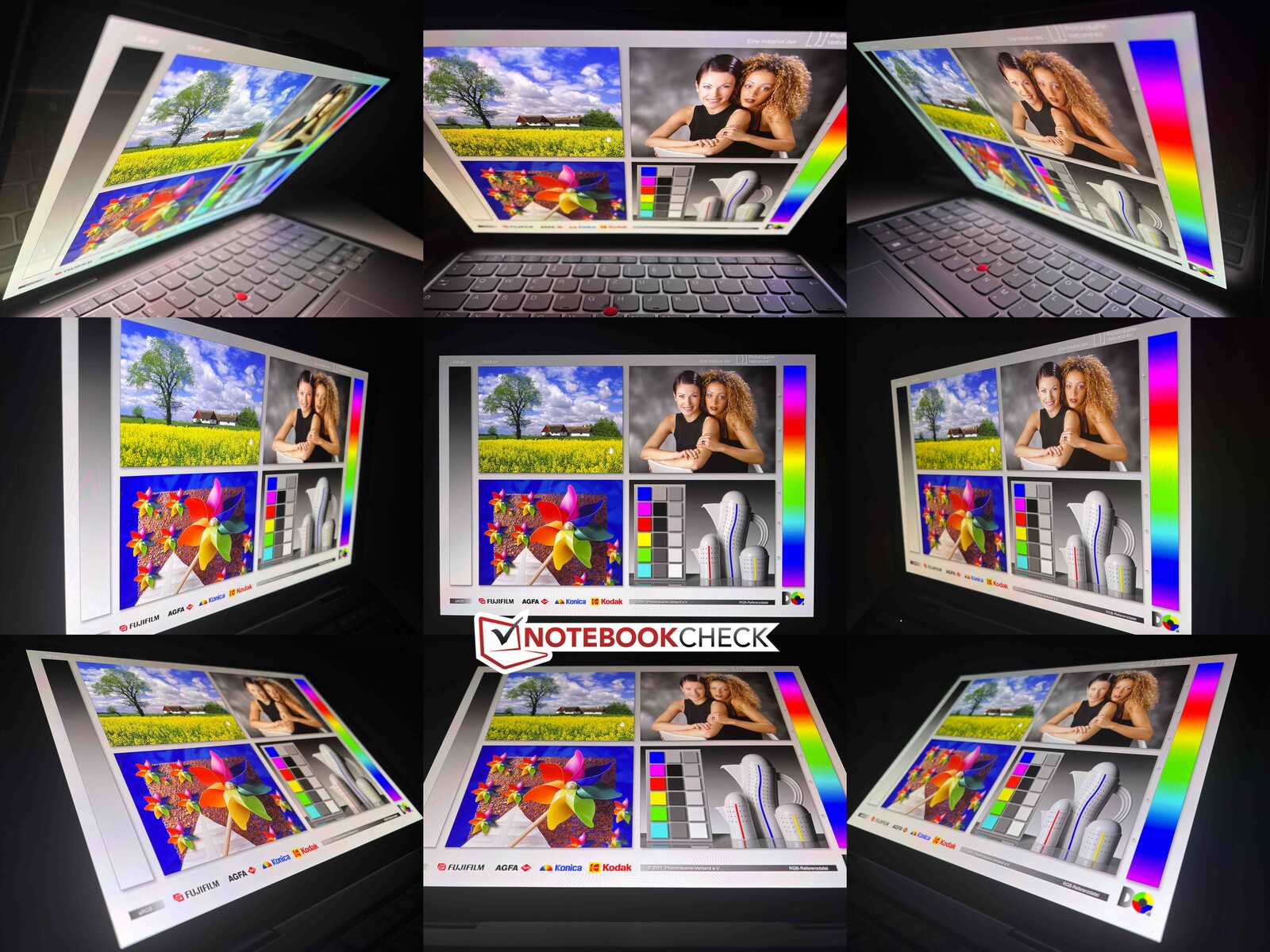

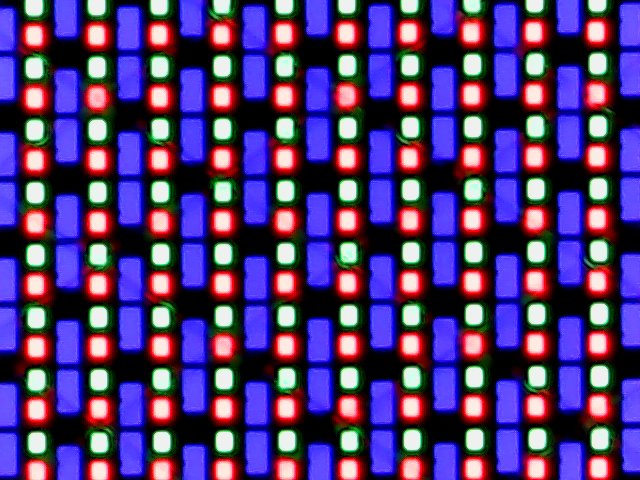

Display - OLED with a raster effect
Our test device uses the optional OLED touchscreen with a resolution of 2,880 x 1,800 pixels. The panel is made by Samsung and subjectively, its picture quality is great—although you can see a slight raster effect when depicting light content. Its brightness values of around 400 cd/m² suggest the current OLED generation from Samsung, however, despite their touchscreens, the latest Galaxy Book Pro models don't show this raster effect. Colors look super vivid and the screen's response times are very fast. In addition, its higher refresh rate of 120 Hz helps with depicting movement. Neither brightness nor color temperature can be adapted automatically.

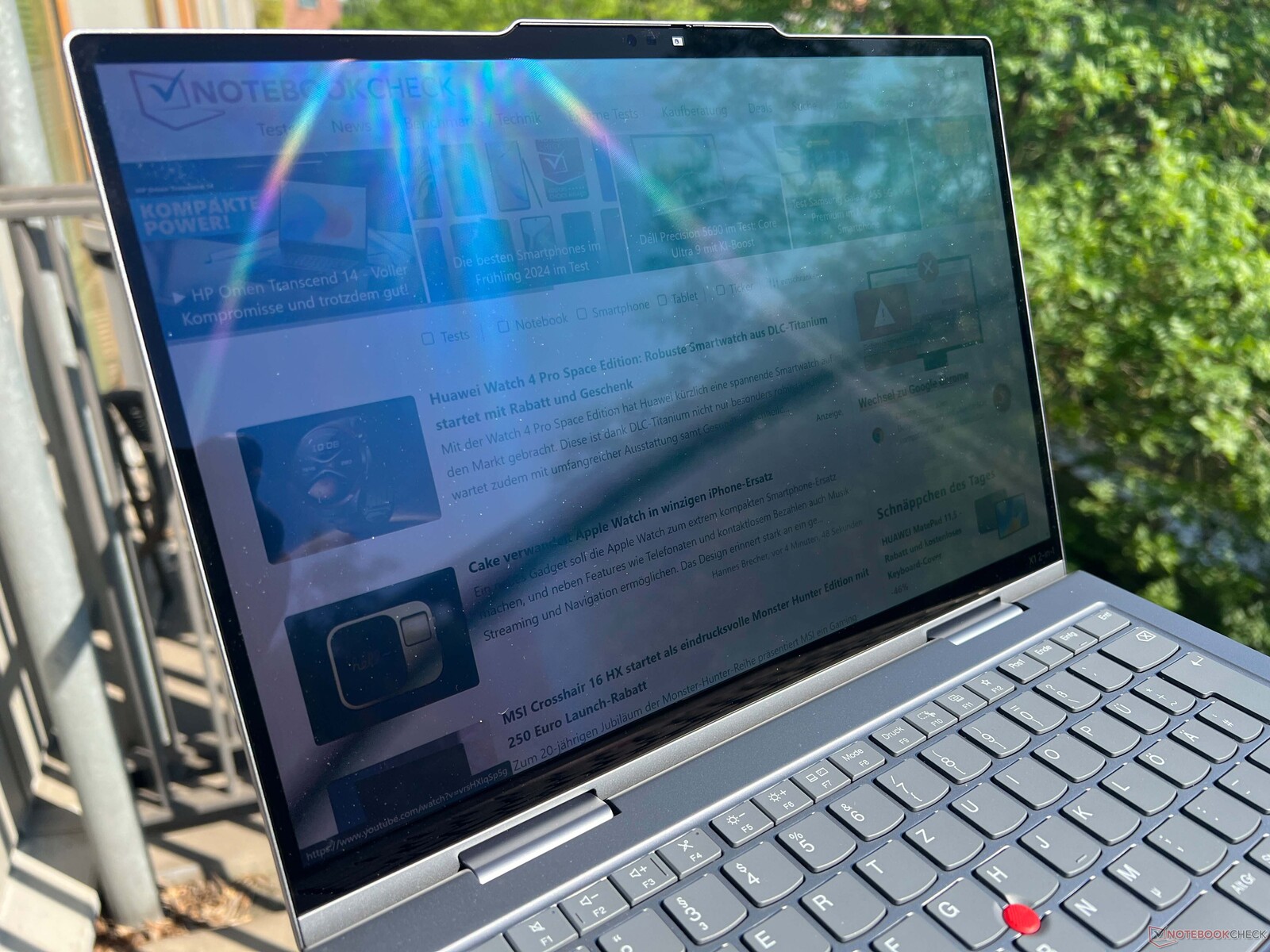

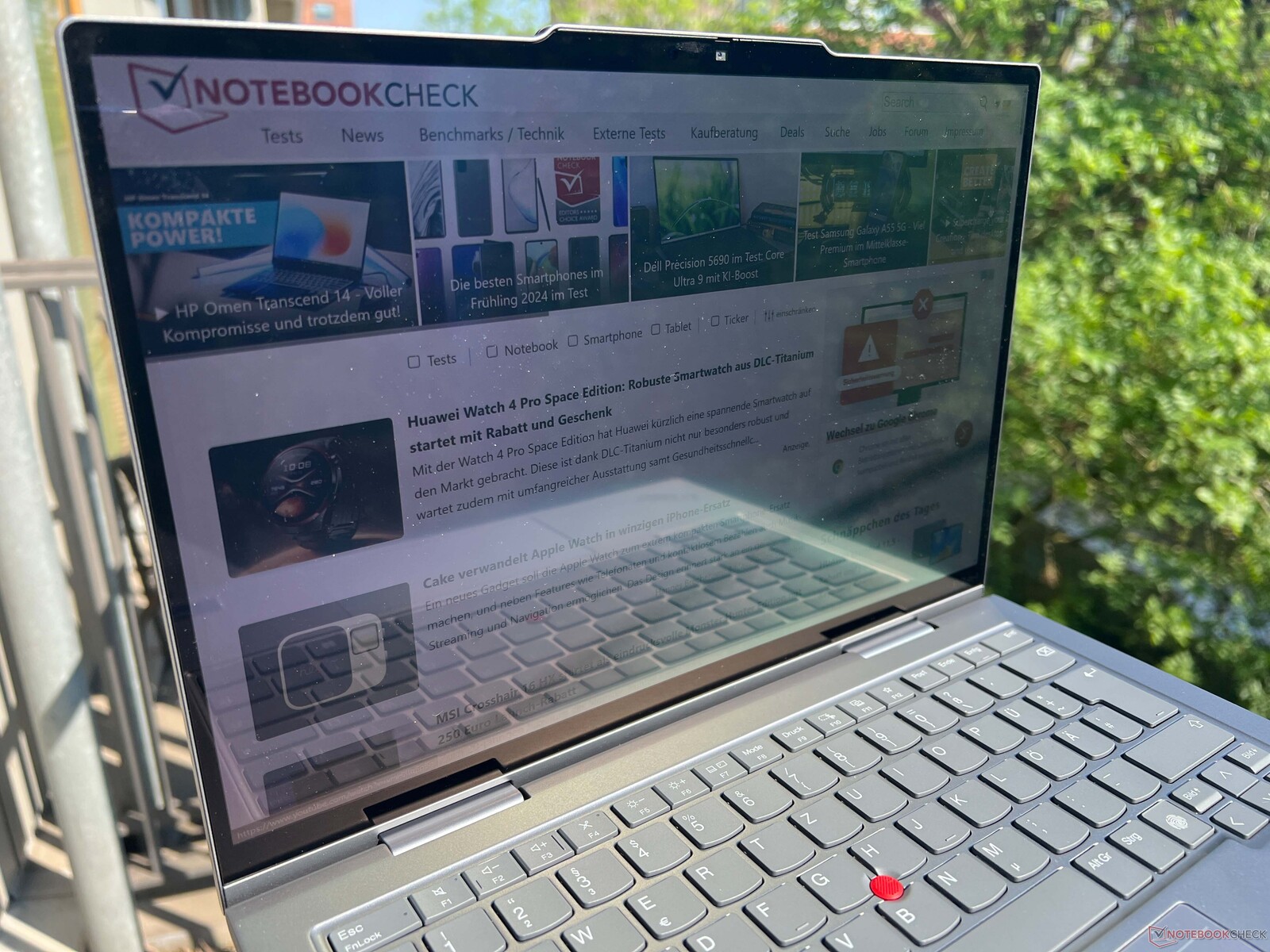

Its average brightness is 411 cd/m² and together with its low black value, it features an extremely high contrast ratio. In HDR mode, its maximum brightness when depicting small image excerpts is 630 cd/m² and when showing an almost completely white screen, we noted 510 cd/m². We measured 240-Hz PWM flickering at brightness levels of 99 % and below.
|
Brightness Distribution: 98 %
Center on Battery: 412 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.9 | 0.5-29.43 Ø4.86, calibrated: 1.9
ΔE Greyscale 1 | 0.09-98 Ø5.1

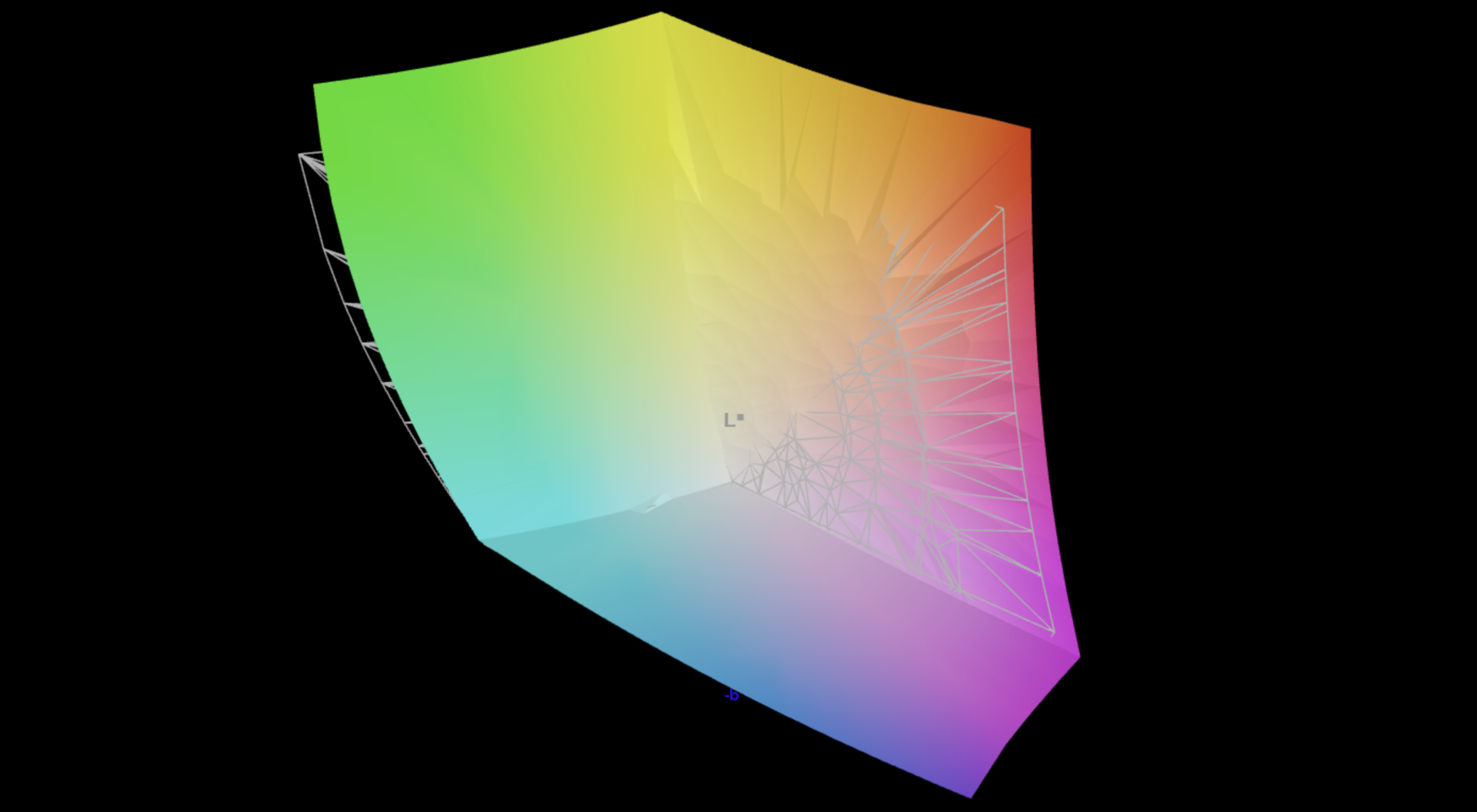

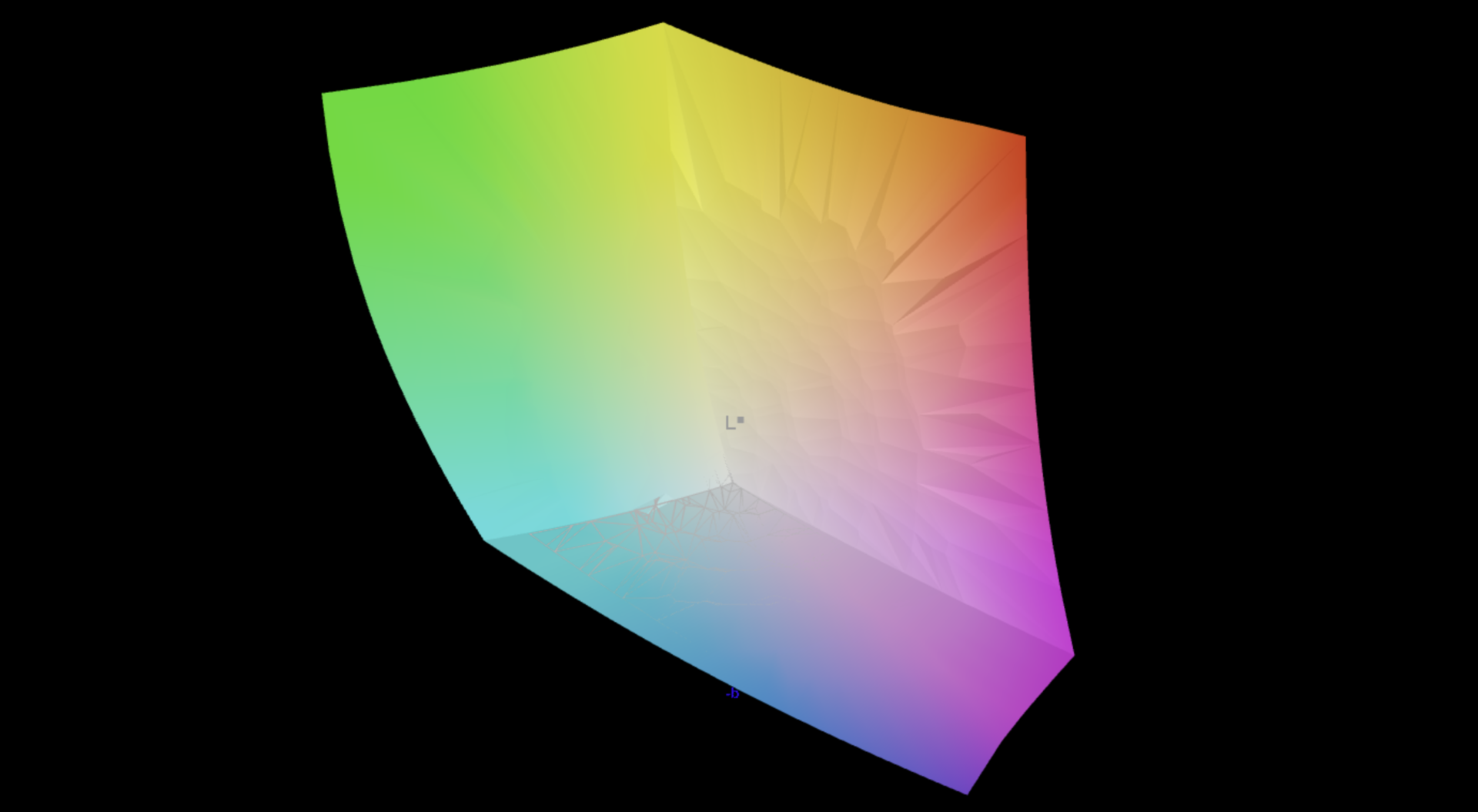

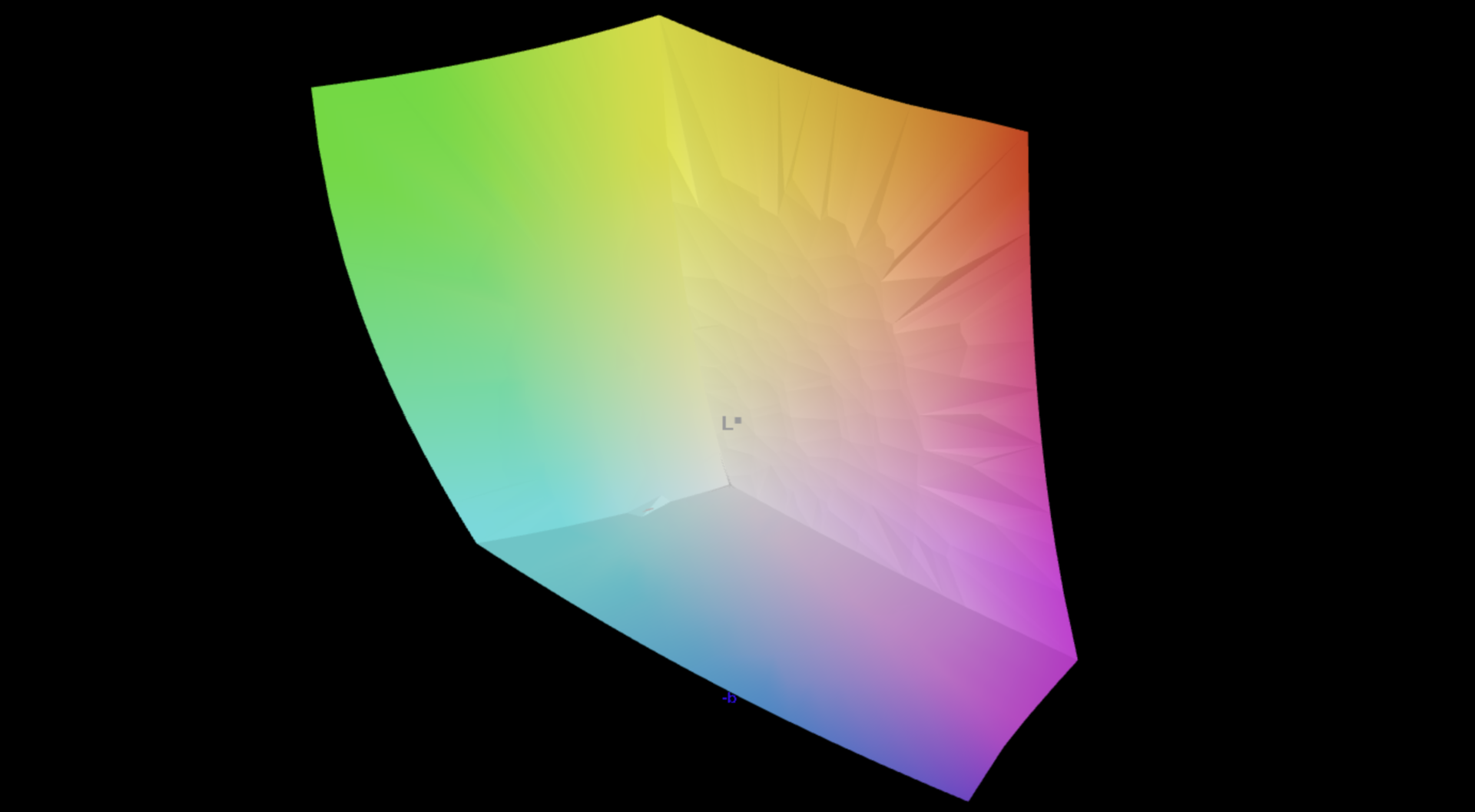

97.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21
Lenovo ThinkPad X1 2in1 G9 21KE004AGE ATNA4ßYK20-0, OLED, 2880x1800, 14" | Lenovo ThinkPad X1 Yoga G8 i7-1355U BOE NE140WUM-N62, IPS, 1920x1200, 14" | Dell Latitude 9450 2-in-1 AU Optronics B140QAN, IPS, 2560x1600, 14" | HP Spectre x360 14-eu0078ng SDC4197, OLED, 2880x1800, 14" | Lenovo Yoga 9 2-in-1 14IMH9 LEN140WQ+, OLED, 2880x1800, 14" | |
---|---|---|---|---|---|
Display | -20% | -12% | -3% | 0% | |
Display P3 Coverage | 99.9 | 69.3 -31% | 80.6 -19% | 99.8 0% | 99.8 0% |
sRGB Coverage | 100 | 98.6 -1% | 100 0% | 100 0% | 100 0% |
AdobeRGB 1998 Coverage | 97.6 | 71.1 -27% | 80.1 -18% | 89.3 -9% | 97.3 0% |
Response Times | -5238% | -7365% | 22% | -25% | |
Response Time Grey 50% / Grey 80% * | 0.61 ? | 43.1 ? -6966% | 59.6 ? -9670% | 0.77 ? -26% | 0.8 ? -31% |
Response Time Black / White * | 0.69 ? | 24.9 ? -3509% | 35.6 ? -5059% | 0.75 ? -9% | 1 ? -45% |
PWM Frequency | 240 ? | 480 100% | 240.5 ? 0% | ||
Screen | -92% | -19% | -3% | -56% | |
Brightness middle | 412 | 425.2 3% | 501.4 22% | 378 -8% | 371.6 -10% |
Brightness | 411 | 381 -7% | 491 19% | 384 -7% | 373 -9% |
Brightness Distribution | 98 | 87 -11% | 88 -10% | 97 -1% | 99 1% |
Black Level * | 0.23 | 0.32 | |||
Colorchecker dE 2000 * | 1.9 | 3.29 -73% | 2.52 -33% | 1.4 26% | 4.91 -158% |
Colorchecker dE 2000 max. * | 3.9 | 8.55 -119% | 4.87 -25% | 2.2 44% | 8.33 -114% |
Colorchecker dE 2000 calibrated * | 1.9 | 0.57 70% | 0.45 76% | 1.59 16% | |
Greyscale dE 2000 * | 1 | 6.1 -510% | 2.8 -180% | 1.7 -70% | 2.2 -120% |
Gamma | 2.21 100% | 2.24 98% | 2.17 101% | 2.17 101% | 2.25 98% |
CCT | 6361 102% | 6925 94% | 6270 104% | 6256 104% | 6120 106% |
Contrast | 1849 | 1567 | |||
Total Average (Program / Settings) | -1783% /
-932% | -2465% /
-1241% | 5% /
3% | -27% /
-36% |
* ... smaller is better

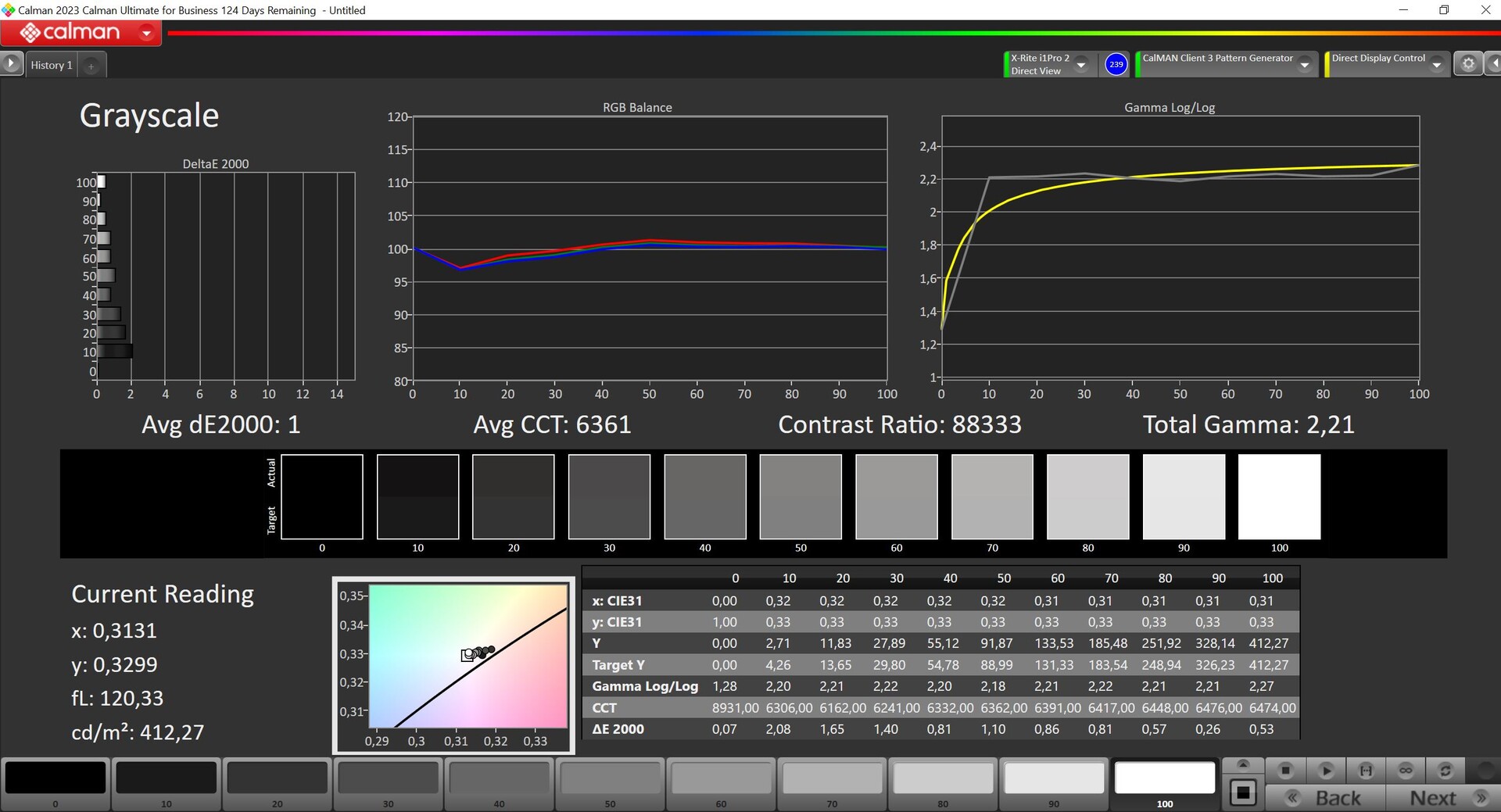

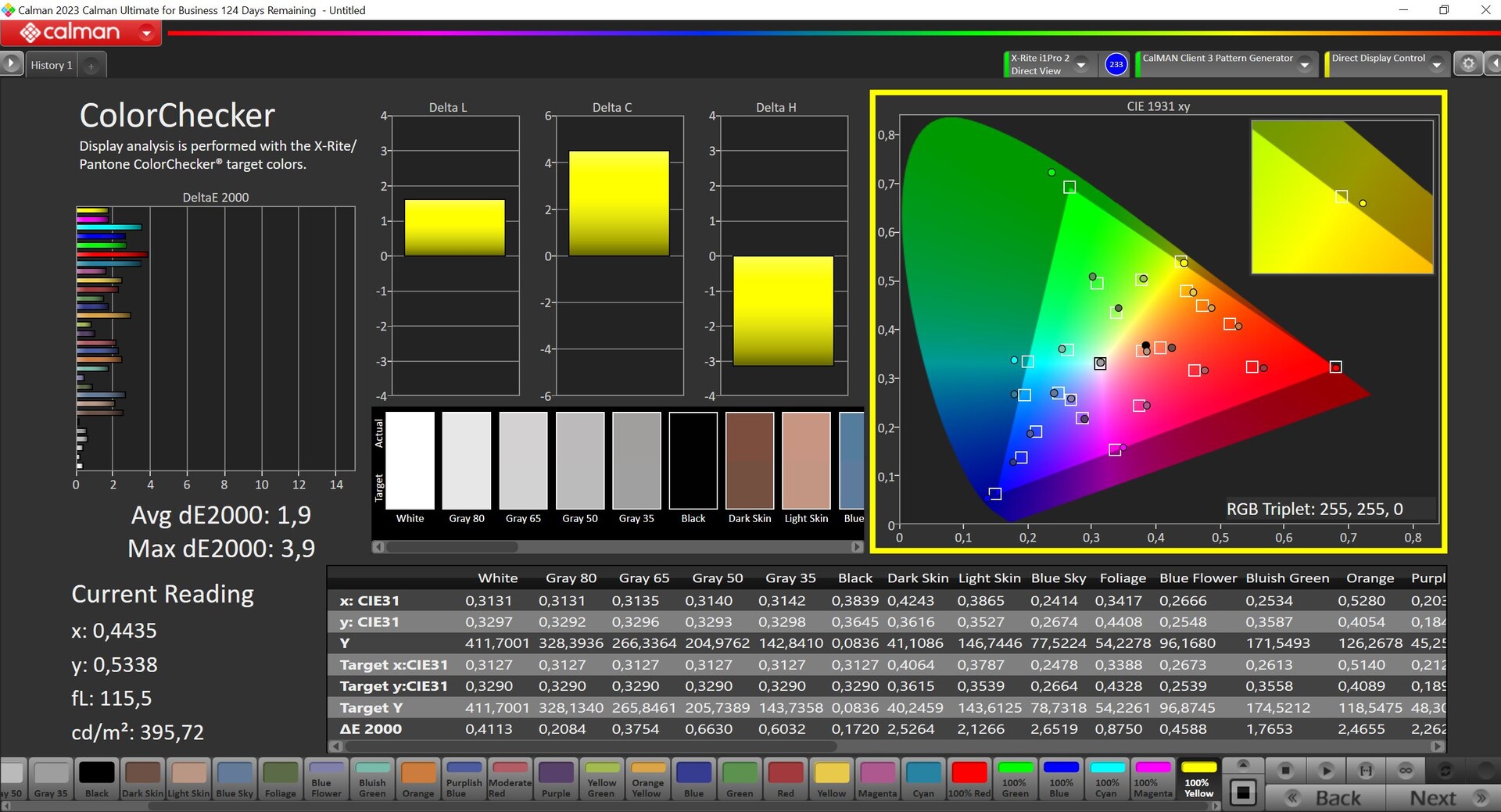

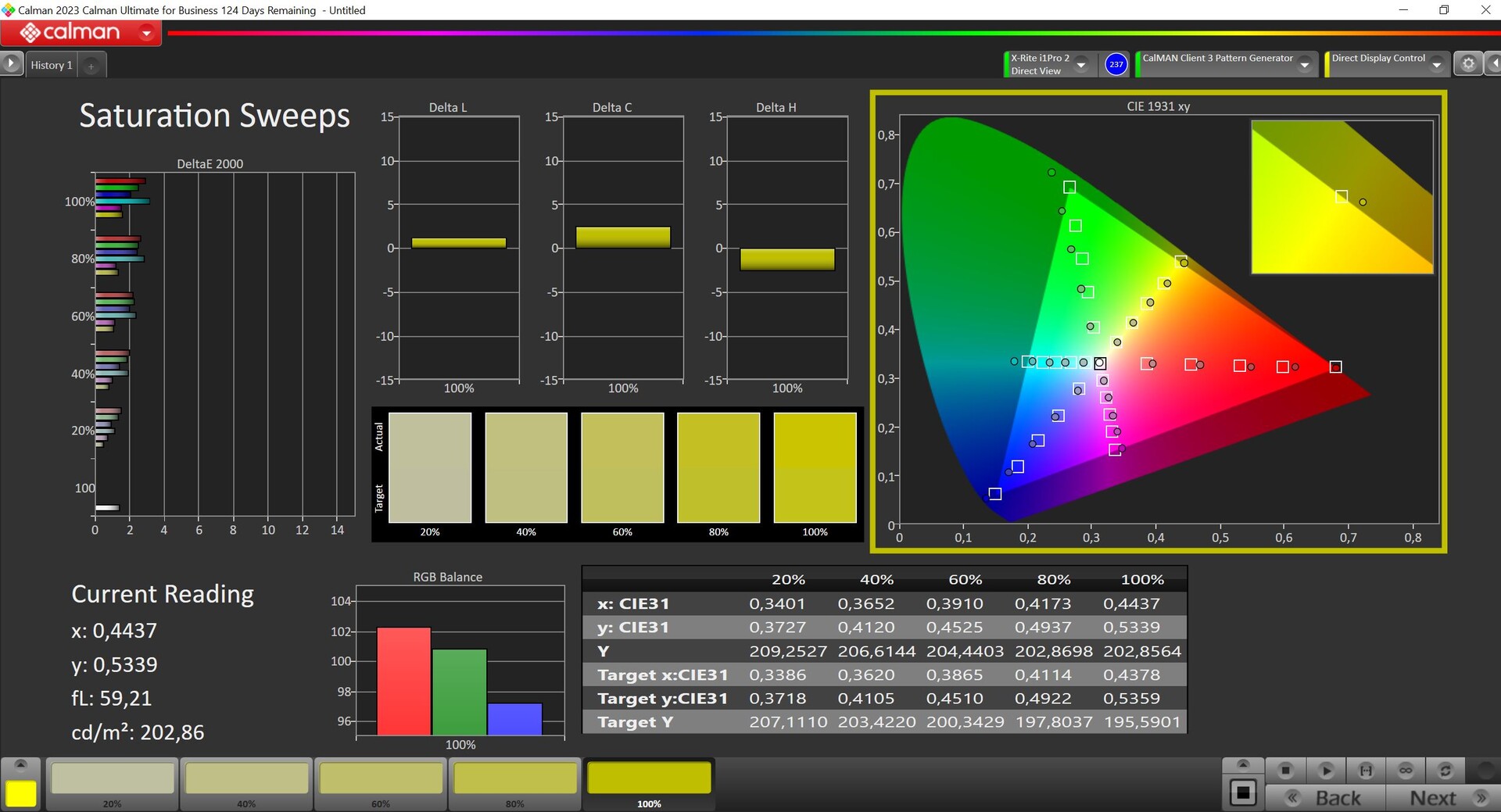

We analyzed the panel using the professional CalMAN software (X-Rite i1 Pro2) and its settings straight out of the box were already decent. We noted no color tint and its color deviations were okay, too. We were able to improve depiction ever so slightly using our own calibration, but quite a few colors were still above the important deviation of 3. Lenovo also doesn't offer a profile for the sRGB color space. Although P3 is covered, the panel isn't ideal for editing photos.

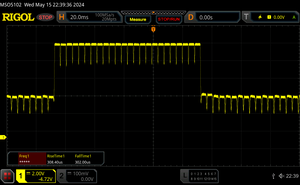

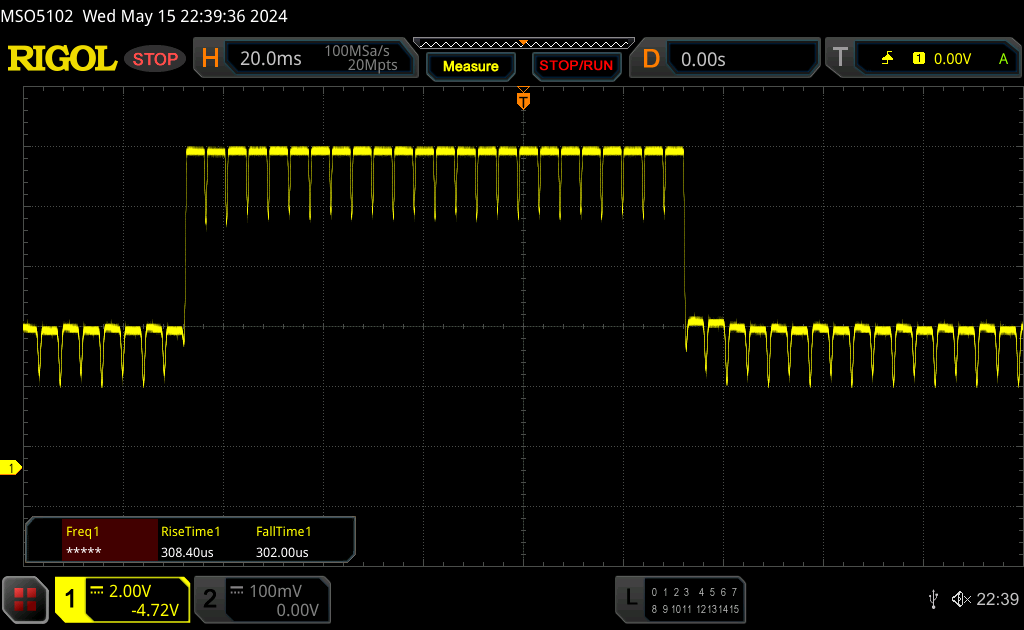

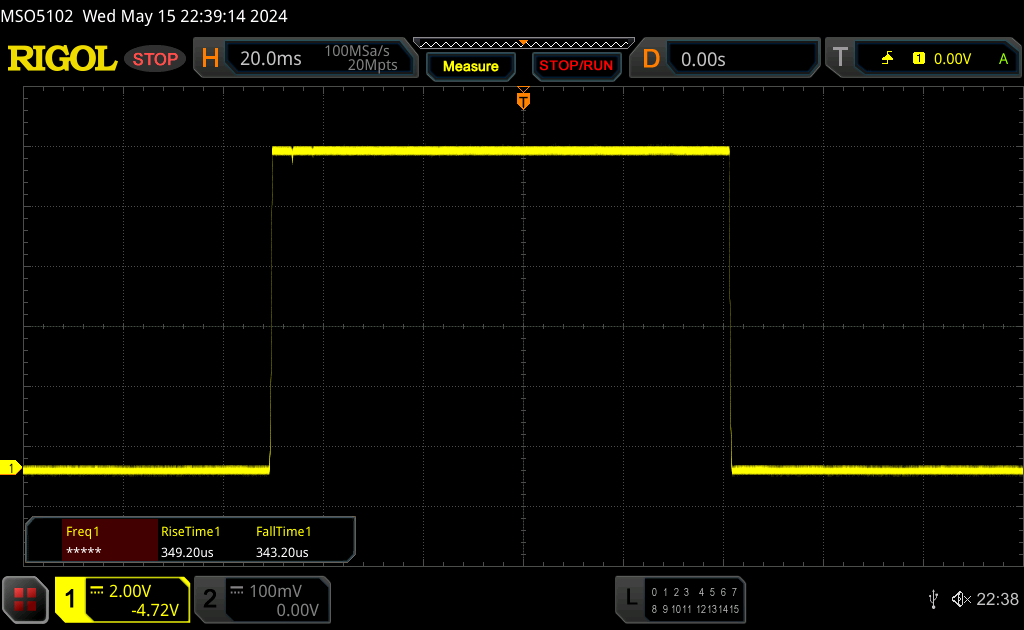

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
0.69 ms ... rise ↗ and fall ↘ combined | ↗ 0.35 ms rise | |
↘ 0.34 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 1 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.7 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
0.61 ms ... rise ↗ and fall ↘ combined | ↗ 0.31 ms rise | |
↘ 0.3 ms fall | ||
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 1 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.4 ms). |

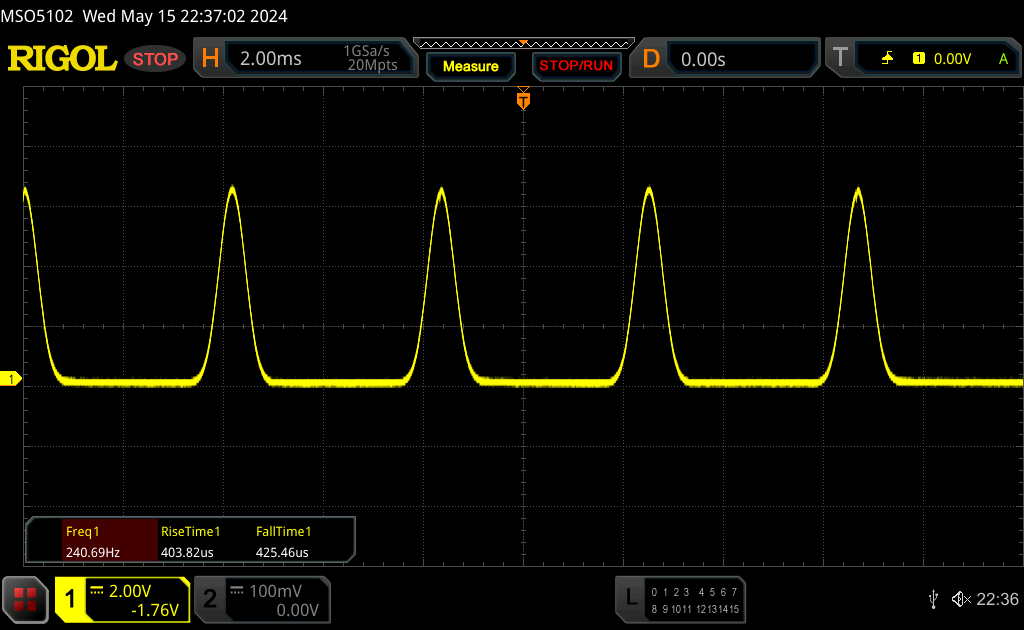

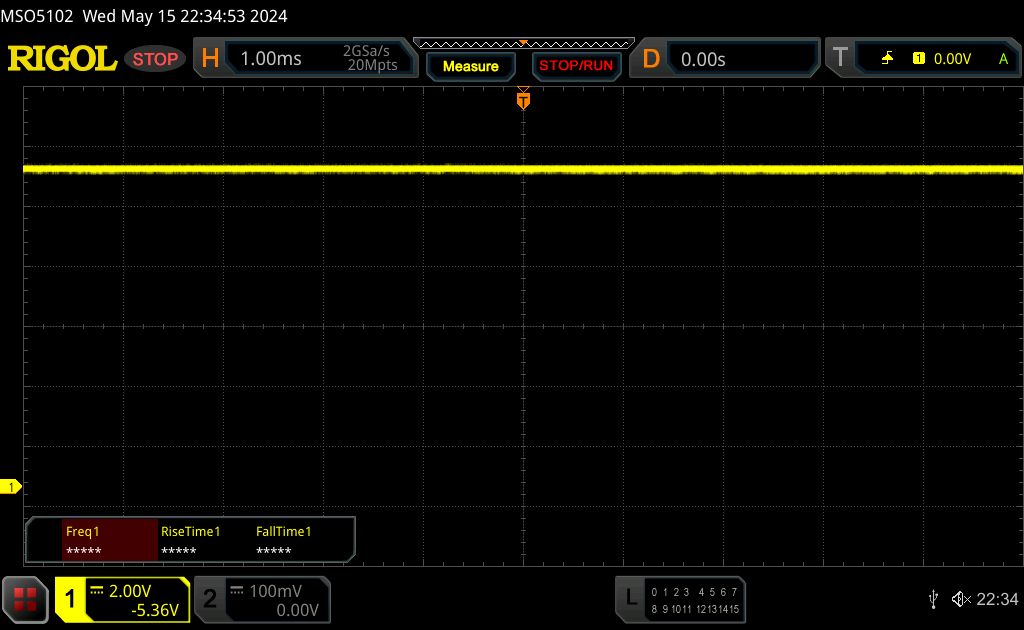

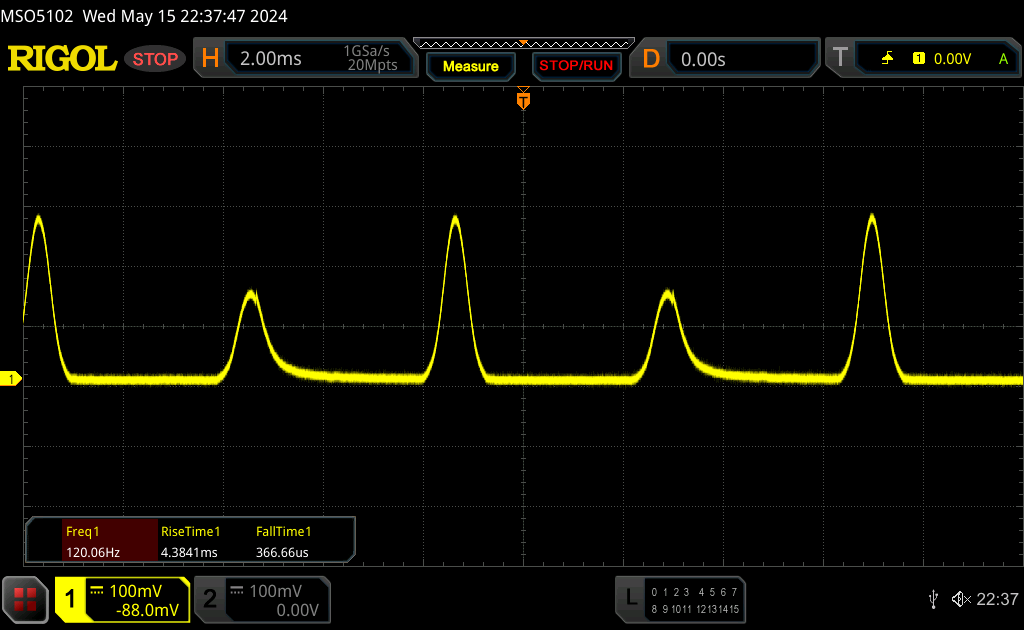

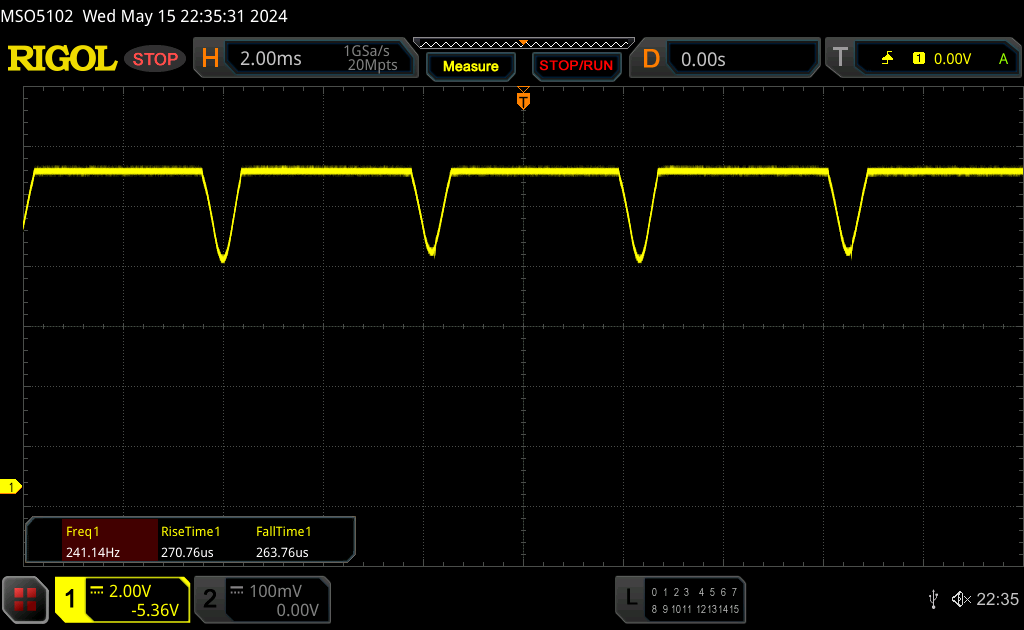

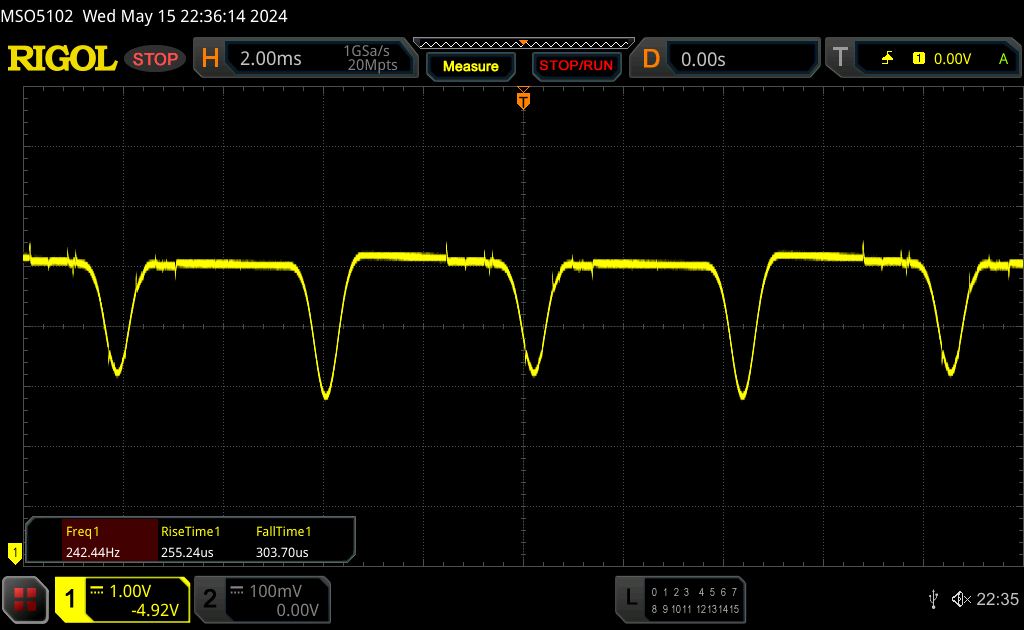

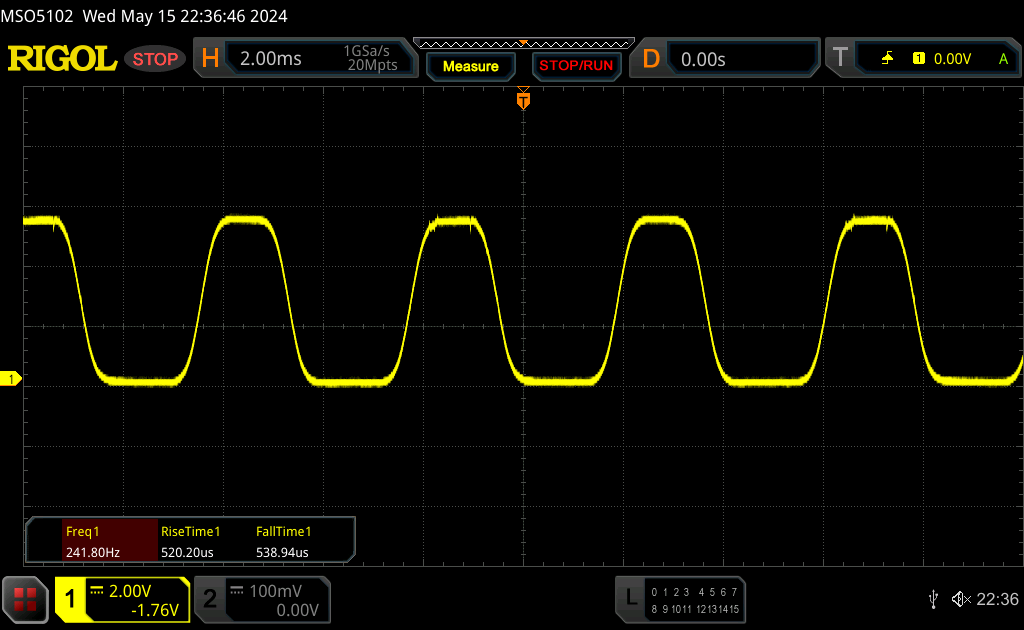

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 240 Hz | ≤ 99 % brightness setting | |
The display backlight flickers at 240 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 99 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 240 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8445 (minimum: 5 - maximum: 343500) Hz was measured. |

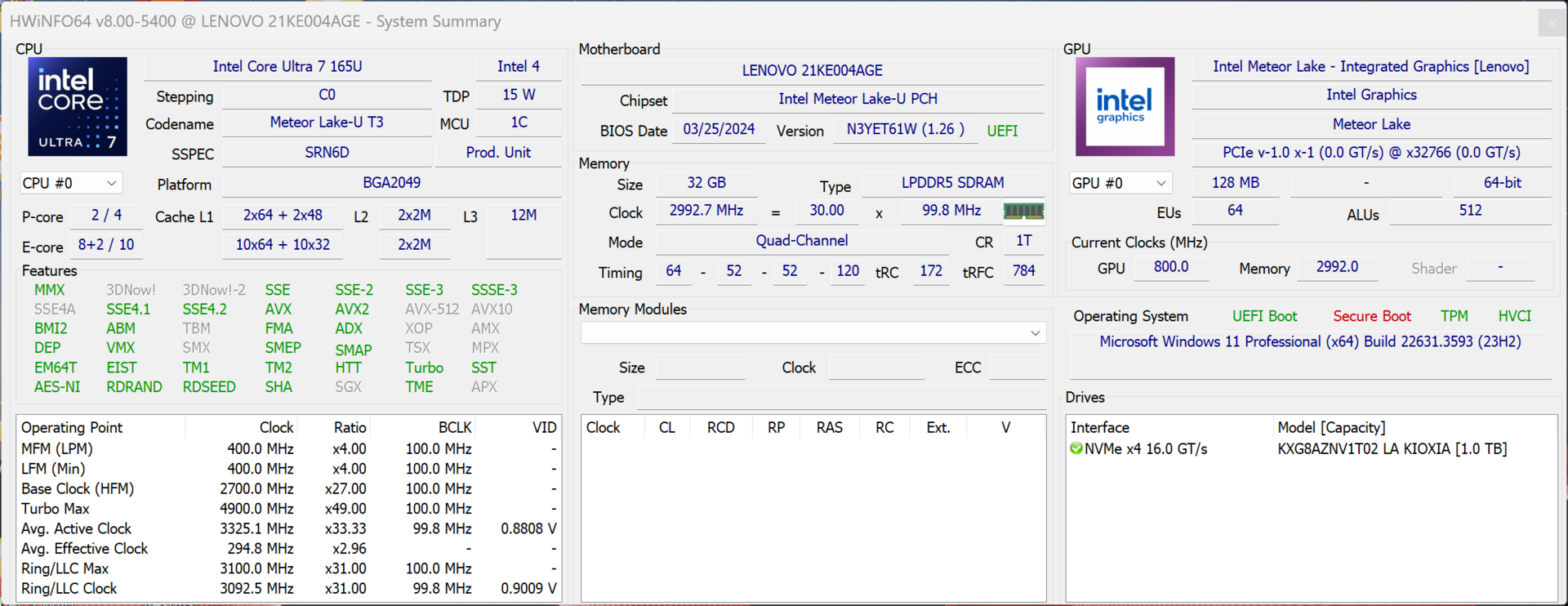

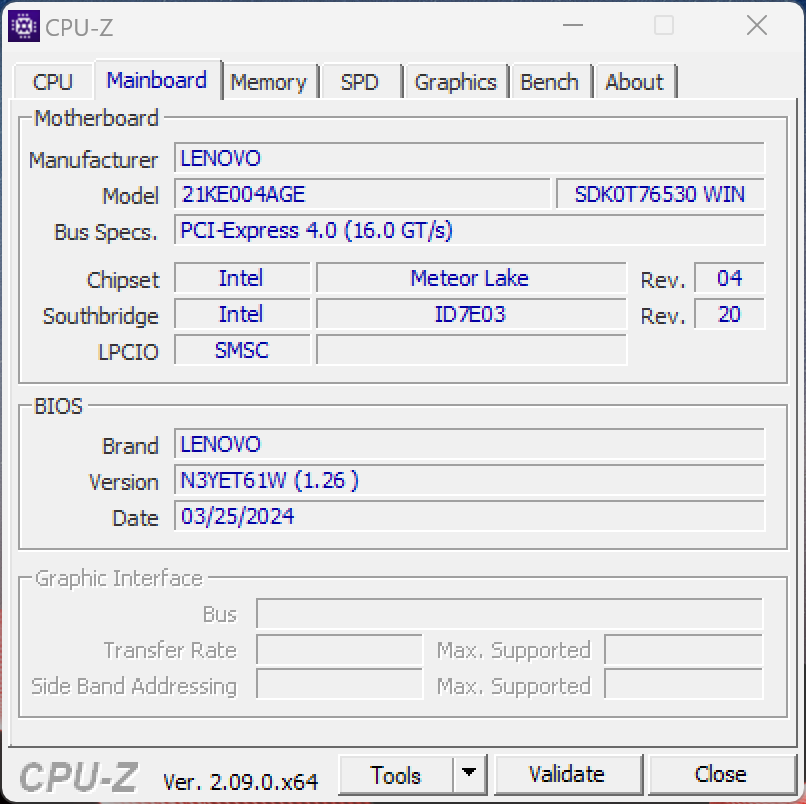

Performance - Meteor Lake and up to 64 GB RAM
Lenovo only offers the new ThinkPad X1 2in1 G9 with the new U-series mobile processors from Intel's Meteor Lake generation, whereby you can choose between the Core Ultra 5 and the Core Ultra 7 (and the corresponding vPro versions). The Core Ultra 5 models and the Core Ultra 7 155U can be had with 16 or 32 GB, and the Core Ultra 7 165U can be configured with 16, 32 or 64 GB.
Testing conditions
There are no additional energy profiles from Lenovo on the ThinkPad models—instead, they are automatically linked to the Windows settings. The following tests and benchmarks were carried out using maximum performance mode.

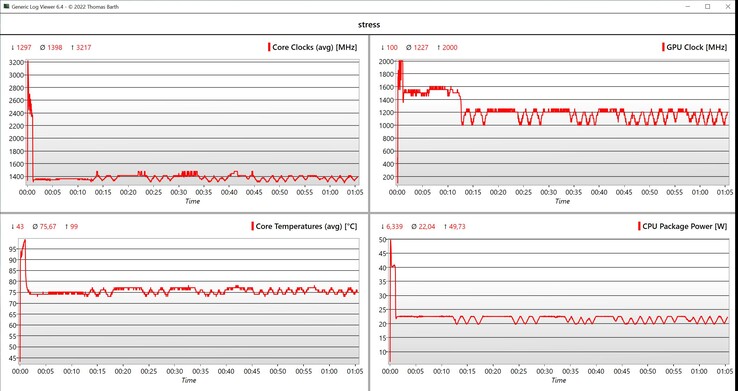

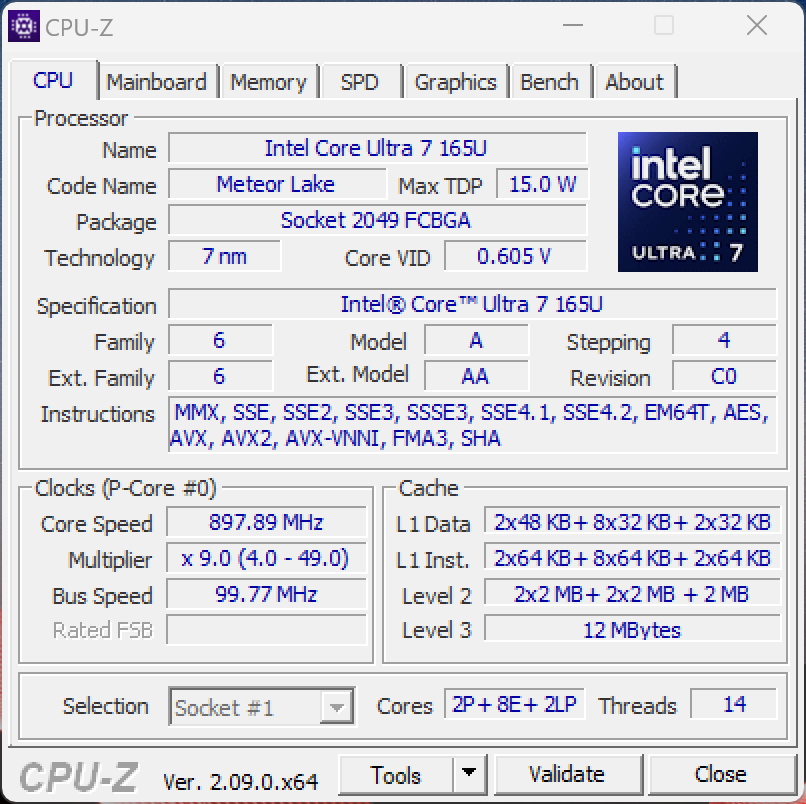

Processor - Core Ultra 7 165H
The Core Ultra 7 165U belongs to the latest Meteor Lake generation from Intel and in comparison to the Core Ultra 7 155U, it has a slightly higher maximum clock rate of up to 4.9 GHz as well as vPro support. The U-series chips only offer two fast performance cores and at the end of the day, its multi-core performance hasn't changed compared to the old Core i7-1355U and in total, its performance is rather low despite its relatively high TDP of 40/30 watts. A current AMD processor with these values would be considerably faster and an H processor from Intel could also have been used at these TDP values. in battery mode, the processor can consume a maximum of 35 watts, which is why its multi-core performance is about 8 % lower in this scenario. Further CPU benchmarks can be found in our tech section.
Cinebench R15 Multi continuous test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U -3! | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE -2! |
Cinebench R23 / Multi Core | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (2949 - 29063, n=63, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (6760 - 10797, n=5) | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
Cinebench R23 / Single Core | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (914 - 2163, n=63, last 2 years) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (1507 - 1709, n=5) | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
Cinebench R20 / CPU (Multi Core) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (1124 - 11357, n=63, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (2642 - 4176, n=5) | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
Cinebench R20 / CPU (Single Core) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible (348 - 827, n=63, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Average Intel Core Ultra 7 165U (604 - 661, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
Cinebench R15 / CPU Multi 64Bit | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (478 - 4830, n=66, last 2 years) | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (1140 - 1667, n=5) |
Cinebench R15 / CPU Single 64Bit | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible (149.8 - 317, n=63, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Average Intel Core Ultra 7 165U (220 - 252, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
Blender / v2.79 BMW27 CPU | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Average Intel Core Ultra 7 165U (310 - 478, n=5) | |
Average of class Convertible (107 - 1051, n=60, last 2 years) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Lenovo Yoga 9 2-in-1 14IMH9 |
7-Zip 18.03 / 7z b 4 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible (12977 - 121368, n=63, last 2 years) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Average Intel Core Ultra 7 165U (28457 - 43441, n=5) |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (3672 - 6540, n=63, last 2 years) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Average Intel Core Ultra 7 165U (4644 - 4960, n=5) |
Geekbench 6.4 / Multi-Core | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (2291 - 21269, n=57, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (5205 - 9944, n=5) |
Geekbench 6.4 / Single-Core | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (1003 - 2978, n=58, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (1853 - 2359, n=6) |
Geekbench 5.5 / Multi-Core | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (2188 - 22023, n=63, last 2 years) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (5652 - 8719, n=5) |
Geekbench 5.5 / Single-Core | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Convertible (806 - 2275, n=63, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (1663 - 1740, n=5) | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (3.43 - 36.2, n=63, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
HP Spectre x360 14-eu0078ng | |
Average Intel Core Ultra 7 165U (7.44 - 12.3, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE |
LibreOffice / 20 Documents To PDF | |
Average Intel Core Ultra 7 165U (43.5 - 61.9, n=5) | |
Average of class Convertible (42.7 - 84.3, n=62, last 2 years) | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 |
R Benchmark 2.5 / Overall mean | |
Lenovo ThinkPad X1 Yoga G7 21CE002HGE | |
Average Intel Core Ultra 7 165U (0.4881 - 0.555, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average of class Convertible (0.3985 - 0.84, n=62, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U |
AIDA64 / FP32 Ray-Trace | |
Average of class Convertible (2179 - 64158, n=64, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (5219 - 9685, n=5) |
AIDA64 / FPU Julia | |
Average of class Convertible (11392 - 183760, n=63, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (28636 - 47555, n=5) |
AIDA64 / CPU SHA3 | |
Average of class Convertible (797 - 8151, n=63, last 2 years) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U (1502 - 2694, n=5) | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
AIDA64 / CPU Queen | |
HP Spectre x360 14-eu0078ng | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (22413 - 145339, n=63, last 2 years) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U (29880 - 47345, n=5) |
AIDA64 / FPU SinJulia | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (1120 - 29155, n=63, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (4207 - 5776, n=5) |
AIDA64 / FPU Mandel | |
Average of class Convertible (5749 - 97193, n=63, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (14144 - 23352, n=5) |
AIDA64 / CPU AES | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (21774 - 169089, n=63, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (28755 - 50177, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
AIDA64 / CPU ZLib | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible (218 - 2001, n=63, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Average Intel Core Ultra 7 165U (449 - 794, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
AIDA64 / FP64 Ray-Trace | |
Average of class Convertible (1169 - 34297, n=63, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average Intel Core Ultra 7 165U (2684 - 4965, n=5) |
AIDA64 / CPU PhotoWorxx | |
Dell Latitude 9450 2-in-1 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Convertible (16583 - 81626, n=63, last 2 years) | |
Average Intel Core Ultra 7 165U (22773 - 49113, n=5) |
System performance
During the synthetic system tests, our test device didn't do particularly well but even so, it is a fast-reacting laptop in everyday use that didn't cause us any problems during the course of our test.
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
PCMark 10 / Score | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (3229 - 9125, n=61, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (5556 - 6421, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
PCMark 10 / Essentials | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Dell Latitude 9450 2-in-1 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (9400 - 11238, n=5) | |
Average of class Convertible (7233 - 12222, n=61, last 2 years) |
PCMark 10 / Productivity | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (5062 - 10591, n=61, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (7722 - 8751, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
PCMark 10 / Digital Content Creation | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (2496 - 16551, n=61, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (6229 - 7325, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE |
CrossMark / Overall | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Convertible (524 - 2274, n=63, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (1454 - 1570, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
HP Spectre x360 14-eu0078ng |
CrossMark / Productivity | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (1448 - 1571, n=5) | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible (554 - 1925, n=63, last 2 years) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
HP Spectre x360 14-eu0078ng |
CrossMark / Creativity | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Convertible (550 - 2949, n=63, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (1400 - 1685, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE |
CrossMark / Responsiveness | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (1305 - 1538, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average of class Convertible (381 - 1868, n=63, last 2 years) | |
HP Spectre x360 14-eu0078ng |
WebXPRT 3 / Overall | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (261 - 399, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (171 - 426, n=65, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE |
WebXPRT 4 / Overall | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (242 - 314, n=5) | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Dell Latitude 9450 2-in-1 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average of class Convertible (91.2 - 317, n=61, last 2 years) |
Mozilla Kraken 1.1 / Total | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average of class Convertible (407 - 1089, n=66, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) (407 - 562, n=5) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
* ... smaller is better
PCMark 10 Score | 5893 points | |
Help |
AIDA64 / Memory Copy | |
HP Spectre x360 14-eu0078ng | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Dell Latitude 9450 2-in-1 | |
Average of class Convertible (29473 - 158525, n=63, last 2 years) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average Intel Core Ultra 7 165U (37002 - 84739, n=5) |
AIDA64 / Memory Read | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Average of class Convertible (28905 - 126517, n=63, last 2 years) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U (10084 - 59571, n=5) |
AIDA64 / Memory Write | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Average of class Convertible (30591 - 216896, n=63, last 2 years) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U (20073 - 64848, n=5) |
AIDA64 / Memory Latency | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Average Intel Core Ultra 7 165U (125.3 - 146.4, n=5) | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Average of class Convertible (7.7 - 173, n=62, last 2 years) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
* ... smaller is better

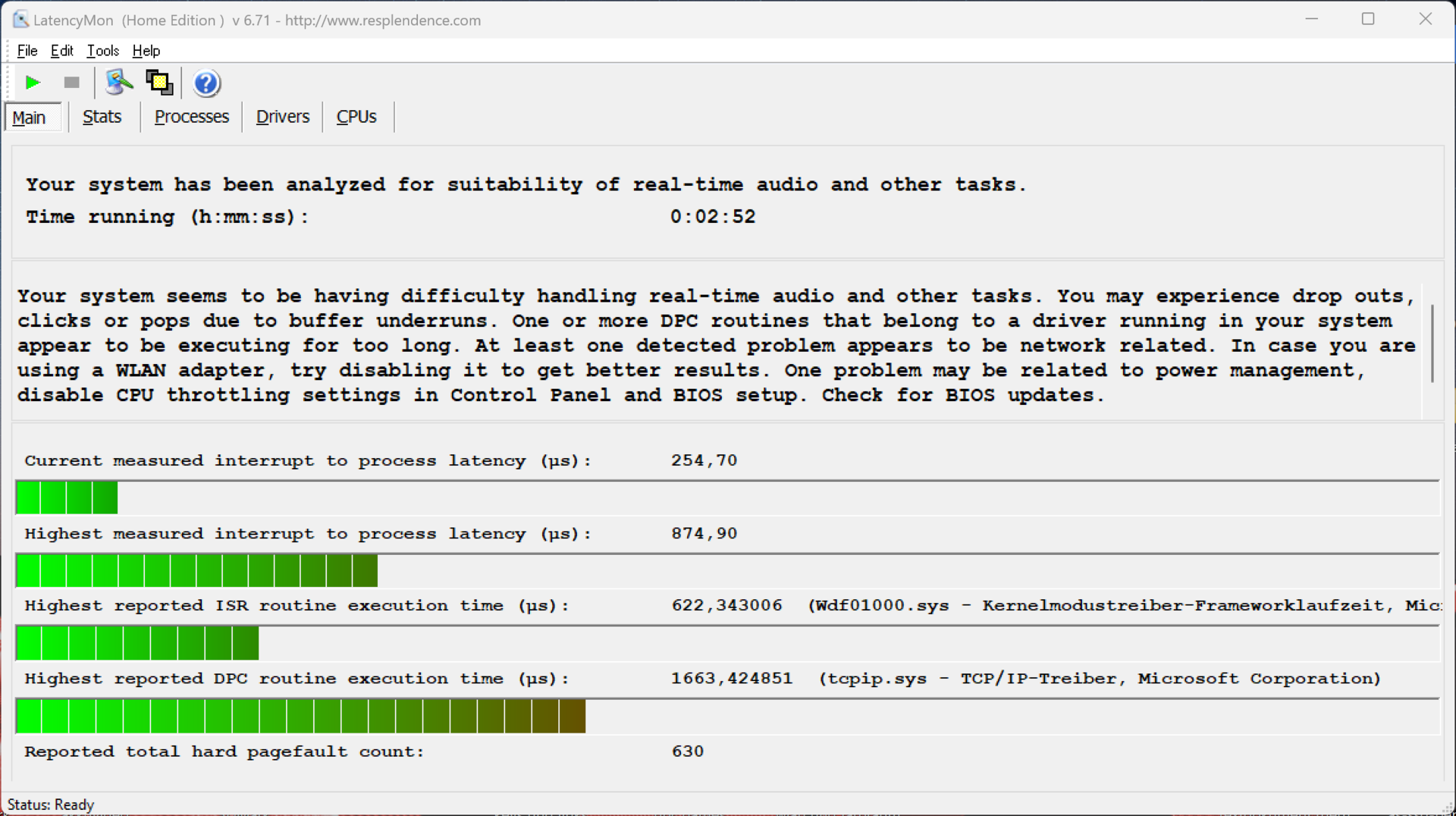

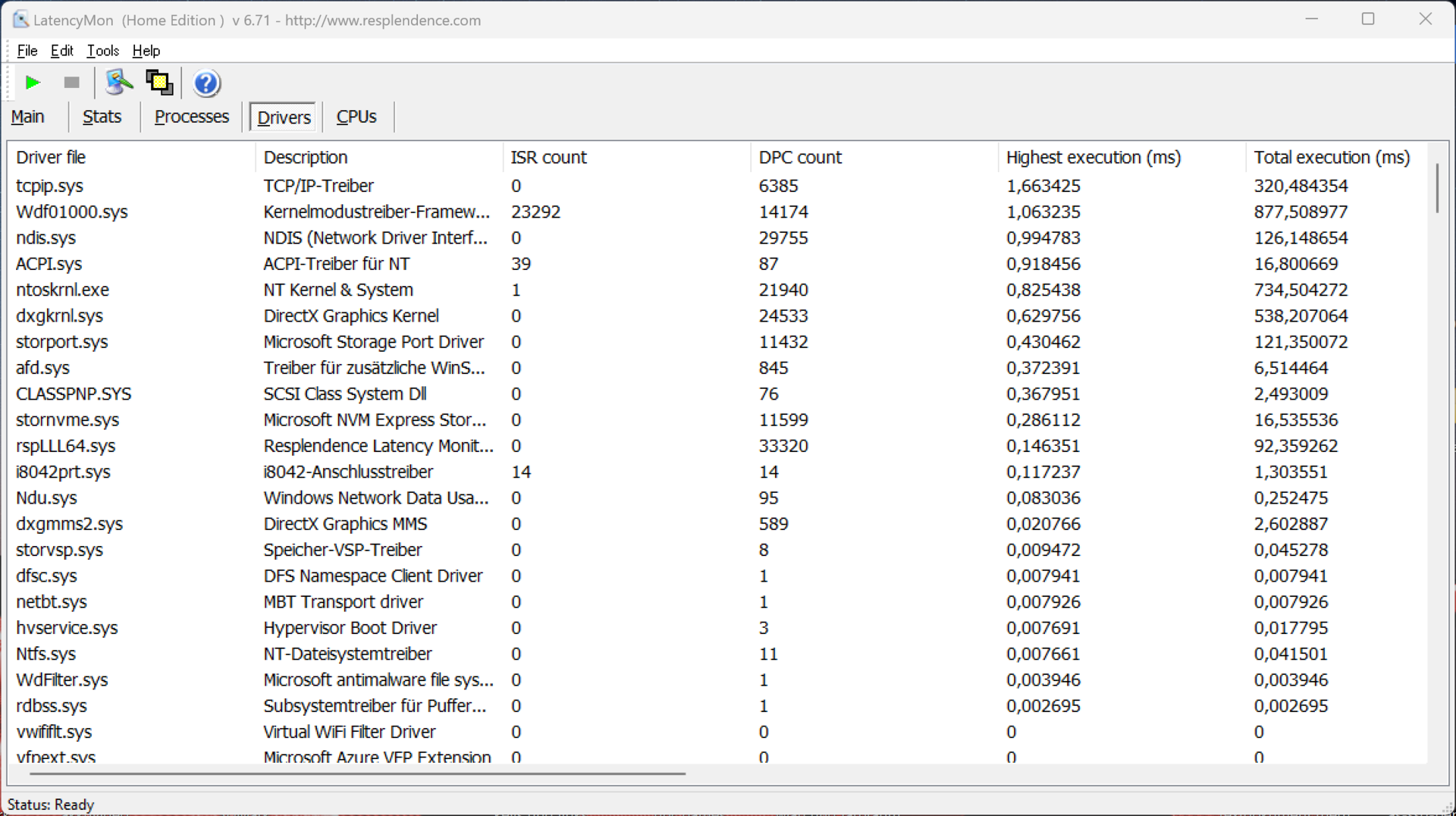

DPC latencies
In our standardized latency test (surfing the web, 4K YouTube playback, CPU load), the test device with the current BIOS version showed no limitations when using real-time audio applications. Although one driver showed a deflection, the important "interrupt-to-process-latency" value was low.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Dell Latitude 9450 2-in-1 | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
HP Spectre x360 14-eu0078ng |
* ... smaller is better
Storage device
The 1-TB SSD (PCIe 4.0, M.2 2280) in our test device is made by Kioxia (XG8) and after first starting up the device, users have 887 GB free to use. It is a very fast storage device with transfer rates of over 6 GB/s. Its performance under continuous load remains almost completely stable. Further SSD benchmarks can be found here.
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
Graphics card

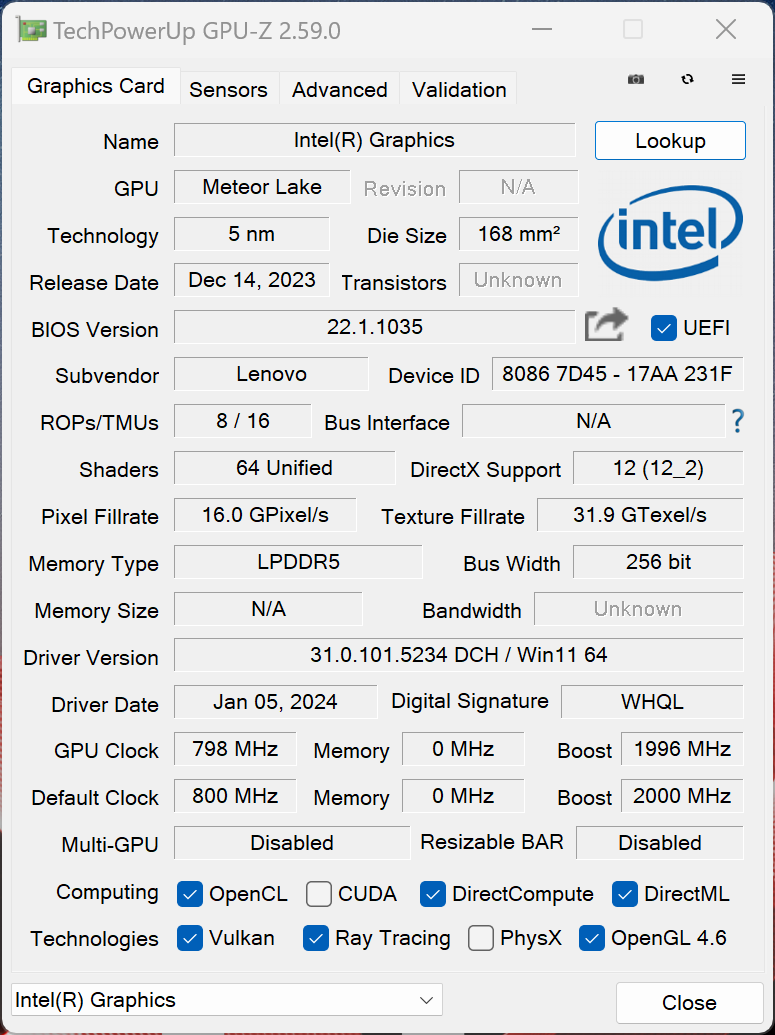

Within the ThinkPad X1 2in1, graphics calculations are taken care of by the processor's iGPU and the new U-series chips of the Meteor Lake generation do not use the fast Arc Graphics with 8 Xe cores—which is available in conjunction with the Core Ultra 7 155H, for example—but only a slower variant with 4 Xe cores. Its performance therefore lags significantly behind devices with the Core Ultra 7 155H and is only slightly faster than the old Iris Xe Graphics from previous years.
Of course, this also has an impact on the device's gaming performance if you intend on winding down after work with some games. Here too, the new X1 2in1 only came just ahead of the old model and you will be limited to older or less demanding games—where you still have to reduce the details in many cases. At least its graphics performance remains stable both under prolonged load and in battery mode. Further GPU benchmarks are available here.
3DMark 11 Performance | 7589 points | |
3DMark Fire Strike Score | 5118 points | |
3DMark Time Spy Score | 2285 points | |
Help |
Blender / v3.3 Classroom CPU | |
Average Intel Graphics 4-Core iGPU (Arc) (548 - 1156, n=21) | |
Average of class Convertible (163 - 2067, n=64, last 2 years) | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Dell Latitude 9450 2-in-1 | |
HP Spectre x360 14-eu0078ng | |
Lenovo Yoga 9 2-in-1 14IMH9 |
* ... smaller is better
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (10.2 - 101, n=36, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Average of class Convertible (7.14 - 89.5, n=51, last 2 years) | |
HP Spectre x360 14-eu0078ng | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
HP Spectre x360 14-eu0078ng | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (4.48 - 86.6, n=64, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
HP Spectre x360 14-eu0078ng | |
Lenovo ThinkPad X1 Yoga G8 i7-1355U | |
Lenovo Yoga 9 2-in-1 14IMH9 | |
Average of class Convertible (18.8 - 142, n=64, last 2 years) | |
Dell Latitude 9450 2-in-1 | |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE |
Witcher 3 FPS diagram
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 139.1 | 123.9 | 21.9 | 9 |
The Witcher 3 (2015) | 91 | 57 | 31 | 16.3 |
Dota 2 Reborn (2015) | 91.8 | 72.2 | 60.4 | 56.9 |
Final Fantasy XV Benchmark (2018) | 48.1 | 26 | 18.2 | |
X-Plane 11.11 (2018) | 40 | 29.7 | 24.8 | |
Far Cry 5 (2018) | 48 | 25 | 23 | 21 |
Strange Brigade (2018) | 115 | 50 | 40 | 32 |
F1 23 (2023) | 43.8 | 39.8 | 26 | 7.14 |
Emissions - Annoying fans
Noise emissions
Its cooling has been revised and still consists of two fans, but the new design is not entirely a success, as the new ThinkPad X1 2in1 G9 is quite a loud laptop in everyday use, because the fans start up very quickly even during simple tasks. This is annoying in practice and is difficult to justify in view of its low overall performance. As soon as you push the laptop a little harder, it quickly reaches its maximum of just under 42 dB(A), which is also on par with its predecessor. At least there were no electronic noises on our test device.
Noise Level
Idle |
| 24.5 / 28 / 29.8 dB(A) |
Load |
| 41.7 / 41.7 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: ![]() ![]() ![]() |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE Graphics 4-Core, Ultra 7 165U, Kioxia XG8 KXG8AZNV1T02 | Lenovo ThinkPad X1 Yoga G8 i7-1355U Iris Xe G7 96EUs, i7-1355U, WDC PC SN810 512GB | Dell Latitude 9450 2-in-1 Graphics 4-Core, Ultra 7 165U | HP Spectre x360 14-eu0078ng Arc 8-Core, Ultra 7 155H, Kioxia XG8 KXG80ZNV2T04 | Lenovo Yoga 9 2-in-1 14IMH9 Arc 8-Core, Ultra 7 155H, Samsung PM9C1a MZAL81T0HDLB | |
---|---|---|---|---|---|
Noise | 14% | 5% | 18% | 8% | |
off / environment * | 24.5 | 22.7 7% | 23.9 2% | 23.4 4% | 23.2 5% |
Idle Minimum * | 24.5 | 22.8 7% | 23.9 2% | 23.4 4% | 23.6 4% |
Idle Average * | 28 | 22.8 19% | 23.9 15% | 23.4 16% | 23.6 16% |
Idle Maximum * | 29.8 | 22.8 23% | 23.9 20% | 25.6 14% | 25 16% |
Load Average * | 41.7 | 29.4 29% | 36.4 13% | 25.6 39% | 34.8 17% |
Witcher 3 ultra * | 41.7 | 35.5 15% | 44.7 -7% | 30.9 26% | 37.7 10% |
Load Maximum * | 41.7 | 42 -1% | 44.7 -7% | 32.6 22% | 46.2 -11% |
* ... smaller is better
Temperature

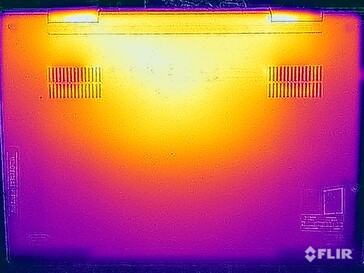

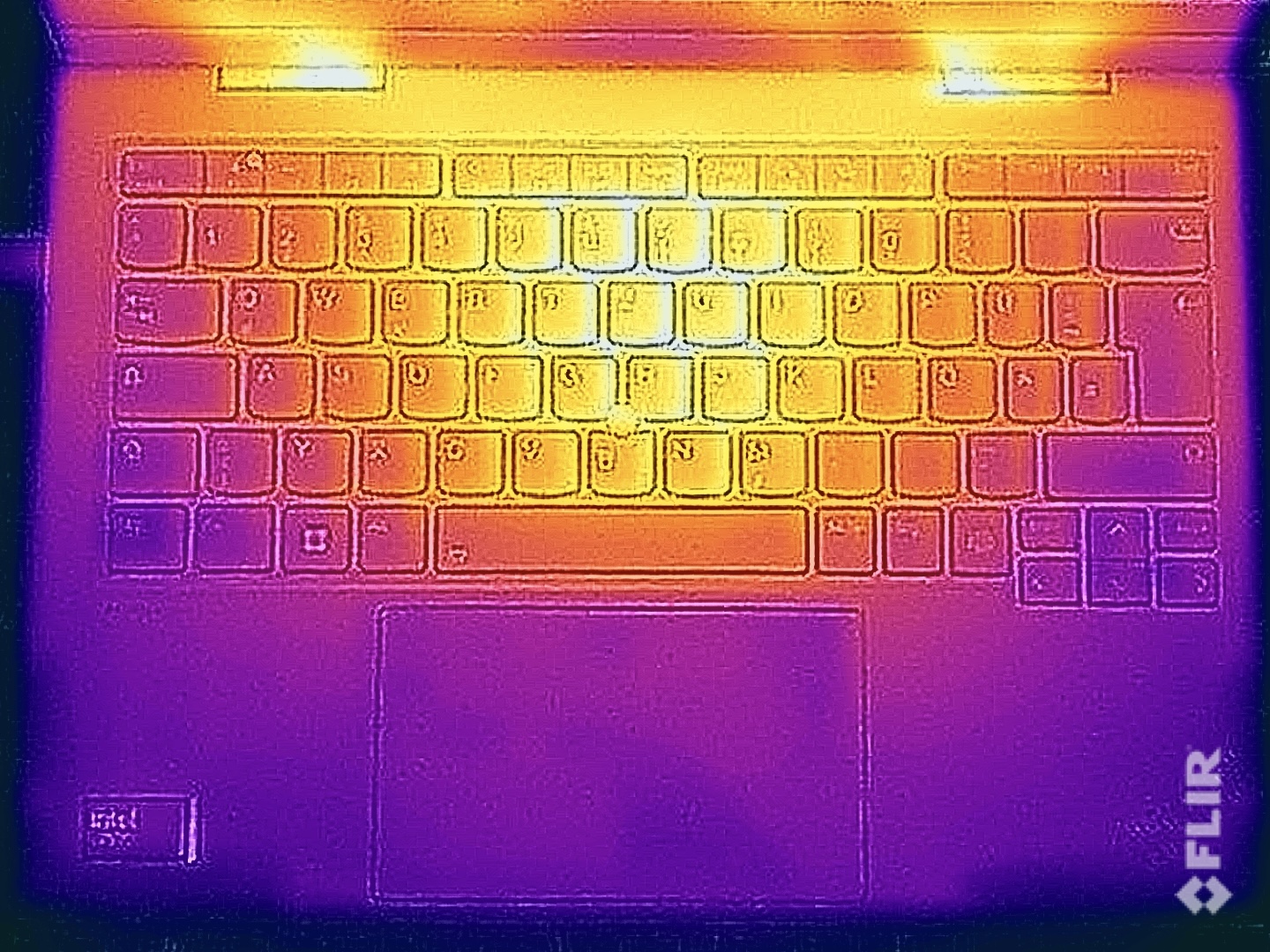

Our test device's case remained pleasantly cool in idle mode and under low load during our test, but its surfaces heated up over a large area under higher load and we measured over 40 °C in several places. There are no restrictions in everyday use and usage is not limited—but this is by no means a brilliant performance either. In the stress test with combined CPU/iGPU load, the processor briefly consumed up to 50 watts, but then quickly dropped to 40 watts and then to around 22 watts.
(±) The maximum temperature on the upper side is 42.9 °C / 109 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.6 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.9 °C / 75 F, compared to the device average of 30.3 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.1 °C / 95 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.3 °C / 84.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-1.3 °C / -2.3 F).
Lenovo ThinkPad X1 2in1 G9 21KE004AGE Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) | Lenovo ThinkPad X1 Yoga G8 i7-1355U Intel Core i7-1355U, Intel Iris Xe Graphics G7 96EUs | Dell Latitude 9450 2-in-1 Intel Core Ultra 7 165U, Intel Graphics 4-Core iGPU (Arc) | HP Spectre x360 14-eu0078ng Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU | Lenovo Yoga 9 2-in-1 14IMH9 Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU | |
---|---|---|---|---|---|
Heat | -16% | 2% | 3% | -16% | |
Maximum Upper Side * | 42.9 | 41.6 3% | 35.4 17% | 39.3 8% | 40 7% |
Maximum Bottom * | 43.6 | 47.6 -9% | 37.8 13% | 45 -3% | 43 1% |
Idle Upper Side * | 24.4 | 30.6 -25% | 27.2 -11% | 23.8 2% | 32 -31% |
Idle Bottom * | 24.9 | 33.2 -33% | 28.2 -13% | 24 4% | 35.2 -41% |
* ... smaller is better
Speakers
The speakers on the new ThinkPad X1 2in1 G9 are no longer located next to the keyboard, and the two stereo modules (2 watts each) also performed slightly weaker during our measurement. However, you won't hear the difference and in practice, their sound is also full and loud, but the competitors from Dell and HP also show that it can be done even better.
Lenovo ThinkPad X1 2in1 G9 21KE004AGE audio analysis
(+) | speakers can play relatively loud (86.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.6% lower than median
(±) | linearity of bass is average (9.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(+) | mids are linear (2.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.2% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 4% similar, 85% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Lenovo ThinkPad X1 Yoga G8 i7-1355U audio analysis
(+) | speakers can play relatively loud (85.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.9% lower than median
(±) | linearity of bass is average (11% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(±) | linearity of highs is average (7.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.7% difference to median)
Compared to same class
» 9% of all tested devices in this class were better, 4% similar, 87% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Dell Latitude 9450 2-in-1 audio analysis
(+) | speakers can play relatively loud (88 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.7% difference to median)
Compared to same class
» 4% of all tested devices in this class were better, 1% similar, 95% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 24%, worst was 134%
HP Spectre x360 14-eu0078ng audio analysis
(+) | speakers can play relatively loud (84.4 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.1% lower than median
(±) | linearity of bass is average (10.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(+) | mids are linear (3.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.9% difference to median)
Compared to same class
» 4% of all tested devices in this class were better, 1% similar, 95% worse
» The best had a delta of 6%, average was 20%, worst was 57%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Power management - OLED and 120 Hz cost runtime
Power consumption
Our test device's consumption measurements show no surprises, although its idle consumption can of course vary depending on the background displayed on OLED panels. Therefore, you should make use of the dark Windows design and the darkest possible wallpaper to keep its consumption as low as possible. With Lenovo's default wallpaper, we measured a maximum of just over 10 watts in idle mode, which is reasonable considering the screen's high resolution. Under load, its maximum consumption briefly hit 64 watts and then settled at around 42 watts after a minute. The included 65-watt power supply is therefore sufficiently sized.
Off / Standby | ![]() ![]() |
Idle | ![]() ![]() ![]() |
Load |
![]() ![]() |
![]() ![]() ![]() ![]() ![]() ![]() ![]() | |
Key:
min: ![]() ![]() ![]() |
Lenovo ThinkPad X1 2in1 G9 21KE004AGE Ultra 7 165U, Graphics 4-Core, Kioxia XG8 KXG8AZNV1T02, OLED, 2880x1800, 14" | Lenovo ThinkPad X1 Yoga G8 i7-1355U i7-1355U, Iris Xe G7 96EUs, WDC PC SN810 512GB, IPS, 1920x1200, 14" | Dell Latitude 9450 2-in-1 Ultra 7 165U, Graphics 4-Core, , IPS, 2560x1600, 14" | HP Spectre x360 14-eu0078ng Ultra 7 155H, Arc 8-Core, Kioxia XG8 KXG80ZNV2T04, OLED, 2880x1800, 14" | Lenovo Yoga 9 2-in-1 14IMH9 Ultra 7 155H, Arc 8-Core, Samsung PM9C1a MZAL81T0HDLB, OLED, 2880x1800, 14" | Average Intel Graphics 4-Core iGPU (Arc) | Average of class Convertible | |
---|---|---|---|---|---|---|---|
Power Consumption | 12% | 10% | 27% | -4% | 23% | 11% | |
Idle Minimum * | 7.3 | 2.9 60% | 3.2 56% | 3.2 56% | 4.2 42% | 3.72 ? 49% | 4.79 ? 34% |
Idle Average * | 10.1 | 5.4 47% | 6.4 37% | 4.2 58% | 7.1 30% | 6.72 ? 33% | 7.59 ? 25% |
Idle Maximum * | 10.4 | 9.6 8% | 10.8 -4% | 4.9 53% | 12.9 -24% | 8.17 ? 21% | 10.2 ? 2% |
Load Average * | 45.7 | 55.9 -22% | 54.6 -19% | 40.5 11% | 58.9 -29% | 40.3 ? 12% | 45.7 ? -0% |
Witcher 3 ultra * | 35.2 | 42.6 -21% | 35.5 -1% | 37.9 -8% | 49.5 -41% | ||
Load Maximum * | 64.1 | 65.3 -2% | 70.2 -10% | 68.6 -7% | 66.7 -4% | 65.1 ? -2% | 67.6 ? -5% |
* ... smaller is better
Power consumption Witcher 3 / stress test
Power consumption with external monitor
Runtimes

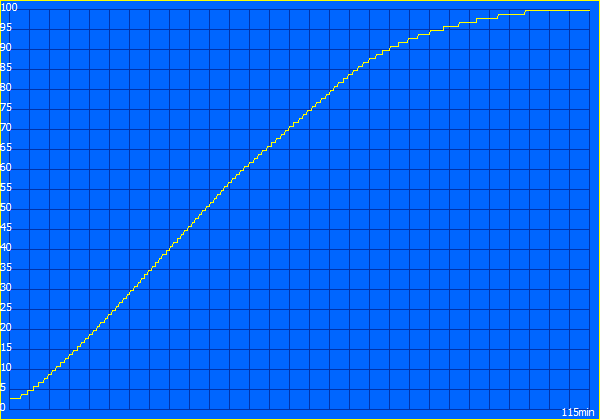

Nothing has changed about the laptop's battery capacity of 57 Wh and its overall runtimes with the high-resolution OLED panel are average. In our WLAN test at 150 cd/m² (corresponds to 68 % of our test device's maximum SDR brightness), the X1 2in1 achieved 8.5 hours at 60 Hz and just under 7 hours at 120 Hz. At full SDR brightness, we noted just 6:17 hours (60 Hz) and 5:46 hours at 120 Hz. The competitors achieve better values in this aspect, which is partly due to their larger batteries. In the video test at 150 cd/m², we measured 9 hours and under full load, the battery can be drained after 1.5 hours. A full charge with the device switched on takes 115 minutes, whereby 80 % of its capacity is available again after around 64 minutes.
If you want the longest possible battery life, you should definitely configure the X1 2in1 with one of the IPS panels (1,920 x 1,200 pixels, 400 nits, sRGB).
Lenovo ThinkPad X1 2in1 G9 21KE004AGE Ultra 7 165U, Graphics 4-Core, 57 Wh | Lenovo ThinkPad X1 Yoga G8 i7-1355U i7-1355U, Iris Xe G7 96EUs, 57 Wh | Dell Latitude 9450 2-in-1 Ultra 7 165U, Graphics 4-Core, 60 Wh | HP Spectre x360 14-eu0078ng Ultra 7 155H, Arc 8-Core, 68 Wh | Lenovo Yoga 9 2-in-1 14IMH9 Ultra 7 155H, Arc 8-Core, 75 Wh | Average of class Convertible | |
---|---|---|---|---|---|---|
Battery Runtime | -21% | 61% | 46% | 11% | 40% | |
H.264 | 540 | 999 85% | 898 ? 66% | |||
WiFi v1.3 | 509 | 403 -21% | 815 60% | 555 9% | 600 18% | 654 ? 28% |
Load | 89 | 143 61% | 129 45% | 93 4% | 112.1 ? 26% |
Pros
Cons
Verdict - New case design brings advantages and disadvantages
Aside from its new name, Lenovo has changed a lot on its new ThinkPad X1 2in1 G9, including a completely new case. The problem, however, is that users barely benefit from this and in some areas, the device is actually even weaker than its predecessor. We don't have anything negative to say about the case's quality in general and it is very stable—in addition, the hinges are now better than before. On the flip side, Lenovo has axed the slot for its small stylus, now delivering a larger pen that may be able to be connected to the case magnetically, but this doesn't provide a very sturdy solution for taking the laptop with you on the go.
The device's new haptic touchpad works well but it isn't very fun to use if you primarily use the TrackPoint, as we are simply missing the old TrackPoint keys' feedback. However, the old version can at least still be configured. Its power button has been moved to the side, which is why a button is now sacrificed for the fingerprint scanner. The keyboard itself is good, at least by current Lenovo standards. However, it no longer has a quality advantage over the competition.
Lenovo has equipped the ThinkPad X1 2in1 G9 with a new case but for customers, this brings more problems than advantages. It may have up to 64 GB RAM and the convertible is WWAN-ready, but you'll have to make do without an integrated stylus and the Meteor Lake U processor's performance is still on the same level as its predecessor.
Although the new Meteor Lake processor easily offers enough performance for everyday office work, you can't help but ask why the manufacturer went for U series processors to begin with. With its two performance cores, the current models are barely competitive and the U-series chips only feature the slow iGPU with 4 Xe cores, which only offers little additional performance compared to the old Xe Graphics G7. In view of its Power Limits, Lenovo should've simply gone for an H-series chip that also features a faster iGPU. In addition, the laptop's fans are annoying in everyday use, as they often spring into action and get quite loud in general. The optional OLED touchscreen offers good picture quality apart from its slight raster effect, but it is time for updates when it comes to the IPS panels which are installed as standard.
This all sounds extremely negative but when you are speaking about such an expensive device, you have to address these concerns. Even so, the ThinkPad impresses with its good performance in many other areas and there have been some positive developments, such as an 8-MP camera and that the X1 2in1 is one of the first ThinkPads in years to be available as WWAN-ready models (aside from limited edition Campus models). Furthermore, you can select up to 64 GB RAM and its surcharges are fair. All-in-all, its price-to-performance ratio is still pretty bad and although the laptop achieved just enough points for a very good rating, its total package has got worse and the device's development is going in the wrong direction.
Price and availability
The new ThinkPad X1 2in1 G9 can be configured and ordered directly via Lenovo's website. Prices start from US$3,456.
Lenovo ThinkPad X1 2in1 G9 21KE004AGE
- 06/03/2024 v7 (old)
Andreas Osthoff
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
