Lenovo ThinkPad L15 laptop review - Decent office companion with high system performance

AMD upgrade. Lenovo's ThinkPad L series includes inexpensive business laptops that have been able to convince in the past with good input devices and quite high-quality workmanship. The current 15-inch model in the series seeks to carry on this tradition while dramatically improving system performance with the new AMD Ryzen 7 Pro 4750 at the same time. We will clarify in the following review whether the final concept works.
Marius Schell, 👁 Andreas Osthoff (translated by Stephanie Chamberlain), 🇩🇪 🇵🇹 ...

The ThinkPad L15 is an affordable office laptop from Lenovo's ThinkPad L series. The 15-inch successor to the ThinkPad L590 is a solid entry into the world of business laptops. It's based on the current AMD Ryzen 7 Pro 4750U, which should provide a noticeable leap in performance compared to its predecessor. Our device is a campus model; a special version for the education sector at a reasonable price, but at around 850 Euros (~$1,005) it doesn't include an operating system. A comparable, unrestrictedly available configuration that includes an operating system can be purchased for about 1,060 Euros (~$1,253).

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Lenovo ThinkPad L15-20U8S0AH00
Processor
AMD Ryzen 7 PRO 4750U 8 x 1.7 - 4.1 GHz, Renoir PRO (Zen 2)
Graphics adapter
Memory
16384 MB
, DDR4 3200, single-channel, 1 of 2 slots occupied, 64 GB max
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, optional, B156HAN02.1, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
WDC PC SN730 SDBQNTY-1T00, 1024 GB
, 922 GB free
Soundcard
AMD Raven/Renoir/VanGogh/Cezanne - Audio Processor - HD Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm stereo audio jack, Card Reader: microSD, 1 SmartCard, 1 Fingerprint Reader
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Size
height x width x depth (in mm): 21 x 366 x 250 ( = 0.83 x 14.41 x 9.84 in)
Battery
45 Wh, 3980 mAh Lithium-Polymer
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: 2x 2-watt stereo speakers, Keyboard: chiclet, Keyboard Light: yes, 65-watt PSU, 12 Months Warranty
Weight
1.907 kg ( = 67.27 oz / 4.2 pounds), Power Supply: 361 g ( = 12.73 oz / 0.8 pounds)
Price
1,200 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85 %
11/2020
Lenovo ThinkPad L15-20U8S0AH00
R7 PRO 4750U, Vega 7
1.9 kg21 mm15.60"1920x1080
82 %
03/2020
Lenovo ThinkPad E15 20RD0011GE
i7-10510U, Radeon RX 640
1.8 kg18.9 mm15.60"1920x1080
81 %
08/2020
HP ProBook 450 G7 8WC04UT
i7-10510U, GeForce MX250
1.9 kg19 mm15.60"1920x1080
83 %
07/2020
HP ProBook 455 G7-175W8EA
R7 4700U, Vega 7
1.8 kg19 mm15.60"1920x1080
84 %
10/2020
Dell Latitude 15 5510-D90XK
i5-10310U, UHD Graphics 620
1.8 kg23 mm15.60"1920x1080
82 %
08/2020
Acer TravelMate P215-52
i7-10510U, UHD Graphics 620
1.8 kg19.9 mm15.60"1920x1080
83 %
10/2019
Lenovo ThinkPad L590-20Q70019GE
i5-8265U, UHD Graphics 620
2 kg23 mm15.60"1920x1080

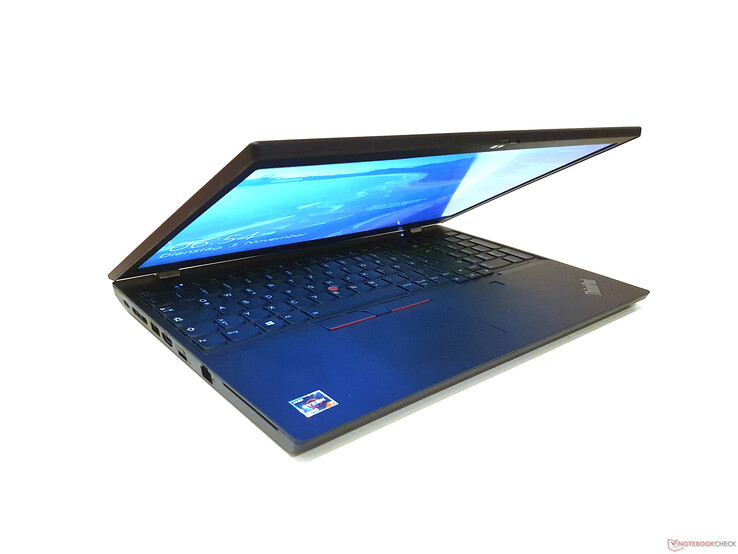

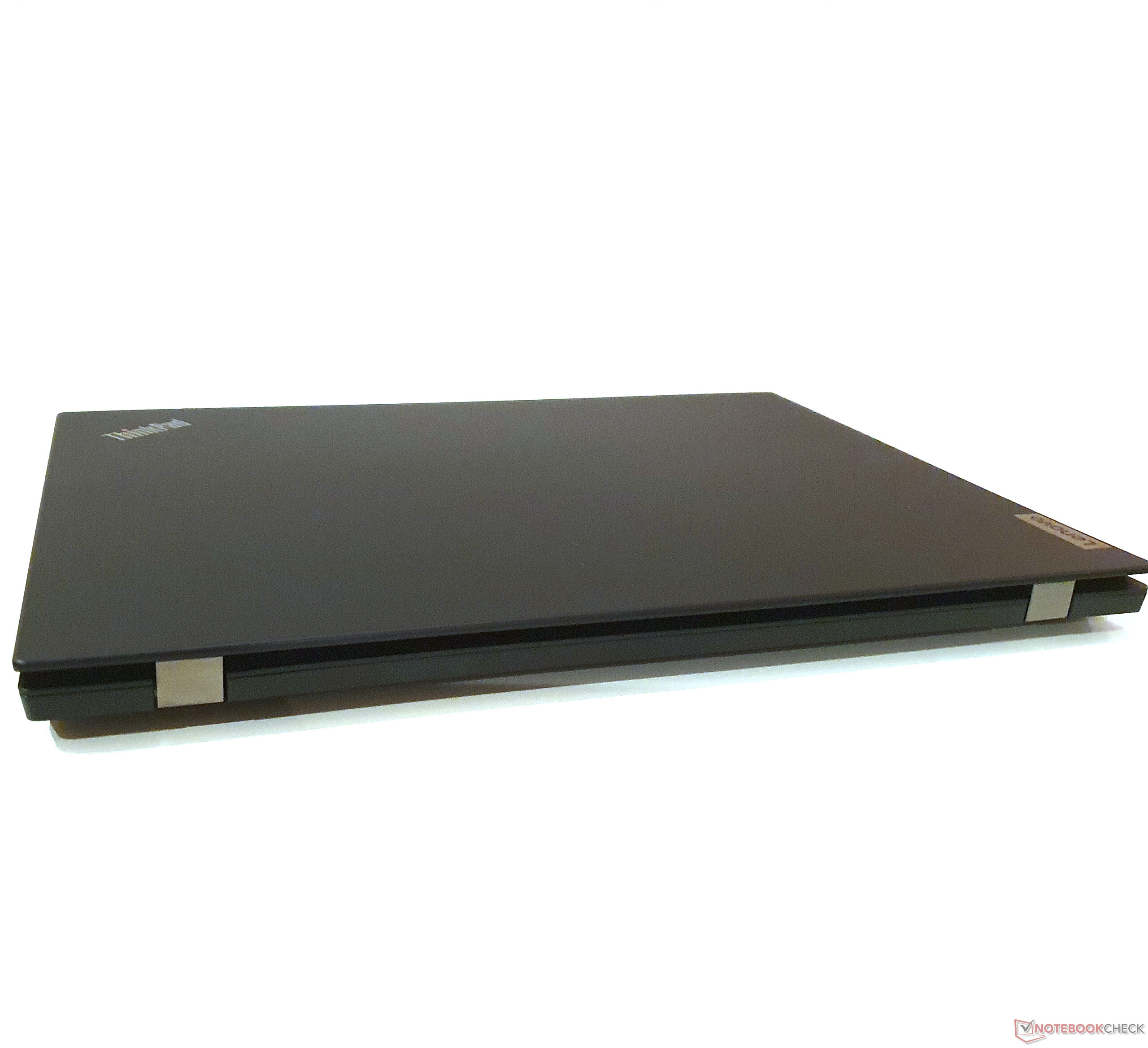

Case - Solid base, sensitive lid

With its slightly narrower display bezels, the laptop looks a bit more stylish and modern than its predecessor. Although the ThinkPad L15 can't quite keep up in this regard with the almost borderless displays found in the more expensive competitors, the fact that it's a relatively modern laptop is clearly noticeable.

The case is made entirely of plastic, and the ThinkPad logo with its illuminated red dot and a Lenovo logo adorn the back of the lid. The surfaces are made of matte, rough plastic, which makes the laptop very susceptible to fingerprints. The higher-quality ThinkPads of the E and T series, on the other hand, feature higher-quality plastic/aluminum or carbon fiber cases. The design is simple but not dull due to a few cleverly placed elements. Workmanship also offers no cause for criticism, as the gaps are uniformly small, and there's no visible excess material.

The base unit appears robust for a plastic construction. The rest of the case stability is also acceptable, but the lid and hinges in particular aren't designed to withstand strong applications of force. The hinges allow a maximum aperture angle of 180 degrees and are evenly rigid independently of this.

Compared to its predecessor, the ThinkPad L590, the ThinkPad L15 has shrunk slightly in every dimension. That's probably thanks in large part to the slightly narrower display bezels, which make the laptop look a bit more modern overall. Accordingly, the weight of 1.98 kg instead of 2.019 kg has also decreased a bit. Compared to the rest of the class, the dimensions and weight place it in the midfield.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Size comparison

376.5 mm / 14.8 inch 254.5 mm / 10 inch 23 mm / 0.906 inch 2 kg4.45 lbs366 mm / 14.4 inch 250 mm / 9.84 inch 21 mm / 0.827 inch 1.9 kg4.2 lbs368 mm / 14.5 inch 245 mm / 9.65 inch 18.9 mm / 0.744 inch 1.8 kg3.95 lbs365 mm / 14.4 inch 257 mm / 10.1 inch 19 mm / 0.748 inch 1.9 kg4.21 lbs365 mm / 14.4 inch 257 mm / 10.1 inch 19 mm / 0.748 inch 1.8 kg4.07 lbs363 mm / 14.3 inch 255 mm / 10 inch 19.9 mm / 0.783 inch 1.8 kg3.97 lbs359 mm / 14.1 inch 236 mm / 9.29 inch 23 mm / 0.906 inch 1.8 kg3.97 lbs

Connectivity - Normal-size HDMI connection and Ethernet port

The connections are distributed on both sides, and the layout has remained unchanged compared to the previous model. In contrast to many other laptops, you get a full-fledged HDMI 1.4b connection and a Gigabit Ethernet port. In addition, the ThinkPad L15 can be connected to various docking stations via the so-called "Side Dock". There are two USB-A (3.1 Gen 1) and two USB-C ports (1x 3.1 Gen 2, 1x 3.1 Gen 1) available. Most ports, including the USB-C charging port, are located on the left side, which makes it easier to use an external mouse. Since the ports are placed relatively far apart from each other, cables shouldn't block nearby ports.

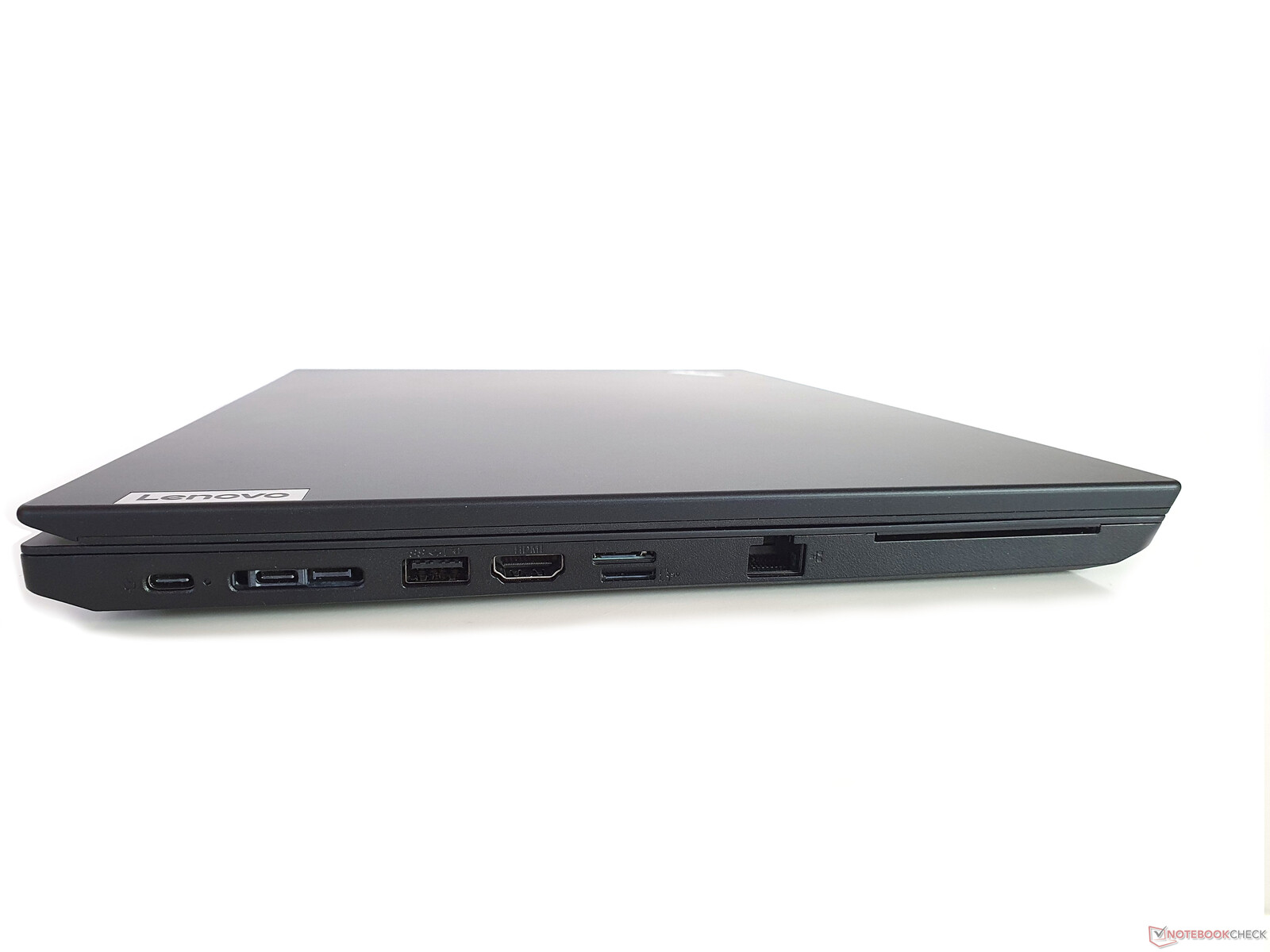

Left: USB-C (power supply), USB-C, network expansion Ethernet/Docking, USB-A 3.1 Gen 1, HDMI, SIM slot (optional), RJ-45 Ethernet, smart card reader (optional)
Left: USB-C (power supply), USB-C, network expansion Ethernet/Docking, USB-A 3.1 Gen 1, HDMI, SIM slot (optional), RJ-45 Ethernet, smart card reader (optional)

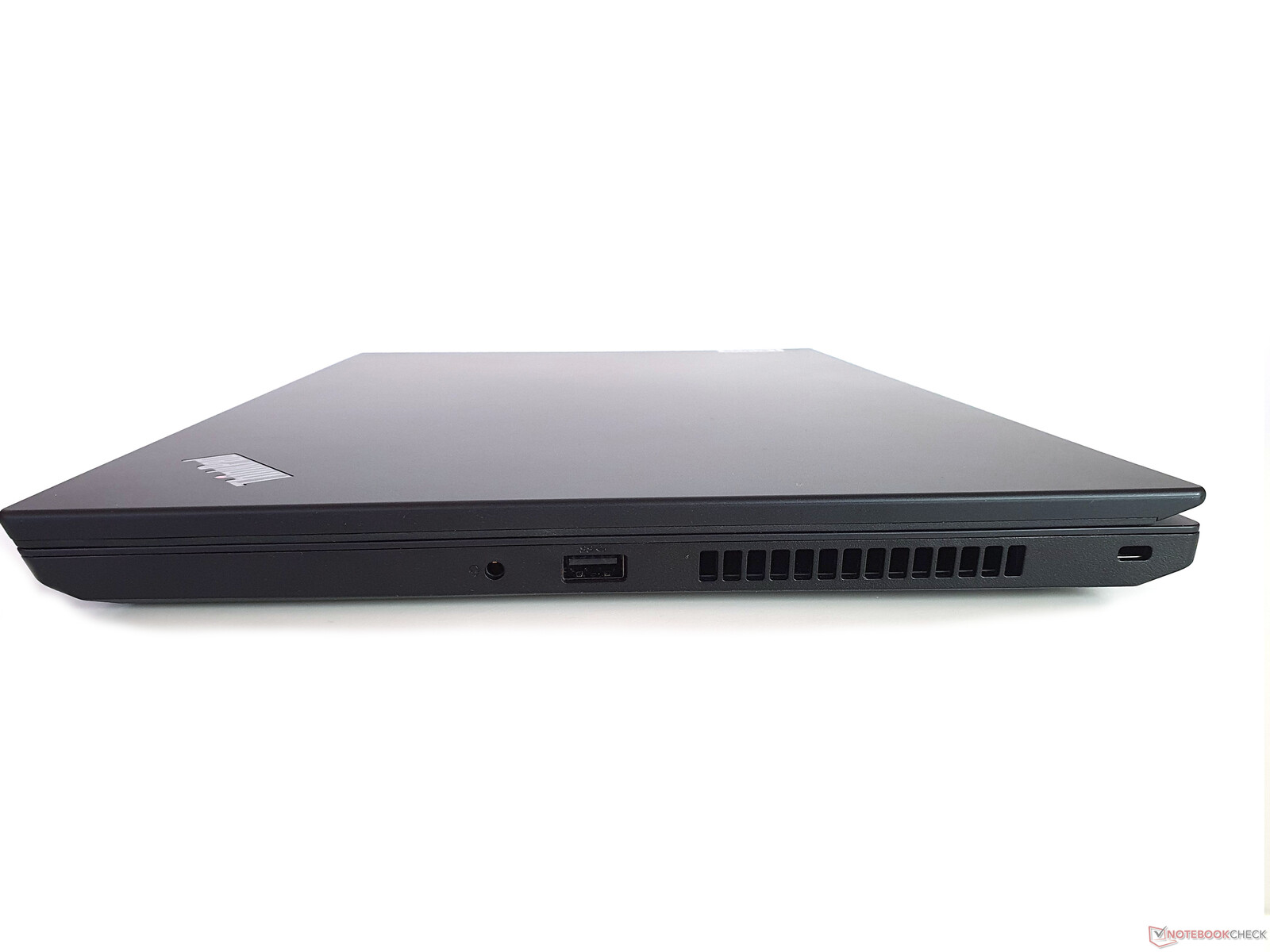

Right: Combined 3.5 mm audio jack, USB 3.1 Gen 1 (Type-A), air vent, Kensington lock slot
Right: Combined 3.5 mm audio jack, USB 3.1 Gen 1 (Type-A), air vent, Kensington lock slot

SD card reader - Slightly above the average

In the test with our 64 GB UHS-II reference memory card, the Toshiba Exceria Pro M501, the SD card reader in our ThinkPad L15 reaches slightly above-average speeds. Except for the Latitude 15 5510, which almost poses a threat to the XPS 15 in this discipline, the remaining comparison devices are at a similar level.

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 15 5510-D90XK
  (Toshiba Exceria Pro M501 microSDXC 64GB)
170 MB/s ∼100% +117%
Lenovo ThinkPad L15-20U8S0AH00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
78.4 MB/s ∼46%
HP ProBook 455 G7-175W8EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
73.7 MB/s ∼43% -6%
HP ProBook 450 G7 8WC04UT
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
73.1 MB/s ∼43% -7%
Lenovo ThinkPad L590-20Q70019GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
72.9 MB/s ∼43% -7%
Average of class Office
  (15.8 - 194, n=88, last 2 years)
71 MB/s ∼42% -9%
Acer TravelMate P215-52
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
17.7 MB/s ∼10% -77%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 15 5510-D90XK
  (Toshiba Exceria Pro M501 microSDXC 64GB)
189 MB/s ∼100% +121%
HP ProBook 455 G7-175W8EA
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87 MB/s ∼46% +2%
Lenovo ThinkPad L15-20U8S0AH00
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.7 MB/s ∼45%
Lenovo ThinkPad L590-20Q70019GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
84.4 MB/s ∼45% -2%
Average of class Office
  (17.2 - 205, n=85, last 2 years)
81.8 MB/s ∼43% -5%
HP ProBook 450 G7 8WC04UT
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
81.4 MB/s ∼43% -5%
Acer TravelMate P215-52
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
17.17 MB/s ∼9% -80%

Communication - WLAN 6, Bluetooth 5.1, and optional WWAN

The Intel 9260 of the predecessor has been updated to the AX200 WLAN module on the ThinkPad L15, offering WLAN 6 and Bluetooth 5.1 support. While performance for receiving data is roughly average, it's slightly below average for sending data at 895 Mb/s. A WWAN slot is also optionally available.

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Dell Latitude 15 5510-D90XK
Intel Wi-Fi 6 AX201
1394 (1125min - 1461max) MBit/s ∼100% +24%
Average Intel Wi-Fi 6 AX200
  (523 - 1640, n=94)
1166 MBit/s ∼84% +4%
Lenovo ThinkPad L15-20U8S0AH00
Intel Wi-Fi 6 AX200
1124 (1055min - 1195max) MBit/s ∼81%
Lenovo ThinkPad E15 20RD0011GE
Intel Wi-Fi 6 AX201
951 (932min - 963max) MBit/s ∼68% -15%
Average of class Office
  (60.8 - 1722, n=114, last 2 years)
893 MBit/s ∼64% -21%
HP ProBook 455 G7-175W8EA
Intel Wi-Fi 6 AX200
811 (593min - 853max) MBit/s ∼58% -28%
Lenovo ThinkPad L590-20Q70019GE
Intel Wireless-AC 9260
604 MBit/s ∼43% -46%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell Latitude 15 5510-D90XK
Intel Wi-Fi 6 AX201
1492 (1313min - 1761max) MBit/s ∼100% +67%
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=93)
1073 MBit/s ∼72% +20%
Lenovo ThinkPad L15-20U8S0AH00
Intel Wi-Fi 6 AX200
895 (483min - 1131max) MBit/s ∼60%
Average of class Office
  (54.8 - 1775, n=113, last 2 years)
851 MBit/s ∼57% -5%
Lenovo ThinkPad E15 20RD0011GE
Intel Wi-Fi 6 AX201
680 (373min - 727max) MBit/s ∼46% -24%
Lenovo ThinkPad L590-20Q70019GE
Intel Wireless-AC 9260
638 MBit/s ∼43% -29%
48358368378388398310831183113910841160107310911074113711141150115211001131110911401126117411931195111811021055115011291120114111291125112211141077113910841160107310911074113711141150115211001131110911401126117411931195111811021055115011291120114111291125112211141077483746799738811937107074898010801131102892087710178758479081092844908919852819884825935766779722Tooltip
; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1124 (1055-1195)
; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø878 (483-1131)

Webcam

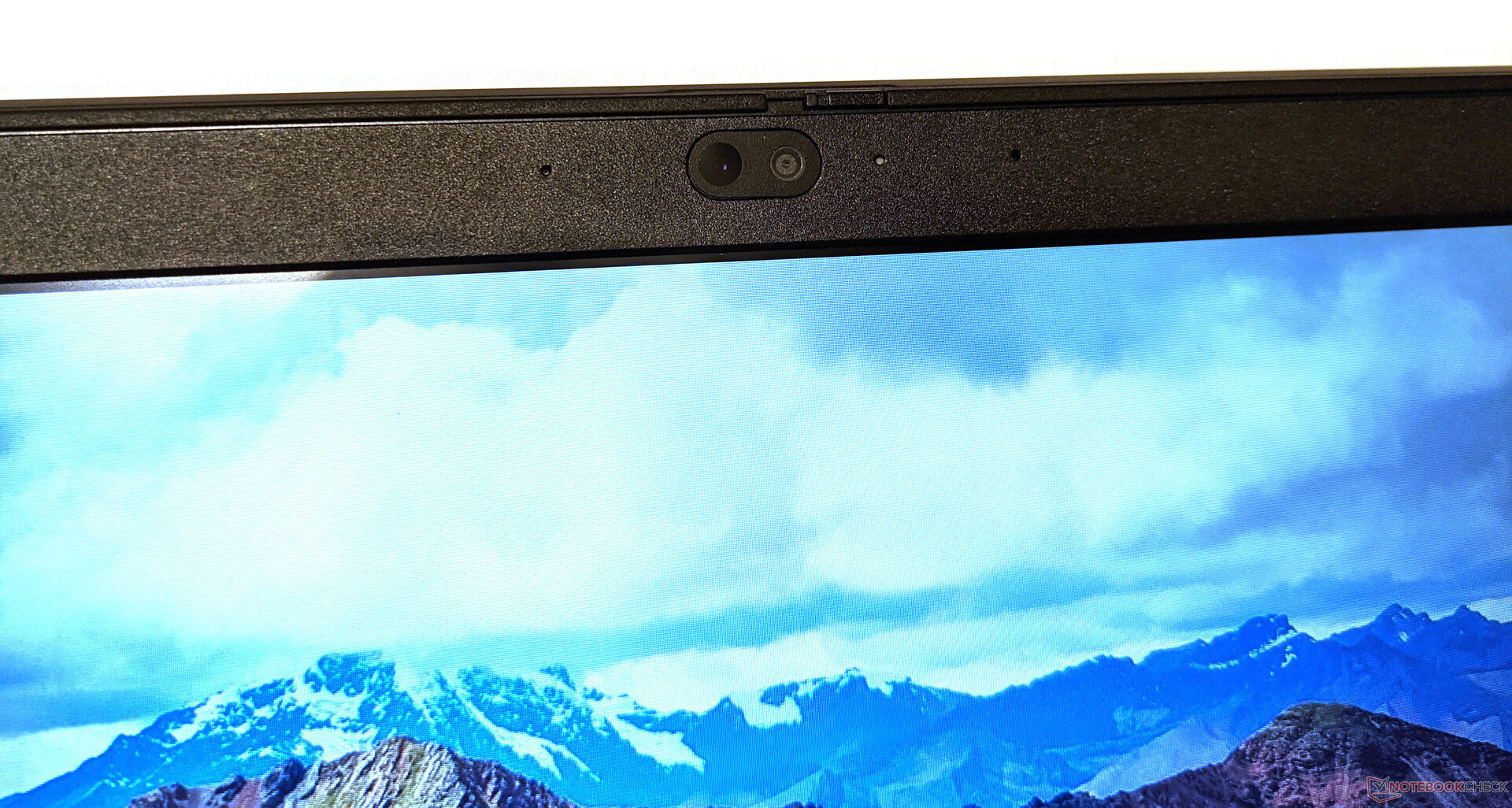

Webcam with a mechanical slider
Webcam with a mechanical slider

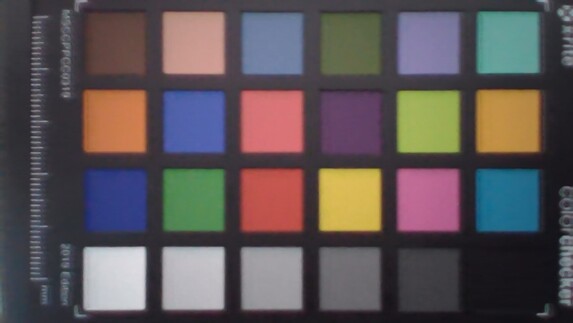

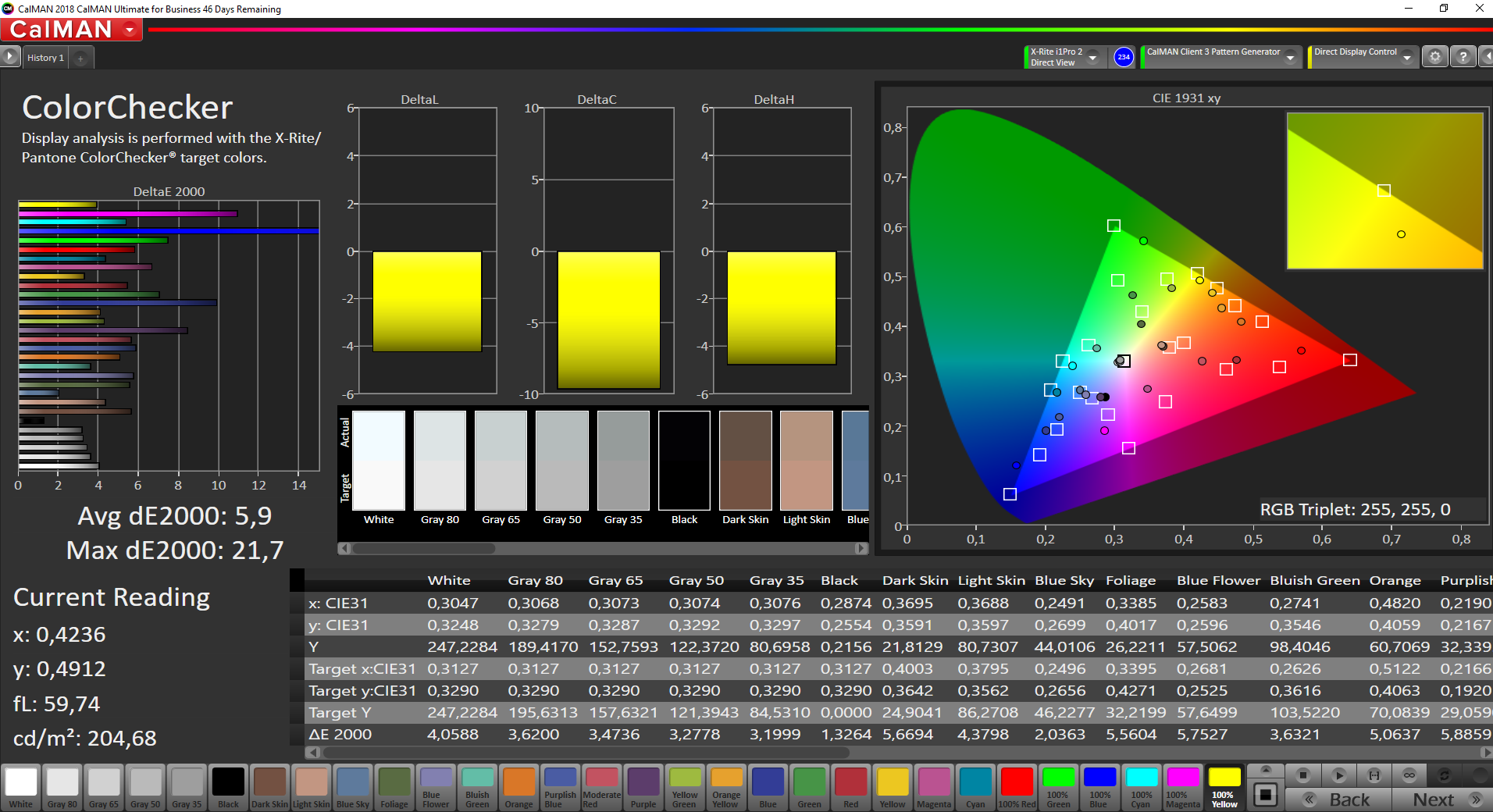

ColorChecker
6.5 ∆E
4.4 ∆E
4.3 ∆E
5.1 ∆E
2.8 ∆E
10.4 ∆E
7.8 ∆E
3.2 ∆E
8.5 ∆E
4.1 ∆E
5.4 ∆E
9.3 ∆E
3.5 ∆E
4.9 ∆E
8.9 ∆E
7.1 ∆E
4.8 ∆E
9.2 ∆E
8.7 ∆E
5.2 ∆E
3.4 ∆E
6.8 ∆E
8.1 ∆E
10.6 ∆E
ColorChecker Lenovo ThinkPad L15-20U8S0AH00: 6.38 ∆E min: 2.83 - max: 10.55 ∆E

Security - Webcam shutter and Ryzen Pro functional features

Alongside a fingerprint scanner and TPM 2.0, the ThinkPad model also supports smart cards and Kensington locks. It also has a mechanical webcam shutter and hardware-based Ryzen Pro security features.

Accessories - Docking solutions separately available

Apart from the power adapter, warranty information, and the laptop itself, there are no extras included in the box. Optionally, the manufacturer's online store offers many accessories such as carrying cases, external peripherals, adapters, and docking solutions. The latter extend the range of interfaces with additional video outputs and USB ports, among other things.

Maintenance

Since there's no maintenance hatch, in order to gain access to the internal components, you have to loosen 9 cross-head screws, remove the SIM drawer, and loosen some plastic clips with a thin plastic object. Afterwards, the bottom cover of the base unit can be removed. Inside, you have access to both RAM slots, the battery, the SSD, the WLAN module, and (if present) the WWAN module.

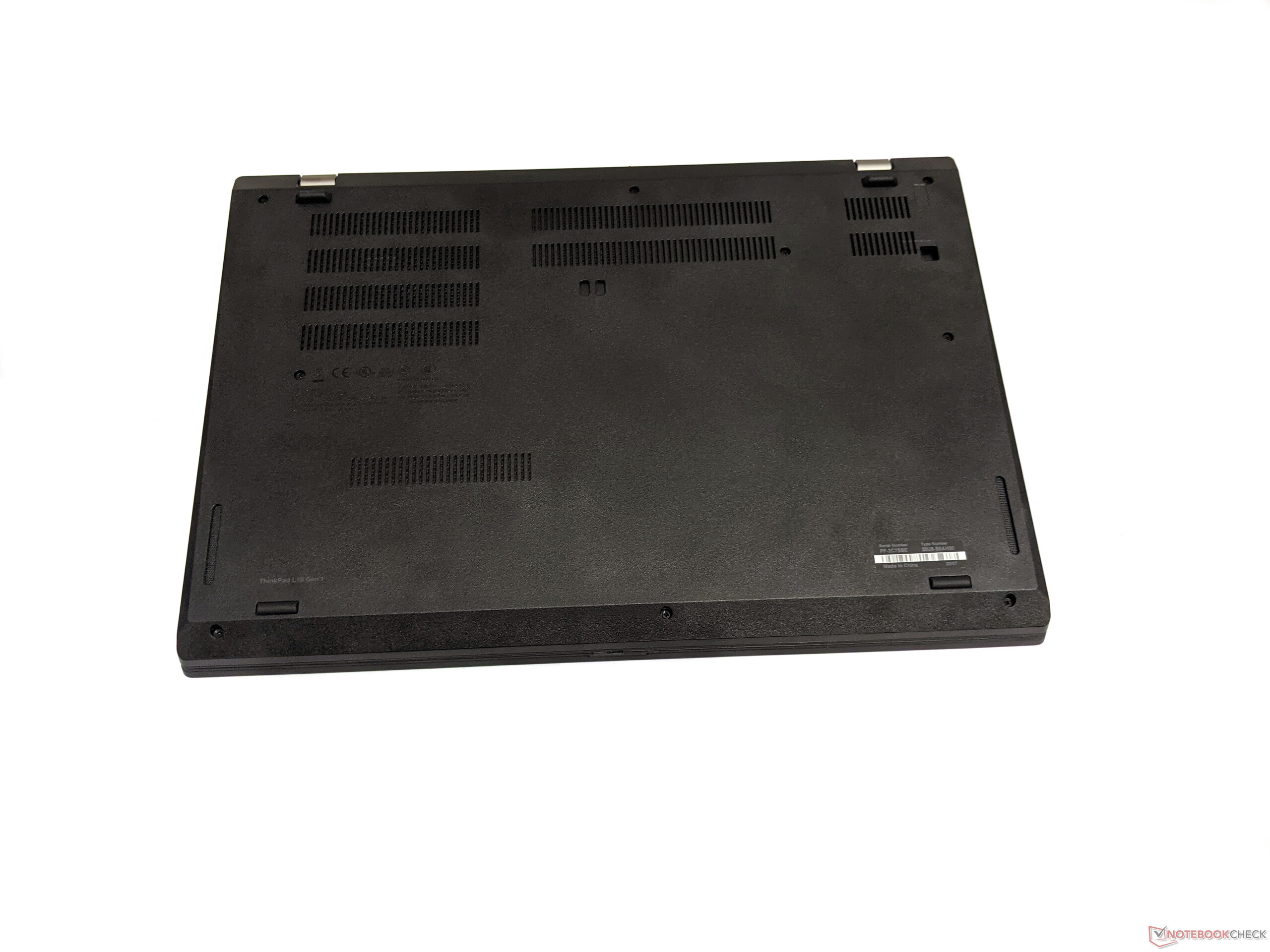

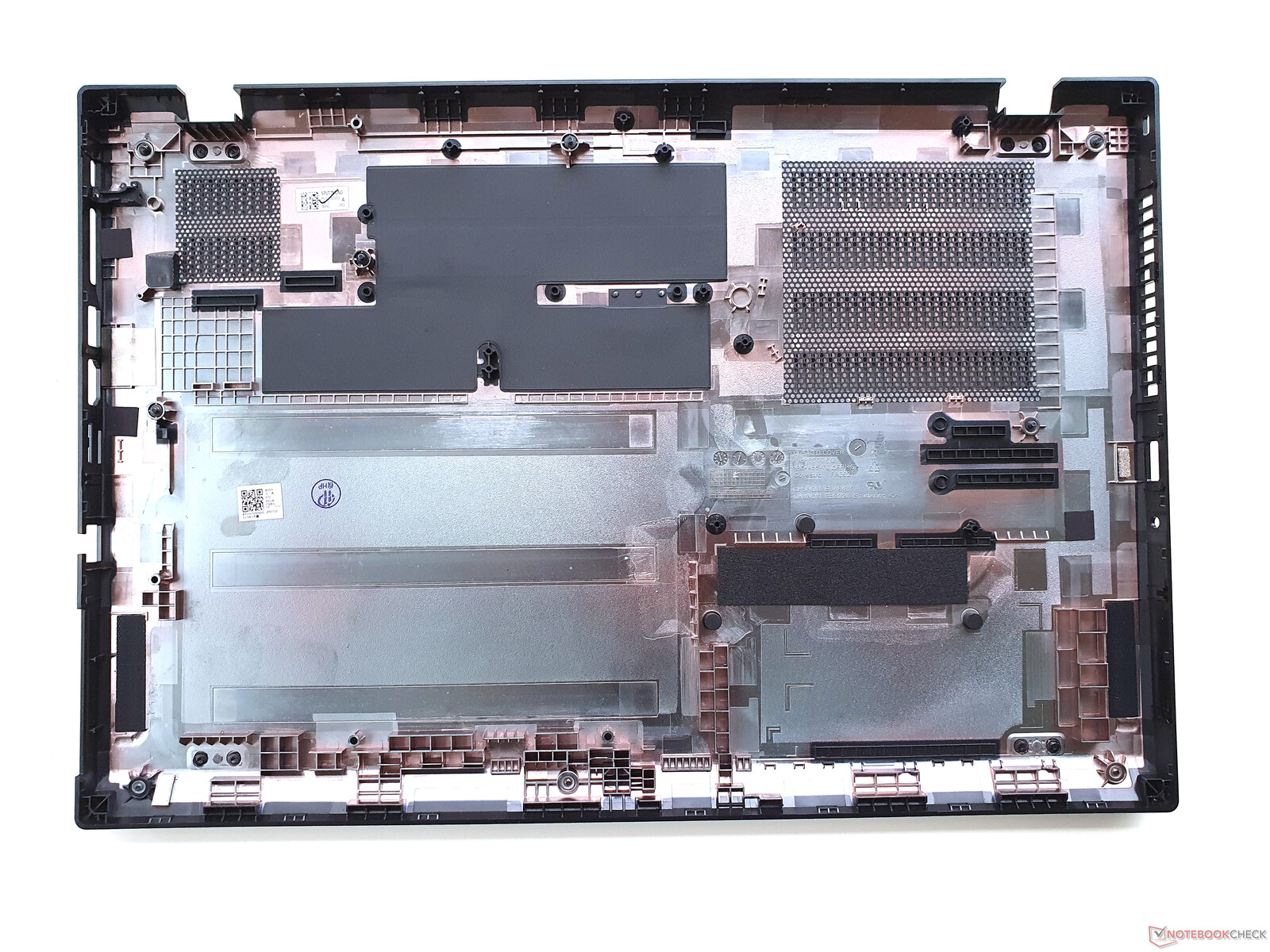

Bottom cover structure
Bottom cover structure

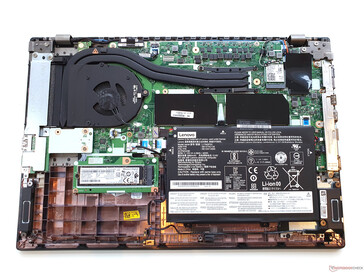

Interior
Interior

Warranty - Extension options up to 5 years

Lenovo honors buyers of the ThinkPad L15 with a standard one-year warranty. The campus model is an exception offering 3 years. The warranty can be extended up to 5 years with various options. For higher-end models, such as the ThinkPad T series, the manufacturer provides a full 3-year warranty as standard.

Input devices - Outstanding keyboard

Keyboard

The keyboard extends over the full width of the base unit and offers a number pad. The layout looks well thought-out, and except for the page up and page down keys, all keys, including the arrow keys, are normal-sized. The sound when typing can be described as being between quiet and moderate, so that it's not bothersome in quiet environments. The keyboard surface hardly gives way when typing. The two-stage keyboard backlighting illuminates all symbols and is sufficiently bright. The key travel is relatively deep, and the pressure point is clearly perceptible. The caps lock, mute, and microphone keys each signal their current status via an illuminated dot on the key. All in all, the keyboard is comparable to the keyboards on much more expensive laptops and thus well suited for longer typing tasks.

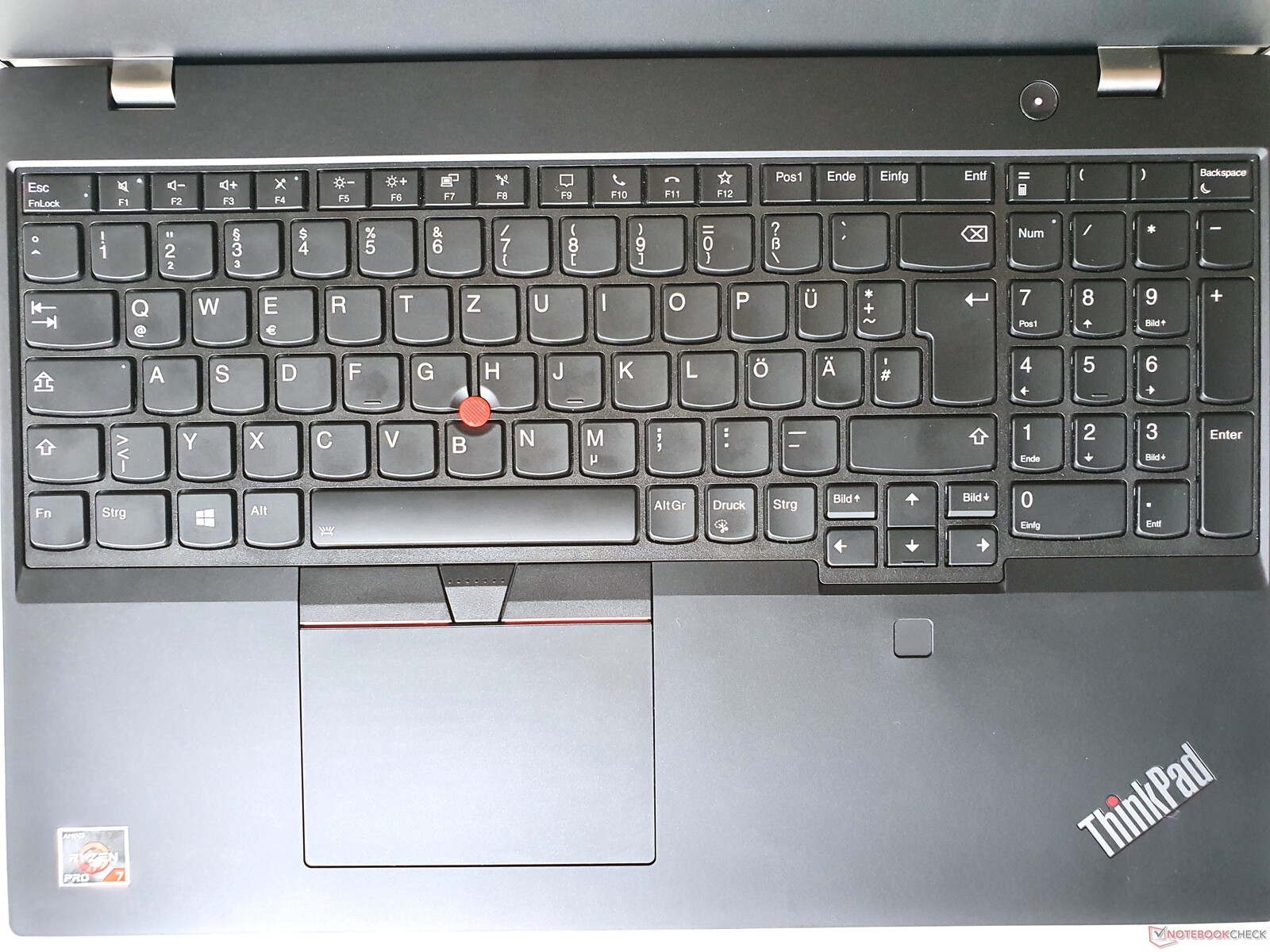

Keyboard - Overview
Keyboard - Overview

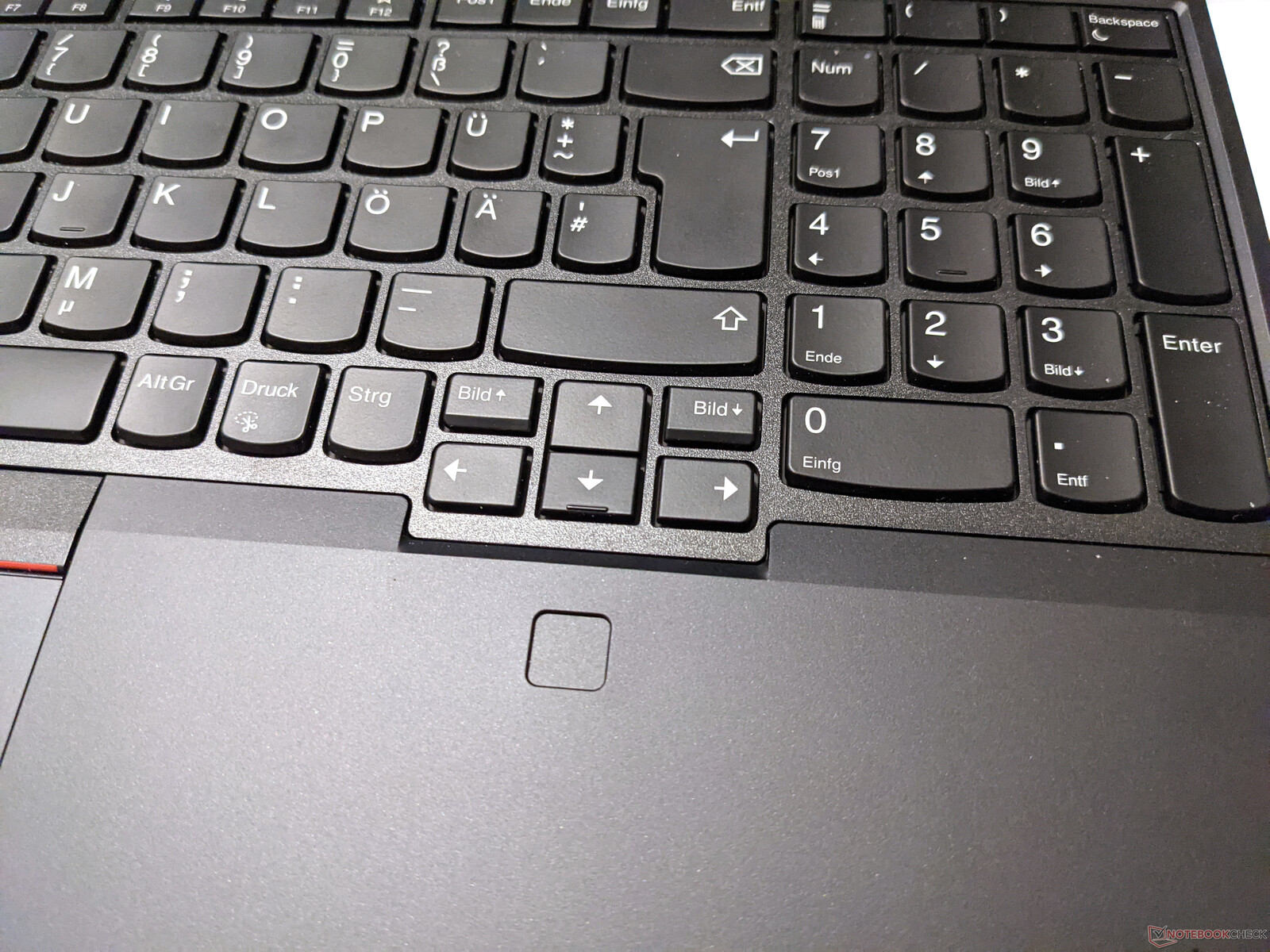

Keyboard - Fingerprint scanner
Keyboard - Fingerprint scanner
Keyboard - Backlighting (2nd stage)
Keyboard - Backlighting (2nd stage)

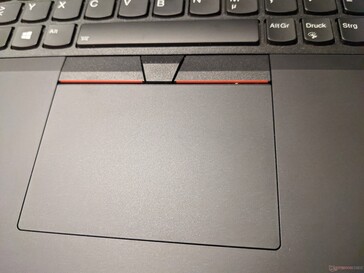

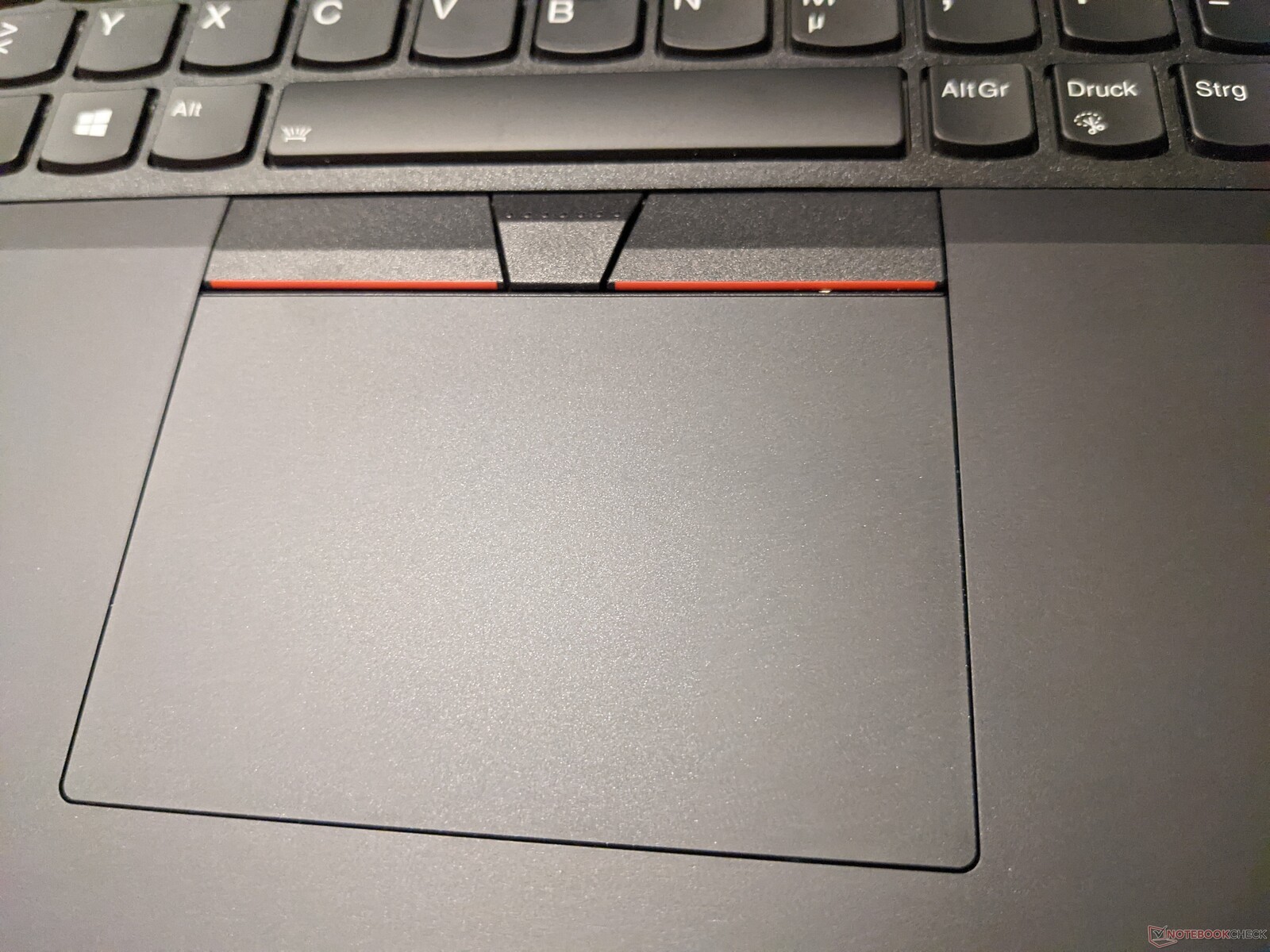

Touchpad and TrackPoint - Dedicated mouse buttons

The touchpad extends over an area of 10 x 7 cm and has three dedicated mouse buttons. In addition, left and right clicks can be triggered by pressing the left or right half of the ClickPad. While the plastic touchpad has good gliding properties and high precision, the separate mouse buttons feel quite cheap due to their inaccurate pressure point and low resistance. Using the TrackPoint works very well after a little getting used to.

Touchpad
Touchpad

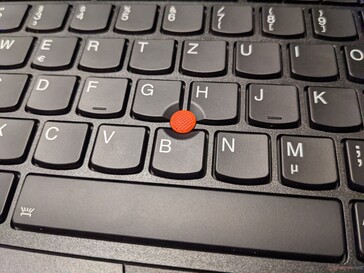

TrackPoint
TrackPoint

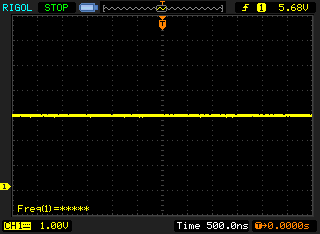

Display - High contrast and no PWM

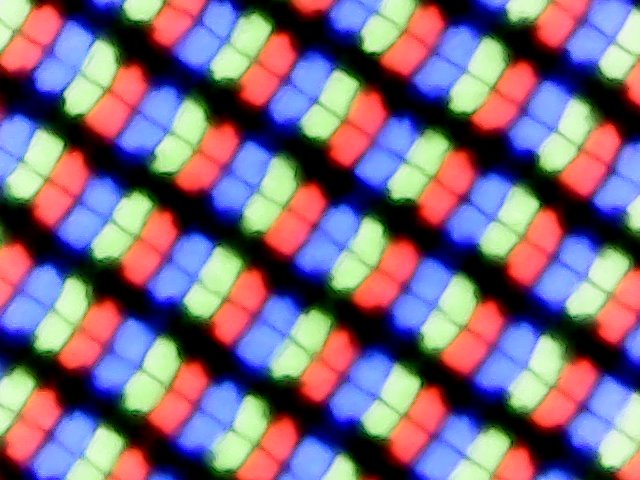

Subpixel grid
Subpixel grid

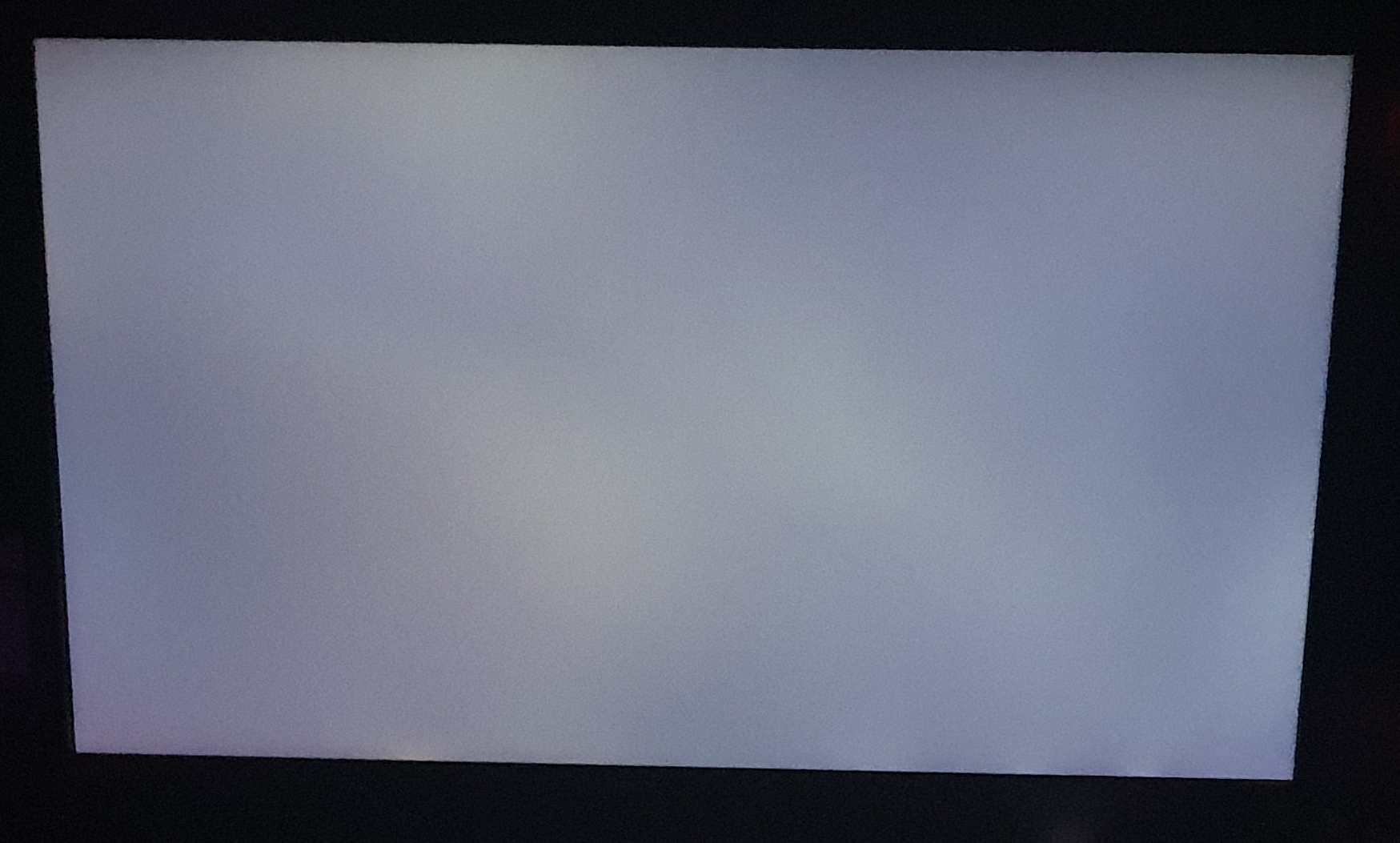

Backlight bleeding
Backlight bleeding

The 15.6-inch IPS display has a native resolution of 1920x1080 pixels (Full HD) and an aspect ratio of 16:9. The matte layer prevents glare. Alternatively, potential buyers can also choose an HD TN panel with a resolution of 1366x768 pixels or a touchscreen version of the Full HD display with 300 cd/m². We generally advise against the TN panel, as the savings don't usually justify the drastic loss of quality on the display. Unlike some competitors, the ThinkPad L15 omitts the use of PWM for brightness control.

At 240 cd/m², the brightness of our test device is relatively low, but it's still roughly in line with the manufacturer's specification of 250 cd/m². Our test configurations of the ThinkPad E15, the HP ProBook 455 G7, and the 450 G7 also only offer slightly more brightness, respectively. The brightness distribution is quite even at 89%. For indoor use, the available brightness level is sufficient, but for outdoor use, you should rather look at certain HP ProBook models, since displays at up to 1,000 cd/m² are available within this product series.

254
cd/m²
245
cd/m²
245
cd/m²
225
cd/m²
249
cd/m²
227
cd/m²
229
cd/m²
244
cd/m²
242
cd/m²
Distribution of brightness
B156HAN02.1
X-Rite i1Pro 2
Maximum: 254 cd/m² Average: 240 cd/m² Minimum: 3.8 cd/m²
Brightness Distribution: 89 %
Center on Battery: 247 cd/m²
Contrast: 1660:1 (Black: 0.15 cd/m²)
ΔE Color 5.9 | 0.59-29.43 Ø5.6, calibrated: 4.8
ΔE Greyscale 3 | 0.64-98 Ø5.8
56.8% sRGB (Argyll 3D) 36.1% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.32
Lenovo ThinkPad L15-20U8S0AH00
B156HAN02.1, IPS, 1920x1080, 15.60
Lenovo ThinkPad E15 20RD0011GE
NV156FHM-N48, IPS LED, 1920x1080, 15.60
HP ProBook 450 G7 8WC04UT
LG Philips LGD062E, IPS, 1920x1080, 15.60
HP ProBook 455 G7-175W8EA
AUO, B156HW02, IPS, 1920x1080, 15.60
Dell Latitude 15 5510-D90XK
BOE0869, IPS, 1920x1080, 15.60
Acer TravelMate P215-52
BOE CQ NV156FHM-N48, IPS, 1920x1080, 15.60
Lenovo ThinkPad L590-20Q70019GE
N156HCE-EAA, IPS, 1920x1080, 15.60
Response Times
-9%
15%
16%
-1%
28%
6%

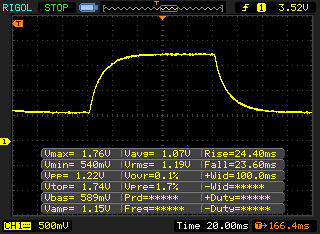

Response Time Grey 50% / Grey 80% *
48 (24.4, 23.6)
49.6 (24.4, 25.2)
-3%
35.2 (19.6, 15.6)
27%
41 (22, 19)
15%
44 (23, 21)
8%
24.4 (14, 10.4)
49%
42.8 (22.8, 20)
11%

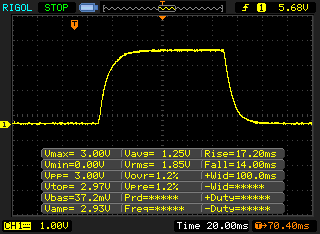

Response Time Black / White *
31.2 (17.2, 14)
36 (18.8, 17.2)
-15%
30.4 (19.6, 10.8)
3%
26 (15, 11)
17%
34 (18, 16)
-9%
29.2 (15.2, 14)
6%
30.8 (18, 12.8)
1%
PWM Frequency
1250 (99)
1000 (90)
1000 (99)
24510 (40)
Screen
-22%
-22%
-1%
-0%
-24%
-9%
Brightness middle
249
283
14%
259.8
4%
282
13%
258
4%
255.9
3%
247
-1%
Brightness
240
258
8%
251
5%
264
10%
229
-5%
234
-2%
228
-5%
Brightness Distribution
89
81
-9%
91
2%
88
-1%
74
-17%
78
-12%
81
-9%
Black Level *
0.15
0.22
-47%
0.42
-180%
0.19
-27%
0.16
-7%
0.46
-207%
0.18
-20%
Contrast
1660
1286
-23%
619
-63%
1484
-11%
1613
-3%
556
-67%
1372
-17%
Colorchecker DeltaE2000 *
5.9
7.9
-34%
6.09
-3%
5.56
6%
5.61
5%
5.02
15%
5.9
-0%
Colorchecker DeltaE2000 max. *
21.7
23.6
-9%
16.33
25%
19.07
12%
19
12%
18.26
16%
22.9
-6%
Colorchecker DeltaE2000 calibrated *
4.8
5.8
-21%
5.2
-8%
4.5
6%
4.17
13%
4.7
2%
Greyscale DeltaE2000 *
3
6.6
-120%
3.7
-23%
3.57
-19%
2.77
8%
4.2
-40%
5.1
-70%
Gamma
2.32 95%
2.18 101%
2.56 86%
2.61 84%
2.27 97%
2.07 106%
2.21 100%
CCT
6838 95%
5735 113%
6759 96%
6895 94%
6198 105%
6975 93%
6398 102%
Color Space (Percent of AdobeRGB 1998)
36.1
37
2%
35.7
-1%
36
0%
36
0%
38.6
7%
41.2
14%
Color Space (Percent of sRGB)
56.8
57.1
1%
56.2
-1%
57
0%
56
-1%
60.4
6%
64.1
13%
Total Average (Program / Settings)
-16% / -20%
-4% / -16%
8% / 2%
-1% / -0%
2% / -16%
-2% / -7%

* ... smaller is better

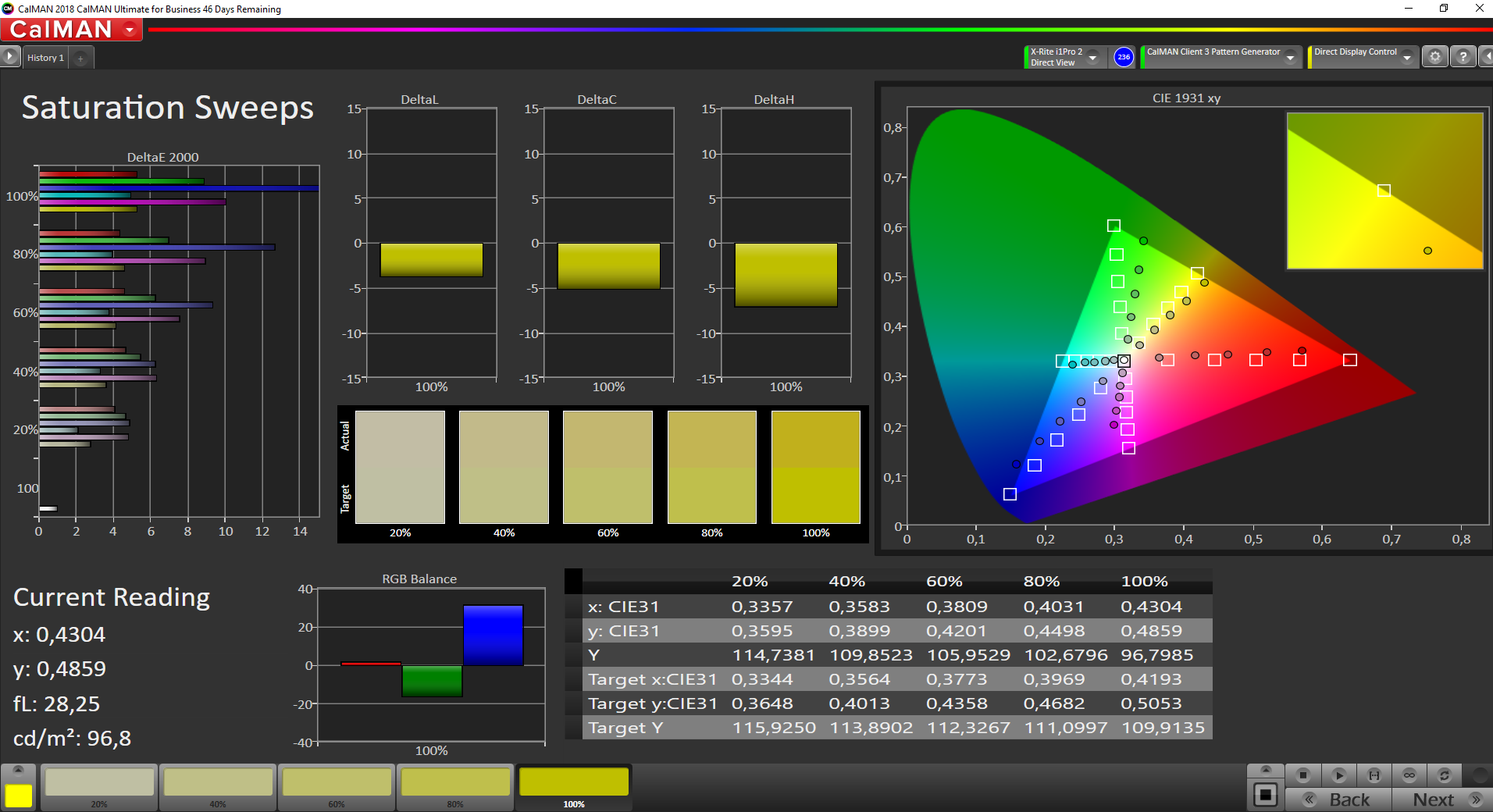

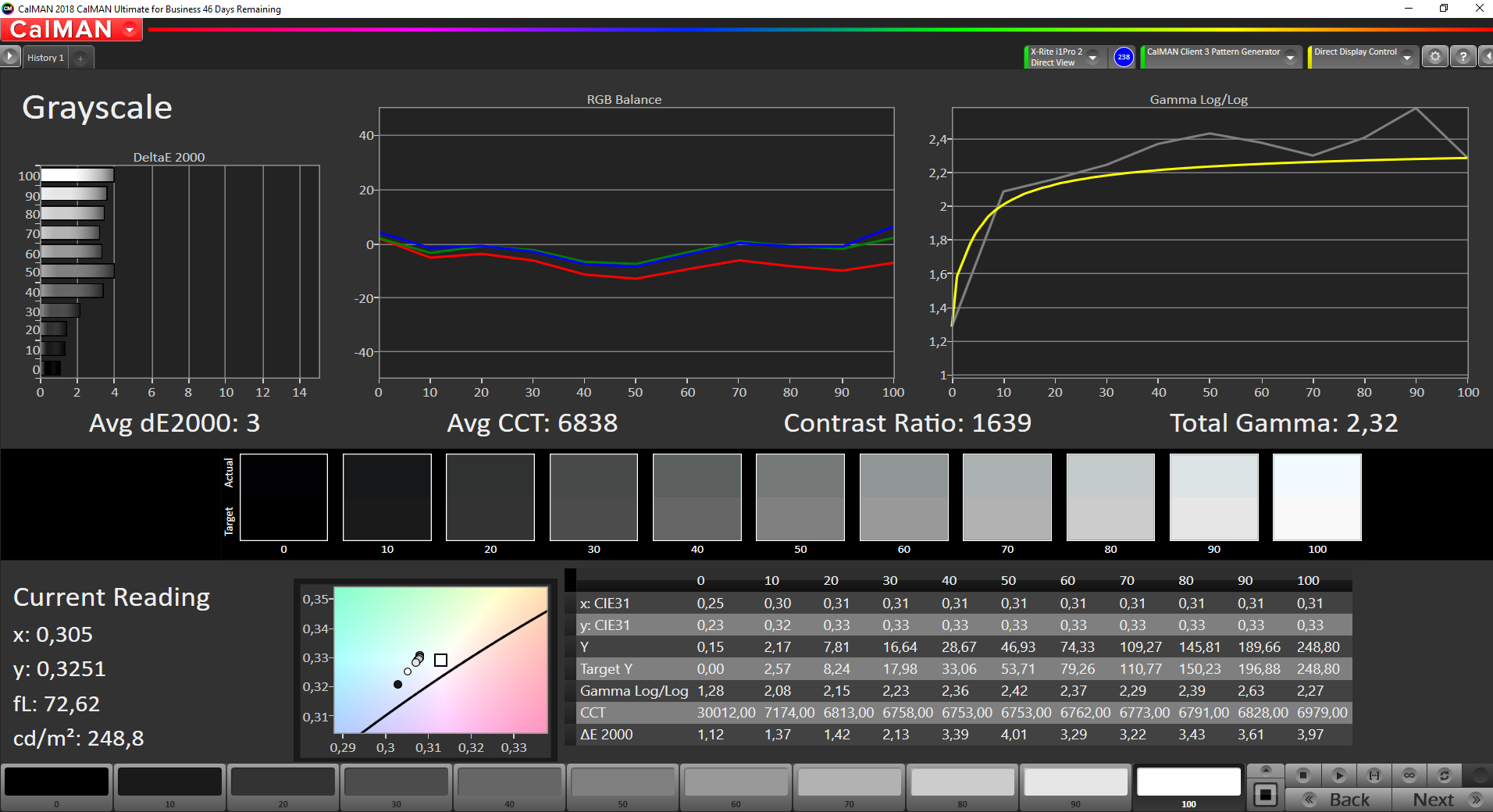

The black level is only 0.15, which is lower than on all other comparison devices. The resulting contrast ratio of 1,660:1 is also a top value in comparison to devices in this class. The subjective impression is convincing too, since the overall image looks authentic, and dark areas in pictures or films are reproduced very well.

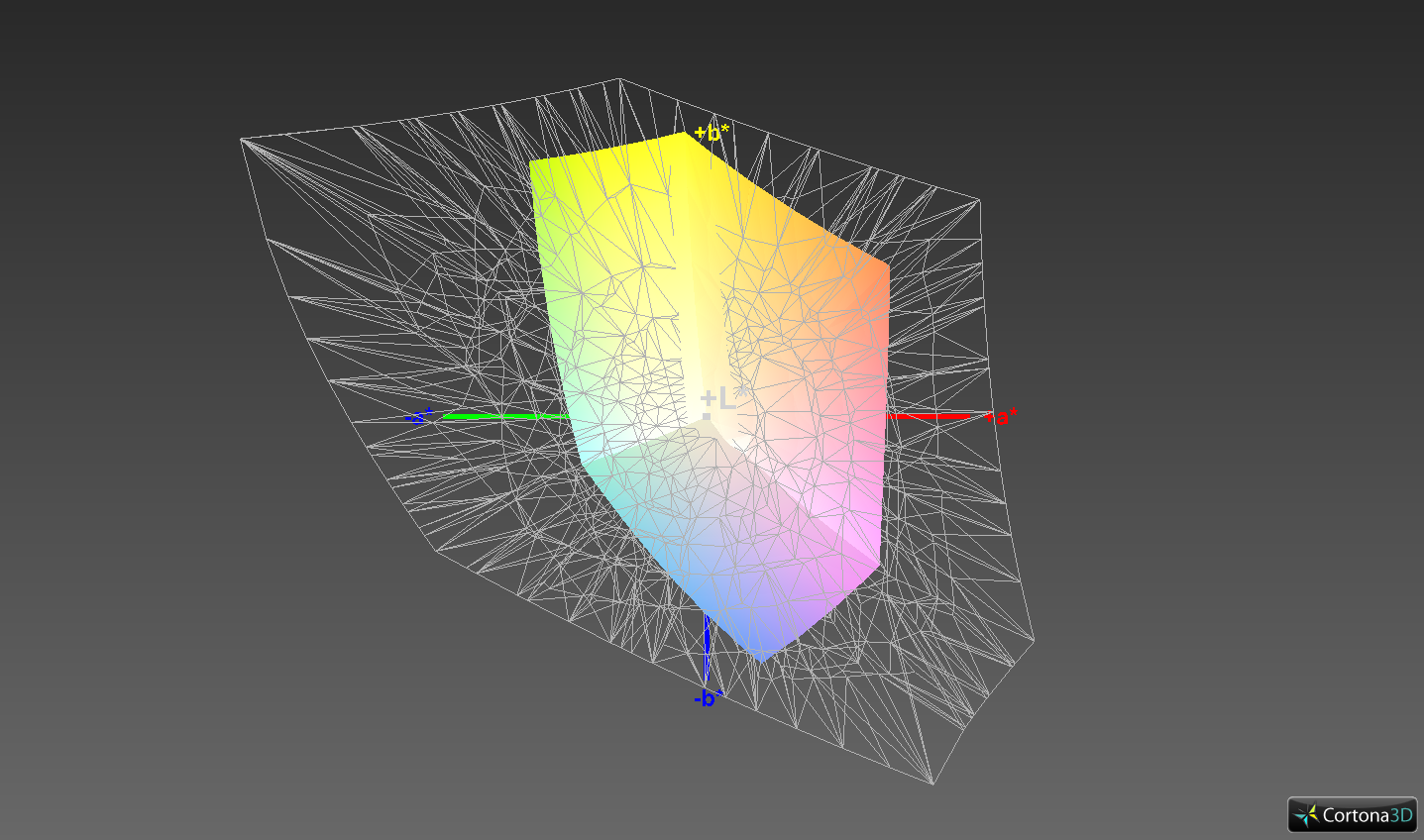

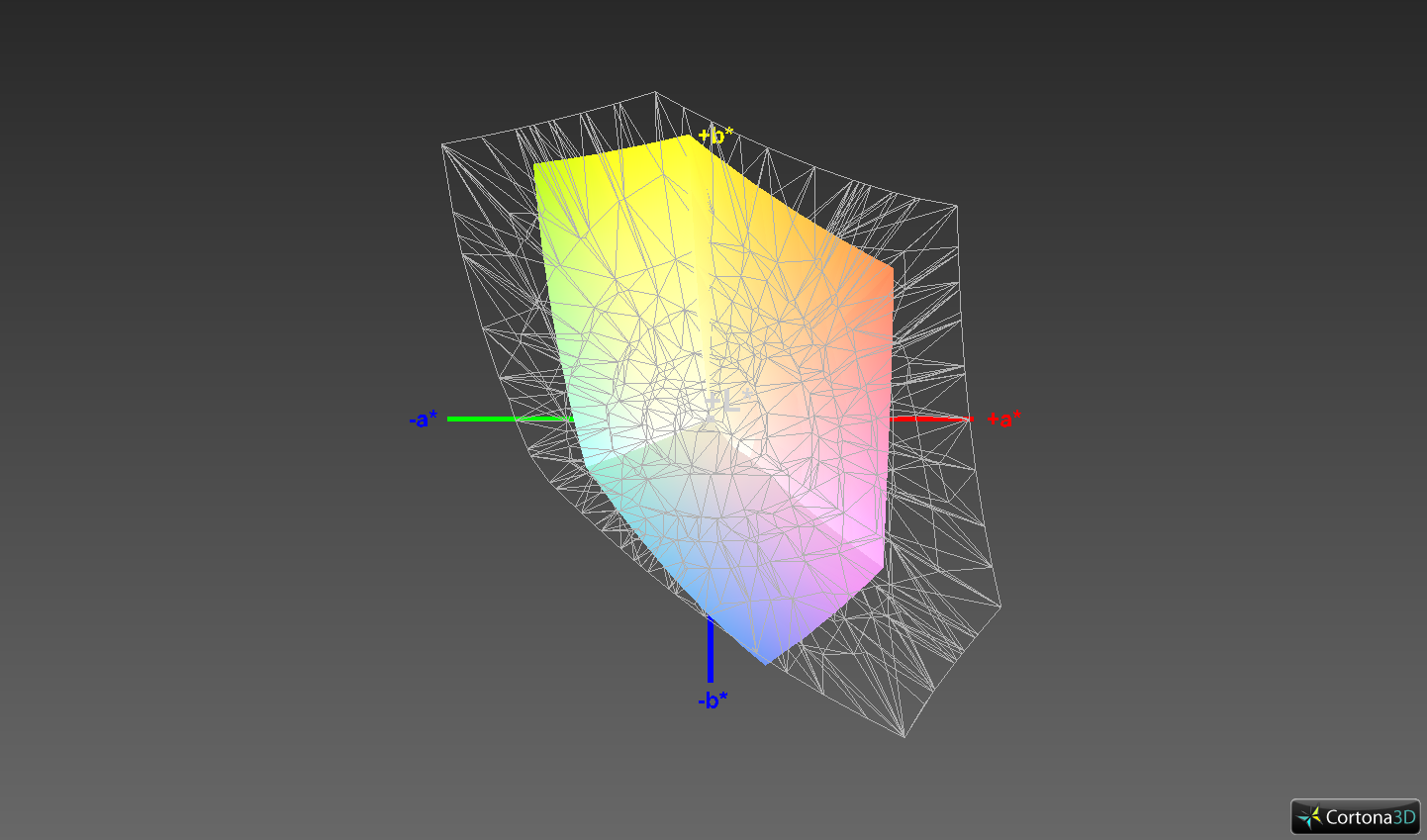

The color-space coverage of the sRGB and AdobeRGB color space is 56.8% and 36.1%, respectively. These values are typical for inexpensive office laptops where other aspects such as workmanship and input devices have a higher priority. However, together with the massive color deviations, the panel is unsuitable for image-processing.

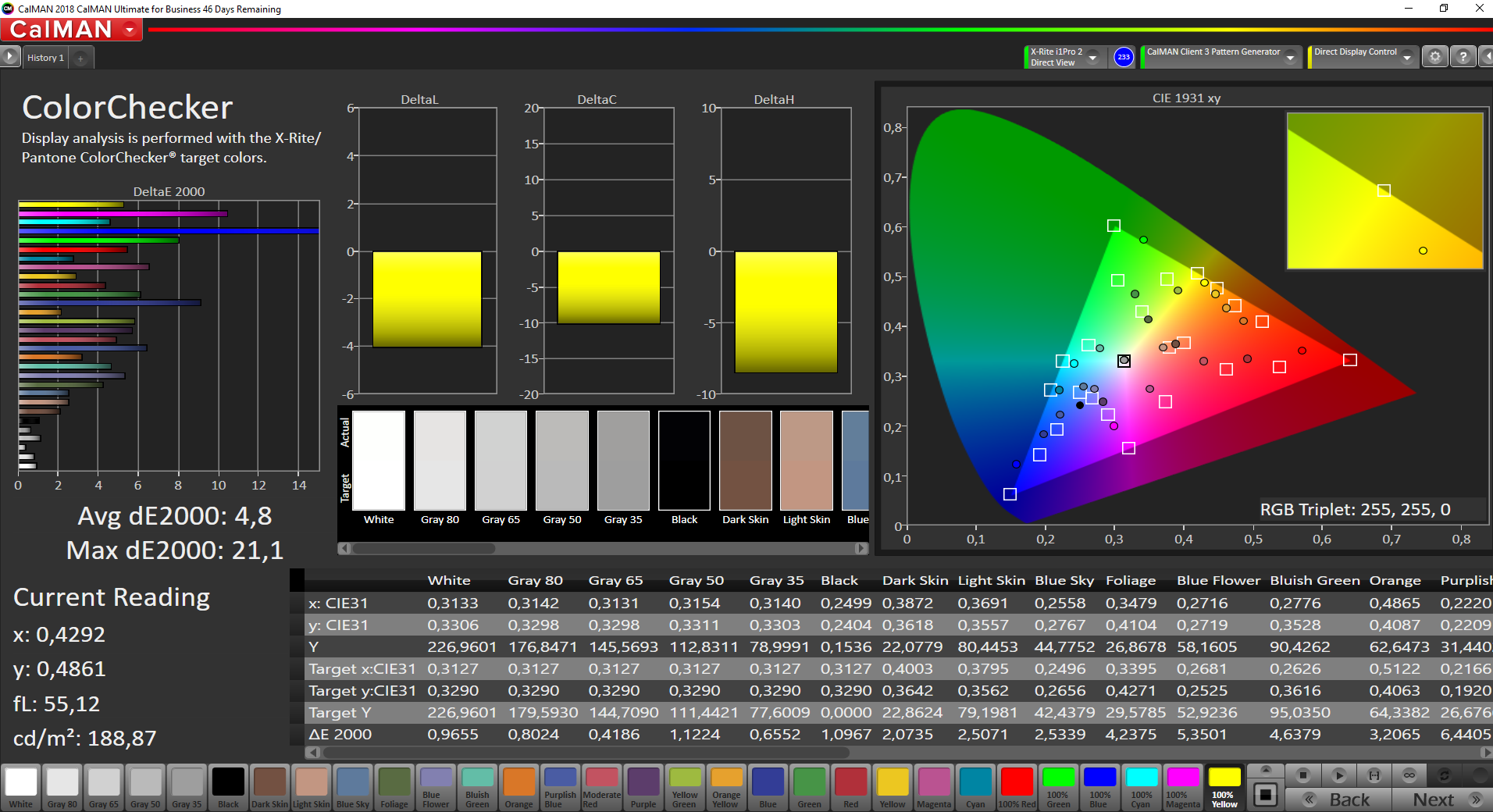

ColorChecker
ColorChecker
Grayscales
Grayscales

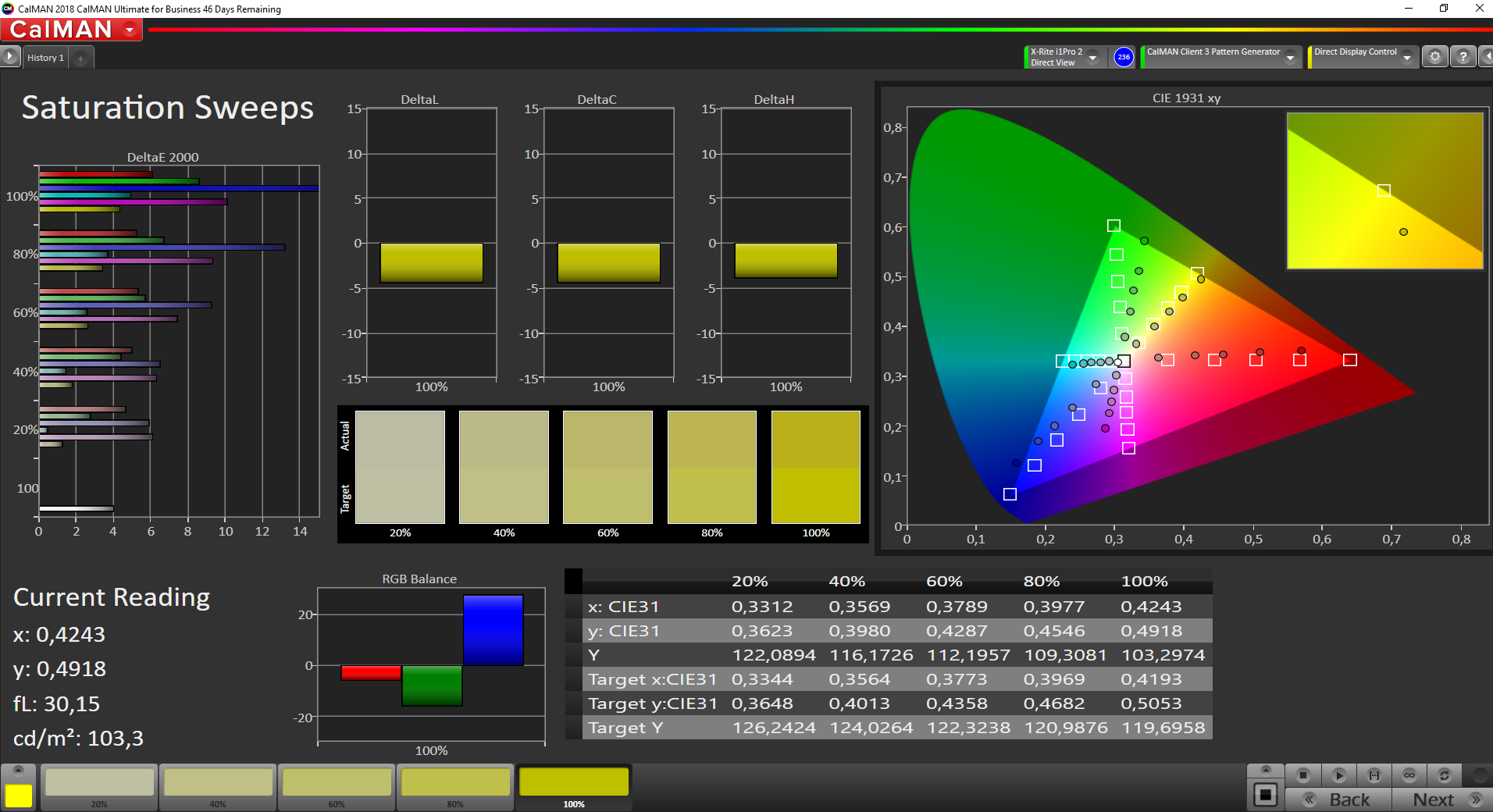

Saturation values
Saturation values
ColorChecker (calibrated)
ColorChecker (calibrated)

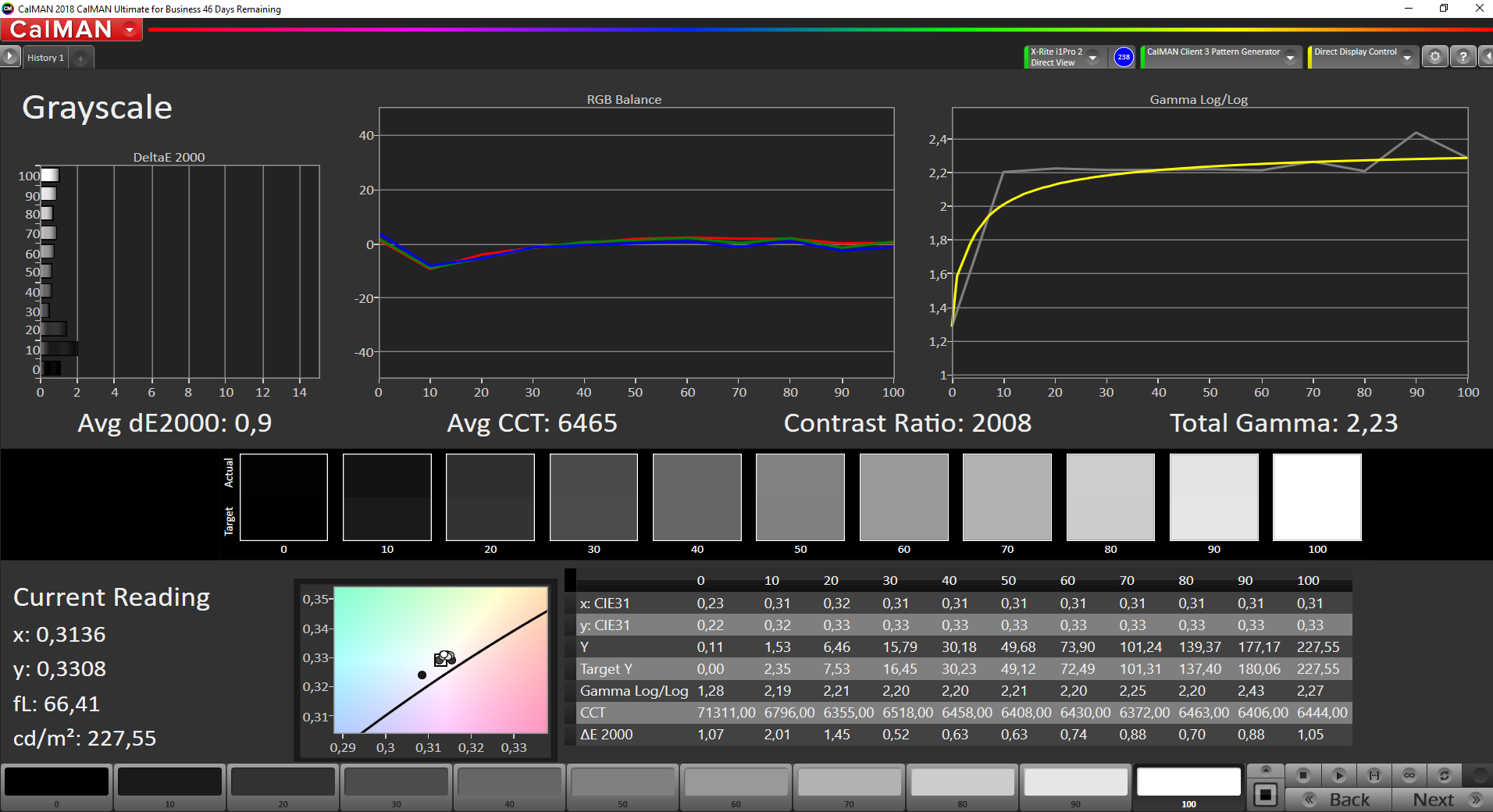

Grayscales (calibrated)
Grayscales (calibrated)
Saturation values (calibrated)
Saturation values (calibrated)

Due to the low brightness of only 240 cd/m², outdoor readability is very limited in most situations. Therefore, you should stay in the shade if possible when using the device outdoors, since the user experience is still most likely to be acceptable here due to the matte panel.

sRGB color-space coverage
sRGB color-space coverage
AdobeRGB color-space coverage
AdobeRGB color-space coverage

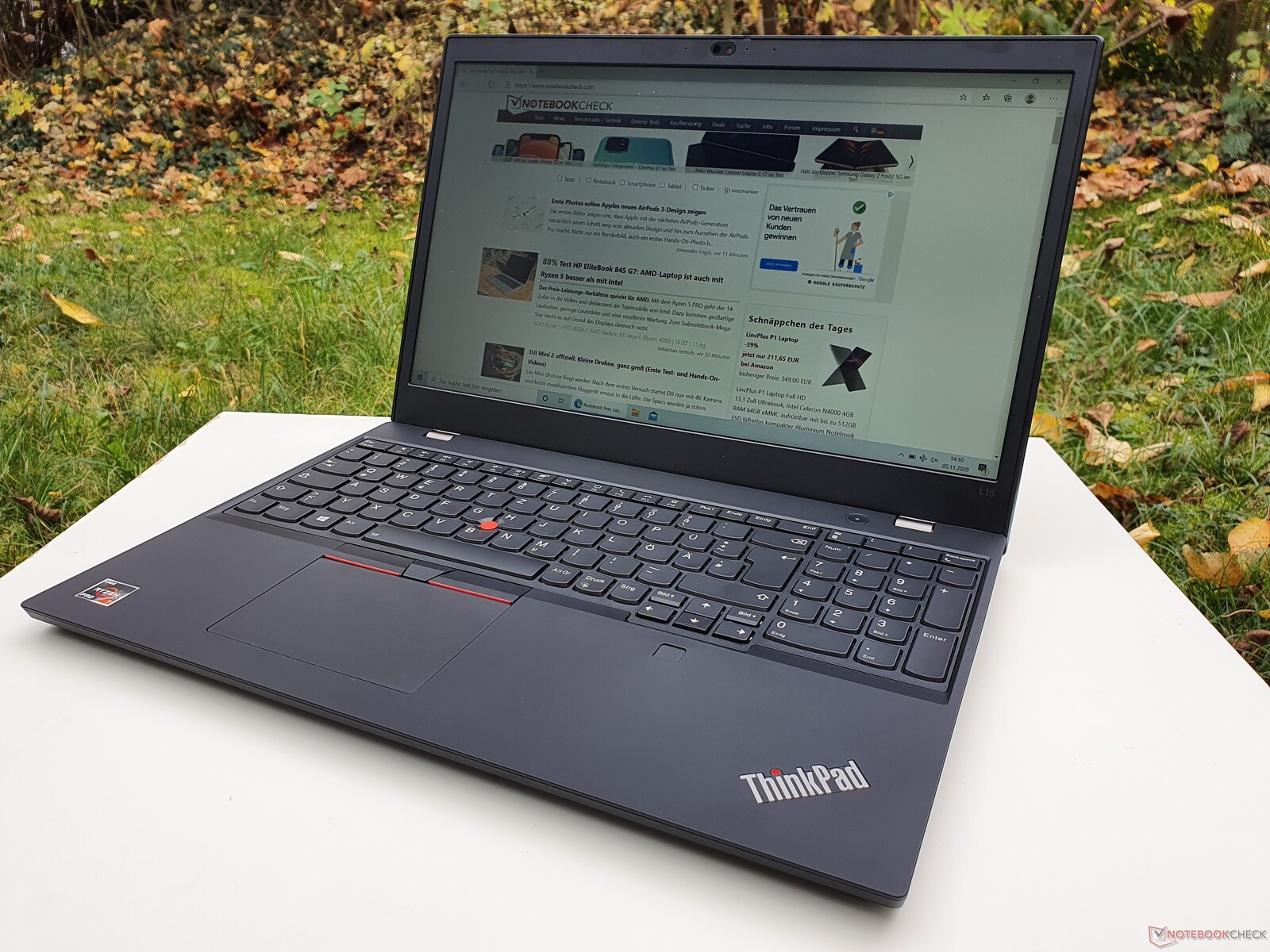

Outdoor use on a cloudy day
Outdoor use on a cloudy day

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
31.2 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 14 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 79 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.2 ms).
       Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined↗ 24.4 ms rise
↘ 23.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 76 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (38.4 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9644 (minimum: 5 - maximum: 151500) Hz was measured.

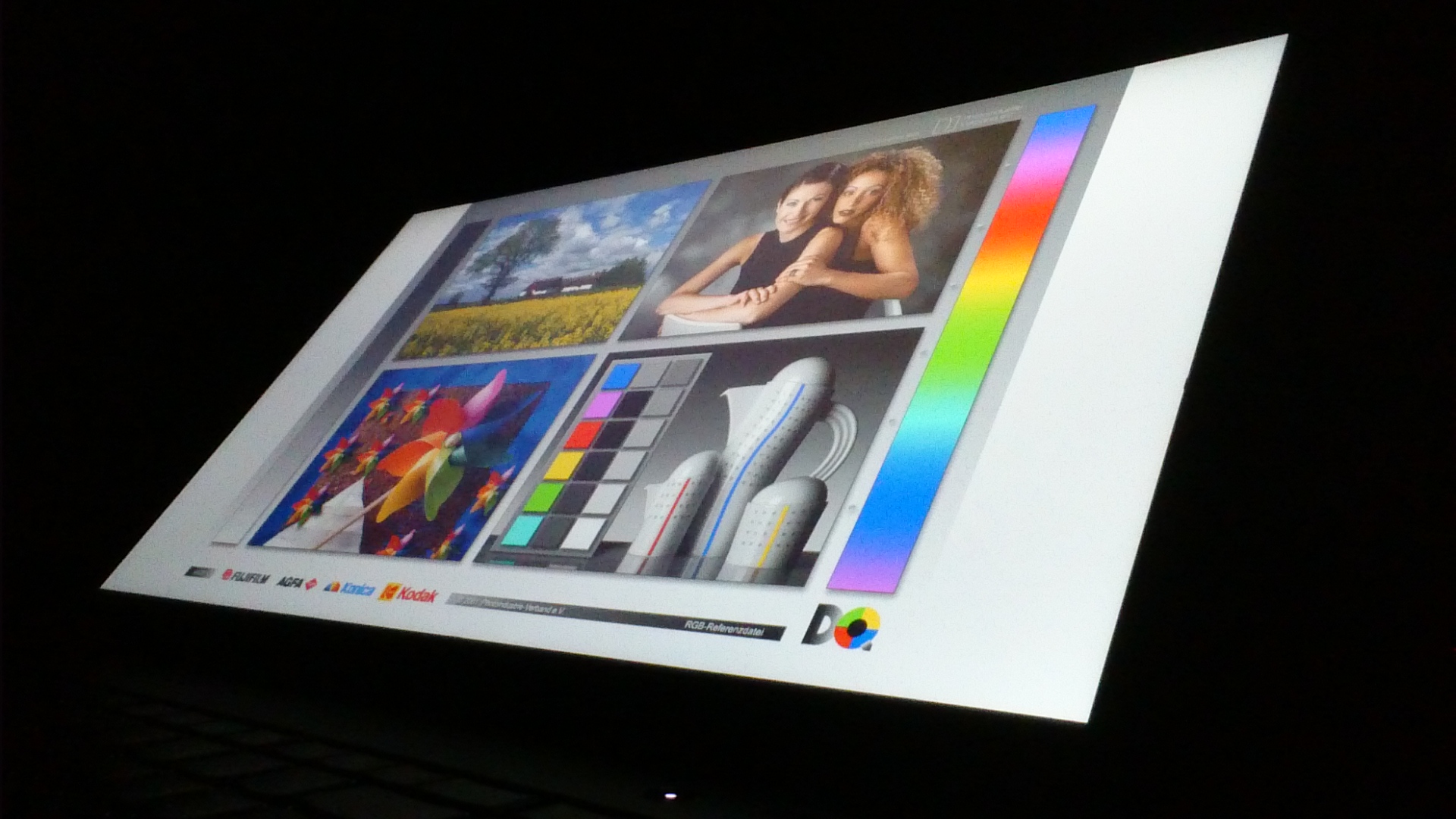

Viewing angles
Viewing angles

As is typical for IPS panels, the viewing angles are excellent, and the colors and contrast are hardly altered, even when being viewed from steep angles. However, the observed brightness decreases slightly at very steep angles.

Performance - Fast Ryzen 7 processor

Our configuration of the ThinkPad L15 is a relatively powerful version that not only handles everyday office life but also multimedia and games with low system requirements without problems. At the heart of our test configuration is the AMD Ryzen 7 Pro 4750U with integrated RX Vega 7 graphics. Intel-based alternatives with the Intel Core i7-10510U or Core i5-10210U as well as cheaper models with the Ryzen 5 4500U are also available. In terms of memory, you can choose between configurations with 8 GB or, as in this case, 16 GB. In our test device, a RAM module with 16 GB is used; it runs in single-channel mode. Lenovo doesn't offer dedicated graphics cards within this laptop series.

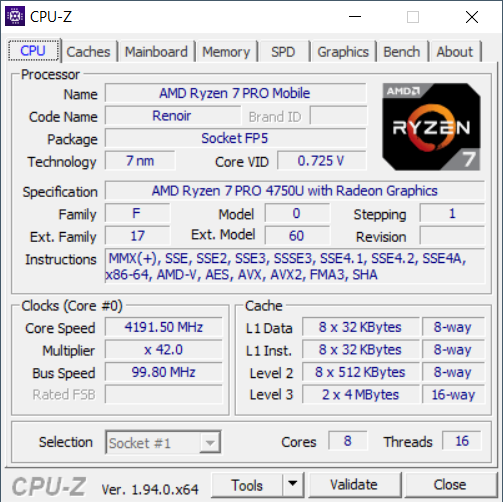

CPU-Z - CPU
CPU-Z - CPU

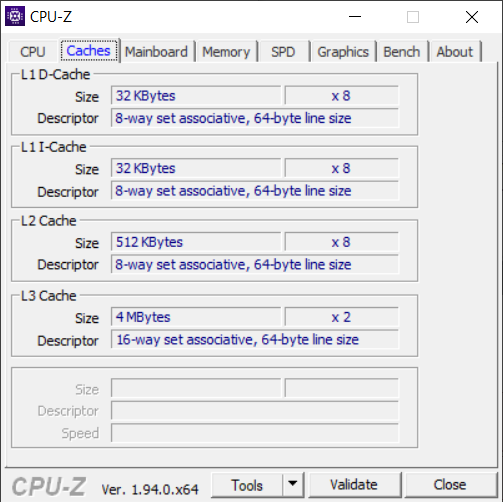

CPU-Z - Caches
CPU-Z - Caches

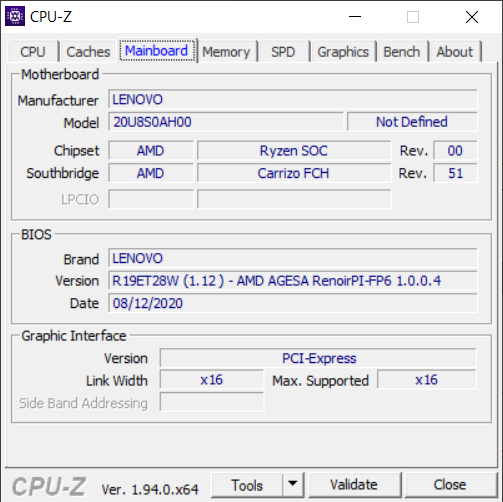

CPU-Z - Mainboard
CPU-Z - Mainboard

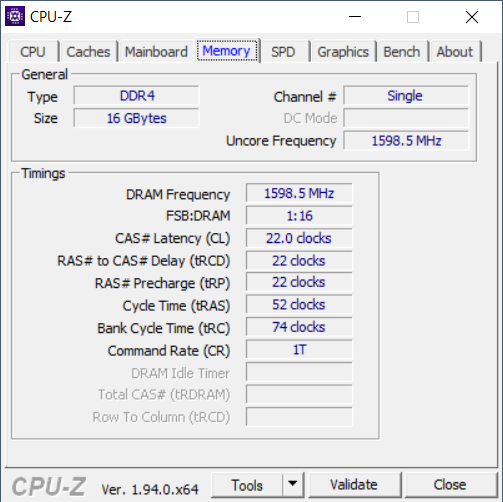

CPU-Z - Memory
CPU-Z - Memory

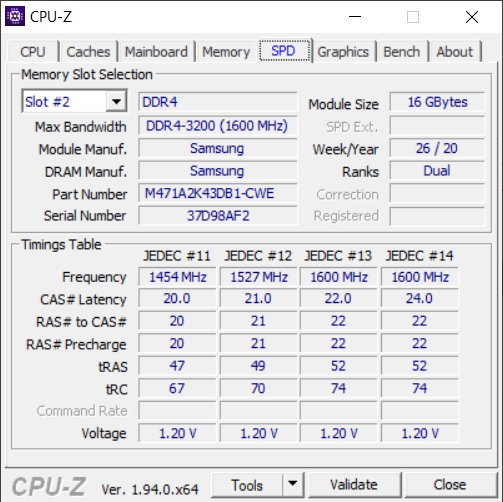

CPU-Z - SPD
CPU-Z - SPD

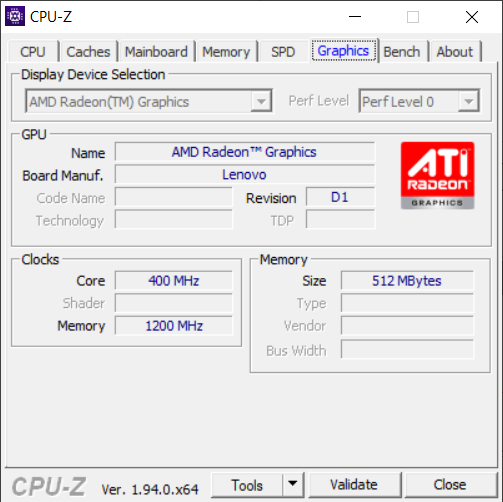

CPU-Z - Graphics
CPU-Z - Graphics

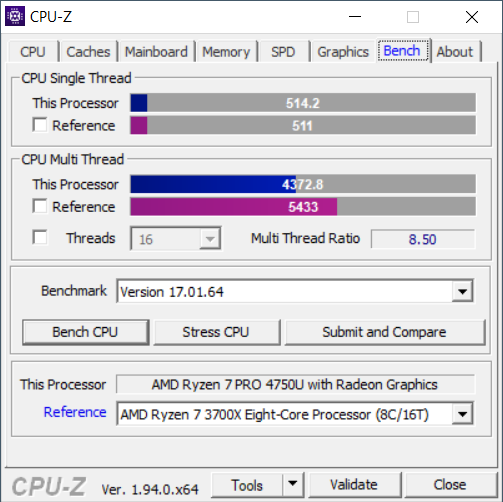

CPU-Z - Bench
CPU-Z - Bench

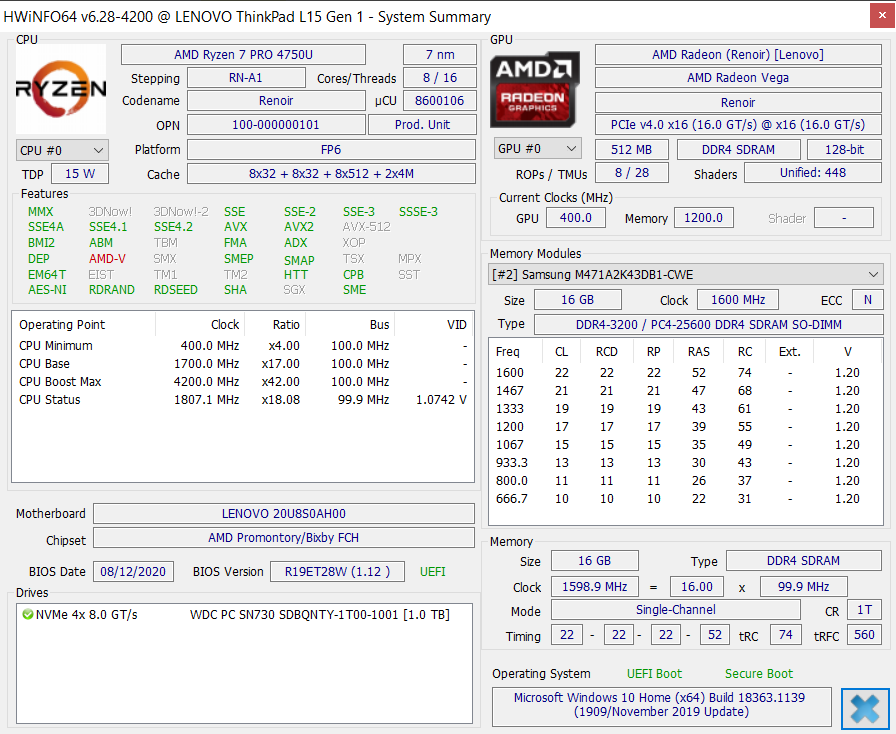

HWiNFO
HWiNFO

Processor

The Ryzen 7 Pro 4750U is an AMD processor from the current Renoir generation. The eight Zen 2 cores have a base clock rate of 1.7 GHz, while the Turbo clock speed reaches up to 4.1 GHz. Compared to the Ryzen 7 4700U, the "Pro" chip offers certain hardware security features and SMT (simultaneous processing of two tasks by one processor), but the base clock is slightly lower.

In the Cinebench R15 multi-thread benchmark, the clock speed is about 4.2 GHz (TDP 30 watts) for a short time, then it drops quickly to 3.0-3.1 GHz (25 watts) and settles at 2.8 to 2.9 GHz (22 watts) after a few minutes.

In our Cinebench loop test, it sets itself far ahead of the Intel competition and also leaves the AMD Ryzen 7 4700U of the HP ProBook 455 G7 behind. Performance drops minimally at the half of the test time.

In general, the CPU performance is slightly below the average of the Ryzen 7 Pro 4750U in the single-thread-based benchmarks, and it tends to be slightly above the average in the multi-thread benchmarks. In our comparison, the processor often reaches peak values.

Full performance is also available on battery power.

370.4420.4470.4520.4570.4620.4670.4720.4770.4820.4870.4920.4970.41020.41070.41120.41170.41220.41270.41320.41370.41409.291409.741402.481395.141399.731400.711398.111401.351400.221401.31399.291402.431395.531399.6814041383.131364.861373.721376.081374.151369.861366.681372.731371.931369.86579534535537536537535535537537536536537536537536535536536536535535537536536535537536537535537536533535536536535537536537535535535536536535536536535534481.68442.1393.45404.8428.12384.24434.66400.22414.54421.18392.67434.37388.32426.06413.54397.7429.27389.03437.12399.16402.49399.68426.48413.13399.72431.23387.56434.32392.85405.62415.48375.9434.52391.31396.56415.41370.4428.91384.79403.82409.89381.95406.7396.81419.18378.45429.71390.93408.52408.911068.261035.17963.99900.37894.43896.44896.54899.14899.52900.17896.68898.35898.57898.15897.59897.73898.74899.48898.31893.95890.95896.44895.3893.16897.97898.96898.29898.07898.88897.99899.04899.62896.98899.24899.14897.42899.46899897.95898.82897.5897.55897.87898.61898.69897.77898.76898.94898.9900.35545.63541.35536.14525.18541.81526.23538.62515.94538.29521.51534.06520.24528.72523.64524.18513.56525.04523.64518.17515.32524.39513.66511.31516.66517.3456.21515452.64480.32453.44451.21454.81454.03456.11452.96485.43455.79456.68453.37451.69454.89453.21449.23454.49452.08509.71457.74453.44455.3517.29489.32456.84456.3456.35452.16455.54513.25453.53456.92455.08458.56448.91451.29513.04515.11512.77454.09455.87465.14453.61455.62513.77513.7514.38450.73508.63491.22488.72492.4494.17492.1492.11492.47492.19490.42491.68489.67491.64492.25492.15492.68490.32491.7490.57491.93491.87491.41490.96492.36491.67490.64492.77489.43491.82491.76492.76491.7490.7488.36489.21489.43492.4491.44492.27491.57488.97492.02491491.94492.65491.2491.78490.88489.21492.27491.49490.93489.85490.16490.85Tooltip
Lenovo ThinkPad L15-20U8S0AH00 AMD Ryzen 7 PRO 4750U, AMD Ryzen 7 PRO 4750U: Ø1390 (1364.86-1409.74)
Lenovo ThinkPad E15 20RD0011GE Intel Core i7-10510U, Intel Core i7-10510U: Ø537 (533-579)
HP ProBook 450 G7 8WC04UT Intel Core i7-10510U, Intel Core i7-10510U: Ø409 (370.4-481.68)
HP ProBook 455 G7-175W8EA AMD Ryzen 7 4700U, AMD Ryzen 7 4700U: Ø905 (890.95-1068.26)
Dell Latitude 15 5510-D90XK Intel Core i5-10310U, Intel Core i5-10310U: Ø526 (511.31-545.63)
Acer TravelMate P215-52 Intel Core i7-10510U, Intel Core i7-10510U: Ø468 (448.91-517.29)
Lenovo ThinkPad L590-20Q70019GE Intel Core i5-8265U, Intel Core i5-8265U: Ø492 (488.36-508.63)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.3: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core)
Average AMD Ryzen 7 PRO 4750U
  (461 - 479, n=5)
470 Points ∼100% +2%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
462 Points ∼98% 0%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
461 Points ∼98%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
438 Points ∼93% -5%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
438 Points ∼93% -5%
Average of class Office
  (153 - 606, n=110, last 2 years)
416 Points ∼89% -10%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
400 Points ∼85% -13%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
396 Points ∼84% -14%
Acer TravelMate P215-52
Intel Core i7-10510U
382 Points ∼81% -17%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
3302 Points ∼100%
Average AMD Ryzen 7 PRO 4750U
  (2935 - 3302, n=5)
3151 Points ∼95% -5%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
2601 Points ∼79% -21%
Average of class Office
  (159 - 3302, n=111, last 2 years)
1522 Points ∼46% -54%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
1327 Points ∼40% -60%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
1290 Points ∼39% -61%
Acer TravelMate P215-52
Intel Core i7-10510U
1175 Points ∼36% -64%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
1162 Points ∼35% -65%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
1051 Points ∼32% -68%
Cinebench R15 / CPU Single 64Bit
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
181 Points ∼100% +1%
Average AMD Ryzen 7 PRO 4750U
  (180 - 184, n=5)
181 Points ∼100% +1%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
180 Points ∼99%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
174 Points ∼96% -3%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
173.43 Points ∼96% -4%
Acer TravelMate P215-52
Intel Core i7-10510U
167 Points ∼92% -7%
Average of class Office
  (69 - 230, n=124, last 2 years)
164 Points ∼91% -9%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
160 Points ∼88% -11%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
113 Points ∼62% -37%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
1410 (1364.86min - 1409.74max) Points ∼100%
Average AMD Ryzen 7 PRO 4750U
  (1287 - 1417, n=5)
1375 Points ∼98% -2%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
1050 Points ∼74% -26%
Average of class Office
  (134 - 1410, n=127, last 2 years)
660 Points ∼47% -53%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
586 Points ∼42% -58%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
545.63 (511.31min - 545.63max) Points ∼39% -61%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
521 (471.69min - 492.04max) Points ∼37% -63%
Acer TravelMate P215-52
Intel Core i7-10510U
517 (448.91min - 517.29max) Points ∼37% -63%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
482 (370.4min - 481.68max) Points ∼34% -66%
Blender 2.79 / BMW27 CPU
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
1051 Seconds * ∼100% -206%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
959 Seconds * ∼91% -179%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
886.1 Seconds * ∼84% -158%
Acer TravelMate P215-52
Intel Core i7-10510U
879 Seconds * ∼84% -156%
Average of class Office
  (344 - 3319, n=99, last 2 years)
856 Seconds * ∼81% -149%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
810 Seconds * ∼77% -135%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
536.5 Seconds * ∼51% -56%
Average AMD Ryzen 7 PRO 4750U
  (340 - 403, n=5)
361 Seconds * ∼34% -5%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
344 Seconds * ∼33%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
4611 MIPS ∼100% +4%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
4453 MIPS ∼97%
Average AMD Ryzen 7 PRO 4750U
  (4413 - 4467, n=5)
4438 MIPS ∼96% 0%
Acer TravelMate P215-52
Intel Core i7-10510U
4409 MIPS ∼96% -1%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
4398 MIPS ∼95% -1%
Average of class Office
  (2158 - 5565, n=100, last 2 years)
4252 MIPS ∼92% -5%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
4208 MIPS ∼91% -6%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
4051 MIPS ∼88% -9%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
3780 MIPS ∼82% -15%
7-Zip 18.03 / 7z b 4
Average AMD Ryzen 7 PRO 4750U
  (37081 - 42173, n=5)
39995 MIPS ∼100% +1%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
39579 MIPS ∼99%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
27219 MIPS ∼68% -31%
Average of class Office
  (4963 - 39649, n=100, last 2 years)
18717 MIPS ∼47% -53%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
17312 MIPS ∼43% -56%
Acer TravelMate P215-52
Intel Core i7-10510U
16371 MIPS ∼41% -59%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
16335 MIPS ∼41% -59%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
14779 MIPS ∼37% -63%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
12196 MIPS ∼30% -69%
Geekbench 5.3 / 64 Bit Single-Core Score
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
1244 Points ∼100% +11%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
1225 Points ∼98% +10%
Average AMD Ryzen 7 PRO 4750U
  (1117 - 1157, n=5)
1140 Points ∼92% +2%
Average of class Office
  (431 - 1648, n=83, last 2 years)
1125 Points ∼90% +1%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
1122 Points ∼90% 0%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
1117 Points ∼90%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
1109 Points ∼89% -1%
Acer TravelMate P215-52
Intel Core i7-10510U
1102 Points ∼89% -1%
Geekbench 5.3 / 64 Bit Multi-Core Score
Average AMD Ryzen 7 PRO 4750U
  (5456 - 6609, n=5)
6052 Points ∼100% +11%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
5456 Points ∼90%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
4853 Points ∼80% -11%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
3749 Points ∼62% -31%
Average of class Office
  (873 - 6502, n=83, last 2 years)
3745 Points ∼62% -31%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
3663 Points ∼61% -33%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
3408 Points ∼56% -38%
Acer TravelMate P215-52
Intel Core i7-10510U
2474 Points ∼41% -55%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average AMD Ryzen 7 PRO 4750U
  (8.33 - 10.3, n=5)
9.41 fps ∼100% +1%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
9.32 fps ∼99%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
6.79 fps ∼72% -27%
Average of class Office
  (1.15 - 9.8, n=99, last 2 years)
4.88 fps ∼52% -48%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
4.6 fps ∼49% -51%
Acer TravelMate P215-52
Intel Core i7-10510U
4.23 fps ∼45% -55%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
4.02 fps ∼43% -57%
Lenovo ThinkPad L590-20Q70019GE
Intel Core i5-8265U
3.9 fps ∼41% -58%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
3.41 fps ∼36% -63%
LibreOffice / 20 Documents To PDF
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
115.68 s * ∼100% -81%
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
77.8 s * ∼67% -22%
Average of class Office
  (21.5 - 180, n=72, last 2 years)
64.1 s * ∼55% -0%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
63.8 s * ∼55%
Average AMD Ryzen 7 PRO 4750U
  (58.4 - 73.4, n=5)
63.6 s * ∼55% -0%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
61.33 s * ∼53% +4%
Acer TravelMate P215-52
Intel Core i7-10510U
53.7 s * ∼46% +16%
R Benchmark 2.5 / Overall mean
HP ProBook 450 G7 8WC04UT
Intel Core i7-10510U
0.75 sec * ∼100% -22%
Acer TravelMate P215-52
Intel Core i7-10510U
0.716 sec * ∼95% -16%
Average of class Office
  (0.542 - 1.578, n=77, last 2 years)
0.715 sec * ∼95% -16%
Dell Latitude 15 5510-D90XK
Intel Core i5-10310U
0.707 sec * ∼94% -15%
Lenovo ThinkPad E15 20RD0011GE
Intel Core i7-10510U
0.666 sec * ∼89% -8%
HP ProBook 455 G7-175W8EA
AMD Ryzen 7 4700U
0.651 sec * ∼87% -6%
Lenovo ThinkPad L15-20U8S0AH00
AMD Ryzen 7 PRO 4750U
0.617 sec * ∼82%
Average AMD Ryzen 7 PRO 4750U
  (0.61 - 0.621, n=5)
0.615 sec * ∼82% -0%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
1410 Points
Cinebench R15 OpenGL 64Bit
52.5 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
180 Points
Help

System performance - Lightning-fast despite wasted potential

Although the overall system performance is very good for an office laptop, it's not always enough for one of the first three places in our comparison. These results are probably due to the dedicated graphics cards in some competitors and the single-channel RAM of our test device. The CPU also lags slightly behind an average Ryzen 7 Pro 4750U from our database. In practice, none of this is noticeable: programs are launched quickly, the system runs smoothly, responsiveness is excellent, and no hardware or software problems were encountered either.

PCMark 10
Digital Content Creation
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4436 - 5347, n=5)
4967 Points ∼100% +12%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
4459 Points ∼90% +1%
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
4436 Points ∼89%
Lenovo ThinkPad E15 20RD0011GE
Radeon RX 640, i7-10510U, Samsung PM991 MZALQ512HALU
4181 Points ∼84% -6%
Average of class Office
  (1270 - 5878, n=118, last 2 years)
3469 Points ∼70% -22%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
3310 Points ∼67% -25%
Dell Latitude 15 5510-D90XK
UHD Graphics 620, i5-10310U, SK Hynix BC511 HFM512GDJTNI
3265 Points ∼66% -26%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
2465 Points ∼50% -44%
Lenovo ThinkPad L590-20Q70019GE
UHD Graphics 620, i5-8265U, Toshiba XG6 KXG6AZNV512G
2067 Points ∼42% -53%
Productivity
Lenovo ThinkPad E15 20RD0011GE
Radeon RX 640, i7-10510U, Samsung PM991 MZALQ512HALU
8567 Points ∼100% +23%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
7424 Points ∼87% +6%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
7330 Points ∼86% +5%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (6877 - 7592, n=5)
7181 Points ∼84% +3%
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
6974 Points ∼81%
Dell Latitude 15 5510-D90XK
UHD Graphics 620, i5-10310U, SK Hynix BC511 HFM512GDJTNI
6886 Points ∼80% -1%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
6805 Points ∼79% -2%
Average of class Office
  (2917 - 9071, n=118, last 2 years)
6424 Points ∼75% -8%
Lenovo ThinkPad L590-20Q70019GE
UHD Graphics 620, i5-8265U, Toshiba XG6 KXG6AZNV512G
2941 Points ∼34% -58%
Essentials
Lenovo ThinkPad E15 20RD0011GE
Radeon RX 640, i7-10510U, Samsung PM991 MZALQ512HALU
9601 Points ∼100% +10%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (8529 - 9490, n=5)
8973 Points ∼93% +2%
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
8761 Points ∼91%
Dell Latitude 15 5510-D90XK
UHD Graphics 620, i5-10310U, SK Hynix BC511 HFM512GDJTNI
8659 Points ∼90% -1%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
8370 Points ∼87% -4%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
8303 Points ∼86% -5%
Average of class Office
  (4469 - 10457, n=118, last 2 years)
8257 Points ∼86% -6%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
8227 Points ∼86% -6%
Lenovo ThinkPad L590-20Q70019GE
UHD Graphics 620, i5-8265U, Toshiba XG6 KXG6AZNV512G
5073 Points ∼53% -42%
Score
Lenovo ThinkPad E15 20RD0011GE
Radeon RX 640, i7-10510U, Samsung PM991 MZALQ512HALU
5023 Points ∼100% +8%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4639 - 5034, n=5)
4900 Points ∼98% +6%
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
4639 Points ∼92%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
4527 Points ∼90% -2%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
4231 Points ∼84% -9%
Dell Latitude 15 5510-D90XK
UHD Graphics 620, i5-10310U, SK Hynix BC511 HFM512GDJTNI
4155 Points ∼83% -10%
Average of class Office
  (1879 - 5606, n=118, last 2 years)
4054 Points ∼81% -13%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
3797 Points ∼76% -18%
Lenovo ThinkPad L590-20Q70019GE
UHD Graphics 620, i5-8265U, Toshiba XG6 KXG6AZNV512G
2247 Points ∼45% -52%
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
5435 Points ∼100%
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (5053 - 5573, n=4)
5408 Points ∼100% 0%
Lenovo ThinkPad E15 20RD0011GE
Radeon RX 640, i7-10510U, Samsung PM991 MZALQ512HALU
5142 Points ∼95% -5%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
5101 Points ∼94% -6%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
4992 Points ∼92% -8%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
4823 Points ∼89% -11%
Average of class Office
  (2489 - 5695, n=80, last 2 years)
4644 Points ∼85% -15%
Lenovo ThinkPad L590-20Q70019GE
UHD Graphics 620, i5-8265U, Toshiba XG6 KXG6AZNV512G
3132 Points ∼58% -42%
Home Score Accelerated v2
Average AMD Ryzen 7 PRO 4750U, AMD Radeon RX Vega 7
  (4158 - 4640, n=4)
4358 Points ∼100% +5%
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
4158 Points ∼95%
Lenovo ThinkPad E15 20RD0011GE
Radeon RX 640, i7-10510U, Samsung PM991 MZALQ512HALU
4045 Points ∼93% -3%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
4015 Points ∼92% -3%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
3585 Points ∼82% -14%
Average of class Office
  (1918 - 4878, n=86, last 2 years)
3533 Points ∼81% -15%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
3157 Points ∼72% -24%
Lenovo ThinkPad L590-20Q70019GE
UHD Graphics 620, i5-8265U, Toshiba XG6 KXG6AZNV512G
2747 Points ∼63% -34%
PCMark 8 Home Score Accelerated v2
4158 points
PCMark 8 Creative Score Accelerated v2
5381 points
PCMark 8 Work Score Accelerated v2
5435 points
PCMark 10 Score
4639 points
Help

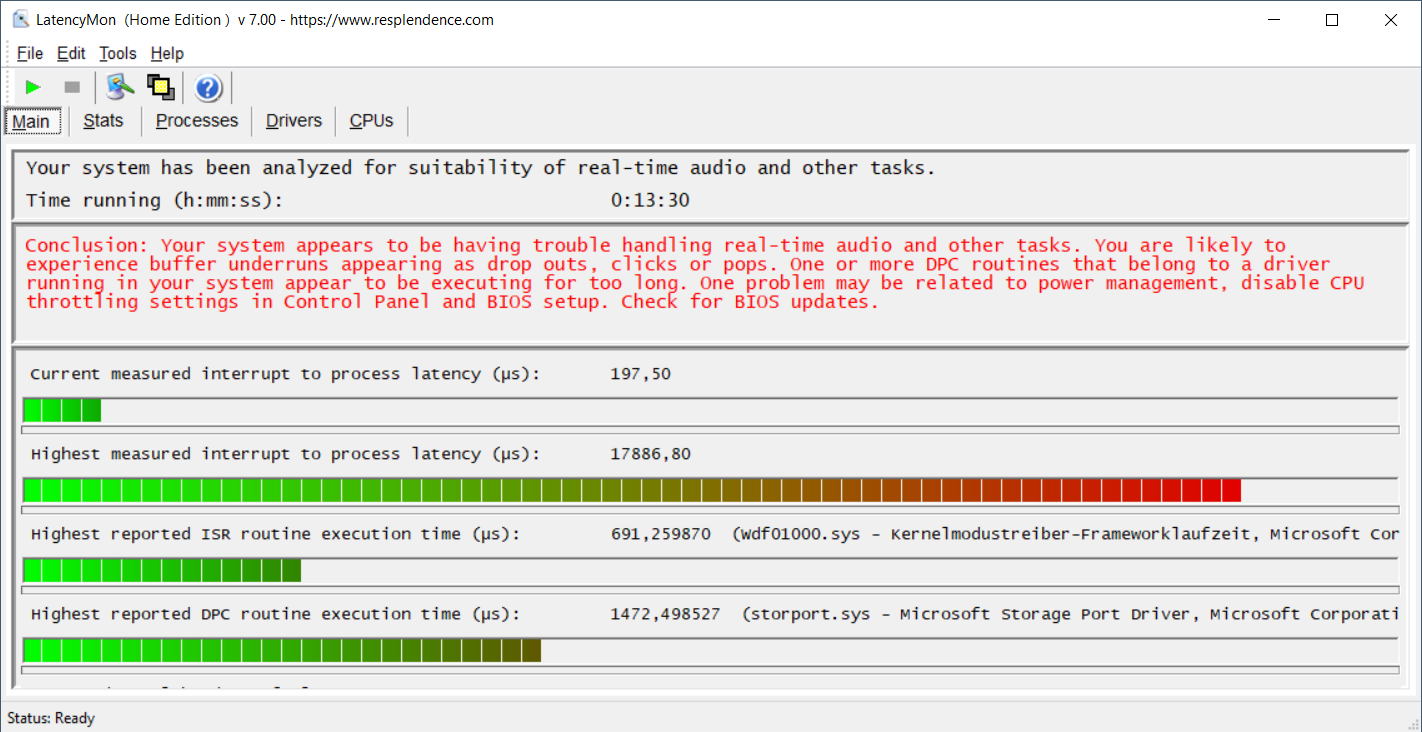

DPC latencies

In our standardized test, we have identified problematic DPC latencies. Therefore, the laptop is rather unsuitable for editing video and audio content in real-time in its current testing state.

LatencyMon
LatencyMon

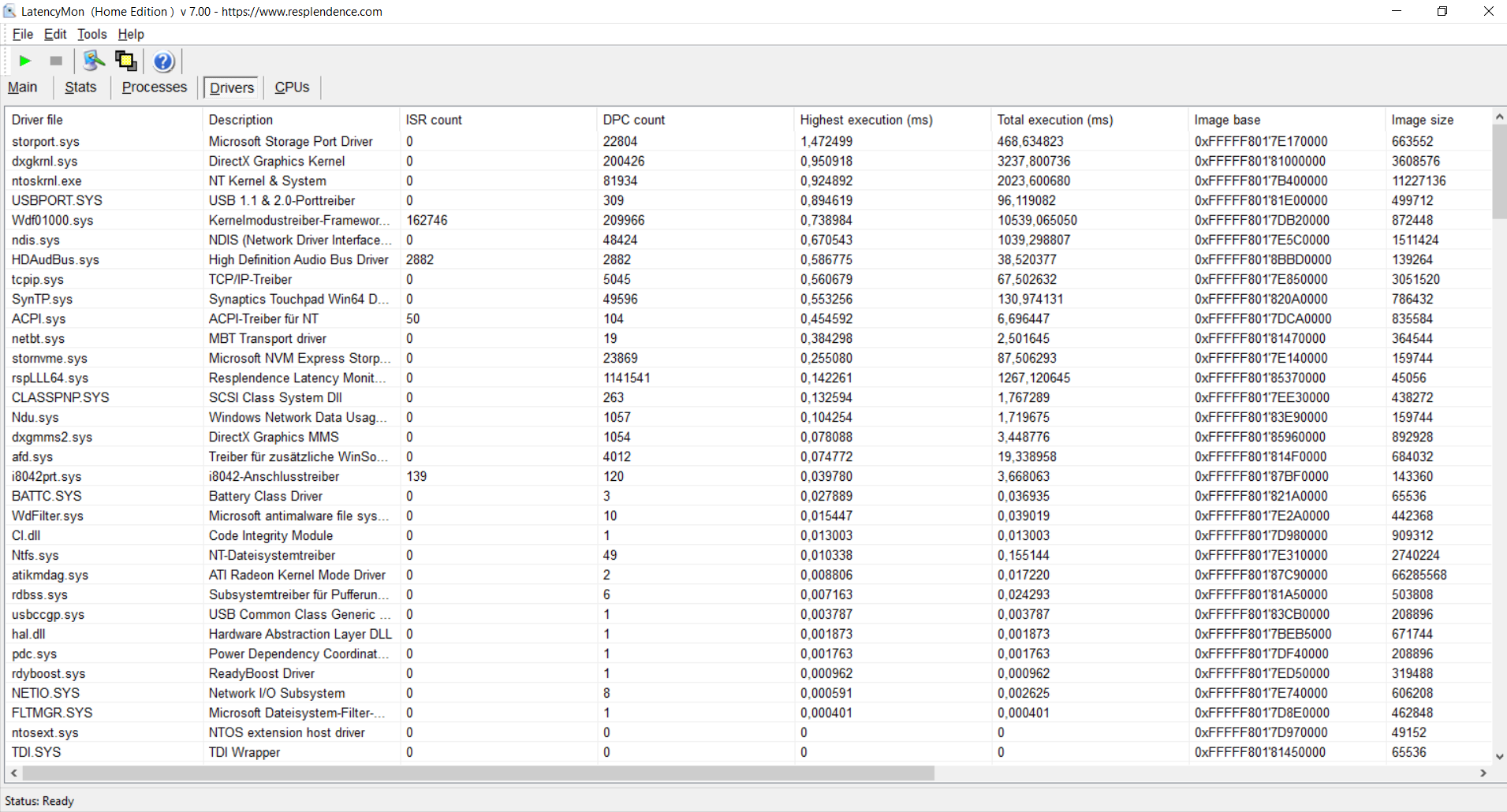

LatencyMon - Drivers
LatencyMon - Drivers
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad L15-20U8S0AH00
Vega 7, R7 PRO 4750U, WDC PC SN730 SDBQNTY-1T00
17886.8 μs * ∼100%
Dell Latitude 15 5510-D90XK
UHD Graphics 620, i5-10310U, SK Hynix BC511 HFM512GDJTNI
10746.7 μs * ∼60% +40%
HP ProBook 450 G7 8WC04UT
GeForce MX250, i7-10510U, Crucial P1 SSD CT1000P1SSD8
2840.5 μs * ∼16% +84%
Acer TravelMate P215-52
UHD Graphics 620, i7-10510U, SK hynix BC511 HFM256GDJTNI-82A0
2367.2 μs * ∼13% +87%
HP ProBook 455 G7-175W8EA
Vega 7, R7 4700U, Samsung PM991 MZVLQ512HALU
973 μs * ∼5% +95%

* ... smaller is better

Storage - Fast 1 TB SSD

In our configuration, the Western Digital PC SN730 1 TB NVMe SSD serves as the system drive. Users have 922 GB available out of the box. Compared to the competition, the speed is very high for 4K writes and also decent for reads, but the Samsung, Crucial and SK hynix SSDs in the ThinkPad E15HP ProBook 450 G7, and Acer TravelMate P215 are a bit faster here. The SSD in our test model consistently lies ahead of the other comparison devices in sequential reading and writing.

Further benchmark comparisons can be found in our HDD/SSD Benchmarks article

Lenovo ThinkPad L15-20U8S0AH00
WDC PC SN730 SDBQNTY-1T00
Lenovo ThinkPad E15 20RD0011GE
Samsung PM991 MZALQ512HALU
HP ProBook 450 G7 8WC04UT
Crucial P1 SSD CT1000P1SSD8
HP ProBook 455 G7-175W8EA
Samsung PM991 MZVLQ512HALU
Dell Latitude 15 5510-D90XK
SK Hynix BC511 HFM512GDJTNI
Acer TravelMate P215-52
SK hynix BC511 HFM256GDJTNI-82A0
Lenovo ThinkPad L590-20Q70019GE
Toshiba XG6 KXG6AZNV512G
Average WDC PC SN730 SDBQNTY-1T00

CrystalDiskMark 5.2 / 6
-16%
-35%
-29%
-34%
-30%
-26%
3%
Write 4K
156.5
144.4
-8%
111.1
-29%
141.9
-9%
121
-23%
153.7
-2%
115.3
-26%
146 (118 - 168, n=4)
-7%
Read 4K
48.72
52.25
7%
56.28
16%
37.25
-24%
42.39
-13%
60.39
24%
43.34
-11%
49.1 (47.4 - 51.7, n=4)
1%
Write Seq
2146.7
946.1
-56%
558.9
-74%
997.9
-54%
1034
-52%
431
-80%
1014
-53%
2374 (1866 - 2748, n=4)
11%
Read Seq
1809.4
1608
-11%
1348
-26%
1233
-32%
1063
-41%
1199
-34%
1481
-18%
2097 (1809 - 2573, n=4)
16%
Write 4K Q32T1
393.8
591.6
50%
277.1
-30%
338.4
-14%
351.4
-11%
374.5
-5%
495.4
26%
410 (394 - 423, n=4)
4%
Read 4K Q32T1
496.1
397.7
-20%
312.1
-37%
431.1
-13%
334.3
-33%
445.5
-10%
332.6
-33%
489 (475 - 509, n=4)
-1%
Write Seq Q32T1
3093.2
1364
-56%
1652
-47%
1366.9
-56%
1059
-66%
408.4
-87%
1653.8
-47%
3079 (3055 - 3097, n=4)
0%
Read Seq Q32T1
3393.7
2301
-32%
1588
-53%
2355.1
-31%
2290
-33%
1966
-42%
1746.1
-49%
3299 (3154 - 3394, n=4)
-3%
Write 4K Q8T8
876.7
1033.2
Read 4K Q8T8
518.4
891.8
AS SSD
-24%
-80%
-35%
-38%
-78%
-25%
1%
Copy Game MB/s
1054.75
1112.92
6%
361.87
-66%
254.9
-76%
228.95
-78%
928.25
-12%
1069 (1055 - 1083, n=2)
1%
Copy Program MB/s
519.93
529.09
2%
95.13
-82%
70.15
-87%
96.22
-81%
419.84
-19%
532 (520 - 545, n=2)
2%
Copy ISO MB/s
1055.2
1287
22%
2635.18
150%
1408.55
33%
634.43
-40%
1147.33
9%
1463 (1055 - 1870, n=2)
39%
Score Total
5338
2545
-52%
1986
-63%
2723
-49%
2326
-56%
1178
-78%
3420
-36%
5213 (5076 - 5338, n=4)
-2%
Score Write
2406
968
-60%
853
-65%
1037
-57%
902
-63%
272
-89%
1132
-53%
2291 (2214 - 2406, n=4)
-5%
Score Read
1938
1072
-45%
745
-62%
1134
-41%
951
-51%
639
-67%
1528
-21%
1938 (1885 - 2012, n=4)
0%
Access Time Write *
0.027
0.025
7%
0.207
-667%
0.033
-22%
0.034
-26%
0.117
-333%
0.036
-33%
0.0335 (0.027 - 0.037, n=4)
-24%
Access Time Read *
0.067
0.095
-42%
0.066
1%
0.069
-3%
0.049
27%
0.071
-6%
0.063
6%
0.0635 (0.06 - 0.067, n=2)
5%
4K-64 Write
2040.19
735.57
-64%
658.35
-68%
800.52
-61%
718.21
-65%
141.05
-93%
926.34
-55%
1929 (1847 - 2040, n=4)
-5%
4K-64 Read
1672.25
830.47
-50%
580.5
-65%
897.18
-46%
786.01
-53%
423.38
-75%
1343.59
-20%
1635 (1562 - 1672, n=4)
-2%
4K Write
140.35
151.74
8%
96.64
-31%
116.22
-17%
115.66
-18%
95.86
-32%
120.22
-14%
111 (101 - 140, n=4)
-21%
4K Read
45.51
49.89
10%
48.85
7%
43.9
-4%
47.35
4%
38.18
-16%
45.72
0%
42.3 (39.9 - 45.5, n=4)
-7%
Seq Write
2252.7
801.91
-64%
983.71
-56%
1199
-47%
677.68
-70%
354.46
-84%
852
-62%
2484 (2253 - 2677, n=4)
10%
Seq Read
2203.03
1917.75
-13%
1154.81
-48%
1929
-12%
1172.28
-47%
1769.75
-20%
1383
-37%
2601 (2203 - 3006, n=4)
18%
Total Average (Program / Settings)
-20% / -21%
-58% / -63%
-32% / -33%
-36% / -36%
-54% / -60%
-26% / -25%
2% / 1%

* ... smaller is better

WDC PC SN730 SDBQNTY-1T00
CDM 5/6 Read Seq Q32T1: 3393.7 MB/s
CDM 5/6 Write Seq Q32T1: 3093.2 MB/s
CDM 5/6 Read 4K Q32T1: 496.1 MB/s
CDM 5/6 Write 4K Q32T1: 393.8 MB/s
CDM 5 Read Seq: 1809.4 MB/s
CDM 5 Write Seq: 2146.7 MB/s
CDM 5/6 Read 4K: 48.72 MB/s
CDM 5/6 Write 4K: 156.5 MB/s

Continuous load read: DiskSpd Read Loop, Queue Depth 8

020040060080010001200140016001800200022002400260028001926.731927.151927.361927.361927.571927.571927.571927.781927.781927.991927.991928.411928.411928.621928.831929.041929.041929.462164.552467.412537.182656.952884.112884.952886.212886.632886.632886.632886.632886.842886.842886.842886.842886.842886.842886.842887.052887.052887.052887.052887.052887.052887.262887.262887.262887.262887.262887.472887.472887.68Tooltip
: Ø2507 (1926.73-2887.68)

Graphics card - Powerful iGPU

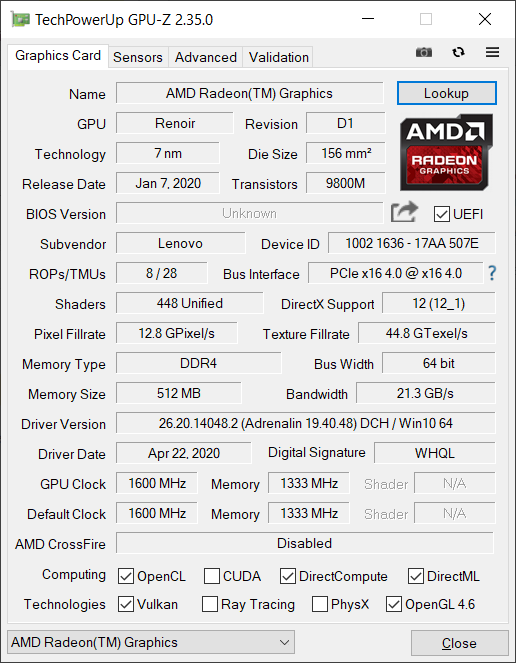

GPU-Z
GPU-Z

The AMD Radeon RX Vega 7 is an integrated graphics solution from AMD. Compared to Intel's iGPU competition, it's about twice as fast, because Intel still relies on the outdated UHD Graphics 620. The situation is different when compared to the HP ProBook 455 G7 AMD competitor or rather to the result of an average RX Vega 7: The deficit can also probably be explained by the RAM here, which only runs in single-channel mode.

Our test model passes the Fire Strike load test with a frame-rate stability of 99.3%.

3DMark 11 - 1280x720 Performance GPU
Average AMD Radeon RX Vega 7
  (3993 - 5509, n=17)
5019 Points ∼100% +26%
Lenovo ThinkPad E15 20RD0011GE
AMD Radeon RX 640, Intel Core i7-10510U
4998 Points ∼100% +25%
HP ProBook 450 G7 8WC04UT
NVIDIA GeForce MX250, Intel Core i7-10510U
4202 Points ∼84% +5%
HP ProBook 455 G7-175W8EA
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
4019 Points ∼80% +1%
Lenovo ThinkPad L15-20U8S0AH00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
3993 Points ∼80%
Average of class Office
  (575 - 8296, n=120, last 2 years)
3109 Points ∼62% -22%
Dell Latitude 15 5510-D90XK
Intel UHD Graphics 620, Intel Core i5-10310U
1843 Points ∼37% -54%
Acer TravelMate P215-52
Intel UHD Graphics 620, Intel Core i7-10510U
1754 Points ∼35% -56%
Lenovo ThinkPad L590-20Q70019GE
Intel UHD Graphics 620, Intel Core i5-8265U
1722 Points ∼34% -57%
3DMark
2560x1440 Time Spy Graphics
HP ProBook 450 G7 8WC04UT
NVIDIA GeForce MX250, Intel Core i7-10510U
1032 Points ∼100% +42%
Lenovo ThinkPad E15 20RD0011GE
AMD Radeon RX 640, Intel Core i7-10510U
990 Points ∼96% +36%
Average AMD Radeon RX Vega 7
  (728 - 1091, n=16)
978 Points ∼95% +34%
HP ProBook 455 G7-175W8EA
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
742 Points ∼72% +2%
Lenovo ThinkPad L15-20U8S0AH00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
728 Points ∼71%
Average of class Office
  (194 - 1975, n=84, last 2 years)
719 Points ∼70% -1%
Acer TravelMate P215-52
Intel UHD Graphics 620, Intel Core i7-10510U
376 Points ∼36% -48%
Lenovo ThinkPad L590-20Q70019GE
Intel UHD Graphics 620, Intel Core i5-8265U
363 Points ∼35% -50%
1920x1080 Fire Strike Graphics
HP ProBook 450 G7 8WC04UT
NVIDIA GeForce MX250, Intel Core i7-10510U
3447 Points ∼100% +43%
Lenovo ThinkPad E15 20RD0011GE
AMD Radeon RX 640, Intel Core i7-10510U
3279 Points ∼95% +36%
Average AMD Radeon RX Vega 7
  (2407 - 3778, n=20)
3243 Points ∼94% +35%
HP ProBook 455 G7-175W8EA
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
2425 Points ∼70% +1%
Lenovo ThinkPad L15-20U8S0AH00
AMD Radeon RX Vega 7, AMD Ryzen 7 PRO 4750U
2407 Points ∼70%
Average of class Office
  (425 - 5848, n=113, last 2 years)
2131 Points ∼62% -11%
Acer TravelMate P215-52
Intel UHD Graphics 620, Intel Core i7-10510U
1173 Points ∼34% -51%
Dell Latitude 15 5510-D90XK
Intel UHD Graphics 620, Intel Core i5-10310U
1146 Points ∼33% -52%
Lenovo ThinkPad L590-20Q70019GE
Intel UHD Graphics 620, Intel Core i5-8265U
1143 Points ∼33% -53%
3DMark 11 Performance
4125 points
3DMark Fire Strike Score
2135 points
3DMark Time Spy Score
838 points
Help

Gaming performance

The ThinkPad L15 isn't designed for gaming, but thanks to the current integrated graphic card, many games are at least playable on low settings.

low med. high ultra
The Witcher 3 (2015) 25.5 9.74 10.9 fps
Dota 2 Reborn (2015) 88.3 67.9 35.5 34 fps
X-Plane 11.11 (2018) 34.9 26.7 24.1 fps
Far Cry 5 (2018) 29 14 fps
F1 2020 (2020) 56.1 27 21.1 fps

Emissions - Quiet in idle usage

Noise emissions

In idle usage, the system fan is deactivated. Under low load, the fan has to start if necessary, but even then, it only generates a maximum of 30.3 dB(A). Moreover, in our stress test, the noise level of the fan immediately rises to 32.3 dB(A), and after about 5 minutes, this value increases to 34.3 dB(A). The fan behavior of the ThinkPad L15 can be characterized overall as sluggish, which results in the laptop being relatively quiet, both subjectively as well as compared to the competition.

We didn't notice any coil whine during our time with the ThinkPad L15.

Noise Level

Idle
29.7 / 29.7 / 30.3 dB(A)
Load
31 / 34.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM-1, Arta (15 cm distance)   environment noise: 29.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.428.330.627.730.629.62532.5282827.32928.33130.329.529.728.929.1314030.127.331.428.326.629.35031.328.528.930.927.327.86327.525.425.725.923.326.98029.824.827.324.924.225.510024.524.524.82623.825.512523.723.723.723.722.323.316023.423.524.62422.72420023.723.524.32424.12425022.822.522.722.322.623.131523.522.322.321.820.821.540021.521.121.421.320.521.450022.22120.721.42020.46302220.621.623.119.919.580024.120.820.719.718.619.2100023.221.119.919.818.518.8125023.121.220.519.217.818.2160023.22119.818.717.217.7200024.522.220.618.816.817.2250022.820.61917.916.417.1315022.319.518.117.716.517400021.71917.717.416.516.9500020.718.61817.416.416.8630018.617.41716.916.617800017.51716.916.916.516.91000016.916.716.716.716.416.91250016.716.616.616.616.216.71600017.918.218.318.416.116.5SPL34.332.331.63129.730.2N21.71.61.51.31.4median 22.8median 21median 20.5median 19.2median 17.8median 18.2Delta1.41.522.42.52.13329.731.633.727.327.723.826.827.82827.527.927.125.92528.129.12625.925.425.422.922.925.622.825.322.924.124.12523.925.72424.524.124.124.525.324.325.623.724.92425.523.124.323.323.722.124.221.723.922.425.420.52522.225.32025.321.824.718.824.920.923.618.322.721.323.619.323.920.824.317.12421.725.516.225.219.923.816.223.319.223.115.522.417.820.915.220.517.520.315.120.216.720.215.119.615.718.115.117.715.216.315.115.81515.71515.314.815.214.914.814.714.914.614.731.734.829.234.51.62.11.22.1median 20.9median 23.8median 17.1median 23.72.52.72.92.938.736.440.839.135.134.431.933.932.231.726.624.225.228.224.82424.224.725.323.324.824.223.822.723.630.625.824.725.629.323.222.322.923.1252020.721.220.222.619.819.620.520.324.618.119.417.819.719.719.619.917.8182220.320.916.617.22520.920.817.118.225.620.519.615.616.425.121.521.115.215.426.822.422.814.514.228.824.825.11414.231.626.426.913.513.733.526.627.513.113.432.727.828.513.513.734.328.429.313.813.936.528.32913.613.737.927.728.81413.740.723.4241413.935.421.221.81413.833.817.217.714.31428.715.616.214.113.824.915.115.11413.821.415.215.414.213.517.914.314.613.512.714.737.438.126.226.246.92.42.50.80.85median 20.9median 20.9median 14.1median 13.9median 26.83.93.11.21.35.532.933.93434.132.934.436.137.533.634.43237.135.733.53232.535.531.630.832.531.131.530.43131.130.529.52628.630.530.327.626.726.730.331.826.926.42531.831.326262531.324.724.224.523.824.72423.822.723.22422.423.422.623.222.422.322.221.321.822.322.921.820.320.322.921.420.919.719.721.422.320.618.919.722.322.320.21918.522.324.422.418.218.324.426.624.317.818.126.625.922.917.618.125.928.325.117.718.128.327.922.317.91827.927.121.817.918.527.121.119.21818.521.120.119.118.118.520.119.118.818.118.619.118.81918.218.618.818.618.818.218.618.618.618.818.31918.618.719.218.319.218.736.833.930.530.936.82.41.91.41.52.4median 22.4median 21.8median 18.3median 18.6median 22.42.92.21.91.52.921.924.723.221.925.837.225.725.824.628.327.924.62122.921.92121.728.424.721.718.922.423.718.916.718.114.116.716.716.615.216.713.717.813.813.715.116.313.115.114.717.212.814.714.316.612.414.313.418.713.913.414.116.711.814.113.315.511.513.31516.811.11516.619.610.916.619.520.810.619.519.421.710.819.419.622.911.919.619.82411.919.819.824.21219.818.624.212.818.617.121.71317.118.223.213.218.216.420.813.416.415.116.613.815.115.216.314.215.215.916.814.315.914.916.114.214.930.133.924.630.11.21.80.61.2median 15.9median 17.8median 12.8median 15.91.72.41.11.732.235.234.333.533.532.531.732.631.132.631.531.323.722.224.324.12421.821.124.823.223.224.824.420.921.722.222.32020.620.920.219.819.718.720.919.918.416.820.520.919.117.121.222.92016.823.522.720.317.122.92320.316.424.724.921.415.127.324.320.6142623.42013.325.521.817.9132422.218.112.624.223.318.412.625.92317.81325.822.818.11325.422.416.313.424.920.215.113.42418.114.713.621.117.614.413.620.316.214.413.518.516.41513.617.815.914.813.115.217.415.812.514.533.829.725.736.31.91.20.72.4median 21.8median 18.1median 13.6median 23.522.21.82.737.936.226.326.929.529.131.530.823.726.423.124.423.622.925.524.723.722.923.324.322.323.722.623.320.821.919.921.719.621.118.421.917.822.617.522.91723.116.322.616.220.515.919.915.722.515.725.515.72115.616.515.71615.415.715.315.315.115.22933.81.22median 17
