NiPoGi CK10 review - The mini PC with an Intel Core i5-12450H and 16 GB RAM falls short of expectations

Name: NiPoGi CK10
Brand: NiPoGi

Modern SoC and lots of plastic! Based on the Intel Core i5-12450H, the NiPoGi CK10 aims to woo buyers. At first glance, it seems promising, as the Alder Lake SoC offers 8 cores, after all. However, with a limited power target, the processor wasn't capable of showing all it could've done. In this review featuring a variety of benchmarks, you can find out about what effect this limitation has.

Sebastian Bade (translated by Daisy Dickson), Published 10/19/2023 🇩🇪 🇸🇪 ...

Mini PC Intel Alder Lake Desktop

NiPoGi is a Chinese system manufacturer specializing in mini PCs. The CK10 is a relatively small device fitted with an Intel Core i5-12450H. It also features 16 GB DDR4 RAM and a 512-GB SSD, meaning the device is ready to be used after just a short setup. The manufacturer charges around US$530 for the device — although, there are always discounts available that bring the price down further. This makes it a lot more attractive and may well be the deciding factor when it comes to buying the PC.

Similarly compact and inexpensive mini PCs act as the comparison devices for this review. You can view these in the following table.

Download your licensed rating image as PNG / SVG

NiPoGi CK10

Processor

Intel Core i5-12450H 8 x 1.5 - 4.4 GHz, 35 W PL2 / Short Burst, 45 W PL1 / Sustained, Alder Lake-H

Graphics adapter

Intel UHD Graphics 64EUs (Alder Lake 12th Gen)

Memory

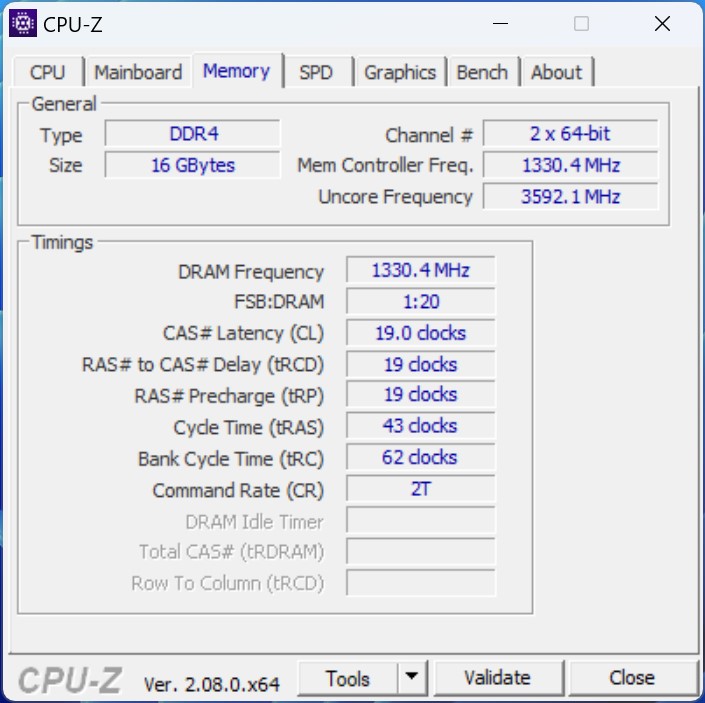

16 GB

, DDR4-3200

Mainboard

Intel Alder Lake-P PCH

Storage

Future Path FPE220M8SSD512G, 512 GB

, M.2 2280, NVMe, 512 GB , 440 GB free

Soundcard

Intel Alder Lake-P PCH - cAVS (Audio, Voice, Speech)

Connections

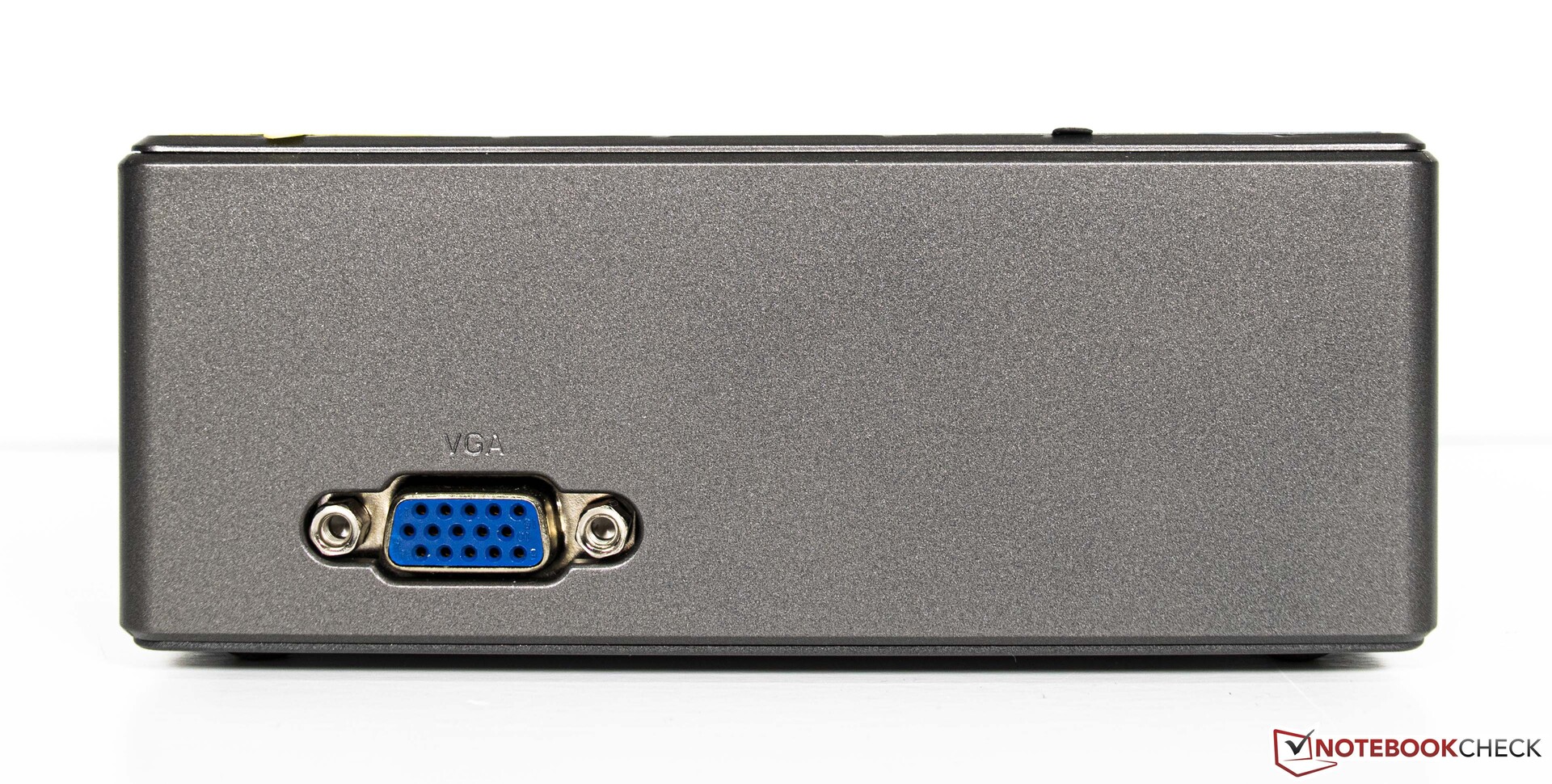

5 USB 3.0 / 3.1 Gen1, 1 VGA, 2 HDMI

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 50 x 137.5 x 125 ( = 1.97 x 5.41 x 4.92 in)

Operating System

Microsoft Windows 11 Pro

Additional features

65-Watt-Netzteil, 12 Months Warranty

Weight

481 g ( = 16.97 oz / 1.06 pounds), Power Supply: 233 g ( = 8.22 oz / 0.51 pounds)

Price

499 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Possible competitors compared

Rating	Date	Model	Weight	Height
77.2 %	10/2023	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	481 g	50 mm
83.7 %	05/2023	Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.9 %	05/2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
80.6 %	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
78 %	10/2023	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	545 g	54.3 mm
77.8 %	09/2023	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	765 g	76 mm
73.8 %	08/2023	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm

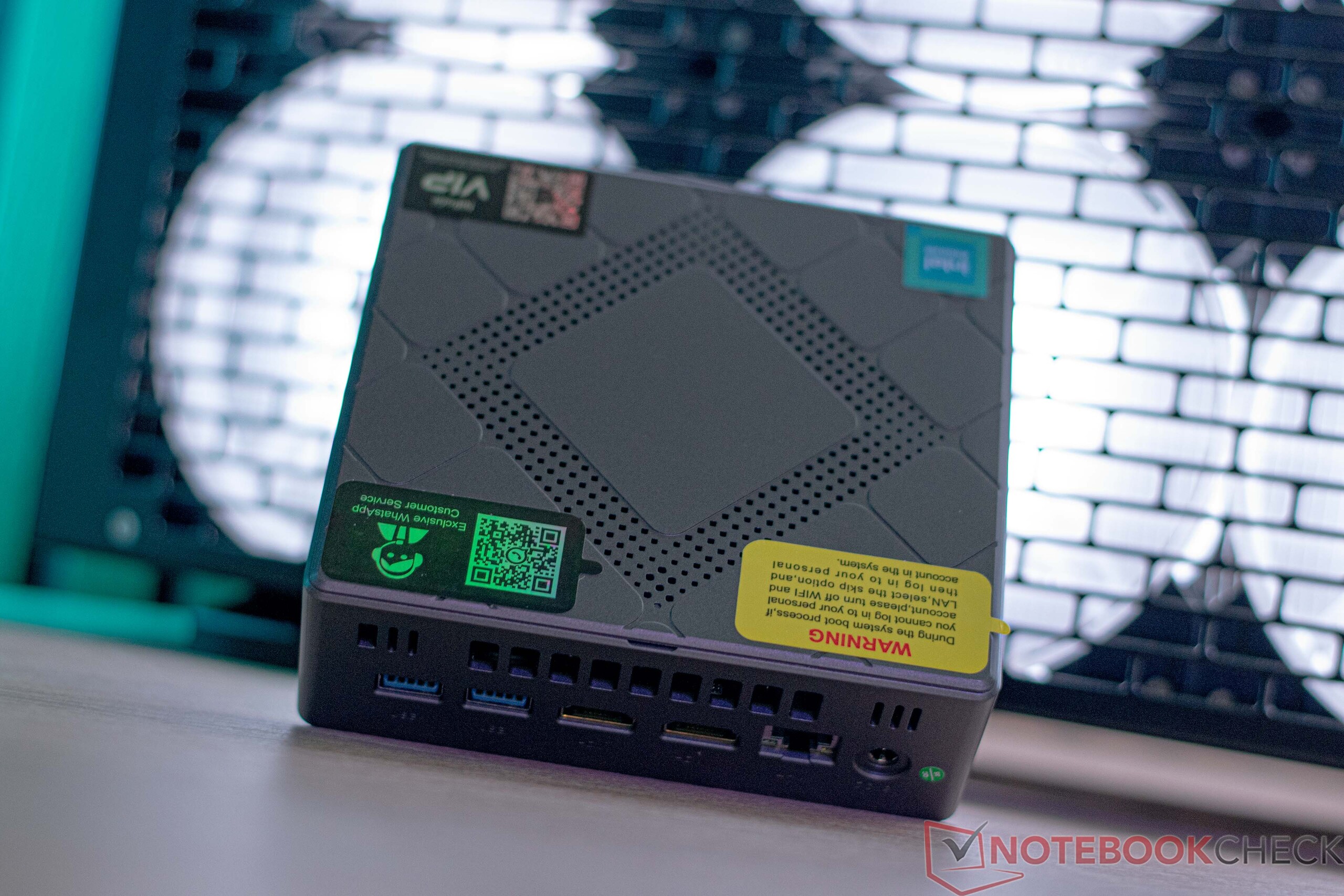

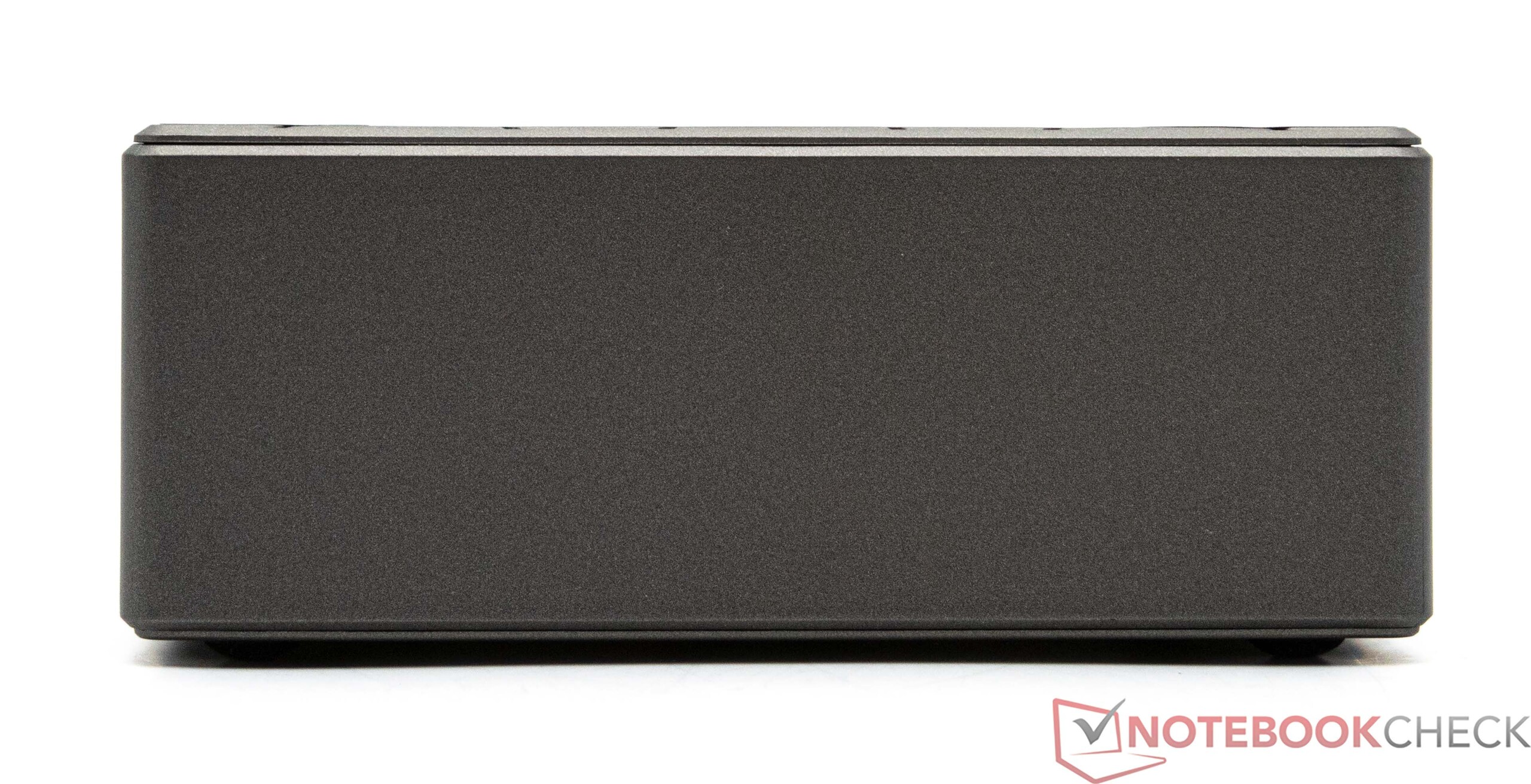

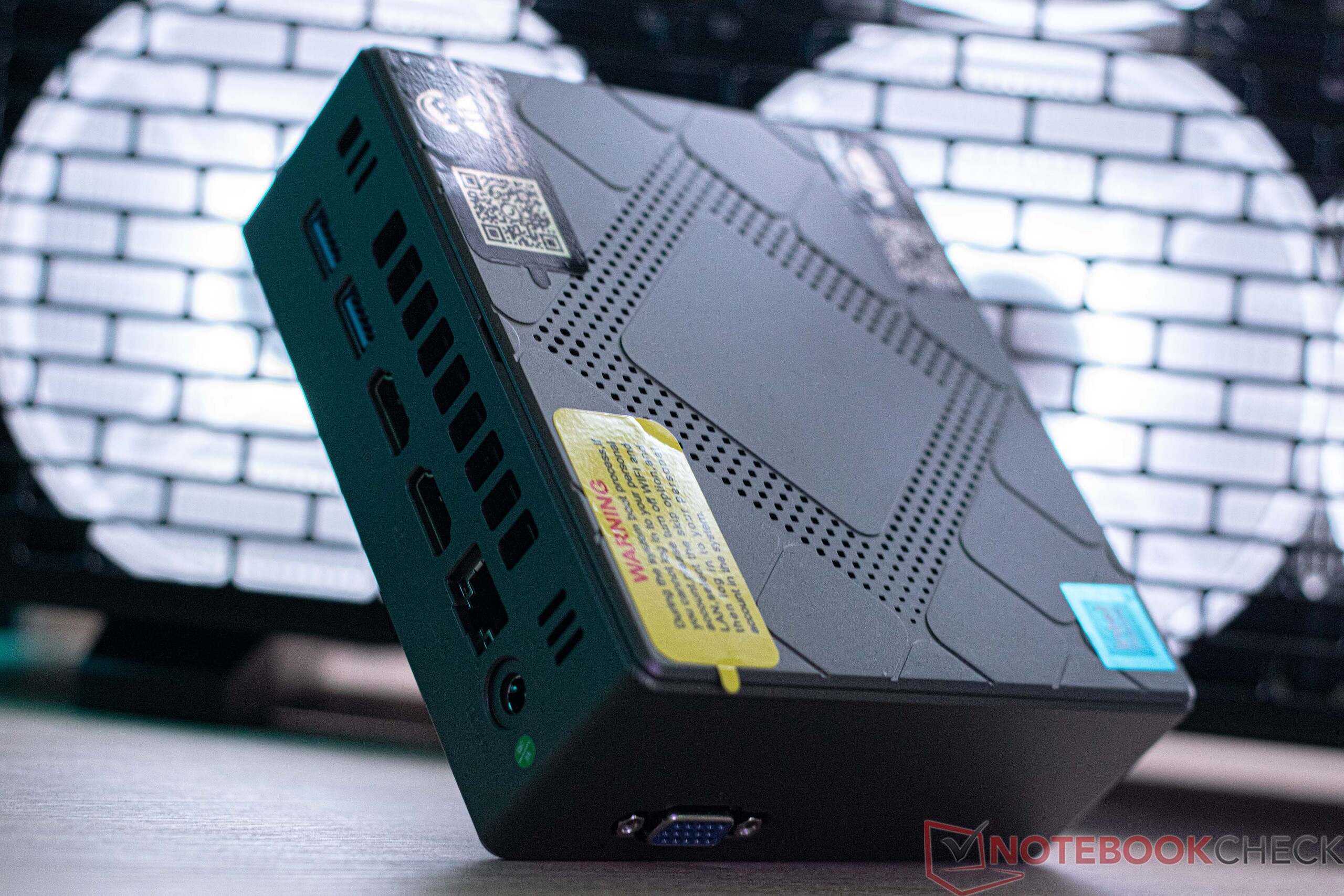

Case - Plastic as far as the eye can see

The NiPoGi CK10 features no noteworthy highlights, but this isn't exactly necessary on a simple mini PC meant for office use. The NiPoGi CK10 takes up a space of 13.7 x 12.5 centimetres, meaning it has about an average footprint when it comes to mini PCs.

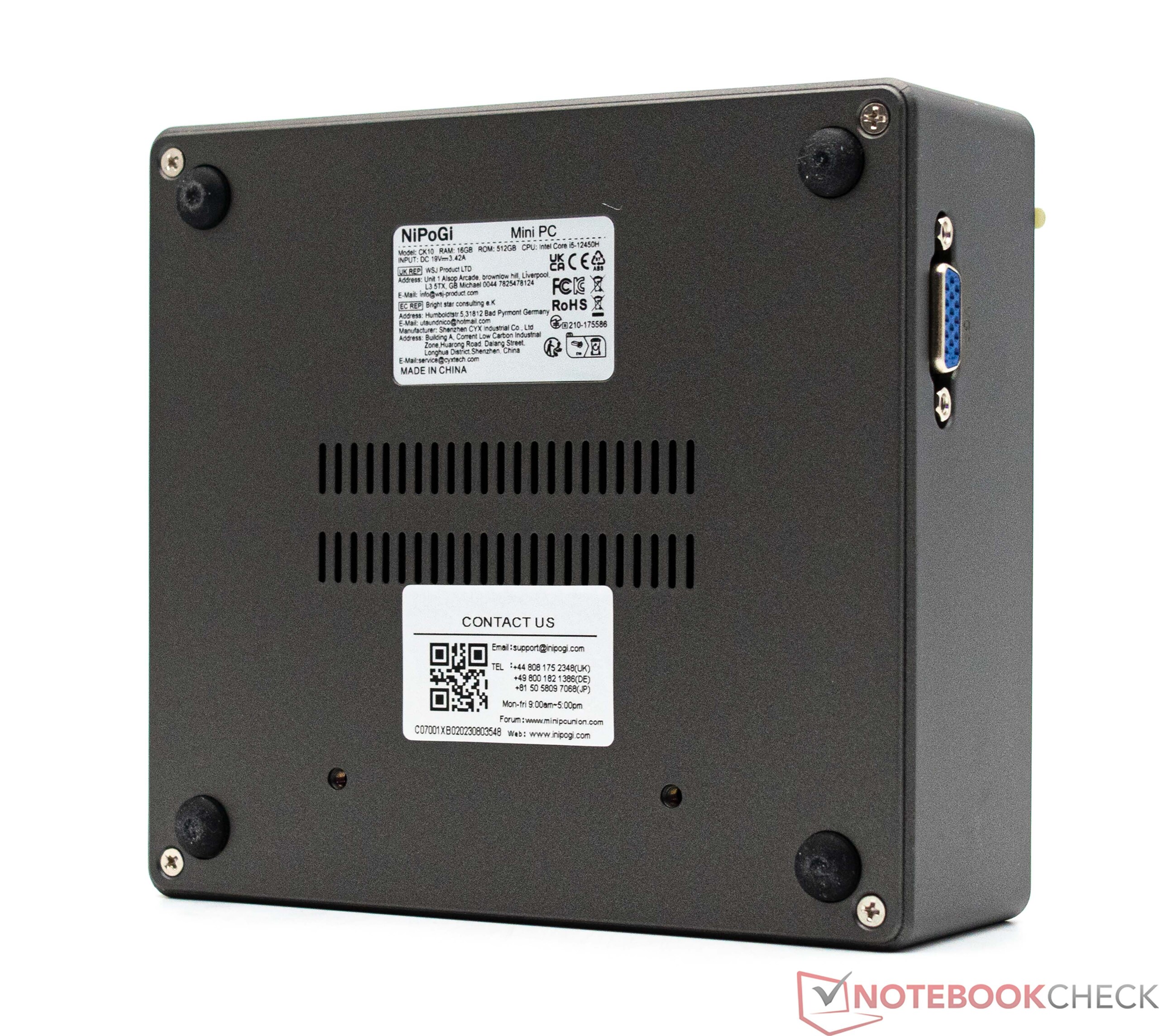

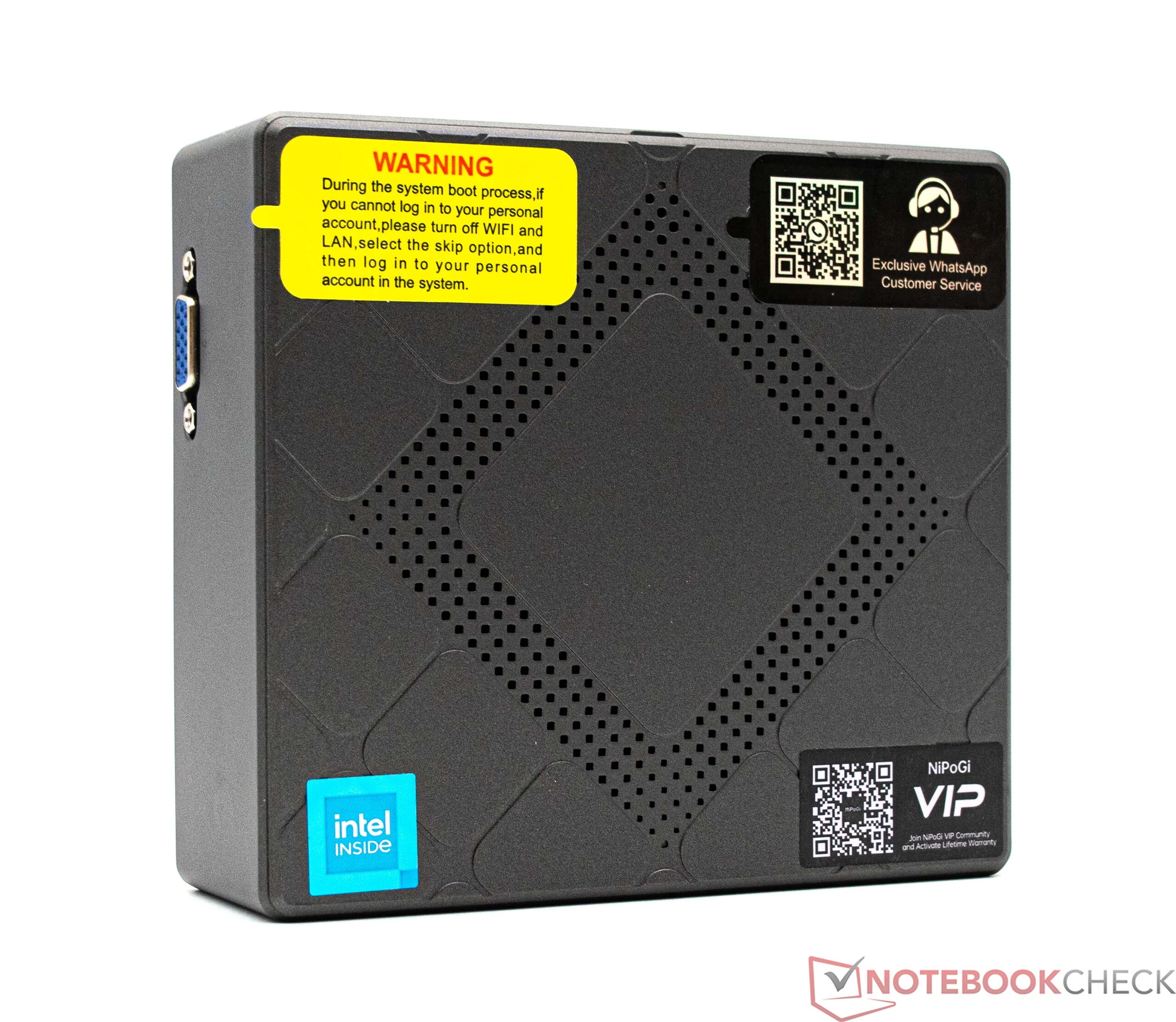

Its case is made entirely from plastic but its build is good and we noted no gaps. Even so, we would have liked to have seen a slightly more modern and stable case, as it feels a little bit cheap. The Blackview MP200 shows how this can be done differently, despite it also relying on plastic.

Within our comparison field, its 3.7 x 12.5 centimetre footprint is actually on the smaller side. The compact PC has a height of exactly five centimetres. When it comes to materials, it pretty much entirely relies on the use of plastic. The manufacturer has decided against including an additional metal frame to provide structure to the device. However, the implied fingerprint scanner on the upper side has no function. It seems that the manufacturer uses this case for other configuration options, too.

Size comparison

Acemagic AD15 Blackview MP200 Morefine M600, 6600U NiPoGi CK10 Minisforum Venus Series UN1245 Minisforum Venus Series NAB6 Geekom Mini IT11, i7-11390H DIN A4 ❌

Connectivity - Pretty standard with one exception

The NiPoGi CK10 has a good selection of external ports: Five USB and two HDMI ports are completely sufficient. If you require a VGA connection, then you're in luck — the NiPoGi CK10 has one. The analogue audio output can be found on the left side of the PC. This connection is hardly used nowadays.

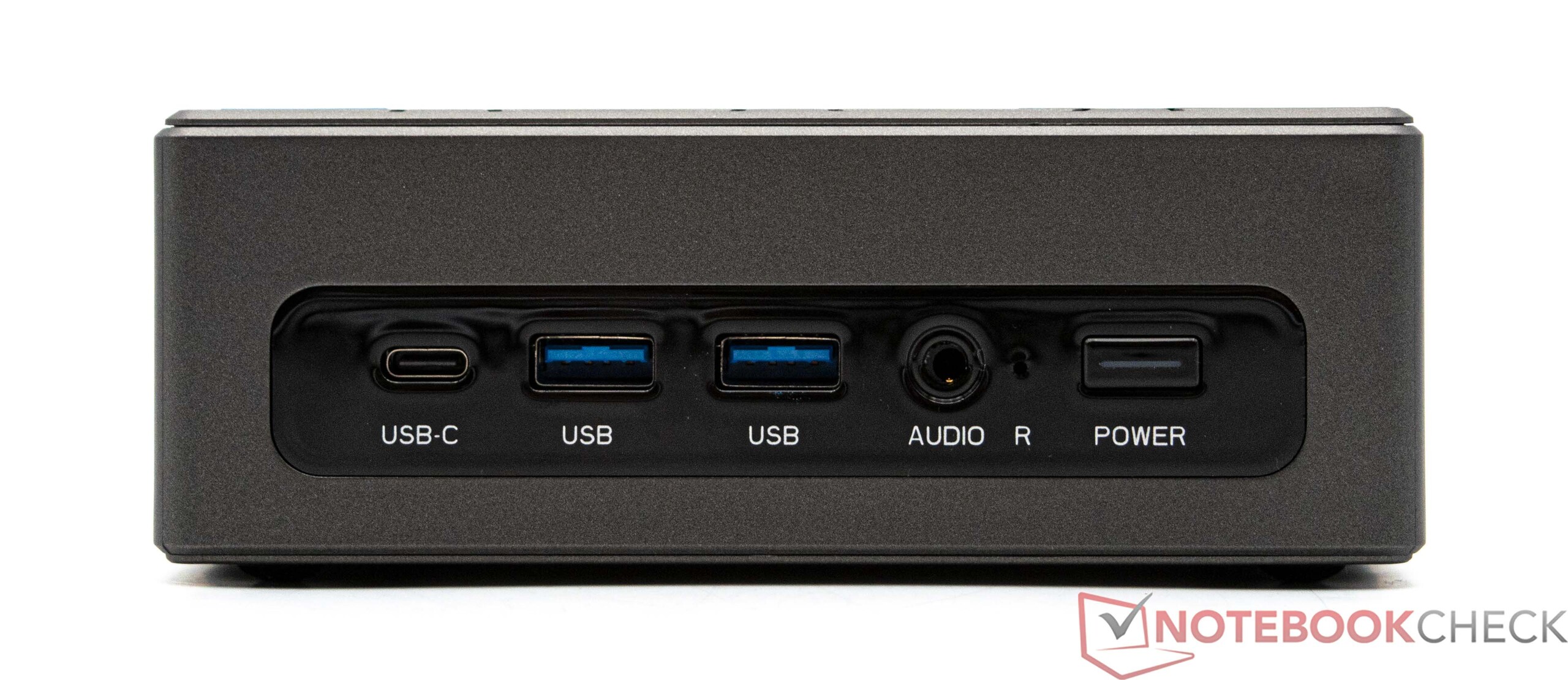

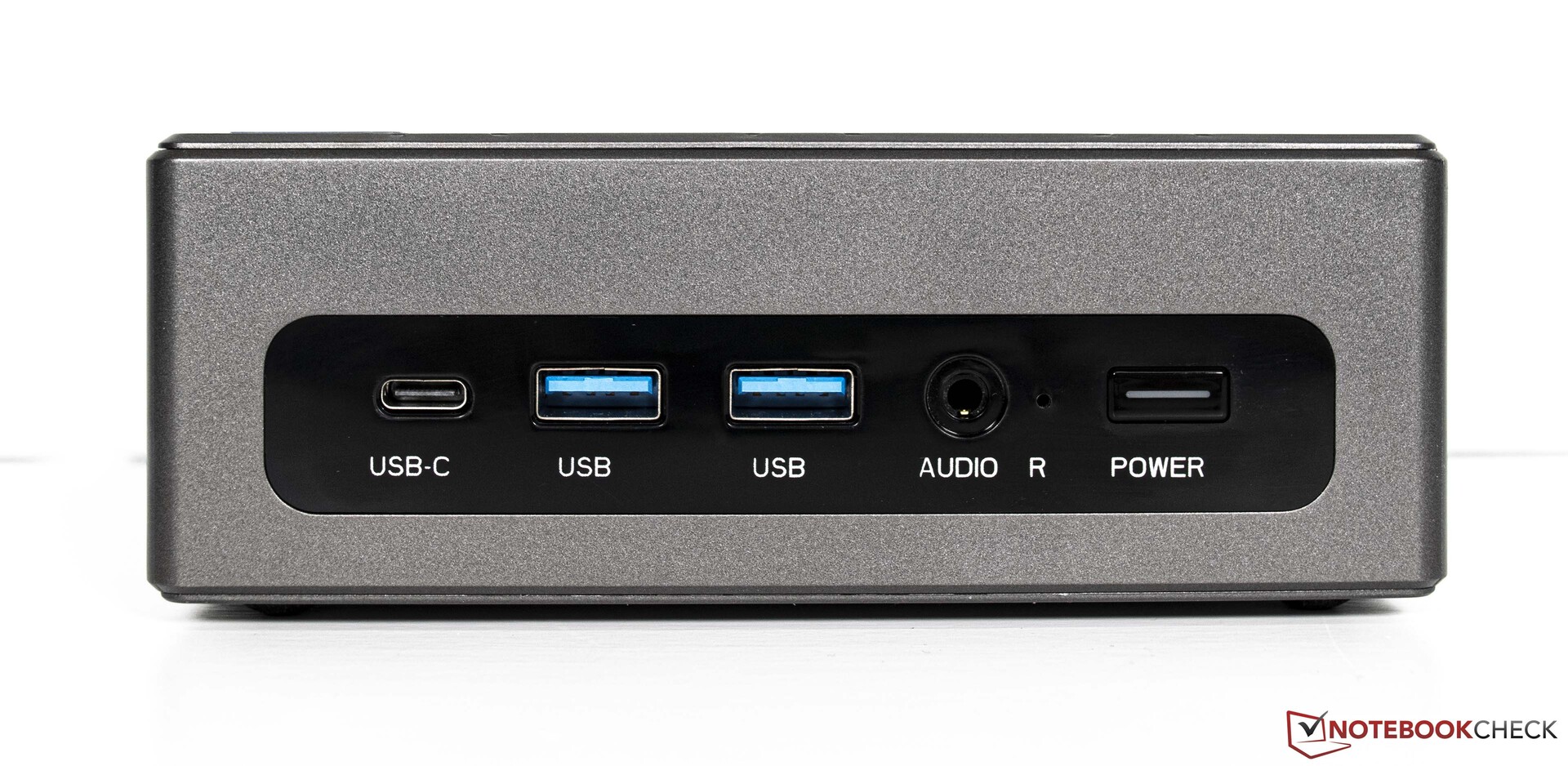

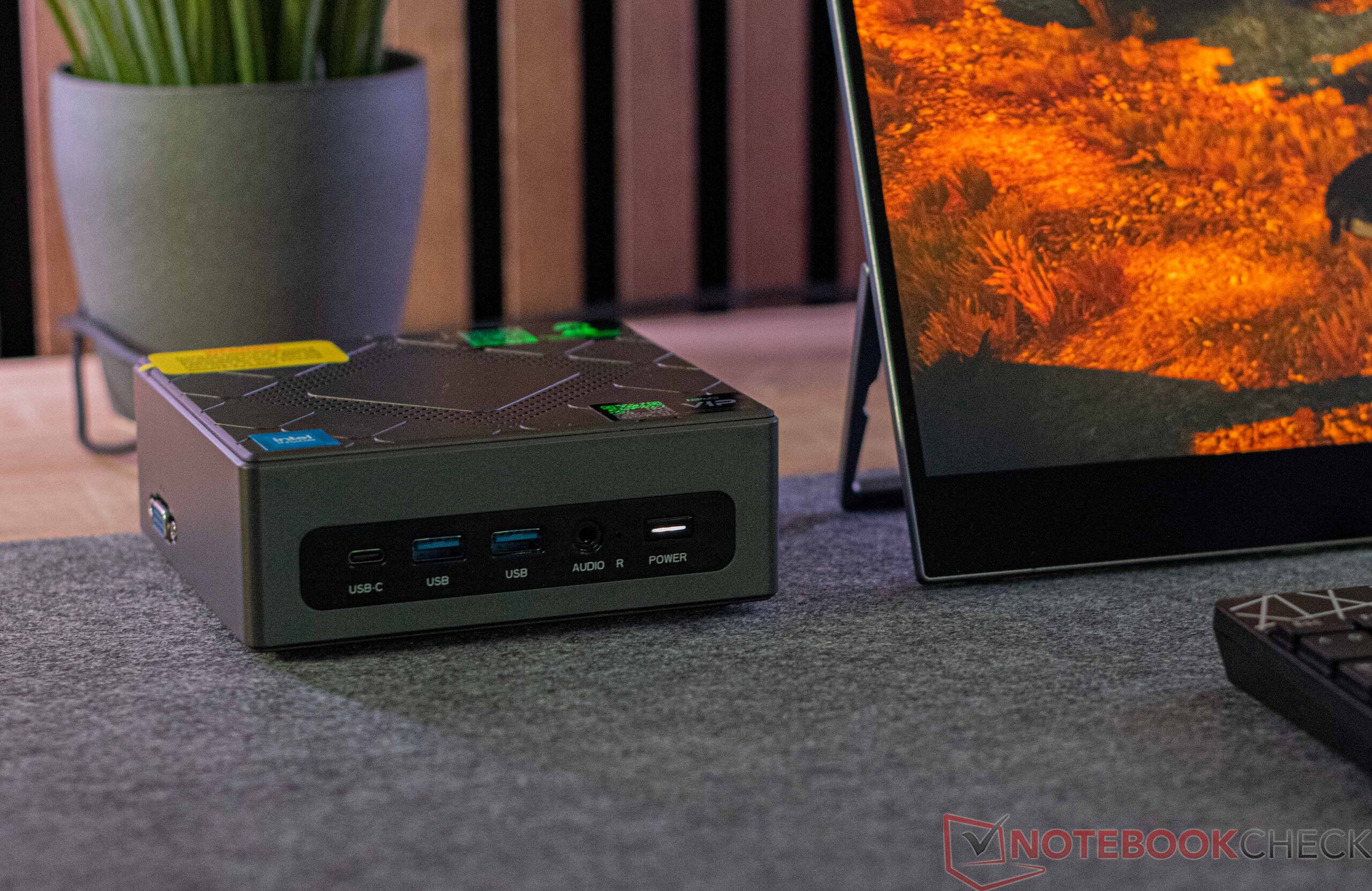

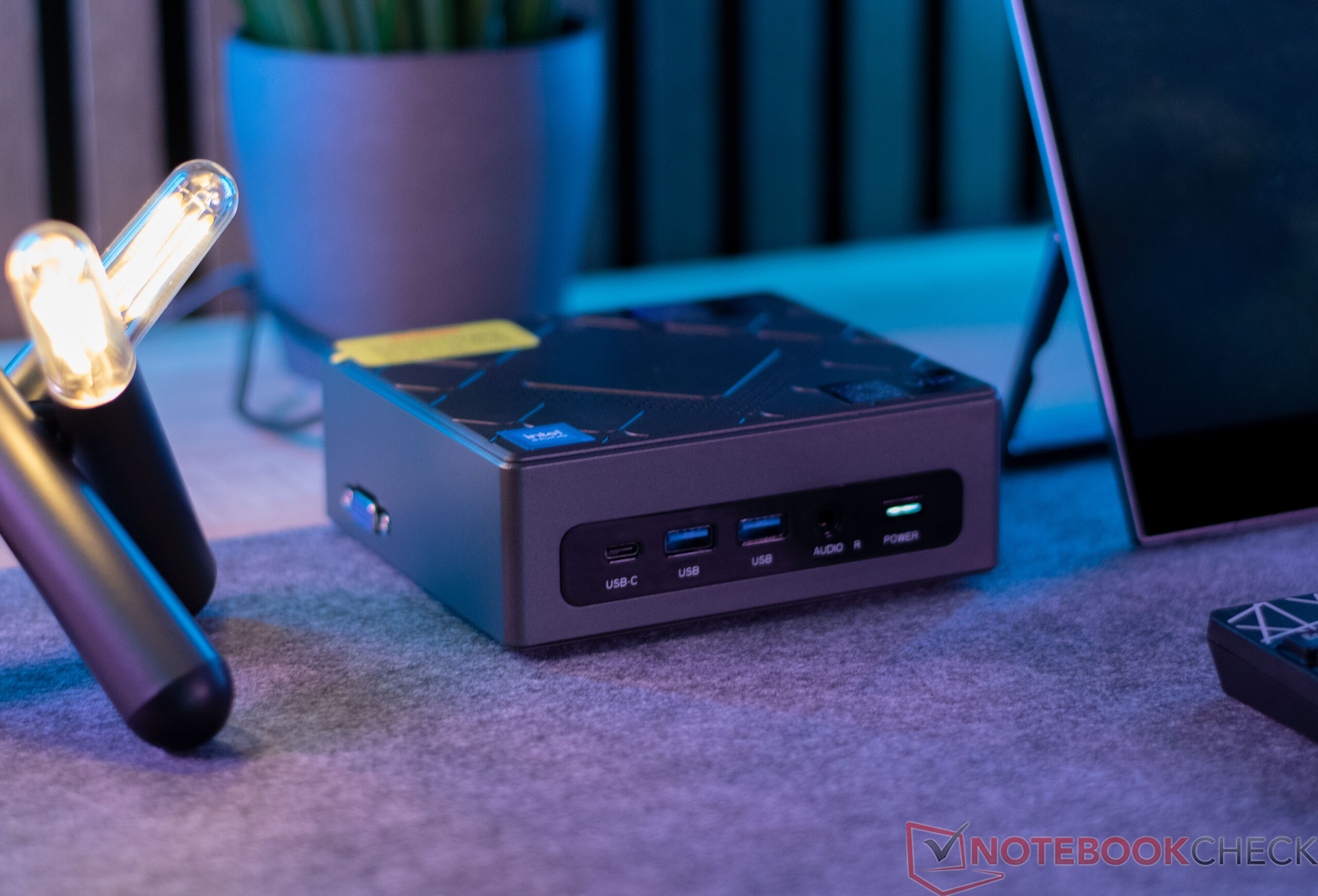

Front: USB Type-C (data), 2x USB 3.0, 3.5-mm jack, power-on

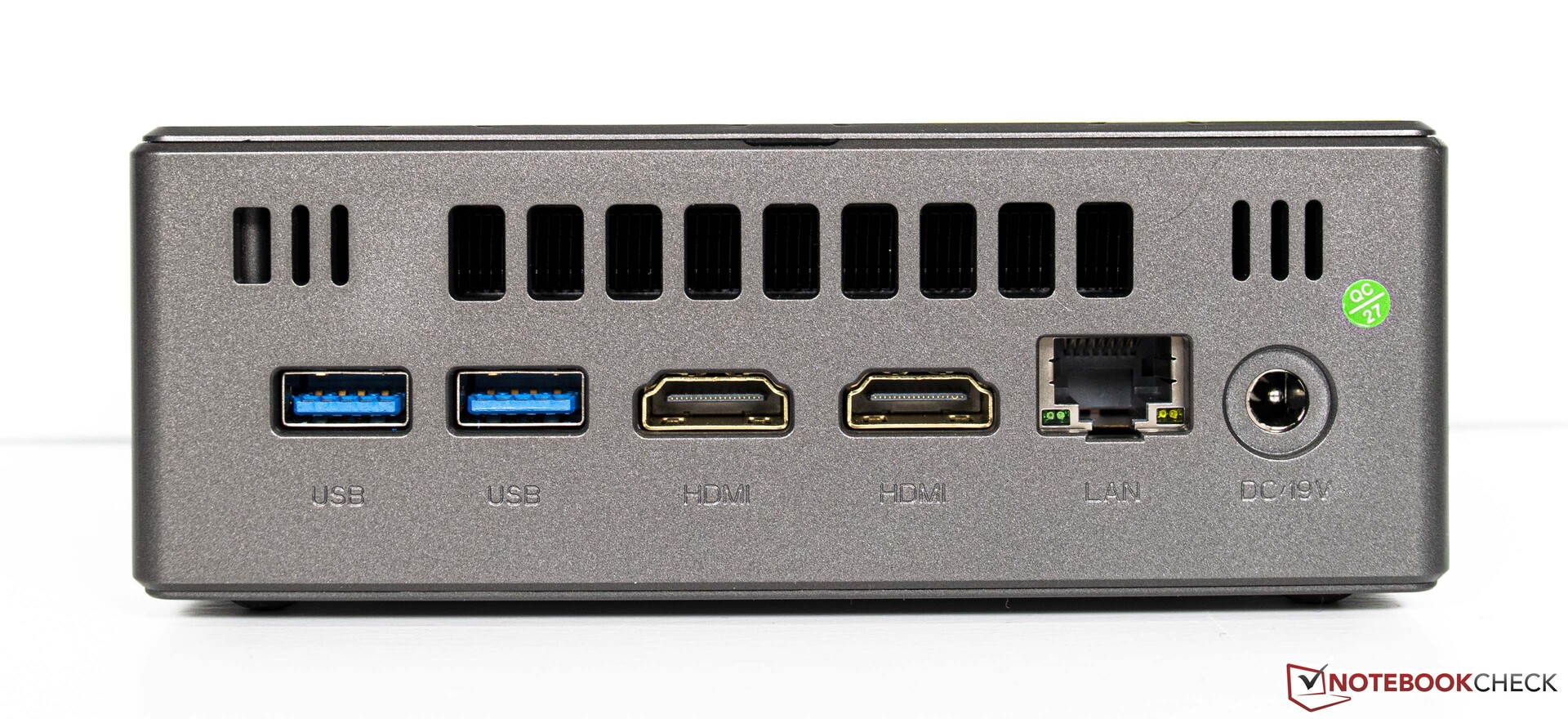

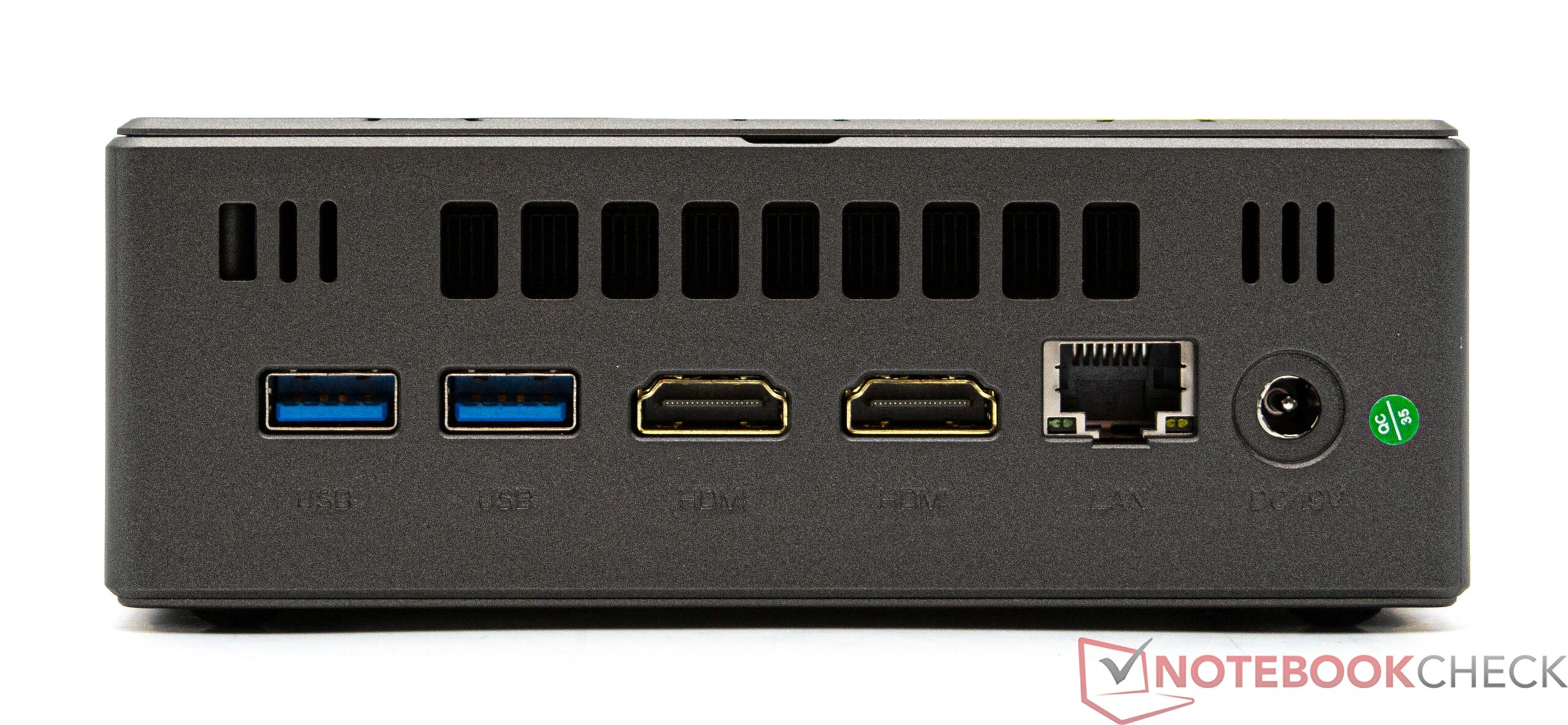

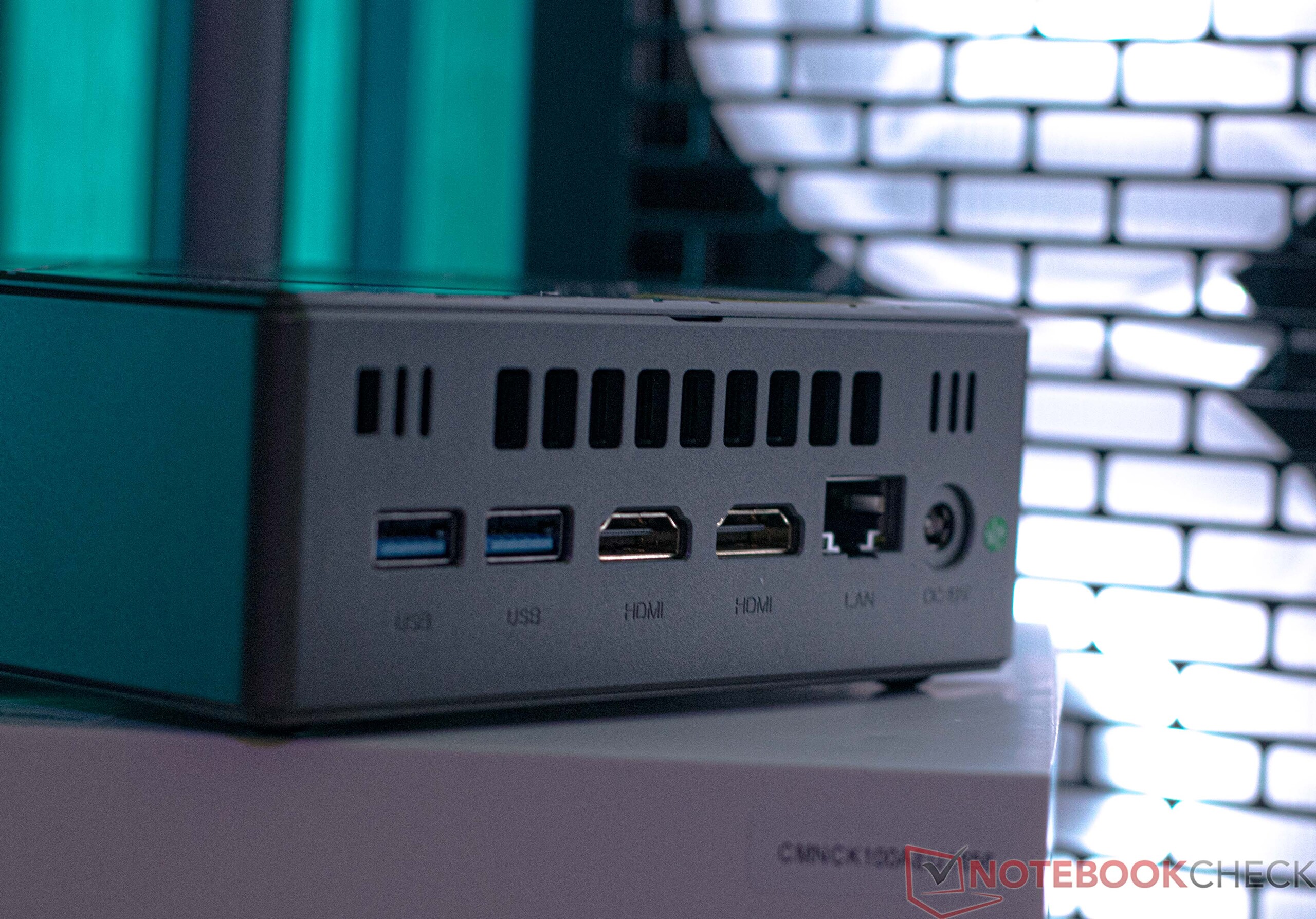

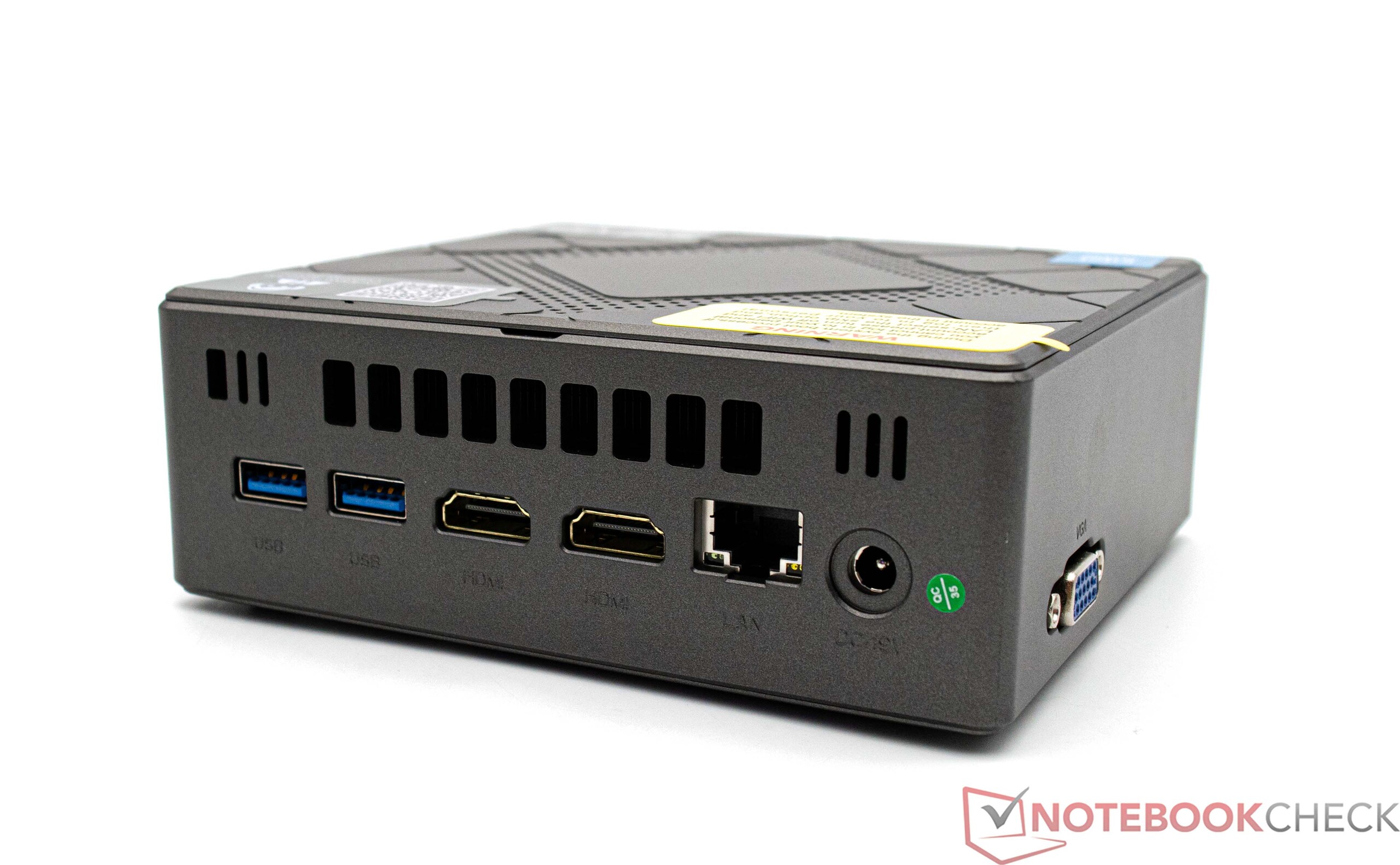

Back: 2x USB 3.0, 2x HDMI, GBit LAN, power connection

Communication

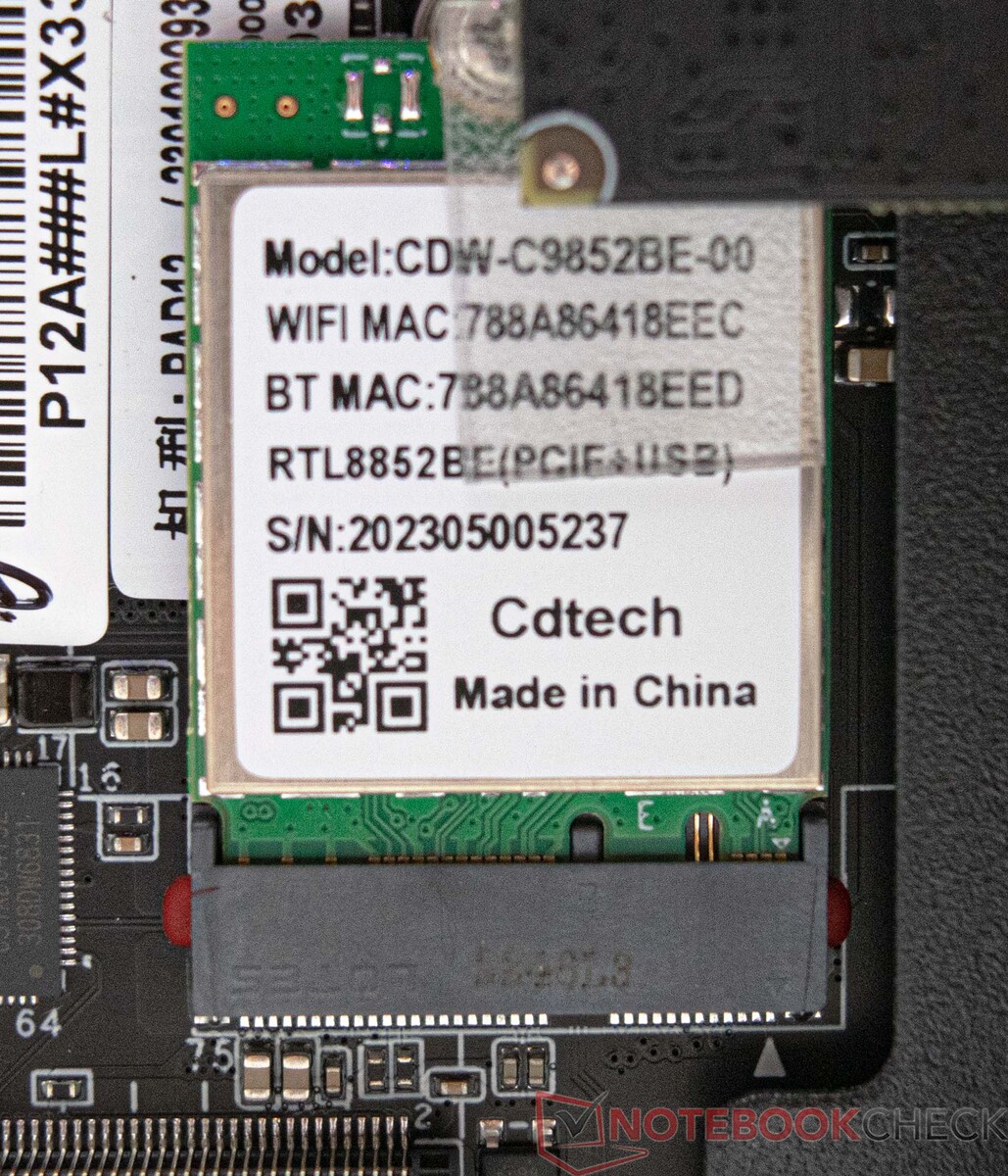

The NiPoGi CK10 relies on a Realtek WiFi module which achieved adequate performance in our test. It only came a few percentage points behind the best devices. For this test, we used the Asus ROG Rapture GT-AXE11000 as a test router. The documented transmission rates were stable and slightly better than the Minisforum Venus Series UN1245. Alternatively, the NiPoGi CK10 features an Ethernet connection. It can achieve speeds up to 1 GBit/s.

Networking
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +2%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +1%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +1%
NiPoGi CK10 Realtek RTL8852BE	940 (924^min - 961^max) MBit/s
Average of class Mini PC (192.9 - 1796, n=86, last 2 years)	897 MBit/s -5%
Average Realtek RTL8852BE (455 - 984, n=36)	833 MBit/s -11%
Minisforum Venus Series UN1245 MediaTek RZ608	795 (753^min - 805^max) MBit/s -15%
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -16%
Acemagic AD15 Realtek RTL8852BE	721 (696^min - 743^max) MBit/s -23%
iperf3 transmit AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +5%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s +3%
Average of class Mini PC (184.1 - 1776, n=86, last 2 years)	825 MBit/s +3%
NiPoGi CK10 Realtek RTL8852BE	801 (770^min - 825^max) MBit/s
Average Realtek RTL8852BE (536 - 925, n=35)	786 MBit/s -2%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s -2%
Acemagic AD15 Realtek RTL8852BE	730 (707^min - 753^max) MBit/s -9%
Minisforum Venus Series UN1245 MediaTek RZ608	724 (606^min - 852^max) MBit/s -10%
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -22%

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø752 (710-810)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø712 (691-721)

NiPoGi CK10 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø940 (924-961)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 receive AXE11000; iperf 3.1.3: Ø794 (753-805)

NiPoGi CK10 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø801 (770-825)

Minisforum Venus Series UN1245 MediaTek RZ608; iperf3 transmit AXE11000; iperf 3.1.3: Ø724 (606-852)

Scope of delivery

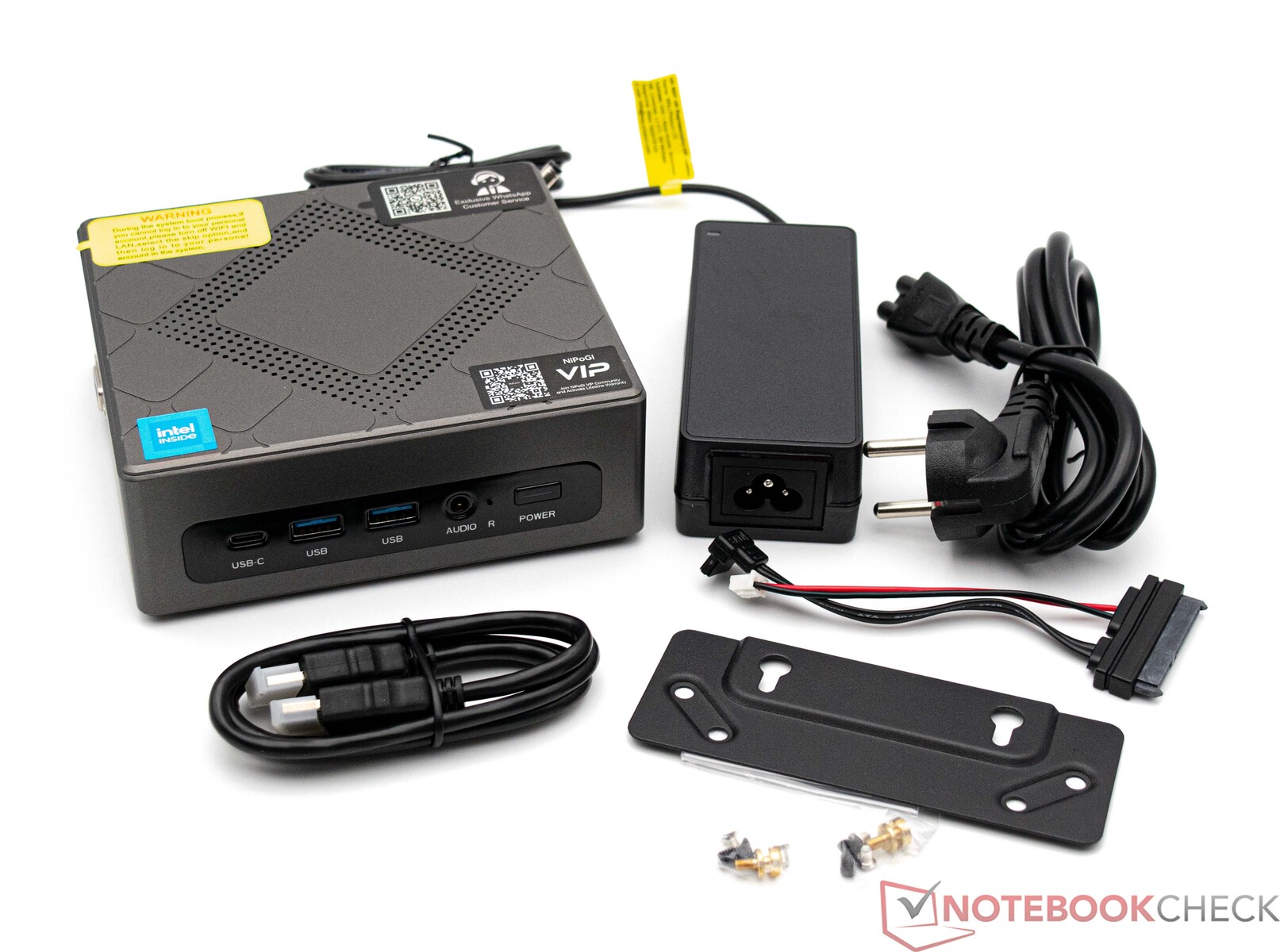

Aside from the PC itself, you also get a 65-watt power supply and a VESA mount which lets you attach the device to a monitor. An HDMI cable and a connection cable for an additional storage device are also included.

Maintenance

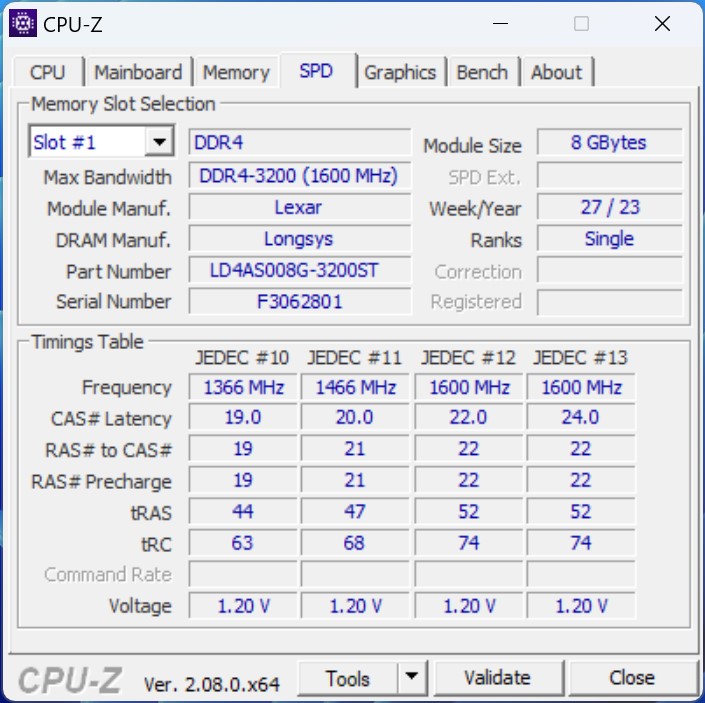

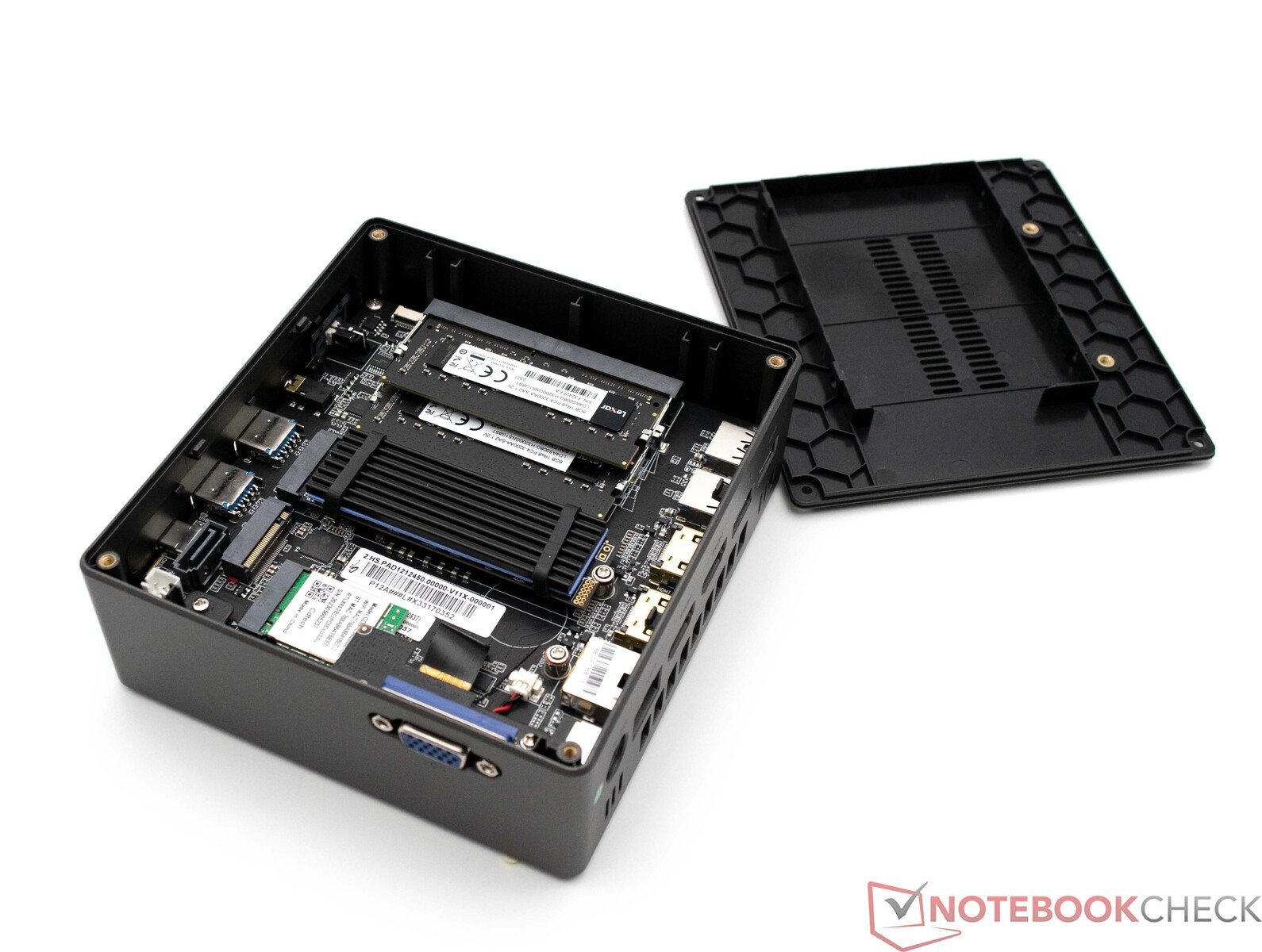

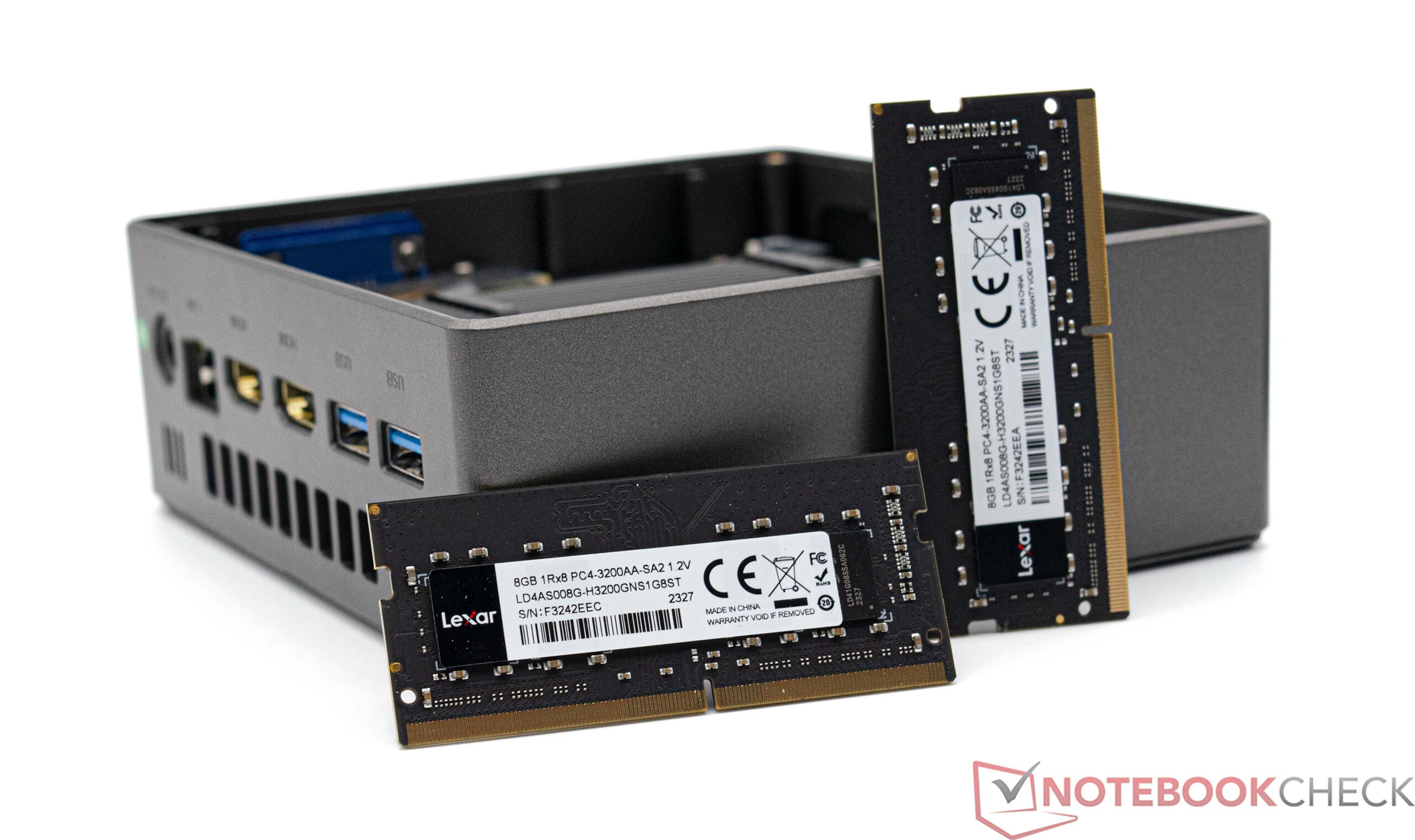

The NiPoGi CK10's RAM and SSD can be expanded. The former requires you to swap out the modules, as both SO DIMM slots are occupied. However, this is a different story when it comes to storage devices. In total, the mini PC can accommodate up to three at a time. You can only access the CPU fans if you further take apart the device.

Performance - Alder Lake H with 8 cores and 12 threads

The NiPoGi CK10's Intel Core i5-12450H is a good SoC fitted with P and E cores that can process up to 12 threads at once. As a result, the SoC delivers adequate performance that is well-suited for everyday use. Due to its limited power consumption, the SoC's full performance can't be taken advantage of.

Testing conditions

All performance tests were performed using the energy profile Maximum Performance. The SoC's performance was not changed in the BIOS and was instead left in its delivered state according to the manufacturer's settings. Deviating energy profiles were used for the noise emission and power measurements according to our test criteria.

Processor

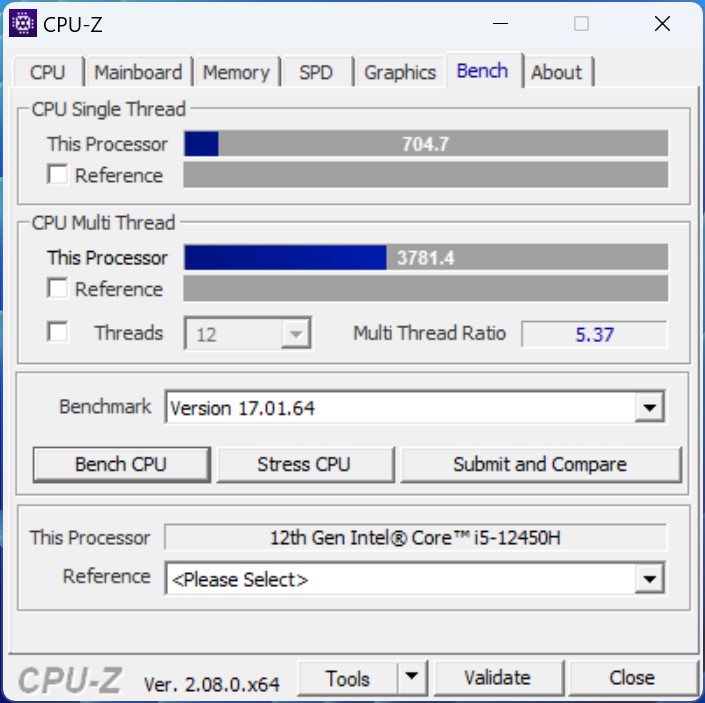

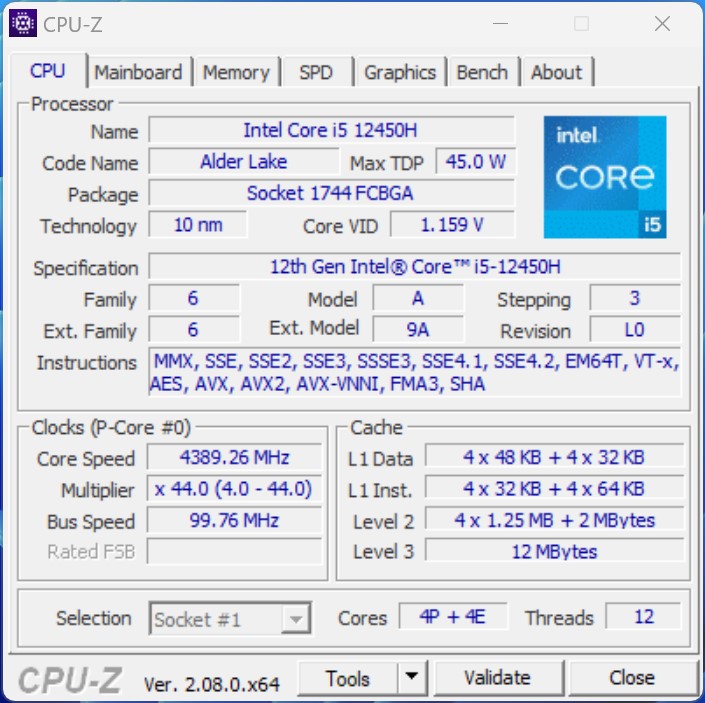

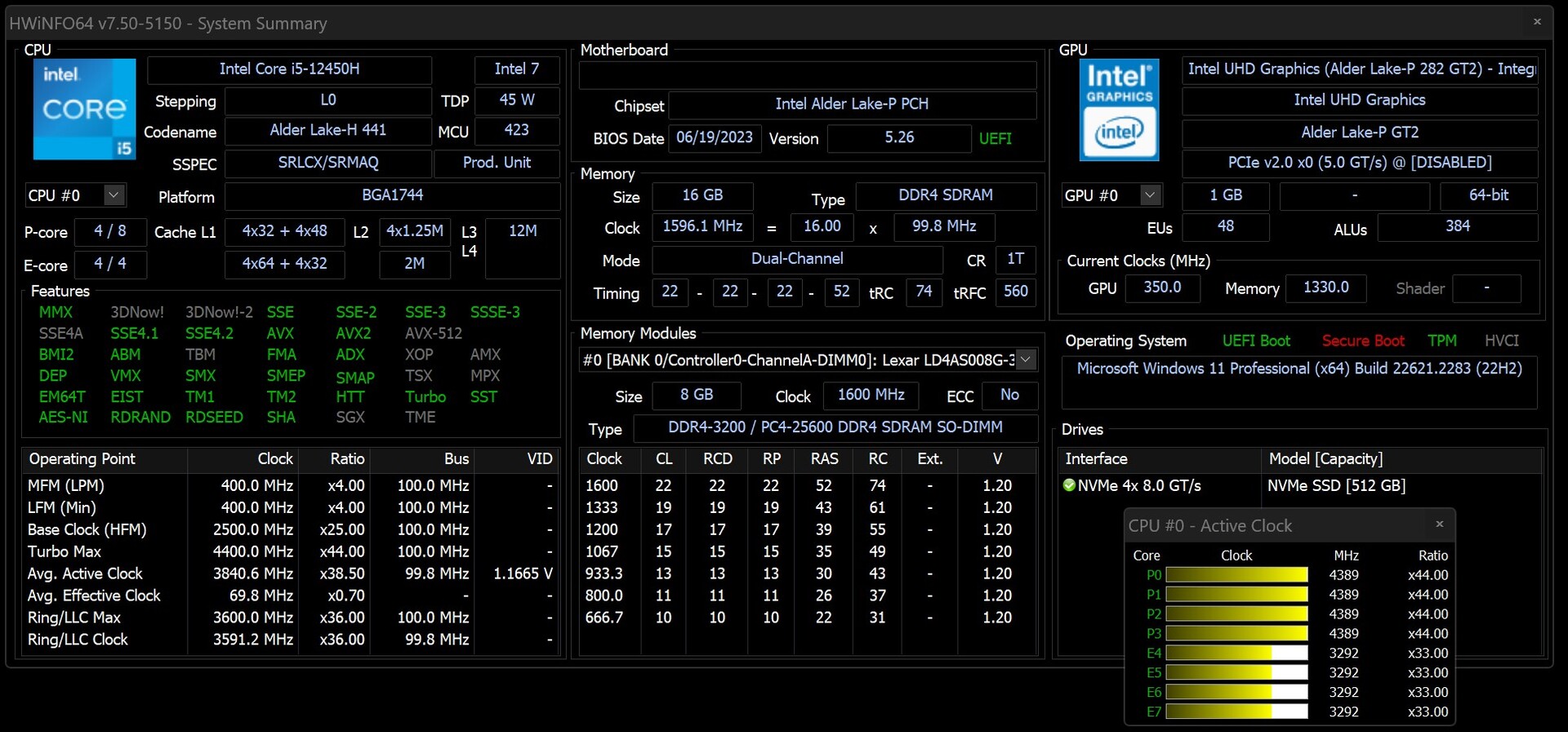

The NiPoGi CK10 has an Intel Core i5-12450H installed. With its eight native computing cores, the SoC can process up to 12 threads simultaneously. The manufacturer has limited the SoC's power consumption to 35 watts, which resulted in slightly worse multi-thread performance in our test. In direct comparison to the Minisforum Venus Series UN1245, our test sample couldn't keep up. In the averaged performance comparison, however, you can see that this limitation actually only had a minor impact because the NiPoGi CK10 was able to achieve good single-core performance results despite this power limit.

For further comparisons and benchmarks, take a look at our CPU comparison table.

Performance Rating - Percent
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	48.9 pt
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	44.5 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	44.2 pt
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	43.1 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	43 pt
Blackview MP200 Intel Core i5-11400H, 2700 MHz	41.1 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	40.3 pt

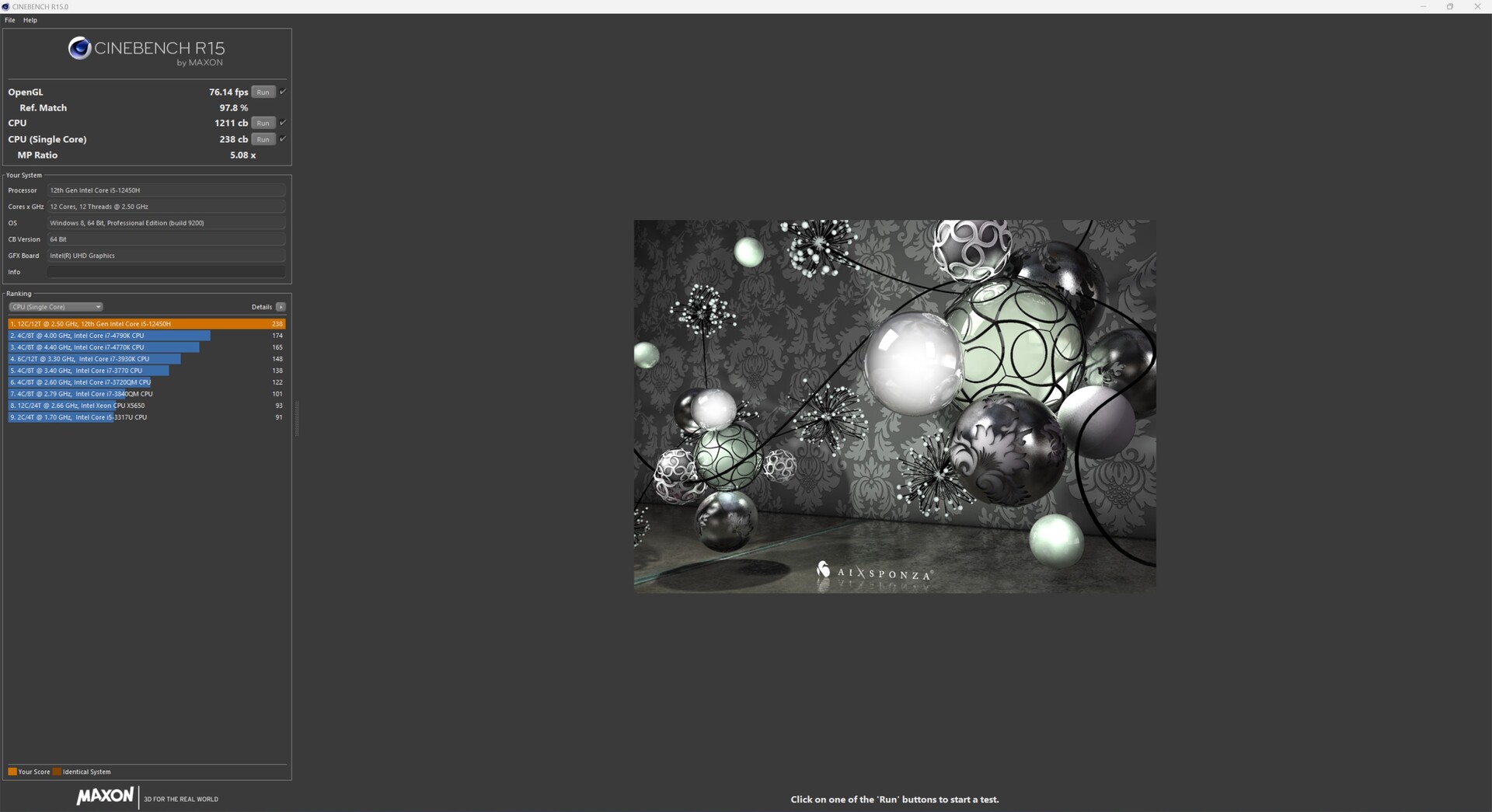

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +9%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	238 Points 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	238 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	232 Points -3%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	227 Points -5%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	226 Points -5%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	218 Points -8%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +56%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1591 Points +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1379 Points +14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1378 Points +14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1361 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1211 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	953 Points -21%

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	644 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	640 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	620 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	574 Points -11%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	560 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	558 Points -13%
CPU (Multi Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +48%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3779 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	3510 Points +8%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	3419 Points +6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	3283 Points +1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	3237 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2284 Points -29%

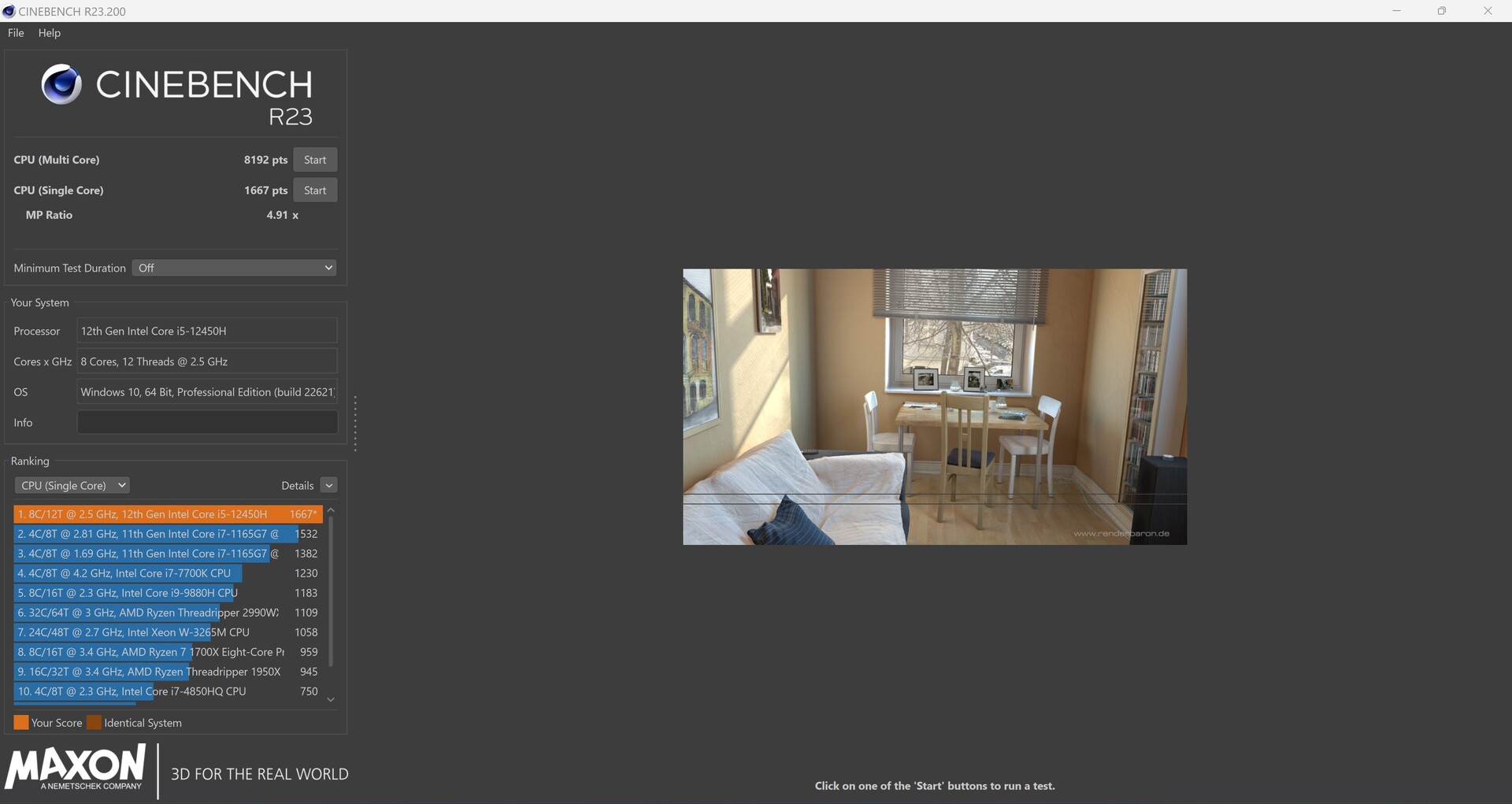

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1667 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1659 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1602 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1496 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1462 Points -12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1420 Points -15%
Multi Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +49%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9503 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	9134 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	8491 Points +4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8451 Points +4%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	8129 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5917 Points -27%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +11%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	2.88 Points +2%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	2.83 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	2.78 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	2.73 Points -4%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	2.62 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	2.55 Points -10%
CPU Multi 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +51%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	17.87 Points +22%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	17.15 Points +17%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	16.55 Points +13%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	15.97 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	14.61 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10.68 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	13352 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	13344 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	12516 Points -6%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	11860 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11685 Points -12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	11530 Points -14%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	58173 Points +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	55999 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	54792 Points +9%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	54687 Points +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	50207 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	39426 Points -21%

Blender - v2.79 BMW27 CPU
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	513 Seconds * -22%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	422 Seconds *
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	415 Seconds * +2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	373 Seconds * +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	349 Seconds * +17%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	319 Seconds * +24%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * +32%

wPrime 2.10
32m
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	8.23 s *
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7.234 s * +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6.518 s * +21%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	4.688 s * +43%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	4.498 s * +45%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	3.969 s * +52%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +55%
1024m
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	452.626 s * -5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	431.842 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	196.909 s * +54%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	146.553 s * +66%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	140.674 s * +67%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	121.132 s * +72%

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +21%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	277 (260^min - 288^max) fps +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	257.5 (251^min - 259^max) fps
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	242 (239^min - 245^max) fps -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	226.5 (210^min - 228^max) fps -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	214.5 (213^min - 216^max) fps -17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	212 (206^min - 224^max) fps -18%
Pass 2
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +46%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	86.25 (83.2^min - 94.6^max) fps +14%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	85.35 (83^min - 87.2^max) fps +12%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	77.85 (69.8^min - 82.6^max) fps +3%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	75.9 (75^min - 75.9^max) fps
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	71.45 (70.2^min - 76.6^max) fps -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	55.2 (54.6^min - 55.9^max) fps -27%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +61%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8569 KB/s +51%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6937 KB/s +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6195 KB/s +9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	6144 KB/s +9%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	5658 KB/s
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5477 KB/s -3%

TrueCrypt
AES Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s +44%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	9.7 GB/s +39%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	9.3 GB/s +33%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	8.4 GB/s +20%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	8 GB/s +14%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	7 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5.4 GB/s -23%
Twofish Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +50%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1.5 GB/s +25%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1.3 GB/s +8%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1.3 GB/s +8%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1.3 GB/s +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1.2 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.838 GB/s -30%
Serpent Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +56%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1 GB/s +42%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.857 GB/s +22%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.815 GB/s +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.79 GB/s +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	0.703 GB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.509 GB/s -28%

Geekbench 5.5
Multi-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +38%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7976 Points +17%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	7658 Points +13%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7200 Points +6%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6804 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6006 Points -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5091 Points -25%
Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1669 Points 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1665 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1655 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1603 Points -4%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1504 Points -10%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1465 Points -12%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	10249 Points +54%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +36%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	7879 Points +18%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7116 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6675 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5961 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5025 Points -25%
5.0 Single-Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +10%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	1655 Points +5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	1581 Points
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	1570 Points -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	1569 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	1557 Points -2%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	1461 Points -8%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	7186 Points
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	7153 Points 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7146 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	6747 Points -6%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	6698 Points -7%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	6110 Points -15%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	39852 Points +53%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +34%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	32181 Points +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	27953 Points +7%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	26009 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	24947 Points -4%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	20385 Points -22%

3DMark 11 - 1280x720 Performance Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +36%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	15082 Points +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	14645 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	13514 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11630 Points -14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10999 Points -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	10536 Points -22%

7-Zip 18.03
7z b 4
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS +43%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	44320 MIPS +32%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	43146 MIPS +29%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	34660 MIPS +3%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	33619 MIPS 0%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	33549 MIPS
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	25876 MIPS -23%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +16%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	5895 MIPS +12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	5732 MIPS +9%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5486 MIPS +4%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5343 MIPS +1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	5278 MIPS
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	4994 MIPS -5%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +44%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	12 fps +27%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	11.7 fps +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	10.8 fps +14%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	10.2 fps +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	9.47 fps
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	7.61 fps -20%

R Benchmark 2.5 - Overall mean
Blackview MP200 Intel Core i5-11400H, 2700 MHz	0.581 sec * -12%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	0.559 sec * -8%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	0.543 sec * -5%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	0.517 sec *
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	0.515 sec * -0%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	0.511 sec * +1%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +11%

LibreOffice - 20 Documents To PDF
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	53 s * -24%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	53 s * -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	47.2 s * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	46.6 s * -9%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	46.3 s * -8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	42.8 s *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +7%

WebXPRT 3 - Overall
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +12%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	285 Points +3%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	277 Points
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	274 Points -1%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	270 Points -3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	261 Points -6%
Blackview MP200 Intel Core i5-11400H, 2700 MHz	247 Points -11%

Mozilla Kraken 1.1 - Total
Blackview MP200 Intel Core i5-11400H, 2700 MHz	660 ms * -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	644 ms * -14%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	641 ms * -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	619 ms * -10%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	566 ms * -1%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	563 ms *
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +8%

3DMark
3840x2160 Fire Strike Ultra Physics
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21176 Points +23%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points +22%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19341 Points +12%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	18599 Points +8%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	17250 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16258 Points -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11557 Points -33%
1920x1080 Fire Strike Physics
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +25%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	21928 Points +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	19994 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	17852 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	16949 Points -5%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	15934 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	11883 Points -33%
2560x1440 Time Spy CPU
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +49%
Acemagic AD15 Intel Core i7-11800H, 2300 MHz	8744 Points +42%
Minisforum Venus Series UN1245 Intel Core i5-12450H, 1500 MHz	6901 Points +12%
NiPoGi CK10 Intel Core i5-12450H, 1500 MHz	6151 Points
Blackview MP200 Intel Core i5-11400H, 2700 MHz	5160 Points -16%
Morefine M600, 6600U AMD Ryzen 5 6600U, 2900 MHz	5114 Points -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, 3400 MHz	4598 Points -25%

* ... smaller is better

Performance Rating
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	95.5 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	86.9 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	80.4 pt
Average of class Mini PC	79.8 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	79.3 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	75.1 pt
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	65.8 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	55.9 pt

AIDA64 / FP32 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	12240 KRay/s +69%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s +50%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s +46%
Average of class Mini PC (561 - 27538, n=98, last 2 years)	9983 KRay/s +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s +32%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	9129 KRay/s +26%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	7229 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -8%

AIDA64 / FPU Julia
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +49%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points +36%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	52677 Points +32%
Average of class Mini PC (3604 - 116903, n=98, last 2 years)	52529 Points +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46204 Points +16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points +12%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	39966 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -30%

AIDA64 / CPU SHA3
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3501 MB/s +88%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s +67%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s +27%
Average of class Mini PC (225 - 5096, n=98, last 2 years)	2296 MB/s +23%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	2071 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	1862 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -1%

AIDA64 / CPU Queen
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	85233 Points +43%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points +38%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points +26%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points +17%
Average of class Mini PC (8172 - 119569, n=98, last 2 years)	69271 Points +16%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	64750 Points +9%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	59539 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -17%

AIDA64 / FPU SinJulia
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +70%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	8510 Points +66%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points +45%
Average of class Mini PC (408 - 15525, n=98, last 2 years)	7328 Points +43%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points +40%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	5985 Points +17%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	5133 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -12%

AIDA64 / FPU Mandel
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +75%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	31628 Points +71%
Average of class Mini PC (1958 - 62378, n=98, last 2 years)	27834 Points +50%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points +45%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points +44%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	22917 Points +24%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	18516 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -10%

AIDA64 / CPU AES
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	122812 MB/s +74%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s +41%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +31%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	78537 MB/s +11%
Average of class Mini PC (3691 - 177158, n=98, last 2 years)	75245 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	70617 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -44%

AIDA64 / CPU ZLib
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	687 MB/s +29%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s +27%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	592 MB/s +11%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s +11%
Average of class Mini PC (74.8 - 1183, n=98, last 2 years)	582 MB/s +10%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	531 MB/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s 0%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -30%

AIDA64 / FP64 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	6651 KRay/s +63%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s +41%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s +41%
Average of class Mini PC (308 - 14722, n=98, last 2 years)	5332 KRay/s +31%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s +24%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	4977 KRay/s +22%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	4082 KRay/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -10%

AIDA64 / CPU PhotoWorxx
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	28682 MPixel/s +3%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s 0%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	27940 MPixel/s
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -9%
Average of class Mini PC (4408 - 44347, n=98, last 2 years)	24661 MPixel/s -12%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	20652 MPixel/s -26%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -56%

NiPoGi CK10 vs. Cinebench R15 Multi Loop

The Cinebench R15 continuous loop gives us an insight into how the SoC behaves over a longer period of time. Although the manufacturer has limited the SoC's performance, the cooling unit is quickly overwhelmed under permanent load. When taking a look at the telemetry data, you can see that it completed the first run with its full performance intact. Then, during the second run, its performance already dropped, having a visible effect. Compared to its competitors, the NiPoGi CK10 came second to last.

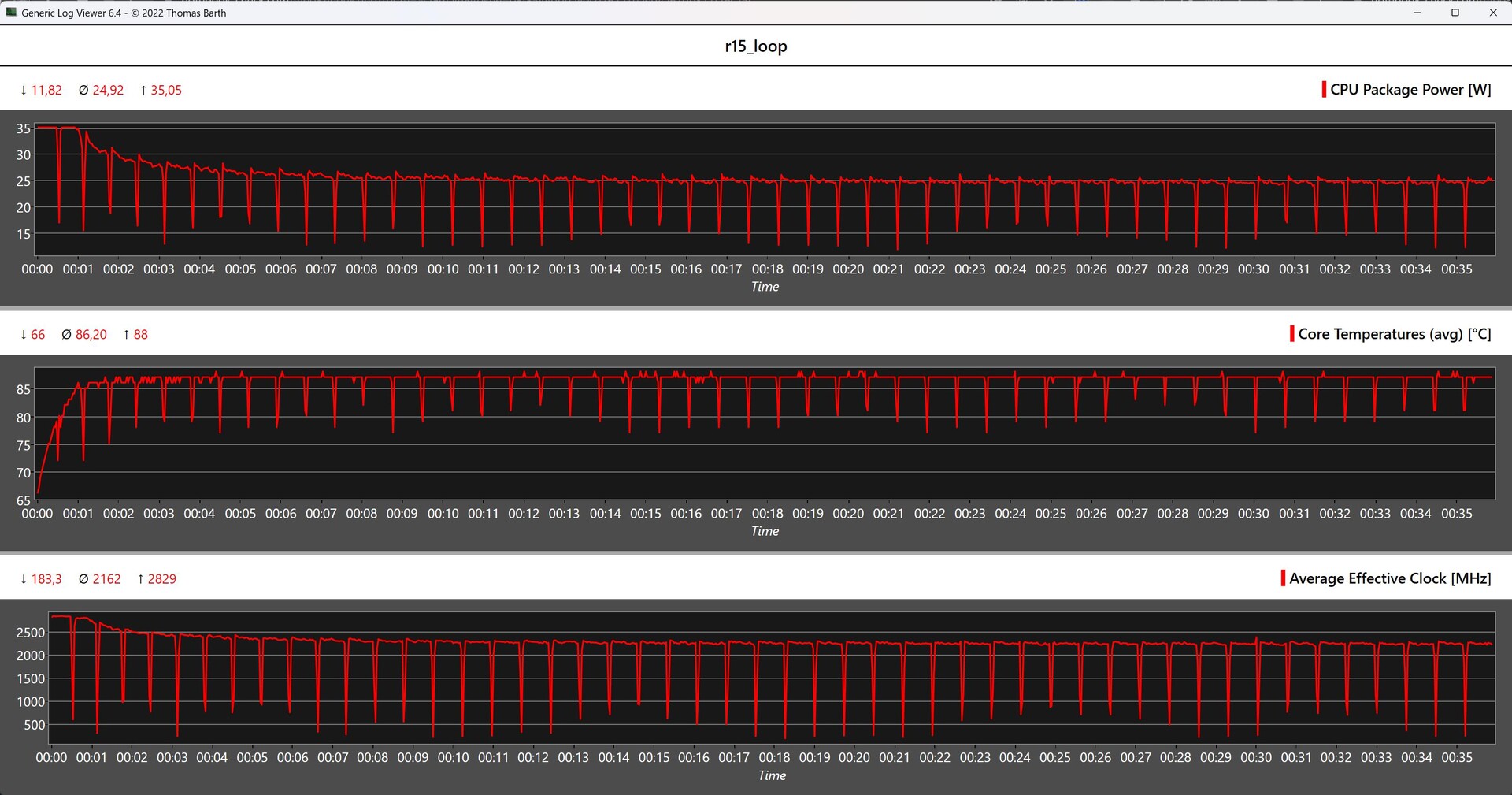

CPU metrics during the Cinebench R15 loop

NiPoGi CK10 Intel Core i5-12450H, Intel Core i5-12450H: Ø1004 (968.01-1261.83)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel Core i5-12450H: Ø1370 (1352.4-1379.41)

Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

System performance

Subjectively seen, the NiPoGi CK10 delivers adequate system performance. Within the comparison field, our test device only managed to achieve average results. The NiPoGi CK10 came behind the Minisforum Venus Series UN1245, which shows that its cooling unit is likely also quickly overwhelmed in this area.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +15%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +12%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	5319 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	5262 Points
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	5036 Points -4%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -14%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	10306 Points 0%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	10280 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points -4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	9694 Points -6%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -6%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -7%

PCMark 10 / Productivity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +23%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points +11%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	7527 Points +2%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	7368 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	6723 Points -9%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -12%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +25%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1637 Points +9%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1504 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1423 Points -5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -15%

CrossMark / Responsiveness
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +48%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1888 Points +35%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points +2%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1403 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points -12%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points -23%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1038 Points -26%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +18%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +8%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1598 Points +4%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1530 Points
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1525 Points 0%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -11%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -14%

CrossMark / Productivity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +24%
Minisforum Venus Series UN1245, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1677 Points +11%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points +1%
NiPoGi CK10, Intel Core i5-12450H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Future Path FPE220M8SSD512G	1513 Points
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points -1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1408 Points -7%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -12%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +7%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	43790 MB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	43746 MB/s 0%
Average of class Mini PC (6481 - 70620, n=98, last 2 years)	42914 MB/s -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -4%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	37807 MB/s -14%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -49%

AIDA64 / Memory Read
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s 0%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	47170 MB/s
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	47042 MB/s 0%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s -2%
Average of class Mini PC (6914 - 71285, n=98, last 2 years)	43571 MB/s -8%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	42236 MB/s -10%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -47%

AIDA64 / Memory Write
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +1%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	46882 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s 0%
Average of class Mini PC (6862 - 89318, n=98, last 2 years)	46636 MB/s -1%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	46529 MB/s -1%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	38930 MB/s -17%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -51%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -22%
Average of class Mini PC (44.9 - 154.6, n=98, last 2 years)	87.8 ns * -14%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	78.7 ns * -2%
Minisforum Venus Series UN1245 Intel Core i5-12450H, UHD Graphics 64EUs	77.5 ns * -1%
NiPoGi CK10 Intel Core i5-12450H, UHD Graphics 64EUs	76.9 ns *
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * +5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +14%

* ... smaller is better

	NiPoGi CK10, Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	Minisforum Venus Series UN1245, Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	Minisforum Venus Series NAB6, Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	Geekom Mini IT11, i7-11390H, Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Morefine M600, 6600U, AMD Ryzen 5 6600U, AMD Radeon 660M Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	Acemagic AD15, Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H) UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	Blackview MP200, Intel Core i5-11400H, Intel UHD Graphics Xe 16EUs (Tiger Lake-H) UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G
SPECviewperf 12		-6%	17%	14%	1243%	-12%	-43%
1900x1060 3ds Max (3dsmax-05)	29.8	29.5 -1%	36.2 21%	30.1 1%	55.8 87%	26.8 -10%	16.8 -44%
1900x1060 Catia (catia-04)	22.9	22.8 0%	34.5 51%	29.2 28%	45 97%	22.2 -3%	14.6 -36%
1900x1060 Creo (creo-01)	17.7	18.4 4%	6.44 -64%	7.28 -59%	39.3 122%	15.5 -12%	4.03 -77%
1900x1060 Energy (energy-01)	0.56	0.24 -57%	0.35 -37%	0.92 64%	51.1 9025%	0.23 -59%	0.16 -71%
1900x1060 Maya (maya-04)	23.3	22.9 -2%	33.4 43%	30.4 30%	44.4 91%	23.9 3%	12.8 -45%
1900x1060 Medical (medical-01)	4.98	5 0%	9.12 83%	8.13 63%	25.8 418%	4.96 0%	2.83 -43%
1900x1060 Showcase (showcase-01)	13.1	13.1 0%	15.9 21%	15 15%	22.8 74%	11.2 -15%	6.62 -49%
1900x1060 Siemens NX (snx-02)	3.31	3.48 5%	3.89 18%	2.85 -14%	42.4 1181%	3.03 -8%	3.58 8%
1900x1060 Solidworks (sw-03)	38.3	38.5 1%	44.5 16%	37.4 -2%	74.6 95%	37.8 -1%	25.7 -33%
SPECviewperf 13		1%	38%	24%	256%	-5%	-35%
3ds Max (3dsmax-06)	29.6	29.3 -1%	36 22%	30 1%	51.7 75%	27.2 -8%	16.7 -44%
Catia (catia-05)	32.8	32.9 0%	49.6 51%	42.5 30%	56.9 73%	31.9 -3%	21.5 -34%
Creo (creo-02)	26.7	27.7 4%	33 24%	30.3 13%	53.8 101%	22.5 -16%	12.8 -52%
Maya (maya-05)	32.4	32.1 -1%	38.2 18%	34.3 6%	62.6 93%	32 -1%	18.8 -42%
Medical (medical-02)	4.51	4.48 -1%	10.9 142%	10.9 142%	24.9 452%	4.96 10%	2.58 -43%
Showcase (showcase-02)	13.1	13.1 0%	15.7 20%	14.8 13%	23.9 82%	11.3 -14%	6.63 -49%
Siemens NX (snx-03)	5.91	6.24 6%	6.68 13%	5.16 -13%	72.7 1130%	5.45 -8%	6.46 9%
Solidworks (sw-04)	46.8	47 0%	53.9 15%	47.6 2%	66.6 42%	45.5 -3%	34.1 -27%
Total Average (Program / Settings)		-3% / -3%	28% / 27%	19% / 19%	750% / 779%	-9% / -9%	-39% / -40%

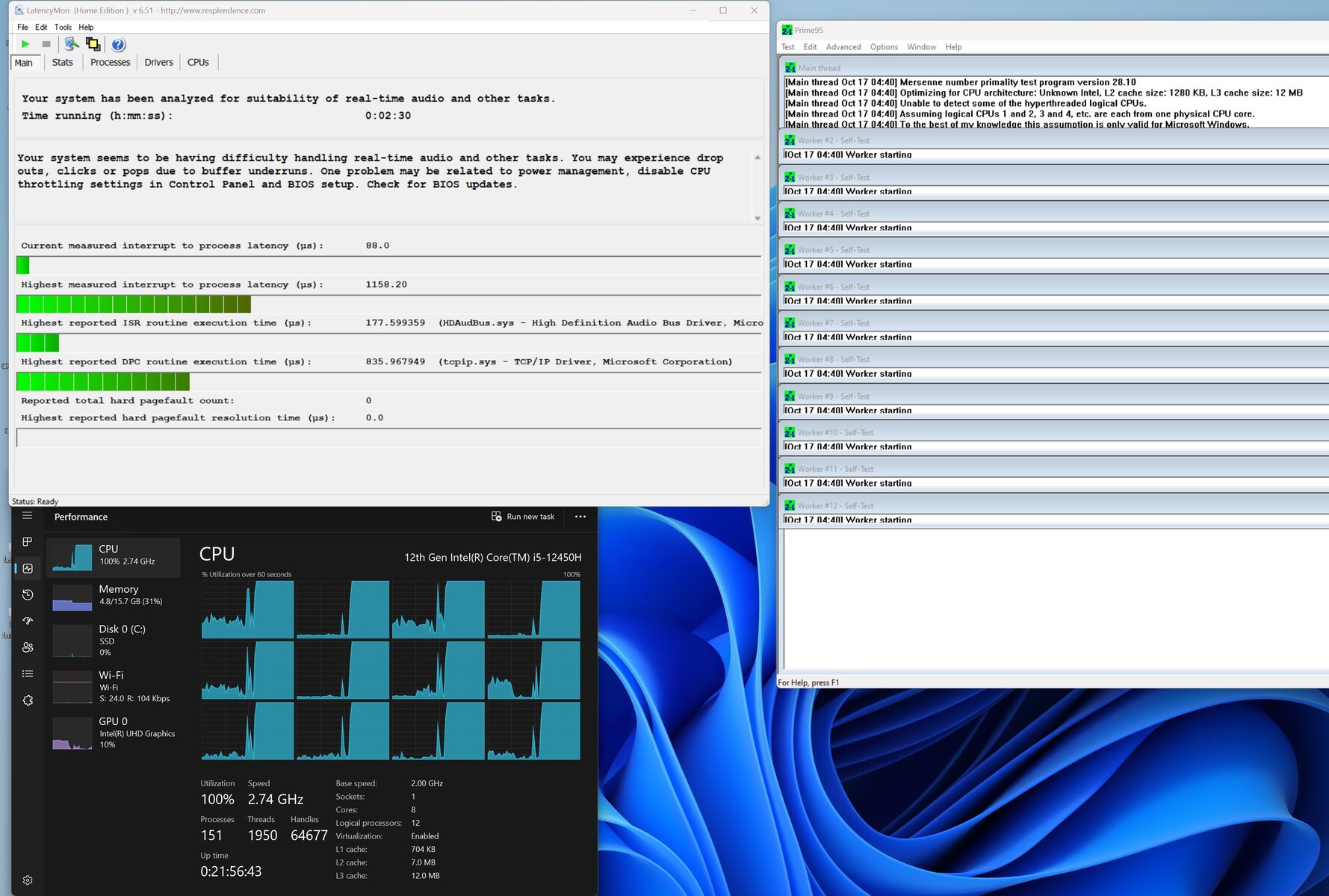

DPC latency

We only noted slightly increased latencies in the NiPoGi CK10 when playing our 4K test video. There were still no problems when opening multiple tabs in the Edge browser. We didn't document any critical rates, and our test device again secured itself an average place in comparison.

Maximum latency when opening multiple browser tabs and playing 4K video.

Maximum latency after ten seconds of Prime95

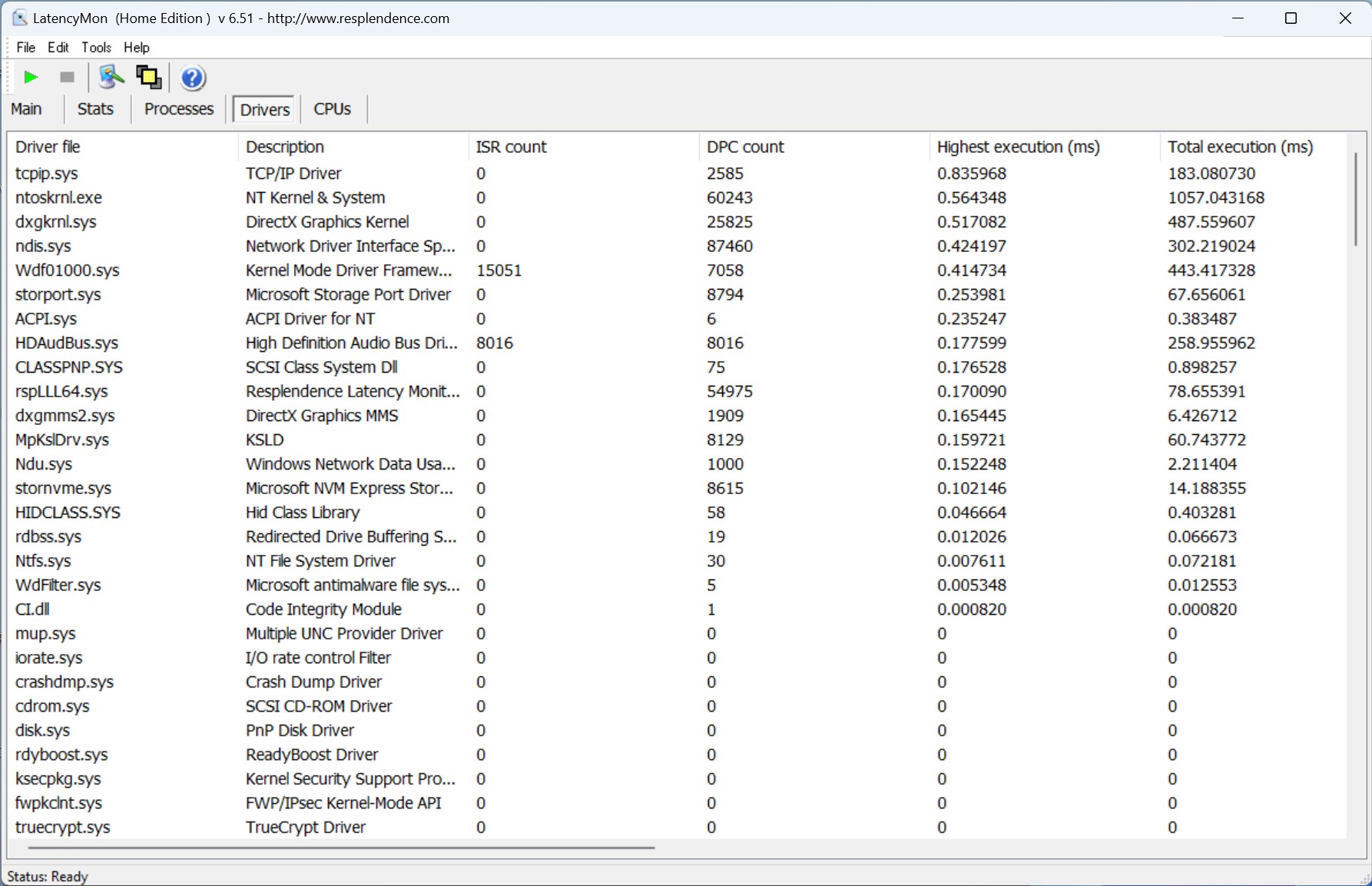

Drivers ranked by longest execution duration

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -69%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -22%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	844.9 μs * -1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	835.9 μs *
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +44%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	447.9 μs * +46%

* ... smaller is better

Storage devices

NiPoGi has installed a 512-GB NVMe SSD from Neatac into our test sample. Its measurement values show decent performance without being able to stand out from the crowd. The SSD's everyday performance is good and installing our test programs worked without any issues. Its continuous load performance levels are excellent. Here, we noted a constant performance without any drops. The NiPoGi CK10 can be fitted with a total of three storage devices. Aside from the pre-installed NVMe SSD, you can install a further M.2 SSD as well as a 2.5-inch storage device. You just have to make sure that the 2.5-inch drive's height doesn't exceed seven millimetres.

For further comparisons and benchmarks, take a look at our comparison table.

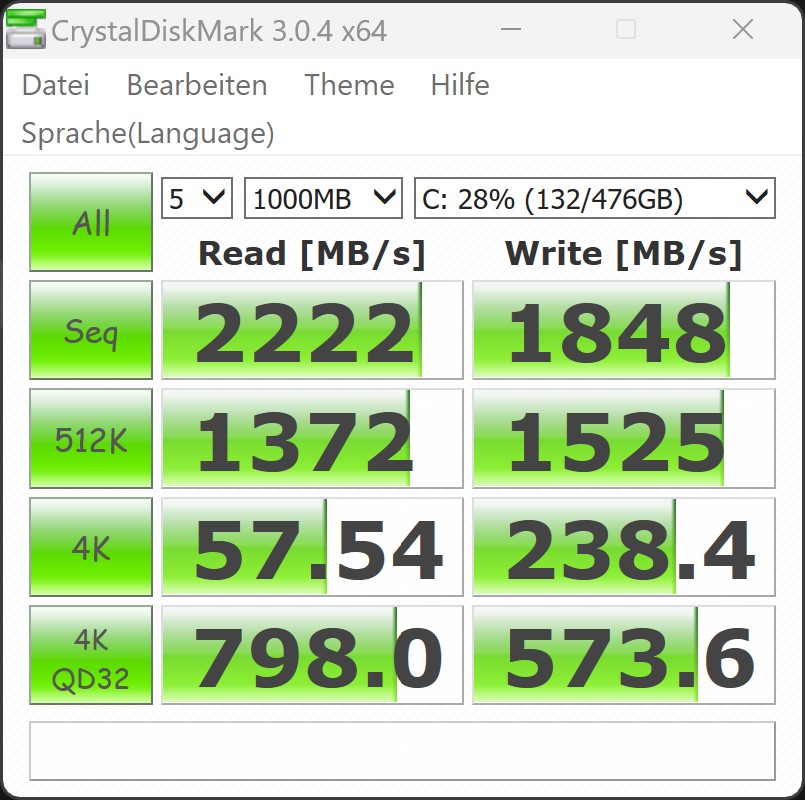

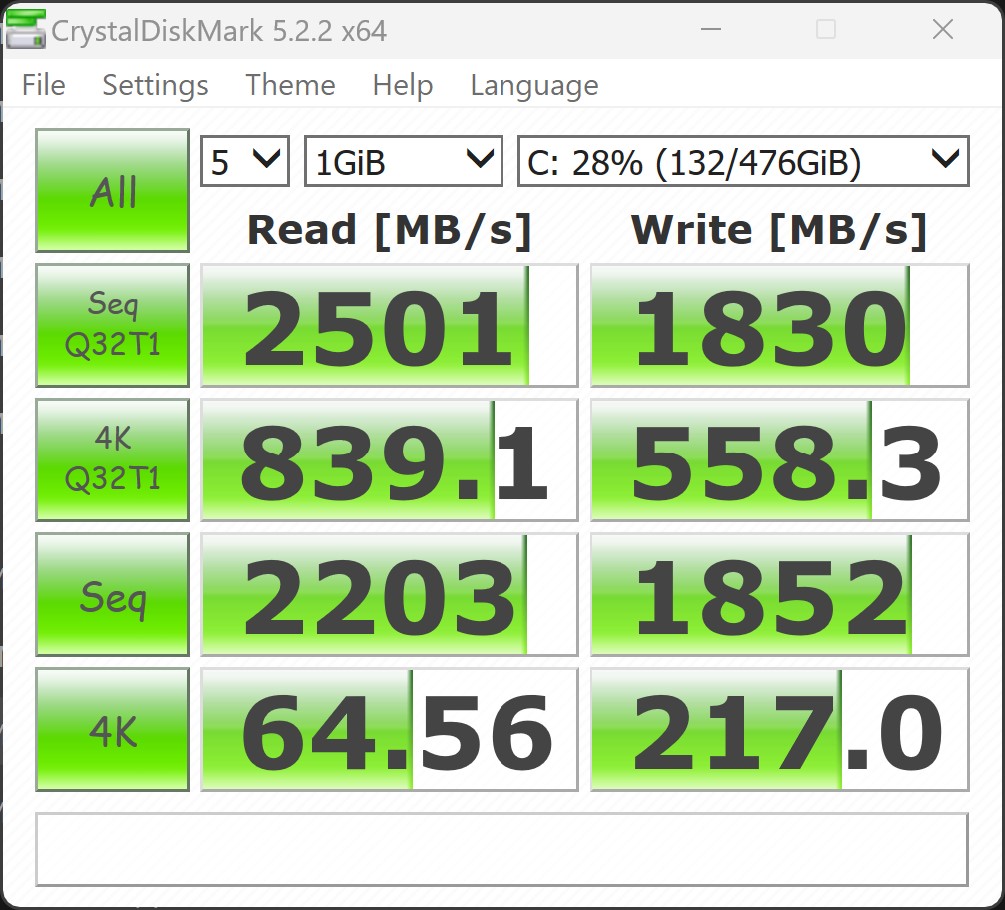

CrystalDiskMark 3.0

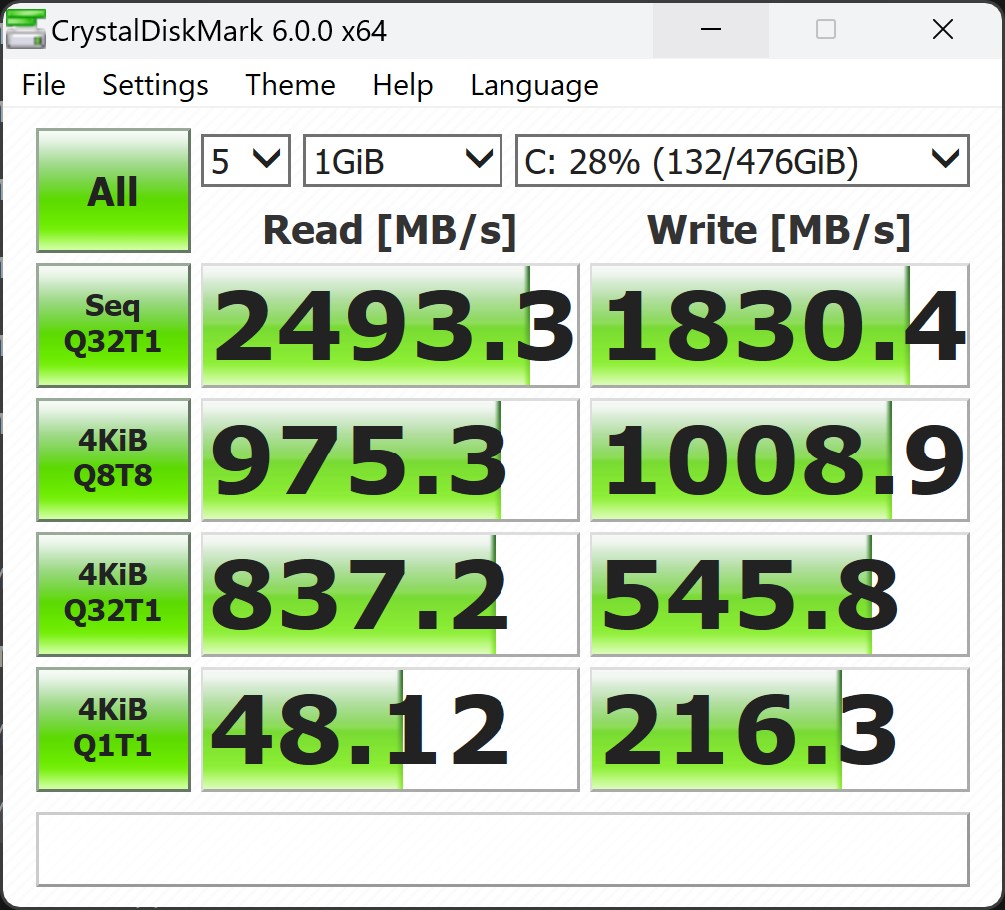

CrystalDiskMark 5.2 / 6

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2222 MB/s

Sequential Write: 1848 MB/s

512K Read: 1372 MB/s

512K Write: 1525 MB/s

4K Read: 57.54 MB/s

4K Write: 238.4 MB/s

4K QD32 Read: 798 MB/s

4K QD32 Write: 573.6 MB/s

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

NiPoGi CK10 Future Path FPE220M8SSD512G: Ø2378 (2112.25-2402.9)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	93.9 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	81.3 pt
Average of class Mini PC	54.1 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	51.3 pt
NiPoGi CK10 ^-11! Future Path FPE220M8SSD512G	49.2 pt
Blackview MP200 Foresee XP1000F512G	47.3 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	41.2 pt
Acemagic AD15 Netac NS512GSSD340	18.4 pt

DiskSpd
seq read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +34%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2655 (2644.09^min - 2654.58^max) MB/s +32%
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s +4%
Average of class Mini PC (233 - 4168, n=97, last 2 years)	2030 MB/s +1%
NiPoGi CK10 Future Path FPE220M8SSD512G	2014 (1987.04^min - 2014.36^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -16%
Acemagic AD15 Netac NS512GSSD340	526 (524.71^min - 525.97^max) MB/s -74%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +122%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3523 (3505.18^min - 3522.8^max) MB/s +120%
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s +50%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +44%
Average of class Mini PC (222 - 5595, n=97, last 2 years)	2052 MB/s +28%
NiPoGi CK10 Future Path FPE220M8SSD512G	1598 (1557.1^min - 1598.24^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s -33%
Acemagic AD15 Netac NS512GSSD340	464 (461.79^min - 463.68^max) MB/s -71%
seq q8 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +100%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4788 (4242.12^min - 4787.8^max) MB/s +100%
Average of class Mini PC (236 - 8430, n=97, last 2 years)	3172 MB/s +32%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s +26%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +5%
NiPoGi CK10 Future Path FPE220M8SSD512G	2399 (2078.28^min - 2398.91^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -7%
Acemagic AD15 Netac NS512GSSD340	545 (387.49^min - 544.63^max) MB/s -77%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +121%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3533 (3500.99^min - 3532.65^max) MB/s +121%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +56%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s +51%
Average of class Mini PC (228 - 6669, n=97, last 2 years)	2233 MB/s +39%
NiPoGi CK10 Future Path FPE220M8SSD512G	1602 (1566.78^min - 1601.65^max) MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s 0%
Acemagic AD15 Netac NS512GSSD340	483 (480.04^min - 483.18^max) MB/s -70%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +51%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	80.2 (79.47^min - 80.17^max) MB/s +46%
NiPoGi CK10 Future Path FPE220M8SSD512G	55 (53.87^min - 55.03^max) MB/s
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s -2%
Average of class Mini PC (5.67 - 86.6, n=97, last 2 years)	51.5 MB/s -6%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s -27%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -31%
Acemagic AD15 Netac NS512GSSD340	34.4 (34.22^min - 34.41^max) MB/s -37%
4k q1 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +116%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	386 (379.05^min - 385.59^max) MB/s +98%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +18%
NiPoGi CK10 Future Path FPE220M8SSD512G	194.7 (191^min - 194.69^max) MB/s
Average of class Mini PC (22 - 425, n=97, last 2 years)	185.7 MB/s -5%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -38%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s -46%
Acemagic AD15 Netac NS512GSSD340	93.3 (91.37^min - 93.31^max) MB/s -52%
4k q32 t16 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +97%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1936 (1933.07^min - 1936.22^max) MB/s +97%
Average of class Mini PC (26.1 - 2810, n=97, last 2 years)	1092 MB/s +11%
NiPoGi CK10 Future Path FPE220M8SSD512G	985 (816.79^min - 984.52^max) MB/s
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s -26%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -35%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s -43%
Acemagic AD15 Netac NS512GSSD340	189.2 (184.89^min - 189.2^max) MB/s -81%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +579%
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2578 (1137.7^min - 2578.06^max) MB/s +417%
Average of class Mini PC (30.2 - 3983, n=97, last 2 years)	1088 MB/s +118%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s +51%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +9%
NiPoGi CK10 Future Path FPE220M8SSD512G	499 (331.35^min - 498.71^max) MB/s
Acemagic AD15 Netac NS512GSSD340	229 (222.72^min - 229.28^max) MB/s -54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -65%

AS SSD
Score Total
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	6225 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points
Average of class Mini PC (151.3 - 9030, n=95, last 2 years)	3560 Points
Blackview MP200 Foresee XP1000F512G	3153 Points
Acemagic AD15 Netac NS512GSSD340	753 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points
Score Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2327 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points
Average of class Mini PC (61 - 3635, n=95, last 2 years)	1354 Points
Blackview MP200 Foresee XP1000F512G	1276 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points
Acemagic AD15 Netac NS512GSSD340	266 Points
Score Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2732 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points
Average of class Mini PC (88 - 4185, n=95, last 2 years)	1564 Points
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points
Blackview MP200 Foresee XP1000F512G	1235 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points
Acemagic AD15 Netac NS512GSSD340	345 Points
Seq Read
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	4095 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s
Blackview MP200 Foresee XP1000F512G	2930 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s
Average of class Mini PC (291 - 6620, n=95, last 2 years)	2820 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s
Acemagic AD15 Netac NS512GSSD340	529 MB/s
Seq Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	3118 MB/s
Blackview MP200 Foresee XP1000F512G	2478 MB/s
Average of class Mini PC (240 - 5783, n=95, last 2 years)	1970 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s
Acemagic AD15 Netac NS512GSSD340	425 MB/s
4K Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	100.9 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s
Average of class Mini PC (6.08 - 104.2, n=95, last 2 years)	55.5 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s
Blackview MP200 Foresee XP1000F512G	52.2 MB/s
Acemagic AD15 Netac NS512GSSD340	30.6 MB/s
4K Write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	332 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s
Average of class Mini PC (30.9 - 366, n=95, last 2 years)	168.3 MB/s
Blackview MP200 Foresee XP1000F512G	103.1 MB/s
Acemagic AD15 Netac NS512GSSD340	89.4 MB/s
4K-64 Read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	1817 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s
Average of class Mini PC (23.4 - 3035, n=95, last 2 years)	1016 MB/s
Blackview MP200 Foresee XP1000F512G	931 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s
Acemagic AD15 Netac NS512GSSD340	182.1 MB/s
4K-64 Write
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	2089 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s
Average of class Mini PC (32.8 - 3598, n=95, last 2 years)	1199 MB/s
Blackview MP200 Foresee XP1000F512G	884 MB/s
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s
Acemagic AD15 Netac NS512GSSD340	213 MB/s
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms *
Average of class Mini PC (0.022 - 0.489, n=95, last 2 years)	0.1025 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms *
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.073 ms *
Acemagic AD15 Netac NS512GSSD340	0.063 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms *
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms *
Acemagic AD15 Netac NS512GSSD340	0.137 ms *
Average of class Mini PC (0.016 - 0.765, n=95, last 2 years)	0.1297 ms *
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms *
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms *
Minisforum Venus Series UN1245 Kingston OM8PGP4512Q-A0	0.031 ms *
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms *

* ... smaller is better

Graphics card

The NiPoGi CK10's integrated graphics unit is the Intel UHD Graphics, the same model as in the Minisforum Venus Series UN1245. The Intel Core i5-12450H's Intel UHD Graphics is an iGPU with 64 EUs. This means that in practical use, both devices are just as fast (with a few performance fluctuations). As is often the case, Intel cannot keep up with AMD with its iGPUs, which led our test sample to not do the greatest. Current iGPUs such as the AMD Radeon 680M or the AMD Radeon 780M offer noticeably better 3D performance.

For further comparisons and benchmarks, take a look at our G PU comparison table.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	100 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	86.7 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	85.6 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.9 pt
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.5 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.6 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	26.5 pt

3DMark 11 - 1280x720 Performance GPU
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +45%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +39%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3912 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3886 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -57%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +41%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points +7%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20098 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19949 Points
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points -4%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points -61%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +53%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +34%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3055 Points +1%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3026 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -60%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +67%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +52%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points +42%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points -23%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -59%
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +36%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1349 Points 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	1346 Points
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	1101 Points -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points -60%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	95.1 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.9 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	79.4 pt
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	61.9 pt
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	58.4 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	52.4 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	29 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +58%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps +53%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +37%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps +3%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	12.9 fps
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	9.8 fps -24%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -42%
Extreme Preset DX11
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +34%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +31%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +15%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	15.9 fps +2%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	15.6 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -51%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +28%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +13%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +9%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	10 fps 0%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	10 fps
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps -12%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	17.7 fps +82%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +56%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps +21%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps +20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps +4%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	9.7 fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -44%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +99%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +60%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points +46%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	1735 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	1724 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -57%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +57%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points +6%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	203 Points 0%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	203 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -42%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +80%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +22%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points +16%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	197 Points +4%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	189 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points -10%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -42%
1024x600 Normal, Mandel Vector
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +209%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +98%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points +60%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	306 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	302 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points -16%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -52%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +86%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +64%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points +62%
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	483 Points +1%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	476 Points
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points -21%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -70%
1024x600 Normal, QJuliaRayTrace
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +74%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +69%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points +48%
NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G	555 Points
Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0	547 Points -1%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points -18%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -58%

3DMark 05 Standard		32570 points
3DMark 06 Standard Score		22825 points
3DMark Vantage P Result		15454 points
3DMark 11 Performance		4406 points
3DMark Ice Storm Standard Score		108684 points
3DMark Cloud Gate Standard Score		17386 points
3DMark Fire Strike Score		2850 points
3DMark Fire Strike Extreme Score		1346 points
3DMark Time Spy Score		981 points
Help

... in comparison

Gaming performance

The Intel UHD Graphics' low 3D performance also results in lower gaming performance. Modern games can't be run smoothly using the NiPoGi CK10's iGPU. Individual older games are mastered by the graphics unit — although often only with the lowest graphics preset. If you don't want to give up compactness but still require decent gaming performance, then you should take a look at the Minisforum HX99G and the Minisforum NUCXi7. You do have to keep in mind that both of these models featuring dedicated GPUs are in a completely different price range.

Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	99 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	85.2 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	70.8 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	65.2 pt
NiPoGi CK10 ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	63.2 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	52.7 pt
Blackview MP200 ^-6! Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	31.6 pt

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	80.8 fps +36%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	76.8 fps +29%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	63.3 fps +6%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	62.4 (20.6^min, 26.1^P0.1, 35.1^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	59.5 (19.9^min, 24.7^P0.1, 33.7^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -21%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	24.5 fps -59%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	26.2 fps +36%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	22.6 fps +18%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	22.2 fps +16%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.2 (10.1^min, 10.8^P0.1, 11.1^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19.2 (9.37^min, 9.7^P0.1, 10.7^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -16%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.3 fps -57%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	49 fps +56%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46 fps +46%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36.6 fps +17%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.9 fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	31.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	24.5 fps -22%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	13.4 fps -57%
1920x1080 High Overall Quality (DX11)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	13.6 fps +64%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +46%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.5 fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.52 fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.29 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.23 fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	3.3 fps -60%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	142.9 (1.358^min, 71.4^P1) fps +31%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	129.9 (16.1^min, 83.3^P1) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	116.1 (16^min, 83.3^P1) fps +7%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	108.8 (14.4^min, 71.4^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	100.8 (23.7^min, 71.4^P1) fps -7%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	97.7 (25.6^min, 55.6^P1) fps -10%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	59.3 (9.5^min, 33.3^P1) fps -45%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	33.9 (1.094^min, 20.4^P1) fps
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	20.5 (8.17^min, 14.5^P1) fps
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	18.5 (6.9^min, 14.3^P1) fps
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	14.6 (9.64^min, 11^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13.7 (7.54^min, 9.71^P1) fps
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	8.59 (3.34^min, 6.21^P1) fps

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	62 (49^min) fps +72%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	50 (44^min) fps +39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	40 (35^min) fps +11%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	36 (32^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	30 (26^min) fps -17%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	16 (14^min) fps -56%
1920x1080 High Preset AA:T
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (25^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	22 (19^min) fps +38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19 (17^min) fps +19%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (13^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	12 (10^min) fps -25%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (6^min) fps -56%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	58 (42^min) fps +76%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48 (32^min) fps +45%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	36 (24^min) fps +9%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34 (21^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	33 (21^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	27 (17^min) fps -18%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15 (11^min) fps -55%
1920x1080 High Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	29 (23^min) fps +81%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	23 (17^min) fps +44%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	18 (14^min) fps +13%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps 0%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	16 (12^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	13 (9^min) fps -19%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7 (5^min) fps -56%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	135.9 (121.4^min) fps +28%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	134.7 (102.1^min) fps +27%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	133.3 (93.2^min) fps +26%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	116 (101.7^min) fps +9%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	106.2 (84.2^min) fps
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	98.7 (85.5^min) fps -7%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	95.8 (84.4^min) fps -10%
1920x1080 high (2/3)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	64.9 (56.8^min) fps +50%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	57.8 (54.5^min) fps +33%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.2 (38.5^min) fps +4%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	44.7 (41.8^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	43.3 (40.5^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	37.1 (33.3^min) fps -14%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	22.6 (20.6^min) fps -48%

Shadow of the Tomb Raider - 1280x720 Lowest Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	69.3 fps +107%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	41.2 fps +23%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	39.1 fps +17%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34.9 fps +4%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	33.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	33.2 fps -1%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	15.8 fps -53%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	56.3 fps +91%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	46.8 fps +59%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	35.9 fps +22%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	32.3 fps +10%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	29.4 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	25.7 fps -13%
1920x1080 High Preset (DX12)
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	12.6 fps +51%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	12.1 fps +45%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	10.7 fps +28%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.66 fps +4%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	8.33 fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	6.35 fps -24%

F1 2020
1280x720 Ultra Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	102.1 (87^min) fps +75%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	78.4 (70^min) fps +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	66.7 (54^min) fps +15%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	60.2 (53^min) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	58.2 (52^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	48.5 (43^min) fps -17%
1920x1080 High Preset AA:T AF:16x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	32.3 (27^min) fps +58%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	29 (23^min) fps +41%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	26.4 (22^min) fps +29%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	21 (16^min) fps +2%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20.5 (16^min) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	16.5 (13^min) fps -20%

F1 2021
1280x720 Ultra Low Preset
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	109.5 (93^min, 91^P1) fps +60%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	92.1 (71^min, 71^P1) fps +35%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	78.3 (58^min, 55^P1) fps +14%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	71.5 (56^min, 55^P1) fps +5%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	68.4 (49^min, 49^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	56.8 (45^min, 44^P1) fps -17%
1920x1080 High Preset AA:T AF:16x
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	35.2 (29^min, 28^P1) fps +44%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	33.2 (28^min, 26^P1) fps +36%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	29.2 (25^min, 23^P1) fps +20%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	25.2 (21^min, 20^P1) fps +3%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	24.4 (20^min, 20^P1) fps
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	20.1 (16^min, 16^P1) fps -18%

	low	med.	high	ultra
GTA V (2015)	108.8	91.9
The Witcher 3 (2015)	59.5	36.4	19.2	9.57
Dota 2 Reborn (2015)	106.2	79.2	43.3	40.4
Final Fantasy XV Benchmark (2018)	28.1	14.5	10.4
X-Plane 11.11 (2018)	36.2	24.2	21.5
Far Cry 5 (2018)	36	17	16	15
Strange Brigade (2018)	61.7	25.1	19.8	16.8
Shadow of the Tomb Raider (2018)	33.4	15
Far Cry New Dawn (2019)	33	17	16	15
Metro Exodus (2019)	27.3	12.3	9.54	7.65
Borderlands 3 (2019)	31.4	13.9	8.29	6.02
F1 2020 (2020)	58.2	27.5	20.5	12.9
F1 2021 (2021)	68.4	30.4	24.4	16
God of War (2022)	13.1	11.3	8.94	6.64
Tiny Tina's Wonderlands (2022)	16.7	12.7	8.33	6.44
F1 22 (2022)	27.1	24.3	17.2	13.4
F1 23 (2023)	24.2	21.6	14.8

Emissions - Frugal and not too loud

Noise emissions

The NiPoGi CK10's noise emission values are neither good nor bad. They much better represent an average result. In idle mode, the fans run quite quietly without getting in your way. Under load, we noted just over 36 dB(A), meaning our test sample achieved the same result as the Minisforum Venus Series NAB6. Compared to the Minisforum Venus Series UN1245, the NiPoGi did considerably better, as its noise emissions of 36 dB(A) under load aren't annoying.

Noise Level

Idle		30.6 / 31.1 / 31.7 dB(A)
Load		32.9 / 36.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A)

	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)
Noise		4%	-1%	2%	-9%	8%	-5%
off / environment *	25	29.4 -18%	29.4 -18%	29.7 -19%	25.2 -1%	25.4 -2%	25.1 -0%
Idle Minimum *	30.6	29.4 4%	29.4 4%	30.2 1%	32 -5%	26.2 14%	25.3 17%
Idle Average *	31.1	29.4 5%	29.5 5%	30.2 3%	32.1 -3%	26.5 15%	25.3 19%
Idle Maximum *	31.7	29.5 7%	29.7 6%	30.2 5%	32.2 -2%	27.3 14%	25.3 20%
Load Average *	32.9	29.6 10%	34.6 -5%	30.6 7%	39.8 -21%	30.8 6%	46 -40%
Witcher 3 ultra *	36.2			30.5 16%		32.6 10%
Load Maximum *	36.1	29.6 18%	36.1 -0%	36.4 -1%	43.3 -20%	37.5 -4%	51.8 -43%

* ... smaller is better

Temperature

In idle mode, the case's temperatures of far below 30 °C are fine. At the same time, its temperatures rose quite a bit during the stress test. However, its values over 40 °C are still nothing to worry about. We noted a maximum processor temperature of 91 °C, which is due to the thermal limit. Moreover, we noted that it only consumed 26 watts under permanent load, while up to 35 watts should be possible. The installed cooling unit is too small to be able to dissipate all of the heat.

The NiPoGi CK10's power supply during the stress test

Max. Load

Idle


41.4 °C 107 F	39.6 °C 103 F	41.9 °C 107 F
37.3 °C 99 F	35.1 °C 95 F	36.7 °C 98 F
36.7 °C 98 F	33.4 °C 92 F	38.6 °C 101 F

Maximum: 41.9 °C = 107 F
Average: 37.9 °C = 100 F


35.2 °C 95 F	39.9 °C 104 F	39.9 °C 104 F
35.8 °C 96 F	32.4 °C 90 F	36.8 °C 98 F
36.5 °C 98 F	34.5 °C 94 F	36.2 °C 97 F

Maximum: 39.9 °C = 104 F
Average: 36.4 °C = 98 F

Power Supply (max.) 39.9 °C = 104 F | Room Temperature 22.6 °C = 73 F | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 37.9 °C / 100 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 41.9 °C / 107 F, compared to the average of 35.5 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.9 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 32.2 °C / 90 F.

Power consumption

The NiPoGi CK10 with its 65-watt power supply

As a result of the Intel Core i5-12450H's low power consumption, we noted good system consumption values under load. The power supply only has to supply a maximum of 62.3 watts. This is considerably less than the Minisforum Venus Series UN1245 which features the same SoC. In turn, the NiPoGi CK10 is happy with a 65-watt power supply — we had no issues using this. The only thing to mention is that its idle values were a little high. This was handled a lot better on Minisforum's device.

Power Consumption

Off / Standby	1 / 0.74 Watt
Idle	9.1 / 11.3 / 13.7 Watt
Load	49.5 / 62.3 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Minisforum Venus Series UN1245 i5-12450H, UHD Graphics 64EUs	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	Average Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	Average of class Mini PC
Power Consumption		5%	-25%	27%	8%	-25%	-11%	-7%	-12%
Idle Minimum *	9.1	8 12%	10.4 -14%	7.3 20%	8.2 10%	8.7 4%	9 1%	9.1 ?(3.6 - 14.3, n=10) -0%	9.75 ?(1.9 - 46.5, n=92, last 2 years) -7%
Idle Average *	11.3	8.7 23%	12.3 -9%	7.8 31%	8.6 24%	14.9 -32%	10.6 6%	11.1 ?(5.3 - 16.8, n=10) 2%	11.7 ?(1.9 - 63, n=91, last 2 years) -4%
Idle Maximum *	13.7	8.8 36%	12.4 9%	8.4 39%	9.6 30%	18.9 -38%	19.9 -45%	15.9 ?(7 - 28.7, n=10) -16%	14.7 ?(2.6 - 68.9, n=92, last 2 years) -7%
Load Average *	49.5	54.6 -10%	72.9 -47%	28.7 42%	52.1 -5%	49.6 -0%	30.9 38%	52.6 ?(34.7 - 76.9, n=10) -6%	51.9 ?(11.3 - 158.7, n=92, last 2 years) -5%
Load Maximum *	62.3	83.2 -34%	101.2 -62%	61.1 2%	73.6 -18%	97.7 -57%	97.8 -57%	72.7 ?(44.6 - 101.2, n=10) -17%	86 ?(18.1 - 271, n=92, last 2 years) -38%
Witcher 3 ultra *							44.8

* ... smaller is better

Power consumption with external monitor

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Prime95 V2810 Stress (external Monitor): Ø52.5 (44.6-64.7)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Prime95 V2810 Stress (external Monitor): Ø72.5 (71.3-73.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R15 Multi (external Monitor): Ø58.1 (56.2-59.4)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R15 Multi (external Monitor): Ø65.9 (65.6-66.2)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø33.1 (28.9-45.5)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.8 (33.7-40.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; 1920x1080 The Witcher 3 ultra (external Monitor): Ø47.3 (43.7-50.8)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; 1920x1080 The Witcher 3 ultra (external Monitor): Ø49.1 (47.6-71.6)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Idle 1min (external Monitor): Ø11.3 (10.6-13.7)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Idle 1min (external Monitor): Ø9.17 (8.95-9.66)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R23 Single (external Monitor): Ø35.5 (32.8-59)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R23 Single (external Monitor): Ø34.8 (33.3-60.8)

NiPoGi CK10 UHD Graphics 64EUs, i5-12450H, Future Path FPE220M8SSD512G; Cinebench R23 Multi (external Monitor): Ø57.9 (53.5-61.4)

Minisforum Venus Series UN1245 UHD Graphics 64EUs, i5-12450H, Kingston OM8PGP4512Q-A0; Cinebench R23 Multi (external Monitor): Ø66 (63.9-67.4)

Pros

+ lightweight case

+ low space requirement

+ lots of USB ports

+ VESA mount option

+ low power consumption

+ powerful SSD

+ stable SSD performance

+ easy to open

+ three storage devices can be installed

Cons

- no SD card reader

- no Thunderbolt

- Intel Core i5-12450H with low TDP limit

- weak cooling system

Verdict - A good SoC, but not enough cooling power

NiPoGi CK10 review - test sample provided by NiPoGi

The NiPoGi CK10 is a super-small, simple office PC that is unable to stand out from the crowd. In general, we welcome the use of Alder Lake processors, as it is possible to achieve decent performance levels while also saving energy through the use of a hybrid design. However, the cooling system has to fit in order to prevent an artificial performance restriction, as we saw on the CK10. All-in-all, we measured adequate performance which, unfortunately, suffered when all cores were loaded. The NiPoGi CK10 is still well-suited for simple everyday office use. We didn't measure any noticeable latencies in our test configuration featuring 16 GB RAM and a 512-GB SSD.

The NiPoGi CK10 is a simple mini PC based on an Intel Core i5-12450H. Unfortunately, the SoC remained behind our expectations due to its power restrictions.

Furthermore, good connectivity is important in everyday use. In this aspect, the NiPoGi CK10 offers solid base connectivity options. This sadly doesn't include Thunderbolt or an SD card reader. However, its direct competitor, the Minisforum Venus Series UN1245, also doesn't have these.

If we take a look at the NiPoGi CK10's price, it doesn't look the greatest at first glance. You can currently find it for around US$530. A Minisforum Venus Series UN1245 featuring a similar configuration costs about US$100 less. Sometimes, you can find some great discounts on the PC, which could make the price a lot more attractive.

Price and availability

The NiPoGi CK10 retails for around US$530. At the time of writing, it cannot be found on any US online stores, but you can find it on Amazon.co.uk.

NiPoGi CK10 - 2023-10-18 10/18/2023 v7
Sebastian Bade

Chassis

81 / 98 → 82%

Connectivity

50 / 81 → 62%

Weight

83%

Games Performance

61%

Application Performance

87%

Temperature

90%

Noise

85%

Average

74%

77%

Mini PC - Weighted Average

Transparency

The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.

Loading comments

Comment on this article

Editor of the original article: Sebastian Bade - Senior Tech Writer - 500 articles published on Notebookcheck since 2012

I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.

contact me via: Facebook, nbc.basti, Xing

Translator: Daisy Dickson - Translator - 213 articles published on Notebookcheck since 2023

Originally from Scotland, I grew up and lived in Germany until I completed my high school qualifications before moving back to Scotland to complete my university studies. Growing up bilingual led me to form a close relationship with the English and German languages, often working in the fields of teaching and translation. Most of my childhood was shaped by playing around on new consoles, computers and gadgets and getting to grips with the new craze of the internet and smartphones. This interest has stayed with me well into adulthood. Nowadays, I live in Glasgow and work as a freelance translator and digital media coordinator. I have been translating for Notebookcheck since early 2023.

Please share our article, every link counts!

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > NiPoGi CK10 review - The mini PC with an Intel Core i5-12450H and 16 GB RAM falls short of expectations

Sebastian Bade, 2023-10-19 (Update: 2023-10-19)
