Impact Display Solutions IMP-3713-V2-16-500 Fanless PC Review
Impact Components specializes in building industrial PCs with specialized hardware and motherboards. Certain models have active cooling while the review unit here is fanless. Let's stress and benchmark the system to see how a passively cooled chassis can handle a low-power 12 to 25 W AMD Ryzen Embedded V1605B CPU.

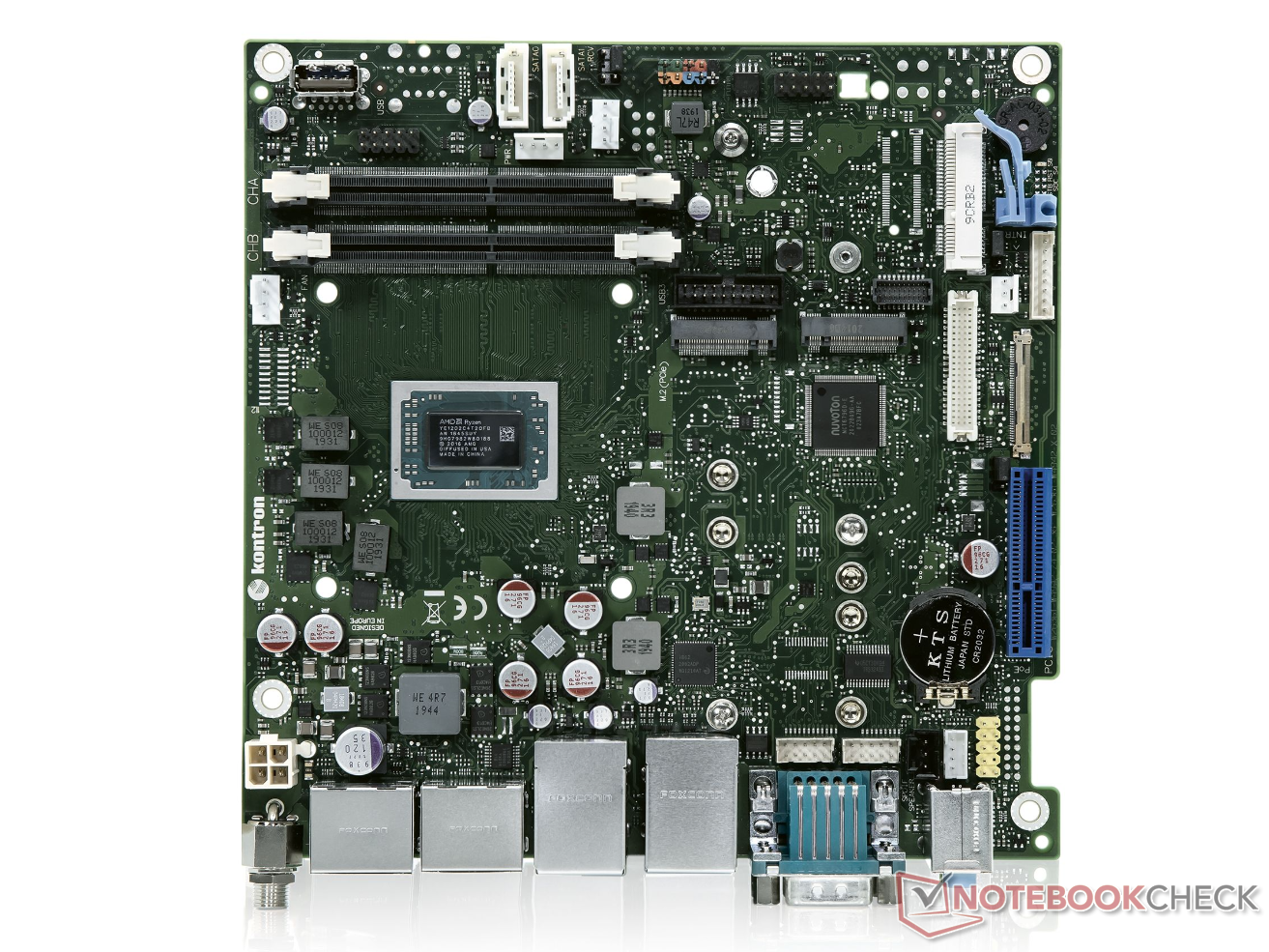

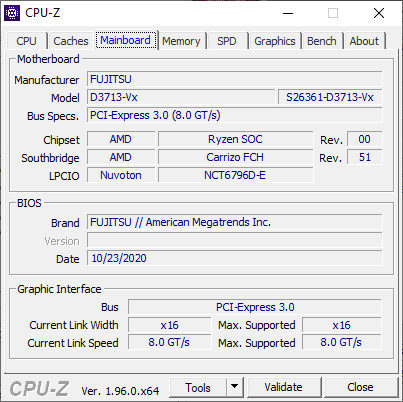

More detailed specifications on the PC and its D3713-V/R mITX motherboard can be found via their respective product pages.
Case

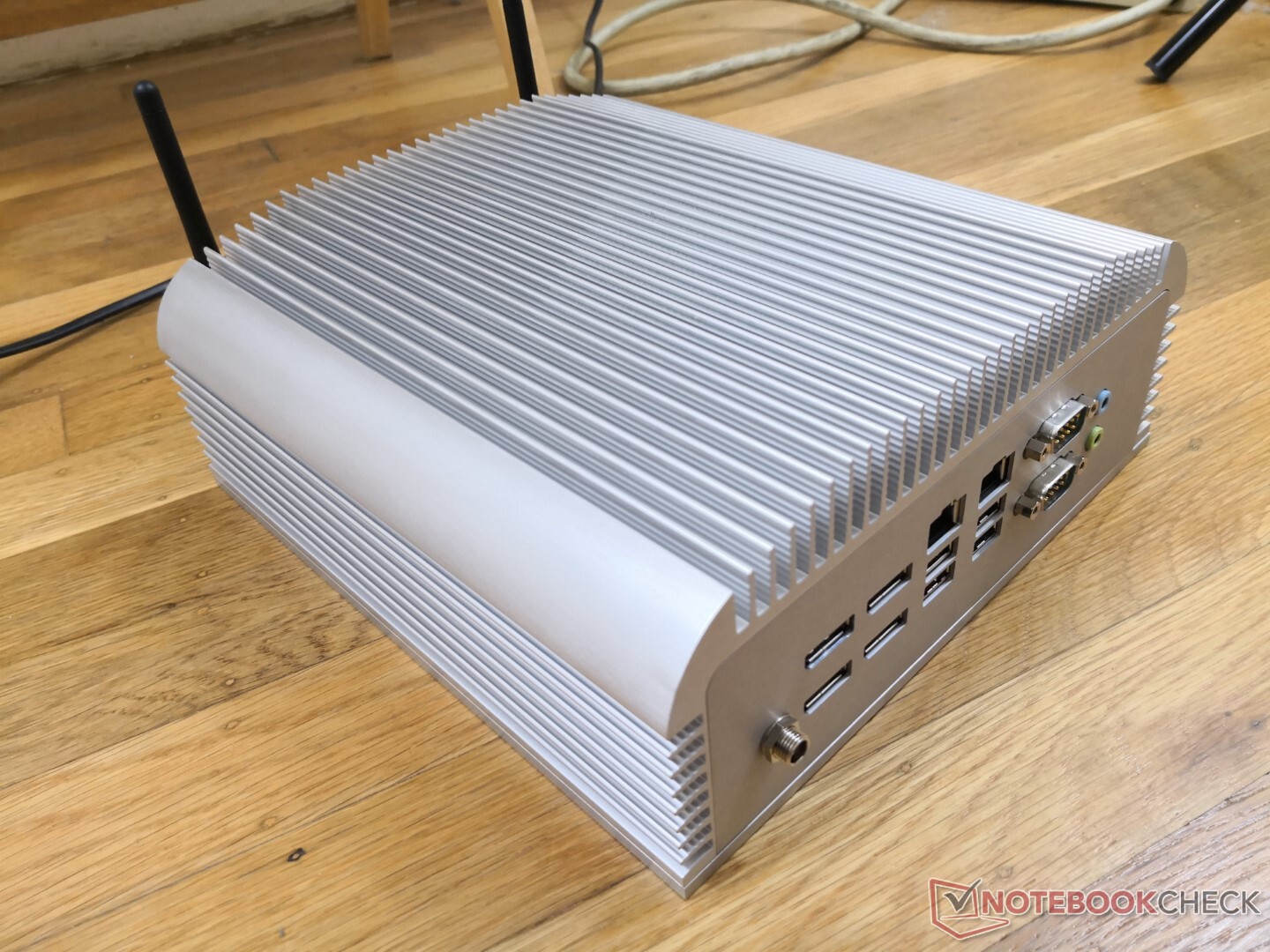

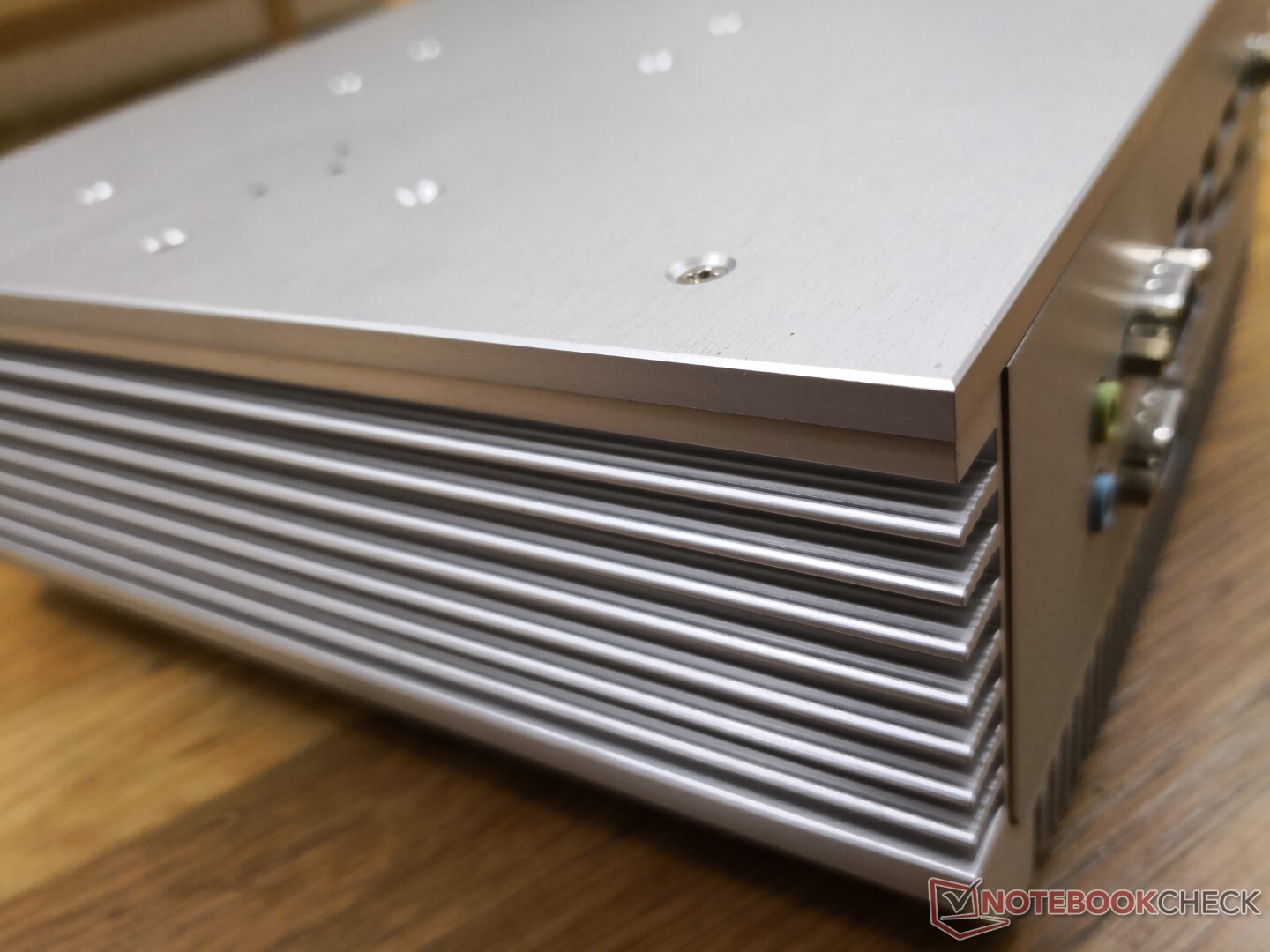

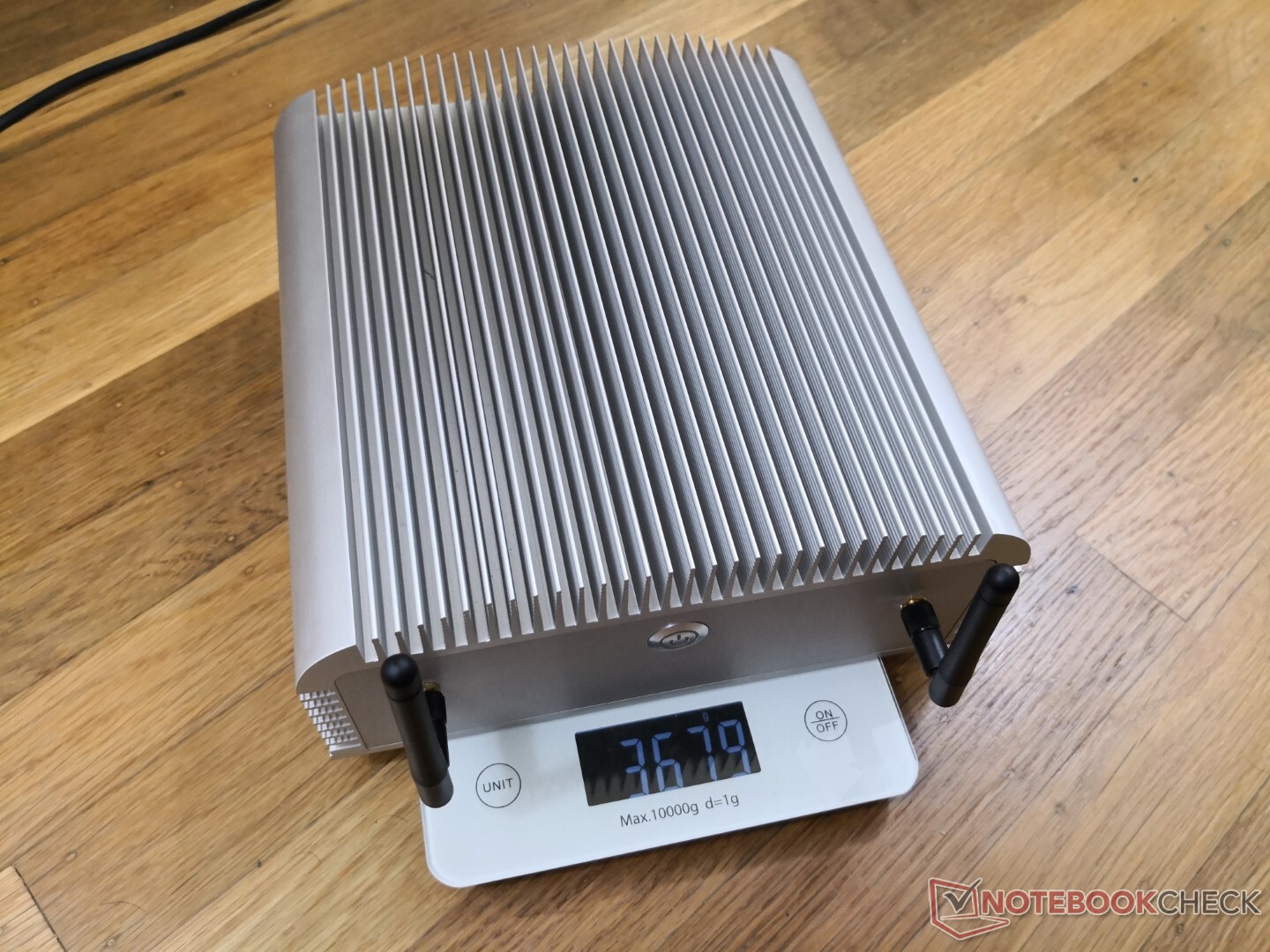

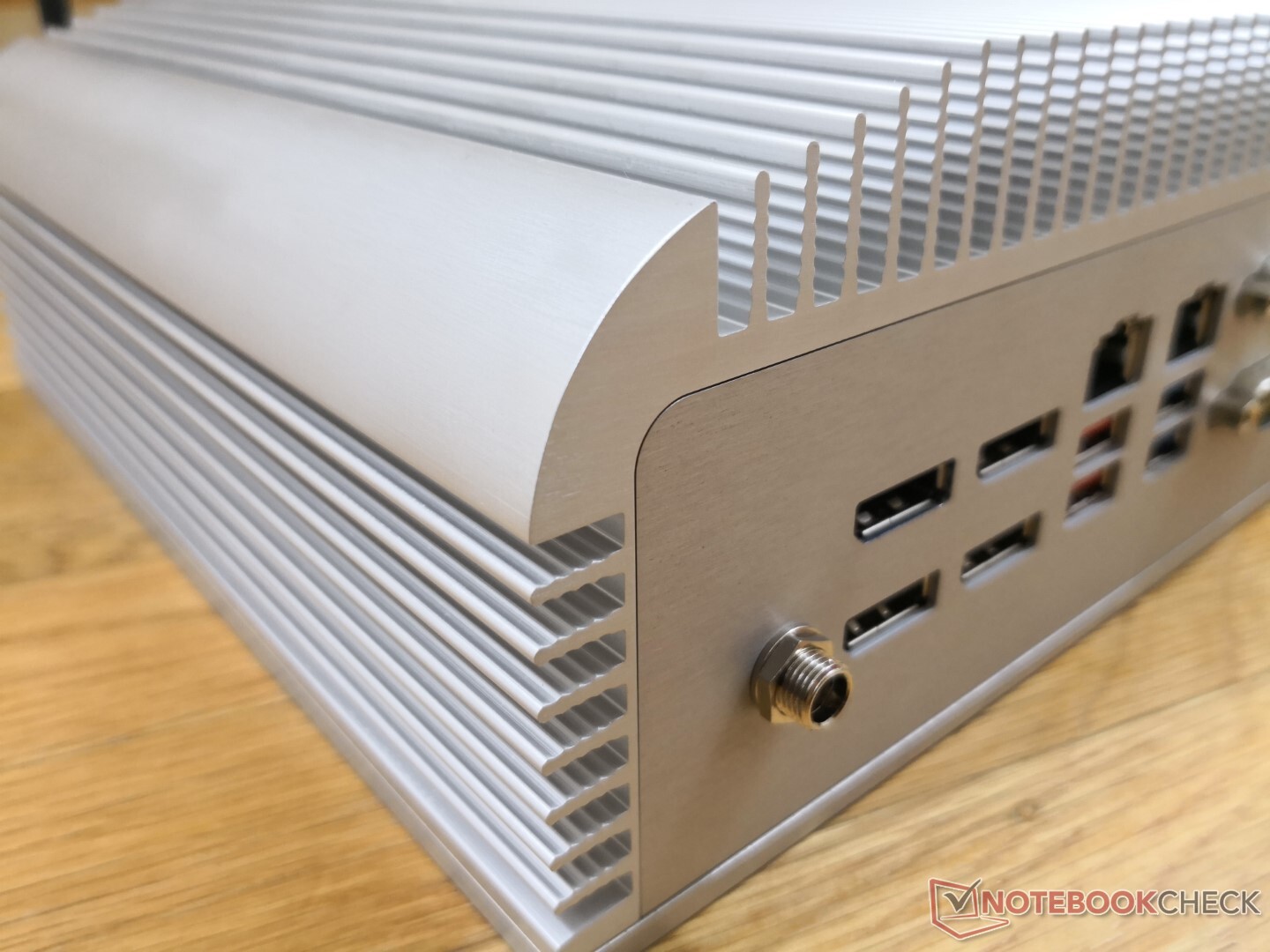

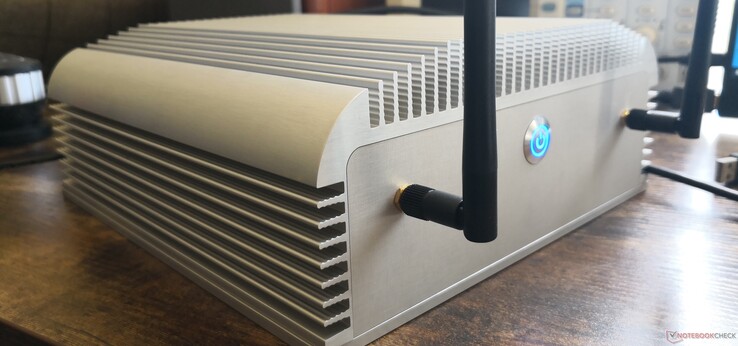

The entire case is anodized aluminum from top to bottom and IP50 certified for dust protection but not water protection. It is significantly larger and heavier than the IMP-3654-B1-R we checked out early last year which should hopefully lead to improved cooling and higher thermal soak.
Connectivity

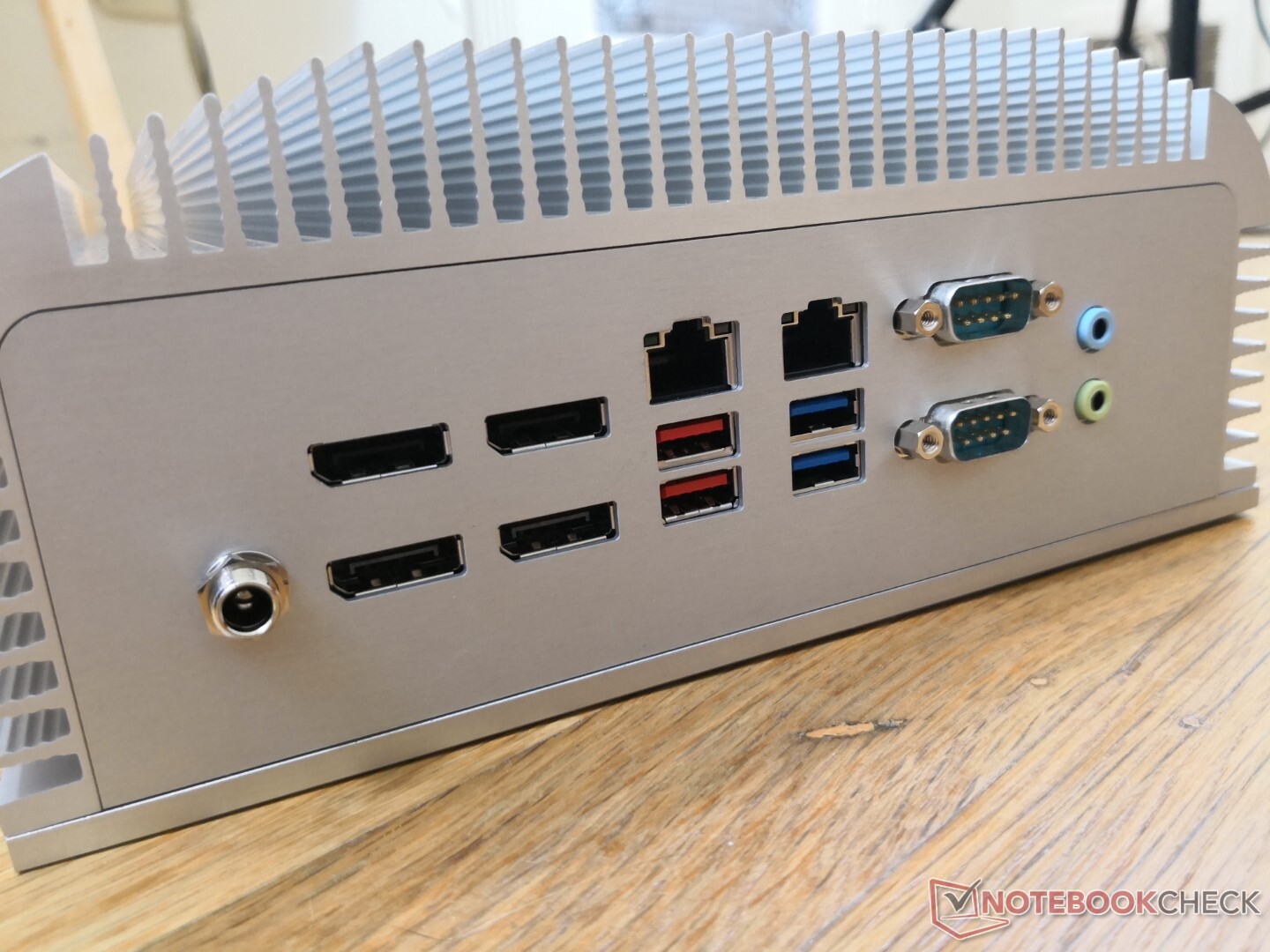

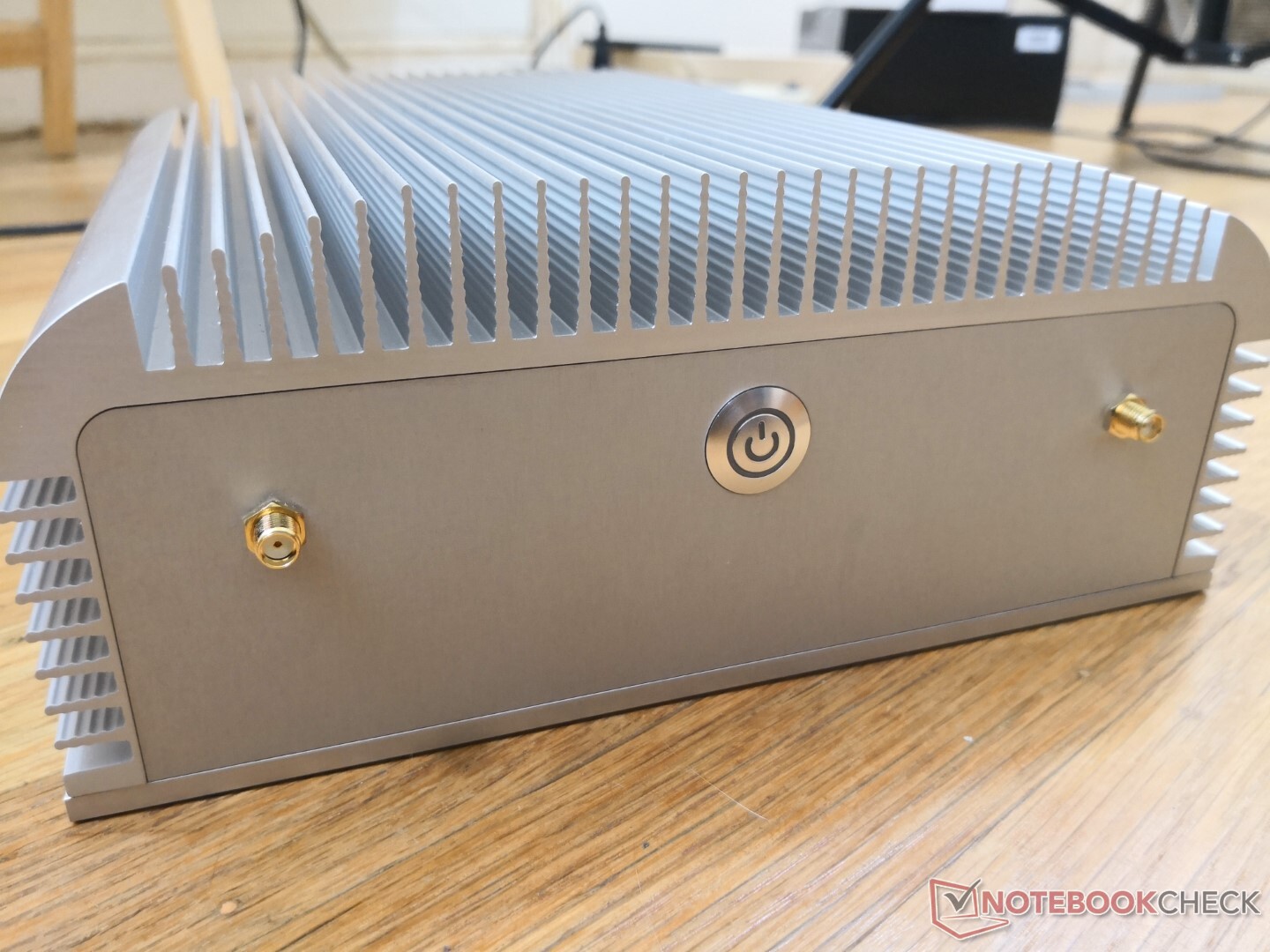

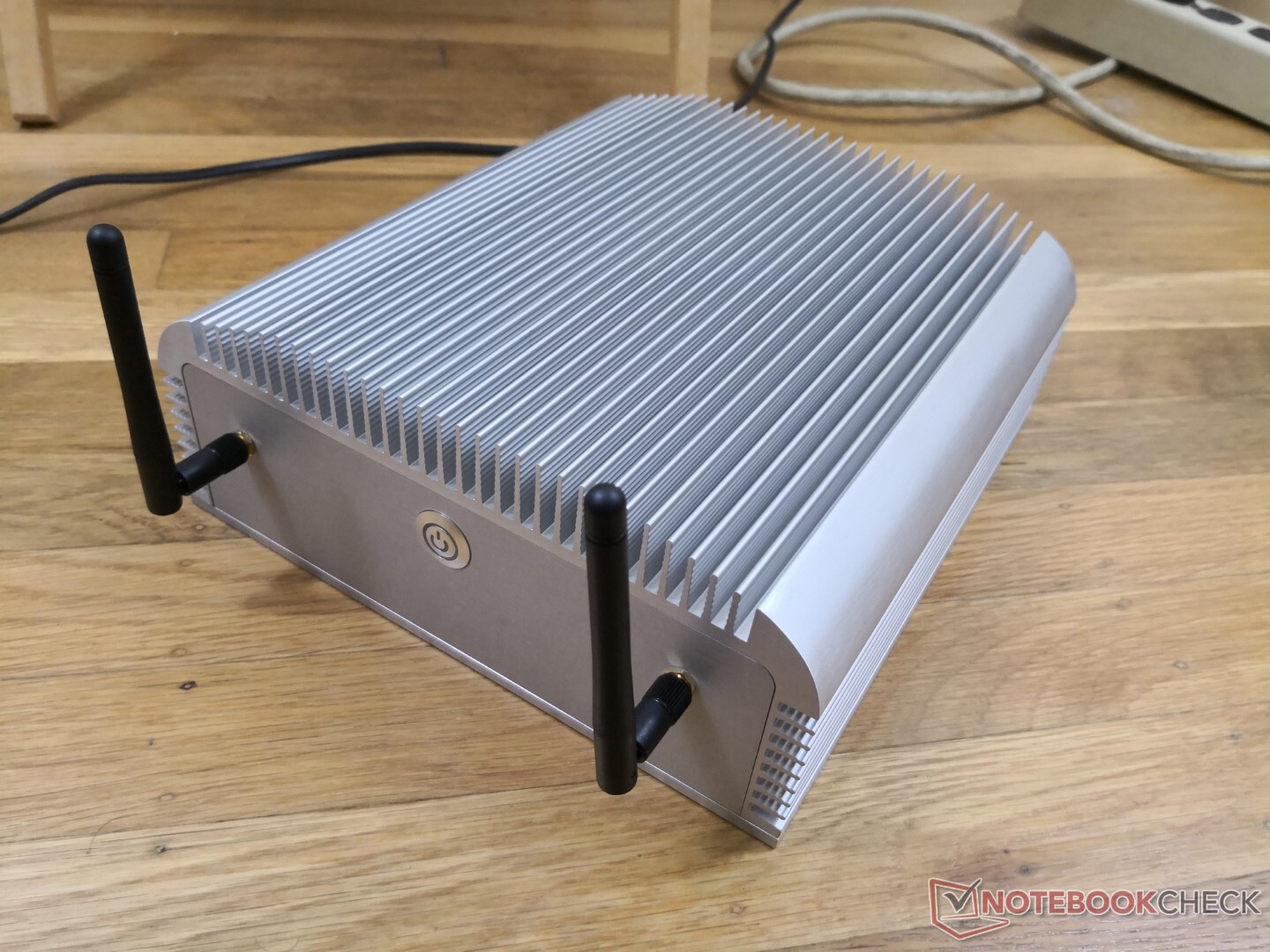

The two antenna attach to the front of the device instead of the rear. Annoyingly, there are no HDMI or USB-C ports.
Communication
Maintenance

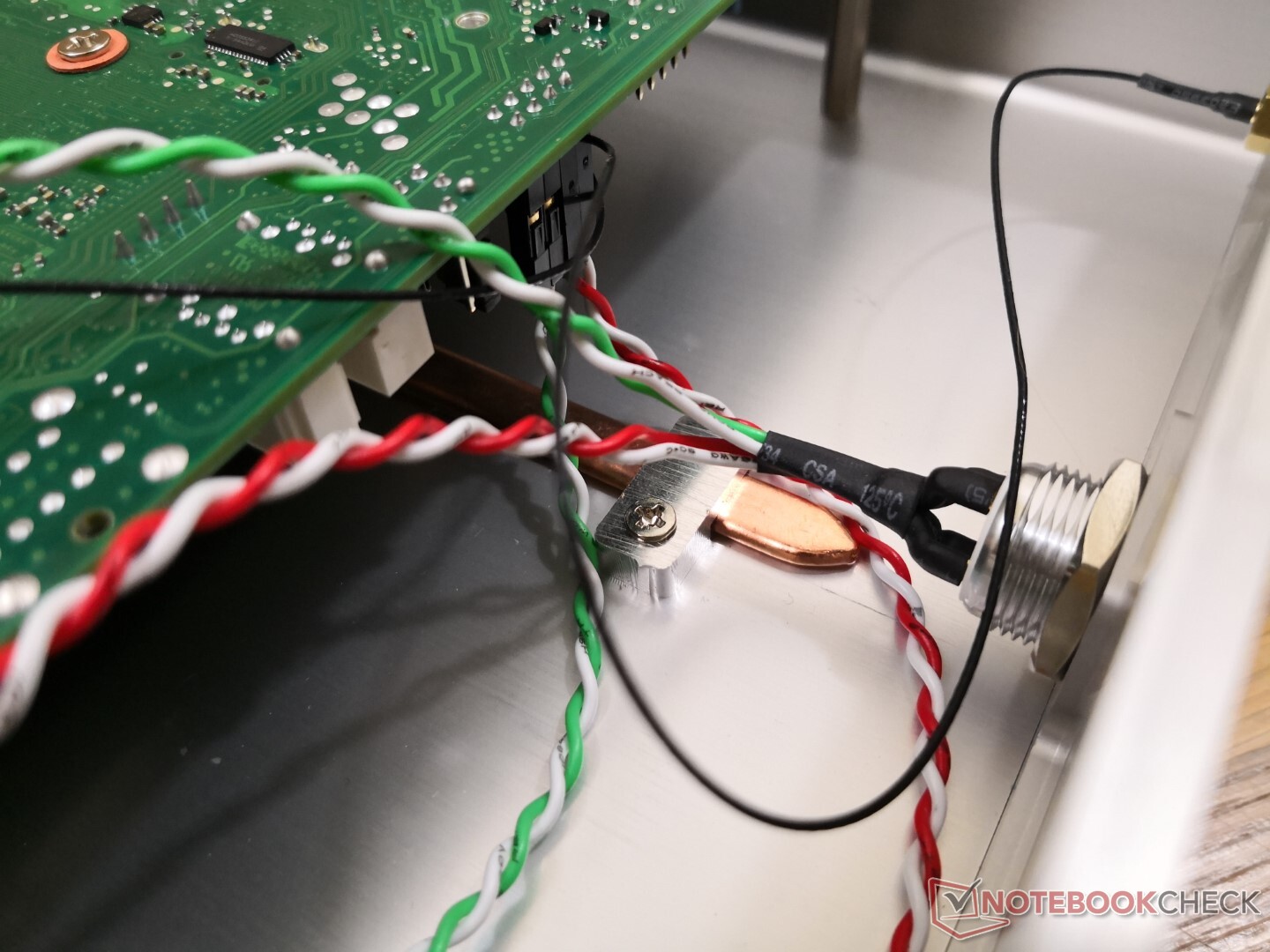

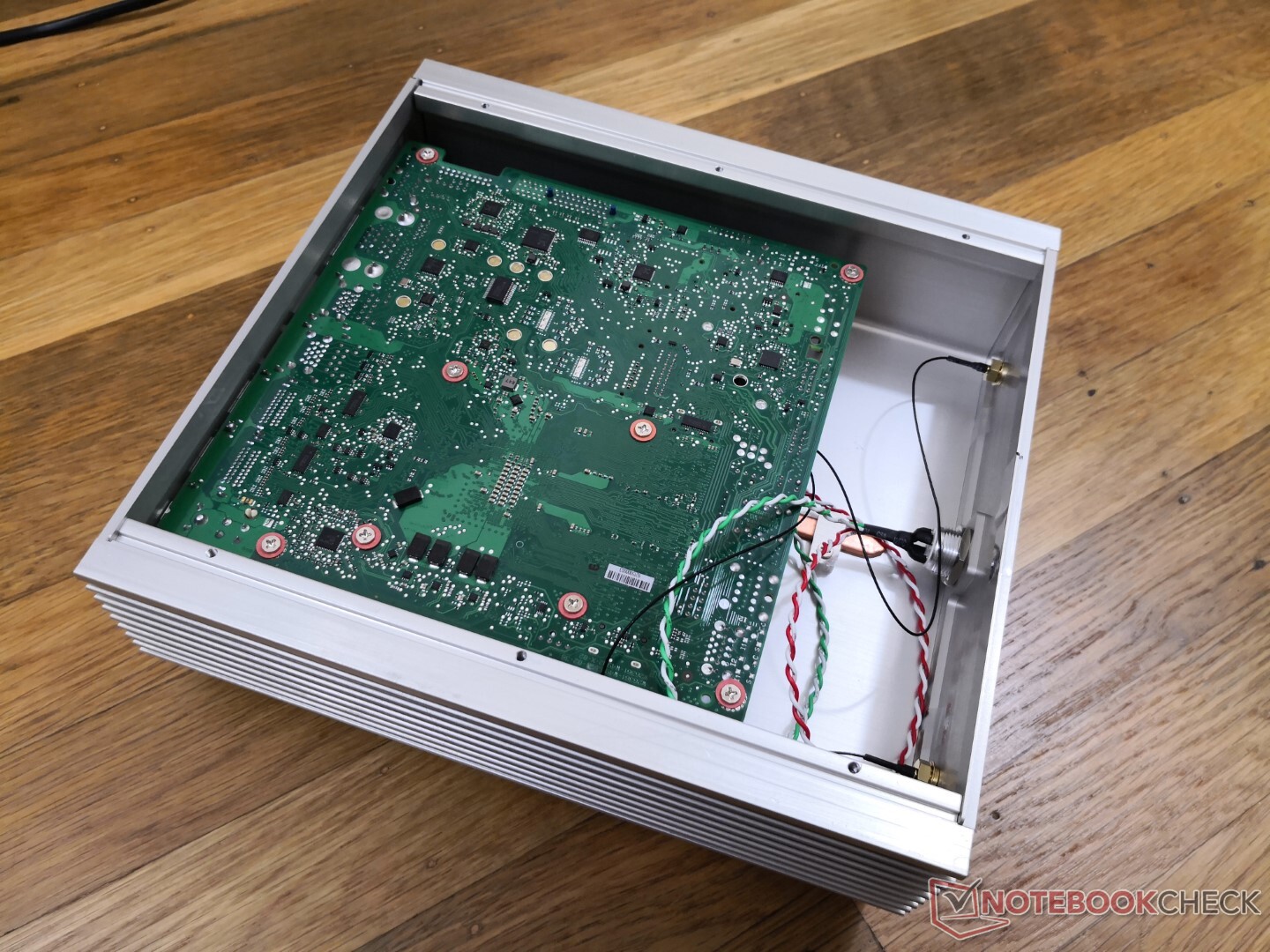

The bottom panel is easily removable with just a Philips screwdriver to reveal the underside of the motherboard. Accessing the rest of the motherboard, however, requires additional disassembly.
Accessories and Warranty

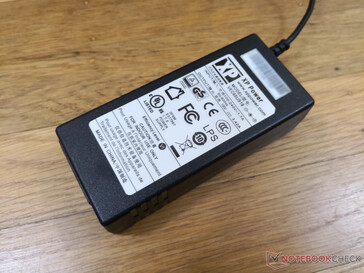

The box includes two antenna in addition to an AC adapter. The standard one-year limited manufacturer warranty applies.
Performance
Processor

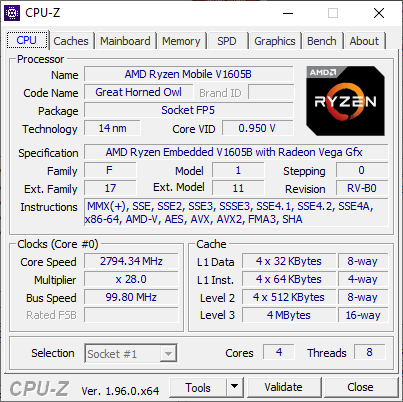

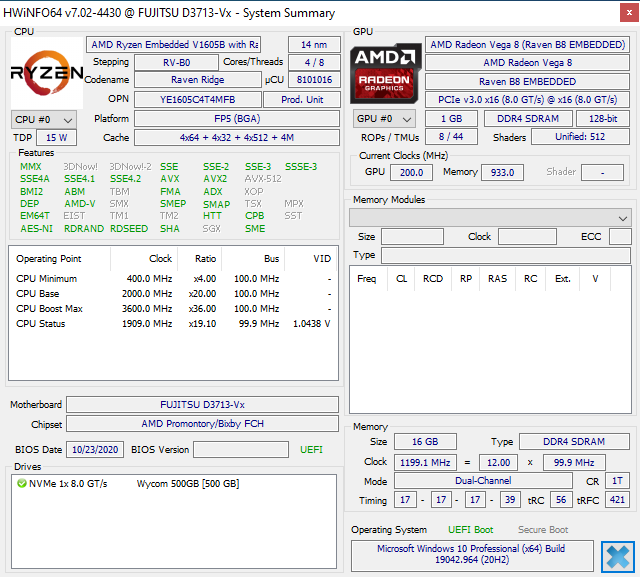

Raw CPU performance is about 14 percent and 22 percent slower than the Ryzen 3 4300U in multi-thread and single-thread workloads, respectively, to represent an entry-level processor.
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Multi Core | |
Intel NUC11PAQi7 | |
Intel NUC11PHKi7C | |
Intel NUC11TNKi5 | |
Honor MagicBook Pro 10210U | |
Impact Display Solutions IMP-3713-V2-16-500 |
Cinebench R23 / Single Core | |
Intel NUC11PHKi7C | |
Intel NUC11TNKi5 | |
Honor MagicBook Pro 10210U | |
Impact Display Solutions IMP-3713-V2-16-500 |
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
System Performance

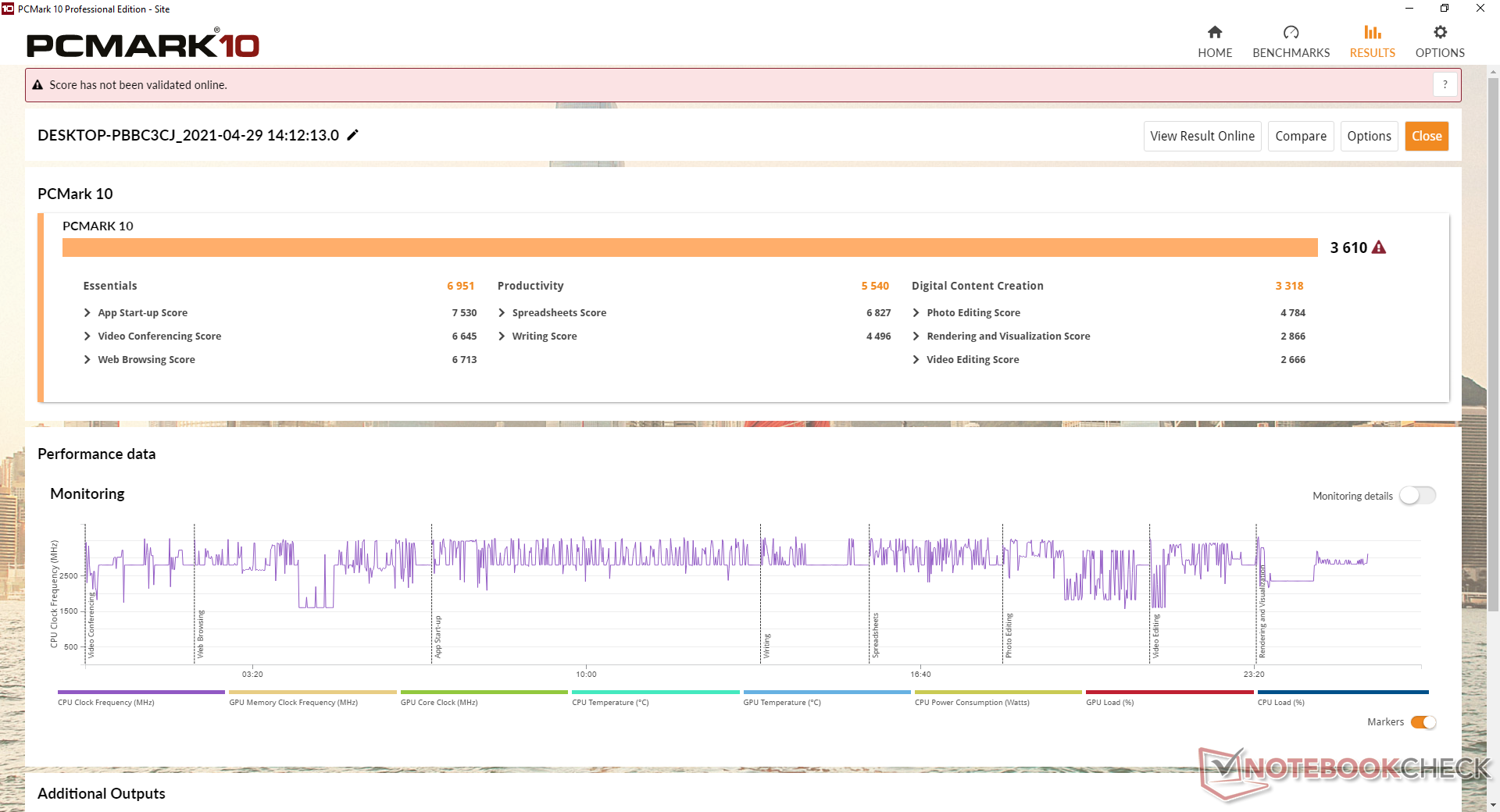

PCMark 10 Score | 3610 points | |
Help |
DPC Latency

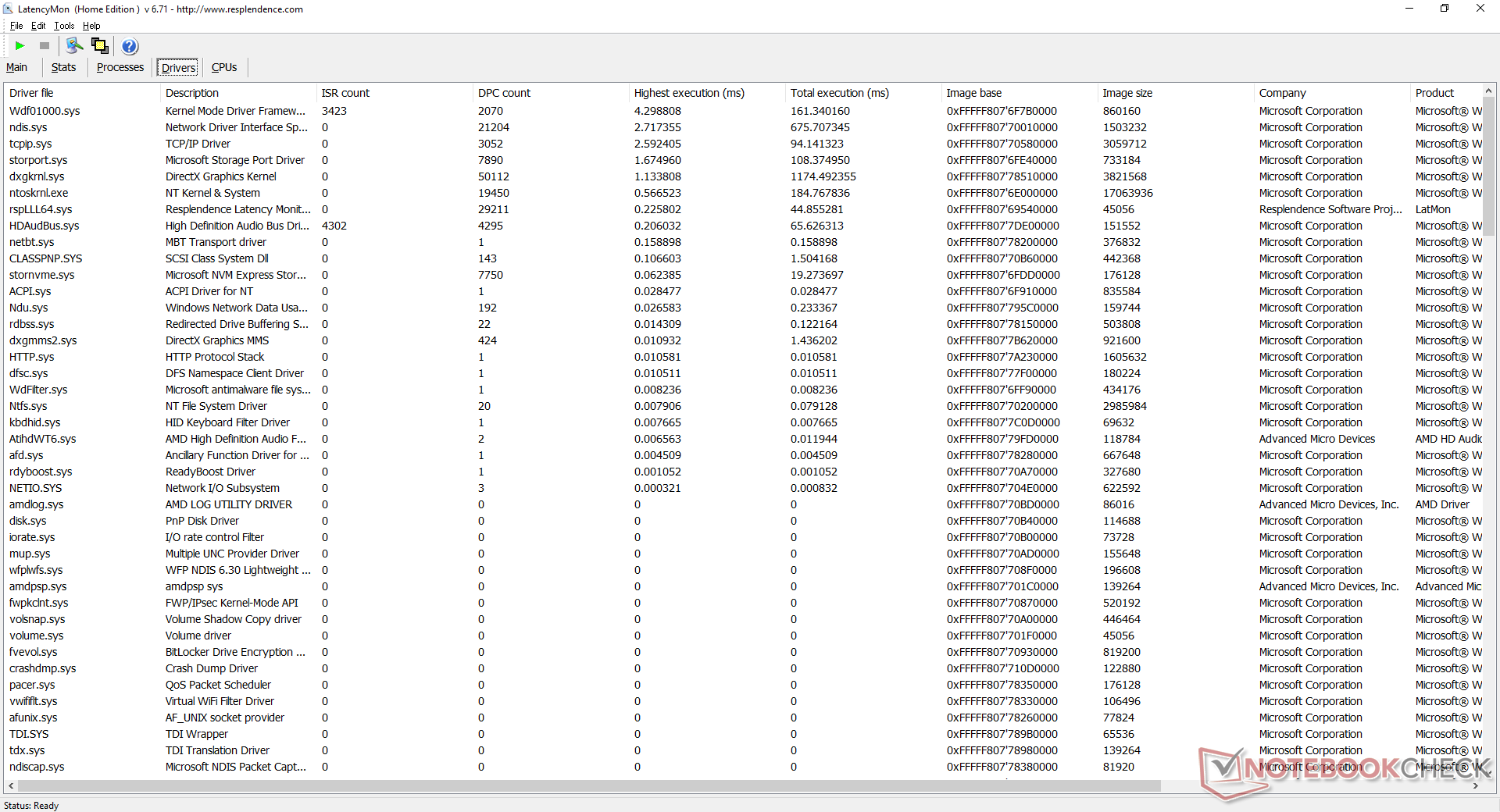

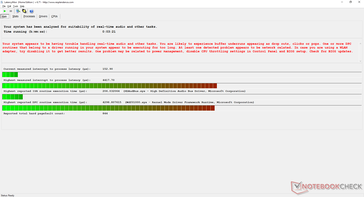

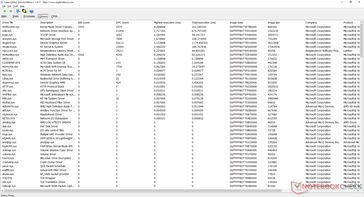

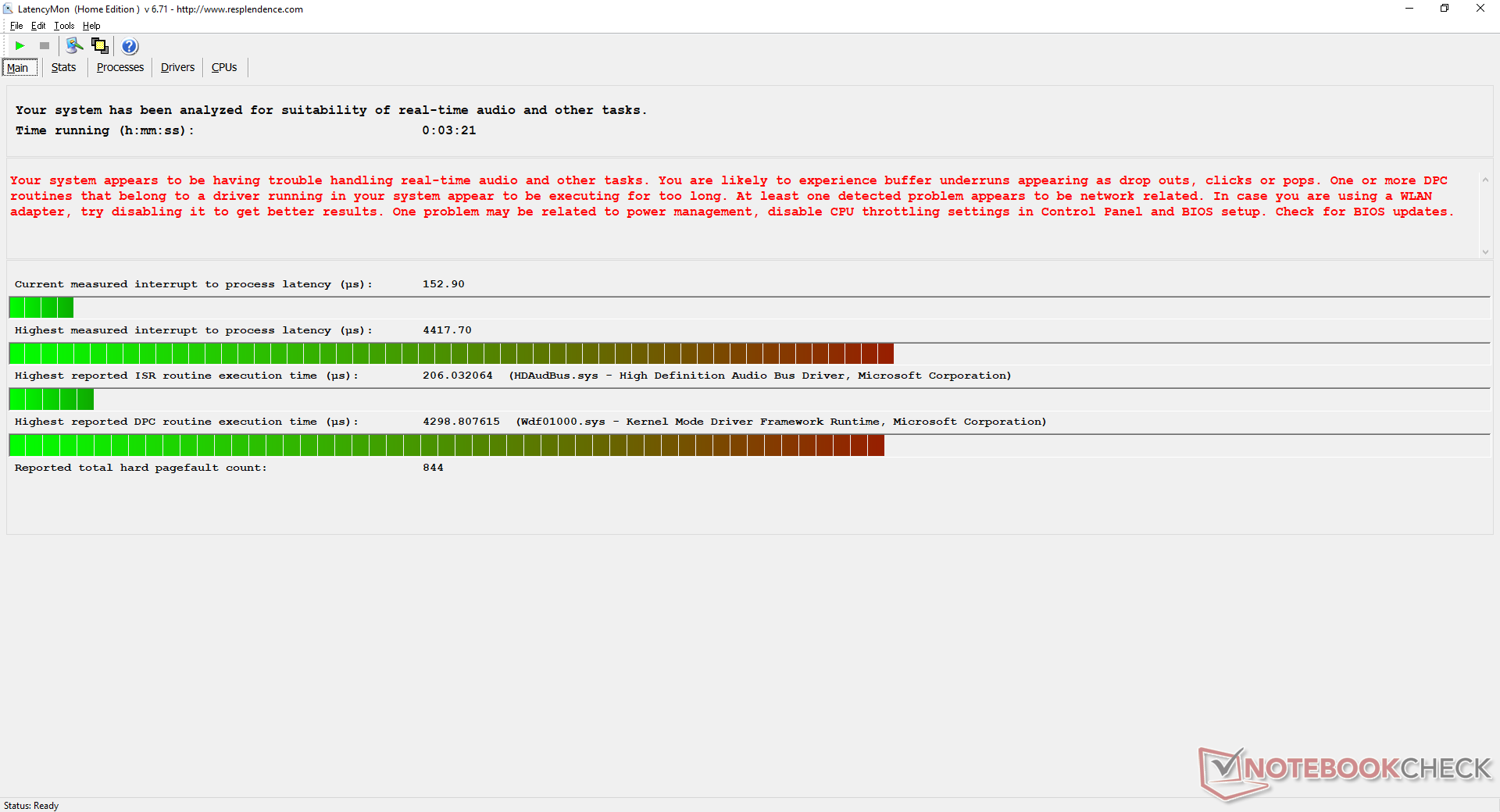

LatencyMon shows DPC latency issues when opening multiple tabs on our homepage or when the CPU is fully stressed under Prime95. 4K UHD playback at 60 FPS is otherwise smooth with just four dropped frames during our minute-long video test.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Impact Display Solutions IMP-3713-V2-16-500 | |
HP Envy 13-ba0001ng | |
Intel NUC11PAQi7 |
* ... smaller is better
Storage Devices

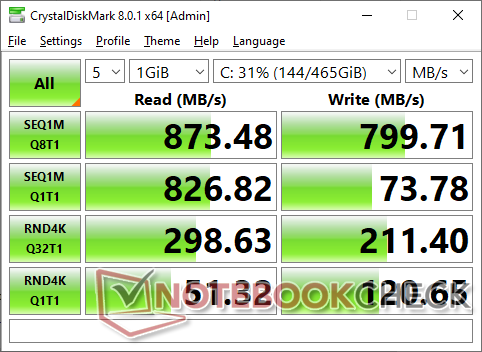

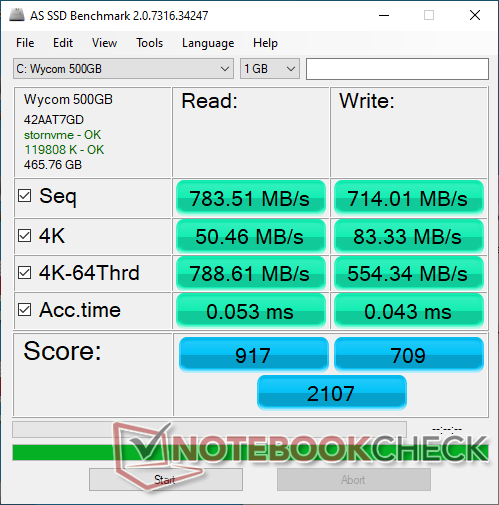

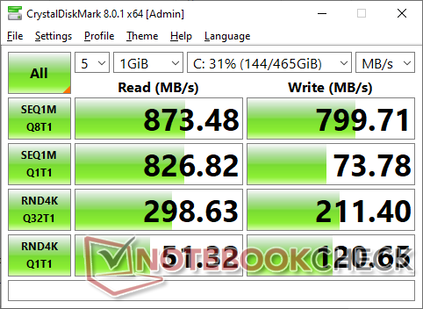

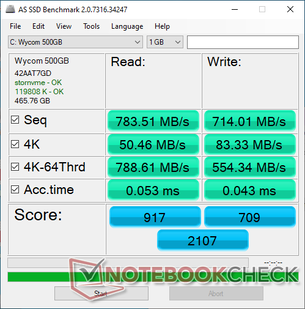

The 500 GB Wycom SSD w/ Silicon Motion SM2262EN controller offers faster transfer rates than SATA III, but it's still well below most other NVMe SSDs. Sequential read and write rates top out in the 800 to 900 MB/s range while most NVMe drives are at least two times faster.
Up to two M.2 SSDs are supported on the motherboard, but only one of the two slots is full PCIe x4 as the other is PCIe x2.
Impact Display Solutions IMP-3713-V2-16-500 | Impact Display Solutions IMP-3654-B1-R Core i9-9900T EDGE NextGen SSD 1TB | HP Envy 13-ba0001ng Intel SSD 660p SSDPEKNW512G8 | LG Gram 17 17Z90N-V.AA77G Samsung PM981a MZVLB1T0HBLR | |
---|---|---|---|---|
AS SSD | -39% | 17% | 79% | |
Seq Read | 784 | 1218 55% | 1587 102% | 2722 247% |
Seq Write | 714 | 1306 83% | 709 -1% | 2649 271% |
4K Read | 50.5 | 25.97 -49% | 52 3% | 52.2 3% |
4K Write | 83.3 | 43.25 -48% | 144 73% | 132.4 59% |
4K-64 Read | 789 | 578 -27% | 322.8 -59% | 886 12% |
4K-64 Write | 554 | 520 -6% | 835 51% | 1074 94% |
Access Time Read * | 0.053 | 0.118 -123% | 0.103 -94% | 0.041 23% |
Access Time Write * | 0.043 | 0.286 -565% | 0.045 -5% | 0.03 30% |
Score Read | 917 | 726 -21% | 533 -42% | 1211 32% |
Score Write | 709 | 694 -2% | 1050 48% | 1471 107% |
Score Total | 2107 | 1800 -15% | 1832 -13% | 3309 57% |
Copy ISO MB/s | 1007 | 2082 107% | 1483 47% | 2096 108% |
Copy Program MB/s | 386.3 | 422.8 9% | 730 89% | 395.6 2% |
Copy Game MB/s | 705 | 1072 52% | 943 34% | 1096 55% |
CrystalDiskMark 5.2 / 6 | 85% | 78% | 174% | |
Write 4K | 36.03 | 111.8 210% | 146.3 306% | 162.8 352% |
Read 4K | 58.5 | 56.8 -3% | 55.7 -5% | 51 -13% |
Write Seq | 764 | 1148 50% | 949 24% | 2078 172% |
Read Seq | 838 | 1522 82% | 1494 78% | 1991 138% |
Write 4K Q32T1 | 210.7 | 399.7 90% | 408.5 94% | 440.1 109% |
Read 4K Q32T1 | 298.9 | 570 91% | 304 2% | 450.1 51% |
Write Seq Q32T1 | 798 | 1375 72% | 984 23% | 2998 276% |
Read Seq Q32T1 | 879 | 1626 85% | 1779 102% | 3562 305% |
Total Average (Program / Settings) | 23% /
6% | 48% /
39% | 127% /
113% |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU Performance

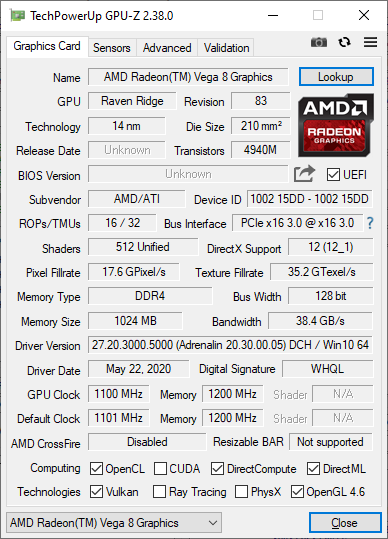

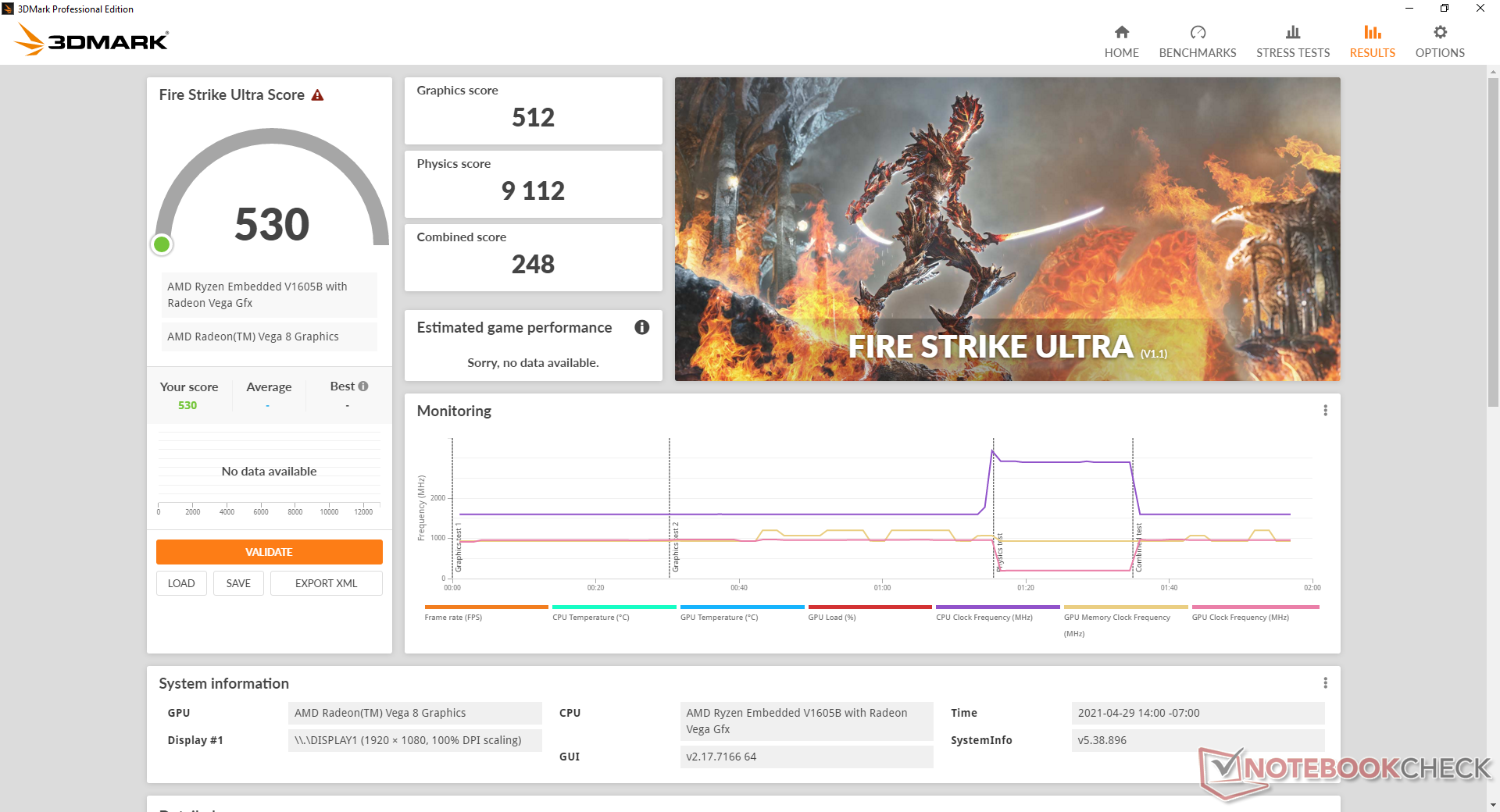

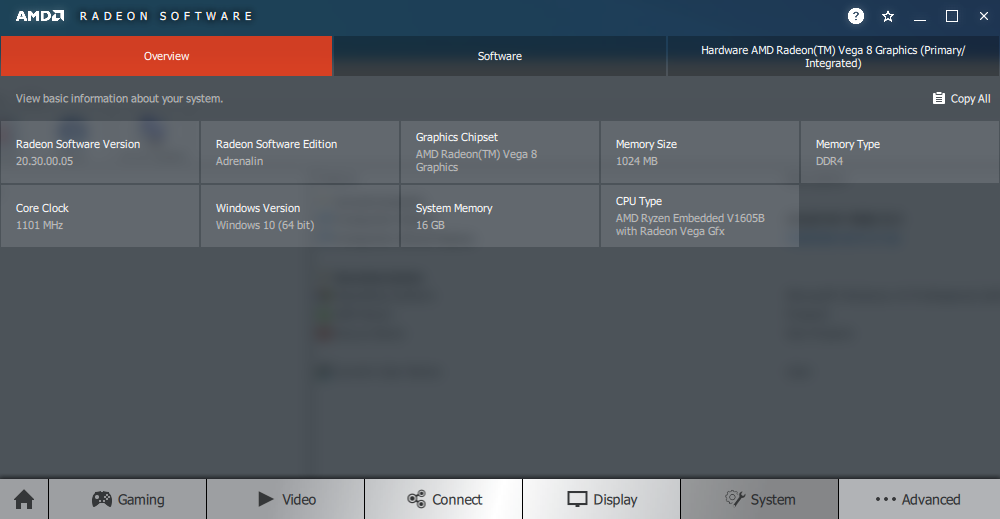

The integrated Radeon RX Vega 8 performs where we expect it to be when compared to laptops with Ryzen 2000U or 3000U series CPUs. Though it's a huge upgrade from the ancient Intel UHD 620 graphics, most current Core i7 Iris Xe solutions will outperform our fanless PC by 30 to 50 percent.

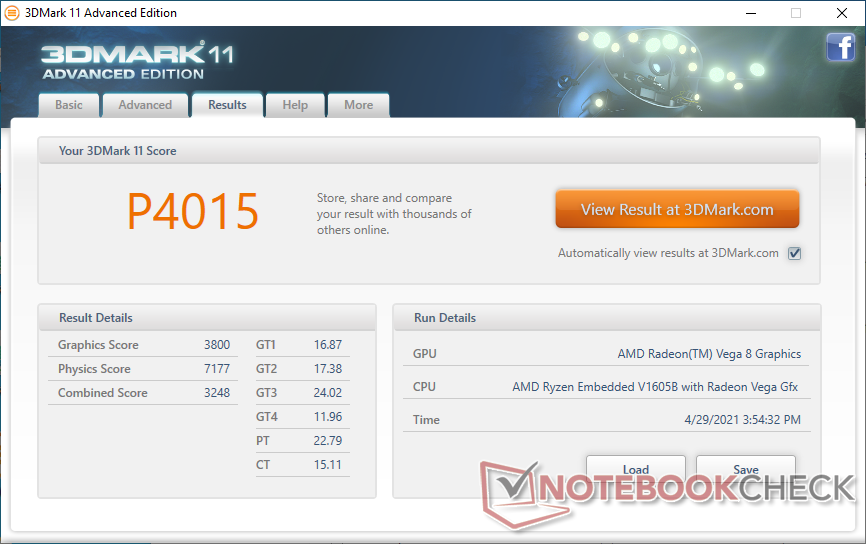

3DMark 11 Performance | 4015 points | |

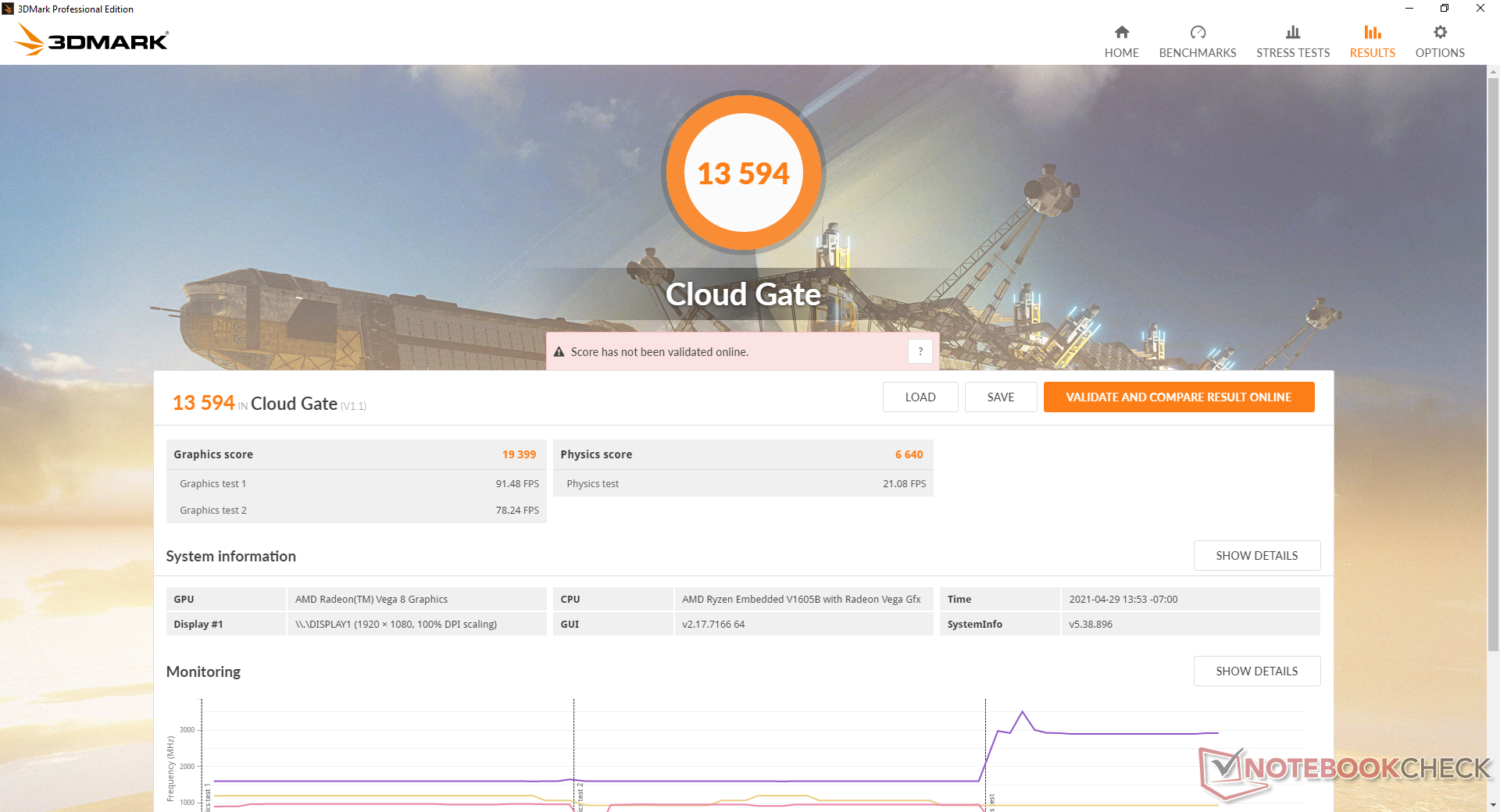

3DMark Cloud Gate Standard Score | 13594 points | |

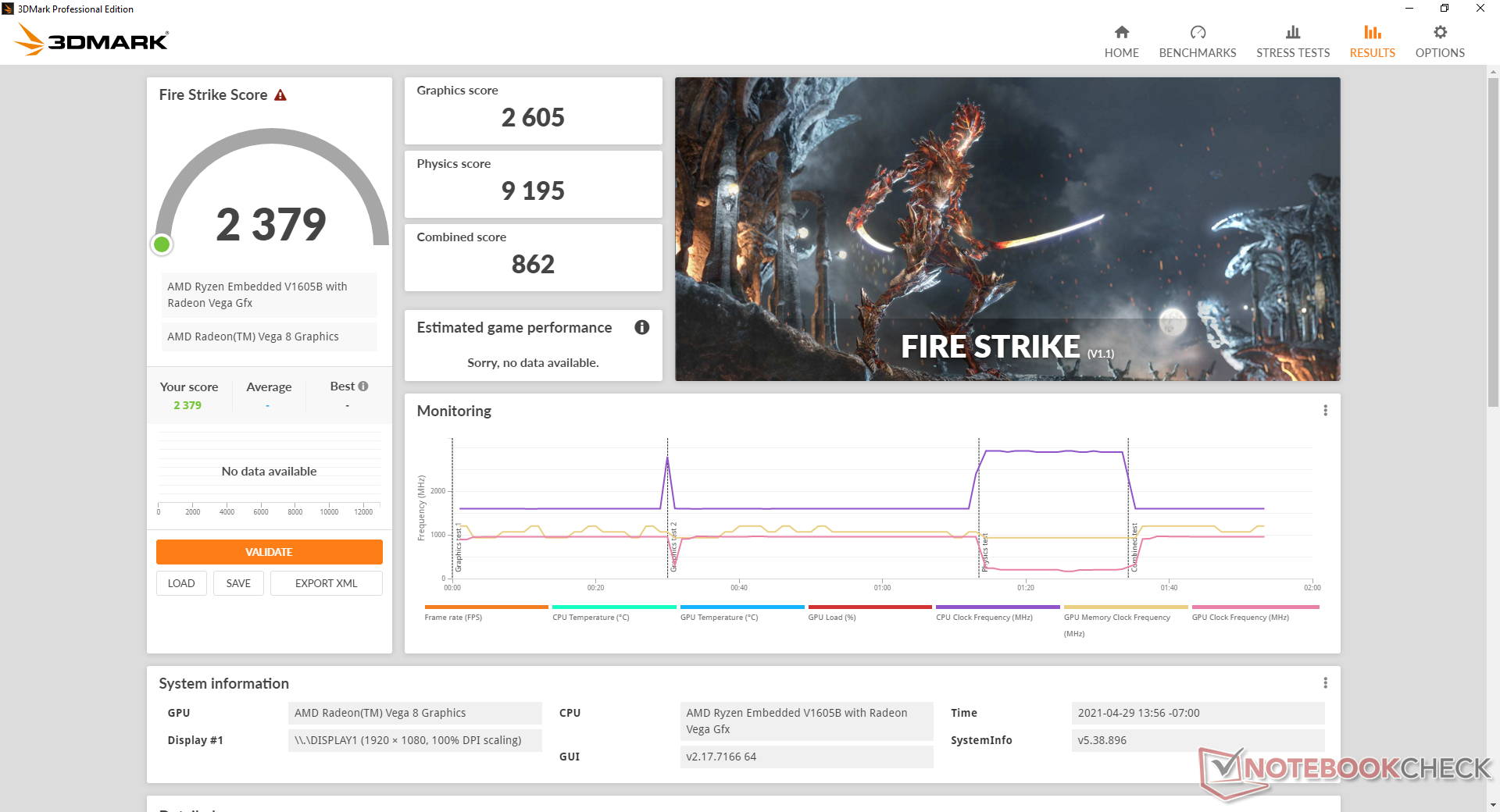

3DMark Fire Strike Score | 2379 points | |

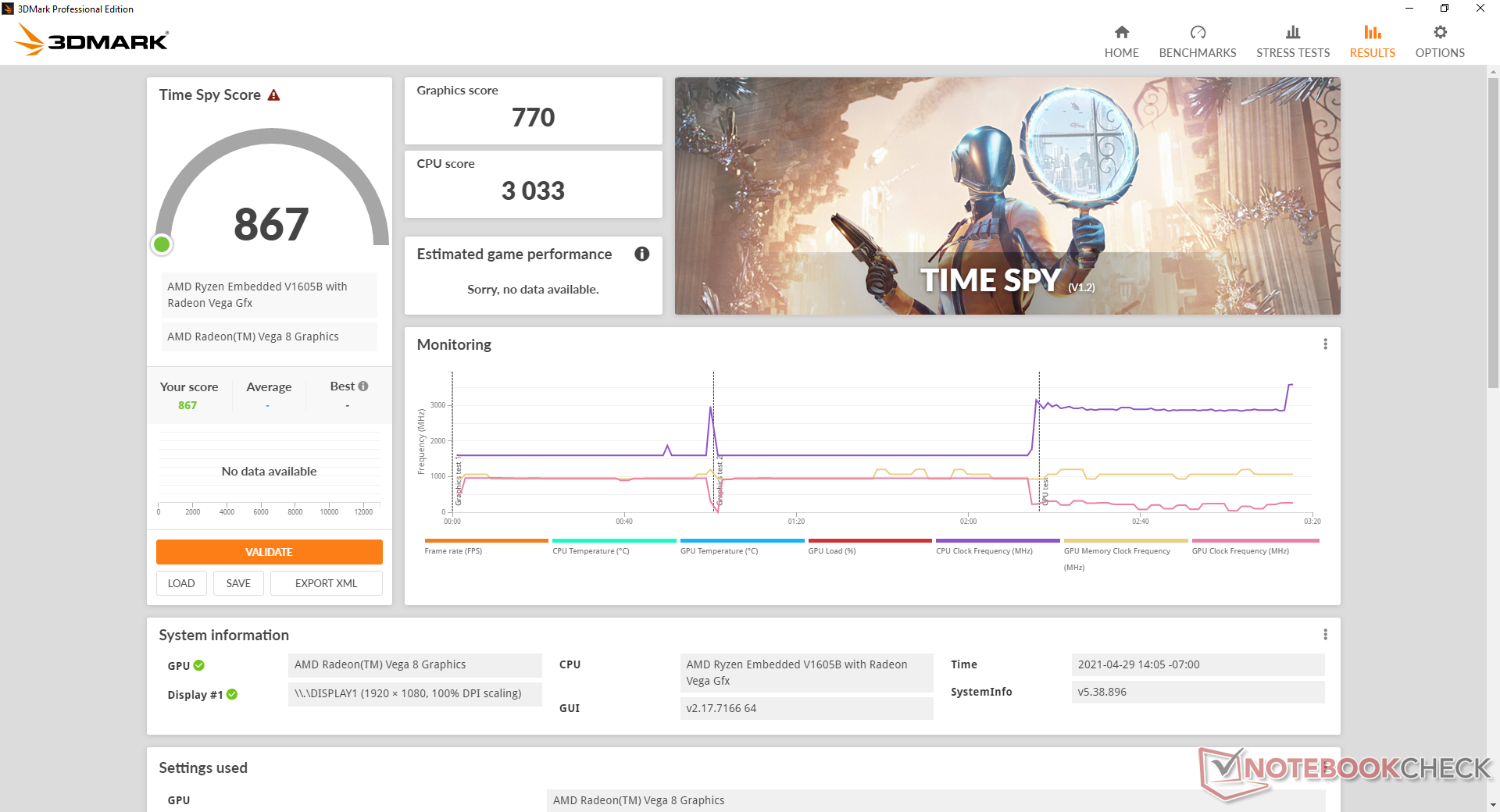

3DMark Time Spy Score | 867 points | |
Help |
low | med. | high | ultra | |
The Witcher 3 (2015) | 23 | |||
Dota 2 Reborn (2015) | 76.6 | 65.9 | 44.4 | 41.4 |
Final Fantasy XV Benchmark (2018) | 26.4 | 13.6 | 9.22 | |
X-Plane 11.11 (2018) | 21.2 | 21.2 | 15.9 |
Emissions
Temperature

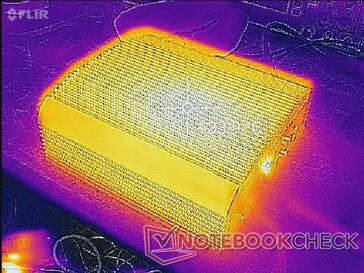

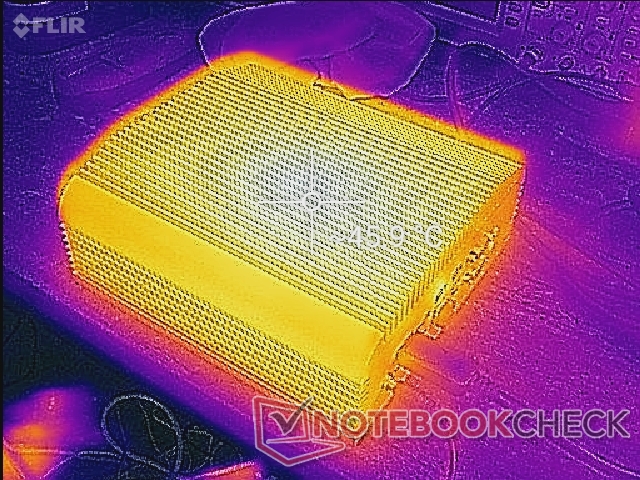

Surface temperatures top out at 46 C after running extreme loads for over an hour.
Stress Test

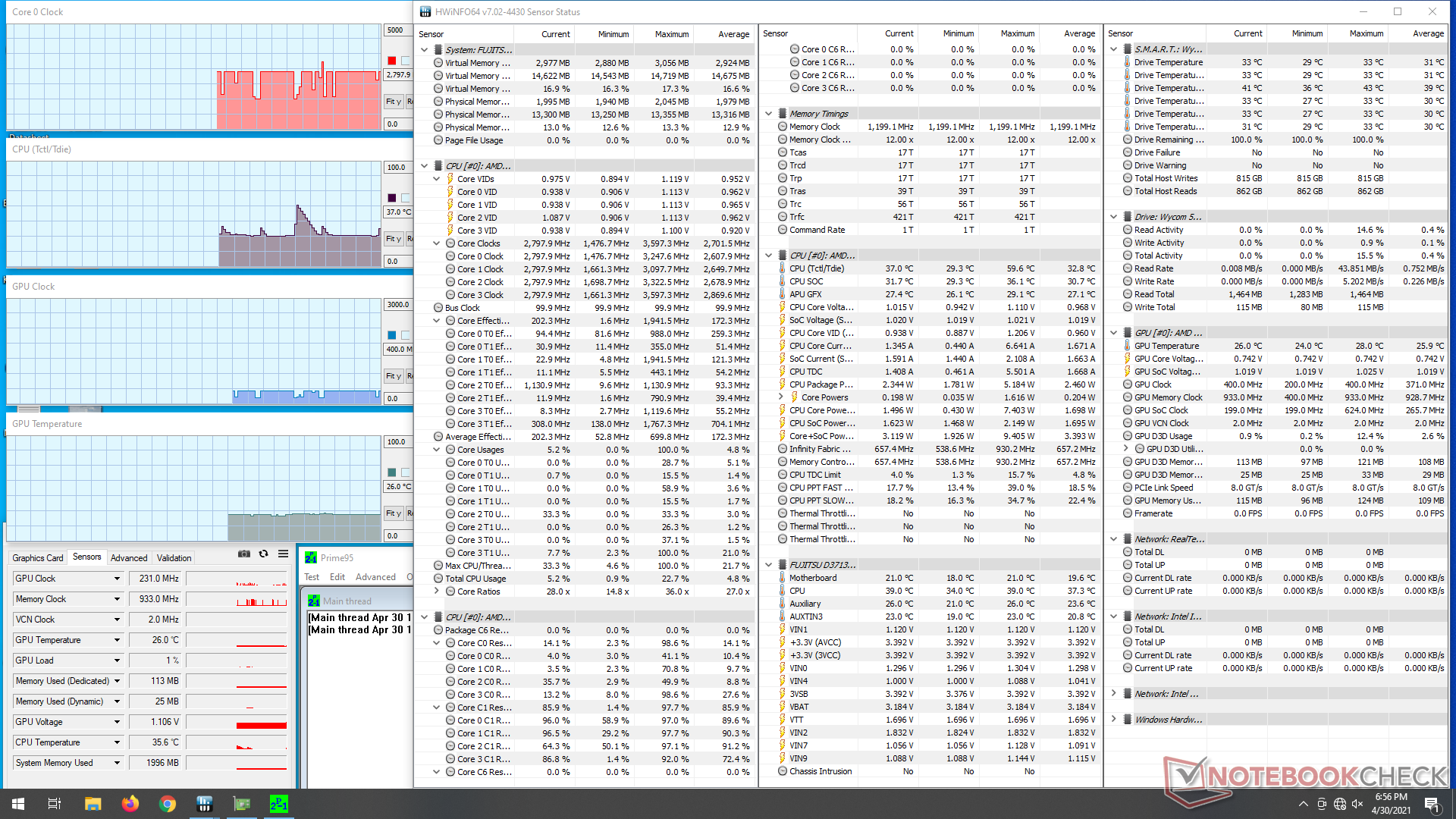

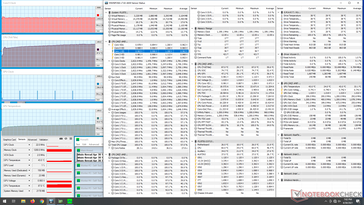

When running Prime95 to stress the CPU, clock rates would boost to 2.9 GHz for just a few seconds before dipping slightly and stabilizing at 2.8 GHz. After 20 minutes or so, however, core temperature eventually reaches 100 C which forces clock rates to drop much steeper to the 1.8 GHz to 2.4 GHz range as shown by the screenshots below.
Running Witcher 3 is more representative of real-world loads. In this scenario, core temperature remains stable at 75 C.
CPU Clock (GHz) | GPU Clock (MHz) | Average CPU Temperature (°C) | |
System Idle | -- | -- | 35 |
Prime95 Stress | 1.8 - 2.4 | -- | 100 |
Prime95 + FurMark Stress | 2.1 | 453 | 96 |
Witcher 3 Stress | 1.7 - 2.1 | 682 | 75 |
Energy Management

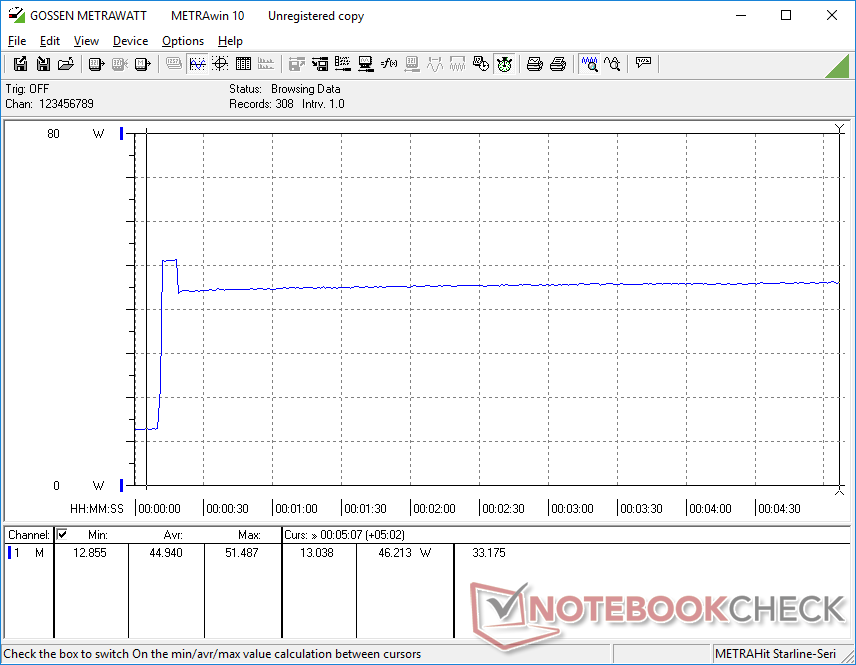

Power Consumption

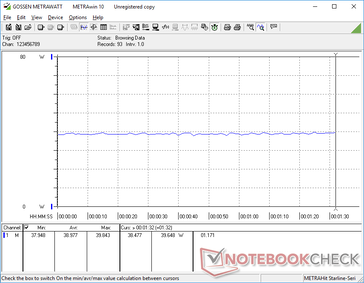

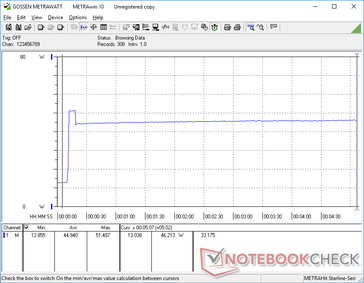

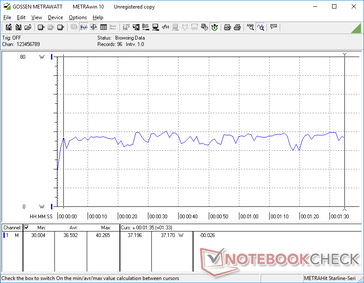

Performance-per-watt is slightly lower than mini PCs running on the latest 11th gen Intel platform. Idling on desktop, for example, consumes between 11 W and 13 W compared to just half that on the Intel NUC11PAQi7. Higher loads like games consume about 36 W to 39 W compared to 31 W to 39 W on the aforementioned NUC even though GPU performance on our AMD PC is noticeably slower.
Off / Standby | 0.14 / 1.6 Watt |
Idle | 11.5 / 12 / 12.4 Watt |
Load |
36.6 / 51.5 Watt |
Impact Display Solutions IMP-3713-V2-16-500 Ryzen V1605B, Vega 8, , , x, | Impact Display Solutions IMP-3654-B1-R Core i9-9900T i9-9900T, UHD Graphics 630, EDGE NextGen SSD 1TB, , x, | Intel NUC11PHKi7C i7-1165G7, GeForce RTX 2060 Mobile, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x, | Intel NUC11PAQi7 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD 980 Pro 500GB MZ-V8P500BW, , x, | Zotac ZBox MI643 i5-10210U, UHD Graphics 620, Lexar NM610 1TB, , x, | |
---|---|---|---|---|---|
Power Consumption | 8% | -143% | 19% | 14% | |
Idle Minimum * | 11.5 | 6.6 43% | 5.8 50% | 5.6 51% | 7.5 35% |
Idle Average * | 12 | 8.3 31% | 5.9 51% | 5.6 53% | 9.2 23% |
Idle Maximum * | 12.4 | 8.8 29% | 20.7 -67% | 6 52% | 9.6 23% |
Load Average * | 36.6 | 46.2 -26% | 130.8 -257% | 31.4 14% | 34.4 6% |
Witcher 3 ultra * | 39 | 154.4 -296% | 39 -0% | ||
Load Maximum * | 51.5 | 69.7 -35% | 225.2 -337% | 80.5 -56% | 60.6 -18% |
* ... smaller is better
Pros
Cons
Verdict
Prime95 shows that the passive cooling of the chassis is not enough to fully support CPU Turbo clock rates for extended periods. Clock rates can start as high as 2.9 GHz before inevitably falling to as low as 1.8 GHz when core temperature inevitably hits 100 C. It appears that even a massive aluminum heat sink isn't able to run the ULV CPU at maximum performance indefinitely. Lenovo offers its own Intel-based fanless mini PC that's much smaller than our AMD unit albeit with fewer expandable features.
Price and availability
Price quotes are available directly from Impact Components.
