HP Pavilion 14 Laptop review: A well-thought-out device, an attractive exterior
Similar to the recently reviewed HP Pavilion x360 14 (2021), this version without a touchscreen features a large RAM module and a pleasantly bright display. As both the battery capacity and the various security functions ranging from a Kensington Lock to a webcam shutter have been deployed rather sparingly, the dv-series HP Pavilion 14 is clearly intended for private use.
Potential users should be pleased with the good speakers and the departure from a silver or black chassis as well as with the device's performance. Still, the lack of a dedicated GPU means that only simple games are displayed smoothly. Our test unit is equipped with 16 GB of RAM and a 1-TB SSD, which is very generous for this kind of device. The model is also available with components that are half the size. Buyers can choose between the i5-1135G7 used in this device and the faster i7-1165G7.
The segment of 14-inch models offers a wide range of competitors. The Asus ExpertBook B1 B1400 and Lenovo Yoga Slim 7 14ITL05, for instance, have many similarities - including a mixed verdict. Find out what we make of this device's weaknesses in this detailed review.
Potential competitors in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
84.8 % v7 (old) | 01 / 2022 | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 19 mm | 14.00" | 1920x1080 | |
79.1 % v7 (old) | 06 / 2020 | HP 14s-dq1431ng i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU) | 1.5 kg | 18 mm | 14.00" | 1920x1080 | |
86.4 % v7 (old) | 10 / 2021 | Lenovo Yoga Slim 7 14ITL05 82A300CNGE i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 14.9 mm | 14.00" | 1920x1080 | |
83.9 % v7 (old) | 11 / 2021 | Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 19.2 mm | 14.00" | 1920x1080 | |
85.2 % v7 (old) | 04 / 2021 | Acer Swift 5 SF514-55T-58DN i5-1135G7, Iris Xe G7 80EUs | 1 kg | 14.95 mm | 14.00" | 1920x1080 | |
86.3 % v7 (old) | 05 / 2021 | Lenovo IdeaPad 5 14ALC05 82LM005YGE R5 5500U, Vega 7 | 1.4 kg | 19.1 mm | 14.00" | 1920x1080 |

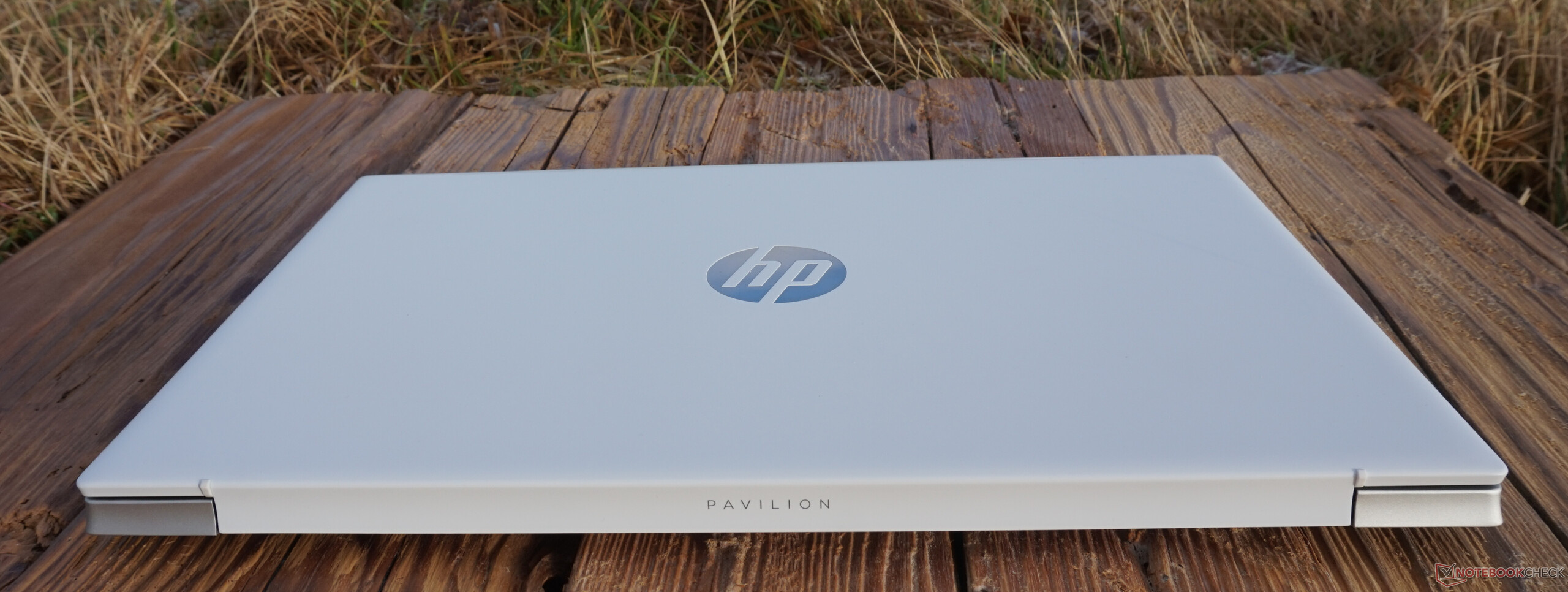

Case – HP manages an appealing but simple look
The chassis gives an overall stable impression. The back of the display and the frame around the keyboard are made of aluminum. The lid has a white finish, which, combined with the matte surface structure, differentiates it from other notebooks. The surfaces are anodized and hardly show any signs of aging. While the bottom cover is made from plastic, it looks very similar to the other parts of the case and will only be recognized as such at closer inspection.
The slightly roughened surfaces do not show finger prints. The HP logo, on the other hand, shows smeary marks very quickly. The workmanship is good. The individual components look neat and were put together seamlessly.
The device is also very resistent to warping. The notebook always stays flat, and there are no noises that would indicate friction. The hinges appear to be robust. The way they are anchored in the housing allows for precise adjustments. We did not notice any teetering of the display while typing. Because the hinges are so tight, it is difficult to open the device with one hand. We were somewhat disappointed by the stability of the keyboard, which gives way slightly unter increased pressure.
The display's opening angle is 130°. The display cover lifts the back of the notebook off the table slightly, but this is hardly noticeable thanks to the chassis' sound construction.
The weight of just below 1.5 kg is within the average range and should not be an issue on the go. The Pavilion 14 is surprisingly thick for a 14-inch device with a thickness of 17 mm. More on that in the section on maintenance.
Connectivity - Only the minimum for the HP Pavilion
At least there is a USB A port both on the left and right side of the device. This is complemented by an HDMI 2.0 port that supports 4K resolution at 30 fps, a microSD card reader that is slightly faster than average, a combined audio port and one USB-C port.
This selection allows for a monitor, a faster storage medium and smartphones or rechargers to be connected. The USB-C port does not fulfill the specifications for Thunderbolt, however, and is limited to 10 Gbit/s. The two other USB ports only support the older USB 3.0 standard.
This port selection, while small, should suffice in most situations, and the USB-C port can be used with an adapter, making it possible to connect several devices at the same time. But we would have appreciated at least one Thunderbolt port. The notebook clearly isn't strapped for space, after all. Fortunately, this also means that the ports are well spaced out.
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
HP Pavilion 14-dv0357ng | |
Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
HP 14s-dq1431ng (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 (AV Pro V60) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE (AV Pro SD microSD 128 GB V60) | |
maximum AS SSD Seq Read Test (1GB) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
HP Pavilion 14-dv0357ng | |
Average of class Office (25 - 249, n=32, last 2 years) | |
HP 14s-dq1431ng (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE (AV Pro SD microSD 128 GB V60) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 (AV Pro V60) |
Communication - Rather problematic
The Wi-Fi module Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC only reaches an average of 600 Mbit/s when sending and receiving data in our other tests. That is more than sufficient for any internet application. Even large blocks of data can be transferred fairly quickly at this rate.
However, our test module only reached about two thirds of the expected speed when receiving and just over 10 percent of the average value when sending. The router showed that the Wi-Fi 5 standard was hardly used at all. Instead, the Wi-Fi module was communicating using Wi-Fi 4 at a frequency of 2.4 GHz. Still, these weak results might even go unnoticed with some private users because it will still max out a 50-Mbit internet connection.
Based on these results, we can only conclude that there was some kind of issue with the Wi-Fi module in our test unit. After all, we would have expected results in the range of 600 Mbit/s, similar to those of other notebooks equipped with the same Wi-Fi module. Our HP Pavilion is clearly a case for warranty.
Webcam
The webcam has a resolution of 720p, which is typically low. The color deviations a clearly noticeable. Unfortunately, the same can be said for many integrated laptop webcams.
Fortunately, however, the fairly good image in low lighting and the reliable dual array microphone still make for good video calls. Voices sound natural and background noises such as music are tuned down, making the caller easy to understand.
The missing mechanical webcam shutter might be an issue for some users.
Maintenance – Yes to upgrades

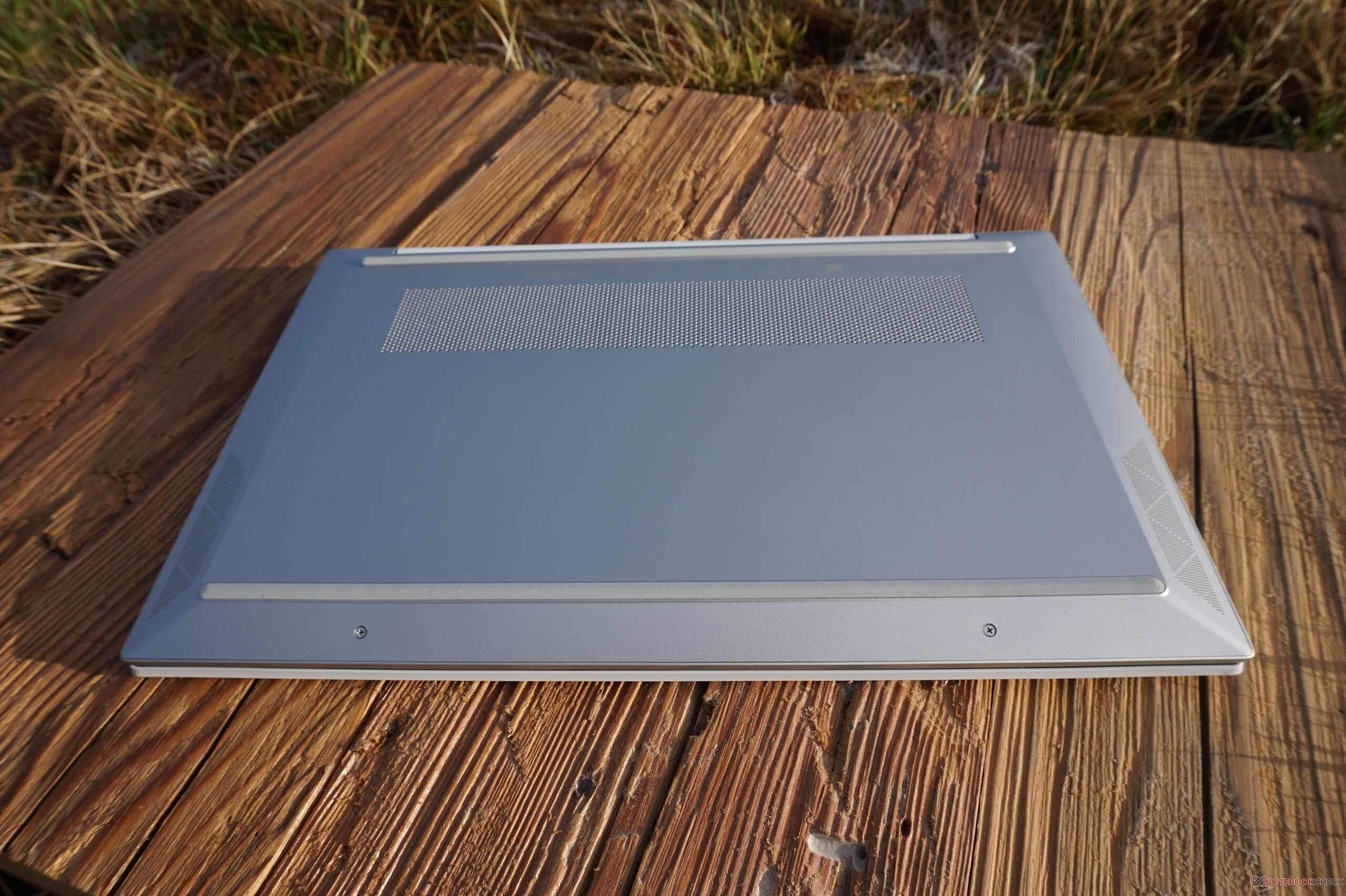

In theory, HP has made maintaining and upgrading individual components very easy in the HP Pavilion 14. Unfortunately, the bottom cover is very difficult to remove, counteracting the device's high serviceability. Four of six screws are hidden beneath glued-on rubber strips. With time, as the glue hardens, it will probably become almost impossible to remove these without damaging or ripping them. The bottom cover made of plastic is held in place by a large number of clips that can also be damaged when trying to remove the cover. We recommend using a plastic tool to pry it open. A good place to start is between the display hinges.

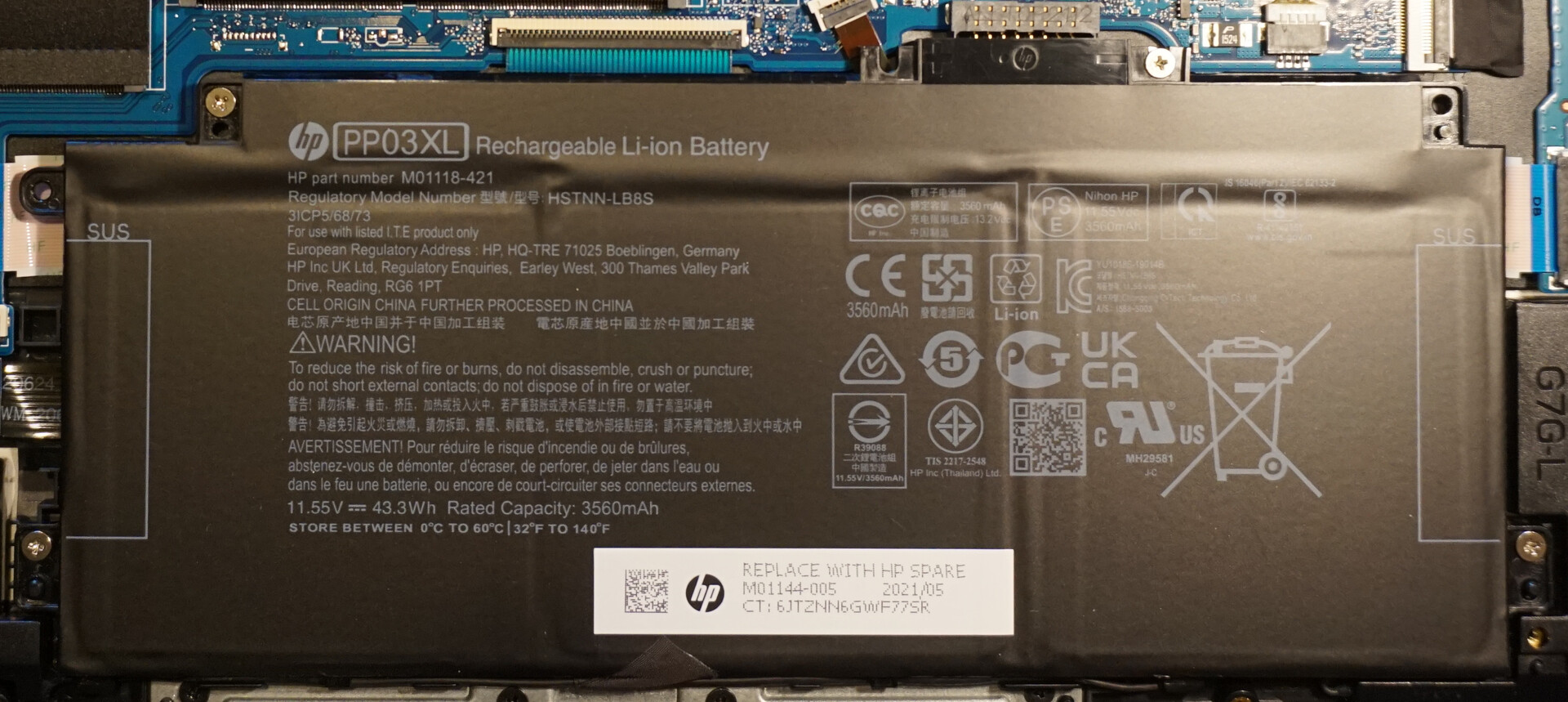

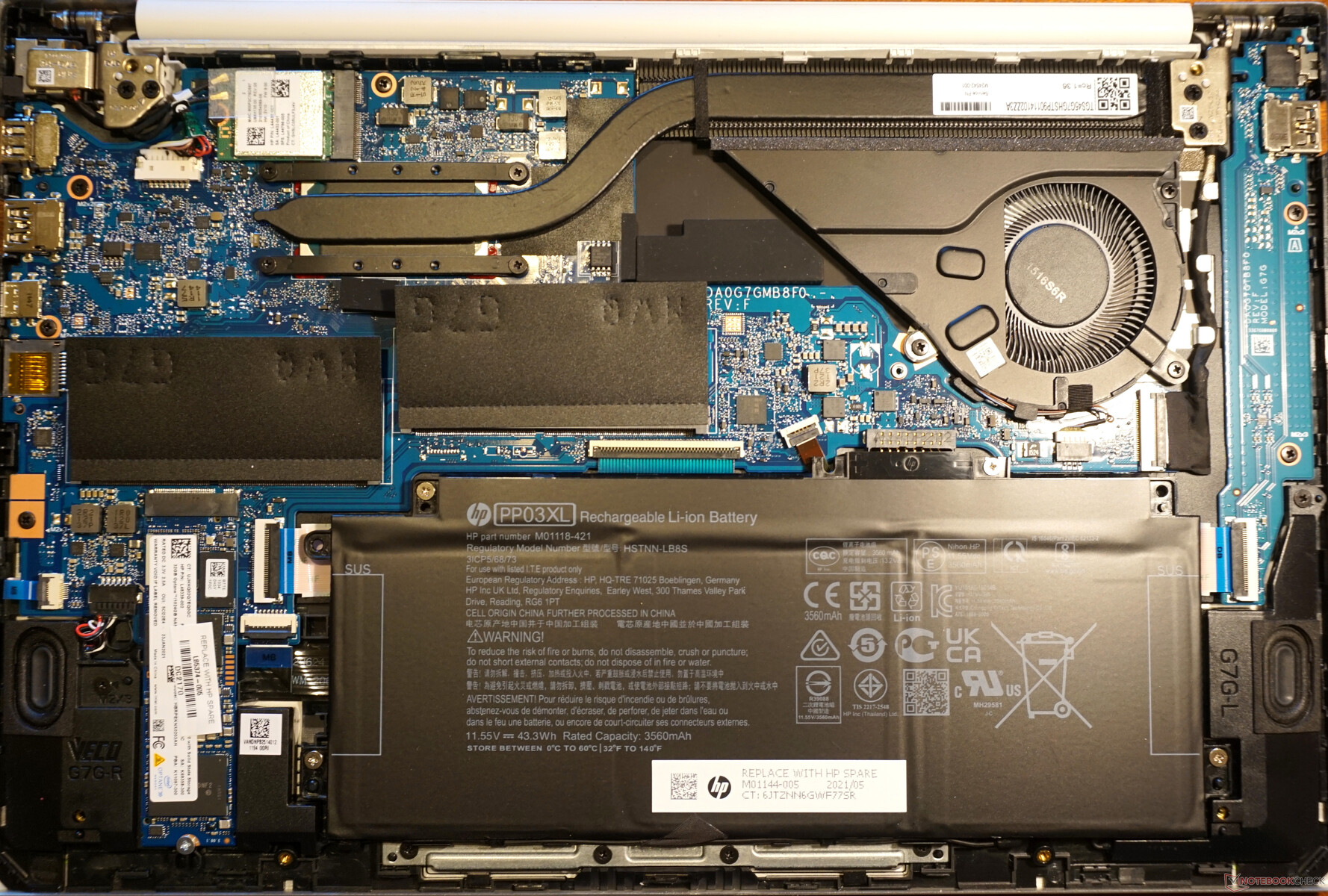

Once you have managed to remove the bottom cover, however, you have access to two RAM slots that both support up to 32 GB. The Wi-Fi module can also be replaced, as can the standard 2280 SSD. Even the battery can be exchanged easily. The fan is accessible for cleaning.
All this explains why the Pavilion is slightly thicker than its competition. The maintenance possibilities are great - as long as you manage to remove the bottom cover without damaging it.
Input devices – A comfortable and precise keyboard

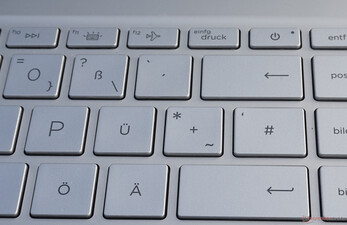

Keyboard

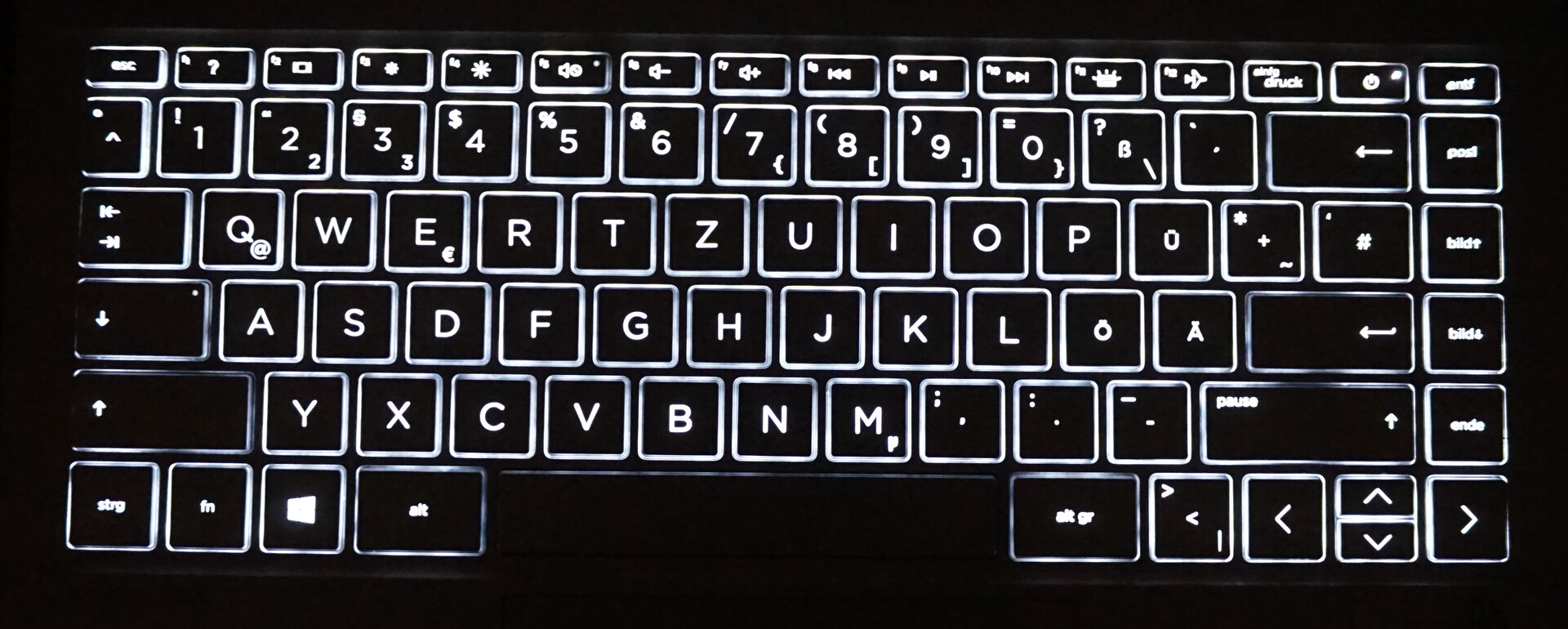

The standard-size chicklet keyboard is fast and precise. Users who type a lot should be very pleased with this keyboard. Both the counterpressure and the slightly audible click when the key is pressed leave a high-quality impression. Travel is on the short side as expected, but satisfactory nonetheless. Because the foundation is very stable even under strong pressure, the keyboard gives a good overall impression.
The contrast between the silver keys and dark gray lettering is not ideal. Fortunately, keyboard backlighting makes it easy to recognize the keys in low lighting. During the day, the white backlighting on the silver background can be hard to see, depending on the way the light falls. The backlighting can actually be counterproductive in these situations.
The typical layout without a number block and with smaller arrow keys should only be an issue for private users if they would like to use this device for gaming. Had HP decided to position the power button outside of the keyboard, they would have had space for full-size arrow keys.
Touchpad
There is hardly anything to criticize about the touchpad: It responds precisely and can be used just as accurately with one or four fingers, which is also due to the large surface. Only pressing the mouse keys feels a bit spongy. This does not apply to left-clicking via the normal touch-sensitive surface.
Display – The notebook panel lacks contrast

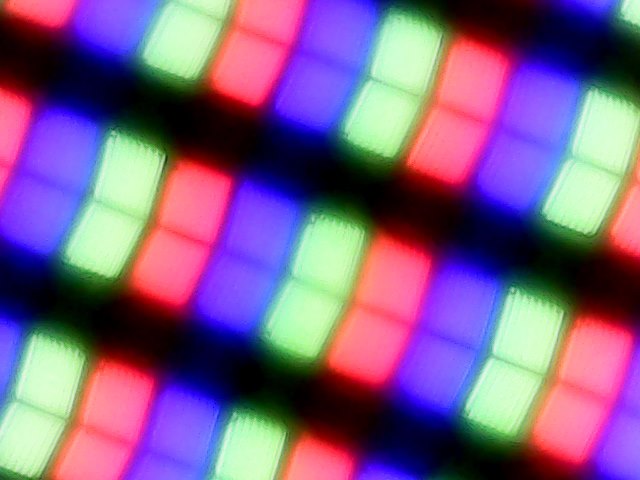

The 14-inch IPS panel is good. It features the stable viewing angles we have come to expect from an IPS display and is easy to read even outdoors thanks to its good brightness. Despite brightness levels being slightly limited when running on battery, the 330 nits still ensure that text can be read easily.
The contrast ratio and black value, however, did not fulfill our high expectations. These values were twice as good on the previous HP Pavilion 14, for example. There are many panels with comparable characteristics, in the MSI Summit B15 A11M, for example. Photos lack brilliance due to the low contrast, but other than that we don't expect users to notice this flaw during everyday use.
We were pleased to find that the screen showed hardly any screen bleeding. There was one lighter area along the left edge that might be visible in very dark scenes, but it is not that noticeable. The response time of 17/37 ms is above average. We did not encounter any PWM flickering.
|
Brightness Distribution: 84 %
Center on Battery: 330 cd/m²
Contrast: 704:1 (Black: 0.55 cd/m²)
ΔE Color 4.04 | 0.5-29.43 Ø4.92, calibrated: 1
ΔE Greyscale 5 | 0.5-98 Ø5.2
63% AdobeRGB 1998 (Argyll 2.2.0 3D)
92% sRGB (Argyll 2.2.0 3D)
62% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.62
HP Pavilion 14-dv0357ng LGD0619, IPS, 1920x1080, 14" | HP 14s-dq1431ng AUO403D, IPS, 1920x1080, 14" | Lenovo Yoga Slim 7 14ITL05 82A300CNGE AU Optronics B140HAN06.8, IPS, 1920x1080, 14" | Asus ExpertBook B1 B1400CEAE, i5-1135G7 Chi Mei CMN14D4, IPS, 1920x1080, 14" | Acer Swift 5 SF514-55T-58DN AU Optronics AUO7490, IPS, 1920x1080, 14" | Lenovo IdeaPad 5 14ALC05 82LM005YGE AU Optronics B140HAN04.E, IPS, 1920x1080, 14" | |
---|---|---|---|---|---|---|
Display | -37% | 7% | -31% | 8% | -39% | |
Display P3 Coverage | 62 | 38.42 -38% | 66.3 7% | 42.8 -31% | 67 8% | 37.47 -40% |
sRGB Coverage | 92 | 57.7 -37% | 97.4 6% | 63.9 -31% | 98.3 7% | 56 -39% |
AdobeRGB 1998 Coverage | 63 | 39.71 -37% | 68.1 8% | 44.3 -30% | 68.3 8% | 38.71 -39% |
Response Times | -29% | -68% | -16% | 19% | -38% | |
Response Time Grey 50% / Grey 80% * | 37 ? | 41 ? -11% | 52 ? -41% | 35.2 ? 5% | 30 ? 19% | 41 ? -11% |
Response Time Black / White * | 17 ? | 25 ? -47% | 33 ? -94% | 23.2 ? -36% | 14 ? 18% | 28 ? -65% |
PWM Frequency | 143 ? | 25000 ? | 29800 | |||
Screen | -36% | 36% | -45% | 45% | 7% | |
Brightness middle | 387 | 305 -21% | 344 -11% | 256 -34% | 404 4% | 357 -8% |
Brightness | 359 | 264 -26% | 340 -5% | 239 -33% | 377 5% | 315 -12% |
Brightness Distribution | 84 | 81 -4% | 88 5% | 83 -1% | 79 -6% | 82 -2% |
Black Level * | 0.55 | 0.16 71% | 0.13 76% | 0.23 58% | 0.25 55% | 0.455 17% |
Contrast | 704 | 1906 171% | 2646 276% | 1113 58% | 1616 130% | 785 12% |
Colorchecker dE 2000 * | 4.04 | 5.44 -35% | 3.29 19% | 6.2 -53% | 1.47 64% | 3.98 1% |
Colorchecker dE 2000 max. * | 8.28 | 20.42 -147% | 7.48 10% | 18.2 -120% | 2.6 69% | 6.92 16% |
Colorchecker dE 2000 calibrated * | 1 | 4.72 -372% | 1.79 -79% | 3.8 -280% | 0.84 16% | |
Greyscale dE 2000 * | 5 | 3.23 35% | 3.25 35% | 5 -0% | 1.7 66% | 3.33 33% |
Gamma | 2.62 84% | 2.45 90% | 2.29 96% | 1.97 112% | 2.35 94% | 2.47 89% |
CCT | 7123 91% | 7035 92% | 6358 102% | 7364 88% | 6662 98% | 6138 106% |
Color Space (Percent of AdobeRGB 1998) | 37 | 63 | 36 | |||
Color Space (Percent of sRGB) | 58 | 98 | 56 | |||
Total Average (Program / Settings) | -34% /
-36% | -8% /
15% | -31% /
-38% | 24% /
33% | -23% /
-11% |
* ... smaller is better

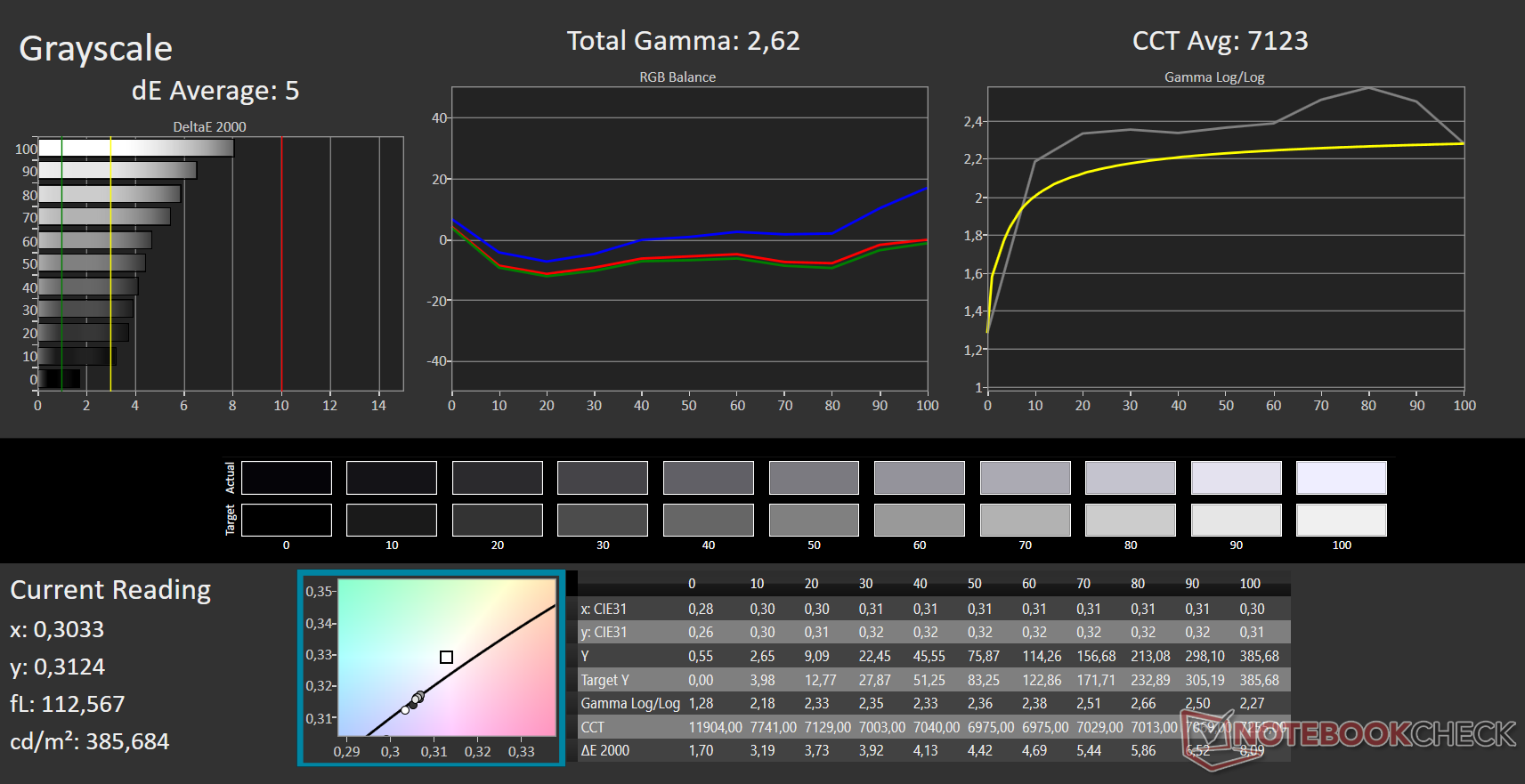

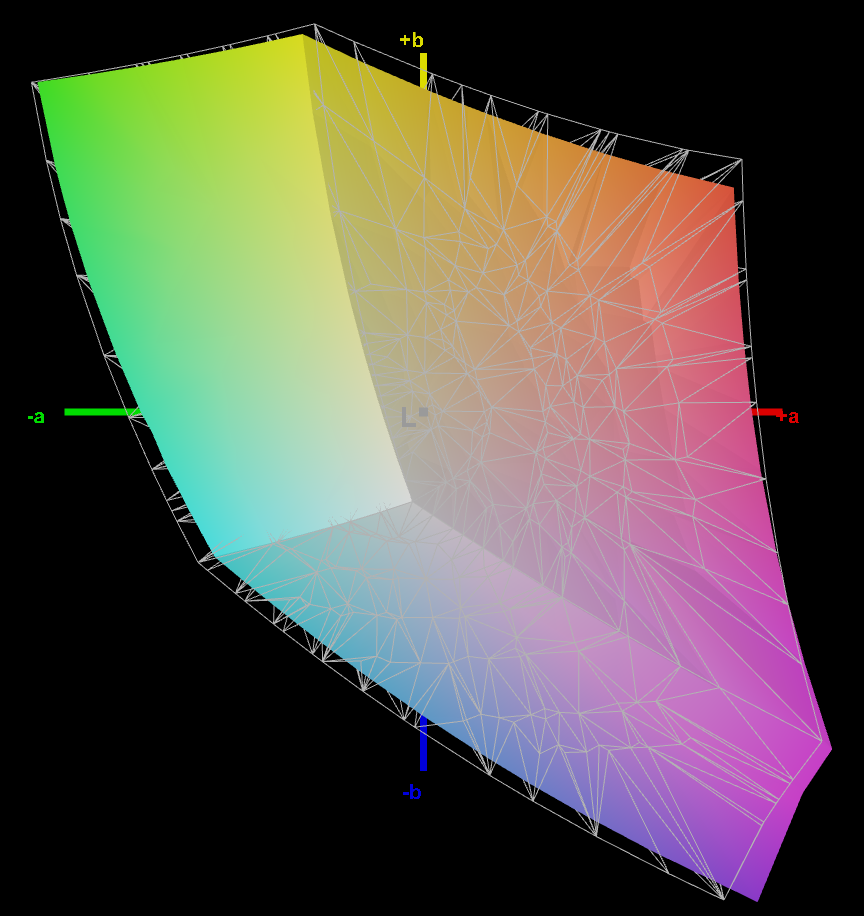

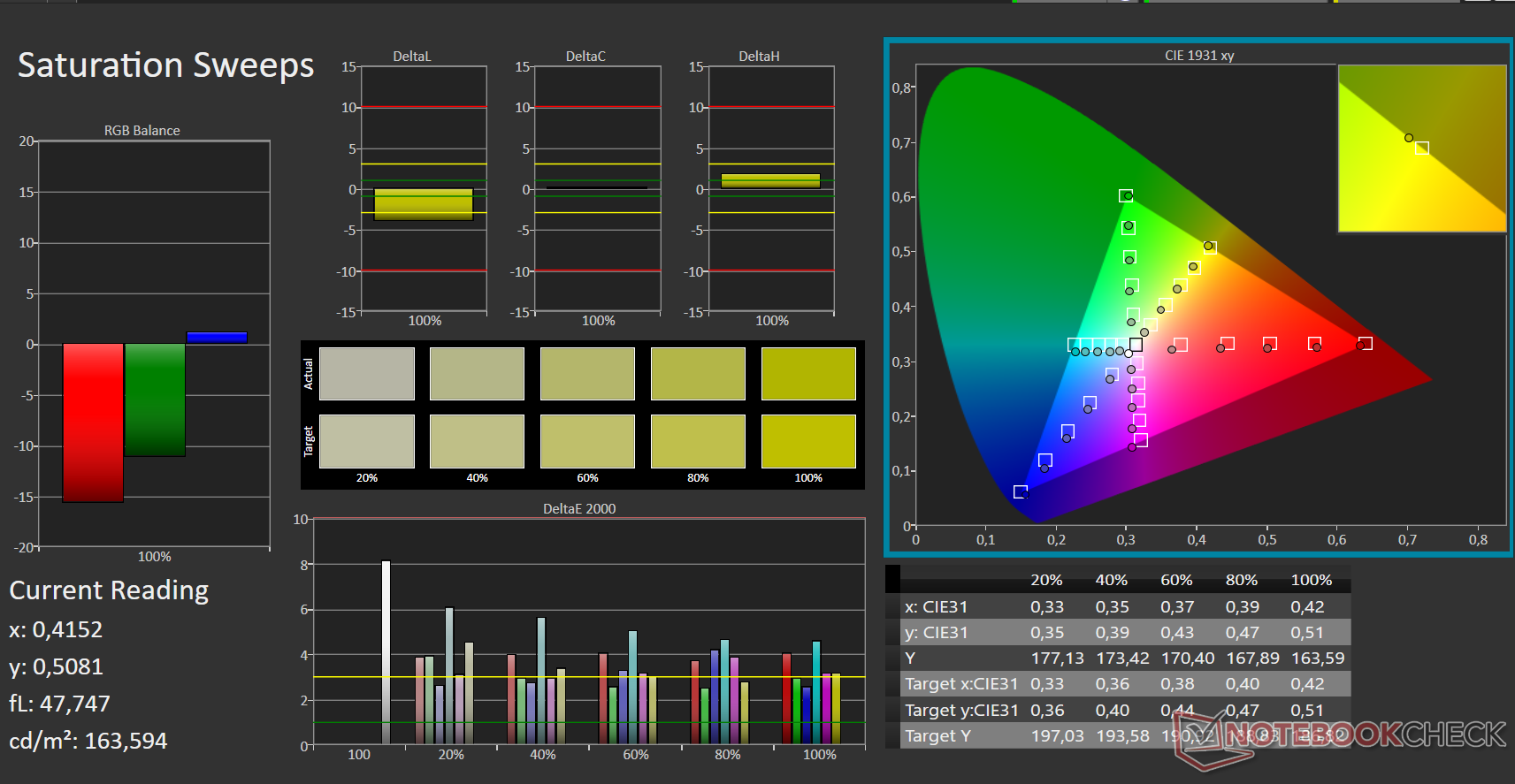

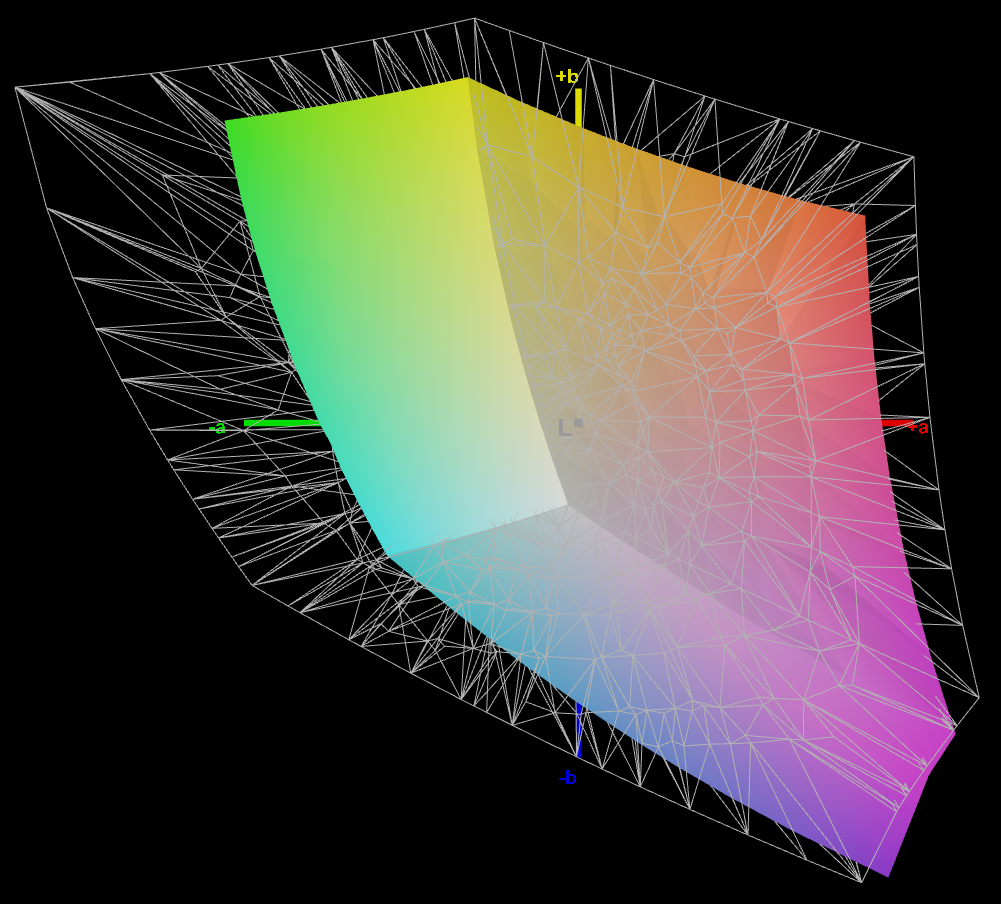

While the display does not cover the entire sRGB color space, it still reaches an above-average coverage of 92 percent. The panel covers 63 percent of the Adobe color space, which is typical for displays that cover the entire sRGB color space.

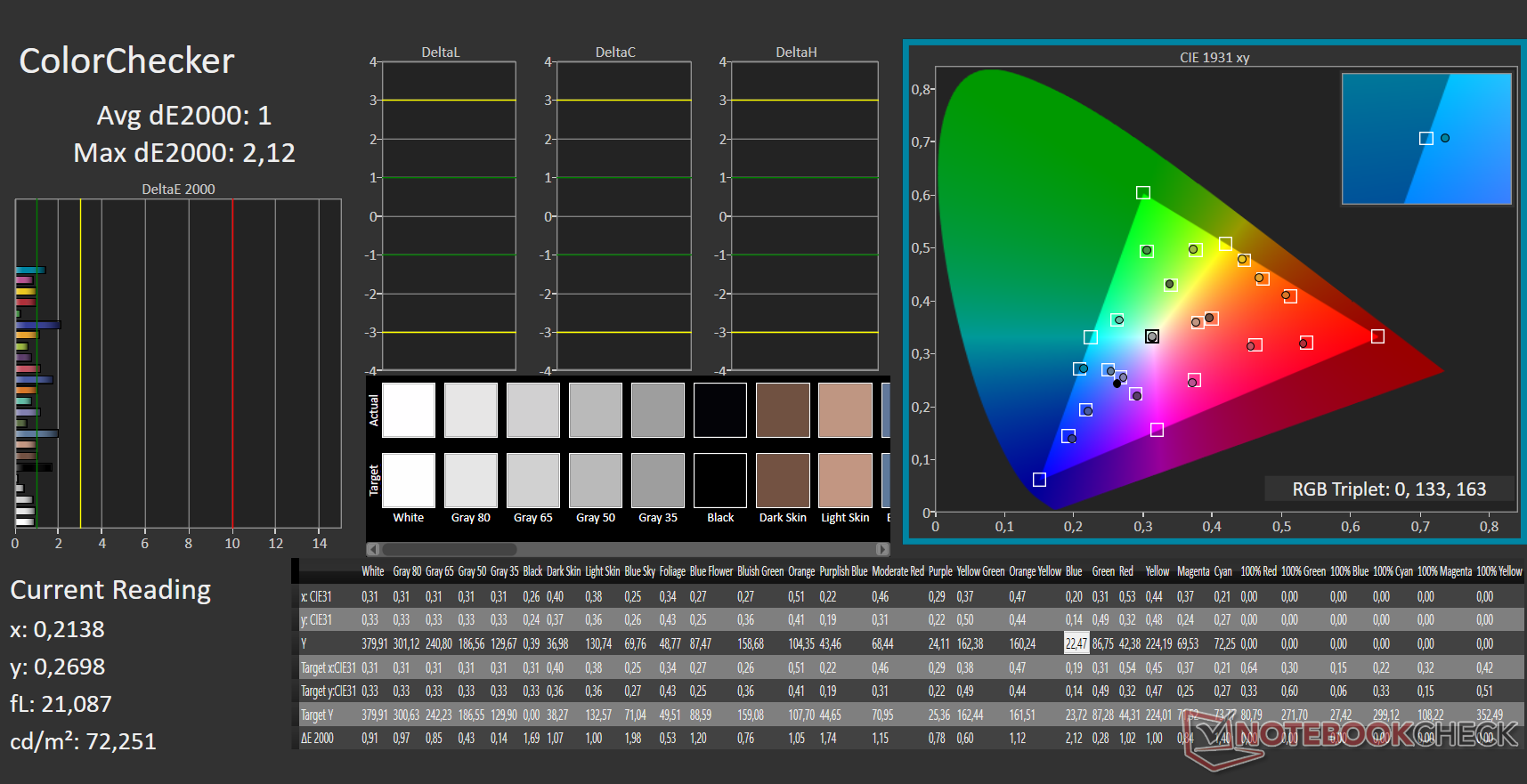

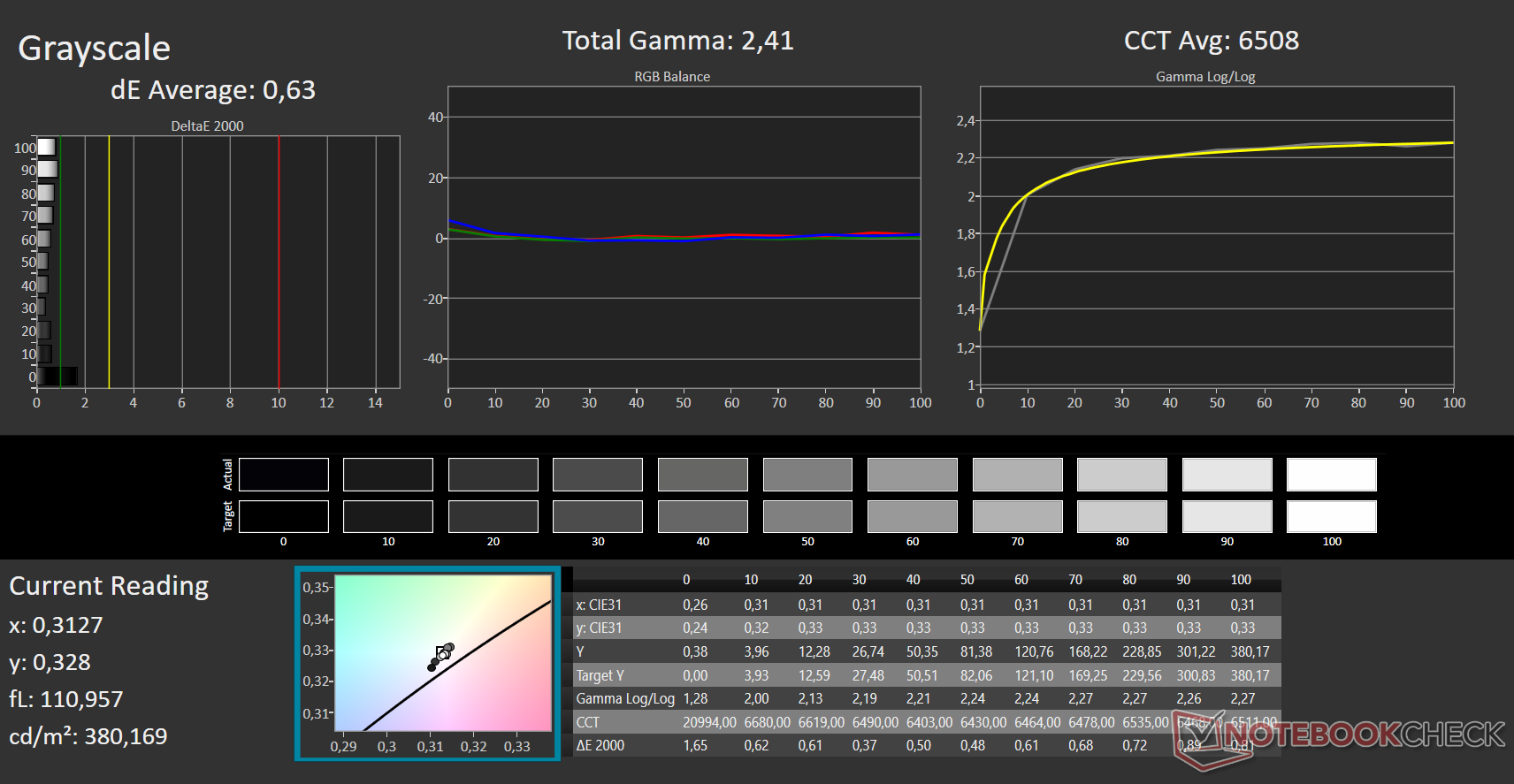

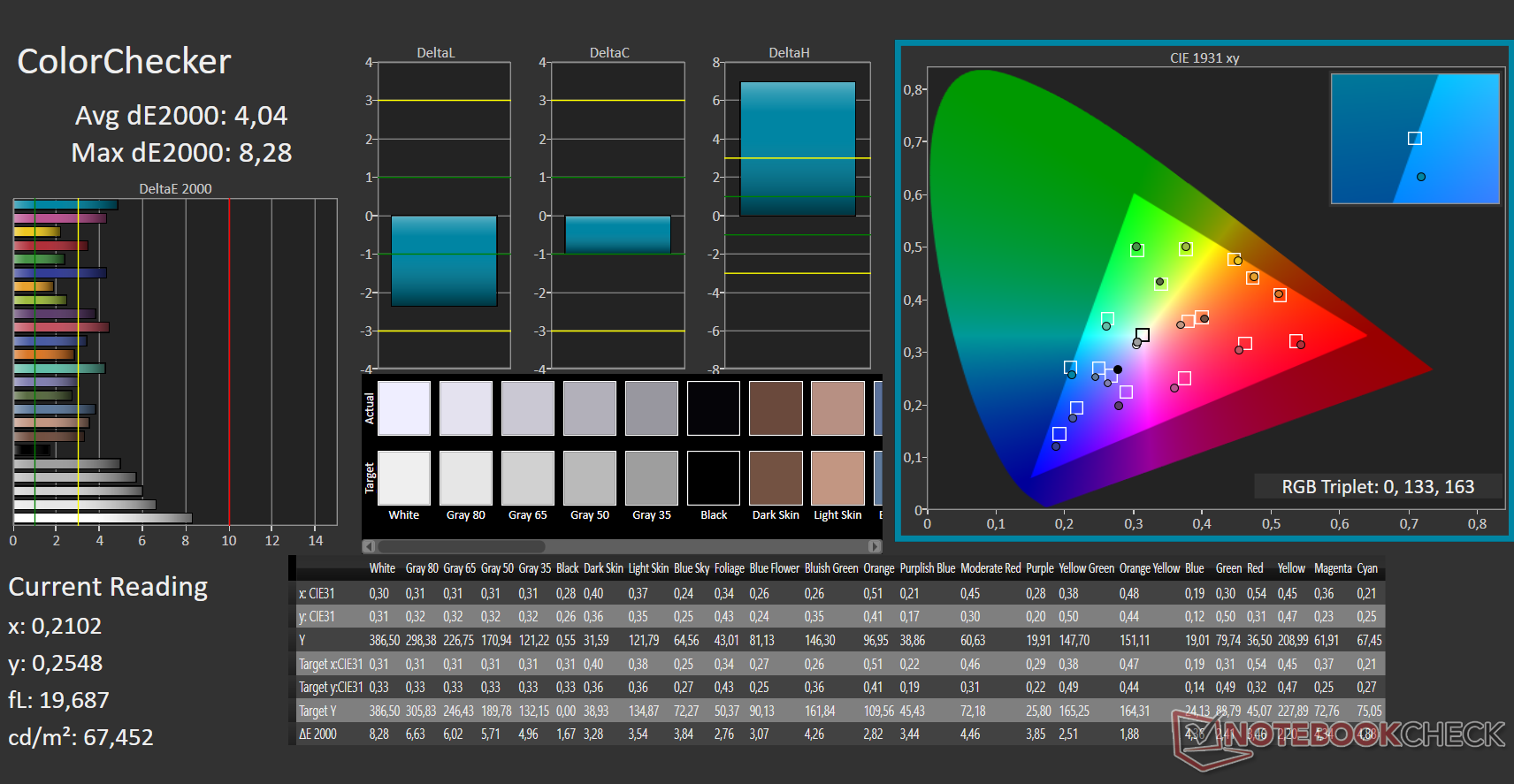

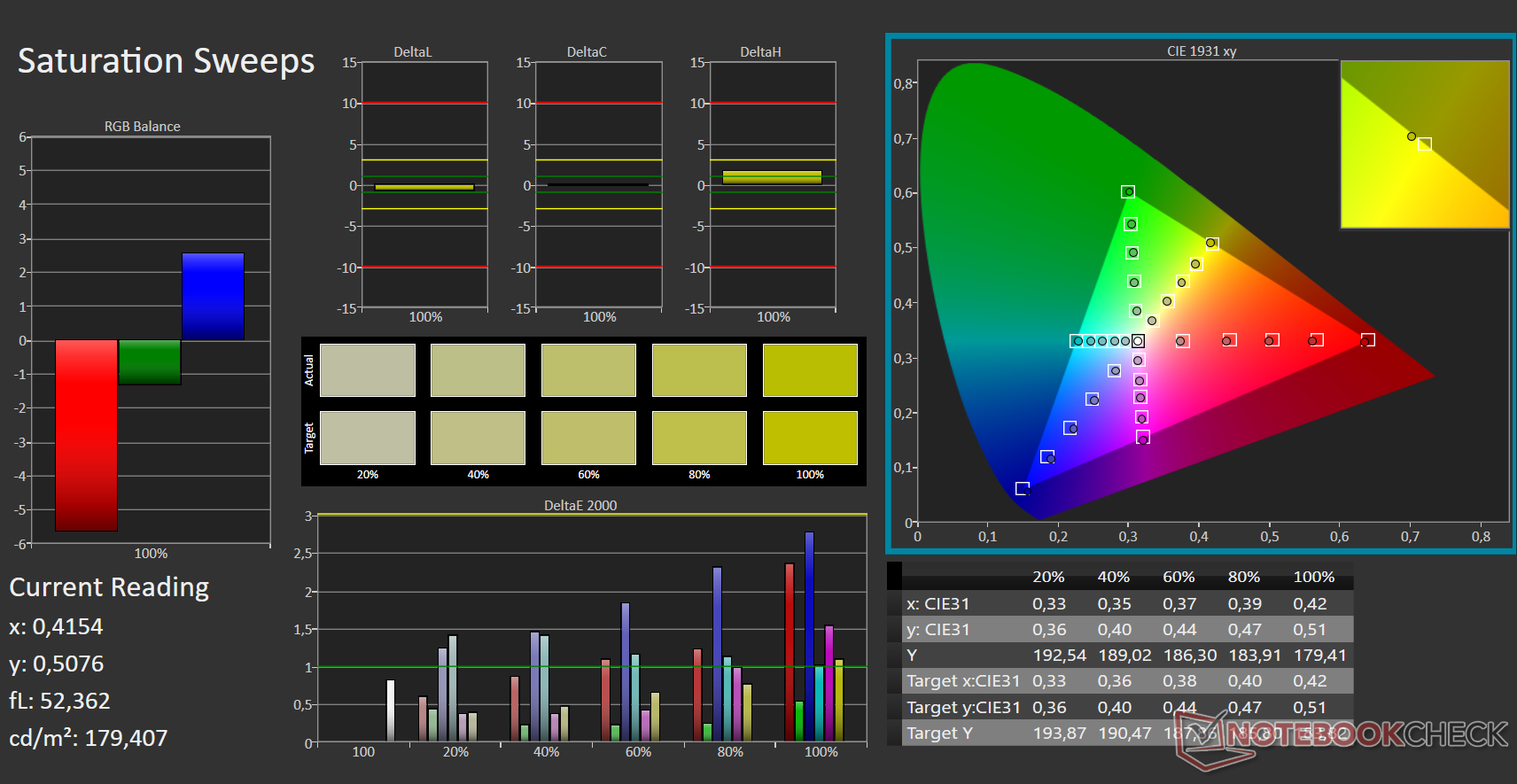

Color accuracy is fine without having to calibrate the display, although the average color space deviation of 5 will be noticeable to the trained eye. The panel does not have a blue cast. Colors are displayed more or less perfectly after calibrating the display with a photospectrometer, which leads to a DeltaE value of 1, far lower than the typical limit of 3.
You can download our ICC profile above, from the box that shows our measurement results.

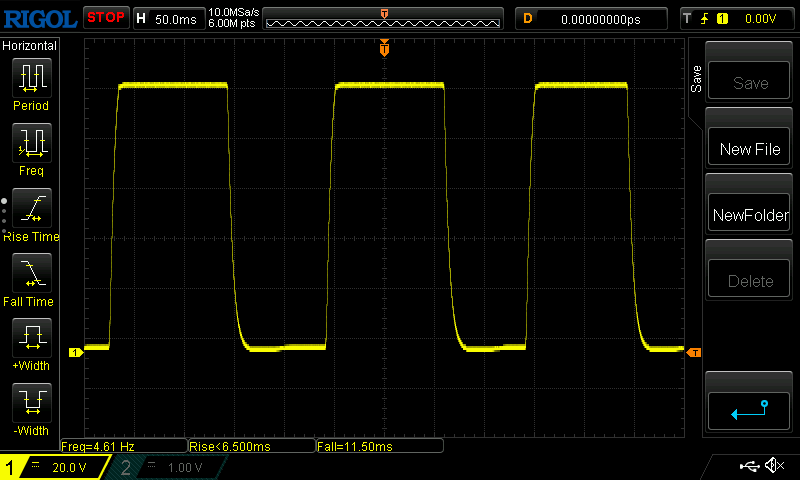

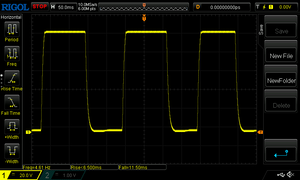

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
17 ms ... rise ↗ and fall ↘ combined | ↗ 7 ms rise | |
↘ 10 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

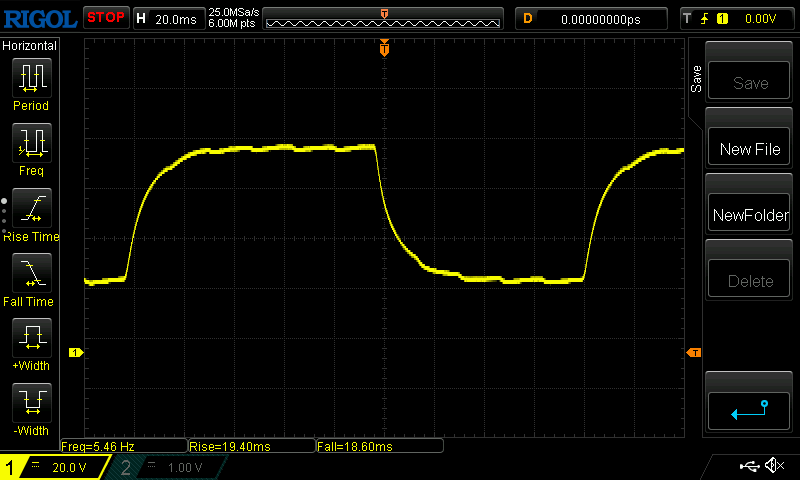

↔ Response Time 50% Grey to 80% Grey | ||
37 ms ... rise ↗ and fall ↘ combined | ↗ 19 ms rise | |
↘ 18 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |

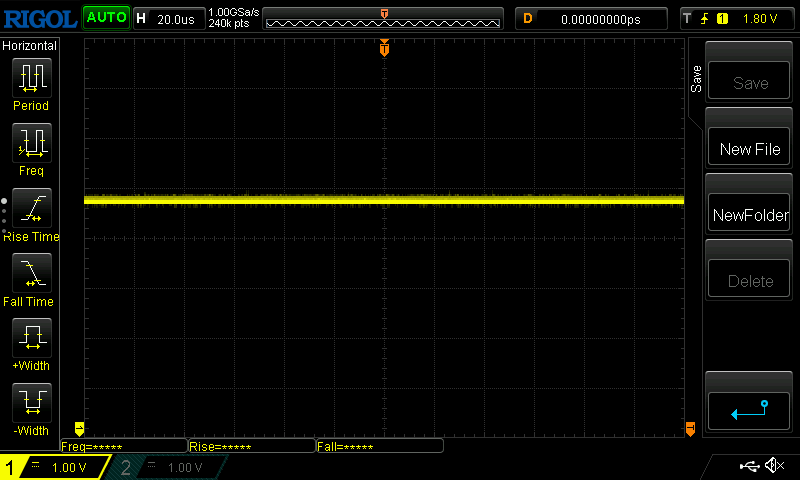

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8747 (minimum: 5 - maximum: 343500) Hz was measured. |
The notebook can be used outdoors or on the go thanks to its brightness of 330 nits. Content remains easy to read even under direct sunlight (based on our trial during winter). Colors naturally lose some of their radiance. Nevertheless, a higher contrast would be desirable if the laptop is occasionally used outdoors.

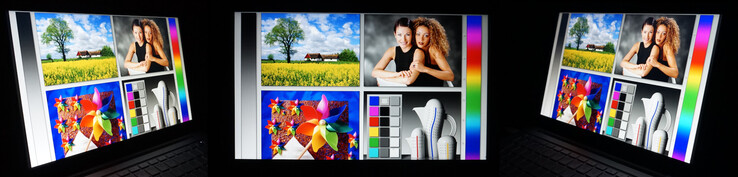

Even from the most acute angle, the colors and contrasts of the screen content remain stable. Only the brightness is minimally reduced. This is what you would expect from an IPS panel.
Performance – A quiet fan

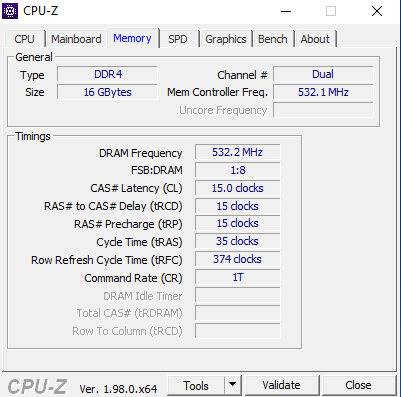

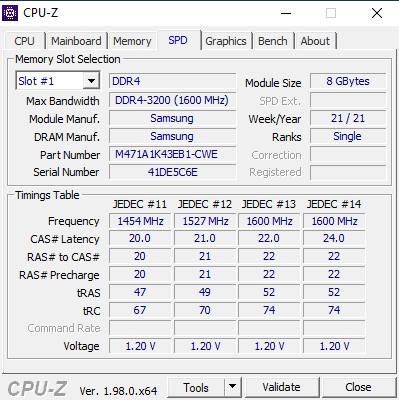

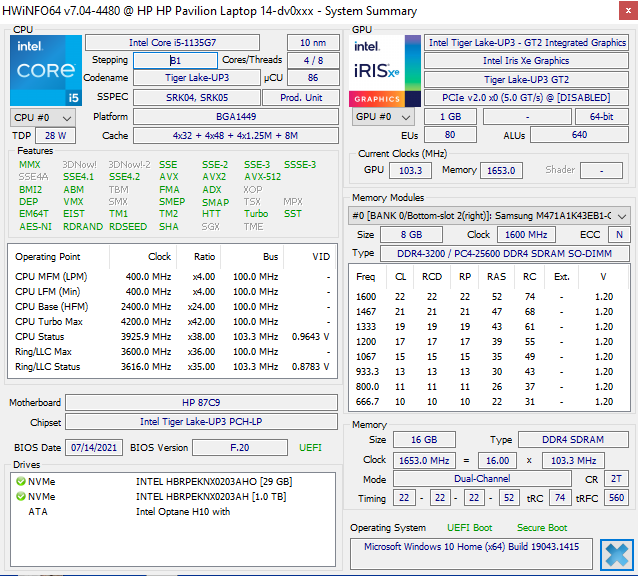

The combination of an Intel Core i5-1135G7 and 16 GB of RAM that can even be further expanded is more than sufficient for all multimedia applications. That said, the HP Pavilion 14-dv0357ng soon reaches its limits when it comes to 3D applications, which is due to the missing dedicated GPU.
Processor
The i5-1135G7 clearly focuses on low power consumption and heat development. Still, the performance improvement compared to the predecessor i5-1035G7 is not to be underestimated thanks to the efficiency of 10-nm architecture.
The CPU can be used for more than simple office tasks. It is particularly well suited to multitasking such as simultaneous streaming, surfing and file management. The alternative CPU, Intel Core i7-1165G7, is a good choice for anyone who needs to perform more demanding tasks.

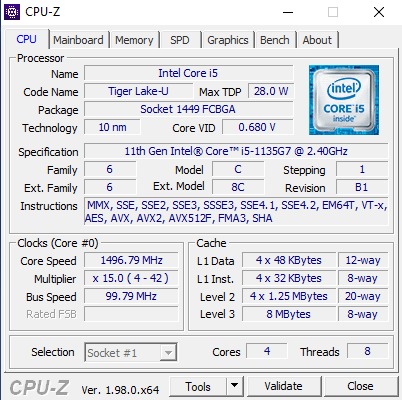

The i5 has four cores that clock at a rate of 4.2 GHz. The total of eight chips are ideal for running several programs in parallel.
Cinebench R15 Multi Loop

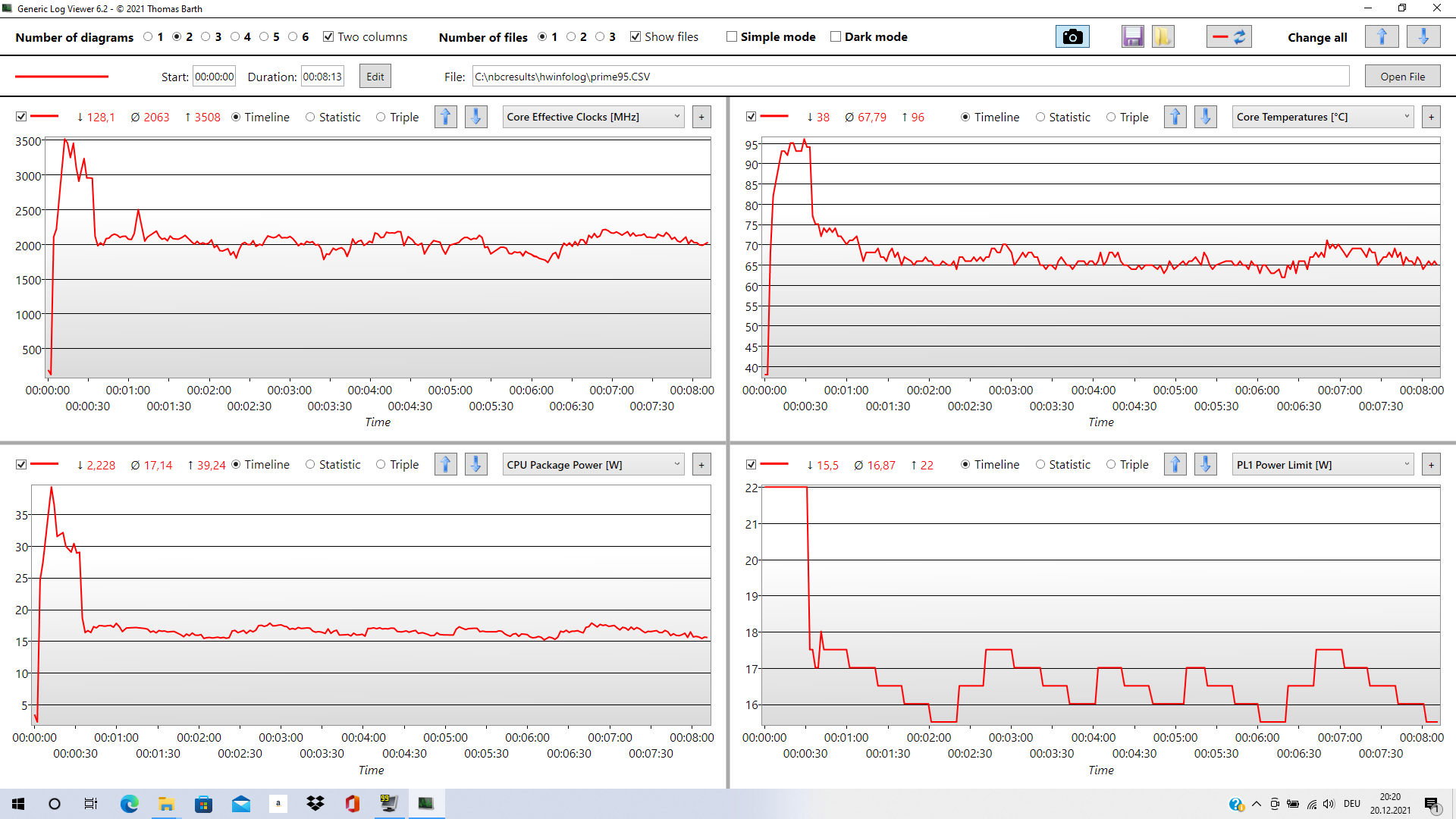

It is worth taking a closer look at how HP has designed the power limit for this device. The design requires a heat dissipation of 15 W. The processor can consume up to 51 W for a short time (2.4 ms). After that, the CPU remains at 22 W for 28 seconds and is then limited to 15 to 12 W if the heavy load continues.
Other manufacturers, such as Asus, allow the i5 at least 25 W while others again give it the usual maximum of 28 W for a certain period of time. This is why the Pavilion's Cinebench loop results are below average. Some similar laptops reach up to 20 percent more performance, which is also reflected in their power consumption.
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Average of class Office | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Acer Swift 5 SF514-55T-58DN -2! | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
HP Pavilion 14-dv0357ng -6! | |
HP 14s-dq1431ng -2! |
Cinebench R23 / Multi Core | |
Average of class Office (1577 - 15743, n=101, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 (2786 - 6136, n=55) | |
HP Pavilion 14-dv0357ng | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 |
Cinebench R23 / Single Core | |
Average of class Office (618 - 1995, n=101, last 2 years) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 (1062 - 1373, n=53) | |
HP Pavilion 14-dv0357ng | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 |
Cinebench R20 / CPU (Multi Core) | |
Average of class Office (590 - 5980, n=101, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Acer Swift 5 SF514-55T-58DN | |
Average Intel Core i5-1135G7 (979 - 2382, n=62) | |
HP Pavilion 14-dv0357ng | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng |
Cinebench R20 / CPU (Single Core) | |
Average of class Office (229 - 764, n=101, last 2 years) | |
Acer Swift 5 SF514-55T-58DN | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 (375 - 527, n=62) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng | |
HP Pavilion 14-dv0357ng |
Cinebench R15 / CPU Multi 64Bit | |
Average of class Office (242 - 2642, n=102, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Acer Swift 5 SF514-55T-58DN | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Average Intel Core i5-1135G7 (431 - 941, n=65) | |
HP Pavilion 14-dv0357ng | |
HP 14s-dq1431ng |
Cinebench R15 / CPU Single 64Bit | |
Average of class Office (98 - 284, n=101, last 2 years) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Acer Swift 5 SF514-55T-58DN | |
Average Intel Core i5-1135G7 (141.4 - 205, n=61) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
HP 14s-dq1431ng |
Blender / v2.79 BMW27 CPU | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng | |
HP Pavilion 14-dv0357ng | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 (499 - 1044, n=60) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Acer Swift 5 SF514-55T-58DN | |
Average of class Office (208 - 2248, n=103, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE |
7-Zip 18.03 / 7z b 4 | |
Average of class Office (7212 - 65460, n=103, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Acer Swift 5 SF514-55T-58DN | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 (14745 - 24873, n=62) | |
HP Pavilion 14-dv0357ng | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Average of class Office (2769 - 6687, n=103, last 2 years) | |
HP Pavilion 14-dv0357ng | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Acer Swift 5 SF514-55T-58DN | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Average Intel Core i5-1135G7 (3924 - 4921, n=62) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng |
Geekbench 5.5 / Multi-Core | |
Average of class Office (1018 - 11980, n=102, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Acer Swift 5 SF514-55T-58DN | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7 (3475 - 5472, n=58) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng |
Geekbench 5.5 / Single-Core | |
Average of class Office (510 - 1989, n=103, last 2 years) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Acer Swift 5 SF514-55T-58DN | |
Average Intel Core i5-1135G7 (1147 - 1428, n=58) | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Average of class Office (1.55 - 18.7, n=101, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Acer Swift 5 SF514-55T-58DN | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Average Intel Core i5-1135G7 (3.57 - 7.6, n=57) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng |
LibreOffice / 20 Documents To PDF | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Average of class Office (31.3 - 129.6, n=101, last 2 years) | |
Average Intel Core i5-1135G7 (44.2 - 62.9, n=60) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Acer Swift 5 SF514-55T-58DN | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 |
R Benchmark 2.5 / Overall mean | |
HP 14s-dq1431ng | |
HP 14s-dq1431ng | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Average Intel Core i5-1135G7 (0.619 - 0.727, n=59) | |
Acer Swift 5 SF514-55T-58DN | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Average of class Office (0.4244 - 1.192, n=100, last 2 years) |
* ... smaller is better
System performance
The fairly realistic PCMark 10 illustrates the CPU's advantages. It provides plenty of computing power for starting programs (the 2.4 ms mentioned earlier). The notebook is not made for complex tasks with long-term loads but rather for tasks at irregular intervals that only require the processor's performance for a moment or so.
Therefore it is no surprise that the Lenovo Yoga Slim 7 14ITL05, which achieved a significantly better result in the CineBench, actually performs minimally worse in the PCMark 10. This indicates that the processor can keep up with its competition in the area of its intended use (at home, for private purposes) despite getting low results in terms of raw performance. Meanwhile, it requires less cooling and the fan remains silent for a lot of the time.
This is noticeable when using the HP Pavilion 14 in everyday use. There is hardly any delay when starting programs. The device can easily support several browser tabs streaming video at the same time. The fan is silent most of the time, despite several tasks using processing power.
PCMark 10 / Score | |
Average of class Office (2463 - 7344, n=93, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Acer Swift 5 SF514-55T-58DN | |
HP Pavilion 14-dv0357ng | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
HP 14s-dq1431ng |
PCMark 10 / Essentials | |
Average of class Office (5575 - 20841, n=93, last 2 years) | |
HP Pavilion 14-dv0357ng | |
Acer Swift 5 SF514-55T-58DN | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
HP 14s-dq1431ng |
PCMark 10 / Productivity | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Average of class Office (3041 - 10415, n=93, last 2 years) | |
HP Pavilion 14-dv0357ng | |
Acer Swift 5 SF514-55T-58DN | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
HP 14s-dq1431ng |
PCMark 10 / Digital Content Creation | |
Average of class Office (1912 - 9773, n=93, last 2 years) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Acer Swift 5 SF514-55T-58DN | |
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
HP Pavilion 14-dv0357ng | |
HP 14s-dq1431ng |
DPC latencies

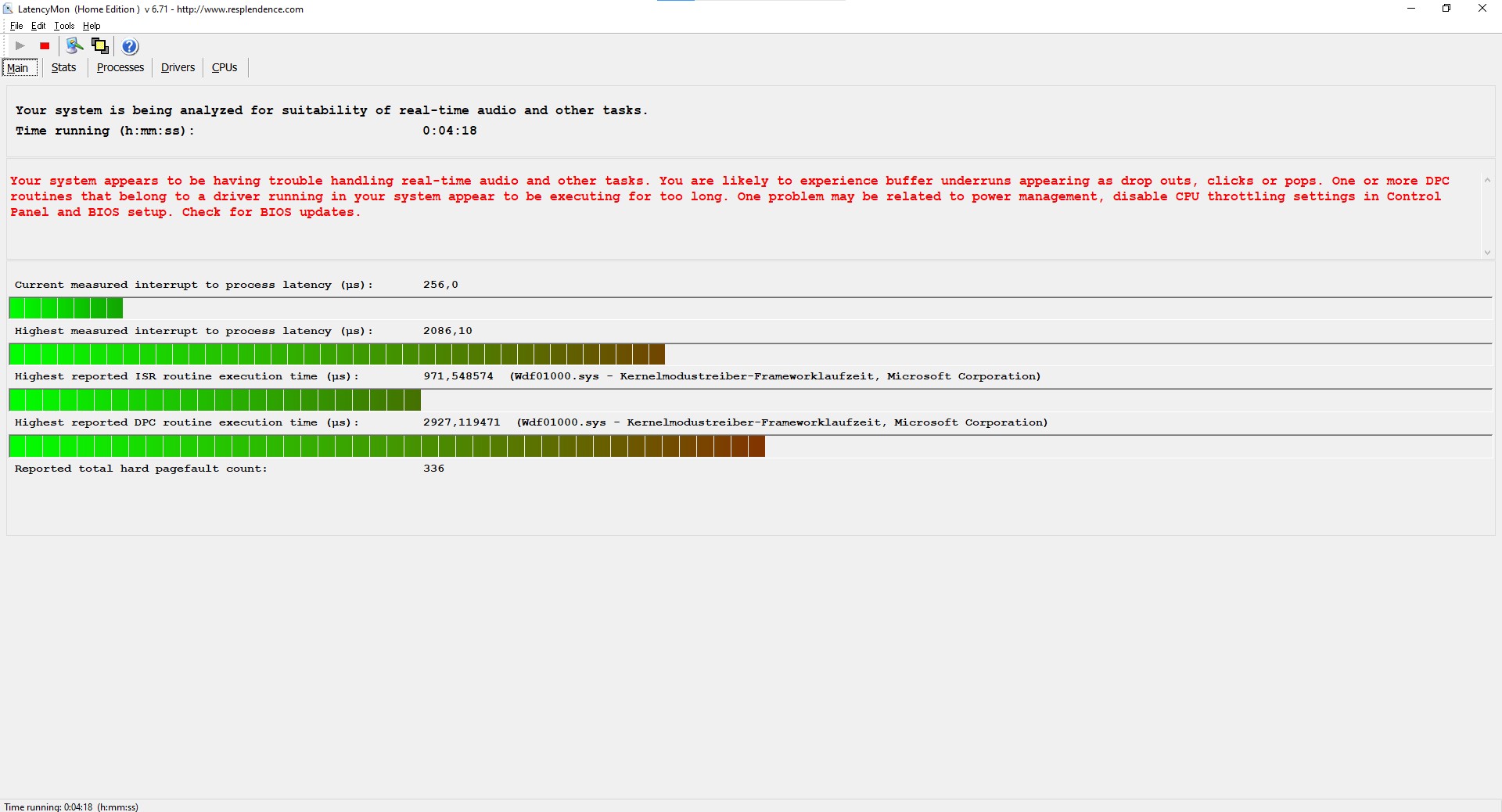

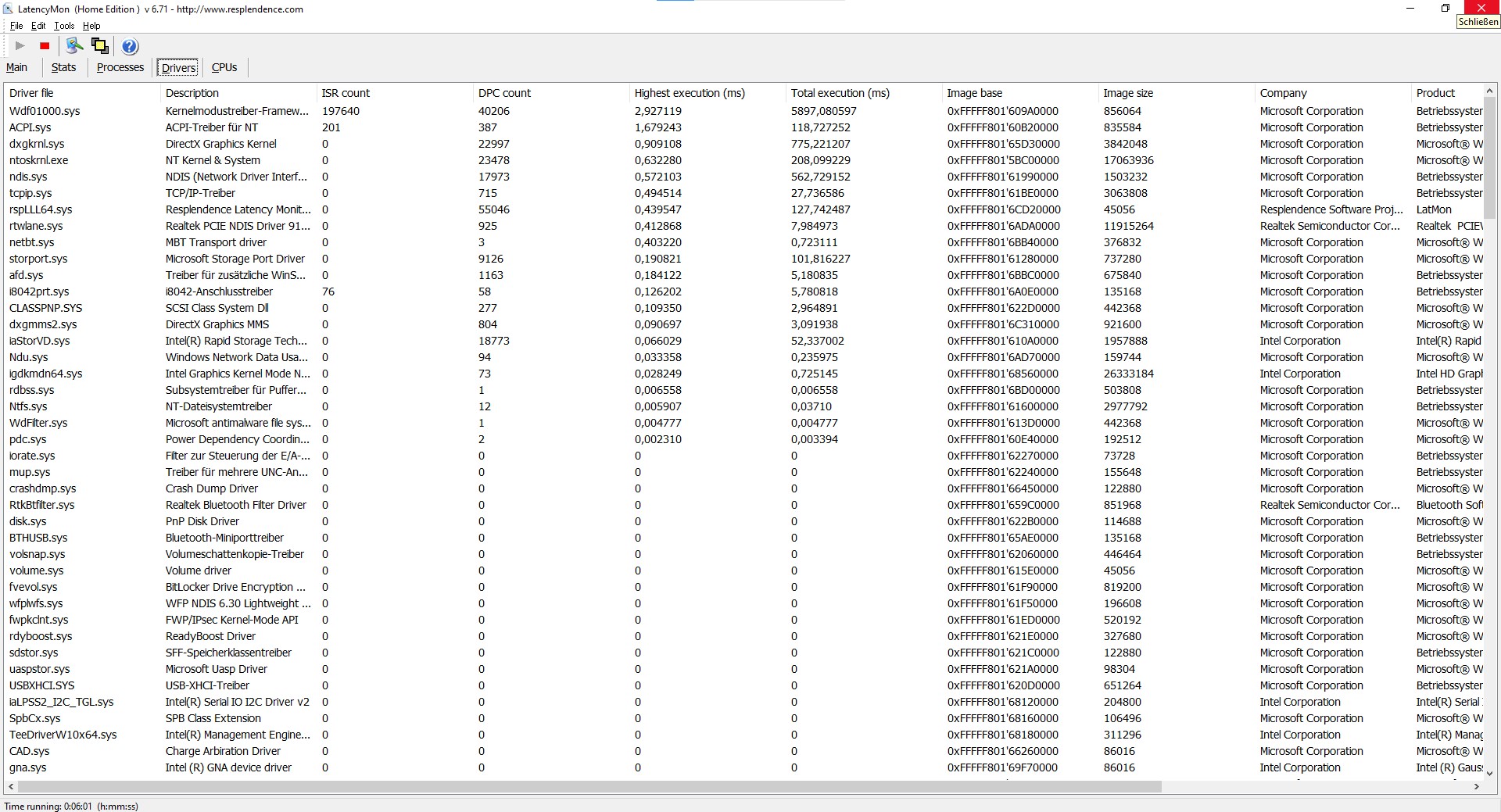

We tested system latency with LatencyMon. This resulted in comparatively high values above 2 ms. The driver overview indicates that the kernel mode driver framework Wdf01000.sys is responsible for this latency. However, this long execution time is presumably a symptom of an ACPI driver that is too slow.
Therefore, this configuration is not suited to real-time audio and video applications. We measured ten dropped frames within a minute when playing 4K video on YouTube. That is perfectly acceptable for an office segment device.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Samsung Galaxy Book Pro 360 13 | |
HP Envy 17-cg | |
HP Pavilion 14-dv0357ng | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE |
* ... smaller is better

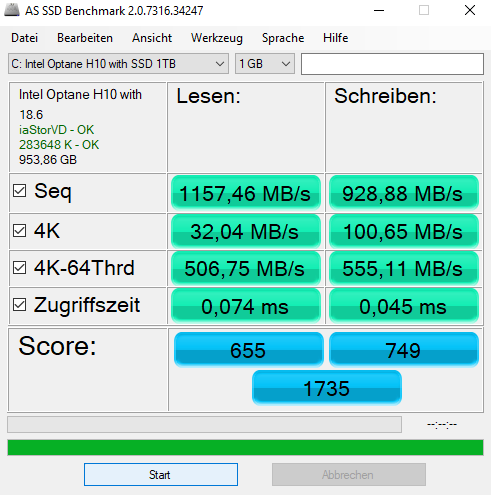

Storage device
The M.2 SSD from Intel in our test unit fulfilled our expectations. The deviation from the recorded average values is within a tolerable range. However, the storage device does a meager job if you compare it to other models. The SSD from SK Hynix in the Acer Swift 5 SF514, for example, has noticeably better access times.
Overall, however, no process is expected to max out the speed of the storage device. A faster SSD would therefore not offer any advantages. It's size of 1 TB, on the other hand, is a real advantage. If you want to store a large collection of photos or video or record videos yourself and store them directly on the laptop, then this is the size to choose.
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H) | HP Spectre x360 13-aw2003dx Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H) | HP 14s-dq1431ng Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH | Asus ExpertBook B1 B1400CEAE, i5-1135G7 WDC PC SN530 SDBPNPZ-512G | Acer Swift 5 SF514-55T-58DN SK Hynix BC511 HFM512GDJTNI | HP Omen 16-b0085ng Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H) | Average Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H) | Average of class Office | |
---|---|---|---|---|---|---|---|---|
Drive Performance Rating | ||||||||
Percent | 48.3 | 56 16% | 42 -13% | 77.1 60% | 62.7 30% | 18.1 -63% | 53.5 11% | 91.2 89% |
AS SSD | 17% | -20% | 67% | 39% | -99% | 11% | 102% | |
Score Total | 1735 | 2067 19% | 1305 -25% | 3357 93% | 2536 46% | 910 -48% | 1879 ? 8% | 4107 ? 137% |
Score Read | 655 | 761 16% | 345 -47% | 1264 93% | 997 52% | 389 -41% | 709 ? 8% | 1441 ? 120% |
Score Write | 749 | 929 24% | 782 4% | 1488 99% | 1034 38% | 338 -55% | 805 ? 7% | 1971 ? 163% |
Seq Read | 1157 | 1337 16% | 677 -41% | 2011 74% | 1405 21% | 925 -20% | 1240 ? 7% | 3384 ? 192% |
Seq Write | 929 | 652 -30% | 194.7 -79% | 961 3% | 1011 9% | 496 -47% | 916 ? -1% | 2283 ? 146% |
4K Read | 32 | 61.8 93% | 58.1 82% | 48.77 52% | 53.7 68% | 19.99 -38% | 55.1 ? 72% | 57.3 ? 79% |
4K Write | 101 | 106.7 6% | 124.1 23% | 221.5 119% | 122.7 21% | 17.96 -82% | 112.3 ? 11% | 163.8 ? 62% |
4K-64 Read | 507 | 565 11% | 219.6 -57% | 1015 100% | 803 58% | 276.2 -46% | 530 ? 5% | 1046 ? 106% |
4K-64 Write | 555 | 757 36% | 638 15% | 1170 111% | 810 46% | 270.2 -51% | 601 ? 8% | 1579 ? 185% |
Access Time Read * | 0.074 | 0.079 -7% | 0.109 -47% | 0.062 16% | 0.23 -211% | 0.081 ? -9% | 0.07966 ? -8% | |
Access Time Write * | 0.045 | 0.046 -2% | 0.065 -44% | 0.053 -18% | 0.032 29% | 0.249 -453% | 0.04233 ? 6% | 0.07085 ? -57% |
Total Average (Program / Settings) | 17% /
17% | -17% /
-19% | 64% /
67% | 35% /
38% | -81% /
-96% | 11% /
11% | 96% /
101% |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU performance

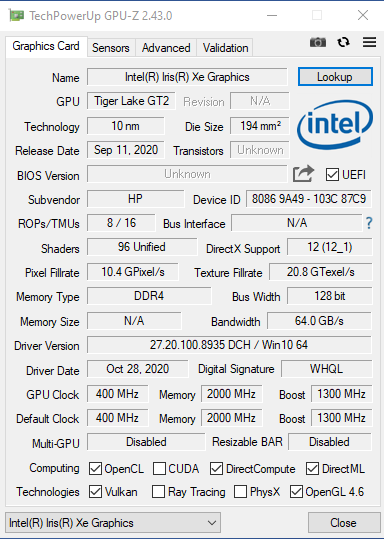

The Intel Iris Xe Graphics G7 80EUs is responsible for getting motion onto the screen. The chip is integrated with the processor as an SoC. It supports DirectX 12 and reaches a clock rate of 1.3 GHz. However, the CPU's clock rate has to be reduced if the GPU is under heavy load, in order to limit heat development. The configuration with an Intel Coe i7 is equipped with a slightly more powerful Intel Iris Xe Graphics G7 96EUs.
Although the GPU performance has increased noticeably compared to the predecessors, it can still only support video rendering and image processing for private purposes. The device cannot handle more demanding games, but should be able to display older or simpler titles with some cutbacks.
Because of the way the processor is reigned in, the GPU's performance is actually above average. It is allowed to contribute more to heat development than in notebooks that allow the CPU more access to power.
3DMark Performance Rating - Percent | |
Average of class Office | |
HP Pavilion 14-dv0357ng | |
Average Intel Iris Xe Graphics G7 80EUs |
3DMark 11 - 1280x720 Performance GPU | |
Average of class Office (1468 - 13132, n=94, last 2 years) | |
HP Pavilion 14-dv0357ng | |
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109) |
3DMark | |
1920x1080 Fire Strike Graphics | |
Average of class Office (712 - 9375, n=97, last 2 years) | |
HP Pavilion 14-dv0357ng | |
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111) | |
2560x1440 Time Spy Graphics | |
Average of class Office (242 - 4109, n=97, last 2 years) | |
HP Pavilion 14-dv0357ng | |
Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108) |
3DMark 11 Performance | 5441 points | |

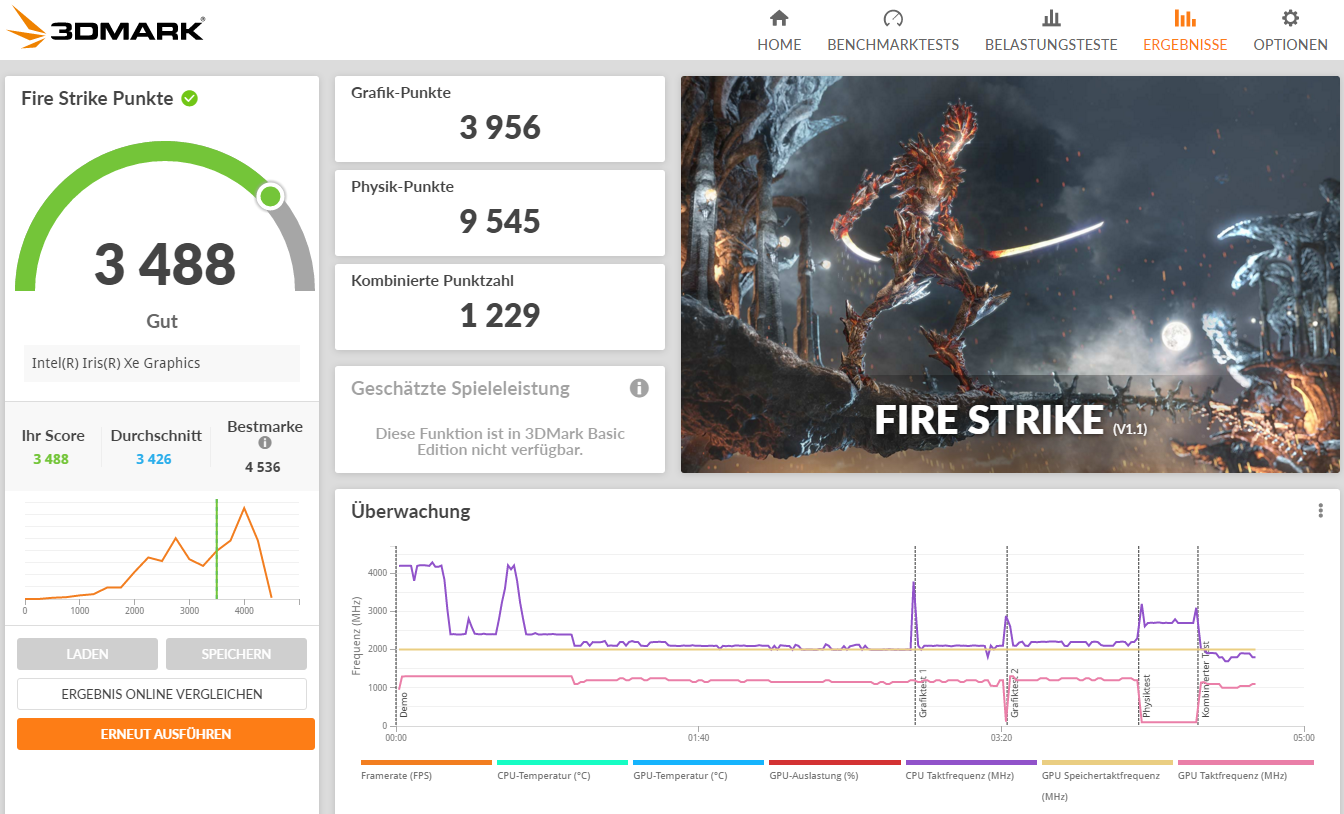

3DMark Fire Strike Score | 3488 points | |

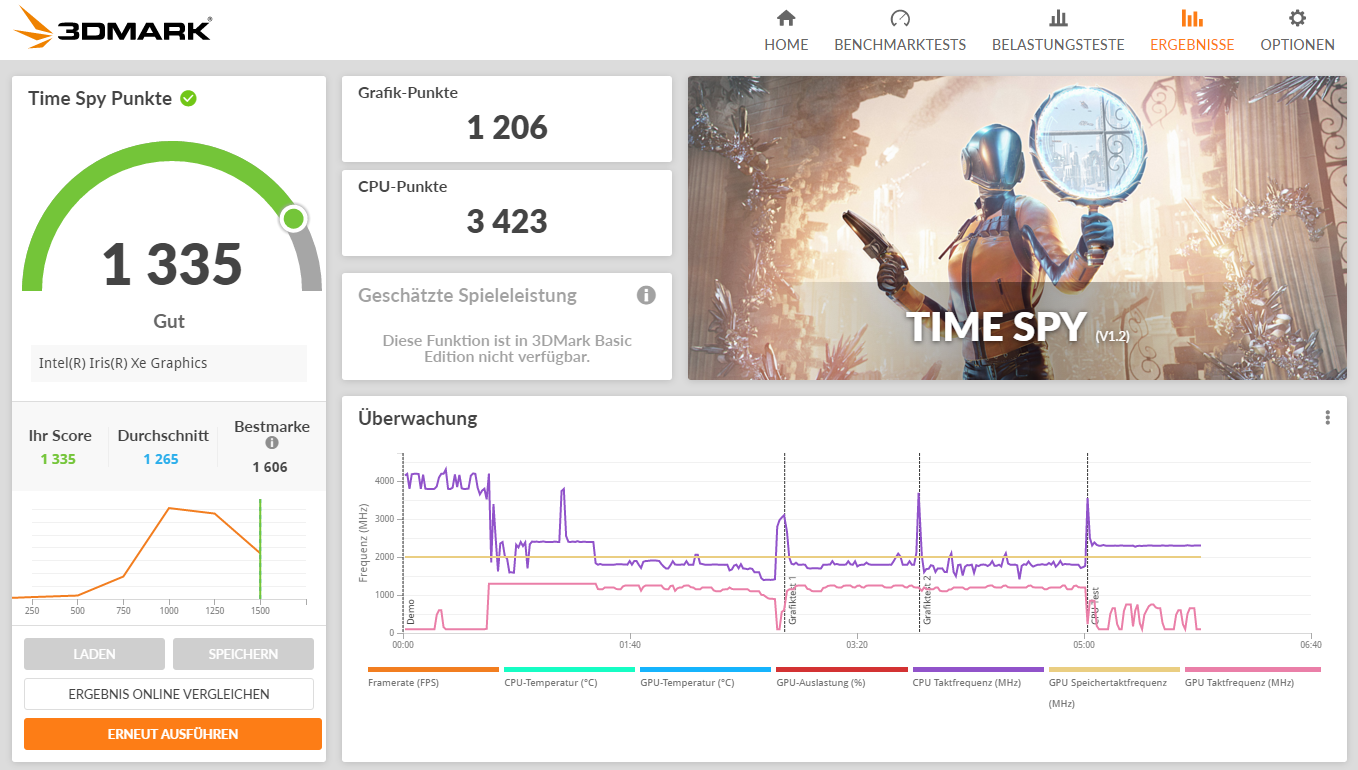

3DMark Time Spy Score | 1335 points | |
Help |
Gaming Performance
Simple, non-demanding games can be played on the Pavilion. The newer and more complex a title, the less likely it is for the frame rate to suffice. Nonetheless, there is a wide range of games, from Battle Royal titles to sports simulations, that can be played smoothly at reduced image quality.

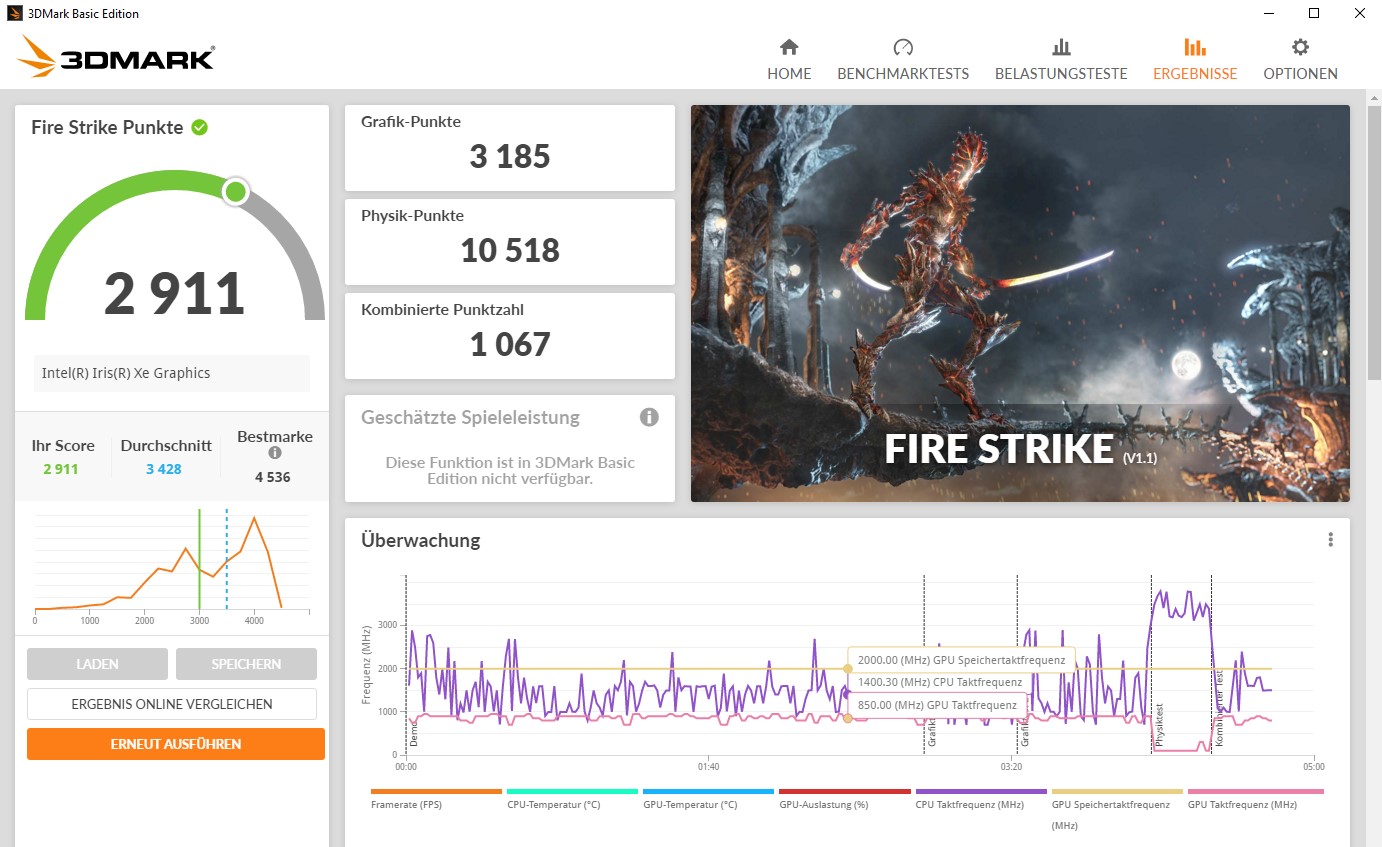

We recommend choosing a resolution below FullHD and low details. With these settings, users should even be able to play some of the classics from 6 or 7 years ago. We also recommend always connecting the device to power when playing games, as the CPU and GPU cannot reach their full potential when running on battery.
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Average of class Office (8.4 - 177, n=82, last 2 years) | |
Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101) | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
HP Pavilion 14-dv0357ng | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Average of class Office (3.49 - 59.1, n=83, last 2 years) | |
Average Intel Iris Xe Graphics G7 80EUs (9.3 - 33.5, n=101) | |
HP Pavilion 14-dv0357ng | |
Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Asus ExpertBook B1 B1400CEAE, i5-1135G7 |
Back 4 Blood | |
1280x720 Low Preset (DX12) | |
Average of class Office (35.7 - 72.9, n=2, last 2 years) | |
Average Intel Iris Xe Graphics G7 80EUs (43.8 - 47.2, n=2) | |
HP Pavilion 14-dv0357ng | |
1920x1080 Medium Preset (DX12) AA:FX | |
HP Pavilion 14-dv0357ng | |
Average Intel Iris Xe Graphics G7 80EUs (21.4 - 27.4, n=2) | |
Average of class Office (19.5 - 27.3, n=2, last 2 years) |

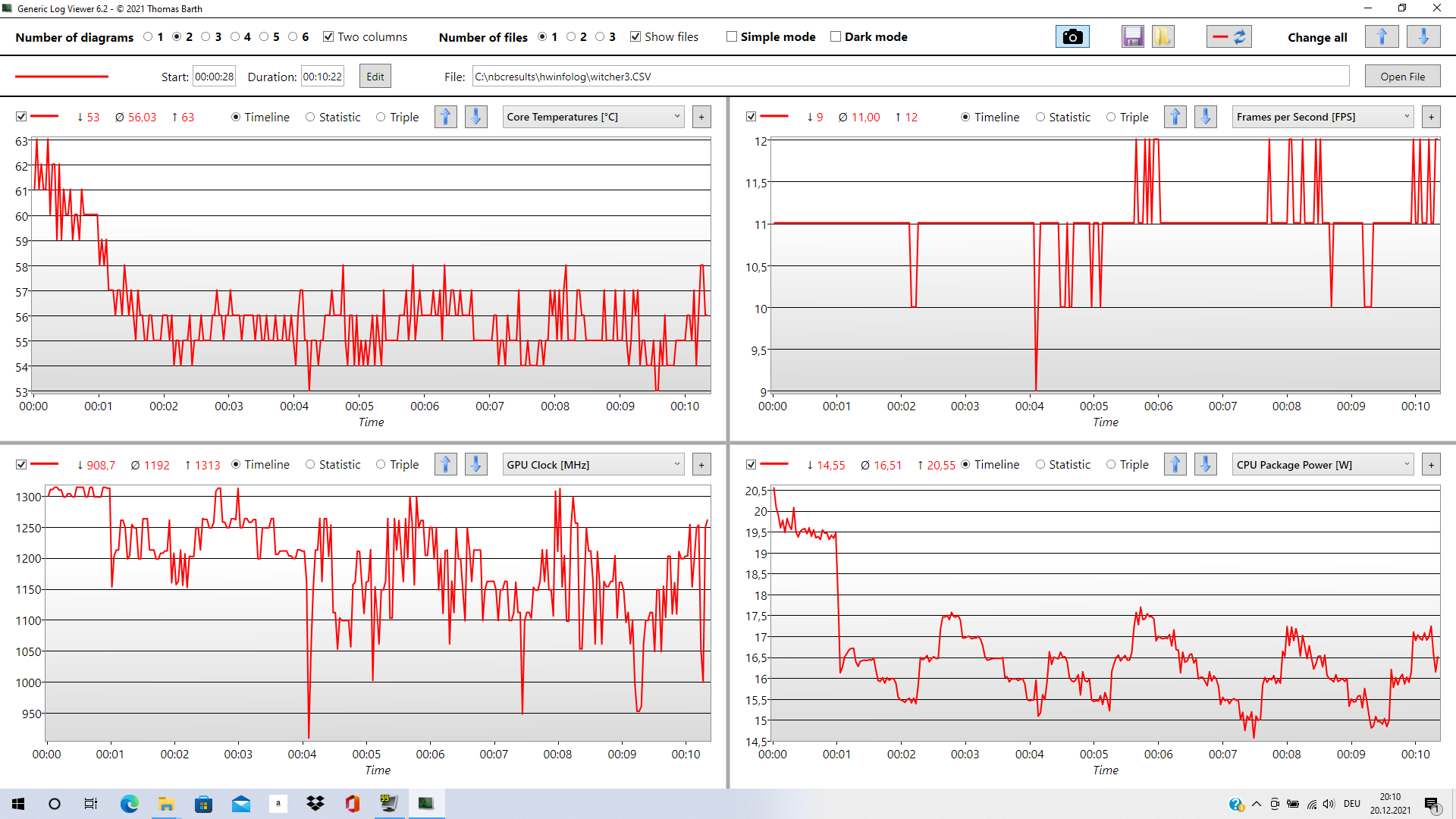

The Pavilion does a surprisingly good job at our Witcher 3 stress test at highest settings, although the game is far from playable at this low level of details.
Instead, the measured rates show that the temperature of the SoC drops to far below 60°C after a short peak. GPU and CPU are then limited to a maximum of 17 W. The meagre frame rate remains at around 11 fps throughout. This performance is comparable with that of the Pavilion 14-ce3040ng, despite the latter being better equipped with a 10th generation i7 and a dedicated GPU.
