HP Pavilion x360 14 (2021) Review: 2-in-1 laptop supports pen-input and Power Delivery

Multi-functional. HP’s 2-in-1 device features the Core i5-1135G7, 16 GB of dual-channel RAM and an NVMe SSD. The Pavilion x360 14 can handle all modern tasks. What is more, it offers good battery life and has a touchscreen that can be operated with the fingers or the HP Tilt Pen, which is sold separately.
Sascha Mölck, 👁 Sebastian Jentsch (translated by Stanislav Kokhanyuk), 🇩🇪 🇮🇹 ...

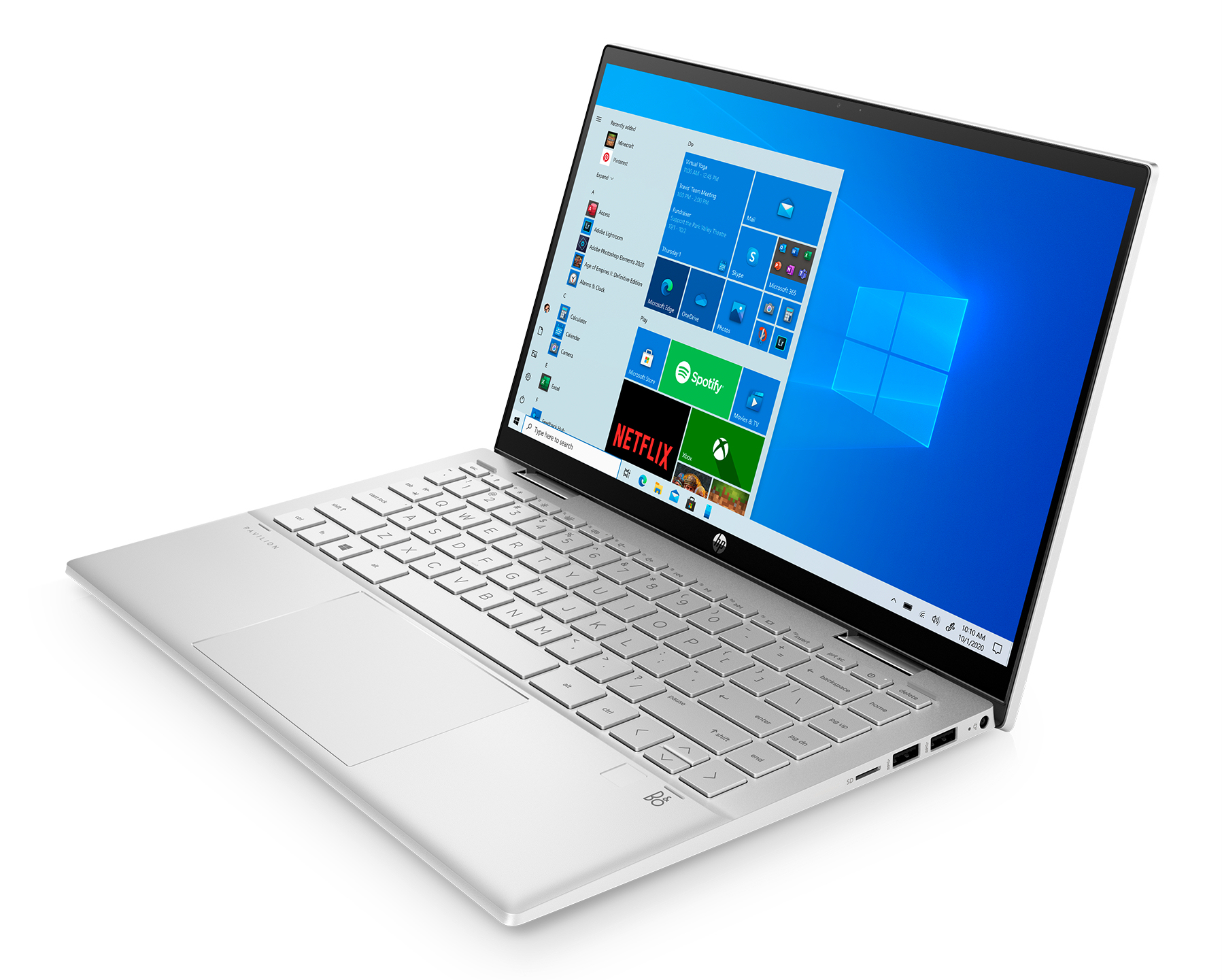

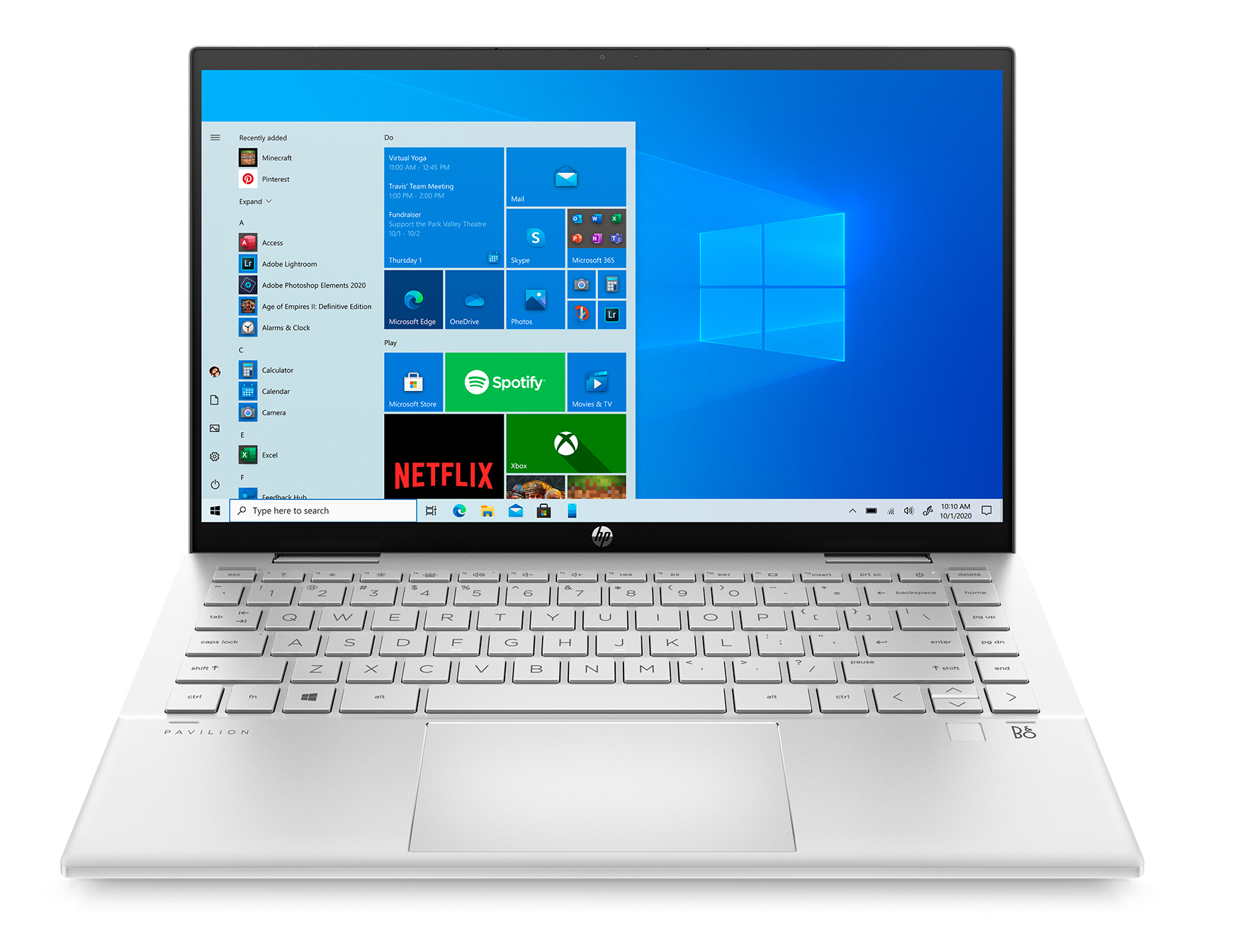

The HP Pavilion x360 14 is a 14-inch 2-in-1 device. It is powered by the Core i5-1135G7. The competing devices include the Lenovo IdeaPad Flex 5 14ALC05, the Acer Spin 3 SP314-54N, the Asus VivoBook Flip 14 TP470EZ, and the Acer Chromebook Spin 713 CP713-2W.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

HP Pavilion x360 14-dy0157ng (Pavilion x360 14 Series)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 51 W PL2 / Short Burst, 20 W PL1 / Sustained, Tiger Lake UP3
Graphics adapter
Intel Iris Xe Graphics G7 80EUs, Core: 1300 MHz, Memory: 2000 MHz, Dual-Channel-Mode, 27.20.100.9466
Memory
16384 MB
, DDR4-3200, Dual-Channel-Mode, two memory slots (both in use)
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, capacitive, 10 touchpoints, native pen support, Chi Mei N140HCA-E5B, IPS, glossy: yes, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Toshiba KBG40ZNV512G, 512 GB
, M.2-2280, 434 GB free
Connections
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: 3.5-mm combination audio jack, Card Reader: microSD, 1 Fingerprint Reader, Sensors: accelerometer, gyroscope, eCompass, TPM 2.0
Networking
Wireless AC-9461 (ac = Wi-Fi 5), Bluetooth 5
Size
height x width x depth (in mm): 19.9 x 322 x 209 ( = 0.78 x 12.68 x 8.23 in)
Battery
43 Wh, 3560 mAh Lithium-Polymer
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Additional features
Speakers: stereo, Keyboard: chiclet-style, Keyboard Light: yes, ExpressVPN (trial version), McAfee LiveSafe (trial version), MS Office 365 (trial version), 12 Months Warranty
Weight
1.5 kg ( = 52.91 oz / 3.31 pounds), Power Supply: 280 g ( = 9.88 oz / 0.62 pounds)
Price
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Likely Competitors

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
82 %
07/2021
HP Pavilion x360 14-dy0157ng
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.9 mm14.00"1920x1080
79 %
05/2021
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
R7 5700U, Vega 8 R4000
1.6 kg20.8 mm14.00"1920x1080
86 %
04/2021
Acer Chromebook Spin 713 CP713-2W-560V
i5-10210U, UHD Graphics 620
1.4 kg16.8 mm13.50"2256x1504
79 %
06/2021
Asus VivoBook Flip 14 TP470EZ
i5-1135G7, Xe MAX
1.5 kg18.7 mm14.00"1920x1080
84 %
03/2021
Acer Spin 3 SP314-54N-56S5
i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)
1.5 kg16 mm14.00"1920x1080

Case - HP uses plastic

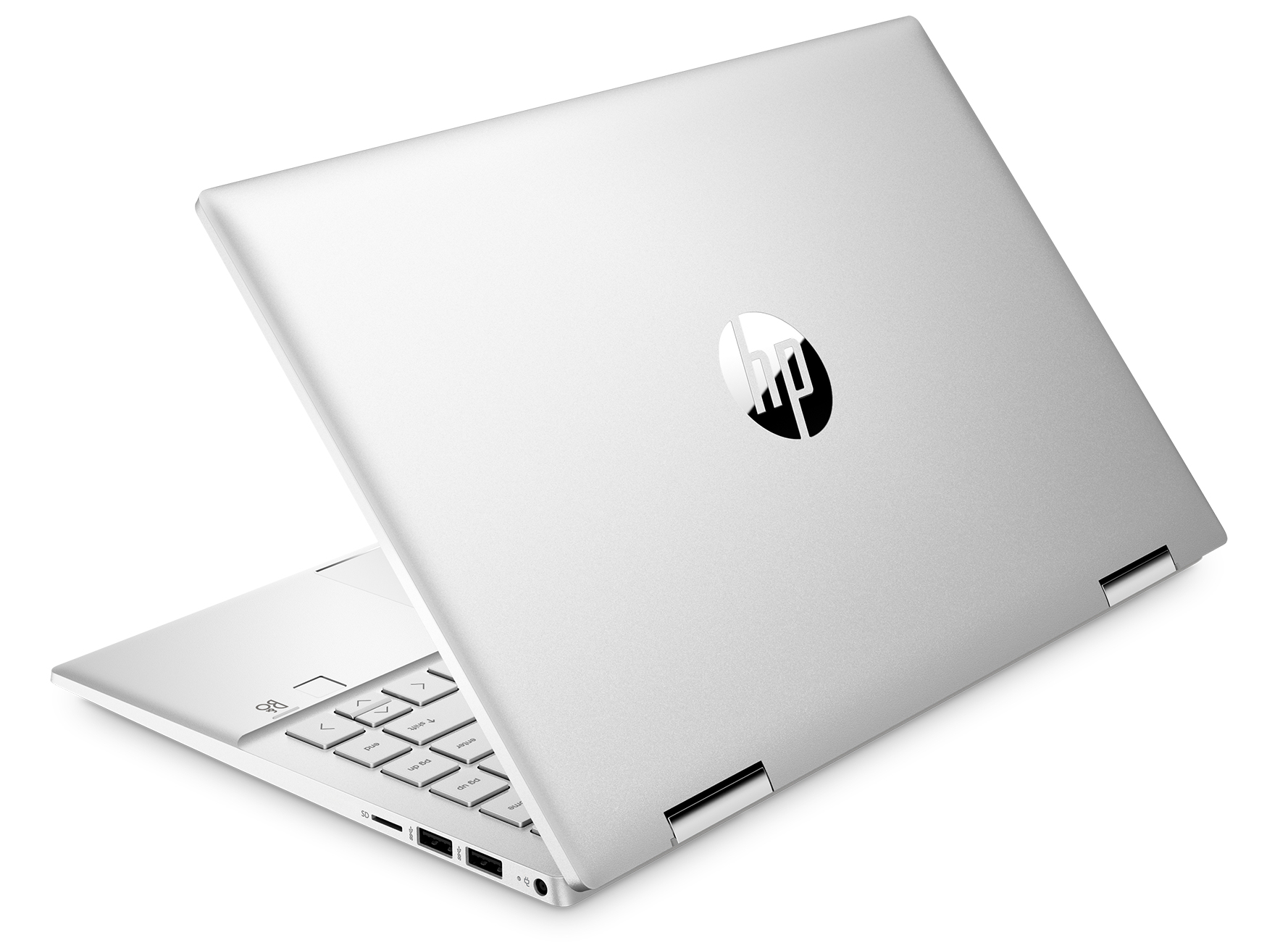

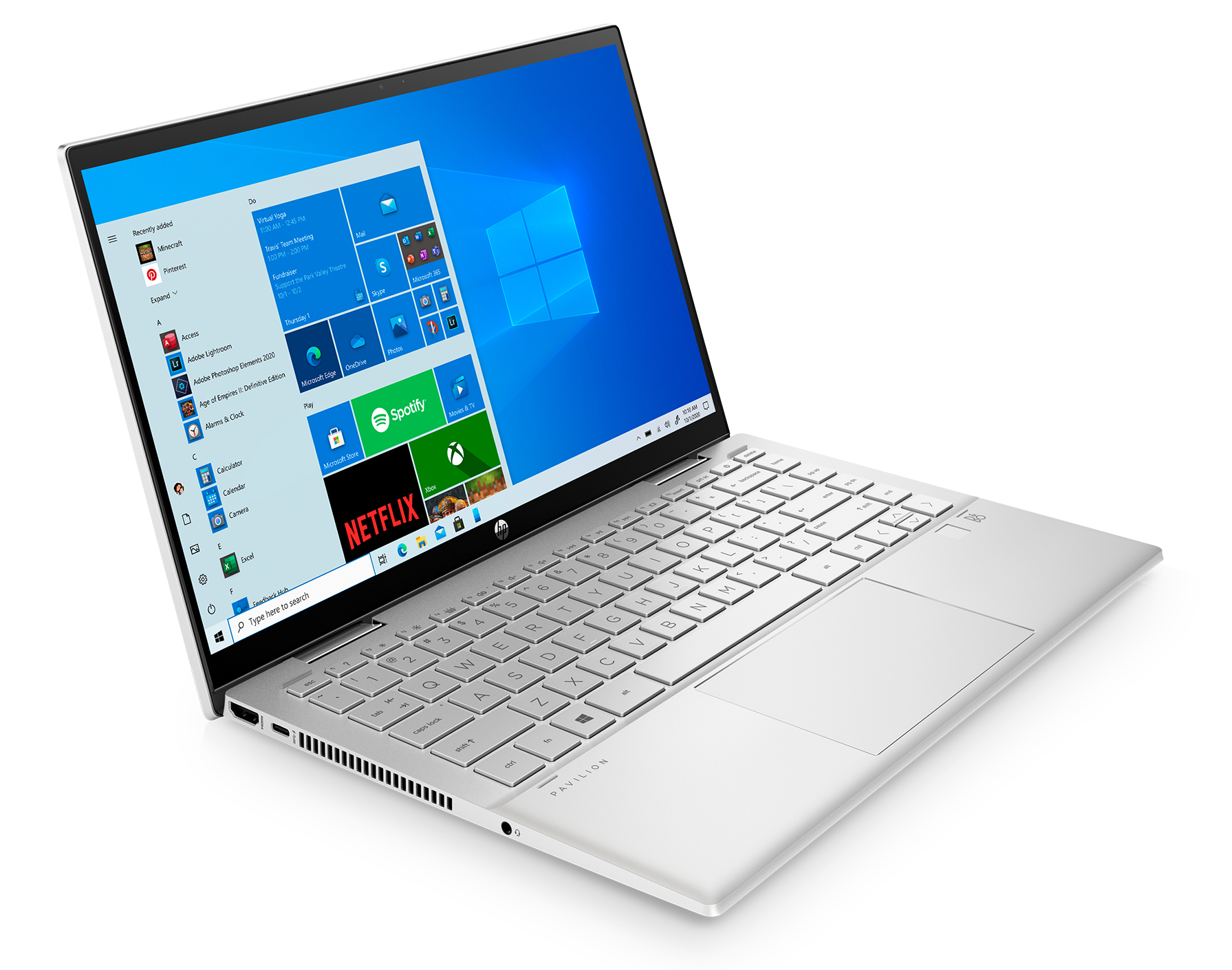

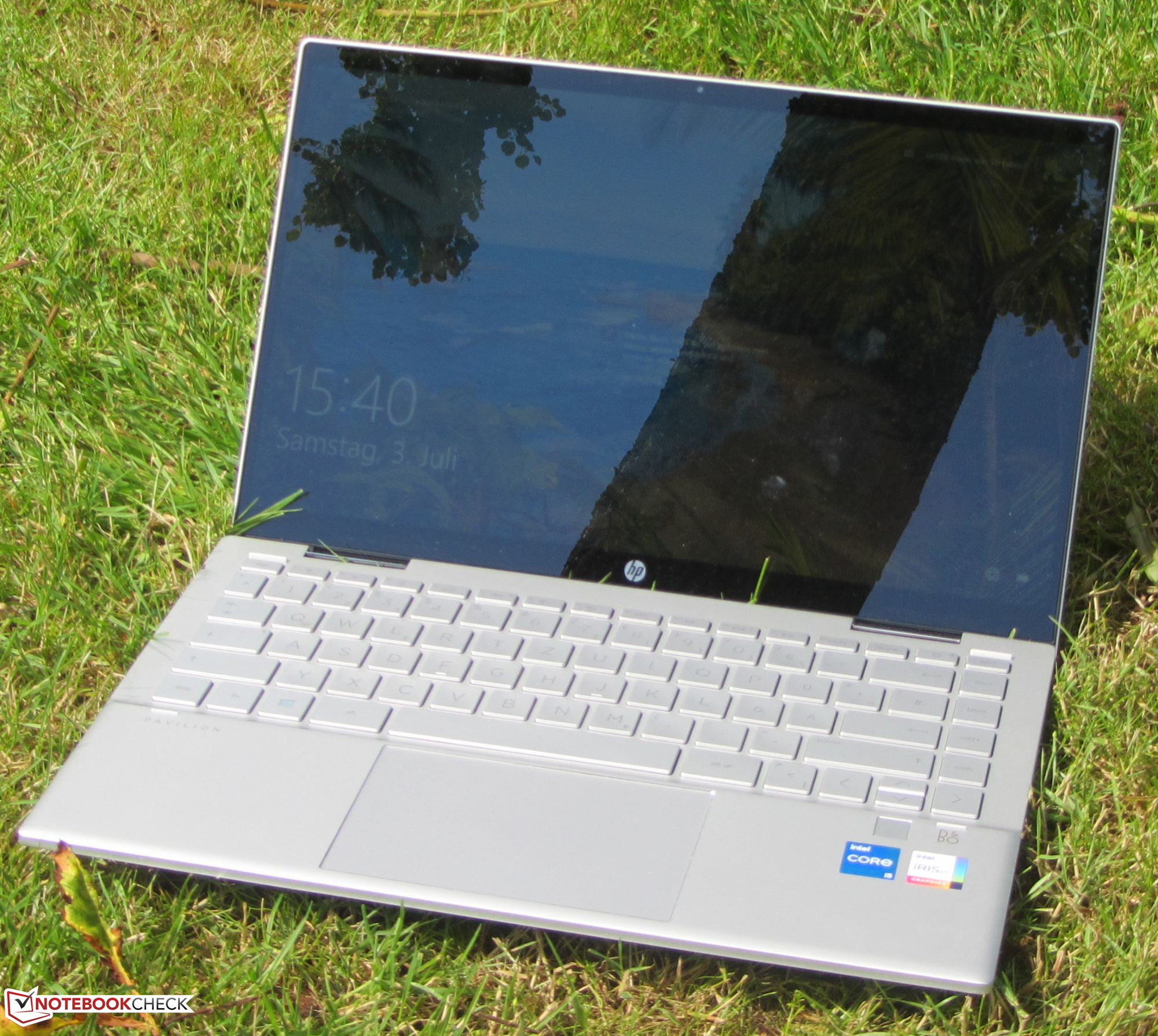

The housing of the HP Pavilion x360 14 is made of plastic. The display lid and the chassis have a non-reflective silver-coloured surface which feels smooth to the touch. The battery is soldered-in. There is no maintenance hatch.

The build quality is solid. We did not notice any defects such as chinks where different pieces of plastic meet. However, the chassis is not very rigid. A small amount of pressure is sufficient to bend the housing in. However, the display lid is rather stiff.

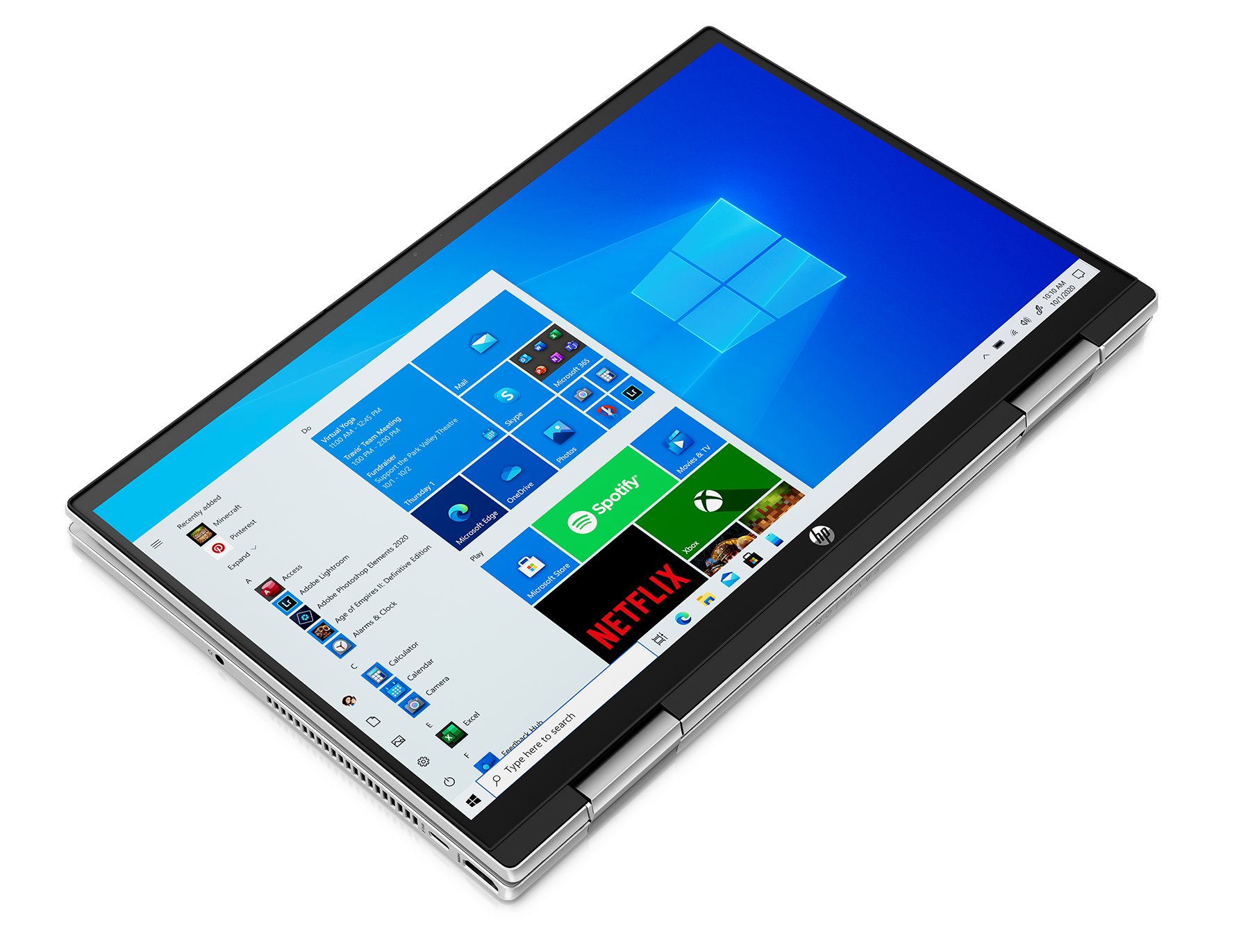

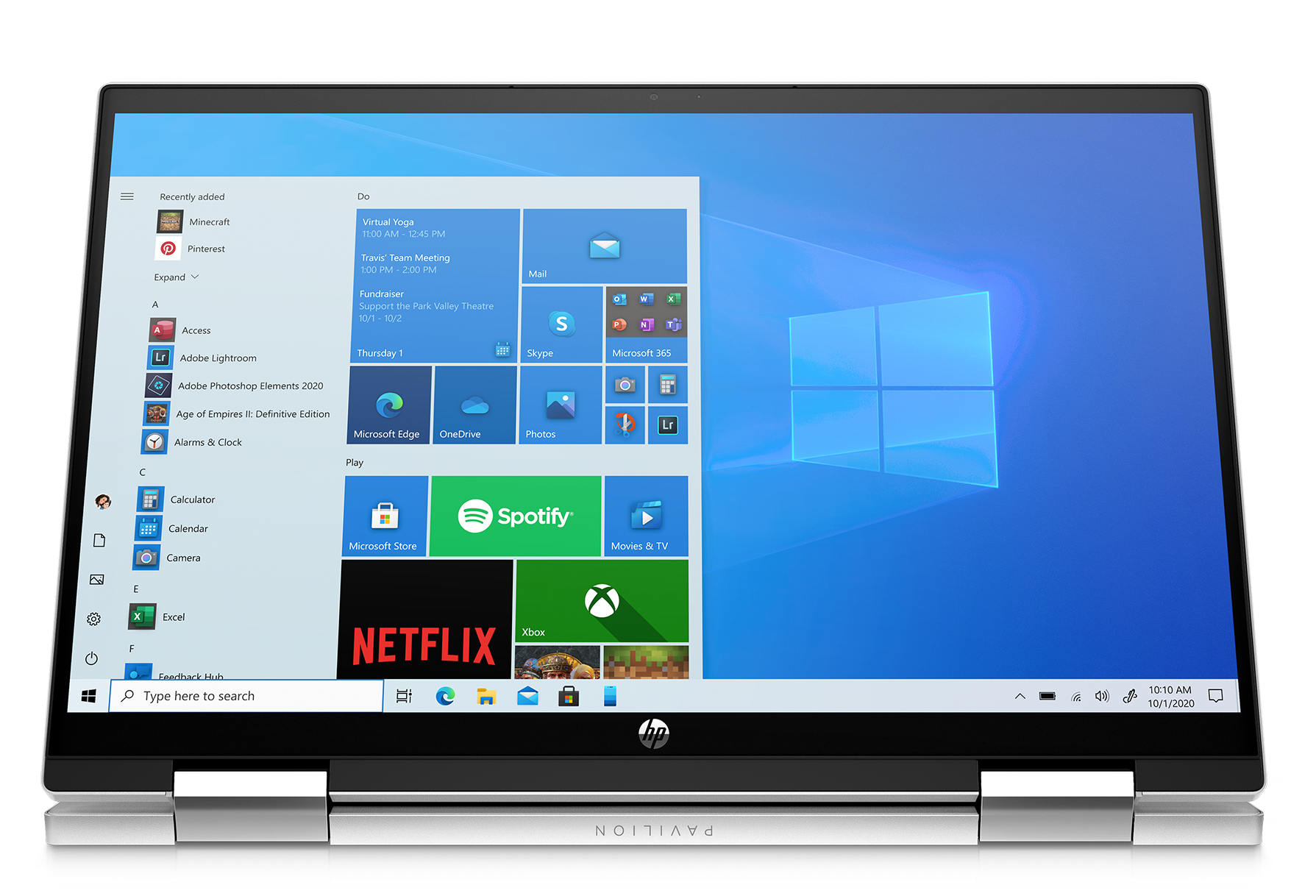

The hinges can hold the display in a set position. The display lid can be opened with one hand. The opening angle amounts to 90°. When fully open, the display lid raises slightly the upper portion of the chassis.

The Pavilion x360 14 is the most compact device in our comparison chart. In terms of weight, there are no major differences between the HP laptop and the competition.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Size Comparison

324 mm / 12.8 inch 220 mm / 8.66 inch 18.7 mm / 0.736 inch 1.5 kg3.31 lbs321.5 mm / 12.7 inch 217.5 mm / 8.56 inch 20.8 mm / 0.819 inch 1.6 kg3.43 lbs322 mm / 12.7 inch 209 mm / 8.23 inch 19.9 mm / 0.783 inch 1.5 kg3.31 lbs325 mm / 12.8 inch 230 mm / 9.06 inch 16 mm / 0.63 inch 1.5 kg3.37 lbs301 mm / 11.9 inch 235 mm / 9.25 inch 16.8 mm / 0.661 inch 1.4 kg3.02 lbs

Connectivity - Pavilion x360 14 supports Power Delivery

HP’s 2-in-1 device features two USB-A ports (USB 3.2 Gen 1) and one USB-C port (USB 3.2 Gen 2). The Type-C port supports Power Delivery and can output a DisplayPort signal. There is also an HDMI port.

The Pavilion x360 14 comes with HP’s proprietary charging port. The laptop can also be charged with the help of a USB-C power adapter (45 W minimum).

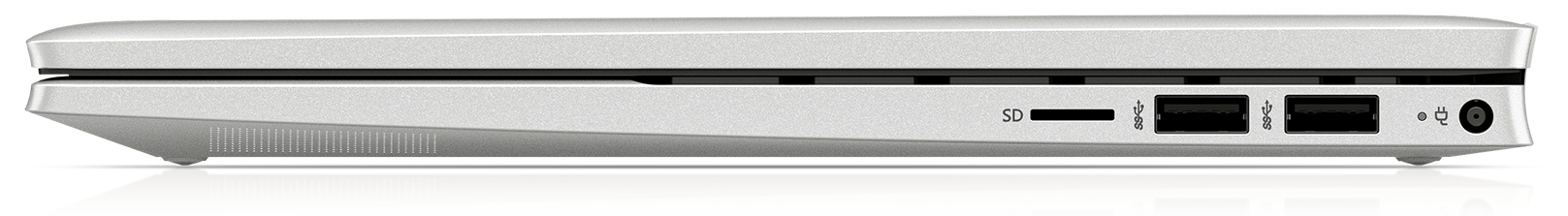

Right side: Card reader (microSD), two USB 3.2 Gen 1 ports (Type-A), charging port
Right side: Card reader (microSD), two USB 3.2 Gen 1 ports (Type-A), charging port

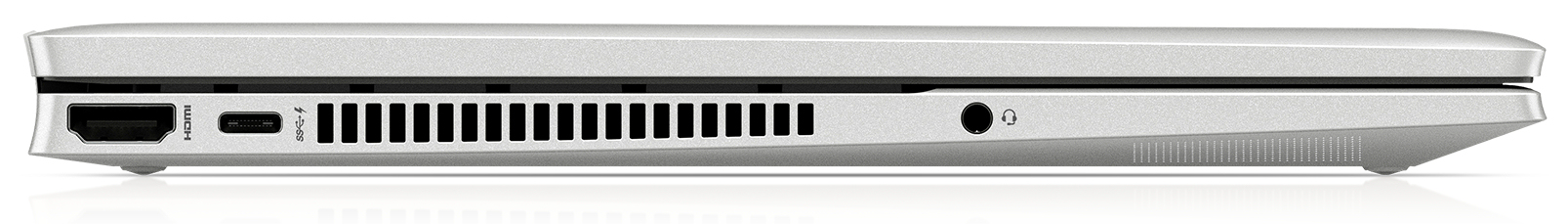

Left side: HDMI output, one USB 3.2 Gen 2 port (Type-C; Power Delivery, DisplayPort), combination headphone/microphone jack
Left side: HDMI output, one USB 3.2 Gen 2 port (Type-C; Power Delivery, DisplayPort), combination headphone/microphone jack

Card Reader

The microSD card reader achieved very good data transfer rates with our reference-grade SD card (Angelbird AV PRO microSD 128 GB V60). When copying JPG files, we saw a maximum transfer rate of 75.3 MB/s. When copying large files, the transfer rates peaked at 85.4 MB/s.

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (10 - 201, n=63, last 2 years)
81.7 MB/s ∼100% +8%
HP Pavilion x360 14-dy0157ng
  (Toshiba Exceria Pro M501 microSDXC 64GB)
75.3 MB/s ∼92%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
  (AV PRO microSD 128 GB V60)
74.3 MB/s ∼91% -1%
Acer Chromebook Spin 713 CP713-2W-560V
  (Toshiba Exceria Pro M501 microSDXC 64GB)
57 MB/s ∼70% -24%
Acer Spin 3 SP314-54N-56S5
  (Toshiba Exceria Pro M501 microSDXC 64GB)
28.1 MB/s ∼34% -63%
Asus VivoBook Flip 14 TP470EZ
  (AV PRO microSD 128 GB V60)
26.6 MB/s ∼33% -65%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (25 - 224, n=58, last 2 years)
97.7 MB/s ∼100% +14%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
  (AV PRO microSD 128 GB V60)
88.1 MB/s ∼90% +3%
HP Pavilion x360 14-dy0157ng
  (Toshiba Exceria Pro M501 microSDXC 64GB)
85.4 MB/s ∼87%
Acer Spin 3 SP314-54N-56S5
  (Toshiba Exceria Pro M501 microSDXC 64GB)
32.4 MB/s ∼33% -62%
Asus VivoBook Flip 14 TP470EZ
  (AV PRO microSD 128 GB V60)
27.6 MB/s ∼28% -68%

Communication

The data transfer speeds that we have measured under the optimal conditions (no other Wi-Fi-enabled devices in close proximity, a short distance between the notebook and the server PC) are very poor. The Pavilion x360 only managed to achieve speeds of 433 Mb/s in our Wi-Fi test.

Networking
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Intel Wi-Fi 6 AX200
1205 (638min - 1358max) MBit/s ∼100% +235%
Acer Spin 3 SP314-54N-56S5
Intel Wi-Fi 6 AX201
1072 (613min - 1668max) MBit/s ∼89% +198%
Average of class Convertible
  (216 - 1690, n=86, last 2 years)
896 MBit/s ∼74% +149%
Asus VivoBook Flip 14 TP470EZ
Intel Wi-Fi 6 AX201
497 (405min - 598max) MBit/s ∼41% +38%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
360 (181min - 385max) MBit/s ∼30%
Average Wireless AC-9461
  (311 - 360, n=8)
341 MBit/s ∼28% -5%
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Intel Wi-Fi 6 AX200
1181 (658min - 1353max) MBit/s ∼100% +253%
Acer Spin 3 SP314-54N-56S5
Intel Wi-Fi 6 AX201
1149 (780min - 1282max) MBit/s ∼97% +243%
Average of class Convertible
  (136 - 1498, n=86, last 2 years)
936 MBit/s ∼79% +179%
Asus VivoBook Flip 14 TP470EZ
Intel Wi-Fi 6 AX201
556 (446min - 712max) MBit/s ∼47% +66%
Average Wireless AC-9461
  (289 - 391, n=8)
347 MBit/s ∼29% +4%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
335 (325min - 338max) MBit/s ∼28%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650335337334335336325334335334332336337336336337334336335336338334333337335335334336335337335134613361273126912781270129812891337131713231335135313331308132612961279125813151300126578373479874665867010511255712577518561446518450475535572584572563567597520526523528527639465593604624575543575616580114210611180125512821272110011551188125312821216118311561173114286212121092110895878099412301263124811991106113312323353373343353363253343353343323363373363363373343363353363383343333373353353343363353373351346133612731269127812701298128913371317132313351353133313081326129612791258131513001265783734798746658670105112557125775185614465184504755355725845725635675975205265235285276394655936046245755435756165801142106111801255128212721100115511881253128212161183115611731142862121210921108958780994123012631248119911061133123218136235335433937936136136136435136536236235336635936536135536434537233838536036635636135763813271358129312091269121797513451320118986212801188132710901096128812541190114411191336133111201257118710829651253489429473414463467506447504420473538475464505496520545544516545438405525544435583592557598804792808708848613636969820818134814041360143410581368135814151138153497410891668141185782810979651082955Tooltip
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø335 (325-338)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS Intel Wi-Fi 6 AX200; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1180 (658-1353)
Asus VivoBook Flip 14 TP470EZ Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø556 (446-712)
Acer Spin 3 SP314-54N-56S5 Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1149 (780-1282)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø354 (181-385)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS Intel Wi-Fi 6 AX200; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1184 (638-1358)
Asus VivoBook Flip 14 TP470EZ Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø497 (405-598)
Acer Spin 3 SP314-54N-56S5 Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1072 (613-1668)

Web Camera

The Pavilion x360 14 comes with a bog-standard 0.9-MP web camera, which produces subpar photos and videos. The colour reproduction is especially poor with a DeltaE 2000 of 22 (the ideal value is less than 3).

ColorChecker
25.3 ∆E
28.2 ∆E
28.7 ∆E
26.1 ∆E
33.8 ∆E
19.2 ∆E
23.8 ∆E
32.8 ∆E
20.5 ∆E
21.3 ∆E
20.2 ∆E
23.9 ∆E
26.1 ∆E
23.8 ∆E
23.6 ∆E
15.2 ∆E
25.4 ∆E
26.1 ∆E
1.8 ∆E
11.3 ∆E
24.5 ∆E
23.9 ∆E
22.6 ∆E
9.8 ∆E
ColorChecker HP Pavilion x360 14-dy0157ng: 22.4 ∆E min: 1.76 - max: 33.81 ∆E
ColorChecker
29.3 ∆E
22.5 ∆E
29.1 ∆E
28.9 ∆E
26.1 ∆E
18 ∆E
22 ∆E
32.8 ∆E
21.2 ∆E
22.4 ∆E
17.1 ∆E
22.6 ∆E
27.4 ∆E
28.1 ∆E
22.7 ∆E
13.1 ∆E
23.1 ∆E
30.5 ∆E
2.3 ∆E
12.5 ∆E
22.9 ∆E
25.9 ∆E
24.6 ∆E
2.8 ∆E
ColorChecker Acer Chromebook Spin 713 CP713-2W-560V: 21.99 ∆E min: 2.33 - max: 32.77 ∆E
ColorChecker
9.4 ∆E
18.2 ∆E
15.9 ∆E
3.5 ∆E
12.9 ∆E
15.8 ∆E
23.8 ∆E
25.4 ∆E
18.7 ∆E
8 ∆E
7.9 ∆E
6.9 ∆E
27.8 ∆E
21.3 ∆E
19 ∆E
13.1 ∆E
16.5 ∆E
15.5 ∆E
2.3 ∆E
11.8 ∆E
22.3 ∆E
19.2 ∆E
11.8 ∆E
20.8 ∆E
ColorChecker Asus VivoBook Flip 14 TP470EZ: 15.33 ∆E min: 2.33 - max: 27.76 ∆E
ColorChecker
15.6 ∆E
14 ∆E
17.1 ∆E
17.6 ∆E
16.1 ∆E
13.4 ∆E
13.9 ∆E
18.4 ∆E
18.3 ∆E
12.2 ∆E
12.7 ∆E
12.7 ∆E
12.3 ∆E
12.2 ∆E
19.1 ∆E
10.9 ∆E
17.2 ∆E
14.4 ∆E
2.5 ∆E
8.8 ∆E
10.9 ∆E
12 ∆E
9.2 ∆E
8.2 ∆E
ColorChecker Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS: 13.32 ∆E min: 2.53 - max: 19.13 ∆E

Accessories

The box contains the usual accessories (warranty information, quick start guide).

Maintenance

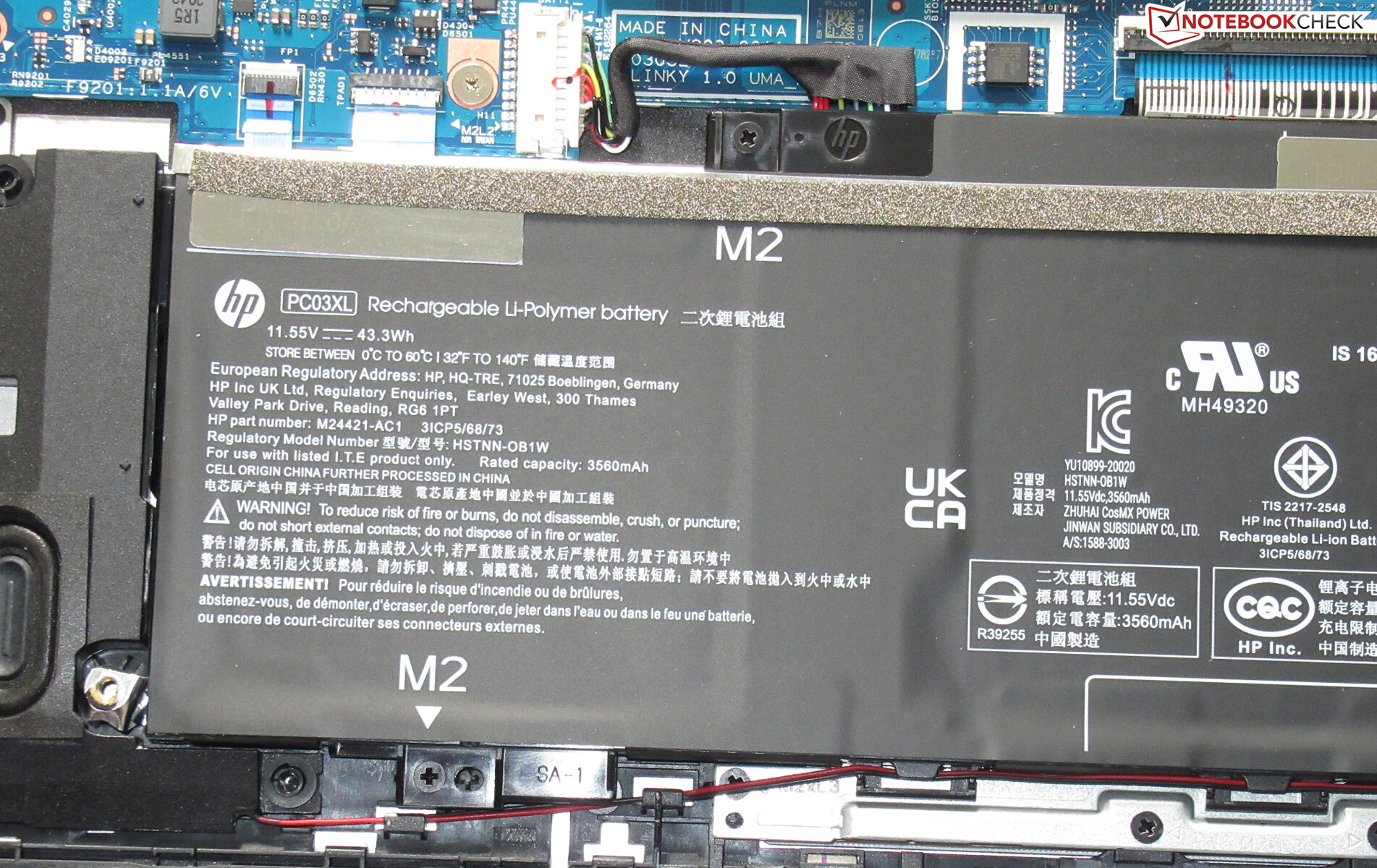

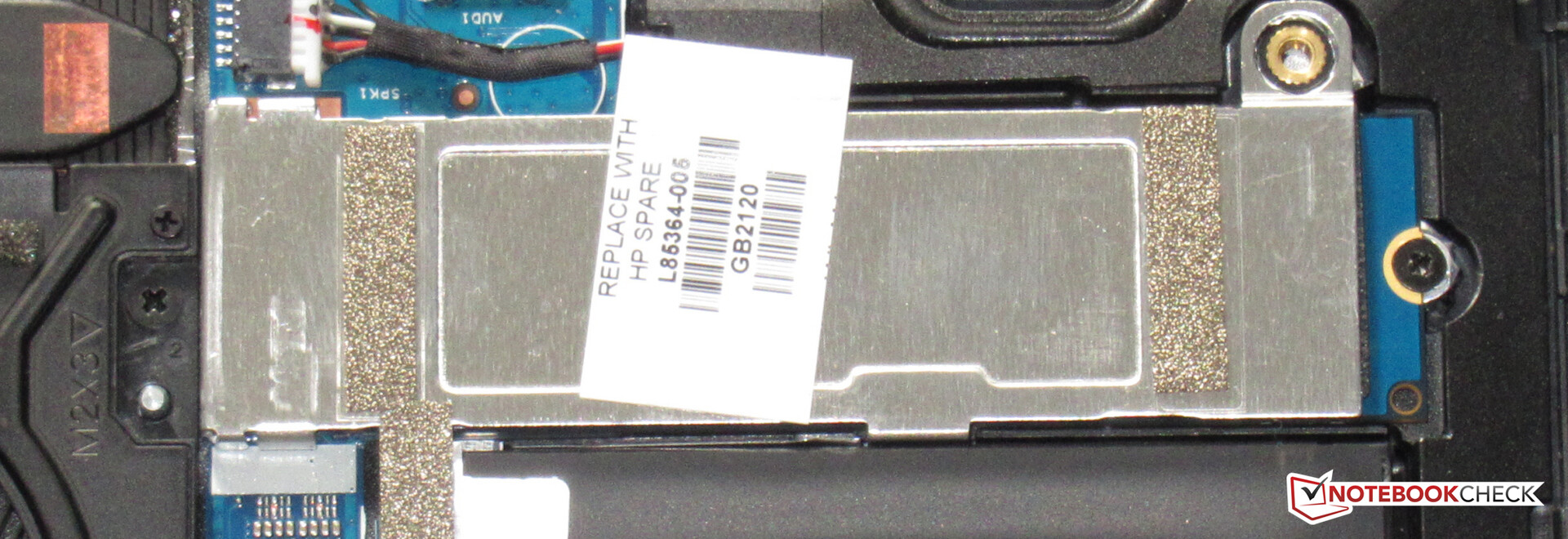

The bottom plate of the Pavilion x360 is rather difficult to remove. To do this, all screws on the underside need to be undone. It is worth mentioning that there are screws under the rubber feet, which are quite brittle and therefore need to be removed with care (replacement feet are quite expensive). After all the screws are undone, the bottom cover can be removed with the help of a spudger or a guitar pick.

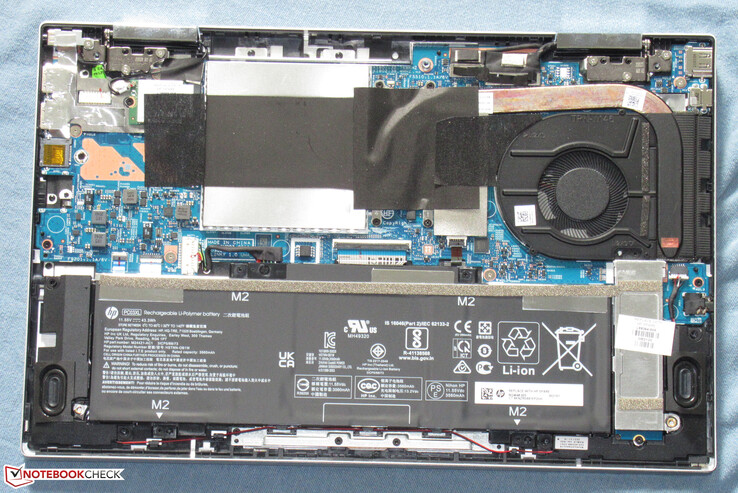

Inside the Pavilion x360
Inside the Pavilion x360

Warranty

The Pavilion x360 14 comes with a 12-month warranty. A two-year warranty extension will cost buyers an additional 50 Euros (~ $60).

Input Devices - HP’s laptop features a backlit keyboard

Keyboard

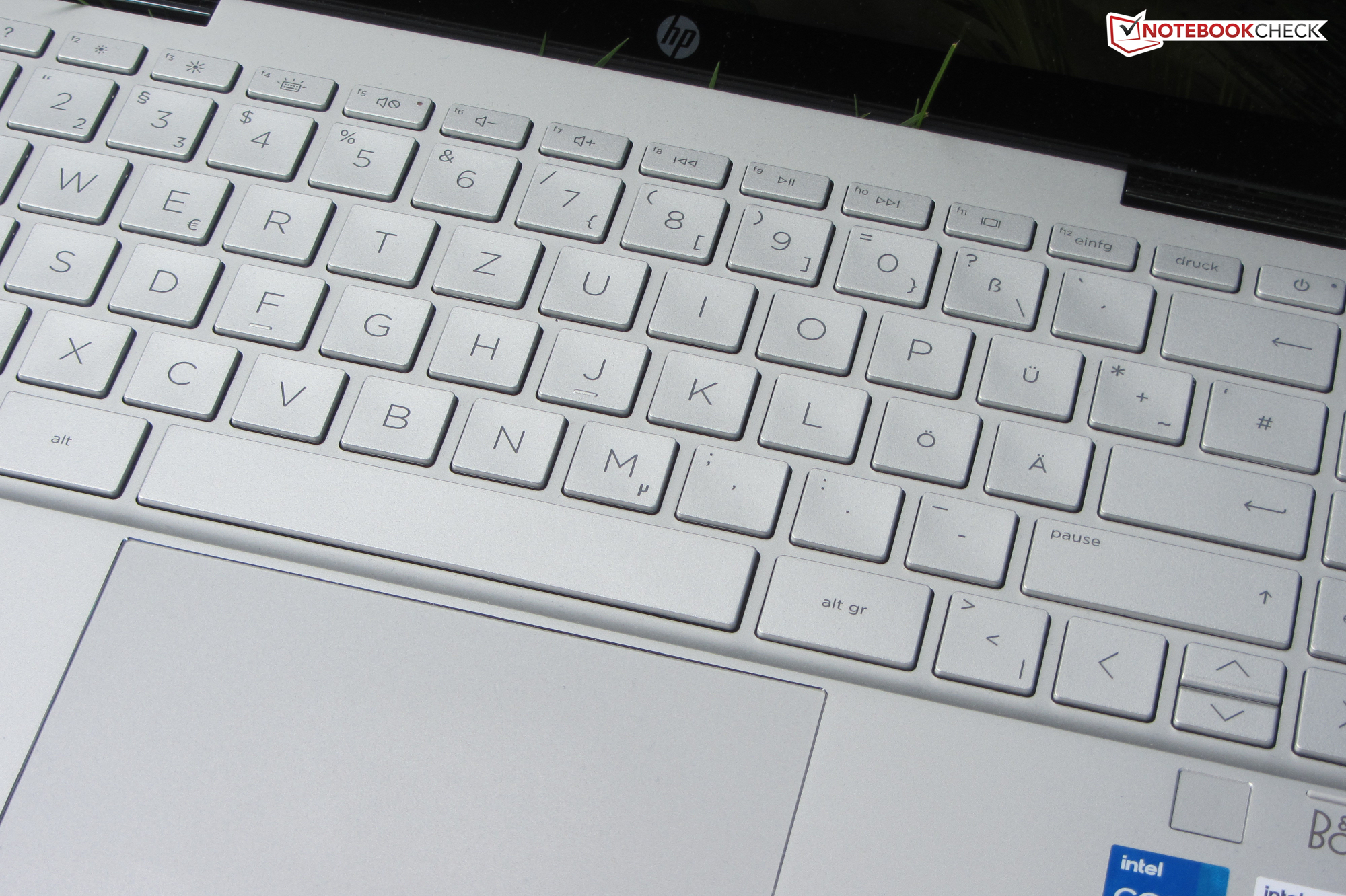

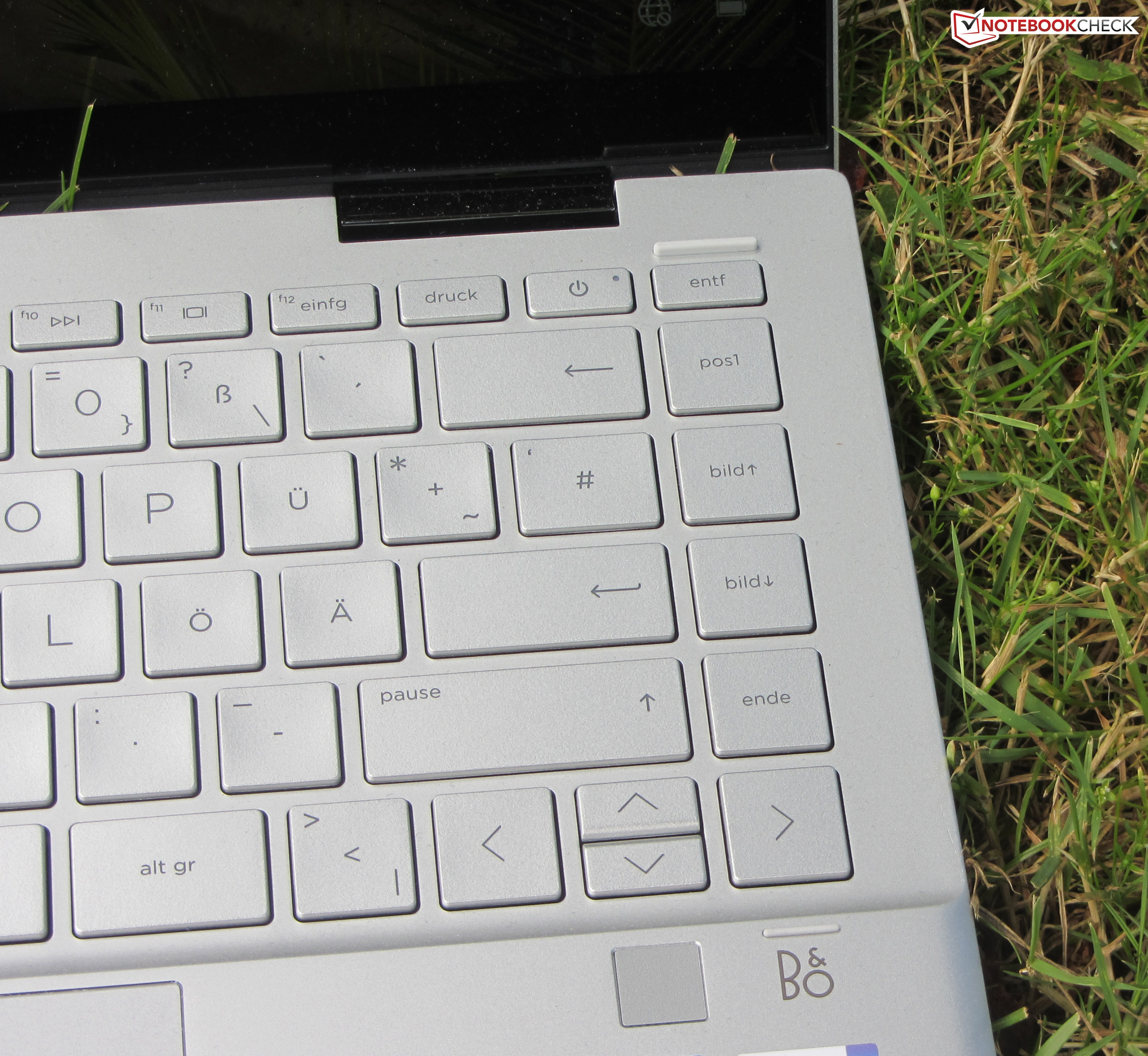

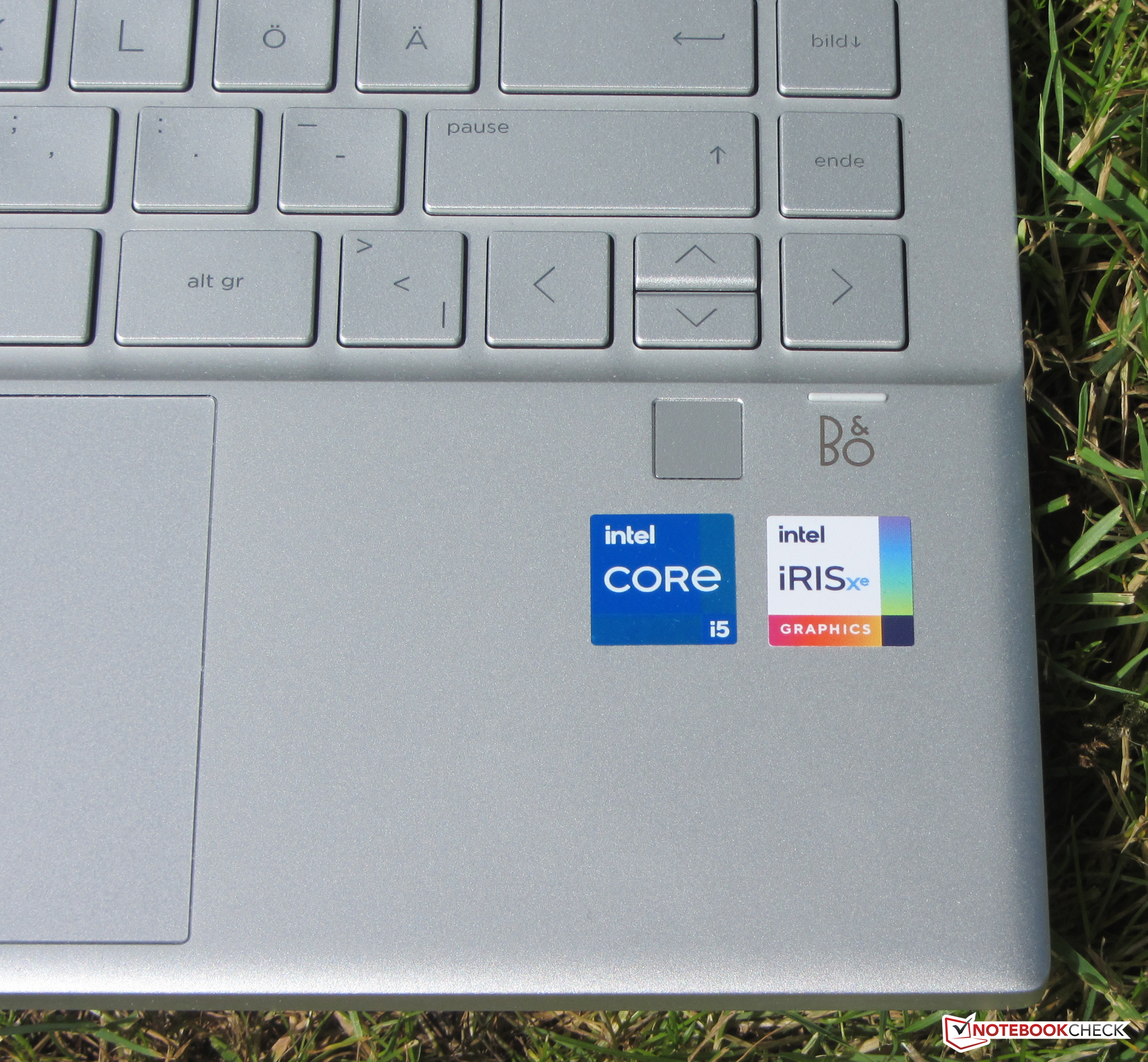

The chiclet-style keyboard offers a decent travel distance and a clear actuation point. However, the keys are a little mushy for our taste. The keyboard deck exhibits an inconsequential amount of flex when typing. The backlight, which can be adjusted via a function key, offers two luminance levels. All in all, the Pavilion x360 14 has a decent keyboard.

TouchPad

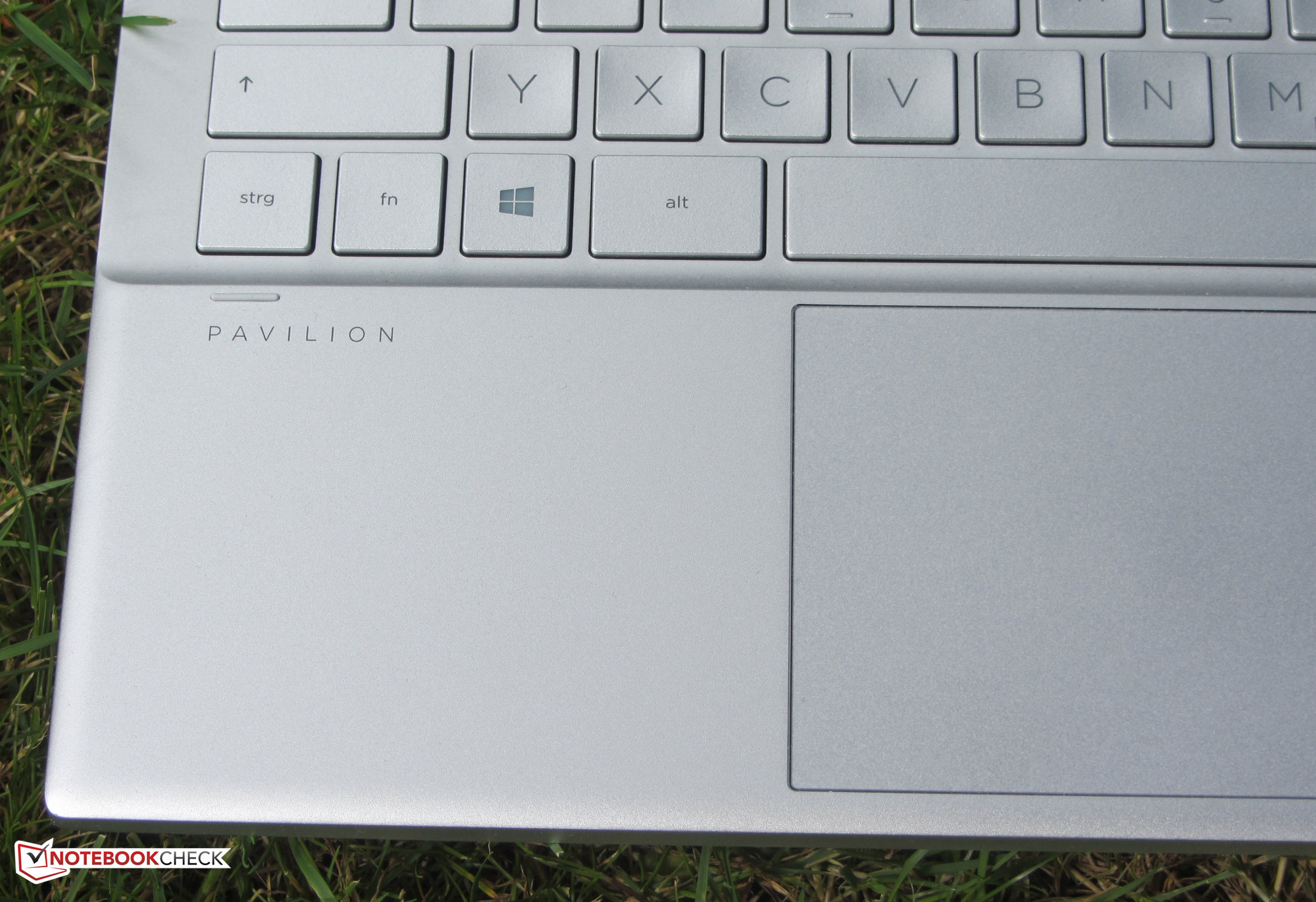

The HP laptop uses a multitouch-enabled ClickPad (11.5x7.3 cm) as a replacement for the mouse. The pad has a smooth surface, clear actuation point and short travel distance. It reliably recognises inputs, even in the corners.

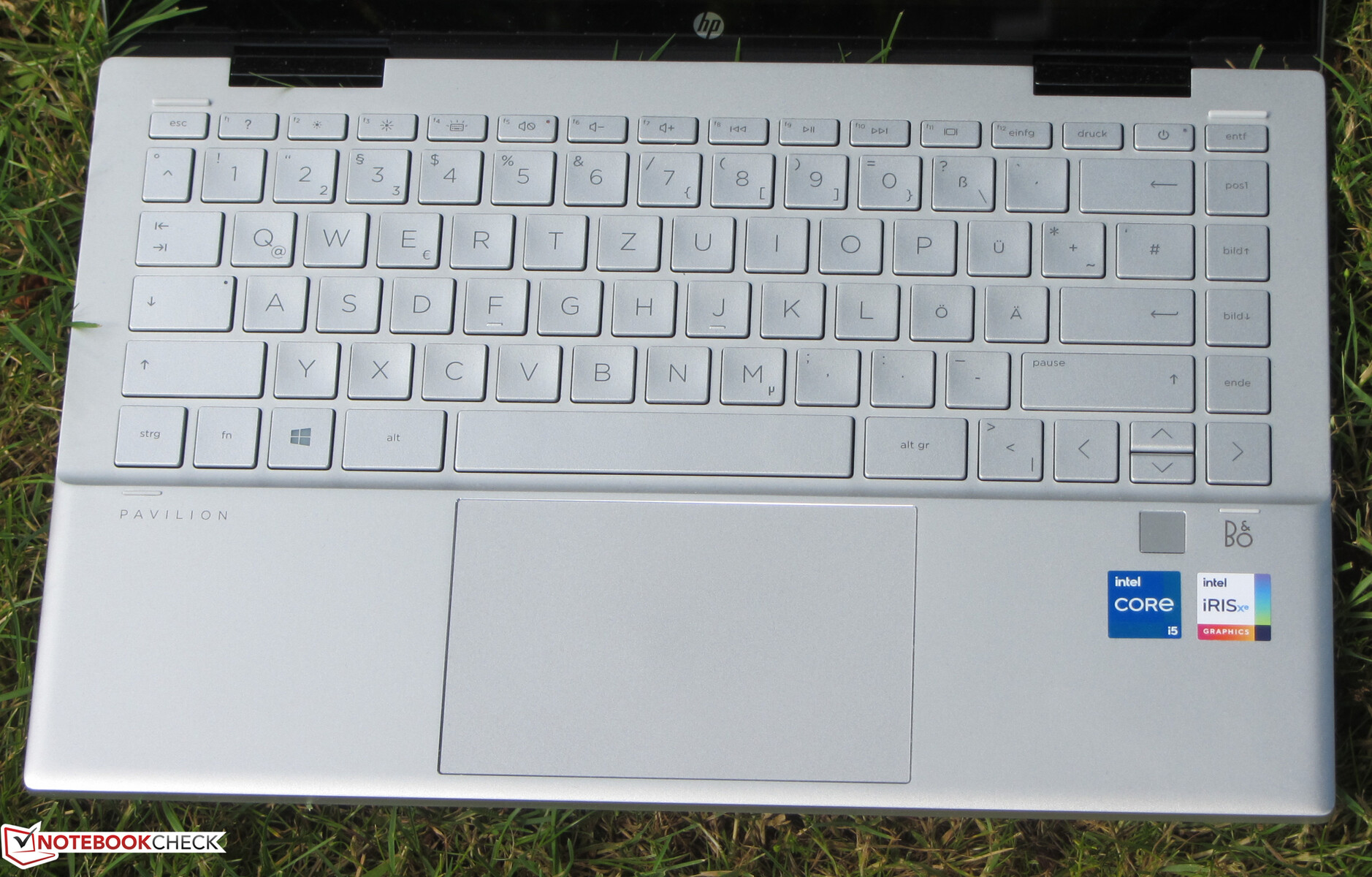

Input devices of the Pavilion x360
Input devices of the Pavilion x360

Touchscreen

The 10-point touchscreen has no trouble recognising inputs. It can be operated with the fingers or the HP Tilt Pen MPP2.0 (3J122AA; €80/$95), which is sold separately. We did not encounter any issues with the touchscreen during our review.

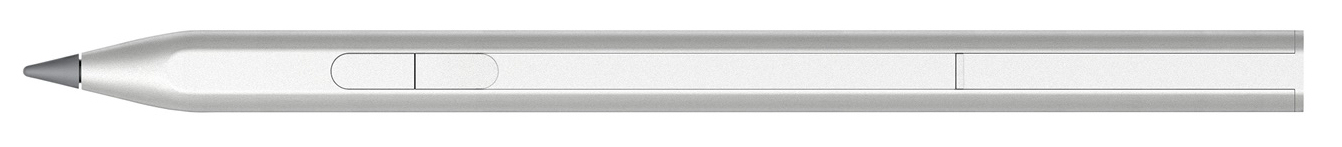

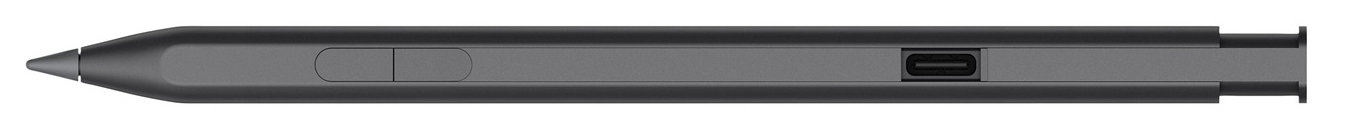

HP Tilt Pen - An LED ring at the top indicates the battery status.
HP Tilt Pen - An LED ring at the top indicates the battery status.
The stylus is charged via a USB-C port.
The stylus is charged via a USB-C port.

Display - Dim IPS screen

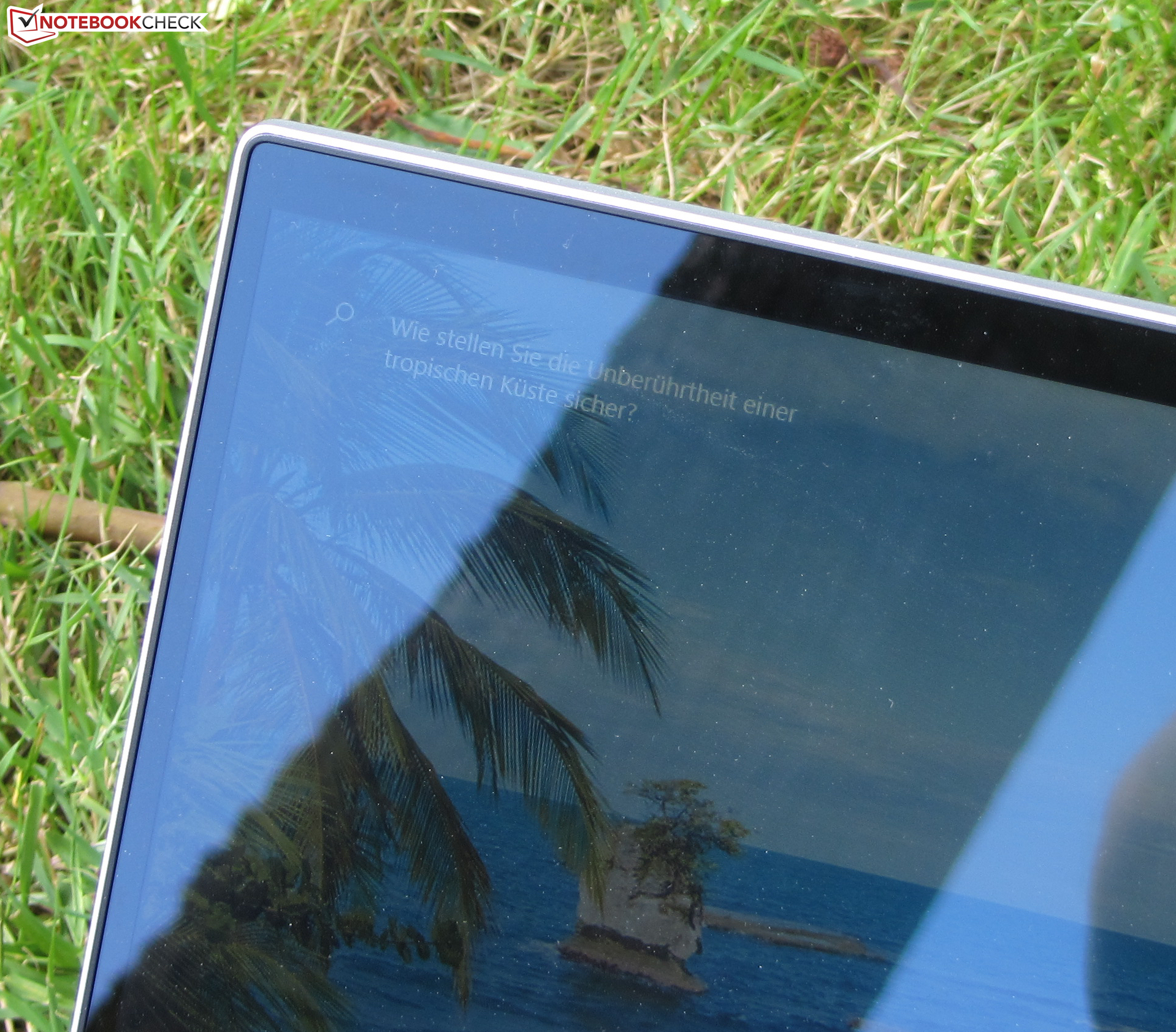

While the brightness (246.1 cd/m²) is too low, the contrast ratio (2445:1) is quite high. When running on battery power, the maximum brightness is even lower As a rule, we consider a screen brightness of at least 300 cd/m² to be good. We did not detect PWM flickering.

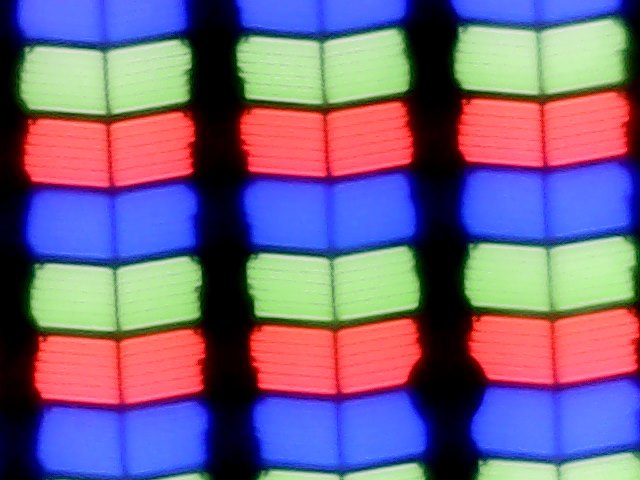

Pixel arrangement
Pixel arrangement

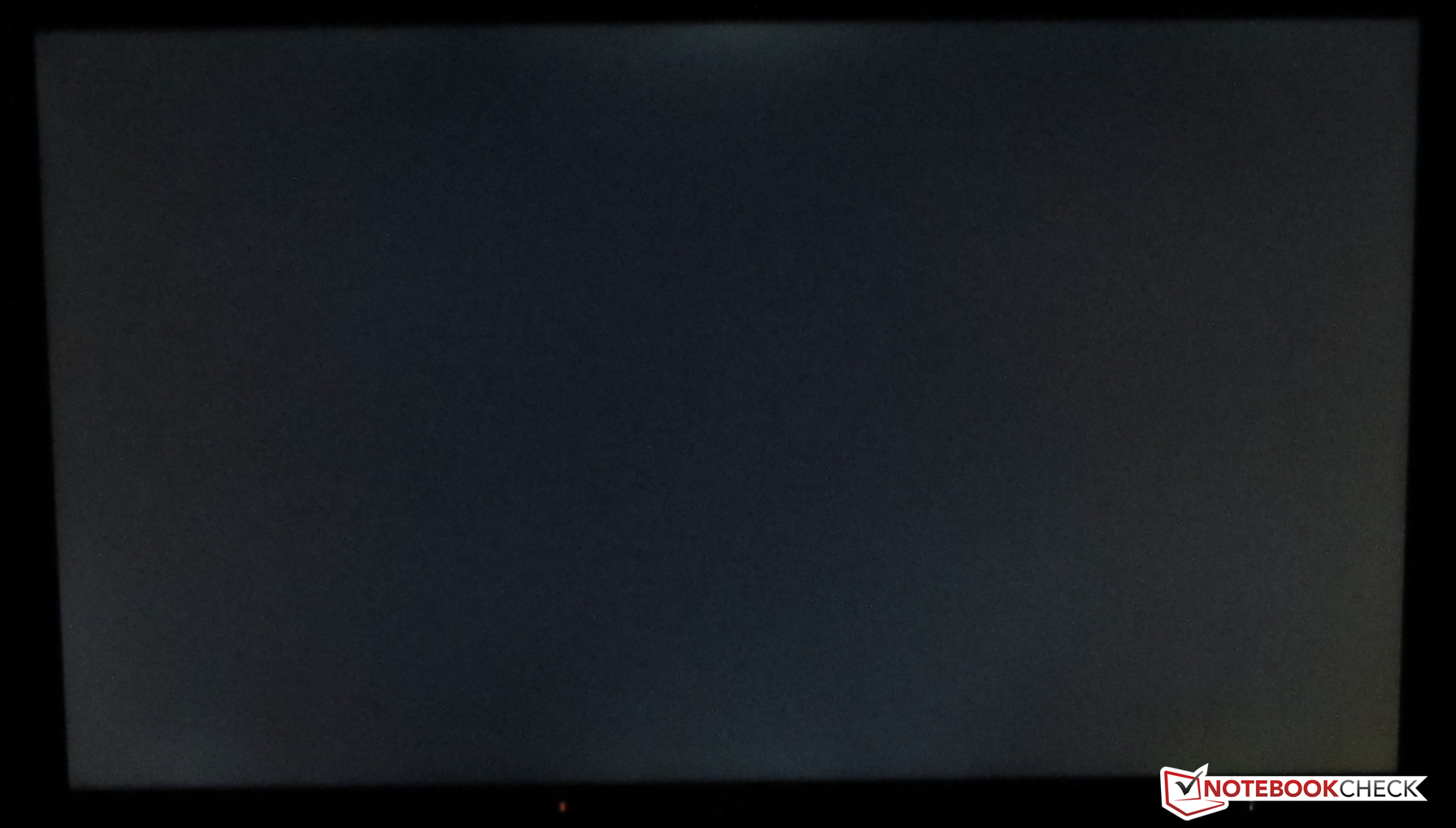

Screen bleeding
Screen bleeding
237
cd/m²
225
cd/m²
228
cd/m²
240
cd/m²
269
cd/m²
243
cd/m²
224
cd/m²
274
cd/m²
230
cd/m²
Distribution of brightness
Chi Mei N140HCA-E5B
X-Rite i1Pro 2
Maximum: 274 cd/m² Average: 241.1 cd/m² Minimum: 13.6 cd/m²
Brightness Distribution: 82 %
Center on Battery: 237 cd/m²
Contrast: 2445:1 (Black: 0.11 cd/m²)
ΔE Color 5.68 | 0.59-29.43 Ø5.6
ΔE Greyscale 4.95 | 0.64-98 Ø5.8

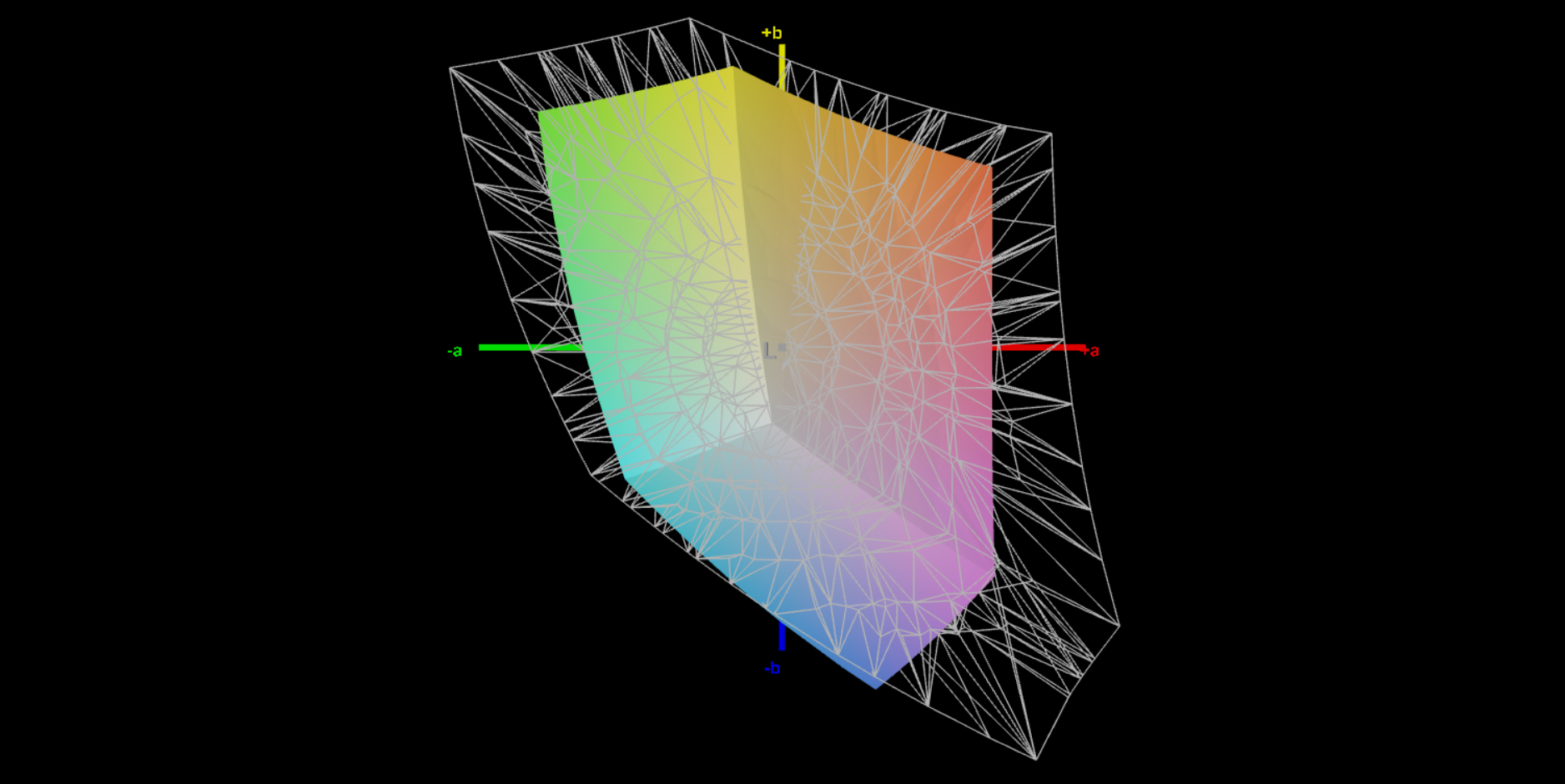

63.7% sRGB (Argyll 1.6.3 3D)

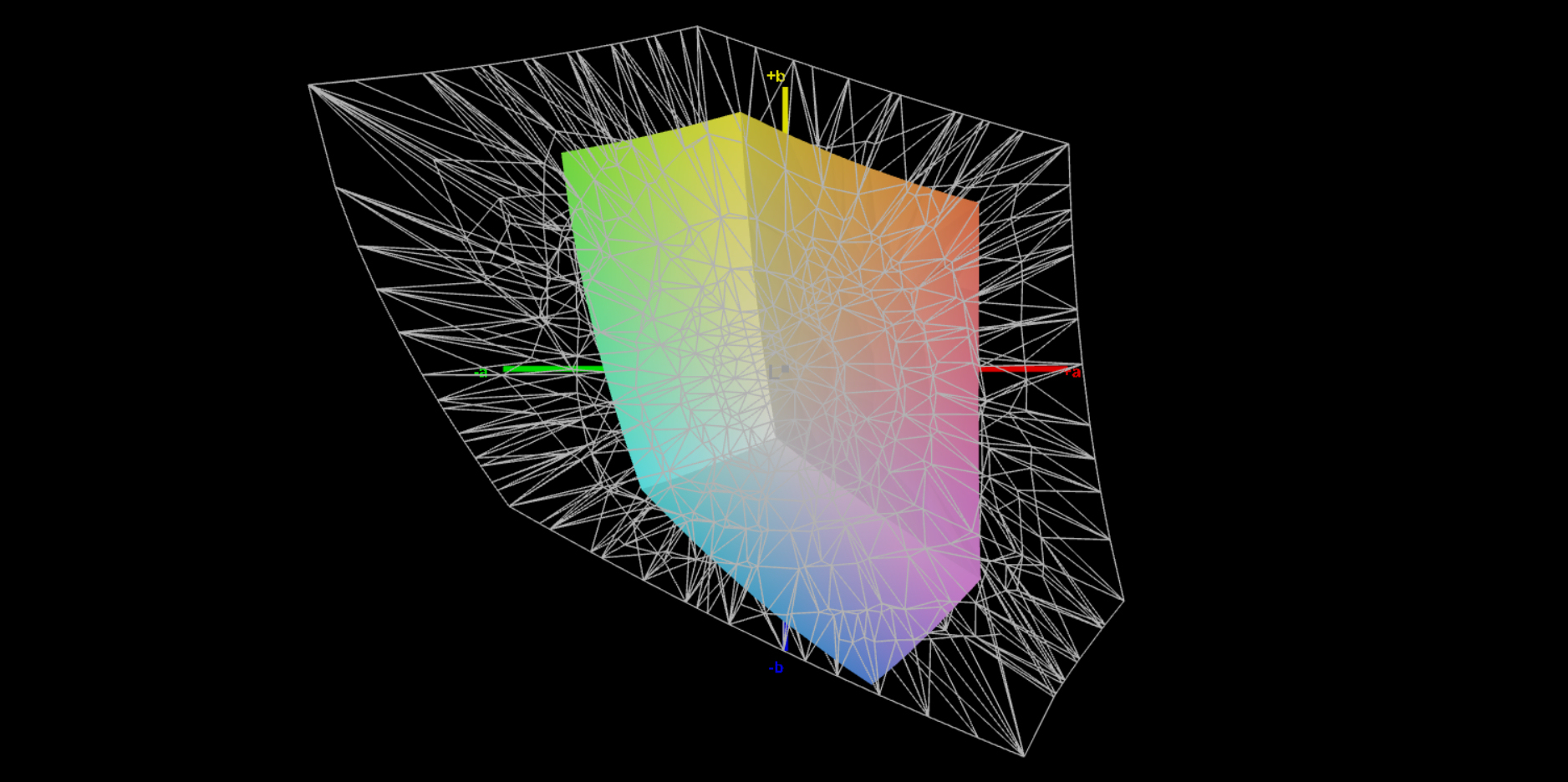

44.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.7% sRGB (Argyll 2.2.0 3D)

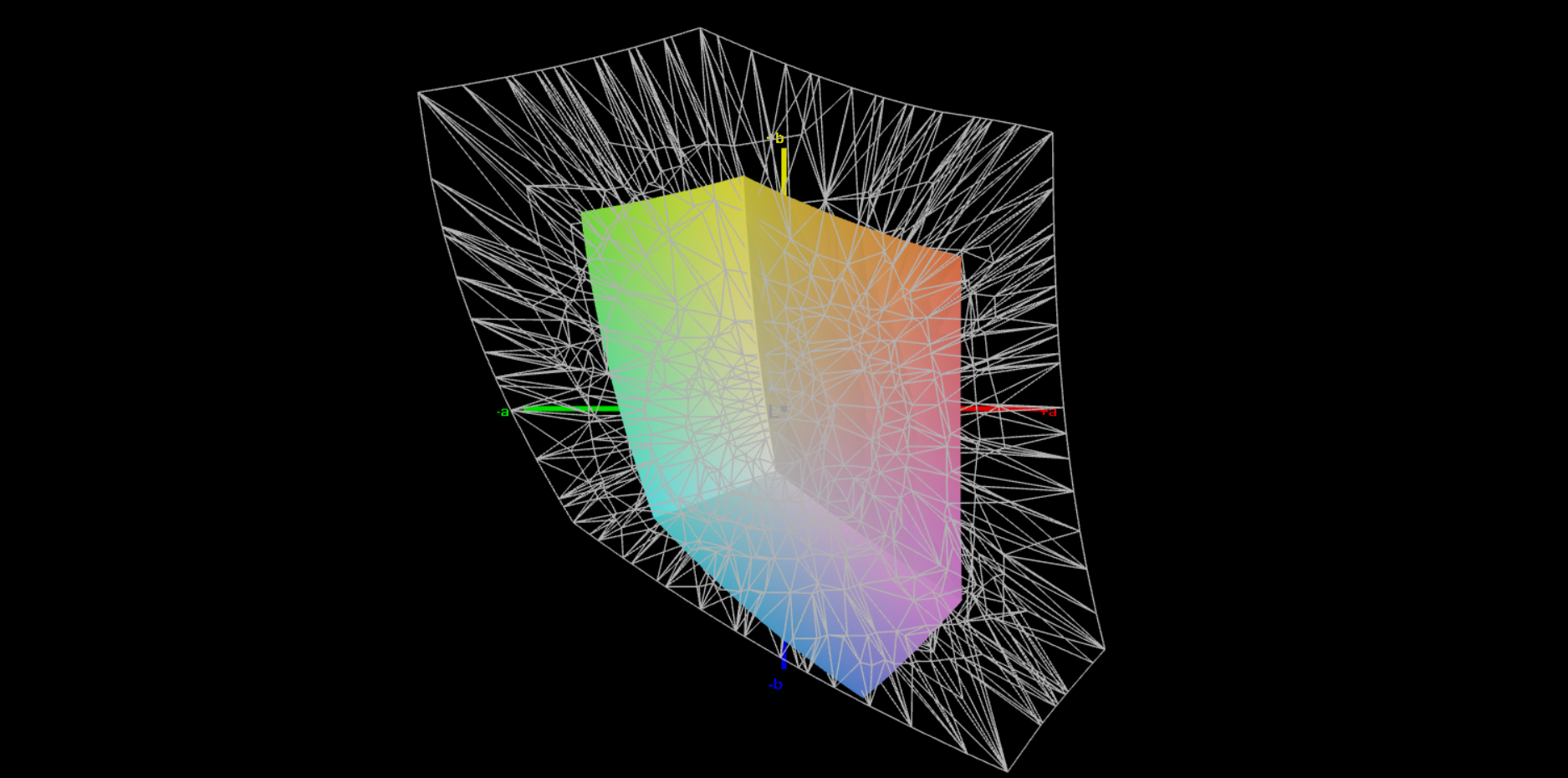

42.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.17
HP Pavilion x360 14-dy0157ng
Chi Mei N140HCA-E5B, IPS, 1920x1080, 14.00
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Chi Mei N140HCA-E5B, IPS, 1920x1080, 14.00
Acer Chromebook Spin 713 CP713-2W-560V
IPS, 2256x1504, 13.50
Asus VivoBook Flip 14 TP470EZ
Chi Mei CMN N140HCA-EAC, IPS, 1920x1080, 14.00
Acer Spin 3 SP314-54N-56S5
BOE081D, IPS, 1920x1080, 14.00
Display
-1%
-3%
-8%
Display P3 Coverage
42.7
42.32
-1%
41.6
-3%
39.25
-8%
sRGB Coverage
63.7
62.69
-2%
62.1
-3%
58.18
-9%
AdobeRGB 1998 Coverage
44.2
43.87
-1%
43
-3%
40.55
-8%
Response Times
-13%
16%
-25%
18%
Response Time Grey 50% / Grey 80% *
32 (15, 17)
38.4 (23.2, 15.2)
-20%
36 (10, 26)
-13%
39 (20, 19)
-22%
29 (5, 24)
9%

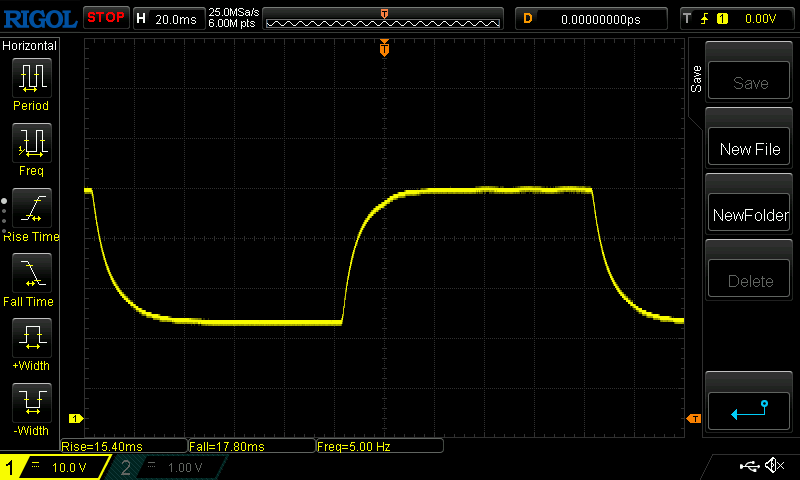

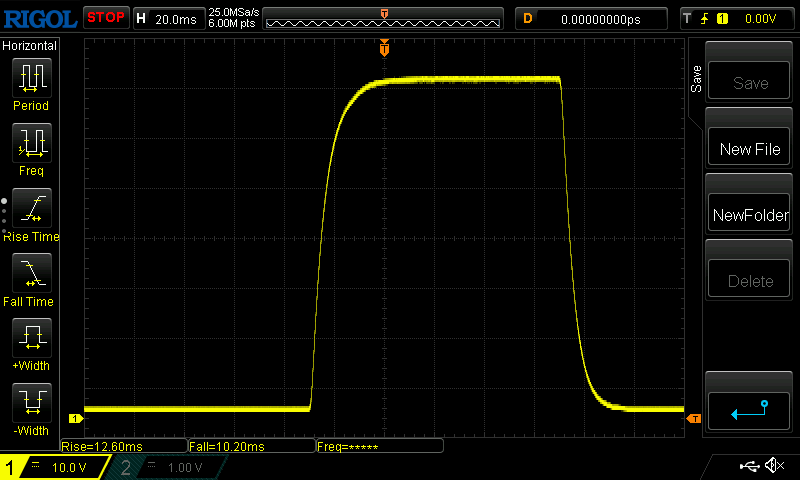

Response Time Black / White *
22 (12, 10)
23.2 (12.4, 10.8)
-5%
12 (3, 9)
45%
28 (16, 12)
-27%
16 (4, 12)
27%

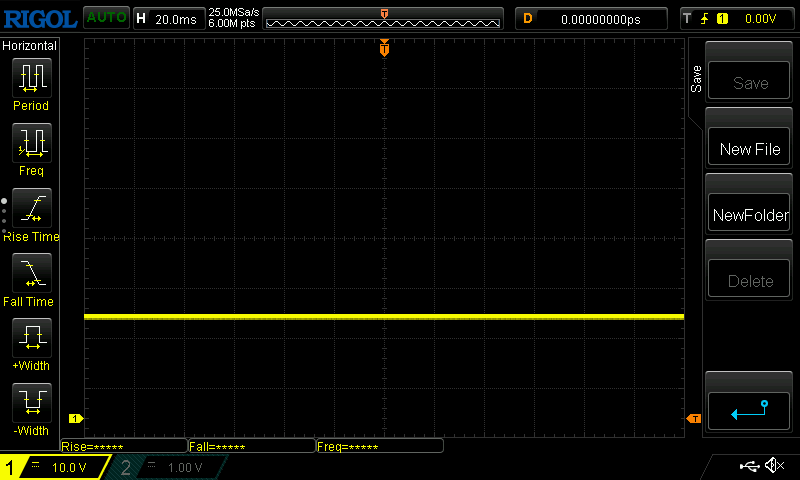

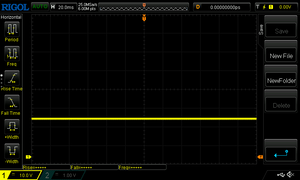

PWM Frequency
200 (40)
25000 (20)
1000 (90)
Screen
-43%
-28%
-30%
-1%
Brightness middle
269
236.7
-12%
426
58%
205
-24%
271
1%
Brightness
241
221
-8%
388
61%
186
-23%
272
13%
Brightness Distribution
82
81
-1%
85
4%
78
-5%
92
12%
Black Level *
0.11
0.2
-82%
0.56
-409%
0.22
-100%
0.19
-73%
Contrast
2445
1184
-52%
761
-69%
932
-62%
1426
-42%
Colorchecker DeltaE2000 *
5.68
7.83
-38%
2.25
60%
5.14
10%
4.24
25%
Colorchecker DeltaE2000 max. *
9.61
23.74
-147%
5.29
45%
19.57
-104%
6.38
34%
Greyscale DeltaE2000 *
4.95
8.6
-74%
3.53
29%
4.1
17%
2.51
49%
Gamma
2.17 101%
1.96 112%
2.32 95%
2.2 100%
2.25 98%
CCT
6628 98%
5901 110%
6368 102%
6807 95%
6812 95%
Color Space (Percent of AdobeRGB 1998)
44.2
40.3
-9%
43.04
-3%
37
-16%
Color Space (Percent of sRGB)
63.7
62.3
-2%
62.1
-3%
58
-9%
Colorchecker DeltaE2000 calibrated *
3.8
3.17
Total Average (Program / Settings)
-19% / -30%
-6% / -19%
-19% / -24%
3% / 0%

* ... smaller is better

Right out of the box, the screen offers acceptable colour accuracy. However, with a DeltaE 2000 colour deviation of about 6, the display misses the mark (DeltaE less than 3) considerably. The display is not marred by a bluish cast. A calibration could improve colour reproduction. The HP laptop can only cover 64% of sRGB, 44% of Adobe RGB and 43% of DCI-P3.

CalMAN - Colour accuracy
CalMAN - Colour accuracy
CalMAN - Grayscale
CalMAN - Grayscale
CalMAN - Saturation
CalMAN - Saturation
Pavilion vs. sRGB
Pavilion vs. sRGB
Pavilion vs. AdobeRGB
Pavilion vs. AdobeRGB
Pavilion vs. DCI-P3
Pavilion vs. DCI-P3

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24 ms).
       Response Time 50% Grey to 80% Grey
32 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 26 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (38.1 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 14804 (minimum: 5 - maximum: 2500000) Hz was measured.

The Pavilion x360 14 comes with an IPS panel. Therefore, the screen content can be read from any angle. Outdoors, the device cannot be used because of a low display brightness and a reflective screen surface.

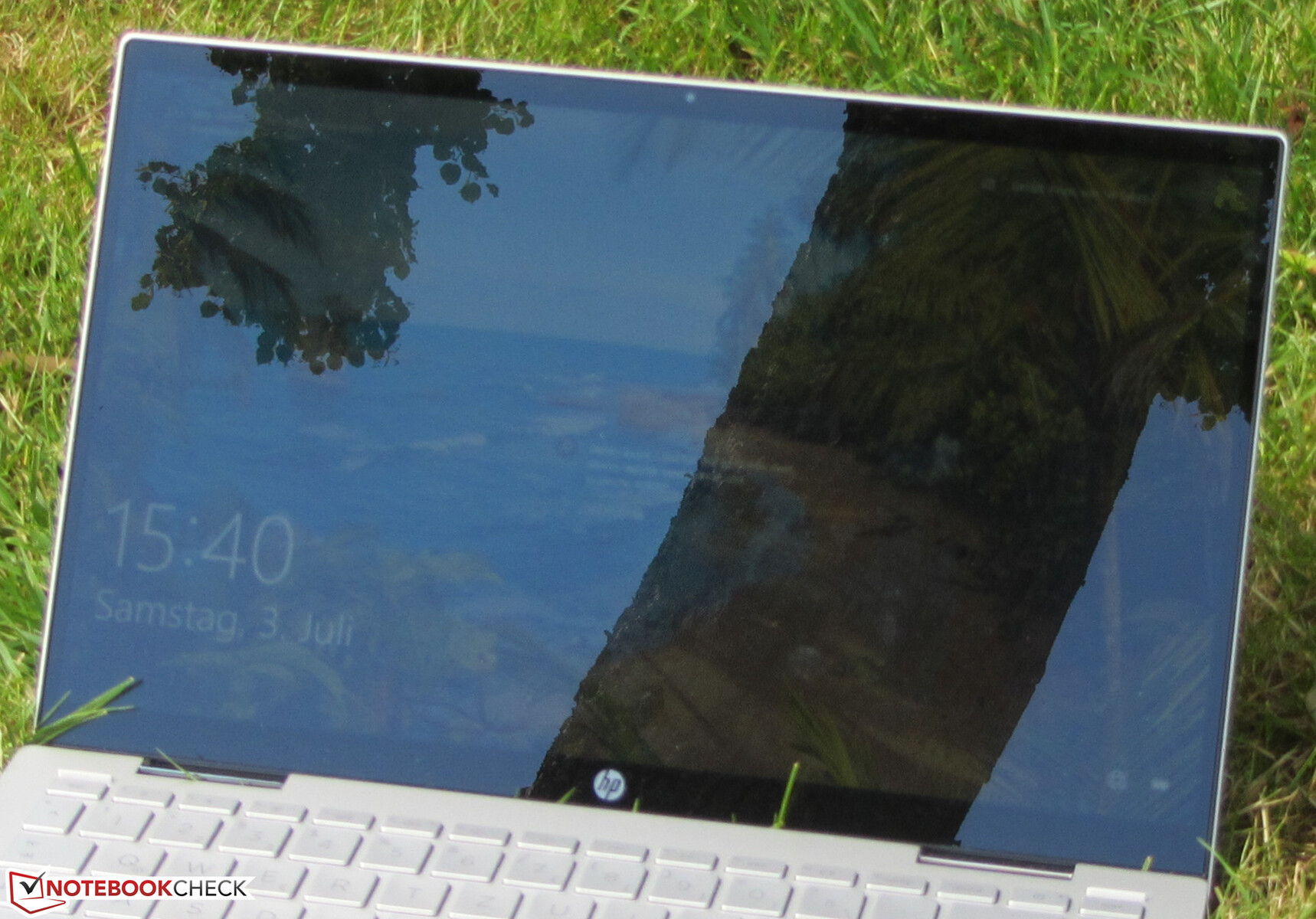

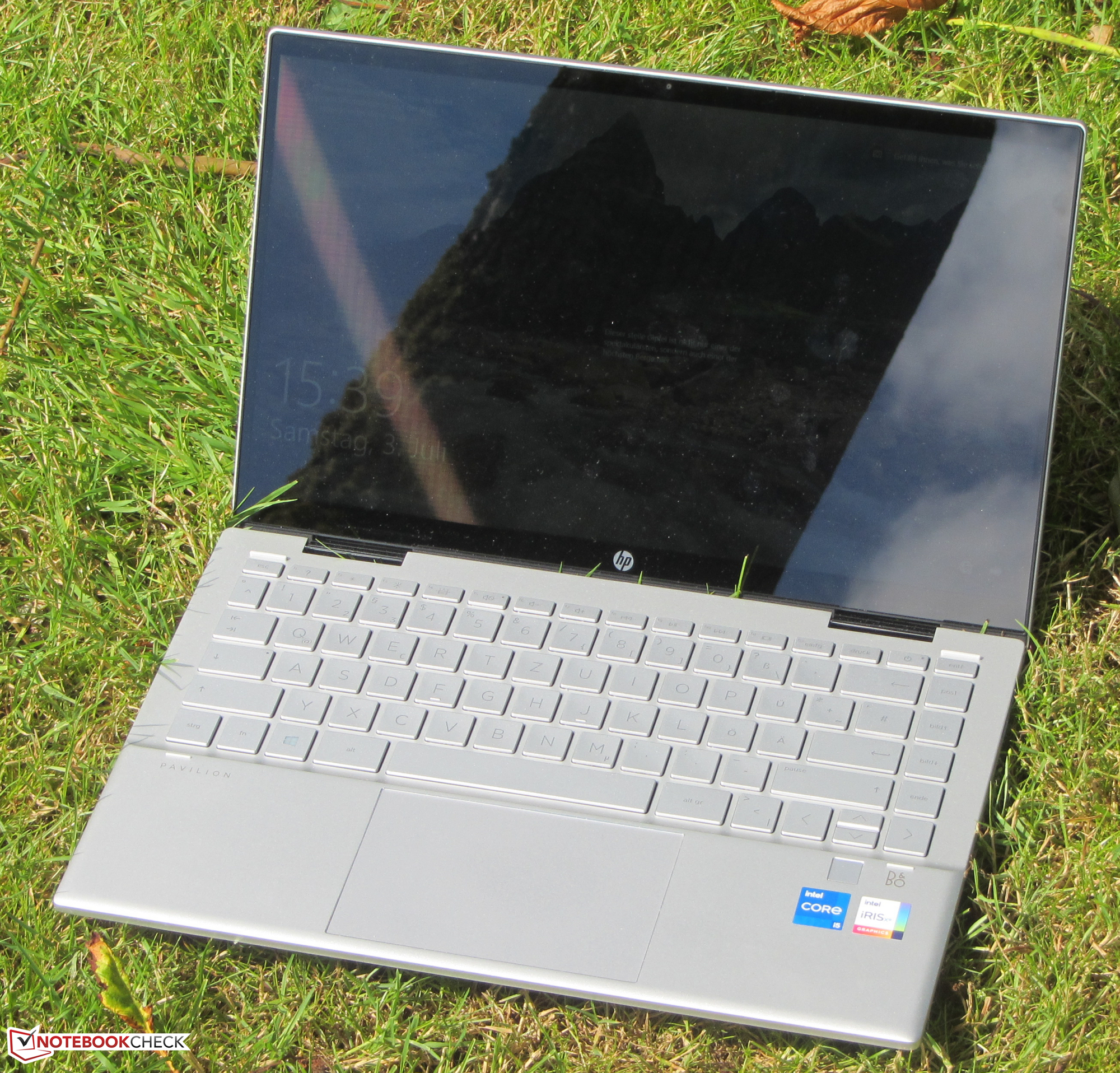

The Pavilion x360 14 outdoors
The Pavilion x360 14 outdoors

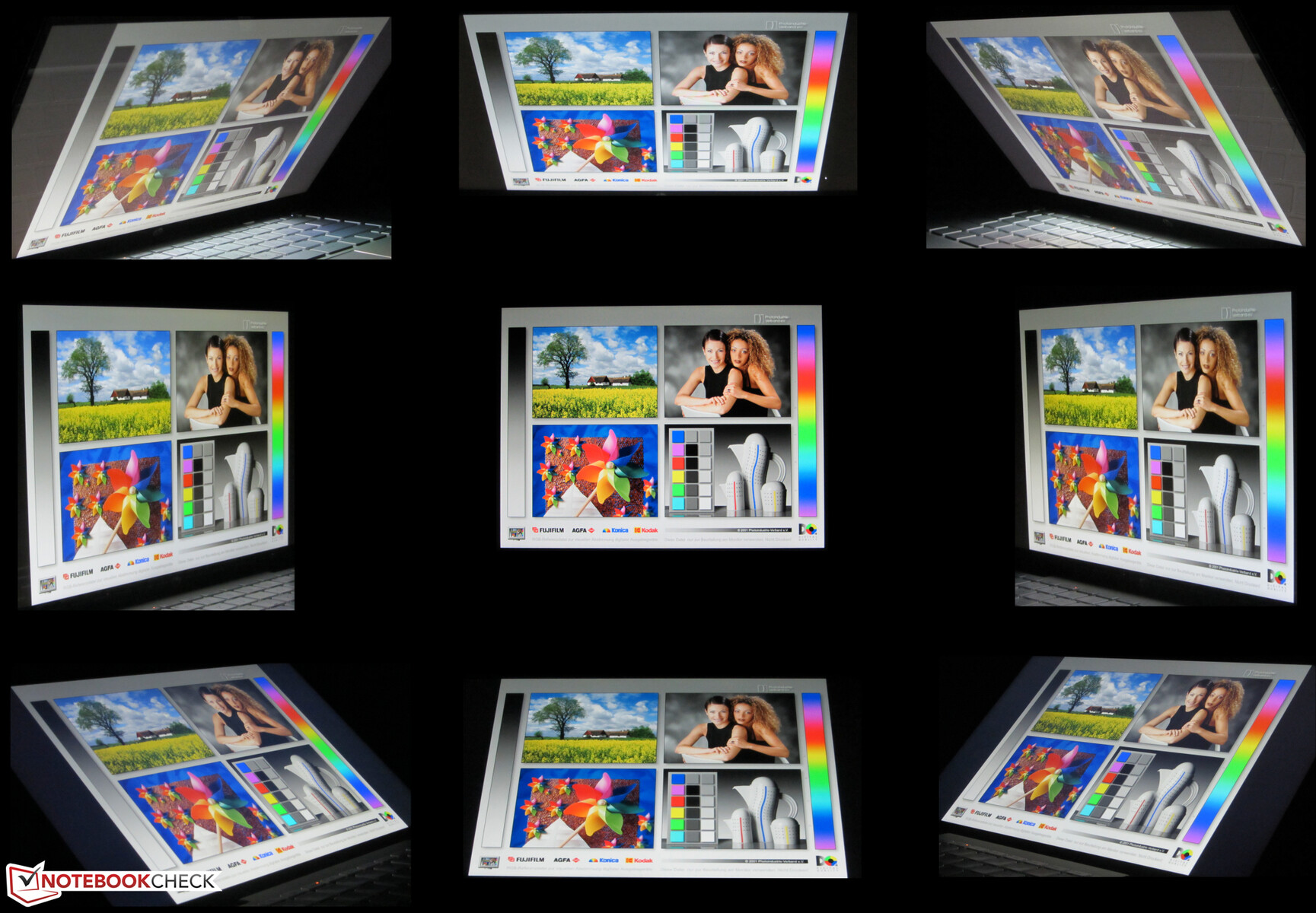

Viewing angles
Viewing angles

Performance - Tiger Lake is not fully utilised

The HP Pavilion x360 14 is a 14-inch 2-in-1 device. It offers enough performance for web browsing and office work.

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z

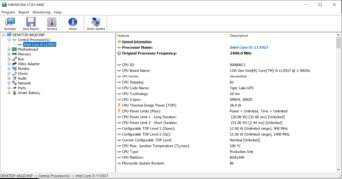

HWInfo
HWInfo



Processor

The Pavilion x360 14 comes with Intel’s Tiger Lake-based Core i5-1135G7, which features four cores with a base clock of 2.4 GHz. Thanks to Intel’s Turbo Boost technology, the clock rate can be increased up to 3.8 GHz for all cores and 4.2 GHz for a single core. The processor supports Intel’s Hyper-Threading Technology (one core can process two threads at the same time).

The processor runs for a short time at 3.8 GHz in the multi-core section of the Cinebench R15 benchmark. Then the clock rate starts to fluctuate between 1.2 GHz and 2.7 GHz. The clock speeds range from 1.7 to 4.2 GHz in the single-core section of the benchmark. When running on battery power, the performance of the processor drops significantly.

When compared to other notebooks with the Core i5-1135G7, the Pavilion x360 14 leaves a rather mixed impression. It offers a high level of single-core performance, but it achieves only subpar results in the multi-core benchmarks.

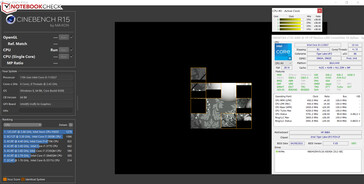

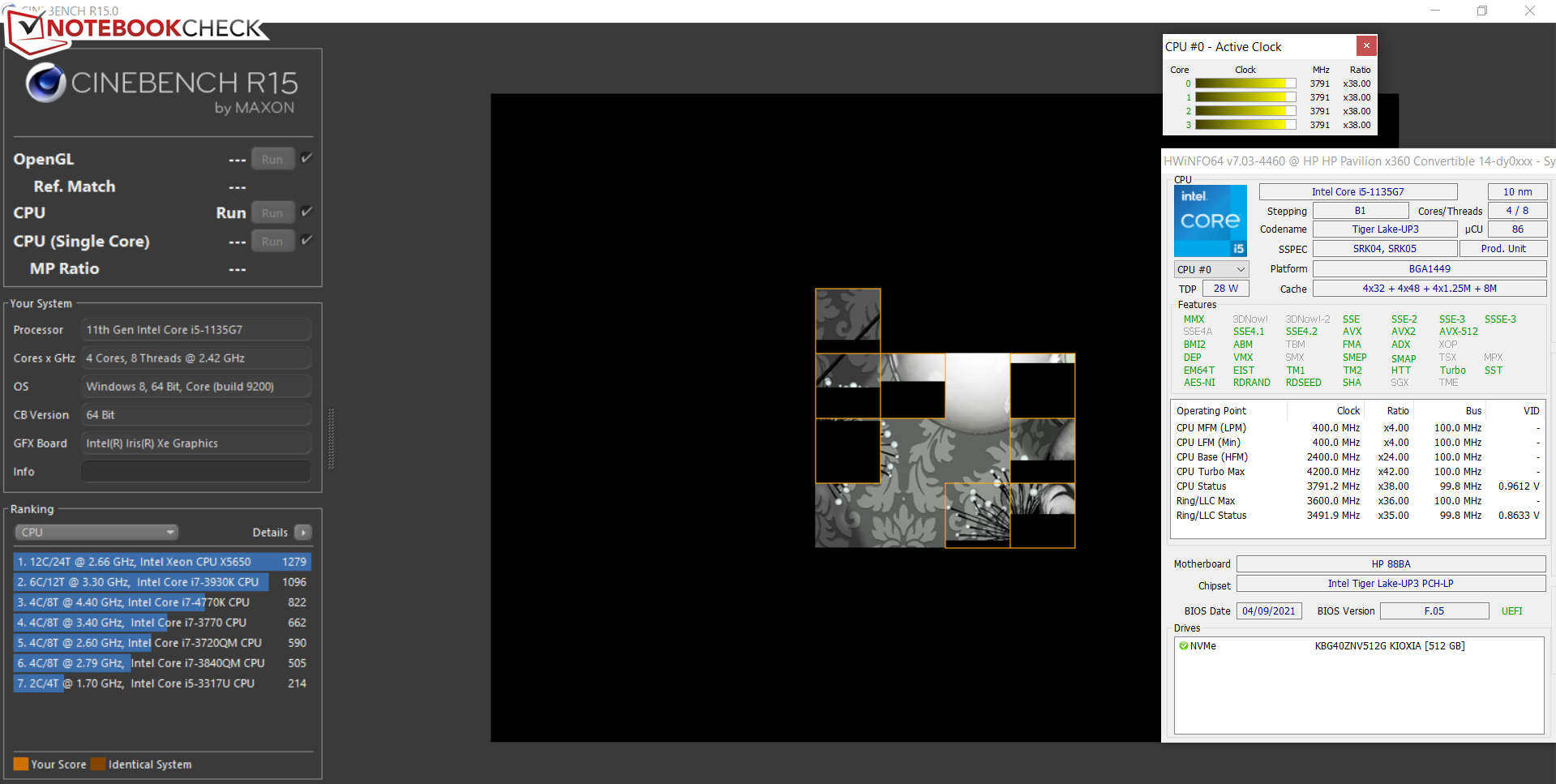

Multi-core (plugged in)
Multi-core (plugged in)

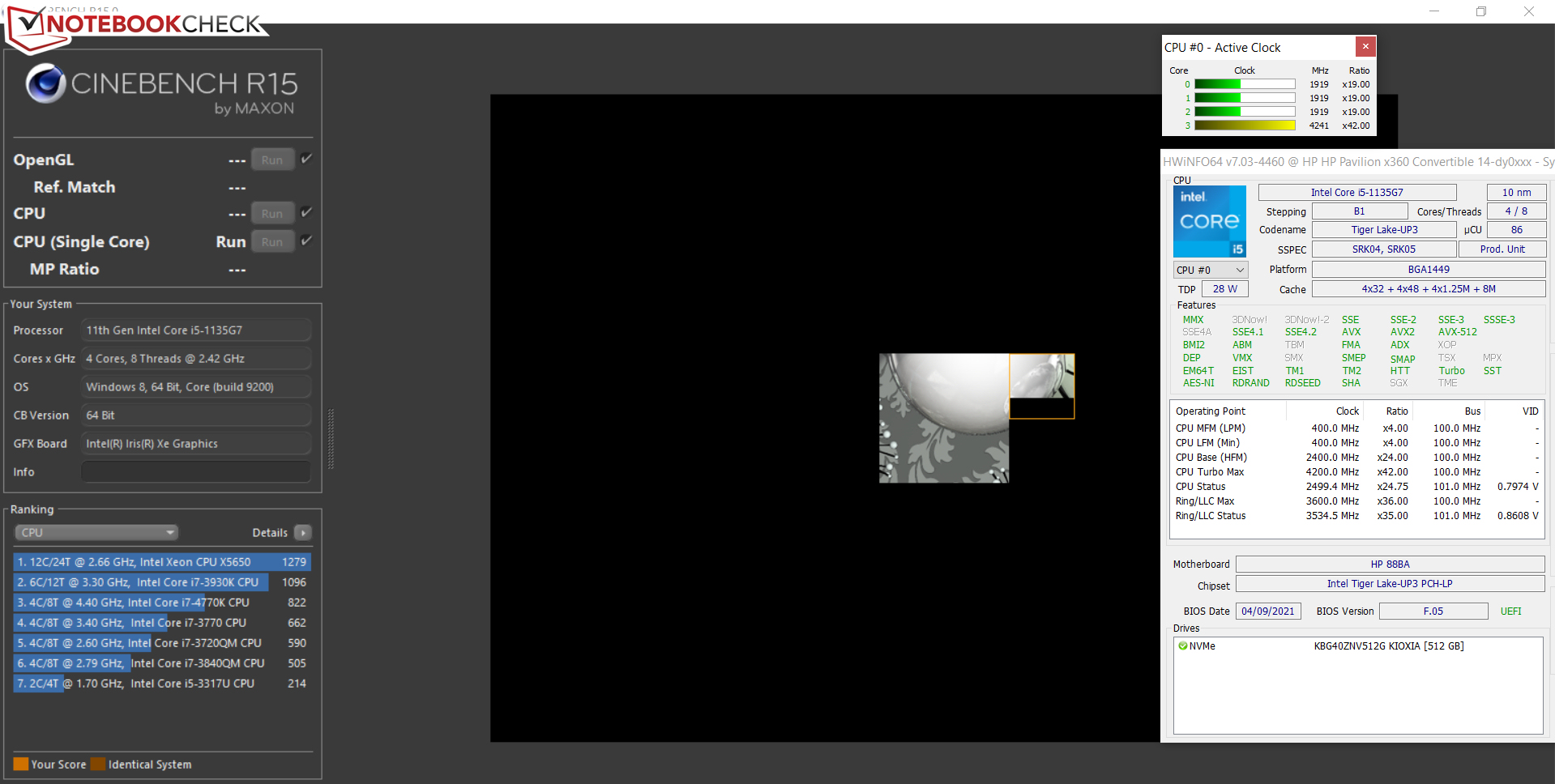

Single-core (plugged in)
Single-core (plugged in)

We check whether or not Intel’s Turbo Boost technology can be used over an extended period of time by running the multi-core section of the Cinebench R15 benchmark for 30 straight minutes in a continuous loop. The clock rates fall considerably shortly after the benchmark is initiated. All in all, the Turbo Boost technology is not fully utilised.

075150225300375450525600675750825900975105011251200127513501425688.22616.75605.37586.83593.44595.9612.67617.53608.65614.7604.35588.62610.2610.05600.47584.07604.81607.45596.53565.83565.2589.21570.87555.69587.93581.33551.56559.26580.64583.57553.31536.89561.73583.27557.69533.06563.86563.61529.91553.871478.251472.71465.311462.841464.721462.521468.811473.571469.081469.671471.621470.71460.711467.941468.111466.171463.491466.441465.91467.891465.91464.661468.481466.871472.051467.411463.331467.891461.081471.41464.831466.061471.671465.951465.521468.051470.591472.051461.131470.11467.241468.751463.061467.781466.281466.541464.081470.321471.071470.64705.47689.17684.63691.2691.86693.76693.77695.28694.03688.8690.23691.86689.69685.94676.68632.13681.8682.38683.24684.45690.2691.2693.06688.99690.13632.01609.96594.3579.63565.94550.95551.31580.6578.07565.06547.77552.14565.43550.24550.6577.07566.31553.33552.14576.63566.68550.84550.36575.9567.31Tooltip
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7: Ø584 (529.91-688.22)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS AMD Ryzen 7 5700U: Ø1468 (1460.71-1478.25)
Asus VivoBook Flip 14 TP470EZ Intel Core i5-1135G7: Ø687 (632.13-705.47)
Acer Spin 3 SP314-54N-56S5 Intel Core i5-1035G4: Ø568 (547.77-632.01)

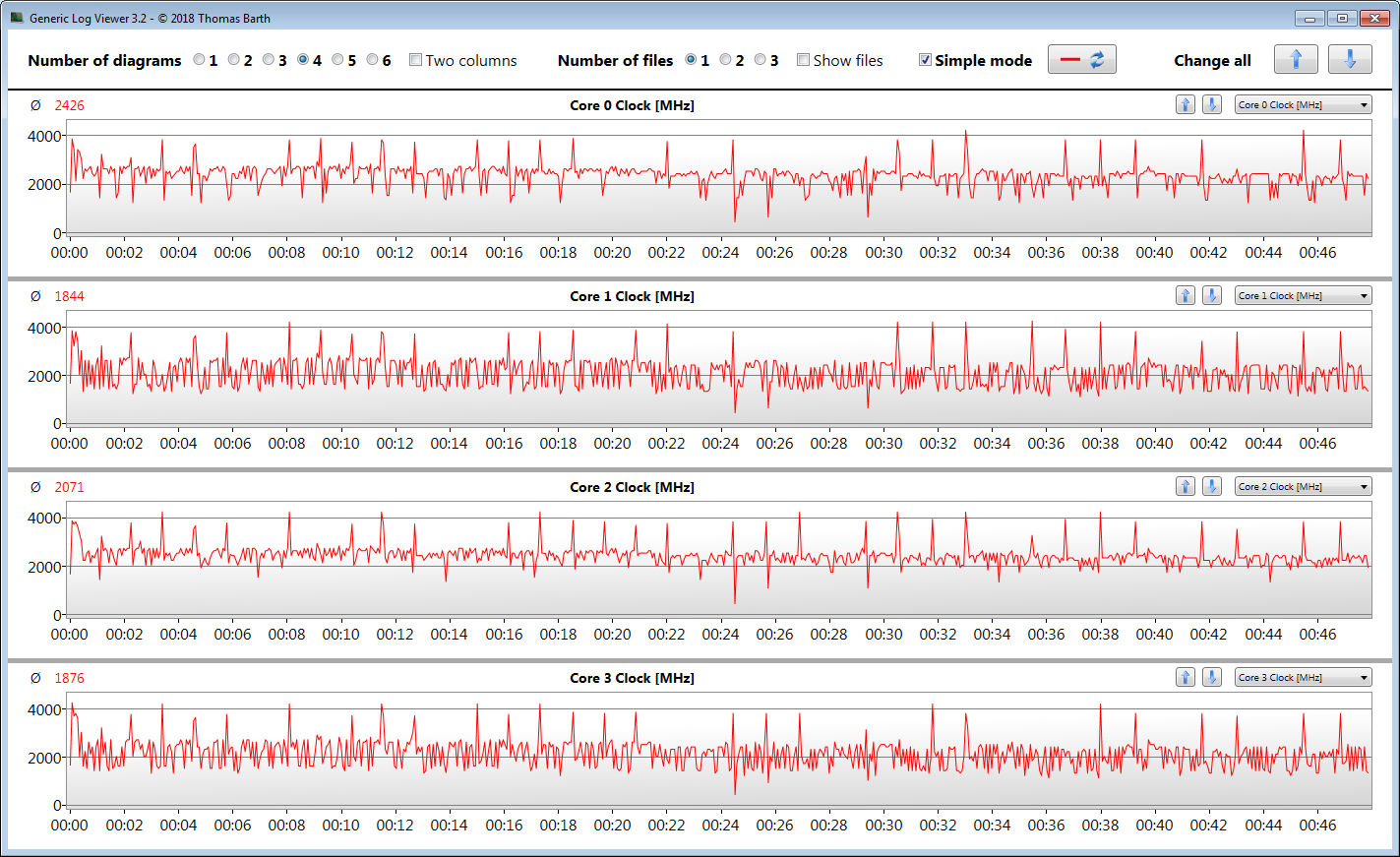

CPU clock rates during the CB15 loop
CPU clock rates during the CB15 loop
Cinebench R15 OpenGL 64Bit
91.69 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Multi 64Bit
688 Points
Cinebench R15 CPU Single 64Bit
197 Points
Help
Cinebench R23
CPU (Single Core)
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
1371 Points ∼100% +1%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1359 Points ∼99%
Average Intel Core i5-1135G7
  (1172 - 1372, n=22)
1324 Points ∼97% -3%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
1263 Points ∼92% -7%
Average of class Convertible
  (382 - 1529, n=37, last 2 years)
1257 Points ∼92% -8%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1119 Points ∼82% -18%
CPU (Multi Core)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
10139 (8794.52min - 10139.3max) Points ∼100% +152%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
5136 Points ∼51% +27%
Average of class Convertible
  (709 - 12629, n=38, last 2 years)
4948 Points ∼49% +23%
Average Intel Core i5-1135G7
  (2786 - 6136, n=23)
4484 Points ∼44% +11%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4029 Points ∼40%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
3800 Points ∼37% -6%
Cinebench R20
CPU (Single Core)
Average Intel Core i5-1135G7
  (442 - 527, n=29)
506 Points ∼100% +8%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
504 Points ∼100% +8%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
492 Points ∼97% +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
467 Points ∼92%
Average of class Convertible
  (106 - 604, n=86, last 2 years)
438 Points ∼87% -6%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
435 Points ∼86% -7%
CPU (Multi Core)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
3877 Points ∼100% +296%
Average Intel Core i5-1135G7
  (979 - 2382, n=29)
1763 Points ∼45% +80%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
1727 Points ∼45% +76%
Average of class Convertible
  (200 - 4953, n=86, last 2 years)
1620 Points ∼42% +65%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1399 Points ∼36% +43%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
979 Points ∼25%
Cinebench R15
CPU Single 64Bit
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
201 Points ∼100% +2%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
197 Points ∼98%
Average Intel Core i5-1135G7
  (86.2 - 205, n=32)
192 Points ∼96% -3%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
189 Points ∼94% -4%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
170 Points ∼85% -14%
Average of class Convertible
  (47.6 - 243, n=91, last 2 years)
170 Points ∼85% -14%
CPU Multi 64Bit
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
1478 (1460.71min - 1478.25max) Points ∼100% +115%
Average Intel Core i5-1135G7
  (431 - 925, n=33)
777 Points ∼53% +13%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
705 (632.13min - 705.47max) Points ∼48% +2%
Average of class Convertible
  (90 - 2083, n=97, last 2 years)
703 Points ∼48% +2%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
688 Points ∼47%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
632 (547.77min - 632.01max) Points ∼43% -8%
Blender 2.79 - BMW27 CPU
Average of class Convertible
  (246 - 5811, n=74, last 2 years)
1000 Seconds * ∼100% -31%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
802 Seconds * ∼80% -5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
766 Seconds * ∼77%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
697.2 Seconds * ∼70% +9%
Average Intel Core i5-1135G7
  (499 - 1044, n=27)
686 Seconds * ∼69% +10%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
321 Seconds * ∼32% +58%
7-Zip 18.03
7z b 4 -mmt1
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4842 MIPS ∼100%
Average Intel Core i5-1135G7
  (3924 - 4867, n=29)
4650 MIPS ∼96% -4%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
4557 MIPS ∼94% -6%
Average of class Convertible
  (1307 - 5623, n=76, last 2 years)
4338 MIPS ∼90% -10%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
4169 MIPS ∼86% -14%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
4098 MIPS ∼85% -15%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
4098 MIPS ∼85% -15%
7z b 4
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
41347 MIPS ∼100% +118%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
22027 MIPS ∼53% +16%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
22027 MIPS ∼53% +16%
Average Intel Core i5-1135G7
  (14745 - 24873, n=29)
21187 MIPS ∼51% +12%
Average of class Convertible
  (3541 - 57319, n=77, last 2 years)
20079 MIPS ∼49% +6%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
18948 MIPS ∼46%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
16883 MIPS ∼41% -11%
Geekbench 5.3
64 Bit Single-Core Score
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1422 Points ∼100%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
1401 Points ∼99% -1%
Average Intel Core i5-1135G7
  (1304 - 1428, n=27)
1394 Points ∼98% -2%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
1235 Points ∼87% -13%
Average of class Convertible
  (263 - 1566, n=73, last 2 years)
1205 Points ∼85% -15%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
1186 Points ∼83% -17%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
949 Points ∼67% -33%
64 Bit Multi-Core Score
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
6630 Points ∼100% +36%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
5329 Points ∼80% +9%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4873 Points ∼73%
Average Intel Core i5-1135G7
  (3475 - 5472, n=27)
4802 Points ∼72% -1%
Average of class Convertible
  (707 - 8620, n=73, last 2 years)
4351 Points ∼66% -11%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
3986 Points ∼60% -18%
Acer Chromebook Spin 713 CP713-2W-560V
Intel Core i5-10210U
3314 Points ∼50% -32%
HWBOT x265 Benchmark v2.2 - 4k Preset
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
10.3 fps ∼100% +104%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
5.97 fps ∼58% +18%
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=26)
5.82 fps ∼57% +15%
Average of class Convertible
  (0.7 - 15.2, n=73, last 2 years)
5.28 fps ∼51% +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
5.04 fps ∼49%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
4.52 fps ∼44% -10%
LibreOffice - 20 Documents To PDF
Average of class Convertible
  (40.7 - 175, n=65, last 2 years)
64.6 s * ∼100% -24%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
58.8 s * ∼91% -13%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
58.4 s * ∼90% -12%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
54.7 s * ∼85% -5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
52.2 s * ∼81%
Average Intel Core i5-1135G7
  (45.9 - 58.8, n=28)
52.1 s * ∼81% -0%
R Benchmark 2.5 - Overall mean
Average of class Convertible
  (0.504 - 2.12, n=65, last 2 years)
0.733 sec * ∼100% -18%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4
0.701 sec * ∼96% -13%
Average Intel Core i5-1135G7
  (0.619 - 0.69, n=27)
0.639 sec * ∼87% -3%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7
0.63 sec * ∼86% -2%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
0.619 sec * ∼84%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U
0.586 sec * ∼80% +5%

* ... smaller is better

System Performance

The system runs very smoothly. The laptop offers more than enough performance for such usage scenarios as office work and Internet browsing. The notebook achieves good results in the PCMark benchmarks. The HP laptop features 16 GB of RAM (dual-channel; DDR4 3200). The amount of RAM can be increased.

PCMark 8 Home Score Accelerated v2
4132 points
PCMark 8 Creative Score Accelerated v2
4683 points
PCMark 8 Work Score Accelerated v2
3076 points
PCMark 10 Score
4646 points
Help
PCMark 10
Score
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Vega 8 R4000, R7 5700U, WDC PC SN530 SDBPMPZ-265G
5372 Points ∼100% +16%
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
4834 Points ∼90% +4%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4646 Points ∼86%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4794, n=26)
4577 Points ∼85% -1%
Average of class Convertible
  (1154 - 5971, n=85, last 2 years)
4192 Points ∼78% -10%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
3885 Points ∼72% -16%
Essentials
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
9753 Points ∼100%
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
9420 Points ∼97% -3%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9828, n=26)
9383 Points ∼96% -4%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Vega 8 R4000, R7 5700U, WDC PC SN530 SDBPMPZ-265G
9291 Points ∼95% -5%
Average of class Convertible
  (3258 - 11505, n=85, last 2 years)
8716 Points ∼89% -11%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
8709 Points ∼89% -11%
Productivity
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Vega 8 R4000, R7 5700U, WDC PC SN530 SDBPMPZ-265G
7972 Points ∼100% +25%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
6371 Points ∼80%
Average of class Convertible
  (1881 - 8653, n=85, last 2 years)
6317 Points ∼79% -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5544 - 6487, n=26)
6227 Points ∼78% -2%
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
6187 Points ∼78% -3%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
5302 Points ∼67% -17%
Digital Content Creation
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Vega 8 R4000, R7 5700U, WDC PC SN530 SDBPMPZ-265G
5681 Points ∼100% +30%
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
5259 Points ∼93% +20%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 4866, n=26)
4460 Points ∼79% +2%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4382 Points ∼77%
Average of class Convertible
  (681 - 6844, n=85, last 2 years)
3702 Points ∼65% -16%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
3448 Points ∼61% -21%
PCMark 8
Home Score Accelerated v2
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
5041 Points ∼100% +22%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3472 - 5032, n=10)
4259 Points ∼84% +3%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4132 Points ∼82%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
4072 Points ∼81% -1%
Average of class Convertible
  (1670 - 5041, n=55, last 2 years)
3656 Points ∼73% -12%
Work Score Accelerated v2
Average of class Convertible
  (2435 - 5366, n=52, last 2 years)
4216 Points ∼100% +37%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
3076 Points ∼73%
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
3021 Points ∼72% -2%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (2473 - 3214, n=10)
2999 Points ∼71% -3%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
2729 Points ∼65% -11%

DPC Latencies

Our DPC latency test (web-surfing, 4K video playback, Prime95) reveals that the Pavilion x360 14 is not fit for work with real-time audio and video.

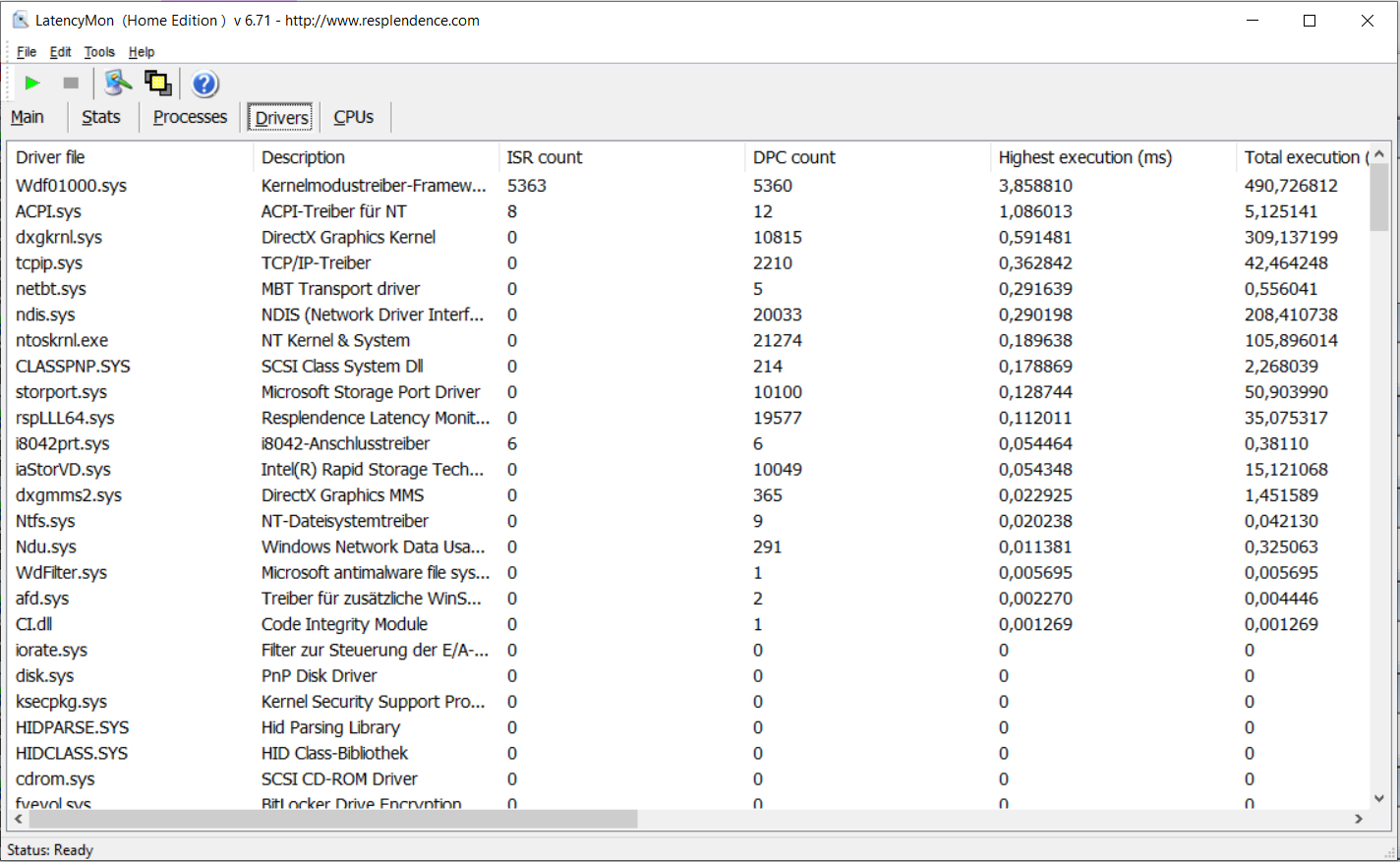

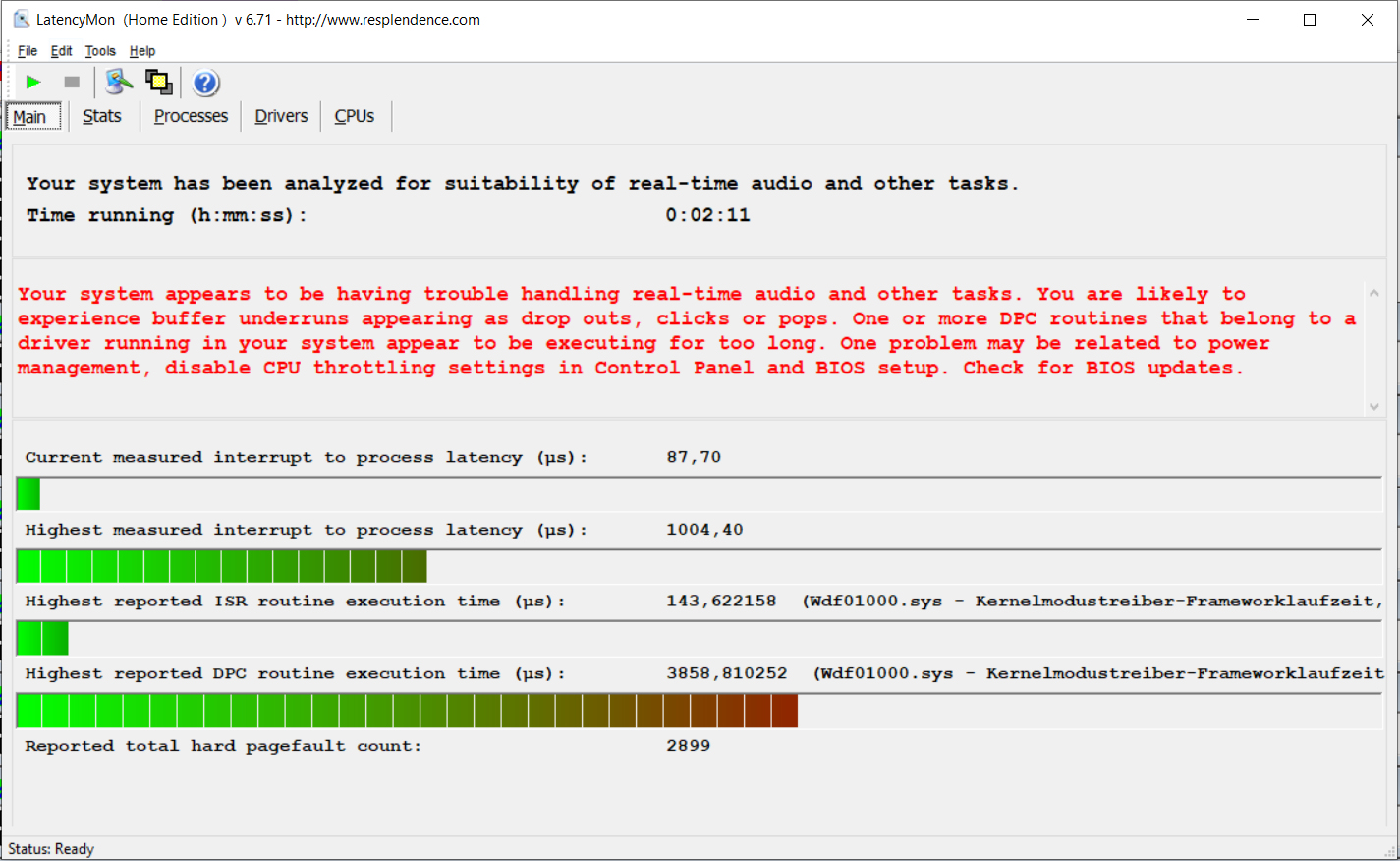

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
Vega 8 R4000, R7 5700U, WDC PC SN530 SDBPMPZ-265G
1820 μs * ∼100% -81%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
1004.4 μs * ∼55%
Acer Spin 3 SP314-54N-56S5
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0
860.7 μs * ∼47% +14%
Asus VivoBook Flip 14 TP470EZ
Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8
571.3 μs * ∼31% +43%

* ... smaller is better

Storage Devices

Our review device features a 512 GB NVMe SSD from Kioxia which offers very good data transfer rates.

An NVMe SSD serves as the system drive.
An NVMe SSD serves as the system drive.
Toshiba KBG40ZNV512G
CDM 5/6 Read Seq Q32T1: 2246 MB/s
CDM 5/6 Write Seq Q32T1: 1520 MB/s
CDM 5/6 Read 4K Q32T1: 619.5 MB/s
CDM 5/6 Write 4K Q32T1: 504.6 MB/s
CDM 5 Read Seq: 1624 MB/s
CDM 5 Write Seq: 1485 MB/s
CDM 5/6 Read 4K: 56.26 MB/s
CDM 5/6 Write 4K: 201.5 MB/s
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
WDC PC SN530 SDBPMPZ-265G
Asus VivoBook Flip 14 TP470EZ
Intel SSD 660p SSDPEKNW512G8
Acer Spin 3 SP314-54N-56S5
SK hynix BC511 HFM256GDJTNI-82A0
Average Toshiba KBG40ZNV512G

CrystalDiskMark 5.2 / 6
-2%
-15%
-25%
-11%
Write 4K
201.5
161
-20%
200.2
-1%
165.2
-18%
142 (112 - 202, n=4)
-30%
Read 4K
56.26
49.96
-11%
58.56
4%
54.96
-2%
51.5 (38.2 - 60.4, n=4)
-8%
Write Seq
1485
1840
24%
982.6
-34%
1015
-32%
1425 (1254 - 1515, n=4)
-4%
Read Seq
1624
1989
22%
1623
0%
1125
-31%
1511 (1337 - 1624, n=4)
-7%
Write 4K Q32T1
504.6
354.1
-30%
547.1
8%
423.6
-16%
349 (236 - 505, n=4)
-31%
Read 4K Q32T1
619.5
452.3
-27%
345.1
-44%
483.8
-22%
564 (393 - 737, n=4)
-9%
Write Seq Q32T1
1520
1842
21%
985.2
-35%
648.3
-57%
1508 (1490 - 1529, n=4)
-1%
Read Seq Q32T1
2246
2447
9%
1840
-18%
1802
-20%
2311 (2246 - 2357, n=4)
3%
Write 4K Q8T8
849
Read 4K Q8T8
345.9
AS SSD
-14%
-20%
-26%
-14%
Seq Read
2027.02
2158.86
7%
1684.19
-17%
1870.57
-8%
2033 (1972 - 2084, n=4)
0%
Seq Write
1057.15
1753.11
66%
901.02
-15%
703.04
-33%
1016 (981 - 1057, n=4)
-4%
4K Read
52.66
30.99
-41%
54.56
4%
45.97
-13%
52.5 (48.7 - 55.9, n=4)
0%
4K Write
133.46
133.72
0%
182.33
37%
119.29
-11%
132 (114 - 146, n=4)
-1%
4K-64 Read
1256.71
761.76
-39%
322.35
-74%
614.06
-51%
1265 (1239 - 1285, n=4)
1%
4K-64 Write
736.16
394.65
-46%
802.54
9%
367.11
-50%
636 (314 - 758, n=4)
-14%
Access Time Read *
0.068
0.072
-6%
0.151
-122%
0.084
-24%
0.1078 (0.058 - 0.155, n=4)
-59%
Access Time Write *
0.182
0.172
5%
0.045
75%
0.038
79%
0.2783 (0.182 - 0.513, n=4)
-53%
Score Read
1512
1009
-33%
545
-64%
847
-44%
1520 (1496 - 1543, n=4)
1%
Score Write
975
704
-28%
1075
10%
557
-43%
869 (546 - 1008, n=4)
-11%
Score Total
3221
2212
-31%
1881
-42%
1792
-44%
3125 (2819 - 3298, n=4)
-3%
Copy ISO MB/s
1564.28
1148.33
-27%
1057.94
-32%
1168.32
-25%
1231 (691 - 1566, n=4)
-21%
Copy Program MB/s
569.06
490.18
-14%
422.82
-26%
459.8
-19%
511 (330 - 799, n=4)
-10%
Copy Game MB/s
1184.18
1068.32
-10%
850.33
-28%
283
-76%
879 (517 - 1184, n=4)
-26%
Total Average (Program / Settings)
-8% / -10%
-18% / -18%
-26% / -25%
-13% / -13%

* ... smaller is better

Continuous read speed: DiskSpd Read Loop, Queue Depth 8

01252503755006257508751000112512501375150016251750187520002125225023752203.892337.222340.562356.362367.982384.462389.962390.382390.592393.482393.732394.322396.212397.462399.332400.212400.42400.822400.822401.242401.452402.082402.292402.292402.52402.52402.522402.712402.712402.732402.922403.142403.142403.352403.532403.772403.772403.772403.982403.982404.192404.192404.192404.822405.032405.222405.242405.452405.452405.452295.572473.682475.352484.52484.982485.42485.822485.822486.232486.862487.282487.282487.582487.72487.72487.72487.912487.912487.912487.9124882488.122488.122488.122488.332488.332488.332488.332488.332488.332488.752488.962488.962489.162489.162489.162489.372489.372489.582489.582489.582489.924902490.422490.532490.742490.742490.792491.162492.671209.961273.61304.221309.461313.031325.41326.241327.221341.761352.241353.081356.861357.281361.891361.891363.151363.361364.621367.131369.441369.861370.491373.221374.471378.671380.351381.391381.61383.281384.121388.11389.361392.31393.561393.771394.191394.611396.71396.911397.331398.81399.011400.481401.111401.61401.741402.991403.411403.831404.461638.52171.242172.082173.342173.552173.552174.172174.382175.432175.852176.062176.272176.272176.482177.312177.732177.942177.942177.942178.362178.572178.992179.22179.22179.612179.822180.032180.242180.452180.452180.452181.082181.52181.712181.922182.132182.132182.552183.82183.82184.222184.432186.522186.942188.22189.242189.872199.712200.542213.1Tooltip
HP Pavilion x360 14-dy0157ng Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G: Ø2393 (2203.89-2405.45)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS Vega 8 R4000, R7 5700U, WDC PC SN530 SDBPMPZ-265G: Ø2484 (2295.57-2492.67)
Asus VivoBook Flip 14 TP470EZ Xe MAX, i5-1135G7, Intel SSD 660p SSDPEKNW512G8: Ø1369 (1209.96-1404.46)
Acer Spin 3 SP314-54N-56S5 Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK hynix BC511 HFM256GDJTNI-82A0: Ø2170 (1638.5-2213.1)

Graphics card

Intel’s Iris Xe Graphics G7 (80EU) is responsible for video rendering. It supports DirectX 12 and can achieve core clocks of up to 1300 MHz. In our gaming stress test with The Witcher 3, the integrated GPU operated at maximum clocks only for a short time. The GPU performed as expected in the 3DMark benchmarks.

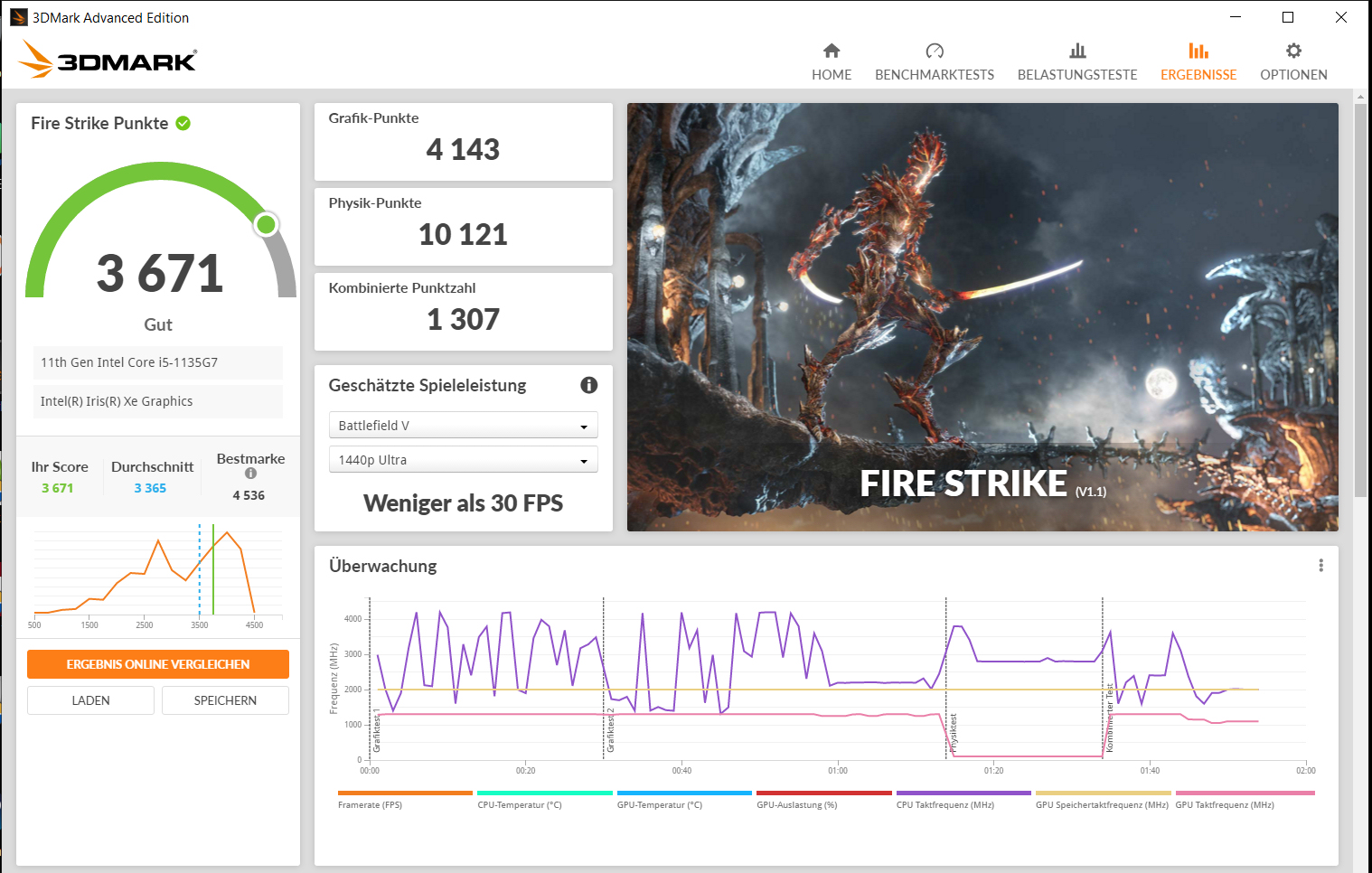

Fire Strike (plugged in)
Fire Strike (plugged in)

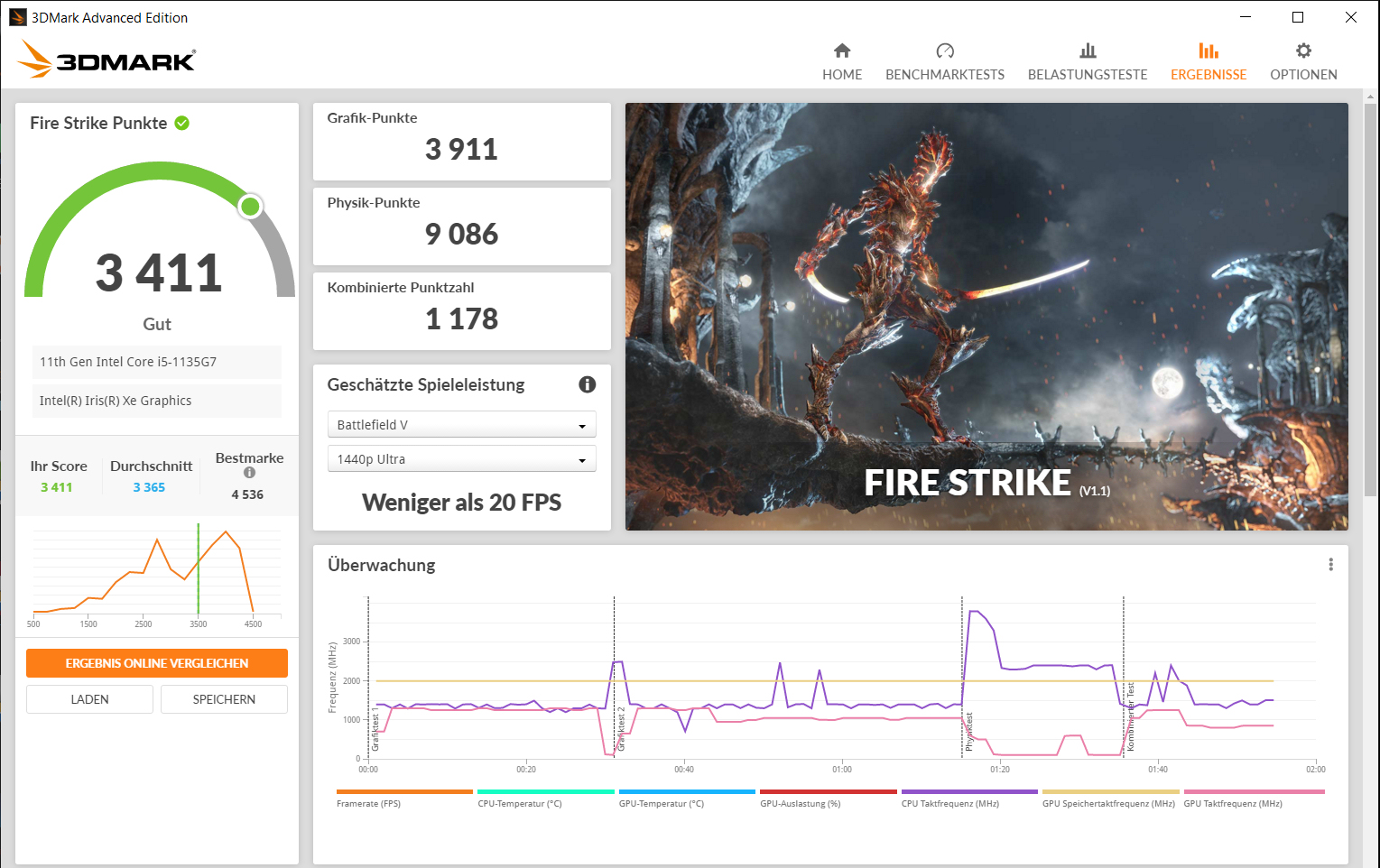

Fire Strike (on battery power)
Fire Strike (on battery power)

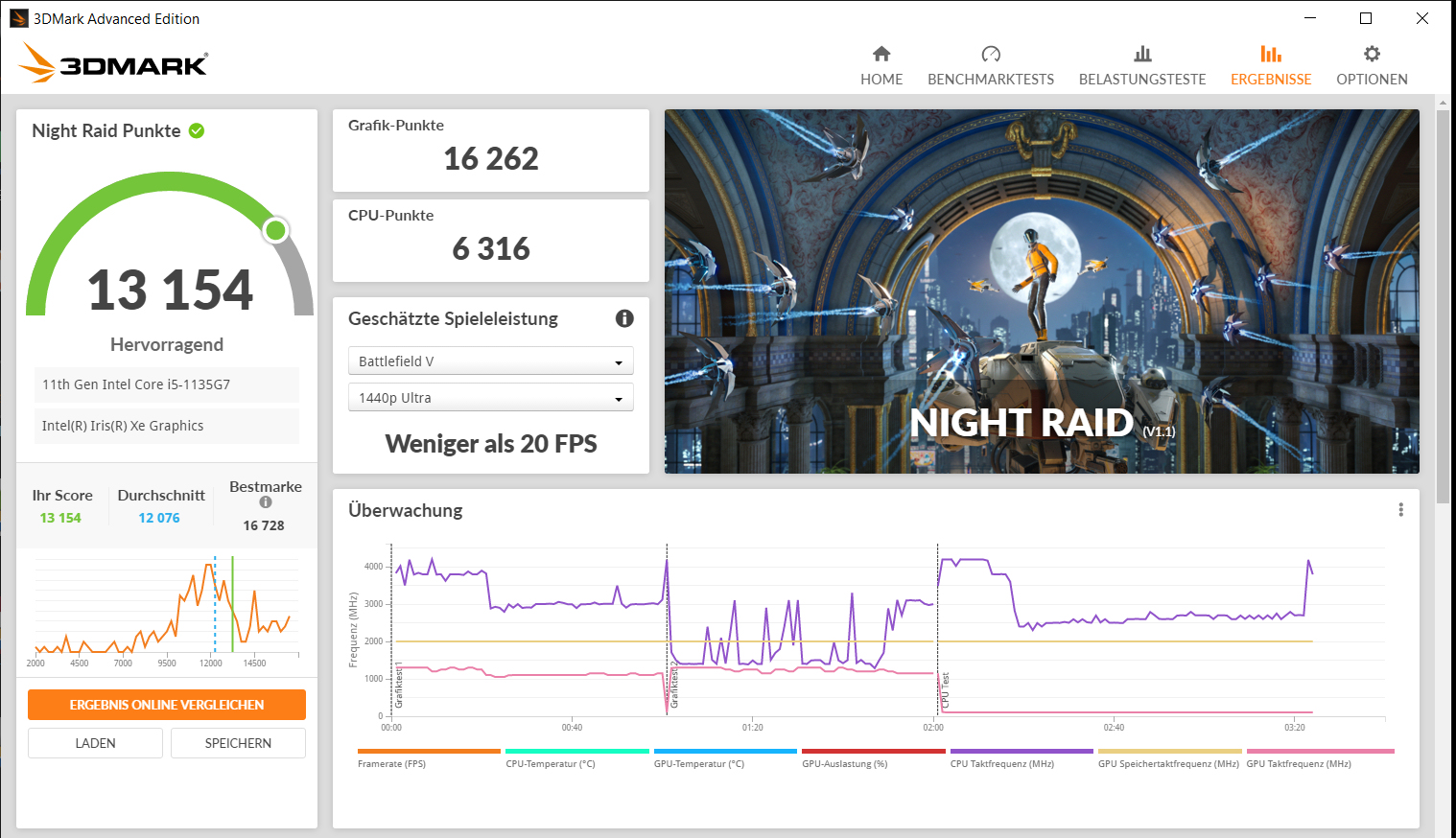

Night Raid (plugged in)
Night Raid (plugged in)

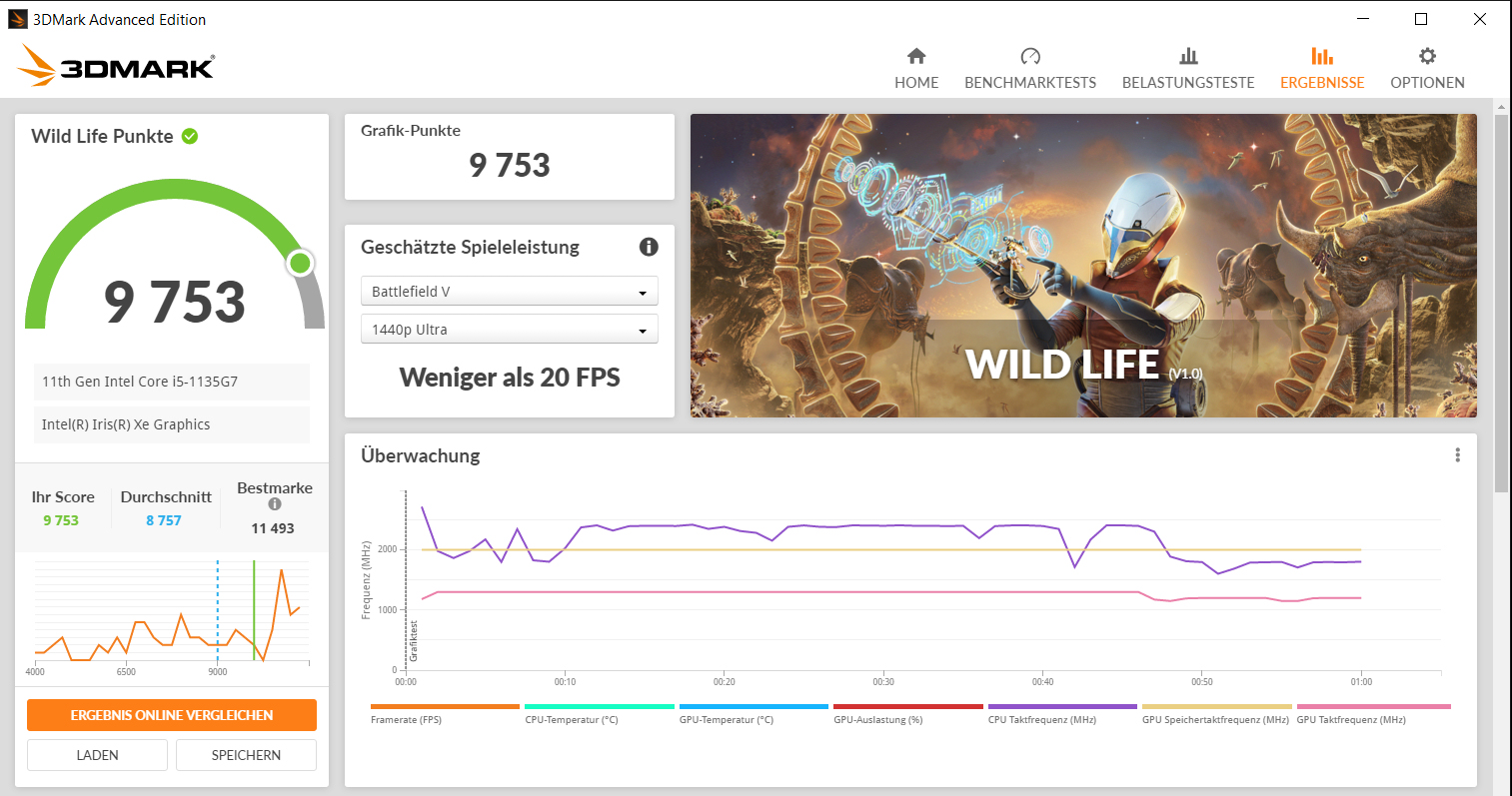

Wild Life (plugged in)
Wild Life (plugged in)

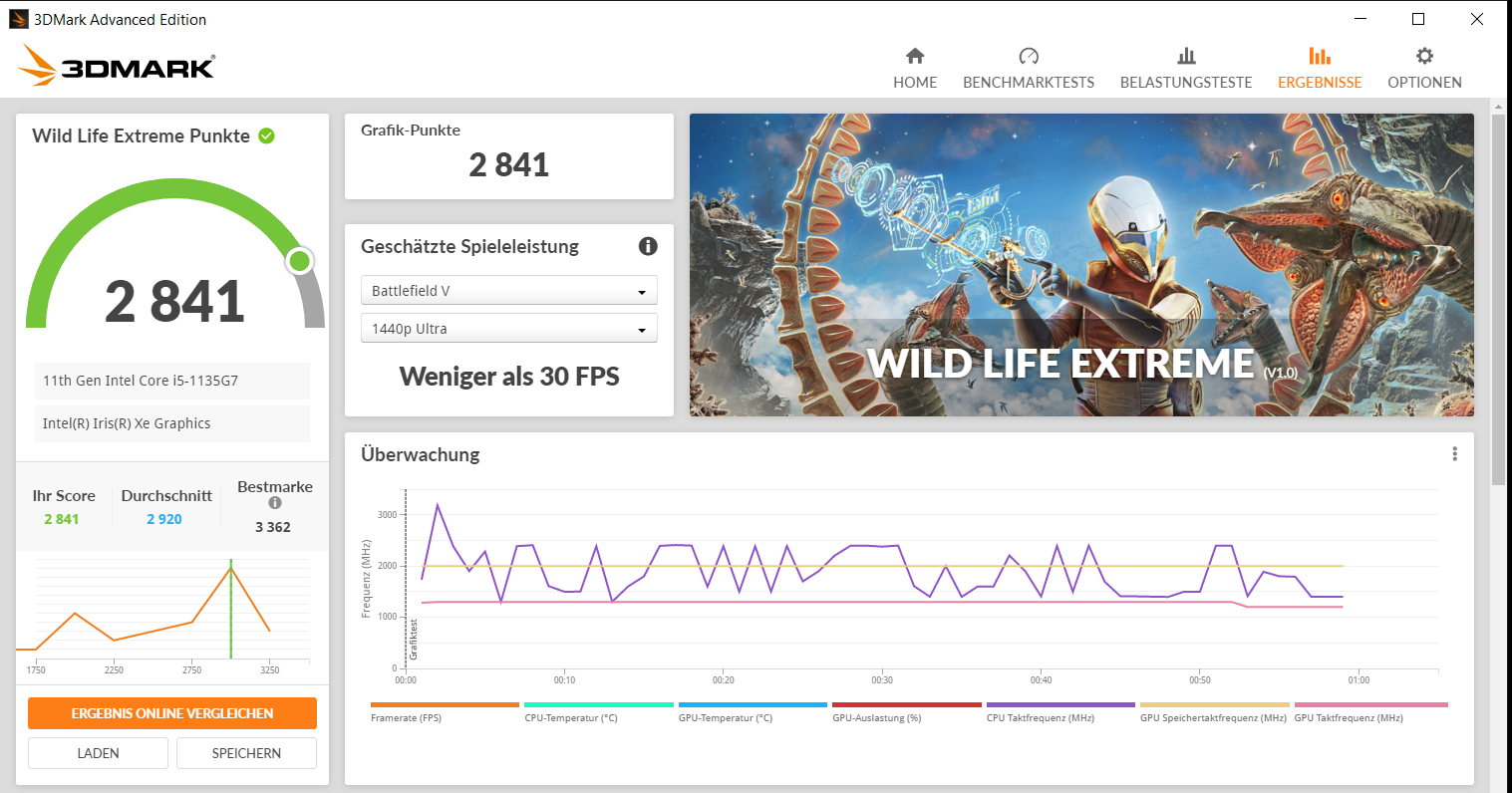

Wild Life Extreme (plugged in)
Wild Life Extreme (plugged in)
3DMark 11 Performance
5926 points
3DMark Ice Storm Standard Score
78426 points
3DMark Cloud Gate Standard Score
15376 points
3DMark Fire Strike Score
3671 points
3DMark Time Spy Score
1425 points
Help
3DMark 11 - 1280x720 Performance GPU
Asus VivoBook Flip 14 TP470EZ
Intel Iris Xe MAX Graphics, Intel Core i5-1135G7
8214 Points ∼100% +41%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5808 Points ∼71%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Radeon RX Vega 8 (Ryzen 4000), AMD Ryzen 7 5700U
5710 Points ∼70% -2%
Average Intel Iris Xe Graphics G7 80EUs
  (4013 - 6120, n=24)
5491 Points ∼67% -5%
Average of class Convertible
  (429 - 17421, n=88, last 2 years)
4218 Points ∼51% -27%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
3334 Points ∼41% -43%
3DMark
1280x720 Cloud Gate Standard Graphics
Asus VivoBook Flip 14 TP470EZ
Intel Iris Xe MAX Graphics, Intel Core i5-1135G7
36993 Points ∼100% +51%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Radeon RX Vega 8 (Ryzen 4000), AMD Ryzen 7 5700U
25553 Points ∼69% +4%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
24558 Points ∼66%
Average Intel Iris Xe Graphics G7 80EUs
  (13867 - 30894, n=21)
22130 Points ∼60% -10%
Average of class Convertible
  (2714 - 38419, n=74, last 2 years)
18407 Points ∼50% -25%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
14903 Points ∼40% -39%
1920x1080 Fire Strike Graphics
Asus VivoBook Flip 14 TP470EZ
Intel Iris Xe MAX Graphics, Intel Core i5-1135G7
6333 Points ∼100% +53%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4143 Points ∼65%
Average Intel Iris Xe Graphics G7 80EUs
  (2087 - 4846, n=26)
3785 Points ∼60% -9%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Radeon RX Vega 8 (Ryzen 4000), AMD Ryzen 7 5700U
3561 Points ∼56% -14%
Average of class Convertible
  (311 - 13158, n=86, last 2 years)
3066 Points ∼48% -26%
Acer Spin 3 SP314-54N-56S5
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
2207 Points ∼35% -47%
2560x1440 Time Spy Graphics
Asus VivoBook Flip 14 TP470EZ
Intel Iris Xe MAX Graphics, Intel Core i5-1135G7
1743 Points ∼100% +35%
HP Pavilion x360 14-dy0157ng
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1289 Points ∼74%
Average Intel Iris Xe Graphics G7 80EUs
  (743 - 1408, n=24)
1165 Points ∼67% -10%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Radeon RX Vega 8 (Ryzen 4000), AMD Ryzen 7 5700U
1136 Points ∼65% -12%
Average of class Convertible
  (91 - 5126, n=68, last 2 years)
972 Points ∼56% -25%

Gaming Performance

HP's 2-in-1 device can achieve playable frame rates in many titles—on low settings and at low resolutions. However, the GPU clocks drop considerably after a few minutes of gameplay. These drops in peformance can render some games unplayable.

The Witcher 3 - 1366x768 Medium Graphics & Postprocessing
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
42.7 (2.89min, 16.6P0.1, 30.7P1 - 85.8max) fps ∼100%
Average Intel Iris Xe Graphics G7 80EUs
  (23.7 - 56.4, n=21)
42.6 fps ∼100% 0%
Average of class Convertible
  (10.6 - 111, n=47, last 2 years)
42.2 fps ∼99% -1%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
37.2 (40min, 41.16P1 - 59max) fps ∼87% -13%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
23.422 (16min - 27max) fps ∼55% -45%
Dota 2 Reborn - 1280x720 min (0/3) fastest
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000)
97.2 (86.8min) fps ∼100% +24%
Acer Spin 3 SP314-54N-56S5
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
81.2 (67.5min) fps ∼84% +3%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
78.7 (48.6min) fps ∼81%
Average Intel Iris Xe Graphics G7 80EUs
  (66.2 - 84.9, n=25)
77.3 fps ∼80% -2%
Average of class Convertible
  (18.3 - 133, n=71, last 2 years)
75.9 fps ∼78% -4%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
68.3 (25.6min) fps ∼70% -13%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000)
41.7 fps ∼100% +8%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.7 fps ∼93%
Average Intel Iris Xe Graphics G7 80EUs
  (18.6 - 57, n=25)
37 fps ∼89% -4%
Average of class Convertible
  (3.94 - 88.1, n=64, last 2 years)
32.2 fps ∼77% -17%
GTA V - 1366x768 Normal/Off AF:4x
Average of class Convertible
  (11.6 - 140, n=18, last 2 years)
69.9 fps ∼100% +21%
Average Intel Iris Xe Graphics G7 80EUs
  (45.9 - 84.3, n=10)
67.6 fps ∼97% +17%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
57.6 (21.1min, 31.3P1 - 98.8max) fps ∼82%
Strange Brigade - 1280x720 lowest AF:1
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
95.2 (22.1min, 49.2P1 - 420max) fps ∼100% +34%
Lenovo IdeaPad Flex 5 14ALC05 82HU002YUS
AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000)
75.8 (43.7min, 66.2P1 - 142max) fps ∼80% +7%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
71 (13.3min, 22.4P1 - 290max) fps ∼75%
Average Intel Iris Xe Graphics G7 80EUs
  (38.4 - 87.7, n=10)
69.5 fps ∼73% -2%
Average of class Convertible
  (8 - 97.8, n=23, last 2 years)
68.5 fps ∼72% -4%
Far Cry 5 - 1280x720 Low Preset AA:T
Average Intel Iris Xe Graphics G7 80EUs
  (27 - 54, n=11)
38.5 fps ∼100% +7%
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
38 (29min - 52max) fps ∼99% +6%
Average of class Convertible
  (6 - 78, n=24, last 2 years)
36.9 fps ∼96% +3%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
36 (29min - 41max) fps ∼94%
Dirt 5 - 1280x720 Ultra Low Preset
Asus VivoBook Flip 14 TP470EZ
Intel Core i5-1135G7, Intel Iris Xe MAX Graphics
44.8 (25.2min, 30.6P0.1, 34.3P1 - 81.2max) fps ∼100% +40%
Average of class Convertible
  (32.1 - 44.8, n=5, last 2 years)
37.5 fps ∼84% +17%
Average Intel Iris Xe Graphics G7 80EUs
  (32.1 - 35.5, n=2)
33.8 fps ∼75% +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
32.1 (9.6min, 23.9P0.1, 26.7P1 - 39.5max) fps ∼72%

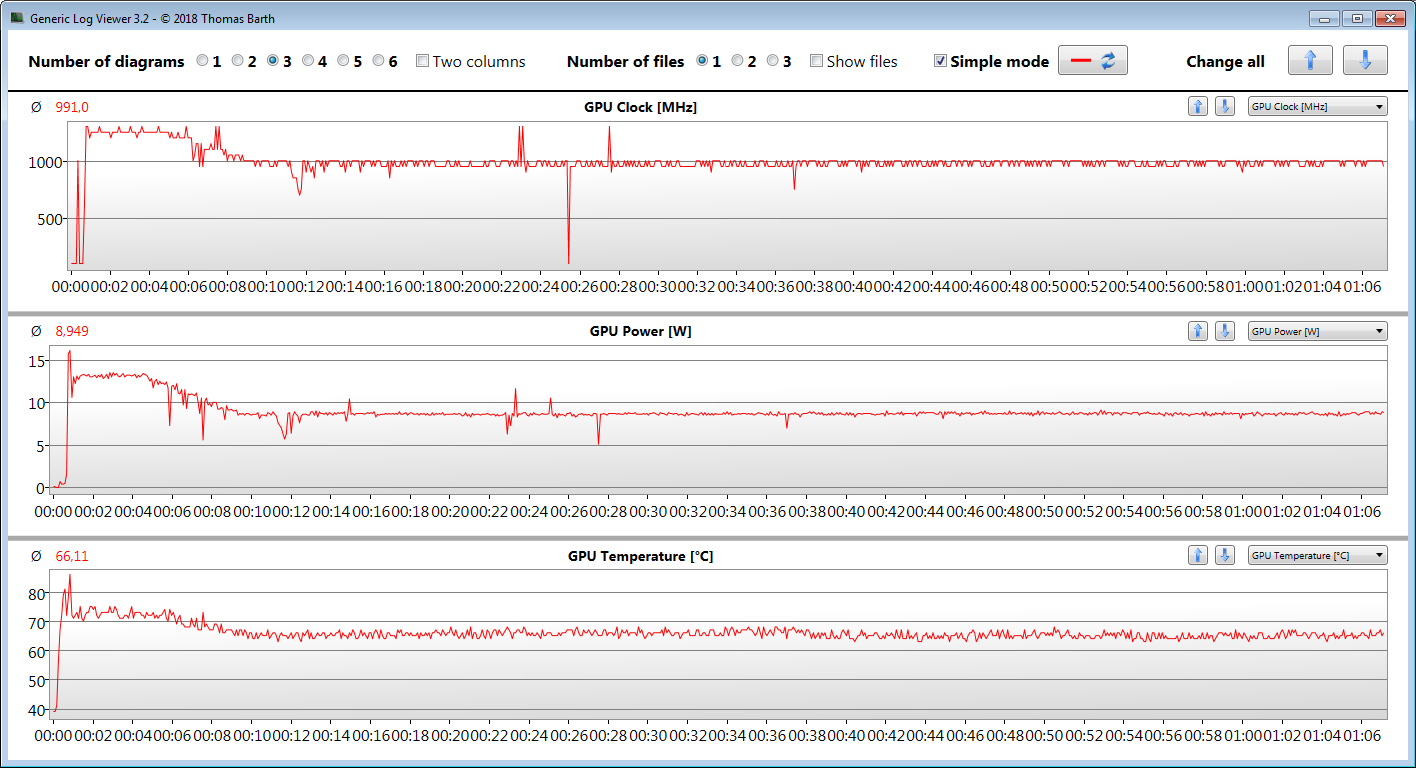

We use the video game known as The Witcher 3 to check whether the frame rates can be maintained consistently over an extended period of time. For this, we run the game on the highest graphics settings at Full HD resolution (1920x1080) for one hour. Over the entire run of gameplay, the player-controlled character stands still. After 6 minutes, the core clocks fell from about 1300 MHz to 1000 MHz. This led to a corresponding drop in performance.

The Witcher 3 - Frame rate graph

567891011121312121212111212111112121212111212121212121212121212121112121212121112121211121112121212111212121112121112121211121211121212111212111212121212121211121211121112121212111212121211121212121112121211121211121311121212121212121211121212121112111211121212111212111212111212111212121212111211121211121211121212121112121211121212111212121211121213111212121212111212121212111212121211121212111212121112121211121212111211121212121112121212121212121212121212121211121212121112121112121112111212111211121211121211121112111211121112111212111211121112111211121112121112111211121212111211111211111161191112111112111111121112111211111271010101111111161111111111121111121111611101011121111121161110111211119991111111111111191110111211111111111111111111111111910111111111191010111111111111971011101111101111111111111111101110111110111011111011111111101111111011111110111110111181011101110111010111010101110111011111099101110111011101110101010101010101110111010111011101010111010101110101010101010101010101010101010101091010101010101010101010101010101010101010101010101010101010101010101010119101010101010101011910101010101191010101010101091010101010101091091110101010101091010101010101010101010101010101010910101010109101010799999999109999998978978788788881010101010101010910108910111091191011101010911109910109101010910999109101010910101010101010101010910109101010910101010109101010109101010101091010101010101091010101010101091010109101010910101091010101010910101010101091091091010101091010910101010101091010101091010
