MagyarAsus ExpertBook B1 B1400 in review: Small, light and affordable
Among Asus' ExpertBooks, the B1 series offers the most affordable models of notebooks intended for office and business tasks. In our tests, we could already take a look at the 15-inch ExpertBook B1 B1500 which offers a similar configuration as the B1 B1400. The latter is equipped in our test configuration with an Intel Core i5-1135G7, 8 GB RAM as well as a 512 GB SSD and is available for about 700 Euros (~$796). The most expensive configuration with a Core i7 processor and more RAM costs about 1,030 Euros (~$1171).
Possible competitors in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 83.9 % | 11/2021 | Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 19.2 mm | 14.00" | 1920x1080 | |
09/2021 | Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs | 1 kg | 16.8 mm | 14.00" | 1920x1200 | ||
| 84.9 % | 05/2021 | Honor Magicbook 14 i7-1165G7 i7-1165G7, Iris Xe G7 96EUs | 1.4 kg | 15.9 mm | 14.00" | 1920x1080 | |
| 83.9 % | 04/2021 | Lenovo ThinkBook 14 G2 ITL 20VD008WGE i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 17.9 mm | 14.00" | 1920x1080 |

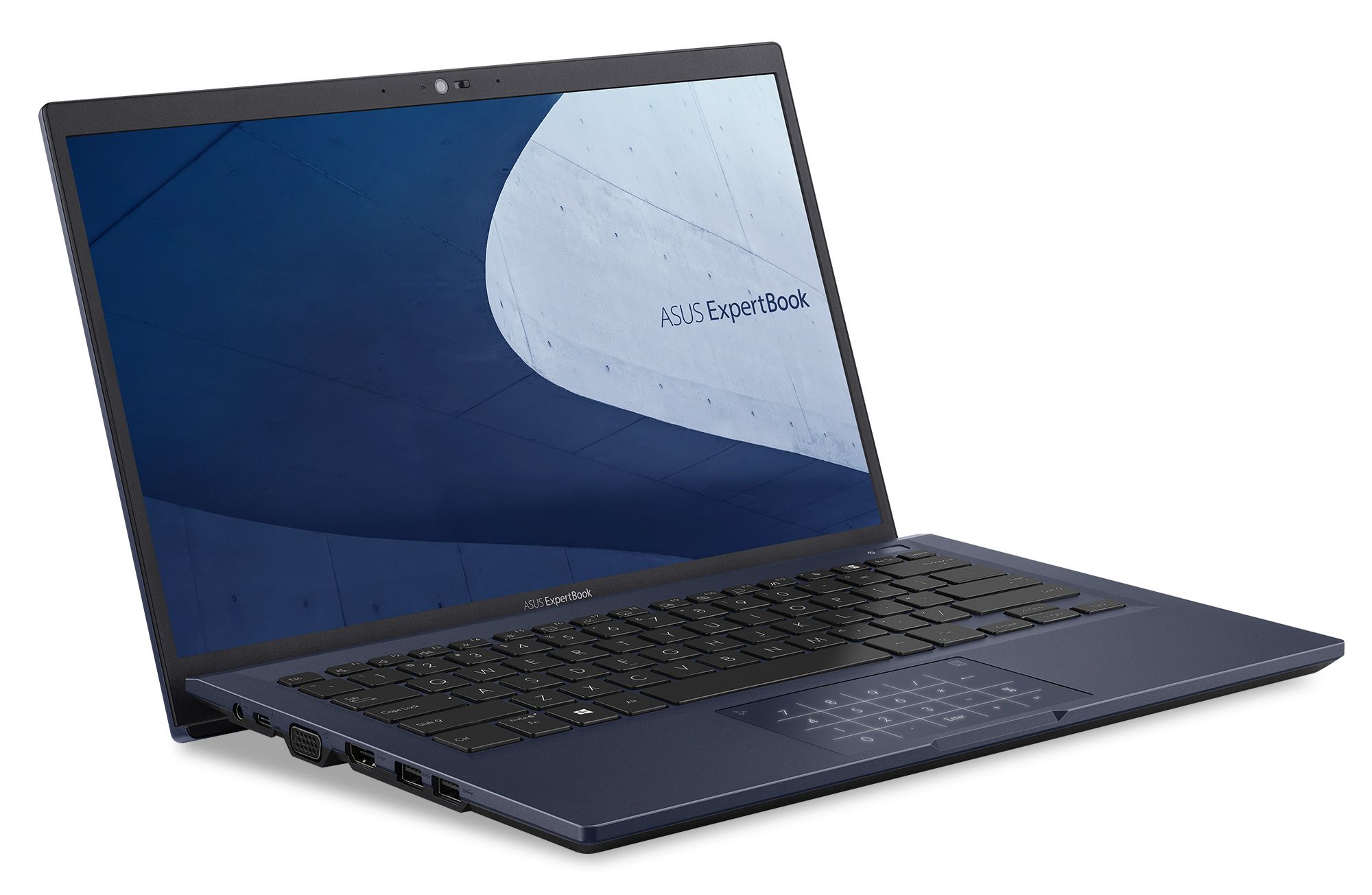

Case & features - 14-inch laptop with Thunderbolt 4

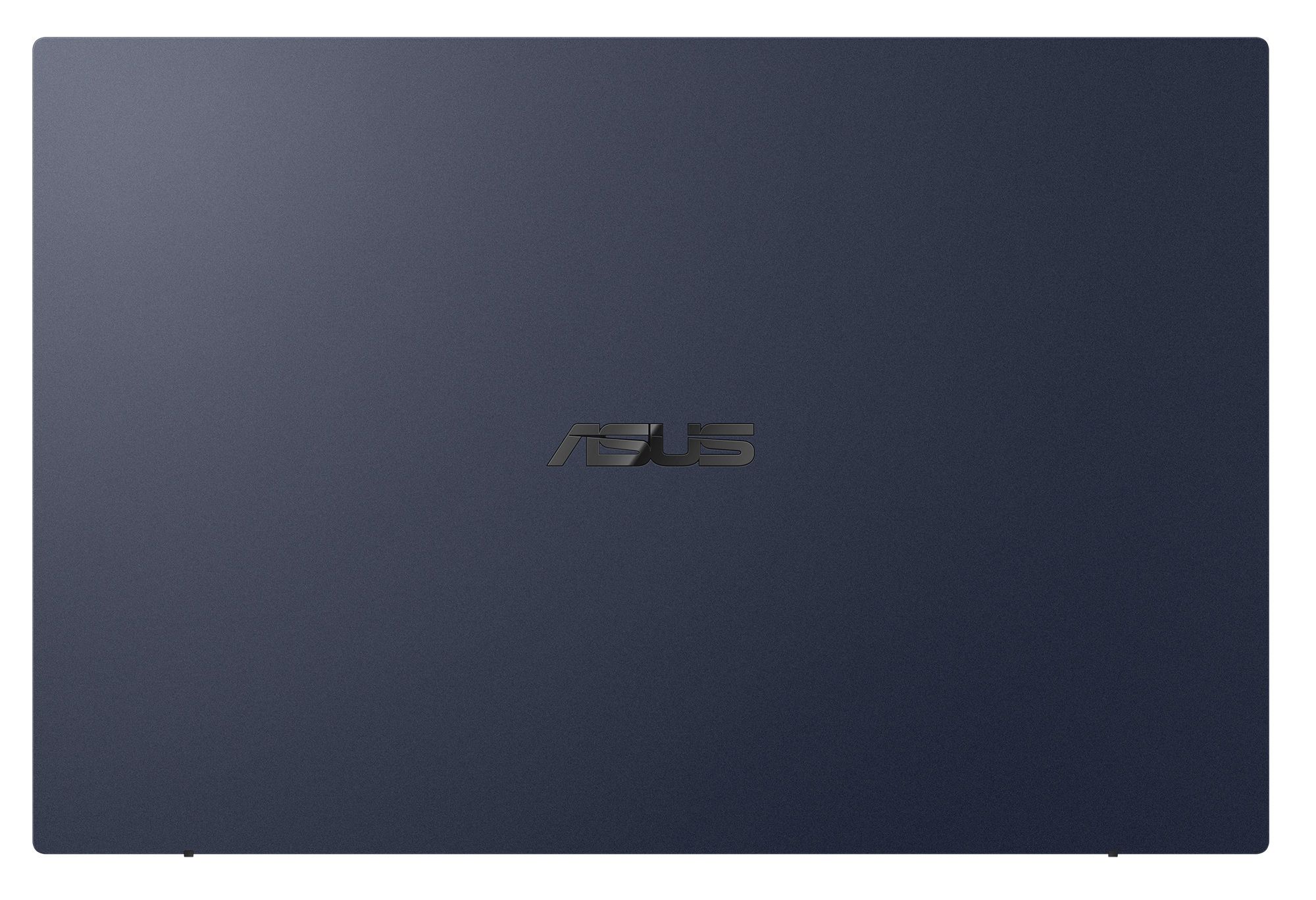

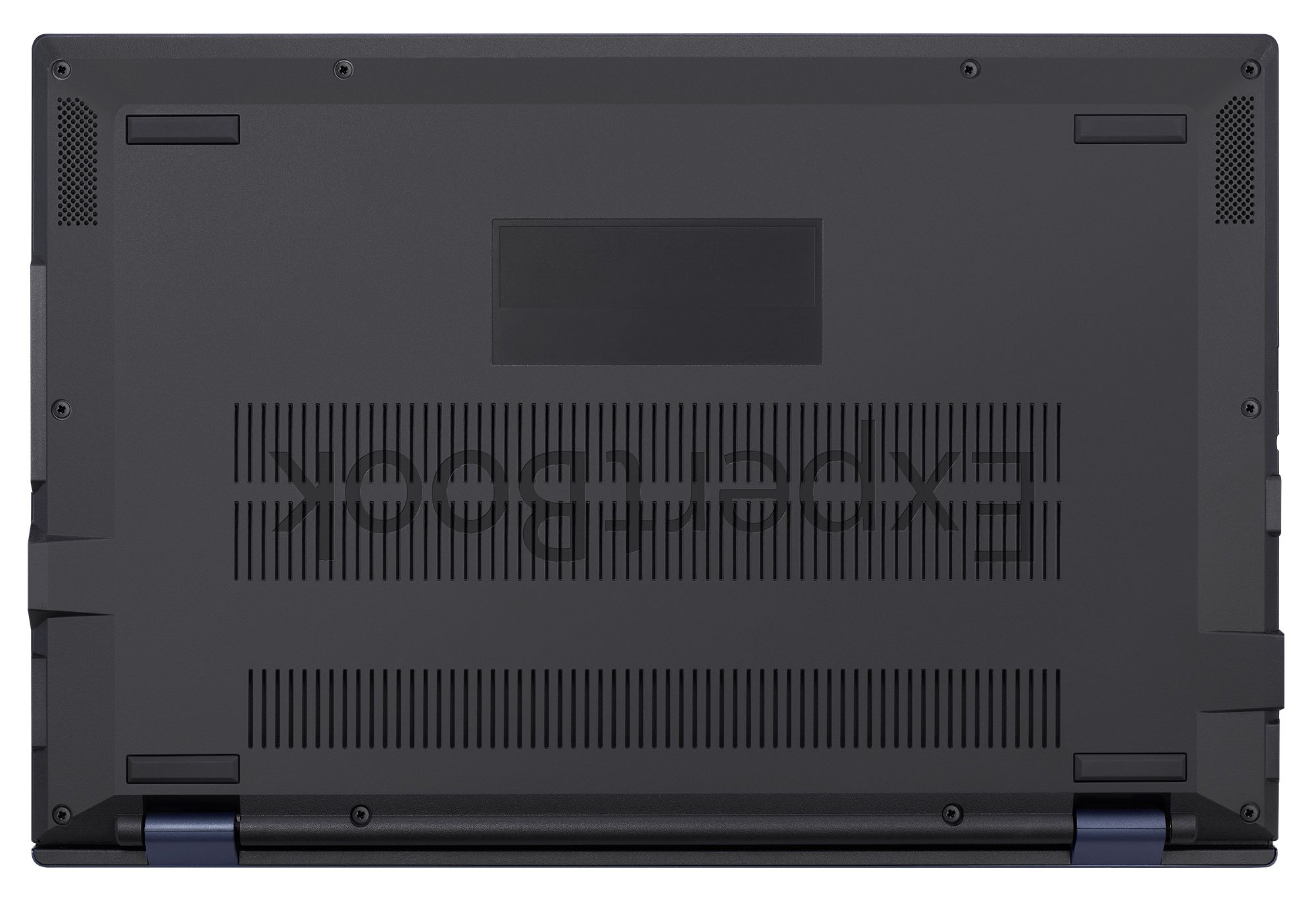

Asus manufactures the case of the ExpertBook B1 B1400 from sturdy plastic and reinforces the lid with an aluminum alloy. The build quality is high and there are no uneven gaps or the like.
The display does not flex when opening the lid and can be folded back up to 180 degrees. Both the dimensions and the weight correspond to those of other 14-inch notebooks. The weight is 1.5 kg (~3.3 lb).

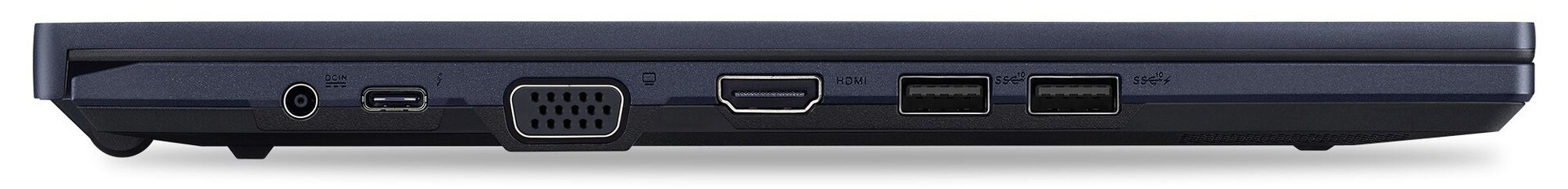

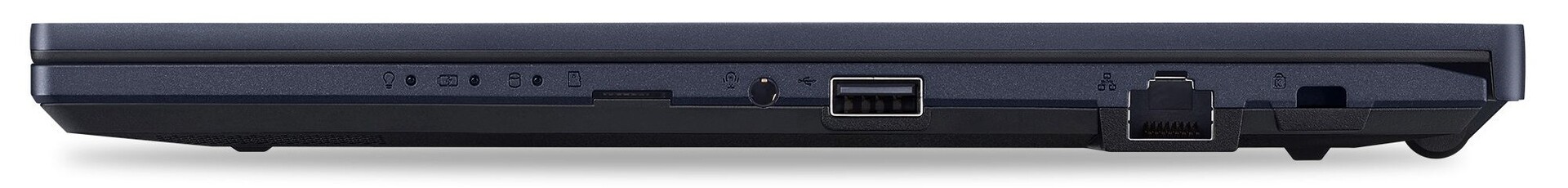

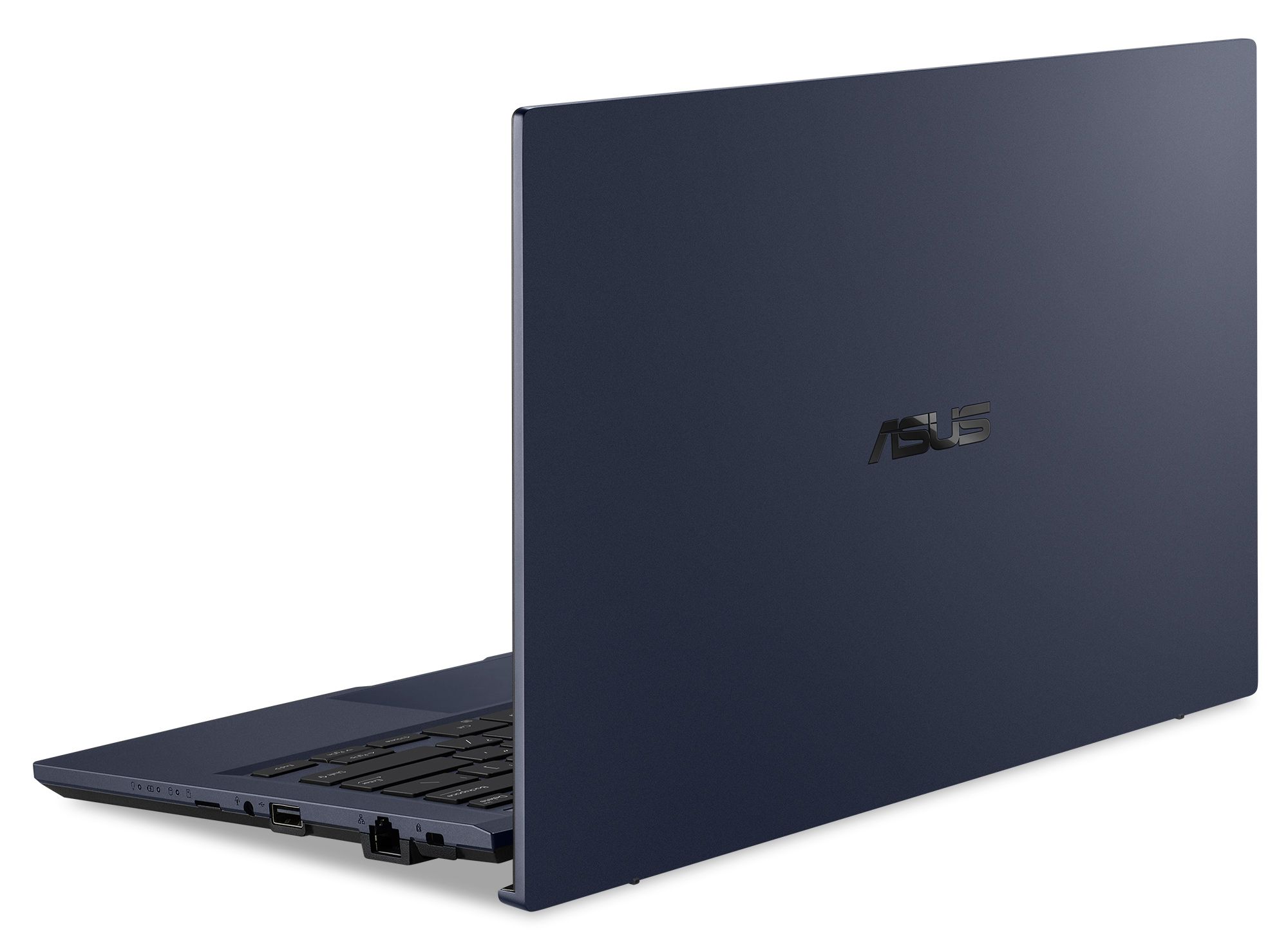

The ExpertBook B1 B1400 also offers unusual ports, such as the VGA port. Since the Thunderbolt 4 port is not blocked by the power supply, numerous other interfaces can also be created with corresponding adapters.
A microSD card reader is also available. However, this only achieves a slow 25.3 MB/s when copying and 26.6 MB/s when writing data with our reference memory card Angelbird AV Pro V60.
WiFi 6 is available for wireless network connections. In combination with our reference router Netgear Nighthawk AX12, the test model achieves very good transfer rates of 1,333 MBit/s when transmitting and 1,480 MBit/s when receiving data.
The webcam resolves pictures with just 0.9 MP, as is the case with many current notebooks. The image quality is correspondingly low, which displays content blurry and with pale colors even in good light conditions. A mechanical webcam shutter protects against unwanted glances.
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE (AV Pro V60) | |
| Average of class Office (22.7 - 198.5, n=36, last 2 years) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 (AV Pro V60) | |
| Acer TravelMate P614P-52 (AV PRO microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE (AV Pro V60) | |
| Average of class Office (25 - 249, n=33, last 2 years) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 (AV Pro V60) | |
| Acer TravelMate P614P-52 (AV PRO microSD 128 GB V60) | |
Input devices - ExpertBook with backlit keyboard

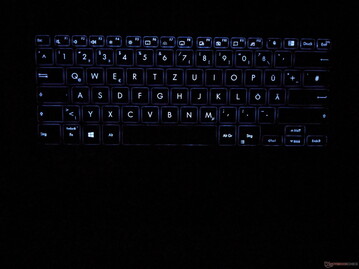

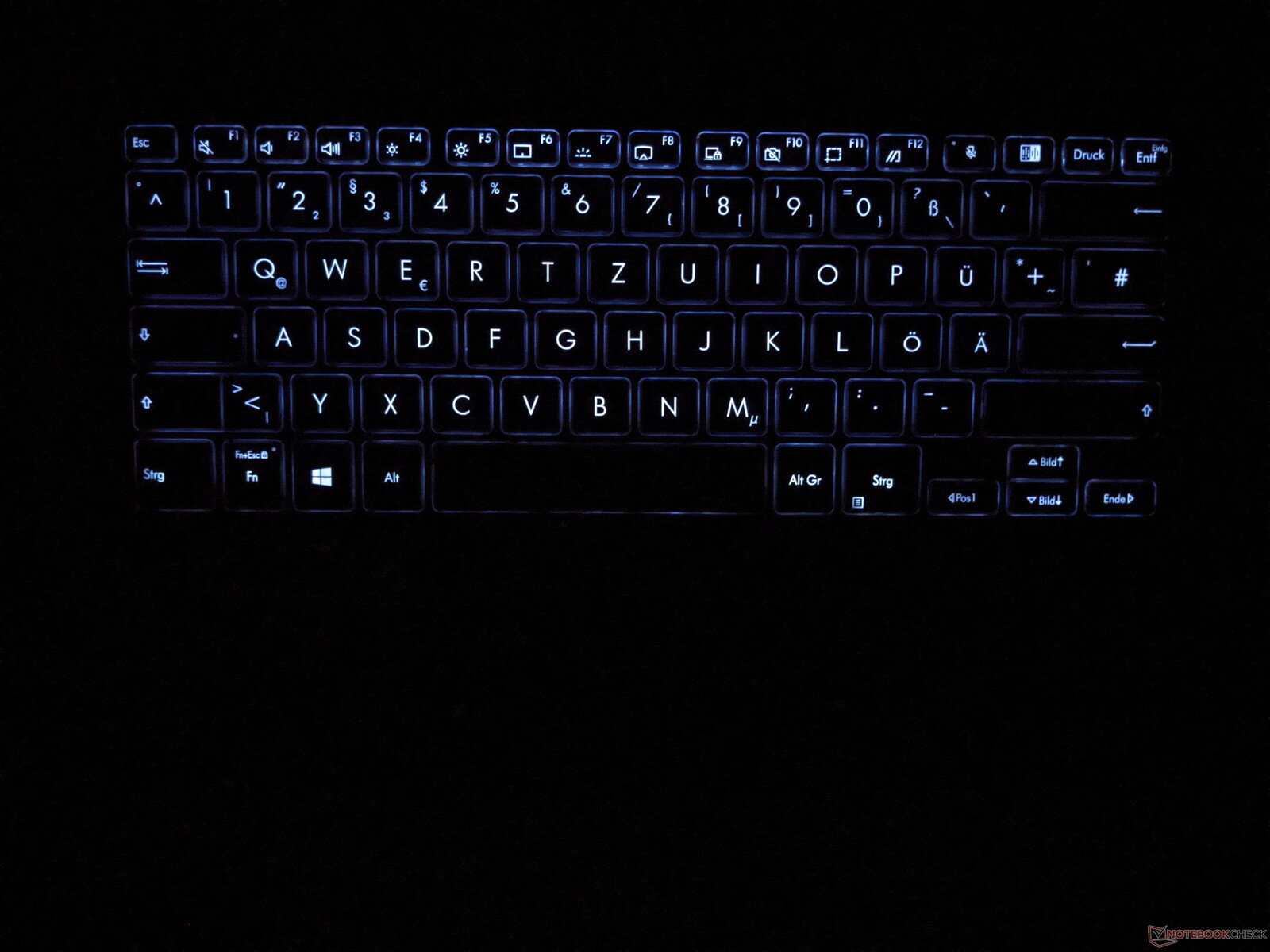

The keyboard of the ExpertBook B1 B1400 offers a noticeable pressure point and is well suited for writing longer texts. The arrow keys are a bit small and their double assignment with the scroll keys as well as Home and End is not optimal. A number pad can be displayed in the clickpad, whereby the mouse pointer can be navigated further.
As a mouse replacement, the touchpad works very well and allows precise navigation. Inputs triggered via click as well as touch are reliably registered. The fingerprint sensor integrated into the power button also functioned reliably during our test period.
Display - Full HD in the Asus notebook

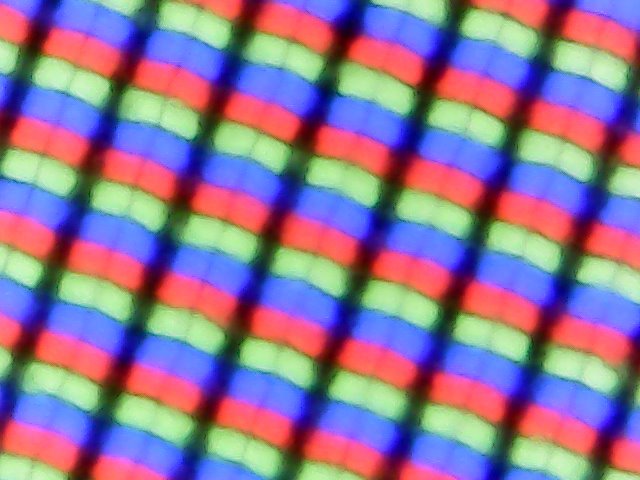

The screen of the ExpertBook B1 B1400 consists of a 14-inch IPS panel and offers a resolution of 1,920 x 1,080 pixels. The average brightness of around 240 cd/m² is very low, but the good black value (0.23 cd/m²) still results in a good contrast ratio of more than 1,100:1. The brightness in combination with the matte panel is therefore still sufficient for indoor use. The subjective picture quality is good and even bright surfaces do not look too grainy.
From a brightness level of 20 percent and less, we measure PWM with a frequency of 25,000 Hz. Since this value turns out very high, people with sensitive eyes should not have to expect any problems. There are also visible halos at the edges.
| |||||||||||||||||||||||||

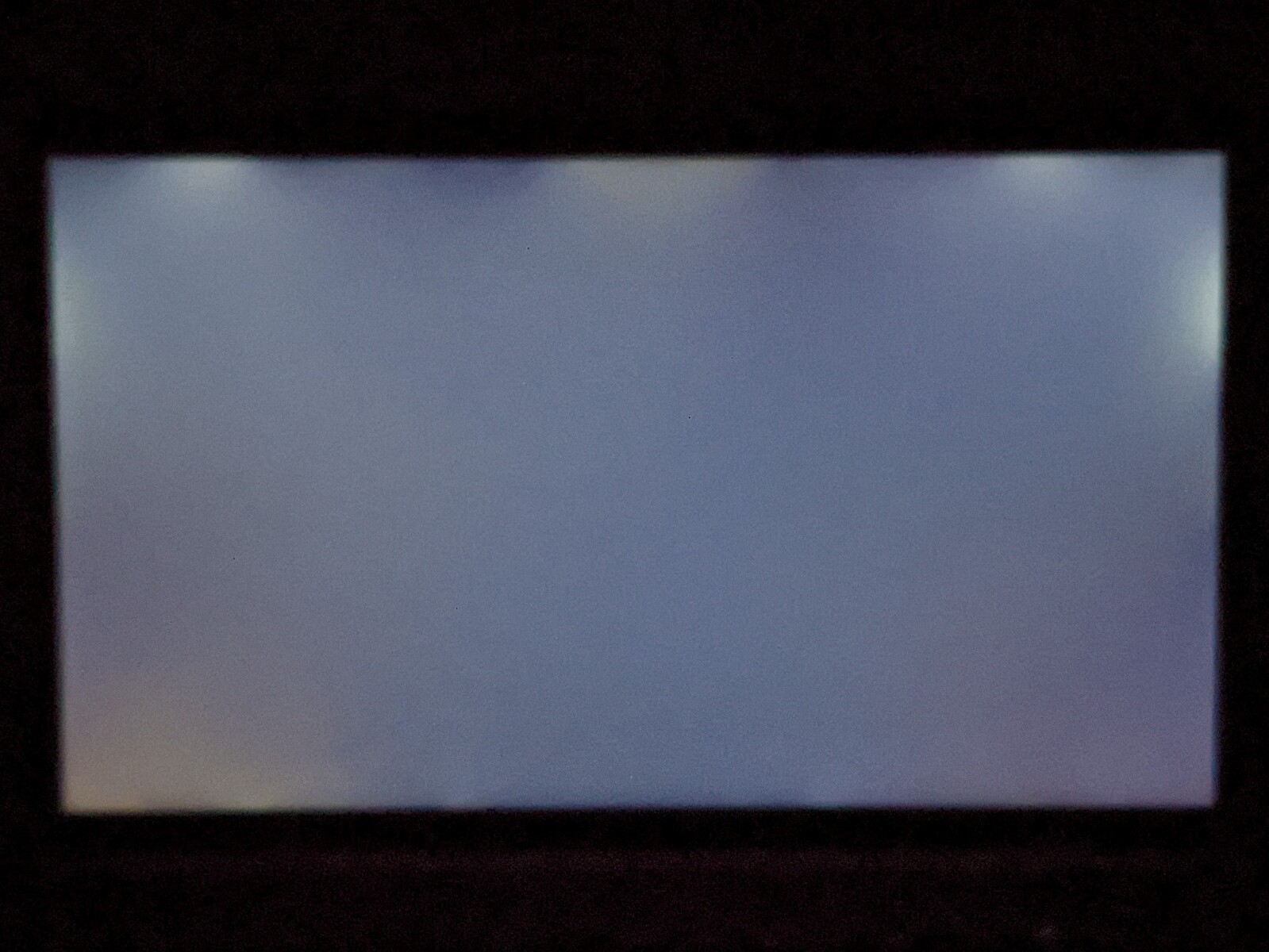

Brightness Distribution: 83 %
Center on Battery: 256 cd/m²
Contrast: 1113:1 (Black: 0.23 cd/m²)
ΔE Color 6.2 | 0.5-29.43 Ø4.94, calibrated: 3.8
ΔE Greyscale 5 | 0.5-98 Ø5.2
44.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.9% sRGB (Argyll 2.2.0 3D)
42.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.97
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 Chi Mei CMN14D4, IPS, 1920x1080, 14" | Acer TravelMate P614P-52 AU Optronics B140UAV01.0, IPS, 1920x1200, 14" | Honor Magicbook 14 i7-1165G7 BOE092E, IPS, 1920x1080, 14" | Lenovo ThinkBook 14 G2 ITL 20VD008WGE B140HAN04.0, a-Si IPS LED, 1920x1080, 14" | |
|---|---|---|---|---|
| Display | 68% | 50% | -13% | |
| Display P3 Coverage | 42.8 | 76 78% | 64.8 51% | 37.23 -13% |
| sRGB Coverage | 63.9 | 99.4 56% | 96.3 51% | 55.9 -13% |
| AdobeRGB 1998 Coverage | 44.3 | 75.5 70% | 66.1 49% | 38.47 -13% |
| Response Times | -37% | 14% | -42% | |
| Response Time Grey 50% / Grey 80% * | 35.2 ? | 40.79 ? -16% | 31.2 ? 11% | 51.6 ? -47% |
| Response Time Black / White * | 23.2 ? | 22.9 ? 1% | 19.2 ? 17% | 31.6 ? -36% |
| PWM Frequency | 25000 ? | 1000 ? -96% | ||
| Screen | 66% | 35% | -1% | |
| Brightness middle | 256 | 504.15 97% | 341 33% | 240 -6% |
| Brightness | 239 | 482 102% | 313 31% | 226 -5% |
| Brightness Distribution | 83 | 77 -7% | 87 5% | 69 -17% |
| Black Level * | 0.23 | 0.19 17% | 0.27 -17% | 0.23 -0% |
| Contrast | 1113 | 2653 138% | 1263 13% | 1043 -6% |
| Colorchecker dE 2000 * | 6.2 | 2.75 56% | 1.76 72% | 5.4 13% |
| Colorchecker dE 2000 max. * | 18.2 | 4.66 74% | 4.85 73% | 21.9 -20% |
| Colorchecker dE 2000 calibrated * | 3.8 | 1.72 55% | 1.01 73% | 4.8 -26% |
| Greyscale dE 2000 * | 5 | 1.9 62% | 3.3 34% | 2.3 54% |
| Gamma | 1.97 112% | 2.13 103% | 2.26 97% | 2.37 93% |
| CCT | 7364 88% | 6426 101% | 7233 90% | 6706 97% |
| Color Space (Percent of AdobeRGB 1998) | 66 | 35.4 | ||
| Color Space (Percent of sRGB) | 89 | 55.8 | ||
| Total Average (Program / Settings) | 32% /
46% | 33% /
35% | -19% /
-10% |
* ... smaller is better

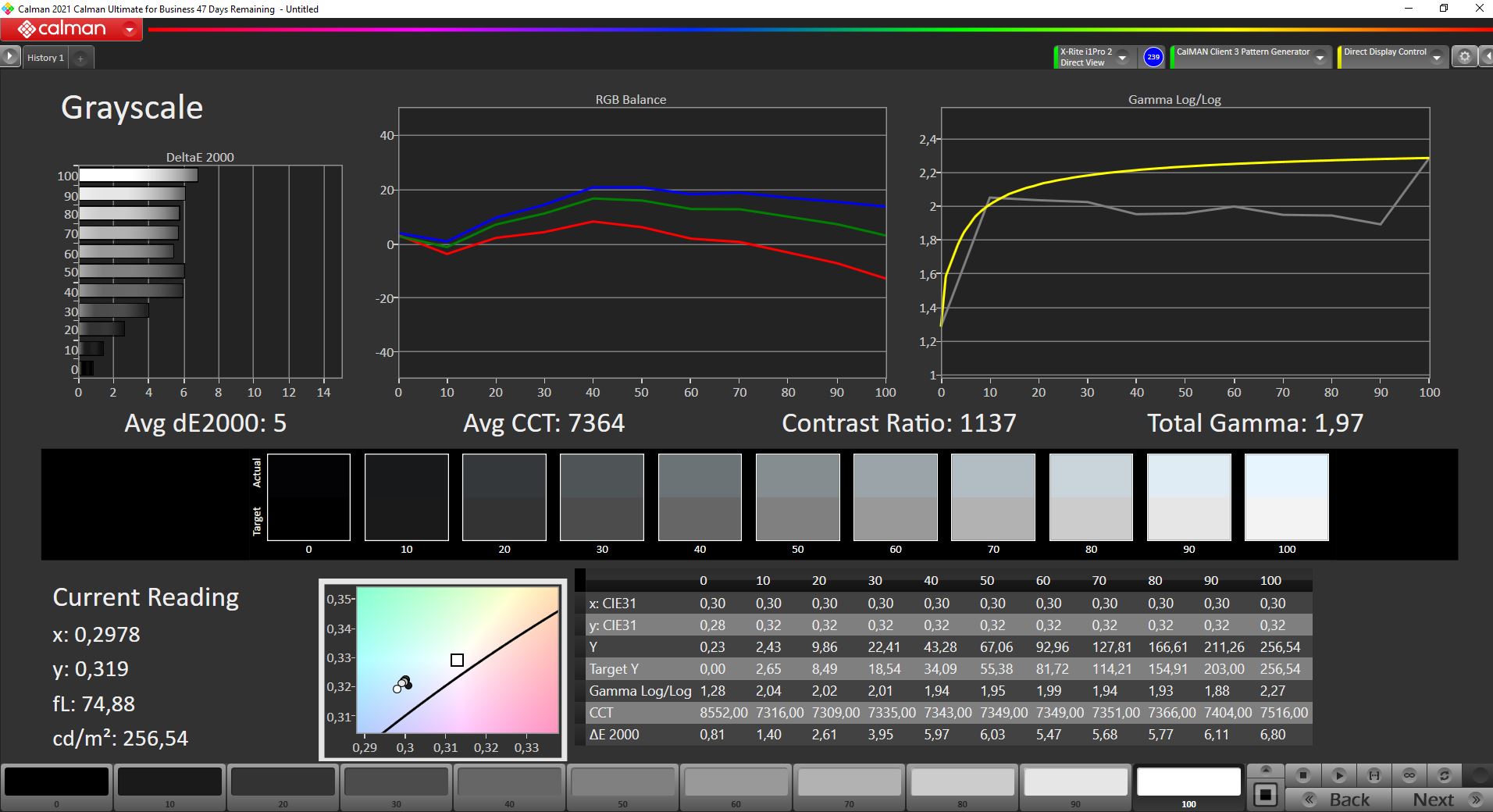

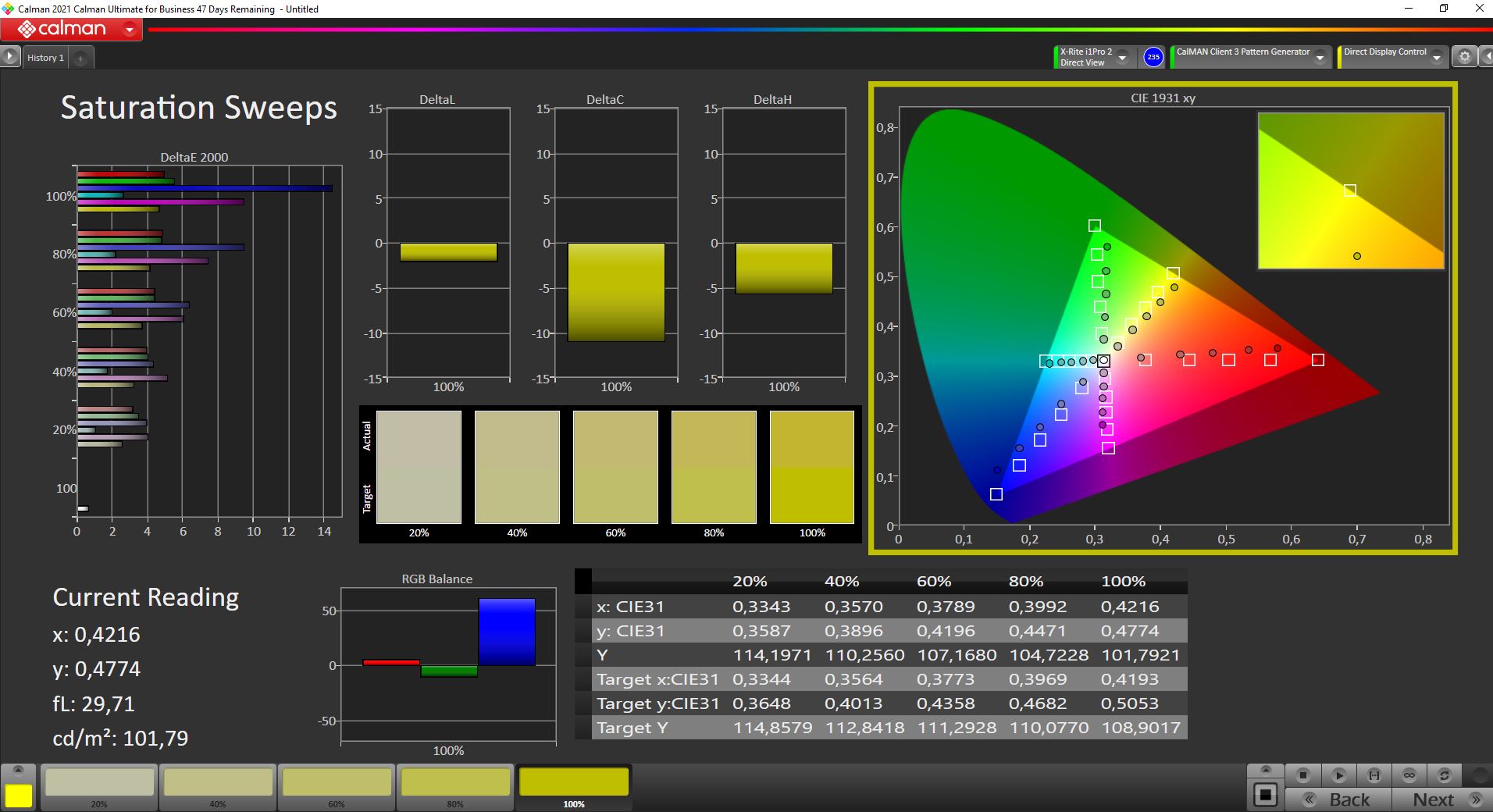

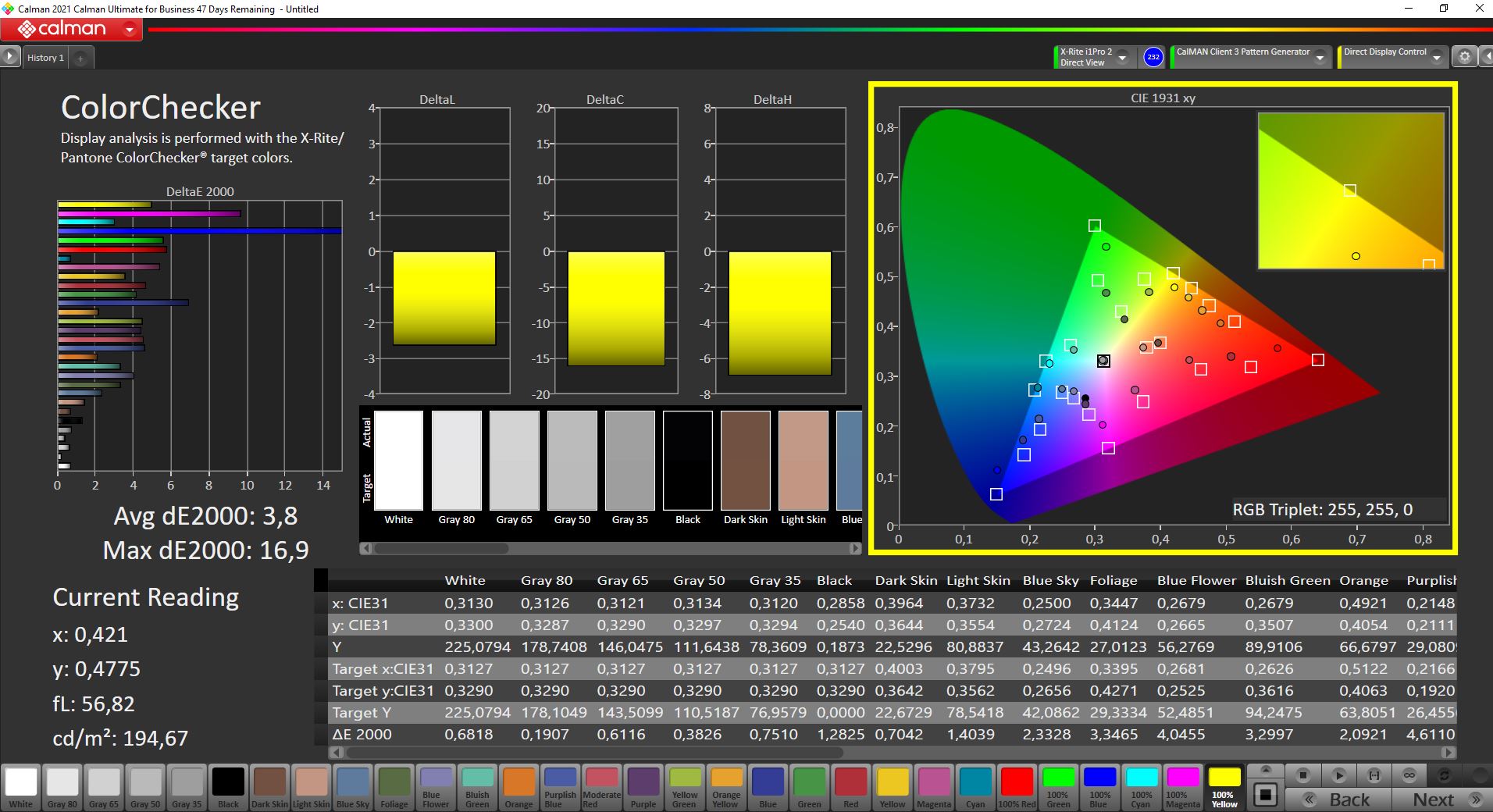

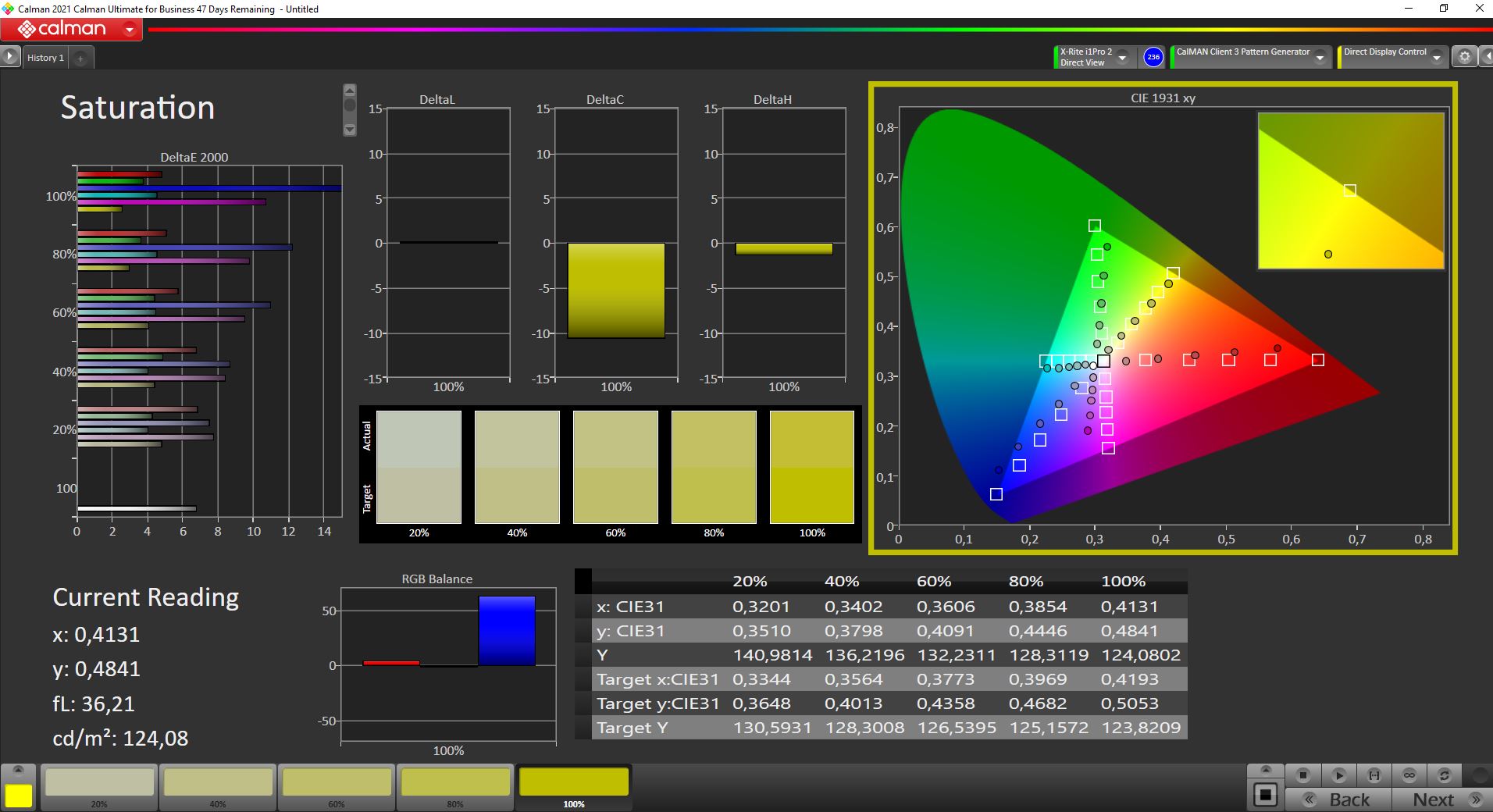

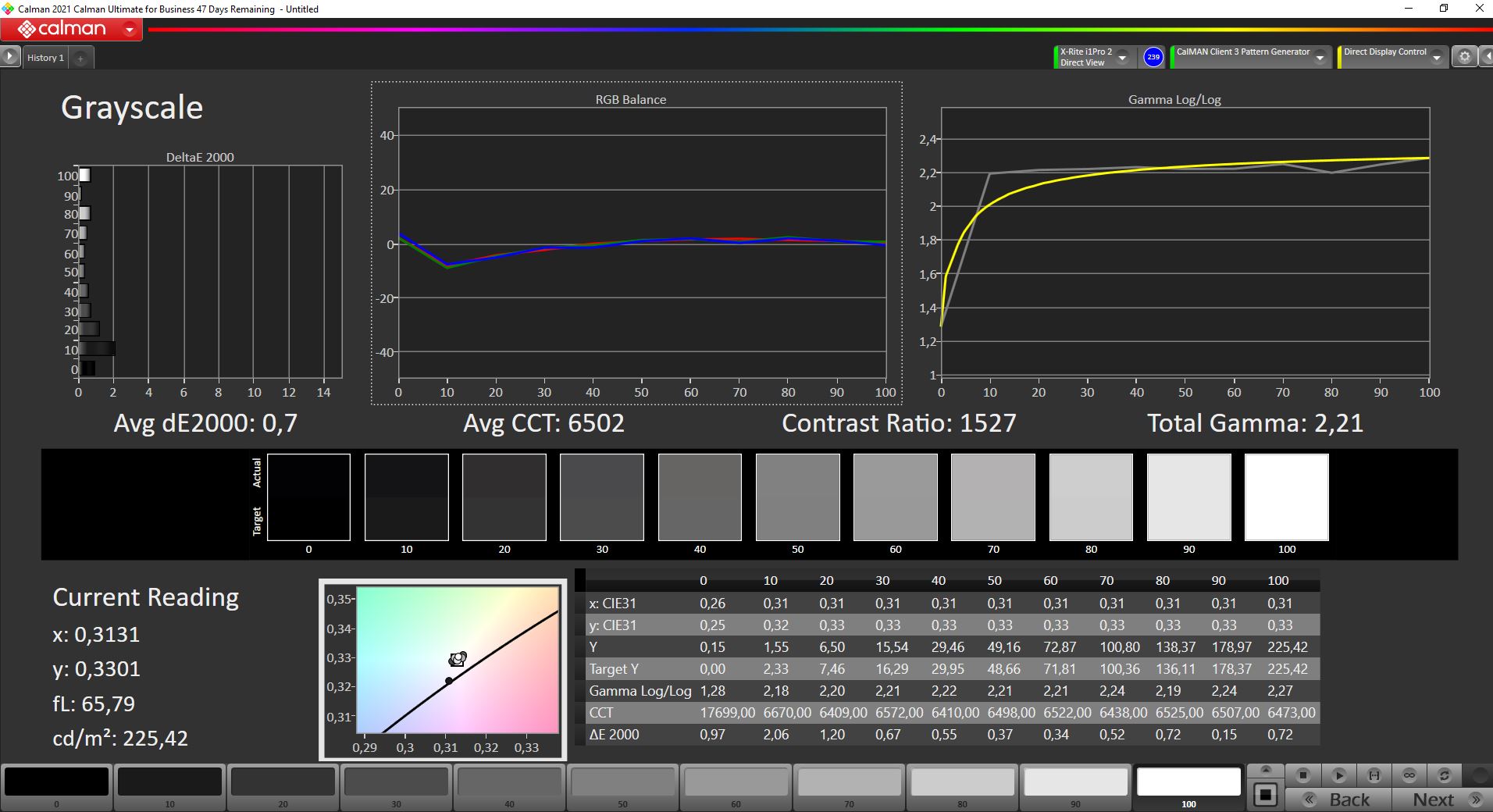

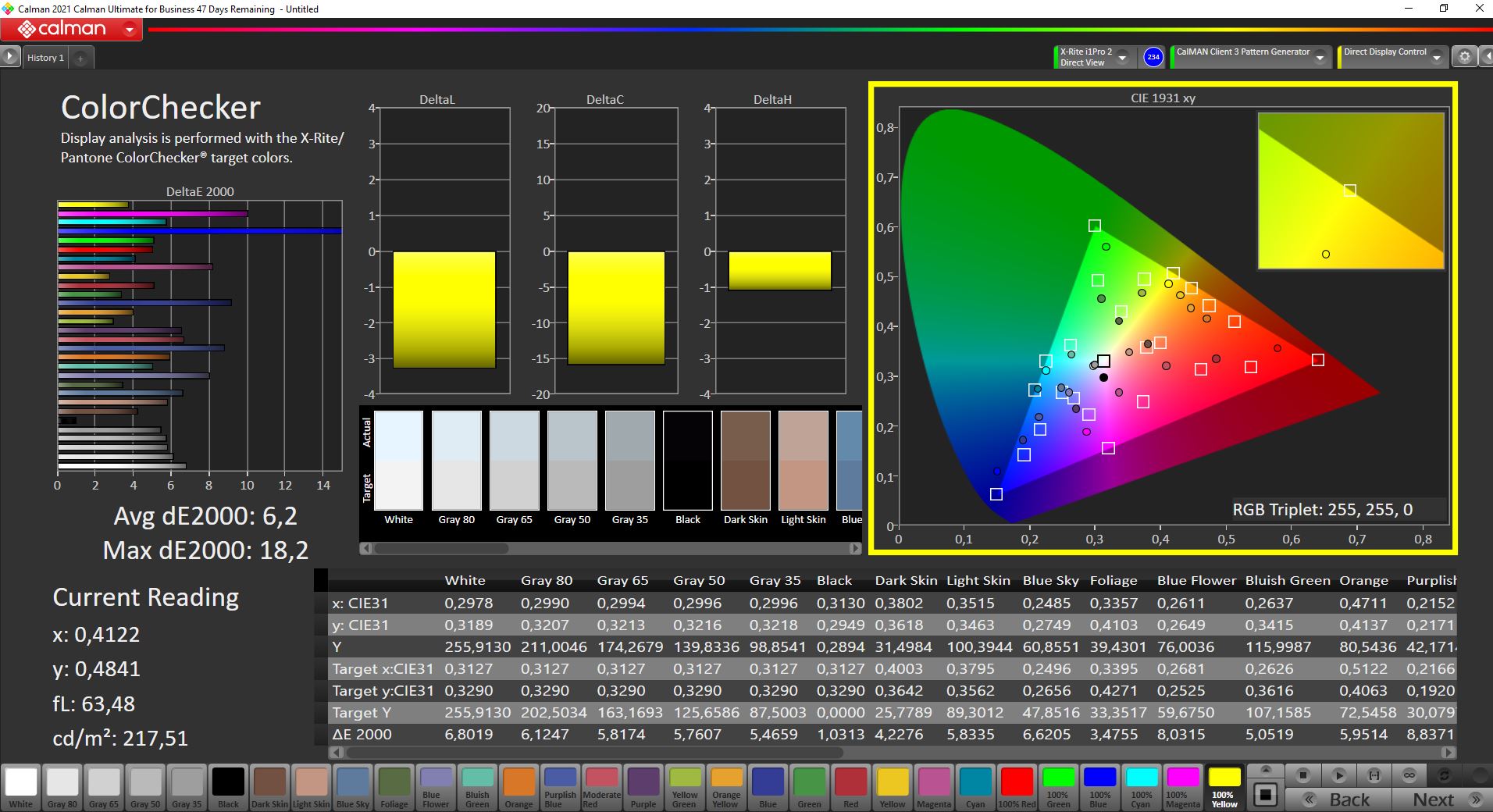

Our analysis (CalMAN & X-Rite i1 Pro 2) shows a visible blue cast in combination with a too cool color temperature in the state of delivery. We get the color cast under control with our calibration, but the brightness drops a bit further to 225 cd/m² at the same time. The color representation also improves a bit, but the deviations are still too high for serious image editing, since the color space coverage is also too low (sRGB only 63%). The calibrated ICC file can be found in the upper right window next to the screen illumination graphic.
Overall, this is a very inexpensive IPS panel, but its picture quality is perfectly sufficient for normal office tasks.
Display Response Times

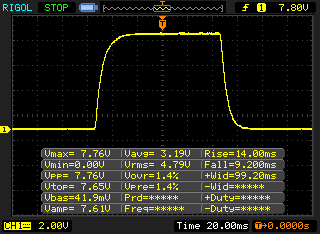

| ↔ Response Time Black to White | ||
|---|---|---|
| 23.2 ms ... rise ↗ and fall ↘ combined | ↗ 14 ms rise |  |
| ↘ 9.2 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 48 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.1 ms). | ||

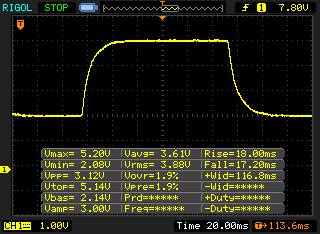

| ↔ Response Time 50% Grey to 80% Grey | ||
| 35.2 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 17.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.1 ms). | ||

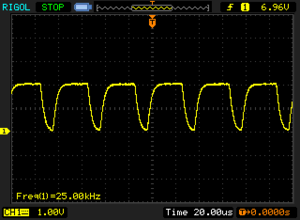

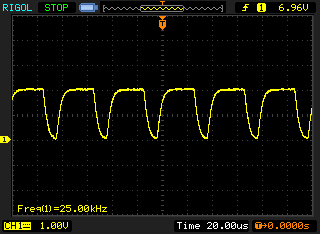

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 25000 Hz | ≤ 20 % brightness setting |  |
The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17204 (minimum: 5 - maximum: 3846000) Hz was measured. | |||

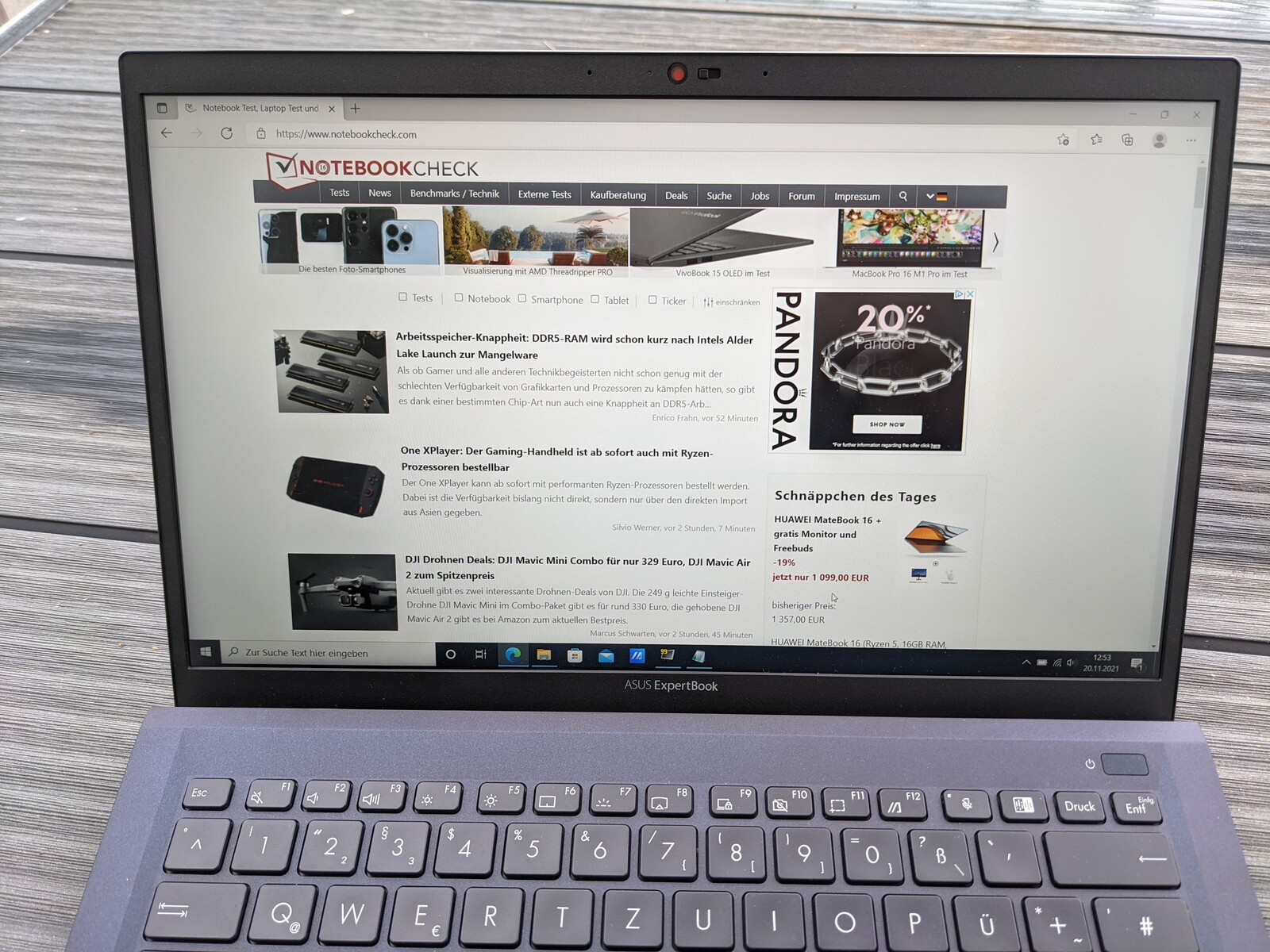

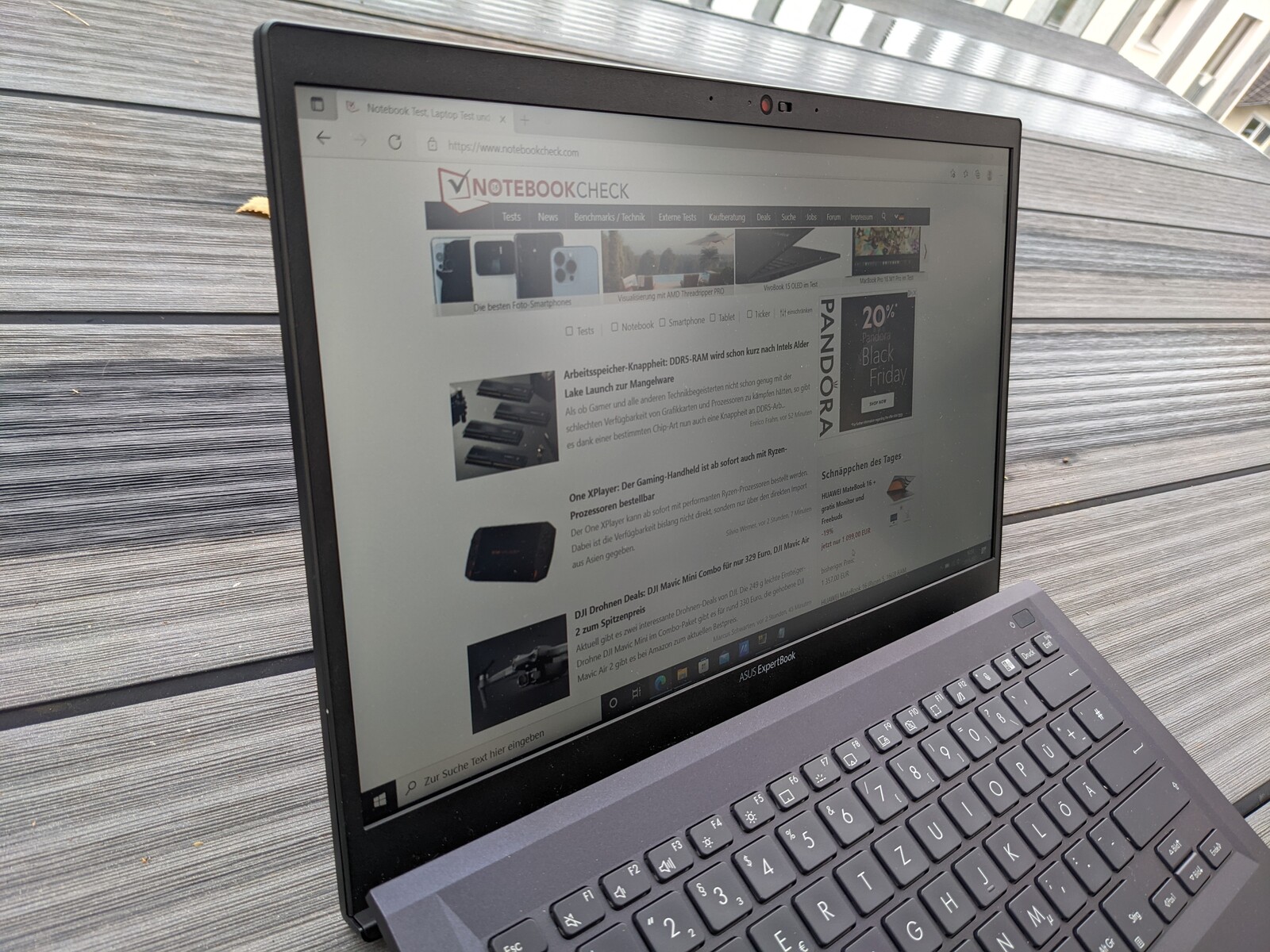

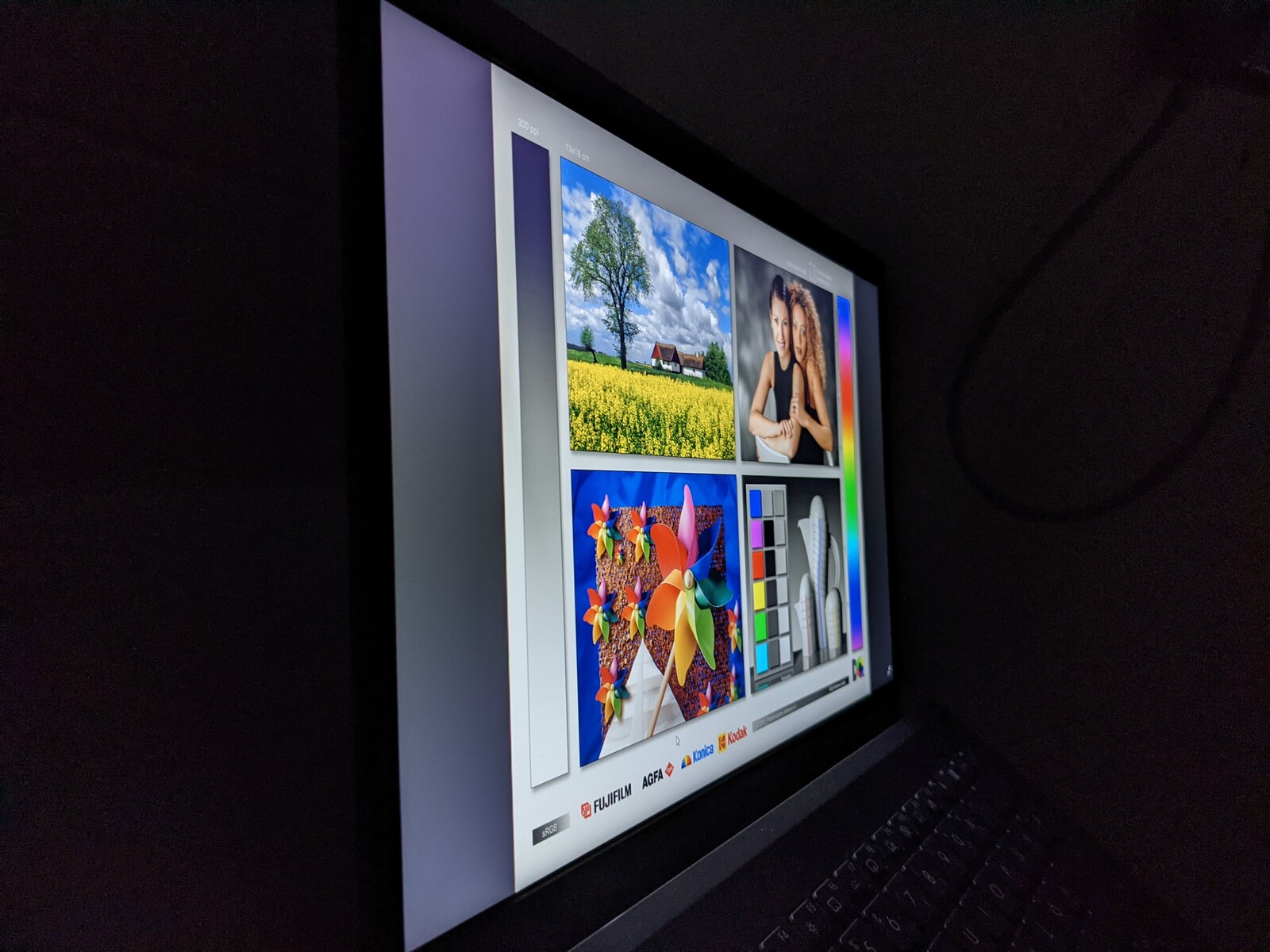

Outdoors, the ExpertBook B1 B1400 can be used well especially on cloudy days or in the shade. However, the display brightness is not sufficient for working in direct sunlight. The IPS panel used is very viewing-angle stable.
Performance - Well suited for office work

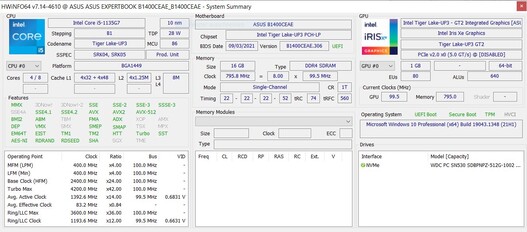

Our test model of the Asus ExpertBook B1 B1400 is equipped with an Intel Core i5-1135G7, 8 GB RAM and a 512 GB SSD. For the display of image contents, the internal graphics unit Intel Iris Xe Graphics G7 80EUs is responsible. As an alternative, the ExpertBook can also be equipped with the stronger Intel Core i7-1165G7 and more working memory.
Test conditions
For our test, we use the "Balanced" performance profile that can be set in the MyAsus app. A whisper and a power mode are also available as alternatives.
Processor
The test unit runs on a Intel Core i5-1135G7 processor with four cores from Intel's Tiger Lake generation and operates with clock rates between 2.4 and 4.2 GHz. Besides the cooling system, however, the set TDP also plays a role for the CPU's performance. This is generously dimensioned with a short-term value of 51 watts (PL2) and a long-term value of 28 watts (PL1).

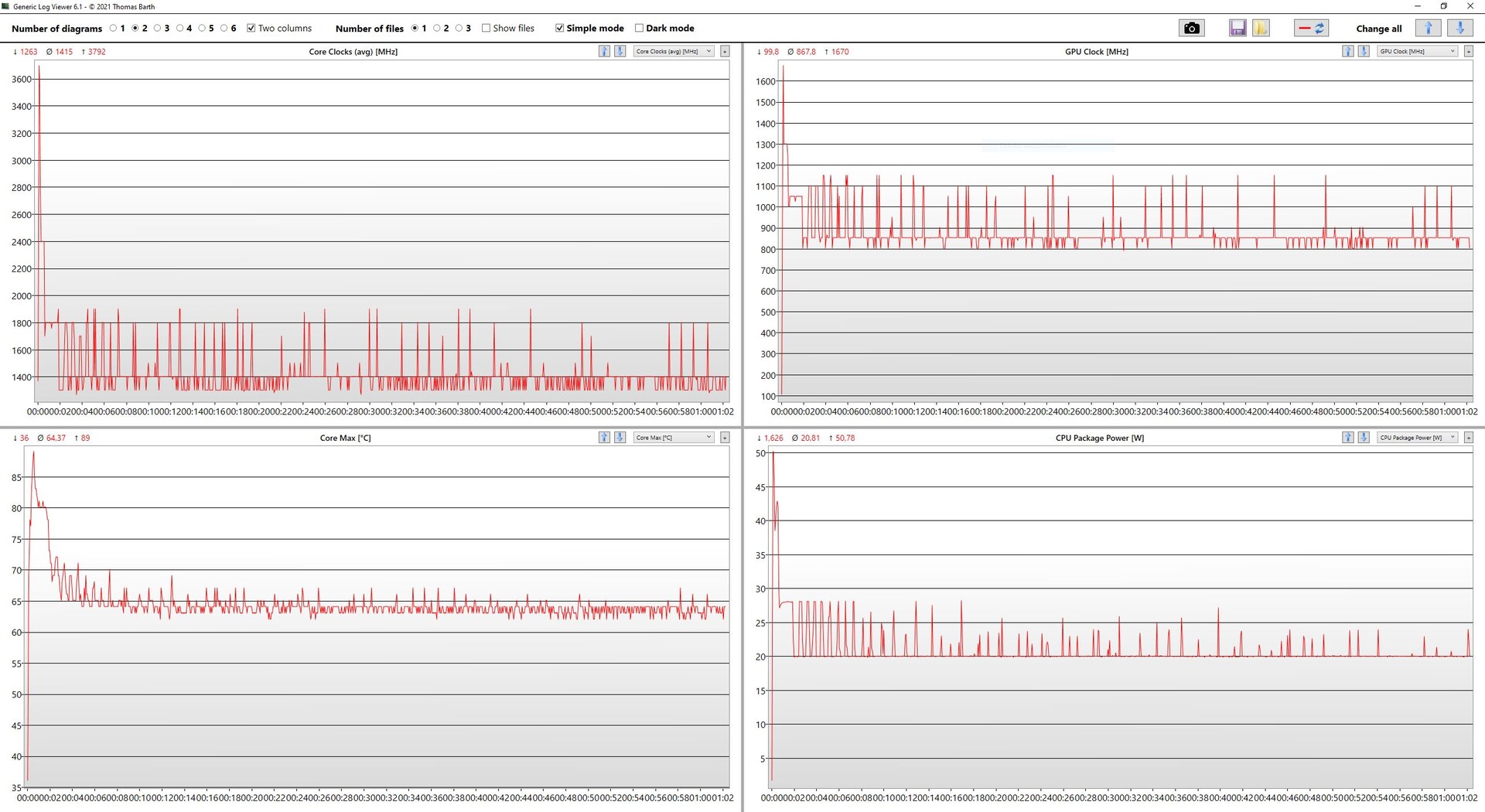

In our Cinebench R15 endurance test, the initial value is on a high level, and even reaches that of some notebooks with an Intel Core i7-1165G7. Afterwards, however, the result drops significantly and settles at an approximately 15 percent lower rate. The results of the individual disciplines are usually a bit below average and are often only enough for the last place in our test field.
The CPU's performance drops significantly in battery mode. Only 248 instead of 860 points are achieved in the Cinebench R15 multi-core test without a connected power supply.
Cinebench R15 Multi Endurance test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Office | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 -2! | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1577 - 15743, n=99, last 2 years) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i5-1135G7 (2786 - 6136, n=55) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R23 / Single Core | |
| Average of class Office (618 - 1995, n=99, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (1062 - 1373, n=53) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=99, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (979 - 2382, n=62) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 764, n=99, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (375 - 527, n=62) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (242 - 2642, n=100, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (431 - 941, n=65) | |
| Cinebench R15 / CPU Single 64Bit | |
| Honor Magicbook 14 i7-1165G7 | |
| Average of class Office (98 - 284, n=99, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (141.4 - 205, n=61) | |
| Blender / v2.79 BMW27 CPU | |
| Average Intel Core i5-1135G7 (499 - 1044, n=60) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Average of class Office (208 - 2248, n=101, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Office (7212 - 62349, n=101, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (14745 - 24873, n=62) | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Average of class Office (2769 - 6687, n=101, last 2 years) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3924 - 4921, n=62) | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (3475 - 5472, n=58) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Geekbench 5.5 / Single-Core | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Average of class Office (510 - 1974, n=100, last 2 years) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (1147 - 1428, n=58) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Office (1.55 - 17.4, n=99, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3.57 - 7.6, n=57) | |
| LibreOffice / 20 Documents To PDF | |
| Average of class Office (31.3 - 129.6, n=99, last 2 years) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (44.2 - 62.9, n=60) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| R Benchmark 2.5 / Overall mean | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (0.619 - 0.727, n=59) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Acer TravelMate P614P-52 | |
| Average of class Office (0.4244 - 1.192, n=98, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 | |
| Honor Magicbook 14 i7-1165G7 -9! | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE -9! | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (4313 - 7952, n=45) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (19402 - 32283, n=45) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4442, n=99, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (1316 - 2172, n=45) | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 113016, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (39000 - 46951, n=45) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3497 - 4445, n=45) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (12569 - 19635, n=45) | |
| AIDA64 / CPU AES | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i5-1135G7 (28988 - 67977, n=45) | |
| Average of class Office (5426 - 147611, n=100, last 2 years) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (265 - 373, n=51) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Honor Magicbook 14 i7-1165G7 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=100, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (2226 - 4291, n=45) | |
| AIDA64 / CPU PhotoWorxx | |
| Acer TravelMate P614P-52 | |
| Average of class Office (4814 - 48177, n=100, last 2 years) | |
| Average Intel Core i5-1135G7 (9004 - 45366, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
System performance
In the PCMark 10 test for evaluating the system performance, the ExpertBook B1 B1400 achieves a slightly above-average overall score. The results of the individual disciplines reflect this score and are on par with the Lenovo ThinkBook 14 G2. However, it is noticed in the AIDA64 test that the working memory speed is comparatively low.
| PCMark 10 / Score | |
| Average of class Office (2463 - 7157, n=91, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
| PCMark 10 / Essentials | |
| Acer TravelMate P614P-52 | |
| Average of class Office (5575 - 20841, n=91, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10198, n=91, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (1912 - 9465, n=91, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
| PCMark 10 Score | 4738 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Acer TravelMate P614P-52 | |
| Average of class Office (7158 - 88119, n=101, last 2 years) | |
| Average Intel Core i5-1135G7 (17443 - 63889, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| AIDA64 / Memory Read | |
| Acer TravelMate P614P-52 | |
| Average of class Office (7325 - 112436, n=101, last 2 years) | |
| Average Intel Core i5-1135G7 (19716 - 63705, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| AIDA64 / Memory Write | |
| Acer TravelMate P614P-52 | |
| Average of class Office (7579 - 94965, n=101, last 2 years) | |
| Average Intel Core i5-1135G7 (18722 - 66778, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| AIDA64 / Memory Latency | |
| Average of class Office (8.3 - 185.2, n=101, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (68.3 - 107, n=51) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Honor Magicbook 14 i7-1165G7 | |
* ... smaller is better
DPC latencies

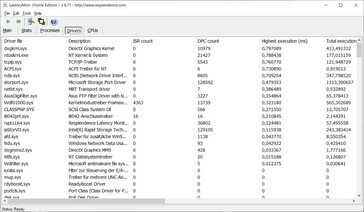

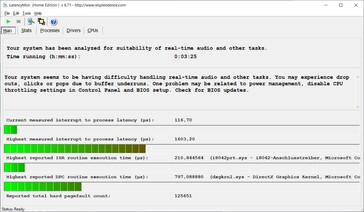

In the test with LatencyMon, our test model from Asus shows slightly increased Interruption times. However, it should still be suitable for real-time applications and the like.
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Honor Magicbook 14 i7-1165G7 | |
* ... smaller is better
Mass storage

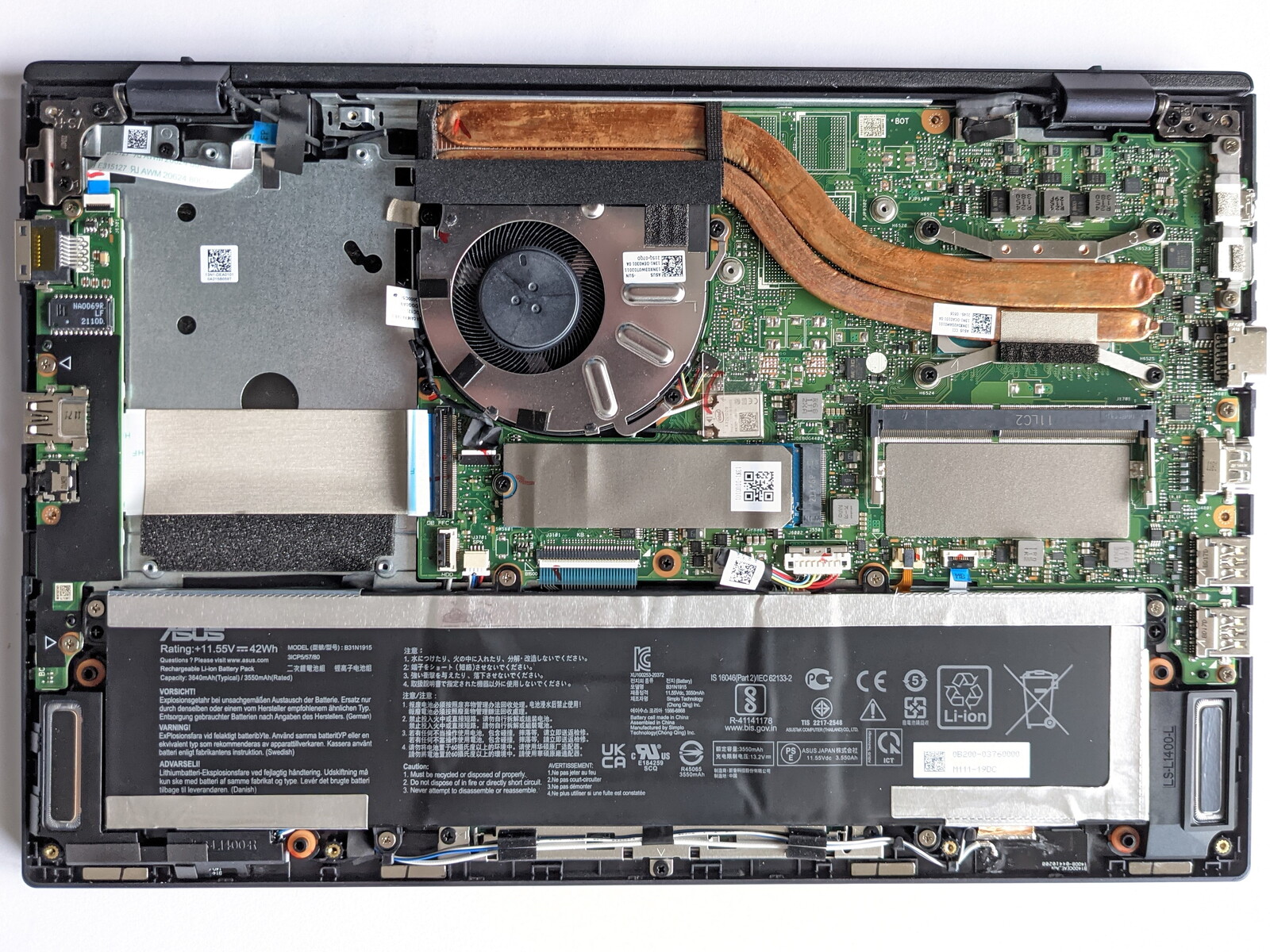

Our configuration of the ExpertBook B1 B1400 is equipped with a 512 GB M.2-2280 SSD (PCIe-3.0 x4), which achieves good speeds in the storage benchmarks. Thus, the laptop can place itself in the middle of our test field.
What speeds can be expected from other mass storage devices can be seen in our HDD/SSD benchmark list.
* ... smaller is better
Continuous power reading: DiskSpd Read Loop, Queue Depth 8
Graphics card
The Asus ExpertBook B1 B1400 is equipped with an Intel Iris Xe Graphics G7 80EUs which is suitable for simple graphical applications. The performance also depends on the installed working memory, which is why the single-channel configuration of our test model offers a lower performance than comparable notebooks.
This is also reflected in the 3DMark as well as gaming benchmarks, where Asus' notebook ranks last in our test field. An improvement in performance can be achieved by using a second RAM module. In battery mode, the 3DMark 11 result of 4472 points is only slightly worse compared to 4684 points.
However, the iGPU is completely sufficient for office and multimedia applications (incl. playing high-resolution videos), but only low details/resolutions are usually possible when gaming. The performance of other graphics units in comparison to this can be seen in our GPU benchmark list and our GPU gaming list.
| 3DMark 11 Performance | 4701 points | |
| 3DMark Cloud Gate Standard Score | 14042 points | |
| 3DMark Fire Strike Score | 2303 points | |
| 3DMark Time Spy Score | 1099 points | |
Help | ||
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Acer TravelMate P614P-52 | |
| Average of class Office (8.4 - 177, n=83, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101) | |
| Honor Magicbook 14 i7-1165G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| Average of class Office (7.47 - 171.4, n=85, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Acer TravelMate P614P-52 | |
| Average of class Office (5.42 - 103.1, n=95, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (16.3 - 175.7, n=90, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
