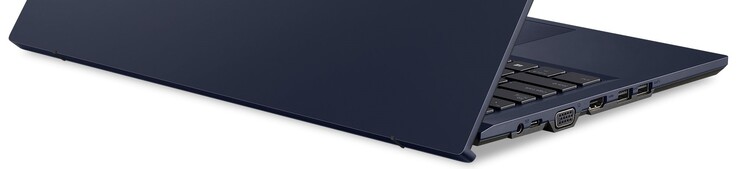

Asus ExpertBook B1 B1500 in review: Many ports on the business laptop

With VGA and Thunderbolt 4. Due to its low price, Asus' ExpertBook B1 does not only seem suitable for office and business use, but also for private use. We will clarify whether this impression is true in our review.
Asus ExpertBook B1 B1500CEAE

With the ExpertBooks from the B1 series, Asus offers inexpensive business devices that range in price from 700 to about 1,200 Euros (~$789 to 1,353) depending on the configuration. In our tests of the ExpertBook B5 and the ExpertBook B9 the devices of this series already left a very good impression on us. Now we take a look at the Asus ExpertBook B1 with a 15-inch display.

In our test configuration, it is equipped with an Intel Core i5-1135G7 and its internal graphics unit, 8 GB RAM and a 512 GB SSD. Depending on the offer, the price is between 700 and 800 Euros (~$789 and $902).

Asus ExpertBook B1 B1500CEAE, i5-1135G7 (ExpertBook B1 Series)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 51 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake UP3
Memory
8 GB
, DDR4-3200, Single-Channel, 1 Slot free, max. 40 GB
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, CEC Panda LM156LF-5L06, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
WDC PC SN530 SDBPNPZ-512G, 512 GB
, 436 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 2.0, 2 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 DVI, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: combined audio jack, Card Reader: microSD, 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.2
Size
height x width x depth (in mm): 19.4 x 358 x 236.5 ( = 0.76 x 14.09 x 9.31 in)
Battery
42 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1280x720)
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.727 kg ( = 60.92 oz / 3.81 pounds), Power Supply: 300 g ( = 10.58 oz / 0.66 pounds)
Price
700 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
84.8 %
11/2021
Asus ExpertBook B1 B1500CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs
1.7 kg19.4 mm15.60"1920x1080
82 %
07/2021
Samsung Galaxy Book NP750XDA
i5-1135G7, Iris Xe G7 80EUs
1.6 kg16 mm15.60"1920x1080
84.8 %
07/2021
Honor MagicBook 15 i5 1135G7
i5-1135G7, Iris Xe G7 80EUs
1.5 kg17 mm15.60"1920x1080
82.8 %
04/2021
Lenovo ThinkBook 15 Gen2 ITL
i5-1135G7, Iris Xe G7 80EUs
1.8 kg18.9 mm15.60"1920x1080

Case & equipment - Fast WiFi 6 and Thunderbolt 4

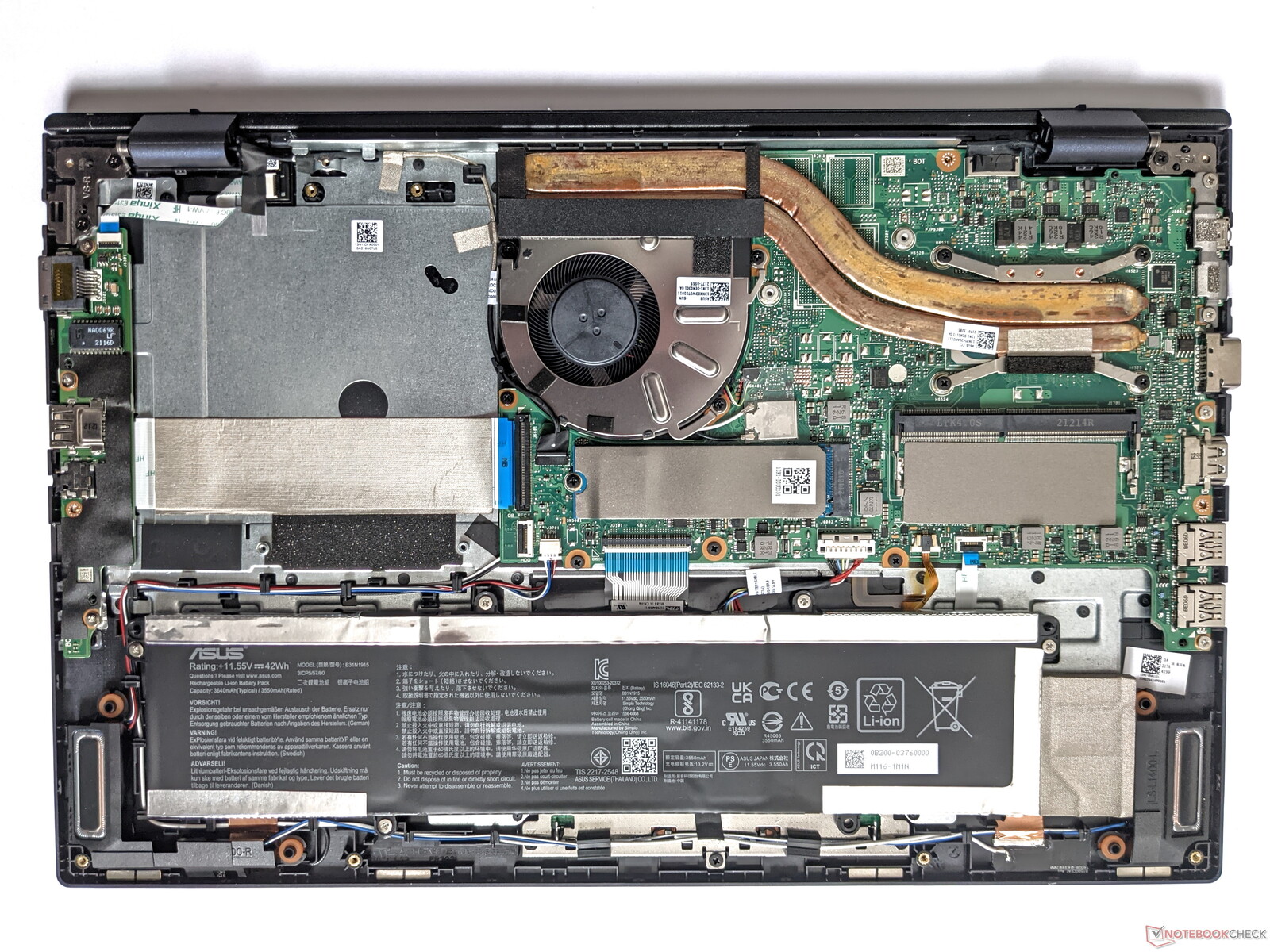

Internal structure
Internal structure

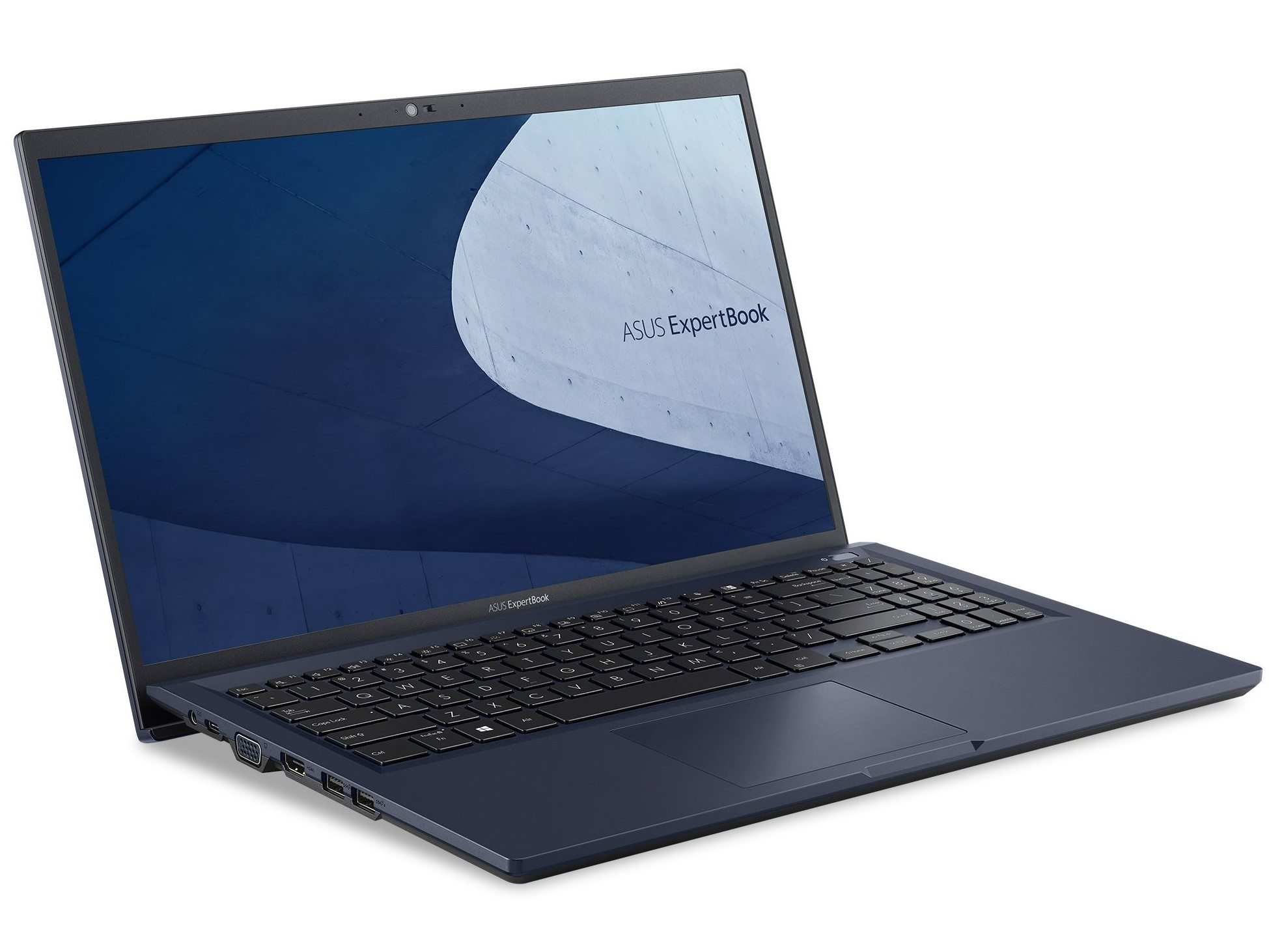

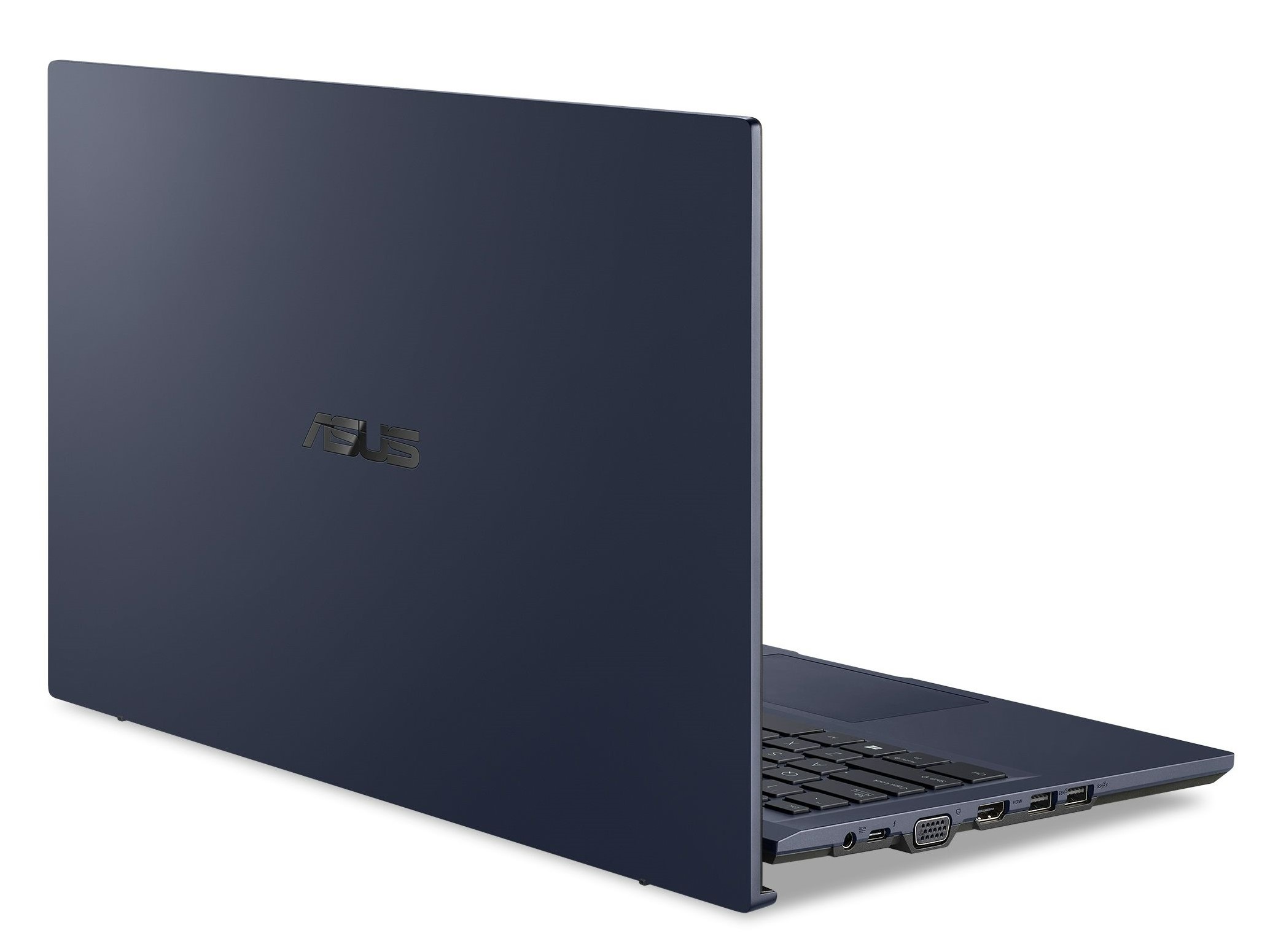

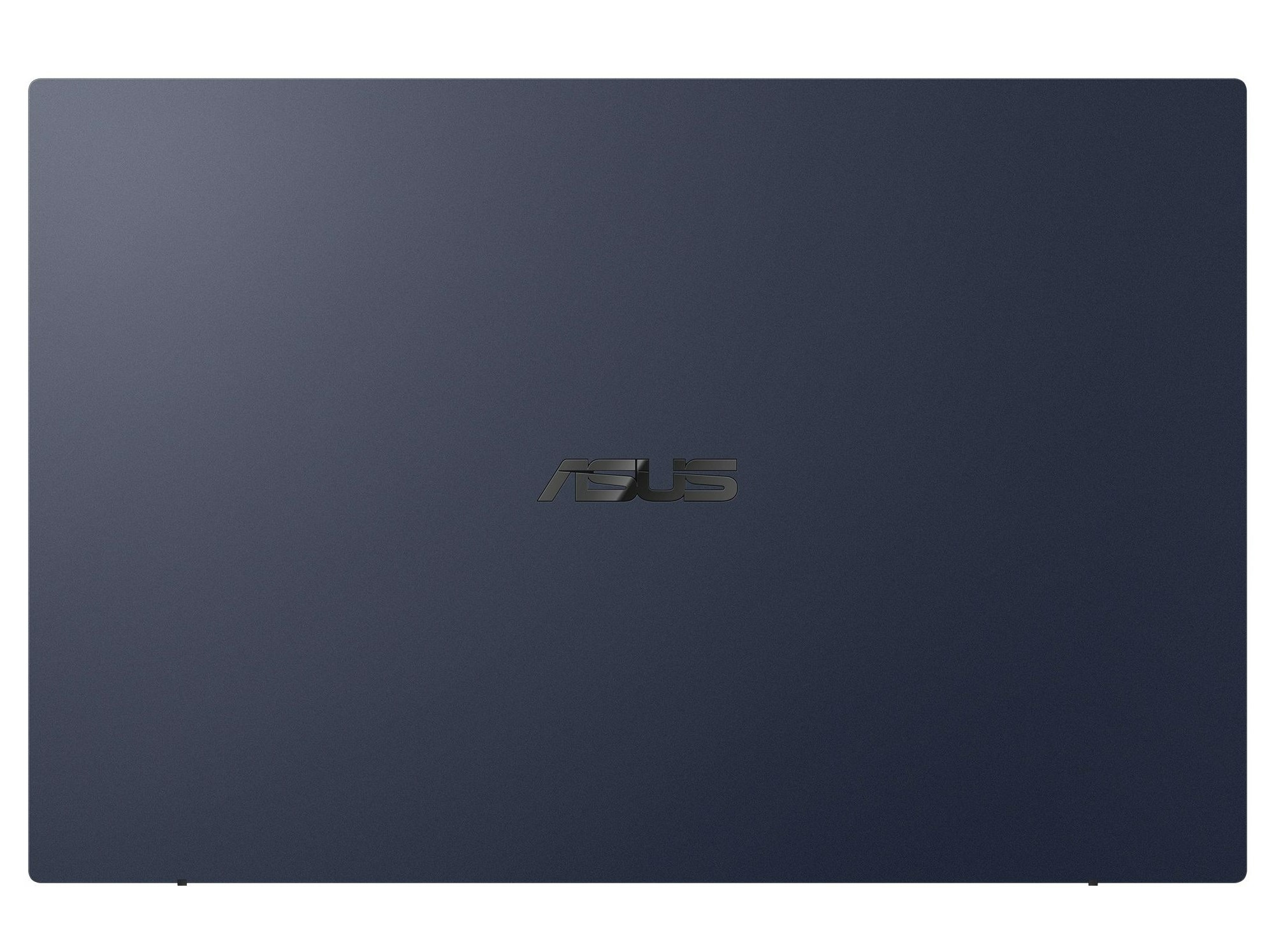

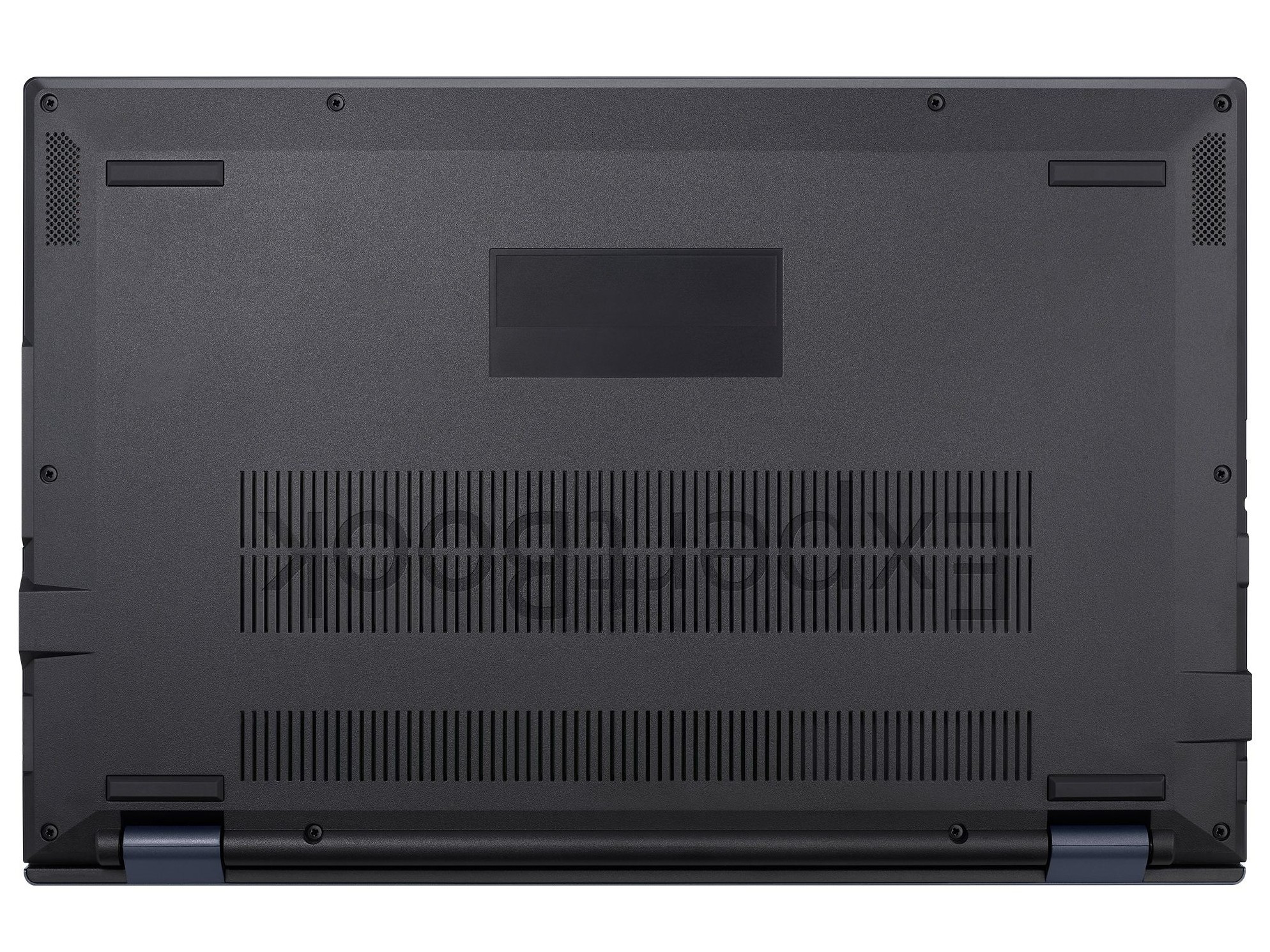

Asus manufactures the base unit of the ExpertBook B1 from plastic and reinforces the lid with an aluminum alloy. The build quality is high and the notebook looks very robust. The dimensions are also quite compact thanks to the narrow display bezel, and the weight is also low at approximately 1.7 kg (~3.8 lb). The maximum opening angle of the display is 180 degrees.

Besides the normal ports like HDMI, USB-C and USB-A, Asus' notebook also offers a VGA and Ethernet port. Thanks to Thunderbolt 4, many other ports can be connected with the corresponding adapters. However, the lame USB 2.0 port on the right side is outdated.

A microSD card reader is also present, but it only achieves quite slow speeds of 25.5 MB/s when copying and 26.9 MB/s when reading data with our reference memory card AV Pro V60.

In the WLAN test, speeds of 1,359 MBit/s are achieved when transmitting data and 1,478 MBit/s when receiving data thanks to WiFi 6 with our reference router Netgear Nighthawk AX12. These rates are very good and correspond to the level of our test field.

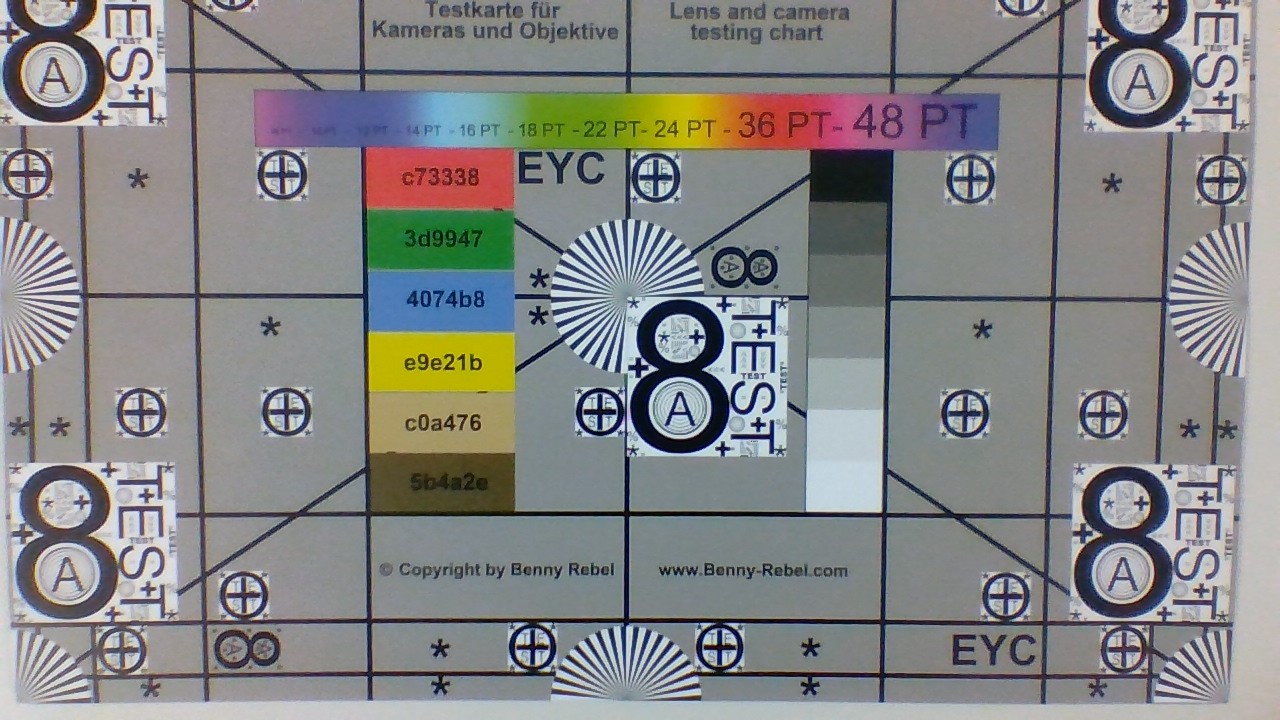

The built-in webcam, like most current notebooks, only displays subjects with a low resolution of 0.9 MP. Accordingly, the quality of our test pictures is mediocre. A mechanical webcam shutter protects against unwanted looks.

Size comparison

358 mm / 14.1 inch 236.5 mm / 9.31 inch 19.4 mm / 0.764 inch 1.7 kg3.81 lbs357 mm / 14.1 inch 235 mm / 9.25 inch 18.9 mm / 0.744 inch 1.8 kg3.88 lbs358 mm / 14.1 inch 230 mm / 9.06 inch 17 mm / 0.669 inch 1.5 kg3.35 lbs357 mm / 14.1 inch 230 mm / 9.06 inch 16 mm / 0.63 inch 1.6 kg3.53 lbs

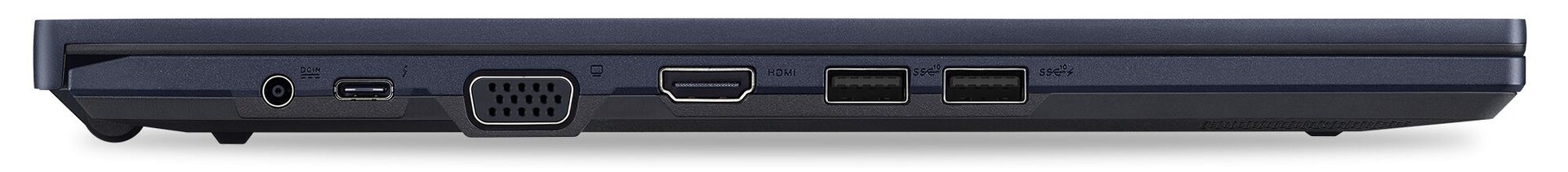

Left side: Power connector, 1x Thunderbolt 4, VGA, HDMI, 2x USB 3.2 Gen2
Left side: Power connector, 1x Thunderbolt 4, VGA, HDMI, 2x USB 3.2 Gen2

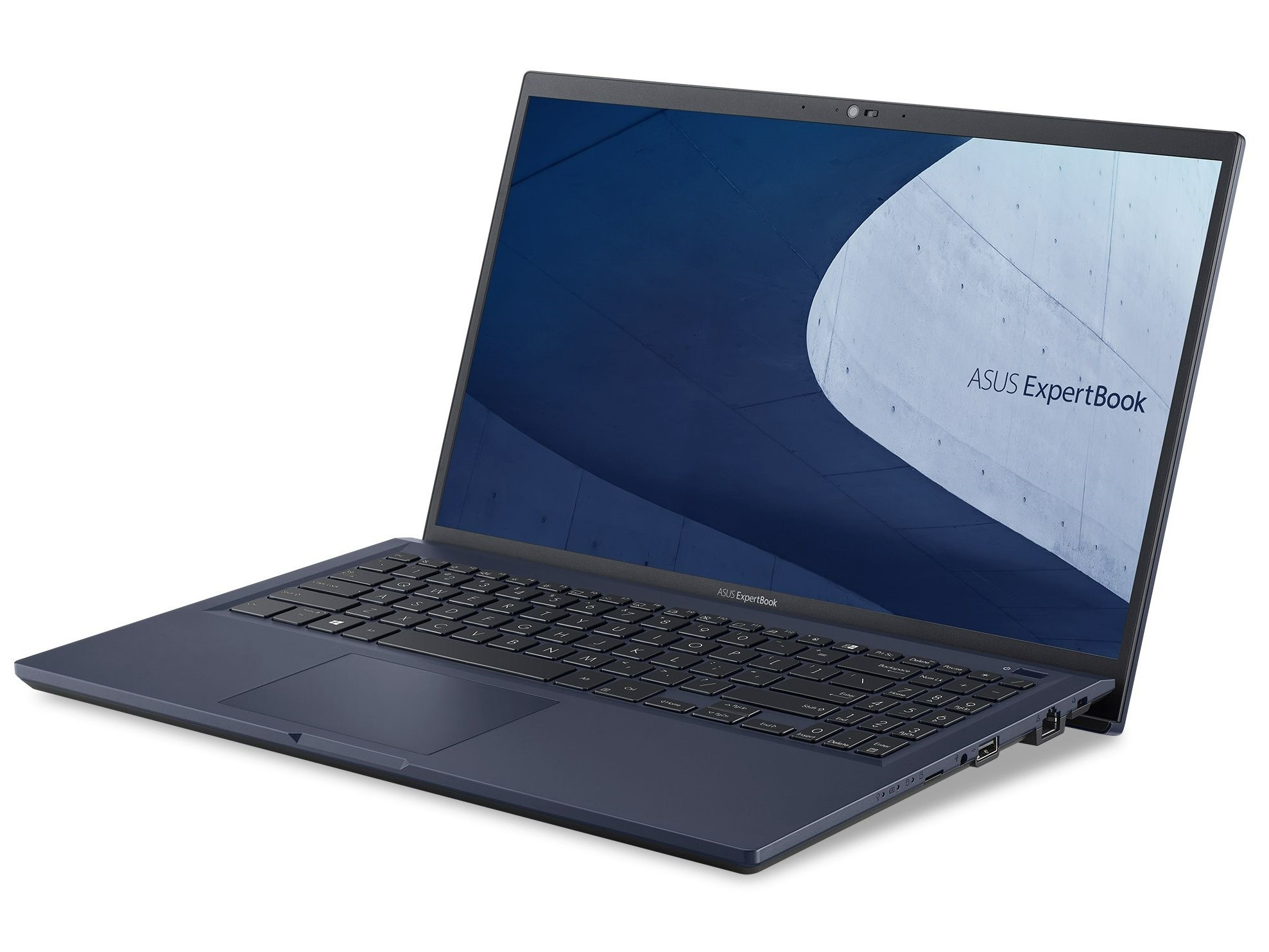

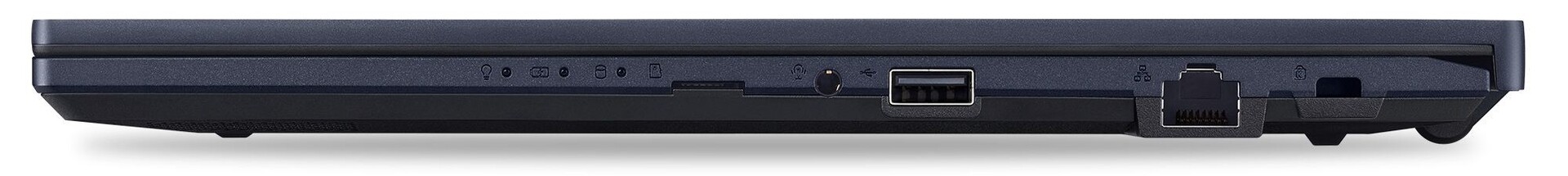

Right side: microSD card reader, 3.5 mm jack, 1x USB 2.0, GigabitLAN, Kensington Lock
Right side: microSD card reader, 3.5 mm jack, 1x USB 2.0, GigabitLAN, Kensington Lock
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkBook 15 Gen2 ITL
  (AV Pro V60)
76.8 MB/s ∼100% +201%
Average of class Office
  (19.4 - 196.8, n=71, last 2 years)
65.2 MB/s ∼85% +156%
Samsung Galaxy Book NP750XDA
  (AV PRO microSD 128 GB V60)
35 MB/s ∼46% +37%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
  (AV Pro V60)
25.5 MB/s ∼33%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkBook 15 Gen2 ITL
  (AV Pro V60)
84.7 MB/s ∼100% +215%
Average of class Office
  (23.6 - 201, n=69, last 2 years)
75 MB/s ∼89% +179%
Samsung Galaxy Book NP750XDA
  (AV PRO microSD 128 GB V60)
36.5 MB/s ∼43% +36%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
  (AV Pro V60)
26.9 MB/s ∼32%
Networking
iperf3 transmit AX12
Samsung Galaxy Book NP750XDA
Intel Wi-Fi 6 AX201
1462 (533min - 1586max) MBit/s ∼100% +8%
Lenovo ThinkBook 15 Gen2 ITL
Intel Wi-Fi 6 AX201
1426 (1307min - 1478max) MBit/s ∼98% +5%
Honor MagicBook 15 i5 1135G7
Intel Wi-Fi 6 AX201
1400 (1264min - 1496max) MBit/s ∼96% +3%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1359 (703min - 1463max) MBit/s ∼93%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s ∼79% -15%
Average of class Office
  (87 - 1651, n=81, last 2 years)
992 MBit/s ∼68% -27%
iperf3 receive AX12
Samsung Galaxy Book NP750XDA
Intel Wi-Fi 6 AX201
1623 (1565min - 1675max) MBit/s ∼100% +10%
Lenovo ThinkBook 15 Gen2 ITL
Intel Wi-Fi 6 AX201
1554 (1438min - 1630max) MBit/s ∼96% +5%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1478 (1347min - 1614max) MBit/s ∼91%
Honor MagicBook 15 i5 1135G7
Intel Wi-Fi 6 AX201
1385 (910min - 1612max) MBit/s ∼85% -6%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s ∼78% -15%
Average of class Office
  (100 - 1716, n=81, last 2 years)
1045 MBit/s ∼64% -29%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155016001650Tooltip
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1478 (1347-1614)
Samsung Galaxy Book NP750XDA Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1622 (1565-1675)
Honor MagicBook 15 i5 1135G7 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1384 (910-1612)
Lenovo ThinkBook 15 Gen2 ITL Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1554 (1438-1630)
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1335 (703-1463)
Samsung Galaxy Book NP750XDA Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1444 (533-1586)
Honor MagicBook 15 i5 1135G7 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1400 (1264-1496)
Lenovo ThinkBook 15 Gen2 ITL Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1426 (1307-1478)
ColorChecker
8.6 ∆E
9.4 ∆E
12.2 ∆E
9.1 ∆E
10.9 ∆E
7.5 ∆E
8.1 ∆E
13.6 ∆E
10.3 ∆E
5.7 ∆E
7 ∆E
5 ∆E
8.5 ∆E
3.5 ∆E
8.3 ∆E
1.8 ∆E
10.3 ∆E
8.8 ∆E
3.3 ∆E
3.1 ∆E
5.5 ∆E
3.6 ∆E
4.1 ∆E
7.8 ∆E
ColorChecker Asus ExpertBook B1 B1500CEAE, i5-1135G7: 7.33 ∆E min: 1.8 - max: 13.59 ∆E

Input devices - Asus notebook with good keyboard

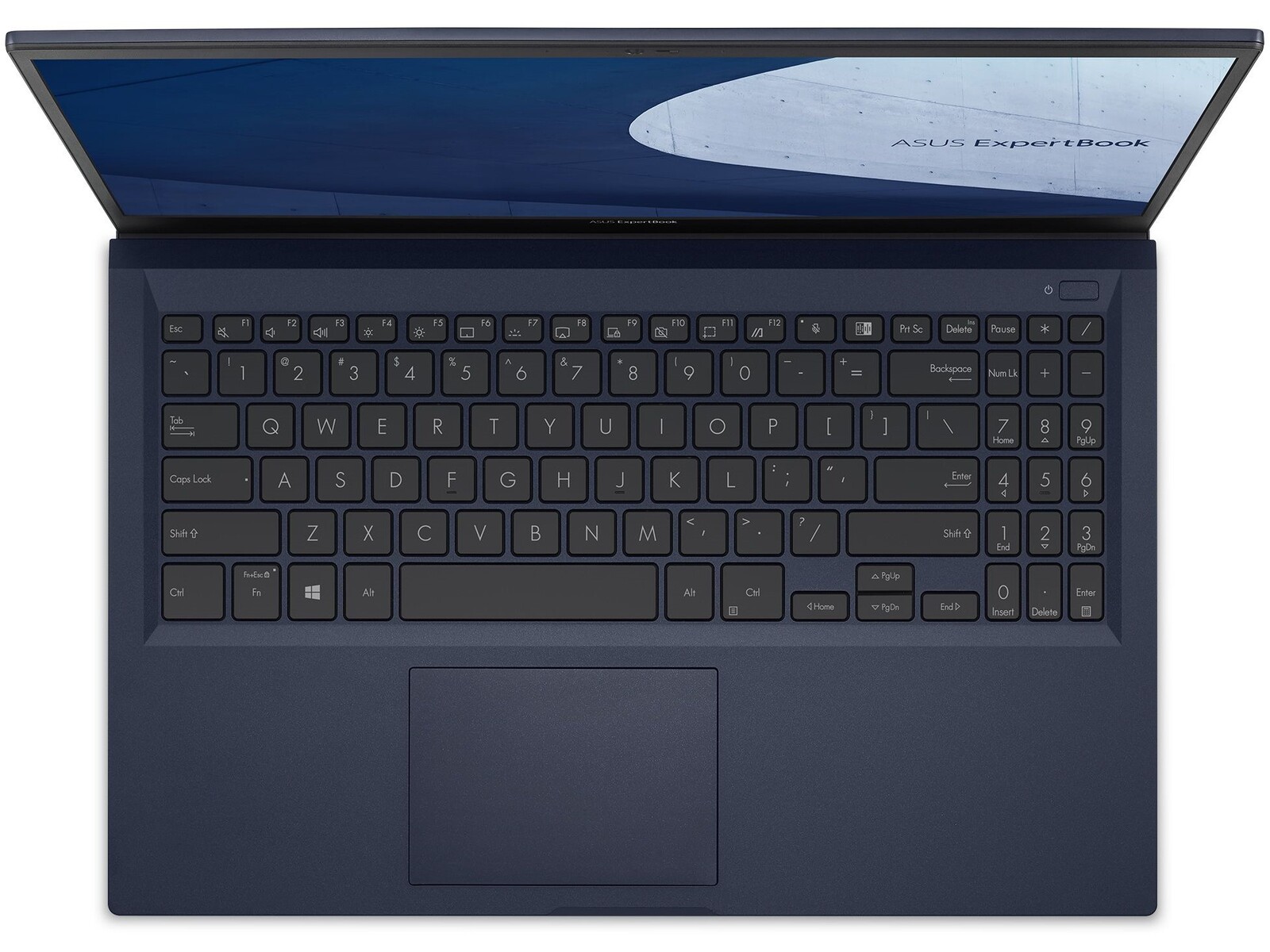

The keyboard of the ExpertBook B1 offers pleasantly large keys and a clear pressure point. Thus, typing tasks are possible without problems after a short familiarization period. A full-fledged numeric keypad completes the keyboard. Only the double assignment of the scroll, Pos1 and End keys on the rather narrow arrow keys is not optimal.

A clickpad is available as a mouse replacement, which is well suited for navigating the mouse pointer. Mouse clicks are triggered reliably via touch as well as mechanical pressure. The fingerprint scanner integrated into the power button also responded reliably during our test period.

Asus ExpertBook B1 - Input devices
Asus ExpertBook B1 - Input devices

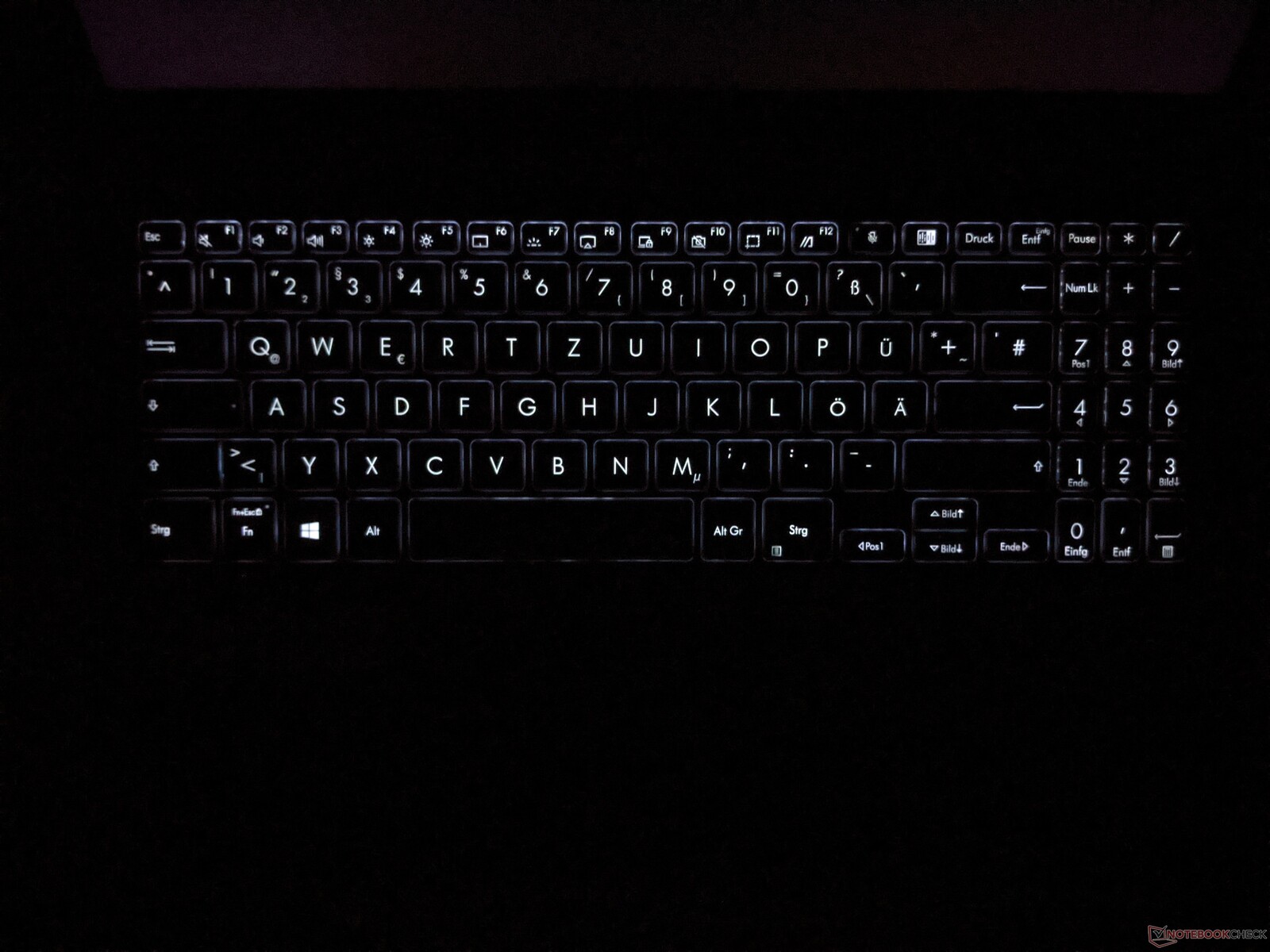

Asus ExpertBook B1 - Lighting
Asus ExpertBook B1 - Lighting

Display - Bright screen in the ExpertBook B1

The screen of the ExpertBook B1 B1500 uses a 15.6-inch IPS panel and offers a resolution of 1,920 x 1,080 pixels. The maximum brightness is 305 cd/m² and thus in the middle of our test field. The screen of the Asus laptop offers a very good contrast ratio of 1,600:1 and an equally very good black value of 0.19 cd/m².

The subjective picture impression of the matte panel is good and even bright surfaces do not look too grainy. Furthermore, no PWM is used for the brightness control. However, slight screen bleeding is visible on dark backgrounds at the edges at full brightness.

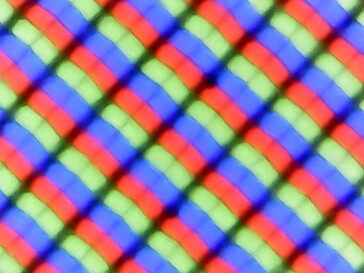

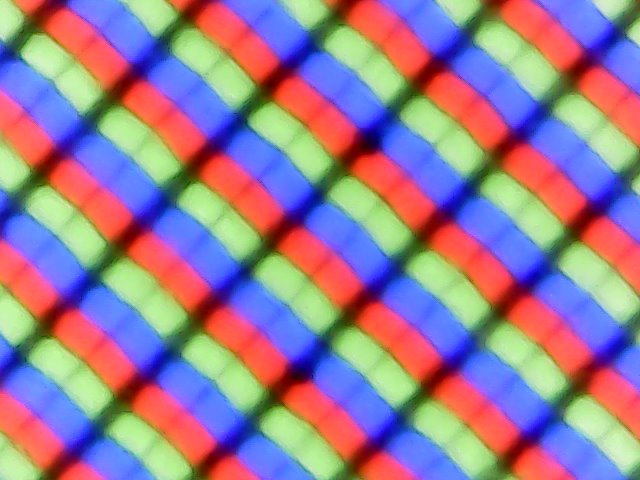

Subpixel
Subpixel

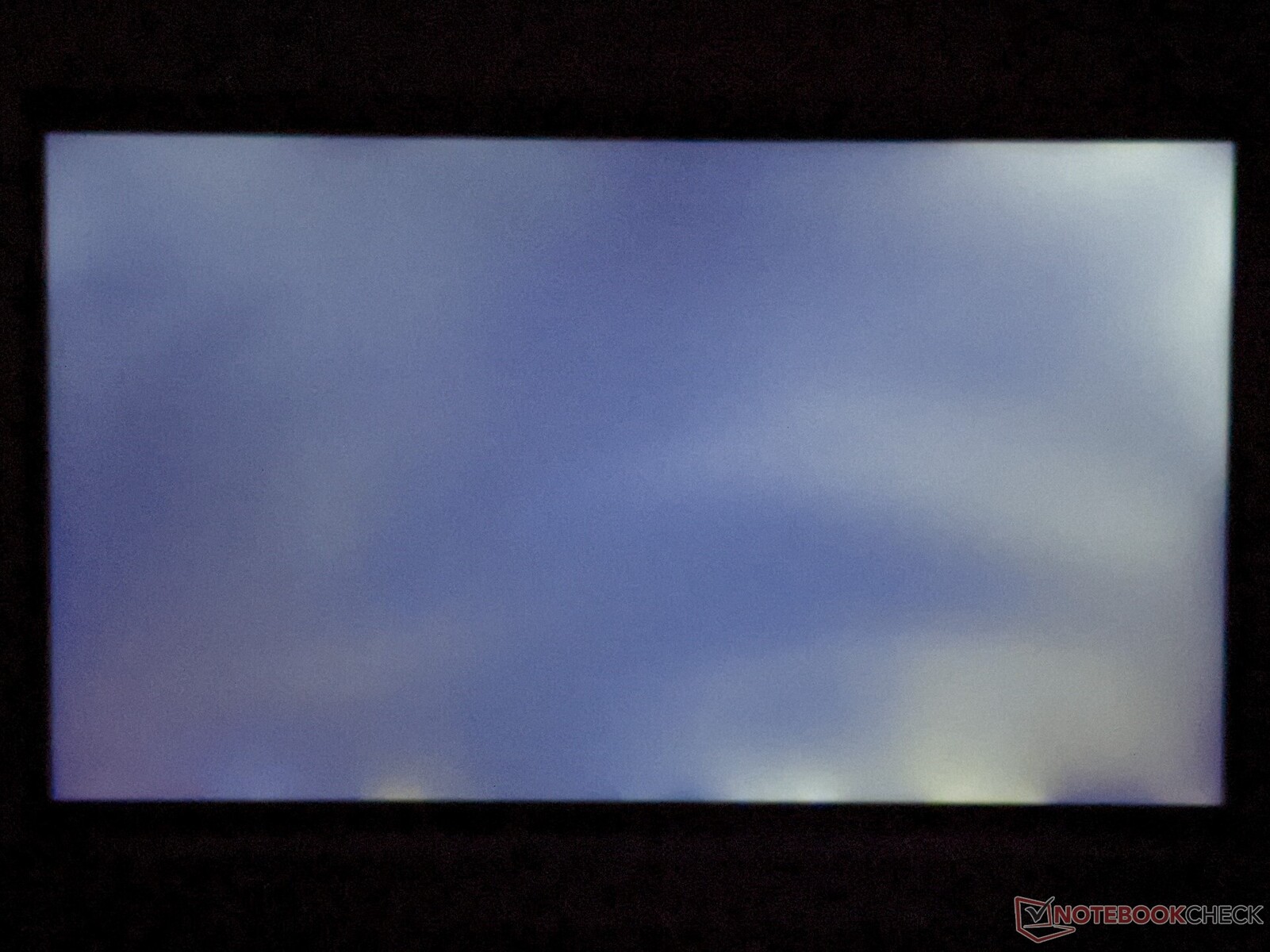

Screen bleeding (enhanced display)
Screen bleeding (enhanced display)
305
cd/m²
292
cd/m²
286
cd/m²
273
cd/m²
304
cd/m²
270
cd/m²
271
cd/m²
288
cd/m²
277
cd/m²
Distribution of brightness
CEC Panda LM156LF-5L06
X-Rite i1Pro 2
Maximum: 305 cd/m² (Nits) Average: 285.1 cd/m² Minimum: 15.6 cd/m²
Brightness Distribution: 89 %
Center on Battery: 305 cd/m²
Contrast: 1600:1 (Black: 0.19 cd/m²)
ΔE Color 5.2 | 0.59-29.43 Ø5.3, calibrated: 4.5
ΔE Greyscale 2.9 | 0.57-98 Ø5.5
43% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.3% sRGB (Argyll 2.2.0 3D)
41.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.14
Asus ExpertBook B1 B1500CEAE, i5-1135G7
CEC Panda LM156LF-5L06, IPS, 1920x1080, 15.60
Samsung Galaxy Book NP750XDA
CEC PANDA LM156LF5L03, IPS, 1920x1080, 15.60
Honor MagicBook 15 i5 1135G7
BOE TV156FHM-NH2, IPS, 1920x1080, 15.60
Lenovo ThinkBook 15 Gen2 ITL
LG Philips LP156WFC-SPD7, IPS, 1920x1080, 15.60
Display
56%
-3%
Display P3 Coverage
41.6
65.4
57%
40.36
-3%
sRGB Coverage
62.3
96.3
55%
60.4
-3%
AdobeRGB 1998 Coverage
43
67.5
57%
41.72
-3%
Response Times
33%
21%
8%
Response Time Grey 50% / Grey 80% *
44.8 ?(22.8, 22)
29 ?(13, 16)
35%
36 ?(18, 18)
20%
40 ?(21.2, 18.8)
11%
Response Time Black / White *
32 ?(17.2, 14.8)
22 ?(12, 10)
31%
24.8 ?(14, 10.8)
22%
30.4 ?(17.2, 13.2)
5%
PWM Frequency
Screen
-22%
5%
-14%
Brightness middle
304
325
7%
332
9%
288
-5%
Brightness
285
297
4%
318
12%
276
-3%
Brightness Distribution
89
86
-3%
87
-2%
87
-2%
Black Level *
0.19
0.445
-134%
0.27
-42%
0.26
-37%
Contrast
1600
730
-54%
1230
-23%
1108
-31%
Colorchecker dE 2000 *
5.2
3.48
33%
3.3
37%
5.9
-13%
Colorchecker dE 2000 max. *
18.5
8.07
56%
7.8
58%
18.4
1%
Colorchecker dE 2000 calibrated *
4.5
1
78%
4.9
-9%
Greyscale dE 2000 *
2.9
5.27
-82%
5.2
-79%
3.8
-31%
Gamma
2.14 103%
2.41 91%
2.07 106%
2.34 94%
CCT
6639 98%
7769 84%
7370 88%
6856 95%
Color Space (Percent of AdobeRGB 1998)
44
38.1
Color Space (Percent of sRGB)
70
60
Total Average (Program / Settings)
6% / -11%
27% / 19%
-3% / -9%

* ... smaller is better

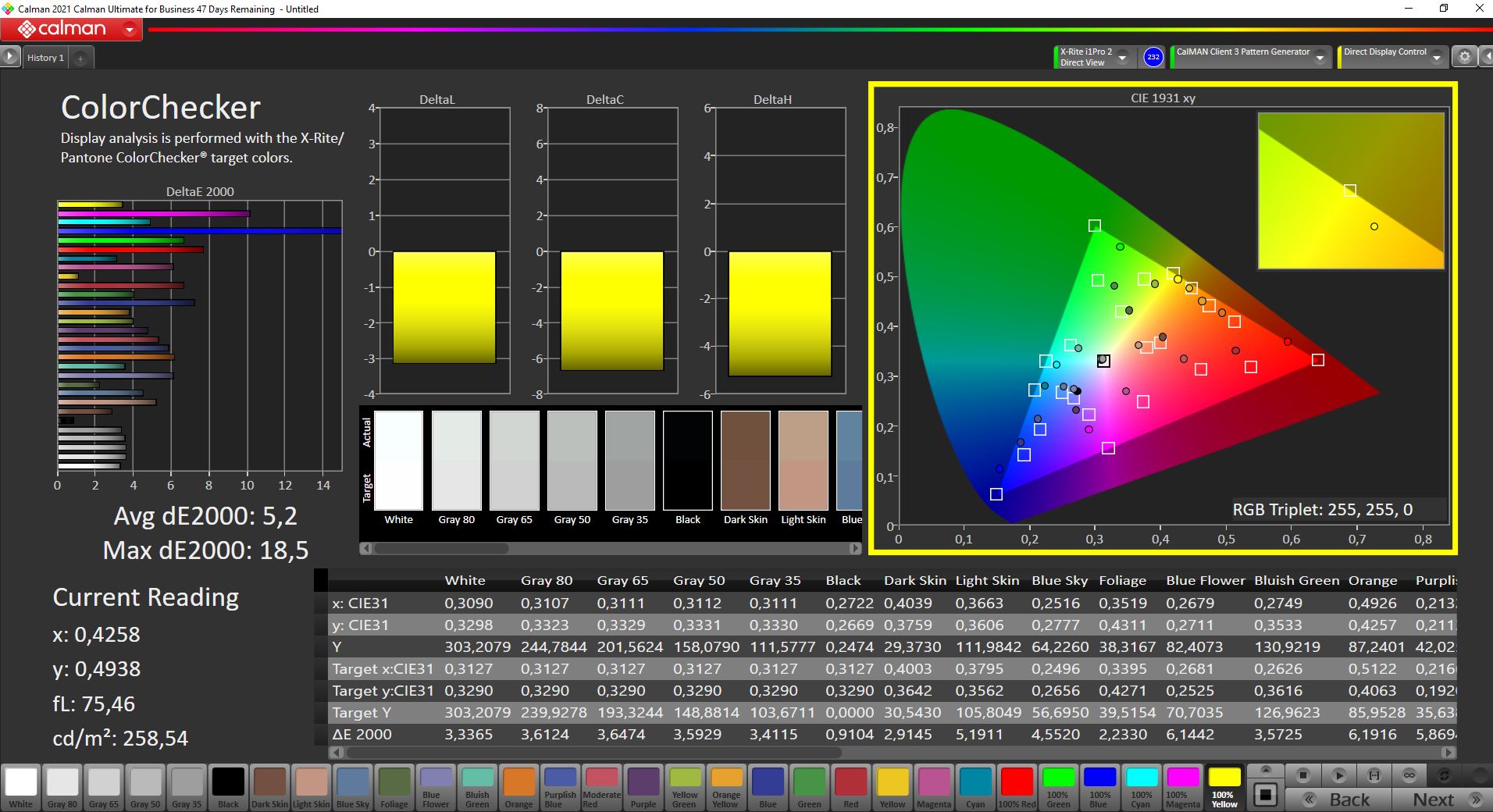

Our analysis (CalMAN & X-Rite i1 Pro 2) shows that the display is already reasonable in the delivery state. There is a minimal color cast (towards green), but it is not visible to the naked eye. We can also reduce the average DeltaE-2000 deviation with our calibration (the corresponding profile is available for download above), but this does not apply to the colors. The high deviations in combination with the low color space coverage clearly show that we are dealing with a cheap IPS panel. The quality is perfectly sufficient for normal office use, but the screen is not suitable for editing pictures or videos.

CalMAN - Color fidelity
CalMAN - Color fidelity

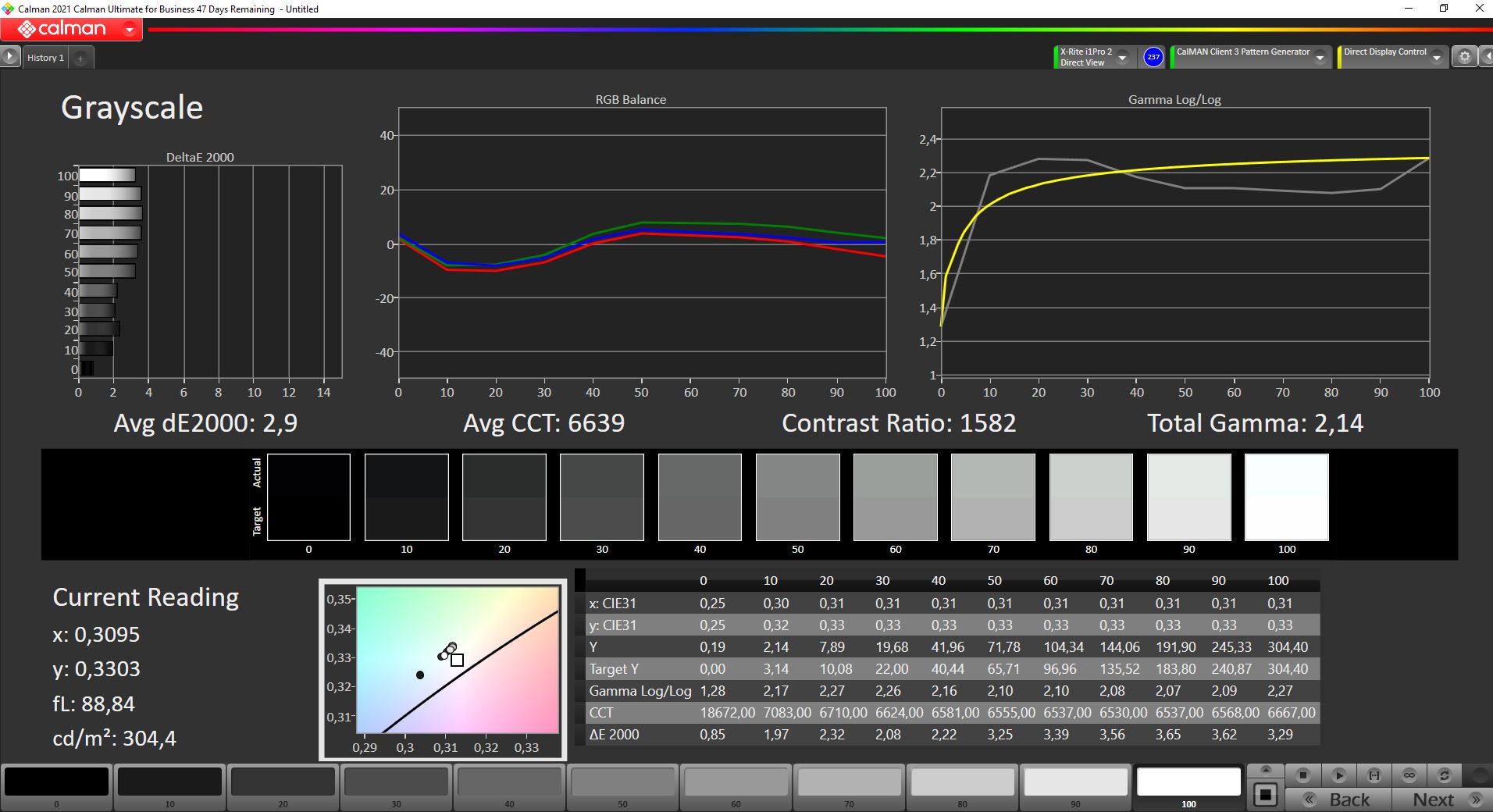

CalMAN - Grayscale
CalMAN - Grayscale

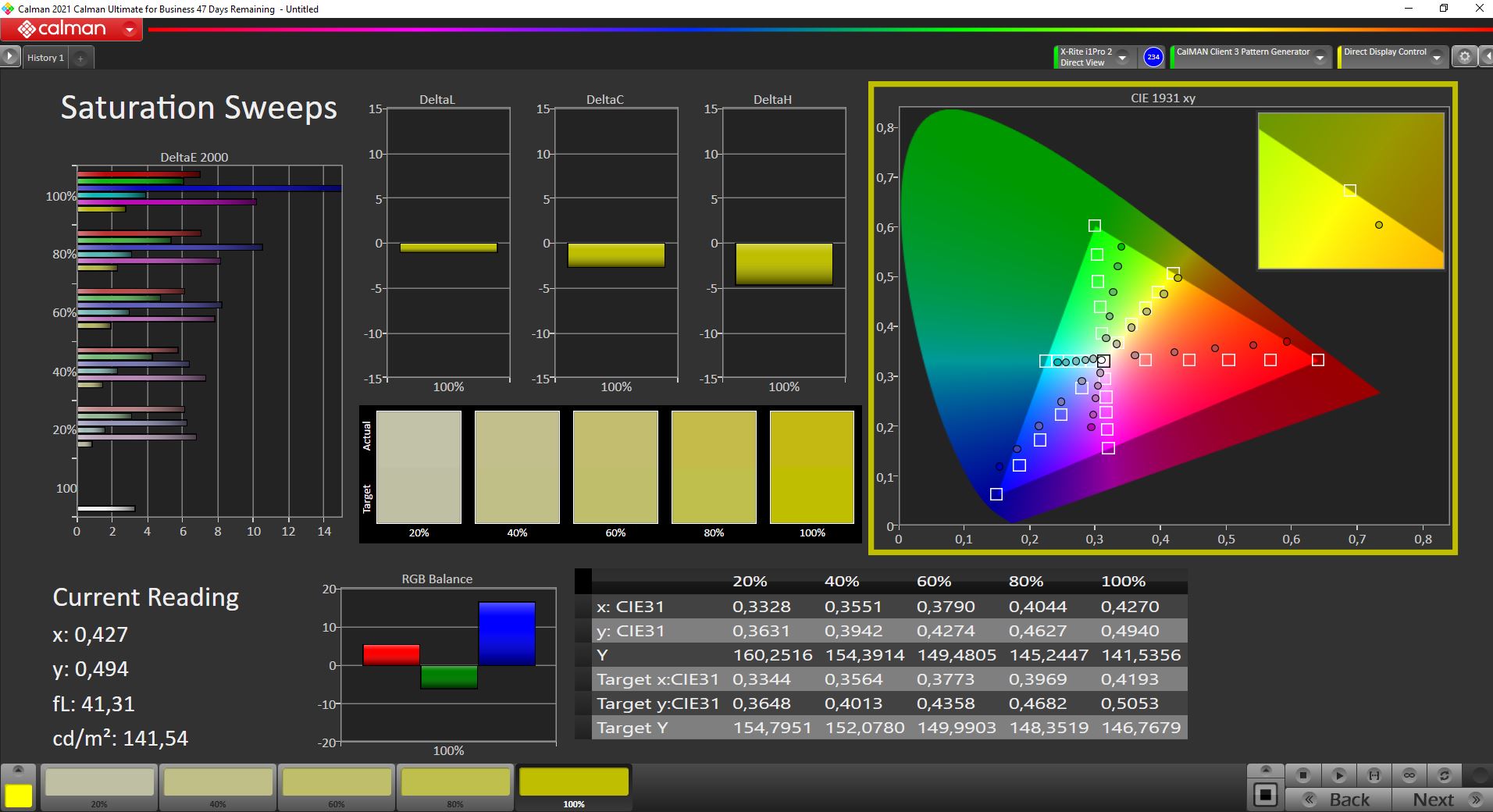

CalMAN - Saturation
CalMAN - Saturation
CalMAN - color fidelity (calibrated)
CalMAN - color fidelity (calibrated)
CalMAN - Grayscale (calibrated)
CalMAN - Grayscale (calibrated)
CalMAN - Saturation (calibrated)
CalMAN - Saturation (calibrated)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

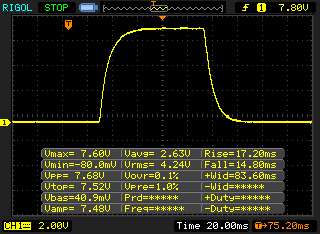

       Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 14.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.4 (minimum) to 240 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (22.9 ms).

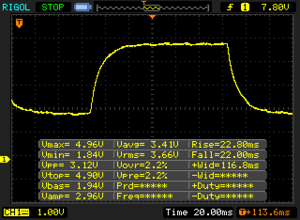

       Response Time 50% Grey to 80% Grey
44.8 ms ... rise ↗ and fall ↘ combined↗ 22.8 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.25 (minimum) to 636 (maximum) ms. » 70 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (36.2 ms).

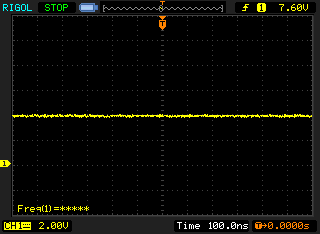

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 19810 (minimum: 5 - maximum: 3846000) Hz was measured.

The ExpertBook B1's matte display surface and sufficiently high brightness make it easy to read image content outdoors. The installed IPS panel is also very viewing-angle stable.

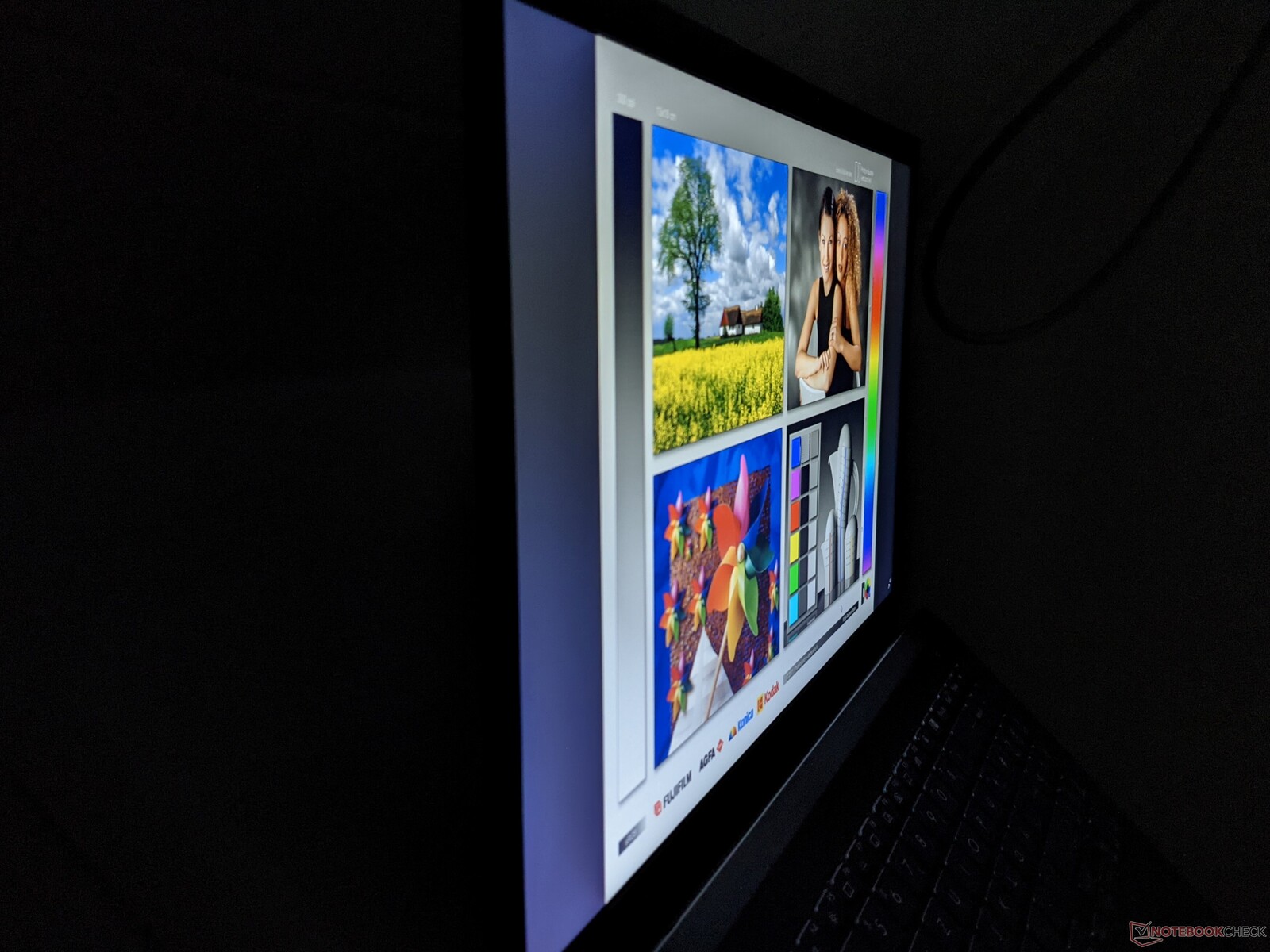

ExpertBook B1 - viewing angle stability
ExpertBook B1 - viewing angle stability
ExpertBook B1 - Outdoor use
ExpertBook B1 - Outdoor use
ExpertBook B1 - Outdoor use
ExpertBook B1 - Outdoor use

Performance - Suitable for daily use

Asus equips the ExpertBook B1 in our test configuration with an Intel Core i5-1135G7 in our test configuration. In addition, there are 8 GB of working memory and a 512 GB SSD. Thus, it should be suitable for diverse office tasks and simple graphics applications. Since one RAM slot is free, the working memory can easily be expanded if necessary (up to a maximum of 40 GB with a 32 GB bar).

As an alternative, the notebook can also be equipped with the somewhat stronger Intel Core i7-1165G7 and a 16 GB working memory. The CPU's internal graphics unit is always responsible for displaying image content.

Asus ExpertBook B1 - CPUz
Asus ExpertBook B1 - CPUz
Asus ExpertBook B1 - CPUz
Asus ExpertBook B1 - CPUz
Asus ExpertBook B1 - GPUz
Asus ExpertBook B1 - HWInfo



Test conditions

The performance of the ExpertBook B1 B1500 can be adjusted to the user's requirements via different profiles in the My Asus app. For our test, we chose the preset "Balanced", but a performance mode and a whisper mode are also available.

Processor

The Intel Core i5-1135G7 used here is a processor with four cores from Intel's Tiger Lake generation. The clock rates are between 2.4 and 4.2 GHz, whereby the cooling system and the set TDP also have an impact on the performance. The latter is generously dimensioned with a short-term 51 watts (PL2) and long-term 28 watts (PL1).

In the Cinebench R15 endurance test, the ExpertBook B1 shows a slightly lower entry-level score than the other competitors with this CPU. However, the permanently maintained value is exactly on the level of the Honor MagicBook 15. Alternating with the latter, the ExpertBook B1 frequently occupies one of the lower places in our test field in the individual tests as well. On battery power, the Cinebench R15 multi-core score drops to just 240 points, so you lose around 70% of the performance.

Cinebench R15 Multi Endurance test

050100150200250300350400450500550600650700750800850900Tooltip
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7: Ø687 (670.58-787.77)
Samsung Galaxy Book NP750XDA Intel Core i5-1135G7: Ø824 (808.51-862.42)
Honor MagicBook 15 i5 1135G7 Intel Core i5-1135G7: Ø699 (681.19-922.04)
Lenovo ThinkBook 15 Gen2 ITL Intel Core i5-1135G7: Ø868 (859.14-922.21)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo ThinkBook 15 Gen2 ITL -2!
Intel Core i5-1135G7
79 pt ∼79%
Average of class Office

74.3 pt ∼74%
Average Intel Core i5-1135G7

73.5 pt ∼74%
Samsung Galaxy Book NP750XDA -2!
Intel Core i5-1135G7
72.9 pt ∼73%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
69.8 pt ∼70%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
68.3 pt ∼68%
Cinebench R23 / Multi Core
Average of class Office
  (830 - 11975, n=101, last 2 years)
5327 Points ∼100% +48%
Average Intel Core i5-1135G7
  (2786 - 6136, n=51)
4706 Points ∼88% +30%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
3717 Points ∼70% +3%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
3610 Points ∼68%
Cinebench R23 / Single Core
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
1350 Points ∼100% +27%
Average Intel Core i5-1135G7
  (1062 - 1373, n=49)
1321 Points ∼98% +24%
Average of class Office
  (208 - 1781, n=98, last 2 years)
1243 Points ∼92% +17%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
1062 Points ∼79%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
2226 Points ∼100% +30%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
2105 Points ∼95% +23%
Average of class Office
  (323 - 4637, n=122, last 2 years)
2071 Points ∼93% +21%
Average Intel Core i5-1135G7
  (979 - 2382, n=58)
1819 Points ∼82% +6%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
1711 Points ∼77%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
1448 Points ∼65% -15%
Cinebench R20 / CPU (Single Core)
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
526 Points ∼100% +9%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
514 Points ∼98% +6%
Average Intel Core i5-1135G7
  (375 - 527, n=58)
507 Points ∼96% +5%
Average of class Office
  (114 - 693, n=122, last 2 years)
487 Points ∼93% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
483 Points ∼92%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
442 Points ∼84% -8%
Cinebench R15 / CPU Multi 64Bit
Average of class Office
  (160.8 - 1972, n=120, last 2 years)
945 Points ∼100% +20%
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
922 (859.14min - 922.21max) Points ∼98% +17%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
922 Points ∼98% +17%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
862 (808.51min - 862.42max) Points ∼91% +9%
Average Intel Core i5-1135G7
  (431 - 941, n=61)
790 Points ∼84% 0%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
788 (670.58min - 787.77max) Points ∼83%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
203 Points ∼100% +2%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
201 Points ∼99% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
200 Points ∼99%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
195 Points ∼96% -2%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
194 Points ∼96% -3%
Average Intel Core i5-1135G7
  (141.4 - 205, n=57)
194.3 Points ∼96% -3%
Average of class Office
  (80.1 - 252, n=114, last 2 years)
193.5 Points ∼95% -3%
Blender / v2.79 BMW27 CPU
Average of class Office
  (265 - 3895, n=122, last 2 years)
769 Seconds * ∼100% -15%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
711 Seconds * ∼92% -7%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
667 Seconds * ∼87%
Average Intel Core i5-1135G7
  (499 - 1044, n=56)
663 Seconds * ∼86% +1%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
602 Seconds * ∼78% +10%
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
541 Seconds * ∼70% +19%
7-Zip 18.03 / 7z b 4
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
24873 MIPS ∼100% +22%
Average of class Office
  (4226 - 51466, n=122, last 2 years)
24124 MIPS ∼97% +18%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
22772 MIPS ∼92% +11%
Average Intel Core i5-1135G7
  (14745 - 24873, n=58)
21371 MIPS ∼86% +5%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
20432 MIPS ∼82%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
17591 MIPS ∼71% -14%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
4818 MIPS ∼100% +3%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
4728 MIPS ∼98% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
4686 MIPS ∼97%
Average Intel Core i5-1135G7
  (3924 - 4921, n=58)
4677 MIPS ∼97% 0%
Average of class Office
  (2059 - 5791, n=123, last 2 years)
4616 MIPS ∼96% -1%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
3924 MIPS ∼81% -16%
Geekbench 5.4 / Multi-Core
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
4876 Points ∼100% +26%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
4742 Points ∼97% +23%
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
4700 Points ∼96% +22%
Average Intel Core i5-1135G7
  (3475 - 5472, n=54)
4666 Points ∼96% +21%
Average of class Office
  (1150 - 10201, n=119, last 2 years)
4592 Points ∼94% +19%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
3861 Points ∼79%
Geekbench 5.4 / Single-Core
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
1428 Points ∼100% +8%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
1405 Points ∼98% +6%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
1401 Points ∼98% +5%
Average Intel Core i5-1135G7
  (1147 - 1428, n=54)
1374 Points ∼96% +3%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
1328 Points ∼93%
Average of class Office
  (531 - 1778, n=119, last 2 years)
1282 Points ∼90% -3%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
7.21 fps ∼100% +29%
Average of class Office
  (0.63 - 14.2, n=121, last 2 years)
6.52 fps ∼90% +17%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
6.15 fps ∼85% +10%
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=53)
5.91 fps ∼82% +6%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
5.66 fps ∼79% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
5.59 fps ∼78%
LibreOffice / 20 Documents To PDF
Average of class Office
  (21.5 - 210, n=121, last 2 years)
58.9 s * ∼100% -14%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
54.4 s * ∼92% -6%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
52.9 s * ∼90% -3%
Average Intel Core i5-1135G7
  (44.2 - 62.9, n=56)
52.8 s * ∼90% -3%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
51.5 s * ∼87%
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
49.1 s * ∼83% +5%
R Benchmark 2.5 / Overall mean
Average of class Office
  (0.4634 - 2.07, n=122, last 2 years)
0.669 sec * ∼100% -4%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
0.645 sec * ∼96%
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=55)
0.642 sec * ∼96% -0%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
0.639 sec * ∼96% +1%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7
0.622 sec * ∼93% +4%
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7
0.619 sec * ∼93% +4%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
788 Points
Cinebench R15 OpenGL 64Bit
62.8 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
200 Points
Help
Performance Rating
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
95 pt ∼95%
Average of class Office

91.2 pt ∼91%
Average Intel Core i5-1135G7

88.6 pt ∼89%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
84 pt ∼84%
AIDA64 / FP32 Ray-Trace
Average Intel Core i5-1135G7
  (4313 - 7952, n=41)
6436 KRay/s ∼100% +4%
Average of class Office
  (109 - 12021, n=106, last 2 years)
6372 KRay/s ∼99% +3%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
6299 KRay/s ∼98% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
6208 KRay/s ∼96%
AIDA64 / FPU Julia
Average of class Office
  (3414 - 76396, n=106, last 2 years)
32173 Points ∼100% +25%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
28636 Points ∼89% +11%
Average Intel Core i5-1135G7
  (19402 - 32283, n=41)
26915 Points ∼84% +4%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
25801 Points ∼80%
AIDA64 / CPU SHA3
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
2172 MB/s ∼100% +25%
Average Intel Core i5-1135G7
  (1316 - 2172, n=41)
1829 MB/s ∼84% +5%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
1741 MB/s ∼80%
Average of class Office
  (125 - 2884, n=106, last 2 years)
1563 MB/s ∼72% -10%
AIDA64 / CPU Queen
Average of class Office
  (3308 - 92177, n=106, last 2 years)
52599 Points ∼100% +13%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
46799 Points ∼89% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
46550 Points ∼88%
Average Intel Core i5-1135G7
  (39000 - 46951, n=41)
45681 Points ∼87% -2%
AIDA64 / FPU SinJulia
Average of class Office
  (546 - 13355, n=106, last 2 years)
5422 Points ∼100% +23%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
4445 Points ∼82% 0%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
4425 Points ∼82%
Average Intel Core i5-1135G7
  (3497 - 4445, n=41)
4213 Points ∼78% -5%
AIDA64 / FPU Mandel
Average of class Office
  (1864 - 39609, n=106, last 2 years)
17822 Points ∼100% +14%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
17101 Points ∼96% +9%
Average Intel Core i5-1135G7
  (12569 - 19635, n=41)
16280 Points ∼91% +4%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
15640 Points ∼88%
AIDA64 / CPU AES
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
67951 MB/s ∼100% +6%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
63921 MB/s ∼94%
Average Intel Core i5-1135G7
  (28988 - 67969, n=41)
58430 MB/s ∼86% -9%
Average of class Office
  (189 - 91726, n=106, last 2 years)
44827 MB/s ∼66% -30%
AIDA64 / CPU ZLib
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
363 MB/s ∼100% +7%
Average of class Office
  (67.6 - 820, n=115, last 2 years)
344 MB/s ∼95% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
340 MB/s ∼94%
Average Intel Core i5-1135G7
  (265 - 373, n=47)
285 MB/s ∼79% -16%
AIDA64 / FP64 Ray-Trace
Average Intel Core i5-1135G7
  (2226 - 4291, n=41)
3422 KRay/s ∼100% +1%
Average of class Office
  (59 - 6396, n=106, last 2 years)
3420 KRay/s ∼100% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
3380 KRay/s ∼99%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
3283 KRay/s ∼96% -3%
AIDA64 / CPU PhotoWorxx
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
23519 MPixel/s ∼100% +157%
Average Intel Core i5-1135G7
  (9004 - 45366, n=41)
22998 MPixel/s ∼98% +152%
Average of class Office
  (2193 - 44296, n=106, last 2 years)
18993 MPixel/s ∼81% +108%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
9143 MPixel/s ∼39%

System performance

In the PCMark 10 test for evaluating the system performance, Asus' notebook takes the last place in our test field, but with a difference of only 5 percent to the first place, the performance can be called competitive. In the individual disciplines, the Productivity score is the best result of the ExpertBook B1 B1500.

The AIDA64 memory test certifies quite low performance rates for the installed working memory, which has a negative impact on the performance of the internal graphics unit, for example.

In everyday testing, the notebook always ran smoothly and did not exhibit any micro-stutters or the like.

PCMark 10 / Score
Lenovo ThinkBook 15 Gen2 ITL
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
4766 Points ∼100% +6%
Average of class Office
  (2133 - 6060, n=101, last 2 years)
4732 Points ∼99% +5%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
4690 Points ∼98% +4%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
4668 Points ∼98% +4%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4952, n=49)
4606 Points ∼97% +2%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4506 Points ∼95%
PCMark 10 / Essentials
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
9666 Points ∼100% +9%
Lenovo ThinkBook 15 Gen2 ITL
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
9638 Points ∼100% +9%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9917, n=49)
9326 Points ∼96% +5%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
9224 Points ∼95% +4%
Average of class Office
  (4922 - 11119, n=101, last 2 years)
9157 Points ∼95% +3%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
8850 Points ∼92%
PCMark 10 / Productivity
Average of class Office
  (3053 - 9512, n=101, last 2 years)
6852 Points ∼100% +11%
Lenovo ThinkBook 15 Gen2 ITL
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
6422 Points ∼94% +4%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5040 - 6611, n=49)
6217 Points ∼91% 0%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
6190 Points ∼90%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
6151 Points ∼90% -1%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
6140 Points ∼90% -1%
PCMark 10 / Digital Content Creation
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
4866 Points ∼100% +7%
Lenovo ThinkBook 15 Gen2 ITL
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
4749 Points ∼98% +5%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
4719 Points ∼97% +4%
Average of class Office
  (1270 - 7252, n=101, last 2 years)
4651 Points ∼96% +3%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 5255, n=49)
4585 Points ∼94% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4533 Points ∼93%
PCMark 10 Score
4506 points
Help
AIDA64 / Memory Copy
Average Intel Core i5-1135G7
  (17443 - 63889, n=41)
36411 MB/s ∼100% +98%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
34501 MB/s ∼95% +87%
Average of class Office
  (11929 - 68450, n=106, last 2 years)
33169 MB/s ∼91% +80%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
18424 MB/s ∼51%
AIDA64 / Memory Read
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
43385 MB/s ∼100% +99%
Average Intel Core i5-1135G7
  (19716 - 63705, n=41)
40587 MB/s ∼94% +86%
Average of class Office
  (12298 - 70553, n=106, last 2 years)
36024 MB/s ∼83% +65%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
21776 MB/s ∼50%
AIDA64 / Memory Write
Average Intel Core i5-1135G7
  (18722 - 66778, n=41)
41308 MB/s ∼100% +44%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
40918 MB/s ∼99% +42%
Average of class Office
  (11554 - 66791, n=106, last 2 years)
35867 MB/s ∼87% +25%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
28752 MB/s ∼70%
AIDA64 / Memory Latency
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
85.7 ns * ∼100%
Average of class Office
  (74.6 - 336, n=116, last 2 years)
84.3 ns * ∼98% +2%
Honor MagicBook 15 i5 1135G7
Intel Core i5-1135G7, Iris Xe G7 80EUs
80 ns * ∼93% +7%
Average Intel Core i5-1135G7
  (68.3 - 107, n=47)
71 ns * ∼83% +17%
Lenovo ThinkBook 15 Gen2 ITL
Intel Core i5-1135G7, Iris Xe G7 80EUs
0 ns * ∼0% +100%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Iris Xe G7 80EUs
0 ns * ∼0% +100%

* ... smaller is better

DPC latencies

In the test with LatencyMon, our test device of the ExpertBook shows slightly increased Interruption times, but should still be suitable for real-time applications and the like.

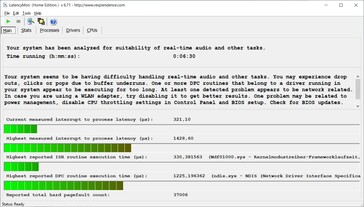

LatencyMon - Statistics
LatencyMon - Statistics

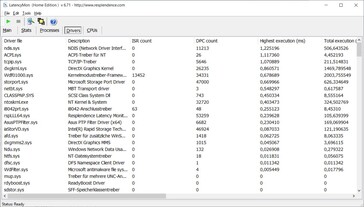

LatencyMon - Driver
LatencyMon - Driver
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkBook 15 Gen2 ITL
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU
1517 μs * ∼100% -6%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
1429 μs * ∼94%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
1267 μs * ∼84% +11%
Honor MagicBook 15 i5 1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G
649 μs * ∼43% +55%

* ... smaller is better

Mass storage

The M.2-2280 SSD (PCIe-3.0 x4) used in our test configuration achieves very good speeds that are sufficient for the second place in our test field. What results can be expected from other mass storage devices can be seen in our HDD/SSD benchmark list.

WDC PC SN530 SDBPNPZ-512G
CDM 5/6 Read Seq Q32T1: 2462 MB/s
CDM 5/6 Write Seq Q32T1: 1817 MB/s
CDM 5/6 Read 4K Q32T1: 419.4 MB/s
CDM 5/6 Write 4K Q32T1: 474 MB/s
CDM 5 Read Seq: 1708 MB/s
CDM 5 Write Seq: 1696 MB/s
CDM 5/6 Read 4K: 53.9 MB/s
CDM 5/6 Write 4K: 173 MB/s
Drive Performance Rating - Percent
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
92.9 pt ∼93%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
66.9 pt ∼67%
Average of class Office

65.9 pt ∼66%
Average WDC PC SN530 SDBPNPZ-512G

60.5 pt ∼61%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
55.5 pt ∼56%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
35.8 pt ∼36%
DiskSpd
seq read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
2543 (2501.69min - 2543.01max) MB/s ∼100% +47%
Average of class Office
  (215 - 4346, n=102, last 2 years)
1948 MB/s ∼77% +12%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1732 (1703.47min - 1732.35max) MB/s ∼68%
Average WDC PC SN530 SDBPNPZ-512G
  (1116 - 1862, n=12)
1637 MB/s ∼64% -5%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
1598 (1589.22min - 1598.03max) MB/s ∼63% -8%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
1323 (1308.73min - 1322.96max) MB/s ∼52% -24%
seq write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
2612 (2518.68min - 2611.79max) MB/s ∼100% +64%
Average of class Office
  (56.3 - 4947, n=102, last 2 years)
1774 MB/s ∼68% +11%
Average WDC PC SN530 SDBPNPZ-512G
  (1356 - 1791, n=12)
1693 MB/s ∼65% +6%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1595 (1557.97min - 1595.26max) MB/s ∼61%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
1133 (1119.67min - 1132.71max) MB/s ∼43% -29%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
205 (101.08min - 204.9max) MB/s ∼8% -87%
seq q8 t1 read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
3434 (3081.26min - 3433.72max) MB/s ∼100% +38%
Average of class Office
  (200 - 6952, n=101, last 2 years)
3019 MB/s ∼88% +21%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
2488 (2200.54min - 2487.7max) MB/s ∼72%
Average WDC PC SN530 SDBPNPZ-512G
  (1359 - 2488, n=12)
2248 MB/s ∼65% -10%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
2007 (1817.32min - 2006.95max) MB/s ∼58% -19%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
1808 (1640.81min - 1808.37max) MB/s ∼53% -27%
seq q8 t1 write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
2718 (2592.86min - 2718.14max) MB/s ∼100% +49%
Average of class Office
  (57 - 5160, n=102, last 2 years)
2089 MB/s ∼77% +15%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1821 (1807.07min - 1820.75max) MB/s ∼67%
Average WDC PC SN530 SDBPNPZ-512G
  (1486 - 1838, n=12)
1780 MB/s ∼65% -2%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
1313 (1305.17min - 1312.5max) MB/s ∼48% -28%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
229 (98.78min - 229.05max) MB/s ∼8% -87%
4k q1 t1 read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
51.5 (50.84min - 51.52max) MB/s ∼100% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
51.1 (27.21min - 51.14max) MB/s ∼99%
Average of class Office
  (9.03 - 94.3, n=102, last 2 years)
49.6 MB/s ∼96% -3%
Average WDC PC SN530 SDBPNPZ-512G
  (27.3 - 52.8, n=12)
43.3 MB/s ∼84% -15%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
41.6 (41.26min - 41.59max) MB/s ∼81% -19%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
32.8 (31.23min - 32.82max) MB/s ∼64% -36%
4k q1 t1 write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
223 (222.25min - 223.21max) MB/s ∼100% +23%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
182 (120.45min - 181.67max) MB/s ∼82%
Average WDC PC SN530 SDBPNPZ-512G
  (111 - 277, n=12)
167.1 MB/s ∼75% -8%
Average of class Office
  (14.3 - 310, n=101, last 2 years)
151.3 MB/s ∼68% -17%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
136 (127.32min - 135.79max) MB/s ∼61% -25%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
121 (63.19min - 121.28max) MB/s ∼54% -34%
4k q32 t16 read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
1910 (1860.97min - 1909.53max) MB/s ∼100% +180%
Average of class Office
  (27.4 - 3412, n=102, last 2 years)
1095 MB/s ∼57% +61%
Average WDC PC SN530 SDBPNPZ-512G
  (681 - 1315, n=12)
1034 MB/s ∼54% +52%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
690 (681.72min - 689.7max) MB/s ∼36% +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
681 (677.18min - 681.28max) MB/s ∼36%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
321 (315.19min - 320.83max) MB/s ∼17% -53%
4k q32 t16 write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
1646 (694.72min - 1646.39max) MB/s ∼100% +237%
Average WDC PC SN530 SDBPNPZ-512G
  (448 - 1306, n=12)
898 MB/s ∼55% +84%
Average of class Office
  (18.8 - 2284, n=102, last 2 years)
852 MB/s ∼52% +75%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
488 (479.76min - 488.09max) MB/s ∼30%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
439 (421.24min - 438.59max) MB/s ∼27% -10%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
192 (101.9min - 192.25max) MB/s ∼12% -61%
AS SSD
Score Total
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
4899 Points ∼100% +44%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
3392 Points ∼69%
Average of class Office
  (125 - 7348, n=105, last 2 years)
3195 Points ∼65% -6%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
2787 Points ∼57% -18%
Average WDC PC SN530 SDBPNPZ-512G
  (1795 - 3507, n=12)
2738 Points ∼56% -19%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
1726 Points ∼35% -49%
Score Read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
1812 Points ∼100% +41%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1284 Points ∼71%
Average of class Office
  (49 - 2864, n=105, last 2 years)
1223 Points ∼67% -5%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
1117 Points ∼62% -13%
Average WDC PC SN530 SDBPNPZ-512G
  (581 - 1322, n=12)
1041 Points ∼57% -19%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
571 Points ∼32% -56%
Score Write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
2186 Points ∼100% +47%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1489 Points ∼68%
Average of class Office
  (39 - 3255, n=105, last 2 years)
1384 Points ∼63% -7%
Average WDC PC SN530 SDBPNPZ-512G
  (684 - 1654, n=12)
1179 Points ∼54% -21%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
1144 Points ∼52% -23%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
904 Points ∼41% -39%
Seq Read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
2960 MB/s ∼100% +54%
Average of class Office
  (266 - 5613, n=105, last 2 years)
2326 MB/s ∼79% +21%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
1965 MB/s ∼66% +2%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1928 MB/s ∼65%
Average WDC PC SN530 SDBPNPZ-512G
  (1007 - 2228, n=12)
1862 MB/s ∼63% -3%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
1780 MB/s ∼60% -8%
Seq Write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
2371 MB/s ∼100% +146%
Average of class Office
  (52.2 - 4909, n=105, last 2 years)
1413 MB/s ∼60% +47%
Average WDC PC SN530 SDBPNPZ-512G
  (956 - 1755, n=12)
1392 MB/s ∼59% +45%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
963 MB/s ∼41%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
843 MB/s ∼36% -12%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
836 MB/s ∼35% -13%
4K Read
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
50.3 MB/s ∼100% +4%
Average of class Office
  (8.89 - 86.8, n=105, last 2 years)
48.4 MB/s ∼96% 0%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
48.31 MB/s ∼96%
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
46.48 MB/s ∼92% -4%
Average WDC PC SN530 SDBPNPZ-512G
  (27.8 - 48.8, n=12)
42.1 MB/s ∼84% -13%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
24.25 MB/s ∼48% -50%
4K Write
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
223.3 MB/s ∼100%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
189.1 MB/s ∼85% -15%
Average WDC PC SN530 SDBPNPZ-512G
  (102.9 - 239, n=12)
163.8 MB/s ∼73% -27%
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
143.6 MB/s ∼64% -36%
Average of class Office
  (13.9 - 257, n=105, last 2 years)
140.9 MB/s ∼63% -37%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
102.2 MB/s ∼46% -54%
4K-64 Read
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
1470 MB/s ∼100% +41%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1043 MB/s ∼71%
Average of class Office
  (13.1 - 2224, n=105, last 2 years)
937 MB/s ∼64% -10%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
870 MB/s ∼59% -17%
Average WDC PC SN530 SDBPNPZ-512G
  (406 - 1067, n=12)
813 MB/s ∼55% -22%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
369 MB/s ∼25% -65%
4K-64 Write
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
1806 MB/s ∼100% +54%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
1170 MB/s ∼65%
Average of class Office
  (17.7 - 2713, n=105, last 2 years)
1102 MB/s ∼61% -6%
Average WDC PC SN530 SDBPNPZ-512G
  (396 - 1385, n=12)
876 MB/s ∼49% -25%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
871 MB/s ∼48% -26%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
717 MB/s ∼40% -39%
Access Time Read
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
0.126 ms * ∼100% -103%
Average of class Office
  (0.032 - 0.389, n=102, last 2 years)
0.09116 ms * ∼72% -47%
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
0.088 ms * ∼70% -42%
Average WDC PC SN530 SDBPNPZ-512G
  (0.045 - 0.132, n=12)
0.07875 ms * ∼63% -27%
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
0.076 ms * ∼60% -23%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
0.062 ms * ∼49%
Access Time Write
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
0.124 ms * ∼100% -143%
Average of class Office
  (0.018 - 0.717, n=105, last 2 years)
0.09478 ms * ∼76% -86%
Average WDC PC SN530 SDBPNPZ-512G
  (0.04 - 0.167, n=12)
0.08225 ms * ∼66% -61%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
0.051 ms * ∼41%
Honor MagicBook 15 i5 1135G7
WDC PC SN730 SDBPNTY-512G
0.026 ms * ∼21% +49%
Lenovo ThinkBook 15 Gen2 ITL
Samsung PM991 MZALQ512HALU
0.02 ms * ∼16% +61%

* ... smaller is better

Continuous reading: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
: Ø2478 (2303.3-2486.8)

Graphics card

The Intel Iris Xe Graphics G7 80EUs, internal graphics unit, is responsible for displaying image content in the ExpertBook B1 B1500. This is suitable for applications with low demands on graphics performance, such as simple image editing.

It also benefits from working memory in dual-channel configuration, which is why the single-channel RAM does not enable the full performance in our test configuration. Therefore, the results in the 3DMark benchmarks also turn out comparatively low. The 3DMark 11 performance score drops from 3,905 to 3,637 points in battery mode.

Games should also be limited to old or very simple titles. The performance other graphics units achieve in comparison to this can be seen in our GPU benchmark list.

3DMark Performance Rating - Percent
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
100 pt ∼100%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
83.9 pt ∼84%
Average Intel Iris Xe Graphics G7 80EUs

80.1 pt ∼80%
Average of class Office

77.5 pt ∼78%
Lenovo ThinkBook 15 Gen2 ITL
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
76 pt ∼76%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
53.8 pt ∼54%
3DMark 11 - 1280x720 Performance GPU
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
6072 Points ∼100% +55%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5517 Points ∼91% +41%
Lenovo ThinkBook 15 Gen2 ITL
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5259 Points ∼87% +35%
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6120, n=68)
5087 Points ∼84% +30%
Average of class Office
  (599 - 11538, n=114, last 2 years)
4868 Points ∼80% +25%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3905 Points ∼64%
3DMark
1280x720 Cloud Gate Standard Graphics
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
26468 Points ∼100% +93%
Honor MagicBook 15 i5 1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
22903 Points ∼87% +67%
Average Intel Iris Xe Graphics G7 80EUs
  (6361 - 30894, n=60)
20984 Points ∼79% +53%
Average of class Office
  (5005 - 46247, n=96, last 2 years)
20681 Points ∼78% +51%
Lenovo ThinkBook 15 Gen2 ITL
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
20451 Points ∼77% +49%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
13722 Points ∼52%
1920x1080 Fire Strike Graphics
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4704 Points ∼100% +131%
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 4847, n=70)
</
