Asus ExpertBook B5 Flip in review: Compact and enduring convertible ideal for university, office and sofa

Chic cross-country skier. The Asus ExpertBook B5 Flip B5302FEA is available as a campus model with a price advantage for students, teachers and others. But the convertible with Intel Core i5-1135G7 and enduring battery is also a good choice for the regular, hardly higher price, as our review shows.
Marcus Schwarten, 👁 Andreas Osthoff, Brian Burriston (translated by DeepL / Ninh Duy), 🇩🇪 🇳🇱 ...

The Asus ExpertBook B5 Flip with the model number B5302FEA-LG0081R is a 13.3-inch compact convertible that can also be used as a tablet besides a classic notebook. As an education model, the device is available for students, teachers and other eligible persons with a campus price advantage for only 899 Euros (~$1,014).

But the device, which has an RRP of around 1,000 Euros (~$1,128), is also a good choice for everyone else, as our review of the model equipped with Intel Core i5-1135G7, Intel Iris Xe G7 graphics (80 EUs), 16 GB RAM and 512 GB NVMe SSD shows. We tested the model with an IPS panel. Alternatively, the device is also available with an OLED screen for a surcharge and in other configuration variants with the Intel Core i7-1165G7 as well as with more or less storage space.

For our review of the Asus ExpertBook B5 Flip B5302FEA, we invited several other convertibles to a duel, all of which play in a similar price and equipment league. These include the two HP devices, the Pavilion x360 14 and Spectre x360 13 as well as the Acer Spin 3, all with the same CPU and GPU.

They are joined by the Asus ZenBook Flip 13 with Intel Core i7-1165G7 and the HP ProBook x360 435 G8 with AMD Ryzen 7 5800U. Our review reveals how Asus' ExpertBook B5 Flip performs in this illustrious group.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

B5302FEA-LG0081R (ExpertBook B5 Series)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 51 W PL2 / Short Burst, 18 W PL1 / Sustained, Tiger Lake UP3
Graphics adapter
Intel Iris Xe Graphics G7 80EUs - 1024 MB, Core: 1300 MHz, Memory: 1200 MHz
Memory
16384 MB
, DDR4-3200 MHz SO-DIMM Single-Channel
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, 1, native pen support, N133HCE-EN2, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung PM991 MZVLQ512HALU, 512 GB
, 433 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
1 USB 3.1 Gen2, 2 USB 4.0 40 Gbps, 2 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Combo, 1 Fingerprint Reader, Gigabit LAN per Micro HDMI Adapter
Networking
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Size
height x width x depth (in mm): 16.9 x 309 x 210.6 ( = 0.67 x 12.17 x 8.29 in)
Battery
66 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 1
Primary Camera: 0.9 MPix 720p HD Webcam mit Kameraabdeckung
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, Eingabestift, LAN-Adapter, 24 Months Warranty
Weight
1.25 kg ( = 44.09 oz / 2.76 pounds), Power Supply: 331 g ( = 11.68 oz / 0.73 pounds)
Price
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
88.3 %
11/2021
Asus ExpertBook B5 Flip B5302FEA
i5-1135G7, Iris Xe G7 80EUs
1.3 kg16.9 mm13.30"1920x1080
81.8 %
07/2021
HP Pavilion x360 14-dy0157ng
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.9 mm14.00"1920x1080
85.7 %
06/2021
Acer Spin 3 SP313-51N-56YV
i5-1135G7, Iris Xe G7 80EUs
1.4 kg16 mm13.30"2560x1600
87.3 %
05/2021
HP Spectre x360 13-aw2003dx
i5-1135G7, Iris Xe G7 80EUs
1.2 kg16.9 mm13.30"3840x2160
86.3 %
07/2021
Asus ZenBook Flip 13 UX363EA-HP069T
i7-1165G7, Iris Xe G7 96EUs
1.2 kg13 mm13.30"1920x1080
85.7 %
08/2021
HP ProBook x360 435 G8 R7-5800U
R7 5800U, Vega 8 R5000
1.5 kg18 mm13.30"1920x1080

Case: Rugged aluminum case

The Asus ExpertBook B5 Flip B5302FEA comes in an aluminum case in anthracite. It has a high-quality build and is quite robust, as a certification according to the US military standard MIL-STD 810H shows. According to Asus, it should survive drops from a height of 120 cm (~47 in), icy temperatures and more without any problems.

The base unit is torsion-resistant, so the device can easily be carried around on a corner. The hinges are quite stiff. This prevents "sloshing around" during movements, but makes opening with one hand a game of skill.

The review sample is one of the lighter models in our comparison field with around 1.3 kg (~2.9 lb). It is not the most compact and thinnest convertible, but it competes very well with the other models. Thus, it hardly weighs anything on the road and does not take up much space in the bag.

, , , , , ,
search relation.
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,


Size comparison

322 mm / 12.7 inch 209 mm / 8.23 inch 19.9 mm / 0.783 inch 1.5 kg3.31 lbs309 mm / 12.2 inch 223 mm / 8.78 inch 18 mm / 0.709 inch 1.5 kg3.22 lbs309 mm / 12.2 inch 210.6 mm / 8.29 inch 16.9 mm / 0.665 inch 1.3 kg2.76 lbs306.7 mm / 12.1 inch 194.5 mm / 7.66 inch 16.9 mm / 0.665 inch 1.2 kg2.7 lbs305 mm / 12 inch 211 mm / 8.31 inch 13 mm / 0.512 inch 1.2 kg2.62 lbs300 mm / 11.8 inch 220 mm / 8.66 inch 16 mm / 0.63 inch 1.4 kg3.1 lbs

Equipment: Convertible with two Thunderbolt 4 ports and one HDMI 2.0 port

The ports are one of the ExpertBook's strengths. Thanks to two Thunderbolt 4 ports and one HDMI 2.0 port, up to three external monitors can be connected. However, one of the two USB-C ports is occupied by the power adapter when the device is plugged in. There is also a USB-A port and a combined audio port, but unfortunately no card reader.

Asus does without a LAN port to keep the convertible as thin as possible. Nevertheless, wired Internet connections are possible via the corresponding port on the left side thanks to an included LAN-to-micro-HDMI adapter.

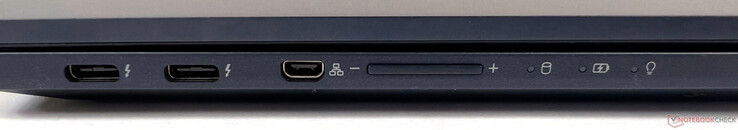

Connectors on the left: 2x Thunderbolt 4 (40GBit/s, DisplayPort ALT mode 1.4, Power Delivery 3.0), 1x Micro HDMI (for LAN)
Connectors on the left: 2x Thunderbolt 4 (40GBit/s, DisplayPort ALT mode 1.4, Power Delivery 3.0), 1x Micro HDMI (for LAN)

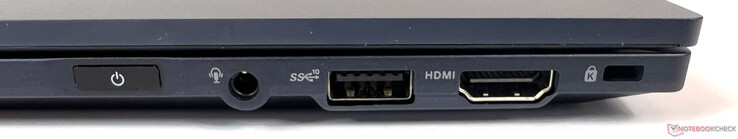

Connections on the right: 1x 3.5 mm jack (Mic-In / Audio-Out combined), 1x USB 3.2 Gen-2 (10GBit/s), 1x HDMI 2.0b, 1x Kensington
Connections on the right: 1x 3.5 mm jack (Mic-In / Audio-Out combined), 1x USB 3.2 Gen-2 (10GBit/s), 1x HDMI 2.0b, 1x Kensington

Communication

The built-in Intel Wi-Fi 6 AX201 does an excellent job in the Asus ExpertBook B5 Flip B5302FEA. The test device secures top rankings and also positions itself clearly ahead of the average of the Wi-Fi 6 module as well as all convertibles we have tested so far.

Networking
iperf3 Client (transmit) TCP 1 m 4M x10
HP ProBook x360 435 G8 R7-5800U
Intel Wi-Fi 6 AX200
1409 (1274min - 1474max) MBit/s ∼100% +5%
Asus ExpertBook B5 Flip B5302FEA
Intel Wi-Fi 6 AX201
1339 (701min - 1486max) MBit/s ∼95%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Wi-Fi 6 AX201
1301 (929min - 1479max) MBit/s ∼92% -3%
HP Spectre x360 13-aw2003dx
Intel Wi-Fi 6 AX201
1228 (629min - 1324max) MBit/s ∼87% -8%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=286)
1156 MBit/s ∼82% -14%
Average of class Convertible
  (216 - 1690, n=87, last 2 years)
961 MBit/s ∼68% -28%
Acer Spin 3 SP313-51N-56YV
Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW)
758 (682min - 804max) MBit/s ∼54% -43%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
360 (181min - 385max) MBit/s ∼26% -73%
iperf3 Client (receive) TCP 1 m 4M x10
Asus ExpertBook B5 Flip B5302FEA
Intel Wi-Fi 6 AX201
1431 (1309min - 1555max) MBit/s ∼100%
HP Spectre x360 13-aw2003dx
Intel Wi-Fi 6 AX201
1380 (1300min - 1427max) MBit/s ∼96% -4%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Wi-Fi 6 AX201
1357 (1148min - 1476max) MBit/s ∼95% -5%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=286)
1252 MBit/s ∼87% -13%
HP ProBook x360 435 G8 R7-5800U
Intel Wi-Fi 6 AX200
1235 (1079min - 1405max) MBit/s ∼86% -14%
Average of class Convertible
  (136 - 1585, n=87, last 2 years)
1012 MBit/s ∼71% -29%
Acer Spin 3 SP313-51N-56YV
Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW)
887 (812min - 947max) MBit/s ∼62% -38%
HP Pavilion x360 14-dy0157ng
Wireless AC-9461
335 (325min - 338max) MBit/s ∼23% -77%
05010015020025030035040045050055060065070075080085090095010001050110011501200125013001350140014501500155013931486150315551499139515321483148713701449154714901413135913991481143014091400134513991394139614781392139513311395130933533733433533632533433533433233633733633633733433633533633833433333733533533433633533733586387190089488090492991089992494792592493394093388886981282386090185583984386985485085690414181406141013911389138613581348136814001413139313961407136613901300132513691408142713731400136813481418134313661353134913431373132111481314133113861459133613671338132313191366133113221348134414761347142813211471132813391320137514151448136314051309127412971316124511661172110611181256130813231207129512851218120210831141126110791167124712481241126412471283129013931486150315551499139515321483148713701449154714901413135913991481143014091400134513991394139614781392139513311395130933533733433533632533433533433233633733633633733433633533633833433333733533533433633533733586387190089488090492991089992494792592493394093388886981282386090185583984386985485085690414181406141013911389138613581348136814001413139313961407136613901300132513691408142713731400136813481418134313661353134913431373132111481314133113861459133613671338132313191366133113221348134414761347142813211471132813391320137514151448136314051309127412971316124511661172110611181256130813231207129512851218120210831141126110791167124712481241126412471283129070113611139141613641297122912431406134713291366122714361268148613571200120114061388138512421434137613911428123913921427181362353354339379361361361364351365362362353366359365361355364345372338385360366356361357773775799754682709766713751792754773707749738758777764789754790757772753767768789693804771629125012611232126812861238126112241243123912461250127213241309120612081193128411931145117311721153113012311199119311889291084113011541206111197113351144117913241426140013861479144814071385142011741435145413901428140814411383134413081336127412811375141214491369145914201426141813811451139414741441141214011451134814101333141614481455137314111465143114721422Tooltip
Asus ExpertBook B5 Flip B5302FEA Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1430 (1309-1555)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø335 (325-338)
Acer Spin 3 SP313-51N-56YV Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø887 (812-947)
HP Spectre x360 13-aw2003dx Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1380 (1300-1427)
Asus ZenBook Flip 13 UX363EA-HP069T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1357 (1148-1476)
HP ProBook x360 435 G8 R7-5800U Intel Wi-Fi 6 AX200; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1235 (1079-1405)
Asus ExpertBook B5 Flip B5302FEA Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1316 (701-1486)
HP Pavilion x360 14-dy0157ng Wireless AC-9461; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø354 (181-385)
Acer Spin 3 SP313-51N-56YV Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø758 (682-804)
HP Spectre x360 13-aw2003dx Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1207 (629-1324)
Asus ZenBook Flip 13 UX363EA-HP069T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1301 (929-1479)
HP ProBook x360 435 G8 R7-5800U Intel Wi-Fi 6 AX200; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1409 (1274-1474)

Webcam

On paper, the 720p HD webcam is nothing special, but in a duel with the other convertibles, the camera equipped with 3D Noise Reduction technology (3DNR) has the smallest Delta-E with 8.29. The mechanical slider for locking the camera and the two-way AI noise-canceling audio technology of the microphones are also positive. Thus, the device is well equipped for video conferences and the like even in noisy environments.

ColorChecker
25.3 ∆E
28.2 ∆E
28.7 ∆E
26.1 ∆E
33.8 ∆E
19.2 ∆E
23.8 ∆E
32.8 ∆E
20.5 ∆E
21.3 ∆E
20.2 ∆E
23.9 ∆E
26.1 ∆E
23.8 ∆E
23.6 ∆E
15.2 ∆E
25.4 ∆E
26.1 ∆E
1.8 ∆E
11.3 ∆E
24.5 ∆E
23.9 ∆E
22.6 ∆E
9.8 ∆E
ColorChecker HP Pavilion x360 14-dy0157ng: 22.4 ∆E min: 1.76 - max: 33.81 ∆E
ColorChecker
12.3 ∆E
13 ∆E
11.6 ∆E
9.5 ∆E
12.6 ∆E
8.9 ∆E
10.9 ∆E
9.6 ∆E
17.7 ∆E
5.1 ∆E
5.9 ∆E
8.4 ∆E
3.7 ∆E
3.6 ∆E
14.9 ∆E
2.1 ∆E
10.9 ∆E
8.1 ∆E
2.9 ∆E
1.7 ∆E
2.4 ∆E
5.2 ∆E
7.7 ∆E
10.2 ∆E
ColorChecker Asus ExpertBook B5 Flip B5302FEA: 8.29 ∆E min: 1.7 - max: 17.74 ∆E

Security

Asus installs a dedicated TPM 2.0 chip in the ExpertBook B5 Flip B5302FEA for securely storing authentication information like passwords and encryption keys. There is a fingerprint sensor in the power button. A Kensington lock port is also installed.

Accessories

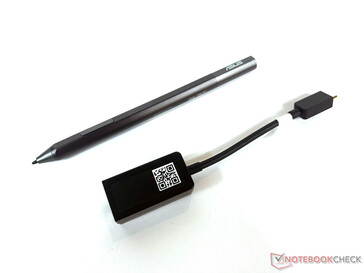

Besides the obligatory power supply with 65 watts, Asus includes an input pen (magnetically attached to the back) and the LAN adapter mentioned above.

Maintenance

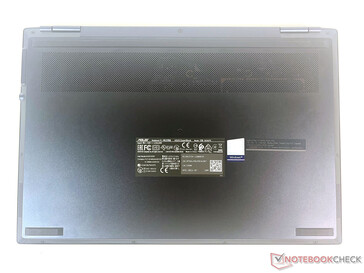

Ten small Phillips screws block the way inside. The 16 GB RAM bar is soldered and can be supplemented with a second one with a maximum of 32 GB up to 48 GB. The battery is screwed and the M.2-2280 SSD can also be replaced.

Warranty

Asus offers the standard two-year warranty in Germany. If you are interested, you can purchase warranty extensions via Asus Premium Care. The Asus website informs about conditions and prices.

Input devices: Touchpad becomes numpad

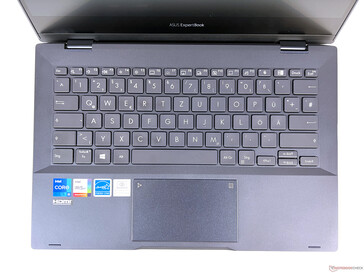

Keyboard

Asus makes good use of the device's width for the keyboard - apart from 2 cm (~0.8 in) thin margins on the left and right. Of course, there is no room for a numpad in this device size, but the keys are of a decent size. The typing feels good, but it could be a bit quieter and the haptic feedback could be of higher quality. A backlight is available, but it can only be turned on and off, not dimmed.

Asus has assigned some functions to the F1 to F12 keys, such as turning the camera on and off, starting the MyAsus app and other functions. Positive: The keyboard is splash-proof, so a spilled coffee should not affect it much.

Touchpad

The touchpad is positioned in the center and measures a good 10 x 6 cm (~3.9 x 2.4 in). This is enough to move the mouse from one edge to the other when moving quickly. Precision and haptics are okay. However, the click surfaces on the lower edge should work a bit quieter so that the device can also be used in quiet libraries without regrets.

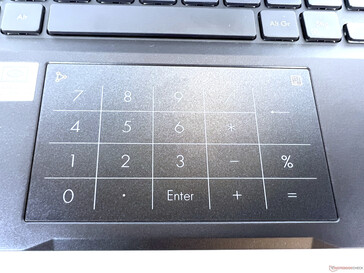

One positive feature should be mentioned: Via an icon in the upper right corner, the touchpad turns into a number field and thus replaces the missing physical number field. This is especially handy when using calculator, spreadsheet and the like.

Display: A lot of light, but also a bit of shadow

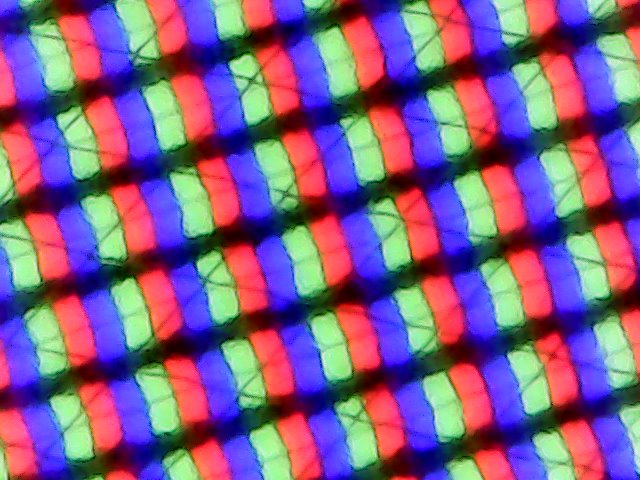

Subpixel structure
Subpixel structure

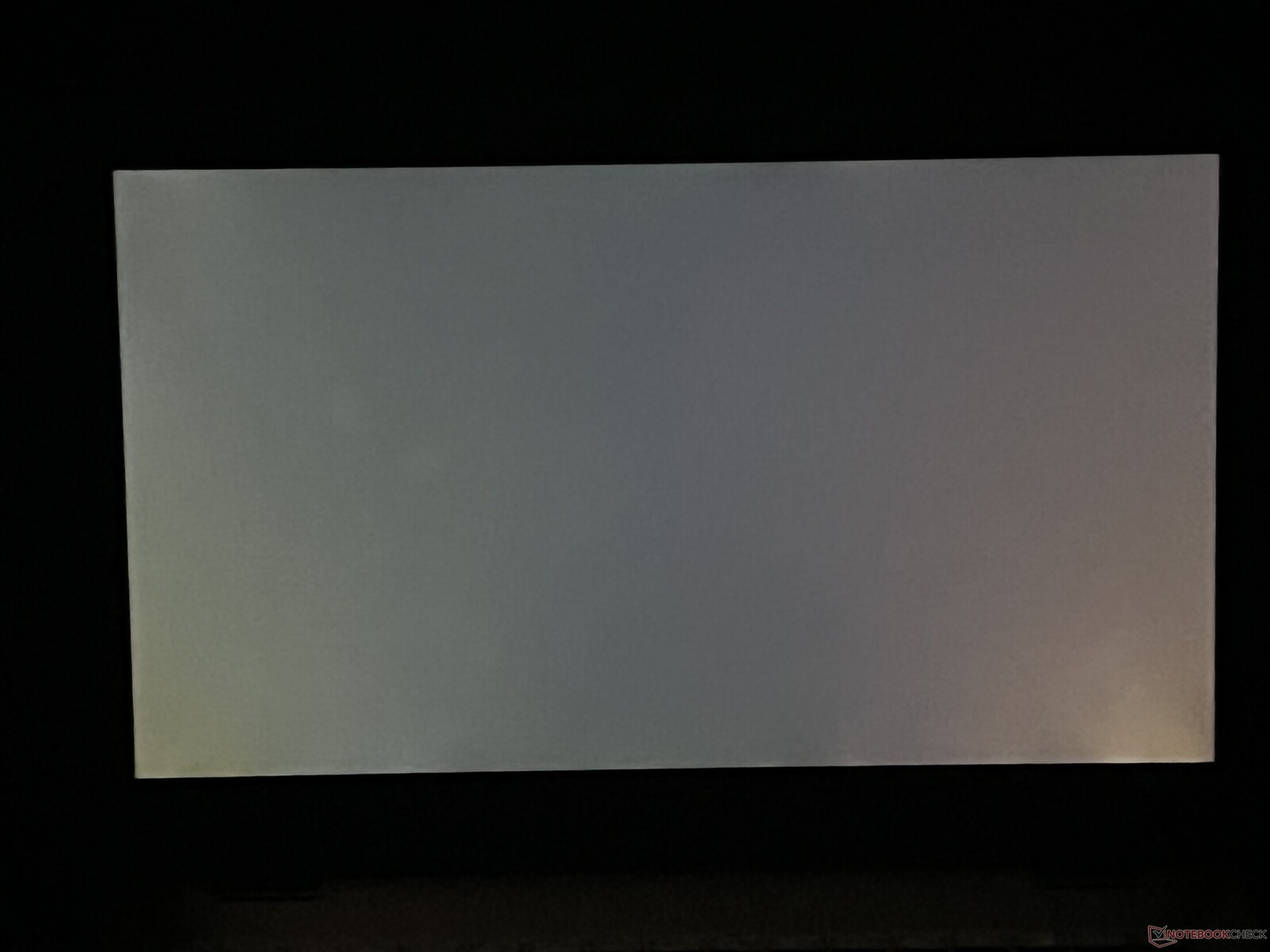

Only slight screen bleeding at the edges
Only slight screen bleeding at the edges

The device we tested is not equipped with the optional OLED, but with a matte IPS display with LED backlight. It resolves with FHD (1,920 x 1,080 pixels) in a 16:9 format and takes up 76 percent of the casing's lid.

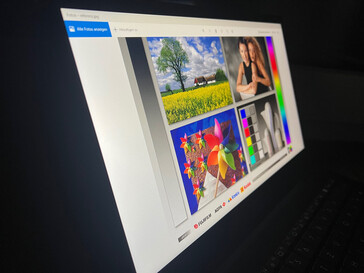

Since it is a convertible, the display can be rotated 360 degrees to the device's back via the stable hinges and naturally also offers touch operation - either with the finger or the included stylus. There were no conspicuous issues here in our test.

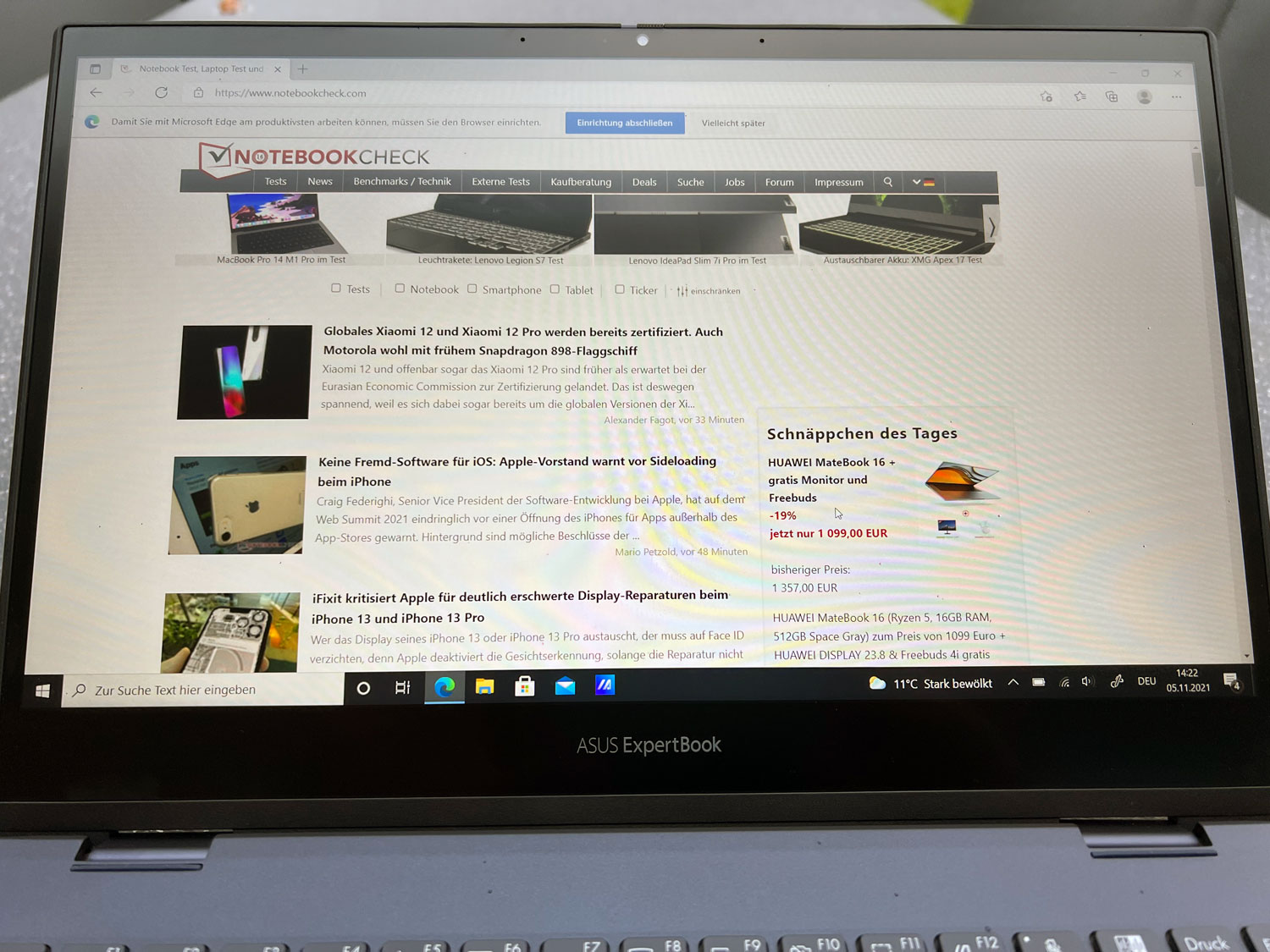

The maximum brightness is just under 300 cd/m², which should be sufficient for most applications. Since the black value is very low at the same time, the panel achieves a very high contrast ratio of more than 1,600:1 and the subjective display is also very good. Furthermore, even bright surfaces do not look too grainy on the matte panel.

This also applies to the clouding, which hardly occurs when displaying a completely black picture. You can only see slight halos at the edges.

286
cd/m²
285
cd/m²
283
cd/m²
283
cd/m²
299
cd/m²
277
cd/m²
291
cd/m²
293
cd/m²
274
cd/m²
Distribution of brightness
N133HCE-EN2
X-Rite i1Pro 2
Maximum: 299 cd/m² (Nits) Average: 285.7 cd/m² Minimum: 17.8 cd/m²
Brightness Distribution: 92 %
Center on Battery: 299 cd/m²
Contrast: 1661:1 (Black: 0.18 cd/m²)
ΔE Color 1.9 | 0.59-29.43 Ø5.5, calibrated: 0.6
ΔE Greyscale 3 | 0.64-98 Ø5.7
68.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)
66.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16
Asus ExpertBook B5 Flip B5302FEA
N133HCE-EN2, IPS, 1920x1080, 13.30
HP Pavilion x360 14-dy0157ng
Chi Mei N140HCA-E5B, IPS, 1920x1080, 14.00
Acer Spin 3 SP313-51N-56YV
AU Optronics AUOB493, IPS, 2560x1600, 13.30
HP Spectre x360 13-aw2003dx
Samsung SDC4149, OLED, 3840x2160, 13.30
Asus ZenBook Flip 13 UX363EA-HP069T
Samsung, SDC414A, OLED, 1920x1080, 13.30
HP ProBook x360 435 G8 R7-5800U
AUO4B2D, IPS, 1920x1080, 13.30
Display
-36%
11%
4%
-40%
Display P3 Coverage
66.3
42.7
-36%
78.76
19%
69.98
6%
40.1
-40%
sRGB Coverage
98.9
63.7
-36%
99.84
1%
88.49
-11%
59.9
-39%
AdobeRGB 1998 Coverage
68.5
44.2
-35%
77.55
13%
81.15
18%
41.4
-40%
Response Times
9%
-49%
27%
29%
-28%

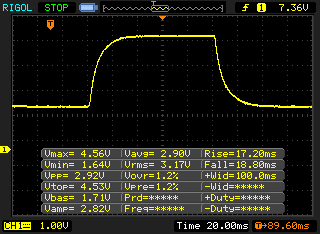

Response Time Grey 50% / Grey 80% *
36 ?(17.2, 18.8)
32 ?(15, 17)
11%
52 ?(26, 26)
-44%
2.8 ?(1.4, 1.4)
92%
2 ?(1, 1)
94%
42.8 ?(20, 22.8)
-19%

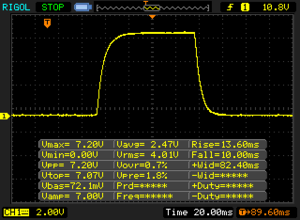

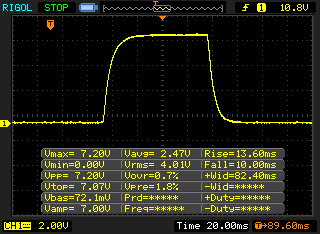

Response Time Black / White *
23.6 ?(13.6, 10)
22 ?(12, 10)
7%
36 ?(21, 15)
-53%
2.8 ?(1.3, 1.5)
88%
2 ?(1, 1)
92%
32 ?(18, 14)
-36%

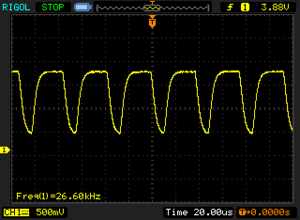

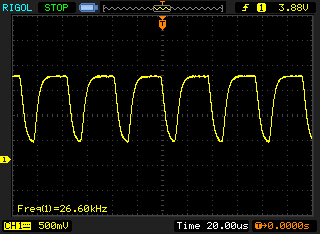

PWM Frequency
26600 ?(30)
242.7 ?(40)
-99%
60
-100%
Screen
-41%
-70%
-179%
-116%
-119%
Brightness middle
299
269
-10%
338
13%
355
19%
353
18%
304
2%
Brightness
286
241
-16%
307
7%
368
29%
359
26%
292
2%
Brightness Distribution
92
82
-11%
83
-10%
93
1%
95
3%
89
-3%
Black Level *
0.18
0.11
39%
0.27
-50%
0.1
44%
0.23
-28%
Contrast
1661
2445
47%
1252
-25%
3530
113%
1322
-20%
Colorchecker DeltaE2000 *
1.9
5.68
-199%
4.63
-144%
5.74
-202%
3.98
-109%
5
-163%
Colorchecker DeltaE2000 max. *
4.5
9.61
-114%
9.99
-122%
9.52
-112%
53.07
-1079%
17.7
-293%
Colorchecker DeltaE2000 calibrated *
0.6
1.64
-173%
6.69
-1015%
4.2
-600%
Greyscale DeltaE2000 *
3
4.95
-65%
6.76
-125%
2.2
27%
1.41
53%
2.1
30%
Gamma
2.16 102%
2.17 101%
2.37 93%
2.03 108%
2.39 92%
2.03 108%
CCT
6944 94%
6628 98%
5934 110%
6505 100%
6346 102%
6443 101%
Color Space (Percent of AdobeRGB 1998)
44.2
68
73.6
Color Space (Percent of sRGB)
63.7
98
88.6
Total Average (Program / Settings)
-23% / -32%
-36% / -50%
-49% / -89%
-44% / -77%
-62% / -89%

* ... smaller is better

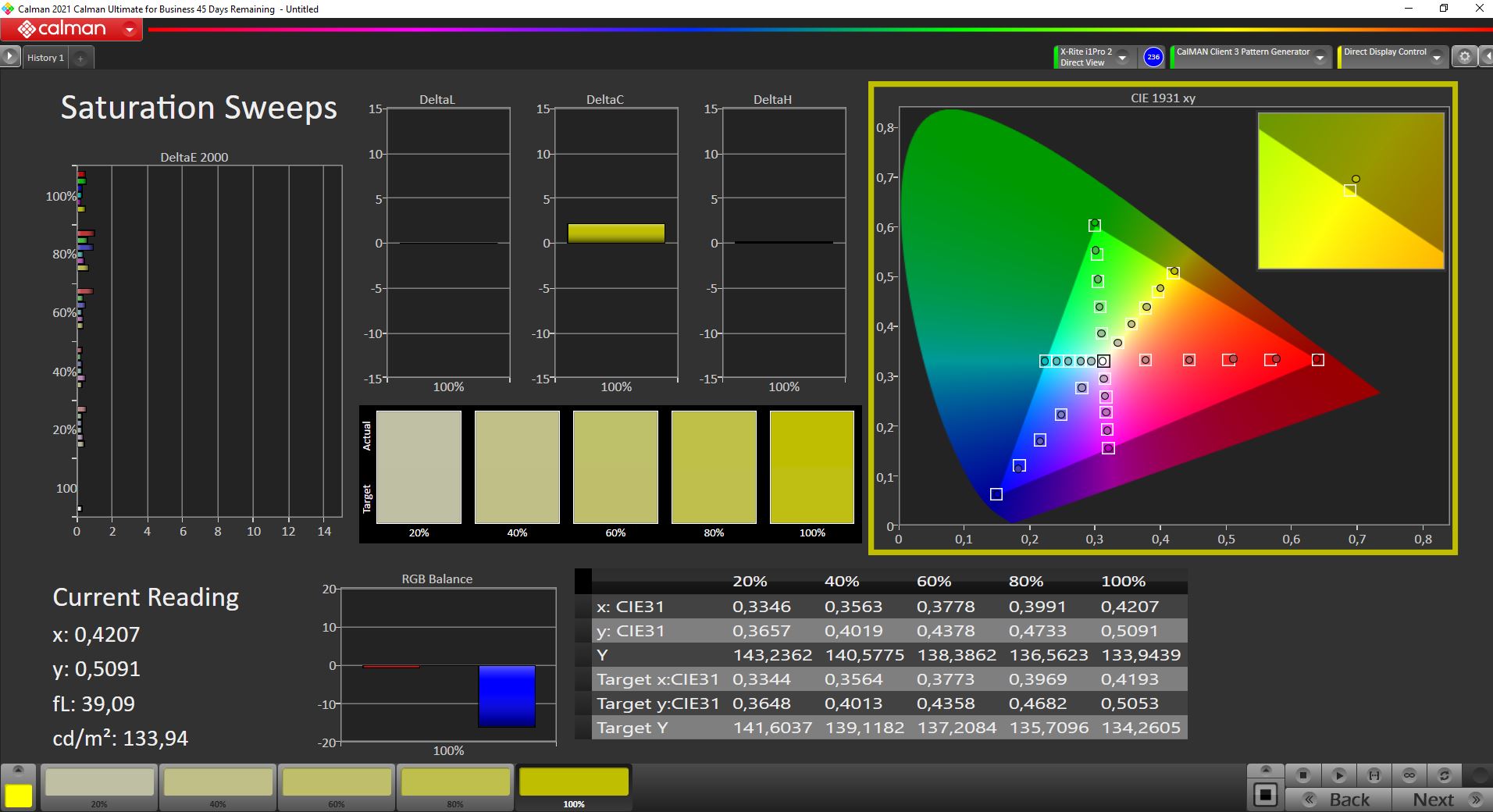

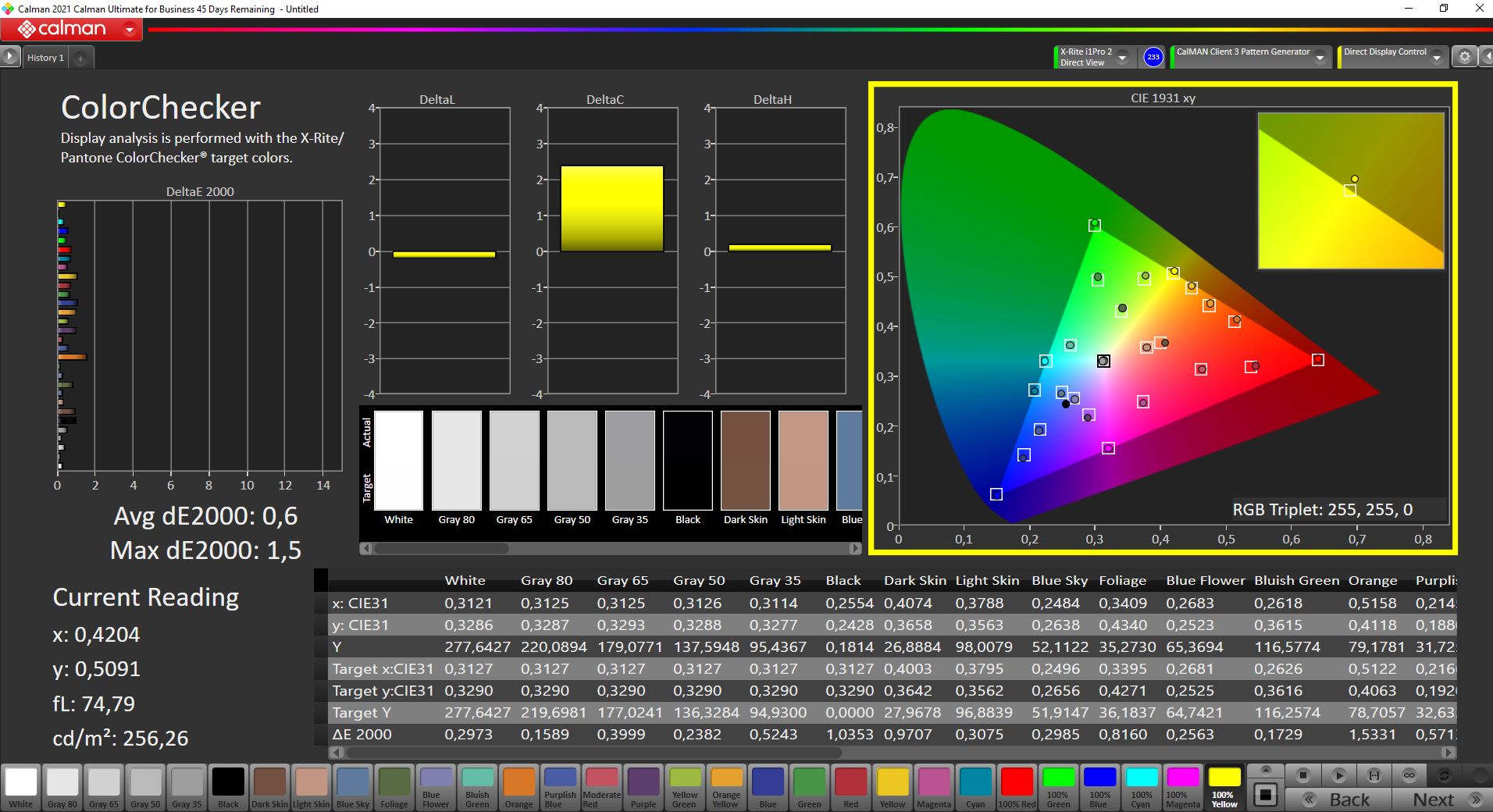

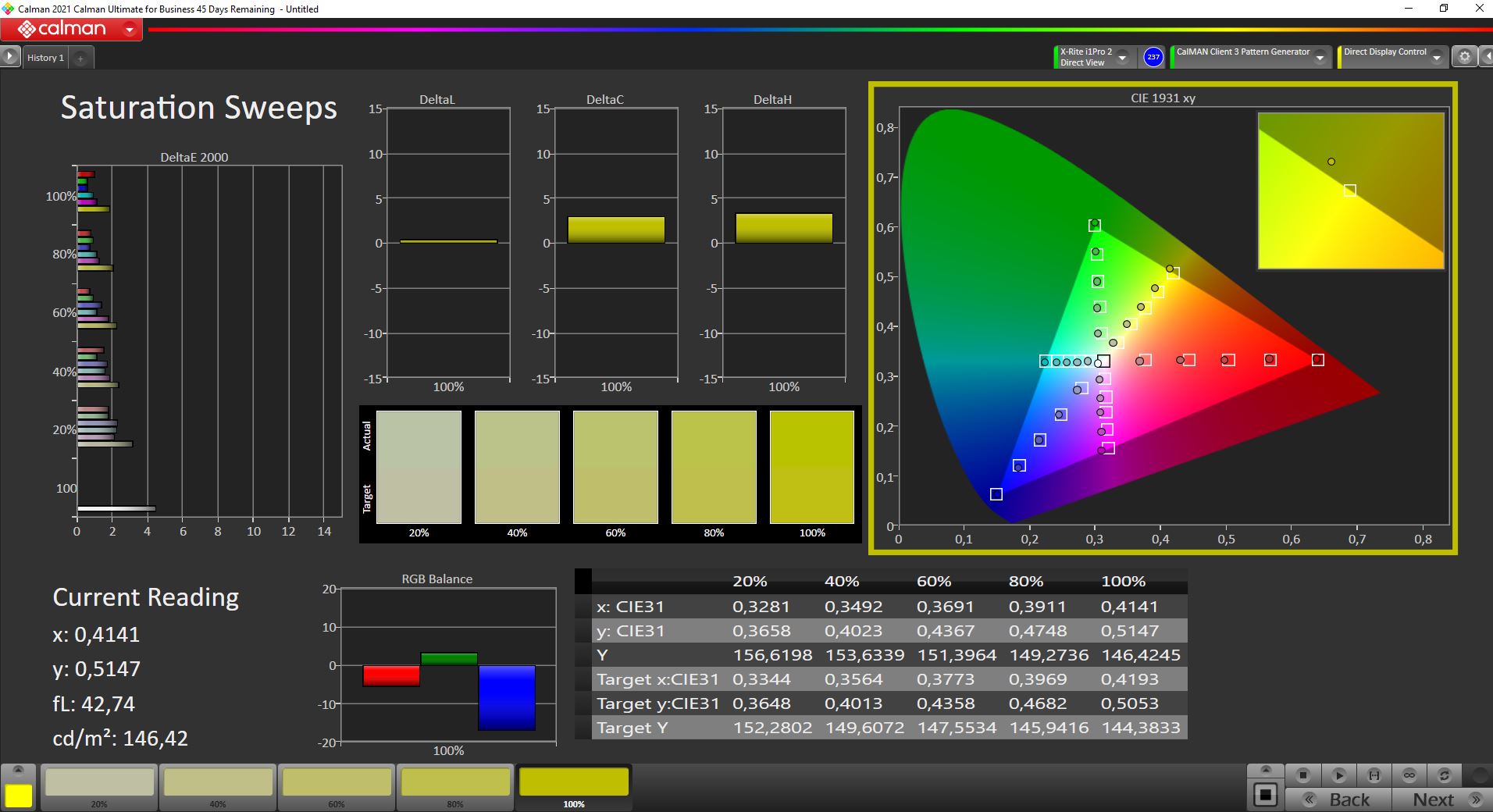

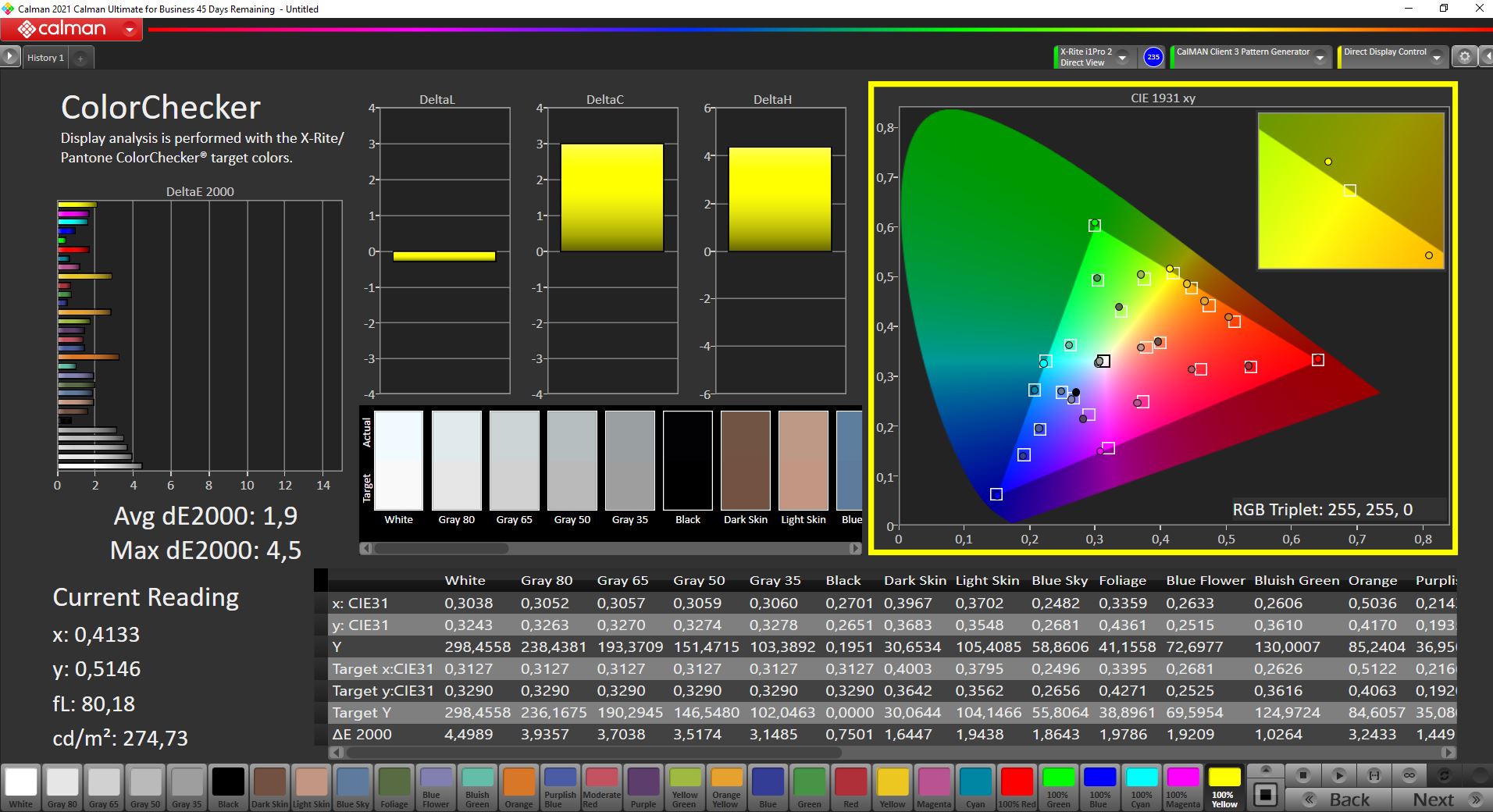

In our analysis (CalMAN and X-Rite i1 Pro 2), the test device has a low DeltaE, so it displays colors almost correctly. The deviation can be reduced even further via calibration and our calibrated profile is available for free download above. Since the small sRGB color space is almost completely covered, the panel is also suitable for editing pictures/videos.

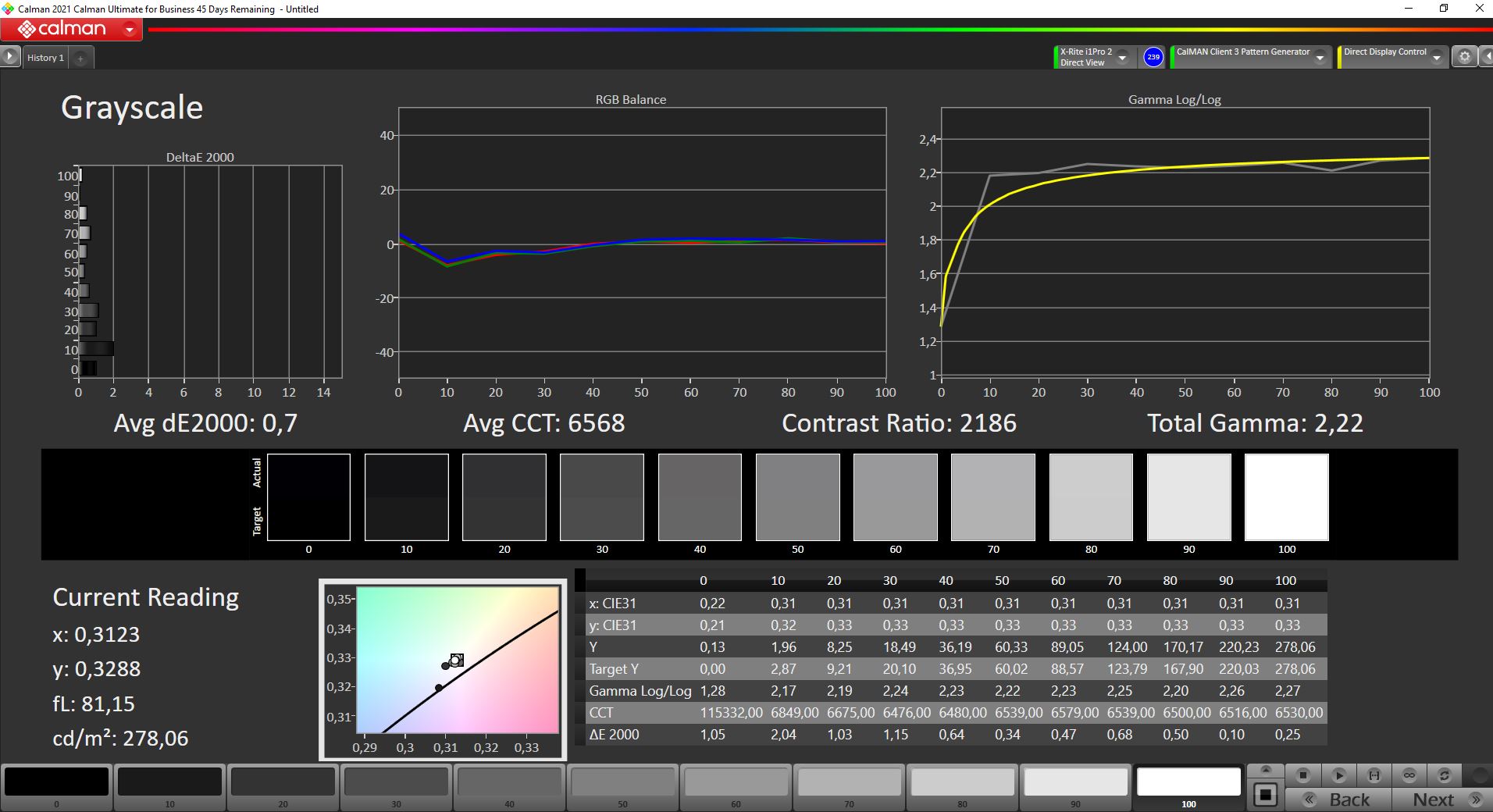

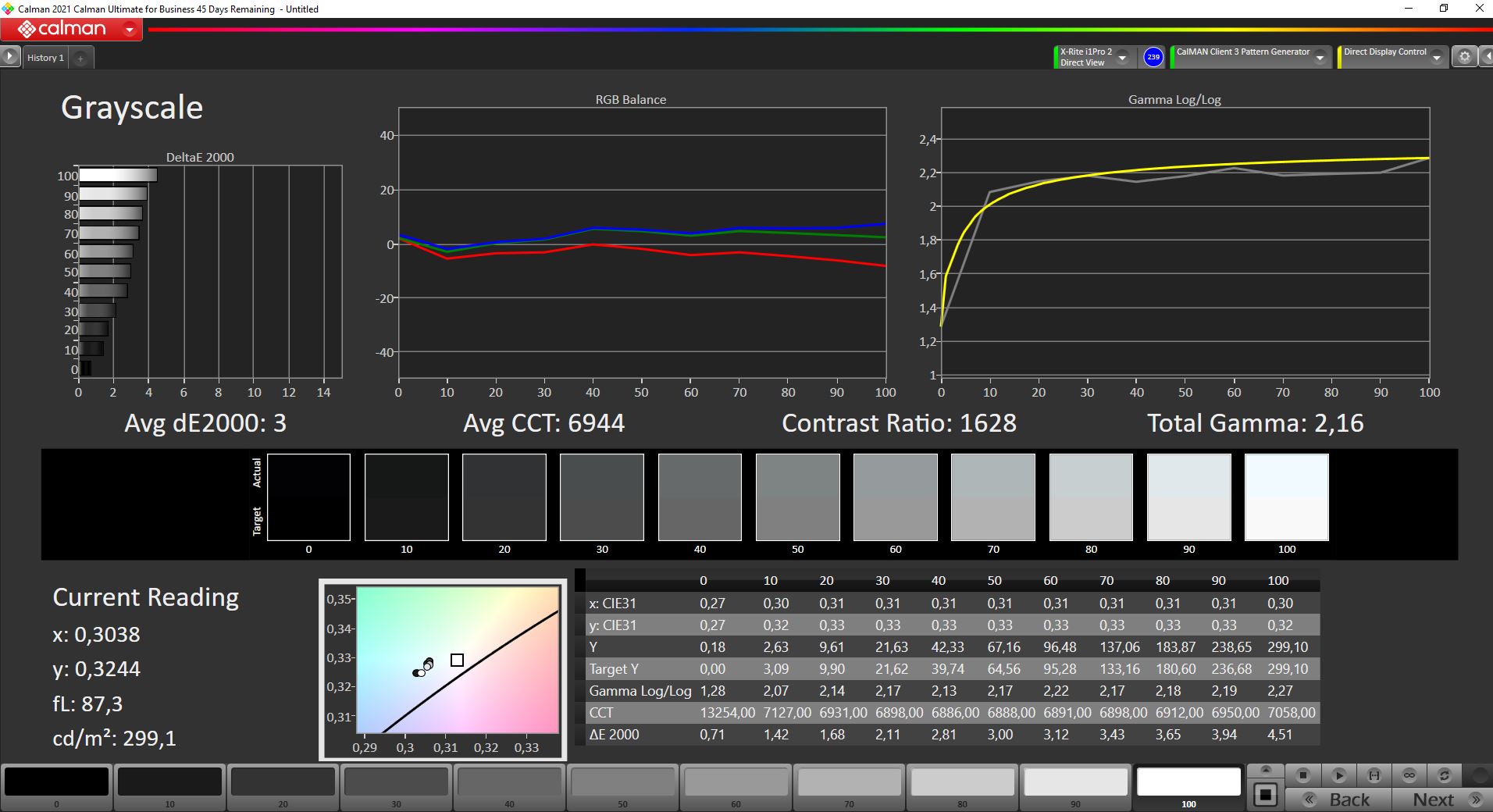

CalMAN: Grayscale
CalMAN: Grayscale
CalMAN: ColorChecker
CalMAN: ColorChecker
CalMAN: Color saturation
CalMAN: Color saturation
CalMAN: Grayscale (calibrated)
CalMAN: Grayscale (calibrated)
CalMAN: ColorChecker (calibrated)
CalMAN: ColorChecker (calibrated)
CalMAN: Color saturation (calibrated)
CalMAN: Color saturation (calibrated)

The display achieves an average brightness of around 285 cd/m² on the highest setting, which is almost evenly distributed. In combination with the non-glossy surface, this is enough to ensure that the device can also be used outdoors. However, it could be a bit brighter for use on very sunny days. Thanks to IPS, the screen also has very stable viewing angles.

Outdoor use in cloudy weather
Outdoor use in cloudy weather
Viewpoint
Viewpoint

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
23.6 ms ... rise ↗ and fall ↘ combined↗ 13.6 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 38 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (23.8 ms).
       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (37.6 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 26600 Hz ≤ 30 % brightness setting

The display backlight flickers at 26600 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 30 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 26600 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 21103 (minimum: 5 - maximum: 3846000) Hz was measured.

Performance: The GPU prevents an even better result

The test device is equipped with the Intel Core i5-1135G7 Quad-core processor, which is known to boost up to 4.2 GHz. A dedicated graphics solution is omitted and Intel's Iris Xe graphics is relied on instead. Asus installs a 16 GB DDR4-3200 MHz SO-DIMM RAM module, which is soldered and works in single-channel mode. A memory expansion of up to 48 GB is optionally possible thanks to a free slot.

Apart from the Windows performance levels, various modes can be set via the MyAsus app. We mainly performed our benchmarks in the balanced mode. Alternatively, a performance and a whisper mode are available. The Boost mode did not have a particularly big impact in a comparison test with Cinebench R15 and 3DMark 11. On the other hand, if the device is to run as silently as possible, the gaming benchmark result and thus the performance is reduced by another 20%.

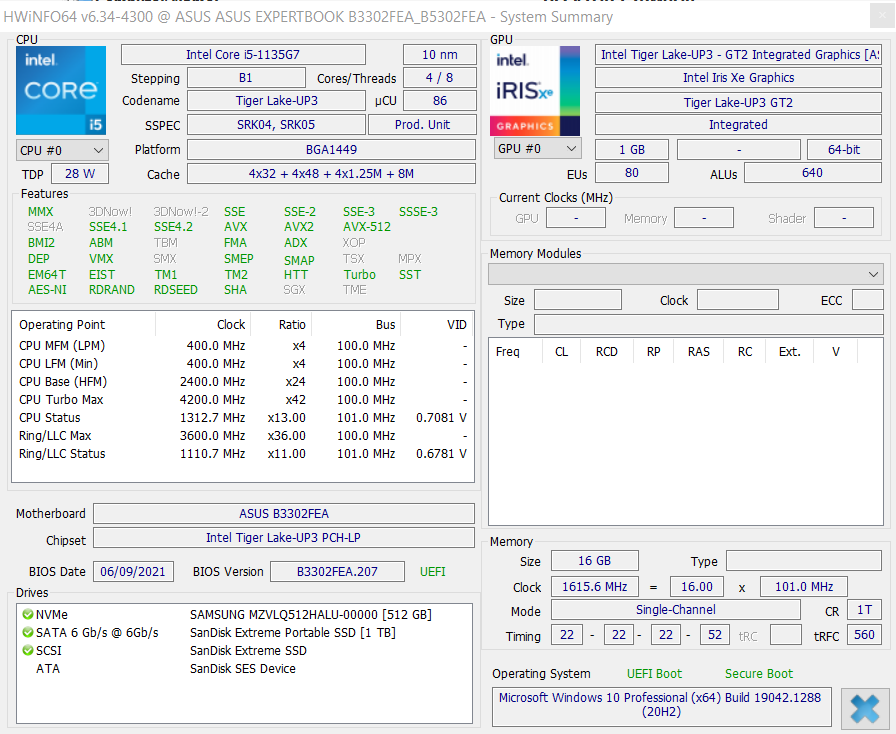

HWInfo
HWInfo

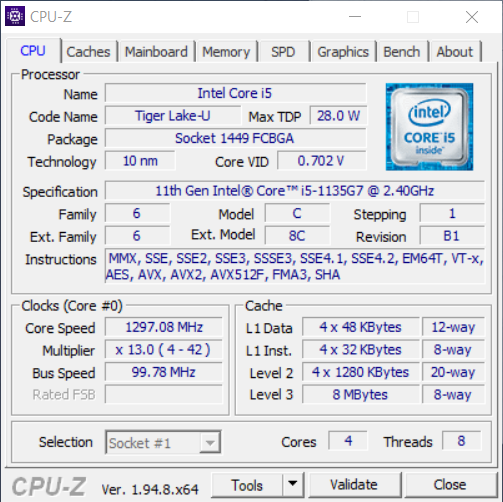

CPU-Z
CPU-Z

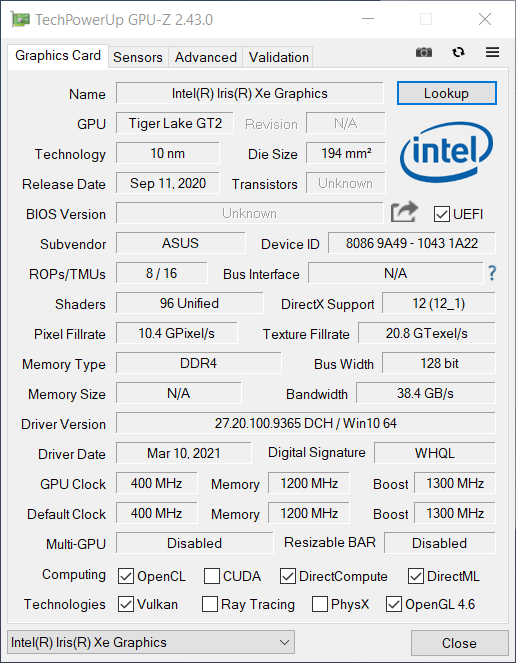

GPU-Z
GPU-Z

Processor

The Intel Core i5-1135G7 belongs to Intel's 11th CPU generation (Tiger Lake) and is a popular processor in cheaper notebooks and convertibles. It is composed of four cores with a base clock of 2.4 GHz and a boost clock of 4.2 GHz. Manufacturers can use the chip with a TDP of 12 to 28 watts, whereby Asus uses the maximum.

The ExpertBook B5 Flip B5302FEA can usually position itself far ahead in the performance tests. It is only just behind the HP ProBook x360 435 in the single-core measurements HP ProBook x360 435 G8 with the AMD Ryzen 7 5800U. However, the CPU cannot keep up in multi-core benchmarks as usual and clearly lags behind the AMD competitor.

Even the Asus Zenbook Flip 13 UX363EA-HP069T with the actually more potent Intel Core i7-1165G7 ranks behind the test candidate. In the endurance test of Cinebench R15, the processor's performance drops slightly at the beginning and then settles at a steady level. The benchmarks do not reveal any noteworthy performance losses in battery mode.

Cinebench R15 Multi Endurance test

0851702553404255105956807658509351020110511901275136014451530902.47843.58836.14824.56815.38801.09781.98766.77746.21730.66721.4702.58711.78712.17716.37714.36710.97715.96714.55715.15714.36711.35712.78717.36711.97688.22616.75605.37586.83593.44595.9612.67617.53608.65614.7604.35588.62610.2610.05600.47584.07604.81607.45596.53565.83565.2589.21570.87555.69587.93581.33551.56559.26580.64583.57553.31536.89561.73583.27557.69533.06563.86563.61529.91553.87824.1783.19766.78750.6725.08707.45690.67666.11676.78684.19672.87682.92682.01683.11683.28682.2685.67679.34688.43683.47683.71670.41683.28682.92684.57804.83760.01676.64722.49795.81682.5690.75806.6719.7676.98781.88750.81674.64753.51792.8685.88705.88808.96733.72677.68775.33781.31679.36722.18805.25715.78681.33809.47744.24677.66785.89773.57679.96749.34805.98695.07699.09811.8737.03674.52790.98772.05677.87754.4802.17692.56720.73808.34721.14684.9730.41722.14636.33599.66526.68499.75495.72493.89420.04410.05404.92425.88436.71438.46490.09474.46491.74492.39491.36489.96485.58490.51489.88488.78489.56492.19490.66492.02493.67493.38488.5489.31489.94492.47489.97488.87490.76491.27491.85491.08492.07487.3482.29494.07488.67493.15492.7495.13490.15492.961613.491597.251591.851592.231592.041574.561581.781542.081549.791547.631518.61508.921500.431491.371489.981487.821482.031474.0614721465.631466.281462.631461.41462.581464.88Tooltip
Asus ExpertBook B5 Flip B5302FEA Intel Core i5-1135G7: Ø750 (702.58-902.47)
HP Pavilion x360 14-dy0157ng Intel Core i5-1135G7: Ø584 (529.91-688.22)
Acer Spin 3 SP313-51N-56YV Intel Core i5-1135G7: Ø700 (666.11-824.1)
HP Spectre x360 13-aw2003dx Intel Core i5-1135G7: Ø739 (674.52-811.8)
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7: Ø498 (404.92-730.41)
HP ProBook x360 435 G8 R7-5800U AMD Ryzen 7 5800U: Ø1520 (1461.4-1613.49)
CPU Performance Rating: Percent
Cinebench R23: CPU (Multi Core) | CPU (Single Core)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.3: 64 Bit Multi-Core Score | 64 Bit Single-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
85.3 pt ∼85%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
62.4 pt ∼62%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
61.4 pt ∼61%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
60.6 pt ∼61%
Average Intel Core i5-1135G7

59.4 pt ∼59%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
58.1 pt ∼58%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
55.9 pt ∼56%
Average of class Convertible

50.4 pt ∼50%
Cinebench R23 / CPU (Multi Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
9539 Points ∼100% +73%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
5514 Points ∼58%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5171 Points ∼54% -6%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
4894 (4681.8min - 4894.21max) Points ∼51% -11%
Average of class Convertible
  (709 - 12629, n=49, last 2 years)
4838 Points ∼51% -12%
Average Intel Core i5-1135G7
  (2786 - 6136, n=35)
4601 Points ∼48% -17%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
4477 Points ∼47% -19%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4029 Points ∼42% -27%
Cinebench R23 / CPU (Single Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
1423 Points ∼100% +5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1359 Points ∼96% 0%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
1355 Points ∼95%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1337 Points ∼94% -1%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
1327 Points ∼93% -2%
Average Intel Core i5-1135G7
  (1062 - 1372, n=34)
1314 Points ∼92% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
1297 Points ∼91% -4%
Average of class Convertible
  (382 - 1529, n=48, last 2 years)
1236 Points ∼87% -9%
Cinebench R20 / CPU (Multi Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
3691 Points ∼100% +82%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
2030 Points ∼55%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1854 Points ∼50% -9%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
1832 Points ∼50% -10%
Average Intel Core i5-1135G7
  (979 - 2382, n=41)
1795 Points ∼49% -12%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
1758 Points ∼48% -13%
Average of class Convertible
  (316 - 4953, n=87, last 2 years)
1668 Points ∼45% -18%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
979 Points ∼27% -52%
Cinebench R20 / CPU (Single Core)
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
555 Points ∼100% +6%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
522 Points ∼94%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
512 Points ∼92% -2%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
512 Points ∼92% -2%
Average Intel Core i5-1135G7
  (442 - 527, n=41)
506 Points ∼91% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
490 Points ∼88% -6%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
467 Points ∼84% -11%
Average of class Convertible
  (152 - 604, n=87, last 2 years)
446 Points ∼80% -15%
Cinebench R15 / CPU Multi 64Bit
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
1613 (1461.4min - 1613.49max) Points ∼100% +79%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
902 (702.58min - 902.47max) Points ∼56%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
824 (666.11min - 824.1max) Points ∼51% -9%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
813 Points ∼50% -10%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
812 (674.52min - 811.8max) Points ∼50% -10%
Average Intel Core i5-1135G7
  (431 - 925, n=45)
792 Points ∼49% -12%
Average of class Convertible
  (144 - 2083, n=93, last 2 years)
727 Points ∼45% -19%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
688 Points ∼43% -24%
Cinebench R15 / CPU Single 64Bit
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
229 Points ∼100% +14%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
205 Points ∼90% +2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
201 Points ∼88%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
200 Points ∼87% 0%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
198 Points ∼86% -1%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
197 Points ∼86% -2%
Average Intel Core i5-1135G7
  (172 - 205, n=42)
196 Points ∼86% -2%
Average of class Convertible
  (66.3 - 243, n=89, last 2 years)
174 Points ∼76% -13%
Blender 2.79 / BMW27 CPU
Average of class Convertible
  (246 - 4249, n=79, last 2 years)
940 Seconds * ∼100% -58%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
827.7 Seconds * ∼88% -39%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
766 Seconds * ∼81% -29%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
705 Seconds * ∼75% -18%
Average Intel Core i5-1135G7
  (499 - 1044, n=39)
671 Seconds * ∼71% -13%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
622 Seconds * ∼66% -5%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
595 Seconds * ∼63%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
319 Seconds * ∼34% +46%
7-Zip 18.03 / 7z b 4
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
45985 MIPS ∼100% +93%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
23822 MIPS ∼52%
Average Intel Core i5-1135G7
  (14745 - 24873, n=41)
21272 MIPS ∼46% -11%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
21246 MIPS ∼46% -11%
Average of class Convertible
  (4498 - 57319, n=81, last 2 years)
20755 MIPS ∼45% -13%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
20529 MIPS ∼45% -14%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
19495 MIPS ∼42% -18%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
18948 MIPS ∼41% -20%
7-Zip 18.03 / 7z b 4 -mmt1
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
5366 MIPS ∼100% +13%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
4918 MIPS ∼92% +3%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4842 MIPS ∼90% +2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
4760 MIPS ∼89%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
4744 MIPS ∼88% 0%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
4660 MIPS ∼87% -2%
Average Intel Core i5-1135G7
  (3924 - 4867, n=41)
4659 MIPS ∼87% -2%
Average of class Convertible
  (2125 - 5623, n=80, last 2 years)
4388 MIPS ∼82% -8%
Geekbench 5.3 / 64 Bit Multi-Core Score
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
6093 Points ∼100% +37%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5472 Points ∼90% +23%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
5165 Points ∼85% +16%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
5003 Points ∼82% +12%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
4873 Points ∼80% +10%
Average Intel Core i5-1135G7
  (3475 - 5472, n=38)
4721 Points ∼77% +6%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
4450 Points ∼73%
Average of class Convertible
  (707 - 8620, n=84, last 2 years)
4211 Points ∼69% -5%
Geekbench 5.3 / 64 Bit Single-Core Score
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
1551 Points ∼100% +13%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
1422 Points ∼92% +4%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
1411 Points ∼91% +3%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1398 Points ∼90% +2%
Average Intel Core i5-1135G7
  (1304 - 1428, n=38)
1386 Points ∼89% +1%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
1375 Points ∼89% 0%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
1369 Points ∼88%
Average of class Convertible
  (263 - 1566, n=84, last 2 years)
1182 Points ∼76% -14%
HWBOT x265 Benchmark v2.2 / 4k Preset
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
11 fps ∼100% +89%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
6.19 fps ∼56% +6%
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=38)
5.86 fps ∼53% +1%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
5.83 fps ∼53%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5.69 fps ∼52% -2%
Average of class Convertible
  (0.74 - 15.2, n=78, last 2 years)
5.35 fps ∼49% -8%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
5.04 fps ∼46% -14%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
4.07 fps ∼37% -30%
LibreOffice / 20 Documents To PDF
Average of class Convertible
  (40.7 - 175, n=75, last 2 years)
66.9 s * ∼100% -27%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
60.2 s * ∼90% -14%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
55.8 s * ∼83% -6%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
53.8 s * ∼80% -2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
52.7 s * ∼79%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
52.2 s * ∼78% +1%
Average Intel Core i5-1135G7
  (44.2 - 58.8, n=40)
52 s * ∼78% +1%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
46.6 s * ∼70% +12%
R Benchmark 2.5 / Overall mean
Average of class Convertible
  (0.504 - 2.12, n=76, last 2 years)
0.739 sec * ∼100% -17%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7
0.652 sec * ∼88% -4%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
0.645 sec * ∼87% -3%
Asus ZenBook Flip 13 UX363EA-HP069T
Intel Core i7-1165G7
0.645 sec * ∼87% -3%
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=39)
0.642 sec * ∼87% -2%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7
0.629 sec * ∼85%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7
0.619 sec * ∼84% +2%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U
0.54 sec * ∼73% +14%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
902 Points
Cinebench R15 OpenGL 64Bit
73.7 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
201 Points
Help
Performance Rating
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
88.6 pt ∼89%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
67.9 pt ∼68%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
64.2 pt ∼64%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
60.7 pt ∼61%
Average Intel Core i5-1135G7

57.1 pt ∼57%
Average of class Convertible

54.3 pt ∼54%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
51.8 pt ∼52%
AIDA64 / FP32 Ray-Trace
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
10106 KRay/s ∼100% +43%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
7072 KRay/s ∼70%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
7040 KRay/s ∼70% 0%
Average Intel Core i5-1135G7
  (4313 - 7889, n=26)
6258 KRay/s ∼62% -12%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
5987 KRay/s ∼59% -15%
Average of class Convertible
  (152 - 12152, n=61, last 2 years)
5630 KRay/s ∼56% -20%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
5329 KRay/s ∼53% -25%
AIDA64 / FPU Julia
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
65780 Points ∼100% +121%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
29750 Points ∼45%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
28994 Points ∼44% -3%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
28466 Points ∼43% -4%
Average of class Convertible
  (569 - 65780, n=61, last 2 years)
27537 Points ∼42% -7%
Average Intel Core i5-1135G7
  (19402 - 31991, n=26)
26428 Points ∼40% -11%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
22393 Points ∼34% -25%
AIDA64 / CPU SHA3
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
2211 MB/s ∼100% +12%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
1979 MB/s ∼90%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
1955 MB/s ∼88% -1%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
1913 MB/s ∼87% -3%
Average Intel Core i5-1135G7
  (1316 - 2172, n=26)
1795 MB/s ∼81% -9%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
1519 MB/s ∼69% -23%
Average of class Convertible
  (66 - 2531, n=59, last 2 years)
1473 MB/s ∼67% -26%
AIDA64 / CPU Queen
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
84480 Points ∼100% +81%
Average of class Convertible
  (2104 - 99178, n=61, last 2 years)
48290 Points ∼57% +4%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
46642 Points ∼55% 0%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
46641 Points ∼55%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
46562 Points ∼55% 0%
Average Intel Core i5-1135G7
  (43403 - 46951, n=26)
46111 Points ∼55% -1%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
44661 Points ∼53% -4%
AIDA64 / FPU SinJulia
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
10008 Points ∼100% +125%
Average of class Convertible
  (121 - 13847, n=61, last 2 years)
4773 Points ∼48% +7%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
4443 Points ∼44%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
4439 Points ∼44% 0%
Average Intel Core i5-1135G7
  (3497 - 4445, n=26)
4209 Points ∼42% -5%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
4153 Points ∼41% -7%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
3736 Points ∼37% -16%
AIDA64 / FPU Mandel
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
35831 Points ∼100% +102%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
17771 Points ∼50%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
17489 Points ∼49% -2%
Average Intel Core i5-1135G7
  (12569 - 19356, n=26)
15959 Points ∼45% -10%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
15613 Points ∼44% -12%
Average of class Convertible
  (291 - 35831, n=61, last 2 years)
15480 Points ∼43% -13%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
14130 Points ∼39% -20%
AIDA64 / CPU AES
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
67259 MB/s ∼100% +8%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
65801 MB/s ∼98% +5%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
62523 MB/s ∼93%
Average Intel Core i5-1135G7
  (35072 - 67969, n=26)
59200 MB/s ∼88% -5%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
54358 MB/s ∼81% -13%
Average of class Convertible
  (104 - 88017, n=61, last 2 years)
42978 MB/s ∼64% -31%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
39773 MB/s ∼59% -36%
AIDA64 / CPU ZLib
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
606 MB/s ∼100% +66%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
366 MB/s ∼60%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
354 MB/s ∼58% -3%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
345 MB/s ∼57% -6%
Average of class Convertible
  (161 - 776, n=63, last 2 years)
320 MB/s ∼53% -13%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
268 MB/s ∼44% -27%
Average Intel Core i5-1135G7
  (267 - 373, n=32)
263 MB/s ∼43% -28%
AIDA64 / FP64 Ray-Trace
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
5301 KRay/s ∼100% +41%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
3754 KRay/s ∼71%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
3733 KRay/s ∼70% -1%
Average Intel Core i5-1135G7
  (2226 - 4257, n=26)
3340 KRay/s ∼63% -11%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
3201 KRay/s ∼60% -15%
Average of class Convertible
  (84 - 6533, n=61, last 2 years)
3054 KRay/s ∼58% -19%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
2901 KRay/s ∼55% -23%
AIDA64 / CPU PhotoWorxx
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
45366 MPixel/s ∼100% +243%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
44209 MPixel/s ∼97% +235%
Average of class Convertible
  (680 - 52923, n=61, last 2 years)
25823 MPixel/s ∼57% +95%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
24181 MPixel/s ∼53% +83%
Average Intel Core i5-1135G7
  (9143 - 45366, n=26)
23535 MPixel/s ∼52% +78%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
13211 MPixel/s ∼29%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
12258 MPixel/s ∼27% -7%

System performance

In terms of system performance, the ExpertBook B5 Flip is usually at the top of the i5-1135G7 field, but has to give way to the R7 5800U from the HP ProBook x360 435. In everyday use, the system runs smoothly and without any problems in the usual tasks for this device class.

PCMark 10 / Score
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
5334 Points ∼100% +14%
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
4763 Points ∼89% +2%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
4687 Points ∼88%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
4676 Points ∼88% 0%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4646 Points ∼87% -1%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
4645 Points ∼87% -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4892, n=36)
4585 Points ∼86% -2%
Average of class Convertible
  (1429 - 5971, n=84, last 2 years)
4294 Points ∼81% -8%
PCMark 10 / Essentials
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
10189 Points ∼100% +9%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
9753 Points ∼96% +4%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
9614 Points ∼94% +3%
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
9476 Points ∼93% +1%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
9414 Points ∼92% +1%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
9365 Points ∼92%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9856, n=36)
9344 Points ∼92% 0%
Average of class Convertible
  (3602 - 11505, n=84, last 2 years)
8839 Points ∼87% -6%
PCMark 10 / Productivity
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
8336 Points ∼100% +31%
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
6986 Points ∼84% +10%
Average of class Convertible
  (2411 - 8653, n=84, last 2 years)
6384 Points ∼77% 0%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
6376 Points ∼76%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
6371 Points ∼76% 0%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
6289 Points ∼75% -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5544 - 6504, n=36)
6228 Points ∼75% -2%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
6165 Points ∼74% -3%
PCMark 10 / Digital Content Creation
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
5214 Points ∼100% +11%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
4684 Points ∼90% 0%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
4682 Points ∼90%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
4595 Points ∼88% -2%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 4989, n=36)
4503 Points ∼86% -4%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
4382 Points ∼84% -6%
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
4121 Points ∼79% -12%
Average of class Convertible
  (886 - 6844, n=84, last 2 years)
3882 Points ∼74% -17%
PCMark 8 Home Score Accelerated v2
4684 points
PCMark 8 Creative Score Accelerated v2
6533 points
PCMark 8 Work Score Accelerated v2
3060 points
PCMark 10 Score
4687 points
Help
AIDA64 / Memory Copy
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
63889 MB/s ∼100% +193%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
60034 MB/s ∼94% +175%
Average of class Convertible
  (4939 - 98967, n=61, last 2 years)
41285 MB/s ∼65% +89%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
40141 MB/s ∼63% +84%
Average Intel Core i5-1135G7
  (18424 - 63889, n=26)
36523 MB/s ∼57% +67%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
21826 MB/s ∼34%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
21599 MB/s ∼34% -1%
AIDA64 / Memory Read
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
63705 MB/s ∼100% +158%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
61511 MB/s ∼97% +149%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
46871 MB/s ∼74% +90%
Average of class Convertible
  (4031 - 67976, n=61, last 2 years)
43316 MB/s ∼68% +76%
Average Intel Core i5-1135G7
  (21776 - 63705, n=26)
40618 MB/s ∼64% +65%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
24654 MB/s ∼39%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
24057 MB/s ∼38% -2%
AIDA64 / Memory Write
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
66442 MB/s ∼100% +183%
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
66152 MB/s ∼100% +182%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
46521 MB/s ∼70% +98%
Average of class Convertible
  (5782 - 117946, n=61, last 2 years)
44775 MB/s ∼67% +91%
Average Intel Core i5-1135G7
  (21194 - 66747, n=26)
41346 MB/s ∼62% +76%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
24125 MB/s ∼36% +3%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
23486 MB/s ∼35%
AIDA64 / Memory Latency
HP Spectre x360 13-aw2003dx
Intel Core i5-1135G7, Iris Xe G7 80EUs
90.5 ns * ∼100% -6%
HP ProBook x360 435 G8 R7-5800U
AMD Ryzen 7 5800U, Vega 8 R5000
89.3 ns * ∼99% -5%
Average of class Convertible
  (71.4 - 169, n=63, last 2 years)
88.9 ns * ∼98% -4%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
88.2 ns * ∼97% -3%
Asus ExpertBook B5 Flip B5302FEA
Intel Core i5-1135G7, Iris Xe G7 80EUs
85.3 ns * ∼94%
HP Pavilion x360 14-dy0157ng
Intel Core i5-1135G7, Iris Xe G7 80EUs
73.1 ns * ∼81% +14%
Average Intel Core i5-1135G7
  (70.3 - 92.2, n=32)
65.2 ns * ∼72% +24%

* ... smaller is better

DPC latencies

In our test, our review unit of the Asus ExpertBook B5 Flip did not reveal any noticeable latencies, so no restrictions are to be expected in this regard.

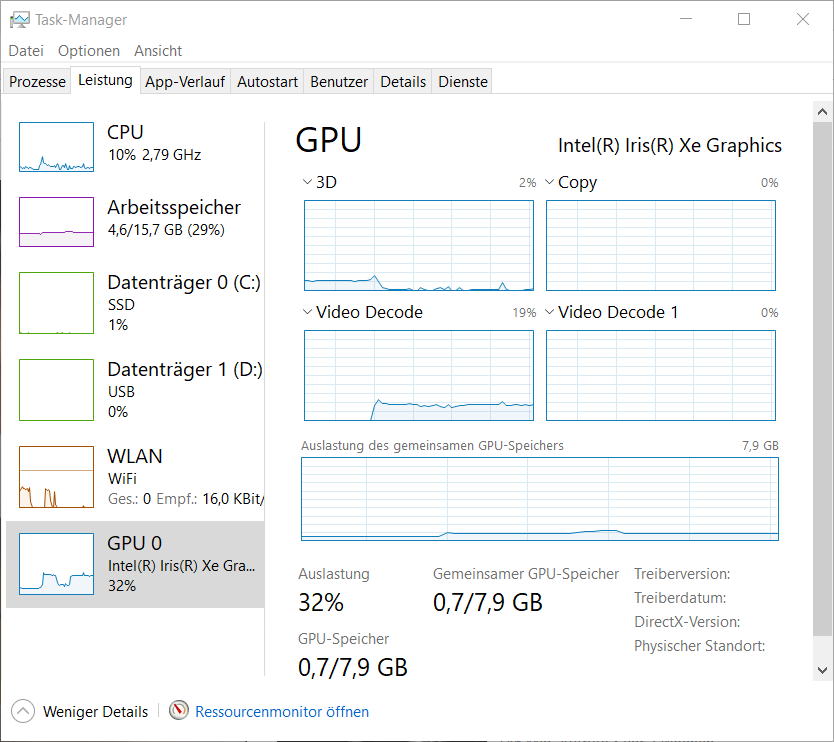

Utilization with 4K video
Utilization with 4K video

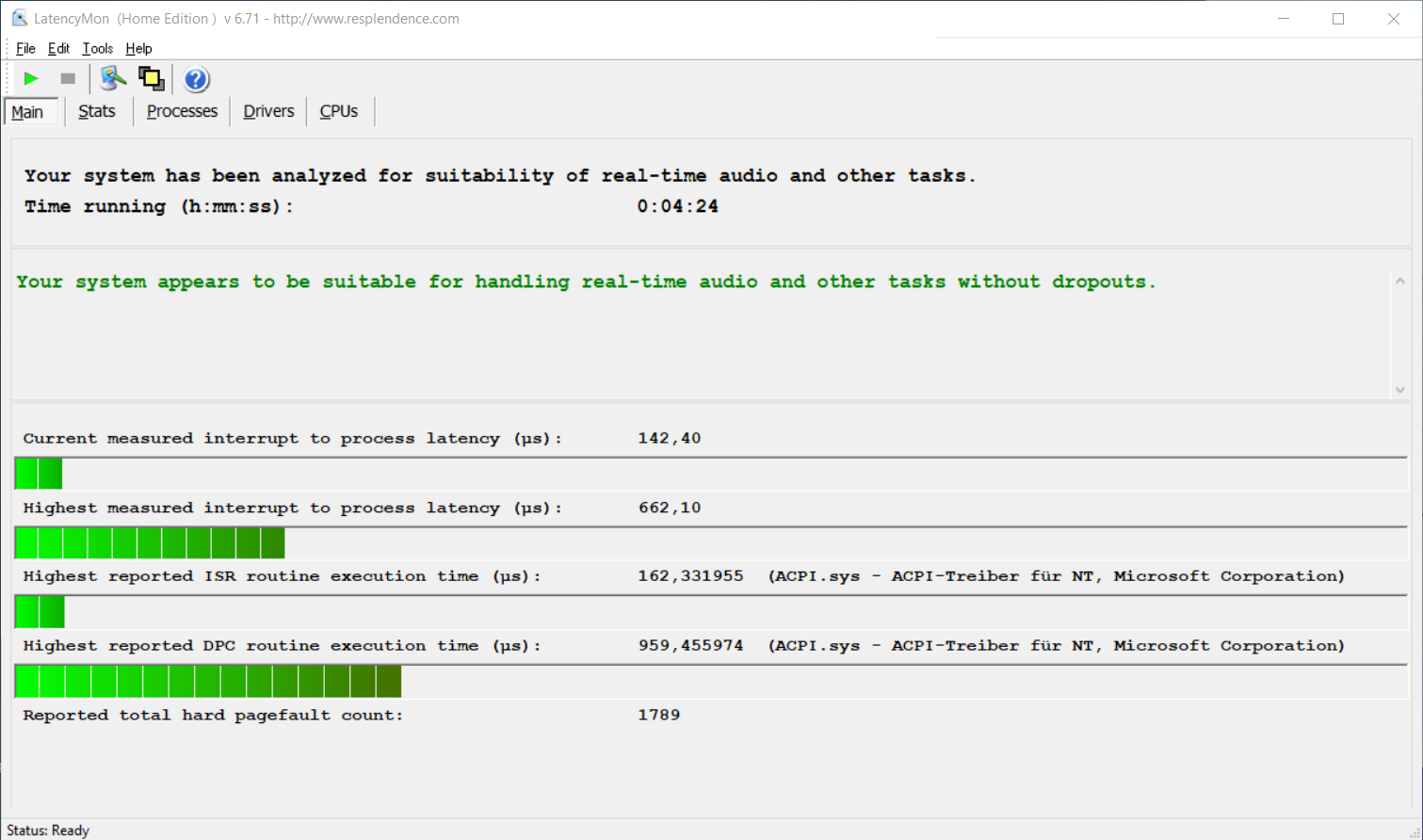

Maximum latency according to our standard procedure
Maximum latency according to our standard procedure

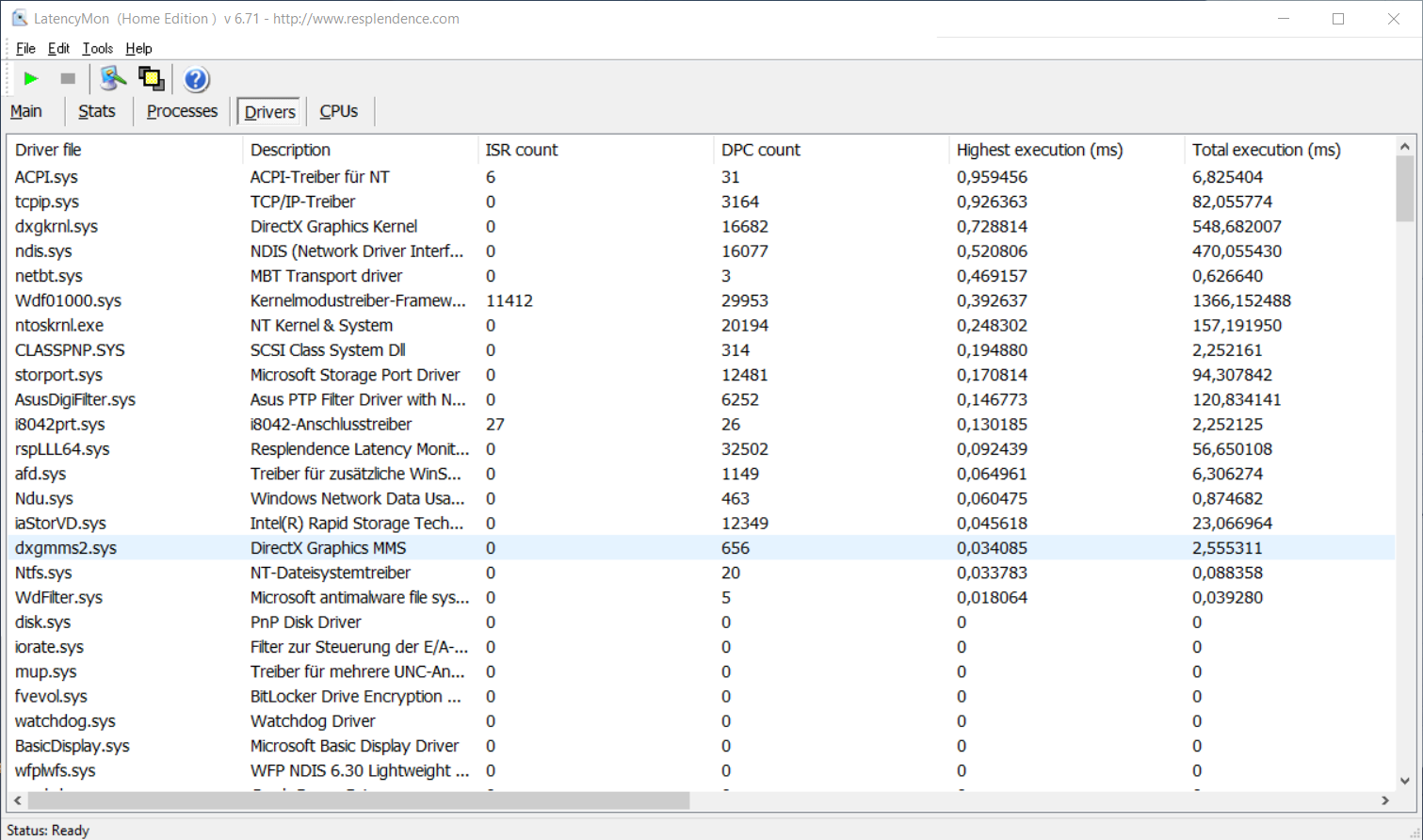

Drivers ordered by longest execution time
Drivers ordered by longest execution time
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ZenBook Flip 13 UX363EA-HP069T
Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00
5262 μs * ∼100% -695%
HP Spectre x360 13-aw2003dx
Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2369.2 μs * ∼45% -258%
HP Pavilion x360 14-dy0157ng
Iris Xe G7 80EUs, i5-1135G7, Toshiba KBG40ZNV512G
1004.4 μs * ∼19% -52%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
911 μs * ∼17% -38%
Asus ExpertBook B5 Flip B5302FEA
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZVLQ512HALU
662 μs * ∼13%
HP ProBook x360 435 G8 R7-5800U
Vega 8 R5000, R7 5800U, Samsung PM991 MZVLQ512HALU
502.9 μs * ∼10% +24%

* ... smaller is better

Mass storage

The installed NVMe SSD has a capacity of 512 GB and comes from Samsung. It shows a solid performance in our benchmarks and can usually position itself in the upper half, often even in the top 3 of the comparison models. The measured rates are often above, partly on par with the average of the Samsung PM991 MZVLQ512HALU and always above those of the HP ProBook x360 435 G8 with the same hard drive.

Drive Performance Rating - Percent
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
82.3 pt ∼82%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
72.9 pt ∼73%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
66.5 pt ∼67%
Average Samsung PM991 MZVLQ512HALU

63.1 pt ∼63%
Average of class Convertible

62.2 pt ∼62%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
57.2 pt ∼57%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
56.7 pt ∼57%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
55.1 pt ∼55%
DiskSpd
seq read
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
2141 (1958.32min - 2140.69max) MB/s ∼100% +41%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1896 (1874.22min - 1895.81max) MB/s ∼89% +25%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1515 (1481.19min - 1515.4max) MB/s ∼71%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1509 (1485.59min - 1509.19max) MB/s ∼70% 0%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
1506 (1024.93min - 1505.68max) MB/s ∼70% -1%
Average of class Convertible
  (509 - 4457, n=79, last 2 years)
1506 MB/s ∼70% -1%
Average Samsung PM991 MZVLQ512HALU
  (252 - 2025, n=12)
1359 MB/s ∼63% -10%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1300 (1291.28min - 1299.61max) MB/s ∼61% -14%
seq write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
1975 (1727min - 1974.5max) MB/s ∼100% +72%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1481 (1382.02min - 1480.8max) MB/s ∼75% +29%
Average of class Convertible
  (431 - 4237, n=79, last 2 years)
1326 MB/s ∼67% +15%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1215 (1171.85min - 1215.42max) MB/s ∼62% +6%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1151 (1119.32min - 1150.71max) MB/s ∼58%
Average Samsung PM991 MZVLQ512HALU
  (197 - 1588, n=12)
1103 MB/s ∼56% -4%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
984 (975.74min - 984.19max) MB/s ∼50% -15%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
923 (900.6min - 922.58max) MB/s ∼47% -20%
seq q8 t1 read
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
3421 (3222.12min - 3421.43max) MB/s ∼100% +57%
Average of class Convertible
  (546 - 6688, n=78, last 2 years)
2446 MB/s ∼71% +12%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
2406 (2140.14min - 2406.49max) MB/s ∼70% +10%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
2252 (2243.32min - 2252.44max) MB/s ∼66% +3%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
2181 (1985.6min - 2180.66max) MB/s ∼64%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2094 (956.28min - 2093.59max) MB/s ∼61% -4%
Average Samsung PM991 MZVLQ512HALU
  (254 - 2876, n=12)
2042 MB/s ∼60% -6%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1989 (1732.56min - 1988.53max) MB/s ∼58% -9%
seq q8 t1 write
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
3078 (2987.6min - 3078.48max) MB/s ∼100% +126%
Average of class Convertible
  (377 - 4928, n=79, last 2 years)
1640 MB/s ∼53% +21%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1470 (1437.6min - 1469.68max) MB/s ∼48% +8%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
1375 (1358.33min - 1374.87max) MB/s ∼45% +1%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
1360 (1328.2min - 1360.43max) MB/s ∼44%
Average Samsung PM991 MZVLQ512HALU
  (158 - 1607, n=12)
1224 MB/s ∼40% -10%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
1142 (1115.13min - 1141.92max) MB/s ∼37% -16%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
983 (976.37min - 982.73max) MB/s ∼32% -28%
4k q1 t1 read
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
85.7 (36.2min - 85.73max) MB/s ∼100% +52%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
60.6 (59.66min - 60.6max) MB/s ∼71% +7%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
56.4 (56.2min - 56.37max) MB/s ∼66%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
48.5 (48.33min - 48.46max) MB/s ∼57% -14%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
47.5 (46.55min - 47.5max) MB/s ∼55% -16%
Average of class Convertible
  (22.2 - 135, n=79, last 2 years)
47.2 MB/s ∼55% -16%
Average Samsung PM991 MZVLQ512HALU
  (7.83 - 56.4, n=12)
46.8 MB/s ∼55% -17%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
44.1 (42.36min - 44.09max) MB/s ∼51% -22%
4k q1 t1 write
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
268 (121.3min - 267.87max) MB/s ∼100% +72%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
208 (204.31min - 207.5max) MB/s ∼78% +33%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
156 (153.76min - 156.42max) MB/s ∼58%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
145 (120.46min - 145.32max) MB/s ∼54% -7%
Average of class Convertible
  (44.4 - 330, n=79, last 2 years)
130 MB/s ∼49% -17%
Average Samsung PM991 MZVLQ512HALU
  (10.2 - 167, n=12)
127 MB/s ∼47% -19%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
118 (107.36min - 117.74max) MB/s ∼44% -24%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
64.8 (64.5min - 64.83max) MB/s ∼24% -58%
4k q32 t16 read
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
1371 (1202.08min - 1370.81max) MB/s ∼100% +95%
Average of class Convertible
  (224 - 2833, n=79, last 2 years)
769 MB/s ∼56% +9%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
703 (697.35min - 703.06max) MB/s ∼51%
Average Samsung PM991 MZVLQ512HALU
  (10.8 - 1443, n=12)
691 MB/s ∼50% -2%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
646 (570.74min - 645.6max) MB/s ∼47% -8%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
567 (565.52min - 566.56max) MB/s ∼41% -19%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
561 (299.94min - 561.39max) MB/s ∼41% -20%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
312 (309.85min - 312.11max) MB/s ∼23% -56%
4k q32 t16 write
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
983 (978.13min - 983.35max) MB/s ∼100% +119%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
765 (718.87min - 764.99max) MB/s ∼78% +70%
Average Samsung PM991 MZVLQ512HALU
  (11.5 - 1125, n=12)
639 MB/s ∼65% +42%
Average of class Convertible
  (217 - 2378, n=79, last 2 years)
615 MB/s ∼63% +37%
HP Spectre x360 13-aw2003dx
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
458 (436.32min - 457.64max) MB/s ∼47% +2%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
449 (416.16min - 448.56max) MB/s ∼46%
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
388 (254.71min - 387.94max) MB/s ∼39% -14%
HP ProBook x360 435 G8 R7-5800U
Samsung PM991 MZVLQ512HALU
364 (360.08min - 363.91max) MB/s ∼37% -19%
AS SSD
Score Total
Asus ZenBook Flip 13 UX363EA-HP069T
WDC PC SN730 SDBPNTY-1T00
3507 Points ∼100% +30%
HP Pavilion x360 14-dy0157ng
Toshiba KBG40ZNV512G
3221 Points ∼92% +20%
Asus ExpertBook B5 Flip B5302FEA
Samsung PM991 MZVLQ512HALU
2693 Points ∼77%
Average Samsung PM991 MZVLQ512HALU
  (1892 - 3818, n=11)
