Asus ZenBook Flip 13 in review: Compact convertible with great OLED display

Slim and versatile. The ZenBook Flip 13 from Asus is an ultra-compact 13-inch convertible with an excellent OLED display. However, the compact design doesn't mean that you have to sacrifice performance, because Intel's latest Tiger Lake SoCs provide enough power. This detailed review with numerous measurements and benchmarks will reveal how well the device performed in our benchmark circuit.

Sebastian Bade, 👁 Sebastian Jentsch (translated by Stephanie Chamberlain), Published 07/10/2021 🇩🇪 🇳🇱 ...

The Asus ZenBook Flip 13 UX363 is one of the slimmest convertibles in the 13.3-inch format. Nevertheless, the slim device offers a solid configuration and a great OLED display. Our review sample is based on Intel's new Tiger Lake series and is powered by the Intel Core i7-1165G7. With the Intel Iris Xe Graphics G7, this SoC offers a fast iGPU as well. The built-in 16 GB of RAM and the 1 TB SSD fit the system well and should be sufficient for users for some time. 1,799 Euros (~$2,137) is the manufacturer's MSRP. However, the device can actually be found considerably cheaper in our test configuration.

The lower priced version of the ZenBook Flip 13 UX363 is based on the Intel Core i5-1135G7, which has a slightly weaker iGPU. You will also have to compromise in terms of RAM and SSD. The great OLED display is also missing. However, the less expensive ZenBook Flip 13 UX363 is listed for significantly less than 1,000 Euros (~$1,188).

Among the competitors of the Asus ZenBook Flip 13 UX363 are devices like the Lenovo ThinkPad X13 Yoga G2, the HP Elite Dragonfly Max, the Lenovo ThinkPad X13 Yoga, the Acer Spin 5 SP513, as well as the HP Spectre x360.

Test device courtesy of Asus Deutschland

Download your licensed rating image as PNG / SVG

Asus ZenBook Flip 13 UX363EA-HP069T (ZenBook Flip 13 Series)

Processor

Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, 51 W PL2 / Short Burst, 15 W PL1 / Sustained, Tiger Lake-UP3

Graphics adapter

Intel Iris Xe Graphics G7 96EUs, Memory: 1300 MHz, 27.20.100.8984 DCH

Memory

16 GB

, LPDDR4-4266, soldered

Display

13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, multitouch, native pen support, Samsung, SDC414A, OLED, glossy: yes, 60 Hz

Mainboard

Intel Tiger Lake-UP3 PCH-LP

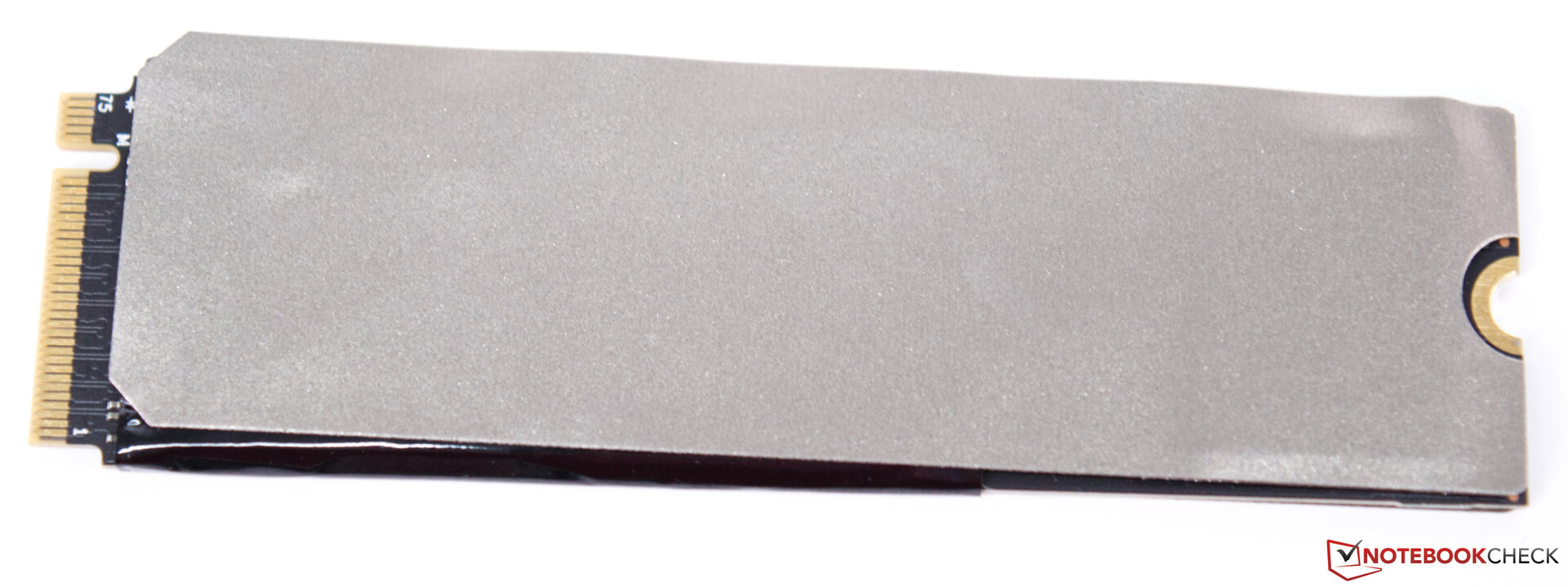

Storage

WDC PC SN730 SDBPNTY-1T00, 1024 GB

, 950 GB free

Soundcard

Realtek Audio

Connections

3 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 1 DisplayPort

Networking

Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5

Size

height x width x depth (in mm): 13 x 305 x 211 ( = 0.51 x 12.01 x 8.31 in)

Battery

67 Wh, 4220 mAh Lithium-Ion

Charging

fast charging / Quickcharge

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: HD
Primary Camera: 0.9 MPix
Secondary Camera: IR

Additional features

Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, 24 Months Warranty

Weight

1.188 kg ( = 41.91 oz / 2.62 pounds), Power Supply: 210 g ( = 7.41 oz / 0.46 pounds)

Price

1 EUR

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

Possible contenders in comparison

Rating	Date	Model	Weight	Height	Size	Resolution
86.3 %	07/2021	Asus ZenBook Flip 13 UX363EA-HP069T i7-1165G7, Iris Xe G7 96EUs	1.2 kg	13 mm	13.30"	1920x1080
91.1 %	06/2021	Lenovo ThinkPad X13 Yoga G2 i7-1165G7, Iris Xe G7 96EUs	1.2 kg	15.39 mm	13.30"	2560x1600
90.8 %	06/2021	HP Elite Dragonfly Max i7-1185G7, Iris Xe G7 96EUs	1.2 kg	16 mm	13.30"	1920x1080
87.9 %	10/2020	Lenovo ThinkPad X13 Yoga 20SX0004GE i7-10510U, UHD Graphics 620	1.3 kg	15.95 mm	13.30"	1920x1080
88.1 %	09/2020	Acer Spin 5 SP513-54N-79EY i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU)	1.2 kg	14.9 mm	13.50"	2256x1504
89.4 %	12/2020	HP Spectre x360 14t-ea000 i7-1165G7, Iris Xe G7 96EUs	1.3 kg	17.2 mm	13.50"	1920x1280

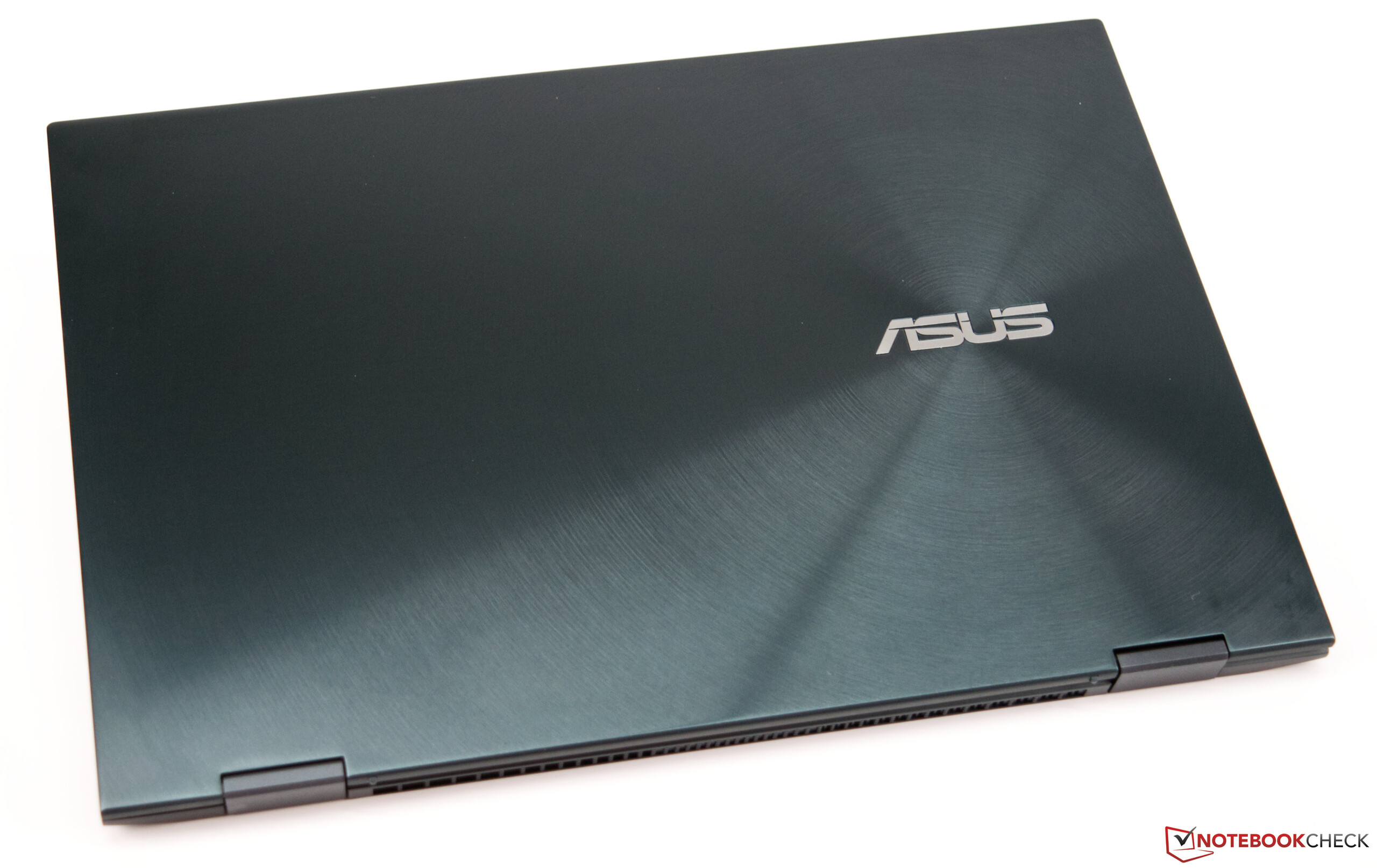

Case - Premium and slim

Asus chooses high-quality materials for the ZenBook Flip 13 UX363. The aluminum used for the base unit and the display lid provides good stability, which makes it almost impossible to twist the device. The display lid is not affected by localized pressure, either. In terms of looks, the ZenBook Flip 13 UX363 shines in pine gray, which actually has a touch of light turquoise in reality. The convertible's design is quite straightforward. A closer look reveals a circular pattern on the display lid, which bears a slightly offset Asus logo in the center. The built-in hinges are smooth, and they allow for a one-handed opening of the lid.

The footprint of the Asus ZenBook Flip 13 UX363 is smaller to some extent compared to the competition. Only the HP Elite Dragonfly Max requires slightly less space. However, with only 13 millimeters, our review sample is slimmer than the comparison devices in our test. When it comes to weight, though, the Asus ZenBook Flip 13 UX363 is on par with the competition with its 1.2 kilograms. Our device's power adapter weighs 210 grams.

Size comparison

Lenovo ThinkPad X13 Yoga 20SX0004GE Lenovo ThinkPad X13 Yoga G2 HP Elite Dragonfly Max Asus ZenBook Flip 13 UX363EA-HP069T HP Spectre x360 14t-ea000 Acer Spin 5 SP513-54N-79EY DIN A4 ❌

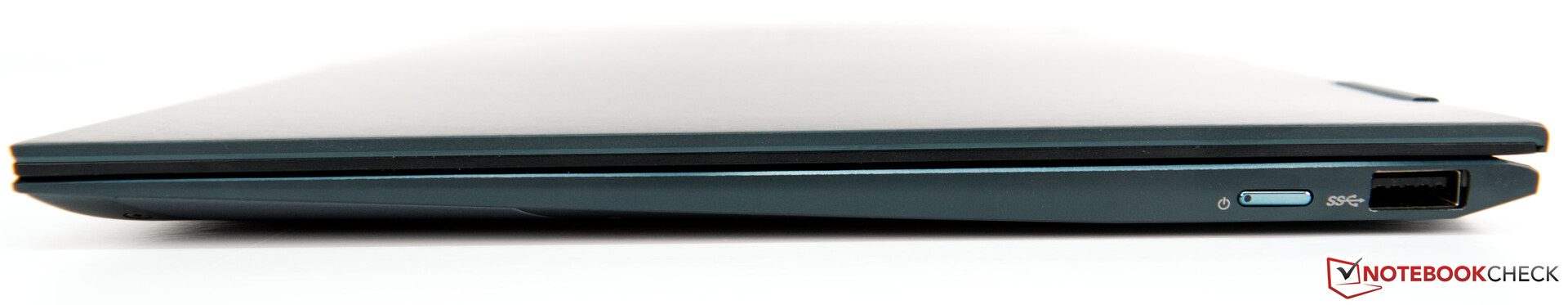

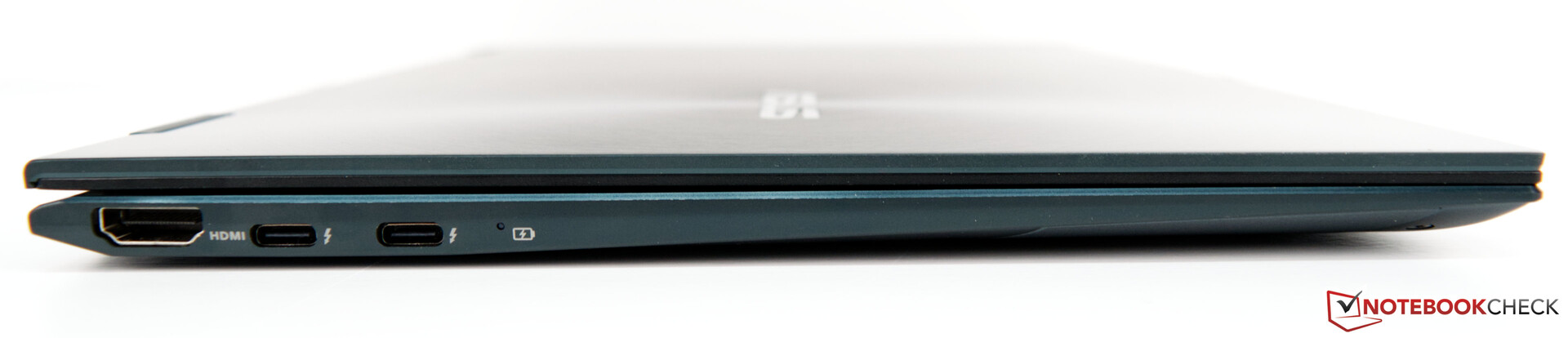

Connectivity - Minimalist and modern

The connectivity of the Asus ZenBook Flip 13 UX363 is very limited. Nevertheless, the device offers a very modern configuration with two Thunderbolt 4 ports. It should be noted, however, that one of the two USB-C ports is also needed for charging. However, the potential for expansion provided by these ports in the form of a dock is an excellent feature. Furthermore, there's also a USB Type-A slot and an HDMI output. Nevertheless, Asus has completely forgone the inclusion of a card reader in the ZenBook Flip 13 UX363.

Communication

An Intel Wi-Fi 6 AX201 module is installed in the Asus ZenBook Flip 13 UX363. There were no problems with the WLAN connection in everyday use. The Wi-Fi tests were performed at a distance of one meter from our Netgear Nighthawk AX12 RAX120 router, without physical obstructions or other connected network devices. The results are at the expected level, although the Lenovo ThinkPad X13 Yoga G2 as well as the Acer Spin 5 SP513 achieved marginally better values for sending data. Unfortunately, the ZenBook Flip 13 UX363 doesn't offer an Ethernet port.

Networking
iperf3 transmit AX12
Lenovo ThinkPad X13 Yoga G2 Intel Wi-Fi 6 AX201	1456 (702^min - 1509^max) MBit/s ∼100% +12%
Acer Spin 5 SP513-54N-79EY Intel Wi-Fi 6 AX201	1384 (1306^min - 1419^max) MBit/s ∼95% +6%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Wi-Fi 6 AX201	1301 (929^min - 1479^max) MBit/s ∼89%
HP Elite Dragonfly Max Intel Wi-Fi 6 AX201	1263 (990^min - 1412^max) MBit/s ∼87% -3%
HP Spectre x360 14t-ea000 Intel Wi-Fi 6 AX201	1163 (846^min - 1445^max) MBit/s ∼80% -11%
Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324)	1161 MBit/s ∼80% -11%
Average of class Convertible (138 - 1468, n=29, last 2 years)	903 MBit/s ∼62% -31%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Wi-Fi 6 AX201	646 (313^min - 659^max) MBit/s ∼44% -50%
iperf3 receive AX12
Asus ZenBook Flip 13 UX363EA-HP069T Intel Wi-Fi 6 AX201	1357 (1148^min - 1476^max) MBit/s ∼100%
Lenovo ThinkPad X13 Yoga G2 Intel Wi-Fi 6 AX201	1333 (1301^min - 1360^max) MBit/s ∼98% -2%
HP Spectre x360 14t-ea000 Intel Wi-Fi 6 AX201	1307 (1119^min - 1370^max) MBit/s ∼96% -4%
HP Elite Dragonfly Max Intel Wi-Fi 6 AX201	1272 (1206^min - 1323^max) MBit/s ∼94% -6%
Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324)	1261 MBit/s ∼93% -7%
Average of class Convertible (136 - 1585, n=29, last 2 years)	1034 MBit/s ∼76% -24%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Wi-Fi 6 AX201	896 (466^min - 945^max) MBit/s ∼66% -34%
Acer Spin 5 SP513-54N-79EY Intel Wi-Fi 6 AX201	850 (729^min - 1030^max) MBit/s ∼63% -37%

Asus ZenBook Flip 13 UX363EA-HP069T; iperf3 receive AX12; iperf 3.1.3: Ø1357 (1148-1476)

Asus ZenBook Flip 13 UX363EA-HP069T; iperf3 transmit AX12; iperf 3.1.3: Ø1301 (929-1479)

Webcam

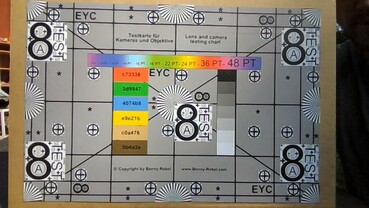

The 720p webcam is only partially suitable for everyday use. Color deviations are too high, and the reproduction also results in a blurry image. The only remedy here is to use an external solution.

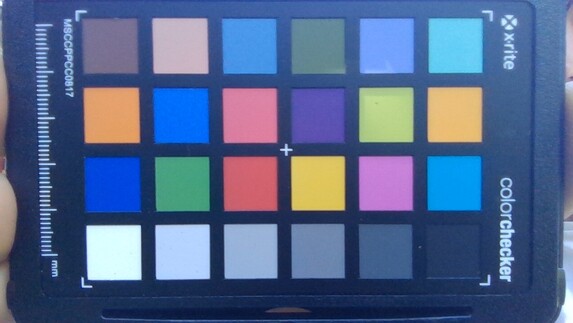

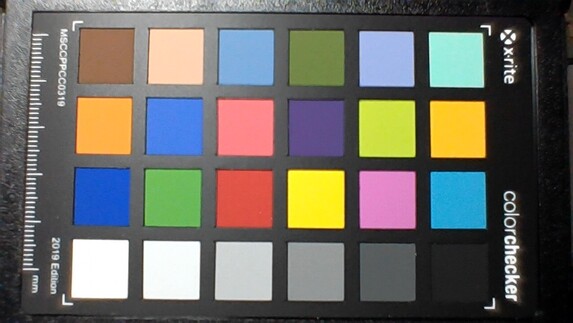

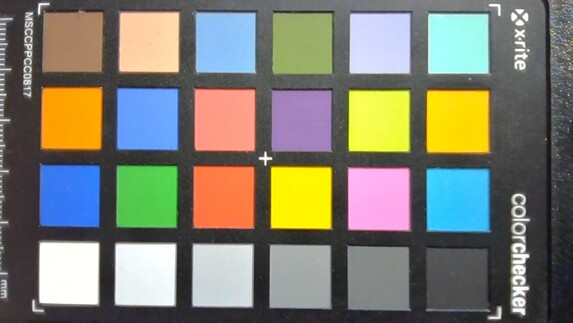

ColorChecker Asus ZenBook Flip 13 UX363EA-HP069T: 18.86 ∆E min: 3.32 - max: 27.93 ∆E

Security

The IR camera is one of the security features of the Asus ZenBook Flip 13 UX363. After a quick setup, it enables authentication on the device.

Accessories

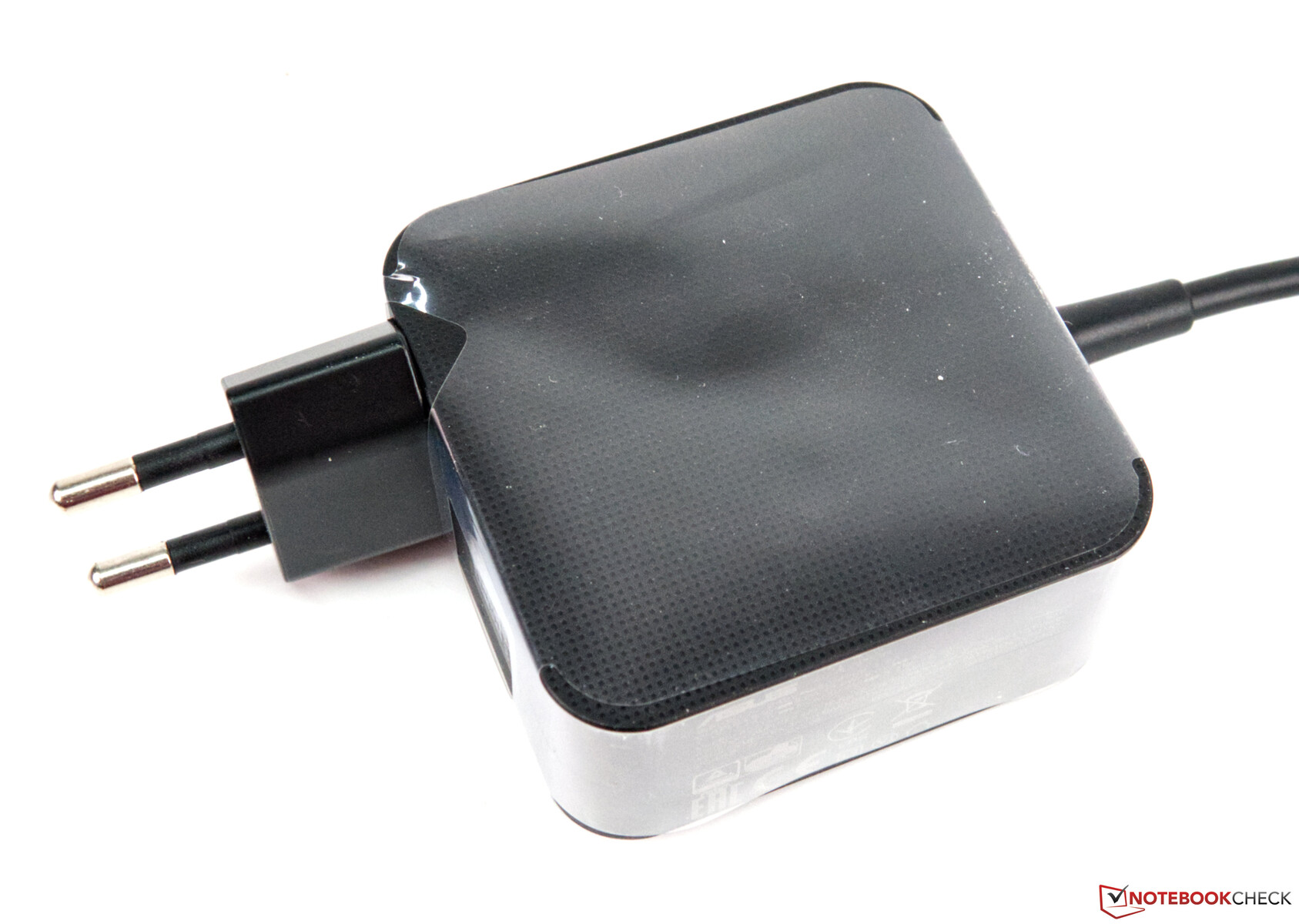

The laptop comes with a 65-watt power adapter as well as an Active Pen and an Ethernet adapter.

Maintenance

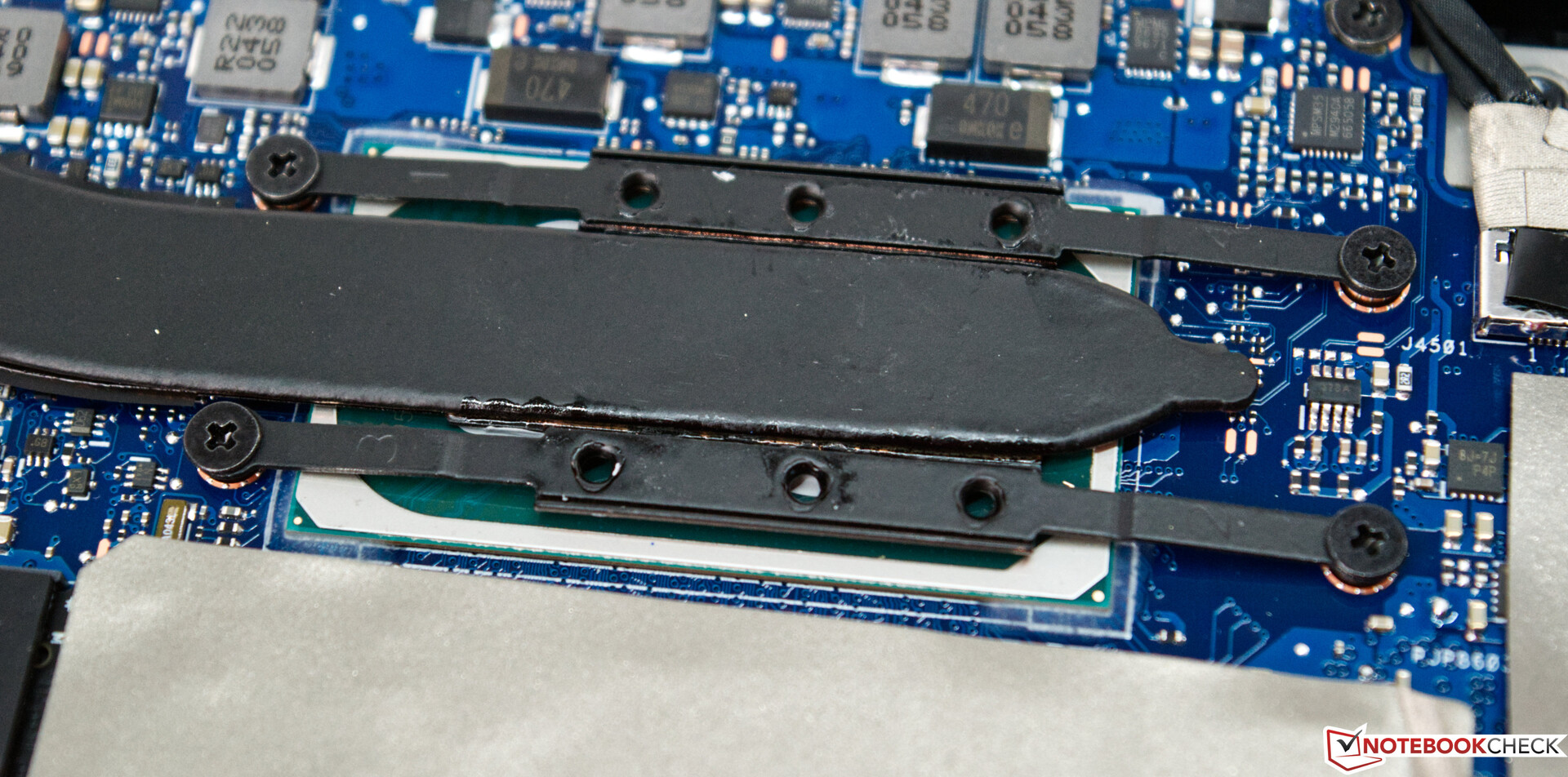

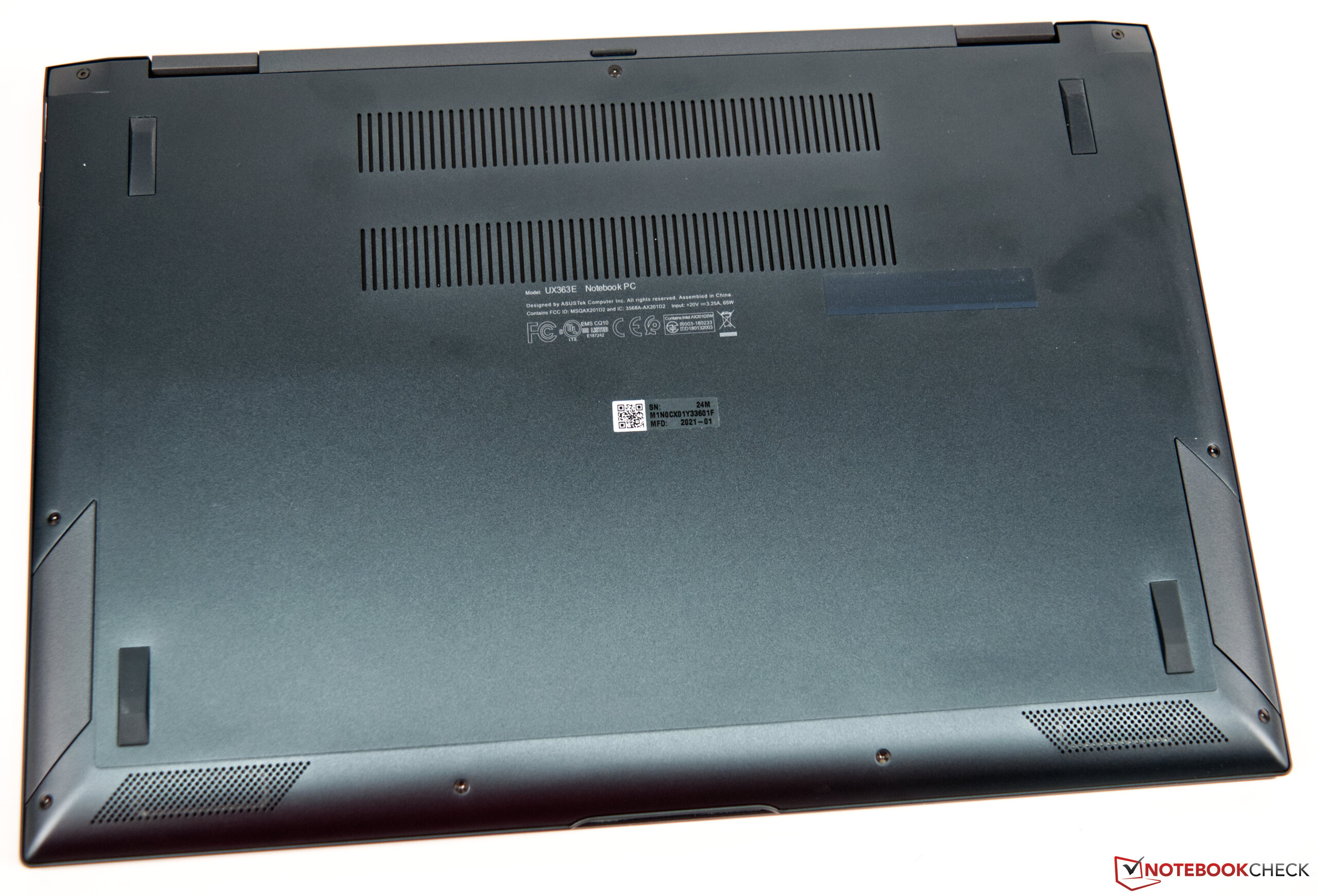

Maintenance tasks aren't that easy to perform on the Asus ZenBook Flip 13 UX363: Once all screws have been removed, the bottom cover can only be removed in a rather complicated way. Several retaining clips further ensure a firm fit. After that, the cover can only be removed with a suitable tool. The Asus ZenBook Flip 13 UX363 doesn't provide many options to upgrade the device. RAM is soldered, and a second mass storage device can't be installed, either. The only plausible reason to open the device would be to replace the existing SSD with a better model.

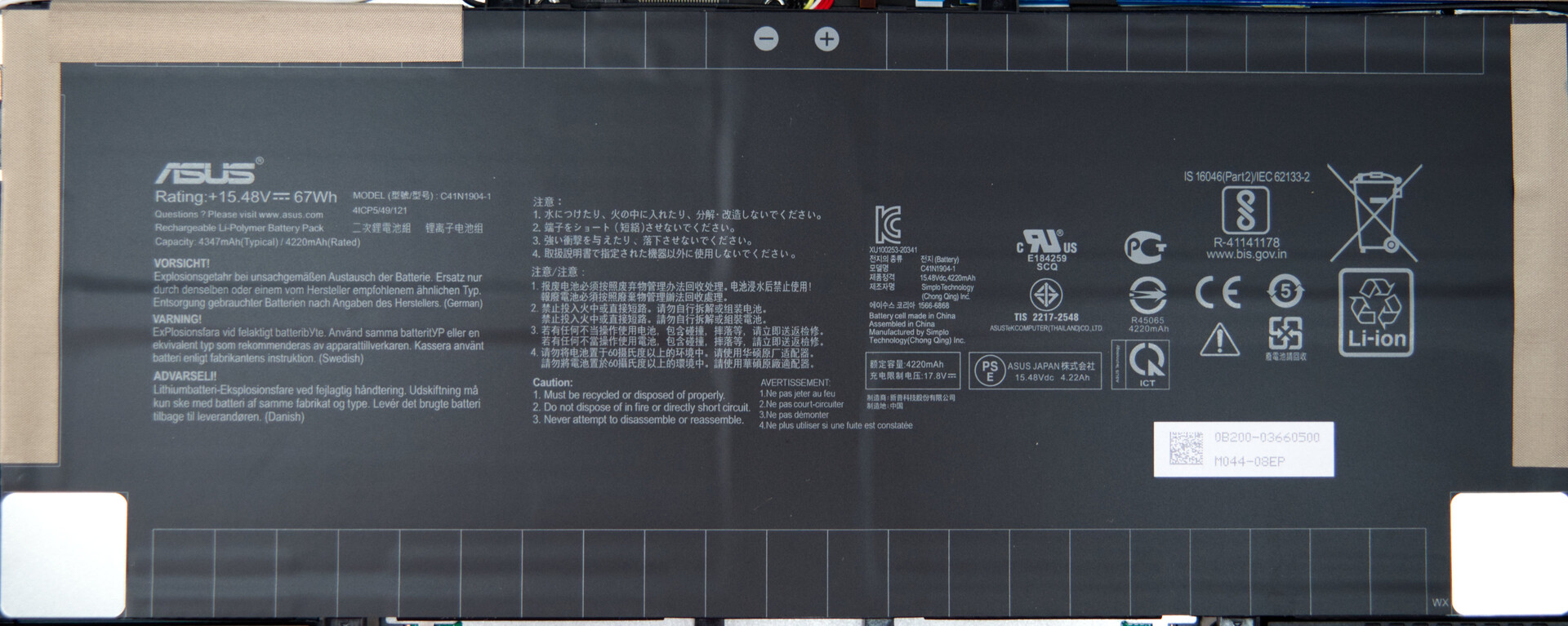

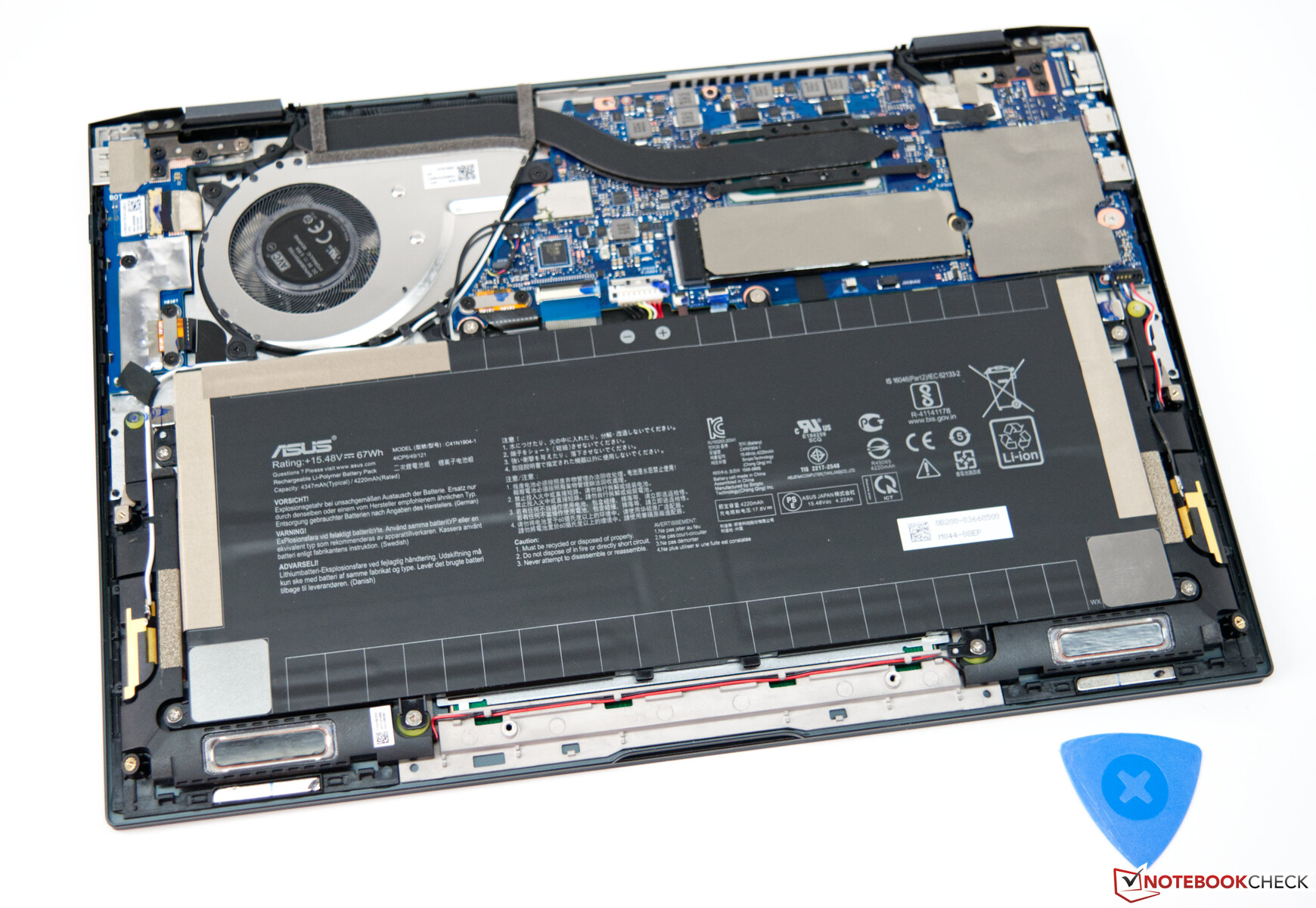

The Asus ZenBook Flip 13 UX363 without the bottom cover

Warranty

Asus provides customers with a 24-month warranty when buying the ZenBook Flip 13 UX363.

Input devices

Keyboard and touchpad

The ZenBook Flip 13 UX363's six-row chiclet keyboard is equipped with a discreet backlight that can be adjusted in three brightness levels. The keys themselves are quite smooth, but they still provide enough grip when typing quickly. The short travel is accompanied by a slightly muffled stroke. The pressure point is somewhat palpable, and it could have definitely been a bit crisper. The narrow arrow keys and the somewhat small shift key on the left side are a minor drawback. Due to the short distances between the individual keys, typos can occur more often at the beginning.

We're already familiar with the ClickPad from the Asus ZenBook 13 UM325S. With its 13 x 6.5 centimeters, the input area is quite large. The available space is used very well. The concept of the integrated numeric keypad is good, although a perceptible feedback would help users a bit when typing. The actual touchpad is responsive and works smoothly in the corners as well. The two input buttons are located in the lower area, and when pressed, they draw attention with a clearly audible but not too noisy click sound.

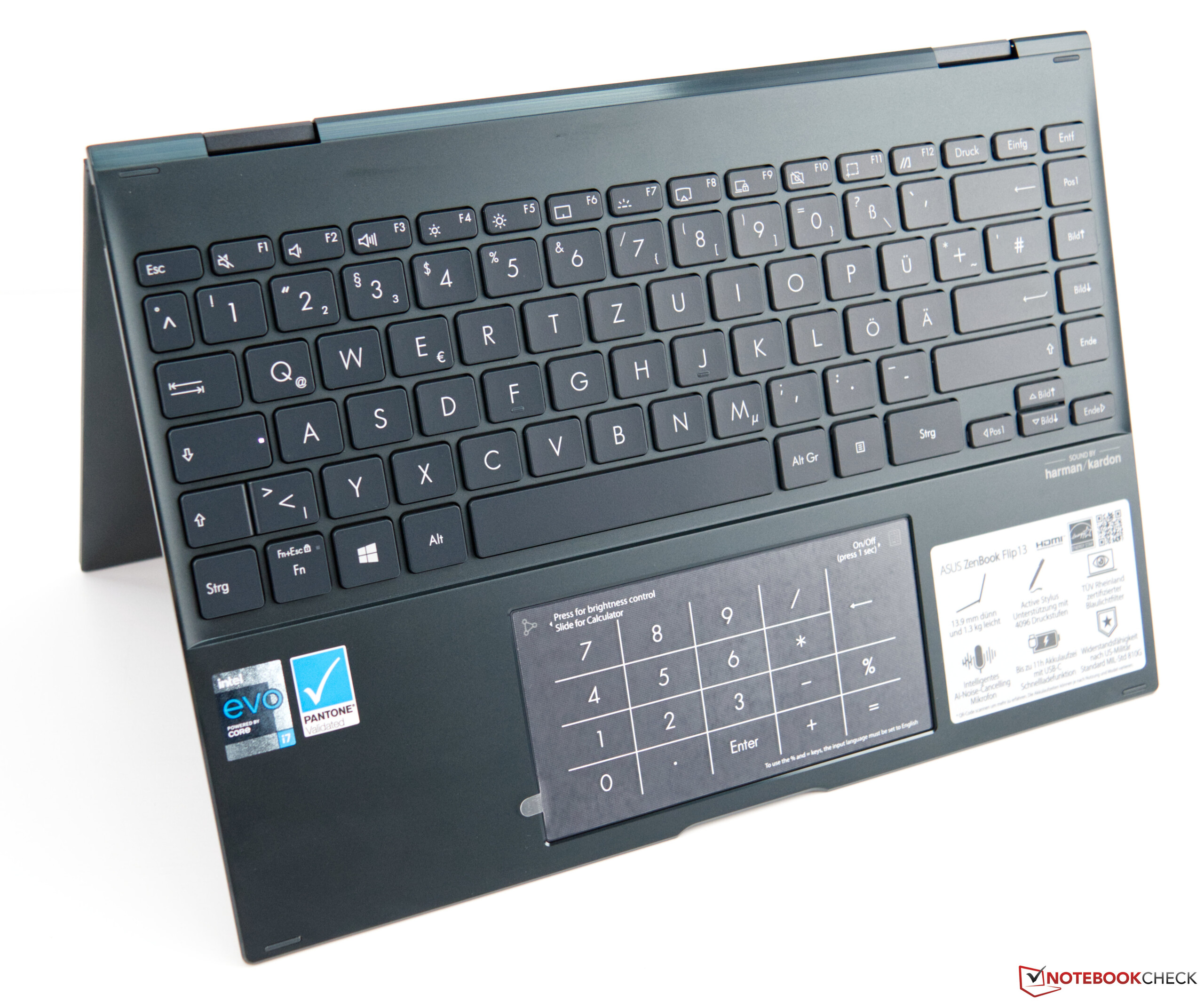

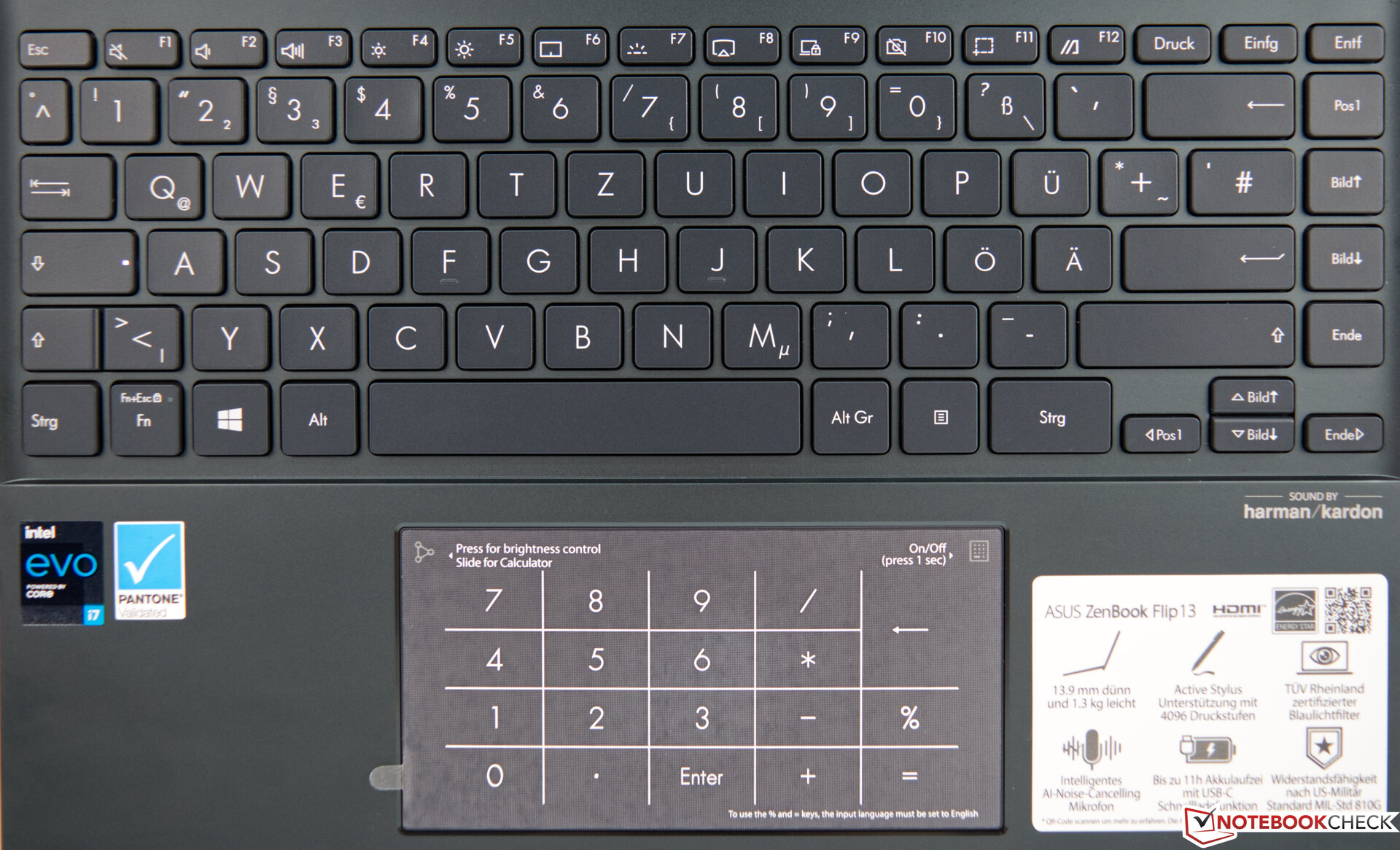

Keyboard of the Asus ZenBook Flip 13 UX363

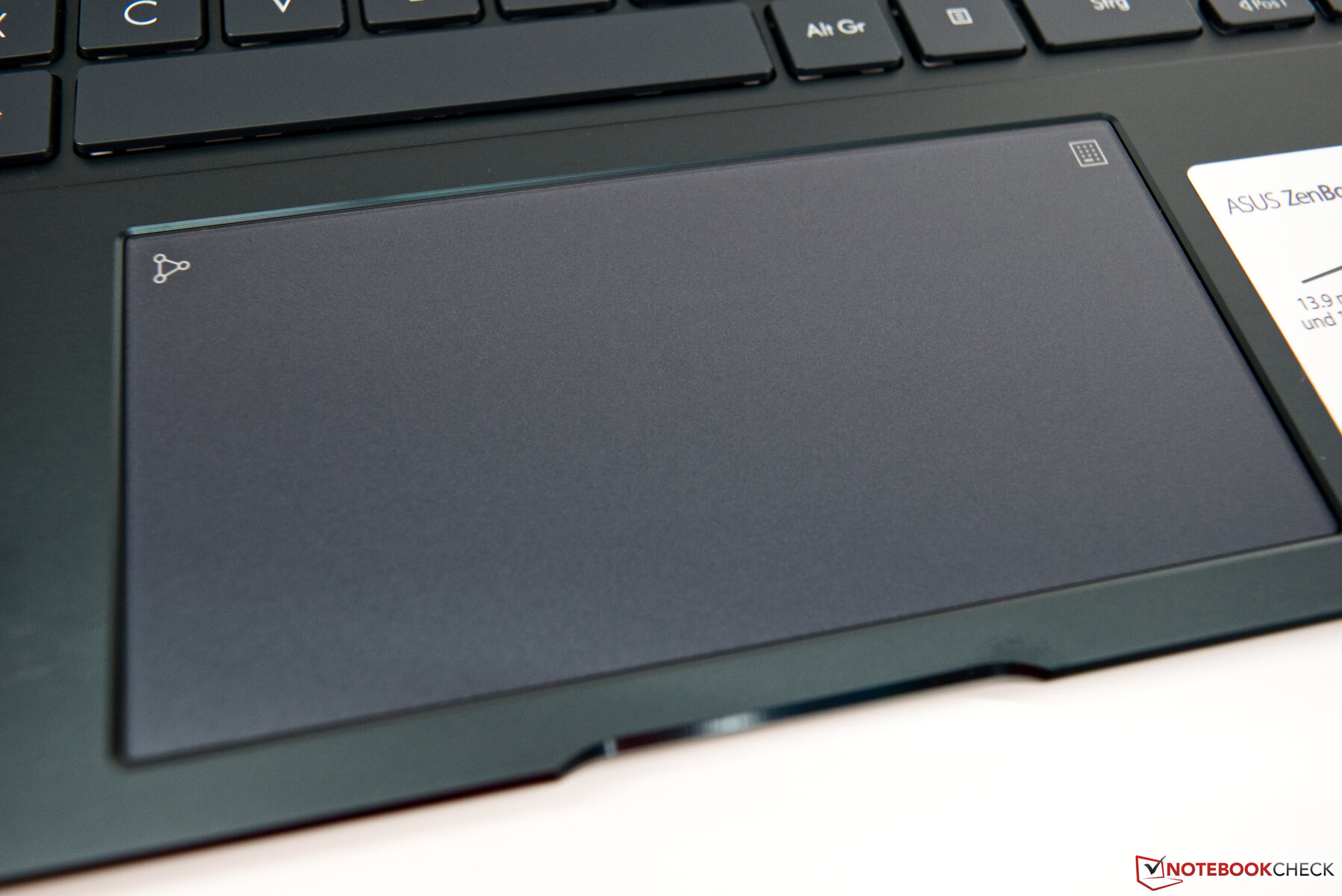

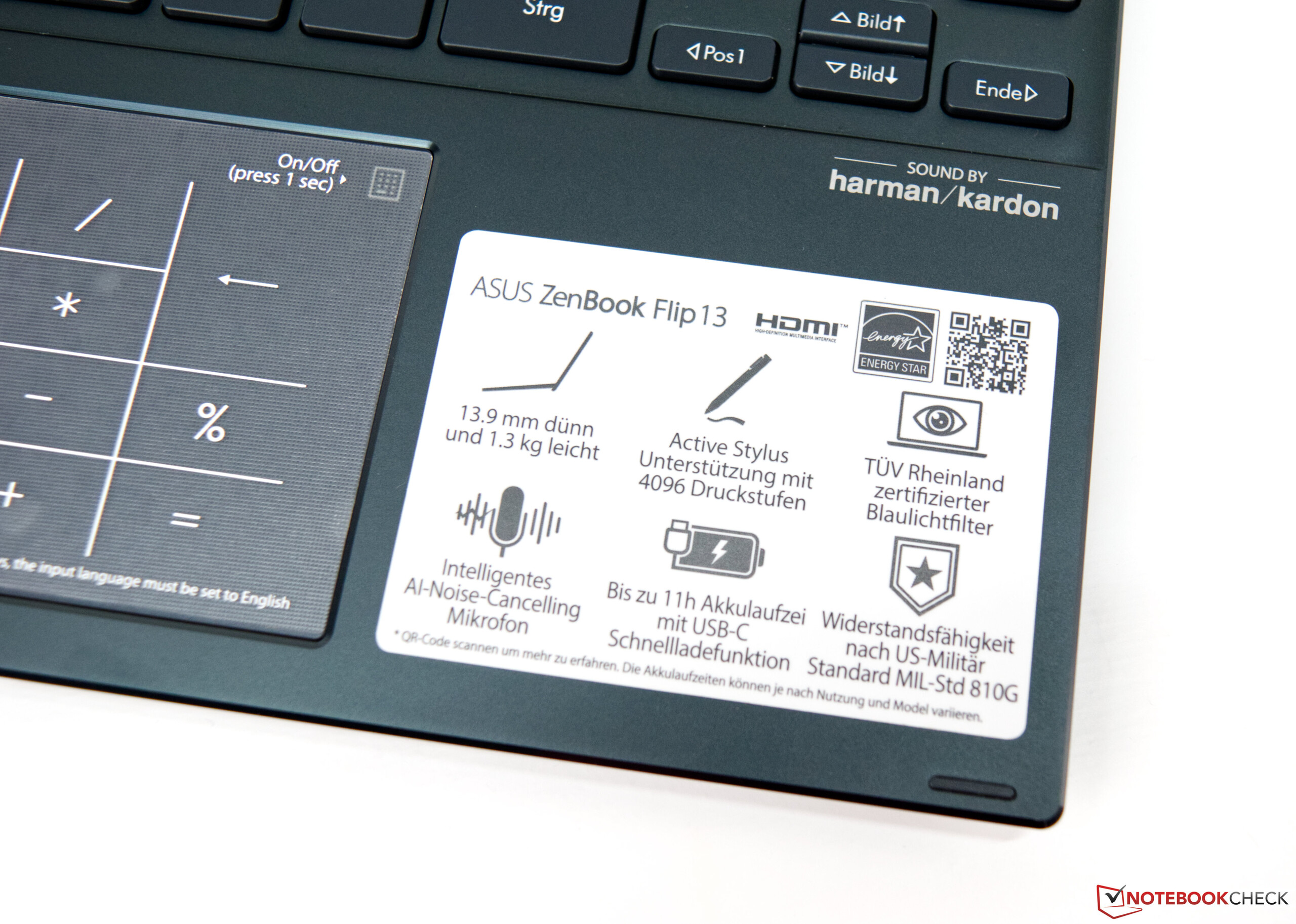

Touchpad of the Asus ZenBook Flip 13 UX363

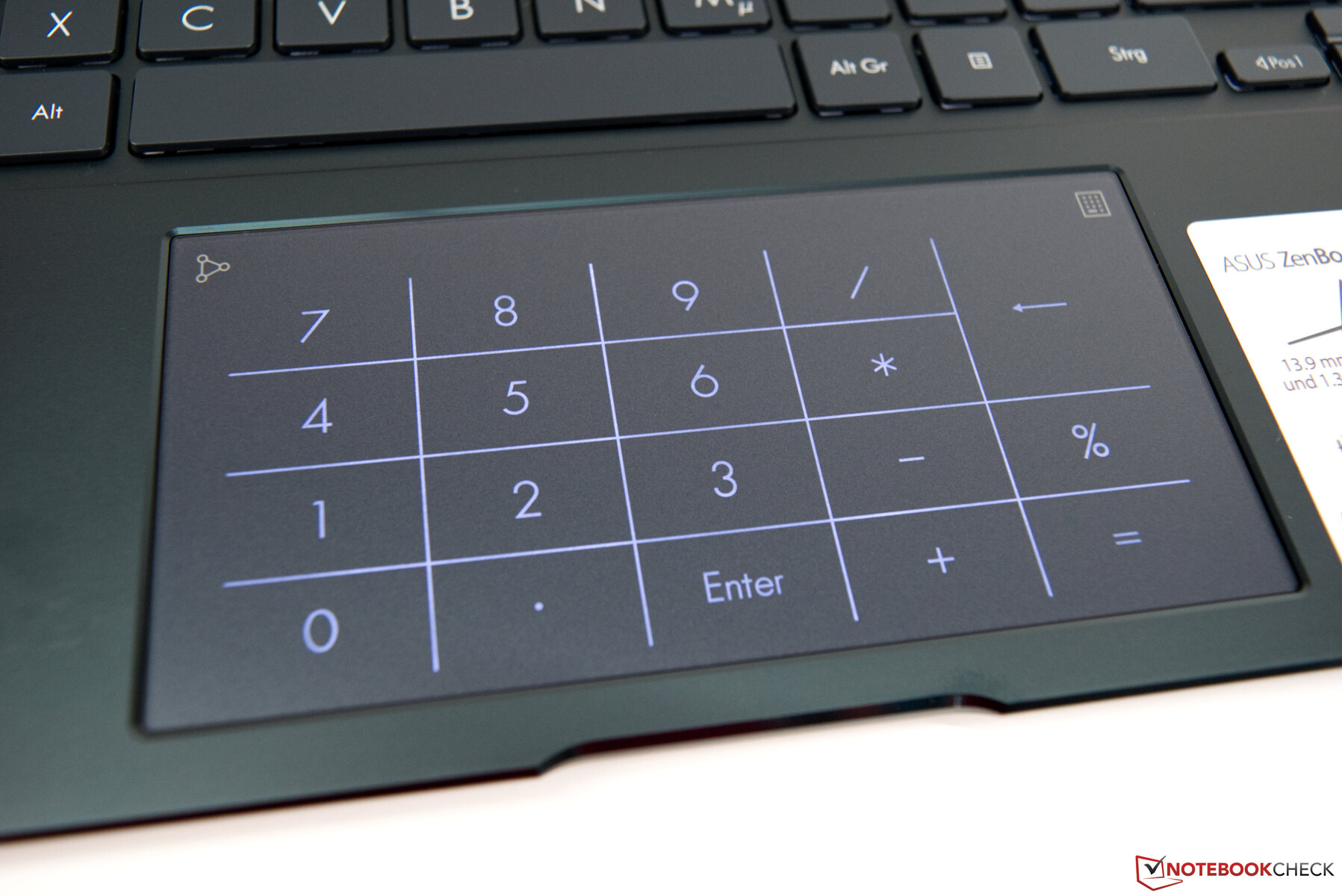

Touchpad of the Asus ZenBook Flip 13 UX363 with integrated number pad

Display - OLED technology

The built-in display is an OLED panel in the 16:9 format with a resolution of 1920x1080 pixels (Full HD). With the visible diagonal of 13.3 inches, this results in a pixel density of 166 ppi. With an average brightness of 359 cd/m², however, our ZenBook Flip 13 can't keep up with the competition in comparison here. Nevertheless, the extremely low black level reflects the strengths of the OLED technology, resulting in a very good contrast ratio. Furthermore, the so-called "clouding" is not an issue with OLED panels, since the display doesn't need a large-area backlight. In order to prevent burn-in effects, refresh/PWM is used. We measured a frequency of 60 Hz at full brightness.


350 cd/m²	352 cd/m²	368 cd/m²
351 cd/m²	353 cd/m²	368 cd/m²
358 cd/m²	364 cd/m²	370 cd/m²

Distribution of brightness

Samsung, SDC414A

X-Rite i1Pro 2

Maximum: 370 cd/m² (Nits) Average: 359.3 cd/m² Minimum: 5 cd/m²
Brightness Distribution: 95 %
Center on Battery: 353 cd/m²
Contrast: 3530:1 (Black: 0.1 cd/m²)
ΔE Color 3.98 | 0.55-29.43 Ø5.1
ΔE Greyscale 1.41 | 0.57-98 Ø5.4
Gamma: 2.39

Download ICC File (X-Rite i1Pro 2)

	Asus ZenBook Flip 13 UX363EA-HP069T Samsung, SDC414A, OLED, 1920x1080, 13.30	Lenovo ThinkPad X13 Yoga G2 LP133WQ1-SPF2, IPS LED, 2560x1600, 13.30	HP Elite Dragonfly Max InfoVision X133NVFL R0, IPS, 1920x1080, 13.30	Lenovo ThinkPad X13 Yoga 20SX0004GE N133HCG-GR3, IPS, 1920x1080, 13.30	Acer Spin 5 SP513-54N-79EY BOE08BC, IPS, 2256x1504, 13.50	HP Spectre x360 14t-ea000 LG Philips LGD0663, IPS, 1920x1280, 13.50
Display
Display P3 Coverage		68.3		67.2	69.4	65.8
sRGB Coverage		99.1		98.1	99.6	98.2
AdobeRGB 1998 Coverage		70.3		69	71	67.9
Response Times		-2000%	-1820%	-2000%	-1134%	-2440%
Response Time Grey 50% / Grey 80% *	2 ?(1, 1)	52 ?(22, 30) -2500%	44.8 ?(20.4, 24.4) -2140%	56 ?(26.8, 29.2) -2700%	49 ?(22, 27) -2350%	62 ?(32, 30) -3000%
Response Time Black / White *	2 ?(1, 1)	32 ?(20, 12) -1500%	32 ?(18.8, 13.2) -1500%	28 ?(11.2, 16.8) -1300%	28 ?(16, 12) -1300%	39.6 ?(21.6, 18) -1880%
PWM Frequency	60				208 ?(90) 247%
Screen		-8%	-7%	-10%	-8%	-12%
Brightness middle	353	460 30%	777.5 120%	401 14%	454 29%	443.5 26%
Brightness	359	423 18%	727 103%	383 7%	426 19%	394 10%
Brightness Distribution	95	85 -11%	75 -21%	91 -4%	91 -4%	78 -18%
Black Level *	0.1	0.33 -230%	0.44 -340%	0.16 -60%	0.33 -230%	0.17 -70%
Contrast	3530	1394 -61%	1767 -50%	2506 -29%	1376 -61%	2609 -26%
Colorchecker dE 2000 *	3.98	1 75%	1.62 59%	2.6 35%	1.27 68%	2.7 32%
Colorchecker dE 2000 max. *	53.07	1.5 97%	5.26 90%	4.2 92%	2.42 95%	4.36 92%
Greyscale dE 2000 *	1.41	1.2 15%	1.6 -13%	3.3 -134%	1.07 24%	3.4 -141%
Gamma	2.39 ^92%	2.26 ^97%	2.2 ^100%	2.01 ^109%	2.39 ^92%	2.09 ^105%
CCT	6346 ^102%	6652 ^98%	6538 ^99%	6076 ^107%	6530 ^100%	6144 ^106%
Colorchecker dE 2000 calibrated *		0.8	1.32	0.9	0.78	2.61
Color Space (Percent of AdobeRGB 1998)		64.4	72.3	62.7	65	62.1
Color Space (Percent of sRGB)		99.12	94.8	98.1	100	98.5
Total Average (Program / Settings)		-1004% / -407%	-914% / -369%	-1005% / -408%	-571% / -315%	-1226% / -498%

* ... smaller is better

Already out of the box, the measured DeltaE 2000 color deviations compared to the sRGB color space are at a good level. It can be inferred that Asus is using a pre-calibrated panel here. However, our comparison devices can also keep up well and offer similarly good rates. Thanks to its positive rates, the Asus ZenBook Flip 13 UX363 is definitely suitable for professional use.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
2 ms ... rise ↗ and fall ↘ combined	↗ 1 ms rise
2 ms ... rise ↗ and fall ↘ combined	↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 3 % of all devices are better. This means that the measured response time is better than the average of all tested devices (22.2 ms).
↔ Response Time 50% Grey to 80% Grey
2 ms ... rise ↗ and fall ↘ combined	↗ 1 ms rise
2 ms ... rise ↗ and fall ↘ combined	↘ 1 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.25 (minimum) to 636 (maximum) ms. » 3 % of all devices are better. This means that the measured response time is better than the average of all tested devices (35.1 ms).

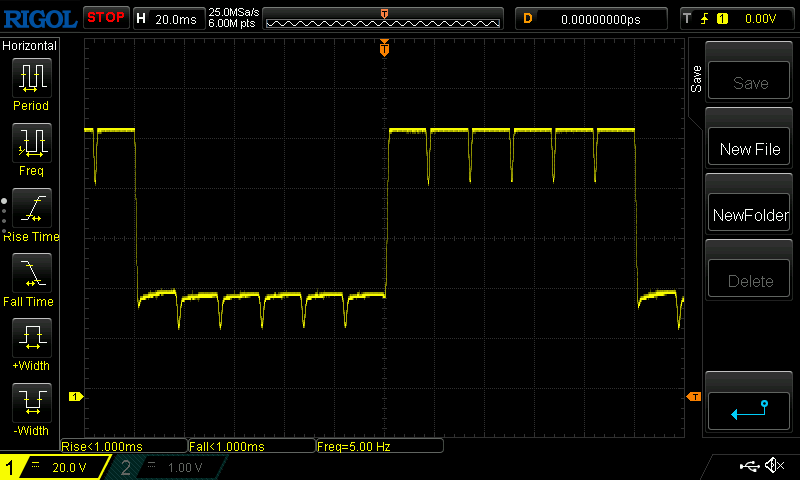

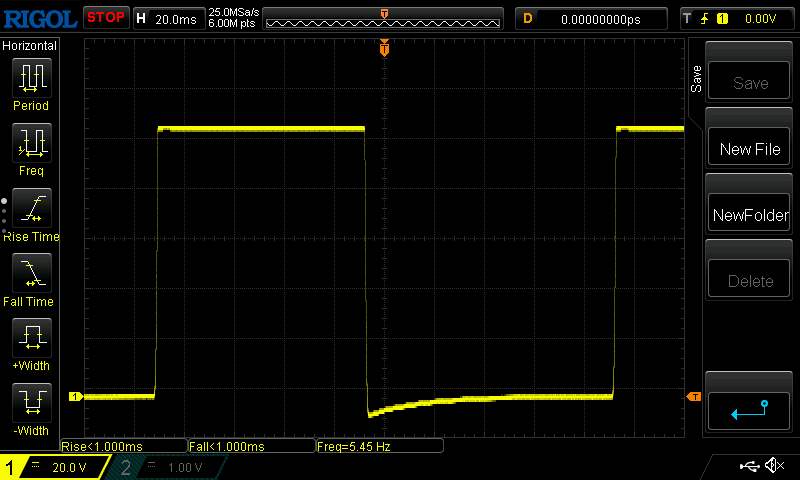

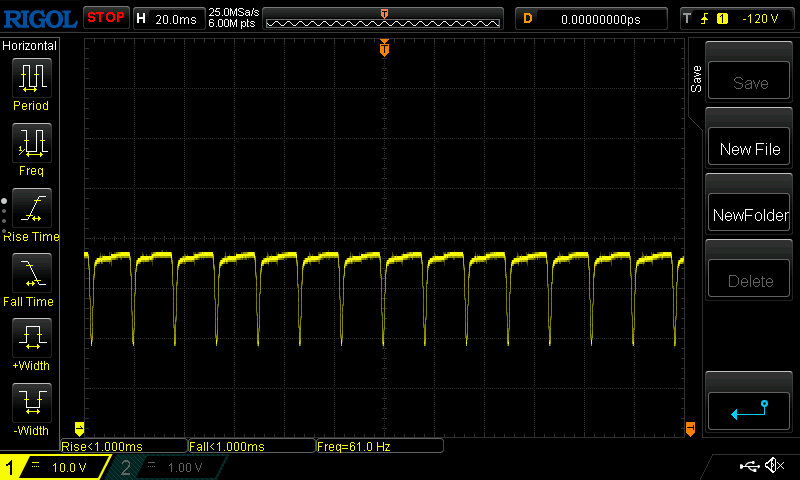

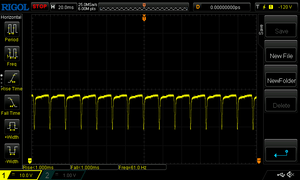

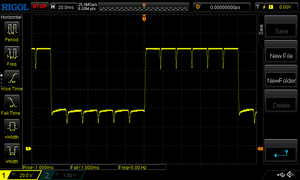

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

60 Hz

The display backlight flickers at 60 Hz (Likely utilizing PWM) .

The frequency of 60 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 19210 (minimum: 5 - maximum: 3846000) Hz was measured.

The Asus ZenBook Flip 13 UX363 performs well in the viewing-angle test, as expected. The built-in OLED panel is very viewing-angle stable, so that the test image can be recognized very well from almost every position. However, our convertible has trouble when used outdoors, because the highly glossy surface leads to annoying reflections on the screen.

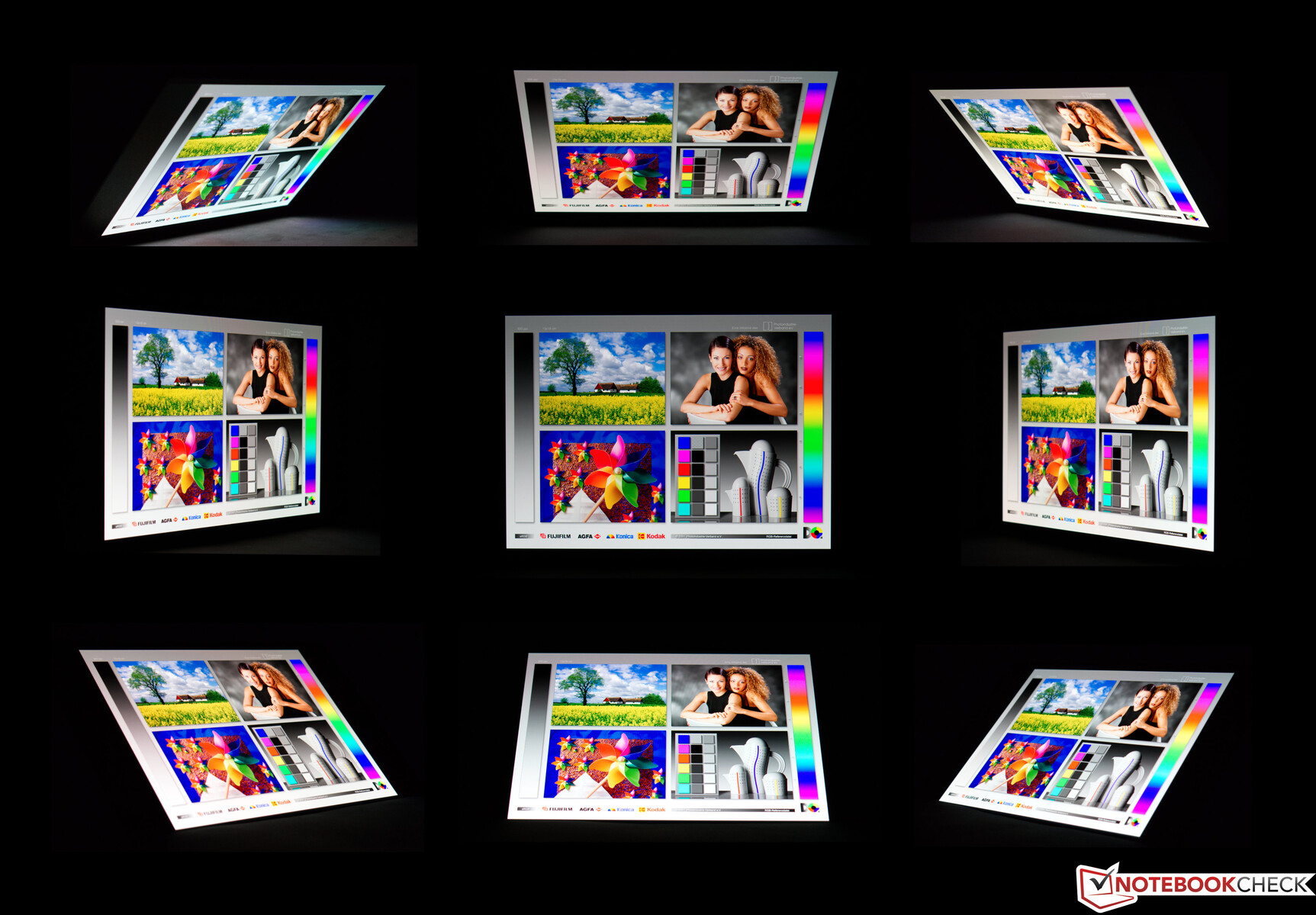

The Asus ZenBook Flip 13 UX363 in the viewing-angle test

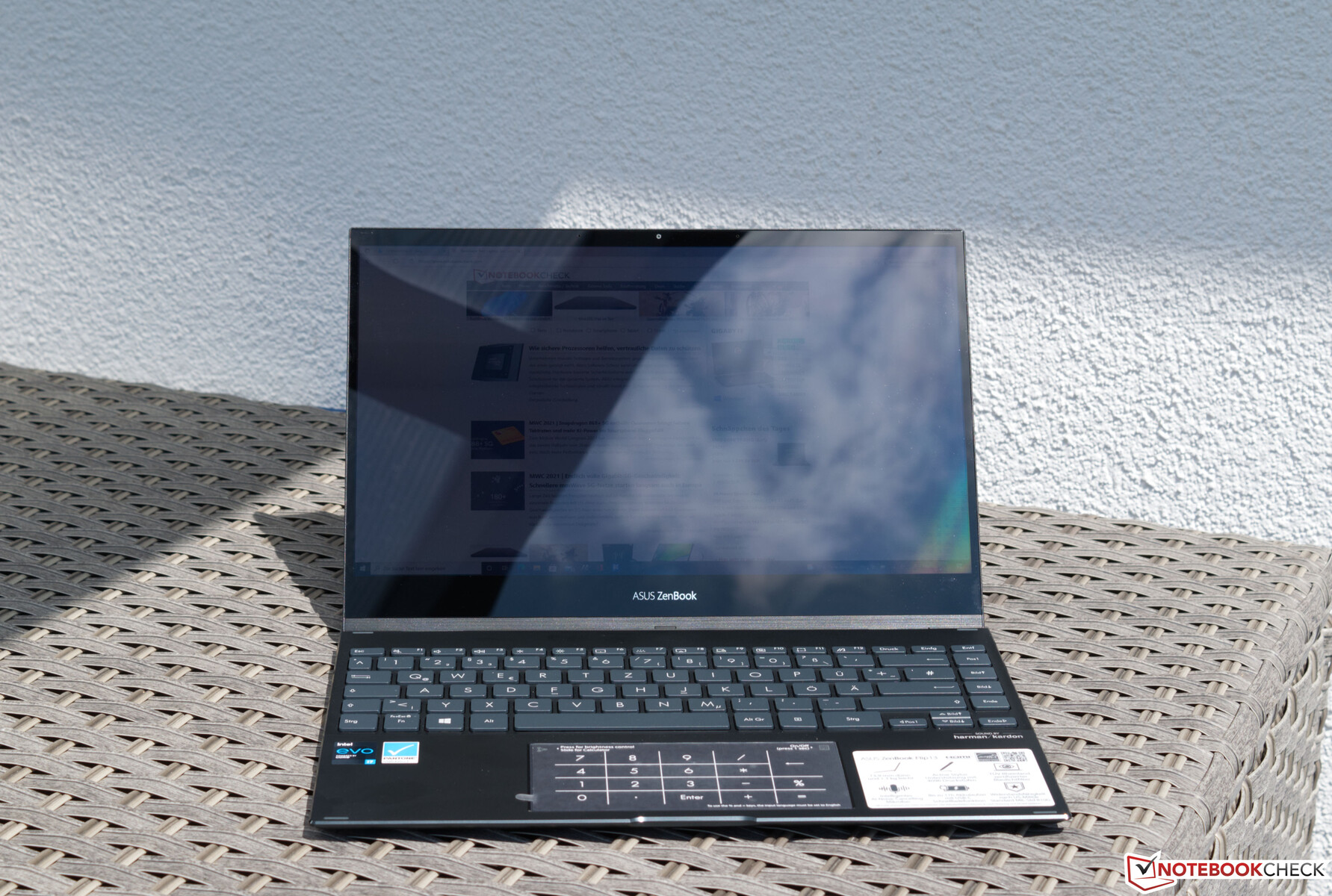

The Asus ZenBook Flip 13 UX363 in sunlight

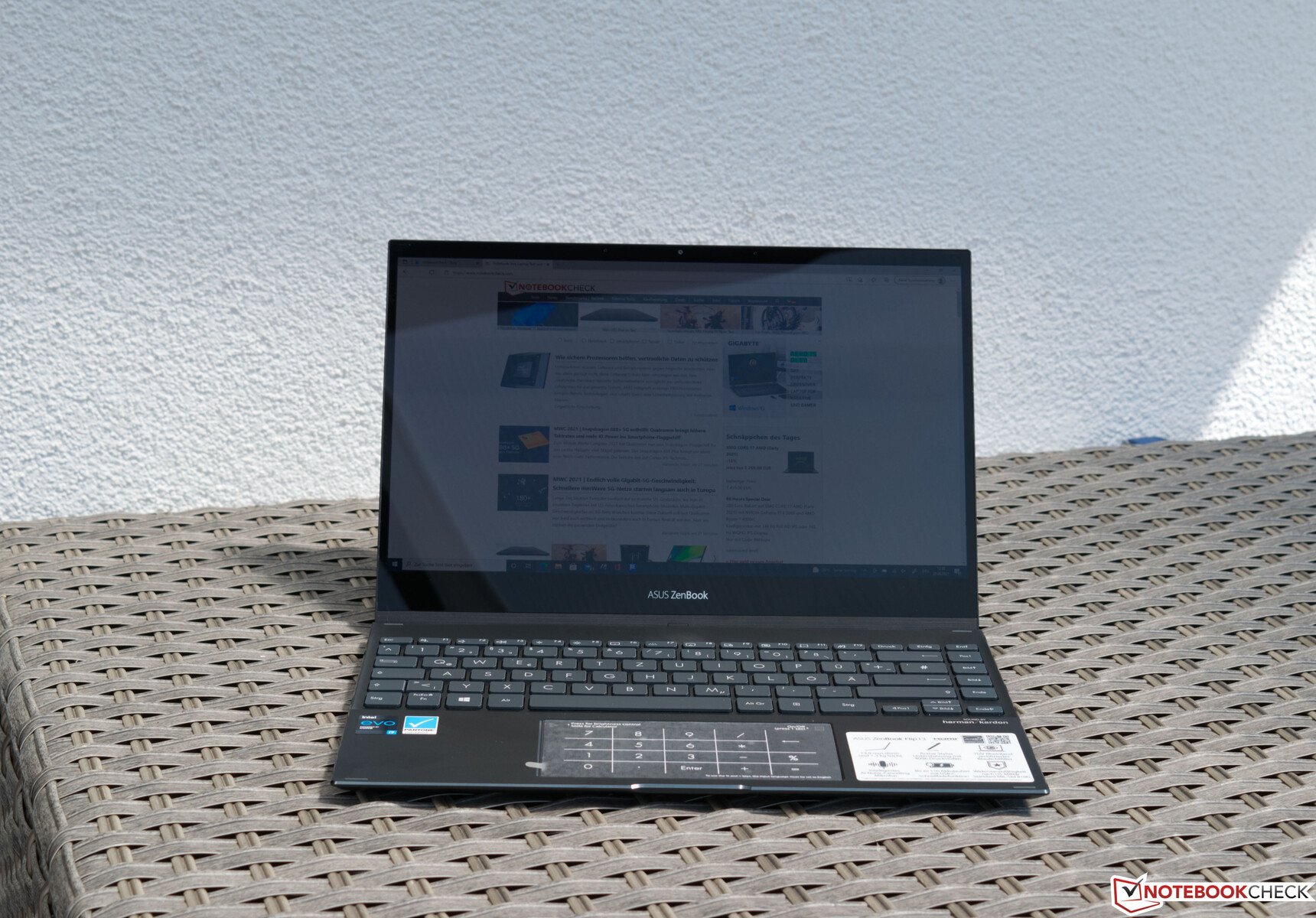

The Asus ZenBook Flip 13 UX363 in the shade

Performance - Intel Tiger Lake with four cores

With the Intel Core i7-1165G7, the Asus ZenBook Flip 13 UX363 offers a good basis for a convertible in the 13-inch format that allows the user to work effectively with the device. The good RAM and SSD configuration contribute to this as well. Compared to the predecessor, the improved iGPU of the Tiger Lake series provides a decent performance boost, and even AMD has to take a back seat with its AMD Radeon RX Vega 8.

Processor

The Intel Core i7-1165G7 is the centerpiece of the Asus ZenBook Flip 13 UX363, and it offers a total of four cores with eight threads. The SoC's base clock speed is 2.8 GHz, and when all conditions are met, the SoC clocks up to 4.7 GHz. However, the test showed that the performance of the Intel Core i7-1165G7 remains slightly behind the average of our test results so far. But there's no reason to panic because the HP Spectre x360 and the Lenovo ThinkPad X13 Yoga G2 also fail to reach our current average. Nevertheless, both can place themselves ahead of the Asus ZenBook Flip 13 UX363 at times, although the performance difference is not noticeable.

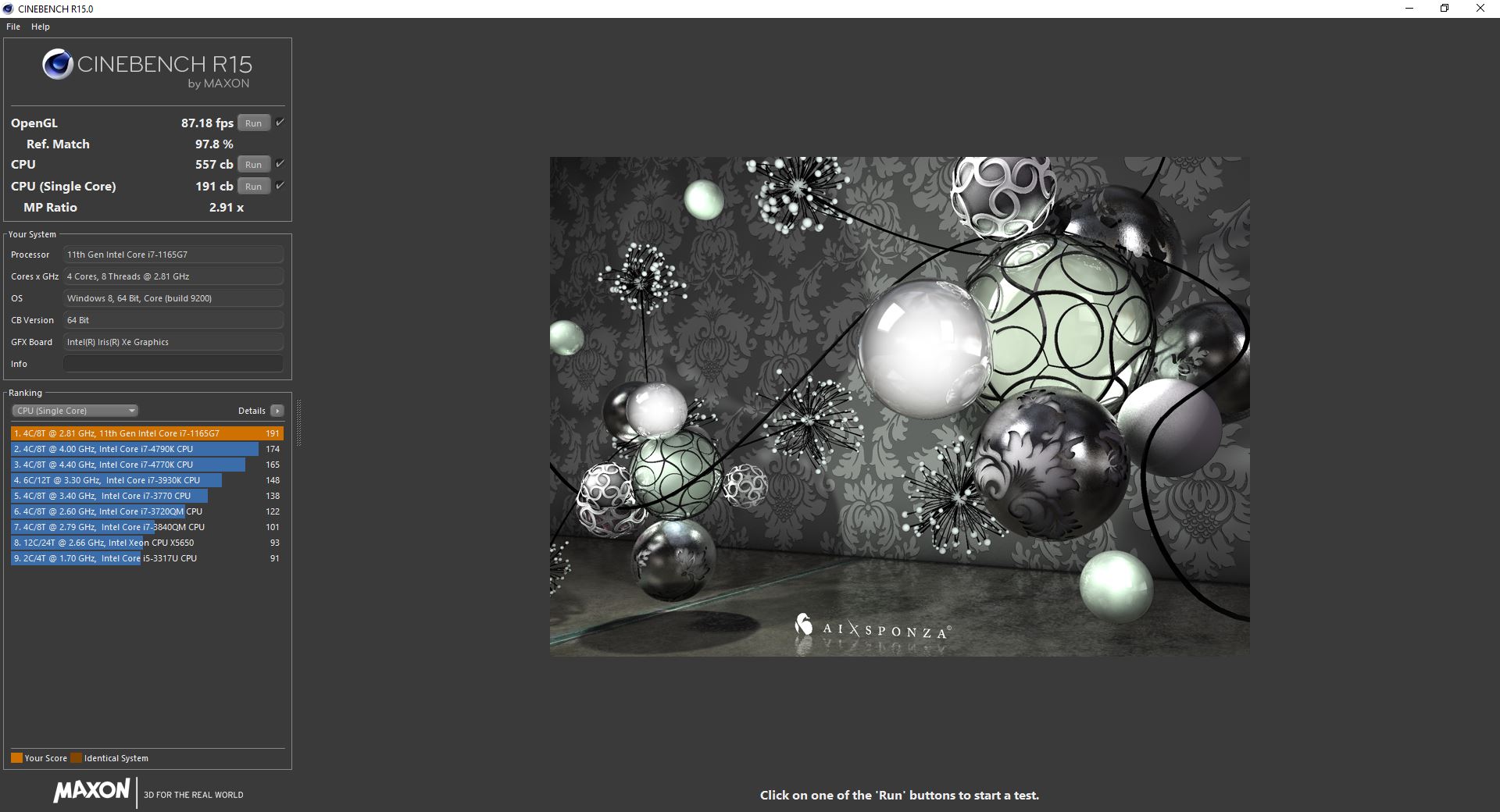

In the Cinebench R15 multi loop, the Intel Core i7-1165G7 starts at just under 730 points and then settles at an average of 498 points over the course of the test.

For further comparisons and benchmarks, we refer to our CPU Benchmarks article.

Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7: Ø498 (404.92-730.41)

Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7: Ø654 (610.84-834.6)

HP Elite Dragonfly Max Intel Core i7-1185G7: Ø569 (508.72-617.22)

Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U: Ø528 (524.76-529.32)

Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7: Ø522 (466.8-660.43)

HP Spectre x360 14t-ea000 Intel Core i7-1165G7: Ø800 (705.49-917.98)

Cinebench R23: Single Core | Multi Core
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.4: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R23 / Single Core
Average Intel Core i7-1165G7 (1110 - 1539, n=59)	1425 Points ∼100% +10%
HP Elite Dragonfly Max Intel Core i7-1185G7	1401 Points ∼98% +8%
Average of class Convertible (307 - 1877, n=76, last 2 years)	1392 Points ∼98% +7%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	1305 Points ∼92% +1%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	1297 Points ∼91%

Cinebench R23 / Multi Core
Average of class Convertible (616 - 14812, n=76, last 2 years)	6900 Points ∼100% +54%
Average Intel Core i7-1165G7 (2525 - 6862, n=64)	5110 Points ∼74% +14%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	4754 Points ∼69% +6%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	4477 Points ∼65%
HP Elite Dragonfly Max Intel Core i7-1185G7	3861 (3696.44^min - 3861^max) Points ∼56% -14%

Cinebench R20 / CPU (Single Core)
Average Intel Core i7-1165G7 (442 - 589, n=81)	552 Points ∼100% +13%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	544 Points ∼99% +11%
HP Elite Dragonfly Max Intel Core i7-1185G7	543 Points ∼98% +11%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	542 Points ∼98% +11%
Average of class Convertible (116.8 - 727, n=76, last 2 years)	536 Points ∼97% +9%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	490 Points ∼89%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	450 Points ∼82% -8%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	415 Points ∼75% -15%

Cinebench R20 / CPU (Multi Core)
Average of class Convertible (242 - 5680, n=77, last 2 years)	2632 Points ∼100% +50%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	1987 Points ∼75% +13%
Average Intel Core i7-1165G7 (1060 - 2657, n=81)	1967 Points ∼75% +12%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	1758 Points ∼67%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	1568 Points ∼60% -11%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	1473 Points ∼56% -16%
HP Elite Dragonfly Max Intel Core i7-1185G7	1451 Points ∼55% -17%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	1239 Points ∼47% -30%

Cinebench R15 / CPU Single 64Bit
Average Intel Core i7-1165G7 (115 - 230, n=78)	212 Points ∼100% +3%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	211.8 Points ∼100% +3%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	210 Points ∼99% +2%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	205 Points ∼97%
Average of class Convertible (68.6 - 271, n=77, last 2 years)	204 Points ∼96% 0%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	178.1 Points ∼84% -13%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	171 Points ∼81% -17%
HP Elite Dragonfly Max Intel Core i7-1185G7	168 Points ∼79% -18%

Cinebench R15 / CPU Multi 64Bit
Average of class Convertible (110.1 - 2332, n=80, last 2 years)	1159 Points ∼100% +43%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	918 (705.49^min - 917.98^max) Points ∼79% +13%
Average Intel Core i7-1165G7 (553 - 1027, n=86)	846 Points ∼73% +4%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	835 (610.84^min - 834.6^max) Points ∼72% +3%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	813 Points ∼70%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	662 (649.58^min - 662^max) Points ∼57% -19%
HP Elite Dragonfly Max Intel Core i7-1185G7	617 (508.72^min - 617.22^max) Points ∼53% -24%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	529 (524.76^min - 529.32^max) Points ∼46% -35%

Blender / v2.79 BMW27 CPU
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	838 Seconds * ∼100% -1%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	828 Seconds * ∼99%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	778 Seconds * ∼93% +6%
HP Elite Dragonfly Max Intel Core i7-1185G7	738 Seconds * ∼88% +11%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	722 Seconds * ∼86% +13%
Average of class Convertible (218 - 4249, n=77, last 2 years)	697 Seconds * ∼83% +16%
Average Intel Core i7-1165G7 (468 - 1138, n=80)	618 Seconds * ∼74% +25%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	591 Seconds * ∼71% +29%

7-Zip 18.03 / 7z b 4 -mmt1
Average Intel Core i7-1165G7 (4478 - 5507, n=80)	5182 MIPS ∼100% +5%
HP Elite Dragonfly Max Intel Core i7-1185G7	5100 MIPS ∼98% +4%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	4984 MIPS ∼96% +1%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	4934 MIPS ∼95% 0%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	4918 MIPS ∼95%
Average of class Convertible (2046 - 5897, n=75, last 2 years)	4825 MIPS ∼93% -2%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	4542 MIPS ∼88% -8%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	4415 MIPS ∼85% -10%

7-Zip 18.03 / 7z b 4
Average of class Convertible (5394 - 61169, n=76, last 2 years)	31024 MIPS ∼100% +51%
Average Intel Core i7-1165G7 (15347 - 27405, n=80)	22935 MIPS ∼74% +12%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	22118 MIPS ∼71% +8%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	20529 MIPS ∼66%
HP Elite Dragonfly Max Intel Core i7-1185G7	19688 MIPS ∼63% -4%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	18831 MIPS ∼61% -8%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	16540 MIPS ∼53% -19%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	16330 MIPS ∼53% -20%

Geekbench 5.4 / Single-Core
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	1551 Points ∼100%
Average Intel Core i7-1165G7 (1302 - 1595, n=77)	1524 Points ∼98% -2%
HP Elite Dragonfly Max Intel Core i7-1185G7	1520 Points ∼98% -2%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	1515 Points ∼98% -2%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	1477 Points ∼95% -5%
Average of class Convertible (260 - 1822, n=79, last 2 years)	1390 Points ∼90% -10%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	1274 Points ∼82% -18%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	1209 Points ∼78% -22%

Geekbench 5.4 / Multi-Core
Average of class Convertible (663 - 12374, n=79, last 2 years)	6067 Points ∼100% +21%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	5374 Points ∼89% +7%
HP Elite Dragonfly Max Intel Core i7-1185G7	5258 Points ∼87% +5%
Average Intel Core i7-1165G7 (3078 - 5926, n=77)	5155 Points ∼85% +3%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	5003 Points ∼82%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	4117 Points ∼68% -18%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	3979 Points ∼66% -20%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	3637 Points ∼60% -27%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Convertible (0.61 - 17.2, n=77, last 2 years)	7.92 fps ∼100% +95%
Average Intel Core i7-1165G7 (1.39 - 8.47, n=80)	6.3 fps ∼80% +55%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	6.24 fps ∼79% +53%
HP Elite Dragonfly Max Intel Core i7-1185G7	5.12 fps ∼65% +26%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	5 fps ∼63% +23%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	4.37 fps ∼55% +7%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	4.07 fps ∼51%

LibreOffice / 20 Documents To PDF
Average of class Convertible (35.3 - 223, n=75, last 2 years)	60.6 s * ∼100% -13%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	55 s * ∼91% -2%
Acer Spin 5 SP513-54N-79EY Intel Core i7-1065G7	54.6 s * ∼90% -1%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	53.8 s * ∼89%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	51.6 s * ∼85% +4%
Average Intel Core i7-1165G7 (21.5 - 88.1, n=78)	49.2 s * ∼81% +9%
HP Elite Dragonfly Max Intel Core i7-1185G7	45.9 s * ∼76% +15%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	44.3 s * ∼73% +18%

R Benchmark 2.5 / Overall mean
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel Core i7-10510U	0.679 sec * ∼100% -5%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Core i7-1165G7	0.645 sec * ∼95%
Average of class Convertible (0.4592 - 2.12, n=75, last 2 years)	0.644 sec * ∼95% -0%
Lenovo ThinkPad X13 Yoga G2 Intel Core i7-1165G7	0.615 sec * ∼91% +5%
HP Spectre x360 14t-ea000 Intel Core i7-1165G7	0.608 sec * ∼90% +6%
HP Elite Dragonfly Max Intel Core i7-1185G7	0.599 sec * ∼88% +7%
Average Intel Core i7-1165G7 (0.552 - 1.002, n=80)	0.594 sec * ∼87% +8%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8396

Cinebench R10 Shading 64Bit

16363 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

29428 Points

Cinebench R10 Rendering Single CPUs 64Bit

10812 Points

Cinebench R10 Shading 32Bit

15614

Cinebench R10 Rendering Multiple CPUs 32Bit

17915

Cinebench R11.5 CPU Multi 32Bit

7.13 Points

Cinebench R11.5 OpenGL 32Bit

61.8 fps

Cinebench R11.5 CPU Single 64Bit

2.41 Points

Cinebench R11.5 CPU Multi 64Bit

7.94 Points

Cinebench R11.5 OpenGL 64Bit

65.5 fps

Cinebench R11.5 CPU Single 32Bit

2.15 Points

Cinebench R15 CPU Single 64Bit

205 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

98.9 fps

Cinebench R15 CPU Multi 64Bit

813 Points

Help

... in comparison

System performance

The Asus ZenBook Flip 13 UX363 consistently achieves very good results in the PCMark 10 scores, even if the gap is often only marginal. On the other hand, our test sample even manages first place in individual disciplines.

PCMark 10
Score
Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00	5146 Points ∼100% +8%
Average of class Convertible (1429 - 6469, n=63, last 2 years)	5000 Points ∼97% +5%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (4531 - 5454, n=50)	4959 Points ∼96% +4%
HP Spectre x360 14t-ea000 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD PM981a MZVLB512HBJQ	4955 Points ∼96% +4%
HP Elite Dragonfly Max Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	4932 Points ∼96% +4%
Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00	4763 Points ∼93%
Lenovo ThinkPad X13 Yoga 20SX0004GE UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ	4276 Points ∼83% -10%
Acer Spin 5 SP513-54N-79EY Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung PM991 MZVLQ1T0HALB	4158 Points ∼81% -13%
Essentials
Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00	10706 Points ∼100% +5%
HP Elite Dragonfly Max Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	10664 Points ∼100% +5%
Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00	10189 Points ∼95%
HP Spectre x360 14t-ea000 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD PM981a MZVLB512HBJQ	10023 Points ∼94% -2%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (8997 - 11505, n=50)	10014 Points ∼94% -2%
Lenovo ThinkPad X13 Yoga 20SX0004GE UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ	9846 Points ∼92% -3%
Average of class Convertible (3602 - 12059, n=63, last 2 years)	9730 Points ∼91% -5%
Acer Spin 5 SP513-54N-79EY Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung PM991 MZVLQ1T0HALB	9233 Points ∼86% -9%
Productivity
Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00	6986 Points ∼100%
Lenovo ThinkPad X13 Yoga 20SX0004GE UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ	6907 Points ∼99% -1%
HP Elite Dragonfly Max Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	6904 Points ∼99% -1%
Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00	6779 Points ∼97% -3%
HP Spectre x360 14t-ea000 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD PM981a MZVLB512HBJQ	6772 Points ∼97% -3%
Average of class Convertible (2411 - 9510, n=63, last 2 years)	6745 Points ∼97% -3%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (5570 - 7136, n=50)	6711 Points ∼96% -4%
Acer Spin 5 SP513-54N-79EY Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung PM991 MZVLQ1T0HALB	5763 Points ∼82% -18%
Digital Content Creation
Average of class Convertible (811 - 8679, n=63, last 2 years)	5264 Points ∼100% +28%
Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00	5096 Points ∼97% +24%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs (4083 - 5550, n=50)	4937 Points ∼94% +20%
HP Spectre x360 14t-ea000 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD PM981a MZVLB512HBJQ	4867 Points ∼92% +18%
HP Elite Dragonfly Max Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G	4424 Points ∼84% +7%
Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00	4121 Points ∼78%
Acer Spin 5 SP513-54N-79EY Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung PM991 MZVLQ1T0HALB	3667 Points ∼70% -11%
Lenovo ThinkPad X13 Yoga 20SX0004GE UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ	3122 Points ∼59% -24%

PCMark 10 Score		4763 points
Help

DPC latencies

LatencyMon only shows slightly elevated latencies when opening multiple browser tabs in Edge and when playing our 4K YouTube video. However, things get significantly worse after Prime95 is launched. The iGPU is loaded to a good 30% when playing our test video.

Maximum latency when opening multiple browser tabs and playing 4K video content

Maximum latency after 10 seconds of Prime95

Drivers ranked by longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00	5262 μs * ∼100%

* ... smaller is better

Storage

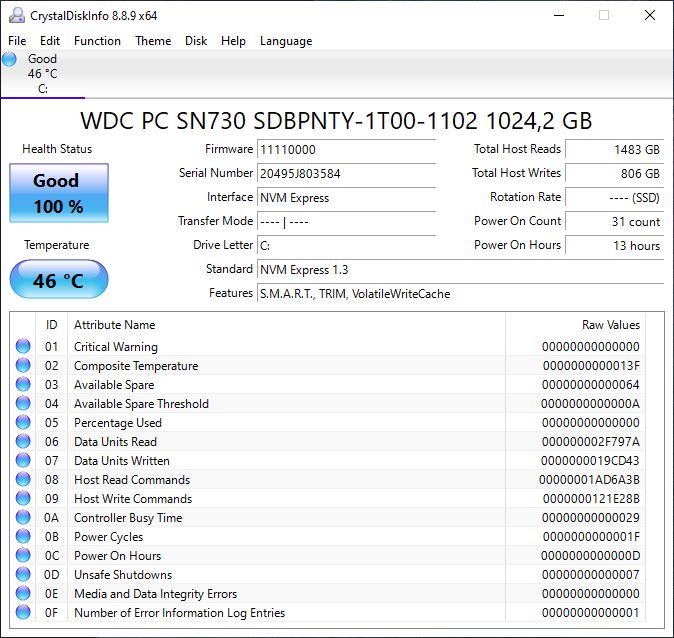

A fast NVMe SSD (M.2-2280) from Western Digital serves as the system drive. The SSD managed to achieve good rates in the test. However, another mass storage device can't be installed in the Asus ZenBook Flip 13 UX363.

For further comparisons and benchmarks, take a look at our HDD/SSD Benchmarks article.

	Asus ZenBook Flip 13 UX363EA-HP069T WDC PC SN730 SDBPNTY-1T00	Lenovo ThinkPad X13 Yoga G2 WDC PC SN730 SDBQNTY-1T00	HP Elite Dragonfly Max Toshiba XG6 KXG60ZNV512G	Lenovo ThinkPad X13 Yoga 20SX0004GE Samsung SSD PM981a MZVLB512HBJQ	Acer Spin 5 SP513-54N-79EY Samsung PM991 MZVLQ1T0HALB	HP Spectre x360 14t-ea000 Samsung SSD PM981a MZVLB512HBJQ	Average WDC PC SN730 SDBPNTY-1T00

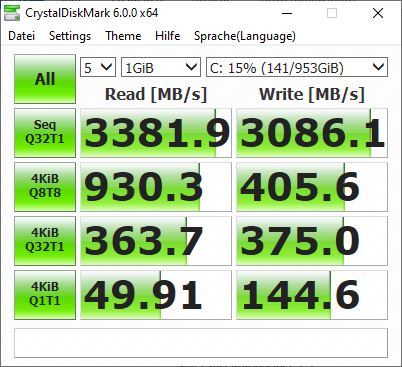

CrystalDiskMark 5.2 / 6		10%	-11%	-10%	18%	-3%	24%
Write 4K	143	170.1 19%	99 -31%	134.5 -6%	168.4 18%	82.2 -43%	139.9 ?(89.9 - 185.8, n=20) -2%
Read 4K	50.2	53.4 6%	52.3 4%	61.2 22%	55 10%	45.7 -9%	44.5 ?(31 - 50.7, n=20) -11%
Write Seq	1963	1866 -5%	1765 -10%	931 -53%		2000 2%	2346 ?(1790 - 2983, n=19) 20%
Read Seq	1990	2077 4%	2065 4%	2534 27%		2206 11%	2102 ?(1615 - 2531, n=19) 6%
Write 4K Q32T1	375	495.5 32%	291.7 -22%	375.9 0%	476.1 27%	451.2 20%	442 ?(318 - 573, n=20) 18%
Read 4K Q32T1	363.7	460.7 27%	314 -14%	343.7 -5%	506 39%	351 -3%	460 ?(296 - 579, n=20) 26%
Write Seq Q32T1	3086	3015 -2%	2549 -17%	934 -70%	1492 -52%	2982 -3%	3049 ?(2602 - 3102, n=20) -1%
Read Seq Q32T1	3382	3407 1%	3282 -3%	3548 5%	2357 -30%	3529 4%	3285 ?(2871 - 3433, n=20) -3%
Write 4K Q8T8	405.6				930 129%		1012 ?(406 - 1619, n=2) 150%
Read 4K Q8T8	930				963 4%		1300 ?(930 - 1670, n=2) 40%

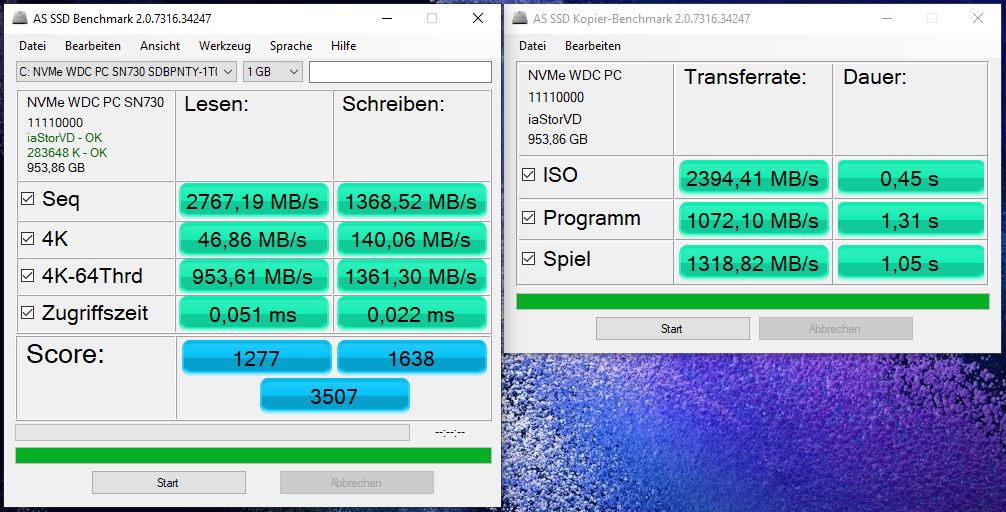

AS SSD		8%	-35%	-1%	-23%	-16%	-7%
Seq Read	2767	2631 -5%	2700 -2%	2844 3%	2071 -25%	2188 -21%	2606 ?(1886 - 2986, n=20) -6%
Seq Write	1368	1280 -6%	1483 8%	1483 8%	1462 7%	1320 -4%	1935 ?(928 - 2657, n=20) 41%
4K Read	46.86	50.4 8%	48.73 4%	56.1 20%	49.82 6%	53.5 14%	42.9 ?(29.8 - 49.3, n=20) -8%
4K Write	140.1	208 48%	126.4 -10%	138.1 -1%	140.7 0%	123.7 -12%	129.1 ?(52 - 221, n=20) -8%
4K-64 Read	954	1058 11%	819 -14%	870 -9%	869 -9%	1010 6%	1361 ?(789 - 1734, n=20) 43%
4K-64 Write	1361	1473 8%	1252 -8%	1311 -4%	729 -46%	1808 33%	1920 ?(846 - 2797, n=20) 41%
Access Time Read *	0.051	0.064 -25%	0.066 -29%	0.049 4%	0.069 -35%	0.055 -8%	0.0689 ?(0.041 - 0.157, n=20) -35%
Access Time Write *	0.022	0.017 23%	0.093 -323%	0.027 -23%	0.028 -27%	0.076 -245%	0.06215 ?(0.017 - 0.36, n=20) -183%
Score Read	1277	1372 7%	1138 -11%	1210 -5%	1126 -12%	1282 0%	1664 ?(1107 - 2070, n=20) 30%
Score Write	1638	1809 10%	1527 -7%	1598 -2%	1016 -38%	2063 26%	2242 ?(1188 - 3011, n=20) 37%
Score Total	3507	3824 9%	3197 -9%	3373 -4%	2700 -23%	3970 13%	4726 ?(3274 - 5673, n=20) 35%
Copy ISO MB/s	2767		1927 -30%		1574 -43%	1644 -41%	2041 ?(1007 - 2903, n=16) -26%
Copy Program MB/s	1072		573 -47%		553 -48%	920 -14%	552 ?(43.1 - 1072, n=16) -49%
Copy Game MB/s	1319		1145 -13%		993 -25%	1725 31%	1183 ?(357 - 1627, n=16) -10%
Total Average (Program / Settings)		9% / 9%	-23% / -26%	-6% / -5%	-3% / -8%	-10% / -11%	9% / 6%

* ... smaller is better

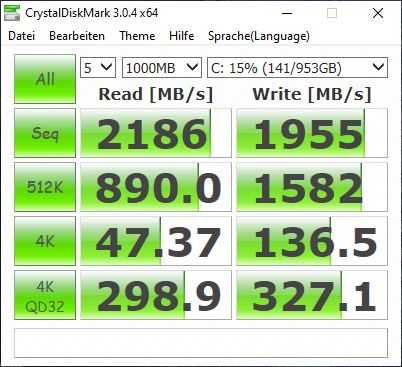

CrystalDiskMark 3.0

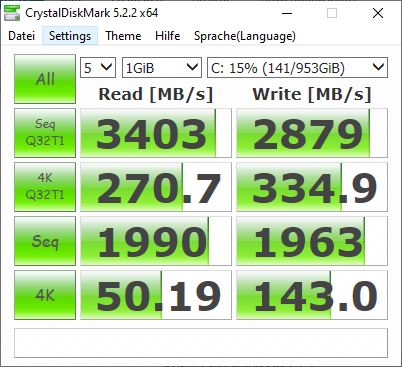

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

WDC PC SN730 SDBPNTY-1T00

Sequential Read: 2186 MB/s

Sequential Write: 1955 MB/s

512K Read: 890 MB/s

512K Write: 1582 MB/s

4K Read: 47.37 MB/s

4K Write: 136.5 MB/s

4K QD32 Read: 298.9 MB/s

4K QD32 Write: 327.1 MB/s

Continuous load read: DiskSpd Read Loop, Queue Depth 8

No graph data

Graphics card

With the Intel Iris Xe Graphics G7, the Asus ZenBook Flip 13 UX363 has an iGPU that is significantly superior to the Intel UHD Graphics 620. The performance of the Asus ZenBook Flip 13 UX363 is good, although the competitors can squeeze a slightly better performance out of the iGPU of the Intel Core i7-1165G7. Nevertheless, our test device can place itself well above the class average.

For further comparisons and benchmarks, please refer to our GPU Benchmarks article.

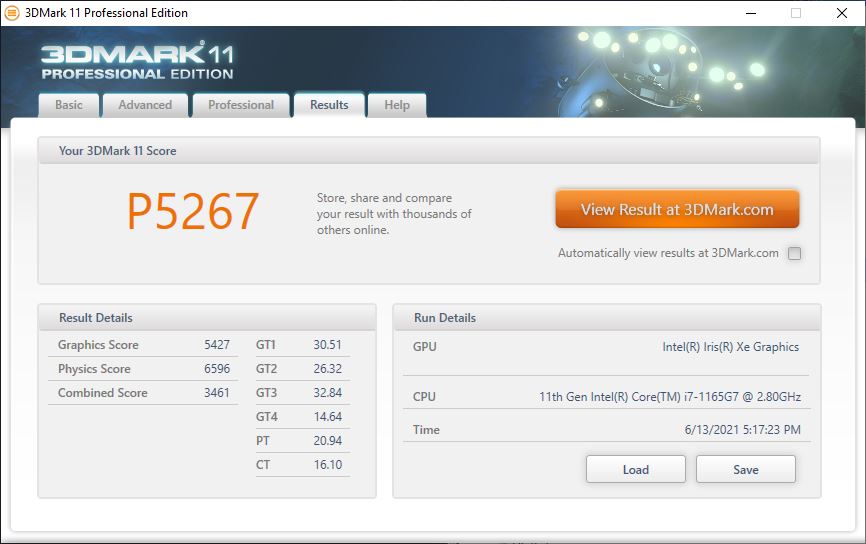

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad X13 Yoga G2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6687 Points ∼100% +3%
HP Spectre x360 14t-ea000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6658 Points ∼100% +3%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6463 Points ∼97%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7471, n=155)	6329 Points ∼95% -2%
Average of class Convertible (471 - 18102, n=72, last 2 years)	5562 Points ∼83% -14%
HP Elite Dragonfly Max Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4841 Points ∼72% -25%
Acer Spin 5 SP513-54N-79EY Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	4560 Points ∼68% -29%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel UHD Graphics 620, Intel Core i7-10510U	1820 Points ∼27% -72%

3DMark
1280x720 Cloud Gate Standard Graphics
HP Spectre x360 14t-ea000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	29671 Points ∼100% +28%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38040, n=142)	26040 Points ∼88% +12%
Average of class Convertible (2965 - 74205, n=63, last 2 years)	24021 Points ∼81% +4%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	23193 Points ∼78%
HP Elite Dragonfly Max Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	22485 Points ∼76% -3%
Acer Spin 5 SP513-54N-79EY Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	15287 Points ∼52% -34%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel UHD Graphics 620, Intel Core i7-10510U	10028 Points ∼34% -57%
1920x1080 Fire Strike Graphics
HP Spectre x360 14t-ea000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5384 Points ∼100% +26%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6143, n=167)	4856 Points ∼90% +13%
Lenovo ThinkPad X13 Yoga G2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4616 Points ∼86% +8%
Asus ZenBook Flip 13 UX363EA-HP069T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4279 Points ∼79%
Average of class Convertible (365 - 13081, n=73, last 2 years)	4175 Points ∼78% -2%
HP Elite Dragonfly Max Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	3625 Points ∼67% -15%
Acer Spin 5 SP513-54N-79EY Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	2504 Points ∼47% -41%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel UHD Graphics 620, Intel Core i7-10510U	1216 Points ∼23% -72%
2560x1440 Time Spy Graphics
HP Spectre x360 14t-ea000 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1546 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=164)	1482 Points ∼96%
Lenovo ThinkPad X13 Yoga G2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1394 Points ∼90%
Average of class Convertible (94 - 5081, n=72, last 2 years)	1357 Points ∼88%
HP Elite Dragonfly Max Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1160 Points ∼75%
Acer Spin 5 SP513-54N-79EY Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	791 Points ∼51%
Lenovo ThinkPad X13 Yoga 20SX0004GE Intel UHD Graphics 620, Intel Core i7-10510U	393 Points ∼25%

3DMark 11 Performance		6229 points
3DMark Ice Storm Standard Score		81626 points
3DMark Cloud Gate Standard Score		13760 points
3DMark Fire Strike Score		3719 points
3DMark Fire Strike Extreme Score		1865 points
Help

... in comparison

Gaming performance

Gaming shouldn't be at the absolute top of the list of priorities when buying an Asus ZenBook Flip 13 UX363. Although the Intel Iris Xe Graphics G7 is available, the iGPU's performance is only sufficient to run simple games smoothly. In addition, you often need to reduce the level of detail or the resolution to achieve playable frame rates.

	low	med.	high	ultra
GTA V (2015)	59.4	54.4	20.2	8.65
Dota 2 Reborn (2015)	36	31.6	31.9	30.3
X-Plane 11.11 (2018)	34.9	27.3	24.5
Far Cry 5 (2018)	31	18	16	15
Strange Brigade (2018)	93.9	35.7	24.4	20
Far Cry New Dawn (2019)	29	18	17	15

Emissions

Noise emissions

Our measurements of the noise level show an ambiguous result: On one hand, the Asus ZenBook Flip 13 UX363 operates powerfully and mostly silently in idle usage and under low load. At the same time, however, it gets considerably louder with increasing load. We measured a maximum of 46.6 dB(A) in the stress test. In addition, the high-frequency fan noise makes this seem even louder from a subjective standpoint.

Noise Level

Idle		27 / 27 / 27 dB(A)
Load		46 / 46.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 27 dB(A)

Temperature

The Asus ZenBook Flip 13 UX363 in the stress test

The case temperatures are relatively high with a maximum of 46.6 °C (~116 °F), but working with the device on the lap still remains comfortable. Nevertheless, we recommend using the device in laptop mode on a solid surface to ensure the best possible cooling. The built-in components are properly strained in the stress test, which is also reflected in high temperatures. We record a maximum of 92 °C (~198 °F) for the CPU, which is still within a tolerable range. Moreover, the stress test is an extreme scenario that doesn't occur in everyday use.

Max. Load

Idle


42 °C 108 F	42 °C 108 F	35.1 °C 95 F
35.5 °C 96 F	34.5 °C 94 F	30.4 °C 87 F
32 °C 90 F	29.7 °C 85 F	29.3 °C 85 F

Maximum: 42 °C = 108 F
Average: 34.5 °C = 94 F


40.4 °C 105 F	45.6 °C 114 F	46.6 °C 116 F
32.8 °C 91 F	38.2 °C 101 F	36.6 °C 98 F
30.8 °C 87 F	33.6 °C 92 F	33 °C 91 F

Maximum: 46.6 °C = 116 F
Average: 37.5 °C = 100 F

Power Supply (max.) 42.7 °C = 109 F | Room Temperature 23.6 °C = 74 F | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 46.6 °C / 116 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.5 °C / 89 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32 °C / 89.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.2 °C / 82.8 F (-3.8 °C / -6.8 F).

Speakers

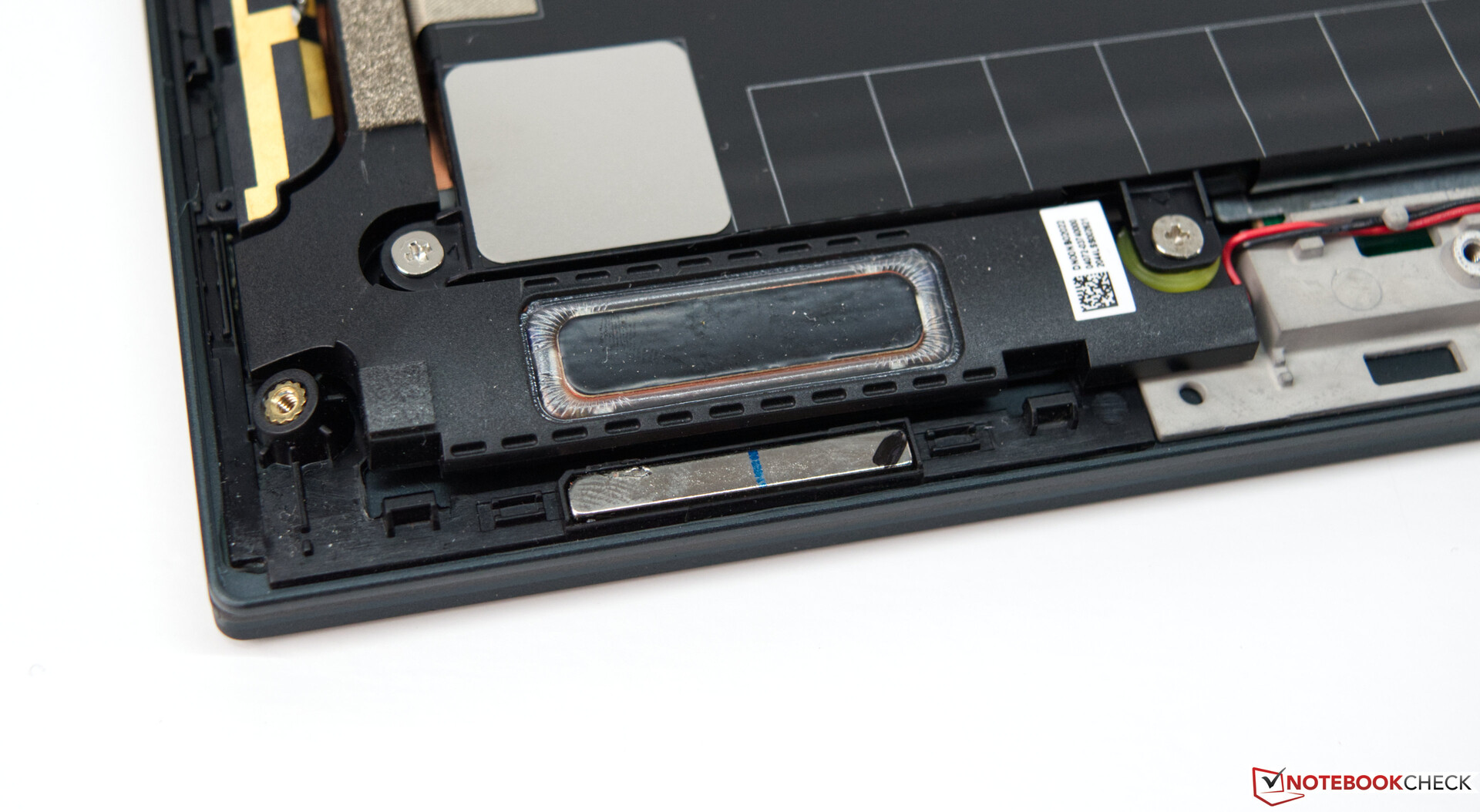

The two speakers are located under the palm rests and are aimed towards the user in laptop mode. The two membranes generate the best sound on a smooth surface, and they provide good sound for a compact device. Nevertheless, there is very little bass present. Trebles and lows prevail and are sufficient for video calls, for example. You can only get a better sound experience if you use an external solution. However, you have to resort to USB here, since there's no 3.5 mm audio jack. Alternatively, the Bluetooth option can also be used with compatible devices.

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Asus ZenBook Flip 13 UX363EA-HP069T audio analysis

(+) | speakers can play relatively loud (85.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.5% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.1% lower than median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.3% higher than median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.1% difference to median)
Compared to same class
» 42% of all tested devices in this class were better, 10% similar, 48% worse
» The best had a delta of 5%, average was 20%, worst was 53%
Compared to all devices tested
» 39% of all tested devices were better, 8% similar, 53% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Lenovo ThinkPad X13 Yoga G2 audio analysis

(±) | speaker loudness is average but good (75.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.5% lower than median
(±) | linearity of bass is average (14.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.4% higher than median
(+) | mids are linear (6.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 0.6% away from median
(+) | highs are linear (2.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.1% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 7% similar, 64% worse
» The best had a delta of 5%, average was 20%, worst was 53%
Compared to all devices tested
» 26% of all tested devices were better, 5% similar, 68% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Energy management

Energy consumption

The new Asus ZenBook Flip 13 UX363's power consumption is partly much better compared to the competition. However, our test sample is not particularly frugal in idle usage with 4.4 to 11.3 watts. It's much more successful when it comes to the average consumption, which we measured at 22 watts. The maximum value was a good 42 watts in the test, with which the 65-watt power adapter won't have any problems at all.

Power Consumption

Off / Standby	0.4 / 0.55 Watt
Idle	4.4 / 7.4 / 11.3 Watt
Load	22 / 42.5 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Asus ZenBook Flip 13 UX363EA-HP069T i7-1165G7, Iris Xe G7 96EUs, WDC PC SN730 SDBPNTY-1T00, OLED, 1920x1080, 13.30	Lenovo ThinkPad X13 Yoga G2 i7-1165G7, Iris Xe G7 96EUs, WDC PC SN730 SDBQNTY-1T00, IPS LED, 2560x1600, 13.30	HP Elite Dragonfly Max i7-1185G7, Iris Xe G7 96EUs, Toshiba XG6 KXG60ZNV512G, IPS, 1920x1080, 13.30	Lenovo ThinkPad X13 Yoga 20SX0004GE i7-10510U, UHD Graphics 620, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1080, 13.30	Acer Spin 5 SP513-54N-79EY i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU), Samsung PM991 MZVLQ1T0HALB, IPS, 2256x1504, 13.50	HP Spectre x360 14t-ea000 i7-1165G7, Iris Xe G7 96EUs, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1280, 13.50	Average Intel Iris Xe Graphics G7 96EUs	Average of class Convertible
Power Consumption		-24%	-23%	-7%	9%	-13%	-37%	-19%
Idle Minimum *	4.4	3.61 18%	2.9 34%	3.4 23%	2.8 36%	3 32%	5.19 ?(2.2 - 46.5, n=148) -18%	4.68 ?(0.8 - 9.8, n=73, last 2 years) -6%
Idle Average *	7.4	6.78 8%	9.9 -34%	4.98 33%	5.4 27%	5.1 31%	8.56 ?(3.8 - 63, n=148) -16%	7.61 ?(3.7 - 15.3, n=73, last 2 years) -3%
Idle Maximum *	11.3	7.45 34%	10.4 8%	8.1 28%	7.6 33%	6.4 43%	10.7 ?(5.8 - 68.9, n=148) 5%	9.21 ?(3.9 - 20.8, n=73, last 2 years) 18%
Load Average *	22	48.85 -122%	37.1 -69%	37.2 -69%	36.6 -66%	39.6 -80%	44.9 ?(12.5 - 77.5, n=148) -104%	38.8 ?(5.4 - 101.3, n=72, last 2 years) -76%
Witcher 3 ultra *	22.8	28.7 -26%	31.5 -38%			39.6 -74%
Load Maximum *	42.5	66.51 -56%	58.8 -38%	63.3 -49%	37 13%	56.2 -32%	65.6 ?(30.1 - 118, n=147) -54%	54.8 ?(8.9 - 155.7, n=72, last 2 years) -29%

* ... smaller is better

Energy consumption The Witcher 3 / Stress test

Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00; Witcher 3 ultra: Ø22.8 (17-24.9)

Lenovo ThinkPad X13 Yoga G2 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00; Witcher 3 ultra: Ø28.7 (27.8-30.4)

HP Elite Dragonfly Max Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG60ZNV512G; Witcher 3 ultra: Ø31.5 (27.5-35.5)

Asus ZenBook Flip 13 UX363EA-HP069T Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-1T00; 1280x720 Prime95 28.10 and Furmark 1.25: Ø22.3 (20.6-42.8)

Battery life

The Asus ZenBook Flip 13 UX363 has the largest battery in this comparison. With the 67 Wh battery, the device offers the best conditions for long runtimes. And the convertible was able to prove that in the test. We recorded a runtime of almost 11 hours in our real-world Wi-Fi test. The brightness was reduced to 70% here in order to achieve the standard value of 150 cd/m². But even at full brightness, the battery only runs out after a good 8 hours. And under load, almost 3.5 hours of use are still possible. You should calculate a good 2 hours for the laptop to recharge, which is absolutely acceptable due to the battery's size.

Users who want to work with the device on the go should note that CPU performance is somewhat throttled on battery power.

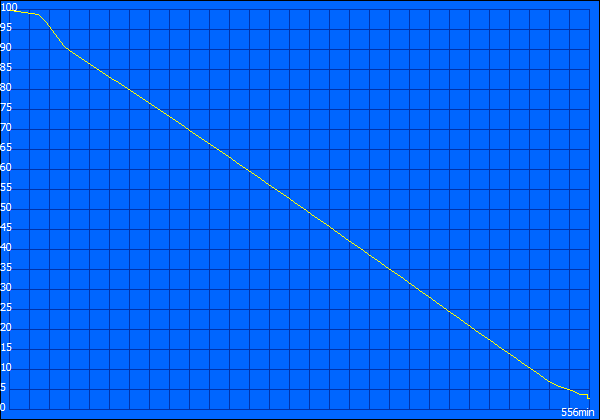

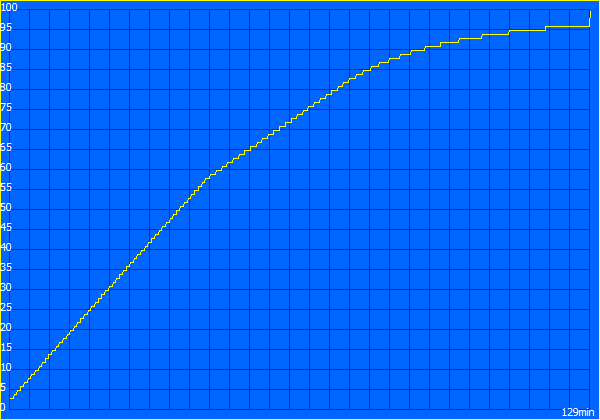

Battery Runtime

Idle (without WLAN, min brightness)		20h 27min

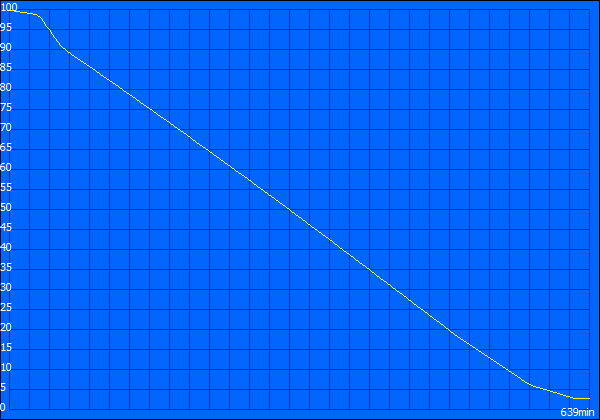

WiFi Websurfing (EDGE:91.0.864.59)		10h 3
